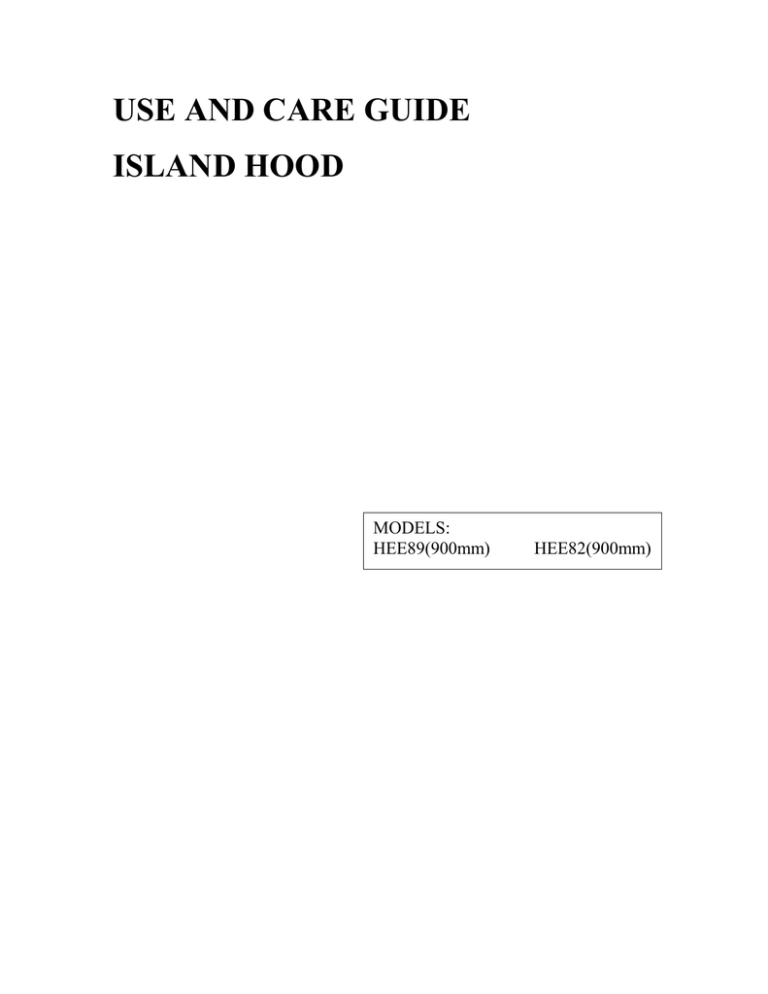

USE AND CARE GUIDE ISLAND HOOD

USE AND CARE GUIDE ISLAND HOOD

USE AND CARE GUIDE

ISLAND HOOD

MODELS:

HEE89(900mm) HEE82(900mm)

Fig.1

Fig.2 Fig.3

Fig.4 Fig.5

Fig.6 Fig.7

Fig.8 Fig.9

Fig.10 Fig.11

Fig.12 Fig.13

A B

Fig.14 Fig.15

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.

The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), filtering version (air circulation on the inside –

Fig.1A) or with external motor (Fig.1C).

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.

The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood.Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

- control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.

2. WARNING !

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker hood is operating

B) Do not touch bulbs or adjacent areas, during or straight after prolonged

use of the lighting installation.

C) Flambè cooking is prohibited underneath the cooker hood

D) Avoid free flame, as it is damaging for the filters and a fire hazard

E) Constantly check food frying to avoid that the overheated oil may become a fire hazard

F) Disconnect the electrical plug prior to any maintenance.

G) This appliance is not intended for use by young children or infirm persons without supervision

H) Young children should be supervised to ensure they do not play with the appliance

I) There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels

J) There is a risk of fire if cleaning is not carried out in accordance with the instructions

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

• Electric Connection

The appliance has been manufactured as a class I, therefore earth cable is necessary.

The connection to the mains is carried out as follows:

IEC227 North America

L=live

N=neutral

Brown

Blue

Black

White

E=earth Green/Yellow Green

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.

An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm.

If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.12) so that the unit is easier to handle. In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

Hood assembly

Remove the structure from the packaging and separate the upper part from the lower part.

- Please attention that the arrow is positioned on the same side as the appliance controls. Make 4, Ø8 holes in the ceiling and drive in 3 screws without completely tightening them(Fig2). Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall).

- Take the upper part of the structure B and insert the 3 slots onto the 3

screws that are not completely tightened. (Fig3)

Rotate slightly to fit.

Drive in the fourth screw X and tighten the remaining 3 to allow definitive blocking of the upper part of structure B.

- Take the lower part of the telescopic structure C and insert it into the upper structure B.

- Adjust the height (Fig.5) by referring to the amounts indicated in and block it using the 8 unit screws G that are supplied (Fig.4)

- Suction version: fix the flexible pipe to the prepared air evacuation hole

(Fig.6).

- Take the upper chimney piece and fix it with 4 unit screws G. (Fig.7)

- Take the lower chimney and fix it with 2 unit screws G, drive in hood to avoid it down .(Fig.8)

- Insert the suction unit inside the structure and set in 4 mounting hole, drive in 4 unit screw N (Fig.9).

- Fix the air evacuation pipe H (not supplied) onto the connection flange

(Fig.10)

- Unscrew the 2 screws G.and rest the lower chimney piece above the cooker hood (Fig.11).

- If the cooker hood is supplied with a lower chimney piece that must be fixed to the hood body with screws, remove the anti-grease filters from the hood by acting on the relevant handles (Fig.12). Then screw the lower chimney piece pipe to the inside of the hood, using screws P(Fig.13).

Re-locate the filters in their seat.

USE AND MAINTENANCE

It is recommended to operate the appliance prior to cooking.

It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.

The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.

The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.

In order to prevent fire hazard, it is recommendable to clean the filter at a maximum of 2 months by carrying out the following instructions:

- Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.

- Rinse thoroughly with warm water and leave to dry.

- The filters may also be washed in the dishwasher.

The aluminum panels may alter in color after several washes. This is not cause for customer complaint nor replacement of panels.

The active carbon filters purify the air that is replaced in the environment.

The filters are not washable nor reuseable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the antigrease filters. (Fig.14) To remove the charcoal filters place on hand on one filter at a time and turn it toward the front part. The charcoal filter can now be removed. Always ensure to replace both filters at the same time.

Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

• The illumination installation is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the illumination installation notably reduces the duration of the bulb. Use a one-edged screwdriver or any other appropriate tool to lift and remove the overhead light fixture. Replace the damaged lamp. Use only halogen lamps as the original specification, avoiding contact with hands. Return the light fixture to its position (snap fastening). (Fig. 15)

Fig.16

• COMMANDS: (Fig.16)

A = OFF

B = SPEED I / OFF

C = SPEED II / OFF

D = SPEED III / OFF

MODEL:

HEE89(900mm) HEE82(900mm)

E = LIGHT

If your appliance does not have the INTENSIVE speed function, press key

A for two seconds and it will be activated for 15 minutes after which it will return to the previously set speed. When the function is active the LED flashes.

By pressing any key for the exclusion of the hood light the hood will return immediately to its normal functioning.

The “automatic stop timer” delays stopping of the hood, which will continue functioning for 15 minutes at the operating speed set at the time this function is activated.

Troubleshooting

Problem Possible reason

Hood doesn’t work

No electric supply

Poor airflow

Solution

Check the plug is connected

Aluminum filters clogged grease

Check the main switch is turned on

Clean the filters and replace when dry

Charcoal clogged filters Replace the charcoal filters

Butterfly valve jammed Contact technician Motor running but no air flow

Motor cuts after a few minutes

High stove temperature safety device activated

The hood is installed too near the cooking

The kitchen is not sufficiently ventilated

The hood must be least 65cm from stove

Strong cooking smell Charcoal filters not installed

Oil dripping onto stove

Oil cup missing or not installed

Whirring sound

Aluminum grease filter saturated

Something in contact with fan blade

In re-circulating mode, charcoal filters must be installed

Remove aluminum replace oil cup filter and

Wash the aluminum grease filters

Contact with technician

THE MANUFACTURORY DECLINES ALL RESPONSIBILITY FOR

EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE

WARNINGS.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Warranty Information

The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year

(Germany: 2 years), starting from the date on which the appliance is sold to the end user.

The warranty only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

- Normal wear and tear

- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories

- Use of force, damage caused by external influences

- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply or non-compliance with the installation instructions

- Partially or completely dismantled appliances
