101 Innovation Drive

San Jose, CA 95134 www.altera.com

QII5V3-11.1.0

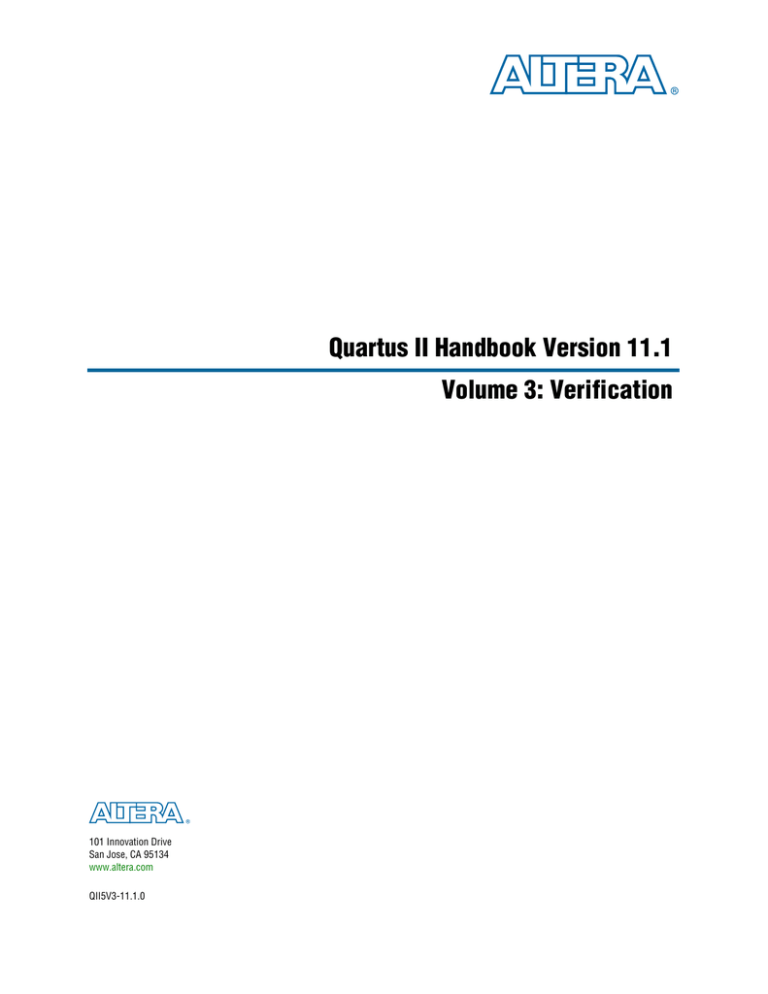

Quartus II Handbook Version 11.1

Volume 3: Verification

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

Contents

Chapter Revision Dates

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Section I. Simulation

Chapter 1. Simulating Altera Designs

Design Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Functional Simulation Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Converting Block Design Files (.bdf) to HDL Format (.v/.vhd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Gate-Level Timing Simulation Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Simulation Netlist Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Simulation Library Compiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Running the Simulation Library Compiler Through the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Running the Simulation Library Compiler from the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Launching the EDA Simulator with the NativeLink Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Setting Up the EDA Simulator Execution Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Configuring NativeLink Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

Setting Up Testbench Files Using the NativeLink Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12

Simulating Altera IP Cores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–14

IP Simulation Flows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

IP Variant Directory Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

Synthesis Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

Simulation Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–16

Perform Functional Simulation with IP Cores Based on _hw.tcl . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–17

Mentor Graphics ModelSim Simulation Tcl Script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–18

Synopsys VCS and VCS MX Simulation Shell Script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20

Cadence Incisive Enterprise Simulation Shell Script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20

Perform Functional Simulation with IP Cores not Based on hw.tcl . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20

Verilog HDL and VHDL IP Functional Simulation Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–21

Stratix V Simulation Model Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–21

Simulating Altera IP Cores Using the Quartus II NativeLink Feature . . . . . . . . . . . . . . . . . . . . . 1–22

Using the Simulation Library Compiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–22

Running Functional Simulation Using the NativeLink Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–23

Running Gate-Level Timing Simulation Using the NativeLink Feature . . . . . . . . . . . . . . . . . . . . 1–23

Simulating Qsys and SOPC Builder System Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–24

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–25

Chapter 2. Mentor Graphics ModelSim and QuestaSim Support

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Design Flow with ModelSim-Altera, ModelSim, or QuestaSim Software . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Simulation Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Precompiled Simulation Libraries in the ModelSim-Altera Software . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Simulation Library Files in the Quartus II Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Disabling Timing Violation on Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Simulating with the ModelSim-Altera Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Setting Up a Quartus II Project for the ModelSim-Altera Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Performing Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Performing Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Performing Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

iv Contents

Simulating with the ModelSim and QuestaSim Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Simulating VHDL or Verilog HDL Designs with the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Simulating VHDL or Verilog HDL Designs with the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Passing Parameter Information from Verilog HDL to VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Speeding Up Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Simulating Designs that Include Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

ModelSim-Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

ModelSim or QuestaSim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

ModelSim-Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

ModelSim or QuestaSim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

Transport Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Using the NativeLink Feature with ModelSim-Altera, ModelSim, or QuestaSim Software . . . . . . . . 2–17

ModelSim and QuestaSim Error Message Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

Generating a Timing Value Change Dump File (.vcd) for the PowerPlay Power Analyzer . . . . . . . . 2–18

Viewing a Waveform from a .wlf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

Simulating with ModelSim-Altera Waveform Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

Generating a Post-Synthesis Simulation Netlist for ModelSim and QuestaSim . . . . . . . . . . . . . . . . 2–20

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

Command Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

Generating a Gate-Level Timing Simulation Netlist for ModelSim and QuestaSim . . . . . . . . . . . . 2–21

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

Software Licensing and Licensing Setup in ModelSim-Altera Subscription Edition . . . . . . . . . . . . . . 2–22

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23

Chapter 3. Synopsys VCS and VCS MX Support

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Using the VCS or VCS MX Software in the Quartus II Design Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Compiling Libraries Using the EDA Simulation Library Compiler . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Functional Simulation for Verilog HDL and SystemVerilog HDL Designs . . . . . . . . . . . . . . . . . . 3–2

Functional Simulation for VHDL Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Post-Synthesis Simulation for Verilog HDL and SystemVerilog HDL Designs . . . . . . . . . . . . . . . 3–4

Post-Synthesis Simulation for VHDL Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6

Gate-Level Timing Simulation for Verilog HDL and SystemVerilog HDL Designs . . . . . . . . . . . 3–7

Gate-Level Timing Simulation for VHDL Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Disabling Timing Violation on Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Performing Functional Simulation Using the Post-Synthesis Netlist . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Common VCS and VCS MX Software Compiler Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Using DVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Debugging Support Command-Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Simulating Designs that Include Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents

Functional Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Gate-Level Timing Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10

Functional Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10

Gate-Level Timing Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Functional Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Gate-Level Timing Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Functional Simulation for Stratix V GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

Transport Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

Using NativeLink with the VCS or VCS MX Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

Generating a Timing .vcd File for the PowerPlay Power Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

Viewing a Waveform from a .vpd or .vcd File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Generating a Post-Synthesis Simulation Netlist File for VCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Command Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Generating a Gate-Level Timing Simulation Netlist File for VCS . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Command Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16

Chapter 4. Cadence Incisive Enterprise Simulator Support

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Simulation Flow Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Quartus II Software and IES Flow Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Compiling Libraries Using the EDA Simulation Library Compiler . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Creating Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

Compiling Source Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

Elaborating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Simulating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Quartus II Simulation Output Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Creating Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Compiling Project Files and Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Elaborating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Simulating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Generating a Gate-Level Timing Simulation Netlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Disabling Timing Violation on Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Creating Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Compiling Project Files and Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Elaborating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Compiling the .sdo File (VHDL Only) in Command-Line Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Compiling the .sdo File (VHDL Only) in GUI Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Simulating Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

Simulating Designs that Include Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

Functional Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

Gate-Level Timing Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

Functional Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

Gate-Level Timing Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

Functional Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

Gate-Level Timing Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

v

vi Contents

Functional Simulation for Stratix V Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16

Pulse Reject Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16

Using the NativeLink Feature with IES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–17

Generating a Timing VCD File for the PowerPlay Power Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–17

Viewing a Waveform from a .trn File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–18

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–19

Generating IES Simulation Output Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–19

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–19

Command Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20

Chapter 5. Aldec Active-HDL and Riviera-PRO Support

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Using Active-HDL or Riviera-PRO Software in Quartus II Design Flows . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Simulation Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Simulation Library Files in the Quartus II Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Compiling Libraries with the EDA Simulation Library Compiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Performing Simulation with the Active-HDL and Riviera-PRO Software . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Functional Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

Simulating VHDL Designs with the Active-HDL GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

Simulating Verilog HDL Designs with the Active-HDL GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

Simulating VHDL Designs with Active-HDL from the Command Line . . . . . . . . . . . . . . . . . . . . 5–4

Simulating Verilog HDL Designs with Active-HDL from the Command Line . . . . . . . . . . . . . . . 5–5

Simulating VHDL and Verilog HDL Designs with the Riviera-PRO GUI . . . . . . . . . . . . . . . . . . . 5–6

Simulating VHDL and Verilog HDL Designs with Riviera-PRO from the Command Line . . . . 5–6

Post-Synthesis Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

Simulating VHDL Designs with the Active-HDL GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

Simulating Verilog Designs with the Active-HDL GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

Simulating VHDL Designs with Active-HDL from the Command Line . . . . . . . . . . . . . . . . . . . . 5–7

Simulating Verilog HDL Designs with Active-HDL from the Command Line . . . . . . . . . . . . . . . 5–8

Simulating VHDL and Verilog HDL Designs with the Riviera-PRO GUI . . . . . . . . . . . . . . . . . . . 5–8

Simulating VHDL and Verilog HDL Designs with Riviera-PRO from the Command Line . . . . 5–9

Gate-Level Timing Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

Disabling Timing Violation on Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

Compiling SystemVerilog Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

Simulating Designs that Include Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

Functional Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

Performing Functional Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

Performing Functional Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

Gate-Level Timing Simulation for Stratix II GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

Performing Gate-Level Timing Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

Performing Gate-Level Timing Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

Functional Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

Performing Functional Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

Performing Functional Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

Gate-Level Timing Simulation for Stratix GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

Performing Gate-Level Timing Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

Performing Gate-Level Timing Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

Functional Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

Performing Functional Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

Performing Functional Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

Gate-Level Timing Simulation for Stratix IV GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

Performing Gate-Level Timing Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents vii

Performing Gate-Level Timing Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

Functional Simulation for Stratix V GX Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

Performing Functional Simulation in VHDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

Performing Functional Simulation in Verilog HDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

Transport Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

Using the NativeLink Feature in Active-HDL or Riviera-PRO

Software . . . . . . . . . . . . . . . . . . . . . . . . 5–17

Generating .vcd Files for the PowerPlay Power Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18

Generating a Post-Synthesis Simulation Netlist for Active-HDL or Riviera-PRO . . . . . . . . . . . . . . 5–18

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18

Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18

Generating a Gate-Level Timing Simulation Netlist for Active-HDL or Riviera-PRO . . . . . . . . . . 5–19

Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

Section II. Timing Analysis

Chapter 6. Timing Analysis Overview

TimeQuest Terminology and Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

Timing Netlists and Timing Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

The Timing Netlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

Timing Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

Data and Clock Arrival Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3

Launch and Latch Edges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

Clock Setup Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

Clock Hold Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

Recovery and Removal Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

Multicycle Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9

Metastability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

Common Clock Path Pessimism Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

Clock-As-Data Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12

Multicorner Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–15

Chapter 7. The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

Running the TimeQuest Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

Recommended Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

Creating and Setting Up your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

Performing an Initial Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

Specifying Timing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

Fitting and Timing Analysis with .sdc Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

Performing a Full Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

Verifying Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

Locating Timing Paths in Other Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

SDC File Precedence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

Constraining and Analyzing with Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

Wildcard Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

Collection Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

Adding and Removing Collection Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–9

Refining Collections with Wildcards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

viii Contents

Removing Constraints and Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

Design Constraints: An Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11

Creating Clocks and Clock Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13

Creating Base Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13

Creating Virtual Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–14

Creating Multifrequency Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–15

Creating Generated Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–16

Automatically Detecting Clocks and Creating Default Clock Constraints . . . . . . . . . . . . . . . . . . . . 7–18

Deriving PLL Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–19

Creating Clock Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–20

Exclusive Clock Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–20

Asynchronous Clock Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

Accounting for Clock Effect Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

Clock Latency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

Clock Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–22

I/O Interface Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–22

Creating I/O Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–24

Input Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–24

Output Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–25

Creating Delay and Skew Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–26

Net Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–26

Advanced I/O Timing and Board Trace Model Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–26

Maximum Skew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–27

Creating Timing Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–27

Precedence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–27

False Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–27

Minimum and Maximum Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–28

Delay Annotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–29

Multicycle Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–29

Creating Multicycle Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–30

Multicycle Clock Setup Check and Hold Check Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–30

Multicycle Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–31

Multicycle Clock Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–32

Examples of Basic Multicycle Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–34

Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–35

End Multicycle Setup = 2 and End Multicycle Hold = 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–37

End Multicycle Setup = 1 and End Multicycle Hold = 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–40

End Multicycle Setup = 2 and End Multicycle Hold = 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–43

Start Multicycle Setup = 2 and Start Multicycle Hold = 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–46

Start Multicycle Setup = 1 and Start Multicycle Hold = 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–49

Start Multicycle Setup = 2 and Start Multicycle Hold = 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–52

Application of Multicycle Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–55

Same Frequency Clocks with Destination Clock Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–55

The Destination Clock Frequency is a Multiple of the Source Clock Frequency . . . . . . . . . . . . . 7–57

The Destination Clock Frequency is a Multiple of the Source Clock Frequency with an Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–60

The Source Clock Frequency is a Multiple of the Destination Clock Frequency . . . . . . . . . . . . . 7–62

The Source Clock Frequency is a Multiple of the Destination Clock Frequency with an Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–64

Timing Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–67

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–68

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents ix

Section III. Power Estimation and Analysis

Chapter 8. PowerPlay Power Analysis

Types of Power Analyses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Factors Affecting Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Device Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Airflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Heat Sink and Thermal Compound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Board Thermal Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Device Resource Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Number, Type, and Loading of I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Number and Type of Logic Elements, Multiplier Elements, and RAM Blocks . . . . . . . . . . . . . . . 8–4

Number and Type of Global Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Signal Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Creating PowerPlay EPE Spreadsheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–5

PowerPlay EPE File Generator Compilation Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–6

PowerPlay Power Analyzer Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

Operating Settings and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

Signal Activities Data Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–9

Simulation Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–9

Using Simulation Files in Modular Design Flows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–11

Complete Design Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–12

Modular Design Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–12

Multiple Simulations on the Same Entity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–13

Overlapping Simulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–13

Partial Simulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–14

Node Name Matching Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–14

Glitch Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–14

Node and Entity Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–16

Timing Assignments to Clock Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–17

Default Toggle Rate Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–17

Vectorless Estimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–17

Using the PowerPlay Power Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–17

Common Analysis Flows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–18

Signal Activities from Full Post-Fit Netlist (Timing) Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . 8–18

Signal Activities from Full Post-Fit Netlist (Zero Delay) Simulation . . . . . . . . . . . . . . . . . . . . . . . 8–18

Signal Activities from RTL (Functional) Simulation, Supplemented by Vectorless Estimation 8–18

Signal Activities from Vectorless Estimation and User-Supplied Input Pin Activities . . . . . . . . 8–18

Signal Activities from User Defaults Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–18

Generating a .vcd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–19

Generating a .vcd from ModelSim Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–20

Generating a .vcd from Full Post-Fit Netlist (Zero Delay) Simulation . . . . . . . . . . . . . . . . . . . . . 8–20

Running the PowerPlay Power Analyzer Using the Quartus II GUI . . . . . . . . . . . . . . . . . . . . . . . . . 8–21

PowerPlay Power Analyzer Compilation Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–21

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–21

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–21

Simulation Files Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–21

Operating Conditions Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22

Thermal Power Dissipated by Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22

Thermal Power Dissipation by Block Type (Device Resource Type) . . . . . . . . . . . . . . . . . . . . . . . 8–22

Thermal Power Dissipation by Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

x Contents

Core Dynamic Thermal Power Dissipation by Clock Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22

Current Drawn from Voltage Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22

Confidence Metric Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Signal Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Specific Rules for Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Running the PowerPlay Power Analyzer from the Command–Line . . . . . . . . . . . . . . . . . . . . . . 8–24

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–25

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–25

Section IV. System Debugging Tools

Chapter 9. System Debugging Tools Overview

System Debugging Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

Analysis Tools for RTL Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

Resource Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

Pin Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–5

Usability Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–6

Stimulus-Capable Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–8

In-System Sources and Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–8

In-System Memory Content Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–8

Virtual JTAG Interface Megafunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–9

System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–9

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–9

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–10

Chapter 10. Analyzing and Debugging Designs with the System Console

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1

System Console Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2

Finding and Referring To Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2

Accessing Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2

Applying Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–3

Setting Up the System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–3

Interactive Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–3

Using the System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–4

Qsys and SOPC Builder Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–4

Console Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–6

Plugins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–9

Design Service Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–9

Data Pattern Generator Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–10

Data Pattern Checker Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–11

Programmable Logic Device (PLD) Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–11

Board Bring-Up Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12

JTAG Debug Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–13

Clock and Reset Signal Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–13

Avalon-MM Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–13

Bytestream Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–14

SLD Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–14

Claim Values for Claim Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–14

Processor Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–15

Bytestream Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–16

Transceiver Toolkit Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–16

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents xi

In-System Sources and Probes Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–21

Monitor Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–22

Dashboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–25

Specifying Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–26

Customizing Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–27

Assigning Dashboard Widget Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–27

System Console Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–31

LED Light Show Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–32

Creating a Simple Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–33

Loading and Linking a Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–35

JTAG Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–36

Verify JTAG Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–36

Verify Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–37

Checksum Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–38

Nios II Processor Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–41

On-Board USB Blaster II Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–42

Device Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–42

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–42

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–43

Chapter 11. Transceiver Link Debugging Using the System Console

Transceiver Toolkit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1

Transceiver Toolkit User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–2

Transceiver Auto Sweep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–2

Transceiver EyeQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–2

Control Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–2

Transceiver Link Debugging Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–3

Setting Up Tests for Link Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–3

Custom PHY IP Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–5

Transceiver Reconfiguration Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–5

Low Latency PHY IP Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–6

Avalon-ST Data Pattern Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–6

Data Checker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–7

Compiling Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–8

Changing Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–8

Transceiver Toolkit Link Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–9

Loading the Project in System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–9

Linking the Hardware Resource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–9

Creating the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–10

Running the Link Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–11

Viewing Results in the EyeQ Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–12

Using Tcl in System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–13

Running Tcl Scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–14

Usage Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–14

Linking One Design to One Device Connected By One USB Blaster Cable . . . . . . . . . . . . . . . . . . 11–15

Linking Two Designs to Two Separate Devices on Same Board (JTAG Chained),

Connected By One USB Blaster Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–15

Linking Two Designs to Two Separate Devices on Separate Boards, Connected to

Separate USB Blaster Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–15

Linking Same Design on Two Separate Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–15

Linking Unrelated Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–16

Saving Your Setup As a Tcl Script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–16

Verifying Channels Are Correct When Creating Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–16

Using the Recommended DFE Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–17

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

xii Contents

Running Simultaneous Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–17

Enabling Internal Serial Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–18

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software . . . . . . . . . . . . . . . . . . . . . 11–18

Preparing to Use the Transceiver Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–18

Working with Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–19

Modifying Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–20

Setting a Link in the Transceiver Toolkit for High-Speed Link Tests . . . . . . . . . . . . . . . . . . . . . . . . 11–21

Running Auto Sweep Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–22

Running EyeQ Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–22

Running Manual Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–23

Using a Typical Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–23

Following the Online Demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–24

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–24

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–24

Chapter 12. Quick Design Debugging Using SignalProbe

Debugging Using the SignalProbe Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–1

Reserve the SignalProbe Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–2

Perform a Full Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–2

Assign a SignalProbe Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–2

Add Registers to the Pipeline Path to SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–3

Perform a SignalProbe Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–3

Analyze the Results of the SignalProbe Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–4

Performing a SignalProbe Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–4

Understanding the Results of a SignalProbe Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–5

Analyzing SignalProbe Routing Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–6

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–6

Make a SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–6

Delete a SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Enable a SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Disable a SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Perform a SignalProbe Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Script Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Reserving SignalProbe Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Common Problems When Reserving a SignalProbe Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–7

Adding SignalProbe Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–8

Assigning I/O Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–8

Adding Registers for Pipelining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–8

Run SignalProbe Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–9

Run SignalProbe Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–9

Enable or Disable All SignalProbe Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–9

Allow SignalProbe to Modify Fitting Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–9

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–10

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–10

Chapter 13. Design Debugging Using the SignalTap II Logic Analyzer

Hardware and Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–3

Design Flow Using the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–5

SignalTap II Logic Analyzer Task Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–6

Add the SignalTap II Logic Analyzer to Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–6

Configure the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–7

Define Trigger Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–7

Compile the Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–7

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents xiii

Program the Target Device or Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–7

Run the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–8

View, Analyze, and Use Captured Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–8

Embedding Multiple Analyzers in One FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–8

Monitoring FPGA Resources Used by the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . 13–8

Using the MegaWizard Plug-In Manager to Create Your Logic Analyzer . . . . . . . . . . . . . . . . . . . . 13–9

Configure the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–9

Assigning an Acquisition Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–10

Adding Signals to the SignalTap II File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–10

Signal Preservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–11

Assigning Data Signals Using the Technology Map Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–12

Node List Signal Use Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–12

Untappable Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–13

Adding Signals with a Plug-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–13

Adding Finite State Machine State Encoding Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–14

Modifying and Restoring Mnemonic Tables for State Machines . . . . . . . . . . . . . . . . . . . . . . . . . 13–15

Additional Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–15

Specifying the Sample Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–15

Capturing Data to a Specific RAM Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–16

Choosing the Buffer Acquisition Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–16

Non-Segmented Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–17

Segmented Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–17

Using the Storage Qualifier Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–18

Input Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–20

Transitional Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–21

Conditional Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–21

Start/Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–23

State-Based . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–24

Showing Data Discontinuities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–24

Disable Storage Qualifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–24

Managing Multiple SignalTap II Files and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–25

Define Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–26

Creating Basic Trigger Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–26

Creating Advanced Trigger Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–27

Examples of Advanced Triggering Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–28

Trigger Condition Flow Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–29

Sequential Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–29

State-Based Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–30

SignalTap II Trigger Flow Description Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–33

State Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–34

Boolean_expression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–34

Action_list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–35

Resource Manipulation Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–35

Buffer Control Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–36

State Transition Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–36

Using the State-Based Storage Qualifier Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–36

Specifying the Trigger Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–41

Creating a Power-Up Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–41

Enabling a Power-Up Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–42

Managing and Configuring Power-Up and Runtime Trigger Conditions . . . . . . . . . . . . . . . . . 13–42

Using External Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–43

Using the Trigger Out of One Analyzer as the Trigger In of Another Analyzer . . . . . . . . . . . . 13–43

Compile the Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–45

Faster Compilations with Quartus II Incremental Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–46

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

xiv Contents

Enabling Incremental Compilation for Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–46

Using Incremental Compilation with the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . 13–46

Preventing Changes Requiring Recompilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–49

Timing Preservation with the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–49

Performance and Resource Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–49

Program the Target Device or Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–50

Run the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–51

Runtime Reconfigurable Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–53

SignalTap II Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–56

View, Analyze, and Use Captured Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–56

Capturing Data Using Segmented Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–57

Differences in Pre-fill Write Behavior Between Different Acquisition Modes . . . . . . . . . . . . . . . . 13–58

Creating Mnemonics for Bit Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–60

Automatic Mnemonics with a Plug-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–60

Locating a Node in the Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–61

Saving Captured Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–62

Exporting Captured Data to Other File Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–62

Creating a SignalTap II List File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–62

Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–62

Using the SignalTap II MATLAB MEX Function to Capture Data . . . . . . . . . . . . . . . . . . . . . . . . . . 13–63

Using SignalTap II in a Lab Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–64

Remote Debugging Using the SignalTap II Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–64

Equipment Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–65

Using the SignalTap II Logic Analyzer in Devices with Configuration Bitstream Security . . . . . 13–65

Backward Compatibility with Previous Versions of Quartus II Software . . . . . . . . . . . . . . . . . . . . 13–65

SignalTap II Command-Line Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–66

SignalTap II Tcl Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–67

Design Example: Using SignalTap II Logic Analyzers in SOPC Builder Systems . . . . . . . . . . . . . . . 13–67

Custom Triggering Flow Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–68

Design Example 1: Specifying a Custom Trigger Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–68

Design Example 2: Trigger When triggercond1 Occurs Ten Times between triggercond2 and triggercond3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–69

SignalTap II Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–70

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–70

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–71

Chapter 14. In-System Debugging Using External Logic Analyzers

Choosing a Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–1

Required Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–2

Debugging Your Design Using the LAI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–4

Working with LAI Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–4

Configuring the File Core Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–5

Mapping the LAI File Pins to Available I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–5

Mapping Internal Signals to the LAI Banks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–5

Using the Node Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–6

Compiling Your Quartus II Project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–6

Programming Your Altera-Supported Device Using the LAI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–6

Controlling the Active Bank During Runtime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–7

Acquiring Data on Your Logic Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–7

Using the LAI with Incremental Compilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–7

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–8

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–8

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Contents xv

Chapter 15. In-System Modification of Memory and Constants

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–1

Updating Memory and Constants in Your Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–2

Creating In-System Modifiable Memories and Constants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–2

Running the In-System Memory Content Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–2

Instance Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–3

Editing Data Displayed in the Hex Editor Pane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–3

Importing and Exporting Memory Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–3

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–4

Programming the Device with the In-System Memory Content Editor . . . . . . . . . . . . . . . . . . . . . . . 15–4

Example: Using the In-System Memory Content Editor with the SignalTap II Logic Analyzer . . 15–4

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–5

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–5

Chapter 16. Design Debugging Using In-System Sources and Probes

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–1

Hardware and Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–3

Design Flow Using the In-System Sources and Probes Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–4

Configuring the ALTSOURCE_PROBE Megafunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–4

Instantiating the ALTSOURCE_PROBE Megafunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–6

Compiling the Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–6

Running the In-System Sources and Probes Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–7

Programming Your Device With JTAG Chain Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–7

Instance Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–8

In-System Sources and Probes Editor Pane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–8

Reading Probe Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–8

Writing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–9

Organizing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–9

Tcl interface for the In-System Sources and Probes Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–9

Design Example: Dynamic PLL Reconfiguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–13

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–16

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–16

Section V. Formal Verification

Chapter 17. Cadence Encounter Conformal Support

Formal Verification Versus Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–2

Formal Verification: What You Must Know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–2

Formal Verification Design Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–2

Quartus II Integrated Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–3

EDA Tool Support for Quartus II Integrated Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–3

Synplify Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–3

RTL Coding Guidelines for Quartus II Integrated Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–4

Synthesis Directives and Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–5

Fixed-Output Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–6

ROM, LPM_DIVIDE, and Shift Register Inference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–7

RAM Inference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–7

Latch Inference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–7

Combinational Loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–8

Finite State Machine Coding Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–8

Black Boxes in the Conformal LEC Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–8

Generating the Post-Fit Netlist Output File and the Conformal LEC Setup Files . . . . . . . . . . . . . . . . . 17–9

Quartus II Software Generated Files, Formal Verification Scripts, and Directories . . . . . . . . . . . . 17–11

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

xvi Contents

Understanding the Formal Verification Scripts for the Conformal LEC Software . . . . . . . . . . . . . . . 17–12

Conformal LEC Commands in the Quartus II Software Generated Scripts . . . . . . . . . . . . . . . . . . 17–12

Comparing Designs Using the Conformal LEC Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–15

Running the Conformal LEC Software from the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–15

Running the Conformal LEC Software From a System Command Prompt . . . . . . . . . . . . . . . . 17–15

Known Issues and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–16

Black Box Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–18

Conformal Dofile/Script Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–19

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–21

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–21

Section VI. Device Programming

Chapter 18. Quartus II Programmer

Programming Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–1

Quartus II Programmer GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–3

Hardware Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–4

JTAG Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–4

JTAG Chain Debugger Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–4

Other Programming Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–4

Stand-Alone Quartus II Programmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–4

Programming and Configuration Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–5

Configuration Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–5

Design Security Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–6

Optional Programming or Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–6

Secondary Programming Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–6

Convert Programming Files Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–7

Flash Loaders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–9

Scripting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–10

The jtagconfig Debugging Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–10

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–11

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–11

Additional Information

How to Contact Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1

Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–2

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter Revision Dates

The chapters in this document, Quartus II Handbook Version 11.1 Volume 3:

Verification, were revised on the following dates. Where chapters or groups of chapters are available separately, part numbers are listed.

Chapter 1.

Simulating Altera Designs

Revised:

November 2011

Part Number: QII53025-11.1.0

Chapter 2.

Mentor Graphics ModelSim and QuestaSim Support

Revised:

November 2011

Part Number: QII53001-11.1.0

Chapter 3.

Synopsys VCS and VCS MX Support

Revised:

November 2011

Part Number: QII53002-11.0.1

Chapter 4.

Cadence Incisive Enterprise Simulator Support

Revised:

November 2011

Part Number: QII53003-11.0.1

Chapter 5.

Aldec Active-HDL and Riviera-PRO Support

Revised:

November 2011

Part Number: QII53023-11.0.1

Chapter 6.

Timing Analysis Overview

Revised:

November 2011

Part Number: QII53030-11.1.0

Chapter 7.

The Quartus II TimeQuest Timing Analyzer

Revised:

November 2011

Part Number: QII53018-11.1.0

Chapter 8.

PowerPlay Power Analysis

Revised:

November 2011

Part Number: QII53013-10.1.1

Chapter 9.

System Debugging Tools Overview

Revised:

November 2011

Part Number: QII53027-10.0.2

Chapter 10. Analyzing and Debugging Designs with the System Console

Revised:

November 2011

Part Number: QII53028-11.1.0

Chapter 11. Transceiver Link Debugging Using the System Console

Revised:

November 2011

Part Number: QII53029-11.1.0

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

xviii

Chapter 12. Quick Design Debugging Using SignalProbe

Revised:

November 2011

Part Number: QII53008-10.0.2

Chapter 13. Design Debugging Using the SignalTap II Logic Analyzer

Revised:

November 2011

Part Number: QII53009-11.0.1

Chapter 14. In-System Debugging Using External Logic Analyzers

Revised:

November 2011

Part Number: QII53016-10.1.1

Chapter 15. In-System Modification of Memory and Constants

Revised:

November 2011

Part Number: QII53012-10.0.3

Chapter 16. Design Debugging Using In-System Sources and Probes

Revised:

November 2011

Part Number: QII53021-10.1.1

Chapter 17. Cadence Encounter Conformal Support

Revised:

November 2011

Part Number: QII53011-11.1.0

Chapter 18. Quartus II Programmer

Revised:

November 2011

Part Number: QII53022-11.1.0

Chapter Revision Dates

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Section I. Simulation

As the design complexity of FPGAs continues to rise, verification engineers are finding it increasingly difficult to simulate their system-on-a-programmable-chip

(SOPC) designs in a timely manner. The verification process is now the bottleneck in the FPGA design flow. The Quartus II software provides a wide range of features for performing functional and timing simulation of designs in EDA simulation tools.

This section includes the following chapters:

Chapter 1, Simulating Altera Designs

This chapter provides guidelines to help you perform simulation for your Altera

® designs using EDA simulators and the Quartus II NativeLink feature. This chapter also describes the process for instantiating the IP megafunctions in your design and simulating their functional simulation models.

Chapter 2, Mentor Graphics ModelSim and QuestaSim Support

This chapter describes how to use the ModelSim-Altera

®

software or the Mentor

Graphics

®

ModelSim software to simulate designs that target Altera FPGAs.

Chapter 3, Synopsys VCS and VCS MX Support

This chapter describes how to use the Synopsys VCS and VCS MX software to simulate designs that target Altera FPGAs.

Chapter 4, Cadence Incisive Enterprise Simulator Support

This chapter describes how to use the Cadence IES software to simulate designs that target Altera FPGAs.

Chapter 5, Aldec Active-HDL and Riviera-PRO Support

This chapter describes how to use the Active-HDL and Riviera-PRO software to simulate designs that target Altera FPGAs.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Section I: Simulation

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

1. Simulating Altera Designs

November 2011

QII53025-11.1.0

QII53025-11.1.0

This chapter provides guidelines to help simulate your Altera

®

designs using EDA simulators. Simulation is the process of verifying the design behavior before configuring the device.

You can use one of the following simulation tool flows:

Automatically create scripts to set up and launch an EDA simulator with the

Quartus

®

II NativeLink feature

Manually set up a simulation in your EDA simulator, optionally using the

Simulation Library Compiler

■ Use the scripts provided with your IP to set up your simulation environment, if your design includes IP cores

Altera supports ModelSim

®

, ModelSim-Altera, QuestaSim, VCS, VCS MX, Cadence

®

Incisive

®

Enterprise Simulator, Active-HDL, and Riviera-PRO simulators.

f

The Altera Complete Design Suite (ACDS) provides the ModelSim-Altera simulator in which all Altera libraries are precompiled. For more information about ModelSim-

Altera software, refer to the ModelSim-Altera Software page of the Altera website.

This chapter includes the following topics:

“Design Flow” on page 1–2

“Simulation Library Compiler” on page 1–8

“Launching the EDA Simulator with the NativeLink Feature” on page 1–9

“Simulating Altera IP Cores” on page 1–14

“Simulating Qsys and SOPC Builder System Designs” on page 1–24

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

1–2 Chapter 1: Simulating Altera Designs

Design Flow

Design Flow

This section describes the simulation flows supported by the Quartus II software, including functional, post-synthesis, and gate-level simulation.

Figure 1–1

shows how these simulation flows fit within a typical design flow.

Figure 1–1. Quartus II Design Flow Incorporating Simulation

Design entry

(Verilog HDL/VHDL/BDF)

(4)

Functional simulation

(3)

Analysis & Synthesis

Generate simulation netlist files

(Functional)

(1)

Post-synthesis gate-level simulation

(3)

Fitter

(place-and-route)

Timing analysis with the

TimeQuest Timing Analyzer

Optional

(2)

Generate simulation netlist files

(Timing/Functional)

(1)

Gate-level simulation

(3)

Program device

Notes to Figure 1–1 :

(1) Generate Verilog Output Files (.vo), VHDL Output Files (.vho), Standard Delay Format Output Files (.sdo), and SystemVerilog Files (.svo) with the

Quartus II Netlist Writer.

(2) For all Stratix V, Arria V, and Cyclone V device families you have the choice of running post-fit functional simulation or post-fit timing simulation.

The 28 nm families do not support post-fit timing simulation. Post-fit simulation can run slowly for large designs.

(3) You can use the NativeLink feature to automate the process of running EDA simulations from the Quartus II software.

(4) You cannot use the Block Design File (.bdf) to perform functional simulation, because the format is not compatible with HDL simulators (for example, ModelSim). The .bdf must be converted to HDL format (Verilog HDL or VHDL) before it can be used for functional simulation. For more information, refer to

“Converting Block Design Files (.bdf) to HDL Format (.v/.vhd)” on page 1–4 .

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Design Flow

1–3

Functional Simulation Flow

Functional simulation allows you to simulate the behavior of your design without

timing information. Figure 1–2

shows the functional simulation flow supported by the Quartus II software. If you are using Altera or partner IP cores, different simulation flows are available for IP cores based on the Hardware Component

Description File (hw.tcl) infrastructure than are available for other (non-hw.tcl-based)

IP cores. IP cores you incorporate in your design using the Qsys flow are hw.tcl based.

IP cores you incorporate in your design using the MegaWizard Plug-In Manager flow or the SOPC Builder flow vary in whether they are hw.tcl-based or not. To determine the simulation flows supported with your IP core, refer to the relevant IP core user guide. If your IP core is hw.tcl-based, it generates simulation script files using the

directory structure described in “Directory Hierarchy for hw.tcl Based IP” on page 1–16 . If your design has no IP cores, or it has IP cores that are not hw.tcl based,

you can use the NativeLink feature or the Simulation Library Compiler to simplify the

simulation process, as shown in Figure 1–2 .

Figure 1–2. Functional Simulation Flow

Create a design and testbench

(may include IP)

Design includes hw.tcl-based

IP cores?

No

(6)

Yes

Design also includes non-hw.tcl-based

IP cores?

No

Use simulation scripts generated

for your IP cores

(5)

Yes

Use NativeLink to set up simulation for simulator?

Yes

Specify NativeLink settings and run Analysis and Elaboration

(1)

No

Compile Altera libraries with

Simulation

Library Compiler?

(3)

,

(4)

Yes

Run manual functional simulation with third-party tool

No

(4)

Run functional simulation with NativeLink

(2)

Manually compile simulation libraries

(4)

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–4 Chapter 1: Simulating Altera Designs

Design Flow

Figure 1–2. Functional Simulation Flow (Continued)

Notes to Figure 1–2 :

(1) For more information, refer to

“Launching the EDA Simulator with the NativeLink Feature” on page 1–9.

(2) For more information, refer to

“Running Functional Simulation Using the NativeLink Feature” on page 1–23 .

(3) For more information, refer to

“Simulation Library Compiler” on page 1–8 .

(4) Not applicable for ModelSim AE and ModelSim ASE.

(5) For more information, refer to

“Perform Functional Simulation with IP Cores Based on _hw.tcl” on page 1–17 .

(6) Nativelink is not supported by IP cores that use hw.tcl.

h

For more information about performing functional simulation with ModelSim,

QuestaSim, VCS, VCS-MX, Incisive Enterprise Simulator, Active-HDL, and

Riviera-PRO, refer to the following, respectively, in Quartus II Help:

Performing a Functional Simulation with the ModelSim Software

Performing a Timing Simulation with the QuestaSim Software

Performing a Functional Simulation with the VCS Software

Performing a Functional Simulation with the VCS MX Software

Performing a Functional Simulation with the Incisive Enterprise Simulator Software

Performing a Simulation of a Verilog HDL Design with the Active-HDL Software

Performing a Simulation of a VHDL Design with the Active-HDL Software

Performing an Functional Simulation with the Riviera-PRO Software

Converting Block Design Files (.bdf) to HDL Format (.v/.vhd)

If you are creating your Quartus II design using the block diagram method instead of

HDL coding, you must convert your block diagram to HDL format before you can simulate your design.

To convert your design from block diagram format to HDL format, perform the following steps:

1. Detach the .bdf window.

2. On the File Menu, point to Create/Update, then click Create HDL Design File for

Current File

.

3. In the File type list, select VHDL or Verilog HDL.

4. Click OK.

The HDL file is generated after you perform these steps. The HDL file and the .bdf have the same file name, but different extensions (for example, the HDL file created for example.bdf is example.v or example.vhd).

1

Ensure that the .bdf only contains primitives that have simulation models. If the .bdf has any other primitives, modify the .bdf appropriately.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Design Flow

1–5

Gate-Level Timing Simulation Flow

Gate-level timing simulation allows you to simulate your design with post-fit timing

information. Figure 1–3 shows the overall gate-level timing simulation flow using the

Quartus II software. For more information about running your simulation tool automatically within the Quartus II software, refer to

“Launching the EDA Simulator with the NativeLink Feature” on page 1–9 .

For more information about manual simulation, refer to

“Simulating Altera IP Cores

Manually” on page 1–23

.

Figure 1–3. Gate-Level Timing Simulation Flow

Create a design and testbench

(may include IP)

Use NativeLink to set up simulation for simulator?

Yes

Specify NativeLink settings and run Analysis and Elaboration

(1)

No

Compile Altera libraries with

Simulation

Library Compiler?

(3)

,

(4)

Yes

Run manual gate-level timing simulation with third-party tool

No

(4)

Manually compile simulation libraries

(4)

Run Analysis & Synthesis

Run Timing Analysis

Run gate-level timing simulation with NativeLink

(2)

Notes to Figure 1–3 :

(1) For more information, refer to

“Launching the EDA Simulator with the NativeLink Feature” on page 1–9.

(2) For more information, refer to

“Running Gate-Level Timing Simulation Using the NativeLink Feature” on page 1–23 .

(3) For more information, refer to

“Simulation Library Compiler” on page 1–8 .

(4) Not applicable for ModelSim AE and ModelSim ASE.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–6 Chapter 1: Simulating Altera Designs

Design Flow h

For more information about performing timing simulation with ModelSim,

QuestaSim, VCS, VCS-MX, Incisive Enterprise Simulator, Active-HDL, and

Riviera-PRO, refer to the following, respectively, in Quartus II Help:

Performing a Timing Simulation with the ModelSim Software

Performing a Timing Simulation with the QuestaSim Software

Performing a Timing Simulation with the VCS Software

Performing a Timing Simulation with the VCS-MX (VHDL) Software

Performing a Timing Simulation with the Incisive Enterprise Simulator Software

Performing a Simulation of a Verilog HDL Design with the Active-HDL Software

Performing a Simulation of a VHDL Design with the Active-HDL Software

Performing a Gate-Level Simulation with the Riviera-PRO Software

1

Altera recommends that you use the TimeQuest Timing analyzer to achieve timing closure, rather than gate-level timing simulation.

1

Post-fit gate-level timing simulation is not available for Stratix V, Arria V, and

Cyclone V device families.

Simulation Netlist Files

Simulation netlist files are required for gate-level timing simulation or post-synthesis simulation. You can generate these files from the EDA Netlist Writer tool in the

Quartus II software.

Generating Gate-Level Timing Simulation Netlist Files

To perform gate-level timing simulation, EDA simulators require the cell delay and interconnect delay information of the design after you perform Analysis and

Synthesis and Fitter flow in the Quartus II software. The Quartus II software generates this information in the form of Verilog HDL (.vo), VHDL (.vho), and

Standard Delay Output (.sdo) files.

h

To specify options for generating .vo, .vho, and .sdo files, refer to

Specifying HDL

Output Settings

in Quartus II Help.

h

For more information about how to generate gate-level timing simulation netlist files in the Quartus II software, refer to

Generating Simulation Netlist Files

in Quartus II

Help.

Generating Post-Synthesis Simulation Netlist Files

Post-synthesis simulation is similar to gate-level timing simulation. The only difference is that post-synthesis simulation requires interconnect delays for simulation. Thus, the Quartus II software does not generate the .sdo for post-synthesis simulation.

h

For more information about how to generate post-synthesis simulation netlist files in the Quartus II software, refer to

Generating Simulation Netlist Files

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Design Flow

1–7

To generate the post-synthesis simulation netlist using the command line, type the following commands at a command prompt: quartus_map <project name> -c <revision name> r quartus_sta <project name> -c <revision name> --post_map r quartus_eda <project name> -c <revision name> --simulation --functional \

--tool= <3rd-party EDA tool> --format=<HDL language> r

For more information about the -format and -tool options, type the following command at a command prompt: quartus_eda --help=<option> r

Generating Timing Simulation Netlist Files with Different Timing Models

In Arria II GX, Cyclone III, HardCopy III, Stratix III, and later devices, you can specify different temperature and voltage parameters to generate the timing simulation netlist files with the Quartus II TimeQuest analyzer. When you generate the timing simulation netlist files (.vo, .vho, and .sdo files), different timing models for different operating conditions are used by default. Multi corner timing analysis is run by default during the full compilation.

h

For more information about generating timing simulation netlist files with different timing models, refer to

EDA Gate Level Simulation (Tools Menu)

in Quartus II Help.

To manually generate the simulation netlist files (.vo or .vho and .sdo) for the three different operating conditions, follow these steps:

1. Generate all available corner models at all operating conditions by typing the following command at a command prompt: quartus_sta <project name> --multicorner r

2. Generate the timing simulation netlist files for all three corners. The output files are generated in the simulation output directory.

h

For more information about how to generate a gate-level timing simulation netlist in the Quartus II software, refer to

Generating Simulation Netlist Files

in Quartus II Help.

The following examples show the timing simulation netlist file names generated for the operating conditions of the preceding steps when Verilog HDL is selected as the output netlist format.

First Slow Corner (slow, 1100 mV, 85° C)

.vo

file—<revision name>.vo

.sdo

file—<revision name>_v.sdo

The <revision_name>.vo and <revision name>_v.sdo are generated for backward compatibility when there are existing scripts that continue to use them.

.vo

file—<revision name>_<speedgrade>_1100mv_85c_slow.vo

.sdo

file—<revision name>_<speedgrade>_1100mv_85c_v_slow.sdo

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–8 Chapter 1: Simulating Altera Designs

Simulation Library Compiler

Second Slow Corner (slow, 1100 mV, 0° C)

.vo

file—<revision name>_<speedgrade>_1100mv_0c_slow.vo

.sdo

file—<revision name>_<speedgrade>_1100mv_0c_v_slow.sdo

Fast Corner (fast, 1100 mV, 0° C)

.vo

file—<revision name>_min_1100mv_0c_fast.vo

.sdo

file—<revision name>_min_1100mv_0c_v_fast.sdo f

For more information about performing multi-corner timing analysis, refer to the

Quartus II TimeQuest Timing Analyzer

chapter in volume 3 of the Quartus II Handbook.

Simulation Library Compiler

The Simulation Library Compiler compiles Verilog HDL and VHDL simulation libraries for all Altera devices and supported third-party simulators. You can use this tool to automatically compile all libraries required for functional and gate-level timing simulation.

1

If your design includes hw.tcl-based IP cores, you can use the simulation scripts generated for your IP cores instead of the Simulation Library Compiler.

You can store the compiled libraries in the directory you specify. When you perform the simulation, you can reuse the compiled libraries to avoid the overhead associated with redundant library compilations.

If the compilation targets the VCS simulator, the VCS options file simlib_comp.vcs is generated after compilation. You can then include your design and testbench files in the option files and invoke them with the vcs command.

Before using the Simulation Library Compiler, ensure that you have already installed the appropriate simulation tools and that you have specified their execution paths. To

specify the path, refer to “Setting Up the EDA Simulator Execution Path” on page 1–9

.

Running the Simulation Library Compiler Through the GUI

Generated libraries from the Simulation Library Compiler for all supported EDA simulators are located at <output directory>/<verilog_libs or vhdl_libs>. The

Simulation Library Compiler also generates library settings files of EDA simulators

(for example, modelsim.ini, cds.lib, or synopsys.setup), and these are located in the output directory.

The output directory mentioned in the path refers to the path that you have set in the

Simulation Library Compiler GUI during setup.

1

The Simulation Library Compiler does not support ModelSim-Altera because

ModelSim-Altera includes precompiled libraries.

h

For more information about compiling simulation libraries from the GUI, refer to

Compiling Simulation Libraries in the Quartus II Software

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Launching the EDA Simulator with the NativeLink Feature

1–9

Running the Simulation Library Compiler from the Command Line

h

For more information about compiling simulation libraries from the command line, refer to

Compiling Simulation Libraries in the Quartus II Software

in Quartus II Help.

1

For Linux operating systems, you can force the Simulation Library Compiler to use the EDA simulator executables from the search path by typing the following command at the command-line prompt: export QUARTUS_INIT_PATH=$PATH

Launching the EDA Simulator with the NativeLink Feature

You can launch an EDA simulator from the Quartus II software using the NativeLink feature, thus facilitating the seamless transfer of information between the Quartus II software and EDA tools.

1

If your design includes any hw.tcl-based IP cores, you cannot use the NativeLink feature. Use the simulation scripts generated for your IP cores.

To determine if the NativeLink feature supports a particular IP core, refer to the applicable IP core user guide. To use IP cores with the NativeLink feature, you must add the Quartus II IP File (.qip) for each IP core variant to your Quartus II project. The

Quartus II software may add the .qip files automatically to your Quartus II project when you generate the IP core.

h

For more information about using the NativeLink feature, refer to

Using the NativeLink

Feature with Other EDA Tools

in Quartus II Help.

Setting Up the EDA Simulator Execution Path

To run an EDA simulator automatically from the Quartus II software using the

NativeLink feature, specify the path to your simulation tool by performing the following steps:

1. On the Tools menu, click Options. The Options dialog box appears.

2. In the Category list, select EDA Tool Options.

3. Double-click the entry under Location of executable beside the name of your EDA tool.

4. Type the path or browse to the directory containing the executables of your EDA tool.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–10 Chapter 1: Simulating Altera Designs

Launching the EDA Simulator with the NativeLink Feature

Table 1–1

lists the execution paths for each EDA simulator.

Table 1–1. Execution Paths for EDA Simulators

Simulator

ModelSim-Altera

ModelSim

QuestaSim

Path

<drive letter>:\<ModelSim-Altera installation path>\win32aloem

(Windows)

/<ModelSim-Altera installation path>/bin (Linux)

<drive letter>:\<ModelSim installation path>\win32 (Windows)

/<ModelSim installation path>/bin (Linux)

<drive letter>:\<QuestaSim installation path>\win32 (Windows)

/<QuestaSim installation path>/bin (Linux)

/<VCS MX installation path>/bin (Linux)

VCS/VCS MX

Incisive Enterprise

Simulator

Active-HDL

/<Incisive Enterprise Simulator installation path>/tools/bin (Linux)

Riviera-PRO

<drive letter>:\<Active-HDL installation path>\bin (Windows)

<drive letter>

:\<Riviera-PRO installation path>\bin (Windows)

/<Riviera-PRO installation path>/bin (Linux)

5. Click OK.

You can also specify the path to the simulator’s executables by typing the

set_user_option

Tcl command at the Tcl console, as follows: set_user_option -name EDA_TOOL_PATH_MODELSIM <path to executables> r set_user_option -name EDA_TOOL_PATH_MODELSIM_ALTERA <path to \

executables>

r set_user_option -name EDA_TOOL_PATH_QUESTASIM <path to executables> r set_user_option -name EDA_TOOL_PATH_VCS <path to executables> r set_user_option -name EDA_TOOL_PATH_VCS_MX <path to executables> r set_user_option -name EDA_TOOL_PATH_NCSIM <path to executables> r set_user_option -name EDA_TOOL_PATH_ACTIVEHDL <path to executables> r set_user_option -name EDA_TOOL_PATH_RIVIERAPRO <path to executables> r

To open the Tcl console, on the View menu, point to Utility Windows, then click Tcl

Console

.

Configuring NativeLink Settings

To configure NativeLink settings, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, select Simulation. The Simulation page appears.

3. In the Tool name list, select your EDA simulator.

4. For gate-level simulation, if you want to run simulation in your EDA simulator automatically after a full compilation, turn on Run gate-level simulation

automatically after compilation

.

5. If you have testbench files or macro scripts, enter the information under

NativeLink settings

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Launching the EDA Simulator with the NativeLink Feature

1–11

For more information about setting up a testbench file with NativeLink, refer to

“Setting Up Testbench Files Using the NativeLink Feature” on page 1–12

.

6. If you want to run the EDA simulator in command-line mode, follow these steps: a. On the Simulation page, click More NativeLink Settings. The More

NativeLink Settings

dialog box appears.

b. Under Existing option settings, click Launch third-party EDA tool in

command-line mode

.

c. In the Setting box, click On.

d. Click OK.

7. If you want to generate only the simulation script without launching the EDA simulator during NativeLink simulation, follow these steps: a. On the Simulation page, click More NativeLink Settings. The More

NativeLink Settings

dialog box appears.

b. Under Existing option settings, click Generate third-party EDA tool

command scripts without running the EDA tool

.

c. In the Setting box, click On.

d. Click OK.

If you turn this option on and run NativeLink, only the simulation command script is generated. The file names of simulation command scripts for various simulators are as follows:

<project_name>_run_msim_<rtl/gate>_level_<verilog/vhdl>.do (ModelSim)

<project_name>_run_questasim_<rtl/gate>_level_<verilog/vhdl>.do

(QuestaSim)

<project_name>_sim_<rtl/gate>_<verilog/vhdl>.do (Riviera-PRO and

Active-HDL)

script_file.sh

and <project_name>_rtl.vcs (VCS)

<project_name>_vcsmx_<rtl/gate>_<vhdl/verilog>.tcl (VCS MX)

<project_name>_ncsim_<rtl/gate>_<verilog/vhdl>.tcl (Incisive Enterprise

Simulator)

8. Depending on the simulator, perform the simulation by typing one of the following commands: do <script>.do

r

(ModelSim/Aldec/Riviera-PRO macro file) quartus_sh -t <script>.tcl

r

(Tcl Script File) sh <script>.sh

r

(Shell script)

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–12 Chapter 1: Simulating Altera Designs

Launching the EDA Simulator with the NativeLink Feature

9. If you have compiled libraries using the Simulation Library Compiler, follow these steps: a. On the Simulation page, click More EDA Netlist Writer Settings. The More

EDA Netlist Writer Settings

dialog box appears.

b. Under Existing option settings, click Location of user compiled simulation

library

.

c. In the Setting box, type the path that contains the user-compiled libraries generated from the Simulation Library Compiler. The path should be the same as the path you have set in the Output Directory in the Simulation Library

Compiler.

1

Step

9 is not applicable for Active-HDL and Riviera-PRO.

For more information about the Simulation Library Compiler, refer to

“Simulation

Library Compiler” on page 1–8

.

h

For more information about using the Quartus II software with other EDA tools, refer to

About Using the Quartus II Software with Other EDA Tools

in Quartus II Help.

Setting Up Testbench Files Using the NativeLink Feature

You can use the NativeLink feature to compile your design files and testbench files, and run an EDA simulation tool to automatically perform a simulation.

1

If your design contains hw.tcl compliant IP, Nativelink is not supported.

To set up the NativeLink feature for simulation, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, under EDA Tool Settings, click Simulation. The Simulation page appears.

3. In the Tool name list, select your preferred EDA simulator.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Launching the EDA Simulator with the NativeLink Feature

1–13

4. Under NativeLink settings, select None, Compile test bench, or Script to

compile test bench

( Table 1–2 ).

Table 1–2. NativeLink Testbench Settings

Setting

None

Compile test bench

Script to compile test bench

Description

NativeLink compiles simulation models and design files.

NativeLink compiles simulation models, design files, testbench files, and starts simulation.

NativeLink compiles the simulation models and design files. The script you provide is sourced after design files are compiled. Use this option when you want to create your own script to compile your testbench file and perform simulation.

If you select Compile test bench, select your testbench setup from the Compile

test bench

list. You can use different testbench setups to specify different test scenarios. If there are no testbench setups entered, create a testbench setup by following these steps: a. Click Test Benches. The Test Benches dialog box appears.

b. Click New. The New Test Bench Settings dialog box appears.

c. In the Top level module in test bench box, type the top-level testbench entity or module name. The testbench name in the Test bench name box automatically follows the top-level testbench entity or module name.

d. If you are running gate-level timing simulation for VHDL designs, turn on Use

test bench to perform VHDL timing simulation

checkbox and specify your top level instance name of your design. This is equivalent to the vsim command option -sdftyp. In the Design instance name in test bench box, type the full instance path to the top level of your FPGA design.

e. Under Simulation period, select Run simulation until all vector stimuli are

used

or specify the end time of the simulation.

f. Under Test bench files, browse and add all of your testbench files in the File

name

box. Use the Up and Down buttons to reorder your files. The NativeLink feature compiles the files in order from top to bottom.

1

You can also specify the library name and HDL version to compile the testbench file by adding the file, selecting it from the list, and clicking

Properties

. The NativeLink feature compiles the testbench file to a library name using the specified HDL version.

g. Click OK.

h. In the Test benches dialog box, click OK.

i. If you have a script to set up your simulation, turn on Use script to set up

simulation

. Click Browse and select your simulation setup script.

If you select Script to compile test bench, browse to your script, and then click

OK.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–14 Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1

You can also use the NativeLink feature in your script to compile your design files and testbench files with customized settings.

Simulating Altera IP Cores

This section describes the process of simulating Altera IP cores in your design.

Even when the IP source code is encrypted or otherwise restricted, the Quartus II software allows you to easily simulate designs that contain Altera IP cores. You can customize Altera IP cores, then generate a VHDL or Verilog HDL functional simulation model.

Altera IP cores support both Verilog HDL and VHDL simulation, although the way in which dual-language simulation is supported for specific IP cores might differ.

For more information about IP simulation models, refer to

“Simulation Files” on page 1–16 .

When IEEE 1364-2005 encrypted Verilog HDL simulation models are provided, they are encrypted separately for each Altera-supported simulation vendor. If you want to simulate the model in a VHDL design, you need a simulator that is capable of

VHDL/Verilog HDL co-simulation. The IEEE 1364 2005 encrypted Verilog HDL models are only provided for Stratix V devices.

By special arrangement with Mentor Graphics

®

, you can simulate Altera IEEE encrypted Verilog HDL models for your VHDL designs using the VHDL-only version of the ModelSim-Altera Edition, as well as single-language VHDL versions of Mentor simulators such as ModelSim PE. Additionally, Altera IEEE encrypted Verilog models for all Mentor Graphics simulators do not consume an additional runtime license. For example, if you are simulating a VHDL design that contains Altera IEEE encrypted

Verilog models, no Verilog license for tools such as ModelSim SE/LNL is checked out.

If your design code is written in both Verilog HDL and VHDL, standard ModelSim license consumption rules apply.

Some AMPP

SM

megafunctions might also use IP Functional Simulation (IPFS) models for functional simulation. An IPFS model is a cycle-accurate VHDL or Verilog HDL model produced by the Quartus II software. The model allows for fast functional simulation of IP using industry-standard VHDL and Verilog HDL simulators.

1

IEEE encrypted Verilog models are generally faster than IPFS models.

c

Use IPFS models for simulation only. Do not use them for synthesis or any other purpose. Using these models for synthesis results in a nonfunctional design.

1

Encrypted Altera simulation model files shipped with the Quartus II software version 10.1 and later can only be read by the ModelSim-Altera Edition Software version 6.6c and later. These encrypted simulation model files are located at the

<Quartus II System directory>/quartus/eda/sim_lib/<eda simulation vendor> directory, where <eda simulation vendor> is aldec, cadence, mentor, or synopsys.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1–15

IP Simulation Flows

The parameter editor for each IP core allows you to quickly and easily view documentation, specify parameters, and generate simulation models and other output files necessary to integrate the IP core into your design. When you use the

MegaWizard

Plug-In Manager to parameterize your IP core, the Quartus II software generates a Quartus II IP File (.qip) for inclusion in your Quartus II project. For IP cores that use IPFS models, the Quartus II software can also generate a .vo or .vho file that contains an IPFS model. For IP cores that use IEEE encrypted Verilog HDL

models or plain-text HDL, the generated directory structure is shown in Figure 1–5 on page 1–17 .

h

For a list of the functional simulation library files, refer to

Altera Functional Simulation

Libraries

in Quartus II Help. For a list of the gate-level timing simulation library files, refer to

Altera Post-Fit Libraries

in Quartus II Help.

IP Variant Directory Structure

You can use the parameter editor to help you parameterize IP cores. The location of simulation output files varies by IP core. The following sections describe the related output files generated by the IP generation process.

f

For information about how to parameterize IP cores, refer to the appropriate IP core user guide, available on the User Guides literature page of the Altera website.

Synthesis Files

For synthesis purposes, a <variant_name>.qip is generated in your project directory for each IP core variation in your design. If you specify Verilog HDL or VHDL as the output file type, an IP variant file (<variant_name>.v or <variant_name>.vhd) is generated, respectively. The .qip is a single file that contains synthesis information required for processing by the Quartus II Compiler.

For hw.tcl compliant IP cores, a <variant_name> subdirectory is created in the project directory. This directory contains files needed for synthesis, and might also contain

Synopsys Design Constraints Files (.sdc), Tcl Script Files (.tcl), and Pin Planner Files

(.ppf).

To compile your design in the Quartus II software, add the <variant_name>.qip files to your project, along with your design files. Additional steps might be necessary, depending on the IP core. f

For more information, refer to the appropriate IP core user guide, available on the

User Guides literature page of the Altera website.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–16 Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

Simulation Files

The form and structure of simulation models that support Altera IP cores vary. IP cores use the simulation models that are provided in the quartus/eda/sim_lib directory of your Quartus II installation. Altera provides some of the models in this directory as plain-text VHDL and Verilog HDL, while other models are IEEE encrypted Verilog HDL for each of the Altera-supported EDA simulation vendors.

You can simulate the IEEE encrypted Verilog HDL models in VHDL designs if you have a VHDL/Verilog HDL co-simulator. You can also simulate the IEEE encrypted

Verilog HDL models in any version of ModelSim, including the VHDL-only versions of ModelSim-Altera and ModelSim PE, because of the special arrangement between

Altera and Mentor Graphics.

Depending on the specific IP core, Altera may provide simulation models in one or more of the following formats:

Plain-text in Verilog HDL, VHDL, or both

Mixed structural IPFS model in .vho and .vo

■ IEEE encrypted Verilog models for each supported EDA simulation vendor

IP cores that use the hw.tcl infrastructure provide a set of standardized vendorspecific simulation scripts, which you can use to compile and elaborate the IP cores in your simulator. You can use these scripts as a reference for developing your systemlevel simulation scripts.

When you generate your IP cores, the Quartus II software creates the simulation files in the project directory.

Figure 1–4

shows an example of the directory hierarchy for simulation models and scripts for hw.tcl-based IP cores.

Figure 1–4. Directory Hierarchy for hw.tcl Based IP

<variant_name>

_sim

This directory contains the files for simulation.

<variant_name>.v for Verilog models

<variant_name>.vhd for VHDL models

<vendor_name>

<simulation_script_files>

<sub_module_name>

<simulation_model_files>

<sub_module_name>

<simulation_model_files>

<vendor_name>

<IEEE_encrypted_Verilog_simulation_model_files>

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1–17

Figure 1–5

shows examples of directory hierarchies for simulation files for other IP cores.

Figure 1–5. Directory Hierarchy for Other IP Cores

<variant_name>

_sim

This directory contains the files for simulation.

<simulation_model_files>

<variant_name>

_sim

This directory contains the files for simulation.

<IP_core_name>

<simulation_model_files>

<simulation_vendor_name>

<IEEE_encrypted_Verilog_simulation_model_files>

Some Altera IP cores include design examples, testbenches, simulator script examples, and/or Quartus II project examples within one of the directory structures in

Figure 1–4 and

Figure 1–5

. f

For IP core-specific information and details about simulating IP example designs and testbenches, refer to the appropriate IP core user guide, available on the User Guides

Literature page of the Altera website.

Perform Functional Simulation with IP Cores Based on _hw.tcl

This section describes how to perform functional simulation of IP cores that generate

vendor-specific simulation scripts in the directory structure in Figure 1–4 on page 1–16

. For other IP cores, refer to the following section “Perform Functional

Simulation with IP Cores not Based on hw.tcl” on page 1–20 .

To perform functional simulation, in addition to adding your design files and testbench files, you must also compile the IP core simulation files and model libraries in your simulator.

When you generate IP cores that use _hw.tcl, you can take advantage of the simulation script templates to set up the simulation environment for Mentor Graphics

ModelSim, Synopsys VCS and VCS MX, and Cadence Incisive Enterprise Simulator

(NCSIM). You can use the scripts to compile the required device libraries and system design files in the correct order and elaborate or load the top-level design for simulation.

The simulation scripts provide the following variables that allow flexibility in your simulation environment:

TOP_LEVEL_NAME

: If the IP core is not the top-level instance in your simulation environment because you instantiate the IP testbench within your own top-level simulation file, set the

TOP_LEVEL_NAME

variable to the top-level hierarchy name.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–18 Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

QSYS_SIMDIR:

If the simulation files generated by your IP cores are not in the simulation working directory, use the

QSYS_SIMDIR

variable to specify the directory location of the simulation files. This variable name is also used for designs generated by the Qsys system integration tool.

■ Other variables to control the compilation, elaboration, and simulation process.

If your top-level design includes multiple hw.tcl-based IP cores, you can use a combination of the generated scripts as a reference to create your own top-level system simulation scripts.

Example 1–1

shows a simple top-level simulation HDL file for an IP core my_ip

. The

top.sv

file defines the top

module that instantiates the IP simulation model as well as a custom SystemVerilog testbench program with test stimulus, called

test_program

.

Example 1–1. Top-level Simulation HDL File Example top.sv

module top();

my_ip tb();

test_program pgm(); endmodule

Mentor Graphics ModelSim Simulation Tcl Script

The simulation script for Mentor Graphics simulators ModelSim, ModelSim-Altera, and QuestaSim is called msim_setup.tcl. The script creates alias commands to compile the required device libraries and system design files in the correct order and elaborate or load the top-level design for simulation. To run this script, type source msim_setup.tcl

in the ModelSim Transcript window. The commands you can use in

ModelSim to setup and load the simulation are displayed in the console when you source the .tcl file.

Example 1–2

shows a custom top-level simulation script that sets the hierarchy variable

TOP_LEVEL_NAME

to top

for the design in

Example 1–1 , and sets the variable

QSYS_SIMDIR

to the location of the generated simulation files. In this example, the toplevel simulation files are stored in the same directory as the original IP core, so this variable is set to the IP-generated directory structure. The

QSYS_SIMDIR

variable provides the relative hierarchy path for the generated IP simulation files.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1–19

The script calls the generated ModelSim script and uses the alias

commands from

msim_setup.tcl

to compile and elaborate the IP files required for simulation along with the custom test program and top-level simulation file. You can specify additional

ModelSim elaboration command options when you run the elab

command, for example, elab +nowarnTFMPC

. The last run command starts the simulation.

Example 1–2. Top-level ModelSim Simulation Script Including Custom Test Program

# Set hierarchy variables used in the IP-generated files set TOP_LEVEL_NAME "top" set QSYS_SIMDIR "./my_ip_sim"

# Source generated script and set up alias commands used below source $QSYS_SIMDIR/mentor/msim_setup.tcl

# Compile device library files dev_com

# Compile design files in correct order com

# Compile the additional test files vlog -sv ./test_program.sv

vlog -sv ./top.sv

# Elaborate the top-level design elab

# Run the full simulation run - all

Using a top-level simulation script and test program takes advantage of the generated

ModelSim script to ensure you compile all the required simulation files and allows you to modify the top-level simulation environment independently of the IP simulation files that are over-written when you modify your IP parameterization core and regenerate.

Example 1–3

shows how you can use the generated scripts in your own top-level system simulation environment if your top-level design includes multiple hw.tclbased IP cores. This example script complies two IP cores and elaborates the second

IP.

Example 1–3. Top-level Modelism Simulation Script Including Two IP Cores

// compile first IP set QSYS_SIMDIR "./ip_one_top_sim" source $QSYS_SIMDIR/mentor/msim_setup.tcl

dev_com com

// compile and elaborate second IP set QSYS_SIMDIR "./ip_two_top_sim" set TOP_LEVEL_NAME "ip_two_top" source $QSYS_SIMDIR/mentor/msim_setup.tcl

dev_com com elab

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–20 Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

Synopsys VCS and VCS MX Simulation Shell Script

The simulation scripts for Synopsys VCS and VCS MX are called vcs_setup.sh (for a single-lanugage HDL system) and vcsmx_setup.sh. The scripts contain shell commands that compile the required device libraries and system design files in the correct order, and elaborate the top-level design for simulation and run the simulation for 100 time units by default. You can run these scripts from a Linux command shell.

To set up the simulation for a design such as Example 1–1 , edit the variable values in

the generated shell script to set the hierarchy variable

TOP_LEVEL_NAME

to top

and set the variable

QSYS_SIMDIR

to the location of the generated simulation files. Edit the compilation commands to add the top-level simulation HDL file and the test program file.

You can specify additional elaboration and simulation options with the

USER_DEFINED_ELAB_OPTIONS

and

USER_DEFINED_SIM_OPTIONS

variables.

Cadence Incisive Enterprise Simulation Shell Script

The simulation script for the Cadence Incisive Enterprise Simulation Shell Script

(NCSIM) is called ncsim_setup.sh. The script contains shell commands that compile the required device libraries and system design files in the correct order, and elaborate or load the top-level design for simulation and run the simulation for 100 time units by default. You can run this script from a Linux command shell.

To set up the simulation for a design as in Example 1–1 , edit the variable values in the

generated shell script to set the hierarchy variable

TOP_LEVEL_NAME

to top

and set the variable

QSYS_SIMDIR

to the location of the generated simulation files. Edit the compilation commands to add the top-level simulation HDL file and the test program file.

You can specify additional elaboration and simulation options with the variables

USER_DEFINED_ELAB_OPTIONS

and

USER_DEFINED_SIM_OPTIONS

.

Perform Functional Simulation with IP Cores not Based on hw.tcl

To perform functional simulation, in addition to adding your design files and testbench files, you must also compile the IP core variation file and other corresponding IP simulation files and model libraries in your simulator. For more

information about the directory structure for simulation files, refer to “IP Variant

Directory Structure” on page 1–15

.

The Quartus II software includes all the simulation model libraries required to sucessfully simulate Altera IP cores. If the IP core you are using supports the

Quartus II NativeLink feature, you can use the NativeLink feature to set up your simulation. However, you can simulate Altera IP cores directly with third-party simulators. To determine if the NativeLink feature is supported, refer to the applicable

IP core user guide. You can also use the Simulation Library Compiler to set up your simulation libraries.

h

IP cores that use device transceiver resources require the Altera transceiver libraries for simulation. For more information, refer to Altera Functional Simulation Libraries in

Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1–21

h

The hard IP implementation of the IP Compiler for PCI Express

®

requires the PCIe libraries for simulation. For more information, refer to Altera Functional Simulation

Libraries

in Quartus II Help.

This section describes the different options available to simulate Altera IP cores that are not based on hw.tcl. If your IP core is based on hw.tcl and generates vendor-specific simulation scripts, refer to

“Perform Functional Simulation with IP

Cores Based on _hw.tcl” on page 1–17

.

Verilog HDL and VHDL IP Functional Simulation Models

Some IP cores use IP Functional Simulation (IPFS) models for functional simulation.

The IPFS models in Verilog HDL or VHDL format differ from the low-level synthesized netlist in Verilog HDL or VHDL format generated by the Quartus II software for post-synthesis or post place-and-route simulations. The IPFS models generated by the Quartus II software are much faster than the low-level post-synthesis or post place-and-route netlists of your design because they are mapped to higher-level primitives such as adders, multipliers, and multiplexers. You can use these IPFS models together with the rest of your design in any

Altera-supported simulator.

1

Simulator-independent IPFS primitives are located in the quartus/eda/sim_lib directory. You must compile the files that correspond to the device you are using and your simulation language.

f

Generating an IPFS model for Altera IP cores does not require a license. However, generating an IPFS model for AMPP megafunctions may require a license. For more information about AMPP licensing requirements, refer to “Obtaining and Licensing an AMPP Megafunction” in

AN 343: OpenCore Evaluation of AMPP Megafunctions

.

Stratix V Simulation Model Libraries

For Stratix V devices, Altera provides a set of IEEE encrypted Verilog models for use in both VHDL and Verilog HDL designs. In general, the models simulate faster than

IPFS models. h

For more information about IEEE encrypted Verilog models and a list of IEEE encrypted libraries for Stratix V devices, refer to

Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

In addition to Stratix V libraries, the altera_lnsim library, which contains the

altera_pll

model, currently only supports Stratix V devices. New device-independent models will be added to the altera_lnsim library in later software releases. The

altera_lnsim

library is provided only in SystemVerilog. The version in the

quartus/eda/sim_lib/mentor

directory can be simulated in all versions (6.6 c or later) of Mentor Graphics simulators.

f

For more information about the ALTERA_PLL megafunction, refer to the

Altera

Phase-Locked Loop (ALTERA_PLL) Megafunction User Guide

.

To use the Stratix V (and the altera_lnsim) libraries in VHDL, compile the VHDL wrappers and Verilog HDL files into the same library.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–22 Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

If your design uses a mix of VHDL and Verilog HDL that references Altera simulation models, you should use the Altera Verilog HDL models with the Verilog HDL portion of your design and the Altera VHDL models with the VHDL portion of your design.

You do this by specifying, mapping, and searching the Verilog HDL and VHDL files of your simulator. For instructions about how to compile models into logical libraries and how to map logical libraries to physical libraries, refer to your EDA simulator documentation.

Simulating Altera IP Cores Using the Quartus II NativeLink Feature

The Quartus II NativeLink feature eases the tasks of setting up and running a simulation. The NativeLink feature launches the supported simulator of your choice from within the Quartus II software. The NativeLink feature also automates the compilation and simulation of testbenches.

For more information about using the NativeLink feature to simulate Altera IP cores,

refer to “Launching the EDA Simulator with the NativeLink Feature” on page 1–9 .

For more information about the functional simulation flow, refer to

Figure 1–2 on page 1–3

.

Before running a NativeLink simulation, you must specify the NativeLink settings and perform analysis and elaboration, as described in the following section.

Perform Analysis and Elaboration on Your Design

To perform Analysis and Elaboration on your design, on the Quartus II Processing menu, point to Start, and then click Start Analysis & Elaboration.

If you are using the Quartus II NativeLink feature and your Quartus II project contains IP cores that require IPFS models for simulation, you do not have to manually add the IPFS models to the Quartus II project for these IP cores. When the

Quartus II NativeLink feature launches the third-party simulator tool and starts the simulation, it automatically adds the IPFS model files required for simulation if they are present in the Quartus II project directory.

After Analysis and Elaboration, you can perform functional simulation in your third-party simulator.

Run Simulation with the Quartus II NativeLink Feature

For more information about using the NativeLink feature to simulate Altera IP cores,

refer to “Launching the EDA Simulator with the NativeLink Feature” on page 1–9 .

Using the Simulation Library Compiler

If you do not use the NativeLink feature, you must either manually compile the simulation libraries, or use the Simulation Library Compiler, which automatically compiles all required libraries.

For more information about the Simulation Library Compiler, refer to

“Simulation

Library Compiler” on page 1–8

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Simulating Altera IP Cores

1–23

Simulating Altera IP Cores Manually

You can also simulate Altera IP cores in your third-party simulator by adding its variation file to your simulation project. If the IP core requires IPFS model files, do not add the IP core variation file to your simulation project. Instead, add its IPFS model files (either Verilog HDL or VHDL) to your simulation project.

If your IP core generates any other type of simulation models, as described in

“IP

Variant Directory Structure” on page 1–15

, you must compile all of the IP simulation files (including the appropriate Altera simulation model library files) along with your design and testbench.

To properly compile, load, and simulate the IP cores, you must first compile the libraries in your simulation tool.

h

For a list of library files, refer to

Altera Functional Simulation Libraries

in Quartus II

Help.

Running Functional Simulation Using the NativeLink Feature

To run functional simulation using the NativeLink feature, follow these steps:

1. Configure the NativeLink settings. Refer to

“Configuring NativeLink Settings” on page 1–10

.

2. On the Processing menu, point to Start, and then click Start Analysis &

Elaboration

to perform an Analysis and Elaboration. This command collects all your file name information and builds your design hierarchy in preparation for simulation.

3. On the Tools menu, point to Run EDA Simulation Tool, and then click RTL

Simulation

to automatically run the EDA simulator, compile all necessary design files, and complete a simulation.

Running Gate-Level Timing Simulation Using the NativeLink Feature

To run a gate-level timing simulation using the NativeLink feature, follow these steps:

1. Configure the EDA Netlist Writer settings. Refer to

“Generating Post-Synthesis

Simulation Netlist Files” on page 1–6 .

2. Configure the NativeLink settings. Refer to

“Configuring NativeLink Settings” on page 1–10

.

3. On the Processing menu, click Start Compilation to perform full compilation, including generation of an EDA netlist file.

4. On the Tools menu, point to Run EDA Simulation Tool, and then click Gate Level

Simulation

to automatically run the EDA simulator, compile all necessary design files, and complete a simulation.

1

If you have turned on Run gate-level simulation automatically after

compilatio

n while configuring NativeLink settings, you can skip step 4 .

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–24 Chapter 1: Simulating Altera Designs

Simulating Qsys and SOPC Builder System Designs

Simulating Qsys and SOPC Builder System Designs

Altera’s Qsys system integration tool is available beginning in the Quartus II software version 11.0.

You can use the Qsys system integration tool or SOPC Builder in the Quartus II software to create your system and generate simulation models for functional simulation. You can also use SOPC Builder to generate system-level testbenches that help you debug your system design.

If your design uses the Nios II processor, you must first initialize any memories that contain software prior to simulation. You can create Memory Initialization Files (.mif) for this purpose with the Nios II Software Build Tools.

f

For more information about migrating your existing SOPC Builder system to Qsys, refer to

AN 632: SOPC Builder to Qsys Migration Guidelines

. For more information about SOPC Builder, refer to the

SOPC Builder User Guide

. f

For more information about using bus functional models (BFMs) to simulate Avalon

® standard interfaces in your system, refer to

Avalon Verification IP Suite User Guide

.

f

For more information about getting started with Qsys, refer to

Qsys System Design

Tutorial

. For more information about simulating Qsys designs, refer to the

Creating a

System with Qsys

chapter of the Quartus II Handbook.

f

For more information about simulating designs that contain a Nios II processor, refer to

AN 351: Simulating Nios II Embedded Processors Designs

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 1: Simulating Altera Designs

Document Revision History

1–25

Document Revision History

Table 1–3

shows the revision history for this chapter.

Table 1–3. Document Revision History

Date Version

November 2011

May 2011

December 2010

July 2010

November 2009

11.1.0

11.0.0

10.1.0

10.0.0

9.1.0

Changes

Removed link to Quartus II Help in “Simulation Library Compiler” on page 1–8

Added information about encrypted Altera simulation model files in “Simulating

Altera IP Cores” on page 1–14

Added

“Perform Functional Simulation with IP Cores Based on _hw.tcl” on page 1–17

“Perform Functional Simulation with IP Cores not Based on hw.tcl” on page 1–20

“Stratix V Simulation Model Libraries” on page 1–21

Added note to Figure 1–1 on page 1–2

Added new section “Converting Block Design Files (.bdf) to HDL Format (.v/.vhd)” on page 1–4

Updated information in “Simulation Netlist Files” on page 1–6

Updated information in “Generating Gate-Level Timing Simulation Netlist Files” on page 1–6

Updated information in “Generating Post-Synthesis Simulation Netlist Files” on page 1–6

Removed information from “Generating Timing Simulation Netlist Files with

Different Timing Models” on page 1–7

Removed information from “Running the Simulation Library Compiler Through the GUI” on page 1–8 and linked to Quartus II Help

Updated Table 1–1 on page 1–9

Updated “Simulating Qsys and SOPC Builder System Designs” on page 1–20

Title changed from “Simulating Designs with EDA Tools”

Merged content from “Simulating Altera IP in Third-Party Simulation Tools” chapter to “Simulating Altera IP Cores” on page 1–14

Added new section “IP Variant Directory Structure” on page 1–15

Added new section “Simulating Qsys and SOPC Builder System Designs” on page 1–21

Added information about simulating designs with Stratix V devices

Updated chapter to new template

Linked to Quartus II Help where appropriate

Removed Referenced Documents section

Removed Creating Testbench Files

Added VCS and QuestaSim as third-party simulation tools

Updated “Running the EDA Simulation Library Compiler Through the GUI” on page 1–18

Updated “Setting Up the EDA Simulator Execution Path” on page 1–19

Updated “Configuring NativeLink Settings” on page 1–20

Updated “Setting Up Testbench Files Using the NativeLink Feature” on page 1–22

Initial release

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

1–26 Chapter 1: Simulating Altera Designs

Document Revision History f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

2. Mentor Graphics ModelSim and

QuestaSim Support

November 2011

QII53001-11.1.0

QII53001-11.1.0

This chapter provides detailed instructions about how to simulate your Altera

Quartus

®

II design in the ModelSim-Altera

® software, Mentor Graphics

®

ModelSim software, and Mentor Graphics QuestaSim software.

Altera provides the ModelSim-Altera software to simplify design simulation with all readily precompiled Altera simulation libraries. The precompiled Altera simulation libraries support the simulation of designs that use Altera devices.

f

For more information about ModelSim-Altera, refer to the Model-Sim Altera Software page of the Altera website.

The Quartus II software subscription includes the ModelSim-Altera Starter Edition, which is a no-cost entry-level version of the ModelSim-Altera Subscription Edition software. The ModelSim-Altera Subscription Edition software offers support for all

Altera devices. Both versions are available on Windows and Linux platforms. You can use the ModelSim-Altera software to perform functional, post-synthesis, and gate-level timing simulations for either Verilog HDL or VHDL designs that target an

Altera device.

1

In this chapter, ModelSim refers to ModelSim SE, PE, and DE, which share the same commands as QuestaSim. ModelSim-Altera refers to ModelSim-Altera Starter Edition and ModelSim-Altera Subscription Edition software.

This chapter includes the following topics:

“Software Requirements” on page 2–2

“Design Flow with ModelSim-Altera, ModelSim, or QuestaSim Software” on page 2–2

“Simulation Libraries” on page 2–3

“Simulating with the ModelSim-Altera Software” on page 2–4

“Simulating with the ModelSim and QuestaSim Software” on page 2–5

“Simulating Designs that Include Transceivers” on page 2–12

“Using the NativeLink Feature with ModelSim-Altera, ModelSim, or QuestaSim

Software” on page 2–17

“Generating a Timing Value Change Dump File (.vcd) for the PowerPlay Power

Analyzer” on page 2–18

“Viewing a Waveform from a .wlf” on page 2–19

“Simulating with ModelSim-Altera Waveform Editor” on page 2–20

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

2–2 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Software Requirements

“Scripting Support” on page 2–20

“Software Licensing and Licensing Setup in ModelSim-Altera Subscription

Edition” on page 2–22

Software Requirements

To simulate your design, you require the following software:

ModelSim-Altera, ModelSim, or QuestaSim

Compiled Altera simulation libraries

Quartus II simulation netlists—Verilog Design File (.v), Verilog Output File (.vo),

VHDL Design File (.vhd), VHDL Output File (.vho), and Synopsys Design

Constraints File (.sdc) f

For more information about installing Altera software, refer to the

Altera Software

Installation and Licensing

manual.

Design Flow with ModelSim-Altera, ModelSim, or QuestaSim Software

You can perform the following types of simulations with the ModelSim-Altera,

ModelSim, or QuestaSim software:

Functional simulation

Post-synthesis simulation

■ Gate-level timing simulation

1

Some versions of ModelSim and QuestaSim support SystemVerilog, PSL assertions,

SystemC, and more. For more information about the features supported in the different versions of ModelSim and QuestaSim, refer to Mentor Graphics literature or your Mentor Graphics contact.

You need a version of ModelSim that supports VHDL/Verilog HDL co-simulation to simulate designs that use transceivers in Stratix

®

V devices.

f

For more information about the Quartus II software design flow, refer to the “Design

Flow” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II

Handbook.

f

For additional documentation about ModelSim-Altera, refer to the ModelSim-Altera

Help that ships with the product. Click the Help button on the ModelSim-Altera toolbar.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulation Libraries

2–3

Simulation Libraries

You are required to run functional simulations, post-synthesis simulations, or gate-level timing simulations. Unless you are using ModelSim-Altera, you must compile the necessary library files before you can run the simulation. The

ModelSim-Altera software has precompiled Altera libraries. Do not recompile these libraries.

A few exceptions require you to compile gate-level timing simulation library files to perform functional simulation. For example, some Altera megafunctions require gate-level libraries to perform a functional simulation with third-party simulators.

Precompiled Simulation Libraries in the ModelSim-Altera Software

Precompiled libraries for both functional and gate-level simulations are provided for the ModelSim-Altera software. You should not compile these library files before running a simulation.

The precompiled libraries provided in <ModelSim-Altera path>/altera> must be compatible with the version of the Quartus II software that is used to create the simulation netlist. To check whether the precompiled libraries are compatible with your version of the Quartus II software, refer to the

<

ModelSim-Altera path>/altera/version.txt file. This file shows which version and build of the Quartus II software was used to create the precompiled libraries.

h

For a list of precompiled library names for all functional and gate-level simulation models, refer to

ModelSim-Altera Precompiled Libraries

in Quartus II Help.

Simulation Library Files in the Quartus II Software

In ModelSim and QuestaSim, no precompiled libraries are available. You must compile the necessary libraries to perform functional or gate-level simulation. h

For a list of all functional simulation library files in the Quartus II directory, refer to

Altera Functional Simulation Libraries

in Quartus II Help. For a list of all post-synthesis and post-fit (gate-level) library files in the Quartus II directory, refer to

Altera Post-Fit

Libraries

in Quartus II Help. For a list of logical library names to compile for simulation models, refer to

Libraries For Altera Simulation Models

in Quartus II Help.

1

Encrypted Altera simulation model files shipped with the Quartus II software version 10.1 and later can only be read by ModelSim-Altera Edition Software version

6.6c and later. These encrypted simulation model files are located at the <Quartus II

System directory>/quartus/eda/sim_lib/<eda simulation vendor> directory, , where

<eda simulation vendor> is aldec, cadence, mentor, or synopsys.

Disabling Timing Violation on Registers

In certain situations, you can ignore a timing violation and disable timing violations on registers (for example, timing violations that occur in internal synchronization registers used for asynchronous clock domain crossing).

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–4 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim-Altera Software

By default, the x_on_violation_option logic option is On, which means simulation shows “x” whenever a timing violation occurs. To disable showing the timing violation on certain registers, set the x_on_violation_option logic option to Off on those registers.

The following Quartus II Tcl command disables timing violation on registers. This Tcl command is also stored in the Quartus II Settings File (.qsf).

set_instance_assignment -name X_ON_VIOLATION_OPTION OFF –to <register_name>

Simulating with the ModelSim-Altera Software

You can perform simulation of Verilog HDL or VHDL designs with the

ModelSim-Altera software at three levels: functional, post-synthesis, and gate-level.

For high-speed simulation, you must select a speed of 1 ps or above in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you select a speed slower than 1 ps, the high-speed simulation may fail.

Setting Up a Quartus II Project for the ModelSim-Altera Software

The first steps in performing a simulation are starting the ModelSim-Altera software, changing to your project or simulation directory, and creating libraries for your design.

h

For more information, refer to

Setting Up a Project with the ModelSim-Altera Software

in

Quartus II Help.

Performing Functional Simulation

Functional simulation verifies code syntax and design functionality. The following sections describe how to perform functional simulation in the ModelSim-Altera software for a Verilog HDL or VHDL design.

h

For information about performing a functional simulation with the ModelSim-Altera software, refer to

Performing a Functional Simulation with the ModelSim-Altera Software

in Quartus II Help.

1

The ModelSim-Altera software includes precompiled simulation libraries for

Altera-provided models. You should not create simulation libraries and compile simulation models for the precompiled Altera libraries.

Performing Post-Synthesis Simulation

Post-synthesis simulation verifies design functionality is preserved after running

Analysis & Synthesis flow in Quartus II software. To run post-synthesis simulation, you must generate post-synthesis netlists and simulate the design with the generated netlists.

f

For more information, refer to the “Generating Post-Synthesis Simulation Netlist

Files” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II

Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

2–5

1

The ModelSim-Altera software includes precompiled simulation libraries for

Altera-provided models. You should not create simulation libraries and compile simulation models for the precompiled Altera libraries.

h

For information about performing a post-synthesis simulation with the

ModelSim-Altera software, refer to

Performing a Timing Simulation with the

ModelSim-Altera Software

in Quartus II Help.

Performing Gate-Level Timing Simulation

Gate-level timing simulation is an important step to ensure that the FPGA device’s functionality is correct and meets all timing requirements after running the Fitter

(Place & Route) flow in Quartus II software. To run gate-level simulation, you must generate gate-level timing simulation netlists and simulate your design with the generated netlists.

f

For more information, refer to the “Generating Gate-Level Timing Simulation Netlist

Files” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II

Handbook.

1

The ModelSim-Altera software includes precompiled simulation libraries for

Altera-provided models. You should not create simulation libraries and compile simulation models for the precompiled Altera libraries.

h

For more information about performing a gate-level simulation with the

ModelSim-Altera software, refer to

Performing a Timing Simulation with the

ModelSim-Altera Software

in Quartus II Help.

f

For additional documentation about ModelSim-Altera, refer to the ModelSim-Altera

Help that ships with the product. Click the Help button on the ModelSim-Altera toolbar.

Simulating with the ModelSim and QuestaSim Software

You can simulate Verilog HDL or VHDL designs with the ModelSim and QuestaSim software at three levels: functional, post-synthesis, and gate-level.

You can perform the simulation with the GUI or from the command line. The following sections provide instructions to perform the simulation with the GUI and from the command line. You can proceed to the specific section that meets your needs.

For high-speed simulation, you must select a speed of 1 ps or above in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you select a speed slower than 1 ps, the high-speed simulation may fail.

Simulating VHDL or Verilog HDL Designs with the GUI

This section provides information about performing functional, post-synthesis, and gate-level simulations of VHDL or Verilog HDL designs with the GUI.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–6 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

Functional Simulation

This section provides information about compiling simulation models and performing a functional simulation.

Compiling Simulation Models into Simulation Libraries

In the Quartus II software, you can use the EDA Simulation Library Compiler tool to help you compile all Altera simulation libraries for Altera devices. The tool helps you compile all or selected Altera device family simulation libraries for ModelSim.

For VHDL, compile the altera_mf_components.vhd and altera_mf.vhd model files in the altera_mf library. Compile the 220pack.vhd and 220model.vhd model files in the

lpm

library. For Verilog HDL, compile the altera_mf.v model files in the

altera_mf_ver

library. Compile the 220model.v model files in the lpm_ver library.

f

For more information about how to compile simulation models into simulation libraries with the EDA Simulation Library Compiler, refer to the “EDA Simulation

Library Compiler” section in the

Simulating Altera Designs

chapter in volume 3 of the

Quartus II Handbook.

h

For more information about how to compile simulation models into simulation libraries if you are not using the EDA Simulation Library Compiler, refer to

Compiling

Libraries with the ModelSim Software

in Quartus II Help.

h

For more information about targeting a Stratix V device, refer to

Guidelines for

Compiling Stratix V Libraries

in Quartus II Help.

1

You require the PCIe file only if you are using the IP Compiler for PCI Express

®

(hard

IP implementation).

Performing the Simulation

h

For information about simulating VHDL designs with the GUI, refer to

Performing a

Functional Simulation with the ModelSim Software

and

Performing a Functional Simulation with the QuestaSim Software

in Quartus II Help.

h

To see all of the functional simulation library files, refer to

Altera Functional Simulation

Libraries

in Quartus II Help.

Post-Synthesis Simulation

1

You cannot perform post-synthesis or post-fit (gate-level) simulation if you are targeting the Stratix V device family.

Performing post-synthesis simulation enables you to verify that the design functionality is preserved after running Analysis & Synthesis in the Quartus II software. To run post-synthesis simulation, you must generate post-synthesis netlists and simulate the design with the generated netlists.

f

For more information, refer to the “Generating Post-Synthesis Simulation Netlist

Files” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II

Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

2–7

h

For information about performing a post-synthesis simulation with the GUI, refer to

Performing a Timing Simulation with the ModelSim Software

and

Performing a Timing

Simulation with the QuestaSim Software

in Quartus II Help.

Gate-Level Timing Simulation

1

You cannot perform post-synthesis or post-fit (gate-level) simulation if you are targeting the Stratix V device family.

Gate-level simulation is a very important step to ensure that the functionality of your

FPGA device is still correct and meets all required timing requirements after running the Fitter (Place & Route) flow in Quartus II software. To run gate-level simulation, you must generate gate-level timing simulation netlists and simulate your design with the generated netlists.

f

For more information, refer to the “Generating Gate-Level Timing Simulation Netlist

Files” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II

Handbook. h

For information about performing a gate-level simulation with the GUI, refer to

Performing a Timing Simulation with the ModelSim Software

and

Performing a Timing

Simulation with the QuestaSim Software

in Quartus II Help.

Simulating VHDL or Verilog HDL Designs with the Command Line

This section provides information about performing functional, post-synthesis, and gate-level simulations of VHDL or Verilog HDL designs from the command line.

Simulating designs from the ModelSim and QuestaSim command line gives you more flexibility and control in compiling the libraries and loading and simulating the design files. All simulation commands are Tcl commands that can be coded into a

<filename>.do, which allows you to run a simulation in batch mode. You have to run only <filename>.do, and the ModelSim and QuestaSim tool automatically runs all commands that are coded in the <filename>.do script macro file.

Functional Simulation

Functional simulation verifies code syntax and design functionality.

Below are examples of the commands used in a <filename>.do to perform functional simulation for VHDL or Verilog HDL designs. Use lib1 to represent an

Altera-provided library.

To create and compile an Altera library, type the following commands:

■ For VHDL designs: vlib <lib1> r vmap <lib1> <lib1> r vcom -work <lib1> <lib1>.vhd r vlib <lib2> r vmap <lib2> < lib2> r vcom -work < lib2> < lib2>.vhd r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–8 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

■ For Verilog HDL designs: vlib <lib1>_ver r vmap <lib1>_ver <lib1>_ver r vcom -work <lib1> <lib1>.v r vlib <lib2>_ver r vmap <lib2>_ver < lib2>_ver r vcom -work < lib2>_ver < lib2>.v r

To create the work library and compile the design and testbench files, type the following commands:

For VHDL designs:

■ vlib work r vmap work work r vcom -work work <design_file1>.vhd <design file2>.vhd <testbench file>.vhd r

For Verilog HDL designs: vlib work r vmap work work r vlog -work work <design_file1>.v <design file2>.v <testbench file>.v r

To load the design, type the following command:

■ For VHDL Designs vsim -L work -L <lib1> -L <lib2> work.<testbench module name> r

For Verilog HDL Designs

■ vsim -L work -L <lib1>_ver -L <lib2>_ver work.<testbench module name> r

To add signals to the waveform viewer and run the simulation, type the following commands: add wave * r run r

Examples:

Example 2–1. For VHDL Designs

# Create and compile Altera libraries vlib altera_mf vmap altera_mf altera_mf vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd

vlib lpm vmap lpm lpm vcom -work lpm 220pack.vhd 220model.vhd

# Create work library and compile design files and testbench file vlib work vmap work work vcom -work work top_level.vhd adder.vhd testbench.vhd

# Load design vsim -L work -L altera_mf -L lpm work.testbench

# add signals to the waveform viewer and run simulation add wave * run

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

2–9

Example 2–2. For Verilog HDL Designs

# Create and compile Altera libraries vlib altera_mf_ver vmap altera_mf_ver altera_mf_ver vlog -work altera_mf_ver altera_mf.v

vlib lpm_ver vmap lpm_ver lpm_ver vlog -work lpm_ver 220model.v

# Create work library and compile design files and testbench file vlib work vmap work work vlog -work work top_level.v adder.v testbench.v

# Load design vsim -L work -L altera_mf_ver -L lpm_ver work.testbench

# add signals to the waveform viewer and run simulation add wave * run h

For more information on functional simulation libraries provided by Altera, refer to

Altera Functional Simulation Libraries

in Quartus II Help.

h

For more information about targeting a Stratix V device, refer to

Guidelines for

Compiling Stratix V Libraries

in Quartus II Help.

Post-Synthesis Simulation

1

You cannot perform post-synthesis or post-fit (gate-level) simulation if you are targeting the Stratix V device family.

Perform post-synthesis simulation to verify that design functionality is preserved after synthesis. Create the post-synthesis netlist in the Quartus II software and use the netlist to perform post-synthesis simulation with the ModelSim and QuestaSim software. Before running post-synthesis simulation, generate post-synthesis simulation netlist files. f

For more information about how to generate the netlist, refer to the “Generating Post-

Synthesis Simulation Netlist Files” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

h

For information about performing a post-synthesis simulation with the GUI, refer to

Performing a Timing Simulation with the ModelSim Software

and

Performing a Timing

Simulation with the QuestaSim Software

in Quartus II Help.

Type the following commands to perform a post-synthesis simulation for VHDL or

Verilog HDL designs. Use lib1 to represent any Altera-provided libraries.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–10 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

To create and compile Altera libraries, type the following commands:

For VHDL designs: vlib work r vmap work work r vcom -work work <output_netlist>.vho <testbench file>.vhd r

For Verilog HDL designs: vlib work r vmap work work r vlog -work work <output_netlist>.vo <testbench file>.v r

To load the design, type the following command:

■ For VHDL designs:

■ vsim +transport_int_delays +transport_path_delays -L work -L \

<lib1>-L <lib2> work.<testbench module name> r

For Verilog HDL designs: vsim -t ps +transport_int_delays +transport_path_delays -L work -L \

<lib1>_ver -L <lib2>_ver work.<testbench module name> r

To add signals to the waveform viewer and to run simulation, type the following commands: add wave * r run r

Examples:

Example 2–3. For VHDL Designs

# Create and compile Altera libraries vlib altera vmap altera altera vcom -work altera altera_primitives_components.vhd \ altera_primitives.vhd

vlib stratixiii vmap stratixiii stratixiii vcom -work stratixiii stratixiii.atoms.vhd stratixiii_components.vhd

# Create work library and compile design files and testbench file vlib work vmap work work vcom -work work top_level.vho testbench.vhd

# Load design vsim +transport_int_delays +transport_path_delays -L work -L \ altera -L stratixiii work.testbench

# add signals to the waveform viewer and run simulation add wave * run

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with the ModelSim and QuestaSim Software

2–11

Example 2–4. For Verilog HDL Designs

# Create and compile Altera libraries vlib altera_ver vmap altera_ver altera_ver vlog -work altera_ver altera_primitives.v

vlib stratixiii_ver vmap stratixiii_ver stratixiii_ver vlog -work stratixiii_ver stratixiii_atoms.v

# Create work library and compile design files and testbench file vlib work vmap work work vlog -work work top_level.vo testbench.v

# Load design vsim +transport_int_delays +transport_path_delays -L work -L altera_ver -L stratixiii_ver work.testbench

#add signals to the waveform viwer and run simulation add wave * run h

For more information about Altera-provided post-fit libraries, refer to

Altera Post-Fit

Libraries

in Quartus II Help.

Gate-Level Timing Simulation

1

You cannot perform post-synthesis or post-fit (gate-level) simulation if you are targeting the Stratix V device family.

The steps for gate-level timing simulation are similar with the steps for post-synthesis simulation, except for the following differences:

For gate-level timing simulation, you must back-annotate the Standard Delay

Format Output File (.sdo)

For VHDL designs, you must add the -sdftyp option for back-annotating

Example 2–5.

vsim +transport_int_delays +transport_path_delays -sdftyp \

<instance path to design> = <path to SDO file> -L work \

-L stratixiii -L altera work.testbench

You do not have to set the value (minimum, average, maximum) for the *.sdo, because the Quartus II EDA Netlist Writer generates the *.sdo with the same value for the minimum, average, and maximum timing values.

If you instantiate your design in the testbench file under the i1

label, the <design

instance> should be “ i1

” (for example,

/i1=<my design>.sdo

).

For Verilog HDL designs, the back-annotating process is already set within the

output_netlist.vo

script. You are not required to back-annotate the .sdo again.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–12 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating Designs that Include Transceivers

Passing Parameter Information from Verilog HDL to VHDL

You must use in-line parameters to pass values from Verilog HDL to VHDL. Using the defparam construct causes an error in simulation. In the example below: lpm_add_sub_component (

.dataa (dataa),

.datab (datab),

.result (sub_wire0)

); defparam lpm_add_sub_component.lpm_direction = "ADD", lpm_add_sub_component.lpm_hint =

"ONE_INPUT_IS_CONSTANT=NO,CIN_USED=NO", lpm_add_sub_component.lpm_type = "LPM_ADD_SUB", lpm_add_sub_component.lpm_width = 12;

You will see the following error message:

# ** Error: (vsim-3043)

/apps2/home/users/bhlee/SPR_ADOQS/ADOQS10000935_IN_LINE_PARAMETER/lpm_ add_sub1.v(67): Unresolved reference to 'lpm_add_sub_component' in lpm_add_sub_component.lpm_direction.

# Region: /IN_LINE_PARAMETER_vlg_vec_tst/i1/b2v_inst

This megafunction instantiation has been modified to use in-line parameters: lpm_add_sub#(12,"SIGNED","ADD",0,"LPM_ADD_SUB","ONE_INPUT_IS_CONSTANT=

NO,CIN_USED=NO") lpm_add_sub_component (

.dataa (dataa),

.datab (datab),

.result (sub_wire0)

);

1

The sequence of the parameters depends on the sequence of the GENERIC in the

VHDL component declaration.

Speeding Up Simulation

By default, the ModelSim and QuestaSim software runs in a debug-optimized mode.

To run the ModelSim and QuestaSim software in speed-optimized mode, add the following two vlog command-line switches: vlog -fast -05

In this mode, module boundaries are flattened and loops are optimized, which eliminates levels of debugging hierarchy and may result in faster simulation. This switch is not supported in the ModelSim-Altera simulator.

Simulating Designs that Include Transceivers

If your design includes an Arria

®

GX, Arria II GX, Cyclone

®

IV, HardCopy

®

IV,

Stratix GX, Stratix II GX, Stratix IV, or Stratix V transceiver, you must compile additional library files to perform functional or gate-level timing simulations.

1

You cannot perform post-synthesis or post-fit (gate-level) simulation if you are targeting the Stratix V device family.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating Designs that Include Transceivers

2–13

For high-speed simulation, you must select a speed of 1 ps and above in the

Resolution

list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you select a speed slower than 1 ps, the high-speed simulation may fail.

f

If you are using the IP Compiler for PCI Express (hard IP implementation) in your design, refer to the “Simulating the Design” section in the

IP Compiler for PCI Express

User Guide

.

The following sections show you how to perform functional and gate-level timing simulation on transceiver devices. Command-line templates are provided. In these

templates, cross-reference the values of Library Name and Library File with Table 2–1 on page 2–14

and Table 2–2 on page 2–16 according to a given transceiver device.

Functional Simulation

The following sections list the commands you need to type to perform a functional simulation for ModelSim-Altera and ModelSim or QuestaSim.

h

For Stratix V, you must compile the libraries listed in

Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

ModelSim-Altera

The following examples show the commands you need to type to perform a functional simulation for ModelSim-Altera.

Example 2–6. For VHDL Designs

vcom -work <my_design>.vhd <my_testbench>.vhd

vsim -L lpm -L altera_mf -L sgate \

-L <Library Name> work.<my_testbench>

Example 2–7. For Verilog HDL Designs

vcom -work <my_design>.vhd <my_testbench>.vhd

vlog -L lpm_ver -L altera_mf_ver -L sgate_ver \

-L <Library Name>_ver work.<my_testbench>

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–14 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating Designs that Include Transceivers

ModelSim or QuestaSim

The following examples show the commands you need to type to perform a functional simulation for ModelSim or QuestaSim.

Example 2–8. For VHDL Designs

vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd

vcom -work lpm 220pack.vhd 220model.vhd

vcom -work sgate sgate_pack.vhd sgate.vhd

vcom -work <Library Name> <Library File 1>.vhd \

<Library File 2>.vhd

vcom -work <my_design>.vhd <my_testbench>.vhd

vsim -L lpm -L altera_mf -L sgate -L <Library Name> work.<my_testbench>

Example 2–9. For Verilog HDL Designs

vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd

vcom -work lpm 220pack.vhd 220model.vhd

vcom -work sgate sgate_pack.vhd sgate.vhd

vcom -work <Library Name> <Library File 1>.vhd \

<Library File 2>.vhd

vcom -work <my_design>.vhd <my_testbench>.vhd

vsim -L lpm -L altera_mf -L sgate -L <Library Name> work.<my_testbench>

Table 2–1. Functional Simulation Libraries for Transceiver Devices

Transceiver Libraries

Devices

Arria GX

Arria II GX

Cyclone IV

HardCopy IV

Stratix GX

Stratix II GX

Stratix IV GX

Stratix V GX

Library Files to Compile

arriagx_hssi_components.vhd

arriagx_hssi_atoms (.vhd or .v) arriaii_hssi_components.vhd

arriaii_hssi_atoms (.vhd or .v) cycloneiv_hssi_components.vhd

cycloneiv_hssi_atoms (.vhd or .v) hardcopyiv_hssi_components.vhd

hardcopyiv_hssi_atoms (.vhd or .v) stratixgx_mf_components.vhd

stratixgx_mf (.vhd or .v) stratixiigx_hssi_components.vhd

stratixiigx_hssi (.vhd or .v) stratixiv_hssi_components.vhd

stratixiv_hssi (.vhd or .v) stratixv_hssi_atoms_ncrypt.v

stratixv_hssi_components.vhd

stratixv_hssi_atoms (.vhd or .v)

Logical Library Name

arriagx_hssi arriaii_hssi cycloneiv_hssi hardcopyiv_hssi altgxb stratixiigx_hssi stratixiv_hssi stratixv_hssi

Common Libraries

altera_mf lpm sgate

For a list of simulation library files to compile for the common libraries, refer to

Table 2–3 on page 2–17 .

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating Designs that Include Transceivers

2–15

Gate-Level Timing Simulation

The following sections list the commands you need to type to perform a gate-level timing simulation for ModelSim-Altera and ModelSim or QuestaSim.

h

For Stratix V, you must compile the libraries listed in

Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

ModelSim-Altera

The following examples show the commands you need to type to perform a gate-level timing simulation for ModelSim-Altera.

Example 2–10. For VHDL Designs

vcom -work <my design>.vho <my testbench>.vhd

vsim -L lpm -L altera_mf -L sgate -L <Library Name 1> -L <Library Name 2> \

-sdftyp <design instance>=<path to .sdo file>.sdo work.<my testbench> \

-t ps - +transport_int_delays+transport_path_delays

Example 2–11. For Verilog HDL Designs

vlog -work <my design>.vo <my testbench>.v vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L <Library Name 1>_ver -L \

<Library Name 2>_ver work.<my testbench> -t ps +transport_int_delays \

+transport_path_delays

ModelSim or QuestaSim

The following examples show the commands you need to type to perform a gate-level timing simulation for ModelSim or QuestaSim.

Example 2–12. For VHDL Designs

vcom -work lpm 220pack.vhd 220model.vhd vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd vcom -work sgate sgate_pack.vhd sgate.vhd vcom -work <Library Name 1> <Library File 1>.vhd <Library File 2>.vhd vcom -work <Library Name 2> <Library File 1>.vhd <Library File 2>.vhd

vcom -work <my design>.vho <my testbench>.vhd vsim -L lpm -L altera_mf -L sgate -L <Library Name 1> -L <Library Name 2> \

-sdftyp <design instance>=<path to .sdo file>.sdo work.<my testbench> \

-t ps +transport_int_delays +transport_path_delays

Example 2–13. For Verilog HDL Designs

vlog -work lpm_ver 220model.v vlog -work altera_mf_ver altera_mf.v vlog -work sgate_ver sgate.v vlog -work <Library Name 1>_ver <Library File 1>.v vlog -work <Library Name 2>_ver <Library File 2>.v vlog -work <my design>.vo <my testbench>.v vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L <Library Name 1>_ver \

-L <Library Name 2>_ver work.<my testbench> -t ps +transport_int_delays \

+transport_path_delays

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–16 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating Designs that Include Transceivers

Table 2–2

lists the gate-level timing simulation libraries for transceiver devices.

Table 2–2. Gate-Level Timing Simulation Libraries for Transceiver Devices

Transceiver Libraries

Devices

Arria GX

Arria II GX

Cyclone IV

HardCopy IV

Stratix GX

Stratix II GX

Stratix IV GX

Stratix V GX

Library Files to Compile

arriagx_components.vhd

arriagx_atoms (.vhd or .v) arriagx_hssi_components.vhd

arriagx_hssi_atoms (.vhd or .v) arriaii_components.vhd

arriaii_atoms (.vhd or .v) arriaii_hssi_components.vhd

arriaii_hssi_atoms (.vhd or .v) cycloneiv_components.vhd

cycloneiv_atoms (.vhd or .v) cycloneiv_hssi_components.vhd

cycloneiv_hssi_atoms (.vhd or .v) hardcopyiv_components.vhd

hardcopyiv_atoms (.vhd or .v) hardcopyiv_hssi_components.vhd

hardcopyiv_hssi_atoms (.vhd or .v) stratixgx_components.vhd

stratixgx_atoms (.vhd or .v) stratixgx_hssi_components.vhd

stratixgx_hssi_atoms (.vhd or .v) stratixiigx_components.vhd

stratixiigx_atoms (.vhd or .v) stratixiigx_hssi_components.vhd

stratixiigx_hssi_atoms (.vhd or .v) stratixiv_components.vhd

stratixiv_atoms (.vhd or .v) stratixiv_hssi_components.vhd

stratixiv_hssi_atoms (.vhd or .v) stratixiv_hssi_components.vhd

stratixv_atoms (.vhd or .v) stratixv_hssi_atoms_ncrypt.v

stratixv_hssi_components.vhd

stratixv_hssi_atoms (.vhd or .v)

Logical Library Name

arriagx arriagx_hssi arriaii arriaii_hssi cycloneiv cycloneiv_hssi hardcopyiv hardcopyiv_hssi stratixgx stratixgx_gxb stratixiigx stratixiigx_hssi stratixiv stratixiv_hssi stratixv stratixv_hssi

Common Libraries

altera_mf lpm sgate

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Using the NativeLink Feature with ModelSim-Altera, ModelSim, or QuestaSim Software

2–17

Table 2–3

lists the simulation library files to compile for the common libraries needed for all Altera transceiver designs.

Table 2–3. Common Libraries

Library Name

altera_mf lpm sgate

Library Files to Compile

altera_mf_components (.vhd or .v) altera_mf (.vhd or .v)

220pack (.vhd or .v)

220model (.vhd or .v) sgate_pack (.vhd or .v) sgate (.vhd or .v)

Transport Delays

By default, the ModelSim and QuestaSim software filters out all pulses that are shorter than the propagation delay between primitives. Turning on the transport

delay

options in the ModelSim and QuestaSim software prevents the simulation tool from filtering out these pulses.

Table 2–4

describes the transport delay options.

Table 2–4. Transport Delay Options

Option

+transport_path_delays

+transport_int_delays

Description

Use this option when the pulses in your simulation are shorter than the delay within a gate-level primitive. You must include the

+pulse_e/number

and

+pulse_r/number

options.

Use this option when the pulses in your simulation are shorter than the interconnect delay between gate-level primitives. You must include the

+pulse_int_e/number

and

+pulse_int_r/number

options.

1

The +transport_path_delays and +transport_int_delays options are also used by default in the NativeLink feature for gate-level timing simulation.

f

For more information about either of these options, refer to the ModelSim-Altera

Command Reference installed with the ModelSim and QuestaSim software.

The following ModelSim and QuestaSim software command shows the command line syntax to perform a gate-level timing simulation with the device family library: vsim -t 1ps -L stratixii -sdftyp /i1=filtref_vhd.sdo work.filtref_vhd_vec_tst \

+transport_int_delays +transport_path_delays

Using the NativeLink Feature with ModelSim-Altera, ModelSim, or

QuestaSim Software

The NativeLink feature in the Quartus II software facilitates the seamless transfer of information between the Quartus II software and EDA tools and allows you to run

ModelSim and QuestaSim within the Quartus II software.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–18 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

ModelSim and QuestaSim Error Message Information f

For more information, refer to the “Launching the EDA Simulator with the

NativeLink Feature” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

ModelSim and QuestaSim Error Message Information

ModelSim and QuestaSim error and warning messages are tagged with a vsim

or vcom code. To determine the cause and resolution for a vsim

or vcom

error or warning, use the verror

command.

For example, ModelSim and QuestaSim may display the following error message:

# ** Error:

C:/altera_trn/DUALPORT_TRY/simulation/modelsim/DUALPORT_TRY.vho(31):

(vcom-1136) Unknown identifier "stratixiii".

In this case, type the following command: verror 1136 r

At that point, the error message appears as follows:

# vcom Message # 1136:

# The specified name was referenced but was not found. This indicates

# that either the name specified does not exist or is not visible at

# this point in the code.

Generating a Timing Value Change Dump File (.vcd) for the PowerPlay

Power Analyzer

To generate a timing Value Change Dump File (.vcd) for the PowerPlay Power

Analyzer, you must first generate a <filename>_dump_all_vcd_nodes.tcl script file in the Quartus II software and run the <filename>_dump_all_vcd_nodes.tcl script file from the ModelSim, QuestaSim, or ModelSim-Altera software to generate a timing

<filename>.vcd. The PowerPlay Power Analyzer can then use this timing

<filename>.vcd for power analysis.

The generation of the <filename>_dump_all_vcd_nodes.tcl script file from the

Quartus II software and the <filename>.vcd file from ModelSim using the script file can be integrated together so that the generation of the <filename>.vcd file can be achieved with a one-button push-automated process.

To set up the automated process flow to generate the <filename>.vcd file, perform the following steps:

1. Set up the EDA simulator execution path. For more information, refer to the

“Setting Up the EDA Simulator Execution Path” section in the

Simulating Altera

Designs

chapter in the Quartus II Handbook.

2. Configure the NativeLink settings for simulation. For more information, refer to the “Configuring NativeLink Settings” section in the

Simulating Altera Designs

chapter in the Quartus II Handbook.

3. When you are configuring the NativeLink settings, turn on the Generate Value

Change Dump (VCD) file script

option.

4. Set the top-level design instance name that you want to use in your testbench.

5. Once all settings are finalized, run a full compilation in the Quartus II software.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Viewing a Waveform from a .wlf

2–19

6. Start a gate-level timing simulation; in the Tools menu, select Run EDA

Simulation

, and then click EDA Gate Level Simulation.

Performing gate-level simulation generates the

<filename>_dump_all_vcd_nodes.tcl file, the ModelSim simulation

<filename>_run_msim_gate_vhdl/verilog.do file (which includes the .vcd and .tcl execution lines), and all the other necessary files to perform the simulation.

ModelSim then automatically launches and runs the generated .do to start the simulation.

7. Break the simulation if your testbench does not have a break point. End the simulation to have ModelSim generate the .vcd. You can only generate the .vcd after simulation ends with the End Simulation function.

f

For more information about using the timing <filename>.vcd for power estimation, refer to the

PowerPlay Power Analysis

chapter in volume 3 of the Quartus II Handbook.

Viewing a Waveform from a .wlf

A Wave Log Format File (.wlf) is automatically generated when your simulation is run. The .wlf is used for generating the waveform view through ModelSim-Altera,

ModelSim, or QuestaSim.

To view a waveform from a .wlf through ModelSim-Altera, ModelSim, or QuestaSim, perform the following steps:

1. Type vsim at the command line. The ModelSim/QuestaSim or ModelSim-Altera dialog box appears.

2. On the File menu, click Datasets. The Datasets Browser dialog box appears.

3. Click Open and browse to the directory that contains your .wlf.

4. Select the .wlf file and click Open, then click OK.

5. Click Done.

6. In the Object browser, select the signals that you want to observe.

7. On the Add menu, click Wave and then click Selected Signals.

You cannot view a waveform from a .vcd in ModelSim-Altera, ModelSim, or

QuestaSim directly. The .vcd must first be converted to a .wlf.

1. Use the vcd2wlf

command to convert the file. For example, type the following at the command-line: vcd2wlf <example>.vcd <example>.wlf r

2. After you convert the .vcd to a .wlf, follow the procedures for viewing a waveform from a .wlf through ModelSim and QuestaSim.

You can also convert your .wlf to a .vcd by using the wlf2vcd

command.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–20 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Simulating with ModelSim-Altera Waveform Editor

Simulating with ModelSim-Altera Waveform Editor

You can use the ModelSim-Altera Waveform Editor as a simple method to create a design stimulus for simulation. You can create this design stimulus via interactive manipulation of waveforms from the wave window in ModelSim-Altera. With the

ModelSim-Altera waveform editor, you can create and edit waveforms, drive simulation directly from created waveforms, and save created waveforms into a stimulus file.

f

For more information, refer to the Generating Stimulus with Waveform Editor chapter in the ModelSim SE User’s Manual available on the ModelSim website ( www.model.com

).

Scripting Support

You can run procedures and create settings described in this chapter in a Tcl script.

You can also run some procedures at the command line prompt.

f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook. f

For more information about command line scripting, refer to the Command-Line

Scripting chapter in volume 2 of the Quartus II Handbook.

For detailed information about scripting command options, refer to the Quartus II

Help command line and Tcl API help browser. To access this information, type the following command to start a help browser: quartus_sh --qhelp r

Generating a Post-Synthesis Simulation Netlist for ModelSim and

QuestaSim

You can use the Quartus II software to generate a post-synthesis simulation netlist with Tcl commands or with a command at the command-line prompt. The following example assumes that you are selecting ModelSim and QuestaSim (Verilog HDL output from the Quartus II software).

Tcl Commands

Use the following Tcl commands to set the output format to Verilog HDL, to set the simulation tool to ModelSim and QuestaSim for Verilog HDL, and to generate a functional netlist: set_global_assignment-name EDA_SIMULATION_TOOL "ModelSim (Verilog)" r set_global_assignment-name EDA_GENERATE_FUNCTIONAL_NETLIST ON r or set_global_assignment-name EDA_SIMULATION_TOOL "QuestaSim (Verilog)" r set_global_assignment-name EDA_GENERATE_FUNCTIONAL_NETLIST ON r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Scripting Support

2–21

Command Prompt

Use the following command to generate a simulation output file for the ModelSim and QuestaSim simulator. Specify VHDL or Verilog HDL for the format: quartus_eda <project name> --simulation=on --format=<format> \

--tool=ModelSim --functional r or quartus_eda <project name> --simulation=on --format=<format> \

--tool=QuestaSim --functional r

Generating a Gate-Level Timing Simulation Netlist for ModelSim and

QuestaSim

Use the Quartus II software to generate a gate-level timing simulation netlist with Tcl commands or with a command at the command prompt.

Tcl Commands

Use one of the following Tcl commands:

■ set_global_assignment -name EDA_SIMULATION_TOOL \

"ModelSim-Altera (Verilog)" r or

■ set_global_assignment -name EDA_SIMULATION_TOOL \

"QuestaSim-Altera (Verilog)" r set_global_assignment -name EDA_SIMULATION_TOOL \

"ModelSim-Altera (VHDL)" r or

■ set_global_assignment -name EDA_SIMULATION_TOOL \

"QuestaSim-Altera (VHDL)" r set_global_assignment -name EDA_SIMULATION_TOOL "ModelSim (Verilog)" r or

■ set_global_assignment -name EDA_SIMULATION_TOOL "QuestaSim (Verilog)" r set_global_assignment -name EDA_SIMULATION_TOOL "ModelSim (VHDL)" r or set_global_assignment -name EDA_SIMULATION_TOOL "QuestaSim (VHDL)" r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–22 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Software Licensing and Licensing Setup in ModelSim-Altera Subscription Edition

Command Line

Generate a simulation output file for the ModelSim and QuestaSim simulator by specifying VHDL or Verilog HDL for the format by typing the following command at the command prompt: quartus_eda <project name> --simulation=on --format=<format> \

--tool=ModelSim r or quartus_eda <project name> --simulation=on --format=<format> \

--tool=QuestaSim r

Software Licensing and Licensing Setup in ModelSim-Altera

Subscription Edition

f

For more information about the ModelSim-Altera Subscription Edition software, including pricing, refer to the ModelSim-Altera Software page of the Altera website.

f

For more information about obtaining and setting up the license for the

ModelSim-Altera Subscription Edition software, refer to the “Licensing Altera

Software” section in the

Altera Software Installation and Licensing Manual

.

1

Currently, Altera does not support companion licensing for ModelSim AE.

1

The USB software guard is not supported by versions earlier than Mentor Graphics

ModelSim software version 5.8d.

1

For ModelSim-Altera software versions prior to 5.5b, use the PCLS utility included with the software to set up the license.

Conclusion

Using the ModelSim, QuestaSim, and ModelSim-Altera simulation software within the Altera FPGA design flow enables you to easily and accurately perform functional simulations, post-synthesis simulations, and gate-level simulations on their designs.

Proper verification of designs at the functional, post-synthesis, and post place-and-route stages with the ModelSim, QuestaSim, and ModelSim-Altera software helps ensure design functionality and success and, ultimately, a quick time-to-market.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Document Revision History

2–23

Document Revision History

Table 2–5

shows the revision history for this chapter.

Table 2–5. Document Revision History (Part 1 of 2)

Date Version

November 2011

May 2011

December 2010

July 2010

November 2009

11.1.0

11.0.0

10.1.0

10.0.0

9.1.0

Changes

Added information about encrypted Altera simulation model files in

“Simulation

Library Files in the Quartus II Software” on page 2–3

Updated Table 2–1 on page 2–14

and Table 2–2 on page 2–16

Updated “Generating a Timing Value Change Dump File (.vcd) for the PowerPlay

Power Analyzer” on page 2–18

Added information in

“Software Licensing and Licensing Setup in ModelSim-Altera

Subscription Edition” on page 2–22

Updated “Software Requirements” on page 2–2

Updated “Design Flow with ModelSim-Altera, ModelSim, or QuestaSim Software” on page 2–2

Restructured “Simulating with the ModelSim-Altera Software” on page 2–4

Restructured “Simulating with the ModelSim and QuestaSim Software” on page 2–5

Restructured “Simulating Designs that Include Transceivers” on page 2–12

Changed section name from “ModelSim and QuestaSim Error Message Verification” to “ModelSim and QuestaSim Error Message Information” on page 2–18

Changed section name from “Simulating with ModelSim-Altera Waveform” to

“Simulating with ModelSim-Altera Waveform Editor” on page 2–20

Changed to new document template

Referenced Simulating Altera Designs chapter

Added new section, “Simulating with ModelSim-Altera Waveform Editor” on page 2–20

Removed Stratix V compilation information and linked to Quartus II Help

Removed simulation library tables and linked to Quartus II Help

Added other links to Quartus II Help and ModelSim-Altera Help where appropriate and removed redundant information

Added QuestaSim support

Added Stratix V simulation information

Minor editorial changes throughout

Removed Referenced Documents section

Removed NativeLink information and referenced new Simulating Designs with EDA

Tools chapter

Added Stratix IV transceiver simulation section

Reformatted transceiver simulation sections

Text edits throughout chapter

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

2–24 Chapter 2: Mentor Graphics ModelSim and QuestaSim Support

Document Revision History

Table 2–5. Document Revision History (Part 2 of 2)

Date Version

March 2009

November 2008

May 2008

9.0.0

8.1.0

8.0.0

Changes

Added the following sections:

“Compile Libraries Using the EDA Simulation Library Compiler” on page 2–17

“Generate Simulation Script from EDA Netlist Writer” on page 2–77

“Viewing a Waveform from a .wlf File” on page 2–78

Updated the following:

Table 2–1, Table 2–2, Table 2–5, Table 2–6, Table 2–7, Table 2–8, Table 2–9,

Table 2–10

Figure 2–4 on page 2–81

All sections titled “Loading the Design”

Updated the following:

Table 2–2, Table 2–3, Table 2–4, Table 2–5, Table 2–6

Removed

--zero_ic_delays

from quartus_sta

option in “Generate

Post-Synthesis Simulation Netlist Files” on page 2–11

Removed steps to include the library when the simulation is run in VHDL mode from all procedures; this is no longer necessary

Added information about the Altera Simulation Library Compiler throughout the chapter

Added “Compile Libraries Using the Altera Simulation Library Compiler” on page 2–15

Added “Disabling Simulation” on page 2–72

Minor editorial updates

Updated entire chapter using 8½” × 11” chapter template

Updated the following:

“Altera Design Flow with ModelSim-Altera or ModelSim Software” on page 2–3

“Simulation Libraries” on page 2–4

“Simulation Netlist Files” on page 2–11

“Perform Simulation Using ModelSim-Altera Software” on page 2–15

“Perform Simulation Using ModelSim Software” on page 2–33

“Simulating Designs that Include Transceivers” on page 2–57

“Using the NativeLink Feature with ModelSim-Altera or ModelSim Software” on page 2–63

“Generating a Timing VCD File for PowerPlay” on page 2–68 f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

3. Synopsys VCS and VCS MX Support

November 2011

QII53002-11.0.1

QII53002-11.0.1

This chapter describes how to use the Synopsys VCS and VCS MX software to simulate designs that target Altera

®

FPGAs. This chapter provides instructions about how to perform functional simulations, post-synthesis simulations, and gate-level timing simulations. This chapter also describes the location of the simulation libraries and how to automate simulations.

This chapter includes the following topics:

“Software Requirements”

“Using the VCS or VCS MX Software in the Quartus II Design Flow”

“Common VCS and VCS MX Software Compiler Options” on page 3–8

“Using DVE” on page 3–8

“Debugging Support Command-Line Interface” on page 3–9

“Simulating Designs that Include Transceivers” on page 3–9

“Transport Delays” on page 3–13

“Using NativeLink with the VCS or VCS MX Software” on page 3–13

“Generating a Timing .vcd File for the PowerPlay Power Analyzer” on page 3–13

“Viewing a Waveform from a .vpd or .vcd File” on page 3–14

“Scripting Support” on page 3–15

Software Requirements

To simulate your design with the Synopsys VCS or VCS MX software, you must first set up the Altera libraries. These libraries are installed with the Quartus

®

II software.

f

For more information about installing the software and the directories created during the Quartus II software installation, refer to the

Altera Software Installation and

Licensing

manual.

Using the VCS or VCS MX Software in the Quartus II Design Flow

You can perform the following types of simulations with the VCS and VCS MX software:

Functional Simulation

Post-Synthesis Simulation

Gate-Level Timing Simulation

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

3–2 Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow f

Refer to the “PLD Design Flow” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook for the Quartus II software design flow.

Compiling Libraries Using the EDA Simulation Library Compiler

The EDA Simulation Library Compiler compiles Verilog HDL, SystemVerilog HDL, and VHDL simulation libraries for all Altera devices and supported third-party simulators. You can compile all libraries required by functional and gate-level timing simulations.

If the compilation targets the VCS simulator, the VCS options file simlib_comp.vcs is generated after compilation.

f

For more information, refer to the “EDA Simulation Library Compiler” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Functional Simulation

A functional simulation verifies the functionality of the design before synthesis, placement, and routing. A functional simulation is independent of any Altera FPGA architecture implementation. After the HDL designs are verified to be functionally correct, the next step is to synthesize the design and use the Quartus II software to place-and-route the design in an Altera device.

To perform a functional simulation of an Altera FPGA design that uses Altera intellectual property (IP) megafunctions or a library of parameterized modules (LPM) functions, you must include certain libraries during the compilation. h

For a list of the functional simulation library files in the Quartus II directory, refer to

Altera Functional Simulation Libraries

in Quartus II Help.

Functional Simulation for Verilog HDL and SystemVerilog HDL Designs

Use the following VCS commands to perform a functional simulation for Verilog HDL and SystemVerilog HDL designs with functional simulation libraries:

For Verilog HDL, type the following command: vcs -R <testbench>.v <design name>.v –v <altera_library1>.v -v \

<altera_library2>.v

r

For SystemVerilog HDL, type the following command: vcs -R <testbench>.v <design name>.v -v <altera_library1>.v -v \

<altera_library2>.v +systemverilogext+.sv+.svo

r

If you have already generated the option file (simlib_comp.vcs) from “Compiling

Libraries Using the EDA Simulation Library Compiler” , type the following command:

vcs -file simlib_comp.vcs

r

Be sure to include the design files and testbench files in simlib_comp.vcs.

Alternatively, you can use the following commands to perform functional simulation for Verilog HDL and SystemVerilog HDL designs.

1. To create library directories, type the following commands:

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow

3–3

mkdir <Directory_to_store_compiled_altera_library1> r mkdir <Directory_to_store_compiled_altera_library2> r

2. To create the work directory, type the following command: mkdir <Directory_to_store_compiled_design_and_testbench_files> r

1

Before performing the following step, make sure the mapped file synopsys_sim.setup was created.

3. To compile libraries, type the following commands: vlogan -work <altera_library1_name> <altera_library1>.v r vlogan -work <altera_library2_name> <altera_library2>.v r

4. To compile the design and testbench, type the following command: vlogan -work <work_library_name> <design>.v <testbench>.v r

1

For SystemVerilog, type the following commands: vlogan -sverilog <design>.sv r vlogan -sverilog <design>.svo r

5. To elaborate your design, type the following command: vcs -debug_all <work_library_name>.<testbench_top-level_module> r

6. To run the simulation, type the following command simv -gui r

The synopsys_sim.setup

file contains the following mapping commands to map the libraries:

<altera_library1_name> : <Directory_to_store_compiled_altera_library1>

<altera_library2_name> : <Directory_to_store_compiled_altera_library2>

<work_library_name> : <Directory_to_store_compiled_design

and_testbench_files>

1

The altera_mf.v model files should be compiled into the altera_mf_ver library. The

220model.v

model files should be compiled into the lpm_ver library.

h

If you are compiling Stratix

®

V libraries, refer to Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Functional Simulation for VHDL Designs

For VHDL designs, you need to use VCS MX software to perform all three types of simulations. Use the following commands to perform a functional simulation for

VHDL designs with the libraries listed in

Altera Functional Simulation Libraries

in

Quartus II Help.

1. To create library directories, type the following commands: mkdir <Directory_to_store_compiled_altera_library1> r mkdir <Directory_to_store_compiled_altera_library2> r

2. To create the work directory, type the following command: mkdir <Directory_to_store_compiled_design_and_testbench_files> r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–4 Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow

1

Before performing the following step, make sure the mapped file synopsys_sim.setup was created.

3. To compile libraries, type the following commands: vhdlan -work <altera_library1_name> <altera_library1>.vhd r vhdlan -work <altera_library2_name> <altera_library2>.vhd r

4. To compile the design and testbench, type the following command: vhdlan -work <work_library_name> <design>.vhd <testbench>.vhd r

5. To elaborate your design, type the following command: vcs -debug_all <work_library_name>.<testbench_top_level_module> r

6. To run the simulation, type the following command: simv -gui r

The synopsys_sim.setup

file contains the following mapping commands to map the libraries:

<altera_library1_name> : <Directory_to_store_compiled_altera_library1>

<altera_library2_name> : <Directory_to_store_compiled_altera_library2>

<work_library_name> : <Directory_to_store_compiled_design \

and_testbench_files>

1

The altera_mf.v model files should be compiled into the altera_mf_ver library. The

220model.v

model files should be compiled into the lpm_ver library.

1

If you have generated the Altera libraries with the EDA Simulation Library Compiler, ignore steps

1

and

3 .

h

If you are compiling Stratix V libraries, refer to Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Post-Synthesis Simulation

A post-synthesis simulation verifies the functionality of a design after synthesis is performed. You can create a post-synthesis netlist file in the Quartus II software and use this netlist file to perform a post-synthesis simulation in the VCS or VCS MX software. When the post-synthesis version of the design is verified, the next step is to place-and-route the design in the target architecture with the Quartus II software. h

For information about how to generate a post-synthesis simulation netlist file, refer to

Generating Simulation Netlist Files

in Quartus II Help.

Post-Synthesis Simulation for Verilog HDL and SystemVerilog HDL Designs

1

You cannot perform post-synthesis or post-fit simulation if you are targeting the

Stratix V device family.

To perform a post-synthesis simulation with the appropriate device family library, type the following VCS command: vcs -R <testbench> <post-synthesis netlist> -v <altera_library1> \

+systemverilogext+.sv+.svo r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow

3–5

h

For more information about

Altera Post-Fit Libraries

, refer to the Quartus II Help.

If you have already generated the option file (simlib_comp.vcs) as described in

“Compiling Libraries Using the EDA Simulation Library Compiler” on page 3–2 ,

modify the simlib_comp.vcs file to add the testbench and post-synthesis netlist file, and then type the following command: vcs -file simlib_comp.vcs r

Be sure to include the post-synthesis netlist file and testbench files in

simlib_comp.vcs

.

Alternatively, you can use the following commands to perform post-synthesis simulation for Verilog HDL and SystemVerilog HDL designs:

1. To create library directories, type the following commands: mkdir <Directory_to_store_compiled_altera_library1> r mkdir <Directory_to_store_compiled_altera_library2> r

2. To create the work directory, type the following command: mkdir <Directory_to_store_compiled_design_and_testbench_files> r

1

Before performing the following step, make sure the mapped file synopsys_sim.setup was created.

3. To compile libraries, type the following commands: vlogan -work <altera_library1_name> <altera_library1>.v r vlogan -work <altera_library2_name> <altera_library2>.v r

4. To compile the design and testbench, type the following command: vlogan -work <work_library_name> <design>.v <testbench>.v r

For Verilog HDL, include the following command: vlogan -work <work_library_name> <post-synthesis_netlist>.vo \

<testbench>.v r

For SystemVerilog HDL, include the following command: vlogan -sverilog -work <work_library_name> <post-synthesis \ _

netlist>.svo <testbench>.v r

5. To elaborate your design, type the following command: vcs -debug_all <work_library_name>.<testbench_top-level_module> r

6. To run the simulation, type the following command simv -gui r

The synopsys_sim.setup file contains the following commands to map the libraries:

<altera_library1_name> : <Directory_to_store_compiled_altera_library1>

<altera_library2_name> : <Directory_to_store_compiled_altera_library2>

<work_library_name> : <Directory_to_store_compiled_post-synthesis \

netlist and_testbench_files>

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–6 Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow

Post-Synthesis Simulation for VHDL Designs

Use the following VCS MX commands to perform a post-synthesis simulation with the appropriate device family library:

1. To create library directories, type the following commands: mkdir <Directory_to_store_compiled_altera_library1> r mkdir <Directory_to_store_compiled_altera_library2> r

2. To create the work directory, type the following command: mkdir <Directory_to_store_compiled_post-synthesis_netlist \

and_testbench_files>

r

1

Before performing the following step, make sure the mapped file synopsys_sim.setup was created.

3. To compile libraries, type the following commands: vhdlan -work <altera_library1_name> <altera_library1>.vhd r vhdlan -work <altera_library2_name> <altera_library2>.vhd r

4. To compile the design and testbench, type the following command: vhdlan -work <work_library_name> <post-synthesis_netlist>.vho \

<testbench>.vhd r

5. To elaborate your design, type the following command: vcs -debug_all <work_library_name>.<testbench_top_level_module> r

6. To run the simulation, type the following command: simv -gui r

The synopsys_sim.setup file contains the following commands to map the libraries:

<altera_library1_name> : <Directory_to_store_compiled_altera_library1>

<altera_library2_name> : <Directory_to_store_compiled_altera_library2>

<work_library_name> : <Directory_to_store_compiled_post_synthesis \

netlist and_testbench_files> h

For more information about

Altera Post-Fit Libraries

, refer to the Quartus II Help.

1

If you have generated the Altera libraries with the EDA Simulation Library Compiler, ignore steps

1

and

3 .

Gate-Level Timing Simulation

A gate-level timing simulation verifies the functionality and timing of the design after place-and-route. You can create a gate-level simulation netlist file in the Quartus II software and use this netlist file to perform a gate-level timing simulation in the VCS or VCS MX software. h

For information about how to generate a gate-level simulation netlist file, refer to

Generating Simulation Netlist Files

in Quartus II Help. h

For a list of the gate-level timing simulation library files in the Quartus II directory, refer to

Altera Post-Fit Libraries

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Using the VCS or VCS MX Software in the Quartus II Design Flow

3–7

1

You cannot perform post-synthesis or post-fit simulation if you are targeting the

Stratix V device family.

Gate-Level Timing Simulation for Verilog HDL and SystemVerilog HDL Designs

For gate-level timing simulation, follow the steps in

“Post-Synthesis Simulation for

Verilog HDL and SystemVerilog HDL Designs” on page 3–4 .

You do not have to specify the Standard Delay Output File (.sdo) file because it is already specified in the Verilog Output File (.vo) file or SystemVerilog Output File

(.svo). However, the .sdo must be in the same directory as the simulator executable file simv generated by VCS.

Gate-Level Timing Simulation for VHDL Designs

For gate-level timing simulation, follow the steps in

“Post-Synthesis Simulation for

VHDL Designs” on page 3–6 .

For VHDL, the *.sdo file must be specified in the simv

command as follows: simv -xlrm -gui -sdf typ:<testbench module name>/<design instance

name>.sdo r

1

Adding the

-xlrm

switch avoids errors that occur when the timing arcs in SDO do not match Altera VHDL simulation models as per the IEEE VITAL ASIC standard.

However, adding this switch reduces timing accuracy, as it may cause some SDO delays to be ignored. Therefore, generate the Verilog HDL or SystemVerilog HDL simulation output netlist (.vo or .svo) if you want to perform gate-level timing simulation.

Disabling Timing Violation on Registers

In certain situations, the timing violations can be ignored and you can disable the “X” propagation that happens when there are timing violations on registers (for example, timing violations that occur in internal synchronization registers used for asynchronous clock-domain crossing).

By default, the x_on_violation_option logic option that applies to all registers in the design is On, which means a register outputs “X” whenever a timing violation occurs.

To disable “X” propagation due to a timing violation on certain registers, set the

x_on_violation_option logic

option to Off for those registers. The following command is an example from the Quartus II Settings File (.qsf): set_instance_assignment -name X_ON_VIOLATION_OPTION OFF -to \

<register_name>

Performing Functional Simulation Using the Post-Synthesis Netlist

You can perform a functional simulation with the post-synthesis netlist file instead of a gate-level netlist file, and you can generate an .sdo file without running the Fitter. In this case, the .sdo file includes all timing values for the device cells only. Interconnect delays are not included because fitting (placement and routing) has not been performed.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–8 Chapter 3: Synopsys VCS and VCS MX Support

Common VCS and VCS MX Software Compiler Options

To generate the post-synthesis netlist file and the .sdo file, type the following commands at a command prompt: quartus_map <project name> -c <revision name> r quartus_eda <project name> -c <revision name> --simulation \

--functional --tool= <third-party EDA tool> --format=<HDL language> r

For more information about the

-format

and

-tool

options, type the following command: quartus_eda --help=<options> r

Common VCS and VCS MX Software Compiler Options

Table 3–1

lists VCS and VCS MX software options that can help you simulate your design.

Table 3–1. VCS Software Compiler Options

Library

-R

-v <library filename>

-y <library directory>

+compsdf

+cli

+race

-P

-q

Description

Runs the executable file immediately.

Specifies a Verilog HDL library file (for example, 220model.v or altera_mf.v). The VCS software looks in this file for module definitions that are found in the source code. This option is available for VCS only.

Specifies a Verilog HDL library directory. The VCS software looks for library files in this folder that contain module definitions that are instantiated in the source code. This option is available for VCS only.

Indicates that the VCS software compiler includes the back-annotated Standard Delay

File (.sdf) file in the compilation.

The VCS software enters Command-Line Interface (CLI) mode upon successful compilation completion.

Specifies that the VCS software generate a report that indicates all of the race conditions in the design. The default report name is race.out.

Compiles user-defined Programming Language Interface (PLI) table files.

Indicates the VCS software runs in quiet mode. All messages are suppressed.

f

For more information about VCS software options, refer to the

VCS User Guide

installed with the VCS software.

Using DVE

Design Viewpoint Editor (DVE) is the graphical debugging system for the VCS and

VCS MX software. This tool is included with the VCS MX software. It can be run by adding the

-gui

option when running a simulation.

To run a simulation in DVE, type the following VCS or VCS MX command: simv -gui r

However, to open the GUI with these commands, you must enable the Unified

Command Line Interface (UCLI) and DVE when performing elaboration. To enable

UCLI and DVE, type the following command: vcs -debug_all r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Debugging Support Command-Line Interface

3–9

f

For more information about DVE, refer to the DVE User Guide installed with the VCS

MX software.

Debugging Support Command-Line Interface

The VCS software UCLI is an interactive, non-graphical debugger that can be used to halt simulations at user-defined break points, force registers with values, and display register values.

Enable the debugger by including the

+ucli

run-time option. To use the VCS software

UCLI to debug your Altera FPGA design, type the following command: vcs -R <testbench>.v <design name>.vo -v <path to Quartus II \

installation directory> \eda\sim_lib\<device family>_atoms.v +compsdf +ucli

\ +systemverilogext+.sv+.svo

r

The

+ucli

command takes an optional number argument that specifies the level of debugging capability. As the optional debugging capability is increased, there is an increase in simulation time.

f

For more information about the

+ucli

options, refer to the

VCS User Guide

installed with the VCS software.

For the design examples to run gate-level timing simulations in VHDL or Verilog

HDL language, refer to the Synopsys VCS Simulation Design Example page on the

Altera website.

Simulating Designs that Include Transceivers

If your design includes Arria

®

, Arria II, Cyclone

®

IV, HardCopy

®

IV, Stratix

®

,

Stratix II, Stratix IV, or Stratix V transceivers, you must compile additional library files to perform functional or gate-level timing simulations.

For high-speed simulation, you must select ps in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you choose slower than ps, the high-speed simulation might fail.

f

If your design contains PCI Express hard IP, refer to the “Simulate the Design” section in the

IP Compiler for PCI Express User Guide.

h

If you are compiling Stratix V libraries, refer to Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Functional Simulation for Stratix GX Devices

To perform a functional simulation of your design that instantiates the ALTGXB megafunction, enabling the gigabit transceiver block gigabit transceiver block on

Stratix GX devices, compile the stratixgx_mf model file into the altgxb library.

1

The stratixgx_mf model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–10 Chapter 3: Synopsys VCS and VCS MX Support

Simulating Designs that Include Transceivers

To compile the libraries necessary for functional simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix GX device, at the VCS command prompt, type the following command: vcs -R <testbench>.v <design files>.v -v stratixgx_mf.v -v sgate.v \

-v 220model.v -v altera_mf.v +systemverilogext+.sv+.svo r

Gate-Level Timing Simulation for Stratix GX Devices

Perform a gate-level timing simulation of your design that includes a Stratix GX transceiver by compiling the stratixgx_atoms and stratixgx_hssi_atoms model files into the stratixgx and stratixgx_gxb libraries, respectively.

1

The stratixgx_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for timing simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix GX device, at the VCS command prompt, type the following command: vcs -R <testbench>.v <gate-level netlist>.vo -v stratixgx_atoms.v -v \ stratixgx_hssi_atoms.v -v sgate.v -v 220model.v -v altera_mf.v \

+transport_int_delays +pulse_int_e/0 +pulse_int_r/0 \

+transport_path_delays +pulse_e/0 +pul se_r/0 \

+systemverilogext+.sv+.svo

r

Functional Simulation for Stratix II GX Devices

Functional simulation for Stratix II GX devices is similar to functional simulation for

Arria GX devices. To simulate the transceiver in Arria GX devices, you only have to replace the stratixiigx_hssi model file with the arriagx_hssi model file.

To perform a functional simulation of your design that instantiates the ALT2GXB megafunction, enabling the gigabit transceiver block on Stratix II GX devices, compile the stratixiigx_hssi model file into the stratixiigx_hssi library.

1

The stratixiigx_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

Generate a functional simulation netlist file by turning on Generate Simulation

Model in the Simulation Library

in the ALT2GXB MegaWizard

Plug-In Manager.

The <alt2gxb entity name>.vho file or <alt2gxb module name>.vo or .svo file is generated in the current project directory.

1

The ALT2GXB functional simulation library file generated by the Quartus II software references stratixiigx_hssi wysiwyg atoms.

To compile the libraries necessary for functional simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix II GX device, type the following command at the VCS command prompt: vcs -R <testbench>.v <alt2gxb simulation netlist>.vo -v \ stratixgx_hssi_atoms.v -v sgate.v -v 220model.v -v altera_m f.v \

+systemverilogext+.sv+.svo

r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Simulating Designs that Include Transceivers

3–11

Gate-Level Timing Simulation for Stratix II GX Devices

Gate-level timing simulation for Stratix II GX devices is similar to gate-level timing simulation for Arria GX devices. You only have to replace the stratixiigx_hssi model file with the arriagx_hssi model file.

To perform a gate-level timing simulation of your design that includes a Stratix II GX transceiver, compile stratixiigx_atoms and stratixiigx_hssi_atoms into the stratixiigx and

stratixiigx_hssi

libraries, respectively.

1

The stratixiigx_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for timing simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix II GX device, type the following command at the VCS command prompt: vcs -R <testbench>.v <gate-level netlist>.vo -v stratixiigx_atoms.v -v \ stratixiigx_hssi_atoms.v -v sgate.v

-v 220model.v -v altera_mf.v \

+transport_int_delays +pulse_int_e/0 +pulse_int_r/0 \

+transport_path_delays +pulse_e/0 +pulse_r/0 +systemverilogext+.sv+.svo

r

Functional Simulation for Stratix IV GX Devices

Functional simulation for Stratix IV devices is similar to functional simulation for Arria II,

Cyclone IV, and HardCopy IV devices. You only have to replace the stratixiv_hssi model file with the arriaii_hssi, cycloneiv_hssi, and hardcopyiv_hssi model files, respectively.

To perform a functional simulation of your design that instantiates the ALTGX megafunction, enabling the gigabit transceiver block on Stratix IV devices, compile the

stratixiv_hssi

model file into the stratixiv_hssi library.

The stratixiv_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for functional simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix IV device, type the following command at the VCS command prompt: vcs -R <testbench>.v <altgx>.v -v stratixiv_hssi_atoms.v -v sgate.v \

-v 220model.v -v altera_mf.v +systemverilogext+.sv+.svo

r

Gate-Level Timing Simulation for Stratix IV GX Devices

Gate-level timing simulation for Stratix IV devices is similar to gate-level timing simulation for Arria II, Cyclone IV, and HardCopy IV devices. You only have to replace the stratixiv_hssi model file with the arriaii_hssi, cycloneiv_hssi, and hardcopyiv_hssi model files, respectively.

To perform a gate-level timing simulation of your design that includes a Stratix IV transceiver, compile stratixiv_atoms and stratixiv_hssi_atoms into the stratixiv and

stratixiv_hssi

libraries, respectively.

To perform a gate-level timing simulation of your design that includes a Stratix IV transceiver, compile stratixiv_atoms and stratixiv_hssi_atoms into the stratixiv and

stratixiv_hssi

libraries, respectively.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–12 Chapter 3: Synopsys VCS and VCS MX Support

Simulating Designs that Include Transceivers

The stratixiv_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for timing simulation of a Verilog HDL and

SystemVerilog HDL design targeting a Stratix IV device, type the following command at the VCS command prompt: vcs -R <testbench>.v <gate-level netlist>.vo -v stratixiv_atoms.v \

-v stratixiv_hssi_atoms.v -v sgate.v -v 220model.v -v altera_mf.v \

+transport_int_delays +pulse_int_e/0 +pulse_int_r/0 \

+transport_path_delays +pulse_e/0 +pulse_r/0 \

+systemverilogext+.sv+.svo

r

Functional Simulation for Stratix V GX Devices

Functional simulation for Stratix V devices is similar to functional simulation for

Arria II, Cyclone IV, HardCopy IV, and Stratix IV devices. You only have to replace the

stratixv_hssi

model file with the arriaii_hssi, cycloneiv_hssi, hardcopyiv_hssi, and

stratixiv_hssi

model files, respectively.

The stratixv_hssi_atoms model file references the lpm and sgate libraries. You must compile these libraries to perform a simulation.

1

The transceiver module from the MegaWizard Plug-In Manager is created in

Interfaces/Transceiver PHY

. Select Custom PHY.

To compile the libraries necessary for functional simulation of a Verilog HDL or VHDL design targeting a Stratix V device, type the following commands at the VCS command prompt: mkdir -p ./stratixv r mkdir -p ./stratixv_pcie_hip r mkdir -p ./stratixv_hssi r mkdir -p ./work r vlogan +v2k -work stratixv \

$QUARTUS_ROOTDIR/eda/sim_lib/synopsys/stratixv_atoms_ncrypt.v r vlogan +v2k -work stratixv_hssi \

$QUARTUS_ROOTDIR/eda/sim_lib/synopsys/stratixv_hssi_atoms_ncrypt.v r vlogan -sverilog -work stratixv_pcie_hip \

$QUARTUS_ROOTDIR/eda/sim_lib/synopsys/stratixv_pcie_hip_atoms_ncrypt.v r vhdlan -work stratixv_hssi \

$QUARTUS_ROOTDIR/eda/sim_lib/stratixv_hssi_components.vhd r vhdlan -work stratixv_hssi \

$QUARTUS_ROOTDIR/eda/sim_lib/stratixv_hssi_atoms.vhd r vcs test r

./simv r

1

The PCIe files are required only if you are using the PCIe HIP.

For VHDL, you must compile the Verilog HDL files first.

In addition to the top-level variant wrapper, <variant>.v, VCS also creates a simulation files subdirectory, <variant>_sim/. All Verilog (.v) and SystemVerilog (.sv) files in the simulation directory must also be compiled into the simulation project.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Transport Delays

3–13

Transport Delays

By default, the VCS software filters out all pulses that are shorter than the propagation delay between primitives. Turning on the transport delay options in the

VCS software prevents the simulation tool from filtering out these pulses. Use the following options to ensure that all signal pulses are seen in the simulation results.

Table 3–2

describes the transport delay options.

Table 3–2. Transport Delay Options

Option

+transport_path_delays

+transport_int_delays

Description

Use this option when the pulses in your simulation are shorter than the delay within a gate-level primitive. You must include the

+pulse_e/number

and

+pulse_r/number options.

Use this option when the pulses in your simulation are shorter than the interconnect delay between gate-level primitives. You must include the +pulse_int_e/number and

+pulse_int_r/number

options.

1

The +transport_path_delays and +transport_int_delays options are also used by default in the NativeLink feature for gate-level timing simulation.

f

For more information about either of these options, refer to the

VCS User Guide

installed with the VCS software.

The following VCS software command shows the command-line syntax to perform a post-synthesis simulation with the device family library: vcs -R <testbench>.v <gate-level netlist>.v -v <Altera device family \

library>.v +transport_int_delays +pulse_int_e/0 +pulse_int_r/0 \

+transport_path_delays +pulse_e/0 +pulse_r/0 r

Using NativeLink with the VCS or VCS MX Software

The NativeLink feature in the Quartus II software facilitates the seamless transfer of information between the Quartus II software and EDA tools and allows you to run

VCS or VCS MX within the Quartus II software.

f

For more information, refer to the “Using the NativeLink Feature” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Generating a Timing .vcd File for the PowerPlay Power Analyzer

To generate a timing Verilog Value Change Dump File (.vcd) for PowerPlay, you must first generate a .vcd in the Quartus II software, and then run the .vcd from the VCS software. This .vcd can then be used by PowerPlay for power analysis.

To generate timing .vcd in the Quartus II software, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Settings. The Settings dialog box appears.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–14 Chapter 3: Synopsys VCS and VCS MX Support

Viewing a Waveform from a .vpd or .vcd File

2. In the Category list, under EDA Tool Settings, click Simulation. On the

Simulation

page, in the Tool name list, select VCS and turn on the Generate

Value Change Dump (VCD) file script

option.

3. To generate the .vcd, perform a full compilation.

Perform the following steps to generate a timing .vcd file in the VCS software:

1. Before compiling and simulating your design, include the script in your testbench file where the design under test (DUT) is instantiated: include <revision_name>_dump_all_vcd_nodes.v r

1

Include the script within the testbench module block. If you include the script outside of the testbench module block, syntax errors occur during compilation.

2. Run the simulation with the VCS command as usual. Exit the VCS software when the simulation is finished and the <revision_name>.vcd file is generated in the simulation directory.

1

The .vcd file is not supported in the VCS MX software.

f

For more detailed information about using the timing .vcd file for power analysis, refer to the

PowerPlay Power Analysis

chapter in volume 3 of the Quartus II Handbook.

Viewing a Waveform from a .vpd or .vcd File

A Virtual Panoramic Display (.vpd) file is automatically generated when your simulation is finished. The .vpd file is not readable. It is used for generating the waveform view through DVE. You can view your waveform result in DVE if you have created a .vpd or .vcd file.

To view a waveform from a .vpd file through DVE, follow these steps:

1. Type dve

on a command line. The DVE dialog box appears.

2. On the File menu, click Open Database. The Open Database dialog box appears.

3. Browse to the directory that contains your .vpd file (for example, inter.vpd).

4. Double-click the .vpd file.

5. In the DVE dialog box, select the signals that you want to observe from the

Hierarchy.

6. On the Signal menu, click Add To Waves.

7. Click New Wave View. The waveform appears.

You cannot view a waveform from a .vcd file in DVE directly. The .vcd file must first be converted to a .vpd file. To convert the file, follow these steps:

1. Use the vcd2vpd

command to convert the file. For example, type the following on a command line: vcd2vpd <example>.vcd <example>.vpd r

2. After you convert the .vcd file to a .vpd file, follow the procedures for viewing a waveform from a .vpd file through DVE.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Scripting Support

3–15

You can also convert your .vpd file to a .vcd file with the vpd2vcd

command.

Scripting Support

You can run procedures and create settings described in this chapter in a Tcl script.

You can also run some procedures at a command prompt.

f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook. For more information about command-line scripting, refer to the

Command-Line Scripting

chapter in volume 2 of the Quartus II Handbook.

For detailed information about scripting command options, refer to the Qhelp utility.

To start the Qhelp utility, type the following command: quartus_sh --qhelp r

Generating a Post-Synthesis Simulation Netlist File for VCS

You can use the Quartus II software to generate a post-synthesis simulation netlist file with Tcl commands or with a command at a command prompt.

Tcl Commands

To generate a post-synthesis simulation netlist file when you compile your design or as part of a Tcl script that compiles your design, type the following Tcl commands: set_global_assignment -name EDA_SIMULATION_TOOL "VCS" r set_global_assignment –name EDA_GENERATE_FUNCTIONAL_NETLIST ON r

Command Prompt

To generate a simulation output file for the VCS software simulator, type the following command (specify VHDL or Verilog HDL for the format): quartus_eda <project name> --simulation=on --format=<format> \

--tool=vcs --functional r

Generating a Gate-Level Timing Simulation Netlist File for VCS

You can use the Quartus II software to generate a gate-level timing simulation netlist file with Tcl commands or with a command at a command prompt.

Tcl Commands

To generate a gate-level timing simulation netlist file, type the following Tcl command: set_global_assignment -name EDA_SIMULATION_TOOL "VCS" r

Command Prompt

To generate a simulation output file for the VCS software simulator, type the following command (specify Verilog HDL, SystemVerilog HDL, or VHDL for the format): quartus_eda <project name> --simulation=on --format=<format> --tool=vcs r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–16 Chapter 3: Synopsys VCS and VCS MX Support

Conclusion

Conclusion

You can use the Synopsys VCS or VCS MX software in your Altera FPGA design flow to easily and accurately perform functional simulations, post-synthesis simulations, and gate-level functional timing simulations. The seamless integration of the

Quartus II software and VCS or VCS MX software make this simulation flow an ideal method for fully verifying an FPGA design.

Document Revision History

Table 3–3

shows the revision history for this chapter.

Table 3–3. Document Revision History

Date Version

November 2011

May 2011

December 2010

July 2010

November 2009

March 2009

November 2008

11.0.1

11.0.0

10.0.1

10.0.0

9.1.0

9.0.0

8.1.0

Changes

Template update.

Minor editorial updates.

Linked to Help for Stratix V Libraries

Added SystemVerilog HDL information

Editorial updates throughout

Changed to new document template. No change to content.

Linked to Quartus II Help where appropriate

Added Stratix V simulation information

Minor text edits

Removed VirSim references

Removed Referenced Documents section

Removed NativeLink information and referenced new

Simulating Designs with EDA

Tools

chapter in volume 3 of the Quartus II Handbook

Added “RTL Functional Simulation for Stratix IV Devices” and “Gate-Level Timing

Simulation for Stratix IV Devices” sections

Minor text edits

Added support for Synopsys VCS MX software

Changed chapter title to “Synopsys VCS and VCS MX Support”

Major revision to “Compiling Libraries Using the EDA Simulation Library Compiler” on page 4–2

Major revision to “RTL Functional Simulations” on page 4–2

Added Table 3–4 on page 3–10 and Table 3–5 on page 3–11

Added new section “Using DVE” on page 4–7

Added new section “Generating a Simulation Script from the EDA Netlist Writer” on page 3–16

Added new section “Viewing a Waveform from a .vpd or .vcd File” on page 4–13

Added “Compile Libraries Using the EDA Simulation Library Compiler” on page 3–3

Added information about the

--simlib_comp

utility

Updated entire chapter using 8½” × 11” chapter template

Minor editorial updates

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 3: Synopsys VCS and VCS MX Support

Document Revision History

3–17

f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

3–18 Chapter 3: Synopsys VCS and VCS MX Support

Document Revision History

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

4. Cadence Incisive Enterprise Simulator

Support

November 2011

QII53003-11.0.1

QII53003-11.0.1

This chapter describes how to use the Cadence Incisive Enterprise Simulator (IES) software to simulate designs that target Altera

®

FPGAs. This chapter provides instructions about how to perform functional simulations, post-synthesis simulations, and gate-level timing simulations. This chapter also describes the location of the simulation libraries and how to automate simulations.

This chapter includes the following topics:

“Software Requirements”

“Simulation Flow Overview”

“Functional Simulation” on page 4–3

“Post-Synthesis Simulation” on page 4–6

“Gate-Level Timing Simulation” on page 4–7

“Simulating Designs that Include Transceivers” on page 4–10

“Using the NativeLink Feature with IES” on page 4–17

“Generating a Timing VCD File for the PowerPlay Power Analyzer” on page 4–17

“Viewing a Waveform from a .trn File” on page 4–18

“Scripting Support” on page 4–19

Software Requirements

To simulate your design with the IES software, you must first set up the Altera libraries. These libraries are installed with the Quartus II software. f

For more information about installing the software and directories created during the

Quartus II software installation, refer to the

Altera Software Installation and Licensing

manual.

Simulation Flow Overview

The IES software supports the following simulation flows:

Functional Simulation

Post-Synthesis Simulation

Gate-Level Timing Simulation

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

4–2 Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulation Flow Overview

Functional simulation verifies the functionality of your design. When you perform a functional simulation with the IES software, you use your design files (Verilog HDL,

SystemVerilog HDL, or VHDL) and the models provided with the Quartus II software. These Quartus II models are required if your design uses the library of parameterized modules (LPM) functions or Altera-specific megafunctions. Refer to

“Functional Simulation” on page 4–3 for more information about how to perform this

simulation.

A post-synthesis simulation verifies the functionality of a design after synthesis has been performed. You can create a post-synthesis netlist (Verilog HDL Output File

(.vo), SystemVerilog HDL Output File (.svo), or VHDL Output File (.vho)) in the

Quartus II software and use this netlist to perform a post-synthesis simulation with the Incisive simulator. Refer to

“Post-Synthesis Simulation” on page 4–6 for more

information about how to perform this simulation.

After performing place-and-route, the Quartus II software genes a .vo, .svo, or .vho and a Standard Delay Output file (.sdo) for gate-level timing simulation. The netlist files map your design to architecture-specific primitives. The .sdo contains the delay information of each architecture primitive and routing element specific to your design. Together, these files provide an accurate simulation of your design with the

selected Altera FPGA architecture. Refer to “Gate-Level Timing Simulation” on page 4–7

for more information about how to perform this simulation.

Operation Modes

You can use either the GUI mode or the command-line mode to simulate your design in the IES software.

To start the IES software in GUI mode, type the following command at a command prompt: nclaunch r

To simulate in command-line mode, use the programs shown in

Table 4–1 .

Table 4–1. Command-Line Programs

Program

ncvlog or

ncvhdl ncelab ncsim

Function

ncvlog compiles your Verilog HDL code and performs syntax and static semantics checks.

ncvhdl compiles your VHDL code and performs syntax and static semantics checks.

ncelab elaborates the design. ncelab constructs the design hierarchy and establishes signal connectivity.

ncsim performs mixed-language simulation. This program is the simulation kernel that performs event scheduling and executes the simulation code.

Quartus II Software and IES Flow Overview

This section provides an overview of the Quartus II software and IES simulation flow.

More detailed information is provided in

“Functional Simulation” on page 4–3

,

“Post-Synthesis Simulation” on page 4–6

, and

“Gate-Level Timing Simulation” on page 4–7

.

For high-speed simulation, you must select ps in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you choose slower than ps, the high-speed simulation might fail.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Functional Simulation

4–3

Complete the following tasks:

1. Create user libraries.

Create a file that maps logical library names to their physical locations. These library mappings include your working directory and any design-specific libraries; for example, Altera LPM functions or megafunctions.

2. Compile source code and testbenches.

Compile your design files at the command-line with the ncvlog (Verilog HDL files) or ncvhdl (VHDL files) command, or, on the Tools menu, click Verilog

Compiler

or VHDL Compiler in NCLaunch. During compilation, the IES software performs syntax and static semantic checks. If no errors are found, compilation produces an internal representation for each HDL design unit in the source files. By default, these intermediate objects are stored in a single, packed, library database file in your working directory.

3. Elaborate your design.

Before you can simulate your model, you must define the design hierarchy in a process called “elaboration”. Use ncelab in command-line mode or, on the Tools menu in NCLaunch, click Elaborator.

4. Add signals to your waveform.

Specify which signals to view in your waveform using a simulation history manager (SHM) database.

5. Simulate your design.

Run the simulator with the ncsim program (command-line mode) or by clicking

Run

in the SimVision Console window.

Compiling Libraries Using the EDA Simulation Library Compiler

The EDA Simulation Library Compiler compiles Verilog HDL, SystemVerilog HDL, and VHDL simulation libraries for all Altera devices and supported third-party simulators. You can compile all libraries required by functional and gate-level simulation with this tool.

f

For more information about this tool, refer to the “EDA Simulation Library Compiler” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Functional Simulation

The following sections provide detailed instructions for performing a functional simulation with the Quartus II software and the IES software.

h

For the Altera Behavioral Simulation Models, refer to

Altera Functional Simulation

Libraries

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–4 Chapter 4: Cadence Incisive Enterprise Simulator Support

Functional Simulation

Creating Libraries

To create libraries, follow these steps:

1. To create a directory for the work library and any other libraries you require, type the following command at a command prompt: mkdir <library name> r

Examples

mkdir worklib r mkdir altera_mf r

2. Using a text editor, create a cds.lib file and add the following line to it:

DEFINE <library name> <physical directory path>

Examples

DEFINE worklib ./worklib

DEFINE altera_mf ./altera_mf h

For information about creating a cds.lib file in GUI mode, refer to

Performing a

Functional Simulation with the Incisive Enterprise Simulator Software

in Quartus II Help.

h

If you are compiling Stratix

®

V libraries, refer to Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Compiling Source Code

To compile from your source code from the command line, type one of the following commands:

■ Verilog HDL: ncvlog <options> -work <library name> <design files> r

SystemVerilog HDL: ■

■ ncvlog -sv <options> -work <library name> <design files> r

VHDL: ncvhdl <options> -work <library name> <design files> r

You must create a work library before compiling your design and testbench. If your design uses LPM, Altera megafunctions, or Altera primitives, you must also compile the Altera-provided functional models. The commands in

Example 4–1

and

Example 4–2

show an example of each.

Example 4–1. Compile in Verilog HDL

ncvlog -WORK lpm 220model.v r ncvlog -WORK altera_mf altera_mf.v r ncvlog -WORK altera altera_primitives.v r ncvlog -WORK altera altera_primitives.v r ncvlog -WORK work toplevel.v testbench.v r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Functional Simulation

4–5

Example 4–2. Compile in VHDL

ncvhdl -V93 -WORK lpm 220pack.vhd r ncvhdl -V93 -WORK lpm 220model.vhd r ncvhdl -V93 -WORK altera_mf altera_mf_components.vhd r ncvhdl -V93 -WORK altera_mf altera_mf.vhd r ncvhdl -V93 -WORK altera altera_primitives_components.vhd r ncvhdl -V93 -WORK altera altera_primitives.vhd r ncvhdl -V93 -WORK work toplevel.vhd testbench.vhd r h

For information about compiling in GUI mode, refer to

Performing a Functional

Simulation with the Incisive Enterprise Simulator Software

in Quartus II Help.

Elaborating Your Design

Before you can simulate your design, you must define the design hierarchy in a process called elaboration. The IES software elaborates your design with the language-independent ncelab program. The ncelab program constructs a design hierarchy based on the design’s instantiation and configuration information, establishes signal connectivity, and computes initial values for all objects in the design. The elaborated design hierarchy is stored in a simulation snapshot, which is the representation of your design that the simulator uses to run the simulation. The snapshot is stored in the library database file, along with the other intermediate objects generated by the compiler and elaborator.

To elaborate your Verilog HDL, SystemVerilog HDL, or VHDL design from the command line, type the following command: ncelab [options][<library>.<testbench module name] r

Example

ncelab -access +rwc work.testbench_module r

Adding the option

-access +rwc

allows signals to be viewed in the Waveform window.

If your design includes high-speed signals, you might have to add the following pulse reject options with the ncelab

command: ncelab -access +rwc work.testbench_module -PULSE_R 0 -PULSE_INT_R 0 r f

For more information about the pulse reject options, refer to the SDF Annotate Guide from Cadence .

h

For information about elaborating your design in GUI mode, refer to

Performing a

Functional Simulation with the Incisive Enterprise Simulator Software

in Quartus II Help.

Simulating Your Design

After you have compiled and elaborated your design, you can simulate it with ncsim.

The ncsim program loads the file, or snapshot, generated by ncelab as its primary input and then loads other intermediate objects referenced by the snapshot. If you enable interactive debugging, ncsim can also load HDL source files and script files.

The simulation output is controlled by the model or debugger. The output can include result files generated by the model, the SHM database, or the .vcd file.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–6 Chapter 4: Cadence Incisive Enterprise Simulator Support

Post-Synthesis Simulation

To perform functional simulation of your Verilog HDL, SystemVerilog HDL, or VHDL design at the command line, type the following command: ncsim [options][<library>.<testbench module name>] r

Example

ncsim -gui work.testbench_module r

Adding the option

-gui

opens the SimVision window for running your simulation. h

For information about performing a functional simulation in GUI mode, refer to

Performing a Functional Simulation with the Incisive Enterprise Simulator Software

in

Quartus II Help.

Post-Synthesis Simulation

The following sections provide detailed instructions for performing post-synthesis simulation with the IES software and output files and simulation files from the

Quartus II software.

1

You cannot perform post-synthesis or post-fit simulation if you are targeting the

Stratix V device family.

h

For a list of the gate-level simulation models, refer to

Altera Post-Fit Libraries

in

Quartus II Help.

Quartus II Simulation Output Files

After performing synthesis with either a third-party synthesis tool or with Quartus II integrated synthesis, you must generate a simulation netlist for functional simulations. h

For information about how to generate a post-synthesis simulation netlist, refer to

Generating Simulation Netlist Files

in Quartus II Help.

Creating Libraries

Create the following libraries for your simulation:

Work library

Device family library with the following files in the <path to Quartus II

installation>/eda/sim_lib directory:

<device_family>_atoms.v

<device_family>_atoms.vhd

<device_family>_components.vhd

Refer to

“Creating Libraries” on page 4–4 for instructions about creating libraries.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Gate-Level Timing Simulation

4–7

Compiling Project Files and Libraries

Compile the project files and libraries into your work directory with the ncvlog program, ncvhdl program, or the GUI. Include the following files:

Testbench file

The Quartus II software functional simuation output netlist file (.vo file or .vho file)

Atom library file for the device family <device family>_atoms.<v|vhd>

■ For VHDL, <device family>_components.vhd

Refer to

“Compiling Source Code” on page 4–4 for instructions about compiling.

Elaborating Your Design

Elaborate your design with the ncelab program, as described in “Elaborating Your

Design” on page 4–5 .

Simulating Your Design

Simulate your design with the ncsim program, as described in “Simulating Your

Design” on page 4–5 .

Gate-Level Timing Simulation

The following sections provide detailed instructions for performing a gate-level simulation with the Quartus II output files, simulation libraries, and Cadence IES tools.

1

You cannot perform post-synthesis or gate-level simulations if you are targeting the

Stratix V device family.

h

For a list of the gate-level simulation models, refer to

Altera Post-Fit Libraries

in

Quartus II Help.

h

For details about how to perform gate-level timing simulation with the Quartus II software and the IES software, refer to

Performing a Timing Simulation with the Incisive

Enterprise Simulator Software

in Quartus II Help.

Generating a Gate-Level Timing Simulation Netlist

To perform a gate-level timing simulation, your design should provide the IES software with information about how the design was placed into device-specific architectural blocks. The Quartus II software provides this information in the form of a .vo file for Verilog HDL designs, a .svo file for SystemVerilog HDL designs, and a

.vho

file for VHDL designs. The accompanying timing information is stored in the

.sdo

file, which annotates the delay for the elements found in the .vo file, .svo file, or

.vho

file.

h

For information about how to generate a gate-level simulation netlist, refer to

Generating Simulation Netlist Files

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–8 Chapter 4: Cadence Incisive Enterprise Simulator Support

Gate-Level Timing Simulation

Disabling Timing Violation on Registers

In certain situations, the timing violations can be ignored and you can disable the timing violation on registers. For example, timing violations that occur in internal synchronization registers used for asynchronous clock-domain crossing can be ignored and disabled.

By default, the x_on_violation_option logic option is On, which means the simulation shows “X” whenever a timing violation occurs. To disable showing the timing violation on certain registers, you can set the x_on_violation_option logic option to Off for those registers.

To disable timing violation on registers, type the following Quartus II Tcl command: set_instance_assignment -name X_ON_VIOLATION_OPTION OFF –to \ <register_name> r

This Tcl command is also stored in the .qsf file.

Creating Libraries

Create the following libraries for your simulation:

Work library

Device family libraries with the following files in the

<

path to Quartus II installation

>/

eda

/

sim_lib

directory:

<device_family>_atoms.v

<device_family>_atoms.vhd

<device_family>_components.vhd

For instructions about creating libraries, refer to “Creating Libraries” on page 4–4 .

Compiling Project Files and Libraries

Compile the project files and libraries into your work directory with the ncvlog program, ncvhdl program, or the GUI. Include the following files:

Testbench file

The Quartus II software functional output netlist file (.vo file,

Atom library file for the device family <device family>_atoms.<v|vhd>

For VHDL, <device family>_components.vhd

.svo

file, or .vho file)

For instructions about compiling, refer to “Compiling Source Code” on page 4–4

.

Elaborating Your Design

When performing elaboration with the Quartus II-generated Verilog HDL or

SystemVerilog HDL netlist file, the .sdo file is read automatically. The ncelab executable recognizes the embedded system task

$sdf_annotate

and automatically compiles and annotates the .sdo file (runs ncsdfc automatically).

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Gate-Level Timing Simulation

4–9

1

The .sdo file should be located in the same directory where you perform an elaboration or simulation, because the

$sdf_annotate

task references the .sdo file without using a full path. If you are starting an elaboration or simulation from a different directory, you can either comment out the

$sdf_annotate

and annotate the

.sdo

file with the GUI, or add the full path of the .sdo file.

Refer to

“Elaborating Your Design” on page 4–5 for elaboration instructions.

VHDL netlist files do not contain system task calls to locate your .sdf file; therefore, you must compile the standard .sdo file manually. For information about compiling the .sdo file, refer to

“Compiling the .sdo File (VHDL Only) in Command-Line Mode” and “Compiling the .sdo File (VHDL Only) in GUI Mode” .

Compiling the .sdo File (VHDL Only) in Command-Line Mode

To annotate the .sdo file timing data from the command line, follow these steps:

1. To compile the .sdo file with the ncsdfc program, type the following command at the command prompt: ncsdfc <project name>_vhd.sdo –output <output name> r

The ncsdfc program generates an <output name>.sdf.X compiled .sdo file.

1

If you do not specify an output name, ncsdfc uses <project name>.sdo.X.

2. Specify the compiled .sdf file for the project by adding the following command to an ASCII SDF command file for the project:

COMPILED_SDF_FILE = "<project name>.sdf.X" SCOPE = <instance path>

Example 4–3

shows an example of an SDF command file.

Example 4–3. SDF Command File

// SDF command file sdf_file

COMPILED_SDF_FILE = "lpm_ram_dp_test_vhd.sdo.X",

SCOPE = :tb,

MTM_CONTROL = "TYPICAL",

SCALE_FACTORS = "1.0:1.0:1.0",

SCALE_TYPE = "FROM_MTM";

After you compile the .sdf file, type the following command to elaborate the design: ncelab worklib.<project name>:entity –SDF_CMD_FILE <SDF Command File> r

Compiling the .sdo File (VHDL Only) in GUI Mode

h

To compile the .sdo file in GUI mode, refer to

Performing a Timing Simulation with the

Incisive Enterprise Simulator Software

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–10 Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

Simulating Your Design

Simulate your design with the ncsim program, as described in “Simulating Your

Design” on page 4–5 .

f

For the design examples to run gate-level timing simulation, refer to the

Cadence NC-Sim Simulation Design Example web page.

Simulating Designs that Include Transceivers

If your design includes Arria

®

, Arria II, Cyclone IV

®

, HardCopy IV

®

, Stratix, Stratix II, or Stratix IV, or Stratix V transceivers, you must compile additional library files to perform functional or gate-level timing simulations.

For high-speed simulation, you must select ps in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you choose slower than ps, the high-speed simulation might fail.

f

If your design contains PCI Express

®

hard IP, refer to the “Simulate the Design” section in the

IP Compiler for PCI Express User Guide.

Functional Simulation for Stratix GX Devices

To perform a functional simulation of your design that instantiates the ALTGXB megafunction, enabling the gigabit transceiver block (GXB) on Stratix GX devices, compile the stratixgx_mf model file into the altgxb library.

1

The stratixgx_mf model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for functional simulation of a VHDL design targeting a Stratix GX device, type the commands shown in

Example 4–4 at the IES

command prompt.

Example 4–4. Compile Libraries Commands for Functional Simulation in VHDL

n cvhdl -work lpm 220pack.vhd 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work altgxb stratixgx_mf.vhd stratixgx_mf_components.vhd r ncsim work.<my design> r

To compile the libraries necessary for a functional simulation of a Verilog HDL design targeting a Stratix GX device, type the commands shown in

Example 4–5 at the IES

command prompt.

Example 4–5. Compile Libraries Commands for Functional Simulation in Verilog HDL

ncvlog -work lpm 220model.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work altgxb stratixgx_mf.v r ncsim work.<my design> r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

4–11

Gate-Level Timing Simulation for Stratix GX Devices

To perform a gate-level timing simulation of your design that includes a Stratix GX transceiver, compile the stratixgx_atoms and stratixgx_hssi_atoms model files into the stratixgx and stratixgx_gxb libraries, respectively.

1

You must create these libraries to perform a simulation because the

stratixgx_hssi_atoms

model file references the lpm and sgate libraries.

To compile the libraries necessary for a timing simulation of a VHDL design targeting

a Stratix GX device, type the commands shown in Example 4–6 at the IES command

prompt.

Example 4–6. Compile Libraries Commands for Timing Simulation in VHDL

nc vhdl -work lpm 220pack.vhd 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixgx stratixgx_atoms.vhd stratixgx_components.vhd r ncvhdl -work stratixgx_gxb stratixgx_hssi_atoms.vhd \ stratixgx_hssi_components.vhd r ncelab work.<my design> -TIMESCA LE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

To compile the libraries necessary for a timing simulation of a Verilog HDL design targeting a Stratix GX device, type the commands shown in

Example 4–7 at the IES

command prompt.

Example 4–7. Compile Libraries Commands for Timing Simulation in Verilog HDL

ncvlog -work lpm 220model.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixgx stratixgx_atoms.v r ncvlog -work stratixgx_gxb stratixgx_hssi_atoms.v r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

Functional Simulation for Stratix II GX Devices

Functional simulation of Stratix II GX devices is similar to functional simulation of

Arria GX devices. Example 4–9 on page 4–12 and “Compile Libraries Commands for

Functional Simulation in Verilog HDL” on page 4–12 show only the functional

simulation for designs that include transceivers in Stratix II GX devices. To simulate transceivers in Arria GX devices, replace the stratixiigx_hssi model file with the

arriagx_hssi

model file.

To perform a functional simulation of your design that instantiates the ALT2GXB megafunction, edit your cds.lib file so all of the libraries point to the work library, and compile the stratixiigx_hssi model file into the stratixiigx_hssi library. When compiling the library files, you can safely ignore the following warning message:

"Multiple logical libraries mapped to a single location"

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–12 Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

Example 4–8

shows the cds.lib file.

Example 4–8. cds.lib File

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvhdl.lib

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvlog.lib

DEFINE work ./ncsim_work

DEFINE stratixiigx_hssi ./ncsim_work

DEFINE stratixiigx ./ncsim_work

DEFINE lpm ./ncsim_work

DEFINE sgate ./ncsim_work

1

The stratixiigx_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

Generate a functional simulation netlist by turning on Create a simulation library for

this design

in the last page of the ALT2GXB MegaWizard Plug-In Manager. The

<alt2gxb entity name>.vho or <alt2gxb module name>.vo is generated in the current project directory.

1

The ALT2GXB functional simulation library file generated by the Quartus II software references stratixiigx_hssi WYSIWYG atoms.

To compile the libraries necessary for functional simulation of a VHDL design targeting a Stratix II GX device, type the commands shown in

Example 4–9

at the IES command prompt.

Example 4–9. Compile Libraries Commands for Functional Simulation in VHDL

ncvhdl -work lpm 220pack.vh

d 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixiigx_hssi stratixiigx_hssi_components.vhd \ stratixiigx_hssi_atoms.vhd r ncvhdl -work work <alt2gxb entity name>.vho r ncelab work.<my design> r

To compile the libraries necessary for functional simulation of a Verilog HDL design targeting a Stratix II GX device, type the commands shown in

Example 4–10 at the IES

command prompt.

Example 4–10. Compile Libraries Commands for Functional Simulation in Verilog HDL

ncvlog -work lpm 220model.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixiigx_hssi stratixiigx_hssi_atoms.v r ncvlog -work work <alt2gxb module name>.vo r ncelab work.<my design> r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

4–13

Gate-Level Timing Simulation for Stratix II GX Devices

Stratix II GX functional simulation is similar to Arria GX functional simulation.

Example 4–11 on page 4–13 and Example 4–12 on page 4–13

show only the gate-level timing simulation for designs that include transceivers in Stratix II GX. To simulate transceivers in Arria GX, replace the stratixiigx_hssi model file with the arriagx_hssi model file.

To perform a post-fit timing simulation of your design that includes the ALT2GXB megafunction, edit your cds.lib file so that all the libraries point to the work library and compile stratixiigx_atoms

and stratixiigx_hssi_atoms

into the stratixiigx and stratixiigx_hssi libraries, respectively. When compiling the library files, you can safely ignore the following warning message:

"Multiple logical libraries mapped to a single location"

For an example of a cds.lib file, refer to “Functional Simulation for Stratix II GX

Devices” on page 4–11 .

1

The stratixiigx_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for timing simulation of a VHDL design targeting a

Stratix II GX device, type the commands shown in

Example 4–11 at the IES command

prompt.

Example 4–11. Compile Libraries Commands for Timing Simulation in VHDL

ncvhdl -work lpm 220pack.vhd 220model.vhd

r ncvhdl -work altera_mf al tera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixiigx stratixiigx_atoms.vhd \ stratixiigx_components.vhd r ncvhdl -work stratixiigx_hssi stratixiigx_hssi_components.vhd \ stratixiigx_hssi_atoms.vhd r ncvhdl -work work <alt2gxb>.vho r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE _INT_R 0 r

To compile the libraries necessary for timing simulation of a Verilog HDL design targeting a Stratix II GX device, type the commands shown in

Example 4–12 at the IES

command prompt.

Example 4–12. Compile Libraries Commands for Timing Simulation in Verilog HDL

ncvlog -work lpm 220mo del.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixiigx stratixiigx_atoms.v r ncvlog -work stratixiigx_hssi stratixiigx_hssi_atoms.v r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–14 Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

Functional Simulation for Stratix IV GX Devices

Functional simulation for Stratix IV devices is similar to functional simulation for

Arria II, Cyclone IV, and HardCopy IV devices. Example 4–14

shows only the functional simulation for designs that include transceivers in Stratix IV devices. To simulate transceivers in Arria II, Cyclone IV, and HardCopy IV devices, replace the

stratixiv_hssi

model file with the arriaii_hssi, cycloneiv_hssi, and hardcopyiv_hssi model files, respectively.

To perform a functional simulation of your design that instantiates the ALTGX megafunction, edit your cds.lib file so that all of the libraries point to the work library, and compile the stratixiv_hssi model file into the stratixiv_hssi library.

When compiling the library files, you can safely ignore the following warning message:

"Multiple logical libraries mapped to a single location"

Example 4–13 shows the cds.lib file.

Example 4–13. cds.lib File

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvhdl.lib

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvlog.lib

DEFINE work ./ncsim_work

DEFINE stratixiv_hssi ./ncsim_work

DEFINE stratixiv ./ncsim_work

DEFINE lpm ./ncsim_work

DEFINE sgate ./ncsim_work

The stratixiv_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for functional simulation of a VHDL design targeting a Stratix IV device, type the commands shown in

Example 4–14

at the IES command prompt.

Example 4–14. Compile Libraries Commands for Functional Simulation in VHDL

ncvhdl -work lpm 220pack.vhd 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixiv_hssi stratixiv_hssi_components.vhd \ stratixiv_hssi_atoms.vhd r ncvhdl -work work <altgx entity name>.vhd r ncelab work.<my design> r

To compile the libraries necessary for a timing simulation of a Verilog HDL design targeting a Stratix IV device, type the commands shown in

Example 4–15

at the IES command prompt.

Example 4–15. Compile Libraries Commands for Gate-Level Timing Simulation in Verilog HDL

ncvlog -work lpm 220model.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixiv stratixiv_atoms.v r ncvlog -work stratixiv_hssi stratixiv_hssi_atoms.v r ncvlog -work work <altgx>.vo r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

4–15

Gate-Level Timing Simulation for Stratix IV GX Devices

Stratix IV gate-level timing simulation is similar to Arria II gate-level timing simulation.

Example 4–16 and Example 4–17 show only the gate-level timing simulation for

designs that include transceivers in Stratix IV devices. To simulate transceivers in

Arria II, Cyclone IV, and HardCopy IV devices, replace the stratixiv_hssi model file with the arriaii_hssi, cycloneiv_hssi, and hardcopyiv_hssi model files, respectively.

To perform a post-fit timing simulation of your design that includes the ALTGX megafunction, edit your cds.lib file so that all of the libraries point to the work library and compile stratixiv_atoms and stratixiv_hssi_atoms into the stratixiv and

stratixiv_hssi

libraries, respectively. When compiling the library files, you can safely ignore the following warning message:

"Multiple logical libraries mapped to a single location"

For an example of a cds.lib file, refer to Example 4–13 on page 4–14

.

The stratixiv_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for a timing simulation of a VHDL design targeting a Stratix IV device, type the commands shown in

Example 4–16 at the IES command

prompt.

Example 4–16. Compile Libraries Commands for Gate-Level Timing Simulation in VHDL

ncvhdl -work lpm 220pack.vhd 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixiv stratixiv_atoms.vhd \ stratixiv_components.vhd r ncvhdl -work stratixiv_hssi stratixiv_hssi_components.vhd \ stratixiv_hssi_atoms.vhd r ncvhdl -work work <altgx>.vho r ncsdfc <project name>_vhd.sdo r ncelab work.<my design> -TIMESCALE 1ps/1ps \

-SDF_CMD_FILE <SDF Command File> -PULSE_R 0 -PULSE_INT_R 0 r

To compile the libraries necessary for a timing simulation of a Verilog HDL design targeting a Stratix IV device, type the commands shown in

Example 4–17

at the IES command prompt.

Example 4–17. Compile Libraries Commands for Gate-Level Timing Simulation in Verilog HDL

ncvlog -work lpm 220model.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixiv stratixiv_atoms.v r ncvlog -work stratixiv_hssi stratixiv_hssi_atoms.v r ncvlog -work work <altgx>.vo r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–16 Chapter 4: Cadence Incisive Enterprise Simulator Support

Simulating Designs that Include Transceivers

Functional Simulation for Stratix V Devices

Functional simulation for Stratix V devices is similar to functional simulation for

Arria II, Cyclone IV, HardCopy IV, and Stratix IV devices. You only have to replace the stratixv_hssi model file with the arriaii_hssi, cycloneiv_hssi, hardcopyiv_hssi, and stratiiv_hssi model files, respectively.

The stratixv_hssi_atoms model file references the lpm and sgate libraries. You must compile these libraries to perform a simulation.

To compile the libraries necessary for a timing simulation of a Verilog HDL design targeting a Stratix V device, create the cds.lib file with contents as shown in

Example 4–18 .

Example 4–18. Compile Libraries Commands for Functional Simulation in Verilog HDL

ncvlog -work lpm 220mo del.v r ncvlog -work altera_mf altera_mf.v r ncvlog -work sgate sgate.v r ncvlog -work stratixvgx stratixiigx_atoms.v r ncvlog -work stratixvgx_hssi stratixvgx_hssi_atoms.v r ncelab work.<my design> -TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

Example 4–19 shows the cds.lib file.

Example 4–19. cds.lib File

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvhdl.lib

SOFTINCLUDE ${CDS_INST_DIR}/tools/inca/files/cdsvlog.lib

DEFINE work ./ncsim_work

DEFINE stratixv_hssi ./ncsim_work

DEFINE stratixv ./ncsim_work

DEFINE lpm ./ncsim_work

DEFINE sgate ./ncsim_work

The stratixv_hssi_atoms model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

To compile the libraries necessary for functional simulation of a VHDL design targeting a Stratix V device, create the cds.lib file with contents as shown in

Example 4–20 .

Example 4–20. Compile Libraries Commands for Functional Simulation in VHDL

ncvhdl -work lpm 220pack.vhd 220model.vhd r ncvhdl -work altera_mf altera_mf_components.vhd altera_mf.vhd r ncvhdl -work sgate sgate_pack.vhd sgate.vhd r ncvhdl -work stratixv_hssi stratixv_hssi_components.vhd r ncvlog +v2k –work stratixv_hssi \ quartus/eda/sim_lib/cadence/stratixv_hssi_atoms_ncrypt.v r stratixv_hssi_atoms.vhd r ncvhdl -work work <my_design>.vhd r ncelab work.<my design> r

Pulse Reject Delays

By default, the IES software filters out all pulses that are shorter than the propagation delay between primitives. Setting the pulse reject delays options in the IES software prevents the simulation tool from filtering out these pulses. Use the following options to ensure that all signal pulses are seen in the simulation results.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Using the NativeLink Feature with IES

4–17

Table 4–2

describes the pulse reject delay options.

Table 4–2. Pulse Reject Delay Options

Option

-PULSE_R Option

-PULSE_INT_R Option

Description

Use this option when the pulses in your simulation are shorter than the delay within a gate-level primitive. The argument is the percentage of delay for pulse reject limit for the path.

Use this option when the pulses in your simulation are shorter than the interconnect delay between gate-level primitives. The argument is the percentage of delay for pulse reject limit for the path.

1

The -PULSE_R and -PULSE_INT_R options are also used by default in the

NativeLink feature for gate-level timing simulation.

To perform a gate-level timing simulation with the device family library, type the following IES software command: ncelab worklib.<project name>:entity –SDF_CMD_FILE <SDF Command File> \

-TIMESCALE 1ps/1ps -PULSE_R 0 -PULSE_INT_R 0 r

Using the NativeLink Feature with IES

The NativeLink feature in the Quartus II software facilitates the seamless transfer of information between the Quartus II software and EDA tools and allows you to run

IES within the Quartus II software.

f

For more information, refer to the “Using the NativeLink Feature” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Generating a Timing VCD File for the PowerPlay Power Analyzer

To generate a timing .vcd file for PowerPlay, you must first generate a VCD script in the Quartus II software and run the VCD script from the IES software to generate a timing .vcd file. This timing .vcd file can then be used by the PowerPlay Power

Analyzer for power analysis. The following instructions show you how to generate a timing .vcd file.

To generate timing VCD scripts in the Quartus II software, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Settings. The Settings

dialog box appears ( Figure 4–1

).

2. In the Category list, click the “+” icon to expand EDA Tool Settings.

3. Click Simulation.

4. In the Tool name list, click NC-Sim.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–18 Chapter 4: Cadence Incisive Enterprise Simulator Support

Viewing a Waveform from a .trn File

5. Turn on the Generate Value Change Dump (VCD) File Script option.

Figure 4–1. Simulation Settings Dialog Box

6. Click OK.

7. To generate the VCD script file, perform a full compilation.

Perform the following steps to generate a timing .vcd file in the IES software:

1. In the IES software, before simulating your design, source the

<revision_name>_dump_all_vcd_nodes.tcl script. To source the .tcl script, use the

–input

switch while running the nssim command. For example: ncsim –input <revision_name>_dump_all_vcd_nodes.tcl <my design>

2. Continue to run the simulation until it finishes. Exit ncsim and the

<revision_name>.vcd is generated in the simulation directory.

f

For more detailed information about using the timing .vcd file for power analysis, refer to the

PowerPlay Power Analysis

chapter in volume 3 of the Quartus II Handbook.

Viewing a Waveform from a .trn File

A .trn file is automatically generated when your simulation is done. The .trn file is not readable. It is used for generating the waveform view through SimVision.

To view a waveform from a .trn file through SimVision, follow these steps:

1. Type simvision

on a command line. The Design Browser dialog box appears.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Scripting Support

4–19

2. On the File menu, click Open Database. The Open File dialog box appears.

3. In the Directories field, browse to the directory that contains your .trn file.

4. Double-click the .trn file.

5. In the Design Browser dialog box, select the signals that you want to observe from the Hierarchy.

6. Right-click the selected signals and click Send to Waveform Window.

1

You cannot view a waveform from a .vcd file in SimVision, and the .vcd file cannot be converted to a .trn file.

Scripting Support

You can run procedures and make settings described in this chapter in a Tcl script.

You can also run some procedures at a command prompt.

For detailed information about scripting command options, refer to the Quartus II

Command-Line and Tcl API Help browser.

To run the Help browser, type the following command at the command prompt: quartus_sh --qhelp r h

For more information, refer to

About Quartus II Scripting

in Quartus II Help.

f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook. For information about all settings and constraints in the

Quartus II software, refer to the

Quartus II Settings File Manual

. For more information about command-line scripting, refer to the

Command-Line Scripting

chapter in volume 2 of the Quartus II Handbook.

Generating IES Simulation Output Files

You can generate .vo and .svo files and .sdo simulation output files with Tcl commands or at a command prompt.

For more information about generating .vo and .svo simulation output files and .sdo

file simulation output files, refer to “Quartus II Simulation Output Files” on page 4–6

.

Tcl Commands

The following three assignments cause a Verilog HDL or SystemVerilog HDL netlist to be written out when you run the Quartus II netlist writer: set_global_assignment -name EDA_OUTPUT_DATA_FORMAT VERILOG -section_id eda_simulation set_global_assignment -name EDA_TIME_SCALE "1 ps" -section_id eda_simulation set_global_assignment -name EDA_SIMULATION_TOOL "NC-Verilog (Verilog)"

1

For SystemVerilog HDL, the first assignment should be: set_global_assignment -name EDA_OUTPUT_DATA_FORMAT ""SYSTEMVERILOG

HDL"" -section_id

The netlist has a 1 ps timing resolution for the IES simulation software.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–20 Chapter 4: Cadence Incisive Enterprise Simulator Support

Conclusion

To run the Quartus II Netlist Writer:, type the following Tcl command execute_module -tool eda r

Command Prompt

To generate a simulation output file for the Cadence IES software simulator, type the following command (specify Verilog HDL or VHDL for the format): quartus_eda <project name> --simulation --format=<verilog|vhdl> \

--tool=ncsim r

Conclusion

The Cadence IES family of simulators work within an Altera FPGA design flow to perform functional, post-synthesis, and gate-level timing simulation, easily and accurately.

Altera provides functional models of LPM and Altera-specific megafunctions that you can compile with your testbench or design. For timing simulation, use the atom netlist file generated by Quartus II compilation.

The seamless integration of the Quartus II software and Cadence IES tools make this simulation flow an ideal method for fully verifying an FPGA design.

Document Revision History

Table 4–3

shows the revision history for this chapter.

Table 4–3. Document Revision History (Part 1 of 2)

Date

November 2011

May 2011

December 2010

July 2010

November 2009

Version Changes

Template update.

11.0.1

Minor editorial updates.

Changed chapter title

Linked to Help for Stratix V Libraries

11.0.0

Added SystemVerilog HDL information

Other minor changes throughout

10.0.1

Changed to new document template. No change to content.

10.0.0

Linked to Help where appropriate

Minor text edits

Removed Referenced Documents section

Removed NativeLink information and referenced new Simulating Designs with EDA

Tools chapter in volume 3 of the Quartus II Handbook

9.1.0

Added “RTL Functional Simulation for Stratix IV Devices” and “Gate-Level Timing

Simulation for Stratix IV Devices” sections

Minor text edits

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 4: Cadence Incisive Enterprise Simulator Support

Document Revision History

4–21

Table 4–3. Document Revision History (Part 2 of 2)

Date Version

March 2009

November 2008

May 2008

9.0.0

8.1.0

8.0.0.

Changes

Removed “Compile Libraries Using the Altera Simulation Library Compiler”

Added “Compile Libraries Using the EDA Simulation Library Compiler” on page 4–5

Added “Generate Simulation Script from EDA Netlist Writer” on page 4–35

Added “Viewing a Waveform from a .trn File” on page 4–36

Minor editorial updates

Added “Compile Libraries Using the Altera Simulation Library Compiler” on page 4–5.

Added information about the

Minor editorial updates.

--simlib_comp

utility.

Updated entire chapter using 8½” × 11” chapter template.

Updated Table 4–1.

Updated Figure 4–1.

Updated “Compilation in Command-Line Mode” on page 4–9.

Updated “Generating a Timing Netlist with Different Timing Models” on page 4–18.

Added “Disable Timing Violation on Registers” on page 4–20.

Updated “Simulating Designs that Include Transceivers” on page 4–23.

Updated “Performing a Gate Level Simulation Using NativeLink” on page 4–30.

Added “Generating a Timing VCD File for PowerPlay” on page 4–33.

Added hyperlinks to referenced documents throughout the chapter.

Minor editorial updates.

f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

4–22 Chapter 4: Cadence Incisive Enterprise Simulator Support

Document Revision History

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

5. Aldec Active-HDL and Riviera-PRO

Support

November 2011

QII53023-11.0.1

QII53023-11.0.1

This chapter describes how to use the Active-HDL and Riviera-PRO software to simulate designs that target Altera

®

FPGAs. This chapter provides instructions about how to perform functional simulations, post-synthesis simulations, and gate-level timing simulations. This chapter also describes the location of the simulation libraries and how to automate simulations.

This chapter includes the following topics:

“Software Requirements”

“Using Active-HDL or Riviera-PRO Software in Quartus II Design Flows”

“Simulation Libraries” on page 5–2

“Performing Simulation with the Active-HDL and Riviera-PRO Software” on page 5–3

“Functional Simulation” on page 5–4

“Post-Synthesis Simulation” on page 5–6

“Gate-Level Timing Simulation” on page 5–9

“Compiling SystemVerilog Files” on page 5–9

“Simulating Designs that Include Transceivers” on page 5–10

“Using the NativeLink Feature in Active-HDL or Riviera-PRO Software” on page 5–17

“Generating .vcd Files for the PowerPlay Power Analyzer” on page 5–17

“Scripting Support” on page 5–18

Software Requirements

To simulate your design with the Active-HDL or Riviera-PRO software, you must first set up the Altera libraries. These libraries are installed with the Quartus II software. f

For more information about installing the software and directories created during the

Quartus II software installation, refer to the

Altera Software Installation and Licensing

manual.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

5–2 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Using Active-HDL or Riviera-PRO Software in Quartus II Design Flows

Using Active-HDL or Riviera-PRO Software in Quartus II Design Flows

You can perform the following types of simulations with the Active-HDL or

Riviera-PRO software:

Functional Simulation

Post-Synthesis Simulation

Gate-Level Timing Simulation

f

Refer to the “PLD Design Flow” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook for the Quartus II software design flow.

Simulation Libraries

Simulation model libraries are required to run a simulation whether you are running a functional simulation, post-synthesis simulation, or gate-level timing simulation. In general, running a functional simulation requires the functional simulation model libraries and running a post-synthesis or gate-level timing simulation requires the gate-level timing simulation model libraries. You must compile the necessary library files before you can run the simulation.

However, there are a few exceptions where you are also required to compile gate-level timing simulation library files to perform functional simulation. For example, some of

Altera megafunctions require gate-level libraries to perform a functional simulation in third-party simulators.

1

For each megafunction that you are using, refer to the last page in the Altera

MegaWizard

Plug-In Manager, which lists the simulation library files required to perform a functional simulation for that megafunction.

The transceiver megafunction (for example, ALTGX) also requires the gate-level libraries to perform functional simulation.

For detailed, step-by-step instructions about how to simulate the transceiver megafunction, refer to

“Simulating Designs that Include Transceivers” on page 5–10

.

Simulation Library Files in the Quartus II Software

In Active-HDL or Riviera-PRO software, you must compile the necessary libraries to perform functional, post-synthesis functional, or gate-level timing simulations. You can refer to these library files for the particular simulation model that you are looking for. h

For a list of all functional simulation library files in the Quartus II directory, refer to

Altera Functional Simulation Libraries

in Quartus II Help. For a list of all gate-level timing simulation and post-fit library files in the Quartus II directory, refer to

Altera

Post-Fit Libraries

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

5–3

Compiling Libraries with the EDA Simulation Library Compiler

The EDA Simulation Library Compiler is used to compile Verilog HDL,

SystemVerilog HDL, and VHDL simulation libraries for all Altera devices and supported third-party simulators. You can use this tool to compile all libraries required by gate-level timing simulation.

1

The altera_mf_components.vhd and altera_mf.vhd model files should be compiled into the altera_mf library. The 220pack.vhd and 220model.vhd model files should be compiled into the lpm library.

f

For more information about this tool, refer to the “EDA Simulation Library Compiler” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Performing Simulation with the Active-HDL and Riviera-PRO Software

Perform simulation of Verilog HDL or VHDL designs with the Active-HDL and

Riviera-PRO software at various levels to verify designs from different aspects. There are three types of simulation:

Functional Simulation

Post-Synthesis Simulation

Gate-Level Timing Simulation

Simulation helps you verify your designs and debug any possible errors. The following sections provide instructions to perform the simulations with the GUI and from the command line.

For high-speed simulation, you must select ps in the Resolution list for your simulator resolutions. If you choose slower than ps, the high-speed simulation may fail.

Workspace creation is the mandatory first step to start working in the Active-HDL

GUI. You must create a new workspace and add the simulation model files, design files, and testbench file to the workspace before you can compile them. To create and open the workspace, type the following commands: createdesign DELAY_TEST C:/DELAY_TEST/simulation/activehdl r opendesign -a DELAY_TEST.adf r

If you are running Riviera-PRO, you can skip the step above.

In command-line mode, standalone commands, such as vlib

, vcom

, and vsim

, are executed in the system shell (for example, cygwin

). These standalone commands can be grouped into script files (tcl, perl, windows batch) that are run from the system shell.

Before running Active-HDL or Riviera-PRO from the command line, ensure that the

Active-HDL/bin

or Riviera-PRO/bin directory is located in PATH environment variables.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–4 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

Functional Simulation

This section describes performing functional simulation of VHDL and Verilog HDL designs with the Active-HDL and Riviera-PRO software with the GUI and from the command line.

Simulating VHDL Designs with the Active-HDL GUI

When you simulate VHDL designs with the Active-HDL GUI, you do not have to remember the commands to compile the libraries or load and simulate the VHDL design files. You can use the Active-HDL GUI to perform a functional simulation, post-synthesis simulation, or a gate-level timing simulation.

Functional simulation is typically performed to verify the syntax of the code and to check the functionality of the design.

h

For detailed information about how to perform functional simulation in the

Active-HDL software for VHDL designs, refer to

Performing a Simulation of a VHDL

Design with the Active-HDL Software

in Quartus II Help.

h

If you are compiling Stratix

®

V libraries, refer to

Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Simulating Verilog HDL Designs with the Active-HDL GUI

When you simulate Verilog HDL designs with the Active-HDL GUI, you do not have to remember the commands to compile the libraries or load and simulate the Verilog

HDL design files. You can use the Active-HDL GUI to perform functional simulation, post-synthesis simulation, and gate-level timing simulation.

Functional simulation is performed to verify the syntax of the code and to check the functionality of the design. h

For detailed information about how to perform functional simulation in the

Active-HDL software for Verilog HDL designs, refer to

Performing a Simulation of a

Verilog HDL Design with the Active-HDL Software

in Quartus II Help.

h

If you are compiling Stratix V libraries, refer to

Guidelines for Compiling Stratix V

Libraries

in Quartus II Help.

Simulating VHDL Designs with Active-HDL from the Command Line

To perform a functional simulation for VHDL designs, follow these steps:

1. To create and compile Altera libraries, type the following commands: vlib <lib1> r vcom -strict93 -dbg -work <lib1> <lib1_component/pack.vhd> \

<lib1.vhd> r vlib <lib1> r vcom -strict93 -dbg -work <lib2> <lib2_component/pack.vhd> \

<lib2.vhd> r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

5–5

2. To create the work library and compile the design files and testbench file, type the following commands: vlib work r vcom - strict93 -dbg -work work <design_file1.vhd> <design \

file2.vhd> <testbench file.vhd> r

3. To load the design, type the following command: vsim +access +r -t 1ps -L work -L <lib1> -L <lib2> work. \

<testbench module name> r

4. To add signals at the waveform and run the simulation, type the following commands: add wave * r run r

Example

vlib vhdl_libs/lpm vcom -strict93 -dbg -work lpm c:/altera/91/quartus/eda/sim_lib/220pack.vhd

vcom -strict93 -dbg -work lpm c:/altera/91/quartus/eda/sim_lib/220model.vhd

vlib vhdl_libs/altera_mf vcom -strict93 -dbg -work altera_mf c:/altera/91/quartus/eda/sim_lib/altera_mf_components.vhd

vcom -strict93 -dbg -work altera_mf c:/altera/91/quartus/eda/sim_lib/altera_mf.vhd

vlib work vcom -strict93 -dbg -work work C:/project/adder.vhd

C:/project/adder.vht

vsim +access +r -t 1ps -L adder -L work -L lpm -L altera_mf work.adder_vhd_vec_tst

#add signals at waveform and run add wave * run

Simulating Verilog HDL Designs with Active-HDL from the Command Line

To perform a functional simulation for Verilog HDL designs with one of the libraries

(lib1) listed in

Altera Functional Simulation Libraries

in Quartus II Help, follow these steps:

1. To create and compile Altera libraries, type the following commands: vlib <lib1> r vlog -v2k -dbg -work <lib1> <lib1.v> r vlib <lib2> r vlog -v2k -dbg -work <lib2> <lib2.v> r

2. To create work library and compile design files and testbench file, type the following commands: vlib work r vlog -v2k -dbg -work work <design_file1.v> <design file2.v> \

<testbench \ file.v> r

3. To load the design, type the following command: vsim +access +r -t 1ps -L work -L <lib1> -L <lib2> work.<testbench \

module name> r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–6 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

4. To add signals at the waverform and run the simulation, type the following commands: add wave * r run r

Example

vlib verilog_libs/lpm_ver vlog -v2k -dbg -work lpm_ver c:/altera/91/quartus/eda/sim_lib/220model.v

vlib verilog_libs/altera_mf_ver vlog -v2k -dbg -work altera_mf_ver c:/altera/91/quartus/eda/sim_lib/altera_mf.v

vlib work vlog -v2k -dbg -work work C:/project/adder.v C:/project/adder.vt

vsim +access +r -t 1ps -L work -L lpm_ver -L altera_mf_ver work.adder_vlg_vec_tst

add wave * run

Simulating VHDL and Verilog HDL Designs with the Riviera-PRO GUI

f

For information about how to perform a functional simulation with the Riviera-PRO

GUI, refer to the Riviera-PRO documentation from Aldec, Inc.

h

If you are compiling Stratix V libraries, refer to

Guidelines for Compiling Stratix V Libraries

in Quartus II Help.

Simulating VHDL and Verilog HDL Designs with Riviera-PRO from the Command

Line

h

For information about how to perform a functional simulation with the Riviera-PRO software from the command line, refer to

Performing an RTL Functional Simulation with the Riviera-PRO Software

in Quartus II Help.

Post-Synthesis Simulation

Before you run post-synthesis simulation, generate post-synthesis simulation netlist files. h

For information about how to generate a post-synthesis simulation netlist file, refer to

Generating Simulation Netlist Files

in Quartus II Help.

1

You cannot perform post-synthesis or post-fit simulation if you are targeting the

Stratix V device family.

Simulating VHDL Designs with the Active-HDL GUI

h

For information abut how to perform a post-synthesis simulation with the Active-HDL

GUI, refer to

Performing a Simulation of a VHDL Design with the Active-HDL Software

in

Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

5–7

Simulating Verilog Designs with the Active-HDL GUI

h

For information abut how to perform a post-synthesis simulation with the Active-

HDL GUI, refer to

Performing a Simulation of a Verilog HDL Design with the Active-HDL

Software

in Quartus II Help.

Simulating VHDL Designs with Active-HDL from the Command Line

To perform a post-synthesis simulation for VHDL designs, follow these steps:

1. To create and compile Altera libraries, type the following commands: vlib <lib1> r vcom -strict93 -dbg -work <lib1> <lib1_component/pack.vhd> \

<lib1.vhd> r vlib <lib1> r vcom -strict93 -dbg -work <lib2> <lib2_component/pack.vhd> \

<lib2.vhd> r

2. To create the work library and compile the EDA output netlist files and testbench file, type the following commands: vlib work r vcom - strict93 -dbg -work work <EDA output netlist.vho> \

<testbench file.vhd> r

3. To load the design, type the following command: vsim +access+r -t 1ps +transport_int_delays +transport_path_delays \

-L work -L <lib1> -L <lib2> work.<testbench module name> r?

4. To add signals at the waveform and run the simulation, type the following commands: add wave * r run r

Example

vlib vhdl_libs/lpm vcom -strict93 -dbg -work lpm c:/altera/91/quartus/eda/sim_lib/220pack.vhd

vcom -strict93 -dbg -work lpm c:/altera/91/quartus/eda/sim_lib/220model.vhd

vlib vhdl_libs/altera vcom -strict93 -dbg -work altera c:/altera/91/quartus/eda/sim_lib/altera_primitives_components.vhd

vcom -strict93 -dbg -work altera c:/altera/91/quartus/eda/sim_lib/altera_primitives.vhd

vlib work vcom -strict93 -dbg -work work

C:/project/simulation/activehdl/adder.vho C:/project/adder.vht

vsim +access +r -t 1ps +transport_int_delays +transport_path_delays -L adder -L work -L lpm -L altera_mf work.adder_vhd_vec_tst

add wave * run

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–8 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Performing Simulation with the Active-HDL and Riviera-PRO Software

Simulating Verilog HDL Designs with Active-HDL from the Command Line

To perform a post-synthesis simulation for Verilog HDL designs, follow these steps:

1. To create and compile Altera libraries, type the following commands: vlib <lib1> r vlog -v2k -dbg -work <lib1> <lib1.v> r vlib <lib2> r vlog -v2k -dbg -work <lib2> <lib2.v> r

2. To create the work library and compile the EDA output netlist files and testbench file, type the following commands: vlib work r vlog -v2k -dbg -work work <EDA_output_netlist.vo> <testbench file.v> r

3. To load the design, type the following command: vsim +access +r -t 1ps +transport_int_delays +transport_path_delays

\ -L work -L <lib1> -L <lib2> work.<testbench module name>

4. To add signals at the waveform and run the simulation, type the following commands: add wave * r run r

Example

vlib verilog_libs/lpm_ver vlog -v2k -dbg -work lpm_ver c:/altera/91/quartus/eda/sim_lib/220model.v

vlib verilog_libs/altera_ver vlog -v2k -dbg -work altera_ver c:/altera/91/quartus/eda/sim_lib/altera_primitives.v

vlib verilog_libs/stratixiv_ver vlog -v2k -dbg -work stratixiv_ver c:/altera/91/quartus/eda/sim_lib/stratixiv_atoms.v

vlib work vlog -v2k -dbg -work work C:/project/simulation/activehdl/adder.vo

C:/project/adder.vt

vsim +access +r -t 1ps +transport_int_delays +transport_path_delays -L work -L lpm_ver -L altera_mf_ver work.adder_vlg_vec_tst

add wave * run

Simulating VHDL and Verilog HDL Designs with the Riviera-PRO GUI

f

For information abut how to perform a post-synthesis simulation with the

Riviera-PRO GUI, refer to the Riviera-PRO documentation from Aldec, Inc.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Compiling SystemVerilog Files

5–9

Simulating VHDL and Verilog HDL Designs with Riviera-PRO from the

Command Line

h

For information about how to perform a post-synthesis simulation with the

Riviera-PRO software from the command line, refer to

Performing a Post-Synthesis

Simulation with the Riviera-PRO Software

in Quartus II Help.

Gate-Level Timing Simulation

The steps for gate-level timing simulation are almost same as the steps for post-synthesis simulation. The only difference is that the Standard Delay Output

(.sdo) file must be back-annotated for gate level-timing simulation.

For Verilog HDL designs, the back-annotating process is done within the

EDA_output_netlist.vo

script. Therefore, you are not required to back-annotate the

.sdo

again.

1

You cannot perform post-synthesis or post-fit simulation if you are targeting the

Stratix V device family.

Disabling Timing Violation on Registers

In certain situations, timing violation can be ignored and you can disable the timing violation on registers; for example, timing violations that occur in internal synchronization registers used for asynchronous clock-domain crossing.

By default, the x_on_violation_option logic option is On, which means the simulation shows “x” whenever a timing violation occurs. To disable showing the timing violation on certain registers, set the x_on_violation_option logic option to

Off

on those registers. The following command is an example of the QSF file: set_instance_assignment -name X_ON_VIOLATION_OPTION OFF –to <register_name>

For VHDL designs, the back-annotating process is done by adding the

–sdftyp option.

Example

vsim +access +r -t 1ps +transport_int_delays +transport_path_delays

-sdftyp <instance path to design>= <path to SDO file> -L adder -L work

-L lpm -L altera_mf work.adder_vhd_vec_tst

Compiling SystemVerilog Files

If your design includes multiple SystemVerilog files, you must compile the System

Verilog files together with a single alog command.

If you have Verilog files and SystemVerilog files in your design, it is recommended that you compile the Verilog files, and then compile only the SystemVerilog files in the single alog command.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–10 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

Simulating Designs that Include Transceivers

If your design includes Arria

®

, Arria II, Cyclone

®

IV, HardCopy

®

IV, Stratix, Stratix II, or Stratix IV transceivers, you must compile additional library files to perform functional or gate-level timing simulations. The following example shows how to perform simulation on designs that include Stratix GX and Stratix II GX transceivers.

For high-speed simulation, you must select ps in the Resolution list for your simulator resolutions (Design tab of the Start Simulation dialog box). If you choose slower than ps, the high-speed simulation may fail.

Performing simulation with transceivers in Arria GX or Stratix II GX is very similar.

The only requirement is to replace the stratixiigx_atoms and stratixiigx_hssi_atoms model files with the arriagx_atoms and arriagx_hssi_atoms model files, respectively.

f

If your design contains PCI Express Hard IP, refer to the “Simulate the Design” section in the

IP Compiler for PCI Express User Guide.

Functional Simulation for Stratix II GX Devices

Functional simulation for Stratix II GX devices is similar to functional simulation for

Arria GX devices. The following example shows only the functional simulation for designs that include transceivers in Stratix II GX devices. To simulate transceivers in

Arria GX devices, replace the stratixiigx_hssi model file with the arriagx_hssi model file.

To perform an functional simulation of your design that instantiates the ALT2GXB megafunction, which enables the gigabit transceiver blocks on Stratix II GX devices, you must generate a functional simulation netlist and compile the stratixiigx_hssi model file into the stratixiigx_hssi library.

1

The stratixgx_hssi_atoms model file references the lpm and sgate libraries; you must create these libraries to perform a simulation.

To run the functional simulation, you must generate a functional simulation netlist by turning on Generate Simulation Model in the Simulation Libraries tab of the

ALT2GXB MegaWizard Plug-In Manager.

The <alt2gxb entity name>.vho or <alt2gxb module name>.vo is generated in the current project directory.

The ALT2GXB functional simulation library file generated by the Quartus II software references stratixiigx_hssi WYSIWYG atoms.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

5–11

Performing Functional Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–1

.

Example 5–1.

vcom -work lpm 220pack.vhd 220model.vhd r vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work stratixiigx_hssi stratixiigx_hssi_components.vhd \ stratixiigx_hssi_atoms.vhd r vcom -work work <alt2gxb entity name>.vho r vcom -work work <my design>.vhd <my testbench>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixgx_hssi work.

<my testbench> r

Performing Functional Simulation in Verilog HDL

To compile and simulate the design, Type the commands in

Example 5–2

.

Example 5–2.

vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work stratixiigx_hssi_ver stratixiigx_hssi_atoms.v r vlog -work work <alt2gxb module name>.vo r vlog -work work <my design>.v <my testbench>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L stratixgx_hssi \ work.<my testbench> r

Gate-Level Timing Simulation for Stratix II GX Devices

To perform a gate-level timing simulation of your design that includes a Stratix II GX transceiver, you must compile stratixiigx_atoms and stratixiigx_hssi_atoms into the

stratixiigx

and stratixiigx_hssi libraries, respectively.

Performing Gate-Level Timing Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–3

.

Example 5–3.

vcom -work lpm 220pack.vhd 220model.vhd r vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work stratixiigx stratixiigx_atoms.vhd stratixiigx_components.vhd r vcom -work stratixiigx_hssi stratixiigx_hssi_components.vhd stratixiigx_hssi_atoms.vhd r vcom -work work <my design>.vho <my testbench>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixiigx -L stratixiigx_hssi \ work.<my testbench> -t ps -sdftyp <design instance>=<path to SDO file>.sdo \

+transport_int_delays +transport_path_delays r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–12 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

Performing Gate-Level Timing Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–4

.

Example 5–4.

vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work stratixiigx_ver stratixiigx_atoms.v r vlog -work stratixiigx_hssi_ver stratixiigx_hssi_atoms.v r vlog -work work <my design>.vo <my testbench>.v r vsim -L lpm -L altera_mf_ver -L sgate_ver -L stratixiigx_ver -L stratixiigx_hssi_ver \ work.<my testbench> -t ps +transport_int_delays +transport_path_delays r

Functional Simulation for Stratix GX Devices

To perform a functional simulation of your design that instantiates the ALTGXB megafunction, which enables the gigabit transceiver block on Stratix GX devices, compile the stratixgx_mf model file into the altgxb library.

1

The stratixgx_mf model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

Performing Functional Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–5

.

Example 5–5.

vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work lpm 220pack.vhd 220model.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work altgxb stratixgx_mf.vhd stratixgx_mf_components.vhd r vcom -work work<altgxb entity name>.vhd r vsim -L lpm -L altera_mf -L sgate -L altgxb work.<my testbench> r

Performing Functional Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–6

.

Example 5–6.

vlib work r vlib lpm_ver r vlib altera_mf_ver r vlib sgate_ver r vlib altgxb_ver r vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work altgxb_ver stratixgx_mf.v r vlog -work work <altgxb module name>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L altgxb_ver \ work.<my testbench> r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

5–13

Gate-Level Timing Simulation for Stratix GX Devices

Perform a gate-level timing simulation of your design that includes a Stratix GX transceiver by compiling the stratixgx_atoms and stratixgx_hssi_atoms model files into the stratixgx and stratixgx_gxb libraries, respectively.

Performing Gate-Level Timing Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–7

.

Example 5–7.

vcom -work lpm 220pack.vhd 220model.vhd r vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work stratixgx stratixgx_atoms.vhd stratixgx_components.vhd r vcom -work stratixgx_gxb stratixgx_hssi_atoms.vhd \ stratixgx_hssi_components.vhd r vcom -work work <my design>.vho <my testbench>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixgx -L stratixgx_gxb work. \

<my testbench> -t ps -sdftyp <design instance>=<path to SDO file>.sdo \

+transport_int_delays +transport_path_delays r

Performing Gate-Level Timing Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–8

.

Example 5–8.

vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work stratixgx_ver stratixgx_atoms.v r vlog -work stratixgx_gxb_ver stratixgx_hssi_atoms.v r vlog -work work <my design>.vo <my testbench>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L stratixgx_ver -L \ stratixgx_gxb_ver work.<my testbench> -t ps +transport_int_delays

+transport_path_delays r

Functional Simulation for Stratix IV GX Devices

Functional simulation for Stratix IV devices is similar to functional simulation for

Arria II, Cyclone IV, and HardCopy IV devices.

The following example shows only the functional simulation for designs that include transceivers in Stratix IV devices. To simulate transceivers in Arria II, Cyclone IV, and

HardCopy IV devices, replace the stratixiv_hssi model file with the arriaii_hssi,

cycloneiv_hssi

, and hardcopyiv_hssi model files, respectively.

To perform a functional simulation of your design that instantiates the ALTGX megafunction, which enables the gigabit transceiver blocks on Stratix IV devices, you must generate a functional simulation netlist and compile the stratixiv_hssi model file into the stratixiv_hssi library.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–14 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

1

The stratixiv_hssi model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

Performing Functional Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–9

.

Example 5–9.

vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work lpm 220pack.vhd 220model.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work stratixiv_hssi stratixiv_hssi.vhd\ stratixiv_hssi_components.vhd r vcom -work work <altgxb entity name>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixiv_hssi work.<my testbench> r

Performing Functional Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–10 .

Example 5–10.

vlib work r vlib lpm_ver r vlib altera_mf_ver r vlib sgate_ver r vlib stratixiv_hssi_ver r vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work stratixiv_hssi_ver stratixiv_hssi_.v r vlog -work work <altgxb module name>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver \

-L stratixiv_hssi_ver work.<my testbench> r

Gate-Level Timing Simulation for Stratix IV GX Devices

Perform a gate-level timing simulation of your design that includes a Stratix IV transceiver by compiling the stratixiv_atoms and stratixiv_hssi_atoms model files into the stratixiv and stratixiv_hssi libraries, respectively.

Performing Gate-Level Timing Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–11 .

Example 5–11.

vcom -work lpm 220pack.vhd 220model.vhd r vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vcom -work stratixiv stratixiv_atoms.vhd stratixiv_components.vhd r vcom -work stratixiv_hssi stratixiv_hssi_atoms.vhd \ stratixiv_hssi_components.vhd r vcom -work work <my design>.vho <my testbench>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixiv -L stratixiv_hssi\ work.<my testbench> -t ps\

-sdftyp <design instance>=<path to SDO file>.sdo \

+transport_int_delays +transport_path_delays r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

5–15

Performing Gate-Level Timing Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–12 .

Example 5–12.

vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog -work stratixiv_ver stratixiv_atoms.v r vlog -work stratixiv_hssi_ver stratixiv_hssi_atoms.v r vlog -work work <my design>.vo <my testbench>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver -L stratixiv_ver -L stratixiv_hssi_ver \ work.<my testbench> -t ps +transport_int_delays +transport_path_delays r

Functional Simulation for Stratix V GX Devices

Functional simulation for Stratix V devices is similar to functional simulation for

Arria II, Cyclone IV, HardCopy IV, and Stratix IV devices.

The following example shows only the functional simulation for designs that include transceivers in Stratix V devices. To simulate transceivers in Arria II, Cyclone IV,

HardCopy IV, and Stratix V devices, replace the stratixv_hssi model file with the

arriaii_hssi

, cycloneiv_hssi, hardcopyiv_hssi, and stratixiv_hssi model files, respectively.

1

The transceiver module from the MegaWizard Plug-In Manager is created in

Interfaces/Transceiver PHY

. Select Custom PHY.

Performing Functional Simulation in VHDL

To compile and simulate the design, type the commands in

Example 5–13 .

Example 5–13.

vcom -work altera_mf altera_mf_components.vhd altera_mf.vhd r vcom -work lpm 220pack.vhd 220model.vhd r vcom -work sgate sgate_pack.vhd sgate.vhd r vlog +v2k –work stratixv_hssi \ quartus/eda/sim_lib/aldec/stratixv_hssi_atoms_ncrypt.v r vcom -work stratixv_hssi stratixiv_hssi.vhd \ stratixiv_hssi_components.vhd vcom -work work <my design>.vhd r vsim -L lpm -L altera_mf -L sgate -L stratixv_hssi work.<my testbench> r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–16 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Simulating Designs that Include Transceivers

Performing Functional Simulation in Verilog HDL

To compile and simulate the design, type the commands in

Example 5–14 .

Example 5–14.

vlib work r vlib lpm_ver r vlib altera_mf_ver r vlib sgate_ver r vlib stratixv_hssi_ver r vlog -work lpm_ver 220model.v r vlog -work altera_mf_ver altera_mf.v r vlog -work sgate_ver sgate.v r vlog +v2k –work stratixv_hssi \ quartus/eda/sim_lib/aldec/stratixv_hssi_atoms_ncrypt.v r vlog -work stratixv_hssi_ver stratixiv_hssi.v r vlog -work work <my design>.v r vsim -L lpm_ver -L altera_mf_ver -L sgate_ver \

-L stratixv_hssi_ver work.<my testbench> r

1

The stratixv_hssi model file references the lpm and sgate libraries. You must create these libraries to perform a simulation.

1

In addition to the top-level variant wrapper, <variant>.v, you also get a simulation files subdirectory, <variant>_sim/. All Verilog (.v) and SystemVerilog (.sv) files in the simulation directory must also be compiled into the simulation project.

Transport Delays

By default, the Active-HDL or Riviera-PRO software filters out all pulses that are shorter than the propagation delay between primitives. Turning on the transport

delay

options in the Active-HDL or Riviera-PRO software prevents the simulation tool from filtering out these pulses.

Table 5–1

describes the transport delay options.

Table 5–1. Transport Delay Options

Option

+transport_path_delays

+transport_int_delays

Description

Use this option when the pulses in your simulation are shorter than the delay within a gate-level primitive. You must include the

+pulse_e/number

and

+pulse_r/number options.

Use this option when the pulses in your simulation are shorter than the interconnect delay between gate-level primitives. You must include the

+pulse_int_e/number

and

+pulse_int_r/number

options.

1

The +transport_path_delays and +transport_int_delays options are also used by default in the NativeLink feature for gate-level timing simulation.

f

For more information about either of these options, refer to the Active-HDL online documentation installed with the Active-HDL software.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Using the NativeLink Feature in Active-HDL or Riviera-PRO Software

5–17

To perform a gate-level timing simulation with the device family library, type the

Active-HDL command shown in

Example 5–15 .

Example 5–15.

vsim -t 1ps -L stratixii -sdftyp /i1=filtref_vhd.sdo \ work.filtref_vhd_vec_tst +transport_int_delays +transport_path_delays

Using the NativeLink Feature in Active-HDL or Riviera-PRO Software

The NativeLink feature in the Quartus II software facilitates the seamless transfer of information between the Quartus II software and EDA tools and allows you to run the

Active-HDL or Riviera-PRO software within the Quartus II software.

f

For more information, refer to the “Using the NativeLink Feature” section in the

Simulating Altera Designs

chapter in volume 3 of the Quartus II Handbook.

Generating .vcd Files for the PowerPlay Power Analyzer

To generate a Value Change Dump File (.vcd) for the PowerPlay power analyzer, you must first generate a VCD script in the Quartus II software and run the VCD script from the Active-HDL software to generate a .vcd. This .vcd can then be used by

PowerPlay for power analysis. The following instructions show you how to generate a .vcd.

To generate VCD scripts in the Quartus II software, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, select Simulator Settings.

3. On the Simulator Settings page, in the Tool name list, select Active-HDL and turn on the Generate Value Change Dump File Script option.

4. To generate the VCD script file, perform a full compilation.

To generate a .vcd in the Active-HDL software, follow these steps:

1. In the Active-HDL software, before simulating your design, source the

<

revision_name>_dump_all_vcd_nodes.tcl script. To source the TCL script, type the following command before running the vsim command: source <revision_name>_dump_all_vcd_nodes.tcl r

2. Continue to run the simulation until the simulation is completed. Exit the

Active-HDL software. If you do not exit the software, the Active-HDL software may end the writing process of the .vcd files improperly, resulting in a corrupted

VCD file.

f

For more details about using the .vcd for power analysis, refer to the

PowerPlay Power

Analysis

chapter in volume 3 of the Quartus II Handbook.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–18 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Scripting Support

Scripting Support

You can run procedures and create settings described in this chapter in a Tcl script. You can also run some procedures at the command-line prompt.

f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook.

f

For more information about command-line scripting, refer to the

Command-Line

Scripting

chapter in volume 2 of the Quartus II Handbook.

f

For detailed information about scripting command options, refer to the Qhelp command line and Tcl API help browser.

To start the Qhelp help browser, type the following command: quartus_sh -qhelp r

Generating a Post-Synthesis Simulation Netlist for Active-HDL or

Riviera-PRO

You can use the Quartus II software to generate a post-synthesis simulation netlist with

Tcl commands or with a command at the command-line prompt. The following examples assume you are selecting Active-HDL or Riviera-PRO (Verilog HDL output from the Quartus II software).

Tcl Commands

To set the output format to Verilog HDL, the simulation tool to Active-HDL or

Riviera-PRO for Verilog HDL, and to generate a functional netlist, type the following

Tcl commands: set_global_assignment-name EDA_SIMULATION_TOOL "Active-HDL (Verilog)" r set_global_assignment-name EDA_GENERATE_FUNCTIONAL_NETLIST ON r or set_global_assignment-name EDA_SIMULATION_TOOL "Riviera-PRO (Verilog)" r set_global_assignment-name EDA_GENERATE_FUNCTIONAL_NETLIST ON r

Command Line

To generate a simulation output file for the Active-HDL or Riviera-PRO software, type one of the following commands (specify VHDL or Verilog HDL for the format): quartus_eda <project name> --simulation=on --format=<format> \

--tool=activehdl --functional r or quartus_eda <project name> --simulation=on --format=<format> \

--tool=rivierapro --functional r

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Conclusion

5–19

Generating a Gate-Level Timing Simulation Netlist for Active-HDL or

Riviera-PRO

You can use the Quartus II software to generate a gate-level timing simulation netlist with Tcl commands or with a command at the command prompt.

Tcl Commands

Type one of the following Tcl commands: set_global_assignment -name EDA_SIMULATION_TOOL "Active-HDL (Verilog)" r set_global_assignment -name EDA_SIMULATION_TOOL "Active-HDL (VHDL)" r or set_global_assignment -name EDA_SIMULATION_TOOL "Riviera-PRO (Verilog)" r set_global_assignment -name EDA_SIMULATION_TOOL "Riviera-PRO (VHDL)" r

Command Line

To generate a simulation output file for the Active-HDL or Riviera-PRO software by specifying VHDL or Verilog HDL for the format, type the following command at the command prompt: quartus_eda <project name> --simulation=on --format=<format> \

--tool=activehdl r or quartus_eda <project name> --simulation=on --format=<format> \

--tool=rivierapro r

Conclusion

Using the Active-HDL or Riviera-PRO simulation software within the Altera FPGA design flow allows you to easily and accurately perform functional simulations, post-synthesis simulations, and gate-level timing simulations on your designs. Proper verification of designs at the functional, post-synthesis, and post place-and-route stages helps ensure your design functions correctly and, ultimately, a quick time-to-market.

Document Revision History

Table 5–2

shows the revision history for this chapter.

Table 5–2. Document Revision History

Date Version Changes

November 2011 11.0.1

Template update.

Minor editorial updates.

May 2011 11.0.0

Linked to Help for Stratix V Libraries.

Reorganized and reformatted chapter

Other minor changes throughout.

December 2010 10.0.1

Changed to new document template. No change to content.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

5–20 Chapter 5: Aldec Active-HDL and Riviera-PRO Support

Document Revision History

Table 5–2. Document Revision History

Date Version

July 2010

November 2000

March 2009

November 2008

May 2008

10.0.0

9.1.0

9.0.0

8.1.0

8.0.0

Changes

Linked to Quartus II Help

Revised simulation procedures

Added Stratix V simulation information

Added Riviera-PRO support

Minor text edits

Removed Referenced Documents section

Updated Table 6–1

Removed Simulation Library tables and EDA Simulation Library Compiler sections and referenced new Simulating Designs with EDA Tools chapter

Added “RTL Functional Simulation for Stratix IV Devices” and “Gate-Level Timing

Simulation for Stratix IV Devices” sections

Minor text edits

Removed “Compile Libraries Using the Altera Simulation Library Compiler”

Added “Compile Libraries Using the EDA Simulation Library Compiler” on page 5–10

Added “Generate Simulation Script from EDA Netlist Writer” on page 5–51

Minor editorial updates

Added the following sections:

“Compile Libraries Using the Altera Simulation Library Compiler” on page 5–10

Added steps to the procedure “Performing an RTL Simulation Using NativeLink” on page 5–45 for using the Altera Simulation Library Compilation

Added steps to the procedure “Performing a Gate-Level Timing Simulation Using

NativeLink” on page 5–47 for using the Altera Simulation Library Compilation

Minor editorial updates

Updated entire chapter using 8½” × 11” chapter template

Initial release f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Section II. Timing Analysis

As designs become more complex, advanced timing analysis capability requirements grow. Static timing analysis is a method of analyzing, debugging, and validating the timing performance of a design. The Quartus

®

II software provides the features necessary to perform advanced timing analysis for today’s system-on-aprogrammable-chip (SOPC) designs.

Synopsys PrimeTime is an industry standard sign-off tool, used to perform static timing analysis on most ASIC designs. The Quartus II software provides a path to enable you to run PrimeTime on your Quartus II software designs, and export a netlist, timing constraints, and libraries to the PrimeTime environment.

This section explains the basic principles of static timing analysis, the advanced features supported by the Quartus II Timing Analyzer, and how you can use

PrimeTime to analyze your Quartus II projects.

This section includes the following chapters:

Chapter 6, Timing Analysis Overview

This chapter describes static timing analysis in the context of the TimeQuest

Timing Analyzer. The chapter focuses on the relationships and equations that are central to timing analysis.

Chapter 7, The Quartus II TimeQuest Timing Analyzer

This chapter describes the Quartus II TimeQuest Timing Analyzer, which is a powerful ASIC-style timing analysis tool that validates the timing performance of all logic in your design using an industry-standard constraint, analysis, and reporting methodology.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Section II: Timing Analysis

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

6. Timing Analysis Overview

November 2011

QII53030-11.1.0

QII53030-11.1.0

Comprehensive static timing analysis involves analysis of register-to-register, I/O, and asynchronous reset paths. Timing analysis with the TimeQuest Timing Analyzer uses data required times, data arrival times, and clock arrival times to verify circuit performance and detect possible timing violations. The TimeQuest analyzer determines the timing relationships that must be met for the design to correctly function, and checks arrival times against required times to verify timing. This chapter is an overview of the concepts you need to know to analyze your designs with the TimeQuest analyzer.

f

For more information about the TimeQuest analyzer flow and TimeQuest examples, refer to

The Quartus II TimeQuest Timing Analyzer

chapter of the Quartus II Handbook.

TimeQuest Terminology and Concepts

Table 6–1 describes TimeQuest analyzer terminology.

Table 6–1. TimeQuest Analyzer Terminology

Term Definition

nodes cells pins nets ports

Most basic timing netlist unit. Used to represent ports, pins, and registers.

Look-up tables (LUT), registers, digital signal processing (DSP) blocks, memory blocks, input/output elements, and so on.

(1)

Inputs or outputs of cells.

Connections between pins.

Top-level module inputs or outputs; for example, device pins.

clocks Abstract objects representing clock domains inside or outside of your design.

Notes to Table 6–1 :

(1) For Stratix

®

devices, the LUTs and registers are contained in logic elements (LE) and modeled as cells.

Timing Netlists and Timing Paths

The TimeQuest analyzer requires a timing netlist to perform timing analysis on any design. After you generate a timing netlist, the TimeQuest analyzer uses the data to help determine the different design elements in your design and how to analyze timing.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

6–2 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

The Timing Netlist

Figure 6–1 shows a sample design for which the TimeQuest analyzer generates a timing netlist equivalent.

Figure 6–1. Sample Design

data1 reg1 and_inst reg3 reg2 data2 clk

Figure 6–2 shows the timing netlist for the sample design in Figure 6–1 , including how different design elements are divided into cells, pins, nets, and ports.

Figure 6–2. The TimeQuest Analyzer Timing Netlist

Cells

Cell

data1 reg1

combout datain

Pin

data2

Port

Pin

clk

reg2

Net

regout

Cell

datac datad

and_inst

combout

reg3

datain

data_out

regout

Net

Net

Port

clk

inclk0

clk~clkctrl

outclk

Timing Paths

Timing paths connect two design nodes, such as the output of a register to the input of another register. Understanding the types of timing paths is important to timing closure and optimization. The TimeQuest analyzer uses the following commonly analyzed paths:

Edge paths

—connections from ports-to-pins, from pins-to-pins, and from pins-to-ports.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

6–3

Clock paths

—connections from device ports or internally generated clock pins to the clock pin of a register.

Data paths

—connections from a port or the data output pin of a sequential element to a port or the data input pin of another sequential element.

Asynchronous paths

—connections from a port or asynchronous pins of another sequential element such as an asynchronous reset or asynchronous clear.

Figure 6–3 shows path types commonly analyzed by the TimeQuest analyzer.

Figure 6–3. Path Types

data

D Q D Q

Clock Path

Data Path

clk

CLRN CLRN

Asynchronous Clear Path

rst

In addition to identifying various paths in a design, the TimeQuest analyzer analyzes clock characteristics to compute the worst-case requirement between any two registers in a single register-to-register path. You must constrain all clocks in your design before analyzing clock characteristics.

Data and Clock Arrival Times

After the TimeQuest analyzer identifies the path type, it can report data and clock arrival times at register pins.

The TimeQuest analyzer calculates data arrival time by adding the launch edge time to the delay from the clock source to the clock pin of the source register, the micro clock-to-output delay (t

CO

) of the source register, and the delay from the source register’s data output (Q) to the destination register’s data input (D).

The TimeQuest analyzer calculates data required time by adding the latch edge time to the sum of all delays between the clock port and the clock pin of the destination register, including any clock port buffer delays, and subtracts the micro setup time

(t

SU

) of the destination register, where the t

SU

is the intrinsic setup time of an internal register in the FPGA. Figure 6–4 shows the flow calculated for data arrival time and data required time.

Figure 6–4. Data Arrival and Data Required Times

D Q

Data Arrival Time

D Q

Data Required Time

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–4 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Equation 6–1

shows the basic calculations for data arrival and data required times including the launch and latch edges.

Equation 6–1. Data Arrival and Data Required Time Equations

Data Arrival Time

=

Launch Edge

+

Source Clock Delay

+

t

CO

+

Register-to-Register Delay

Data Required Time

=

Latch Edge

+ –

SU

Launch and Latch Edges

All timing relies on one or more clocks. In addition to analyzing paths, the TimeQuest analyzer determines clock relationships for all register-to-register transfers in your

design. Figure 6–5 shows the launch edge, which is the clock edge that sends data out

of a register or other sequential element, and acts as a source for the data transfer. A latch edge is the active clock edge that captures data at the data port of a register or other sequential element, acting as a destination for the data transfer. In this example, the launch edge sends the data from register reg1

at 0 ns, and the register reg2 captures the data when triggered by the latch edge at 10 ns. The data arrives at the destination register before the next latch edge.

In timing analysis, and with the TimeQuest analyzer specifically, you create clock constraints and assign those constraints to nodes in your design. These clock constraints provide the structure required for repeatable data relationships. The primary relationships between clocks, in the same or different domains, are the setup relationship and the hold relationship.

Figure 6–5 also shows the setup and hold

relationships between a launch edge and a latch edge which are 10ns apart.

Figure 6–5. Launch and Latch Edges

0ns 10ns 20ns

Launch Clock

Hold relationship

Setup relationship

Latch Clock

1

If you do not constrain the clocks in your design, the Quartus II software analyzes in terms of a 1 GHz clock to maximize timing based Fitter effort. To ensure realistic slack values, you must constrain all clocks in your design with real values.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

6–5

Clock Setup Check

To perform a clock setup check, the TimeQuest analyzer determines a setup relationship by analyzing each launch and latch edge for each register-to-register path. For each latch edge at the destination register, the TimeQuest analyzer uses the closest previous clock edge at the source register as the launch edge. Figure 6–6 shows two setup relationships, setup A and setup B. For the latch edge at 10 ns, the closest clock that acts as a launch edge is at 3 ns and is labeled setup A. For the latch edge at

20 ns, the closest clock that acts as a launch edge is 19 ns and is labeled setup B.

TimQuest analyzes the most restrictive setup relationship, in this case setup B; if that relationship meets the design requirement, then setup A meets it by default.

Figure 6–6. Setup Check

Source Clock

Setup A

Setup B

Destination Clock

0 ns 8 ns 16 ns 24 ns 32 ns

The TimeQuest analyzer reports the result of clock setup checks as slack values. Slack is the margin by which a timing requirement is met or not met. Positive slack indicates the margin by which a requirement is met; negative slack indicates the margin by which a requirement is not met. Equation 6–2 shows the TimeQuest analyzer clock setup slack time calculation for internal register-to-register paths.

Equation 6–2. Clock Setup Slack for Internal Register-to-Register paths

Clock Setup Slack

=

Data Required Time Data Arrival Time

Data Arrival Time = Launch Edge + Clock Network Delay to Source Register +

t

CO

+

Register-to-Register Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay to Destination Register –

t

SU

– Setup Uncertainty

The TimeQuest analyzer performs setup checks using the maximum delay when calculating data arrival time, and minimum delay when calculating data required time.

Equation 6–3 shows the TimeQuest analyzer clock setup slack time calculation if the data path is from an input port to an internal register.

Equation 6–3. Clock Setup Slack from Input Port to Internal Register

Clock Setup Slack = Data Required Time Data Arrival Time

Data Arrival Time

=

Launch Edge

+

Clock Network Delay +

Input Maximum Delay

+

Port-to-Register Delay

Data Required Time = Latch Edge + Clock Network Delay to Destination Register

t

SU

– Setup Uncertainty

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–6 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Equation 6–4 shows the TimeQuest analyzer clock setup slack time calculation if the data path is an internal register to an output port.

Equation 6–4. Clock Setup Slack from Internal Register to Output Port

Clock Setup Slack

=

Data Required Time Data Arrival Time

Data Required Time = Latch Edge + Clock Network Delay to Output Port –

Output Maximum Delay

Data Arrival Time

=

Launch Edge

+

Clock Network Delay to Source Register +

t

CO

+

Register-to-Port Delay

Clock Hold Check

To perform a clock hold check, the TimeQuest analyzer determines a hold relationship for each possible setup relationship that exists for all source and destination register pairs. The TimeQuest analyzer checks all adjacent clock edges from all setup relationships to determine the hold relationships. The TimeQuest analyzer performs two hold checks for each setup relationship. The first hold check determines that the data launched by the current launch edge is not captured by the previous latch edge.

The second hold check determines that the data launched by the next launch edge is not captured by the current latch edge. From the possible hold relationships, the

TimeQuest analyzer selects the hold relationship that is the most restrictive. The most restrictive hold relationship is the hold relationship with the smallest difference between the latch and launch edges and determines the minimum allowable delay for the register-to-register path. Figure 6–7 shows two setup relationships, setup A and setup B, and their respective hold checks. In this example, the TimeQuest analyzer selects hold check A2 as the most restrictive hold relationship.

Figure 6–7. Hold Checks

Source Clock

Hold

Check A1

Setup A

Hold

Check A2

Hold

Check B1

Setup B

Hold

Check B2

Destination Clock

0 ns 8 ns 16 ns 24 ns 32 ns

Equation 6–5 shows the TimeQuest analyzer clock hold slack time calculation.

Equation 6–5. Clock Hold Slack for Internal Register-to-Register Paths

Clock Hold Slack

=

Data Arrival Time Data Required Time

Data Arrival Time = Launch Edge + Clock Network Delay to Source Register +

t

CO

+ Register-to-Register Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay to Destination Register +

t

H

+

Hold Uncertainty

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

6–7

The TimeQuest analyzer performs hold checks using the minimum delay when calculating data arrival time, and maximum delay when calculating data required time.

Equation 6–6 shows the TimeQuest analyzer hold slack time calculation if the data path is from an input port to an internal register.

Equation 6–6. Clock Hold Slack from Input Port to Internal Register

Clock Hold Slack = Data Arrival Time Data Required Time

Data Arrival Time

=

Launch Edge

+

Clock Network Delay +

Input Minimum Delay

+

Pin-to-Register Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay to Destination Register

+

t

H

Equation 6–7 shows the TimeQuest analyzer hold slack time calculation if the data path is from an internal register to an output port.

Equation 6–7. Clock Hold Slack from Internal Register to Output Port

Clock Hold Slack

=

Data Arrival Time Data Required Time

Data Arrival Time = Latch Edge + Clock Network Delay to Source Register +

t

CO

+

Register-to-Pin Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay Output Minimum Delay

Recovery and Removal Time

Recovery time is the minimum length of time for the deassertion of an asynchronous control signal realtive to the next clock edge; for example, signals such as clear

and preset

must be stable before the next active clock edge. The recovery slack calculation is similar to the clock setup slack calculation, but it applies to asynchronous control signals. Equation 6–8 shows the TimeQuest analyzer recovery slack time calculation if the asynchronous control signal is registered.

Equation 6–8. Recovery Slack if Asynchronous Control Signal Registered

Recovery Slack Time = Data Required Time Data Arrival Time

Data Required Time

=

Latch Edge

+ –

SU

Data Arrival Time

=

Launch Edge

+

Clock Network Delay to Source Register +

t

CO

+

Register-to-Register Delay

Equation 6–9 shows the TimeQuest analyzer recovery slack time calculation if the asynchronous control signal is not registered.

Equation 6–9. Recovery Slack if Asynchronous Control Signal not Registered

Recovery Slack Time

=

Data Required Time Data Arrival Time

Data Required Time = Latch Edge + –

SU

Data Arrival Time

=

Launch Edge

+

Clock Network Delay

+

Input Maximum Delay +

Port-to-Register Delay

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–8 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

1

If the asynchronous reset signal is from a device I/O port, you must must create an input delay constraint for the asynchronous reset port for the TimeQuest analyzer to perform recovery analysis on the path.

Removal time is the minimum length of time the deassertion of an asynchronous control signal must be stable after the active clock edge. The TimeQuest analyzer removal slack calculation is similar to the clock hold slack calculation, but it applies asynchronous control signals. Equation 6–10 shows the TimeQuest analyzer removal slack time calculation if the asynchronous control signal is registered.

Equation 6–10. Removal Slack if Asynchronous Control Signal Registered

Removal Slack Time

=

Data Arrival Time Data Required Time

Data Arrival Time = Launch Edge + Clock Network Delay to Source Register +

+

Register-to-Register Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay to Destination Register

+

t

H

Equation 6–11 shows the TimeQuest analyzer removal slack time calculation if the asynchronous control signal is not registered.

Equation 6–11. Removal Slack if Asynchronous Control Signal not Registered

Removal Slack Time

=

Data Arrival Time Data Required Time

Data Arrival Time

=

Launch Edge

+

Clock Network Delay

+

Input Minimum Delay of Pin +

Minimum Pin-to-Register Delay

Data Required Time

=

Latch Edge

+

Clock Network Delay to Destination Register

+

t

H

1

If the asynchronous reset signal is from a device pin, you must assign the Input

Minimum Delay

timing assignment to the asynchronous reset pin for the TimeQuest analyzer to perform removal analysis on the path.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Multicycle Paths

Multicycle paths are data paths that require a non-default setup and/or hold relationship for proper analysis. For example, a register may be required to capture data on every second or third rising clock edge. Figure 6–8 shows an example of a multicycle path between the input registers of a multiplier and an output register where the destination latches data on every other clock edge.

Figure 6–8. Multicycle Path

6–9

D Q

ENA

D Q

ENA

D Q

ENA

2 Cycles

Figure 6–9 shows a register-to-register path used for the default setup and hold relationship, the respective timing diagrams for the source and destination clocks, and the default setup and hold relationships, when the source clock, src_clk

, has a period of 10 ns and the destination clock, dst_clk

, has a period of 5 ns. The default setup relationship is 5 ns; the default hold relationship is 0 ns.

Figure 6–9. Register-to-Register Path and Default Setup and Hold Timing Diagram

data_in

D reg

Q D reg

Q data_out src_clk dst_clk setup hold

0 10 20 30

To accommodate the system requirements you can modify the default setup and hold relationships with a multicycle timing exception.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–10 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Figure 6–10 shows the actual setup relationship after you apply a multicycle timing exception. The exception has a multicycle setup assignment of two to use the second occurring latch edge; in this example, to 10 ns from the default value of 5 ns.

Figure 6–10. Modified Setup Diagram

new setup default setup

0 10 20 30

For more information about creating exceptions with multicycle paths, refer to

The

Quartus II TimeQuest Timing Analyzer

chapter of the Quartus II Handbook.

Metastability

Metastability problems can occur when a signal is transferred between circuitry in unrelated or asynchronous clock domains because the designer cannot guarantee that the signal will meet setup and hold time requirements. To minimize the failures due to metastability, circuit designers typically use a sequence of registers, also known as a synchronization register chain, or synchronizer, in the destination clock domain to resynchronize the data signals to the new clock domain.

The mean time between failures (MTBF) is an estimate of the average time between instances of failure due to metastability.

The TimeQuest analyzer analyzes the potential for metastability in your design and can calculate the MTBF for synchronization register chains. The MTBF of the entire design is then estimated based on the synchronization chains it contains.

In addition to reporting synchronization register chains found in the design, the

Quartus II software also protects these registers from optimizations that might negatively impact MTBF, such as register duplication and logic retiming. The

Quartus II software can also optimize the MTBF of your design if the MTBF is too low.

f

For more information about metastability, its effects in FPGAs, and how MTBF is calculated, refer to the

Understanding Metastability in FPGAs

white paper. For more information about metastability analysis, reporting, and optimization features in the

Quartus II software, refer to the

Managing Metastability with the Quartus II Software

chapter in volume 1 of the Quartus II Handbook.

Common Clock Path Pessimism Removal

Common clock path pessimism removal accounts for the minimum and maximum delay variation associated with common clock paths during static timing analysis by adding the difference between the maximum and minimum delay value of the common clock path to the appropriate slack equation.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

6–11

Minimum and maximum delay variation can occur when two different delay values are used for the same clock path. For example, in a simple setup analysis, the maximum clock path delay to the source register is used to determine the data arrival time. The minimum clock path delay to the destination register is used to determine the data required time. However, if the clock path to the source register and to the destination register share a common clock path, both the maximum delay and the minimum delay are used to model the common clock path during timing analysis.

The use of both the minimum delay and maximum delay results in an overly pessimistic analysis since two different delay values, the maximum and minimum delays, cannot be used to model the same clock path.

Figure 6–11 shows a typical register-to-register path with the maximum and minimum delay values shown.

Figure 6–11. Common Clock Path

D Q

B

2.2 ns

2.0 ns reg1 clk

A

5.5 ns

5.0 ns

3.2 ns

3.0 ns

D Q

C

2.2 ns

2.0 ns reg2

Segment A is the common clock path between reg1

and reg2

. The minimum delay is

5.0 ns; the maximum delay is 5.5 ns. The difference between the maximum and minimum delay value equals the common clock path pessimism removal value; in this case, the common clock path pessimism is 0.5 ns. The TimeQuest analyzer adds the common clock path pessimism removal value to the appropriate slack equation to determine overall slack. Therefore, if the setup slack for the register-to-register path in

Figure 6–11 equals 0.7 ns without common clock path pessimism removal, the slack would be 1.2 ns with common clock path pessimism removal.

You can also use common clock path pessimism removal to determine the minimum pulse width of a register. A clock signal must meet a register’s minimum pulse width requirement to be recognized by the register. A minimum high time defines the minimum pulse width for a positive-edge triggered register. A minimum low time defines the minimum pulse width for a negative-edge triggered register.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–12 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Clock pulses that violate the minimum pulse width of a register prevent data from being latched at the data pin of the register. To calculate the slack of the minimum pulse width, the TimeQuest analyzer subtracts the required minimum pulse width time from the actual minimum pulse width time. The TimeQuest analyzer determines the actual minimum pulse width time by the clock requirement you specified for the clock that feeds the clock port of the register. The TimeQuest analyzer determines the required minimum pulse width time by the maximum rise, minimum rise, maximum fall, and minimum fall times. Figure 6–12 shows a diagram of the required minimum pulse width time for both the high pulse and low pulse.

Figure 6–12. Required Minimum Pulse Width

Minimum and

Maximum Rise

Rise Arrival Times

High Pulse

Width

Minimum and

Maximum

Fall Arrival Times

0.8

0.5

Low Pulse

Width

0.9

0.7

0.8

0.5

With common clock path pessimism, the minimum pulse width slack can be increased by the smallest value of either the maximum rise time minus the minimum rise time, or the maximum fall time minus the minimum fall time. For Figure 6–12 , the slack value can be increased by 0.2 ns, which is the smallest value between 0.3 ns (0.8 ns – 0.5 ns) and 0.2 ns (0.9 ns – 0.7 ns).

h

For more information, refer to

TimeQuest Timing Analyzer Page (Settings Dialog Box)

in

Quartus II Help.

Clock-As-Data Analysis

The majority of FPGA designs contain simple connections between any two nodes known as either a data path or a clock path. A data path is a connection between the output of a synchronous element to the input of another synchronous element. A clock is a connection to the clock pin of a synchronous element. However, for more complex FPGA designs, such as designs that use source-synchronous interfaces, this simplified view is no longer sufficient. Clock-as-data analysis is performed in circuits with elements such as clock dividers and DDR source-synchronous outputs.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

6–13

The connection between the input clock port and output clock port can be treated either as a clock path or a data path. Figure 6–13 shows a design where the path from port clk_in

to port clk_out

is both a clock and a data path. The clock path is from the port clk_in

to the register reg_data

clock pin. The data path is from port clk_in

to the port clk_out

.

Figure 6–13. Simplified Source Synchronous Output

D Q reg_data clk_in clk_out

With clock-as-data analysis, the TimeQuest analyzer provides a more accurate analysis of the path based on user constraints. For the clock path analysis, any phase shift associated with the phase-locked loop (PLL) is taken into consideration. For the data path analysis, any phase shift associated with the PLL is taken into consideration rather than ignored.

The clock-as-data analysis also applies to internally generated clock dividers.

Figure 6–14 shows an internally generated clock divider. In this figure, waveforms are for the inverter feedback path, analyzed during timing analysis. The output of the divider register is used to determine the launch time and the clock port of the register is used to determine the latch time.

Figure 6–14. Clock Divider

D Q

D Q

Launch Clock (2 T)

Data Arrival Time

Latch Clock (T)

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–14 Chapter 6: Timing Analysis Overview

TimeQuest Terminology and Concepts

Multicorner Analysis

The TimeQuest analyzer performs multicorner timing analysis to verify your design under a variety of operating conditions—such as voltage, process, and temperature— while performing static timing analysis.

To change the operating conditions or speed grade of the device used for timing analysis, use the set_operating_conditions

command.

h

For more information about the set_operating_conditions

and get_available_operating_conditions commands—including full syntax information, options, and example usage—refer to

set_operating_conditions

and

get_available_operating_conditions

in Quartus II Help.

If you specify an operating condition Tcl object, the

-model

, speed

,

-temperature

, and

-voltage

options are optional. If you do not specify an operating condition Tcl object, the

-model

option is required; the

-speed

,

-temperature

, and

-voltage

options are optional.

1

To obtain a list of available operating conditions for the target device, use the get_available_operating_conditions -all

command.

To ensure that no violations occur under various conditions during the device operation, perform static timing analysis under all available operating conditions.

Table 6–2 shows the operating conditions for the slow and fast timing models for device families that support only slow and fast operating conditions.

Table 6–2. Operating Conditions for Slow and Fast Models

Model Speed Grade Voltage

Slow

Fast

Slowest speed grade in device density

Fastest speed grade in device density

V cc

minimum supply

(1)

V cc

maximum supply

(1)

Note to Table 6–2 :

(1) Refer to the DC & Switching Characteristics chapter of the applicable device Handbook for V cc

and T

J

. values

Temperature

Maximum T

J

(1)

Minimum T

J

(1)

Example 6–1 shows how to set the operating conditions in Example 6–2 with a Tcl object.

Example 6–1. Setting Operating Conditions with a Tcl Object

set_operating_conditions 3_slow_1100mv_85c

Example 6–2 shows how to set the operating conditions for a Stratix III design to the slow timing model, with a voltage of 1100 mV, and temperature of 85° C.

Example 6–2. Setting Operating Conditions with Individual Values

set_operating_conditions -model slow -temperature 85 -voltage 1100

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 6: Timing Analysis Overview

Document Revision History

6–15

Example 6–3 shows how to use the set_operating_conditions

command to generate different reports for various operating conditions.

Example 6–3. Script Excerpt for Analysis of Various Operating Conditions

#Specify initial operating conditions set_operating_conditions -model slow -speed 3 -grade c -temperature 85

-voltage 1100

#Update the timing netlist with the initial conditions update_timing_netlist

#Perform reporting

#Change initial operating conditions. Use a temperature of 0C set_operating_conditions -model slow -speed 3 -grade c -temperature 0

-voltage 1100

#Update the timing netlist with the new operating condition update_timing_netlist

#Perform reporting

#Change initial operating conditions. Use a temperature of 0C and a model of fast set_operating_conditions -model fast -speed 3 -grade c -temperature 0

-voltage 1100

#Update the timing netlist with the new operating condition update_timing_netlist

#Perform reporting

Document Revision History

Table 6–3

shows the revision history for this document.

Table 6–3. Document Revision History

Date

November 2011

Version

11.1.0

Initial release.

Changes

f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

6–16 Chapter 6: Timing Analysis Overview

Document Revision History

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

7. The Quartus II TimeQuest

Timing Analyzer

November 2011

QII53018-11.1.0

QII53018-11.1.0

The Quartus

®

II TimeQuest Timing Analyzer is a powerful ASIC-style timing analysis tool that validates the timing performance of all logic in your design using an industry-standard constraint, analysis, and reporting methodology. Use the

TimeQuest analyzer GUI or command-line interface to constrain, analyze, and report results for all timing paths in your design.

This chapter contains the following sections:

“Getting Started with the TimeQuest Analyzer” on page 7–1

“Constraining and Analyzing with Tcl Commands” on page 7–7

“Creating Clocks and Clock Constraints” on page 7–13

“Creating I/O Requirements” on page 7–24

“Creating Delay and Skew Constraints” on page 7–26

“Creating Timing Exceptions” on page 7–27

“Examples of Basic Multicycle Exceptions” on page 7–34

“Application of Multicycle Exceptions” on page 7–55

“Timing Reports” on page 7–67

f

For more information about basic timing analysis concepts and how they pertain to the TimeQuest analyzer, refer to the

Timing Analysis Overview

chapter in volume 3 of the Quartus II Handbook.

f

For more information about Altera resources available for the TimeQuest analyzer, refer to the TimeQuest Timing Analyzer Resource Center of the Altera website.

f

For more information about the TimeQuest Timing Analyzer, refer to the Altera

Training page of the Altera website.

Getting Started with the TimeQuest Analyzer

This section provides a brief overview of the design steps necessary to set up your project for timing and analysis and the steps to perform to constrain your design with the TimeQuest analyzer.

Running the TimeQuest Analyzer

You can run the TimeQuest analyzer in the following ways:

■ Directly from the Quartus II software GUI

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

7–2 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer

As a stand-alone GUI application

At a system command prompt

For more information about prerequisite steps to perform before opening the

TimeQuest analyzer, refer to “Recommended Flow” on page 7–3 .

To run the TimeQuest analyzer from the Quartus II software, on the Tools menu, click

TimeQuest Timing Analyzer

.

To run the TimeQuest analyzer as a stand-alone application, type the following command at the command prompt: quartus_staw r h

For more information about the TimeQuest analyzer GUI, refer to

About TimeQuest

Timing Analysis

in Quartus II Help.

To run the TimeQuest analyzer in command-line mode for easy integration with scripted design flows, type the following command at a system command prompt: quartus_sta r

For more information about using Tcl commands to constrain and analyze your

design, refer to “Constraining and Analyzing with Tcl Commands” on page 7–7

.

Table 7–1

describes the available command-line options.

Table 7–1. Summary of Command-Line Options (Part 1 of 2)

Command-Line Option

-h | --help

-t <

script file

> |

--script=<

script file

>

-s | --shell

--tcl_eval <

tcl command

>

Description

Provides help information on quartus_sta

.

Sources the <script file>.

--do_report_timing

--force_dat

--lower_priority

--post_map

--sdc=<

SDC file

>

--report_script=<

script

>

--speed=<

value

>

--tq2hc

--tq2pt

Enters shell mode.

Evaluates the Tcl command <tcl command>.

For all clocks in the design, run the following commands: report_timing -npaths 1 -to_clock $clock report_timing -setup -npaths 1 -to_clock $clock report_timing -hold -npaths 1 -to_clock $clock report_timing -recovery -npaths 1 -to_clock $clock report_timing -removal -npaths 1 -to_clock $clock

Forces an update of the project database with new delay information.

Lowers the computing priority of the quartus_sta

process.

Uses the post-map database results.

Specifies the .sdc to use.

Specifies a custom report script to call.

Specifies the device speed grade used for timing analysis.

Generate temporary files to convert the TimeQuest analyzer .sdc file(s) to a

PrimeTime .sdc that can be used by the HardCopy

®

Design Center.

Generates temporary files to convert the TimeQuest Timing Analyzer .sdc file(s) to a

PrimeTime .sdc.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer

7–3

Table 7–1. Summary of Command-Line Options (Part 2 of 2)

-f <

Command-Line Option

argument file

>

-c <

revision name

> |

--rev=<

revision_name

>

Description

Specifies a file containing additional command-line arguments.

Specifies which revision and its associated .qsf to use.

--multicorner

Specifies that all slack summary reports be generated for both slow- and fast-corners.

Turns off the multicorner timing analysis.

Specifies the device voltage, in mV, used in timing analysis.

--multicorner[=on|off]

--voltage

=<value_in_mV>

--temperature

=

<value_in_C>

--parallel

[=<num_processors>]

--64bit

Specifies the device temperature in degrees Celsius, used in timing analysis.

Specifies the number of computer processors to use on a multiprocessor system.

Enables 64-bit version of the executable.

Recommended Flow

The Quartus II TimeQuest Timing Analyzer performs everything from constraint validation to timing verification as part of the compilation flow.

Figure 7–1

shows the recommended design flow steps to maximize and leverage the benefits of the

TimeQuest Analyzer. Details about each step are provided after the figure.

Figure 7–1. Design Flow with the TimeQuest Timing Analyzer

Create Quartus II Project and Specify Design Files

Perform Initial Compilation

Specify Timing Requirements

Perform Compilation

Verify Timing

Creating and Setting Up your Design

You must first create your project in the Quartus II software. Make sure to include all the necessary design files, including any existing Synopsys Design Constraints (.sdc) files that contain timing constraints for your design.

1

If you previously created and specified an .sdc for your project, you should perform a full compilation to create a post-fit database.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–4 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer h

For more information, refer to

Managing Files in a Project

in Quartus II Help.

Performing an Initial Compilation

If you have never compiled your design, or you don't have an .sdc file, and you want to use the TimeQuest analyzer to create one interactively, you must compile your design to create an initial design database before you specify timing constraints. You can either perform Analysis and Synthesis to create a post-map database, or perform a full compilation to create a post-fit database. Creating a post-map database takes less time than a full compilation, and is sufficient for creating initial timing constraints.

The type of database you create determines the type of timing netlist generated by the

TimeQuest analyzer; a post-map netlist if you perform Analysis and Synthesis or a post-fit netlist if you perform a full compilation.

1

If you are using incremental compilation, you must merge your design partitions after performing Analysis and Synthesis to create a post-map database.

h

For more information, refer to

Setting up and Running Analysis and Synthesis

and

Setting up and Running a Compilation

in Quartus II Help.

Specifying Timing Requirements

Before running timing analysis with the TimeQuest analyzer, you need to specify initial timing constraints that describe the clock characteristics, timing exceptions, and signal transition arrival and required times. You can use the TimeQuest Timing

Analyzer Wizard to enter basic, initial constraints for your design, and you can specify timing constraints with the dialog boxes in the TimeQuest analyzer or with a

Tcl script.

1

The Quartus II software assigns a default frequency of 1GHz for clocks that have not been constrained, either in the TimeQuest GUI or an .sdc file.

h

For more information, refer to

Specifying Timing Constraints and Exceptions

in

Quartus II Help.

When you create timing constraints with the TimeQuest analyzer GUI, the .sdc is not automatically updated. To write your constraints to an .sdc, use the write_sdc command in command-line mode, or the Write SDC File command in the TimeQuest analyzer GUI.

You can also use an existing .sdc rather than creating new timing constraints. To use timing constraints from an existing .sdc and any SDC timing constraints embedded in your HDL files, use the read_sdc command in command-line mode, or the Read

SDC File

in the TimeQuest analyzer GUI.

The .sdc should contain only SDC commands; Tcl commands to manipulate the timing netlist or control the compilation flow should be run as part of a separate Tcl script. After you create timing constraints, you must update the timing netlist. The

TimeQuest analyzer applies all constraints to the netlist for verification and removes any invalid or false paths in the design from verification.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer

7–5

1

The constraints in the .sdc are read in sequence. You must first make a constraint before making any references to it. For example, if a generated clock references a base clock, the base clock constraint must be made before the generated clock constraint.

Fitting and Timing Analysis with .sdc Files

You can specify the same or different .sdc files for the Quartus II Fitter to use during the place-and-route process, and the TimeQuest analyzer for static timing analysis.

Using different .sdc files allows you to have one set of constraints for the place-and-route process and another set of constraints for final timing sign-off in the

TimeQuest analyzer.

To specify an .sdc for the Fitter, you must add the .sdc to your project. The Fitter optimizes your design based on the requirements in the .sdc.

Performing a Full Compilation

After creating initial timing constraints, you must fully compile your design. During full compilation the Fitter optimizes the placement of logic to meet your constraints.

When compilation is complete, you can open the TimeQuest analyzer to verify timing results and to generate summary, clock setup and clock hold, recovery, and removal reports for all defined clocks in the design.

Verifying Timing

During timing analysis, the TimeQuest analyzer analyzes the timing paths in the design, calculates the propagation delay along each path, checks for timing constraint violations, and reports timing results as positive slack or negative slack. Negative slack indicates a timing violation. If you encounter violations along timing paths, use the timing reports to analyze your design and determine how best to optimize your design. If you modify, remove, or add constraints, you should perform a full compilation again. This iterative process allows you to resolve your timing violations in the design.

h

For more information, refer to

Viewing Timing Analysis Results

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–6 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Getting Started with the TimeQuest Analyzer

Figure 7–2

shows the recommended flow for constraining and analyzing your design within the TimeQuest analyzer. Included are the corresponding Tcl commands for each step.

Figure 7–2. The TimeQuest Timing Analyzer Flow

Open Project

project_open

Create Timing Netlist

create_timing_netlist

Constrain the Design

create_clock create_generated_clock set_clock_uncertainty derive_pll_clocks set_clock_latency set_input_delay set_output_delay

...

Update Timing Netlist

update_timing_netlist

Verify Static Timing Analysis

Results

report_clocks_transfers report_min_pulse_width report_sdc report_timing report_net_timing report_clocks report_min_pulse_width report_ucp

Locating Timing Paths in Other Tools

You can locate paths and elements from the TimeQuest analyzer to other tools in the

Quartus II software. Use the Locate Path command in the TimeQuest analyzer GUI or the locate

command-line command.

h

For more information about locating paths from the TimeQuest analyzer, refer to

Viewing Timing Analysis Results

and

locate

in Quartus II Help.

Example 7–1 shows how to locate ten paths from TimeQuest analyzer to the Chip

Planner and locate all data ports in the Technology Map Viewer.

Example 7–1. Locating from the TimeQuest Analyzer

# Locate in the Chip Planner all of the nodes in the longest ten paths locate [get_path -npaths 10] -chip

# locate all ports that begin with data to the Technology Map Viewer locate [get_ports data*] -tmv

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Constraining and Analyzing with Tcl Commands

7–7

SDC File Precedence

The Fitter and the TimeQuest analyzer read the .sdc files from the files list in the .qsf in the order they are listed, from top to bottom. If no .sdc files are listed in the .qsf, the

Quartus II software looks for an .sdc named <current revision>.sdc in the project directory.

Figure 7–3

shows the order in which the Quartus II software searches for an .sdc.

Figure 7–3. .sdc File Order of Precedence

Is one or more .sdc specified in the .qsf?

Yes

No

Does an .sdc named

<current revision>.sdc exist in the project directory?

No

Analyze the design

Yes

1

If you type the read_sdc

command at the command line without any arguments, the

TimeQuest analyzer follows precedence order shown in

Figure 7–3 .

Constraining and Analyzing with Tcl Commands

You can use Tcl commands from the Quartus II software Tcl Application

Programming Interface (API) to constrain and analyze your design, and to collect information about your design. This section focuses on executing timing analysis tasks with Tcl commands; however, you can perform many of the same functions in the TimeQuest analyzer GUI. You can use standard SDC Tcl commands and SDC extension commands in addition to TimeQuest analyzer Tcl commands. SDC commands and SDC constraints are a specialized form of Tcl command.

The following Tcl packages are available in the Quartus II software:

::quartus::sta

::quartus::sdc

::quartus::sdc_ext h

For more information about TimeQuest analyzer Tcl commands and a complete list of commands, refer to

::quartus::sta

in Quartus II Help. For more information about standard SDC commands and a complete list of commands, refer to

::quartus::sdc

in

Quartus II Help. For more information about Altera extensions of SDC commands and a complete list of commands, refer to

::quartus::sdc_ext

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–8 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Constraining and Analyzing with Tcl Commands

Wildcard Characters

To apply constraints to many nodes in a design, use the “

*

” and “

?

” wildcard characters. The “

*

” wildcard character matches any string; the “

?

” wildcard character matches any single character.

If you make an assignment to node reg*

, the TimeQuest analyzer searches for and applies the assignment to all design nodes that match the prefix reg

with any number of following characters, such as reg

, reg1

, reg[2]

, regbank

, and reg12bank

.

If you make an assignment to a node specified as reg?

, the TimeQuest analyzer searches and applies the assignment to all design nodes that match the prefix reg

and any single character following; for example, reg1

, rega

, and reg4

.

Collection Commands

The commands in the Tcl API for the TimeQuest analyzer often return port, pin, cell, or node names in a data set called a collection. In your Tcl scripts you can iterate over the values in collections to analyze or modify constraints in your design.

The TimeQuest analyzer supports collection APIs that provide easy access to ports, pins, cells, or nodes in the design. Use collection APIs with any valid constraints or Tcl commands specified in the TimeQuest analyzer.

Table 7–2

describes the collection commands supported by the TimeQuest timing analyzer.

Table 7–2. SDC Collection Commands

Command

all_clocks all_inputs all_outputs all_registers get_cells get_clocks get_nets get_pins get_ports

Description

Returns a collection of all clocks in the design.

Returns a collection of all input ports in the design.

Returns a collection of all output ports in the design.

Returns a collection of all registers in the design.

Returns a collection of cells in the design. All cell names in the collection match the specified pattern. Wildcards can be used to select multiple cells at the same time.

Returns a collection of clocks in the design. When used as an argument to another command, such as the

-from

or

-to

of set_multicycle_path

, each node in the clock represents all nodes clocked by the clocks in the collection. The default uses the specific node (even if it is a clock) as the target of a command.

Returns a collection of nets in the design. All net names in the collection match the specified pattern. You can use wildcards to select multiple nets at the same time.

Returns a collection of pins in the design. All pin names in the collection match the specified pattern. You can use wildcards to select multiple pins at the same time.

Returns a collection of ports (design inputs and outputs) in the design.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Constraining and Analyzing with Tcl Commands

7–9

Adding and Removing Collection Items

Wildcards used with collection commands define collection items identified by the command. For example, if a design contains registers named src0

, src1

, src2

, and dst0

, the collection command

[get_registers src*]

identifies registers src0

, src1

, and src2

, but not register dst0

. To identify register dst0

, you must use an additional command,

[get_registers dst*]

. To include dst0

you could also specify a collection command

[get_registers {src* dst*}]

.

To overcome this limitation when using filters, use the add_to_collection

and remove_from_collection

commands. The add_to_collection

command allows you

to add additional items to an existing collection. Example 7–2 shows the

add_to_collection

command and arguments.

Example 7–2. add_to_collection Command

add_to_collection

< first collection

> < second collection

>

1

The add_to_collection

command creates a new collection that is the union of the two specified collections.

The remove_from_collection

command allows you to remove items from an existing

collection. Example 7–3 shows the

remove_from_collection

command and arguments.

Example 7–3. remove_from_collection Command

remove_from_collection

< first collection

> < second collection

>

Example 7–4

shows examples of how to add elements to collections.

Example 7–4. Adding Items to a Collection

#Setting up initial collection of registers set regs1 [get_registers a*]

#Setting up initial collection of keepers set kprs1 [get_keepers b*]

#Creating a new set of registers of $regs1 and $kprs1 set regs_union [add_to_collection $kprs1 $regs1]

#OR

# Creating a new set of registers of $regs1 and b*

# Note that the new collection appends only registers with name b*

# not all keepers set regs_union [add_to_collection $regs1 b*]

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–10 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Constraining and Analyzing with Tcl Commands

1

In the Quartus II software, keepers are I/O ports or registers. An .sdc that includes get_keepers

can only be processed as part of the TimeQuest analyzer flow but are not compatible with third-party timing analysis flows.

h

For more information about the add_to_collection

and remove_from_collection commands—including full syntax information, options, and example usage—refer to

add_to_collection

and

remove_from_collection

in Quartus II Help.

Refining Collections with Wildcards

The collection commands get_cells

and get_pins

have options that allow you to refine searches that include wildcard characters.

Table 7–3

shows examples of search strings that use options to refine the search and

wildcards. The examples in Table 7–3 filter the following cells and pin names to

illustrate function: foo foo|dataa foo|datab foo|bar foo|bar|datac foo|bar|datad

Table 7–3. Sample Search Strings and Search Results

Search String Search Result

get_pins *|dataa get_pins *|datac get_pins *|*|datac get_pins foo*|* get_pins -hierarchical *|*|datac get_pins -hierarchical foo|* get_pins -hierarchical *|datac get_pins -hierarchical foo|*|datac get_pins -compatibility *|datac foo|dataa

<empty>

foo|bar|datac foo|dataa, foo|datab

<empty>

(1)

foo|dataa, foo|datab foo|bar|datac

<empty>

(1)

foo|bar|datac get_pins -compatibility *|*|datac foo|bar|datac

Note to Table 7–3 :

(1) The search result is <empty> because of the additional

*|*|

in the search string.

Removing Constraints and Exceptions

When you use the TimeQuest analyzer interactively, it is sometimes necessary to remove a constraint or exception. Use the following commands to remove constraints and exceptions:

■ remove_clock remove_clock_groups

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Design Constraints: An Example

7–11

■ remove_clock_latency remove_clock_uncertainty remove_input_delay remove_output_delay remove_annotated_delay reset_design reset_timing_derate h

For more information—including a complete list of commands and full syntax information, options, and example usage—refer to

::quartus::sdc

and

::quartus::sdc_ext

in Quartus II Help.

Design Constraints: An Example

Figure 7–4

shows an example circuit including two clocks, a PLL, and other common synchronous design elements.

Figure 7–4. TimeQuest Constraint Example

inst data1 lpm_add_sub0 myfifo inst2 dataout data2 inst1 clk1 clk2 altpll0

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–12 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Design Constraints: An Example

Example 7–5

shows an SDC file containing basic constraints for the circuit in

Figure 7–4

.

Example 7–5. Example Basic SDC Constraints

# Create clock constraints create_clock -name clockone -period 10.000 [get_ports {clk1}] create_clock -name clocktwo -period 10.000 [get_ports {clk2}]

# derive_pll_clocks, then copy the derivations themselves

# as constraints

# analyzed once with derive_pll_clocks, to get the following clock

# settings for altpll0 create_generated_clock \

-source {altpll0|altpll_component|auto_generated|pll1|inclk[0]} \

-multiply_by 2 -phase 180.00 \

-duty_cycle 50.00 \

-name {altpll0|altpll_component|auto_generated|pll1|clk[0]} \

{altpll0|altpll_component|auto_generated|pll1|clk[0]}

# derive clock uncertainty derive_clock_uncertainty

# Specify that clockone and clocktwo are unrelated by assinging

# them to seperate exclusive groups set_clock_groups \

-exclusive \

-group [get_clocks {clockone}] \

-group [get_clocks {clocktwo \ altpll0|altpll_component|auto_generated|pll1|clk[0]}]

# set input and output delays set_input_delay -clock { clockone } -max 4 [get_ports {data1}] set_input_delay -clock { clockone } -min -1 [get_ports {data1}] set_input_delay -clock { clockone } -max 4 [get_ports {data2}] set_input_delay -clock { clockone } -min -1 [get_ports {data2}] set_output_delay \

-clock { altpll0|altpll_component|auto_generated|pll1|clk[0] } \

-max -3 [get_ports {dataout}] set_output_delay \

-clock { altpll0|altpll_component|auto_generated|pll1|clk[0] } \

-min 6 [get_ports {dataout}]

The SDC file shown in Example 7–5 contains the following basic constraints you

should inlculde for most designs:

Definitions of clockone

and clocktwo

as base clocks, and assignment of those settings to nodes in the design.

Definition of a generated clock and assignment of those settings to the output of the PLL in the design. Note in the example that you can achieve this constraint by initially running timing analysis with the derive_pll_clocks

command, and then adding the specific derived clock constraints from the TimeQuest console to your

SDC file.

■ Derivation of clock uncertainty.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

7–13

■ Specification of two mutually exclusive clock groups, one containing clockone and the other containing clocktwo

. This overrides the default analysis of all clocks in the design as related to each other. For more information about exclusive clock

groups, refer to “Exclusive Clock Groups” on page 7–20 .

■ Specification of input and output delays for the design.

The following sections describe each of these constraint types in greater detail.

Creating Clocks and Clock Constraints

To ensure accurate static timing analysis results, you must specify all clocks and any associated clock characteristics in your design. The TimeQuest analyzer supports SDC commands that accommodate various clocking schemes and clock characteristics.

The TimeQuest analyzer supports the following types of clocks:

Base clocks

Virtual clocks

Multifrequency clocks

Generated clocks

Clocks are used to specify register-to-register requirements for synchronous transfers and guide the Fitter optimization algorithms to achieve the best possible placement for your design.

Specify clock constraints first in Synopsys Design Constraint Files (.sdc) because other constraints may reference previously defined clocks. The TimeQuest analyzer reads

SDC constraints and exceptions from top to bottom in the file.

Creating Base Clocks

Base clocks are the primary input clocks to the FPGA. Unlike clocks from phase-locked loops (PLLs) that are generated within the FPGA, base clocks are usually generated by off-chip oscillators or forwarded from an external device. Define base clocks first because generated clocks and other constraints often reference base clocks.

To create clock settings for the signal from any register, port, or pin, use the create_clock

command. You can create each clock with unique characteristics.

Clocks defined with the create_clock command have a default source latency value of zero. The TimeQuest analyzer automatically computes the clock’s network latency for non-virtual clocks.

Example 7–6

shows how to create a 10 ns clock with a 50% duty cycle that is phase shifted by 90 degrees applied to port clk_sys

.

Example 7–6. 100MHz Shifted by 90 Degrees Clock Creation

create_clock -period 10 -waveform { 2.5 7.5 } [get_ports clk_sys]

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–14 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Use the create_clock

command to constrain all primary input clocks. The target for the create_clock

command is usually an FPGA device pin. To specify the FPGA device pin as the target, use the get_ports

command. Example 7–7 shows how to specify a 100-MHz requirement on a clk_sys

input clock port.

Example 7–7. create_clock Command

create_clock -period 10 -name clk_sys [get_ports clk_sys]

You can apply multiple clocks on the same clock node with the

-add

option.

Example 7–8 shows how to specify that two oscillators drive the same clock port on the FPGA.

Example 7–8. Two Oscillators Driving the Same Clock Port

create_clock -period 10 -name clk_100 [get_ports clk_sys] create_clock -period 5 -name clk_200 [get_ports clk_sys] -add h

For more information about the create_clock

and get_ports

commands—including full syntax information, options, and example usage—refer to

create_clock

and

get_ports

in Quartus II Help.

Creating Virtual Clocks

A virtual clock is a clock that does not have a real source in the design or that does not interact directly with the design. To create virtual clocks, use the create_clock command with no value specified for the <targets> option. For example, if a clock feeds only an external device’s clock port and not a clock port in the design, and the external device connects to a port in the design, the clock is considered a virtual clock.

Use virtual clocks with the set_input_delay

and set_output_delay

commands when you use the derive_clock_uncertainty

command for your design. The TimeQuest analyzer uses virtual clocks to calculate clock uncertainty separately for I/O interfaces and internal register-to-register paths.

When an FPGA interfaces with an external device, and both the FPGA and external device have different clock sources, you should model the clock source for the external device with a virtual clock.

h

For more information about the set_input_delay

, set_output_delay

, and derive_clock_uncertainty

commands—including full syntax information, options, and example usage—refer to

set_input_delay

,

set_output_delay

, and

derive_clock_uncertainty

in Quartus II Help.

You can create virtual clocks with the create_clock

command, with no targets specified. Example 7–9 shows how to create a 10 ns virtual clock.

Example 7–9. Create Virtual Clock

create_clock -period 10 -name my_virt_clk

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

7–15

Figure 7–5

shows a design where a virtual clock is required for the TimeQuest analyzer to properly analyze the relationship between the external register and the registers in the design. Because the oscillator, virt_clk

, does not interact with the

Altera device, but acts as the clock source for the external register, you must declare the clock as a virtual clock. After you create the virtual clock, you can perform a register-to-register analysis between the register in the Altera device and the register in the external device.

Figure 7–5. Virtual Clock Board Topology

Altera FPGA

reg_a datain

External Device

reg_b dataout system_clk virt_clk

Example 7–10 shows how to create a 10 ns virtual clock named

virt_clk

with a 50% duty cycle where the first rising edge occurs at 0 ns. The virtual clock is then used as the clock source for an output delay constraint.

Example 7–10. Virtual Clock Example

#create base clock for the design create_clock -period 5 [get_ports system_clk]

#create the virtual clock for the external register create_clock -period 10 -name virt_clk -waveform { 0 5 }

#set the output delay referencing the virtual clock set_output_delay -clock virt_clk -max 1.5 [get_ports dataout]

Creating Multifrequency Clocks

You should create a multifrequency clock if your design has more than one clock source feeding a single clock node in the design. The additional clock may act as a low-power clock, with a lower frequency than the primary clock.

To create multifrequency clocks, use the create_clock

command with the

-add

option to create multiple clocks on a clock node.

Example 7–11 shows how to create a 10 ns

clock applied to clock port clk

, and then add an additional 15 ns clock to the same clock port. The TimeQuest analyzer uses both clocks when it performs timing analysis.

Example 7–11. Multifrequency Clock Example

create_clock –period 10 –name clock_primary –waveform { 0 5 } \

[get_ports clk] create_clock –period 15 –name clock_secondary –waveform { 0 7.5 } \

[get_ports clk] -add

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–16 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Creating Generated Clocks

To create generated clocks, use the create_generated_clock

command. The

TimeQuest analyzer considers clock dividers, ripple clocks, or circuits that modify or change the characteristics of the incoming or master clock as generated clocks. You should define as generated clocks the output of circuits that modify or change the characteristics of the incoming or master clock. Defining the output of the circuits as generated clocks allows the TimeQuest analyzer to analyze these clocks and account for any associated network latency. Source latencies are based on clock network delays from the master clock, but not necessarily the master pin.

Generated clocks are applied in the FPGA when you modify the properties, including phase, frequency, offset, and duty cycle, of a source clock signal. Generated clocks, which are PLLs or register clock dividers, are constrained after all base clocks are constrained in the .sdc. Generated clocks capture all clock delays and clock latency where the generated clock target is defined, ensuring that all base clock properties are accounted for in the generated clock.

You can use the create_generated_clock

command to constrain all generated clocks in your design. The source of the create_generated_clock

command should be a node in your design and not a previously constrained clock.

Example 7–12 creates a base clock, clk_sys

, then defines a generated clock clk_div_2 which is the clock frequency of clk_sys

divided by two:

Example 7–12. Clock Divider

create_clock -period 10 -name clk_sys [get_ports clk_sys] create_generated_clock -name clk_div_2 -divide_by 2 -source

[get_pins reg|clk_sys] [get_pins reg|regout]

When you use the create_generated_clock

command, the

-source

option should refer to the nearest clock pin of the specified register. In Example 7–12 , the

-source option assigns the clock pin of the register as the source for the generated clock instead of the clock port clk

feeding the clock pin of register reg

.

If you have multiple base clocks feeding a node that is the source for a generated clock, you must define multiple generated clocks. Each generated clock is associated to one base clock using the

-master_clock

option in each generated clock statement.

The TimeQuest analyzer provides the derive_pll_clocks

command to automatically generate clocks for all PLL clock outputs. The properties of the generated clocks on the PLL outputs match the properties defined for the PLL.

h

For more information about the create_generated_clock

and derive_pll_clocks commands—including for full syntax information, options, and example usage—refer to

create_generate_clock

and

derive_pll_clocks

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Figure 7–6

shows how to generate an inverted clock based on a 10 ns clock.

Figure 7–6. Generating an Inverted Clock

create_clock -period 10 [get_ports clk] create_generated_clock -divide_by 1 -invert -source [get_ports clk] \

[get_registers gen|clkreg]

Edges 1 2 3 4 5 6 7 8 clk

7–17

gen|clkreg

Time

0 10 20 30

Figure 7–7

shows how to modify the generated clock by defining and shifting the edges.

Figure 7–7. Edge Shifting a Generated Clock

create_clock -period 10 -waveform { 0 5 } [get_ports clk]

# Creates a divide-by-two clock create_generated_clock -source [get_ports clk] -edges { 1 3 5 } [get_registers \ clkdivA|clkreg]

# Creates a divide-by-two clock independent of the master clock’s duty cycle (now 50%) create_generated_clock -source [get_ports clk] -edges { 1 1 5 } \

-edge_shift { 0 2.5 0 } [get_registers clkdivB|clkreg]

Edges 1 2 3 4 5 6 7 8 clk clkdivA|clkreg clkdivB|clkreg

Time

0 10 20 30

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–18 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Figure 7–8

shows the effect of the applying a multiplication factor to the generated clock.

Figure 7–8. Multiplying a Generated Clock

create_clock -period 10 -waveform { 0 5 } [get_ports clk]

# Creates a multiply-by-two clock create_generated_clock -source [get_ports clk] -multiply_by 2 [get_registers \ clkmult|clkreg] clk clkmult|clkreg

Time

0 10 20 30

Automatically Detecting Clocks and Creating Default Clock Constraints

To automatically create clocks for all clock nodes in your design, use the derive_clocks

command. The derive_clocks

command is equivalent to using the create_clock

command for each register or port feeding the clock pin of a register.

The derive_clocks

command creates clock constraints on ports or registers to ensure every register in the design has a clock constraints, and it applies one period to all base clocks in your design.

To provide a complete clock analysis, if there are no clock constraints in your design, the TimeQuest analyzer automatically creates default clock constraints for all detected unconstrained clock nodes. The TimeQuest analyzer automatically creates clocks only when all synchronous elements have no associated clocks. For example, the

TimeQuest analyzer does not create a default clock constraint if your design contains two clocks and you assigned constraints to one of the clocks. However, if you did not assign constraints to either clock, then the TimeQuest analyzer creates a default clock constraint.

Example 7–13 shows how the TimeQuest analyzer creates a base clock with a 1 GHz

requirement for unconstrained clock nodes.

Example 7–13. Create Base Clock for Unconstrained Clock Nodes

derive_clocks -period 1

1

To achieve a thorough and realistic analysis of your design’s timing requirements, you should make individual clock constraints for all clocks in your design. Do not use the derive_clocks

command for final timing sign-off; instead, you should create clocks for all clock sources with the create_clock

and create_generated_clock

commands.

h

For more information about the derive_clocks

command—including full syntax information, options, and example usage—refer to

derive_clocks

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

7–19

Deriving PLL Clocks

Use the derive_pll_clocks

command to direct the TimeQuest analyzer to automatically search the timing netlist for all unconstrained PLL output clocks. The derive_pll_clocks

command calls the create_generated_clock

command to create generated clocks on the outputs of the PLLs. The source for the create_generated_clock

command is the input clock pin of the PLL.

You must create manually a base clock for the input clock port of the PLL. If you do not define a clock for the input clock node of the PLL, no clocks are reported for the

PLL outputs and the TimeQuest analyzer issues a warning message when the timing netlist is updated. Before you can generate any reports for this design, you must create a base clock for the PLL input clock port. You do not have to generate the base clock on the input clock pin of the PLL, for example, pll_inst|altpll_component|pll|inclk[0]

. The clock created on the PLL input clock port propagates to all fan-outs of the clock port, including the PLL input clock pin.

Example 7–14 shows how to create a base clock for the PLL input clock port.

Example 7–14. Create Base Clock for PLL input Clock Port

create_clock -period 5 [get_ports pll_inclk]

1

You can use the

-create_base_clocks

option to create the input clocks for the PLL inputs automatically.

h

For more information about the derive_pll_clocks

command—including full syntax information, options, and example usage—refer to

derive_pll_clocks

in Quartus II Help.

You can include the derive_pll_clocks

command in your .sdc, which automatically detects any changes to the PLL settings. Each time the TimeQuest analyzer reads your

.sdc

, it generates the appropriate create_generated_clocks

command for the PLL output clock pin. If you use the write_sdc -expand

command after the derive_pll_clocks

command, the new .sdc contains the individual create_generated_clock

commands for the PLL output clock pins and not the derive_pll_clocks

command. Any changes to the properties of the PLL are not automatically reflected in the new .sdc. You must manually update the create_generated_clock

commands in the new .sdc created by the derive_pll_clocks

command to reflect the changes to the PLL.

1

The derive_pll_clocks

command also constrains any LVDS transmitters or LVDS receivers in the design by adding the appropriate multicycle constraints to account for any deserialization factors.

Figure 7–9

shows a simple PLL design with a register-to-register path.

Figure 7–9. Simple PLL Design

dataout reg_1 reg_2 pll_inclk pll_inst

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–20 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Example 7–15 shows the messages generated by the TimeQuest analyzer when you

use the derive_pll_clocks

command to automatically constrain the PLL for the design shown in

Figure 7–9

.

Example 7–15. derive_pll_clocks Command Messages

Info:

Info: Deriving PLL Clocks:

Info: create_generated_clock -source pll_inst|altpll_component|pll|inclk[0] -divide_by 2 -name pll_inst|altpll_component|pll|clk[0] pll_inst|altpll_component|pll|clk[0]

Info:

The input clock pin of the PLL is the node pll_inst|altpll_component|pll|inclk[0]

used for the

-source

option. The name of the output clock of the PLL is the PLL output clock node, pll_inst|altpll_component|pll|clk[0]

.

If the PLL is in clock switchover mode, multiple clocks are created for the output clock of the PLL; one for the primary input clock (for example, inclk[0]

), and one for the secondary input clock (for example, inclk[1]

). You should create exclusive clock groups for the primary and secondary output clocks.

For more information about creating exclusive clock groups, refer to “Creating Clock

Groups” on page 7–20

.

Creating Clock Groups

The TimeQuest analyzer assumes all clocks are related unless constrained otherwise.

To specify clocks in your design that are exclusive or asynchronous, use the set_clock_groups

command.

h

For more information about the set_clock_groups

command—including full syntax information, options, and example usage—refer to

set_clock_groups

in Quartus II Help.

Exclusive Clock Groups

Use the

-exclusive

option to declare that two clocks are mutually exclusive. You may want to declare clocks as mutually exclusive when multiple clocks are created on the same node or for multiplexed clocks. For example, a port can be clocked by either a

25-MHz or a 50-MHz clock. To constrain this port, you should create two clocks on the port, and then create clock groups to declare that they cannot coexist in the design at the same time. Declaring the clocks as mutually exclusive eliminates any clock transfers that may be derived between the 25-MHz clock and the 50-MHz clock.

Example 7–16 shows how to create mutually exclusive clock groups.

Example 7–16. Create Mutually Exclusive Clock Groups

create_clock -period 40 -name clk_A [get_ports {port_A}] create_clock -add -period 20 -name clk_B [get_ports {port_A}] set_clock_groups -exclusive -group {clk_A} -group {clk_B}

A group is defined with the

-group

option. The TimeQuest analyzer excludes the timing paths between clocks for each of the separate groups.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

7–21

Asynchronous Clock Groups

Use the

-asynchronous

option to create asynchronous clock groups. Clocks contained within an asynchronous clock group are considered asynchronous to clocks in other clock groups; however, any clocks within a clock group are considered synchronous to each other.

For example, if your design has three clocks, clk_A

, clk_B

, and clk_C

, and you establish that clk_A

and clk_B

are related to each other, but clock clk_C

operates completely asynchronously, you can set up clock groups to define the clock behavior.

Example 7–17 shows how to create a clock group containing clocks

clk_A

and clk_B and a second unrelated clock group containing clk_C

.

Example 7–17. Create Asynchronous Clock Groups

set_clock_groups -asynchronous -group {clk_A clk_B} -group {clk_C}

Alternatively, in this example, you can create a clock group containing only clk_C to ensure that clk_A

and clk_B

are synchronous with each other and asynchronous with clk_C

. Because clk_C is the only clock in the constraint, it is asynchronous with every other clock in the design.

If you apply multiple clocks to the same port, use the set_clock_groups

command with the

-exclusive

option to place the clocks into separate groups and declare that the clocks are mutually exclusive. The clocks cannot physically exist in your design at the same time.

h

For more information about the set_clock_groups

command—including full syntax information, options, and example usage—refer to

set_clock_groups

in Quartus II Help.

Accounting for Clock Effect Characteristics

The clocks you create with the TimeQuest analyzer are ideal clocks that do not account for any board effects. You can account for clock effect characteristics with clock latency and clock uncertainty.

Clock Latency

There are two forms of clock latency, clock source latency and clock network latency.

Source latency is the propagation delay from the origin of the clock to the clock definition point (for example, a clock port). Network latency is the propagation delay from a clock definition point to a register’s clock pin. The total latency at a register’s clock pin is the sum of the source and network latencies in the clock path.

To specify source latency to any clock ports in your design, use the set_clock_latency

command.

1

The TimeQuest analyzer automatically computes network latencies; therefore, you only can characterize source latency with the set_clock_latency

command. You must use the

-source

option.

h

For more information about the set_clock_latency

command—including full syntax information, options, and example usage—refer to

set_clock_latency

in Quartus II

Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–22 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

Clock Uncertainty

To specify clock uncertainty, or skew, for clocks or clock-to-clock transfers, use the set_clock_uncertainty

command. You can specify the uncertainty separately for setup and hold, and you can specify separate rising and falling clock transitions. The

TimeQuest analyzer subtracts setup uncertainty from the data required time for each applicable path and adds the hold uncertainty to the data required time for each applicable path.

To automatically apply interclock, intraclock, and I/O interface uncertainties, use the derive_clock_uncertainty

command. The TimeQuest analyzer automatically applies clock uncertainties to clock-to-clock transfers in the design, and calculates both setup and hold uncertainties for each clock-to-clock transfer.

Any clock uncertainty constraints applied to source and destination clock pairs with the set_clock_uncertainty

command have a higher precedence than the clock uncertainties derived with the derive_clock_uncertainty

command for the same source and destination clock pairs. For example, if you use the set_clock_uncertainty

command to set clock uncertainty between clka

and clkb

, the TimeQuest analyzer ignores the values for the clock transfer calculated with the derive_clock_uncertainty

command. The TimeQuest analyzer reports the values calculated with the derive_clock_uncertainty

command even if they are not used.

1

Changes to the bandwidth settings of a PLL do not have an impact on the clock uncertainty values derived by the TimeQuest analyzer when you use the derive_clock_uncertainty

command.

To automatically remove previous clock uncertainty assignments, use the

-overwrite option. To manually remove previous clock uncertainty assignments, use the remove_clock_uncertainty

command.

h

For more information about the set_clock_uncertainty

, derive_clock_uncertainty

, and remove_clock_uncertainty

commands—including full syntax information, options, and example usage—refer to

set_clock_uncertainty

,

derive_clock_uncertainty

, and

remove_clock_uncertainty

in Quartus II Help.

I/O Interface Uncertainty

To specify I/O interface uncertainty, you must create a virtual clock and constrain the input and output ports with the set_input_delay

and set_output_delay

commands that reference the virtual clock. You must use a virtual clock to prevent the derive_clock_uncertainty

command from applying clock uncertainties for either intraclock or interclock transfers to an I/O interface clock transfer when the set_input_delay

or set_output_delay

commands reference a clock port or PLL output. If you do not reference a virtual clock with the set_input_delay

or set_output_delay

commands, the derive_clock_uncertainty

command calculates intraclock or interclock uncertainty values for the I/O interface.

f

For information about source-synchronous constraints, which require generated clocks rather than virtual clocks, refer to

AN 433: Constraining and Analyzing Source-

Synchronous Interfaces

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Clocks and Clock Constraints

7–23

Create the virtual clock with the same properties as the original clock that is driving the I/O port.

Figure 7–10

shows a typical input I/O interface with clock specifications.

Figure 7–10. I/O Interface Clock Specifications

External Device Altera FPGA data_in

D reg1

Q D reg1

Q clk_in

100 MHz

Example 7–18 shows the SDC commands to constrain the I/O interface shown in

Figure 7–10 .

Example 7–18. SDC Commands to Constrain the I/O Interface

# Create the base clock for the clock port create_clock -period 10 -name clk_in [get_ports clk_in]

# Create a virtual clock with the same properties of the base clock

# driving the source register create_clock -period 10 -name virt_clk_in

# Create the input delay referencing the virtual clock and not the base

# clock

# DO NOT use set_input_delay -clock clk_in <delay value>

# [get_ports data_in] set_input_delay -clock virt_clk_in <delay value> [get_ports data_in]

Intraclock transfers occur when the register-to-register transfer takes place in the core of the FPGA and the source and destination clocks come from the same PLL output

pin or clock port. Figure 7–11 shows an intraclock transfer.

Figure 7–11. Intraclock Transfer

data_in

Source Register

D Q

Destination Register

D Q data_out clk_in

PLL clk0

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–24 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating I/O Requirements

Interclock transfers occur when a register-to-register transfer takes place in the core of the FPGA and the source and destination clocks come from a different PLL output pin

or clock port. Figure 7–12 shows an interclock transfer.

Figure 7–12. Interclock Transfer

data_in

Source Register

D Q

Destination Register

D Q data_out clk_in

PLL clk0

I/O interface clock transfers occur when data transfers from an I/O port to the core of the FPGA or from the core of the FPGA to the I/O port.

Figure 7–13

shows an I/O interface clock transfer.

Figure 7–13. I/O Interface Clock Transfer

data_in

D reg1

Q data_out clk_in

Creating I/O Requirements

You should specify timing requirements, including internal and external timing requirements, before you fully analyze a design. With external timing requirements specified, the TimeQuest analyzer verifies the I/O interface, or periphery of the

FPGA, against any system specification. The TimeQuest analyzer supports input and output external delay modeling.

You should specify I/O requirements after you constrain all clocks in your design.

When specifying I/O requirements, reference a virtual clock in the constraints.

Input Constraints

Input constraints allow you to specify all the external delays feeding into the FPGA.

Specify input requirements for all input ports in your design.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating I/O Requirements

7–25

You can use the set_input_delay

command to specify external input delay requirements. Use the

-clock

option to reference a virtual clock. Using a virtual clock allows the TimeQuest analyzer to correctly derive clock uncertainties for interclock and intraclock transfers. The virtual clock defines the launching clock for the input port. The TimeQuest analyzer automatically determines the latching clock inside the device that captures the input data, because all clocks in the device are defined.

Figure 7–14 shows an example of an input delay referencing a virtual clock.

Figure 7–14. Input Delay

External Device tco_ext cd_ext

Oscillator dd cd_altr

Altera Device

Equation 7–1

shows a typical input delay calculation.

Equation 7–1. Input Delay Calculation

input delay

MAX input delay

MIN

=

=

 cd_ext

MAX

 cd_ext

MIN

– cd_altr

MIN

– cd_altr

MAX

MAX

+ dd

MAX

+

MIN

+ dd

MIN

Output Constraints

Output constraints allow you to specify all external delays from the FPGA for all output ports in your design.

You can use the set_output_delay

command to specify external output delay requirements. Use the

-clock

option to reference a virtual clock. The virtual clock defines the latching clock for the output port. The TimeQuest analyzer automatically determines the launching clock inside the device that launches the output data, because all clocks in the device are defined. Figure 7–15 shows an example of an output delay referencing a virtual clock.

Figure 7–15. Output Delay

Altera Device

External Device cd_altr dd cd_ext

Oscillator tsu_ext/th_ext

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–26 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Delay and Skew Constraints

Equation 7–2 shows a typical output delay calculation.

Equation 7–2. output Delay Calculation

output delay

MAX output delay

MIN

=

=

– dd

MAX

+

 dd

MIN

+ tsu_ext +

 cd_altr

MAX th_ext +

 cd_altr

MIN

– cd_ext

MIN

 cd_ext

MAX

 

For more information about the set_input_delay

and set_output_delay commands—including full syntax information, options, and example usage—refer to

set_input_delay

and

set_output_delay

in Quartus II Help.

Creating Delay and Skew Constraints

The TimeQuest analyzer supports the Synopsys Design Constraint format for constraining timing for the ports in your design. These constraints allow the

TimeQuest analyzer to perform a system static timing analysis that includes not only the FPGA internal timing, but also any external device timing and board timing parameters.

Net Delay

To perform minimum or maximum analysis across nets and report the net delays, use the set_net_delay

command in conjunction with the report_net_delay

command.

You can use the set_net_delay

and report_net_delay

commands to verify timing-critical delays for high-speed interfaces.

h

For more information about the set_net_delay

and report_net_delay

commands— including full syntax information, options, and example usage—refer to

set_net_delay

and

report_net_delay

in Quartus II Help.

Advanced I/O Timing and Board Trace Model Delay

The TimeQuest analyzer can use advanced I/O timing and board trace model assignments to model I/O buffer delays in your design.

If you change any advanced I/O timing settings or board trace model assignments, recompile your design before you analyze timing, or use the

-force_dat

option to

force delay annotation when you create a timing netlist. Example 7–19

shows how to force delay annotation when creating a timing netlist.

Example 7–19. Forcing Delay Annotation

create_timing_netlist -force_dat r h

For more information about using advanced I/O timing, refer to

Using Advanced I/O

Timing

in Quartus II Help.

f

For more information about advanced I/O timing, refer to the

I/O Management

chapter in volume 2 of the Quartus II Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–27

Maximum Skew

To specify the maximum path-based skew requirements for registers and ports in the design and report the results of maximum skew analysis, use the set_max_skew command in conjunction with the report_max_skew command.

By default, the set_max_skew

command excludes any input or output delay constraints.

h

For more information about the set_max_skew

and report_max_skew

commands— including full syntax information, options, and example usage—refer to

set_max_skew report_max_skew

in Quartus II Help.

Creating Timing Exceptions

Timing exceptions in the TimeQuest analyzer provide a way to modify the default timing analysis behavior to match the analysis required by your design. Specify timing exceptions after clocks and input and output delay constraints because timing exceptions can modify the default analysis.

Precedence

If a conflict of node names occurs between timing exceptions, the following order of precedence applies:

1. False path

2. Minimum delays and maximum delays

3. Multicycle path

The false path timing exception has the highest precedence. Within each category, assignments to individual nodes have precedence over assignments to clocks. Finally, the remaining precedence for additional conflicts is order-dependent, such that the assignments most recently created overwrite, or partially overwrite, earlier assignments.

False Paths

Specifying a false path in your design removes the path from timing analysis. Use the set_false_path

command to specify false paths in your design. You can specify either a point-to-point or clock-to-clock path as a false path. For example, a path you should specify as false path is a static configuration register that is written once during power-up initialization, but does not change state again. Although signals from static configuration registers often cross clock domains, you may not want to make false path exceptions to a clock-to-clock path, because some data may transfer across clock domains. However, you can selectively make false path exceptions from the static configuration register to all endpoints.

Example 7–20 shows how to make false path exceptions from all registers beginning with A to all registers beginning with B.

Example 7–20. False Path

set_false_path -from [get_pins A*] -to [get_pins B*]

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–28 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

The TimeQuest analyzer assumes all clocks are related unless you specify otherwise.

You can use clock groups to make false path exceptions for clock-to-clock timing relationships in your design. Clock groups are a more efficient way to make false path exceptions between clocks, compared to writing multiple set_false_path

exceptions between every clock transfer you want to eliminate. h

For more information about the set_false_path

command—including full syntax information, options, and example usage—refer to

set_false_path

in Quartus II Help.

Minimum and Maximum Delays

To specify an absolute minimum or maximum delay for a path, use the set_min_delay

command or the set_max_delay

commands, respectively.

Specifying minimum and maximum delay constraints in your design creates a bounded minimum and maximum path delay. Use the set_min_delay

and set_max_delay

commands to create constraints for asynchronous signals that do not have a specific clock relationship in your design, but require a minimum and maximum path delay. You can create minimum and maximum delay exceptions for port-to-port paths through the FPGA without a register stage in the path. If you use minimum and maximum delay exceptions to constrain the path delay, specify both the minimum and maximum delay of the path; do not constrain only the minimum or maximum value.

If the source or destination node is clocked, the TimeQuest analyzer takes into account the clock paths, allowing more or less delay on the data path. If the source or destination node has an input or output delay, that delay is also included in the minimum or maximum delay check.

If you specify a minimum or maximum delay between timing nodes, the delay applies only to the path between the two nodes. If you specify a minimum or maximum delay for a clock, the delay applies to all paths where the source node or destination node is clocked by the clock.

You can create a minimum or maximum delay exception for an output port that does not have an output delay constraint. You cannot report timing for the paths associated with the output port; however, the TimeQuest analyzer reports any slack for the path in the setup summary and hold summary reports. Because there is no clock associated with the output port, no clock is reported for timing paths associated with the output port.

1

To report timing with clock filters for output paths with minimum and maximum delay constraints, you can set the output delay for the output port with a value of zero. You can use an existing clock from the design or a virtual clock as the clock reference.

You can also use the set_net_delay

command to specify the minimum delay, maximum delay, or skew for any edge in your design when no clock relationships are defined or required. h

For more information about the set_min_delay

, set_max_delay

, and set_net_delay commands—including full syntax information, options, and example usage—refer to

set_min_delay

,

set_max_delay

, and

set_net_delay

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–29

Delay Annotation

To modify the default delay values used during timing analysis, use the set_annotated_delay

and set_timing_derate

commands. You must update the timing netlist to see the results of these commands

To specify different operating conditions in a single .sdc, rather than having multiple

.sdc

files that specify different operating conditions, use the set_annotated_delay command with the

-operating_conditions

option.

h

For more information about the set_annotated_delay

and set_timing_derate commands—including full syntax information, options, and example usage—refer to

set_annotated_delay

and

set_timing_derate

in Quartus II Help.

Multicycle Paths

By default, the TimeQuest analyzer performs a single-cycle analysis. When analyzing a path, the setup launch and latch edge times are determined by finding the closest two active edges in the respective waveforms. For a hold analysis, the timing analyzer analyzes the path against two timing conditions for every possible setup relationship, not just the worst-case setup relationship. Therefore, the hold launch and latch times may be completely unrelated to the setup launch and latch edges. The TimeQuest analyzer does not report negative setup or hold relationships. When either a negative setup or a negative hold relationship is calculated, the TimeQuest analyzer moves both the launch and latch edges such that the setup and hold relationship becomes positive.

A multicycle constraint adjusts setup or hold relationships by the specified number of clock cycles based on the source (

-start

) or destination (

-end

) clock. An end setup multicycle constraint of 2 extends the worst-case setup latch edge by one destination clock period.

Hold multicycle constraints are based on the default hold position (the default value is 0). An end hold multicycle constraint of 1 effectively subtracts one destination clock period from the default hold latch edge.

When the objects are timing nodes, the multicycle constraint only applies to the path between the two nodes. When an object is a clock, the multicycle constraint applies to all paths where the source node (

-from

) or destination node (

-to

) is clocked by the clock. When you adjust a setup relationship with a multicycle constraint, the hold relationship is adjusted automatically.

Table 7–4

shows the commands you can use to modify either the launch or latch edge times that the TimeQuest analyzer uses to determine a setup relationship or hold relationship.

Table 7–4. Commands to Modify Edge Times

Command

set_multicycle_path -setup -end <value> set_multicycle_path -setup -start<value> set_multicycle_path -hold -end <value> set_multicycle_path -hold -start <value>

Description of Modification

Latch edge time of the setup relationship

Launch edge time of the setup relationship

Latch edge time of the hold relationship

Launch edge time of the hold relationship

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–30 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Creating Multicycle Exceptions

Multicycle exceptions adjust the timing requirements for a register-to-register path, allowing the Fitter to optimally place and route a design in an FPGA. Multicycle exceptions also can reduce compilation time and increase the quality of results, and can occasionally make timing requirements more stringent.

For example, if your design contains a long combinational path in which the latching register does not require data stability on every clock edge, but only on every second clock edge, you can assign a multicycle exception to the path. The multicycle path is dependent on the endpoint register’s use of the clock signal. Example 7–21 shows how to create a multicycle path for the combinational path where the data is stable at the endpoint every two clock cycles of the endpoint latch clock.

Example 7–21. Multicycle Path

set_multicycle_path -setup 2

If you specify a multicycle path, define both the setup and hold multicycle relationships. For the preceding example, setting data at the endpoint can take two clock cycles and the minimum hold time relationship must be defined with a multicycle exception as well. Use the set_multicycle_path

command with the

-hold option to define the hold relationship. The value of the

-hold

option is (N – 1), where

N is equal to the multicycle setup assignment value for a register-to-register path in the same clock domain. However, if data crosses different clock domains, the phase and period of the launch and latch clock may change the default multicycle setup and hold values. If you use multicycle paths that cross different clock domains, you must carefully examine the timing paths in the TimeQuest analyzer before and after applying the multicycle exception to determine if the launch and latch clock edges function as you intend.

h

For more information about the set_multicycle_path

command—including full syntax information, options, and example usage—refer to

set_multicycle_path

in

Quartus II Help.

Multicycle Clock Setup Check and Hold Check Analysis

You can modify the setup and hold relationship when you apply a multicycle exception to a register-to-register path. Figure 7–16 shows a register-to-register path with various timing parameters labeled.

Figure 7–16. Register-to-Register Path

D

REG1

SET

Q

T clk1

CLR

T

CO

CLK

Combinational

Logic

T data

D

REG2

SET

T clk2

CLR

T

SU

/ T

H

Q

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–31

Multicycle Clock Setup

The setup relationship is defined as the number of clock periods between the latch edge and the launch edge. By default, the TimeQuest analyzer performs a single-cycle path analysis, which results in the setup relationship being equal to one clock period

(latch edge – launch edge). Applying a multicycle setup assignment, adjusts the setup relationship by the multicycle setup value. The adjustment may be negative.

For every register-to-register path, the TimeQuest analyzer calculates the setup slack for the path. Equation 7–3 shows the setup slack calculation for the path in

Figure 7–16 .

Equation 7–3. Setup Slack

(1) (2) (3) (4) (5) (6)

setup slack

=

=

= data required time – data arrival time

 latch edge +

t

clk2

t

SU

 launch edge +

t

clk1

 latch edge – launch edge

+

t

clk2

t

clk1

+

t

CO

+

t

data

t

CO

+

t

data

+

t

SU

Notes to Equation 7–3

:

(1) t clk1

= the propagation delay from clock source to clock input on source register

(2) t clk2

= the propagation delay from clock source to clock input on destination register

(3) t data

= the propagation delay from source register to data input on destination register

(4) t

CO

= the clock to output delay of source register

(5) t

SU

= the setup requirement of destination register

(6) t

H

= the hold requirement of destination register

An end multicycle setup assignment modifies the latch edge of the destination clock by moving the latch edge the specified number of clock periods to the right of the determined default latch edge. Figure 7–17 shows various values of the end multicycle setup assignment and the resulting latch edge.

Figure 7–17. End Multicycle Setup Values

-10 0 10 20

REG1.CLK

EMS = 3

EMS = 1

(default)

EMS = 2

REG2.CLK

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–32 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

A start multicycle setup assignment modifies the launch edge of the source clock by moving the launch edge the specified number of clock periods to the left of the determined default launch edge. Figure 7–18 shows various values of the start multicycle setup assignment and the resulting launch edge.

Figure 7–18. Start Multicycle Setup Values

-20 -10 0 10 20

Source Clock

Destination Clock

SMS = 3

SMS = 2

SMS = 1

(default)

Figure 7–19 shows the setup relationship reported by the TimeQuest analyzer for the negative setup relationship shown in Figure 7–18 .

Figure 7–19. Start Multicycle Setup Values Reported by the TimeQuest Analyzer

-10 0 10

Source Clock

SMS = 1

(default)

SMS = 2

Destination Clock

20

SMS = 3

Multicycle Clock Hold

The hold relationship is defined as the number of clock periods between the launch edge and the latch edge. By default, the TimeQuest analyzer performs a single-cycle path analysis, which results in the hold relationship being equal to one clock period

(launch edge – latch edge). When analyzing a path, the TimeQuest analyzer performs two hold checks. The first hold check determines that the data launched by the

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–33

current launch edge is not captured by the previous latch edge. The second hold check determines that the data launched by the next launch edge is not captured by the current latch edge. The TimeQuest analyzer reports only the most restrictive hold check. Equation 7–4 shows the calculation that the TimeQuest analyzer performs to determine the hold check.

Equation 7–4. Hold Check

hold check 1 = current launch edge – previous latch edge hold check 2 = next launch edge – current latch edge

1

If a hold check overlaps a setup check, the hold check is ignored.

Applying a multicycle hold assignment, adjusts the hold slack equation by the number of specified clock cycles.

For every register-to-register path, the TimeQuest analyzer calculates the hold slack for the path. Equation 7–5 shows the hold slack calculation.

Equation 7–5. Hold Slack

(1) (2) (3) (4) (5) (6)

hold slack

=

=

= data arrival time – data required time

 launch edge +

t

clk1

+

t

CO

+

t

data

 launch edge – latch edge

t

clk2

 latch edge +

t

clk2

t

clk1

+

t

CO

+

t

– data

t

H

t

H

Notes to Equation 7–5

:

(1) t clk1

= the propagation delay from clock source to clock input on source register

(2) t clk2

= the propagation delay from clock source to clock input on destination register

(3) t data

= the propagation delay from source register to data input on destination register

(4) t

CO

= the clock to output delay of source register

(5) t

SU

= the setup requirement of destination register

(6) t

H

= the hold requirement of destination register

A start multicycle hold assignment modifies the launch edge of the destination clock by moving the latch edge the specified number of clock periods to the right of the determined default launch edge. Figure 7–20 shows various values of the start multicycle hold assignment and the resulting launch edge.

Figure 7–20. Start Multicycle Hold Values

-10 0 10 20

Source Clock

SMH = 0

(default)

SMH = 1

SMH = 2

Destination Clock

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–34 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

An end multicycle hold assignment modifies the latch edge of the destination clock by moving the latch edge the specific ed number of clock periods to the left of the determined default latch edge. Figure 7–21 shows various values of the end multicycle hold assignment and the resulting latch edge.

Figure 7–21. End Multicycle Hold Values

-20 -10

EMH = 2

Source Clock

0 10 20

EMH = 1

EMH= 0

(default)

Destination Clock

Figure 7–22 shows the hold relationship reported by the TimeQuest analyzer for the negative hold relationship shown in Figure 7–21 .

Figure 7–22. End Multicycle Hold Values Reported by the TimeQuest Analyzer

-10 0 10 20

Source Clock

EMH = 0 default)

EMH = 2

EMH = 1

Destination Clock

Examples of Basic Multicycle Exceptions

This section describes the following examples of combinations of multicycle exceptions:

“Default Settings” on page 7–35

“End Multicycle Setup = 2 and End Multicycle Hold = 0” on page 7–37

“End Multicycle Setup = 1 and End Multicycle Hold = 1” on page 7–40

“End Multicycle Setup = 2 and End Multicycle Hold = 1” on page 7–43

“Start Multicycle Setup = 2 and Start Multicycle Hold = 0” on page 7–46

“Start Multicycle Setup = 1 and Start Multicycle Hold = 1” on page 7–49

“Start Multicycle Setup = 2 and Start Multicycle Hold = 1” on page 7–52

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–35

Each example explains how the multicycle exceptions affect the default setup and hold analysis in the TimeQuest analyzer. The multicycle exceptions are applied to a simple register-to-register circuit. Both the source and destination clocks are set to

10 ns.

Default Settings

By default, the TimeQuest analyzer performs a single-cycle analysis to determine the setup and hold checks. Also, by default, the TimeQuest Timing Analyzer sets the end multicycle setup assignment value to one and the end multicycle hold assignment value to zero.

Figure 7–23 shows the source and the destination timing waveform for the source register and destination register, respectively.

Figure 7–23. Default Timing Diagram

-10 0

Current Launch

10 20

REG1.CLK

REG2.CLK

HC1

0

SC HC2

1

Current Latch

2

Equation 7–6 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–6. Setup Check

setup check

= current latch edge – closest previous launch edge

=

=

10 ns – 0 ns

10 ns

The most restrictive setup relationship with the default single-cycle analysis, that is, a setup relationship with an end multicycle setup assignment of one, is 10 ns.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–36 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–24 shows the setup report for the default setup in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–24. Setup Report

Equation 7–7 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–7. Hold Check

hold check 1

= next launch edge – current latch edge

=

=

0 ns – 0 ns

0 ns hold check 2

=

=

10 ns – 10 ns

0 ns

The most restrictive hold relationship with the default single-cycle analysis, that a hold relationship with an end multicycle hold assignment of zero, is 0 ns.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–25 shows the hold report for the default setup in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–25. Hold Report

7–37

End Multicycle Setup = 2 and End Multicycle Hold = 0

In this example, the end multicycle setup assignment value is two, and the end multicycle hold assignment value is zero. Example 7–22 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–22. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_\ dst] -setup -end 2

1

An end multicycle hold value is not required because the default end multicycle hold value is zero.

In this example, the setup relationship is relaxed by a full clock period by moving the latch edge to the next latch edge. The hold analysis is unchanged from the default settings.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–38 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–26 shows the setup timing diagram. The latch edge is a clock cycle later than in the default single-cycle analysis.

Figure 7–26. Setup Timing Diagram

-10 0

Current Launch

10 20

REG1.CLK

SC

REG2.CLK

Current Latch

Equation 7–8 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–8. Setup Check

setup check

= current latch edge – closest previous launch edge

=

=

20 ns – 0 ns

20 ns

The most restrictive setup relationship with an end multicycle setup assignment of two is 20 ns.

Figure 7–27 shows the setup report in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–27. Setup Report

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–39

Because the multicycle hold latch and launch edges are the same as the results of hold analysis with the default settings, the multicycle hold analysis in this example is equivalent to the single-cycle hold analysis. Figure 7–28 shows the timing diagram for the hold checks for this example. The hold checks are relative to the setup check.

Usually, the TimeQuest analyzer performs hold checks on every possible setup check, not only on the most restrictive setup check edges.

Figure 7–28. Hold Timing DIagram

-10 0

Current Launch

10 20

REG1.CLK

Data

REG2.CLK

HC1 SC HC2

Current Latch

Equation 7–9 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–9. Hold Check

hold check 1

= current launch edge – previous latch edge

=

0 ns – 10 ns

=

– 10 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 20 ns

– 10 ns

The most restrictive hold relationship with an end multicycle setup assignment value of two and an end multicycle hold assignment value of zero is 10 ns.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–40 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–29 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–29. Hold Report

End Multicycle Setup = 1 and End Multicycle Hold = 1

In this example, the end multicycle setup assignment value is one, and the end multicycle hold assignment value is one. Example 7–23 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–23. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_\ dst] -hold -end 1

1

An end multicycle setup value is not required because the default end multicycle setup value is one.

In this example, the hold relationship is relaxed by one clock period by moving the latch edge to the previous latch edge. The setup analysis is unchanged from the default settings.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–41

Figure 7–30 shows the setup timing diagram. The latch edge is the same as the default single-cycle analysis.

Figure 7–30. Setup Timing Diagram

-10 10 20 0

Current

Launch

SRC.CLK

HC1

SC

HC2

DST.CLK

Current

Latch

Equation 7–10 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–10. Setup Check

setup check

=

=

= current latch edge – closest previous launch edge

10 ns – 0 ns

10 ns

The most restrictive setup relationship with an end multicycle setup assignment of one is 10 ns.

Figure 7–31 shows the setup report in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–31. Setup Report

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–42 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–32 shows the timing diagram for the hold checks for this example. The hold checks are relative to the setup check.

Figure 7–32. Hold Timing Diagram

-10 10 20 0

Current

Launch

SRC.CLK

HC1

SC

HC2

DST.CLK

Current

Latch

Equation 7–11 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–11. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns –

– 10 ns

10 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 0 ns

10 ns

The most restrictive hold relationship with an end multicycle setup assignment value of one and an end multicycle hold assignment value of one is 10 ns.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–43

Figure 7–33 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–33. Hold Report

End Multicycle Setup = 2 and End Multicycle Hold = 1

In this example, the end multicycle setup assignment value is two, and the end multicycle hold assignment value is one. Example 7–24 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–24. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -end 2 set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-hold -end 1

In this example, the setup relationship is relaxed by two clock periods by moving the latch edge to the left two clock periods. The hold relationship is relaxed by a full period by moving the latch edge to the previous latch edge.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–44

Figure 7–34 shows the setup timing diagram.

Figure 7–34. Setup Timing Diagram

-10 0

Current

Launch

10

SRC.CLK

SC

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

20

DST.CLK

0

1 2

Current

Latch

Equation 7–12 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–12. Setup Check

setup check

= current latch edge – closest previous launch edge

=

=

20 ns – 0 ns

20 ns

The most restrictive hold relationship with an end multicycle setup assignment value of two is 20 ns.

Figure 7–35 shows the setup report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–35. Setup Report

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–45

Figure 7–36 shows the timing diagram for the hold checks for this example. The hold checks are relative to the setup check.

Figure 7–36. Hold Timing Diagram

-10 10 20 0

Current

Launch

SRC.CLK

SC

HC1

HC2

DST.CLK

Current

Latch

Equation 7–13 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–13. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 0 ns

0 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 10 ns

0 ns

The most restrictive hold relationship with an end multicycle setup assignment value of two and an end multicycle hold assignment value of one is 0 ns.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–46 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–37 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–37. Hold Report

Start Multicycle Setup = 2 and Start Multicycle Hold = 0

In this example, the start multicycle setup assignment value is two, and the start multicycle hold assignment value is zero. Example 7–25 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–25. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_\ dst] -setup -start 2

1

A start multicycle hold value is not required because the default start multicycle hold value is zero.

In this example, the setup relationship is relaxed by moving the latch edge to the left two clock periods. Hold analysis is unchanged from the default settings.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–38 shows the setup timing diagram.

Figure 7–38. Setup TIming Diagram

-10

Current

Launch

REG1.CLK

2

0

1

10

0

SC

20

7–47

REG2.CLK

Current

Latch

Equation 7–14 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–14. Setup Check

setup check

=

= current latch edge – closest previous launch edge

10 ns –

– 10 ns

=

20 ns

The most restrictive hold relationship with a start multicycle setup assignment value of two is 20 ns.

Figure 7–39 shows the setup report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–39. Setup Report

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–48 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Because the multicycle hold latch and launch edges are the same as the results of hold analysis with the default settings, the multicycle hold analysis in this example is equivalent to the single-cycle hold analysis. Figure 7–40 shows the timing diagram for the hold checks for this example.

Figure 7–40. Hold TIming Diagram

-10

Current

Launch

REG1.CLK

0 10 20

HC1

SC

HC2

REG2.CLK

Current

Latch

Equation 7–15 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–15. Hold Check

hold check 1

= current launch edge – previous latch edge

=

0 ns – 10 ns

=

– 10 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 0 ns

10 ns

The most restrictive hold relationship with a start multicycle setup assignment value of two and a start multicycle hold assignment value of zero is 10 ns.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–49

Figure 7–41 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–41. Hold Report

Start Multicycle Setup = 1 and Start Multicycle Hold = 1

In this example, the start multicycle setup assignment value is one, and the start multicycle hold assignment value is one. Example 7–26 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–26. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_\ dst] -hold -start 1

1

A start multicycle setup value is not required, because the default start multicycle hold value is one.

In this example, the hold relationship is relaxed by one clock period by moving the launch edge to the left.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–50

Figure 7–42 shows the setup timing diagram.

Figure 7–42. Setup Timing Diagram

-10 10

REG1.CLK

2

0

Current

Launch

1 0

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

20

SC

REG2.CLK

Current

Latch

Equation 7–16 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–16. Setup Check

setup check

= current latch edge – closest previous launch edge

=

=

10 ns – 0 ns

10 ns

The most restrictive setup relationship with a start multicycle setup assignment of one is 10 ns.

Figure 7–43 shows the setup report in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–43. Setup Report

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–51

Figure 7–44 shows the timing diagram for the hold checks for this example. The hold checks are relative to the setup check.

Figure 7–44. Hold Timing Diagram

-10 10 20

REG1.CLK

2

0

Current

Launch

1 0

HC1 SC HC2

REG2.CLK

Current

Latch

Equation 7–17 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–17. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

10 ns – 0 ns

10 ns hold check 2

=

=

= next launch edge – current latch edge

20 ns – 10 ns

10 ns

The most restrictive hold relationship with a start multicycle setup assignment value of one and a start multicycle hold assignment value of one is 10 ns.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–52 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–45 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–45. Hold Report

Start Multicycle Setup = 2 and Start Multicycle Hold = 1

In this example, the start multicycle setup assignment value is two, and the start multicycle hold assignment value is one. Example 7–27 shows the multicycle exceptions applied to the register-to-register design for this example.

Example 7–27. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -start 2 set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-hold -start 1

In this example, the setup relationship is relaxed by two clock periods by moving the launch edge to the left two clock periods.

Figure 7–46 shows the setup timing diagram.

Figure 7–46. Setup Timing Diagram

-10 0 10 20

SRC.CLK

2 1

SC

( (default)

0

Data

SC

DST.CLK

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–53

Equation 7–18 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–18. Setup Check

setup check

=

=

= current latch edge – closest previous launch edge

10 ns –

– 10 ns)

20 ns

The most restrictive hold relationship with a start multicycle setup assignment value of two is 20 ns.

Figure 7–47 shows the setup report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–47. Setup Report

Figure 7–48 shows the timing diagram for the hold checks for this example. The hold checks are relative to the setup check.

Figure 7–48. Hold Timing Diagram

-10 0

Current

Launch

10 20

SRC.CLK

HC1

SC

HC2

DST.CLK

Current

Latch

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–54 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Equation 7–19 shows the calculation that the TimeQuest analyzer performs to determine the hold check. Both hold checks are equivalent.

Equation 7–19. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 0 ns

0 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 10 ns

0 ns

The most restrictive hold relationship with a start multicycle setup assignment value of two and a start multicycle hold assignment value of one is 0 ns.

Figure 7–49 shows the hold report for this example in the TimeQuest analyzer with the launch and latch edges highlighted.

Figure 7–49. Hold Report

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–55

Application of Multicycle Exceptions

This section shows the following examples of applications of multicycle exceptions:

“Same Frequency Clocks with Destination Clock Offset” on page 7–55

“The Destination Clock Frequency is a Multiple of the Source Clock Frequency” on page 7–57

“The Destination Clock Frequency is a Multiple of the Source Clock Frequency with an Offset” on page 7–60

“The Source Clock Frequency is a Multiple of the Destination Clock Frequency” on page 7–62

“The Source Clock Frequency is a Multiple of the Destination Clock Frequency with an Offset” on page 7–64

Each example explains how the multicycle exceptions affect the default setup and hold analysis in the TimeQuest analyzer. All of the examples are between related clock domains. If your design contains related clocks, such as PLL clocks, and paths between related clock domains, you can apply multicycle constraints.

Same Frequency Clocks with Destination Clock Offset

In this example, the source and destination clocks have the same frequency, but the destination clock is offset with a positive phase shift. Both the source and destination clocks have a period of 10 ns. The destination clock has a positive phase shift of 2 ns with respect to the source clock. Figure 7–50 shows an example of a design with same frequency clocks and a destination clock offset.

Figure 7–50. Same Frequency Clocks with Destination Clock Offset

In

D

REG1

SET

Q

Combinational

Logic

D

REG2

SET

Q clk0

CLR CLR clk1

Out

Figure 7–51 shows the timing diagram for default setup check analysis performed by the TimeQuest analyzer.

Figure 7–51. Setup Timing Diagram

-10 0

Launch

REG1.CLK

10 20

REG2.CLK

SC

1

Latch

2

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–56 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Equation 7–20 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–20. Setup Check

setup check

=

=

= current latch edge – closest previous launch edge

2 ns – 0 ns

2 ns

The setup relationship shown in Figure 7–51 is too pessimistic and is not the setup relationship required for typical designs. To correct the default analysis, you must use an end multicycle setup exception of two. Example 7–28 shows the multicycle exception used to correct the default analysis in this example.

Example 7–28. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -end 2

Figure 7–52 shows the timing diagram for the preferred setup relationship for this example.

.

Figure 7–52. Preferred Setup Relationship

-10 0

Launch

10 20

REG1.CLK

SC

REG2.CLK

1 2

Latch

Figure 7–53 shows the timing diagram for default hold check analysis performed by the TimeQuest analyzer with an end multicycle setup value of two.

Figure 7–53. Default Hold Check

-10 10 20 0

Current

Launch

REG1.CLK

HC1 SC

HC2

REG2.CLK

Current

Latch

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–57

Equation 7–21 shows the calculation that the TimeQuest analyzer performs to determine the hold check.

Equation 7–21. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 2 ns

– 2 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 12 ns

– 2 ns

In this example, the default hold analysis returns the preferred hold requirements and no multicycle hold exceptions are required.

Figure 7–54 shows the associated setup and hold analysis if the phase shift is –2 ns. In this example, the default hold analysis is correct for the negative phase shift of 2 ns, and no multicycle exceptions are required.

Figure 7–54. Negative Phase Shift

-10 0

Current

Launch

REG1.CLK

10 20

HC1

SC

HC2

REG2.CLK

Current

Latch

The Destination Clock Frequency is a Multiple of the Source Clock

Frequency

In this example, the destination clock frequency value of 5 ns is an integer multiple of the source clock frequency of 10 ns. The destination clock frequency can be an integer multiple of the source clock frequency when a PLL is used to generate both clocks with a phase shift applied to the destination clock. Figure 7–55 shows an example of a design where the destination clock frequency is a multiple of the source clock frequency.

Figure 7–55. Destination Clock is Multiple of Source Clock

In

D

REG1

SET

Q

Combinational

Logic clk0

CLR clk clk1

D

REG2

SET

Q

CLR

Out

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–58 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–56 shows the timing diagram for default setup check analysis performed by the TimeQuest analyzer.

Figure 7–56. Setup Timing Diagram

-10 0

Launch

REG1.CLK

10 20

REG2.CLK

SC

1 2

Latch

Equation 7–22 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

Equation 7–22. Setup Check

setup check

=

=

= current latch edge – closest previous launch edge

5 ns – 0 ns

5 ns

The setup relationship shown in Figure 7–56 demonstrates that the data does not need to be captured at edge one, but can be captured at edge two; therefore, you can relax the setup requirement. To correct the default analysis, you must shift the latch edge by one clock period with an end multicycle setup exception of two. Example 7–29 shows the multicycle exception used to correct the default analysis in this example.

Example 7–29. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -end 2

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–57 shows the timing diagram for the preferred setup relationship for this example.

Figure 7–57. Preferred Setup Analysis

-10 0

Launch

REG1.CLK

10 20

7–59

REG2.CLK

SC

1 2

Latch

Figure 7–58 shows the timing diagram for default hold check analysis performed by the TimeQuest analyzer with an end multicycle setup value of two.

Figure 7–58. Default Hold Check

-10 10 20 0

Current

Launch

REG1.CLK

SC

HC2

HC1

REG2.CLK

Current

Latch

Equation 7–23 shows the calculation that the TimeQuest analyzer performs to determine the hold check.

Equation 7–23. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 5 ns

– 5 ns hold check 2

=

=

= next launch edge – current latch edge

10 ns – 10 ns

0 ns

In this example, hold check one is too restrictive. The data is launched by the edge at

0 ns and should check against the data captured by the previous latch edge at 0 ns, which does not occur in hold check one. To correct the default analysis, you must use an end multicycle hold exception of one.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–60 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

The Destination Clock Frequency is a Multiple of the Source Clock

Frequency with an Offset

This example is a combination of the previous two examples. The destination clock frequency is an integer multiple of the source clock frequency and the destination clock has a positive phase shift. The destination clock frequency is 5 ns and the source clock frequency is 10 ns. The destination clock also has a positive offset of 2 ns with respect to the source clock. The destination clock frequency can be an integer multiple of the source clock frequency with an offset when a PLL is used to generate both clocks with a phase shift applied to the destination clock. Figure 7–59 shows an example of a design in which the destination clock frequency is a multiple of the source clock frequency with an offset.

Figure 7–59. Destination Clock is Multiple of Source Clock with Offset

In

D

REG1

SET

Q

Combinational

Logic

D

REG2

SET

Q clk0 clk

CLR CLR clk1

Out

Figure 7–60 shows the timing diagram for default setup check analysis performed by the TimeQuest analyzer.

Figure 7–60. Setup Timing Diagram

-10 0

Launch

REG1.CLK

10 20

REG2.CLK

SC

1

Latch

2 3

Equation 7–24 shows the calculation that the TimeQuest analyzer performs to determine the setup check.

.

Equation 7–24. Setup Check

setup check

=

=

=

2 ns – 0 ns

2 ns

– closest previous launch edge

The setup relationship shown in Figure 7–60 demonstrates that the data does not need to be captured at edge one, but can be captured at edge two; therefore, you can relax the setup requirement. To correct the default analysis, you must shift the latch edge by one clock period with an end multicycle setup exception of three.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–61

Example 7–30 shows the multicycle exception used to correct the default analysis in this example.

Example 7–30. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -end 3

Figure 7–61 shows the timing diagram for the preferred setup relationship for this example.

Figure 7–61. Preferred Setup Analysis

-10 0

Launch

REG1.CLK

10 20

REG2.CLK

1

SC

2 3

Latch

Figure 7–62 shows the timing diagram for default hold check analysis performed by the TimeQuest analyzer with an end multicycle setup value of three.

Figure 7–62. Default Hold Check

-10 10 20 0

Current

Launch

REG1.CLK

SC

HC2

HC1

REG2.CLK

Current

Latch

Equation 7–25 shows the calculation that the TimeQuest analyzer performs to determine the hold check.

Equation 7–25. Hold Check

hold check 1

= current launch edge – previous latch edge

=

=

0 ns – 5 ns

– 5 ns hold check 2

= next launch edge – current latch edge

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–62 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Equation 7–25. Hold Check

=

=

10 ns – 10 ns

0 ns

In this example, hold check one is too restrictive. The data is launched by the edge at

0 ns and should check against the data captured by the previous latch edge at 2 ns, which does not occur in hold check one. To correct the default analysis, you must use an end multicycle hold exception of one.

The Source Clock Frequency is a Multiple of the Destination Clock

Frequency

In this example, the source clock frequency value of 5 ns is an integer multiple of the destination clock frequency of 10 ns. The source clock frequency can be an integer multiple of the destination clock frequency when a PLL is used to generate both

clocks and different multiplication and division factors are used. Figure 7–63 shows

an example of a design where the source clock frequency is a multiple of the destination clock frequency.

Figure 7–63. Source Clock Frequency is Multiple of Destination Clock Frequency

In

D

REG1

SET

Q

Combinational

Logic

D

REG2

SET

Q

Out clk0

CLR CLR clk clk1

Figure 7–64 shows the timing diagram for default setup check analysis performed by

the TimeQuest analyzer.

Figure 7–64. Default Setup Check Analysis

-10 0 10 20

REG1.CLK

2

Launch

1

SC

REG2.CLK

Latch

Equation 7–26 shows the calculation that the TimeQuest analyzer performs to

determine the setup check.

Equation 7–26. Setup Check

setup check

= current latch edge – closest previous launch edge

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–63

Equation 7–26. Setup Check

=

=

10 ns – 5 ns

5 ns

The setup relationship shown in Figure 7–64 demonstrates that the data launched at

edge one does not need to be captured, and the data launched at edge two must be captured; therefore, you can relax the setup requirement. To correct the default analysis, you must shift the launch edge by one clock period with a start multicycle setup exception of two.

Example 7–31 shows the multicycle exception used to correct the default analysis in

this example.

Example 7–31. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -start 2

Figure 7–65 shows the timing diagram for the preferred setup relationship for this

example.

Figure 7–65. Preferred Setup Check Analysis

-10

REG1.CLK

0

Launch

2 1

10 20

SC

REG2.CLK

Latch

Figure 7–66 shows the timing diagram for default hold check analysis performed by

the TimeQuest analyzer with a start multicycle setup value of two.

Figure 7–66. Default Hold Check

-10 10 20 0

Current

Launch

REG1.CLK

HC1 SC HC2

REG2.CLK

Current

Latch

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–64 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Equation 7–27 shows the calculation that the TimeQuest analyzer performs to

determine the hold check.

.

Equation 7–27. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 0 ns

0 ns hold check 2

=

=

= next launch edge – current latch edge

5 ns – 10 ns

– 5 ns

In this example, hold check two is too restrictive. The data is launched next by the edge at 10 ns and should check against the data captured by the current latch edge at

10 ns, which does not occur in hold check two. To correct the default analysis, you must use a start multicycle hold exception of one.

The Source Clock Frequency is a Multiple of the Destination Clock

Frequency with an Offset

In this example, the source clock frequency is an integer multiple of the destination clock frequency and the destination clock has a positive phase offset. The source clock frequency is 5 ns and destination clock frequency is 10 ns. The destination clock also has a positive offset of 2 ns with respect to the source clock. The source clock frequency can be an integer multiple of the destination clock frequency with an offset when a PLL is used to generate both clocks, different multiplication and division

factors are used, and a phase shift applied to the destination clock. Figure 7–67 shows

an example of a design where the source clock frequency is a multiple of the destination clock frequency with an offset.

Figure 7–67. Source Clock Frequency is Multiple of Destination Clock Frequency with Offset

In

D

REG1

SET

Q

Combinational

Logic

D

REG2

SET

Q

Out clk0

CLR CLR clk clk1

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

7–65

Figure 7–68 shows the timing diagram for default setup check analysis performed by

the TimeQuest analyzer.

Figure 7–68. Setup Timing Diagram

-10 0 20

REG1.CLK

3 2

10

Launch

1

C

REG2.CLK

Latch

Equation 7–28 shows the calculation that the TimeQuest analyzer performs to

determine the setup check.

..

Equation 7–28. setup Check

setup check

=

=

= current latch edge – closest previous launch edge

12 ns – 10 ns

2 ns

The setup relationship shown in Figure 7–68 demonstrates that the data is not

launched at edge one, and the data that is launched at edge three must be captured; therefore, you can relax the setup requirement. To correct the default analysis, you must shift the launch edge by two clock periods with a start multicycle setup exception of three.

Example 7–32 shows the multicycle exception used to correct the default analysis in

this example.

Example 7–32. Multicycle Exceptions

set_multicycle_path -from [get_clocks clk_src] -to [get_clocks clk_dst]

-setup -start 3

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–66 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Creating Timing Exceptions

Figure 7–69 shows the timing diagram for the preferred setup relationship for this

example.

Figure 7–69. Preferred Setup Check Analysis

-10

REG1.CLK

0

Launch

3 2

10

1

20

SC

REG2.CLK

Latch

Figure 7–70 shows the timing diagram for default hold check analysis performed by

the TimeQuest analyzer with a start multicycle setup value of three.

Figure 7–70. Default Hold Check Analysis

-10 0

Current

Launch

REG1.CLK

10 20

HC1

SC

HC2

REG2.CLK

Current

Latch

Equation 7–29 shows the calculation that the TimeQuest analyzer performs to

determine the hold check.

Equation 7–29. Hold Check

hold check 1

=

=

= current launch edge – previous latch edge

0 ns – 2 ns

– 2 ns hold check 2

=

=

= next launch edge – current latch edge

5 ns – 12 ns

– 7 ns

In this example, hold check two is too restrictive. The data is launched next by the edge at 10 ns and should check against the data captured by the current latch edge at

12 ns, which does not occur in hold check two. To correct the default analysis, you must use a start multicycle hold exception of one.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 7: The Quartus II TimeQuest Timing Analyzer

Timing Reports

7–67

Timing Reports

The TimeQuest analyzer provides real-time static timing analysis result reports. The

TimeQuest analyzer does not automatically generate reports; you must create each report individually in the TimeQuest analyzer GUI or with command-line commands.

You can customize in which report to display specific timing information, excluding fields that are not required.

Table 7–5

shows some of the different command-line commands you can use to generate reports in the TimeQuest analyzer and the equivalent reports shown in the

TimeQuest analyzer GUI.

Table 7–5. TimeQuest Analyzer Reports

Command-Line Command

report_timing report_exceptions report_clock_transfers report_min_pulse_width report_ucp

Report

Timing report

Exceptions report

Clock Transfers report

Minimum Pulse Width report

Unconstrained Paths report h

For more information—including a complete list of commands to generate timing reports and full syntax information, options, and example usage—refer to

::quartus::sta

in Quartus II Help.

During compilation, the Quartus II software generates timing reports on different timing areas in the design. You can configure various options for the TimeQuest analyzer reports generated during compilation. h

For more information about the options you can set to customize the reports, refer to

TimeQuest Timing Analyzer Page

in Quartus II Help.

You can also use the

TIMEQUEST_REPORT_WORST_CASE_TIMING_PATHS

assignment to generate a report of the worst-case timing paths for each clock domain. This report contains worst-case timing data for setup, hold, recovery, removal, and minimum pulse width checks.

Use the

TIMEQUEST_REPORT_NUM_WORST_CASE_TIMING_PATHS

assignment to specify the number of paths to report for each clock domain.

Example 7–33 shows an example of how to use the

TIMEQUEST_REPORT_WORST_CASE_TIMING_PATHS

and

TIMEQUEST_REPORT_NUM_WORST_CASE_TIMING_PATHS

assignments in the .qsf to generate reports.

Example 7–33. Generating Worst-Case Timing Reports

#Enable Worst-Case Timing Report set_global_assignment -name TIMEQUEST_REPORT_WORST_CASE_TIMING_PATHS ON

#Report 10 paths per clock domain set_global_assignment -name TIMEQUEST_REPORT_NUM_WORST_CASE_TIMING_PATHS 10

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

7–68 Chapter 7: The Quartus II TimeQuest Timing Analyzer

Document Revision History f

For more information about timing closure recommendations, refer to the

Area and

Timing Optimization

chapter in volume 2 of the Quartus II Handbook.

Document Revision History

Table 7–6

shows the revision history for this chapter.

Table 7–6. Document Revision History

Date Version Changes

November 2011 11.1.0

May 2011

Consolidated content from the Best Practices for the Quartus II TimeQuest

Timing Analyzer chapter.

Changed to new document template.

11.0.0

Updated to improve flow. Minor editorial updates.

Changed to new document template.

December 2010 10.1.0

July 2010 10.0.0

Revised and reorganized entire chapter.

Linked to Quartus II Help.

Updated to link to content on SDC commands and the TimeQuest analyzer GUI in Quartus II

Help.

Updated for the Quartus II software version 9.1, including:

November 2009

November 2008

9.1.0

8.1.0

Added information about commands for adding and removing items from collections

Added information about the set_timing_derate and report_skew commands

Added information about worst-case timing reporting

Minor editorial updates

Updated for the Quartus II software version 8.1, including:

Added the following sections:

“set_net_delay” on page 7–42

“Annotated Delay” on page 7–49

“report_net_delay” on page 7–66

Updated the descriptions of the

-append

and

-file

< name

>

options in tables throughout the chapter

Updated entire chapter using 8½” × 11” chapter template

Minor editorial updates f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Section III. Power Estimation and

Analysis

As FPGA designs grow larger and processes continue to shrink, power is an everincreasing concern. When designing a PCB, the power consumed by a device must be accurately estimated to develop an appropriate power budget, and to design the power supplies, voltage regulators, heat sink, and cooling system.

The Quartus

®

II software allows you to estimate the power consumed by your current design during timing simulation. The power consumption of your design can be calculated using the Microsoft Excel-based power calculator, or the Simulation-Based

Power Estimation features in the Quartus II software. This section explains how to use both.

This section includes the following chapter:

Chapter 8, PowerPlay Power Analysis

This chapter describes the Altera

®

Quartus II PowerPlay power analysis tool and how to use the tools to accurately estimate device power consumption.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Section III: Power Estimation and Analysis

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

8. PowerPlay Power Analysis

November 2011

QII53013-10.1.1

QII53013-10.1.1

This chapter describes how to use the Altera

®

Quartus

®

II PowerPlay Power Analysis tools to accurately estimate device power consumption.

As designs grow larger and process technology continues to shrink, power becomes an increasingly important design consideration. When designing a PCB, the power consumed by a device must be accurately estimated to develop an appropriate power budget and to design the power supplies, voltage regulators, heat sink, and cooling system. As shown in

Figure 8–1 , the PowerPlay Power Analysis tools provide the

ability to estimate power consumption from early design concept through design implementation.

Figure 8–1. PowerPlay Power Analysis

Higher

PowerPlay EPE Quartus II PowerPlay Power Analyzer

Placement and

Routing

Results

Simulation

Results

Quartus II

Design Profile

User Input

Design Concept Design Implementation

Lower

PowerPlay Power Analysis Input

Higher h

For more information about the PowerPlay suite of power analysis and optimizations tools, refer to

About Power Estimation and Analysis

in Quartus II Help. For more information about acquiring the PowerPlay EPE spreadsheet, refer to PowerPlay

Early Power Estimators (EPE) and Power Analyzer on the Altera website.

This chapter discusses the following topics:

“Types of Power Analyses” on page 8–2

“Factors Affecting Power Consumption” on page 8–2

“Creating PowerPlay EPE Spreadsheets” on page 8–5

“PowerPlay Power Analyzer Flow” on page 8–8

“Using Simulation Files in Modular Design Flows” on page 8–11

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

8–2 Chapter 8: PowerPlay Power Analysis

Types of Power Analyses

“Using the PowerPlay Power Analyzer” on page 8–17

“Conclusion” on page 8–25

Types of Power Analyses

Understanding the uses of power analysis and the factors affecting power consumption helps you to use the PowerPlay Power Analyzer effectively. Power analysis meets two significant planning requirements:

Thermal planning—

The cooling solution must be sufficient to dissipate the heat generated by the device. The computed junction temperature must fall within normal device specifications.

Power supply planning—

Power supplies must provide adequate current to support device operation.

The two types of analyses are closely related because much of the power supplied to the device is dissipated as heat from the device; however, in some situations, the two types of analyses are not identical. For example, if you are using terminated I/O standards, some of the power drawn from the power supply of the device dissipates in termination resistors rather than in the device.

Power analysis also addresses the activity of your design over time as a factor that impacts the power consumption of the device. Static power is the power consumed regardless of design activity. Dynamic power is the additional power consumed due to signal activity or toggling.

1

For power supply planning, you can use the PowerPlay EPE at the early stages of your design cycle, or use the PowerPlay Power Analyzer reports when your design is complete to get an estimate of your design power requirement.

Factors Affecting Power Consumption

This section describes the factors affecting power consumption. Understanding these factors allows you to use the PowerPlay Power Analyzer and interpret its results effectively.

Device Selection

Different device families have different power characteristics. Many parameters affect the device family power consumption, including choice of process technology, supply voltage, electrical design, and device architecture. For example, the Cyclone II device family architecture consumes less static power than the high-performance and full-featured Stratix II device family.

Power consumption also varies in a single device family. A larger device consumes more static power than a smaller device in the same family because of its larger transistor count. Dynamic power can also increase with device size in devices that employ global routing architectures, for example, the MAX device family. Cyclone,

MAX II, and Stratix devices do not exhibit significantly increased dynamic power as device size increases.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Factors Affecting Power Consumption

8–3

The choice of device package also affects the ability of the device to dissipate heat.

This choice can impact your cooling solution choice required to meet junction temperature constraints.

Process variation can affect power consumption. Process variation primarily impacts static power because sub-threshold leakage current varies exponentially with changes in transistor threshold voltage. As a result, it is critical to consult device specifications for static power and not rely on empirical observation. Process variation has a weak effect on dynamic power.

Environmental Conditions

Operating temperature primarily affects device static power consumption. Higher junction temperatures result in higher static power consumption. The device thermal power and cooling solution that you use must result in the device junction temperature remaining within the maximum operating range for the device. The main environmental parameters affecting junction temperature are the cooling solution and ambient temperature.

Airflow

Airflow is a measure of how quickly heated air is removed from the vicinity of the device and replaced by air at ambient temperature. Airflow can either be specified as

“still air” when no fan is used, or as the linear feet per minute rating of the fan used in the system. Higher airflow decreases thermal resistance.

Heat Sink and Thermal Compound

A heat sink allows more efficient heat transfer from the device to the surrounding area because of its large surface area exposed to the air. The thermal compound that interfaces the heat sink to the device also influences the rate of heat dissipation. The case-to-ambient thermal resistance (

CA

) parameter describes the cooling capacity of the heat sink and thermal compound employed at a given airflow. Larger heat sinks and more effective thermal compounds reduce 

CA

.

Junction Temperature

The junction temperature of a device is equal to:

T

Junction

= T

Ambient

+ P

Thermal

· 

JA in which 

JA

is the total thermal resistance from the device transistors to the environment, having units of degrees Celsius per watt. The value 

JA

is equal to the sum of the junction-to-case (package) thermal resistance (

JC

) and the case-to-ambient thermal resistance (

CA

) of your cooling solution.

Board Thermal Model

The thermal resistance of the path through the board is referred to as the junction-to-board thermal resistance (

JB

), having units of degrees Celsius per watt. It is used in conjunction with the board temperature, as well as the top-of-chip 

JA

and ambient temperatures, to compute junction temperature.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–4 Chapter 8: PowerPlay Power Analysis

Factors Affecting Power Consumption

Device Resource Usage

The number and types of device resources used greatly affects power consumption.

Number, Type, and Loading of I/O Pins

Output pins drive off-chip components, resulting in high-load capacitance that leads to a high-dynamic power per transition. Terminated I/O standards require external resistors that generally draw constant (static) power from the output pin.

Number and Type of Logic Elements, Multiplier Elements, and RAM Blocks

A design with more logic elements (LEs), multiplier elements, and memory blocks tends to consume more power than a design with fewer circuit elements. The operating mode of each circuit element also affects its power consumption. For example, a DSP block performing 18 × 18 multiplications and a DSP block performing multiply-accumulate operations consume different amounts of dynamic power because of different amounts of internal capacitance being charged on each transition.The operating mode of a circuit element also affects static power.

Number and Type of Global Signals

Global signal networks span large portions of the device and have high capacitance, resulting in significant dynamic power consumption. The type of global signal is important as well. For example, Stratix II devices support several kinds of global clock networks that span either the entire device or a specific portion of the device (a regional clock network covers a quarter of the device). Clock networks that span smaller regions have lower capacitance and tend to consume less power. The location of the logic array blocks (LABs) driven by the clock network can also have an impact because the Quartus II software automatically disables unused branches of a clock.

Signal Activities

The final important factor in estimating power consumption is the behavior of each signal in your design. The two vital statistics are the toggle rate and the static probability.

The toggle rate of a signal is the average number of times that the signal changes value per unit of time. The units for toggle rate are transitions per second and a transition is a change from

1

to

0

, or

0

to

1

.

The static probability of a signal is the fraction of time that the signal is logic

1

during the period of device operation that is being analyzed. Static probability ranges from

0

(always at ground) to

1

(always at logic-high).

Dynamic power increases linearly with the toggle rate as the capacitive load is charged more frequently for logic and routing. The Quartus II software models full rail-to-rail switching. For high toggle rates, especially on circuit output I/O pins, the circuit can transition before fully charging the downstream capacitance. The result is a slightly conservative prediction of power by the PowerPlay Power Analyzer.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Creating PowerPlay EPE Spreadsheets

8–5

The static power consumed by both routing and logic can sometimes be affected by the static probabilities of their input signals. This effect is due to state-dependent leakage and has a larger effect on smaller process geometries. The Quartus II software models this effect on devices at 90 nm (or smaller) if it is important to the power estimate. The static power also varies with the static probability of a logic

1

or

0

on the

I/O pin when output I/O standards drive termination resistors.

1

To get accurate results from the power analysis, the signal activities for analysis must represent the actual operating behavior of your design. Inaccurate signal toggle rate data is the largest source of power estimation error.

Creating PowerPlay EPE Spreadsheets

You can use PowerPlay EPE spreadsheets to perform a preliminary thermal analysis and power consumption estimate for your design. You can either enter the data manually or use the tools in the Quartus II software to assist you with generating the device resources usage information for your design.

h

For more information about generating a PowerPlay EPE File in the Quartus II software, refer to

Performing an Early Power Estimate Using the PowerPlay Early Power

Estimator

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–6 Chapter 8: PowerPlay Power Analysis

Creating PowerPlay EPE Spreadsheets

Figure 8–2

shows an example of the contents of a PowerPlay EPE File generated for a design that targets a Stratix III device.

Figure 8–2. Example of a PowerPlay EPE File

The PowerPlay EPE spreadsheet includes the Import Data macro that parses the information in the PowerPlay EPE File and transfers it into the spreadsheet. If you do not want to use the macro, you can manually transfer the data into the PowerPlay EPE spreadsheet.

For example, after importing the PowerPlay EPE File information into the PowerPlay

EPE spreadsheet, you can add additional device resource information at any time. If the existing Quartus II project represents only a portion of your full design, you must enter the additional device resources used in the final design manually.

PowerPlay EPE File Generator Compilation Report

After successfully generating the PowerPlay EPE File, you can locate a PowerPlay

EPE File Generator report under the Compilation Report section. This report contains different sections, such as Summary, Settings, Generated Files, Confidence Metric

Details, and Signal Activities. For more information about the PowerPlay EPE File

Generator report, refer to

“PowerPlay Power Analyzer Compilation Report” on page 8–21 .

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Creating PowerPlay EPE Spreadsheets

8–7

Table 8–1

lists the main differences between the PowerPlay EPE and the Quartus II

PowerPlay Power Analyzer.

Table 8–1. Comparison of the PowerPlay EPE and Quartus II PowerPlay Power Analyzer

Characteristic PowerPlay EPE Quartus II PowerPlay Power Analyzer

Phase in the design cycle

Tool requirements

Any time

Spreadsheet program or the Quartus II software

Post-fit

The Quartus II software

Accuracy

Data inputs

Medium

Resource usage estimates

Clock requirements

Environmental conditions

Toggle rate

Medium to very high

Post-fit design

Clock requirements

Signal activity defaults

Environmental conditions

Register transfer level (RTL) simulation results (optional)

Post-fit simulation results (optional)

Signal activities per node or entity

(optional)

Data outputs

(1)

Total thermal power dissipation

Thermal static power

Thermal dynamic power

Off-chip power dissipation

Current drawn from voltage supplies

Total thermal power

Thermal static power

Thermal dynamic power

Thermal I/O power

Thermal power by design hierarchy

Thermal power by block type

Thermal power dissipation by clock domain

Off-chip (non-thermal) power dissipation

Device supply currents

Notes to Table 8–1

:

(1) PowerPlay EPE and PowerPlay Power Analyzer outputs vary by device family. For more information, refer to the device-specific EPE User Guide and PowerPlay Power Analyzer Reports in Quartus II Help.

The result of the PowerPlay Power Analyzer is only an estimation of power. Altera does not recommend using the result as a specification. The purpose of the estimation is to help you to establish a guide for the power budget of your design. Altera recommends measuring the actual power on the board. You must measure the total dynamic current of your design during device operation because the estimate is design dependent and depends on many variable factors, including input vector quantity, quality, and exact loading conditions of a PCB design. Static power consumption must not be based on empirical observation. The values reported by the

PowerPlay Power Analyzer or data sheet must be used because the tested devices might not exhibit worst-case behavior.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–8 Chapter 8: PowerPlay Power Analysis

PowerPlay Power Analyzer Flow

PowerPlay Power Analyzer Flow

The PowerPlay Power Analyzer supports accurate power estimations by allowing you to specify all the important design factors affecting power consumption.

Figure 8–3

shows the high-level PowerPlay Power Analyzer flow.

Figure 8–3. PowerPlay Power Analyzer High-Level Flow

User Design

(Post-Fit)

Operating

Conditions

(1)

PowerPlay

Power Analyzer

Signal

Activities

Power Analysis

Report

Note to Figure 8–3 :

(1) Operating condition specifications are available only for some device families. For more information, refer to

Performing Power Analysis with the PowerPlay Power Analyzer

in Quartus II Help.

The PowerPlay Power Analyzer requires your design to be synthesized and fitted to the target device. You must specify the electrical standard used by each I/O cell and the capacitive load on each I/O standard in your design to obtain accurate I/O power estimates.

Operating Settings and Conditions

You can specify device power characteristics, operating voltage conditions, and operating temperature conditions for power analysis in the Quartus II software.

On the Operating Settings and Conditions page of the Settings dialog box, you can specify whether the device has typical power consumption characteristics or maximum power consumption characteristics.

h

For more information, refer to

Operating Setting and Conditions Page (Settings Dialog

Box)

in Quartus II Help.

On the Voltage page of the Settings dialog box, you can view the operating voltage conditions for each power rail in the device, and specify supply voltages for power rails with selectable supply voltages.

h

For more information, refer to

Voltage Page (Settings Dialog Box)

in Quartus II Help.

On the Temperature page of the Settings dialog box, you can specify the thermal operating conditions of the device.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

PowerPlay Power Analyzer Flow

8–9

h

For more information, refer to

Temperature Page (Settings Dialog Box)

in Quartus II

Help.

Signal Activities Data Sources

The PowerPlay Power Analyzer provides a flexible framework for specifying signal activities. It reflects the importance of using representative signal-activity data during power analysis. You can use the following sources to provide information about signal activity:

Simulation results

User-entered node, entity, and clock assignments

User-entered default toggle rate assignment

Vectorless estimation

The PowerPlay Power Analyzer allows you to mix and match the signal-activity data

sources on a signal-by-signal basis. Figure 8–4

shows the priority scheme. The following sections describe the data sources.

Figure 8–4. Signal-Activity Data Source Priority Scheme

Start

Node or entity assignment?

No

Yes

Use node or entity assignment

Simulation data?

No

Yes

Use simulation data

Is primary input?

No

Yes

Vectorless supported and enabled?

(1)

Yes

Use vectorless estimation

No

Use default assignment

Note to Figure 8–4 :

(1) Vectorless estimation is available only for some device families. For more information, refer to

Performing Power Analysis with the PowerPlay

Power Analyzer

.

Simulation Results

The PowerPlay Power Analyzer directly reads the waveforms generated by a design simulation. The static probability and toggle rate for each signal are calculated from the simulation waveform. Power analysis is most accurate when you use representative input stimuli to generate simulations.

The PowerPlay Power Analyzer reads results generated by the following simulators:

■ ModelSim

®

ModelSim-Altera

QuestaSim

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–10 Chapter 8: PowerPlay Power Analysis

PowerPlay Power Analyzer Flow

Active-HDL

NCSim

VCS

VCS MX

Riviera-PRO

Signal activity and static probability information derive from a Verilog Value Change

Dump File (.vcd). For more information, refer to “Signal Activities” on page 8–4

.

For third-party simulators, use the Quartus II EDA Tool Settings for Simulation to specify a Generate Value Change Dump file script. These scripts instruct the third-party simulators to generate a .vcd that encodes the simulated waveforms. The

Quartus II PowerPlay Power Analyzer reads this file directly to derive the toggle rate and static probability data for each signal.

Third-party EDA simulators, other than those listed, can generate a .vcd that can then be used with the PowerPlay Power Analyzer. For those simulators, you must manually create a simulation script to generate the appropriate .vcd.

1

You can use a .vcd created for power analysis to optimize your design for power during fitting by utilizing the appropriate settings in the PowerPlay power

optimization

list, available in the Fitter Settings page of the Settings dialog box.

f

For more information about power optimization, refer to the Power Optimization chapter in volume 2 of the Quartus II Handbook.

f

For more information about how to create a .vcd in other third-party EDA simulation tools, refer to

Section I. Simulation

in volume 3 of the Quartus II Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

8–11

Using Simulation Files in Modular Design Flows

A common design practice is to create modular or hierarchical designs in which you develop each design entity separately, and then instantiate it in a higher-level entity, forming a complete design. You can perform simulation on a complete design or on each modular design for verification. The PowerPlay Power Analyzer supports modular design flows when reading the signal activities generated from these

simulation files. An example of a modular design flow is shown in Figure 8–5

.

Figure 8–5. Modular Simulation Flow

Parameter

Input

Video

Processing

Column

Driver

Memory

Interface

Video

Source

Interface

Timing

Control system.vcd

video_gizmo.vcd

output_driver.vcd

video_input.vcd

When specifying a simulation file, an associated design entity name is given, such that the signal activities derived from the simulation file (.vcd) are imported into the

PowerPlay Power Analyzer for that particular design entity. The PowerPlay Power

Analyzer also supports the specification of multiple .vcd for power analysis, with each having an associated design entity name to allow the integration of partial design simulations into a complete design power analysis. When specifying multiple

.vcd

for your design, it is possible that more than one simulation file contains signal-activity information for the same signal. When you apply multiple .vcd to the same design entity, the signal activity used in the power analysis is the equal-weight arithmetic average of each .vcd. When you apply multiple simulation files to design entities at different levels in your design hierarchy, the signal activity in the power analysis derives from the simulation file that applies to the most specific design entity.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–12 Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

Figure 8–6

shows an example of a hierarchical design. The top-level module of your design, called Top, consists of three 8b/10b decoders, followed by a multiplexer. The output of the multiplexer is then encoded again before being the output from your design. There is also an error-handling module that handles any 8b/10b decoding errors. The top contains the top-level entity of your design and any logic not defined as part of another module. The design file for the top-level module might be just a wrapper for the hierarchical entities below it, or it might contain its own logic. The following usage scenarios show common ways that you can simulate your design and import .vcd into the PowerPlay Power Analyzer.

Figure 8–6. Example Hierarchical Design

Top

8b10b_dec:decode1

8b10b_rxerr:err1

8b10b_dec:decode2 mux:mux1

8b10b_dec:decode3 8b10b_enc:encode1

Complete Design Simulation

You can simulate the entire design top, generating a .vcd from a third-party simulator.

The .vcd can then be imported (specifying entity top) into the PowerPlay Power

Analyzer. The resulting power analysis uses all the signal activities information from the generated .vcd, including those that apply to submodules, such as decode [1-3]

, err1

, mux1

, and encode1

.

Modular Design Simulation

You can independently simulate submodules of the design top, and then import all the resulting .vcd into the PowerPlay Power Analyzer. For example, you can simulate the

8b10b_dec

independent of the entire design, as well as multiplexer,

8b10b_rxerr

, and

8b10b_enc

. You can then import the .vcd generated from each simulation by specifying the appropriate instance name. For example, if the files produced by the simulations are 8b10b_dec.vcd, 8b10b_enc.vcd, 8b10b_rxerr.vcd, and mux.vcd, the

import specifications in Table 8–2 are used.

Table 8–2. Import Specifications (Part 1 of 2)

File Name

8b10b_dec.vcd

8b10b_dec.vcd

8b10b_dec.vcd

8b10b_rxerr.vcd

Entity

Top|8b10b_dec:decode1

Top|8b10b_dec:decode2

Top|8b10b_dec:decode3

Top|8b10b_rxerr:err1

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

8–13

Table 8–2. Import Specifications (Part 2 of 2)

File Name

8b10b_enc.vcd

mux.vcd

Entity

Top|8b10b_enc:encode1

Top|mux:mux1

The resulting power analysis applies the simulation vectors found in each file to the assigned entity. Simulation provides signal activities for the pins and for the outputs of functional blocks. If the inputs to an entity instance are input pins for the entire design, the simulation file associated with that instance does not provide signal activities for the inputs of that instance. For example, an input to an entity such as mux1

has its signal activity specified at the output of one of the decode entities.

Multiple Simulations on the Same Entity

You can perform multiple simulations of an entire design or specific modules of a design. For example, in the process of verifying the design top, you can have three different simulation testbenches: one for normal operation and two for corner cases.

Each of these simulations produces a separate .vcd. In this case, apply the different

.vcd

names to the same top-level entity, shown in Table 8–3 .

Table 8–3. Multiple Simulation File Names and Entities

File Name normal.vcd corner1.vcd

corner2.vcd

Top

Top

Top

Entity

The resulting power analysis uses an arithmetic average that the signal activities calculated from each simulation file to obtain the final signal activities used. If a signal err_out

has a toggle rate of zero toggles per second in normal.vcd, 50 toggles per second in corner1.vcd, and 70 toggles per second in corner2.vcd, the final toggle rate in the power analysis is 40 toggles per second.

Overlapping Simulations

You can perform a simulation on the entire design top and more exhaustive simulations on a submodule, such as

8b10b_rxerr

.

Table 8–4

shows the import specification for overlapping simulations.

Table 8–4. Overlapping Simulation Import Specifications

File Name full_design.vcd

error_cases.vcd

Entity

Top

Top|8b10b_rxerr:err1

In this case, signal activities from error_cases.vcd are used for all of the nodes in the generated .vcd and signal activities from full_design.vcd are used for only those nodes that do not overlap with nodes in error_cases.vcd. In general, the more specific hierarchy (the most bottom-level module) derives signal activities for overlapping nodes.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–14 Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

Partial Simulations

You can perform a simulation in which the entire simulation time is not applicable to signal-activity calculation. For example, run a simulation for 10,000 clock cycles and reset the chip for the first 2,000 clock cycles. If the signal-activity calculation is performed over all 10,000 cycles, the toggle rates are only 80% of their steady state value (because the chip is in reset for the first 20% of the simulation). In this case, you must specify the useful parts of the .vcd for power analysis. The Limit VCD Period option enables you to specify a start and end time to be used when performing signal-activity calculations.

Node Name Matching Considerations

Node name mismatches happen when you have .vcd applied to entities other than the top-level entity. In a modular design flow, the gate-level simulation files created in different Quartus II projects may not match their node names with the current

Quartus II project.

For example, if you have a file named 8b10b_enc.vcd, which was generated in a separate project called 8b10b_enc and is simulating the

8b10b

encoder, and you import that .vcd into another project called Top, you might encounter name mismatches when applying the .vcd to the

8b10b_enc

module in the Top project. This mismatch happens because all the combinational nodes in the 8b10b_enc.vcd might be named differently in the Top project.

You can avoid name mismatching with only RTL simulation data, in which register names do not change, or with an incremental compilation flow that preserves node names in conjunction with a gate-level simulation.

1

To ensure the best accuracy, Altera recommends using an incremental compilation flow to preserve the node names of your design.

f

For more information about the incremental compilation flow, refer to the

Quartus II

Incremental Compilation for Hierarchical and Team-Based Design

chapter in volume 1 of the Quartus II Handbook.

Glitch Filtering

The PowerPlay Power Analyzer defines a glitch as two signal transitions so closely spaced in time that the pulse or glitch occurs faster than the logic and routing circuitry can respond. The output of a transport delay model simulator contains glitches for some signals. The logic and routing structures of the device form a low-pass filter that filters out glitches that are tens to hundreds of picoseconds long, depending on the device family.

Some third-party simulators use different models than the transport delay model as default model. Different models cause differences in signal activity and power estimation. The inertial delay model, which is the ModelSim default model, filters out more glitches than the transport delay model and usually yields a lower power estimate.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

8–15

1

Altera recommends using the transport simulation model when using the Quartus II software glitch filtering support with third-party simulators. Simulation glitch filtering has little effect if you use the inertial simulation model. h

For more information about how to set the simulation model type for your specific simulator, refer to Quartus II Help.

Glitch filtering in a simulator can also filter a glitch on one LE (or other circuit element) output from propagating to downstream circuit elements to ensure that the glitch does not affect simulated results. It prevents a glitch on one signal from producing non-physical glitches on all downstream logic, which can result in a signal toggle rate and a power estimate that are too high. Circuit elements in which every input transition produces an output transition, including multipliers and logic cells configured to implement

XOR

functions, are especially prone to glitches. Therefore, circuits with such functions can have power estimates that are too high when you do not use glitch filtering.

Altera recommends using the glitch filtering feature to obtain the most accurate power estimates. For .vcd, the PowerPlay Power Analyzer flows support two levels of glitch filtering, both of which are recommended for power estimation.

In the first level of glitch filtering, glitches are filtered during simulation. To enable this level of glitch filtering in the Quartus II software for supported third-party simulators, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, select Simulation under EDA Tool Settings. The Simulation page appears.

3. Select the Tool name to use for the simulation.

4. Turn on Enable glitch filtering.

The second level of glitch filtering occurs while the PowerPlay Power Analyzer is reading the .vcd generated by a third-party simulator. To enable this level of glitch filtering, follow these steps:

On the Assignments menu, click Settings. The Settings dialog box appears.

1. In the Category list, select PowerPlay Power Analyzer Settings. The PowerPlay

Power Analyzer Settings

page appears.

2. Under Input File(s), turn on Perform glitch filtering on VCD files.

The .vcd file reader performs complementary filtering to the filtering performed during simulation and is often not as effective. While the .vcd file reader can remove glitches on logic blocks, it has no way of determining how downstream logic and routing are affected by a given glitch, and may eliminate the impact of the glitch completely. Filtering the glitches during simulation avoids switching downstream routing and logic automatically.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–16 Chapter 8: PowerPlay Power Analysis

Using Simulation Files in Modular Design Flows

1

When running simulation for design verification (rather than to produce input to the

PowerPlay Power Analyzer), Altera recommends turning off the glitch filtering option to produce the most rigorous and conservative simulation from a functionality viewpoint. When performing simulation to produce input for the PowerPlay Power

Analyzer, Altera recommends turning on the glitch filtering to produce the most accurate power estimates.

Node and Entity Assignments

You can assign specific toggle rates and static probabilities to individual nodes and entities in the design. These assignments have the highest priority, overriding data from all other signal-activity sources.

You must use the Assignment Editor or Tcl commands to create the Power Toggle

Rate

and Power Static Probability assignments. You can specify the power toggle rate as an absolute toggle rate in transitions using the Power Toggle Rate assignment or you can use the Power Toggle Rate Percentage assignment to specify a toggle rate relative to the clock domain of the assigned node for a more specific assignment made in terms of hierarchy level.

1

If the Power Toggle Rate Percentage assignment is used, and the given node does not have a clock domain, a warning is issued and the assignment is ignored.

f

For more information about how to use the Assignment Editor in the Quartus II software, refer to the

Constraining Designs

chapter in volume 2 of the Quartus II

Handbook.

Assigning specific toggle rates and static probabilities to individual nodes and entities is appropriate for signals in which you have specific knowledge of the signal or entity being analyzed. For example, if you know that a 100 MHz data bus or memory output produces data that is essentially random (uncorrelated in time), you can directly enter a 0.5 static probability and a toggle rate of 50 million transitions per second.

Bidirectional I/O pins are treated specially. The combinational input port and the output pad for a given pin share the same name. However, those ports might not share the same signal activities. For the purpose of reading signal-activity assignments, the PowerPlay Power Analyzer creates a distinct name

<

node_name~output> when the bidirectional signal is configured as an output and

<node_name~result> when the signal is configured as an input. For example, if a design has a bidirectional pin named

MYPIN

, assignments for the combinational input use the name

MYPIN~result

, and the assignments for the output pad use the name

MYPIN~output

.

1

When creating the logic assignment in the Assignment Editor, you will not find the

MYPIN~result

and

MYPIN~output

node names in the Node Finder. Therefore, to create the logic assignment, you must manually enter the two differentiating node names to create the specific assignment for the input and output port of the bidirectional pin.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

8–17

Timing Assignments to Clock Nodes

For clock nodes, the PowerPlay Power Analyzer uses the timing requirements to derive the toggle rate when neither simulation data nor user-entered signal-activity data is available. f

MAX

requirements specify full cycles per second, but each cycle represents a rising transition and a falling transition. For example, a clock f

MAX requirement of 100 MHz corresponds to 200 million transitions per second.

Default Toggle Rate Assignment

You can specify a default toggle rate for primary inputs and all other nodes in the design. The default toggle rate is used when no other method has specified the signal-activity data.

The toggle rate is specified in absolute terms (transitions per second) or as a fraction of the clock rate in effect for each particular node. The toggle rate for a given clock derives from the timing settings for the clock. For example, if a clock is specified with an f

MAX

constraint of 100 MHz and a default relative toggle rate of 20%, nodes in this clock domain transition in 20% of the clock periods, or 20 million transitions occur per second. In some cases, the PowerPlay Power Analyzer cannot determine the clock domain for a given node because there is either no clock domain for the node or it is ambiguous. In these cases, the PowerPlay Power Analyzer substitutes and reports a toggle rate of zero.

Vectorless Estimation

For some device families, the PowerPlay Power Analyzer automatically derives estimates for signal activity on nodes with no simulation or user-entered signal-activity data. Vectorless estimation statistically estimates the signal activity of a node based on the signal activities of all nodes feeding that node, and on the actual logic function implemented by the node. Vectorless estimation cannot derive signal activities for primary inputs. Vectorless estimation is generally accurate for combinational nodes, but not for registered nodes. Therefore, simulation data for at least the registered nodes and I/O nodes is required for accuracy.

h

For more information, refer to

Performing Power Analysis with the PowerPlay Power

Analyzer

in Quartus II Help.

The PowerPlay Power Analyzer Settings dialog box lets you disable vectorless estimation. When enabled, vectorless estimation takes priority over default toggle rates. Vectorless estimation does not override clock assignments.

Using the PowerPlay Power Analyzer

For all the flows that use the PowerPlay Power Analyzer, synthesize your design first and then fit it to the target device. You must either provide timing assignments for all the clocks in the design or use a simulation-based flow to generate activity data. The

I/O standard used on each device input or output and the capacitive load on each output must be specified in the design.

h

For more information about using the PowerPlay Power Analyzer, refer to

Performing

Power Analysis with the PowerPlay Power Analyzer

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–18 Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

Common Analysis Flows

You can use the analysis flows in this section with the PowerPlay Power Analyzer.

However, vectorless activity estimation is only available for some device families.

Signal Activities from Full Post-Fit Netlist (Timing) Simulation

This flow provides the most accuracy because all node activities reflect actual design behavior, provided that supplied input vectors are representative of typical design operation. Results are better if the simulation filters glitches. The disadvantage of this method is that the simulation time is long.

Signal Activities from Full Post-Fit Netlist (Zero Delay) Simulation

The zero delay simulation flow is used with designs for which signal activities from a full post-fit netlist (timing) simulation are not available. Zero delay simulation is as accurate as timing simulation in 95% of designs with no glitches.

1

If your design has glitches, power may be underestimated. Altera recommends using the signal activities from a full post-fit netlist (timing) simulation to achieve accurate power estimation of your design.

The following designs might exhibit glitches:

Designs with many

XOR

gates (for example, an encryption core)

Designs with arithmetic blocks without input and output registers (DSPs and carry chains)

For more information about creating zero delay simulation signal activities, refer to

“Generating a .vcd from Full Post-Fit Netlist (Zero Delay) Simulation” on page 8–20.

Signal Activities from RTL (Functional) Simulation, Supplemented by

Vectorless Estimation

In this flow, simulation provides toggle rates and static probabilities for all pins and registers in the design. Vectorless estimation fills in the values for all the combinational nodes between pins and registers, giving good results. This flow usually provides a compilation time benefit to the user in the third-party RTL simulator.

1

RTL simulation may not provide signal activities for all registers in the post-fitting netlist because some register names might be lost during synthesis. For example, synthesis might automatically transform state machines and counters, thus changing the names of registers in those structures.

Signal Activities from Vectorless Estimation and User-Supplied Input Pin

Activities

This flow provides a low level of accuracy, because vectorless estimation for registers is not entirely accurate.

Signal Activities from User Defaults Only

This flow provides the lowest degree of accuracy.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

8–19

Generating a .vcd

In previous versions of the Quartus II software, you could use either the Quartus II simulator or an EDA simulator to perform your simulation. The Quartus II software no longer supports a built-in simulator, and you must use EDA simulators to perform simulation. Use the .vcd as the input to the PowerPlay Power Analyzer to estimate power for your design. f

For more information about the supported third-party simulators, refer to

“Simulation Results” on page 8–9 .

To create a .vcd for your design, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, under EDA Tool Settings, click Simulation. The Simulation page appears.

3. In the Tool name list, select your preferred EDA simulator.

4. In the Format for output netlist list, select Verilog HDL, or SystemVerilog HDL,

or VHDL

.

5. Turn on Generate Value Change Dump (VCD) file script.

1

This turns on the Map illegal HDL characters and Enable glitch filtering options. The Map illegal HDL characters option ensures that all signals have legal names and that signal toggle rates are available later in the

PowerPlay Power Analyzer.

6. By turning on Enable glitch filtering, glitch filtering logic is the output when you generate an EDA netlist for simulation. This option is available regardless of whether or not you want to generate the .vcd scripts. For more information about glitch filtering, refer to

“Glitch Filtering” on page 8–14 .

1

When performing simulation using ModelSim, the +nospecify option for the vsim

command disables the specify path delays and timing checks option in ModelSim. By enabling glitch filtering on the Simulation page, the simulation models include specified path delays. Thus, ModelSim might fail to simulate a design if glitch filtering is enabled, and the

+nospecify

option is specified. Altera recommends removing the

+nospecify

option from the ModelSim vsim

command to ensure accurate simulation for power estimation.

7. Click Script Settings. The Script Settings dialog box appears.

Select which signals must be output to the .vcd. With All signals selected, the generated script instructs the third-party simulator to write all connected output signals to the .vcd. With All signals except combinational lcell outputs selected, the generated script tells the third-party simulator to write all connected output signals to the .vcd, except logic cell combinational outputs.

1

The file can become extremely large if you write all output signals to the file because its size depends on the number of output signals being monitored and the number of transitions that occur.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–20 Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

8. Click OK.

9. Type a name for your testbench in the Design instance name box.

10. Compile your design with the Quartus II software and generate the necessary

EDA netlist and script that instructs the third-party simulator to generate a .vcd. f

For more information about the NativeLink feature, refer to

Section I. Simulation

in volume 3 of the Quartus II Handbook.

11. Perform a simulation with the third-party EDA simulation tool. Call the generated script in the simulation tool before running the simulation. The simulation tool generates the .vcd and places it in the project directory.

Generating a .vcd from ModelSim Software

To successfully produce a .vcd with the ModelSim software, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, under EDA Tool Settings, click Simulation. The Simulation page appears.

3. In the Tool name list, select your preferred EDA simulator.

4. In the Format for output netlist list, select Verilog HDL, or SystemVerilog HDL,

or VHDL

.

5. Turn on Generate Value Change Dump (VCD) file script.

6. To generate the .vcd, perform a full compilation.

7. In the ModelSim software, compile the files necessary for simulation.

8. Load your design by clicking Start Simulation on the Tools menu, or use the vsim command.

9. Use the .vcd script created in step

6

using the following command: source <design>_dump_all_vcd_nodes.tcl

10. Run the simulation (for example, run 2000ns

or run -all

).

11. Quit the simulation using the quit -sim

command, if required.

12. Exit the ModelSim software. If you do not exit the software, the ModelSim software might end the writing process of the .vcd improperly, resulting in a corrupt .vcd.

Generating a .vcd from Full Post-Fit Netlist (Zero Delay) Simulation

To successfully generate a .vcd from the full post-fit Netlist (zero delay) simulation, follow these steps:

1. Compile your design in the Quartus II software to generate the Netlist

<project_name>.vo.

2. In <project_name>.vo, search for the include statement for <project_name>.sdo, comment the statement out, and save the file.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

8–21

3. Generate a .vcd for power estimation by performing the steps in

“Generating a

.vcd” on page 8–19

.

1

Altera recommends using the Standard Delay Format Output File (.sdo) for gate-level timing simulation. The .sdo contains the delay information of each architecture primitive and routing element specific to your design; however, you must exclude the .sdo for zero delay simulation.

f

For more information about how to create a .vcd in other third-party EDA simulation tools, refer to

Section I. Simulation

in volume 3 of the Quartus II

Handbook.

Running the PowerPlay Power Analyzer Using the Quartus II GUI

To run the PowerPlay Power Analyzer using the Quartus II GUI, refer to

Performing

Power Analysis with the PowerPlay Power Analyzer

in Quartus II Help.

PowerPlay Power Analyzer Compilation Report

The PowerPlay Power Analyzer section of the Compilation Report consists of the following sections.

Summary

This section of the report shows the estimated total thermal power consumption of your design. This includes dynamic, static, and I/O thermal power consumption. The

I/O thermal power consumption is the total I/O power contributed by both the V

CCIO power supplies and some portion of the V

CCINT

. The report also includes a confidence metric that reflects the overall quality of the data sources for the signal activities. For example, a Low power estimation confidence value reflects that you have provided insufficient toggle rate data, or most of the signal-activity information used for power estimation is from default or vectorless estimation settings. For more information about the input data, refer to the PowerPlay Power Analyzer Confidence Metric report.

Settings

This section of the report shows the PowerPlay Power Analyzer settings information of your design, including the default input toggle rates, operating conditions, and other relevant setting information.

Simulation Files Read

This section of the report lists the simulation output file (.vcd) used for power estimation. This section also includes the file ID, file type, entity, VCD start time, VCD end time, the unknown percentage, and the toggle percentage. The unknown percentage indicates the portion of the design module that is not exercised by the simulation vectors.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–22 Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

Operating Conditions Used

This section of the report shows device characteristics, voltages, temperature, and cooling solution, if any, that were used during the power estimation. This section also shows the entered junction temperature or auto-computed junction temperature that was used during the power analysis.

Thermal Power Dissipated by Block

This section of the report shows estimated thermal dynamic power and thermal static power consumption categorized by atoms. This information provides you with estimated power consumption for each atom in your design.

Thermal Power Dissipation by Block Type (Device Resource Type)

This section of the report shows the estimated thermal dynamic power and thermal static power consumption categorized by block types. This information is further categorized by estimated dynamic and static power that was used, as well as providing an average toggle rate by block type. Thermal power is the power dissipated as heat from the FPGA device.

Thermal Power Dissipation by Hierarchy

This section of the report shows estimated thermal dynamic power and thermal static power consumption categorized by design hierarchy. This information is further categorized by the dynamic and static power that was used by the blocks and routing in that hierarchy. This information is very useful when locating problem modules in your design.

Core Dynamic Thermal Power Dissipation by Clock Domain

This section of the report shows the estimated total core dynamic power dissipation by each clock domain, which provides designs with estimated power consumption for each clock domain in the design. If the clock frequency for a domain is unspecified by a constraint, the clock frequency is listed as “unspecified.” For all the combinational logic, the clock domain is listed as no clock with zero MHz.

Current Drawn from Voltage Supplies

This section of the report lists the current that was drawn from each voltage supply.

The V

CCIO

voltage supply is further categorized by I/O bank and by voltage. The minimum safe power supply size (current supply ability) is also listed for each supply voltage.

Transceiver-based devices have multiple voltage supplies, which are V

CCH

, V

CCT

,

V

CCR

, V

CCA

, and V

CCP

. The report also shows the static and dynamic current (in mA) drawn from each voltage supply. Total static and dynamic power consumed by the transceivers on all voltage supplies is listed under the “Thermal Power Dissipation by

Block Type” report section, which contains a row that starts with “GXB Transceiver.”

The I/O thermal power dissipation, which is listed on the summary page, does not correlate directly to the power drawn from the V

CCIO

voltage supply listed in this report. This is because the I/O thermal power dissipation value also includes portions of the V

CCINT

power, such as the I/O element (IOE) registers, which are modeled as

I/O power, but do not draw from the V

CCIO

supply.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer

8–23

Confidence Metric Details

The confidence metric indicates the quality of the signal toggle rate data used to compute a power estimate. The confidence metric is low if the signal toggle rate data comes from sources that are considered poor predictors of real signal toggle rates in the device during an operation. Toggle rate data that comes from simulation, user-entered assignments on specific signals, or entities are considered reliable.

Toggle rate data from default toggle rates (for example, 12.5% of the clock period) or vectorless estimation are considered relatively inaccurate. This section gives an overall confidence rating in the toggle rate data, from low to high. This section also summarizes how many pins, registers, and combinational nodes obtained their toggle rates from each of simulation, user entry, vectorless estimation, or default toggle rate estimations. This detailed information helps you understand how to increase the confidence metric, letting you determine your own confidence in the toggle rate data.

Signal Activities

This section lists toggle rates and static probabilities assumed by power analysis for all signals with fan-out and pins. The signal type is provided (pin, registered, or combinational), as well as the data source for the toggle rate and static probability. By default, all signal activities are reported, but can be turned off by turning off the Write

signal activities to report file

option on the PowerPlay Power Analyzer Settings page.

1

Altera recommends turning off the Write signal activities to report file option for a large design because of the large number of signals present. You can use the

Assignment Editor to specify that activities for individual nodes or entities are reported by assigning an on value to those nodes for the Power Report Signal

Activities

assignment.

Messages

This section lists the messages generated by the Quartus II software during the analysis.

Specific Rules for Reporting

In a Stratix GX device, the XGM II state machine block is always used together with

GXB transceivers, so its power is lumped into the power for the transceivers.

Therefore, the power for the XGM II state machine block is reported as zero Watts.

Scripting Support

You can run procedures and create settings described in this chapter in a Tcl script.

You can also run some procedures at a command prompt. For more information about scripting command options, refer to the Quartus II Command-Line and Tcl API Help browser. To run the Help browser, type the following command at the command prompt: quartus_sh --qhelp r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–24 Chapter 8: PowerPlay Power Analysis

Using the PowerPlay Power Analyzer f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook and

API Functions for Tcl

in Quartus II Help. For more information about all settings and constraints in the Quartus II software, refer to the

Quartus II Settings File Reference Manual

. For more information about command-line scripting, refer to the

Command-Line Scripting

chapter in volume 2 of the Quartus II

Handbook.

Running the PowerPlay Power Analyzer from the Command–Line

The separate executable used to run the PowerPlay Power Analyzer is quartus_pow

.

For a complete listing of all command–line options supported by quartus_pow

, type the following command at a system command prompt: quartus_pow --help or quartus_sh --qhelp r

The following is an example of using the quartus_pow

executable with project

sample.qpf

:

To instruct the PowerPlay Power Analyzer to generate a PowerPlay EPE File, type the following command at a system command prompt: quartus_pow sample --output_epe=sample.csv

r

To instruct the PowerPlay Power Analyzer to generate a PowerPlay EPE File without performing the power estimate, type the following command at a system command prompt: quartus_pow sample --output_epe=sample.csv --estimate_power=off r

To instruct the PowerPlay Power Analyzer to use a .vcd as input (sample.vcd), type the following command at a system command prompt: quartus_pow sample --input_vcd=sample.vcd

r

To instruct the PowerPlay Power Analyzer to use two .vcd files as input files

(sample1.vcd and sample2.vcd), perform glitch filtering on the .vcd and use a default input I/O toggle rate of 10,000 transitions per second, type the following command at a system command prompt:

■ quartus_pow sample --input_vcd=sample1.vcd --input_vcd=sample2.vcd \

--vcd_filter_glitches=on --\ default_input_io_toggle_rate=10000transitions/s r

To instruct the PowerPlay Power Analyzer to not use any input file, a default input

I/O toggle rate of 60%, no vectorless estimation, and a default toggle rate of 20% on all remaining signals, type the following command at a system command prompt: quartus_pow sample --no_input_file -default_input_io_toggle_rate=60% \

--use_vectorless_estimation=off --default_toggle_rate=20% r

1

There are no command–line options to specify the information found on the

PowerPlay Power Analyzer Settings Operating Conditions

page. You can use the Quartus II GUI to specify these options.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 8: PowerPlay Power Analysis

Conclusion

8–25

The quartus_pow

executable creates a report file, <revision name>.pow.rpt. You can locate the report file in the main project directory. The report file contains the same information in

“PowerPlay Power Analyzer Compilation Report” on page 8–21 .

Conclusion

PowerPlay power analysis tools are designed for accurate estimation of power consumption from early design concept through design implementation. You can use the PowerPlay EPE to estimate power consumption during the design concept stage.

You can use the PowerPlay Power Analyzer tool to refine power estimations during design implementation. The PowerPlay Power Analyzer produces detailed reports that you can use to optimize designs for lower power consumption and verify that the design is in your power budget.

Document Revision History

Table 8–5

shows the revision history for this chapter.

Table 8–5. Document Revision History

Date

November 2011

December 2010

July 2010

November 2009

March 2009

November 2008

May 2008

Version

10.1.1

10.1.0

10.0.0

9.1.0

9.0.0

8.1.0

8.0.0

Changes

Template update.

Minor editorial updates.

Added links to Quartus II Help, removed redundant material.

Moved

“Creating PowerPlay EPE Spreadsheets” to page 8–5 .

Minor edits.

Removed references to the Quartus II Simulator.

Updated

Table 8–1 on page 8–7 ,

Table 8–2 on page 8–12

, and Table 8–3 on page 8–13

.

Updated

Figure 8–3 on page 8–8

, Figure 8–4 on page 8–9

, and

Figure 8–5 on page 8–11 .

Updated

“Creating PowerPlay EPE Spreadsheets” on page 8–5

and “Simulation Results” on page 8–9 .

Added “Signal Activities from Full Post-Fit Netlist (Zero Delay) Simulation” on page 8–18

and “Generating a .vcd from Full Post-Fit Netlist (Zero Delay) Simulation” on page 8–20 .

Minor changes to

“Generating a .vcd from ModelSim Software” on page 8–20

.

Updated

Figure 8–2 on page 8–6

and Figure 11–8 on page 11–24 .

This chapter was chapter 11 in version 8.1.

Removed Figures 11-10, 11-11, 11-13, 11-14, and 11-17 from 8.1 version.

Updated for the Quartus II software version 8.1.

Replaced Figure 11-3.

Replaced Figure 11-14.

Updated Figure 11–5.

Updated “Types of Power Analyses” on page 11–5.

Updated “Operating Conditions” on page 11–9.

Updated “PowerPlay Power Analyzer Compilation Report” on page 11–31.

Updated “Current Drawn from Voltage Supplies” on page 11–32.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

8–26 Chapter 8: PowerPlay Power Analysis

Document Revision History f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Section IV. System Debugging Tools

The Altera

®

Quartus

®

II design software provides a complete design debugging environment that easily adapts to your specific design requirements. This handbook is arranged in chapters, sections, and volumes that correspond to the major tools available for debugging your designs. For a general introduction to features and the standard design flow in the software, refer to the

Introduction to the Quartus II Software

manual.

This section is an introduction to System Debugging Tools and includes the following chapters:

Chapter 9, System Debugging Tools Overview

This chapter compares the various system debugging tools and explains when to use each of them.

Chapter 10, Analyzing and Debugging Designs with the System Console

This chapter describes the System Console Toolkit and compares the different capabilities within the toolkit.

Chapter 11, Transceiver Link Debugging Using the System Console

This chapter explains what functions are available within the Transceiver Toolkit and helps you decide which tool best meets your debugging needs.

Chapter 12, Quick Design Debugging Using SignalProbe

This chapter provides detailed instructions about how to use SignalProbe to quickly debug your design.

Use this chapter to verify your design more efficiently by routing internal signals to I/O pins quickly without affecting the design.

Chapter 13, Design Debugging Using the SignalTap II Logic Analyzer

This chapter describes how to debug your FPGA design during normal device operation without the need for external lab equipment. Use this chapter to learn how to examine the behavior of internal signals, without using extra I/O pins, while the design is running at full speed on an FPGA device.

Chapter 14, In-System Debugging Using External Logic Analyzers

This chapter explains how to use external logic analyzers to debug designs on

Altera devices.

Chapter 15, In-System Modification of Memory and Constants

This chapter explains how to use the Quartus II In-System Memory Content Editor as part of your FPGA design and verification flow to easily view and debug your design in the hardware lab.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Section IV: System Debugging Tools

Chapter 16, Design Debugging Using In-System Sources and Probes

This chapter provides detailed instructions about how to use the In-System

Sources and Probes Editor and Tcl scripting in the Quartus

®

II software to debug your design.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

9. System Debugging Tools Overview

November 2011

QII53027-10.0.2

QII53027-10.0.2

The Altera

®

system debugging tools help you verify your FPGA designs. As your product requirements continue to increase in complexity, the time you spend on design verification continues to rise. This chapter provides a quick overview of the tools available in the system debugging suite and discusses the criteria for selecting the best tool for your design.

The Quartus

®

II software provides a portfolio of system design debugging tools for real-time verification of your design. Each tool in the system debugging portfolio uses a combination of available memory, logic, and routing resources to assist in the debugging process. The tools provide visibility by routing (or “tapping”) signals in your design to debugging logic. The debugging logic is then compiled with your design and downloaded into the FPGA or CPLD for analysis. Because different designs can have different constraints and requirements, such as the number of spare pins available or the amount of logic or memory resources remaining in the physical device, you can choose a tool from the available debugging tools that matches the specific requirements for your design.

System Debugging Tools

Table 9–1

summarizes the tools in the system debugging tool suite that are covered in this section.

Table 9–1.

Available Tools in the In-System Verification Tools Suite (Part 1 of 2)

Tool Description

System Console

Transceiver Toolkit

SignalTap

Analyzer

®

II Logic

This is a Tcl console that communicates to hardware modules instantiated into your design.

You can use it with the Transceiver Toolkit to monitor or debug your design.

You need to perform system-level debugging.

For example, if you have an Avalon-MM slave or

Avalon-ST interfaces, you can debug your design at a transaction level. The tool supports

JTAG connectivity, but also supports PLI connectivity to a simulation model, as well as

TCP/IP connectivity to the target FPGA you wish to debug.

Thhe Transceiver Toolkit allows you to test and tune transceiver link signal quality. You can use a combination of BER, bathtub curve, and eye contour graphs as quality metrics. Auto

Sweeping of PMA settings allows you to quickly find an optimal solution.

This logic analyzer uses FPGA resources to sample tests nodes and outputs the information to the Quartus II software for display and analysis.

You need to debug or optimize signal integrity of your board layout even before the actual design to be run on the FPGA is ready.

You have spare on-chip memory and you want functional verification of your design running in hardware.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

9–2 Chapter 9: System Debugging Tools Overview

System Debugging Tools

Table 9–1.

Available Tools in the In-System Verification Tools Suite (Part 2 of 2)

Virtual JTAG

Interface

Tool Description

SignalProbe

Logic Analyzer

Interface (LAI)

In-System Sources and Probes

In-System Memory

Content Editor

This tool incrementally routes internal signals to

I/O pins while preserving results from your last place-and-routed design.

This tool multiplexes a larger set of signals to a smaller number of spare I/O pins. LAI allows you to select which signals are switched onto the I/O pins over a JTAG connection.

You have spare I/O pins and you would like to check the operation of a small set of control pins using either an external logic analyzer or an oscilloscope.

You have limited on-chip memory, and have a large set of internal data buses that you would like to verify using an external logic analyzer.

Logic analyzer vendors, such as Tektronics and

Agilent, provide integration with the tool to improve the usability of the tool.

This tool provides an easy way to drive and sample logic values to and from internal nodes using the JTAG interface.

You want to prototype a front panel with virtual buttons for your FPGA design.

This tool displays and allows you to edit on-chip memory.

You would like to view and edit the contents of on-chip memory that is not connected to a

Nios II processor. You can also use the tool when you do not want to have a Nios II debug core in your system.

This megafunction allows you to communicate with the JTAG interface so that you can develop your own custom applications.

You have custom signals in your design that you want to be able to communicate with.

With the exception of SignalProbe, each of the on-chip debugging tools uses the JTAG port to control and read back data from debugging logic and signals under test.

System Console uses JTAG and other interfaces as well. The JTAG resource is shared among all of the on-chip debugging tools.

For all system debugging tools except System Console, the Quartus II software compiles logic into your design automatically to distinguish between data and control information and each of the debugging logic blocks when the JTAG resource is required. This arbitration logic, also known as the System-Level Debugging (SLD) infrastructure, is shown in the design hierarchy of your compiled project as

sld_hub:sld_hub_inst

. The SLD logic allows you to instantiate multiple debugging blocks into your design and run them simultaneously. For System Console, you must explicitly insert IP cores into your design to enable debugging.

To maximize debugging closure, the Quartus II software allows you to use a combination of the debugging tools in tandem to fully exercise and analyze the logic under test. All of the tools described in

Table 9–1 have basic analysis features built in;

that is, all of the tools enable you to read back information collected from the design nodes that are connected to the debugging logic. Out of the set of debugging tools, the

SignalTap II Logic Analyzer, the LAI, and the SignalProbe feature are general purpose debugging tools optimized for probing signals in your RTL netlist. In-System Sources and Probes, the Virtual JTAG Interface, System Console, Transceiver Toolkit, and

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 9: System Debugging Tools Overview

System Debugging Tools

9–3

In-System Memory Content Editor, in addition to being able to read back data from the debugging points, allow you to input values into your design during runtime.

Taken together, the set of on-chip debugging tools form a debugging ecosystem. The set of tools can generate a stimulus to and solicit a response from the logic under test,

providing a complete debugging solution ( Figure 9–1

).

Figure 9–1. Quartus II Debugging Ecosystem

(1)

FPGA

JTAG

In-System Sources and Probes

In-System Memory Content Editor

VJI

SignalTap II Logic Analyzer

In-System Memory Content Editor

Transceiver Toolkit - System Console

LAI

Design

Under Test

Note to Figure 9–1 :

(1) The set of debugging tools offer end-to-end debugging coverage.

The tools in the toolchain offer different advantages and different trade-offs. To understand the selection criteria between the different tools, the following sections analyze the tools according to their typical applications.

The first section,

“Analysis Tools for RTL Nodes” , compares the SignalTap II Logic

Analyzer, SignalProbe, and the LAI. These three tools are logically grouped since they are intended for debugging nodes from your RTL netlist at system speed.

The second section,

“Stimulus-Capable Tools” on page 9–8 , compares

System

Console

, In-System Memory Content Editor ,

Virtual JTAG Interface Megafunction ,

and In-System Sources and Probes

. These tools are logically grouped since they offer the ability to both read and write transactions through the JTAG port.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

9–4 Chapter 9: System Debugging Tools Overview

System Debugging Tools

Analysis Tools for RTL Nodes

The SignalTap II Logic Analyzer, the SignalProbe feature, and the LAI are designed specifically for probing and debugging RTL signals at system speed. They are generalpurpose analysis tools that enable you to tap and analyze any routable node from the

FPGA or CPLD. If you have spare logic and memory resources, the SignalTap II Logic

Analyzer is useful for providing fast functional verification of your design running on actual hardware.

Conversely, if logic and memory resources are tight and you require the large sample depths associated with external logic analyzers, both the LAI and the SignalProbe feature make it easy to view internal design signals using external equipment.

The most important selection criteria for these three tools are the available resources remaining on your device after implementing your design and the number of spare pins available. You should evaluate your preferred debugging option early on in the design planning process to ensure that your board, your Quartus II project, and your design are all set up to support the appropriate options. Planning early can reduce time spent during debugging and eliminate the necessary late changes to accommodate your preferred debugging methodologies. The following two sections provide information to assist you in choosing the appropriate tool by comparing the tools according to their resource usage and their pin consumption.

1

The SignalTap II Logic Analyzer is not supported on CPLDs, because there are no memory resources available on these devices.

Resource Usage

Any debugging tool that requires the use of a JTAG connection requires the SLD infrastructure logic mentioned earlier, for communication with the JTAG interface and arbitration between any instantiated debugging modules. This overhead logic uses around 200 logic elements (LEs), a small fraction of the resources available in any of the supported devices. The overhead logic is shared between all available debugging modules in your design. Both the SignalTap II Logic Analyzer and the LAI use a JTAG connection.

SignalProbe requires very few on-chip resources. Because it requires no JTAG connection, SignalProbe uses no logic or memory resources. SignalProbe uses only routing resources to route an internal signal to a debugging test point.

The LAI requires a small amount of logic to implement the multiplexing function between the signals under test, in addition to the SLD infrastructure logic. Because no data samples are stored on the chip, the LAI uses no memory resources.

The SignalTap II Logic Analyzer requires both logic and memory resources. The number of logic resources used depends on the number of signals tapped and the complexity of the trigger logic. However, the amount of logic resources that the

SignalTap II Logic Analyzer uses is typically a small percentage of most designs. A baseline configuration consisting of the SLD arbitration logic and a single node with basic triggering logic contains approximately 300 to 400 Logic Elements (LEs). Each additional node you add to the baseline configuration adds about 11 LEs. Compared with logic resources, memory resources are a more important factor to consider for

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 9: System Debugging Tools Overview

System Debugging Tools

9–5

your design. Memory usage can be significant and depends on how you configure your SignalTap II Logic Analyzer instance to capture data and the sample depth that your design requires for debugging. For the SignalTap II Logic Analyzer, there is the added benefit of requiring no external equipment, as all of the triggering logic and storage is on the chip.

Figure 9–2

shows a conceptual graph of the resource usage of the three analysis tools relative to each other.

Figure 9–2. Resource Usage per Debugging Tool

(1)

SignalTap II

Signal

Probe

Memory

Note to Figure 9–2 :

(1) Though resource usage is highly dependent on the design, this graph provides a rough guideline for tool selection.

The resource estimation feature for the SignalTap II Logic Analyzer and the LAI allows you to quickly judge if enough on-chip resources are available before

compiling the tool with your design. Figure 9–3

shows the resource estimation feature for the SignalTap II Logic Analyzer and the LAI.

Figure 9–3. Resource Estimator

Pin Usage

The ratio of the number of pins used to the number of signals tapped for the

SignalProbe feature is one-to-one. Because this feature can consume free pins quickly, a typical application for this feature is routing control signals to spare debugging pins for debugging.

The ratio of the number of pins used to the number of signals tapped for the LAI is many-to-one. It can map up to 256 signals to each debugging pin, depending on available routing resources. The control of the active signals that are mapped to the spare I/O pins is performed via the JTAG port. The LAI is ideal for routing data buses to a set of test pins for analysis.

Other than the JTAG test pins, the SignalTap II Logic Analyzer uses no additional pins. All data is buffered using on-chip memory and communicated to the

SignalTap II Logic Analyzer GUI via the JTAG test port.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

9–6 Chapter 9: System Debugging Tools Overview

System Debugging Tools

Usability Enhancements

The SignalTap II Logic Analyzer, the SignalProbe feature, and the LAI tools can be added to your existing design with minimal effects. With the node finder, you can find signals to route to a debugging module without making any changes to your HDL files. SignalProbe inserts signals directly from your post-fit database. The SignalTap II

Logic Analyzer and LAI support inserting signals from both pre-synthesis and post-fit netlists. All three tools allow you to find and configure your debugging setup quickly.

In addition, the Quartus II incremental compilation feature and the Quartus II incremental routing feature allow for a fast turnaround time for your programming file, increasing productivity and enabling fast debugging closure.

Both LAI and the SignalTap II Logic Analyzer support incremental compilation. With incremental compilation, you can add a SignalTap II Logic Analyzer instance or an

LAI instance incrementally into your placed-and-routed design. This has the benefit of both preserving your timing and area optimizations from your existing design, and decreasing the overall compilation time when any changes are necessary during the debugging process. With incremental compilation, you can save up to 70% compile time of a full compilation.

SignalProbe uses the incremental routing feature. The incremental routing feature runs only the Fitter stage of the compilation. This also leaves your compiled design untouched, except for the newly routed node or nodes. With SignalProbe, you can save as much as 90% compile time of a full compilation.

As another productivity enhancement, all tools in the on-chip debugging tool set support scripting via the quartus_stp

Tcl package. For the SignalTap II Logic

Analyzer and the LAI, scripting enables user-defined automation for data collection while debugging in the lab.

In addition, the JTAG server allows you to debug a design that is running on a device attached to a PC in a remote location. This allows you to set up your hardware in the lab environment, download any new .sof files, and perform any analysis from your desktop.

Table 9–2

compares common debugging features between these tools and provides suggestions about which is the best tool to use for a given feature.

Table 9–2. Suggested On-Chip Debugging Tools for Common Debugging Features (Part 1 of 2)

Feature SignalProbe

Logic Analyzer

Interface

(LAI)

SignalTap II

Logic

Analyzer

(1)

Description

Large Sample

Depth

Ease in Debugging

Timing Issue

N/A v v v

An external logic analyzer used with the LAI has a bigger buffer to store more captured data than the SignalTap II Logic Analyzer. No data is captured or stored with SignalProbe.

External equipment, such as oscilloscopes and

Mixed Signal Oscilloscopes (MSOs), can be used with either LAI or SignalProbe. When used with the LAI to provide you with access to timing mode, you can debug combined streams of data.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 9: System Debugging Tools Overview

System Debugging Tools

9–7

Table 9–2. Suggested On-Chip Debugging Tools for Common Debugging Features (Part 2 of 2)

(1)

Feature SignalProbe

Logic Analyzer

Interface

(LAI)

SignalTap II

Logic

Analyzer

Description

Minimal Effect on Logic Design

Short Compile and

Recompile Time

Triggering

Capability

I/O Usage

Acquisition

Speed

No JTAG

Connection

Required

No External

Equipment Required

v v

N/A

N/A v

v

v

(2)

(2)

N/A

v v

v v v

— v

(2)

(2)

The LAI adds minimal logic to a design, requiring fewer device resources. The

SignalTap II Logic Analyzer has little effect on the design, because it is set as a separate design partition. SignalProbe incrementally routes nodes to pins, not affecting the design at all.

SignalProbe attaches incrementally routed signals to previously reserved pins, requiring very little recompilation time to make changes to source signal selections. The SignalTap II

Logic Analyzer and the LAI can take advantage of incremental compilation to refit their own design partitions to decrease recompilation time.

The SignalTap II Logic Analyzer offers triggering capabilities that are comparable to commercial logic analyzers.

No additional output pins are required with the

SignalTap II Logic Analyzer. Both the LAI and

SignalProbe require I/O pin assignments.

The SignalTap II Logic Analyzer can acquire data at speeds of over 200 MHz. The same acquisition speeds are obtainable with an external logic analyzer used with the LAI, but may be limited by signal integrity issues.

An FPGA design with the SignalTap II Logic

Analyzer or the LAI requires an active JTAG connection to a host running the Quartus II software. SignalProbe does not require a host for debugging purposes.

The SignalTap II Logic Analyzer logic is completely internal to the programmed FPGA device. No extra equipment is required other than a JTAG connection from a host running the Quartus II software or the stand-alone

SignalTap II Logic Analyzer software.

SignalProbe and the LAI require the use of external debugging equipment, such as multimeters, oscilloscopes, or logic analyzers.

Notes to Table 9–2

:

(1) v

indicates the recommended tools for the feature.

— indicates that while the tool is available for that feature, that tool may not give the best results.

N/A indicates that the feature is not applicable for the selected tool.

(2) When used with incremental compilation.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

9–8 Chapter 9: System Debugging Tools Overview

System Debugging Tools

Stimulus-Capable Tools

The In-System Memory Content Editor, the In-System Sources and Probes, and the

Virtual JTAG interface each enable you to use the JTAG interface as a general-purpose communication port. Though all three tools can be used to achieve the same results, there are some considerations that make one tool easier to use in certain applications than others. In-System Sources and Probes is ideal for toggling control signals. The

In-System Memory Content Editor is useful for inputting large sets of test data.

Finally, the Virtual JTAG interface is well suited for more advanced users who want to develop their own customized JTAG solution.

System Console provides system-level debugging at a transaction level, such as with

Avalon-MM slave or Avalon-ST interfaces. You can communicate to a chip through

JTAG, PLI connectivity for simulation models, and TCP/IP protocols. System Console is a Tcl console that you use to communicate with hardware modules that you have instantiated into your design.

In-System Sources and Probes

In-System Sources and Probes is an easy way to access JTAG resources to both read and write to your design. You can start by instantiating a megafunction into your

HDL code. The megafunction contains source ports and probe ports for driving values into and sampling values from the signals that are connected to the ports, respectively. Transaction details of the JTAG interface are abstracted away by the megafunction. During runtime, a GUI displays each source and probe port by instance and allows you to read from each probe port and drive to each source port.

The GUI makes this tool ideal for toggling a set of control signals during the debugging process.

A good application of In-System Sources and Probes is to use the GUI as a replacement for the push buttons and LEDs used during the development phase of a project. Furthermore, In-System Sources and Probes supports a set of scripting commands for reading and writing using quartus_stp

. When used with the Tk toolkit, you can build your own graphical interfaces. This feature is ideal for building a virtual front panel during the prototyping phase of the design.

In-System Memory Content Editor

The In-System Memory Content Editor allows you to quickly view and modify memory content either through a GUI interface or through Tcl scripting commands.

The In-System Memory Content Editor works by turning single-port RAM blocks into dual-port RAM blocks. One port is connected to your clock domain and data signals, and the other port is connected to the JTAG clock and data signals for editing or viewing.

Because you can modify a large set of data easily, a useful application for the

In-System Memory Content Editor is to generate test vectors for your design. For example, you can instantiate a free memory block, connect the output ports to the logic under test (using the same clock as your logic under test on the system side), and create the glue logic for the address generation and control of the memory. At runtime, you can modify the contents of the memory using either a script or the

In-System Memory Content Editor GUI and perform a burst transaction of the data contents in the modified RAM block synchronous to the logic being tested.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 9: System Debugging Tools Overview

Conclusion

9–9

Virtual JTAG Interface Megafunction

The Virtual JTAG Interface megafunction provides the finest level of granularity for manipulating the JTAG resource. This megafunction allows you to build your own

JTAG scan chain by exposing all of the JTAG control signals and configuring your

JTAG Instruction Registers (IRs) and JTAG Data Registers (DRs). During runtime, you control the IR/DR chain through a Tcl API, or with System Console. This feature is meant for users who have a thorough understanding of the JTAG interface and want precise control over the number and type of resources used.

System Console

System Console is a framework that you can launch from the Quartus II software to start services for performing various debugging tasks. System Console provides you with Tcl scripts and a GUI to access either the Qsys system integration tool or SOPC

Builder modules to perform low-level hardware debugging of your design, as well as identify a module by its path, and open and close a connection to a Qsys or SOPC

Builder module. You can access your design at a system level for purposes of loading, unloading, and transferring designs to multiple devices.

System Console also allows you to access commands that allow you to control how you generate test patterns, as well as verify the accuracy of data generated by test patterns. You can use JTAG debug commands in System Console to verify the functionality and signal integrity of your JTAG chain. You can test clock and reset signals.

You can use System Console to access programmable logic devices on your development board, as well as bring up a board and verify stages of setup. You can also access software running on a Nios II processor, as well as access modules that produce or consume a stream of bytes.

Transceiver Toolkit runs from the System Console framework, and allows you to run automatic tests of your transceiver links for debugging and optimizing your transceiver designs. You can use the Transceiver Toolkit GUI to set up channel links in your transceiver devices, and then automatically run EyeQ and Auto Sweep testing to view a graphical representation of your test data.

Conclusion

The Quartus II on-chip debugging tool suite allows you to reach debugging closure quickly by providing you a with set of powerful analysis tools and a set of tools that open up the JTAG port as a general purpose communication interface. The Quartus II software further broadens the scope of applications by giving you a comprehensive

Tcl/Tk API. With the Tcl/Tk API, you can increase the level of automation for all of the analysis tools. You can also build virtual front panel applications quickly during the early prototyping phase.

In addition, all of the on-chip debugging tools have a tight integration with the rest of the productivity features within the Quartus II software. The incremental compilation and incremental routing features enable a fast turnaround time for programming file generation. The cross-probing feature allows you to find and identify nodes quickly.

The SignalTap II Logic Analyzer, when used with the TimeQuest Timing Analyzer, is a best-in-class timing verification suite that allows fast functional and timing verification.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

9–10 Chapter 9: System Debugging Tools Overview

Document Revision History

Document Revision History

Table 9–3

shows the revision history for this chapter.

Table 9–3.

Document Revision History

Date

November 2011

December 2010

July 2010

Version Changes

10.0.2

Maintenance release. Changed to new document template.

10.0.1

Maintenance release. Changed to new document template.

10.0.0

Initial release f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

10. Analyzing and Debugging Designs with the System Console

November 2011

QII53028-11.1.0

QII53028-11.1.0

This chapter provides a description of the System Console. The chapter lists Tcl commands and provides examples of how to use various applications in the System

Console to analyze and debug your FPGA designs.

Introduction

The System Console performs low-level hardware debugging of either Qsys or SOPC

Builder systems. You can use the System Console to debug systems that include IP cores instantiated in your Qsys or SOPC Builder system, as well as for initial bring-up of your printed circuit board, and for low-level testing. You access the System Console from the Tools menu of either Qsys or SOPC Builder. You can use the System Console in command-line mode or with the GUI.

Command-line mode allows you to run Tcl scripts from the Tcl Console pane, located in the System Console window. You can also run Tcl scripts from the

System Console GUI.

The System Console GUI allows you to view a main window with separate panes, including System Explorer, Tcl Console, Messages, and Tools panes.

h

For more information about the System Console GUI, refer to

About System Console

in

Quartus

®

II Help.

f

For more information about the System Console, refer to the

Altera Training

page of the Altera website.

This chapter contains the following sections:

“System Console Overview”

“Setting Up the System Console” on page 10–3

“Interactive Help” on page 10–3

“Using the System Console” on page 10–4

“System Console Examples” on page 10–31

“On-Board USB Blaster II Support” on page 10–42

“Device Support” on page 10–42

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

10–2 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Overview

System Console Overview

The System Console allows you to use many types of services. When you interact with the Tcl console in the System Console, you have general commands related to finding and accessing instances of those services. Each service type has functions that are unique to that service.

Finding and Referring To Services

You can retrieve available service types with the get_service_types

command.

The System Console uses a virtual file system to organize the available services, which is similar to the

/dev location

on Linux systems. Instances of services are referred to by their unique service path in the file system. You can retrieve service paths for a particular service with the command get_service_paths

<service-type>.

1

Every System Console command requires a service path to identify the service instance you want to access. The paths used for different components can change between runs of the tool and between versions. You should use get_service_paths and similar commands to obtain service paths rather then hardcoding them into your

Tcl scripts.

Most System Console service instances are automatically discovered when you start the System Console. The System Console automatically scans for all JTAG and

USB-based service instances, and their services paths are immediately retrieved. Some other services, such as those connected by TCP/IP, are not automatically discovered.

You can use the add_service

Tcl command to inform the System Console about those services.

Accessing Services

After you have a service path to a particular service instance, you can access the service for use.

The open_service

command tells the System Console to start using a particular service instance. The open_service

command works on every service type. The open_service

command claims a service instance for exclusive use. The command does not tell the System Console which part of a service you are interested in. As such, service instances that you open are not safe for shared use among multiple users.

The claim_service

command tells the System Console to start accessing a particular portion of a service instance. For example, if you use the master service to access memory, then use claim_service

to tell the System Console that you only want to access the address space between

0x0

and

0x1000

. The System Console then allows other users to access other memory ranges and denies them access to your claimed memory range. The claim_service

command returns a newly created service path that you can use to access your claimed resources.

Not all services support the claim_service

command.

You can access a service after you open or claim it. When you finish accessing a service instance, use the

close_service

command to tell the System Console to free up resources.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Setting Up the System Console

10–3

Applying Services

The System Console provides extensive portfolios of services for various applications, such as real-time on-chip control and debugging, and system measurement. Examples of how to use these services are provided in this chapter.

Table 10–1 lists example

applications included with the System Console and associated services.

The System Console functions by running Tcl commands that are described in

Table 10–3 through

Table 10–23

.

Table 10–1. System Console Example Applications

Application

Board Bring-Up

Processor Debug

Active retrieval of dynamic information

Query static design information

System Monitoring

Transceiver Toolkit Direct Phy Control

Transceiver Toolkit System Level Control

Services Used

device, jtag_debug, sld processor, elf, bytestream, master bytestream, master, issp marker, design monitor, master, dashboard transceiver_reconfig_analog, alt_xcvr_reconfig_dfe, alt_xcvr_reconfig_eye_viewer transceiver_channel_rx, transceiver_channel_tx, transceiver_debug_link

Setting Up the System Console

You set up the System Console according to the hardware you have available in your system. You can access available debug IP on your system with the System Console.

The debug IP allows you to access the running state of your system. The following sections discuss setting up and using debug IP in further detail.

“System Console Examples” on page 10–31

provides you with detailed examples of using the System Console with debug IP.

f

Download the design files for the example designs from the On-chip Debugging

Design Examples page on the Altera website.

These design examples demonstrate how to add debug IP blocks to your design and how to connect them before you can use the host application.

Interactive Help

Typing help help

into the System Console lists all available commands. Typing help

<command name> provides the syntax of individual commands. The System

Console provides command completion if you type the beginning letters of a command and then press the Tab key.

1

The System Console interactive help commands only provide help for enabled services; consequently, typing help help

does not display help for commands supplied by disabled plug-ins.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–4 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Using the System Console

The Quartus II software expands the framework of the System Console by allowing you to start services for performing different types of tasks, as described in the following sections of this chapter. These sections provide Tcl scripting commands, arguments, and a brief description of the command functions.

1

To use the System Console commands, you must connect to a system with a programming cable and with the proper debugging IP.

Qsys and SOPC Builder Communications

You can use the System Console to help you debug Qsys or SOPC Builder systems.

The System Console communicates with debug IP in your system design. You can instantiate debug IP cores using Qsys, SOPC Builder, or the MegaWizard Plug-In

Manager.

f

For more information about the Qsys system integration tool, refer to

System Design with Qsys

in volume 1 of the Quartus II Handbook.

Table 10–2 describes some of the IP cores you can use with the System Console to

debug your system. When connected to the System Console, these components enable you to send commands and receive data.

Table 10–2. Qsys and SOPC Builder Components for Communication with the System Console

(1)

Component Name

Nios

®

II processor with JTAG debug enabled

JTAG to Avalon master bridge

USB Debug Master

Avalon Streaming (Avalon-ST) JTAG Interface

JTAG UART

TCP/IP

Component Interface Types for Debugging

Components that include an Avalon

®

Memory-Mapped (Avalon-MM) slave interface. The JTAG debug module can also control the Nios II processor for debug functionality, including starting, stopping, and stepping the processor.

Components that include an -MM slave interface.

Provides the same functionality as JTAG to Avalon master bridge, but is faster.

Components that include an -ST interface.

The JTAG UART is an Avalon-MM slave device that can be used in conjunction with the System Console to send and receive bytestreams.

For more information, refer to

AN624: Debugging with System Console over TCP/IP

.

Provides Tcl support for ISSP.

In-System Sources and Probes

Note to Table 10–2

:

(1) The System Console can also send and receive bytestreams from any system-level debugging (SLD) node whether it is instantiated in Qsys or

SOPC Builder components provided by Altera, a custom component, or part of your Quartus II project; however, this approach requires detailed knowledge of the JTAG commands.

f

For more information about Qsys and SOPC Builder components, refer to the following web pages and documents:

Nios II Processor page of the Altera website

SPI Slave/JTAG to Avalon Master Bride Cores chapter in the

Embedded Peripherals IP

User Guide

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Avalon Verification IP Suite User Guide

Avalon-ST JTAG Interface Core chapter in the

Embedded Peripherals IP User Guide

Virtual JTAG (sld_virtual_jtag) Megafunction User Guide

JTAG UART Core chapter in the Embedded Peripherals IP User Guide

System Design with Qsys

in volume 1 of the

Quartus II Handbook

About Qsys

in Quartus II Help

Figure 10–1 illustrates examples of interfaces of the components that the System

Console can use.

Figure 10–1. Example Interfaces (Paths) the System Console Uses to Send Commands

Connections You Make in Qsys or SOPC Builder

Transparent Connections

Nios II Processor

Avalon-MM

Master

Virtual JTAG

Interface

10–5

User Component

Avalon-MM

Slave or

User Component

Avalon-ST

Source and Sink

JTAG Avalon Master Bridge

Avalon-MM

Master

Virtual JTAG

Interface

Avalon-ST JTAG Interface

Avalon-ST

Source and

Sink

Virtual JTAG

Interface

JTAG UART

Avalon-MM

Slave

Legacy

JTAG

Interface

JTAG Logic

(Quartus II)

Virtual

JTAG Hub

(Soft IP)

JTAG TAP

Controller

(Hard IP)

To

Host PC

Running

System Console

Altera recommends that you include the following components in your system:

On-chip memory

JTAG UART

■ System ID core

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–6 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

The System Console provides many different types of services. Different modules can provide the same type of service. For example, both the Nios II processor and the

JTAG to Avalon Bridge master provide the master service; consequently, you can use the master commands to access both of these modules. c

If your system includes a Nios II/f core with a data cache it may complicate the debugging process. If you suspect that writes to memory from the data cache at nondeterministic intervals are overwriting data written by the System Console, you can disable the cache of the Nios II/f core while debugging.

You can start the System Console from a Nios II command shell.

1. On the Windows Start menu, point to All Programs, then Altera, then Nios II EDS

<version>, and then click Nios II <version> Command Shell.

2. To start the System Console, type the following command: system-console r

You can customize your System Console environment by adding commands to the configuration file called system_console_rc.tcl. This file can be located in either of the following places:

<quartus_install_dir>/sopc_builder/system_console_macros/system_console_rc.tcl, known as the global configuration file, which affects all users of the system

<$HOME>/system_console/system_console_rc.tcl, known as the user configuration file, which only affects the owner of that home directory

On startup, the System Console automatically runs any Tcl commands in these files.

The commands in the global configuration file run first, followed by the commands in the user configuration file.

Console Commands

The console commands enable testing. You can use console commands to identify a module by its path, and to open and close a connection to it. The path that identifies a module is the first argument to most of the System Console commands. To exercise a module, follow these steps:

1. Identify a module by specifying the path

to it, using the get_service_paths command.

2. Open a connection to the module using the open_service

or claim_service command. ( claim_service returns a new path for use).

3. Run Tcl and System Console commands to use a debug module that you insert to test another module of interest.

4. Close a connection to a module using the close_service

command.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–7

Table 10–3 describes the syntax of the console commands.

Table 10–3. Console Commands (Part 1 of 2)

Command Arguments

get_service_types get_service_paths open_service claim_service close_service is_service_open get_services_to_add add_service add_service dashboard add_service gdbserver

<service_path>

<service-type>

<service-path>

<claim-group>

<claims>

<service-type>

<service_type_name>

<service_type_name>

<service_type_name>

<service_path>

<service_type_name>

<service_path>

<instance-name>

<optional-parameters>

<name>

<title>

<menu>

<Processor Service>

<port number>

Function

Returns a list of service types that the System Console manages. Examples of service types include master, bytestream, processor, sld, jtag_debug, device, and plugin.

Returns a list of paths to nodes that implement the requested service type.

Note: When this command returns an item in the list that has only one element and the element has no spaces in it, you should not pass the element to other commands.

As an example, do not run this command: set master [ get_service_paths master

] master_read_memory $master 0x0200 16

Instead, please run this command: set masters [ get_service_paths master ] set master [ lindex $master 0

] master_read_memory $master 0x0200 16

Claims a service instance for use.

Provides finer control of the portion of a service you want to use.

Run help claim_service

to get a <service-type> list.

Then run help claim_service

<service-type> to get specific help on that service.

Frees the System Console resources at the path you claimed.

Returns 1 if the service type provided by the path is open, 0 if the service type is closed.

Returns a list of all services that are instantiable with the add_service

command.

Adds a service of the specified service type with the given instance name. Run get_services_to_add to retrieve a list of instantiable services. This command returns the path where the service was added.

Run help add_service

<service-type> to get specific help about that service type, including any arguments that might be required for that service.

Creates a new GUI dashboard in System Console desktop.

Instantiates a gdbserver.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–8 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–3. Console Commands (Part 2 of 2)

Command Arguments

add_service nios2dpx add_service pli_bytestream

<path to debug channel>

<isDualHeaded>

<Base Av St Channel number>

<instance_name>

<port_number>

add_service pli_master add_service pli_packets add_service tcp add_service transceiver_channel_rx add_service transceiver_channel_tx add_service transceiver_debug_link

<instance_name>

<port_number>

<instance_name>

<port_number>

<instance_name>

<ip_addr>

<port>

<data_pattern_checker path>

<transceiver_reconfig_analog path>

<reconfig channel>

<data_pattern_generator path>

<transceiver_reconfig_analog path>

<reconfig channel>

<transceiver_channel_tx path>

<transceiver_channel_rx path>

Function

Instantiates a Nios II DPX debug driver.

Instantiates a PLI Bytestream service.

Instantiates a PLI Master service.

Instantiates a PLI packet stream service.

Instantiates a tcp service.

Instantiates a Transceiver Toolkit receiver channel.

Instantiates a Transceiver Toolkit transceiver channel.

Instantiates a Transceiver Toolkit debug link.

get_version add_help get_claimed_services refresh_connections send_message

<command>

<help-text>

<library-name>

<level>

<message>

Returns the current System Console version and build number.

Adds help text for a given command. Use this when you write a Tcl script procedure ( proc

) and then want to provide help for others to use the script.

For the given library name, returns a list services claimed via claim_service with that library name. The returned list consists of pairs of paths and service types, each pair one claimed service.

Scans for available hardware and updates the available service paths if there have been any changes.

Sends a message of the given level to the message window. Available levels are info, warning, error, and debug.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–9

Plugins

Plugins allow you to customize how you use the System Console services, and are

enabled by default. Table 10–4 lists Plugin commands.

Table 10–4. Plugin Commands

Command Arguments

Plugin Service Type Commands

Function

plugin_enable plugin_disable is_plugin_enabled

<plugin-path>

<plugin-path>

<plugin-path>

Enables the plugin specified by the path.

After a plugin is enabled, you can retrieve the <service-path> and

<service_type_name> for additional services using the get_service_paths command.

Disables the plugin specified by the path.

Returns a non-zero value when the plugin at the specified path is enabled.

Design Service Commands

Design Service commands allow you to use the System Console services to load and work

with your design at a system level. Table 10–5

lists Design Service commands.

Table 10–5. Design Service Commands

design_load design_link

Command Arguments

design_instantiate

<quartus-project-path> or

<qpf-file-path>

<design-path> <instance-name>

<design-path> <device-service-path>

Function

Loads a model of a Quartus II design into the

System Console.

For example, if your Quartus II Project File

(.qpf) file is in c:/projects/loopback, type the following command: design_load

{c:\projects\loopback\}

Allows you to apply the same design to multiple devices.

Creates a design instance if necessary and then links a Quartus II logical design with a physical device.

For example, you can link a Quartus II design called 2c35_quartus_design to a 2c35 device. After you create this link, the System

Console creates the appropriate correspondences between the logical and physical submodules of the Quartus II

project. Example 10–5 on page 10–35

shows a transcript illustrating the design_load

and design_link

commands.

Note that the System Console does not verify that the link is valid; if you create an incorrect link, the System Console does not report an error.

Note to Table 10–5

:

(1) If you set the "Auto Usercode" option (found by opening the Quartus II Device Assignments dialogue box and then the Device and Pin Options dialogue box), the System

Console automatically instantiates and links designs after they have been loaded.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–10 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Data Pattern Generator Commands

Data Pattern Generator commands allow you control data patterns that you generate for testing, debugging, and optimizing your design. You must first insert debug IP to enable these commands.

Table 10–6 lists Data Pattern Generator commands.

Table 10–6. Data Pattern Generator Commands (Part 1 of 2)

Command Arguments

data_pattern_generator_start data_pattern_generator_stop

<service-path>

<service-path>

data_pattern_generator_is_generating

<service-path>

data_pattern_generator_inject_error data_pattern_generator_set_pattern data_pattern_generator_get_pattern

<service-path>

data_pattern_generator_get_available_patter ns

<service-path>

data_pattern_generator_enable_preamble

<service-path>

data_pattern_generator_disable_preamble

<service-path>

<service-path>

<pattern-name>

<service-path>

data_pattern_generator_is_preamble_enabled

<service-path>

data_pattern_generator_set_preamble_word data_pattern_generator_get_preamble_word

<service-path>

<preamble-word>

<service-path>

Function

Starts the data pattern generator.

Stops the data pattern generator.

Returns non-zero if the generator is running.

Injects a 1-bit error into the generator's output.

Sets the output pattern specified by the <pattern-name>. In all, 6 patterns are available, 4 are pseudo-random binary sequences (PRBS), 1 is high frequency and 1 is low frequency. The following pattern names are defined:

PRBS7

PRBS15

PRBS23

PRBS31

HF–outputs a high frequency, constant pattern of alternating 0s and 1s

LF–outputs a low frequency, constant pattern of

10b’1111100000 for 10-bit symbols and 8b’11110000 for

8-bit symbols

Returns currently selected output pattern.

Returns a list of available data patterns by name.

Enables the preamble mode at the beginning of generation.

Disables the preamble mode at the beginning of generation.

Returns a non-zero value if preamble mode is enabled.

Sets the preamble word (could be

32-bit or 40-bit).

Gets the preamble word.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–11

Table 10–6. Data Pattern Generator Commands (Part 2 of 2)

Command Arguments

data_pattern_generator_set_preamble_beats

<service-path>

<number-of-preamble- beats>

data_pattern_generator_get_preamble_beats

<service-path>

Function

Sets the number of beats to send out the in the preamble word.

Returns the currently set number of beats to send out in the preamble word.

Data Pattern Checker Commands

Data Pattern Checker commands allow you verify the data patterns that you generate.

You must first insert debug IP to enable these commands. Table 10–7 lists Data Pattern

Checker commands.

Table 10–7. Data Pattern Checker Commands

data _ pattern _

Command Arguments

checker _ start

<service-path>

data _ pattern _ checker _ stop

<service-path>

data

_ pattern

_ checker

_ is

_ checking

<service-path>

data _ pattern _ checker _ is _ locked data data

_ pattern

_ checker

_ set

_ pattern

_ pattern _ checker _ get _ pattern

<service-path>

<service-path>

<pattern-name>

<service-path>

data

_ pattern

_ checker

_ get

_ available

_ patt erns data _ pattern _ checker _ get _ data

<service-path>

<service-path>

data _ pattern _ checker _ reset _ counters

<service-path>

Function

Starts the data pattern checker.

Stops the data pattern checker.

Returns a non-zero value if the checker is running.

Returns non-zero if the checker is locked onto the incoming data.

Sets the expected pattern to the one specified by the <pattern-name>.

Returns the currently selected expected pattern by name.

Returns a list of available data patterns by name.

Returns the correct and incorrect counts of data received, providing the number of bits and the number of errors.

Resets the bit and error counters inside the checker.

Programmable Logic Device (PLD) Commands

The PLD commands provide access to programmable logic devices on your board.

Before you use these commands, identify the path to the programmable logic device on your board using the get_service_paths

command described in Table 10–3

.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–12 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–8 describes the PLD commands.

Table 10–8. PLD Commands

Command Arguments

device_download_sof

<device_path> <sof_file>

device_load_jdi

<device_path> <jdi_file>

Function

Loads the specified SRAM object file (.sof) file to the device specified by the path.

This command is deprecated. It performs the same function as running the design_load

command on the directory containing the JTAG Debug

Interface File (.jdi), followed by the design_link

command. Please use those commands instead.

Board Bring-Up Commands

The board bring-up commands allow you to test your system. These commands are presented in the order that you would use them during board bring-up, including the following setup work flow:

1. Verify JTAG connectivity.

2. Verify the clock and reset signals.

3. Verify memory and other peripheral interfaces.

4. Verify basic Nios II processor functionality.

1

The System Console is intended for debugging the basic hardware functionality of your Nios II processor, including its memories and pinout. If you are writing device drivers, you may want to use the System Console and the Nios II software build tools together to debug your code.

f

For more information about the hardware functioning correctly and software debugging, refer to

Nios II Software Build Tools Reference

in the Nios II Software

Developer’s Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–13

JTAG Debug Commands

You can use JTAG debug commands to verify the functionality and signal integrity of your JTAG chain. Your JTAG chain must be functioning correctly to debug the rest of your system. To verify signal integrity of your JTAG chain, Altera recommends that

you provide an extensive list of byte values. Table 10–9

lists these commands.

Table 10–9. JTAG Commands

Command Arguments

jtag_debug_loop jtag_debug_reset_system

<path> <list_of_byte_ values>

<service-path>

Function

Loops the specified list of bytes through a loopback of tdi

and tdo

of a system-level debug (SLD) node. Returns the list of byte values in the order that they were received. Blocks until all bytes are received. Byte values are given with the 0x

(hexadecimal) prefix and delineated by spaces.

Issues a reset request to the specified service.

Connectivity within your device determines which part of the system is reset.

Clock and Reset Signal Commands

The next stage of board bring-up tests the clock and reset signals.

Table 10–10

lists the three commands to verify these signals. Use these commands to verify that your clock is toggling and that the reset signal has the expected value.

Table 10–10. Clock and Reset Commands

Command Argument

jtag_debug_sample_clock jtag_debug_sample_reset jtag_debug_sense_clock

<service-path>

<service-path>

<service-path>

Function

Returns the value of the clock signal of the system clock that drives the module's system interface. The clock value is sampled asynchronously; consequently, you may need to sample the clock several times to guarantee that it is toggling.

Returns the value of the reset_n

signal of the Avalon-ST

JTAG Interface core. If reset_n

is low (asserted), the value is 0 and if reset_n

is high (deasserted), the value is 1.

Returns the result of a sticky bit that monitors for system clock activity. If the clock has toggled since the last execution of this command, the bit is 1. Returns true

if the bit has ever toggled and otherwise returns false

. The sticky bit is reset to 0 on read.

Avalon-MM Commands

The master service provides commands that allow you to access memory-mapped slaves via a suitable Avalon-MM master, which can be controlled by the host. You can use the commands listed in

Table 10–11

to read and write memory with a master service.

Master services are provided either by System Console master components such as the JTAG Avalon Master or the USB Debug Master, by PLI or TCP masters, and by some processors (which must usually be paused before they can be used for general purpose memory acesss).

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–14 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Bytestream Commands

The bytestream commands listed in

Table 10–13

provide bytestream and master services over a PLI connection to a simulator. TCP Master commands provide bytestream and master services over TCP/IP.

SLD Commands

You can use the SLD commands to shift values into the instruction and data registers of SLD nodes and read the previous value.

Table 10–13 lists these commands.

Claim Values for Claim Services

Each master claim consists of three parts: a base address, a size, and an access mode.

The base address and size can be specified in decimal or hexadecimal (with preceding

0x). Valid access modes include the following:

■ RO or READONLY gives read access to the specified addresses.

RW or READWRITE gives read and write access to the specified addresses.

EXC or EXCLUSIVE gives read and write access to the specified addresses.

If multiple RO and/or RW addresses have overlapping address ranges they are allowed to open at the same time. EXC and EXCLUSIVE claims do not allow other claims for the same memory range.

Table 10–11. Module Commands (Part 1 of 2)

(1)

Command Arguments Function

master_write_memory master_write_8 master_write_16 master_write_32 master_read_memory master_read_8 master_read_16 master_read_32

Avalon-MM Master Commands

<service-path> <address>

<list_of_byte_values>

<service-path> <address>

<list_of_byte_values>

Writes the list of byte values, starting at the specified base address.

Writes the list of byte values, starting at the specified base address, using 8-bit accesses.

<service-path> <address>

<list_of_16_bit_words>

<service-path> <address>

<list_of_32_bit_words>

<service-path> <base_address>

<size_in_bytes>

<service-path> <base_address>

<size_in_bytes>

<service-path> <base_address>

<size_in_multiples_of_

16_bits>

<service-path> <base_address>

<size_in_multiples_of_32_bits>

Writes the list of 16-bit values, starting at the specified base address, using 16-bit accesses.

Writes the list of 32-bit values, starting at the specified base address, using 32-bit accesses.

Returns a list of

<size> bytes. Read from memory starts at the specified base address.

Returns a list of

<size> bytes. Read from memory starts at the specified base address, using 8-bit accesses.

Returns a list of

<size>

16-bit values. Read from memory starts at the specified base address, using

16-bit accesses.

Returns a list of

<size>

32-bit bytes. Read from memory starts at the specified base address, using

32-bit accesses.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–15

Table 10–11. Module Commands (Part 2 of 2)

(1)

Command Arguments Function

SLD Commands

sld_access_ir sld_access_dr sld_lock

<service-path> <value> <delay>

(in µs)

<service-path> <size_in_bits>

<delay> (in µs),

<list_of_byte_values>

<service-path> <timeout> (in ms) sld_unlock

<service-path>

Note to Table 10–11 :

(1) Transfers performed in 16- and 32-bit sizes are packed in little-endian format.

Shifts the instruction value into the instruction register of the specified node. Returns the previous value of the instruction. If the <timeout> value is set to 0, the operation never times out. A suggested starting value for <

delay>

is 1000 µs

.

Shifts the byte values into the data register of the SLD node up to the size in bits specified. If the <timeout> value is set to 0, the operation never times out. Returns the previous contents of the data register. A suggested starting value for <delay> is 1000 µs.

Locks the SLD chain to guarantee exclusive access. If the SLD chain is already locked, tries for <timeout> ms before returning

-1

, indicating an error. Returns

0

if successful.

Unlocks the SLD chain.

Processor Commands

These commands allow you to start, stop, and step through software running on a

Nios II processor. The commands also allow you to read and write the registers of the processor.

Table 10–12

lists the commands.

Table 10–12. Processor Commands

Command Arguments

elf_download

<processor-service-path>

<master-service-path>

<elf-file-path>

processor_in_debug_mode

<service-path>

processor_reset processor_run processor_stop processor_step

<service-path>

<service-path>

<service-path>

<service-path>

processor_get_register_nam es

<service-path>

processor_get_register processor_set_register

<service-path>

<register_name>

<service-path>

<register_name>

Function

Downloads the given Executable and Linking Format

File (.elf) to memory using the specified master service. Sets the processor's program counter to the

.elf entry point.

Returns a non-zero value if the processor is in debug mode.

Resets the processor and places it in debug mode.

Puts the processor into run mode.

Puts the processor into debug mode.

Executes one assembly instruction.

Returns a list with the names of all of the processor's accessible registers.

Returns the value of the specified register.

Sets the value of the specified register.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–16 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Bytestream Commands

These commands provide access to modules that produce or consume a stream of bytes. You can use the bytestream service to communicate directly to IP that provides

bytestream interfaces, such as the Altera JTAG UART. Table 10–13

lists the commands.

Table 10–13. Bytestream Commands

Command Arguments

bytestream_send

<service-path>

<list_of_byte_values>

bytestream_receive

<service-path>

<number_of_bytes>

Function

Sends the list of byte values on the specified path.

Values are in hexadecimal format and delineated by spaces.

Attempts to read up to the number of bytes specified from the service. A list is returned where each value contains one byte value read from the service. If insufficient bytes are available, the list is shorter than the specified maximum length.

Transceiver Toolkit Commands

You can run the Transceiver Toolkit from the System Console window. Alternatively, you can open the Transceiver Toolkit from the Tools menu in the Quartus II software.

You can debug, monitor, and optimize the transceiver channel links in your design with Tcl scripts, or you can launch the Transceiver Toolkit GUI from the System

Console Tools menu. The GUI for the Transceiver Toolkit provides a graphical representation of automatic tests that you run. You can also view graphical control panels to change physical medium attachment (PMA) settings of channels, start and stop generators, and checkers.

f

For further information about the Transceiver Toolkit, refer to the

Transceiver Link

Debugging Using the System Console

chapter of the Quartus II Handbook.

Table 10–14

through Table 10–19 lists the Transceiver Toolkit commands..

Table 10–14. Transceiver Toolkit Channel_rx Commands (Part 1 of 2)

Command Arguments

transceiver_channel_rx_get_data transceiver_channel_rx_get_dcgain transceiver_channel_rx_get_dfe_tap_value transceiver_channel_rx_get_eqctrl transceiver_channel_rx_get_pattern transceiver_channel_rx_has_dfe

<service-path>

<service-path>

<service-path>

<tap position>

<service-path>

<service-path>

<service-path>

Function

Returns a list of the current checker data.The results are in the order: number of bits, number of errors, bit error rate.

Gets the DC gain value on the receiver channel.

Gets the current tap value of the specified channel at the specified tap position.

Gets the equalization control value on the receiver channel.

Returns the current data checker pattern by name.

Gets whether this channel has the DFE feature available.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–17

Table 10–14. Transceiver Toolkit Channel_rx Commands (Part 2 of 2)

Command Arguments

transceiver_channel_rx_is_checking transceiver_channel_rx_is_dfe_enabled transceiver_channel_rx_is_locked transceiver_channel_rx_reset_counters transceiver_channel_rx_set_dcgain transceiver_channel_rx_set_dfe_enabled transceiver_channel_rx_set_dfe_tap_value transceiver_channel_rx_set_eqctrl transceiver_channel_rx_start_checking transceiver_channel_rx_stop_checking transceiver_channel_rx_get_eyeq_phase_step transceiver_channel_rx_set_pattern transceiver_channel_rx_is_eyeq_enabled transceiver_channel_rx_set_eyeq_enabled transceiver_channel_rx_set_eyeq_phase_step transceiver_channel_rx_set_word_aligner_enabled transceiver_channel_rx_is_word_aligner_enabled transceiver_channel_rx_is_rx_locked_to_data transceiver_channel_rx_is_rx_locked_to_ref

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<dc_gain setting>

<service-path>

<disable(0)/enable(1)>

<service-path>

<tap position>

<tap value>

<service-path>

<eqctrl setting>

<service-path>

<service-path>

<service-path>

<service-path>

<pattern-name>

<service-path>

<service-path>

<disable(0)/enable(1)>

<service-path>

<phase step>

<service-path>

<disable(0)/enable(1)>

<service-path>

<disable(0)/enable(1)>

<service-path>

<service-path>

Function

Returns non-zero if the checker is running.

Gets whether the DFE feature is enabled on the specified channel.

Returns non-zero if the checker is locked onto the incoming data.

Resets the bit and error counters inside the checker.

Sets the DC gain value on the receiver channel.

Enables/disables the DFE feature on the specified channel.

Sets the current tap value of the specified channel at the specified tap position to the specified value.

Sets the equalization control value on the receiver channel.

Starts the checker.

Stops the checker.

Gets the current phase step of the specified channel.

Sets the expected pattern to the one specified by the pattern name.

Gets whether the EyeQ feature is enabled on the specified channel.

Enables/disables the EyeQ feature on the specified channel.

Sets the phase step of the specified channel.

Enables/disables the word aligner of the specified channel.

Enables/disables the word aligner of the specified channel.

Returns

1

if transceiver in lock to data (LTD) mode. Otherwise

0

.

Returns

1

if transceiver in lock to reference (LTR) mode.

Otherwise

0

.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–18 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–15. Transceiver Toolkit Channel _tx Commands (Part 1 of 2)

transceiver_channel_tx_disable_preamble transceiver_channel_tx_enable_preamble transceiver_channel_tx_get_number_of_preamble_bea ts transceiver_channel_tx_get_pattern transceiver_channel_tx_get_preamble_word transceiver_channel_tx_get_preemph0t transceiver_channel_tx_get_preemph1t transceiver_channel_tx_get_preemph2t transceiver_channel_tx_get_vodctrl transceiver_channel_tx_inject_error transceiver_channel_tx_is_generating transceiver_channel_tx_is_preamble_enabled transceiver_channel_tx_set_number_of_preamble_bea ts

Command Arguments

transceiver_channel_tx_set_pattern transceiver_channel_tx_set_preamble_word transceiver_channel_tx_set_preemph0t transceiver_channel_tx_set_preemph1t transceiver_channel_tx_set_preemph2t

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

<pattern-name>

<service-path>

<preamble-word>

<service-path>

<preemph0t value>

<service-path>

<preemph1t value>

<service-path>

<preemph2t value>

Function

Disables the preamble mode at the beginning of generation.

Enables the preamble mode at the beginning of generation.

Returns the number of preamble beats.

Returns the currently set pattern.

Returns the currently set preamble word.

Gets the pre-emphasis pre-tap value on the transmitter channel.

Gets the pre-emphasis first post-tap value on the transmitter channel.

Gets the pre-emphasis second post-tap value on the transmitter channel.

Gets the VOD control value on the transmitter channel.

Injects a 1-bit error into the generator's output.

Returns non-zero if the generator is running.

Returns non-zero if preamble mode is enabled.

<service-path>

<number-of-preamblebeats>

Sets the number of beats to send out the preamble word.

Sets the output pattern to the one specified by the pattern name.

Sets the preamble word to be sent out.

Sets the pre-emphasis pre-tap value on the transmitter channel.

Sets the pre-emphasis first post-tap value on the transmitter channel.

Sets the pre-emphasis second post-tap value on the transmitter channel.

transceiver_channel_tx_set_vodctrl

<service-path>

<vodctrl value>

Sets the VOD control value on the transmitter channel.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–15. Transceiver Toolkit Channel _tx Commands (Part 2 of 2)

Command Arguments

transceiver_channel_tx_start_generation transceiver_channel_tx_stop_generation

<service-path>

<service-path>

Table 10–16. Transceiver Toolkit Debug_Link Commands

Command Arguments

transceiver_debug_link_get_pattern

<service-path>

transceiver_debug_link_is_running transceiver_debug_link_set_pattern transceiver_debug_link_start_running transceiver_debug_link_stop_running

<service-path>

<service-path>

<data pattern>

<service-path>

<service-path>

Table 10–17. Transceiver Toolkit Reconfig_analog Commands (Part 1 of 2)

Command Arguments

transceiver_reconfig_analog_get_logical_channel_ address

<service-path>

transceiver_reconfig_analog_get_rx_dcgain

<service-path>

transceiver_reconfig_analog_get_rx_eqctrl transceiver_reconfig_analog_get_tx_preemph0t transceiver_reconfig_analog_get_tx_preemph1t transceiver_reconfig_analog_get_tx_preemph2t transceiver_reconfig_analog_get_tx_vodctrl

<service-path>

<service-path>

<service-path>

<service-path>

<service-path>

Function

Starts the generator.

Stops the generator.

10–19

Function

Gets the currently set pattern the link uses to run the test.

Returns non-zero if the test is running on the link.

Sets the pattern the link uses to run the test.

Starts running a test with the currently selected test pattern.

Stops running the test.

Function

Gets the transceiver logical channel address currently set.

Gets the DC gain value on the receiver channel specified by the current logical channel address.

Gets the equalization control value on the receiver channel specified by the current logical channel address.

Gets the pre-emphasis pre-tap value on the transmitter channel specified by the current logical channel address.

Gets the pre-emphasis first post-tap value on the transmitter channel specified by the current logical channel address.

Gets the pre-emphasis second post-tap value on the transmitter channel specified by the current logical channel address.

Gets the VOD control value on the transmitter channel specified by the current logical channel address.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–20 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–17. Transceiver Toolkit Reconfig_analog Commands (Part 2 of 2)

Command Arguments

<service-path>

transceiver_reconfig_analog_set_logical_channel_ address transceiver_reconfig_analog_set_rx_dcgain

<logical channel address>

<service-path>

<dc_gain value>

Function

Sets the transceiver logical channel address.

transceiver_reconfig_analog_set_rx_eqctrl transceiver_reconfig_analog_set_tx_preemph0t transceiver_reconfig_analog_set_tx_preemph1t transceiver_reconfig_analog_set_tx_preemph2t transceiver_reconfig_analog_set_tx_vodctrl

<service-path>

<eqctrl value>

<service-path>

<preemph0t value>

<service-path>

<preemph1t value>

<service-path>

<preemph2t value>

<service-path>

<vodctrl value>

Sets the transceiver logical channel address.

Sets the equalization control value on the receiver channel specified by the current logical channel address.

Sets the pre-emphasis pre-tap value on the transmitter channel specified by the current logical channel address.

Sets the pre-emphasis first post-tap value on the transmitter channel specified by the current logical channel address.

Sets the pre-emphasis second post-tap value on the transmitter channel specified by the current logical channel address.

Sets the VOD control value on the transmitter channel specified by the current logical channel address.

.

Table 10–18. Transceiver Toolkit DFE Feedback Equalization (DFE) Tcl Commands (Part 1 of 2)

Command Arguments

alt_xcvr_reconfig_dfe_get_logical_channel_address alt_xcvr_reconfig_dfe_is_enabled alt_xcvr_reconfig_dfe_set_enabled alt_xcvr_reconfig_dfe_set_logical_channel_address

<service-path>

<service-path>

<service-path>

<disable(0)/enable(1)>

<service-path>

<tap position>

Function

Gets the logical channel address that other alt_xcvr_reconfig_dfe commands use to apply.

Gets whether the DFE feature is enabled on the previously specified channel.

Enables/disables the DFE feature on the previously specified channel.

Gets the tap value of the previously specified channel at specified tap position.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–21

Table 10–18. Transceiver Toolkit DFE Feedback Equalization (DFE) Tcl Commands (Part 2 of 2)

Command Arguments

alt_xcvr_reconfig_dfe_set_logical_channel_address alt_xcvr_reconfig_dfe_set_tap_value

<service-path>

<logical channel address>

<service-path>

<tap position>

<tap value>

Function

Sets the logical channel address that other alt_xcvr_reconfig_eye_viewer commands use to apply.

Sets the tap value at the previously specified channel at specified tap position and value.

Table 10–19. Transceiver Toolkit Eye Monitor Tcl Commands

Command

alt_xcvr_custom_is_word_aligner_enabled alt_xcvr_custom_set_word_aligner_enabled alt_xcvr_reconfig_eye_viewer_get_logical_channel_ address alt_xcvr_reconfig_eye_viewer_get_phase_step alt_xcvr_reconfig_eye_viewer_is_enabled alt_xcvr_reconfig_eye_viewer_set_enabled alt_xcvr_reconfig_eye_viewer_set_logical_channel_ address alt_xcvr_reconfig_eye_viewer_set_phase_step

Arguments

<service-path>

<disable(0)/enable(1)>

<service-path>

<disable(0)/enable(1)>

<service-path>

<service-path>

<service-path>

<service-path>

<disable(0)/enable(1)>

<service-path>

<logical channel address>

<service-path>

<phase step>

Function

Enables/disables the word aligner of the previously specified channel.

Enables/disables the word aligner of the previously specified channel.

Gets the logical channel address on which other alt_reconfig_eye_viewer commands will use to apply.

Gets the current phase step of the previously specified channel.

Gets whether the EyeQ feature is enabled on the previously specified channel.

Enables/disables the EyeQ feature on the previously specified channel.

Sets the logical channel address on which other alt_reconfig_eye_viewer commands will use to apply.

Sets the phase step of the previously specified channel.

In-System Sources and Probes Commands

You can use the In-System Sources and Probes commands to read source and probe data.

Table 10–20 lists the commands. You use these commands with the In-System

Sources and Probes that you insert into your project from the Quartus II software main menu.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–22 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

The valid values for probe claims include read_only

, normal

, and exclusive

.

.

Table 10–20. In-System Sources and Probes Tcl Commands

Command Arguments Function

Returns a list of the configurations of the In-System

Sources and Probes instance, including: issp_get_instance_info

<service-path>

issp_read_probe_data issp_read_source_data issp_write_source_data

<service-path>

<service-path>

<service-path>

<source-value> instance_index instance_name source_width probe_width

Retrieves the current value of the probes. A hex string is returned representing the probe port value.

Retrieves the current value of the sources. A hex string is returned representing the source port value.

Sets values for the sources.

The value can be either a hex string or a decimal value supported by System Console

Tcl interpreter.

Monitor Commands

You can use the Monitor commands to efficiently read many Avalon-MM slave memory locations at a regular interval. For example, if you want to do 100 reads per second, every second, you get much better performance using the monitor service than if you call 100 separate master_read_memory

commands every second. This is the primary difference between the monitor service and the master service.

Table 10–21

lists the commands usually called from the main program when setting

up the monitor. Table 10–22 lists the commands called from within the monitor

callback.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–23

To get a working set up, you need to create a new monitor, set its callback and interval, add ranges, and then set it to enabled. From within the callback you need to use appropriate read_data

commands to get the data out. Note that under heavy load, one or more monitor callbacks might have been skipped.

Table 10–21. Main Monitoring Commands

monitor_add_range monitor_set_callback monitor_set_interval monitor_get_interval monitor_set_enabled

Command Arguments

<service-path>

<target-path>

<address>

<size>

<service-path>

<Tcl-expression>

<service-path>

<interval>

<service-path>

<service-path>

<enable(1)/disable(0)>

Function

Adds a contiguous memory address into the monitored memory list.

The <target-path> argument is the name of a master service to read. The address is within the address space of this service.

Defines a Tcl expression in a single string that will be evaluated after all the memories monitored by this service are read. Typically, this expression should be specified as a Tcl procedure call with necessary argument passed in.

Specifies the frequency of the polling action by specifying the interval between two memory reads. The actual polling frequency varies depending on the system activity. The monitor service will try it keep it as close to this specification as possible.

Returns the current interval set which specifies the frequency of the polling action.

Enables/disables monitoring.

Memory read starts after this is enabled, and Tcl callback is evaluated after data is read.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–24 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–22. Monitor Callback Commands

monitor_add_range monitor_set_callback monitor_set_interval monitor_get_interval monitor_set_enabled monitor_read_data monitor_read_all_data

Command Arguments

monitor_get_read_interval

<service-path>

<target-path>

<address>

<size>

<service-path>

<Tcl-expression>

<service-path>

<interval>

<service-path>

<service-path>

<enable(1)/disable(0)>

<service-path>

<target-path>

<address>

<size>

<service-path>

<target-path>

<address>

<size>

<service-path>

<target-path>

<address>

<size>

Function

Adds a contiguous memory addresses into the monitored memory list.

The <target-path> argument is the name of a master service to read. The address is within the address space of this service.

Defines a Tcl expression in a single string that will be evaluated after all the memories monitored by this service are read. Typically, this expression should be specified as a Tcl procedure call with necessary argument passed in.

Specifies the frequency of the polling action by specifying the interval between two memory reads. The actual polling frequency varies depending on the system activity. The monitor service will try it keep it as close to this specification as possible.

Returns the current interval set which specifies the frequency of the polling action.

Enables/disables monitoring.

Memory read starts after this is enabled, and Tcl callback is evaluated after data is read.

Returns a list of 8-bit values read from the most recent values read from device. The memory range specified must be within the monitored memory range as defined by monitor_add_range.

Returns a list of 8-bit values read from all recent values read from device since last Tcl callback. The memory range specified must be within the monitored memory range as defined by monitor_add_range.

Returns the number of milliseconds between last two data reads returned by monitor_read_data.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–25

Command Arguments

monitor_get_all_read_intervals monitor_get_missing_event_count

<service-path>

<target-path>

<address>

<size>

<service-path>

Function

Returns a list of intervals in milliseconds between two reads within the data returned by monitor_read_all.

Returns the number of callback events missed during the evaluation of last Tcl callback expression.

Under normal load, the monitor service reads the data after each interval and then calls the callback. If the value you read is timing sensitive, the monitor_get_read_interval

command can be used to read the exact time between the intervals at which the data was read.

Under heavy load, or with a callback that takes a long time to execute, the monitor service skips some callbacks so it can keep up. If the registers you read do not have side effects (for example, they read the total number of events since reset), skipping callbacks has no effect on your code. You only need to use monitor_read_data

and monitor_get_read_interval

.

If the registers you read have side effects (for example, they return the number of events since the last read), you need access to the data that was read, but for which the callback was skipped. The monitor_read_all_data

and monitor_get_all_read_intervals

commands provide access to this data.

Dashboard Commands

The System Console dashboard allows you to create graphical tools that seamlessly integrate into the System Console. This section describes how to build your own dashboard with Tcl commands and the properties that you can assign to the widgets on your dashboard. The dashboard allows you to create tools that interact with live

instances of an IP core on your device. Table 10–23

lists the dashboard Tcl commands available from the System Console.

Example 10–1 shows a Tcl command to create a dashboard. After you run the

command, you get a path. You can then use the path on the commands listed in

Table 10–23

.

Example 10–1. Example of Creating a Dashboard

add_service dashboard my_new_dashboard "This is a New Dashboard" “Tools/My New Dashboard”

Table 10–23. Dashboard Commands (Part 1 of 2)

Command

dashboard_add dashboard_remove

Arguments

<service-path>

<string>

<service-path>

<string>

Description

Allows you to add a specified widget to your GUI dashboard.

Allows you to remove a specified widget from your GUI dashboard.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–26 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–23. Dashboard Commands (Part 2 of 2)

Command

dashboard_set_property dashboard_get_property dashboard_get_types dashboard_get_properties

Arguments

<string>

<service-path>

<string>

Description

Allows you to set the specified properties of the specified widget that has been added to your GUI dashboard.

Allows you to determine the existing properties of a widget added to your GUI dashboard.

Returns a list of all possible widgets that you can add to your GUI dashboard.

Returns a list of all possible properties of the specified widgets in your GUI dashboard.

Specifying Widgets

You can specify the widgets that you add to your dashboard.

Table 10–24

lists the widgets.

1

Note that dashboard_add

does a case-sensitive match against the widget type name.

Table 10–24. Dashboard Widgets

Widget

group button tabbedGroup fileChooserButton label text textField list table led dial timeChart barChart checkBox comboBox lineChart pieChart

Description

Allows you to add a collection of widgets and control the general layout of the widgets.

Allows you to add a button.

Allows you to group tabs together.

Allows you to define button actions.

Allows you to add a text string.

Allows you to specify text.

Allows you add a text field.

Allows you to add a list.

Allows you to add a table.

Allows you to add an LED with a label.

Allows you to add the shape of an analog dial.

Allows you to add a chart of historic values, with the X-axis of the chart representing time.

Allows you to add a bar chart.

Allows you to add a check box.

Allows you to add a combo box.

Allows you to add a line chart.

Allows you to add a pie chart.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–27

Example 10–2 is a Tcl script to instantiate a widget. In this example, the Tcl command

adds a label to the dashboard. The first argument is the path to the dashboard. This path is returned by the add_service

command. The next argument is the ID you assign to the widget. The ID must be unique within the dashboard. You use this ID later on to refer to the widget.

Following that argument is the type of widget you are adding, which in this example is a label

. The last argument to this command is the group where you want to put this widget. In this example, a special keyword self

is used.

Self

refers to the dashboard itself, the primary group. You can then add a group to self

, which allows you to add other widgets to this group by using the ID of the new group, rather than using the ID of the self

group.

Example 10–2. Example of Instantiating a Widget

dashboard_add $dash mylabel label self

Customizing Widgets

You can change widget properties at any time. The dashboard_set_property

command allows you to interact with the widgets you instantiate. This functionality is most useful when you use you change part of the execution of a callback.

Example 10–3

shows how to change the text in a label.

In

Example 10–3

, the first argument is the path to the dashboard. Next is the unique

ID of the widget, which then allows you to target an arbitrary widget. Following that is the name of the property. Each type of widget has a defined set of properties, discussed later. You can change the properties. In this example, mylabel

is of the type label

, and the example shows how to set its text

property. The last argument is the value that the property takes when the command is executed.

Example 10–3. Example of Customizing a Widget

dashboard_set_property $dash mylabel text "Hello World!"

Assigning Dashboard Widget Properties

In

Table 10–25 through

Table 10–37

, the various properties are listed that you can apply to the widgets on your dashboard.

Table 10–25. Properties Common to All Widgets (Part 1 of 2)

Property

enabled expandable expandableX expandableY maxHeight minHeight

Description

Enables or disables the widget.

Allows the widget to be expanded.

Allows the widget to be resized horizontally if there's space available in the cell where it resides.

Allows the widget to be resized vertically if there's space available in the cell where it resides.

If the widget's expandableY is set, this is the maximum height in pixels that the widget can take.

If the widget's expandableY is set, this is the minimum height in pixels that the widget can take.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–28 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–25. Properties Common to All Widgets (Part 2 of 2)

Property

maxWidth minWidth preferredHeight preferredWidth toolTip selected visible onChange options

Description

If the widget's expandableX is set, this is the maximum width in pixels that the widget can take.

If the widget's expandableX is set, this is the minimum width in pixels that the widget can take.

The height of the widget if expandableY is not set.

The width of the widget if expandableX is not set.

A tool tip string that appears once the mouse hovers above the widget.

The value of the checkbox, whether it is selected or not.

Allows the widget to be displayed.

Allows for registering a callback function to be called when the value of the box changes.

Allows you to list available options.

Table 10–26. button Properties

Property

onClick text

A Tcl command to run, usually a proc

, every time the button is clicked.

The text on the button.

Description

Table 10–27. fileChooserButton Properties

Property

text onChoose title chooserButtonText filter mode multiSelectionEnabled paths

Description

The text on the button.

A Tcl command to run, usually a proc

, every time the button is clicked.

The text of file chooser dialog box title.

The text of file chooser dialog box approval button. By default, it is "Open".

The file filter based on extension. Only one extension is supported. By default, all file names are allowed. The filter is specified as [list filter_description file_extension], for example [list "Text Document (.txt)"

"txt"].

Specifies what kind of files or directories can be selected. "files_only", by default. Possible options are "files_only" and "directories_only".

Controls whether multiple files can be selected. False, by default.

Returns a list of file paths selected in the file chooser dialog box. This property is read-only. It is most useful when used within the onclick

script or a procedure when the result is freshly updated after the dialog box closes.

Table 10–28. dial Properties

Properties

max min tickSize

Description

The maximum value that the dial can show.

The minimum value that the dial can show.

The space between the different tick marks of the dial.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

10–29

Table 10–28. dial Properties

title value

Properties Description

The title of the dial.

The value that the dial's needle should mark. It must be between min and max.

Table 10–29. group Properties

itemsPerRow title

Properties Description

The number of widgets the group can position in one row, from left to right, before moving to the next row.

The title of the group. Groups with a title can have a border around them, and setting an empty title removes the border.

Table 10–30. label Properties

Properties

text

Table 10–31. led Properties

Properties

color text

The text to show in the label.

Description

Description

The color of the LED. The options are: red_off, red, yellow_off, yellow, green_off, green, blue_off, blue, and black.

The text to show next to the LED.

Table 10–32. text Properties

Properties

editable htmlCapable text

Table 10–33. timeChart Properties

labelX

Properties

labelY latest maximumItemCount title

Controls whether the text box is editable.

Controls whether the text box can format HTML.

Controls the text of the textbox.

Description

Description

The label for the X axis.

The label for the Y axis.

The latest value in the series.

The number of sample points to display in the historic record.

The title of the chart.

Table 10–34. table Properties (Part 1 of 2)

Properties

columnCount

Description

Table-wide Properties

The number of columns (Mandatory) (0, by default).

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–30 Chapter 10: Analyzing and Debugging Designs with the System Console

Using the System Console

Table 10–34. table Properties (Part 2 of 2)

Properties

rowCount headerReorderingAllowed headerResizingAllowed rowSorterEnabled showGrid showHorizontalLines showVerticalLines rowIndex columnIndex cellText selectedRows columnHeader columnHorizontalAlignment columnRowSorterType columnWidth columnWidthResizable

Description

The number of rows (Mandatory) (0, by default).

Controls whether you can drag the columns (false, by default).

Controls whether you can resize all column widths. (false, by default). Note, each column can be individually configured to be resized by using the columnWidthResizable property.

Controls whether you can sort the cell values in a column (false, by default).

Controls whether to draw both horizontal and vertical lines (true, by default).

Controls whether to draw horizontal line (true, by default).

Controls whether to draw vertical line (true, by default).

Current row index. Zero-based. This value affects some properties below (0, by default).

Current column index. Zero-based. This value affects all column specific properties below (0, by default).

Specifies the text to be filled in the cell specified the current rowIndex and columnIndex (Empty, by default).

Control or retrieve row selection.

Column-specific Properties

The text to be filled in the column header.

The cell text alignment in the specified column. Supported types are

"leading"(default), "left", "center", "right", "trailing".

The type of sorting method used. This is applicable only if rowSorterEnabled is true. Each column has its own sorting type. Supported types are "string" (default), "int", and "float".

The number of pixels used for the column width.

Controls whether the column width is resizable by you (false, by default).

Table 10–35. barChart Properties

Properties Description

labelX labelY range itemValue

X axis label text.

Y axis label text.

Y axis value range. By default, it is auto range. Range is specified in a Tcl list, for example [list lower_numerical_value upper_numerical_value].

Item value. Value is specified in a Tcl list, for example [list bar_category_str numerical_value].

Table 10–36. lineChart Properties

Properties

labelX labelY

Axis X label text.

Axis Y label text.

Description

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

10–31

Table 10–36. lineChart Properties

Properties

range itemValue

Description

Axis Y value range. By default, it is auto range. Range is specified in a Tcl list, for example [list lower_numerical_value upper_numerical_value].

Item value. Value is specified in a Tcl list, for example [list bar_category_str numerical_value].

Table 10–37. pieChart Properties

Properties Description

itemValue

Item value. Value is specified in a Tcl list, for example [list bar_category_str numerical_value].

f

To see all the properties for a widget in the System Console, type:

% dashboard_get_properties <widget_type> r

For example, the System Console returns all the properties for the dial widget when you type:

%dashboard_get_properties dial r

System Console Examples

This section provides an example of how to load and link a design in the System

Console, as well as three SOPC Builder system examples that show you how to use the System Console. The System-Console.zip file contains design files for the first two example systems. This zip file includes files for both the Nios II Development Kit

Cyclone

®

II Edition and the Nios II Development Kit Stratix

®

II Edition. f

Download the design files for the example designs from the On-chip Debugging

Design Examples page on the Altera website.

The first example Tcl script creates a LED light show on your board. The SOPC

Builder system for this example includes two modules: a JTAG to Avalon master bridge and a parallel I/O (PIO) core. The JTAG to Avalon master bridge provides a connection between your development board and either SOPC Builder system via

JTAG. The serial peripheral interface (SPI) to Avalon master bridge provides connections via SPI. The PIO module provides a memory-mapped interface between an Avalon-MM slave port and general-purpose I/O ports. f

For more information about these components, refer to the

Embedded Peripherals IP

User Guide

.

The first example Tcl script sends a series of master_write_8

commands to the JTAG

Avalon master bridge. The JTAG Avalon master sends these commands to the

Avalon-MM slave port of the PIO module. The PIO I/O ports connect to FPGA pins that are, in turn, connected to the LEDs on your development board. The write commands to the PIO Avalon-MM slave port result in the light show.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–32 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

1

The instructions for these examples assume that you are familiar with the Quartus II software and either the SOPC Builder or Qsys software.

LED Light Show Example

Figure 10–2 illustrates the SOPC Builder system for the first example.

Figure 10–2. SOPC Builder System for Light Show Example

JTAG

Avalon-MM

Master

System

Interconnect

Fabric

PIO LED

(Avalon-MM

Slave)

Conduit

Interface

LEDs

To build this example system, perform the following steps:

1. On your host computer file system, locate the following directory: <Nios II EDS

install path>\examples\<verilog or vhdl>\<board version>\standard. Each development board has a VHDL and Verilog HDL version of the design. You can use either of these design examples.

2. Copy the standard directory to a new location. By copying the design files, you avoid corrupting the original design and avoid issues with file permissions. This document refers to the newly created directory as the c:\<projects>\standard directory.

f

For information on different board kits available from Altera, refer to the All

Development Kits page on the Altera website.

3. Copy the System_Console.zip file to the c:\< projects>\standard directory and unzip it. Specific directories may be created for specific Altera development boards.

4. Choose All Programs > Altera > Nios II EDS <version> Command Shell

(Windows Start menu) to run a Nios II command shell.

5. Change to the directory for your board.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

10–33

6. To program your board with the .sof file, type the following command in the

Nios II command shell: nios2-configure-sof

<sof_name>

.sof

r

If your development board includes more than one JTAG cable, you must specify which cable you are communicating with as an argument to the nios2-configure-sof

<sof_name>

.sof command. To do so, type the following commands: jtagconfig r

Figure 10–3

gives sample output from the jtagconfig

command. This output shows that the active JTAG cable is number 2. Substitute the number of your JTAG cable for the <cable_number> variable in the following command: nios2-configure-sof -c

<cable_number> <sof_name>

.sof r

1

You can use the System Explorer pane to obtain information about the content of your device.

Figure 10–3. jtagconfig Output

7. You can then run the LED light show example by typing the following command: system-console --script=led_lightshow.tcl r

8. You can see the LEDs performing a running light demonstration. Press Ctrl+C to stop the LED light show.

9. To see the commands that this script runs, open the led_lightshow.tcl file in your

\jtag_pio_

<cii_or_sii> directory.

Creating a Simple Dashboard

In the following paragraphs, you can follow an example of how to create a simple dashboard.

1. Create a Tcl file inside $HOME/system_console/scripts and call it

dashboard_example.tcl

.

2. Open the System Console from the command line by typing system-console

. You should now see the System Console GUI, including the System Explorer.

3. Add the following line to your Tcl file: namespace eval dashboard_example { set dash [add_service dashboard dashboard_example "Dashboard

Example" "Tools/Example"]

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–34 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples dashboard_set_property $dash self developmentMode true dashboard_add $dash mylabel label self dashboard_set_property $dash mylabel text "Hello World!" dashboard_add $dash mybutton button self dashboard_set_property $dash mybutton text "Start Count" dashboard_set_property $dash mybutton onclick

{::dashboard_example::start_count 0} dashboard_set_property $dash self itemsperrow 1 dashboard_set_property $dash self visible true

}

4. Return to the System Console GUI. Under the System Explorer tree, locate the scripts, and right-click the node dashboard_example.tcl.

5. On the popup menu, click Execute. This command executes the Tcl script that you added to $HOME/system_console/scripts.

6. You should now see an internal window titled “Dashboard Example”, “Hello World!” in the middle of the dashboard window and a button named ‘Start Count”.

7. To add some behavior to the example dashboard, you can create a seconds counter.

First create a proc inside the namespace_eval

as follows: proc start_count { c } { incr c variable dash dashboard_set_property $dash mylabel text $c after 1000 ::dashboard_example::start_count $c

}

8. Then add a line in the main script like the following: dashboard_set_property $dash mybutton onclick

{::dashboard_example::start_count 0}

9. As shown in this example, the above lines define a proc

inside the namespace

.

When you click Start Count, the script calls the proc start_count

with an argument of

0

. The body of the proc

is fairly simple. The

proc

increments the argument, sets the value of the label to the argument, and then tells Tcl to call this proc

again in another 1000 milliseconds, using the recently incremented value as an argument.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

The whole script is shown in Example 10–4 .

Example 10–4. Example of Creating a Simple Dashboard

namespace eval dashboard_example { proc start_count { c } { incr c variable dash dashboard_set_property $dash mylabel text $c after 1000 ::dashboard_example::start_count $c

}

10–35

set dash [add_service dashboard dashboard_example "Dashboard Example" "Tools/Example"] dashboard_set_property $dash self developmentmode true dashboard_add $dash mylabel label self dashboard_set_property $dash mylabel text "Hello World!" dashboard_add $dash mybutton button self dashboard_set_property $dash mybutton text "Start Count" dashboard_set_property $dash mybutton onclick {::dashboard_example::start_count 0} dashboard_set_property $dash self itemsperrow 1 dashboard_set_property $dash self visible true f

Download the Tcl dashboard design example from the On-chip Debugging Design

Examples page of the Altera website.

Loading and Linking a Design

Example 10–5 shows how to load and link a Quartus II design.

Example 10–5. Loading and Linking a Design

% get_service_paths device

/devices/[email protected]#USB-0

% set device_path [lindex [get_service_paths device] 0]

/devices/[email protected]#USB-0

% design_load /projects/9.1/standard

QuartusDesignFactory elaborating \projects\9.1\standard

QuartusDesignFactory found SOF File at NiosII_cycloneII_2c35_standard.sof

QuartusDesignFactory found JDI File at NiosII_cycloneII_2c35_standard.jdi

QuartusDesignFactory found SOPC Info File at

\projects\9.1\standard\NiosII_cycloneII_2c35_standard_sopc.sopcinfo

% set design_path [lindex [get_service_paths design] 0]

/designs/standard/NiosII_cycloneII_2c35_standard.qpf

% design_link $design_path $device_path

Created a link from /designs/standard to /connections/USB-Blaster [USB-0]/EP2C35.

Created a link from /designs/standard/NiosII cycloneII_2c35_standard_sopc.sopcinfo/cpu.data_master to /connections/USB-Blaster

[USB-0]/EP2C35/cpu.

Created a link from

/designs/standard/NiosII_cycloneII_2c35_standard_sopc.sopcinfo/cpu.data_master/jtag_ uart.avalon_jtag_slave to /connections/USB-Blaster [USB-0]/EP2C35/jtag_uart

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–36 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

JTAG Examples

Two JTAG examples are described below. The first JTAG example gives you some practice working with the System Console as an interactive tool. The second example verifies that the clock is toggling.

Verify JTAG Chain

In this example, you verify the JTAG chain on your board. To run this example, perform the following steps:

1. On the Windows Start menu, point to All Programs, then point to Altera, and then click Quartus II <version> to run the Quartus II software. Open the Quartus II project file, jtag_pio.qpf or jtag_pio_sii.qpf.

2. On the Tools menu, click SOPC Builder.

3. On the SOPC Builder Tools menu, click System Console.

4. Set the path to the jtag_debug service by typing the following command: set jd_path [lindex [get_service_paths jtag_debug] 0] r

The get_service_paths

command always returns a list, even if the list has a single item; consequently, you must index into the list using the lindex

command. In this case, the variable <jd_path> is assigned the string that is the zeroth element of the list.

5. Open the jtag_debug

service by typing the following command: open_service jtag_debug $jd_path r

6. Set up a list of byte values to test the chain by typing the following command: set values [list 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55

0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55] r

7. Loop the values by typing the following command: jtag_debug_loop $jd_path $values r

If the jtag_debug_loop

command is successful, you should see the values that you sent reflected in the System Console.

Example 10–6

shows the transcript from this interactive session.

.

8. Close the jtag_debug

service by typing the following command: close_service jtag_debug $jd_path r

Example 10–6. The jtag_debug_loop Command

% set jd_path [lindex [get_service_paths jtag_debug] 0]

/devices/[email protected]#USB-0/(link)/JTAG/(110:132 v1 #0)

% open_service jtag debug $jd_path

% set values [list Oxaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa

0x55]

Oxaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55 0xaa 0x55

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

10–37

Example 10–6 provides the beginnings of a JTAG chain validation workflow.

Depending on the number of FPGAs in your JTAG chain, you can expand upon this test by performing more operations, in which you can interleave access to JTAG chains with larger data sets, and potentially multiple devices.

Verify Clock

The jtag_debug_sample_clock

command verifies that your clock is toggling by synchronously sampling the clock. Consequently, you may need to use this command several times to determine if the clock is toggling. The jtag_debug_sample_clock.tcl script samples the clock 10 times. To run this script, type source jtag_debug_sample_clock.tcl

at the System Console prompt. You should see 10 values for the JTAG clock printed to the System Console as

Figure 10–4 illustrates.

Figure 10–4. The jtag_debug_sample_clock Command

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–38 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

Checksum Example

In this example, you add an on-chip memory and hardware accelerator to the SOPC

Builder system discussed in the previous example. The hardware accelerator

calculates a checksum. Figure 10–5 illustrates this system.

Figure 10–5. SOPC Builder System for Checksum Accelerator Example

JTAG

Avalon-MM

Master

System Interconnect Fabric

On-Chip

Memory

Checksum

Accelerator

PIO LED

LEDs

To build this example system, perform the following steps:

1. In the System Contents tab in SOPC Builder, double-click On-Chip Memory

(RAM or ROM)

in the On-Chip of the Memories and Memory Controllers folder to add this component to your system.

2. In the On-Chip Memory (RAM or ROM) wizard, for Total memory size type

128 to change the memory size to 128 bytes. Click Finish to accept the other default values.

3. To connect the on-chip memory to the master, click the open dot at the intersection of the onchip_mem s1

Avalon slave port and the JTAG to Avalon Master Bridge master

port.

4. In the System Contents tab, double-click Checksum Accelerator in the Custom

Component

folder to add this component to your system.

5. To connect the checksum accelerator

Slave

port, click on the open dot at the intersection of the accelerator

Slave

and the master master

port.

6. To connect the checksum accelerator

Master

port, click on the open dot at the intersection of the accelerator

Master

and the onchip_mem s1

port.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

7. In the Base column, enter the base addresses for the slaves in your system.

Onchip_mem s1

port—0x00000080

Accelerator

Slave

port—0x00000020

Click on the lock icon next to each address to lock these values.

Figure 10–6

illustrates the completed system.

Figure 10–6. Checksum Accelerator Module Connections

10–39

8. Save your system.

9. In the System Contents tab, click Next.

10. In the System Generation tab, click Generate.

11. On the Quartus II Processing menu, click Start Compilation.

12. When compilation completes, re-program your board by typing the following command in the Nios II command shell: nios2-configure-sof jtag_pio.sof

r

13. Type system-console r in the Nios II command shell to start the System Console.

1

If you reprogram your board, you must start a new System Console to receive the changes.

14. To run the checksum example, in the System Console, type: source set_memory_and_run_checksum.tcl

r

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–40 Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

Figure 10–7 shows the output from a successful run.

Figure 10–7. System Console Output

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

System Console Examples

10–41

You can change the value written into the RAM by changing the value given in the fill_memory

routine in the set_memory_and_run_checksum.tcl file. Save the Tcl file after editing and rerun the command. (Because the system command uses master_write_32

, if you use values that are less than 32 bits, they are filled with leading 0s.)

Nios II Processor Example

In this example, you program the Nios II processor on your board to run the count binary software example that is included in the Nios II installation. This is a simple program that uses an 8-bit variable to repeatedly count from 0x00 to 0xFF. The output of this variable is displayed on the LEDs on your board. After programming the

Nios II processor, you use the System Console processor commands to start and stop the processor.

To run this example, perform the following steps:

1. Download the Nios II Ethernet Standard Design Example for your board from the

Altera website.

2. Create a folder to extract the design. For this example, use C:\Count_binary.

3. Unzip the Nios II Ethernet Standard Design Example into C:\Count_binary.

4. In a Nios II command shell, change to the directory of your new project.

5. To program your board, type the following command in a Nios II command shell: nios2-configure-sof niosii_ethernet_standard_<board_version>.sof r

6. Using Nios II Software Build Tools for Eclipse, create a new Nios II Application and BSP from Template using the Count Binary template and targeting the Nios II

Ethernet Standard Design Example.

7. To build the executable and linkable format (ELF) file (.elf) for this application, right-click the Count Binary project and select Build Project.

f

For more information about creating Nios II applications, refer to the

Nios II Software

Build Tools

chapter in the Nios II Software Developer’s Handbook.

8. Download the .elf file to your board by right-clicking Count Binary project and selecting Run As, Nios II Hardware.

The LEDs on your board provide a new light show.

9. Start the System Console by typing system-console

in your Nios II command shell.

10. Set the processor service path to the Nios II processor by typing the following command: set niosii_proc [lindex [get_service_paths processor] 0] r

11. Open both services by typing the following commands: open_service processor $niosii_proc r

12. Stop the processor by typing the following command: processor_stop $niosii_proc r

The LEDs on your board freeze.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–42 Chapter 10: Analyzing and Debugging Designs with the System Console

On-Board USB Blaster II Support

13. Start the processor by typing the following command: processor_run $niosii_proc r

The LEDs on your board resume their previous activity.

14. Stop the processor by typing the following command: processor_stop $niosii_proc r

15. Close the services by typing the following command: close_service processor $niosii_proc r

The processor_step

, processor_set_register

, and processor_get_register commands provide additional control over the Nios II processor.

On-Board USB Blaster II Support

The System Console supports an On-Board USB-Blaster

TM

II circuit via the USB

Debug master command.

f

For more informaton about using the On-Board USB-Blaster II development kit for

Stratix V devices, refer to the

All Development Kits

page on the Altera website.

1

Not all Stratix V boards support the On-Board USB-Blaster II. For example, the transceiver signal integrity board does not support the On-Board

USB-Blaster II.

Device Support

You can target all Altera device families with the System Console. Transceiver Toolkit commands, however, can only be targeted for Arria II GX, Stratix IV GX, and Stratix V devices.

Conclusion

The System Console offers you a wide variety of options for communicating with modules in your design at a low level. You can use either Tcl scripting commands or the GUI to access and run services for setting up, running tests, optimizing design parameters, and debugging designs you have programmed into Altera supported device families without having to recompile your designs.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 10: Analyzing and Debugging Designs with the System Console

Document Revision History

10–43

Document Revision History

Table 10–38

shows the revision history for this chapter.

Table 10–38. Document Revision History

Date

November 2011

May 2011

December 2010

July 2010

Version Changes

11.1.0

Maintenance release. This chapter adds new System Console features.

11.0.0

Maintenance release. This chapter adds new System Console features.

10.1.0

Maintenance release. This chapter adds new commands and references for Qsys.

10.0.0

Initial release. Previously released as the System Console User Guide, which is being obsoleted. This new chapter adds new commands.

f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

10–44 Chapter 10: Analyzing and Debugging Designs with the System Console

Document Revision History

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

11. Transceiver Link Debugging Using the

System Console

November 2011

QII53029-11.1.0

QII53029-11.1.0

This chapter describes how to use the Transceiver Toolkit in the Quartus

®

II software.

The Transceiver Toolkit in the Quartus II software allows you to quickly test the functionality of transceiver channels and helps you improve the signal integrity of transceiver links in your design.

1

You can use an example design available on the Altera

®

website if you want to immediately start using the Transceiver Toolkit, or you can create a custom design.

In today's high-speed interfaces, stringent bit error rate (BER) requirements are not easy to meet and debug. You can use the Transceiver Toolkit in the Quartus II software to check and improve the signal integrity of transceiver links on your board before you complete the final design, saving you time and helping you find the best physical medium attachment (PMA) settings for your high-speed interfaces.

This chapter contains the following sections:

“Transceiver Toolkit Overview”

“Transceiver Link Debugging Design Examples” on page 11–3

“Setting Up Tests for Link Debugging” on page 11–3

“Using Tcl in System Console” on page 11–13

“Usage Scenarios” on page 11–14

“Quick Guide to Using the Transceiver Toolkit in the Quartus II Software” on page 11–18

Transceiver Toolkit Overview

The underlying framework for the Transceiver Toolkit is the System Console. The

System Console performs low-level hardware debugging of your design. The System

Console provides read and write access to the IP cores instantiated in your design.

Use the System Console for the initial bring-up of your PCB and low-level testing.

f

For information about the System Console, refer to the

Analyzing and Debugging

Designs with the System Console

chapter in volume 3 of the Quartus II Handbook. For more information about getting training to use the System Console, refer to the

Altera

Training

page of the Altera website.

The Transceiver Toolkit allows you to perform run-time tasks, including performing high-speed link tests for the transceivers in your devices. The Transceiver Toolkit allows you to test your high-speed interfaces in real-time. To launch the Transceiver

Toolkit, in the main Quartus II window, on the Tools menu, click Transceiver Toolkit.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

11–2 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Toolkit Overview

Transceiver Toolkit User Interface

The Transceiver Toolkit has an intuitive GUI that you open from the Tools menu of the

Quartus II software. It is designed to be run from within the System Console framework. The interface is a window that consists of four panes. A left navigation

System Explorer shows you connection information for the system you are testing, including designs, design instances, and scripts.

Once you load a project in the System Console, all the design information is populated under the System Explorer. The Messages pane shows error messages and warnings for any actions you perform in other panes. You can enter Tcl commands through the Tcl Console pane. Most of the actions you can perform in the GUI can also be performed with Tcl commands. Most Tcl commands are listed in this chapter.

The Transceiver Toolkit Channel Manager GUI consists of three tabs, including the

Transmitter Channels tab, the Receiver Channels tab, and the Transceiver Links tab.

These tabs have various control buttons, which you click to open the Auto Sweep

Control panel and the EyeQ panel. From these three tabs you cxan also open Control

Channel and Control Link panels, which allow you to view and modify transceiver and test settings.

You can open Link Control Channel h

For more information, refer to

About the Transceiver Toolkit

in Quartus II Help.

Transceiver Auto Sweep

You can sweep ranges for your transceiver PMA settings and run tests automatically with the auto sweep feature. You can store a history of the test runs and keep a record of the best PMA settings. You can then use these settings in your final design.

h

For more information, refer to the Transceiver Auto Sweep Panel in Quartus II Help.

Transceiver EyeQ

You can determine signal integrity with the EyeQ feature. The EyeQ feature in the

Transceiver Toolkit allows you to create a bathtub curve or eye diagram (Stratix V) to have a metric other than BER to measure siognal quality. After you run the EyeQ feature you can view the data in the Report pane of the Transceiver Toolkit and export the data in Comma-Separated Value (.csv) format for further analysis.

h

For more information about the EyeQ feature, refer to

Working with the Transceiver

Toolkit

in Quartus II Help.

f

For more information, refer to AN 605: Using the On-Chip Signal Quality Monitoring

Circuitry (EyeQ) Feature in Stratix IV Transceivers

.

Control Links

You can test the transmitter and receiver channel links in your design in manual mode with the channel control features. The channel control panels allow you to view and manually modify settings for transmitter and receiver channels while the channels are running.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples

11–3

h

For more information about the Transceiver Toolkit, refer to

Working with the

Transceiver Toolkit

in Quartus II Help.

Transceiver Link Debugging Design Examples

Altera provides design examples to assist you with setting up and using the

Transceiver Toolkit. To learn more about the version of the Quartus II software used to create these design examples, the target device, and development board details, refer to the readme.txt of each example. Each example is verified and tested with the

Quartus II software version referenced in the readme.txt. However, you may be able to use these examples with a later version of the Quartus II software.

If you are recompiling the design examples for a different board, refer to “Changing

Pin Assignments” on page 11–8 to determine which pin assignments you must edit.

f

Download the Transceiver Toolkit design examples from the On-Chip Debugging

Design Examples page of the Altera website.

f

For a quick guide to using design examples with the Transceiver Toolkit, refer to

“Working with Design Examples” on page 11–19

.

Setting Up Tests for Link Debugging

Testing signal integrity for high-speed transceiver links involves using data patterns, such as pseudo-random binary sequences (PRBS). Although the sequences appear to be random, they have specific properties that you can use to measure the quality of a link. In the example designs available on the Altera website, data patterns are generated by a pattern generator and are then transmitted by the transmitter. The transceiver on the far end can then be looped back so that the same data is then received by the receiver portion of the transceiver. The data obtained is then checked by a data checker to verify any bit errors.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–4 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples

Figure 11–1 and Figure 11–2 show examples of the test setup for the transceiver link

debugging tool. The figures show a setup that is similar to the design examples that you can download from the On-Chip Debugging Design Example page of the Altera website. You can also have the transmitter on one FPGA and the receiver on a different FPGA.

Figure 11–1. Transceiver Link Debugging Tool Test Setup

System Console

(in SOPC Builder)

Host Computer

JTAG-to-Avalon

Master Bridge

Top-Level Design (FPGA)

Avalon-ST Data

Pattern Generator

Avalon-ST Data

Pattern Checker

Custom PHY

IP Core

IP Core

or

Low Latency

PHY IP Core

Loopback on board

Figure 11–2 shows a similar test setup for the second design example described in this

section, except that there are four sets of transceivers and receivers rather than one.

Figure 11–2. Transceiver Link Debugging Tool Test Setup (Four Channels)

System Console

(in SOPC Builder)

Host Computer

JTAG to Avalon

Master Bridge

Top-Level Design (FPGA)

Avalon-ST Data

Pattern Generator

Avalon-ST Data

Pattern Checker

Avalon-ST Data

Pattern Generator

Avalon-ST Data

Pattern Checker

Avalon-ST Data

Pattern Generator

Avalon-ST Data

Pattern Checker

Avalon-ST Data

Pattern Generator

Avalon-ST Data

Pattern Checker

Custom PHY

IP Core

or

Low Latency

PHY IP Core

Loopback on board

Loopback on board

Loopback on board

Loopback on board

The design examples use the Qsys system integration tool and contain the following components:

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples

11–5

Custom PHY IP Core or Low Latency PHY IP Core

Avalon-ST Data Pattern Generator

Avalon-ST Data Pattern Checker

JTAG-to-Avalon Master Bridge f

For a quick guide to set up tests for link debugging with the Transceiver Toolkit, refer to

“Working with Design Examples” on page 11–19 .

Custom PHY IP Core

You can use the Custom PHY IP core to test all possible parallel data widths of the transceivers in these design examples. You can configure the Custom PHY IP core as

8, 10, 16, 20, 32 or 40-bit. The sweep tools disable word alignment during sweep, which is enabled to simplify timing closure. You can also use the Data Format

Adapter IP component as required. You can have one or multiple channels in your design.

You use Qsys to define and generate the Custom PHY IP core. The Custom PHY IP core in the design examples that you can download from the On-Chip Debugging

Design Example page of the Altera website are generated for Stratix IV and Stratix

Vdevices.

To use the Custom PHY IP core with the Transceiver Toolkit, perform the following steps:

1. Set the following parameters to meet your project requirements:

Number of lanes

Bonded group size

Serialization factor

Data rate

Input clock frequency

2. Turn on Avalon data interfaces.

3. Disable 8B/10B

4. Set Word alignment mode to manual

5. Disable rate match FIFO

6. Disable byte ordering block f

For more information about the protocol settings used in the Custom PHY IP core, refer to the “Custom PHY IP User Core” section of the Altera Transceiver PHY IP Core

User Guide

.

Transceiver Reconfiguration Controller

This IP is necessary to control PMA settings and modify other transceiver settings in

Stratix V devices. It must be connected to all PHY IP (custom or low_latency) to be controlled by the Transceiver Toolkit. The reconfig_from_xcvr and reconfig_to_xcvr ports should be connected together.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–6 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples f

For further informmation, refer to the

Altera Transceiver PHY IP Core User Guide

.

These settings must be turned on:

Enable Analog controls

Enable EyeQ block

Enable AEQ block

Low Latency PHY IP Core

Use Low Latency PHY IP Core as follows:

To get more than 8.5 gbps in GT devices.

To use PMA direct mode, such as when using six channels in one quad.

To meet your project requirements, use the same set of parameters that you would use with the Custom PHY IP core.

The phase compensation FIFO mode must be set to embedded above certain data rates. The Transceiver Toolkit provides a warning when you exceed the data rate. To be in PMA direct mode, you must set the phase compensation FIFO mode to none, which supports a smaller range of data rates.

The Low Latency PHY must have the loopback setting set to serial loopback mode.

Otherwise, the serial loopback controls within the tool do not function.

f

For more information about the protocol settings used in the Low Latency PHY IP core, refer to the “Low Latency PHY IP User Core” section of the

Altera Transceiver

PHY IP Core User Guide

.

Avalon-ST Data Pattern Generator

The generator produces standard data patterns that you can use for testing. The patterns supported include prbs7, prbs15, prbs23, prbs31, high frequency, and low frequency.

This component produces data patterns in the test flow. You can use a variety of popular patterns to test transceiver signal integrity (SI). The data pattern generator component is provided as an Altera IP core component. You can use any pattern, but you must have a checker to verify that you receive that pattern properly.

When you use the Avalon

®

-ST Data Pattern Generator, the width may be different than the width the Custom PHY IP core or Low Latency PHY IP core is configured with, so you may need to use a data format adaptor. The Avalon-ST Data Pattern

Generator component is available in the Qsys component library tree. The Avalon-ST

Data Pattern Checker is available under Debug and Performance in the Qsys component library tree. The adaptor can be automatically inserted and properly configured by Qsys with the Insert Avalon-ST Adapters command.

The Avalon-ST Data Pattern Generator generates industry-standard data patterns.

Data patterns are generated on a 32-bit or 40-bit wide Avalon streaming source port.

f

For more information about both SOPC Builder and Qsys interconnect fabric, refer to the System Interconnect Fabric for Streaming Interfaces chapter in the SOPC Builder User

Guide

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples

11–7

Figure 11–3 shows the wizard page that you use to set parameters for the Avalon-ST

Data Format Adapter.

Figure 11–3. Avalon-ST Data Format Adapter

Data Checker

The Avalon-ST Data Pattern Checker is provided as a Qsys component. It checks the incoming data stream against standard test patterns, which include PRBS7, PRBS15,

PRBS23, PRBS31, High Frequency, and Low Frequency. It is used in conjunction with the Avalon-ST Data Pattern Generator to test transceiver links.

The Avalon-ST Data Pattern Checker is available under Debug and Performance in the Qsys component library tree. The checker is the core logic for data pattern checking. Data patterns are accepted on 32-bit or 40-bit wide Avalon streaming sink ports.

f

For more information, refer to

Avalon Streaming Data Pattern Generator and Checker

Cores chapter in the

Embedded Peripherals User Guide

.

Use the design examples as a starting point to work with a particular signal integrity development board. You can also modify and customize the design examples to match your intended transceiver design. When you use the Transceiver Toolkit, you can check your transceiver link signal integrity without the completed final design.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–8 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Link Debugging Design Examples

Use the design examples to quickly test the functionality of the receiver and transmitter channels in your design without creating any custom designs with data generators and checkers. You can quickly change the transceiver settings in the design examples to see how they affect transceiver link performance. You can also use the

Transceiver Toolkit to isolate and verify the transceiver links without having to debug other logic in your design.

Compiling Design Examples

Once you have downloaded the design examples, open the Quartus II software version 10.0 or later and unarchive the project in the example. If you have access to the same development board with the same device as mentioned in the readme.txt file of the example, you can directly program your device with the provided programming file in that example. If you want to recompile the design, you must make your modifications to the configuration in Qsys, re-generate in Qsys, and recompile the design in the Quartus II software to get a new programming file.

If you have the same board as mentioned in readme.txt file, but a different device on your board, you must choose the appropriate device and recompile the design. For example, some early development boards are shipped with engineering sample devices.

If you have a different board, you must edit the necessary pin assignments and recompile the design examples.

Changing Pin Assignments

You can edit pin assignments for various development kits. The following paragraphs are examples of pin assignments for Stratix IV GX development kits. f

For further information about other development kits, read the readme.txt file which comes with the design examples. For more information on the pinouts refer to their respective user guide found on the

All Development Kits

page of the Altera website.

Table 11–1

shows the pin-assignment edits for the Stratix IV Transceiver Signal

Integrity Development Kit (DK-SI-4SGX230N). You must make these assignments before you recompile your design.

Table 11–1. Stratix IV GX Top-Level Pin Assignments (DK-SI-4SGX230N)

Top-Level Signal Name

REFCLK_GXB2_156M25 (input)

S4GX_50M_CLK4P (input)

GXB1_RX1 (input)

GXB1_TX1 (output)

2.5 V LVTTL/LVCMOS

2.5 V LVTTL/LVCMOS

1.4-V PCML

1.4-V PCML

I/O Standard

Pin Number on

DK-SI-4SGX230N Board

PIN_G38

PIN_AR22

PIN_R38

PIN_P36

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Toolkit Link Test Setup

11–9

Table 11–2

shows the pin-assignment edits for the Stratix IV GX development kit

(DK-DEV-4SGX230N). You must make these assignments before you recompile your design.

Table 11–2. Stratix IV GX Top-Level Pin Assignments (DK-DEV-4SGX230N)

Top-Level Signal Name

REFCLK_GXB2_156M25 (input)

S4GX_50M_CLK4P (input)

GXB1_RX1 (input)

GXB1_TX1 (output)

LVDS

2.5 V LVTTL/LVCMOS

1.4-V PCML

1.4-V PCML

I/O Standard

Pin Number on

DK-DEV-4SGX230N Board

PIN_AA2

PIN_AC34

PIN_AU2

PIN_AT4

Similarly, you can change the pin assignment for your own board and recompile the design examples.

Transceiver Toolkit Link Test Setup

To set up testing with the Transceiver Toolkit, perform the following steps:

1. Ensure the device board is turned on and is available before you start the System

Console or the Transceiver Toolkit. The connections are detected at startup of the tool.

2. Program the device either with the programming file provided with the .zip file or with the new programming file after you recompile your project.

3. Open the Transceiver Toolkit from the Tools menu in the Quartus II software.

4. Make sure the device is correctly programmed with the programming file in step 1 and that board settings, such as the jumper settings, are correct.

Loading the Project in System Console

From the Transceiver Toolkit, load the Quartus project file (*.qpf) by going to the File menu and selecting Load Project. Whether you have recompiled the design or not, the unzipped contents of the examples contain this file. After the project is loaded, you can review the design information under System Explorer in the System Console.

Linking the Hardware Resource

Expand the devices tree in the System Explorer pane and find the device you are using. Right click on a design and choose a device to link to. This is only necessary if you do not use the usercode for automatic linking. If you are using more than one

Altera board, you can set up a test with multiple devices linked to the same design.

This is useful when you want to perform a link test between a transmitter and receiver on two separate devices.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–10 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Toolkit Link Test Setup

1

For Transceiver Toolkit version 11.1 and later, to automatically instantiate and link designs after they have been loaded in to the System Console, click Assignments on the main menu of the Quartus II software, click Device on the Device and Pin

Options

dialog box, and then turn on Auto usercode. When the project is loaded any devices programmed with this project will automatically be linked. Prior to

Transceiver Toolkit version 11.1, you you must manually load your design as described in the previous paragraphs.

To set up the transmitter channels, receiver channels, and transceiver links, go to the

Tools menu and select Transceiver Toolkit, or from the Welcome to the Transceiver

Toolkit

tab, click on the Transceiver Toolkit to open the main Transceiver Toolkit window. You can then create the channels, as described in the following section.

Creating the Channels

After you open the Transceiver Toolkit, there are three tabs in the System Console, including Transmitter Channels, Receiver Channels, and Transceiver Links tabs.

The Transmitter Channel and Receiver Channel tabs are automatically populated with the existing transmitter and receiver channels in the design, respectively.

However, you can create your own additional transmitter and receiver channels in a situation where the expected configuration was not automatically populated. The situation may occur if in the Link Channel tab you create a link between a transmitter and receiver channel. Links define connectivity between a particular transmitter channel and a receiver. The link forms the main logical unit that you test with the

Transceiver Toolkit.

Links are automatically created when a receiver channel and transmitter channel share a transceiver channel. However, if you are not actually looping data back, but using it to transmit or receive to another transceiver channel, you must define and

create a new link. For example, in Figure 11–4

, a link is created in the Link Channel tab between a transmitter and receiver channels of the same device.

Figure 11–4. Creating a Link Channel in Transceiver Toolkit

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Toolkit Link Test Setup

11–11

You can also perform a physical link test without loopback by connecting one device transmitter channel to another device receiver channel. In this channel you would define that connection into a link, and tests would run off that link. For example, as

shown in Figure 11–2 , use the transmitter and receiver channels of the same device

and loop them back on the far side of the board trace to check the signal integrity of your high-speed interface on the board trace. You can select the link that you created in the Transceiver Toolkit and use the different buttons to start and control link tests.

1

You can also communicate with other devices that have the capability to generate and verify test patterns that Altera supports.

Running the Link Tests

Use the Link Channel tab options to control how you want to test the link. For example, use the Auto Sweep feature to sweep various transceiver settings parameters through a range of values to find the results that give the best BER value.

You can also open Transmitter, Receiver and Link Control panels to manually control the PMA settings and run individual tests. You can change the various controls in the panels to suit your requirements.

To perform an auto sweep link test, perform the following steps:

1. Select the link to test and click Auto Sweep to open the auto sweep panel for the selected link.

2. Set the test pattern to test.

3. Select either Smart Auto Sweep or Full Auto Sweep. Full Auto Sweep runs a test of every combination of settings that falls within the bounds that you set.

1

Smart Auto Sweep

minimizes the number of tests run to reach a good setting, which saves you time. Smart Auto Sweep does not test every possible setting, so may not achieve the very best setting possible; however, it can quickly find an acceptable setting.

4. Set up run lengths for each test iteration. The run length limits you set are ignored when you run a smart sweep.

5. Set up the PMA sweep limits within the range you want to test.

6. Press Start and let the sweep run until complete.

After an Auto Sweep test has finished at least one iteration, you can create a report by clicking Create Reports, which opens the Reports tab. The report shows data from all tests that you have completed. You can sort by columns and filter data by regular expression in the Reports tab. You can also export the reports to a .csv file by right clicking on a report.

If you found a setting with the Smart Sweep mode, use the reported best case PMA settings, and apply a +/- 1 setting to them, returning the test to Full Auto Sweep mode. This helps you determine if the settings you chose are the best.

You can then choose your own runtime conditions, reset the Auto Sweep feature by pressing Reset, and re-running the tests to generate BER data based on your own run length conditions. This procedure allows you to obtain a good setting for PMA faster.

Review the BER column at the end of the full sweep to determine the best case.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–12 Chapter 11: Transceiver Link Debugging Using the System Console

Transceiver Toolkit Link Test Setup

1

When setting smart sweep ranges, try to include the 0 setting as often as possible, as that setting often provides the best results.

Viewing Results in the EyeQ Feature

Advanced FPGA devices such as Stratix IV have built-in EyeQ circuitry, which is used with the EyeQ feature in Transceiver Toolkit. The EyeQ feature allows you to estimate the horizontal eye opening at the receiver of the transceiver. With this feature, you can tune the PMA settings of your transceiver, which results in the best eye and BER at high data rates.

Stratix V EyeQ circuitry adds the ability to see the vertical eye opening in addition to the horizontal eye opening at the receiver of the transceiver. With this view of the eye, you have a better idea of what is going on as you tune the PMA settings.

f

For more information about the EyeQ feature, refer to AN 605: Using the On-Chip

Signal Quality Monitoring Circuitry (EyeQ) Feature in Stratix IV Transceivers

.

To use the EyeQ feature in the Transceiver Toolkit to view the results of the link tests, perform the following steps:

1. Select a Transceiver Link or Receiver Channel in the main Transceiver Toolkit panel that you want to run EyeQ against.

2. Click Control Link or Control Channel to open control panels. Use these control panels to set the PMA settings and test pattern that you want the EyeQ feature to run against. You can check the report panel or Best Case column from an Auto

Sweep run for the settings with the best BER value and enter those PMA values through the Transmitter and Receiver control panels.

3. Click EyeQ to open the EyeQ feature.

4. Review the test stop conditions and set them to your preference.

5. Choose a mode to run EyeQ.

Eye Contour

–shows a BER contour graph of the eye. You can select a specific target bit error rate that the Transceiver Toolkit uses asa means to try to find the boundary. You can also select All, which allows the range of BER targets to be simultaneously found and shown.

Bathtub

–only finds the horizontal width of the eye. You can choose options for a particular vertical step to sweep. You can also set the Transceiver Toolkit to sweep all vertical steps and get an overlay of multiple slices through the eye.

When at least one run has completed, you can click Create Report to view details of completed iterations of the sweep in a report panel.

6. Choose a horizontal and vertical interval, which allows you to skip steps to get a faster though rougher view of the eye. If time is critical this can help speed up the eye generation process, but results in less resolution as to the actual point of BER crossover.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Using Tcl in System Console

11–13

7. Click Run. The EyeQ Feature gathers the current settings of the channel and uses those settings to start a sweep to create the eye. As the run is active you can view the status through the progress bar. Depending on the mode you chose, you will see a bathtub curve or eye contour. The width and height (if applicable) of the eye is displayed once the run is completed. If the eye is un-centered or falls off the edge and wraps around the other side, click Center Eye to center the data for easier viewing.

8. You can change run options such as BER target, vertical phase step, or intervals, and run again to collect more data. Switching between these options can show previously run data so you can easily compare. If you click Create Report, all data collected so far is shown in table format. If you change PMA settings, you must click Reset to clear all data and take in the new PMA settings to be used for testing. You can also click Reset to clear the data and collect a new set of data due to changing conditions or circumstances.

If you want to change PMA settings and re-run the EyeQ feature, make sure you first stop and reset the EyeQ feature. If you do not reset, the EyeQ feature continues testing based on the original PMA settings of the current test and overwrites any setting you may have changed through the control panel.

After you stop and reset the EyeQ feature, change settings in the link or receiver channel control panel. Then click Start on the EyeQ feature to start a new set of tests.

When you can see that you are running good PMA settings, the bathtub curve is wide, with sharp slopes near the edges. The curve may be up to 30 units wide. If the bathtub is narrow, maybe as small as two units wide, then the signal quality may be poor. The wider the bathtub curve, the wider the eye you have. Conversely, the smaller the bathtub curve, the smaller the eye.

h

For more information about how to use the EyeQ feature, including the differences between Stratix IV and Stratix V devices, refer to Working with the Transceiver Toolkit in

Quartus II Help.

Using Tcl in System Console

System Console is the framework in the Quartus II software that supports the

Transceiver Toolkit. System Console provides a number of Tcl commands that you can use to build a custom test routine script to test the transceiver link using the data generator and checker. System Console allows you to tune PMA parameter, such as those for changing DC gain. To get help on the Tcl commands available, type help

in the Tcl console in System Console. To run a transceiver link test flow, perform the following.You can perform all the tasks with Tcl commands in System Console.

1. Load the Quartus II project.

2. Find and link the design and service path.

3. Find and open links to transmitter channels and receiver channels.

4. Set up PRBS patterns to run on the link.

5. Set up PMA settings on transmitter and receiver channels.

6. Use PIO logic to generate a rising edge to enable the word aligner.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–14 Chapter 11: Transceiver Link Debugging Using the System Console

Usage Scenarios

7. Start the link test.

8. Poll the receiver for BER data.

9. When the test is finished, stop the link test.

10. Close the link.

f

For more information about Tcl commands, refer to the

Analyzing and Debugging

Designs with the System Console

chapter in volume 3 of the Quartus II Handbook.

When you read the Tcl scripts provided with the design examples, they help you understand how the Tcl commands are used.

Running Tcl Scripts

The tasks that you perform with the Transceiver Toolkit GUI for setting up your test environment you can also save as Tcl scripts. For example, you can save the steps you perform for loading your project in the Transceiver Toolkit by clicking Create Tcl

setup script

on the File menu.

You can save your steps at various stages, such as when you add projects, create design instances, link designs to devices, and create transceiver links. You can run these scripts to reach the initial setup you created to get your specific configuration ready for debugging. All the saved scripts are shown under the Scripts in the System

Explorer

.You can execute a script by right-clicking on Scripts under the System

Explorer

in the Transceiver Toolkit, and then clicking Run, or you can double-click on the script. You can also execute scripts from the System Console command line.

Usage Scenarios

You can use the Transceiver Toolkit if you are debugging one device on one board or more than one device on a single or multiple boards. Usually for a device you have a single Quartus II design or project, but you can have one design targeted for two or more similar devices on the same or different boards.

Possible scenarios for how you can use the Transceiver Toolkit in those situations follow. The scenarios assume that you have programmed the device you are testing with the relevant .sof.

“Linking One Design to One Device Connected By One USB Blaster Cable” on page 11–15

“Linking Two Designs to Two Separate Devices on Same Board (JTAG Chained),

Connected By One USB Blaster Cable” on page 11–15

“Linking Two Designs to Two Separate Devices on Separate Boards, Connected to

Separate USB Blaster Cables” on page 11–15

“Linking Same Design on Two Separate Devices” on page 11–15

“Linking Unrelated Designs” on page 11–16

“Saving Your Setup As a Tcl Script” on page 11–16

“Verifying Channels Are Correct When Creating Link” on page 11–16

“Using the Recommended DFE Flow” on page 11–17

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Usage Scenarios

11–15

“Running Simultaneous Tests” on page 11–17

“Enabling Internal Serial Loopback” on page 11–18

h

For further information on how to use the Transceiver Toolkit GUI to perform the following scenarios, refer to Working with the Transceiver Toolkit in Quartus II Help.

Linking One Design to One Device Connected By One USB Blaster Cable

The following describes how to link one design to one device by one USB Blaster cable.

1. Load the design for all the Quartus II project files you might need.

2. Link each device to an appropriate design (Quartus II project) if it has not auto-linked.

3. Create the link between channels on the device to test.

Linking Two Designs to Two Separate Devices on Same Board (JTAG

Chained), Connected By One USB Blaster Cable

The following describes how to link two designs to two separate devices on the same board, connected by one USB Blaster cable.

1. Load the design for all the Quartus II project files you might need.

2. Link each device to an appropriate design (Quartus II project) if it has not auto-linked.

3. Open the project for the second device.

4. Link the second device on the JTAG chain to the second design (unless it auto-links).

5. Create a link between the channels on the devices you want to test.

Linking Two Designs to Two Separate Devices on Separate Boards,

Connected to Separate USB Blaster Cables

The following describes how to link two designs to two separate devices on separate boards, connected to separate USB Blaster cables.

1. Load the design for all the Quartus II project files you might need.

2. Link each device to an appropriate design (Quartus II project) if it has not auto-linked.

3. Create the link between channels on the device to test.

4. Link the device you connected to the second USB Blaster cable to the second design.

5. Create a link between the channels on the devices you want to test.

Linking Same Design on Two Separate Devices

The following describes how to link the same design on two separate devices.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–16 Chapter 11: Transceiver Link Debugging Using the System Console

Usage Scenarios

1. In the Transceiver Toolkit, open the Quartus II project file (.qpf) you are using on both devices.

2. Link the first device to this design instance. Follow the same linking method that you used on previous steps.

3. Link the second device to the design. Follow the same linking method that you used on previous steps.

4. Create a link between the channels on the devices you want to test.

Linking Unrelated Designs

Use a combination of the above steps to load multiple Quartus II projects and make links between different systems. You can perform tests on completely separate systems that are not related to one another. All tests run through the same tool instance.

1

Do not attempt to start multiple instances of the Transceiver Toolkit. You can only control multiple devices and run multiple tests simultaneously through the same instance of the Transceiver Toolkit.

Saving Your Setup As a Tcl Script

After you open projects and define links for the system so that the entire physical system is correctly described, use the command Save Tcl Script to create a setup script.

Close and reopen the Transceiver Toolkit.

Open the scripts folder in System Explorer and double-click the script to reload the system. You can also right-click and choose Run Script, or use the menu command

Load Script

to run the appropriate script.

Verifying Channels Are Correct When Creating Link

After you load your design and link your hardware, you should verify that the channels you have created are correct and looped back properly on the hardware. You should be able to send the data patterns and receive them correctly.

Perform the following steps before you perform Auto Sweep or EyeQ tests to verify your link and correct channel, which may save time in the work flow.

1. Assuming that you have completed the system setup, choose the transmitter channel, and click Control Transmitter Channel.

2. Set the test pattern to prbs 7.

3. Start the pattern generator, press Start.

4. Navigate to the control panel, choose the receiver channel, and click Control

Receiver Channel

.

5. Set the test pattern to prbs 7.

6. Press Start.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Usage Scenarios

11–17

7. Verify channels that the channels are correct, based on the following conditions: a. If the Run status is good (green), the receiver is receiving data. To verify that the data is coming from the expected transmitter, you can navigate to the transmitter and do either of the following:

Click Stop on the transmitter and see if Data Locked on the receiver turns off.

If the receiver shows 0 error bits, click Inject Error on the transmitter and see if that error shows up on the receiver.

b. If the Run status is bad (yellow with flashing exclamation point), do either of the following:

The data quality is too poor to lock. You can manually adjust the PMA settings to see if you can get a lock. If not, use the Auto Sweep tool if you are certain the channel is correct.

The receiver and transmitter are not connected together. You either picked the wrong pair, or you have not made the physical connection between the pair.

After you have verified that the transmitter and receiver are talking to each other, create a link in the link tab with these two transceivers so that you can perform Auto

Sweep and EyeQ tests with this pair.

Using the Recommended DFE Flow

To use the DFE flow recommended by Altera, perform the following steps:

1. Use the Auto Sweep flow to find optimal PMA settings while leaving the DFE setting OFF.

2. Take the best PMA setting achieved, if BER = 0. Then you do not have to do anything if you use this setting.

3. If BER > 0, then use this PMA setting and set minimum and maximum values in the Auto Sweep tool to match this setting. Set the DFE MAX range to limits for each of the three DFE settings.

4. Run the Auto Sweep tool to determine which DFE setting results in the best BER.

Use these settings in conjunction with the PMA settings for the best results.

Running Simultaneous Tests

To run link tests simultaneously in one instance of the Transceiver Toolkit, perform the following steps:

1. Set up your system correctly with one of the previous set-up scenarios.

2. In the control panel for the link you work on, run either the Auto Sweep or EyeQ tool.

3. After you start the test, return to the Transceiver Toolkit control panel.

4. Select the control panel tab.

5. Open the Tools menu and click Transceiver Toolkit, which returns you to the control panel.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–18 Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

6. Repeat step 2 until all tests are run.

7. The control panel shows which links and channel resources are in use to help identify which channels already have tests started and their current run status.

Enabling Internal Serial Loopback

You can use the Transceiver Toolkit GUI control for serial loopback. In the Transceiver

Toolkit version 11.1 and later to enable the serial loopback, check the box Serial

Loopback

. To enable the serial loopback in Tcl, use the System Console commands.

h

For more information, refer to

Working with the Transceiver Toolkit

in Quartus II Help.

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

This section provides a quick guide for using the Transceiver Toolkit, and includes the following:

“Preparing to Use the Transceiver Toolkit” on page 11–18

“Working with Design Examples” on page 11–19

“Modifying Design Examples” on page 11–20

“Setting a Link in the Transceiver Toolkit for High-Speed Link Tests” on page 11–21

“Running Auto Sweep Tests” on page 11–22

“Running EyeQ Tests” on page 11–22

“Running Manual Tests” on page 11–23

“Using a Typical Flow” on page 11–23

“Following the Online Demonstration” on page 11–24

f

For more information about how to use the Transceiver Toolkit, refer to the

Altera

Training

page of the Altera website.

Preparing to Use the Transceiver Toolkit

Following is a list of recommended prerequisites to get you prepared for using the

Transceiver Toolkit:

You should know how to use the Quartus II software.

f

For further information on how to use the Quartus software, refer to the

Introduction to Quartus II Software.

Become familiar with an overview description of the Transceiver Toolkit as

described in “Transceiver Toolkit Overview” on page 11–1

.

Design examples you may download from the Altera website were created using

Qsys software, such that you should have knowledge of Qsys. Prior to Qsys, design examples were created with SOPC Builder. Knowledge of SOPC Builder will help with your understanding of Qsys.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

11–19

You need some experience working with Altera high-speed transceiver devices, especially Stratix IV GX and Stratix V devices.

Working with the Transceiver Toolkit GUI is described in further detail in the

Quartus II Help.

h

For more information, refer to

Working with the Transceiver Toolkit

in Quartus

II Help.

■ You can find further reference materials, including Quartus II design examples, on the Altera website.

Working with Design Examples

You can download design examples from the Altera website, as described in

“Transceiver Link Debugging Design Examples” on page 11–3

. These design examples help you get started quickly using the Transceiver Toolkit without having to make your own designs to perform high-speed link tests.

The design example is a Qsys designed system using various components. The components include JTAG to Avalon Master Bridge, Custom PHY IP core, Low

Latency PHY IP core, and data generator and checkers with their own data format and adapters. These components can be found in a Qsys library.

The Qsys system is wrapped in a top-level HDL file in Verilog.

The online design examples are targeted for device-specific signal integrity boards.

You can use these design examples with other boards by changing assignments.

The first design example is a one-channel design with an 8-bit interface and a

Custom PHY IP core data rate of 1.25 mbps. This example contains one JTAG to

Avalon Master Bridge, one Custom PHY IP core, one data generator, one data checker, and timing and data format adapters for each checker and generator.

The second design example is a four-channel bonded design with a 10-bit interface and a Custom PHY IP core data rate of 2.5 gbps.

1

Some device families have a different set of examples than this four-channel bonded design.

The design contains one JTAG to Avalon master, one Custom PHY IP core, four data generators and data checkers, and timing and data format adapters for each checker and generator.

To use these examples, perform the following:

1. Download the examples from the Altera website.

f

Download the Transceiver Toolkit design examples from the On-Chip

Debugging Design Examples page of the Altera website.

2. Unzip the examples files.

3. You can directly program the device with the design provided, or you can modify the design.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–20 Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

4. If you modify the design you must then recompile the program to get a new programming file. Use the new programming file to program your device.

5. Open the Transceiver Toolkit from the Tools menu of the Quartus II software. You do not need to create links because a default set is automatically created for you.

h

For more information, refer to

Transceiver Toolkit Window

in Quartus II Help.

6. You can change settings for the links manually or you can use the Transceiver

Auto Sweep panel.

7. Run the Auto Sweep and EyeQ tests from the Transceiver Toolkit window to find the optimal settings.

h

For more information about running Auto Sweep and EyeQ tests and the difference between Stratix IV GX and Stratix V testing, refer to

Working with the Transceiver Toolkit

in Quartus II Help.

Modifying Design Examples

You may want to modify the design examples to change the data rate of the Custom

PHY IP core, add more channels to the Custom PHY IP core, or change the device.

Online training on the Altera website provides further detailed descriptions of how to modify the design examples. f

For more information about the online training, refer to “Following the Online

Demonstration” on page 11–24

.

To modify the design examples that you download from the Altera website, open the existing project in the Qsys tools in the Quartus II software. Qsys has a graphical interface that is shown in the online training, so that following the instructions is straightforward.

You can make changes to the design examples so that you can use a different development board or different device. You make pin assignment changes and then recompile the design, as shown in the online training.

You either create a new programming file with the Programmer in the Quartus II software, or use the existing programming file that comes with the zipped design examples. The Programmer must complete its programming function 100% with no errors.

f

When you recompile the design a new programming file is created. If you do not change the design you can use the included programming file.

h

For more information about programming a device, refer to

Programming Devices

in

Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

11–21

Setting a Link in the Transceiver Toolkit for High-Speed Link Tests

1. Make sure your development board is properly configured.

a. You must make the proper connections for the links you want to test.

b. Your board must be up and running, and programmed with the correct programming file.

c. Set-up examples are shown in the online training.

f

Refer to the

Transceiver Toolkit Online Demo

on the Altera website.

2. Open the Transceiver Toolkit from the Tools menu in the Quartus II software, if the panel is not already showing on the screen.

3. The System Explorer panel on the left side of the System Console shows design connections, loaded designs, and design instances. Ensure that your hardware is shown in the System Explorer.

4. Load your design project, which is a .qpf file, into the System Console with the

Load Design

command.

5. Open the Transceiver Toolkit from the Tools menu in the System Console. You can now view all the design information.

6. Link the hardware you want to test to the Quartus II project. Right-click on a device and select Link device to. Then select the Quartus II project name from the list.

1

In most cases links are automatically loaded, so you may not need to link hardware as described in step 6 if you are working with design examples.

1

To automatically instantiate and link designs after they have been loaded in to the System Console, click Assignments on the main menu of the Quartus

II software, click Device on the Device and Pin Options dialog box, and then turn on Auto usercode.

7. You can save all actions you perform into a Tcl script. On the File menu of the

System Console, click Create Tcl setup script. This action creates a Tcl script of your current setup, including receivers, transmitters, and links you created. The next time you start the Transceiver Toolkit, you can double-click the script to open the setup you saved.

8. All the scripts are listed under Scripts in the System Explorer pane. You can add any Tcl script when you place the script into your Scripts folder. You can then right-click the Scripts folder to open the folder and add or modify files.

9. On the Transceiver Toolkit main window, the Transceiver Links tab is automatically populated with the channel information in your design.

10. By default links are created between the transceiver and receiver of the same channel and are shown in the Transceiver Links tab.

11. You can also create an additional link between a different transceiver and receiver channel.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–22 Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

12. On the Transceiver Links tab, you click Control Link, Auto Sweep, or EyeQ to run tests.

13. On the Receiver Channels tab, you click Control Channel, Auto Sweep, or EyeQ to control and run tests.

Running Auto Sweep Tests

To use Auto Sweep in the Transceiver Toolkit to perform high-speed link tests perform the following:

1. On the Transceiver Links tab, click Auto Sweep to open the Auto Sweep panel.

You use this panel to perform Auto Sweep Bit Error Rate (BER) testing.

2. Previous transceiver settings are shown in the Auto Sweep tab. You can select different combinations of settings here before starting a test. Different settings change the case count.

3. When you start the Auto Sweep test the Current column displays the current test results. The Best column displays the best results so far obtained during the test.

4. You create reports by clicking Create Report once Auto Sweep is completed or while the testing is in process. You can export all settings and results to reports in a

.csv

format. Columns in the reports show various transceiver settings and you can sort the columns, which simplifies finding the best test cases. For example, when you sort on the BER column, it gives you the settings that produce the lowest BER.

h

For more information about running Auto Sweep tests and the difference between Stratix IV GX and Stratix V testing, refer to

Working with the

Transceiver Toolkit

in Quartus II Help.

Running EyeQ Tests

To use the EyeQ feature in the Transceiver Toolkit, perform the following:

1. On the Transceiver Links tab, click EyeQ to open the EyeQ panel. This panel shows the transceiver settings. To change settings you open either the Transceiver

Links or Receiver Links control panels, make setting changes, and run the EyeQ test again. These panels open when you click either Control Links or Control

Channel

on the Transceiver Links tab or the Transceiver Channels tab.

2. Use EyeQ to verify receiver settings. EyeQ can see how receiver settings affect eye width.

3. Click Reset when you change settings and want to run the EyeQ test again.

4. When the EyeQ test begins and the first sweep is completed, the bathtub curve is generated and displays. If you do not see a bathtub curve at the end of the test run, but see a hill instead, click Center Eye to position the bathtub curve in the middle of the pane.

5. Click Create Report to generate EyeQ reports. If you sort the report by BER column, the number of rows that have a BER value of 0 are considered the unit of width of the eye from the specified PMA settings.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 11: Transceiver Link Debugging Using the System Console

Quick Guide to Using the Transceiver Toolkit in the Quartus II Software

11–23

h

For more information about running Auto Sweep tests and the difference between Stratix IV GX and Stratix V testing, refer to

Working with the

Transceiver Toolkit

in Quartus II Help.

Running Manual Tests

Besides performing Auto Sweep and EyeQ tests with the Transceiver Toolkit, you can also perform manual tests and change PMA settings while testing is in progress as follows:

1. Ensure that Auto Sweep tools have finished, and both Auto Sweep and EyeQ windows are closed.

2. Click Control Link on the Transceiver Links tab. The Receiver, Transmitter, and

Link Control panels open.

3. Select a test pattern and begin testing.

4. While the test is running you can change the PMA settings on the Transmitter or

Receiver Control panels.

5. Press Inject Error on the Transmitter Control panel and view results on the

Receiver Control panel. You can only use Inject Error to verify that have connected the proper transmitter to your receiver.

6. Click Reset on the Receiver Control panel after changing the PMA settings so that the BER counter starts from the beginning.

Using a Typical Flow

You can use the tools in the Transceiver Toolkit however you choose. Following is a typical flow:

1. Perform an Auto Sweep test to get the best BER with various combinations of

PMA settings. You can also check the Best Case column in an Auto Sweep BER report for the settings with the best BER value. You then enter those PMA values in the Transmitter Channel and Receiver Channel control tabs.

2. Use the control panels to set the PMA settings and test pattern that you want to run the EyeQ test against. Select a Transceiver Link or Receiver Channel in the

Transceiver Toolkit tab that you want to run the EyeQ test against. Click Control

Link

or Control Channel to open the control panels.

3. Re-run EyeQ sweeps with different settings to see if the eye width changes. When you see that you are running good PMA settings, the bathtub curve is wide and has sharp slopes near the edges. The curve may be up to 30 units wide. If the bathtub curve is narrow, say two units wide for example, then the signal quality may be poor. The wider the bathtub curve, the wider the eye you have.

1

Do not change any control panel settings while you are actively using Auto

Sweep tools. If you do manually use the control panel, make sure all receivers and transmitters are stopped before attempting to use an Auto

Sweep tool.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

11–24 Chapter 11: Transceiver Link Debugging Using the System Console

Conclusion

Following the Online Demonstration

f

For an online demonstration of how to use the Transceiver Toolkit to run a high-speed link test with one of the design examples, refer to the

Transceiver Toolkit Online Demo

on the Altera website.

The demonstration shows how to perform link testing with one device. The

Transceiver Toolkit is scalable for other purposes, such as performing board-to-board testing, testing device-to-device on the same development board, and testing internal loopbacking of the same channel with no external loopbacking required.

Conclusion

You gain productivity when optimizing high-speed transceiver links in your board designs with the Transceiver Toolkit and design examples provided from Altera. You can easily set up automatic testing of your transceiver channels so that you can monitor, debug, and optimize transceiver link channels in your board design. You then know the optimal PMA settings to use for each channel in your final FPGA design. You can download standard design examples from Altera’s website, and then customize the examples to use in your own design.

Document Revision History

Table 11–3

lists the revision history for this handbook chapter.

Table 11–3. Document Revision History

Date

November, 2011

May, 2011

December 2010

August 2010

July 2010

Version

11.1.0

11.0.0

10.1.0

10.0.1

10.0.0

Changes

Maintenance release. This chapter adds new Transceiver Toolkit features.

Minor editorial updates.

Added new Tcl scenario.

Changed to new document template. Added new 10.1 release features.

Corrected links

Initial release f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

12. Quick Design Debugging Using

SignalProbe

November 2011

QII53008-10.0.2

QII53008-10.0.2

This chapter provides detailed instructions about how to use SignalProbe to quickly debug your design. The SignalProbe incremental routing feature helps reduce the hardware verification process and time-to-market for system-on-a-programmable-chip (SOPC) designs.

Easy access to internal device signals is important in the design or debugging process.

The SignalProbe feature makes design verification more efficient by routing internal signals to I/O pins quickly without affecting the design. When you start with a fully routed design, you can select and route signals for debugging to either previously reserved or currently unused I/O pins.

The SignalProbe feature is supported with the Arria

® series, and MAX

®

II, device families.

GX, Stratix

® series, Cyclone

® f

The Quartus

®

II software provides a portfolio of on-chip debugging solutions. For an overview and comparison of all of the tools available in the Quartus II software on-chip debugging tool suite, refer to

Section IV. System Debugging Tools

in volume 3 of the Quartus II Handbook.

Debugging Using the SignalProbe Feature

The SignalProbe feature allows you to reserve available pins and route internal signals to those reserved pins, while preserving the behavior of your design.

SignalProbe is an effective debugging tool that provides visibility into your FPGA.

You can reserve pins for SignalProbe and assign I/O standards before or after a full compilation. Each SignalProbe-source to SignalProbe-pin connection is implemented as an engineering change order (ECO) change that is applied to your netlist after a full compilation.

To route the internal signals to the device’s reserved pins for SignalProbe, perform the following tasks:

1.

Reserve the SignalProbe Pins , described on page 12–2 .

2.

Perform a Full Compilation

, described on

page 12–2

.

3.

Assign a SignalProbe Source , described on page 12–2

.

4.

Add Registers to the Pipeline Path to SignalProbe Pin , described on page 12–3

.

5.

Perform a SignalProbe Compilation , described on page 12–3 .

6.

Analyze the Results of the SignalProbe Compilation , described on page 12–4

.

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

12–2 Chapter 12: Quick Design Debugging Using SignalProbe

Debugging Using the SignalProbe Feature

Reserve the SignalProbe Pins

SignalProbe pins can only be reserved after compiling your design. You can also reserve any unused I/Os of the device for SignalProbe pins after compilation.

Assigning sources is a simple process after reserving SignalProbe pins. The sources for SignalProbe pins are the internal nodes and registers in the post-compilation netlist that you want to probe.

1

Although you can reserve SignalProbe pins using many features within the Quartus II software, including the Pin Planner and the Tcl interface, you should use the

SignalProbe Pins

dialog box to create and edit your SignalProbe pins. h

For more information, refer to

About SignalProbe

in Quartus II Help.

Perform a Full Compilation

You must complete a full compilation to generate an internal netlist containing a list of internal nodes to probe to a SignalProbe output pin.

To perform a full compilation, on the Processing menu, click Start Compilation.

Assign a SignalProbe Source

A SignalProbe source can be any combinational node, register, or pin in your post-compilation netlist. To find a SignalProbe source, in the Node Finder, use the

SignalProbe filter to remove all sources that cannot be probed. You might not be able to find a particular internal node because the node can be optimized away during synthesis, or the node cannot be routed to the SignalProbe pin. For example, nodes and registers within Gigabit transceivers in Stratix IV devices cannot be probed because there are no physical routes available to the pins.

1

To probe virtual I/O pins generated in low-level partitions in an incremental compilation flow, select the source of the logic that feeds the virtual pin as your

SignalProbe source pin. h

For more information, refer to

SignalProbe Pins Dialog Box

and

Add SignalProbe Pins

Dialog Box

in Quartus II Help.

Because SignalProbe pins are implemented and routed as ECOs, turning the

SignalProbe enable

option on or off is the same as selecting Apply Selected Change or Restore Selected Change in the Change Manager window. (If the Change Manager window is not visible at the bottom of your screen, on the View menu, point to Utility

Windows

and click Change Manager.) f

For more information about the Change Manager for the Chip Planner and Resource

Property Editor, refer to the

Engineering Change Management with the Chip Planner

chapter in volume 2 of the Quartus II Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 12: Quick Design Debugging Using SignalProbe

Debugging Using the SignalProbe Feature

12–3

Add Registers to the Pipeline Path to SignalProbe Pin

You can specify the number of registers placed between a SignalProbe source and a

SignalProbe pin to synchronize the data with a clock and to control the latency of the

SignalProbe outputs. The SignalProbe feature automatically inserts the number of registers specified into the SignalProbe path.

Figure 12–1 shows a single register between the SignalProbe source

Reg_b_1

and

SignalProbe

SignalProbe_Output_2

output pin added to synchronize the data between the two SignalProbe output pins.

1

When you add a register to a SignalProbe pin, the SignalProbe compilation attempts to place the register to best fit timing requirements. You can place SignalProbe registers either near the SignalProbe source to meet f

MAX

requirements, or near the

I/O to meet t

CO

requirements.

Figure 12–1. Synchronizing SignalProbe Outputs with a SignalProbe Register

Logic

Reg_a_1

DFF

D Q

Reg_a_2

DFF

D Q

Logic

Logic

Reg_b_1

DFF

D Q

Reg_b_2

DFF

D Q

Logic

SignalProbe_Output_1

D Q

SignalProbe

Pipeline

Register

SignalProbe_Output_2 h

To pipeline an existing SignalProbe connection, refer to

Add SignalProbe Pins Dialog

Box

in Quartus II Help.

In addition to clock input for pipeline registers, you can also specify a reset signal pin for pipeline registers. To specify a reset pin for pipeline registers, use the Tcl command make_sp

, as described in “Scripting Support” on page 12–6

.

Perform a SignalProbe Compilation

Perform a SignalProbe compilation to route your SignalProbe pins. A SignalProbe compilation saves and checks all netlist changes without recompiling the other parts of the design and completes compilation in a fraction of the time of a full compilation.

The design’s current placement and routing are preserved.

To perform a SignalProbe compilation, on the Processing menu, point to Start and click Start SignalProbe Compilation.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

12–4 Chapter 12: Quick Design Debugging Using SignalProbe

Debugging Using the SignalProbe Feature

Analyze the Results of the SignalProbe Compilation

After a SignalProbe compilation, the results are available in the compilation report file. Each SignalProbe pin is displayed in the SignalProbe Fitting Result page in the

Fitter

section of the Compilation Report. To view the status of each SignalProbe pin in the SignalProbe Pins dialog box, on the Tools menu, click SignalProbe Pins.

The status of each SignalProbe pin appears in the Change Manager window

(

Figure 12–2 ). (If the Change Manager window is not visible at the bottom of your

GUI, from the View menu, point to Utility Windows and click Change Manager.)

Figure 12–2. Change Manager Window with SignalProbe Pins

f

For more information about how to use the Change Manager, refer to the

Engineering

Change Management with the Chip Planner

chapter in volume 2 of the Quartus II

Handbook.

To view the timing results of each successfully routed SignalProbe pin, on the

Processing menu, point to Start and click Start Timing Analysis.

Performing a SignalProbe Compilation

After a full compilation, you can start a SignalProbe compilation either manually or automatically. A SignalProbe compilation performs the following functions:

Validates SignalProbe pins

Validates your specified SignalProbe sources

If applicable, adds registers into SignalProbe paths

Attempts to route from SignalProbe sources through registers to SignalProbe pins

To run the SignalProbe compilation automatically after a full compilation, on the

Tools menu, click SignalProbe Pins. In the SignalProbe Pins dialog box, click Start

Check & Save All Netlist Changes

.

To run a SignalProbe compilation manually after a full compilation, on the Processing menu, point to Start and click Start SignalProbe Compilation.

1

You must run the Fitter before a SignalProbe compilation. The Fitter generates a list of all internal nodes that can be used as SignalProbe sources.

Turn the SignalProbe enable option on or off in the SignalProbe Pins dialog box to enable or disable each SignalProbe pin.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 12: Quick Design Debugging Using SignalProbe

Debugging Using the SignalProbe Feature

12–5

Understanding the Results of a SignalProbe Compilation

After a SignalProbe compilation, the results appear in two sections of the compilation report file. The fitting results and status (

Table 12–1

) of each SignalProbe pin is displayed in the SignalProbe Fitting Result screen in the Fitter section of the

Compilation Report ( Figure 12–3 ).

Table 12–1. Status Values

Status

Routed

Not Routed

Failed to Route

Need to Compile

Description

Connected and routed successfully

Not enabled

Failed routing during last SignalProbe compilation

Assignment changed since last SignalProbe compilation

Figure 12–3. SignalProbe Fitting Results Page in the Compilation Report Window

The timing results of each successfully routed SignalProbe pin is displayed in the

SignalProbe source to output delays

screen in the Timing Analysis section of the

Compilation Report ( Figure 12–4 ).

Figure 12–4. SignalProbe Source to Output Delays Page in the Compilation Report Window

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

12–6 Chapter 12: Quick Design Debugging Using SignalProbe

Scripting Support

1

After a SignalProbe compilation, the processing screen of the Messages window also provides the results of each SignalProbe pin and displays slack information for each successfully routed SignalProbe pin.

Analyzing SignalProbe Routing Failures

The SignalProbe can begin compilation; however, one of the following reasons can prevent complete compilation:

Route unavailable

—the SignalProbe compilation failed to find a route from the

SignalProbe source to the SignalProbe pin because of routing congestion

Invalid or nonexistent SignalProbe source

—you entered a SignalProbe source that does not exist or is invalid

Unusable output pin

—the output pin selected is found to be unusable

Routing failures can occur if the SignalProbe pin’s I/O standard conflicts with other

I/O standards in the same I/O bank.

If routing congestion prevents a successful SignalProbe compilation, you can allow the compiler to modify routing to the specified SignalProbe source. On the Tools menu, click SignalProbe Pins and turn on Modify latest fitting results during

SignalProbe compilation

. This setting allows the Fitter to modify existing routing channels used by your design.

1

Turning on Modify latest fitting results during SignalProbe compilation can change the performance of your design.

Scripting Support

Running procedures and make settings using a Tcl script are described in this chapter.

You can also run some procedures at a command prompt. For detailed information about scripting command options, refer to the Quartus II command-line and Tcl API

Help browser. To run the Help browser, type the following command at the command prompt: quartus_sh --qhelp r

1

The Tcl commands in this section are part of the

::quartus::chip_planner

Quartus II

Tcl API. Source or include the

::quartus::chip_planner

Tcl package in your scripts to make these commands available.

f

For more information about Tcl scripting, refer to the

Tcl Scripting

chapter in volume 2 of the Quartus II Handbook. For more information about all settings and constraints in the Quartus II software, refer to the

Quartus II Settings File Reference Manual

. For more information about command-line scripting, refer to the

Command-Line Scripting

chapter in volume 2 of the Quartus II Handbook.

Make a SignalProbe Pin

To reserve a SignalProbe pin, type the following command: make_sp [-h | -help] [-long_help] [-clk <clk>] [-io_std <io_std>] \

-loc <loc> -pin_name <pin name> [-regs <regs>] [-reset <reset>] \

-src_name <source name>

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 12: Quick Design Debugging Using SignalProbe

Scripting Support

12–7

Delete a SignalProbe Pin

To delete a SignalProbe pin, use the following Tcl command: delete_sp [-h | -help] [-long_help] -pin_name <pin name>

Enable a SignalProbe Pin

To enable a SignalProbe pin, use the following Tcl command: enable_sp [-h | -help] [-long_help] -pin_name <pin name>

Disable a SignalProbe Pin

To disable a SignalProbe pin, use the following Tcl command: disable_sp [-h | -help] [-long_help] -pin_name <pin name>

Perform a SignalProbe Compilation

To perform a SignalProbe compilation, type the following command: quartus_sh --flow signalprobe <project name>

Script Example

Example 12–1 shows a script that creates a SignalProbe pin called

sp1

and connects the sp1

pin to source node reg1

in a project that was already compiled.

Example 12–1. Creating a SignalProbe Pin Called sp1

package require ::quartus::chip_planner project_open project read_netlist make_sp -pin_name sp1 -src_name reg1 check_netlist_and_save project_close

Reserving SignalProbe Pins

To reserve a SignalProbe pin, add the commands shown in

Example 12–2

to the

Quartus II Settings File .qsf for your project.

Example 12–2. Reserving a SignalProbe Pin

set_location_assignment <location> -to <SignalProbe pin name> set_instance_assignment -name RESERVE_PIN \

"AS SIGNALPROBE OUTPUT" -to <SignalProbe pin name>

Valid locations are pin location names, such as

Pin_A3

.

For more information about reserving SignalProbe pins, refer to “Reserve the

SignalProbe Pins” on page 12–2

.

Common Problems When Reserving a SignalProbe Pin

If you cannot reserve a SignalProbe pin in the Quartus II software, it is likely that one of the following is true:

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

12–8 Chapter 12: Quick Design Debugging Using SignalProbe

Scripting Support

You have selected multiple pins.

A compile is running in the background. Wait until the compilation is complete before reserving the pin.

You have the Quartus II Web Edition software, in which the SignalProbe feature is not enabled by default. You must turn on TalkBack to enable the SignalProbe feature in the Quartus II Web Edition software.

You have not set the pin reserve type to As Signal Probe Output. To reserve a pin, on the Assignments menu, in the Assign Pins dialog box, select As SignalProbe

Output

.

The pin is reserved from a previous compilation. During a compilation, the

Quartus II software reserves each pin on the targeted device. If you end the

Quartus II process during a compilation, for example, with the Windows Task

Manager End Process

command or the UNIX kill

command, perform a full recompilation before reserving pins as SignalProbe outputs.

The pin does not support the SignalProbe feature. Select another pin.

The current family does not support the SignalProbe feature.

Adding SignalProbe Sources

Use the following Tcl commands to add SignalProbe sources.

To assign the node name to a SignalProbe pin, use the following Tcl command: set_instance_assignment -name SIGNALPROBE_SOURCE <node name> -to \

<SignalProbe pin name>

The next command turns on SignalProbe routing. To turn off individual SignalProbe pins, specify

OFF

instead of

ON

with the following command: set_instance_assignment -name SIGNALPROBE_ENABLE ON -to \

<SignalProbe pin name> h

For more information about adding SignalProbe sources, refer to

SignalProbe Pins

Dialog Box

and

Add SignalProbe Pins Dialog Box

in Quartus II Help.

Assigning I/O Standards

To assign an I/O standard to a pin, use the following Tcl command: set_instance_assignment -name IO_STANDARD <I/O standard> -to \

<SignalProbe pin name> h

For a list of valid I/O standards, refer to the I/O Standards general description in the

Quartus II Help.

Adding Registers for Pipelining

To add registers for pipelining, use the following Tcl command: set_instance_assignment -name SIGNALPROBE_CLOCK <clock name> -to \

<SignalProbe pin name>

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 12: Quick Design Debugging Using SignalProbe

Scripting Support

12–9

set_instance_assignment \

-name SIGNALPROBE_NUM_REGISTERS <number of registers> -to \

<SignalProbe pin name>

Run SignalProbe Automatically

To run SignalProbe automatically after a full compile, type the following Tcl command: set_global_assignment -name SIGNALPROBE_DURING_NORMAL_COMPILATION ON

For more information about running SignalProbe automatically, refer to

“Performing a SignalProbe Compilation” on page 12–4 .

Run SignalProbe Manually

To run SignalProbe as part of a scripted flow using Tcl, use the following in your script: execute_flow -signalprobe

To perform a Signal Probe compilation interactively at a command prompt, type the following command: quartus_sh_fit --flow signalprobe <project name>

For more information about running SignalProbe manually, refer to

“Performing a

SignalProbe Compilation” on page 12–4

.

Enable or Disable All SignalProbe Routing

Use the Tcl command in Example 12–3 to turn on or turn off SignalProbe routing.

When using this command, to turn SignalProbe routing on, specify

ON

. To turn

SignalProbe routing off, specify

OFF

.

Example 12–3. Turning SignalProbe On or Off with Tcl Commands

set spe [get_all_assignments -name SIGNALPROBE_ENABLE] \ foreach_in_collection asgn $spe { set signalprobe_pin_name [lindex $asgn 2] set_instance_assignment -name SIGNALPROBE_ENABLE -to \

$signalprobe_pin_name <ON|OFF> }

For more information about enabling or disabling SignalProbe routing, refer to

page 12–4 .

Allow SignalProbe to Modify Fitting Results

To turn on Modify latest fitting results, type the following Tcl command: set_global_assignment -name SIGNALPROBE_ALLOW_OVERUSE ON

For more information, refer to “Analyzing SignalProbe Routing Failures” on page 12–6 .

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

12–10 Chapter 12: Quick Design Debugging Using SignalProbe

Conclusion

Conclusion

Using the SignalProbe feature can significantly reduce the time required compared to a full recompilation. Use the SignalProbe feature for quick access to internal design signals to perform system-level debugging.

Document Revision History

Table 12–2 shows the revision history for this chapter.

Table 12–2. Document Revision History

Date

November 2011

December 2010

July 2010

November 2009

March 2009

November 2008

May 2008

Version Changes

10.0.2

Template update.

10.0.1

Changed to new document template.

10.0.0

9.1.0

9.0.0

Revised for new UI.

Removed section SignalProbe ECO flows

Removed support for SignalProbe pin preservation when recompiling with incremental compilation turned on.

Removed outdated FAQ section.

Added links to Quartus II Help for procedural content.

Removed all references and procedures for APEX devices.

Style changes.

Removed the “Generate the Programming File” section

Removed unnecessary screenshots

Minor editorial updates

Modified description for preserving SignalProbe connections when using Incremental

Compilation

8.1.0

8.0.0

Added plausible scenarios where SignalProbe connections are not reserved in the design

Added “Arria GX” to the list of supported devices

Removed the “On-Chip Debugging Tool Comparison” and replaced with a reference to the Section V Overview on page 13–1

Added hyperlinks to referenced documents throughout the chapter

Minor editorial updates f

For previous versions of the Quartus II Handbook, refer to the Quartus II Handbook

Archive .

f

Take an online survey to provide feedback about this handbook chapter.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

November 2011

QII53009-11.0.1

QII53009-11.0.1

13. Design Debugging Using the

SignalTap II Logic Analyzer

Altera provides the SignalTap

II Logic Analyzer to help with the process of design debugging. This logic analyzer is a solution that allows you to examine the behavior of internal signals, without using extra I/O pins, while the design is running at full speed on an FPGA device.

The SignalTap II Logic Analyzer is scalable, easy to use, and is available as a standalone package or included with the Quartus

II software subscription. This logic analyzer helps debug an FPGA design by probing the state of the internal signals in the design without the use of external equipment. Defining custom trigger-condition logic provides greater accuracy and improves the ability to isolate problems. The

SignalTap II Logic Analyzer does not require external probes or changes to the design files to capture the state of the internal nodes or I/O pins in the design. All captured signal data is conveniently stored in device memory until you are ready to read and analyze the data.

The topics in this chapter include:

“Design Flow Using the SignalTap II Logic Analyzer” on page 13–5

“SignalTap II Logic Analyzer Task Flow” on page 13–6

“Configure the SignalTap II Logic Analyzer” on page 13–9

“Define Triggers” on page 13–26

“Compile the Design” on page 13–45

“Program the Target Device or Devices” on page 13–50

“Run the SignalTap II Logic Analyzer” on page 13–51

“View, Analyze, and Use Captured Data” on page 13–56

“Other Features” on page 13–62

“Design Example: Using SignalTap II Logic Analyzers in SOPC Builder Systems” on page 13–67

“Custom Triggering Flow Application Examples” on page 13–68

“SignalTap II Scripting Support” on page 13–70

© 2011 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011

Twitter Feedback Subscribe

13–2 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

The SignalTap II Logic Analyzer is a next-generation, system-level debugging tool that captures and displays real-time signal behavior in a system-on-a-programmablechip (SOPC) or any FPGA design. The SignalTap II Logic Analyzer supports the highest number of channels, largest sample depth, and fastest clock speeds of any

logic analyzer in the programmable logic market. Figure 13–1

shows a block diagram of the components that make up the SignalTap II Logic Analyzer.

Figure 13–1. SignalTap II Logic Analyzer Block Diagram

FPGA Device

(1)

Design Logic

0 1 2 3

SignalTap II

Instances

0 1 2 3

Buffers (Device Memory)

JTAG

Hub

Altera

Programming

Hardware

Quartus II

Software

Note to Figure 13–1

:

(1) This diagram assumes that you compiled the SignalTap II Logic Analyzer with the design as a separate design partition using the Quartus II incremental compilation feature. This is the default setting for new projects in the Quartus II software. If incremental compilation is disabled or not used, the SignalTap II logic is integrated with the design. For information about the use of incremental compilation with SignalTap II, refer to

“Faster Compilations with Quartus II Incremental Compilation” on page 13–46

.

This chapter is intended for any designer who wants to debug an FPGA design during normal device operation without the need for external lab equipment. Because the SignalTap II Logic Analyzer is similar to traditional external logic analyzers, familiarity with external logic analyzer operations is helpful, but not necessary. To take advantage of faster compile times when making changes to the SignalTap II

Logic Analyzer, knowledge of the Quartus II incremental compilation feature is helpful.

f

For information about using the Quartus II incremental compilation feature, refer to the

Quartus II Incremental Compilation for Hierarchical and Team-Based Design

chapter in volume 1 of the Quartus II Handbook.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer 13–3

Hardware and Software Requirements

You need the following components to perform logic analysis with the SignalTap II

Logic Analyzer:

■ Quartus II design software

or

Quartus II Web Edition (with the TalkBack feature enabled)

or

SignalTap II Logic Analyzer standalone software, included in and requiring the

Quartus II standalone Programmer software available from the Downloads page of the Altera website ( www.altera.com

)

Download/upload cable

Altera

development kit or your design board with JTAG connection to device under test

1

The Quartus II software Web Edition does not support the SignalTap II

Logic Analyzer with the incremental compilation feature.

The memory blocks of the device store captured data and transfers the data to the

Quartus II software waveform display with a JTAG communication cable, such as

EthernetBlaster or USB-Blaster

TM

.

Table 13–1

summarizes features and benefits of the

SignalTap II Logic Analyzer.

Table 13–1. SignalTap II Logic Analyzer Features and Benefits (Part 1 of 2)

Feature

Multiple logic analyzers in a single device

Multiple logic analyzers in multiple devices in a single JTAG chain

Benefit

Captures data from multiple clock domains in a design at the same time.

Simultaneously captures data from multiple devices in a JTAG chain.

Plug-In Support

Up to 10 basic or advanced trigger conditions for each analyzer instance

Power-Up Trigger

State-based Triggering Flow

Incremental compilation

Flexible buffer acquisition modes

MATLAB integration with included MEX function

Up to 2,048 channels per logic analyzer instance

Up to 128K samples in each device

Easily specifies nodes, triggers, and signal mnemonics for IP, such as the

Nios

II processor.

Enables sending more complex data capture commands to the logic analyzer, providing greater accuracy and problem isolation.

Captures signal data for triggers that occur after device programming, but before manually starting the logic analyzer.

Enables you to organize your triggering conditions to precisely define what your logic analyzer captures.

Modifies the SignalTap II Logic Analyzer monitored signals and triggers without performing a full compilation, saving time.

The buffer acquisition control allows you to precisely control the data that is written into the acquisition buffer. Both segmented buffers and non-segmented buffers with storage qualification allow you to discard data samples that are not relevant to the debugging of your design.

Collects the SignalTap II Logic Analyzer captured data into a MATLAB integer matrix.

Samples many signals and wide bus structures.

Captures a large sample set for each channel.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–4 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Table 13–1. SignalTap II Logic Analyzer Features and Benefits (Part 2 of 2)

Feature

Fast clock frequencies

Resource usage estimator

No additional cost

Compatibility with other on-chip debugging utilities

Benefit

Synchronous sampling of data nodes using the same clock tree driving the logic under test.

Provides estimate of logic and memory device resources used by

SignalTap II Logic Analyzer configurations.

The SignalTap II Logic Analyzer is included with a Quartus II subscription and with the Quartus II Web Edition (with TalkBack enabled).

You can use the SignalTap II Logic Analyzer in tandem with any JTAG-based on-chip debugging tool, such as an In-System Memory Content editor, allowing you to change signal values in real-time while you are running an analysis with the SignalTap II Logic Analyzer. f

The Quartus II software offers a portfolio of on-chip debugging solutions. For an overview and comparison of all tools available in the In-System Verification Tool set, refer to

Section IV. In-System Design Debugging

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Design Flow Using the SignalTap II Logic Analyzer

VHDL

(.vhd)

AHDL

(.tdf)

Block

Design File

(.bdf)

EDIF

Netlist

(.edf)

13–5

Design Flow Using the SignalTap II Logic Analyzer

Figure 13–2 shows a typical overall FPGA design flow for using the SignalTap II Logic

Analyzer in your design. A SignalTap II file (.stp) is added to and enabled in your project, or a SignalTap II HDL function, created with the MegaWizard

Plug-In

Manager, is instantiated in your design. The figure shows the flow of operations from initially adding the SignalTap II Logic Analyzer to your design to final device configuration, testing, and debugging.

Figure 13–2. SignalTap II FPGA Design and Debugging Flow

Verilog

HDL

(.v)

VQM

Netlist

(.vqm)

Debug Source File

Analysis and Synthesis

Fitter

Place-and-Route

Assembler

Timing Analyzer

Configuration

No Functionality

Satisfied?

Yes

End

SignalTap II File (.stp) or SignalTap II

MegaWizard File

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–6 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

SignalTap II Logic Analyzer Task Flow

SignalTap II Logic Analyzer Task Flow

To use the SignalTap II Logic Analyzer to debug your design, you perform a number of tasks to add, configure, and run the logic analyzer.

Figure 13–3

shows a typical flow of the tasks you complete to debug your design. Refer to the appropriate section of this chapter for more information about each of these tasks.

Figure 13–3. SignalTap II Logic Analyzer Task Flow

Create New Project or

Open Existing Project

Add SignalTap II Logic

Analyzer to Design Instance

Configure

SignalTap II Logic Analyzer

Define Triggers

Yes

Recompilation

Necessary?

No

Compile Design

Program Target

Device or Devices

Run SignalTap II

Logic Analyzer

View, Analyze, and

Use Captured Data

Adjust Options,

Triggers, or both

Continue Debugging

Functionality

Satisfied or Bug

Fixed?

Yes

End

No

Add the SignalTap II Logic Analyzer to Your Design

Create an .stp or create a parameterized HDL instance representation of the logic analyzer using the MegaWizard Plug-In Manager. If you want to monitor multiple clock domains simultaneously, add additional instances of the logic analyzer to your design, limited only by the available resources in your device.

h

For information about creating an .stp, refer to

Setting Up the SignalTap II Logic

Analyzer

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

SignalTap II Logic Analyzer Task Flow

13–7

Configure the SignalTap II Logic Analyzer

After you add the SignalTap II Logic Analyzer to your design, configure the logic analyzer to monitor the signals you want. You can manually add signals or use a plug-in, such as the Nios II processor plug-in, to quickly add entire sets of associated signals for a particular intellectual property (IP). You can also specify settings for the data capture buffer, such as its size, the method in which data is captured and stored, and the device memory type to use for the buffer in devices that support memory type selection.

h

For information about configuring the SignalTap II Logic Analyzer, refer to

Setting Up the SignalTap II Logic Analyzer

in Quartus II Help.

Define Trigger Conditions

The SignalTap II Logic Analyzer captures data continuously while the logic analyzer is running. To capture and store specific signal data, set up triggers that tell the logic analyzer under what conditions to stop capturing data. The SignalTap II Logic

Analyzer allows you to define trigger conditions that range from very simple, such as the rising edge of a single signal, to very complex, involving groups of signals, extra logic, and multiple conditions. Power-Up Triggers allow you to capture data from trigger events occurring immediately after the device enters user-mode after configuration.

h

For information about defining trigger conditions, refer to

Setting Up the SignalTap II

Logic Analyzer

in Quartus II Help.

Compile the Design

With the .stp configured and trigger conditions defined, compile your project as usual to include the logic analyzer in your design. Because you may need to change monitored signal nodes or adjust trigger settings frequently during debugging, Altera recommends that you use the incremental compilation feature built into the

SignalTap II Logic Analyzer, along with Quartus II incremental compilation, to reduce recompile times.

h

For information about compiling your design, refer to

Compiling a Design that Contains a SignalTap II Logic Analyzer

in Quartus II Help.

Program the Target Device or Devices

When you debug a design with the SignalTap II Logic Analyzer, you can program a target device directly from the .stp without using the Quartus II Programmer. You can also program multiple devices with different designs and simultaneously debug them.

1

The SignalTap II Logic Analyzer supports all current Altera FPGA device families including Arria

, Cyclone

, HardCopy

, and Stratix

devices.

h

For instructions on programming devices in the Quartus II software, refer to

Running the SignalTap II Logic Analyzer

in Quartus II Help.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–8 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

SignalTap II Logic Analyzer Task Flow

Run the SignalTap II Logic Analyzer

In normal device operation, you control the logic analyzer through the JTAG connection, specifying when to start looking for trigger conditions to begin capturing data. With Runtime or Power-Up Triggers, read and transfer the captured data from the on-chip buffer to the .stp for analysis.

h

For information about analyzing results from the SignalTap II Logic Analyzer, refer to

Analyzing Data in the SignalTap II Logic Analyzer

in Quartus II Help.

View, Analyze, and Use Captured Data

After you have captured data and read it into the .stp, that data is available for analysis and debugging. Set up mnemonic tables, either manually or with a plug-in, to simplify reading and interpreting the captured signal data. To speed up debugging, use the Locate feature in the SignalTap II node list to find the locations of problem nodes in other tools in the Quartus II software. Save the captured data for later analysis, or convert the data to other formats for sharing and further study.

h

For information about analyzing results from the SignalTap II Logic Analyzer, refer to

Analyzing Data in the SignalTap II Logic Analyzer

in Quartus II Help.

Embedding Multiple Analyzers in One FPGA

The SignalTap II Logic Analyzer Editor includes support for adding multiple logic analyzers by creating instances in the .stp. You can create a unique logic analyzer for each clock domain in the design.

h

For information about creating instances, refer to

Running the SignalTap II Logic

Analyzer

in Quartus II Help.

Monitoring FPGA Resources Used by the SignalTap II Logic Analyzer

The SignalTap II Logic Analyzer has a built-in resource estimator that calculates the logic resources and amount of memory that each logic analyzer instance uses.

Furthermore, because the most demanding on-chip resource for the logic analyzer is memory usage, the resource estimator reports the ratio of total RAM usage in your design to the total amount of RAM available, given the results of the last compilation.

The resource estimator provides a warning if a potential for a “no-fit” occurs.

You can see resource usage of each logic analyzer instance and total resources used in the columns of the Instance Manager pane of the SignalTap II Logic Analyzer Editor.

Use this feature when you know that your design is running low on resources.

The logic element value reported in the resource usage estimator may vary by as much as 10% from the actual resource usage.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–9

Table 13–2 shows the SignalTap II Logic Analyzer M4K memory block resource usage

for the listed devices per signal width and sample depth.

Table 13–2. SignalTap II Logic Analyzer M4K Block Utilization

(1)

Samples (Depth)

Signals (Width)

256 512

8 < 1 1

16 1 2

32

64

256

2

4

16

4

8

32

2,048

4

8

16

32

128

8,192

16

32

64

128

512

Note to Table 13–2

:

(1) When you configure a SignalTap II Logic Analyzer, the Instance Manager reports an estimate of the memory bits and logic elements required to implement the given configuration.

Using the MegaWizard Plug-In Manager to Create Your Logic Analyzer

You can create a SignalTap II Logic Analyzer instance by using the MegaWizard

Plug-In Manager. The MegaWizard Plug-In Manager generates an HDL file that you instantiate in your design.

1

The State-based trigger flow, the state machine debugging feature, and the storage qualification feature are not supported when using the MegaWizard Plug-In Manager to create the logic analyzer. These features are described in the following sections:

“Adding Finite State Machine State Encoding Registers” on page 13–14

“Using the Storage Qualifier Feature” on page 13–18

“State-Based Triggering” on page 13–30

h

For information about creating a SignalTap II instance with the MegaWizard Plug-In

Manager, refer to

Setting Up the SignalTap II Logic Analyzer

in Quartus II Help.

Configure the SignalTap II Logic Analyzer

There are many ways to configure instances of the SignalTap II Logic Analyzer. Some of the settings are similar to those found on traditional external logic analyzers. Other settings are unique to the SignalTap II Logic Analyzer because of the requirements for configuring a logic analyzer. All settings allow you to configure the logic analyzer the way you want to help debug your design.

1

Some settings can only be adjusted when you are viewing Run-Time Trigger conditions instead of Power-Up Trigger conditions. To learn about Power-Up Triggers and viewing different trigger conditions, refer to

“Creating a Power-Up Trigger” on page 13–41

.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–10 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

Assigning an Acquisition Clock

Assign a clock signal to control the acquisition of data by the SignalTap II Logic

Analyzer. The logic analyzer samples data on every positive (rising) edge of the acquisition clock. The logic analyzer does not support sampling on the negative

(falling) edge of the acquisition clock. You can use any signal in your design as the acquisition clock. However, for best results, Altera recommends that you use a global, non-gated clock synchronous to the signals under test for data acquisition. Using a gated clock as your acquisition clock can result in unexpected data that does not accurately reflect the behavior of your design. The Quartus II static timing analysis tools show the maximum acquisition clock frequency at which you can run your design. Refer to the Timing Analysis section of the Compilation Report to find the maximum frequency of the logic analyzer clock.

h

For information about assigning an acquisition clock, refer to

Working with Nodes in the

SignalTap II Logic Analyzer

in Quartus II Help.

1

Altera recommends that you exercise caution when using a recovered clock from a transceiver as an acquisition clock for the SignalTap II Logic Analyzer. Incorrect or unexpected behavior has been noted, particularly when a recovered clock from a transceiver is used as an acquisition clock with the power-up trigger feature.

If you do not assign an acquisition clock in the SignalTap II Logic Analyzer Editor, the

Quartus II software automatically creates a clock pin called auto_stp_external_clk

.

You must make a pin assignment to this pin independently from the design. Ensure that a clock signal in your design drives the acquisition clock.

f

For information about assigning signals to pins, refer to the I/O Management chapter in volume 2 of the Quartus II Handbook.

Adding Signals to the SignalTap II File

While configuring the logic analyzer, add signals to the node list in the .stp to select which signals in your design you want to monitor. You can also select signals to define triggers. You can assign the following two types of signals to your .stp file:

Pre-synthesis

—These signals exists after design elaboration, but before any synthesis optimizations are done. This set of signals should reflect your Register

Transfer Level (RTL) signals.

Post-fitting

—This signal exists after physical synthesis optimizations and place-and-route.

1

If you are not using incremental compilation, add only pre-synthesis signals to the

.stp

. Using pre-synthesis helps when you want to add a new node after you change a design. Source file changes appear in the Node Finder after you perform an Analysis and Elaboration. On the Processing Menu, point to Start and click Start Analysis &

Elaboration

.

h

For more information about incremental compilation, refer to

About Incremental

Compilation

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–11

The Quartus II software does not limit the number of signals available for monitoring in the SignalTap II window waveform display. However, the number of channels available is directly proportional to the number of logic elements (LEs) or adaptive logic modules (ALMs) in the device. Therefore, there is a physical restriction on the number of channels that are available for monitoring. Signals shown in blue text are post-fit node names. Signals shown in black text are pre-synthesis node names.

After successful Analysis and Elaboration, invalid signals are displayed in red. Unless you are certain that these signals are valid, remove them from the .stp for correct operation. The SignalTap II Status Indicator also indicates if an invalid node name exists in the .stp.

You can tap signals if a routing resource (row or column interconnects) exists to route the connection to the SignalTap II instance. For example, signals that exist in the I/O element (IOE) cannot be directly tapped because there are no direct routing resources from the signal in an IOE to a core logic element. For input pins, you can tap the signal that is driving a logic array block (LAB) from an IOE, or, for output pins, you can tap the signal from the LAB that is driving an IOE.

When adding pre-synthesis signals, make all connections to the SignalTap II Logic

Analyzer before synthesis. Logic and routing resources are allocated during recompilation to make the connection as if a change in your design files had been made. Pre-synthesis signal names for signals driving to and from IOEs coincide with the signal names assigned to the pin.

In the case of post-fit signals, connections that you make to the SignalTap II Logic

Analyzer are the signal names from the actual atoms in your post-fit netlist. You can only make a connection if the signals are part of the existing post-fit netlist and existing routing resources are available from the signal of interest to the SignalTap II

Logic Analyzer. In the case of post-fit output signals, tap the

COMBOUT

or

REGOUT

signal that drives the IOE block. For post-fit input signals, signals driving into the core logic coincide with the signal name assigned to the pin.

1

If you tap the signal from the atom that is driving an IOE, the signal may be inverted due to

NOT

-gate push back. You can check this by locating the signal in either the

Resource Property Editor or the Technology Map Viewer. The Technology Map viewer and the Resource Property Editor can also be used to help you find post-fit node names.

f

For information about cross-probing to source design files and other Quartus II windows, refer to the

Analyzing Designs with Quartus II Netlist Viewers

chapter in volume 1 of the Quartus II Handbook.

For more information about the use of incremental compilation with the SignalTap II

Logic Analyzer, refer to “Faster Compilations with Quartus II Incremental

Compilation” on page 13–46 .

Signal Preservation

Many of the RTL signals are optimized during the process of synthesis and place-and-route. RTL signal names frequently may not appear in the post-fit netlist after optimizations. For example, the compilation process can add tildes (“

~

”) to nets that fan-out from a node, making it difficult to decipher which signal nets they actually represent. These process results can cause problems when you use the

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–12 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

■ incremental compilation flow with the SignalTap II Logic Analyzer. Because you can only add post-fitting signals to the SignalTap II Logic Analyzer in partitions of type

post-fit

, RTL signals that you want to monitor may not be available, preventing their use. To avoid this issue, use synthesis attributes to preserve signals during synthesis and place-and-route. When the Quartus II software encounters these synthesis attributes, it does not perform any optimization on the specified signals, forcing them to continue to exist in the post-fit netlist. However, if you do this, you could see an increase in resource utilization or a decrease in timing performance. The two attributes you can use are: keep

—Ensures that combinational signals are not removed preserve

—Ensures that registers are not removed f

For more information about using these attributes, refer to the

Quartus II Integrated

Synthesis

chapter in volume 1 of the Quartus II Handbook.

If you are debugging an IP core, such as the Nios II CPU or other encrypted IP, you might need to preserve nodes from the core to make them available for debugging with the SignalTap II Logic Analyzer. Preserving nodes is often necessary when a plug-in is used to add a group of signals for a particular IP.

If you use incremental compilation flow with the SignalTap II Logic Analyzer, pre-synthesis nodes may not be connected to the SignalTap II Logic Analyzer if the affected partition is of the post-fit type. A critical warning is issued for all presynthesis node names that are not found in the post-fit netlist. h

For more information about node preservation or how to avoiding these warnings, refer to

Working with Nodes in the SignalTap II Logic Analyzer

in Quartus II Help.

Assigning Data Signals Using the Technology Map Viewer

You can easily add post-fit signal names that you find in the Technology map viewer.

To do so, launch the Technology map viewer (post-fitting) after compiling your design. When you find the desired node, copy the node to either the active .stp for your design or a new .stp.

Node List Signal Use Options

When a signal is added to the node list, you can select options that specify how the signal is used with the logic analyzer. You can turn off the ability of a signal to trigger the analyzer by disabling the Trigger Enable option for that signal in the node list in the .stp. This option is useful when you want to see only the captured data for a signal and you are not using that signal as part of a trigger.

You can turn off the ability to view data for a signal by disabling the Data Enable column. This option is useful when you want to trigger on a signal, but have no interest in viewing data for that signal.

For information about using signals in the node list to create SignalTap II trigger conditions, refer to

“Define Triggers” on page 13–26

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–13

Untappable Signals

Not all of the post-fitting signals in your design are available in the SignalTap II :

post-fitting filter

in the Node Finder dialog box. The following signal types cannot be tapped:

Post-fit output pins

—You cannot tap a post-fit output pin directly. To make an output signal visible, tap the register or buffer that drives the output pin. This includes pins defined as bidirectional.

Signals that are part of a carry chain

—You cannot tap the carry out ( cout0

or cout1

) signal of a logic element. Due to architectural restrictions, the carry out signal can only feed the carry in of another LE.

JTAG Signals

—You cannot tap the JTAG control (

TCK

,

TDI

,

TDO

, and

TMS

) signals.

ALTGXB megafunction

—You cannot directly tap any ports of an ALTGXB instantiation.

LVDS

—You cannot tap the data output from a serializer/deserializer (SERDES) block.

DQ

, DQS Signals—You cannot directly tap the

DQ

or

DQS

signals in a DDR/DDRII design.

Adding Signals with a Plug-In

Instead of adding individual or grouped signals through the Node Finder, you can add groups of relevant signals of a particular type of IP with a plug-in. The

SignalTap II Logic Analyzer comes with one plug-in already installed for the Nios II processor. Besides easy signal addition, plug-ins also provide features such as pre-designed mnemonic tables, useful for trigger creation and data viewing, as well as the ability to disassemble code in captured data.

The Nios II plug-in, for example, creates one mnemonic table in the Setup tab and two tables in the Data tab:

Nios II Instruction

(Setup tab)—Capture all the required signals for triggering on a selected instruction address.

Nios II Instance Address

(Data tab)—Display address of executed instructions in hexadecimal format or as a programming symbol name if defined in an optional

Executable and Linking Format (.elf) file.

Nios II Disassembly

(Data tab)—Displays disassembled code from the corresponding address.

For information about the other features plug-ins provide, refer to “Define Triggers” on page 13–26

and

“View, Analyze, and Use Captured Data” on page 13–56 .

To add signals to the .stp using a plug-in, perform the following steps after running

Analysis and Elaboration on your design:

1. Right-click in the node list. On the Add Nodes with Plug-In submenu, choose the plug-in you want to use, such as the included plug-in named Nios II.

1

If the IP for the selected plug-in does not exist in your design, a message informs you that you cannot use the selected plug-in.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–14 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

2. The Select Hierarchy Level dialog box appears showing the IP hierarchy of your design. Select the IP that contains the signals you want to monitor with the plug-in and click OK.

3. If all the signals in the plug-in are available, a dialog box might appear, depending on the plug-in selected, where you can specify options for the plug-in. With the

Nios II plug-in, you can optionally select an .elf containing program symbols from your Nios II Integrated Development Environment (IDE) software design. Specify options for the selected plug-in as desired and click OK.

1

To make sure all the required signals are available, in the Quartus II Analysis &

Synthesis

settings, turn on Create debugging nodes for IP cores.

All the signals included in the plug-in are added to the node list.

Adding Finite State Machine State Encoding Registers

Finding the signals to debug Finite State Machines (FSM) can be challenging. Finding nodes from the post-fit netlist may be impossible, as FSM encoding signals may be changed or optimized away during synthesis and place-and-route. If you can find all of the relevant nodes in the post-fit netlist or you used the nodes from the pre-synthesis netlist, an additional step is required to find and map FSM signal values to the state names that you specified in your HDL.

The SignalTap II Logic Analyzer GUI can detect FSMs in your compiled design. The

SignalTap II Logic Analyzer configuration automatically tracks the FSM state signals as well as state encoding through the compilation process. Shortcut menu commands from the SignalTap II Logic Analyzer GUI allow you to add all of the FSM state signals to your logic analyzer with a single command. For each FSM added to your

SignalTap II configuration, the FSM debugging feature adds a mnemonic table to map the signal values to the state enumeration that you provided in your source code. The mnemonic tables enable you to visualize state machine transitions in the waveform viewer. The FSM debugging feature supports adding FSM signals from both the pre-synthesis and post-fit netlists.

Figure 13–4 shows the waveform viewer with decoded signal values from a state

machine added with the FSM debugging feature.

Figure 13–4. Decoded FSM Mnemonics

f

For coding guidelines for specifying FSM in Verilog and VHDL, refer to the

Recommended HDL Coding Styles

chapter in volume 1 of the Quartus II Handbook.

h

For information about adding FSM signals to the configuration file, refer to

Setting Up the SignalTap II Logic Analyzer

in Quartus II Help.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–15

Modifying and Restoring Mnemonic Tables for State Machines

When you add FSM state signals via the FSM debugging feature, the SignalTap II

Logic Analyzer GUI creates a mnemonic table using the format

<StateSignalName>_ table

, where StateSignalName is the name of the state signals that you have declared in your RTL. You can edit any mnemonic table using the

Mnemonic Table Setup

dialog box.

If you want to restore a mnemonic table that was modified, right-click anywhere in the node list window and select Recreate State Machine Mnemonics. By default, restoring a mnemonic table overwrites the existing mnemonic table that you modified. To restore a FSM mnemonic table to a new record, turn off Overwrite

existing mnemonic table

in the Recreate State Machine Mnemonics dialog box.

1

If you have added or deleted a signal from the FSM state signal group from within the setup tab, delete the modified register group and add the FSM signals back again.

For more information about using Mnemonics, refer to

“Creating Mnemonics for Bit

Patterns” on page 13–60 .

Additional Considerations

The SignalTap II configuration GUI recognizes state machines from your design only if you use Quartus II Integrated Synthesis (QIS). The state machine debugging feature is not able to track the FSM signals or state encoding if you use other EDA synthesis tools.

If you add post-fit FSM signals, the SignalTap II Logic Analyzer FSM debug feature may not track all optimization changes that are a part of the compilation process. If the following two specific optimizations are enabled, the SignalTap II FSM debug feature may not list mnemonic tables for state machines in the design:

■ If you have physical synthesis turned on, state registers may be resource balanced

(register retiming) to improve f

MAX

. The FSM debug feature does not list post-fit

FSM state registers if register retiming occurs.

■ The FSM debugging feature does not list state signals that have been packed into

RAM and DSP blocks during QIS or Fitter optimizations.

You can still use the FSM debugging feature to add pre-synthesis state signals.

Specifying the Sample Depth

The sample depth specifies the number of samples that are captured and stored for each signal in the captured data buffer. To specify the sample depth, select the desired number of samples to store in the Sample Depth list. The sample depth ranges from

0 to 128K.

If device memory resources are limited, you may not be able to successfully compile your design with the sample buffer size you have selected. Try reducing the sample depth to reduce resource usage.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–16 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

Capturing Data to a Specific RAM Type

When you use the SignalTap II Logic Analyzer with some devices, you have the option to select the RAM type where acquisition data is stored. Once SignalTap II

Logic Analyzer is allocated to a particular RAM block, the entire RAM block becomes a dedicated resource for the logic analyzer. RAM selection allows you to preserve a specific memory block for your design and allocate another portion of memory for

SignalTap II Logic Analyzer data acquisition. For example, if your design has an application that requires a large block of memory resources, such a large instruction or data cache, you would choose to use MLAB, M512, or M4k blocks for data acquisition and leave the M9k blocks for the rest of your design.

To select the RAM type to use for the SignalTap II Logic Analyzer buffer, select it from the RAM type list. Use this feature when the acquired data (as reported by the

SignalTap II resource estimator) is not larger than the available memory of the memory type that you have selected in the FPGA.

Choosing the Buffer Acquisition Mode

The Buffer Acquisition Type Selection feature in the SignalTap II Logic Analyzer lets you choose how the captured data buffer is organized and can potentially reduce the amount of memory that is required for SignalTap II data acquisition. There are two types of acquisition buffer within the SignalTap II Logic Analyzer—a non-segmented buffer and a segmented buffer. With a non-segmented buffer, the SignalTap II Logic

Analyzer treats entire memory space as a single FIFO, continuously filling the buffer until the logic analyzer reaches a defined set of trigger conditions. With a segmented buffer, the memory space is split into a number of separate buffers. Each buffer acts as a separate FIFO with its own set of trigger conditions. Only a single buffer is active during an acquisition. The SignalTap II Logic Analyzer advances to the next segment after the trigger condition or conditions for the active segment has been reached.

When using a non-segmented buffer, you can use the storage qualification feature to determine which samples are written into the acquisition buffer. Both the segmented buffers and the non-segmented buffer with the storage qualification feature help you maximize the use of the available memory space.

Figure 13–5

illustrates the differences between the two buffer types.

Figure 13–5. Buffer Type Comparison in the SignalTap II Logic Analyzer

(1)

,

(2)

Notes to Figure 13–5 :

(1) Both non-segmented and segmented buffers can use a predefined trigger (Pre-Trigger, Center Trigger, Post-Trigger) position or define a custom

trigger position using the State-Based Triggering tab. Refer to “Specifying the Trigger Position” on page 13–41 for more details.

(2) Each segment is treated like a FIFO, and behaves as the non-segmented buffer shown in (a).

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–17

For more information about the storage qualification feature, refer to

“Using the

Storage Qualifier Feature” on page 13–18 .

Non-Segmented Buffer

The non-segmented buffer (also known as a circular buffer) shown in Figure 13–5

(a) is the default buffer type used by the SignalTap II Logic Analyzer. While the logic analyzer is running, data is stored in the buffer until it fills up, at which point new data replaces the oldest data. This continues until a specified trigger event, consisting of a set of trigger conditions, occurs. When the trigger event happens, the logic analyzer continues to capture data after the trigger event until the buffer is full, based on the trigger position setting in the Signal Configuration pane in the .stp. To capture the majority of the data before the trigger occurs, select Post trigger position from the list. To capture the majority of the data after the trigger, select Pre-trigger position. To center the trigger position in the data, select Center trigger position. Alternatively, use the custom State-based triggering flow to define a custom trigger position within the capture buffer.

For more information, refer to “Specifying the Trigger Position” on page 13–41 .

Segmented Buffer

A segmented buffer allows you to debug systems that contain relatively infrequent recurring events. The acquisition memory is split into evenly sized segments, with a set of trigger conditions defined for each segment. Each segment acts as a non-

segmented buffer. Figure 13–6

shows an example of a segmented buffer system.

Figure 13–6. Example System that Generates Recurring Events

Stratix Device

Reference Design Top-Level File

WADDR[17..0]

RADDR[17..0]

WDATA[35..0]

RDATA[35..0]

CMD[1..0]

INCLK

Pipeline

Registers

(Optional) QDR SRAM

Controller

SRAM Interface Signals

A[17..0]

Q[17..0]

D[17..0]

BWSn[1..0]

RPSn

WPSn

QDR

SRAM

K, Kn

K_FB_OUT

K_FB_IN

C, Cn

The SignalTap II Logic Analyzer verifies the functionality of the design shown in

Figure 13–6 to ensure that the correct data is written to the SRAM controller. Buffer

acquisition in the SignalTap II Logic Analyzer allows you to monitor the

RDATA

port when

H'0F0F0F0F

is sent into the

RADDR

port. You can monitor multiple read transactions from the SRAM device without running the SignalTap II Logic Analyzer again. The buffer acquisition feature allows you to segment the memory so you can capture the same event multiple times without wasting allocated memory. The number of cycles that are captured depends on the number of segments specified under the Data settings.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–18 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

To enable and configure buffer acquisition, select Segmented in the SignalTap II Logic

Analyzer Editor and select the number of segments to use. In the example in

Figure 13–6 , selecting sixty-four 64-sample segments allows you to capture 64 read

cycles when the

RADDR

signal is

H'0F0F0F0F

.

h

For more information about buffer acquisition mode, refer to

Configuring the Trigger

Flow in the SignalTap II Logic Analyzer

in the Quartus II Help.

Using the Storage Qualifier Feature

Both non-segmented and segmented buffers described in the previous section offer a snapshot in time of the data stream being analyzed. The default behavior for writing into acquisition memory with the SignalTap II Logic Analyzer is to sample data on every clock cycle. With a non-segmented buffer, there is one data window that represents a comprehensive snapshot of the datastream. Similarly, segmented buffers use several smaller sampling windows spread out over more time, with each sampling window representing a contiguous data set.

With carefully chosen trigger conditions and a generous sample depth for the acquisition buffer, analysis using segmented and non-segmented buffers captures a majority of functional errors in a chosen signal set. However, each data window can have a considerable amount of redundancy associated with it; for example, a capture of a data stream containing long periods of idle signals between data bursts. With default behavior using the SignalTap II Logic Analyzer, you cannot discard the redundant sample bits.

The Storage Qualification feature allows you to filter out individual samples not relevant to debugging the design. With this feature, a condition acts as a write enable to the buffer during each clock cycle of data acquisition. Through fine tuning the data that is actually stored in acquisition memory, the Storage Qualification feature allows for a more efficient use of acquisition memory in the specified number of samples over a longer period of analysis.

Use of the Storage Qualification feature is similar to an acquisition using a segmented buffer, in that you can create a discontinuity in the capture buffer. Because you can create a discontinuity between any two samples in the buffer, the Storage

Qualification feature is equivalent to being able to create a customized segmented buffer in which the number and size of segment boundaries are adjustable.

Figure 13–7 illustrates three ways the SignalTap II Logic Analyzer writes into

acquisition memory.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–19

1

You can only use the Storage Qualification feature with a non-segmented buffer. The

MegaWizard Plug-In Manager instantiated flow only supports the Input Port mode for the Storage Qualification feature.

Figure 13–7. Data Acquisition Using Different Modes of Controlling the Acquisition Buffer

Notes to Figure 13–7 :

(1) Non-segmented Buffers capture a fixed sample window of contiguous data.

(2) Segmented buffers divide the buffer into fixed sized segments, with each segment having an equal sample depth.

(3) Storage Qualification allows you to define a custom sampling window for each segment you create with a qualifying condition. Storage qualification potentially allows for a larger time scale of coverage.

There are six storage qualifier types available under the Storage Qualification feature:

Continuous

Input port

Transitional

Conditional

Start/Stop

State-based

Continuous (the default mode selected) turns the Storage Qualification feature off.

Each selected storage qualifier type is active when an acquisition starts. Upon the start of an acquisition, the SignalTap II Logic Analyzer examines each clock cycle and writes the data into the acquisition buffer based upon storage qualifier type and condition. The acquisition stops when a defined set of trigger conditions occur.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–20 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

1

Trigger conditions are evaluated independently of storage qualifier conditions. The

SignalTap II Logic Analyzer evaluates the data stream for trigger conditions on every clock cycle after the acquisition begins.

Trigger conditions are defined in “Define Trigger Conditions” on page 13–7 .

The storage qualifier operates independently of the trigger conditions.

The following subsections describe each storage qualification mode from the acquisition buffer.

Input Port Mode

When using the Input port mode, the SignalTap II Logic Analyzer takes any signal from your design as an input. When the design is running, if the signal is high on the clock edge, the SignalTap II Logic Analyzer stores the data in the buffer. If the signal is low on the clock edge, the data sample is ignored. A pin is created and connected to this input port by default if no internal node is specified.

If you are using an .stp to create a SignalTap II Logic Analyzer instance, specify the storage qualifier signal using the input port field located on the Setup tab. You must specify this port for your project to compile.

If you use the MegaWizard Plug-In Manager flow, the storage qualification input port, if specified, appears in the MegaWizard-generated instantiation template. You can then connect this port to a signal in your RTL.

Figure 13–8 shows a data pattern captured with a segmented buffer. Figure 13–9

shows a capture of the same data pattern with the storage qualification feature enabled.

Figure 13–8. Data Acquisition of a Recurring Data Pattern in Continuous Capture Mode (to illustrate Input port mode)

Figure 13–9. Data Acquisition of a Recurring Data Pattern Using an Input Signal as a Storage Qualifier

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–21

Transitional Mode

In Transitional mode, you choose a set of signals for inspection using the node list check boxes in the Storage Qualifier column. During acquisition, if any of the signals marked for inspection have changed since the previous clock cycle, new data is written to the acquisition buffer. If none of the signals marked have changed since the

previous clock cycle, no data is stored. Figure 13–10 shows the transitional storage

qualifier setup.

Figure 13–11 and Figure 13–12

show captures of a data pattern in continuous capture mode and a data pattern using the Transitional mode for storage qualification.

Figure 13–10. Transitional Storage Qualifier Setup

Node List

Storage Enable Transitional Enable

Storage Qualifier

Dialog Box

Figure 13–11. Data Acquisition of a Recurring Data Pattern in Continuous Capture Mode (to illustrate Transitional mode)

Figure 13–12. Data Acquisition of Recurring Data Pattern Using a Transitional Mode as a Storage

Qualifier

Conditional Mode

In Conditional mode, the SignalTap II Logic Analyzer evaluates a combinational function of storage qualifier enabled signals within the node list to determine whether a sample is stored. The SignalTap II Logic Analyzer writes into the buffer during the clock cycles in which the condition you specify evaluates

TRUE

.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–22 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

You can select either Basic or Advanced storage qualifier conditions. A Basic storage qualifier condition matches each signal to one of the following:

Don’t Care

Low

High

Falling Edge

■ Either Edge

If you specify a Basic Storage qualifier condition for more than one signal, the

SignalTap II Logic Analyzer evaluates the logical AND of the conditions.

Any other combinational or relational operators that you may want to specify with the enabled signal set for storage qualification can be done with an advanced storage condition.

Figure 13–13 details the conditional storage qualifier setup in the .stp.

You can specify up storage qualification conditions similar to the manner in which trigger conditions are specified. For details about basic and advanced trigger conditions, refer to the sections

“Creating Basic Trigger Conditions” on page 13–26

and “Creating Advanced Trigger Conditions” on page 13–27

.

Figure 13–14 and

Figure 13–15

show a data capture with continuous sampling, and the same data pattern using the conditional mode for analysis, respectively.

Figure 13–13. Conditional Storage Qualifier Setup

Figure 13–14. Data Acquisition of a Recurring Data Pattern in Continuous Capture Mode (to illustrate Conditional capture)

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

Figure 13–15. Data Acquisition of a Recurring Data Pattern in Conditional Capture Mode

13–23

Start/Stop Mode

The Start/Stop mode is similar to the Conditional mode for storage qualification.

However, in this mode there are two sets of conditions, one for start and one for stop.

If the start condition evaluates to

TRUE

, data begins is stored in the buffer every clock cycle until the stop condition evaluates to

TRUE

, which then pauses the data capture.

Additional start signals received after the data capture has started are ignored. If both start and stop evaluate to

TRUE

at the same time, a single cycle is captured.

1

You can force a trigger by pressing the Stop button if the buffer fails to fill to completion due to a stop condition.

Figure 13–16

shows the Start/Stop mode storage qualifier setup.

Figure 13–17 and

Figure 13–18

show captures data pattern in continuous capture mode and a data pattern in using the Start/Stop mode for storage qualification.

Figure 13–16. Start/Stop Mode Storage Qualifier Setup

Figure 13–17. Data Acquisition of a Recurring Data Pattern in Continuous Mode (to illustrate

Start/Stop mode)

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–24 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

Figure 13–18. Data Acquisition of a Recurring Data Pattern with Start/Stop Storage Qualifier

Enabled

State-Based

The State-based storage qualification mode is used with the State-based triggering flow. The state based triggering flow evaluates an if-else based language to define how data is written into the buffer. With the State-based trigger flow, you have command over boolean and relational operators to guide the execution flow for the target acquisition buffer. When the storage qualifier feature is enabled for the

State-based flow, two additional commands are available, the start_store

and stop_store

commands. These commands operate similarly to the Start/Stop capture conditions described in the previous section. Upon the start of acquisition, data is not written into the buffer until a start_store

action is performed. The stop_store command pauses the acquisition. If both start_store

and stop_store

actions are performed within the same clock cycle, a single sample is stored into the acquisition buffer.

For more information about the State-based flow and storage qualification using the

State-based trigger flow, refer to the section

“State-Based Triggering” on page 13–30 .

Showing Data Discontinuities

When you turn on Record data discontinuities, the SignalTap II Logic Analyzer marks the samples during which the acquisition paused from a storage qualifier. This marker is displayed in the waveform viewer after acquisition completes.

Disable Storage Qualifier

You can turn off the storage qualifier quickly with the Disable Storage Qualifier option, and perform a continuous capture. This option is run-time reconfigurable; that is, the setting can be changed without recompiling the project. Changing storage qualifier mode from the Type field requires a recompilation of the project.

1

For a detailed explanation of Runtime Reconfigurable options available with the

SignalTap II Logic Analyzer, and storage qualifier application examples using runtime reconfigurable options, refer to

“Runtime Reconfigurable Options” on page 13–53

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Configure the SignalTap II Logic Analyzer

13–25

Managing Multiple SignalTap II Files and Configurations

You may have more than one .stp in one design. Each file potentially has a different group of monitored signals. These signal groups make it possible to debug different blocks in your design. In turn, each group of signals can also be used to define different sets of trigger conditions. Along with each .stp, there is also an associated programming file (SRAM Object File [.sof]). The settings in a selected SignalTap II file must match the SignalTap II logic design in the associated .sof for the logic analyzer to run properly when the device is programmed. Use the Data Log feature and the

SOF Manager to manage all of the .stp files and their associated settings and programming files.

The Data Log allows you to store multiple SignalTap II configurations within a single

.stp

. Figure 13–19

shows two signal set configurations with multiple trigger conditions in one .stp. To toggle between the active configurations, double-click on an entry in the Data Log. As you toggle between the different configurations, the signal list and trigger conditions change in the Setup tab of the .stp. The active configuration displayed in the .stp is indicated by the blue square around the signal specified in the

Data Log. To store a configuration in the Data Log, on the Edit menu, click Save to

Data Log

or click Save to Data Log at the top of the Data Log.

Figure 13–19. Data Log

Save to Data Log

Enable

Data Log

The SOF Manager allows you to embed multiple SOFs into one .stp. Embedding an

SOF

in an .stp lets you move the .stp to a different location, either on the same computer or across a network, without the need to include the associated .sof as a separate. To embed a new SOF in the .stp, right-click in the SOF Manager, and click

Attach SOF File

( Figure 13–20

).

Figure 13–20. SOF Manager

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–26 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

As you switch between configurations in the Data Log, you can extract the SOF that is compatible with that particular configuration. You can use the programmer in the

SignalTap II Logic Analyzer to download the new SOF to the FPGA, ensuring that the configuration of your .stp always matches the design programmed into the target device.

Define Triggers

When you start the SignalTap II Logic Analyzer, it samples activity continuously from the monitored signals. The SignalTap II Logic Analyzer “triggers”—that is, the logic analyzer stops and displays the data—when a condition or set of conditions that you specified has been reached. This section describes the various types of trigger conditions that you can specify using the SignalTap II Logic Analyzer on the Signal

Configuration

pane.

Creating Basic Trigger Conditions

The simplest kind of trigger condition is a basic trigger. Select this from the list at the top of the Trigger Conditions column in the node list in the SignalTap II Logic

Analyzer Editor. If you select the Basic trigger type, you must specify the trigger pattern for each signal you have added in the .stp. To specify the trigger pattern, rightclick in the Trigger Conditions column and click the desired pattern. Set the trigger pattern to any of the following conditions:

Don’t Care

Low

High

Falling Edge

Rising Edge

■ Either Edge

For buses, type a pattern in binary, or right-click and select Insert Value to enter the pattern in other number formats. Note that you can enter

X

to specify a set of “don’t care” values in either your hexadecimal or your binary string. For signals added to the

.stp

that have an associated mnemonic table, you can right-click and select an entry from the table to specify pre-defined conditions for the trigger.

For more information about creating and using mnemonic tables, refer to “View,

Analyze, and Use Captured Data” on page 13–56

, and to the Quartus II Help.

For signals added with certain plug-ins, you can create basic triggers easily using predefined mnemonic table entries. For example, with the Nios II plug-in, if you have specified an .elf from your Nios II IDE design, you can type the name of a function from your Nios II code. The logic analyzer triggers when the Nios II instruction address matches the address of the specified code function name.

Data capture stops and the data is stored in the buffer when the logical

AND

of all the signals for a given trigger condition evaluates to

TRUE

.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

13–27

Creating Advanced Trigger Conditions

With the basic triggering capabilities of the SignalTap II Logic Analyzer, you can build more complex triggers with extra logic that enables you to capture data when a combination of conditions exist. If you select the Advanced trigger type at the top of the Trigger Conditions column in the node list of the SignalTap II Logic Analyzer

Editor, a new tab named Advanced Trigger appears where you can build a complex trigger expression using a simple GUI. Drag-and-drop operators into the Advanced

Trigger Configuration Editor window to build the complex trigger condition in an expression tree. To configure the operators’ settings, double-click or right-click the

operators that you have placed and select Properties. Table 13–3 lists the operators

you can use.

Table 13–3. Advanced Triggering Operators

(1)

Name of Operator

Less Than

Less Than or Equal To

Equality

Inequality

Greater Than

Greater Than or Equal To

Logical

NOT

Logical

AND

Logical

OR

Logical

XOR

Reduction

AND

Reduction

OR

Reduction

XOR

Left Shift

Right Shift

Bitwise Complement

Bitwise

AND

Bitwise

OR

Bitwise

XOR

Edge and Level Detector

Note to

Table 13–3

:

(1) For more information about each of these operators, refer to the Quartus II Help.

Type

Comparison

Comparison

Comparison

Comparison

Comparison

Comparison

Logical

Logical

Logical

Logical

Reduction

Reduction

Reduction

Shift

Shift

Bitwise

Bitwise

Bitwise

Bitwise

Signal Detection

Adding many objects to the Advanced Trigger Condition Editor can make the work space cluttered and difficult to read. To keep objects organized while you build your advanced trigger condition, use the shortcut menu and select Arrange All Objects.

You can also use the Zoom-Out command to fit more objects into the Advanced

Trigger Condition Editor window.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–28 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

Examples of Advanced Triggering Expressions

The following examples show how to use Advanced Triggering:

■ Trigger when bus outa

is greater than or equal to outb

( Figure 13–21

).

Figure 13–21. Bus outa is Greater Than or Equal to Bus outb

■ Trigger when bus outa

is greater than or equal to bus outb

, and when the enable signal has a rising edge (

Figure 13–22

).

Figure 13–22. Enable Signal has a Rising Edge

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

13–29

■ Trigger when bus outa

is greater than or equal to bus outb

, or when the enable signal has a rising edge. Or, when a bitwise

AND

operation has been performed between bus outc

and bus outd

, and all bits of the result of that operation are equal to 1 (

Figure 13–23 ).

Figure 13–23. Bitwise AND Operation

Trigger Condition Flow Control

The SignalTap II Logic Analyzer offers multiple triggering conditions to give you precise control of the method in which data is captured into the acquisition buffers.

Trigger Condition Flow allows you to define the relationship between a set of triggering conditions. The SignalTap II Logic Analyzer Signal Configuration pane offers two flow control mechanisms for organizing trigger conditions:

Sequential Triggering

—The default triggering flow. Sequential triggering allows you to define up to 10 triggering levels that must be satisfied before the acquisition buffer finishes capturing.

State-Based Triggering

—Allows you the greatest control over your acquisition buffer. Custom-based triggering allows you to organize trigger conditions into states based on a conditional flow that you define.

You can use sequential or state based triggering with either a segmented or a nonsegmented buffer.

Sequential Triggering

Sequential triggering flow allows you to cascade up to 10 levels of triggering conditions. The SignalTap II Logic Analyzer sequentially evaluates each of the triggering conditions. When the last triggering condition evaluates to

TRUE

, the

SignalTap II Logic Analyzer triggers the acquisition buffer. For segmented buffers, every acquisition segment after the first segment triggers on the last triggering condition that you have specified. Use the Simple Sequential Triggering feature with

basic triggers, advanced triggers, or a mix of both. Figure 13–24

illustrates the simple sequential triggering flow for non-segmented and segmented buffers.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–30 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

1

The external trigger is considered as trigger level

0

. The external trigger must be evaluated before the main trigger levels are evaluated.

Figure 13–24. Sequential Triggering Flow

(1)

,

(2)

Non-segmented Buffer

Trigger Condition 1

Trigger Condition 1

Segmented Buffer

Trigger Condition 2 n - 2 transitions

Trigger Condition n trigger

Acquisition Buffer

Trigger Condition 2 n - 2 transitions

Trigger Condition n trigger

Acquisition Segment 1

Trigger Condition n trigger m - 2 transitions

Trigger Condition n trigger

Acquisition Segment 2

Acquisition Segment m

Notes to Figure 13–24

:

(1) The acquisition buffer stops capture when all n triggering levels are satisfied, where

n

10

.

(2) An external trigger input, if defined, is evaluated before all other defined trigger conditions are evaluated. For more information about external triggers, refer to

“Using External Triggers” on page 13–43 .

To configure the SignalTap II Logic Analyzer for Sequential triggering, in the

SignalTap II editor on the Trigger flow control list, select Sequential. Select the desired number of trigger conditions from the Trigger Conditions list. After you select the desired number of trigger conditions, configure each trigger condition in the node list. To disable any trigger condition, turn on the trigger condition at the top of the column in the node list.

State-Based Triggering

Custom State-based triggering provides the most control over triggering condition arrangement. The State-Based Triggering flow allows you to describe the relationship between triggering conditions precisely, using an intuitive GUI and the SignalTap II

Trigger Flow Description Language, a simple description language based upon conditional expressions. Tooltips within the custom triggering flow GUI allow you to describe your desired flow quickly. The custom State-based triggering flow allows for more efficient use of the space available in the acquisition buffer because only specific samples of interest are captured.

Quartus II Handbook Version 11.1

Volume 3: Verification

November 2011 Altera Corporation

Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

13–31

Figure 13–25

illustrates the custom State-based triggering flow. Events that trigger the acquisition buffer are organized by a state diagram that you define. All actions performed by the acquisition buffer are captured by the states and all transition conditions between the states are defined by the conditional expressions that you specify within each state.

Figure 13–25. State-Based Triggering Flow

(1)

,

(2)

User-Defined Triggering Flow

Transition Condition i

Transition Condition k

State 1: State 2: State 3:

Transition Condition l

State n (last state):

Trigger Condition Set a Trigger Condition Set b Trigger Condition Set c Trigger Condition Set d

Transition Condition j segment_trigger segment_trigger segment_trigger segment_trigger

First Acquisition Segment Next Acquisition Segment Next Acquisition Segment Last Acquisition Segment

Segmented Acquisition Buffer

Notes to Figure 13–25

:

(1) You are allowed up to 20 different states.

(2) An external trigger input, if defined, is evaluated before any conditions in the custom State-based triggering flow are evaluated. For more information, refer to

“Using External Triggers” on page 13–43 .

Each state allows you to define a set of conditional expressions. Each conditional expression is a Boolean expression dependent on a combination of triggering conditions (configured within the Setup tab), counters, and status flags. Counters and status flags are resources provided by the SignalTap II Logic Analyzer custom-based triggering flow.

Within each conditional expression you define a set of actions. Actions include triggering the acquisition buffer to stop capture, a modification to either a counter or status flag, or a state transition.

Trigger actions can apply to either a single segment of a segmented acquisition buffer or to the entire non-segmented acquisition buffer. Each trigger action provides you with an optional count that specifies the number of samples captured before stopping acquisition of the current segment. The count argument allows you to control the amount of data captured precisely before and after triggering event.

Resource manipulation actions allow you to increment and decrement counters or set and clear status flags. The counter and status flag resources are used as optional inputs in conditional expressions. Counters and status flags are useful for counting the number of occurrences of particular events and for aiding in triggering flow control.

This SignalTap II custom State-based triggering flow allows you to capture a sequence of events that may not necessarily be contiguous in time; for example, capturing a communication transaction between two devices that includes a handshaking protocol containing a sequence of acknowledgements.

November 2011 Altera Corporation Quartus II Handbook Version 11.1

Volume 3: Verification

13–32 Chapter 13: Design Debugging Using the SignalTap II Logic Analyzer

Define Triggers

The State-Based Trigger Flow tab is the control interface for the custom state-based triggering flow. To enable this tab, select State-based on the Trigger Flow Control list.

(Note that when Trigger Flow Control is specified as Sequential, the State-Based

Trigger Flow

tab is hidden.)

The State-Based Trigger Flow tab is partitioned into the following three panes:

State Diagram Pane

Resources Pane

State Machine Pane

State Diagram Pane

The State Diagram pane provides a graphical overview of the triggering flow that you define. It shows the number of states available and the state transitions between the states. You can adjust the number of available states by using the menu above the graphical overview.

State Machine Pane

The State Machine pane contains the text entry boxes where you can define the triggering flow and actions associated with each state. You can define the triggering flow using the SignalTap II Trigger Flow Description Language, a simple language based on “if-else” conditional statements. Tooltips appear when you move the mouse over the cursor, to guide command entry into the state boxes. The GUI provides a syntax check on your flow description in real-time and highlights any errors in the text flow.

1

For a full description of the SignalTap II Trigger Flow Description Language, refer to

“SignalTap II Trigger Flow Description Language” on page 13–33

. h

You can also refer to

SignalTap II Trigger Flow Description Language

in Quartus II Help.

The State Machine description text boxes default to show one text box per state. You can also have the entire flow description shown in a single text field. This option can be useful when copying and pasting a flow description from a template or an external text editor. To toggle between one window per state, or all states in one window, select the appropriate option under State Display mode.

Resources Pane

The Resources pane allows you to
