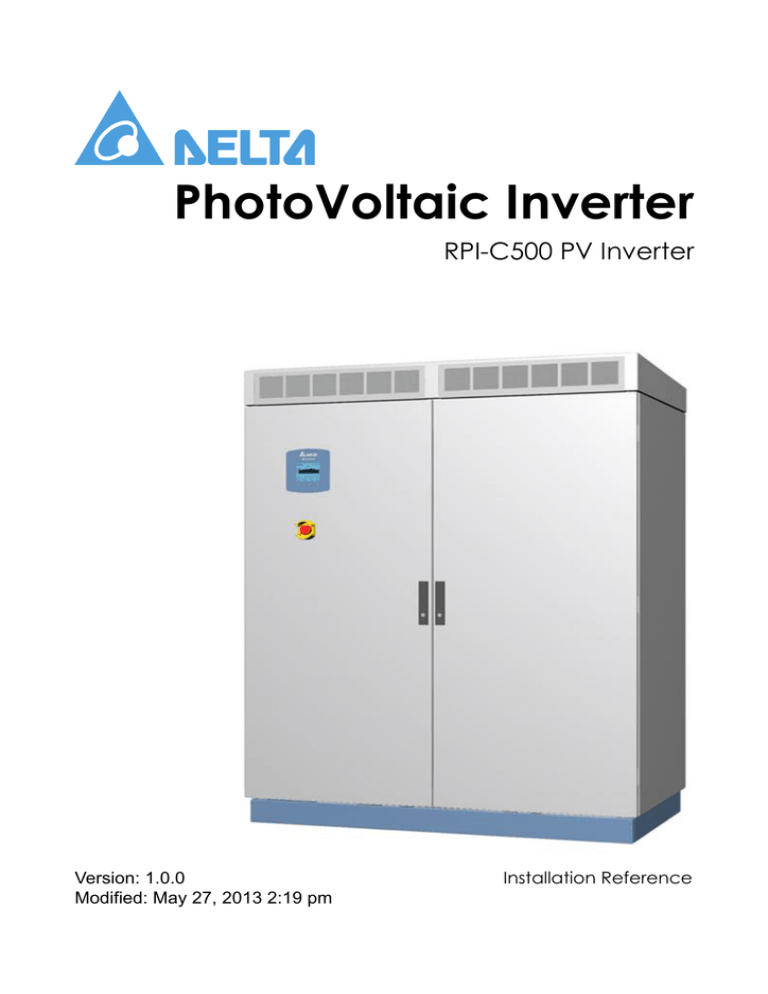

PhotoVoltaic Inverter

PhotoVoltaic Inverter

RPI-C500 PV Inverter

Version: 1.0.0

Modified: May 27, 2013 2:19 pm

Installation Reference

T

ABLE OF

C

ONTENTS

T

ABLE OF

C

ONTENTS

1. Introduction 1

1.1. About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2. Valid Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3. Target Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2. Safety 2

2.1. System Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.2. Disconnecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3. Product Overview 4

3.1. Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.2. Product View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.2.1. Exterior Front View .................................................................4

3.2.2. Exterior Triangle View.............................................................5

3.2.3. Interior Front View ..................................................................6

3.3. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.4. Identify the Inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Transportation 8

4.1. Delivery Options and Recommended Vehicle . . . . . . . . . . . . . . . 8

4.2. Using a Forklift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.3. Using a Crane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.4. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.5. Installation Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.5.1. Site Space ............................................................................12

I

NSTALLATION

M

ANUAL I

T

ABLE OF

C

ONTENTS

5. Installation 13

5.1. Preparing the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.1.1. Building a base .....................................................................13

5.1.2. Using the ground as a base..................................................13

5.2. Recommended Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.3. DC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.4. AC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.5. PE Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.6. Connection of Communication Modules. . . . . . . . . . . . . . . . . . . 17

5.6.1. RS-485 Connection ..............................................................17

5.6.2. Dry Contact Connection........................................................19

5.6.3. Auxiliary Power from External Source ..................................19

5.7. First Time Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.7.1. Before Powering Up..............................................................21

5.7.2. Powering Up the Inverter and Self-test.................................21

5.8. LCD Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.8.1. Home Page...........................................................................23

5.8.2. Power Meter .........................................................................24

5.8.3. Energy Log ...........................................................................24

5.8.4. Event Log..............................................................................25

5.8.5. Operation Data .....................................................................26

5.8.6. Inverter Information...............................................................27

5.8.7. Settings.................................................................................27

5.8.7.1. Personal Settings...........................................................28

5.8.7.2. Coefficient Settings ........................................................28

5.8.7.3. Install Settings................................................................29

I

NSTALLATION

M

ANUAL II

T

ABLE OF

C

ONTENTS

6. Troubleshooting 32

6.1. Measurement Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.2. Error Message and Troubleshooting . . . . . . . . . . . . . . . . . . . . . 36

7. Maintenance 41

7.1. Replacing components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.1.1. Replacing a Fan Module.......................................................41

7.1.2. Replacing an Air Filter ..........................................................44

Appedix A. Technical Data 46

Appedix B. Contact Information 50

I

NSTALLATION

M

ANUAL III

Conventions

General Conventions

The following conventions are used in this manual:

Example:

Indicates information used to demonstrate or explain an associated concept.

C

ONVENTIONS

Note:

Indicates additional information that is relevant to the current process or procedure.

!

WARNING!

Warning information appears before the text it references to emphasize that the content may prevent damage to the device or equipment.

!

CAUTION!

CAUTIONS APPEAR BEFORE THE TEXT IT REFERENCES

.

CAUTIONS APPEAR IN CAPITAL LETTERS

TO EMPHASIZE THAT THE MESSAGE CONTAINS VITAL HEALTH AND SAFETY INFORMATION

.

Typographical Conventions

The following typographical conventions are used in this document:

Italics

Indicates denotes references to other titles, directories, files, paths, and/or programs.

Screen Display width

Indicates computer output shown on a computer screen, including menus, prompts, responses to input, and error messages.

Bold type

Indicates keyboard keys that are pressed by the user.

I

NSTALLATION

R

EFERENCE IV

C

OPYRIGHT

Copyright

The ownership and all intellectual property rights of this Installation Reference (this

“Manual”), including but not limited to the content, data and figures contained herein are vested by Delta Electronics, Inc. (“Delta”). The Manual can only be applied to operation or use of the product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction or any other usage to the Manual is prohibited without obtaining Delta’s prior written permission. As the product will be developed and improved continuously, Delta may modify or update the Manual from time to time without any notice. Delta will do its best efforts to keep the Manual updated and maintain the accuracy of the Manual. Delta disclaims any kinds or forms of warranty, guarantee or undertaking, either expressly or implicitly, including but not limited to the completeness, accuracy, non-infringement, merchantability or fitness for particular purpose or usage.

Copyright © 2013 Delta Electronics, Inc. All Rights Reserved.

I

NSTALLATION

R

EFERENCE V

I

NTRODUCTION

A

BOUT

T

HIS

M

ANUAL

1. Introduction

1.1. About This Manual

This manual provides the detail information of specification, installation procedures and all related function setting about the RPI-C500 PV Inverter. Installation technicians must be well-trained and qualified for installing solar system and must follow all the safety instruction and installation procedures.

1.2. Valid Models

This user manual describes the installation procedures, maintenance, technical data and safety instruction of the following solar inverter models under Delta brand.

RPI-C500 PV Inverter

1.3. Target Group

The guidelines in this manual provide instructions for a person who is well training and skillful for the installation of the central inverter.

I

NSTALLATION

G

UIDE

1

S

YSTEM

U

SAGE

S

AFETY

2. Safety

2.1. System Usage

See the system usage in the following diagram:

Public Grid

PV Array

DC

Distribution box

3Ph

(3 Phase/N/PE)

AC

Distribution box

3 Phase

Transformer

Figure 2-1. System Usage

2.2. Disconnecting

Isolation of the device must always occur under load-free conditions.

!

CAUTION!

R

ISK OF LETHAL ELECTRIC SHOCK

.

It is admitted to work on the PV Inverter only after switching the relative power sources.

The VDE regulations must be followed:

Disconnect

Ensure that the device cannot be reconnected

Ensure that no voltage is present

Ground and short-circuit the unit if necessary (not on the DC side)

If necessary, cover or shield any adjacent live components

The following power sources must be isolated:

Grid voltage for grid feeding

Grid voltage for internal power supply (optional)

DC voltage from the photovoltaic generator

Simply switching off the main AC and DC switches is not sufficient to ensure proper isolation of the device. The main switches only separate the power circuit from the grid and the photovoltaic generator.

!

CAUTION!

R

ISK OF LETHAL ELECTRIC SHOCK

.

Dangerous accidental-contact voltages can be present in the PV Inverter even when the main AC and DC switches are switched off!

Wait at least 5 minutes after switching off the PV Inverter.

I

NSTALLATION

G

UIDE

2

S

AFETY

D

ISCONNECTING

The DC voltage is isolated using the internal or external DC input fuses, or using an external circuit breaker if present. Isolation by removing the DC input fuses must occur under load-free conditions.

The device contains capacitors on the AC and DC sides that must discharge once the device has been switched off. After switching off, dangerous accidental-contact voltages remain within the device for several minutes. If there is a fault in the device, these voltages may also be present for a longer period of time. Wait at least 5 minutes after switching off the device before opening the device.

!

CAUTION!

R

ISK OF LETHAL ELECTRIC SHOCK

.

Dangerous accidental-contact voltages can be present in the PV Inverter even when the main AC and DC switches are switched off!

Wait at least 5 minutes after switching off the PV Inverter.

I

NSTALLATION

G

UIDE

3

P

RODUCT

O

VERVIEW

P

RODUCT

D

ESCRIPTION

3. Product Overview

3.1. Product Description

The Delta RPI inverter models include the RPI-C500. It is manufactured to meet high standards of quality and to maximize the yield of every solar plant (up to 98.5% efficiency).

The RPI series include a IP-54 protection level enclosure and corrosion resistant features to ensure the protection of the inverter within an indoor or outdoor environment.

3.2. Product View

3.2.1. Exterior Front View

Air Outlets

LCD/LED

Display Buttons

Emergency

Power Off (EPO)

Figure 3-1. Exterior Front View

I

NSTALLATION

M

ANUAL

4

P

RODUCT

O

VERVIEW

3.2.2. Exterior Triangle View

E

XTERIOR

T

RIANGLE

V

IEW

Air Inlet

Figure 3-2. Exterior Rear View

I

NSTALLATION

M

ANUAL

5

P

RODUCT

O

VERVIEW

3.2.3. Interior Front View

I

NTERIOR

F

RONT

V

IEW

AC Terminals

AC Surge Arrester

DC Terminals

AC Surge Arrester /

Fuse Holder

Net Wire Location GND Wire Location

Figure 3-3. Interior Front View

3.3. Features

The following are important features of the product(s) described in this manual:

High efficiency, peak 98.5%, EUR 98.0%

3 Phase (3 Lines + PE) 500kVA solar inverter

Wide input range (450-1000Vdc)

Wide MPPT range (450-820Vdc)

1 MPP Trackers

5” Graphic LCD display (Adjustable contrast & brightness)

IP-54 protective level (electrics)

I

NSTALLATION

M

ANUAL

6

P

RODUCT

O

VERVIEW

3.4. Identify the Inverter

Please refer to the following image for identifying the inverter.

I

DENTIFY THE

I

NVERTER

Figure 3-4. Inverter Identification

I

NSTALLATION

M

ANUAL

7

T

RANSPORTATION

D

ELIVERY

O

PTIONS AND

R

ECOMMENDED

V

EHICLE

4. Transportation

4.1. Delivery Options and Recommended Vehicle

Any equipment used for the transport of the central inverter must be suitable for the weight of the central inverter. The following equipment can be used for the transport of the central inverter:

Forklift or crane (Recommended)

Hoisting steel cables

Hoisting hooks

Steel rings

4.2. Using a Forklift

To move the central inverter using a forklift:

1. Place the forks of the forklift under the unit.

Figure 4-1. Moving the Central Inverter

I

NSTALLATION

G

UIDE

8

T

RANSPORTATION

U

SING A

F

ORKLIFT

2. Move the inverter to the installation base. The steps to install the inverter on the base depend on whether the unit is packed in a shipping crate:

If the unit is not packed in a shipping crate, place it directly on the installation base.

If the unit is packed in a shipping crate, follow these steps: a. Using a claw hammer or pry bar, remove the crate's wood top and side panels.

b. Remove the central inverter anchor hardware that attaches it to the shipping pallet.

Figure 4-2. Unpacking the Shipping Crate

c. Remove the central inverter from the pallet and place it on the installation base.

Figure 4-3. Removing the Central Inverter from the Pallet

I

NSTALLATION

G

UIDE

9

T

RANSPORTATION

U

SING A

C

RANE

4.3. Using a Crane

To move the central inverter using a crane:

1. Move the inverter to the installation base. The steps to install the inverter on the base depend on whether the unit is packed in a shipping crate:

If the unit is packed in a shipping crate, follow these steps: a. Using a claw hammer or pry bar, remove the crate's wood top and side panels.

b. Remove the central inverter anchor hardware that attaches it to the shipping pallet.

Figure 4-4. Unpacking the Shipping Crate

2. Remove the top cover of the inverter.

Figure 4-5. Removing the Inverter’s Top Cover

I

NSTALLATION

G

UIDE

10

T

RANSPORTATION

P

ACKAGE

C

ONTENTS

3. Attach the hoisting hooks and cables to the steel rings on the inverter.

Crane hook

Steel ring

Hoisting hook

Figure 4-6. Attaching the Hoisting Cables

4. Attach the crane hook to the steel ring on the hoisting cables.

5. Place the inverter on the installation base.

6. Remove the hoisting cables.

4.4. Package Contents

Table 4-1: Package Content

Object

Central Inverter

Installation Manual

Key

Cable Gland

Qty Description

1

1

RPI-C500 PV Inverter

The Instruction to provide the information of safety, Installation, specification, etc.

2 Open/Close the door of the inverter

22 Prevent dust and water via cable

I

NSTALLATION

G

UIDE

11

T

RANSPORTATION

I

NSTALLATION

S

ITE

R

EQUIREMENTS

4.5. Installation Site Requirements

4.5.1. Site Space

Make sure the room for system loading and the destination installation site meet the space requirements described in this section.

40cm

20cm

100cm

100cm

20cm

Figure 4-7. Inverter Space Requirements

The loading site should provide enough space to unpack the entire system and release the container. See the following dimensions:

Full height of the system package on shipping pallet: 2210 mm (87 inches)

Width of the system package, front: 1820 mm (72 inches)

Length of the shipping pallet: 1090 mm (43 inches)

Width of the system: 1600 mm (63 inches)

Height of the system: 1950 mm (77 inches)

Depth of the system: 800 mm (31 inches)

I

NSTALLATION

G

UIDE

12

I

NSTALLATION

P

REPARING THE

I

NSTALLATION

S

ITE

5. Installation

5.1. Preparing the Installation Site

Prior to unpacking the system, make sure that you read and understand all environmental and space requirements.

5.1.1. Building a base

Build an installation base using the dimensions from the following illustration.

Figure 5-1. Installation Base Dimensions

5.1.2. Using the ground as a base

Install the inverter directly on the ground and dig a trench below to run the cables.

I

NSTALLATION

G

UIDE

Trench

Figure 5-2. Ground as a base

13

I

NSTALLATION

R

ECOMMENDED

T

OOLS

5.2. Recommended Tools

Only use tools that have been recommended to install the unit.

Power meter (power analyzer)

Voltmeter

Current meter

Adjustable / Torque / Socket Wrench

Screwdriver

5.3. DC Connection

Connect the power cable from the DC distribution box to the PV Inverter through the input power cable gland shown in Figure 5-3.

I

NSTALLATION

G

UIDE

DC+

Figure 5-3. DC Connection

DC-

14

I

NSTALLATION

5.4. AC Connection

AC C

ONNECTION

AC

Figure 5-4. AC Connection

I

NSTALLATION

G

UIDE

15

I

NSTALLATION

PE C

ONNECTION

5.5. PE Connection

PE connection point can be accessed to the bus bar by either the AC or DC side.

DC side

AC side

Figure 5-5. PE Connection

I

NSTALLATION

G

UIDE

16

I

NSTALLATION

C

ONNECTION OF

C

OMMUNICATION

M

ODULES

5.6. Connection of Communication

Modules

The Communication Module provide the function of communication with 2-port RS-

485 and 2-port dry contacts.

5.6.1. RS-485 Connection

The pin definition of RS-485 is shown as in Table 5-1. Installer should switch ON the terminal resistor when single inverter is installed. The cable wire position and wiring of multi-inverter connection is shown as Figure 5-6 & Figure 5-7. Installer must switch

ON terminal resister at the first and last devices on the RS-485 chain as Figure 5-7.

The other terminal resisters must be switch OFF. Please refer to Table 5-3 for the terminal resister setting.

Table 5-1: Definition of RS-485 PIN

PIN

4

5

7

8

DATA-

DATA+

VCC(+12V)

GND

Function

Terminal Resistor

Dry Contact

RS-485

Expanding port

Figure 5-6. Cable Wire Position for Multi-inverter Connection

I

NSTALLATION

G

UIDE

17

I

NSTALLATION

Inverter 1 Inverter 2

Figure 5-7. Multi-inverter Connection Illustration

Table 5-2: RS-485 Data Format

Baud ratey

Data bit

Stop bit

Parity

9600

8

1

N/A

Table 5-3: Terminal Resister Setting

SW ON

SW OFF

ON

1 2

SW

Terminal

Resistor

OFF

ON

1

OFF

ON

OFF

ON

2

OFF

OFF

ON

ON

Inverter n

RS-485 C

ONNECTION

PC

RS485/USB or

RS485/RS232

I

NSTALLATION

G

UIDE

18

I

NSTALLATION

D

RY

C

ONTACT

C

ONNECTION

5.6.2. Dry Contact Connection

Provide 2 set of Dry Contact function for gird and fault respectively. When inverter is on grid, COM & NO2 will be shorted. When the Hardware Fail is detected, COM &

NO1 will be shorted. This might be programmable according to the request of customer.

FAULT

COM pin

ON GRID

Figure 5-8. Dry Contact Port & Assignments

5.6.3. Auxiliary Power from External Source

If the power source of AC Aux Power is changed from internal to external source, please follow the below steps:

1. Loosen the internal wiring (solid line in figure).

2. Power cable of external source is connected to AC Aux Power Terminal Block

(dotted line in figure).

I

NSTALLATION

G

UIDE

19

I

NSTALLATION

A

UXILIARY

P

OWER FROM

E

XTERNAL

S

OURCE

3. The requirement of external source is 3P3W - 270Vac ±15% and the capacity is at least 2KW. Other voltage required should consult with Delta.

Figure 5-9. Auxiliary Power from External Source

Positive Grounding Negative Grounding

DC+ DC-

Fuse Holder

Fuse Holder

Figure 5-10. Configure to Positive (DC+)/Negative (DC-) Grounding

I

NSTALLATION

G

UIDE

20

I

NSTALLATION

F

IRST

T

IME

P

OWERING

U

P

5.7. First Time Powering Up

5.7.1. Before Powering Up

1. Check the PV array.

Note:

The PV array open circuit DC voltage must be greater than 500Vdc and less than

1000Vdc.

a. Measure the PV array open circuit DC voltage across the DC positive (+) and negative (-) terminals in DC distribution.

2. Check the AC utility voltage.

Use an AC voltmeter to measure the AC utility voltage. The voltage level should be at the nominal value of 270 Vac Line-Line.

5.7.2. Powering Up the Inverter and Self-test

1. Configure the PV inverter settings.

To provide power to the inverter, switch on the DC switch. The LCD display would be worked normally after 40seconds.

a. For the first time start-up, the Select Country screen is displayed. Highlight a country in the list by pressing the up  or down  buttons and press

ENT to select or EXIT to cancel.

b. Verify the language you selected is correct by pressing ENT for Yes or EXIT for No. Select No to return to the previous screen.

c. The Select Language screen is displayed. Highlight a language by pressing the up  or down  buttons and press ENT to select or EXIT to cancel and return to the first screen.

d. The Main Menu screen is displayed. Highlight E-Today by pressing the up

 or down  buttons and press ENT to select or EXIT to cancel. e. The E-Today screen is displayed while the inverter performs a self-test. If the self-test passes. the System Boot Countdown screen is displayed. If the self-test fails, the test is performed again .

f. The System Boot Countdown screen is displayed and the countdown begins. Press EXIT to return to the Main Menu screen.

g. The Main Menu screen is displayed. Highlight Power Meter by pressing the up  or down  buttons and press ENT to select.

h. The Power Meter screen is displayed. Confirm input and output information and press EXIT to return to the main menu screen.

I

NSTALLATION

G

UIDE

21

I

NSTALLATION

P

OWERING

U

P THE

I

NVERTER AND

S

ELF

-

TEST i. The Main Menu screen is displayed and the setup is complete.

EXIT

Select Country

– 1/ 1

China

Germany LV

Germany MV

India

Taiwan

21. Jun 2010 13:50

ENT

EXIT

Confirm Country

21. Jun 2010 13:50

Are you sure you to set country

China

ENT

No Yes

(A) (B)

Select Language

English

Deutsch

Francais

Italiano

Espanol

Nederlands

(C)

ENT

21. Jun 2010 13:50

Menu

E-Today

Power Meter

Energy Log

Event Log

Operation Data

Inverter Information

Settings

(D)

21. Jun 2010 13:50

ENT

E-Today: 0kWh

500

375

250

125

R untime: 0.0Hrs

Standby

0

4 8 12 16

21. Jun 2010 13:50

Power: 0.0 kW

20 24

(E)

Fail

PASS

E-Today: 0kWh

R untime: 0.0Hrs

Countdown 33s

500

375

250

125

0

4 8 12 16

21. Jun 2010 13:50

Power: 0.0 kW

20 24

(F)

EXIT

Menu

E-Today

Power Meter

Energy Log

Event Log

Operation Data

Inverter Information

Settings

(I)

21. Jun 2010 13:50

EXIT

Power Meter

I

P

V

Input1

245.0

500

490

Today Energy:

Today R untime:

Today Earning:

Today CO2 Saved:

Input2

245.0

500

490

(H)

21. Jun 2010 13:50

Output

480.0

270

1026

0

0 kWh

Hours

0

0

€ t.

kW

V

A

ENT

Menu

E-Today

Power Meter

Energy Log

Event Log

Operation Data

Inverter Information

Settings

(G)

Figure 5-11. Configuration Screens

21. Jun 2010 13:50

Note:

If Auxiliary Power is powered externally, the LCD display should be turn on before

inverter working. Refer to Auxiliary Power from External Source.

I

NSTALLATION

G

UIDE

22

I

NSTALLATION

LCD F

LOWCHART

5.8. LCD Flowchart

Press EXIT button will enter menu page (Figure 5-12), E-today is the home page for the following items in this section.

Figure 5-12. Menu Page

5.8.1. Home Page

When inverter is operating normally, LCD will show home page as Figure 5-13, user can get the information of output power, inverter status, E-today, date and time.

Figure 5-13. Home Page

I

NSTALLATION

G

UIDE

23

I

NSTALLATION

5.8.2. Power Meter

This page shows the information about input and output power.

P

OWER

M

ETER

Figure 5-14. Power Meter Page

5.8.3. Energy Log

After pressing ENT in this page, user can view the historical data about power generating yearly, monthly, and daily.

Figure 5-15. Energy Log Flow Chart

I

NSTALLATION

G

UIDE

24

I

NSTALLATION

E

VENT

L

OG

5.8.4. Event Log

When entering this page, the display will show all the events (error or fault) and it can show 30 records at most with the latest one on the top. When pressing ENT, user can view all the statistic data.

Figure 5-16. Event Log Flow Chart

I

NSTALLATION

G

UIDE

25

I

NSTALLATION

O

PERATION

D

ATA

5.8.5. Operation Data

Has 4 pages, record the maximum and/or minimum values of history, including voltage, current, power and temperature.

Figure 5-17. Operation Data Flow Chart

I

NSTALLATION

G

UIDE

26

I

NSTALLATION

I

NVERTER

I

NFORMATION

5.8.6. Inverter Information

This page has the following information: serial number, firmware version, installation

date and inverter ID. If user wants to change inverter ID, please refer to Settings.

Figure 5-18. Inverter Information Page

5.8.7. Settings

The Settings menu includes Personal Setting, Coefficients setting, Install Setting,

Active/Reactive Power Control, and FRT.

Figure 5-19. Setting Page

I

NSTALLATION

G

UIDE

27

I

NSTALLATION

S

ETTINGS

5.8.7.1. Personal Settings

User can set Language, Date, Time, Screen Saver, LCD brightness and contrast in

Personal Settings. Screen Saver can adjust from 5min-60min. When over the setting time limitation without using button functions, the LDC backlight will turn off automatically. Brightness and Contrast can adjust the level 1-5 (low- high).

Figure 5-20. Personal Settings Page

5.8.7.2. Coefficient Settings

Users can set the following parameters according their needs.

Figure 5-21. Coefficient Settings Page

I

NSTALLATION

G

UIDE

28

I

NSTALLATION

S

ETTINGS

5.8.7.3. Install Settings

Correct passwords are requested when entering Install Settings. Install Settings for user and installation technician are different. The password can not be revised. After confirmation as the general user password, user can set Inverter ID, and Insulation.

!

CAUTION!

C

AUTIONS APPEAR BEFORE THE TEXT IT REFERENCES

.

CAUTIONS APPEAR IN CAPITAL LETTERS

TO EMPHASIZE THAT THE MESSAGE CONTAINS VITAL HEALTH AND SAFETY INFORMATION

.

Insulation

Inverter will meansure the impedance between Array and PE before connect to grid. If the impedance between Array and PE is lower then the value that set in Insulation

Settings, inverter will stop connecting to grid. There are 4 modes users can select in

Insulation settings: ON, Positive Ground, Negative Ground, or Disable. Installer can also select different impedance according to the actual situation.

Figure 5-22. Install Setting Page -User Mode

Figure 5-23. Insulation Setting

After confirmation as the installation technician passwords, system will add setting optionsof DC-Injection, Return to Factory, Country and Grid Setting. In Grid Setting selection, technician can adjust the parameter for protection (OVR, UVR, OFR, UFR, etc.) to Utility. Before setting of the protection to Utility in Grid Settings page, please

I

NSTALLATION

G

UIDE

29

I

NSTALLATION

S

ETTINGS set country as "Custom." Return to Factory will turn inverter to default setting and delete all the records of event and energy.

Figure 5-24. Install Setting Page -Installer Mode

Figure 5-25. Grid Setting Page

There are 19 parameters in Grid Settings page. User can refer to Table 5-4. for the function of each parameter.

Table 5-4: Grid Setting Parameters

Parameter

Vac High Off

Vac High On

Description

Inverter will be disconnected from grid if the phase voltage of AC rises to this value.

Inverter will be reconnected to grid if the phase voltage of AC drops to this value.

I

NSTALLATION

G

UIDE

30

I

NSTALLATION

S

ETTINGS

Table 5-4: Grid Setting Parameters (Continued)

Parameter

Vac High Off T

Vac Low Off

Vac Low On

Vac Low Off T

Vac High Off Slow

Vac High On Slow

Vac High Off Slow T

Vac Low Off Slow

Vac Low On Slow

Vac Low Off Slow T

Fac High Off

Fac High On

Fac High Off T

Fac Low Off

Fac Low On

Fac Low Off T

Reconnection Time

Description

If AC voltage reaches to the value of Vac High Off, inverter will be disconnected in this time.

Inverter will be disconnected from grid if the phase voltage of AC drops to this value.

Inverter will be reconnected to grid if the phase voltage of AC rises to this value.

If AC voltage reaches to the value of Vac Low Off, inverter will be disconnected in this time.

The function is same as Vac High Off, but the value must be lower than former.

The function is same as Vac High On, but the value must be lower than former.

The function is same as Vac High Off T, but the time must be longer than former.

The function is same as Vac Low Off, but the value must be higher than former.

The function is same as Vac Low On, but the value must be higher than former.

The function is same as Vac High Off T, but the time must be longer than former.

Inverter will be disconnected from grid if AC frequency rises to this value.

Inverter will be reconnected to grid if AC frequency drops to this value.

If AC frequency reaches to the value of Fac High Off, inverter will be disconnected in this time.

Inverter will be disconnected from if AC frequency drops to this value.

Inverter will be reconnected to grid if AC frequency rises to this value.

If AC frequency reaches to the value of Fac Low Off, inverter will be disconnected in this time.

The countdown time before inverter connected to grid.

Note:

Once you change any item listed above, the country will be turn to "Custom".

You can go back the original country via re-selecting the country in the page "Install settings" - "Country".

I

NSTALLATION

G

UIDE

31

T

ROUBLESHOOTING

M

EASUREMENT

I

NDEX

6. Troubleshooting

6.1. Measurement Index

Please refer to the following tables for definition of Measurement Index.

Figure 6-1. Measurement Index (1 of 3)

I

NSTALLATION

G

UIDE

Figure 6-2. Measurement Index (2 of 3)

32

T

ROUBLESHOOTING

M

EASUREMENT

I

NDEX

Figure 6-3. Measurement Index (3 of 3)

Table 6-1: Measurement Index

No.

Measurement

7

8

5

6

3

4

1

2

E-Today

Runtime

Power

Input1 - P

Input1 - V

Input1 - I

Input2 - P

Input2 - V

9 Input2 - I

10 Output - P

11 Output - V

12 Output - I

13 Today Energy

14 Today Runtime

15 Today Earning

Meaning

Total energy generated today

Operation time today

Actual power is generating

Power of DC Input1

Voltage of DC Input1

Current of DC Input1

Power of DC Input2

Voltage of DC Input2

Current of DC Input2

Power of AC output

Voltage of AC output

Current of AC output

Accumulate electricity generated today

Accumulated operation time today

Accumulated dollars amount earned today

I

NSTALLATION

G

UIDE

33

T

ROUBLESHOOTING

M

EASUREMENT

I

NDEX

No.

Measurement

16

Today CO

2

saved

17 Life Energy

18 Life Runtime

19

Total CO

2

saved

20 Total Earning

21 Peak Month

22 E-Year

23 Year CO2 saved

24 Peak Day

25 E-Month

26 Month CO2 saved

27 Peak Hour

28 E-Day

29

Day CO

2

saved

30 Input1 Voltage Maximum

31 Input1 Current Maximum

32 Input1 Power Maximum

33 Input2 Voltage Maximum

34 Input2 Current Maximum

35 Input2 Power Maximum

36 L1 Voltage Maximum

37 L1 Current Maximum

38 L1 Power Maximum

39 L2 Voltage Maximum

40 L2 Current Maximum

41 L2 Power Maximum

42 L3 Voltage Maximum

43 L3 Current Maximum

44 L3 Power Maximum

45 Output Voltage Maximum

46 Output Current Maximum

47 Output Power Maximum

Table 6-1: Measurement Index (Continued)

Meaning

Accumulated CO

2

emission retrenched today

Total energy generated to present time

Accumulated operation time to present time

Accumulated CO

2

emission retrenched to present time

Accumulated the total amount of money earned

The maximum energy generated of one month in that year.

Total energy generated in that year

Accumulated CO

2

emission retrenched in that year

The maximum energy generated of one day in that month

Total energy generated in that month

Accumulated CO

2

emission retrenched in that month

The maximum energy generated of one hour in that day

Total energy generated in that day

Accumulated CO

2

emission retrenched in that day

The maximum DC Input1 voltage from history

The maximum DC Input1 current from history

The maximum DC Input1 power from history

The maximum DC Input2 voltage from history

The maximum DC Input2 current from history

The maximum DC Input2 power from history

The maximum L1 phase voltage from history

The maximum L1 phase current from history

The maximum L1 phase power from history

The maximum L2 phase voltage from history

The maximum L2 phase current from history

The maximum L2 phase power from history

The maximum L3 phase voltage from history

The maximum L3 phase current from history

The maximum L3 phase power from history

The maximum Grid voltage from history

The maximum output current from history

The maximum output power from history

I

NSTALLATION

G

UIDE

34

T

ROUBLESHOOTING

M

EASUREMENT

I

NDEX

Table 6-1: Measurement Index (Continued)

No.

Measurement Meaning

48 Output Frequency Maximum The maximum Grid frequency from history

49 Inside Max.

50 Heatsink-R Max.

The maximum inverter inner temperature value

The maximum Heatsink-R temperature value

51 Heatsink-S Max.

52 Heatsink-T Max.

53 Heatsink-U Max.

The maximum Heatsink-S temperature value

The maximum Heatsink-T temperature value

The maximum Heatsink-U temperature value

54 Heatsink-V Max.

55 Heatsink-W Max.

56 Inside Min.

57 Heatsink-R Min.

58 Heatsink-S Min.

59 Heatsink-T Min.

60 Heatsink-U Min.

61 Heatsink-V Min.

62 Heatsink-W Min.

The maximum Heatsink-V temperature value

The maximum Heatsink-W temperature value

The minimum inverter inner temperature value

The minimum Heatsink-R temperature value

The minimum Heatsink-S temperature value

The minimum Heatsink-T temperature value

The minimum Heatsink-U temperature value

The minimum Heatsink-V temperature value

The minimum Heatsink-W temperature value

I

NSTALLATION

G

UIDE

35

T

ROUBLESHOOTING

E

RROR

M

ESSAGE AND

T

ROUBLESHOOTING

6.2. Error Message and Troubleshooting

Ones can check the Error Message on LCD then make simple and quick trouble shooting according to the following table.

Table 6-2: Error Messages

Message on

LCD

Possible cause Action

AC Freq High

AC Freq Low

Grid Quality

HW Connect Fail

No Grid

AC Volt Low

AC Volt High

1. Actual utility frequency is over the

OFR setting

2. Incorrect country setting

3. Detection circuit malfunction

1. Actual utility frequency is under the UFR setting

2. Incorrect country setting

3. Detection circuit malfunction

Non-linear load in Grid and near to inverter

1. Wrong AC connection

2. Detection circuit malfunction

1. AC breaker is OFF

2. Grid is disconnected

1. Actual utility voltage is under the

UVR setting

2. Incorrect country or Grid setting

3. Wrong AC connections

4. Detection circuit malfunction

1. Actual utility voltage is over the

OVR setting

2. Utility voltage is over the Slow

OVR setting during operation

3. Incorrect country or Grid setting

4. Detection circuit malfunction

1. Check the utility frequency on the inverterterminal

2. Check country setting

3. Check the detection circuit inside the inverter

1. Check the utility frequency on the inverter terminal

2. Check country setting

3. Check the detection circuit inside the inverter

Grid connection of inverter need to be far away from non-linear load if necessary

1. Check the AC connection based on the manual

2. Check the detection circuit inside the inverter

1. Switch on AC breaker

2. Check the connection in AC and make sure it connects to inverter

1. Check the utility voltage connection to the inverter terminal

2. Check country & Grid setting

3. Check the connection in AC

4. Check the detection circuit inside the inverter

1. Check the utility voltage on the inverter terminal

2. Check country & Grid setting

3. Check the detection circuit inside the inverter

I

NSTALLATION

G

UIDE

36

T

ROUBLESHOOTING

E

RROR

M

ESSAGE AND

T

ROUBLESHOOTING

Table 6-2: Error Messages (Continued)

Message on

LCD

Possible cause

Solar1 High

Insulation

1. Actual Solar1 voltage is over

1000Vdc

2. Detection circuit malfunction

1. PV array insulation fault

2. Large PV array capacitance between Plus to Ground or Minus to Ground or both.

3. Detection circuit malfunction

Action

1. Modify the solar array setting, and make the Voc less than 1000Vdc

2. Check the detection circuit inside the inverter

1. Check the insulation of Solar inputs

2. Check the capacitance, dry PV panel if necessary

3. Check the detection circuit inside the inverter

Table 6-3: Warning Message

Message on

LCD

Solar1 Low

HW FAN

EPO

DC Surge

AC Surge

Possible cause Action

1. Actual Solar1 voltage is under the limit

2. Some devices were damaged inside the inverter if the actual

Solar1 voltage is close to "0"

3. Detection circuit malfunction

1. One or more fans are locked

2. One or more fans are defective

3. One ore more fans are disconnected

4. Detection circuit malfunction

EPO button is activated

SPD on DC Side damaged

SPD on AC Side damaged

1. Check the Solar1 voltage connection to the inverter terminal

2. Check the detection circuit inside the inverter

1. Remove the object that stuck in the fan(s)

2. Replace the defective fan(s)

3. Check the connections of all fans

4. Check the detection circuit inside the inverter

1. Replease the EPO (Release with

N.C )

2. Check the connection of EPO

1. Contact the connections of DC

SPD

2. Check the DC SPD if damaged

1. Contact the connection of AC

SPD

2. Check the AC SPD if damaged

I

NSTALLATION

G

UIDE

37

T

ROUBLESHOOTING

E

RROR

M

ESSAGE AND

T

ROUBLESHOOTING

Table 6-4: Fault Message

Message

HW DC Injection

Temperature

HW NTC1 Fail

Temperature

HW NTC2 Fail

HW NTC3 Fail

HW NTC4 Fail

HW DSP ADC1

HW DSP ADC3

Possible cause

1. Utility waveform is abnormal

2. Detection circuit malfunction

1. The ambient is over 60

°

C (The installation is abnormal)

2. Detection circuit malfunction

1. Ambient temperature >105

°

C or

<-40

°

C

2. Detection circuit malfunction

1. Ambient temperature is <-30

°

C

2. Detection circuit malfunction

1. Ambient temperature >125

°

C or

<-30

°

C

2. Detection circuit malfunction

1. Ambient temperature >125

°

C or

<-30

°

C

2. Detection circuit malfunction

1. Ambient temperature >125

°

C or

<-30

°

C

2. Detection circuit malfunction

1. Insufficient input power

2. Auxiliary power circuitry malfunction

3. Detection circuit malfunction

1. Insufficient input power

2. Auxiliary power circuitry malfunction

3. Detection circuit malfunction

Action

1. Check the utility waveform. Grid connection of inverter need to be far away from non-linear load if necessary

2. Check the detection circuit inside the inverter

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter (RTM1)

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter (RTM1, RTDR1,

RTDS1, RTDT1, RTDU1, RTDV1 and RTDW1)

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter

1. Check the installation ambient and environment

2. Check the detection circuit inside the inverter

1. Check the input voltage, must >

450Vdc

2. Check the auxiliary circuitry inside the inverter

3. Check the detection circuit inside the inverter

1. Check the input voltage, must >

450Vdc

2. Check the auxiliary circuitry inside the inverter

3. Check the detection circuit inside the inverter

I

NSTALLATION

G

UIDE

38

T

ROUBLESHOOTING

E

RROR

M

ESSAGE AND

T

ROUBLESHOOTING

Table 6-4: Fault Message (Continued)

Message

HW Red ADC1

HW Red ADC2

HW COMM2

HW COMM1

HW Connect Fail

Relay Test Short

Relay Test Open

HW Bus OVR

Possible cause

1. Insufficient input power

2. Auxiliary power circuitry malfunction

3. Detection circuit malfunction

1. Insufficient input power

2. Auxiliary power circuitry malfunction

3. Detection circuit malfunction

1. Red. CPU is idling

2. The communication connection is disconnected

Action

1. Check the input voltage, must >

450Vdc

2. Check the auxiliary circuitry inside the inverter

3. Check the detection circuit inside the inverter

1. Check the input voltage, must >

450Vdc

2. Check the auxiliary circuitry inside the inverter

3. Check the detection circuit inside the inverter

1. Check reset and crystal in Red.

CPU

2. Check the connection between

Red. CPU and DSP

1. Check reset and crystal in DSP

2. Check the connection between

DSP and COMM

3. Check the communication circuit

1. DSP is idling

2. The communication connection is disconnected

3. The communication circuit malfunction

1. Power line is disconnected inside the inverter

2. Driver or switching device malfunction in inverter stage

3. Current feedback circuit is defective

1. Contactor coil is abnormal

2. The driver circuit for the contactor malfunction

3. The detection accuracy is not correct for Vgrid and Vout

1. Driver circuit for Contactor is defective

2. Contactor coil is defective

3. Detection circuit malfunction

(Inverter Voltage)

4. The detection accuracy is not correct for Vgrid and Vout

1. Power BackFeed Occured (DC

Power < AC Power)

2. Something wrong with AC Frequency PLL

1. Check the power lines inside the inverter

2. Check driver & switching device in inverter stage

3. Check the current feedback circuit inside the inverter

1. Replace the defective contactor coil

2. Check the driver circuit inside the inverter

3. Check the Vgrid and Vout voltage detection accuracy

1. Check the driver circuit for contactor

2. Replace the defective contactor coil

3. Check the detection circuit inside the inverter

4. Check the Vgrid and Vout voltage detection accuracy

1. Check the connection between

Solar Panel and Inverter

2. Check the Vgrid and Vout voltage detection accuracy

I

NSTALLATION

G

UIDE

39

T

ROUBLESHOOTING

E

RROR

M

ESSAGE AND

T

ROUBLESHOOTING

Table 6-4: Fault Message (Continued)

Message

AC Current High

Possible cause

1. Surge occurs during operation

2. Driver for inverter stage is defective

3. Switching device is defective

4. Detection circuit malfunction

HW CT A Fail

HW CT B Fail

HW CT C Fail

HW AC OCR

HW ZC Fail

AC Aux Fail

DC Current High

1. Test current loop is broken

2. Detection circuit malfunction

1. Test current loop is broken

2. Detection circuit malfunction

1. Test current loop is broken

2. Detection circuit malfunction

1. Large Grid harmonics

2. Switching device is defective

3. Detection circuit malfunction

The detection circuit for synchronal signal malfunction

AC AuxPower offer incorrect output voltage

Input current detection circuit malfunction

Action

1. N/A

2. Check the driver circuit in inverter stage

3. Check all switching devices in inverter stage

4. Check the detect circuit inside the inverter

1. Check CT Sensor Wire

2. Check the detection circuit inside the inverter

1. Check CT Sensor Wire

2. Check the detection circuit inside the inverter

1. Check CT Sensor Wire

2. Check the detection circuit inside the inverter

1. Check the utility waveform. Grid connection of inverter need to be far away from non-linear load if necessary

2. Check all switching devices in inverter stage

3. Check the detection circuit inside the inverter

Check the detection circuit for synchronal signal inside the inverter

1. Check the connection between

Inverter and AC side

2. Check the output voltage of AC

AuxPower (output voltage : 49.5V)

Check input current detection circuit

I

NSTALLATION

G

UIDE

40

M

AINTENANCE

R

EPLACING COMPONENTS

7. Maintenance

7.1. Replacing components

7.1.1. Replacing a Fan Module

1. Loosen the screws securing the rear panel door to the chassis and then open the door.

Figure 7-1. Loosening Rear Panel Door Screws

I

NSTALLATION

G

UIDE

41

M

AINTENANCE

R

EPLACING A

F

AN

M

ODULE

2. Disconnect the power and signal cables from the PV Inverter connectors.

Figure 7-2. Disconnecting Power and Signal Cables

3. Loosen the screws securing the bottom front cover of the fan ventilation shaft and then remove the cover.

Figure 7-3. Loosening Bottom Front Cover Screws

I

NSTALLATION

G

UIDE

42

M

AINTENANCE

R

EPLACING A

F

AN

M

ODULE

4. Remove the screws securing the fan module to the chassis and then remove the module.

Figure 7-4. Loosening Fan Module Screws

I

NSTALLATION

G

UIDE

43

M

AINTENANCE

R

EPLACING AN

A

IR

F

ILTER

7.1.2. Replacing an Air Filter

1. Loosen the screws securing the rear panel door to the chassis and then open the door.

Figure 7-5. Loosening Rear Panel Door Screws

2. Loosen the screws securing the air filter cover to the rear panel door and then open the cover.

I

NSTALLATION

G

UIDE

Figure 7-6. Loosening Air Filter Cover Screws

44

M

AINTENANCE

R

EPLACING AN

A

IR

F

ILTER

3. Loosen the screws securing the air filter to the rear panel door.

Figure 7-7. Loosening Air Filter Screws

4. Loosen the filter.

I

NSTALLATION

G

UIDE

Figure 7-8. Loosening the Air Filter

45

A

PPENDIX

A

Appedix A. Technical Data

Type of Equipment

Grid tied PV inverter

Outdoor enclosure

Input

Absolute maximum PV input voltage

Operation voltage range

Maximum power MPPT range

MPPT accuracy

Inverter wake up voltage

Startup voltage

MPP tracker

Input current limitation

Peak efficiency

European efficiency

Input detection tolerance

DC Switch

Input protection

1000Vdc

450Vdc – 1000Vdc

450Vdc - 820Vdc

> 99.9% at rated power

< 200Vdc (Aux-power on)

500Vdc

1

1200A

98.5%

98%

Input voltage deviation < 2%

1000V/1250A *1

DC over voltage_ electronic shutdown

DC current limitation_ current control

Surge arrestor_ 1000V/40KA

Type 2

Fuse 630A×4

I

NSTALLATION

G

UIDE

46

A

PPENDIX

A

Output

Output capacity

Grid

Utility voltage (Normal)

Utility frequency

Utility frequency range

Output current limitation

Anti-islanding

Output reconnect

Reconnect time

Output current DC component

Output current harmonic distortion

Reactive power control

Active power control

Nighttime power consumption

Detection tolerance

Power limitation

AC Circuitry Breaker

Protection

500KVA

Three phase 3P3W

270VΔ

50/60Hz

Domestic regulation (Max 50/60Hz

±5Hz)

[email protected]°CVin <550VDC

[email protected]°C

[email protected]°C

Domestic regulation

Connect to utility after utility recover and countdown finished

Domestic regulation

< 0.5% at rated current

< 3% at rated power

0.8 leading to 0.8 lagging

1% each step

< 50 watts (without optional transformer)

Utility voltage deviation < 2%

Utility frequency deviation < 0.03

Hz

Countdown timer deviation < 1.0 sec

Output power deviation < 3% at full power

Temperature sensor depend on heatsink & internal air temperature.

690V/1250A

AC Circuitry Breaker & Thermal protection

Surge arrestor_ 600V/30kA

Type 2

I

NSTALLATION

G

UIDE

47

A

PPENDIX

A

Information

Table A-1: Information

Communication Port

LED

LCD display

Display buttons

Energy log

Event Log

EPO (Emergency power off)

Dry Contact

Regulatory

Electrical safety

Grid interface

Emission

Immunity

Harmonic

Operation

Operating temperature

Storage temperature

Relative humidity

Audible noise

Operating elevation

RS-485 Delta Protocol

Operation: Green (flashing during countdown)

Alarm: Red

5” Graphic, 320*240 pixels

4 operational buttons

Day/Month/Year

30 events recently

Event times for each event

1 set

1 set

IEC 62109

CE compliance

BDEW

EN61000-6-4

EN61000-6-2

BDEW

-20°C~ 60°C

(full power -20°C~ 45°C)

-30°C~60°C

5%~95%

< 80dB

0 to 3000 m

I

NSTALLATION

G

UIDE

48

A

PPENDIX

A

Environment

Vibration

Shock

Drop

MTBF

Mechanical

Dimension

Width

Depth

High

Weight

Cooling

Enclosure rating

ISTA 1E

ISTA 1E

ISTA 1E

> 100,000 Hrs

1600 mm

800 mm

1950mm

1350 kg

Air cooling with Fans with inlet filter

IP-54 (Electrics parts)/NEMA 3R

I

NSTALLATION

G

UIDE

49

A

PPENDIX

C

Appedix B. Contact Information

Delta Power Solutions India Pvt Ltd

Ozone Manay Tech Park, "A" Block, 3rd Floor, Hosur Road, Hongasandra Village,

Bangalore-560068.

Tel: +91 80 6716 4777, Fax: +91 80 6716 4784.

Website: www.deltaelectronicsindia.com / www.solar-inverter.com

Sales Contact (All India) :

Email: [email protected]

Landline: +91 80 6716 4777 (Ask for Inverter Sales contact)

Inverter Service Support Center (All India):

Customer to register faults by calling +91-80-6716 4716 (Monday to Friday from 9:30 to 18:00 HRS) or

Service Mobile Number: +91 76762 54716 (After Office Hours & other days)

Email: [email protected]

I

NSTALLATION

G

UIDE

50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
