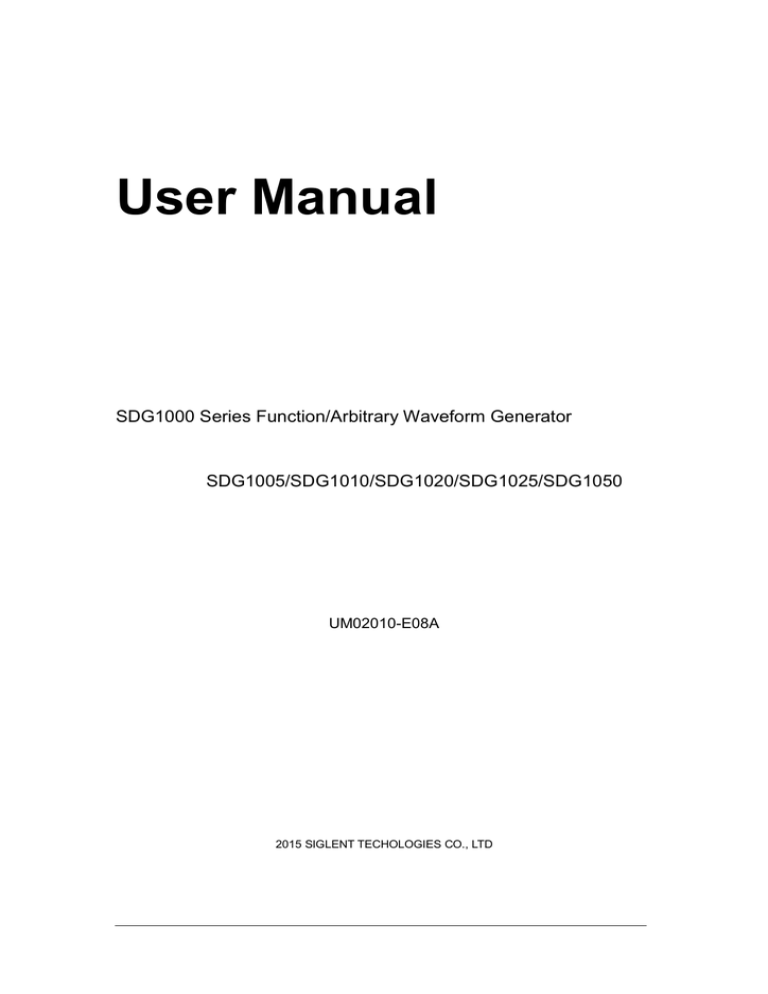

User Manual
SDG1000 Series Function/Arbitrary Waveform Generator
SDG1005/SDG1010/SDG1020/SDG1025/SDG1050
UM02010-E08A
2015 SIGLENT TECHOLOGIES CO., LTD
Declaration
Copyright © SIGLENT TECHNOLOGIES CO., LTD. All rights reserved.
Contents in this Manual are not allowed to be copied, extracted and
translated before being allowed by SIGLENT Company
SDG1000 User Manual
I
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage
to this product or any products connected to it. To avoid potential hazards,
use this product only as specified.
Only qualified personnel should perform service procedures.
 To Avoid Fire or Personal Injury

Use proper power line. Only the special power line of the products
approved by the state should be used.

Ground the instrument. This generator is grounded through the
protective terra conductor of the power cord. To avoid electric shock, the
grounding conductor must be connected to the earth ground. Make sure
that the instrument is properly grounded before connecting the input or
output terminals.

Observe all the ratings of the terminal. To avoid fire or shock, observe
all the ratings and symbols that marked on the instrument. Read the
user guide carefully before making connections to the instrument.

Do not operate without Covers. Do not operate the product with covers
or panels removed.

Avoid circuit or wire exposed. Do not touch the exposed connections
or components when the power is on.

Do not operate with suspected failures. If you suspect there is
damage with this product, you should have it inspected by qualified
service personnel authorized by SIGLENT before further operations.

Provide proper ventilation.
SDG1000 User Manual
II

Do not operate in wet/damp conditions.

Do not operate in an explosive atmosphere.

Keep the product’s surfaces clean and dry.

Not position the equipment so that it is difficult to operate the
disconnecting device (detachable plug)
SDG1000 User Manual
III
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
This product has been tested to the requirements of
CAN/CSA-C22.2 No. 61010-1, second edition, including Amendment 1,
or a later version of the same standard incorporating the same level of
testing requirements.
Not to use the product for measurements within other measurement
categories, such as CAT II, CAT III, CAT IV.
Not to use the equipment for measurements on mains circuits, not to
use the equipment for measurements on voltage exceed the voltage
range describe in the manual.
Only probe assemblies which meet the manufacturer’s specifications
shall be used.
The Responsible body or operator should refer to the instruction
manual to preserve the protection afford by the equipment. If the
equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Any parts of the device and its accessories are not allowed to be
changed or replaced, other than authorized by the manufacturer of his
agent.
SDG1000 User Manual
IV
Safety Terms and Symbols
Terms in this guide, these terms may appear in this manual:
Terms on the product, terms below may appear on the product:
DANGER: Indicates an injury or hazard that may immediately happen.
WARNING: Indicates an injury or hazard that may not immediately happen.
CAUTION: Indicates that a potential damage to the instrument or other
property might occur.
Symbols on the product: Symbols as followed may appear on the product:
SDG1000 User Manual
V
Introduction of SDG1000 Series
The
manual
covers
the
following
5
types
of
SDG1000
Series
Function/Arbitrary Waveform Generators: SDG1005, SDG1010, SDG1020,
SDG1025, SDG1050.
SIGLENT SDG1000 Series Function/Arbitrary Waveform Generators adopt
the direct digital synthesis (DDS) technology, which can provide stable,
high-precision, pure and low distortion signals. Its combination of excellent
system features, easiness in usage and versatile functions makes this
generator a perfect solution for your job now and in the future.
SDG1000 Series Function/Arbitrary Waveform Generator has a clear and
simple front-panel. The user-friendly panel layout and instructions, versatile
terminals, direct graph interface, built-in instructions and help system have
greatly simplified the operation process, with the help of which, users do not
have to spend a great deal of time learning and familiarizing the operation of
the generator before they can use it proficiently. The built-in AM, FM, PM,
ASK, FSK and PWM modulation functions generate modulated waveforms at
ease, without the help of a separate modulating source. USB I/O is a
standard accessory, while GPIB is optional. Remote instructions meet the
SCPI specification requirements.
SDG1000 User Manual
VI
From the characteristics and specifications given below, you will understand
how SDG1000 can satisfy your requirements.

DDS technology provides precise, stable and low distortional output
signal.

3.5’TFT color LCD display.

125MSa/s sampling rate, 14-bit resolution.

Frequency characteristics:
Sine: 1μHz to 50MHz
Square: 1μHz to 25 MHz
Ramp: 1μHz to 300kHz
Pulse: 500μHz to 5MHz
White Noise: 50MHz bandwidth (-3dB)
Arbitrary: 1μHz to 5MHz

5 standard waveforms: Sine, Square, Ramp, Pulse, Noise

Self-defined arbitrary waveform

Multiple modulation function: AM, FM, PM, ASK, FSK, PWM, DSB-AM,
Sweep and Burst.

Multiple I/O: external modulation source, external 10 MHz reference input,
external trigger source, waveform output, synchronous signal output.

Support USB storage device. Software updating could also be performed
using USB devices.

Up to 16k sample points of internal waveform depth, which can rebuild or
simulate any complex waveform.

Remote control is realized using the USB.

Multiple interfaces: USB host & device, GPIB (IEEE-488) (option).

Support the seamless connection with SIGLENT Series Digital
SDG1000 User Manual
VII
Oscilloscopes; can directly read and rebuild the stored waveform in the
oscilloscopes.

2 languages (English and Chinese) user interface and built-in help
system.
Note:
All the specifications described in this guide are according to SDG1050. If
you need to know the particular specifications about the other types, please
see ‘Specifications’ in Chapter 6.
SDG1000 User Manual
VIII
Catalogue
General Safety Summary ................................................................................. II
Introduction of SDG1000 Series .................................................................... VI
1. Getting Started ........................................................................................... 1
1.1. General Inspection ........................................................................... 2
1.2. Handle Adjustment ........................................................................... 3
1.3. The Front/Rear Panel ....................................................................... 4
1.4. To Set a Waveform ........................................................................... 7
1.5. To Set Modulate/Sweep/Burst ........................................................ 12
1.6. To Set Output ................................................................................. 14
1.7. To Use Digital Input ........................................................................ 15
1.8. To Use Store/Utility/Help Function .................................................. 16
2. Operating Your Generator........................................................................ 17
2.1. To Set Sine Signals ........................................................................ 18
2.2. To Set Square Signals .................................................................... 23
2.3. To Set Ramp Signals ...................................................................... 26
2.4. To Set Pulse Signals ...................................................................... 29
2.5. To Set Noise Signals ...................................................................... 33
2.6. To Set Arbitrary Signals .................................................................. 35
2.7. To Generate the Modulated Waveform ........................................... 42
2.8. To Generate Sweep........................................................................ 52
2.9. To Generate Burst .......................................................................... 54
2.10.
To Store and Recall ..................................................................... 58
2.11.
To Set the Utility Function............................................................ 64
2.12.
Test/Cal ....................................................................................... 77
2.13.
Edition Information ...................................................................... 82
2.14.
Updating Firmware ...................................................................... 84
SDG1000 User Manual
IX
2.15.
How to Use the Built-in Help System .......................................... 86
3. Application and Examples ....................................................................... 87
3.1. Example 1:Generate a Sine Wave ................................................. 88
3.2. Example 2:Generate a Square Wave ............................................. 90
3.3. Example 3:Generate a Ramp Wave ............................................... 92
3.4. Example 4:Generate a Pulse Wave................................................ 94
3.5. Example 5:Generate a Noise Wave ............................................... 96
3.6. Example 6:Generate an Arbitrary Wave ......................................... 97
3.7. Example 7:Generate a Sweep Linear Wave................................... 99
3.8. Example 8:Generate a Burst Wave .............................................. 101
3.9. Example 9:Generate an AM Wave ............................................... 103
3.10.
Example 10:Generate a FM Wave ............................................ 105
3.11.
Example 11:Generate a PM Wave ............................................ 107
3.12.
Example 12:Generate a FSK Wave .......................................... 109
3.13.
Example 13:Generate an ASK Wave ........................................ 111
3.14.
Example 14: Generate a PWM Wave........................................ 113
3.15.
Example 15: Generate a DSB-AM Wave .................................. 115
4. Troubleshooting ..................................................................................... 117
General Inspecting................................................................................ 117
Troubleshooting .................................................................................... 118
5. Service and Support .............................................................................. 119
Maintain summary................................................................................. 119
Contact SIGLENT ................................................................................. 120
6. Appendix................................................................................................ 121
Appendix A: Accessories....................................................................... 121
Appendix B: Daily Maintain and Cleaning ............................................. 122
SDG1000 User Manual
X
1. Getting Started
This chapter covers the following topics:

General Inspection

Handle Adjustment

The Front/Rear Panel

To Set a Waveform

To Set Modulate/Sweep/Burst

To Set Output

To Use Digital Input

To Use Store/Utility/Help Function
SDG1000 User Manual
1
1.1. General Inspection
When you get a new SDG1000 Series Function/Arbitrary Waveform
Generator, you are suggested to take the following steps to inspect the
instrument.
1. Inspect the shipping container for damage.
If there are damages in the packing or foam, keep them until the whole
machine and the accessories pass the electric and mechanical testing.
2. Check the accessories.
Accessories supplied with the instrument are listed in chapter 6
‘Appendix A: Accessories’.
If the contents are incomplete or damaged, please notify your sales
representative.
3. Inspect the instrument.
In case any mechanical damage or defect, or if the instrument does not
operate properly or pass performance tests, notify your sales
representative. If the shipping container is damaged, or the cushioning
materials show signs of stress, notify the carrier as well as your sales
office. Keep the shipping materials for the carrier’s inspection. Offices
will arrange for repair or replacement at their option without waiting for
claim settlement.
SDG1000 User Manual
2
1.2. Handle Adjustment
To adjust the handle position of SDG1000 Function/Arbitrary Waveform
Generator, please grip the handle by the sides and pull it outward. Then,
make the handle rotate to the desired position.
Figure 1- 1 Viewing Position and Carrying Position
SDG1000 User Manual
3
1.3. The Front/Rear Panel
When you get a new SDG1000 Series Function/Arbitrary Waveform
Generator, first you need to understand how to operate the front/rear panel
correctly. This chapter will make a brief introduction and description for the
operation and functions of the front/rear panel.
The SDG1000 Series Function/Arbitrary Waveform Generator has a clear
and simple front panel. See Figure 1- 2 and Figure 1- 3. The front panel has a
knob and functional keys. The 5 blue grey buttons on the right side of the
screen are menu buttons (named F1 to F5 from up to down) with the help of
which, you can enter different functions menu or have direct specific
applications. The signal input and output interfaces are set at the front and
rear panels which can help generating multiple arbitrary waveforms. The
various
interfaces
can
meet
the
need
of
the
multiple
interface
communications.
Figure 1- 2 Front Panel of SDG1000 Series
SDG1000 User Manual
4
Waveform
USB Host
Power
keys
LCD
Display
Menu
Operation
Number
keys
Function
keys
Knob
Output Direction
keys
Control
Figure 1- 3 Front Panel of SDG1000 Series
10MHz In
Sync Out
USB Device
Ext Trig/Gate/
Modulation
Power
FSK/Burst
Socket
In
Figure 1- 4 Rear Panel of SDG1000 Series
SDG1000 User Manual
5
Waveform
Display area
Operation
Menu:
Parameter area
Figure 1- 5 Display Interface (Sine Wave is the default display signal)
Character definitions in this User Manual:
The signs for buttons in this manual are the same as the panel buttons.
Please note that, the signs for the functional buttons on the operation panel
are represented by squared words, such as Sine , which represents the
transparent functional key with Sine on it on the front panel, while the menu
buttons are represented by brighten words such as Freq, which means the
frequency option in the Sine menu.
SDG1000 User Manual
6
1.4. To Set a Waveform
On the operation panel, there is a set of buttons with waveform icon. See
Figure 1- 6. The exercise below will help you familiarize with the waveform
selection settings.
Figure 1- 6 Waveform Selection Buttons
1. Press Sine
button and the waveform window will display sine waveform.
SDG1000 Series Generator can generate sine signal with a frequency
from 1μHz to 50MHz. By setting frequency/period, amplitude/high level,
offset/low level, sine signal with different parameters can be generated.
SDG1000 User Manual
7
Figure 1- 7 Sine Signal Display Interface
As is shown in Figure 1- 7, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude and 0Vdc offset.
2. Press Square button, and the waveform window displays square
waveform. SDG1000 Series Generator can generate square signal with a
frequency from 1μHz to 25MHz and variable duty cycle.
Figure 1- 8 Square Signal Display Interface
As is shown in Figure 1- 8, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude, 0Vdc offset and 50% duty cycle.
SDG1000 User Manual
8
3. Press Ramp
button, and the waveform window displays ramp waveform.
SDG1000 Series Generator can generate ramp signal with a frequency of
from 1μHz to 300kHz and variable symmetry.
Figure 1- 9 Ramp Signal Display Interface
As is shown in Figure 1- 9, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude, 0Vdc offset and 50% symmetry.
4. Press Pulse
button, and the waveform window displays pulse waveform.
SDG1000 Series Generator can generate pulse signal with a frequency
from 500μHz to 5 MHz and variable pulse width and delay.
SDG1000 User Manual
9
Figure 1- 10 Pulse Signal Display Interface
As is shown in Figure 1- 10, the default signal parameters are: 1kHz
frequency, 4.0Vpp amplitude, 0Vdc offset, 200μs pulse width.
5. Press Noise button, and the waveform window displays noise waveform.
SDG1000 Series Generator can generate noise signal with a band width
up to 50MHz.
Figure 1- 11 Noise Signal Display Interface
As is shown in Figure 1- 11, the default signal parameters are: 2.0V Stdev
and 10mV Mean.
SDG1000 User Manual
10
6. Press Arb button, and the waveform window displays arbitrary waveform.
SDG1000 Series Generator can generate repeatable arbitrary waveform
signals with at most 16K points and 5MHz frequency.
Figure 1- 12 Arbitrary Waveform Signal Display Interface
As is shown in Figure 1- 12, the default signal parameters are: 1kHz
frequency, 4.0Vpp amplitude and 0mVdc offset.
SDG1000 User Manual
11
1.5. To Set Modulate/Sweep/Burst
As shown in Figure 1- 13, there are three buttons on the front panel, which
are used for modulation, sweep and burst settings. The instructions below will
help you familiarize with the setting of these functions.
Figure 1- 13 Modulate/Sweep/Burst Button
1.
Press Mod button, the modulated waveforms will be generated. The
modulated waveform can be changed by modifying the parameters such
as type, internal/external modulation, depth, frequency, waveform, etc.
SDG1000 Series can modulate waveform using AM, FM, PM, ASK, FSK,
PWM and DSB-AM. Sine, square, ramp and arbitrary waveforms can be
modulated (pulse, noise and DC can not be modulated).
Figure 1- 14 Modulated Waveform Display Interface
SDG1000 User Manual
12
2. Press Sweep button, sine, square, ramp or arbitrary waveform can be
swept (pulse, noise and DC can not be swept).
In the sweep mode, SDG1000 Series generate signal with variable
frequencies.
Figure 1- 15 Sweep Waveform Display Interface
3. Press Burst button, burst for sine, square, ramp, pulse or arbitrary
waveform can be generated.
Figure 1- 16 Burst Waveform Display Interface
SDG1000 User Manual
13
Term Explanation
Burst: Output waveforms with set cycle times.
Burst can last for certain times of waveform cycle (N-Cycle Burst) or be
controlled by external gated signals (Gated Burst). Burst applies to all
kinds of waveforms, but noise can only be used in gated burst. Generally it
is called burst function within every signal generator.
1.6. To Set Output
As is shown in Figure 1- 17, there are two buttons on the right side of the
operation panel, which are used to output control. The instruction below will
help you familiarize with these functions.
Figure 1- 17 Output Buttons
Press Output button, activate or deactivate the output signal.
SDG1000 User Manual
14
1.7. To Use Digital Input
As is shown in Figure 1- 18, there are three sets of buttons on the operation
panel, which are direction button, the knob and the keypad. The instruction
below will help you familiarize with the digital input function.
Figure 1- 18 Front Panel Digital Input
1.
The up and down keys are used to shift parameters and the left and right
keys are used to shift digits.
2.
Keypad is used to directly set the parameters value.
3.
Knob is used to change a signal digit value whose range is 0~9.
SDG1000 User Manual
15
1.8. To Use Store/Utility/Help Function
As is shown in Figure 1- 19, there are three buttons on the operation panel,
which are used to call the store/recall, utility and help function. The instruction
below will help you familiarize with these functions.
Figure 1- 19 Store/Recall Utility and Help Button
1.
The Store/Recall button is used to store waveform data and configure
information.
2.
The Utility button is used to set the auxiliary system function, change
the output configure parameters, interface setting, system setting
information or perform the instrument self-test and read the calibration
information, etc.
3.
The Help button is used to read the help information.
SDG1000 User Manual
16
2. Operating Your Generator
Up to now you have got a brief understanding about SDG1000 series with the
front/rear panel, every function control area and keys. You should also know
how to set your Function/Arbitrary Waveform Generator for your usage. If you
are not familiar with these operations, you are suggested to read chapter one
‘Getting Started’ again.
This chapter covers the following topics:

Setting Sine Signal

Setting Square Signal

Setting Ramp Signal

Setting Pulse Signal

Setting Noise Signal

Setting Arb Signal

Output Modulated Signal

Output Sweep Signal

Output Burst Signal

Store/Recall

Utility Setting

Help System
You are suggested to read this chapter carefully so as to understand
SDG1000 Series Generator’s versatile waveform setting functions and
more operation methods.
SDG1000 User Manual
17
2.1. To Set Sine Signals
Press Sine button to call the sine operation. The sine waveform parameters
are set by using the sine operation menu.
The parameters of sine waveforms are: frequency/period, amplitude/high
level, offset/low level and phase. Different sine signals are generated by
setting these parameters. As is shown in Figure 2- 1, in the soft key menu,
select Freq. Cursor is located in the frequency parameter area in the
parameter display window, and users can set the frequency value here.
Figure 2- 1 Sine Parameter Display Interface
SDG1000 User Manual
18
Figure 2- 2
Table2- 1 Menu Explanations of Sine Waveform
Function
menu
Setting
Freq/
Period
Ampl/
HLevel
Offset/
LLevel
Phase/
EqPhase
Explanations
Set the signal frequency or period;
The current parameter will be switched at
a second press.
Set the signal amplitude or high level;
The current parameter will be switched at
a second press.
Set the signal offset or low level;
The current parameter will be switched at
a second press.
Set the phase of the signal;
The current parameter will be switched at
a second press.
To Set the Output Frequency/Period
1. Press Sine →Freq, to set the frequency parameter.
The frequency shown on the screen when the instrument is powered is
the default value or the set value beforehand. When setting the function,
if the current value is valid for the new waveform, it will be used
sequentially. If you want to set the period for the waveform, press
Freq/Period button again, to switch to the period parameter (the current
operation is displayed in inverse color).
2. Input the desired frequency.
Use the keypad to input the parameter value directly, and press the
corresponding button to select the parameter unit. Or you can use the
direction button to select the digit you want to edit, and then use the knob
to change its value.
SDG1000 User Manual
19
Figure 2- 3 Setting the Frequency
Instruction:
When using the keypad to enter the digit, you can use the left direction button
to move the cursor backward and delete or change the value of the previous
digit.
To Set the Output Amplitude
1. Press Sine →Ampl, to set the amplitude.
The amplitude shown on the screen when the instrument is powered is
the default value or the set value beforehand. When changing the
function, if the current value is valid for the new waveform, it will be used
sequentially. If you want to set the waveform by high level or low level,
press the Ampl/HLevel or Offset/LLevel button again, to switch into the
high level or low level parameter (the current operation is displayed in
inverse color).
SDG1000 User Manual
20
2. Input the desired Amplitude
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button.
Figure 2- 4 Setting the Amplitude
To Set the Output Offset
1. Press Sine →Offset, to set the offset.
The offset shown on the screen when the instrument is powered is the
default value or the set value beforehand. When changing the function, if
the current value is valid for the new waveform, it will be used
sequentially.
2. Input the desired Offset
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button.
SDG1000 User Manual
21
Figure 2- 5 Setting the Offset
SDG1000 User Manual
22
2.2. To Set Square Signals
Press Square button to call the Square operation. The square waveform
parameters are set by using the Square operation menu.
The parameters of Square waveforms are: frequency/period, amplitude/high
level, offset/low level, phase and duty. As is shown in Figure 2- 6, select Duty.
Cursor is located in the duty parameter area in the parameter display window,
and users can set the duty value here.
Figure 2- 6 Square Parameter Display Interface
SDG1000 User Manual
23
Figure 2- 7
Table2- 2 Menu Explanations of Square Waveform
Function
Menu
Settings
Freq/
Period
Ampl/
HLevel
Offset/
LLevel
Phase/
EqPhase
Duty
Explanation
Set the signal
frequency or period;
The current parameter will be switched at a
second press.
Set the signal amplitude or high level;
The current parameter will be switched at a
second press.
Set the signal offset or low level;
The current parameter will be switched at a
second press.
Set the phase of the signal;
The current parameter will be switched at a
second press.
Set the duty cycle for square waveform.
Term Explanation:
Duty Cycle: The percentage that the high level takes up the whole period.
Please Note : for the Frequency
Duty Cycle Value
Below 10MHz:
20% to 80%
From 10MHz to20MHz (included):
40% to 60%
Higher than 20MHz:
50%
To Set the Duty Cycle
1. Press Square →Duty, to set the duty cycle.
The duty cycle shown on the screen when the instrument is powered is
the default value or the set value beforehand. When changing the
function, if the current value is valid for the new waveform, it will be used
sequentially.
SDG1000 User Manual
24
2. Input the desired Duty Cycle
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button. The generator will change the
waveform immediately.
Figure 2- 8 Setting the Duty Cycle
SDG1000 User Manual
25
2.3. To Set Ramp Signals
Press Ramp button to call the ramp operation. The ramp waveform
parameters are set by using the ramp operation menu.
The parameters for ramp waveforms are: frequency/ period, amplitude/ high
level offset/ low level, phase and symmetry. As is shown in Figure 2- 9, in the
soft key menu, select Symmetry. Cursor is located in the symmetry parameter
area in the parameter display window, and users can set the symmetry value
here.
Figure 2- 9 Ramp Parameter Display Interface
SDG1000 User Manual
26
Figure 2- 10
Table2- 3 Menu Explanations of Ramp Waveform
Function
Menu
Settings
Freq/
Period
Ampl/
HLevel
Offset/
LLevel
Phase/
EqPhase
Symmetry
Explanation
Set the signal frequency or period;
The current parameter will be switched at
a second press.
Set the signal amplitude or high level;
The current parameter will be switched at
a second press.
Set the signal offset or low level;
The current parameter will be switched at
a second press.
Set the phase of the signal;
The current parameter will be switched at
a second press.
Set the symmetry for ramp waveform.
Term Explanation:
Symmetry: The percentage that the rising period takes up the whole Period.
Input Range: 0~100%.
To Set the Symmetry
1. Press Ramp →Symmetry, to set the symmetry.
The symmetry shown on the screen when the instrument is powered is
the default value or the set value beforehand. When changing the
function, if the current value is valid for the new waveform, it will be used
sequentially.
2. Input the desired Symmetry
SDG1000 User Manual
27
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button. The generator will change the
waveform immediately.
Figure 2- 11 Setting the Symmetry
SDG1000 User Manual
28
2.4. To Set Pulse Signals
Press Pulse button to call the pulse operation. The pulse waveform
parameters are set by using the pulse operation menu.
The parameters for pulse waveforms are: frequency/period, amplitude/high
level, offset/low level, pulse width and delay. As is shown in Figure 2- 12, in
the soft key menu, select PulWidth. Cursor is located in the pulse width
parameter area in the parameter display window, and users can set the pulse
width value here.
Figure 2- 12 Pulse Parameter Display Interface
SDG1000 User Manual
29
Figure 2- 13
Table 2- 4 Menu Explanations of Pulse Waveform
Function
Menu
Settings
Freq/
Period
Ampl/
HLevel
Offset/
LLevel
PulWidth
/Duty
Delay
Explanation
Set the signal frequency or period;
The current parameter will be switched at a
second press.
Set the signal amplitude or high level;
The current parameter will be switched at a
second press.
Set the signal offset or low level;
The current parameter will be switched at a
second press.
Set the signal pulse width or duty;
The current parameter will be switched at a
second press.
Setting the delay for pulse waveform.
Term Explanation:
Pulse Width:
Positive Pulse Width: the time span between thresholds of 50% of the rising
edge amplitude to the next 50% of the falling edge amplitude;
Negative Pulse Width: the time span between thresholds of 50% of the falling
edge amplitude to the next 50% of the rising edge amplitude.
To Set the Pulse Width
1. Press Pulse →PulWidth, to set the pulse width.
The pulse width shown on the screen when the instrument is powered is
the default value or the set value beforehand. When changing the
function, if the current value is valid for the new waveform, it will be used
sequentially.
2. Input the desired Pulse Width
SDG1000 User Manual
30
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button. The Generator will change the
waveform immediately.
Figure 2- 14 Setting the Pulse Width
To Set the Delay
1. Press Pulse →Delay, to set the delay.
The delay shown on the screen when the instrument is powered is the
default value or the set value beforehand. When changing the function, if
the current value is valid for the new waveform, it will be used
sequentially.
2. Input the desired delay
Use the keypad or the knob to input the desired value, choose the unit,
and press the corresponding button. The generator will change the
waveform immediately.
SDG1000 User Manual
31
Figure 2- 15 Setting the Delay
SDG1000 User Manual
32
2.5. To Set Noise Signals
Press Noise button to call the Gaussian White noise operation. The noise
waveform parameters are set by using the noise operation menu.
The parameters for noise waveforms are: Stdev and mean. As is shown in
Figure 2- 16, in the soft key menu, select Stdev, Cursor is located in the Stdev
parameter area in the parameter display window, and users can set the Stdev
value here. Noise is non-regulated signal which has no frequency or period.
Figure 2- 16 Noise Parameter Display Interface
SDG1000 User Manual
33
Figure 2- 17
Table 2- 5 Menu Explanations of Noise Waveform
Function
Menu
Settings
Explanation
Stdev
Set the signal Stdev
Mean
Set the signal mean
SDG1000 User Manual
34
2.6. To Set Arbitrary Signals
Press Arb button to call the Arb operation. The Arb waveform parameters are
set by using the Arb operation menu.
The Arb signal consists of two types: the system built-in waveform and the
user-definable
waveform.
The
parameters for
Arb
waveforms are:
frequency/period, amplitude/high level, offset/ low level and phase.
Figure 2- 18 Arb Parameter Display Interface
SDG1000 User Manual
35
Figure 2- 19
Table 2- 6 Menu Explanations of Arb Waveform (Page 1/2)
Function
Menu
Settings
Set the signal frequency or period;
Freq/
The current parameter will be switched at
Period
a second press.
Set the signal amplitude or high level;
Ampl/
The current parameter will be switched at
HLevel
a second press.
Set the signal offset or low level;
Offset/
The current parameter will be switched at
LLevel
a second press.
Set the phase of the signal;
Phase/
The current parameter will be switched at
EqPhase
Figure 2- 20
Explanation
a second press.
Table 2- 7 Menu Explanations of Arb Waveform (Page 2/2)
Function
Menu
Load Wform
Settings
Explanation
Select the built-in arbitrary signal as
output.
SDG1000 User Manual
36
To select the built-in Arbitrary Waveform
There are forty-eight built-in Arbitrary Waveforms and user-definable Arbitrary
Waveforms inside the Generator. To select one of them, follow the
instructions below:
Press Arb →Load Wform, to enter the interface below.
Figure 2- 21
Table 2- 8 Menu Explanations of Built-in Arbitrary Waveform
Function
Menu
Settings
Built-In
Explanation
Select one of the forty-eight built-in arbitrary
waveforms (see ).
Stored
Select one of arbitrary waveforms stored in
Wforms
the non-volatile memory.
Cancel the current operation, and return to
Cancel
the upper menu (the followings are the
same and will not be explained).
1. To Select the Built-in Waveform
Press Arb →Load Wform->Built-In, and enter the following interface.
As is shown in Figure 2- 22, there are five kinds of arbitrary waveform.
SDG1000 User Manual
37
Figure 2- 22
Table 2- 9 Menu Explanations of Built-In Arbitrary Waveform
Function
Menu
Common
Math
Settings
Explanation
Select common waveform.
Select math waveform.
Project
Select project waveform.
Winfun/
Select windows function
Triangle
/triangle waveform.
Select
Validate the built-in waveform.
Figure 2- 23 Common Built-In Arbitrary Waveform interface
Table 2- 10 Menu Explanations of Common Built-In Arbitrary Waveform
Function
Menu
Settings
Explanation
StairUp
Select the built-in stair up waveform.
StairDn
Select the built-in stair down waveform.
StairUD
Select the built-in stair up waveform.
PPulse
Select the built-in positive pulse waveform.
NPulse
Select the built-in negative pulse waveform.
Trapezia
Select the built-in trapezoid waveform
UpRamp
Select the built-in up ramp waveform.
DnRamp
Select the built-in down ramp waveform.
SDG1000 User Manual
38
Figure 2- 24 Math Built-In Arbitrary Waveform Interface
Table 2- 11 Menu Explanations of Math Built-in Arbitrary Waveform
Function
Menu
Settings
Explanation
ExpFall
Select the built-in exponential fall waveform.
ExpRise
Select he built-in exponential rise waveform.
LogFall
Select the built-in logarithmic fall waveform.
LogRise
Select the built-in logarithmic rise waveform.
Sqrt
Select the built-in square root waveform.
Root3
Select the built-in Root3 waveform.
X^2
Select the built-in X^2 waveform.
X^3
Select the built-in X^3 waveform.
Sinc
Select the built-in sinc waveform; Sinc=sin(x)/x.
Gaussian
Select the built-in gaussian waveform.
Dlorentz
Select the built-in D-lorentz waveform.
Haversin
Select the built-in haversine waveform.
Lorentz
Gauspuls
Gmonpuls
Tripuls
Select the built-in lorentz Waveform.
Select the built-in gaussian-modulated sinusoidal
pulse waveform.
Select
the
built-in
Gaussian
monopulse
waveform.
Select the built-in triangle pulse waveform.
Figure 2- 25 Project Built-In Arbitrary Waveform interface
SDG1000 User Manual
39
Table 2- 12 Menu Explanations of Project Built-in Arbitrary Waveform
Function
Menu
Cardiac
Quake
Chirp
TwoTone
SNR
Settings
Explanation
Select the built-in electrocardiogram (ECG) signal
waveform.
Select
the
built-in
loma
prieta
earthquake
waveform.
Select
the
built-in
swept-frequency
cosine
waveform.
Select the built-in two tone signal waveform.
Select the built-in sin wave with white noise
waveform.
Figure 2- 26 Winfun/Triangle Built-In Arbitrary Waveform interface
Table 2- 13 Menu Explanations of Winfun/Triangle Built-in Arbitrary Waveform
Function
Menu
Settings
Explanation
Hamming
Select the built-in hamming window waveform.
Hanning
Select the built-in hanning window waveform.
Kaiser
Blackman
Gaussian
Triangle
Hairs
Bartlett
Select the built-in kaiser window waveform.
Select
the
built-in
blackman
windows
waveform.
Select the built-in gaussian window waveform.
Select the built-in triangle window waveform.
Select the built-in hairs window waveform.
Select the built-in bartlett window waveform.
Tan
Select the built-in tangent waveform.
Cot
Select the built-in cotangent waveform.
Sec
Select the built-in secant waveform.
Csc
Select the built-in cosecant waveform
Asin
Select the built-in inverse sine waveform.
Acos
Select the built-in inverse cosine waveform.
SDG1000 User Manual
40
Atan
Acot
Select the built-in tangent waveform.
Select
the
built-in
inverse
cotangent
waveform.
2. To Select the Stored Waveform
Press Arb →Load Wform->Stored Wforms, and enter the following interface.
As is shown in Figure 2- 27, use the direction keys or knob to choose the
corresponding arbitrary waveform and press Select.
Figure 2- 27 Stored Wform Display Interface
SDG1000 User Manual
41
2.7. To Generate the Modulated Waveform
Use the Mod button to generate modulated waveform.SDG1000 Series can
generate AM, FM, ASK, FSK, PM, PWM and DSB-AM modulated waveforms.
Modulating parameters vary with the types of the modulation. In AM, users
can set the source (internal/external), depth, modulating frequency,
modulating waveform and carrier waveform; In FM, users can set the source
(internal/ external),modulating frequency, frequency deviation, modulating
waveform and carrier waveform; In ASK, users can set the source
(internal/external), Key Freq and carrier waveform; In FSK, users can set the
source (internal/external), key frequency, Hop Freq and carrier waveform; In
PM, users can set the source (internal/external),phase deviation, modulating
frequency, modulating waveform and carrier waveform.
We will cover how to set these parameters in details according to the
modulation types.
Modulating
Frequency
Carrier
Carrier
Frequency
Amplitude
Figure 2- 28 Display Interface of Modulated Waveform Parameter
SDG1000 User Manual
42
AM
The modulated waveform consists of two parts: the carrier waveform and the
modulating waveform. In AM, the amplitude of the carrier waveform varies
with the instantaneous voltage of the modulating waveform. The parameters
for the AM are in Figure 2- 29
Press Mod →Type→ AM, to enter the following menu.
Figure 2- 29
Table 2- 14 Menu Explanations of the AM Parameters
Function
Menu
Settings
Explanation
Set
AM Freq
the
frequency.
modulating
waveform
Frequency
range:
2mHz~20kHz (internal source only).
AM Depth
Type
Set the amplitude range.
AM
Amplitude modulation.
Sine
Square
Triangle
Shape
UpRamp
DnRamp
Noise
Choose the modulating waveform.
To
change
the
carrier
waveform
parameter, press Sine, Square, Ramp,
Arb
Arb
Internal
Source
The source is internal
The source is external. Use the
External
[Modulation In] connector in the rear
panel.
SDG1000 User Manual
43
Term Explanation
Modulation Depth
The amplitude range (also called ‘Percentage Modulation’). Modulation depth
varies from 1% to 120%.

In the 0% modulation, the output amplitude is the half of the set one.

In the 100% modulation, the output amplitude is the same with the set
one.

For an external source, the depth of AM is controlled by the voltage level of
the connector connected to the [Modulation In]. ±6V corresponds to the
currently set depth 100%.
FM
The modulated waveform consists of two parts: the carrier waveform and the
modulating waveform. In FM, the frequency of the carrier waveform varies
with the instantaneous voltage of the modulating waveform. The parameters
for the FM are as shown in Figure 2- 30.
Figure 2- 30 Setting Interface of FM Waveform Parameter
SDG1000 User Manual
44
Press Mod →Type→ FM, to enter the following menu.
Figure 2- 31
Table 2- 15 Menu Explanations of the FM Parameters
Function
Menu
Settings
Explanation
Set the modulating waveform frequency.
FM Freq
Frequency range 2mHz~20kHz (internal
source).
FM Dev
Type
Set the maximum frequency deviation
FM
Frequency modulation
Sine
Square
Shape
Triangle
Choose the modulating waveform. To
UpRamp
change the carrier waveform parameter,
DnRamp
press Sine, Square,
Ramp, Arb
Noise
Arb
Internal
Source
The source is internal.
The
External
source
is
external.
Use
the
[Modulation In] connector in the rear
panel.
Term Explanation
Frequency Deviation

The deviation should be equal to or less than the carrier waveform
frequency.

The sum of the deviation and the carrier frequency should be equal to or
less than maximum frequency of the selected function.

For an external source, the deviation is controlled by the voltage level of
the connector connected to the [Modulation In]. +6V corresponds to the
selected deviation and -6V to the negative selected deviation.
SDG1000 User Manual
45
ASK
ASK is a form of modulation that represents digital data as variations in the
amplitude of a carrier wave. The amplitude of an analog carrier signal varies
in accordance with the bit stream (modulating signal), keeping frequency and
phase constant. The parameters for the ASK are as shown in Figure 2- 32
Figure 2- 32 Setting Interface of ASK Waveform Parameter
Press Mod →Type→ ASK, to enter the following menu.
Figure 2- 33
Table 2- 16 Menu Explanations of the ASK Parameters
Function
Menu
Settings
Explanation
Set the frequency at which the output
amplitude
Key Freq
shifts
between
amplitude and zero (internal
the
carrier
modulation
only): 2mHz~50kHz.
Type
ASK
Internal
Source
Amplitude shift keying modulation.
The source is internal.
The
External
source
is
external;
Use
the
[ExtTrig/Gate/FSK/Burst] connector in the
rear panel.
SDG1000 User Manual
46
FSK
The FSK Modulation is a modulation method, the output frequency of which
switches between two the pre-set frequencies (carrier waveform frequency
and the hop frequency). The frequency at which the output frequency
switches is called the key frequency.
Figure 2- 34 Setting Interface of FSK Waveform Parameter
Press Mod →Type→ FSK, to enter the following interface
Figure 2- 35
Table 2- 17 Menu Explanations of the FSK Parameters
Function
Menu
Settings
Explanation
Set the frequency at which the output
frequency
Key Freq
shifts
between
the
carrier
frequency and the hop frequency (internal
modulation only):
2mHz~50kHz.
Type
FSK
Hop Freq
Set the hop frequency.
Internal
Source
Frequency shift keying modulation.
The source is internal.
The
External
source
is
external.
Use
the
[ExtTrig/Gate/FSk/Burst] connector in the
rear panel.
SDG1000 User Manual
47
PM
The modulated waveform consists of two parts: the carrier waveform and the
modulating waveform. In PM, the phase of the carrier waveform varies with
the instantaneous voltage level of the modulating waveform. The parameters
for the PM are as shown in Figure 2- 36.
Figure 2- 36 Setting Interface of PM Waveform Parameter
Press Mod →Type →PM, enter the following interface.
SDG1000 User Manual
48
Figure 2- 37
Table 2- 18 Menu Explanations of the PM Parameters
Function
Menu
Settings
Explanation
Set the modulating waveform frequency.
PM Freq
Frequency range:
2mHz~20kHz
Phase
Range from 0° ~ 360°.
Dev
Type
PM
Phase modulation
Sine
Square
Shape
Triangle
Choose the modulating waveform.
UpRamp
To change the carrier waveform parameter,
DnRamp
press Sine, Square, Ramp, Arb
Noise
Arb
Internal
Source
The source is internal.
The
External
source
is
external.
Use
the
[ExtTrig/Gate/FSK/Burst] connector in the
rear panel.
PWM
The modulated waveform consists of two parts: the carrier waveform and the
modulating waveform, the carrier waveform is only pulse. In PWM, the pulse
width of pulse varies with the instantaneous voltage of the modulating
waveform. The parameters for the FM are as shown in Figure 2- 38.
SDG1000 User Manual
49
Figure 2- 38 Setting Interface of PWM Waveform Parameter
Press Mod→ Pulse →PWM, to enter the following menu.
Figure 2- 39
Table 2- 19 Menu Explanations of the PWM Parameters
Function
Menu
Settings
Explanation
Set
PWM Freq
the
frequency.
modulating
waveform
Frequency
range:
2mHz~20kHz (internal source only).
Width Dev
Set the width range.
Duty Dev
Set the duty range.
Type
PWM
Amplitude modulation.
Sine
Square
Triangle
Shape
UpRamp
DnRamp
Choose the modulating waveform.
The carrier waveform is pulse.
Noise
Arb
Internal
Source
The source is internal
The source is external. Use the
External
[Modulation In] connector in the
rear panel.
SDG1000 User Manual
50
DSB-AM
Press Mod→ Type →DSB-AM. The parameters for the DSB-AM are as
shown in Figure 2- 40.
Figure 2- 40 Setting Interface of DSB-AM Waveform Parameter
Figure 2- 41
Table 2- 20 Menu Explanations of the DSB-AM Parameters
Function
Menu
Settings
Explanation
Set the modulating waveform frequency.
DSB Freq
Frequency
range:
2mHz~20kHz
(internal
source only).
Type
DSB-AM
Amplitude modulation.
Sine
Square
Shape
Triangle
Choose the modulating waveform.
UpRamp
To change the carrier waveform parameter,
DnRamp
press Sine, Square, Ramp, Arb
Noise
Arb
Internal
Source
External
The source is internal
The source is external. Use the [Modulation In]
connector in the rear panel.
SDG1000 User Manual
51
2.8. To Generate Sweep
In the frequency sweep mode, the function generator ‘steps’ from the start
frequency to the stop frequency at the sweep time you specify. Sweep can be
generated by sine, square, ramp or arbitrary waveforms (pulse, noise and DC
are not allowed).
Figure 2- 42 Setting Interface of Sweep Waveform Parameter
Press Sweep button to enter the following menu. Set the waveform
parameters by using the operation menu.
SDG1000 User Manual
52
Figure 2- 43
Table 2- 21 Menu Explanations of Waveform Sweep (Page 1/2)
Function
Menu
Settings
Explanation
Set the time span of the sweep in which
Swp Time
the frequency changes from the start
frequency to stop frequency.
Stop Freq
Set the stop frequency of the sweep;
Freq Span
Set the frequency span of the sweep.
Start Freq
Set the start frequency of the sweep;
Mid Freq
Set the center frequency of the sweep.
Internal
Choose internal source.
Choose external source, use the [Ext
Source
External
Trig/Gate/FSK/Burst] connector in the
rear panel.
Manual
Set the start and stop time by hand.
Sweep
Frequency Setting
Use start freq and stop freq or center freq and freq span to set the range of
the frequency. Press the button again to switch between each other.
Figure 2- 44
Table 2- 22 Menu Explanations of Waveform Sweep (Page 2/2)
Function
Menu
Trig Out
Linear/
Log
Settings
Open
Off
Explanation
Set signal triggered at rise edge;
Turn off trigger setting.
Set the sweep with linear spacing;
Set the sweep with logarithmic spacing.
Sweep upward;
Direct
Sweep downward.
SDG1000 User Manual
53
2.9. To Generate Burst
Burst function can generate versatile waveforms in burst, which can last
specific times of waveform cycle (N-Cycle burst), or when external gated
signals (gated burst) is applied, any waveform could be used, but noise can
only be used in Gated Burst.
Press Burst button to enter the following interface. Set the waveform
parameters by using the operation menu.
Figure 2- 45 Setting Interface of Burst Waveform Parameter
SDG1000 User Manual
54
Set the N-Cycle Burst
Press Burst → N Cycle, to enter the following interface.
Figure 2- 46
Table 2- 23 Menu Explanations of the N-Cycle Parameters(Page 1/2)
Function
Menu
Settings
Period
Explanation
Set the burst Period.
Start
Set the start phase of the burst.
Phase
NCycle
Use the N-Cycle mode.
Gated
Use the Gated mode.
Internal
Choose internal source.
Choose
Source
External
external
source,
use
the
[EXTTrig/Gate/FSK/Burst] connector in the
rear panel.
Manual
Choose external source, set the start time
by hand.
Burst Period
Set the time span between an N-Cycle burst and the next. If necessary the
period will increase to allow the specific number of cycles in a burst. Burst
Period>Carrier Period × Burst Number
Start Phase
Define the start point in a waveform. The phase varies from 0° to 360°, and
the default setting is 0°.
For an Arbitrary Waveform, 0° is the first waveform
point.
SDG1000 User Manual
55
N-Cycle/Gated
N-Cycle has specific number of waveform cycles, and every burst is activated
by a trigger event. Gated burst use external source to control burst as when
to be activated.
Figure 2- 47
Table 2- 24 Menu Explanations of the N-Cycle Parameters (Page2/2)
Function
Menu
Settings
Explanation
Signal Triggered at Rise Edge.
Trig Out
Signal Triggered at Fall Edge.
Off
Cycles/
Infinite
Delay
Turn off Trigger Setting.
Set the number of the bursts in a N-Cycle.
Set the number of the bursts in a N-Cycle to
be infinite.
Set the delay time before the burst starts.
Cycles
Set the number of waveform cycle in an N-Cycle (1 to 50,000 or Infinite).
If you choose Infinite, then a continuous waveform will be generated which
will not stop until a trigger event happens.

If needed, Burst Period will increase to cater to the specific number of
cycles.

For an infinite-cycle burst, external or manual trigger is needed to
activate burst.
SDG1000 User Manual
56
Delay
Set the time delay between the trigger input and the start of the N-Cycle burst.
The max delay is 240ns.
Set the Gated Burst
Press Burst →Gated, to enter the following interface.
Figure 2- 48
Table 2- 25 Menu Explanations of the Gated Burst Parameters
Function
Menu
Settings
Explanation
NCycle
Set the NCycle mode;
Gated
Set the gated mode.
Polarity
Positive
Negative
Set the polarity for the gated signal.
SDG1000 User Manual
57
2.10. To Store and Recall
Press Store/Recall button to enter the following interface. You can save or
recall the state documentation inside the generator. The state file on the U
Disk is also allowed to recall or delete. File names can only be English. User
can only recall or delete the data documentation you save via CSV of the
Oscilloscopes.
Figure 2- 49 Save and Read Interface
Figure 2- 50
Table 2- 26 Menu Explanations of Save and Recall (Page 1/2)
Function
Menu
File Type
Browser
Save
Settings
Explanation
State
The setting of the generator;
Data
Arbitrary waveform file;
Directory
File
Shift between the directory and file.
Save the waveform to the appointed
place.
Recall
Recall
the
waveform
or
setting
information in the specific position of the
memory.
Delete
Delete the selected file.
SDG1000 User Manual
58
About the browser
The directory selection shift is done by the direction keys. In the directory
mode, pressing the right key will open the lower directory while the left key
will fold the directory. Up and down key are used to shift between the
directories;
To Save the Instrument State
Users are allowed to store the instrument state in any of the 10 non-volatile
memories. The state storage will ‘memorize’ the selected function (including
the arbitrary waveform, frequency, amplitude, DC offset, duty cycle, symmetry,
and other modulation parameter used.)
To save the instrument state, the procedures are given as followed:
1.
Choose the file type to store
Press Store/Recall →Type→ State, and choose state as the storage
type.
2.
Choose the location of the file.
There are ten positions in the Local(C :), choose anyone of them by
rotating the knob.
3.
Name the file and save it
Press Save button, enter the desired name. Press Save to finish.
SDG1000 User Manual
59
To Use USB Storage
As is shown in Figure 2- 51, the storage location is divided into: The internal
storage Local(C :) and the U Disk storage USB Device (A :). At the left side of
the front panel, there is a USB interface. When a USB storage is connected,
the storage menu will show ‘USB Device (A:)’. Otherwise, the default location
is the internal location Local(C :).
Figure 2- 51 USB Storage Interface
1. Install the USB Device
Insert the USB Device into the USB interface on the front panel, and the
screen will show ‘USB flash device plug in’, and storage menu will show
‘USB Device (A :)’
2. Choose the USB Device
Press Browser->Directory, move the cursor with the up or down direction
key to select ‘USB Device (A :)’. Press the right key to open the lower
directory, use the up and down direction key to choose the file
‘SDG1000’. Use the right key to open the lower directory, and up and
down key to select the file ‘Workspace’. Input the file name and save.
SDG1000 User Manual
60
3. Remove the USB Device
Remove the USB Device from the interface. The system will inform you
‘USB flash device plug out’, and the ‘USB Device (A :)’ in the storage
menu will disappear.
Note: USB Device can only be used by U Disk; portable hard disk is not
supported.
To Save a File
Press Store/Recall →Store, to enter the following interface. Enter the desired
file name in the ‘File Name’ frame. In the middle of the figure below is the
input keypad, used to edit the file name. Use the up and down direction keys
and knob to select the desired character; use the left and right direction keys
to edit the input file name.
Figure 2- 52 File Storage Interface
SDG1000 User Manual
61
Figure 2- 53
Table 2- 27 Menu Explanation of File Storage
Function
Menu
Settings
Input
Type
1.
En
Explanation
English input.
Select
Select the current character.
Delete
Delete the current character.
Save
Store the file with the current name
English Input
The English input interface is as shown in Figure 2- 54, to save a file named
‘NEWFILE’, follow the steps below:
Figure 2- 54 English Input Interface
(1) Press InType->En, to enter the English interface.
(2) Input the file name’ NEWFILE’.
Use the Knob to adjust the cursor’s horizontal position and the up and
down key to adjust the vertical position. Select the Character ‘N’ and
SDG1000 User Manual
62
press Select. Repeat this until you have inputted ‘NEWFILE’.
(3) Edit the File Name
When you have entered a wrong character, move the cursor to the
wrong character to be deleted and press Delete to remove it. Reenter
the file name.
(4) Press Save, to finish and save the file.
SDG1000 User Manual
63
2.11. To Set the Utility Function
With the Utility Function, you can set the parameters of the generator such as:
DC On/Off, Sync On/Off, Output Parameter, Interface Parameter, System
Setting and Testing Parameter. The DC switch offers the options of DC output
or Arbitrary Waveform Output. Sync Switch offers the option to choose the
Sync Signal or not. Output Setting provides the parameter setting for
Load/HighZ and Normal/Inverse. The System Setting provides the setting for
Language,
Display, Beep, Screen Guard, Format, Power System Configure
and default setting; Test provides the self-testing and calibration function.
Press Utility button, to enter the Utility Menu. Its functions are listed below in
Figure 2- 55, Figure 2- 55 and Figure 2- 55.
Figure 2- 55
Table 2- 28 Menu Explanations of Utility System Setting (Page1/2)
Function
Menu
DC
Interface
Settings
On
Set the output waveform to be DC.
Off
Set the output waveform to be arbitrary.
USB Setup
GPIB
Output
Set USB function.
Set the GPIB address.
Set the output parameter.
Setup
Sync
Explanation
On
Open Sync output;
Off
Close Sync output.
SDG1000 User Manual
64
Figure 2- 56
Table 2- 29 Menu Explanations of Utility System Setting (Page2/2)
Function
Menu
Figure 2- 57
Settings
Explanation
System
Set the system configuration.
Test/Cal
Test and calibrate the instrument.
EditInfo
Information of the system.
Table 2- 30 Menu Explanations of Utility System Setting (Page2/2)
Function
Menu
Update
Bandwidth
Update
Counter
Settings
Explanation
Update function.
Input license to update bandwidth.
Frequency counter.
To Set the DC Output
Press Utility →DC→DC On, to enter the following interface. Please note that
there is a ‘DC On’ sign at the middle left of the screen.
SDG1000 User Manual
65
Figure 2- 58 DC Setting Interface
DC Offset
Set the DC voltage level.
To Shift into the Arbitrary Waveform Output
1. Press Utility →DC→DC Off, to close DC output and return to arbitrary
waveform output.
2. Press any functional button, and the waveform output setting turns into
the arbitrary waveform output. The DC output is turned off automatically.
To Set IO
Press Utility →IO Setup, to set the IO interface. The equipment stands for
RAW protocol and TMC protocol, user may setup corresponding protocol by
IO Setup.
To Set Output Parameter
Press Utility →Output Setup, to enter the following interface.
SDG1000 User Manual
66
Figure 2- 59
Table 2- 30 Menu Explanations of Output Setting (Page 1/2)
Function
Menu
Settings
Explanation
Set the load connected to the Output
Load
Connector;
HighZ
Set the load connected to the Output
Connector to be HighZ.
Normal
Normal output;
Invert
Inverse output.
Coupling
ChCopy
Copy one channel to the other
Done
1.
Finish operation.
To Set the Output Load
For the [Output] connector on the front panel, the generator has a built-in
50Ω series impendence. If the actual load does not match the set one,
the displayed amplitude and offset will be incorrect. This function is used
to match the displayed voltage with the expected one.
Steps for setting the load:
Press Utility →Output Setup→ Load, to enter the following interface.
Please
note
that
the
load
parameter
shown
on
the
right
bottom is the default setting when the power is on or the pre-set load
value. If the current value is valid for the output, then current value will be
used.
SDG1000 User Manual
67
Figure 2- 60 Set the Output Load
Instruction
SDG1000 Series has a fixed 50Ω Series Impendence. No matter what value
the set parameter is, if the real load is different from the set one, the displayed
voltage will not equal the real voltage.
2. To Set the Invert Waveform
Press Utility →Output Setup→ Invert, to set the Inverse Waveform Output.
When the waveform is inverse, no offset will change.
3. To Set the Coupling
SDG1000 supports frequency and phase couplings. When coplings is
enabled, CH1 and CH2 are mutual base source. When the frequency or
phase of one channel (as the base source) is changed, the corresponding
parameter of the other channel will be changed automatically and always
keeps the specified frequency deviation or phase deviation relative to the
SDG1000 User Manual
68
base channel.
Press Utility →Output Setup→ Coupling, to set the coupling function.
To Set the Sync Output
The generator provides Sync output through the [Sync] connector on the rear
panel. All standard output functions (except DC and Noise) have a
corresponding Sync signal. For some applications, they can be disabled if
users do not want to use it,

In the default setting, the Sync signal should be connected to the [Sync]
connector (activated). When the Sync Signal is disabled, the output
voltage of the [Sync] connector is level low.

In the Inverse Mode, the Waveform that corresponds to the Sync Signal
does not inverse.

The Sync Signal is a Pulse Signal with fixed positive pulse width, which is
more than 50ns.

For non-modulated waveform, the Sync Signal reference is the carrier.

For internal modulating AM, FM and PM, the Sync signal reference is the
modulated signal (not the carrier signal).

For ASK and FSK, the Sync Signal Reference is the keying Frequency.

For a Sweep, when the sweep starts, the Sync Signal becomes TTL
Level High. The Sync frequency equals the specific Sweep time.

For the Burst, when the burst starts, the Sync Signal is Level High.

For the External Gated Burst, the Sync Signal follows the External Gated
Signal.
SDG1000 User Manual
69
To measure the frequency
SDG1000 Series have included a frequency counter which could measure
frequency from 100mHz to 200MHz. Press Utility →Count, to enter the
following interface.
Figure 2- 60
Table 2- 31 Menu Explanations of Frequency Counter
Function
Menu
Settings
Freq
Explanation
Measure frequency.
Period
Measure period.
PWidth
Measure positive width;
NWidth
Measure negative width.
Duty
Measure duty
RefeFreq
Set the reference frequency
TrigLev
Set the trigger level voltage.
Setup
Set the count configuration.
Figure 2- 61
Table 2- 32 Menu Explanations of Setup
Function
Menu
Mode
HFR
Default
Settings
Explanation
DC
Set the coupling mode to DC;
AC
Set the coupling mode to AC.
On
Open the high frequency rejection filter.
Off
Close the high frequency rejection filter.
Set count settings to default.
SDG1000 User Manual
70
To Set the System
Press Utility → System, to enter the following interface.
Figure 2- 62
Table 2- 33 Menu Explanations of System Setup (Page 1/2)
Function
Menu
Settings
Number
Explanation
Set the number format.
format
Language
Set the display language.
All the settings return to default when
Power On
Default
Last
powered;
All the settings return to the last one
when powered.
Set to
Set all the settings to default.
Default
Figure 2- 63
Table 2- 34 Menu Explanations of System Setup (Page 2/2)
Function
Menu
Beep
Settings
Explanation
On
Open beep;
Off
Close beep.
1min
5min
15min
ScrnSvr
30min
1hour
2hour
Activate the screen saver program.
Screen saver will be on if no action is
taken within the time that you have
selected. Press any button the resume.
5hour
Off
ClKSource
Internal
External
Deactivate the screen saver program.
Choose the system clock source.
Key points:
SDG1000 User Manual
71
Power On
Choose the configuration setting when the machine is powered.
Two choices are available: the default setting and the latest. Once selected,
the setting will be used when the instrument is powered.
Beep
Activate or deactivate the sound when an error occurs from the front panel or
the remote interface. Activate or deactivate any sound made by the button or
knob on the front panel. The current setting is stored in the non-volatile
memory.
1. Set the Format
Press Utility →System→ Number Format, to enter the following interface.
Figure 2- 64 Set the number Format
SDG1000 User Manual
72
Figure 2- 65
Table 2- 35 Menu Explanations of Setting the Number Format
Function
Menu
Settings
Explanation
Using dot to represent point;
Point
Using comma to represent point.
Separator
On
Enable the Separator;
Off
Close the Separator;
Space
Use Space to separate.
According to the different choices of the point and the separator, the format
can have various forms.
(1)
as point, press Separator->On, the example is as followed:
Figure 2- 66 Set Format
(2)
as point, press ->Separator->On, the example is as followed:
Figure 2- 67 Set Format
(3)
as point, press Separator->Off, the example is as followed:
Figure 2- 68 Set Format
SDG1000 User Manual
73
(4)
as point, press Separator->Off, the example is as followed:
Figure 2- 70 Set Format
(5)
as point, press Separator->Space, the example is as followed:
Figure 2- 69 Set Format
(6)
as point, press Separator->Space, the example is as followed:
Figure 2- 70 Set Format
2. Language Setup
The SDG1000 Series Generator offers two languages (English and Simplified
Chinese) for user to choose.
To Select Language, press Utility and then Language to select the language.
The Procedure is as followed:
Press Utility →System→ Language, to change the language.
SDG1000 User Manual
74
3. To Return to Default Setting
Press Utility →System→ Set to Default, to set the system to the default
setting. The default settings of the system are as followed:
Table 2- 36 Factory Default Setting
Output
Default
Function
Sine Wave
Frequency
1kHz
Amplitude/Offset
4Vpp/0Vdc
Phase
0°
Terminals
High Z
Modulation
Default
Carrier
1kHz Sine Wave
Modulating
100Hz Sine Wave
AM Depth
100%
FM Deviation
500Hz
Key Freq
100Hz
Key Freq
100Hz
FSK Hop Frequency
1MHz
Phase Deviation
180°
Sweep
Default
Start/Stop Frequency
100Hz/1.9kHz
Sweep Time
1S
Trig Out
Off
Mode
Linear
Direction
↑
SDG1000 User Manual
75
Burst
Default
Period
10ms
Phase
0°
Count
1Cycle
Trig
Off
Trigger
Default
Source
Internal
SDG1000 User Manual
76
2.12. Test/Cal
Press Utility →Test/Cal, to enter the following menu.
Figure 2- 71 Test/Cal function Menu
Figure 2- 72
Table 2- 37 Menu Explanations of Test Setting
Function
Menu
Settings
Explain
SelfTest
Perform system self-test.
SelfCal
Do self calibration
SDG1000 User Manual
77
SelfTest
Press Utility →Test/Cal →SelfTest, to enter the following menu.
Figure 2- 73
Table 2- 38 Menu Explanations of Self Test
Function
Menu
Settings
Explain
Scr Test
Run screen test program.
Key Test
Run keyboard test program.
LED Test
Run LED test program.
1. Scr Test
Select Scr Test to enter the screen test interface. The clew words ‘Press ‘7’
Key to continue, Press ‘8’ Key to exit’ is displayed. You could press the ‘7’ for
test.
Figure 2- 74 Screen Test Interface
SDG1000 User Manual
78
2. Key Test
Select ‘keyboard Test’ to enter the keyboard test interface, the on-screen
lathy rectangle shapes represent the front panel keys. The shapes with two
arrows beside them represent the front panel knobs. Test all keys and knobs
and you should also verify that all the backlit buttons illuminate correctly.
Note:

When you operate, the screen would display the white (color LCD).

The tested button or knobs corresponding area would display green
(color LCD).

At the bottom of the screen display ‘Press ‘8’ Key Three Times to exit’
information prompt to show that press ‘8’ three times for quitting the test.
Figure 2- 75 Key Test Interface
SDG1000 User Manual
79
3. LED Test
Select ‘LED Test’ to enter the lighten interface, the on-screen lathy rectangle
shapes represent the front panel keys; the shapes with two arrows beside
them represent the front panel knobs. The clew words ‘Press ‘7’ Key to
continue, ‘Press ‘8’ Key to exit’ is displayed, You could press the ‘7’ button
continuously for testing, when buttons are lighted ,the corresponding area on
the screen would display green(color LCD).
Figure 2- 76 Led Test Interface
SDG1000 User Manual
80
SelfCal
Press Utility →1/2→Test/Cal →SelfCal, to enter SelfCal, as is shown in
Figure 2- .
SelfCal: do self calibration, environment you use the generator changes,
system may calibrate data based on change of current environment
Figure 2- 77 SelfCal Interface
SDG1000 User Manual
81
2.13. Edition Information
Press the EditInfo option button of the Utility Menu to view the generator’s
hardware and software configuration.
Figure 2- 80 Edit Info Interface
Edition Information introduce
Boot-strap No:
The times of boot-strap
Software version:
Software version of current equipment
Hardware version:
00-00-00-15-22 represents ordinally: PCB version, BOM version, Daughter
card version, FPGA version, CPLD version.
Model:
Contains information of brand of product, series, bandwidth.
For example: SDG1050 represents SIGLENT’s 1000 series function/arbitrary
waveform generator, the bandwidth is 50MHz.
SDG1000 User Manual
82
Serial No:
Bit 1-6 represent maker and series of the product. Bit 7-10 represent
production date. Bit 11-14 represent serial number of product.
For example: SDG00002110008 represents the eighth generator made by
SIGLENT in the second quarter of 2011.
SDG1000 User Manual
83
2.14. Updating Firmware
Using USB flash drive update firmware.
The software of the generator can be updated directly via USB flash drive.
This process takes about two minutes. Follow the next steps:
1. Insert USB flash drive with firmware procedure to USB host interface on
the front panel of the generator.
2. Press the Utility button to enter the ‘Utility Menu’.
3. Press ‘1/2↓’ option button to enter the second page of ‘Utility Menu’.
4. Press the ‘Update’ option button.
5. Press ‘Brower’ option button to select ‘Directory’, then select the ‘USB
Device (A:)’ through direction key.
6. Press ‘Brower’ option button to select ‘File’, then select the ‘XXXX.ADS’
file by direction key.
7. Press the ‘Recall’ option button to updating.
8. After accomplish update, restart the generator.
Note: Don’t cut off the power during product is being updating.
SDG1000 User Manual
84
2.15. Updating Bandwidth
If you need to update the bandwidth, please contact with SIGLENT, acquire a
right license and input it in the following interface.
Figure 2- 78 Bandwidth Updating Interface
Note: SDG1000 Series support 5M, 10M, 20M, 25M and 50M bandwidth.
SDG1000 User Manual
85
2.16. How to Use the Built-in Help System
You can get a particularly help for every button on the front panel by using the
built-in help system. Or you can get help about the operation of the front
panel buttons with the help list.
Press Help to enter the following interface.
Figure 2- 79 Help Menu
Figure 2- 80
Table 2- 40 Help Menu Explanations
Function
Menu
Settings
Explanation
Cursor upward to select.
Cursor downward to select.
Choice
Select to read the information.
SDG1000 User Manual
86
3. Application and Examples
To help the user master how to use the Function/ Arbitrary Waveform
Generator more efficiently, we will describe some examples in detail. All the
examples below use the default setting of the instrument except especial
explanations.
This chapter includes the following topics:

Example 1: Generate a Sine Wave

Example 2: Generate a Square Wave

Example 3: Generate a Ramp Wave

Example 4: Generate a Pulse Wave

Example 5: Generate a Noise Wave

Example 6: Generate an Arbitrary Wave

Example 7: Generate a Sweep Wave

Example 8: Generate a Burst Wave

Example 9: Generate an AM Wave

Example 10:Generate a FM Wave

Example 11:Generate a PM Wave

Example 12:Generate a FSK Wave

Example 13:Generate an ASK Wave

Example 14:Generate a PWM Wave

Example 15:Generate a DSB-AM Wave
SDG1000 User Manual
87
3.1. Example 1:Generate a Sine Wave
Generate a sine wave with 50kHz frequency, 5Vpp amplitude and 1Vdc
offset.
 Steps:

Set the frequency.
1. Press Sine →Freq and choose frequency which will display in white color.
2. Input ‘50’ from the keyboard and choose the unit ‘kHz’. The frequency is
set to be 50kHz.

Set the amplitude.
1. Press Ampl to choose Ampl which will display in white color.
2. Input ‘5’ from the keyboard and choose the unit ‘Vpp’. The amplitude is
set to be 5Vpp.

Set the Offset.
1. Press Offset to choose Offset which will display in white color
2. Input ‘1’ from the keyboard and choose the unit ‘Vdc’. The offset is set to
be 1Vdc.
When the frequency, amplitude and offset are set, the wave generated is
shown in Figure 3- 1;
SDG1000 User Manual
88
Figure 3- 1 Sine Waveform
SDG1000 User Manual
89
3.2. Example 2:Generate a Square Wave
Generate a square wave with 5kHz frequency, 2Vpp amplitude, 0Vdc offset
and 30% duty cycle.
 Steps:

1.
Set the frequency.
Press Square →Freq and choose Frequency which will display in white
color.
2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is
set to be 5kHz.

Set the amplitude.
1. Press Ampl to choose Ampl which will display in white color.
2. Input ‘2’ from the keyboard and choose the unit ‘Vpp’. The amplitude is
set to be 2Vpp.

Set the offset.
1. Press Offset to choose Offset which will display in white color
2. Input ‘0’ from the keyboard and choose the unit ‘Vdc’. The Offset is set to
be 0Vdc.

Set the duty
1. Press Duty to choose Duty which will display in white color
2. Input ‘30’ from the keyboard and choose the unit ‘%’. The duty is set to be
30%.
When the frequency, amplitude, offset and duty cycle are set, the wave
generated is shown in Figure 3- 2.
SDG1000 User Manual
90
Figure 3- 2 Square Waveform
SDG1000 User Manual
91
3.3. Example 3:Generate a Ramp Wave
Generate a ramp wave with 10μs period, 100mVpp amplitude, 20mVdc offset,
45°phase and 30% symmetry.
 Steps:

Set the period.
1. Press Ramp →Freq and choose Period which will display in white color.
2. Input ‘10’ from the keyboard and choose the unit ‘μs’. The period is set to
be 10μs.

Set the amplitude.
1. Press Ampl to choose Ampl which will display in white color.
2. Input ‘100’ from the keyboard and choose the unit ‘mVpp’. The amplitude
is set to be 100mVpp.

Set the offset.
1. Press Offset to choose Offset which will display in white color
2. Input ‘20’ from the keyboard and choose the unit ‘mVdc’. The offset is set
to be 20mVdc.

Set the phase
1. Press Phase to choose Phase which will display in white color
2. Input ‘45’ from the keyboard and choose the unit ‘ °’. The phase is set to
be 45°.
SDG1000 User Manual
92

Set the symmetry
1. Press Symmetry to choose Symmetry which will display in white color.
2. Input ‘30’ from the keyboard and choose the unit ‘30%’. The symmetry is
set to be 30%.
When the period, amplitude, offset, phase and symmetry are set, the wave
generated is shown in Figure 3- 3:
Figure 3- 3 Ramp Waveform
SDG1000 User Manual
93
3.4. Example 4:Generate a Pulse Wave
Generate a pulse wave with 5kHz frequency, 5V high level, -1V low level,
40μs pulse width and 20ns delay.
 Steps:

Set the frequency.
1. Press Pulse → Freq and choose Freq, which will display in white color.
2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is
set to be 5 kHz.

Set the high level
1. Press Ampl and choose the HLevel which will display in white color.
2. Input ‘5’ from the keyboard and choose the unit ‘V’. The high level is set
to be 5V.

Set the low level
1. Press Offset and choose the LLevel which will display in white color.
2. Input ‘-1’ from the keyboard and choose the unit ‘V’. The low level is set to
be -1V.

Set the pulse width
1. Press PulWidth and choose PulWidth which will display in white color.
2. Input ‘40’ from the keyboard and choose the unit ‘μs’. The pulse width is
set to be 40μs.
SDG1000 User Manual
94

Set the Delay
1. Press Delay and choose Delay which will display in white color.
2. Input ‘20’ from the keyboard and choose the unit ‘ns’. The delay is set to
be 20ns.
When the frequency, high level, low level, pulse width and delay are set, the
wave generated is shown in Figure 3- 4
Figure 3- 4 Pulse Waveform
SDG1000 User Manual
95
3.5. Example 5:Generate a Noise Wave
Generate a noise waveform with 1V stdev and 150 mV mean.
 Steps:

Set the Amplitude
1. Press Noise →Stdev.
2. Input ‘1’ from the keyboard and choose the unit ‘V’. The stdev is set to be
1 V.

Set the Offset
1. Press Mean.
2. Input ‘150’ from the keyboard and choose the unit ‘mV’. The mean is set
to be 150 mV.
When the stdev and mean are set, the wave generated is shown in Figure 35
Figure 3- 5 Noise Waveform
SDG1000 User Manual
96
3.6. Example 6:Generate an Arbitrary Wave
Generate an arbitrary waveform (Sinc) with 5MHz frequency, 2Vrms
amplitude and 0Vdc offset.
 Steps:

Set the type of the arbitrary waveform.
1. Press Arb → (1/2↓) →Load form, to choose the built-in waveform..
2. Press Built-In→ Math, There are sixteen math arbitrary waveforms.
3. Choose Sinc, and press Select to enter Arb Main Menu.

Set the frequency.
1. Press Freq and choose Frequency which will display in white color.
2. Input ‘5’ from the keyboard and choose the unit ‘MHz’. The frequency is
set to be 5MHz.

Set the amplitude
1. Press Ampl to choose Ampl which will display in white color.
2. Input ‘2’ from the keyboard and choose the unit ‘Vrms’. The amplitude is
set to be 2Vrms.

Set the offset
1. Press Offset to choose Offset which will display in white color.
2. Input ‘0’ from the keyboard and choose the unit ‘Vdc’. The offset is set to
be 0Vdc.
When the arbitrary waveform’s type, frequency, amplitude and offset are set,
SDG1000 User Manual
97
the wave generated is shown in Figure 3- 6:
Figure 3- 6 Sinc Waveform
SDG1000 User Manual
98
3.7. Example 7:Generate a Sweep Linear Wave
Generate a sine sweep waveform whose frequency starts from 100Hz to
10kHz. Use internal trigger mode, linear sweep, and the sweep time is 2s.
 Steps:

Set the sweep function:
Press Sine and choose the sine waveform as the sweep function.
The default setting of the source is internal.

Set the frequency, amplitude and offset.
1. Press Freq and choose Freq which will display in white color. Input ‘5’
from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz.
2. Press Ampl to choose Ampl which will display in white color. Input ‘5’ from
the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.
3. Press Offset to choose Offset which will display in white color. Input ‘0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc

Set the sweep time.
Press Sweep →Sweep Time, Input ‘2’ from the keyboard and choose the
unit ‘s’ to set sweep time 2s.

Set the start frequency
Press Start Freq, Input ‘100’ from the keyboard and choose the unit ‘Hz’
to set start freq 100Hz.
SDG1000 User Manual
99

Set the end frequency
Press Stop Freq, Input ‘10’ from the keyboard and choose the unit ‘kHz’
to set stop freq 10kHz.

Set the Sweep Mode
Press (1/2↓) →Linear, and choose Linear.
When all parameters above are set, the linear sweep wave generated is
shown in Figure 3- 7
Figure 3- 7 Sweep Waveform
SDG1000 User Manual
100
3.8. Example 8:Generate a Burst Wave
Generate a burst waveform of 5 cycles. The period is 3ms. Use internal
trigger and 0 degree phase.
 Steps:

Set the sweep function:
Press Sine, and choose the sine waveform as the burst function. The
default setting of the source is internal.

Set the frequency, amplitude and offset
1. Press Freq and choose Freq which will display in white color. Input ‘10’
from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz.
2. Press Ampl to choose Ampl which will display in white color. Input ‘1’ from
the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.
3. Press Offset to choose Offset which will display in white color. Input ‘0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc

Set the sweep mode.
Press Burst →N Cycle, choose N Cycle Mode.

Set the burst period
Press Period, input ‘3’ from the keyboard and choose the unit ‘ms’ to set
the period 3ms.

Set the start phase
Press Start Phase, input ‘0’ from the keyboard and choose the unit ‘ °’ to
SDG1000 User Manual
101
set the start phase 0°.

Set the burst cycles
Press (1/2↓) →Choose Cycles, Input ‘5’ from the keyboard and choose
the unit ‘Cycle’ to set the burst cycle 5.

Set the delay
Press Delay, and input ‘100’ from the keyboard and choose the unit ‘μs’
to set the delay 100μs.
When all parameters above are set, the wave generated is shown in Figure
3- 8:
Figure 3- 8 Burst Waveform Output
SDG1000 User Manual
102
3.9. Example 9:Generate an AM Wave
Generate an AM waveform with 80% depth. The carrier is a sine wave with
10kHz frequency, and the modulating wave is a sine wave with 200Hz
frequency.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine , and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input’10’
from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz
3. Press Ampl and choose Ampl which will display in white color. Input’1’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.
4. Press Offset and choose Offset which will display in white color. Input’0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type AM and parameters.
1. Press Mod →Type → AM, choose AM. Please notice that the message
shown on the middle left side of the screen is ‘AM’.
2. Press AM Freq, input’200’ from the keyboard and choose the unit ‘Hz’ to
set the AM freq 200Hz.
3. Press AM Depth, input’80’ from the keyboard and choose the unit ‘%’ to
set the AM depth 80%.
4. Press Shape →Sine, to choose sine wave as the modulating waveform.
When all parameters above are set, the wave generated is shown in Figure
3- 9:
SDG1000 User Manual
103
Figure 3- 9 AM Waveform
SDG1000 User Manual
104
3.10. Example 10:Generate a FM Wave
Generate a FM waveform, the carrier is a sine wave with 10kHz frequency,
and the modulating wave is a sine wave with 1 Hz frequency, 2kHz frequency
deviation.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine
and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input’10’
from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz
3. Press Ampl and choose Ampl which will display in white color. Input’1’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.
4. Press Offset and choose Offset which will display in white color. Input’0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type FM and parameters.
1. Press Mod →Type → FM, choose FM. Please notice that the message
shown on the middle left side of the screen is ‘FM’.
2. Press FM Freq, input ‘1’ from the keyboard and choose the unit ‘Hz’ to set
the AM Freq 1Hz.
3. Press FM Dev, input ‘2’ from the keyboard and choose the unit ‘kHz’ to
set the FM deviation 2kHz.
4. Press Shape →Sine, to choose sine wave as the modulating waveform.
When all parameters above are set, the wave generated is shown in Figure
SDG1000 User Manual
105
3- 10:
Figure 3- 10 FM Waveform
SDG1000 User Manual
106
3.11. Example 11:Generate a PM Wave
Generate a PM waveform, the carrier is a sine wave with 10kHz frequency,
and the modulating wave is a sine wave with 2kHz frequency, 90°phase
deviation.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine , and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input’10’
from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz
3. Press Ampl and choose Ampl which will display in white color. Input’5’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.
4. Press Offset and choose Offset which will display in white color. Input’0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type PM and parameters.
1. Press Mod →Type → PM, choose PM. Please notice that the message
shown on the middle left side of the screen is ‘PM’.
2. Press PM Freq, input ‘2’ from the keyboard and choose the unit ‘kHz’ to
set the PM freq 2kHz.
3. Press Phase Dev, input ‘90’ from the keyboard and choose the unit ‘ °’ to
set the phase deviation 90°.
4. Press Shape →Sine, to choose sine wave as the modulating waveform.
When all parameters above are set, the wave generated is shown in Figure
3- 11:
SDG1000 User Manual
107
Figure 3- 11 PM Waveform
SDG1000 User Manual
108
3.12. Example 12:Generate a FSK Wave
Generate a FSK waveform with 200Hz key frequency. The carrier is a sine
wave with 10kHz frequency, and the hop frequency is 500Hz.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine , and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input’10’
from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz
3. Press Ampl and choose Ampl which will display in white color. Input’5’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.
4. Press Offset and choose Offset which will display in white color. Input’0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type FSK and parameters.
1. Press Mod →Type → FSK, choose FSK. Please notice that the message
shown on the middle left side of the screen is ‘FSK ’.
2. Press Key Freq, input’200’ from the keyboard and choose the unit ‘Hz’ to
set the key frequency 200 Hz.
3. Press Hop Freq, input ‘500’ from the keyboard and choose the unit ‘Hz’ to
set the hop frequency 500Hz.
When all parameters above are set, the wave generated is shown in Figure
3- 12:
SDG1000 User Manual
109
Figure 3- 12 FSK Waveform
SDG1000 User Manual
110
3.13. Example 13:Generate an ASK Wave
Generate an ASK waveform with 500Hz key frequency. The carrier is a sine
wave with 5kHz frequency.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine , and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input ‘5’
from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz
3. Press Ampl and choose Ampl which will display in white color. Input ‘5’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.
4. Press Offset and choose Offset which will display in white color. Input ‘0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type ASK and parameters.
1. Press Mod →Type → ASK, choose ASK. Please notice that the message
shown on the middle left side of the screen is ‘ASK ’.
2. Press Key Freq, input ‘500’ from the keyboard and choose the unit ‘Hz’ to
set the key freq 500 Hz.
When all parameters above are set, the wave generated is shown in Figure
3- 13
SDG1000 User Manual
111
Figure 3- 13 ASK Waveform
SDG1000 User Manual
112
3.14. Example 14: Generate a PWM Wave
Generate a PWM waveform with 200Hz key frequency. The carrier is a pulse
wave with 5kHz frequency.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Pulse , and choose the Pulse waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input ‘5’
from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz
3. Press Ampl and choose Ampl which will display in white color. Input ‘5’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.
4. Press Offset and choose Offset which will display in white color. Input ‘0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.
5. Press PulWidth and choose PulWidth which will display in white color.
Input ‘40’ from the keyboard and choose the unit ‘us’ to set the PulWidth
40us

Set the modulation type PWM and parameters.
1. Press Mod →Type →PWM, Please notice that the message shown on
the middle left side of the screen is ‘PWM ’.
2. Press Key Freq, input ‘200’ from the keyboard and choose the unit ‘Hz’ to
set the key freq 200 Hz.
3. Press Width Dev, input ‘20’ from the keyboard and choose the unit ‘us’ to
set the Width Dev 20us
SDG1000 User Manual
113
When all parameters above are set, the wave generated is shown in Figure
3- 14
Figure 3- 14 PWM Waveform
SDG1000 User Manual
114
3.15. Example 15: Generate a DSB-AM Wave
Generate a DSB-AM waveform with 100Hz key frequency. The carrier is a
sine wave with 2kHz frequency.
 Steps:

Set the frequency, amplitude and offset of the carrier wave.
1. Press Sine , and choose the sine waveform as the carrier wave
2. Press Freq and choose Freq which will display in white color. Input ‘2’
from the keyboard and choose the unit ‘kHz’ to set the frequency 2kHz
3. Press Ampl and choose Ampl which will display in white color. Input ‘4’
from the keyboard and choose the unit ‘Vpp’ to set the amplitude 4Vpp.
4. Press Offset and choose Offset which will display in white color. Input ‘0’
from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

Set the modulation type DSB-AM and parameters.
1. Press Mod →Type →DSB-AM, choose DSB-AM. Please notice that the
message shown on the middle left side of the screen is ‘DSB-AM ’.
2. Press Key Freq, input ‘100’ from the keyboard and choose the unit ‘Hz’ to
set the key freq 100Hz.
When all parameters above are set, the wave generated is shown in Figure
3- 15
SDG1000 User Manual
115
Figure 3- 15 DSB-AM Waveform
SDG1000 User Manual
116
4. Troubleshooting
General Inspecting
After receiving a new SDG1000 Series Function/Arbitrary Waveform
Generator, please inspect the instrument as followed:
1. Inspect the shipping container for damage.
Keep the damaged shipping container or cushioning material until the
contents of the shipment have been checked for completeness and the
instrument has been checked mechanically and electrically.
2. Inspect the whole instrument.
In case there is any mechanical damage or defect, or the instrument
does not operate properly or fails performance tests, notify the SIGLENT
sales representative.
If the shipping container is damaged, or the cushioning materials show
signs of stress, notify the carrier as well as the SIGLENT sales
department. Keep the shipping materials for carrier’s inspection.
3. Check the accessories.
Accessories supplied with the instrument are listed below. If the contents
are incomplete or damaged, notify the SIGLENT sales representative.
Standard Accessories:






A Q uick Start
A Certification
A Guaranty Card
A CD(including EasyWave1.0 computer software system)
A Power Cord that fits the standard of destination country
A USB Cable
SDG1000 User Manual
117
Troubleshooting
1. After the waveform generator is powered on, the screen remains
dark, please do the following steps:
(1) Check the power cable’s connection.
(2) Ensure the power switch is turned on.
(3) After the inspections above, restart the waveform generator.
(4) If the generator still doesn’t work after the checking, please connect
with SIGLENT company
2. If there is no signal wave output after setting the parameters, please
do as following steps:
(1) Check whether the BNC cable has connected with output channel or not.
(2) Check whether the output button have been turned on or not.
SDG1000 User Manual
118
5. Service and Support
Maintain summary
SIGLENT warrants that the products that it manufactures and sells will be
free from defects in materials and workmanship for a period of three years
from the date of shipment from an authorized SIGLENT distributor. If a
product proves defective within the respective period, SIGLENT will provide
repair or replacement as described in the complete warranty statement.
To arrange for service or obtain a copy of the complete warranty statement,
please contact your nearest SIGLENT sales and service office.
Except as provided in this summary or the applicable warranty statement,
SIGLENT makes no warranty of any kind, express or implied, including
without limitation the implied warranties of merchantability and fitness for a
particular purpose. In no event shall SIGLENT be liable for indirect, special or
consequential damages
SDG1000 User Manual
119
Contact SIGLENT
MTR Add: 3/F, Building 4, Antongda Industrial Zone, Liuxian Road,
68 District, Baoan District, Shenzhen, P.R. CHINA
Service Tel: 0086 755 3661-5186
Post Code: 518101
E-mail:[email protected]
http://www.siglent.com
SDG1000 User Manual
120
6. Appendix
Appendix A: Accessories
SDG1000 Series Function/ Arbitrary Waveform Generator Accessories:
Standard Accessories:





A Quick Start
A Calibration Certificate
A CD(including EasyWave computer software system)
A Power Cord that fits the standard of destination country
A USB Cable
Optional Accessories:
 BNC Cable
 GPIB(IEEE 488.2)
SDG1000 User Manual
121
Appendix B: Daily Maintain and Cleaning
Daily Maintain
Do not store or leave the instrument in where the LCD will be exposed to
direct sunlight for long periods of time.
CAUTION: To avoid damage to the instrument, do not expose them
to sprays, liquids, or solvents.
Cleaning
If this instrument requires cleaning, disconnect it from all power sources and
clean it with a mid detergent and water. Make sure the instrument is
completely dry before reconnecting it to a power source.
To clean the exterior surface, perform the following steps:
1.
Remove loose dust on the outside of the instrument with a lint-free
cloth. Use care to avoid scratching the clear plastic display filter.
2.
Use a soft cloth dampened with water to clean the instrument.
WARNING: To avoid damage to the surface of the instrument, do
not use any abrasive or chimerical cleaning agents.
SDG1000 User Manual
122
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
