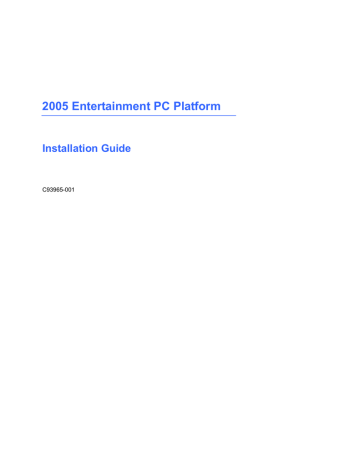

2005 Entertainment PC Platform

Installation Guide

C93965-001

Table of Contents

Box Contents ........................................................................... 2

Before Getting Started ................................................................. 4

System Overview ......................................................................... 5

Setup Diagram ........................................................................... 7

Installation Overview .................................................................... 8

1. Connect Audio......................................................................... 8

2. Connect to the Internet ......................................................... 13

3. Connect Video....................................................................... 15

4. Connect the TV Signal Source.............................................. 19

5. Connect the IR Blaster (Required if using a Set-Top Box) ... 22

6. Connect FM Antenna ............................................................ 23

7. Connect Power and Power On ............................................. 24

8. Prepare Wireless Control Device(s)...................................... 25

Start Media Center ..................................................................... 27

Verify Your Audio Settings ......................................................... 27

2005 Entertainment PC Platform Installation Guide 3

Before Getting Started

CAUTION

Confirm the voltage setting before turning the power on the 2005

Entertainment PC Platform. The voltage selection switch located on the back panel of the entertainment PC should match the voltage settings for your area. If you set the voltage selection switch incorrectly, your system will be damaged.

North America typically uses 115V. Europe typically uses 230V.

115V

230V

Voltage Selector

CAUTION

Place the system where there is proper ventilation. Do not block system vents and do not place a device directly on top of the entertainment PC. If placed in a cabinet, make sure there is adequate ventilation in the cabinet back and front panels. Place the entertainment PC at the bottom of the cabinet.

Additional Cables Needed for Some Connections

There are cables that you may need that are not provided in the box.

These cables are:

* Other names and brands may be claimed as the property of others.

4

2005 Entertainment PC Platform Installation Guide

System Overview

Front Panel

1

2 3

4

5

6

7

3

4

1

2

Standby-ON button

Emergency eject pinhole

Disc tray

7

8

5

6

IR sensor

Display

I/O access door

Skip back

9

10

11

12

Rewind

Stop

Play

Pause

8 9 10 11 12 13 14

13

14

Fast forward

Skip forward

Front Panel (with I/O Door Open)

1 2 17

3 4 5 6 7 8 9 10 11

3

4

5

1

2

SmartMedia card

MMC/SD card

CompactFlash I/II card

MS/MS pro card

S-video in

6

7

8

9

10

Composite video

Audio in (left & right)

Headphone

Microphone

USB 2.0 ports

11

12

IEEE-1394

Left

13

14

15

OK

Down

Up

12 14 16 18

13 15

16

17

Right

Home

18

Back

2005 Entertainment PC Platform Installation Guide 5

Rear Panel

23

TV in

FM in radio antenna

S-video in

Composite video-in

Audio in (left & right)

VGA out

S-video out

DVI out

IR blaster 1

IR blaster 2

IEEE-1394

Modem

USB 2.0

10/100 LAN

Digital audio optical out

Digital audio coaxial out

Front audio out (left & right)

Subwoofer out

Center channel out

Side surround out

(left & right)

Back surround out

(left & right)

Voltage selector

AC power connector

NOTE: For a larger view of the back panel, please look at the 2005

Entertainment PC Platform User’s Manual.

6

2005 Entertainment PC Platform Installation Guide

Setup Diagram

Internet connection

Esc

Tab

CapsLock

Fn

Shift

Ctrl

1

2

F1 F2

1

Q

@

2

W

F3

3

E

F4 F5

4

R

A

Z

S

X

D

C

F

%

F6

5

T

6

Y

F7

G H

F8

&

7

U

F9

*

8

F10

9

O

F11

0

P

F12

-

Num

Lock

+

=

3

Prt Scr

SysRq

Scrol

Lock

Back

Space

K L

Enter

Pause

Break

Home

Page

Up

Page

Down

V B N M .

?

Shift End

Alt

,

Alt Ins Del

(optional)

OR

B

OR

D

E

A

F

A

Cable/satellite set-top box

B

C

AND (optional)

Entertainment PC

C

Receiver

OR

B

D

(optional)

Speakers

OR

B

D

(optional)

TV or monitor

A. Coaxial cable

B. S-video or composite video cable

C. Analog or digital audio (left/right) cable

D. Component video cable (not provided)

E. VGA or DVI cable

F. IR blaster

NOTE: For other setup options, please see the 2005

Entertainment PC Platform User’s Manual.

2005 Entertainment PC Platform Installation Guide 7

Installation Overview

This guide shows you how to setup the entertainment PC by:

Connecting audio

• Connecting to the Internet

Connecting video

• Connecting the TV signal source

Connecting FM antenna

• Connecting power and turning power on

Preparing wireless control device(s)

• Starting Media Center

Verifying audio settings

1. Connect Audio

For connecting audio, choose one of the following options:

You may connect a powered PC speaker set without a receiver.

8

2005 Entertainment PC Platform Installation Guide

Option 1: 5.1-Channel AV Receiver – Digital

Connection

NOTE: This is the simplest way to setup a connection to your audio system for 5.1 surround sound and the default for the system. In this configuration, the system is limited to 5.1 output and the volume level is completely controlled by the receiver, not the entertainment PC. After setting up the system, use Intel®

Audio Studio to optimize your audio settings (see page 27).

2005 Entertainment PC Platform Installation Guide 9

Option 2: 7.1-Channel AV Receiver – Analog

Connection

NOTE: In this configuration, the volume level can be controlled by the entertainment PC or the receiver. After setting up the system, you will need to use Intel Audio Studio to turn on this output option and optimize your audio settings (see page 27).

10

2005 Entertainment PC Platform Installation Guide

Option 3: 5.1-Channel AV Receiver – Analog

Connection

NOTE: In this configuration, the volume level can be controlled by the entertainment PC or the receiver. After setting up the system, you will need to use Intel Audio Studio to turn on this output option and optimize your audio settings (see page 27).

2005 Entertainment PC Platform Installation Guide 11

Option 4: 2-Channel Audio – Analog Connection

NOTE: In this configuration, the volume level can be controlled by the entertainment PC or the receiver/TV. After setting up the system, you will need to use Intel Audio Studio to turn on this output option and optimize your audio settings (see page 27).

12

2005 Entertainment PC Platform Installation Guide

2. Connect to the Internet

To connect to the Internet, choose one of the following options:

Option 1: Ethernet LAN Connection

2005 Entertainment PC Platform Installation Guide 13

Option 2: Dial-Up Modem Connection

Option 3: Wireless Connection

Entertainment PC (back)

Wireless access point

NOTE: If connecting to a wireless home network, refer to the

Network Setup Wizard, during the MCE Setup Wizard, to configure (see page 27).

14

2005 Entertainment PC Platform Installation Guide

3. Connect Video

To connect video, choose from the preferred connections listed below in descending order, starting with highest quality:

Option 1: DVI Connection (Recommended)

2005 Entertainment PC Platform Installation Guide 15

Option 2: VGA Connection

16

2005 Entertainment PC Platform Installation Guide

Option 3: S-Video Connection

2005 Entertainment PC Platform Installation Guide 17

Option 4: DVI to Component Video Adapter

Connection

1. Set switches on component adapter based on your display’s capability.

2. Depending on your display, this setup will likely require additional configuration of your graphics settings.

18

2005 Entertainment PC Platform Installation Guide

4. Connect the TV Signal Source

To connect the TV signal source, choose one of the following options:

Option 1: Connect with a TV In Coaxial Cable

Do this setup option if you do not have a set-top box.

2005 Entertainment PC Platform Installation Guide 19

Option 2: Connect with an S-Video Cable

NOTE: You must also plug audio cables from your set top box into the audio in right (red) connector and the audio in left (white) connector on the back of the entertainment PC.

20

2005 Entertainment PC Platform Installation Guide

Option 3: Connect with an Antenna

2005 Entertainment PC Platform Installation Guide 21

5. Connect the IR Blaster

(Required if using a Set-Top Box)

You will need to follow the Microsoft* Windows* XP Media Center

Edition 2005 TV Setup Wizard to configure the entertainment PC’s remote to control the set-top box.

22

2005 Entertainment PC Platform Installation Guide

6. Connect FM Antenna

2005 Entertainment PC Platform Installation Guide 23

7. Connect Power and Power On

CAUTION

Confirm the voltage setting before turning the power on the 2005

Entertainment PC Platform. The voltage selection switch located on the back panel of the entertainment PC should match the voltage settings for your area. If you set the voltage selection switch incorrectly, your system will be damaged.

See page 4 for the illustration showing voltage settings.

NOTE: A popping sound may be heard through the speakers when you first power up. This is normal and does not mean a device malfunction.

Surge protector

(Recommended)

Speakers

24

2005 Entertainment PC Platform Installation Guide

8. Prepare Wireless Control

Device(s)

Install the batteries in to the remote control and optional keyboard.

NOTE: Remote control and keyboard may be different from what is

illustrated.

Remote Control

AA

AA bottom

AA

AA

Wireless Keyboard (Optional)

bottom

2005 Entertainment PC Platform Installation Guide 25

Set the ID Button for the Keyboard (optional)

The following steps should be completed within one minute:

1. Press the ID button on the wireless keyboard adapter.

2. Press the ID button, located inside the back of the keyboard where the batteries are located, once.

See the 2005 Entertainment PC Platform User’s Manual for more information about setting the ID button.

26

2005 Entertainment PC Platform Installation Guide

Start Media Center

After the system has booted up, press the green Microsoft* Windows*

XP Media Center Edition 2005 button on the remote control which will start the Media Center Setup Wizard.

START

For information about Main Menu options, refer to the following:

• Windows Help (for Windows XP Media Center Edition)

To access Windows Help, press the F1 key on the keyboard or click Start on the Windows taskbar, then click Help

• The Microsoft Media Center website: http//www.microsoft.com/windowsxp/mediacenter

Verify Your Audio Settings

For information about the Intel® Audio Studio settings, select More

Programs from the Main Menu, select Intel Audio Studio, then select

Settings.

2005 Entertainment PC Platform Installation Guide 27
