including repair parts and special tools list for

including repair parts and special tools list for

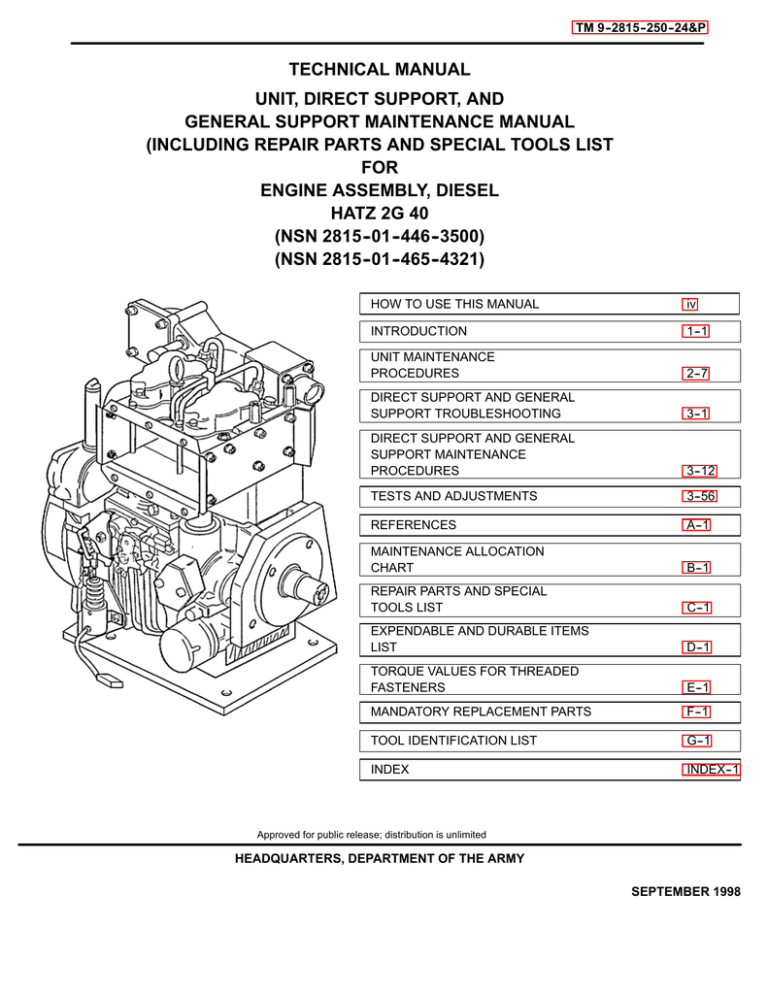

TM 9--2815--250--24&P

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT, AND

GENERAL SUPPORT MAINTENANCE MANUAL

(INCLUDING REPAIR PARTS AND SPECIAL TOOLS LIST

FOR

ENGINE ASSEMBLY, DIESEL

HATZ 2G 40

(NSN 2815--01--446--3500)

(NSN 2815--01--465--4321)

HOW TO USE THIS MANUAL

INTRODUCTION

UNIT MAINTENANCE

PROCEDURES

DIRECT SUPPORT AND GENERAL

SUPPORT TROUBLESHOOTING

DIRECT SUPPORT AND GENERAL

SUPPORT MAINTENANCE

PROCEDURES

TESTS AND ADJUSTMENTS

REFERENCES

MAINTENANCE ALLOCATION

CHART

REPAIR PARTS AND SPECIAL

TOOLS LIST

EXPENDABLE AND DURABLE ITEMS

LIST

TORQUE VALUES FOR THREADED

FASTENERS

MANDATORY REPLACEMENT PARTS

TOOL IDENTIFICATION LIST

INDEX

iv

1--1

2--7

3--1

3--12

3--56

A--1

B--1

C--1

D--1

E--1

F--1

G--1

INDEX--1

Approved for public release; distribution is unlimited

HEADQUARTERS, DEPARTMENT OF THE ARMY

SEPTEMBER

1998

TM 9--2350--314--20--1--1

--2

FOR INFORMATION ON FIRST AID, REFER TO FM 4--25.11.

WARNING

CARBON MONOXIDE

TM 9--2815--250--24&P

S

Carbon monoxide is a colorless, odorless, deadly poisonous gas that, when breathed, deprives the body of oxygen and causes suffocation. Exposure to carbon monoxide can cause headache, dizziness, loss of muscle control, drowsiness, and coma. Permanent brain damage or death can result from serious exposure.

S

Carbon monoxide is present in the exhaust fumes of diesel engines; inadequate ventilation causes dangerous concentrations of this gas.

Precautions must be observed to ensure the safety of personnel whenever the diesel engine is operated for maintenance or tactical reasons. Do not operate the engine in an enclosed area without adequate ventilation.

WARNING

DRYCLEANING SOLVENT

S

Drycleaning solvent (P--D680) is TOXIC and flammable. Wear protective goggles and gloves; use only in a well--ventilated area; avoid contact with skin, eyes, and clothes; and DO NOT breathe vapors. Keep away from heat or flame.

Never smoke when using drycleaning solvent. Failure to follow this warning may result in injury or death to personnel.

S

If personnel become dizzy while using drycleaning solvent, immediately get fresh air and medical help. If solvent contacts skin or clothes, flush with cold water. If solvent contacts eyes, immediately flush them with water and get immediate medical attention.

S

When drycleaning solvent is used, notify the local medical authority

(preventive medicine) and environmental coordinator concerning medical surveillance, respiratory protection, and disposal requirements.

Change 1

a

b

TM 9--2815--250--24&P

WARNING

COMPRESSED AIR

Compressed air used for cleaning or drying purposes, or for clearing restrictions, should never exceed 30 psi (207 kPa). Wear protective clothing (gloves, etc.) and use caution, particularly when drying or cleaning metal parts, to avoid injury to personnel.

It is particularly important to wear eye protection (goggles or a face shield) to protect eyes from blowing particles and prevent serious eye injury.

WARNING

LIFTING

Use extreme caution when handling heavy parts. The diesel engine weighs about 200 pounds (90 kg). Use a suitable lifting device to place the engine on the stand. Failure to follow this warning may result in serious injury or death to personnel.

TM 9--2815--250--24&P

C1

HEADQUARTERS

DEPARTMENT OF THE ARMY

CHANGE

NO. 1 WASHINGTON, D.C. 3

1 December 2

005

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT AND GENERAL SUPPORT MAINTENANCE MANUAL

(INCLUDING REPAIR PARTS AND SPECIAL TOOLS LIST)

FOR

ENGINE ASSEMBLY, DIESEL

HATZ 2G 40

(NSN 2815--01--446--3500)

(NSN 2815--01--465--4321)

TM 9--2815--250--24&P, September 1998, is changed as follows:

1.

The purpose of this change is to update TM 9--2815--250--24&P.

2.

New or changed material is indicated by a vertical bar in the outside margin of text changes and by a hand symbol beside illustration changes.

3.

Remove the old page and insert the new page as indicated below:

Remove Pages a and b

A and B i and ii

1--3 and 1--4

1--7 and 1--8

2--7 thru 2--10

2--13 and 2--14

Insert Pages

a and b

A and B

i and ii

1--3 and 1--4

1--7 and 1--8

2--7 thru 2--10

2--13 and 2--14

2--19 thru 2--32

3--11 thru 3--14

3--15 and 3--16

3--19 thru 3--22

3--27 thru 3--32

3--37 thru 3--40

3--45 and 3--46

3--47 thru 3--56

3--59 and 3--60

3--63 thru 3--70

A--1 and A--2

C--5 and C--6

C--7 thru 17--1

I--1 thru I--9

D--1 and D--2

F--3/F--4 blank

Index--1 thru Index--4

Cover/Blank

2--19 thru 2--32

3--11 thru 3--14.1/3--14.2 blank

3--15 and 3--16

3--19 thru 3--22

3--27 thru 3--32

3--37 thru 3--40

3--45 and 3--46

3--47/3--48 blank thru 3--56

3--59 and 3--60

3--63 thru 3--70

A--1 and A--2

C--5 and C--6

C--7 thru 17--1/17--2 blank

I--1 thru I--6

D--1 thru D--3/D--4 blank

F--3 and F--4

Index--1 thru Index--4

Cover/Pin

Distribution Statement A: Approved for public release; distribution is unlimited.

4. File this change in front of the publication.

By Order of the Secretary of the Army:

PETER J. SCHOOMAKER

General, United States Army

Chief of Staff

Official:

SANDRA R. RILEY

Administrative Assistant to the

Secretary of the Army

0524301

DISTRIBUTION: To be distributed in accordance with the Initial Distribution Number (IDN)

381080, requirements for TM 9--2815--250--24&P.

TM 9-2815-250-24&P

INSERT LATEST CHANGED PAGES.

DESTROY SUPERSEDED PAGES

LIST OF EFFECTIVE PAGES

Note: The portion of the text affected by the changes is indicated by a vertical line in the outer margin of the page. Changes to illustrations are indicated by miniature pointing hands. Changes to wiring diagrams are indicated by shaded areas.

Date of issue for original and changed pages are:

Original .......... 0 ................ 11 September 1998

Change .......... 1 .......................31 December 2005

TOTAL NUMBER OF PAGES IN THIS PUBLICATION IS 232, CONSISTING OF THE FOLLOWING:

Page

No.

*Change

No.

Cover ....................................... 1 a ............................................... 1 b ............................................... 0 i ................................................ 1 ii ............................................... 0 iii............................................... 0 iv .............................................. 0 v ............................................... 0 vi .............................................. 0 vii/viii blank............................... 0

1-1............................................ 0

1-2............................................ 0

1-3............................................ 1

1-4............................................ 1

1-5............................................ 0

1-6............................................ 0

1-7............................................ 0

1-8............................................ 1

1-9............................................ 0

1-10 blank ................................ 0

2-1............................................ 0

2-2............................................ 0

2-3............................................ 0

2-4............................................ 0

2-5............................................ 0

2-6............................................ 0

2-7............................................ 1

2-8............................................ 1

2-9............................................ 0

2-10.......................................... 1

2-11.......................................... 0

2-12.......................................... 0

2-13.......................................... 1

2-14.......................................... 1

2-15.......................................... 0

2-16.......................................... 0

2-17.......................................... 0

2-18.......................................... 0

Page

No.

*Change

No.

2-19 ......................................... 0

2-20 ......................................... 1

2-21 ......................................... 1

2-22 ......................................... 1

2-23 ......................................... 1

2-24 ......................................... 1

2-25 ......................................... 1

2-26 ......................................... 1

2-27 ......................................... 1

2-28 ......................................... 1

2-29 ......................................... 1

2-30 ......................................... 1

2-31 ......................................... 1

2-32 ......................................... 1

3-1 ........................................... 0

3-2 ........................................... 0

3-3 ........................................... 0

3-4 ........................................... 0

3-5 ........................................... 0

3-6 ........................................... 0

3-7 ........................................... 0

3-8 ........................................... 0

3-9 ........................................... 0

3-10 ......................................... 0

3-11 ......................................... 1

3-12 ......................................... 1

3-13 ......................................... 1

3-14 ......................................... 1

3-14.1 ...................................... 1

3-14.2 blank (added) ............... 1

3-15 ......................................... 1

3-16 ......................................... 0

3-17 ......................................... 0

3-18 ......................................... 0

3-19 ......................................... 1

3-20 ......................................... 0

3-21 ......................................... 0

3-22 ......................................... 1

Page

No.

*Change

No.

3-23 ..........................................0

3-24 ..........................................0

3-25 ..........................................0

3-26 ..........................................0

3-27 ..........................................1

3-28 ..........................................1

3-29 ..........................................1

3-30 ..........................................1

3-31 ..........................................1

3-32 ..........................................1

3-33 ..........................................0

3-34 ..........................................0

3-35 ..........................................0

3-36 ..........................................0

3-37 ..........................................1

3-38 ..........................................1

3-39 ..........................................1

3-40 ..........................................0

3-41 ..........................................0

3-42 ..........................................0

3-43 ..........................................0

3-44 ..........................................0

3-45 ..........................................0

3-46 ..........................................1

3-47 ..........................................1

3-48 blank (added) ...................1

3-48.1 (added)..........................1

3-48.2 (added)..........................1

3-48.3 (added)..........................1

3-48.4 (added)..........................1

3-49 ..........................................1

3-50 ..........................................1

3-51 ..........................................0

3-52 ..........................................1

3-53 ..........................................1

3-54 ..........................................1

3-55 ..........................................1

3-56 ..........................................0

*Zero in this column indicates an original page

TM 9-2815-250-24&P

Page

No.

*Change

No.

3-57.......................................... 0

3-58.......................................... 0

3-59.......................................... 0

3-60.......................................... 1

3-61.......................................... 0

3-62.......................................... 0

3-63.......................................... 0

3-64.......................................... 1

3-65.......................................... 1

3-66.......................................... 1

3-67.......................................... 0

3-68.......................................... 1

3-69.......................................... 1

3-70.......................................... 0

3-71.......................................... 0

3-72 blank ................................ 0

A-1 ........................................... 1

A-2 ........................................... 1

B-1 ........................................... 0

B-2 ........................................... 0

B-3 ........................................... 0

B-4 ........................................... 0

B-5 ........................................... 0

B-6 ........................................... 0

C-1 ........................................... 0

C-2 ........................................... 0

C-3 ........................................... 0

C-4 ........................................... 0

C-5 ........................................... 0

C-6 ........................................... 1

C-7 ........................................... 1

Figure 1.................................... 0

1-1............................................ 0

Figure 2.................................... 1

2-1............................................ 1

Figure 3.................................... 1

3-1............................................ 1

Figure 4.................................... 1

Page

No.

*Change

No.

4-1 ........................................... 1

Figure 5 ................................... 1

5-1 ........................................... 1

Figure 6 ................................... 1

6-1 ........................................... 1

Figure 7 ................................... 1

7-1 ........................................... 1

Figure 8 ................................... 1

8-1 ........................................... 1

Figure 9 ................................... 1

9-1 ........................................... 1

Figure 10 ................................. 0

10-1 ......................................... 1

Figure 11 ................................. 0

11-1 ......................................... 1

Figure 12 ................................. 1

12-1 ......................................... 1

12-2 blank (added) .................. 1

Figure 13 (SH 1 of 2) ............... 1

Figure 13 (SH 2 of 2) (added) . 1

13-1 ......................................... 1

13-2 blank (added) .................. 1

Figure 14 (SH 1 of 2) ............... 0

Figure 14 (SH 2 of 2) ............... 0

14-1 ......................................... 1

Figure 15 ................................. 0

15-1 ......................................... 1

Figure 16 ................................. 0

16-1 ......................................... 1

16-2 (added) ............................ 1

Kits-1 ....................................... 1

Kits-2 (added) .......................... 1

Bulk-1 ...................................... 1

Figure 17 ................................. 0

17-1 ......................................... 1

17-2 blank (added) .................. 1

I-1............................................. 1

I-2............................................. 1

Page

No.

*Change

No.

I-3 .............................................1

I-4 .............................................1

I-5 .............................................1

I-6 .............................................1

I-7 (deleted) ..............................1

I-8 (deleted) ..............................1

I-9/I-10 blank (deleted) .............1

D-1............................................0

D-2............................................1

D-3/D-4 blank ...........................1

E-1 ............................................0

E-2 ............................................0

E-3 ............................................0

E-4 ............................................0

E-5 ............................................0

E-6 blank ..................................0

F-1 ............................................0

F-2 ............................................0

F-3 ............................................1

F-4 ............................................1

G-1 ...........................................0

G-2 ...........................................0

G-3 ...........................................0

G-4 blank..................................0

Index-1 .....................................1

Index-2 .....................................1

Index-3 .....................................1

Index-4 .....................................1

Index-5 .....................................0

Index-6 blank............................0

2028 Sample ............................0

2028 Sample Address ..............0

2028 .........................................0

2028 Address ...........................0

Metric Page ..............................0

PIN ...........................................1

*Zero in this column indicates an original page

TECHNICAL MANUAL

NO. 9--2815--250--24&P

TM 9--2815--250--24&P

HEADQUARTERS

DEPARTMENT OF THE ARMY

WASHINGTON, D.C. 11 September 1998

UNIT, DIRECT SUPPORT, AND

GENERAL SUPPORT MAINTENANCE MANUAL

(INCLUDING REPAIR PARTS AND SPECIAL TOOLS LIST)

FOR

ENGINE ASSEMBLY, DIESEL

HATZ 2 G 40

NSN 2815--01--446--3500

NSN 2815--01--465--4321

REPORTING OF ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this publication. If you find any mistakes or if you know of a way to improve the procedures, please let us know. Submit your DA Form 2028 (Recommended Changes to

Equipment Technical Publications), through the Internet, on the Army Electronic Product Support

(AEPS) website. The Internet address is

https://aeps.ria.army.mil

. The DA Form 2028 is located under the Public Applications section in the AEPS Public Home Page. Fill out the form and click on

SUBMIT. Using this form on the AEPS will enable us to respond quicker to your comments and better manage the DA Form 2028 program. You may also mail, fax or E--mail your letter or DA Form

2028 direct to: AMSTA--LC--LMIT / TECH PUBS, TACOM--RI, 1 Rock Island Arsenal, Rock Island, IL

61299--7630. The email address is [email protected] The fax number is DSN

793--0726 or Commercial (309) 782--0726.

Approved for public release; distribution is unlimited.

TABLE OF CONTENTS

Page

HOW TO USE THIS MANUAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

iv

CHAPTER 1

INTRODUCTION

Section I General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

Section II Equipment Description and Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--4

Section III Principles of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--9

Change 1

i

TM 9--2815--250--24&P

Table of Contents (continued)

Page

CHAPTER 2

UNIT MAINTENANCE

Section I Repair Parts; Special Tools; Test, Measurement, and Diagnostic

Equipment (TMDE); and Support Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--1

Section II Service upon Receipt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--2

Section III General Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--3

Section IV Unit Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--7

CHAPTER 3

DIRECT SUPPORT AND GENERAL SUPPORT MAINTENANCE

Section I Direct Support and General Support Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--1

Section II Direct Support and General Support Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--12

Section III Tests and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--56

APPENDIX A

REFERENCES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--1

APPENDIX B

MAINTENANCE ALLOCATION CHART

Section I Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B--1

Section II Maintenance Allocation Chart for Engine Assembly, Diesel, Hatz 2 G 40 . . . . . . . . . . . . . . . . . . . .

B--4

Section III Tools and Test Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B--6

APPENDIX C

REPAIR PARTS AND SPECIAL TOOLS LIST

Section I Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C--1

Section II Repair Parts List

Page

Illus

Fig

Group 22

Group 2210

Group 29

Body, Chassis, and Hull Accessory Items

Data Plates and Instruction Holders

2210

Engine Identification Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

Auxiliary Generator and Engine, and Controls

2910

Engine Assembly

Engine Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2911

Crankcase, Cylinder Sleeve, and Cylinder Head

Cylinder Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankcase Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2912

2--1

3--1

4--1

2913

Crankcase Assembly

Crankshaft Assembly

Flywheel Assembly

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel and Related Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5--1

6--1

1

2

3

4

5

6

ii

TM 9-2815-250-24&P

Table of Contents (continued)

Page

2914

Pistons and Connecting Rods

Pistons and Connecting Rods........................................................... 7-1

2915

Valves, Camshaft, and Timing System

Camshaft and Valves ....................................................................... 8-1

2916

Engine Lubrication System

Engine Lubrication System............................................................... 9-1

2918

Manifolds

Exhaust Manifold Mounting Hardware ............................................. 10-1

Intake Manifold and Related Components ....................................... 11-1

2932

Engine Fuel System

Injection Pump, Nozzles, and Fuel Lines ......................................... 12-1

2936 Engine Speed Governor and Controls

Governor and Controls................................................................... 13-1

2952

Engine Cowling Deflectors, Air Ducts, and Shrouds

Engine Cowling, Ducts, and Shroud................................................ 14-1

2960 Sending Units

Sending Units................................................................................ 15-1

2968

Switches, Circuit Breakers, and Fuses

Fuel-Shutoff Solenoid..................................................................... 16-1

Group 94

Repair Kits

9401 Repair Kits

Repair Kits ....................................................................................KITS-1

Group 95

General Use Standard Parts

9501 Bulk Material

Bulk Material ............................................................................... BULK-1

Section III Special Tools List

Illus

Fig

Group 26

Tools and Test Equipment

2604 Special Tools

Special Tools.................................................................................... 17-1

Section IV Cross Reference Indexes

National Stock Number Index ........................................................................ I-1

Part Number Index........................................................................................ I-4

17

Page

APPENDIX D

EXPENDABLE AND DURABLE ITEMS LIST

Section I

Introduction ......................................................................................................................... D-1

Section II

Expendable and Durable Items List....................................................................................... D-2

APPENDIX E

TORQUE VALUES FOR THREADED FASTENERS ............................................................. E-1

APPENDIX F

MANDATORY REPLACEMENT PARTS .............................................................................. F-1

APPENDIX G

TOOL IDENTIFICATION LIST..............................................................................................G-1

INDEX

.................................................................................................................................... Index 1

9

10

11

12

13

7

8

14

15

16

iii

TM 9-2815-250-24&P

HOW TO USE THIS MANUAL

SCOPE.

This technical manual contains Unit, Direct Support, and General Support maintenance procedures for the Diesel Engine

Assembly, Hatz 2 G 40. Chapter 1 contains general information; Chapter 2 describes and illustrates Unit troubleshooting

and maintenance procedures; and Chapter 3 describes and illustrates Direct Support and General Support

troubleshooting and maintenance procedures. Seven appendixes and a subject index are also included in this manual.

INDEXING.

Four Indexing procedures are used to help you locate information quickly:

Cover index. Lists chapter titles and important parts of this manual, with corresponding page numbers. Each chapter or part listed is boxed in, with a black outer edge that is in line with the first page of that chapter or part.

Table of contents. The table of contents follows the summary of warnings. The table of contents lists all chapters

and sections numerically, with corresponding page numbers.

Section indexes. Each section starts with a numerical listing of all paragraphs in that section.

Alphabetical index. The alphabetically arranged subject index starts on page Index 1.

TEXT AND ILLUSTRATIONS.

1.

2.

Each chapter is divided into sections; each section begins with a numencal listing of all paragraphs.

Each paragraph in the maintenance chapters (2 and 3) contains the following information, as appropriate:

The common or special tools and test equipment required to perform the procedures are listed under the heading

'Tools/Test Equipment." Information (e.g., part numbers and national stock numbers) for all common and special

tools is given in Appendix G.

Materials and mandatory replacement parts that will be discarded during performance of the procedure are listed under the heading "Materials/Parts." A materials/parts list does not contain items that may be replaced If found defective during inspection. Also, the list does not contain the item cited in the paragraph title. Information on the

materials is In Appendix D, and information on the mandatory replacement parts is in Appendix F.

If more than one person is required to perform the procedure, the number is specified under the heading

"Personnel Required."

Procedures that must be followed prior to performing the engine maintenance procedure are listed under the heading "Equipment Conditions."

iv

TM 9-2815-250-24&P

TEXT AND ILLUSTRATIONS (continued).

3.

4.

Maintenance procedures are to be performed in the sequence given in the text and illustrations.

Illustrations are numbered clockwise, beginning at the 11 o'clock position. Because an illustration is keyed to the text, parts that are removed sequentially may not have sequential numbers. For example:

Remove screw (4), lockwasher (6), washer (7), and bracket (5) from crankcase (2).

5.

Be sure to read the entire paragraph before beginning a maintenance procedure. Also, read the general information in Chapter 1 before beginning a procedure

WARNINGS, CAUTIONS, AND NOTES.

1.

2.

Throughout this manual you will see WARNING, CAUTION, and NOTE headings. There are good reasons for every one of these notices.

WARNING

A warning is used to alert the user to hazardous operating and maintenance procedures, practices, or conditions that could result in injury or death. Warnings must be strictly observed.

CAUTION

A caution is used to alert the user to hazardous operating and maintenance procedures, practices, or conditions that could result in damage to, or destruction of, equipment or mission effectiveness. Cautions must be strictly observed.

NOTE

A note highlights an essential operating or maintenance procedure, condition, or statement.

Warnings and cautions appear immediately preceding the step to which they pertain. It is important to read and thoroughly understand the warnings and/or cautions before beginning maintenance.

3.

Notes may precede or follow the steps to which they pertain, depending on what makes the most sense.

v

TM 9-2815-250-24&P

SAFETY SUMMARY

This safety summary contains general safety precautions and hazardous materials warnings that must be understood and applied during maintenance to protect personnel and U.S. Department of Defense property. Portions of this summary may be repeated elsewhere for emphasis.

WARNING and CAUTION statements appear throughout this manual prior to procedures, practices, or conditions that may endanger personnel (WARNING) or cause equipment and property damage (CAUTION). A warning or caution will apply each time the related step is repeated. Before starting any task, review and understand the warnings and cautions included in the text for that task.

This manual contains procedures that may require using chemicals, solvents, paints, or other commercially available material that may pose a health or safety hazard. Refer to the "Materials/Parts" list at the beginning of a task to see which materials will be used during the task. Obtain material safety data sheets (Occupational Safety and Health Act [OSHA]

Form 20 or equivalent) from the manufacturer or supplier of the material to be used. Become completely familiar with the information and manufacturer/supplier procedures, recommendations, warnings, and cautions for the safe use, handling, storage, and disposal of these materials.

Following the "General Safety Precautions" list is a list of "Hazardous Materials Warnings." These warnings are designed to warn personnel of dangers associated with hazardous materials. For each hazardous material used, a material safety data sheet is required to be provided and available for review by personnel. Consult your local safety and health staff concerning questions on hazardous chemicals, personnel protective equipment requirements, and appropriate handling and emergency procedures.

GENERAL SAFETY PRECAUTIONS

Always use the same fastener part number (or equivalent) when replacing fasteners. Do not risk using a fastener of less quality; do not mix metric and inch (customary) fasteners. Mismatched or incorrect fasteners can result in damage, malfunction, or injury.

Fuel and oil are slippery and can cause falls. To avoid injury, wipe up spilled fuel or oil with rags.

Make sure equipment will not move while repairing or inspecting it. For powered equipment, block or chock wheels or tracks and red-tag the starter. Prevent a quick fix from becoming a quick injury.

When adjustment or service requires a running engine, two people are needed, one at the controls and one at the service point. This helps prevent accidental movement of controls.

Sharp edges can cut hands. Use rags or a brush to lubricate parts.

Do not use equipment for other than its intended use, unless authorized by the National Inventory Control

Point/commodity command.

Remove rings, bracelets, wristwatches, and neck chains before working on the engine. Jewelry can catch on equipment and result in injury.

vi

TM 9-2815-250-24&P

GENERAL SAFETY PRECAUTIONS (continued)

Keep clear of equipment when it is being raised or lowered. Equipment may fall and cause serious injury or death to personnel.

Do not work on any item supported only by lift jacks or a hoist. Always use blocks or trestles to support the item prior to any work. Equipment may fall and cause injury or death to personnel.

Do not allow heavy components to swing while hanging from a lifting device. Equipment may strike personnel and cause injury or death.

Exercise extreme caution when working near a cable or chain under tension. A snapped cable or a swinging or shifting load may result in injury or death to personnel.

When working on a running engine, provide shielding for exposed rotating parts. Tools, clothing, or hands can get caught and cause serious injury to personnel.

HAZARDOUS MATERIALS WARNINGS

Adhesive causes immediate bonding on contact with eyes, skin, or clothing and also gives off harmful vapors. Wear protective goggles and use in a wellventilated area. If adhesive gets in your eyes, try to keep them open; flush with water for 15 minutes and get immediate medical attention.

Adhesive sealant MIL-S-46163 (Loctite) can damage your eyes. Wear safety goggles/glasses when using sealant, and avoid contact with eyes. If sealant contacts your eyes, flush them with water and get immediate medical attention.

Drycleaning solvent (P-D-680) is TOXIC and flammable. Wear protective goggles and gloves; use only in a well-ventilated area; avoid contact with skin, eyes, and clothes; and do not breathe vapors. Keep away from heat or flame. Never smoke when using drycleaning solvent. Failure to follow this warning may result in injury or death to personnel.

If personnel become dizzy while using cleaning solvent, immediately get fresh air and medical help. If solvent contacts skin or clothes, flush with cold water. If solvent contacts eyes, immediately flush with water and get immediate medical attention.

vii/(viii blank)

TM 9-2815-250-24&P

CHAPTER 1

INTRODUCTION

Section I. GENERAL INFORMATION

Paragraph

Number

1-1

1-2

1-3

1-4

1-5

1-6

1-7

1-8

1-9

1-10

Paragraph Title

Page

Number

Scope ................................................................................................................................. 1-1

Maintenance Forms, Records, and Reports........................................................................... 1-1

Destruction of Army Materiel To Prevent Enemy Use............................................................. 1-1

Preparation for Storage or Shipment ..................................................................................... 1-1

Quality Assurance................................................................................................................ 1-1

Reporting Equipment Improvement Recommendations .......................................................... 1-2

List of Abbreviations and Acronyms ...................................................................................... 1-2

Warranty Information ........................................................................................................... 1-3

Safety, Care, and Handling................................................................................................... 1-3

Corrosion Prevention and Control ......................................................................................... 1-3

1-1.

SCOPE.

This technical manual describes Unit, Direct Support, and General Support maintenance for the Diesel Engine Assembly,

Hatz 2 G 40. The manual also contains the repair parts and special tools list (RPSTL) for the engine assembly.

1-2.

MAINTENANCE FORMS, RECORDS, AND REPORTS.

Department of the Army forms and procedures used for equipment maintenance will be those prescribed by DA Pam

738-750.

1-3.

DESTRUCTION OF ARMY MATERIEL TO PREVENT ENEMY USE.

Refer to TM 750-244-6 for procedures on the destruction of military vehicles to prevent enemy use.

1-4.

PREPARATION FOR STORAGE OR SHIPMENT.

Refer to TM 743-200-1 for information on preparing the Diesel Engine Assembly, Hatz 2 G 40, for storage or shipment.

1-5.

QUALITY ASSURANCE.

a.

No specific quality assurance manual pertains to the Diesel Engine Assembly, Hatz 2 G 40.

1-1

TM 9-2815-250-24&P

1-5.

QUALITY ASSURANCE (continued).

b.

Defective material received through the supply system should be reported on SF Form 368. Instructions for preparing the reports are provided in AR 702-7. Mail your completed form directly to:

Commander

U.S. Army Tank-automotive and Armaments Command

ATTN: AMSTA-TR-E/MPA/267

Warren, MI 48397-5000

REPORTING EQUIPMENT IMPROVEMENT RECOMMENDATIONS.

1-6.

If your Diesel Engine Assembly, Hatz 2 G 40, needs improvement, let us know. Send us an equipment improvement recommendation (EIR). You, the user, are the only one who can tell us what you do not like about the equipment. Let us know why you don't like the design or performance. Put it on an SF Form 368 and mail it to:

Commander

U.S. Army Tank-automotive and Armaments Command

ATTN: AMSTA-TR-E/MPA/267

Warren, Ml 48397-5000

1-7.

LIST OF ABBREVIATIONS AND ACRONYMS.

GL in.

kg km kPa

L

DOD

DSN

EIR

F ft ft-lb approx.

APU

AR

ATTN

BT

B X

C

CAGEC cc cm

CN

CPC cu in

DA

DD Form approximately auxiliary power unit

Army regulation attention bottle box

Celsius commercial and government entity code cubic centimeter centimeter can corrosion prevention and control cubic inch

Department of the Army

Department of Defense Form

Department of Defense defense switching network equipment improvement recommendation

Fahrenheit foot foot-pound gallon inch kilogram kilometer kilopascal liter

1-2

TM 9--2815--250--24&P

1--7.

LIST OF ABBREVIATIONS AND ACRONYMS (continued).

lb, LB

MAC min mm

MTOE

NIIN

N

S m

NSN

OZ p.

Pam para psi qt, QT rpm

RPSTL

SF

SMR

TC

TM

TMDE

TU

U/M

UOC pound maintenance allocation chart minimum, minute millimeter

Modified Table of Organization and Equipment national item identification number newton meter national stock number ounce page pamphlet paragraph pounds per square inch quart revolutions per minute repair parts and special tools list standard form source, maintenance, and recoverability technical circular technial manual test, measurement, and diagnostic equipment tube unit of measure usable on code

1--8.

WARRANTY INFORMATION.

The Diesel Engine Assembly, Hatz 2 G 40, is not covered by a warranty.

1--9.

SAFETY, CARE, AND HANDLING.

For information on general safety precautions and regulations, review the warning summary and the safety summary at the beginning of this manual. In addition, observe all warnings and cautions that appear in the maintenance procedures.

1--10.

CORROSION PREVENTION AND CONTROL.

a.

Corrosion prevention and control (CPC) of Army materiel is a continuing concern. It is important that any corrion problem be reported so it can be corrected and improvements can be made to prevent the problem in the future.

b.

While corrision is typically associated with the rusting of metals, it can also include deterioration of other materials, such as rubber and plastic. Unusual cracking, softening, swelling, or breaking or materials may indicat a corrosion problem.

c.

If a corrosion problem is identified, it can be reported using an SF Form 368. The use of key words, such as

“corrision,” “rust,” “deterioration,” or “cracking,” will ensure that the information is identified as a CPC problem.

The form should be submitted to the address specified in DA Pam 738--750.

Change 1

1--3

TM 9--2815--250--24&P

Paragraph

Number

1--11

1--12

1--13

SECTION II.

EQUIPMENT DESCRIPTION AND DATA

Paragraph Title Page

Number

Equipment Characteristics, Capabilities, and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--4

Location and Description of Major Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--5

Equipment Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--8

1--11.

EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES.

a.

The Diesel Engine Assembly, Hatz 2 G 40, is an air--cooled four--stroke diesel engine with vertical cylinders and direct fuel injection.

b.

The engine is a lightweight, all--purpose industrial engine.

c.

Later models of Hatz 2 G 40 come EPA version 1 compliant. Differences in configuration affect fuel control on these engines. Examine the serial number on the ID plate to determine which style you have. Also look for statement “EPA compliant” at bottom of tag.

EXAMPLE: 091 XX 02028520

MODEL

2G40

00 to 13 are non EPA

14 and above are EPA compliant

1--4

Change 1

1-12.

LOCATION AND DESCRIPTION OF MAJOR COMPONENTS.

TM 9-2815-250-24&P

4

5

6

7

8

9

Key

1

2

3

Component

Intake Manifold

Fuel Injectors (2)

Rocker Arm Covers (2)

Fuel Pressure Pipes (2)

Filler Cap

Filter Element

Solenoid

Filler Neck

Airflow Deflectors (6)

Description

Provides fresh air to cylinders for combustion.

Supply fuel to cylinders.

Protect rocker arm assemblies.

Provide fuel to fuel injectors.

Allows access to filler neck.

Removes impurities from lubrication system.

Opens and closes fuel supply.

Allows oil to be added to lubrication system.

Provide and direct cooling air.

1-5

1-12.

LOCATION AND DESCRIPTION OF MAJOR COMPONENTS (continued).

TM 9-2815-250-24&P

1-6

Key

10

11

12

Component

Oil Tube Assemblies (2)

Oil Switch

Engine Mounts (2)

Description

Supply oil to various parts of engine.

Shuts off engine if oil pressure is not high enough.

Secure engine to auxiliary power unit (APU).

1--12.

LOCATION AND DESCRIPTION OF MAJOR COMPONENTS (continued).

TM 9--2815--250--24&P

Key

13

14

15

Component

Fuel Hose

Description

Removes excess fuel from engine.

Injection Pump Pumps fuel to injectors.

Governor Control Assembly Controls engine speed.

1--7

TM 9--2815--250--24&P

1--13.

EQUIPMENT DATA.

Model

GENERAL SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 G 40

Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hatz Diesel of America

Mode of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 cycle

Combustion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Method direct injection

Number of Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Bore/Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.622/2.935 in. (92/75 mm)

Cubic Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60.79 cu in (997 cc)

Compression Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18:1

Ignition Sequence (Cylinder 1--Flywheel Side)‘ . . . . . . . . . . . . . . . . . . . . . .

1--2

Direction of Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft power takeoff rotation is counterclockwise when facing power takeoff shaft

Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

approx. 196 lb (90 kg)

Cooling air Required at 3000 rpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.13 in/min (10.5 cm/min)

Combustion Air Required at 3000 rpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Capacity (Including Filter Replacement) . . . . . . . . . . . . . . . . . . . . . . . . .

0.56 in/mim (1.42 cm/min) approx. 2.65 qt (2.5 L)

Oil Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

min 14.5 psi/900 rpm (min 1 bar/900 rpm)

Injection Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3625--3741 psi (250--258 bar)

Tappet Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0.004 in. (0.10 mm)

Governor Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2200U+50 rpm

Thermostatic Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Closes at 446

°

F+18F (230

°

C+10

°

C)

Horsepower (UOC APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13.3 hp at 2000 rpm at 328--ft elevation at

77

°

F (25

°

C) ambient temperature

Horsepower (UOC APJ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17.5 hp at 2650 rpm at 328 foot elevation at

77

°

F (25

°

C) ambient temperature

1--8

Change 1

TM 9-2815-250-24&P

1-14.

PRINCIPLES OF OPERATION.

Section III. PRINCIPLES OF OPERATION

The Diesel Engine Assembly, Hatz 2 G 40, is an internal combustion power unit that converts heat energy to work energy inside the cylinders. This particular engine has a four-stroke cycle. A four-stroke engine completes one cycle every other time the piston goes up and down (up being one stroke, down being the return stroke).

The first stroke is intake; the piston goes down in the cylinder and the intake valve opens, allowing air to flow into the cylinder.

The second stroke is compression; the piston comes up and both valves close, so the air in the cylinder is compressed. While the air is compressed, the fuel injector releases a spray of fuel into the cylinder.

The compression heats the air enough to ignite the fuel.

The third stroke is power; the fuel burns, forcing the piston down.

The fourth stroke is exhaust; the piston comes up in the cylinder and the exhaust valve opens, allowing exhaust gas to escape.

1-9/(1-10 blank)

TM 9-2815-250-24&P

CHAPTER 2

UNIT MAINTENANCE

Section I. REPAIR PARTS; TOOLS; SPECIAL TOOLS; TEST, MEASUREMENT, AND DIAGNOSTIC

EQUIPMENT (TMDE); AND SUPPORT EQUIPMENT

Paragraph

Number

2-1

2-2

2-3

2-4

Page

Paragraph Title Number

General............................................................................................................................... 2-1

Common Tools and Equipment............................................................................................. 2-1

Special Tools, TMDE, and Support Equipment ...................................................................... 2-1

Repair Parts........................................................................................................................ 2-1

2-1.

GENERAL.

This chapter describes the Unit maintenance tasks to be performed on the Diesel Engine Assembly, Hatz 2 G 40.

2-2.

COMMON TOOLS AND EQUIPMENT.

Common tools and equipment are issued to Unit maintenance personnel for maintaining the Diesel Engine Assembly,

Hatz 2 G 40. Common tools and equipment should not be used for purposes other than those prescribed and should be properly stored when not in use. For authorized common tools and equipment, refer to the Modified Table of Organization and Equipment (MTOE), CTA 50-970, or CTA 8-100, as applicable to your unit.

2-3.

SPECIAL TOOLS, TMDE, AND SUPPORT EQUIPMENT.

Special tools are listed and illustrated in Appendix C of this manual.

2-4.

REPAIR PARTS.

Repair parts are listed and illustrated in Appendix C of this manual.

2-1

TM 9-2815-250-24&P

Section II. SERVICE UPON RECEIPT

Paragraph

Number

2-5.

2-5

2-6

Page

Para graph Title Number

General............................................................................................................................... 2-2

Inspection Instructions ......................................................................................................... 2-2

GENERAL.

When a new, used, or reconditioned Diesel Engine Assembly, Hatz 2 G 40, is received, determine whether it has been properly prepared for service and is capable of accomplishing its mission by performing the inspection instructions in

paragraph 2-6.

2-6.

INSPECTION INSTRUCTIONS.

a.

Refer to DD Form 1397 for procedures on unpacking the Diesel Engine Assembly, Hatz 2 G 40.l

b.

Remove all straps, plywood, tape, seals, and wrappings.

WARNING

Drycleaning solvent P-D-680 is toxic and flammable. Always wear protective goggles and gloves, and use only in a well-ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

c.

Remove rust-preventive compound from coated exterior parts of the engine using drycleaning solvent (Item 4,

Appendix D) and rags (Item 7, Appendix D).

d.

Inspect engine for damage incurred during shipment.

2-2

TM 9-2815-250-24&P

Section III. GENERAL MAINTENANCE PROCEDURES

Paragraph

Number

2-7.

2-7

2-8

2-9

2-10

2-11

2-12

2-13

2-14

GENERAL.

Paragraph Title

Page

Number

General............................................................................................................................... 2-3

Work Safety ........................................................................................................................ 2-4

Cleaning Instructions ........................................................................................................... 2-4

Inspection Instructions ......................................................................................................... 2-5

Repair Instructions............................................................................................................... 2-6

Hose and Tube Tagging....................................................................................................... 2-6

Lubrication Instructions ........................................................................................................ 2-6

Torque Values ..................................................................................................................... 2-6

a.

These general maintenance procedures and instructions contain general shop practices and specific methods you must be familiar with to properly maintain your Diesel Engine Assembly, Hatz 2 G 40. You should read and understand these practices and methods before performing any maintenance task.

b.

Before beginning a task find out how much repair, modification, or replacement is needed to fix the equipment as described in this manual. Sometimes the reason for equipment failure can be seen right away and complete tear down is not necessary. Disassemble equipment only as far as necessary to repair or replace damaged or broken parts.

c.

The following applies to the "Initial Setup" section contained in all the maintenance-task paragraphs.

(1) Materials, parts, and tools are not listed unless they apply to the procedure.

(2) Personnel are listed under "Personnel Required" only if more than one technician is needed in order to complete the task. If "Personnel Required" is not listed, it means that one technician can perform the task.

d.

Check all tags and forms attached to the Diesel Engine Assembly for any information about the reason it was removed from service. Modification work orders and technical bulletins must also be checked for equipment changes and updates.

e.

In some cases, a part may be damaged by removal. If the part appears to be good and other parts behind it are not defective, leave it on and continue with the procedure. Here are a few simple rules:

(1) Do not remove dowel pins or studs unless loose, bent, broken, or otherwise damaged.

(2) Do not remove bearings or bushings unless damaged. If you need to remove them to access parts, pull out bearings and bushings carefully.

(3) Replace all gaskets, seals, lockwashers, cotter pins, preformed packings, and other locking hardware.

2-3

TM 9-2815-250-24&P

2-8.

WORK SAFETY.

a.

Observe all WARNINGs and CAUTIONs. Always use power tools carefully.

b.

Protect yourself against injury. Wear protective gear, such as safety goggles or lenses, safety shoes, a rubber apron, and gloves.

c.

When lifting heavy parts, have someone help you. Make sure lifting and jacking equipment is working properly, is suitable for the assigned task, and is secure against slipping.

2-9.

CLEANING INSTRUCTIONS.

WARNING

Improper cleaning methods and the use of unauthorized cleaning liquids or solvents can injure personnel and damage equipment. To prevent this, refer to TM

9-247 for further instructions.

a.

General. Cleaning instructions will be the same for a majority of the parts and components that make up the

Diesel Engine Assembly, Hatz 2 G 40. The following should apply to all cleaning, inspection, repair, and assembly operations:

(1) Clean all parts before inspection, after repair, and before assembly.

(2) Keep hands free of grease, which can collect dust, dirt, and grit.

(3) After cleaning, cover or wrap all parts to protect them from dust and dirt. Parts that are subject to rust should be lightly oiled.

b.

Steam-Cleaning.

(1) Before steam-cleaning exterior of engine, protect all electrical equipment that could be damaged by steam or moisture.

(2) Place disassembled parts in a suitable container to steam-clean. Parts that are subject to rust should be dried and lightly oiled after cleaning.

c.

Castings, Forgings, and Machined Metal Parts.

WARNING

Drycleaning solvent P-D-680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

(1) Clean inner and outer surfaces with drycleaning solvent (Item 4, Appendix D) and rag (Item 7, Appendix D).

(2) Remove grease and accumulated deposits with a stiff-bristled brush.

2-4

TM 9-2815-250-24&P

2-9.

CLEANING INSTRUCTIONS (continued).

WARNING

Compressed air used for cleaning or drying purposes, or for clearing restrictions, should never exceed 30 psi (207 kPa). Wear protective clothing (goggles/shield, gloves, etc.) and use caution to avoid injury to personnel.

(3) Clear out all threaded holes with compressed air to remove dirt and cleaning fluids.

CAUTION

Do not wash oil seals, electrical cables, and flexible hoses with drycleaning solvent or mineral spirits. Serious damage or destruction of material would result.

d.

Oil Seals, Electrical Cables, and Flexible Hoses. Wash electrical cables and flexible hoses with a solution of water and dishwashing soap, and wipe dry.

e.

Bearings. Clean bearings in accordance with TM 9-214.

2-10.

INSPECTION INSTRUCTIONS.

NOTE

All damaged areas should be marked for repair or replacement.

a.

All components and parts must be checked carefully to determine if they are serviceable for reuse, can be repaired, or must be scrapped.

b.

Inspect drilled and tapped (threaded) holes for the following:

(1) In or around holes-wear, distortion (stretching), cracks, and any other damage.

(2) Threaded areas-wear, distortion (stretching), and evidence of cross-threading.

c.

Inspect metal lines (tubes), flexible lines (hoses), and metal fittings and connectors for the following:

(1) Metal lines-sharp kinks, cracks, bad bends, and dents.

(2) Flexible lines-fraying, evidence of leakage, and loose metal fittings or connectors.

(3) Metal fittings and connectors-thread damage and worn or rounded hex heads.

d.

Inspect castings, forgings, and machined metal parts for the following:

(1) Machined surfaces-nicks, burrs, raised metal, wear, and other damage.

(2) Inner and outer surfaces-breaks and cracks.

e.

Inspect bearings in accordance with TM 9-214.

2-5

TM 9-2815-250-24&P

2-11.

REPAIR INSTRUCTIONS.

a.

Any repair procedure peculiar to a specific part or component is covered in the section or paragraph relating to that item. After repair, clean all parts thoroughly to prevent dirt, metal chips, or other foreign material from entering any working parts.

b.

Repair castings, forgings, and machined parts using the following instructions:

(1) Refer to TC 9-237 for instructions on repairing minor cracked castings or forgings.

WARNING

Drycleaning solvent P-D-680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

(2) Repair minor damage to machined surfaces with a fine mill file or abrasive cloth dipped in drycleaning

solvent (Item 4, Appendix D).

(3) Replace any deeply nicked machined surface that could affect the operation of the Diesel Engine

Assembly.

(4) Repair minor damage to a threaded capscrew hole with thread tap of same size, to prevent cutting the hole too large.

2-12.

HOSE AND TUBE TAGGING.

a.

As soon as the first hose or tube is disconnected, write the number "1" on two tags. Secure one tag to the hose or tube and the other tag to the nipple or fitting. After disconnecting the second hose or tube, write the number

"2" on two tags. Secure one tag to the hose or tube and the other tag to the nipple or fitting. Do the same for all hoses and tubes.

b.

Note which numbers you used, in pencil, on the art in this manual. This will help you retag properly when you remove tags from some parts to perform cleaning and maintenance work.

c.

Remove all tags when finished.

2-13.

LUBRICATION INSTRUCTIONS.

To prevent corrosion, apply a light coat of lubricating oil to metal parts after they are cleaned and before they are assembled.

2-14.

TORQUE VALUES.

Follow the torque values given in the maintenance procedures, which apply to unlubricated threads. If no torque value is

given, refer to Appendix E.

2-6

TM 9--2815--250--24&P

Paragraph

Number

SECTION IV.

UNIT MAINTENANCE PROCEDURES

Page

Paragraph Title

Number

2--15

2--16

2--17

2--18

2--19

2--20

2--21

2--22

2--23

2--24

2--25

2--26

2--27

Identification Plate Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Eye Bolt Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rocker Arm Cover and O--ring Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Filler Opening Cap Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Tube Assemblies Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Filter Element Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Intake Manifold Replacement

Valve Vent Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Pressure Pipe Assemblies and Return Fuel Hose Replacement

Airflow Deflectors Replacement (UOC: APP)

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pressure Switch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermostatic Switch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Solenoid Replacement and Adjustment (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--7

2--8

2--9

2--10

2--11

2--13

2--15

2--18

2--20

2--24

2--28

2--29

2--30

2--15.

IDENTIFICATION PLATE REPLACEMENT.

This Task Covers:

a. Removal

Initial Setup:

Tools/Test Equipment:

S

Blind hand riveter (Item 2, Appendix G)

S

Cable assembly (Item 3, Appendix G)

S

Drill set (Item 10, Appendix G)

S

Electric drill (Item 11, Appendix G)

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

b. Installation

Materials/Parts:

S

Blind rivet (4) (Item 12, Appendix F)

Equipment Conditions:

S Airflow deflector removed from engine

(UOC: APP) (para 2--24, removal steps 1--3).

S Airflow deflector removed from engine

(UOC: APJ) (TM 9--2350--292--20--2).

a.

REMOVAL

Remove four rivets (2) and identification plate (1) from airflow deflector (3).

b.

INSTALLATION

Install identification plate (1) on airflow deflector (3) and secure with four rivets (2).

FOLLOW--ON TASKS:

S

Install airflow deflector on engine (para 2--24,

installation steps 11--13).

Change 1

2--7

2--16.

EYEBOLT REPLACEMENT (UOC: APP)

This Task Covers:

a. Removal

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive (Item 14, Appendix G)

a.

REMOVAL

Remove eyebolt (1) and shim (2) from collar nut (3).

b.

INSTALLATION

Install shim (2) and eyebolt (1) in collar nut (3).

b. Installation

TM 9--2815--250--24&P

FOLLOW--ON TASKS:

S None

2--8

Change 1

TM 9--2815--250--24&P

2--17.

ROCKER ARM COVER AND O--RING REPLACEMENT.

This Task Covers:

a. Removal b. Installation

Initial Setup:

a.

1.

b.

1.

2.

3.

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

2.

3.

(Item 15, Appendix G)

Materials/Parts:

S

Grease, automotive (Item 5, Appendix D)

S

O--ring (Item 33, Appendix F)

S

Washer (2) (Item 29, Appendix F)

NOTE

The Diesel Engine Assembly has two rocker arm covers. Use this procedure to remove either one.

REMOVAL

Remove two screws (1) and washers (2) from rocker arm cover (3) and cylinder head (5).

Discard washers.

Remove rocker arm cover (3) from cylinder head (5).

Remove O--ring (4) from groove in rocker arm cover (3). Discard O--ring.

INSTALLATION

Lightly coat new O--ring (4) with grease and install in groove in rocker arm cover (3).

Install rocker arm cover (3) on cylinder head (5).

Install two screws (1) and new washers (2) on rocker arm cover (3) and cylinder head (5).

FOLLOW--ON TASKS:

S

None

2--9

TM 9--2815--250--24&P

2--18.

FILLER OPENING CAP REPLACEMENT (UOC: APP).

This Task Covers:

a. Removal b. Installation

b.

1.

2.

a.

1.

2.

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit,

(Item 14, Appendix G)

Materials/Parts:

S

Grease, automotive (Item 5, Appendix D)

S

O--ring (Item 28, Appendix F)

REMOVAL

Remove filler opening cap (1) and O--ring (3) from filler neck (2).

Remove O--ring (3) from cap (1). Discard O--ring.

INSTALLATION

Lightly coat new O--ring (3) with grease. Install O--ring (3) on cap (1).

Install cap (1) on filler neck (2).

FOLLOW--ON TASKS:

S None

2--10

Change 1

TM 9-2815-250-24&P

2-19. OIL TUBE ASSEMBLIES REPLACEMENT.

This Task Covers:

a. Removal b. Installation

Initial Setup:

Tools/Test Equipment:

General mechanic's tool kit, automotive

(Item 15, Appendix G)

Oil switch removed (para 2-25).

Materials/Parts:

O-ring (Item 46, Appendix F)

Washer (12) (Item 18, Appendix F)

Equipment Conditions:

Airflow deflectors removed (only as many as needed

to allow access to oil tubes) (para 2-24).

Fuel pressure pipe assemblies removed (para 2-23).

a.

1.

2.

3.

4.

REMOVAL

Remove fluid passage bolt (14) and two washers (12) from plate (11) and oil tube assembly (15). Discard washers.

Remove two screws (13) and plate (11) from timing cover (7). Remove O-ring (10)from plate (11). Discard Oring.

Remove two fluid passage bolts (4) and four washers (5) from two cylinder heads (6) and oil tube assembly (9).

Discard washers.

Remove screw (1), fluid passage bolt (3), connector (17), bushing (16), six washers

(2), and two oil tube assemblies (9 and 15) from crankcase (8). Discard washers.

2-11

TM 9-2815-250-24&P

3.

4.

5.

2-19. OIL TUBE ASSEMBLIES REPLACEMENT (continued).

b.

1.

2.

INSTALLATION

Install two oil tube assemblies (9 and 15), fluid passage bolt (3), connector (17), bushing (16), and six new washers (2) on crankcase (8). Loosely install screw (1) in fluid passage bolt (3).

Install four new washers (5) on two cylinder heads (6) and oil tube assembly (15) and secure loosely with two fluid passage bolts (4).

Install new O-ring (10) on plate (11). Install plate (11) and two screws (13) on timing cover (7).

Install two new washers (12) and fluid passage bolt (14) on plate (11) and oil tube assembly (15).

Tighten screw (1) and two fluid passage bolts (4).

FOLLOW-ON TASKS:

Install fuel pressure pipe assemblies (para 2-23).

Install oil switch (para 2-25).

Install airflow deflectors (para 2-24), if any were removed.

2-12

TM 9--2815--250--24&P

2--20.

FILTER ELEMENT REPLACEMENT (UOC: APP).

This Task Covers:

a. Removal c. Installation b. Cleaning

a.

1.

2.

Initial Setup:

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S

Strap wrench (Item 29, Appendix G)

Materials/Parts:

S

Drycleaning solvent (Item 4, Appendix D)

S

Lubricating oil (Item 6, Appendix D)

S

S

Rag (Item 7, Appendix D)

Filter element (Item 35, Appendix F)

REMOVAL

Remove filter element (4) from filter mount (3). Discard filter element).

Remove strainer element (1) from safety relief valve (2).

Change 1

2--13

TM 9--2815--250--24&P

1.

2.

3.

2.

c.

2--20.

FILTER ELEMENT REPLACEMENT (UOC: APP) (continued).

b.

1.

CLEANING

WARNING

Compressed air used for cleaning or drying purposes, or for clearing restrictions, should never exceed 30 psi (207 kPa). Wear protective clothing

(goggles/shield, gloves, etc.) and use caution to avoid injury to personnel.

Clean strainer element (1) with compressed air.

WARNING

Drycleaning solvent P--D--680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well--ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

Clean sealing surface (5) with drycleaning solvent and rag.

INSTALLATION

Install strainer element (1) on safety relief valve (2).

Apply light coat of oil to sealing ring of new filter element (4).

Install filter element (4) on filter mount (3).

FOLLOW--ON TASKS:

S None

2--14

Change 1

TM 9-2815-250-24&P

2-21. INTAKE MANIFOLD REPLACEMENT.

This Task Covers:

a. Removal b. Installation

a.

1.

Initial Setup:

Tools/Test Equipment:

General mechanic's tool kit, automotive

(Item 15, Appendix G)

Screwdriver attachment, 6 mm (Item 24,

Appendix G)

Socket wrench set, 3/8-inch drive (Item 27,

Appendix G)

Materials/Parts:

Gasket set (2) (Item 4, Appendix F)

Gasket (2) (Item 8, Appendix F)

Self-locking nut (4) (Item 15, Appendix F)

Spring tension washer (4) (Item 25, Appendix F)

Spring tension washer (8) (Item 31, Appendix F)

Equipment Conditions:

Valve vent removed (para 2-22).

Airflow deflectors removed as needed to permit

replacement of air intake manifold (para 2-24).

REMOVAL

Remove four socket head screws (5) and spring tension washers (4), adapter (3), and four-part gasket (2) from

Intake manifold (1). Discard spring tension washers and gasket.

2-15

TM 9-2815-250-24&P b.

1.

2-21. INTAKE MANIFOLD REPLACEMENT (continued).

2.

3.

2.

Remove two socket head screws (8) and socket head screws (9), four washers (7), spring tension washers (15), and nuts (16), access cover (14), and four-part gasket (6) from intake manifold (1). Discard spring tension washers and gasket.

Remove four self-locking nuts (10) and spring tension washers (11), intake manifold (1), and two gaskets (12) from four studs (13). Discard self-locking nuts, spring tension washers, and gaskets.

INSTALLATION

Install two new gaskets (12), intake manifold (1), and four new spring tension washers (11) and new self-locking nuts (10) on four studs (13).

Install new four-part gasket (6), access cover (14), four nuts (16), new spring tension washers (15), and washers

(7), and two socket head screws (8) and socket head screws (9) on intake manifold (1).

2-16

TM 9-2815-250-24&P

2-21. INTAKE MANIFOLD REPLACEMENT (continued).

3.

Install new four-part gasket (2), adapter (3), and four new spring tension washers (4) and socket head screws (5) on intake manifold (1).

FOLLOW-ON TASKS:

Install valve vent (para 2-22).

Install airflow deflectors (para 2-24), if removed.

2-17

TM 9-2815-250-24&P

2-22. VALVE VENT REPAIR.

This Task Covers:

a. Removal c. Assembly

a.

1.

2.

Initial Setup:

Tools/Test Equipment:

General mechanic's tool kit, automotive

(Item 15, Appendix G)

REMOVAL

Remove valve vent (2) from intake manifold (5).

Remove hose (3) from hose coupling (4).

b. Disassembly d. Installation

Materials/Parts:

Grease, automotive (Item 5, Appendix D)

O-ring (2) (Item 45, Appendix F)

2-18

TM 9--2815--250--24&P

2--22.

VALVE VENT REPAIR (continued).

b.

1.

2.

c.

DISASSEMBLY

Remove two O--rings (1) from valve vent (2). Discard O--rings.

Remove hose (3) from valve vent (2).

ASSEMBLY d.

1.

1.

2.

Install hose (3) on valve vent (2).

Apply light coat of grease on two new O--rings (1). Install two O--rings (1) on valve vent (2).

INSTALLATION

Install hose (3) on hose coupling (4).

2.

Install valve vent (2) on intake manifold (5).

FOLLOW--ON TASKS:

S None

2--19

TM 9--2815--250--24&P

2--23.

FUEL PRESSURE PIPE ASSEMBLIES AND RETURN FUEL HOSE REPLACEMENT.

This Task Covers:

a. Removal b. Installation

1.

2.

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit,

(Item 14, Appendix G)

S Torque wrench, 1/2--inch drive (Item 31,

Appendix G)

S

Wrench (Item 36, Appendix G)

a.

3.

Materials/Parts:

S

S

S

S

Gasket (2) (Item 19, Appendix F)

Gasket (4) (Item 40, Appendix F)

Spring tension washer (Item 31, Appendix F)

Washer (2) (Item 18, Appendix F)

REMOVAL

NOTE

Fuel pressure pipe nuts will stay on fuel pressure pipe assemblies when they are removed.

Loosen two fuel pressure pipe nuts on each of two fuel pressure pipe assemblies (9 and 12).

Remove two fuel pressure pipe assemblies (9 and 12) and clamp (7) from two injection pump fittings (11) and fuel injector fittings (10).

Remove screw (8) and nut (6) from clamp (7). Remove clamp (7) from two fuel pressure pipe assemblies (9 and 12).

2--20

Change 1

TM 9--2815--250--24&P

7.

8.

5.

6.

2--23.

FUEL PRESSURE PIPE ASSEMBLIES AND RETURN FUEL HOSE REPLACEMENT

(continued).

NOTE

Steps 6--7 are done only if equipment has dual banjo fittings. Steps 8 and 9 are done only for single banjo fittings.

4.

Remove fluid passage bolt (13), two washers (14), strap clamp (14.1), return fuel hose (4), adapter (15), two gaskets (23), and fitting (16) and fitting (20) from injection pump (22). Discard washers and gaskets.

Remove strap clamp (18.1) and hose (4) from fitting (21) or tee (21.1).

Remove two fluid passage bolts (17), four gaskets (18), and fuel hose (4.1) from two fuel injectors (19).

Discard gaskets.

9.

Remove two hose nipples (21) and two strap clamps (18.1) from return fuel hose (4.1).

Remove two fluid passage bolts (17), four gaskets (18) and two single banjo fittings (21.2) from two fuel injectors (19). Discard gaskets.

Remove six strap clamps (18.1) securing fuel return hoses (24 and 25) to tees (21.1) and separate hoses (24 and 25) from tees (21.1) and single banjo fitting (21.2).

Change 1 2--21

TM 9--2815--250--24&P

3.1

3.2

3.3

1.

2.

2--23.

FUEL PRESSURE PIPE ASSEMBLIES AND RETURN FUEL HOSE REPLACEMENT

(continued).

NOTE

Steps 1 and 2 are done only if equipment has dual banjo fittings. Steps 3.2 and

3.3 are done only if equipment has single banjo fittings.

b.

INSTALLATION

3.

Install two hose nipples (21) on return fuel hose (4.1) and secure with two strap clamps (18.1).

Install return fuel hose (4.1) and two fittings (21) on two fuel injectors (19) and secure with two fluid passage bolts (17) and four new gaskets (18).

Install two new gaskets (23), fitting (16), adapter (15), two new washers (14), return fuel hose (4) and fitting

(20) and fluid passage bolt (13) on injection pump (22). Torque adapter to 26 ft--lb (35 N S m). Torque fluid passage bolt to 18.5 ft--lb (25 N S m). Secure return fuel hose (4) to fitting (20) with strap clamp (14.1).

Connect fuel hose (4) to fitting (21) or tee (21.1) and secure with strap clamps (18.1).

Install six strap clamps (18.1) to secure fuel return hoses (24 and 25) to tees (21.1) and single banjo (21.2).

Install two fluid passage bolts (17), four gaskets (18), and single banjo fittings (21.2) to two fuel injectors (19).

2--22 Change 1

TM 9--2815--250--24&P

4.

5.

2--23.

FUEL PRESSURE PIPE ASSEMBLIES AND RETURN FUEL HOSE REPLACEMENT

(continued).

Install clamp (7) onto fuel pressure pipe assemblies (9 and 12) and secure with nut (6) and screw (8).

Install two fuel pressure pipe assemblies (9 and 12) and clamp (7) on two injection pump fittings (11) and fuel injector fittings (10). Secure by tightening two fuel pressure pipe nuts on each of two fuel pressure pipe assemblies (9 and 12).

Change 1 2--23

TM 9--2815--250--24&P

2--24.

AIRFLOW DEFLECTORS REPLACEMENT (UOC: APP).

This Task Covers:

a. Removal b. Installation

a.

3.

4.

1.

2.

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Materials/Parts:

S

Split washer (3) (Item 41, Appendix F)

S

S

Spring tension washer (6) (Item 30, Appendix F)

Spring tension washer (2) (Item 31, Appendix F)

Equipment Conditions:

S

Valve vent removed (para 2--22)

REMOVAL

Remove five screws (7) and washers (8) from airflow deflector (4).

Remove three screws (6) and split washers (5) from airflow deflector (4). Discard split washers.

Remove airflow deflector (4) from engine (3).

Remove two screws (10) and spring tension washers (11) and airflow deflector (9) from engine (3). Discard spring tension washers.

2--24

Change 1

TM 9--2815--250--24&P

8.

9.

10.

11.

12.

13.

2--24.

AIRFLOW DEFLECTORS REPLACEMENT (UOC: APP) (continued).

5.

6.

7.

Remove three screws (17) from air duct bracket (12).

Remove two screws (15) and spring tension washers (16) from air duct bracket (12). Discard spring tension

CAUTION

Be careful not to damage fuel line when removing air duct.

Remove two screws (14) and spring tension washers (13), clip (1), fuel hose (2), and air duct bracket (12) from engine (3). Discard spring tension washers.

Remove three screws (24) from air duct bracket (23).

Remove two screws (26) and spring tension washers (25) from air duct bracket (23). Discard spring tension washers.

Remove two screws (19), washers (18), and spacers (32) and airflow deflector (22) from airflow deflector (21).

Remove two screws (20) and airflow deflector (21) from engine (3).

Remove air duct bracket (23) from engine (3).

Remove four screws (30), washers (29), and nuts (27) and airflow deflector (31) from flywheel (28).

Change 1 2--25

TM 9--2815--250--24&P

3.

4.

1.

2.

2--24.

AIRFLOW DEFLECTORS REPLACEMENT (UOC: APP) (continued).

b.

INSTALLATION

NOTE

Install screws loosely, to allow some movement of air ducts brackets and airflow deflectors during installation procedure.

Install four screws (30), washers (29), and nuts (27) and airflow deflector (31) on flywheel (28).

Install air duct bracket (23) on engine (3).

Install airflow deflector (21) and two screws (20) on engine (3).

Install two spacers (32), washers (18), and screws (19) and airflow deflector (22) on airflow deflector (21).

2--26 Change 1

TM 9--2815--250--24&P

11.

12.

13.

2--24.

AIRFLOW DEFLECTORS REPLACEMENT (UOC: APP) (continued).

5.

6.

7.

8.

9.

10.

Install two new spring tension washers (25) and screws (26) on air duct bracket (23).

Install three screws (24) on air duct bracket (23).

CAUTION

Be careful not to damage fuel line when installing air duct bracket on engine.

Install air duct bracket (12) on engine (3) and secure with two new spring tension washers (16) and screws

(15).

Position clip (1) and fuel hose (2) on air duct bracket (12). Install two new spring tension washers (13) and screws (14) on air duct bracket (12).

Install three screws (17) on air duct bracket (12).

Install airflow deflector (9) on engine (3) and secure with two new spring tension washers (11 ) and screws

(10).

Install airflow deflector (4) on engine (3) and secure with five washers (8) and screws (7).

Install three new split washers (5) and screws (6) on airflow deflector (4).

Tighten all screws.

FOLLOW--ON TASKS:

S

Install valve vent (para 2--22).

Change 1 2--27

TM 9--2815--250--24&P

2--25.

OIL PRESSURE SWITCH REPLACEMENT.

This Task Covers:

a. Removal b. Installation

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Materials/Parts:

S

Sealing compound (Item 17, Appendix D)

a.

REMOVAL

NOTE

For easy access to oil switch, it may be necessary to loosen the screw (1) to turn manifold. (UOC: APP).

Remove oil switch (2) from adapter (3).

b.

INSTALLATION

Coat threads of oil switch (2) with sealing compound (Item 17, Appendix D). Install switch (2) on adapter (3).

FOLLOW--ON TASKS:

S None

2--28

Change 1

TM 9--2815--250--24&P

2--26.

THERMOSTATIC SWITCH REPLACEMENT.

This Task Covers:

a. Removal b. Cleaning

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Materials/Parts:

S

Airflow deflectors removed as needed (UOC:

APP) (para 2--24).

S

Airflow deflectors removed as needed (UOC:

APJ) (TM 9--2350--292--20--2)

a.

REMOVAL

Remove thermostatic switch (2) from cylinder head (1) on auxiliary drive side of engine.

b.

INSTALLATION

Install thermostatic switch (2) in cylinder head (1) on auxiliary drive side of engine.

FOLLOW--ON TASKS:

S

Install airflow deflectors (para 2--24), if any were removed (UOC:APP).

S

Install airflow deflectors (TM 9--2350--292--20--2), if any were removed (UOC:APJ).

Change 1

2--29

TM 9--2815--250--24&P

2--27.

SOLENOID REPLACEMENT AND ADJUSTMENT (UOC:APP).

This Task Covers:

a. Removal c. Adjustment b. Installation

2.

3.

a.

1.

Initial Setup:

Tools/Test Equipment:

S

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Screwdriver attachment, 6 mm (Item 24, Appendix G)

S

Socket wrench set, 3/8--inch drive (Item 27,

Appendix G)

Materials/Parts:

S

O--ring (Item 32, Appendix F)

REMOVAL

Remove two clips (2) from connecting link (1). Remove connecting link (1) from governor lever (4), plunger

(3), and solenoid (8).

Remove two screws (7) and washers (6) and solenoid (8) from bracket (5).

Remove stud (10) from solenoid (8). Remove connector (12) and two nuts (9 and 11) from stud (10).

2--30

Change 1

2--27.

SOLENOID REPLACEMENT AND ADJUSTMENT (UOC:APP) (continued).

2.

3.

b.

1.

4.

4.

5.

6.

7.

Remove screw (17) and plunger (3) from bracket (5).

Remove bellows (19) and O--ring (18) from plunger (3). Discard O--ring.

Remove screw (16) from bracket (5) and crankcase (20).

Remove nut (15), washer (14), and bracket (5) from screw (13) and crankcase (20).

INSTALLATION

Install bracket (5), washer (14), and nut (15) on screw (13) and crankcase (20).

Install screw (16) on bracket (5) and crankcase (20).

Install new O--ring (18) and bellows (19) on plunger (3).

Install plunger (3) and screw (17) on bracket (5).

TM 9--2815--250--24&P

Change 1 2--31

2--27.

SOLENOID REPLACEMENT AND ADJUSTMENT (UOC:APP) (continued).

5.

6.

7.

Install two nuts (9 and 11) and connector (12) on stud (10). Install stud (10) on solenoid (8).

Install solenoid (8) and two washers (6) and screws (7) on bracket (5).

Install connecting link (1) in plunger (3), governor lever (4), and solenoid (8). Secure connecting link (1) with two clips (2).

TM 9--2815--250--24&P c.

1.

2.

3.

4.

ADJUSTMENT

Loosen two nuts (9 and 11) on stud (10).

Remove top clip (2) from connecting link (1).

Remove connecting link (1) from governor lever

(4) and plunger (3).

Rotate governor lever (4) fully counterclockwise, to the off position, and push stud (10) all the way down.

Turn stud (10) until connecting link (1) reaches governor lever (4) while stud (10) remains pushed all the way down. Install connecting link

(1) in governor lever (4) and plunger (3).

5.

Tighten two nuts (9 and 11).

6.

Install top clip (2) on connecting link (1).

FOLLOW--ON TASKS:

S

None

2--32

Change 1

TM 9-2815-250-24&P

CHAPTER 3

DIRECT SUPPORT AND GENERAL SUPPORT MAINTENANCE

Section I. DIRECT SUPPORT AND GENERAL SUPPORT TROUBLESHOOTING

Paragraph Title

Page

Number

Paragraph

Number

3-1.

a.

3-1

3-2

3-3

b.

c.

d.

e.

f.

g.

h.

i.

General.................................................................................................................................. 3-1

Quick Guide to Troubleshooting............................................................................................... 3-2

Troubleshooting Chart............................................................................................................. 3-3

GENERAL.

This section provides information for identifying and correcting malfunctions that may develop while operating or maintaining the Diesel Engine Assembly, Hatz 2 G 40.

The Quick Guide to Troubleshooting (para 3-2) lists common malfunctions of the diesel engine or its components

and refers you to the appropriate paragraph in the Troubleshooting Chart (para 3-3). You should perform the

tests/inspections and corrective actions in the order listed in the chart.

If you are unsure of the location of an item mentioned in troubleshooting, refer to paragraph 1-12 or to the

maintenance task where the item is replaced.

Before performing troubleshooting, read and follow all safety instructions listed in the warning summary at the beginning of this manual.

This section cannot list all malfunctions that may occur, or all tests or inspections and corrective actions. If a malfunction is not listed or is not corrected by the corrective action listed, notify your supervisor.

When troubleshooting a malfunction:

In the Quick Guide to Troubleshooting, locate the symptom or symptoms that best describe the malfunction.

Turn to the subparagraph in the Troubleshooting Chart where the troubleshooting procedures for the malfunction in question are described.

Perform each step in the order listed until the malfunction is corrected. DO NOT perform any maintenance task unless the troubleshooting procedure tells you to do so.

When troubleshooting any electrical system or component, exercise extreme care in order to prevent electric shock.

WARNING

To prevent injury due to electric shock throughout troubleshooting of the electrical system or electrical components, be certain MASTER switch is turned off between every step unless otherwise directed.

To prevent injury due to electric shock, remove all jewelry and metal objects when working on the electrical system.

The multimeter is used throughout troubleshooting of the electrical system. When using the multimeter, make sure it is used with a probe kit.

When performing a continuity check, connect the meter probes to both terminals of the circuit you are testing.

Read the meter and interpret the results. If the needle swings to near 0 on the top scale, the circuit has continuity. If the needle does not move, the circuit is open. If the needle jumps or flickers, there is a loose connection.

3-1

TM 9-2815-250-24&P

3-2. QUICK GUIDE TO TROUBLESHOOTING.

ITEM

ENGINE

GOVERNOR

SYMPTOM

ENGINE CRANKS, BUT STARTS HARD OR FAILS

TO START.

OIL CONSUMPTION IS EXCESSIVE.

FUEL CONSUMPTION IS EXCESSIVE, AND THERE IS

BLACK EXHAUST SMOKE.

ENGINE HAS LOW POWER OR MISFIRES.

ENGINE MAKES A KNOCKING SOUND.

ENGINE SPEED IS ERRATIC.

PARAGRAPH

para 3-3a(i) para 3-3a(2) para 3-3a(3) para 3-3a(4) para 3-3a(5) para 3-3b

3-2

3-3. TROUBLESHOOTING CHART.

a. ENGINE

TM 9-2815-250-24&P

(1) ENGINE CRANKS, BUT STARTS HARD OR

FAILS TO START.

para 2-23

para 3-21

para 3-14

para 3-20

para 3-15

FOR PURPOSES OF CLARITY, AIRFLOW DEFLECTORS

AND INTAKE MANIFOLD ARE NOT SHOWN.

3-3

3-3. TROUBLESHOOTING CHART (continued).

a. ENGINE

TM 9-2815-250-24&P

(1) ENGINE CRANKS, BUT STARTS HARD OR

FAILS TO START (continued).

para 3-17

para 3-9

para 3-18 para 3-18

para 3-5 para 3-5

3-4

3-3. TROUBLESHOOTING CHART (continued).

a. ENGINE

TM 9-2815-250-24&P

(2) OIL CONSUMPTION IS EXCESSIVE.

para 2-19

paras 3-6, 3-12, and 3-13

para 2-26

3-5

3-3. TROUBLESHOOTING CHART (continued).

a. ENGINE

TM 9-2815-250-24&P

(2) OIL CONSUMPTION IS EXCESSIVE (continued).

para 3-17

paras 3-5 and 3-9 para 3-5 para 3-5

3-6

3-3.

a.

TROUBLESHOOTING CHART (continued).

ENGINE

para 3-21

TM 9-2815-250-24&P

(3) FUEL CONSUMPTION IS EXCESSIVE, AND

THERE IS BLACK EXHAUST SMOKE.

para 3-14

para 3-20

para 3-15

para 3-17

para 3-9

para 3-5 para 3-5

3-7

3-3.

a.

TROUBLESHOOTING CHART (continued).

ENGINE

TM 9-2815-250-24&P

(4) ENGINE HAS LOW POWER OR MISFIRES.

para 2-23

para 3-21

para 3-14

para 3-20

para 3-15

para 3-17

para 3-9

3-8

3-3.

TROUBLESHOOTING CHART (continued).

a. ENGINE

TM 9-2815-250-24&P

(5) ENGINE MAKES A KNOCKING SOUND.

para 2-23

para 3-21

para 3-14

para 3-20

para 3-15

3-9

3-3.

a.

TROUBLESHOOTING CHART (continued).

ENGINE

TM 9-2815-250-24&P

(5) ENGINE MAKES A KNOCKING SOUND

(continued).

para 2-24

para 3-9

paras 3-5 and 3-11

3-10

3--3.

TROUBLESHOOTING CHART (continued).

b.

GOVERNOR ENGINE SPEED IS ERRATIC.

TM 9--2815--250--24&P

para 2--23

para 3--22

Is governor speed within limits specified (para 3--22)?

para 3--22

para 3--16

Change 1

3--11

TM 9--2815--250--24&P

SECTION II.

DIRECT SUPPORT AND GENERAL SUPPORT MAINTENANCE PROCEDURES

Paragraph

Number

Paragraph Title Page

Number

3--4

3--4.1

3--5

3--6

3--7

3--8

3--9

3--10

3--11

3--12

3--13

3--13.1

3--14

3--15

3--16

Mounting Plates Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary Drive Adapter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Heads Repair

Crankcase Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft and Bearings Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel and Housing Replacement

Fuel Injector Replacement

3--4.

MOUNTING PLATES REPLACEMENT.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Piston and Combustion Chamber Liner Repair

Rocker Arm Assemblies Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--32

3--38

Camshaft Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--40

Filler Neck Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pan and Gasket Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Deep Oil Pan and Gasket Replacement (UOC: APJ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Injection Pump Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Governor Control Assembly Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--12

3--14.1

3--15

3--20

3--26

3--28

3--46

3--47

3--47.1

3--48

3--50

3--54

This Task Covers:

a. Removal c. Installation b. Cleaning

Initial Setup:

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S

Screwdriver attachment, 6 mm (Item 24, Appendix G)

S

Socket wrench set, 3/8--inch drive (Item 27, Appendix G)

Materials/Parts:

S

Drycleaning solvent (Item 4, Appendix D)

S

Grease, automotive (Item 5, Appendix D)

S

Rag (Item 7, Appendix D)

S

Sealing compound (Item 10, Appendix D)

S

Sealing compound (Item 12, Appendix D)

S

Lockwasher (8) (Item 23, Appendix F)

S

Seal (Item 48, Appendix F)

Equipment Conditions

S Auxiliary Drive Adapter Removed (para

3--4.1)

a.

1.

2.

3.

3--12

REMOVAL

NOTE

Mark position of engine mounting plate on crankcase before removing mounting plate from crankcase.

Remove eight screws (6) and lockwashers (7) and engine mounting plate (5) from crankcase (1). Discard lockwashers.

Remove four screws (3) and mounting plate (2) from crankcase (1).

Remove seal (4) from mounting plate (2). Discard seal.

Change 1

TM 9--2815--250--24&P

3--4.

MOUNTING PLATES REPLACEMENT (continued).

b.

CLEANING

WARNING

Drycleaning solvent P--D--680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well--ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

Using drycleaning solvent and a rag, clean sealing compound from both mounting plates.

Change 1 3--13

TM 9--2815--250--24&P

3--4.

MOUNTING PLATES REPLACEMENT (continued).

c.

INSTALLATION

1.

2.

2.1

Apply light coat of grease to new seal (4). Install seal (4) on mounting plate (2) with secondary sealing lip facing inboard and primary sealing lip facing outboard.

Apply sealing compound (Item 10, Appendix D) under four screws (3) and designated surface of crankcase

(1) that will come in contact with mounting plate (2).

Apply loctite 242 (Item 13, Appendix D) to threads of screws (3).

CAUTION

Use extreme caution not to damage new seal when installing mounting plate on crankcase.

3.

4.

Install mounting plate (2) on crankcase (1) and secure with four screws (3). Torque screws (35--38 ft--lbs

(47--52 N

S m).

NOTE

Use marks made during removal to install engine mounting plate correctly.

Apply sealing compound (Item 12, Appendix D) to eight screws (6). Install engine mounting plate (5) on

crankcase (1) and secure with eight new lockwashers (7) and screws (6). Torque screws (35--38 ft--lbs

(47--52 N

S m).

FOLLOW--ON TASKS:

S

install drive adapter (para 3--4.1)

3--14 Change 1

TM 9--2815--250--24&P

3--4.1

AUXILIARY DRIVE ADAPTER REPLACEMENT

This Task Covers:

a. Removal b. Installation

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Materials/Parts:

S

Sealing compound (Item 13, Appendix D)

a.

REMOVAL

Remove socket screw (1), lockwasher (2), woodruff key (3) and drive adapter (4) from crankshaft (5).

b.

1.

2.

3.

INSTALLATION

Install drive adapter (4) with woodruff key (3) onto crankshaft (5).

Apply sealing compound (Item 13, Appendix D) to threads of socket screw (1).

Install socket screw (1), lockwasher (2) into crankshaft (5). Torque screw to 37 ft--lb (50 N

S m).

Change 1

3--14.1

3--14.2

TM 9--2815--250--24&P

TM 9--2815--250--24&P

3--5.

CYLINDER HEADS REPAIR

This Task Covers:

a. Removal c. Adjustment e. Installation.

a.

1.

Initial Setup:

Tools/Test Equipment:

S

Cylinder alignment bracket (Item 6, Appendix G)

S

Depth gage rule (Item 9, Appendix G)

S General mechanic’s tool kit, automotive (Item 15,

Appendix G)

S

Torque wrench, 1/2--inch drive (Item 31, Appendix G

S

Valve face grinding machine (Item 33, Appendix G)

S

Valve seat grinding kit (Item 34, Appendix G)

S

Valve spring lifter (Item 35, Appendix G)

Materials/Parts:

S

Carbon--removing compound (Item 3, Appendix D)

S

Drycleaning solvent (Item 4, Appendix D)

S

Rag (Item 7, Appendix D)

S

Head gasket set (Item 3, Appendix F)

2.

3.

REMOVAL

Remove two push rods (2) from each of two guides (1).

Remove five extended plain nuts (4), three plain nuts (5), and eight washers (3) from eight studs (8).

Remove two cylinder heads (6) and gaskets

(7) from two combustion chamber liners (9).

Discard gaskets.

b. Cleaning and Inspection d. Machining

Equipment Conditions:

S

Eyebolt removed (UOC: APP) (para 2--16).

S

Lifting bracket removed (UOC: APJ)

(TM 9--2350--292--20--2)

S

Rocker arm assemblies removed (para 3--10).

S Airflow deflectors removed (UOC: APP)

(para 2--24).

S Air flow deflectors removed (UOC: APJ)

(TM 9--2350--292--20--2)

S

Intake manifold removed (para 2--21).

S

Fuel injectors removed (para 3--14).

S

Oil tube assemblies removed (para 2--19).

S Exhaust manifold removed (UOC: APJ)

S

Thermostatic switch removed (para 2--26).

Change 1

3--15

b.

1.

3--5.

CYLINDER HEADS REPAIR (continued).

4.

Remove two guides (1) from two recesses in crankcase (11).

5.

Remove two O--rings (10) from two grooves in each of two guides (1). Discard

O--rings.

NOTE

There are two valves, intake and exhaust, in each of two cylinder heads.

Follow steps 6 and 7 for each of them.

Part numbers are different for the intake and exhaust valves, but the valves are removed the same way. This procedure describes the removal of an exhaust valve.

6.

7.

Using a valve spring lifter, compress valve spring (14) and remove two valve spring retainer locks (12) from valve spring (14) and exhaust valve (16).

Remove valve spring retainer washer (13), valve spring (14), and base spring washer(15) from exhaust valve (16).

Remove exhaust valve (16) from bottom of cylinder head (6).

2.

CLEANING AND INSPECTION

Inspect four push rods for bends or wear on four sockets at ends of push rods.

Replace any push rods if bent or if sockets are worn.

Clean valves and valve seats with carbon removing compound.

WARNING

Drycleaning solvent P--D--680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well--ventilated area. Avoid contact with skin, eyes, and clothes, and

DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

3.

Using drycleaning solvent and rag, clean valves, springs, washers, locks, and valve seat.

3--16

TM 9--2815--250--24&P

3-5.

4.

c.

1.

TM 9-2815-250-24&P

CYLINDER HEADS REPAIR (continued).

Inspect valves and valve seats for cracks, burns, or bends. Replace any cracked, burned, or bent valves. If valve seats are cracked or burned, replace cylinder head.

ADJUSTMENT

CAUTION

If, after removing the cylinder head, you have replaced the combustion chamber liner, piston, connecting rod, or crankshaft, the valve-to-piston clearance must be checked.

Too little clearance will result in damage to pistons, cylinder heads, and valves.

Too much clearance will cause the engine to lose power and be difficult to start.

NOTE

There are two pistons on the engine. Follow steps 1 through 4 to adjust the valve-to-piston clearance on each of them.

Gaskets come in various thicknesses. It may be necessary to try several different gaskets to achieve the desired valve-to-piston clearance. Use only one gasket on each combustion chamber liner.

Install new gasket (7), with a thickness of 0.60 mm, and cylinder alignment bracket (18) on combustion chamber liner (9).

2.

3.

4.

NOTE

Make sure piston is as high as possible in the combustion chamber.

Place bottom of depth gage rule (17) across piston (20) and gasket (7). Loosen screw (19) and slide depth gage rule (17) down to crown of piston (20). Be sure to measure highest part of piston (20). Tighten screw (19) and read measurement. Clearance should be no less than 0.024 inch (0.61 mm) and no greater than 0.026 inch (0.66

mm).

If clearance is incorrect, repeat steps 1 and 2 using a gasket with a different thickness.

When clearance is correct, remove cylinder alignment bracket (18) from combustion chamber liner (9), leaving gasket (7) in place.

3-17

3-5.

CYLINDER HEADS REPAIR (continued).

d.

MACHINING

Grind exhaust valve (16) and valve seat (21) to a 45degree angle. If necessary, repeat for other valves.

e.

1.

2.

3.

4.

INSTALLATION

NOTE

There are two valves, intake and exhaust, in each of two cylinder heads. Follow steps 1 and 2 for each of them.

Part numbers are different for the intake and exhaust valves, but the valves are installed the same way. This procedure describes the installation of an exhaust valve.

Install exhaust valve (16) in cylinder head (6).

Place base spring washer (15) over exhaust valve (16). Install valve spring (14) over exhaust valve (16) so it is seated on base spring washer

(15). Place valve spring retainer washer (13) on valve spring (14).

Using a valve spring lifter, compress valve spring (14) and install two valve spring retainer locks (12) in valve spring retainer washer (13).

Install two new O-rings (10) in two grooves on each of two guides (1).

Install two guides (1) in two recesses in crankcase (11).

3-18

TM 9-2815-250-24&P

3--5.

CYLINDER HEADS REPAIR (continued).

5.

6.

Install two push rods (2) in two guides (1).

Make sure each push rod (2) rests on a tappet

(22).

Place two cylinderheads (6) on two combustion chamber liners (9), making sure two gaskets (7) are in place.

TM 9--2815--250--24&P

7.

Install eight washers (3), five extended plain nuts (4), and three plain nuts (5) on eight studs (8). Torque nuts to 40 ft--lb (55 Nom). See diagram below for correct placement of extended plain nuts (4) and plain nuts (5).

FOLLOW--ON TASKS:

S

Install thermostatic switch (para 2--26).

S Install exhaust manifold (UOC: APJ)

(TM 9--2350--292--20--2)

S

Install oil tube assemblies (para 2--19).

S

Install fuel injectors (para 3--14).

S

Install intake manifold (para 2--21).

S

Install airflow deflectors (UOC: APP) (para 2--24).

S

Install airflow deflectors (UOC: APJ)

(TM 9--2350--292--20--2)

S

Install rocker arm assemblies (para 3--10).

S

Install eyebolt (UOC: APP) (para 2--16).

S

Install lifting bracket (UOC: APJ)

(TM 9--2350--292--20--2)

Change 1

3--19

TM 9--2815--250--24&P

3--6.

CRANKCASE REPAIR

This Task Covers:

a. Disassembly c.

Test

a.

1.

Initial Setup:

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S

Steel rule (Item 28, Appendix G)

Materials/Parts:

S

Grease, automotive (Item 5, Appendix D)

S

Lubricating oil (Item 6, Appendix D)

S

Sealing compound (Item 10, Appendix D)

S

Crankcase gasket set (Item 1, Appendix F)

S

Shim (Item 5 or 6, Appendix F)

S

Spring tension washer (2) (Item 31, Appendix F)

DISASSEMBLY

Remove shim (2) from camshaft gear (1).

b. Assembly

Personnel Required: Two

Equipment Conditions:

S Pistons and combustion chamber liners

removed (para 3--9)

S Flywheel, auxiliary drive hardware, and flywheel

housing removed (para 3--8)

S

Solenoid removed (para 2--27)

S

Governor control assembly removed (para

3--16)

2.

3.

3--20

Remove hose coupling (6) and gasket (7) from upper crankcase (23). Discard gasket.

Remove two screws (18) and spring tension washers (17), access cover (16), and gasket (15) from upper crankcase (23). Discard gasket and spring tension washers.

TM 9--2815--250--24&P

3--6.

CRANKCASE REPAIR (continued).

4.

5.

6.

7.

Remove nut (21), two washers (3), and screw (4) from upper crankcase (23) and lower crankcase (22) on injection--pump side of engine.

Remove three nuts (5), washers (20), and screws (19) from upper crankcase (23) and lower crankcase (22) on injection--pump side of engine.

Remove three nuts (14), six washers (9), and three screws (8) from upper crankcase (23) and lower crankcase (22) on starter side of engine.

Remove two nuts (10), four washers (11), two screws (13), and air duct bracket (12) from upper crankcase

(23) and lower crankcase (22).

3--21

TM 9--2815--250--24&P

3--6.

CRANKCASE REPAIR (continued).

b.

1.

8.

9.

10.

11.

2.

Remove upper crankcase (23) from eight studs (24) on lower crankcase (22). Set upper crankcase (23) top down on work surface.

Inspect eight studs (24) and remove any bent or damaged studs from lower crankcase (22). Discard removed studs.

Remove two gaskets (25 and 26) from upper crankcase (23). Discard gaskets.

Remove eight O--rings (27) from eight grooves in upper crankcase (23). Discard O--rings.

ASSEMBLY

Apply grease to eight new 0--rings (27). Install eight

O--rings (27) on eight grooves in upper crankcase

(23).

Apply sealing compound to ends of two new gaskets (25 and 26). Lightly coat the rest of each gasket (25 and 26) with lubricating oil. Install two gaskets (25 and 26) on upper crankcase (23).

3.

4.

3--22

Apply GAA (Item 5, Appendix D) to threads of studs (24). Install eight new studs (24), if removed.

CAUTION

During installation of upper crankcase, rotate crank gear so timing mark on crank gear is between two timing marks on camshaft gear. Failure to align timing marks correctly may cause damage to the engine.

With the aid of an assistant, install upper crankcase (23) on eight studs (24) and lower crankcase (22). Make sure timing marks on crankshaft gear (28) and camshaft gear (1) are aligned and that two gaskets (25 and 26) and eight O--rings (27) stay in place.

Change 1

3-6.

5.

6.

7.

8.

9.

10.

11.

TM 9-2815-250-24&P

CRANKCASE REPAIR (continued).

Install air duct bracket (12) on upper crankcase (23) and lower crankcase (22). Secure loosely with two screws

(13), four washers (11), and two nuts (10)

Install three screws (8), six washers (9), and three nuts (14) loosely securing upper crankcase (23) to lower crankcase (22) on starter side of engine.

Install three screws (19), washers (20), and nuts (5) loosely securing upper crankcase (23) to lower crankcase

(22) on injection-pump side of engine.

Install screw (4), two washers (3), and nut (21) loosely securing upper crankcase (23) to lower crankcase (22) on injection-pump side of engine.

Tighten nine screws (13, 8, 19, and 4), starting with the center front and back of the engine.

Install new gasket (15), access cover (16), and two new spring tension washers (17) and screws (18) on upper crankcase (23).

Install new gasket (7) and hose coupling (6) on upper crankcase (23).

3-23

3-6.

c.

1.

TM 9-2815-250-24&P

CRANKCASE REPAIR (continued).

TEST

NOTE

This test procedure determines the offset between the camshaft gear and the crankshaft gear and gives instruction about how to correct the offset, if necessary.

Perform this test only if the camshaft, camshaft gear, crankshaft, or crankshaft gear has been replaced.

Place steel rule (29) across crankshaft gear (28) and camshaft gear (1). Using feeler gage, measure any distance at point A between steel rule (29) and camshaft gear (1). There should be 0.00-inch gap.

2.

On camshaft gear (1), install shim(s) (2) of appropriate thickness to completely fill any distance measured in step 1.

3-24

3-6.

3.

TM 9-2815-250-24&P

CRANKCASE REPAIR (continued).

NOTE

When correct size and number of shim(s) are used, steel rule will be in contact with both crankshaft gear and top shim on camshaft gear.

Place steel rule (29) across crankshaft gear (28) and camshaft gear (1). Measure the distance at point B and point C between crankcase sealing surfaces (30) and steel rule (29). If measurement is between 0.00 inch and

0.0039 inch (0.00 mm and 0.10 mm), install gasket on flywheel housing (para 3-8). If measurement is between

0.0043 inch and 1.18 inches (0.11 and 0.30 mm), install two gaskets on flywheel housing (para 3-8).

FOLLOW-ON TASKS:

Install governor control assembly (para 3-16).

Install solenoid (para 2-27).

Install flywheel, auxiliary drive hardware, and flywheel housing (para 3-8).

Install pistons and combustion chamber liners (para 3-9).

3-25

TM 9-2815-250-24&P

3-7.

CRANKSHAFT AND BEARINGS REPAIR.

This Task Covers:

a.

Removal c.

Installation

2.

3.

4.

5.

6.

a.

1.

Initial Setup:

Tools/Test Equipment:

Crank gear driver (Item 4, Appendix G)

Crank gear puller (Item 5, Appendix G)

General mechanic's tool kit (Item 14,

Appendix G)

Relief valve puller (Item 23, Appendix G)

Screwdriver attachment, 8 mm (Item 25,

Appendix G)

Socket wrench set, 3/8-inch drive (Item 27,

Appendix G)

REMOVAL

Remove seal (3) from auxiliary drive end of crankshaft (2). Discard seal.

CAUTION

To prevent warping, crankshaft must be placed standing up in flywheel.

Remove crankshaft (2) from lower crankcase

(5).

Remove three sleeve bearing halves (4) from three upper crank supports (9) (upper crankcase), and remove three sleeve bearing halves (4) from three lower crank supports (6)

(lower crankcase). Discard sleeve bearing halves.

Remove flow control valve (8) from lower crankcase (5).

Using crank gear puller, remove crank gear (1) from crankshaft (2).

Using relief valve puller, remove relief valve (7) from lower crankcase (5).

b.

Inspection

Materials/Parts:

Lubricating oil (Item 6, Appendix D)

Sealing compound (Item 12, Appendix D)

Crankcase gasket set (Item 1, Appendix F)

Sleeve bearing (3) (Item 34, Appendix F)

Equipment Conditions:

Crankcase disassembled (para 3-6).

Camshaft removed (para 3-11).

3-26

TM 9--2815--250--24&P

3--7.

CRANKSHAFT AND BEARINGS REPAIR (continued).

1.

2.

2.1

2.2

b.

INSPECTION

Inspect crankshaft for scoring, nicks, and excessive wear. Replace if necessary.

Inspect bushing (2.1) internal threads for damage. Bushing (2.1) should not be removed unless damaged.

c.

INSTALLATION

3.

Install relief valve (7) in lower crankcase (5) with grooved side facing auxiliary drive side of engine.

Install crank gear (1) on crankshaft (2). Make sure timing mark is facing end of crankshaft (2).

If installing bushing (2.1), apply primer (Item 19, Appendix D) to threads of bushing.

Apply loctite 271 (Item 20, Appendix D) to threads of bushing (2.1). Torque to 20 lb--ft (27 N

S m). Allow to cure for 6 hours before assembly.

Apply sealing compound (Item 10, Appendix D) to new seal (3). Install seal (3) on crankshaft (2) with lip facing

inward.

4.

5.

6.

Install flow control valve (8) in lower crankcase (5) with eccentric at approximately the 11 o’clock position.

Tighten flow control valve (8) into lower crankcase (5) until it projects 3/4 inch (1 9.1 mm) from lower crankcase (5).

Apply sealing compound (Item 21, Appendix D) to sleeve bearing halves (4) and bearing surfaces. Install

three new sleeve bearing halves (4) in three upper crank supports (9), and install three sleeve bearing halves

(4) in three lower crank supports (6). Keep matching bearings together.

Apply light coat of lubricating oil to crankshaft (2). Install crankshaft (2) in lower crankcase (5).

FOLLOW--ON TASKS:

S

Install camshaft (para 3--11).

S

Assemble crankcase (para 3--6).

S

Adjust engine speed (para 3--18).

Change 1

3--27

TM 9--2815--250--24&P

3--8. FLYWHEEL AND HOUSING REPLACEMENT.

This Task Covers:

a. Removal b. Installation

2.

3.

a.

1.

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit automotive (Item 15, Appendix

G)

S

Mechanical gear and bearing puller kit (Item 17, Appendix

G)

S

Torque wrench, 1/2--inch drive (Item 31, Appendix G)

Materials/Parts:

S

Crankcase gasket set (Item 1, Appendix F)

S

S

O--ring (item 44, Appendix F)

Spring tension washer (Item 27, Appendix F)

Equipment Conditions:

S

Oil tube assemblies removed (para 2--19).

S Airflow deflectors removed (UOC:APP) (para

2--24).

S Airflow deflectors removed (UOC:APJ) (TM

9--2350--292--20--2).

REMOVAL

Remove nut (1) and washer (2) from crankshaft (8).

Using mechanical gear puller, remove flywheel (3) from crankshaft (8).

Remove key (9) from crankshaft (8).

3--28

Change 1

TM 9--2815--250--24&P

8.

9.

6.

7.

3--8. FLYWHEEL AND HOUSING REPLACEMENT (continued).

4.

5.

Remove oil drain plug (17) and gasket (18) from flywheel housing (19). Discard gasket.

NOTE

Pin for intermediate gear may come off with flywheel housing.

Remove screw (14), 18 screws (15), 19 washers (13), and flywheel housing (19) from crankcase (10).

NOTE

There may be one or two gaskets on flywheel housing. Remove all of them, and note how many gaskets are removed from flywheel housing.

Remove one or two gaskets (11) from flywheel housing (19). Discard gasket(s).

Remove O--ring (12) from flywheel housing (19). Discard O--ring.

Remove seal (16) from crankshaft opening (20). Discard seal.

Remove two screws (23) and washers (22) and plate (21) from flywheel housing (19).

Change 1 3--29

TM 9--2815--250--24&P

3--8. FLYWHEEL AND HOUSING REPLACEMENT (continued).

2.

3.

b.

1.

4.

5.

6.

INSTALLATION

Install two screws (23) and washers (22) and plate (21) on flywheel housing (19).

Install new seal (16) in crankshaft opening (20), with lip of seal (16) facing inward.

Install new O--ring (12) on flywheel housing (19).

Apply sealing compound (Item 17, Appendix D) to surfaces of gasket(s) (11). Depending on the number

removed, install one or two new gaskets (11) on flywheel housing (19).

Install flywheel housing (19) on crankcase (10) and secure with screw (14),18 screws (15), and 19 washers

(13).

Install oil drain plug (17) and new gasket (18) in flywheel housing (19) and crankcase (10).

3--30 Change 1

TM 9--2815--250--24&P

3--8. FLYWHEEL AND HOUSING REPLACEMENT (continued).

7.

Install key (9) in crankshaft (8). Install flywheel (3), washer (2), and nut (1) on crankshaft (8). Torque nut to

148 ft--lb (200 N

⋅ m).

FOLLOW--ON TASKS:

S

Install airflow deflectors (UOC:APP) (para 2--24).

S Install airflow deflectors (UOC:APJ) (TM 9--2350--292--20--2).

S

Install oil tube assemblies (para 2--19).

Change 1 3--31

TM 9--2815--250--24&P

3--9.

PISTON AND COMBUSTION CHAMBER LINER REPAIR.

This Task Covers:

a. Removal c. Cleaning e. Installation b. Disassembly d. Assembly

Initial Setup:

1.

2.

3.

Tools/Test Equipment:

S

Cylinder ridge reamer (Item 8, Appendix G)

S

General mechanic’s tool kit, automotive (Item 15, Appendix

G)

S

Piston ring compressor (Item 21, Appendix G)

S

Piston ring expander (Item 22, Appendix G)

S

Screwdriver attachment, 6 mm (Item 24, Appendix G)

S

Snapring pliers (Item 26, Appendix G)

S

Socket wrench set, 3/8--inch drive (Item 27, Appendix G).

S

Torque wrench, 3/8--inch drive (Item 30, Appendix G)

Materials/Parts:

S

Carbon--removing compound (Item 3, Appendix D)

S

Drycleaning solvent (Item 4, Appendix D)

S

Lubricating oil (Item 6, Appendix D)

S

Rag (Item 7, Appendix D)

S

Cap--plug (2) (Item 10, Appendix F)

S

Cap--plug (4) (Item 11, Appendix F)

S

Piston ring set (2) (Item 2, Appendix F)

S

Retaining ring (4) (Item 47, Appendix F)

S

Shim (2) (Item 9, Appendix F)

S

Sleeve bearing (2) (Item 7, Appendix F)

Personnel Required:

Equipment Conditions:

S

Cylinder heads removed (para 3--5).

S

Engine placed on side.

S

Oil pan removed (UOC: APP) (para 3--13).

S

Oil pan removed (UOC: APJ) (para 3--13.1).

a.

REMOVAL

NOTE

There are two connecting rod caps on the engine. Repeat steps 1 and 2 to remove each of them.

Turn crankshaft (4) so crankshaft journal for connecting rod cap (5) to be removed is in its lowest position.

Remove two connecting rod screws (6) and connecting rod cap (5) from connecting rod (1).

Remove two combustion chamber liners (2), with two pistons inside, from crankcase (3).

3--32

Change 1

6.

7.

3-9.

4.

5.

TM 9-2815-250-24&P

PISTON AND COMBUSTION CHAMBER LINER REPAIR (continued).

CAUTION

Each connecting rod and connecting rod cap is stamped with a number, and each also has a notch on one side. Each connecting rod cap must be installed on the connecting rod stamped with the same number and with the notches on the same side.

Using the numbers stamped on the two connecting rods (1) and connecting rod caps (5), loosely install connecting rod cap (5) and two screws (6) on each connecting rod (1), making sure the notches are on the same side.

Loosen screw (7) on bracket (8) and clamping sheet (10). Remove bracket (8) and clamping sheet (10) by lifting them straight up until they are free of two studs (13).

Remove two cap-plugs (11) and four cap-plugs (12) from eight studs (13). Discard cap-plugs.

Remove two shims (9) from crankcase (3). Discard shims.

3-33

3-9.

8.

b.

1.

2.

3.

4.

TM 9-2815-250-24&P

PISTON AND COMBUSTION CHAMBER LINER REPAIR (continued).

Remove two pistons (15) and connecting rods (1) from two combustion chamber liners (2)

DISASSEMBLY

Remove two connecting rod caps (5) and four screws (6) from two connecting rods (1). Remove two sleeve bearing halves (18) from each of two connecting rods (1) and connecting rod caps (5). Discard bearing halves.

Loosely install two connecting rod caps (5) and four screws (6) on two connecting rods (1).

Remove three piston rings (14) from each of two pistons (15). Discard piston rings.

NOTE

If any pistons, piston pins, retaining rings, or connecting rods are damaged and need to be replaced, do steps 3 and 4. Otherwise, go to step 3 in subparagraph d.

Remove two retaining rings (17) and piston pin

(16) from piston (15) and connecting rod (1).

Discard retaining rings.

Remove piston (15) from connecting rod (1).

Replace piston, piston pin, and/or connecting rod if damaged. Repeat for other piston, if necessary.

c.

1.

2.

3-34

CLEANING

WARNING

Drycleaning solvent P-D-680 is toxic and flammable. Always wear protective goggles and gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and clothes, and DO NOT breathe vapors. DO NOT use near open flame or excessive heat.

Remove carbon from pistons, piston ring grooves, and combustion chamber liners with carbon-removing compound. Clean all parts with drycleaning solvent and rag.

Using cylinder ridge reamer, remove ridge from top of combustion chamber liner.

3-9.

d.

1.

2.

TM 9-2815-250-24&P

PISTON AND COMBUSTION CHAMBER LINER REPAIR (continued).

ASSEMBLY

NOTE

Piston head must be installed so the pocket is on the same side of the piston assembly as the notches in the connecting rod and connecting rod cap.

If piston (15) is being replaced, place piston (15) on connecting rod (1) with pocket in piston (15) facing the same direction as notches in connecting rod (1). Install piston pin (16) in piston (15) and connecting rod (1) and secure with two new retaining rings (17). Repeat for other piston, if necessary.

NOTE

There are two pistons on the engine.

Repeat steps 2 and 3 for each of them.

Install three piston rings (14) on piston (15).

See diagram for correct location and orientation of piston rings. Stagger three ring gaps so they are 120 degrees apart and no ring gap is over piston pin (16) or directly above or below other ring gaps.

3.

Remove two screws (6) and connecting rod cap

(5) from connecting rod (1). Place two new sleeve bearing halves (18) in connecting rod (1) and connecting rod cap (5).

3-35

3-9.

e.

1.

2.

3.

PISTON AND COMBUSTION CHAMBER LINER REPAIR (continued).

INSTALLATION

Install two new shims (9) on crankcase (3).

Install two new cap-plugs (11) and four new cap-plugs (12) on eight studs (13).

Install bracket (8) and clamping sheet (10) on two studs (13). Tighten screw (7) to secure.

TM 9-2815-250-24&P

4.

5.

6.

NOTE

There are two pistons and combustion chamber liners on the engine. Follow steps

4 through 9 for each of them.

Apply light coat of lubricating oil to three piston rings (14) and piston (15). Clamp piston ring compressor over piston rings (14). Tighten piston ring compressor.

Install combustion chamber liner (2) in crankcase (3). Make sure notched corners on combustion chamber liner

(2) are facing injection-pump side of engine.

Turn crankshaft (4) so crankshaft journal for piston to be installed is at the bottom of crankcase (3).

3-36

3--9.

PISTON AND COMBUSTION CHAMBER LINER REPAIR (continued).

TM 9--2815--250--24&P

7.

8.

INJECTION--PUMP

SIDE OF ENGINE

CAUTION

Pocket in piston and notches in connecting rod must face starter access plate side of engine.

Slide piston (15) into combustion chamber liner (2). Make sure pocket in piston (15) is facing toward starter access plate side of engine.

Tap piston (15) into combustion chamber liner (2) with hammer handle. Make sure connecting rod (1) is aligned with crankshaft journal.

CAUTION

Each connecting rod and connecting rod cap is stamped with a number and also has a notch on one side. Each connecting rod cap must be installed on the connecting rod stamped with the same number and with the notches on the same side.

9.

Install two connecting rod caps (5) on two connecting rods (1) and secure loosely with two screws (6). Torque screws to 30 ft--lb (40 N S m).

FOLLOW--ON TASKS:

S

Install oil pan (UOC: APP) (para 3--13).

S

Install oil pan (UOC: APJ) (para 3--13.1).

S Turn engine upright.

S

Install cylinder heads (para 3--5).

Change 1

3--37

TM 9--2815--250--24&P

3--10.

ROCKER ARM ASSEMBLIES REPAIR.

This Task Covers:

a. Removal b. Installation

1.

2.

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive (Item 15,

Appendix G)

S

Snapring pliers (Item 26, Appendix G)

S

Torque wrench, 1/2--inch drive (Item 31, Appendix G)

Materials/Parts:

S

Retaining ring (4) (Item 20, Appendix F)

a.

S

S

S

Sealing compound (Item 16, Appendix D)

Self--locking nut (4) (Item 15, Appendix F)

Shim (1 or 2) (Item 42 or 43, Appendix F)

Equipment Conditions:

S Rocker arm covers and gaskets removed

(para 2--17).

REMOVAL

NOTE

There are two rocker arm assemblies on the engine, each containing two rocker arms. Repeat steps 1 through 4 to remove both assemblies.

Remove two self--locking nuts (7) and rocker arm bracket (8) from two studs (10). Discard self--locking nuts.

Remove two retaining rings (1) and any shims (2 or 3) from rocker arm bracket (8). Discard retaining rings and shims.

3--38

Change 1

TM 9--2815--250--24&P

2.

3.

3--10.

ROCKER ARM ASSEMBLIES REPAIR (continued).

3.

4.

b.

1.

Remove two rocker arms (6 and 9) from rocker arm bracket (8).

NOTE

Remove nuts and adjusting screws only if damaged.

Remove two nuts (4) and adjusting screws (5) from two rocker arms (6 and 9). If damaged, discard nuts and adjusting screws.

INSTALLATION

NOTE

There are two rocker arm assemblies on the engine. Repeat steps 1 through

4 to install both of them.

If nuts or adjusting screws need to be replaced, do step 1. If not, go to step 2.

Install two new nuts (4) on two new adjusting screws (5). Install two adjusting screws (5) on two rocker arms

(6 and 9).

Place two rocker arms (6 and 9) on rocker arm bracket (8) and secure with two new retaining rings (1).

To determine if shims (2 or 3) are needed, use a feeler gage to measure play between rocker arm bracket (8) (point A) and inside edge of rocker arm (6 or 9) (point B). This measurement should be between 0.004 and

0.008 inch (0.1 mm and 0.2 mm). Remove two retaining rings (1) from rocker arm bracket (8), and install shims (2 or 3) as needed to achieve this distance. Reinstall retaining rings (1) in rocker arm bracket (8).

CAUTION

To ensure adequate lubrication, rocker arm bracket must be installed with the oil hole on the bottom.

4.

Apply sealing compound (Item 16, Appendix D) to threads of studs (10). Install rocker arm bracket (8) on two

studs (10) and secure with two new self--locking nuts (7). Torque nuts to 17 ft--lb (23 N

⋅ m).

FOLLOW--ON TASKS:

S

Adjust valves (para 3--18).

S

Install rocker arm covers and gaskets (para 2--17).

Change 1 3--39

TM 9--2815--250--24&P

3--11.

CAMSHAFT REPAIR

This Task Covers:

a. Removal b. Installation

a.

3.

4.

1.

2.

Initial Setup:

Tools/Test Equipment:

S

S

S

Materials/Parts:

S

Arbor press (Item 1, Appendix G)

General mechanic’s tool kit (Item 14, Appendix G)

Snapring pliers (Item 26, Appendix G)

Clip (Item 38, Appendix F)

S

Crankcase gasket set (Item 1, Appendix F)

S

Retaining ring (Item 21, Appendix F)

S

Retaining ring (Item 36, Appendix F)

S

Retaining ring (Item 39, Appendix F)

Equipment Conditions:

S

Crankcase disassembled (para 3--6):

REMOVAL

Remove three screws (14) and washers (13) and oil pump cover (12) from upper crankcase (15).

Remove O--ring (11) from oil pump cover (12). Discard O--ring.

Remove rotor (9) and oil pump gear (10) from upper crankcase (15).

Remove clip (2) from governor spring (1). Remove governor spring (1) from governor control lever assembly

(3) and accelerator lever (8). Discard clip.

3--40

TM 9-2815-250-24&P

6.

7.

3-11. CAMSHAFT REPAIR (continued).

5.

Remove governor control lever assembly pin (6) and governor control lever assembly (3) from upper crankcase

(15).

Remove two O-rings (7) from pin (6). Discard O-rings.

Remove camshaft assembly (5) from upper crankcase (15): Position the timing marks on camshaft gear (4) at the

10 o'clock position. Pull camshaft assembly (5) toward you until it stops. Turn camshaft gear (4) until timing marks are in the 12 o'clock position. Pull camshaft assembly (5) the rest of the way out of upper crankcase (15).

CAUTION

Do not lay camshaft flat on table while it is attached to camshaft gear. Stand camshaft and camshaft gear assembly on camshaft gear, to prevent warping.

8.

9.

Remove three screws (21) and nuts (19) and mounting plate (20) from camshaft gear (4).

Remove retaining ring (24) from groove on camshaft (16), and slide spacer (18) and washer (17) away from camshaft gear (4). Discard retaining ring.

10.

Remove camshaft gear (4) and key (23) from camshaft (16).

11.

Remove retaining ring (22) from groove on camshaft (16). Discard retaining ring.

12.

Remove spacer (18) and washer (17) from camshaft (16).

3-41

TM 9-2815-250-24&P

3-11. CAMSHAFT REPAIR (continued).

13.

Remove four tappets (25) from upper crankcase (15).

14.

Remove retaining ring (28) from acceleration lever (26). Discard retaining ring.

15.

Remove acceleration lever(26) from upper crankcase (15). Remove O-ring (27) from acceleration lever (26).

Discard O-ring.

NOTE

Pin for pinion assembly may have come off with flywheel housing (para 3-8).

16.

Remove pin (29), pinion assembly (30), and washer (31) from upper crankcase (15).

b.

INSTALLATION

1.

3-42

Install washer (31), pinion assembly (30), and pin (29) in upper crankcase (15).

TM 9-2815-250-24&P

3-11. CAMSHAFT REPAIR (continued).

2.

3.

4.

Install new O-ring (27) on acceleration lever (26). Install acceleration lever (26) on upper crankcase (15).

Install new retaining ring (28) on acceleration lever (26).

Install four tappets (25) in upper crankcase (15).

5.

6.

Install washer (17) and spacer (18) on camshaft (16). Make sure tapered end of spacer (18) is facing away from washer (17).

Install new retaining ring (22) in groove on camshaft (16).

3-43

TM 9-2815-250-24&P

3-11. CAMSHAFT REPAIR (continued).

7.

8.

9.

Install key (23) on camshaft (16). Using arbor press, install camshaft gear (4) on camshaft (16), making sure timing marks on camshaft gear (4) are facing toward near end of camshaft (16). Press camshaft gear(4) onto camshaft

(16) until camshaft gear (4) seats against retaining ring (22).

Slide spacer (18) and washer (17) toward camshaft gear (4). Install new retaining ring (24) in groove on camshaft

(16).

Install mounting plate (20) on camshaft gear (4) and secure with three screws (21) and nuts (19).

10.

Set upper crankcase (15) on end on work surface with opening for camshaft (16) facing up. Install camshaft assembly (5) in upper crankcase (15): Position the timing marks on camshaft gear (4) in the 12 o'clock position, and insert camshaft assembly (5) into bearing bore. When the first cam lobe drops down behind bearing bore, turn camshaft gear (4) counterclockwise until timing marks are in the 10 o'clock position; insert camshaft assembly (5) the rest of the way.

11.

Lay upper crankcase (15) on work surface. Install two new O-rings (7) on governor control lever assembly pin (6).

12.

Position governor control lever assembly (3) in upper crankcase (15).

3-44

TM 9--2815--250--24&P

3--11.

CAMSHAFT REPAIR (continued).

13.

14.

15.

16.

17.

Install pin (6) on governor control lever assembly (3) and upper crankcase (15).

Install governor spring (1) on governor control lever assembly (3) and accelerator lever (8). Secure governor spring (1) with new clip (2).

Place oil pump gear (10) and rotor (9) in upper crankcase (15). Make sure beveled edge of rotor (9) is facing toward inside of upper crankcase (15).

Install new O--ring (11) in oil pump cover (12).

Install oil pump cover (12) on upper crankcase (15) and secure with three screws (14) and washers (13). Turn camshaft gear (4) to be sure camshaft assembly (5) turns freely.

FOLLOW--ON TASKS:

S

Assemble crankcase (para 3--6).

3--45

TM 9--2815--250--24&P

3--12.

FILLER NECK REPLACEMENT (UOC: APP).

This Task Covers:

a. Removal

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit automotive

(item 15, Appendix G)

Materials/Parts:

S

Grease compound (Item 5, Appendix D)

S

Sealing compound (Item 13, Appendix D)

a.

1.

2.

3.

b.

1.

2.

REMOVAL

Remove four nuts (2) and washers (1) from four studs (4).

Remove filler neck (3) from crankcase (5).

Remove O--ring (6) from groove of filler neck (3). Discard O--ring.

INSTALLATION

Lightly coat new O--ring (6) with grease.

Install Oring (6) in groove in filler neck (3).

Apply sealing compound (Item 13,

Appendix D) to four studs (4).

Install filler neck (3) on crankcase (5).

3.

4.

Install four washers (1) and nuts (2) on four studs (4).

FOLLOW--ON TASKS:

S

Install airflow deflectors (para 2--24).

S

Install filler cap (para 2--18).

b. Installation

S

Crankcase gasket set (Item 1, Appendix F)

Equipment Conditions:

S

Filler cap removed (para 2--18).

S

Airflow deflectors removed as needed to allow

access to oil filler assembly (para 2--24).

3--46

Change 1

TM 9--2815--250--24&P

3--13.

OIL PAN AND GASKET REPLACEMENT (UOC: APP).

This Task Covers:

a. Removal b. Installation

Initial Setup:

2.

3.

2.

3.

b.

1.

a.

1.

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(item 15, Appendix G)

Materials/Parts:

S

Crankcase gasket set (item 1, Appendix F)

S

Lockwasher (10) (Item 24, Appendix F)

REMOVAL

Remove 10 screws (5) and lockwashers (6) and oil pan (4) from crankcase (1). Discard lockwashers.

Remove strainer element (2) from crankcase (1).

Remove gasket (3) from oil pan (4). Discard gasket.

INSTALLATION

Install strainer element (2) in crankcase (1).

Install new gasket (3) on oil pan (4).

Install oil pan (4) on crankcase (1) and secure with 10 new lockwashers (6) and screws (5).

Equipment Conditions:

S

Engine mounting plate removed (para 3--4)

FOLLOW--ON TASKS:

S

Install engine mounting plate (para 3--4).

Change 1

3--47

3--48

TM 9--2815--250--24&P

TM 9--2815--250--24&P

3--13.1.

DEEP OIL PAN AND GASKET REPLACEMENT (UOC: APJ).

This Task Covers:

a. Removal b. Installation

Initial Setup:

b.

1.

2.

3.

a.

1.

2.

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(item 14, Appendix G)

Materials/Parts:

S

Crankcase gasket set (item 1, Appendix F)

3.

4.

4.

REMOVAL

Equipment Conditions:

S

Engine mounting plate removed (para 3--4)

Place a suitable container under drain plug (5) to catch oil then remove drain plug (5) from deep oil pan (4).

Remove 10 screws (6) and flat washers (7) and oil pan (4) from crankcase (1). Discard lockwashers.

Remove strainer element (2) from crankcase (1).

Remove gasket (3) from deep oil pan (4).

Discard gasket.

INSTALLATION

Install strainer element (2) in crankcase (1).

Install new gasket (3) on deep oil pan (4).

Install deep oil pan (4) on crankcase (1) and secure with two new flat washers (7) and screws (6).

Install drain plug (5).

FOLLOW--ON TASKS:

S

Install engine mounting plate (para 3--4).

S

Refill with oil (TM 9--2350--292--20--2).

Change 1 3--48.1

TM 9--2815--250--24&P

3--14.

FUEL INJECTOR REPLACEMENT.

This Task Covers:

a. Removal c. Inspection b. Cleaning d. Installation

Initial Setup:

3.

b.

Tools/Test Equipment:

S

General mechanic’s tool kit (item 14, Appendix G)

S

Socket wrench set, 3/8--inch drive (Item 27, Appendix G)

S

Torque wrench, 3/8--inch drive (Item 30, Appendix G)

Materials/Parts:

S

Drycleaning solvent (Item 4, Appendix D)

S

Rag (Item 7, Appendix D)

S

Head gasket set (Item 3, Appendix F)

S

Equipment Conditions:

S

Spring tension washer (2) (Item 31, Appendix F)

Fuel pressure pipe assemblies and return fuel

hose removed (para 2--23).

NOTE

There are two fuel injectors on the engine. Use this procedure to replace either one. The injector on the flywheel side of the engine is shown.

a.

REMOVAL

1.

2.

1.

Remove nut (1), spring tension washer (2), spacer (3), and hose clamp (4) from fuel injector (5) and stud (9).

Discard spring tension washer.

Remove fuel injector (5) from bore in cylinder head (8).

NOTE

Gasket may stay in bore in cylinder head. check bore if gasket is not on the end of the fuel injector.

Remove gasket (6) from fuel injector (5) or bore in cylinder head (8). Discard gaset.

CLEANING

Drycleaning solvent P--D--680 is toxic and flammable. Always wear protective goggles and gloves, and use only in a well--ventilated area. Avoid contact with skin, eyes, and clothes and do not breathe vapors. Do not use near open flame or excessive heat.

Clean bore in cylinder head (8) with drycleaning solvent and rag.

3--48.2

Change 1

3--14.

FUEL INJECTOR REPLACEMENT (continued).

TM 9--2815--250--24&P

Change 1 3--48.3

TM 9--2815--250--24&P

3--14.

FUEL INJECTOR REPLACEMENT (continued).

c.

1.

2.

3.

4.

5.

6.

INSPECTION

Remove the nozzle retaining nut (1) from the fuel injector body (2).

Check the nozzle body (3) and nozzle needle (4) for overheating damage, scoring and coked--up spray holes.

Immerse the nozzle needle (4) in clean fuel. The nozzle needle (4) must slide down under its own weight into the seat of nozzle body (3).

Replace the nozzle needle (4) and the nozzle body (3) as an assembly if defective. If other parts are defective, replace entire fuel injector.

Assemble fuel injector parts (1) through (8) together as shown. Torque nozzle retaining nut (1) to 44 ft--lb (60

N S m).

Test fuel injector spray pattern (para 3--21).

3--48.4

Change 1

3--14.

FUEL INJECTOR REPLACEMENT (continued).

TM 9--2815--250--24&P

1.

2.

d.

3.

INSTALLATION

NOTE

Make sure that the soft, graphite--coated surface of the gasket is facing fuel injector.

Install new gasket (6) on fuel injector (5).

Install fuel injector (5) in bore in cylinder head (8). Make sure opening for screw faces rocker arm cover (7).

NOTE

Make sure tapered side of spacer is toward hose clamp and that tapered side of hose clamp is facing up.

Install hose clamp (4), spacer (3), new spring tension washer (2), and nut (1) on stud (9) and fuel injector (5).

Torque nut to 17 ft--lb (23 N S m).

FOLLOW--ON TASKS:

S

Install fuel pressure pipe assemblies and return fuel hose (para 2--23).

Change 1 3--49

TM 9--2815--250--24&P

3--15.

INJECTION PUMP REPLACEMENT.

This Task Covers:

a. Removal c. Installation b. Cleaning and Inspection

Initial Setup:

Tools/Test Equipment:

S

S

S

a.

1.

2.

General mechanic’s tool kit, automotive

(item 14, Appendix G)

Materials/Parts:

S

Drycleaning solvent (Item 4, Appendix D)

Rag (Item 7, Appendix D)

Cotter pin (Item 22, Appendix F)

S

Sealing compound (Item 17, Appendix D)

S

Crankcase gasket set (Item 1, Appendix F)

S

Head gasket set (Item 3, Appendix F)

Equipment Conditions:

S

Airflow deflectors removed (UOC:APP) (para

2--24).

S

Airflow deflectors removed (UOC:APJ) (TM

9--2350--292--20--2).

S Fuel pressure pipe assemblies and return fuel

hose removed (para 2--23).

REMOVAL

Remove three screws (5), nut (1), and governor plate (2) shown or extra fuel device, if equipped, from crankcase (4).

Remove gasket (3) from governor plate (2). Discard gasket.

3--50

Change 1

TM 9--2815--250--24&P

3--15.

INJECTION PUMP REPLACEMENT (continued).

3.

4.

5.

6.

b.

1.

Remove cotter pin (6) from control rack of injection pump (7). Discard cotter pin.

Remove end of governor lever (8) from control rack of injection pump (7).

Remove four nuts (9) from injection pump (7).

NOTE

To remove injection pump from crankcase, control rack of injection pump must be positioned under cutout in crankcase.

The number of gaskets to be removed will vary. Refer to the first note in subparagraph c.

Position control rack of injection pump (7) under cutout in crankcase (4), and remove injection pump (7) and gaskets (10) from crankcase (4). Discard gaskets.

CLEANING AND INSPECTION

WARNING

Drycleaning solvent P--D--680 is toxic and flammable. Always wear protective goggles and gloves, and use only in a well--ventilated area. Avoid contact with skin, eyes, and clothes, and do not breathe vapors. Do not use near open flame or excessive heat.

Clean injection pump and cavity in crankcase with drycleaning solvent and rag.

2.

Measure governor lever (8). It should measure 3.88 inches + 0.03 inch (98.5 mm = 0.8 mm). If measurement is not correct, adjust it by loosening jamnut and turning governor lever (8) in or out to shorten or lengthen it.

Tighten jamnut when length is correct.

3--51

TM 9--2815--250--24&P

3--15.

INJECTION PUMP REPLACEMENT (continued).

c.

1.

2.

3.

INSTALLATION

NOTE

The thickness of the gasket(s) to be installed is determined by the number stamped on the side of the crankcase next to the injection pump. For example, if the number ”6” is stamped on the crankcase, the total thickness of the gaskets should be 0.60 mm. Gaskets come in sets of three gaskets of varying thickness.

Install enough new gaskets (10) on crankcase (4) to reach the thickness indicated by the number stamped on crankcase (4).

NOTE

To install injection pump in crankcase, control rack of injection pump must be positioned over cutout in crankcase.

Position control rack of injection pump (7) over cutout, and install injection pump (7) on crankcase (4). Turn flywheel (11) to allow injection pump (7) to sit all the way down in the opening.

Apply sealing compound (Item 17, Appendix D) to threads of studs. Install four nuts (9) on injection pump (7).

3--52 Change 1

TM 9--2815--250--24&P

3--15.

INJECTION PUMP REPLACEMENT (continued).

4.

Install end of governor lever (8) on control rack of injection pump (7) and secure with new cotter pin (6).

5.

6.

Install new gasket (3) on governor plate (2).

Install governor plate (2) shown or extra fuel device if equipped on crankcase (4) and secure with nut (1) and three screws (5).

FOLLOW--ON TASKS:

S

Install fuel pressure pipe assemblies and return fuel hose (para 2--23).

S

Install airflow deflectors (para 2--24).

Change 1 3--53

TM 9--2815--250--24&P

3--16.

GOVERNOR CONTROL ASSEMBLY REPAIR

This Task Covers:

a. Removal c. Assembly b. Disassembly d. Installation

3.

4.

5.

6.

a.

1.

2.

Initial Setup:

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

S

S

(item 15, Appendix G)

Snapring pliers (Item 26, Appendix G)

Materials/Parts:

S

Lockwasher (Item 26, Appendix F)

O--ring (Item 37, Appendix F)

S

Seal (Item 13, Appendix F)

S

Spring tension washer (Item 30, Appendix F)

S

Wire mesh (Item 14, Appendix F)

References:

S

para 3--15

S

para 3--22

REMOVAL

Remove governor plate ((para 3--15).

Remove screw (1), lockwasher (2), washer (3), lever (4), and spring (5) from speed control lever (6). Discard lockwasher.

Remove seal (7) and wire mesh (8) from speed control lever (6). Discard seal and wire mesh.

Remove screw (9) and speed control lever (6) from crankcase (10).

Remove two nuts (11) and two screws (12) from speed control lever (6).

Remove nut (13) and screw (14) (UOC:APP).

3--54

Change 1

TM 9--2815--250--24&P c.

1.

2.

3.

2.

3.

*4.

3--16.

GOVERNOR CONTROL ASSEMBLY REPAIR (continued).

b.

1.

*4.

DISASSEMBLY

Remove screw (15), spring tension washer (16), two levers (17 and 18), and bushing (19) from mounting plate (20). Discard spring tension washer.

Remove stop lever (21) and spring (22) from mounting plate (20).

Remove O--ring (23) from stop lever (21). Discard O--ring.

Remove spring pin (24), lever (25), and spring (26) from extra fuel device (27).

ASSEMBLY

Install new O--ring (23) to stop lever (21).

Install stop lever (21) and spring (22) into mounting plate (20).

Install screw (15), new spring tension washer (16), two levers (17 and 18), and bushing (19) into mounting plate (20).

Install spring (26), lever (25), and spring pin (24) to extra fuel device (27).

4.

5.

6.

d.

1.

2.

3.

INSTALLATION

Install two screws (12) and two nuts (11) on speed control lever (6).

Install screw (14) and nut (13) (UOC:APP).

Install screw (9) and speed control lever (6) on crankcase (10).

Install spring (5), lever (4), washer (3), new lockwasher (2), and screw (1) on speed control lever (6).

Install governor plate (para 3--15).

Adjust engine speed (para 3--22).

7.

Install new wire mesh (8) and new seal (7) on speed control lever (6).

FOLLOW--ON TASKS:

S None

Change 1 3--55

Paragraph

Number

3--17

3--18

3--19

3--20

3--21

3--22

3--23

TM 9--2815--250--24&P

SECTION III.

TESTS AND ADJUSTMENTS

Page

Paragraph Title

Number

Cylinder Compression Test

Valve Adjustment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flow Control Valve Adjustment

Injection Pump Test

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Injector Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Speed Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pressure Test

Table 3--1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--56

3--58

3--60

3--65

3--66

3--69

3--70

3--71

3--17.

CYLINDER COMPRESSION TEST.

This Task Covers:

Test a.

b.

c.

d.

Initial Setup:

Tools/Test Equipment:

S

Cylinder compression tester (Item 7, Appendix G)

S

General mechanic’s tool kit (Item 14, Appendix G)

TEST

NOTE

The cylinder compression test is used to determine the condition of valves, pistons, piston rings, and cylinders. Any pressure difference between cylinders indicates a problem with one or more of these components.

Run engine until thoroughly warm.

Remove fuel injectors (para 3--14).

NOTE

Compression tester gage reading for a new engine turning at about 300 rpm should be approximately 350 to 400 psi (2410 to 2758 kPa). If there is a pres-

sure difference between cylinders, refer to paragraphs 3--5 and 3--9 for repair

procedures for valves, pistons, piston rings, and cylinders.

Insert compression tester into fuel injector bore near cylinder no. 1 (2) (on flywheel side of engine).

Crank engine and note compression reading on compression tester gage.

3--56

Change 1

3-17. CYLINDER COMPRESSION TEST (continued).

TM 9-2815-250-24&P

e.

f.

g.

Remove compression tester from fuel injector bore for cylinder no. 1 (2), and repeat steps c and d for fuel injector bore for cylinder no. 2 (1) (on auxiliary drive side of engine).

Remove compression tester from fuel injector bore for cylinder no. 2 (1).

Install fuel injectors (para 3-14).

FOLLOW-ON TASKS:

None

3-57

TM 9-2815-250-24&P

3-18. VALVE ADJUSTMENT.

This Task Covers:

Adjustment

Initial Setup:

Tools/Test Equipment:

General mechanic's tool kit, automotive

(Item 15, Appendix G)

Equipment Conditions:

Rocker arm cover removed (para 2-17).

ADJUSTMENT

a.

NOTE

• Cylinder no. 1 is on the flywheel side of the engine. Cylinder no. 2 is on the auxiliary drive side of the engine.

• Allow engine to cool to room temperature (approximately 75°F [24°C]) before adjusting the valves.

• Valves are in rocking position when the rocker arms are level and can be moved slightly.

Turn flywheel (1) clockwise until valves in cylinder no. 2 are in rocking position, then turn flywheel 180 degrees further.

3-58

TM 9--2815--250--24&P

3--18.

VALVE ADJUSTMENT (continued).

b.

c.

d.

Using feeler gage, measure the clearance between rocker arm (4) and valve stem (5) on intake valve (3) and exhaust valve (6) of cylinder no. 1. Clearance should be 0.004 inch (0.102 mm).

To adjust clearance, loosen nut (7) and turn adjusting screw (2) so that, after tightening nut (7), clearance is correct.

Rotate flywheel (1) clockwise 180 degrees. Intake valve (3) and exhaust valve (6) of cylinder no. 2 will be fully closed. Repeat steps b and c for both valves (3 and 6) in cylinder no. 2.

FOLLOW--ON TASKS:

S

Install rocker arm cover (para 2--17).

3--59

TM 9--2815--250--24&P

3--19.

FLOW CONTROL VALVE ADJUSTMENT.

This Task Covers:

Adjustment

Initial Setup:

Tools/Test Equipment:

S

Fuel--test set (Item 12, Appendix G)

S

Fuel--testing device (Item 13, Appendix G)

S

General mechanic’s tool kit (Item 14, Appendix G)

S

Indicator dial (Item 16, Appendix G)

S

Wrench (Item 36, Appendix G)

Materials/Parts:

S

Rubber band (Item 8, Appendix D)

S

Crankcase gasket set (Item 1, Appendix F)

S

Gasket (2) (Item 16, Appendix F)

S

O--ring (2) (Item 17, Appendix F)

Equipment Conditions:

S Airflow deflectors removed as needed

(UOC: APP) (para 2--24).

S Airflow deflectors removed as needed (UOC:

APJ) (TM 9--2350--292--20--2)

S

Fuel pressure pipes removed (para 2--23).

S Vehicle fuel supply connected to injection pump

(refer to TM 9--2350--293--20) (UOC: APP).

S Vehicle fuel supply connected to injection pump

(UOC: APJ) (TM 9--2350--292--20--2)

ADJUSTMENT

a.

NOTE

The flow control valve should be adjusted only if any of the following conditions exist: The flow control valve has been replaced; the engine lacks power; or the engine emits smoke after start--up, during operation.

The fuel quantity injected is determined by the travel of the pump plunger between start and end of delivery. This dimension is specified in millimeters on the engine data plate located on the flywheel air duct.

Turn flywheel (2) clockwise until 26--degree mark on flywheel (2) is aligned with ”PM” mark on flywheel airflow deflector (1).

3--60

Change 1

3-19. FLOW CONTROL VALVE ADJUSTMENT (continued).

b.

Remove injector line fitting (3), O-ring (4), spring guide (5), shim (6), spring (7), gasket (8), and delivery valve (9) from injection pump outlet port

(10). Discard O-ring and gasket.

TM 9-2815-250-24&P

c.

d.

Install fuel-testing device (13), adapter rod (12), and indicator dial (11) in injection pump outlet port

(10).

Remove three screws (18), nut (19), mounting plate (17), and gasket (16) from crankcase (14).

Install screw (18) on auxiliary drive side of mounting plate opening (15). Discard gasket.

3-61

TM 9-2815-250-24&P

f.

g.

3-19. FLOW CONTROL VALVE ADJUSTMENT (continued).

e.

Place rubber band (20) around governor lever pad (21) and screw (18), to position line on control rod rack at edge of opening.

Open fuel shutoff valve (refer to technical manual for vehicle).

Set indicator dial (11) at "0." Turn flywheel (2) clockwise until the dimension specified on engine data plate (23) is reached. In this position, fuel should come out of spill device outlet (22) at the rate of approximately one drop every five seconds.

3-62

TM 9--2815--250--24&P

i.

3--19.

FLOW CONTROL VALVE ADJUSTMENT (continued).

h.

NOTE

If fuel comes out of spill device outlet before the dimension specified on engine data plate is reached, fuel quantity is set too low. If no fuel comes out of the spill device outlet at the specified dimension, fuel quantity is set too high.

If fuel quantity is incorrect, loosen nut on flow control valve (24). Turn knob to the right to increase fuel quantity or to the left to decrease fuel quantity.

Tighten nut and repeat steps g and h until fuel quantity is correct.

j.

k.

Close fuel shutoff valve (refer to technical manual for vehicle).

Remove rubber band (20) from governor lever pad

(21) and screw (18). Remove screw (18) from crankcase (14).

3--63

TM 9--2815--250--24&P

3--19.

FLOW CONTROL VALVE ADJUSTMENT (continued).

l.

m.

Install mounting plate (17) and new gasket (16) on crankcase (14). Secure with three screws (18) and nut

(19).

Remove fuel--testing device (13), adapter rod

(12), and indicator dial (11) from injection pump outlet port (10).

n.

Install delivery valve (9), new gasket (8), spring

(7), shim (6), spring guide (5), new O--ring (4), and injector line fitting (3) on injection pump outlet port (10).

FOLLOW--ON TASKS:

S Disconnect vehicle fuel supply from injection pump

(UOC: APP) (refer to TM 9--2350--293--20).

S Disconnect vehicle fuel supply from injection pump

(UOC: APJ) (TM 9--2350--292--20--2)

S

Install fuel pressure pipes (para 2--23).

S

Install airflow deflectors (UOC: APP) (para 2--24).

S Install airflow deflectors (UOC: APJ)

(TM 9--2350--292--20--2).

3--64 Change 1

TM 9--2815--250--24&P

3--20.

INJECTION PUMP TEST.

This Task Covers:

Test

Initial Setup:

Tools/Test Equipment:

S

Fuel--test set (Item 12, Appendix G)

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S

Wrench (Item 36, Appendix G)

TEST

Equipment Conditions:

S Airflow deflectors removed as needed (UOC:

APP) (para 2--24).

S

Air flow deflectors removed as needed (UOC:

APJ) (TM 9--2350--292--20--2).

b.

c.

f.

g.

a.

d.

e.

Remove fuel pressure pipe clamp and fuel pressure pipe assembly from fuel injector on flywheel side of

engine (para 2--23).

Remove fuel injector from flywheel side of engine (para 3--14).

Install extension tube (4), tube assembly (5), and indicator dial (1) from fuel--test set on flywheel--side port (2) of injection pump (3).

WARNING

Fuel spray on hot components is an extreme fire hazard. Control leakage immediately, to prevent serious injury to personnel.

Crank engine and observe indicator dial

(1). Reading should be between 250 and

258 bars. If reading is incorrect, replace

injection pump (para 3--15).

Remove indicator dial (1), tube assembly

(5), and extension tube (4) from flywheel side port (2) of injection pump (3).

Install fuel injector on engine (para 3--14).

Install fuel pressure pipe assembly and

fuel pressure pipe clamp (para 2--23).

h.

Repeat steps a through g for port on auxiliary drive side of injection pump.

FOLLOW--ON TASKS:

S Install airflow deflectors (UOC:APP) (para

2--24).

S Install airflow deflectors (UOC:APJ) (TM

9--2350--292--20--2).

Change 1

3--65

TM 9--2815--250--24&P

3--21.

FUEL INJECTOR TEST.

This Task Covers:

Test

Initial Setup:

Tools/Test Equipment:

S

Fuel--test set (Item 12, Appendix G)

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

Equipment Conditions:

S

Airflow deflectors removed as needed (UOC:

APP) (para 2--24).

S Air flow deflectors removed as needed (UOC:

APJ) (TM 9--2350--292--20--2)

S

Injection pump test performed (para 3--20).

a.

b.

c.

TEST

NOTE

There are two fuel injectors on the engine. Use this procedure to test either one.

Remove fuel pressure pipe clamp and fuel pressure pipe assembly from fuel injector to be tested (para 2--23).

Remove fuel injector to be tested (para 3--14).

Remove two blank plugs (1) from test tube (2).

d.

e.

f.

Install extension tube (4) of fuel--test set on injection pump port (5).

Install test tube (2) on extension tube (4).

Install indicator dial (3) of fuel--test set on test tube (2).

3--66

Change 1

TM 9--2815--250--24&P

j.

k.

h.

i.

l.

m.

3--21.

FUEL INJECTOR TEST (continued).

g.

Install fuel injector (6) on test tube (2).

WARNING

Fuel spray on hot components is an extreme fire hazard. Control leakage immediately, to prevent serious injury to personnel.

Keep hands away from fuel injector after installing it on test tube. Fuel spray can penetrate the skin, causing blood poisoning. Failure to follow this warning may result In serious injury or death.

Crank engine.

Check pressure reading at indicator dial (3). Correct pressure is 250 to 258 bar.

If pressure is not correct, replace fuel injector (para 3--14).

Check spray pattern. Fuel should spray evenly, in a diffuse pattern, rather than in a stream or dripping.

If spray pattern is not correct, replace fuel injector (6) (para 3--14).

Remove fuel injector (6) from test tube (2).

3--67

3--21.

FUEL INJECTOR TEST (continued).

n.

o.

p.

Remove indicator dial (3) from test tube (2).

Remove test tube (2) from extension tube (4)

Remove extension tube (4) from injection pump port (5).

TM 9--2815--250--24&P

q.

Install blank two plugs (1) on test tube (2).

r.

s.

Install fuel injector (para 3--14).

Install fuel pressure pipe assembly and fuel pressure pipe clamp (para 2--23).

FOLLOW--ON TASKS:

S

Install airflow deflectors (UOC: APP) (para 2--24).

S Install airflow deflectors (UOC: APJ) (TM 9--2350--292--20--2).

3--68 Change 1

TM 9--2815--250--24&P

3--22.

ENGINE SPEED ADJUSTMENT.

This Task Covers:

Adjustment

Initial Setup:

Tools/Test Equipment:

S General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S Mechanical hand--held tachometer

(Item 18, Appendix G)

Personnel Required:

S Two a.

b.

ADJUSTMENT

NOTE

Engine speed is measured in revolutions per minute (rpm).

Start engine and let it run until warm.

c.

Have an assistant hold a hand--held mechanical tachometer on end of crankshaft (1) on flywheel side of engine.

The rpm reading on tachometer should be 2200

±

50 rpm (UOC: APP) or 2650 +50 rpm (UOC: APJ). If it is not, loosen two nuts (2) and turn two adjusting screws (3) to move speed control lever (4), while assistant watches tachometer gage, until correct rpm reading is reached. Moving speed control lever (4) to the left will decrease engine speed; moving speed control lever (4) to the right will increase engine speed.

d.

Hold two adjusting screws (3) in place and tighten two nuts (2).

e.

Recheck engine speed by repeating steps b through d.

FOLLOW--ON TASKS:

S None

Change 1

3--69

3--23.

OIL PRESSURE TEST.

This Task Covers:

Test

Initial Setup:

Tools/Test Equipment:

S

General mechanic’s tool kit, automotive

(Item 15, Appendix G)

S

Oil pressure test set (Item 20, Appendix G)

TEST

a.

Remove screw (1) and washer (2) from fluid passage bolt (3).

TM 9--2815--250--24&P

3--70

TM 9-2815-250-24&P

3-23.

OIL PRESSURE TEST (continued).

b.

Install oil pressure gage (4) on flexible connector (5), and install flexible connector (5) on fluid passage bolt (3).

c.

Start the engine and allow it to warm up. Run the engine at the speeds indicated in Table 3-1, and check the oil

pressure gage.

Table 3-1. Oil Pressure

Speed in rpm

900

1500

2300

3000

FOLLOW-ON TASKS:

None

Normal Oil Pressure

1.2 to 2.5 bar (17.4 to 36.3 psi)

1.8 to 3.5 bar (26.1 to 50.8 psi)

2.5 to 4.5 bar (36.3 to 65.3 psi)

3.5 to 5.0 bar (50.8 to 72.5 psi)

Minimum Oil Pressure

0.4 bar (5.8 psi)

1.0 bar (14.5 psi)

1.8 bar (26.1 psi)

2.5 bar (36.3 psi)

3-71

TM 9--2350--314--20--1--1

--2

TM 9--2815--250--24&P

Paragraph

Number

APPENDIX A

REFERENCES

Paragraph Title

Page

Number

A--1

A--2

A--3

A--4

A--5

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--1

A--1

Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pamphlets and Circulars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--1

A--1

Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--2

A--1.

GENERAL.

This appendix lists all forms, pamphlets, and regulations that are referenced in this technical manual. DA Pam 25--30 should be consulted frequently for the latest changes or revisions and for new publications relevant to material covered in this manual.

A--2.

FORMS.

Refer to DA Pam 738--750 for instructions on the use of maintenance forms.

Recommended Changes to Publications and Blank Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DA Form 2028

Recommended Changes to Equipment Technical Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DA Form 2028--2

Processing and Deprocessing Record for Shipment, Storage and Issue of

Vehicles and Spare Engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DD Form 1397

Product Quality Deficiency Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SF Form 368

A--3.

MANUALS.

First Aid for Soldiers

Army . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Marine Corps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FM 4--25.11

MCRP 3--02G

Inspection, Care and Maintenance of Antifriction Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--214

Materials Used for Cleaning, Preserving, Abrading and Cementing

Ordnance Materiel and Related Materials Including Chemicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operator’s Manual for Carrier, Ammunition, Tracked, M992A2

(NSN 2350--01--368--9500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--247

TM 9--2350--293--10

Unit Maintenance Manual for Carrier, Ammunition, Tracked, M992A2

(NSN 2350--01--368--9500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--2350--293--20--1 and --2

Unit, Direct Support and General Support Maintenance Repair Parts and Special Tools List for Carrier, Ammunition, Tracked, M992A2

(2350--01--368--9500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--2350--293--24P

Direct Support and General Support Maintenance Manual: for Carrier,

Ammunition, Tracked, M992A2 (NSN 2350--01--368--9500) . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage and Materials Handling

TM 9--2350--293--34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 743--200--1

Procedures for Destruction of Tank--Automotive Equipment to Prevent Enemy Use . . . . . . . . . . . . . . . . .

TM 750--244--6

Change 1

A--1

TM 9--2815--250--24&P

A--3.

MANUALS (CONTINUED)

Operator’s Manual: Recovery Vehicle, Heavy, Full--Tracked: M88A2 . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Maintenance Manual: Recovery Vehicle, Heavy, Full--Tracked: M88A2 . . . . . . . . . . . . . . . . . .

TM 9--2350--292--10

TM 9--2350--292--20

Direct and General Support Maintenance Manual: Recovery Vehicle, Full--Tracked,

Heavy: M88A2 (NSN 2350--01--390--4683) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--2350--292--34

Unit, Direct Support and General Support Maintenance Repair Parts and Special Tools

List for Recovery Vehicle, Heavy, Full--Tracked: M88A2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TM 9--2350--292--24P

A--4.

PAMPHLETS AND CIRCULARS.

Consolidated Index of Army Publications and Blank Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DA Pam 25--30

Functional User’s Manual for The Army Maintenance Management System (TAMMS)

Operator’s Circular Welding Theory and Application

. . . . . . . . . . .

DA Pam 738--750

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TC 9--237

A--5.

REGULATIONS.

Product Quality Deficiency Report Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AR 702--7

Army Medical Department Expendable/Durable Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Expendable/Durable Items (Except: Medical, Class V, Repair Parts and Heraldic Items) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CTA 8--100

CTA 50--970

Abbreviations for Use on Drawings, Specifications, Standards, and in Technical Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MIL--STD--12

A--2

Change 1

TM 9-2815-250-24&P

APPENDIX B

MAINTENANCE ALLOCATION CHART

Section I. INTRODUCTION

Paragraph

Number

B-1

B-2

B-3

B-4

B-1.

Number

General............................................................................................................................... B-1

Maintenance Functions ........................................................................................................ B-1

Explanation of Columns in Section II, Maintenance Allocation Chart for Engine Assembly,

Diesel, Hatz 2 G 40.............................................................................................................. B-2

Explanation of Columns in Section III, Tools and Test Equipment Requirements ..................... B-3

GENERAL.

Page

Paragraph Title

Appendix B consists of three sections:

a.

Section I provides a general explanation of all maintenance and repair functions authorized at the various maintenance levels.

b.

Section II, the maintenance allocation chart (MAC), designates overall authority and responsibility for the performance of maintenance functions on the identified end item or component. The application of the maintenance functions to the end item or component will be consistent with the capacities and capabilities of the designated maintenance levels.

c.

Section III lists the tools and test equipment (both special tools and common tool sets) required for each maintenance function as referenced from Section II.

B-2.

MAINTENANCE FUNCTIONS.

Maintenance functions are limited to and defined as follows: a.

Inspect. To determine the serviceability of an item by comparing its physical, mechanical, and/or electrical characteristics with established standards through examination (e.g., by sight, sound, or feel).

b.

Test. To verify serviceability by measuring the mechanical, pneumatic, hydraulic, or electrical characteristics of an item and comparing those characteristics with prescribed standards.

c.

Service. To keep an item in proper operating condition by periodically cleaning (including decontaminating, when required), preserving, draining, painting, or replenishing fuel, lubricants, chemical fluids, or gases.

d.

Adjust. To maintain or regulate, within prescribed limits, by bringing into proper or exact position or by setting the operating characteristics to specified parameters.

e.

Align. To adjust specified variable elements of an item to bring about optimum or desired performance.

B-1

TM 9-2815-250-24&P

B-2.

MAINTENANCE FUNCTIONS (continued).

f.

Calibrate. To determine the accuracy of and cause corrections or adjustments to be made on instruments or test, measuring, and diagnostic equipment (TMDE) used in precision measurement. Calibration consists of comparisons of two instruments, one of which is a certified standard of known accuracy, to detect and adjust any discrepancy In the accuracy of the instrument being compared.

g.

Remove/Install. To remove and Install the same item when required to perform service or other maintenance functions. "Install" may be the act of emplacing, seating, or fixing into position a spare, repair part, or module

(component or assembly) in a manner to allow the proper functioning of an end Item or system.

h.

Replace. To remove an unserviceable item and install a serviceable counterpart in its place. "Replace" is authorized by the MAC and is shown as the third position of the source, maintenance, and recoverability (SMR) code.

i.

Repair. To apply maintenance services-including fault location/troubleshooting, removal/installation, and disassembly/assembly procedures-and maintenance actions to identify troubles and restore serviceability to an item by correcting any specific damage, fault, malfunction, or failure in a part, subassembly, module (component or assembly), end Item, or system.

j.

Overhaul. To perform that maintenance effort (service/action) required to restore an item to a completely serviceable/operational condition as required by maintenance standards in an appropriate technical publication

(e.g., depot maintenance work requirement). Overhaul is normally the highest degree of maintenance performed by the Army. Overhaul does not normally return an item to like-new condition.

k.

Rebuild. To perform those services/actions necessary for the restoration of unserviceable equipment to a likenew condition in accordance with original manufacturing standards. Rebuild is the highest degree of materiel maintenance applied to Army equipment. The rebuild operation includes the act of returning to zero those age measurements (e.g., hours, miles) considered In classifying Army equipment/components.

B-3.

EXPLANATION OF COLUMNS IN SECTION II, MAINTENANCE ALLOCATION CHART

FOR ENGINE ASSEMBLY, DIESEL, HATZ 2 G 40.

a.

(1) Group Number. Column 1 lists functional group code numbers, whose purpose is to identify maintenancesignificant components, assemblies, subassembies, and modules with the next higher assembly. The end Item group number is "00." b.

(2) Component/Assembly. Column 2 contains the names of components, assemblies, subassemblies, and modules for which maintenance is authorized.

c.

(3) Maintenance Function. Column 3 lists the functions to be performed on the item listed in Column 2. (For a

detailed explanation of these functions, refer to para B-2.)

d.

(4) Maintenance Level. Column 4 specifies, by the listing of a work-time figure in the appropriate subcolumn(s), the level of maintenance authorized to perform the function listed in Column 3. This figure represents the active time required to perform that maintenance function at the indicated level of maintenance. If the number or complexity of the tasks within the listed maintenance function varies at different maintenance levels, appropriate work-time figures will be shown for each level. The work-time figure represents the average time required to restore an item (assembly, subassembly, component, module, end item, or system) to a serviceable condition under typical field operating conditions. This time includes preparation time (including any necessary disassembly/assembly

B-2

B-3.

TM 9-2815-250-24&P

EXPLANATION OF COLUMNS IN SECTION II, MAINTENANCE ALLOCATION CHART

FOR ENGINE ASSEMBLY, DIESEL, HATZ 2 G 40 (continued).

troubleshooting/fault location time, and quality assurance/quality control time in addition to the time required to perform the specific tasks identified for the maintenance functions authorized in the MAC. The symbol designations for the various maintenance levels are as follows:

C ............................................. Operator/Crew

O............................................. Unit

F ............................................. Direct Support

H ............................................. General Support

D ............................................. Depot e.

(5) Tools and Test Equipment Reference Code. Column 5 specifies, by code, those common tool sets (not individual tools), common TMDE, special tools, special TMDE, and special support equipment required to perform the designated maintenance function. Codes are keyed to tools and test equipment listed in Section III.

f.

(6) Remarks. When applicable, this column contains a lettercode, in alphabetical order, which is keyed to remarks contained in Section IV. If there is nothing in the Remarks column, there is no Section IV.

B-4.

EXPLANATION OF COLUMNS IN SECTION III, TOOLS AND TEST EQUIPMENT

REQUIREMENTS.

a.

Column 1, Tools and Test Equipment Reference Code. This code correlates with the code used in Section II,

Column 5.

b.

Column 2, Maintenance Level. The symbol designation shown indicates the lowest level of maintenance authorized to use the tool or test equipment.

c.

Column 3, Nomenclature. This is the name or identification of the tool or test equipment.

d.

Column 4, National Stock Number. This is the national stock number of the tool or test equipment.

e.

Column 5, Tool Number. This is the manufacturer's part number.

B-3

B-4

TM 9-2815-250-24&P

(1)

Group

No.

Section II. MAINTENANCE ALLOCATION CHART

FOR ENGINE ASSEMBLY, DIESEL, HATZ 2 G 40

(2)

Component/

Assembly

(3)

Maintenance

Function

O

(4)

Maintenance Level

F H D

22

BODY, CHASSIS AND HULL

ACCESSORY ITEMS

2210

Engine Identification Plate

29

AUXILIARY GENERATOR

AND ENGINE, AND

CONTROLS

2910

Engine Assembly

Replace

Inspect

Service

Test

Adjust

Repair

0.5

0.1

0.5

1.0

3.0

1.0

3.0

2.0

16

(5)

Tools and

Equipment

1, 2, 7

2

3, 9

2, 6,10,

15,16

2, 6, 10

15, 16

(6)

Remarks

2911

Crankcase, Cylinder Sleeve,

Cylinder Head, and Block

2912

Crankshaft

2913

Flywheel Assembly

2914

Pistons and Connecting Rods

2915

2916

2918

2932

Valves, Camshaft, and

Timing System

Engine Lubrication System

Oil Filter

Manifolds

Injector Pump, Nozzles, and Fuel Lines

Replace

Repair

Replace

Replace

Replace

Repair

Adjust

Replace

Repair

Test

Replace

Replace

Replace

Adjust

Replace

0.5

0.2

1.0

1.0

8.0

2.0

1.0

1.0

2.0

2.0

1.0

3.0

2.0

0.5

2.0

2.0

3.0

2, 5, 7, 8

2, 4, 6,11

3, 5, 8, 12,

14

2, 5

2, 7

2, 5, 6, 8

2

2

2, 5, 8

2, 17

2, 5, 13

2, 7

2, 5

2, 3, 10, 16

2, 5,10

TM 9-2815-250-24&P

(1)

Group

No.

Section II. MAINTENANCE ALLOCATION CHART

FOR ENGINE ASSEMBLY, DIESEL, HATZ 2 G 40 (continued)

(2) (3) (4)

Component/

Assembly

Maintenance

Function

O

Maintenance Level

F H D

2936

Engine Speed Governor and

Controls

2952

Engine Cowling, Deflectors,

Air Ducts, and Shrouds

2960

Sending Units

Adjust

Replace

Replace

Test

Replace

1.0

0.5

1.0

2.0

5.0

2968

Switches, Circuit Breakers, and Fuses

Fuel Shutoff Solonoid Adjust

Replace

1.0

0.5

5

2

2, 5

3, 8

3

(5)

Tools and

Equipment

2, 5, 8

2, 5, 8

(6)

Remarks

B-5

TM 9-2815-250-24&P

Section III. TOOLS AND TEST EQUIPMENT REQUIREMENTS

2

3

4

5

8

14

15

16

17

9

10

11

12

13

(1)

Tools and

Test

Equipment

Reference

Code

1

6

7

(2) (3)

Maintenance

Level

O

F

F

F

F

F

F

F

F

F

O, F

F

F

F

F

O

F

Nomenclature

Shop Equipment, Automotive

Maintenance and Repair

Organizational Maintenance,

Common No. 2, Less Power

Tool Kit, General Mechanic's:

Automotive

Tool Kit, General Mechanic's

Shop Equipment, Machine Shop:

Field Maintenance, Basic

Shop Equipment, Automotive

Maintenance and Repair: Field

Maintenance Basic, Less Power

Shop Equipment, Automotive

Maintenance and Repair: Field

Maintenance Supplemental No. 2

Shop Equipment, Automotive

Maintenance and Repair

Organizational Maintenance,

Common No. 1

Tool Kit, Automotive Fuel and

Electrical Systems Repair

Tester, Cylinder Compression

Wrench

Bracket, Cylinder Alignment

Puller, Crank Gear

Puller, Relief Valve

Driver, Crank Gear

Testing Device, Fuel

Test Set, Fuel

Test Set, Oil Pressure

(4)

National

Stock Number

(5)

Tool Number

4910-00-754-0650

5180-00-177-7033

5180-00-699-5273

3470-00-754-0708

SC 4910-95-CL-A72

SC 5180-90-N26

SC 5180-90-CL-N05

SC 3470-95-A02

4910-00-754-0705 SC 4910-95-A31

4910-00-754-0707 SC 4910-95-CL-A63

4910-00-754-0654

5180-00-754-0655

4910-00-808-4300

SC4910-95-A74

SC5180-95-B08

SC 4940-95-B02

61372800

62574200

62574801

62569902

62574700

66503091

60462890

62092692

B-6

TM 9-2815-250-24&P

APPENDIX C

REPAIR PARTS AND SPECIAL TOOLS LIST

Section I. INTRODUCTION

Paragraph

Number

C-1

C-2

C-3

C-4

C-5

C-6

C-7

Paragraph Title

Page

Number

Scope ................................................................................................................................. C-1

General............................................................................................................................... C-1

Explanation of Columns (Sections II and III) .......................................................................... C-2

Explanation of Columns (Section IV)..................................................................................... C-6

Special Information .............................................................................................................. C-6

How To Locate Repair Parts................................................................................................. C-7

Abbreviations ...................................................................................................................... C-7

C-1.

SCOPE.

This repair parts and special tools list (RPSTL) lists and authorizes spares and repair parts; special tools; special test, measurement, and diagnostic equipment (TMDE); and other special support equipment required for the performance of

Unit, Direct Support, and General Support maintenance of the Diesel Engine Assembly, Hatz 2 G 40. This RPSTL authorizes the requisitioning, issue, and disposition of spares, repair parts, and special tools as indicated by the source, maintenance, and recoverability (SMR) code.

C-2.

GENERAL.

In addition to Section I, this RPSTL is divided into the following sections: a b.

Section II. Repair Parts List. A list of spares and repair parts authorized by this RPSTL for use in the performance of maintenance. The list also includes parts that must be removed for replacement of the authorized parts. Parts lists are composed of functional groups In ascending alphanumeric sequence, with the parts in each group listed in ascending figure and item number sequence Bulk materials are listed in item name sequence.

Repair parts kits are listed separately In their own functional group within Section II.

Section III. Special Tools List. A list of special tools, special TMDE, and other special support equipment authorized by this RPSTL for the performance of maintenance.

c.

Section IV. Cross-reference Indexes. There are two indexes The first is a list, in national item identification number (NIIN) sequence, of all national stock numbered items appearing in the listings; the second is a list, in alphanumeric sequence, of all part numbers appearing in the listings National stock numbers (NSNs) and part numbers are cross-referenced to each illustration/figure and item number appearance.

C-1

C-3.

a.

b.

TM 9-2815-250-24&P

EXPLANATION OF COLUMNS (SECTIONS II AND III).

ITEM NO. [Column (1)]. Indicates the number used to identify items called out in the illustration.

SMR CODE [Column (2)]. The SMR code is a five-position code containing supply/requisitioning information, maintenance category authorization criteria, and disposition instruction, as shown in the following breakout:

Source

Code

Maintenance

Code

Recoverability

Code

XX 1st two positions

How you get an item.

XX X

3d position 4th position 5th position

PA

PB

PC

PD

PE

PF

PG

Who can install, replace or use the item

* Complete Repair. Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the

Repair function in a use/user environment in order to restore serviceability to a failed item.

(1) Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul of an end item/equipment. Explanations of source codes follow:

Code

Who can do complete repair

(see note) on the item.

Who determines disposition action on an unserviceable item.

Application/Explanation

Stocked Items; use the applicable NSN to request/requisition items with these source codes. They are authorized to the category indicated by the code entered in the third position of the SMR code.

**Items coded PC are subject to deterioration.

KD

KF

KB

MO - Made at UNIT/AVUM Level

MF - Made at DS/AVUM Level

MH - Made at GS Level

MD - Made at Depot

AO - Assembled by UNIT/A VUM Level

AF - Assembled by DS/AVUM Level

AH - Assembled by GS Level

AD - Assembled at Depot

Items with these codes are not to be requested/requisitioned individually.

They are part of a kit that is authorized to the maintenance category indicated in the third position of the SMR code. The complete kit must be requisitioned and applied.

Items with these codes are not to be requested/requisitioned individually.

They must be made from bulk material that is identified by the part number in the DESCRIPTION AND USABLE ON CODE (UOC) column and listed in the bulk material group of the repair parts list in this RPSTL. If the item is authorized to you by the third-position code of the SMR code, but the source code indicates it is made at a higher level, order the item from the higher level of maintenance.

Items with these codes are not to be requested/requisitioned individually.

The parts that make up the assembled item must be requisitioned or fabricated and assembled at the level of maintenance indicated by the source code. If the third-position code of the SMR code authorizes you to replace the item, but the source code indicates that the item is assembled at a higher level, order the item from the higher level of maintenance.

C-2

TM 9-2815-250-24&P

C-3.

EXPLANATION OF COLUMNS (SECTIONS II AND III) (continued).

NOTE

Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items with the preceding source codes, except for those source-

coded “XA”.

XA - DO NOT requisition an "XA"-coded item. Order its next higher assembly.

XB - If an "XB" item is not available from salvage, order it using the CAGEC and part number given.

XC - Installation drawing, diagram, instruction sheet, or field service drawing that is identified by manufacturer's part number.

XD - Item is not stocked. Order an "XD"-coded item through normal supply channels using the CAGEC and part number given if no NSN is available.

(2) Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to use and repair support items. The maintenance codes are entered in the third and fourth positions of the SMR code as follows:

(a) The maintenance code entered in the third position tells you the lowest maintenance level authorized to remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to one of the following levels of maintenance:

Code

C

O

F

H

L

Application/Explanation

Crew or Operator maintenance done within Unit maintenance or Aviation Unit maintenance.

Unit maintenance or Aviation Unit can remove, replace, and use the item.

Direct Support or Aviation Intermediate level can remove, replace, and use the item.

General Support level can remove, replace, and use the item.

Specialized repair activity (SRA) can remove, replace, and use the item.

Depot level can remove, replace, and use the item.

D

NOTE

If authorized by the maintenance allocation chart (MAC) and SMR codes, some limited repair may be done on an item at a lower level of maintenance.

(b) The maintenance code entered in the fourth position tells whether the item is to be repaired and identifies the lowest maintenance level with the capability to do complete repair (i.e., perform all authorized "Repair" functions). This position will contain one of the following maintenance codes:

C-3

C-3.

TM 9-2815-250-24&P

EXPLANATION OF COLUMNS (SECTIONS II AND III) (continued).

Code

O

F

H

L

D

Z

B

Application/Explanation

Unit maintenance or Aviation Unit is the lowest level that can do complete repair of the item.

Direct Support or Aviation Intermediate is the lowest level than can do complete repair of the item.

General Support is the lowest level that can do complete repair of the item.

SRA is the lowest level that can do complete repair of the Item.

Depot is the lowest level that can do complete repair of the item.

Nonrepairable. No repair is authorized.

No repair is authorized. (No parts or special tools are authorized for the maintenance of a "B"-coded item.) However, the item may be reconditioned by adjusting, lubricating, and so on, at the user level.

(3) Recoverability Code. Recoverability codes are assigned to Items to indicate the disposition action on unserviceable items. The recoverability code is entered in the fifth position of the SMR code as follows: c.

Code

Z

O

F

Application/Explanation

Nonrepairable item. When unserviceable, condemn and dispose of the item at the level of maintenance shown In the third position of the SMR code.

Repairable item. When uneconomically repairable, condemn and dispose of the item at Unit maintenance or Aviation Unit level.

Repairable item. When uneconomically repairable, condemn and dispose of the item at the Direct Support or Aviation Intermediate level.

H

D

Repairable item. When uneconomically repairable, condemn and dispose of the item at the General Support level.

Repairable Item. When beyond lower-level repair capability, return to Depot.

Condemnation and disposal of the item is not authorized below Depot level.

L

A

Repairable item. Condemnation and disposal of the Item is not authorized below

SRA.

Item requires special handling or condemnation procedures for specific reasons

(e.g., precious metal content, high dollar value, critical material, or hazardous material). Refer to appropriate manuals/directives for specific instructions.

NSN [Column (3)]. The NSNs for the Items are listed in this column.

C-4

TM 9--2815--250--24&P

C--3.

EXPLANATION OF COLUMNS

d.

e.

f.

g.

CAGEC [Column (4)]. The commercial and government entity code (CAGEC) is a five--digit alphanumeric code used to identify the manufacturer, distributor, or Government agency, etc., that supplies the item.

NOTE

When you use an NSN to requisition an item, the item you receive may have a part number different from the part ordered.

PART NUMBER [COLUMN (5)]. Indicates the primary number used by the manufacturer (individual, company, firm, corporation, of Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications standards, and inspection requirements, to identify an item or range of items.

DESCRIPTION AND USABLE--ON CODE (UOC) [Column (6)]. This column includes the following information:

(1) The Federal item name and, when required, a minimum description to identify the item.

(2) Physical security classification. Not applicable (3) Items that are included in kits and sets are listed below the name of the kit or set on Figure KIT.

(3) Spare/repair parts that make up an assembled item are listed immediately following the assembled item line entry.

(4) Part numbers for bulk materials are referenced in this column in the line item entry for the item to be manufactured/fabricated.

(5) When the item is not used with all serial numbers of the same model, the effective serial numbers are shown on the last line(s) of the description (before the UOC) (7) The UOC, when applicable (see para

C--5, Special Information) (8) In the Special Tools List section, the Basis of Issue (BOI) appears as the last line(s) in the entry for each special tool, special TMDE, and other special support equipment. when density of equipments supported exceeds density spread indicated in the BOI, the total authorization is increased proportionately.

(6) The statement “END OF FIGURE” appears just below the last item description in Column 5 for a given figure in both Section II and Section III.

QTY [Column (7)]. The QTY (quantity per figure) column indicates the quantity of the item used in the breakout shown on the illustration/figure, which is prepared for a functional group, subfunctional group, or an assembly. A “V” appearing in this column in lieu of a quantity indicates that the quantity is variable and may vary from application to application.

C--5

TM 9--2815--250--24&P

C--4.

EXPLANATION OF COLUMNS (SECTION IV).

a.

b.

National Stock Number (NSN) Index.

(1) STOCK NUMBER Column. This column lists the NSN by NIN sequence. The NUN consists of the last nine digits of the NSN (i.e.,

NSN

5305--01--674--1467). When using this column to locate an item, ignore the first four digits

NIIN of the NSN. However, the complete NSN should be used when ordering items by stock number.

(2) FIG. Column. This column lists the number of the figure where the item is identified/located. The figures are in numerical order in Section II and Section III.

(3) ITEM Column. The item number identifies the item associated with the figure listed in the adjacent

FIG. column. This item is also identified by the NSN listed on the same line.

Part Number Index. Part numbers in this index are listed by part number in ascending alphanumeric sequence (i.e., vertical arrangement of letter and number combination that places the first letter or digit of each group in order a through Z, followed by the numbers 0 through 9 and each following letter or digit in like order).

(1) CAGEC Column. The CAGEC is a five--digit alphanumeric code used to identify the manufacturer, distributor, or Government agency, tc., that supplies the item.

(2) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications standards, and inspection requirements, to identify an item or range of items.

(3) STOCK NUMBER Column. This column lists the NSN for the associated part number and manufacturer identified in the PART NUMBER and CAGEC columns to the left.

(4) FIG. Column. This column lists the number of the figure where the item is identified/located in Section

II and Section III.

(5) ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced in the adjacent figure number column.

b.

c.

d.

e.

C--5.

SPECIAL INFORMATION.

a.

Usable--on Code. Uncoded items are applicable to all models. usable on code for the M88A2 HERCULES items is APJ. Usable on code for all other applications is APP.

Fabrication Instructions. Not applicable.

Assembly Instructions. Not applicable.

Kits. Not applicable.

Index Numbers. Not applicable.

C--6

Change 1

TM 9--2815--250--24&P

C--5.

SPECIAL INFORMATION (continued).

b.

c.

d.

e.

f.

Fabrication Instructions. Not applicable.

Assembly Instructions. Not applicable.

Kits. Not applicable.

Index Numbers. Not applicable.

Associated Publications.

Operator’s Manual, Unit Maintenance Manual, Direct Support and General Support Maintenance Manual, and Repair Parts and Special Tools List For Carrier, Ammunition, Tracked

M992A2 (NSN 2350--01--368--9500)

Operator’s Manual, Unit Maintenance Manual, Direct Support and General Support Maintenance Manual, and Repair Parts and Special Tools List For Recovery Vehicle, Full Tracked:

Heavy M88A2 (NSN 2350--01--390--4683)

TM 9--2350--293--10

TM 9--2350--293--20--1 and --2

TM 9--2350--293--34

TM 9--2350--293--24P

TM 9--2350--292--10

TM 9--2350--292--20--1 and --2

TM 9--2350--292--34

TM 9--2350--292--24P

C--6.

HOW TO LOCATE REPAIR PARTS.

a.

b.

When the NSN or part number is not known, you can locate a repair part by following these steps:

(1) First. Using the Table of Contents, determine the assembly group or subassembly group to which the item belongs. This is necessary because figures are prepared for assembly groups and subassembly groups, and listings are divided into the same groups.

(2) Second. Find the figure covering the assembly group or subassembly group to which the item belongs.

(3) Third. Identify the item on the figure and note the item number of the item.

(4) Fourth. Refer to the Repair parts List for the figure to find the line item entry for the item number noted on the figure.

When the NSN or part number is known, you can locate a repair part by following these steps.

(1) First. Using the National Stock Number Index or the Part Number Index, find the pertinent NSN or part number. the National Stock Number Index is in NIIN sequence. The part numbers in the Part Number

Index are listed in ascending alphanumeric sequence. Both indexes cross--reference you to the figure number and item number of the item you are looking for.

(2) Second. After finding the figure and item numbers, verify that the item is the one you’re looking for; then locate the item number in the Repair Parts List for the figure.

C--7.

ABBREVIATIONS.

For standard abbreviations see MIL--STD--12, Military Standard Abbreviations for Use on Drawings, Specifications,

Standards, and in Technical Documents.

Change 1

C--7

C--8

Figure 1. Engine Identification Plate

TM 9--2815--250--24&P

(1)

ITEM

NO

(2)

SMR

(3)

NSN

1 PAOZZ 9905-01-456-3828

2 PAOZZ 5315-01-070-5656

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 22

BODY, CHASSIS, AND

HULL ACCESSORY ITEMS

GROUP 2210

DATA PLATES AND

INSTRUCTION HOLDERS

FIGURE 1

ENGINE IDENTIFICATION

PLATE

61080 03225504

61080 40002500

END OF FIGURE

PLATE,IDENTIFICATIO.................

PIN,GROOVED,HEADED..................

(7)

QTY

1

4

1-1

SECTION II C01 TM 9--2815--250--24&P

Figure 2. Engine, Diesel

*

*

*

*

*

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 29

AUXILIARY GENERATOR AND

ENGINE, AND CONTROLS

GROUP 2910

ENGINE ASSEMBLY

FIGURE 2

ENGINE, DIESEL

1 PAFFD 2815-01-465-4321

1 PAOFD 2815-01-446-3500

2 PAFZZ 5935-01-480-9543

2 PFFZZ 5340-01-454-8631

3 PAFZZ 5305-01-455-2207

4 PAFZZ 5330-01-455-7822

5 PAFZZ

5 PFFZZ 2990-01-454-8843

6 PAFZZ 5305-12-146-1760

6 PAFZZ 5305-01-455-2206

7 PAFZZ 5310-01-274-4387

7 PAFZZ 5310-12-130-4938

19207 12367094

19207 12463204

19207 12367105

61080 99400639

61080 99400642

61080 99400641

19207 12478240

61080 99400640

ASSEMBLY,ENGINE,APU.................

UOC:APJ,

ENGINE,DIESEL.......................

UOC:APP,

.SPACER,SPECIAL SHAP................

UOC:APJ,

.PLATE,MOUNTING.....................

UOC:APP,

.SCREW,CAP,SOCKET HE................

.SEAL,PLAIN ENCASED.................

PLATE,MOUNTING......................

UOC:APJ,

.PLATE,MOUNTING,ENGI................

UOC:APP,

4B948 DIN7984-M10X30-1 .SCREW,LOW HEAD CAP.................

0.9-A3P UOC:APJ,

61080 50054300 .SCREW,CAP,SOCKET HE................

UOC:APP,

61080 50061700

D8286 DIN7980-10-FST

.WASHER,SPRING TENSI................

UOC:APP,

.WASHER,LOCK........................

UOC:APJ,

END OF FIGURE

(7)

QTY

1

8

8

1

8

8

1

1

4

1

1

2-1

SECTION II C01 TM 9--2815--250--24&P

Figure 3. Cylinder Head

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2911

CRANKCASE, CYLINDER

SLEEVE, AND CYLINDER

FIGURE

HEAD

3

CYLINDER HEAD

**

**

1

2

PAOZZ

PAOZZ

5306-01-455-2212

5365-01-399-5013

3 PAFZZ 5310-01-455-8479

4 PAFZZ 5310-01-399-8358

5 PAFZZ 5310-01-399-7312

* 6 PAFZZ

6.1

PAFFF 2815-01-455-0371

***6.1

PAFFF

* 6.2

PAFZZ 2815-01-455-0056

7 PAFZZ 5307-01-405-9899

8 PAFZZ 5307-01-406-5443

9 PAFZZ 5307-01-405-9997

9.1

PAFZZ 5307-01-405-9907

9.2

PAFZZ 5307-01-405-9909

11 KFFZZ

11 KFFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

11 PAFZZ

*** 11 PAFZZ

*** 11 PAFZZ

12 PAFZZ 5307-01-455-2210

61080 50315500

61080 03787300

61080 03784501

61080 03791400

61080 03171800

61080 50405200

61080 01247200

61080 01247210

61080 03785201

61080 50038400

61080 50065100

61080 50128100

61080 50231900

61080 50279200

61080 03792800

61080 03792900

61080 03793000

61080 03793100

61080 03793200

61080 03793300

61080 03793400

61080 03971200

61080 03971300

61080 04090600

61080 04090700

61080 04110800

61080 04110900

61080 03781000

BOLT,EYE............................

UOC:APP,

SHIM................................

UOC:APP,

NUT,PLAIN,EXTENDED..................

WASHER,FLAT.........................

NUT,PLAIN,HEXAGON...................

SEAL CAP,VALVE STEM.................

CYLINDER HEAD,DIESE.................

CYLINDER HEAD,DIESE.................

.GUIDE,VALVE STEM...................

.STUD,PLAIN.........................

.STUD,PLAIN.........................

.STUD,PLAIN.........................

.STUD,PLAIN.........................

.STUD,PLAIN.........................

GASKET,0.60 MM PART OF KIT P/N

01247702............................

GASKET,0.70 MM PART OF KIT P/N

01247702............................

GASKET,0.80 MM......................

GASKET,0.90 MM......................

GASKET,1.00 MM......................

GASKET,1.10 MM......................

GASKET,1.20 MM......................

GASKET,0.65 MM......................

GASKET,0.75 MM......................

GASKET,0.85 MM......................

GASKET,0.95 MM......................

GASKET,0.50 MM......................

GASKET,0.55 MM......................

STUD,PLAIN..........................

END OF FIGURE

** Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

*** EPA Version 1 Compliant Only

(7)

QTY

4

2

2

4

5

8

3

2

2

2

4

4

1

1

V

V

V

V

V

V

V

V

V

V

V

8

1

1

3-1

SECTION II C01 TM 9--2815--250--24&P

Figure 4. Crankcase Assembly

TM 9-2815-250-24&P C01

(1) (2) (3) (4) (5) (6) (7)

ITEM SMR NSN PART DESCRIPTION AND

NO CAGE NUMBER USABLE ON CODE (UOC) QTY

GROUP 2911 CRANKCASE, CYLINDER

SLEEVE, AND CYLINDER

HEAD

FIGURE 4 CRANKCASE ASSEMBLY

* 1 PAFFF 61080 01227410 CRANKCASE ASSEMBLY 2G40.13, 1

2G40.14, 2G40.15....................

* 1 PAFFF 61080 01227420 CRANKCASE ASSEMBLY 2G40.16, 1

2G40.17, 2G40.18....................

2 PAFZZ 5315-01-399-6105 61080 50290500 .PIN,STRAIGHT,HEADLE................ 2

3 PAFZZ 5307-01-405-9997 61080 50128100 .STUD,PLAIN......................... 2

4 PAFZZ 5307-01-405-9905 61080 50098300 .STUD,PLAIN......................... 4

5 PAFZZ 5305-01-406-0014 61080 50137000 .SCREW,MACHINE...................... 10

6 PAOZZ 5310-12-149-4353 61080 50144500 .WASHER,FLAT........................ 21

7 PAFZZ 5310-01-405-9890 61080 50144400 .NUT,PLAIN,HEXAGON.................. 10

8 PAFZZ 5315-01-400-0444 61080 50300700 .PIN,STRAIGHT,HEADLE................ 2

9 PAFZZ 4730-01-454-7542 61080 50302700 .NIPPLE,PIPE........................ 1

* 10 PAOZZ 4730-01-454-7545 61080 05034900 .STRAINER ELEMENT,SE................ 1

* 11 PAFZZ 4820-01-455-5017 61080 01221803 .VALVE,SAFETY RELIEF................ 1

*** 12 PAFZZ 61080 50139201 .STUD,M6 X 16....................... 1

12 PAFZZ 5307-01-455-2205 61080 50307000 .STUD,PLAIN......................... 1

13 PAFZZ 5315-01-399-6106 61080 50301000 .PIN,SPRING......................... 1

14 PAFZZ 5340-01-454-9272 61080 04038200 CAP-PLUG,PROTECTIVE................. 2

15 PAFZZ 5340-01-454-9273 61080 04039100 CAP-PLUG,PROTECTIVE................. 4

16 KFFZZ 61080 50301200 GASKET PART OF KIT P/N 01228002..... 1

** 17 PAFZZ 5305-01-455-1615 61080 50052100 SCREW,CAP,SOCKET HE................. 2

UOC:APP,

18 PAOZZ 5310-01-399-7303 61080 50208500 WASHER,SPRING TENSI................. 2

** 19 PAFZZ 5340-01-455-2343 61080 99400645 COVER,ACCESS........................ 1

UOC:APP,

20 PAFZZ 5330-01-400-5766 61080 50291400 GASKET.............................. 1

21 KFFZZ 61080 50301100 GASKET PART OF KIT P/N 01228002..... 1

22 KFFZZ 61080 50275000 O-RING PART OF KIT P/N 01228002..... 8

END OF FIGURE

** Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

*** EPA Version 1 Compliant Only

4-1

SECTION II C01 TM 9--2815--250--24&P

Figure 5. Crankshaft Assembly

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2912

CRANKCHSAFT ASSEMBLY

FIGURE 5

CRANKSHAFT ASSEMBLY

*

1 PAFZZ

1 PAFZZ

2 PAFZZ 3020-01-455-2798

3 PAFFF 2815-01-455-0423

4 PAFZZ 5315-01-103-1522

5 PAFZZ 5315-01-400-0441

6 PAFZZ 5340-01-455-0010

7 PAFZZ 5365-01-406-4171

8 PAFZZ 5330-01-400-5773

9 XDFZZ

* 9.1

PAFZZ 5315-00-616-5530

*

10 PAFZZ 5310-01-400-2138

11 PAFZZ 5305-01-101-4830

11 PAFZZ 5305-01-455-1245

12 XDFZZ

* 12.1

XDFZZ

61080 50347500

61080 50347600

61080 50304400

61080 01262701

61080 50011200

61080 50304300

61080 50304100

61080 50333900

61080 50304500

SHIM................................

SHIM................................

GEAR,HELICAL........................

CRANKSHAFT,ENGINE...................

.KEY................................

.KEY,MACHINE........................

.PLUG,MACHINE THREAD................

BUSHING,MACHINE THR.................

SEAL,PLAIN PART OF KIT P/N 01228002.

61080 99400638

96906 MS35756-15

HUB,BODY............................

KEY,WOODRUFF........................

61080 50146000 WASHER,SPRING TENSI.................

21969 M10X55DIN912-8.8

SCREW,CAP,SOCKET HE.................

61080 50055100

61080 50302100

61080 50324200

UOC:APJ,

SCREW,CAP,SOCKET HE.................

UOC:APP,

BEARING,SLEEVE......................

BEARING,SLEEVE......................

END OF FIGURE

(7)

QTY

1

3

3

2

1

4

1

1

1

1

1

1

1

1

1

1

5-1

SECTION II

1

2

3

4

C01 TM 9--2815--250--24&P

Figure 6. Flywheel and Related Components

29i102

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2913

FLYWHEEL ASSEMBLY

FIGURE 6

FLYWHEEL AND RELATED

COMPONENTS

1 PAFZZ 5310-01-400-2140

2 PAFZZ 5310-01-400-2141

3 PAFZZ 2815-01-455-0376

4 KFFZZ

5 PAFZZ 2815-01-454-9103

* 5.1

PAFFF 5340-01-494-6423

6 PAOZZ 5340-01-454-9940

7 PAFZZ 5310-01-405-9911

8 PAOZZ 5305-01-406-0005

9 KFFZZ

10 PAFZZ 5305-01-405-9908

11 PAFZZ 5310-01-400-1002

12 XDFZZ

13 PAFZZ 5315-01-455-8935

14 XDFZZ

15 PAOZZ 5310-12-149-4353

16 PAFZZ 5305-01-406-0000

17 PAFZZ 5310-01-405-9890

18 PAFZZ 5305-01-463-1028

61080 04031300

61080 03975300

61080 03792100

61080 50311200

61080 50310810

61080 99400644

61080 99400646

61080 50145900

61080 50093400

61080 50311500

61080 50310900

61080 50195800

61080 01239901

61080 50303610

61080 50336200

61080 50144500

61080 50092100

61080 50144400

61080 50026400

NUT,PLAIN,HEXAGON...................

WASHER,FLAT.........................

FLYWHEEL,ENGINE.....................

O-RING PART OF KIT P/N 01228002.....

HOUSING,FLYWHEEL....................

COVER,ACCESS........................

.COVER,ACCESS.......................

.WASHER,FLAT........................

.SCREW,MACHINE......................

GASKET PART OF KIT P/N 01228002.....

SCREW,MACHINE.......................

WASHER,FLAT.........................

ROD,PINION..........................

PIN,STRAIGHT,HEADLE.................

O-RING..............................

WASHER,FLAT.........................

SCREW,MACHINE.......................

NUT,PLAIN,HEXAGON...................

SCREW,MACHINE.......................

END OF FIGURE

(7)

QTY

2

2

3

1

1

1

1

22

18

3

1

1

1

1

2

1

1

1

1

6-1

SECTION II C01 TM 9--2815--250--24&P

Figure 7. Pistons and Connecting Rods

(1)

ITEM

NO

(2)

SMR

(3)

NSN

1 PAFFF 2835-01-414-8480

*** 1 PAFFF

*

2 PAFZZ 5365-01-455-0011

3 PAFFF

*** 3 PAFFF

* 3 PAFFF

*** 3 PAFFF

*

*

4 PAFZZ 2815-01-455-0428

4 PAFZZ

5 PAFZZ 5325-01-455-8936

* 5.1

PAFZZ

* 5.1

PAFZZ

6 PAFFF 2815-01-414-1273

* 6.1

PAFZZ

* 6.2

XDFZZ

* 6.2

XDFZZ

7 PAFZZ 5305-01-406-0001

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2914

PISTONS AND CONNECTING

RODS

FIGURE 7

PISTONS AND CONNECTING

RODS

61080 01247100

61080 01247110

61080 03958000

61080 01240203

61080 01240211

61080 01248303

61080 01248311

61080 01240301

61080 01248701

61080 50359110

61080 50359000

61080 50359010

61080 01262200

61080 03785300

61080 03781300

61080 03785600

61080 03781100

LINER,COMBUSTION CH.................

LINER,COMBUSTION CH.................

.SHIM...............................

.PISTON,INTERNAL COM................

.PISTON,INTERNAL COM................

.PISTON,INTERNAL COM OVERSIZE 0.5

MM..................................

.PISTON,INTERNAL COM OVERSIZE 0.5

MM..................................

..RING SET,PISTON...................

..RING SET,PISTON OVERSIZE 0.5 MM..

..RING,RETAINING....................

..PIN,PISTON 2G40.10...............

..PIN,PISTON........................

CONNECTING ROD,PIST.................

.BEARING,SLEEVE.....................

.BEARING,SLEEVE.....................

.BEARING,SLEEVE OVERSIZE 0.5 MM....

SCREW,MACHINE.......................

***

END OF FIGURE

EPA Version 1 Compliant Only

(7)

QTY

2

2

1

1

1

1

1

1

1

2

1

1

2

1

1

1

4

7-1

SECTION II C01 TM 9--2815--250--24&P

Figure 8. Camshaft and Valves

(1)

ITEM

NO

(2)

SMR

(3)

NSN

1 PAFZZ 5325-01-399-4615

2 PAFZZ 5365-01-399-5011

3 PAFZZ 5365-01-455-0012

3.1

PAFFF 2815-01-455-0054

4 PAFZZ 5310-01-078-8066

5 PAFZZ 5305-01-405-9904

7 PAFZZ 5310-01-101-2028

8 PAFZZ 2815-01-455-0046

8.1

PAFFF 2815-01-455-0043

* 8.2

PAFZZ 5310-01-078-8066

* 8.3

PAFZZ 5305-01-405-9904

10 PAOZZ 5305-01-405-9903

11 PAOZZ 5310-01-415-2649

12 PAOZZ 2815-01-454-8841

13 PAOZZ 5330-01-400-5772

14 PAFZZ 2815-01-455-0364

15 PAFZZ 5310-01-456-2275

16 PAFZZ 5360-01-414-8475

17 PAFZZ 5310-01-399-7311

* 18 PAFZZ 4820-01-407-0705

*** 18 PAFZZ

* 19 PAFZZ 2805-01-407-0706

*** 19 PAFZZ

20 PAFFF 3010-01-455-2856

21 PAFZZ 5310-01-400-3721

22 PAFZZ 5340-01-400-1000

23 PAFZZ 5305-01-406-0013

24 PAFZZ 5365-01-100-5415

24 PAFZZ 5365-01-100-5416

25 PAFZZ 5325-01-245-3517

26 PAFZZ 5365-01-400-3717

27 PAFZZ 5310-01-399-6981

28 PAFZZ 5315-01-102-7922

29 PAFZZ 5325-01-399-4618

* 30 PAFZZ 2815-01-454-8842

*** 30 PAFZZ

* 30 PAFZZ

31 PAFZZ 2815-01-455-0085

32 KFFZZ

33 PAFZZ 2815-01-454-8839

34 KFFZZ

35 PAFZZ 2815-12-330-5421

61080 50019800

61080 50315900

61080 50316000

61080 01224400

61080 03173100

61080 03783000

61080 40028400

61080 01224600

61080 01224500

61080 03173100

61080 03783000

61080 50177500

61080 50162900

61080 03783800

61080 50290200

61080 03786300

61080 03783600

61080 03783500

61080 03783401

61080 03783300

61080 03783301

61080 03783200

61080 03783210

61080 01222100

61080 50305400

61080 01244800

61080 50305300

61080 03233200

61080 03233300

61080 50020000

61080 50305700

61080 50306001

61080 50010500

61080 50305000

61080 04092800

61080 04092810

61080 50304900

61080 50302000

61080 50290100

61080 03781800

61080 50208400

61080 01224001

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2915

VALVES, CAMSHAFT, AND

TIMING SYSTEM

FIGURE 8

CAMSHAFT AND VALVES

RING,RETAINING......................

SHIM................................

SHIM................................

ROCKER ARM,ENGINE P.................

.NUT,PLAIN,HEXAGON PART OF KIT P/N

01228202............................

.SCREW,MACHINE......................

NUT,SELF-LOCKING,HE.................

BRACKET,ROCKER ARM..................

ROCKER ARM,ENGINE P.................

.NUT,PLAIN,HEXAGON PART OF KIT P/N

01228202............................

.SCREW,MACHINE......................

SCREW,MACHINE.......................

WASHER,FLAT PART OF KIT P/N 01228202

, 01247702..........................

COVER,ENGINE POPPET.................

O-RING PART OF KIT P/N 01228202,

01247702............................

LOCK,VALVE SPRING R.................

WASHER,SPRING TENSI.................

SPRING,HELICAL,COMP.................

WASHER,SPRING TENSI.................

VALVE,EXHAUST CONTR.................

VALVE,EXHAUST CONTR.................

VALVE,POPPET,ENGINE.................

VALVE,POPPET,ENGINE.................

GEAR ASSY,CAMSHAFT..................

.NUT,PLAIN,HEXAGON..................

.PLATE,MOUNTING.....................

.SCREW,MACHINE......................

SHIM................................

SHIM................................

RING,RETAINING......................

SPACER,SLEEVE.......................

WASHER,FLAT.........................

KEY.................................

RING,RETAINING......................

CAMSHAFT,ENGINE.....................

CAMSHAFT,ENGINE.....................

CAMSHAFT,ENGINE 2G40.10, 2G40.11...

TAPPET,ENGINE POPPE.................

O-RING PART OF KIT P/N 01247702.....

GUIDE,ENGINE POPPET.................

O-RING PART OF KIT P/N 01247702.....

PUSH ROD,ENGINE POP.................

***

END OF FIGURE

EPA Version 1 Compliant Only

(7)

QTY

1

4

4

2

2

1

1

1

1

1

1

1

1

3

1

3

2

2

2

2

4

4

4

4

2

2

2

4

1

1

1

4

V

V

4

2

1

1

4

2

2

1

8-1

SECTION II C01 TM 9--2815--250--24&P

Figure 9. Engine Lubrication System

(1)

ITEM

NO

(2)

SMR

(3)

NSN

*

*

1 PAOZZ 5305-01-405-9906

2 PAOZZ 5310-01-090-0938

3 PAOZZ 4730-01-454-7549

4 PAOZZ 4730-01-454-7692

5 PAOZZ 4730-01-454-7693

6 PAOZZ 4730-01-103-3202

7 PAOZZ 4710-01-454-7687

8 PAFZZ 2805-01-488-7755

9 KFFZZ

10 PAFZZ 5340-01-454-9280

11 PAFZZ 5310-01-400-2139

12 PAFZZ 5305-01-406-0004

13 PAFZZ 4730-01-454-7461

14 KFFZZ

15 PAFZZ

15 PAFZZ 2815-01-455-0042

* 15.1

PAOZZ

16 PAFZZ 5305-01-455-1243

* 16 PAFZZ 5305-01-492-8775

17 PAFZZ 5310-01-239-2390

17 PAFZZ 5310-12-149-4353 *

* 17.1

PAOZZ

* 17.2

PAOZZ

* 17.3

PAOZZ

** 18 PAOZZ 2940-01-383-9739

61080 50033300

61080 50000900

61080 03790001

61080 03932100

61080 03790100

61080 50006100

61080 01224900

61080 01227910

61080 50310500

61080 50310400

61080 50216300

61080 50025200

61080 50301400

61080 50301500

61080 03938610

61080 50301601

61080 50341900

61080 50207900

61080 50342000

61080 500 812 00

61080 50144500

61080 50043800

61080 50548200

61080 50448100

61080 50302800

21 PAOZZ 5330-01-101-8076

22 PAOZZ 4820-01-406-0343

23 PAFZZ 5310-01-399-8386

** 24 PAFZZ 5310-01-400-3719

** 25 PAFZZ

** 26 KFFZZ 5331-01-400-5778

** 27 PAFZZ 2590-01-454-8941

**27.1

PAOFF

61080 50001200

61080 50311000

61080 03788800

61080 50335300

61080 50321900

61080 50323500

61080 03908201

61080 01613100

** 28 PAOZZ

30 PAOZZ 4710-01-454-7688

31 PAOZZ 5305-01-405-9998

32 PAOZZ 5340-01-454-9281

33 PAOZZ 5330-01-399-6976

61080 04125000

61080 50336300

61080 50274500

61080 50336400

61080 50336500

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2916

ENGINE LUBRICATION

SYSTEM

FIGURE 9

ENGINE LUBRICATION

SYSTEM

SCREW,MACHINE.......................

WASHER,FLAT PART OF KIT P/N 01247702

BOLT,FLUID PASSAGE..................

CONNECTOR,MULTIPLE..................

BUSHING,BOSS........................

BOLT,FLUID PASSAGE..................

TUBE ASSEMBLY,METAL.................

OIL PUMP ASSEMBLY,E.................

O-RING PART OF KIT P/N 01228002.....

COVER,ACCESS........................

WASHER,FLAT.........................

SCREW,MACHINE.......................

STRAINER ELEMENT,SE.................

GASKET PART OF KIT P/N 01228002.....

SUMP,OIL DEEP.......................

UOC:APJ,

OIL PAN.............................

UOC:APP,

PLUG................................

UOC:APJ,

SCREW,MACHINE.......................

UOC:APP,

SCREW,MACHINE.......................

UOC:APJ,

WASHER,LOCK.........................

UOC:APP,

WASHER,FLAT.........................

UOC:APJ,

PLUG,RECESS.........................

UOC:APJ,

PLUG................................

UOC:APJ,

WASHER..............................

UOC:APJ,

FILTER ELEMENT,FLUI PART OF KIT P/N

01228202............................

UOC:APP,

GASKET PART OF KIT P/N 01228202.....

COCK,POPPET DRAIN PART OF KIT P/N

01228202............................

WASHER,FLAT.........................

NUT,PLAIN,HEXAGON...................

UOC:APP,

STUD,PLAIN..........................

UOC:APP,

O-RING PART OF KIT P/N 01228002.....

UOC:APP,

FILLER NECK,VEHICUL.................

UOC:APP,

CAP,FILLER OPENING PART OF KIT P/N

01228202............................

UOC:APP,

.O-RING PART OF KIT P/N 01228002....

UOC:APP,

TUBE ASSEMBLY,METAL.................

SCREW,MACHINE.......................

COVER,ACCESS........................

O-RING..............................

(7)

QTY

2

1

1

1

1

1

4

4

1

1

2

1

1

1

10

10

1

1

1

1

1

3

3

1

3

1

1

1

12

1

1

1

10

1

1

2

2

1

END OF FIGURE

9-1

** Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

SECTION II TM 9--2815--250--24&P

Figure 10. Exhaust Manifold Mounting Hardware

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2918

MANIFOLDS

FIGURE 10

EXHAUST MANIFOLD

MOUNTING HARDWARE

1 PAOZZ 5310-01-101-2028

2 PAOZZ 5330-01-455-7566

61080 40028400

61080 01285500

NUT,SELF-LOCKING,HE.................

GASKET SET PART OF KIT P/N 01247702.

END OF FIGURE

(7)

QTY

4

2

10-1

SECTION II TM 9--2815--250--24&P

Figure 11. Intake Manifold and Related Components

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2918 MANIFOLDS

FIGURE 11

INTAKE MANIFOLD AND

RELATED COMPONENTS

**

*

*

1 PAOZZ 2815-01-455-0041

2 PAOZZ 5310-01-455-8480

3 PAOZZ 5305-01-455-1242

4 PAOZZ 5305-01-455-1247

5 PAOZZ 5310-01-399-7305

6 PAOZZ 5310-01-101-2028

7 PAOZZ 5330-01-455-7823

8 PAOZZ 2815-01-454-8626

9 PAOZZ 5310-01-399-7303

10 PAOZZ 5305-01-455-1613

11 PAOZZ 5330-01-455-7819

12 PAOZZ

13 PAOZZ 5330-01-080-1776

14 PAOZZ 4730-01-399-6267

15 PAOZZ

16 PAOZZ 4820-01-399-5579

17 PAOZZ 5340-01-454-9271

18 PAFZZ 5310-01-400-3720

61080 03787402

61080 50148100

61080 50175900

61080 50183100

61080 50095100

61080 40028400

61080 01285600

61080 01198900

61080 50208500

61080 50206300

61080 03783902

61080 50326200

61080 50001100

61080 50303000

61080 03784001

61080 01225610

61080 03939700

61080 50148000

MANIFOLD,INTAKE.....................

WASHER,FLAT.........................

SCREW,CAP,SOCKET HE.................

SCREW,CAP,SOCKET HE.................

WASHER,SPRING TENSI.................

NUT,SELF-LOCKING,HE.................

GASKET..............................

ADAPTER,INTAKE MANI.................

UOC:APP,

WASHER,SPRING TENSI.................

SCREW,CAP,SOCKET HE.................

GASKET PART OF KIT P/N 01247702.....

O-RING..............................

GASKET PART OF KIT P/N 01228002.....

COUPLING,HOSE.......................

HOSE,PREFORMED......................

UOC:APJ,

VALVE,VENT..........................

COVER,ACCESS........................

NUT,PLAIN,HEXAGON...................

**

END OF FIGURE

Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

(7)

QTY

8

4

2

2

1

1

1

1

1

4

4

4

2

1

1

4

2

2

11-1

SECTION II C01 TM 9--2815--250--24&P

Figure 12. Injection Pump, Nozzles, and Fuel Lines

(1)

ITEM

NO

(2)

SMR

(3)

NSN

1 PAOZZ 4710-01-399-7358

*** 1 PAOZZ 4710-01-518-8127

2 PAOZZ 4710-01-399-7359

*** 2 PAOZZ 4710-01-518-8125

3 PAFZZ 5310-01-400-3720

4 PAFZZ 5310-01-399-7303

5 PAFZZ 5310-01-400-0995

6 PAFZZ 4730-01-399-4252

* 6.1

PAFZZ 5307-01-405-9899

* 7 PAFFF 2910-12-337-7727

*** 7 PAFFF

* 7.1

PAFZZ

***7.1

PAFZZ

*** 8 PAFZZ

8 PAFZZ

8 KFFZZ

9 PAOZZ 4730-01-399-4253

* 9.1

PAOZZ

***9.2

MOOZZ

***9.3

PAOZZ

***9.4

MOOZZ

***9.5

PAOZZ

10 PAOZZ 5330-01-405-9900

11 PAOZZ 4730-01-399-4254

12 PAFFF 2910-12-338-8683

*** 12 PAFFF

13 PAFZZ 4820-01-406-6143

14 PAFZA 5331-01-101-8063

15 PAFZZ 5340-01-100-4991

16 PAFZZ 5365-01-101-5938

17 PAFZZ 5360-01-458-0666

18 PAFZA 5330-01-101-7264

19 PAFZZ 4820-01-407-1908

20 PAFZZ

*** 21 KFFZZ

21 PAFZZ

22 KFFZZ

* 22.1

PAFZZ 5307-01-405-9905

23 PAFZZ 5315-01-400-0445

24 PAFZZ 4820-01-455-5018

25 PAOZZ 5330-01-080-1776

25 PAOZZ 5330-01-080-1776

* 25.1

PAOZZ 5310-01-494-3769

26 PAOZZ 4730-01-454-7573

26 PAOZZ 4730-01-494-7219

27 PAOZZ 4730-01-454-7560

28 PAOZZ 5310-01-090-0938

29 PAOZZ 4730-01-454-7567

30 PAOZZ 4730-01-454-7569

61080 50015800

61080 01223200

61080 50000900

61080 50015700

61080 50311700

*

*

31

35

MOOZZ

MOOZZ

19207 12478232-2

19207 12478232-5

36 PAOZZ 5340-01-406-1646 61080 50314100

*** EPA Version 1 Compliant Only

END OF FIGURE

12-1/12-2 blank

61080 01240900

61080 01240910

61080 01241000

61080 01241010

61080 50148000

61080 50208500

61080 04035700

61080 03792400

61080 50038400

61080 50355500

61080 50493300

61080 50355600

61080 50493400

61080 04025800

61080 04085001

61080 40085001

61080 03780800

81343 J1508-M-04

19207 12478232-4

61080 50157800

19207 12478232-3

61080 50333400

61080 50313100

61080 50313000

61080 50355400

61080 50493200

61080 49061200

61080 49004700

61080 49003900

61080 49004300

61080 49003500

61080 49004400

53867 3418502037

61080 50312500

61080 50312400

61080 50552200

61080 50312300

61080 50098300

61080 50312200

61080 01231501

61080 50001100

61080 50001100

61080 03966300

61080 40092600

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2932

ENGINE FUEL SYSTEM

FIGURE 12

INJECTION PUMP, NOZZLES

AND FUEL LINES

PIPE ASSEMBLY,METAL.................

TUBE ASSEMBLY,METAL.................

PIPE ASSEMBLY,METAL.................

TUBE ASSEMBLY,METAL.................

NUT,PLAIN,HEXAGON...................

WASHER,SPRING TENSI.................

WASHER,FLAT.........................

CLAMP,HOSE..........................

STUD,PLAIN..........................

INJECTOR ASSEMBLY,F.................

INJECTOR ASSEMBLY...................

.NOZZLE.............................

.NOZZLE.............................

.JOINT PART OF KIT P/N 01247702.....

.JOINT PART OF KIT P/N 01247702.....

GASKET PART OF KIT P/N 01247702.....

NIPPLE,HOSE.........................

CLAMP,HOSE..........................

HOSE, 2.2” MAKE FROM HOSE P/N

12478232............................

NIPPLE,HOSE.........................

HOSE,4.0” MAKE FROM HOSE, P/N

12478232............................

NIPPLE,HOSE.........................

GASKET PART OF KIT P/N 01247702.....

BOLT,FLUID PASSAGE..................

PUMP,FUEL,METERING..................

PUMP,FUEL,METERING..................

.BODY,VALVE.........................

.O-RING.............................

.PLUG,VENT..........................

.SHIM...............................

.SPRING,HELICAL,COMP................

.GASKET.............................

.VALVE,PRESSURE EQUA................

GASKET,0.30 MM......................

GASKET,0.20 MM PART OF KIT P/N

01228002............................

GASKET,0.30 MM 2G40.17, 2G40.18

PART OF KIT P/N 01228002............

GASKET,0.10 MM PART OF KIT P/N

01228002............................

STUD,PLAIN..........................

PIN,STRAIGHT,HEADLE.................

VALVE,FLOW CONTROL..................

GASKET PART OF KIT P/N 01228002.....

UOC:APP,

GASKET PART OF KIT P/N 01228002.....

UOC:APJ,

WASHER,FLAT.........................

UOC:APJ,

FITTING,RING PIECE..................

UOC:APP,

CONNECTOR,MULTIPLE,.................

UOC:APJ,

ADAPTER,STRAIGHT,TU.................

WASHER,FLAT PART OF KIT P/N 01247702

FITTING,RING PIECE..................

BOLT,FLUID PASSAGE..................

UOC:APP,

HOSE ASSEMBLY,NONME MAKE FROM HOSE,

P/N 12478232........................

HOSE ASSEMBLY,NONME MAKE FROM HOSE,

P/N 12478232........................

CLAMP,LOOP..........................

(7)

QTY

4

1

1

2

3

1

1

1

2

2

2

2

8

2

2

1

1

2

2

2

2

2

1

1

1

1

6

2

2

1

V

2

2

2

2

2

4

2

1

1

2

2

2

1

1

1

1

1

1

2

1

1

SECTION II C01 TM 9--2815--250--24&P

Figure 13. Governor and Controls (SH 1 of 2)

SECTION II C01 TM 9--2815--250--24&P

Figure 13. Governor and Controls (SH 2 of 2)

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2936

ENGINE SPEED GOVERNOR

FIGURE

AND CONTROLS

13

GOVERNOR AND CONTROLS

1 PAFZZ 2990-01-454-7609

2 PAFZZ 5315-01-399-6107

3 PAFZZ 5360-01-399-5014

* 3 PAFZZ

4 PAFZZ 2990-01-454-8630

5 PAFZZ 5331-01-399-6978

6 PAFZZ 5325-01-400-0999

7 PAFZZ 5305-01-406-0000

8 PAFZZ 2990-01-454-9173

* 8.1

PAFZZ 5305-01-406-0009

9 PAFZZ 5310-01-405-9890

10 PAFZZ 5305-01-455-1246

11 PAFZZ 5360-01-399-5016

12 PAFZZ 2990-01-454-9177

13 PAFZZ 5310-01-405-9912

14 PAFZZ 5310-01-455-8481

15 PAFZZ 5305-01-274-1064

16 PAFZZ 5330-01-120-2966

17 PAFZZ 5999-01-116-8286

18 PAFZZ 5305-01-406-0011

* 18 PAFZZ 5305-01-406-0010

61080 01222400

61080 50036000

61080 04020200

61080 04086300

61080 04088300

61080 50306500

61080 50308800

61080 50092100

61080 50308901

61080 50309100

61080 50144400

61080 50309200

61080 50309300

61080 50309400

61080 50309500

61080 50114300

61080 500-254-00

61080 40021400

61080 40021500

61080 03791600

61080 50344900

19 PAFZZ 5305-01-406-0006

20 PAFZZ 5305-01-406-0007

21 PAFZZ 5305-01-455-1248

22 PAFZZ 5310-01-399-7301

23 PAFZZ 2990-01-454-9202

24 PAFZZ 5365-01-455-0004

25 PAFZZ 2990-01-454-9214

26 PAFZZ 5360-01-399-5017

27 PAFZZ 5340-01-454-9278

28 KFFZZ

29 PAFZZ 2990-01-454-8635

29.1

PAFZZ

30 PAFZZ 5340-01-406-1645

31 KFFZZ

32 PAFZZ 2990-01-455-0084

*** 33 PAFFF

*** 34 PAFZZ

35 PAFZZ 5315-01-081-4488

36 PAFZZ

37 PAFZZ

38 PAFZZ 4730-01-103-3202

39 PAFZZ 5310-01-090-0938

40 PAFZZ

40.1

PAFZZ

41 PAFZZ

42 PAFZZ 5305-01-406-0007

43 PAFZZ 5305-01-455-1250

*** 44 PAFZZ 5340-01-526-2574

*** 45 PAFZZ

*** 46 PAFZZ

*** 47 PAFZZ

*** 48 PAFZZ 5310-01-525-7457

*** 49 PAFZZ

*** 50 PAFZZ

*** 51 PAFZZ 5305-01-264-6247

52 PAFZZ

61080 50146300

61080 50306900

61080 50170800

61080 50170900

61080 05063900

61080 03125800

61080 01266500

61080 50306600

61080 50306200

61080 50307100

61080 01222300

61080 50139201

61080 50308500

61080 50308100

61080 01222510

61080 01665610

61080 01665600

61080 50034100

61080 01665000

61080 04021800

61080 50006100

61080 50000900

61080 01670100

61080 05184200

61080 05186900

61080 50306900

61080 50149100

61080 50500800

61080 50511000

61080 05185400

61080 05184800

61080 50328300

61080 50507800

61080 50286300

61080 50052000

61080 50323800

13-1/13-2 blank

*** EPA Version 1 Compliant Only

END OF FIGURE

LEVER ASSEMBLY,POWE.................

PIN,COTTER..........................

SPRING,HELICAL,COMP.................

UOC:APP,

SPRING,HELICAL,COMP.................

UOC:APJ,

LEVER,THROTTLE......................

O-RING PART OF KIT P/N 01228002.....

RING,RETAINING......................

SCREW,MACHINE.......................

LEVER,SPEED CONTROL.................

SCREW,MACHINE UOC:APP...............

NUT,PLAIN,HEXAGON...................

SCREW,MACHINE.......................

SPRING,HELICAL,COMP.................

LEVER,SPEED CONTROL.................

WASHER,FLAT.........................

WASHER,LOCK.........................

SCREW,MACHINE.......................

SEAL................................

WIRE MESH,KNITTED...................

SCREW,MACHINE.......................

UOC:APP,

SCREW,MACHINE.......................

UOC:APJ,

SCREW,MACHINE.......................

SCREW,MACHINE.......................

SCREW,CAP,SOCKET HE.................

WASHER,SPRING TENSI.................

LEVER,GOVERNOR......................

SPACER,STRAIGHT.....................

LEVER,GOVERNOR......................

SPRING,HELICAL,COMP.................

PLATE,MOUNTING......................

GASKET PART OF KIT P/N 01247702.....

STOP LEVER,GOVERNOR.................

STUD,M6 X 16........................

CLIP,SPRING TENSION.................

O-RING PART OF KIT P/N 01228002.....

LEVER ASSEMBLY,POWE.................

EXTRA FUEL DEVICE A.................

.EXTRA FUEL DEVICE A................

SSEMBLY, 2G40.14

.PIN,SPRING.........................

.LEVER..............................

.SPRING.............................

BOLT,FLUID PASSAGE..................

WASHER,FLAT.........................

PIPE,OIL............................

SCREW,CLOS..........................

SUPPORT.............................

SCREW,MACHINE.......................

SCREW,CAP,SOCKET HE.................

CLIP,RETAINING......................

STUD,M6 X 30........................

STOP................................

BRACKET.............................

NUT,PLAIN,HEXAGON...................

SCREW,GRUB..........................

SCREW,GRUB..........................

SCREW,ALLEN.........................

SCREW,SOCKET HEAD...................

(7)

QTY

1

1

1

1

1

1

1

1

2

1

1

3

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

2

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

3

1

1

1

SECTION II TM 9--2815--250--24&P

Figure 14. Engine Cowling, Ducts, and Shroud (SH 1 of 2)

SECTION II TM 9--2815--250--24&P

Figure 14. Engine Cowling, Ducts, and Shroud (SH 2 of 2)

(1)

ITEM

NO

(2)

SMR

(3)

NSN

**

1 PAOZZ 5305-01-405-9895

2 PAOZZ 5310-01-400-3715

3 PAOZZ 5310-12-149-4353

4 PAOZZ 5305-01-405-9894

5 PAOZZ 2815-01-455-0040

** 6 PAOZZ 5340-01-459-1403

7 PAOZZ 5310-01-399-7301

8 PAOZZ 5305-01-405-9897

9 PAOZZ 5310-01-399-7303

10 PAOZZ 5305-01-405-9901

11 PAOZZ 5305-01-455-1622

** 12 PAOZZ 2815-01-454-9237

** 13 PAOZZ 3120-01-455-7311

** 14 PAOZZ 2815-01-454-9210

** 15 PAOZZ 5340-01-458-8159

16 PAOZZ 4720-01-399-5578

** 17 PAOZZ 5305-01-455-1619

18 PAOZZ 5305-01-405-9892

19 PAOZZ 5340-01-454-9270

20 PAOZZ 4730-01-415-7923

** 21 PAOZZ 2815-01-454-9344

** 22 PAOZZ 5310-01-405-9890

23 PAOZZ 2815-01-439-3916

24 PAOZZ 5305-01-406-0003

25 PAOZZ 2815-01-455-0039

26 PAOZZ 5305-01-405-9898

27 PAOZZ 5310-01-455-8482

61080 50334600

61080 50315400

61080 50144500

61080 50333800

61080 03784400

61080 01133200

61080 50170900

61080 50170700

61080 50208500

61080 50098500

61080 50289200

61080 01129900

61080 03920100

61080 99400648

61080 01133300

61080 50334800

61080 50317800

61080 50165500

61080 03784300

61080 01226100

61080 01445200

61080 50144400

61080 03958100

61080 50293200

61080 50405600

61080 50170600

61080 50408500

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2952

ENGINE COWLING

FIGURE 14

ENGINE COWLING, DUCTS,

AND SHROUD

SCREW,MACHINE.......................

WASHER,SPLIT........................

WASHER,FLAT.........................

SCREW,MACHINE.......................

DEFLECTOR,AIRFLOW...................

UOC:APP,

BRACKET,AIR DUCT....................

UOC:APP,

WASHER,SPRING TENSI.................

SCREW,MACHINE.......................

WASHER,SPRING TENSI.................

SCREW,MACHINE.......................

SCREW,MACHINE.......................

DEFLECTOR,AIRFLOW...................

UOC:APP,

SPACER,SLEEVE.......................

UOC:APP,

DEFLECTOR,AIRFLOW...................

UOC:APP,

BRACKET,AIR DUCT....................

UOC:APP,

SLEEVE,REINFORCING,.................

SCREW,CAP,HEXAGON H.................

UOC:APP,

SCREW,CAP,HEXAGON H.................

BRACKET,AIR DUCT....................

SHEET,CLAMPING......................

DEFLECTOR,AIRFLOW...................

UOC:APP,

NUT,PLAIN,HEXAGON...................

UOC:APP,

CONSOLE,REGULATOR...................

SCREW,MACHINE.......................

DEFLECTOR,AIRFLOW...................

SCREW,MACHINE.......................

NUT,PLAIN,CLINCH....................

END OF FIGURE

** Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

(7)

QTY

1

2

1

1

1

1

6

1

2

1

1

3

1

1

1

10

10

2

2

8

1

2

3

3

15

5

1

14-1

SECTION II TM 9--2815--250--24&P

Figure 15. Sending Units

*

(1)

ITEM

NO

(2)

SMR

(3)

NSN

1 PAOZZ 2990-01-497-9561

1 PAOZZ 5930-01-348-9797

2 PAOZZ 5930-01-441-0097

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2960

SENDING UNITS

FIGURE 15

SENDING UNITS

61080 01160500

61080 50268600

61080 50293810

SWITCH,ENGINE TEMPE.................

UOC:APJ,

SWITCH,THERMOSTATIC.................

UOC:APP,

SWITCH,PRESSURE.....................

END OF FIGURE

(7)

QTY

1

1

1

15-1

SECTION II TM 9--2815--250--24&P

Figure 16. Fuel--Shutoff Solenoid

(1)

ITEM

NO

(2)

SMR

(3)

NSN

** 1 PAOZZ 3040-01-455-2816

**

2 PAOZZ 5340-01-454-9284

3 PAOZZ 5340-01-454-9277

4 PAOZZ 5331-01-457-3350

5 PAOZZ 5945-01-454-8223

6 PAOZZ 5305-01-401-3694

7 PAOZZ 5310-12-149-4353

8 PAOZZ 5310-01-405-9890 **

** 9 PAOZZ 5945-01-454-8230

** 10 PAOZZ 5305-01-455-1251

** 11 PAOZZ 5945-01-454-8238

** 12 PAOZZ 5305-01-455-1250

** 13 PAOZZ 5305-01-274-1064

** 14 PAOZZ 5307-01-455-1249

** 15 PAOZZ 5310-01-456-0736

** 16 PAOZZ 5340-01-454-9275

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 2968

SWITCHES, CIRCUIT

BREAKERS AND FUSES

FIGURE 16

FUEL-SHUTOFF SOLENOID

61080 05063800

61080 50365600

61080 50180400

61080 50225501

61080 50431300

61080 50328500

61080 50144500

61080 50144400

61080 01516900

61080 50290300

61080 01509110

61080 50149100

61080 500-254-00

61080 05094600

61080 50446700

61080 05064010

CONNECTING LINK,RIG.................

UOC:APP,

CLIP,RETAINING......................

BELLOWS,PROTECTION..................

O-RING..............................

PLUNGER,SOLENOID....................

SCREW,MACHINE.......................

UOC:APP,

WASHER,FLAT.........................

NUT,PLAIN,HEXAGON...................

UOC:APP,

BRACKET,SOLENOID....................

UOC:APP,

SCREW,CAP,SOCKET HE.................

UOC:APP,

SOLENOID,ELECTRICAL.................

UOC:APP,

SCREW,CAP,SOCKET HE.................

UOC:APP,

SCREW,MACHINE.......................

UOC:APP,

STUD,PLAIN..........................

UOC:APP,

NUT,PLAIN,HEXAGON...................

UOC:APP,

CONNECTOR,ROD END...................

UOC:APP,

END OF FIGURE

** Refer to TM 9-2350-292-24P and TM 9-2350-292-20-2 for UOC: APJ Item.

(7)

QTY

1

1

1

2

1

1

1

1

1

2

1

1

1

4

5

3

16-1/16-2 blank

*

*

*

(1)

ITEM

NO

(2)

SMR

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 94

REPAIR KITS

GROUP 9401

REPAIR KITS

FIGURE KITS REPAIR KITS

1 PAFZZ 5330-01-415-6721 61080 01247702

2

3

PAFZZ

PAFZZ

61080 01228002

61080 01228202

GASKET SET..........................

GASKET,0.70 MM ( 1) 3-11

GASKET,0.60 MM

WASHER,FLAT

(

(

1)

4)

3-11

8-11

O-RING

O-RING

O-RING

WASHER,FLAT

(

(

(

(

2)

2)

2)

2)

8-13

8-32

8-34

9-2

GASKET SET

GASKET

GASKET

JOINT

JOINT

GASKET

GASKET

(

(

(

(

(

(

(

2)

2)

2)

2)

2)

10-2

11-11

12-8

12-8

12-8

4) 12-10

1) 13-28

GASKET ( 1) 13A-20

GASKET SET..........................

GASKET

O-RING

(

(

1)

8)

4-15

4-16

GASKET

SEAL,PLAIN

O-RING

GASKET

(

(

(

(

1)

1)

1)

2)

4-15.1

5-8

6-4

6-9

O-RING

GASKET

O-RING

O-RING

GASKET

GASKET,0.20 MM

GASKET,0.30 MM

GASKET,0.10 MM

(

(

(

(

(

(

(

(

1)

1)

1)

1)

1)

1)

1)

2)

9-9

9-14

9-26

9-28

11-13

12-21

12-21

12-22

GASKET

GASKET

O-RING

O-RING

(

(

(

(

2)

3)

2)

2)

12-25

12-25

13-5

13-31

O-RING ( 1) 13A-7

MAINTENANCE KIT.....................

NUT,PLAIN,HEXAGON ( 1) 8-4

WASHER,FLAT

O-RING

(

(

NUT,PLAIN,HEXAGON (

FILTER ELEMENT,FLUI(

GASKET (

COCK,POPPET DRAIN (

CAP,FILLER OPENING (

4)

2)

1)

1)

1)

1)

1)

8-11

8-13

8-8.2

9-18

9-21

9-22

9-27.1

END OF FIGURE

(7)

QTY

1

1

1

KITS-1/KITS-2 blank

(1)

ITEM

NO

(2)

SMR

* 1 PAFZZ

(3)

NSN

TM 9-2815-250-24&P

(4) (5)

PART

CAGE NUMBER

C01

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 95

GENERAL USE

STANDARDIZED PARTS

GROUP 9501

BULK MATERIAL

FIGURE BULK MATERIAL

HOSE,NONMETALLIC....................

19207 12478232

END OF FIGURE

(7)

QTY

1

BULK-1

SECTION II TM 9--2815--250--24&P

Figure 17. Special Tools

*

*

*

*

*

*

*

*

(1)

ITEM

NO

1

2

3

4

5

6

7

8

(2)

SMR

PEOZZ

PEFZZ

PEFZZ

PEFZZ

PEFZZ

PEFZZ

PEFZZ

PEFZZ

(3)

NSN

TM 9-2815-250-24&P C01

(4) (5)

PART

CAGE NUMBER

(6)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 26

TOOLS AND TEST

EQUIPMENT

GROUP 2604

SPECIAL TOOLS

FIGURE 17

SPECIAL TOOLS

5120-01-428-5525

5120-01-454-5887

5120-01-454-5888

5120-01-454-5885

5120-01-458-3944

5120-01-454-5886

5120-01-454-5890

4910-01-454-5889

1CV05 3715M

61080 62574200

61080 62574801

61080 62574700

61080 66503091

61080 62568902

19207 57K3263

19207 57K3264

END OF FIGURE

(7)

QTY

WRENCH,OPEN END BOX.................

BRACKET,CYL,ALINE...................

PULLER,CRANK GEAR...................

DRIVER,CRANK GEAR...................

TESTING DEVICE,FUEL.................

PULLER,RELIEF VALVE.................

TEST SET,OIL PRESSU.................

TESTER,FUEL INJETOR.................

1

1

1

1

1

1

1

1

17-1/17-2 blank

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIGURE NO ITEM NO STOCK NUMBER FIGURE NO ITEM NO

5315-00-616-5530 5 9.1 4710-01-399-7358 12 1

5315-01-070-5656 1 2 4710-01-399-7359 12 2

5310-01-078-8066 8 4 5310-01-399-8358 3 4

8 8.2 5310-01-399-8386 9 23

5330-01-080-1776 11 13 5315-01-400-0441 5 5

12 25 5315-01-400-0444 4 8

5315-01-081-4488 13 35 5315-01-400-0445 12 23

5310-01-090-0938 9 2 5310-01-400-0995 12 5

12 28 5325-01-400-0999 13 6

13 39 5340-01-400-1000 8 22

5340-01-100-4991 12 15 5310-01-400-1002 6 11

5365-01-100-5415 8 24 5310-01-400-2138 5 10

5365-01-100-5416 8 24 5310-01-400-2139 9 11

5310-01-101-2028 8 7 5310-01-400-2140 6 1

10 1 5310-01-400-2141 6 2

11 6 5310-01-400-3715 14 2

5305-01-101-4830 5 11 5365-01-400-3717 8 26

5365-01-101-5938 12 16 5310-01-400-3719 9 24

5330-01-101-7264 12 18 5310-01-400-3720 11 18

5331-01-101-8063 12 14 12 3

5330-01-101-8076 9 21 5310-01-400-3721 8 21

5315-01-102-7922 8 28 5330-01-400-5766 4 20

5315-01-103-1522 5 4 5330-01-400-5772 8 13

4730-01-103-3202 9 6 5330-01-400-5773 5 8

13 38 5331-01-400-5778 9 26

5999-01-116-8286 13 17 5305-01-401-3694 16 6

5330-01-120-2966 13 16 5310-01-405-9890 4 7

5310-01-239-2390 9 17 6 17

5325-01-245-3517 8 25 13 9

5305-01-264-6247 13 51 14 22

5305-01-274-1064 13 15 16 8

16 13 5305-01-405-9892 14 18

5310-01-274-4387 2 7 5305-01-405-9894 14 4

5930-01-348-9797 15 1 5305-01-405-9895 14 1

2940-01-383-9739 9 18 5305-01-405-9897 14 8

4730-01-399-4252 12 6 5305-01-405-9898 14 26

4730-01-399-4253 12 9 5307-01-405-9899 3 7

4730-01-399-4254 12 11 12 6.1

5325-01-399-4615 8 1 5330-01-405-9900 12 10

5325-01-399-4618 8 29 5305-01-405-9901 14 10

5365-01-399-5011 8 2 5305-01-405-9903 8 10

5365-01-399-5013 3 2 5305-01-405-9904 8 5

5360-01-399-5014 13 3 8 8.3

5360-01-399-5016 13 11 5307-01-405-9905 4 4

5360-01-399-5017 13 26 12 22.1

4720-01-399-5578 14 16 5305-01-405-9906 9 1

4820-01-399-5579 11 16 5307-01-405-9907 3 9.1

5315-01-399-6105 4 2 5305-01-405-9908 6 10

5315-01-399-6106 4 13 5307-01-405-9909 3 9.2

5315-01-399-6107 13 2 5310-01-405-9911 6 7

4730-01-399-6267 11 14 5310-01-405-9912 13 13

5330-01-399-6976 9 33 5307-01-405-9997 3 9

5331-01-399-6978 13 5 4 3

5310-01-399-6981 8 27 5305-01-405-9998 9 31

5310-01-399-7301 13 22 5305-01-406-0000 6 16

14 7 13 7

5310-01-399-7303 4 18 5305-01-406-0001 7 7

11 9 5305-01-406-0003 14 24

12 4 5305-01-406-0004 9 12

14 9 5305-01-406-0005 6 8

5310-01-399-7305 11 5 5305-01-406-0006 13 19

5310-01-399-7311 8 17 5305-01-406-0007 13 20

5310-01-399-7312 3 5 13 42

I-1

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIGURE NO ITEM NO STOCK NUMBER FIGURE NO ITEM NO

5305-01-406-0009 13 8.1 5340-01-454-9271 11 17

5305-01-406-0010 13 18 5340-01-454-9272 4 14

5305-01-406-0011 13 18 5340-01-454-9273 4 15

5305-01-406-0013 8 23 5340-01-454-9275 16 16

5305-01-406-0014 4 5 5340-01-454-9277 16 3

4820-01-406-0343 9 22 5340-01-454-9278 13 27

5340-01-406-1645 13 30 5340-01-454-9280 9 10

5340-01-406-1646 12 36 5340-01-454-9281 9 32

5365-01-406-4171 5 7 5340-01-454-9284 16 2

5307-01-406-5443 3 8 2815-01-454-9344 14 21

4820-01-406-6143 12 13 5340-01-454-9940 6 6

4820-01-407-0705 8 18 5365-01-455-0004 13 24

2805-01-407-0706 8 19 5340-01-455-0010 5 6

4820-01-407-1908 12 19 5365-01-455-0011 7 2

2815-01-414-1273 7 6 5365-01-455-0012 8 3

5360-01-414-8475 8 16 2815-01-455-0039 14 25

2835-01-414-8480 7 1 2815-01-455-0040 14 5

5310-01-415-2649 8 11 2815-01-455-0041 11 1

5330-01-415-6721 KITS 1 2815-01-455-0042 9 15

4730-01-415-7923 14 20 2815-01-455-0043 8 8.1

5120-01-428-5525 17 1 2815-01-455-0046 8 8

2815-01-439-3916 14 23 2815-01-455-0054 8 3.1

5930-01-441-0097 15 2 2815-01-455-0056 3 6.2

2815-01-446-3500 2 1 2990-01-455-0084 13 32

5120-01-454-5885 17 4 2815-01-455-0085 8 31

5120-01-454-5886 17 6 2815-01-455-0364 8 14

5120-01-454-5887 17 2 2815-01-455-0371 3 6.1

5120-01-454-5888 17 3 2815-01-455-0376 6 3

4910-01-454-5889 17 8 2815-01-455-0423 5 3

5120-01-454-5890 17 7 2815-01-455-0428 7 4

4730-01-454-7461 9 13 5305-01-455-1242 11 3

4730-01-454-7542 4 9 5305-01-455-1243 9 16

4730-01-454-7545 4 10 5305-01-455-1245 5 11

4730-01-454-7549 9 3 5305-01-455-1246 13 10

4730-01-454-7560 12 27 5305-01-455-1247 11 4

4730-01-454-7567 12 29 5305-01-455-1248 13 21

4730-01-454-7569 12 30 5307-01-455-1249 16 14

4730-01-454-7573 12 26 5305-01-455-1250 13 43

2990-01-454-7609 13 1 16 12

4710-01-454-7687 9 7 5305-01-455-1251 16 10

4710-01-454-7688 9 30 5305-01-455-1613 11 10

4730-01-454-7692 9 4 5305-01-455-1615 4 17

4730-01-454-7693 9 5 5305-01-455-1619 14 17

5945-01-454-8223 16 5 5305-01-455-1622 14 11

5945-01-454-8230 16 9 5307-01-455-2205 4 12

5945-01-454-8238 16 11 5305-01-455-2206 2 6

2815-01-454-8626 11 8 5305-01-455-2207 2 3

2990-01-454-8630 13 4 5307-01-455-2210 3 12

5340-01-454-8631 2 2 5306-01-455-2212 3 1

2990-01-454-8635 13 29 5340-01-455-2343 4 19

2815-01-454-8839 8 33 3020-01-455-2798 5 2

2815-01-454-8841 8 12 3040-01-455-2816 16 1

2815-01-454-8842 8 30 3010-01-455-2856 8 20

2990-01-454-8843 2 5 4820-01-455-5017 4 11

2590-01-454-8941 9 27 4820-01-455-5018 12 24

2815-01-454-9103 6 5 3120-01-455-7311 14 13

2990-01-454-9173 13 8 5330-01-455-7566 10 2

2990-01-454-9177 13 12 5330-01-455-7819 11 11

2990-01-454-9202 13 23 5330-01-455-7822 2 4

2815-01-454-9210 14 14 5330-01-455-7823 11 7

2990-01-454-9214 13 25 5310-01-455-8479 3 3

2815-01-454-9237 14 12 5310-01-455-8480 11 2

5340-01-454-9270 14 19 5310-01-455-8481 13 14

I-2

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIGURE NO ITEM NO STOCK NUMBER FIGURE NO ITEM NO

5310-01-455-8482 14 27 5340-01-494-6423 6 5.1

5315-01-455-8935 6 13 4730-01-494-7219 12 26

5325-01-455-8936 7 5 2990-01-497-9561 15 1

5310-01-456-0736 16 15 4710-01-518-8125 12 2

5310-01-456-2275 8 15 4710-01-518-8127 12 1

9905-01-456-3828 1 1 5310-01-525-7457 13 48

5331-01-457-3350 16 4 5340-01-526-2574 13 44

5360-01-458-0666 12 17 5310-12-130-4938 2 7

5120-01-458-3944 17 5 5305-12-146-1760 2 6

5340-01-458-8159 14 15 5310-12-149-4353 4 6

5340-01-459-1403 14 6 6 15

5305-01-463-1028 6 18 9 17

2815-01-465-4321 2 1 14 3

5935-01-480-9543 2 2 16 7

2805-01-488-7755 9 8 2815-12-330-5421 8 35

5305-01-492-8775 9 16 2910-12-337-7727 12 7

5310-01-494-3769 12 25.1 2910-12-338-8683 12 12

I-3

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

PART NUMBER INDEX

PART NUMBER FIG. ITEM PART NUMBER FIG. ITEM

01129900 14 12 03781800 8 33

01133200 14 6 03783000 8 5

01133300 14 15 8 8.3

01160500 15 1 03783200 8 19

01198900 11 8 03783210 8 19

01221803 4 11 03783300 8 18

01222100 8 20 03783301 8 18

01222300 13 29 03783401 8 17

01222400 13 1 03783500 8 16

01222510 13 32 03783600 8 15

01223200 12 27 03783800 8 12

01224001 8 35 03783902 11 11

01224400 8 3.1 03784001 11 15

01224500 8 8.1 03784300 14 19

01224600 8 8 03784400 14 5

01224900 9 7 03784501 3 3

01225610 11 16 03785201 3 6.2

01226100 14 20 03785300 7 6.1

01227410 4 1 03785600 7 6.2

01227420 4 1 03786300 8 14

01227910 9 8 03787300 3 2

01228002 KITS 2 03787402 11 1

01228202 KITS 3 03788800 9 23

01231501 12 24 03790001 9 3

01239901 6 12 03790100 9 5

01240203 7 3 03791400 3 4

01240211 7 3 03791600 13 18

01240301 7 4 03792100 6 3

01240900 12 1 03792400 12 6

01240910 12 1 03792800 3 11

01241000 12 2 03792900 3 11

01241010 12 2 03793000 3 11

01244800 8 22 03793100 3 11

01247100 7 1 03793200 3 11

01247110 7 1 03793300 3 11

01247200 3 6.1 03793400 3 11

01247210 3 6.1 03908201 9 27

01247702 KITS 1 03920100 14 13

01248303 7 3 03932100 9 4

01248311 7 3 03938610 9 15

01248701 7 4 03939700 11 17

01262200 7 6 03958000 7 2

01262701 5 3 03958100 14 23

01266500 13 25 03966300 12 25.1

01285500 10 2 03971200 3 11

01285600 11 7 03971300 3 11

01445200 14 21 03975300 6 2

01509110 16 11 04020200 13 3

01516900 16 9 04021800 13 37

01613100 9 27.1 04025800 12 8

01665000 13 36 04031300 6 1

01665600 13 34 04035700 12 5

01665610 13 33 04038200 4 14

01670100 13 40 04039100 4 15

03125800 13 24 04085001 12 8

03171800 3 5 04086300 13 3

03173100 8 4 04088300 13 4

8 8.2 04090600 3 11

03225504 1 1 04090700 3 11

03233200 8 24 04092800 8 30

03233300 8 24 04092810 8 30

03780800 12 9 04110800 3 11

03781000 3 12 04110900 3 11

03781100 7 7 04125000 9 28

03781300 7 6.2 05034900 4 10

I-4

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

PART NUMBER INDEX

PART NUMBER FIG. ITEM PART NUMBER FIG. ITEM

05063800 16 1 13 7

05063900 13 23 50093400 6 8

05064010 16 16 50095100 11 5

05094600 16 14 50098300 4 4

05184200 13 40.1 12 22.1

05184800 13 47 50098500 14 10

05185400 13 46 50114300 13 14

05186900 13 41 50128100 3 9

12367094 2 1 4 3

12367105 2 2 50137000 4 5

12463204 2 1 50139201 4 12

12478232 BULK 1 13 29.1

12478232-2 12 31 50144400 4 7

12478232-3 12 9.4 6 17

12478232-4 12 9.2 13 9

12478232-5 12 35 14 22

12478240 2 5 16 8

3418502037 12 19 50144500 4 6

3715M 17 1 6 15

40002500 1 2 9 17

40021400 13 16 14 3

40021500 13 17 16 7

40028400 8 7 50145900 6 7

10 1 50146000 5 10

11 6 50146300 13 19

40085001 12 8 50148000 11 18

40092600 12 26 12 3

49003500 12 17 50148100 11 2

49003900 12 15 50149100 13 43

49004300 12 16 16 12

49004400 12 18 50157800 12 9.3

49004700 12 14 50162900 8 11

49061200 12 13 50165500 14 18

500 812 00 9 17 50170600 14 26

500-254-00 13 15 50170700 14 8

16 13 50170800 13 21

50000900 9 2 50170900 13 22

12 28 14 7

13 39 50175900 11 3

50001100 11 13 50177500 8 10

12 25 50180400 16 3

50001200 9 21 50183100 11 4

50006100 9 6 50195800 6 11

13 38 50206300 11 10

50010500 8 28 50207900 9 16

50011200 5 4 50208400 8 34

50015700 12 29 50208500 4 18

50015800 12 26 11 9

50019800 8 1 12 4

50020000 8 25 14 9

50025200 9 12 50216300 9 11

50026400 6 18 50225501 16 4

50033300 9 1 50231900 3 9.1

50034100 13 35 50268600 15 1

50036000 13 2 50274500 9 31

50038400 3 7 50275000 4 22

12 6.1 50279200 3 9.2

50043800 9 17.1 50286300 13 50

50052000 13 51 50289200 14 11

50052100 4 17 50290100 8 32

50054300 2 6 50290200 8 13

50055100 5 11 50290300 16 10

50061700 2 7 50290500 4 2

50065100 3 8 50291400 4 20

50092100 6 16 50293200 14 24

I-5

TM 9-2815-250-24&P C01

CROSS REFERENCE INDEXES

PART NUMBER INDEX

PART NUMBER FIG. ITEM PART NUMBER FIG. ITEM

50293810 15 2 50324200 5 12.1

50300700 4 8 50326200 11 12

50301000 4 13 50328300 13 48

50301100 4 21 50328500 16 6

50301200 4 16 50333400 12 9.5

50301400 9 13 50333800 14 4

50301500 9 14 50333900 5 7

50301601 9 15 50334600 14 1

50302000 8 31 50334800 14 16

50302100 5 12 50335300 9 24

50302700 4 9 50336200 6 14

50302800 9 18 50336300 9 30

50303000 11 14 50336400 9 32

50303610 6 13 50336500 9 33

50304100 5 6 50341900 9 15.1

50304300 5 5 50342000 9 16

50304400 5 2 50344900 13 18

50304500 5 8 50347500 5 1

50304900 8 30 50347600 5 1

50305000 8 29 50355400 12 12

50305300 8 23 50355500 12 7

50305400 8 21 50355600 12 7.1

50305700 8 26 50359000 7 5.1

50306001 8 27 50359010 7 5.1

50306200 13 27 50359110 7 5

50306500 13 5 50365600 16 2

50306600 13 26 50405200 3 6

50306900 13 20 50405600 14 25

13 42 50408500 14 27

50307000 4 12 50431300 16 5

50307100 13 28 50446700 16 15

50308100 13 31 50448100 9 17.3

50308500 13 30 50493200 12 12

50308800 13 6 50493300 12 7

50308901 13 8 50493400 12 7.1

50309100 13 8.1 50500800 13 44

50309200 13 10 50507800 13 49

50309300 13 11 50511000 13 45

50309400 13 12 50548200 9 17.2

50309500 13 13 50552200 12 21

50310400 9 10 57K3263 17 7

50310500 9 9 57K3264 17 8

50310810 6 5 62568902 17 6

50310900 6 10 62574200 17 2

50311000 9 22 62574700 17 4

50311200 6 4 62574801 17 3

50311500 6 9 66503091 17 5

50311700 12 30 99400638 5 9

50312200 12 23 99400639 2 2

50312300 12 22 99400640 2 5

50312400 12 21 99400641 2 4

50312500 12 20 99400642 2 3

50313000 12 11 99400644 6 5.1

50313100 12 10 99400645 4 19

50314100 12 36 99400646 6 6

50315400 14 2 99400648 14 14

50315500 3 1 DIN7980-10-FST 2 7

50315900 8 2 DIN7984-M10X30-1 2 6

50316000 8 3 0.9-A3P

50317800 14 17 J1508-M-04 12 9.1

50321900 9 25 M10X55DIN912-8.8 5 11

50323500 9 26 MS35756-15 5 9.1

50323800 13 52

I-6

TM 9--2815--250--24&P

APPENDIX D

EXPENDABLE AND DURABLE ITEMS LIST

Section I. INTRODUCTION

Paragraph Title

Paragraph

Number

Page

Number

D--1

D--2

Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Explanation of Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

D--1

D--1

D--1.

SCOPE.

This appendix lists expendable/durable supplies and materials you will need to operate and maintain the Diesel Engine Assembly, Hatz G 2 40. This listing is for informational purposes only nd is not authority to requisition the listed items. These items are authorized to you by CTA 50--970 or CTA 8--100.

D--2.

EXPLANATION OF COLUMNS.

There are five columns in Section II, Expendable and Durable Items List:

(1)

Item Number. This number is assigned to the entry in the listing and is referenced in the “Initial Setup” of maintenance paragraphs or narrative instructions to identify the material needed (e.g., Drycleaning

Solvent, Item 4, Appendix D).

(2)

Level. This column identifies the lowest level of maintenance that requires the listed item.

C -- Operator/Crew

O -- Unit

F -- Direct Support

H -- General Support

(3)

National Stock Number. This is the national stock number assigned to the item; use it to request or requisition the item.

(4)

Description (CAGEC). This column contains the Federal item name and, if required, a description to identify the item. The last line for each item indicates the commercial and government entity code

(CAGEC) in parentheses followed by the part number, if applicable.

(5)

U/M (Unit of Measure). Indicates the measure used in performing the actual maintenance function.

This measure is expressed by a two--character alphabetical abbreviation: BT (bottle), BX (box), CN (can),

GL (gallon), LB (pound), OZ (ounce), PT (pint), QT (quart), and TU (tube). If the unit of measure differs from the unit of issue, requisition the lowest unit of issue that will satisfy your requirements.

D--1

16

17

18

19

13

14

15

10

11

8

9

12

4

5

6

7

F

F

F

F

O

F

F

F

F

F

F

O

O

F

O

O

(1)

Item

Number

1

2

3

(2)

Level

F

O

F

TM 9--2815--250--24&P

Section II. EXPENDABLE AND DURABLE ITEMS LIST

(3)

National

Stock

Number

(4)

Description (CAGEC)

8040--00--833--9563 Adhesive Kit

(71984) RTV 732

8030--00--597--5367 Antiseize Compound, 2.5--Pound Can

(73165) 51008

6850--01--085--1423 Carbon--Removing Compound, 13--Ounce

Aerosol Can

(01326) 7450

6850--00--281--1985 Drycleaning Solvent, 1--Gallon Can

(58536) A--A--59601

9150--01--197--7690 Grease, Automotive, 1.75--Pound Can (81349)

M--10924--C

9150--00--186--6681 Lubricating Oil, 1--Quart Can

(15958) ALLIEDC030

7920--00--205--1711 Rag, Wiping, 50--Pound Bale

(80244) 7920--00--205--1711

7510--00--243--3437 Rubber Band, 1/4--Pound Box

(88001) 0385B

1015--01--255--4144 Sealant, Pipe, Teflon, 50--Milliliter Tube

(19207) 12297953

8030--00--252--3391 Sealing Compound, 11--Ounce Tube

(80064) 1756371

8030--00--081--2335 Sealing Compound, 10 Cubic Centimeter bottle

(05970) 85--14

8030--00--275--8115 Sealing Compound, 1--Pint Can

(81349) MIL--S--46163

8040--01--250--3969 Sealing Compound

(05972) 242

Primer, Grade N, 500 ML

(05972) 50223001

8030--01--060--0015 Sealing Compound

(05972) 573

8030--01--231--7156 Sealing Compound

(05972) 601

Sealing Compound

(05972) 221

8030--01--475--2445 Sealing Compound

(05972) 648

8030--01--388--5604 Sealing Compound

(05972) T7471

(5)

(U/M)

BT

LB

OZ

GL

CN

QT

LB

BX

TU

TU

BT

PT

ML

ML

ML

ML

ML

ML

ML

D--2

Change 1

(1)

Item

Number

20

21

(2)

Level

F

F

Section II. EXPENDABLE AND DURABLE ITEMS LIST (continued)

(3)

National

Stock

Number

(4)

Description (CAGEC)

8030--00--148--9833 Sealing Compound

(05972) 27121

5330--01--399--7318 Silicon Sealer

(61080) 50282501

TM 9--2815--250--24&P

(5)

(U/M)

ML

ML

Change 1 D--3

D--4

TM 9--2815--250--24&P

TM 9-2815-250-24&P

Paragraph

Number

E-1

E-2

E-3

E-4

E-5

E-6

APPENDIX E

TORQUE VALUES FOR THREADED FASTENERS

Page

Paragraph Title Number

General.....................................................................................................................................

E-1

Torque Limits ............................................................................................................................

E-1

How To Use Torque Table..........................................................................................................

E-1

Tightening Metal Fasteners ........................................................................................................

E-3

Fastener Size and Thread Pattern ..............................................................................................

E-4

Fastener Grade .........................................................................................................................

E-5

E-1. GENERAL.

This section provides general torque limits for screws used on the Diesel Engine Assembly, Hatz 2 G 40. Special torque limits are indicated in the maintenance procedures for applicable components. The general torque limits given in this appendix shall be used when specific torque limits are not indicated in the maintenance procedure. These general torque limits cannot be applied to screws that retain rubber components. The rubber components will be damaged before the correct torque limit is reached. If a special torque limit is not given in the maintenance instructions, tighten the screw or nut until it touches the metal bracket, then tighten it one more turn.

E-2. TORQUE LIMITS.

Table E-1 (p. E-2) lists dry torque limits. Dry torque limits are used on screws that do not have lubricants applied to

threads. Table E-2 (p. E-3) lists wet torque limits. Wet torque limits are used on screws that have high-pressure

lubricants applied to threads.

E-3. HOW TO USE TORQUE TABLE.

1.

2.

3.

4.

Measure the diameter of the screw to be installed.

Count the number of threads per inch or use a pitch gage.

Under the heading SIZE (Tables E-1 and E-2),

look down the left-hand column until the diameter of the screw to be installed is found

(there will usually be two lines beginning with the same size).

In the second column under SIZE, find the number of threads per inch that matches the number of threads counted in step 2.

E-1

TM 9-2815-250-24&P

E-3. HOW TO USE TORQUE TABLE (continued).

5.

To find the grade of the screw that is to be installed, match the markings on the head to the correct picture of

CAPSCREW HEAD MARKINGS on the table.

CAPSCREW HEAD MARKINGS

Manufacturer's marks may vary.

These are all SAE Grade No. 5 (3 lines).

6. Look down the column under the picture found in step 5 until the torque limit in foot-pounds for the diameter and threads per inch of the screw being Installed is found.

Table E-1. Torque Limits for Dry Fasteners

SAE CAPSCREW HEAD

MARKINGS

DIA.

(IN.)

1/4

1/4

5/16

5/16

3/8

3/8

7/16

7/16

1/2

1/2

9/16

9/16

5/8

5/8

3/4

3/4

7/8

7/8

1

1

1 1/8

1 1/4

1 3/8

1 1/2

SIZE

SAE GRADE

No. 1 or 2

THREADS FOOT

PER INCH MM POUNDS

20 6.35

5

28 6.35

6

N

• m

6.78

8.14

12

18

11

18

14

20

13

20

18

24

16

24

10

16

9

14

8

14

7.94

7.94

9.53

9.53

11.11

12.70

14.28

15.88

19.05

22.23

25.40

25.58

51

55

63

95

28

30

39

41

11

13

18

20

105

115

160

175

235

250

14.92

17.63

24.41

27.12

37.97

40.68

52.88

55.60

69.16

74.58

85.43

128.82

142.38

155.94

216.96

237.30

318.66

338.00

31.75

 

34.93

38.10

SAE GRADE

No. 5

TORQUE

SAE GRADE

No. 6 or 7

FOOT-

POUNDS

8.0

10.0

17.0

19.0

31.0

35.0

49.0

55.0

75.0

85.0

110.0

120.0

150.0

170.0

270.0

295.0

375.0

435.0

590.0

660.0

800.0

N

• m

10.85

13.56

23.05

25.76

42.04

47.46

66.44

74.58

101.70

115.26

149.16

162.72

203.40

230.52

356.12

400.02

536.62

599.85

800.04

894.96

1064.80

FOOT-

POUNDS

120

167

55

85

10

19

34

280

440

660

N

• m

13.56

25.76

46.10

74.58

115.26

162.72

226.45

379.68

596.64

694.96

880.0

1193.30

  

1460.0

1680.0

1940.0

2200.0

1979.80

2278.10

2630.60

2963.20

SAE GRADE

No. 8

FOOT-

POUNDS

12.0

14.0

N

• m

16.27

18.98

375.0

420.0

605.0

675.0

910.0

990.0

1280.0

1444.0

1820.0

2000.0

2300.0

2720.0

3160.0

3560.0

24.0

27.0

44.0

49.0

70.0

78.0

105.0

120.0

155.0

170.0

210.0

240.0

506.50

596.52

820.38

915.30

1233.96

1342.44

1735.70

1952.80

2467.90

2712.00

3227.30

3688.30

4285.00

4827.40

32.52

36 61

59.66

66.44

94.92

105.77

142.38

162.78

210.18

230.52

284.76

325.44

E-2

TM 9-2815-250-24&P

E-3. HOW TO USE TORQUE TABLE (continued).

Table E-2. Torque Limits for Wet Fasteners

SAE CAPSCREW HEAD

MARKINGS

DIA.

(IN.)

1/4

1/4

5/16

5/16

3/8

3/8

7/16

7/16

1/2

1/2

9/16

9/16

5/8

5/8

3/4

3/4

7/8

7/8

1

1

1-1/8

1-1/4

14-3/8

1-1/2

SIZE

SAE GRADE

No. 1 or 2

THREADS FOOT

PER INCH MM POUNDS

20 6.35

4.9

28 6.35

5.4

N

• m

6.10

7.33

12

18

11

18

14

20

13

20

18

24

16

24

10

16

9

14

8

14

7.94

7.94

9.53

9.53

11.11

12.70

14.29

15.88

19.05

22.23

25.40

25.58

9.9

11.7

16.2

18.0

25.2

27.0

35.1

36.9

45.9

45.5

56.7

85.5

94.5

103.5

144.0

157.5

211.5

225.0

13.34

15.87

21.97

24.41

34.17

36.61

47.58

50.04

62.24

67.12

76.89

115.94

128.14

140.35

195.26

213.57

286.79

305.10

31.75

34.93

38.10

SAE GRADE

No. 5

TORQUE

SAE GRADE

No. 6 or 7

FOOT-

POUNDS

7.2

9.0

15.3

17.1

27.9

31.5

44.1

49.5

67.5

76.5

99.0

106.0

135.0

153.0

243.0

265.5

355.5

391.5

531.0

594.0

720.0

N

• m

9.76

12.20

22.54

23.18

37.84

42.71

59.80

67.12

91.53

103.73

134.24

146.45

183.06

207.47

329.51

360.20

482.06

530.87

720.04

805.46

976.32

FOOT-

POUNDS

49.5

76.5

108.0

150.3

252.0

396.0

594.0

9.0

17.1

30.6

N

• m

12.00

23.18

41.49

67.12

103.73

146.45

203.80

341.71

536.98

805.46

792.0

1073.97

  

 

1314.0

1512.0

1746.0

1980.0

1781.82

2050.29

2367.54

2684.88

 

SAE GRADE

No. 8

FOOT-

POUNDS

10.8

12.6

N

• m

14.64

17.08

337.5

378.0

544.5

607.5

819.0

891.0

1152.0

1296.0

1638.0

1800.0

2142.0

2448.0

2844.0

3204.0

21.6

24.3

39.6

44.1

63.0

70.2

94.5

106.0

139.5

153.0

189.0

216.0

457.65

536.87

738.34

823.77

1110.56

1208.20

1562.13

1757.52

2221.11

2440.80

2904.57

3319.47

3856.50

4344.66

29.27

32.95

53.69

59.80

85.42

95.19

128.14

146.50

189.16

207.47

256.28

296.90

E-4. TIGHTENING METAL FASTENERS.

When torquing a fastener, select a torque wrench whose range (Table E-3, p. E-4) fits the required torque value. A torque

wrench is most accurate from 25 percent to 75 percent of its stated range. A torque wrench with a stated range of 0 to

100 will be most accurate from 25 to 75 foot-pounds. The accuracy of readings will decrease as you approach 0 foot-

pounds or 100 foot-pounds. The ranges in Table E-3 are based on this principle.

E-3

TM 9-2815-250-24&P

E-4. TIGHTENING METAL FASTENERS (continued).

Table E-3. Torque Ranges

STATED RANGE MOST EFFECTIVE RANGE

0-600 ft-lb

0-170 ft-lb

15-75 ft-lb

150-450 ft-lb

44-131 ft-lb

30-60 ft-lb

E-5. FASTENER SIZE AND THREAD PATTERN.

Threaded fasteners are categorized according to diameter of the fastener shank. Thread styles are divided into broad groups, the two most common being coarse (Unified Coarse-UNC) and fine (Unified Fine-UNF). These groups are

defined by the number of threads per inch on the bolt shanks. In addition, threads are categorized by thread class (Table

E-4), which is a measure of the degree between threads of bolt or screw (external threads) and threads of the attaching

nut or tapped hole (internal threads of the attaching nut or tapped hole) (internal threads). The most common thread class for bolts and screws is Class 2.

Table E-4. Thread Classes and Description

EXTERNAL INTERNAL INTERNAL

1A

2A

3A

1B

2B

3B

LOOSE FIT

MEDIUM FIT

CLOSE FIT

NOMINAL SIZE

NO. THREADS/INCH

THREAD SYMBOL

THREAD CLASS

3/4 10 UNC 2A

NOTE: Unless followed with -LH (e.g., 314-10 UNC-2A-LH), threads are right-hand.

E-4

TM 9-2815-250-24&P

E-6. FASTENER GRADE.

In addition to being classified by thread type, thread fasteners are also classified by material. The most familiar fastener

classification system is the SAE grading system (Table E-5).

Table E-5. SAE Screw and Bolt Markings

SCREWS BOLTS

SAE GRADE 2

NO MARKING

SAE GRADE 6

4 RADIAL DASHES

90

°

APART

SAE GRADE 3

2 RADIAL DASHES

180

°

APART

SAE GRADE 7

5 RADIAL DASHES

72

°

APART

SAE GRADE 5

3 RADIAL DASHES

120

°

APART

SAE GRADE 8

6 RADIAL DASHES

60

°

APART

GRADE A - No Marks

GRADE B - 3 Marks

GRADE C - 6 Marks

Markings on Hex Locknuts

GRADE A - No Marks

GRADE B - Letter B

GRADE C - Letter C

GRADE A - No Notches

GRADE B - 1 Notch

GRADE C - 2 Notches

E-5/(E-6 blank)

TM 9-2815-250-24&P

Paragraph

Number

APPENDIX F

MANDATORY REPLACEMENT PARTS

Page

Paragraph Title Number

F-1

General...............................................................................................................................

F-1

F-2

Explanation of Columns .......................................................................................................

F-1

Table F-1

Mandatory Replacement Parts List .......................................................................................

F-2

F-1. GENERAL.

This appendix is a cross-reference of item numbers to part numbers and is included for that purpose only.

F-2. EXPLANATION OF COLUMNS .

There are five columns in Table F-1, Mandatory Replacement Parts List (p. F-2):

(1) Item Number. This number is assigned to the entry in Table F-1 for cross-referencing to the part number.

The item number appears in the Materials/Parts listing of a maintenance procedure.

(2) Part Number. This is the primary number used by the manufacturer, which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or a range of items.

(3) National Stock Number. When available, the national stock number is listed for each part.

(4) Item Name. This is the name given each item in the Materials/Parts listing of a maintenance procedure.

(5) Reference. This is the Repair Parts and Special Tools List (RPSTL) appendix in which the referenced replacement part can be found. The RPSTL is the authorization for requisitioning replacement parts.

F-1

F-2

(1)

Item

Number

20

21

22

17

18

19

14

15

16

11

12

13

23

24

25

26

27

8

9

10

5

6

7

1

2

3

4

Table F-1. MANDATORY REPLACEMENT PARTS LIST

(2)

National

Part Number

04039100

40002500

40021400

40021500

40028400

49004400

49004700

50000900

50001100

50019800

50020000

50036000

01228000

01240300

01247700

01285600

03233200

03233300

03781300

03783902

03958000

04038200

50061700

50081200

50095100

50114300

50146000

(3)

Stock Number

5330-01-415-6723

2815-01-455-0428

5330-01-415-6721

5365-01-100-5416

5365-01-100-5417

3120-01-416-3110

5365-01-455-0011

5340-01-454-9272

5340-01-454-9273

5330-01-120-2966

5999-01-116-8286

5310-01-101-2028

5330-01-101-7264

5310-01-090-0938

5330-01-080-1776

5360-01-399-4615

5365-01-245-3517

5315-01-399-6107

5310-01-274-4387

5130-01-274-3165

5310-01-399-7305

5310-01-400-2138

(4)

Item Name

Crankcase Gasket Set

Piston Ring Set

Head Gasket Set

Gasket Set

Shim, 0.2 mm

Shim, 0.3 mm

Sleeve Bearing

Gasket

Shim, 0.3 mm

Cap-Plug

Cap-Plug

Blind Rivet

Seal

Wire Mesh

Self-Locking Nut

Gasket

O-Ring

Washer

Gasket

Retaining Ring

Retaining Ring

Cotter Pin

Lockwasher

Lockwasher

Spring Tension Washer

Lockwasher

Spring Tension Washer

TM 9-2815-250-24&P

(5)

Reference

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

40

41

42

43

36

37

38

39

32

33

34

35

28

29

30

31

48

49

50

51

52

44

45

46

47

(1)

Item

Number

(2)

Part

Number

Table F--1. MANDATORY REPLACEMENT PARTS LIST (continued)

(3)

National

Stock

Number

(4)

Item Name

50153800 5330--01--070--7136 O--Ring

50162900 5301--01--415--2649 Washer

50170900 5310--01--399--7301 Spring Tension Washer

50208500 5310--01--399--7307 Spring Tension Washer

50225501 O--Ring

50290200 5330--01--400--5772 O--Ring

50302100 3120--01--4161--3105 Sleeve Bearing

50302800 2940--01--383--9739 Filter Element

50305000 5365--01--399--4618 Retaining Ring

50306500 O--Ring

50308500 5340--01--406--1645 Clip

50308800 5365--01--400--0999 Retaining Ring

50313100 Gasket

50315400 5310--01--400--3715 Split Washer

50315900 5365--01--399--5011 Shim, 0.2 mm

50316000 5365--01--455--0012 Shim, 0.3 mm

50326200 5330--01--399--8354 O--Ring

50336200 5330--01--399--8357 O--Ring

50336500 5330--01--399--6979 O--Ring

50359110

99400641

05185802

50153900

Retaining Ring

Seal

Spring, Return

O--Ring

50224200 CIRCLIP, 16x1

50195800 5310--01--400--1002 Shim

TM 9--2815--250--24&P

(5)

Reference

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Change 1

F--3

53

54

55

56

57

58

(1)

Item

Number

(2)

Part

Number

Table F--1. MANDATORY REPLACEMENT PARTS LIST (continued)

(3)

National

Stock

Number

(4)

Item Name

50499900 Spring, Pressure

50499800

50500000

O--Ring

Spring, Pressure

50034100 5315--01--081--4488 Pin, Spring

04021800 Spring

50519800 O--Ring

TM 9--2815--250--24&P

(5)

Reference

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

Appendix C

F--4

TM 9-2815-250-24&P

APPENDIX G

TOOL IDENTIFICATION LIST

Section I. INTRODUCTION

Paragraph

Number

G-1

G-2

Page

Paragraph Title Number

General.....................................................................................................................................

G-1

Explanation of Columns in Section II ...........................................................................................

G-1

G-1. GENERAL.

This appendix lists all of the common and special tools required to maintain the Diesel Engine Assembly, Hatz 2 G 40.

This appendix is for reference only. To requisition special tools, refer to Appendix C, Repair Parts and Special Tools List

(RPSTL).

G-2.

a.

b. c. d. e.

EXPLANATION OF COLUMNS IN SECTION II.

Column (1) - Item Number. This number is assigned to the entry in the listing and is referenced in the initial setup

in each maintenance procedure to identify the item (e.g., General mechanic's tool kit, Item 11, Appendix G).

Column (2) Item Name. This column lists the item by nomenclature and other descriptive features, such as measurement.

Column (3) National Stock Number. This is the national stock number assigned to the item; use it to requisition or request an item.

Column (4) Part Number. This indicates the primary number used by the manufacturer who controls the design and characteristics of the item by means of engineering drawings, specification, standards, and inspection requirements.

Column (5) Reference. This column identifies the authorizing supply catalog (SC) or RPSTL for items listed in this appendix.

G-1

TM 9-2815-250-24&P

8

9

10

11

12

13

14

(1)

Item

Number

4

5

6

1

2

3

7

15

16

17

18

19

20

(2)

National

Part Number

Arbor press

Blind hand riveter

Cable assembly

Crank gear driver

Crank gear puller

Cylinder alignment bracket

Cylinder compression tester

Cylinder ridge reamer

Depth gage rule

Drill set

Electric drill

Fuel-test set

Fuel-testing device

Section II. TOOL IDENTIFICATION LIST

(3) (4)

Stock Number Item Name

3444-00-449-7295

5120-00-017-2849

6150-00-682-3460

4910-00-808-4300

5110-00-237-8598

5210-00-221-1902

5133-00-293-0983

5130-00-889-9004

General mechanic's tool kit

General mechanic's tool kit, automotive

Indicator dial

Mechanical gear and bearing puller kit

5180-00-699-5273

5180-00-177-7033

5210-00-277-8840

5180-00-423-1569

Mechanical hand-held 6680-00-171-4584 tachometer

6625-01-139-2512 Multimeter

Oil pressure test set

A-A-51194

98

11647741

62574700

62574801

62574200

MIL-G-5353, Type 2

MIL-C-82069

MC103A

DB129B

WD00661

60462890

66503191

SC-5180-90-CL-N05

SC-5180-90-CL-N26

196A

GGG P 781

4800

T00377

62092692

(5)

Reference

SC- 4910-95-A31

SC 4910-95-CL-A74

SC 4910-95-CL-A74

TM 9-2815-250-24&P

TM 9-2815-250-24&P

NA

SC-4940-95-B02

SC-4910-95-A63

SC-3470-95-A02

SC 4910-95-CL-A72

SC 4910-95-CL-A74

TM 9-2815-250-24&P

TM 9-2815-250-24&P

SC-5180-90-CL-N05

SC-5180-90-CL-N26

SC-4910-95-A63

SC-4910 95 A31

SC-4910 95 A31

SC-4910 95 A31

TM 9-2815-250-24&P

G-2

TM 9-2815-250-24&P

(1)

Item

Number

21

22

23

24

25

26

27

28

29

30

31

*32

33

34

35

36

(2)

National

Part Number

Piston ring compressor

Section II. TOOL IDENTIFICATION LIST (continued)

(3) (4)

Stock Number

5120-00-223-8848

Item Name

J3272-03

PRS 8

62568902

Piston ring expander 5120-00-857-3190

Relief valve puller

Screwdriver attachment, 6 mm

Screwdriver attachment, 8 mm

Snapring pliers

5120-01-102-1670

5120-01-101-1943

5120-00-789-0492

5120-00-322-6231 Socket wrench set,

3/8-inch drive

Steel rule, 12-inch 5210-00-234-5224

5120-00-020-2947

5120-00-554-7292

Strap wrench

Torque wrench,

3/8-inch drive

Torque wrench,

1/2-inch drive

Torque wrench,

3/8-inch drive

Valve face grinding machine

Valve seat grinding kit

Valve spring lifter

5120-00-640-6364

5120-01-112-9531

44910-00-540-4679

4910-00-060-9983

Wrench

5120-00-239-8686

51230-01-309-2048

J3516-A

GIT-17595

4440R

512000 17510

GGG-R-791

A91C

GGG-W-00686

1753 LDF

TESI60

K403CM

WG690

GGG-L-350

3715M

(5)

Reference

SC-4910-95-A63

SC-4910 95 A31

TM 9-2815-250-24&P

SC-4910-95-A31

SC-4910 95 A31

SC-5180-95-B08

SC-5181-95-B08

SC-3470-95-A02

SC-4910-95-A74

SC-4910-95-A74

SC-4910 95 A31

SC-4910 95 A31

SC-4910-95-A63

SC-4910-95-A63

SC-4910-95-A63

TM 9-2815-250-24&P

*This torque wrench may be used instead of Item 30 if a metric torque reading is preferred.

G-3/(G-4 blank)

TM 9--2815--250--24&P

INDEX

SUBJECT PAGE

A

Abbreviations and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustment

Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flow Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--2

3--69

3--60

Solenoid (UOC: APP)

Valve

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Valve--to--Piston Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--30

3--58

3--40

Airflow Deflectors Replacement (UOC: APP)

Auxiliary Drive Adapter Replacement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--24

3--14.1

B

Bearings Repair, Crankshaft and . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--26

C

Camshaft Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cautions, Notes, and Warnings

3--40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Combustion Chamber Liner Repair, Piston and . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--4

3--32

Common Tools and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--1

Components, Major, Location and Description

Corrosion Prevention and Control

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--5

1--3

Crankcase Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft and Bearings Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Compression Test

Cylinder Heads Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--20

3--26

3--56

3--15

D

Deep Oil Pan and Gasket Replacement (UOC: APJ)

Destruction of Army Materiel To Prevent Enemy Use

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--48.1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

Direct Support and General Support

Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick Guide to Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--12

3--2

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting, General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Durable Items List, Expendable and . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--3

3--1

D--2

E

Engine Speed Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Characteristics, Capabilities and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--69

1--4

Equipment Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Improvement Recommendations, Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment, Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--8

1--2

2--1

Change 1

Index--1

TM 9--2815--250--24&P

PAGE SUBJECT

E (continued)

Errors, Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Expendable and Durable Items List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

D--2 i

Eyebolt Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--8

F

Fastener Grade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

E--5

Fastener Size and Thread Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Filler Neck Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

E--4

3--46

Filler Opening Cap Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--10

Filter Element Replacement (UOC: APP)

Flow Control Valve Adjustment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel and Housing Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--13

3--60

3--28

Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Injector

Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1, A--1

3--48.2

Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Pressure Pipe Assemblies and Return Fuel Hose Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--66

2--20

G

Governor Control Assembly Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--54

H

Hose and Tube Tagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--6

I

Identification Plate Replacement

Indexing

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

iv

Injection Pump

Replacement

Test

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--50

3--65

2--2, 2--5

Intake Manifold Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--15

L

Lubrication Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--6

M

Maintenance Allocation Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance Forms, Records, and Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B--4

1--1

Maintenance Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance Procedures, Direct Support and General Support

Auxiliary Drive Adapter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B--1

3--14.1

Camshaft Repair

Crankcase Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--40

3--20

Index--2 Change 1

TM 9--2815--250--24&P

PAGE SUBJECT

M (continued)

Crankshaft and Bearings Repair

Cylinder Heads Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--26

3--15

Deep Oil Pan and Gasket Replacement (UOC: APJ)

Filler Neck Replacement (UOC: APP)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--48.1

3--46

Flywheel and Housing Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--28

Fuel Injector Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Governor Control Assembly Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--48.2

3--54

Injection Pump Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--50

Mounting Plates Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pan and Gasket Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Piston and Combustion Chamber Liner Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--12

3--47

3--32

Rocker Arm Assemblies Repair

Maintenance Procedures, Unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Airflow Deflectors Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--38

2--24

Eyebolt Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Filter Opening Cap Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--8

2--10

Filter Element Replacement (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--13

Fuel Pressure Pipe Assemblies and Return Fuel Hose Replacement

General

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--20

2--3

Identification Plate Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--7

Intake Manifold Replacement

Oil Switch Replacement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Tube Assemblies Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--15

2--28

2--11

Rocker Arm Cover and O--Ring Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Solenoid Replacement and Adjustment (UOC: APP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--9

2--30

Thermostatic Switch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--29

Valve Vent Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Major Components, Location and Description of . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--18

1--5

Mandatory Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

F--2

Manual, How To Use

Manuals

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

iv

A--1

Materiel, Destruction of . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

Mounting Plates Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--12

N

Notes, Warnings, and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

O

Oil Pan and Gasket Replacement (UOC: APP)

Oil Pressure Test

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--47

3--70

Oil Switch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Tube Assemblies Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation, Principles of . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--28

2--11

1--9

Change 1 Index--3

TM 9--2815--250--24&P

PAGE SUBJECT

P

Pamphlets and Circulars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Piston and Combustion Chamber Liner Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--2

3--32

Principles of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Replacement, Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--9

3--50

Pump Test, Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3--65

Q

Quality Assurance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick Guide to Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

3--2

R

Records and Reports, Maintenance

References

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

A--1

Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Repair Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A--2

2--6

2--1, C--1

Repair Parts and Special Tools List

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Explanation of Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Repair Parts, How To Locate

Scope

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Special Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C--7

C--2

C--7

C--1

C--6

Return Fuel Hose and Fuel Pressure Pipes Replacement

Rocker Arm Assemblies Repair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rocker Arm Cover and O--Ring Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--20

3--38

2--9

S

Safety, Care, and Handling

Safety Summary

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vi

Safety, Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service upon Receipt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--4

2--2

Solenoid Replacement And Adjustment (UOC: APP)

Special Tools, TMDE, and Support Equipment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--30

2--1

Storage or Shipment, Preparation for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1--1

T

Tagging, Hose and Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test, Measurement, and Diagnostic Equipment (TMDE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tests

Cylinder Compression

Fuel Injector

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Injection Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2--6

A--1

2--1

3--56

3--66

3--65

3--70

Index--4

Change 1

SUBJECT

TM 9-2815-250-24&P

PAGE

T (continued)

Text and Illustrations ................................................................................................................................................. i v

Thermostatic Switch Replacement ......................................................................................................................... 2-29

Tightening Metal Fasteners .................................................................................................................................... E-3

Tool Identification List ............................................................................................................................................ G-1

Tools and Equipment, Common............................................................................................................................... 2-1

Tools and Test Equipment Requirements................................................................................................................ B-6

Tools, Special......................................................................................................................................................... 2-3

Torque Limits ........................................................................................................................................................ E-1

Torque Table, How To Use..................................................................................................................................... E-1

Torque Values ........................................................................................................................................................ 2-6

Troubleshooting, Direct Support and General Support

Chart ............................................................................................................................................................... 3-3

General............................................................................................................................................................ 3-1

Quick Guide to.................................................................................................................................................. 3-2

Tube and Hose Tagging.......................................................................................................................................... 2-6

V

Valve Adjustment.................................................................................................................................................. 3-58

Valve-to-Piston Clearance Adjustment ................................................................................................................... 3-40

Valve Vent Repair................................................................................................................................................. 2-18

W

Warnings, Cautions, and Notes .................................................................................................................................. v

Warning Summary .....................................................................................................................................................a

Warranty Information .............................................................................................................................................. 1-3

Work Safety ........................................................................................................................................................... 2-4

Index 5/(Index 6 blank)

By Order of the Secretary of the Army:

DENNIS J. REIMER

General, United States Army

Chief of Staff

Official:

JOEL B. HUDSON

Administrative Assistant to the

Secretary of the Army

05170

DISTRIBUTION:

To be distributed in accordance with the initial distribution number (IDN)

381080, requirements for TM 9-2815-250-24&P.

U.S. GOVERNMENT PRINTING OFFICE: 1999-746-025/800075

TM 9--2350--314--20--1--1

--2

THE METRIC SYSTEM AND EQUIVALENTS

LINEAR MEASURE

1 Centimeter = 10 Millimeters = 0.01 Meters = 0.3937 Inches

1 Meter = 100 Centimeters = 1000 Millimeters = 39.37 Inches

1 Kilometer = 1000 Meters = 0.621 Miles

WEIGHTS

1 Gram = 0.001 Kilograms = 1000 Milligrams = 0.035 Ounces

1 Kilogram = 1000 Grams = 2.2 Lb.

1 Metric Ton = 1000 Kilograms = 1 Megagram = 1.1 Short Tons

SQUARE MEASURE

1 Sq. Centimeter = 100 Sq. Millimeters = 0.155 Sq. Inches

1 Sq. Meter = 10,000 Sq. Centimeters = 10.76 Sq. Feet

1 Sq. Kilometer = 1,000 Sq. Meters = 0.386 Sq. Miles

CUBIC MEASURE

1 Cu. Centimeter = 1000 Cu. Millimeters = 0.06 Cu. Inches

1 Cu. Meter = 1,000,000 Cu. Centimeters = 35.31 Cu. Feet

LIQUID MEASURE

1 Milliliter = 0.001 Liters = 0.0338 Fluid Ounces

1 Liter = 1000 Milliliters = 33.82 Fluid Ounces

TEMPERATURE

5/9 (_F --- 32) = _C

212_ Fahrenheit is equivalent to 100_ Celsius

90_ Fahrenheit is equivalent to 32.2_ Celsius

32_ Fahrenheit is equivalent to 0_ Celsius

(9/5 x _C) + 32 = _F

APPROXIMATE CONVERSION FACTORS

TO CHANGE TO MULTIPLY BY

Inches

Feet

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

Yards

Miles

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Square Inches

Square Feet

Square Yards

Square Miles

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

Acres . . . . . . . . . . . . . . . . . . . . . . . .

Cubic Feet

Cubic Yards

Fluid Ounces

Pints

Quarts

Gallons

Ounces

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

Pounds

Short Tons

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

Pound---Feet

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

Pounds per Square Inch

Miles per Gallon

Miles per Hour

. . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

Centimeters

Meters

Meters

Cubic Meters

Cubic Meters

Millimeters

Liters

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

Kilometers . . . . . . . . . . . . . . . . . . . .

Square Centimeters

Square Meters

Square Meters

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

Square Kilometers

Square Hectometers

. . . . . . . . . . .

. . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . .

2.540

0.305

0.914

1.609

6.451

0.093

0.836

2.590

0.405

0.028

. . . . . . . . . . . . . . . . .

0.765

29.573

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Liters

Liters

Grams . . . . . . . . . . . . . . . . . . . . . .

Kilograms

Metric Tons

Newton---Meters

Kilopascals

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

Kilometers per Liter

Kilometers per Hour

. . . . . . . . . . . .

. . . . . . . . . . .

0.473

0.946

3.785

28.349

0.454

0.907

1.356

6.895

0.425

1.609

TO CHANGE TO MULTIPLY BY

Centimeters

Meters

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

Meters . . . . . . . . . . . . . . . . . . . . . . .

Kilometers . . . . . . . . . . . . . . . . . . . .

Square Centimeters

Square Meters

Square Meters

. . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

Square Kilometers

Square Hectometers

. . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

Cubic Meters

Cubic Meters

Milliliters

Liters

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Liters

Liters

Grams

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Kilograms

Metric Tons

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

Newton---Meters

Kilopascals

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

Kilometers per Liter

Kilometers per Hour

. . . . . . . . . . . .

. . . . . . . . . . . .

Inches

Feet

Yards

Miles

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Square Inches

Square Feet

0.394

3.280

1.094

0.621

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

0.155

10.764

Square Yards

Square Miles

Acres

Cubic Feet

Cubic Yards

Fluid Ounces

Pints

Quarts

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

1.196

0.386

2.471

35.315

Gallons

Ounces

Pounds

Short Tons

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

Pound---Feet

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

Pounds per Square Inch

Miles per Gallon

Miles per Hour

. . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

1.308

0.034

2.113

1.057

0.264

0.035

2.205

1.102

0.738

0.145

2.354

0.621

PIN: 076853--00

0

This fine document...

Was brought to you by me:

Liberated Manuals -- free army and government manuals

Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly available information, slap “watermarks” and other junk on it, and sell it.

Those masters of search engine manipulation make sure that their sites that sell free information, come up first in search engines. They did not create it...

They did not even scan it... Why should they get your money? Why are not letting you give those free manuals to your friends?

I am setting this document FREE. This document was made by the US

Government and is NOT protected by Copyright. Feel free to share, republish, sell and so on.

I am not asking you for donations, fees or handouts. If you can, please provide a link to liberatedmanuals.com, so that free manuals come up first in search engines:

<A HREF=

http://www.liberatedmanuals.com/

>Free Military and Government Manuals</A>

Sincerely

Igor Chudov http://igor.chudov.com/

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
