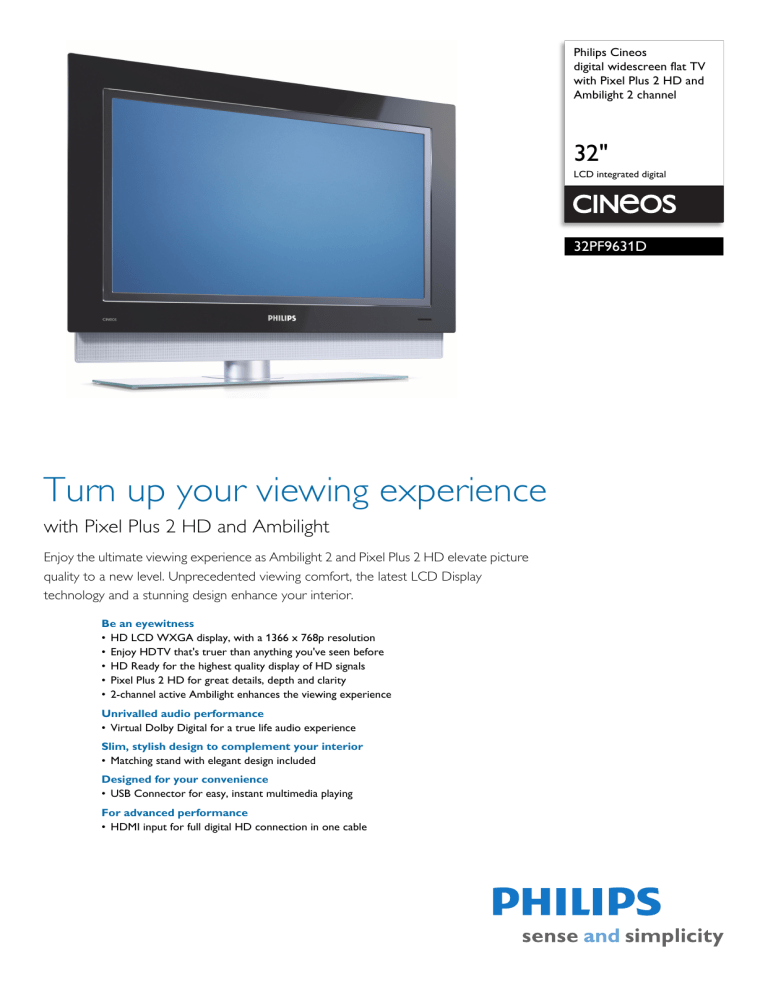

Philips Cineos
digital widescreen flat TV
with Pixel Plus 2 HD and
Ambilight 2 channel
32"
LCD integrated digital
32PF9631D
Turn up your viewing experience
with Pixel Plus 2 HD and Ambilight
Enjoy the ultimate viewing experience as Ambilight 2 and Pixel Plus 2 HD elevate picture
quality to a new level. Unprecedented viewing comfort, the latest LCD Display
technology and a stunning design enhance your interior.
Be an eyewitness
• HD LCD WXGA display, with a 1366 x 768p resolution
• Enjoy HDTV that's truer than anything you've seen before
• HD Ready for the highest quality display of HD signals
• Pixel Plus 2 HD for great details, depth and clarity
• 2-channel active Ambilight enhances the viewing experience
Unrivalled audio performance
• Virtual Dolby Digital for a true life audio experience
Slim, stylish design to complement your interior
• Matching stand with elegant design included
Designed for your convenience
• USB Connector for easy, instant multimedia playing
For advanced performance
• HDMI input for full digital HD connection in one cable
Digital widescreen flat TV with Pixel Plus 2 HD and Ambilight 2 channel
32PF9631D/79
32" LCD integrated digital
Highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HDTV
HDTV delivers exceptional picture quality and
real movie-viewing experience that makes
television more dynamic, truer than anything
you've seen before. It is the latest and best
television signal available. It features picture
quality more than twice that of traditional
analog broadcasts. In order to effectively
maximize the HDTV signal, a television must
incorporate advanced signal input connectivity
and circuitry design.
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus 2 HD
Pixel Plus 2 HD offers the unique combination
of ultimate sharpness, natural detail, increased
depth, vivid colors and smooth and natural
motion from standard TV, High Definition
signals and multimedia sources. Each pixel of
the incoming picture is enhanced to better
match the surrounding pixels, resulting in a
more natural picture. Artifacts in compressed
multimedia content are detected and reduced,
ensuring that the picture is clean and razor
sharp. Digital noise reduction ensures that the
picture is perfectly smooth yet razor sharp.
Ambilight 2 channel
Ambilight makes an impressive contribution to
the overall viewing experience by producing
ambient light to complement the colors and
light intensity of the on-screen image. It adds a
new dimension to the viewing experience,
completely immersing you into the content
you are watching. It creates ambiance,
stimulates more relaxed viewing, and improves
perceived picture detail, contrast and color.
Ambilight automatically and independently
adapts its colors according to the changing
content on the screen.
Virtual Dolby Digital
Virtual Dolby Digital is a processing technology
for enhancing surround sound effects. It will
create the sensation of Dolby Pro Logic
without the necessity of additional rear
speakers. You become totally immersed in
your television experience.
Bypacked tabletop stand
A table-top stand with matching design is
packed with the set.
USB Multimedia Connector
The USB connector allows access to
multimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1
memory-class device). Plug the USB into the
slot at the side of the TV and access your
photos or music files. This makes you easily
viewing and sharing your photos and music.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
32PF9631D/79
Digital widescreen flat TV with Pixel Plus 2 HD and Ambilight 2 channel
32" LCD integrated digital
Specifications
Picture/Display
•
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 550 cd/m²
Contrast ratio (typical): 1200:1
Dynamic screen contrast: 6000:1
Response time (typical): 6 ms
Viewing angle: 176º (H) / 176º (V)
Diagonal screen size: 32 inch / 80 cm
Display screen type: LCD WXGA Active Matrix
TFT
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus 2 HD, 3D
Combfilter, Active Control + Light sensor, Digital
Crystal Clear, Digital Natural Motion, Dynamic
contrast enhancement, Jagged Line Suppression,
Progressive Scan, Pulse Killer Chip, Widescreen
Plus
• Screen enhancement: Anti-Reflection coated
screen
Ambilight
• Ambilight Features: Ambilight 2 Channel, Auto
adaptive to video content, Efficient low energy
lamp
• Color Settings: Full Multi Color
• Dimming Function: Manual and via Light Sensor
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60Hz
800 x 600
60Hz
1024 x 768
60Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
• Output power (RMS): 2x8W
• Sound Enhancement: Digital Signal Processing,
Dynamic Bass Enhancement, Graphic Equaliser
• Sound System: Virtual Dolby Digital
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: Front Speakers
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Autostore, PLL Digital Tuning, Plug
& Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List, Side
Control
• Electronic Program Guide: Now + Next EPG
• Picture in Picture: Text dual screen
• Remote Control: Aux, DVD, STB (Set-Top Box),
VCR
• Remote control type: RC4401
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Movie expand 14:9, Movie
expand 16:9, Subtitle and Heading Shift, Super
Zoom, Widescreen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
information Line
• VESA Mount: Vesa compliant
Multimedia Applications
• Digital Content Management: Digital Media Reader
• Multimedia connections: USB (streaming video
capable)
• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures, MPEG2
Tuner/Reception/Transmission
•
•
•
•
•
Aerial Input: 75 ohm coaxial (IEC75)
TV system: NTSC, PAL B/G, DVB COFDM 2K/8K
Video Playback: NTSC, SECAM, PAL
DVB: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, S-video
in
• Ext 3: YPbPr
• Ext 4: HDMI
Issue date 2009-05-03
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.0.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 24738
EAN: 87 10895 99710 2
www.philips.com
• Ext 5: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Monitor out, CVBS, L/R
(cinch), S/PDIF out (coaxial), Common Interface
Power
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: AC 220 - 240 V +/- 10%
Power consumption: 128 W
Standby power consumption: 0.9W
Dimensions
•
•
•
•
•
Set dimensions (W x H x D): 866 x 642 x 114 mm
Set dimensions with stand (H x D): 707 x 220 mm
Weight incl. Packaging: 32 kg
Color cabinet: High Gloss Black
VESA wall mount compatible: 600 x 200 mm
Accessories
• Included Accessories: Table top stand, Wall
mounting bracket, RF antenna cable
• Optional accessories: Floor stand
•
