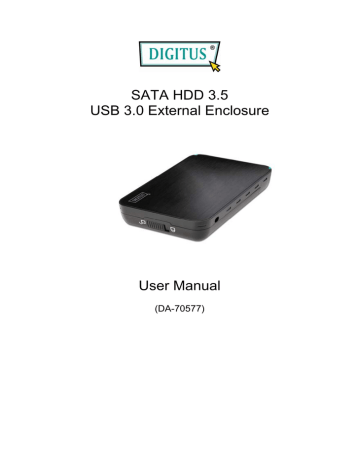

SATA HDD 3.5

USB 3.0 External Enclosure

User Manual

(DA-70577)

I. System Requirement

Basic environment for setup this device:

Hardware requirement: a PC or Notebook

Operation system:Windows2000/XP/Vista/7

II. Feature

No screws design, easy install or remove disk drive

Suitable for 3.5" SATA HDD

Compliant USB3.0 to SATA interface, transfer rate max up to5Gbps

One touch backup function

Support Plug-paly and Hot-plug.

Power Supply: Self-power, AC100~240V input, DC 12V output

III. Check fittings

Before using the product, please check the fittings in the package compliant with the below. If not, please contact the local dealers timely.

◇one 3.5" External Enclosure

◇one 12V Adapter

◇one CD Driver

◇one User's Manual

◇one USB3.0 cable

IV. Hardware Install

1. Slide the button to [Unlock] position, and pull the plastic cover out

2. Connect the 3.5" SATA HDD to the 22pin SATA connector correctly and firmly

1

3. Slide the plastic cover to the main case

4. Slide the button to the [Lock] position

5. Insert the enclosure to the attached stand

6.Connect the USB cable to enclosure and PC

7.Connect the Adapter to the enclosure and power source

7

2

V. Driver Installation

a . Setup mode under Windows2000/XP/Vista/7

Under system win2000/XP/Vista/Win7, system will automatically detect the new hardware and finish the setup!

Then an icon will appear on the right-bottom area of the system toolbar as below:

Congratulation,you enyoy this product now!

VI. Power Supply: Self-Power

Power Supply Voltage input: AC 100~240V

50/60Hz

Voltage output: DC 12V

3

VII. software installation and usage

A. software installation

1.Open the folder

[PCCLONEEX_LITE_1_82_01_JMICRON] and double click

[Setup],the window will apear as below:

2. Click [Agree] to accrpt the license agreement

3

. Click [Install] enter next step

1. After finish the installation, on icon will appear on desktop, double click [PCCloneEX] , then one window will appear as below:

5

2. Press the backup button, program will appear [Please select file(s)], click [OK]

6

3. Please select the file(s) which you want to backup in the left window, then press the button again

4. Follow the instruction to press the button again or click

[Start] with mouse

7

5. System start to backup the file(s) which you have selected, when finish, there will display [Back up finished], click [OK]

6. Now you can check the file in right window

8

VIII. Remove the external enclosure

Before removing this unit from your computer, please finish the following procedures for a safe removal:

1). Click the icon in the [Desktop] window of your computer

2). A [Safely Remove Hardware] message window will appear , click the [Stop] button

3). [It is now safe to remove the USB device] message will appear, close the [Safely Remove Hardware] window

4). Remove the USB cable and Power off the adapter if it is applied.

IX.Format a new Hard Disk Drive

If you use a new Hard Disk Drive, you must format it before you use it.please follow the steps as bellow to format your new Hard

Disk Drive:

1). Right click [My Computer], and select [Manager]

2). System will display a "Computer Manager" window, and click

[Disk Manager] in left window

3). In right window, the message of the new Hard Disk Drive will appear under the system disk, such as [Seagate....]

4). Right click the new disk drive, and select [Delete partition]

5).Right click the new disk drive, select [New Partition]

6).Right click the new disk drive, select [New logical drive]

7).Right click the new disk drive, select [Format disk drive]

8). Now you have formatted the new disk drive, then in [My

Computer], the new Hard Disk Drive will appear and you can use it

9
