iVMS-4500 (iPad) Mobile Client Software User Manual

iVMS-4500 (iPad) Mobile Client Software User Manual

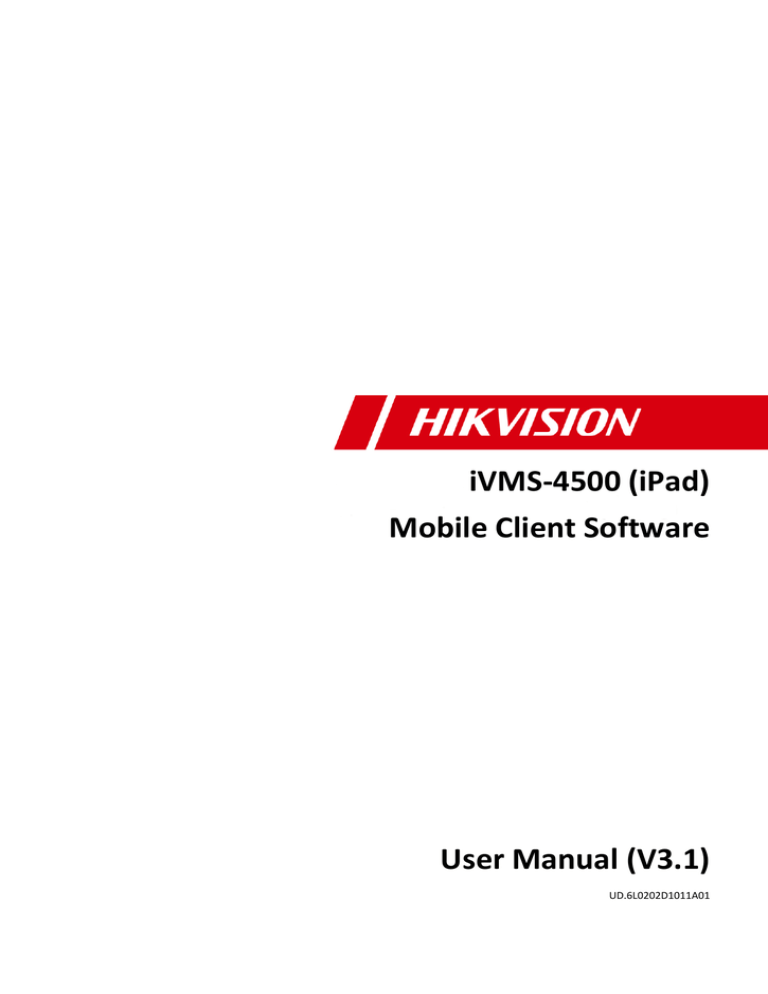

iVMS-4500 (iPad)

Mobile Client Software

User Manual (V3.1)

UD.6L0202D1011A01

iVMS-4500 (iPad) Mobile Client Software

Thank you for purchasing our product. This manual applies to iVMS-4500 (iPad) mobile client software; please read it carefully for the better use of this software.

The contents in this manual are subject to change without notice.

1

iVMS-4500 (iPad) Mobile Client Software

Contents

Chapter 1 Introduction ...................................................................................................................... 3

1.1 Overview ............................................................................................................................. 3

1.2 System Requirements .......................................................................................................... 3

1.3 Conventions......................................................................................................................... 3

Chapter 2 Installing and Uninstalling the Software ........................................................................... 4

2.1 Installing the Software ........................................................................................................ 4

2.2 Uninstalling the Software .................................................................................................... 4

Chapter 3 Running the Software ....................................................................................................... 5

3.1 Interfaces Introduction ........................................................................................................ 5

3.2 Password Protection ............................................................................................................ 6

Chapter 4 Device Management ........................................................................................................ 8

4.1 Adding a Device ................................................................................................................... 8

4.2 Modifying a Device ............................................................................................................ 10

4.3 Deleting a Device............................................................................................................... 12

Chapter 5 Live View ........................................................................................................................ 13

Chapter 6 Playback .......................................................................................................................... 23

Chapter 7 Favorites ......................................................................................................................... 27

Chapter 8 Others ............................................................................................................................. 30

Appendix ......................................................................................................................................... 32

Version History ........................................................................................................................ 32

Troubleshooting ...................................................................................................................... 32

2

iVMS-4500 (iPad) Mobile Client Software

Chapter 1 Introduction

1.1 Overview

iVMS-4500 (iPad) V3.1 mobile client software, which is designed for iPad on the basis of iOS (Version 4.3 or higher), can be used to remotely monitor the live video from embedded DVR, NVR, network camera, network speed dome and DVS via wireless network, play back record files, control alarm output and realize PTZ control as well.

With this software installed in your iPad, you are able to log on to the front-end device via Wi-Fi or 3G; besides, if there is no public IP available for the device, it’s accessible by using a dynamic domain name, or by mapping ports to the public IP of router.

Notes:

1. Wi-Fi or 3G access service must be supported by the iPad.

2. Network traffic charges may be produced during the use of this client software.

Please refer to the local ISP.

1.2 System Requirements

iOS 4.3 or higher version, including iPad2, iPad3, iPad4 and iPad mini series products.

1.3 Conventions

In order to simplify the description, we define the “iVMS-4500 (V3.1) mobile client software” as “software” and “DVR, NVR, DVS, IP camera, IP speed dome” as

“device” in the following chapters.

3

iVMS-4500 (iPad) Mobile Client Software

Chapter 2 Installing and Uninstalling the Software

2.1 Installing the Software

Steps:

1. Log into the App Store.

2. Enter “iVMS-4500 HD” to search mobile client software.

3. Download and install it to your iPad.

4. After having installed the software successfully, you can click the software.

2.2 Uninstalling the Software

icon to start

Click and hold the icon in the program list until it changes to uninstall the mobile client software.

. Click to

4

iVMS-4500 (iPad) Mobile Client Software

Chapter 3 Running the Software

After having installed the software successfully, click icon to run the software.

3.1 Interfaces Introduction

The software has three main functions, including Live View, Remote Playback and

Configuration.

Note:

The is a demo added by default when you run the software for the first time. You can view the live video (refer to Chapter 5) and play back the record files (refer to Chapter 6) of the demo. And you can also modify the demo (refer to

Chapter 4.2) or remove the demo (refer to Chapter 4.3).

Icon Description

Icon

Live View

Remote Playback

Configuration

Devices

Favorites

5

Descriptions

Live view, PTZ control, alarm outputs management, etc.

Play back the recorded files.

Display device list, add/delete/modify device, view device information, etc.

Define specific cameras and views to

iVMS-4500 (iPad) Mobile Client Software your favorites.

Local Configuration Configure password protection.

Help

Show software’s quick operation guide and main features.

About

Display software’s version information and new features, and configure software update and email feedback.

3.2 Password Protection

With the password protection enabled, then only the user that has the password can access the software.

Task 1: Enable Password Protection

Steps:

1. Click and select to enter the Local Configuration interface.

2. Slide the protection.

to in Password Protection item to activate password

3. In the dialog box, enter the password for the software and click

6

to

iVMS-4500 (iPad) Mobile Client Software save the settings.

Next time, if you want to run the software, you need to enter the password to log in first.

Task 2: Modify the Password

Click and enter corresponding information to modify the password.

Task 3: Disable Password Protection

Steps:

1. Slide the protection.

to in Password Protection item to disable password

2. In the pop-up dialog box, enter the password to confirm the settings.

7

iVMS-4500 (iPad) Mobile Client Software

Chapter 4 Device Management

4.1 Adding a Device

You need to add a device firstly that all operations such as live view, playback and device management can be accessible.

Note:

The is a demo added by default when you run the software for the first time. You can view the live video (refer to Chapter 5) and play back the record files (refer to Chapter 6) of the demo. And you can also modify the demo (refer to

Chapter 4.2) or remove the demo (refer to Chapter 4.3).

Steps:

1. Click and select to enter the Device Management interface.

2. Click to add a new device.

8

iVMS-4500 (iPad) Mobile Client Software

3. Edit the device name in the Alias field.

4. Click the Register Mode item to select the register mode of the device to HiDDNS,

IP/Domain, or IP Server, and configure the corresponding settings.

HiDDNS: When the device is registered on the HiDDNS server, you need to enter the HiDDNS server address and the device domain name registered on the server.

IP/Domain: You can access the device through fixed IP address or domain name.

You need to edit the IP address or domain address and the port of the device.

IP Server: You can access the device through IP Server. You need to set the IP

Server address and device identifier which is device name or device serial No..

5. Enter the login user name and password of the device to be added.

6. Click to confirm the settings.

Notes:

1) If the device is successfully added, the software can obtain the camera information of the device and the

2) Up to 100 devices can be added.

button will display.

3) You can click to live view the newly added device. Please refer to Chapter 5 for detailed operation about live view.

9

iVMS-4500 (iPad) Mobile Client Software

Click to return to the Device Management interface. The successfully added new device will be displayed in the Device Management interface.

4.2 Modifying a Device

Steps:

1. In the Device Management interface, select a device and click the device item to view its parameters.

10

iVMS-4500 (iPad) Mobile Client Software

2. Click needs. and then modify the parameters of the device according to actual

3.

Click

4.

Click to save the modification.

to return to the Device Management interface.

11

iVMS-4500 (iPad) Mobile Client Software

4.3 Deleting a Device

In the Device Management interface, select a device and slide the item from right to left to access the button. Click to delete the selected device.

12

iVMS-4500 (iPad) Mobile Client Software

Chapter 5 Live View

After the device is successfully added, you can view live video from the devices, enable or disable the alarm output of the device and control PTZ movement as well.

Note:

The alarm output and PTZ control should be supported by the added device.

Click to enter the Live View interface and the screen will be displayed in

1-division mode by default.

Description of Live View Icons:

Icons Descriptions

/

Hide/Show the device nodes

/

/

Mute/Audio on

Set image quality to Clear,

Balanced, Fluent or

Customized

Enable / disable digital zoom

Stop all the live view

PTZ control

13

Icons

/

/

/

Descriptions

Capture picture of the selected live view window

Start/stop two-way audio

Enable / disable alarm outputs

Set favorite cameras and views

Full-screen mode /

Restore

iVMS-4500 (iPad) Mobile Client Software

Start Live View

Click the device node to list all the cameras under it. Drag the camera node to the window for live viewing. Alternatively, you can drag the device node to the window for viewing all the cameras of the device.

Note:

1) Up to 16 cameras can be live viewed at the same time. If you drag a device node that contains more than 16 cameras for live view, then the live videos of first 16 cameras will be played.

2) If the channel-zero is supported by the device and it has been configured, you can select to live view channel-zero.

Image Quality

There are three defined image quality types provided, including Clear, Balanced and

Fluent. And you can also customize the image quality. Click to adjust the quality according to the performance of your network and phone hardware.

Customize the Image Quality

Steps:

1. Click to activate the customized panel shown below.

14

iVMS-4500 (iPad) Mobile Client Software

2. Configure the parameters according to actual needs, including Stream Type,

Resolution, Frame Rate and Bitrate.

3. Click to save the settings.

Note:

The live view effect is related to the performance of your network and phone hardware. If the live view is not fluent or the screen appears blurred, please reduce the resolution, frame rate and bitrate of the camera in Custom mode, or set the image quality as Balanced or Fluent mode.

The following table shows the recommended frame rate and bitrate configuration for different resolution at H.264 video compression by using iPad 2.

Resolution 1-ch 2-ch 4-ch 6-ch 9-ch 16-ch Recommended Configuration

HD1080P √

UXGA √

XVGA √

HD720P √

4CIF

VGA

CIF

√ √ √

Frame rate: 4fps; Bitrate: 1024Kbps

Frame rate: 6fps; Bitrate: 1024Kbps

Frame rate: 15fps; Bitrate: 1024Kbps

Frame rate: 15fps; Bitrate: 1024Kbps

Frame rate: 25fps; Bitrate: 1024Kbps

Frame rate: 25fps; Bitrate: 512Kbps

Frame rate: 25fps; Bitrate: 256Kbps

QVGA

QCIF

√ √

√ √

Frame rate: 25fps; Bitrate: 128Kbps

Frame rate: 25fps; Bitrate: 128Kbps

Window Division

When all the current windows are in live view, you can drag a more camera node to the live view window until the window division mode switches and then drag it to the free window for live view.

Note:

The software supports 1 / 4 / 6 / 9 / 16-division mode.

15

iVMS-4500 (iPad) Mobile Client Software

You can drag and move the window to adjust the window sequence. Double-click the live view window to display the camera in 1-division mode and double-click again to restore.

Stop Live View

During the live view, you can click to stop all the live videos.

Or you can perform the following steps to stop live view of the specific camera.

1. Click and hold the live view window.

2. Drag the window upwards, and the will display in the top of the software.

Drag the window to the until it changes to and then release the window. In this way, you can stop the specified live video.

Enable / Disable Alarm Output

16

iVMS-4500 (iPad) Mobile Client Software

You can enable or disable the alarm outputs of the added device by the software.

Note:

The alarm output should be supported by the device.

Steps:

1. Click to activate the alarm output control panel.

2. Select an alarm output and click it to set it as to enable this alarm output. You can also click the enabled alarm output to set it as to disable it.

Digital Zoom

You can realize the partial digital zoom during live view.

Steps:

1. Click to select a playing window.

2. Click and the selected window will be displayed in 1-division mode.

3. Spread two fingers apart to zoom in or pinch them together to zoom out the live view.

Configure My Cameras and Views

In live view mode, you can add the camera or view to the favorites so that you can access the camera or view conveniently.

Task 1: My Cameras

Select a window that is under live view. Click and select to add the camera to My Cameras.

The successfully added camera will be listed under My Cameras node in the device nodes area. In this way, you can easily view the camera by dragging it from My

Cameras node to the window area.

17

iVMS-4500 (iPad) Mobile Client Software

Task 2: My Views

You can add the current view information to My Views.

Steps:

1. Click and select .

2. In the pop-up dialog box, edit the name for the view.

3. Click to confirm the settings.

After that, you can see the view listed under My Views node in the device nodes area.

You can drag it to the window area to easily access the common view.

18

iVMS-4500 (iPad) Mobile Client Software

Capture

In live view mode, select the live viewing window and click the to capture a picture.

Note:

The captured pictures are saved in the photo folder of your iPad by default. You can access the directory to view or delete the pictures.

PTZ Control

In live view mode, select a playing window and click to activate PTZ control panel, and the icon changes to .

Note:

The PTZ control should be supported by the added device.

19

iVMS-4500 (iPad) Mobile Client Software

Icons Descriptions

Zoom+

Focus+

Iris+

Click the button to control

PTZ movements or start auto-scan.

Configuring Presets

Steps:

Icons Descriptions

Zoom-

Focus-

Iris-

PTZ steps for adjusting the pan/tilt movement speed.

1. In the PTZ control mode, use

2. Click

to move the camera to the desired scene.

to activate the preset settings interface. Click a preset and then click

under it to set the current scene as a preset.

Note:

Up to 256 presets can be configured.

20

iVMS-4500 (iPad) Mobile Client Software

3. To call the defined preset, click the preset and then click under it.

4. To delete the defined preset, click the preset and then click under it.

After completion of PTZ control, click or slide the PTZ panel to the right side to hide the PTZ control panel.

Full-screen Live View

During live view, you can click to enter the full-screen mode.

Note:

You can touch the screen to activate the control panel after it hides.

21

iVMS-4500 (iPad) Mobile Client Software

Descriptions

Restore

Description of Icon

Icons Descriptions

PTZ control. Slide the button to control PTZ movements.

/

Mute / Audio on

Capture picture of the selected live view window

Stop all the live view

/

Enable / disable digital zoom

Icons

/

/

Start/stop two-way audio

Set image quality

Enable / disable alarm output management

22

iVMS-4500 (iPad) Mobile Client Software

Chapter 6 Playback

You can search the recorded video files from the remote storage device for playback.

Start Playback

Steps:

1. Click to enter the Remote Playback interface.

2. Set the start time and end time in the From and To text filed to define the search condition.

3. Drag the device node or camera node to the display window for playback.

Notes:

1) You can view the playback of up to 4 windows at the same time.

2) Only the camera with record during that period can be played back successfully.

23

iVMS-4500 (iPad) Mobile Client Software

4. In 4-division mode, you can drag and move the window to adjust the window sequence. Double-click the playback window to display the camera in 1-division mode and double-click again to restore.

5. You can slide the timeline bar to adjust the playback time of the selected window.

6. You can also click to pause the playback of the selected window.

Hide device nodes Capture

Pause

Full-screen

Timeline

Mute/Audio on Digital zoom

Stop all playbacks

Stop Playback

There are two ways available for stopping the playback.

You can click to stop playback of all the windows.

Or you can perform the following steps to stop the specified playback window.

1. Click and hold the playback window.

2. Drag the window upwards, and the will display in the top of the software.

3. Drag the window to the until it changes to and then release the window.

24

iVMS-4500 (iPad) Mobile Client Software

Digital Zoom

You can realize the partial digital zoom during playback of video files.

Steps:

1.

Select a playback window.

2.

Click and the selected window will be displayed in 1-window mode.

3.

Spread two fingers apart to zoom in or pinch them together to zoom out the video.

Capture

During the playback, you can click to capture pictures of the selected window.

Note:

The captured pictures are saved in the photo folder of your iPad by default. You can access the directory to view or delete the pictures.

Full-screen Playback

During playback, click to enter the full-screen mode. You can press and drag the toolbar to adjust its position.

Note:

You can touch the screen to activate the control bar after it hides.

25

iVMS-4500 (iPad) Mobile Client Software

Description of Icon

Icons Descriptions

Pause the playback

/

Mute/Audio on

/

Enable / disable digital zoom

Icons Descriptions

Capture picture of the selected playback window

Restore

26

iVMS-4500 (iPad) Mobile Client Software

Chapter 7 Favorites

The Favorites function can be used for management of My Views and My Cameras to make the live view of commonly used cameras and views more easily and conveniently.

My Cameras: You can collect the commonly used cameras.

My Views: You can collect the commonly used views.

Note:

For adding cameras or views to the favorites in live view mode, please refer to

Configure My Cameras and Views in Chapter 5.

Click and select to enter the Favorites interface.

Task 1: My Cameras

Steps:

1. Click My Cameras to enter My Cameras interface. All the cameras of the added devices will be listed.

27

iVMS-4500 (iPad) Mobile Client Software

2. The cameras that have been added to My Cameras will be marked with .

3. Click to add the camera to My Cameras. Or click to remove the camera from My Cameras.

4. You can click to return to the Favorites interface.

Task 2: My Views

Steps:

1. Click My Views to enter My Views interface. You can see all the added views.

2. You can click to delete the view as desired.

28

iVMS-4500 (iPad) Mobile Client Software

3. For adding views to My Views, please refer to Configure My Cameras and Views in Chapter 5.

4. You can click to return to the Favorites interface.

Note:

Up to 32 views can be added to My Views.

All the successfully added cameras and views will also be listed under My Cameras node and My Views node in the device nodes area in the Live View interface.

29

iVMS-4500 (iPad) Mobile Client Software

Chapter 8 Others

Update the Software

When there is a new version available in the App Store, the software will prompt you to update the software. You can confirm to update the software immediately. Or you can cancel it and perform the following steps to update the software next time as desired.

Steps:

1. Click and select to enter the About interface.

2. If the shows in the Software Update item, click the software.

Note:

The

to update

displays when there is a new version available in the App Store.

Help and New Features

Click and select to enter the Help interface. You can view the quick operation guide of the software.

Click and select to enter the About interface. Click new features of the software.

to view the

Feedback

If there is any problem or suggestion during you use the software, please feel free to

30

iVMS-4500 (iPad) Mobile Client Software send emails to us by clicking . Our technical engineers will handle your problems and suggestions as soon as possible.

31

iVMS-4500 (iPad) Mobile Client Software

Appendix

Version History

V 3.1

Added New Features:

1. Support live viewing channel-zero.

2. Support customized image quality during live view mode.

3. Enable and disable alarm outputs.

4. Support audio control.

5. Preset configuration.

6. Support email feedback.

7. Support digital zoom.

8. Fisheye camera compatible.

Troubleshooting

What kinds of devices are compatible with iVMS-4500 (iPad) mobile client

software?

The devices which adopt H.264, MPEG4 or MJPEG video compression are compatible with this software.

Why does the mobile client software prompt ‘login failed’ when access to the

device via Wi-Fi?

Please check whether the Wi-Fi parameters are configured properly in your iPad.

After starting viewing the live video, why does the responding of the mobile

device becomes very slow and the video is easy to get stuck?

This problem may due that the lower performance of your iPad, please try to view less cameras at the same time, or decrease the frame rate and resolution, you may refer to the following parameter settings.

0301001030515

32

iVMS-4500 (iPad) Mobile Client Software

33

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
