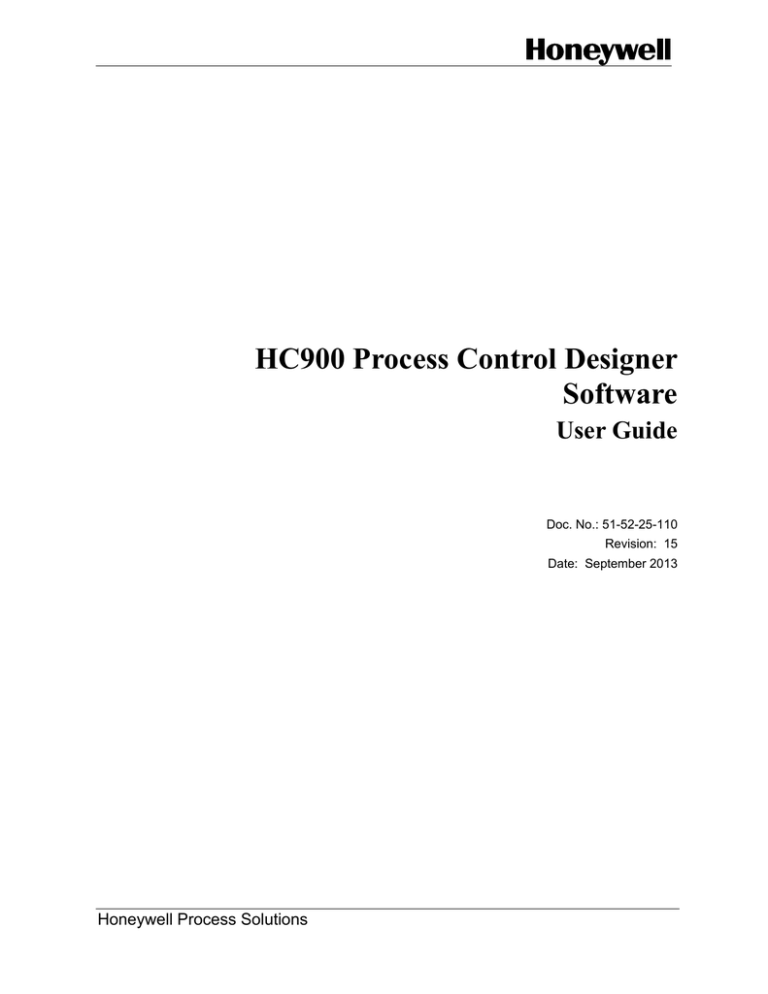

HC900 Process Control Designer
Software
User Guide
Doc. No.: 51-52-25-110
Revision: 15
Date: September 2013
Honeywell Process Solutions
Notices and Trademarks
Copyright 2013 by Honeywell
Revision 15 September 2013
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being free of defective materials and faulty
workmanship. Contact your local sales office for warranty information. If warranted goods are
returned to Honeywell during the period of coverage, Honeywell will repair or replace without
charge those items it finds defective. The foregoing is Buyer's sole remedy and is in lieu of all
other warranties, expressed or implied, including those of merchantability and fitness for a
particular purpose. Specifications may change without notice. The information we supply is
believed to be accurate and reliable as of this printing. However, we assume no responsibility for its
use.
While we provide application assistance personally, through our literature and the Honeywell web
site, it is up to the customer to determine the suitability of the product in the application.
Honeywell Process Solutions
Honeywell
1250 W Sam Houston Pkwy S
Houston, TX 77042
HC900 Process Control is a U.S. trademark of Honeywell
Other brand or product names are trademarks of their respective owners.
ii
HC900 Process Control Designer User Guide
Revision 15
September 2013
License Agreement
Read this agreement before opening the software. Once you have removed the software from its envelope, you have
accepted the agreement.
USAGE RIGHTS
Your rights, with respect to the Software, are non-exclusive. The software may only be used by one user, on one
computer at a time. The software may be transferred to another computer, as long as it is only used by one user at a
time. The Software and its documentation may not be copied or distributed to others. You may not create, modify,
alter, adapt, merge, de-compile or reverse-engineer the Software, and you may not remove or obscure Honeywell or
other included copyright or trademark notices.
TERM OF LICENSE
This agreement is effective unit terminated. Terminate the Agreement by destroying the Software, documentation
and all backup copies.
BACKUP COPIES
You may make backup copies of the Software. The copyright notice(s) must be included on each backup copy.
COPYRIGHTS
The Software accompanying this manual is protected by United States copyright law. The Software documentation
is copyrighted. You may only copy the Software and the Software documentation for backup or to load the
Software onto your computer as part of program execution.
TITLE TO SOFTWARE AND CONFIDENTIALITY
The Software and all copies thereof are proprietary to Honeywell and title thereto remains in Honeywell. All
applicable rights to patents, copyrights, trademarks and trade secrets in the Software are and shall remain in
Honeywell.
You may not sell, transfer, publish, or otherwise make available any software copies thereof to others. You
acknowledge that the Software is a trade secret of Honeywell. You agree to secure and protect each program,
software product and copies thereof in a manner consistent with the maintenance of Honeywell's rights therein and
to take appropriate action by instruction or agreement within your organization to satisfy your obligations hereunder.
Violation of these provisions shall be a basis for immediate termination of this license. Termination of the license
shall be in addition to and not in lieu of any other legal or equitable remedies available in Honeywell.
Revision 15
September 2013
HC900 Process Control Designer User Guide
iii
About This Document
Abstract
The Designer program operates on a PC with Windows™ 2000, XP, Vista or Windows™ 7. It lets you create, edit,
view and monitor HC900 Process Control control strategy configurations as well as your Operator Interface menu,
screen and button configurations. It uses graphic symbols and line drawing connections to represent control
strategies. Completed configurations are loaded into the control system using a dedicated communication port in the
controller.
References
The following list identifies all documents that may be sources of reference for material discussed in this
publication.
Document Title
Doc ID
HC900 Controller Technical Overview
51-52-03-31
Legacy HC900 Controller Installation and User Guide
51-52-25-107
HC900 Operator Interface User Guide
51-52-25-108
HC900 Process Control Function Block Reference Guide
51-52-25-109
HC900 Process Control Communications User Guide
51-52-25-111
HC900 Process & Safety Controller User & Installation Manual
51-52-25-154
HC900 Process Controller Safety Manual
51-52-25-153
iv
HC900 Process Control Designer User Guide
Revision 15
September 2013
Support & Contact Information
For Europe, Asia Pacific, North and South America contact details, refer to the back page of this manual
or the appropriate Honeywell Solution Support web site:
Honeywell Organization
WWW Address (URL)
Corporate
http://www.honeywell.com
Honeywell Process Solutions
http://www.hpsweb.honewell.com/ps
HPS Technical tips
http://hpsweb.honeywell.com/Cultures/enUS/Products/Instrumentation/hybrid/hc900/Technic
alTips/documents.htm
Telephone and Email Contacts
Area
Organization
United States and
Canada
Honeywell Inc.
Global Email
Support
Honeywell Process Solutions
Revision 15
September 2013
Phone Number
1-800-343-0228
Customer Service
1-800-423-9883
Global Technical Support
Email: (Sales)
[email protected]
or (TAC)
[email protected]
HC900 Process Control Designer User Guide
v
Symbol Definitions
The following table lists those symbols that may be used in this document to denote certain conditions.
Symbol
Definition
This DANGER symbol indicates an imminently hazardous situation, which,
if not avoided, will result in death or serious injury.
This WARNING symbol indicates a potentially hazardous situation, which, if
not avoided, could result in death or serious injury.
This CAUTION symbol may be present on Control Product instrumentation
and literature. If present on a product, the user must consult the
appropriate part of the accompanying product literature for more
information.
This CAUTION symbol indicates a potentially hazardous situation, which, if
not avoided, may result in property damage.
WARNING
PERSONAL INJURY: Risk of electrical shock. This symbol warns the user
of a potential shock hazard where HAZARDOUS LIVE voltages greater
than 30 Vrms, 42.4 Vpeak, or 60 Vdc may be accessible. Failure to
comply with these instructions could result in death or serious injury.
ATTENTION, Electrostatic Discharge (ESD) hazards. Observe precautions
for handling electrostatic sensitive devices
Protective Earth (PE) terminal. Provided for connection of the protective
earth (green or green/yellow) supply system conductor.
Functional earth terminal. Used for non-safety purposes such as noise
immunity improvement. NOTE: This connection shall be bonded to
protective earth at the source of supply in accordance with national local
electrical code requirements.
Earth Ground. Functional earth connection. NOTE: This connection shall be
bonded to Protective earth at the source of supply in accordance with
national and local electrical code requirements.
Chassis Ground. Identifies a connection to the chassis or frame of the
equipment shall be bonded to Protective Earth at the source of supply in
accordance with national and local electrical code requirements.
vi
HC900 Process Control Designer User Guide
Revision 15
September 2013
Table of Contents
LICENSE AGREEMENT ......................................................................................III
ABOUT THIS DOCUMENT ................................................................................. IV
Abstract ............................................................................................................................. iv
References........................................................................................................................ iv
6XSSRUWContacts ............................................................................ Y
Symbol Definitions ........................................................................................................... vL
TABLE OF CONTENTS..................................................................................... VII
SOFTWARE INTRODUCTION AND OVERVIEW ................................................1
Introduction ....................................................................................................................... 1
Features ............................................................................................................................ 1
HARDWARE AND SOFTWARE REQUIREMENTS .............................................4
What to Know Before You Start ........................................................................................ 4
Rack, Module, and Channel Assignments ........................................................................ 4
IMPLEMENTATION ..............................................................................................7
Starting the Application ..................................................................................................... 7
Connecting the PC to the Controller ................................................................................. 8
USER INTERFACE ...............................................................................................9
User Interface Overview ................................................................................................... 9
General Terminology ...................................................................................................... 10
File Browser Window ...................................................................................................... 11
Worksheet Toolbox Window ........................................................................................... 12
Traceback Window ......................................................................................................... 15
Watch Summary Window ................................................................................................ 16
Status Bar ....................................................................................................................... 17
Menu Conventions .......................................................................................................... 17
Selecting a Menu ............................................................................................................ 18
Closing a Menu ............................................................................................................... 18
Main Menu ...................................................................................................................... 18
File Menu ........................................................................................................................ 19
Edit Menu ........................................................................................................................ 21
View Menu ...................................................................................................................... 23
Monitor Menu .................................................................................................................. 24
Recipes Menu ................................................................................................................. 25
Window Menu ................................................................................................................. 25
Help Menu....................................................................................................................... 26
Main Toolbar Functions .................................................................................................. 27
Navigational Tools .......................................................................................................... 29
Right Mouse Click ........................................................................................................... 29
Keyboard Navigation....................................................................................................... 31
Revision 15
September 2013
HC900 Process Control Designer User Guide
vii
FILE MANAGEMENT .........................................................................................33
Opening an Existing File ................................................................................................. 33
Creating a New Configuration File .................................................................................. 33
Saving A Configuration File ............................................................................................ 33
Creating Other File Types ............................................................................................... 35
Converting HC900 Configurations .................................................................................. 36
Uploading a File from the Controller ............................................................................... 36
Downloading a File to the Controller ............................................................................... 37
Downloading Controller Firmware ................................................................................... 40
Download Firmware Error Messages .............................................................................. 42
File Properties ................................................................................................................. 43
How to Add Worksheet Protection .................................................................................. 44
File Read Protection ....................................................................................................... 47
Write Protect a File ......................................................................................................... 48
PC COMM PORTS AND CONNECTIONS .........................................................51
How to Manage PC Comm Ports and Connections ........................................................ 51
PC Network Port Set Up For Controller Access .............................................................. 51
PC Serial Com Port Setup .............................................................................................. 53
PC to Controller Connection Settings ............................................................................. 55
Remote Loopback Test ................................................................................................... 56
Remote Access ............................................................................................................... 57
Select the Number to Call ............................................................................................... 57
Communications Statistics .............................................................................................. 58
WORKSHEETS OVERVIEW ..............................................................................59
What is a Worksheet? ..................................................................................................... 59
Worksheet Category Tabs .............................................................................................. 59
CONTROLLER WORKSHEET ...........................................................................60
Controller Worksheet Overview ...................................................................................... 60
Controller Configuration Toolbar ..................................................................................... 61
E-Mail Notification ........................................................................................................... 62
Unlock the Worksheets ................................................................................................... 63
DISPLAY WORKSHEET ....................................................................................64
Operator Panel Worksheet Overview ............................................................................. 64
Operator Panel Configuration Toolbar ............................................................................ 64
Operator Interface Displays ............................................................................................ 65
Display Buttons Configuration ......................................................................................... 65
Configuring or Viewing Display Tag Groups ................................................................... 67
Alarm Details ................................................................................................................... 71
Event List Configuration .................................................................................................. 72
Event Details ................................................................................................................... 73
E-Mail Notification ........................................................................................................... 73
Operator Interface Settings ............................................................................................. 74
O/I File Names for Disk Storage ..................................................................................... 76
Start Up Display Configuration ........................................................................................ 76
Message Display Configuration ...................................................................................... 77
Unlock the Worksheets ................................................................................................... 77
viii
HC900 Process Control Designer User Guide
Revision 15
September 2013
DATA STORAGE................................................................................................79
Data Storage Overview ................................................................................................... 79
Data Storage Conventions .............................................................................................. 79
Data Storage Enable Conditions ..................................................................................... 81
Data Storage Configuration Access ................................................................................ 85
Create/Edit Data Storage File ......................................................................................... 85
Trend Storage Configuration........................................................................................... 86
Point Log Storage Configuration ..................................................................................... 87
Alarm/Event Storage Configuration ................................................................................ 88
FUNCTION BLOCK DIAGRAM (FBD) WORKSHEET .......................................91
FB Worksheet Overview ................................................................................................. 91
FBD Configuration Toolbar ............................................................................................. 92
How to Add a New FBD Worksheet ................................................................................ 93
How to Navigate Between FBD Worksheets .................................................................. 93
Keyboard Navigation....................................................................................................... 95
Traceback Window ......................................................................................................... 96
Resolve Dangling Soft Wires .......................................................................................... 97
How to Find an Item on the FBD Worksheet .................................................................. 99
How to Change a FBD's Worksheet Properties ............................................................ 100
How to Change the Worksheet Order ........................................................................... 100
How to Delete a FBD Worksheet .................................................................................. 100
How to Add Worksheet Protection ................................................................................ 101
Alarm Group Configuration ........................................................................................... 103
Alarm Details ................................................................................................................. 104
Event List Configuration ................................................................................................ 105
Execution Order ............................................................................................................ 105
Event Details ................................................................................................................. 111
E-Mail Notification ......................................................................................................... 111
Unlock the Worksheets ................................................................................................. 112
FUNCTION BLOCKS OVERVIEW ...................................................................113
Function Block Definition .............................................................................................. 113
Function Block Identification ......................................................................................... 113
Function Block Inputs and Outputs ............................................................................... 113
Types of Function Blocks .............................................................................................. 115
Function Block Attributes .............................................................................................. 116
Fast Scan Indicator ....................................................................................................... 116
USING FUNCTION BLOCKS TO BUILD A CONTROL /SAFETY STRATEGY117
Before You Start ........................................................................................................... 117
General Steps to Build a Control /Safety Strategy ........................................................ 117
Adding, Moving, Deleting Function Blocks to a FBD .................................................... 118
Connecting/Disconnecting Blocks ................................................................................. 120
Adding a Variable.......................................................................................................... 122
Adding a Numeric Constant .......................................................................................... 123
Adding a Connector ...................................................................................................... 124
Variables ....................................................................................................................... 125
Wire Nodes ................................................................................................................... 125
Signal Tags ................................................................................................................... 127
Revision 15
September 2013
HC900 Process Control Designer User Guide
ix
Page Connectors .......................................................................................................... 129
Text String..................................................................................................................... 131
Changing the Default Annotation Attributes .................................................................. 132
CONVENTIONS ................................................................................................133
Drag and Drop .............................................................................................................. 133
Accessing Context Sensitive Help ................................................................................ 133
Right Mouse Click ......................................................................................................... 133
HOW TO CONFIGURE FUNCTION BLOCK PARAMETERS ..........................134
Accessing Block Details ................................................................................................ 134
Function Block Address ................................................................................................ 134
User Assigned Tag Names ........................................................................................... 134
Function Block Parameters ........................................................................................... 134
FUNCTION BLOCK DIAGRAMS......................................................................135
Overview ....................................................................................................................... 135
Function Block Diagram Rules ...................................................................................... 135
Saving A Configuration File .......................................................................................... 135
UTILITIES WORKSHEET .................................................................................137
Overview ....................................................................................................................... 137
Controller Utility Functions ............................................................................................ 137
Uploading a File from the Controller ............................................................................. 138
Download a File to the Controller .................................................................................. 138
Set Controller Serial Ports ............................................................................................ 138
Modbus RTU Master - Advanced Setup ....................................................................... 140
Calibrate Controller ....................................................................................................... 142
Set Controller Mode ...................................................................................................... 142
Set Controller Network Parameters .............................................................................. 142
Set Controller Time ....................................................................................................... 145
Data Storage Utility ....................................................................................................... 148
Back Up Controller Information ..................................................................................... 149
Restore Controller Information ...................................................................................... 150
Manually Write Database to Flash ................................................................................ 152
Diagnostics ................................................................................................................... 153
Calibrate Modules ......................................................................................................... 153
PPO Block Calibration .................................................................................................. 156
SET POINT PROGRAMMING ..........................................................................161
Terms and Definitions ................................................................................................... 161
What is a Setpoint Program? ........................................................................................ 162
Setpoint Program Configuration Overview .................................................................... 163
SETPOINT SCHEDULERS ...............................................................................165
Setpoint Scheduler Overview ........................................................................................ 165
Setpoint Schedule Overview ......................................................................................... 165
x
HC900 Process Control Designer User Guide
Revision 15
September 2013
SEQUENCERS .................................................................................................167
What is Sequence Control? .......................................................................................... 167
Sequence Configuration Overview ............................................................................... 167
RECIPES ..........................................................................................................168
Recipe Overview ........................................................................................................... 168
Recipes Menu ............................................................................................................... 169
RECIPE (VARIABLES) .....................................................................................170
Introduction ................................................................................................................... 170
Recipe (Variables) Configuration .................................................................................. 170
Using Recipes to Download Setpoint Profiles ............................................................... 171
Create/Edit Recipe (Variables) File............................................................................... 172
Recipe Pool................................................................................................................... 173
Setup/Edit a Recipe in Pool .......................................................................................... 174
Recipe Properties ......................................................................................................... 174
SETPOINT PROFILES .....................................................................................175
Create/Edit Setpoint Profile File .................................................................................... 175
Setpoint Profile Properties ............................................................................................ 177
SETPOINT SCHEDULES .................................................................................179
Create/Edit Setpoint Schedule file ................................................................................ 179
Setpoint Schedule Pool................................................................................................. 180
Setup/Edit Setpoint Schedule in Pool ........................................................................... 181
Setpoint Schedule Properties ....................................................................................... 183
SEQUENCES ....................................................................................................184
Create/Edit Sequence File ............................................................................................ 184
Sequence Pool.............................................................................................................. 186
Setup/Edit Sequence in Pool ........................................................................................ 186
Sequence Properties .................................................................................................... 188
ON-LINE MONITORING ...................................................................................189
Overview ....................................................................................................................... 189
Enter Monitor Mode ...................................................................................................... 190
Visual Indicators for Monitor Mode ............................................................................... 191
Monitor Update Rate ..................................................................................................... 192
Monitor Toolbar ............................................................................................................. 192
How Do I Start Monitoring ............................................................................................. 193
Right Click Procedure in Monitor Mode ........................................................................ 194
Function Block Monitor Window .................................................................................... 195
Forcing/Unforcing an Output ......................................................................................... 196
Forced Blocks Window ................................................................................................. 198
How Do I Stop Monitoring ............................................................................................. 201
Logic Flow ..................................................................................................................... 201
Revision 15
September 2013
HC900 Process Control Designer User Guide
xi
WATCH SUMMARY WINDOW .........................................................................208
Overview ....................................................................................................................... 208
Find Feature.................................................................................................................. 210
Sort Function................................................................................................................. 210
Watch Summary - User Defined ................................................................................... 210
Watch Summary - Signals ............................................................................................ 212
Watch Summary - Variables ......................................................................................... 214
Watch Summary - Inputs/Outputs ................................................................................. 215
Watch Summary - Display Groups ................................................................................ 216
DIAGNOSTICS .................................................................................................219
Controller Diagnostics ................................................................................................... 219
Controller Diagnostics Status Indications ..................................................................... 221
Rack Diagnostics .......................................................................................................... 227
Rack Diagnostics: Power Supply .................................................................................. 230
I/O Module Diagnostics Status Indications ................................................................... 231
I/O Channel/Sensor Status ........................................................................................... 233
Controller Ports Diagnostics ......................................................................................... 235
Modbus Master (Serial) Port Diagnostics ..................................................................... 248
Modbus Initiator (TCP) Port Diagnostics ....................................................................... 251
REPORTS .........................................................................................................255
Print Report ................................................................................................................... 255
Print Report Preview ..................................................................................................... 261
Export Report ................................................................................................................ 262
MODBUS REGISTER ADDRESSES ................................................................265
Modbus Map Overview ................................................................................................. 265
Configure Modbus Map Method .................................................................................... 265
Modbus addressability of principal function blocks ....................................................... 267
Fixed Modbus Map ....................................................................................................... 268
Custom Modbus Map .................................................................................................... 271
Adding function block parameters to custom map ........................................................ 276
Adding system parameters to custom map ................................................................... 279
REDUNDANCY .................................................................................................281
Redundancy System Status Indicators ......................................................................... 281
Redundancy Link Status Indicators .............................................................................. 282
Lead CPU Status Indicators .......................................................................................... 283
Reserve CPU Status Indicators .................................................................................... 286
Scanner 2 Link Status Indicators .................................................................................. 287
INDEX ...............................................................................................................289
xii
HC900 Process Control Designer User Guide
Revision 15
September 2013
Software Introduction and Overview
Introduction
Software Introduction and Overview
Introduction
The Controller and Operator Interface configurations are performed using HC900 Process Control
Designer software on a PC operating with Windows™ XP, Vista or Windows™ 7 Operating Systems.
Easy-to-use Windows™-based software, operable over Ethernet or via an USB to RS 485 adapter or
modem connection, simplifies controller and operator interface configuration. It provides advanced
monitoring functions for debug, uploads the complete, annotated graphic controller and operator
interface configuration, and supplies an array of printouts for enhanced documentation.
In some instances, an On-line configuration download capability allows configuration changes such as
block additions or block substitutions to be made without switching the controller to program mode,
avoiding initialization.
Once a configuration is installed into the controller and operator interface, the software may be used to
develop or change recipes, edit data storage schedules, monitor areas of the configuration to verify
proper operation, or perform calibration functions.
Features
•
•
•
•
•
•
•
•
•
•
Graphic drag and drop, soft-wire configuration
Supports on-line configuration changes
Configuration upload that includes graphic configuration to recreate the function block diagram
and OI assignments
Configures Controller and Operator Interface in an integrated environment
Configures View OI data storage, e-mail alarms
Configures recipes (Variables only), SP profiles, SP schedules, sequences with on-line operation,
provides easy file generation for media transfer to HC900 OI’s locally and file management.
Configuration partitioning using "Worksheets"
Extensive monitoring tools including watch windows, concurrent detailed block parameter
windows, digital/logic power flow via color coding, live data at block pins, and a signal traceback
facility
Windows™ XP, Vista, Windows™ 7 support
Use Ethernet or RS 485 to access controller
Worksheets
Worksheets are a logical partition of a configuration and selected by tabs that appear on the Main
Window.
A configuration is built using four main elements (or Worksheets) of configuration.
The user-friendly graphic development environment allows partitioning of the control strategy into up to
20 or 40 "worksheets" of 20 pages each, depending on Controller model. This allows the configuration
to be organized according to process function, allows faster configuration access, and improves
documentation.
The configuration originator may apply additional security to specific worksheets to prohibit access to
proprietary operations while allowing other users to modify unprotected worksheets or generate recipe
and data storage files.
Blocks are simply selected from a categorized list, dropped on a selected worksheet page, and softwired to other blocks directly or via tag references. Editing tools such as box copy and paste speed
development.
With Controller Rev 6.0 and higher, there is also the concept of “Safety” function-block-diagram
worksheets (vs. the regular “Process” function-block-diagram worksheets) for controllers that support it.
The Safety worksheets allow definition of “Safety-enabled” configurations to run on SIL-compliant
controller models. Within Safety worksheets, certain restrictions at both configuration and run-time are
Revision 15
September 2013
HC900 Process Control Designer User Guide
1
Software Introduction and Overview
Features
enforced to ensure safety compliance is achieved (See below section on Function Block Configuration
development). Note that a reference to a “Safety block” refers to a function block that is placed on a
Safety worksheet.
Monitoring
On-line monitoring tools allow quick analysis of execution problems. These include:
• Multiple function blocks monitor access on a single display from multiple worksheets. Most
internal parameters are available for read/write plus block outputs may be forced including I/O
and logic blocks. Major blocks such as PID, Setpoint Programmer and Sequencers have dialog
boxes to allow operation and test. Stored profiles or sequences may also be selected on-line.
• User-selected Watch Window lists allow access to digital and analog I/O, Signal Tags, Variables
(for write actions), and custom display data groups by tab selection. A user-defined watch
window provides custom association of parameters for a debug session. Watch windows also
allow write (or force) capability.
• Logic power flow indication using color-coded soft wiring for digital connections to and between
block pins including signal tags and connectors
• Live data at block pins (analog floating point or digital status) on a complete block or pin basis.
• Signal Trace-back, for any input to a block, for finding the signal sources for quick identification of
potential errors.
• A Forced Blocks window shows all forced outputs and allows release of force conditions
individually.
• Data update selection as fast as 250 ms.
• Retention of monitoring setup when moving back and forth between editing and monitoring
modes.
The user-selected, dockable Watch Window lists and Signal Trace-back finds the signal sources and
provides a clear view of the configuration operation allowing quick identification of potential faults.
Read/write interaction is provided for most blocks including PID, Setpoint Programmer and
Sequencers.
A FIND function allows location of multiple instances of specific tags, variables, and function blocks
across all worksheets. A right click on any signal tag also allows selection of a "Find Where Used"
listing for fast access to tag destinations and return to the tag source.
Configuration Download
Configuration download capability (Hot Start) allows configuration changes such as block additions or
block substitutions to be made, with restrictions, without switching the controller to program mode,
avoiding initialization (Cold Start). Corrections or additions are executed shortly after download – within
3 normal scan cycles. For scan information, refer to the HC900 Controller Installation and User Guide.
Operator Interface Configuration (for Legacy 559/1042 OI)
Configuration of the Operator Interface is an integral part of the controller configuration. Controllers
that have been configured with Operator interface data provide the necessary display format data.
This unique attribute guarantees compatibility of the controller and user interface databases and
greatly simplifies product maintenance.
Designer configuration software uses the database of the function block control strategy to develop
operating displays for the Operator Interface. A large selection of display templates is provided that
may be assigned quickly and easily to the Operator Interface.
Additional Software Functions
In addition to creating displays and defining display access, Designer software allows users to set up
data archiving schedules, develop recipes, create alarm grouping, establish operator security and
define a number of other operator interface attributes.
Documenting your configuration is supported through a variety printable presentation formats. A few of
these include a summary of the controller I/O, the graphic configuration diagram, function block
2
HC900 Process Control Designer User Guide
Revision 15
September 2013
Software Introduction and Overview
Features
properties, recipe groups, setpoint profile groups, Operator Interface display and point selections,
among others.
Recipe/Data Storage File Generation
Recipes and data schedules may be defined within the configuration and/or created as files (via File
New) for external file transfer to HC900 operator interfaces or for file management.
Reports
Documenting your configuration is supported through a variety of report formats. Each can be printpreviewed. A few of these include a summary of the controller I/O used, function block worksheet
selection (each page of diagram worksheet printed as 8.5 x 11" sheet), function block properties,
variable and tag parameters, Modbus addresses, Data Storage Settings, recipe listings, setpoint profile
listings, sequencer listings, setpoint scheduler listings, OI display groups, Alarm and Event Groups,
and controller setup.
Function Block Configuration development
Function Block configuration development is performed using "Drag and Drop " techniques for
positioning graphic icons on a FBD Worksheet from a list of available functions. Once dragged and
dropped from the Item list onto any FBD worksheet, you can double-click on a block and open a
Properties page in which you can configure the specific parameters of that block.
Signal flow connections from icon to icon form the flow of the control strategy by using either softwire
connections or named tags to complete the controller configuration.
Depending on controller model, you can create up to 20/40 graphic diagrams, 1 page high by 20 pages
wide. The completed diagram may be printed on pages of 8.5" x 11" paper.
With Controller Rev 6.0 and higher, there is also the concept of “Safety” worksheets (vs. the regular
“Process” worksheets) for controllers that support it. The Safety worksheets allow definition of “Safetyenabled” configurations to run on SIL-compliant controller models. On a Safety worksheet, certain
restrictions related to safety may be active:
Only the function block types that are supported by the SIL-compliant controllers may be placed
on Safety worksheets. Others will be grayed out in the Toolbox when a Safety worksheet is active.
There will be strict data-flow restrictions. Generally, the restriction is that data can flow from
items on a Safety worksheet to items on Process worksheet, but not vice-versa. This means that
setting up data-flows using Connectors, Page-Connectors, and Signals will be restricted to allow only
one-way data flows.
For some function block types, their functionality will become restricted to adhere to the above
mentioned data-flow rule. An example is the Write Constant block, which, if placed on a Process
worksheet, will not be allowed to be configured to write to a block on a Safety worksheet.
The data flow restrictions will not only be applied at configuration time, but will be applied at runtime as well (in the controller). For example, SIL-compliant controllers will not allow other controllers to
write into blocks in the Safety worksheets using the Peer Data function blocks.
Revision 15
September 2013
HC900 Process Control Designer User Guide
3
Hardware and Software requirements
What to Know Before You Start
Hardware and Software requirements
Specification
Description
PC Requirements
CPU:
Operating System:
Display Color:
Pointing Device:
RAM:
Disk Drive:
Ports:
1 GHz (2.5 GHz preferred)
Windows™ XP onwards
Minimum resolution (256 color x 1024 x 768 resolution)
Mouse, Trackball or compatible device
> 1GB (512MB preferred)
CD & DVD Drive
USB (2.0 & 3.0)/ Ethernet
System
Interconnection
Connected to the controller through its Ethernet 10/100 Base-T ports, RS232 Port,
or RS485 port.
Cable Termination:
10/100 baseT RJ45
Configuration
Off-line Configuration or, with restrictions, make incremental
configuration changes and download them to the controller without taking
the process off-line.
On-line Monitoring allows the user to test the developed configuration.
What to Know Before You Start
Rack, Module, and Channel Assignments
The controller contains one or more racks. Each rack may contain one or more I/O modules of various
types and each I/O module contains a number of channels. Each rack, module and channel is
assigned a number in the configuration that corresponds to a physical location in the installed racks.
Before starting, determine the I/O content of the controller racks. Although configurations can be
constructed using default I/O locations, the recommended configuration approach is to first verify that
the proper I/O is available to execute the desired configuration, and to record the location of each I/O
Rack, Module, and Channel so that they may be properly entered during configuration file
development.
Please note that expansion racks ARE NOT permitted on the HC900-C30 controller.
To allow for and facilitate future expansions and modifications, it is usually a good idea to leave
some I/O module slots vacant in each rack, since in software configuration of the I/O, the identification
of each I/O point depends on the physical position of the I/O hardware (Rack #, Module #, and
Channel #). If all module slots in a rack are full, addition of one I/O module to a given rack could
require hardware and software modifications for one or more other I/O Racks in the system.
The function blocks that deal with reading input channels and/or writing to output channels are
categorized as I/O Function Blocks (with the exception of the Three-Position Step Control block which
is considered a Loop Function Block). These function blocks all have one or more I/O address
properties that must be configured through the block’s properties dialog. The rack, module and
channel numbers assigned to the block’s I/O address properties are displayed on the block’s graphic
as a series of 3 two-digit numbers separated by decimals, as shown below.
4
HC900 Process Control Designer User Guide
Revision 15
September 2013
Hardware and Software requirements
Rack, Module, and Channel Assignments
In the above diagram, the AI148 Analog Input function block has a single input channel configured as:
Rack 01
Module 03
Channel 04
The PPO150 Position Proportional Output function block has 1 analog input and 2 digital output
channels configured as:
Feedback
Forward Relay
Reverse Relay
Rack 01
Module 04
Channel 12
Rack 01
Module 02
Channel 05
Rack 01
Module 02
Channel 06
Revision 15
September 2013
HC900 Process Control Designer User Guide
5
Implementation
Starting the Application
Implementation
Starting the Application
When the application is started, the only viewable parts are the File Browser and the Worksheet
Toolbox.
Go to the Main Toolbar or the File Menu and select:
or NEW - Displays a "Choose a New File Type" dialog box with three tabs.
New Configuration:
Select the "Configuration" tab. From the drop-down menus, select Controller and Revision. Click
OK and a new Designer Configuration file is listed in the File Browser and a new diagram is
placed in the Main Window area.
New Recipes:
Select the "Recipe" tab. On the tab, click on a radio button to select one of the following:
Recipes (Variables)
Setpoint Profile
Setpoint Schedule
Sequence
Click OK. The associated "Editor" dialog box will appear and a new "Opened Recipe File" is listed
in the File Browser. Refer to the specific Recipe type for specifics.
New Data Storage (Legacy feature for 559/1042 OI):
Select the "Data Storage" tab. On the tab, click on a radio button to create a new Data Storage
File
or
or OPEN. - Displays the "Open" dialog box.
From the "Files of Type" drop-down menu, select a file type.
Navigate to folder where the file is stored.
Click on the desired file name, then click "OPEN".
or
or Upload (Configuration) - The Upload File dialog box will appear. A temporary file name will
be place in the "File Name" box.
Check the current connection. This will indicate over which communications port the upload will occur.
Change the current connection, if necessary, prior to beginning the upload.
Press "START". The dialog box will show "Percent Complete".
The Uploaded Configuration File (.cde) will appear with a temporary file name.
From the "File" menu, select Save or Save As and enter a file name and path in the appropriate fields.
or
Revision 15
September 2013
HC900 Process Control Designer User Guide
7
Implementation
Connecting the PC to the Controller
Connecting the PC to the Controller
The PC can be connected to the Controller by:
Direct Serial RS-232 connection
Modem connection via Remote Access.
Direct Ethernet connection
Networked Ethernet connection
For details refer to the HC900 Controller Installation and User Guide, document 51-52-25-154, section
"Connecting the HC900 Controller to a PC with the Designer Software."
8
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
User Interface Overview
User Interface
User Interface Overview
The main components of the User Interface are:
Main Menu
Main Toolbar
Worksheet Window(s)
File Browser
Worksheet Toolbox Window
Status Bar
Revision 15
September 2013
HC900 Process Control Designer User Guide
9
User Interface
General Terminology
General Terminology
Term
Browser
Definition
Defaults to the top left side of the Worksheet is a dockable window listing opened files.
It allows you to move quickly between files and worksheets.
Configuration
Files
A Configuration File contains a Control Strategy that you have created best suited for
your application. All Open Configuration Files appear in the Browser Window
Recipe File
A Recipe File refers to one of 4 types of user files – a "Recipe" file consisting of
Variables only, a Setpoint Profile, a Setpoint Schedule, or a Sequence.
Data Storage
File
A Data Storage File contains a data storage schedule for loading at the operator
interface via storage media.
Function Blocks
A Function Block is a unit of software that performs a set of operations on its Input
Signals and Function Block parameters and produces Output Signals. These output
signals can be configured as inputs to other blocks, whose output parameters can be
configured as inputs to other function blocks, and so on.
Main Window
The Main Window contains Menus, toolbars and worksheet window plus other items
that help you navigate through the application.
Menu
The Main Menu is a top-level menu for this application. You select (highlight) a menu
and then choose a command from the drop-down menu. Choosing the command
carries out the action.
Status Bar
The status bar is located along the bottom of the window. It indicates information about
the current window, the time, the date, download, upload, monitoring and network
information. This status bar can be displayed or not displayed from the "View" menu.
Tab
A configuration is built using three main worksheet types: Controller, Display, and
Function Blocks. Select the desired tab, located at the bottom of the configuration
window for type of worksheet.
There are also Tabs in the Function Block Diagrams that allow you to navigate around
the multiple FBD Worksheets.
10
Toolbox
The Worksheet Toolbox, located on the lower left side of the Worksheet, is a dockable
window and lists all the function block by category separated by fast and normal scan
tabs at the base of the toolbox. You can drag and drop function blocks onto FBD
worksheets. A Configuration Tab lists all configured items. Click on any item to jump to
it.
Trace Window
Helps you find problems with soft-wire and signal connections between
Function Blocks.
Watch
Summary
Window
The Watch Summary window lets you monitor the following groups of data
from the controller: Signal, Variables, I/O. OI Display Groups.
Worksheet
A Worksheet is a logical partition of a configuration. A configuration is built using three
main Worksheet) types: Controller, Display (for Legacy 559/1042 I/O configuration), and
Function Blocks. A fourth worksheet type (Utilities) included Maintenance functions for
the controller.
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
File Browser Window
File Browser Window
The File Browser Window is a dockable window listing open Configuration Files, Recipe Files, Data
Storage Files and Backup Files, as show below. It allows you to move quickly between open files and
individual worksheets within configuration files. You can collapse or expand the tree branches and you
can enlarge or shrink the size of the window.
•
Right-click on any open file name to
make it the active document in the
Worksheet Window.
•
Right-click on any open file and select
Close File from the context menu to close
it.
•
Right-click on a Configuration or
Backup file name and select Properties
from the context menu to view the file
properties.
•
Expand the branches under any
Configuration or Backup file name to
display the currently configured
worksheets. A red lock displayed in the
worksheet icon indicates that the
worksheet is write-protected.
•
Double-click on a worksheet in the
browser to make it the active view in the
Worksheet Window.
•
Right-click on a worksheet to view its
context menu. The options available on
the context menu will depend on the type
of worksheet and the current protection
status but may include:
o
o
o
o
o
o
Worksheet Properties
Unlock Worksheets
Print Worksheet
Append New Worksheet
Delete Worksheet
Reorder Worksheets
The File Browser Window can be undocked from its default location to the top-left of the Worksheet
Window and moved to another location by dragging and dropping on the bar above the tree view. It
File Browser option available from:
can also be hidden or made visible by toggling the state of the
•
The Main View menu
•
The Main Toolbar
Revision 15
September 2013
HC900 Process Control Designer User Guide
11
User Interface
Worksheet Toolbox Window
•
The worksheet context menu View sub-menu
Worksheet Toolbox Window
The Worksheet Toolbox is a dockable window which provides two main functions:
• Categorized library of available function blocks and other items that may be placed on function block
worksheets.
• Categorized library of all function blocks, variables and signal tags currently in use on all worksheets,
providing easy access to properties and navigation to the containing worksheet.
You can collapse or expand the tree and you can enlarge or shrink the size of the window.
This toolbox applies to the current active document and the name of the active configuration appears on a
button at the top of the window. Click on this button to view the active configuration's file statistics.
The Worksheet Toolbox contains a tab control with either 3 or 4 tabs. The first two tabs contain the library of
available function blocks grouped by the rate that they will be executed at, either Normal Scan or Fast Scan,
as shown below.
12
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Worksheet Toolbox Window
•
Click on a tab to display the
function block categories available
for that scan rate.
•
Expand each category to display
the available function blocks. For
Safety Enabled SIL-compliant
configurations some function blocks
are not compatible with Safety
Worksheets and will be disabled
and grayed-out if the current active
worksheet is a Safety Worksheet.
•
If the current active worksheet is
a Function Block Worksheet, drag
and drop any enabled function
block to place it on the worksheet.
•
Right-click on a function block
and select Help from the context
menu to display a help file page
with the details of that block.
The third and optional fourth tabs contain the library of function blocks currently in use, grouped by the
type of function block worksheet, either Process or Safety, as shown below. (The Safety tab will only be
available in SIL-compliant configurations.)
Revision 15
September 2013
HC900 Process Control Designer User Guide
13
User Interface
Worksheet Toolbox Window
•
Click on a tab to display the
function block categories
available for that worksheet
type.
•
Expand each category to
display the function blocks
used. The blocks will be
identified by the Function Block
ID and the assigned Block
Number rather than function
block type. The
icon
indicates a Normal Scan rate
block and the
icon indicates
a Fast Scan rate block.
•
If the configuration is using a
Custom Modbus Map, items
can be dragged and dropped
on to the corresponding
Custom Modbus Map
configuration dialog.
•
Right-click on an item to
display its context menu and
select from the following
options:
o
Properties… to
open the item’s
properties dialog
o
Block Execution
Order… to change the
relative execution order
of function blocks
o
Find to navigate to
the item’s location on the
worksheet
o
Help to display a
help file page with the
details of that item
The Worksheet Toolbox can be undocked from its default location to the bottom-left of the Worksheet
Window and moved to another location by dragging and dropping on the bar above the tree view. It can
Worksheet Toolbox option available from:
also be hidden or made visible by toggling the state of the
14
•
The Main View menu
•
The Main Toolbar
•
The worksheet context menu View sub-menu
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Traceback Window
Traceback Window
Overview
This feature helps you find problems with soft-wire and signal connections between Function Blocks.
For Example:
If you are testing a configuration that you've built and want to know why a Digital Output is ON when it
should be OFF, you can search for the source of the Input Signal.
Traceback is useful for finding the analog or digital source signal.
Trace Window
Access the Trace Window from the Main Menu Toolbar
Or, from the View Menu on the main menu.
It is a dockable, sizeable window.
The Trace Window provides a list of all blocks/pins you have traced and lists :
Block ID
Tag Name
I/O Pin Name
Worksheet name
Trace Window Update
Each time you perform a Trace, the window will update with a new pair of block/pins.
The first item is the signal source, the second item is the signal destination.
Select any of the rows in the Traceback window to recall the diagram to display the selected
block.
The last trace is on the top of the list.
Right Mouse Click Procedure to Trace Signals
Select a Function Block of interest.
Right Mouse click on any INPUT pin.
Select "TRACE". Traceback will "find" the source of the connection you selected and refresh the FBD
view with that block visible (Highlighted) - even if the other side of the connection is on a different
worksheet.
The Output pin of the block (the signal source) will be displayed in RED.
From that block, repeat the traceback to another block and another block, etc.
Use the Traceback list to view your Traceback history.
You can clear the Trace List by pressing the bar at the top of the window.
Revision 15
September 2013
HC900 Process Control Designer User Guide
15
User Interface
Watch Summary Window
Watch Summary Window
Overview
accesses the Watch Summary Window from the Monitor Toolbar
Or, the menu item "Watch Summary" from the Monitor Menu on the main menu.
This is a view of the Watch Summary Window. It is a Dockable (movable), sizable window.
[Press and hold the CTRL key down to prevent Docking when moving the window]
There are five tabs at the bottom of the window that lets you monitor the following groups of data
from the controller. Click on any of the tab titles below to view an example of the selected data for
that tab. All parameter listings may be sorted by column.
User Defined (Customized list of Variables, Signal Tags, Page Connectors)
Signals (can be filtered by type - All, Analog, Digital)
Page Connectors (can be filtered by type - All, Analog, Digital)
Variables (can be filtered by type - All, Analog, Digital)
I/O (can be filtered by type - AI, AO, DI, DO)
OI Display groups (Overviews, Panel Meters, Alarms, Trends, etc)
Docking and Undocking the Window
Double clicking in the Title Bar area of the Watch Summary Window will toggle its docked state. If
the window is docked, double clicking in the title bar area will undock the window.
If the window is Undocked
- double-clicking in the title bar area will dock the window at it last docked position
- Dragging the window to the top, bottom, left, or right edge of the main viewing area of the
application will dock the window at that location
[Press and hold the CTRL key down to prevent Docking when moving the window]
Hot Links
You can click on any I/O function block or Signal on the Controller Worksheet or any I/O function block,
Signal, or Variable in the Watch Window and that item will be located on the Function Block Diagram.
As you move the mouse over a HOT LINK, the text changes to Underlined Blue and the cursor
changes to a Hand.
Writes or Forces
By clicking on the item in the Value column, you may write a value such as for a Variable or force a
value for an analog input or digital input. For I/O, a Forced column will indicate that the I/O point is
forced.
16
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Status Bar
Status Bar
The status bar is located along the bottom of the application’s window. It indicates information about
the current window. It can be turned on or off in the "View" Menu.
Menu Item Description - The text string at the far left on the status bar gives a brief description of the
menu item in focus. If you pull down a menu list and position the cursor on a menu item this field will
describe the menu item.
Connected Field - To the left of the Page Number indicator are two fields that are visible when you
are in Monitor Mode. One indicates "Connected" and the other is a green LED that flashes when
communications is active between the PC and controller.
Worksheet Page Number -To the left of the Zoom indicator is a page number field. This will display
the page number of the current FBD Worksheet. It is blank for other worksheet types (Display,
Controller, and Utilities). There are scroll buttons to navigate through pages of the worksheet.
Zoom Level – indicates the level of Zoom active on the worksheet. (i.e 100%)
Active Keyboard Keys - Toward the far right, you will see indicators to alert the user that the Caps
Lock key on the keyboard is active , the NUM lock on the keyboard is active, or the SCRL (Scroll
Lock) key is active.
Menu Conventions
The following menu conventions are used.
Menu Convention
Meaning
Dimmed command
You will not be able to use this
command at the current time.
(For example: You may need to select
another item before using this
command.)
An ellipsis (...) following a command
A dialog box will appear when you
choose this command. The dialog box
contains options you need to select
before the command can be
completed.
A check mark next to a command
The command is in effect. When you
remove the check mark (by selecting
the command), the command is no
longer in effect.
A key combination next to a
command
The key combination is a keyboard
accelerator shortcut for this
command. You can use this key
combination to choose this command.
A triangle next to a command
When you choose this command, a
cascading menu appears, listing
additional commands.
Revision 15
September 2013
HC900 Process Control Designer User Guide
17
User Interface
Selecting a Menu
Selecting a Menu
In this application, you select (highlight) a menu and then choose a command from that menu.
Choosing the command carries out the action.
To choose an item from a selected menu:
Mouse
Using the mouse pointer, point to the name of the menu on the menu bar, and click the left mouse
button. This opens the menu. To move directly to a menu item, drag the selection cursor down the
menu until the desired item is highlighted, then release the button.
UP/Down Arrow Keys
Press the "ALT" key to highlight the menu bar then use the UP/Down arrow keys on the keyboard to
select the item, then press "Enter".
Underlined Letter
If a name in the menu bar has an underlined letter you can press ALT and then type the letter that’s
underlined to open the menu.
For example: to open the FILE menu in the Designer main window, press ALT+F.
Closing a Menu
To close a menu:
Click the menu name or anywhere outside the menu, or
Press ESC to close the menu but remain on the menu bar so that you can make another selection
Main Menu
The Main Menu is located across the top of the User Interface. The menus are:
File Menu
Edit Menu
View Menu
Monitor Menu
Recipes Menu
Window Menu
Help Menu
18
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
File Menu
File Menu
Menu Selection
New
Toolbar:
Shortcut: CTRL+N
Function
Displays a "Choose a New File Type" dialog box with these tabs:
New Configuration:
Select the "Configuration" tab. From the drop-down menus,
select Controller and Revision. Click OK and a new
Configuration file is listed in the File Browser and a new diagram
is placed in the Main Window area.
New Recipes:
Select the "Recipe" tab. On the tab, click on a radio button to
select one of the following:
Recipes (Variables)
Setpoint Profile
Setpoint Schedule
Sequence
Click OK. The associated "Editor" dialog box will appear and a
new "Opened Recipe File" is listed in the File Browser. Refer to
the specific Recipe type for specifics.
New Data Storage:
Select the "Data Storage" tab. On the tab, click on a radio button to
create a new Data Storage File
Open …
Displays the "Open" dialog box.
From the "Files of Type" drop-down menu, select a file type.
Toolbar:
Shortcut: CTRL+O
Navigate to folder where the file is stored.
Click on the desired file name, then click "OPEN".
Opens files and converts UMC800 (*.FBD) configuration files.
Close
Closes the active document window. It will also close a minimized window
if active. [It will not close an active dialog box.]
Save
Saves the active configuration.
First time save displays the "Save As" dialog box.
Toolbar:
Shortcut: CTRL+S
Save As ...
Revision 15
September 2013
Displays the "Save As" dialog box.
Prompts user to name the active configuration and select the file in which
the file is to be stored.
HC900 Process Control Designer User Guide
19
User Interface
File Menu
Menu Selection
Download
Function
Configuration Download transfers a saved configuration FROM the PC
TO the controller.
The Controller may be in either RUN or PROGRAM mode.
Upload Configuration
Configuration Upload transfers a configuration FROM the controller TO
the PC including graphic function block pages, text annotations, stored
recipes/profiles/schedules/sequences, OI display assignments, OI data
storage setup. The uploaded file name, as a default, will include the
controller name, alias name (if assigned) and network name (if assigned).
The Controller may be in ANY mode.
No configuration file is required to be opened prior to the Upload
Request
Upload…
Opens the "Upload" dialog box that lists the type of recipes
available to upload.
Click on a radio button to select one of the following:
Recipes (Variables)
Setpoint Profile
Setpoint Schedule
Sequence
Data Storage.
Upload transfers a recipe FROM the controller TO the software.
Back up Controller…
Saves a controller’s active configuration as a backup file with .cbk
extension. Similar to saving an uploaded configuration except that the
configuration and port settings are saved. You are prompted to specify the
comm. link settings for the controller to be backed up. Backup files are
read-only; to edit you must first save as .cde. See Back Up Controller
Information for more details.
Hang Up Modem
When communicating with a controller via a Modem, select this to
disconnect the Modem from the controller.
Properties ...
Displays the "File Properties " dialog box.
Tabs allow user to fill in Configuration File properties, read Configuration
File Statistics (capacity usage), read protection, and worksheet
protection (password access to individual worksheets)
Write Protect File ...
Displays the "Add Write Protection" dialog box.
Can enter and confirm a password for the selected file. Use the check box
to turn "Write Protect" on or off.
Print Report
Displays the "Print Report" Dialog box.
Toolbar:
Shortcut: CTRL+P
20
Lets you choose reports for printing from 5 different categories:
Controllers
Function Block Diagrams
Displays
Recipes
Alarms and Events
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Edit Menu
Menu Selection
Print Report Preview
Function
Lets you choose a report preview (Print Preview) for printing from the 5
categories:
Controllers
Function Block Diagrams
Displays
Recipes
Alarms and Events
The selected report is displayed on the screen as it will look when printed.
Export Report
Lets you export reports as files in comma or tab separated format.
Print Setup ...
Displays "Print Setup" dialog box.
Allows user to select printer, paper type, and orientation.
Most Recent Files
Lists the most recent files that were open.
Exit
Exits the application.
Edit Menu
Menu Selection
Function
Undo
Click once to undo the last action. Click on the down arrow to see all previous
actions. To undo several actions, move mouse to an earlier action and click on
it: all actions from that action forward are undone. If you accidentally undo an
action, use redo.
Toolbar:
Shortcut: CTRL+Z
Redo
Toolbar:
Shortcut: CTRL+Y
Cut
Toolbar:
Shortcut: CTRL+X
Copy
You can undo only actions that affect the contents of the configuration; you
can’t undo actions that affect the display of the configuration (such as zoom).
Click once to redo the last Undone action. Click on the down arrow to see all
Undone actions. To redo several actions, move mouse to earliest desired action
and click on it: all actions from that action forward are redone. If you
accidentally redo an action, use undo.
You can redo only actions that affect the contents of the configuration; you can’t
redo actions that affect the display of the configuration (such as zoom).
Moves the currently selected Process or Safety block diagram items from the
current diagram and places them on the clipboard. Indicated by a red dotted
line. Upon pasting the items, all links to them (e.g., display references, Modbus
address, recipes) are preserved as if they were moved; they are not deleted
and pasted as a new copy. The only exception to this is if the item is pasted into
a diagram on a different configuration.
Copies the currently selected Process or Safety block diagram items from the
current diagram, and place it on the clipboard. Indicated by a blue dotted line.
Toolbar:
Shortcut: CTRL+C
Revision 15
September 2013
HC900 Process Control Designer User Guide
21
User Interface
Edit Menu
Paste
Toolbar:
Shortcut: CTRL+V
Places the contents of the clipboard containing Process or Safety block
diagram items onto the Process or Safety block diagram at the location
determined by the blinking insertion point caret. This command is unavailable if
the clipboard is empty. Cut and pasted items maintain their links (e.g., display
references, Modbus addresses, recipes); they are not deleted and pasted as a
new copy. The only exception to this is if the item is pasted into a diagram on a
different configuration.
If you paste a cut (not copied) function block and soft wires to the same or
different worksheet in the same configuration, the soft wires will be dangling
(unconnected) and you are asked to specify how you want to resolve dangling
soft wires.
Delete
Deletes the currently selected item on the function block diagram.
Append Process Worksheet /
Append Safety Worksheet
Adds a new Process or Safety block diagram. You will see “Append Process
Worksheet” or “Append Safety Worksheet” depending on which tab is currently
active. If the Controller or Utilities tab is currently active, this command will be
grayed out. If selected when enabled, a new worksheet will be created and a
new sub-tab for it will appear at the bottom of the diagram window. The new
diagram reference will be placed in the File Browser. Click on the diagram
name in the File Browser to edit the name.
Delete Process Worksheet /
Delete Safety Worksheet
Deletes the selected Function Block Diagram and its reference in the File
Browser.
Reorder Process
Worksheets… / Reorder
Safety Worksheets…
Opens the Worksheet order dialog box. Allows you to change the order of the
worksheets as they appear at the bottom of the Worksheet area. Click on
worksheet name and use the increment-decrement buttons at the top of the
dialog box to change the worksheet order.
Worksheet Properties…
Opens the "Worksheet Properties" dialog box. Allows you to enter or edit the
Title and Description of the worksheet. Type in a title (24 characters ) and
description (32 characters) for your Worksheet -.
Unlock Worksheets
Displays "Unlock Worksheets" dialog box. Enter password to unlock all
protected worksheets. Click on "Unlock".
Block and Tag Order
Opens the " Block Execution Order" or the "Fast Block Execution Order" dialog
box to let you re-arrange block execution order.
Also available from the Process or Safety worksheet toolbar.
Select "Tag Order" to re-arrange the tags order for:
Alternator Operates
Device Controls
HOA Switches
Loops
Ramp Operates
Sequencers
SP Programmers
SP Schedulers
Stage Operates
22
Loop Mode Priority
Opens the Loop Mode Priority dialog box. Lets you select which has priority:
Manual Mode or Tracking Mode.
Alarms
Opens the "Alarm Group Configuration" dialog box. Lets you set up or edit
alarm groups .
Also available from the Process or Safety worksheet toolbar.
Events
Opens the "Configure Event List" dialog box. Allows you to Set up or Edit
Events.
Also available from the Process or Safety worksheet toolbar.
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
View Menu
Configure Modbus Map Type
Available for configuration revision 4.0 or higher. Selects a method for
configuring the Modbus register map: fixed or custom. See Configure Modbus
Map Method .
Modbus Register Map…
Available for configuration revision 2.0 or higher. Lets you "Edit Fixed Modbus
Register Addresses " dialog box.
Trend Backfill Log Point
Selection
Available for configuration revision 4.4 or higher. Lets you select method for
configuring points to be saved in the trend history buffer either via signal tag
name or Modbus address.
Defragment Function Block
List
Frees up memory occupied by previously deleted function blocks. After
defragmentation is complete, downloading the configuration to the controller
requires a cold start. When configuration memory is 100% full but includes
fragmented space from deleted blocks, the defragment window appears
automatically. To avoid untimely cold starts, we recommended you defragment
before configuration memory is full. (See Statistics.)
Find
Searches for an item on the "Find Item" dialog box. Select an item type from the
"Show" drop-down menu to search, then select an Item from the "Item" drop
down menu.
The Tag, Variable, or Function Block will be highlighted on the Function Block
Diagram.
Shortcut: CTRL+F
Go To
Shortcut: CTRL+G
Displays the "Enter Page Number" dialog box and allows you to enter the page
number to which you want to go. (1-20)
View Menu
Menu Selection
Function
Toolbar
Displays or hides the toolbar in the top of the Main window. Gray box
with √ mark indicates display.
Status Bar
Displays or hides the status bar at the bottom of the Main window.
Gray box with √ mark indicates display.
File Browser
Displays or hides the File Browser at the top left of the Main window.
Gray box with icon indicates display.
Worksheet Toolbox
Displays or hides the Worksheet Toolbox at the bottom left of the Main
window. Gray box with icon indicates display. Tabs separate fast scan
and normal scan function block types.
Trace Window
Allows you to view the Traceback list.
Phone Book
Opens the "Select the Number to Call" dialog box. Lets you add and
delete phone number on the list.
Network Device List
Lets you setup a PC Network Port for interface to a specific controller.
See PC Network Port Set Up .
PC Serial Port Setup
Lets you setup up to 8 PC Serial Comm ports for interface to a specific
controller. See PC Serial Com Port Setup .
Grid
Displays or hides a Grid on the FBD Worksheet
Zoom Out
Lets you Zoom in out to see more of a document.
Zoom levels of 50%, 75%, 100%, 125%, and 150%.
Also available from FBD worksheet toolbar.
Zoom In
Lets you zoom in to return items to normal size.
Zoom levels of 50%, 75%, 100%, 125%, and 150%.
Revision 15
September 2013
HC900 Process Control Designer User Guide
23
User Interface
Monitor Menu
Menu Selection
Function
Also available from FBD worksheet toolbar.
Monitor Menu
Menu Selection
Function
Monitor Mode
Enters or exits monitor mode. While in monitor mode, edits to the configuration
cannot be made. If entering monitor mode, selecting this menu item opens the "Enter
Monitor Mode" dialog box.
Monitor Toolbar
The Monitor Toolbar toggles each monitor window listed below:
Set Update Rate
You can specify the monitor update rate that determines how often data is collected from
the controller during monitoring.
Set Logic State
Colors
You can select a color scheme for indicating the on/off status of digital wires, digital signal
tags, page connectors, and logic inversion.
Watch Summary
Window
Toggles the Watch Summary Window that lets you view groups of related data such as I/O
and Signal Tags.
Controller
Diagnostics
Toggles the Controller Diagnostics Window that lets you view the controller parameters
and values.
Rack Diagnostics
Toggles the Rack Diagnostics window that lets you view the Rack Diagnostics, Expansion
I/O Comm Diagnostics(except C30 CPU) and the I/O Module parameters and indicators.
Controller Ports
Diagnostics
Toggles the Configuration Port Diagnostics window that lets you view the Configuration
Port parameters and values.
Serial Port S1
Serial Port S2
Network Port
Expansion I/O Comm (except C30 CPU)
Host Connections
Peer to Peer Connections
Modbus Master
Ports Diagnostics
Displays Modbus ports diagnostics.
Monitor Function
Block
Shortcut: CTRL+M
Toggles the Function Block Monitor Windows that lets you monitor all the parameters of
the selected Function Block.
Forced Blocks
Toggles the Forced Block Summary Window that lets you see all the outputs that are being
forced and permits release of the force condition for a selected output.
All Function Block
Windows
Allows you toggle the function block windows that are open - On/Off.
All Pins
Lets you toggle monitoring values (numeric or On/Off state) at any input or output pin –
Display or Hide.
All Monitor
Windows
Allows you toggle the Monitor windows that are open - On/Off.
24
Modbus Master (Serial) Port Diagnostics
Modbus/TCP Initiator Port Diagnostics
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Recipes Menu
Menu Selection
Redundancy…
Function
Accesses Redundancy diagnostics.
Redundancy System
Redundancy Link
Lead CPU
Reserve CPU
Scanner 2 Link
Recipes Menu
Accesses all recipe pools. To learn about the different recipe types read Recipe Overview.
Menu Selection
Function
Allocate Recipe
Memory
Allocates the controller's memory for the four recipe types. This is the number of recipes
that can be stored in the controller's four recipe pools. Recipes in these pools can be
loaded and run by Recipe Selection Blocks, Programmers, Schedulers, and Sequencers.
As recipe memory usage increases, less memory is available for other parts of your
configuration (such as function blocks).
Recipes
(Variables)…
A recipe (variables) is a list of Variables with settings that define the ingredients needed
to make a product or run a particular batch. This selection opens the Recipe Pool dialog
box and allows viewing, adding, editing, and printing of Recipe details.
You can save the selected recipe item to a file; open a recipe file and insert it into the
pool; and download the selected recipe item to a controller’s recipe pool.
Setpoint Profiles…
Setpoint Program (Profile) configuration provides a quick and easy way to create, edit,
and save different ramp/soak (setpoint) profiles for the Setpoint Programmer (SPP)
control blocks in the configuration. This selection opens the Setpoint Profile Pool dialog
box and allows viewing, adding, editing, and printing of Setpoint Profile details.
You can save the selected SPP item to a file; open a SPP file and insert it into the pool;
and download the selected SPP item to a controller’s Setpoint Profiles pool.
Setpoint
Schedules…
Setpoint Schedule configuration provides a quick and easy way to create, edit, and save
different Setpoint Schedules for the Setpoint Scheduler (SPS) control blocks in the
configuration. This selection opens the Setpoint Schedule Pool dialog box and allows
viewing, adding, editing, and printing of Setpoint Schedules details.
You can save the selected SPS item to a file; open a SPS file and insert it into the pool;
and download the selected SPS item to a controller’s Setpoint Schedule pool.
Sequences…
Sequence configuration provides a series of inter-related events used to start-up or shutdown a unit process, or a series of timed and process measurement dependent events
that are executed to produce a final product. This selection opens the Sequence Pool
dialog box and allows viewing, adding, editing, and printing of Sequence details.
You can save the selected SEQ item to a file; open a SEQ file and insert it into the pool;
and download the selected SEQ item to a controller’s Sequence pool.
Window Menu
Menu Selection
Revision 15
September 2013
Function
HC900 Process Control Designer User Guide
25
User Interface
Help Menu
Cascade
Arranges windows so that they overlap making it easy to select
a window.
Tile Horizontally
Arranges windows side by side. Each window is visible and
none overlap.
Tile Vertically
Arranges windows over and under each other. Each window is
visible and none overlap.
Arrange All
Arranges configuration Icons when configurations are
minimized.
(Open window
designations)
Lists all Function Block Diagrams, recipes, and data storage
files that are open and checks the one that is active. Click any
file to display it.
Help Menu
MENU SELECTIONS
Help Topics
Calls up the top level Helps Contents page.
Selecting a Topic displays information about that topic. If the information about a topic exceeds the
height of the window, a vertical scrollbar will be displayed.
Selecting the Index tab lets you type in the first few letters of the word you are looking for.
Selecting the Find tab lets you search for specific words and phrases in Help topics, instead of
searching for information by category.
About Help
Displays copyright and software version, and user name and company name entered during software’s
installation.
ADDITIONAL HELP ACCESS
Right-click Help for Help Topics
Right-click on any Function Block to access topic help for that particular Block
Hotspots
When the cursor is over a hotspot area on an image, it turns to a hand indicating that when clicked
some sort of action occurs.
26
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Main Toolbar Functions
Main Toolbar Functions
Click on ICON to open a dialog box.
ICON
Function
Dialog Box Comments
New
Displays a "Choose a New File Type" dialog box with these tabs.
New Configuration:
Select the "Configuration" tab. From the drop-down menus, select
Controller and Revision. Click OK and a new Designer Configuration
file is listed in the Designer Browser and a new diagram is placed in
the Main Window area.
New Recipes:
Select the "Recipe" tab. On the tab, click on a radio button to select
one of the following:
Recipes (Variables)
Setpoint Profile
Setpoint Schedule
Sequence
Click OK. The associated "Editor" dialog box will appear and a new
"Opened Recipe File" is listed in the File Browser. Refer to the
specific Recipe type for specifics.
New Data Storage:
Select the "Data Storage" tab. On the tab, click on a radio button to create a
new Data Storage File
Open
Displays the "Open" dialog box.
From the "Files of Type" drop-down menu, select a file type.
Navigate to folder where the file is stored.
Click on the desired file name, then click "OPEN".
Opens files and converts UMC800 (*.FBD) configuration files.
Save
Saves the active configuration.
First time save displays the "Save As" dialog box.
Cut
Copy
Revision 15
September 2013
Moves the currently selected FBD diagram items from the current Function
Block diagram and places them on the clipboard. Indicated by a red dotted
line. Upon pasting the items, all links to them (e.g., display references, Modbus
address, recipes) are preserved as if they were moved, they are not deleted
and pasted as a new copy.
Copies the currently selected FBD diagram items from the current Function
Block diagram and places it on the clipboard. Indicated by a blue dotted line.
HC900 Process Control Designer User Guide
27
User Interface
Main Toolbar Functions
ICON
Function
Paste
Dialog Box Comments
Places the contents of the clipboard containing FBD diagram items onto the
Function Block Diagram at the location determined by the blinking insertion
point caret. This command is unavailable if the clipboard is empty. Cut and
pasted items maintain their links (e.g., display references, Modbus addresses,
recipes), they are not deleted and pasted as a new copy.
If you paste a cut function block and soft wires to the same or different
worksheet in the same configuration, the soft wires will be dangling
(unconnected) and you are asked to specify how you want to resolve dangling
soft wires.
Undo
Click once to undo the last action. Click on the down arrow to see all previous
actions. To undo several actions, move mouse to an earlier action and click on
it: all actions from that action forward are undone. If you accidentally undo an
action, use redo.
You can undo only actions that affect the contents of the configuration; you
can’t undo actions that affect the display of the configuration (such as zoom).
Redo
Click once to redo the last Undone action. Click on the down arrow to see all
Undone actions. To redo several actions, move mouse to earliest desired
action and click on it: all actions from that action forward are redone. If you
accidentally redo an action, use undo.
You can redo only actions that affect the contents of the configuration; you
can’t redo actions that affect the display of the configuration (such as zoom).
Print
Displays the "Print Report" Dialog box.
Lets you choose reports for printing from 5 different categories:
Controllers
Function Block Diagrams
Displays
Recipes
Alarms and Events
Help Topics
Worksheet
Toolbox
File Browser
Traceback
Window
28
Opens Help Topics Table of Contents and Help information screen.
Displays or hides the Worksheet Toolbox Window.
Displays or hides the File Browser Window.
Displays or hides the Traceback Window.
Monitor Mode
Enters/Exits Monitor Mode and allows On-line Monitoring and Diagnostics.
When pressed, the active configuration is in the Monitor mode (and cannot be
edited). When not pressed, the active configuration is in the edit mode.
Download
Opens the "Download File" dialog box. Press start to Download file selected to
the controller.
Upload
Opens the "Upload File" dialog box. Press start to Upload file selected from the
controller.
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Navigational Tools
Navigational Tools
Navigational Tools available:
Main Menus and Main Window Toolbar
File Browser Window
Worksheet Category Tabs
Worksheet Toolbars (Controller, Display, Function Block Diagram, Utilities)
Find / Go To
Function Block Help (right mouse click on block)
Connection Traceback Window
Finding an Item on the FBD Worksheet
Hot Links
Keyboard Navigation
Right Mouse Click
Shown below are the right-click menus.
See also Right Click In Monitor Mode.
Right Click On Function Block Object (not pins)
Help - Calls up Topic Help for Function Block selected
Execution Order
Cut
Copy
Paste
Delete
Edit Modbus Register Address
Properties
Right Click On Unconnected Function Block pins*
Signal Tag
Page Connector
Analog Variable
Digital Variable
Numeric Constant
Connector
Paste – Reconnects a signal tag or page connector that you cut from another pin.
*When you drop one of these items it automatically connects to the pin you right-clicked on.
Right Click on Connected Function Block Input Pins
Trace
Right Click on Variable
Help - Calls up Topic Help for Function Block selected
Revision 15
September 2013
HC900 Process Control Designer User Guide
29
User Interface
Right Mouse Click
Execution Order
Cut
Copy
Paste
Delete
Add to Modbus Registers
Properties
Right Click on Signal Tag
Help – calls up help
Find Where Used – Opens Find dialog box. Lets you locate any and all places where the signal tag is
used.
Cut -- Cuts the signal tag so you can reconnect (paste) it to a different unconnected pin of the same
type (digital or analog). Can reconnect to a different function block. Item is grayed out indicating the
cut. Press Esc to cancel.
Delete – Deletes the signal tag.
Add to Modbus Registers
Properties
Right Click on Page Connector
Help – calls up help
Find Where Used – Opens Find dialog box. Lets you locate any and all places where the page
connector is used.
Cut --Cuts the page connector so you can reconnect (paste) it to a different unconnected pin of the
same type (digital or analog). Can reconnect to a different function block. Item is grayed out indicating
the cut. Press Esc to cancel.
Delete – Deletes the page connector.
Add to Modbus Registers
Properties
Click On FB Diagram White Space
Cut
Copy
Paste
Drop Other Items
Execution Order
Fast Logic Order
Find
Go To
View (displays the view menu)
Properties [File]
30
HC900 Process Control Designer User Guide
Revision 15
September 2013
User Interface
Keyboard Navigation
Keyboard Navigation
Press
To
LEFT ARROW
Scroll worksheet to the left
RIGHT ARROW
Scroll worksheet to the right
UP ARROW
Scroll worksheet up
DOWN ARROW
Scroll worksheet down
END
Go to the end of last page
HOME
Go to the beginning of first page
PAGE DOWN
Go to the next worksheet page
PAGE UP
Go to the previous worksheet page
CTRL+LEFT ARROW
Go to the end of last page
CTRL+RIGHT ARROW
Go to the beginning of first page
CTRL+UP ARROW
Go to the top of the page
CTRL+DOWN ARROW
Go to the bottom of the page
CTRL+PAGE DOWN
Go to the next worksheet tab
CTRL+PAGE UP
Go to the previous worksheet tab
Other keyboard functions
If necessary, you can use the standard keystroke conventions to move around.
ALT used together with the underlined letter in text labeling an object lets you select that
object.
TAB select next field or object in dialog boxes and configuration templates
SHIFT+TAB select previous field or object in dialog boxes and configuration templates
UP ARROW previous choice in the field
DOWN ARROW next choice in the field
ALT+DOWN ARROW opens a drop-down list box
Revision 15
September 2013
HC900 Process Control Designer User Guide
31
User Interface
Keyboard Navigation
This page has been intentionally left blank
32
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Opening an Existing File
File Management
Opening an Existing File
Select "Open" from
the File Menu…
or
Displays the “Open” dialog box. Drop-down the “Files of Type’
menu and select a file type.
from the Main
Toolbar
Shortcut: CTRL+O
Navigate to folder where the file is stored.
Click on the desired file name, then click “OPEN”.
or
From the "File" menu, select one of the most recently opened
file listed above the "Exit" item.
Creating a New Configuration File
Select "New" from
the File Menu then
“Configuration”tab
from the dialog box
or
Displays a "Choose a New File Type" dialog box. Select
the “Configuration” tab. From the drop-down menus, select
Controller and Revision.
Click OK and a new Designer Configuration file is listed in
the Designer Browser and a New diagram is place in the
Main Window area.
from the Main
toolbar
Shortcut: CTRL+N
Saving A Configuration File
To Save an Existing File
1. Select "SAVE" from the "FILE" menu or from the Main Toolbar
2. If there are no unconnected inputs that need to be set to OFF or 0, and there are no I/O blocks
with unassigned I/O addresses, then the data is saved automatically, and the rest of the steps
may be skipped.
3. If there are unconnected inputs that have not been previously set to OFF or 0, and/or there are
I/O blocks with unassigned I/O addresses, the Process Control Designer will notify you of the
situation and ask if you want to see a list of unconnected inputs and/or a list of unconfigured
I/O blocks.
Revision 15
September 2013
HC900 Process Control Designer User Guide
33
File Management
Saving A Configuration File
4. Click "Yes" to view the summary of unconnected inputs or unconfigured I/O blocks.
5. Click "Log File" to save the list to a text file, if desired.
To Save a New File or Save the File as a New Name
1. Select "SAVE AS" from the "FILE" menu. The "Save As" dialog box will open.
2. Type in the new file name in that field.
3. From the drop-down menu in the "Save as Type" field, select the configuration type depending
on the controller you have.
4. If there are no unconnected inputs that need to be set to OFF or 0, and there are no I/O blocks
with unassigned I/O addresses, then the data is saved automatically, and the rest of the steps
may be skipped.
5. If there are unconnected inputs that have not been previously set to OFF or 0, and/or there are
I/O blocks with unassigned I/O addresses, the Process Control Designer will notify you of the
situation and ask if you want to see a list of unconnected inputs and/or a list of unconfigured
I/O blocks.
6. Click "Yes" to view the summary of unconnected inputs or unconfigured I/O blocks.
34
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Creating Other File Types
7. Click "Log File" to save the list to a text file, if desired.
To Save a File as a Different Device or Revision (i.e. conversion)
1. Select "SAVE AS" from the "FILE" menu. The "Save As" dialog box will open.
2. Type in the new file name in that field.
3. From the drop-down menu in the "Save as Type" field, select the configuration type and
revision that you wish to convert to.
4. If there are no unconnected inputs that need to be set to OFF or 0, and there are no I/O blocks
with unassigned I/O addresses, then the data is saved automatically, and the rest of the steps
may be skipped.
5. If there are unconnected inputs that have not been previously set to OFF or 0, and/or there are
I/O blocks with unassigned I/O addresses, the Process Control Designer will notify you of the
situation and ask if you want to see a list of unconnected inputs and/or a list of unconfigured
I/O blocks.
6. Click "Yes" to view the summary of unconnected inputs or unconfigured I/O blocks.
7. Click "Log File" to save the list to a text file, if desired.
Note that if you convert a safety-enabled configuration to a non-safety configuration, then all the
safety worksheets in the configuration will be converted to process worksheets.
Conversely, if you convert a non-safety configuration to a safety-enabled configuration, then a
blank safety worksheet will be added to the configuration.
Creating Other File Types
See sections for details.
Create/Edit Recipe (Variables)
Create/Edit Setpoint Profile
Create/Edit Setpoint Schedule
Create/Edit Sequence
Create/Edit Data Storage Settings
Back up Controller Information
Revision 15
September 2013
HC900 Process Control Designer User Guide
35
File Management
Converting HC900 Configurations
Converting HC900 Configurations
You cannot download a configuration saved as one HC900 controller model to a controller of a
different model. You must first convert the configuration before doing a download.
Conversion Procedure
1. With the configuration file open, select “SAVE AS” from the “FILE” menu. The “Save As” dialog
box will open.
2. From the drop-down menu in the “Save as Type” field, select the type of Controller configuration
that you want to convert TO. (See table below.)
3. Select “SAVE”.
4. If there is a problem with the conversion from C50 to C30, the “Conversion Error” dialog box will
appear indicating what the error is. For example:
Too many Loop Blocks,
Greater than 400 User Function Blocks,
Expansion Rack used in Configuration.
5. If there is no problem, the conversion will proceed.
6. If there are no unconnected inputs that need to be set to OFF or 0, the data is saved
automatically.
7. If there are unconnected inputs that have not been previously set to OFF or 0, the application
will notify you that there are unconnected inputs and ask if you want to see a list of unconnected
inputs.
8. Click “Yes” to view the summary of unconnected inputs.
9. Click “Log File” to save the list to a text file, if desired.
Note: Configuration for model revisions can only be saved as models of same revision or newer
revision. Configuration fails cannot be saved as older configuration revisions.
Start with an “original configuration” and do a File, Save As, and save the configuration to the newer
revision (or different controller type).
The new configuration can only be downloaded to a controller of the same type.
* Configuration revision remains the same or is upgraded to a later revision
Uploading a File from the Controller
Introduction
Upload transfers a file FROM the controller TO the PC. Uploadable files are configurations, recipes,
and data storage.
The Controller may be in ANY mode.
No configuration file is required to be opened prior to the Upload Request.
36
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Downloading a File to the Controller
Uploading Configuration
1. From the "File Menu" select Upload Configuration, or click on the Upload icon on the Main Toolbar
,or click on the Upload icon on the Utilities Worksheet Toolbar
Configuration".
then select "Upload
2. The Upload File dialog box will appear. A temporary file name will be place in the "File Name" box.
3. Under "Current CommLink Settings", select the port and address to communicate to a controller.
Reference "Utilities Worksheetin the appropriate fields. " for configuring the PC Ports.
4. Press "START". The dialog box will show "Percent Complete".
5. The Uploaded File will appear with an automatic file name containing the controller name, its local
name (or alias), and the network it is on.
6. From the "File" menu, select Save or Save As and enter a file name and path in the appropriate
fields.
Uploading Recipe or Data Storage
1.
From the "File Menu" select Upload... The Upload File dialog box will appear. A temporary file
name will be place in the "File Name" box.
2.
Under “Current” CommLink Settings”, select the port and address to communicate to a
controller. Reference "Utilities Worksheet" for configuring the PC Ports.
3.
Press "START".
4.
Select a file type to upload. If uploading a recipe you’ll be asked to choose which recipe in the
controller’s memory to upload.
5.
The dialog box will show "Percent Complete". When the upload is complete, the Uploaded File
will appear (with a temporary file name) in the editor for that file type.
6.
From the "File" menu, select Save or Save As and enter a file name and path in the appropriate
fields.
Downloading a File to the Controller
Introduction
Once a control strategy—configuration file—is opened, Configuration Download transfers a
configuration FROM the PC TO the controller.
The Controller may be in either RUN or PROGRAM mode (not Run-Locked)
ATTENTION: You cannot download a configuration saved as one HC900 controller model to a
controller of a different model. You must first convert the configuration before doing a
download. See “Converting HC900 configurations ”.
Procedure
1. From the File Menu select "Open" or Upload a file* from the controller.
IMPORTANT: If you intend to make a set of changes to a running configuration and
wish to preserve the context of the current configuration parameters, you should
perform an upload from the controller first to assure that you have the current
configuration, make the incremental changes, save the modified file, and then
download. This is highly recommended to avoid configuration conflicts.
2. Select the file (.cde) that is to be downloaded.
3. The selected function block diagram will appear in the Active View window. Only the active
file window can be downloaded.
4. At this point you can make incremental changes to the file. (See "Downloading in the RUN
Revision 15
September 2013
HC900 Process Control Designer User Guide
37
File Management
Downloading a File to the Controller
mode" first)'
5. From the "File Menu" select Download or
click on the Download icon on the Main Toolbar
6.
7.
8.
9.
or
then select "Download
click on the Download icon on the Utilities Worksheet Toolbar
Configuration".
The "Download File" dialog box will appear. Check the Port and Address information for
correctness.
Press "START" to download the configuration to the configuration buffer.
The download will begin if the controller is in:PROGRAM mode or RUN mode.
The download will be rejected if the controller is in:RUN/LOCKED mode or OFFLINE mode.
The dialog box will show "Percent Complete".
After the database tables have been transferred to a configuration buffer, select one of the
following commands to transfer from the buffer to the controller: Download of a safety-enabled
configuration will not be allowed if there is a mismatch of I/O channel information or in case of
duplicate I/O information.
HOT START - the controller will use the new or updated configuration in RUN Mode.
During a Hot Start:
- Controller memory will not be re-initialized
- Outputs will be held at their current value.
- Controller will stay in RUN mode
There are two possible actions with a Hot Start.
- If the Hot Start will be completed within approximately 3 controller scan cycles, then
the Hot Start will proceed automatically.
- If the Hot Start requires longer than 3 controller scan cycles, a dialog box displays
a) the estimated duration of the Hot Start and b) options to initiate or cancel the Hot
Start.
COLD START - the controller will transition through normal PROGRAM-TO-RUN mode
transition
- Controller memory will be re-initialized
- Outputs will be turned off during re-start
- Controller will return to RUN mode
ABORT - the controller will disregard the new configuration and continue to use the
previous configuration.
The dialog box status line will state "Mode Change in Progress" then "Download Successful"
when completed.
Downloading in Run Mode
WARNING
While we provide application assistance personally, through our literature and the
Honeywell web site, it is up to the customer to determine the suitability of the
configuration in the application and the potential dangers of downloading a
configuration while running.
Downloading in RUN Mode has the potential to create a hazardous situation. Changes
to the configuration result in a short suspension of the control program followed by an
immediate execution of the new configuration. It is the user’s responsibility to ensure
that configuration changes will not result in a hazardous situation.
It is the user’s responsibility to assess this risk for his process. Failure to comply with
these instructions could result in death or serious injury to people and/or property
38
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Downloading a File to the Controller
damage.
Downloading in Run Mode (Hot Start) is a means to make configuration changes and download
them to the controller without taking the process off-line.
It is intended for incremental changes to a running configuration, such as:
Adding and Deleting Blocks
Modifying block configuration parameters
Adding/changing soft-wires, signals, variables
Adding OI displays, Data Storage
Adding Recipes, SP Profiles, SP Schedules, or Sequencers.
Adding, deleting, or modifying I/O (DI, DO, AI, AO).
IMPORTANT: If you intend to make a set of changes to a running configuration and wish to
preserve the context of the current configuration parameters you should perform an upload
from the controller first to assure that you have the current configuration, make the
incremental changes, and then download.
Cautions
Configuration Change Transfer
Once the HOT START button is depressed, the configuration will be updated with the new changes.
Note: During the time period required to perform the Hot Start, the controller will suspend the
execution of its function blocks and hold its outputs at their current value. If you select Hot Start and
the Hot Start will take longer than approximately three controller scan cycles, a popup window
appears:
If this time period is acceptable, click Yes to begin the Hot Start. If this time period is not acceptable,
press No.
Configuration Parameters
All Configuration Parameters are set to the value or state in the .cde file following a download.
For example: Tuning constants could be over written by a Download while in Run Mode. The tuning
constants are considered part of the configuration. If you DO NOT first upload the present
configuration, you will overwrite the active parameters with the values in the configuration that are
downloaded. The new download is an all or nothing proposition.
Function Block Changes
If a function block is deleted, Designer does not re-use the block number.
If a function block is added, Designer uses the highest current block number + 1.
Restrictions:
When a configuration uses the last block number (500 for C30, 2100 for C50, 5100 for C70/C70R/C75)
and you try to add another block, Designer will prompt you to "de-fragment" the table and recover
previously deleted blocks. There can be NO Hot Start this case.
Revision 15
September 2013
HC900 Process Control Designer User Guide
39
File Management
Downloading Controller Firmware
Data Storage Schedule (Legacy 559/1042 OI only)
Assuming changes have NOT been made to an OI data Storage Schedule, the data storage will be
interrupted only as long as it takes to transfer the configuration changes.
Downloading Controller Firmware
Background
Code download provides a mechanism to upgrade the firmware in your HC900 Process Controlto a
newer version without the need to replace the CPU card. This can be useful if you wish to upgrade your
controller to take advantage of new features and functions as they are introduced, or in the event that a
software bug requires field repair. The HC Designer upgrade files can be downloaded from website
https://www.honeywellprocess.com/en-US/explore/products/control-monitoring-and-safetysystems/modular-control-systems/hc900-control-system/Pages/hc900-controller.aspx
Getting Started
Before you begin the download there are a few things you need to be aware of.
• Code Download can take from a couple of minutes using Ethernet to over one hour if using a
Modem. Therefore, it is highly recommended that you do not start the code download
procedure at a time when the likelihood of power failure is increased, such as during
thunderstorms.
• The code download function is only available through the HC900 Process Control Designer
program connected to the controller via the CONFIGURATION port or Ethernet port on the
HC900. Use the Utilities Worksheet to do the download.
• The controller will not allow the controller firmware download to begin if the battery is bad.
• Code download will destroy the configuration database in the controller. Therefore, before
code download is started, either upload the configuration file via the operator interface and
save on floppy disk or other storage media, or upload and save to your PC via the software’s
Utilities Worksheet.
Controller Firmware Files
The firmware files for the various CPU and Scanner versions are placed in the C:\Program
Files\HC900 Firmware directory when HC Designer is installed or upgraded. It is strongly
recommended both controller and scanners be upgraded together.
Controller Mode
Before starting the Controller Firmware Download, switch the controller to "Program Locked" or
"Program" mode. Program Locked offers more security by requiring a key to change the mode switch
position. See set controller mode.
Download Procedure
Step
Action
1
Backup the controller configuration either by uploading to floppy disk on the operator
interface, or uploading and saving via the Designer.
2
Make sure the controller’s mode switch is in "Program" (locked) or "Run/Prog" position.
If the switch is in "Run/Prog" position, go to set controller mode display and change
mode to Program.
3
In Designer select the Utilities Worksheet tab.
Controller Module
40
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Downloading Controller Firmware
Step
4
Action
From the "Controller Utilities Functions" select "Download to Controller".
On the sub-menu, select "Controller Firmware", then "Controller Module".
5
Use the "Look in:" drop down list in the "Open" dialog box to select the drive and folder
you placed the files in.
6
Select and open the file "Version.CPU" displayed in the file list box.
7
Select the "Port" and "Address" on the "Download File" dialog box.
8
Click on the "Start" button in the "Download File" dialog box. The download will start,
and progress is displayed. The download itself will take a few minutes, depending on
the Port type and connection.
9
A "Download Succeeded" status will be displayed in the "Download File" dialog box.
If a failure is detected, an error message will appear in the Status section of the
"Download File" dialog box. See "Error Messages" for a list of possible messages and
resolutions. Also see Failure Modes.
Scanner Module
10
From the "Controller Utilities Functions" select "Download to Controller".
On the sub-menu, select "Controller Firmware", then "Scanner Module".
11
Use the "Look in:" drop down list in the "Open" dialog box to select the drive and folder
you placed the files in.
12
Select and open the file "Version.SCN" displayed in the file list box.
13
Select the "Port" and "Address" on the "Download File" dialog box.
14
Click on the "Start" button in the "Download File" dialog box. The download will start,
and progress is displayed. The download itself will take a few minutes, depending on
the Port type and connection.
15
A "Download Succeeded" status will be displayed in the "Download File" dialog box.
If a failure is detected, an error message will appear in the Status section of the
"Download File" dialog box. See "Error Messages" for a list of possible messages and
resolutions. Also see Failure Modes.
16
Restore the configuration from the backup copy you previously made.
Failure Modes
If there is a download failure indication on the "Download File" dialog box:
• DO NOT cycle the controller power and DO NOT remove the battery.
• Check the physical connections.
• Check for power failures.
• Restart the download from the beginning.
Revision 15
September 2013
HC900 Process Control Designer User Guide
41
File Management
Download Firmware Error Messages
Download Firmware Error Messages
This is a list of possible error messages that could be displayed as the result of a Download Firmware
failure:
Error Message
What to do
Instrument must be in PROGRAM
LOCK mode to perform this operation
Put controller in program lock mode before starting code download.
Instrument's battery missing or dead
Replace controller battery before starting code download.
Missing loader binary file
Could not open the loader file. Make sure the “loader.s19” file is in
the same directory as the firmware file to be downloaded.
Could not open firmware update file
Make sure the firmware file is present in the directory selected.
Programming is not required, the
downloaded version matches the code
in the controller
The version in the controller matches the version that was
downloaded.
The downloaded file is corrupted
The firmware file was bad. Replace the firmware file
Failed to complete file transfer
Could be caused by communication loss or controller power failure.
Restart code download again.
Controller is not responding, code
download failed
Could be caused by communication loss or controller power failure.
Restart code download again.
Failed to put instrument into loader
transfer mode
Could be caused by communication loss or controller power failure.
Restart code download again.
Failed to get controller status
Could be caused by communication loss or controller power failure.
Restart code download again.
Unexpected controller mode. Code
download will abort. The controller will
now reset
Could be caused by communication loss or controller power failure.
Restart code download again.
Failed to get expansion rack status
Could be caused by communication loss or controller power failure.
Restart code download again.
FLASH erase failure. Replace the
controller card
The controller has a hardware problem. Replace the controller card.
FLASH programming failure. Replace
the controller card
The controller has a hardware problem. Replace the controller card.
FLASH memory failure. Replace the
Controller card
The controller has a hardware problem. Replace the controller
card.
An incomplete code download has been
detected. Do not remove controller
power! Removing controller power
A previous code download was aborted or failed. Code download
will proceed using the selected file.
42
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
File Properties
Error Message
What to do
could result in damage to the scanner
card(s)
An incomplete code download has been
detected. Code download will proceed
using the selected file
A previous code download was aborted or failed. Code download
will proceed using the selected file.
No scanner racks detected
Most likely cause is no expansion racks connected to the main
controller. It can also be caused by a failed scanner card. If a
scanner is properly connected to the controller and this message is
displayed, replace the scanner card.
“Rack 1: SUCCESS, Rack 2: FAILED"
Completion report for scanner code download. There should be a
SUCCESS status for each card connected to the main controller
rack. A FAILED status could be caused by a communications
problem between the main controller rack and the scanner racks or
by a failed scanner card. Restart code download again.
File Properties
Lets you fill in the title and author of the file as well as view the file statistics (Number of Blocks, Inputs,
and other items).
From the Designer Window File menu, select “Properties”. Or in the File Browser Window right-click on
an open configuration.
The “File Properties” dialog box will appear.
Select a tab:
General
Enter Title and Author.
Read only: Path and file name, Date created and Last Modified, Schema #, Device information (CPU
type, Revision number)
Statistics
Revision 15
September 2013
HC900 Process Control Designer User Guide
43
File Management
How to Add Worksheet Protection
Shows usages and capacities for all items in the configuration. Asterisk * indicates there is no specific
limit for this item, its limit is determined by available memory.
Cycle Time and Fast Cycle Time increase (slow down) as the following increase: CPU % Used, Fast
CPU % Used, Dynamic Memory, Config Memory. Also, extensive use of Free Form Logic blocks (as
opposed to equivalent gate logic) can substantially increase Fast Cycle Time.
Be aware that deleted function blocks consume memory; this memory can be made available by
defragmenting.
"Read Protection" - Indicates current protection. If file is unprotected, click on "Protect File" to allow
new password entry or change current password.
"Worksheet Protection" - Indicates current protection. If worksheet is unprotected, click on "Protect" to
allow new password entry or change current password. Also, you can change or remove worksheet
protection.
How to Add Worksheet Protection
Introduction
The HC900 Process Control Designer provides an optional configuration Worksheet protection. New
files default to "No Protection". Worksheets can be protected on individual basis where all protected
worksheets use the same password. A user has limited access to protected worksheets.
The HC900 Process Control Designer provides an optional configuration Worksheet protection. New
files default to "No Protection". Worksheets can be protected on individual basis where all protected
worksheets use the same password. A user has limited access to protected worksheets.
Protected Worksheet Type
44
View Worksheet?
Edit Worksheet?
Controller
YES
NO
Display
YES
NO
Function Blocks
NO
NO
Modbus Map
YES
NO
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
How to Add Worksheet Protection
Protected Worksheets:
• can be "unlocked". Protection is disabled, but not removed from the file. If you save the file,
the worksheet protection will be "locked" when the file is reopened.
• can have their passwords changed. In order to change a password, you will need to know
the current password.
• Can have their protection "removed". Removing the protection is permanent. If you save
the file, the worksheet will not be protected when the file is reopened.
Protection Symbols
There are three symbols that could appear on the "Worksheet Protection" tab that indicate the level of
protection for the file:
= No protection is in place, worksheets are 'Unlocked"
= Protection exists, and the worksheets are "Unlocked".
= Protection exists, and the worksheets are "Locked".
Protecting a Worksheet When There is No Protection
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Change Protection" button.
3
Click on the box next to the worksheet names you want to protect, then select
"DONE" button.
4
Click on the "Lock" button to setup a password.
5
Enter a password for the file in the "New Password" field (up to 14 characters).
6
Re-enter the password in the "Confirm New Password" field.
7
Click "OK".
8
In version 4.4 and greater click “Disable Master Password” if you wish to prevent
others from overiding password protection by getting a master password from
Honeywell. IMPORTANT NOTE: If you forget your password after Disable Master
Password has been selected you will not be able to view any protected worksheets.
Revision 15
September 2013
HC900 Process Control Designer User Guide
45
File Management
How to Add Worksheet Protection
To Change a Password
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Change Password" button.
3
Enter the current password in the appropriate field.
4
Enter a New Password in the appropriate field.
5
Confirm the new password in the appropriate field.
6
Click "OK".
To Temporarily Unlock a Worksheet
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Unlock" button.
3
Enter the current password in the appropriate field.
4
Click "OK", the worksheets are unprotected
NOTE: the "Controller", "Display", and "Function Block" worksheets also have a
toolbar button to unlock worksheets.
To Permanently Remove Worksheet Protection
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Remove Protection" button.
3
Enter the current password in the appropriate field.
4
Click "OK", the worksheets are unprotected.
Protecting a Worksheet When Worksheets Protection is Active
Step
46
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
"Unlock" the worksheet.
3
Change protection.
4
Select worksheet names, then "DONE".
5
Select "LOCK"
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
File Read Protection
File Read Protection
Protected files are password protected. You will be prompted for a password to open them.
Introduction
The HC900 Process Control Designer provides an optional configuration File Read protection. All the
files default to “No Protection”. Through the Properties selection on the FILE menu, you can enter a
password to read protect each file. You can change the password and also remove Write protection
using the same password.
Use this security feature to prevent other users from viewing your configuration. Once a file is
protected and saved (or downloaded to a controller), it cannot be opened (or uploaded) unless you
know the password.
Adding Read protection to a file
Step
Action
1
From the “File” menu, select “Properties”, then select the "Read Protection "
tab.
2
Click on the "Protect File" button.
3
Enter a password for the file in the “New Password” field (up to 14
characters).
4
Re-enter the password in the “Confirm New Password” field.
5
Click “OK”.
To Change a Password
Step
Action
1
Click on the "Change Password" button.
2
Enter the current password in the appropriate field.
3
Enter a New Password in the appropriate field.
4
Confirm the new password in the appropriate field.
5
Click “OK”.
To Unprotect a File
Step
Action
1
Click on the "Unprotect File" button.
2
Enter the current password in the appropriate field.
3
Click "OK", the file is unprotected
Revision 15
September 2013
HC900 Process Control Designer User Guide
47
File Management
Write Protect a File
Write Protect a File
Introduction
Optional configuration File Write protection is provided. This feature makes use of the disk general file
"Read Only" attribute. All the files default to "No Protection". When set to "Read Only", the file is Write
Protected, which means it cannot be over written or deleted.
Select "Write Protect File" from the FILE menu.
Use the Check Box on the dialog box that appears to turn the attribute On (selected) or Off
(deselected).
48
HC900 Process Control Designer User Guide
Revision 15
September 2013
File Management
Write Protect a File
This page has been intentionally left blank
Revision 15
September 2013
HC900 Process Control Designer User Guide
49
PC Comm Ports and Connections
How to Manage PC Comm Ports and Connections
PC Comm Ports and Connections
How to Manage PC Comm Ports and Connections
The middle and lower portions of the Utilities Worksheet contain the PC Comm Ports and Connections
functions.
Setting up your PC Comm Ports consists of the following functions:
• PC Network Port Setup for Controller Access
• PC Serial Comm Port Setup
• PC to Controller Connection Settings
• Remote Loopback test
• Remote Access
• Communications Statistics
PC Network Port Set Up For Controller Access
The software lets you setup a PC Network Port and up to 8 PC Serial/USB Comm ports for interface to
a specific controller (serially via the controller’s RS-232 (legacy) or RS485 configuration port or over a
network via the controller’s Ethernet port, accessed by its IP address). You will need an Network
Interface Card (NIC) in your PC for network connection. If there is a Modem on your PC, a symbol will
appear on one of the Serial comm ports buttons.
Setting Up a Network Port
1. Click on the Network Port setup button
Revision 15
September 2013
HC900 Process Control Designer User Guide
51
PC Comm Ports and Connections
PC Network Port Set Up For Controller Access
2. The Network Port Dialog Box will Open
To ADD a Network Port:
Click on ADD and enter the properties in the
Device IP Address fields.
To EDIT a Network Port:
Click a device, click on EDIT and enter the
properties in the Device IP Address fields.
To Delete a Network address:
Click on a device in the Network address list, then
click Delete button. The address will be deleted.
3. To do a Loopback test for a specific
address click on the Loopback button.
4. For Advanced Network Setup, click on
the MORE>> button at the bottom of the
"Network Port Properties" dialog box.
Number of Retries before Abort - Enter a
decimal value
Retry Delay - Enter a value in
milliseconds
Timeout - Enter a value in milliseconds
Note: It is not recommended that you set
the values lower than those shown in the
dialog box, since it may cause some
communications operations to fail.
Press Reset button to reset these fields to
their default values
52
HC900 Process Control Designer User Guide
Revision 15
September 2013
PC Comm Ports and Connections
PC Serial Com Port Setup
PC Serial Com Port Setup
The software lets you setup a Network Port and up to 8 Serial Comm ports. If there is a Modem on
your PC, a symbol will appear on one of the Serial Comm Ports buttons. See Setting up a Serial Com
Port with a Modem.
Setting Up a Serial Comm Port
1. Click on the Serial Comm Port setup button.
When there is no port Icon above the comm
port name, the port is currently disabled.
With newer PCs a USB to RS232 or USB to
RS485 adapter may be used.
2. The "Serial Comm Port Properties" Dialog
Box will Open
Click the 'Enable Port" box
Manually select a Baud Rate from the
"Speed" drop-down menu, or if a controller is
currently connected to the ports, press the
"Detect" button to detect the controller's
RS232 /RS485 baud rate.
Click OK.
Note: The Legacy controller’s serial port can
be set for either RS232 or RS485 operation
(by means of DIP switches on the CPU card).
Version 6.0 and greater CPUs support only
an RS485 serial connection. If the Detect
process runs through all of the baud rates
rapidly without appearing to actually check
each baud rate, there may be a mismatch
between the PC’s serial port type and the
controller’s serial port type. If this behavior
occurs, make sure that the DIP switches on
the controller’s CPU card are set correctly.
The legacy controller factory settings are
RS232 for Serial Port S1 and RS485 for
Serial Port S2.
Note: The serial comm ports are configured to default to
Honeywell ELN protocol, If a user configures a serial port
to use Modbus RTU (slave) protocol, the Serial 232 box
may be checked for HC Designer to communicate via this
protocol.
3. The Serial CommPort Button will now show
an icon indicating that the port has been set
up.
Revision 15
September 2013
HC900 Process Control Designer User Guide
53
PC Comm Ports and Connections
PC Serial Com Port Setup
4. For Advanced Network Setup, click on the
MORE>> button at the bottom of the "Serial
Comm Port Properties" dialog box.
Number of Retries before Abort - Enter a
decimal value
Retry Delay - Enter a value in milliseconds
Timeout - Enter a value in milliseconds
Note: It is not recommended that you set
the values lower than those shown in the
dialog box, since it may cause some
communications operations to fail.
Press Reset button to reset these fields to
their default values.
Setting Up a Serial Comm Port with a Modem
1. Modems must be "Installed" in MS
Windows™.
2. Click on the Serial Comm Port Setup
button.
3. The "Serial Comm Port Properties"
Dialog Box will Open
Click the 'Enable Port" box
There is NO Baud selection because
the speed is determined by the
controller's modem.
Click OK.
4. For Advanced Network Setup, click
on the MORE>> button at the bottom
of the "Serial Comm Port Properties"
dialog box.
Number of Retries before Abort - Enter
a decimal value
Retry Delay - Enter a value in
milliseconds
Timeout - Enter a value in milliseconds
Note: It is not recommended that you
set the values lower than those shown
in the dialog box, since it may cause
some communications operations to
fail.
Press Reset button to reset these
fields to their default values.
54
HC900 Process Control Designer User Guide
Revision 15
September 2013
PC Comm Ports and Connections
PC to Controller Connection Settings
5. For Telephony Settings, click on the
MORE>> button at the bottom of the
"Serial Comm Port Properties" dialog
box.
Click on a radio button to select one
of the following two options:
No Timeout - No timeout is performed
and the application will stay connected
until you Hang Up
Connection Timeout - Enter in the
active field (in minutes) how long the
application will leave the line open
before hanging up automatically.
The Modem will hang up if there is no
communications activity for this
amount of time.
PC to Controller Connection Settings
After setting up your PC Network and PC Serial Comm Ports:
Select a Port from the drop-down menu
If you selected "Network" Select the Address
of the controller from the drop-down menu.
You can run a loopback test
You can view and reset the communications
statistics
Revision 15
September 2013
HC900 Process Control Designer User Guide
55
PC Comm Ports and Connections
Remote Loopback Test
Remote Loopback Test
Remote Loopback tests the connection between the PC and the Controller.
Running the test
•
•
•
56
Click on the Loopback icon on the Utilities Worksheet Window.
Loopback Test" dialog box will appear.
Click "SEND". The Status line will read:
Instrument Responded Correctly, or
Instrument did not Respond - check the connections
Click "Close".
HC900 Process Control Designer User Guide
. The "Remote
Revision 15
September 2013
PC Comm Ports and Connections
Remote Access
Remote Access
For Remote Controller Access via dial-up modem an external modem is required at the controller and
is connected to the standard RS 232 configuration port.
If a modem is already installed on the PC the Designer will notify you that it exists.
Remote Access functions include on-line monitoring Live Monitor - Overview, Uploading and
Downloading Configurations.
Procedure
1. Click on the Utilities tab.
2. Under PC Port Setup, click on a Comm Port.
3. The Serial Comm Port Properties dialog box opens. Click on the "Enable Port" box.
4. From the "Port" drop-down menu, select "COMx:MODEM".
button.
will appear next to the Statistics
5. Click on this icon and the "Select the Number To Call" will appear.
To Hang Up a call, select “Hangup Modem” from the File Menu in the Main Menu.
A message will ask you to confirm that you want to hang up.
Select the Number to Call
Select the Number to Call Dialog Box.
To ADD a Phone Number
Type in the Phone Number, Name, and Comments in their respective fields, then click on “ADD to
List”. The information will appear in the Phone Number List.
To DELETE a Phone Number
Click on a name or number in the Phone Number List and click “Remove from list”. The line will be
deleted and all the Phone numbers and names will move up one line.
To SELECT a number to call
Click on a name or number in the Phone Number List and click “Dial”.
To Hang Up a call
Select “Hangup Modem” from the File Menu in the Main Menu. A message will ask you to confirm that
you want to hang up.
Revision 15
September 2013
HC900 Process Control Designer User Guide
57
PC Comm Ports and Connections
Communications Statistics
Communications Statistics
The "Statistics" button on the "Current PC to Controller Connections Settings" will launch the
"Communications Error Summary" dialog box. The summary statistics are shown below:
See the table below for corrective action for each communication error.
Click on "Reset" to change the statistics to "0".
Error
Reason
Number of Comm Attempts
Count of messages sent down to a Controller
Receive Overrun Errors
A count of Controller response messages that were longer than expected.
Make sure you have the latest version of HC Designer and that it is
compatible with the Controller version. Contact Technical Support if the
problem continues.
API Errors
The number of Application Errors are typically errors reported by the
Controller.
Common reasons for this error:
Instrument responded to the wrong message. Check that there isn’t more
than one device with the same IP or Modbus address trying to communicate
with the Controller.
Controller communication port is in use by other device(s).
Instrument responded with an error code. Take note of any error message
dialog boxes that may popup while communicating with the Controller (e.g.
While Monitoring). Attempt any corrective action based on the reported
errors.
Contact Technical Support if the problem continues.
58
Link Errors
Count of messages that could not be interpreted by HC Designer. Typically
these occur when the response message contains garbled data. Check
physical connections between the Controller and the PC. If you are using a
modem or a serial cable, this error may be the result of "line noise".
Physical Errors
Count of hardware type errors. These typically occur when the Controller
doesn’t respond. Check cable and other hardware connections. If using a
modem or a serial cable, verify the cable connections and baud rates of all
pieces.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Worksheets Overview
What is a Worksheet?
Worksheets Overview
What is a Worksheet?
A Worksheet is a logical partition of a configuration file. Worksheets can be further categorized by
function into 6 main categories. Each category is assigned a tab in the worksheet category tab control
that makes up the main Worksheet Window of a configuration. There are restrictions on the number of
individual worksheets that can exist in a given category and not all categories are available to all
controller types and revisions of controller firmware. Below are the different worksheet categories:
•
Displays the configuration of I/O modules
•
1 per configuration
Operator Panel Worksheet
•
Display and configure Operator Interface displays
(Also referred to as Display Worksheets)
•
1 per configuration
•
Not available in revision 6.0 and above
•
Display and configure control logic
•
20 per configuration (for C30, C30S, C50, C50S)
•
40 per configuration (for C70, C70S, C70R, C75, C75S)
•
20 per configuration (for C30S, C50S)
•
40 per configuration (for C70S, C75S)
•
Only available for SIL-compliant controller types
•
Only available in revision 6.0 and above
•
Only available in revision 4.0 and higher configurations
using a Custom Modbus Address Map
•
1 per configuration
•
Provides access to a variety of maintenance functions for
the controller
•
1 per configuration
Controller Worksheet
Function Block Diagram Worksheets
(This category is sub-divided into)
Process Worksheets
Safety Worksheets
Modbus Map Worksheet
Utilities Worksheet
Each Worksheet may have full or restricted access (Worksheet Protection).
Worksheet Category Tabs
A configuration is organized into categories shown as tabs at the bottom of the Main window:
Controller
Display
Function Blocks / Process/ Safety
Modbus Map (Rev. 4.0 configurations and higher with custom Modbus map)
An additional tab, Utilities, is provides access to a variety of useful functions that interact with the
controller.
Revision 15
September 2013
HC900 Process Control Designer User Guide
59
Controller Worksheet
Controller Worksheet Overview
Controller Worksheet
Controller Worksheet Overview
There is one worksheet for the configuration. It displays the I/O in all configured racks.
Toolbar
The Controller Worksheet has a Toolbar to launch dialog boxes to configure:
Print Worksheet- Prints the I/O Summary as viewed on the worksheet.
Controller Identification - Enter a controller name. It will be displayed on the Operator Interface
used for Peer Communications (16 characters).
Controller E-Mail Notification
Unlock Worksheets
I/O Summary
A summary of each addressed I/O point (as well as unassigned I/O points) in the configuration
indicates:
Rack/Module/Channel
Block ID - a hot link when clicked finds the I/O block on the Function Block Diagram
Engineering Units and AI Input range
Signal Tag of primary output pin (if present) a hot link when clicked finds the signal tag on the Function Block
Diagram
Signal Descriptor of primary output pin (if present)
This assignment summary is built and updated dynamically on the worksheet body. It can be printed
from the toolbar Icon.
60
HC900 Process Control Designer User Guide
Revision 15
September 2013
Controller Worksheet
Controller Configuration Toolbar
Controller Configuration Toolbar
Click on ICON to open a dialog box.
ICON
Function
Dialog Box Comments
Print
Worksheet
Click to open the standard Print dialog box.
Fill in appropriate fields
Printed Output is the I/O Summary as viewed on the worksheet.
To display each page, as it will look when printed, click Print Report Preview on
the File menu.
Controller
Identificatio
n
Click to open the Controller Identification dialog box.
E-Mail
Notification
Click to open the E-Mail Notification dialog box.
Type in a name for your controller configuration. (same as Worksheet name)
Also indicates controller type and revision. (read only)
Two Tabs on Dialog Box:
General FROM name displayed for convenience (read only) and SUBJECT information 31 character configurable text.
To List - enter up to 3 configurable E-Mail addresses. For each Email address
check an Alarm/Event priority
See "E-Mail Notification"
Unlock
Worksheets
Revision 15
September 2013
Click to open the "Unlock Worksheets" dialog box. Enter a password and click
"Unlock" to unlock all worksheets.
HC900 Process Control Designer User Guide
61
Controller Worksheet
E-Mail Notification
E-Mail Notification
opens the E-Mail Notification dialog box. It lets you configure up to three E-Mail
addresses per controller configuration for Alarm and Event notification.
There are two tabs on the dialog Box.
General Tab
FROM
The Controller name is configured by the builder of the Configuration file
[Read Only]
SUBJECT
Enter an Event Subject (up to 31 characters)
Enter an Alarm Subject (up to 31 characters)
To List Tab Enter up to 3 configurable E-Mail addresses.(32 characters per addresses)
For each Email address check the Alarm/Event priorities you want the E-mail address to receive.
Events do not have multiple priorities like alarms because they are considered at a priority lower than all
alarms.
Alarm priorities were set during "Alarm Group Configuration" under "Alarm Details"
2 = Low Priority Alarm
3 = Medium Priority Alarm
4 = High Priority Alarms
5 = Emergency Alarm
The priority of an event is always indicated as "1" - (see Event Configuration)
Attention: See "Set Controller Network Parameters" and follow the wizard to set up a SMTP mail
server IP Address.
Examples:
[email protected] receives only priority 5 Alarms
(only the check box for "5" is checked
[email protected] receives all Alarms and Events
(all 5 boxes are checked)
[email protected] receives only Events
(only check box for "1" is checked)
62
HC900 Process Control Designer User Guide
Revision 15
September 2013
Controller Worksheet
Unlock the Worksheets
Unlock the Worksheets
opens the "Unlock Worksheets" dialog box.
Enter the password in the field and then, press "UNLOCK".
See How to Add Worksheet Protection on page 44.
Revision 15
September 2013
HC900 Process Control Designer User Guide
63
Display Worksheet
Operator Panel Worksheet Overview
Display Worksheet
Note: This section does not apply to the 900 Control Station.
Operator Panel Worksheet Overview
The Operator Panel Worksheet has a Toolbar to launch dialog boxes to configure:
O/I Display Buttons [1 - 8] Model 1042; [1 - 5] Model 559
and Display Groups
O/I Security (Operator Interface Settings)
O/I Data Storage
Alarm Groups
Event List
Filenames
Start Up Banner Page
Help Message screens.
Unlock Worksheets
There is a Display Keys Report that indicates current O/I Button assignments:
Display Button Number
Display Position on the button
Display Format
Group Title or Tag name
This assignment summary is built and updated dynamically on the worksheet body. It can be printed
from the toolbar.
Operator Panel Configuration Toolbar
Click on ICON to open the dialog box.
ICON
Function
Dialog Box Comments
Print
Prints the OI Display Worksheet. The printed output is the list of displays on
each user-assigned button as viewed on the worksheet.
To display each page as it will look when printed, click "Print Preview" on the
File menu.
Display
Button
Configuration
Operator
Interface
Settings
Data Storage
Configuration
Click to open Display Buttons Configuration.
It lets you assign displays to the user-assigned Operator Interface keys.
Click to open the "Operator Interface Settings" Dialog Box.
It lets you edit security settings on the Operator Interface.
Click to open the Data Storage Configuration dialog box.
It lets you w create groups of data to be archived on the Operator
Interface's storage device.
Dialog box tabs are:
Trend, Point Log, and Alarm/Event
64
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Operator Interface Displays
ICON
Function
Alarm Group
Configuration
Dialog Box Comments
Click to open the Alarm Group Configuration dialog box.
It lets you configuregroups of alarm points in the controller to report be
reported at the OI and via E-Mail.
See "Configuring or Viewing Display Tag Groups".
Configure
Event List
Click to open the Configure Event List Dialog Box.
Operator
Interface File
Names
Click to open the "O/I File Names for Disk Storage" Dialog Box.
It lets you configuretags to events from the controller to be reported at the OI
or via E Mail.
It lets you configure root names for the Operator Interface.
Start Up
Display
Configuration
Click to open the Start Up Display Configuration Dialog Box.
Message
Display
Configuration
Click to open the "Message Display Configuration" Dialog Box.
Unlock
Worksheets
Click to open the "Unlock Worksheets" dialog box. Enter a
password and click "Unlock" to unlock all worksheets.
It lets you configurethe Operator Interface Start Up display.
It lets you configurea set of message help displays for the
Operator Interface.
Operator Interface Displays
The Operator Interface uses a color display to provide a variety of screen presentations for viewing
control loops, setpoint programs, and other analog and digital status.
Modifying and customizing the operator interface is done using the Designer software.
With the software, data points can be identified with ASCII tag names. Once named, these data points
may be accessed by the operator interface using a standard set of display formats.
Customized display access and the assignment of selected display screens to keyboard buttons may
be viewed using the Operator Interface Worksheet.
All of the information for control loops and setpoint programmers will be accessed by the associated
tag name while selected screens such as bar graphs, trends, and overview displays will require the
user to specify the individual data points to be represented on the screen.
Display Buttons Configuration
Overview
This function lets you customize display access by assigning specific display screens to a set of
assignable buttons. OI Model 1042 has 8 assignable buttons, Model 559 has 5. Each assignable
button supports a sequence of up to ten screens. Screens assigned to these buttons may be Monitor
screens (view data only) or Operate screens (take actions). The type of screen and the data presented
on the screen is defined during configuration.
Configuration Procedure
on the Operator Panel Worksheet Toolbar opens the "Display Buttons Configuration" dialog
box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
65
Display Worksheet
Display Buttons Configuration
Select one of the tabs (one for each button) located across the top of the dialog box.
"Choose a display format" field. This will determine what will be shown in the "Groups/Tags" field
located below the "Display Format" selection box.
Display Formats categories are as follows. For examples, see the Operator Interface User Guide.
Category
Available Display Formats
1 Loop faceplate with trend , 1 Loop Numeric, Auto-Manual Bias, Multi-loop Faceplate
Recipe Load, Sequencer, Setpoint Programmer, Setpoint Scheduler
Device Control Operate, Four-Selector Switch, HOA Switch, Pushbutton
Horizontal Trend, Horizontal Trend with Digitals, Horizontal Trend with Vertical Bars,
Vertical Trend, Vertical Trend with Horizontal Bars
3 Pt Horizontal, 3 Pt Vertical, 6 Pt Horizontal, 6 Pt Vertical
1 Pt Rotating Panel, Multipoint Panel, Overview, Panel - 4 Pts, Panel Meter
Alarm, Alternator Operate, Data Storage Status, Messages, Ramp Operate, Stage
Operate
66
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Configuring or Viewing Display Tag Groups
A list of configured Groups/Tags and their titles will appear in the "Groups/Tags" selection window on
the tab. The format selection title is listed under "Groups/Tags".
Click on a Group/Tag number.
Click ADD - to add the selection to the "Selected Display Formats" list.
Click INSERT - to insert into a screen position. Other entries will shift down. Note that you must first
select (click) the position in the "Selected Display Formats" list, on the right-hand side of the dialog,
where you want to insert this display.
Click DELETE - to delete a page from a selected position in the "Selected Display Formats" list.
Click EDIT - to change the Tag Order or to bring up the Display Tag Group Configuration dialog box.
Note: You can also double-click on an entry in the "Groups/Tag" list or the "Selected Display Formats"
list. This action produces the same result as clicking on the Edit button for the selected entry.
Each time you configure a Loop (PID, CARB, ONOFF, TPSC, or AMB), SP Programmer (SPP), SP
Scheduler (SPS), Sequencer, Hands/Off/Auto Switch (HOA), Ramp, Stage, Alternator or Device
Control (DC) function block, you will have assigned a unique Tag Name to the block. This selection lets
you arrange tags to determine the tag order in various displays on the operator interface. The order in
which they appear in this "Tag Order" dialog box can be changed to coincide with the order in which
you want them to be displayed.
For other Display Groups, it allows you to go and edit the group; for example: Trend, Bar, Overview,
and others.
Configuring or Viewing Display Tag Groups
Overview
The "Display Tag Groups" let you configure groups of tags that can be accessed by the operator
interface using a standard set of display formats and a predefined menu hierarchy. These groups are
configured using tabs that appear on the "Display Tag Groups Configuration" dialog box. The groups
are listed below.
After you have completed all the group configurations you can select the groups to be displayed and
assign them to a specific operator panel display button. Refer to (Display Button Configuration )
Configuration
on the Operator Panel Worksheet Toolbar opens the "Display Tag Group Configuration" dialog
box.
Select one of the tabs (one for each group) located across the top of the dialog box.
Click on tab below to access the configuration procedure for the specific tab.
Alarms Display Tag Group
The Alarm Display Tag Group configuration tab provides a drop list of Alarm groups.
You can configure 20 Alarm Groups of 12 alarm points each. Each group contains a set of selected
digital signal tags. An Alarm may be any Digital Signal Tag. There are up to 240 alarm points available.
Each alarm point can be configured to generate an E-mail notification.
Select the Alarm tab then Select Display Group from the drop-down menu. Digital signals will be
displayed in the "Selected Tags List" field.
You can also select "Alarms" from:
- the EDIT menu on the Main Menus
- the FBD Worksheet toolbar button
Revision 15
September 2013
HC900 Process Control Designer User Guide
67
Display Worksheet
Configuring or Viewing Display Tag Groups
(when you do not have an OI and do not need to use Alarm Group logic in the control strategy)
- the FBD Worksheet by dropping an ALMGR block onto the configuration and either doubleclicking on the block or right-clicking on the block and selecting the properties menu item on the
context menu to bring up the 'Alarm Group Configuration" dialog box.
(when you do not have an OI and do need to use Alarm Group logic in the control strategy)
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag will be placed in the next available position in the "Selected
Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Repeat the selection for up to 12 tags for each group.
Select a signal in the "Selected Tags" field and click on ALARM DETAILS, and enter Alarm details in
the Dialog Box.
Click OK.
Note: when you edit "Alarm Group 1-20" from either the O/I Worksheet, the FBD worksheet, or
the FBD Alarm Group block, you are editing the same data.
Panel Meter Display Tag Groups
This selection lets you configure groups of Panel Meter Displays. Each group may contain a mix of
analog signal tags, digital signal tags, analog variables, and digital variables.
Select the Panel Meter tab then Select Display Group from the drop-down menu. Analog signal tags,
digital signal tags, analog variables, and digital variables will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces.
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag or variable will be placed in the next available position in the
"Selected Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Repeat the selection for up to 12 tags for each group. Click OK.
Trend Display Tag Groups
A selection of horizontal or vertical trend format displays is available to provide a historical record of
recent control performance. Trend displays may be configured with analog or digital points on each
display. Trend displays allow a user selectable time period of from 0.5 to 24 hours each. Each display
will retain from 1.5 to 6 screens of historical data that may be recalled from memory. Trend graph
displays provide traditional value versus time plots in horizontal or vertical orientation. Each group may
contain a mix of analog signal tags and digital signal tags.
Attention: If you want trends displayed logarithmically make sure that the first signal tag selected
has the decimal place setting. (Exponential Notation). See "Signal Tags".
68
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Configuring or Viewing Display Tag Groups
Select the Trend tab then Select Display Group from the drop-down menu. Analog signal tags and
digital signal tags will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag will be placed in the next available position in the "Selected
Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Enter the "Scale High" and "Scale Low" values for each signal selected.
Select a Time base for the Trend Display from the Drop down menu. (30 minutes to 24 hours)
Repeat the selection for up to 6 tags for each group.
Click OK.
Bar Display Tag Groups
This selection lets you configure 8 groups of Bar Displays. Bar Graph displays provide graphic
representation of multiple analog or digital signal tags using horizontal or vertical orientation. Bar
Graph displays are available in 3-point or 6-point vertical or horizontal format. Each group may contain
a mix of analog signal tags and digital signal tags.
Select the Bar tab then Select Display Group from the drop-down menu. Analog signal tags and
digital signal tags will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag will be placed in the next available position in the "Selected
Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Enter the "Scale High" and "Scale Low" values for each signal selected. Defaults are 0 and 100.
Repeat the selection for up to 6 tags for each group.
Click OK.
Overview Display Tag Groups
This selection lets you configure groups of Overview Displays. An Overview display will present the
current status/state for analog or digital tagged points. The display allows operator entry of values via
assigned analog and digital variables.. Each group may contain a mix of analog signal tags, digital
signal tags, analog variables, and digital variables for monitor only and/or operator entries. Analog
entries for variables have range limits and digital variables may be turned on or off (via corresponding
label).
The user may adjust analog and digital variables listed on overview displays while in operation.
Configure entry limits for analog variables. Use entry limits for analog variables. Use entry limits of 0
(low) and 1 (high) for digital limits.
Revision 15
September 2013
HC900 Process Control Designer User Guide
69
Display Worksheet
Configuring or Viewing Display Tag Groups
Select the Overview tab then Select Display Group from the drop-down menu. Analog signal tags,
digital signal tags, analog variables, and digital variables will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces.
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag or variable will be placed in the next available position in the
"Selected Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Enter the "Min Value" and "Max Value" values for each signal selected. Defaults are
–99999 and +99999
Repeat the selection for up to 12 tags for each group.
Click OK.
Single Point (Rotating) Panel Display Tag Groups
This selection lets you configure 2 groups of Single Point (Rotating) Panel Displays. Single Point
Panel displays provide a single point alphanumeric readout that consists of the tag and current value.
The display sequences through a list of up to 12 analog or digital signals or analog or digital variables.
Each group may contain a mix of analog signal tags, digital signal tags, analog variables, and digital
variables.
Select the Single Point tab then Select Display Group from the drop-down menu. Analog signal tags,
digital signal tags, analog variables, and digital variables will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces.
Select a 'Tag Name" from the "Select Tag List".
Click on ADD, the selected signal tag or variable will be placed in the next available position in the
"Selected Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Repeat the selection for up to 12 tags for each group.
Click OK.
Multi-Point Panel Display Tag Groups
This selection lets you configure 8 groups of Multi-Point Panel Displays. Multi-Point Panel displays
present the current value/state for up to seven Analog or Digital signal tags or analog or digital
variables in the controller. Each group may contain a mix of analog signal tags, digital signal tags,
analog variables, and digital variables.
Select the Multi Point tab then Select Display Group from the drop-down menu. Analog signal tags,
digital signal tags, analog variables, and digital variables will be displayed in the "Selected Tags" field.
From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in the list.
The default selection is "ALL".
Enter the group title. Use any mix of numbers, letters, and spaces.
Select a 'Tag Name" from the "Select Tag List".
70
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Alarm Details
Click on ADD, the selected signal tag or variable will be placed in the next available position in the
"Selected Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag will be
placed in the position chosen and the other signal tags will reorder as required.
Repeat the selection for up to 7 tags for each group.
Click OK.
Alarm Details
Select a tag in the "Selected Tags" area of the Alarm Group Configuration dialog box, then click on
"Alarm Details' button. The Alarm Details dialog box opens and enables you to enter details for the
selected tag.
The block number and output number are listed across the banner. The Tag number and descriptor is
listed in field below the banner.
Details include:
Alarm Priority - used for routing alarms to Email (which Email addresses get which alarms)
Each of 3 E-mail address may have any/all alarm priorities assigned to it.
2 - Low Priority Alarm
3 - Medium Priority Alarm
4 - High Priority Alarm
5 - Emergency Alarm
(select from the drop-down menu)
E Mail Notification of alarms, by priority, on a point by point basis.
(check the box to allow Email notification) The E-mail will be sent:
- if an alarm occurs on a point configured to send E-mail.
- to any/all of the 3 E-mail addresses that have the associated alarm priority assigned.
Detailed Text - appears on the Operator Interface.
(enter 2 lines of detailed text -24 characters max for each line)
Trigger Direction Trigger on ON state means alarm goes ON when triggered by rising edge (the discrete goes off-to-on)
Trigger on OFF state means alarm goes ON when triggered by falling edge (the discrete goes on-to-off)
(click on radio button to select)
Alarm Acknowledge - Group acknowledge
Manual Acknowledge - Can be acknowledged by operator. When a manual acknowledge
alarm goes into alarm and then out of alarm without being acknowleged by the operator, it
will be indicated as cleared. Use when you want the operator to be able to acknowledge
the alarm or see that the alarm was acknowledged and cleared.
Auto Acknowledge -When an auto acknowledge alarm goes into alarm and then out of
alarm without being acknowledged by the operator, it will show no indication it was in
alarm. Alarm can still be acknowledged by the operator when it is in the alarm state. An
alarm point with this attribute will never indicate "clear" status.
(click on radio button to select)
Note: an alarm will always be stored to the O/I Archive list.
Revision 15
September 2013
HC900 Process Control Designer User Guide
71
Display Worksheet
Event List Configuration
Event List Configuration
on the Operator Panel Worksheet Toolbar opens the Configure Event List dialog box.
You can also select "Events" from:
- the EDIT menu on the Main Menu
- the FBD Worksheet toolbar button
Up to 64 digital signals can be configured as events.
The most recent 150 events will be available for display at the Operator Interface
Events can generate Emails.
From 150 to 1500 event records can be stored on the Operator Interface archive disk.
Each event must have at least one of the following destinations:
Email, OI archive, or OI Display
You can select the events from a list of all digital tags.
A digital signal may be either an Event or an Alarm, but not both
Procedure
Enter a Title for the Event list.
From the drop-down menu, select the type of tags you want to display on the tag name list.
Click on each tag name you want included in the list.
Click on ADD. The selected tag or variable will be placed in the next available position in the "Selected
Tags List".
Select a tag in the list then, click on "Event Details" button to enter details for the tag selected. Details
include:
E Mail Notification
Store to O/I Archive List
Display on O/I
Trigger Direction for ON or OFF state
Click OK.
72
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Event Details
Event Details
The Event Details dialog box enables you to enter details for the tag selected when you configure
events. The block number and output number are listed across the banner. The Tag name and tag
descriptor is listed in field below the banner.
Events do not have multiple priorities like alarms. They are considered a lower priority than alarms.
Details include:
E Mail Notification of events on a point by point basis. (Check the box to allow Email notification) The E-mail will
be sent:
- if an event occurs on a point configured to send E-mail.
- to any/all of the 3 E-mail addresses that have events assigned. Event priorities are always indicated as "1"
Store to OI Archive List -OI Event File on the data archive disk on an event by event basis
Display on OI - presentation on OI Status line and Event Summary display
Trigger Direction – ON – Event on rising edge (Off-to-on transition)
OFF – Event on falling edge (off-to-on transition).
(click on radio button to select)
E-Mail Notification
opens the E-Mail Notification dialog box. It lets you configure up to three E-Mail
addresses per controller configuration for Alarm and Event notification.
There are two tabs on the dialog Box.
General Tab
FROM
The Controller name is configured by the builder of the Configuration file
[Read Only]
SUBJECT
Enter an Event Subject (up to 31 characters)
Enter an Alarm Subject (up to 31 characters)
To List Tab Enter up to 3 configurable E-Mail addresses.(32 characters per addresses)
For each Email address check the Alarm/Event priorities you want the E-mail address to receive.
Events do not have multiple priorities like alarms because they are considered at a priority lower than all
alarms.
Alarm priorities were set during "Alarm Group Configuration" under "Alarm Details"
2 = Low Priority Alarm
3 = Medium Priority Alarm
4 = High Priority Alarms
5 = Emergency Alarm
The priority of an event is always indicated as "1" - (see Event Configuration)
Attention: See "Set Controller Network Parameters" and follow the wizard to set up a SMTP mail
server IP Address.
Examples:
[email protected] receives only priority 5 Alarms
(only the check box for "5" is checked
[email protected] receives all Alarms and Events
(all 5 boxes are checked)
[email protected] receives only Events
(only check box for "1" is checked)
Revision 15
September 2013
HC900 Process Control Designer User Guide
73
Display Worksheet
Operator Interface Settings
Operator Interface Settings
Note: This section does not apply to the 900 Control Station.
on the Operator Panel Worksheet Toolbar opens the "Operator Interface Settings" Dialog
Box.
Select one of the tabs:
Security
Save
Main Menu
Language
Security Tab
This lets you configure, download, and upload security settings for the operator interface. The security
configuration is divided into two areas: Operator Security and Engineer Security.
Each of the security features shown in the dialog box offers a different level of security.
Item
74
Feature
Description
1
Enable Security
This is a master enabling switch. Click on box to enable security on
any of the engineer or operator secured items that are also selected.
If this is not selected, no engineer or operator secured items will be
secured, even if they are selected.
2
Operator Security Code
Enter a 3-digit NUMERIC code that will be used to secure items 3
through 9. 0 disables Operator Security
3
Set Up Control
Click to secure access to setup items. Click off to allow unrestricted
access.
4
Change between Auto
and Manual Control
Click to secure loop mode AUTO/MANUAL operation Click off to allow
unrestricted access
5
Change between Local
and Remote Setpoint
Click to secure changing between Local and Remote Setpoints. Click
off to allow unrestricted access.
6
Disk Utilities/
Data Storage
Click to secure access to disk utilities, data storage controls, and load
data storage settings. Click off to allow unrestricted access.
7
Setpoint Programmer Scheduler - Sequencer
operations
Click to secure Setpoint Program/Scheduler/Sequencer operation. Click
off to allow unrestricted access.
8
Recipe
operations/Variable Edit
Click to secure recipe and variable edit operation. Click off to allow
unrestricted access.
9
Log On/Off
Click to secure Log On/Off operation. Click off to allow unrestricted
access.
10
Engineer Security Code
This is a higher level of security than the operator security code
because it secures access to "off-line" functions such as calibration.
Choose a 3-digit code which will be used to secure the item 11 through
13.
0 disables Engineering Security
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Operator Interface Settings
Item
Feature
Description
11
Unit Setup
Click to secure Set Mode, Set Time and Date, Set Security, Comm
Ports., Self Tests, Calibrate AI, Calibrate AO. Click off to allow
unrestricted access.
12
Function Block Edit
Click to secure Edit Device Control and HOA EDIT displays. Click off to
allow unrestricted access.
13
Edit Menus
Click to secure Edit Device Control and HOA operate display Edit
menus. Click off to allow unrestricted access
Save tab
The Save tab is available for Rev. 2.0 or later configurations.
Prevents unauthorized saves by specifying which items can be saved to the controller’s pool.
Recipes
Setpoint Profiles
Schedules
Sequences
Main Menu tab
The Main Menu tab is available for Rev. 2.0 or later configurations.
Specify which items appear on the OI main menu:
Recipes
SP Programmers
SP Schedulers
Sequencers
Loops
Alarms/Events/Diags
Summary Displays
Unit Setup
Disk Utilities
Data Storage
Log Off
Language tab
Specify the language for all OI menus.
Revision 15
September 2013
HC900 Process Control Designer User Guide
75
Display Worksheet
O/I File Names for Disk Storage
O/I File Names for Disk Storage
on the Operator Panel Worksheet Toolbar opens the OI File Names dialog box.
You can configure up to 25 file name roots (6-characters) for use by the operator interface in disk
storage.
The Operator Interface lets you choose a name root and append it with a 2-digit number. Then a 3character extension is automatically added to create a filename for the disk storage functions.
Please use DOS format File Names.
The first several names listed in the dialog box are defaults and can be changed.
Click on a box and enter a file name.
Start Up Display Configuration
on the Operator Panel Worksheet Toolbar opens the Start Up Display Configuration dialog
box.
This selection lets you enter Title Text and Comment Text for your start up display. The "Start Up
display" is the first screen displayed following start up and is not associated with any display
button.
This same text is also viewed on the OI's Logoff Display.
Configuration Procedure
Enter a title on the Startup display. The title can be up to 2 lines in length but there is a maximum of
12 characters per line.
Enter a text message on the Startup display. The message can be up to 4 lines in length but there is a
maximum of 24 characters per line.
Example
76
HC900 Process Control Designer User Guide
Revision 15
September 2013
Display Worksheet
Message Display Configuration
Message Display Configuration
on the Operator Panel Worksheet Toolbar opens the Message Display Configuration dialog
box.
This selection lets you configure 10 pages of Help Message Displays.
Configuration Procedure
Select a page from the drop-down menu or navigate to the desired page using the Forward/Reverse
buttons on the top of the dialog box.
Enter a title text for the display. The title can be one line in length but there is a maximum of 24
characters per line.
Enter a message text for the display. The message can be up to 11 lines in length for each page but
there is a maximum of 32 characters per line.
Example
Unlock the Worksheets
opens the "Unlock Worksheets" dialog box.
Enter the password in the field and then, press "UNLOCK".
How to add/change worksheet protection.
Revision 15
September 2013
HC900 Process Control Designer User Guide
77
Data Storage
Data Storage Overview
Data Storage
Note: This section does not apply to the 900 Control Station.
Data Storage Overview
The Data Storage feature provides background storage of process information on a storage device for
analysis by an off-line computer equipped with Honeywell data analysis software.
Data stored files can not be reviewed from the operator interface. The instrument can support both
continuous and discontinuous (batching) modes of the following storage types:
Trends - Two Trend groups of up to 12 points each can be stored. Floppy disk capacity for
trends is inversely proportional to the number of trend points and the storage time interval (that
is, the time between trend samples). For example, when storing 2 trend groups of 12 points
each at a storage interval of 2 seconds, the storage device will be filled in a few hours.
Conversely, when storing 1 trend group of 3 points at a storage interval of 30 minutes, the
storage device could take several months to be filled.
Point Log (unit data samples) - A point log file to take a "snapshot" of process data for up to 12
points is also provided. Point log samples can be scheduled to occur at a user-specified time
synchronized to the controller’s Real Time Clock (RTC) or by a digital event in the controller.
The maximum sample rate for point log data is 60 seconds per sample. The Point log file has a
maximum capacity of between 2000 and 5000 records per file.
Alarms - Alarm recording is available to store on and off alarm actions. Alarm data includes the
point tag, a 16-character point description, and the time and date of alarm occurrence. The
Alarm file has a capacity of between 150 and 1500 records per file.
Events - Digital event recording is also available to store on and off transitions of digital events
in the controller. Event data includes the point tag, a 16-character point description, and the time
and date of event occurrence. An Event file has a capacity of between 150 and 1500 records
per file.
Setpoint Programs/Schedules, instrument configurations, recipes, variables, diagnostics, and
calibrations are not part of the Data Storage feature.
Data Storage Conventions
Storage Modes
Trends, Point Log, and Alarms/Events can be stored in Continuous or Batch modes. In addition,
Point Log can be stored in On Command mode.
Mode
Description
Off
No data will be collected
Continuous
Data is sampled at the storage interval
Batch
Data is sampled at the storage interval, but also a Batch Enable Signal separates the
sampled data into numbered batches. Batch #1 begins when the Batch Enable
Signal turns on, and ends when the signal turns off. Batch #2 begins when the Batch
Enable Signal turns on, and ends when the signal turns off, etc. No batch mode data
is collected while the Batch Enable Signal is off. The Batch Enable Signal does not
affect data being stored as Continuous or On Command.
On Command
Point Log data is sampled on each off-to-on transition of the Point Log Enable Signal.
Revision 15
September 2013
HC900 Process Control Designer User Guide
79
Data Storage
Data Storage Conventions
Storage intervals
When data storage is enabled, samples are taken at regular intervals known as the storage intervals.
These intervals can be from a few seconds to 30 minutes. Each data type has its own storage interval.
For example:
Trends can be stored using one interval (like 5 seconds),
Point Log using another interval (like 10 per day), and
Alarms/Events (stored as they occur).
Or, they can all use the same interval. It depends on how data storage has been
configured.
In Continuous and Batch modes, the storage interval determines how often data is sampled and
stored:
For trends, data is first sampled when storage is enabled and again at equally spaced intervals
thereafter. For example, if trend storage is enabled at 2:03 p.m. and the interval is 10 minutes,
trend storage occurs at 2:03, 2:13, 2:23, etc. until storage is disabled.
For Point Log, data is first sampled after storage is enabled but not until the programmed Start Time.
Data is sampled at equally spaced intervals after the Start Time. For example, suppose the Start
Time is 3:00 p.m. and the storage interval is 10 minutes. If storage is enabled at 2:03 p.m., the first
sample will occur at 3:00 and every 10 minutes thereafter. If storage is disabled at 3:35 and
enabled at 3:42, storage will resume at 3:50. Notice that the interval is synchronized to the Start
Time.
Alarm/Events are logged on occurrence with time and date (No interval)
In On Command mode for Point Log, there is no storage interval or Start Time. A single sample of
Point Log data is taken when the Point Log Enable changes from off (disable) to on (enable).
How Storage is Enabled
Data collection may be started through key actions from the operator interface keyboard or from digital
status signals from the controller. An "S" in the status line of the operator interface display indicates
active storage. [For detailed information refer to Data Storage Enable Conditions]
Disk Capacity
The disk capacity (in time) is calculated and displayed once all storage initialization is complete. This
eliminates the need for manual calculations and gives the operator the exact duration of the disk. All
file types in the data storage feature may be configured to stop collecting data when the file is full or to
continue in a circular storage mode (roll-over) where the oldest data is discarded as new data is
collected. When roll-over is not selected, a disk full warning indication is provided in the status line of
the display. The configurator, as required, may change the percent full limit. A storage buffer in the
operator interface allows changing the disk media without the loss of process data.
80
HC900 Process Control Designer User Guide
Revision 15
September 2013
Data Storage
Data Storage Enable Conditions
File Extensions
The following File Extensions are used for the HC900 Controller’s Data Storage output files:
LNT for Trend Files
LNP for Point Log Files
LNA for Alarm Files
LNE for Event Files
Data Storage Enable Conditions
How storage is enabled
Data Storage Enable/disable is an Operator Interface function. If a schedule is developed in the
software, all storage is automatically enabled.
Enable controls
The figure below shows the controls that must be enabled for each storage mode and data type.
The left side shows the three data types and their possible storage modes (only one storage
mode is in effect for any data type). The arrows show the conditions required for that storage to
take place.
For example, trend batch storage requires:
the Trend Storage Control to be on (enabled at configuration – if any signal is selected for storage i.e.
Signal Enable = NONE),
the Batch Command Control to be on (enabled at configuration), and
the Data Storage Control to be enabled (enabled at Operator Interface).
Notice that the Batch Command Control applies only to batch storage mode.
Revision 15
September 2013
HC900 Process Control Designer User Guide
81
Data Storage
Data Storage Enable Conditions
Three Levels of Enabling
There are three levels of Data Storage Enable:
Data Storage Disable Signal (Operator Interface) – See Note 1.
Data Type Enable Signals
Batch Command Enable Signal
Note 1. Since any storage schedules loaded into the system automatically enables storage, the
operator interface can disable storage.
Data Type Enable Signals
This level of control is the Data Type Enable Signal. Each data type (trends, point log, and
alarms/events) has its own Enable Signal that can either be configured as a digital signal on the
Designer, or if not configured as a digital signal (NONE selected on Designer Data Storage
Configuration), it will appear on the Storage Control menu on the operator interface
For example, if the Trend Enable Signal is configured as a digital signal in the Designer Data
Storage Configuration, it will not appear on the Storage Control menu on the operator interface.
This is done to avoid having two conflicting sources for the enable signal.
When a digital signal is not used, the Trend enable signal is set to enable when the configuration
is loaded. The Trends can then be disabled from the Operator Interface.
The Enable Signal has two functions for Point Log storage.
In Continuous and Batch modes, it enables Point Log storage to begin at the Start Time and at
every storage interval thereafter.
In On Command mode, when it changes from off (disable) to on (enable), it causes a single
sample of Point Log data to be stored at that moment. (See Point Log Storage Enable Conditions)
82
HC900 Process Control Designer User Guide
Revision 15
September 2013
Data Storage
Data Storage Enable Conditions
Batch Command Enable Signal
This level of control is the Batch Command. It is a single control signal that starts and stops
storage for all data types configured for batch storage. It does not affect Continuous or On
Command storage.
If the Batch Signal is configured as a digital signal in the Designer Data Storage Configuration, it
will not appear on the Storage Control menu on the Operator Interface. This is done to avoid
having two conflicting sources for the signal.
When a digital signal is not used and Batch storage has been selected, the Batch command
signal is set to Stop. Batches can be started from the Operator Interface.
Storage Enable Conditions
Trend Storage Enable Conditions
The figure below shows examples of Trend Storage Enable Conditions.
Notice that Continuous Trend storage occurs unless Trend Disable or Data Storage Disable is
selected.
For Batch Trend storage, notice that Trend enable/disable, Data Storage enable/disable must be
set to enable and Batch command must be Start.
Point Log Storage Enable Conditions
The figure below shows examples of Point Log Storage Enable conditions.
Notice that it occurs unless Point Log Disable or Data Storage Disable is selected.
For Batch Point Log storage, notice that all three enables must be on.
The figure shows that storage does not actually occur until the Start Time occurs, and then at
every Storage Interval thereafter.
For On Command Point Log storage, notice the samples are taken the instant Point Log Enable
is enabled but not at intervals.
Revision 15
September 2013
HC900 Process Control Designer User Guide
83
Data Storage
Data Storage Enable Conditions
Alarm/Event Storage Enable Conditions
The figure below shows examples of Alarm/Event Enable conditions.
Notice that Continuous Alarm/Event storage occurs unless Alarm/Event Disable and Data
Storage Disable is selected.
For Batch Alarm/Event storage, all three enables must be on.
1: Although Alarm Storage is active during the specified time periods, Alarm records will only be
saved on active transitions of the alarm status. If no alarm occurs during the active period, the
data for that period will be blank.
84
HC900 Process Control Designer User Guide
Revision 15
September 2013
Data Storage
Data Storage Configuration Access
Data Storage Configuration Access
on the Operator Panel Worksheet Toolbar opens the Data Storage Configuration dialog box.
This facility allows you to configure groups of data that will be stored to the Operator interface's data
storage device. This process history can be a valuable source of information to analyze process
operations quality and upsets.
The groups are configured in Designer and downloaded as part of the configuration.
You can also create a new data storage file (.dss) separate from the configuration. On the File menu,
select New, Data Storage.
Select a tab at the top of the dialog box to access a specific Data Storage Configuration dialog box.
Click on a button below for specific Data Storage Configuration Instructions.
Create/Edit Data Storage File
Creates/edits a data storage file (.DSS). File can be downloaded to the controller.
Step/Item
Action/Description
Select File, Open.
Lets you choose a .DSS file to edit. After selecting file the Data Storage
Editor appears.
OR
Select File, New.
Select Data Storage tab.
Select Data Storage.
THEN
Select a Reference
Configuration.
Trend
Point Log
Alarm/Event
Pre-initialize Disk
Print
Save
Download
Revision 15
September 2013
"Choose a new file type" box appears.
Data Storage button appears.
The Data Storage Editor appears.
A data storage file must have a configuration to give it context. Select
an open configuration from the pull-down list. If none available, select
Open Configuration to open one. The configuration will open. Click
back to Data Storage Editor and select the reference configuration.
Trend setup.
Point Log setup.
Alarms/Events setup.
Prepares zip disk for data storage. Select this to avoid the long
initialization time on the operator interface.
Prints the data storage settings.
Saves the data storage file as .DSS file.
Downloads data storage file to the controller.
HC900 Process Control Designer User Guide
85
Data Storage
Trend Storage Configuration
Trend Storage Configuration
Trend storage will provide the following:
Number of Files:
2 maximum
Points per Trend:
12 maximum, Analog or Digital
Storage Modes:
Off, Batch, Continuous
Storage Interval:
2, 5, 10, 20,30,40, 50 seconds
1, 2, 5, 10, 20, 30 minutes
External Control:
Digital Tagged Signal – Start/Stop of both Trends
Configuration Procedure
Select the "TREND" tab on the "Data Storage Configuration" dialog box.
Active Field
Batch Enable
Signal
Description
This signal starts and stops storage for Trends configured for "Batch" storage. It does not
affect "Continuous" storage selection.
From the pull-down menu, select:
NONE – Batch is started/stopped only through the operator interface’s Data Storage
Control Menu (defaults to Stop on configuration download)
ANY DIGITAL TAG – Batch is started/stopped only through the on/off state of the selected
Digital Signal. It will not appear on the operator interface’s data Storage Control Menu
For detailed information concerning Data Storage Enable, refer to "Data Storage Enable
Conditions"
Group
Use the pull-down menu and select a Trend Group for configuration.
Title
Enter a Group Title. There is a maximum of 24 characters
(Note: This is not displayed on the Operator Interface. It only serves as a reminder for the
user.)
File name
Tag List
Enter a File Name. There is a maximum of 8 Alpha Numeric characters. (DOS File Name
restrictions)
From the Tag List drop-down menu, select the type of signals you want the tag list to
display.
Click on a Tag Name and click ADD>>.
The tag name will be added to the "Selected Tags" list.
Selected Tag
List
Scaling Signals
Scale each tag selected for High and Low values for the Trend Display. Click on the "Scale
High" and "Scale Low" fields and enter the value.
To delete a signal tag, click on a tag and click Delete.
Storage
Intervals
Storage Interval
From the Storage Interval drop-down menu, select a storage interval of from 2 seconds to
30 minutes.
When Data Storage is enabled, samples will be taken at the interval selected here.
Refer to Storage Intervals in Storage Conventions
Data Type
Enable Signals
86
This enable signal turns storage on and off for trends.
From the pull-down menu, select:
HC900 Process Control Designer User Guide
Revision 15
September 2013
Data Storage
Point Log Storage Configuration
Active Field
Description
NONE – Trend Storage Enable is started/stopped only through the operator interface’s
Data Storage Control Menu (defaults to Enable on configuration download), or,
ANY DIGITAL TAG – Trend Storage is started/stopped only through the on/off state of the
selected Digital Signal. It will not appear on the operator interface’s data Storage Control
Menu
For detailed information concerning Trend Storage Enable, refer to "Trend Storage Enable
Conditions".
Storage Mode
From the pull-down menu, select a Storage Mode.
Refer to "Data Storage Conventions" for mode definitions.
Rollover
Click this box to allow data storage to continue collecting data in a circular storage mode
where the oldest data is discarded as new data is collected.
Clear this box to allow data storage to stop collecting data when the file is full. You can
configure a Warning Level for Disk Full %.
Warning Level
If you do not select rollover, enter a percent in the appropriate box.
Point Log Storage Configuration
Point Log storage will provide the following:
Number of Files:
One
Points per File:
12 maximum, Analog or Digital
Storage Modes:
Off, Batch, Continuous, On Command
Storage Interval:
(all relative to
start time)
1 to 59 minutes, one minute increments
1 to 23 hours, one hour increments
1 to 30 days, one day increments
Once month, same day of each month
External Control:
Digital Tagged signal
- start/stop storage to file
- On Demand sampling
Configuration Procedure
Select the "POINT LOG" tab on the "Data Storage Configuration" dialog box.
Active Field
Batch Enable
Signal
Description
This signal starts and stops storage for Point Logs configured for "Batch" storage. It does
not affect "Continuous" or "On Command" storage selections.
From the pull-down menu, select:
NONE – Batch is started/stopped only through the operator interface’s Data Storage
Control Menu (defaults to Stop on configuration download)
ANY DIGITAL TAG – Batch is started/stopped only through the on/off state of the selected
Digital Signal. It will not appear on the operator interface’s data Storage Control Menu
For detailed information concerning Data Storage Enable, refer to "Data Storage Enable
Conditions"
File name
Revision 15
September 2013
Enter a File Name. There is a maximum of 8 Alpha Numeric characters. (DOS File Name
HC900 Process Control Designer User Guide
87
Data Storage
Alarm/Event Storage Configuration
Active Field
Description
restrictions)
File Record
Limit
Tag List
Enter a File Record Limit number of between 2000 and 5000.
From the Tag List drop-down menu, select the type of signals you want the tag list to
display.
Click on a Tag Name and click ADD>>.
The tag name will be added to the "Selected Tags" list.
Selected Tag
List
Scaling Signals
Scale each tag selected for High and Low values for the Point Log Display. Click on the
"Scale High" and "Scale Low" fields and enter the value.
To delete a signal tag, click on a tag and click Delete.
Data Type
Enable Signals
This enable signal turns storage on and off for Point Logs.
From the pull-down menu, select:
NONE – Point Log Storage Enable is started/stopped only through the operator interface’s
Data Storage Control Menu (defaults to Enable on configuration download), or,
ANY DIGITAL TAG – Point Log Storage is started/stopped only through the on/off state of
the selected Digital Signal. It will not appear on the operator interface’s data Storage
Control Menu
For detailed information concerning Trend Storage Enable, refer to "Point Log Storage
Enable Conditions".
Storage Mode
From the pull-down menu, select a Storage Mode.
Refer to "Data Storage Conventions" for mode definitions.
Storage
Interval
NOTE: For On Command storage mode, there is no storage interval or start time. (They
are not used.)
Click on "Change". The "Storage Interval" dialog box will appear.
Click on the radio button for Minutes, Hours, or Days
and select a storage interval from the Edit box.
Or, click on the radio button for "Once a Month".
Click OK
Refer to Storage Intervals in Storage Conventions
Start Time
NOTE: For On Command storage mode, there is no storage interval or start time. (They
are not used.)
Click on "Change". The "Change Time" dialog box will appear.
In the Edit box in each field, select a start time.
Click OK.
Refer to Storage Intervals in Storage Conventions
Rollover
Click this box to allow data storage to continue collecting data in a circular storage mode
where the oldest data is discarded as new data is collected.
Clear this box to allow data storage to stop collecting data when the file is full. You can
configure a Warning Level for Disk Full %.
Warning Level
If you do not select rollover, enter a percent in the appropriate box.
Alarm/Event Storage Configuration
Alarm/Event storage will provide the following:
88
HC900 Process Control Designer User Guide
Revision 15
September 2013
Data Storage
Alarm/Event Storage Configuration
Number of Files:
One each
Records per File:
150 to 1500 records per file
Data Types:
All Alarms – Time/Date, On/Off
All Events – Time/Date, On/Off
Storage Modes:
Off, Batch, Continuous
External Control:
Digital Tagged Signal – Start/Stop storage to file
Configuration Procedure
Select the "Alarm/Event" tab on the "Data Storage Configuration" dialog box.
Active Field
Description
Batch Enable
Signal
This signal starts and stops storage for Alarm/Events configured for "Batch" storage. It does
not affect "Continuous" storage selections.
From the pull-down menu, select:
NONE – Batch is started/stopped only through the operator interface’s Data Storage Control
Menu (defaults to Stop on configuration download)
ANY DIGITAL TAG – Batch is started/stopped only through the on/off state of the selected
Digital Signal. It will not appear on the operator interface’s data Storage Control Menu
For detailed information concerning Data Storage Enable, refer to "Data Storage Enable
Conditions"
Alarm File Name
Enter a File Name. There is a maximum of 8 Alpha Numeric characters. (DOS File Name
restrictions)
Alarm File
Record Limit
Enter an Alarm File Record Limit number of from 150 to 1500.
Event File Name
Enter a File Name. There is a maximum of 8 characters
Event File
Record Limit
Enter an Event File Record Limit number of from 150 to 1500.
Data Type
Enable Signal
This enable signal turns storage on and off for Alarm Events.
From the pull-down menu, select:
NONE – Alarm/Event Storage Enable is started/stopped only through the operator
interface’s Data Storage Control Menu (defaults to Enable on configuration download), or,
ANY DIGITAL TAG – Alarm/Event Storage is started/stopped only through the on/off state
of the selected Digital Signal. It will not appear on the operator interface’s data Storage
Control Menu
For detailed information concerning Trend Storage Enable, to "Alarm/Event Storage Enable
Conditions"
Storage Mode
From the pull-down menu, select a Storage Mode.
Refer to "Data Storage Conventions" for mode definitions.
Rollover
Click this box to allow data storage to continue collecting data in a circular storage mode
where the oldest data is discarded as new data is collected.
Clear this box to allow data storage to stop collecting data when the file is full. You can
configure a Warning Level for Disk Full %.
Warning Level
If you do not select rollover, enter a percent in the appropriate box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
89
Function Block Diagram (FBD) Worksheet
FB Worksheet Overview
Function Block Diagram (FBD) Worksheet
FB Worksheet Overview
Function Block Diagram Worksheets let you build your control strategy graphically right on the User
Interface. It provides a full complement of SAMA-style symbols that we call Function Blocks that can
be "softwired " to each other. It also includes signal tag generation capability for resident control data
that can be linked to displays and other software programs.
The Function Block Diagram Worksheet has a Toolbar to launch dialog boxes to configure:
Worksheet Properties - Enter a configuration name and description in the appropriate fields.
Alarm Group Configuration
Event List Configuration
Block Order
The toolbar also contains icons for Cut, Copy, and Paste; Zoom Level, and an Icon to toggle a grid on
and off on the worksheet.
The Function Blocks are listed in the appropriate Worksheet Toolbox (Function Block Menu Tree).
You can Drag and Drop the function blocks from the menu onto the worksheet and softwire them to
create a control and/or safety strategy. See FB Diagram Rules.
Note that with Controller Rev 6.0 and higher, there is now the concept of “Safety” function-blockdiagram worksheets (vs. the regular “Process” function-block-diagram worksheets) for controllers that
support it. The Safety worksheets allow definition of “Safety-enabled” configurations to run on SILcompliant controller models. Within Safety worksheets, certain restrictions at both configuration and
run-time are enforced to ensure safety compliance is achieved.
The “Process” worksheet is the same as the “FBD” worksheet as they were called prior to Rev 6.0.
Note that a “Safety” function-block-diagram worksheet may be simply called “Safety worksheet”, and a
“Process” function-block-diagram worksheet may be simply called “Process worksheet”, for purposes
of brevity. Also, a function block that is placed on a Safety worksheet may be simply called a “Safety
block”.
When a new configuration is created, the Safety worksheet tab will only appear if the controller model
and revision selected is a SIL-compliant model/revision.
There are:
Process Worksheets
Safety Worksheets
Revision 15
September 2013
•
20 per configuration (for C30, C30S, C50, C50S)
•
40 per configuration (for C70, C70S, C70R, C75, C75S)
•
20 per configuration (for C30S, C50S)
•
40 per configuration (for C70S, C75S)
•
Only available for SIL-compliant controller types
•
Only available in revision 6.0 and above
HC900 Process Control Designer User Guide
91
Function Block Diagram (FBD) Worksheet
FBD Configuration Toolbar
•
•
•
•
Up to 20/40 worksheets per configuration depending on controller model A total of up to 400
Function Block Pages (20 x 20) for non-SIL controllers C30, C50
A total of up to 800 Function Block Pages (40 x 20) for non-SIL controllers C70, C70R, C75
A total of up to 800 Function Block Pages (20 x 20 x 2) for SIL controllers C30S, C50S
A total of up to 1600 Function Block Pages (40 x 20 x 2) for SIL controllers C70S, C75S
There is extended use of Right Mouse Click.
FBD Configuration Toolbar
Click on ICON to open the dialog box.
ICON
Function
Dialog Box Comments
Print
Worksheet
Click to print the active worksheet. It opens the "Print" dialog box for printing.
Append
Process
Worksheet /
Append
Safety
Worksheet
Adds a new Process or Safety block diagram. If selected, a new worksheet will
be created and a new sub-tab for it will appear at the bottom of the diagram
window.
Delete
Process
Worksheet /
Delete
Safety
Worksheet
Click to delete the selected Process / Safety Worksheet highlighted on the File
Browser. This will delete all the items in the worksheet.
Reorder
Process
Worksheets /
Reorder
Safety
Worksheets
Opens the Worksheet order dialog box. Allows you to change the order of the
worksheets as they appear at the bottom of the Worksheet area. Click on
worksheet name and use the increment-decrement buttons at the top of the
dialog box to change the worksheet order.
FBD
Worksheet
Properties
Type in a title and description of your FBD Worksheet. The title will appear in
the File Browser and on the associated FB Worksheets tab at the bottom of
the diagram.
Cut
Moves the currently selected FBD diagram items from the current Function
Block diagram and places them on the clipboard. Indicated by a red dotted
line. Upon pasting the items, all links to them (e.g., display references, Modbus
address, recipes) are preserved as if they were moved, they are not deleted
and pasted as a new copy.
Copy
Paste
The new diagram reference will be placed in the File Browser. Click on the
diagram name in the File Browser to edit the name.
Copies the currently selected FBD diagram items from the current Function
Block diagram and places it on the clipboard. Indicated by a blue dotted line.
Places the contents of the clipboard containing FBD diagram items onto the
Function Block Diagram at the location determined by the blinking insertion
point caret. This command is unavailable if the clipboard is empty. Cut and
pasted items maintain their links (e.g., display references, Modbus addresses,
recipes), they are not deleted and pasted as a new copy.
If you paste a cut function block and soft wires to the same or different
worksheet in the same configuration, the soft wires will be dangling
(unconnected) and you are asked to specify how you want to resolve dangling
soft wires.
92
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
How to Add a New FBD Worksheet
ICON
Function
Find Item
Dialog Box Comments
Allows you find an Item on the FBD worksheet. Opens the "Find Item" dialog
box.
Zoom Out
You can "zoom out" to see more of the page at a reduced size.
Zoom levels of 50%, 75%, 100%, 125%, and 150%.
Zoom In
You can "zoom in" to return items to normal size.
Zoom levels of 50%, 75%, 100%, 125%, and 150%.
Grid
Lets you place a grid in the FBD Diagram. This can aid in the placement of
items on the diagram.
Alarms
Click to open the "Alarms Group Configuration" Dialog Box. It lets you
configurealarm points.
See "Alarm Group Configuration"
Events
Click to open the "Configure Event List" Dialog Box. It lets you configure
events in the controller.
See "Event List Configuration"
Block Tag
Order
Click to show drop down menu. Lets you changethe execution order of the
function blocks. Select Execution Order, Fast Logic Order, or Tag Order.
Unlock
Worksheets
Click to open the "Unlock Worksheets" dialog box. Enter a password
and click "Unlock" to unlock all worksheets.
How to Add a New FBD Worksheet
Right click on the FBD Worksheet name on the Browser. Select "Append New Worksheet", or
Select the "New FBD Worksheet" icon on the Function Block Diagram Toolbar (far left), or
From the Edit menu on the Main Drop-down menus, select "Append New Worksheet".
A new worksheet will appear at the bottom of the Function Block Diagram list in the browser and a
blank worksheet will be place on the Designer.
Right click on the new Worksheet name in the browser or double-click on the worksheet's tab then,
select Properties and set the new worksheet properties.
For each worksheet added, a tab will appear at the bottom of the Function Block Worksheet
area with the name of the worksheet that was set in "Worksheet Properties" on it. Use the
scroll bar for access to a specific worksheet tab.
How to Navigate Between FBD Worksheets
Use the Worksheet Tabs
For each worksheet added, a tab will appear at the bottom of the Function Block Worksheet area with
the name of the worksheet that was set in "Worksheet Properties" on it. If necessary, use the scroll bar
to access other worksheet tabs. Click on the tab to select the associated Worksheet.
Use the File Browser
The File Browser, located on the top left side of the Worksheet, is a movable window listing opened
files.
Revision 15
September 2013
HC900 Process Control Designer User Guide
93
Function Block Diagram (FBD) Worksheet
How to Navigate Between FBD Worksheets
It allows you to move quickly between files and worksheets.
To select a particular Worksheet, double-click the Function Block Worksheet name.
Use the Connection Traceback
Access the Trace Window from the Main Menu Toolbar
Or, from the View Menu on the main menu.
The Trace Window provides a list of all blocks/pins you have traced and lists :
Block ID
Tag Name
I/O Pin Name
Worksheet name
The last trace is on the top of the list.
Selecting a function block from the list will activate the associated function block worksheet.
Use the "Find Item" feature
From the "Edit" Menu on the main menu select "Find". It lets you search for an item on the FBD
Worksheet.
Select the item type from the "Show" drop down menu on the "Find Item" dialog box.
Select an item from the "Item" drop-down menu. Click on the Worksheet in the "Find Results" field and
the associated worksheet will be selected and the Tag, Variable, or Function Block will be highlighted
on the worksheet.
94
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Keyboard Navigation
Keyboard Navigation
Press
LEFT ARROW
To
Scroll worksheet to the left
RIGHT ARROW
Scroll worksheet to the right
UP ARROW
Scroll worksheet up
DOWN ARROW
Scroll worksheet down
END
Go to the end of last page
HOME
Go to the beginning of first page
PAGE DOWN
Go to the next worksheet page
PAGE UP
Go to the previous worksheet page
CTRL+LEFT ARROW
Go to the end of last page
CTRL+RIGHT ARROW
Go to the beginning of first page
CTRL+UP ARROW
Go to the top of the page
CTRL+DOWN ARROW
Go to the bottom of the page
CTRL+PAGE DOWN
Go to the next worksheet tab
CTRL+PAGE UP
Go to the previous worksheet tab
Other keyboard functions
If necessary, you can use the standard keystroke conventions to move around.
ALT used together with the underlined letter in text labeling an object lets you select that
object.
TAB select next field or object in dialog boxes and configuration templates
SHIFT+TAB select previous field or object in dialog boxes and configuration templates
UP ARROW previous choice in the field
DOWN ARROW next choice in the field
ALT+DOWN ARROW opens a drop-down list box
Revision 15
September 2013
HC900 Process Control Designer User Guide
95
Function Block Diagram (FBD) Worksheet
Traceback Window
Traceback Window
Overview
This feature helps you find problems with soft-wire and signal connections between Function Blocks.
For Example:
If you are testing a configuration that you've built and want to know why a Digital Output is ON when it
should be OFF, you can search for the source of the Input Signal.
Traceback is useful for finding the analog or digital source signal.
Trace Window
Access the Trace Window from the Main Menu Toolbar
Or, from the View Menu on the main menu.
It is a dockable, sizeable window.
The Trace Window provides a list of all blocks/pins you have traced and lists :
Block ID
Tag Name
I/O Pin Name
Worksheet name
Trace Window Update
Each time you perform a Trace, the window will update with a new pair of block/pins.
The first item is the signal source, the second item is the signal destination.
Select any of the rows in the Traceback window to recall the diagram to display the selected
block.
The last trace is on the top of the list.
Right Mouse Click Procedure to Trace Signals
Select a Function Block of interest.
Right Mouse click on any INPUT pin.
Select "TRACE". Traceback will "find" the source of the connection you selected and refresh the FBD
view with that block visible (Highlighted) - even if the other side of the connection is on a different
worksheet.
The Output pin of the block (the signal source) will be displayed in RED.
From that block, repeat the traceback to another block and another block, etc.
Use the Traceback list to view your Traceback history.
You can clear the Trace List by pressing the bar at the top of the window.
96
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Resolve Dangling Soft Wires
Resolve Dangling Soft Wires
When you cut a function block(s) and any connected soft wires, after you paste the selection onto the
same or different worksheet in the same configuration, the pasted soft wires are left dangling
(unconnected). To resolve these dangling soft wires a dialog box appears with the following choices.
Delete dangling soft wires. Select this to delete the soft wires from the pasted function block(s). The soft
wire connections prior to the cut will be broken.
Split dangling soft wires using signal tags. Select this to restore the pre-cut connections using
automatically created signal tags. The function blocks will again be connected not with soft wires but
with signal tags.
Split dangling soft wires using page connectors (available in configuration revisions 2.x or
higher). Select this to restore the pre-cut connections using automatically created page connectors.
The function blocks will again be connected not with soft wires but with page connectors.
The last two choices are selectable only if sufficient quantities of signal tags or page connectors
remain.
ATTENTION: The automatically created signal tags or page connectors can sometimes overlap or hide
the original connectors so check behind them, don’t assume the previous connectors were replaced.
Examples
Before the cut:
After pasting on a different worksheet and Delete dangling soft wires:
Revision 15
September 2013
HC900 Process Control Designer User Guide
97
Function Block Diagram (FBD) Worksheet
Resolve Dangling Soft Wires
After pasting on a different worksheet and Split dangling soft wires using signal tags:
After pasting on a different worksheet and Split dangling soft wires using page connectors:
98
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
How to Find an Item on the FBD Worksheet
How to Find an Item on the FBD Worksheet
On the FBD worksheet lets you find an item and all places it is used (such as a signal tag used multiple
times).
Access
From Edit menu or by right clicking an item on the FBD worksheet. Opens the "Find Item" dialog box.
From the "Show" drop-down menu, choose an item type
From the "Item" drop-down menu, choose an item. If you already right clicked on an item in the FBD
worksheet it will be displayed here.
Revision 15
September 2013
HC900 Process Control Designer User Guide
99
Function Block Diagram (FBD) Worksheet
How to Change a FBD's Worksheet Properties
The Find Results" field will indicate the Worksheet where the item is located. Click on the Worksheet
name and you will jump to the item on the worksheet.
Double click on an item on the worksheet to open the "properties" dialog box. The Tag or Variable
Number or Function Block name will appear on the dialog box banner.
How to Change a FBD's Worksheet Properties
Right click on the new Worksheet name in the browser and select "Properties", or
Double click on the worksheet tab, or
Select the "Properties" icon on the Function Block Diagram Toolbar (3rd from left), or
From the Edit menu on the Main Drop-down menus, select " Worksheet Properties".
Enter a Title (worksheet name will appear on the File Browser and worksheet tabs) and Description
(enhance the Worksheet name with descriptive text) in the appropriate fields of the dialog box. The
descriptive name appears on the FBD Report Printouts. Reference "Print Report"
How to Change the Worksheet Order
The Worksheet Order dialog box lists the FBD worksheets as they appear on the tabs at the bottom of
the Function Block Worksheet area.
In the dialog box, click on the Worksheet name that you want to reorder
Change the worksheet order using the Increment/decrement buttons at the top right of the worksheet
order dialog box
The tabs will be reordered at the bottom of the worksheet area.
How to Delete a FBD Worksheet
Right click on the new Worksheet name in the browser and select "Delete Worksheet", or
Select the "Delete" icon on the Function Block Diagram Toolbar (2nd from left), or
From the Edit menu on the Main Drop-down menus, select " Delete Worksheet". The selected
worksheet will be deleted.
100
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
How to Add Worksheet Protection
How to Add Worksheet Protection
Introduction
The HC900 Process Control Designer provides an optional configuration Worksheet protection. New
files default to "No Protection". Worksheets can be protected on individual basis where all protected
worksheets use the same password. A user has limited access to protected worksheets.
Protected Worksheet Type
View Worksheet?
Edit Worksheet?
Controller
YES
NO
Display
YES
NO
Function Blocks
NO
NO
Modbus Map
YES
NO
Protected Worksheets:
• can be "unlocked". Protection is disabled, but not removed from the file. If you save the file,
the worksheet protection will be "locked" when the file is reopened.
• can have their passwords changed. In order to change a password, you will need to know
the current password.
• Can have their protection "removed". Removing the protection is permanent. If you save
the file, the worksheet will not be protected when the file is reopened.
Protection Symbols
There are three symbols that could appear on the "Worksheet Protection" tab that indicate the level of
protection for the file:
= No protection is in place, worksheets are 'Unlocked"
= Protection exists, and the worksheets are "Unlocked".
= Protection exists, and the worksheets are "Locked".
Protecting a Worksheet When There is No Protection
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Change Protection" button.
3
Click on the box next to the worksheet names you want to protect, then select "DONE" button.
4
Click on the "Lock" button to setup a password.
5
Enter a password for the file in the "New Password" field (up to 14 characters).
6
Re-enter the password in the "Confirm New Password" field.
7
Click "OK".
8
In version 4.4 and greater click “Disable Master Password” if you wish to prevent others from
overiding password protection by getting a master password from Honeywell. IMPORTANT
NOTE: If you forget your password after Disable Master Password has been selected you will not
be able to view any protected worksheets.
Revision 15
September 2013
HC900 Process Control Designer User Guide
101
Function Block Diagram (FBD) Worksheet
How to Add Worksheet Protection
To Change a Password
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Change Password" button.
3
Enter the current password in the appropriate field.
4
Enter a New Password in the appropriate field.
5
Confirm the new password in the appropriate field.
6
Click "OK".
To Temporarily Unlock a Worksheet
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Unlock" button.
3
Enter the current password in the appropriate field.
4
Click "OK", the worksheets are unprotected
NOTE: the "Controller", "Display", and "Function Block" worksheets also have a toolbar button to
unlock worksheets.
To Permanently Remove Worksheet Protection
Step
102
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
Click on the "Remove Protection" button.
3
Enter the current password in the appropriate field.
4
Click "OK", the worksheets are unprotected.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Alarm Group Configuration
Protecting a Worksheet When Worksheets Protection is Active
Step
Action
1
From the "File" menu, select "Properties", then select the
"Worksheet Protection " tab.
2
"Unlock" the worksheet.
3
Change protection.
4
Select worksheet names, then "DONE".
5
Select "LOCK"
Alarm Group Configuration
opens the Alarm Group Configuration dialog box.
You can also select "Alarms" from:
- the EDIT menu on the Main Menu
- the FBD Worksheet by dropping an ALMGP block onto the configuration - when you do not have an
O/I and do need to use Alarm Group logic in the control strategy)
The Alarm Display Tag Group configuration tab provides a drop list of Alarm groups. You can
configure:
• For controller Rev 4.0 or higher: 30 Alarm Groups of 12 alarm points each for a total of 360
alarm points in the controller.
• For lower revisions: 20 Alarm Groups of 12 alarm points each for a total of 240 alarm points.
Each group contains a set of selected digital signal tags. An Alarm may be any Digital Signal Tag.
All alarms are displayed at the OI.
Each alarm point can be configured to generate an E-mail notification.
Procedure
1. Select a Display Group from the drop-down menu. Digital signals will be displayed in the
"Selected Tags" field.
2. From the "Selected Tags List" drop-down menu, select the type of tags you wish displayed in
the list. The default selection is "ALL".
3. (For Safety-enabled configurations only) From the “Safety Filter” drop-down menu, select the
type of tags you wish displayed in the list. The default selection is "ALL".
4. Enter the group title. Use any mix of numbers, letters, and spaces
5. Select a tag then click on ADD, the selected signal tag will be placed in the next available
position in the "Selected Tags" field,
OR
Select a position in the "Selected Tags" field, then click on INSERT. The selected signal tag
will be placed in the position chosen and the other signal tags will reorder as required.
6. Repeat the selection for up to 12 tags for each group.
7. Select a signal in the "Selected Tags" field and click on ALARM DETAILS, and enter Alarm
details in the Dialog Box.
8. Click OK.
Revision 15
September 2013
HC900 Process Control Designer User Guide
103
Function Block Diagram (FBD) Worksheet
Alarm Details
Alarm Details
Select a tag in the "Selected Tags" area of the Alarm Group Configuration dialog box, then click on
"Alarm Details' button. The Alarm Details dialog box opens and enables you to enter details for the
selected tag.
The block number and output number are listed across the banner. The Tag number and descriptor is
listed in field below the banner.
Details include:
Alarm Priority - used for routing alarms to Email (which Email addresses get which alarms)
Each of 3 E-mail address may have any/all alarm priorities assigned to it.
2 - Low Priority Alarm
3 - Medium Priority Alarm
4 - High Priority Alarm
5 - Emergency Alarm
(select from the drop-down menu)
E Mail Notification of alarms, by priority, on a point by point basis.
(check the box to allow Email notification) The E-mail will be sent:
- if an alarm occurs on a point configured to send E-mail.
- to any/all of the 3 E-mail addresses that have the associated alarm priority assigned.
Detailed Text - appears on the Operator Interface.
(enter 2 lines of detailed text -24 characters max for each line)
Trigger Direction Trigger on ON state means alarm goes ON when triggered by rising edge (the discrete goes off-to-on)
Trigger on OFF state means alarm goes ON when triggered by falling edge (the discrete goes on-to-off)
(click on radio button to select)
Alarm Acknowledge - Group acknowledge
Manual Acknowledge - Can be acknowledged by operator. When a manual acknowledge
alarm goes into alarm and then out of alarm without being acknowleged by the operator, it
will be indicated as cleared. Use when you want the operator to be able to acknowledge
the alarm or see that the alarm was acknowledged and cleared.
Auto Acknowledge -When an auto acknowledge alarm goes into alarm and then out of
alarm without being acknowledged by the operator, it will show no indication it was in
alarm. Alarm can still be acknowledged by the operator when it is in the alarm state. An
alarm point with this attribute will never indicate "clear" status.
(click on radio button to select)
Note: an alarm will always be stored to the O/I Archive list.
104
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Event List Configuration
Event List Configuration
on the Operator Panel Worksheet Toolbar opens the Configure Event List dialog box.
You can also select "Events" from:
- the EDIT menu on the Main Menu
- the FBD Worksheet toolbar button
•
•
•
•
•
•
•
Up to 64 digital signals can be configured as events.
The most recent 150 events will be available for display at the Operator Interface
Events can generate Emails.
From 150 to 1500 event records can be stored on the Operator Interface archive disk.
Each event must have at least one of the following destinations:
Email, OI archive, or OI Display
You can select the events from a list of all digital tags.
A digital signal may be either an Event or an Alarm, but not both
Procedure
1. Enter a Title for the Event list in the “Title” editbox.
2. From the drop-down menu below the “Title” editbox, select the type of tags you want to display
on the tag name list.
3. (For Safety-enabled configurations only) From the “Safety Filter” drop-down menu, select the
type of tags you want to display on the tag name list.
4. Click on each tag name you want included in the list.
5. Click on ADD. The selected tag or variable will be placed in the next available position in the
"Selected Tags List".
6. Select a tag in the list then, click on "Event Details" button to enter details for the tag selected.
Details include:
E Mail Notification
Store to O/I Archive List
Display on O/I
Trigger Direction for ON or OFF state
7. Click OK.
Execution Order
Execution Order is the order in which function blocks are executed in the control strategy. There is a
separate execution order for each of the two available scan rates, Normal Scan and Fast Scan. Each
function block within a given scan rate is assigned a relative Block Execution Order number. Blocks
are executed in increasing order, with blocks having lower execution order numbers being executed
before those with higher execution order numbers. The Block Execution Order of each block is shown
as a number in the top right-hand corner of the block’s graphic on the function block diagram, as
shown below.
Revision 15
September 2013
HC900 Process Control Designer User Guide
105
Function Block Diagram (FBD) Worksheet
Execution Order
In the diagram above, both function blocks have an execution order of 4. This is allowed because the
PID104 block is executing at the Normal Scan rate, whereas the QDT105 block is executing at the
Fast Scan rate, as indicated by the yellow lightning bolt on the QDT134 graphic.
It should be noted that the Block Execution Order is independent of the Block Number. Both the Block
Number and the Block Execution Order are assigned in the sequence in which they are programmed,
however, the Block Number must be unique throughout all function blocks, while the Block Execution
Order only needs to be unique throughout the function blocks in the same scan rate. The system
remembers the last programmed Block Execution Order for both scan rates independently.
You can override the execution order determined by the system during programming. Block Numbers,
on the other hand, can not be reassigned. There are two ways to change the execution order; by
assigning a specific Block Execution Order number to a single function block, or by changing the
relative execution order of multiple function blocks.
Assigning a Block Execution Order
To change the Block Execution Order of a specific function block on a function block diagram, doubleclick in the top portion of the block’s graphic where the Block Number and Block Execution Order are
displayed (circled in the diagram below).
106
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Execution Order
This action will display the Change Block Execution Order dialog on top of the function block graphic
as shown below.
The block’s execution order can be changed by entering a new number in the entry box and clicking on
the OK button. You can increase or decrease the block’s execution order to any value from 1 to 2100.
If you enter a value outside this range an error message will be displayed.
When you click on the OK button the Block Execution Order of the selected function block is set to the
new value. Any other function blocks in the same execution rate that have current execution orders
equal to or greater than the new value will have their execution order incremented to retain
uniqueness. For example, if the Block Execution Order of the PID104 block shown in the diagrams
above is changed to 5, the Block Execution Order of the AI107 block will be incremented to 6, but the
Block Execution Order of the DI108 block will remain at 5, as shown below.
Revision 15
September 2013
HC900 Process Control Designer User Guide
107
Function Block Diagram (FBD) Worksheet
Execution Order
When you change a block’s execution order in this way, the previous execution order number is not
reassigned to another block, but rather it is dropped from the list of used execution order numbers.
This can leave gaps in the assigned execution order numbers. A similar situation occurs when a
function block is deleted from a diagram. This does not create a problem for block execution, as it is
the relative value of the execution order numbers that matter, not the absolute value. It does mean,
however, that you can change the Block Execution Order number of a block without actually changing
its true execution order if no other function block is assigned a number between the previous and new
values.
Changing Relative Execution Order of Multiple Blocks
The relative execution order of one or more function blocks executing at either the Normal Scan or
Fast Scan rates may be changed through the Function Block Execution Order dialog. This method has
an advantage over the method described above, even for single function blocks, because the absolute
values of the assigned execution order numbers does not have to be known and the function blocks
from all function block diagrams are displayed together.
The Function Block Execution Order dialog can be accessed in a number of ways as described below.
Note that while the same dialog is used to change the execution order of either the Normal Scan or
Fast Scan function blocks, there are separate selection methods to pre-populate the dialog’s list with
the correct function blocks.
Edit Menu
1. Select Edit from the main application menu.
2. Select Block and Tag Order and activate sub-menu.
3. Select either
Block Execution Order… or
Fast Block Execution Order… to launch
the Function Block Execution Order dialog.
Function Block Diagram Worksheet Toolbar
1. Click on the
icon in the Worksheet Toolbar displayed above any Function Block Diagram
Worksheet to activate the drop-down menu.
2. Select either
Block Execution Order… or
Fast Block Execution Order… to launch
the Function Block Execution Order dialog.
108
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Execution Order
Function Block Diagram Worksheet Context Menu
1. Right-click in any whitespace area of any Function Block Diagram Worksheet to activate the
context menu.
2. Select either
Block Execution Order… or
Fast Block Execution Order… to launch
the Function Block Execution Order dialog.
Function Block Graphic Context Menu
1. Right-click within the body portion of any normal scan or fast scan function block graphic (not
the pins) to activate the context menu.
2. Select either
Block Execution Order… or
Fast Block Execution Order…,
depending on which function block was selected in step 1, to launch the Function Block
Execution Order dialog.
Worksheet Toolbox Context Menu
1. Click on the Process or Safety tab of the Worksheet Toolbox to display a browser view of the
function blocks currently in use.
2. Expand the folder of one of the function block types used in the configuration.
normal scan or
fast scan rate function
3. Right-click on either the icon or name of any
block to activate the context menu.
4. Select either
Block Execution Order… or
Fast Block Execution Order…,
depending on which function block was selected in step 3, to launch the Function Block
Execution Order dialog.
When one of the above actions is taken, the Function Block Execution Order dialog box is displayed,
as shown below. The list box will be populated with all of the function blocks executing at the selected
execution rate, Normal Scan or Fast Scan. If there are more function blocks that can be displayed in
the list box a vertical scrollbar will be displayed.
• If the dialog is accessed through the function block graphic context menu or the worksheet
toolbox context menu, the corresponding function block will be selected in the dialog.
• If the dialog is accessed through the edit menu, worksheet toolbar or the worksheet context
menu and a function block has been selected on an active function block diagram worksheet,
that function block will be selected in the dialog.
• Otherwise the first function box in the list will be selected in the dialog.
Revision 15
September 2013
HC900 Process Control Designer User Guide
109
Function Block Diagram (FBD) Worksheet
Execution Order
For controller configurations that support the SIL Safety standard, the function blocks in the Process
and Safety segments of the control strategy share the two execution rate systems. As a result, there is
no filtering of Process versus Safety function blocks in this dialog, but the location of the function block,
either Process or Safety, is shown in the first column. Note that for non SIL configurations there is
no Safety portion, so the Process/Safety column shown in the figure above will not be present.
The relative position of the function blocks shown in the dialog list box can be selected and
manipulated in a number of ways.
Single Function Block:
•
•
•
Select by clicking on that function block.
Use the up and down arrows in the list box tile bar to reposition the function block one row at a
time.
Use Drag and Drop by clicking and holding on a block and dragging it to the desired location and
releasing the mouse button. Dragging to the top or bottom of the list box bounds will cause the
list to scroll if the scrollbar is visible.
Consecutive Function Blocks:
•
•
•
110
Select first function block by clicking and then select the last function block while holding down
the Shift key while clicking.
Use the up and down arrows in the list box tile bar to reposition the group of function blocks one
row at a time.
Use Drag and Drop by clicking on one of the selected function blocks and holding and dragging it
to the desired location and releasing the mouse button. Dragging to the top or bottom of the list
box bounds will cause the list to scroll if the scrollbar is visible.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagram (FBD) Worksheet
Event Details
Non-Consecutive Function Blocks:
•
•
•
Select the first function block or consecutive group of function blocks as indicated above. Add
additional function blocks by holding down the Ctrl key while clicking.
Make all of the selected function blocks have a consecutive execution order, starting with the
position of the first selected function block, by clicking on the Make Blocks Consecutive button.
Note that neither the Up and Down arrows in the list box title bar or Drag and Drop work
with this selection method.
When all function blocks have been repositioned, click on the OK button to enforce the new execution
order, or click on the Cancel button to revert back to the existing execution order. When the new
execution order is enforced, the new Block Execution Order numbers will be assigned consecutively
starting from 1, so any previous gaps in the execution order numbers will be eliminated.
See also "Tag Order"
Event Details
The Event Details dialog box enables you to enter details for the tag selected when you configure
events. The block number and output number are listed across the banner. The Tag name and tag
descriptor is listed in field below the banner.
Events do not have multiple priorities like alarms. They are considered a lower priority than alarms.
Details include:
E Mail Notification of events on a point by point basis. (Check the box to allow Email notification) The E-mail will
be sent:
- if an event occurs on a point configured to send E-mail.
- to any/all of the 3 E-mail addresses that have events assigned. Event priorities are always indicated as
"1"
Store to OI Archive List -OI Event File on the data archive disk on an event by event basis
Display on OI - presentation on OI Status line and Event Summary display
Trigger Direction – ON – Event on rising edge (Off-to-on transition)
OFF – Event on falling edge (off-to-on transition).
(click on radio button to select)
E-Mail Notification
opens the E-Mail Notification dialog box. It lets you configure up to three E-Mail
addresses per controller configuration for Alarm and Event notification.
There are two tabs on the dialog Box.
General Tab
FROM
The Controller name is configured by the builder of the Configuration file
[Read Only]
SUBJECT
Enter an Event Subject (up to 31 characters)
Enter an Alarm Subject (up to 31 characters)
To List Tab Enter up to 3 configurable E-Mail addresses.(32 characters per addresses)
For each Email address check the Alarm/Event priorities you want the E-mail address to receive.
Events do not have multiple priorities like alarms because they are considered at a priority lower than all
alarms.
Revision 15
September 2013
HC900 Process Control Designer User Guide
111
Function Block Diagram (FBD) Worksheet
Unlock the Worksheets
Alarm priorities were set during "Alarm Group Configuration" under "Alarm Details"
2 = Low Priority Alarm
3 = Medium Priority Alarm
4 = High Priority Alarms
5 = Emergency Alarm
The priority of an event is always indicated as "1" - (see Event Configuration)
Attention: See "Set Controller Network Parameters" and follow the wizard to set up a SMTP mail
server IP Address.
Examples:
[email protected] receives only priority 5 Alarms
(only the check box for "5" is checked
[email protected] receives all Alarms and Events
(all 5 boxes are checked)
[email protected] receives only Events
(only check box for "1" is checked)
Unlock the Worksheets
opens the "Unlock Worksheets" dialog box.
Enter the password in the field and then, press "UNLOCK".
112
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Blocks Overview
Function Block Definition
Function Blocks Overview
Function Block Definition
A Function Block is a unit of software that performs a set of operations on its Input Signals and
Function Block parameters and produces Output Signals. These output signals can be configured as
inputs to other blocks, whose output parameters can be configured as inputs to other function blocks,
and so on. By configuring and connecting all the desired input signals and function block parameters,
you develop control strategies for both analog and digital operations.
A function block may represent a physical input or output, several inputs or outputs, an internal
calculation or an internal function such as a PID algorithm. A single controller configuration may have
up to 400(CPU C30) or 2000(CPU C50) or 5000 (CPU C70/C70R/C75) user-defined blocks. Block
numbers 1-100 are reserved for specific status blocks.
Function Block Identification
Each Function Block has a type identification label of up to 5 characters assigned by during
configuration. The label is an abbreviation for the operation or algorithm that the block performs
and indicates the block number assigned.
Function Block Inputs and Outputs
Inputs
Function Block Inputs must be connected to a signal source. Valid sources to a function block input
parameter are:
Signal Tags
Variables
Soft Wires
Constants
Page connectors
Inputs enter the block from the top or left-hand side.
Note that unconnected inputs will default to 0 or OFF.
Outputs
Function Block Outputs are signals that reflect the results of a function block's execution.
Outputs can be connected to any number of function block inputs including inputs on the same block,
but, they cannot be connected to:
an output of another block,
a variable or constant,
an internal system value from system status block.
Outputs exit the block as straight lines from the bottom or right-hand side.
Note that unused outputs can be left unconnected.
Attention
As shown on the function block example below, there is a visual distinction between analog and
digital pins,
Revision 15
September 2013
HC900 Process Control Designer User Guide
113
Function Blocks Overview
Function Block Inputs and Outputs
Analog Inputs and Outputs are indicated by a solid pin and
Digital Inputs and Outputs are indicated by a hollow pin.
114
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Blocks Overview
Types of Function Blocks
Types of Function Blocks
Function blocks come in three main classes.
Input
These process the physical inputs from the controller. Examples are Analog Input, Digital Input. They
are the first stage in the controller’s configuration.
Calculations and logic
These process the data from the input blocks and perform arithmetic, logic and sequencing operations.
Examples are PID, Setpoint Programmer, AND, Math, etc. They are the middle stage of the controller’s
configuration.
Output
These process the data from the calculations and logic blocks and are the link with the physical
outputs of the controller. The Analog output and Digital output function blocks convert this output
information into a voltage or current, which is fed to the corresponding output hardware (such as a
current output or relay).
Overview
Function blocks are graphic representations of instrument-like functions
·
They are accessible through the Worksheet Toolbox on the Designer Main Window.
·
They have inputs and/or outputs for connections to other blocks or functions, as applicable.
·
Each function block is assigned a unique number from 101 to 500(CPU C30), 101 to 2100(CPU
C50), 101 to 5100 (CPU C70/C70R/C75)
Note: Some blocks have reserved block numbers from 1 to 100
Memory usage
The amount of memory used depends on the type of block. For capacities, File Properties, Statistics.
Revision 15
September 2013
HC900 Process Control Designer User Guide
115
Function Blocks Overview
Function Block Attributes
Function Block Attributes
1
Blocks have a rectangular graphic form, which varies in size depending on number of inputs and
outputs that the block possesses. The block type determines the type of operation or algorithm that the
block performs.
2
Each block has type identification label of up to five characters. The label is an abbreviation for
the operation or algorithm that the block performs. Each block has a number to uniquely identify the
function block. A few blocks have reserved block numbers.
3
Block numbers from 101 to 500(CPU C30), 101 to 2100(CPU C50), 101 to 5100 (CPU
C70/C70R/C75) are assigned in the sequence that they are programmed. This is the Block ID number.
During controller operation, control blocks are executed in numerical order; lowest numbered blocks
are executed first unless you change the execution order.
4
Loops, Setpoint programmers, Setpoint Schedulers, Sequencers have unique user-assigned tag
names. They are used to identify values for operator displays. Note that tag names are automatically
displayed in capital letters.
5
Pin labels help identify block’s secondary inputs and outputs.
6
Block outputs can be labeled with a "Signal Tag Name. ( Right click on the Output pin to drop a
signal tag symbol) Signal point names are used to display value/state of block output signals on
operator displays.
7
Many blocks have configuration parameters to tailor operation to control requirements at hand.
8
Outputs exit block as straight lines from bottom or right-hand side. Outputs can be connected to
any number of control block inputs, but, they cannot be connected to:• an output of another block,•
a named variable , or• a constant. Note that unused outputs can be left unconnected.
9
Inputs enter block as arrows from top or left-hand side. Inputs can be from:·
An output of
another block (soft wire),·
A named variable (values that can be changed from the Operator
Interface (max-150)) (Right click on Input pin to drop a variable)·
A connector that references a
signal tag or page connector (Right click on Input pin to drop a connector)·
A constant that
references a signal tag (Right click on Input pin to drop a constant) Note that unconnected inputs will
default to 0 or OFF.
10
There is a visual distinction between analog and digital pins,
Analog Inputs and Outputs are indicated by a solid pin and
Digital Inputs and Outputs are indicated by a hollow pin.
11
A Digital pin without the ^ symbol indicates it is level sensitive. The pin is ON when its source
signal is ON, OFF when source signal is OFF.A digital pin with the ^ symbol indicates it is rising edge
sensitive. The pin is ON after its source signal changes from OFF to ON. Examples:HOLD is level
sensitive ^RST is rising edge sensitive
11
Each I/O block corresponds to a physical address in a rack. That address (rack, module,
channel) is shown at the top of the block.
Fast Scan Indicator
The Fast Scan Indicator is a yellow lightning bolt that has been placed somewhere on the face of the
function block. See the example below.
ATTENTION
For information on update rates for these blocks, refer to the "Fast Scan Function Blocks".
116
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Before You Start
Using Function Blocks to Build a Control /Safety Strategy
Before You Start
The Designer software operates on a PC, independently from the controller hardware, until after the
configuration is completed and downloaded. For this reason, you must identify the hardware that will
be used in the controller so that the configuration constructed will match the intended I/O quantity and
location in the controller.
There are two basic methods to begin configuring the controller:
1. Start with the physical I/O requirements of the controller
Identify the I/O
Configure the I/O blocks
Download and test the I/O first, then
Configure the Control /Safety Strategy, or
2. Start with the Control /Safety Strategy
Drop the I/O blocks as needed but leave the physical address 0.0.0
Download and debug the strategy, then
Configure the physical I/O addresses.
You can use some combination of these 2 methods, the Designer and Controller is flexible and will
accommodate either approach.
See "Rack, Module, and Channel Assignments".
General Steps to Build a Control /Safety Strategy
Introduction
Configuration is the process of creating/editing a Control /Safety Strategy, best suited for your
application, using Function Blocks, Variables, and Constants; Operator Interface Display assignments,
Setpoint Programs, Schedules, Sequencers, and Recipes; Data Storage, Alarm and Event
configuration. The configuration is essential to the controller, since it defines your control strategies
and operational displays.
Following are the steps of the configuration process as determined by the tasks required.
Develop the Control/Safety Strategy using Function Block Worksheets
Step
Task
1
Select the Function Blocks, Variables, and Constants needed to meet the control /safety strategy
requirements.
2
Soft-wire the outputs to the inputs.
3
Assign signal tags to block outputs needed on displays.
4
Enter annotations as needed on the diagram.
5
Configure the function block parameters needed to define the operating characteristics.
6
Configure the Execution Order.
7
Configure Setpoint Profiles, Setpoint Schedules, Sequencers, and Recipes.
8
Configure the Alarms and Events.
9
Save the Configuration File.
10
Download the Configuration File.
Revision 15
September 2013
HC900 Process Control Designer User Guide
117
Using Function Blocks to Build a Control /Safety Strategy
Adding, Moving, Deleting Function Blocks to a FBD
Step
Task
Develop the Operator Interface and Data Storage using the Display Worksheet (Legacy
controllers V 4.3 and older)
Step
Task
1
Configure the Display Tag Groups.
2
Configure the Alarms and Events.
3
Configure the Display Buttons for the Operator Interface.
4
Configure the Start Up and Message Displays .
5
Configure Operator Interface Settings.
6
Configure Data Storage
7
Save the Configuration File
8
Download a Control Strategy
Notes
You can initiate a print out of your control strategy whenever you want to assist you in configuring.
The above is a general approach to building a control strategy. One of the benefits of this product is its
flexibility and integration. You can develop some I/O, Control Displays, then download and repeat.
Adding, Moving, Deleting Function Blocks to a FBD
Adding
Drag and drop a function block symbol in the Worksheet Toolbox tree to the function block diagram.
The Function block will appear on the Function Block Diagram for configuration.
Selecting a drawing item
To select a drawing item, either click on it (Shift-Click to add an existing selection) or capture it in a
selection net.
Auto-scrolling to select offscreen items
Click and drag the mouse to the window’s edges to automatically scroll to offscreen items.
118
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Adding, Moving, Deleting Function Blocks to a FBD
Manipulating a drawing item
To form a selection net, press the left mouse button
on an empty area of the drawing and drag the
mouse to form a visible dotted rectangle
Release the mouse button. Everything entirely
within the rectangle is selected and highlighted.
Drawing Conventions
To delete a selected item, press the DELETE key or right-click on the item and select DELETE.
To move a selected item, press the left mouse button on an already selected item and drag the
selection to the desired location on the function block diagram.
To copy a selected item, use the CUT, COPY, and PASTE functions on the EDIT menu or Toolbar
or right-click on the item and select the desired menu item.
To abort a move operation, press the ESCAPE key before releasing the mouse.
Function Block Changes
If a function block is deleted, Designer does not re-use the block number.
If a function block is added, Designer uses the highest current block number + 1.
Restrictions:
When a configuration uses the last block number (500 or 2100) and you try to add another block,
Designer will prompt you to "de-fragment" the table and recover previously deleted blocks. The next
configuration download to the controller following the defragmentation process requires a
Cold Start.
Revision 15
September 2013
HC900 Process Control Designer User Guide
119
Using Function Blocks to Build a Control /Safety Strategy
Connecting/Disconnecting Blocks
Connecting/Disconnecting Blocks
Introduction
A control strategy is created by connecting function blocks to each other -(Softwiring).
Connecting
To connect two blocks, you must softwire a block’s output pin to the other block’s input pin (or
vice versa).
CAUTION
In pre-2.0 configurations, if a function block is (inadvertently) placed on top of another
block with pins touching, wires connected to the touching pins may follow the wrong block,
when the block again moves. In other words, the connections you see may not be the
connections you actually get.
SOLUTION: Place drawing items so their boundaries do not touch or overlap. When moving
drawing items groups, release the group over empty diagram space.
The outputs are always on the right or bottom of blocks; inputs are always on the top or left of the
blocks.
Double click at the end of a block’s output (or input) pin. A single segment wire will adopt a
straight or "L" shaped route.
You can click anywhere on the drawing to make a wire vertex and continue to either another
vertex or a block pin.
A wire can have up to eight vertices including endpoints.
You can connect two or more wires to the same output pin.
Repositioning
To reposition an existing wire:
Click on the end point of the wire to be repositioned. It will be highlighted in a dotted line showing
each vertex.
120
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Connecting/Disconnecting Blocks
Click on a vertex and drag into the new position and release
NOTE: A single "L" shaped wire cannot be repositioned. If you must alter the routing, delete the
wire and add one with a vertex.
Disconnecting
To disconnect an existing wire:
Click on the end point of the wire to be deleted. The wire is highlighted.
Pull down the "EDIT" menu and select "Delete", or press the DELETE key.
NOTE: A single "L" shaped wire cannot be repositioned. If you must alter the routing, delete the
wire and add one with a vertex.
See also
Wire nodes
Revision 15
September 2013
HC900 Process Control Designer User Guide
121
Using Function Blocks to Build a Control /Safety Strategy
Adding a Variable
Adding a Variable
There are two types of variables; Analog and Digital.
Procedure
Right-click on an Input pin and select "Drop Analog Variable" or "Drop Digital Variable" from the
dropdown list
OR
From the Worksheet Toolbox group "Other Items", drag and drop the Variable symbol to the
function block diagram.
The Variable symbol will appear on the Function Block Diagram for configuration.
Analog Variable
Double click on the symbol to open its properties dialog box. Enter:
Name and Descriptor
Decimal Places (1-5)
Engineering Units
Decimal Places
Initial Value
Also displayed is the item’s default Modbus address and data type, followed by any user-defined
addresses.
Digital Variable
Double click on the symbol to open its properties dialog box. Enter:
Tag Name and Descriptor
Off Label
On Label
Initial Value (Off or ON)
Also displayed is the item’s default Modbus address and data type, followed by any user-defined
addresses.
122
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Adding a Numeric Constant
Adding a Numeric Constant
Procedure
Right-click on an Input pin and select "Drop Constant" from the drop-down list
OR
From the Worksheet Toolbox group "Other Items", drag and drop the Numeric Constant symbol to
the function block diagram.
The Constant symbol will appear on the Function Block Diagram for configuration.
Numeric Constant symbol
Double click on the symbol to open its dialog box. Enter Numeric Constant value.
Click "OK".
Hint
To save the number of numeric constants used when a given constant is used more than once,
connect a signal tag to the output pin of the constant and use a connector object as the input pins of
the appropriate blocks.
Revision 15
September 2013
HC900 Process Control Designer User Guide
123
Using Function Blocks to Build a Control /Safety Strategy
Adding a Connector
Adding a Connector
Procedure
Right-click on an Input pin and select "Connector” from the drop-down list
OR
From the Worksheet Toolbox group “Other Items”, drag and drop the Connector symbol to the
function block diagram.
The Connector symbol will appear on the Function Block Diagram for configuration.
Connector symbol
Double click on the symbol to open its dialog box. Enter:
Connector Name
Click ‘OK”.
124
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Variables
Variables
A variable is a named diagram item, capable of holding a single analog or digital value. The value can
be connected to function block inputs with a softwire. The value can be changed through any of the
following:
• Entry at the Operator Interface
• Loaded through a recipe
Either at the operator interface or programmed in the control strategy using a recipe load
block.
• Over a communications link from a peer controller or from a supervisor host.
Wire Nodes
Note: The Wire Node feature is available only in configurations for HC900 C30/C50 revision 2.0x and
higher.
Introduction
A wire node lets you distribute an output signal to multiple input pins. The wire node has 4 pins;
any one pin can be connected to an output signal (this action defines the pin as the input pin of the
wire node and the pin is marked with an arrow head), the other three pins of the wire node are then
automatically defined as output pins and can be connected to input pins of function blocks or other wire
nodes. Note that multiple soft wires can be connected to each of the three output pins of the wire
node, so you can distribute an output signal to more than three input pins on function blocks or other
wire nodes using just one wire node. Also note that you can wire an input connector to the input pin of
a wire node. This input connector can refer to either a signal tag or a page connector. This is useful if
you want to distribute a signal on one page or worksheet to multiple places on another page or
worksheet."
Procedure
Right-click on white space in your function block diagram and select "Drop Other Items…, Wire
Node"
OR
to a
From the Worksheet Toolbox group "Other Items", drag and drop the Wire Node symbol
blank spot on the controller configuration.
Double-click any pin on the wire node, then click on the output signal you want. You can also doubleclick on the output signal first and then click on any pin on the wire node. An arrow appears
showing logic flow direction. You can connect the input pin of a wire node to an output signal of a
block, variable, signal connector, or numeric constant but not to a signal tag or page connector.
Double-click on any remaining wire node pin, then click on the desired input pin to complete the
connection. Repeat for the remaining wire node pins.
Revision 15
September 2013
HC900 Process Control Designer User Guide
125
Using Function Blocks to Build a Control /Safety Strategy
Wire Nodes
If you need an output signal to go to more than 3 inputs, use additional wire nodes. You may use any
number of output pins of a wire node.
Loop-backs are allowed.
You can drag a wire node without breaking its connections.
126
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Signal Tags
Signal Tags
Introduction
Signal tags are users assigned names that can be associated with the output of any item. They can be:
Assigned to displays
Used to connect discontinuous wires to other block inputs using connectors in the same or in
another FBD Worksheet.
Assigned to Data Storage
Used for Peer-to-Peer communication between multiple-networked controllers using Modbus
communications.
To identify important block output pins for monitoring.
Procedure
Right-click on an Output pin and select "Signal Tag". Drops the signal tag down and automatically
connects it to the pin. Skip to Step 4.
OR
to the
From the Worksheet Toolbox "Other Items", drag and drop the Signal Tag symbol
controller configuration
OR
Right-click on white space in your function block diagram and select "Drop Other Items…, Signal
Tag".
The Signal Tag symbol will appear on the Controller configuration and the cursor will change to
the softwire cursor.
Attention: You cannot drop a signal tag directly onto an output pin. Drop it away from the pin,
then softwire it to the pin. Once it is connected, you can move the signal tag to any location.
Place the crosshairs on the output pin and click to connect the tag to the output (dotted Line). You
can add vertices like a softwire.
Double click on the tag name area to display the signal properties dialog box.
Analog Signal Tag
Revision 15
September 2013
HC900 Process Control Designer User Guide
127
Using Function Blocks to Build a Control /Safety Strategy
Signal Tags
Enter:
- Tag Name
- Descriptor
- Select Decimal Place [0-5]
or select exponential notation (i.e. display Trend Points Logarithmically)
- Engineering Units
Also displayed is the item’s default Modbus address and data type, followed by any user-defined
addresses.
Digital Signal Tag
Enter:
- Tag Name
- Descriptor
- Off Label
On Label
Also displayed is the item’s default Modbus address and data type, followed by any user-defined
addresses.
An input signal tag connector can be changed to another signal tag connector or to a page
connector. Double-click on the assigned input connector to see a selection of different signal
tags or page connectors.
128
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Page Connectors
Page Connectors
Note: The Page Connector feature is available only in configurations for HC900 C30/C50 revision 2.0x
and higher.
Introduction
A Page Connector lets you connect a signal from a worksheet page to another page and across
worksheets. Page connectors are similar to signal tags except they do not appear in any signal tag
lists. They are tags but they have no descriptors, decimal places, or alarm/event notification properties.
You can rename them.
Page connectors can be monitored. The Watch Summary window has a tab for page connectors.
Procedure
Right-click on white space in your function block diagram and select "Drop Other Items…, Page
Connector",
OR
From the Worksheet Toolbox group "Other Items", drag and drop the Page Connector symbol to a
blank spot on the controller configuration.
OR
Right-click on a function block output pin. Drops the page connector down and automatically connects
it to the pin. Skip to Step 3.
Click any output pin of any function block to make a connection. (An output pin can have multiple
signal tags and/or page connectors attached to it.) The output page connector appears with a
default number.
. Use any of the following methods.
Drop a connector
Right click on the white space of a function block worksheet,
OR
Right click on a function block input pin
OR
Drag and drop the connector from the Worksheet Toolbox.
Double-click on the connector . A list of signal tags or page connectors is shown. Display all page
connectors and pick one to assign to the input. When you pick one the unconnected input
Revision 15
September 2013
HC900 Process Control Designer User Guide
129
Using Function Blocks to Build a Control /Safety Strategy
Page Connectors
connector
changes to an input page connector
.
Double click on the page connector tag name area to view or change the page connector
properties:
Analog Page Connector Properties
- Tag Name
- Engineering Units
Digital Page Connector Properties
- Tag Name
- Off Label
- On Label
Page connector tag names must be unique.
An input page connector can be changed to another page connector or to a signal tag connector.
Double-click on the assigned input connector to see a selection of different signal tags or page
connectors.
If you change the name of an output page connector you break the connection to any connected
input page connectors. Input and output page connector names must match exactly to be a
valid connection. Unconnected input page connectors are displayed as
.
130
HC900 Process Control Designer User Guide
Revision 15
September 2013
Using Function Blocks to Build a Control /Safety Strategy
Text String
Text String
This is part of the Other Items category.
Introduction
You have the option to enter descriptive data on the Function Block Diagram. V Any entered data has
no effect on the operation of the Controller.
Procedure to Enter a Text String.
Step
Action
1
From the Worksheet Toolbox group “Other Items”, use the left Mouse button to click on the T (text)
symbol, hold the button down, drag the symbol to the function block diagram and release the
mouse button. The “Modify Text” dialog box will appear on the Function Block Diagram.
2
Select a Font size ( 6, 10, 12, 16 pt)
Select a Color (black, blue, red, green)
Select Bold, Italics, or underline or all three
You can change the default font characteristics for Text Annotations. See "Changing the Default
Annotations Attributes"
3
Key in the desired text in the field, then click OK.
You can use carriage returns for multiple lines.
The text will appear on the diagram in a dotted-line box.
4
Click and hold the cursor in the box and move the text string to the desired location.
5
To enter another text string, repeat the above steps.
Editing Text
To edit existing text, double click the text. The “Modify Text” dialog box will reopen. You can delete text
or cut, copy, and paste text from one “Modify Text” dialog box to another. Use the ‘right’ mouse button
menu while the mouse cursor is in the edit box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
131
Using Function Blocks to Build a Control /Safety Strategy
Changing the Default Annotation Attributes
Changing the Default Annotation Attributes
You can change the default font characteristics for Text Annotations. These include
• Font Size
• Color
• Bold/italic/underline Settings
Configuration Procedure
1. From the "Edit" menu, select "Options".
2. Select " Default Annotation Attributes". The "Default Text Attributes" dialog box opens.
3. Select a font size from the dropdown menu.(6,10,12,or 16 points)
4. Select a color from the drop-down menu. (black, red, green, or blue)
5. Click on a button to select Bold, Italics, or Underline, or all three.
6. Click OK to save the selections for default text annotations
132
HC900 Process Control Designer User Guide
Revision 15
September 2013
Conventions
Drag and Drop
Conventions
Drag and Drop
To add a function block to a controller configuration, select the desired block from the menu tree. Press
and hold the left mouse button and drag the block over to the diagram on the right hand side of the
screen. Position the block and then release the left mouse button to drop the item into place.
Accessing Context Sensitive Help
While in a Controller configuration, click the right mouse button to allow access to Topic Help, Monitor
functions, Cut, Copy, Paste functions and Properties Dialog Boxes.
Right Mouse Click
See page 29.
Revision 15
September 2013
HC900 Process Control Designer User Guide
133
How to Configure Function Block Parameters
Accessing Block Details
How to Configure Function Block Parameters
Accessing Block Details
Overview
After function blocks are placed on the function block diagram, they can be configured
Most dialog boxes are simple dialog boxes that contain the assigned block number and execution
order of the block.
Some dialog boxes contain various parameters and options that are configured based on the particular
type of function block. For example: I/O blocks contain Rack, Module, and Channel addresses and
function block configuration parameters. Certain function blocks contain a Modbus address.
Tabbed dialog boxes will be used for the most complicated blocks (for example, PID) to organize the
data for you.
Procedure
To access Block Properties, double click on the selected function block and the corresponding dialog
box(es) will be displayed.
The dialog box(es) display(s) all parameters having to do with the selected function block.
Enter a physical address if applicable.
Enter any Tag Names
Enter all parameters.on each tab, if present.
When all the changes are entered, click OK to enter, or CANCEL.
While in a Controller configuration, click the right mouse button to allow access to Topic Help, Monitor
functions, Properties Dialog Boxes, and Cut, Copy, and Paste functions. Some function blocks let you
customize their Modbus address.
Function Block Address
Addresses identify physical connection points for field wiring to Input/Output modules.
Assign a unique address to each I/O block. See page 4.
User Assigned Tag Names
Some blocks have unique, user-assigned tag names.
They are used to identify values for operator displays.
When configuring displays you will be able to select from a list of tag name groups that you have
assigned. (See "Configure Tag Order")
Enter a Name in the "Tag Name" field.
Tag names are automatically displayed on the block in capital letters
Function Block Parameters
All Function Block Parameters are values that influence the function block's execution.
To enter a parameter:
• Click the cursor on the desired parameter field to highlight it.
• Key in the desired value, make a selection from any drop-down menus, or select a radio
button, if necessary.
• Click OK when configuration is complete.
134
HC900 Process Control Designer User Guide
Revision 15
September 2013
Function Block Diagrams
Overview
Function Block Diagrams
Overview
Function Block diagrams let you build your control /safety strategy graphically right on the Designer
Window. It provides a full complement of SAMA-style symbols that we call Function Blocks that can be
"softwired" to each other. It also includes signal tag generation capability for resident control data that
can be linked to displays and other software programs.
Function Block Diagram Rules
1. Do not place Function Block icons over another or overlap pins.
2. A pin output may be soft-wired to any number of inputs of other blocks.
3. You may change direction for soft-wiring with a left mouse click (up to 6 direction changes).
4. You may use "Signal tags" and "Connectors" to substitute for soft-wired connections and for
reference across diagram pages.(right click on the input or output pins)
5. You may move a block or group of blocks by selecting blocks or "boxing a group of blocks".
6. You may cross soft-wires.
7. You can cut, copy, or paste (from File menu or Right-click on the diagram) one or more
blocks by selecting or "boxing" within an application or between active applications (allows
function block libraries to be stored).
Saving A Configuration File
To Save an Existing File
Select "SAVE" from the "FILE" menu or from the Main Toolbar
If there are no unconnected inputs that need to be set to OFF or 0, the data is saved automatically.
If there are unconnected inputs that have not been previously set to OFF or 0, The Designer will notify
you that there are unconnected inputs and ask if you want to see a list of unconnected inputs.
Click "Yes" to view the summary of unconnected inputs.
Click "Log File" to save the list to a text file, if desired.
Revision 15
September 2013
HC900 Process Control Designer User Guide
135
Function Block Diagrams
Saving A Configuration File
To Save a New File or Save the File as a New Name
Select "SAVE AS" from the "FILE" menu. The "Save As" dialog box will open.
Type in the new file name in that field.
From the drop-down menu in the "Save as Type" field, select the configuration type depending on the
controller you have.
If there are no unconnected inputs that need to be set to OFF or 0, the data is saved automatically.
If there are unconnected inputs that have not been previously set to OFF or 0, The Designer will notify
you that there are unconnected inputs and ask if you want to see a list of unconnected inputs.
Click "Yes" to view the summary of unconnected inputs.
Click "Log File" to save the list to a text file, if desired.
136
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Overview
Utilities Worksheet
Overview
This Utility Worksheet has three areas the let you perform a variety of tasks for maintaining the
HC900 Process Control and setting up your PC's Communications Ports.
Controller Utility Functions
The upper part of the Utilities Worksheet contains the Controller Utility Functions. It has list of Icons
that will launch dialog boxes for the following utilities:
• Diagnostics
• Uploads
• Downloads (Configuration, Controller Firmware, Scanner Firmware)
• Set Controller Serial Port
• Calibrate Modules
• Set Controller Mode
• Set Controller's Network Parameters
• Set Controller Time
• Data Storage Utility
• Back Up Controller Information or Restore Controller Information
• Manually Write Database to Flash
Current PC to Controller Connection Settings
• Displays Comm Port and Address information. Lets you select a Port and Controller Network
Address from the drop-down menus.
• Allows you do a Loopback to check the communications connections.
• Allows you view and reset the communications statistics.
• Allows you to Dial/hang up the modem.
PC Port Setup
Lets you set up a Network Port and up to 8 Comm Ports or Modems.
Controller Utility Functions
The upper part of the Utilities Worksheet contains the Controller Utilities Functions. It has list of Icons
that will launch dialog boxes for the following utilities:
ICON
FUNCTION
Controller Diagnostics*
Upload from Controller*
Revision 15
September 2013
REFERENCE
Select from drop down menu:
(options are only available in Monitor Mode)
Controller Diagnostics. See page 219
Rack Diagnostics – see page 227
Controller Ports Diagnostics – see page 235
Modbus Port Diagnostics
Modbus Master (Serial) Port Diagnostics – see page 248
Modbus/TCP Initiator Port Diagnostics – see page 251
Forced Blocks – see page 198
Redundancy …
Redundancy System – see page 281
Redundancy Link - see page 282
Lead CPU – see page 283
Reserve CPU – see page 286
Scanner 2 Link – see page 287
Configuration Upload transfers a configuration FROM the controller
TO the PC. See page 36.
HC900 Process Control Designer User Guide
137
Utilities Worksheet
Uploading a File from the Controller
ICON
FUNCTION
Download to
Controller*
REFERENCE
Downloads a saved configuration, controller firmware, or scanner
firmware from FROM the PC TO the controller. See page 37 and
page 40.
Set Controller Port**
Menu selection lets you Set Protocol for controller's configuration
ports.
Calibrate Controller **
Click to open the Calibrate dialog box.
Four Tabs on the Dialog Box:
AI Channel - see "Calibrate AI Channel".
CJ Temp - see "Calibrate CJ Temp".
AO Channel - see "Calibrate AO Channel".
PPO Block – see "PPO Block Calibration "
Set Controller Mode**
Click to open the Set Controller Mode dialog box.
Read the current mode, select a new mode, then write the new mode
to the controller.
Set Controller
Network Parameters*
A Wizard interface guides you through connecting to a
controller in order to view and edit the controller's network
parameters
In order to change the controller's network parameters, the controller
must be in PROGRAM mode.
Set Controller Time**
Click to open the Set Controller Time dialog box.
Data Storage Utility
(Available only for software revision Rev 4.4 and earlier.)
Click to open the Data Storage Utility dialog box.
Select a Removable Disk Drive Group Number and Trend group
number.
Press "Initialize" to prepare the disk for storage.
Back Up Controller
Information
Backs up controller’s configuration and port settings. See
Back Up Controller Information.
Restore Controller
Information
This button visible for open backup files only. See Restore
Controller Information .
Manually Write
Database to Flash
See Manually Write Database to Flash.
* These functions prompt you to select a PC port to which to connect.
** These functions communicate to a controller by using the PC Port displayed in " Current PC
to Controller Connection Settings".
Uploading a File from the Controller
See page 36.
Download a File to the Controller
See page 37 and page 40.
Set Controller Serial Ports
Use this feature to set the RS232 (legacy controllers) and RS485 ports protocol.
138
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Set Controller Serial Ports
has two tabs—Serial S1 (RS232) and Serial S2 (RS485)—each with the following settings.
Honeywell ELN: Default protocol
Modbus RTU Master: Select to set controller up as a master.
Modbus RTU Master - Advanced: Provides enhanced data throughput for applications where the
HC900 is being used in conjunction with a “Modbus-to-fieldbus” gateway device. See page 140 for
details.
Modbus RTU Slave: Select to set controller up as a slave.
Slave Type:
Multidrop--select when using more than one slave on the selected PC port.
Point to point--select for one slave
Modem--select when using a modem between the master and slave.
Slave Address: Enter 1-247, or 255.
Modbus Slave Double Register Format: Each IEEE 32-bit floating point number requires two
consecutive registers (four bytes, MSB=4, LSB=1 in byte order below) starting with the register
defined as the starting register for the information. The stuffing order of the bytes into the two
registers differs among Modbus hosts. To provide compatibility, the Double register format is
configurable. Selections are:
FPB Floating Point Big Endian Format Byte order - 4, 3, 2, 1 (Default)
FP LB Floating Point Little Endian with byte-swapped Byte order - 2, 1, 4, 3
FP BB Floating Point Big Endian with byte-swapped Byte order - 3, 4, 1, 2
FP L Floating Point Little Endian Format Byte order - 1, 2, 3, 4
Port Enable: Enables or disables port.
Speed (bps): Select Baud rate. All slaves on the same PC port must be the same.
Modbus parity: Odd or even. All slaves must be the same.
Modbus stop bits: 1 or 2. All slaves must be the same.
Set – Activates settings. If you changed the controller's Baud Rate via a PC RS232 Comm Port,
your PC will no longer communicate with the controller. In this case, you are prompted to detect the
controller's Baud Rate. This feature will synchronize the PC's Comm Port with the controller and
set the PC Baud Rate to the correct Baud Rate.
Revision 15
September 2013
HC900 Process Control Designer User Guide
139
Utilities Worksheet
Modbus RTU Master - Advanced Setup
Modbus RTU Master - Advanced Setup
Overview
The Modbus RTU Master Advanced protocol provides enhanced data throughput for applications
where the HC900 is being used in conjunction with a “Modbus-to-fieldbus” gateway device. In
these applications the gateway acts as a Modbus slave to the HC900 controller. The Modbus data
is connected into the HC900 control strategy using the Modbus Read, Modbus Write, and Modbus
Slave function blocks.
In order to achieve the enhanced data throughput, the HC900 communicates with the gateway
using large packets of contiguous Modbus register addresses. This packetization technique allows
the HC900 to exchange data with the gateway at rates up to the analog cycle rate of the controller
(depending on the operating characteristics of the gateway device). The packet sizes can be
adjusted to match the specifications of the gateway slave device.
Differences from standard Modbus RTU
There are several important ways in which the Advanced protocol differs from the standard
Modbus RTU Master protocol:
1. Under the Advanced protocol the Modbus register data is written to the slave devices during
every Modbus Master scan cycle. This behavior is different than the standard Modbus RTU Master
protocol, where the data is written only when the slave block’s Enable pin is ON.
2. The Enable pins on the Modbus function blocks do not control when the register data is written
to the slave device. Instead, they control the value that is written to the block. For example, if a
Modbus function block has the value 10 on its Write pin and the Enable pin is ON, then a value of
10 is written to the slave device. If the Enable pin is changed to OFF, the HC900 controller will
continue to write a value of 10 to the slave device once every Modbus Master scan cycle. If the
value on the Write pin is changed to 100 while the Enable pin is OFF, the controller will continue to
write a value of 10 to the slave device. The next time the Enable pin is changed to ON, the
controller will write the value 100 to the slave device.
3. Modbus Register write operations are performed using Modbus Function Code 16 (Preset
Multiple Write). The number of registers written in a single transaction is based on the Advanced
Setup settings for the serial port.
140
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Modbus RTU Master - Advanced Setup
4. If there are “gaps” in the Modbus register addresses referenced within the HC900 configuration,
the controller will write a value of zero to the “undefined” registers. For example, if Modbus
Registers 1 and 10 are assigned to Modbus function blocks but Registers 2 through 9 are not, the
controller will write zeroes to Registers 2 through 9.
The Advanced protocol can be used in any Modbus Master application that can accommodate
these differences.
Factors affecting scan time
Using the Advanced protocol, the HC900 controller can potentially scan all of the Modbus registers
on the serial link at a rate that is equal to the analog cycle time. The actual scan time for any given
application is affected by the following factors.
1. Characteristics of the slave devices (e.g., the maximum baud rate, the message turn around
time, support for Modbus packets, the maximum allowable packet size, etc.).
2. Configuration of the Modbus slave blocks.
3. Programmed baud rate of the serial port.
The Modbus Master scan time is adjusted automatically by the HC900 at run-time; no user
intervention required. The actual scan time of the link is displayed on the Modbus Communication
Diagnostics display in Monitor Mode.
Configurable parameters
The parameters on this dialog can be used to match the behavior of the Advanced protocol to the
characteristics of the slave devices on the link. Please consult the documentation for your slave
devices to determine the best settings for your application. In general, the best overall
performance of the Modbus Master Advanced link can typically be achieved by using the largest
possible packet sizes.
Slave Reply Timeout (milliseconds)
This parameter defines the Modbus message turnaround time for the link. It has a range of 10ms
to 255ms. This parameter should be set to handle the slave device that has the worse case
turnaround time on the link. If there are slave devices with turnaround times that are longer than
255ms, then the standard Modbus RTU Master protocol must be used.
Maximum Number of Modbus registers per transaction
Read Coil Registers (Function Code 1)
This parameter determines the maximum number of coil registers that can be read from the slave
devices in a single transaction.
Read Digital Input Registers (Function Code 2)
This parameter determines the maximum number of digital input registers that can be read from
the slave devices in a single transaction.
Read Holding Registers (Function Code 3)
This parameter determines the maximum number of holding registers that can be read from the
slave devices in a single transaction.
Read Input Registers (Function Code 4)
This parameter determines the maximum number of input registers that can be read from the slave
devices in a single transaction.
Write Multiple Holding Registers (Function Code 16)
Revision 15
September 2013
HC900 Process Control Designer User Guide
141
Utilities Worksheet
Calibrate Controller
This parameter determines the number of registers that will be written to the slave devices in a
single transaction. Note: if there are gaps in the Modbus register addresses referenced within the
HC900 configuration, the controller will write a value of zero to the undefined address. For
example, if Modbus Registers 1 and 10 are assigned to Modbus function blocks but Registers 2
and 9 are not, the controller will write zeroes to Registers 2 and 9.
Restore Default Settings
This button allows you to restore the original default settings for the Advanced Setup parameters.
Note: you must click the Set button on the Set Protocol dialog to activate any changes that are
made on this dialog.
Calibrate Controller
See page 153.
Set Controller Mode
Set Controller Mode lets you set the controller mode. It can only be set when the controller's mode
switch is in the center "Run Mode" position.
ATTENTION: If the controller's mode switch is in one of the "Locked" positions, the mode
cannot be changed from this position. It can be changed only by changing the position of the
switch.
opens the Set Controller Mode dialog box. Follow the steps on the dialog box
1. Select a new mode - RUN, PROGRAM, or OFFLINE
2. Write the new mode to the controller. Press "Set New Mode" button
Program to Run takes some time. An Indicator on the dialog box shows the progress.
Set Controller Network Parameters
opens the "Controller Identification Setup Wizard" dialog box.
You can select a serial port or the Ethernet port over which the network parameters will be
read/written.
The controller must be in PROGRAM mode to set the Network Parameters.
There are set up options on the wizard. The option you choose depends on how you are connected to
a controller and what current knowledge you have of that controller.
Important: before configuring your controller to work on a corporate LAN, consult with your Network
Administrator regarding any corporate networking policies.
Follow the Wizard instruction to set:
• Network Name
User assigned name - can be different from controller name (16-character ASCII name. It is not
part of configuration.)
It is required to uniquely define a Peer group if multiple processes, each with its set of peer
controllers, are on the same physical cable. The controller binds the "Network name: Controller
name" to the IP address of each of its peers at run-time.
• Local Name (alias)
User assigned 16-character ASCII name [can be different from controller name]
It is not part of the configuration.
142
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Set Controller Network Parameters
•
•
•
•
•
See Controller Identification for more info on names.
Modbus TCP Double Register format
Each IEEE 32-bit floating point number requires two consecutive registers (four bytes, MSB=4,
LSB=1 in byte order below) starting with the register defined as the starting register for the
information. The stuffing order of the bytes into the two registers differs among Modbus hosts. To
provide compatibility, the Double register format is configurable. Selections are:
FP B Floating Point Big Endian Format Byte order - 4, 3, 2, 1 (Default)
FP LB Floating Point Little Endian with byte-swapped Byte order - 2, 1, 4, 3
FP BB Floating Point Big Endian with byte-swapped Byte order - 3, 4, 1, 2
FP L Floating Point Little Endian Format Byte order - 1, 2, 3, 4
IP Address
Controller Internet Protocol Address - Guaranteed unique address, assigned by the Internet
Corporation of America for Assigned Names and Numbers (ICANN) IP Address includes four
"Octets" (eight bits, translating to integers from 0 to 255, separated by periods). The manufacture
default IP Address is 192.168.1.254.
Subnet Mask
Subnet Mask defines the netid (Network ID) and the hostid (Host ID) parts of an IP Address.
The netid uniquely identifies a network, and the hostid uniquely identifies a computer on the
network.
The Subnet Mask can be used to partition the Network into sub-networks, using parts of the hostid
to define new netids, or more correctly subnetids.
Portioning a network in this way enables switches and routers to use the subnetids to reduce
collision domains and to promote security.
Gateway IP Address
Used to forward packets to other networks and subnets. The Network Administrator typically
provides this address.
Email Server
Outgoing Mail (SMTP) server IP Address: If the controller is configured for E-mail notification, enter
the IP Address of the (SMTP) E-mail server.
Controller Identification
The figure below shows how to uniquely identify multiple controllers on a network. Notice the controller
names can be the same in both furnaces (Larry, Curly, Moe), but within the same network name they
must be unique. To further distinguish controllers, use unique network names (Furnace #1 and
Furnace #2). Network name:Controller name are bound to the IP address of each controller. Finally,
use a local name (alias) to identify each controller to the end user. This local name is a convenient
name such as for displays on the PC, it is not referred to for actual communication.
Revision 15
September 2013
HC900 Process Control Designer User Guide
143
Utilities Worksheet
Set Controller Network Parameters
144
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Set Controller Time
Set Controller Time
opens the Set Controller Time dialog box. Screens differ according to the version of HC
Designer.
Version 4.0 and earlier
This window lets you set your controller's date and time.
Note: Use of Daylight Saving or Network Time Server requires Version 4.1.
Group
Item
Description
Action
PC Time
Current Date
Current Time
Time Zone
Indicates PC’s date, time and time zone.
Read Only.
Controller Time
Current Date
Current Time
Shows Controller's current date and time
This is updated when you click on Set
Controller Time button below.
Read only.
Select method
for writing Time
and Date to the
Controller
Set to PC Time
PC's date and time, indicated here, will be
used by controller.
Click radio button
to select.
Manually
Override Time
Date and time entered here will be used by
controller.
Click radio button
and enter
desired date and
time.
Set Controller
Time
Writes PC or manual Date and Time to the
controller. Current Controller Time (top of
window) will be updated. A status message
confirms the update.
Click to set time.
Revision 15
September 2013
HC900 Process Control Designer User Guide
145
Utilities Worksheet
Set Controller Time
Version 4.1 and later
There are two tabs in this window.
Time and Date tab - Lets you set controller time to the PC time and assign a time zone to the
controller.
Network Time Server and DST tab - Lets you assign a Network Time Server that periodically
synchronizes the controller time. Lets you specify when controller time changes to Daylight Saving.
Version 4.1 Time and Date tab
146
Group
Item
Description
Action
Current PC Time
Current Date
Current Time
Time Zone
Indicates PC’s date, time and time zone,
including Standard or Daylight Saving.
Read Only.
Current Controller
Time
Current Date
Current Time
Time Zone
Shows Controller's current date, time and
time zone. Note: Daylight Saving, if
applicable, is not shown unless Controller is
in RUN mode.
Read only.
Set Controller
Time and Date
Date
Time
PC’s date and time, indicated here, will be
used by controller.
Read only.
Use Controller
Time Zone
Time zone entered here will be used by
controller.
Click to select.
Enter desired
Time Zone.
Use PC’s Time
Zone
Time zone displayed here will be used by
controller.
Read only. Click
to select.
Set Controller
Time
Click to write the above Date, Time and
Time Zone to the controller. Current
Controller Time (top of window) will be
updated. A status message confirms the
update.
Click to select.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Set Controller Time
Version 4.1 Network Time Server and DST tab
Use this tab to
- assign a Network Time Server that periodically synchronizes the controller time,
- specify when controller time changes to Daylight Saving.
Group
Item
Description
Action
Network Time
Server
Enabled
Disabled - controller's time will not be
synchronized with a network time server.
Click to select.
Disabled
Enabled - controller's time will be periodically
synchronized to a network time server in
Greenwich Mean Time. Different time zone or
Daylight Saving must be configured
separately.
Disable or enable will take effect when you
click on Write Time Server Settings to
Controller.
Time Server IP
Addresses
Primary
Primary - primary time server's IP address.
Secondary
Secondary - secondary time server address as
a backup in case the primary can't be
accessed.
Write Time
Server Settings
to Controller
Daylight Saving
Mode
Revision 15
September 2013
Enter addresses.
If using one server
only, enter the
same address as
the primary.
Writes time server settings (enable or disable)
to controller. Status will confirm the completed
write. This button does not update the
controller time, it just enables the connection.
To see the current controller time, go to the
Time and Date tab. Important: Network time
servers use Greenwich Mean Time. Go to the
Time and Date tab and set the time zone for
your controller.
Click to write to
the controller.
Adjust Clock for
Daylight Saving
Changes
Lets you select one of the three Daylight
Saving methods below.
Check box to
enable one of the
following options.
Use DSTI Pin on
Time and Date
Function Block
Controller time will be in Daylight Saving when
DSTI pin on the Time and Date function block
is ON. Time will be in Standard when pin is
OFF.
Click to select.
One Year
Controller time will change to Daylight Saving,
then to Standard, on the dates and times
specified for a single year.
Click to select.
Enter dates ad
times. Begin
Daylight Saving
Time setting must
be earlier than
Begin Standard
Time setting.
Every Year
Controller time will change to Daylight Saving,
then to Standard, on the weekdays and times
specified for every year.
Click to select.
Enter dates and
times. Last will be
either 4th or 5th
week, whichever
is last.
HC900 Process Control Designer User Guide
147
Utilities Worksheet
Data Storage Utility
Data Storage Utility
Note: This section does not apply to the 900 Control Station.
opens the Data Storage Disk Initialization Utility dialog box.
It is used to initialize ZIP disks offline. (It takes a long time to initialize a disk on the Operator Interface)
Pre-initializing ZIP Diskette
Step
148
Action
1
Insert the 100MB Zip disk into your PC drive.
2
Select the Data Storage Utility Icon on the Utilities toolbar.
3
The dialog box appears.
4
Select a Drive Letter from the drop-down menu to specify the drive on your PC.
5
Select the number of Trend Groups that the Operator Interface will need from the drop down menu .
6
Click on Pre-initialize to prepare the disk for storage.
7
Exit DSU.
8
Remove disk, insert it into the operator Interface, and initialize it. See Initializing Disk under this
section entitled "Data Storage Operation".
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Back Up Controller Information
Back Up Controller Information
Saves a controller’s active configuration as a backup file with .cbk extension. Similar to saving an
uploaded configuration except that in addition to the configuration the port settings are saved. Versions
4.1 and up save time settings (time zone, DST, NTS IP addresses).
You are prompted to specify the comm. link settings for the controller to be backed up. Backup files are
read-only; to edit you must save as .cde.
Revision 15
September 2013
HC900 Process Control Designer User Guide
149
Utilities Worksheet
Restore Controller Information
Restore Controller Information
This button is visible for currently open backup files (.cbk).
Choices:
Back Up Controller
Restore Controller – Same as doing a download to controller except port settings are also downloaded.
Controller must be in Program Lock Mode
View Port Settings – Shows all port settings in the backup file.
Serial S1/Serial S2 ports:
150
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Restore Controller Information
General properties:
Revision 15
September 2013
HC900 Process Control Designer User Guide
151
Utilities Worksheet
Manually Write Database to Flash
Network E1, Network E2 ports:
Manually Write Database to Flash
Causes the configuration and user settings of a C70R CPU to be written (saved) to the controller’s
FLASH memory. User settings include, for example, PID tuning parameters, PP Output calibrations
and changes to recipes (setpoint profiles, sequences, schedules). These settings are normally saved
in battery-backed RAM, but if there is a power failure and the battery dies, these settings would be lost.
By allowing an on-demand write of the database to FLASH, these settings will be retained and
available immediately upon power-up.
If using redundant CPUs (C70R) the database is saved to the FLASH of both Lead and Reserve
controllers. On-demand write to flash memory is not available for C30 and C50 CPU types.
152
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Diagnostics
Diagnostics
has menu selections on a drop-down menu. It lets you select from a list of diagnostic windows
for various controller connections.
The controller must be in "Monitor" mode. Select Monitor Mode from the Monitor menu or click on the
Monitor mode icon on the Main toolbar.
Controller Diagnostics - displays controller status and diagnostic parameters.
Rack Diagnostics - displays the "Rack Diagnostic Summary" dialog box. Information is for Rack, I/O
expansion (except C30 CPU), and Module diagnostics.
Controller Ports Diagnostics - select a port from the drop-down list.
Serial Port S1
Serial Port S2
Network Port
Expansion Rack Port (except C30 CPU)
Host Connections
Peer-to-Peer connections
Modbus Master Port Diagnostics - displays status of the Modbus Master port S1 (RS232) or S2
(RS485), if so configured.
Forced Blocks.- displays a list of Function Blocks, by block ID, that have a forced output pin.
Redundancy – select from the drop-down list:
Redundancy System
Redundancy Link
Lead CPU
Reserve CPU
Scanner 2 Link
Calibrate Modules
Overview
The controller I/O modules are factory calibrated to 0.1% accuracy. But, if greater accuracy is required,
you can calibrate the AI and AO modules using the Process Control Utilities on-line connected to the
controller.
You can also calibrate the Position Proportional Output block. The calibration of the PPO block is
similar to that of the AI and AO except that the calibration values are stored as part of the block’s
configuration, not on the AI card itself.
opens the Calibrate Modules dialog box.
There are four tabs on the Dialog Box:
AI Channel - see "Calibrate AI Channel".
CJ Temp - see "Calibrate CJ Temp".
AO Channel - see "Calibrate AO Channel".
PPO Block – see "Calibrate Position Proportional Output "
Revision 15
September 2013
HC900 Process Control Designer User Guide
153
Utilities Worksheet
Calibrate Modules
Calibrate AI Channel
The Calibrate AI Channel tab allows you to calibrate the selected AI to ensure that the 0 and 100% values selected
during configuration is actually correct.
ATTENTION:You should not access the Utilities Calibrate Controller Analog I/O display while the OI
calibration display is being displayed, or vice versa. Calibration can't be done as long as both displays
are shown; user must exit either display to do a calibration.
To calibrate an AI Channel:
1.
Enter a Rack #, Module #, and Channel #.
2.
Click on Select Input. The program will then poll the controller to see if the selected AI exists.
3.
The Cal 0% button is now available. Connect a reference supply to the input pins of the AI.
The reference supply must have the following characteristics:
T/C, mV, Volts Inputs:
1 microvolt resolution
Ohms, RTD Inputs: 0.1 Ohm resolution
4-20mA inputs:
4 microamp resolution
4.
Set the reference supply to the reference value shown. (The reference value is displayed below the Instrument
Status section.) Click on "Cal 0%" to calibrate the low end of the AI.
5.
The Instrument Status section of the dialog will display the results of the calibration.
6.
If the 0% calibration was successful, the 100% button is now available. Set the reference supply to the reference
value shown. Click on "Cal 100%" to calibrate the high end of the AI.
7.
If the Cal 100% calibration was successful, the Save Cal button is then available. Click on "Save Cal" to save the
current set of calibrations for the selected AI.
8.
If either calibration fails,
the Instrument Status section will display an AI Calibration Failed message - Check connections
The Reference section will display a wrong Rack, Module, and channel - reenter Addresses.
9.
Click on Close.
Note: Click on "Restore Factory Calibration" button to do same.
NOTE: Refer to the Calibration section in the HC900 Installation and User Guide for additional
Hardware details.
Calibrate CJ Temp
The Calibrate CJ Temperature tab allows you to ensure the Cold Junction calibration is correct.
To calibrate a CJ Temperature:
1. Enter a Rack #, Module #, and Channel #.
2. At CJ Temperature, enter the actual ambient temperature (measured at the AI pins).
3. Click on Select CJ Input. The program will then poll the controller to see if the selected AI exists. If
the AI is found the Cal CJ button will then be available.
4. Click on the Cal CJ button to initiate the calibration. The status of the calibration is displayed in the
Instrument Status section of the dialog. If the calibration is successful, the Save Cal button will be
available.
5. Click on the Save Cal button to save the current CJ calibration.
6. If the calibration fails, a message will be displayed in the Instrument status section.
7. Click on Close to close dialog.
Note: Click on "Restore Factory Calibration" button to do same.
NOTE: Refer to the Calibration section in the HC900 Installation and User Guide for additional
Hardware details.
154
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
Calibrate Modules
Calibrate AO Channel
The Calibrate AO Channel option allows you to calibrate the selected AO to ensure that the 0 and 100% values
selected during configuration are actually correct.
ATTENTION:You should not access the Utilities Calibrate Controller Analog I/O display while the OI
calibration display is being displayed, or vice versa. Calibration can't be done as long as both displays
are shown; user must exit either display to do a calibration.
To calibrate an AO Channel:
1.
Enter a Rack #, Module #, and Channel #.
2.
Click on Select Output. The program will then poll the controller to see if the selected AO exists.
3.
The Cal 0% button is now available. Measure the actual output of the AO at the terminal block with a meter and
enter the measurement into 0% Measured. Click on Cal 0% button to calibrate the 0% measurement. The
reference value is displayed below the Instrument Status section.
4.
The Instrument Status section of the dialog will display the results of the test.
5.
If the 0% calibration was successful, the 100% button is now available. Measure the actual output of the AO at
the terminal block with a meter and enter the measurement into 100% Measured. Click on Cal 100% button to
calibrate the 100% measurement.
6.
If the Cal 100% was successful, the Save Cal button is then available. Click on Save Cal in order to save the
current set of calibrations for the selected AO.
7.
If either of the tests fail, the Instrument Status section will display an AO Calibration Failed message.
8.
Click on Close.
Note: Click on "Restore Factory Calibration" button to do same.
NOTE: Refer to the Calibration section in the HC900 Installation and User Guide for additional
Hardware details.
Revision 15
September 2013
HC900 Process Control Designer User Guide
155
Utilities Worksheet
PPO Block Calibration
Restore Factory Calibration
To restore the Factory Calibration:
1. Click on the Restore Factory Calibration button on the dialog box. The Restore Factory Calibration
dialog is displayed.
2. Enter the Rack, Module, and Channel number for the desired calibration.
3. Click on Restore to initiate the task. The status of the restore will be displayed in the Instrument
Status section of the dialog.
4. Click on Close to close the dialog when the restore is complete.
PPO Block Calibration
Introduction
The Calibrate PPO Block tab allows you to calibrate the selected Position Proportional Output Block
to ensure that the 0% and 100% Motor Positions are actually correct and to measure the true motor
speed.
The calibration of the PPO Block is similar to that of the AI and AO. However, the calibration values
are stored as part of the PPO block’s configuration data; not on the AI card itself.
To retain these calibrated values, upload and save the configuration to disk.
The procedure is to move the motor first to its 0% position, wait until the position feedback signal
has stabilized, and capture the 0% feedback value.
A similar procedure is done next for the motor’s 100% position,
The third step is to measure the true motor speed by moving the motor a fixed period of time,
measuring the position feedback delta, and computing a motor speed from this data.
The final step is to save the values in the block’s configuration data. All previous calibration values
will be overwritten.
Calibration Procedures
There are three methods for calibrating the PPO block. Click on one of the modes shown below for
instructions.
AUTO – Controller positions the motor and captures the positions.
SEMI-AUTO – Controller positions the motor and the user captures the positions.
HAND – User positions the motor by hand and captures the positions.
156
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
PPO Block Calibration
Auto Calibration Procedure
Controller automatically positions the motor and captures the positions.
NOTE: Put the controller in "Offline" or "Program" mode in order to perform calibration.
2. Select the Utilities tab at the bottom of the Main Window
3. Under the "Controller Utility Functions", select the "Calibrate Controller" icon.
The "Calibrate" dialog box will open.
4. Select the "PPO Block" tab at the top of the dialog box.
5. In the "Calibration Block" field, drop-down the list of PPO blocks and select one.
6. Under "Calibration Mode", select the "AUTO" radio button.
7. Under "Calibration Procedure", press "Start".
Result:
•
The "Start" button is disabled and the Status indication at the top of the dialog box will
change to indicate that the motor is moving to its 0% position.
The "Feedback Value" area on the dialog will indicate movement and direction of the
motor.
The Progress Bar will indicate progress (Time Remaining) for this step.
•
The status will change to indicate that the motor is at its 0% position.
The status will change to indicate that the 0% position has been captured.
•
The status will change to indicate that the motor is moving to its 100% position and the
feedback area will indicate movement and direction of the motor.
The progress bar will indicate progress (Time Remaining) for this step.
•
The status will change to indicate that the motor is at its 100% position.
The status will change to indicate that the 100% position has been captured.
•
The status will change to indicate that the motor is currently undergoing speed
calibration.
The feedback area will indicate movement and direction of the motor.
The progress bar will indicate progress (Time Remaining) for this step.
•
The status will change to indicate that the PPO Calibration has been saved.
A message box appears indicating that the calibration is complete.
Three choices will also appear. Select one.
Press F2 to Position Motor at 0%
Press F3 to Position Motor at 100%
Press F4 to Leave Motor at Current Position
Revision 15
September 2013
HC900 Process Control Designer User Guide
157
Utilities Worksheet
PPO Block Calibration
Semi-Auto Calibration Procedure
Controller automatically positions the motor and the user captures the positions
NOTE: Put the controller in "Offline" or "Program" mode in order to perform calibration.
1. Select the Utilities tab at the bottom of the Main Window.
2. Under the "Controller Utility Functions", select the "Calibrate Controller" icon
The "Calibrate" dialog box will open.
3. Select the "PPO Block" tab at the top of the dialog box.
4. In the "Calibration Block" field, drop-down the list of PPO blocks and select one.
5. Under "Calibration Mode", select the "SEMI-AUTO" radio button.
6. Under "Calibration Procedure", press "Start".
The "Start" button is disabled and the Status indication at the top of the dialog box will change
to indicate that the motor is moving to its 0% position.
The "Feedback Value" area on the dialog will indicate movement and direction of the motor.
The Progress Bar will indicate progress (Time Remaining) for this step.
The status will change to indicate that the motor is at its 0% position.
7. Click the Cal 0% button, then the status will change to indicate that the 0% position has been
captured.
The status will change to indicate that the motor is moving to its 100% position.
The feedback area will indicate movement and direction of the motor.
The progress bar will indicate progress (Time Remaining) for this step.
The status will change to indicate that the motor is at its 100% position.
8. Click the Cal 100% button, then the status will change to indicate that the 100% position has
been captured.
9. Click the Cal Speed button.
A dialog box will appear warning that the speed calibration will move the motor.
Press "OK" to start or "Cancel" to abort.
The status will change to indicate that the motor is currently undergoing speed calibration.
The feedback area will indicate movement and direction of the motor.
The progress bar will indicate progress (Time Remaining) for this step.
10. Click the Save Cal button.
A dialog box will appear that confirms the Motor Calibration Values.
Press "OK" to save the values or "Cancel" to abort.
The status will change to READY and indicate that the PPO Calibration has been saved.
A message box appears indicating that the calibration is complete.
Three choices will also appear. Select one.
Press F2 to Position Motor at 0%
Press F3 to Position Motor at 100%
Press F4 to Leave Motor at Current Position
158
HC900 Process Control Designer User Guide
Revision 15
September 2013
Utilities Worksheet
PPO Block Calibration
Hand Calibration Procedure
User positions the motor by hand and captures the positions.
NOTE: Put the controller in "Offline" or "Program" mode in order to perform calibration.
1. Select the Utilities tab at the bottom of the Main Window.
2. Under the "Controller Utility Functions", select the "Calibrate Controller" icon.
The "Calibrate" dialog box will open.
3. Select the "PPO Block" tab at the top of the dialog box.
4. In the "Calibration Block" field, drop-down the list of PPO blocks and select one.
5. Under "Calibration Mode", select the "HAND" radio button.
6. Under "Calibration Procedure", press "Start".
The "Start" button is disabled and the Cal 0% button is enabled.
7. Move the motor by hand to its 0% position.
The feedback area will indicate movement and direction of the motor when it is moving.
8. When ready, click the Cal 0% button and the 0% position of the motor is captured
as indicated in the status.
9. Move the motor by hand to its 100% position.
The feedback area will indicate movement and direction of the motor when it is
moving.
10. When ready, click the Cal 100% button and the 100% position of the motor is
captured as indicated in the status.
11. Click the Cal Speed button
A dialog box will appear warning that the speed calibration will move the motor.
Press "OK" to start or "Cancel" to abort.
The status will change to indicate that the motor is currently undergoing speed calibration.
The feedback area will indicate movement and direction of the motor.
The progress bar will indicate progress (Time Remaining)
11. Click the Save Cal button.
A dialog box will appear that confirms the Motor Calibration Values.
Press "OK" to save the values or "Cancel" to abort.
The status will change to READY and indicate that the PPO Calibration has been saved.
A message box appears indicating that the calibration is complete.
Revision 15
September 2013
HC900 Process Control Designer User Guide
159
Utilities Worksheet
PPO Block Calibration
This page has been intentionally left blank.
160
HC900 Process Control Designer User Guide
Revision 15
September 2013
Set Point Programming
Terms and Definitions
Set Point Programming
Terms and Definitions
Term
Definition
Auxiliary
Analog Value
In addition to the main ramp and soak output value, a second analog value is available for each
step of the profile. This output is a fixed soak value, which may be used to provide a setpoint
value for a secondary control loop in the process. An example would be a ramp and soak
temperature program combined with pressure setpoints for each step of the profile.
Cycles
A portion of a profile or the entire program may be repeated up to 100 times or indefinitely as
specified in the program Cycles count value.
Engineering
Units
You must assign a descriptor consisting of up to 4 keyboard characters for the engineering units
that the setpoint value represents. For example, GPM for gallons per minute, NPS for number
per second, RPM for revolutions per minute, and DEGF for degrees Fahrenheit.
Guaranteed
Hold Soak
Limits
Limits High and Low (above and below the Setpoint value) can be configured in selected
engineering units. If the PV is outside of configured limits just prior to entering the Soak segment,
the soak timer will not be permitted to start. It will start when the PV is within the High and Low
limits. Once the soak timer has started and then the PV goes out side of configured limits, the
soak timer will halt. It will remain halted until the PV is again within the configured limits. A
Guaranteed Hold High or Low limit setting of 0.00 is equal to no limit at all.
Number of
Segments
Segments are timed ramp and soak subdivisions of a setpoint program. Consecutive ramps and
soaks are allowed. The last segment must be a soak.
Power Loss
A recovery ramp rate value is provided in the event of a power loss while a program is running.
The ramp rate value is used to return the process to the last operating setpoint prior to power
loss. A power OFF digital input and separate timing block will abort the running program if power
loss has been OFF for more than a specified time period.
Program
The term "Program" is used to identify the process for selecting and entering the individual ramp
and soak segment data for a Setpoint Program function block (SPP) needed to generate a
required setpoint versus time profile (also called a program).
Program Name
During configuration you must assign a name (descriptive reference) consisting of from 1 to 8
letters or numbers without spaces. Thus, a name can be a combination of letters and numbers.
Note that lowercase letters are automatically converted to uppercase.
Program
Number
This number is assigned when the software or the Operator Interface creates the profile. The
program number is assigned in the "Setpoint Profile Pool" and is shown on the "Edit Setpoint
Profile" dialog box.
Ramp
Segments
A ramp segment is a starting setpoint and the time or rate to reach the setpoint of the following
segment.
Typically, segment #1 will be a ramp. Ramp time is determined in either:
TIME*—Hours or Minutes Range = 0.00 hr. to 999.99 hr. / 0.00 min. to 999.99 min.
OR
RATE*—EU/MIN or EU/HR
Range = 0 to 999.99
*This selection of time or rate is made when you configure properties.
Make this selection before entering any Ramp during Profile Edit.
NOTE: When Ramp unit is configured for TIME, entering "0" will imply an immediate step change
in setpoint to the next soak.
Running a
Profile
Setpoint profiles may be started, held, advanced, jogged to a predefined segment or reset from
the operator interface or by digital inputs to the block. Programs may be started from a preselected segment number.
Segment
A segment is a ramp or soak function which together make up a Setpoint Profile.
Revision 15
September 2013
HC900 Process Control Designer User Guide
161
Set Point Programming
What is a Setpoint Program?
Term
Definition
Segment
Events
You can configure 1 to 16 segment events to turn ON or OFF at the beginning of each segment.
Segment events are digital switches that provide ON/OFF outputs through an SPEV control
block. When a segment event is turned ON, it remains ON until the end of the segment at
which time it is turned OFF unless it is configured to turn ON in the next segment. Note
that segment events are not interrupted by soak time delays when the process variable is outside
the guaranteed soak band. Events turn ON as soon as the previous segment is completed even
if the process variable has not reached the soak setpoint. When the program completes, the
events are held at current value until the programmer is returned to the ready state.
Setpoint
Guarantee
There is a setpoint guarantee function provided that holds the program if a PV exceeds a
predefined deviation from setpoint. Selections allow setpoint guarantee to be active for all
segments, soak segments only, or for specified segments. Up to 3 Process Variables may be
configured as inputs to the block for setpoint guarantee.
Setpoint Value
A setpoint value set for Ramp(starting Setpoint value) and Soak(soak setpoint value)segments
Soak
Segments
A soak segment is a combination of soak setpoint (value) and soak duration (time).
The last segment must be a Soak.
The soak setpoint range value must be within the setpoint high and low range limits in
engineering units.
SOAK TIME is the duration of the soak and is determined in:
TIME*—Hours or Minutes Range = 0.00 hr. to 999.99 hr. / 0.00 min. to 999.99 min.
*This selection is made when you configure properties.
Synchronizing
Programs
Two setpoint programs operating on the same time base can be synchronized using the
Synchronize (SYNC) function block. This block automatically starts the second program when
the first program is started and maintains synchronization when either program is place in hold.
What is a Setpoint Program?
A Setpoint Program is really a setpoint versus time profile that establishes the setpoint values and
how they are to vary with time.
Each setpoint profile consists of segments. Each segment of the profile may be a ramp or a soak
except the last step that must be a soak.
In addition to the main ramp and soak output value, a second analog value (Aux. Output) is available
for each step of the program. This output is a fixed soak value that may be used to provide a setpoint
value for a secondary control loop in the process. An example would be a ramp and soak temperature
program combined with pressure setpoints for each step of the program.
Each segment can turn on segment events to provide ON/OFF signals through a Setpoint Program
Events (SPEV) control block that is used in conjunction with an SPP block.
Each Profile carries its own unique number and a name for identification. (The names are descriptive
references [aliases] and uniqueness is not enforced.) Unique names are recommended to avoid
operator confusion).
Using the software, you can set the setpoint values, soak times, guaranteed soak band, ramp rates,
and event action for individual setpoint profiles in configuration and access the information through the
Setpoint profile display in the operator interface. This means that an operator can adjust individual
ramp and soak segment settings during operation, but the general profile configuration, including
number and name, is under configuration control.
However, any changes made through the SPP Operate display to a program that is running in an SPP
block will not be written as changes in the program configuration.
162
HC900 Process Control Designer User Guide
Revision 15
September 2013
Set Point Programming
Setpoint Program Configuration Overview
Setpoint Program Configuration Overview
Introduction
Setpoint Program (Profile) configuration provides a quick and easy way to create, edit, and save up to
99 different ramp/soak (setpoint) profiles for the Setpoint Programmer (SPP) control blocks in the
configuration. An operator can interact with the configured profiles through the Setpoint Program
Operate display at the operator interface or operation can be directed through integral actions
connected by Softwiring functions.
Configuration Functions
Basic functions that you will use to configure a Setpoint Profile.
• Create/Edit Setpoint Profile - Under File-New or File-Open you can access the Profile Editor
to create or edit a setpoint profile.
• Setpoint Profile Pool - The SP Profile Pool lets you add or delete a profile on a list of
configured profiles. Through two menus on the dialog box you can set the properties for
each profile and set up or edit the information for each segment that make up a profile.
• Setpoint Profile Properties - Setpoint Profile Properties is information for the profile that is
entered on five specific tabs. It includes Text, General, Loop/Jog, and Start/Restart.
• Setpoint Profile Setup (EDIT) - Setpoint Profile Setup or Edit consists of configuring each
segment of the profile and assigning the ramps and soaks and associated information
(Values, Time, Auxiliary output, Guaranteed Hold, and Events) in the order required to
complete your SP program.
Revision 15
September 2013
HC900 Process Control Designer User Guide
163
Set Point Programming
Setpoint Program Configuration Overview
This page has been intentionally left blank
164
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Schedulers
Setpoint Scheduler Overview
Setpoint Schedulers
Setpoint Scheduler Overview
Setpoint Scheduler blocks may be configured for multi-setpoint control. Comprising the suite is a
Master block (SPS), Auxiliary Setpoint block (SPSA), Event Decoder block (SPEV), State Switch Block
(STSW), and State Flags block (STFL).
The Master block supports ramp or soak outputs operating on a common time base. It accepts one PV
for each setpoint. Setpoint guarantee is provided for the master (SPS) block setpoints with a single
symmetrical value for each setpoint output.
You can assign a Failsafe value for each setpoint.
The Auxiliary block supports soak only outputs.
The Event block supports event outputs.
A single schedule may include segments and auxiliary block data. The schedules are stored in the
controller’s memory.
Setpoint Schedules offer the same operating modes and digital controls as setpoint programs.
On-line editing of a running schedule is supported through dedicated operator interface displays
Setpoint Guarantee
Setpoint guarantee is provided for the master block setpoints with a single symmetrical value for each
setpoint output. Actions for the guarantee soak may be set on a per segment basis for OFF, high
setpoint deviation, low setpoint deviation or both high and low setpoint deviations.
Segments
Each segment of the Setpoint Scheduler allows entry of a next segment recycle location. This function
allows unlimited recycle nesting and continuous recycle operation. A jog function allows a single jump
to a designated segment number through a digital input to the State Switch block.
Labels
Main Output Labels
Eight character labels and four character engineering units are provided for each Setpoint plus a
decimal point selection.
Auxiliary Output Labels
Eight character labels and four character engineering units are provided for each Setpoint plus a
decimal point selection
Event Labels
Eight character labels are also provided for the Digital Event block.
Assigning these labels first will aid you in the setpoint schedule configuration process. These labels will
appear in the configuration dialog boxes.
Setpoint Schedule Overview
Introduction
Setpoint Schedule configuration provides a quick and easy way to create, edit, and save up to 20
different Setpoint Schedules for the Setpoint Scheduler (SPS) control blocks in the configuration. An
operator can interact with the configured schedules through the Setpoint Program Operate display at
the operator interface or operation can be directed through integral actions connected by Softwiring
functions.
Revision 15
September 2013
HC900 Process Control Designer User Guide
165
Setpoint Schedulers
Setpoint Schedule Overview
Setpoint Scheduler Display Configuration
ATTENTION
Before you proceed with the Setpoint Schedule assign the appropriate labels for the Setpoint
Scheduler displays.
Assigning these labels first will aid you in the schedule configuration process.
See Setpoint Scheduler Function Block configuration.
These labels will appear in the configuration dialog boxes.
Configuration Functions
Basic functions that you will use to configure a Setpoint Schedule.
• Create/edit Setpoint Schedule - Under File-New or File-Open you can access the Schedule
Editor to create or edit a setpoint schedule.
• Setpoint Schedule Pool - The SP Schedule Pool lets you add or delete a schedule on a list of
configured schedules. Through this dialog box you will set the properties for each schedule
and set up or edit the information for each segment that make up a schedule.
• Setpoint Schedule Properties - Setpoint Schedule Properties is information for the schedule
that a Label, a Jog Segment, Time Units, and Guaranteed Hold Limits for each of the eight
setpoints.
• Setup/Edit Setpoint Schedule - Setpoint Schedule Setup or Edit consists of configuring each
segment of the schedule and assigning starting values for all eight Setpoints of the segment
and the Guaranteed Hold Type for each. You can also set up to 16 events for each segment.
Time Units, Recycle Segment, and Recycle Counts selections are included on this dialog
box.
• You can also assign values to all eight Auxiliary Outputs for each segment by clicking on
each “Aux” button on the dialog box.
166
HC900 Process Control Designer User Guide
Revision 15
September 2013
Sequencers
What is Sequence Control?
Sequencers
What is Sequence Control?
The need to control a sequence of operation is a very common control requirement in industrial
equipment today. Sequence control can be a very rigid series of inter-related events used to start-up
or shut-down a unit process, or it can be a series of timed and process measurement dependent
events that are executed to produce a final product.
Sequences can be very simple with only timed or cascaded events that occur regardless of process
feedback, or they can be very complex with multiple nested default sequences programmed to occur
only if process feedback indicates a need to take alternate actions.
When sequence control is used to produce final product, sequence variations are often required to
allow the same equipment to be used to produce multiple types of product. In these applications the
sequence is often partitioned into logical units to allow operators and supervisors to monitor the
progress of the process using familiar terminology. Heat-up, cool-down, filling, venting, mixing and
other similar terms are often used to describe the particular phase the control equipment is executing.
Variations in the product being processed can require changes to the sequence where particular
phases are bypassed, duplicated or executed in an alternate manner.
When all of these requirements are combined in a single control specification, developing a suitable
control strategy can be a demanding and sophisticated endeavor.
Sequence Configuration Overview
The sequencer function block controls the output statuses of up to 16 digital outputs and one auxiliary analog
output. Each combination of outputs represents a state of the sequence such as Heat, Mix, or Cool, for example.
The function block supports up to 50 states e.g. PURGE, FILL, HEAT, etc.
The sequence contains up to 64 steps. Each step enables a state, allowing for a state to be designated for
several steps.
A pool of 20 sequences, up to 64 steps each, may be stored in controller memory for quick recall and assignment
to any of the 4 sequencers.
Each state supports two of digital events as inputs that can designate the end of the associated step.
Time in seconds or minutes, a manual advance, or a digital event can be used to terminate a sequencer step and
cause the sequence to advance.
The operational sequence for the steps is retained in a separate sequence file in the memory pool of
the controller that may be selected on-demand through a user interface or via a recipe (variables).
Configuration Functions
Basic functions that you will use to configure a Sequence.
Sequence Editor
Create/Edit a Sequence under the File-New or File-Open menus. Accesses the Sequence Editor.
Sequence Pool
When you select "Sequences" from the Recipe menu, the "Sequence Pool" dialog box will be
displayed. Through this display, you will add a new sequence or delete an existing one and also
enter the properties function and the "Edit Sequence" function to set up each sequence.
Sequence Properties
Sequence Properties is information for the sequencer: Label, Description, a Jog Step, and Time
Units.
Sequence Setup (EDIT)
Sequence Setup or Edit consists of configuring each step of the Sequence with a State Number
and Name, Time In Step, Time Next Step, Event 1 Next Step, Event 2 Next Step, Advance next
step, and an Auxiliary value.
Revision 15
September 2013
HC900 Process Control Designer User Guide
167
Recipes
Recipe Overview
Recipes
Recipe Overview
Multiple meanings of "recipe"
Loop control users apply the word "recipe" differently in different contexts. There is no industry
standard for the word’s meaning. In a broader sense, a recipe is any collection of data specific to a
process setup that can be downloaded into and then run as part of controller’s function block
configuration. The following are recipe types:
Recipe (Variables)
Set Point Profile
Set Point Schedule
Sequence
Notice the first recipe type is also called a recipe. The two uses of the word "recipe" can get confusing.
In this narrower sense, a recipe is a collection of data—specifically, variables. To distinguish it from the
broader meaning HC Designer calls it "recipe (variables)".
To one user a recipe is a collection of variables; to another user a recipe is a set point profile; to
another user a recipe is a set point schedule; to another it's a sequence. These different uses of the
word "recipe" are all ok as long as you understand they are all recipes in the broader sense.
A recipe needs a configuration for context
A recipe by itself is useless; it must be associated with a specific controller configuration to give it
context. Therefore when creating or opening a recipe you must specify by name which configuration
the recipe applies to. Set Point Profiles are excluded from this requirement.
Recipe type
Recipe
Setpoint Profile
Setpoint Schedule
Sequence
How linked to configuration
Variable tag names
Not linked to configuration
Event labels
State Name, Event Signal #1, Event Signal # 2
Compatibility
It is up to you to understand how your recipes will work with your configurations. For example, when
you download a recipe (variables)(.rcp) to a controller, the recipe’s variables, sequential order and their
values might make sense in one controller configuration but not another.
Recipe locations
Once created, a recipe can reside in several places. Be aware that having multiple copies of a recipe
can cause mixups. For example, suppose you’ve created a recipe (any type) called COOKIES. It can
reside in the following places.
COOKIES saved as a separate recipe file to disk or floppy. Recipe files can be added to a recipe
pool. (See Recipe file types.)
COOKIES in the recipe pool of a configuration saved to disk as a .CDE file.
COOKIES in the recipe pool of a currently open configuration in the software. (See Recipes menu)
COOKIES in the recipe pool of your controller’s running configuration. Here it is available to be
loaded into the controller’s function block configuration.
COOKIES actively loaded and running in your controller’s function blocks.
This example applies to all recipe types (recipe (variables), schedules, sequences, profiles).
168
HC900 Process Control Designer User Guide
Revision 15
September 2013
Recipes
Recipes Menu
Recipe file types
After creating a recipe or editing one in the recipe pool, you can save a recipe to disk using the
following extensions (assigned automatically).
Recipe (variables): .RCP
Set Point Profile: .PRF
Set Point Schedule: .SCH
Sequence: .SEQ
When part of a configuration’s recipe pool, a recipe is not saved as a separate file but is saved in a
"slot" in the pool as part of the configuration (.CDE). Any recipe can be accessed in the configuration’s
recipe pools and saved as its own recipe file if desired.
Recipes Menu
Accesses all recipe pools. To learn about the different recipe types read Recipe Overview.
Menu Selection
Function
Allocate Recipe Memory
Allocates the controller's memory for the four recipe types. This is the number
of recipes that can be stored in the controller's four recipe pools. Recipes in
these pools can be loaded and run by Recipe Selection Blocks, Programmers,
Schedulers, and Sequencers. As recipe memory usage increases, less memory
is available for other parts of your configuration (such as function blocks).
Recipes (Variables)…
A recipe (variables) is a list of Variables with settings that define the ingredients
needed to make a product or run a particular batch. This selection opens the
Recipe Pool dialog box and allows viewing, adding, editing, and printing of
Recipe details.
You can save the selected recipe item to a file; open a recipe file and insert it
into the pool; and download the selected recipe item to a controller’s recipe
pool.
Setpoint Profiles…
Setpoint Program (Profile) configuration provides a quick and easy way to
create, edit, and save different ramp/soak (setpoint) profiles for the Setpoint
Programmer (SPP) control blocks in the configuration. This selection opens the
Setpoint Profile Pool dialog box and allows viewing, adding, editing, and
printing of Setpoint Profile details.
You can save the selected SPP item to a file; open a SPP file and insert it into
the pool; and download the selected SPP item to a controller’s Setpoint Profiles
pool.
Setpoint Schedules…
Setpoint Schedule configuration provides a quick and easy way to create, edit,
and save different Setpoint Schedules for the Setpoint Scheduler (SPS) control
blocks in the configuration. This selection opens the Setpoint Schedule Pool
dialog box and allows viewing, adding, editing, and printing of Setpoint
Schedules details.
You can save the selected SPS item to a file; open a SPS file and insert it into
the pool; and download the selected SPS item to a controller’s Setpoint
Schedule pool.
Sequences…
Sequence configuration provides a series of inter-related events used to startup or shut-down a unit process, or a series of timed and process measurement
dependent events that are executed to produce a final product. This selection
opens the Sequence Pool dialog box and allows viewing, adding, editing, and
printing of Sequence details.
You can save the selected SEQ item to a file; open a SEQ file and insert it into
the pool; and download the selected SEQ item to a controller’s Sequence pool.
Revision 15
September 2013
HC900 Process Control Designer User Guide
169
Recipe (Variables)
Introduction
Recipe (Variables)
Introduction
Each recipe consists of Variables, and carries its own unique recipe number and name for
identification. (The names are descriptive references [aliases] and uniqueness is not enforced. Unique
names are recommended to avoid operator confusion). The selected Variables were assigned during
the Function Block Diagram Configuration.
It is possible to edit the setting of any recipe Variables through the Recipe Setup display at the
operator interface. This means that an operator can adjust individual ingredient amounts in the recipe;
but the ingredients (item’s Variable Name), the order of the ingredients, and the recipe’s number and
name are under configuration control.
The recipe variable list is configured using the Designer application. An operator will be able to change
individual item values through the Operator Interface.
For automatic loading of a setpoint profile in addition to other variables, a variable representing a
profile number may be included in the recipe. This would also apply to a schedule or sequence
number.
Recipe Attributes
A recipe is a list of Variables with settings that define the ingredients needed to make a product or run
a particular batch. The items represent Analog and/or Digital Points that were assigned in the Function
Block Configuration and are identified by their Variable Names. Recipes have these basic attributes:
Recipe Number - A unique number must be assigned for each recipe that is configured. Numbers can
be assigned in any sequence with gaps between numbers, but no two recipes can be given the same
number.
Recipe Name - A descriptive name must be assigned consisting of letters or numbers with no spaces.
Thus, a name can be any combination of letters and numbers without spaces. Note that lowercase
letters are automatically converted to uppercase letters.
Recipe Variables - A list of Variables can be compiled for each recipe. A valid Variable and desired
setting must be specified for each recipe item.
Adjustable Settings - The setting for an analog point can be any appropriate value from–99999 to
99999, and a digital point can be set in its ON or OFF state. It is possible to edit/change any recipe
item/Variable Name setting through the "Edit Recipe" Setup dialog box during configuration.
Recipe (Variables) Configuration
Overview
A recipe is a list of Variables with settings that define the ingredients needed to make a product or run
a particular batch. The items represent Analog and/or Digital Points that are assigned in the Function
Block Configuration and are identified by their Variable Names.
Configuration Functions
Basic functions that you will use to configure a Recipe:
Recipe Editor
Create/Edit a Recipe under the File-New or
File-Open menus. Accesses the Recipe Editor.
Recipe Pool
When you select "Recipes" from the Recipe menu, the "Recipe Pool " dialog box will be displayed.
Through this display, you will add a new recipe or delete an existing one and also enter the properties
function and the "Edit Recipe" function to set up each recipe.
170
HC900 Process Control Designer User Guide
Revision 15
September 2013
Recipe (Variables)
Using Recipes to Download Setpoint Profiles
Recipe Properties
The Recipe Properties is merely a name assigned to the recipe, which will be added to the pool. You
can also include a descriptor.
Recipe Setup (EDIT)
Recipe Set Up or Edit consists of selecting Variable names, assigning an analog value or digital state,
and adding them to a list of Recipe items.
Using Recipes to Download Setpoint Profiles
Recipes can be given an 16-character name and shown on the Recipe Menu display for user selection
(accessed through the Main Menu selections of the Operator Interface).
A Recipe can automatically load a stored profile number for use by a specific Set Point Programmer.
To do this connect an Analog Variable to the NPGM pin of the Set Point Programmer block given a
name such as PROFNUM (see figure below). This Variable is added to the variable list for a recipe
and given a number corresponding to the profile number to be loaded. Upon selection and loading of
the recipe at the Operator Interface, the programmer will also load the profile number listed in the
recipe. The operation of the programmer to run this profile is from the standard Set Point Programmer
display.
As an example, for a selection of a SP Profile number 2, the entries into the Edit Recipe dialog box
would be
VARIABLE NAME = PROFNUM
VALUE = 2
Revision 15
September 2013
HC900 Process Control Designer User Guide
171
Recipe (Variables)
Create/Edit Recipe (Variables) File
Create/Edit Recipe (Variables) File
Creates/edits a group of variables to be saved as a file (.RCP). File can be downloaded to the recipe
pool. A recipe in the pool can later be edited or loaded into the controller’s active configuration. The file
assumes that the variables are in a certain order in the configuration. Make sure that this order is
preserved when loading into a controller’s active configuration. Changes to variables via deletions,
renaming, or re-directing may affect the recipe content.
Step/Item
Action/Description
Select File, Open.
Lets you choose an .RCP file to edit. After selecting file the Recipe
Editor appears.
OR
Select File, New.
Select Recipes tab.
Select Recipes
(Variables).
THEN
Select a Reference
Configuration.
"Choose a new file type" box appears.
Recipe types appear.
The Recipe Editor appears.
Recipe Items
A recipe must have a configuration to give it context. Select an open
configuration from the pull-down list. If none available, select Open
Configuration to open one. The configuration will open. Click back to
Recipe Editor and select the reference configuration.
Identify the recipe.
Lists all variable tags in the reference configuration. Click on a tag
and click Add to add it to the recipe.
Lists all variables in the recipe.
Name
Name of variable
Value
Value/state of variable. If analog variable, enter a value in the value field. If
digital variable, select ON or OFF.
Delete
Print
Save
Download
Deletes selected item from recipe.
Prints the recipe
Saves the recipe as .RCP file.
Downloads recipe to the controller’s recipe pool where it can be
edited or loaded into the controller’s active configuration.
Name and Description
Variable Tag List
172
HC900 Process Control Designer User Guide
Revision 15
September 2013
Recipe (Variables)
Recipe Pool
Recipe Pool
Introduction
This is the recipe (variables) pool. The Recipe Pool lets you add or delete a Recipe on a list of
configured Recipes and also enter the "Properties" function and the "Edit Recipe " function to set up
each recipe.
Configuration
When you select "Recipes (Variables)" from the Recipes menu, the "Recipe Pool" dialog box will be
displayed. From left to right the icons are:
ADD a Recipe:
Put cursor on an empty pool line and select the NEW Icon. The "Recipe Properties" dialog box will
open.
EDIT the Properties of an Existing Profile:
Select the Worksheet Properties Icon. The "Recipe properties" dialog box will open.
EDIT a Recipe:
Select the Edit Recipe Icon. The "Edit Recipe" dialog box will appear.
COPY and PASTE:
Select a recipe from the pool window, then select the Copy Icon. Select another location in the pool
window, then select the Paste Icon. The copied recipe will be inserted into the location selected.
DELETE a Recipe:
Click on a recipe name and then click on the Delete icon.
PRINT a Recipe:
Click on a recipe name and then select the Print icon. The "Print" dialog box will appear.
Select OK.
A recipe report will be printed with all the information entered on the "Recipe Properties" dialog box.
[Variable, Description, Value or State]
SAVE a Recipe:
To save a recipe as a .rcp file, click on a recipe name and then select the Save icon. The "Save As"
dialog box will appear.
OPEN a Recipe:
To open a previously saved .rcp file and insert it into the pool, click on the Open icon.
DOWNLOAD a Recipe:
To download a recipe to the controller’s recipe pool, click on the Download icon.
Revision 15
September 2013
HC900 Process Control Designer User Guide
173
Recipe (Variables)
Setup/Edit a Recipe in Pool
Setup/Edit a Recipe in Pool
The "Edit Recipes" dialog box lets you set up or edit a recipe listed in the "Recipe Pool."
Make sure you have clicked on "Properties " and have given that specific recipe a name and
description. See RECIPE POOL before proceeding.
Procedure
Click on a recipe name in the active field and select "Recipe" or double click on the recipe name. The
"Edit Recipe" dialog box will appear.
To ADD Variable to a Recipe:
Select a variable and click on ADD. A variable number will appear under "Recipe Items".
To DELETE a Variable from a Recipe:
Select a variable number from the "Recipe Items" field, then click "Delete".
To SET UP a Recipe Item
From the "Recipe Items" list, select a variable name from the list of recipe items.
If it is an analog variable, enter a value in the value field.
If it is a digital variable, select ON or OFF, from the drop-down menu in the Value field, as a digital
state for the variable.
Repeat this procedure for each recipe variable desired for the recipe you are configuring.
Click "OK". The length of the Recipe (number of variables) will appear in the "Recipe Pool".
Click "CLOSE" on the "Recipe Pool’ dialog box to complete the configuration.
Recipe Properties
The Recipe Properties dialog box contains fields for you to enter:
• a recipe name you want assigned to the recipe, which will be added to the pool.
• a descriptor of 16 characters.
174
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Profiles
Create/Edit Setpoint Profile File
Setpoint Profiles
Create/Edit Setpoint Profile File
Creates/edits a setpoint profile be saved as a file (.PRF). File can be downloaded to the setpoint profile
pool. A profile in the pool can be edited or loaded into the controller’s active configuration.
Step/Item
Action/Description
Select File, Open.
Lets you choose a .PRF file to edit. After selecting file the Profile
Editor appears.
OR
Select File, New.
Select Recipes tab.
Select Setpoint Profile
THEN
Name and
Description
Properties
Ramp Type
Eng. Units
Time Units
Aux. Out Units
Guar. Hold Type
Guar. Hold High
Guar. Hold Low
Add
Insert
Delete
Type
SP Value
Time/Rate
Revision 15
September 2013
"Choose a new file type" box appears.
Recipe types appear.
The Profile Editor appears.
Identify the profile.
This function lets you set the properties for the profile. The
information configured here will appear in the Edit SP Profile dialog
box.
Properties of the profile. You can change these under Properties.
Adds a step.
Inserts a step.
Deletes selected step.
Ramp or Soak. A ramp segment is a starting setpoint and the time
or rate to reach the setpoint of the following segment. Typically,
segment #1 will be a ramp.
Setpoint value set for Ramp (starting Setpoint value) and Soak
(soak setpoint value).
Ramp time is determined in either:
TIME*-Hours or Minutes
Range =
0.00 hr. to 999.99 hr. / 0.00 min. to 999.99 min.
OR
RATE*-EU/MIN or EU/HR
Range =
0 to 999.99
*This selection of time or rate is made when you configure
properties. Make this selection before entering any Ramp. NOTE:
When Ramp unit is configured for TIME, entering "0" will imply an
immediate step change in setpoint to the next soak.
HC900 Process Control Designer User Guide
175
Setpoint Profiles
Create/Edit Setpoint Profile File
Step/Item
Aux. Out
Guar. Hold
Events
Print
Save
Download
176
Action/Description
In addition to the main ramp and soak output value, a second
analog value is available for each step of the profile. This output is
a fixed soak value, which may be used to provide a setpoint value
for a secondary control loop in the process. An example would be
a ramp and soak temperature program combined with pressure
setpoints for each step of the profile.
OFF or ON. Choose ON to hold the program if a process variable
exceeds a predefined deviation from setpoint.
You can configure 1 to 16 segment events to turn ON or OFF at
the beginning of each segment. Segment events are digital
switches that provide ON/OFF outputs through an SPEV control
block. When a segment event is turned ON, it remains ON until the
end of the segment at which time it is turned OFF unless it is
configured to turn ON in the next segment. Note that segment
events are not interrupted by soak time delays when the process
variable is outside the guaranteed soak band. Events turn ON as
soon as the previous segment is completed even if the process
variable has not reached the soak setpoint. When the program
completes, the events are held at current value until the
programmer is returned to the ready state.
Prints the profile.
Saves the profile as .PRF file.
Downloads profile to the controller’s Setpoint Profile Pool where it
can be edited or loaded into the controller’s active configuration.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Profiles
Setpoint Profile Properties
Setpoint Profile Properties
Introduction
This function lets you set the properties for the program selected in the Setpoint Profile Pool. Appears
when creating a new profile or editing one in the setpoint profile pool.
Parameters
Enter the properties information in the appropriate fields in the dialog box, then click "OK".
Parameter
Parameter Description
Entry Information
TEXT
Label
Profile Name
8 characters
Descriptor
Description of Profile
16 characters
Primary
Output
Label
Primary Output Descriptor Name.
8 characters
Primary
Output
Engineering
Units
Primary Output Engineering Units
descriptor
4 characters
Auxiliary
Output
Label
Auxiliary Output Descriptor name
8 characters
Auxiliary
Output
Engineering
Units
Auxiliary Output Engineering Units
descriptor
Auxiliary Output Engineering Units
descriptor
Rate
Each ramp segment's time specifies
the RATE at which that profile's output
will reach the next segment.
Click on Radio button
Time
Each ramp segment's time is the TIME
allotted to the profile's output to reach
the next segment's value in hours or
minutes.
Click on Radio button
GENERAL
Ramp Type
Guaranteed
Hold Type
None
No guaranteed hold if a PV deviates a
specified amount above or below the
profile output.
Click on Radio button
Per Segment
All Soaks
Click on Radio button
Lets you select specific segments for
guaranteed soak where you set up the
profile ramps and soaks.
Click on Radio button
All soaks will have a guaranteed soak.
Revision 15
September 2013
HC900 Process Control Designer User Guide
177
Setpoint Profiles
Setpoint Profile Properties
Click on Radio button
All Segments
All segments will have a guaranteed soak
Time Units
Hours
Click on Radio button
This selection assigns the time units of
all segments in HOURS.
Click on Radio button
Minutes
This selection assigns the time units of
all segments in MINUTES.
Guaranteed
Hold High
A Number in Engineering Units above
the setpoint outside of which the timer
halts
Enter a value
Guaranteed
Hold High
Enter a Number in Engineering Units
below the setpoint outside of which the
timer halts.
Enter a value
Segment number jog will go to.
Enter a value
LOOP/JOG
Jog Segment
Loop
Start Segment
This designates the number of the first
segment of the loop.
End Segment
This designates the number of the last
segment of the loop. The last segment of
a program must be a soak segment. Last
segment of a loop can be a ramp or soak.
Cycles
This number lets the program repeat
(loop) a specified number of time from
beginning to end.
Enter a value from
1 to 49
Enter a value from
2 to 50
Enter a value from
0 to 100
An entry of 0 will cause an indefinite loop.
Enter a value in Engineering Units
START/RESTART
Restart Rate
The Restart Rate value is used to return
the process to the last operating setpoint
prior to power loss when restart input is
connected to power off timing block.
Click on the tab to access the properties for that tab.
Enter the information required for each tab then click "OK".
Click on the profile name in the Setpoint Profile Pool and select the Edit Segments Icon (3rd from left)
from the Toolbar on the dialog box
178
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Schedules
Create/Edit Setpoint Schedule file
Setpoint Schedules
Create/Edit Setpoint Schedule file
Creates/edits a setpoint schedule be saved as a file (.SCH). File can be downloaded to the setpoint
schedule pool. A schedule in the pool can be edited or loaded into the controller’s active configuration.
Step/Item
Action/Description
Select File, Open.
Lets you choose a .SCH file to edit. After selecting file the Schedule
Editor appears.
OR
Select File, New.
Select Recipes tab.
Select Setpoint Schedule.
THEN
Select a Reference
Configuration.
Name and Description
Properties
Time
SP1-SP8
Events 1-16
Aux1-Aux8
GHold1-GHold8
Recycle Segment
Recycle Count
Revision 15
September 2013
"Choose a new file type" box appears.
Recipe types appear.
The Schedule Editor appears.
A schedule must have a configuration to give it context. Select an open
configuration from the pull-down list. If none available, select Open
Configuration to open one. The configuration will open. Click back to
Schedule Editor and select the reference configuration.
Identify the schedule.
Sets properties for the schedule, such as time units and guaranteed
hold limits.
Length of time for the segment.
Setpoint values. For ramp segments these are the starting values.
Segment events are digital switches that provide ON/OFF output
through an SPS function block. When a segment event is turned ON, it
remains on until the end of the segment at which time it is turned OFF
unless it is configured to turn ON in the next segment. Select from the
drop down menu which events you want to turn ON or OFF at the
beginning of each segment.
The auxiliary block supports up to 8 soak only outputs. You can
assign values to all eight Auxiliary Outputs for each segment.
Setpoint guarantee is provided for the master block setpoints with a
single symmetrical value for each setpoint output. Actions for the
guarantee soak may be set on a per segment basis for OFF, HIGH
setpoint deviation, LOW setpoint deviation or both HIGH and LOW
setpoint deviations. Click on an active field and select a GHOLD Type
from Drop-down menu:
OFF - No Guaranteed Hold
HIGH setpoint deviation - The schedule will hold if a PV deviates
above the Setpoint value set.
LOW setpoint deviation - The schedule will hold if a PV deviates below
the Setpoint value set on the "Setpoint Schedule Properties" dialog
box.
HIGH and LOW setpoint deviations - The schedule will hold if a PV
deviates above or below the Setpoint value set on the "Setpoint
Schedule Properties" dialog box.
The segment number at which a recycle will start. Enter a value 0 to 50
This number lets the schedule repeat (loop) a specified number of
times. Enter a value 0-999 or 0 for infinite.
HC900 Process Control Designer User Guide
179
Setpoint Schedules
Setpoint Schedule Pool
Step/Item
Delete
Print
Save
Download
Action/Description
Deletes selected item from schedule.
Prints the schedule.
Saves the schedule as .SCH file.
Downloads schedule to the controller’s schedule pool where it can be
edited or loaded into the controller’s active configuration.
Setpoint Schedule Pool
Introduction
The SP Schedule Pool lets you add or delete a schedule on a list of configured schedules. Through
this dialog box you will set the properties for each schedule and then set up or edit the information for
each segment that make up a schedule.
Configuration
When you select “Setpoint Schedules” from the Recipe menu, the “Setpoint Schedule Pool” dialog box
will be displayed. Through this display, you will add a new schedule or delete an existing one and also
enter the set properties function and the “Edit Schedule” function to set up each schedule.
From left to right the icons are:
To ADD a Schedule:
Select the NEW Icon. The “Setpoint Schedule Properties ” dialog box will open.
To EDIT the Properties of an Existing Schedule:
Select the Worksheet Properties Icon. The “Setpoint Schedule Properties ” dialog box will open.
To EDIT a Schedule:
Select the Edit Segments Icon. The “Edit Setpoint Schedule” dialog box will appear.
COPY and PASTE:
Select a schedule from the pool window, then select the Copy Icon. Select another location in the pool
window, then select the Paste Icon. The copied schedule will be inserted into the location selected.
To DELETE a Schedule:
Click on a schedule name and then click on the Delete icon.
PRINT a Schedule:
Click on a schedule name and select the Print icon. The "Print" dialog box will appear.
Select OK.
A profile report will be printed with all the information entered on the tabs of the "Setpoint Schedule
Properties" dialog box.
SAVE a Schedule:
To save a Schedule as a .sch file, click on a recipe name and then select the Save icon. The "Save As"
dialog box will appear.
OPEN a Schedule:
To open a previously saved .sch file and insert it into the pool, click on the Open icon.
DOWNLOAD a Schedule:
To download a Schedule to the controller’s Schedule pool, click on the Download icon.
180
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Schedules
Setup/Edit Setpoint Schedule in Pool
Setup/Edit Setpoint Schedule in Pool
Introduction
The “Edit Schedule” dialog box lets you set up or edit a schedule from the schedules listed in the
“Setpoint Schedule Pool.”
Make sure you have clicked on “Properties ” and have configured the properties for that specific
Schedule.
Edit a Schedule
Click on a schedule name in the active field and select the Edit Segments Icon (3rd from left) from the
Toolbar on the dialog box or double click on the schedule name.
The “Edit Schedule Segments” dialog box will appear with the selected Schedule indicated on the top
banner. The Designer presents multiple segments at a time to view and edit.
To ADD a Segment
Click on ADD on the dialog box. A new Segment number will appear at the bottom of the segment list.
To DELETE a Segment
Click on a segment number in the field and click “Delete” on the dialog box. The segment will be
deleted and all the segment numbers following the deletion will be changed.
To EDIT a Segment
Each segment contains the following Segment attributes: (click on field for drop down menu to appear
for some selections)
Parameter
Parameter Description
Entry Information
Time
Length of time for the segment
Time Units were selected in the “Setpoint
Schedule Function Block Properties ” Dialog Box
Value in Minutes or
Hours, whichever has
been selected.
Setpoint Values
Setpoint 1 through Setpoint 8
Enter a starting
setpoint value in each
active field
Ghold Type
Setpoint guarantee is provided for the master
block setpoints with a single symmetrical value for
each setpoint output. Actions for the guarantee
soak may be set on a per segment basis for OFF,
HIGH setpoint deviation, LOW setpoint deviation
or both HIGH and LOW setpoint deviations.
Click on an active field
and select a GHOLD
Type from Drop-down
menu
[Ghold1 thru
Ghold8]
OFF - No Guaranteed Hold
HIGH setpoint deviation
The schedule will hold if a PV deviates above the
Setpoint value set.
LOW setpoint deviation
The schedule will hold if a PV deviates below the
Setpoint value set on the “Setpoint Schedule
Properties” dialog box.
HIGH and LOW setpoint deviations
The schedule will hold if a PV deviates above or
below the Setpoint value set on the “Setpoint
Schedule Properties” dialog box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
181
Setpoint Schedules
Setup/Edit Setpoint Schedule in Pool
Parameter
Auxiliary Outputs
Parameter Description
Entry Information
[Aux1 thru Aux8]
The auxiliary block supports up to 8 soak only
outputs. You can assign values to all eight
Auxiliary Outputs for each segment.
Enter values for all
Auxiliary Outputs in the
appropriate fields.
Recycle Segment
The segment number at which a recycle will start
Enter a value
0 to 50
Recycle Count
This number lets the schedule repeat (loop) a
specified number of times.
Enter a value 0-999
or 0 for infinite
Events
Segment events are digital switches that provide
ON/OFF output through an SPS function block .
Select, from the drop
down menu, which
events you want to turn
ON or OFF at the
beginning of each
segment. Click on the
box for each segment.
[Events 1 thru 16]
When a segment event is turned ON, it remains
on until the end of the segment at which time it is
turned OFF unless it is configured to turn ON in
the next segment.
A zero will change to 1
in the selected event
position
182
HC900 Process Control Designer User Guide
Revision 15
September 2013
Setpoint Schedules
Setpoint Schedule Properties
Setpoint Schedule Properties
Introduction
This function lets you set the properties for the schedule selected in the Setpoint Schedule Pool. If you
are adding a schedule, this dialog box will automatically appear. It will also appear if you select the
Worksheet Properties Icon (2nd from left) from the Toolbar on the dialog box. The information
configured here will appear in the “Edit Schedule Segment” dialog box.
Configuration
Refer to the table below and enter the properties information in the appropriate fields in the dialog box,
then click “OK”. You will return to the “Setpoint Schedule Pool ” dialog box.
Parameter
Parameter Description
Entry Information
General
Label
Schedule Name
6 characters
Descriptor
Description of schedule
16 characters
Jog Seg
Logic input (JOG) on state switch
block will cause the schedule to
jump to the start of the segment
designated then continue.
Segment number jog
will go to
Time Units
This selection assigns the time
units (hours or minutes) for all
segments.
Hours
Time unit in Hours
Click on Radio button
Minutes
Time unit in Minutes
Click on Radio button
The schedule will hold if a PV
deviates above or below (or both)
the Setpoint value set here.
Enter a setpoint value
Guaranteed Hold
Limit
Select Guaranteed Hold Type on
the “Setpoint Edit Schedule”
dialog box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
183
Sequences
Create/Edit Sequence File
Sequences
Create/Edit Sequence File
Creates/edits a sequence be saved as a file (.SEQ). File can be downloaded to the sequence pool. A
sequence in the pool can be edited or loaded into the controller’s active configuration.
Step/Item
Action/Description
Select File, Open.
Lets you choose a .SEQ file to edit. After selecting file the Sequence
Editor appears.
OR
Select File, New.
Select Recipes tab.
Select Sequence.
THEN
Select a Reference
Configuration.
Name and Description
Properties
Add
Time
SP1-SP8
State
State name
Time in Step
Time in Next Step
Event Signal #1
Event 1 Next Step
Event Signal #2
184
"Choose a new file type" box appears.
Recipe types appear.
The Sequence Editor appears.
A sequence must have a configuration to give it context. Select an
open configuration from the pull-down list. If none available, select
Open Configuration to open one. The configuration will open. Click
back to Sequence Editor and select the reference configuration.
Identify the sequence.
Sets properties for the sequence, such as jog step and time units.
Adds a step to the sequence.
Length of time for the segment.
Setpoint values at the start of the segment.
State number for each step of the sequence. A state may be
selected multiple times in the sequence. Since time is an attribute
of the sequence, the state may be activated for a different time
period each time it is selected. (The order does not have to be
sequential). Enter a State Number in each active field. States are
numbered from 1 to 50.
Name of current state. Enter a state name (12 character max.)
Examples: Heating, Cooling, Mixing.
Time duration value for each step of the sequence. Time units can
be changed under Properties.
Designates the step the sequence will advance to when the time
expires. It can be any step in the sequence, including steps that
have been previously executed. Enter 0 to stop the sequence after
current step expires and to hold the outputs.
Click on the Event Signal #1 field and from the drop-down menu,
select the event you want signal #1 to represent.
Each state of the sequence can also be configured to accept two
different events to terminate the step. Whichever occurs first—an
Off-to-On (rising edge) transition of either event signal OR elapsed
step time—will cause the sequence to advance to the appropriate
next step. Enter a value for Event 1 Next Step.
Click on the Event Signal #2 field and from the drop-down menu,
select the event you want signal #2 to represent.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Sequences
Create/Edit Sequence File
Step/Item
Event 2 Next Step
Advance Next Step
Aux. Value
Delete
Print
Save
Download
Revision 15
September 2013
Action/Description
Each state of the sequence can also be configured to accept two
different events to terminate the step. Whichever occurs first—an
Off-to-On (rising edge) transition of either event signal OR elapsed
step time—will cause the sequence to advance to the appropriate
next step. Enter a value for Event 2 Next Step.
Allows you to select an appropriate action for the manual advance
OI action or function block digital advance input. Enter a value.
Enter an analog output value associated with each state.
Deletes selected step from sequence.
Prints the sequence.
Saves the sequence as .SEQ file.
Downloads sequence to the controller’s schedule pool where it can
be edited or loaded into the controller’s active configuration.
HC900 Process Control Designer User Guide
185
Sequences
Sequence Pool
Sequence Pool
Introduction
The Sequence Pool lets you add or delete a Sequence on a list of configured Sequences and also
enter the "Properties" function and the "Edit Sequence " function to set up each Sequence.
Configuration
When you select "Sequences" from the Recipes menu, the "Sequence Pool" dialog box will be
displayed. From left to right the icons are:
ADD a Sequence:
Select the NEW Icon. The "Sequence Properties" dialog box will open.
EDIT the Properties of an Existing Sequence:
Select the Worksheet Properties Icon. The "Sequence Properties" dialog box will open.
EDIT a Sequence:
Select the Edit Sequence Icon. The "Setup/Edit Sequences" dialog box will appear.
COPY and PASTE:
Select a recipe from the pool window, then select the Copy Icon. Select another location in the pool
window, then select the Paste Icon. The copied sequence will be inserted into the location selected.
DELETE a Sequence:
Click on a sequence name and then click on the Delete icon.
PRINT a Sequence:
Click on a sequence name and then select the Print icon. The "Print" dialog box will appear.
Select OK.
A sequence report will be printed with all the information entered on the "Sequence Properties" dialog
box. [Label, Description, Jog Step, and Time Units in Hours or Minutes]
SAVE a Sequence:
To save a sequence as an .seq file, click on a recipe name and then select the Save icon. The "Save
As" dialog box will appear.
OPEN a Sequence:
To open a previously saved .seq file and insert it into the pool, click on the Open icon.
DOWNLOAD a Sequence:
To download a sequence to the controller’s sequence pool, click on the Download icon.
Setup/Edit Sequence in Pool
Introduction
The "Edit Sequence" dialog box lets you set up or edit a sequence from the sequences listed in the
"Sequence Pool" dialog box.
Make sure you have clicked on "Edit Properties" toolbar icon and have configured the properties for
that specific Sequence.
Edit a Sequence
Click on a Sequence name in the active field and select the Edit Item Icon (3rd from left) from the
Toolbar on the dialog box or double click on the Sequence name.
The "Edit Sequence" dialog box will appear with the selected Sequence indicated on the top banner.
Several Steps are shown for viewing and editing.
To ADD a Step
Click on ADD on the dialog box. A new Step number will appear at the bottom of the Step list.
186
HC900 Process Control Designer User Guide
Revision 15
September 2013
Sequences
Setup/Edit Sequence in Pool
To DELETE a Step
Click on a Step number in the field and click "Delete" on the dialog box. The Step will be deleted and
all the step numbers following the deletion will be changed.
To EDIT a Step
Each step contains the following Step attributes:
Parameter
Parameter Description
Entry Information
State Number
State number for each step of the sequence.
A state may be selected multiple times in the
sequence. Since time is an attribute of the
sequence, the state may be activated for a
different time period each time it is selected.
(The order does not have to be sequential)
Enter a State Number in each
active field. States are
numbered from 1 to 50
State Name
Name of current state
N/A
Time in Step
Time duration value for each step of the
sequence.
Enter values for all Steps in the
appropriate fields.
Time Units are selected on the Sequence
Properties dialog box
Time Next Step
Designates the step the sequence will
advance to when the time expires. It can be
any step in the sequence, including steps that
have been previously executed.
Enter a number for the next
step when time expires on
current step. Enter 0 to stop the
sequence after current step
expires and to hold the outputs.
Event Signal #1
The event signal is a digital signal defined in
the sequencer block. When Event Signal #1
signal transitions from FALSE to TRUE the
sequence will jump to the step defined in
Event 1 Next Step.
N/A
Event 1 Next Step An off-to-on (rising edge) transition of Event
Signal #1 will cause the sequence to advance
to the step specified here.
Enter a value for Event 1 Next
Step.
Event Signal #2
N/A
The event signal is a digital signal defined in
the sequencer block. When Event Signal #2
signal transitions from FALSE to TRUE the
sequence will jump to the step defined in
Event 2 Next Step.
Event 2 Next Step An off-to-on (rising edge) transition of Event
Signal #2 will cause the sequence to advance
to the step specified here.
Enter a value for Event 2 Next
Step.
Advance Next
Step
Allows you to select an appropriate action for
the manual advance OI action or function
block digital advance input
Enter an "Advance Next Step"
value.
Aux Value
Enter an analog output value associated with
each state.
Enter an analog output value.
Revision 15
September 2013
HC900 Process Control Designer User Guide
187
Sequences
Sequence Properties
Sequence Properties
Introduction
This function lets you set the properties for the sequence selected in the Sequence Pool. If you are
adding a Sequence, this dialog box will automatically appear. It will also appear if you select the
Worksheet Properties Icon (2nd from left) from the Toolbar on the dialog box. The information
configured here will appear in the "Edit Sequence" dialog box.
Configuration
Refer to the table below and enter the properties information in the appropriate fields in the dialog box,
then click "OK" to return to the "Sequence Pool" dialog box.
Parameter
Parameter Description
Entry Information
Sequence Name
6 characters
General
Label
Descripto Description of Sequence
16 characters
Jog Step
Step number jog
will go to
r
Time Units
188
Logic input (JOG) on state switch
block will cause the Sequencer to
jump to the start of the step
designated then continue.
This selection assigns the time
units (hours or minutes) for all
Steps.
Hours
Time unit in Hours
Click on Radio button
Minutes
Time unit in Minutes
Click on Radio button
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Overview
On-Line Monitoring
Overview
Designer Monitoring provides the following:
• Multiple, concurrent function block Monitor Windows
•
•
−
You can open as many Function Block monitor windows as you want until you run out of
physical resources on the PC
−
You can open Function Block monitor windows concurrently for Function Blocks on different
Function Block Diagram Worksheets
−
Function Block monitor window can be resized to better suit concurrent windows
Provides a Watch Window to view groups of related data such as I/O and Signal Tags
Allows Monitoring to cross all FBD worksheet boundaries
−
There are no boundaries
−
You can call up Function Block monitor windows from any or all FBD worksheets
concurrently
−
The Watch Window implicitly crosses all worksheets
−
All other diagnostic windows can also be open concurrently
Access
Select "Monitor Mode" from the "Monitor" menu or select the "Monitor" icon from the Main
Toolbar.
You can specify the monitor update rate that determines how often data is collected from the controller
during monitoring. This update rate can be set to either 1/4 second, 1/2 second, 1 second, or 5
seconds.
See "Monitor Toolbar" for the available Monitoring and Diagnostic Windows.
See "Visual Indicators for Monitor Mode" for on-line monitoring indicators.
Revision 15
September 2013
HC900 Process Control Designer User Guide
189
On-Line Monitoring
Enter Monitor Mode
Enter Monitor Mode
Select "Monitor Mode" from the "Monitor" menu or select the "Monitor" icon from the Main Toolbar.
While in monitor mode, edits to the configuration cannot be made.
Procedure
190
1
Selecting this menu item opens the "Enter Monitor Mode" dialog box
2
Select the controller to monitor using the Port and Address fields on this dialog. The dialog
box also indicates the Protocol and Baud rate for the selected controller.
3
Click the OK button on this dialog to enter monitor mode for this configuration.
4
The background of the function block diagram worksheet changes to yellow and the cursor
includes the Monitor icon [Eye} with the arrow.
See "Visual Indicators for Monitor Mode".
5
The Monitor Toolbar will appear, whose buttons you can use to toggle (show or hide) the
various monitor windows. These windows can also be toggled using menu items on the
Monitor menu.
6
When exiting monitor mode, any monitor windows still open will be closed and will be reopened at their same positions when monitor mode is re-entered for this configuration.
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Visual Indicators for Monitor Mode
Visual Indicators for Monitor Mode
When "Monitor Mode" is selected there are several indications that the configuration is in Monitor
Mode.
1. The "Connected" indicator on the Status Bar will blink to show that the controller,
whose name appears next to it, is being monitored.
2. The cursor changes to include the Monitor icon [Eye] along with the arrow.
3. The word <Monitoring> appears in the configuration Title Bar at the top of the diagram.
4. The background color of the Function Block Diagram changes to YELLOW.
Revision 15
September 2013
HC900 Process Control Designer User Guide
191
On-Line Monitoring
Monitor Update Rate
Monitor Update Rate
Introduction
You can specify the monitor update rate that determines how often data is collected from the controller
during monitoring. This update rate can be set to either 1/4 second, 1/2 second, 1 second, or 5
seconds.
This option is allowed only during edit mode, not while you are monitoring the controller. The default
monitor update rate is 1 second and this update rate is remembered between sessions of the software.
If you want to monitor from a relatively slow computer set the monitor update rate to a slow setting.
Procedure
Select "Set Update Rate" from the "Monitor" menu on the Main Drop-down menus.
Select an Update Rate from the Sub-menu:
1/4 Second
1/2 Second
1 Second, or
5 seconds
Monitor Toolbar
Click on ICON to open a dialog box. More than one dialog box can be open at a time.
The Monitor Toolbar toggles monitor windows for the following:
ICON
192
Function
Window Comments
Watch Summary
Toggles the Watch Summary Window that lets you view groups of related
data such as I/O and Signal Tags.
Controller
Diagnostics
Toggles the Controller Diagnostics Window that lets you view the
controller parameters and values.
Rack Diagnostics
Toggles the I/O Rack Diagnostics window that lets you view the Rack
Diagnostics, Expansion I/O Comm Diagnostics(except C30 CPU), and the
I/O Module diagnostics.
Serial S1 Port
Diagnostics
Opens the Serial Port S1 (RS232 Default) Configuration Port Diagnostics
window that lets you view the parameters and values of the S1 port
(default R2-232) on the controller.
Serial S2 Port
Diagnostics
Toggles the Serial Port S2 (RS485 default) OI Port Diagnostics window
that lets you view the S2 port (default RS485 Operator Interface)
parameters and values.
Network Port
Diagnostics
Toggles the Network Port Diagnostics window that lets you view the
network port parameters and values.
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
How Do I Start Monitoring
ICON
Function
Window Comments
Expansion I/O
Comm
Diagnostics
(except C30 CPU)
Toggles the Expansion I/O Comm Diagnostics window that lets you view
the expansion port parameters and values.
Host Connections
Diagnostics
Toggles the Host Connections window that lets you view the host
connections parameters and values.
Peer-to-Peer
Diagnostics
Toggles the Peer-to-Peer Connections Diagnostics window that lets you
view the Peer-to-Peer parameters and values.
Function Block
Monitor
Toggles the Monitor Function Block window that lets you monitor key
parameters of the selected Function Block.
Forced Blocks
Window
Toggles the Forced Block Summary Window Window that lets you see all
the function blocks that have forced outputs.
All Function Block
Windows
Lets you toggle the function block windows that are open - Display or Hide
All Pins
Lets you toggle (display/hide) monitoring values (numeric or On/Off state)
at all input and output pins that are shown.
All Monitor
Windows
Lets you toggle the Monitor windows that are open - Display or Hide.
How Do I Start Monitoring
Procedure
Either upload the configuration from the controller to your PC or Open the file from disk that matches
what's in the controller. Designer will inform you if the file you opened is not currently loaded in the
controller. In this case, limited monitoring capabilities will be available. For example, you won't be
able to monitor function blocks or bring up the Watch Summary Window.
Press the MONITOR button on the main toolbar.
The "Enter Monitor Mode" dialog box will open.
Note: While in monitor mode, you won't be able to edit the configuration. For example, you won't be
able to add or delete function blocks, move items on the Function Block Diagram, or change
configuration parameters of function blocks on their property pages. You will, however, be able to
view the configuration parameters of function blocks on their property pages, but these values aren’t
being read from the controller. They exist only in the configuration open in Designer . That is why it
is recommended that you perform an upload from the controller before monitoring so that current
values from the controller are shown on the function block property pages."
Select the Comm port and controller address to monitor. Press OK.
It checks to see if information is the same in the controller.
The feedback will be the monitor toolbar.
Revision 15
September 2013
HC900 Process Control Designer User Guide
193
On-Line Monitoring
Right Click Procedure in Monitor Mode
The Status Bar shows
on bar indicates that monitor mode is in effect. The green square
is an activity indicator and flashes bright green when requests for monitored data are made to the
controller.
There is also the word "Monitoring" indicated on the banner of the worksheet,the FBD worksheet
background turns yellow and an eye appears with the cursor arrow.
See "Visual Indicators for Monitor Mode" for on-line monitoring indicators.
Right Click Procedure in Monitor Mode
Depending where you right-mouse click on the FBD worksheet during monitoring, the resulting menu
will have some differences.
In each column is shown the menu items that appear when you right-click on that item on your FBD
during Monitor Mode.
Right click on these
To see
these
choices
Function
Block
Variable
Yellow
Space
Signal
Tags
Connectors
Page
Connectors
Monitor
Block
Monitor
Block
Execution
Order
Watch
Summary
Watch
Summary
Watch
Summary
Watch
Summary
Watch
Summary
Fast Logic
Order
Add to
Watch
Summary
Add to Watch
Summary
Add to
Watch
Summary
Monitor
Pins
Add to
Watch
Summary
Find
Monitor
Pins
Monitor Pins
Monitor Pins
Help
Monitor
Pins
Go To
Help
Help
Help
Execution
Order
Help
View
Find
Where
Used
Find Where
Used
Find Where
Used
Copy
Execution
Order
Properties
(File)
Properties
(Signal
Tag)
Properties
(Connector)
Properties
Properties
(Function
Block)
Copy
Properties
(Function
Block)
194
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Function Block Monitor Window
Right click on these
To see
these
choices
Input Pins
Output Pins
Wire Node
Trace
Monitor Pins
Help
Monitor
Pins
Function Block Monitor Window
The Designer provides live monitoring of all Function Blocks.
To access, select "Monitor Function Block" from the "Monitor" menu or from the Monitor toolbar.
Or
Right Click a function block or variable in Monitor Mode and select the Monitor Block menu item.
The summary will provide status of the parameters shown in the list.
For "Loop" blocks, the current mode will be shown in the lower right of the window
LSP AUTO = Local Setpoint, Automatic Output
LSP MAN = Local Setpoint, Manual Output
RSP AUTO = Remote Setpoint, Automatic Output
RSP MAN = Remote Setpoint, Manual Output
To change Mode settings of a loop block, click on a radio button to select
Local or Remote Setpoint
Automatic or Manual Output
Click the "Change Mode" button to change the mode.
Changing a Parameter
Some blocks allow you to change some parameters. Click on a parameter name, if allowed the "Write"
field will become active. Enter an override value in the field.
Channel/Sensor Status
I/O blocks display a parameter called Channel/Sensor Status to indicate any abnormalities. See I/O
Channel/Sensor Status for details.
Click on "X" to exit box.
Attention: All function blocks dialog boxes have a "MONITOR" button when in Monitor mode that will
access this window.
Below is an example of a Monitor Window for a PID block.
Revision 15
September 2013
HC900 Process Control Designer User Guide
195
On-Line Monitoring
Forcing/Unforcing an Output
Forcing/Unforcing an Output
Overview
The ability to force and unforce the output [pin] of function blocks and variables from the Designer is
provided as an aid to startup and configuration troubleshooting. The feature is limited to single output
per block.
The majority of blocks have a single output, and most of the multiple output blocks have an obvious
primary (i.e. most important) output. This may apply to the block’s primary analog output (such as for
an AI block) or digital output of a logic block (such as for a DI or DO block).
Note: A function block input is never forced.
Some blocks (i.e.Loop Blocks) do not have a forceable output. It is not possible to force/unforce
function block outputs from the Operator Interface.
Variables, which are normally set to 0 on download of a new configuration or a change in configuration
can have their output value changed on-line. You can also preset the value of a variable using an
initialization procedure via function blocks or by setting the Initial Value field on the variable's property
page.
You can also display a list of blocks that are presently being forced. See "Forced Blocks Window "
ATTENTION:
All forced outputs are cleared by a CONTROLLER COLD START.
CAUTION
During Live-Monitoring (especially fast logic), it is possible to see transient states where the block
output is inconsistent with its input values. This occurs because it is possible for the input values and
outputs values to be taken from different controller execution cycles. Therefore, either the viewed
inputs or outputs may be "older".
SOLUTION: Recognize this possibility when interpreting results. Use forcing if necessary to create and
assess static conditions.
Forcing an Output
Do an Upload to make sure the file is current.
Enter Monitor Mode - Select the Monitor Mode icon from the Main Toolbar, or select "Monitor Mode"
from the Monitor menu. The FBD background turns yellow.
196
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Forcing/Unforcing an Output
Right-Click on a selected function block, then select "Monitor Block". The "Monitor Block" dialog box
will open.
Select "OUT" or "Output" in the dialog box of the Live Monitor screen. If Forcing is allowed, the Write
field becomes active. Enter the Output value in the entry field next to the "Write" button.
NOTE: for Loop Blocks, put the controller into Manual Mode
Click "WRITE". The output value will change to the value entered for forcing.
The word Forced will appear next to "Output" and "Block Status".
Changing (Force) a Digital Value from ON to OFF
Select "ON" or "OFF" from the drop down list box and click "WRITE". The selection for the parameter
selected will change to the selection entered for forcing.
If there is a problem with the forcing
Check your communication Set Up for correct settings
Make sure the Mode Switch on the controller is in "RUN " mode.
Revision 15
September 2013
HC900 Process Control Designer User Guide
197
On-Line Monitoring
Forced Blocks Window
Unforcing an Output
Right-Click on a selected function block, then select "Monitor Block". The "Monitor Block" dialog box
will open.
Click on the forced output (indicated by FORCED).
Click Unforce. The original selection for the parameter will return.
Forced Blocks Window
Overview
The Forced Blocks window provides a list view of all function blocks that have forced outputs
and provides a quick means of removing the forced outputs on selected block. The Forcing and
Unforcing of function block outputs is a feature that is only available in Monitor Mode. For more
information on how to force function block outputs see Forcing/Unforcing an Output.
Opening the Window
The Forced Blocks Window is represented by the Exclamation Mark icon and can be accessed
in 3 ways as described below. For each method, the system must already be in Monitor Mode
for the option to be available.
Monitor Menu
4. Select Monitor from the main application menu.
5. Select
Forced Blocks… to launch the Forced Blocks window.
Monitor Mode Toolbar
1. Click on the
toolbar.
button in the Monitor Mode Toolbar from the main application
Utilities Worksheet
Utilities tab from the main Worksheet Category Tabs to display the
1. Select the
Controller Utilities worksheet.
198
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Forced Blocks Window
2. Click on the
3. Select
button to bring up the Controller Diagnostics submenu.
Forced Blocks… to launch the Forced Blocks window.
Unforcing Block Outputs
There are two versions of the Forced Blocks dialog window, depending on whether or not the
controller being monitored is one that supports the SIL Safety standard. For SIL compliant
controllers the version shown on the left below will be displayed. For non SIL compliant
controllers the version shown on the right below will be displayed.
Both versions of the window have a list box displaying a list of all of the function blocks that
currently have forced outputs.
•
•
•
•
Function blocks located on a Safety worksheet have a yellow background.
Function blocks located on a Process worksheet have a white background.
If no function blocks have forced outputs the word NONE is displayed.
If new forces are added or removed from individual function block monitor windows the
list will be updated dynamically.
Both versions of the window have a Clear ALL Forces button that allows all forced outputs to
be cleared with one click. For Safety enabled controllers there are additional Clear PROCESS
Forces and Clear SAFETY Forces buttons that allow forced outputs on the Process and Safety
worksheets to be cleared independently. In either, case a warning message similar to the one
shown below will be displayed requesting confirmation before the action is taken.
Revision 15
September 2013
HC900 Process Control Designer User Guide
199
On-Line Monitoring
Forced Blocks Window
Both versions of the window have a Unforce Selected Item button that allows the output of a
single function block to be unforced. To enable this button, click on the desired function block as
shown below. (Multiple selections using the Shift or Ctrl keys are not allowed.)
Clicking on the Unforce Selected Item will now clear the forced output on the selected function
block. In this case the action takes place immediately and no confirmation is required.
Exiting
To close the Force Blocks window click on the X in the top right-hand corner.
See Also
Monitor Mode
Forcing/Unforcing an Output
Watch Summary – Inputs/Outputs
200
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
How Do I Stop Monitoring
How Do I Stop Monitoring
Press the MONITOR button on the main toolbar.
This will return the associated configuration to EDITmode.
Feedback will be the monitor button (unpressed), and all open monitor windows will disappear. The
FBD Worksheet background returns to white and the eye disappears from the cursor.
Attention: If you return from EDITmode to Monitor mode, all your previously opened monitor windows
will appear (if the same configuration)
Logic Flow
Overview
In Monitor Mode, Logic Flow is shown within the Configuration Worksheet Monitor Window.
Soft Wires are identified to represent the Logic state at the pin of the source in monitor mode.
Function Block pin values can be monitored briefly or you can stick the values on display until you
dismiss them. Analog Values are in decimal format and Digital States are On/Off.
Digital Signal Tags and corresponding Connectors at the block pins include color-coded
representations for state changes.
Page Connectors include color-coded representations for state changes.
Logic Inversion indicators are pictorially identified on the block and are color-coded to identify logic
states impeding or permitting logic flow.
CAUTION
During Live-Monitoring (especially fast scan), it is possible to see transient states where the block
output is inconsistent with its input values. This occurs because it is possible for the input values and
outputs values to be taken from different controller execution cycles. Therefore, either the viewed
inputs or outputs may be "older". Logic monitoring is appropriate for static conditions.
Soft Wire Identification
Solid/Green = On, Dotted/Red = Off
Logic State at the Output Pin = ON
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire length of
its tail drawn in solid GREEN.
Logic State at the Output Pin = OFF
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire length of
its tail drawn in dashed RED.
Revision 15
September 2013
HC900 Process Control Designer User Guide
201
On-Line Monitoring
Logic Flow
Solid/Red = On, Dotted/Green = Off
Logic State at the Output Pin = ON
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire length of
its tail drawn in solid RED.
Logic State at the Output Pin = OFF
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire length of
its tail drawn in dotted GREEN.
202
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Logic Flow
Signal Tags and Connectors/Page Connectors
Digital Signal Tags and Connectors/Page Connectors include color-coded representations for
state changes as substitutes for soft-wires. To select one of the following color schemes, go to
Monitor menu, then Set Logic State Colors.
Solid/Green = On, Dotted/Red = Off
Logic State at the Output Pin = ON
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire
length of its tail drawn in solid GREEN.
Logic State at the Output Pin = OFF
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire
length of its tail drawn in dashed RED.
Solid/Red = On, Dotted/Green = Off
Logic State at the Output Pin = ON
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire
length of its tail drawn in solid RED.
Logic State at the Output Pin = OFF
The Digital Signal Tag and its corresponding Connector/Page Connector will have the entire
length of its tail drawn in dotted GREEN.
Revision 15
September 2013
HC900 Process Control Designer User Guide
203
On-Line Monitoring
Logic Flow
Displaying Function Block's Pin Values
Function Block pin value(s) can be monitored briefly and you can set one or all of the values on
display (constant display) until you dismiss them. Analog Values are in decimal format and
Digital States are On/Off.
Displaying a Single Pin Value
Displaying Briefly
Hover the cursor over any pin momentarily. The pin’s value will be displayed next to the pin as
long as the cursor remains motionless over the pin.
To remove the briefly displayed value:
remove the cursor from the pin.
Displaying Until Dismissed (Constant Display)
Hover the cursor over any pin and left-click while the pin value is displayed, or
right-click and select "Monitor Pins" from the menu.
To remove the constantly displayed value:
left-click on the pin again, or
right-click and select "Monitor Pins" again from the menu.
Displaying All Function Block Pin Values
Displaying Briefly
Hover the cursor over the interior of a function block momentarily. All of the Function Blocks pin
values will be displayed next to the pins as long as the cursor remains motionless over the
block.
To remove the briefly displayed values:
remove the cursor from the block.
Displaying Until Dismissed
Hover the cursor over the interior of a function block and left-click while the pin values are
displayed, or right-click and select "Monitor Pins" from the menu.
To remove the constantly displayed value:
left-click on the pin again, or
right-click and select "Monitor Pins" again from the menu.
204
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Logic Flow
Toggling All Pin Values on Worksheet
Select
on the Monitor Toolbar or select "Monitor Pins" from the Monitor menu.
NOTE: Any pin values shown when monitor mode is exited will be re-shown when Monitor mode
is re-entered. This only applies to the current session of the application and not between sessions
of the application.
Logic Inversion Color Codes
Certain function blocks (such as Discrete Input/Output and logic blocks) have an Invert feature
that, when selected, inverts the state of the block’s input or output. These blocks have special
logic inversion indicators when viewed in monitor mode.
The examples below use the color scheme
RED = OFF
GREEN = ON.
To select the opposite color scheme
RED = ON
GREEN = OFF,
go to Monitor menu, then Set Logic State Colors.
Logic Blocks Inversion Indicators
RED = OFF
GREEN = ON
Digital Input Blocks Inversion Indicators
ON
or Inverted ON
OFF
or Inverted OFF
Digital Output Blocks Inversion Indicators
Revision 15
September 2013
HC900 Process Control Designer User Guide
205
On-Line Monitoring
Logic Flow
ON
OFF
206
or Inverted ON
or Inverted OFF
HC900 Process Control Designer User Guide
Revision 15
September 2013
On-Line Monitoring
Logic Flow
This page has been intentionally left blank
Revision 15
September 2013
HC900 Process Control Designer User Guide
207
Watch Summary Window
Overview
Watch Summary Window
Overview
Overview
The Watch Summary window is a dockable (movable), re-sizable window that lets you view the
current values of groups of related data, such as I/O and Signal Tags, from the controller.
Opening the Window
The Watch Summary window is represented by the
icon and can be accessed in 2 ways as
described below. For each method, the system must already be in Monitor Mode for the option to be
available.
Monitor Menu
6. Select Monitor from the main application menu.
7. Select
Watch Summary… to launch the Watch Summary window.
Monitor Mode Toolbar
2. Click on the
button in the Monitor Mode Toolbar from the main application toolbar.
Using the Window
The Watch Summary window will have a slightly different appearance depending on the revision of
software and the type of controller, however, the general layout is as shown below:
•
•
•
208
Tab control to select from different groups of data
Pull-down selectors at the top to further filter items within the group
Table to display information and current values of the selected items
HC900 Process Control Designer User Guide
Revision 15
September 2013
Watch Summary Window
Overview
The number of different data groups available through the tabs at the bottom of the window will
depend on the revision of software running in the controller. The possible selections are listed below
(click on any of the links to view an example of the selected data for that tab):
•
User-Defined (Customized list of Signals, Page Connectors and/or Variables)
•
Signals (Analog, Digital)
•
Page Connectors (Analog, Digital)
•
Variables (Analog, Digital)
•
Inputs / Outputs (AI, AO, DI, DO)
•
Display Groups (Not available in revision 6.0 and higher)
The number of pull-down selectors at the top of the display will depend on the controller type. For
SIL-compliant controllers there will be a leading selector which allows the data items within the
group to be filtered based on the type of function block worksheet they are located on; Process,
Safety or All (both Process and Safety worksheets).
For all controller types there will be a pull-down selector which allows the data items within the
group to be further filtered based on a sub-type, such as analog versus digital, or input versus
output. The list of available sub-types is determined by the data group selected through the tab
control.
Information about each item in the filtered list is displayed in the table in the middle of the window.
The amount of information displayed will vary based on the selected tab, but will always include a
current value from the controller. The rows of data may be sorted by clicking in the header for most
of the configuration information columns. Subsequent clicking within a column header will toggle
between ascending and descending sort orders. (See also Sort Feature)
For SIL-compliant controller types, the rows of data will be colored coded. Items located on a Safety
worksheet will be displayed with a yellow background, whereas items located on a Process
worksheet will be displayed on a white background.
Docking and Undocking the Window
Double clicking in the Title Bar area of the Watch Summary Window will toggle its docked state. If
the window is docked, double clicking in the title bar area will undock the window. If the window is
undocked
•
•
Double-clicking in the title bar area will dock the window at it last docked position
Dragging the window to the top, bottom, left, or right edge of the main viewing area of the
application will dock the window at that location
[Press and hold the CTRL key down to prevent Docking when moving the window]
Hot Links
You can click on any I/O function block or Signal on the Controller Worksheet or any I/O function
block, Signal, or Variable in the Watch Window and that item will be located on the Function Block
Diagram.
As you move the mouse over a HOT LINK, the text changes to Underlined Blue and the cursor
changes to a hand
. (See also Find Feature)
Writes or Forces
By clicking on the item in the Value column, you may write a value such as for a Variable or force a
value for an analog input or digital input. For I/O, a Forced column will indicate that the I/O point is
forced.
Revision 15
September 2013
HC900 Process Control Designer User Guide
209
Watch Summary Window
Find Feature
Find Feature
You can click on any I/O function block or Signal on the Controller Worksheet or any I/O function block,
Signal, or Variable in the Watch Window and that item will be located on the Function Block Diagram.
As you move the mouse over a HOT LINK, the text changes to Underlined Blue and
the cursor changes to a Hand.
You can also find within the Watch Summary window itself any tag, descriptor, signal number, variable
number, as well as rack number, module number, channel number, or block on the Inputs / Outputs
tab. For example, to find a tag in the Watch Summary window, click anywhere in the Tag Name
column and start typing the characters of the tag you want to find. The tag matching the characters
you type will scroll into view. To find a tag name and prevent the tag hot link from re-positioning the
Function Block Diagram, right-click the tag name instead of left-clicking it.
Sort Function
The Sort function in the Watch Summary lets you sort the tag list by:
Signal #
Variable #
Tag Name
Descriptor
Block
At the top of the Watch Window, click on the Column title. The list will be sorted accordingly. Clicking
the column title the first time sorts the list in ascending (alphabetical) order. Clicking the column title a
second time sorts the list in descending (reverse alphabetical) order, and so forth.
Watch Summary - User Defined
On the User-Defined tab of the Watch Summary Window you can view a list of tags that you want to
monitor. You can add the following to the list:
•
•
•
Signals
Page Connectors
Variables
The Watch Summary window doesn't have to be visible in order to add items to the list of UserDefined tags to display, nor do the drop-down selectors on the User-Defined tab have to match what
you'll be adding.
For example, you can add a signal to the User-Defined tab of the Watch Summary window even if
the window is not visible or the User-Defined tab's "Show" drop-down selector is set to All Variables.
As long as you are in monitor mode, you can add items at any time.
Note that there is no limit to the number of items that you can add to the list, but the list is not saved
between sessions of the software.
To add Signals, Page Connectors or Variables to the user-defined watch list:
1. Navigate to the function block worksheet that contains the item.
2. Right-click on the item to display the context menu.
3. Select Add to Watch Summary from the context menu
(See the Watch Window Summary for instructions on how to view the Watch Summary Window.)
The number of pull-down selectors at the top of the User-Defined tab of the Watch Summary
window will depend on the controller type. For SIL-compliant controllers there will be a leading
210
HC900 Process Control Designer User Guide
Revision 15
September 2013
Watch Summary Window
Watch Summary - User Defined
selector which allows the signals to be filtered based on the type of function block worksheet they
are located on:
•
•
•
All (both Process and Safety worksheets)
Process
Safety
For all controller types there will be a pull-down selector which allows the type of user-defined tags
to be selected:
•
•
•
•
All
All Signals
All Page Connectors
All Variables
(Note that in this case “All” refers to the list of user-defined items and not to the full configuration.)
For each item in the selection list, its Tag Name, Descriptor and Value are displayed in the table, as
shown below.
For SIL-compliant controller types, the rows of data will be colored coded. Items located on a Safety
worksheet will be displayed with a yellow background, whereas items located on a Process
worksheet will be displayed on a white background.
You can change the value of any item that can be forced by entering a new value in the Value
column.
You can re-order the items in the list by selecting a single row or range of rows in the list and
dragging the row(s) to another position in the list. You can also delete selected items in the list.
To select the first row in a range:
•
•
•
Positioning the cursor over the gray cell at the beginning of the row.
Wait for the cursor to change to an arrow.
Click on the gray cell.
To select the last row in a range:
•
Positioning the cursor over the gray cell at the beginning of the row.
Revision 15
September 2013
HC900 Process Control Designer User Guide
211
Watch Summary Window
Watch Summary - Signals
•
•
Wait for the cursor to change to an arrow.
Hold down the Shift key and click on the gray cell.
To reposition the selected row(s):
•
•
•
Position the cursor over any gray cell in the selected rows.
Drag and drop the rows to their new position.
A red line will appear as you drag the rows to show you where the row that was clicked will
be dropped when you release the mouse button.
To delete the selected row(s) press the Delete key.
Use the Find Feature to locate a specific I/O on the Function Block Diagram.
Use the Sort Function to sort the table rows by a specific column.
See the Watch Window Summary for more details on this window.
Watch Summary - Signals
On the User-Defined tab of the Watch Summary Window you can view a list of tags that you want to
monitor. You can add the following to the list:
•
•
•
Signals
Page Connectors
Variables
The Watch Summary window doesn't have to be visible in order to add items to the list of UserDefined tags to display, nor do the drop-down selectors on the User-Defined tab have to match what
you'll be adding.
For example, you can add a signal to the User-Defined tab of the Watch Summary window even if
the window is not visible or the User-Defined tab's "Show" drop-down selector is set to All Variables.
As long as you are in monitor mode, you can add items at any time.
Note that there is no limit to the number of items that you can add to the list, but the list is not saved
between sessions of the software.
To add Signals, Page Connectors or Variables to the user-defined watch list:
4. Navigate to the function block worksheet that contains the item.
5. Right-click on the item to display the context menu.
6. Select Add to Watch Summary from the context menu
(See the Watch Window Summary for instructions on how to view the Watch Summary Window.)
The number of pull-down selectors at the top of the User-Defined tab of the Watch Summary
window will depend on the controller type. For SIL-compliant controllers there will be a leading
selector which allows the signals to be filtered based on the type of function block worksheet they
are located on:
•
•
•
All (both Process and Safety worksheets)
Process
Safety
For all controller types there will be a pull-down selector which allows the type of user-defined tags
to be selected:
•
•
•
212
All
All Signals
All Page Connectors
HC900 Process Control Designer User Guide
Revision 15
September 2013
Watch Summary Window
Watch Summary - Signals
•
All Variables
(Note that in this case “All” refers to the list of user-defined items and not to the full configuration.)
For each item in the selection list, its Tag Name, Descriptor and Value are displayed in the table, as
shown below.
Watch Summary - Page Connectors
The number of pull-down selectors at the top of the display will depend on the controller type. For
SIL-compliant controllers there will be a leading selector which allows the page connectors to be
filtered based on the type of function block worksheet they are located on:
•
•
•
All (both Process and Safety worksheets)
Process
Safety
For all controller types there will be a pull-down selector which allows the type of page connectors to
be selected:
•
•
•
All Page Connectors
Analog Page Connectors
Digital Page Connectors
For each page connector in the selection list, its Tag Name and Value are displayed in the table, as
shown below.
For SIL-compliant controller types, the rows of data will be colored coded. Page connectors located
on a Safety worksheet will be displayed with a yellow background, whereas page connectors
located on a Process worksheet will be displayed on a white background.
You cannot change the value of a page connector as they are Read Only.
Use the Find Feature to locate a specific I/O on the Function Block Diagram.
Use the Sort Function to sort the table rows by a specific column.
See the Watch Window Summary for more details on this window.
Revision 15
September 2013
HC900 Process Control Designer User Guide
213
Watch Summary Window
Watch Summary - Variables
Watch Summary - Variables
The number of pull-down selectors at the top of the display will depend on the controller type. For
SIL-compliant controllers there will be a leading selector which allows the variables to be filtered
based on the type of function block worksheet they are located on:
•
•
•
All (both Process and Safety worksheets)
Process
Safety
For all controller types there will be a pull-down selector which allows the type of variable to be
selected:
•
•
•
All Variables
Analog Variables
Digital Variables
For each variable in the selection list, its Number, Tag Name, Descriptor and Value are displayed in
the table, as shown below.
For SIL-compliant controller types, the rows of data will be colored coded. Variables located on a
Safety worksheet will be displayed with a yellow background, whereas variables located on a
Process worksheet will be displayed on a white background.
You can change a variable by clicking on a variable value and entering a new value for an analog
variable or selecting the appropriate user-configured OFF or ON label from a drop-down menu for a
Digital variable.
Note: the new value entered is not written to the controller until you move off of the current cell either
by tabbing out of the cell using the Shift+Tab keys or clicking on another cell using the mouse. If the
value you want to change also shows engineering units, as in "100.0 LBS", for example, you just
need to change the number portion; you don't need to delete the engineering units or type it in again.
Use the Find Feature to locate a specific I/O on the Function Block Diagram.
Use the Sort Function to sort the table rows by a specific column.
214
HC900 Process Control Designer User Guide
Revision 15
September 2013
Watch Summary Window
Watch Summary - Inputs/Outputs
See the Watch Window Summary for more details on this window.
Watch Summary - Inputs/Outputs
The number of pull-down selectors at the top of the display will depend on the controller type. For
SIL-compliant controllers there will be a leading selector which allows the I/O points to be filtered
based on the type of function block worksheet they are located on:
•
•
•
All (both Process and Safety worksheets)
Process
Safety
For all controller types there will be a pull-down selector which allows the type of I/O point to be
selected:
•
•
•
•
Analog Inputs
Analog Outputs
Digital Inputs
Digital Outputs
For each Input/Output in the selection list, its Rack, Module, Channel Number, Block Name, Tag
Name, Descriptor, Value, and Status are displayed in the table, as shown below..
NOTE: Only "assigned" inputs and outputs are shown in this window. Inputs and outputs whose
rack, module, and channel that are all zero are not shown in this window. These unassigned inputs
and outputs are shown on the controller worksheet, however.
For SIL-compliant controller types, the rows of data will be colored coded. I/O blocks located on a
Safety worksheet will be displayed with a yellow background, whereas I/O blocks located on a
Process worksheet will be displayed on a white background.
You can Force an I/O by clicking on a value and entering a new value for an analog input or
selecting the appropriate user-configured OFF or ON label from a drop-down menu for a digital input
or output. A checked box and the word FORCED will appear in the Status column indicating that the
I/O is forced. [Click off the value cell to see the box]
Revision 15
September 2013
HC900 Process Control Designer User Guide
215
Watch Summary Window
Watch Summary - Display Groups
To Remove a Force, double-click to deselect the checked box.
Notes:
• Analog outputs cannot be forced.
• Safety I/O points cannot be forced while the controller is in Run mode.
• Time Proportioning outputs and Three position Step outputs cannot be monitored since the
live value is maintained only on the D.O. module itself. The text "n/a" (for "not available) is
shown as the value for these outputs.
Use the Find Feature to locate a specific I/O on the Function Block Diagram.
Use the Sort Function to sort the table rows by a specific column.
See the Watch Window Summary for more details on this window.
Watch Summary - Display Groups
This tab will only appear for Controller Revision Rev 4.4 and below. Watch Summary - Display
Groups lets the user monitor the same points configured on the Operator Interface displays.
Select a Display Group (Show Menu) then a Group Number (Group Menu) from the drop-down
menus at the top of the dialog box. The window will monitor the Display Group selected. Note that
new values can be written to the variables shown in this window.
Use the "Find Feature " to Find a specific tag on the Function Block Diagram.
Use the "Sort Function " to sort the tag list by a specific column.
216
HC900 Process Control Designer User Guide
Revision 15
September 2013
Watch Summary Window
Watch Summary - Display Groups
This page has been intentionally left blank
Revision 15
September 2013
HC900 Process Control Designer User Guide
217
Diagnostics
Controller Diagnostics
Diagnostics
Controller Diagnostics
Introduction
The Designer provides live monitoring of Controller diagnostics. The instrument executes diagnostic
routines during instrument start-up and during on-line operation and displays the controller status and
diagnostics.
1. Select "Controller Diagnostics" from the "Monitor" drop-down menu, from the Monitor toolbar.
.
(This window can be launched from the "Utilities Worksheet")
2. The Controller Diagnostics (C30/C50/C70) or Diagnostic Overview (C70R/C75) window will
appear. See below.
3. The "Controller Diagnostic Status Indications" explains the parameters and their values.
4. Click on "X" to exit box.
C30/C50/C70:
Revision 15
September 2013
HC900 Process Control Designer User Guide
219
Diagnostics
Controller Diagnostics
C70R /C75:
220
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Diagnostics Status Indications
Controller Diagnostics Status Indications
For C30/C50/C70, the "Controller Diagnostics" window appears. For C70R, the "Diagnostics Overview"
window appears.
C30/C50/C70 Controller Diagnostics parameters
Parameter
Value
Possible Cause
System Diagnostics Good
CPU Diagnostics
Revision 15
September 2013
Controller Action
User Action
Controller is in RUN
mode.
Executes the run mode.
Outputs are updated.
None
Forced Output
A block has an output
that is forced.
None
Remove force on block
output.
Invalid Config.
A configuration that
exceeds the loop
capacity of the controller
was downloaded or an
invalid configuration
exists.
An empty database is
created.
Download a valid
configuration.
Switch Fault
A failure is detected in
the switch reading.
All control blocks stop
running
All I/O scanning ceases.
This forces the modules
into failsafe.
Replace CPU.
Invalid Change Of
Mode
Controller mode is
Controller will not go to
changed to RUN-Locked RUN-Locked mode.
while there are forces on
safety sheets.
To clear the diagnostic:
1. Change mode back to
RUN mode OR
2. Clear all safety forces
using HCD through Monitor>Forced Blocks OR
3. Force a cold-start
Safety Configuration
mismatch
Controller mode is
Controller will not go to
changed to RUN-Locked RUN-Locked mode.
when safety
configuration is changed
at run-time
To clear the diagnostic:
1. Change mode back to
RUN mode OR
2. Force a cold-start
Good
N/A
N/A
Watchdog
1.
Watchdog reset resulting Associated rack monitor
from software failure
block’s RACK OK pin is
2.
turned off.
ASYS block’s HW OK pin is 3.
turned off.
4.
N/A
HC900 Process Control Designer User Guide
Force a cold start.
Upgrade control file
software.
Replace CPU board.
Contact Honeywell
Personnel.
221
Diagnostics
Controller Diagnostics Status Indications
Parameter
Value
Possible Cause
Prefetch Abort
CPU failed when
attempting to fetch an
instruction from the
prefetch register.
Controller Action
1.
2.
3.
Memory
Diagnostics
The reserved exception Same as above
occurred for an unknown
reason.
Same as above
Undefine Error
Bad Instruction Detected Same as above
Same as above
Data Abort
CPU failed when
attempting to access
data.
Software Interrupt
Error
Software Interrupt
occurred which is not
supported by the
software.
Good
N/A
5 Day Low Battery
Warning
Estimated battery life is
less than 5 days.
1. Associated rack monitor Replace battery.
block’s RACK OK pin is
turned off.
2. ASYS block’s HW OK
pin is turned off.
Low Battery
Battery voltage is low.
1.
Same as above
Same as above
N/A
3.
Flash Error
222
Controller performs a 1. Force a cold start.
restart
2. Isolate system from noise
and force a cold start.
Associated rack
monitor block’s RACK 3. Replace CPU board
OK pin is turned off.
ASYS block’s HW OK
pin is turned off.
Address Error
2.
Real Time Clock
User Action
Good
Flash failed to burn
N/A
Same as above
Same as above
N/A
Replace battery.
Associated rack
monitor block’s RACK
OK pin is turned off.
ASYS block’s LOW
BATTERY pin is
turned on.
ASYS block’s HW OK
pin is turned off.
1.
1.
Associated rack
monitor block’s RACK 2.
OK pin is turned off.
2.
ASYS block’s HW
OK pin is turned
off.
N/A
HC900 Process Control Designer User Guide
Force a cold start.
Replace CPU board.
N/A
Revision 15
September 2013
Diagnostics
Controller Diagnostics Status Indications
Parameter
Diagnostics
Value
Possible Cause
Not Programmed
RTC not programmed
Controller Action
1.
2.
3.
Rack I/O
Diagnostics
User Action
Time and date is set to Program RTC.
00:00:00, January 1,
1970.
Associated rack
monitor block’s RACK
OK pin is turned off.
ASYS block’s HW OK
pin is turned off.
1.
2.
3.
4.
5.
Bad Data
Bad date and time
Same as above
Programming Failure
RTC failed to program
Same as above
Same as above
Read Failure
Unable to read RTC
Same as above
Same as above
Good
N/A
N/A
N/A
Refer to related Module
diagnostic.
Access the I/O Module
diagnostics screen.
Module Error
One of the module
diagnostics in the
associated rack is set
to WRONG
MODULE, MODULE
NO COMM (if the
communications is
failing due to the
module not installed),
BAD MODULE, or
BAD CHANNEL.
Hi Temp
One of the module
Refer to HI CJ
diagnostics in the
TEMPERATURE in
associated rack is set to Module diagnostics
HI CJ TEMPERATURE.
Rack Backplane Fail
The Main CPU/Scanner
is unable to successfully
communicate to any
modules that are in its
SPI backplane.
All associated module
diagnostics are set to
MODULE NO COMM.
Access the I/O Module
diagnostics screen
•
•
Refer to MODULE NO
COMM diagnostic for further
details.
•
•
•
•
Revision 15
September 2013
HC900 Process Control Designer User Guide
Program RTC.
Cycle power.
Replace CPU.
Replace boards in rack.
Replace rack
Remove modules and
check for bent pins on
connectors.
Reinsert modules one at a
time and note which
module the diagnostic
reoccurs, and replace that
module.
Cycle power to the rack.
Replace the power supply.
Replace the rack.
Replace the CPU board.
223
Diagnostics
Controller Diagnostics Status Indications
Parameter
Value
Possible Cause
Rack Comm Fail
Comm Port
Diagnostics
224
Controller Action
The Main CPU is unable Same as above
to successfully
communicate to an
expansion rack that is in
its configuration.
Please note that there
are NO expansion
racks permitted on the
HC900-C30 controller.
User Action
1.
Verify that the expansion
rack should be in the
configuration
2. Verify that the jumpers on
the scanner are setup for
the correct rack address.
3. Check that expansion rack
is on.
4. Check the expansion
rack’s status LED for
diagnostic information.
5. Check that cable is
connected to expansion
rack.
6. If a hub is used, check that
all cables are properly
connected to the hub,
proper crossover cables
are used, and that hub is
powered.
7. Cycle power to the rack.
8. Cycle power to the hub.
9. Replace the expansion
rack’s power supply.
10. Replace the expansion
rack.
11. Replace the expansion
rack’s scanner board.
Rack SW Incompatility The Main CPU
determined that its
software is not
compatible with the
scanner module.
All associated module
diagnostics are set to
MODULE NO COMM.
1.
Refer to MODULE NO
COMM diagnostic for
further details.
2.
Good
N/A
N/A
Warning
One of the comm port’s
is reporting an application
error
Failed
One of the Comm port’s
is reporting a physical or
data link failure
Refer to related Comm
port diagnostic
Upgrade the scanner
software either by
replacing the module or
doing a code-download.
Update Main CPU
software either by
replacing the module or
doing a code download.
N/A
Access the Comm port
diagnostics screen
Refer to related Comm port Same as above
diagnostic
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Diagnostics Status Indications
C70R Diagnostic Overview parameters
Parameter
Value
Possible Cause
Controller Action
User Action
System Diagnostics Good
Controller is in RUN
mode.
Executes the run mode.
Outputs are updated.
None
CPU Diagnostic
Good
System is functional
None
None
Rack ‘n’
Rack ‘n’ is reporting a
diagnostic
Diagnostic may cause a
failover
Refer to the Rack Diagnostics
for more details
Diagnostic may prevent a
failover
Multiple Racks
More than one Rack is
reporting a diagnostic
Diagnostic may cause a
failover
Refer to the Rack Diagnostics
for more details
Diagnostic may prevent a
failover
Lead CPU
The Lead CPU is
reporting a diagnostic
None
Refer to the Lead CPU
Diagnostics for more details
Reserve CPU
The Reserve CPU is
reporting a diagnostic
None
Refer to the Reserve CPU
Diagnostic for more details
Serial Port S1 or S2
There is a diagnostic on
the Lead CPU Serial
Port (S1 or S2)
None
Refer to the Serial Port S1 or
Serial Port S2 Diagnostic
Screen for more details
Network E1 or E2
There is a diagnostic on
the Lead CPU Network
Port E1 or E2
None
Refer to the Network Port
Diagnostic Screen for more
details
Scanner Link
Lead CPU is reporting a
diagnostic on the
Scanner Link
None
Refer to the Lead CPU
Diagnostic and the Scanner
Link Diagnostic screens for
more details
Redundancy Link
Lead CPU is reporting a
diagnostic on the
Redundancy Link.
There is a problem with
the communications
between the Lead and
Reserve CPUs.
None
Refer to the Lead and
Reserve CPU Diagnostic
screens for more details.
Memory Diagnostic
See CPU Diagnostic
for possible values
Real-Time Clock
Diagnostic
See CPU Diagnostic
for possible values
Communication
Port Diagnostics
See CPU Diagnostic
for possible values
Rack IO
See CPU Diagnostic
Revision 15
September 2013
HC900 Process Control Designer User Guide
Check the Redundancy Link
Diagnostic screen for more
details
225
Diagnostics
Controller Diagnostics Status Indications
Parameter
Value
Possible Cause
Diagnostics
for possible values
Rack Comm
Diagnostic
See CPU Diagnostic
for possible values
Power Supply
Diagnostic
See CPU Diagnostic
for possible values
Reserve Available
On
1.
2.
3.
4.
No Reserve CPU is System will not be able to
available
perform a failover
Reserve CPU may
be powered off
Reserve CPU is
powered on but
synchronizing with
the Lead CPU
There may be other
physical problems
with the Reserve
CPU
1.
2.
3.
Check that Reserve
CPU is powered ON
If powered ON, check
the Reserve status LED
on the Reserve CPU
and the RSM Module
Check Reserve CPU
Diagnostics for
additional details
Good
Data Link Failure
Hardware Failure
226
User Action
There is a Reserve CPU
Available for failover
Off
Redundancy Link
Diagnostics
Controller Action
1. No Reserve CPU is
System will not be able to
available
perform a failover
2. Reserve CPU may be
powered off
3. Reserve CPU is
powered on but
synchronizing with
the Lead CPU
4. There may be other
physical problems
with the Reserve
CPU
There may be physical
problems with the Lead
CPU
System will not be able to
perform a failover
HC900 Process Control Designer User Guide
1. Check that Reserve CPU
is powered ON
2. If powered ON, check the
Reserve status LED on
the Reserve CPU and
the RSM Module
3. Check Reserve CPU
Diagnostics for
additional details
Replace the Lead CPU
Revision 15
September 2013
Diagnostics
Rack Diagnostics
Rack Diagnostics
Introduction
The Designer provides live monitoring Rack diagnostics. The instrument executes diagnostic routines
during instrument start-up and during on-line operation.
1. Select the "Rack Diagnostics" from the "Monitor" drop-down menu or from the Monitor Toolbar.
(This window can be launched from the "Utilities Worksheet"
2. The "Rack Diagnostic Summary" dialog box will appear.
3. Select a Rack from the "Monitoring Rack" drop-down menu on the dialog box. The information for
the selected rack will appear on the dialog box.
4. The summary window will provide Controller status and diagnostic information for the selected
Rack:
Rack in Configuration - ON or Off
High CJ Temp status - On or Off
Revision Level of the Rack - Read Only
Number of Slots - Read Only
Rack Diagnostics - The status of the selected rack. Refer to "Controller Diagnostics Status
Indications" for diagnostic messages. Not all diagnostics appear for expansion racks.
Power Supply Diagnostics – C70R only. Status of the rack’s power supply/supplies. See Rack
Diagnostics: Power Supply .
Expansion I/O Comm Diagnostics (except C30 CPU) - The status of the Expansion I/O Comm
Diagnostics. Refer to "Expansion I/O Comm Diagnostic Status Indicators". Read the diagnostics
for a particular rack.
I/O Module Diagnostics - Status of the Modules shown in the list:
Physical Type
Configured as (type)
Error Status.
Model Number & Rev Level (scroll horizontally to view)
For status of individual I/O channels, see Function Block Monitor Window.
5. Click on upper right X to exit box.
Revision 15
September 2013
HC900 Process Control Designer User Guide
227
Diagnostics
Rack Diagnostics
C30/C50/C70:
228
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Rack Diagnostics
C70R:
Revision 15
September 2013
HC900 Process Control Designer User Guide
229
Diagnostics
Rack Diagnostics: Power Supply
Rack Diagnostics: Power Supply
The Power Supply diagnostics provide status of the parameters shown in the list.
Parameter/
Message
Power Supply
Status
Value
Possible Cause
Unknown
No rack
communication.
Controller Action
If under power I/O will
switch to failsafe values
Loss of Comms
User Action
Determine & correct
cause of
communication
failure
If not powered (unpowered outputs)
Restore rack
operation
Loss of AC mains
Restore AC main
power, reset breaker
Bad power supply
Failed scanner2
Replace Power
supply
Replace scanner2
Redundant P/S is
not present
Single power
supply configuration
Status reported
Redundant Power
Backplane not
detected
Status reported
Rack continues to
function properly
Rack continues to
function properly
No action required if
single power supply
rack.
If dual power
supplies installed
Replace Redundant
Power Backplane
Replace rack
backplane
Replace Scanner2.
Power Supply
PS-1 Failed
(PS-1 LED is
OFF)
(PS-1 LED is ON)
Power Supply
PS-2 Failed
(PS-2 LED is
OFF)
No AC Mains on
PS-1
Diagnostic reported.
Rack continues to
function properly.
Status posted.
Failed Power
Supply
Replace Power
Supply
Failed Redundant
Power Backplane
detection circuit
Requires unit
shutdown - Replace
Redundant Power
Backplane
Failed rack
backplane status
signal
Requires unit
shutdown - Replace
rack backplane.
Failed Scanner2
status input
Requires unit
shutdown - Replace
Scanner2.
No AC Main on PS2
Diagnostic reported.
Rack continues to
function properly.
Restore AC main
power, reset
breaker.
Status posted.
Failed Power
230
Restore AC main
power, reset
breaker.
HC900 Process Control Designer User Guide
Replace Power
Revision 15
September 2013
Diagnostics
I/O Module Diagnostics Status Indications
Parameter/
Message
Value
Possible Cause
(PS-2 LED is ON)
Both Power
Supplies are
Good
Power Supply
Diagnostic
Controller Action
User Action
Supply
Supply
Failed Redundant
Power Backplane
detection circuit
Requires unit
shutdown - Replace
Redundant Power
Backplane
Failed rack
backplane status
signal
Requires unit
shutdown - Replace
rack backplane.
Failed Scanner2
status input
Requires unit
shutdown - Replace
Scanner2
NA
None
None
See Power
Supply Status for
possible values
I/O Module Diagnostics Status Indications
In the Rack Diagnostics window, the subsection I/O Module Diagnostics displays the Error Status for
each module in the rack.
The following table lists the possible Error Statuses.
Error
Status
Possible Cause
Controller Action
User Action
Good
N/A
N/A
N/A
Hi CJ
Temperature
Possible causes of
this diagnostic are:
Associated AI blocks that are
configured as T/Cs set their fail
pin on, their warn pin off, and
their output pin to the failsafe
value.
Improve ventilation to rack
One of the two CJs on
the module is
indicating a
temperature reading
greater than 70
degrees C.
Both cold-junction
sensors are failing to
convert.
The CJs are
converting properly,
but their differential is
greater than 10
degrees C.
Replace AI module
Associated AI blocks that are
configured as T/Cs set their IO
status to “CJ High Temperature”
for reason 1 or “CJ Failure” for
possible causes 2 and 3.
Associated rack monitor block’s
module fail pin is turned on.
Associated rack monitor block’s
RACK OK pin is turned off.
Associated rack monitor block’s
HITEMP pin is turned on.
ASYS block’s HITEMP pin is
turned on.
ASYS block’s HW OK pin is
turned off.
Revision 15
September 2013
HC900 Process Control Designer User Guide
231
Diagnostics
I/O Module Diagnostics Status Indications
Error
Status
Wrong Module
Possible Cause
The module does not
agree with the module
required for the
control scenario
Controller Action
Associated blocks set their fail
pin on, their warn pin off, and
their output pin to the failsafe
value.
User Action
Verify configuration
Replace module with the
correct one.
Associated blocks set their IO
status to “Channel No Comm”.
Associated rack monitor block’s
module fail pin is turned on.
Associated rack monitor block’s
RACK OK pin is turned off.
ASYS block’s HW OK pin is
turned off.
#
Module No
Comm
Main CPU is unable
to communicate to the
module for one of the
following reasons:
See Wrong Module.
Module is not installed
The module cannot
communicate with the
controller CPU or the
expansion rack CPU
because of a
backplane
problem.Module is on
an expansion rack
and the expansion
rack communications
are failing
Action is based on the
IODIAG indication. If
IODIAG is not MODULE
ERROR, then follow the
prescribed action defined for
that diagnostic.
For MODULE ERROR, do
the following:
Verify configuration
Install module.
Check the communication
cables that connect the
expansion rack(s) to the
Main Rack.
Replace the controller or
expansion rack backplane.
232
Bad Module
Module is bad.
Module LED flashes
to indicate the
problem.
N/A
See HC900 Controller
Manual 51-52-25-107, I/O
Module Indicators. A table
describes the LED flashes
and what they mean.
Bad Channel
One or more channels
in the module is bad.
The I/O rack’s Scanner status
LED and the Controller rack’s
status LED (not the module or
channel LED) flash 6 times.
To determine which
channel(s) are bad, monitor
the function blocks
corresponding to the
channels in this module. See
Function Block Monitor
Window Check each I/O
function block’s
“Channel/Sensor Status ”.
2) To determine the cause,
see HC900 Controller
Manual 51-52-25-107, I/O
Module Indicators, Bad I/O
Channel Diagnostics. A
table describes the channel
statuses and what they
mean.
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
I/O Channel/Sensor Status
I/O Channel/Sensor Status
When monitoring blocks of the type in the table below, the Channel/Sensor Status is displayed.
Statuses vary in severity; the more serious will trigger an error message/indicator elsewhere, such as a
I/O Module Diagnostic Error or a flashing LED on the I/O rack.
Here is an alphabetical list of possible statuses for each I/O channel type.
Channel/Sensor
Status
Good
Channel type
Possible Cause
User Action
AI AO DI DO TPO TPSC PI PO FI QUAD
√
√
√
Bad Channel
√
√
√
√
√
√ √
√
√
Normal operation
There are two possible causes for
this error:
Check terminal
connections.
Replace module.
1. If the channel is an Analog
Output: There is no physical output
device connected to this channel,
or the output device is showing an
“open” connection.
2. If the channel is a Pulse Output:
The channel is failing to output the
correct value.
A BAD CHANNEL I/O module
diagnostic is posted.
Burnout Failure
√
The sensor – T/C, RTD, or mV
source -- is failing burnout checks.
A BAD CHANNEL I/O module
diagnostic is posted.
Check terminal block
connections
Replace source
element
Replace module.
CJ Failure
√
Two conditions can create this
failure.
Improve ventilation
to rack.
1. Both cold-junction sensors are
failing to convert.
Replace AI module.
2. The CJs are converting properly,
but their differential is greater than
10 degrees C.
In either case a HI CJ TEMP I/O
module diagnostic is posted.
CJ High
Temperature
CJ Warning
√
One of the CJs is indicating a
temperature reading above 70
degrees C. A HI CJ TEMP I/O
module diagnostic is posted.
√
√
The AO block’s input is greater
than the block’s configured high
range value.
Clamp Low
√
The AO block’s input is less than
the block’s configured low range
value.
Revision 15
September 2013
√
Replace AI module.
One of the cold-junction sensors is
failing to convert. The temperature
compensation for the thermocouple
readings could have a slight error
because only the good CJ is being
used in the temperature
calculation.
Clamp High
Disabled
Improve ventilation
to rack.
AI channel is programmatically
disabled
HC900 Process Control Designer User Guide
233
Diagnostics
I/O Channel/Sensor Status
Channel/Sensor
Status
Failed to convert
Channel type
User Action
When attempting to take a reading,
the analog-to-digital (ADC) fails.
This can occur if the incoming
signal is either too large or too
small. It also could result if the
ADC circuit is failing. If the problem
is the ADC circuit, most likely other
channels will have the same
failure. A BAD CHANNEL I/O
module diagnostic is posted.
Check the signal
level being applied to
the terminals.
AI AO DI DO TPO TPSC PI PO FI QUAD
√
Forced
√
√
√
No Channel
Available
√
√
√
No Comm
√
√
√
√
√
Over current
Over range
Possible Cause
√
Replace module.
The point has been manually
forced to its present value,
probably via a PC host.
√
√
√ √
√
√
There is no hardware on the I/O
module to support this channel.
For example, the customer
configured Channel #15 for a given
module, but there is an 8-channel
module installed in the rack. A BAD
CHANNEL I/O module diagnostic
is posted.
The Main CPU is unable to
communicate to the channel.
Possible reasons are module
missing, wrong module installed,
SPI backplane is failing, expansion
rack is missing.
√
√ √
√
A Digital Output module detected
an excessive amount of current on
its output terminals. Note that this
message will only appear for the
32-channel DO module. A BAD
CHANNEL module diagnostic is
posted.
The signal at the terminals is more
than 10% over the range of the
sensor.
Check the signal
level being applied to
the terminals.
Replace module.
Sensor & Range
type not available
√
The AI module installed in the rack
does not support the range or
sensor type configured for this
channel. For example, this
channel’s AI function block is
configured as a thermocouple, but
there is a high-level AI module
installed in the rack.
T/C Failing
√
When burnout check occurs on the
T/C, the measured resistance
indicates that the T/C’s resistance
is to a point where the burnout
failure will result.
T/C Warning
√
When burnout check occurs on the
T/C, the measured resistance is
higher than normal.
Under range
√
The signal at the terminals is less
than 10% below the range of the
234
HC900 Process Control Designer User Guide
Check the signal
level being applied to
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Channel/Sensor
Status
Channel type
Possible Cause
User Action
AI AO DI DO TPO TPSC PI PO FI QUAD
sensor.
the terminals.
Replace module.
Wrong Firmware
Rev
√
The firmware in the AI module is
not compatible with the firmware in
the controller or scanner CPU, or
AI module does not support
slidewire as an input type.
Controller Ports Diagnostics
Accessing Port Diagnostics
Overview
The Designer provides live monitoring of Controller Ports diagnostics. The instrument executes
diagnostic routines during instrument start-up and during on-line operation.
1. Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu or from the Monitor
toolbar.
There is a sub-menu from which you can choose the type of port you want to monitor:
Toolbar
Menu
Serial Port S1 Configuration Port Diagnostics
Serial Port S2 OI Port Diagnostics
Network Port Diagnostics
Expansion I/O Comm Diagnostics (except C30 CPU)
Host Connections Diagnostics
Peer-to-Peer Connections Diagnostics
The specific monitoring dialog box for that selection will open.
Serial Port S1 Configuration Port Diagnostics
The Designer provides live monitoring of the Serial Port S1 Configuration Port (default RS232). The
instrument executes diagnostic routines during instrument start-up and during on-line operation.
Revision 15
September 2013
HC900 Process Control Designer User Guide
235
Diagnostics
Controller Ports Diagnostics
1. Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Serial Port
S1" from the list provided or from the Monitor toolbar.
2. The "Serial Port S1 Diagnostic Summary" dialog box will appear. It shows Port Status, Diagnostics,
Statistics and parameters for the Serial Port S1 Configuration Port.
(This window can be launched from the "Utilities Worksheet")
3. The summary will provide status of the parameters shown in the list.
4. Click on "X" to exit box.
Refer to the Serial Port S1 Configuration Port Diagnostics Status Indicators for status indications,
possible cause, and actions to correct the problem.
236
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Serial Port S1 Configuration Port Diagnostics Status Indicators
The "Serial Port S1 Diagnostic Summary" dialog box will provide status of the parameters shown in the
list.
Parameter
Serial Port S1
Port Diagnostics
Value
Possible Cause
Controller Action
Good
N/A
N/A
N/A
Data Link Failure
A large number of
messages are
resulting in data link
errors.
1.Rack 1 monitor block’s
1.Check baud rate
2.Check connectors
3.Check cable polarity
4.Isolate cabling from
COMPORT DIAG is
set to FAILED.
2.Rack 1 monitor block’s
RACK OK pin is
turned off.
3.ASYS block’s HW OK
pin is turned off.
4.If configured as a
Modbus master:
ASYS and FSYS blocks’
Modbus Master Fail pins
are turned on.
Slave and read blocks
associated with the
slaves experiencing the
failure have their read
pins frozen to the last
value read.
Slave blocks associated
with the slaves
experiencing the failure
have their BAD COMM
and NO SCAN pins
turned on.
IN SCAN STATUS is set
to NO for all slaves
experiencing the failure.
COMM STATUS is set to
BAD for all slaves
experiencing the failure.
The slaves with the data
link errors have a nonzero data link error
count.
The slaves experiencing
the failure are moved to
the background scan
rate.
Revision 15
September 2013
User Action
HC900 Process Control Designer User Guide
electrical
interference
5.If RS232 to RS485
converter is
used, check its
power,
switch/jumper
settings, and
polarity.
6.If configured as a
Modbus master,
use the slave
status screens to
determine which
slaves are
experiencing the
problem. For
those slaves
check:
• power
• connections
• address
• baud rate
• parity
• number of stop bits
• for electrical
interference
• grounding
• termination resistor
(if at end of link)
7. The diagnostic is
cleared by
clearing the port’s
statistics.
237
Diagnostics
Controller Ports Diagnostics
Parameter
Value
HW Failure
Possible Cause
The DUART is
failing to operate
properly.
Controller Action
1.Rack 1 monitor block’s
COMPORT DIAG is
set to FAILED.
2.Rack 1 monitor block’s
RACK OK pin is
turned off.
3.ASYS and FSYS blocks’
HW OK pins are
turned off.
4.If configured as a
Modbus master:
i.
ASYS and FSYS
blocks’ Modbus
Master Fail pins
are turned on.
ii.
All Modbus slave
and Modbus
read blocks have
their read pins
frozen to the last
value read.
User Action
Replace CPU
module
iii. All slave blocks
have their BAD
COMM and NO
SCAN pins
turned on.
iv. IN SCAN
STATUS is set to
NO for all slaves.
v.
COMM STATUS
is set to BAD for
all slaves in the
function block
diagram.
vi. Statistical data for
all slaves is
frozen.
vii. All slaves in the
function block
diagram are
scanned at the
background scan
rate.
238
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Serial Port S2 Port Diagnostics
The Designer provides live monitoring of the S2 Port. The instrument executes diagnostic routines
during instrument start-up and during on-line operation.
1. Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Serial Port
S2" from the list provided or from the Monitor toolbar.
2. The "Serial Port S2 Diagnostic Summary" dialog box will appear.
It shows Port Status, Diagnostics, Statistics and parameters for the Serial S2 Port (default RS485
for 559/1042 Operator Interface).
(This window can be launched from the "Utilities Worksheet").
3. The summary will provide status of the parameters shown in the list.
4. Click on "X" to exit box.
Refer to the Serial Port S2 Port Status Indicators for status indications, possible cause, and actions to
correct the problem.
Serial Port S2 Port Status Indicators
The "Serial Port S2 Diagnostic Summary" dialog box will provide status of the parameters shown in the
list.
Parameter
Serial Port S2
Diagnostics
Value
Possible Cause
Good
N/A
Application Error
At least 1 response
to a host resulted
in an exception
code or NAK.
Controller Action
N/A
1.
2.
3.
Revision 15
September 2013
Rack 1 monitor block’s
COMPORT DIAG is
set to WARNING.
Rack 1 monitor block’s
RACK OK pin is
turned off.
ASYS block’s HW OK
pin is turned off.
HC900 Process Control Designer User Guide
User Action
N/A
At host, determine
which message is
causing the
exception code and
fix.
239
Diagnostics
Controller Ports Diagnostics
Parameter
Value
Possible Cause
Data Link Failure
A large number of
messages are
resulting in data link
errors.
Controller Action
1.
2.
3.
4.
HW Failure
The DUART is
failing to operate
properly.
Rack 1 monitor block’s
COMPORT DIAG is
set to FAILED.
Rack 1 monitor block’s
RACK OK pin is
turned off.
ASYS block’s HW OK
pin is turned off.
If configured as a
Modbus Master port,
associated slave
blocks have their read
pins frozen to the last
value read.
Same as above
User Action
1.
2.
3.
4.
5.
Check baud rate
Check
connectors
Check cable
polarity
Isolate cabling
from electrical
interference
If RS232 to
RS485 converter
used, check its
power,
switch/jumper
settings, and
polarity.
Replace CPU
module
Network Port Diagnostics
The Designer provides live monitoring of the Ethernet Network Port. The instrument executes
diagnostic routines during instrument start-up and during on-line operation.
1.
Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Network
Port" from the list provided or from the Monitor toolbar.
(This window can be launched from the "Utilities Worksheet"
2.
The "Network Port Diagnostic Summary" dialog box will appear. It shows Port Status, Diagnostics,
Statistics and parameters for the Ethernet Network Port.
3.
The summary will provide status of the parameters shown in the list.
4.
Click on "X" to exit box.
Refer to "Network Port Diagnostics Status Indicators" for status indications, possible cause, and
actions to correct the problem.
240
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Network Port Diagnostic Status Indicators
The "Network Port Diagnostic Summary" dialog box will provide status of the parameters shown in the
list.
Parameter
Network Port
Diagnostics
Value
Possible Cause
Good
N/A
Network Setup
Error
Controller/network
names determined
on network are
illegal
No IP Address
DHCP and IP
address are not
configured
Same as above
Ethernet port tests
failed during powerup.
Same as above
Hardware Failure
Revision 15
September 2013
Controller Action
N/A
1. Rack 1 monitor block’s
COMPORT DIAG is
set to FAILED.
2. Rack 1 monitor block’s
RACK OK pin is
turned off.
3. ASYS block’s HW OK pin
is turned off.
User Action
N/A
Correct the setup
problem.
1.If a DHCP server is
present,
download a
configuration that
uses DHCP.
2.Enter an IP address
HC900 Process Control Designer User Guide
Replace CPU
Module
241
Diagnostics
Controller Ports Diagnostics
Expansion I/O Comm Diagnostics
The Designer provides live monitoring of the Expansion I/O (except C30 CPU) Comm subsystem. The
instrument executes diagnostic routines during instrument start-up and during on-line operation.
1.
Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Expansion
I/O Comm" from the list provided or from the Monitor toolbar.
(This window can be launched from the "Utilities Worksheet")
2.
The "Expansion I/O Comm Diagnostic Summary" dialog box will appear. It shows Port Status,
Diagnostics, Statistics and parameters for the I/O Expansion I/O Comm subsystem.
3.
The summary will provide status of the parameters shown in the list.
4.
Click on "X" to exit box.
Refer to "Expansion I/O Comm Diagnostics Status Indicators" for status indications, possible cause,
and actions to correct the problem.
242
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Expansion I/O Comm Diagnostics Status Indicators
The "Expansion I/O Comm Diagnostic Summary" dialog box will provide status of the parameters
shown in the list. (except C30 CPU)
Parameter
Rack Comm
Diagnostics
Value
Possible Cause
Controller Action
User Action
Good
N/A
N/A
N/A
Data Link Failure
The communications to 1.
a particular rack is
resulting in a lot of DLL
2.
errors.
Related rack monitor
block’s RACK OK pin is
turned off.
Depending on the nature
of the DLL errors, the
associated rack monitor
block’s module
diagnostics, and pins
could be affected.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Revision 15
September 2013
HC900 Process Control Designer User Guide
Use the OI to
determine which rack
is experiencing the
DLL errors. Verify that
the expansion rack
should be in the
configuration
Verify that the
jumpers on the
scanner are setup for
the correct rack
address.
If a hub is used,
check that all cables
are properly
connected to the hub,
proper crossover
cables are used, and
that hub is powered.
Cycle power to the
rack.
Cycle power to the
hub.
Replace the HC900C50 expansion rack’s
power supply.
Replace the HC900C50 expansion rack.
Replace the HC900C50 expansion rack’s
scanner board.
Replace the main
CPU.
243
Diagnostics
Controller Ports Diagnostics
Parameter
Value
Possible Cause
Controller Action
Hardware Failure
The power-up test of the 1.
expansion rack Ethernet
controller failed.
2.
3.
4.
5.
244
User Action
All rack monitor block
Replace main-CPU module
XIO PORT DIAG are set
to HWFAIL.
All rack monitor block
RACK OK pin are turned
off.
All modules in the
configuration have their
diagnostic set to
MOD_NOCOMM, their
rack monitor module fail
pin is turned on., and the
rack monitor block’s
RACK OK pin is turned
off.
ASYS block’s HW OK
pin is turned off.
The statuses for the AO
and AI channels that are
affected are set to
BAD_CHANNEL.
Port A/B Cable
Mismatch
C70R only. The I/O
cables from CPUA and
CPUB are connected to
the wrong ports on the
I/O scanner CPU
Controller continues to run but Swap the cables so that I/O
is not able to access the I/O
A is connected to I/O on
on the associated rack
CPUA and I/O B is
connected to I/O on CPUB
Protocol Mismatch
C70R only. The
firmware version in the
controller CPU is not
compatible with the
firmware version in the
I/O scanner
Controller continues to run but Upgrade the firmware in the
is not able to access the I/O
CPU and/or scanner to be
on the associated rack
compatible versions
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Host Connections Diagnostics
The Designer provides live monitoring of the Host Connections. The instrument executes diagnostic
routines during instrument start-up and during on-line operation.
1.
Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Host
Connections" from the list provided or from the Monitor toolbar.
(This window can be launched from the "Utilities Worksheet")
2.
The "Host Connections Diagnostic Summary" dialog box will appear.
3.
The summary will provide status of the parameters shown in the list.
4.
Click on "X" to exit box.
Refer to "Host Connections Diagnostics Status Indicators" for status indications, possible cause, and
actions to correct the problem.
Revision 15
September 2013
HC900 Process Control Designer User Guide
245
Diagnostics
Controller Ports Diagnostics
Host Connections Diagnostics Status Indicators
The "Network Host Connections Diagnostic Summary" dialog box will provide status of the parameters
shown in the list.
Parameter
Network Host
Connections
Diagnostics
Value
Possible Cause
Controller Action
User Action
Good
N/A
N/A
N/A
Application Error
At least 1 response
to a host resulted in
an exception code
1.Rack 1 monitor block’s
At host, determine
which message is
causing the exception
code and fix.
COMPORT DIAG is
set to WARNING.
2.Rack 1 monitor block’s
RACK OK pin is
turned off.
3.ASYS block’s HW OK
pin is turned off.
Peer-to-Peer Connections Diagnostics
The Designer provides live monitoring of the Peer-to-Peer Connections. The instrument executes
diagnostic routines during instrument start-up and during on-line operation.
1.
Select "Controller Ports Diagnostics" from the "Monitor" drop-down menu then select "Peer-toPeer Connections" from the list provided.
2.
(This window can be launched from the "Utilities Worksheet") Select "Controller Diagnostics" icon
then select "Controller Ports Diagnostics" then "Peer-to-Peer" Connections.
3.
The “Peer-to-Peer Connections” dialog box will appear.
4.
The summary will provide status of the parameters shown in the list.
5.
Click on "X" to exit box.
Refer to "Peer -to-Peer Connections Diagnostics Status Indicators" for status indications, possible
cause, and actions to correct the problem.
246
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Controller Ports Diagnostics
Peer-to-Peer Connections Diagnostics Status Indicators
The “Peer-to-Peer connections” dialog box will provide status of the parameters shown in the list.
Value
Good
Application
Error
Possible Cause
Controller Action
N/A
N/A
The peer connection could not be
established due to an internal program
problem.
N/A
User Action
N/A
1. Reset the controller to restart the
UDP/IP protocol stack and reset
buffer allocations.
2. Contact Honeywell Technical
Assistance if the problem exists.
Setup Error
The peer device indicated that one or
more data item is not valid.
The error will occur when an
incompatibility exists
between peer devices with
regard to variable or signal
assignments.
Contact Honeywell Technical
Assistance if the status occurs.
This error should not occur
when exchanging data
between HC900 controllers.
Peer Fail
The assigned peer could not be located
on the network.
N/A
1. Check the controller name and
network name of the peer device to
assure that they match that specific
PDE block.
2. Check that the IP addresses of
the peer devices are all within the
range of the IP mask.
3. Check that the peer devices
have the same IP subnet mask. See
Network parameters for IP mask
setting.
Port Fail
The peer data exchange IO subsystem
could not be started due to internal
resource problem.
N/A
1. Reset the controller to restart the
Ethernet IO hardware and reassign
processor IO mapping.
2. Contact Honeywell Technical
Assistance if the problem exists.
Not Started
The assigned peer IO connection has
not yet been attempted. Normal state
during startup and during configuration
mode. This status should automatically
change to GOOD after both peer
controllers are in the RUN mode.
N/A
1. If this status persists during run
time, check that the peer device is
properly connected and that the
control name and network name is
correct.
2. Check that the IP masks of all
peer devices to assure that all IP
addresses are within the same
subnet.
3. Check that all external network
components such as switches and
routers allow passing of UDP packets
on port 502.
4. Check that the peer device is
powered on and is in RUN mode.
Revision 15
September 2013
HC900 Process Control Designer User Guide
247
Diagnostics
Modbus Master (Serial) Port Diagnostics
Parameter
Peer-to-Peer
Connections
Diagnostics
Value
Possible Cause
Good
N/A
Network Setup
Error
Controller/network
names determined on
network are illegal
Controller Action
N/A
Rack 1 monitor block’s
COMPORT DIAG is set to
FAILED.
User Action
N/A
Correct the setup problem.
Rack 1 monitor block’s
RACK OK pin is turned off.
SYSTEM MONITOR
block’s HW OK pin is turned
off.
No IP Address
IP address is not
configured
Hardware Failure
Ethernet port tests
failed during power-up.
See Network Setup Error
Enter an IP address.
Replace CPU module
Modbus Master (Serial) Port Diagnostics
Displays the status of the Modbus Master port, if so configured.
Access
Enter Monitor mode and select Modbus master port diagnostics from the Monitor menu or through the
Utilities tab/Controller Diagnostics icon.
248
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Modbus Master (Serial) Port Diagnostics
Port
S1
The controller’s S1 port is the Modbus Master port.
S2
The controller’s S2 port is the Modbus Master port.
No Master Port
The HC900 configuration contains Modbus slave blocks, but neither
the S1 or the S2 port is configured as a Modbus Master. Use Set
Controller Serial Ports on the Utilities tab to set up a Modbus Master
port.
Master port status
The master port S1 or S2 is shown along with its status.
Modbus Master Port Status
Meaning
No Slave Blocks
There are no MBS (Modbus Slave) Blocks in the configuration
Program Mode
Controller is in Program Unlocked Mode, Modbus Slave
Communications is disabled; return to Run to communicate to Slave
Devices
ELN Slave
Controller is in Program Locked Mode; Port switches to Serial ELN
Protocol while in this mode.
Scanning
Port is configured as a Modbus Master. Controller is in RUN or
OFFLINE mode and is scanning the slave devices.
Protocol
Shows the protocol for the port. If Modbus RTU Advanced, you can click on View Advanced Setup.
Cycle time (S)
This is the computed cycle time of the Modbus Master link. This time is computed by the HC900
controller.
Execution time (S)
This is the actual execution time of the Modbus Master link as measured by the HC900 Controller.
Peak time (S)
This is peak execution time of the Modbus Master link, as measured by the HC900 controller.
Overruns
This parameter counts the number of times that the actual execution time of the Modbus Master link
exceeded the computed Cycle Time. Overruns can occur in the following situations:
•
The baud rate configured for this serial port is incorrect.
•
There is a physical problem on the serial communications link (e.g., a bad connection, a faulty
or disconnected communications cable).
•
The Slave Reply Timeout value is too small (this applies to Modbus RTU Master Advanced
protocol only). If overruns continue to accumulate you may need to increase this value.
•
Changing the serial port setup parameters. There may be a momentary overrun when the new
parameters are saved to the controller.
Revision 15
September 2013
HC900 Process Control Designer User Guide
249
Diagnostics
Modbus Master (Serial) Port Diagnostics
Any persistent overrun condition should be investigated and corrected. Note that occasional overruns
may occur during normal operation of the system if the scanning of the Modbus Master link is delayed
by a higher priority activity.
The Overruns counter can be reset to zero by selecting Clear Statistics on the Serial Port S1 or S2
Diagnostics display.
Slave status
Under Modbus Slave Devices click on any slave name (left) to view its details (right). Some details
show the configuration of the Modbus Slave function block.
The slave’s Status (left) is the same as under Details, Comm quality (right).
Slave status/Comm Quality
Meaning
NONE
Slave communications are disabled.
BAD
Errors are occurring in the communications. Possible causes to
check for:
Physical link might be bad
Slave device might be off
No slave device found at the selected Modbus Address
Slave device set to the wrong baud rate.
GOOD
Slave communications are normal
Port scanning
To enable/disable port scanning for a slave device:
1. Click a Modbus slave device in the slave device window. Slave details will appear at left.
2. Click on the Enable/Disable button at the bottom right to enable/disable the port scanning of
that slave device.
250
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Modbus Initiator (TCP) Port Diagnostics
Modbus Initiator (TCP) Port Diagnostics
Displays the status of the Modbus/TCP Initiator port, if so configured.
Access
Enter Monitor mode and select Modbus/TCP Initiator Port Diagnostics from the Monitor menu or
through the Utilities tab/Controller Diagnostics icon.
Modbus/TCP Initiator port status
Status
Meaning
No Slave Blocks
There are no TCPS (Modbus/TCP Slave) Blocks in the configuration
Scanning
Controller is in RUN or OFFLINE mode and is scanning the
Modbus/TCP slave devices.
Slave status
Under Modbus Slave Devices click on any slave name (left) to view its details (right). Some details
show the configuration of the Modbus/TCP Slave function block.
The slave’s Status (left) is the same as under Details, Comm quality (right).
Slave status/Comm Quality
Meaning
NONE
Slave communications are disabled.
BAD
Errors are occurring in the communications. Possible causes to
check for:
Revision 15
September 2013
HC900 Process Control Designer User Guide
251
Diagnostics
Modbus Initiator (TCP) Port Diagnostics
Physical link might be bad
Slave device might be off
No slave device found at the selected Modbus IP Address
Slave device set to the wrong baud rate.
GOOD
Slave communications are normal
Port scanning
To enable/disable port scanning for a slave device:
1. Click a Modbus slave device in the slave device window. Slave details will appear at left.
2. Click on the Enable/Disable button at the bottom right to enable/disable the port scanning of that
slave device.
252
HC900 Process Control Designer User Guide
Revision 15
September 2013
Diagnostics
Modbus Initiator (TCP) Port Diagnostics
This page has been intentionally left blank
Revision 15
September 2013
HC900 Process Control Designer User Guide
253
Reports
Print Report
Reports
Print Report
Select "Print Report" from the File menu. If you selected
from the Custom Modbus Map toolbar
it will print the currently displayed partition.
Print Report lets you print a report for various functions.
Click on the Icon on the toolbar and select a report from the drop-down menu that appears.
The "Print" dialog box will open to let you print a specific report.
You can also print a report from "Print Report Preview" from the File menu.
Report Categories
The Print Report function provides access to the greatest number of reports. For software
revisions prior to 6.0, all 5 main report categories are available. For revision 6.0 and later the
Display worksheet is no longer supported, so the Displays report category option is not
available. For SIL compliant controller types, additional sub-menus allow for filtering of some
reports based on Process or Safety worksheets. For more information see Reports Overview.
Controller Reports
Clicking on the Controller button provides a drop-down menu which allows the selection of 2
different reports, as shown below. Note that for SIL compliant controller types only; there is an
additional sub-menu for the I/O Configuration report.
Revision 15
September 2013
HC900 Process Control Designer User Guide
255
Reports
Print Report
Report
Description
SIL
Filtering
Email
Shows how E-mail notification is configured.
No
I/O
Configuration
Shows configuration of all I/O on all racks.
Yes
This report is similar to the data shown on the Controller
worksheet. It may also be printed by clicking on the Print
button in the Controller Configuration Toolbar.
Function Block Diagram Reports
Clicking on the FBDs button provides a drop-down menu which allows the selection of reports
or report sub-categories related to the items contained on the function block diagrams of the
configuration. The available report options for configurations with a Fixed Modbus Address Map
are shown in the first figure below. The available report options for configurations with a Custom
Modbus Address Map are shown in the second figure below.
256
HC900 Process Control Designer User Guide
Revision 15
September 2013
Reports
Print Report
Report
Description
SIL
Filtering
All FBD
Worksheets
Not a traditional report. Prints out the graphical
representation of all Function Block Diagrams in the
configuration.
Yes
FBD
Worksheets
Not a traditional report. Prints out the graphical
representation of a single Function Block Diagrams from
the configuration.
Yes
Hovering over this menu option will display a submenu(s) which allows selection of the desired function
block diagram worksheet.
Block
Parameters
Shows a detailed report of each function block’s
parameters.
Yes
[Modbus Register Map] (appears if using fixed map)
Yes
Detailed
Function
Block Report
Shows the starting Modbus address of each function
Summary
Function
Block Report
Shows the starting Modbus address of each function
User-Defined
Signals and
Variables
Shows the user-defined Modbus addresses of signals
and variables.
Yes
Signal Tags
Shows the system-defined Modbus addresses of all
signal tags.
Yes
Variables
Shows the system-defined Modbus addresses of all
variables.
Yes
Revision 15
September 2013
block, as well as the Modbus addresses of all its
parameters. Click here for details.
Yes
block. Click here for details. (also available if using
custom map)
HC900 Process Control Designer User Guide
257
Reports
Print Report
Signal Tags
and Variables
Shows the system-defined Modbus addresses of all
signal tags and variables.
Yes
[Modbus Partition] (appears if using custom map)
Modbus
Partition
Shows the Modbus addresses and contents of the
selected partition.
No
Hovering over this menu option will display a submenu(s) which allows selection of the desired partition.
The report generated by this method is equivalent to the
report printed when the same Modbus address partition
is selected in the Custom Modbus Map worksheet and
the Print button on the worksheet’s toolbar is clicked.
Where Used
Shows location (worksheet and page) of every item in
the function block diagram.
Yes
File Statistics
Shows useful file statistics. Schema # is a database
revision code used by the controller, OI and the software
to ensure compatibility
No
Display Reports
Clicking on the Displays button provides a drop-down menu which allows the selection of 4
reports related to displays, as shown below. As noted above, this category is not available
starting with revision 6.0.
258
Report
Description
SIL
Filtering
General
Settings
Shows Operator Interface settings (security, startup
display, filenames).
No
Help Screens
Shows Operator Interface help screens.
No
Assigned
Display Keys
Shows Operator Interface displays and contents for each
display button.
No
Data Storage
Shows data storage settings (trend group data points,
No
HC900 Process Control Designer User Guide
Revision 15
September 2013
Reports
Print Report
Settings
batch enable, etc.)
Recipe Reports
Clicking on the Recipes button provides a drop-down menu which allows the selection of 4
reports related to recipes, as shown below.
Report
Description
SIL
Filtering
Select a
Recipe
(Variables)
Shows contents of the selected recipe (variables,
descriptions).
No
Select a Set
Point Profile
Shows contents of the selected Setpoint Profile.
No
Select a Set
Point
Schedule
Shows contents of the selected Setpoint Schedule.
No
Select a
Sequence
Shows contents of the selected Sequence.
No
Selecting any of the 4 report options noted above brings up a selection dialog similar to the one
below that allows one of the available Variables, Set Point Profile, Set Point Schedule or Set
Point Sequences to be selected from a pool for printing. Clicking on the Print button completes
the report printing.
Revision 15
September 2013
HC900 Process Control Designer User Guide
259
Reports
Print Report
Alarms & Events Reports
Clicking on the Alarms & Events button provides a drop-down menu which allows the selection
of 2 reports related to displays, as shown below.
Report
Description
SIL
Filtering
Alarm Groups
Shows contents of each Operator Interface alarm group
display.
Yes
Events
Shows all configured events and their triggers.
Yes
See Also
Reports Overview
Print Report Preview
Export Report
260
HC900 Process Control Designer User Guide
Revision 15
September 2013
Reports
Print Report Preview
Print Report Preview
Report Categories
The Print Report Preview function provides a means of previewing reports before they are
printed. As such, the reports available for previewing is essentially the same as those available
in the Print Report function. The one notable exception is that the option to preview the printing
of all Function Block Diagrams at once is not supported.
Navigation
A toolbar at the top of the Print Report Preview window lets you navigate through the pages of
the report:
The functions from left to right are:
Print
Prints the active report without going to "Print Report" in the file menu
Previous Page Selects the previous page on the report for display
Next Page
Selects the next page on the report for display
Two Pages
Shows two report pages at once
Zoom Out
Makes the report larger on the screen
Zoom In
Makes the report smaller on the screen
Close
Closes the Print Report Preview
See Also
Reports Overview
Print Report
Export Report
Revision 15
September 2013
HC900 Process Control Designer User Guide
261
Reports
Export Report
Export Report
Select "Export Report" from the File menu or select
from the Custom Modbus Map toolbar.
Export Report lets you export some reports as files in comma delimited (.csv) or tab delimited (.txt)
format. The files contain the same data as shown in the printed report, just formatted differently.
Exported reports can then be imported by other applications such as third party operator interface
configurations.
Not all printable reports can be exported; choices are limited.
Click on the Icon on the toolbar and select a report from the drop-down menu that appears. Name the
report and save it as .csv or .txt.
To change the default export file type, see Export Delimiter.
Exported Files have the following format for their Header sections.
Header
RevisionID:
Example
0115.0030.0002.0002.0003
Description
AAAA.BBBB.CCCC.DDDD.EEEE
Where
AAAA = Export ID:
0103 = IO Configuration Information Report
0106 = Variable and Signal Tag Information Report
0115 = Modbus Address Detailed Report
0116 = User Defined Modbus Registers Report
0117 = Signal Tag Report
0118 = Variable Report
0119 = Modbus Address Summary Report
0120 = All Function Block Modbus Addresses
5000 = Modbus Partition Registers Report
5500 = All Modbus Registers Report
BBBB = Database Schema Number
CCCC = Product type:
2 = HC950
3 = HC930
4 = HC970R
5 = HC970
DDDD = Platform type:
2 = HC900 series controllers
File Name:
Controller
Name:
Title:
Author:
Created Date:
Modified Date:
Report Title:
262
HC900-C50 Rev 2.1x :
jjpconfig1 C50_R2.1.cde
JOE
Joe’s Furnace Control
Joe
5/20/2005 13:09
5/30/2005 14:05
Modbus Address Detailed
Report
EEEE = Feature Set:
Schema database minor revisions
Device Type Device Revision: Configuration Filename
Controller name assigned within the configuration
Optional title or description for the configuration
Optional author or creator of the configuration
Date when configuration file was first created
Date when configuration file was last modified and saved.
Report title:
IO Configuration Information Report
Variable and Signal Tag Information Report
Modbus Address Detailed Report
User Defined Modbus Registers Report
Signal Tag Report
Variable Report
HC900 Process Control Designer User Guide
Revision 15
September 2013
Reports
Export Report
Header
Revision 15
September 2013
Example
Description
Modbus Address Summary Report
All Function Block Modbus Addresses
Modbus Partition Registers Report – Partition Name
All Modbus Registers Report
HC900 Process Control Designer User Guide
263
Reports
Export Report
This page has been intentionally left blank
264
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Modbus Map Overview
Modbus Register Addresses
Modbus Map Overview
Overview
Modbus addressing is available in revision 2.0 and later.
In your controller’s configuration certain parameters are each automatically assigned a Modbus
address. These include certain types of function blocks (such as loops and set point programmers),
signals and variables, among other items. Through their addresses these parameters can be accessed
or displayed remotely, such as by a third-party operator interface. Collectively, these Modbus
addresses and parameters are known as the Modbus map. You can use a predefined fixed map where
common parameters are mapped out automatically at fixed addresses, or you can create a custom
map for configurations rev. 4.0 or higher.
Click here for details on fixed vs. custom map.
Configure Modbus Map Method
Overview
Lets you select your preferred Modbus mapping method: fixed or custom.
Access
1. Edit menu.
2. Configure Modbus Map Method
Caution: If you change from custom map to fixed map you will lose all custom addresses, partitions,
and quantities not found in the fixed map (>32 loops, >8 SP Programmers, etc.). If you accidentally
switch from custom to fixed you can use the Undo feature on the main toolbar.
Fixed or custom map
There are two kinds of Modbus maps available: fixed or custom. Basically, the fixed and custom maps
both can contain the same types of items but the custom map has more flexibility with those items’
quantities, addresses and data types. The maps have these characteristics.
Fixed map
Custom map
The items that can be in the fixed map are limited
to certain types of function blocks and other
configuration data.
The items that can be in the custom map are
limited to certain types of function blocks and
other configuration data, same as fixed map.
Items are automatically assigned to the fixed map.
At the moment you switch from fixed to custom
map mode, any items in your configuration
maintain their addresses from the fixed map.
However, once you are in custom map mode, if
you add more items to your configuration they are
not automatically added to the custom map, you
must add them manually.
Each item type is grouped in a fixed address
range of the map. For example, the address
range designated for Loops is restricted to Loops
only, it can not contain Setpoint Programmers.
You can create partitions with custom names and
address ranges. Partitions can contain any item
types, you can mix and match items if needed.
Revision 15
September 2013
HC900 Process Control Designer User Guide
265
Modbus Register Addresses
Configure Modbus Map Method
Fixed map
Custom map
Quantities of each item type are at a fixed
maximum (such as 32 loops, 8 programmers).
Good for smaller configurations or pre-4.0
configurations. If your configuration exceeds
these maximums a message reminds you to
consider switching to the custom map.
Quantities are limited only by the amount of free
space in the map or partition. Use custom map
when you need to access data from more than 32
loops, for example.
Every parameter of a function block is
automatically added to the map. You don’t need
to specify which of the block’s parameters are
mapped, they’re all there. For example, all of a
PID block’s 40-plus parameters are added to the
map.
Lets you pick and choose which block parameters
to add. For example, a PID block contains over 40
parameters. The fixed map adds them all; the
custom map lets you add only the ones you need
to access, thus freeing up more addresses for
other parameters.
You can create templates to apply to any or all
function blocks of a type. For example, you can
select 5 of a PID block’s parameters then save
them to a PID template. You can load that
template into other PID blocks so they each
address the same 5 parameters.
You can reorder items within a group, such as
switching Loop 1 with Loop 10. You can assign
signals and variables to a user-defined area of the
map.
You can reorder items. More generally you can
put any parameter at any address or at multiple
addresses or partitions.
The fixed map has a fixed range (45057-46056)
for assigning configured signal tags and variables
to another data type, such as integer 16.
The custom map lets you assign any data type to
any address (float 32, integer 16, etc.). A default
data type is applied but can be changed.
The fixed map contains several gaps of unused
(and unusable) addresses.
Since you can put any parameter at any address
you can eliminate gaps of unused addresses, thus
increasing the map’s capacity.
The fixed map is the default map for all
configurations. Unless and until you switch to the
custom map, the fixed map is in use. Items are
automatically added to the map when you access
the map, up to the quantity limits (such as 32
loops, 8 programmers). The only items that are
not automatically added are user-defined signals
and variables.
Uses the fixed map as a starting point*. Any edits
to the fixed map (such as reordered items within a
group or user-defined signals and variables) are
carried over when you switch to the custom map.
The custom map’s default partitions are based on
the fixed map’s groups.
Conversely, if you switch from custom map to
fixed map, any customized partitions or addresses
are lost.
*You can revert to this starting point at any time
by using the Replace feature in the custom map.
266
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Modbus addressability of principal function blocks
Modbus addressability of principal function blocks
Function Block
Category/Filter
Available in fixed
map?
Available in custom
map?
AGA8-Detail
AGAs
No
Yes
AGA8-Gross
AGAs
No
Yes
Alternator
Alternators
Yes
Yes
UDC Loop
Communications
No
Yes
UDC Loop2
Communications
No
Yes
XYR5000 Base Station
Communications
No
Yes
XYR5000 Transmitter
Communications
No
Yes
XYR6000 Transmitter
Communications
No
Yes
Calendar Event
Counters/Timers
No
Yes
Device Control
Device Controls
Yes
Yes
Hand Off Auto
Hand Off Autos
Yes
Yes
Four Selector Switch
Logic
No
Yes
Push Button
Logic
No
Yes
Auto Manual Bias
Loops
Yes
Yes
Carbon Loop
Loops
Yes
Yes
On Off Loop
Loops
Yes
Yes
PID Loop
Loops
Yes
Yes
Three Pos. Step Cont.
Loops
Yes
Yes
Set Point Programmer
Programmers
Yes
Yes
Ramp
Ramps
Yes
Yes
Set Point Scheduler
Schedulers
Yes
Yes
Sequencer
Sequencers
Yes
Yes
Stage
Stages
Yes
Yes
Position Proportional Output
NA
No
No
Peer-Peer
NA
No
No
Modbus Slave
NA
No
No
Modbus/TCP Slave
NA
No
No
XYR6000 Gateway
NA
No
No
Revision 15
September 2013
HC900 Process Control Designer User Guide
267
Modbus Register Addresses
Fixed Modbus Map
Fixed Modbus Map
Overview
Certain items in your configuration are automatically assigned Modbus addresses in the fixed Modbus
map. These items include signal tags, variables and principal function blocks like loops and setpoint
programmers. (See page 267.) As each item is added to your configuration it is assigned to the first
(lowest) available Modbus address within the range reserved for that item type. If you delete an item
from your configuration it is removed from that Modbus address and that address becomes available
for another item.
Also available is a range of 1000 addresses (45057 for assigning user-defined signal tags and
variables to any address or multiple addresses. Within these 1000 addresses the data type of each
signal tag or variable can be changed, for example, from float 32 to integer 16.
Access
To access the fixed Modbus register map to add or edit an address, select the main menu Edit item,
Edit Fixed Modbus Register Map, or right-click on a configured signal, variable, or function block.
The following tabs are presented.
User Defined Signals and Variables Tab
Procedure for editing signal or variable addresses.
1. Select the type of signal or variable you want to choose from.
2. Highlight the desired signal/variable.
3. Select an address range you want to add to. There are 20 ranges of 50 addresses each for a total
of 1000 addresses. Then click on the address you will assign the signal/variable to.
4. Click Add to insert the signal/variable.
268
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Fixed Modbus Map
5. Click on the Data Type area of the signal/variable and select a data type. 32-bit data types require
2 adjacent addresses.
6. You can assign a signal/variable to multiple addresses. Just repeat the preceding steps.
7. To clear a single address, select it and click Delete. To clear all signal/variable addresses, select
Clear All Registers. This does not clear the item’s default address, it only clears the addresses
assigned here.
8. To view all addresses of an item, display its Properties.
Signal Tag Properties
Variable Properties
Function Blocks Tab
Procedure for editing function block addresses.
1. Use Filter to list all configured function blocks of a certain type. Types whose Modbus address can
be changed are:
•
Loops (PID, On-Off, Carbon Potential, 3 Position Step, Auto-Manual Bias)
•
Alternator
•
Hand/Off/Auto Switch
•
Sequencer
•
Setpoint Programmer
•
Setpoint Scheduler
•
Stage
•
Device Control
•
Ramp
Revision 15
September 2013
HC900 Process Control Designer User Guide
269
Modbus Register Addresses
Fixed Modbus Map
2. Addresses containing that type of function block are shown in numerical order. For example, with
the Loop blocks filter selected, Loop 1 starts at 0x0040/00065, Loop 2 starts at 0x0140/00321, etc.
Whichever loop is in the first slot is known as Loop 1, as far as the Modbus map is concerned.
That is, loop order in the map is independent of execution order or block number. More generally,
any function block’s order in the Modbus map is independent of its execution order or block
number.
3. To move a function block to another address, click on its address to select it, release, then click
and drag it to the top of the new address, then drop it. A colored line appears while you’re dragging
the function block.
4. If you drop it in an address that’s occupied by another function block, the two function blocks will
swap addresses.
5. Unlike signals and variables, only one range of addresses is allowed per function block.
6. To view the starting address of any function block, display its Properties by right-clicking on the
function block in the configuration diagram under the Controller tab.
If your configuration contains more items than are allowed in the fixed map (such as >32 loops) a
message informs you of this. Consider switching to the custom map, which allows for greater quantities
and access to more parameters.
Further information
For details on Modbus parameters, see the HC900 Process ControlCommunications User Guide,
document number 51-52-25-111.
270
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Custom Modbus Map
Custom Modbus Map
Access
To access the custom Modbus register map to add or edit an address, click on the Modbus Map tab
at the bottom of the display. This tab is visible only after you configure your map type
as custom.
Overview
The custom Modbus map is applicable to the array of Modbus registers classified as "holding registers"
or "4xxxxx" registers using decimal addressing where "xxxxx" equals the Modbus address ranging from
1-65535 decimal (0-FFFE hex).
Use the custom map to assign any addressable parameter (see page 267) to any address, along with
its data type (float 32, integer 16, etc.). You can edit or create partitions of any size to help organize
addresses.
Default partitions and addresses are based on the fixed map. This is only a default starting point; you
can edit the custom map extensively or even erase it entirely and start from scratch.
To add an item to a map
1. Select a partition whose addresses you want to display or edit.
2. Assign items to the map in two ways: drag an item from the Configuration tab into an
address, or click on an address under the Item heading and choose an item to add.
3. Select/edit item’s parameters.
Working with partitions
You can view or edit addresses in defined partitions only. Addresses in undefined partitions are not
available until you create a new partition with those addresses. Partitions need not be empty to be
edited. If you need more addresses in a partition you can combine it with adjacent partitions, or resize
it using space from an adjacent undefined partition. See Edit Partitions.
Revision 15
September 2013
HC900 Process Control Designer User Guide
271
Modbus Register Addresses
Custom Modbus Map
Functions
Refer to the following table for descriptions of the numbered items in the custom map. Functions are
numbered in the order you will probably use them.
Function
Description
1
Select a partition
You must select a partition whose contents you want to
display or edit. The map takes a few seconds to build the
contents. Default partitions are based on the fixed map and
can be edited or resized. See Edit Partitions.
2
Currently displayed partition
Name of the current partition. See Select a partition.
3
Show Register Address as
Select whether to display addresses in hexadecimal or
decimal.
4
Item Filter
Select the type of item (block, signal tag, etc.) whose
parameters you want to assign to the map. Items of this
type will then be listed as choices under the Item column.
For example, if you select Loops then all your
configuration’s loop blocks will be listed under the Item
column when you click there.
272
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Custom Modbus Map
5
Function
Description
Item
Click on any address under the Item column. All items of
the Item Filter type will be listed. (If no items of the filter
type are in your configuration the list will be empty.) Click
the item you want to add to the address.
If you are adding a function block it will display a checklist
of parameters from which to choose. Click here for details.
If you are adding system parameters you must add them by
clicking an address; they can’t be dragged from the
Configuration tab.
6
Parameter Name
If the item is a function block this is the parameter name.
Click on this field to see a list of that item’s other
parameters from which to choose, if reassignment is
desired.
If the item is a signal tag or variable this is the tag name.
Click to see a list of other signal tags or variables from
which to choose.
ATTENTION: when you assign a different parameter here,
the Data Type does not automatically change, you must
manually change to the correct Data Type for the
parameter.
7
Description
Read only. Description of signal tag or variable.
8
Data Type
Choices:
Unsigned 16
Signed 16
Unsigned 32 (requires 2 registers)
Signed 32 (requires 2 registers)
Float 32 (requires 2 registers)
If 2 registers are required the higher register is grayed out
and not assignable.
Note: For signals and variables, when changing data type
from float 32 to integer 16, keep in mind the decimal point
location. For example, 1000.1 translates to 10001.
Note: For function blocks, when changing data type from
float 32 to integer 16, the value is rounded. For example,
1000.1 translates to 1000 and 1000.5 translates to 1001.
9
Decimals
Read only. Decimal places of signal tag or variable.
10
R/W
Type of access to the parameter.
Read
Write
Read/Write
11
Configuration Tab
Revision 15
September 2013
This tab shows all configured items. Click and drag an item
from here to an address under the map’s Item column. Not
all items can be assigned to an address. Dragging a
function block will display its checklist of parameters from
which to choose. Click here for details.
HC900 Process Control Designer User Guide
273
Modbus Register Addresses
Custom Modbus Map
12
Function
Description
Register
Click on a register(s) then right click for the menu.
Clear Contents – deletes the contents of the selected
registers without affecting other registers.
Insert Registers – Inserts blank registers before the
selected registers and shifts registers down by the same
amount. Will not work if partition’s last registers are
occupied.
Delete Registers – deletes the contents of the selected
registers and shifts subsequent registers up by the same
amount.
Cut – cuts contents of registers
Copy – copies contents of registers
Paste – pastes from the last cut or copy
13
Edit Partitions
A register must be in a defined partition in order to be
populated with data, you can’t assign data to an undefined
partition.
Default partitions are based on the fixed map. An undefined
partition starts where the fixed Modbus map ends.
Partitions can be edited in the following ways.
To rename a partition, click on the Description and enter a
new name.
To edit one or more partitions, click on one or more partition
# then right-click to access these functions:
Clear - deletes the contents of the selected partitions but
keeps the partition names and addresses.
Delete - deletes the contents of the selected partitions as
well as the partition names and addresses, leaving behind
an undefined partition which does not appear in any exports
or reports.
Split - divides the selected partition into two contiguous
partitions of any size and names you specify. Does not
delete contents of the partition’s registers. You can split
undefined partitions.
Combine - merges selected partitions into one partition of
any name. Does not delete the contents of the partition’s
registers. You can combine undefined partitions.
Resize - changes the starting and ending address of the
selected partition.
New - Creates a new partition within an undefined partition.
To erase the entire map and start from scratch, select all
partitions and select Delete, then select all undefined
partitions and select Combine.
14
Horizontal Scroll
Use to scroll to offscreen areas of the map.
15
Vertical Scroll
Lets you scroll through the partition.
274
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Custom Modbus Map
16
Function
Description
Replace map with fixed
Modbus map data
Replaces the entire custom map with all your
configuration's loops, programmers, etc. at their
preassigned addresses and partitions, up to the fixed map's
quantity limits (e.g., 32 Loops, 8 SP Programmers, etc.).
Beyond these quantity limits items will not be added to the
map unless you add them manually. Since you are still in
custom map mode, you can edit the map after doing the
replacement.
ATTENTION: Do not select Replace unless you are willing
to overwrite your entire custom map's registers and
partitions. Consider backing up your custom map first,
either by saving a backup of your configuration or by
Exporting a Modbus report. Or you can click on the Undo
button in the main toolbar.
17
Toolbar
Prints a Partition Report.
Exports a Partition Report.
Lock/unlock Worksheet
Further information
For details on Modbus parameters, see the HC900 Process Control Communications User Guide,
document number 51-52-25-111.
Revision 15
September 2013
HC900 Process Control Designer User Guide
275
Modbus Register Addresses
Adding function block parameters to custom map
Adding function block parameters to custom map
Two methods to add parameters to the map
Method 1: In the Configuration tab in the Worksheet Toolbox window, click and drag a function block
over to a starting address register in the custom map.
Method 2: In the custom map, select an Item Filter, then click on a starting address in the Item column.
Note: If adding system register parameters you must use this method.
276
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Adding function block parameters to custom map
In both methods the following box appears listing all available parameters for the block type selected.
Revision 15
September 2013
HC900 Process Control Designer User Guide
277
Modbus Register Addresses
Adding function block parameters to custom map
Function blocks that can be added to the custom map
Functions
Use this window to select block parameters to add to your custom map.
The available block parameters for the selected block will be listed. Select the parameters you'd like to
add by using Select All, Clear All, or by checking and unchecking individual parameters.
Click Add to Map to add the checked parameters to the map. The uppermost checked parameter will
be added to the Block Start Register, and the remaining checked parameters will contiguously fill in
the remaining registers until the Block End Register is reached. Unchecked parameters will not leave
gaps in registers, in most cases. If the current partition range is not big enough to hold all the
parameters you must select fewer parameters or edit the partition to make it larger.
You can use templates to apply the same list of parameters to each function block of that type. This
saves you the effort of creating the same checklist for each block and ensures the same parameters
are checked. Templates are saved as separate files with .ptf extension. Each block type is limited to
templates created for that block type only. You can't apply a PID block’s template to a Setpoint
Programmer block, for example.
Example of how to use templates
278
HC900 Process Control Designer User Guide
Revision 15
September 2013
Modbus Register Addresses
Adding system parameters to custom map
1. Add a PID loop to the map. We'll refer to this as PID 1.
2. Check PID 1's desired parameters to be addressed.
3. Click Save Template to save this checked list to a template file (extension .ptf). Use a descriptive
filename that describes the type of block, for future reference. For example, PID1.ptf.
4. As you add other PID loops to the map you can Load Template PID1 into them, which applies the
same checklist of parameters.
5. You can also Save Template As Default for that block type, which saves you from loading a
template into each block. For example, if you want all your PID blocks to have the same parameters
checked as the template PID1, save PID1 as the default. When you add subsequent PID blocks to the
map they will automatically have those same parameters checked.
Adding system parameters to custom map
Overview
If adding system register parameters to the custom map you must click on an address to add them.
They can not be dragged from the Configuration tab.
Procedure
1. Select Item Filter "System Register."
2. Click on an address under Item.
3. Select a system parameter.
4. If adding time parameters you must add all time parameters to the map, one at a time. Time
parameters must written to as a group, therefore you must add all* of them to the map.
*The Day-of-week parameter is optional and can be left out.
Revision 15
September 2013
HC900 Process Control Designer User Guide
279
Modbus Register Addresses
Adding system parameters to custom map
This page has been intentionally left blank
280
HC900 Process Control Designer User Guide
Revision 15
September 2013
Redundancy
Redundancy System Status Indicators
Redundancy
C70R/C75 controllers/networks have their own diagnostics that are accessed under
Utilities Worksheet Overview
Monitor Menu
Redundancy diagnostics are grouped as follows.
Redundancy System
Redundancy Link
Lead CPU
Reserve CPU
Scanner 2 Link
Redundancy System Status Indicators
The Redundancy System Diagnostics dialog box will provide status of the parameters shown in the
following list.
Parameter
Redundancy
Status
Value
Possible Cause
Controller Action
User Action
Available
Normal operation
N/A
N/A
No RSM module
detected
Switch on RSM is set
between two positions.
The controller will continue
to operate with a missing
RSM. Automatic failover is
still possible if required.
Make sure switch is in
desired position
RSM Module is not
inserted
Install RSM module
Replace RSM
RSM Module has failed
RSM switch is
bad
RSM Switch is
indicating an invalid
position
The controller will continue
to operate with a bad RSM.
Automatic failover is still
possible if required.
Replace RSM
I/O comm error
on reserve
Reserve CPU is
unable to communicate
with one or more of the
I/O racks.
The lead controller will
continue to control the
process. Failover to the
reserve is still possible if a
subsequent failure renders
the current lead less capable
than the reserve.
Verify all cabling
between the reserve
CPU and the scanners.
Replace any Ethernet
switches between the
reserve CPU and the I/O
rack(s).
Replace the reserve
CPU
Replace the scanner
CPU
Contact Honeywell
service
Database Not
Synchronized
Hardware failure on the
reserve CPU
Hardware failure on the
lead CPU
The lead controller will
continue to control the
process, but failover is not
possible.
Hardware failure on the
CPU rack backplane
Revision 15
September 2013
HC900 Process Control Designer User Guide
Replace the reserve
CPU
Replace the lead CPU
Replace the CPU rack
backplane
Contact Honeywell
281
Redundancy
Redundancy Link Status Indicators
Parameter
Value
Possible Cause
Controller Action
User Action
service
Redundancy
Diagnostics
Invalid
Configuration
Neither CPU has a
valid configuration
database
An empty database is
created.
Download the desired
configuration file and
perform a cold start.
Firmware Version
Mismatch
The reserve
controller does not
have the same
version of controller
firmware installed
The lead controller will
continue to control the
process, but failover is
not possible.
Upgrade the CPU
firmware so both the
lead and reserve
have the same
version.
Hardware failure on the
reserve CPU
The lead controller will
continue to control the
process, but failover is not
possible.
Replace the reserve
CPU
Good
Database Not
Synchronized
Hardware failure on the
lead CPU
Hardware failure on the
CPU rack backplane
Replace the lead CPU
Replace the CPU rack
backplane
Contact Honeywell
service
Invalid
Configuration
Neither CPU has a
valid configuration
database
An empty database is
created.
Download the desired
configuration file and
perform a cold start.
Firmware Version
Mismatch
The reserve
controller does not
have the same
version of controller
firmware installed
The lead controller will
continue to control the
process, but failover is
not possible.
Upgrade the CPU
firmware so both the
lead and reserve
have the same
version.
Redundancy Link Status Indicators
The Redundancy Link Diagnostics dialog box will provide status of the parameters shown in the
following list.
Parameter
Redundancy Link
Port Status
Value
Possible Cause
Controller Action
Good
Lead and Reserve
CPUs working ok
N/A
N/A
Reserve not
present
Reserve CPU module
is not plugged in.
N/A
Install Reserve CPU
Reserve Bad
Comm
Reserve CPU module
is plugged in but not
communicating.
Reserve or Lead CPU
module could be bad.
Replace faulty CPU.
Bad Lead module
N/A
Hardware failure
282
Good
N/A
Replace rack.
Backplane could be bad.
Bad backplane
Redundancy Link
User Action
Replace faulty CPU.
Replace rack.
N/A
HC900 Process Control Designer User Guide
N/A
Revision 15
September 2013
Redundancy
Lead CPU Status Indicators
Parameter
Port Diagnostics
Value
Possible Cause
Data Link Failure
Reserve CPU module
is not plugged in.
Reserve CPU module
is plugged in but not
communicating.
Hardware Failure
Bad Redundancy link
hardware detected on
the lead CPU
Controller Action
User Action
The lead CPU will
continue to control the
process but failover is
not possible.
Replace faulty CPU
The lead CPU will
continue to control the
process but failover is
not possible.
Replace faulty CPU
Replace rack
Lead CPU Status Indicators
The Lead Diagnostics Overview dialog box will provide status of the parameters shown in the following
list. These parameters are also shown for the Reserve Diagnostics Overview.
Parameter
CPU Diagnostics
Status
Possible Cause
Controller Action
User Action
Good
N/A
N/A
N/A
Watchdog
Watchdog reset
resulting from
software failure
ASYS block’s HW OK pin 1. Force a cold start.
is turned off.
2. Upgrade control file
software.
3. Replace CPU board.
4. Contact Honeywell
Personnel.
Prefetch Abort
CPU failed when
1. Controller performs a
attempting to fetch an
restart
instruction from the
2. ASYS block’s HW OK
prefetch register.
pin is turned off.
1. Force a cold start.
2. Isolate system from
noise and force a
cold start.
3. Replace CPU board
Revision 15
September 2013
Address Error
Same as above
The reserved
exception occurred for
an unknown reason.
Same as above
Undefine Error
Bad Instruction
Detected
Same as above
Same as above
Data Abort
CPU failed when
attempting to access
data.
Software Interrupt
Error
Same as above
Software Interrupt
occurred which is not
supported by the
software.
Good
N/A
Same as above
N/A
HC900 Process Control Designer User Guide
Same as above
Same as above
N/A
283
Redundancy
Lead CPU Status Indicators
Parameter
Status
Possible Cause
Controller Action
User Action
Watchdog
Watchdog reset
resulting from
software failure
ASYS block’s HW OK pin 1. Force a cold start.
is turned off.
2. Upgrade control file
software.
3. Replace CPU
board.
4. Contact Honeywell
Personnel.
Memory
Diagnostics
Good
N/A
N/A
N/A
5 Day Low Battery
Warning
Estimated battery life
is less than 5 days.
ASYS block’s HW OK pin
is turned off.
Replace battery.
Low Battery
Battery voltage is low. 1. ASYS block’s LOW
BATTERY pin is turned
on.
Replace battery.
2. ASYS block’s HW OK
pin is turned off.
Flash Error
Real-time Clock
Diagnostics
Flash failed to burn
ASYS block’s HW OK pin is
turned off.
Good
N/A
N/A
Not Programmed
RTC not programmed 1.Time and date is set to
1. Force a cold start.
2. Replace CPU board.
N/A
Program RTC.
00:00:00, January 1,
1970.
2.ASYS block’s HW OK pin is
turned off.
Bad Data
Bad date and time
Same as above
1. Program RTC.
2. Cycle power.
3. Replace CPU.
4. Replace boards in
rack.
5. Replace rack
Port S1/S2
Diagnostic
284
Programming
Failure
RTC failed to program Same as above
Same as above
Read Failure
Unable to read RTC
Same as above
Same as above
Good
N/A
N/A
N/A
HC900 Process Control Designer User Guide
Revision 15
September 2013
Redundancy
Lead CPU Status Indicators
Parameter
Lead Port E1/E2:
Network Port
Diagnostics
Rack Comm
Diagnostic
Status
Possible Cause
Controller Action
User Action
Data Link Error
A large number of
messages are
resulting in data link
errors.
SYSTEM MONITOR
block’s HW OK pin is
turned off.
Hardware Failure
The UART is failing
to operate properly.
1. Check baud rate.
2. Check connectors.
3. Check cable
polarity.
4. Isolate cable from
electrical interference.
5. If RS232-to-RS485
converter used, check
its power,
switch/jumper
settings, and polarity.
Replace the
controller CPU
module.
Good
N/A
N/A
N/A
Hardware Failure
Ethernet port tests
failed during
power-up.
Same as above
Replace CPU
module
Good
See Expansion I/O
Comm Diagnostics
Status Indicators
See Expansion I/O
Comm Diagnostics
Status Indicators
See Expansion I/O
Comm Diagnostics
Status Indicators
See Expansion I/O
Comm Diagnostics
Status Indicators
See Expansion I/O
Comm Diagnostics
Status Indicators
Data Link Failure
Hardware Failure
Port A/B Cable
Mismatch
Protocol Mismatch
Scanner2 Rack n
Network Status
Revision 15
September 2013
No Comm
See Scanner 2 Link
Status Indicators .
Marginal - Port I/O
A
See Scanner 2 Link
Status Indicators .
Marginal - Port I/O
B
See Scanner 2 Link
Status Indicators .
Good - Port I/O A
See Scanner 2 Link
Status Indicators .
Good - Port I/O B
See Scanner 2 Link
Status Indicators .
HC900 Process Control Designer User Guide
285
Redundancy
Reserve CPU Status Indicators
Parameter
Scanner2 Rack n
Network
Diagnostics
CPU Slot Position
Status
Possible Cause
Controller Action
User Action
Not in Configuration
See Scanner 2 Link
Status Indicators .
Good
See Scanner 2 Link
Status Indicators .
Data Link Failure
See Scanner 2 Link
Status Indicators .
Hardware Failure
See Scanner 2 Link
Status Indicators .
Port A/B Cable
Mismatch
See Scanner 2 Link
Status Indicators .
Protocol Mismatch
See Scanner 2 Link
Status Indicators .
CPU A
CPU A is the
Lead/Reserve.
N/A
N/A
CPU B
CPU B is the
Lead/Reserve.
N/A
N/A
CPU is missing
Reserve CPU is not
installed or not
powered.
CPU rack backplane
failure.
The lead CPU will
continue to control the
process but failover is
not possible.
1.Install reserve CPU.
2.Apply power to reserve
CPU.
3.Replace CPU rack
backplane.
4.Call Honeywell service.
Power Supply
Type
Unknown
CPU cannot identify
the Power Supply
Type
None
None
24VDC
CPU identified a
24VD DC power
supply
None
None
Low Wattage
CPU identified a
Low wattage power
supply
None
None
High Wattage
CPU identified a
High wattage power
supply
None
None
Reserve CPU Status Indicators
Contains same information as for the Lead CPU Status Indicators.
286
HC900 Process Control Designer User Guide
Revision 15
September 2013
Redundancy
Scanner 2 Link Status Indicators
Scanner 2 Link Status Indicators
The Redundancy Scanner 2 Link Diagnostics dialog box will provide status of the parameters shown in
the following list.
Parameter
Scanner-2
Network Status
Value
Possible Cause
No Comm
C70R/C75 is
communicating to
none of the Scanner
2s that are in the
configuration.
Controller Action
User Action
If scanners are in the
configuration, see
Expansion Rack Link
Diagnostics below.
See Expansion Rack
Link Diagnostic below.
If a scanner 2 in the
configuration is not
communicating, then a
communication diagnostic
Is posted for that rack.
Refer to the Expansion I/O
Comm Diagnostic
Summary dialog box
Refer to the Expansion
I/O Comm Diagnostic
Summary dialog box
Same as above
Same as above
or
C70R/C75 may be
communicating to a
Scanner 2 that is not in
the configuration
Marginal - Port I/O
A
C70R/C75 is
experiencing marginal
communications on
the respective
Scanner 2 link to one
or more Scanner 2s in
the configuration
and/or
C70R/C75 is
communicating to
some of the Scanner
2s in the configuration
but not all
Marginal - Port I/O
B
C70R/C75 is
experiencing marginal
communications on
the respective
Scanner 2 link to one
or more Scanner 2s in
the configuration
and/or
C70R/C75 is
communicating to
some of the Scanner
2s in the configuration
but not all
Revision 15
September 2013
Good - Port I/O A
C70R/C75 is
experiencing good
communications on
the respective
Scanner 2 link.
Scanner 2s not in the
configuration have no
effect on the status
Lead CPU is operating
normally using the I/O Port
A to communicate with the
Scanner Racks
none
Good - Port I/O B
C70R/C75 is
experiencing good
communications on
the respective
Lead CPU is operating
normally using the I/O Port
B to communicate with the
Scanner Racks
none
HC900 Process Control Designer User Guide
287
Redundancy
Scanner 2 Link Status Indicators
Parameter
Value
Possible Cause
Controller Action
User Action
Scanner 2 link.
Scanner 2s not in the
configuration have no
effect on the status
Not in Configuration
Expansion Rack
Link Diagnostics
N/A
N/A
N/A
The ratio of the
number of data link
errors and the number
of good messages
exceeds a certain
threshold
See the “Rack Comm
Diagnostics” parameter
in the Expansion I/O
See the “Rack
Comm Diagnostics”
parameter in the
Comm Diagnostic
Summary dialog box
Expansion I/O Comm
Diagnostic Summary
dialog box
The expansion I/O
port’s hardware is
indicating a failure
See the “Rack Comm
Diagnostics” parameter
in the Expansion I/O
See the “Rack
Comm Diagnostics”
parameter in the
Comm Diagnostic
Summary dialog box
Expansion I/O Comm
Diagnostic Summary
dialog box
See the “Rack Comm
Diagnostics” parameter
in the Expansion I/O
See the “Rack
Comm Diagnostics”
parameter in the
Comm Diagnostic
Summary dialog box
Expansion I/O Comm
Diagnostic Summary
dialog box
Good
Data Link Failure
Hardware Failure
Port A/B Cable
Mismatch
288
N/A
No Scanner 2s in the
configuration
At least one Scanner 2
has its A and B ports
swapped with the
Lead and Reserve
HC900 Process Control Designer User Guide
Revision 15
September 2013
Index
Scanner 2 Link Status Indicators
Index
A
Accessing Port Diagnostics
221
Adding a Numeric Constant
115
Adding a Variable
114
Adding function block parameters to custom
map
255
Adding system parameters to custom map 258
Alarm Details
69, 101
Alarm Group Configuration
100
Alarm/Event Storage Configuration
87
and
125
Auto Calibration Procedure
149
B
Backup Controller Information
Batch File Management
Before you Start
141
160
109
C
Calibrate AI Channel
146
Calibrate AO Channel
147
Calibrate CJ Temp
146
Calibrate Modules
145
Calibrate Position Proportional Output
148
Changing the Default Annotation Attributes. 125
Closing a Menu
17
Communications Statistics
55
Configuration File
31, 127
Saving
31, 127
Configuration Functions
162
Configuration Overview
155
Configuration Port Diagnostics
222
Configuration Port Diagnostics Status Indicators
223
Configure Modbus Map Method
244
Configuring Display Tag Groups
65
Connecting the PC to the Controller
8
Connecting/Disconnecting Blocks
112
Connectors
194
Context Sensitive Help
125
Control strategy
109
Controller Configuration Overview
59
Controller Configuration Toolbar
60
Controller Diagnostics
205
Controller Diagnostics Status Indications
207
Controller Idenfication
135
Controller Port Diagnostics
223
Controller to PC Connection Settings
53
Controller Utility Functions
129
Controller Worksheet Overview
59
Converting a UMC800 Database
36
Copy
20, 89
Revision 14
September 2013
Create/edit Data Storage File
Create/edit Recipe-Variables-File
Create/edit Schedule file
Create/edit Sequence File
Create/edit Setpoint Profile File
Custom Modbus Map
Cut
83
164
171
176
167
250
20, 28, 89
D
Data Storage Configuration
83
Data Storage Configuration Access
83
Data Storage Conventions
77
Data Storage Enable Conditions
79
Data Storage File
83
Data Storage Overview
77
Data Storage Utility
140
Default Annotation Attributes
125
Changing
125
Diagnostics
configuration port
222, 223
controller
205, 207
expansion I/O comm
228, 229
host connections
231, 232
I/O module
217
Modbus Initiator TCP Port Diagnostics
237
Modbus Master Serial Port Diagnostics
234
network port
226, 227
peer to peer
238, 239
port
221
rack
213
RS485 OI port
225
Display Buttons Configuration
63
Display Tag groups
65
Displaying Function Block Pin Value
195
Download Setpoint Profiles
163
using recipe to download
163
Downloading a File to the Controller
40
Drag and Drop
125
E
Edit Menu
20
Edit Schedule Segments
176
Edit Setpoint Schedule
176
E-Mail Notification
61, 71, 104
Enter Monitor Mode
184
Event Details
71, 103
Event List Configuration
70, 102
Execution Order
103
Expansion Port Diagnostics
228
Expansion Port Diagnostics Status Indicators
229
Export Delimiter
20
Export Report
242
HC900 Process Control Designer User Guide
289
Index
Scanner 2 Link Status Indicators
F
Fast Logic Indicator
108
Fast Scan Indicator
108
FB Worksheet Overview
89
FBD Configuration Toolbar
89
FBD Worksheet Properties
97
how to change
97
File Browser Window
11
File Menu
18
File Properties
44
File Protection
48
File Read Protection
48
Find Feature
199
Find Where Used
28
Finding a Tag Name
199
Finding an Item on the FBD Worksheet
199
Fixed Modbus Map
244, 247
Forced Blocks Window
191
Forcing/Unforcing an Output
188
Function block
105, 107, 126, 195
accessing details
126
how to display pin value
195
inputs and outputs
105
Types
107
Function Block
110
adding, moving, deleting
110
Function Block Address
126
Function Block Definition
105
Function Block Diagram Configuration Toolbar
89
Function Block Diagram Rules
127
Function Block Diagrams
127
Function Block Identification
105
Function Block Monitor Window
187
Function Block Parameters
126
Function Block Usage Guidelines
108
Function blocks
112
connect/disconnect
112
G
General Designer Window Terminology
General Steps to Build a Control Strategy
General Terminology
General Windows Terminology
10
109
10
10
H
Hand Calibration Procedure
151
Hardware and Software requirements
4
Help Menu
25
Host Connections Diagnostics
231
Host Connections Diagnostics Status Indicators
232
How Do I Start Monitoring
185
How Do I Stop Monitoring
192
How to Add a New FBD Worksheet
90
290
How to Add a New Worksheet
90
How to Add Worksheet Protection
44, 98
How to Change A FBD Worksheet Properties 97
How to Change the Worksheet Order
97
How to Delete a FBD Worksheet
97
How to Find an Item on the FBD Worksheet 96
How to Manage PC Comm Ports and
Connections
49
How to Navigate Between FBD Worksheets 91
Designer Main Menus
17
I
I/O Module Diagnostics Status Indications
217
K
Keyboard Navigation
30, 92
L
Logic Inversion Color Codes
196
M
Main Menu
17
Main Menus
17
Main Toolbar Functions
26
Manually Write Database to Flash
144
Menu
16, 17
Closing
17
Selecting
17
Menu Conventions
16
Message Display Configuration
75
Modbus Address
247
Adding function block parameters to custom
map
255
Adding system parameters to custom map 258
choosing fixed or custom map
244
Custom Modbus Map
250
Fixed Modbus Map
247
Modbus Map Overview
244
Modbus Initiator TCP Port Diagnostics
237
Modbus Master Serial Port Diagnostics
234
Monitor menu
23
Monitor Mode
184
indicator
184
Monitor Toolbar
184
Monitor Update Rate
184
Monitoring
181, 185, 192
how to start
185
how to stop
192
HC900 Process Control Designer User Guide
Revision 15
September 2013
Index
Scanner 2 Link Status Indicators
N
R
Navigational Tools
Network Port Diagnostic Status Indicators
Network Port Diagnostics
Numeric Constant
Adding
28
227
226
115
115
O
O/I File Names for Disk Storage
Operator Interface Displays
Operator Interface Settings
Operator Panel Configuration Toolbar Test
Operator Panel Worksheet Overview
Output
Forcing/Unforcing
Overview
Logic Flow
Overview On Line Monitoring
74
63
72
62
62
188
188
192
192
181
P
Page connectors
194
Page Connectors
121
Paste
20, 28, 89
PC Comm ports and connection
49
how to manage
49
PC Network Port Set Up For Controller Access
49
PC Serial Com Port Setup
51
PC to Controller Connection Settings
53
Peer-to-Peer Connections Diagnostics 238, 239
Peer-to-Peer Connections Diagnostics Status
Indicators
238, 239
Pin Value
195
placePlaceNameModbus PlaceNameInitiator
PlaceNameTCP PlaceTypePort Diagnostics
237
placePlaceNameModbus PlaceNameMaster
PlaceNameSerial PlaceTypePort Diagnostics
234
Point Log Storage Configuration
85
Position Proportional Output Calibration
148
PPO Block Auto Calibration
149
PPO Block Calibration
148
PPO Block Hand Calibration
151
PPO Block Semi-Auto Calibration
150
Print Report
239
Print Report Preview
241
Revision 14
September 2013
Rack Module and Channel Assignments
4
Rack Diagnostics
213
Rack Diagnostics Power Supply
216
Recipe
166
Setup/Edit
166
Recipe Configuration Overview
162
Recipe Overview
160
Recipe Pool
165
Recipe Properties
166
Recipes Menu
24, 161
Recipe-Variables
162
configuration overview
162
Recipe-Variables- File
164
Recipe-Variables-Overview
162
Redo
20
Remote Access
54
Remote Loopback Test
53
Report
239, 241, 242
Export
242
Preview
241
Print
239
Resolve Dangling Soft Wires
94
Restore Controller Information
142
Restore Factory Calibration
148
Right Mouse Click
28
RS485 OI Port Diagnostics
225
RS485 OI Port status Indicators
225
S
Saving A Configuration File
Saving A Function Block Diagram
Select the Number to Call
Selecting a Menu
Semi-Auto Calibration Procedure
Sequence
setup/edit
Sequence File
Sequence Pool
Sequence Properties
Sequencer Configuration Overview
Serial ports
set controller serial ports
Set Controller IP Address
Set Controller Mode
Set Controller Network Parameters
Set Controller Time
Set Instrument Time
Set Serial Port
Setpoint Profile
properties
Setpoint Profile Pool
Setpoint Profile Properties
Setpoint Program
HC900 Process Control Designer User Guide
31, 127
31, 127
54
17
150
178
178
176
178
180
159
131
131
134
134
134
137
137
131
167, 169
169
168
169
154, 155
291
Index
Scanner 2 Link Status Indicators
configuration
What is
Setpoint Schedule
setup/edit
Setpoint Schedule File
Setpoint Schedule Overview
Setpoint Schedule Pool
Setpoint Schedule Properties
SETPT
Setup/Edit a Recipe
Setup/Edit Sequence
Signal
Signal Tags
Software Overview
Sort Function
Start Up Display Configuration
Starting the Application
Status Bar
system parameters
155
154
176
176
171
158
176
176
126
166
178
119
119, 194
1
199
74
7
16
250, 258
T
Tag Order
templates
Terms and Definitions
Traceback Window
Trend Storage Configuration
Types of Blocks
104
255
153
13, 93
84
107
U
UMC800 Database
Converting
Undo
Unforcing an Output
Unlock the Worksheet
292
36
36
20
188
61, 75, 104
User Assigned Tag Names
126
User Interface Overview
9
Using Recipes to Download Setpoint Profiles 163
Utilities Worksheet Overview
129
V
Variables
Adding
View Menu
Visual Indicators for Monitor Mode
114
114
22
184
W
Watch Summary - Display Groups
203
Watch Summary - Inputs/Outputs
202
Watch Summary - Page Connectors
201
Watch Summary - Signals
201
Watch Summary - User Defined
199
Watch Summary - Variables
202
Watch Summary Window
14
Watch Window
13, 93
What is Sequence Control
159
What is Sequence Control?
159
Window Menu
25
Wire Nodes
117
Worksheet
44, 57, 61, 75, 91, 98, 104
How to add protection
44, 98
how to navigate
91
unlock
61, 75, 104
What is
57
Worksheet Category Tabs
57
Worksheet Overview
62, 89, 129
Worksheet Toolbox Window
12
Write Protect a File
48
HC900 Process Control Designer User Guide
Revision 15
September 2013
Index
Scanner 2 Link Status Indicators
Revision 14
September 2013
HC900 Process Control Designer User Guide
293
Sales and Service
For application assistance, current specifications, pricing, or name of the nearest Authorized Distributor, contact
one of the offices below.
ASIA PACIFIC
EMEA
AMERICA’S
Honeywell Process Solutions,
(TAC) [email protected]
Honeywell Process Solutions,
Phone: + 80012026455 or
+44 (0)1344 656000
Honeywell Process Solutions,
Phone: (TAC) 1-800-423-9883 or
215/641-3610
(Sales) 1-800-343-0228
Australia
Honeywell Limited
Phone: +(61) 7-3846 1255
FAX: +(61) 7-3840 6481
Toll Free 1300-36-39-36
Toll Free Fax:
1300-36-04-70
Email: (Sales)
[email protected]
or
(TAC)
[email protected]
Email: (Sales)
[email protected]
or
(TAC)
[email protected]
China – PRC - Shanghai
Honeywell China Inc.
Phone: (86-21) 5257-4568
Fax: (86-21) 6237-2826
Singapore
Honeywell Pte Ltd.
Phone: +(65) 6580 3278
Fax: +(65) 6445-3033
South Korea
Honeywell Korea Co Ltd
Phone: +(822) 799 6114
Fax: +(822) 792 9015
Specifications are subject to change without notice.
For more information
To learn more about HC 900 Process Controller,
visit www.honeywellprocess.com
Or contact your Honeywell Account Manager
Process Solutions
Honeywell
1250 W Sam Houston Pkwy S
Houston, TX 77042
Honeywell Control Systems Ltd
Honeywell House, Skimped Hill Lane
Bracknell, England, RG12 1EB
Shanghai City Centre, 100 Jungi Road
Shanghai, China 20061
www.honeywellprocess.com
51-52-25-110 Rev.15
September 2913
2013 Honeywell International Inc.
