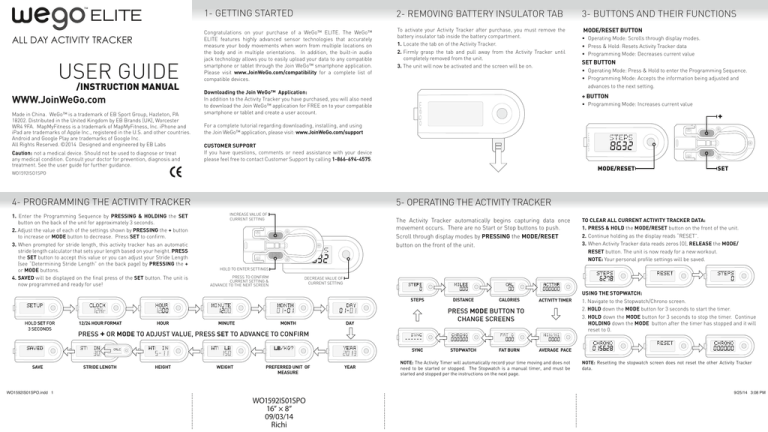

English
ELITE
ALL DAY ACTIVITY TRACKER
USER GUIDE
/INSTRUCTION MANUAL
WWW.JoinWeGo.com
Made in China. WeGo™ is a trademark of EB Sport Group, Hazleton, PA
18202. Distributed in the United Kingdom by EB Brands (UK), Worcester
WR4 9FA. MapMyFitness is a trademark of MapMyFitness, Inc. iPhone and
iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
Android and Google Play are trademarks of Google Inc.
All Rights Reserved. ©2014 Designed and engineered by EB Labs
Caution: not a medical device. Should not be used to diagnose or treat
any medical condition. Consult your doctor for prevention, diagnosis and
treatment. See the user guide for further guidance.
1- GETTING STARTED
2- REMOVING BATTERY INSULATOR TAB
3- BUTTONS AND THEIR FUNCTIONS
Congratulations on your purchase of a WeGo™ ELITE. The WeGo™
ELITE features highly advanced sensor technologies that accurately
measure your body movements when worn from multiple locations on
the body and in multiple orientations. In addition, the built-in audio
jack technology allows you to easily upload your data to any compatible
smartphone or tablet through the Join WeGo™ smartphone application.
Please visit www.JoinWeGo.com/compatibility for a complete list of
compatible devices.
To activate your Activity Tracker after purchase, you must remove the
battery insulator tab inside the battery compartment.
1. Locate the tab on of the Activity Tracker.
2. Firmly grasp the tab and pull away from the Activity Tracker until
completely removed from the unit.
3. The unit will now be activated and the screen will be on.
• Operating Mode: Scrolls through display modes.
• Press & Hold: Resets Activity Tracker data
• Programming Mode: Decreases current value
Downloading the Join WeGo™ Application:
In addition to the Activity Tracker you have purchased, you will also need
to download the Join WeGo™ application for FREE on to your compatible
smartphone or tablet and create a user account.
• Programming Mode: Increases current value
+
CUSTOMER SUPPORT
If you have questions, comments or need assistance with your device
please feel free to contact Customer Support by calling 1-866-694-4575.
MODE/RESET
HOUR
The Activity Tracker automatically begins capturing data once
movement occurs. There are no Start or Stop buttons to push.
Scroll through display modes by PRESSING the MODE/RESET
button on the front of the unit.
PRESS TO CONFIRM
CURRENT SETTING &
ADVANCE TO THE NEXT SCREEN
DECREASE VALUE OF
CURRENT SETTING
MINUTE
MONTH
DISTANCE
CALORIES
ACTIVITY TIMER
PRESS MODE BUTTON TO
CHANGE SCREENS
DAY
PRESS + OR MODE TO ADJUST VALUE, PRESS SET TO ADVANCE TO CONFIRM
STRIDE LENGTH
HEIGHT
TO CLEAR ALL CURRENT ACTIVITY TRACKER DATA:
1. PRESS & HOLD the MODE/RESET button on the front of the unit.
2. Continue holding as the display reads “RESET”.
3. When Activity Tracker data reads zeros (O), RELEASE the MODE/
RESET button. The unit is now ready for a new workout.
NOTE: Your personal profile settings will be saved.
HOLD TO ENTER SETTINGS
SYNC
SAVE
SET
5- OPERATING THE ACTIVITY TRACKER
INCREASE VALUE OF
CURRENT SETTING
STEPS
12/24 HOUR FORMAT
• Operating Mode: Press & Hold to enter the Programming Sequence.
• Programming Mode: Accepts the information being adjusted and
advances to the next setting.
For a complete tutorial regarding downloading, installing, and using
the Join WeGo™ application, please visit: www.JoinWeGo.com/support
4- PROGRAMMING THE ACTIVITY TRACKER
HOLD SET FOR
3 SECONDS
SET BUTTON
+ BUTTON
WO1592ISO1SPO
1. Enter the Programming Sequence by PRESSING & HOLDING the SET
button on the back of the unit for approximately 3 seconds.
2. Adjust the value of each of the settings shown by PRESSING the + button
to increase or MODE button to decrease. Press SET to confirm.
3. When prompted for stride length, this activity tracker has an automatic
stride length calculator that sets your length based on your height. PRESS
the SET button to accept this value or you can adjust your Stride Length
(see “Determining Stride Length” on the back page) by PRESSING the +
or MODE buttons.
4. SAVED will be displayed on the final press of the SET button. The unit is
now programmed and ready for use!
MODE/RESET BUTTON
WEIGHT
PREFERRED UNIT OF
MEASURE
WO1592IS01SPO.indd 1
YEAR
STOPWATCH
FAT BURN
USING THE STOPWATCH:
1. Navigate to the Stopwatch/Chrono screen.
2. HOLD down the MODE button for 3 seconds to start the timer.
3. HOLD down the MODE button for 3 seconds to stop the timer. Continue
HOLDING down the MODE button after the timer has stopped and it will
reset to 0.
AVERAGE PACE
NOTE: The Activity Timer will automatically record your time moving and does not
need to be started or stopped. The Stopwatch is a manual timer, and must be
started and stopped per the instructions on the next page.
NOTE: Resetting the stopwatch screen does not reset the other Activity Tracker
data.
9/25/14 3:08 PM
WO1592IS01SPO
16” × 8”
09/03/14
Richi
6- UPLOADING
7- MEASURING STRIDE LENGTH
8- HOW TO WEAR THE ACTIVITY TRACKER
9-CARE & MAINTENANCE
UPLOADING ACTIVITY TRACKER DATA TO Join WeGo APP
HOW TO MEASURE YOUR STRIDE LENGTH
This Activity Tracker will be most accurate when worn close to the body, ideally on your
belt or waist line or inserting the unit into a tight, secure pocket.
WARNING: Before you start any exercise program or perform any vigorous physical
activity, we strongly suggest you visit your doctor for a complete physical and
discuss your plans.
1. Open the Join WeGo™ application on your smartphone or tablet and navigate to the
SYNC section.
2. Adjust your smartphone/tablet volume to its maximum level to ensure optimum
uploading conditions.
3. Flip out the audio jack from the Activity Tracker and insert it fully into the audio port
of your smartphone or tablet until it clicks.
4. Press the MODE button on your Activity Tracker until the SYNC screen is shown.
A flashing line will be shown on the screen to indicate that it is ready to upload data.
5. Press the SYNC button on the Join WeGo™ application and your data will be
uploaded. If the Activity Tracker does not successfully upload after a short period,
it will time out, and default back to the STEPS screen. At this point, you will need
to navigate back to the SYNC screen on the Activity Tracker and try uploading again
through the application.
(See www.JoinWeGo.com/support for a full tutorial)
The Activity Tracker automatically sets your stride length based upon your height input
during the Set Up sequence. You may choose to adjust this stride length. To obtain
your personalized measurement, see below.
CAUTION: The Activity Tracker is not water resistant.
Avoid exposing the Activity Tracker to extreme conditions.
1. To find out what your stride is, walk or run 10 steps and then measure the distance
with a tape measure from the first step’s toe to the 10th step’s toe.
Avoid rough uses or severe impacts to the Activity Tracker.
2. Divide your total distance by 10 to get your average stride length.
Never get the Activity Tracker wet. This unit is not water resistant.
3. For a quick estimate, walk 3 steps, measure the distance, and divide by 3.
The more steps you take, the more accurate and realistic your stride will be.
An average walking stride for a female is 2 feet (24 in.), a male is 2.5 feet (30 in.).
Never attempt to service your Activity Tracker or take it apart.
Do not expose the unit to extreme heat, shocks, magnetic fields, electrical noise,
strong vibration or long-term exposure to direct sunlight.
Do not drop or step on the Activity Tracker.
Clean the Activity Tracker occasionally with a soft, dry cloth.
Store the unit in a dry place when you are not using it.
BASE LINE
DIVIDE TOTAL
DISTANCE BY 10
START WALKING/RUNNING
NOTES:
1
• The Activity Tracker must be on the SYNC screen for
uploading to occur.
2
3
4
5
6
7
8
9
10
• Volume of smartphone/tablet should be set to high
• It is recommended that you upload your data once a
week to ensure activity is recorded.
• When the unit’s memory is 80% full, a MEMORY LOW
warning will flash every minute until the data is
uploaded
CLiCK!!
BASE LINE
START WALKING/
RUNNING
1
2
DIVIDE TOTAL
DISTANCE BY 3
3
• When the unit’s memory is 100% full, a MEMORY
FULL warning will flash every 30 seconds until the
data is uploaded. No additional data can be saved
at this time.
10- REPLACING THE BATTERY
11- FCC COMPLIANCE
12- BATTERY SAFETY INFORMATION
13- WARRANTY
This unit uses one CR2032 3V lithium battery.
The device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
GUARANTEE CERTIFICATE – FOR PURCHASES MADE IN THE U.S.
• Connect the product into an outlet on a circuit different from that to which the
receiver is connected.
CAUTION – BATTERY SAFETY INFORMATION
• Do not allow children to play with button cell batteries, and keep button cell
batteries out of your child’s reach.
• Never put button cell batteries in your mouth for any reason as they are easily
swallowed accidentally.
• If a button cell battery is ingested, immediately seek medical attention.
• Non-rechargeable batteries are not to be recharged
• Rechargeable batteries must be removed before recharging
• Rechargeable batteries should only be recharged under adult supervision
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium)
batteries
• Exhausted batteries are to be removed
• Do not mix old and new batteries
• Do not dispose of batteries in fire; batteries may explode or leak
• Do not dispose of product in fire; batteries may explode or leak
• If this product will not be used for an extended period of time, remove the
batteries from the product
• The supply terminals are not to be short-circuited
• Batteries are to be inserted with correct polarity
• Clean the battery contacts and also those of the product prior to battery
installation
• Consult the dealer or an experienced radio/TV technician for help.
• As always, dispose of batteries in an eco-friendly manner
Battery replacement will be required from time to time, and should occur when:
1. The display fades in part or completely.
2. The unit is not functioning properly.
TO REPLACE THE BATTERY:
1. Remove the spring-loaded belt clip on the back of the unit to expose the battery
compartment door. Unscrew the battery compartment door with a small Phillips
screwdriver.
2. Remove the exhausted battery from the unit, and insert a new battery (be sure to
place the positive (+) side of the battery facing up).
3. Replace the battery compartment cover and fasten with the screw.
4. Replace the spring clip back into position.
2
1
1. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the product.
2. NOTE: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This product generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If the product does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
3
4
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus”, ICES-003 of the Canadian Department of Communications.
www.JoinWeGo.com
WO1592IS01SPO.indd 2
The purpose of the crossed-out wheelie bin symbol is to remind us that most electrical products,
and batteries, contain trace elements (including Mercury – Hg, Cadmium – Cd and Lead – Pb) which
could be harmful to our environment and therefore our health. We must all be careful to dispose
of them responsibly in a specifically designated way – either using a collection scheme or into
the correctly labeled civic amenity (NOT into general waste) – this will help your local authority to
arrange to recycle or dispose of them in the appropriate manner.
If at any time within one (1) year from the purchase date of this product, it fails to
perform properly because of defects in material or manufacturing, return it prepaid to:
EB SPORT GROUP, 585 OAK RIDGE ROAD, HAZLETON, PA 18202
Complete this Guarantee Certificate and enclose it (or a copy of it) with the product.
Please contact Customer Service at 866-694-4575 or [email protected]
for a return authorization number, prior to sending in your product.
(PLEASE PRINT CLEARLY)
NAME
PHONE
ADDRESS
STORE PURCHASED FROM
DATE OF PURCHASE
STATE
PURCHASE PRICE
ZIP
PROBLEM WITH PRODUCT
REPLACEMENT
This product has been carefully designed, manufactured and packaged. If any parts are missing or damaged, please
contact us at the address above and we will replace the unit at no charge. (Guarantee does not cover crystal or battery.)
FOR PURCHASES MADE IN THE UK:
Should you experience problems with this item, please return it to the point of purchase.
This will not affect your statutory rights. Alternatively return it to the address shown
below for a repair/replacement.
EB
Brands
UK,
Berkeley
Business
Park,
Wainwright
Road,
Worcester WR4 9FA
www.JoinWeGo.com
Distributed in the UK by EB Brands UK, Worcester WR4 9FA
9/25/14 3:08 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
