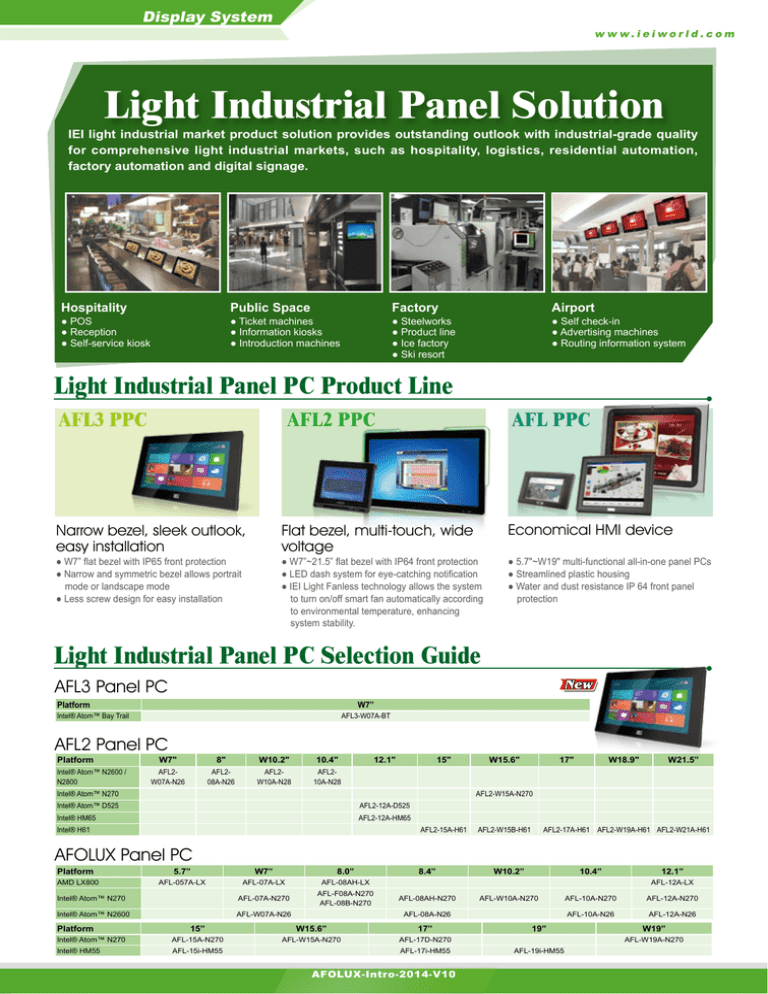

Light Industrial Panel Solution

Light Industrial Panel Solution
Display System
w w w.ieiworld.com
Light Industrial Panel Solution
IEI light industrial market product solution provides outstanding outlook with industrial-grade quality
for comprehensive light industrial markets, such as hospitality, logistics, residential automation,
factory automation and digital signage.
Hospitality
Public Space
● POS
● Reception
● Self-service kiosk
Factory
● Ticket machines
● Information kiosks
● Introduction machines
Airport
● Steelworks
● Product line
● Ice factory
● Ski resort
● Self check-in
● Advertising machines
● Routing information system
Light Industrial Panel PC Product Line
AFL3 PPC
AFL2 PPC
AFL PPC
Narrow bezel, sleek outlook,
easy installation
Flat bezel, multi-touch, wide
voltage
Economical HMI device
● W7” flat bezel with IP65 front protection
● Narrow and symmetric bezel allows portrait
mode or landscape mode
● Less screw design for easy installation
● W7”~21.5” flat bezel with IP64 front protection
● LED dash system for eye-catching notification
● IEI Light Fanless technology allows the system
to turn on/off smart fan automatically according
to environmental temperature, enhancing
system stability.
● 5.7"~W19" multi-functional all-in-one panel PCs
● Streamlined plastic housing
● Water and dust resistance IP 64 front panel
protection
Light Industrial Panel PC Selection Guide
AFL3 Panel PC
Platform
W7”
Intel® Atom™ Bay Trail
AFL3-W07A-BT
AFL2 Panel PC
Platform
Intel® Atom™ N2600 /
N2800
W7"
8"
W10.2"
10.4"
AFL2W07A-N26
AFL208A-N26
AFL2W10A-N28
AFL210A-N28
12.1"
15"
Intel® Atom™ N270
W15.6"
17"
W18.9"
W21.5”
AFL2-W15A-N270
Intel® Atom™ D525
AFL2-12A-D525
Intel® HM65
AFL2-12A-HM65
Intel® H61
AFL2-15A-H61
AFL2-W15B-H61
AFL2-17A-H61 AFL2-W19A-H61 AFL2-W21A-H61
AFOLUX Panel PC
Platform
5.7”
W7”
8.0”
AFL-057A-LX
AFL-07A-LX
AFL-08AH-LX
Intel® Atom™ N270
AFL-07A-N270
AFL-F08A-N270
AFL-08B-N270
Intel® Atom™ N2600
AFL-W07A-N26
AMD LX800
Platform
8.4”
W10.2”
10.4”
12.1”
AFL-12A-LX
AFL-08AH-N270
AFL-W10A-N270
AFL-08A-N26
15”
W15.6”
17”
Intel® Atom™ N270
AFL-15A-N270
AFL-W15A-N270
AFL-17D-N270
Intel® HM55
AFL-15i-HM55
AFL-17i-HM55
AFOLUX-Intro-2014-V10
AFL-10A-N270
AFL-10A-N26
19”
AFL-12A-N270
AFL-12A-N26
W19”
AFL-W19A-N270
AFL-19i-HM55
Display System
w w w.ieiworld.com
AFL3-W07A-BT
Dual-core Intel® Celeron® N2807
Features
● 7-inch HD 1024 x 600
● Flat screen with 6H projected capacitive touch supports multi-touch function
● 9V~30V wide range DC power input
● Fanless cooling system with dual-core Intel® Celeron® N2807 processor
1.58 GHz/2.16 GHz
● 2GB DDR3L Onboard RAM
● Built-in 802.11b/g/n wireless LAN
● Landscape and portrait screen modes support different applications
● Front panel is compliant with IP 65 protection standard
● IEI One Key Recovery solution allows you to create rapid OS backup and
recovery (suggested with over 4 GB storage capacity)
HD
IP65
Fanless
Multi-touch
HD High Performance Interactive System
The AFL3-W07A-BT has a 7-inch display with HD 1024 x 600 pixels and is pre-installed with a high-performance Celeron® N2807 CPU,
which is a dual-core processor that comes with 1 MB L2 cache and 1.58 GHz base clock. The SoC has 2.17 GHz maximum burst frequency,
which pumps up its frequency to complete tasks faster suitable for industrial computing. Benefits include:
Double Graphics Power!
● Support fan-less design
● Green memory: low voltage DDR3L supports up to 4 GB
● New graphic performance
*Windows 8
The latest Intel® Atom™ processor includes a 7th generation Intel® GPU with burst
technology to provide a stunning graphics and media experience. Seamless video
playback is supported by a high performance and low power hardware acceleration of
media encode and decode.
● 3D graphics hardware acceleration including support for DirectX*11, OCL 1.2, OGL
ES Halti/2.0/1.1, OGL 3.2
● Video decode hardware acceleration including support for H.264, MPEG2, MVC,
VC-1, WMV9 and VP8 formats
● Video encode hardware acceleration including support for H.264, MPEG2 and MVC
formats
Core Functionality
AFL-W07A-N26
AFL3-W07A-BT
Intel® Atom™ processor N2600
(1M cache, 1.6 GHz)
Intel® Celeron® processor N2807
(1M cache, up to 1.58 GHz)
Process Technology
32-nm
22-nm
Memory Technology
DDR3 800 up to 2GB
2GB DDR3L onboard
4-wire resistive touch screen
PCAP touch screen with multi-touch
function
WVGA 800 x 480
HD 1024 x 600
140º / 110º
150º / 145º
9~28V DC
9~30V DC
Touch Technology
Panel Technology
Resolution
Viewing Angles
Power Requirements
IP Rating
Dimensions (LxW) (mm)
IP64
IP65
226 x 140
190 x 127
AFL3-W07A-BT-2014-V10
3DMark2001
3712
Intel® Atom™ Processor
N2600 (1M Cache, 1.6 GHz)
6707
Intel® Celeron® Processor
N2807
(1M Cache, up to 2.16 GHz)
Enhanced Visual Experiences
Display System
w w w.ieiworld.com
2 mm Narrow Bezel for Seamless View
Easy Assembly
Nothing shows sophistication like a display with a thin bezel. The AFL3
PPC has gone one step further with a narrower bezel and will simply have
audiences mesmerized by its contemporary look and feel.
2mm
Rear Slide
Cover
37mm
There are only 2 screws needed
for assembling rear cover, which
make it easy to access and replace
storage, RAM, and PCIe Mini card.
AFL3 PPC
Conventional
Compact All-in-one Unit for
Easy Installation in Small Spaces
12 cm
19 cm
The compact slim AFL3 PPC is secured in light weight plastic housing with
IP65 certified front panel. The compact size is designed for small-size operator
interface applications, such as factory HMI, home automation terminal and
digital signage.
Options
Item
P/N
Panel mounting kit
AFL2PK-08A
Description
Wall mounting kit
AFLWK-12
Rack mounting kit
AFL3RK-W07A-R10 / STAND-100-RS
ARM
ARM-11-RS/ARM-31-RS
Stand
STAND-B08/STAND-C12-R10
V-stand
VSTAND-A07-R11
DC jack to terminal block power
converter cable
32002-005500-100-RS
100 mm (A) terminal block, 2P P=5.0(B) DC plug
RJ-45 to DB-9 COM port cable
32005-000200-200-RS
RS-232 D-sub 9 male to RJ-45, 300 mm
OS: Win 8 Embedded (DVD-ROM)
AFL3-W07A-BT-WE8S-R10
OS: Win 7 Embedded (DVD-ROM)
AFL3-W07A-BT-WES7P-R10
Packing List
Item
P/N
Q'ty
Description
Utility CD
One Key Recovery CD
Power adapter
63000-FSP036RAB610-RS
36W Power Adapter ;Input: 90VAC~264VAC, 50/60Hz; Output: 12VDC
Power cord
32702-000400-200-RS
Power cord 3P European 250 V 16 A 1.8 m
Ordering Information
Part No.
Description
AFL3-W07A-BT-N28/PC/2G-R10
7” 500 cd/m² 1024x600 HD fanless panel PC with Intel® Celeron® N2807 dual core 1.58 GHz/2.16 GHz, 802.11b/g/n wireless module, projected
capacitive touch screen, 2GB DDR3L RAM, R10
Rich I/O Interface
9~30V DC Jack
Power Button
RS-232
2 x USB 3.0
RS-232
2 x LAN
Reset
AT/ATX Switch
AFL3-W07A-BT-2014-V11
Display System
w w w.ieiworld.com
Specifications
Model
AFL3-W07A-BT-R10
Size
7”
Resolution
1024 x 600
Brightness (cd/m²)
LCD
500
Contrast Ratio
Pixel Pitch (mm)
700:1
0.05(H) x 0.15(V)
Viewing Angle (H-V)
Backlight MTBF
Touch
Touch Screen
20000 hrs (LED backlight)
projected capacitive type with USB interface
Touch Controller
EETI EXC7200
CPU
Intel® Celeron® N2807 dual core 1.58 GHz
RAM
2GB DDR3L Onboard RAM
Ethernet
Audio Codec
System
150º / 145º
Realtek RTL8111E PCIe GbE controller
Realtek ALC892 HD Audio codec
Storage
Input/Output
Audio
mSATA
1 x RS-232 COM port (RJ-45 connector)
1 x RS-232 COM port
2 x USB 3.0
2 x Gigabit Ethernet ports (RJ-45)
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line-out
1 x 9 V-30 V lockable DC jack
AMP 2W + 2W (internal speaker)
System Cooling
Fanless
Wireless
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
Construction Front Bezel
Mounting
Physical
PC + ABS plastic
Wall, Panel, Stand, Rack Mounting (VESA 75 mm x 75 mm)
Color
Dimensions (WxHxD)(mm)
Black
190.65 x 127 x 38.9
Cut-out(WxH)(mm)
Environment
182 x 111
Operating Temperature (°C)
(Ambient with air flow)
-10°C~45°C
Storage Temperature (°C)
-20°C~60°C
Humidity
10% to 95% (non-condensing)
IP Level
IP 65 front
Safety/EMC
Power
Power Supply
CE/FCC
P/N: 63000-FSP036RAB610-RS
36W power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
9 V–30 V DC
AFL3-W07A-BT-2014-V10
Display System
w w w.ieiworld.com
AFOLUX GEN II Panel PC
New flat bezel, multi-touch, wide voltage AFOLUX panel PC
From the heritage of affordable Luxury AFOLUX Panel PC, AFOLUX II Panel PC shows it’s spirit to exceed the
history. The AFOLUX II Panel PC is slim and stylish and provides two types of touch option. RFID reader, wide
voltage power input are its features which make it more flexible and more powerful than ever!
Innovative product design:
● AFOLUX II flat bezel design is thinner than AFOLUX
● Projected capacitive multi-touch and resistive single touch
screen options
New technology and multiple functions:
● LED dash system for eye-catching notification
● Integrated EM/ Mifare RFID reader
● Light fanless temperature management
● 9 V ~36V DC wide voltage input fits all power requirements
● IEI Light Fanless technology allows the system to turn on/off fan
automatically, enhancing system stability.
● Exclusive LED Light Bar Simulation displays light signals
Rugged while Stylish
Flat Bezel Design with IP64 Protection
AFOLUX II series is designed in flat bezel panel and against dust and water, enduring
flawless operation.
Flat-bezel Features:
● Better visual effects
● No edge effect
● Sleek and stylish
● Easy to clean
Enhanced touch technology – projected capacitive touch
Projected capacitive touch panel is stronger and with higher transparency than the resistive
type touch panel. It also supports Windows 7 multi-touch function compatible with glovewearing users and enhancing ease-of-use.
Model
AFL2-17A-H61/PC
AFL2-17A-H61/R
Type of Touch
Projected capacitive type
5-wire resistive type touch
Multi-touch
Single-touch
Transparency
85%
78%
Hardness
≥6H
≥3H
Hand/ glove
Hand/ glove/ stylus
Touch Function
Input Flexibility
Glove-friendly multi-touch
6H Anti-scratch Surface (Projected capacitive type touch screen)
Projected capacitive touch technology utilizes
a durable glass front surface. 6H hardness is
stronger than the conventional touch panel
and therefore is able to protect the screen from
damage.
Typical
Panel
Fingernail
Knife
Steel
2H
3H
5H
6H
Quartz
7H
Beryl
8H
MOH’s Hardness Rating
AFOLUX GEN II-Intro-2014-V10
Diamond
10H
Display System
w w w.ieiworld.com
Superior Performance
The Best C/P Value Intel® H61 Platform
Comparing to mobile solution, Intel® H61 with desktop CPU provides low power consumption but high performance.
Mobile Celeron V.S. Desktop Celeron
Mobile 2nd Core i3 V.S. Desktop Pentium & 2nd Core i3
Desktop 2nd Core i3-2100T
Desktop Celeron G530T
Desktop Pentium G620T
Mobile Celeron B810
Mobile 2nd Core i3-2330E
CPU Performance (CPUMark 99)
CPU Performance (CPUMark 99)
Intel® 2nd Core™ i3Intel® Pentium® G620T Intel® 2nd Core™
i3-2100T
1.31x
1.4
2330E (Mobile 35W CPU)
(Desktop 35W CPU)
(Desktop 35W CPU)
CPU Type
CPU Performance
(CPUMark 99)
337
337
1.2
1.36x
CPU Type
1.21x
Intel® Celeron® B810
(Mobile 35W CPU)
Intel® Celeron® G530T
(Desktop 35W CPU)
245
306
CPU Performance
(CPUMark 99)
380
1
D425
N2600
1.4
N270
N270
D425
N2600
N270
0.6
Better performance with Intel®
Atom™
0.4
Cedarview dual core processor
0.2
D425
N2600
0.8
1.31x
1.36x
1.21x
1.2
1
0.0
CPU
PC Mark 2005
3D
3D Mark 2001 SE
D425
N2600
0.2
Intel® Atom™ processor N2600 (1.6GHz)
N270
0.4
Intel® Atom™ processor D425 (1.8GHz)
D425
N2600
Intel® Atom™ processor N270 (1.6GHz)
N270
N2600 CPU performance is 31% better than N270,
Graphics performance is 36% better than N270,
Memory performance is 21% better than N270
D425
N2600
0.6
PC Mark
3D Mark 2001 SE
Sisoftware sandra
DDR3 memory. With fanless system, it reduces system noise
and2005
dust accumulation.
pro 2007
N270
0.8
0.0 dual core processor running with
AFOLUX II Cedarview panel PC integrates with Intel
CPU
3D
Memory
Memory
Sisoftware sandra
pro 2007
Intel® Atom™ processor N270 (1.6GHz)
Secondary Display on Full HD
Intel® Atom™ processor D425 (1.8GHz)
Intel® Atom™ processor N2600 (1.6GHz)
Latest Display Technology: HDMI
HDMI is a compact audio/video interface for transferring uncompressed digital video data and compressed/uncompressed digital audio data
from an HDMI-compliant device to a compatible digital audio device, computer monitor, video projector, or digital television. HDMI is a digital
replacement for existing analog video standards.
Maximum
clock
rate(MHz)
Maximum
Maximum Maximum resolution Dolby TrueHD
total TMDS
color depth
over single link at
bitstream
throughput(Gbit/s)
(bit/px.)
24-bit/px
capable
3D over
HDMI
Version 1.0
to 1.2
165
4.95
24
1920 x 1200
No
No
Version 1.3
340
10.2
48
2560 x 1600
Yes
No
Version 1.4
340
10.2
48
2096 x 2160
Yes
Yes
Advantages
● Backward compatible with DVI via an adapter.
● Support audio transport (v.s. DVI canonly transmit image).
Latest Display Technology: DisplayPort
It’s not only used to connect a video source to a display device, but also be used to transmit audio, USB, and other
forms of data. DisplayPort lets you take advantage of today’s high-bandwidth content, enabling you to create a
professional and powerfully compelling digital signage solution.
External connect to
multiple display device
Advantages
Reception
Hospital-Medical Imaging
● Backward compatible with DVI/HDMI with the adapter.
● Support multi-display: It can works with monitors, notebooks or all-in-one computers.
AFOLUX GEN II-Intro-2014-V10
Display System
w w w.ieiworld.com
Faster Transmission
10x Faster Transmission: USB 3.0
The AFOLUX II PPC supports both USB 2.0 and USB 3.0. USB 3.0 has higher transmission speed and wider data bandwidth and supports
faster transferring for the user.
Data Rate Comparison
Down loading
USB version
USB1.0
USB2.0
USB3.0
Data Transfer Rate
12Mbps
480Mbps
5Gbps
Media (Data Size)
USB 2.0
14 minutes to download HD movie
Down complete
Transfer Time
Song / Pic (4 MB)
5.3 sec
0.1 sec
0.01 sec
HD-Movie (25 GB)
9.3 hr
13.9 min
70 sec
USB 3.0
70 sec to download HD movie
Wi-Fi 2T2R Wireless LAN
The AFOLUX II integrates a PIFA antenna and provides
802.11n 2T2R wide bandwith wireless communication.
T: Transmitter: the number T is absolutely relative with speed,
1T up to 150Mbps, 2T up to 300Mbps
R: Receive: the number R is relative with receiving dead
angle and distance. The higher R is, the wider the receiving
range.
Easy to Use
LED Indicator and Function key
● Function Key
● Function key can be more convenient for panel PC users to operate
this panel without any keyboard or mouse.
● Indicator is located in front of panel, it can tell users which function
is enable or disable
● LED Indicators
AT/ATX Mode
Wi-Fi
Bluetooth
MIC
Fn
Backlight On/Off
Power
CPU Temperature Alert RFID
Auto-Dimming
Audio Mute
Audio Audio +
● Brightness of LED indicator can be set by
manual (3-step) or auto-adjust by ambient
light (new function support from AFL2xxA-N26 R11, AFL2-xxA-N28-R11, AFL2xxA-H61 R12, AFL2-W21A-H61 R10)
Brightness Brightness +
RFID Enable/Disable
Audio Mute
Camera Enable/Disable
Front Side USB Enable/Disable
Power On / Off
Mini USB 2.0 Port & microSD Card Slot on Front Panel
Mini USB 2.0
The AFOLUX GEN II new series has a mini USB 2.0 port on the
front panel for easy connecting.
MicroSD card
The AFOLUX GEN II new series has a microSD slot on the front
panel for easier access.
Auto-dimming Advantages
Auto-dimming Advantages
● Power Consumption Saving
● Comfortable Viewing Brightness
● Extend Product Lifetime
Auto-dimming
Automatically adjust the
optimal brightness to fit
the environment.
Day: Higher Ambient Luminance
AFOLUX GEN II-Intro-2014-V10
Night: Lower Ambient
Luminance
Display System
w w w.ieiworld.com
Flexible Design to Fit Various Scenarios
Wide Application to Extreme Circumstance
Power supply requirement varies from applications. Incorrect voltage input will damage electronic components thus cause system break
down. AFOLUX GEN II offers wide voltage power input, which fits different application scenarios and increase stability of the system.
Wide Range Power Input
9~ 36V DC*
Wide Range 9~36VDC input *
Wide range DC input fits different power source
depends on what circumstance needed.
Flexible Power Mode
With the AT mode selected, the AFOLUX
II turns on automatically when the power is
connected. With the ATX mode, the AFOLUX
II can be easily controlled via network or a
power switch
Automation Central Control
AT Power Mode
Applications
● Factory Automation platform
● Self-service kiosk
Factory Manufacture Control
Advantages
● Easy to turn on/off with panel mounting
● Automatic start when power connected
Truck Control (24V)
System On
System Off
System On
System Off
ATX Power Mode
Applications
● Security surveillance
● Advertising terminal
Advantages
● Power management
● Remote control via network advantage
● Remote control individually
AT/ATX
Complete Peripherals
Optional EM/Mifare RFID Reader
ID
RF
EM card reader (125KHz):
Mifare card reader (13.56MHz):
It is called an ID card and has read/write function of contactless
RFID chip with low consumption and can provide various data
transmission rate and data encoding.
It is called an IC card and can be used to read and save the
data information to implement certein data transmission.
100KHz
1MHz
Data Rate
Up to 16 kbps
Reading Distance
Memory
Interfe-rence
Security
100MHz
1GHz
High Frequency (13.56MHz)
Low Frequency
(125KHz)
ISO14443
Up to 106 kbps
Faster!
ISO15693
Felica (NFC)
Up to 53 kbps
Up to 434 kbps
0-200cm
0-10cm
0-150cm
0-10cm
R/O
48/64 bits
64 bits
64bits
64bits
R/W
2048/1024 bits
512-4096 bits High Capacity!
Max. 2048 bits
N/A
Liquid
Low
Mid
Mid
Mid
Metal
High
High
High
High
RF
Very Low
Low
Low
Low
32-bit password
High (AB keys)
Low
High (AB Keys)
Optional Magnetic Stripe Card/
Hybrid Card Reader
AFLP-xxxMSR-U
IEI provides a bracket kit option for users to
secure either the MSR or MSI card reader,
which both accept magnetic cards.
Magnetic Card Reader
OSD Remote Control Advantage
Advantages
● Convenient way to control visual setting
● Control the system from a distance
● Extend Product Lifetime
System
On/Off
Volume
Up/Down
AFOLUX GEN II-Intro-2014-V10
LCD On/Off
Auto Dimming
On/Off
Brightness
Up/Down
Display System
w w w.ieiworld.com
IEI Light Fanless System
IEI Light Fanless System is a highly effective smart system, embedded with a smart sensor to sense
the ambient temperature. It can operate quietly with high performance in various applications, such as a
patient’s bedside multimedia platform, gaming machines, airport kiosks etc.
Benefits
● Power Saving
Auto switch on/off fan can reduce redundant power consumption
● Expanding system lifecycle
Helping users to run system more effectively, it also enhances the lifecycle of CPU.
● Effectively manage system environment
User can monitor the information of the system easily
● High performance with noiseless
IEI supports noiseless situation to have quiet environment and high performance simultaneously.
Environment
Temperature (°C)
High Performance With Light Fanless
iCMC Setting
(default: 32°C)
Smart-Fan Mode
Smart
Light Fanless Mode
IEI Light Fanless Applications
Patient Bedside Entertainment System
Clean Room
Semi-outdoor Kiosk
iCMC (IEI Cooling Management Console)
Real-time
Monitoring
iCMC, IEI’s exclusive software, provides reliable
embedded features for system integrators. It
simplifies integration for the AFOLUX II and
upgrades system configuration from the BIOS level
to the operating system level.
CPU
Information
Light Fanless
Settings
LED Light Visual Management
Graphical Data
Function
button
30/34/50 light
buttons
Access key
Display time
adjustment
Features
● Programmable LED RGB colors
● Signaling light display user demand
● Manual scripts for LED lighting programs
● 100% software programmable colors, light duration, and light patterns
● 30 light sections for AFL2-17A-H61, 34 light sections for AFL2-W19A-H61
50 light sections for AFL2-W21A-H61, each light section can be configured
independently.
Scripts
Full colors
Support LED Light Bar control API for the customer to suit their
own software program. Light bar signal are correspond to the light
button. User can customize their own light patterns for different
conditions.
LED Dash Board for Visual Visual Alert System and Status Notification
Achieving a smooth production line
Medical care alert system
AFOLUX GEN II-Intro-2014-V10
Showing appealing light simulation
Display System
w w w.ieiworld.com
AFOLUX GEN II
Model
Size
Resolution
Brightness (cd/m²)
LCD
Specifications
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
7"~10" Selection Guide
AFL2-W07A-N26
AFL2-08A-N26
AFL2-W10A-N28
Wide 7”
8''
Wide 10.2”
10.4”
800 (W) x 480 (H)
800 (W) x 600 (H)
1024 (W) x 600 (H)
800 (W) x 600 (H)
400 cd/m²
250 cd/m²
400 cd/m²
400 cd/m²
500:1
400:1
700:1
500:1
262K/16.2M
16.2 M
262K
262K/16.2M
0.1905(H) x 0.1905(V)
0.2025(H) x 0.2025(V)
0.2175(H) x 0.2175(V)
0.264 (H) x 0.264 (V)
160°(H) / 160°(V)
140°(H) / 130°(V)
140°(H) / 120°(V)
160°(H) / 140°(V)
50000 hrs (LED backlight)
30000 hrs (LED backlight)
30000 hrs (LED backlight)
30000 hrs (LED backlight)
5-wire resistive type with RS-232
interface/projected capacitive
touch with USB interface
PenMount DMC9000/
EETI EX5404+EXC7200
5-wire resistive type with RS-232 interface
Touch
Touch Controller
CPU
PenMount DMC9000
Support one 800 MHz 204-pin DDR3 SO-DIMM slot (max. 2GB)
pre-installed wiith 2GB
Realtek ALC892 HD Audio codec
Audio
Other Features
mSATA
Storage
Camera
1 × RS-232 COM Port (DB-9)
1 × PS-422/485 COM Port (RJ-11)
1 × GbE LAN (RJ-45)
2 × USB 2.0
2 × USB 3.0
1 × Audio jack
1 × Display port
2.5” SATA 2.0 HDD bay
1 x Mini USB 2.0 port on front panel
1 x MicroSD card slot on front
panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x DC input jack
AMP 1.5 W + 1.5 W
2M pixels with low light function
RFID Reader
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader
OSD Function
MSR card reader (optional)
LCD on/off, brightness up/down, volume up/down,hotkey
Yes
Yes
Fanless
Wireless
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth
Bluetooth V2.0+EDR with USB interface (optional)
Construction Front Panel
PC + ABS plastic front frame
Mounting
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C)
Environment
Black
208 (W) x 158.5 (H) x 45.9 (D)
215 (W) x 188 (H) x 46 (D)
280 (W) x 198 (H) x 51(D)
282.5 (W) x 242.7 (H) x 51 (D)
1.12 kg / 2.08 kg
1.43 kg / 2.2 kg
2.5 kg / 4.02 kg
2.98 kg / 4.5 kg
-20°C ~ 45°C
-20°C ~ 40°C
-20°C ~ 60°C
Humidity
10% to 95% (non-condensing)
IP Level
Front panel IP 64
Safety&EMC
Power Supply
Power
Wall, Panel, Stand, RACK Mounting and VESA 75 mm x 75mm
Color
Dimensions (mm)
Power Requirement
Power Consumption
1 x Mini USB 2.0 port on front panel
1 x MicroSD card slot on front panel
Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x DC input jack
AMP 0.8 W + 0.8 W
Infrared Remote Controller
System Cooling
Physical
1 × RS-232 COM Port (DB-9)
1 × RS-232 COM Port (RJ-45)
1 × RS-422/485 COM Port (RJ-45)
1 × GbE LAN (RJ-45)
2 × USB 2.0
2 × USB 3.0
1 × Audio jack
1 x Display port
2M pixels with low light function
Ambient Light Sensor
Connectivity
Support one 1066MHz 204-pin DDR3 SO-DIMM slot (max. 4GB)
pre-installed wiith 2GB
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Ethernet
Input / Output
PenMount DMC9000
Intel® NM10
Audio Codec
System
5-wire rsistive type with RS-232
interface
Intel® Atom™ N2800 dual core 1.86 GHz CPU
Intel® Atom™ N2600 dual core 1.6 GHz CPU
Chipset
RAM
AFL2-10A-N28
CE / FCC
60W power adapter, Input: 90VAC~264VAC, 50/60 Hz,
Output: 12VDC
40W adapter Input: 90VAC~264VAC, 50/60 Hz, Output: 12VDC
9 ~ 36 VDC
[email protected]
[email protected]
(Intel® Atom™ N2600 CPU with (Intel® Atom™ N2600 CPU with
2GB DDR3 momory)
2GB DDR3 momory)
AFOLUX GEN II-Intro-2014-V10
[email protected]
(Intel® Atom™ N2800 CPU with
2GB DDR3 memory )
[email protected]
(Intel® Atom™ N2800 CPU with
2GB DDR3 memory )
Display System
w w w.ieiworld.com
AFOLUX GEN II
Model
AFL2-12A-D525
LCD Color
CPU
Chipset
RAM
Input / Output
Audio
Camera
Other Features
400
300
500:1
16.2 M
0.240 (H) x 0.240 (V)
16.7 M
262K/16.2M
16.7M
0.252 (H) x 0.252 (V)
0.297 (H) x 0.297 (V)
0.252 (H) x 0.252 (V)
160° / 140°
170° / 160°
160° / 140°
170° / 160°
50000 hrs (LED backlight)
50,000 (LED backlight)
50,000 hrs (LED backlight)
50,000 hrs (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
PenMount DMC9000 (Resistive type) / EETI EXC7200 & EXC5400 (Projected capacitive type)
2nd Generation Intel® Core™
Intel® Atom™ D525 1.8GHz dual
Intel® Atom™ processor N270 1.6 2nd/3rd Generation Intel® Core™ i7/i5/ 2nd/3rd Generation of Intel®Core™ i7/
i7/ i5/ i3 and Celeron®
core processor
i3 and Pentium® processors
i5/i3 and Pentium® processors
GHz CPU
processor
Intel® ICH8M
Intel® HM65
Support one 204-pin DDR3 SO-DIMM slot (max. 4GB)
Connectivity
Bluetooth
Construction Front
Panel
Mounting
Physical
Environment
Color
Dimensions (WxHxD)
(mm)
Weight (N/G)
Operating Temperature
(°C) (Ambient with
air flow)
Storage Temperature
(°C)
Humidity
CF Type II socket
2.5" SATA 3Gb/s SSD bay
mSATA
1 x RS-232 (DB-9 connector)
1 x RS-232 (RJ-45 connector)
1 x RS-422/485
(4-pin box header)
2 x GbE LAN (RJ-45 connector)
4 x USB 2.0
1 x Mini USB 2.0 port on front
panel
1 x Audio jack (line-out)
1 x VGA port (DB-15 connector)
1 x MicroSD card slot on front
panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC jack
2.5" SATA 6Gb/s SSD bay
mSATA
Power Requirement
Power Consumption
Realtek ALC892 HD Audio codec
CF Type II
2.5” SATA 3Gb/s HDD bay
1 x RS-232 COM port
1 x RS-232/422/485 COM port
1 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x Audio port (Line out)
1 x VGA
1 x Power jack
1 x External SATA
1 x 8-bit digital I/O, 4-bit input/4-bit
output (optional)
1.3 megapixels with low light function
CF Type II socket
2 x RS-232 (DB-9 connector)
1 x GbE LAN (RJ-45 connector) on left side
1 x RS-422/485 (RJ-45 connector)
1 x Type K
3 x USB 2.0 (two on the bottom, one on the left)
2 x USB 3.0
1 x Mini USB port on front panel
1 x MicroSD card slot on front panel
1 x Line out, MIC on left side
1 x VGA port
1 x HDMI port
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC jack
AMP 1.5 W + 1.5 W
AMP 2W + 2W (internal speaker)
(internal speaker)
2 M pixels with low light function
2 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
AMP 3W + 3W (internal speaker)
AMP 2W + 2W (internal speaker)
2 M pixels with low light function
MSR card reader (optional)
LCD on/off, brightness up/down, volume up/down, Hot Key
Yes
Yes
Fanless
Smart fan
Fanless
Bluetooth V2.0+EDR with USB interface (optional)
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10)Telec
certified
N/A
PC + ABS Plastic
PC + ABS plastic
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
Telec certified
Light Fanless
Light Fanless
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10)Telec certified
Bluetooth V2.0+EDR with USB interface (optional)
PC + ABS Plastic
PC + ABS Plastic
Panel, Wall, Rack, Stand and Arm VESA 100 mm x 100 mm
Black
400 x 267 x 54
363.2 x 305.1 x 58.8
399.4 x 271.2 x 58.8
3.2 kg / 5.5 kg
3.8 kg / 6.1 kg
3.8 kg
5.2 kg / 7.3 kg
4.5 kg / 6.5 Kg
-20°C ~ 50°C
-20°C ~ 50°C with SSD
-10°C ~ 50°C
-20°C ~ 50°C
-20°C ~ 50°C
-20°C ~ 60°C
-20°C ~ 60°C
-20°C ~ 60°C
-20°C ~ 60°C
-20°C ~ 50°C
310 x 265 x 52.6
10% to 95% (non-condensing)
IP 64 compliant front panel
Safety&EMC
Power
Intel® H61
Support two 204-pin DDR3 SO-DIMM
slot (system Max. 16GB)
CF Type II
1 x 2.5” SATA HDD Bay
1 x RS-232 (DB-9 connector)
1 x RS-232 (RJ-45 connector)
1 x RS-422/485
(4-pin box header)
1 x GbE LAN (RJ-45
connector)
2 x USB 2.0
2 x USB 3.0
1 x Mini USB 2.0 port on front
panel
1 x Audio jack (line-out)
1 x HDMI port
1 x MicroSD card slot on front
panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC jack
IP Level
Power Supply
Intel® H61
Support two 204-pin DDR3 SO-DIMM
slot (max. 16GB) preinstalled with 4GB
(2GB x 2)
Realtek RTL8111E PCIe GbE controller supports ASF 2.0
OSD Function
Wireless
Intel® 945GSE + ICH7M
Support one 400 MHz or 533 MHz
DDR2 SO-DIMM (max. 2GB)
Realtek ALC888 HD Audio codec
RFID Reader
MSR Card Reader
Ambient Light Sensor
Infrared Remote
Controller
System Cooling
1366 (W) x 768 (H)
700:1
Audio Codec
System
1024 (W) x 768 (H)
300
Ethernet
Storage
W15.6” (16:9)
1366 (W) x 768 (H)
500:1
Touch Screen
Touch Controller
15″ (4:3)
600
Viewing Angle (H-V)
Touch
AFL2-W15B-H61
Wide 15.6” TFT LCD
700:1
Brightness (cd/m²)
Contrast Ratio
Pixel Pitch (mm)
AFL2-15A-H61
AFL2-W15A-N270
1024 (W) x 768 (H)
Resolution
Backlight MTBF
AFL2-12A-HM65
12.1"
Size
LCD
Specifications
12.1"~W15" Selection Guide
CE / FCC
65W power adapter
90W power adapter
Input: 100VAC~240VAC,
Input: 100VAC~240VAC,
50/60 Hz
50/60Hz
Output: 19VDC
Output: 19VDC
9 ~ 36 VDC
[email protected]
[email protected]
(Intel® Core™ i5-2510E
(Intel® Atom™ D525 CPU with
processor with 4GB DDR3
800MHz 2GB DDR3 memory )
memory)
60W power adapter
Input: 90VAC~264VAC, 50/60 Hz
Output: 12VDC
90W power adapter
90W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz, Input:100 V AC ~ 240 V AC, 50 / 60Hz,
Output: 19 V DC
Output: 19 V DC
12 VDC
9~36 VDC
9 ~ 36 VDC
[email protected]
(Intel® Atom™ N270 CPU with
667MHz 2GB DDR2 memory )
[email protected]
(Intel® Core™ i3-2100T CPU with 4GB
1333 Mhz DDR3 memory)
[email protected]
(Intel® Core™ i3-2120 CPU with 4GB
1333 Mhz DDR3 memory)
AFOLUX GEN II-Intro-2014-V11
Display System
w w w.ieiworld.com
AFOLUX GEN II
Model
Size
Resolution
Brightness (cd/m²)
LCD
Specifications
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
AFL2-17A-H61
IBS-19A
AFL2-W19A-H61
17" (4:3)
19”
W18.9” (16:10)
W21.5” (16:9)
1280 (W) x 1024 (H)
1280 x 1024
1440 (W) X 900 (H)
1920(W) x 1080(H)
350
300
250
250
2000:1
1000:1
1000 : 1
16.7M
16.7M
16.7M
16.7M
0.264 (H) x 0.264 (V)
0.294mm x 0.294mm
0.2835 (H) x 0.2835 (V)
0.248mm x 0.248mm
170° / 160°
178° / 178°
170° / 160°
165° / 165°
50,000 (LED backlight)
50,000
30,000 (LED backlight)
30,000 (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
CPU
EETI EXC7200 & EXC5404
2nd/3rd Generation of Intel®Core™ i7/i5/i3 and Pentium® processors
2nd/3rd Generation of Intel®Core™ i7/i5/i3
and Pentium® processors
Chipset
Intel® H61
RAM
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Audio Codec
Realtek ALC892 HD Audio codec
Storage
2.5” SATA 3Gb/s HDD bay
CD-ROM
1 x Slim Type CD-ROM bay
2 x RS-232 (DB-9 connector)
1 x RS-422/485
(DB-9 connector)
2 x GbE LAN (one on the bottom, one on the
left)
2 x USB 3.0
3 x USB 2.0 (two on the bottom, one on the
left)
1 x Mini USB port on front panel
1 x MicroSD card slot on front panel
1 x External power switch connector
1 x RS-422/485
1 x USB 2.0
1 x GbE LAN RJ-45
1 x RS-232
2 x RJ-45 GbE LAN
1 x HDMI
2 x USB 2.0
1 x Mic-in
1 x Line-out
1 x AT/ATX Switch
1 x Reset Button
Expansion Interface
AMP 2W + 2W (internal speaker)
Camera
RFID Reader
MSR Card Reader
1 x Line-out, Mic (on the left)
1 x VGA port
(DB-15 connector)
1 x Type K
1 x HDMI port
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC input jack
AMP 3W + 3W (internal speaker)
2 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader
(optional)
Mifare 13.56 MHz card reader (optional)
MSR card reader (optional)
IC card reader
OSD Function
LCD on/off, brightness up/down, volume up/down, Hot Key
Ambient Light Sensor
Yes
Infrared Remote
Controller
Yes
Wireless
Bluetooth
Construction Front
Panel
Mounting
Physical
Environment
Color
Yes
Light fanless (smart fan operates above
default temperature setting)
Active with fan
Light fanless (smart fan operates above
default temperature setting)
Light fanless (smart fan operates above
default temperature setting)
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10)Telec certified
IEEE 802.11a/b/g/n 3T3R moduleTelec
certified
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10)Telec certified
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10)Telec certified
PC + ABS Plastic
N/A
PC + ABS Plastic
PC + ABS Plastic
PC + ABS Plastic
Anti-bacteria plastic front frame
PC + ABS Plastic
PC + ABS Plastic
Panel, Wall, Rack, Stand, Arm
VESA 100mm x 100mm
Wall, Stand and Arm
VESA 100mm x 100mm
Panel, Wall, Stand, Arm
VESA 100mm x 100mm
Wall, Panel, Stand and
VESA 100 mm x 100mm
Black
white (RAL 9016)
Black
Black
Dimensions (WxHxD)
(mm)
418 x 378 x 65
466 x 428 x 65
488 x 361 x 65
547 x 346 x 71, withLED Light Bar
Weight (N/G)
6.9 kg / 9.0 kg
7.28 kg
7.3 kg / 10 Kg
7.3 Kg / 9.4 Kg (with LED Light Bar)
Operating Temperature
(°C)(Ambient with air
flow)
-20°C ~ 40°C
0°C ~ 40°C
-20°C ~ 50°C
-10°C ~ 50°C
120W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz,
Output: 19 V DC
120W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz,
Output: 19 V DC
Storage Temperature
(°C)
-20°C ~ 60°C
Humidity
10% to 95% (non-condensing)
IP Level
IP 64 compliant front panel
Safety&EMC
Power Supply
Power
MSR card reader (optional)
Reserved by pin-header
LED Light Bar
Connectivity
EM 125 KHz or Mifare 13.56 MHz card reader EM 125 KHz or Mifare 13.56 MHz card reader
(optional)
(optional)
MSR card reader (optional)
TPM
System Cooling
2 x RS-232 (DB-9 Connector)
1 x RS-422/485 COM Port
(DB-9 connector)
2 x GbE LAN (RJ-45 connector)
3 x USB 2.0
2 x USB 3.0
1 x HDMI on bottom side
1 x Line out/MIC on left side
1 x VGA port (DB-15 Connector)
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Clear CMOS button
1 x Type K
1 x 9~36V DC jack
1 x PCIe Mini slot reserved
Audio
Other Features
Support two 204-pin DDR3 SO-DIMM slots
(System Max. 16GB)
Support two 204-pin DDR3 SO-DIMM slot (system Max. 16GB)
Ethernet
Input / Output
Projected capacitive type with USB interface
PenMount DMC9000 (Resistive Type) / EETI EXC7200 & EXC5404
(Projected capacitive type)
Touch Controller
System
AFL2-W21A-H61
1000:1
Touch Screen
Touch
17"~21.5" Selection Guide
CE / FCC
120W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz,
Output: 19 V DC
120W power adapter
Input:90 V AC ~ 264 V AC,
Output: 19 V DC
Power Requirement
9 ~ 36 VDC
9 ~ 28 VDC
9 ~ 36 VDC
9 ~ 36 VDC
Power Consumption
[email protected]
(Intel® Core™ i3-2100T CPU with
4GB 1333 Mhz 4GB DDR3 memory)
[email protected]
(Intel® Core™ i3-2120T processor with 2GB
DDR3 memory)
[email protected]
(Intel® Core™ i3-2100T CPU with
4GB 1333 Mhz 4GB DDR3 memory)
[email protected]
(Intel® Core™ i3-2120T processor with 4GB
DDR3 memory)
AFOLUX GEN II-Intro-2014-V10
Display System
w w w.ieiworld.com
AFL2-W07A-N26
Intel® Atom™ N2600 Dual Core Processor
AFL2-08A-N26
Intel® Atom™ N2600 Dual Core Processor
Features
● Flat-bezel LCD with LED backlight
● Intel® Atom™ N2600 dual core 1.6 GHz processor
● One 800 MHz 204-pin DDR3 SO-DIMM slot
(system max. 2GB) pre-installed with 2GB
● 5-wire resistive type touch screen supported
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● Built-in EM or Mifare RFID reader (optional)
● IP64 compliant front panel
● Auto dimming control
AFL2-W07A-N26
Specifications
Model
Size
Resolution
Brightness (cd/m²)
LCD
Specifications
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch
Wireless
802.11b/g/n
EM/Mifare
8''
800 (W) x 600 (H)
400 cd/m²
350 cd/m²
500:1
500:1
262K/16.2M
16.2 M
0.1905 (H) x 0.1905 (V)
0.2025 (H) x 0.2025 (V)
160°(H) / 160°(V)
140°(H) / 130°(V)
50000 hrs (LED backlight)
30000 hrs (LED backlight)
5-wire rsistive type with RS-232 interface
PenMount DMC9000
Intel® Atom™ N2600 dual core 1.6 GHz CPU
Intel® NM10
Support one 800 MHz 204-pin DDR3 SO-DIMM slot (max. 2GB) pre-installed wiith 2GB
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC892 HD Audio codec
Audio Codec
mSATA
Storage
AMP 0.8 W + 0.8 W
Camera
2megapixel with low light function
Microphone
Other Features
Digital Microphone
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader
OSD Function
1 x Mini USB 2.0 port on front panel
1 x MicroSD card slot on front panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x DC input jack
1 × RS-232 COM Port (DB-9)
1 × RS-422/485 COM Port (RJ-11)
1 × GbE LAN (RJ-45)
2 × USB 2.0
2 × USB 3.0
1 × Audio jack
1 × Display port
Audio
RFID Reader
MSR card reader (optional)
LCD on/off, brightness up/down, volume up/down,hotkey
Ambient Light Sensor
Yes
Infrared Remote Controller
Yes
System Cooling
Connectivity
Fanless
Wireless
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth
Bluetooth V2.0+EDR with USB interface (optional)
Construction Front Panel
Mounting
Physical
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Environment
Power
PC + ABS plastic front frame
Wall, Panel, Stand, RACK Mounting and VESA 75 mm x 75mm
Color
Dimensions (WxHxD)(mm)
Storage Temperature (°C)
Black
208 x 158.5 x 45.9
215 x 188 x 46
1.12 kg / 2.08 kg
1.43 kg / 2.2 kg
-20°C ~ 40°C
-20°C ~ 60°C
Humidity
10% to 95% (non-condensing)
IP Level
IP 64 compliant front panel
Safety&EMC
CE / FCC
Power Supply
40W power adapter Input: 90VAC~264VAC, 50/60 Hz, Output: 12VDC
Power Requirement
Power Consumption
IP64
AFL2-08A-N26
Chipset
Input / Output
-20ºC~40ºC
800 (W) x 480 (H)
CPU
System
Touchscreen
Wide 7”
Touch Controller
Ethernet
Microphone
AFL2-W07A-N26
Touch Screen
RAM
Speakers
9 ~ 36 VDC
[email protected] (Intel® Atom™ N2600 CPU with 2GB DDR3 momory)
AFL2-W07A-2014-V10
[email protected] (Intel® Atom™ N2600 CPU with 2GB DDR3 momory)
Display System
w w w.ieiworld.com
Rich I/O Interface
2 x USB 3.0
Display Port
LAN
RJ-45 for RS-422/485
2 x USB 2.0
Power Switch CMOS Reset
Line-out
AT/ATX
9-36V DC Jack
RS-232
Fn
1 x Mini USB port
1 x MicroSD card slot
RFID Enable/Disable
Backlight On/Off
Audio Mute
Audio -
AFL2-08A-N26
Camera Enable/Disable
Audio +
Front Side USB Enable/Disable
Brightness -
Power On / Off
Brightness +
Options
Item
AFL2-W07A-N26
AFL2-08A-N26
Panel Mounting Kit
AFL2PK-08A
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFL2RK-W07A
Stand
AFL2RK-08A
STAND-B08/STAND-C12-R10 / STAND-100-RS
V-stand
VSTAND-A07-R11
Magnetic stripe reader
AFL2P-08AMSR-U-R10
Bluetooth Module Kit
AFL2-BT-KIT01-R11
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Win XPE (CD-ROM)
AFL2-W07A-CV-XPE-R10
OS: Win 7 Embedded
(DVD-ROM)
AFL2-W07A-CV-WES7E-R10 (for Resistive Touch)
Packing List
Item
P/N
Q'ty
Description
Utility CD
7B000-000889-RS
1
drivers and user manual
Power adapter
63000-FSP040DGAA1106-RS
1
90VAC~264VAC, 50/60 Hz, Output: 12VDC,40W (Meet PSE)
Power cord
32000-000002-RS
1
European standard, 1830mm
IR remote controller
7Z000-SLPCB001-RS
1
Pen
43125-0002C0-00-RS
1
One Key Recovery CD
1
RJ-11 to DB-9 COM port cable
1
For Resistive Touch
Ordering Information
Part No.
Description
AFL2-W07A-N26/R/2G-R11
7" 400 cd/m² WVGA fanless panel PC with Intel® Atom™ N2600 dual core 1.6GHz, 802.11b/g/n wireless module, resistive touch screen, microphone,
2megapixel webcam, 2GB DDR3 RAM, R11
AFL2-08A-N26/R/2G-R11
8" 350 cd/m² SVGA fanless panel PC with Intel® Atom™ N2600 dual core 1.6GHz, 802.11b/g/n wireless module, resistive touch screen, microphone,
2megapixel webcam, 2GB DDR3 RAM, R11
AFL2-W07A-2014-V10
Display System
w w w.ieiworld.com
AFL2-W07A Dimensions
(Unit: mm)
AFL2-08A Dimensions
(Unit: mm)
AFL2-W07A-2014-V10
Display System
w w w.ieiworld.com
AFL2-W10A-N28
Intel® Atom™ N2800 Dual Core Processor
AFL2-10A-N28
Intel® Atom™ N2800 Dual Core Processor
Features
● Flat-bezel LCD with LED backlight
● Intel® Atom™ N2800 dual core 1.86 GHz processor
● One 1066 MHz 204-pin DDR3 SO-DIMM slot (system max. 4GB)
pre-installed with 2GB
● 5-wire resistive type touch screen supported
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● EM or Mifare RFID reader
● Built-in 2M pixels webcam with AF, AE and AWB capabilities
● Built-in two 1.5W speakers and microphone
● IP 64 compliant front panel
AFL2-W10A-N28
Specifications
Model
Resolution
Brightness (cd/m²)
Speakers
10.4”
1024 (W) x 600 (H)
800 (W) x 600 (H)
400 cd/m²
400 cd/m²
700:1
262K
262K/16.2M
0.2175 (H) x 0.2175 (V)
0.264 (H) x 0.264 (V)
140°(H) / 120°(V)
160°(H) / 140°(V)
30000 hrs (LED backlight)
30000 hrs (LED backlight)
Touch Screen
5-wire rsistive type with RS-232 interface/
projected capacitive touch with USB interface
5-wire rsistive type with RS-232 interface
Touch Controller
PenMount DMC9000/EETI EX5404+EXC7200
PenMount DMC9000
RAM
Ethernet
Intel® Atom™ N2800 dual core 1.86 GHz CPU
Intel® NM10
Support one 1066MHz 204-pin DDR3 SO-DIMM slot (max. 4GB)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC892 HD Audio codec
Audio Codec
HDD
Input / Output
2.5” SATA 2.0 HDD bay
1 x Mini USB 2.0 port on front panel
1 x MicroSD card slot on front panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x DC input jack
1 × RS-232 COM Port (DB-9)
1 × RS-232 COM Port (RJ-45)
1 × RS-422/485 COM Port (RJ-45)
1 × GbE LAN (RJ-45)
2 × USB 2.0
2 × USB 3.0
1 × Audio jack
1 x Display port
Audio
AMP 1.5 W + 1.5 W
Camera
2M pixels with low light function, digital microphone
RFID Reader
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader
OSD Function
MSR card reader (optional)
LCD on/off, brightness up/down, volume up/down, hotkey
System Cooling
Fanless
Wireless
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth
Bluetooth V2.0+EDR with USB interface (optional)
Construction Front Panel
Mounting
Environment
Power
PC + ABS plastic front frame
Wall, Rack, Stand, RACK Mounting and Arm VESA 75mm x 75mm
Color
Black
Dimensions (WxHxD) (mm)
280 x 198 x 51
282.5 x 242.7 x 51
Weight (N/G)
2.5 kg / 4.02 kg
2.98 kg / 4.5 kg
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C)
-20°C ~ 45°C
-20°C ~ 60°C
Humidity
10% to 95% (non-condensing)
IP Level
IP 64 compliant front panel
Safety&EMC
CE / FCC
Power Supply
60W power adapter, Input: 90VAC~264VAC, 50/60 Hz, Output: 12VDC
Power Requirement
Power Consumption
IP64
AFL2-10A-N28
Chipset
Physical
-20ºC~45ºC
Wide 10.2”
CPU
Connectivity
Touchscreen
LCD Color
Backlight MTBF
Other Features
Camera
400:1
Viewing Angle (H-V)
System
Microphone
Contrast Ratio
Pixel Pitch (mm)
Touch
EM/Mifare
AFL2-W10A-N28
Size
LCD
Specifications
Wireless
802.11b/g/n
9 ~ 36 VDC
[email protected] (Intel® Atom™ N2800 CPU with 2GB DDR3 memory)
AFL2-W10A-2014-V10
[email protected] (Intel® Atom™ N2800 CPU with 2GB DDR3 memory )
Display System
w w w.ieiworld.com
Rich I/O Interface
RJ-45 for RS-232
2 x USB 3.0
Power Switch
LAN
RJ-45 for
RS-422/485
Line-out
9-36V DC Jack
RS-232
AT/ATX CMOS Reset Display Port
2 x USB 2.0
Function Keys
Fn
RFID Enable/Disable
Backlight On/Off
AFL2-10A-N28
1 x Mini USB port
1 x MicroSD card slot
Audio Mute
Audio -
Camera Enable/Disable
Audio +
Front Side USB Enable/Disable
Brightness -
Power On / Off
Brightness +
Options
Item
AFL2-W10A-N28
AFL2-10A-N28
Panel Mounting Kit
AFL2PK-10A
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFL2RK-W10A
AFL2RK-10A
Stand
STAND-C12-R10/STAND-A21-R10
V-stand
VSTAND-A10-R11
Magnetic Stripe Reader
AFL2P-12AMSR-U-R10
Bluetooth Module Kit
AFL2-BT-KIT01-R11
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Win XPE (CD-ROM)
AFL2-W10A-CV-XPE-R10
OS: Win 7 Embedded (DVD-ROM)
AFL2-W10A-CV-WES7E-R10 (for Resistive Touch) AFL2-W10A-CV-WES7P-R10 (for Projected Capacitive Touch
Packing List
Item
P/N
Utility CD
One Key Recovery CD
Q'ty
Description
1
drivers and user manual
1
Power adapter
63040-010060-030-RS
1
(Meet PSE)
Power cord
32702-000200-100-RS
1
European standard, 1830mm
Power transfer cord
32702-000300-100-RS
1
Ordering Information
Part Number
Description
AFL2-W10A-N28/R/2G-R10
10.2" 400cd/m² WSVGA fanless panel PC with Intel® Atom™ cedarview N2800 dual core 1.86GHz, 802.11b/g/n wireless module, resistive touch screen,
2M camera, microphone, 2GB DDR3 RAM, R10
NEW!!
AFL2-W10A-N28/PC/2G-R10
10.2” 400cd/m² WSVGA fanless panel PC with Intel® Atom™ cedarview N2800 dual core 1.86GHz, 802.11b/g/n wireless module, projected capacitive
touch screen, 2M camera, microphone, 2GB DDR3 RAM, R10
AFL2-10A-N28/R/2G-R10
10.4" 400cd/m² SVGA fanless panel PC with Intel® Atom™ cedarview N2800 dual core 1.86GHz, 802.11b/g/n wireless module, resistive touch screen,
2M camera, microphone, 2GB DDR3 RAM, R10
AFL2-W10A-2014-V10
Display System
w w w.ieiworld.com
AFL2-W10A Dimensions
(Unit: mm)
AFL2-10A Dimensions
(Unit: mm)
AFL2-W10A-2014-V10
Display System
w w w.ieiworld.com
AFL2-12A-HM65
Intel® Core™ i7/i5/i3 Processor
AFL2-12A-D525
Intel® Atom™ D525 Dual Core Processor
Features
● 12.1” 600nits 1024 x 768 flat-bezel LCD with LED backlight
● Supports projected capacitive touchscreen or 5-wire resistive type touchscreen
● Built-in two 3W speakers and microphone
● GbE LAN for high speed network applications
● One 204-pin DDR3 SO-DIMM slot (system max. 4GB)
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● EM or Mifare RFID reader
● IP 64 compliant front panel
● Auto-dimming control
● Built-in 1.3 megapixels webcam with AF AE and AWB capabilities
● Wide range 9~36 VDC input
Specifications
Model
Size
Resolution
Brightness (cd/m²)
Contrast Ratio
LCD
Specifications LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
Touch
Touch Controller
CPU
Chipset
RAM
Ethernet
Audio Codec
Storage
System
Input / Output
Other
Features
Connectivity
Physical
Environment
EM/Mifare
AFL2-12A-D525
OSD Function
Ambient Light Sensor
Infrared Remote Controller
System Cooling
Wireless
Bluetooth
Construction Front Panel
Mounting
Color
Dimensions (WxHxD)(mm)
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C)
Humidity
IP Level
Safety&EMC
Camera
nless
Fa
Touchscreen
-20ºC~45ºC
IP64
AFL2-12A-HM65
12.1"
1024 (W) x 768 (H)
160° / 140°
50000 hrs (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
PenMount DMC9000 / EETI EXC7200 & EXC5400
Intel® Atom™ D525 1.8GHz dual core processor
2nd Generation Intel® Core™ i7/ i5/ i3 and Celeron® processor
Intel® ICH8M
Intel® HM65
Support one 204-pin DDR3 SO-DIMM slot (Max. 4GB)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC888 HD Audio codec
CF Type II socket
2.5" SATA 3Gb/s SSD bay
2.5" SATA 6Gb/s SSD bay
mSATA
1 x HDMI port
1 x RS-232 (DB-9)
1 x VGA port (DB-15)
1 x RS-232 (DB-9)
1 x MicroSD card slot on front panel
1 x MicroSD card slot on front panel 1 x RS-232 (RJ-45)
1 x RS-232 (RJ-45)
1 x Power switch
1 x RS-422/485 (4-pin box header)
1 x Power switch
1 x RS-422/485
1 x AT/ATX switch
2 x GbE LAN (RJ-45)
1 x AT/ATX switch
(4-pin box header)
1 x Reset button
2 x USB 2.0
1 x Reset button
2 x GbE LAN (RJ-45)
1 x Clear CMOS button
2 x USB 3.0
1 x Clear CMOS button
4 x USB 2.0
1 x DC input jack
1 x Mini USB 2.0 port on front panel
1 x DC input jack
1 x Mini USB 2.0 port on front panel
1 x Audio jack (line-out)
1 x Audio jack (line-out)
AMP 3W + 3W (internal speaker)
1.3 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR card reader (optional)
LCD on/off, brightness up/down, volume up/down, Hot Key
Yes
Yes
Fanless
Smart fan
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth V2.0+EDR with USB interface (optional)
PC + ABS Plastic
Panel, Wall, Rack, Stand and Arm VESA 100 mm x 100 mm
Black
310 x 265 x 52.6
3.2 kg / 5.5 kg
3.8 kg / 6.1 kg
-20°C ~ 50°C
-20°C ~ 50°C with SSD
-20°C ~ 60°C
-20°C ~ 60°C
10% to 95% (non-condensing)
IP 64 compliant front panel
CE / FCC
90W power adapter
Input: 100VAC~240VAC, 50/60Hz
Output: 19VDC
65W power adapter
Input: 100VAC~240VAC, 50/60 Hz
Output: 19VDC
Power Requirement
Power Consumption
Microphone
Speakers
600
700:1
16.2 M
0.240 (H) x 0.240 (V)
Audio
Camera
RFID Reader
MSR Card Reader
Power Supply
Power
Wireless
802.11b/g/n
9 ~ 36 VDC
[email protected]
(Intel® Atom™ D525 CPU with 800MHz 2GB DDR3 memory )
AFL2-12A-2014-V11
[email protected]
(Intel® Core™ i5-2510E processor with 4GB DDR3 memory)
Display System
w w w.ieiworld.com
Ordering Information
●AFL2-12A-D525
Part No.
Description
Resistive Touch
Panel Screen
AFL2-12A-D525/R/1G-R12
12.1” 600cd/m² XGA fanless panel PC with Intel® Atom™ D525 dual core 1.8GHz, 802.11b/g/n wireless module, resistive touch screen,
1.3 M camera, microphone,1 GB DDR3 RAM, Dual GbE LAN, R12
Projective
Capacitive Touch
Screen
AFL2-12A-D525/PC/1G-R12
12.1” 600cd/m² XGA fanless panel PC with Intel® Atom™ D525 dual core 1.8GHz, 802.11b/g/n wireless module, projected capacitive
touchscreen, 1.3 M camera, microphone,1 GB DDR3 RAM, Dual GbE LAN, R12
●AFL2-12A-HM65
Part No.
Description
Resistive Touch
Screen
AFL2-12A-HM65/R-R12
12.1" 600cd/m² XGA panel PC, 802.11b/g/n wireless module, resistive touch screen, 1.3M camera, microphone, dual GbE LAN, R12
Projective
Capacitive Touch
Screen
AFL2-12A-HM65/PC-R12
12.1" 600cd/m² XGA panel PC, 802.11b/g/n wireless module, projected capacitive touchscreen, 1.3M camera, microphone, dual GbE
LAN, R12
CPU-MB-i7-2640M
2nd Generation Intel® Core™ i7 Processor [Mobile], PPGA-988, dual core 2.8GHz, 35W, iAMT CPU-MB-i5-2510E
2nd Generation Intel® Core™ i5 Processor [Mobile], PPGA-988, dual core 2.5GHz, 35W, iAMT
CPU-MB-i3-2310M
2nd Generation Intel® Core™ i3 Processor [Mobile], PPGA-988, dual core 2.1GHz, 35W
CPU-MB-CM-B810
Intel® Celeron® Mobile Processor, PPGA-988, dual core 1.6GHz, 35 W
CPU-MB-CM-B710
Intel® Celeron® Mobile Processor, PPGA-988, single core 1.6GHz, 35 W
DDR3-SO-1333-1GB
SO-DIMM DDR3 1333MHz 1GB
DDR3-SO-1333-2GB
SO-DIMM DDR3 1333MHz 2GB
DDR3-SO-1333-4GB
SO-DIMM DDR3 1333MHz 4GB
CPU Selection
Memory Selection
Options
Item
AFL2-12A-D525
AFL2-12A-HM65
Panel Mounting Kit
AFLPK-15
Wall Mounting Kit
AFLWK-19B
Rack Mounting Kit
AFL2RK-12
Arm
Stand
ARM-11-RS
STAND-A12-RS/STAND-A19-RS/STAND-A21-R10/STAND-C12-R10
V-Stand
VSTAND-A12-R11
Bluetooth Module Kit
AFL2-BT-KIT01-R11
Magnetic Stripe Reader Kit
AFL2P-12AMSR-U-R10
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Win XPE (2GB CF Card)
AFL2CF-12-D525-XPE-2G-R10
AFL2-12A-HM65-XPE-R10*
OS: Win XPE (4GB CF Card)
AFL2CF-12-D525-XPE-4G-R10
AFL2-12A-HM65-XPE-R10*
AFL2CF-12-D525-WES7P-4G-R10 (for Projected Capacitive Touch)
AFL2CF-12-D525-WES7E-4G-R10 (for Resistive Touch)
AFL2-12A-HM65-WES7P-R10* (for Projected Capacitive
Touch)
AFL2-12A-HM65-WES7E-R10* (for Resistive Touch)
OS: Win 7 Embedded (4GB CF Card)
*OS image with CD-ROM or DVD-ROM
AFL2-12A-2014-V10
Display System
w w w.ieiworld.com
Packing List
Q'ty
Description
Utility CD
Item
P/N
1
Drivers and user manual
One Key Recovery CD
1
63040-010065-010-RS (for AFL2-12A-D525)
63040-010090-030-RS (for AFL2-12A-HM65)
Power Adapter
1
FSP065-RAB;90~264VAC input ; 65W ;19VDC output (Meet PSE)
FSP090-D2BA1;90~264VAC input ; 90W ;19VDC output
1500 mm, European Standard
Power Cord
32702-000401-100-RS
1
Power Transfer Cord
32702-000300-100-RS
1
M3 Screw Pack
44013-030041-RS
4
M3*4 for securing HDD
M4 Screw Pack
44403-040061-RS
4
M4*4 VESA screw
Touch Pen
43125-0002C0-00-RS
1
RJ-45 to DB-9 COM Port Cable
32005-000200-200-RS
1
IR Remote Controller
7Z000-SLPCB005-RS
1
RS-422 Cable
32205-002400-100-RS
1
Pen
43125-0002C0-00-RS
1
For Resistive Touch
AFL2-12A-D525 Dimensions
Fully Integrated I/O
DC Jack
(Unit: mm)
LAN
Line-out
4 x USB 2.0
LAN Port
Power Switch
VGA
RS-422/485
RS-232
RS-232
AFL2-12A-D525
AFL2-12A-HM65 Dimensions
Fully Integrated I/O
(Unit: mm)
DC Jack
LAN
2 x USB 3.0
2 x USB 2.0
Line-out
LAN Port
Power Switch
HDMI
RS-422/485
RS-232
RS-232
AFL2-12A-HM65
AFL2-12A-2014-V10
Display System
w w w.ieiworld.com
AFL2-15A-H61
Intel® Core™ i7/i5/i3 and Pentium® processor
AFL2-W15B-H61
Intel® Core™ i7/i5/i3 and Pentium® processor
Features
● Flat-bezel LCD with LED backlight
● Intel® Core™ i5/ i3 and Pentium® processor
● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2)
● Projected capacitive touchscreen and 5-wire resistive type touchscreen supported
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● EM or Mifare RFID reader
● Built-in 2M pixels webcam with AF, AE and AWB capabilities
● Built-in two 2W speakers and microphone
● IP 64 compliant front panel
● Auto dimming control
● Light fanless technology design
● Type K thermocouple temperature sensor
● Wide range 9~36 VDC input
AFL2-15A-H61
Specifications
Model
Size
Resolution
Brightness (cd/m²)
LCD
Specifications
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch
Touch Screen
Touch Controller
CPU
Wireless
802.11b/g/n
EM/Mifare
AFL2-15A-H61
W15.6” (16:9)
400
300
700:1
500:1
262K/16.2M
16.7M
0.297 (H) x 0.297 (V)
0.252 (H) x 0.252 (V)
160° / 140°
170° / 160°
50,000 hrs (LED backlight)
50,000 hrs (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
PenMount DMC9000 / EETI EXC7200 & EXC5404
2nd/3rd Generation Intel® Core™ i7/i5/i3 and Pentium® processors
Intel® H61
Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC892 HD Audio codec
CF Type II socket
2.5" SATA 3Gb/s HDD bay
Storage
Audio
AMP 2W + 2W (internal speaker)
2M pixels with low light function
RFID Reader
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader
MSR card reader (optional)
TPM
Reserved by pin-header
OSD Function
LCD on/off, brightness up/down, volume up/down, Hot Key
Ambient Light Sensor
Yes
Infrared Remote Controller
System Cooling
Connectivity
Wireless
Physical
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Power
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth V2.0+EDR with USB interface (optional)
PC + ABS Plastic
Wall, Stand, Arm VESA 100mm x 100mm
Panel, Wall, Rack, Stand, Arm VESA 100mm x 100mm
Color
Dimensions (WxHxD) (mm)
Environment
Yes
Light fanless (smart fan operates above default temperature setting)
Bluetooth
Construction Front Panel
Mounting
Storage Temperature (°C)
1 x VGA port
1 x HDMI port
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC jack
1 x Type K connector
2 x RS-232 (DB-9 connector)
1 x GbE LAN (RJ-45 connector) on left side
1 x RS-422/485 (RJ-45 connector)
3 x USB 2.0 (two on the bottom, one on the left)
2 x USB 3.0
1 x Mini USB port on front panel
1 x MicroSD card slot on front panel
1 x Line out, MIC on left side
Camera
Other
Features
Black
363.2 x 305.1 x 58.8
399.4 x 271.2 x 58.8
5.2 kg / 7.3 kg
4.5 kg / 6.5 Kg
-20°C ~ 50°C
-20°C ~ 60°C
Humidity
10% to 95% (non-condensing)
IP Level
IP 64 compliant front panel
Safety&EMC
CE / FCC
Power Supply
90W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC
Power Requirement
Power Consumption
IP64
AFL2-W15B-H61
1366 (W) x 768 (H)
Audio Codec
Input / Output
-20ºC~50ºC
1024 (W) x 768 (H)
Ethernet
System
Touchscreen
15″ (4:3)
Chipset
RAM
Camera
Microphone
Speakers
9 ~ 36 VDC
[email protected]
(Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz DDR3 memory)
AFL2-15A-2014-V10
[email protected]
(Intel® Core™ i3-2120 CPU with 4GB 1333 Mhz DDR3 memory)
Display System
w w w.ieiworld.com
Options
Item
AFL2-15A-H61
Panel Mounting Kit
AFL2-W15B-H61
N/A
AFL2PK-W15B
Wall Mounting Kit
AFLWK-19B
Rack Mounting Kit
N/A
AFL2RK-W15B
Arm
ARM-11-RS/ARM-31-RS
Stand
STAND-A21-R10/ STAND-C19-R10/ STAND-210-R11
Magnetic Stripe Reader
AFL2P-15AMSR-U-R10
AFL2P-W15BMSR-U-R10
Bluetooth Module Kit
AFL2-BT-KIT01-R11
Trusted Platform Module (TPM)
TPM-IN01-R11
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Win XPE (2GB CF Card)
AFL2CF-15A-H61-XPE-2G-R10
OS: Win XPE (4GB CF Card)
AFL2CF-15A-H61-XPE-4G-R10
AFL2CF-15A-H61-WES7P-4G-R10 (for Projected Capacitive Touch)
AFL2CF-15A-H61-WES7E-4G-R10 (for Resistive Touch)
OS: Win 7 Embedded (4GB CF Card)
Packing List
Item
P/N
Q'ty
Description
Utility CD
7B000-000957-RS
1
drivers and user manual
One Key Recovery CD
7B000-000781-RS
1
Power Adapter
63040-010090-020-RS
1
FSP090-D2BA1; 90~264VAC input; 90W; 19VDC output
Power Cord
32702-000401-100-RS
1
European, 1500mm
Power Transfer Cord
32702-000300-100-RS
1
RJ-45 to DB-9 COM Port Cable
32005-000200-200-RS
1
IR Remote Controller
7Z000-SLPCB005-RS
1
M3 Screw Pack
44013-030041-RS
4
M3 x 4 for securing HDD
M4 Screw Pack
44033-040061-RS
4
M4 x 4 for VESA screw
Temperature Sensor Cable
32133-004300-100-RS
1
Pen
43125-0002C0-00-RS
1
For Resistive Touch
Ordering Information
AFL2-15A-H61
Part No.
Description
AFL2-15A-H61-i5/R-R12
15" 400cd/m² XGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen,2M camera, microphone, R12
AFL2-15A-H61-i5/PC-R12
15" 400cd/m² XGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen,2M camera, microphone, R12
AFL2-15A-H61-i3/R-R12
15" 400cd/m² XGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen,2M camera, microphone, R12
AFL2-15A-H61-i3/PC-R12
15" 400cd/m² XGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2) 802.11b/g/n wireless module,
projected capacitive touchscreen,2M camera, microphone, R12
AFL2-15A-H61-P/R-R12
15" 400cd/m² XGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen,2M camera, microphone, R12
AFL2-15A-H61-P/PC-R12
15" 400cd/m² XGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen,2M camera, microphone, R12
Core i5
Core i3
Pentium
AFL2-W15B-H61
Part No.
Description
AFL2-W15B-H61-i5/R-R12
15.6’’ 300cd/m² HD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R12
AFL2-W15B-H61-i5/PC-R12
15.6’’ 300cd/m² HD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-W15B-H61-i3/R-R12
15.6’’ 300cd/m² HD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R12
AFL2-W15B-H61-i3/PC-R12
15.6’’ 300cd/m² HD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-W15B-H61-P/R-R12
15.6’’ 300cd/m² HD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R12
AFL2-W15B-H61-P/PC-R12
15.6’’ 300cd/m² HD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R12
Core i5
Core i3
Pentium
AFL2-15A-2014-V10
Display System
w w w.ieiworld.com
Function Keys
Fn
Backlight On/Off
RFID enable / disable
Audio -
Audio mute
Audio +
Camera enable / disable
Brightness -
Front side Mini USB&
MicroSD enable / disable
Brightness +
Power on / off
AFL2-W15B-H61
1 x Mini USB port
1 x MicroSD card slot
HDMI
2 x USB 3.0 RS-422/485
2 x RS-232
Type K connector
Type K thermocouple
temperature sensor
1 x GbE LAN
1 x USB 2.0
Mic, Line-out
Power Button
Reset 2 x USB 2.0
AFL2-15A-H61
Dimensions
(Unit: mm)
AFL2-W15B-H61
Dimensions
(Unit: mm)
AFL2-15A-2014-V10
VGA
DC-Jack
Micphone
Display System
w w w.ieiworld.com
15.6" Wide Panel PC
AFL2-W15A-N270
Intel® Atom™ N270 Processor
Features
● Flat-bezel LCD with LED backlight
● Intel® Atom™ processor N270 1.6 GHz processor
● one 400 MHz or 533 MHz DDR2 SO-DIMM (max. 2GB)
●Projected capacitive type flat touch screen/ Resistive type 5-wire
flat touch screen supported
● Wi-Fi 802.11b/g/n supported
● Optional EM or Mifare RFID reader
● Built-in 2 M pixels webcam
● Built-in two 1.5W speakers and microphone
● IP 64 compliant front panel
Specifications
Wireless
802.11b/g/n
EM/Mifare
Speakers
Microphone
Model
LCD Specifications
Touch
Size
Resolution
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
Touch Controller
CPU
Chipset
RAM
Ethernet
Audio Codec
System
Storage
Watchdog Timer
Input / Output
Other Features
Connectivity
Physical
Audio
Camera
RFID Reader
OSD Function
Ambient Light Sensor
Infrared Remote Controller
Touch Screen
Wireless
Construction Front Panel
Mounting
Color
Dimensions (WxHxD) (mm)
IP Level
Safety & EMI
Power Supply
Power
Power Requirement
Power Consumption
-20ºC~50ºC
Wide 15.6” TFT LCD
1366 x 768
300
500:1
16.7M
0.252 (H) x 0.252 (V)
170° (H) / 160° (V)
50000 hrs (LED backlight)
5-wire rsistive type with RS232 interface / projected capacitive type with USB interface
PenMount DMC9000 / EETI EXC7200 & EXC5404
Intel® Atom™ processor N270 1.6 GHz CPU
Intel® 945GSE + ICH7M
Support one 400 MHz or 533 MHz DDR2 SO-DIMM (max. 2GB)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC888 HD Audio codec
CF Type II
1 x 2.5” SATA HDD Bay
Software programmable supports 1~255 sec. system reset
1 x Audio port (Line out)
1 x RS-232 COM port
1 x VGA
1 x RS-232/422/485 COM port
1 x Power jack
1 x RJ-45 for GbE LAN
1 x External SATA
2 x USB 2.0
1 x Power switch
1 x Reset button
AMP 1.5 W + 1.5 W (internal speaker)
2 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
LCD on/off, brightness up/down, volume up/down
Yes
LCD on/off, brightness up/down, volume up/down
Projected capacitive type flat touch screen/ Resistive type 5-wire flat touch screen
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
PC + ABS plastic front frame
VESA 100 mm x 100 mm
Black C
400 x 267 x 54
3.8 kg
-10°C ~ 50°C
Storage Temperature (°C)
Humidity
Touchscreen
AFL2-W15A-N270
Weight (N/G)
Operating Temperature (°C) (Ambient with air flow)
Environment
Camera
-20°C ~ 60°C
10% to 95% (non-condensing)
IP 64 compliant front panel
CE / FCC
60W power adapter
Input: 90VAC~264VAC, 50/60 Hz
Output: 12VDC
12VDC
[email protected]
(Intel® Atom™ N270 CPU with 667MHz 2GB DDR2 memory )
AFL2-W15A-2014-V10
IP64
Display System
w w w.ieiworld.com
VESA 100 mm x 100 mm
AFL2-W15A
Dimensions (Unit: mm)
Power RS-232
button
12V DC jack
Optional Kit
VGA
2 x USB
Audio line out
RS-232/422/485
External SATA GbE LAN
Packing List
Options
AFL2-W15A-N270
Item
P/N
Q'ty Specifications
Panel Mounting Kit
AFL2PK-W15A-R10
Touch Pen
43125-0002C0-00-RS
1
Wall Mounting Kit
AFLWK-19B
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-A19-RS / STAND-A21-R10 / STAND-C19-R10
/ STAND-210-R11
EM RFID Reader
AFL2-EM-RFID-KIT02-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT03-R10
Win CE 6.0
AFL2CF-W15-N270-CE060-R10 (128 MB CF card)
Win XPE
AFL2CF-W15-N270-XPE-R10 (1 GB CF card)
OS
Win 7
Power Adapter 63040-010060-050-RS
1
90-264 VAC input ,
12 VDC output, 60W (Meet PSE)
Power Cord
32000-000002-RS
1
1750 mm; European standard
User's Manual
CD
7B000-000087-RS
1
Screws
44013-030041-RS
4
Remote
Controller
7Z000-8T00320ICP05G-RS
1
AFL2CF-W15-N270-WES7E-R20 /
AFL2CF-W15-N270-WES7P-R20
(4 GB CF card)
AFL2SD-W15-N270-WES7E-R20 /
AFL2SD-W15-N270-WES7P-R20
(4 GB SATA SSD module)
DC 12 V Input UPS
AUPS-B10-R10 (VESA 100, DC 12 V input, 12 V output 100 W
UPS module with 3800 mAH)
DC 9~36 V Input UPS
AUPS-B20-R10 (VESA 100, DC 9~36 V input, 12 V output 100 W
UPS module with 3800 mAH)
Touch Pen
Model No.:43125-0002C0-00-RS
Description:
1) With special material 
2) Combined soft rubber with anti-oxidative plastic material 
3) Durable and flexible 
4) Particularly designed for AFOLUX II touch 
5) Pen Length: 140mm
Ordering Information
Part No.
Description
Resistive Type Touch
AFL2-W15A-N270/R/1G-R20
15.6" 300cd/m² WXGA+ fanless panel PC with Intel® Atom™ N270 1.6 GHz, 802.11b/g/n wireless module, resistive touch screen,
2 M camera, microphone, 1GB DDR2 RAM, without expansion, R20
Projected Capacitive
Type Touch
AFL2-W15A-N270/PC/1G-R20
15.6” 300cd/m² WXGA+ fanless panel PC with Intel® Atom™ N270 1.6 GHz, 802.11b/g/n wireless module, projected capacitive
touchscreen, 2 M camera, microphone, 1GB DDR2 RAM, without expansion, R20
AFL2-W15A-2014-V10
Display System
w w w.ieiworld.com
AFL2-17A-H61
Intel® Core™ i7/i5/i3 and Pentium® processor
AFL2-W19A-H61
Intel® Core™ i7/i5/i3 and Pentium® processor
Features
Optional CD-ROM
available
AFL2-17A-H61
Specifications
Size
Resolution
Brightness (cd/m²)
Contrast Ratio
LCD
Specifications LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
Touch Controller
CPU
Chipset
RAM
Ethernet
Audio Codec
HDD
CD-ROM
System
Input / Output
Other
Features
Connectivity
Physical
Environment
Power
EM/Mifare
Speakers
AFL2-17A-H61
Model
Touch
Wireless
802.11b/g/n
● Programmable colorful LED light bar
● Intel® Core™ i5/ i3 and Pentium® processor
● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2)
● Projected capacitive touchscreen and 5-wire resistive type touchscreen supported
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● EM or Mifare RFID reader
● Built-in 2-megapixel webcam with AF, AE and AWB capabilities
● Built-in two 2W speakers and microphone
● IP 64 compliant front panel
● Auto dimming control
● Light fanless design
● Type K thermocouple temperature sensor
● Wide range 9~36 VDC input
Expansion Interface
Audio
Camera
RFID Reader
MSR Card Reader
TPM
OSD Function
Ambient Light Sensor
Infrared Remote Controller
LED Light Bar
System Cooling
Wireless
Bluetooth
Construction Front Panel
Mounting
Color
Dimensions (WxHxD)(mm)
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C)
Humidity
IP Level
Safety&EMC
Power Supply
Power Requirement
Power Consumption
Microphone
Camera
Touchscreen
-20ºC~50ºC
IP64
AFL2-W19A-H61
17" (4:3)
W18.9” (16:10)
1280 (W) x 1024 (H)
1440 (W) X 900 (H)
350
250
1000:1
1000:1
16.7M
16.7M
0.264 (H) x 0.264 (V)
0.2835 (H) x 0.2835 (V)
170° / 160°
170° / 160°
50,000 (LED backlight)
30,000 (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
PenMount DMC9000 / EETI EXC7200 & EXC5404
2nd/3rd Generation Intel® Core™ i7/i5/i3 and Pentium® processors
Intel® H61
Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC892 HD Audio codec
2.5" SATA 3Gb/s HDD bay
1 x Slim Type CD-ROM bay
2 x RS-232 (DB-9 connector)
1 x Mic (on the left)
1 x RS-422/485 (DB-9 connector)
1 x VGA port (DB-15 connector)
2 x GbE LAN (one on the bottom, one on the left)
1 x HDMI port
2 x USB 3.0
1 x Power switch
3 x USB 2.0 (two on the bottom, one on the left)
1 x AT/ATX switch
1 x Mini USB port on front panel
1 x Reset button
1 x MicroSD card slot on front panel
1 x Clear CMOS button
1 x Line out (on the left)
1 x 9 ~ 36V DC input jack
1 x Type K connector
1 x PCIe Mini slot reserved
AMP 2W + 2W (internal speaker)
2 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR card reader (optional)
Reserved by pin-header
LCD on/off, brightness up/down, volume up/down, Hot Key
Yes
Yes
Yes
Light fanless (smart fan operates above default temperature setting)
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified
Bluetooth V2.0+EDR with USB interface (optional)
PC + ABS Plastic
Panel, Wall, Rack, Stand, Arm VESA 100mm x 100mm
Panel, Wall, Stand, Arm VESA 100mm x 100mm
Black
418 x 378 x 65
488 x 361 x 65
6.9 kg / 9.0 kg
7.3 kg / 10 Kg
-20°C ~ 50°C
-20°C ~ 40°C
-20°C ~ 60°C
10% to 95% (non-condensing)
IP 64 compliant front panel
CE / FCC
120W power adapter , Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC
9 ~ 36 VDC
[email protected]
[email protected]
(Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory) (Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory)
AFL2-17A-2014-V10
Display System
w w w.ieiworld.com
Ordering Information
AFL2-17A-H61/AFL2-17AB-H61
LED Bar
Model
Description
AFL2-17A-H61-i5/R-R12
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R12
AFL2-17A-H61-i5/PC-R12
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-17A-H61-i3/R-R12
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R12
AFL2-17A-H61-i3/PC-R12
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-17A-H61-P/R-R12
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, R12
AFL2-17A-H61-P/PC-R12
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-17AB-H61-i5/R-R12
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-17AB-H61-i5/PC-R12
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
AFL2-17AB-H61-i3/R-R12
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2) 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-17AB-H61-i3/PC-R12
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
AFL2-17AB-H61-P/R-R12
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-17AB-H61-P/PC-R12
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
LED Bar
Without
LED Bar
Options
Item
Panel Mounting Kit
AFL2-17A-H61
AFL2-W19A-H61
AFL2PK-17A
AFL2PK-W19A
Wall Mounting Kit
Rack Mounting Kit
AFLWK-19B
AFL2RK-17A
N/A
Arm
Stand
Magnetic Stripe Reader
Slim DVD Burner
Bluetooth Module Kit
Trusted Platform Module (TPM)
ARM-31-RS
STAND-A19-RS/STAND-A21-R10/STAND-C19-R10/STAND-210-R11
AFL2P-W19AMSR-U-R10
AFL2-DVD-KIT01-R10
AFL2-BT-KIT01-R11
TPM-IN01-R11
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Win 7 Embedded (DVD-ROM)
AFL2-17A-H61-WES7P-R10 (for Projected Capacitive Touch)
AFL2-17A-H61-WES7E-R10 (for Resistive Touch)
AFL2-17A-2014-V10
AFL2-W19A-H61-WES7P-R10 (for Projected Capacitive Touch)
AFL2-W19A-H61-WES7E-R10 (for Resistive Touch)
Display System
w w w.ieiworld.com
Ordering Information
AFL2-W19A-H61/AFL2-W19AB-H61
LED Bar
Model
Description
AFL2-W19A-H61-i5/R-R12
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, R12
AFL2-W19A-H61-i5/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-W19A-H61-i3/R-R12
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, R12
AFL2-W19A-H61-i3/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-W19A-H61-P/R-R12
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, R12
AFL2-W19A-H61-P/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R12
AFL2-W19AB-H61-i5/R-R12
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-W19AB-H61-i5/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
AFL2-W19AB-H61-i3/R-R12
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-W19AB-H61-i3/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
AFL2-W19AB-H61-P/R-R12
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, without LED bar, R12
AFL2-W19AB-H61-P/PC-R12
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12
LED Bar
Without
LED Bar
Packing List
CD-RW/DVD-RW Driver Spec.
Item
P/N
Q'ty
Description
Utility CD
7B000-000956-RS
1
drivers and user manual
One Key Recovery CD
7B000-000781-RS
1
Power Adapter
63000-FSP120AAB-RS
1
FSP120-AAB;90~264VAC input ; 120W
;19VAC output (Meet PSE)
European, 1500mm
Power Cord
32702-000401-100-RS
1
Power Transfer Cord
32000-089400-RS
1
Infrared Remote Controller
7Z000-SLPCB005-RS
1
M3 Screw Pack
44013-030041-RS
4
M3 x 4 for securing HDD
M4 Screw Pack
44033-040061-RS
4
M4 x 4 for VESA screw
I/O Bracket
I/O Bracket
41013-0290C2-00-RS
1
Temperature Sensor Cable
32133-004300-100-RS
1
Pen
43125-0002C0-00-RS
1
The drive is able to write CD-R/RW disks, DVD+R/RW
disks and DVD-R/RW disks
Drive Type
Internal Slim CD-RW/DVD Combo Drive
Data Transfer
Rate
Write:
DVD+R/DVD+RW/DVD-R: 8X
DVD-RW: 6X
CD-R/CD-RW: 24X
Interface
SATA
Buffer Memory 2MB
For Resistive Touch
AFL2-17A-2014-V10
Read:
DVD-ROM: 8X
CD-ROM: 24X
Display System
w w w.ieiworld.com
Function Keys
Micphone
Fn
Backlight On/Off
RFID enable / disable
Audio -
Audio mute
Audio +
Camera enable / disable
Brightness -
Front side Mini USB&MicroSD
enable / disable
Brightness +
Power on / off
2 x USB 2.0 RS-422/485
2 x RS-232
VGA
Power Switch
DC Jack
1 x Mini USB port
1 x MicroSD card slot
Mic, Line-out
1 x USB 2.0
1 x GbE LAN
Type K thermocouple
temperature sensor
Hot Keys 2 x USB 3.0
HDMI
GbE LAN
AFL2-17A-H61 Dimensions
(Unit: mm)
AFL2-W19A-H61 Dimensions
(Unit: mm)
AFL2-17A-2014-V10
Display System
w w w.ieiworld.com
IBS-19A Series
19” Interactive Panel PC features Intel® Core™
i5/i3 Processor
Features
● Best price and high-performance Intel® Core™ i5/i3 processor
● Easy cleaning and maintenance in Medical environment
● Feature-rich bedside applications for patients
● Professional point-if-care features for clinician
● Innovative LED dash light system for efficient visual management
● Easy installation with flexible mounting and cabling
Specifications
Wi-Fi
Touchscreen
Camera
Model
Chipset
RAM Slot
LCD Size
Resolution
Brightness (nits)
Backlight
Contrast Ratio
Viewing Angle
Operation Lifetime (Hrs)
Gamma Table
Touch Screen
Wireless
Drive Bay
Wi-Fi
HDD
ODD
Backward I/O Set
I/O Ports
Audio/Video
LED Dash Light
Downward I/O Set
Webcam
Microphone
Speakers
Handset
Digital TV Tuner
Upper
Left
Right
OSD Key
RFID
Smart Card Reader
Remote control
Power
IP Level
Environmental
Condition
EM/Mifare
IBS-19A
CPU
Display
Microphone
DC Input
External Adaptar
Front Panel
Intel® Core™ i5 - 2390T 2.7GHz
Intel® Core™ i3 - 21xxT above 2.5GHz
Intel® Pentium® - G6xxT above 2.2GHz
Intel® H61 Express Chipset
Two DDR3 1333MHz SDRAM SO-DIMMs
System max. 4GB
19"
1280 x 1024
300
LED
2000
89/89/89/89
50000
Grayscale Mode - DICOM GSDF Clear Base 6500K
Grayscale Mode - DICOM GSDF Blue Base 9300K
Color Mode - Gamma 2.2 6500K
Color Mode - DICOM GSDF Clear Base 6500K
Color Mode - Gamma 2.2 9300K
Color Mode - DICOM GSDF Blue Base 9300K
5-wire resistive type
802.11a/b/g/n dual-band 2.4Ghz/5Ghz Telec certified
1 x 2.5" SATA HDD
1 x Slim DVD RW 24x
1 x External power switch connector
1 x USB 2.0
1 x RS-422/485
1 x GbE LAN RJ-45
1 x Mic-in
1 x RS-232
1 x Line-out
2 x RJ-45 GbE LAN
1 x AT/ATX Switch
1 x HDMI
1 x Reset Button
2 x USB 2.0
1280 x 1024 CMOS camera
Stereo
2 x 3W
Optional handset with speaker and microhpne
Optional DVB-T by project case
26 x true color LED
20 x true color LED
20 x true color LED
6-key touch sensor pad
Programmable Fn key
Optional Mifare 13.56Mhz RFID reader
Optional ISO7816-1,2,3 card reader
Infrared remote control for display OSD
9~28 V DC
130W 90~264 [email protected] to [email protected]
IP 64
Operating Temp.
0°C ~ 40°C
IBS-19A-2014-V10
SCR
Display System
w w w.ieiworld.com
HDMI 2 x USB 2.0
RS-232
Rich I/O Interface
2 x GbE
AT/ATX switch
DVB-T
(optional)
Line-out
Reset Mic-in 9V~28V DC
Button
Phone Jack
(optional)
LED Reading
IBS-19A
Dimensions (Unit: mm)
Options
Item
Part No.
Item
Part No.
Handset
IBSOPT-HS-R10
Smart Card Reader
IBSOPT-SCR-R10
Mifare RFID Reader
IBSOPT-RFID-R10
Arm
ARM-31-RS
Wall Mounting Kit
AFLWK-19B
Stand
STAND-300SW-RS/STAND-A19/STAND-A21-R10/STAND-C19
Packing List
Item
Part No.
Q’ty
Description
Utility CD
7B000-000773-RS
1
Drivers and User Manual
Power Adapter
63040-010120-010-RS
1
PMP120-13-2, 90~264VAC Input, 120W, 19VDC output
Power Cord
32702-000200-100-RS
1
European, 1830mm
Pen
43125-0002C0-00-RS
1
For Resistive Touch
Mounting Bracket
41120-0310C0-00-RS
1
Mount Bracket
Infrared Remote Controller
7Z000-SLPCB005-RS
1
Ordering Information
Part No.
Description
IBS-19A3L-P/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, with Pentium® G6xxT CPU (2.2GHz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/
g/n, Touchscreen, Slim DVD-RW, AC to DC 19V Power Adapter, R10.
IBS-19A3D-P/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, with Pentium® G6xxT CPU (2.2GHz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/
g/n, Touchscreen, Slim DVD-RW, AC to DC 19V Power Adapter, DICOM GSDF Calibrated, R10.
IBS-19A3S-P/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, with Pentium® G6xxT CPU (2.2GHz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/
g/n, Touchscreen, Slim DVD-RW, LED Dash Light, RFID, Smart Card Reader, AC to DC 19V Power Adapter, R10.
IBS-19A3L-i3/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i3 21xxT (2.5Ghz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n,
Touchscreen, Slim DVD-RW, AC to DC 19V Power Adapter, R10.
IBS-19A3D-i3/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i3 21xxT (2.5Ghz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n,
Touchscreen, Slim DVD-RW, AC to DC 19V Power Adapter, DICOM GSDF Calibrated, R10.
IBS-19A3S-i3/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i3 21xxT (2.5Ghz above), TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n,
Touchscreen, Slim DVD-RW, LED Dash Light, RFID, Smart Card Reader, AC to DC 19V Power Adapter, R10.
IBS-19A3L-i5/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i5 2390T 2.7GHz, TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n, Touchscreen,
Slim DVD-RW, AC to DC 19V Power Adapter, R10.
IBS-19A3D-i5/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i5 2390T 2.7GHz, TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n, Touchscreen,
Slim DVD-RW, AC to DC 19V Power Adapter, DICOM GSDF Calibrated, R10.
IBS-19A3S-i5/2G/32G-R10
19” Interactive Panel PC, Intel® H61 platform, Core™ i5 2390T 2.7GHz, TDP 35W, 2GB DDR3 RAM, 320GB HDD, Wireless 802.11a/b/g/n, Touchscreen,
Slim DVD-RW, LED Dash Light, RFID, Smart Card Reader, AC to DC 19V Power Adapter, R10.
IBS-19A-2014-V10
Automation Panel Solutions
Display System
w w w.ieiworld.com
AFL2-W21A-H61
Intel® Core™ i7/i5/i3 and Pentium® Processor
IEI designed a completely new model for its new AFOLUX GEN II
Panel PCs. AFL2-W21A-H61 with exclusive LED light bar function
combining
Features
● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) pre-installed
with 4GB (2GB x 2)
● Projected capacitive touchscreen supported
● Wi-Fi 802.11b/g/n 2T2R high speed wireless
● EM or Mifare RFID reader
● Programmable colorful LED light bar
● Built-in two 3W speakers and microphone
● Auto dimming control
● Light fanless design
● Wide range 9~36 VDC input
Wireless
802.11b/g/n
EM/Mifare
Camera
Touchscreen
-20ºC~50ºC
iCMC
IP64
Full HD Second Display Through HDMI Interface
Full-HD 1080p (1920x1080) reacts the resolution of panel, which is a set of high-definition
video modes with 1920 of horizontal resolution and 1080 of vertical resolution. Widescreen
aspect ratio of 16:9 supports perfect display sight, with brighter digital display.
1080p
HDMI
1920 lines of horizontal resolution supporting a
16:9 ratio to perform perfect display sight.
IEI Customized Expansion
Standard Connector Type Easy to Design
Expansion Module
The AFL2-W21A-H61 can customize the
expansion board depending on user’s
necessary. Customer can choose digital TV,
3G,video capturing…and so on.
UART
3.5G
HSUPA 3.5G
DVB-T/ATSC/Hybrid
Serial Port
Ethernet
USB 3.0
Video card
Features
● Reliable board to board connection
● IEI provides ODM service which customize boards of user’s demand.
Use one system in
different markets!
Digital TV
3G/3.75G
4-Port Video Capture
Kiosk System
Mobile Broadcasting System
Surveillance System
AFL2-W21-H61-2014-V10
Automation Panel Solutions
Display System
w w w.ieiworld.com
Specifications
Model
LCD
Specifications
AFL2-W21A-H61
LCD Display
W21.5″ (16:9)
Max Resolution
1920 (W) x 1080 (H)
Brightness (cd/m²)
250
Contrast Ratio
1000 : 1
LCD Color
16.7M
Pixel Pitch (mm)
0.248 mm x 0.248 mm
Viewing Angle (H-V)
170° / 160°
Other
Features
EM and Mifare RFID
Optional: EM 125 KHz or Mifare 13.56 MHz card
reader
LED Light Bar
Programmable R/G/B colorful LED light bar
(SMBus Control)
Function Key
6 x function keys:
Key1 Backlight On/Off
Key2 Audio Key3 Audio +
Key4 Brightness Key5 Brightness+
Key6 Fn
Combinations:
Fn+Key1 RFID Enable/Disable
Fn+Key2 Audio Mute
Fn+Key3 Camera Enable/Disable
Fn+Key5 Power ON/OFF
Backlight MTBF (Hrs) 30000 (LED backlight)
Touch
Touch Screen
projected capacitive type with USB interface
Touch Controller
EETI EXC7200 & EXC5404
CPU
Intel® Core™ i7/i5/i3 and Pentium® processors
Chipset
Intel® H61
Infrared
IR receiver 38KHz
RAM
Support two 204-pin DDR3 SO-DIMM slot (max.
16GB) preinstalled with 4GB (2GB x 2)
Light Sensor
Ambient light sensor for panel brightness adjustment
TPM
Reserved by pin-header
Storage
1 x 2.5″ SATA 3Gb/s HDD Bay
Optical Drive
1 x Slim Type DVD-ROM bay
OS Support
Windows Embedded Standard 7
Windows XP Embedded,
Ethernet
Realtek RTL8111E PCIe GbE controller supporting
ASF 2.0
Wireless
IEEE 802.11b/g/n 2T2R module
(WIFI-RT5392-SB-R10) Telec certified
Audio Codec
Realtek ALC892 HD Audio codec
Bluetooth
Bluetooth V2.0+EDR with USB interface (optional)
Audio
Amplifier 3W + 3W
Construction Material PC + ABS plastic for front cover and rear cover
Webcam &
Microphone
2-megapixel camera with low light function
Digital Microphone
I/O Ports
2 x RS232 (DB9 Connector)
1 x RS422/485 COM Port (DB9 connector)
2 x GbE LAN (RJ-45 connector)
3 x USB 2.0
2 x USB 3.0
1 x HDMI
1 x VGA port (DB-15 Connector)
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Clear CMOS button
1 x Type K
1 x 9~36V DC jack
1 x Line out
1 x Mic
System
Expansion Interface
1 x PCIe Mini for Wi-Fi Module
1 x PCIe Mini reserved
Cooling System
Light Fanless
OS Support
Connectivity
Physical
Enviornment
Power
Mounting
Wall, Stand and VESA 100 mm x 100mm
Enclosure Color
Sliver + Black
Dimension (mm)
546.85 (W) x 345.82 (H) x 70.35 (D)
Weight (Net/Gross)
8.27 Kg / 11.27 Kg
Operating
Temperature
(with air flow)
-10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Humidity
10% to 90% (non-condensing)
IP Level
IP 64 compliant front panel
Safety and EMC
CE & FCC
Power Adapter
120W power adapter
Input: 100 V AC ~ 240 V AC, 50 / 60Hz,
Output: 19 V DC
Power Input
9 ~ 36V DC-IN
Power Consumption
[email protected] (Intel® Core™ i3-2120T processor with
4GB DDR3 memory)
AFL2-W21A-H61
Dimensions (Unit: mm)
AFL2-W21-H61-2014-V10
Automation Panel Solutions
Display System
w w w.ieiworld.com
Rich I/O Interface
2 x USB 3.0
2 x RS-232
LAN
9-36V DC Jack
RS-422/485
2 x USB 2.0
Fn
Backlight On/Off
Audio -
VGA
Power Switch Reset
Clear CMOS
HDMI
AT/ATX Switch
Audio +
Brightness -
RFID Enable/Disable
Audio Mute
Camera Enable/Disable
Power On / Off
Brightness +
Options
Item
AFL2-W21A-H61
Panel Mount Kit
AFL2PK-W21A
Wall Mounting Kit
AFLWK-19B
Stand
STAND-A21-R10
ARM
ARM-31-RS
Slim DVD Burner Installation Kit
(Including SATA Cable)
AFL2-DVD-KIT01-R10
Magnetic Stripe Reader
AFL2P-W21AMSR-U-R10
Bluetooth Module Kit
AFL2-BT-KIT01-R11
Trusted Platform Module (TPM)
TPM-IN01-R11
EM RFID Reader
AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader
AFL2-MF-RFID-KIT01-R11
OS: Windows® XP Embedded (CD-ROM)
AFL2-W21-H61-XPE-R10
OS: Windows® Embedded Standard 7
(DVD-ROM)
AFL2-W21-H61-WES7P-R10
Temperature Sensor Cable
32133-004300-100-RS
Packing List
Item
P/N
Utility CD
7B000-000952-RS
Q'ty
1
One Key Recovery CD
7B000-000781-RS
1
Power Adapter
63000-FSP120AAB-RS
1
FSP120-AAB ; 90~264VAC input ; 120W ; 19VAC output (Meet PSE)
Power Cord
32702-000401-100-RS
1
European, 1500mm
Power Transfer Cord
32000-089400-RS
1
Infrared Remote Controller
7Z000-SLPCB005-RS
1
M3 Screw Pack
44013-030041-RS
4
M3 x 4 for securing HDD
M4 Screw Pack
44033-040061-RS
4
M4 x 4 for VESA screw
Description
drivers and user manual
Ordering Information
LED Bar
LED Bar
Without
LED Bar
Model
Description
AFL2-W21A-H61-i5/PC-R10
21.5” 250cd/m² FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R10
AFL2-W21A-H61-i3/PC-R10
21.5” 250cd/m² FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R10
AFL2-W21A-H61-P/PC-R10
21.5” 250cd/m² FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R10
AFL2-W21AB-H61-i5/PC-R10
21.5” 250cd/m² FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R10
AFL2-W21AB-H61-i3/PC-R10
21.5” 250cd/m² FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R10
AFL2-W21AB-H61-P/PC-R10
21.5” 250cd/m² FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R10
AFL2-W21-H61-2014-V11
Display System
w w w.ieiworld.com
AFOLUX Panel PC
■ 5.7"~19" multi-functional all-in-one Panel PCs
■ Streamlined plastic housing
■ Water and dust resistance IP 64 front panel protection
■ Industrial grade operating temperature
Affordable Luxury for You~
AFOLUX is designed to provide versatile, cost-effective solutions to meet the growing demand emerging from semi-industrial computing
markets. From clinical to factory environments, restaurants to schools, and entertainment to surveillance devices, AFOLUX is your ultimate
choice to fulfill a wide spectrum of applications.
A. IP 64 Water and Dust Proof Protection
The AFOLUX front panel is IP64 compliant which protects the screen against
damage from liquid or dust. Extend the lifetime of your products!
B. Variety Multimedia Functions
Low Light Camera, Microphone and Speaker
High resolution
video camera
HD Hardware Decoder and HDMI Output
Integrated Radeon HD3200 graphic core supports UVD– VC-1, MPEG2, and H.264/
AVC full HD decoder. Through HDMI output to HD-SDI-BOX-kit, HD content can be
transmitted up to 100 meters for a long distance digital signage application.
Built-in stereo
speakers
100m
Sensitive
Microphone
100m
Slave
100m
Slave
HDMI
Master
C. LED Backlight Panel Equipped
LED
Backlight
Enhancement of image quality on LCD screen
■ Wider color gamut
■ More even screen illumination
■ Longer display life
■ Low temperature operation and greater power efficiency
Color Gamut Comparison
Slave
HD-SDI-BOX kit
Shopping Mall Digital
Signage Broadcasting
Vivid and High Contrast Image
LED
Normal CCFL
LED Backlight Panel
CCFL Backlight Panel
Thus LED backlight makes the image color shown on the LCD screen look nature and vivid.
AFLPPC-Intro-2014-V10
Display System
w w w.ieiworld.com
D. Wireless Capabilities
Local-based Communication
Peripheral Communication
Long-range Mobile Communication
Easy to deploy, no network cables is needed. It is easy to operate and connect input
devices and peripherals when the Panel
Reduce your setup cost and lead time.
PC is mounted to a rack or a kiosk.
High mobility without any hot spot
limitation.
Real-Time Data
Communication
Internet
802.11b/g
802.11n
Cloud
Server
HSUPA
Cellular Network
Streaming music
Streaming video
No spaces in between items:
VoIP/Gaming/NAS
E. Auto Dimming and OSD Remote Control
Built-in Ambient Light Sensor
■ Power Consumption Saving
■ Comfortable Viewing Brightness
■ Extend Product Lifetime
Day: Higher Ambient Luminance
Ambient Light Sensor
System On/Off
Night: Lower Ambient Luminance
LCD On/Off
OSD Remote Control
Ambient Light Sensor On/Off
Volume Up/Down
Brightness and volume control wherever the system is located.
Brightness Up/Down
F. Multiple and Expandable Storage
Cost
Data Transfer Rate
Capacity
Application
Models
CF card
SATA Slim SSD
2.5” SSD
Hard Disk
High
High
High
Medium
Optical Disk
Low
Read-40MB/sec.
Write-20MB/sec.
Read-90MB/sec.
Write-60MB/sec.
Read-230MB/sec.
Write-160MB/sec.
Read-110MB/sec.
Write-110MB/sec.
Read-32.4MB/sec.
Write-10MB/sec.
128MB~16GB
1GB~16GB
8GB~128GB
80GB~1TB
680MB~50GB
Operating System,
Application Program
Operating System,
Application Program
Operating System,
Application Program
Operating Data, Media Data
Media Data, Backup Data…
CF Card
SATA Slim SSD
2.5” Storage Bay
Slim Type ODD
AFL2-W15A-N270
V
V
V
--
AFL-15i/17i/19i-HM55
--
V
V
--
AFL-17D
V
V
V
V
AFL-W15A/W19A
V
V
V
--
AFL-057A-Z510/Z530
AFL-07A/08AH/F08A/08B/
W10A-N270
AFL-408A/408B/W410A-N270
AFL-057A/07A/08AH/10A-LX
V
--
--
--
AFL-10A/12A/15A-N270
AFL-412A
V
V
V
--
AFL-12A-LX
V
--
V (IDE Interface)
--
AFLPPC-Intro-2014-V10
Display System
w w w.ieiworld.com
G. Optional Magnetic Stripe Card
tic
Magnetic Stripe Reader
Magne
Card
Magnetic
Card Reader
P/N
Convenient
cable location
Back mounting holes designed
for the bracket kit
AFLP-12BMSR-U / AFLP-17AMSR-U
General
90 mm Magnetic Stripe Reader
Programming: By Software Download Program
Card Standard: ANSI , ISO , ABA
Track Read: ISO 1,2,3 (IATA,ABA,THRIFT/MINTS), JISII100-1000mm/sec
Electrical
Voltage:DC+5V, +/-5% Reading Indicator:Beeper
Environment
Operating Temperature: 0°C to 40°C
Relative Humidity: 20% to 85 %
(Non-condensing)
Physical
Cable: Straight 2.5ft
Weight: Approx.61g
Interface
USB
IEI patented system software utility allows users to adjust system
settings through the software interface in Windows environment instead
of pressing the membrane keypad below the front panel.
H. OSD
Control
Software
Volume adjustment
Ambient light sensor
Brightness adjustment
I. Selectable AT/ATX Power Mode
ATX Power Mode
AT Power Mode
Applications
Applications
● ATM
● Self-service kiosk
● Plant environment monitoring
system
● Factory automation platform
● Manufacturing shop flow
● Security surveillance
● Advertising terminal
Advantages
● Power management
● Remote control via network
advantage
Advantages
● Easy to turn on/off with wall/
panel mounting
● Automatic start when power
connected
With the AT mode selected, the power is controlled by a central
power unit rather than a power switch. The AFOLUX PPCs turns
on automatically when the power is connected.
Convenient Power Mode Setting
With the ATX mode selected, the AFL series panel PC goes in a
standby mode when it is turned off. The panel PC can be easily
turned on via network or a power switch in standby mode. Remote
power control is perfect for advertising applications since the
broadcasting time for each panel PC can be set individually and
controlled remotely.
AT/ATX switch on the rear panel
AT/ATX
AFLPPC-Intro-2014-V10
AT/ATX switch is located
at the bottom right on the
aluminum chassis
Display System
AFOLUX
w w w.ieiworld.com
5.7”~8” Selection Guide
16:9
Wide Screen
PoE
IEEE802.3af
LCD Size
Model
AFL-057A-LX
LCD Size
AFL-F08A-N270
800 x 600
400
500
250
Contrast Ratio
300:1
400:1
400:1
LCD Color
262K
262K
262K
0.06 (H) x 0.18 (V)
0.0635 (H) x 0.1905 (V)
0.2025 (H) x 0.2025 (V)
Viewing Angle (H/V)
140º/100º
140º/110º
140º/ 130º
Backlight MTBF (hrs)
50000
(LED backlight panel)
50000 (LED backlight panel)
30000 (LED backlight panel)
CPU
AMD Geode LX800
500MHz Processor
AMD Geode LX800
500MHz Processor
Chipset
AMD Geode LX800 +
AMD CS5536
AMD Geode LX800 +
AMD CS5536
Intel® 945GSE +
ICH7M
One 200-pin DDR SODIMM
(max. 1GB)
One 200-pin DDR SODIMM
(max. 1GB)
One 200-pins DDR2
SO-DIMM
(max. 2GB)
1 x RS-232 COM Port
(RJ-45)
1 x RS-232/422/485
COM Port (RJ-45)
1 x RJ-45 for
10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x VGA Port
1 x Power Jack
CF
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485
COM Port (DB-9)
2 x RJ-45 for
10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack
(Line-out)
Intel® Atom™ Processor Intel® Atom™ N2600
N270 1.6GHz CPU
dual core 1.6 GHz CPU
Intel® NM10
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485
COM Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack
(Line-out)
1 x External SATA
One 800 MHz 204-pin
DDR3 SO-DIMM slot
(max. 2G) pre-installed
wiith 2GB
1 x 9-28V Lockable DC
Jack
1 x RJ45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
CF Type II
Wi-Fi
IEEE 802.11 b/g
(internal USB)
IEEE 802.11 b/g
(internal Mini PCI)
Intel® Atom™ Processor N270 1.6GHz CPU
Intel® 945GSE + ICH7M
One 200-pin DDR2 SO-DIMM
(max. 2GB)
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x External SATA
mSATA
IEEE 802.11b/g/n
IEEE 802.11b/g/n
(internal PCIe Mini card) (internal PCIe Mini card)
Telec certified
Telec certified
CF Type II
IEEE 802.11b/g/n
(internal PCIe Mini card)
Camera Module
--
--
2-megapixel with Low Light Function
Microphone
--
--
yes
180 x 135 x 55
226 x 140 x 41
234 x 177 x 43
Dimensions (WxHxD)
(mm)
Net Gross Weight
0.8 Kg
0.8 Kg
0.6 Kg
System Cooling
Environment
AFL-08B-N270
800 x 480
I/O Ports and Switches
Physical
AFL-W07A-N26
640 x 480
RAM
Audio/Video
Device
AFL-07A-N270
8.0"
Pixel Pitch (mm)
(HxV)
Wireless
Connection
AFL-07A-LX
8.0"
Wide 7"
Brightness
(cd/m²)
Motherboard
7"
5.7"
Max Resolution
(WxH)
Display
5.7"
Flat
Bezel
Operation
Temperature
1.8 Kg
Fanless
0°C~50°C
0°C~50°C
-10°C~50°C
Storage Temperature
Power Requirement
0.8 Kg
-10°C~50°C
-10°C~50°C
9-28V DC
12 VDC
-20°C~60°C
12 VDC
12 VDC
12 VDC
AFLPPC-Intro-2014-V10
Display System
AFOLUX
w w w.ieiworld.com
8”~12.1” Selection Guide
16:9
Wide Screen
LCD Size
Model
8.4”
AFL-08AH-LX
AFL-08AH-N270
LCD Size
1024 x 600
800 x 600
450
400
400
Contrast Ratio
600:1
400:1
600:1
LCD Color
262K
262K
262K
0.213 (H) x 0.213 (V)
0.2175 (H) x 0.2175 (V)
0.264 (H) x 0.264 (V)
160º/140º
140º/ 110º
160º/140º
50000 (LED backlight panel)
40000
50000 (LED backlight panel)
Backlight MTBF
(hrs)
CPU
AMD Geode LX800
500MHz Processor
Intel® Atom™ Processor
N270 1.6GHz CPU
Intel® Atom™ N2600
dual core 1.6 GHz CPU
Intel® Atom™ Processor
N270 1.6GHz CPU
Intel® Atom™ Processor
N270 1.6GHz CPU
Intel® Atom™ N2600 dual
core 1.6 GHz CPU
Chipset
AMD Geode LX800 +
AMD CS5536
Intel® 945GSE + ICH7M
Intel® NM10
Intel® 945GSE + ICH7M
Intel® 945GSE + ICH7M
Intel® NM10
One 200-pin DDR SODIMM socket, (max. 1GB)
One 200-pins DDR2 SODIMM
(max. 2GB)
One 800 MHz 204-pin
DDR3 SO-DIMM slot
(Max. 2GB) pre-installed
wiith 2GB
One 200-pins DDR2 SODIMM (max. 2GB)
One 200-pins DDR2 SODIMM (max. 2GB)
One 800 MHz 204-pin
DDR3 SO-DIMM slot
(Max. 2GB) pre-installed
wiith 2GB
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485 COM
Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack
(Line-out)
1 x External SATA
1 x 9-28V lockable DC Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
RAM
I/O Ports and Switches
Audio/Video
Device
Physical
HDD
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485 COM
Port (DB-9)
2 x RJ-45 for 10/100Mbps
LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
--
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485 COM
Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x External SATA
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485 COM
Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x External SATA
1 x 9-28V lockable DC Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
--
--
--
--
mSATA
CF Type II
CF Type II
--
IEEE 802.11 b/g
(internal Mini PCI)
IEEE 802.11 b/g
(internal Mini PCI)
IEEE 802.11 b/g
(internal Mini PCI)
Telec certified
IEEE 802.11 b/g
(internal Mini PCI)
IEEE 802.11 b/g
(internal Mini PCI)
IEEE 802.11 b/g
(internal Mini PCI)
Telec certified
Camera Module
--
--
--
2-megapixel with Low Light
Function
--
--
Microphone
--
--
--
Yes
--
--
234 x 134 x 42
280 x 186 x 49
276 x 222 x 51
276 x 222 x 51
0.8 Kg
1.4 Kg
CF
Wi-Fi
CF Type II
Dimensions
(WxHxD) (mm)
Net Gross Weight
System Cooling
Environment
AFL-10A-N26
800 x 600
Viewing Angle
(H/V)
Wireless
Connection
AFL-10A-N270
10.4"
Pixel Pitch (mm)
(HxV)
Drive Bay
Storage
AFL-W10A-N270
Wide 10.2"
Brightness
(cd/m²)
Motherboard
AFL-08A-N26
10.4”
8.4 "
Max Resolution
(WxH)
Display
Wide 10.2"
mSATA
1.4 Kg
Fanless
Operation
Temperature
0°C~50°C
-10°C~50°C
-10°C ~50°C
Storage
Temperature
Power Requirement
-10°C~50°C
-10°C~50°C
-10°C ~50°C
12VDC
12VDC
9-28V DC
-20°C~60°C
12VDC
12VDC
9-28V DC
AFLPPC-Intro-2014-V10
Display System
AFOLUX
w w w.ieiworld.com
12” ~Wide 15.6” Selection Guide
Intel®
Core™ i7/i5/i3
LCD Size
Model
Display
15”
12.1”
AFL-12A-LX
AFL-12A-N270
AFL-12A-N26
AFL-15A(E)-N270
AFL-15i(E)-HM55
12.1”
15"
15.6"
1024 x 768
1024 x 768
1366 x 768
Brightness
(cd/m²)
500
400 or 250
300
Contrast
Ratio
700:1
700:1
LCD Color
262K
262K
Pixel Pitch
(mm) (HxV)
0.240 (H) x 0.240 (V)
0.297 (H) x 0.297 (V)
Viewing
Angle (H/V)
160º/160º
160º/140º
170º/160º
Backlight
MTBF (hrs)
50000 (LED backlight panel)
50000 (LED backlighting) or 30000
50000 (LED backlighting)
Chipset
RAM
I/O Ports and Switches
HDD
CF
CD-ROM
Audio/Video
Device
Physical
Intel® Atom™
Processor N270
1.6GHz CPU
AMD Geode LX800
500MHz Processor
Wi-Fi
AMD Geode LX800 +
AMD CS5536
Intel® Atom™ N2600
dual core 1.6 GHz CPU
One 200-pin DDR SODIMM (max. 1GB)
Intel® 945GSE +
ICH7M
Intel® Atom™
Processor N270
1.6GHz CPU
Intel® NM10
500:1
Intel® Celeron® M
P4500 CPU
Intel® Atom™ Processor N270 1.6GHz
CPU
Intel®
Core™ i7/i5/i3
Intel® 945GSE + ICH7M
Intel® HM55
Intel® 945GSE + ICH7M
Two 204-pins DDR3
SO-DIMM
(max. 8GB)
One 200-pins DDR2
SO-DIMM (max. 2GB)
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485
COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485
COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x HDMI Port
1 x 2.5” SATA HDD & 1
x mSATA SSD
1 x 2.5” SATA HDD
bay
1 x 2.5” SATA HDD
bay
1 x 2.5” SATA HDD bay
CF Type II
--
CF Type II
--
CF Type II
--
--
--
--
IEEE 802.11b/g/n
(internal PCIe Mini
card) Telec certified
IEEE 802.11b/g/n
(internal Mini PCI)
Telec certified
IEEE 802.11b/g/n
(internal PCIe Mini
card) (AFL-15i-HM55
with telec certified )
IEEE 802.11b/g/n (internal Mini PCI)
Telec certified
2 x RS-232 COM Port
(pin 9 with RI, 5V or 12V
switch selectable)
1 x RJ-45 for
10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x RJ-12 for Cash
Drawer (12V)
1 x RS-232 COM Port
(DB-9)
1 x RS-232/422/485
COM Port (DB-9)
2 x RJ-45 for GbE LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x External SATA
1 x 9-28V lockable DC
Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
4 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
1 x 2.5” IDE HDD bay
1 x 2.5” SATA HDD bay
CF Type II
-IEEE 802.11 b/g
(internal Mini PCI)
Intel® 945GSE +
ICH7M
One 800 MHz 204-pin
One 200-pins DDR2
DDR3 SO-DIMM slot
One 200-pins DDR2
SO-DIMM
SO-DIMM (max. 2GB) (Max. 2GB) pre-installed
(max. 2GB)
wiith 2GB
IEEE 802.11b/g/n
(internal PCIe Mini
card)
Camera
Module
--
--
--
2-megapixel
Microphone
--
--
--
Yes
394 x 309 x 61
394 x 309 x 66
400 x 273 x 63
3.2 Kg
5.8 Kg
3.3 Kg
Fanless
Fanless
Active with fan
Fanless
0°C~40°C with SATA
HDD
-10°C~50°C with CF
card or SATA SSD
0°C~40°C with SATA
HDD
-10°C~45°C with CF
card or SATA SSD
0°C~50°C
0°C~40°C with SATA HDD
-10°C~50°C with CF card or SATA SSD
-20°C~60°C
-20°C~60°C
-20°C~60°C
Dimensions
(WxHxD)
(mm)
304 x 246 x 56
304 x 246 x 50
Net Gross
Weight
Operation
Temperature
0°C~50°C
Storage
Temperature
Power Requirement
304 x 246 x 50
1.8 Kg
System Cooling
Environment
AFL-W15A-N270
LCD Size
Motherboard
Wireless
Connection
Wide 15.6"
Max
Resolution
(WxH)
CPU
Drive Bay
16:9
Wide Screen
-10°C~50°C
-20°C~60°C
12 VDC
9-28 VDC
AFLPPC-Intro-2014-V10
12 VDC
Display System
AFOLUX
w w w.ieiworld.com
17”~19” Selection Guide
Intel®
Core™ i7/i5/i3
LCD Size
Model
17”
AFL-17D-N270
AFL-17i-HM55
LCD Size
300
CD-ROM
Wireless
Connection
Audio/Video
Device
Physical
Microphone
Dimensions
(WxHxD) (mm)
Net Gross Weight
System Cooling
Environment
Operation
Temperature
Storage
Temperature
Power Requirement
1000:1
16.2M
0.285 (H) x 0.285 (V)
160º/160º
170º/160º
170º/160º
50000
50000 (LED backlighting)
Intel® Celeron® M P4500 CPU"
Intel® Celeron® M P4500 CPU
Intel®
Core™ i7/i5/i3
Intel®
Core™ i7/i5/i3
Intel® 945GSE + ICH7M
Intel® HM55
Intel® HM55
Intel® 945GSE + ICH7M
One 200-pin DDR2 SO-DIMM
(max. 2GB)
Two 204-pin DDR3 SO-DIMM
(max. 8GB)
Two 204-pin DDR3 SO-DIMM
(max. 8GB)
One 200-pin DDR2 SO-DIMM (max. 2GB)
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x HDMI Port
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x HDMI Port
Intel® Atom™ Processor N270
1.6GHz CPU
Intel® Atom™ Processor N270 1.6GHz CPU
1 x RS-232 COM Port (DB-9)
1 x RS-232/422/485 COM Port (DB-9)
2 x RJ-45 for GbE LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x VGA (DB-15)
1 x 2.5” SATA HDD bay
CF Type II
--
--
CF Type II
1 x Slim type ODD bay
--
--
--
WiFi
Camera Module
1000:1
0.294 (H) x 0.294 (V)
HDD
CF
300
0.264(H) x 0.264(V)
Motherboard
Drive Bay
350
16.7M
Backlight MTBF
(hrs)
I/O Ports and Switches
1440 x 900
380
Viewing Angle
(H/V)
RAM
AFL-W19A-N270
800:1
Pixel Pitch (mm)
(HxV)
Chipset
AFL-19i-HM55
19"
LCD Color
CPU
Wide 19"
1280 x 1024
Contrast Ratio
Display
19"
17"
Max Resolution
(WxH)
Brightness
(cd/m²)
16:9
Wide Screen
IEEE 802.11b/g/n (internal PCIe Mini card) Telec certified
300K pixels
--
--
300K pixels
Yes
--
--
Yes
410 x 349 x 83
428 x 350 x 71
470 x 383 x 72
475 x 259 x 65
6.2 Kg
6.0 Kg
6.2 Kg
5.8 Kg
Fanless
Active with fan
Active with fan
Fanless
0°C~40°C with SATA HDD
-10°C~50°C with CF card or SATA
SSD
0°C~50°C
0°C~50°C
0°C~40°C with SATA HDD
-10°C~50°C with CF card or SATA SSD
-20°C~60°C
12 VDC
AFLPPC-Intro-2014-V10
Display System
w w w.ieiworld.com
5.7" VGA AFOLUX PPC
AFL-057A-LX
AMD Geode™ LX 800 500MHz Processor
Features
● 5.7” Panel PC with resistive touchscreen
● Lower power consumption and fanless operation
● One CompactFlash® slot
● IEI One Key Recovery solution for rapid OS backup and recovery (over
4 GB storage capacity recommended)
● IP 64 compliant front panel
IP64
Specifications
Model
AFL-057A-LX
LCD Size
5.7”
Max Resolution
640 (W) x 480 (H)
Brightness (cd/m²)
400
Contrast Ratio
300:1
LCD Color
262K
Pixel Pitch (mm)
0.06 (W) x 0.18 (H)
Viewing Angle (H-V)
Backlight MTBF
140º / 100º
50,000 hrs (LED Backlight)
SBC Model
CPU
Chipset
RAM
I/O Ports
AFLMB-LX2-800
AMD Geode™ LX 800 (500Mhz)
AMD LX800 + AMD CS5536
Supports one 333MHz or 400MHz DDR SO-DIMM (Max.1GB )
1 x RJ-45 for RS-232 COM port
1 x RJ-45 for RS-232/422/485 COM port
2 x USB 2.0
1 x RJ-45 for 10/100Mbps LAN
1 x VGA port
1 x Power switch
1 x Reset button
1 x Power jack
SSD
CF Type II
PoE Function
Watchdog Timer
Audio
Wireless Connection
Construction Front Panel
LED Function
Mounting
-Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speaker)
1 x Wireless LAN 802.11 b/g Module (internal USB interface)
ABS + PC Plastic front frame /Aluminum die-casting body
1 x LED on front panel for power on/off
Panel, Wall, Rack, Stand or Arm mounting VESA 75mm x 75mm
Front Panel Color
Gray 7539U
Dimension (WxHxD) (mm)
180 x 135 x 55
Operation Temperature (°C)
0°C~50°C
Storage Temperayure (°C)
-20°C ~ 60°C
N/G Weight
IP Level
Fanless
0.8 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
4-Wire Resistive Type (touch controller IC is on board)
Power Adapter
36W Power Adapter Input: 90VAC~264VAC, 50/60Hz (Meet PSE)
P/N: 63000-FSP036RAB608-RS
Output: 12VDC
Power Requirement
12VDC
Power Consumption
15W
AFL-057A-2014-V10
Display System
w w w.ieiworld.com
AFL-057A
Dimensions (Unit: mm)
AFL-057A-LX
Aluminum die-casting rear cover with
good heat dissipation!
Mounting holes
VGA
2 x USB 2.0
Reset button
12V DC input
LAN
Power switch
Ordering Information
1 x RS-232
1 x RS-232/422/485
Selectable AT/ATX power mode
Part Number
Description
AFL-057A-LX/R/512M-R21
5.7” VGA fanless panel PC with AMD LX-800 CPU, AT/ATX mode, wireless module, touch screen and 512MB DDR RAM, R21
Options
Item
IQ Mount
AFL-057A-LX
Panel Mount Kit
AFLPK-12
Wall Mount Kit
AFLWK-12
Rack Mount Kit
AFLRK-057
ARM
ARM-11-RS / ARM-31-RS
Stand
STAND-B08-R10 / STAND-100-RS
VSTAND
VSTAND-A07-R11
Win XPE (1GB CF card)
OS
AFLCF-057-LX-XPE-R10
Win 7 Embedded (2GB CF card)
N/A
Win CE 5.0 (128MB CF card)
AFLCF-057-LX-CE5-R10
Win CE 6.0 (128MB CF card)
AFLCF-057-LX-CE6-R10
Magnetic Stripe Reader
AFLP-08AMSR-U
DC to DC converter module
IDD-930160-KIT
Power Adapter
DC 12V Input UPS
DC 9~36V Input UPS
AUPS-A10-R1
Bluetooth
Bluetooth V2.0+EDR
AFL-BT-KIT03-R10
AUPS-A10-R1- (7.4V 3800mAH)
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
4
Power Adpater
63000-FSP036RAB608-RS
1
90~264V AC; 12V DC; 36W (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm (EU or US, depending on the shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Q’ty
Specification
M3;5mm
1
AFL-057A-2014-V10
Display System
w w w.ieiworld.com
7" Wide Screen WVGA AFOLUX PPC
AFL-07A-LX
AMD Geode™ LX 800 500 MHz Processor
AFL-07A-N270
Intel® Atom™ N270 1.6GHz Processor
AFL-W07A-N26
Intel® Atom™ N2600 1.6GHz Processor
9V ~ 28V Wide DC Power Input
Features
The compact fanless AFL-W07A-N26 model with widescreen highbrightness panel is ideal for setup in a place where space and light
is limited. This makes it an ideal choice for mobile and transportation
PC applications.
● 7” widescreen WVGA LED backlight TFT LCD with resistive touch screen
● 9V~28V wide range DC power input (for Intel® N2600 platform)
● Compact design with plastic housing
● Fanless cooling system
● Selectable AT/ATX power mode
● System memory up to 2 GB SDRAM
● Built-in 802.11b/g/n Wireless LAN
● Built-in speakers
● One compactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and
recovery (suggest with over 4GB storage capacity)
16:9
Wide Screen
Specifications
Model
Wireless
802.11b/g/n
Dual
Display
Speakers
DDR3
AFL-07A-LX
500
Contrast Ratio
400:1
LCD Color
262K
Pixel Pitch (mm)
0.0635 (H) x 0.1905 (V)
Viewing Angle (H-V)
140º / 110º
Backlight MTBF
RAM
I/O Ports
50000 hrs (LED Backlight)
AFLMB-LX-800
AFLMB-945GSE-N270-R10
AFLMB-CV-N2600-R10
AMD Geode™ LX 800 (500Mhz)
Intel® Atom™ processor N270 1.6GHz CPU
Intel® Atom™ N2600 dual core 1.6 GHz CPU
AMD LX800 + AMD CS5536
Intel® 945GSE + ICH7M
Intel® NM10
Supports one 333MHz or 400MHz DDR SO-DIMM
(1GB Max.)
Supports one 400MHz or 533MHz DDR2 SO-DIMM
(2GB Max.)
One 800 MHz 204-pin DDR3 SO-DIMM slot
(max. 2G) pre-installed wiith 2GB
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for 10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x External SATA
1 x Audio Jack (Line-out)
Storage
Watchdog Timer
CF Type II
mSATA
AMP 1.5W + 1.5W (internal speaker)
1 x Wireless LAN 802.11 b/g Module
(internal Mini PCI interface)
Construction Front Panel
AMP 2W + 2W (internal speaker)
1 x Wireless LAN 802.11b/g/n Module
(internal PCIe Mini card interface) Telec certified
1 x LED on front panel for power on/off
Mounting
Panel, Wall, Rack, Stand or Arm mounting VESA 75mm x 75mm
Front Panel Color
Gray 7539U
Dimensions (WxHxD) (mm)
226 x 140 x 41
0~50°C
-10°C ~50°C
Storage Temperayure (°C)
0.6 Kg
IP Level
Front Frame IP64
Safety & EMC
CE / FCC
Touch Screen
4-wire Resistive Type (touch controller IC is on board)
P/N: 63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Adapter
Power Consumption
-10°C~50°C
-20°C ~ 60°C
N/G Weight
Power Requirement
1 x Wireless LAN 802.11b/g/n 2T2R Module
(internal PCIe Mini card interface) Telec certified
ABS + PC Plastic front frame
LED Function
Operation Temperature (°C)
1 x 9-28V Lockable DC Jack
1 x RJ45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
Software programmable supports 1~255 sec. system reset
Audio
Wireless Connection
AFL-W07A-N26
800 x 480
Brightness (cd/m²)
Chipset
IP64
7”
Max Resolution
CPU
Touchscreen
AFL-07A-N270
LCD Size
SBC Model
mSATA
P/N: 63000-FSP036RAB610-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
12VDC
12VDC
9-28V DC
20W
23W
23W
AFL-W07A-2014-V10
Display System
w w w.ieiworld.com
Fully Integrated I/O
Standard VESA mounting
AFL-07A-LX
2 x USB
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
12VDC Power Jack or 18~30VDC Input
Power Switch
Standard VESA mounting
2 x USB
AFL-07A-N270
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
Power Switch
12VDC Power Jack
Audio (Line-out)
RS-232/422/485
2 x LAN Port
Power Switch
RS-232
AFL-W07A-N26
Line Out
Lockable DC Jack
VGA
Reset Button
2 x USB 2.0
AT/ATX Switch
AFL-07A/AFL-W07A
Dimensions (Unit: mm)
(Optional Stand Kit)
AFL-W07A-2014-V10
Display System
w w w.ieiworld.com
Ordering Information
Part Number
Description
AFL-07A-LX/R/512-R22
7” 500 cd/m², WVGA fanless panel PC with AMD LX-800 CPU, AT/ATX mode, 802.11b/g Wireless Module, Touch screen and 512MB DDR RAM,
R22
AFL-07A-N270/R/1G-R23
7” 500 cd/m² WVGA fanless panel PC with Intel® Atom™ N270 1.6GHz, 802.11b/g/n wireless module, touch screen ,1GB DDR2 533, R23
AFL-W07A-N26/R/2G-R10
7” 500cd/m², WVGA fanless panel PC with Intel® Atom™ cedarview N2600 dual core 1.6GHz, 802.11b/g/n wireless module, touch screen, 2GB
DDR3, R10
Options
Model
AFL-07A-LX
AFL-07A-N270
AFL-W07A-N26
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFLRK-07
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-100-RS
VSTAND
VSTAND-A07-R11
9~30VDC to 12VDC Converter Module
IDD-930160-KIT
OS: Win CE 5.0 (128 MB CF card)
AFLCF-07-LX-CE-R21
--
OS: Win CE 6.0 (128 MB CF card)
AFLCF-07-LX-CE060-R21
AFLCF-07-N270-CE060-R23
--
AFLCF-07-LX-XPE-R21
AFLCF-07-N270-XPE-R23
AFL-W07-N26-XPE-R10*
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
(4 GB CF card or CD-ROM)
--
--
AFL-W07-N26-WES7E-R10*
Magnetic Stripe Reader
AFLP-08AMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
*OS image with CD-ROM
ISMM Support Functions
Voltage
Fan
Smart Fan
Temperature
WDT
AFL-07A-LX
V
V
V
AFL-07A-N270
V
V
V
AFL-W07A-N26
V
V
V
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
4
M3;5mm
Power Adpater
63000-FSP036RAB608-RS
63000-FSP036RAB610-RS (for AFL-07A-N26)
1
90~264V AC; 12V DC; 36W (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
(EU or US, depending on the shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
RJ45 to RS-232 Transfer Cable
Q’ty
Specification
1
32005-000200-200-RS
1
AFL-W07A-2014-V10
300MM; RJ45 to D-SUB 9P transfer cable
Cash Drawer
Display System
w w w.ieiworld.com
8.4” SVGA AFOLUX Panel PC
AFL-08AH-LX
AMD Geode™ LX 800 500 MHz Processor
AFL-08AH-N270
Intel® Atom™ N270 1.6GHz Processor
AFL-08A-N26
Intel® Atom™ N2600 1.60 GHz Processor
Features
● 8.4” TFT LED Backlight LCD with resistive touch screen
● 9V~28V wide range DC power input (for Intel® N2600 platform)
● Fanless cooling system
● Selectable AT/ATX power mode
● System memory up to 2GB SDRAM
● Built-in 802.11b/g/n Wireless LAN
● Built-in speakers
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup
and recovery (Suggest over 4GB storage capacity)
Wireless
802.11b/g/n
Specifications
Model
LCD Size
Max Resolution
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Wireless Connection
Construction Front Panel
LED Function
Mounting
Front Panel Color
Dimensions (WxHxD)
(mm)
Operation Temperature
(°C )
Storage Temperayure
(°C )
N/G Weight
IP Level
Safety & EMC
Touch Screen
Power Adapter
Power Requirement
Power Consumption
AFL-08AH-LX
Speakers
AFL-08AH-N270
Fanless
AFL-08A-N26
8.4”
800 x 600
450
600:1
262K
0.213 (H) x 0.213 (V)
160º / 140º
50000 hrs (LED Backlight)
AFLMB-LX-800
AFLMB-945GSE-N270-R10
AMD Geode™ LX 800 (500MHz)
Intel® Atom™ process N270 1.6GHz CPU
AMD LX 800 + AMD CS5536
Intel® 945GSE + ICH7M
Supports one 400MHz or 533MHz DDR SO-DIMM Supports one 400MHz or 533MHz DDR2 SO-DIMM
(Max.1GB)
(Max. 2GB)
1 x RS-232 COM Port
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for 10/100Mbps LAN
2 x RJ-45 for GbE
2 x USB 2.0
2 x USB 2.0
1 x Power Switch
1 x Power Switch
1 x Reset Button
1 x Reset Button
1 x Power Jack
1 x External SATA
1 x Audio Port
1 x Power Jack
Intel® Atom™ N2600 dual core 1.6 GHz CPU
Intel® NM10
One 800 MHz 204-pin DDR3 SO-DIMM slot
(Max. 2GB) pre-installed wiith 2GB
1 x 9-28V lockable DC Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
CF Type II
mSATA
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speaker)
AMP 2W + 2W (internal speaker)
1 x Wireless LAN 802.11 b/g Module
1 x Wireless LAN 802.11b/g/n Module
1 x Wireless LAN 802.11b/g/n 2T2R Module
(internal Mini PCI interface)
(internal PCIe Mini card interface)
(internal PCIe Mini card interface) Telec certified
ABS + PC Plastic front frame
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm
Gray 7539U
234 x 184 x 42
0°C ~ 50°C
-10°C ~50°C
-10°C ~50°C
-20°C ~ 60°C
0.8 Kg
IP 64 compliant front panel
CE / FCC
4-Wire Resistive Type (touch controller IC is on board)
P/N: 63000-FSP036RAB608-RS
P/N: 63000-FSP036RAB610-RS
36W Power Adapter (Meet PSE)
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Output: 12VDC
12VDC
12VDC
9-28V DC
20W
29W
29W
AFL-08A-2014-V10
Display System
w w w.ieiworld.com
Fully Integrated I/O
Standard VESA mounting
2 x USB
AFL-08AH-LX
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
12VDC Power jack or 18~30VDC input
Power switch
Standard VESA mounting
2 x USB
AFL-08AH-N270
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
Power switch
12VDC power jack
Audio (Line-out)
AFL-08A-N26
RS-232/422/485
2 x LAN Port
Power Switch
RS-232
Line Out
Lockable DC Jack
VGA
Reset Button
2 x USB 2.0
AT/ATX Switch
AFL-08AH/AFL-08A
Dimensions (Unit: mm)
AFL-08A-2014-V10
Display System
w w w.ieiworld.com
Ordering Information
Part Number
Description
AFL-08AH-LX/R/512-R22
8.4” 450 cd/m², SVGA fanless panel PC with AMD LX-800 CPU, AT/ATX mode, 802.11b/g Wireless Module, Touch screen and 512MB DDR RAM,
R22
AFL-08AH-N270/R/1G-R23
8.4” 450 cd/m², SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz,802.11b/g/n wireless module, touch screen , 1GB DDR2 533MHz, R23
AFL-08A-N26/R/2G-R10
8.4” 450cd/m², SVGA fanless panel PC with Intel® Atom™ N2600 dual core 1.6GHz, 802.11b/g/n wireless module, touch screen, 2GB DDR3,
R10
Options
Model
AFL-08AH-LX
AFL-08AH-N270
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFLRK-08
Arm
AFL-08A-N26
ARM-11-RS / ARM-31-RS
Stand
STAND-100-RS
VSTAND
VSTAND-A10-R11
9~30VDC to 12VDC Converter Module
IDD-930160-KIT
OS: Win CE 5.0 (128 MB CF card)
AFLCF-08-LX-CE-R21
--
OS: Win CE 6.0 (128 MB CF card)
AFLCF-08-LX-CE060-R21
AFLCF-07-N270-CE060-R23
--
AFLCF-08-LX-XPE-R21
AFLCF-07-N270-XPE-R23
AFL-W07-N26-XPE-R10*
--
--
AFL-W07-N26-WES7E-R10*
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
(4 GB CF card or CD-ROM)
Magnetic Stripe Reader
AFLP-08AMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
AFL-BT-KIT01-R10
DC jack to terminal block power converter
cable
AFL-BT-KIT02-R10
32002-005500-100-RS
*OS image with CD-ROM
ISMM Supported Functions
Voltage
Fan
Smart Fan
Temperature
DIO
WDT
AFL-08AH-LX
V
V
V
AFL-08AH-N270
V
V
V
AFL-08AH-N26
V
V
V
Packing List
Item
Part Number
Q’ty
Specification
Screw Pack
44013-030041-RS
4
M3;5mm
Power Adpater
63000-FSP036RAB608-RS
63000-FSP036RAB610-RS (for AFL-08A-N26)
1
90~264V AC; 12V DC; 36W (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
(EU or US, depending on the shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
RJ45 to RS-232 Transfer Cable
1
32005-000200-200-RS
1
AFL-08A-2014-V10
300MM; RJ45 to D-SUB 9P transfer cable
Cash Drawer
Display System
AFL-F08A
w w w.ieiworld.com
8” Flat-bezel Panel PC
The new 8” panel is a full-flat surface touchscreen PC. The AFL-F08A
includes all necessary input/output interfaces to control any subsystem
or automation hardware in your office, business, or home. The new
stylish design is easily integrated into any environment. The front
panel is IP 64 compliant. An optional projected capacitive touchscreen
provides a multi-touch interactive user experience.
Features:
● 8.0” LED TFT LCD with stylish flat-bezel touchscreen
● Optional projected capacitive touchscreen supports multi-touch
● Fanless system with Intel® Atom™ N270 processor
(512K Cache, 1.60 GHz, 533 MHz FSB)
● Hot keys controlled by cap-sensor in the front panel
● Optional color change kit matches the style of any decoration
● Wireless LAN 802.11b/g/n
● Built-in 2-megapixel CMOS camera with low-light capability
● Two 1.5W speakers and micophone for multimedia applications
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and
recovery (suggest with over 4GB storage capacity)
Multi-touch
Wi-Fi
Full-flat Surface Touchscreen
The AFL-F08A flat-bezel design covers the entire front frame (bezel) of standard LCD to make the screen and bezel appear to
blend together. The seamless flat-bezel touchscreen system offers a stylish and easy to clean surface.
Flat-bezel Advantages:
Applications:
● Better visual effects
● No edge effect
● Sleek and stylish
● Easy to clean
With Bezel
OFFICE
KITCHEN
AFL-F08A-2014-V10
LIVING ROOM
AUTOMATION
YACHTING
MUSEUM
Display System
w w w.ieiworld.com
Picture Frame In-Wall Mount
This optional kit includes a decorative
front plate and wall mount enclosure
to securely house the AFL-F08A
panel PC. The enclosure includes
knockouts for power and l/O interface
cables.
3.7mm
Decorative front plate
In-Wall Enclosure
● Optional Decorative Kit:
+
DIM.
300mm x 230mm x 3.7mm
(Optional)
=
■ Projected Capacitive Touch Sensor
● Operational Theory
Projected capacitive touch is based on principle of embedding an array of micro-fine
sensing wires within a multi-layer laminated screen behind a protective front surface,
ensuring that the sensing medium is well-protected from accidental damage.
Activated by a finger or
gloved hand
Projected Field
● Windows® 7 with Multi-touch Capability
Front Glass
The AFL-F08A comes with the true multi-touch Microsoft Windows 7 operating system.
Windows 7 features improved touch and gesture support. With Windows 7, handwriting
recognition is faster, more accurate and with more language support.
X-Y Wire Array
Capacitance forms between
The finger and an electrode
In the sensor grid.
● 7H Anti-scratch Surface (Projected capacitive type touch screen)
Projected Capacitive touch technology utilizes a durable glass front surface. 7H
hardness is stronger than the conventional touch panel and therefore is able to
protect the screen from damage.
Typical
Panel
2H
Fingernail
Knife
3H
5H
Steel
6H
Quartz
7H
Beryl
8H
Diamond
10H
MOH’s Hardness Rating
AFL-F08A-2014-V10
Hard Coat
Film Rear
Display System
Hot Keys Controlled by
Cap-Sensor
w w w.ieiworld.com
12V DC Jack
Power Switch
RS-232/422/485
Versatile I/O Ports
Brightness
Control
Volume
Control
Audio Line-out
Hot Keys
Lock
Reset Button
LCD
On/Off
External SATA
RS-232
AFL-F08A
Dimensions (Unit: mm)
Decoration Kit
Dimensions (Unit: mm)
In-Wall Cage
Dimensions (Unit: mm)
AFL-F08A-2014-V10
LAN Port 2 x USB 2.0
Display System
w w w.ieiworld.com
Specifications
Model
AFL-F08A-N270
LCD Size
8"
Max Resolution
800 x 600
Brightness (cd/m²)
250
Contrast Ratio
500:1
LCD Color
262K
Pixel Pitch (mm)
0.2025 (H) x 0.2025 (V)
Viewing Angle (H-V)
140° / 130°
Backlight MTBF
30000 hrs (LED Backlight)
SBC Model
AFLMB-945GSE-N270-R10
CPU
Intel® Atom™ Processor N270 (512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset
Intel® 945GSE + ICH7M
RAM
Supports one 400MHz or 533MHz DDR2 SO-DIMM (Max. 2GB)
I/O Ports
1 x Reset Button
1 x Audio Port (line-out)
1 x 12V DC Power Jack
1 x External SATA
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
2 x USB 2.0
SSD
CF Type II
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Audio
AMP 1.5W + 1.5W (internal speakers)
Wireless Connection
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini interface)
Camera
2 megapixel with Low Light Function and digital microphone
Front Panel Construction
ABS + PC Plastic front frame
Membrane Keypad
LCD on/off, Brightness up/down, Volume up/down by cap-sensor
Mounting
In-Wall, Panel, Wall, Stand and Arm VESA 75mm x 75mm
Front Panel Color
Black
Dimensions (WxHxD) (mm)
234 x 177 x 43
Operation Temperature (°C)
-10°C ~ 50°C
Storage Temperature (°C)
-20°C ~ 60°C
N/G Weight
1.8Kg
IP Level
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5 (touch controller IC is on board) or projected capacitive type touch screen
Power Adapter
63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
32W
Ordering Information
Part Number
Description
Resistive Touch Panel
AFL-F08A-N270/R/1G-R24
8.0” 250cd/m² SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n Wi-Fi, touch
screen, 2 megapixel camera, microphone, R24
Projected Capacitive
Multi-Touch Panel
AFL-F08A-N270/PC/1G-R24
8.0” 250cd/m² SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n Wi-Fi,
projected capacitive multi-touch panel screen, 2 megapixel camera, microphone, R24
Options
Item
Packing List
AFL-F08A-N270/R
(Resistive type touch)
AFL-F08A-N270/PC
(PCT type touch)
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
Arm
Stand
VSTAND
9~30VDC to 12VDC converter
Module
OS: Win CE 6.0
(128 MB CF card)
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
(4 GB CF card)
Magnetic Stripe Reader
AFLRK-08
Item
Part Number
Q'ty
Specification
Screw Pack
44013-030041-RS
4
M3;5mm
Power Adpater
63000-FSP036RAB608RS
1
90~264V AC;
12V DC; 36W (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European
Standard
(EU or US, depending on
the shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
ARM-11-RS / ARM-31-RS
STAND-100-RS / STAND-C12
VSTAND-A10-R11
IDD-930160-KIT
AFLCF-F08-N270-CE060-R24
AFLCF-F08-N270-XPE-R24
AFLCF-F08-N270-WES7E-R24
AFLCF-F08-N270-WES7P-R24
AFLP-08AMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
In-wall Cage
AFLIWC-F08A-R10
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
Note: Multi-touch function is only supported on Windows 7 on PCT type touch.
One Key
Recovery CD
AFL-F08A-2014-V10
1
Display System
w w w.ieiworld.com
8" SVGA AFOLUX PPC
AFL-08B-N270
Intel® Atom™ Processor N270 1.60 GHz
LED
Backlight
Camera with Low Light Capability
Digital Microphone
Features
● 8” LED backlight LCD panel with resistive type touch screen
● Built-in 2-megapixel camera with low light capability
● Built-in digital microphone
● Selectable AT/ATX power mode via internal switch
● Fanless cooling system
● System memory up to 2 GB SDRAM
● Built-in 802.11b/g/n Wireless LAN
● Built-in two 1.5 W speakers
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(Suggest over 4GB storage capacity)
Wireless
802.11b/g/n
Microphone
Speakers
Camera
Fanless
Specifications
Model
AFL-08B-N270
LCD Size
8"
Max Resolution
800 x 600
Brightness (cd/m²)
250
Contrast Ratio
400 : 1
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
262K
0.2025 (H) x 0.2025 (V)
140º / 130º
30000 hrs (LED backlight)
AFLMB-945GSE-N270-R10
Intel® Atom™ Processor N270 (512K L2 Cache, 1.60 GHz, 533 MHz FSB)
Intel® 945GSE + ICH7M
Supports one 400MHz or 533MHz DDR2 SO-DIMM
(Max. 2GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
Storage
Watchdog Timer
Audio
Camera Module
Wireless Connection
Construction Front Panel
LED Function
Mounting
Front Panel Color
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speakers)
2-megapixel camera with digital microphone
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)
ABS + PC Plastic front frame
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm
Gray 7539U
Dimensions (WxHxD) (mm)
234 x 177 x 43
Operation Temperature (°C)
-10°C ~50°C
Storage Temperayure (°C)
-20°C ~60°C
N/G Weight
IP Level
0.8 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire resistive type (touch controller IC is on board)
Power Adapter
P/N: 63000-FSP036RAB608-RS
36W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
25W
AFL-08B-2014-V10
Display System
w w w.ieiworld.com
Fully Integrated I/O
LED-backlight PPC Delivers Vivid Images
The AFL-08B-N270 is the first panel PC with its compact size to
incorporate a LED backlight - making viewing and editing photos a
lot better than previous CCFL illumination models.
Power Switch
Standard VESA
Mounting
LED backlighting PPC displays clear and vivid pictures!
Enhancement of image quality on LCD screen
● Wider color gamut
● More even screen illumination
● Longer display life
● Low temperature operation and greater power efficiency
Reset Button
2 x USBs
2 x LAN
Color Gamut Comparison
RS-232/422/485
LED
Normal CCFL
RS-232
External SATA
The LED backlight makes the image
color shown on the LCD screen look
nature and vivid.
+12V DC Power Jack
AFL-08B
Dimensions (Unit: mm)
Ordering Information
Part Number
Description
AFL-08B-N270/R/1G-R23
8" 250 cd/m², SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz,802.11b/g/n wireless module, touch screen, 2megapixel camera with digital
microphone, 1GB DDR2 533MHz, R23
Options
Item
P/N
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFLRK-08
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-100-RS
VSTAND
VSTAND-A10-R11
9~30VDC to 12VDC converter
Module
IDD-930160-KIT
OS: Win CE 6.0
(128 MB CF card)
AFLCF-08-N270-CE060-R23
OS: Win XPE (1 GB CF card)
AFLCF-08-N270-XPE-R23
OS: Win 7 Embedded
(4GB CF card)
AFLCF-08-N270-WES7E-R23
Magnetic Stripe Reader
AFLP-08BMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
ISMM Supported Functions
Voltage
AFL08B-N270
Fan
Smart Fan
Temperature
WDT
V
V
V
Cash
Drawer
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
4
M3;5mm
Power Adpater
63000-FSP036RAB608-RS
1
90~264V AC; 12V DC; 36W
(Meet PSE)
Power Cord
32000-000002-RS
1
1750mm
(EU or US, depending on the
shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Note: Win CE application without digital microphone function
AFL-08B-2014-V10
Q'ty
1
Specification
Display System
w w w.ieiworld.com
Wide 10.2" WSVGA AFOLUX PPC
AFL-W10A-N270
Intel® Atom™ Processor N270 1.60 GHz
Camera with Low Light Function
New
Wide Screen
Digital Microphone
Features
● Wide 10.2” TFT LCD with resistive touch screen
● Fanless cooling system
● Built-in 2-megapixel camera with digital microphone module
● Selectable AT/ATX power mode through the switch inside the
chassis
● System memory up to 2 GB SDRAM
● Built-in 802.11b/g/n wireless LAN
● Built-in two 1.5 W speakers
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS
backup and recovery (Suggest over 4GB storage capacity)
Wireless
802.11b/g/n
Specifications
Model
AFL-W10A-N270
LCD Size
Wide 10.2"
Max Resolution
1024 x 600
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Camera Module
Wireless Connection
Construction Front Panel
LED Function
Mounting
Front Panel Color
Dimensions (WxHxD) (mm)
400
400: 1
262K
0.2175 mm (H) x 0.2175 mm (V)
140° / 120°
40000 hrs
AFLMB-945GSE-N270-R10
Intel® Atom™ processor N270 1.6GHz CPU
Intel® 945GSE + ICH7M
Supports one 400 MHz or 533MHz DDR2 SO-DIMM (Max. 2GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speakers)
2-megapixel with digital microphone
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)
ABS + PC Plastic front frame
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Gray 7539U
280 x 186 x 49
Operation Temperature (ºC)
-10ºC ~50ºC
Storage Temperayure (ºC)
-20ºC ~ 60ºC
N/G Weight
IP Level
Speakers
1.4 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire resistive type (touch controller IC is on board)
Power Adapter
Power Requirement
Power Consumption
P/N: 63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
12VDC
28W
AFL-W10A-2014-V10
Fanless
Display System
w w w.ieiworld.com
Fully Integrated I/O
Building Automation/Access Control System
Power switch
Standard VESA
Mounting
Audio
Door Security
2 x USB
RS-232/422/485
DC Power Input
Power Management
2 x LAN
1 x RS-232
1 x RS-232/422/485 Selectable COM Port
External SATA
AFL-W10A
Dimensions (Unit: mm)
Ordering Information
Part Number
Description
AFL-W10A-N270/R/1G-R32
10.2" 400 cd/m², WSVGA fanless panel PC with Intel® Atom™ N270 1.6GHz, 802.11b/g/n wireless module, touch screen, 2megapixel camera
with digital microphone, 1GB DDR2 533, R32
Options
ISMM Supported Functions
Model
AFL-W10A-N270
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-19B
Rack Mounting Kit
AFLRK-W10
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-A12-RS / STAND-100-RS
VSTAND
VSTAND-A10-R11
9~30VDC to 12VDC Converter Module
IDD-930160-KIT
OS
Win CE 6.0
(128 MB CF card)
AFLCF-08-N270-CE060-R32
Win XPE (1 GB CF card)
AFLCF-08-N270-XPE-R32
Win 7 Embedded
(4GB CF card)
AFLCF-08-N270-WES7E-R32
Voltage
AFLW10A-N270
Fan
Smart Fan Temperature DIO WDT
V
V
Beep
Cash
Drawer
V
Packing List
Item
Part Number
Q'ty
Screw Pack
44013-030041-RS
4
M3; 5mm
Power Adpater
63000-FSP036RAB608-RS
1
90~264V AC; 12V DC; 36W
(Meet PSE)
Power Cord
32000-000002-RS
1
1750mm;
European Standard
(EU or US, depending on
the shipment country)
Magnetic Stripe Reader
AFLP-10AMSR-U
DC 12V Input UPS
AUPS-B10-R10 (7.4V 3800mAH)
Utility CD
7B000-000087-RS
1
DC 9~36V Input UPS
AUPS-B20-R10 (7.4V 3800mAH)
Touch Pen
43125-0002C0-00-RS
1
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
One Key Recovery CD
Note: Win CE application without digital microphone function
AFL-W10A-2014-V10
1
Specification
Display System
w w w.ieiworld.com
10.4” SVGA AFOLUX Panel PC
AFL-10A-N270
Intel® Atom™ N270 1.6GHz Processor
AFL-10A-N26
Intel® Atom™ N2600 1.60 GHz Processor
Advanced Features
(1) PCIe Mini card slot compatible with
mSATA and PCIe Mini device
IEI patented PCIe Mini interface provides
PCIe x 1 and USB signals such as PCIe
Mini SSD and wireless LAN card for fullsize or half-size devices!
2
1
(2) Enhanced 2T2R MIMO Technology
Preinstalled 2.4GHz 802.11b/g/n Wi-Fi
module supports 2Tx/2Rx 2-stream MIMO
with up to 300Mbps data rate for a 40MHz
channel!
Wireless
802.11b/g/n
Specifications
Model
AFL-10A-N270
10.4”
Max Resolution
800 x 600
Brightness (cd/m²)
400
Contrast Ratio
700:1
LCD Color
262K
Pixel Pitch (mm)
0.264 (H) x 0.264 (V)
Viewing Angle (H-V)
160° / 140°
Backlight MTBF
SBC Model
Chipset
RAM
I/O Ports
Storage
50000 hrs (LED Backlight)
AFLMB-945GSE-N270-R10
AFLMB-CV-N2600-R10
Intel® Atom™ processor N270 1.6GHz CPU
Intel® Atom™ N2600 dual core 1.6 GHz CPU
Intel® 945GSE + ICH7M
Intel® NM10
Supports one 400MHz or 533MHz DDR2 SO-DIM (Max. 2GB)
One 800 MHz 204-pin DDR3 SO-DIMM slot
(Max. 2GB) pre-installed wiith 2GB
Wireless Connection
CF Type II
mSATA
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speakers)
AMP 2W + 2W (internal speaker)
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)
1 x Wireless LAN 802.11b/g/n 2T2R Module (internal PCIe Mini card interface)
Telec certified
Construction Front Panel
ABS + PC Plastic front frame
LED Function
Mounting
1 x 9-28V lockable DC Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
Watchdog Timer
Audio
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Front Panel Color
Gray 7539U
Dimensions (WxHxD) (mm)
276 x 222 x 51
Operation Temperature (°C)
-10°C ~50°C
Storage Temperayure (°C)
-20°C ~ 60°C
N/G Weight
1.4 Kg
IP Level
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire resistive type (touch controller IC is on board)
Power Adapter
Power Requirement
Power Consumption
Fanless
AFL-10A-N26
LCD Size
CPU
Speakers
P/N: 63040-010060-030-RS
60W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
P/N: 63040-010060-040-RS
60W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
12V DC
9-28V DC
28W
28W
AFL-10A-2014-V10
Display System
w w w.ieiworld.com
Fully Integrated I/O
Standard VESA mounting
2 x USB
AFL-10A-N270
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
Power switch
DC power input
Audio
RS-232/422/485
2 x LAN Port
Power Switch
RS-232
AFL-10A-N26
Line Out
Lockable DC Jack
VGA
Reset Button
2 x USB 2.0
AT/ATX Switch
AFL-10A
Dimensions (Unit: mm)
AFL-10A-2014-V10
Display System
w w w.ieiworld.com
Ordering Information
Part Number
Description
AFL-10A-N270/R/1G-R23
10.4” 400cd/m² SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz, 802.11b/g/n wireless module, touch screen,1GB DDR2 533,R23
AFL-10A-N26/R/2G-R10
10.4” 400cd/m² SVGA fanless panel PC with Intel® Atom™ N2600 dual core 1.6GHz, 802.11b/g/n wireless module, touch screen, 2GB DDR3, R10
Options
Model
AFL-10A-N270
AFL-10A-N26
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFLRK-10
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-A12-RS / STAND-100-RS
VSTAND
VSTAND-A10-R11
9~30VDC to 12VDC Converter Module
IDD-930160-KIT
OS: Win CE 5.0 (128 MB CF card)
--
--
OS: Win CE 6.0 (128 MB CF card)
AFLCF-07-N270-CE060-R23
--
AFLCF-07-N270-XPE-R23
AFL-W07-N26-XPE-R10*
AFLCF-07-N270-WES7E-R23
AFL-W07-N26-WES7E-R10*
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded (4 GB CF card or
CD-ROM)
Magnetic Stripe Reader
AFLP-10AMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
DC jack to terminal block power
converter cable
32002-005500-100-RS
*OS image with CD-ROM
ISMM Supported Functions
Voltage
Fan
Smart Fan
Temperature
DIO
WDT
AFL-10A-N270
V
V
V
AFL-10A-N26
V
V
V
Cash Drawer
Packing List
Item
Part Number
Q’ty
Specification
Screw Pack
44013-030041-RS
4
M3; 5mm
Power Adpater
63000-FSP036RAB608-RS (AFL-10A-N270)
63040-010060-040-RS (AFL-10A-N26)
1
90~264V AC; 12V DC; 36W90~264V AC; 12V DC; 40W (Meet PSE)
1750mm; European Standard
Power Cord
32000-000002-RS
1
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
RJ45 to RS-232 Transfer Cable
1
32005-000200-200-RS
1
AFL-10A-2014-V10
300MM; RJ-45 to RS-232 transfer cable
Display System
w w w.ieiworld.com
12.1” XGA AFOLUX Panel PC
AFL-12A-LX
AMD Geode™ LX 800 500 MHz Processor
AFL-12A-N270
Intel® Atom™ N270 1.6GHz Processor
AFL-12A-N26
Intel® Atom™ N2600 1.6GHz Processor
Features
● 12.1" TFT LED backlight LCD with resistive touch screen
● Fanless cooling system
● 9V~28V wide range DC power input (for Intel® N2600 platform)
● Selectable AT/ATX power mode through the switch inside the chassis
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup
and recovery (Suggest over 4GB storage capacity)
Wireless
802.11b/g/n
Specifications
Model
AFL-12A-LX
AFL-12A-N270
LCD Size
500
Contrast Ratio
700 : 1
LCD Color
262K
Pixel Pitch (mm)
0.240 (H) x 0.240 (V)
Viewing Angle (H-V)
160° / 160°
Backlight MTBF
Chipset
RAM
I/O Ports
50000 (LED Backlight)
AFLMB-LX-800
AFLMB-945GSE-N270-R10
Intel® Atom™ processor N270
AMD Geode™ LX 800 (500MHz)
1.6GHz CPU
AMD LX 800 + AMD CS5536
Intel® 945GSE + ICH7M
Supports one 333MHz or 400MHz DDR SO-DIMM
Supports one 400MHz or 533MHz DDR2
(Max. 1GB)
SO-DIMM (Max. 2GB)
1 x RS-232 COM Port
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
2 x RJ-45 for 10/100Mbps LAN
4 x USB 2.0
2 x USB 2.0
1 x Power Switch
1 x Power Switch
1 x Reset Button
1 x Reset Button
1 x External SATA
1 x Power Jack
1 x Audio Port
1 x Audio Port
1 x Power Jack
Storage
CF Type II
Watchdog Timer
Audio
Wireless Connection
Drive Bay
AMP 2W + 2W (internal speaker)
1 x Wireless LAN 802.11b/g/n Module
(internal PCIe Mini card interface) Telec certified
1 x 2.5” SATA HDD & 1 x mSATA SSD
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Front Panel Color
Gray 7539U
Dimensions (WxHxD) (mm)
0°C ~ 50°C
Storage Temperayure (°C)
N/G Weight
304 x 246 x 50
0°C ~40°C with SATA HDD
-10°C ~50°C with CF Card or
SATA interface 2.5” SSD HDD
-20°C ~ 60°C
-10°C~50°C
1.8 Kg
IP Level
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
Power Consumption
Intel® NM10
One 800 MHz 204-pin DDR3 SO-DIMM slot
(Max. 2GB) pre-installed wiith 2GB
1 x 9-28V lockable DC Jack
1 x RJ-45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
4 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
mSATA
1 x Power on/off LED on front panel
Mounting
Power Requirement
Intel® Atom™ N2600 dual core 1.6 GHz CPU
ABS + PC Plastic front frame
LED Function
Power Adapter
AFLMB-CV-N2600-R10
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speaker)
1 x Wireless LAN 802.11 b/g Module
1 x Wireless LAN 802.11b/g/n Module
(internal Mini PCI interface)
(internal PCIe Mini card interface)
1 x 2.5” IDE HDD bay
1 x 2.5” SATA HDD bay
Construction Front Panel
Operation Temperature
(°C)
AFL-12A-N26
1024 x 768
Brightness (cd/m²)
CPU
Fanless
12.1”
Max Resolution
SBC Model
Speakers
P/N: 63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
12VDC
29W
5-wire resistive type (touch controller IC is on board)
P/N: 63040-010060-040-RS
P/N: 63040-010060-030-RS
60W Power Adapter (Meet PSE)
60W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Output: 12VDC
12VDC
9-28V DC
32W
AFL-12A-2014-V10
32W
Display System
w w w.ieiworld.com
Fully Integrated I/O
Standard VESA mounting
2 x USB
AFL-12A-LX
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
Power switch
DC power input
or 18~30VDC input
Standard VESA mounting
AFL-12A-N270
4 x USB
2 x LAN
1 x RS-232
1 x RS-232/422/485 selectable COM port
Power switch
DC power input
Audio
Lockable DC Jack
2 x USB 2.0
RS-232/422/485
2 x LAN Port
AFL-12A-N26
2 x USB 2.0
Line Out
Reset Button
AT/ATX Switch
Power Switch
VGA
RS-232
AFL-12A
Dimensions (Unit: mm)
AFL-12A-2014-V10
Automation Panel Solutions
Display System
w w w.ieiworld.com
Ordering Information
Part Number
Description
AFL-12A-LX/R/512-R22
12.1” 500 cd/m², XGA fanless panel PC with AMD LX-800 CPU, AT/ATX mode, 802.11b/g wireless module, touch screen and 512MB DDR RAM, R22
AFL-12A-N270/R/1G-R23
12.1” 500 cd/m², XGA fanless panel PC with Intel® Atom™ N270 1.6GHz, 802.11b/g/n wireless module, capitalize touch screen, 1GB DDR2 533MHz,
R23
AFL-12A-N26/R/2G-R10
12.1” 500cd/m², XGA fanless panel PC with Intel® Atom™ cedarview N2600 dual core 1.6GHz, 802.11b/g/n wireless module, touch screen, 2GB DDR3,
R10
Options
Model
AFL-12A-LX
AFL-12A-N270
AFL-12A-N26
Panel Mounting Kit
AFLPK-12
Wall Mounting Kit
AFLWK-12
Rack Mounting Kit
AFLRK-12
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-A12-RS/STAND-100-RS
VSTAND
VSTAND-A12
9~30VDC to 12VDC
Converter Module
OS: Win CE 5.0
(128 MB CF card)
OS: Win XPE
(1 GB CF card)
STAND-A12-RS / STAND-100-RS
IDD-930160-KIT
AFLCF-12-LX-CE-R21
--
--
AFLCF-12-LX-XPE-R21
AFLCF-07-N270-XPE-R23
AFL-W07-N26-XPE-R10*
--
AFLCF-07-N270-WES7E-R23
AFL-W07-N26-WES7E-R10*
OS: Win 7 Embedded
(4 GB CF card or CD-ROM)
Magnetic Stripe Reader
AFLP-12AMSR-U
DC 12V Input UPS
AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS
AUPS-A20-R10 (7.4V 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT02-R10
AFL-BT-KIT03-R10
DC jack to terminal block power
converter cable
AFL-BT-KIT01-R10
32002-005500-100-RS
ISMM Supported Functions
Voltage
Fan
Smart Fan
Temperature
DIO
WDT
AFL-12A-LX
V
V
V
AFL-12A-N270
V
V
V
AFL-12A-N26
V
V
V
Cash Drawer
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
4
M3; 5mm
Power Adpater
63000-FSP036RAB608-RS
63040-010060-040-RS
63040-010060-030-RS
1
90~264V AC; 12V DC; 36W (for LX) (Meet PSE)
90~264V AC; 12V DC; 60W (for N2600) (Meet PSE)
90~264V AC; 12V DC; 60W (N270) (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
RJ45 to RS-232 Transfer Cable
Q’ty
Specification
1
32005-000200-200-RS
1
AFL-12A-2014-V10
300MM; RJ45 to RS-232 transfer cable
Automation Panel Solutions
Display System
w w w.ieiworld.com
15” XGA AFOLUX Panel PC
AFL-15A(E)-N270
Intel® Atom™ N270 1.6GHz Processor
Features
● 15" TFT LCD with resistive touch screen
● System memory up to 2 GB RAM
● Built-in 802.11b/g (or 802.11b/g/n) wireless LAN
● Selectable AT/ATX power mode through the switch inside the chassis
● Built-in two speakers
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and
recovery (over 4GB storage capacity is suggested)
Wireless
802.11b/g/n
Specifications
Model
AFL-15A(E)-N270
LCD Size
15”
Max Resolution
700:1
LCD Color
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
262K or 16.7M
0.297(H) x 0.297(V)
160º/140º or 170º/160º
50000 or 30000 hrs
AFLMB2-945GSE-N270-R10
Intel® Atom™ N270 1.6GHz processor
Intel® 945GSE + ICH7M
Supports one 400MHz or 533MHz DDR2 SO-DIMM (Max. 2GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (line-out)
1 x VGA Port
1 x Power Jack
Storage
Watchdog Timer
Audio
Wireless Connection
Construction Front Panel
LED Function
Mounting
Front Panel Color
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speakers)
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini interface) (AFL-15A-N270 with telec certified)
ABS + PC Plastic front frame
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm, VESA 100mm x 100mm
Sliver (877U) & Gray (ABSA2037)
Dimensions (WxHxD) (mm)
394 x 309 x 61
Operation Temperature (°C)
0°C ~40°C with SATA HDD
-10°C ~50°C with CF Card or SATA interface 2.5” SSD HDD
Storage Temperature (°C)
-20°C ~ 60°C
N/G Weight
IP Level
3.2 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire resistive type (Touch controller IC is on board)
Power Adapter
s
s
Fanle
250
Contrast Ratio
Viewing Angle (H-V)
Fanless
1024 x 768
Brightness (cd/m²)
Pixel Pitch (mm)
Speakers
P/N: 63040-010060-050-RS
60W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz / Output: 12VDC
Power Requirement
12VDC
Power Consumption
49W
AFL-15A(E)-2014-V11
Automation Panel Solutions
Display System
w w w.ieiworld.com
15" XGA AFOLUX Panel PC
AFL-15i(E)-HM55
Intel® Core™ i7/i5/i3/Celeron® Processor
Dual
Independent
Display!
NEW Features in HM55 Platform :
● Powered by high performance 2.66 GHz Intel® Core i7-620M CPU
with Intel® HM55 chipset
● DDR3 1066MHz system memory up to 4GB
● HDMI/VGA port delivers high quality image on the second display
● IEI One Key Recovery solution allows you to create rapid OS
backup and recovery (over 4GB storage capacity is suggested)
Wireless
802.11b/g/n
Specifications
Model
LCD Size
AFL-15i(E)-HM55
15”
Max Resolution
1024 x 768
Brightness (cd/m²)
400 or 250
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Wireless Connection
Drive Bay
Construction Front Panel
Membrane Keypad
LED Function
Mounting
Front Panel Color
Dimensions (WxHxD) (mm)
Operation Temperature (°C)
Storage Temperayure (°C)
N/G Weight
IP Level
Speakers
700:1
262K or 16.7M
0.297(H) x 0.297(V)
160º/140º or 170º/160º
50000 hrs (LED backlighting) or 30000 hrs
AFLMB2-HM55-R10
Intel® Core™ i7/i5/i3/Celeron® Processor
Intel® HM55
Two 204-pin 800/1066MHz DDR3 dual-channel SO-DIMMs supported (Max. 8GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (Line-out)
1 x VGA
1 x Power Jack
1 x HDMI Port
SATA SSD
Software programmable supports 1~255 sec. system reset
AMP 3W + 3W (internal speakers)
1 x Wireless LAN 802.11b/g/n Module
(internal PCIe Mini card interface) (AFL-15i-HM55 with telec certified)
1 x 2.5” SATA HDD bay
ABS + PC Plastic front frame
LCD on/off, Brightness up/down, Volume up/down (5 keys)
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Sliver (877U) & Gray (ABSA2037)
394 x 309 x 66
0°C~50°C
-20°C ~ 60°C
5.8 Kg
Front Frame IP64
Touch Screen
Resistive Type 5-Wire (Touch controller IC is on board)
Power Adapter
P/N: 63040-010096-010-RS
96W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
80W
AFL-15i(E)-2014-V12
Automation Panel Solutions
Display System
w w w.ieiworld.com
Fully Integrated I/O
12V DC Input
Power Switch
AFL-15A-N270
VGA Output
Line-out
External SATA
4 x USB 2.0
2 x LAN
1 x RS-232
1 x RS-232/422/485
VESA 100 x 100
2 x RJ-45 Giga LAN
4 x USB 2.0
1 x Line-out
1 x VGA
AFL-15i-HM55
1 x HDMI
AT/ATX Switch
Membrane Keypad
• LCD on/off • Brightness up
• Volume up • Brightness down
AFL-15A
Dimensions (Unit: mm)
AFL-15i
Dimensions (Unit: mm)
AFL-15i(E)-2014-V10
12 V DC Input
Power Switch
• Volume down
Reset Button
1 x RS-232
1 x RS-232/422/485
Automation Panel Solutions
Display System
w w w.ieiworld.com
Ordering Information
● High Luminance (400 cd/m²)
Part Number
Description
AFL-15A-N270/R/1G-R30
15" 400cd/m² XGA LED backlighting fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n wireless module, touch
screen, R30
AFL-15i-HM55-P45/R/1G-R20
15" 400cd/m² XGA LED backlighting panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
AFL-15i-HM55i3-35/R/2G-R20
15" 400cd/m² XGA LED backlighting panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
AFL-15i-HM55i5-52/R/2G-R20
15" 400cd/m² XGA LED backlighting panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R20
AFL-15i-HM55i7-62/R/2G-R20
15" 400cd/m² XGA LED backlighting panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
● Regular Luminance (250 cd/m²)
Part Number
Description
AFL-15AE-N270/R/1G-R22
15” 250cd/m² XGA fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n wireless module, touch screen, R22
AFL-15iE-HM55-P45/R/1G-R12
15" 250cd/m² XGA panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-15iE-HM55i3-35/R/2G-R12
15" 250cd/m² XGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-15iE-HM55i5-52/R/2G-R12
15" 250cd/m² XGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-15iE-HM55i7-62/R/2G-R12
15" 250cd/m² XGA panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12,
ISMM Supported Functions
Voltage
Fan
Smart Fan
Temperature
WDT
AFL-15i(E)-HM55
V
V
V
V
V
AFL-15A(E)-N270
V
V
V
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
Q’ty
4
M3;5mm
Power Adpater
63040-010060-050-RS
63040-010060-050-RS
1
90~264V AC; 12V DC; 60W (15A(E)-N270) (Meet PSE)
90~264V AC; 12V DC; 96W (15i(E)-HM55) (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Specification
1
Options
Model
Panel Mounting Kit
AFL-15A(E)-N270
AFL-15i(E)-HM55
AFLPK-15
AFLPK-15B
Wall Mounting Kit
Rack Mounting Kit
AFLWK-19B
AFLRK-15-R11
AFLRK-15i-R10
Arm
ARM-11-RS / ARM-31-RS
Stand
OS: Win CE 6.0
(128 MB CF card)
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
(2GB CF card)
STAND-A19-RS / STAND-A21-R10-R10 / STAND-210-R11
AFLCF-15-N270-CE060-R30
--
AFLCF-15-N270-XPE-R30
AFLSD-15-HM55-2G-XPE-R20
(2GB SATA SSD)
AFLCF-15-N270-WES7E-R30
AFLSD-15-HM55-4G-WES7E-R20
(4GB SATA SSD)
Hybrid Card Reader
AFLP-17AMSI-U
Magnetic Stripe Reader
AFLP-17AMSR-U
DC 12V Input UPS
AUPS-B10-R10 (14.8V 3800mAH)
DC 9~36V Input UPS
Bluetooth V2.0+EDR
AUPS-B20-R10 (14.8V 3800mAH)
AFL-BT-KIT04-R10
AFL-15A(E)-2014-V11
AFL-BT-KIT01-R10
Cash Drawer
Automation Panel Solutions
Display System
w w w.ieiworld.com
15" Wide 1366 x 768 AFOLUX Panel PC
AFL-W15A-N270
Intel® Atom™ N270 1.6GHz Processor
16:9
Wide Screen
Membrane Keypad for LCD On/Off,
Brightness Down/Up, Volume Down/
Up, Lock, Ambient Light Sensor On/Off
Control
Ambient Light Sensor
HDMI
2-mega Pixel Camera (with Low Light
Function) and Digital Microphone
HDMI High-Definition Multimedia
Interface (for GM45 Systems Only)
Features
● 15” wide screen all-in-one system with resistive touch panel
● IEEE 802.11b/g/n Wi-Fi connection
● Ambient light sensor detects ambient light for automated screen
adjustments.
Wireless
802.11b/g/n
● VESA-mountable for flexibility in mounting and deployment
Speakers
Microphone
Camera
Infrared Remote Control
● Membrane keypad to control LCD backlight, panel brightness,
speakers volume, ambient light sensor and lock the keypad
functions
System
On/Off
● Software system settings utility support
● Support for Windows CE, Windows XP Embedded and Linux
(optional)
● IP 64 compliant front panel
Volume Up/
Down
LCD On/Off
Ambient Light
Sensor On/Off
Brightness
UP/Down
Ambient Light Sensor
The AFL-W15A series has a built-in ambient light sensor on the front panel to automatically detect the amount of light in the viewing environment
and auto-adjust the brightness of the screen.
Benefits:
● More comfortable viewing
decreases eye strain and
tiredness
● Power consumption saving
● Extend lamp lifetime
Day: Higher Ambient Luminance
AFL-W15A-2014-V10
Night: Lower Ambient Luminance
Display System
w w w.ieiworld.com
Fully Integrated I/O
4 x USB 2.0
Power Switch
VGA Output
Line-out for Speakers
1 x HDMI (For GM45 System)
Reset Button
2 x LAN
Membrane Keypad
Specifications
Model
1 x RS-232
1 x RS-232/422/485
12V DC Input
s
s
Fanle
AFL-W15A-N270
LCD Size
15.6"
Max Resolution
1366 x 768
Brightness (cd/m²)
300
Contrast Ratio
500 : 1
LCD Color
Pixel Pitch (mm)
16.7M
0.252 (W) x 0.252 (H)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
170º / 160º
50000 hrs (LED backlight)
AFLMB2-945GSE-N270-R10
Intel® Atom™ N270 1.6GHz CPU
Intel® 945GSE + ICH7M
Supports one 400MHz or
533MHz DDRII SO-DIMM (Max. 2GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port
1 x VGA Port
1 x Power Jack
SSD
Watchdog Timer
Audio
Camera Module
Wireless Connection
Construction Front Panel
Membrane Keypad
Infrared Remote Control
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 3W + 3W (internal speakers)
2megapixel camera (with low light function) and digital microphone
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface) Telec certified
ABS + PC Plastic front frame
LCD On/Off, Brightness Down/Up, Volume Down/Up, Lock, Ambient Light Sensor On/Off (OSD Lock: Lock button+ ALS button) (7 keys)
LCD On/Off, Brightness Up/Down, Volume Up/Down, System On/Off, Ambient Light Sensor On/Off
Ambient Light Sensor
Mounting
Yes
Panel, Wall, Stand and Arm VESA 100mm x 100mm
Front Panel Color
Gray 7539U
Dimensions (WxHxD) (mm)
400 x 273 x 63
Operation Temperature (°C)
0°C ~40°C with SATA HDD
-10°C ~50°C with CF Card or SATA interface 2.5” SSD HDD
Storage Temperature (°C)
-20°C ~60°C
N/G Weight
IP Level
3.3 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire Resistive Type (Touch controller IC is on board)
Power Adapter
P/N: 63040-010060-050-RS
60W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
50W
AFL-W15A-2014-V10
Display System
w w w.ieiworld.com
AFL-W15A
Dimensions (Unit: mm)
Ordering Information
Part Number
Description
AFL-W15A-N270/R/1G-R30
15.6" 300cd/m² 1366x768 LED backlighting panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n wireless module, touch
screen, 2megapixel camera, microphone, R30
Options
Model
AFL-W15A-N270
Panel Mounting Kit
AFLPK-15B
Wall Mounting Kit
AFLWK-19B
Rack Mounting Kit
AFLRK-W15
Arm
ARM-11-RS / ARM-31-RS
Stand
STAND-A19-RS / STAND-A21-R10 / STAND-210-R11
OS: Win CE 6.0
(128 MB CF card)
AFLCF-15-N270-CE060-R30
OS: Win XPE (1 GB CF card)
AFLCF-15-N270-XPE
OS: Win 7 Embedded (4GB CF card)
AFLCF-15-N270-WES7E-R30
Hybrid Card Reader
AFLP-W15AMSI-U
Magnetic Stripe Reader
AFLP-W15AMSR-U
DC 12V Input UPS
AUPS-B10-R10 (VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH)
DC 9~36V Input UPS
AUPS-B20-R10 (VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT04-R10
Note: Win CE application without digital microphone function
Packing List
Item
Part Number
Screw Pack
Power Adpater
44013-030041-RS
63000-FSP060DBAB1554-RS
Q'ty
4
1
Power Cord
32000-000002-RS
1
Utility CD
Touch Pen
One Key Recovery CD
7B000-000087-RS
43125-0002C0-00-RS
1
1
1
Specification
M3; 5mm
90~264V AC; 12V DC; 60W (W15A-N270) (Meet PSE)
1750mm
(EU or US, depending on the shipment country)
ISMM Supported Functions
Voltage
AFL-W15A-N270
Fan
Smart Fan
V
AFL-W15A-2014-V10
Temperature
WDT
V
V
Cash Drawer
Automation Panel Solutions
Display System
w w w.ieiworld.com
17” SXGA AFOLUX Panel PC
AFL-17i(E)-HM55
Intel® Core™ i7/i5/i3/Celeron® Processor
New HM55 Platform Features:
● Powered by high performance 2.66 GHz Intel® Core i7-620M CPU with Intel® HM55
chipset
● DDR3 1066MHz system memory up to 4GB
● HDMI port delivers high image quality on the second display
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(over 4GB storage capacity is suggested)
Wireless
802.11b/g/n
Specifications
Model
AFL-17i-HM55
LCD Size
Max Resolution
17"
1280 x 1024
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Wireless Connection
Drive Bay
Construction Front Panel
Membrane Keypad
LED Function
Mounting
Front Panel Color
Dimensions (WxHxD) (mm)
Operation Temperature
(°C)
Storage Temperature (°C)
N/G Weight
IP Level
Touch Screen
Power Adapter
Speakers
380
800 : 1
16.7M
0.264 (H) x 0.264 (V)
160º / 160º
50000 hrs
AFLMB2-HM55-R10
Intel® Core™ i7/i5/i3/Celeron® Processor
Intel® HM55
Two 204-pin 800/1066MHz DDR3 dual-channel SO-DIMMs supported
(Max. 8GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (Line-Out)
1 x VGA
1 x Power Jack
1 x HDMI Port
SATA SSD
Software programmable supports 1~255 sec. system reset
AMP 3W + 3W (internal speakers)
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)
1 x 2.5" SATA HDD bay
ABS + PC Plastic front frame
LCD On/Off, Brightness Up/Down, Volume Up/Down (5 keys)
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Sliver (877U) & Gray (ABSA2037)
428 x 350 x 71
0ºC ~ 50ºC
-20°C ~60°C
6.0 Kg
IP 64 compliant front panel
5-wire resistive type (touch controller IC is on board)
P/N: 63000-FSP096AHB-RS
96W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
85W
AFL-17i(E)-2014-V11
Automation Panel Solutions
Display System
w w w.ieiworld.com
17” SXGA AFOLUX Panel PC
AFL-17D-N270
Intel® Atom™ N270 1.6GHz Processor
Deep Glossy
Black Surface
Digital Camera:
300K Camera with Low Light Function
5-key membrane keypad
Easy access CF card
Convenient USBs on the side
Specifications
s
Model
AFL-17D-N270
LCD Size
1280 x 1024
Brightness (cd/m²)
300
Contrast Ratio
800 : 1
LCD Color
16.7M
0.264 (H) x 0.264 (V)
Viewing Angle (H-V)
160º / 160º
Backlight MTBF
50000 hrs
SBC Model
CPU
Chipset
RAM
I/O Ports
AFLMB2-N270-R10
Intel® Atom™ processor N270 1.6GHz CPU
Intel® 945GSE + ICH7M
Supports one 400MHz or533MHz DDR2 SO-DIMMs (Max. 2GB)
1 x RS- 232 COM port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power switch
1 x Reset button
1 x Audio port
1 x VGA port
1 x Power jack
Storage
Watchdog Timer
Audio
Camera Module
Wireless Connection
Drive Bay
Construction Front Panel
Membrane Keypad
LED Function
Mounting
s
Fanle
17"
Max Resolution
Pixel Pitch (mm)
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 3W + 3W (internal speakers)
300K pixel with digital microphone
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface) Telec certified
1 x 2.5" SATA HDD bay, 1 x Slim Type CD-ROM bay
ABS + PC Plastic front frame
LCD On/Off, Brightness Up/Down, Volume Up/Down (5 keys)
1 x Power on/off LED on front panel
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Front Panel Color
Black C
Dimensions (WxHxD) (mm)
410 x 349 x 83
Operation Temperature (°C)
0°C ~40°C with SATA HDD
-10°C ~50°C with CF Card or SATA interface 2.5” SSD HDD
Storage Temperature (°C)
-20°C ~60°C
N/G Weight
IP Level
6.2 Kg
IP 64 compliant front panel
Safety & EMC
CE / FCC
Touch Screen
5-wire resistive type (touch controller IC is on board)
Power Adapter
Built-in ODD (optional)
P/N: 63000-FSP084DMBA1308-RS
84W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
58W
AFL-17D-2014-V11
Automation Panel Solutions
Display System
w w w.ieiworld.com
Fully Integrated I/O
● AFL-17D-N270
2 x LAN
1 x RS-232
1 x RS-232/422/485
● AFL-17i-HM55
4 x USB 2.0
Line-out
VESA 100 x 100
2 x RJ-45 Giga LAN
4 x USB 2.0
1 x Line-out
12V DC Input
1 x VGA
Power Switch
1 x HDMI
AT/ATX Switch
Membrane Keypad
Reset Button
AT/ATX Switch
HDMI (for AFL-17D-GM45)
Membrane Keypad
• LCD on/off • Brightness up
• Volume up • Brightness down
VGA Output
AFL-17D
Dimensions (Unit: mm)
AFL-17i-HM55
Dimensions (Unit: mm)
AFL-17D-2014-V10
12 V DC Input
Power Switch
• Volume down
Reset Button
1 x RS-232
1 x RS-232/422/485
Automation Panel Solutions
Display System
w w w.ieiworld.com
Ordering Information
Part Number
Description
AFL-17D-N270/R/1G-R23
17" 300cd/m² SXGA fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n wireless module, touch screen, 2M camera,
microphone, R23
AFL-17D-N270/RD/1G-R23
17" 300cd/m² SXGA fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n Wi-Fi, touch screen, 2M camera,
microphone, DVD-COMBO, R23
AFL-17i-HM55-P45/R/1G-R12
17" 380cd/m² SXGA panel PC with Intel® Celeron® P4500 1.86G CPU, 1GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-17i-HM55i3-35/R/2G-R12
17" 380cd/m² SXGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-17i-HM55i5-52/R/2G-R12
17" 380cd/m² SXGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
AFL-17i-HM55i7-62/R/2G-R12
17" 380cd/m² SXGA panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen, R12
ISMM Supported Functions
Voltage
Fan
Smart Fan
Temperature
WDT
AFL-17i-HM55
V
V
V
V
V
AFL-17D-N270
V
V
V
Packing List
Item
Part Number
Q'ty
Screw Pack
44013-030041-RS
4
M3; 5mm
Power Adpater
63000-FSP084DMBA1308-RS
63000-FSP084DMBA1308-RS
63000-FSP096AHB-RS
1
90~264V AC; 12V DC; 84W (17D-N270)
90~264V AC; 12V DC; 96W (17i-HM55) (Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Specification
1
Options
Model
AFL-17D-N270
AFL-17i-HM55
AFLPK-17D
AFLPK-17B
Panel Mounting Kit
Wall Mounting Kit
Rack Mounting Kit
AFLWK-19B
AFLRK-17D-R11
AFLRK-17i-R10
Arm
ARM-11-RS / ARM-31-RS
Stand
OS: Win CE 6.0
(128 MB CF card)
STAND-A19-RS / STAND-A21-R10 / STAND-210-R11
AFLCF-15-N270-CE060-R30
N/A
AFLCF-15-N270-XPE-R30
AFLSD-15-HM55-2G-XPE-R20 (2GB SATA SSD)
AFLCF-15-N270-WES7E-R30
AFLSD-15-HM55-4G-WES7E-R20
(4GB SATA SSD)
Magnetic Stripe Reader
N/A
AFLP-17BMSR-U
DC 12V Input UPS
AUPS-B10-R10 (VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH)
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
(4GB CF card)
DC 9~36V Input UPS
Bluetooth V2.0+EDR
AUPS-B20-R10 (VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH)
AFL-BT-KIT04-R10
Note: Win CE application without digital microphone function
AFL-17D-2014-V11
AFL-BT-KIT01-R10
Display System
w w w.ieiworld.com
19” SXGA AFOLUX Panel PC
AFL-19i(E)-HM55
Intel® Core™ i7/i5/i3/Celeron® Processor
New HM55 Platform Features:
● Powered by high performance 2.66 GHz Intel® Core™ i7-620M
CPU with Intel® HM55 chipset
● 1066MHz DDR3 system memory up to 4GB
● HDMI port delivers high image quality on the second display
● IEI One Key Recovery solution allows you to create rapid OS
backup and recovery (over 4GB storage capacity is suggested)
Wireless
802.11b/g/n
Specifications
Model
AFL-19i-HM55
LCD Size
Max Resolution
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Wireless Connection
Drive Bay
Construction Front Panel
Membrane Keypad
LED Function
Mounting
Front Panel Color
Dimensions (WxHxD) (mm)
Operation Temperature (°C)
Storage Temperature (°C)
N/G Weight
IP Level
Touch Screen
Power Adapter
Speakers
19”
1280 x 1024
350
1000 : 1
16.7M
0.294 (H) x 0.294 (V)
170º / 160º
50000 hrs (LED backlighting)
AFLMB2-HM55-R10
Intel® Core™ i7/i5/i3/Celeron® Processor
Intel® HM55
Two 204-pin 800/1066MHz DDR3 dual-channel SO-DIMMs supported (Max. 8GB)
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (Line-out)
1 x VGA
1 x Power Jack
1 x HDMI Port
SATA SSD
Software programmable supports 1~255 sec. system reset
AMP 3W + 3W (internal speakers)
1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface) Telec certified
1 x 2.5” SATA HDD bay
ABS + PC Plastic front frame
OSD Keypad below the Front Panel (5 keys)
1 x Power on/off LED on front panel
Panel, Wall, Stand and Arm VESA 100mm x 100mm
Sliver (877U) & Gray (ABSA2037)
470 x 383 x 72
0°C~50°C
-20°C ~60°C
6.2Kg
Front Frame IP64
Resistive Type 5-Wire (Touch controller IC is on board)
P/N: 63040-010096-010-RS
96W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50 / 60 Hz
Output: 12VDC
Power Requirement
12VDC
Power Consumption
88W (Intel® T7500, 2GB memory, 80G HDD)
AFL-19i(E)-2014-V10
Display System
w w w.ieiworld.com
Fully Integrated I/O
VESA 100 x 100
2 x RJ-45 Giga LAN
4 x USB 2.0
1 x Line-out
● AFL-19i-HM55
1 x VGA
1 x HDMI
AT/ATX switch
Membrane Keypad
• LCD on/off • Brightness up
• Volume up • Brightness down
12 V DC Input
Power Switch
Reset Button
1 x RS-232
1 x RS-232/422/485
• Volume down
AFL-19i
Dimensions (Unit: mm)
Ordering Information
Part Number
AFL-19i-HM55-P45/R/1G-R20
AFL-19i-HM55i3-35/R/2G-R20
AFL-19i-HM55i5-52/R/2G-R20
AFL-19i-HM55i7-62/R/2G-R20
Description
19" 350cd/m² SXGA LED backlighting panel PC with Intel® Celeron® P4500 1.86G CPU, 1GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
19" 350cd/m² SXGA LED backlighting panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
19" 350cd/m² SXGA LED backlighting panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
19" 350cd/m² SXGA LED backlighting panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11b/g/n wireless module, touch screen,
R20
Packing List
Part Number
44013-030041-RS
4
M3;5mm
Power Adpater
63040-010096-010-RS
1
90~264V AC; 12V DC; 96W
(Meet PSE)
Power Cord
32000-000002-RS
1
1750mm; European Standard
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Q’ty
ISMM Supported Functions
Item
Screw Pack
Specification
Voltage
Fan
Smart
Fan
Temperature
WDT
V
V
V
V
V
AFL-19i-HM55
1
Options
Model
AFL-19i-HM55
Panel Mounting Kit
AFLPK-19B
Wall Mounting Kit
AFLWK-19B
Arm
Stand
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded
Magnetic Stripe Reader
DC 12V Input UPS
ARM-11-RS / ARM-31-RS
STAND-A19-RS / STAND-A21-R10 / STAND-210-R11
AFLSD-15-HM55-2G-XPE-R20(2GB SATA SSD)
AFLSD-15-HM55-4G-WES7E-R20 (4GB SATA SSD)
AFLP-19MSR-U
AUPS-B10-R10 (VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH)
DC 9~36V Input UPS
AUPS-B20-R10 (VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT01-R10
AFL-19i(E)-2014-V10
Cash
Drawer
Display System
w w w.ieiworld.com
19" Wide 1440 x 900 AFOLUX Panel PC
AFL-W19A-N270
Intel® Atom™ N270 1.6GHz Processor
Mirror Black
Glossy Finish
Features
● 19” wide screen all-in-one system with resistive touch panel
● High quality wide screen panel featuring 16:10 aspect ratio, high contrast and fast
response time
● Fanless system integrated with Intel® Atom™ N270 1.6G processor for ultra low
voltage
● IEEE 802.11b/g/n Wi-Fi connection
● Built-in two speakers
● Built-in capitalize technology
● Ambient light sensor detects ambient light for automated screen adjustments
● VESA-mountable for flexibility in mounting and deployment
● iSMM system utility included for system settings
● Support Windows® CE, Windows® XP Embedded (optional)
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(suggest over 4GB storage capacity)
Specifications
Model
LCD Size
Max Resolution
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipset
RAM
I/O Ports
Storage
Watchdog Timer
Audio
Camera Module
Wireless Connection
Drive Bay
Construction Front Panel
Membrane Keypad
Ambient Light Sensor
Infrared Remote Control
Mounting
Front Panel Color
Dimensions (WxHxD) (mm)
Operation Temperature (°C)
Storage Temperature (°C)
N/G Weight
IP Level
Safety & EMC
Touch Screen
Power Adapter
Power Requirement
Power Consumption
Wireless
802.11b/g/n
Speakers
Microphone
Camera
Built-in
ODD
AFL-W19A-N270
19"
1440 x 900
250
1000:1
16.7M
0.2835 (H) x 0.2835 (V)
170° / 160°
30000 hrs (LED backlight)
AFLMB2-945GSE-N270-R10
Intel® Atom™ N270
1.6GHz CPU
Intel® 945GSE + ICH7M
Supports one 400MHz or 533MHz
DDR2 SO-DIMM (Max. 2GB)
1 x RS-232 COM Port
1 x Reset Button
1 x RS-232/422/485 COM port
1 x Audio Port
2 x RJ-45 for Giga LAN
1 x VGA Port
4 x USB 2.0
1 x Power Jack
1 x Power Switch
CF Type II
Software programmable supports 1~255 sec. system reset
AMP 1.5W + 1.5W (internal speakers)
300K pixel camera (with low light function) and digital microphone
1 x Wireless LAN 802.11b/g/n module (internal PCIe Mini card interface)
Telec certified
1 x 2.5" SATA HDD bay
ABS + PC Plastic front frame
LCD On/Off, Brightness Down/Up, Volume Down/Up,
Lock, Ambient Light Sensor On/Off (7 keys)
Yes
LCD On/Off, Brightness Up/Down, Volume Up/Down,
System On/Off, Ambient Light Sensor On/Off
Panel, Wall, Stand and Arm VESA 100mm x 100mm
Black C
475 x 259 x 65
0°C ~40°C with HDD
-10°C ~50°C with CF Card or SATA interface 2.5" SSD HDD
-20°C ~60°C
5.8 Kg
IP 64 compliant front panel
CE / FCC
5-wire resistive type (touch controller IC is on board)
P/N: 63000-FSP084DMBA1308-RS
84W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
12VDC
55W
AFL-W19A-2014-V10
Membrane Keypad for
System Function Control
Ambient Light Sensor
2mega pixel Camera (with Low
Light Function) and Digital
Microphone
Infrared Remote Control
(For AFL-W19A Series Only)
System On/
Off
Volume Up/
Down
LCD On/Off
Ambient Light
Sensor On/Off
Brightness
UP/Down
Display System
w w w.ieiworld.com
Fully Integrated I/O
Power Switch
4 x USB 2.0
VGA Output
Line-out for Speakers
Reset Button
2 x GbE LAN
1 x RS-232
1 x RS-232/422/485
12V DC Input
Membrane Keypad
AFL-W19A
Dimensions (Unit: mm)
Ordering Information
Part Number
Description
AFL-W19A-N270/R/1G-R30
19" 250cd/m² 1440x900 LED backlighting panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11b/g/n wireless module, touch
screen, 2-megapixel camera, microphone, R30
Packing List
Item
Part Number
Screw Pack
44013-030041-RS
Q'ty
4
M3;5mm
Power Adpater
63000-FSP084DMBA1308-RS
1
90~264V AC; 12V DC; 84W
Power Cord
32000-000002-RS
1
1750mm; (EU or US, depending on the shipment country)
Utility CD
7B000-000087-RS
1
Touch Pen
43125-0002C0-00-RS
1
One Key Recovery CD
Specification
1
ISMM Supported Functions
Voltage
AFL-W19A- N270
Fan
Smart Fan
Temperature
WDT
V
V
V
Options
Model
Panel Mounting Kit
Wall Mounting Kit
Arm
Stand
OS: Win CE 6.0 (128 MB CF card)
OS: Win XPE (1 GB CF card)
OS: Win 7 Embedded (4GB CF card)
DC 12V Input UPS
AFL-W19A-N270
AFLPK-W19B
AFLWK-19B
ARM-11-RS / ARM-31-RS
STAND-A19-RS / STAND-A21-R10 / STAND-210-R11
AFLCF-15-N270-CE060-R30
AFLCF-15-N270-XPE-R30
AFLCF-15-N270-WES7E-R30
AUPS-B10-R10 (VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH)
DC 9~36V Input UPS
AUPS-B20-R10 (VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH)
Bluetooth V2.0+EDR
AFL-BT-KIT04-R10
Note: Win CE application without digital microphone function
AFL-W19A-2014-V10
Cash Drawer
Display System
w w w.ieiworld.com
IS-400 Pro
4-bay Industrial NAS/NVR
■ Designed for a wide range of temperatures and environments
Built with high-quality aluminum materials for maximum heat
dissipation, the IS-400 Pro has been designed to operate
perfectly in non-office environments. Withstanding temperatures
between -20°C and 50°C (-4°F to 120°F) it is the ideal choice
for networked storage across a wide range of platforms such
as factories & industrial settings, transportation and other
environments that are exposed to the elements.
 Industrial-grade SSDs are required to ensure listed operational temperature ranges.
Please note: Industrial SSDs are required to meet this condition, please refer to the
compatibility list: http://www.qnap.com/compatibility
■ Cross-platform file sharing,
centralized data storage
The IS-400 Pro supports SMB/CIFS, NFS, and AFP protocols for
file sharing across Windows, Mac and Linux/UNIX networks. Data,
logs and ISO image of CDs and DVDs can be centrally stored in
the NAS and protected by an integrated antivirus solution. The
Windows AD and LDAP services enable system administrators
to configure user permissions by using existing Windows® AD
servers, LDAP servers or NAS build-in LDAP services.
Windows PC
Router
Internet
■ Rock-solid & fanless design
Upload/
download by FTP
Samba
QNAP NAS
Switch
Engineered to perfection with a rugged steel body and no moving
parts, the fanless IS-400 Pro is designed to withstand dust, rust,
vibration and impact for reliable and energy-saving operations
within even the most extreme environments.Compliant with
the military-grade MIL-STD-810G-514.6E-1 simulation test for
anti-vibration, the all-metal construction of the IS-400 Pro can
withstand a minimum 100KG (220lbs) impact while still providing
continuous operation.
■ Up to 221 MB/sec reading, 214MB/sec
Writing
The IS-400 Pro delivers ultra-high performance achieving speeds
of up to 221MB/s read and up to 214MB/s write. It is powered
by an energy efficient Intel® 1.1 GHz dual core processor and
4GB DDR3 RAM, and features 2 Gigabit LAN ports to maximize
system bandwidth.
Access files
through Web
File Manager
Mac
AFP
AD server (Centralized
authentication control)
■ Well-rounded backup solutions to
secure data
QNAP Netbak Replicator supports real-time and scheduled data
backup on Windows including Outlook email archiving. Apple
Time Machine is also supported to provide Mac OS X users
with an effortless solution to back up data to the IS-400 Pro. A
wide range of third-party backup software such as Acronis True
Image and Symantec Backup Exec are also supported. The IS400 Pro offers various data recovery options. RTRR (Real-Time
Remote Replication) supports real time or scheduled data backup
to remote Turbo NAS or FTP servers and synchronizes files to
remote folders from local folders with better backup efficiency and
reduced backup time. The IS-400 Pro also supports rsync protocol
to back up data to remote servers on a scheduled basis. Data can
also be backed up to and restored from a range of cloud storage
services, including Amazon® S3, Elephant Drive®, Dropbox® and
Google® Drive.
Read
ElephantDrive
Dropbox
Write
(MB/Sec)
Windows Azure
Google Drive
STATUS
LAN
USB
eSATA
POWER
COPY
 Tested in QNAP lab. Figures could vary by environments.
Testing Environment:
Client PC configurations: Intel® Core™ i7-2600 CPU, 16GB DDR3 RAM, Windows®
7 professional 64-bit, Dual-port Intel X520-SR2 10GbE Server Adapter, IOMeter
sequential read and write.
NAS configurations:
Intel® 510 SSDs, Intel® X-520-DA2 + 802.3ad trunking mode, RAID 5.
IS-400 Pro-2014-V10
RTRR / rsync
NetBak
Replicator
Time
Machine
Display System
w w w.ieiworld.com
■ Data security
In an open network environment, business data may be exposed
in a potential hack. The IS-400 Pro provides numerous security
options, such as encrypted access, IP blocking, and other
protective features. IT administrators can also control the access
rights of each user to different folders, preventing unauthorized
access to important files. The IS-400 Pro is validated with
military-grade FIPS 140-2 AES 256-bit encryption, preventing
unauthorized users to access data even if the hard drives or entire
system were stolen.
■ Reliable iSCSI target for surveillance
video storage
The most frequently encountered challenge in deploying IP
surveillance is how to set up or expand the storage capacity. The
IS-400 Pro supports reliable and high performance iSCSI target.
Windows or Linux based VMS server can easily connect to the
IS-400 Pro through iSCSI to expand the storage capacity. It is an
ideal solution for IP surveillance recording and archiving.
■ Comprehensive surveillance solution
providing 24/7 security
The IS-400 Pro‘s Surveillance Station Pro offers a professional
surveillance solution with the user-friendly NVR (network video
recorder) management interface, a wide range of over 1,200
compatible IP camera models, and expandable IP camera
channel licenses. It supports real-time monitoring, video and
audio recording and playback with a wide range of customizable
settings. You can also install the VMobile app on your iOS® or
Android™ devices to manage the monitoring of cameras anytime,
anywhere, for total surveillance of your monitored environment.
■ HIPAA compliant storage solution
While medical data (e.g ePHI) constantly increases, IT
administrators are required to develop a strategy of strong
storage platforms within their medical
organizations. The IS-400 Pro meets
the electronic requirements of HIPAA
for storing PHI data by providing a
base to protect the confidentiality and
security of individually identifiable
health information.
■ Private cloud storage
The IS-400 Pro offers businesses a total solution for creating
private cloud storage. The exclusive myQNAPcloud allows you
to establish VPN connections for secure data transfer over the
Internet or remote access via 3G/4G router. The Qfile mobile app
enables remote access to the files on the IS-400 Pro anytime,
anywhere, while the Qmanager mobile app allows for easy remote
management & monitoring of your IS-400 Pro.
IS-400 Pro
■ IP surveillance storage for AXIS
Camera Companion, Mobotix and
other VMS
The IS-400 Pro provides a reliable storage solution for video
management software (VMS) recordings from different network
camera vendors. The IS-400 Pro is an ideal storage solution
providing high compatibility with AXIS Camera Companion, the
video management software (VMS) for Axis network cameras,
to offer a reliable and powerful network surveillance system. The
IS-400 Pro works well with AXIS Camera Companion to support
one-click folder creation and network camera recording. AXIS
cameras can easily stream video recordings to the IS-400 Pro for
instant playback and
archiving for business
environments such as
retail stores, hotels,
and small offices.
Headquarters
IS-400 Pro-2014-V10
Branch Office
Customer´
s site
Display System
w w w.ieiworld.com
■ Dropbox-style file synchronization
across computers and mobile
devices
With Qsync, your IS-400 Pro is turned into a safe data center for
file synchronization. Any file uploaded to the IS-400 Pro will be
made available for all linked devices, such as computers, laptops
and mobile devices. Qsync is especially useful for frequent
travelers in managing files and ensuring that different devices
have the most up-to-date files. Qsync provides multiple ways of
file synchronization and group file sharing, greatly enhancing the
flexibility of team projects and collaboration.
With the QNAP Virtualization Station, you can create a virtual
machine to run Windows, Linux, or UNIX operating system
on the Turbo NAS. There is no longer a need to purchase a
standalone computer or server just to run a print server, enterprise
management system, or mail server. The Virtualization Station
helps quickly integrate existing IT infrastructure in the Turbo NAS
without additional hardware cost. You can run the Virtualization
Station in the browser after you log into the QTS with extreme
flexibility and convenience or access the Windows® VM using
any client devices that are supported by the Remote Desktop
Protocol (RDP). Virtual machines of various formats can be easily
imported to and exported from the Virtualization Station with
simple steps. Virtualization Station provides snapshot feature to
record the virtual machine system status at a point of time. At the
event of virtual machine failure, users can quickly roll it back to
the snapshot time to ensure continual system operation.
VM1
Applications
VM2
Applications
VM3
Virtual Machine
NAS
File Station
Backup Station
Music Station
Storage pool
The IS-400 Pro has a built-in App Center that provides various
install-on-demand apps developed by QNAP and third-party
developers, including tools for backup/sync, business, content
management, communications, download, entertainment,
and much more. It is also a centralized location for managing
& updating installed apps. In addition, QNAP’s development
platform embraces the open-source spirit to enable developers to
create their own apps, adding potentially limitless opportunities for
the IS-400 Pro.
Hardware Specification
■ Run your existing Windows®
applications at ease
Applications
■ Install-on-demand apps to extend
NAS functionality
Applications
CPU
Onboard dual-core Intel® CeleronTM 1.1 GHz processor
RAM
4GB DDR3 RAM (2 x DDR3 1333MHz SO-DIMM socket)
System Disk
512MB DOM for OS
Hard Disk Drive
4 x 2.5" SATA SSDs (recommended) or HDDs
Hard Disk Tray
4 x Hot-swappable trays
LAN Port
2 x Gigabit RJ-45 Ethernet ports
LED Indicators
Status, LAN, HDD 1 – 4
USB
2 x USB 3.0 ports (rear)
2 x USB 2.0 ports (rear)
Supports USB devices including printers, drives, and UPS
HDMI
1 (reserved)
Buttons
Power, Reset
Alarm Buzzer
System warning
Secure Design
Kensington security slot for theft prevention
Chasis
Fanless design with aluminum and steel body
Form Factor
Desktop (Wall-mount and din-rail mount support with
optional accessories)
Dimensions
59 (H) x 180 (W) x 247 (D) mm
2.32 (H) x 7.09 (W) x 9.72 (D) inch
Weight
Net weight: 1.11 kg ( 2.45 lbs)
Power
HDD sleep mode: 13.54W
Consumption
In Operation: 19.77W
Power-off (in WOL mode): 1.6W
(with 4 x 180 GB SSD installed; Intel® SSDSC2CT180A4
SSD)
Operating
Temperature
-40°C ~ 50°C (Please note: Industrial SSDs are required
to meet this condition. Please refer to the compatibility list:
http://www.qnap.com/compatibility)
Humidity
5~95% RH non-condensing, wet bulb: 27°C
Power
Power 1: 4-pin terminal block, 9-36V DC
Power 2: DC power jack, external power adaptor, 12V,
120W
Input: 100-240V
VM4
RAID Group
 The system is shipped without disk drives. For a list of compatible SSDs and HDDs,
please visit http://www.qnap.com/compatibility
IS-400 Pro-2014-V10
Display System
w w w.ieiworld.com
Product Information
■ Dimension Drawing
■ Optional Accessories
1
LAN
2
3
4
R4
150 (5.9)
Status
Wall mounting kit
59 (2.32)
59 (2.32)
Unit: mm (inch)
140 (5.51)
8 (0.31)
75 (2.95)
244 (9.6)
247 (9.72)
Din-rail mounting kit
180 (7.09)
59 (2.32)
75 (2.95)
■ Package Contents
2.5” SSD/HDD
Quick Installation Guide
Certificates and Standards
► CE CLASS A, FCC CLASS A, BSMI, VCCI, MIL-STD-810G-514.6C-1, MIL-STD-810G METHOD 516.6 Procedure I
IS-400 Pro-2014-V10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
