SET UP

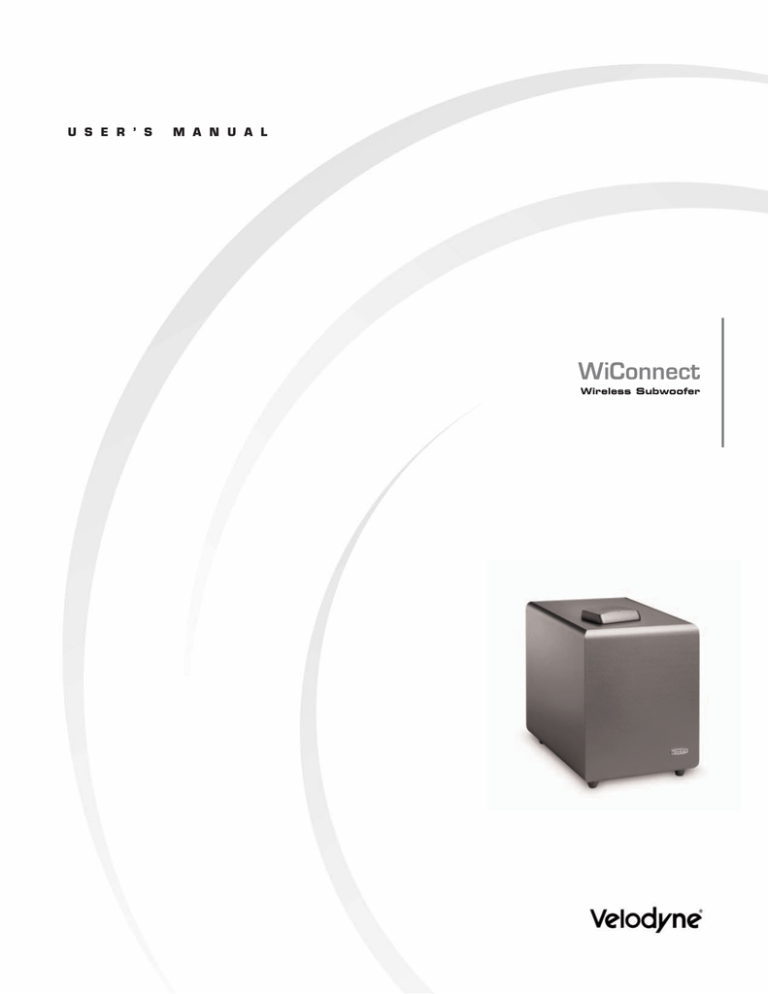

U S E R ’ S
M A N U A L
WiConnect
Wireless Subwoofer
Enjoy.
We here at Velodyne want to thank you for selecting our product.
Get ready to experience the highest quality and amazing low-distortion
bass that Velodyne is world famous for. Relax as you enhance your
home entertainment experience with our easy setup instructions.
Welcome . . . enjoy your new Velodyne!
1
SAFETY NOTICE
SET UP
3
Place Subwoofer
4
Subwoofer Placement Guidelines
4
Subwoofer Placement Cautions
5
Box Contents
7
Connect Wireless Transmitter to Receiver
9
Select Receiver Options Optimal Subwoofer Performance
10
Connect Subwoofer
10
Select Wireless Broadcast Channel
10
— Wireless Broadcast Considerations
11
Adjust Subwoofer Controls for Listening Preferences
11
Adjust Subwoofer Location for Listening Preferences
11
— Crawl Test
11
— Move Test
12
12
12
Connect Multiple Wireless Subwoofers
— In a Single Audio System
— In Separate Audio Systems
13
Use the Subwoofer’s LFE Input (Optional)
14
Mount Wireless Transmitter on Wall (Optional)
M A I N TA I N
16
Protect Subwoofer from Damage
16
Clean
16
Service
17
Troubleshoot
17
Packaging
RESOURCES
18
Specifications
18
Protection Circuitry
19
Regulatory Information
19
— FCC Compliance Statement
19
— FCC Warning
19
— European Union (EU) Declaration of Conformity
19
Radio Frequency Exposure Limit Requirements
19
Listen Responsibly
19
Legal Notice
19
— Subwoofer Recycling
19
— Trademarks
20
Warranty
SAFETY NOTICE
W iConnect User’s Manual
SAFETY NOTICE
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified
service personnel.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL is intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
THE EXCLAMATION POINT SYMBOL is intended to alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the subwoofer.
1. READ INSTRUCTIONS — All safety and operating instructions should be read before the product is operated.
2. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS — All operating and use instructions should be followed.
5. WATER AND MOISTURE — The product should not be used near water — for example, near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, near a swimming pool or the like.
6. CARTS AND STANDS — The product should be used only with a cart or stand recommended by the manufacturer.
7. WALL OR CEILING MOUNTING — The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. VENTILATION — The product should be situated so that its location or position does not interfere with its proper ventilation. For example,
the product should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in
installation such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9. HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that
produce heat.
10. POWER SOURCES — The product should be connected to a power supply only of the type described in the operating instructions or as
marked on the product.
11. GROUNDING OR POLARIZATION — This product may be equipped with a polarized alternating-current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug.If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
[1]
SAFETY NOTICE
W iConnect User’s Manual
12. POWER-CORD PROTECTION — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from
the product.
13. CLEANING — The product should be cleaned only as recommended by the manufacturer.
14. NONUSE PERIODS — The power cord of the product should be unplugged from the outlet when left unused for a long period of time.
15. OBJECT AND LIQUID ENTRY — Care should be taken so that objects do not fall and liquids are not spilled onto the enclosure.
16. DAMAGE REQUIRING SERVICE — The product should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen or liquid has been spilled into the product.
c. The product has been exposed to rain.
d. The product does not appear to operate normally or exhibits a marked change in performance.
e. The product has been dropped or damaged.
17. SERVICING — The user should not attempt to service the product beyond what is described in the operating instructions. All other
servicing should be referred to qualified service personnel.
18. LIGHTNING — For added protection for the product during a lightning storm or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet.
19. OVERLOADING — Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or
electric shock.
20. ATTACHMENTS — Only use attachments and accessories specified by the manufacturer.
21. VOLTAGE — Insure that the subwoofer is only connected to the rated source voltage. Do not connect the 120-volt version to 230-volts or
vice-versa. This will result in damage to the product and possible injury to the user.
CAUTION: To prevent electrical shock, match wide blade of plug to wide slot, fully inserted.
[2]
SET UP
W iConnect User’s Manual
SET UP
Place Subwoofer
[3]
SET UP
1. Review the Placement Guidelines
section below.
2. Review the Placement Cautions
section below.
W iConnect User’s Manual
4. Before you remove the subwoofer
from the box, place the box near
to optionally adjust the
where you want to place the
location of the subwoofer for your
subwoofer in your room. If you’ve
listening preferences.
already unpacked the subwoofer,
move the subwoofer to where you
3. Select a subwoofer placement
Later, we’ll guide you
5. Go to the Box Contents section next.
want it in the room.
location based on the placement
cautions and guidelines.
The seating positions shown in the diagram above are general guidelines for most room types and aren’t dependent on the subwoofer
placement. Sitting closer to the front in a “boomy bass” room may sound better. Sitting closer to the back of a “bass shy” room may
sound better.
Subwoofer Placement Guidelines
REFER to the RECOMMENDED SINGLE SUBWOOFER PLACEMENT diagram above for general seating and subwoofer
placement guidelines.
PLACE in a CORNER (loudest) or within a FEW FEET of a WALL (smoothest).
AVOID locations FAR AWAY from a WALL, CLOSE to the ROOM CENTER, BY a DOOR, NEAR a PARTIAL-HEIGHT WALL,
or BEHIND SEATING ARRANGEMENTS.
FACE the GRILLE TOWARDS the room’s main SEATING location.
MAKE SURE:
• You can access the controls on the rear of the subwoofer.
• The included 6’ power cord for the subwoofer can safely reach a power outlet.
Subwoofer Placement Cautions
PLACE THE SUBWOOFER CABINET ON A STABLE, FLAT AND LEVEL SURFACE. An uneven or unstable surface can cause the
subwoofer to tip over and cause injury or be damaged. Protruding objects from the surface or an uneven surface could cause damage to the
speaker cone on the bottom of the cabinet.
DO NOT CREATE A TRIP HAZARD WITH THE POWER CORDS. Route power cables so that they cannot be tripped on by persons walking
in the room.
DO NOT BLOCK THE SOUND PORT. The sound port is located in the back of the cabinet above the cable connection sockets.
PLACE THE SUBWOOFER ON THE FLOOR. If the subwoofer is placed on a stand, bracket, tripod, table or similar device, it could fall or be
knocked over causing injury to persons or damage to the subwoofer and other items.
KEEP THE SUBWOOFER IN ITS UPRIGHT POSITION.
[4]
SET UP
W iConnect User’s Manual
Box Contents
Now that you’ve unpacked the subwoofer, make sure you have the components and Velodyne supplied accessories shown below. Also,
acquire the necessary user supplied accessories. If any components or Velodyne supplied accessories are missing or damaged, contact the
retailer where you purchased this subwoofer.
A
B
Components
Velodyne Supplied Accessories
User Supplied Accessories
A. Subwoofer
• 6’ Power cord for subwoofer.
• RCA cable for connecting wireless
B. Wireless transmitter
• 5V DC power adaptor for
wireless transmitter.
transmitter to receiver, or if using the
wired instead of the wireless connection
• Self-tapping wood screws (2) for
option, RCA cable for connecting
wireless transmitter mounting.
subwoofer to wireless transmitter.
Wireless Transmitter
A. INPUTS
• L and R: Inputs for connecting to the
receiver’s RCA outputs.
• LFE: Input for connecting to the
receiver’s LFE output.
B. CHANNEL: Selection switch for
C. 5V DV Power adaptor socket
choosing broadcast frequency.
This CHANNEL selection must
match CHANNEL selection on
the subwoofer.
[5]
D. BLUE LED: Indicates transmitter
is active.
SET UP
W iConnect User’s Manual
Subwoofer Cabinet Back
A. CHANNEL: Select broadcast
D. LOW-PASS CROSSOVER: Select the
• Subwoofer goes to STAND BY if
frequency. This CHANNEL selection
upper frequency to cut-off the audio
no audio signal is present for
must match CHANNEL selection on
signal to the subwoofer output.
12 minutes.
the transmitter.
B. LFE INPUT: Optional wired
connection to receiver, if not
using the wireless connection.
C. PHASE: Invert the phase of the
subwoofer, if it blends better with
E. ACTIVE:
F. VOLUME: Adjust subwoofer volume.
• Solid yellow when ON/ACTIVE using
wireless connection.
• Flashing yellow and green when
ON/ACTIVE , but no RF signal.
• Solid Red when in ON/STAND BY.
the satellite speakers.
[6]
G. POWER: Switch power ON and OFF.
SET UP
W iConnect User’s Manual
Connect Wireless Transmitter to Receiver
Use one of the following two setups to connect the wireless transmitter to receiver:
SETUP #1:
SETUP #2:
MOST COMMON
LESS COMMON
(RECEIVER LFE/SUB OUTPUT)
(NO RECEIVER LFE/SUB OUTPUT)
This setup requires one RCA cable.
This setup requires one RCA cable for
each of the L and R channels.
1
2
SETUP #1: MOST COMMON (RECEIVER HAS LFE/SUB OUTPUT)
1. Use the RCA cable supplied by you
to connect the wireless transmitter’s
wireless transmitter. Plug the other
The subwoofer must be within
end of the adaptor into a power outlet.
50 feet (15 meters) from its
LFE input to your receiver’s LFE or
SUB output.
2. Plug the wireless transmitter’s 5V DC
transmitter to be able to receive the
3. Go to the Select Receiver Options
wireless signal. Also, make sure that
for Optimal Subwoofer Performance
the same CHANNEL is selected on
instructions next.
both the transmitter and subwoofer.
power adaptor into the back of the
[7]
SET UP
W iConnect User’s Manual
1
2
SETUP #2: LESS COMMON (RECEIVER HAS NO LFE/SUB OUTPUT)
1. Use the two RCA cables supplied
by you to connect the wireless
wireless transmitter. Plug the other
The subwoofer must be within
end of the adaptor into a power outlet.
50 feet (15 meters) from its
transmitter’s R and L inputs to
your receiver’s R and L outputs.
2. Plug the wireless transmitter’s 5V DC
transmitter to be able to receive the
3. Go to the Select Receiver Options
wireless signal. Also, make sure that
for Optimal Subwoofer Performance
the same CHANNEL is selected on
instructions next.
both the transmitter and subwoofer.
power adaptor into the back of the
[8]
SET UP
W iConnect User’s Manual
Select Receiver Options Optimal Subwoofer Performance
It is important that the audio system’s existing receiver is set up correctly to work in concert with the subwoofer. To set up the receiver refer to its
instruction manual and use one of the following three options:
RECEIVER OPTIONS
OPTION #1
OPTION# 2
OPTION #3
(MOST COMMON)
(LESS COMMON)
(LESS COMMON)
SETUP #1:
SETUP #1:
SETUP #2:
(MOST COMMON)
(MOST COMMON)
(LESS COMMON)
Receiver has LFE or SUB output
Yes
Yes
No
Use receiver’s LFE or SUB
Yes
No
No
Wireless Transmitter SETUP
output as subwoofer’s input
No
Yes
Yes
This setup uses the receiver’s,
not the subwoofer’s, lowpass
crossover frequency filter.
This setup uses the subwoofer’s
lowpass crossover frequency filter
instead of the receiver’s filter.
This setup uses the subwoofer’s
lowpass crossover
frequency filter.
Use receiver’s unfiltered/full
frequency range R and L
outputs as subwoofer’s inputs
RECEIVER OPTION #1
The receiver’s LFE or SUB output is the input to the subwoofer (most common case):
1. Select that you have a subwoofer.
2. Select the number of speakers.
3. Select the speaker size as SMALL.
4. If you don’t know the low frequency limit of your main speakers, use 80 Hz as the crossover point. The lower limit of the main
speaker’s frequency response is usually listed in the speaker specifications as, for example, “3 dB down at 45 Hz.”
In this example, double the value (45 Hz) and use the doubled-value (90 Hz) as the crossover frequency.
5. Adjust the LFE /SUB output level to 0 dB.
6. Go to the Connect Subwoofer instructions next.
RECEIVER OPTION #2
The receiver’s unfiltered/full frequency range R and L output channels, not its LFE or SUB output, is the input to the subwoofer
(less common case).
1. Select that you have NO subwoofer.
2. Select the number of speakers.
3. Select the speaker size as LARGE.
4. If the crossover frequency option is available, double your main speakers specified low frequency response value and select
the result as the crossover frequency. If you don’t know the low frequency response value, use 80 Hz.
5. Go to the Connect Subwoofer instructions next.
RECEIVER OPTION #3
The receiver has no LFE or SUB output:
1. No selections to make.
2. Go to the Connect Subwoofer instructions next.
[9]
SET UP
W iConnect User’s Manual
Connect Subwoofer
1. Use the included power cord to connect the subwoofer to a power outlet.
2. Turn the POWER switch to the ON position. The ACTIVE light should be yellow.
After 12 minutes without receiving a signal, the ACTIVE light turns red to indicate STAND BY mode. The subwoofer will
automatically go from STAND BY mode to ACTIVE when it detects an audio signal.
3. Turn the VOLUME knob to MIN to prevent blasting music when you first use the subwoofer. You can increase the VOLUME to the
correct level later.
4. You’re done. No more wires to connect!
5. Go to the Select Wireless Broadcast Channel instructions next.
Select Wireless Broadcast Channel
The wireless transmitter can broadcast your audio signals on one of four selectable channels. Multiple channels are made available in case
other devices in your home are using some of the channels for communication.
To select the broadcast channel:
1. Review the Wireless Broadcast Considerations below.
2. Use the CHANNEL switch on the back of the wireless transmitter to select “1”, “2”, “3”, or “4” as the broadcast channel.
3. Use the CHANNEL switch on the back of the subwoofer to select the same broadcast channel as you selected on the
wireless transmitter.
4. Go to the Adjust Subwoofer Controls for Listening Preferences instructions next.
Wireless Broadcast Considerations
All wireless devices like the WiC-10 may be susceptible to radio frequency (RF) interference from other devices. Other RF devices include
WiFi Internet access, computer equipment and routers; WiFi solar panel monitoring systems; video game consoles, cordless telephones, blue
tooth devices, baby monitors and microwave ovens. In particular, any devices operating in the 2.4 GHz band may cause intermittent wireless
connections between the wireless transmitter and subwoofer.
To prevent wireless broadcast interference problems, keep wireless devices at least 2’ apart. Any interference effects from a microwave oven
will cease once the oven stops operating and may be resolved on a long-term basis by increasing the physical distance between the
subwoofer and the microwave oven.
If the WiC-10 sound is intermittent, check that another wireless device isn’t within 2’ of either the wireless transmitter or the subwoofer.
[ 10 ]
SET UP
W iConnect User’s Manual
Adjust Subwoofer Controls for Listening Preferences
Now it’s time to adjust the subwoofer controls to match your listening environment and preferences.
1. Play some music through your receiver.
2. Turn the subwoofer’s VOLUME to a level that balances with the output volume of your satellite speakers and doesn’t distort the bass
sounds. You might also want to adjust your receiver’s LFE output volume higher, if you can’t get a loud enough subwoofer output, or
lower, if the subwoofer output is too loud.
3. If you didn’t use the LFE INPUT on the wireless transmitter, optionally, adjust the subwoofer’s LOW PASS FREQUENCY to provide a
wireless transmitter input equivalent to an LFE input. The LOW PASS FREQUENCY is the frequency at which the subwoofer’s output
starts to decrease as the frequency increases. Your satellite speakers output the frequencies not covered by the subwoofer. You want
to not be able to hear the transition from the subwoofer output to your satellite speakers’ output. You can adjust this frequency from
between 50 Hz to 200 Hz. To adjust this frequency:
a. If your satellite speakers are small with limited low frequency output, choose a LOW PASS FREQUENCY of between
100 Hz and 120 Hz.
b. If your satellite speakers are larger with better low frequency output, choose a LOW PASS FREQUENCY of around 80 Hz.
c. Adjust the LOW PASS FREQUENCY based on listening to your audio system until it sounds pleasing to your ear.
4. Optionally, switch the subwoofer’s PHASE to 180°. This reverses the phase of the subwoofer to correct for sound cancellations
between your subwoofer and your satellite speakers. To determine which PHASE is best for your room and subwoofer location:
a. Listen to the system with music playing.
b. Ask a friend to switch the PHASE switch from 0° to 180° while you listen for a change in the mid-bass loudness.
c. The correct PHASE is the one that you hear as having louder mid-bass.
d. If you can’t tell a difference, keep the phase at 0°.
5. Go to the Adjust Subwoofer Location for Listening Preferences instructions next.
Adjust Subwoofer Location for Listening Preferences
Optionally, you can now optimize the location of the subwoofer for your listening preferences by either using the “Crawl Test”
or the “Move Test.”
Crawl Test
In this test, the subwoofer stays in one spot and you move around the room to different listening spots. To do the “Crawl Test”:
1. Place the subwoofer on the floor or table near your most often used seating location. Velodyne doesn’t recommend placing the
subwoofer on the actual seating surface. The weight of the subwoofer or its corners could damage the seating surface or structure.
Also, placing the subwoofer on a very soft surface, such as a sofa cushion, will not allow the downward firing speaker cone to extend
out freely without hitting the surface and causing damage to the speaker.
2. Play some music on the audio system.
3. Crawl around to various spots in the room until you hear the best sounding bass output to you. When you hear the best bass output,
you have determined the placement of the subwoofer for your listening preferences.
4. Re-locate the subwoofer from the seating location to the spot you crawled to that sounded the best.
5. You’re done with this best placement test and setting up the subwoofer. Enjoy!
Move Test
In this test, you stay in one listening spot and you move the subwoofer around the room. To do the “Move Test”:
1. Place the subwoofer in a new location in the room.
2. Sit in the seating location you use most often.
3. Play some music on the audio system.
4. Listen to the audio output.
5. Repeat Step 1 through Step 4 until you hear the best sounding bass output to you. When you hear the best bass output, you have
determined the placement of the subwoofer for your listening preferences.
6. You’re done with this best placement test and setting up the subwoofer. Enjoy!
[ 11 ]
SET UP
W iConnect User’s Manual
Connect Multiple Wireless Subwoofers
In a Single Audio System
If you are using more than one wireless subwoofer in a single audio system, the following two setup options exist.
OPTION #1: All subwoofers receive the same audio signal. This is the most common setup. For this setup:
1. Connect only one wireless transmitter to your receiver. Follow the instructions for OPTION #1 or OPTION #2 in the
Connect Wireless Transmitter Section.
2. Follow the instructions for SETUP #1 in the Select Receiver Options for Optimal Subwoofer Performance section.
3. Set the same wireless broadcast channel on the wireless transmitter and all subwoofers. Follow the instructions in the
Select Wireless Broadcast Channel section.
4. Follow the instructions in the Adjust Subwoofer Controls section for each subwoofer.
OPTION #2: Subwoofers receive different audio signals. This is a less common setup. Usually, this setup uses one subwoofer for the R audio
channel and one subwoofer for the L audio channel. If using separate R and L channel subwoofers, place each subwoofer within a couple of
feet of the appropriate main speaker for the channel. If the system’s crossover frequency is high, each subwoofer should be even closer to its
channel’s main speaker. For this setup:
1. Connect a wireless transmitter to each signal you want to transmit to a subwoofer. Usually, one for the R and one for the L channel.
Follow instructions for SETUP #2 in the Connect Wireless Transmitter Section, except pair one transmitter’s R input to the R
channel receiver output and the other transmitter’s L channel input to the L channel receiver output.
2. Follow the instructions for OPTION #3 in the Select Receiver Options for Optimal Subwoofer Performance section.
3. Follow the instructions in the Select Wireless Broadcast Channel section, except:
a. Select a unique wireless broadcast channel for each wireless transmitter.
b. Match the wireless broadcast channel on each subwoofer to that of the wireless transmitter that broadcasts the audio signal the
subwoofer is to output.
4. Follow the instructions in the Adjust Subwoofer Controls section for each subwoofer.
In Separate Audio Systems
If you have multiple audio systems in your home, such as one in the family movie room and another in a bedroom or office, you can use a
separate wireless transmitter in each system. In this case, use a different wireless broadcast channel for each system, to avoid the
subwoofers from getting input from multiple systems due to the close proximity of the systems.
[ 12 ]
SET UP
W iConnect User’s Manual
Use the Subwoofer’s LFE Input (Optional)
In case you misplace the wireless transmitter or the wireless transmitter malfunctions, you can also connect the subwoofer to your receiver
with an RCA cable.
1. Use the RCA cable, supplied by you,
• Or use a “Y” connector (not
to connect one end of the RCA cable
included) to connect both the R
to the subwoofer’s LFE In input.
and L output channels
Do not use the subwoofer’s
LFE connection option if you
are already using the wireless
2. Connect the other end of the RCA
cable to either the receiver’s:
3. Go to the Adjust Subwoofer
Controls for Listening Preferences
instructions next.
• LFE or SUB output
• Or the R output channel (red or
purple connector)
[ 13 ]
connection option.
SET UP
W iConnect User’s Manual
Mount Wireless Transmitter on Wall (Optional)
Optionally, you can mount the wireless transmitter on the wall or place in a location that better organizes your audio components.
The transmitter doesn’t have to be visually in view in the room to function properly
1. Use the template below to mark the mounting locations on the
3. Hook two of the slotted holes on back of the wireless
wall. Mark the two screw locations for either the horizontal or
transmitter to the two screws. There is no right way up for
vertical mounting orientation.
the transmitter. It can be mounted in any orientation.
2. Hand turn one of the included self-tapping wood screws into
The provided wood screws aren’t suitable for stone
each marked location. Tighten the screws until about 1/8”
or other hard wall surfaces. If you can’t hand drive
(3.17mm) of the screw shank is exposed.
the screws, you may need to drill holes and provide other
wall anchors.
Wireless Transmitter Mounting Template
[ 14 ]
MAINTAIN
W iConnect User’s Manual
MAINTAIN
Protect Subwoofer from Damage
DO NOT PUT HEAVY OBJECTS ON TOP of the subwoofer cabinet or wireless transmitter that could scratch or dent the cabinet or case.
DO NOT ALLOW OBJECTS TO FALL INTO OR LIQUIDS TO SPILL ON THE SUBWOOFER ENCLOSURE.
DO NOT EXPOSE SUBWOOFER TO DRIPPING OR SPLASHING FROM LIQUIDS.
DO NOT PLACE LIQUID-FILLED OBJECTS ON OR NEAR THE SUBWOOFER. Examples of liquid-filled objects include flower vases,
beverages and liquid-fueled lamps.
DO NOT PUSH OBJECTS OF ANY KIND into the subwoofer or transmitter openings.
DO NOT PLACE BURNING CANDLES, INCENSE, OR SMOKING PRODUCTS ON TOP OF OR NEAR THE SUBWOOFER.
DO NOT PLACE A LAPTOP COMPUTER ON TOP OF THE SUBWOOFER. Damage could occur to either the laptop hardware or the
subwoofer finish.
Clean
USE A CLEAN, SOFT DAMP CLOTH to remove dust or fingerprints from the subwoofer cabinet. Unplug the subwoofer power cord from the
power outlet before cleaning to prevent static electricity from damaging the subwoofer during cleaning.
DO NOT CLEAN THE SUBWOOFER CABINET OR WIRELESS TRANSMITTER CASE with detergents, soaps, abrasives, aerosol sprays,
chemical solvents, alcohol, or other cleaning solutions.
Service
DO NOT ATTEMPT TO SERVICE THE SUBWOOFER OR WIRELESS TRANSMITTER YOURSELF beyond what is described in this
owner’s manual.
ONLY USE QUALIFIED SERVICE TECHNICIANS TO REPAIR DAMAGED PARTS. Service the subwoofer or transmitter using qualified
service technicians when:
• A power cord or plug is damaged
• The power socket on the subwoofer or transmitter is damaged
• Objects have fallen into the subwoofer or liquid has spilled into the subwoofer
• The subwoofer was rained on or has become partially or fully submerged in water
• The subwoofer does not operate normally or exhibits a marked change in performance
• The cabinet has been dropped or is damaged
• The subwoofer driver’s cone and/or suspension is physically damaged
[ 16 ]
MAINTAIN
W iConnect User’s Manual
Troubleshoot
IF THE SUBWOOFER’S ACTIVE LIGHT ISN’T YELLOW OR RED:
1. Verify that the subwoofer is plugged into a live power outlet.
2. Verify that the subwoofer’s POWER switch is in the ON position.
3. Verify that the power cord is not damaged. If damaged, replace the cord.
IF THE SUBWOOFER ISN’T PRODUCING SOUND, BUT ITS ACTIVE LIGHT IS YELLOW OR RED:
1. Verify that the wireless transmitter is plugged into a live power outlet.
2. Verify that the wireless transmitter’s inputs are connected to the receiver’s output. This wire may have become
accidentally disconnected.
3. Increase the subwoofer’s VOLUME level.
4. Increase the receiver’s LFE or SUB OUT volume level, if it is adjustable.
5. If your receiver has a switch or menu to enable its LFE or SUB OUT, make sure this switch or menu is set to ON or YES.
6. Verify that the wireless transmitter’s light is on solid. If the transmitter’s light isn’t on solid and the same CHANNEL is selected
on both the wireless transmitter and subwoofer, select another matching CHANNEL for the wireless transmitter and subwoofer.
IF THE BASS DOESN’T SOUND LOUD ENOUGH TO YOU:
1. Increase the subwoofer’s VOLUME level.
2. Increase the receiver’s LFE or SUB OUT volume level, if it is adjustable.
3. Put the subwoofer closer to a corner of your room.
IF THE SUBWOOFER OUTPUT IS DISTORTED, INTERMITTENT OR STOPS:
The subwoofer may have shut down due to the protection circuitry.
1. Reduce the volume setting; or
2. Shut the subwoofer off until normal operating conditions return.
OR
The subwoofer and transmitter may have lost their broadcast connection.
1. Turn off power to both the subwoofer and wireless transmitter.
2. Turn back on power to both the subwoofer and wireless transmitter.
3. If cycling the power doesn’t re-establish the broadcast connection, select another matching CHANNEL for the wireless
transmitter and subwoofer.
4. If selecting another CHANNEL doesn’t re-establish the broadcast connection, decrease the distance between the subwoofer
and the wireless transmitter to increase the broadcast signal strength between them.
5. Verify that the transmitter and subwoofer aren’t in close proximity to other electronic devices that could interfere with the
wireless transmission and reception.
Packaging
Save the carton and packing materials for future use. Using other packaging for this unit may result in severe damage when shipping or
moving. You can use this packaging should you ever move or need to return the subwoofer to Velodyne for service. To save storage space,
you can flatten the box and put the other packing material in a plastic bag.
[ 17 ]
RESOURCES
W iConnect User’s Manual
RESOURCES
Specifications
Model
WiC-10
Woofer
10” downward firing (7.65” piston diameter)
Amplifier (Class D)
200 Watts Dynamic, 125 Watts RMS Power
Magnet Structure
2 lbs. (0.9 Kg)
Frequency Response
33 Hz – 140 Hz (+/- 3 dB)
Voice Coil
1.6” copper wound
Cone
Coated fiber
Speaker-level Pass-through
Full range
Low-Pass Crossover
50 Hz – 200 Hz
Phase
0° or 180 °
Auto On/Off
Yes
Video Shielding
No
LED Power Indicator
Yes
Cabinet Design
Bass-reflex with built-in power amplifier
Cabinet (H x W x D) (includes feet)
16” x 12” x 15.5” (40 cm x 30 cm x 39.5 cm)
Shipping Weight (approximate)
35 lbs. (16 Kg)
Wireless Transmitter Range
50’ (15 m)
Wireless Transmitter Frequency
2.4 GHz
Warranty (North America)
3 years electronics (parts and labor). 5 years driver (parts and labor)
Protection Circuitry
The subwoofer is equipped with protection circuitry to provide maximum performance with greatest reliability.
The subwoofer is protected against:
• Overdriving the speaker
• Overdriving the amplifier
• Overheating the amplifier
• Excessive drop in power line voltage
The overdrive protection circuitry operates constantly without being audible under most situations.
If the subwoofer should shut down, reduce the volume setting and shut the subwoofer off until it cools down. The time the subwoofer takes to
cool down depends on the ambient room temperature, but typically at least 10 minutes are required for the subwoofer to cool down and
recover from the thermal shutdown.
Also, plug the unit into a different wall socket. Overloaded sockets or damaged home wiring circuits can cause power voltage drops while the
subwoofer is drawing high power levels. This condition can result in the subwoofer shutting down intermittently.
[ 18 ]
RESOURCES
W iConnect User’s Manual
Regulatory Information
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The Federal Communications Commission warns that changes or modifications of the unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
E U R O P E A N U N I O N ( E U ) D E C L A R AT I O N O F C O N F O R M I T Y
This product complies with the requirements and other relevant provisions of the R&TTE Directive as well as CE-LVD (Safety) and CE-EMC
(Emissions & Immunity).
Radio Frequency Exposure Limit Requirements
Keep a minimum separation of 8 inches (20 cm) between the transmitter and any person to comply with FCC and EU exposure
limit requirements.
Listen Responsibly
REFRAIN FROM LISTENING TO MUSIC AT HIGH VOLUMES for long periods of time to protect you from permanent hearing damage. The
United States Occupational Health and Safety Administration (OSHA) standards recommend not listening to sound levels of 85 dB for more
than 8 hours and to wear hearing protection if sound levels exceed 85 dB. Refer to the OSHA website for more information and updated
recommendations about sound levels and hearing damage: www.osha.gov/dts/osta/otm/noise/standards_more.html
Legal Notice
Subwoofer Recycling
These products should not be treated as household waste. Instead, the subwoofer and transmitter should be taken to a certified collection
point so that the electrical and electronic components can be recycled. By recycling these products through a certified collection point, you
prevent potential environmental damage and help to conserve natural resources used in these products. Certain international, national and/or
local laws and/or regulations may also apply regarding the disposal of this subwoofer. For further information, contact your local waste
disposal service, your local city government office, or the retailer where you purchased this subwoofer.
Trademarks
The Velodyne logo is a trademark of Velodyne Acoustics, Inc.
[ 19 ]
WARRANTY
W iConnect User’s Manual
FOR YOUR RECORDS. . .
Date Purchased _____________________________________________________________________________________
Dealer ______________________________________________________________________________________________
Serial # ____________________________________________________________________________________________
*NOTE: Please complete and return your warranty card within ten (10) days or
Register. . . ON LINE . . . It’s faster . . . and easier www.velodyne.com
LIMITED WARRANTY - U.S. AND CANADA ONLY
VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range
speakers for a period of five years. All VELODYNE products have a warranty from the date of purchase against defects in materials and
workmanship subject to the following conditions:
1.
VELODYNE is not responsible for defects which result from the use of an amplifier or controller other than the one originally supplied
with the unit (subwoofer) or defects which result from modifications or repairs made by any component of the system by anyone other
than a VELODYNE factory authorized service representative.
2.
This warranty is void if any repairs or service covered by the terms of this warranty are made to any component of the system by
anyone other than a VELODYNE factory authorized service representative.
3.
VELODYNE is not responsible for damage caused by accidents, abuse, misuse, natural or personal disaster or unauthorized
modification. The VELODYNE products are not intended for professional or commercial use and VELODYNE is not responsible for
damage resulting from such use.
4.
The VELODYNE product warranty is limited to units that are purchased from authorized VELODYNE dealers and finalized within
authorized dealer locations.
5.
This warranty is nontransferable under any condition.
6.
Use of this product outside the U.S. and Canada voids this warranty.
TO OBTAIN SERVICE
Information regarding service may be obtained from the dealer from whom you purchased the unit, or by contacting VELODYNE customer
service. Warranty service must be performed by a VELODYNE factory authorized service representative within the warranty period set forth
above. If VELODYNE determines the unit is defective, VELODYNE will, at VELODYNE’s option, repair or replace the product at no charge if
the product is forwarded prepaid to a factory authorized service representative. Products forwarded to the factory authorized service
representative should be shipped securely and properly packaged, insured and freight prepaid.
WARRANTY OUTSIDE THE UNITED STATES AND CANADA
The Warranty of this product if it is sold to a consumer outside of the United States or Canada shall comply with applicable law and shall be the
sole responsibility of the distributor that supplied this product. To obtain any applicable warranty service, please contact the dealer from which
you purchased this product, or the distributor that supplied this product.
[ 20 ]
Velodyne Acoustics, Inc.
345 Digital Drive
Morgan Hill, CA 95037
408.465.2800 voice
408.779.9227 fax
408.779.9208 service fax
www.velodyne.com
Service E-mail: [email protected]
General E-mail: [email protected]
63-WIC-10 Rev B OCT10
V~lodyne OWNERS REGISTRATION
1.
Name
Street
City
State ________ Zip
Phone
Alternate Phone
E-mail
2.
Product Model
SIN
Date Purchased
3.
Purchase Price
Dealer Name
Address
City
4.
State ________ Zip
Comments:
5. Would you like to be notified of new Velodyne products or special promotions via email?
6.
Age:
Marital Status:
7.
0 18-24
0 Under 18
0 Married
U 30-34
035-44
0 Price
U Magazine Review
(] 55-64
045-54
I.]
65+
U Single
II Dealer Recommendation
0 Magazine Ad
I learned about this product through:
I.]
PrinUAdvertisement
0 Friends Recommendation
0 Other
_
I.J Sales Person
U Magazine Review
(J
0 Distributor
Internet Review
U Other Website
I.]
9.
aNo
Why did you choose your Velodyne product? (check all that apply)
o Performance
8.
(] 25-29
0 Yes
0 Velodyne Website
0 Audio Forum/Chat Room
Trade Show
0 Friend/Relative Recommendation
I purchased the product because: (check all that apply)
I.]
0 Industry Contact
Technical Specifications
I.]
Appearance
:J Durability
LJ Technical Support
[J
o Friend's Recommendation/Audition
I.]
I.]
0 Price
Other
_
Promotion
(] Performance
0 Reputation/Brand Name
Prior Experience with Velodyne
(] Availability
0 Review
0 Other recommendation
10. What other brands did you consider?
_
11. Home theater or audio magazines I read:
(] Home Entertainment & Design
o Sound & Vision
[J
[J
The Absolute Sound
(] The Sensible Sound
0 Home Theater
0 Guide to Home Theater
0 The Perfect Vision
0 Stereophile
Other
_
12. Audio or home theater websites I visit
13. Primary use:
U Home Theater
14. Please describe your stereo system:
U Size
0 Amplifier
63-260 Rev D OCT05
_
II Music
U Tuner/Receiver
II TV
0 Satellite Speakers
_
_
return address
place
stamp
here
Velodyne Acoustics, Inc.
345 Digital Drive
Morgan Hill, CA 95037
Velodyne Extended Product Warranty
Velodyne products are now backed by one of the strongest warranties In the industry.
This new warranty supercedes the one found in your manual. The warranty on drivers has
been extended from two years to five years, the warranty on all amplifiers and electronics
has been extended from two years to three years and the warranty on full-range speakers
remains the same at five years. This warranty covers drivers, amplifiers and related
electronics purchased on or after January 1, 2007.
Please retain this page for your records.
LIMITED WARRANTV
VELODYNE ACOUSTICS, Inc. ("VELODYNE warrants all electronics for a period of three years, drivers for a period
of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the
date of purchase against defects in materials and workmanship subject to the following conditions:
U
)
1.
VELODYNE is not responsible for defects which result from the use of an amplifier or controller other than
the one originally supplied with the unit (subwoofer) or defects which result from modifications or repairs
made by any component of the system by anyone other than a VELODYNE factory authorized
service representative.
2.
This warranty is void if any repairs or service covered by the terms of this warranty are made to any
component of the system by anyone other than a VELODYNE factory authorized service representative.
3.
VELODYNE is not responsible for damage caused by accidents, abuse, misuse, natural or personal disaster
or unauthorized modification. The VELODYNE products are not intended for professional or commercial use
and VELODYNE is not responsible for damage resulting from such use.
4.
The VELODYNE product warranty is limited to units that are purchased from authorized VELODYNE dealers
and finalized within authorized dealer locations.
5.
This warranty is nontransferable under any condition.
TD OBTAIN SERVICE
Information regarding service may be obtained from the dealer from whom you purchased the unit, or by contacting
VELODYNE customer service. Warranty service must be performed by a VELODYNE factory authorized service
representative within the warranty period set forth above. If VELODYNE determines the unit is defective, VELODYNE
will, at VELODYNE's option, repair or replace the product at no charge if the product is forwarded prepaid to a factory
authorized service representative. Products forwarded to the factory authorized service representative should be
shipped securely and properly packaged, insured and freight prepaid.
@
63-Warranty Rev A Jan07
VIIV11V\1. velodyne. com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
