Copper Cable Testing and Certification

+44 (0)1925 444446 for Customer Service

1

2

About Us

Background

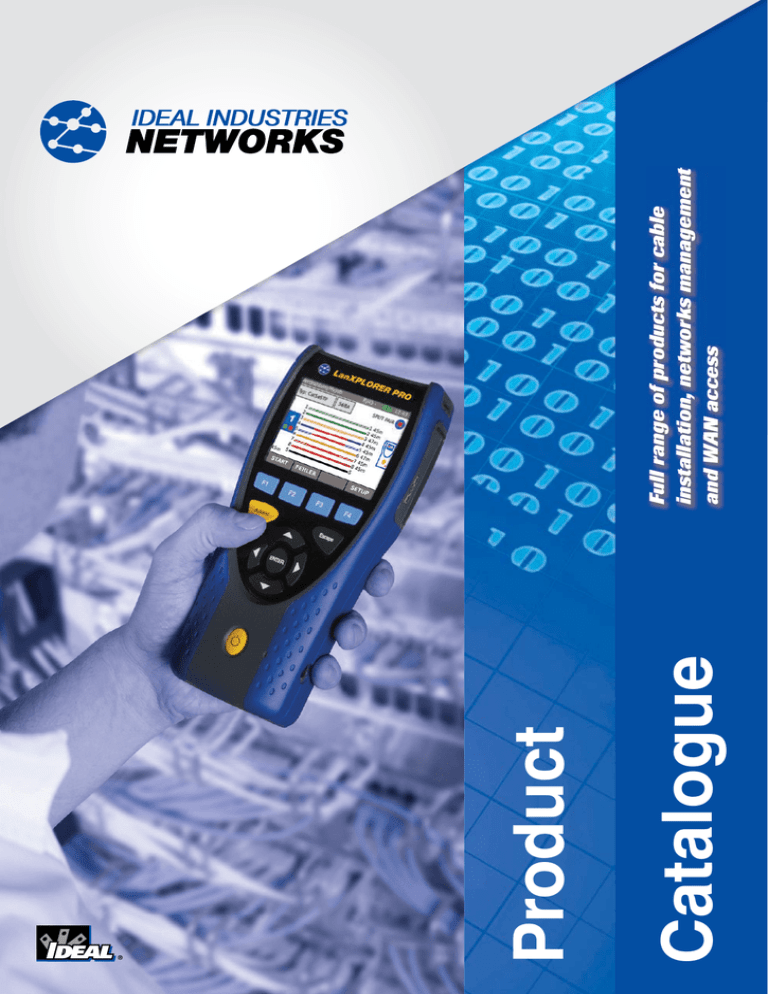

Welcome to the IDEAL INDUSTRIES NETWORKS product catalogue. This is your guide to the most comprehensive range of portable test equipment, installation tools, accessories and consumables for all copper & fi bre cable installation, network maintenance & troubleshooting and access telecom testing.

IDEAL INDUSTRIES NETWORKS is a new name but comes with many years of experience in network test and installation. Through the merger of IDEAL Datacomm and Trend Communications, IDEAL INDUSTRIES NETWORKS has been born. It is the only supplier of portable test equipment with true heritage and expertise in both Local

Area Network AND Wide Area Network installation and maintenance.

Focus on Network Installation and Troubleshooting

In this modern world, our dependency on network performance is becoming more and more critical. At the same time, bandwidth demand is increasing at a huge rate, overloading existing infrastructure and increasing the frequency of breakdowns. This means that the quality of cable installation and maintaining network performance is becoming increasingly important. Bad quality installation or poor network performance costs businesses money in today’s world. There are many options available to address this but they can be expensive, very complex or too basic to meet the requirements. IDEAL INDUSTRIES NETWORKS provides a range of solutions for WAN & LAN installation and maintenance which meets the highest technical demands, whilst offering products which are fl exible, easy to use at an affordable cost.

High Quality Solutions

IDEAL INDUSTRIES NETWORKS provides test solutions for LAN cable installers, network technicians, IT managers, Telecoms operators and service providers. The range includes copper cable testers, Cat 5 to Cat7A cable certifi ers, OTDRs, 1 GbE testers, xDSL testers, network troubleshooting tools and more. There is a high quality test solution to meet the needs of most users. Our focus is on delivering products which test to the very latest standards and highest technical requirements but do not require a professor to use them. Designed to ensure accuracy of results is achieved with easy to use interfaces, they ensure the job is done faster and right fi rst time ultimately, saving money.

As well as testers, IDEAL INDUSTRIES NETWORKS also provides a comprehensive range of installation products and materials. There is a large range of copper cable and fi bre preparation tools, connectors, fi shtapes and lubricants to help make any installation job easier and quicker. This catalogue is a one-stop-shop for all LAN/WAN installers, maintenance technicians and network managers.

www.idealnwd.co.uk

Copper Cable Testing and Certification

Product Sections

COPPER CABLE AND FIBRE INSTALLATION

TEST AND CERTIFICATION

I.T. NETWORK TEST & ANALYSIS

WAN ACCESS

TOOLS, CONNECTORS AND ACCESSORIES

+44 (0)1925 444446 for Customer Service

4-26

27-34

35-46

47-70

3

COPPER CABLE AND

FIBRE INSTALLATION

TEST AND

CERTIFICATION

The IDEAL INDUSTRIES NETWORKS range of Installation, Test and Certifi cation products covers all of the requirements of the installer of both copper cable and fi bre optics. From pulling lubrication and rods, a full range of connectors, tools for cable and fi bre preparation, through to testers and certifi ers to ensure correct installation and warranty certifi cation.

4 www.idealnwd.co.uk

Copper Cable and Fibre

Installation Test and Certification

Copper Cable Testing and Certification

............................................................6

LanTEK

®

II Cable Certifier Series

...........................................................................................................................................8

Superior performance, revolutionary fi bre options and outstanding value makes LanTEK ® II the ultimate cable certifi cation platform.

Choose from three models that provide the test capabilities you need today with cost-effective upgrades should these change tomorrow.

SignalTEK

TM

Gigabit Ethernet Cable Qualifier

...............................................................................................11

SignalTEK™ provides a technically innovative method to test and document performance of voice, data, video and VoIP applications for cabling installers and network technicians.

VDV PRO Copper Cable Verifier

..........................................................................................................................................13

The VDV PRO Cable Tester is an easy-to-use cable testing and verifi cation device that can quickly test all wiring requirements found throughout today’s domestic and commercial environments.

IENet™ PRO Industrial Ethernet Tester

.....................................................................................................................14

The IENet™ PRO tester makes it a snap to quickly verify wiring integrity and assure proper terminations for diverse types of industrial cabling.

SecuriTEST

TM

CCTV/Security Tester

............................................................................................................................15

SecuriTEST™ PRO is the most versatile all-in-one installation and troubleshooting tool for the CCTV professional.

Other Testers

......................................................................................................................................................................................................16

Explore our range of tone generators, amplifi er probes and other small testers.

Fibre Optic Installation Test and Troubleshooting

.........18

Quad OTDR

..............................................................................................................................................................................................................20

Designed with installers in mind, 33-960 Series Micro OTDR offers excellent performance and ease of use in a truly handheld, lightweight and rugged package.

FiberMASTER

TM

Fibre Optic Test Kit

..............................................................................................................................24

Easily measure fi bre optic power in milliwatts (mW) and decibel-milliwatts (dBm) to test and troubleshoot active LANs

Other Fibre Products

..............................................................................................................................................................................26

Explore our range of power meters, light sources and other fi bre testers.

+44 (0)1925 444446 for Customer Service

COPPER CABLE TESTING

AND CERTIFICATION

6

IDEAL INDUSTRIES NETWORKS copper cable testers are essential tools for any cable installer or network technician. In today’s LAN environment, performance is crucial to the quality of service delivered to the customer.

Whether through poor installation, cable damage or a bad connection, the majority of network issues come from one form of cabling fault or another.

Without the right test equipment, identifying and locating the problem can be time consuming and expensive. The IDEAL INDUSTRIES NETWORKS copper test range has solutions from basic wiremappers to qualifi ers to test correct cable installation through to bandwidth capability.

On top of this, more and more premises owners are requiring a documented record that installations meet the latest cabling test standards. Certain cable manufacturers also offer a warranty for their cabling when installed and tested using an approved certifi er.

The Lantek ® II range is one of only a very few cable certifi ers available today approved by key cable manufacturers testing up to

1000 MHz and certifying cabling up to the highest Cat. 7A ISO Class

FA standard.

Through accuracy of testing, easy to use interface and features designed to test the real application needs of the user, IDEAL

INDUSTRIES NETWORKS copper test products help to signifi cantly speed up cable installation and fault fi nding, reducing downtime and saving money.

www.idealnwd.co.uk

Copper Cable Testing and Certification

Copper Cable Testing and Certification Range

Page 8 Page 11 Page 13 Page 16 Page 14

LanTEK ® II

SignalTEK

TM

VDV PRO

Lorem IPSUM

Cable certifi cation to international standards

Ethernet cable qualifi cation

Supported standards

Accuracy level

350 MHz –

Class E/Cat

6, 500 MHz –

Class EA/Cat

6A, 1000MHz

–Class FA/

Cat 7A

ISO/IEC

61935-1

Level III, IIIe,

IV

IEEE Ethernet TIA 586 wiremap

Fault fi nding and continuity testing

Supported interfaces

Fibre testing option

VDV MM

RJ-45, TERA,

GG45, EC7,

BNC, 66 block, 110 block, M12

(adaptor)

MM/SM attenuation and length

RJ-45

MM/SM

Ethernet test with SFP

RJ-45, RJ-11, coax (F)

RJ-45, RJ-11, coax (F)

IENet™ PRO

TIA 586 wiremap TIA 586 wiremap

RJ-45, M12, coax (adaptor),

BNC (adaptor)

Industrial mode

Documented test results

+44 (0)1925 444446 for Customer Service

7

8

LanTEK

®

II Cable Certifier Series

Superior performance, revolutionary fi bre options and outstanding value makes LanTEK

®

II the ultimate cable certifi cation platform. Choose from three models that provide the test capabilities you need today with cost-effective upgrades should these change tomorrow; choose from 350 MHz - Class E/Cat 6, 500 MHz - Class

EA/Cat 6A or 1000 MHz - Class FA/Cat 7A all with accuracy verifi ed by ETL. Productivity on the job is assured by 11-second Class D/Cat 5e and a 14-second

Class E/Cat 6 autotest times that include full graphical data storage. Certifi cation costs and effi ciency are further improved by a patented universal adaptor system that lets you certify most cabling with off-the-shelf patch cords. This unique feature eliminates the need for proprietary permanent link adaptors.

The LanTEK ® II series also offers ultimate versatility with options for Alien Crosstalk testing, certifi cation of TERA, GG45 and EC7 Class F/FA / Category 7/7A, plus

M12 Industrial Ethernet, and coaxial test adaptors.

The optional FiberTEK ® FDX modules provide the world’s only dual wavelength, bidirectional fi bre certifi cation for multimode, single mode and Gigabit applications that’s 3 times faster than existing testers.

More Ways to Save

Save time and money in more ways than ever with LanTEK ® II.

Universal Link Testing

The patented testing process features universal test adaptors for ISO

Class D/Category 5e through Class EA/Category 6A certifi cation.

Consequently, patch cords are typically the only item that needs to be replaced when worn out or damaged. This eliminates the expense of proprietary adaptors meaning more time is spent testing and less time searching for replacement parts.

Channel and Permanent Link Testing with One Adaptor

Only LanTEK ® allows permanent link and channel certifi cation without changing adaptors. The patented DualMODE function allows cabling to be certifi ed to two different standards with one press of the Autotest button; less than half the time it would take with any other certifi er.

Features and Benefits

Best price/performance options - models ranging from 350 MHz to 1000

High spe

Most internal memory available - store over 1700 Category 6/ISO E tests with

Patented testing method - eliminate expensive permanent link adaptors and

Extraordinary fast fi bre testing with FiberTEK

®

FDX - the fi rst dual wavelength,

Large, ultra-bright display - 4.3 in. wide screen display with white LED

350 MH

Smart lithium-ion battery technology - 18 hour battery life with self calibrating

Most ver

Other inte

Level III, IIIe, IV accuracy according to ISO IEC 61935-1

DualMODE function - certify to two different standards with one press of the

Maximum reporting power with the new IDEAL DataCENTER (IDC) software www.idealnwd.co.uk

Cable Installation Test & Certification

FiberTEK

®

FDX Fibre Test Module

Time Saving Fibre Certifi cation

The FiberTEK ® FDX option allows users to add full Tier 1 standards compliant fi bre certifi cation capability to the LanTEK

®

II certifi ers. Tier 1 certifi cation utilises a light source and power meter to measure the power loss of optical cabling. FiberTEK ® FDX modules incorporate dual light sources and a wide range power meter to allow loss testing of fi bre links as well as to measure light levels emitted from active network equipment for troubleshooting.

Simplifi ed Testing

Unlike other fi bre certifi cation “add-ons” that require up to four separate steps to test each fi bre at both wavelengths and in both directions, FiberTEK

®

FDX can accomplish this task in one easy step. FiberTEK ® FDX revolutionises the whole fi bre certifi cation process by utilising a sophisticated full duplex optical module that allows each fi bre to be certifi ed in one go with no reversing of patch cords or swapping of optical modules. Four attenuation measurements plus length in one press of the Autotest button. The simplest way to certify fi bre.

FiberTEK ® FDX Key Advantages

The only solution that allows complete one-step certifi cation of horizontal and backbone cabling without swapping fi bres or modules. Extremely fast fi bre certifi cation that complies with TIA/ISO/IEC certifi cation standards. Available with both LED and VCSEL/laser multimode sources for 10/100Mbps or 1/10G certifi cation.

Real-time power meter to aid in troubleshooting active equipment. Field changeable adaptors (SC, ST, FC) eliminate the need to carry multiple hybrid launch cords.

LanTEK

®

II

Description

LanTEK ® II-350: TIA/EIA Cat6, ISO Class E certifi er w/ Cat6 adaptors

Cat. No.

33-991

LanTEK

®

II-500: TIA/EIA Cat6A, ISO Class Ea certifi er w/ Cat6A adaptors

LanTEK

®

II-1000: TIA/EIA Cat7A, ISO Class F/FA certifi er w/ Cat6A adaptors

33-992

33-993

Contents: LanTEK

®

II display and remote handset, two smart lithium-ion batteries, two 110-240V power adaptors with US/EU/UK plugs, lockable semi-rigid carrying case, Cat6A F/FTP patch cords, USB cable, DataCENTER data management and reporting software, two headsets, hanging straps, and ETL accuracy certifi cate.

FiberTEK

®

FDX

Multimode (850/1300nm) kit with LED light sources for standard multimode fi bre, 850nm LED, 1300nm LED 33-990-FA01

Multimode (850/1300nm) kit with VCSEL/laser light sources for laser optimised fi bre, 850nm VCSEL, 1300nm FP laser 33-990-FA02

Contents: Two FiberTEK ® FDX modules, lockable semi-rigid carrying case, SC, FC, ST adaptors for modules (2 ea), SC-SC patch cords

(MM kits: 3x 62.5μm, 3x 50μm; SM kits: 3x 9um) compliant to ISO/IEC 14763-3 standard, quick reference guide, and electronic operation manual.

Accessories

Lithium-ion Battery

Category 6A/Class EA Universal Channel/Permanent Link Adaptor

Category 6/Class E Universal Channel/Permanent Link Adaptor

Replacement Category 6A F/FTP Patch Cord

Replacement Power Supply

Replacement Talk Set

USB Cable

Large Carrying Case

Cat7/7A ISO - F/FA EC7 testing kit

Coax Testing Kit

LANTEK 10 Gigabit Alien Crosstalk Testing Kit

Single mode (1310/1550nm) kit with laser light sources for single mode fi bre, 1310nm FP laser, 1550nm FP laser

Combination MM/SM kit with LED MM sources and laser SM sources (33-990-FA01 & 33-990-FA03)

Combination MM/SM kit with VCSEL/laser MM sources and laser SM sources (33-990-FA02 & 33-990-FA03)

33-990-BP01

0012-00-0656

0012-00-0629

6011-50-0001

33-990-PS01

33-990-TS01

33-990-DC01

33-990-CC01

0012-00-635

1019-00-0343

LANTEK10GBKIT

33-990-FA03

33-990-FA04

33-990-FA05

Trade-in and upgrade options available. For more information please visit www.idealnwd.co.uk

+44 (0)1925 444446 for Customer Service

9

10

LanTEK

®

II

Handset Dimensions Height/Width/Depth: 10in/5in/2.1in (25.4cm/12.7cm/5.3cm)

Handset weight w/ battery Display: 2.4lbs/1.1kg; Remote: 2.3lbs/1.0kg

Battery Lithium-ion, 7.4VDC, 6.6AH; Input: 12V/2A DC; Typical operating time: 18 hours (new battery running a Cat6 test every

2.5 minutes, full backlight); Charge time: 4 hours quick charge with battery removed from handset, 6 hours inside handset.

Input power

Display

Connectivity

Handset: DC 12-15V, 2A; Line/mains power: AC 110-240V

4.3” wide screen TFT, 480 x 272 pixel, 95 x 54mm viewable area

Frequency range

Memory

Adaptor port: 168 pin ultra low crosstalk, mini-USB device port, USB host port (display handset only), four pin serial port

(service use only), 1/8” talkset jack, power/charging jack

LanTEK

®

II-350: 1-350MHz, LanTEK

®

II-500: 1-500MHz, LanTEK

®

II-1000: 1-1000 MHz

Non-volatile fl ash, storage capacity for 1700 TIA-Cat 6 tests with graphs. Tests can be copied to USB fl ash drive, up to

64GB.

Measurements

Length measurement

Supported cable types

Supported connectors

Tone generator

Wiremap, DC loop resistance length, capacitance, NEXT, insertion loss (formerly attenuation), ACR-N (formerly ACR), return loss, average impedance, propagation delay, delay skew, power sum NEXT, power sum ACR-N (formerly power sum ACR), ACR-F (formerly ELFEXT), power sum ACR-F (formerly power sum ELFEXT), alien crosstalk (with optional AXT testing kit)

0-605m; +3% (+1), display resolution: 0.1m

TIA/EIA Category 3, 4, 5, 5e, 6 and 6A: 100O

ISO/IEC Class C, D, E, EA, F, FA: 100O

Cat 6/6A Class E/Ea RJ-45 permanent link adaptors: shielded and un-shielded cable, universal adaptors provide channel, permanent link and basic link measurements.

Additional adaptors: GG45, RJ-45, TERA, EC7 (MMCPRO3000), Coax 50-75O (BNC connector), M12 industrial

Integrated into display and remote handset, compatible with standard analogue inductive probes, selectable tone (high/ low/warble) 500/600 Hz, selectable pin output.

100V @ 25mA

0°C to 50°C, non-condensing

-20°C to 70°C, non-condensing

Input protection

Operating temperature

Storage temperature

Vibration/shock

Supported languages

Accuracy

Warranty (LanTEK

FiberTEK FDX)

® II/

Baseline: Certifi ed by ETL to meet IEC 61935 Level III/IIIe/IV; Channel/Permanent link: TIA 568-B.2-2 and IEC 61935

Level III/IIIe/IV

One (1) Year from date of purchase

Batteries and accessories are warranted 90 days from date of purchase

Requirements: Microsoft Windows

®

XP or Vista, 512MB RAM, 500MB hard disk + 1GB for every 1,500 Category 6 tests PC Software

FiberTEK ® FDX

Compatability LanTEK

®

II (any model)

Connector User changeable adaptor (SC, FC, ST), 2.5mm ferrule

Laser safety

MIL-PRF-28800 F, Class 3

Chinese, Czech, Danish, Dutch, English, French, German, Italian, Korean, Norwegian, Polish, Portuguese, Russian,

Spanish, Swedish

Power meter accuracy

Length accuracy

Display resolution

Multimode 850 VCSEL: class 3, 5mW max; multimode 1300 laser: class 3, 5mW max; Single mode 1310 & 1550: class: 3, 5mW max

± .5dB from 0dBm to -40dBm 850-1550nm; system dynamic range 40dB

±3%; maximum distance measurement 3000m

Power/attenuation: 0.1dB, length: 0.1m/0.1ft

www.idealnwd.co.uk

Copper Cable Testing and Certification

SignalTEK

Gigabit Ethernet Qualifier

& SignalTEK

FO Multimedia Ethernet Qualifier

SignalTEK™ provides a technically innovative method to test and document performance of voice, data, video and VoIP applications for cabling installers and network technicians. It tests the link’s ability to support applications by transmitting Ethernet packets on the wire and measuring the link performance according to IEEE 802.3ab Gigabit

Ethernet standard. By monitoring transmitted and received data packets, it can report the BERT (Bit Error Rate Test) for the link.

SignalTEK™ FO

is the fi rst active ethernet certifi er that offers both copper and fi bre optic testing; and

SignalTEK™ FO

does it for less than the price of an Optical Test Set alone.

Multi-colour LEDs indicate link status, loopback mode,

10/100 and Gigabit device detection, Autotest pass/fail, and battery condition

Autotest key to initiate tests from the remote end for one person operation

Port status function detects

10/100 or Gigabit

Ethernet devices

Compact design and soft overmould

Single button push for active network testing and monitoring

Single button cable testing

2.89 (7.1cm) 1⁄4 VGA Colour

Display with backlighting for use in low light condition

Context sensitive

Quick navigation key returns to Job Manager screen user interface via red or green

LED indication

Features and Benefits

Simulate real world network traffi c with full-duplex gigabit performance testing

User selectable 10/100/1000 Bit Error Rate Testing (BERT) to ensure performance for all Ethernet devices. Decibel (dB) loss measurements of optical lines.

Smart autotest function detects line condition and automatically chooses appropriate test to run to allow testing cable that is terminated with a SignalTEK remote, a network device or unterminated

Save time using the remote to perform 10/100 or gigabit service detection AND initiate an Autotest when main unit is connected

Maximum fl exibility with two USB ports. Connect to a computer to upload test results, connect directly to a printer, or connect a USB memory drive for unlimited storage

Confi gure multiple target IP addresses for pinging several network devices to ensure communications with servers, printers, IP cameras, home automation controls, etc.

Offers network interrogation tools such as link establishment, port LED blink and ping

TDR to accurately measure length and locate shorts and opens

ARP test discovers active network devices

Exceeds 100m measurement distance required by IEE 802.3ab

Gigabit Ethernet

Dual Wavelength Capability – available in both 850nm and 1300nm wavelengths to support virtually all LAN and campus fi bre applications.

SignalTEK™ FO

Multimedia Qualifi cation Tester Kit

SignalTEK™ FO Multimedia Qualifi cation Tester Kit

1 SignalTEK™ fi bre ready near-end and 1 remote-end handset

Carrying case

Copper cable accessory kit with interfaces to RJ-45, RJ-11, Coax F-Type cables, and alligator clips

Fibre optic cable accessory kit: 2 duplex LC-SC 50/125μm (2m/7ft) cables, 2 duplex LC-SC 62.5/125μm (2m/7ft) cables, 1 duplex SC-SC adaptor.

8 AA alkaline batteries

2 AC power adaptors with international plugs

1 CD-ROM User Manual

USB interface cable

1 Training DVD

+44 (0)1925 444446 for Customer Service

Interchangeable Small

Form-Factor Pluggable f for fi bre-optic testing

Fibre activity LED’s.

Red LED lights when t transmitter is lights when signal is detected.

copper testing

SignalTEK™ Standard Kit

Catalog No. 33-975

1x SignalTEK™ Display and Remote

1x Black Nylon carrying case

2x 12 inch (30.5cm) RJ-11 silver satin cables

2x 24 inch (61cm) RJ-45-to-F patchcords

2x 12 inch (30.5cm) RJ-45 shielded patchcords

2x 12 inch (30.5cm) RJ-45-twin crocodile clip cords

8x AA alkaline batteries

1x USB cable

1x Quickstart guide

1x CD-ROM User Manual

Description

SignalTEK™-FO w/850 Modules

SignalTEK™-FO w/13X0 Modules

SignalTEK™-FO w/850 & 13X0 Modules

SignalTEK™-FO w/o Modules (Fibre-Ready)

SignalTEK™ Kit - Copper Only

Universal 120-240V Power Adaptor

RJ-45 to 8 Head Crocodile Clip

Pair of 850nm SFP Modules

Pair of 13X0nm SFP Modules

Pair of1550nm SFP Modules

Cat. No.

33-984

33-985

33-986

33-988

33-975

4010-00-0136

K-7920

SFP-850

SFP-13X0

SFP-1550

12

SignalTEK™ and SignalTEK™-FO

Physical Dimensions

Cable Types

Tests Available

Ports/Connection

SFP-850 – 850nm Module

SFP-13X0 – 1300nm Module

Length Measurement

Display Handset: 7.9"L × 3.62"W × 1.5"D (20.1cm × 9.1cm × 3.8cm), Remote Handset: 6.8"L × 3.5"W × 1.5"D (17.3cm

× 8.9cm × 3.8cm), Display: 12.5 oz. (354g) Weight without batteries, Remote: 9 oz. (255g) Weight without batteries

Voice/phone cable –USOC/RJ-11/RJ-12 interface, Data cable – (STP/UTP)RJ-45 for CAT 3/5e/6/6A/7cabling; Coax cable – via RJ-45-to-F - patch cord, series 58, 59, 6 cabling (75 ohm)

Cable Length Measurement Exceeds IEEE 802.3 specifi cations

Battery Life: Standard AA Alkaline Batteries Cable testing: Up to 8 hours for the copper version and up to 5 hours for the fi bre version

Ports/Connections RJ-45 test interface port; Mini-USB “A” device port; Standard USB “B” host port; DC power input for longterm network monitoring; Fibre Testing: Recommend use of AC adaptors when testing fi bre

Standard, VoIP, IP Video and Web BERT selections; Link Speed (10/100/1000 Mbps); Link Status - Full/Half Duplex,straight/ cross-over; Length Measurement (copper only); Bit Error Rate Test (BERT) - per IEEE 802.3ab standard withdefault and user selectable rates; Decibel Loss (fi bre only); DHCP Service Test (fi bre & copper); Ping Test with IP and URLentry (copper & fi bre)

ARP Device Discovery (copper & fi bre)

USB A/B, DC power input – Shielded RJ-45 Port :Supports 10/100/1000Mbps Ethernet connections;

Small Form-factor Pluggable (SFP): Supports SFP modules sourced through IDEAL INDUSTRIES in 850nm and 1300nm, wavelengths, 1000Mbps Ethernet;

Class 1 Laser EN60825-1; Compatible fi bre types: 50/125μm or 62.5/125μm graded index multimode fi bre; Power Output

(dBm): -9.5min, -3max; Receiver Power Range (dBm): 0 to -20; Max Link Length: 550m (1800ft) on 50/125μmfi bre; 300m

(985ft) on 62.5/125μm fi bre; Operating Temperature: -10 to 85°C (14 to 185°F), 85%RH non condensing;

Class 1 Laser EN60825-1; Compatible fi bre types: 50/125μm or 62.5/125μm graded index multimode fi bre and 9/125mm step index single mode fi bre; Power Output (dBm): -9min, -2.5max; Receiver Power Range (dBm): 0 to -22;

Max Link Length: 550m (1800ft) on 50/125μm fi bre; 300m (985ft) on 62.5/125μm fi bre; 10km (6.2mi) on 9/125μm fi bre;

Operating Temperature: -10 to 85°C (14 to 185°F), 85%RH non-condensing;

RJ-45 Port: TDR length measurement of 1-4 pair cables to 140m/460ft;

SFP Port: No length measurement of fi bre optic cables;

Bit Error Rate Measurement Copper: 10/100/1000Mbps. Error rates tested to IEEE 802.3ab standard;

Fibre: 1000Mbps. Error rates tested to IEEE 802.3ab standard;

Battery Life: Standard AA Alkaline Batterie Copper Testing: Approx 15 hours @ 22 tests per hour (45s Autotest);

Fibre Testing: Recommend use of AC adaptors when testing fi bre; www.idealnwd.co.uk

Cable Installation Test & Certification

VDV PRO

Copper Cable Verifier

The VDV PRO Cable Tester is an easy-to-use cable testing and verifi cation device that can quickly test all wiring requirements found throughout today’s residential and commercial environments.

Voice

– tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing

Data

– tests wire map of shielded and unshielded cable to T568A/B standard

Video

– tests coax cable for opens, shorts and length with F-Connector interface

Interchangeable Small

Form-Factor Pluggable port with duplex LC connector for fi bre optic testing

Compact ergonomic design puts fullfeatured VDV functionality in the palm of your hand

Simple four button operation

Dockable remote with RJ-11/12,

RJ-45, and Coax

(F-Connector) interfaces.

Remote #1 stores securely in the base of the main unit for ready availablity and easy patch cable testing

Description

VDV PRO w/one remote and terminator

VDV PRO w/eight remotes and terminators

VDV PRO Eight Remote Kit (ID 1-8)

Eight Coax Terminator Kit

VDV PRO w/one remote and amplifi er probe

+44 (0)1925 444446 for Customer Service

Remote ID number on display. UTP indicated as “No

Shield” and STP as “Shield.”

Large backlit

LCD displays current test mode, test results and all faults for the various cable types.

Display automatically warns of voltage on lines and shows a “PASS” or “Miswire” message after each test.

Features and Benefits

Larger backlit LCD screen for better test results readability

Selectable backlight

Network link LED blink for visual cable tracing

Voice testing capability detects RJ-11 (1, 2, or 3 pair)

Voice test also shows Normal or Reverse for pins 1 through 6

Length measurement is shown during initial test results for convenience and time savings

Eight remotes have RJ-45, RJ-11 and Coax F-jacks for increased testing capabilities

Tests for shield continuity, shorts, opens, miswires, reversals and split pairs with remote connected

Full dot-matrix LCD display for user convenience to read display results

One-ended testing for shorts, opens and split pairs

(no remote needed)

Test results displayed in wire map format with message line for shorts and split pairs

Displays PASS and sounds beep (selectable) for T568A/B

Will display wiremap for 10Base-T and Token Ring with remote connected

UTP, STP, and Coax length measurement in feet or metres using cable capacitance method

Coax mapping with up to eight colour coded coax remotes

Tone generator mode sends four different tones on all conductors, selected pair or selected pin

Auto-off in any mode and low power consumption for long battery life

Low battery symbol indicates when to change battery

9V battery included and easy to change in the future as needed

Identifi es presence of voltage on cables

Cat. No.

33-770

33-771

33-774

33-775

33-780

13

IENet™ PRO

Industrial Ethernet Tester

The tester features a unique easy-to-use cable test for 2 pair and 4 pair Industrial Ethernet cabling. With shielded 2 pair, M12 and RJ-45 ports, the

IENet™ PRO is compatible with most Industrial Ethernet cabling. Test results are displayed in the PROFINET ® Industrial Ethernet required format.

Features and Benefits

The IENet™ PRO tester makes it a snap to quickly verify wiring integrity and assure proper terminations for diverse types of industrial cabling.

Simple selection between Voice, 2 and 4 pair Data, and Coax testing functions (Voice and Video/Security tests via optional adaptors)

Tests for opens, shorts, miswires, reversals, split pair

(user selectable) and length

Indicates correct wiremap to T568A/B standards for shielded and unshielded cabling

Easy-to-read LCD display with “PASS” or “Miswire” indicator for each test

Identifi es presence of voltages on cables

Tone generator supports four different tones making fault isolation easier

Integrated remote unit to make storage and carrying easier

Can support additional optional remotes making it effi cient for one person testing

Network LED blink for visual cable tracing

Numerical indication for UTP “No Shield” and STP -

“Shield” to comply with industrial ethernet PROFINET ®

Remote ID number indicated on display, UTP indicated as “No

Shield” and STP as “Shield”

Compact ergonomic design puts full-featured Industrial Ethernet cable testing in the palm of your hand.

A single button push immediately selects between VOICE, 2 and 4 pair

DATA or VIDEO testing functions.

requirements

Integrated RJ-45 (UTP/STP) and shielded M12 interfaces on top of the unit

Large backlit LCD

displays user current test mode, test results and all faults for the various cable types.

Display automatically warns of voltage on lines and shows a Pass or Miswire message after each test.

PROFINET

®

is a registered trademark of PROFIBUS International.

Detachable remote with

RJ-45 and shielded

M12 Coax interfaces.

14

Description

IENet™ PRO w/single remote

IENet™ PRO w/eight remotes

Eight Coax Terminator Kit

IENet™ PRO Eight Remote Kit (ID 1-8)

RJ-45 to RJ-11 jack adaptor (2/card)

RJ-45 to F-Connector adaptor (2/card)

F to BNC Adaptor Kit

Ordering information

Cat. No.

33-772

33-773

33-775

33-776

LA-4233

LA-4234

LA-4173 www.idealnwd.co.uk

Copper Cable Testing and Certification

SecuriTEST™ PRO

CCTV/Security Tester

SecuriTEST™ PRO is the most versatile all-in-one installation and troubleshooting tool for the CCTV professional. CCTV installers often need to carry a variety of testing tools to complete their work. SecuriTEST™ PRO combines the most-needed tools in one easy-to-carry package. Since all connections

(video/communications/DMM) attach to a single unit, SecuriTEST™ PRO eliminates the need to juggle several devices while on a ladder or lift, making working conditions safer and increasing productivity.

Features and Benefits

IRE video level and sync tests

Sound level test through integrated speaker and on screen level indicator

High capacity lithium-ion battery

Support for additional PTZ protocols

Carrying case included

Seven Essential CCTV Tools - Combines a CCTV video tester, PTZ camera controller, Digital Multimeter, UTP cable tester, video test pattern generator, PTZ protocol analyser and camera programmer in a single compact package.

Save Time & Money - Test, aim, focus and program cameras when working alone. Save time by not having to walk back to the control centre to verify functionality of each camera.

Compact Design - Combines all the most needed security tools in a lightweight easy-to-carry unit. Sharp, bright 2.5 in. (6.3 cm) colour LCD screen with on-screen displays for PTZ control/diagnostics and DMM readouts.

PTZ Protocol Analyser - Compatible with 20+ PTZ protocols to test and program cameras in the fi eld. Decodes and identifi es output from PTZ console to aid in troubleshooting.

IRE On/Off

Description

SecuriTEST™ PRO CCTV/Security Tester only

+44 (0)1925 444446 for Customer Service

Cat. No.

33-892

Ordering information

15

VDV MM - Multimedia Cable Tester

Easy-to-use tester for installers working with voice, data and video applications.

One tester for all applications!

Tests for opens, shorts, miswires, reversals and split pairs. Also indicates correct wire map. Has automatic shut off (to prolong battery life) and low battery indicator.

Easy-to-read LCD display with “PASS or ERROR” indicator after each test

Tone generator supports four different tones making fault isolation easier

One remote wire map and testing unit is stored inside tester — easier to keep all parts together

Uniquely designed remote accommodates RJ-11, RJ-45 and F-style connectors

Voice

— supports

3-pair USOC and jacks for telephone

Data

— supports both shielded and unshielded cable testing to

Video

— tests coax cable for opens and shorts with

33-856 Kit with integrated remote and accessories

Test-Tone-Trace Kit

Kit includes the VDV (33-856) and Amplifi er Probe (62-164)

Tests and traces coax, twisted pair and telephone cables

Test-Tone-Trace Kit 33-859

LinkMASTER

Tester

Tests wiring confi gurations on UTP/STP cables. Checks for shorts, miswires, reversals and split pairs. Debug feature, automatic shut-off and low battery

LED indication.

LinkMASTER™ Tester and Remote 62-200

540

DK Tone Generator & Amplifier Probe

Tracing and continuity checking of telecom and datacom cables

Ergonomic design aids grip and durability

Probe’s unique rubber tip won’t break or crack

LED lamp provides visual indication of correct wire

Volume adjustment knob

External terminals for butt-set connection

Batteries included

16

Tone Generator & Amplifi er Probe 540DK www.idealnwd.co.uk

PRO Amplifier Probe and Tone Generator

Tone Generator

Emits three different types of tones

Auto-off after three hours of non-use

F-Connector port for toning & tracing coaxial CATV cabling systems

Tone can be added in any status

Amplifi er Probe

Identifi es and traces wire or cables within a group

Battery low indicator

Description

Amplifi er Probe & Tone Generator Kit - includes:

62-164, 62-160, Lead Set, Cable Assembly

Amplifi er Probe

Tone Generator

Cat. No.

33-864

62-164

62-160

TRACETone™ Tone Generator & Amplifier Probe

Test continuity and locate signal of installed wire and cable

Two selectable tone styles

Tone Generator & Amplifi er Probe fi t together for easy storage

Adjustable volume control

RJ-11 Alligator Clip, RJ-11 Cable Assembly included

Description

TRACETone™ Tester

Cat. No.

62-140

Installation Tools, Connectors and Accessories

See page 47 for the full range of IDEAL INDUSTRIES NETWORKS installation tools, connectors and accessories

17

FIBRE OPTIC INSTALLATION,

TEST AND TROUBLESHOOTING

Fibre optics has revolutionised the bandwidth carrying capability of modern networks and therefore the services which would otherwise be impossible to provide. However, this capability is only as good as the quality of installation. Installation is extremely sensitive and requires signifi cant attention to fi bre preparation, quality of connection and cleanliness to ensure maximum transmission of data. end preparation ensuring the highest quality connection and minimum loss of attenuation. The test range includes microscopes for connector inspection, visual fault fi nders and a power meter light source for troubleshooting and attenuation measurement. The OTDR range, suitable for WAN and LAN, offers high accuracy results, reliable fault location and excellent distinction between ‘real’ events and noise.

18

IDEAL INDUSTRIES NETWORKS provides an excellent range of products for all LAN and WAN fi bre installers to ensure quality fi bre preparation, testing and fault fi nding. The range of tools for preparation includes strippers for outer jackets, serrated cutters, polishers & cleaning kits for

IDEAL INDUSTRIES NETWORKS fibre optic range is a comprehensive installation kit and a must for all fibre installers ensuring high quality installation with quick and easy test and troubleshooting solutions.

www.idealnwd.co.uk

Fibre Optic Installation, Test and Troubleshooting

Fibre Optic Installation, Test and

Troubleshooting Range

Page 20

OTDR

Page 9 Page 24 Page 26 Page 26

Lorem IPSUM

FiberTEK FDX FiberMASTER Visual Fibre inspection

Finder microscope

Certifi cation to international standards

Fault location

Pass/Fail test results

Fibre modes

Bidirectional testing

Light source type

Tier 1 tests

Tier 2 tests

Documented test results

Optical Power measurement

Connector inspection

MM/SM via PC

MM/SM

Automatic

Laser LED/Laser

MM/SM

LED/Laser

Visual

MM/SM

LED/Laser

Visual

MM/SM

19

Quad OTDR

33-960 Series

Designed with installers in mind, 33-960 Series Micro

OTDR offers excellent performance and ease of use in a truly handheld, lightweight and rugged package.

Available as 850/1300/1310/1550 nm (multimode and single mode) OTDR is ideally suited for the installation and troubleshooting of LAN, campus and WAN fi bre networks.

The models combine high measurement precision with the user friendliness of one-button operation resulting in accurate characterisation of connectors and splices in addition to fast and reliable fault location.

With the 33-962-5 option, this OTDR provides clear

PASS/FAIL indication. Distance, loss and ORL for each event is reported in a trace summary table making full certifi cation of the link possible. Each OTDR is shipped in a kit containing everything you need to get started on the job, including a ruggedised carry case, PC software, rechargeable batteries and wall charger

20

Target Applications:

Tier-2 certifi cation of premise and enterprise networks that require OTDR testing. The feature set of 33-960 Series Micro OTDRs is perfectly matched to this application.

Increasing bandwidths in LAN and campus fi bre cabling demands more in-depth testing.

The 33-960 Series delivers all necessary test functions in an extremely user-friendly instrument.

Troubleshooting of fi bre links requires an accurate, easy to use OTDR. The high specifi cation and small form factor of the

33-960 series makes them perfect for troubleshooting installations.

WAN and FTTH cabling requires an OTDR with a high dynamic range. Offering a dynamic range up to 29 dB, the 33-960 Series is more than capable of the job.

www.idealnwd.co.uk

Fibre Optic Installation, Test and Troubleshooting

Features and Benefits:

Short attenuation and event dead zones for accurate location and characterisation of events.

Suitable for even the shortest fi bre links.

Two wavelength “autotest” function with automatic adjustment of test parameters

Manual mode allows users to defi ne all test parameters

Real-time mode for troubleshooting. Useful when trying to identify intermittent problems.

Clear characaterisation of events

Fast data acquisition

Interchangeable fi bre adaptors with a wide variety of available confi gurations

PC Software included. Reports in Bellcore™ format

Colour display

USB connection to thumbdrives or PCs.

Optional Certifying OTDR fi rmware

Optional macro bend detection on single mode fi bres

Video inspection probe ready

Comprehensive PC Software

• Multilingual PC software is included as standard in all kits. This software is used to manage OTDR traces and test data. Downloads from the OTDR can be made

to a memory stick or directly through the USB interface to a PC.

• An AUTO mode makes interpretation of traces straightforward. The EXPERT mode allows more experienced users to evaluate test data using up to 4 markers

for attenuation in dB and dB/km, optical return loss and refl ection.

• With adjustable PASS/FAIL limits, the software gives a clear indication of the quality of links being tested.

• The PC software allows export in Bellcore™ format, making test results compatible with world wide OTDR standards.

• The kit also includes a viewer for bi-directional tests, allowing the user to overlay A => B / B => A plots.

• Test results can also be printed or stored as PDF fi le

21

22

33-962-5 Certifying OTDR and Macro Bend Detector Option

The Certifying OTDR option turns 33-960 Series OTDRs into full certifying instruments with clear PASS/FAIL indication for every link. A single summary screen delivers all key measurement values. Installations that specify “Tier-2”certifi cation will fi nd this option invaluable as it gives instant PASS/FAIL results for every link without having to resort to cumbersome manual evaluation of traces. It also benefi ts less experienced users by providing clear decision points on whether a link is good or bad. The Macro Bend

Detector fi nds areas along the fi bre where minimum bending radii are undercut. Especially at splicing cassettes or patch panels, macro bends can cause excessive attenuation.

Without this option macro bends are extremely hard to detect or are often confused with splices.

Please note that this option cannot be installed in the fi eld.

It is a factory installed option only, so wherever possible should be ordered at the same time as the main OTDR.

www.idealnwd.co.uk

Fibre Optic Installation, Test and Troubleshooting

33-960-2 Video Inspection Probe

Poor cleanliness is the number one reason for failures in fi bre optic networks. The optional video probe helps users document and troubleshoot fi bre optic installations by providing visual inspection of connectors. Unlike optical microscopes, video microscopes offer

100% eyesight protection plus the ability to store connector images on the OTDR for later download and documentation.

Magnifi cations of 200x and 400x deliver crystal clear images of connectors. In addition, a wide range of probe tips makes the video probe a useful diagnostic tool in many different applications.

The 33-960-2 Video Inspection Probe is compatible with all 33-960

Series OTDRs which incorporate a video probe port as standard - no upgrade is required to drive the probe.

Quad OTDR Kit

Quad OTDR with 850/1300/1310/1550nm

Ruggedised carrying case

PC-Software

CD with manual and Quick Reference Guide

Wall charger

2x Li-Ion rechargeable batteries

1x SC and 1 FC Adaptor

Ordering information

Cat. No.

33-960-3

Testing

Wavelength [nm]

Dynamic Range [dB]

850, 1300, 1310, 1550

24 / 25 / 29 / 28

Attenuation dead zone [m] 11 / 11 / 11 / 12

Pulse width [ns] 10, 30, 100, 275, 1000, 2500, 10000

Event dead zone [m] 2.5 worst case

Launch Conditions (MM)

Linearity [dB / dB]

Loss threshold [dB]

Class CPR 1 or 2

± 0.03

0.05

Loss resolution [dB]

Sampling resolution [m]

Sampling points

0.01

0.16 to 5

Up to 30000

Typical real time refresh [1/sec ] 4

Distance uncertainty [m] ± (0.75 + 0.0025% x distance + sampling resolution)

Distance range [km]

Stable source output power

[dBm]

MM: 0.1 to 40 SM: 0.65 to 160

MM: -1.5 SM -6.5

Laser Safety 21 CFR 1040.10 and IEC 60825-1:1993+A2:2001 /

Class 1M

Hardware

Memory capacity

Data connectivity

Size (HxWxD) [mm]

Weight

Temperature

Batteries

Power supply (mains)

Power supply (unit)

Operating time

Warranty

500 traces

USB A and USB B

250 x 125 x 75

1 kg

Operating: -18°C to 50°C, Storage: -40°C to 70°C

2 x Li-Ion

110 – 230 V AC

9 - 24 V DC, 12 Watt

8 hours (per Bellcore™ TR-NWT-001138)

1 year

Ordering information

Accessories

200x and 400x video probe w. USB port

Cat. No.

33-960-2

Certifying OTDR and Macrobend fi rmware (note: has to be ordered in advance or tester must be returned to IDEAL service department)

Visual Fault Locator, red light laser source, 5 km reach

33-962-5

VFF5

Cleaning Kit

Rechargeable battery

Foldable USB Keyboard

1219-00-1621

4010-00-0001

33-960-4

Adaptor for FC connectors

Adaptor for SC connectors

Adaptor for ST connectors

Adaptor for E2000 connectors

Adaptor for DIN 47256 connectors

Adaptor for HMS-10/AG connectors

33-961-1

33-961-2

33-961-3

33-961-4

33-961-5

33-961-6

23

FiberMASTER™ Fibre Optic Test Kit

Measure fi bre optic power in milliwatts (mW) and decibel-milliwatts (dBm) to test and troubleshoot active LANs. Quickly measure cabling loss with the automatic calibration feature that stores reference power from any light source for quick dB loss calculations. Plus, the 1490nm wavelength measurement mode is perfect for troubleshooting emerging Fibre-To-The-Home cabling systems.

24

Power Meter

Wavelength

Detector

Accuracy

Display Resolution

Connector

Power Supply

Operating Time

Operating Temp

Storage Temp

Light Source

Wavelength

Output Power

Stability

Connector

Power Supply

Operating Time

Operating Temp

Storage Temp

Features and Benefits:

FiberMASTER™ Kit Includes

Fibre Optic Power Meter & Light Source — Four wavelength power meter for

33-926 Light source, 850nm LED with ST, SC and FC multimode and single mode testing, and 850nm multimode LED light source.

Calibration Function — Stores reference power level for quick dB loss measurements adaptors (Basic Kit)

33-929 Light source, 850+1300nm, LED, eliminating the need to manually calculate loss.

Save Time and Money — Power meter features 2.5mm universal and FC adaptors, light source includes ST, SC and FC adaptors to test the most common interfaces.

Ready for FTTx — 1490nm measurement wavelength for use with nearly all single mode Fibre-To-The Home applications.

Designed for the Field — Unique “docking” light source and easy three-button

1310+1550nm, Laser Light source with ST, SC and FC adaptors (Quad Kit)

33-927 Power Meter, 4 wavelength with universal

2.5mm and fi xed FC adaptor

2x FC-SC 50 (1x SC-SC, 9μm single mode cable for operation make this the perfect fi bre tester for use in the fi eld.

Quad Kit) multimode cables

1 SC calibration coupler

Carrying case

English, Spanish, German, French, Portuguese, Italian and Chinese user manual

Description

850nm Fibre light source

Power Meter only

FiberBasic Fibre Optic Test Kit

Four wavelength MM/SM light source only

FiberMASTER™ Quad Optic Test Kit

Cat. No.

33-926

33-927

33-928

33-929

33-931

850, 1300/1310, 1490, 1550nm

InGaAs -60 to +3dBm

±5%

.01

Universal 2.5mm w/FC adaptor

AAA Alkaline Battery x 3

360 hours

-10 to +60°C

-25 to +70°C

850, 1300, 1310, 1550nm laser diode

-6 to -7 dBm Typical

.05dB after 15min, 0.1dB over 8 hrs

2.5mm w/ST

®

, SC, FC adaptors

AAA Alkaline Battery x 3

40 hours

-10 to +60°C

-25 to +70°C www.idealnwd.co.uk

Fibre Optic Installation, Test and Troubleshooting

Optical Multimeter

Simple and Reliable Optical Loss Test Set

Description

Optical Multimeter combining the functions of a 1310/1550 nm

Laser Source with a Power Meter. Includes Euro mains adaptor/ charger, rechargeable battery, SC/FC/ST connectors, RS232 cable, PC support software, user guide and carry case.

Cat.No.

RO2X0000

Transmitter

Wavelengths

Output power

Spectral width

Output Stability

Warm-up time

Receiver

Wavelength range

Measurement range

Uncertainty

General

Dimensions

Weight

Operating time

Optical Power Meter

For Quick and Easy Output Power Measurements

I IDEAL’S Optical Power Meter features a robust design, wide

Optical Power Meter 850 to 1550 nm. Includes batteries,

SC/FC/ST connectors, user guide and carry case.

Cat.No.

RO1X0000

Basic Features

Wavelength range

Wavelength

Measurement range

Resolution

General

Dimensions

Weight

Operating time

Optical Light Source

The Ideal Partner for Optical Equipment Installation and Troubleshooting

1310, 1550 nm

-7 dBm (typical)

< 10 nm

± 0.1 dB (long term, including warm-up time)

10 min

800 nm to 1700 nm

+6 to -70 dB

5%

210 mm x 115 mm x 55 mm

540 g

up to 28 hours

800 to 1700 nm calibration points: 850, 980, 1300, 1310, 1490, 1550 nm

+3 to -70 dBm

0.01 dB

175 mm x 82 mm x 33 mm

325 g

up to 45 hours

Description

Optical Laser Source with 850 and 1300nm wavelengths primarily for testing Multimode fi bres. Includes battery, SC/ST/FC optical connectors, user guide and carry case.

Optical Laser Source with 850, 1300, 1310 and 1550nm wavelengths for testing Multimode and Single mode fi bres.

Includes battery, SC/ST/FC optical connectors, user guide and carry case.

Optical Laser Source with 1310 and 1550nm wavelengths primarily for testing Single mode fi bres. Includes battery, SC/ST/

FC optical connectors, user guide and carry case.

Cat.No.

RO6M0000

RO6MS000

RO6S0000

Basic Features

Wavelengths

Output power

Spectral width

Output Stability

Warm-up time

General

Dimensions

Weight

Operating time

850/1300, 1310/1550/1300/1310/1550 nm

-7 dBm (typical)

< 10 nm

± 0.1 dB (long term, including warm-up time)

10 min

175 mm x 82 mm x 33 mm

325 g

up to 45 hours

25

Visual Fault Finder

Laser light source used to locate breaks, faulty splices and crimps

2.5mm Universal Adaptor for all ST, SC and FC connectors

Useful over a distance of 5km (3 miles)

Slim, pocket-sized tool in rugged solid aluminum body

Two AA batteries provide over 30 hours of continuous use

Nylon carrying case with belt loop included

Fibre Inspection Microscope

100X magnifi cation for viewing multimode connectors

Includes 2.5mm connector “Universal Adaptor” for FC, ST and SC style connectors

Oblique illumination provides excellent view of ferrule cleanliness and core condition

Rugged, rubberised metal housing, precision glass optics and a built-in laser safety fi lter

White LED illumination delivers 100,000 hours bulb life

Optional 200X Conversion Eyepiece threads on for viewing fi nish/polish of single mode connectors

Optical Fibre Identifier

Non Intrusive Traffi c Detector for Optical Fibre

The Fibre Identifi er is an essential installation and maintenance tool used to identify power and traffi c direction in jacketed or bare fi bre without service interruption. The clamp design allows the tester to detect light in the fi bre without damage or disconnection and with low bending loss. By inserting the fi bre into the adaptor head and closing the jaws of the identifi er around the fi bre, the optical power inside the fi bre can be detected.

FIBRE TOOLS AND ACCESSORIES

Visual Fault Finder VFF5

Fibre Inspection Microscope w/carrying case

1.25mm Connector Adaptor

MTRJ-Style Connector Adaptor

45-332

45-334

45-335

200X Conversion Eyepiece for Single mode Connectors 45-336

Description

Optical Fibre Identifi er. Includes battery, adaptors for 3mm, 2mm, 0.9mm and 0.25mm fi bres, user guide and carry case.

Cat.No.

RO4X0000

26

See page 47 for the full range of IDEAL INDUSTRIES NETWORKS Fibre tools and accessories

www.idealnwd.co.uk

I.T. Network Test & Analysis

I.T. Network Test & Analysis

LanXPLORER PRO - In-Line Network Tester ........................................................

30-33

Unsurpassed test capability for Local Area Network management with state-of-the-art touchscreen interface and large clear colour display.

+44 (0)1925 444446 for Customer Service

27

I.T. Network Test & Analysis

28

Today’s enterprise networks are a dynamic environment with ever increasing demands and changes. With multiple users, more services, security issues, expanding infrastructure and new technologies, monitoring the network through various media poses real challenges to the I.T. administrator, frontline technician or integrator. Networks are also expanding into new environments such as industrial ethernet. The opportunities for problems are becoming increasingly frequent in a world where businesses are becoming more reliant on their performance.

IDEAL INDUSTRIES NETWORKS range of hand held test devices offer a comprehensive range of active and passive network test capability from basic cabling faults through to network monitoring, PC diagnostics and

VoIP QoS amongst many others. This range delivers high performance test and troubleshooting capability in LAN, WLAN and VLAN networks over copper, fi bre and WiFi. With easy to use menu navigation and complete portability, problems are identifi ed and located fast and effectively ensuring minimum downtime and saving money.

www.idealnwd.co.uk

I.T. Network Test & Analysis

I.T. Network Test & Analysis Range

Continuity and length measurement

Distance to fault

Ethernet speed

Cable qualifi cation

Fibre option

PoE/PoE+ tests

Network discovery and verifi cation

Ethernet packet and data error statistics, Top 10

VoIP Tests

EDP, CDP, LLDP, VLAN and

802.1.X support

Industrial mode

Page 30 Page 34

LanXPLORER

Lorem IPSUM

SignalTEK

Page 34

VDV PRO

Page 34

IENet™ PRO

+44 (0)1925 444446 for Customer Service

29

30

LanXPLORER PRO

In-Line Network Tester

LanXPLORER PRO is an outstanding In-Line Active and Passive network tester from IDEAL INDUSTRIES NETWORKS. It offers unsurpassed test capability for

Local Area Network management with state-of-the-art touchscreen interface and large clear colour display.

LanXPLORER PRO is a high quality, powerful, convenient and easy to use tester unrivalled by any other product available today.

With full In-Line and Endpoint test capabilities, LanXPLORER PRO tests not only copper cables but also active LAN connections over copper and fi bre links. In addition, it liberates the user from cables by allowing most tests to be conducted through a wireless connection offering unparalleled fl exibility. With such comprehensive test capability and ease of use, LanXPLORER PRO is the perfect tool to meet the needs of professional IT installers and systems administrators in any enterprise, campus or industrial Ethernet environment.

Features and benefits

Comprehensive Testing Capability

The LanXPLORER PRO is the most comprehensive network tester on the market with extensive test capability in Copper and Fibre.

Network Tests over Copper & Fibre

• Identifi cation of active devices with Network Discovery function

• Comparison of active network devices against historical data with

Network Verify

• DHCP client, Ping and Traceroute tests with VLAN support

• Full bandwidth Layer 1,2,and 3 Loopback device

• Diagnostic statistics including Top Ten talkers, protocols, error generators and packet size distribution

Copper Features

• Best-in-class Wiremapper - tests cables by pin as well as by pair with split pair detection and length measurement

• Wire tracing function in combination with an Amplifi er Probe

• Detection of PoE and PoE+, with voltage, current and power measurements in endpoint and In-Line modes

• Hub blink test with colour-switching on supported devices

• 10/100/1000 BASE-T support

• Network monitoring with In-Line tests and PC diagnosis function

• Monitoring of VoIP calls and quality, including RTP Jitter

Optical Fibre Features

Single mode and Multimode SFP options

1000 BASE-SX, LX and ZX support

Hub

WiFi Features

Identifi cation of active network devices with Network Discovery function

Comparison of active network devices against historical data with

Network Verify

DHCP client, Ping and Traceroute tests with VLAN support

802.11 b,g and n support

Identifi cation of access points, Service Set Identifi ers (SSID), channels in use, signal strength and security settings

Detection of channel confl icts

Optional - see back page for details

Two other products exist in the LanXPLORER family:

LanXPLORER – Standard model

LanXPLORER PLUS – Standard model plus WiFi www.idealnwd.co.uk

I.T. Network Test & Analysis

LanXPLORER PRO

Simplicity of Use

The LanXPLORER PRO redefi nes ‘Simplicity of Use’. Through its state of the art QVGA

3 ½” Colour Touchscreen display, the

LanXPLORER PRO replaces the complex menu navigation of existing products with a revolutionary Touch ‘n’ Test system. Testing with LanXPLORER is simple and fast.

Results are easy to interpret through its high resolution graphic display.

Touchscreen menu navigation allows tests to be completed within three stepsa

Virtual Keyboard allows easier and much faster data inputs

WiFi

WiFi port provides wireless access to LANs for testing

SFP Fibre Slot

Fibre test capability

Multifunction Softkeys

For easy menu navigation

Crystal clear graphical interpretation of results like Wiremap through large

3 ½” QVGA colour display

USB Interface & Internal Memory

Internal memory for up to 100 tests in XML format.

Job manager for effi cient organization of results.

Data exportable to PC via USB fl ash drive

QVGA 3 ½” Colour Touch Screen

Large colour display makes easy interpretation of graphical results plus

Touchscreen offers very easy menu navigation

RJ-45 Connection

For testing copper connections

Exchangeable RJ-45 Inserts

Allows easy and cheap replacement of RJ-45 sockets

In-Line Test

Full In-Line Test capability over Copper

Autotest

Pre-programmable function allows fast and easy testing of common applications Preprogrammable function allows fast and easy testing of common applications

Cursor Keys

Alternative navigation method according to user preference

Rubber Moulded Housings

Ergonomically designed rubber housings offering both comfortable feel and robust design

Functions

Advanced Wiremap and Wire Trace

PoE / PoE+ testing

Network Discovery

Network Verify

DHCP, Ping, Traceroute, VLAN

Endpoint LAN Testing over Copper

Port discovery: LLDP, EDP, CD

LAN Testing over WiFi

Loopback Mode

LAN Testing over Optical Fibre

Touchscreen

+44 (0)1925 444446 for Customer Service

LanXPLORER LanXPLORER PLUS

Mains Charger Input

Tester can operate from replaceable dry cells, mains supply or on board rechargeable long runtime battery

LanXPLORER PRO

31

32

Description

LanXPLORER

1x LanXPLORER Test Unit, 1x Remote Unit #1, 6 x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables,

30cm, Cat. 5e STP, 1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case

LanXPLORER – PREMIUM Package

1x LanXPLORER Test Unit, 1x Remote Unit #1, 1x NiMH Battery Pack,

2x Patch Cables, 30cm, Cat. 5e STP, 1x Power Supply w EU/UK adaptor,

1x IDEAL Amplifi er Probe 62-164, 1x Manual on CD,

1x Quick Reference Guide, 1x Carrying Case,

1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts

LanXPLORER PLUS

1x LanXPLORER PLUS Test Unit, 1x Remote Unit #1, Cat. 5e STP,

6x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables, 30cm,

1x External USB high sensitivity WiFi Antenna

1x Manual on CD, 1x Quick Reference Guide,

1x External USB high sensitivity WiFi Antenna

1x Carrying Case

LanXPLORER PLUS – PREMIUM Package

1x LanXPLORER PLUS Test Unit, 1x Remote Unit #1,

1x NiMH Battery Pack, 2x Patch Cables, 30cm, Cat. 5e STP,

1x Power Supply w EU/UK adaptor, 1x IDEAL Amplifi er Probe 62-164,

1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case,

1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts

LanXPLORER PRO

1x LanXPLORER PRO Test Unit, 1x Remote Unit #1,

6x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables, 30cm, Cat. 5e STP,

1x Manual on CD, 1xQuick Reference Guide,

1x External USB high sensitivity WiFi Antenna

1x Carrying Case

LanXPLORER PRO – PREMIUM Package

1x LanXPLORER PRO Test Unit, 1x Remote Unit #1,

1x NiMH Battery Pack, 2x Patch Cables, 30cm, Cat. 5e STP,

1x Power Supply w EU/UK adaptor, 1x IDEAL Amplifi er Probe 62-164,

1x External USB high sensitivity WiFi Antenna

1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case,

1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts

Cat. No.

150002

150003

150004

150005

150000

150001 www.idealnwd.co.uk

I.T. Network Test & Analysis

Accessories

1x Active Remote # 1

Active Remote set #2 to #6

Active Remote set # 2 – 12

1x NiMH Battery Pack

2x Patch Cables, 30cm, Cat. 5e STP

1x Power Supply w EU/UK adaptor

1x Hanging Strap Set

1x RJ-45 Insert Extraction Tool, 10 x Lifejack RJ-45 Inserts

1 x External USB high sensitivity WiFi Antenna

1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode cables and SC/SC duplex adaptor

1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor

1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor

1x IDEAL Amplifi er Probe

1x Fibre Tip Pen Cleaner for ST-, SC- and FC- Adaptor

1x Fibre Tip Pen Cleaner for LL/MU - Adaptor

Optical fi bre multimode 2m duplex cable with LC-LC connectors

Optical fi bre single mode 2m duplex cable with LC-LC connectors

+44 (0)1925 444446 for Customer Service

Cat. No.

150054

150059

150050

150053

150055

150052

3010-12-0097

150058

150061

MGKSX1

MGKLX2

MGKZX3

62-164

33-963-10

33-963-11

150056

150057

33

34

Other products for I.T. Network Test & Analysis

SignalTEK™ & SignalTEK™ FO

Gigabit and Multimedia Ethernet Qualifier

SignalTEK™ provides a technically innovative method to test and document performance of voice, data, video and VoIP applications for cabling installers and network technicians. It tests the link’s ability to support applications by transmitting Ethernet packets on the wire and measuring the link performance according to IEEE 802.3ab Gigabit Ethernet standard. By monitoring transmitted and received data packets, it can report the BERT (Bit Error Rate Test) for the link.

Full Details on Page 11

VDV PRO Copper Cable Verifier

The VDV PRO Cable Tester is an easy-to-use cable testing and verifi cation device that can quickly test all wiring requirements found throughout today’s residential and commercial environments.

Voice

– tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing

Data

– tests wire map of shielded and unshielded cable to T568A/B standard

Video

– tests coax cable for opens, shorts and length with F-Connector interface

Full Details on Page 13

IENet™ PRO Industrial Ethernet Tester

The tester features a unique easy-to-use cable test for 2 pair and 4 pair Industrial Ethernet cabling. With shielded 2 pair, M12 and RJ-45 ports, the IENet™ PRO is compatible with most Industrial Ethernet cabling. Test results are displayed in the PROFINET™ PRO Industrial Ethernet required format.

Full Details on Page 14

www.idealnwd.co.uk

WAN Access

WAN Access

MultiPRO ....................................................................................................................................

38

The MultiPRO family of handheld modular tools provides a fl exible solution for testing Triple Play,

Gigabit Ethernet, xDSL and SDH Copper and Optical-based Telecom systems.

UniPRO GbE ..............................................................................................................................

41

Low-cost, high-value tester designed for the roll-out and maintenance of Access, Metro and Carrier Ethernet networks.

UniPRO VoIP ............................................................................................................................

42

Rugged, light and compact tester for wired and wireless VoIP service verifi cation.

MC

2+

.............................................................................................................................................

43

Cost-effective tester for the installation and maintenance of ADSL, ADSL2 and ADSL2+ networks

UniPRO Gbis .............................................................................................................................

44

Our revolutionary tool for testing all types of G.SHDSL service. It combines a state-of-the-art DSL engine with a range of useful copper layer fault checks into a compact, hand-held, battery-powered tester.

AuroraPRESTO ........................................................................................................................

45

Handheld tester used for verifi cation of ADSL, ADSL2, ADSL2+, READSL and SHDSL services.

AuroraSONATA ......................................................................................................................

45

All-purpose ISDN test tool for fi eld technicians

WAN Access Testing

36

While Ethernet and IP are now the dominant technologies used within Local

Area Networks to deliver information services to end users, transport mechanisms to carry these technologies over Metro and Wide Area Networks are more diverse. IDEAL INDUSTRIES NETWORKS offers a broad range of test equipment for use in these telecom networks.

The telecom user’s fundamental needs are the same as in LAN – test equipment which can tell him if his system is working, how well and if not, why. But the diversity of the transport technologies in the telecom access arena creates requirements for testers which can also solve a number of different problems. The Ethernet-based services are often carried over systems such as

DSL and SDH, and these systems require special techniques to analyse their performance and diagnose faults. Even where Ethernet is itself the transport technology right across the WAN, new issues arise which can affect the

Quality of Service and hence require testing. All services demand a certain bandwidth, and it is important to qualify the WAN transport system to confi rm that the required throughput is reliably available, and to pinpoint any potential bottlenecks. But certain services are also sensitive to other more subtle characteristics of the end-to-end connections that the WAN provides to link remote LANs together. Voice services, for example, are affected by excessive latency, which causes disturbing delays in two-way conversations. And video quality is degraded by jitter which results in picture break-up. Ensuring that the demanded Quality of Service is delivered requires some quite complex tests, but these need to be performed by test equipment that presents the answers in a simple and meaningful way.

All of IDEAL INDUSTRIES NETWORKS’ telecom access test products are based on this premise, letting the user know what is happening, from the simplest of physical connection problems right up to complex high-layer performance faults, in a way which gives busy telecom engineers tools optimised for the way they work, so that they can quickly get on with the job of maintaining their networks.

www.idealnwd.co.uk

WAN Access

WAN Access Range

ADSL

VDSL

G.SHDSL

GbE

SDH

Copper

Interface

Fibre Interface

WiFi Interface

Triple Play -

Data

Triple Play -

VoIP

Triple Play -

Video

Copper test

SND BRI ISDN

ISDN PRI

Page 38 Page 41 Page 42 Page 43 Page 44 Page 45 Page 45

MultiPRO UniPRO

GbE

UniPRO

VoIP

MC2+ UniPRO Gbis

Lorem IPSUM

Aurora

Presto

Aurora

Sonata

+44 (0)1925 444446 for Customer Service

37

MultiPRO

The MultiPRO family of handheld modular tools provides a fl exible solution for testing Triple Play, Gigabit Ethernet, xDSL and SDH Copper and Optical-based

Telecom systems. Using plug and play interchangeable interface modules (PIMs) fi tted to a base platform in seconds, the MultiPRO testers are designed with a wide range of users in mind, for specifi c or multiple applications, from a quick check to in-depth analysis, in installation, maintenance and troubleshooting situations.

With their high defi nition graphical touchscreen controls, outstanding battery life and rugged design, the MultiPRO testers are always ready to solve the problems of the busy Telecom engineer.

Features and Benefits

5.7” TFT LCD ¼ VGA Touchscreen

Graphical User Interface

On-screen context-sensitive help system

Powerful report generation and wide range of connectivity for exporting

Weight up to 2.5 kg (depending on PIM fi tted)

Dimensions up to 320 x 150 x 120 mm (depending on PIM fi tted)

Battery life 4 to 6 hours (depending on test conditions and PIM fi tted)

MultiPRO Triple Play

The MultiPRO platform can be used to test Triple Play services over fast Ethernet without the need for any PIM, or over Gigabit Ethernet, xDSL or SDH with the addition of the relevant PIM. It ensures correct end-to-end operation of services delivered over converged networks just as they are experienced by the customer.

38

Features and Benefits

Tests Voice, Video and Data services

Intuitive Quality of Experience (QoE) tests, including Mean Opinion Score and R-Factor

Tests at every layer of the protocol stack

SIP VoIP support, on-screen live Video (MPEG2) and Web Browser

Ordering information

Description Cat. No.

MultiPRO TP/IP MultiPRO Tester for testing Data, VoIP and Video services via 10/100 Ethernet.

Includes compact carry case, PSU, Ethernet crossover and straight cables and user guide.

MultiPRO TP/

IP Plus

MultiPRO Tester for testing Data, VoIP and

Video services, including tests for Video MOS and Advanced QoS, via 10/100 Ethernet.

Includes compact carry case, PSU, Ethernet crossover and straight cables and user guide.

RMZX0000

RMZP0000 www.idealnwd.co.uk

MultiPRO Copper

MultiPRO Copper is a 30Mhz tester for qualifying and troubleshooting telephone-grade copper for carrying xDSL services. Its comprehensive set of spectrum-

Features and Benefits

200Hz to 30MHz qualifi cation

Graphical results, displayed as plots against frequency

Results with pass/fail indications and customisable limit masks

Digital Multimeter and Time Domain Refl ectometer built-in

Full range of transmission tests

Low-cost Transponder for double-ended tests

Description

MultiPRO Copper Plus MultiPRO Tester with Copper PIM for testing up to 30MHz (and Advanced Triple Play via 10/100 Ethernet.)

Includes full size case, PSU, 4mm Plug/Clip line cables, Ethernet x-over and straight cables, Active Probe, earth ref cable, C of C and user guide.

MultiPRO Copper Suite MultiPRO Tester with Copper PIM up to 30MHz (+ Advanced TP via E‘net.) Includes Transponder with batts,

Pair Tracer Probe, full case, PSU, 4mm Plug/Clip cables, E‘net x-over and st cables, Active+Passive Probes, earth ref cables, C of C and user guide.

MultiPRO Copper

Copper PIM

MultiPRO Copper

Transponder

Cat. No.

RMQ30P00

RMQ30S00

MultiPRO Tester with Copper PIM for testing up to 6MHz (and Triple Play via 10/100 Ethernet.) Includes full size case, PSU, Ethernet x-over and straight cables, Active Probe, 4mm Plug/Clip line cables, earth reference cable, C of C and user guide.

Copper PIM for conversion of MultiPRO to MultiPRO Copper. Includes Active Probe, test & earth cables,

Certifi cate of Calibration & user guide. Requires a 405488 earthed PSU if upgrading a pre-2010 MultiPRO equipped with a 2-pin PSU.

Far End Transponder for use with MultiPRO Copper for end-to-end Attenuation, SNR and FEXT tests. Includes carry bag, non-rechargeable batteries, 4mm Plug/Clip line cables and earth reference cable. Can be powered from a MultiPRO or accessory PSU.

RMQ60000

RMQUP000

405049

MultiPRO xDSL

A range of PIMs is available to allow MultiPRO to interface to and test xDSL services from the physical layer through to the Triple Play services in the application layer.

Features and Benefits

ADSL (Annex A/B), ADSL2+ (AnnexA/B) and VDSL2 PIMs available

Emulates CPE (ATU-R / VTU-R)

Description

MultiPRO ADSL

MultiPRO ADSL Plus

ADSL PIM

MultiPRO DSL (A)

MultiPRO DSL (A) Plus

Cat. No.

MultiPRO Tester with ADSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL(2+)

(Annex A and B). Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11, RJ-45 and

Plug/Clip DSL cables and user guide.

RMA00000

MultiPRO Tester with ADSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS, via

10/100 Ethernet and ADSL (2+) (Annex A and B). Includes full size case, PSU, Eth x-over and straight cables,

RJ-11 and RJ-45 DSL cables, user guide.

RMAP0000

RMAUP000 ADSL Pluggable Interface Module for conversion of any MultiPRO to MultiPRO ADSL or MultiPRO Plus to

Multipro ADSL Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.

MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL(2+)

(Annex A) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11 and

Plug/Clip DSL cables and user guide.

MultiPRO Tester with DSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS, via

10/100 Ethernet and ADSL (2+) (Annex A) and VDSL. Includes full size case, PSU, Eth. x-over and straight cables, RJ-11 + Plug/Clip DSL cables, user guide.

CMUA0000

CMUAP000

+44 (0)1925 444446 for Customer Service

39

40

MultiPRO DSL (B)

MultiPRO DSL (B) Plus

DSL (A) PIM

DSL (B) PIM

MultiPRO DSL (A)

DSL (B) PIM

MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL (2+)

(Annex B) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11, RJ-45 and Plug/Clip DSL cables and user guide.

MultiPRO Tester with DSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS, via 10/100 Ethernet and ADSL (2+) (Annex B) and VDSL. Includes full size case, PSU, Ethernet x-over and straight cables, RJ-11 and RJ-45 DSL cables, user guide.

VDSL (+ADSL Annex A) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (A) or

MultiPRO Plus to MultiPRO DSL (A) Plus. Includes RJ-11 and Plug/Clip DSL cables.

RMUB0000

RMUBP000

CMUAUP00

RMUBUP00 VDSL (+ADSL Annex B) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (B) or

MultiPRO Plus to MultiPRO DSL (B) Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.

MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL (2+)

(Annex A) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11 and

Plug/Clip DSL cables and user guide.

VDSL (+ADSL Annex B) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (B) or

MultiPRO Plus to MultiPRO DSL (B) Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.

CMUA0000

RMUBUP00

MultiPRO SDH

tester for installation and maintenance of SDH, PDH and

Ds-n networks up to 2.5Gb/s.

With its auto-confi guration and non SDH experts to master the

Features and Benefits

BERT, performance, traffi c generation and physical layer tests

Optical and electrical interfaces

Graphical histogram display of results

Supports all parts of the hierarchy up to STM-16 ease.

Description

MultiPRO SDH STM-16

Plus

MultiPRO SDH STM-1

MultiPRO SDH STM-4

Plus

Cat. No.

MultiPRO Tester with SDH PIM for Advanced testing of PDH/SDH services up to STM-16 (and Advanced Triple

Play, via 10/100 Ethernet.) Includes full size case, PSU, Ethernet x-over and straight cables, BNC cable, CofC and user guide. Does not include SFP.

RM16P000

RM600000 MultiPRO Tester with SDH PIM for testing PDH/SDH services up to STM-1. (Can also test Triple Play services via 10/100 Ethernet.) Includes full size carry case, PSU, Ethernet crossover and straight cables, BNC cable,

CofC and user guide. Not including SFP.

MultiPRO Tester with SDH PIM for Advanced testing of PDH/SDH services up to STM-4 (and Advanced Triple

Play, via 10/100 Ethernet.) Includes full size carry case, PSU, Ethernet x-over and straight cables, BNC cable,

CofC and user guide. Not including SFP.

RM640000

RM6UP000 SDH PIM SDH Pluggable Interface Module for conversion of any MultiPRO to MultiPRO SDH. Includes BNC cable and

Certifi cate of Calibration. Does not include any SFP.

Accessories

VoIP Headset

GbE Fibre Kit LX

Headset for use with MultiPRO and UniPRO VoIP function

Copper Pair Tracer Probe Non-contact cable tracing probe for use with MultiPRO Copper Transponder. Includes battery.

SDH Cable Kit SMB-BNC, 120ohm RJ-45 crossover and Plug/Clip cables for use with MultiPRO SDH and MultiPRO SDH Plus.

SDH Fibre Kit STM-1 Fibre Kit for use with MultiPRO SDH. Includes 1310 and 1550 nm SFP (Small Form factor Pluggable) transceivers,

15dB attenuator for Short Haul applications, and Duplex LC cable.

SDH Plus Fibre Kit STM-16 Fibre Kit for use with MultiPRO SDH and MultiPRO SDH Plus. Supports all SDH/PDH rates up to STM-16. Includes

1310 and 1550 nm SFP (Small Form factor Pluggable) transceivers, 15dB attenuator for Short Haul applications, and

Duplex LC cable.

1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor.

022758

024241

M6CK00

M6FK00

M6PFK0

MGKLX2

GbE Fibre Kit SX MGKSX1

GbE Fibre Kit ZX

1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode cables and SC/SC duplex adaptor.

1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor.

MGKZX3 www.idealnwd.co.uk

WAN Access

UniPRO GbE

Quick and Efficient Ethernet Service Testing

service from the physical layer to the IP layer.

Ethernet and IP standards.

monitoring really easy.

Physical Interfaces

Dual Electrical

Dual Optical

Loopback operation

Testing

Modes

Tests

10/100/1000 Mbit/s RJ-45

100/1000 Mbit/s SFPs

Physical (L1), Ethernet (L2) and IP(L3)

UniPRO GbE Loopback only

Traffi c Generation

End point, Through mode, Monitor Mode

Cable tests, optical power, PoE, autonegotiation RFC 2544, Traffi c statistics, QoS statistics, BERT Ping and trace-route, User confi gurable

Error Insertion

Optional

Generation of custom MAC frames, VLAN frames, Q-in-Q frames, IPv4 and IPv6 over Ethernet Generation of Ethernet user priority bits, IP

ToS/DSCP bits

Constant, burst and ramp

LED set for test status; Frame Stats, Error Counts, QoS Stats, PoE, Physical Link, Stats

Custom bandwidth profi les

Results

General

Dimensions

Weight

Battery life

120 (W) x 270 (H) x 60 (D)

Approximately 1 kg

Minimum 4 hrs

Description Cat. No.

UniPRO GbE DE

UniPRO GbE DE Plus

UniPRO Gigabit Ethernet Tester with dual Electrical Ethernet test ports. Includes carry case, PSU, Ethernet cable,

Certifi cate of Calibration and user guide.

UniPRO Gigabit Ethernet Tester with dual Electrical Ethernet test ports and Multistreaming, Asymmetrical RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certifi cate of Calibration and user guide.

UniPRO GbE Duo UniPRO Gigabit Ethernet Tester with dual Optical and Electrical Ethernet test ports. Includes carry case, PSU, Ethernet cable, Certifi cate of Calibration and user guide.

UniPRO GbE Duo Plus UniPRO Gigabit Ethernet Tester with dual Optical and Electrical Ethernet test ports and Multistreaming, Asymmetrical

RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certifi cate of Calibration and user guide.

UniPRO GbE Loop UniPRO Gigabit Ethernet Loopback Unit with single Optical and Electrical Ethernet ports. Includes carry case, PSU,

Ethernet cable, Certifi cate of Calibration and user guide.

UniPRO GbE SE UniPRO Gigabit Ethernet Tester with single Electrical Ethernet test port. Includes carry case, PSU, Ethernet cable,

Certifi cate of Calibration and user guide.

UniPRO GbE SE Plus

UniPRO GbE Solo

UniPRO Gigabit Ethernet Tester with single Electrical Ethernet test port and Multistreaming, Asymmetrical RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certifi cate of Calibration and user guide.

UniPRO Gigabit Ethernet Tester with single Optical and Electrical Ethernet test ports. Includes carry case, PSU,

Ethernet cable, Certifi cate of Calibration and user guide.

RPGDE000

RPGDEP00

RPGDOE00

RPGDOEP0

RPGL0000

RPGSE000

RPGSEP00

RPGSOE00

UniPRO GbE Solo Plus UniPRO Gigabit Ethernet Tester with single Optical and Electrical Ethernet test ports and Multistreaming, Asymmetrical

RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certifi cate of Calibration and user guide.

RPGSOEP0

Accessories

GbE Fibre Kit LX 1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor.

MGKLX2

GbE Fibre Kit SX

GbE Fibre Kit ZX

1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode cables and SC/SC duplex adaptor.

MGKSX1

1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex single mode cables and SC/SC duplex adaptor.

MGKZX3

+44 (0)1925 444446 for Customer Service

41

UniPRO VoIP

Compact Testing Solution for VoIP and VoWLAN

UniPRO VoIP is a compact tester for wired and wireless VoIP service verifi cation. Its rugged, light and bespoke design makes it suitable for fi eld technicians working for service providers and enterprises. UniPRO VoIP offers real-time MOS measurement rating of emulated VoIP calls, SIP Message traces and analysis of data services.

Physical Interfaces

Tests

SIP message trace

Additional Features

Specifi cations

2 x 10/100BASE-T Ethernet full duplex IEEE

802.11b/g WiFi

VoIP phone emulation

Traffi c statistics (IP, Ethernet, WiFi) and QoS statistics (packet loss, delay and jitter)

MOS and R-Factor analysis; Ping and

Traceroute;FTP, HTTP tests

Support for DHCP and PPPoE with PAP and CHAP;

Support of WEP and WPA for wireless

Support of STUN for NAPT transversal

Features and Benefits

Quick boot up time and long battery life

Rugged design

Wired and wireless VoIP telephone emulation

Web Interface

SIP protocol trace

MOS and R factor rating of VoIP Calls

HTTP and FTP performance tests

42

Description

UniPRO VoIP UniPRO Tester for testing SIP Voice over IP services via 10/100 Ethernet and WiFi connections, with

Advanced QoS tests. Includes carry case, PSU, Ethernet cable and user guide.

Ordering information

Cat. No.

RPPX0000 www.idealnwd.co.uk

WAN Access

MC

2+

Compact One Button ADSL/ADSL2/ADSL2+ testing solution

The MC2+ is a cost-effective tester for the installation and maintenance of ADSL, ADSL2 and ADSL2+ networks. Designed for both fi eld applications and telephone exchanges, this tester quickly checks all network layers, detecting any issue affecting them. Test results are presented by using a line identifi cation ringer, multicolour LEDs and an easy-to-read screen.

Features and Benefits

Small, robust and cost-effective

Quick and easy automatic testing

Endpoint and Through modes

Full ADSL, ADSL2, ADSL2+ and

RE-ADSL2 support

IP ping test

Impulse Noise Protection up to level 5

*Supports ITU-T G.dmt, G.lite and

ANSI T1.413 *One-button result display *Connection rate, line attenuation and noise margin

*Remote control

Description

MC2+

Accessories

Battery / Charger Kit

MC2+ Rechargeable Batt Set

Set of batteries, charger unit with Euro mains plug and vehicle adaptor lead for MC2+

MC2+ Rechargeable Batteries Set

Physical Interfaces

ADSL

10/100 Base- T(RJ-45)

USB

Main Functions

Modem emulation:

Support

PSTN

PING

Confi gurations

Test status LEDs:

Results

General

Weight

Dimensions

Operating temperature range

Optional

ADSL2+, ADSL2, G.DMT, RE-ADSL, G.Lite, T1.413 (RJ-11)

For hosted mode

For hosted mode

Endpoint, Routed mode, bridged mode

PPPoE, PPPoA & IPoA;

POTS/ISDN line voltage detect: POTS ringer

IP Endpoint reach-ability test

Recall/Save confi guration, Pass/Fail threshold, Web based confi guration

Battery, Power, Line, ADSL, PPP/IP

ADSL parameters including; Upto 16 results stored on the product (with Display option)

400 g (batteries included)

90 mm x 140 mm x 45 mm,

0 °C to +40 °C

2 line backlit monochrome LCD display (giving extra results)

+44 (0)1925 444446 for Customer Service

Ordering information

MC2+ ADSL (2+) (AnnexA and Annex M) Tester with Display. Includes batteries, PSU/Charger, vehicle power adaptor, carry bag, user guide, RJ-11 DSL cable, 4mm Plug/Clip DSL Cable and Ethernet Cable

Cat. No.

RMCD0000

023597

121050

Specifi cations

43

UniPRO Gbis

G.SHDSL Tester

UniPRO Gbis is a revolutionary tool for testing all types of G.SHDSL service. It combines a state-of-the-art DSL engine with a range of useful copper layer fault checks into a compact, hand-held, battery-powered tester.

Designed with the fi eld engineer in mind, UniPRO Gbis provides the ultimate in ease of use, pinpointing common network faults and checking service performance directly from switch on with minimal setup. It supports the latest

G.SHDSL standard, G.SHDSL.bis, as well as legacy versions of the technology, which are widely deployed for the provision of multi-pair DSL access to business applications. Up to 4 copper pairs can be tested simultaneously and can be bonded together using ATM (Asynchronous Transfer Mode) or EFM (Ethernet in First Mile) encapsulation to provide up to 22.784Mbps of symmetrical bandwidth.

UniPRO Gbis can be programmed with acceptance targets for the main

G.SHDSL performance parameters, providing a simple Red/Green, Pass/

Fail test. Results can be stored in the tester and simply uploaded to a USB memory stick for analysis and reporting in a PC environment. With its optional

CO (STU-C) emulation, UniPRO Gbis is equally useful in the Distribution Frame, at the street cabinet or in the customer’s premises

44

Features and Benefits

Instant switch ON and test

Network faults can be found in seconds, saving valuable technician time

Copper fault fi nding

Gross cable faults can be eliminated without the need for high levels of operator skill

Simultaneous testing of up to 4 pairs

No need to test cables individually. Bonded aggregate performance of all pairs can easily be checked

Main results on one screen

All the important results are presented on the home screen, direct from switch-on, with no user intervention. Saves time and operator skill requirement.

Detailed results for each pair

One button press reveals the detailed performance of each pair

Simple setup using Multifunction

Softkeys

Very easy test and system setup. Negligible training needed.

Performance threshold target setting and comparison

Service level targets can be pre-set before deployment, maximising productivity of the user in the fi eld

Result memory and USB export, with timestamp and tester identifi cation

One-button result saving allows the performance of multiple jobs to be uploaded for later analysis and reporting.

Automatically records when the test was performed and on which tester

Robust construction and long battery life

Always ready for work

Highly visible user interface

Effective in all fi eld situations

Integral hanging/carrying Strap

Can be hooked on to plant or in frames where working space is limited

Physical Layer Tests

Line Voltage

Automatic Fault Detection

(for each pair separately)

Up to 50 volts DC wetting current is allowed.

DC span powering is not supported

Up to 50 volts DC wetting current is allowed. DC span powering is not supported. Open circuit. Short circuit. Excessive Voltage (eg ISDN or DC span power). Alien xDSL service (eg ADSL orVDSL). Indication on display and LED

DSL Layer Tests

Emulation

DSL Support

Automatic Synchronisation

(for each pair separately)

Results

(for each pair separately)

Pass / Fail

(for each pair separately)

CPE (Customer Premise modem / router – STU-R). CO (Central Offi ce

DSLAM – STU-C) - Optional

G.SHDSL / G.SHDSL.bis / Auto. ATM / EFM Bonding.1 / 2 / 3 / 4 pairs

Seeking / Training / Data Mode

Indication on display and LED

Data Rate. Attenuation. Noise Margin. Signal Quality (Noise Margin Stability).

Transmit Power. Uptime. Drops count.

Comparison with user-settable targets

Indication on display and LED

Results (for bonded aggregate) Data Rate. Comparison with user-settable target.

Indication on display and LED

General

Dimensions and Weight: 280 x 180 x 50 mm/1.8 kg

Display 3.5” Colour backlit LCD

Battery Nickel Metal Hydride/, Autonomy: 4 hours typical

Note: This product is not suitable for testing SHDSL connections which are confi gured to transport TDM payloads with plesiochronous clocking.

Description

UniPRO Gbis

UniPRO Gbis CO Plus

UniPRO Gbis 4-pair SHDSL / G.SHDSLbis tester with CPE emulation plus EFM/ATM Bonding. Includes

PSU, carry bag, carry strap, quick reference card, full user guide on CD, RJ-45 DSL cable and RJ-45 to 8 x 4mm Plug/Clip DSL cable.

UniPRO Gbis 4-pair SHDSL / G.SHDSLbis tester with CPE and CO emulation plus EFM / ATM bonding.

Includes PSU, carry bag, carry strap, quick reference card, full user guide on CD, RJ-45 DSL cable and

RJ-45 to 8 x 4mm Plug/Clip DSL cable.

Cat. No.

RPB00000

RPBCP000

Accessories

RJ-45 / 8-4mm PLG CRC CLP 2M LF RJ-45 TO 8-4mm PLUGS CROC CLIPS 2M LF 123300 www.idealnwd.co.uk

WAN Access

AuroraPRESTO

The Complete Test Tool for DSL Technology

Aurora Presto offers all the functionality needed for the installation, maintenance and troubleshooting of Asymmetrical Digital Subscriber Line

Physical Interfaces

ADSL

Including

Tests

Modes

IP Tests

ADSL, ADSL2, ADSL2+, G.SHDSL

ATM, PPP and IP layer support

DSL Termination Modes, Golden Modem mode

WAN Global Stats, LAN Global Stats, LAN/

WAN PING Trace Route, Internet download

TDR (Time Domain Refl ectometer) & DMM (Digital

Multi-meter) Automatic Test Mode

1.1 kg

285mm(l) x 100mm(w) x 87mm(d)

0 °C to 45 °C

Backlit 21 characters by 8

Rechargeable NiMH

IP22

Description

Presto ADSL

Cat. No.

RACAX000 AuroraPRESTO ADSL(2+) tester with CPE (Annex A,B and M) emulation and TDR/DMM.

Includes PSU, standard carry bag, user guide, RJ-11 DSL cable, 4mm Plug/Clip DSL cable, straight and crossover Ethernet and RS-232 PC cable

Accessories

Battery Pack 5HR-4/3AU 3.8AH

Short Line Adaptor Assy 20db

Short Line Adaptor Assy 40dB

ADSL Cbl RJ-11-2x4mm Plg/Clp

ADSL Test Cable RJ-11 - RJ-11

ADSL Tst Cable RJ-11/RJ-11 Xover

ATM25 Card Cbl RJ-45/RJ-45 Xover

Battery Pack 5HR-4/3AU 3.8AH for Sonata / Presto

Short Line Adaptor for use when working on short cable lengths in close proximity to the

DSLAM (20db)

Short Line Adaptor for use when working on short cable lengths in close proximity to the

DSLAM (40dB)

RJ-11 Line cables terminated with banana plugs and crocodile clips for ADSL.

RJ-11 plug to RJ-11 plug 6 way straight wired line cable

RJ-11 plug to RJ-11 plug, cross-over line cable (wired pins 2&5 to pins 3&4) for ADSL

RJ-45 plug to RJ-45 plug CAT5 ATMF 25.6 cable with cross-over wiring (length 2m).

427402

480152

480153

480305

480350

480351

480352

AuroraSONATA

The Most Versatile

ISDN Tester in the Market

The AuroraSONATA is an all-purpose ISDN test tool for fi eld technicians.

Available as either a Basic or Primary Rate only confi guration or as a

Physical Interfaces

S/T 192 kbps to ITU 1.430

RJ-45 connector

2.048Mbps to ITU G.703

U Interfaces

POTS Interface

Tests

ISDN

75ohm unbalanced/120ohm balanced RJ-45

Upo, 4B3T & 2B1Q

RJ-11

ISDN G.703/G.704 statistics FAS/NFAS word

3.1KHz and ISDN voice call via selected B channel

Support for many supplementary services

General

Weight

Dimensions

Operating Temperature

Display

1.1 kg

285mm(l) x 100mm(w) x 87mm(d

-25oC - +70oC (ETSI 300 019 -1 class 1.2)

Backlit 21 characters by 8

Battery

Water resistance

Rechargeable NiMH

IP22 Drop Test 2M

+44 (0)1925 444446 for Customer Service

45

46

Description

Sonata PRI P

Sonata PRI

Sonata BRI S

Sonata Combi S

Sonata Combi SP

Cat. No.

AuroraSONATA ISDN Primary Rate tester with POTS. Includes PSU, standard carry bag, User Guide, RJ-45 cable, 4mm Plug/

Clip POTS cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

AuroraSONATA ISDN Primary Rate tester. Includes PSU, standard carry bag, User Guide, RJ-45 cable, 4mm Plug/Clip PRI cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

AuroraSONATA ISDN Basic Rate tester with S Interface. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable, RJ-

45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

AuroraSONATA ISDN PRI/BRI Rate tester with S Interface. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, 4mm

Plug/Clip PRI cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

AuroraSONATA ISDN PRI/BRI tester with S Interface and POTS. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable,

RJ-45 T-Piece, 4mm Plug/Clip POTS and PRI cables and RS-232 PC cable. Includes all available protocols and Aurora Expert

PC software.

RASEP000

RASEX000

RASS0000

RASSE000

RASSEP00

Sonata BRI SP

Sonata BRI Q

Sonata Combi Q

AuroraSONATA ISDN Basic Rate tester with S Interface and POTS. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable,

RJ-45 T-Piece, 4mm Plug/Clip POTS cable and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

AuroraSONATA ISDN Basic Rate tester with S and 2B1Q U Interfaces. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable,

RJ-45 T-Piece, 4mm Plug/Clip U i/f cable and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.

Sonata ISDN PRI/BRI tester with S and 2B1Q U interfaces. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, RJ-45

T-Piece, 4mm Plug/Clip PRI, U i/f and RS-232 PC cables. Includes all available protocols and Aurora Expert PC s/w.

Sonata Combi QP

Sonata BRI QP

Sonata ISDN PRI/BRI tester with S and 2B1Q U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45 S/PRI i/f cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables and RS-232 PC cable. Includes all available protocols and Aurora

Expert PC s/w.

AuroraSONATA ISDN Basic Rate tester with S and 2B1Q U Interfaces and POTS. Includes PSU, standard bag, User Guide, RJ-

45 S i/f cable, RJ-45 T-Piece, 4mm Plug/Clip POTS &U i/f and RS-232 PC cables. Includes all available protocols and Aurora

Expert PC software.

Sonata Combi 2QP Sonata ISDN PRI/BRI tester with S and Dual 2B1Q(Mon) U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45

S/PRI i/f cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables and RS-232 PC cable. Includes all protocols, Aurora

Expert PC s/w.

Sonata BRI T

Sonata Combi T

Sonata Combi TP

AuroraSONATA ISDN Basic Rate tester with S and 4B3T U Interfaces. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable, RJ-45 T-Piece, 4mm Plug/Clip U i/f cable and RS-232 PC cable. Includes all available protocols and Aurora Expert

PC software.

Sonata ISDN PRI/BRI tester with S and 4B3T U interfaces. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, RJ-45

T-Piece, 4mm Plug/Clip PRI, U i/f and RS-232 PC cables. Includes all available protocols and Aurora Expert PC s/w.

Sonata ISDN PRI/BRI tester with S and 4B3T U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45 S/PRI i/f cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables, and RS-232 PC cable. Includes all available protocols and Aurora

Expert PC s/w.

Sonata BRI TP AuroraSONATA ISDN Basic Rate tester with S and 4B3T U Interfaces and POTS. Includes PSU, standard bag, User Guide, RJ-

45 S i/f cable, RJ-45 T-Piece, 4mm Plug/Clip POTS & U i/f and RS-232 PC cables. Includes all available protocols and Aurora

Expert PC software.

Accessories

U I/F Cbl(RJ-11-

4mm Plgs+Clips)

RJ-45 3 Way ‚T‘

Piece

U2\4 Phantom

Power Feed Unit

S Bus Phantom

Power Feed Unit

‚U‘ Interface cable, complete with 4mm Banana plugs and crocodile clips.

RJ-45 3 way T-piece for PRI and BRI monitoring

U2\4 Phantom Power Feed Unit

‚S‘ Bus Phantom Power Feed Unit

Accy Cable RJ-45 -

75 OHM BNC

Sonata RJ-45 to

Type 43 Cbl PRI

FCC68 4-4 Crc Clps cbl - POTS

Battery Pack 5HR-

4/3AU 3.8AH

RJ-45 connector cable terminated with two BNC connectors (for E1 circuits)

75 Ohm connector cable terminated with two BT Type 43 jacks. For PRI option only.

FCC68 4-4 to Crocodile Clips cable for POTS

Battery Pack 5HR-4/3AU 3.8AH for Sonata / Presto

RASSP000

RASSQ000

RASSQE00

RASSQEP0

RASSQP00

RASSQQEP

RASST000

RASSTE00

RASSTEP0

RASSTP00

420305

421474

427131

427150

427352

427353

427354

427402 www.idealnwd.co.uk

Tools, Connectors and

Accessories

As well as network testing, IDEAL INDUSTRIES NETWORKS specialises in the whole installation process from start to fi nish. From cable pulling, connectors and plugs to high precision installation tools, everything needed by the installer is here.

We offer various modular plugs including RJ-11 and RJ-45’s as well as compression connectors, F-Type connectors and splitters etc. For added convenience and value, a range of tailored tool and connector kits are also available in one tidy and tough case.

For data cable preparation and connector termination we have all of the essential tools including strippers, crimpers and punch down tools etc. In fi bre where cleanliness and precision are critical, top class stripping tools, serrated cutters, polishers & cleaning kits are available to ensure the highest quality joints are achieved.

And fi nally, our range includes the pulling rods and world renowned Yellow 77 pulling lubricant in order to get that cable through tight spots.

Copper Cable Installation Tools, Accessories and Lubricants .........

48

Connectors Termination Products .........................................................................

56

Fibre Tools and Accessories .....................................................................................

69

+44 (0)1925 444446 for Customer Service

47

48

COPPER CABLE INSTALLATION TOOLS, ACCESSORIES

AND LUBRICANTS

Data T

®

- Cutter

Cuts round communication and structured wiring cables and maintains cable geometry for better cable performance. Data T ® -Cutter cuts multi-pair cable up to .500 in. (12.7 mm) and coaxial cable up to RG-9/U. Blade cutting capabilities suitable for soft cables (not ACSR).

Steel reinforced centre conductors can be trimmed with bolt cutting holes

Cushioned comfort grip handles

Locking latch keeps tool closed in pouch

Data T ® -Cutter 45-074

Lever™ Snips Electrician’s Scissors with Stripping Notches

Ergonomic design gives added leverage

Spring-action, mechanical advantage increases stripping leverage and reduces operator fatigue

Double plated for added rust protection

Extra-deep serrations grip wire better

Description

Electrician’s Scissors with Stripping Notches

Cat. No.

35-087

Electrician’s Scissors

Designed for use in telephone and electrical service applications

Cut up to 1.5mm

2 solid and 4.0mm

2 stranded wire

Serrated surface on back blade edge cleans wire

Electician‘s Scissors with stripping notches

Description

Electrician’s Scissors w/stripping notches

Cat. No.

35-088

Twin & Earth Cable Stripper

Works great on Category 5 Cable!

Self-adjusting stripping blades automatically select proper position

Neatly removes outer cable sheath and then inner wire sheathing to

desired lengths

Strips Twin and Earth cable

Open-throat construction allows unlimited strip length

Underground Feeder Cable Stripper

Replacement blade set

45-235

45-234 www.idealnwd.co.uk

Copper Cable Installation Tools, Accessories and Lubricants

Strips UTP, RG-59 and RG-6 coax cable

Rotates easily around fi nger

Push-on ring for easy connector termination

Coax/UTP Cable Stripper 45-603

Cyclops

®

Data Cable Stripper

Fast, easy removal of outer sheath insulations (PVC and Plenum types) from all Unshielded Twisted Pair (UTP), Shielded Twisted Pair (STP) and multicore cables up to .433 in./11 mm in diameter

Strips UTP, RG-59 and RG-6 coax cable

Rotates easily around fi nger

Push-on ring for easy connector termination

For Unshielded and Shielded Twisted Pair Cable 45-514

UTP/STP/Coaxial Cable Strippers

Adjustable blades can be set for any depth to help ensure nick-free strips

Description Typical RG

Cables

Cat. No.

Coaxial Cable Stripper, up to 1/8 in. (3.2mm) O.D

Coaxial Cable Stripper, 1/8 in. (3.2mm) to 7/32 in.

(5.556mm) O.D.

Coaxial Cable Stripper, 1/4 in. (6.4mm) to 9/16 in.

(14.3mm) O.D.

Cable Stripper, 3/16 in. (4.8mm) to 5/16 in. (8mm)

O.D.

Replacement Blade Set* for 45-162, 45-163, 45-165 -

Replacement Blade Set* for 45-164 -

RG-58, Mini

Coax

RG-11, RG-8

RG-59, UTP

Cable

*A set of blades consists of three straight blades and one round blade.

UTP Cable Stripper

Strips and cuts fl at telephone cable easily. Cuts outer insulation without nicking inner conductors.

RG-174, RG-187

45-162-341

(Gray)

45-163-341

(Blue)

45-164-341

(Blue)

45-165-341

(Black)

L-9225

L-9226

Strips Cat 3, 5, 5e & 6 cables

One-step stripping

UTP Cable Stripper 45-167

+44 (0)1925 444446 for Customer Service

49

Round Cable Slitting and Ringing Tool

Great for large diameter structured wiring cables

Cuts around cable jacket as well as slits the length of jacket for easy removal

Use with single or multiple conductor cable up to 44.45 mm O.D.

Blade adjusts for jacket thicknesses up to 3.175 mm

Spare blade in handle base

Round Cable Slitting and Ringing Tool

Replacement Blades for 45-144 (2/pkg.)

45-144

LB-1748

Kit designed for use in telephone and electrical service applications

High carbon steel blade in Splicing Knife remains sharp and cuts easily through many insulation types

Kit includes Scissors, Splicing Knife and Leather Holder

Cable Splicing Kit

(Scissors, Splicing Knife, Leather Holder)

35-093

50

Punch Down Tools

35-185

Economy Punch Down Tool

Impact Turn-Lock™ Punch Down Tools Cat. No

Punchmaster™ II Punch Down Tool - body only 35-483

Punchmaster™ II Punch Down Tool w/110 blade 35-485

Punchmaster™ II Punch Down Tool w/66 blade 35-487

35-407

Punch Down Tool 110 66 Combo

Blade with Cutting Edges

35-485

Punchmaster™ II Punch Down

Tool with 110 Blade

Non-Impact Turn-Lock™ Punch Down Tools

Punch Down Tool w/110 blade

Punch Down Tool w/66 blade

Cat. No

35-492

35-493

Economy Punch Down Tool Cat. No

Punch Down Tool (insertion tool for Krone Blocks) 35-482

Non-impact Tool w/permanent non-cut blade** 35-185

35-492

Non-Impact Turn-Lock™ Style

Punch Down Tool with 110

Blade

35-495

Replacement Blade,

Punchmaster™ II Turn-Lock™

Style 110 Blade

*Not applicable for Economy Punch Down tool.

**35-185 is made in Taiwan.

Bix ® is a registered trademark of Nortel. Krone ® is a registered trademark of Krone, Inc.

Removable Blades*

110 Turn-Lock™ blade

66 Turn-Lock blade

110/66 combo blade w/cutting edges

Krone ® blade

Bix ® blade

Krone Style Punch Down Blade for 35-482

Cat. No

35-495

35-497

35-407

35-478

35-495

ND-3851 www.idealnwd.co.uk

Copper Cable Installation Tools, Accessories and Lubricants

Ratchet Telemaster™

Telemaster™ Telephone Tools

Modular Plug Tool Kit

For paired conductors

Ratchet version of popular Telemaster™ Tool for RJ-45 and RJ-11 modular plugs

Repeatable crimp action for consistent, high quality connections

Ratchet Telemaster™ 30-696

For paired conductors

Multi-function telephone tool cuts, strips and crimps for easy one-tool application

Steel frame for long-term durability.

(Crimps primary modular plug strain relief only)

Description Kit Cat. No. Tool Only

Cat. No.

Tool for RJ-11 (1, 2, 3 pair) and RJ-45 (4 pair)

Plugs

Tool for RJ-45 (4 pair) & DECconnect MMJ

(RJ-11, 3 pair)

Tool for RJ-22 (handset) and RJ-11 (1, 2, 3 pair)

33-700*

N/A

N/A

Replacement Cut and Strip Blade Set for

Telemaster ™

N/A

* Kit includes 10 each, RJ-45 8P8C, RJ-11 6P6C and RJ-45 6P4C plugs.

30-496-001

30-497

30-499

LB-1747

Multi-function telephone/network tool; cuts, strips and crimps

Steel frame construction for durability

Tool-less die change for added convenience

Interchangeable dies allow for crimping RJ-45 and RJ-11 modular plugs

Spring return handle for comfort

Modular Plug Tool Kit - includes ten each

RJ-11, 6P4C Telephone Plugs & RJ-45,

CAT 5e Data Plugs, RJ-11 & RJ-45 Die Sets

33-296

Crimpmaster™ Crimp Tools & Die Sets

Description Kit Cat. No. Tool Only

Cat. No.

30-506 -Crimpmaster™ Crimp Tool Frame

RJ-45 Eight-position Crimp Tool for

AMP RJ-45 modular plugs

RJ-45 Eight-position Crimp Toolfor keyed or non-keyed modular plugs

30-521

30-522

RJ-11 Crimp Tool for two, four or six-position modular plugs

--

30-560

30-559

30-556

+44 (0)1925 444446 for Customer Service

51

52

Modular Plug Replacement Die Sets For Crimpmaster™ 30-506 Frame

30-556

Crimpmaster™ RJ-11 die set for two, four or six-position modular plugs

30-559

Crimpmaster™ RJ-45 eight-position die set for keyed or non-keyed modular plugs (excluding AMP).

Tool w/die 30-522

30-560

Crimpmaster™ RJ-45 AMP die set for eight-position modular plugs. Primary strain relief crimp bar is located further back on die/modular plugs. Tool w/die 30-521

Technician’s Service Kit

Kit includes tools to install twiated pair cable on blocks and data jacks.

Punchmaster ™ II Punch Down Tool w/110 Blade Qty.

Punchmaster ™ II 66 Blade only 1

Electrician’s Scissors w/stripping notches

UTP/STP Stripper

1

1

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver

Probe Pick and Spudger

Nylon case

1

1

1

35-485

35-497

35-088

45-165

35-908

35-473

62-205

Data/Video Kit

Kit 33-917 Includes:

Description

Data T

®

-Cutter

Twist-a-Nut™ 7-in-1 Screwdriver

UTP Stripper

Coax Stripper w/Replaceable Cartridge 1

Punchmaster

II Punch Down Tool w/110 Blade 1

110/66 Blade Combo Punch Down Blade 1

Crimpmaster ™ Crimp Tool for RJ-45 Modular

Plugs

1

Qty.

1

1

1

OmniSeal ™ Pro XL Compression Tool

Probe Pic and Spudger

Coax Connector Tool - F & BNC

VDV MultiMedia Cable Tester

Amplifi er Probe

Electrician’s Scissors w/Stripping Notch

Large Mouth Bag - 33 cm

1

1

1

1

1

1

1

Cat. No.

45-074

35-908

45-165

45-526

35-485

35-407

30-522

30-793

35-473

35-046

33-856

62-164

35-088

35-410 www.idealnwd.co.uk

Copper Cable Installation Tools, Accessories and Lubricants

Insulation Displacement Connectors (IDC)

IDC connectors create fast splice and tap connections on solid copper wires. Designed for low voltage telecommunication cables.

Moisture-resistant sealant protects wires from corrosion

Use with solid copper single-conductor wire

Kinetic Super ™ Wire Stripper/Crimper cuts and strips 0.2mm

2 to

0.3mm

2

solid wire

Description

UB-I, 2-Wire Tap Splice IDC

UR-I, 3-Wire Butt Splice IDC

UY-I, 2-Wire Butt Splice IDC

UR-I, 2-Wire Butt Splice IDC

UR-I, 3-Wire Butt Splice IDC

UY-I, 2-Wire Butt Splice IDC

IDC Combo Pack

Kinetic Super

Crimper

Wire Stripper/

Qty.

25

25

25

100

1000

1000

25

1

Cat. No.

85-900

85-925

85-950

86-925

87-925

87-950

85-960

45-719

Blued-Steel Tuff-Grip

Pro Fish Tapes

Industry’s Leading Fish Tape!

Length m/ft.

18.29 / 60

36.58 / 120

73.15 / 240

Width & Thickness

0.060 cm x 0.32 cm (1/8in. x .060 in.)

0.060 cm x 0.32 cm 1/8 in.x .060 in.

0.060 cm x 0.32 cm 1/8 in.x .060 in.

Zoom Fish Tapes

Features and Benefits

Unique fi nish is non-oily and resists rust

Multiple options in width and length for ease of use

Industry’s straightest wire

Stiffer for long runs

Highest grade carbon steel

Tensile strength 725kg

High column strength for longer runs

Superior pull-out and rewind characteristics

Case Diameter

30.48 cm / 12 in.

30.48 cm / 12 in.

30.48 cm / 12 in.

End Type Tuff-Grip

ProBlued

Formed hook 31-055

Formed hook

Formed hook

31-056

31-057

Length m/ft.

15.24 / 50

30.48 / 100

60.96 / 200

Width & Thickness

3/16 in. diameter

3/16 in. diameter

3/16 in. diameter

+44 (0)1925 444446 for Customer Service

Case Diameter

30.48 cm / 12 in.

30.48 cm / 12 in.

40.64 cm / 16 in.

Features and Benefits

19 strands of stainless steel

Ultra hard nylon jacket adds slipperiness, protects cables and user’s hands

Excellent for corrugated plastic conduit

Excellent for multiple bends or wet/corrosive work environment

The only one in the industry

End Type

Eyelet

Eyelet

Eyelet

Tuff-Grip™ Pro

31-090

31-092

31-096

Replacement Tapes

31-091

31-093

31-097

53

S-Class

®

Fish Tape

Length m/ft.

15.24 / 50

15.24 / 50

30.48 / 100

30.48 / 100

60.96/ 200

60.96/ 200

Width & Thickness Case Diameter End Type

3/16 in. diameter 30.48 cm / 12 in. Leader

3/16 in. diameter 30.48 cm / 12 in.

Leader

3/16 in. diameter 30.48 cm / 12 in.

Leader

3/16 in. diameter 30.48 cm / 12 in.

Leader

3/16 in. diameter 40.64 cm / 16 in.

Leader

3/16 in. diameter 40.64 cm / 16 in.

Leader

Non-conductive tape designed for use around live circuits

Strong S-Class ® core for longer life and greater pushing power

Smooth nylon jacket provides great handling around bends

Omni-directional pushing

Tuff-Grip™ Pro Rapid-Pak ®

31-060 31-187

31-062

31-061

31-190

31-186

31-063

31-064

31-065

31-189

31-207

31-208

Replacement Tapes

31-150

31-160

31-152

31-162

31-155

31-165

54

Tuff-Rod™ Cable Pulling Rods

Designed to meet the needs of the electrical contractor and save valuable time during the installation of cable. Used to reach and push / pull wires & cables over suspended ceilings, in cable trays and through wall cavities. Ideal’s Tuff-Rod™ fi shing rods are extremely strong yet lightweight and fl exible.

Use to reach and pull wires over suspended ceilings, in cable trays or through interior walls

Packaged in clear tubes for protection and longterm storage

Strong, lightweight & fl exible fi breglass rods (6 mm/1/4 inch)

Extendable with additional rods & accessories

Ultra smooth gel coating helps protect hand from fi breglass

ADDITIONAL EXTRA FLEX GLOW Features

As Regular Flex but 5 mm (3/16 inch) luminescent fi breglass rods

Glow-in-the-dark material for use in attics, basements and other dim lit areas

Cat. No.

31-611

31-612

Description - Regular Flex

3.6m (12 ft.) kit with fi xed bullet nose and threaded J hook (3 ea. 1.2m [4 ft.] sections)

7.32m (24 ft.) kit with fi xed bullet nose and threaded bullet nose (4 ea. 1.83m [6 ft.] sections)

12 pack of 0.64 cm [1/4 in.] x 1.2m [4 ft.] Replacement Rods

12 pack of 0.64 cm [1/4 in.] x 1.83m [6 ft.] Replacement Rods

Description - Extra Flex Glow

3.6 m (12 ft.) kit with fi xed bullet nose and threaded J hook (3 ea. 1.2m [4 ft.] sections)

9.14m (30 ft.) kit with fi xed bullet nose and threaded bullet nose (5 ea. 1.83m [6 ft.] sections)

12 pack of 0.48 cm (3/16 in.) x 1.2 m [4 ft.] Replacement Rods

12 pack of 0.48 cm (3/16 in.) x 1.83 m [6 ft.] Replacement Rods

Accessory Kits

0.48 cm (3/16 in.)

0.64 cm (1/4 in.)

Repair Kits

0.48 cm (3/16 in.)

0.64 cm (1/4 in.)

31-643

31-644

Cat. No.

31-631

31-633

31-647

31-648

Cat. No.

31-651

31-652

Cat. No.

31-641

31-642

Wire Pulling Lubricants

Electricians have been known to use alternative solutions such as washing up liquid rather than products developed specifi cally as cable pulling lubricants. Independent lab tests have shown that detergents remain wet for longer periods within the conduit causing permanent damage to the cable insulation. This can lead to fi re and safety risks. IDEAL’s Yellow 77 ® is the number 1 brand of wire pulling lubricant since 1959 and is a perfect general purpose lubricant for pulling wire & cable. ClearGlide™ wire & cable pulling lubricant is a clear and colourless lubricant designed for quick and easy clean-up.

www.idealnwd.co.uk

Copper Cable Installation Tools, Accessories and Lubricants

Yellow 77

®

Wire Pulling Lubricant

Features and Benefits

Wax-based formula for superior lubricity

Safe for use with most cable types except low-density polyethylene and semi-conducting jackets

Clings to cable throughout long pulls

Won’t break down or separate after repeated exposure to freezing temperatures

Dries to a thin, non-conductive fi lm

Easy to apply by hand or by brush

Creamy texture applies easily and uniformly

Homogeneous blend requires no mixing

Won’t dry out - surface coat forms to control evaporation

Environmentally safe - non-toxic, non-fl ammable and non-corrosive

0.95 l (1-qt.) Squeeze Bottle

3.79 l (1-gal.) Bucket

18.93 l (5-gal.) Bucket

31-358

31-351

31-355

ClearGlide™ Cable Pulling Lubricant

*Results from Falex Corporation, an independent testing agency specializing in tribology tests, using the Falex-ISC On Disk Tribmeter System machine with the

ASTM G99 modifi ed method.

Features and Benefits

Exceptional lubricity for super-fast pulls

Polymer-based formula perfect for all electrical and datacomm applications

Safe to use with all cable types

Remains stable over wide temperature range - usable from 30°F to 180°F (-1°C to 82°C)

Dries to a semi-fl uid fi lm that won’t clog conduit

Easy to apply by hand, brush or pump

Environmentally safe - non-toxic, non-fl ammable and non-corrosive

Description Cat .

0.95 l (1-qt.) Squeeze Bottle

3.79 l (1-gal.) Bucket

18.93 l (5-gal.) Bucket

No.

31-388

31-381

31-385

Selection Guide

Colour

ClearGlide™ Wire Pulling Lubricant

Clear

Base Polymer

Average Coeffi cient of Friction* .

17 .

Safe Storage

Application Temperature Range

32°F – 180°F(0°C – 82°C)

40°F – 100°F (4°C – 38°C)

COMPATIBILITY (Cable Types):

Rubber •

Neoprene •

Nylon •

PVC •

High-density or cross-linked • polyethylene •

Low-density polyethylene •

Semiconducting jacket •

Hypalon •

Yellow 77

Yellow

®

Wire Pulling Lubricant Velocity™ Wire Pulling Lubricant

Cream

Wax Polymer

08 .

14

32°F – 130°F (0°C – 54°C)

40°F – 100°F (4°C – 38°C)

40°F – 140°F (4°C – 82°C)

25°F – 140°F (-3.9°C – 60°C)

• •

• •

• •

• •

• •

For more information on our full range of cable lubricants, please contact Customer Service or visit: www.idealindustries.co.uk/lubricants

+44 (0)1925 444446 for Customer Service

55

CONNECTORS AND TERMINATION PRODUCTS

Data T

®

-Cutter

Cuts round communication and structured wiring cables and maintains cable geometry for better cable performance. Data T

®

-Cutter cuts multi-pair cable up to .500 in. (12.7 mm) and coaxial cable up to RG-9/U. Blade cutting capabilities suitable for soft cables (not ACSR).

Steel reinforced centre conductors can be trimmed with bolt cutting holes

Data T ® -Cutter II designed for RG-58 and RG-6 coaxial cable

Cushioned comfort grip handles

Locking latch keeps tool closed in pouch

Data T

®

-Cutter 45-074

Economy Coax Cable Stripper

For RG-6, RG-6 Quad and RG-59

No adjustment required

Strips centre conductor & cable jacket

Coax Cable Stripper 45-320

Coax Connector Kit w/four RG-6 Push-On F-Connectors 33-320

RG-11 Coax Stripper

For use with IDEAL RG-11 compression connectors (89-211, 89-1211), provides 6.4mm x 6.4mm strip

RG-11 Coax Stripper for Compression Connectors 45-111

56

Proper Coax Strip Procedure

6.4mm x 6.4mm standard strip.

6.4mm 6.4mm

Proper strip length settings will leave 6.4mm of the centre conductor exposed and 6.4mm of the braiding (shield) exposed.

After stripping, make sure the tip of the centre conductor is straight and not bent. Straighten the conductor if necessary.

Fold back the outer layer of braiding (shield) against the cable jacket.

Keep the braid strands as straight and as close to the jacket as possible.

Note: For Quad Shield cables (with four layers; outer braid, outer foil, inner braid, inner foil), fi rst fold back the outer braiding. Use the 45-074 to score and remove the exposed 6.4mm of outer foil. Remove outer foil and fold back inner braiding.

www.idealnwd.co.uk

Connectors and Termination Products

Features a primary and secondary active strip cartridge

Strips UTP, RG-59, RG-6 Quad and RG-6 coax cable

Rotates easily around fi nger

Push-on ring for easy connector termination

Description Cat. No.

Coax/UTP Cable Stripper

RG-6/6Q/59 Replacement Cartridge

UTP Replacement Cartridge

45-603

LB-2726

LB-2727

Coax Stripmaster

®

Wire Strippers

Speeds 2-step cable stripping

Spring-action operation grips and strips in one motion

Knife-type blades feature multiple hole diameters sized for two step removal of outer jacket insulation and centre conductor

Description Coax Cable Type

(RGU)

Coax Stripmaster

®

for RG-6 RG-6

Coax Stripmaster ® for RG-59 RG-59

Repl. Blade

Cat. No.

Cat. No.

LB-740 45-262

LB-743 45-265

Coax Stripmaster ® for RG-6

Quad Shield

RG-6 Quad Shield

Coax Stripmaster ® for RG-58 RG-58

LA-3953

45-264 -

45-282

Coax Stripmaster ® for

MediaTwist

MediaTwist 45-274 -

Round Cable Slitting and Ringing Tool

Cuts around cable jacket as well as slits

the length of jacket for easy removal

Blade adjusts for jacket thicknesses up to .125 in.

Use with single or multiple conductor cable up to 1.75 in. O.D.

Spare blade in handle base

Round Cable Slitting and Ringing Tool

Replacement Blades for 45-144 (2/pkg.)

45-144

LB-1748

Cable/Satellite/CCTV Coax Stripper

Designed for fast and easy 1/4” x 1/4” strip lengths

Blades auto-adjust to different diameter coax cables

Spinner ring for fast stripping

Strips RG-6/6 Quad and RG-59 coax cable

Video Coax Stripper 45-321

+44 (0)1925 444446 for Customer Service

57

58

Coax Strippers

Specifi c adjustments needed for each cable size

Description

Coax Stripper - 3 Step

• For crimp BNC and TNC conn.

• Strips braid 0.240 in. or 6mm and Dielectric 0.240 in. or 6mm

Cat. No.

45-520

Coax Stripper - 3 Step

• For dual crimp BNC/TNC and Thinnet BNC conn.

• For 735A Belden ® cable

• Strips braid 0.328 in. or 8.2mm and dielectric 0.109 in. or 2.7mm

45-521

Coax Stripper - 2 Step

• For F-Type, many single crimp BNC/

TNC‘s, Twist-on BNC/TNC‘s, Twinax and

UHF conn.

• Strips 0.250 in. or 6.35mm

45-526

Cassette

45-522

(Black)

45-523

(Brown)

45-524

(Blue)

UTP/STP/Coaxial Cable Strippers

Specifi c adjustments needed for each cable size

Designed for fast and easy 1/4” x 1/4” strip lengths

Blades auto-adjust to different diameter coax cables

Spinner ring for fast stripping

Strips RG-6/6 Quad and RG-59 coax cable

Description

Coaxial Cable Stripper, up to 1/8 in.

(3.2mm) O.D

Coaxial Cable Stripper, 1/8 in. (3.2mm) to

7/32 in. (5.556mm) O.D.

Coaxial Cable Stripper, 1/4 in. (6.4mm) to

9/16 in. (14.3mm) O.D.

Cable Stripper, 3/16 in. (4.8mm) to 5/16 in.

(8mm) O.D.

Replacement Blade Set* for 45-162, 45-

163, 45-165

Replacement Blade Set* for 45-164

-

-

RG Cables

RG-174, RG-

187

RG-58, Mini

Coax

RG-11, RG-8

RG-59, UTP

Cable

Cat. No.

45-162-341,

(Gray)

45-163-341,

(Blue)

45-164-341

(Blue)

45-165-341,

(Black)

L-9225

L-9226

Coax Strip and Crimp Tool

Precision, form-ground stripping holes remove outer jacket and insulation from RG-59 and RG-6 coaxial cable

Durable blades cut copper-coated steel conductors

Three crimping nests for crimping F-connectors and ring terminals

Cushioned, comfort-grip handles

Coax Strip & Crimp Tool

Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors

30-433

30-433F www.idealnwd.co.uk

Connectors and Termination Products

4-Way Indent Crimp Tools

Specifi c adjustments needed for each cable size

D-Sub/Double-D Service Tool

High-grade steel construction for outstanding performance

20-26 AWG (0.52 mm 2 - 0.13 mm 2 ) RS232 D-sub Round

Barrel Contacts, Pins or Sockets

16-22 AWG (1.31 mm 2 - 0.33 mm 2 ) Round Barrel Contacts,

Pins, Sockets and Deutsch 16 Pin Contacts

Trompeter BNC Connector Centre Pins

35-465

35-466

35-468

Exact replacement of the AMP openbarrel service tool for stamped contacts and D-Sub contacts

Also crimps Double-D,high density, miniature contacts

Includes openings for crimping insulated terminals and cutters for machine screws

Description Qty.

D-Sub/Double-D Service Tool

Cat. No.

30-426

Easily compresses series 6 and 59 coax compression F-connectors

Permanent connection – never comes loose

Works with most brands of compression connectors

Economy Compression Tool

Economy Compression Tool Kit - Includes four CMP RG-6

Connectors

30-633

33-633

Moisture-resistant sealant protects wires from corrosion

Use with solid copper single-conductor wire

Kinetic Super

Wire Stripper/Crimper cuts and strips 0.2mm

2

to 0.3mm

2 solid wire

85-900

85-950

85-925

UR-I, 3-Wire Butt Splice IDC

UR-I, 2-Wire Butt Splice IDC

UR-I, 3-Wire Butt Splice IDC

IDC Combo Pack

UY-I, 2-Wire Butt Splice IDC

UB-I, 2-Wire Tap Splice IDC

25

100

1,000

25

25

25

85-925

86-925

87-925

85-960

85-950

85-900

Strain Relief Boots for Modular Plugs

Prevents broken connector tabs and snagging while extending connector life

Minimizes cable bends that can reduce data speed and result in data loss

Dampens cable movement and vibrations that can result in premature connector failure

Strain Relief Boots for Modular Plugs 25 85-380

+44 (0)1925 444446 for Customer Service

59

Modular Plugs

Plugs are capable of supporting the latest EIA/TIA cable system performance categories when installed in compliance with appropriate EIA/TIA standards and methods

All plugs work with 0.2mm

2 solid or stranded conductors and

8-Position 8-Contact, RJ-45

6-Position 6-Contact, RJ-11

6-Position 4-Contact, RJ-11

25

50

100

250

25

100

25

50

100

85-346

85-396

86-396

85-1396

85-345

86-395

85-344

85-394

86-394

CAT 6 RJ-45 Modular Plugs

Unique three-piece design provides easy installation and optimal performance

Crimps with a standard RJ-45 crimp die

50 micron gold contacts, 8-position, 8-contact

Suitable for solid or stranded conductors – 0.26mm

2

- 0.33mm

2

CAT 6 RJ-45 Modular Plugs 25 85-366

OmniSeal™ Pro Compression Tools

The IDEAL OmniSeal™ Compression Tools now offer additional features and increased connector compatibility in a smaller, more compact tool designed to meet the demands of the professional installer. (OmniSeal™ requires no accessory attachment to terminate IDEAL branded compression connectors.) Most other manufacturers compression connectors can be terminated with an easy plunger depth adjustment. The simple intuitive design combined with its size and universal connector acceptance makes this the only compression tool needed by professional installers.

Spring loaded handle

Convenient handle lock for easy fi t in pouch

For BNC connectors

(Model 30-793)

Textured Santoprene™ slip resistant comfort grip

High strength aluminum body for durability, lighter weight

F-type, Mini

F-type, RCA, and Mini RCA connectors connectors

60 adjustments in place

Factory preset to work with IDEAL compression connectors

Compresses F-type, RCA, BNC and Mini connectors

Adjustable to fi t other manufacturer’s connectors - no accessory adaptors required adjustment

Description Qty.

OmniSeal™ Pro XL Compression Tool

OmniSeal™ Pro Compression Tool

OmniSeal™ Pro XL OmniSeal™ Pro

OmniSeal™ Pro XL

30-793

OmniSeal™ Pro

30-603

-

BNC yes

F-Type RG11 RCA yes yes yes yes yes yes

Cat. No.

30-793

30-603

Mini Coax yes yes www.idealnwd.co.uk

Connectors and Termination Products

COMPRESSION CONNECTORS

RTQ™ Reg/Tri/Quad & Plenum F-Connectors

Fits 60% regular, tri-shield and quad shield cables

Nickel-plated, brass-construction for superior corrosion resistance

Weatherproof for indoor and outdoor use

Designed for use by satellite and cable TV companies

Use 30-603, 30-793 or 30-633 Compression Tools

RG-11 F-Connectors

Fits 60% regular RG-11 cable

Nickel-plated, brass-construction for superior corrosion resistance

Designed for use by satellite and cable TV companies

Weatherproof for indoor and outdoor use

Use 30-603 or 30-793 Compression Tools

Use 45-111, 6.35mm x 6.35mm RG-11 Coax Stripper

BNC Connectors

Nickel-plated, brass-construction for superior corrosion resistance

Moisture-inhibiting design

Use 30-793 Compression Tool

75 Ohm nominal impedance

Gold-plated pin contact area

Available in plenum versions

OmniCONN™ F-Connectors

Non corrosive nickel plated brass body and polycarbonate bushing

Delrin/Nylon adaptor sleeve and o-ring provide double protection for a watertight seal

Free spinning hex nut for ease of installation onto all 11.11mm ports

75 ohm nominal impedance

RCA Connectors

Constructed of nickel plated brass and gold plated head

75 ohm nominal impedance

Compatible with 30-603 and 30-793 Compression Tools

Bandwidth up to 3 GHZ

Two-piece pre-assembled connectors

+44 (0)1925 444446 for Customer Service

61

62

Connector

Type

Cable Type

F

F

F

F

F

F

BNC

BNC

BNC

BNC

RCA

RCA

RCA

Qty.

RG-6

Reg/Tri/Quad

RG-6

Plenum

RG-59

Reg/Tri/Quad

RG-11

RG-6

Quad

RG-6

RG-6 Plenum

RG-59

RG-59 Plenum

RG-6

RG-59

Mini (21 - 23 AWG)

Card of 4

Card of 10

Jar of 50

Jar of 100

Box of 1,000 (20 bags of 50 ea.)

Box of 1,000 bulk

Jar of 50

Box of 1,000

Jar of 50

Box of 1,000

Card of 10

Box of 500

Jar of 50

Box of 1,500

Jar of 50

Box of 1,500

Card of 4

Card of 15

Jar of 35

Box of 1,000 (10 bags, 100 ea.)

Card of 15

Jar of 35

Box of 1,000 (10 bags, 100 ea.)

Card of 4

Card of 15

Jar of 35

Box of 1,000 (10 bags, 100 ea.)

Card of 15

Jar of 35

Box of 1,000 (10 bags, 100 ea.)

Card of 4

Card of 10

Jar of 35

Card of 4

Card of 10

Jar of 35

Card of 10

Cat. No.

89-044

89-1544

89-045

89-1545

92-705

89-048

89-5048

89-1048

89-050

89-5050

89-1050

92-704

89-047

89-5047

92-654

92-651

92-650

92-656

92-759

92-659

92-660

92-669

92-610

92-619

89-211

89-1211

89-1047

89-049

89-5049

89-1049

92-582

89-582

89-580

92-572

89-572

89-570

89-014SMRCA www.idealnwd.co.uk

Connectors and Termination Products

Compression Port Seals - 1/2 in.

Used with compression F-connectors to weatherproof connector by placing onto the female port. Made from EPDM for superior sealing.

Description Qty.

Long Sleeve Compression F-Connector

Port Seals, 12.7mm

Bag of 100 33-633

Crimpmaster™ Crimp Tool Replacement Die Sets

Used with compression F-connectors to weatherproof connector by placing onto the female port. Made from EPDM for superior sealing.

Crimpmaster™ Crimp Tool Frame

Cat.No. 35-185

Crimp release provides operator safety.

Dies change quickly and easily with a screwdriver.

Interchangeable dies provide versatility in a single tool.

Pressure adjustment for actuation force.

Ratchet crimp action provides repeatable and reliable terminations.

Description

22-10 AWG (0.5mm

2 -6.0mm

2 ) fully insulated slide-on connectors

Insulated Terminal Crimp Tool with built-in locator

22-12 AWG (0.5mm

2

- 4.0mm

2

) Non-insulated open barrel crimp style connectors

RG-58, 59, 62 Non-plenum Cambridge BNC/TNC connectors

RG-8/11, RG-213, RG-216 Ethernet Thickwire, N-Series type plugs and jacks

RG-9, Belden ® 8281 ® and RG-6 Cable, 50 & 75 Ohm

RG-58 and RG-174 cable for 50 and 75 Ohm cables

RG-174 Mini-59 Hex BNC/TNC coax connector

RG-58 and RG-59 Plenum cables, Thinwire PVC Hex

16-26 AWG (0.13mm

2 - 1.3mm

2 ) Miniature insulated rings and splices

22-10 AWG (0.5mm

2

-6.0mm

2

) Insulated ring tongue terminals and splices

22-8 AWG (0.5mm

2 - 8mm 2 ) Non-insulated terminals and splices

RG-58 RG-59/62AU BNC/TNC3-Piece Hex type connectors

CATV RG-59 and RG-6 Captive Ring F-connectors

RG-6, RG-174, Belden-Type RG-8281 cables

Mini UHF and BNC/TNC 5 cavity

30-18 AWG (0.05mm

2

- 1.0mm

2

), Open barrel pins and sockets

+44 (0)1925 444446 for Customer Service

-

Tool Cat. No.

30-479

-

-

30-481

30-482

30-483

-

-

30-485

-

30-500

30-502

-

-

-

30-503

-

Replacement Die Set Cat. No.

30-594

30-586

30-573

30-577

30-578

30-587

30-576

30-591

30-572

30-579

30-580

30-581

30-582

30-570

30-593

30-599

63

30-556

RJ-11 Crimp Tool for two, four or six-position modular plugs

Tool w/die N/A

30-559

RJ-45 Eight-position Crimp

Tool for keyed or non-keyed modular plugs

Tool w/die 30-522

64

30-560

RJ-45 Eight-position Crimp

Tool for AMP RJ-45 modular plugs

Tool w/die 30-521

30-570

RG-6, RG-174, Belden-Type

RG-8281 cables (Hex. 0.324

(8.23mm), 0.178 (4.52mm),

0.068 (1.73mm)

Tool w/die N/A

30-573

Cambridge CP-88, CP-89

BNC/TNC coax connectors with RG-58, RG-59/RG-62

AU cables (Hex 0.305

(7.75mm), 0.068 (1.73mm),

0.228 (5.79mm)

Tool w/die 30-481

30-576

RG-174, Mini 59 BNC/TNC

Connectors (Hex, 0.178

(4.52mm), 0.128 (3.25mm),

0.068 (1.73mm)

Tool w/die 30-485

30-577

N-Series and RG-8/11

Connectors (Hex, 0.429

(10.90mm), 0.100

(2.54mm), 0.080 (2.03mm)

Tool w/die 30-482

30-578

RG-59, RG-6, and 8281 50 and 75 OHM cables (Hex,

0.324 (8.23mm), 0.255

(6.48mm), 0.068 (1.73mm),

0.042 (1.07mm)

Tool w/die 30-483

30-581

RG-58, RG-59/62, BNC/

TNC Coax Connectors (Hex,

0.255 (6.48mm), 0.213

(5.41mm), 0.068 (1.73mm)

Tool w/die 30-502

30-582

F-type CATV RG-59, RG-6

Connectors (Hex, 0.350

(8.89mm), 0.320 (8.13mm),

0.255 6.48mm)

Tool w/die 30-503

30-587

RG-58, RG-174 and

G-8218 for both 50 and

75 ohm cables (Hex 0.213

(5.41mm), 0.178 (4.52mm),

0.068 (1.73mm), 0.042

(1.07mm)

Tool w/die N/A

30-591

Plenum and Non-Plenum

Thinwire Cables RG-58 and

59 (Hex, 0.213 (5.41mm),

0.190 (4.83mm), 0.068

(1.73mm), 0.042 (1.07mm)

Tool w/die N/A

30-593

Mini UHF and BNC/TNC 5 cavity (Hex, 0.052 (1.32mm),

0.068 (1.73mm), 0.100

(2.54mm), 0.213 (5.41mm),

0.255 (6.48mm)

Tool w/die N/A

30-572

16-26 AWG (0.13mm

2 - 1.3mm

2 ) miniature insulated rings, spade and butt splices

Tool w/die N/A

30-579

22-10 AWG (0.5mm

2 -6.0mm

2 ) insulated terminals/colour coded nests

Tool w/die 30-500

30-580

22-8 AWG (0.5mm

2 - 8.0mm

2 ) non-insulated terminals

Tool w/die N/A

30-586

22-12 AWG (0.5mm

2 - 4.0mm

2 )

Non Insulated Open Barrel

Connectors, Commercial Type

Tool w/die N/A

30-594

Fully Insulated quick disconnect terminals with thinner wire barrels 22-10 AWG

(0.5mm

2 -6.0mm

2 )

Tool w/die N/A

30-599

30-18 AWG (0.05mm

2 - 1.0mm

2 )

Open Barrel Pins and Sockets

Tool w/die N/A

30-479 (Tool w/die)

For insulated terminals,

22-10 AWG (0.5mm

2 -6.0mm

2 ) with built-in locator www.idealnwd.co.uk

Connectors and Termination Products

F-Type Coaxial Connectors

F-Series Connectors utilize threaded couplings and cable conductors as contacts for CATV and other UHF applications.

Available in the three most popular styles, RG-6/6Q/59

All brass design

One-piece body design

Crimp with the Crimpmaster™ 30-503 Crimp Tool

Push-On F-Connectors, RG-6 & RG-59

No terminator tool required

All brass nickel-plated construction

Knurled nut for superior grip

Designed for indoor use

Connector Type

F

F

F

RCA

Connector

Type

Cable Type Termination Type

Qty.

F

F

F

RG-6

RG-6

Quad

RG-59

Crimp

Crimp

Crimp

Card of 4

Card of 10

Card of 50

Box of 100

Card of 4

Card of 10

Card of 50

Box of 100

Card of 4

Card of 10

Card of 50

Cat. No.

84-017

85-037

85-017

86-017

84-030

85-057

85-030

86-030

84-016

85-036

85-016

Cable Type

RG-6

RG-6 Quad

RG-59

RG-6

Qty.

Cat. No.

Card of 4

Jar of 50

85-065

89-165

Box of 1,500 85-1165

Card of 4 85-066

Jar of 50 85-166

Box of 1,500 85-1166

Card of 4

Jar of 50

85-067

85-167

Card of 10 89-500

Twist-On F-Connectors, RG-6 & RG-59

After cable is stripped, simply twist on connector

No termination tool required

Available in two styles, RG-6 and 59

Connector Type

F

F

Cable Type

RG-6

RG-59

Qty.

Cat. No.

Card of 10

Card of 50

Box of 100

Card of 4

Card of 10

85-053

85-039

86-039

84-018

85-035

F-Type Adaptors & Terminators

Nickel-plated brass construction

For 75Ω applications

Description

1GHz Female-to-Female F-Type Coaxial Adaptor

3GHz F-Splice Adaptor, high bandwith, OMHz to 3GHz for standard and high defi nition applications,

<0.25dB insertion loss, >25dB return loss

Female to RCA Male Adaptor – converts female F-connectors to male RCA connectors

Coax Cable F-Terminators - for all open ports on coax wall plates and splitters

90° F-Adaptor - F-female to F-male coax adaptor

+44 (0)1925 444446 for Customer Service

Qty.

Cat. No.

Card of 10 85-031

Card of 4 85-339

Card of 2 85-936

Card of 10 85-038

Card of 2 85-070

65

BNC Connectors

Connector construction covers both plenum and non-plenum cable jackets

Captive gold centre contacts provide maximum conductivity and minimal resistance

Meets military specifi cations. MS39012 and MIL202 where applicable.

Nickel plating resists corrosion, tarnish and ensures signal quality

Available in both small and bulk quantities to suit a range of application requirements

Connector Type

BNC Plug

BNC Plug

Cable Type Centre

RG-59

20 AWG Solid

(0.5mm

2

)

RG-6

18 AWG Solid

(1.0mm

2 )

Jacket

Non-Plenum

Non-Plenum

Connector Impedance Insulation

75 Ohm Delrin

75 Ohm

Delrin

BNC Adaptor -

Jack to Jack

50 Ohm Delrin

BNC Twist-on Plug RG-59

22-23 AWG

Solid (0.25-

0.32mm

2

)

Non-Plenum

Description

F to BNC Adaptor Kit

• 1x BNC Male to F-type Female

• 4x F-type Male to BNC Female

• 4x F-type Female to BNC Female

• 1x RJ-45 Male to F-type Female

50 Ohm Delrin

Qty.

Bag of 5

Cat. No.

85-502

Box of 100 86-502

Bag of 5

Bag of 5

Bag of 5

85-512

85-545

85-590

Bag of 5

Cat. No.

LA-4173

85-480

Works on compression and hex connectors

Makes attaching (and detaching) connector to equipment easier

Aids in installing CATV connectors on coax cable

New comfort grip handle

Description Qty.

Coax Connector Tool - F & BNC — 20.32cm overall

(7.62mm. blade)

Cat. No.

35-046

66

2.4 GHz Satellite and Digital TV Splitters

Designed for easy mounting over cable

All ports are F female connectors, 75Ω

Two grounding screws eliminate the need for grounding block

All ports power pass

Description

2-Way, 5MHz - 2.4GHz

3-Way, 5MHz - 2.4GHz

4-Way, 5MHz - 2.4GHz

Cat. No.

85-332

85-333

85-334 www.idealnwd.co.uk

Connectors and Termination Products

Cable TV Splitters

Description

High Performance Cable Splitter, 5MHz-1GHz 2-Way

High Performance Cable Splitter, 5MHz-1GHz 3-Way

High Performance Cable Splitter, 5MHz-1GHz 4-Way

8-Way Digital Cable Splitter

Diplexer 5 MHz - 2.1 GHz

Grounding Block

+44 (0)1925 444446 for Customer Service

Qty.

Card of 1

Box of 10

Card of 1

Box of 10

Card of 1

Box of 10

Cat. No.

85-132

86-132

85-133

86-133

85-134

86-134

Nickel-plated housing

High-performance impedance balanced Printed Circuit Board design

Bandwidth: 5MHz - 1 GHz Impedance: 75 Ohm

Over 120 dB of RFI shielding

Splits signals up to 8 outlets

Low insertion loss

Terminators (85-038) needed for all unused ports for optimal performance

Description Qty.

Digital Cable Splitter, 8-Way

Cat. No.

85-138

Combine or split cable/antenna signals with satellite signals

High quality PCB design

Nickel-plated die-cast zinc housing

Corrosion-resistant sealed construction

Grounding hole for up to 6 AWG wire

Description Qty.

Diplexer, 2.1 GHz, SATV/TV Combiner Splitter - 2 Amp

Cat. No.

85-323

Solid zinc alloy, nickel plated and chromate fi nished

High performance 360° beryllium copper contact

Excellent electrical performance 0 - 3,000 MHz

UL/CSA approved

Description Qty.

2-Port Grounding Block for F-Connectors

Cat. No.

85-311

67

Connectors and Termination Products

Description

Compression Connector Installation Kit

Data T

®

-Cutter

Coax Cable Stripper

Economy Compression Tool

Pouch w/belt clip

1

1

1

1

Qty.

1

Cat. No.

33-623

-

45-074

45-320

30-633

RG-6 Push-on Connector Kit

Description

RG-6 Push-On Connector Kit

RG-6 Push-On Connectors

2-Step 59 & 6 Series Stripper

Qty.

1

4

1

Cat. No.

33-320

85-065

45-320

BNC/TNC connector removal tools for easy access to

high density locations of connectors.

Description

12 in. (30.5 cm) Overall Length, 8 in. (20.3 cm) Blade Length

16 in. (40.6 cm) Overall Length, 12 in. (30.4 cm) Blade Length

Cat. No.

35-042

35-043

68

Coax Strip and Crimp Tool

(Kit includes ten connectors)

Precision, form-ground stripping holes remove outer jacket and insulation from RG-59 and RG-6 coaxial cable

Durable blades cut copper-coated steel conductors

Three crimping nests for crimping F-connectors and ring terminals

Cushioned, comfort-grip handles

Description

Coax Strip & Crimp Tool

Cat. No.

30-433

Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors 30-433F www.idealnwd.co.uk

Fibre Tools and Accessories

FIBRE TOOLS AND ACCESSORIES

Simplex/Duplex 3mm jacket Stripper

Designed to remove the jacket from 3mm Simplex or Duplex (zip cord) fi bre optic cable

Form-ground, knife-type blades for accurate easy stripping without damaging the fi bre or Kevlar

®

strength member

Contoured, comfort-grip handles to reduce operator fatigue

Simplex/Duplex 3mm Jacket Stripper 45-349

Stripmaster

®

Ribbon Fibre Jacket Stripper

Removes jacket from Ribbon Fibre without damage to the Kevlar

® strength member of the Ribbon Fibre

Note: Frame and blade-set sold separately.

Stripmaster

®

Frame only

Frame & Blade-set for use with Corning Plenum and Riser Ribbon

Fibre Cable

Frame &Blade-set for use with Corning “Fanout” Ribbon Cable

L-5620

45-891

45-892

Serrated Cutter (for Kevlar

®

) with Breaker Notch

Two-Step process signifi cantly increases the life of this rugged tool

Superior quality high-carbon stainless steel with molybdenum and vanadium provides the super-hard edges needed to stand up to the demands of today’s market

Textured cushioned-grip handles

Value-priced for contractors, cable assembly houses, fi bre installers/technicians and tool kits

Serrated Cutter w/Breaker Notch 45-344

Small strip notch engineered and precision-ground to strip 900 micron or

250 micron buffer coatings from

125 micron fi bre

Larger round strip notch machined to remove the 3mm outer jacket

Strip notches pre-set and locked, no fi eld adjustment necessary

MiniLite-Strip™ Optical Fibre Stripper 45-352

Cable Strippers

This lightweight, compact stripper is inexpensive and simple to operate.

Adjustable blades can be set for any depth to help ensure nick-free strips

Use with twisted-pair wire, tightly wrapped stranded cables, CATV cable,

CB antenna cable, SO, SJ, SJT and other types of fl exible power cords

Includes three straight and one round blade

Cable Stripper, up to 1/8 in. (3.2 mm) O.D., Gray 45-162-341

Cable Stripper, 1/8 in. (3.2 mm) to 7/32 in. (5.556 mm) O.D., Blue 45-163-341

Replacement Blade Set for 45-162, 45-163, 45-165 L-9225

+44 (0)1925 444446 for Customer Service

69

Fibre Tools and Accessories

Split-Tip Fibre Optic Swabs

Split-tip design cleans fi bre easier and more effi ciently than other methods

Tube/handle is pre-loaded with 99% isopropyl alcohol

A single swab can be used for many cleanings or until the alcohol is gone

Split-Tip Fibre Optic Swabs Bag of 20 45-360

DualScribe™ Double-Ended Fibre Optic Scribes

Three professional quality blade styles to choose from to meet

Sapphire, Carbide

Colour-coded handles for quick, easy identifi cation

Red – Ruby

Blue – Sapphire

Black – Carbide

30° single bevel – DualScribe™ reversible blade doubles tool life

Soft non-slip grip provides precise control during scribing

Clear safety cap protects the blades from damage when not in use

Description

Ruby Blade Fibre Optic Scribe

Sapphire Blade Fibre Optic Scribe

Carbide Blade Fibre Optic Scribe

Handle Colour Cat. No.

Red

Blue

Black

45-357

45-358

45-359

Universal fi tting accepts all ST

®

, SC and FC connectors with

2.5mm ferrules

Economically priced

Grooved face for polishing effi ciency

Precision tool used by manufacturers, contractors and in tool kits

Description Cat. No.

Plastic Polishing Fixture 45-342

70

Stainless Steel Polishing Fixture for Optical Fibre ST

®

and SC Type Connectors

F-Series Connectors utilize threaded couplings and cable conductors as contacts for CATV and other UHF applications.

Precision-machined, stainless-steel disk provides accurate polishing angle for desired end face fi nish

Stainless-steel hardness maintains long life and resists uneven wear

Stepped surface reduces drag and friction for easier polishing

Description

Polishing Fixture for Optical Fibre SC/ST ®

Type Connectors

Handle Colour Cat. No.

1 45-341

g p

For optimum connector polishing results, we recommend a three-step procedure using 0.5μm, 3μm and 12μm 3” x 6” aluminum oxide polishing fi lms

Lot-to-lot consistency in our fi lms means repeatable connector fi nishes on ceramic, stainless steel, plastic and composite ferrules

A single sheet will typically yield 10 to 20 connectors when using the recommended 3-step procedure

Description Colour Qty.

Cat. No.

0.5μm, 3” x 6”, Aluminum Oxide Ivory 20 fi lms/sleeve 45-337

3.0μm, 3” x 6”, Aluminum Oxide Lt. Yellow 20 fi lms/sleeve 45-338

12μm, 3” x 6”, Aluminum Oxide Lt. Red 20 fi lms/sleeve 45-339 www.idealnwd.co.uk

Also from IDEAL INDUSTRIES

Domestic, commercial and industrial electricians have come to depend on

IDEAL for quality electrical products. Our electrical line contains just about everything an electrician might need for an easier, more effi cient job: industry standard wire connectors, fi sh tapes, wire pulling lubricants, wire strippers, hand tools, safety supplies and a comprehensive family of rugged, versatile and easy-to-use test and measurement instruments.

For more information on our electrical range please visit

www.idealindustries.co.uk

Recommended product for data centres

HeatSeeker

®

Thermal Imagers

Troubleshoot and identify potential problems before they happen with the IDEAL HeatSeeker

®

Thermal Imagers. What makes HeatSeeker

®

so useful are the dual cursors that instantly locate the hottest and coldest temperatures on a live screen, and the camera’s ability to blend a thermal image on top of a digital image for easy on-the-job decision making. The HeatSeeker

®

Thermal Imager’s easy set-up and operation make it a cost-effective tool for electrical service, industrial maintenance, building inspection and data centre evaluation

Features and Benefits

Troubleshoot potential problems quickly

Auto hot/cold tracker

Image blending of thermal and digital

Picture-in-picture

Mark images with text and voice annotation

Large widescreen display

Sequence image recording

Description

HeatSeeker

HeatSeeker ® 160

Cat.No

61-844EU

61-846EU

For more information about IDEAL INDUSTRIES NETWORKS in Europe:

IDEAL INDUSTRIES NETWORKS DIVISION

Unit 3, Europa Court, Europa Boulevard,

Westbrook, Warrington, Cheshire, WA5 7TN,

United Kingdom

Tel: +44 (0)1925 444446

Fax: +44 (0)1925 445501

Email: [email protected]

www.idealnwd.co.uk

IDEAL INDUSTRIES GmbH

Gutenbergstrasse 10,

D - 85737 Ismaning, Germany

Tel: +49 (0) 89 99686 0

Fax: +49 (0) 89 99686 111

Email: [email protected]

www.idealnwd.de

IDEAL INDUSTRIES SAS

Route de Gisy, ZA Burospace - Bât 7, F - 91571

BIEVRES CEDEX, France

Tel: +33 (0)1 69 35 54 70

Fax: +33 (0)1 60 19 00 48

Email: [email protected]

www.idealnwd.fr

All specifi cations are subject to change without notice. No liability will be accepted for errors and omissions.

+44 (0)1925 444446 for Customer Service

71

IDEAL INDUSTRIES LIMITED

Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington,

Cheshire, WA5 7TN, United Kingdom

Tel: +44 (0)1925 444446, Fax: +44 (0)1925 445501, Email: [email protected]

International offi ces:

Australia • Brazil • Canada • China • France • Germany • Mexico • UK • USA

For complete sales offi ce contact information, visit us at

www.idealindustries.co.uk.

Publication No. 00630 Issue 1

Printed in UK

No. P-1658UK

©2011 IDEAL INDUSTRIES, INC.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
