Freescale Semiconductor, Inc.

Datasheet: Technical Data

Document Number: DSP56F803

Rev. 17, 10/2015

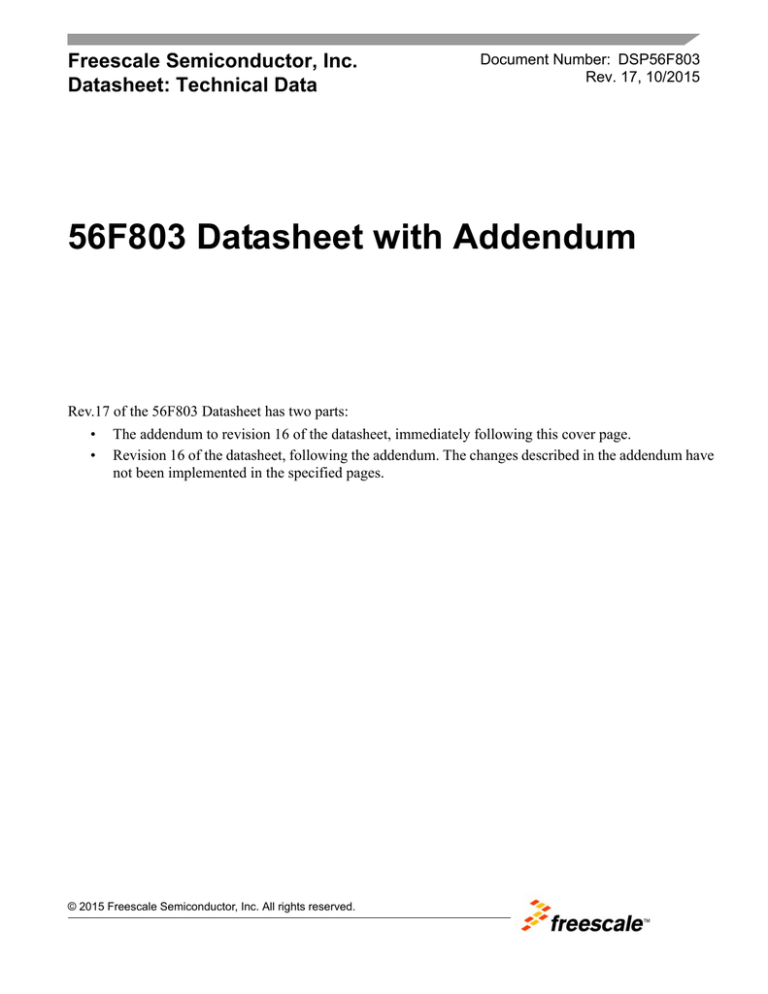

56F803 Datasheet with Addendum

Rev.17

of the 56F803 Datasheet has two parts:

• The addendum to revision 16 of the datasheet, immediately following this cover page.

• Revision 16 of the datasheet, following the addendum. The changes described in the addendum have not been implemented in the specified pages.

© 2015 Freescale Semiconductor, Inc. All rights reserved.

Freescale Semiconductor, Inc.

Datasheet Addendum

Document Number: DSP56F803AD

Rev. 0, 10/2015

Addendum to Rev.

16 of the 56F803 datasheet

This addendum identifies changes to Rev.16

of the 56F803 datasheet. The changes described in this addendum have not been implemented in the specified pages.

1 Update the incomplete Thermal Design

Considerations section

Location:

Section 5.1, Page 51

Thermal Considerations section in 56F803 datasheet Rev.16 is incomplete. The complete Thermal

Design Consideration section should be as follows:

An estimation of the chip junction temperature, T

J

, in °C can be obtained from the equation:

T

J

= T

A

+ (P

D

x R

JA

)

Eqn. 1

where:

T

A

= ambient temperature °C

R

JA

= package junction-to-ambient thermal resistance °C/W

P

D

= power dissipation in package

Historically, thermal resistance has been expressed as the sum of a junction-to-case thermal resistance and a case-to-ambient thermal resistance:

R

JA

= R

JC

+ R

CA

Eqn. 2

© 2015 Freescale Semiconductor, Inc. All rights reserved.

Update the incomplete Thermal Design Considerations section

where

R

JA

= package junction-to-ambient thermal resistance °C/W

R

JC

= package junction-to-case thermal resistance °C/W

R

CA

= package case-to-ambient thermal resistance °C/W

R

JC is device-related and cannot be influenced by the user. The user controls the thermal environment to change the case-to-ambient thermal resistance,R

CA

. For example, the user can change the air flow around the device, add a heat sink, change the mounting arrangement on the Printed Circuit Board (PCB), or otherwise change the thermal dissipation capability of the area surrounding the device on the PCB. This model is most useful for ceramic packages with heat sinks; some 90% of the heat flow is dissipated through the case to the heat sink and out to the ambient environment. For ceramic packages, in situations where the heat flow is split between a path to the case and an alternate path through the PCB, analysis of the device thermal performance may need the additional modeling capability of a system level thermal simulation tool.

The thermal performance of plastic packages is more dependent on the temperature of the PCB to which the package is mounted. Again, if the estimations obtained from R

JA do not satisfactorily answer whether the thermal performance is adequate, a system level model may be appropriate.

Definitions

A complicating factor is the existence of three common definitions for determining the junction-to-case thermal resistance in plastic packages:

• Measure the thermal resistance from the junction to the outside surface of the package (case) closest to the chip mounting area when that surface has a proper heat sink. This is done to minimize temperature variation across the surface.

• Measure the thermal resistance from the junction to where the leads are attached to the case. This definition is approximately equal to a junction to board thermal resistance.

• Use the value obtained by the equation (T

J

– T

T

)/P

D

where T

T

is the temperature of the package case determined by a thermocouple.

The thermal characterization parameter is measured per JESD51-2 specification using a 40-gauge type T thermocouple epoxied to the top center of the package case. The thermocouple should be positioned so that the thermocouple junction rests on the package. A small amount of epoxy is placed over the thermocouple junction and over about 1mm of wire extending from the junction. The thermocouple wire is placed flat against the package case to avoid measurement errors caused by cooling effects of the thermocouple wire.

When heat sink is used, the junction temperature is determined from a thermocouple inserted at theinterface between the case of the package and the interface material. A clearance slot or hole is normally required in the heat sink. Minimizing the size of the clearance is important to minimize the change in thermal performance caused by removing part of the thermal interface to the heat sink. Because of the experimental difficulties with this technique, many engineers measure the heat sink temperature and then back-calculate the case temperature using a separate measurement of the thermal resistance of the

Freescale Semiconductor, Inc.

Addendum to Rev.16 of 56F803 Technical Data, Rev. 0, 10/2015

3

4

Add missing Electrical Design Considerations section

interface. From this case temperature, the junction temperature is determined from the junction-to-case thermal resistance.

2 Add missing

Electrical Design Considerations section

Location:

Section 5.2, Page 52

CAUTION

This device contains protective circuitry to guard against damage due to high static voltage or electrical fields. However, normal precautions are advised to avoid application of any voltages higher than maximum rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate voltage level.

Use the following list of considerations to assure correct DSP operation:

• Provide a low-impedance path from the board power supply to each VDD pin on the DSP, and from the board ground to each VSS (GND) pin.

• The minimum bypass requirement is to place six 0.01–0.1 mF capacitors positioned as close as possible to the package supply pins. The recommended bypass configuration is to place one bypass capacitor on each of the seven VDD/VSS pairs, including VDDA/VSSA. The VCAP capacitors must be 150 milliohm or less ESR capacitors.

• Ensure that capacitor leads and associated printed circuit traces that connect to the chip VDD and

VSS (GND) pins are less than 0.5 inch per capacitor lead.

• Use at least a four-layer Printed Circuit Board (PCB) with two inner layers for VDD and VSS .

• Bypass the VDD and VSS layers of the PCB with approximately 100 mF, preferably with a highgrade capacitor such as a tantalum capacitor.

• Because the DSP output signals have fast rise and fall times, PCB trace lengths should be minimal

3 Add missing Ordering part section

Location:

Section 6, Page 53

Table 1

lists the pertinent information needed to place an order. Consult a Freescale Semiconductor sales office or authorized distributor to determine availability and to order parts.

Table 1. 56F803 Ordering Information

Part

56F803

Supply

Voltage

Package Type

3.0–3.6 V Low Profile Plastic Quad Flat

Pack (LQFP)

Pin Count

Ambient

Frequency

(MHz)

100 80

Order Number

DSP56F803BU80

Addendum to Rev.16 of 56F803 Technical Data, Rev. 0, 10/2015

Freescale Semiconductor, Inc.

Part

Supply

Voltage

Add missing Ordering part section

Table 1. 56F803 Ordering Information

Package Type Pin Count

Ambient

Frequency

(MHz)

Order Number

100 80 DSP56F803BU80E

1

56F803 3.0–3.6 V Low Profile Plastic Quad Flat

Pack (LQFP)

1

This package is RoHS compliant

Freescale Semiconductor, Inc.

Addendum to Rev.16 of 56F803 Technical Data, Rev. 0, 10/2015

5

56F803

Data Sheet

Preliminary Technical Data

56F800

16-bit Digital Signal Controllers

DSP56F803

Rev. 16

09/2007

freescale.com

Version History

Rev. 16

Document Revision History

Description of Change

Added revision history.

Added this text to footnote 2 in

Table 3-8

: “However, the high pulse width does not have to

be any particular percent of the low pulse width.”

56F803 General Description

• Up to 40 MIPS at 80MHz core frequency

• DSP and MCU functionality in a unified,

C-efficient architecture

• Hardware DO and REP loops

• MCU-friendly instruction set supports both DSP and controller functions: MAC, bit manipulation unit, 14 addressing modes

• 31.5K

× 16-bit words (64KB) Program Flash

• 512

× 16-bit words (1KB) Program RAM

• 4K

× 16-bit words (8KB) Data Flash

• 2K

× 16-bit words (4KB) Data RAM

• 2K

× 16-bit words (4KB) Boot Flash

• Up to 64K

× 16-bit words each of external Program and Data memory

• 6-channel PWM module

• Two 4-channel 12-bit ADCs

• Quadrature Decoder

• CAN 2.0 B module

• Serial Communication Interface (SCI)

• Serial Peripheral Interface (SPI)

• Up to two General Purpose Quad Timers

• JTAG/OnCE

TM

port for debugging

• 16 shared GPIO lines

• 100–pin LQFP package

3

3

6

PWM Outputs

Current Sense Inputs

Fault Inputs

PWMA

Quad Timer B

Quad Timer C

Quad Timer D

CAN 2.0A/B

SCI or

GPIO

SPI or

GPIO

Program Memory

32252 x 16 Flash

512 x 16 SRAM

Boot Flash

2048 x 16 Flash

Data Memory

4096 x 16 Flash

2048 x 16 SRAM

COP/

Watchdog

Application-Specific

Memory &

Peripherals

EXTBOOT

RESET

IRQA

IRQB

6

JTAG/

OnCE

Port

VCAPC V

DD

2 6

V

SS

6*

V

DDA

V

SSA

Digital Reg Analog Reg

Low Voltage

Supervisor

4

4

4

2

2

2

4

A/D1

A/D2 ADC

VREF

Quadrature

Decoder 0 /

Quad Timer A

Interrupt

Controller

Program Controller and

Hardware Looping Unit

Address

Generation

Unit

Data ALU

16 x 16 + 36

→ 36-Bit MAC

Three 16-bit Input Registers

Two 36-bit Accumulators

Bit

Manipulation

Unit

PAB

PDB

XDB2

CGDB

XAB1

XAB2

INTERRUPT

CONTROLS

16

IPBB

CONTROLS

16

COP RESET

MODULE CONTROLS

ADDRESS BUS [8:0]

DATA BUS [15:0]

IPBus Bridge

(IPBB)

16-Bit

56800

Core

PLL

Clock Gen

CLKO

XTAL

EXTAL

External

Bus

Interface

Unit

External

Address Bus

Switch

External

Data Bus

Switch

Bus

Control

6

10

16

A[00:05]

A[06:15] or

GPIO-E2:E3 &

GPIO-A0:A7

D[00:15]

PS Select

DS Select

WR Enable

RD Enable

56F803 Block Diagram

* includes TCS pin which is reserved for factory use and is tied to VSS

56F803 Technical Data, Rev. 16

Freescale Semiconductor 3

4

Part 1 Overview

1.1 56F803 Features

1.1.1

Processing Core

• Efficient 16-bit 56800 family controller engine with dual Harvard architecture

• As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency

• Single-cycle 16

× 16

bit parallel Multiplier-Accumulator (MAC)

• Two 36

bit accumulators, including extension bits

• 16

bit bidirectional barrel shifter

• Parallel instruction set with unique processor addressing modes

• Hardware DO and REP loops

• Three internal address buses and one external address bus

• Four internal data buses and one external data bus

• Instruction set supports both DSP and controller functions

• Controller style addressing modes and instructions for compact code

• Efficient C compiler and local variable support

• Software subroutine and interrupt stack with depth limited only by memory

• JTAG/OnCE debug programming interface

1.1.2

Memory

• Harvard architecture permits as many as three simultaneous accesses to Program and Data memory

• On-chip memory including a low-cost, high-volume Flash solution

— 31.5K

× 16-bit words of Program Flash

— 512K

× 16

bit words of Program RAM

— 4K

× 16

bit words of Data Flash

— 2K

× 16

bit words of Data RAM

— 2K

× 16

bit words of Boot Flash

• Off-chip memory expansion capabilities programmable for 0, 4, 8, or 12 wait states

— As much as 64K

× 16 bits of Data memory

— As much as 64K

× 16 bits of Program memory

1.1.3

Peripheral Circuits for 56F803

• Pulse Width Modulator module (PWM) with six PWM outputs, three Current Sense inputs, and three Fault inputs, fault-tolerant design with dead time insertion, supports both center- and edge- aligned modes, supports Freescale’s patented dead time distortion correction

• Two 12

bit Analog-to-Digital Converters (ADCs), which support two simultaneous conversions; ADC and

PWM modules can be synchronized

• Quadrature Decoder with four inputs (shares pins with Quad Timer)

56F803 Technical Data, Rev. 16

Freescale Semiconductor

56F803 Description

• Four General Purpose Quad Timers: Timer A (sharing pins with Quad Dec0), Timers B &C without external pins and Timer D with two pins

• CAN 2.0 B module with 2-pin ports for transmit and receive

• Serial Communication Interface (SCI) with two pins (or two additional GPIO lines)

• Serial Peripheral Interface (SPI) with configurable 4-pin port (or four additional GPIO lines)

• Computer Operating Properly (COP) Watchdog timer

• Two dedicated external interrupt pins

• Sixteen multiplexed General Purpose I/O (GPIO) pins

• External reset input pin for hardware reset

• JTAG/On-Chip Emulation (OnCE™) for unobtrusive, processor speed-independent debugging

• Software-programmable, Phase Locked Loop-based frequency synthesizer for the controller core clock

1.1.4

Energy Information

• Fabricated in high-density CMOS with 5V

tolerant, TTL-compatible digital inputs

• Uses a single 3.3V power supply

• On-chip regulators for digital and analog circuitry to lower cost and reduce noise

• Wait and Stop modes available

1.2 56F803 Description

The 56F803 is a member of the 56800 core-based family of processors. It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, the 56F803 is well-suited for many applications. The 56F803 includes many peripherals that are especially useful for applications such as motion control, smart appliances, steppers, encoders, tachometers, limit switches, power supply and control, automotive control, engine management, noise suppression, remote utility metering, and industrial control for power, lighting, and automation.

The 56800 core is based on a Harvard-style architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. The MCU-style programming model and optimized instruction set allow straightforward generation of efficient, compact device and control code.

The instruction set is also highly efficient for C compilers to enable rapid development of optimized control applications.

The 56F803 supports program execution from either internal or external memories. Two data operands can be accessed from the on-chip Data RAM per instruction cycle. The 56F803 also provides two external dedicated interrupt lines, and up to 16 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration.

The 56F803 controller includes 31.5K words (16-bit) of Program Flash and 4K words of Data Flash (each programmable through the JTAG port) with 512 words of Program RAM and 2K words of Data RAM. It also supports program execution from external memory.

A total of 2K words of Boot Flash is incorporated for easy customer-inclusion of field-programmable

56F803 Technical Data, Rev. 16

Freescale Semiconductor 5

6 software routines that can be used to program the main Program and Data Flash memory areas. Both

Program and Data Flash memories can be independently bulk

– erased or erased in page sizes of 256 words.

The Boot Flash memory can also be either bulk- or page

erased.

A key application-specific feature of the 56F803 is the inclusion of a Pulse Width Modulator (PWM) module. This module incorporates three complementary, individually programmable PWM signal outputs

(the module is also capable of supporting three independent PWM functions, for a total of six PWM outputs) to enhance motor control functionality. Complementary operation permits programmable dead time insertion, distortion correction via current sensing by software, and separate top and bottom output polarity control. The up-counter value is programmable to support a continuously variable PWM frequency. Edge- and center-aligned synchronous pulse width control (0% to 100% modulation) is supported. The device is capable of controlling most motor types: ACIM (AC Induction Motors), both

BDC and BLDC (Brush and Brushless DC motors), SRM and VRM (Switched and Variable Reluctance

Motors), and stepper motors. The PWM incorporates fault protection and cycle-by-cycle current limiting with sufficient output drive capability to directly drive standard opto-isolators. A “smoke-inhibit”, write-once protection feature for key parameters and patented PWM waveform distortion correction circuit are also provided. The PWM is double-buffered and includes interrupt controls to permit integral reload rates to be programmable from 1 to 16. The PWM module provides a reference output to synchronize the ADC.

The 56F803 incorporates a separate Quadrature Decoder capable of capturing all four transitions on the two-phase inputs, permitting generation of a number proportional to actual position. Speed computation capabilities accommodate both fast and slow moving shafts. The integrated watchdog timer in the

Quadrature Decoder can be programmed with a time-out value to alarm when no shaft motion is detected.

Each input is filtered to ensure only true transitions are recorded.

This controller also provides a full set of standard programmable peripherals that include a Serial

Communications Interface (SCI), one Serial Peripheral Interface (SPI), and four Quad Timers. Any of these interfaces can be used as General Purpose Input/Outputs (GPIO) if that function is not required. A

Controller Area Network interface (CAN Version 2.0 A/B-compliant) and an internal interrupt controller are also included on the 56F803.

1.3 State of the Art Development Environment

• Processor Expert

TM

(PE) provides a Rapid Application Design (RAD) tool that combines easy-to-use component-based software application creation with an expert knowledge system.

• The Code Warrior Integrated Development Environment is a sophisticated tool for code navigation, compiling, and debugging. A complete set of evaluation modules (EVMs) and development system cards will support concurrent engineering. Together, PE, Code Warrior and EVMs create a complete, scalable tools solution for easy, fast, and efficient development.

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Product Documentation

1.4 Product Documentation

The four documents listed in

Table 1-1

are required for a complete description and proper design with the

56F803. Documentation is available from local Freescale distributors, Freescale Semiconductor sales offices, Freescale Literature Distribution Centers, or online at: www.freescale.com

Topic

56800E

Family Manual

DSP56F801/803/805/807

User’s Manual

56F803

Technical Data Sheet

56F803

Errata

Table 1-1 56F803 Chip Documentation

Description

Detailed description of the 56800 family architecture, and

16-bit core processor and the instruction set

Detailed description of memory, peripherals, and interfaces of the 56F801, 56F803, 56F803, and 56F807

Electrical and timing specifications, pin descriptions, and package descriptions (this document)

Details any chip issues that might be present

Order Number

56800EFM

DSP56F801-7UM

DSP56F803

DSP56F803E

1.5 Data Sheet Conventions

This data sheet uses the following conventions:

OVERBAR

Examples:

This is used to indicate a signal that is active when pulled low. For example, the RESET pin is active when low.

“asserted” A high true (active high) signal is high or a low true (active low) signal is low.

“deasserted” A high true (active high) signal is low or a low true (active low) signal is high.

Signal/Symbol Logic State Signal State

Voltage

1

PIN

PIN

PIN

PIN

True

False

True

False

Asserted

Deasserted

Asserted

Deasserted

1.

Values for V

IL

, V

OL

, V

IH

, and V

OH

are defined by individual product specifications.

V

IL

/V

OL

V

IH

/V

OH

V

IH

/V

OH

V

IL

/V

OL

Freescale Semiconductor

56F803 Technical Data, Rev. 16

7

8

Part 2 Signal/Connection Descriptions

2.1 Introduction

The input and output signals of the 56F803 are organized into functional groups, as shown in

Table 2-1

and as illustrated in

Figure 2-1

. In

Table 2-2

through

Table 2-17

, each table row describes the signal or

signals present on a pin.

Table 2-1 Functional Group Pin Allocations

Functional Group

Power (V

DD

or V

DDA

)

Ground (V

SS

or V

SSA

)

Supply Capacitors

PLL and Clock

Address Bus

1

Data Bus

Bus Control

Interrupt and Program Control

Pulse Width Modulator (PWM) Port

Serial Peripheral Interface (SPI) Port

1

Quadrature Decoder Port

2

Serial Communications Interface (SCI) Port

1

CAN Port

Analog to Digital Converter (ADC) Port

Quad Timer Module Port

JTAG/On-Chip Emulation (OnCE)

1.

Alternately, GPIO pins

2.

Alternately, Quad Timer pins

4

2

2

9

2

6

Number of

Pins

7

7

2

3

16

16

4

4

12

4

Detailed

Description

Table 2-2

Table 2-3

Table 2-4

Table 2-5

Table 2-6

Table 2-7

Table 2-8

Table 2-9

Table 2-10

Table 2-11

Table 2-12

Table 2-13

Table 2-14

Table 2-15

Table 2-16

Table 2-17

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Introduction

Power Port

Ground Port

Power Port

Ground Port

Other

Supply

Ports

PLL and

Clock

External

Address Bus or

GPIO

External

Data Bus

External

Bus Control

Quadrature

Decoder or

Quad Timer A

V

DD

V

SS

V

DDA

V

SSA

VCAPC

1

1

6

6*

2

6

3

3

PWMA0-5

ISA0-2

FAULTA0-2

EXTAL

XTAL

CLKO

A0-A5

A6-7 (GPIOE2-E3)

A8-15 (GPIOA0-A7)

D0–D15

PHASEA0 (TA0)

PHASEB0 (TA1)

INDEX0 (TA2)

HOME0 (TA3)

PS

DS

RD

WR

1

1

1

1

1

1

1

1

6

2

8

1

1

1

16

56F803

1

1

1

1

SCLK (GPIOE4)

MOSI (GPIOE5)

MISO (GPIOE6)

SS (GPIOE7)

1

1

TXD0 (GPIOE0)

RXD0 (GPIOE1)

8

1

ANA0-7

VREF

1

1

MSCAN_RX

MSCAN_TX

PWMA

Port

SPI Port or GPIO

SCI0 Port or GPIO

ADCA

Port

CAN

TD1-2

2

JTAG/OnCE

Port

TCK

TMS

TDI

TDO

TRST

DE

1

1

1

1

1

1

1

1

1

1

IRQA

IRQB

RESET

EXTBOOT

* includes TCS pin which is reserved for factory use and is tied to VSS

Figure 2-1 56F803 Signals Identified by Functional Group

1

1. Alternate pin functionality is shown in parenthesis.

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Quad

Timer D

Interrupt/

Program

Control

9

2.2 Power and Ground Signals

No. of Pins

6

1

Signal Name

V

DD

V

DDA

Table 2-2 Power Inputs

Signal Description

Power—These pins provide power to the internal structures of the chip, and should all be attached to V

DD.

Analog Power—This pin is a dedicated power pin for the analog portion of the chip and should be connected to a low noise 3.3V supply.

No. of Pins

5

1

1

Signal Name

V

SS

V

SSA

TCS

Table 2-3 Grounds

Signal Description

GND—These pins provide grounding for the internal structures of the chip, and should all be attached to V

SS.

Analog Ground—This pin supplies an analog ground.

TCS—This Schmitt pin is reserved for factory use and must be tied to V

SS

for normal use.

In block diagrams, this pin is considered an additional V

SS.

No. of

Pins

Signal

Name

Signal

Type

2 VCAPC Supply

Table 2-4 Supply Capacitors

State During

Reset

Signal Description

Supply VCAPC—Connect each pin to a 2.2

μF or greater bypass capacitor in order to bypass the core logic voltage regulator (required for proper chip operation). For more information, please refer to

Section 5.2

.

10

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Clock and Phase Locked Loop Signals

2.3 Clock and Phase Locked Loop Signals

No. of

Pins

1

Signal

Name

EXTAL

1

1

XTAL

CLKO

Signal

Type

Input

Input/

Output

Output

Table 2-5 PLL and Clock

State During

Reset

Input

Signal Description

Chip-driven

External Crystal Oscillator Input—This input should be connected to an 8MHz external crystal or ceramic resonator. For more information,

please refer to

Section 3.5

.

Crystal Oscillator Output—This output should be connected to an

8MHz external crystal or ceramic resonator. For more information,

please refer to

Section 3.5

.

Chip-driven

This pin can also be connected to an external clock source. For more

information, please refer to

Section 3.5.3

.

Clock Output—This pin outputs a buffered clock signal. By programming the CLKOSEL[4:0] bits in the CLKO Select Register

(CLKOSR), the user can select between outputting a version of the signal applied to XTAL and a version of the device’s master clock at the output of the PLL. The clock frequency on this pin can also be disabled by programming the CLKOSEL[4:0] bits in CLKOSR.

2.4 Address, Data, and Bus Control Signals

No. of

Pins

6

2

8

Signal

Name

A0–A5

A6–A7

Signal

Type

Output

GPIOE2

GPIOE3

Input/O utput

A8–A15

Output

Output

GPIOA0

GPIOA7

Input/O utput

Table 2-6 Address Bus Signals

State During

Reset

Tri-stated

Tri-stated

Signal Description

Address Bus—A0–A5 specify the address for external Program or Data memory accesses.

Address Bus—A6–A7 specify the address for external Program or Data memory accesses.

Input

Tri-stated

Input

Port E GPIO—These two pins are General Purpose I/O (GPIO) pins that can be individually programmed as input or output pins.

After reset, the default state is Address Bus.

Address Bus—A8–A15 specify the address for external Program or

Data memory accesses.

Port A GPIO—These eight pins are General Purpose I/O (GPIO) pins that can be individually programmed as input or output pins.

After reset, the default state is Address Bus.

56F803 Technical Data, Rev. 16

Freescale Semiconductor 11

No. of

Pins

16

Signal

Name

D0–D15

Signal

Type

Input/O utput

Table 2-7 Data Bus Signals

State During

Reset

Tri-stated

Signal Description

Data Bus— D0–D15 specify the data for external Program or Data memory accesses. D0–D15 are tri-stated when the external bus is inactive. Internal pull-ups may be active.

No. of

Pins

1

Signal

Name

PS

1

1

1

DS

WR

RD

Signal

Type

Output

Output

Output

Output

Table 2-8 Bus Control Signals

State During

Reset

Tri-stated

Signal Description

Tri-stated

Tri-stated

Tri-stated

Program Memory Select—PS is asserted low for external Program memory access.

Data Memory Select—DS is asserted low for external Data memory access.

Write Enable—WR is asserted during external memory write cycles. When

WR is asserted low, pins D0–D15 become outputs and the device puts data on the bus. When WR is deasserted high, the external data is latched inside the external device. When WR is asserted, it qualifies the A0–A15, PS, and

DS pins. WR can be connected directly to the WE pin of a Static RAM.

Read Enable—RD is asserted during external memory read cycles. When

RD is asserted low, pins D0–D15 become inputs and an external device is enabled onto the device data bus. When RD is deasserted high, the external data is latched inside the controller. When RD is asserted, it qualifies the

A0–A15, PS, and DS pins. RD can be connected directly to the OE pin of a

Static RAM or ROM.

2.5 Interrupt and Program Control Signals

No. of

Pins

1

Signal

Name

IRQA

1

IRQB

Table 2-9 Interrupt and Program Control Signals

Signal

Type

Input

(Schmitt)

Input

(Schmitt)

State During

Reset

Input

Input

Signal Description

External Interrupt Request A—The IRQA input is a synchronized external interrupt request indicating an external device is requesting service. It can be programmed to be level-sensitive or negative-edge- triggered.

External Interrupt Request B—The IRQB input is an external interrupt request indicating an external device is requesting service.

It can be programmed to be level-sensitive or negative-edge-triggered.

56F803 Technical Data, Rev. 16

12 Freescale Semiconductor

Pulse Width Modulator (PWM) Signals

No. of

Pins

1

1

Table 2-9 Interrupt and Program Control Signals (Continued)

Signal

Name

RESET

Signal

Type

Input

(Schmitt)

State During

Reset

Input

Signal Description

Reset—This input is a direct hardware reset on the processor.

When RESET is asserted low, the controller is initialized and placed in the Reset state. A Schmitt trigger input is used for noise immunity.

When the RESET pin is deasserted, the initial chip operating mode is latched from the EXTBOOT pin. The internal reset signal will be deasserted synchronous with the internal clocks, after a fixed number of internal clocks.

EXTBOOT

Input

(Schmitt)

Input

To ensure a complete hardware reset, RESET and TRST should be asserted together. The only exception occurs in a debugging environment when a hardware device reset is required and it is necessary not to reset the OnCE/JTAG module. In this case, assert

RESET, but do not assert TRST.

External Boot—This input is tied to V

DD to force device to boot from off-chip memory. Otherwise, it is tied to V

SS

.

2.6 Pulse Width Modulator (PWM) Signals

No. of

Pins

6

3

3

Signal

Name

Table 2-10 Pulse Width Modulator (PWMA) Signals

Signal

Type

PWMA0

5

ISA0

2

Output

Input

(Schmitt)

FAULTA0

2

Input

(Schmitt)

State During

Reset

Tri-stated

Input

Input

Signal Description

PWMA0

5— These are six PWMA output pins.

ISA0

2— These three input current status pins are used for top/bottom pulse width correction in complementary channel operation for PWMA.

FAULTA0

2— These three fault input pins are used for disabling selected PWMA outputs in cases where fault conditions originate off-chip.

Freescale Semiconductor

56F803 Technical Data, Rev. 16

13

2.7 Serial Peripheral Interface (SPI) Signals

No. of

Pins

1

1

1

1

Signal

Name

MISO

GPIOE6

MOSI

GPIOE5

SCLK

GPIOE4

SS

GPIOE7

Table 2-11 Serial Peripheral Interface (SPI) Signals

Signal

Type

Input/Out put

State During

Reset

Input

Signal Description

SPI Master In/Slave Out (MISO)—This serial data pin is an input to a master device and an output from a slave device. The MISO line of a slave device is placed in the high impedance state if the slave device is not selected.

Input/Out put

Input

Input/Out put

Input/Out put

Input/Out put

Input/Out put

Input

Input/Out put

Input

Input

Input

Input

Input

Input

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is MISO.

SPI Master Out/Slave In (MOSI)—This serial data pin is an output from a master device and an input to a slave device. The master device places data on the MOSI line a half-cycle before the clock edge that the slave device uses to latch the data.

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is MOSI.

SPI Serial Clock—In master mode, this pin serves as an output, clocking slaved listeners. In slave mode, this pin serves as the data clock input.

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is SCLK.

SPI Slave Select—In master mode, this pin is used to arbitrate multiple masters. In slave mode, this pin is used to select the slave.

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is SS.

14

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Quadrature Decoder Signals

2.8 Quadrature Decoder Signals

No. of

Pins

1

Signal

Name

PHASEA0

Table 2-12 Quadrature Decoder (Quad Dec0) Signals

Signal

Type

Input

State During

Reset

Input

Signal Description

Phase A—Quadrature Decoder #0 PHASEA input

1

1

1

TA0

PHASEB0

TA1

INDEX0

TA2

HOME0

TA3

Input/Output

Input

Input/Output

Input

Input/Output

Input

Input/Output

Input

Input

Input

Input

Input

Input

Input

TA0—Timer A Channel 0

Phase B—Quadrature Decoder #0 PHASEB input

TA1—Timer A Channel 1

Index—Quadrature Decoder #0 INDEX input

TA2—Timer A Channel 2

Home—Quadrature Decoder #0 HOME input

TA3—Timer A Channel 3

2.9 Serial Communications Interface (SCI) Signals

No. of

Pins

1

1

Signal

Name

TXD0

Table 2-13 Serial Communications Interface (SCI0) Signals

Signal Type

Output

State During

Reset

Input

Signal Description

Transmit Data (TXD0)—SCI0 transmit data output

GPIOE0

Input/Output Input

RXD0

GPIOE1

Input

Input/Output

Input

Input

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is SCI output.

Receive Data (RXD0)— SCI0 receive data input

Port E GPIO—This General Purpose I/O (GPIO) pin can be individually programmed as an input or output pin.

After reset, the default state is SCI input.

Freescale Semiconductor

56F803 Technical Data, Rev. 16

15

2.10 CAN Signals

No. of

Pins

1

Signal

Name

MSCAN_ RX

1

MSCAN_ TX

Signal

Type

Input

(Schmitt)

Output

Table 2-14 CAN Module Signals

State During

Reset

Input

Signal Description

Output

MSCAN Receive Data—This is the MSCAN input. This pin has an internal pull-up resistor.

MSCAN Transmit Data—MSCAN output. CAN output is open-drain output and a pull-up resistor is needed.

2.11 Analog-to-Digital Converter (ADC) Signals

No. of

Pins

4

4

1

Signal

Name

ANA0

3

ANA4

7

VREF

Table 2-15 Analog to Digital Converter Signals

Signal

Type

Input

Input

Input

State During

Reset

Input

Input

Input

Signal Description

ANA0

3—Analog inputs to ADC channel 1

ANA4

7—Analog inputs to ADC channel 2

VREF—Analog reference voltage for ADC. Must be set to V

DDA

-0.3V for optimal performance.

2.12 Quad Timer Module Signals

No. of Pins

2

Signal Name

TD1

2

Table 2-16 Quad Timer Module Signals

Signal Type

Input/Output

State During Reset

Input

Signal Description

TD1

2— Timer D Channel 1

2

16

56F803 Technical Data, Rev. 16

Freescale Semiconductor

JTAG/OnCE

2.13 JTAG/OnCE

Table 2-17 JTAG/On-Chip Emulation (OnCE) Signals

No. of

Pins

1

1

Signal

Name

TCK

TMS

Signal

Type

State During

Reset

Signal Description

Input

(Schmitt)

Input, pulled low internally

Test Clock Input—This input pin provides a gated clock to synchronize the test logic and shift serial data to the JTAG/OnCE port. The pin is connected internally to a pull-down resistor.

Input

(Schmitt)

Input, pulled high internally

Test Mode Select Input—This input pin is used to sequence the JTAG

TAP controller’s state machine. It is sampled on the rising edge of TCK and has an on-chip pull-up resistor.

1

1

1

TDI

TDO

TRST

Input

(Schmitt)

Output

Input

(Schmitt)

Input, pulled high internally

Tri-stated

Input, pulled high internally

Note:

Always tie the TMS pin to V

DD

through a 2.2K resistor.

Test Data Input—This input pin provides a serial input data stream to the

JTAG/OnCE port. It is sampled on the rising edge of TCK and has an on-chip pull-up resistor.

Test Data Output—This tri-statable output pin provides a serial output data stream from the JTAG/OnCE port. It is driven in the Shift-IR and Shift-DR controller states, and changes on the falling edge of TCK.

Test Reset—As an input, a low signal on this pin provides a reset signal to the JTAG TAP controller. To ensure complete hardware reset, TRST should be asserted at power-up and whenever RESET is asserted. The only exception occurs in a debugging environment when a hardware device reset is required and it is necessary not to reset the OnCE/JTAG module. In this case, assert RESET, but do not assert TRST.

1

DE

Output Output

Note:

For normal operation, connect TRST directly to V

SS

. If the design is to be used in a debugging environment, TRST may be tied to V

SS

through a 1K resistor.

Debug Event—DE provides a low pulse on recognized debug events.

Part 3 Specifications

3.1 General Characteristics

The 56F803 is fabricated in high-density CMOS with 5-V tolerant TTL-compatible digital inputs. The term “5-V tolerant” refers to the capability of an I/O pin, built on a 3.3V-compatible process technology, to withstand a voltage up to 5.5V without damaging the device. Many systems have a mixture of devices designed for 3.3V and 5V power supplies. In such systems, a bus may carry both 3.3V and 5V-compatible

I/O voltage levels (a standard 3.3V I/O is designed to receive a maximum voltage of 3.3V

± 10% during normal operation without causing damage). This 5V-tolerant capability therefore offers the power savings of 3.3V I/O levels while being able to receive 5V levels without being damaged.

56F803 Technical Data, Rev. 16

Freescale Semiconductor 17

Absolute maximum ratings given in

Table 3-1

are stress ratings only, and functional operation at the

maximum is not guaranteed. Stress beyond these ratings may affect device reliability or cause permanent damage to the device.

The 56F803 DC/AC electrical specifications are preliminary and are from design simulations. These specifications may not be fully tested or guaranteed at this early stage of the product life cycle. Finalized specifications will be published after complete characterization and device qualifications have been completed.

CAUTION

This device contains protective circuitry to guard against damage due to high static voltage or electrical fields. However, normal precautions are advised to avoid application of any voltages higher than maximum rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate voltage level.

Table 3-1 Absolute Maximum Ratings

Characteristic

Supply voltage

All other input voltages, excluding Analog inputs

Voltage difference V

DD to V

DDA

Voltage difference V

SS to V

SSA

Analog inputs ANA0-7 and VREF

Analog inputs EXTAL and XTAL

Current drain per pin excluding V

DD

, V

SS

, PWM outputs, TCS,

V

PP

, V

DDA

, V

SSA

Symbol

V

DD

V

IN

ΔV

DD

ΔV

SS

V

IN

V

IN

I

Min Max

V

SS

– 0.3

V

SS

+ 4.0

V

SS

– 0.3

V

SS

+ 5.5V

- 0.3

0.3

- 0.3

V

SSA

– 0.3

V

SSA

– 0.3

0.3

V

DDA

+ 0.3

V

SSA

+ 3.0

10

Unit

V

V mA

V

V

V

V

Table 3-2 Recommended Operating Conditions

Characteristic

Supply voltage, digital

Supply Voltage, analog

Voltage difference V

DD to V

DDA

Symbol

V

DD

V

DDA

ΔV

DD

Min

3.0

3.0

-0.1

Typ

3.3

3.3

-

Max

3.6

3.6

0.1

Unit

V

V

V

56F803 Technical Data, Rev. 16

18 Freescale Semiconductor

Table 3-2 Recommended Operating Conditions

Characteristic

Voltage difference V

SS to V

SSA

ADC reference voltage

Ambient operating temperature

Symbol

ΔV

SS

VREF

T

A

Min

-0.1

2.7

–40

Typ

-

Max

0.1

V

DDA

85

General Characteristics

Unit

V

V

°C

Characteristic

Table 3-3 Thermal Characteristics

6

Comments

Symbol

Value

100-pin LQFP

R

θJA

41.7

Unit Notes

Junction to ambient

Natural convection

Junction to ambient (@1m/sec)

Junction to ambient

Natural convection

Junction to ambient (@1m/sec)

Junction to case

Junction to center of case

I/O pin power dissipation

Power dissipation

Junction to center of case

Four layer board (2s2p)

Four layer board (2s2p)

°C/W

R

θJMA

R

θJMA

(2s2p)

R

θJMA

R

θJC

Ψ

JT

P

I/O

P

D

P

DMAX

37.2

34.2

°C/W

°C/W

32

10.2

0.8

User Determined

P

D

= (I

DD

x V

DD

+ P

I/O

)

(TJ - TA) /R

θ

JA

°C/W

°C/W

°C/W

W

W

W

Notes:

1.

Theta-JA determined on 2s2p test boards is frequently lower than would be observed in an application.

Determined on 2s2p thermal test board.

2.

Junction to ambient thermal resistance, Theta-JA (R

θJA

) was simulated to be equivalent to the JEDEC specification JESD51-2 in a horizontal configuration in natural convection. Theta-JA was also simulated on a thermal test board with two internal planes (2s2p where “s” is the number of signal layers and “p” is the number of planes) per JESD51-6 and JESD51-7. The correct name for Theta-JA for forced convection or with the non-single layer boards is Theta-JMA.

3.

Junction to case thermal resistance, Theta-JC (R

θJC

), was simulated to be equivalent to the measured values using the cold plate technique with the cold plate temperature used as the “case” temperature. The basic cold plate measurement technique is described by MIL-STD 883D, Method 1012.1. This is the correct thermal metric to use to calculate thermal performance when the package is being used with a heat sink.

2

2

1,2

1,2

3

4, 5

7

56F803 Technical Data, Rev. 16

Freescale Semiconductor 19

4.

Thermal Characterization Parameter, Psi-JT (

Ψ

JT

), is the “resistance” from junction to reference point thermocouple on top center of case as defined in JESD51-2.

Ψ

JT

is a useful value to use to estimate junction temperature in steady state customer environments.

5.

Junction temperature is a function of on-chip power dissipation, package thermal resistance, mounting site (board) temperature, ambient temperature, air flow, power dissipation of other components on the board, and board thermal resistance.

6.

See Section 5.1 from more details on thermal design considerations.

7.

TJ = Junction Temperature

TA = Ambient Temperature

3.2 DC Electrical Characteristic

Table 3-4 DC Electrical Characteristics

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f op

= 80MHz

Characteristic Symbol Min Typ Max Unit

Input high voltage (XTAL/EXTAL)

Input low voltage (XTAL/EXTAL)

Input high voltage (Schmitt trigger inputs)

1

Input low voltage (Schmitt trigger inputs)

1

Input high voltage (all other digital inputs)

Input low voltage (all other digital inputs)

Input current high (pullup/pulldown resistors disabled, V

IN

=V

DD

)

Input current low (pullup/pulldown resistors disabled, V

IN

=V

SS

)

Input current high (with pullup resistor, V

IN

=V

DD

)

Input current low (with pullup resistor, V

IN

=V

SS

)

Input current high (with pulldown resistor, V

IN

=V

DD

)

Input current low (with pulldown resistor, V

IN

=V

SS

)

Nominal pullup or pulldown resistor value

Output tri-state current low

Output tri-state current high

V

IHC

V

ILC

V

IHS

V

ILS

V

IH

V

IL

I

IH

I

IL

I

IHPU

I

ILPU

I

IHPD

I

ILPD

R

PU

, R

PD

I

OZL

I

OZH

2.0

-0.3

-1

2.25

0

2.2

-0.3

-1

-1

-210

20

-1

-10

-10

30

2.75

0.5

5.5

0.8

5.5

0.8

1

1

1

-50

180

1

10

10

V

V

V

μA

V

V

V

μA

K

Ω

μA

μA

μA

μA

μA

μA

56F803 Technical Data, Rev. 16

20 Freescale Semiconductor

DC Electrical Characteristic

Table 3-4 DC Electrical Characteristics (Continued)

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f op

= 80MHz

Characteristic Symbol Min Typ Max

I

IHA

-15 — 15

Unit

μA

Input current high (analog inputs, V

IN

=V

DDA

)

2

Input current low (analog inputs, V

IN

=V

SSA

)

2

Output High Voltage (at IOH)

I

ILA

-15 —

15

μA

V

Output Low Voltage (at IOL)

Output source current

Output sink current

PWM pin output source current

3

PWM pin output sink current

4

V

OH

V

OL

I

OH

I

OL

I

OHP

I

OLP

V

DD

– 0.7

4

4

10

16

0.4

V mA mA mA mA

Input capacitance

Output capacitance

V

DD

supply current

C

IN

C

OUT

I

DDT

5

8

12

— pF pF

Run

6

Wait

7

Stop

Low Voltage Interrupt, external power supply

8

2.4

126

105

60

2.7

152

129

84

3.0

mA mA mA

V V

EIO

Low Voltage Interrupt, internal power supply

9 V

EIC

2.0

2.2

2.4

V

1.

Power on Reset

10 V

POR

— 1.7

2.0

V

1.

Schmitt Trigger inputs are: EXTBOOT, IRQA, IRQB, RESET, ISA0-2, FAULTA0-3, TCS, TCK, TRST, TMS, TDI, and

MSCAN_RX

2.

Analog inputs are: ANA[0:7], XTAL and EXTAL. Specification assumes ADC is not sampling.

3.

PWM pin output source current measured with 50% duty cycle.

4.

PWM pin output sink current measured with 50% duty cycle.

5.

I

DDT

= I

DD

+ I

DDA

(Total supply current for V

DD

+ V

DDA

)

6.

Run (operating) I

DD

measured using 8MHz clock source. All inputs 0.2V from rail; outputs unloaded. All ports configured as inputs; measured with all modules enabled.

7.

Wait I

DD

measured using external square wave clock source (f osc

= 8MHz) into XTAL; all inputs 0.2V from rail; no DC loads; less than 50pF on all outputs. C

L

= 20pF on EXTAL; all ports configured as inputs; EXTAL capacitance linearly affects wait I

DD

; measured with PLL enabled.

56F803 Technical Data, Rev. 16

Freescale Semiconductor 21

8.

This low-voltage interrupt monitors the V as V

DD via separate traces. If V

DDA under transient conditions when V

DDA

>V

EIO

DDA external power supply. V drops below V

DDA is generally connected to the same potential

EIO

, an interrupt is generated. Functionality of the device is guaranteed

(between the minimum specified V

DD

and the point when the V

EIO interrupt is generated).

9.

This low voltage interrupt monitors the internally regulated core power supply. If the output from the internal voltage is regulator drops below V

EIC

, an interrupt is generated. Since the core logic supply is internally regulated, this interrupt will not be generated unless the external power supply drops below the minimum specified value (3.0V).

10. Power

– on reset occurs whenever the internally regulated 2.5V digital supply drops below 1.5V typical. While power is ramping up, this signal remains active as long as the internal 2.5V is below 1.5V typical, no matter how long the ramp-up rate is. The internally regulated voltage is typically 100mV less than V

DD

during ramp-up, until 2.5V is reached, at which time it self-regulates.

180

150

120

90

IDD Digital

IDD Analog

IDD Total

60

30

0 20

40

Freq. (MHz)

60

Figure 3-1 Maximum Run IDD vs. Frequency (see Note 6. in

Table 3-14 )

80

3.3 AC Electrical Characteristics

Timing waveforms in

Section 3.3

are tested using the V

IL

and V

IH levels specified in the DC Characteristics

table. In

Figure 3-2

the levels of V

IH

and V

IL

for an input signal are shown.

22

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Flash Memory Characteristics

Input Signal

V

IH

Midpoint1

Fall Time

Low High

V

IL Rise Time

Note: The midpoint is V

IL

+ (V

IH

– V

IL

)/2.

Figure 3-2 Input Signal Measurement References

Figure 3-3

shows the definitions of the following signal states:

• Active state, when a bus or signal is driven, and enters a low impedance state

• Tri-stated, when a bus or signal is placed in a high impedance state

• Data Valid state, when a signal level has reached V

OL

or V

OH

• Data Invalid state, when a signal level is in transition between V

OL

and V

OH

Data1 Valid

Data1

Data2 Valid

Data2

Data Invalid State

Data Active

Data

Tri-stated

Figure 3-3 Signal States

3.4 Flash Memory Characteristics

Data3 Valid

Data3

90%

50%

10%

Data Active

Table 3-5 Flash Memory Truth Table

Mode

XE

1

YE

2

SE

3

OE

4

Standby

Read

Word Program

Page Erase

L

H

H

H

L

H

H

L

L

H

L

L

Mass Erase H L L

1.

X address enable, all rows are disabled when XE = 0

L

2.

Y address enable, YMUX is disabled when YE = 0

3.

Sense amplifier enable

4.

Output enable, tri-state Flash data out bus when OE = 0

L

H

L

L

PROG

5

H

L

L

L

L

ERASE

6

L

H

L

L

H

MAS1

7

L

L

L

L

H

NVSTR

8

H

H

L

L

H

56F803 Technical Data, Rev. 16

Freescale Semiconductor 23

24

5.

Defines program cycle

6.

Defines erase cycle

7.

Defines mass erase cycle, erase whole block

8.

Defines non-volatile store cycle

Mode

Read

Word program

Page erase

Mass erase

Table 3-6 IFREN Truth Table

IFREN = 1

Read information block

Program information block

Erase information block

Erase both block

IFREN = 0

Read main memory block

Program main memory block

Erase main memory block

Erase main memory block

Table 3-7 Flash Timing Parameters

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF

Characteristic Symbol Min Typ Figure

Program time

Erase time

T prog*

T erase*

20

20

– us ms

Figure 3-4

Figure 3-5

Mass erase time

Endurance

1

Data Retention

1

T me*

E

CYC

D

RET

100

10,000

10

20,000

30

– ms cycles years

Figure 3-6

The following parameters should only be used in the Manual Word Programming Mode

PROG/ERASE to NVSTR set up time T nv*

– 5 – us

Figure 3-4

,

Figure 3-5

,

Figure 3-6

NVSTR hold time T nvh*

– 5 – us

NVSTR hold time (mass erase) – 100 – us

Figure 3-4

,

Figure 3-5

Figure 3-6

NVSTR to program set up time

T nvh1*

T pgs*

– 10 – us

Figure 3-4

Recovery time T rcv*

– 1 – us

Figure 3-4

,

Figure 3-5

,

Figure 3-6

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Flash Memory Characteristics

Table 3-7 Flash Timing Parameters (Continued)

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF

Characteristic Symbol Min Typ Figure

Cumulative program

HV period

2

Program hold time

3

Address/data set up time

3

T

T hv pgh

3

– ms

Figure 3-4

Figure 3-4

T ads

– – –

Figure 3-4

Address/data hold time

3

T adh

– – –

Figure 3-4

1.

One cycle is equal to an erase program and read.

2.

Thv is the cumulative high voltage programming time to the same row before next erase. The same address cannot be programmed twice before next erase.

3.

Parameters are guaranteed by design in smart programming mode and must be one cycle or greater.

*The Flash interface unit provides registers for the control of these parameters.

IFREN

XADR

XE

YADR

YE

DIN

PROG

NVSTR

Tnvs

Tadh

Tads

Tprog

Tpgs

Thv

Figure 3-4 Flash Program Cycle

Tpgh

Tnvh

Trcv

Freescale Semiconductor

56F803 Technical Data, Rev. 16

25

26

IFREN

XADR

XE

YE=SE=OE=MAS1=0

ERASE

NVSTR

Tnvs

Terase

Figure 3-5 Flash Erase Cycle

Tnvh

Trcv

IFREN

XADR

XE

MAS1

YE=SE=OE=0

ERASE

NVSTR

Tnvs

Tme

Figure 3-6 Flash Mass Erase Cycle

Tnvh1

Trcv

56F803 Technical Data, Rev. 16

Freescale Semiconductor

External Clock Operation

3.5 External Clock Operation

The 56F803 system clock can be derived from an external crystal or an external system clock signal. To generate a reference frequency using the internal oscillator, a reference crystal must be connected between the EXTAL and XTAL pins.

3.5.1

Crystal Oscillator

The internal oscillator is also designed to interface with a parallel-resonant crystal resonator in the

frequency range specified for the external crystal in

Table 3-9

. In

Figure 3-7

a recommended crystal oscillator circuit is shown. Follow the crystal supplier’s recommendations when selecting a crystal, because crystal parameters determine the component values required to provide maximum stability and reliable start-up. The crystal and associated components should be mounted as close as possible to the

EXTAL and XTAL pins to minimize output distortion and start-up stabilization time. The internal

56F80x oscillator circuitry is designed to have no external load capacitors present. As shown in

Figure 3-8

no external load capacitors should be used.

The 56F80x components internally are modeled as a parallel resonant oscillator circuit to provide a capacitive load on each of the oscillator pins (XTAL and EXTAL) of 10pF to 13pF over temperature and process variations. Using a typical value of internal capacitance on these pins of 12pF and a value of 3pF as a typical circuit board trace capacitance the parallel load capacitance presented to the crystal is 9pF as determined by the following equation:

CL =

CL1 * CL2

CL1 + CL2

+ Cs =

12 * 12

12 + 12

+ 3 = 6 + 3 = 9pF

This is the value load capacitance that should be used when selecting a crystal and determining the actual frequency of operation of the crystal oscillator circuit.

EXTAL XTAL

R z

Recommended External Crystal

Parameters:

R z

= 1 to 3 M

Ω f c

= 8MHz (optimized for 8MHz) f c

Figure 3-7 Connecting to a Crystal Oscillator

Freescale Semiconductor

56F803 Technical Data, Rev. 16

27

3.5.2

Ceramic Resonator

It is also possible to drive the internal oscillator with a ceramic resonator, assuming the overall system design can tolerate the reduced signal integrity. In

Figure 3-8

, a typical ceramic resonator circuit is shown. Refer to supplier’s recommendations when selecting a ceramic resonator and associated components. The resonator and components should be mounted as close as possible to the EXTAL and

XTAL pins. The internal 56F80x oscillator circuitry is designed to have no external load capacitors present. As shown in

Figure 3-7

no external load capacitors should be used.

EXTAL XTAL

R z

Recommended Ceramic Resonator

Parameters:

R z

= 1 to 3 M

Ω f c

= 8MHz (optimized for 8MHz) f c

Figure 3-8 Connecting a Ceramic Resonator

Note: Freescale recommends only two terminal ceramic resonators vs. three terminal resonators

(which contain an internal bypass capacitor to ground).

3.5.3

External Clock Source

The recommended method of connecting an external clock is given in

Figure 3-9

. The external clock

source is connected to XTAL and the EXTAL pin is grounded.

56F803

XTAL EXTAL

External

Clock

V

SS

Figure 3-9 Connecting an External Clock Signal

28

56F803 Technical Data, Rev. 16

Freescale Semiconductor

External Clock Operation

Table 3-8 External Clock Operation Timing Requirements

3

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C

Characteristic Symbol Min Typ Max Unit

Frequency of operation (external clock driver)

1 f osc

0 — 80 MHz

Clock Pulse Width

2

,

3 t

PW

6.25

— — ns

1.

See

Figure 3-9

for details on using the recommended connection of an external clock driver.

2.

The high or low pulse width must be no smaller than 6.25ns or the chip will not function. However, the high pulse width does not have to be any particular percent of the low pulse width.

3. Parameters listed are guaranteed by design.

External

Clock

90%

50%

10% t

PW t

PW

Note: The midpoint is V

IL

+ (V

IH

– V

IL

)/2.

Figure 3-10 External Clock Timing

V

IH

90%

50%

10%

V

IL

Freescale Semiconductor

56F803 Technical Data, Rev. 16

29

3.5.4

Phase Locked Loop Timing

Table 3-9 PLL Timing

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C

Characteristic Symbol Min Typ Max Unit

External reference crystal frequency for the PLL

1 f osc f out

/2

4 8 10 MHz

PLL output frequency

2

PLL stabilization time

3

0 o

to +85 o

C

40 — 110 MHz t plls

— 1 10 ms

PLL stabilization time

3

-40 o

to 0 o

C t plls

— 100 200 ms

1.

An externally supplied reference clock should be as free as possible from any phase jitter for the PLL to work correctly. The PLL is optimized for 8MHz input crystal.

2.

ZCLK may not exceed 80MHz. For additional information on ZCLK and f out

/2, please refer to the OCCS chapter in the

User Manual. ZCLK = f op

3.

This is the minimum time required after the PLL set-up is changed to ensure reliable operation.

3.6 External Bus Asynchronous Timing

Table 3-10 External Bus Asynchronous Timing

1, 2

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f op

= 80MHz

Characteristic Symbol

Min Max

Unit

Address Valid to WR Asserted

WR Width Asserted

Wait states = 0

Wait states > 0

WR Asserted to D0–D15 Out Valid

Data Out Hold Time from WR Deasserted

Data Out Set Up Time to WR Deasserted

Wait states = 0

Wait states > 0

RD Deasserted to Address Not Valid

Address Valid to RD Deasserted

Wait states = 0

Wait states > 0 t

AWR t

WR t

WRD t

DOH t

DOS t

RDA t

ARDD

6.5 —

7.5

(T*WS) + 7.5

4.8

2.2

(T*WS) + 6.4

0

18.7

(T*WS) + 18.7

4.2

— ns ns ns ns ns ns ns ns ns ns

56F803 Technical Data, Rev. 16

30 Freescale Semiconductor

External Bus Asynchronous Timing

Table 3-10 External Bus Asynchronous Timing

Operating Conditions:

V

SS

= V

SSA

1, 2

(Continued)

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f op

= 80MHz

Characteristic Symbol

Min Max

Unit

0 — ns Input Data Hold to RD Deasserted

RD Assertion Width

Wait states = 0

Wait states > 0

Address Valid to Input Data Valid

Wait states = 0

Wait states > 0

Address Valid to RD Asserted

RD Asserted to Input Data Valid

Wait states = 0

Wait states > 0

WR Deasserted to RD Asserted

RD Deasserted to RD Asserted

WR Deasserted to WR Asserted

RD Deasserted to WR Asserted t

DRD t

RD t

AD t

ARDA t

RDD t

WRRD t

RDRD t

WRWR t

RDWR

19

(T*WS) + 19

-4.4

6.8

0

14.1

12.8

1

(T*WS) + 1

2.4

(T*WS) + 2.4

— ns ns ns ns ns ns ns ns ns ns ns

Freescale Semiconductor

56F803 Technical Data, Rev. 16

31

1.

Timing is both wait state and frequency dependent. In the formulas listed, WS = the number of wait states and

T = Clock Period. For 80MHz operation, T = 12.5ns.

2. Parameters listed are guaranteed by design.

To calculate the required access time for an external memory for any frequency < 80Mhz, use this formula:

Top = Clock period @ desired operating frequency

WS = Number of wait states

Memory Access Time = (Top*WS) + (Top- 11.5)

A0–A15,

PS, DS

(See Note) t

ARDD t

ARDA t

RDA t

RD t

RDRD

RD t

AWR t

WRWR t

WR t

WRRD t

RDWR

WR t

RDD t

WRD t

DOS t

AD t

DOH t

DRD

D0–D15

Data Out

Data In

Note: During read-modify-write instructions and internal instructions, the address lines do not change state.

Figure 3-11 External Bus Asynchronous Timing

3.7 Reset, Stop, Wait, Mode Select, and Interrupt Timing

Table 3-11 Reset, Stop, Wait, Mode Select, and Interrupt Timing

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

1, 5

50pF

Characteristic

RESET Assertion to Address, Data and Control

Signals High Impedance

Minimum RESET Assertion Duration

2

OMR Bit 6 = 0

OMR Bit 6 = 1

RESET De-assertion to First External Address Output

Symbol

t

RAZ t

RA t

RDA

Min

275,000T

128T

33T

Max

21

34T

Unit

ns ns ns ns

See Figure

Figure 3-12

Figure 3-12

Figure 3-12

56F803 Technical Data, Rev. 16

32 Freescale Semiconductor

Reset, Stop, Wait, Mode Select, and Interrupt Timing

Table 3-11 Reset, Stop, Wait, Mode Select, and Interrupt Timing (Continued)

1, 5

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF

Characteristic Symbol Min Max Unit See Figure

Edge-sensitive Interrupt Request Width

IRQA, IRQB Assertion to External Data Memory

Access Out Valid, caused by first instruction execution in the interrupt service routine

IRQA, IRQB Assertion to General Purpose Output

Valid, caused by first instruction execution in the interrupt service routine

IRQA Low to First Valid Interrupt Vector Address Out recovery from Wait State

3 t

IRW t t

IDM t

IG

IRI

1.5T

15T

16T

13T

— ns ns ns ns

Figure 3-13

Figure 3-14

Figure 3-14

Figure 3-15

IRQA Width Assertion to Recover from Stop State

4

Delay from IRQA Assertion to Fetch of first instruction

(exiting Stop)

OMR Bit 6 = 0

OMR Bit 6 = 1 t t

IW

IF

2T

275,000T

12T ns ns ns

Figure 3-16

Figure 3-16

Duration for Level Sensitive IRQA Assertion to Cause the Fetch of First IRQA Interrupt Instruction (exiting

Stop)

OMR Bit 6 = 0

OMR Bit 6 = 1 t

IRQ

275,000T

12T ns ns

Figure 3-17

Delay from Level Sensitive IRQA Assertion to First

Interrupt Vector Address Out Valid (exiting Stop)

OMR Bit 6 = 0

OMR Bit 6 = 1 t

II

275,000T

12T ns ns

1.

In the formulas, T = clock cycle. For an operating frequency of 80MHz, T = 12.5ns.

2.

Circuit stabilization delay is required during reset when using an external clock or crystal oscillator in two cases:

• After power-on reset

• When recovering from Stop state

Figure 3-17

3.

The minimum is specified for the duration of an edge-sensitive IRQA interrupt required to recover from the Stop state. This is not the minimum required so that the IRQA interrupt is accepted.

4.

The interrupt instruction fetch is visible on the pins only in Mode 3.

5.

Parameters listed are guaranteed by design.

Freescale Semiconductor

56F803 Technical Data, Rev. 16

33

RESET

A0–A15,

D0–D15

PS, DS,

RD, WR t

RAZ t

RA

Figure 3-12 Asynchronous Reset Timing

t

RDA

First Fetch

First Fetch

IRQA,

IRQB t

IRW

Figure 3-13 External Interrupt Timing (Negative-Edge-Sensitive)

34

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Reset, Stop, Wait, Mode Select, and Interrupt Timing

A0–A15,

PS, DS,

RD, WR

IRQA,

IRQB t

IDM

First Interrupt Instruction Execution a) First Interrupt Instruction Execution

General

Purpose

I/O Pin

IRQA,

IRQB t

IG b) General Purpose I/O

Figure 3-14 External Level-Sensitive Interrupt Timing

IRQA,

IRQB

A0–A15,

PS, DS,

RD, WR t

IRI

First Interrupt Vector

Instruction Fetch

Figure 3-15 Interrupt from Wait State Timing

t

IW

IRQA t

IF

A0–A15,

PS, DS,

RD, WR

First Instruction Fetch

Not IRQA Interrupt Vector

Figure 3-16 Recovery from Stop State Using Asynchronous Interrupt Timing

56F803 Technical Data, Rev. 16

Freescale Semiconductor 35

t

IRQ

IRQA t

II

A0–A15

PS, DS,

RD, WR

First IRQA Interrupt

Instruction Fetch

Figure 3-17 Recovery from Stop State Using IRQA Interrupt Service

3.8 Serial Peripheral Interface (SPI) Timing

Operating Conditions:

V

SS

= V

SSA

Table 3-12 SPI Timing

1

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Characteristic Symbol Min Max Unit See Figure

Cycle time

Master

Slave

Enable lead time

Master

Slave

Enable lag time

Master

Slave

Clock (SCLK) high time

Master

Slave

Clock (SCLK) low time

Master

Slave

Data set-up time required for inputs

Master

Slave

Data hold time required for inputs

Master

Slave

Access time (time to data active from high-impedance state)

Slave

Disable time (hold time to high-impedance state)

Slave t

C t

ELD t

ELG t

CH t

CL t

DS t

DH t

A t

D

50

25

25

100

17.6

12.5

24.1

25

20

0

0

2

4.8

3.7

15

15.2

ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns

Figures

3-18

, ,

3-20

,

3-21

Figure

3-21

Figure

3-21

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

Figure

3-21

Figure

3-21

56F803 Technical Data, Rev. 16

36 Freescale Semiconductor

Serial Peripheral Interface (SPI) Timing

Operating Conditions:

V

SS

= V

SSA

Table 3-12 SPI Timing

1

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Min Max Unit Characteristic

Data Valid for outputs

Master

Slave (after enable edge)

Data invalid

Master

Slave

Rise time

Master

Slave

Fall time

Master

Slave

1.

Parameters listed are guaranteed by design.

Symbol

t

DV t

DI t

R t

F

0

0

4.5

20.4

11.5

10.0

9.7

9.0

ns ns ns ns ns ns ns ns

See Figure

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

Figures

3-18

, ,

3-20

,

3-21

SS

(Input)

SCLK (CPOL = 0)

(Output) t

CH t

CL

SS is held High on master t

C t

R t

CL t

F t

F t

R

SCLK (CPOL = 1)

(Output)

MISO

(Input)

MOSI

(Output) t

DH t

DS

MSB in t

DI t

CH

Bits 14–1 t

DV

LSB in t

DI

(ref)

Master MSB out t

F

Bits 14–1

Figure 3-18 SPI Master Timing (CPHA = 0)

Master LSB out t

R

Freescale Semiconductor

56F803 Technical Data, Rev. 16

37

SS

(Input) t

C

SS is held High on master t

F t

CL t

R

SCLK (CPOL = 0)

(Output) t

CH t

CL t

F

SCLK (CPOL = 1)

(Output)

MISO

(Input)

MOSI

(Output) t

CH t

R

LSB in t

DS t

DH

MSB in t

DI

Bits 14–1 t

DV t

DV

(ref)

Master MSB out t

F

Bits 14– 1

Figure 3-19 SPI Master Timing (CPHA = 1)

Master LSB out t

R

38

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Serial Peripheral Interface (SPI) Timing

SS

(Input) t

C t

CL t

R t

F t

ELG

SCLK (CPOL = 0)

(Input) t

ELD t

CH t

CL

SCLK (CPOL = 1)

(Input)

MISO

(Output)

MOSI

(Input) t

DS t

A t

CH t

R

Slave MSB out

MSB in

Bits 14–1 t

DV t

DH

Bits 14–1 t

F t

D

Slave LSB out t

DI t

DI

LSB in

Figure 3-20 SPI Slave Timing (CPHA = 0)

Freescale Semiconductor

56F803 Technical Data, Rev. 16

39

SS

(Input) t

C t

CL t

R t

F

SCLK (CPOL = 0)

(Input) t

ELD t

CH t

CL t

ELG

SCLK (CPOL = 1)

(Input) t

DV t

CH

MISO

(Output) t

DS t

A

Slave MSB out t

F

Bits 14–1 t

DH t

DV

Bits 14–1

MOSI

(Input)

MSB in

Figure 3-21 SPI Slave Timing (CPHA = 1)

3.9 Quad Timer Timing

t

R t

D t

DI

Slave LSB out

LSB in

Operating Conditions:

V

Table 3-13 Timer Timing

1, 2

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Characteristic Symbol Min Max Unit

Timer input period

Timer input high/low period

Timer output period

P

IN

P

INHL

P

OUT

4T+6

2T+3

2T

— ns ns ns

40

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Quadrature Decoder Timing

Operating Conditions:

V

Table 3-13 Timer Timing

1, 2

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

— ns Timer output high/low period P

OUTHL

1T

1.

In the formulas listed, T = clock cycle. For 80MHz operation, T = 12.5ns.

2.

Parameters listed are guaranteed by design.

Timer Inputs

P

IN

P

INHL

P

INHL

Timer Outputs

P

OUT

P

OUTHL

Figure 3-22 Timer Timing

P

OUTHL

3.10 Quadrature Decoder Timing

Table 3-14 Quadrature Decoder Timing

1,2

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Characteristic Symbol Min Max Unit

Quadrature input period

Quadrature input high/low period

P

IN

P

HL

8T+12

4T+6

— ns ns

Quadrature phase period P

PH

2T+3 — ns

1.

In the formulas listed, T = clock cycle. For 80MHz operation, T = 12. ns. V

SS

= 0 V, V

T

A

= –40

° to +85°C, C

L

50pF.

DD

= 3.0 – 3.6V,

2.

Parameters listed are guaranteed by design.

Freescale Semiconductor

56F803 Technical Data, Rev. 16

41

42

P

PH

P

PH

P

PH

P

PH

Phase A

(Input)

P

IN

P

HL

P

HL

Phase B

(Input)

P

IN

P

HL

P

HL

Figure 3-23 Quadrature Decoder Timing

3.11 Serial Communication Interface (SCI) Timing

Operating Conditions:

V

SS

= V

SSA

Table 3-15 SCI Timing

4

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Characteristic

Baud Rate

1

RXD

2

Pulse Width

Symbol

BR

RXD

PW

Min

0.965/BR

Max

(f

MAX

*2.5)/(80)

1.04/BR

Unit

Mbps ns

TXD

3

Pulse Width

TXD

PW

0.965/BR

1.

f

MAX is the frequency of operation of the system clock in MHz.

2.

The RXD pin in SCI0 is named RXD0 and the RXD pin in SCI1 is named RXD1.

3.

The TXD pin in SCI0 is named TXD0 and the TXD pin in SCI1 is named TXD1.

4.

Parameters listed are guaranteed by design.

1.04/BR ns

RXD

SCI receive data pin

(Input)

RXD

PW

Figure 3-24 RXD Pulse Width

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Analog-to-Digital Converter (ADC) Characteristics

TXD

SCI receive data pin

(Input)

TXD

PW

Figure 3-25 TXD Pulse Width

3.12 Analog-to-Digital Converter (ADC) Characteristics

Characteristic

ADC input voltages

Resolution

Integral Non-Linearity

3

Differential Non-Linearity

Monotonicity

ADC internal clock

5

Conversion range

Power-up time

Conversion time

Sample time

Input capacitance

Gain Error (transfer gain)

5

Offset Voltage

5

Total Harmonic Distortion

5

Signal-to-Noise plus Distortion

5

Effective Number of Bits

5

Spurious Free Dynamic Range

5

Bandwidth

Table 3-16 ADC Characteristics

Symbol

V

ADCIN

R

ES

INL

DNL

Min

0

1

12

0.5

V

SSA

Typ

+/- 2.5

Max

V

REF

2

12

+/- 4

+/- 0.9

GUARANTEED

+/- 1

5

16

V

DDA

— f

ADIC

R

AD t

ADPU t

ADC t

ADS

C

ADI

E

GAIN

V

OFFSET

THD

SINAD

ENOB

SFDR

BW

9

65

0.95

-80

60

55

6

1

5

1.00

-15

64

60

10

70

100

1.10

+20

Unit

V

Bits

LSB

4

LSB

4

MHz

V t

AIC cycles

6 t

AIC cycles

6 t

AIC cycles

6 pF

6

— mV dB dB bit dB

KHz

56F803 Technical Data, Rev. 16

Freescale Semiconductor 43

Table 3-16 ADC Characteristics

Characteristic Symbol Min Typ Max Unit

ADC Quiescent Current (both ADCs) I

ADC

— 50 — mA

V

REF

Quiescent Current (both ADCs) I

VREF

— 12 16.5

mA

1.

For optimum ADC performance, keep the minimum V

ADCIN

value > 25mV. Inputs less than 25mV may convert to a digital output code of 0.

2.

V

REF

must be equal to or less than V

DDA

and must be greater than 2.7V. For optimal ADC performance, set V

REF

to V

D-

DA

-0.3V.

3.

Measured in 10-90% range.

4.

LSB = Least Significant Bit.

5.

Guaranteed by characterization.

6.

t

AIC

= 1/ f

ADIC

3

ADC analog input

1

2 4

1. Parasitic capacitance due to package, pin to pin, and pin to package base coupling. (1.8pf)

2. Parasitic capacitance due to the chip bond pad, ESD protection devices and signal routing. (2.04pf)

3.

Equivalent resistance for the ESD isolation resistor and the channel select mux. (500 ohms)

4.

Sampling capacitor at the sample and hold circuit. (1pf)

Figure 3-26 Equivalent Analog Input Circuit

3.13 Controller Area Network (CAN) Timing

Table 3-17 CAN Timing

2

Operating Conditions: V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40× to +85×C, C

L

£ 50pF, MSCAN Clock = 30MHz

Characteristic Symbol Min Max Unit

Baud Rate

Bus Wakeup detection

1

BR

CAN

T

WAKEUP

5

1

Mbps

μs

44

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Controller Area Network (CAN) Timing

1.

If Wakeup glitch filter is enabled during the design initialization and also CAN is put into SLEEP mode then, any bus event

(on MSCAN_RX pin) whose duration is less than 5 micro seconds is filtered away. However, a valid CAN bus wakeup detection takes place for a wakeup pulse equal to or greater than 5 microseconds. The value of 5 microseconds originates from the fact that the CAN wakeup message consists of 5 dominant bits at the highest possible baud rate of 1Mbps.

2.

Parameters listed are guaranteed by design.

MSCAN_RX

CAN receive data pin

(Input)

T

WAKEUP

Figure 3-27 Bus Wakeup Detection

Freescale Semiconductor

56F803 Technical Data, Rev. 16

45

3.14 JTAG Timing

Table 3-18 JTAG Timing

1, 3

Operating Conditions:

V

SS

= V

SSA

= 0 V, V

DD

= V

DDA

= 3.0–3.6 V, T

A

= –40

° to +85°C, C

L

50pF, f

OP

= 80MHz

Characteristic Symbol Min Max Unit

TCK frequency of operation

2 f

OP

DC 10

TCK cycle time

TCK clock pulse width

TMS, TDI data set-up time

TMS, TDI data hold time t

CY t

PW t

DS t

DH

100

50

0.4

1.2

TCK low to TDO data valid

TCK low to TDO tri-state t

DV t

TS

26.6

23.5

TRST assertion time t

TRST

50 —

DE assertion time t

DE

4T

1.

Timing is both wait state and frequency dependent. For the values listed, T = clock cycle. For 80MHz operation, T = 12.5ns.

2.

TCK frequency of operation must be less than 1/8 the processor rate.

3.

Parameters listed are guaranteed by design.

MHz ns ns ns ns ns ns ns ns t

CY t

PW t

PW

V

IH

TCK

(Input)

V

M

= V

IL

+ (V

IH

– V

IL

)/2

V

M

V

IL

V

M

Figure 3-28 Test Clock Input Timing Diagram

46

56F803 Technical Data, Rev. 16

Freescale Semiconductor

TCK

(Input)

TDI

TMS

(Input)

TDO

(Output)

TDO

(Output

)

TDO

(Output) t

DS

Input Data Valid t

DH t

DV

Output Data Valid t

TS t

DV

Output Data Valid

Figure 3-29 Test Access Port Timing Diagram

TRST

(Input) t

TRST

Figure 3-30 TRST Timing Diagram

DE t

DE

Figure 3-31 OnCE—Debug Event

JTAG Timing

Freescale Semiconductor

56F803 Technical Data, Rev. 16

47

Part 4 Packaging

4.1 Package and Pin-Out Information 56F803

This section contains package and pin-out information for the 100-pin LQFP configuration of the 56F803.

48

D10

D11

D12

D13

D14

D15

A0

V

DD

V

SS

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

V

DD

PS

DS

PIN 1

ORIENTATION

MARK

PIN 26

Figure 4-1 Top View, 56F803 100-pin LQFP Package

PIN 76

PIN 51

PWMA5

PWMA4

PWMA3

PWMA2

PWMA1

PWMA0

HOME0

INDEX0

V

SS

V

DD

PHASEB0

PHASEA0

V

SS

V

DD

V

DD

V

DDA

V

SSA

EXTAL

XTAL

AN7

AN6

AN5

AN4

AN3

AN2

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Package and Pin-Out Information 56F803

Table 4-1 56F803 Pin Identification By Pin Number

Pin No.

Signal Name Pin No.

Signal Name Pin No.

Signal Name Pin No.

Signal Name

4

5

6

7

8

1

2

3

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

D10

D11

D12

D13

D14

D15

A0

V

DD

V

SS

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

V

DD

PS

DS

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

A14

A15

V

SS

WR

RD

IRQA

IRQB

TCS

TCK

TMS

TDI

TDO

TRST

VCAPC

ISA0

ISA1

ISA2

FAULTA0

MSCAN_TX

FAULTA1

MSCAN_RX

FAULTA2

VREF

AN0

AN1

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

AN2

AN3

AN4

AN5

AN6

AN7

XTAL

EXTAL

V

SSA

V

DDA

V

DD

V

DD

V

SS

PHASEA0

PHASEB0

V

DD

V

SS

INDEX0

HOME0

PWMA0

PWMA1

PWMA2

PWMA3

PWMA4

PWMA5

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

TXD0

RXD0

EXTBOOT

RESET

DE

CLKO

TD1

TD2

SS

MISO

MOSI

SCLK

VCAPC

D0

D1

D2

V

DD

V

SS

D3

D4

D5

D6

D7

D8

D9

Freescale Semiconductor

56F803 Technical Data, Rev. 16

49

50

-AB-

C

E

H

9

0.15 (0.006) S

S

AC T-U S Z S

-T-

-U-

0.15 (0.006)

S

A

AB T-U

S

Z

S

AE

AD

-Z-

AE

96X

G

(24X PER SIDE)

0.100 (0.004) AC

-AC-

SEATING

PLANE

M °

R

0.25 (0.010)

GAUGE PLANE

W

DETAIL AD

X

K

Q°

D

F

N J

0.20 (0.008)

M

AC T-U

S

Z

S

SECTION AE-AE

Figure 4-2 100-pin LQPF Mechanical Information

NOTES:

1.

DIMENSIONING AND TOLERANCING PER

ANSI Y14.5M, 1982.

2.

CONTROLLING DIMENSION: MILLIMETER.

3.

DATUM PLANE -AB- IS LOCATED AT BOTTOM

OF LEAD AND IS COINCIDENT WITH THE

LEAD WHERE THE LEAD EXITS THE PLASTIC

BODY AT THE BOTTOM OF THE PARTING

LINE.

4.

DATUMS -T-, -U-, AND -Z- TO BE DETERMINED

AT DATUM PLANE -AB-.

5.

DIMENSIONS S AND V TO BE DETERMINED

AT SEATING PLANE -AC-.

6.

DIMENSIONS A AND B DO NOT INCLUDE

MOLD PROTRUSION. ALLOWABLE

PROTRUSION IS 0.250 (0.010) PER SIDE.

DIMENSIONS A AND B DO INCLUDE MOLD

MISMATCH AND ARE DETERMINED AT

DATUM PLANE -AB-.

7.

DIMENSION D DOES NOT INCLUDE DAMBAR

PROTRUSION. DAMBAR PROTRUSION SHALL

NOT CAUSE THE D DIMENSION TO EXCEED

0.350 (0.014). DAMBAR CAN NOT BE LOCATED

ON THE LOWER RADIUS OR THE FOOT.

MINIMUM SPACE BETWEEN PROTRUSION

AND AN ADJACENT LEAD IS 0.070 (0.003).

8.

MINIMUM SOLDER PLATE THICKNESS

SHALL BE 0.0076 (0.003).

9.

EXACT SHAPE OF EACH CORNER MAY VARY

FROM DEPICTION.

MILLIMETERS INCHES

DIM MIN MAX MIN MAX

A 13.950 14.050

0.549

0.553

B

13.950 14.050

0.549

0.553

C

1.400

1.600

0.055

0.063

D

0.170

0.270

0.007

0.011

E

1.350

1.450

0.053

0.057

F

0.170

0.230

0.007

0.009

G

0.500 BSC 0.020 BSC

H

0.050

0.150

0.002

0.006

J

0.090

0.200

0.004

0.008

K

0.500

0.700

0.020

0.028

M

°

N

0.090

0.160

0.004

0.006

Q

°

5

R

0.150

0.250

0.006

0.010

°

S

15.950 16.050

0.628

0.632

V 15.950 16.050

0.628

0.632

W

X

0.200 REF

1.000 REF

0.008 REF

0.039 REF

56F803 Technical Data, Rev. 16

Freescale Semiconductor

Thermal Design Considerations

Please see www.freescale.com for the most current case outline.

Part 5 Design Considerations

5.1 Thermal Design Considerations

An estimation of the chip junction temperature, T

J

, in

°C can be obtained from the equation:

Equation 1:

T

J

= T

A

+

(

P

D

×

R

θJA

)

Where:

T

A

= ambient temperature °C

R

θJA

= package junction-to-ambient thermal resistance °C/W

P

D

= power dissipation in package

Historically, thermal resistance has been expressed as the sum of a junction-to-case thermal resistance and a case-to-ambient thermal resistance:

Equation 2:

R

θJA

= R

θJC

+ R

θCA

Where:

R

θJA

= package junction-to-ambient thermal resistance °C/W

R

θJC

= package junction-to-case thermal resistance °C/W

R

θCA

= package case-to-ambient thermal resistance °C/W

R

θJC

is device-related and cannot be influenced by the user. The user controls the thermal environment to change the case-to-ambient thermal resistance, R

θCA

. For example, the user can change the air flow around the device, add a heat sink, change the mounting arrangement on the Printed Circuit Board (PCB), or otherwise change the thermal dissipation capability of the area surrounding the device on the PCB. This model is most useful for ceramic packages with heat sinks; some 90% of the heat flow is dissipated through the case to the heat sink and out to the ambient environment. For ceramic packages, in situations where the heat flow is split between a path to the case and an alternate path through the PCB, analysis of the device thermal performance may need the additional modeling capability of a system level thermal simulation tool.

The thermal performance of plastic packages is more dependent on the temperature of the PCB to which the package is mounted. Again, if the estimations obtained from R

θJA

do not satisfactorily answer whether the thermal performance is adequate, a system level model may be appropriate.

Definitions:

A complicating factor is the existence of three common definitions for determining the junction-to-case thermal resistance in plastic packages:

• Measure the thermal resistance from the junction to the outside surface of the package (case) closest to the chip mounting area when that surface has a proper heat sink. This is done to minimize temperature variation

56F803 Technical Data, Rev. 16

Freescale Semiconductor 51

How to Reach Us:

Home Page:

freescale.com

Web Support:

freescale.com/support

Information in this document is provided solely to enable system and software implementers to use Freescale products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based on the information in this document.

Freescale reserves the right to make changes without further notice to any products herein. Freescale makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does Freescale assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters that may be provided in Freescale data sheets and/or specifications can and do vary in different applications, and actual performance may vary over time. All operating parameters, including “typicals,” must be validated for each customer application by customer’s technical experts. Freescale does not convey any license under its patent rights nor the rights of others. Freescale sells products pursuant to standard terms and conditions of sale, which can be found at the following address: freescale.com/SalesTermsandConditions.

Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc.,

Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. This product incorporates SuperFlash® technology licensed from

SST.

RoHS-compliant and/or Pb-free versions of Freescale products have the functionality and electrical characteristics of their non-RoHS-compliant and/or non-Pb-free counterparts.

© 2005, 2007,2015 Freescale Semiconductor, Inc. All rights reserved.

Document Number: DSP56F803

Rev. 17

10/2015

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
