50A/65A/80A

50A/65A/80A
0A/ 50A/65A/80A Electronic Speed Controller (ESC)

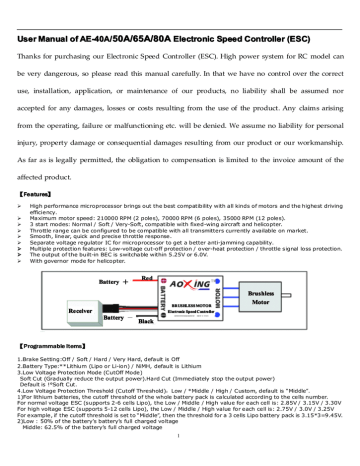

User Manual of AE-4
AE-40
Thanks for purchasing our Electronic Speed Controller (ESC). High power system for RC model can
be very dangerous, so please read this manual carefully. In that we have no control over the correct
use, installation, application, or maintenance of our products, no liability shall be assumed nor
accepted for any damages, losses or costs resulting from the use of the product. Any claims arising
from the operating, failure or malfunctioning etc. will be denied. We assume no liability for personal
injury, property damage or consequential damages resulting from our product or our workmanship.
As far as is legally permitted, the obligation to compensation is limited to the invoice amount of the
affected product.
Features
【Features
Features】
�
�
�
�
�
�
�
�
�
High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving
efficiency.
Maximum motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
Throttle range can be configured to be compatible with all transmitters currently available on market.
Smooth, linear, quick and precise throttle response.
Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
The output of the built-in BEC is switchable within 5.25V or 6.0V.
With governor mode for helicopter.
Battery +
Red
MOTOR
BRUSHLESS
BRUSHLESSMOTOR
Receiver
Brushless
Motor
Controller
Electronic Speed
SpeedController
Battery -
Black
Programmable Items
【Programmable
Items】
1.Brake Setting:Off / Soft / Hard / Very Hard, default is Off
2.Battery Type:**Lithium (Lipo or Li-ion) / NiMH, default is Lithium
3.Low Voltage Protection Mode (CutOff Mode)
Soft Cut (Gradually reduce the output power).Hard Cut (Immediately stop the output power)
Default is !°Soft Cut.
4.Low Voltage Protection Threshold (Cutoff Threshold):Low / *Middle / High / Custom, default is “Middle”.
1)For lithium batteries, the cutoff threshold of the whole battery pack is calculated according to the cells number.
For normal voltage ESC (supports 2-6 cells Lipo), the Low / Middle / High value for each cell is: 2.85V / 3.15V / 3.30V
For high voltage ESC (supports 5-12 cells Lipo), the Low / Middle / High value for each cell is: 2.75V / 3.0V / 3.25V
For example, if the cutoff threshold is set to “Middle”, then the threshold for a 3 cells Lipo battery pack is 3.15*3=9.45V.
2)Low : 50% of the battery’s battery’s full charged voltage
Middle: 62.5% of the battery’s full charged voltage
1
High: 75% of the battery’s full charged voltage
3)If this programmable item is set to “Custom”, that means you can set the cutoff threshold for the whole battery pack
very accurately with the step of 0.1V.The program box or PC software(through USB adapter) is need to customize the
value.
5.Start Mode:*Normal / Soft / Very-Soft, default is “Normal”.
“Normal” is preferred for fixed-wing aircraft. “Soft” or “Very-Soft” are preferred for helicopters. The initial acceleration of
the “Soft” and “Very-Soft” modes are slower than “Normal” mode, usually it takes 3 second for “Soft” mode or 8 seconds
for “Very-Soft” mode from 0% throttle advance to full throttle.After start up, if the throttle is closed (throttle stick is
moved to the bottom position) and opened again (throttle stick is moved upwards) within 3 seconds, the restart will be
temporarily changed to "Normal" mode to get rid of the chances of a crash caused by slow throttle response. This special
design is usedful for aerobatic flight.
6.Timing:0°/ 3.75° / 7.5° / 11.25°/ *15°/ 18.75°/ 22.5°/ 26.25°, default is 15°.Note3
Usually, low timing value is suitable for most motors. But there are many differences among structures and parameters
of different motors so please try and select the most suitable timing value according to the motor you are just using. The
correct timing valuemakes the motor run smoothly. And generally, higher timing value brings out higher output power
and higher speed.
Note3:After changing the timing setting, please test your RC model on ground prior to flight!
7. Governor Mode:*Off / Governor Low / Governor High, default is !°Off
If the governor mode is activated ,the ESC will try its best to hold the motor speed at a fixed value,(Usually the throttle
curve is a horizontal line,you can change the preset motor speed by changing the height of this line).
The speed range of "Governor Low"is 100000RPM to 45000RPM for 2 poles brushless motor,"Governor High"mode is
46000RPM to 200000RPM for 2 poles brushless motor,In order to caneed to know the motor poles number and the gear
rate of main drive gear vs.the pinion.For example,if you are using a 6 poles motor(that is:3 pair poles),and the main drive
gear is 150T,the pinion is 13T,so you can calculate as follow:
The rotation speed for the main rotor blades=(The speed of 2 poles motor *13)/3/150
When you adjust the throttle curve,please make sure that the motor can run at this preset speed even if the motor load
is heaviest.Please note that the governor mode function is automatically disabled if the throttle volume less than 60%.
8.Motor Type:*Normal Motor / Special Motor 1 / Special Motor 2,, default is !°Normal Motor!±
Usually, the default value !°Normal Motor!± is suitable for most of motors, but if the motor cannot
run smoothly with this mode, please try other 2 options.
9.PWM Frequency: *12KHz / 24KHz, default is !°12KHz!±.
For some motors with high KV (high speed) and many poles, the 24KHz PWM frequency may let them work more
smoothly. But the higher PWM frequency will make the ESC to be hotter.
10.Built-In BEC Output: *5.25V / 6 V, default is 5.25V.
11.Motor Load:Normal / Heavy / Very Heavy / Auto.
For normal voltage ESC (supports 2-6 cells Lipo), the default value is !°Normal!±
For high voltage ESC (supports 5-12 cells Lipo), the default value is !°Auto-F3A!±;Please note that !°Auto-F3A!± option
is only suitable for big motors of large scale airplanes such as F3A, please don!ˉt use this option for big motors of
helicopters.) When you accelerate the motor immediately, if the motor suddenly stop running and emit scream
sound,please try to set this item to other value.
12. Lipo Cells:
For normal voltage ESC (supports 2-6 cells Lipo), *Auto / 2S / 3S / 4S / 5S / 6S, the default is Auto!±Note4
For high voltage ESC (supports 5 to 12 cells Lipo), *Auto / 5S / 6S / 8S / 10S / 12S, the default isAuto!±Note5
This programmable item is available for lithium battery.In the startup process,the motor will emits several"Beep-"tones
to represent the lipo cells number,it is helpful for you to check whether it is coincident with the actual battery pack or
not.Note5.
Not4:If you choose "Auto",the ESC may mistakenly judge the battery cells when the voltage is less than 3.7V/Cell,so we
strongly suggest setting the"Lipo Cells"manually.
Note5:For high voltage ESC(supports 5to 12 cells lipo),when the motor emits the "Beep"tone to represents the cells
number,a long"Beep-"tone.So 5S="Beep-",6S="Beep-Beep"(1 long 1 short),8S="Beep-Beep-Beep-Beep-"(1 long 3
short),10S="Beep-Beep-"(2 long),12S=Beep-Beep-Beep-Beep-" (2 long 2 short).While for normal voltage ESC
(supports 2 to 6 cells Lipo),we still use 5 short "Beep-"tones to represent 5S lipo,and 6 short"Beep-"tones to represent
6S lipo.
Begin To Use The New ESC
【Begin
ESC】
Please check the wiring and connections carefully, an1. Move the throttle stick to the bottom and then start the ESC in
the following sequences:
1. Move the throttle stick to the bottom position and then switch on the transmitter.
2. Connect the battery pack to the ESC, the ESC begins the self-test process, a special tone♪123 is emitted, which
means the voltage of the battery pack is in normal range, and then N Beep tones will be emitted, mean the number of lipo
battery cells. Finally a long Beep tone will be emitted, which means the self-test is OK.the aircraft or helicopter is ready
to go flying.
� If nothing is happened, please check the battery pack and all the connections;
2
If a special tone ♪56712 is emitted after 2 Beep tones (Beep-Beep-) means the ESC has entered the program mode,
it is because the throttle channel of your transmitter is reversed, please set it correctly;
� If the red LED flashes very quickly (2 times per second), means the input voltage is too low or too high, please check
your battery's voltage.
3.VERY IMPORTANT ! Because different transmitter has different throttle range, you need to calibrate the throttle range
and let the ESC remember it. Please read the instruction on the left bottom of this page ------! °Throttle Range
Setting!After correctly setting the throttle range, the red LED lights when the throttle stick is moved to the top position
(Maximum throttle).
�
Alert Tone
【Alert
Tone】
Input voltage is abnormal: The ESC begins to check the voltage when the battery pack is connected, if the voltage is not
in acceptable range, such an alert tone will be emitted: !°Beep-Beep-, Beep-Beep-!± (Every !°Beep-!± has a time
interval of about 1seconds),and at the same time, the red LED also flashes.
2.Throttle signal is lost: When the ESC can!ˉt detect the normal throttle signal, such an alert tone will be
emitted: !°Beep-,BeepBeep--, (Every !°Beep-!± has a time interval of about 2 seconds)
3.Throttle stick is not in the bottom position: When the throttle stick is not in the bottom (lowest) position, a very rapid
alert tone will be emitted: !°Beep-, Beep-, Beep-! ±. (Every !°Beep-, Beep has a time interval of about 0.25 second.).The
output power will be resumed as soon as the throttle signal is normal again.
Trouble Shooting
【Trouble
Shooting】
Trouble
The connection between battery
pack and ESC is not correct
Action
Check the power connection.
Replace the connector with new
one
Input voltage is abnormal,too high
or too low
Check the voltage of battery pack
Throttle signal is irregular or lost
Check the receiver and
transmitter
Check the control cable of the ESC
The throttle stick is not in the
bottom(lowest) position.
Move the throttle stick to bottom
position.Set the throttle
transmitter to neural or even
lower.
After power on,motor does not work ,a
special tone"♪56712 is emitted after
2"Beep"tones (Beep-Beep)
Direction of the throttle channel is
reversed ,so the ESC has entered
the program mode
Set the direction of throttle
channel correctly(Please refer to
the user manual of your
transmitter)
The motor runs in the opposite direction
The connection between ESC and
the motor need to be changed.
After power on,motor does not work,no
sound is emitted
After power on,motor does not
work,such an alert tone is emitted and
the red LED flashes at the same
time."Beep-Beep-"(Every
"Beep-Beep-"has a time interval of
about 1 second)
After power on,motor does not
work,such an alert tone is
emitted;"Beep-Beep-"(Every
"Beep-"has a time interval of about 2
second)
After power on,motor does not
work,such an alert tone is
emitted;"Beep-Beep-"(Every
"Beep-"has a time interval of about 0.25
second)
Possible Reason
Throttle signal is lost
The motor stop running while in working
state
ESC has entered low Voltage
protection
Some connections are not reliable
Swap any two wire connections
between ESC and motor
Check the receiver and
transmitter
Check the control cable of throttle
channel
Land RC model as soon as
possible,and replace the battery
pack
Check all the connections;battery
pack connection,throttle signal
cable,motor connections,etc.
Normal Startup Procedure
【Normal
Procedure】
Move the throttle
stick to bottom
position and then
switch on your
transmitter
Connect the battery
pack to the ESC,a
special tone"♪123"
emits,that means the
battery supply is OK
Several"Beep-"t
ones emits to
represent the
number of lip
battery cells
3
As soon as the
self-test process is
finished"Beep-"tone
will be emitted
Move the throttle
stick upwards to go
flying now
Throttle Range Setting
【Throttle
Setting】
Switch on the
transmitter,an
d then move
the throttle
stick to top
postion
Connect battery pack to the
ESC,a special
tone" ♪123"emits,that
means the battery supply is
ok,then wait for 2 seconds
"Beep-Beep-"tone
emits ,that means the
highest point of
throttle range has
been correctly
confimed
Move throttle stick to
the bottom
position,several
"Beep-" tones emits to
represent the number
of lipo battery cells
Along"Beep--"ton
e emits,means
the lowest
position of
throttle range has
been confirmed
【Program the ESC with the transmitter】
1、Enter program mode
2、Select programmable items
3、
Set
item's
value(Programmable
value)
4、Exit program mode
1.Enter program mode
a) Switch on transmitter,move the
throttle stick to the top position.
b)Connect the battery pack to the
ESC ,a special tone "♪123" emits,that
means the battery supply is ok.
c)Wait for 2 seconds ,the motor will
emit"Beep-Beep-" tone.
d)Wait for another 5 seconds,special
tone like"♪56712" emits ,that means the
program mode is entered.
2.Select programmable items:
After entering program mode,you will hear 14 groups of"Beep"tones in a
loop with the following sequence,.If you move the throttle stick to bottom
position within3seconds after one kind of tones, the corresponding item will
be selected.
1
B
Brake
(1short tone)
2
BB
Battery Type
(2short tone)
3
BBB
Cutoff Mode
(3short tone)
4
BBBB
Cutoff Threshold
(4short tone)
5
BeepStart mode
(1 long tone)
6
Beep-B
Timing
(1 long 1 short)
7
Beep-BB
Governor Mode
(1 long 2 short)
8
Beep-BBB
Motor Type
(1 long 3 short)
9
Beep-BBBB
PWM Frequency
(1 long 4 short)
10
Beep-BeepBuilt-in BEC Output
(2 long tones)
11
Beep-Beep-B
Motor Load
(2 long 1 short)
12
Beep-Beep-BB
Lipo Cells
(2 long 2short)
13
Beep-Beep-Beep-B
Reset All To Default
(3 long 1 short)
14
Beep-Beep-Beep-BB
Exit
(3 long 2 short)
Note:"Beep-"means
a
long
"Beep"tone,"B"mans
a
short
"Beep"tone,Usually,1 long"Beep-"=5 short "B"
4
4.Exit program mode
There are 2 ways to exit
3.Set item value(Programmable value):
You will hear several"Beep"tones in loop.Set the value matching to a tone by moveing
the throttle stick to top position when you hear the tone,then a special tone "♪1515"
emits,that means the value is set and saved.(Keep the throttle stick at the top
position,you will go back to Step#2 and you can select other items;Or Move the stick to
bottom position within 2 seconds will exit program mode directly)
Beep
Item
Brake
Battery Type
Cutoff Mode
Cutoff
Threashold
Start mode
Timing
Governor
Mode
Motor Type
PWM
Frequency
Built-in BEC
Output
Motor Load
Lipo Cells
1
long
1 long
1short
1 long
2short
1 long
3 short
1 short
2 short
3short
4 short
*Off
*Lipo
Soft
NiMH
Hard
Very hard
*Soft
Cut
Hard
Cut
Low
*Middle
High
Customer
*Normal
0°
*Normal
Motor
Soft
3.75°
Governor
Low
Special
Motor 1
Very soft
7.5°
Governor
High
Special
Motor 2
*12KHz
24KHz
*5.25V
6V
"Normal
Heavy
Very
Heavy
Auto
For normal ESC
(2 to 6S Lipo)
"Normal
Heavy
Very
Heavy
Auto
For normal ESC
(5 to 12S Lipo)
"Auto
2S
3S
4S
5S
6S
For normal ESC
(2 to 6S Lipo)
"Auto
5S
6S
5S
10S
12S
For normal ESC
(5 to 12S Lipo)
*Off
the program mode:
a) In
#3,after
special
tone"♪1515",please
move the throttle stick
to the bottom position
within 2 seconds.
b) In
11..25°
step
Step
#2,after
tones,that is the item
*15°
18.75°
22.5°
26.25°
#14),move the throttle
stick
to
the
bottom
position within 3second
The value with *symbol is the factory-preset value(That is default value)
5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
