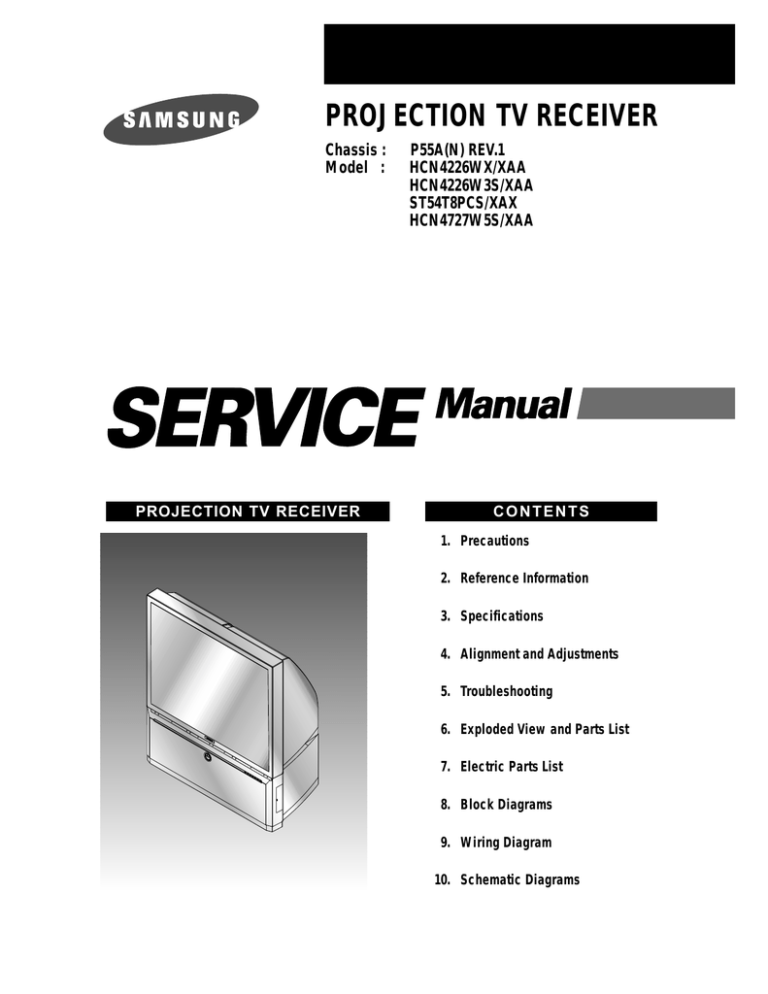

PROJECTION TV RECEIVER
Chassis :
Model :
PROJECTION TV RECEIVER
P55A(N) REV.1
HCN4226WX/XAA
HCN4226W3S/XAA
ST54T8PCS/XAX
HCN4727W5S/XAA
CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Alignment and Adjustments
5. Troubleshooting
6. Exploded View and Parts List
7. Electric Parts List
8. Block Diagrams
9. Wiring Diagram
10. Schematic Diagrams
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
Samsung Electronics
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time servicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement component differs from the original—even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or (
).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheating, and correct any potential hazards.
1-2
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning 1 : First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a
conflict between the servicing and safety precautions, always follow the safety precautions.
Warning 2 : An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
9. When some parts inside the optical engine
(except lamp) are damaged, replace the whole
optical engine.
“CAUTION : Double-pole/neutral fusing”
Samsung Electronics
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
CAUTION
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so.
1-4
Samsung Electronics
Reference Information
2. Reference Information
2-1 Tables of Abbreviations and Acronyms
Table 2-1 Abbreviations
A
Ah
Å
dB
dBm
°C
°F
°K
F
G
GHz
g
H
Hz
h
ips
kWh
kg
kHz
kΩ
km
km/h
kV
kVA
kW
I
MHz
Samsung Electronics
Ampere
Ampere-hour
Angstrom
Decibel
Decibel Referenced to One
Milliwatt
Degree Celsius
Degree Fahrenheit
degree Kelvin
Farad
Gauss
Gigahertz
Gram
Henry
Hertz
Hour
Inches Per Second
Kilowatt-hour
Kilogram
Kilohertz
Kilohm
Kilometer
Kilometer Per Hour
Kilovolt
Kilovolt-ampere
Kilowatt
Liter
Megahertz
MV
MW
MΩ
m
µA
µF
µH
µm
µs
µW
mA
mg
mH
mI
mm
ms
mV
nF
Ω
pF
Ib
rpm
rps
s
V
VA
W
Wh
Megavolt
Megawatt
Megohm
Meter
Microampere
Microfarad
Microhenry
Micrometer
Microsecond
Microwatt
Milliampere
Milligram
Millihenry
Milliliter
Millimeter
Millisecond
Millivolt
Nanofarad
Ohm
Picofarad
Pound
Revolutions Per Minute
Revolutions Per Second
Second (Time)
Volt
Volt-ampere
Watt
Watt-hour
2-1
Reference Information
Table 2-2 Table of Acronyms
ABL
AC
ACC
AF
AFC
AFT
AGC
AM
ANSI
APC
APC
A/V
AVC
BAL
BPF
B-Y
CATV
CB
CCD
CCTV
Ch
CRT
CW
DC
DVM
EIA
ESD
ESD
FBP
FBT
FF
FM
FS
GND
G-Y
H
HF
HI-FI
IC
IC
IF
2-2
Automatic Brightness Limiter
Alternating Current
Automatic Chroma Control
Audio Frequency
Automatic Frequency Control
Automatic Fine Tuning
Automatic Gain Control
Amplitude Modulation
American National Standards Institute
Automatic Phase Control
Automatic Picture Control
Audio-Video
Automatic Volume Control
Balance
Bandpass Filter
Blue-Y
Community Antenna Television (Cable TV)
Citizens Band
Charge Coupled Device
Closed Circuit Television
Channel
Cathode Ray Tube
Continuous Wave
Direct Current
Digital Volt Meter
Electronics Industries Association
Electrostatic Discharge
Electrostatically Sensitive Device
Feedback Pulse
Flyback Transformer
Flip-Flop
Frequency Modulation
Fail Safe
Ground
Green-Y
High
High-Frequency
High Fidelity
Inductance-Capacitance
Integrated Circuit
Intermediate Frequency
I/O
L
L
LED
LF
MOSFET
MTS
NAB
NEC
NTSC
OSD
PCB
PLL
PWM
QIF
R
RC
RF
R-Y
SAP
SAW
SIF
SMPS
S/N
SW
TP
TTL
TV
UHF
UL
UV
VCD
VCO
VCXO
VHF
VIF
VR
VTR
VTVM
TR
Input/output
Left
Low
Light Emitting Diode
Low Frequency
Metal-Oxide-Semiconductor-Field-Effect-Tr
Multi-channel Television Sound
National Association of Broadcasters
National Electric Code
National Television Systems Committee
On Screen Display
Printed Circuit Board
Phase-Locked Loop
Pulse Width Modulation
Quadrature Intermediate Frequency
Right
Resistor & Capacitor
Radio Frequency
Red-Y
Second Audio Program
Surface Acoustic Wave(Filter)
Sound Intermediate Frequency
Switching Mode Power Supply
Signal/Noise
Switch
Test Point
Transistor Transistor Logic
Television
Ultra High Frequency
Underwriters Laboratories
Ultraviolet
Variable-Capacitance Diode
Voltage Controlled Oscillator
Voltage Controlled Crystal Oscillator
Very High Frequency
Video Intermediate Frequency
Variable Resistor
Video Tape Recorder
Vacuum Tube Voltmeter
Transistor
Samsung Electronics
Reference Information
2-2 Description of Dynamic Focus
Most large-screen video display devices that are using CRT (including CDT) usually apply the Dynamic
Focus (hereinafter D/F) circuit.
As CRT has non-spherical surface (perfect spherical surface = 1, non-spherical surface R>1), the distance
that the electron beam emitted from the electron gun reaches to the center of CRT is different from the one
that the electron beam reaches to the corners. (See Figure 1.)
Only the beam, which has the equal distance as the beam from the electron gun to the center of CRT
surface, can maintain the optimum focus.
By this reason, focus dagradation at corners occurs inevitably.
To recover this, the speed of the electron beam injected into the corners of CRT should increase and the
focus dagradation by the difference of distances can be compensated.
Increasing the voltage is used as a method of increasing the speed of the electron beam at the corners of
screen.
In this case, an ideal D/F voltage waveform is the form of parabola where the center of screen has low
voltage and the corners has the highest voltages.
The horizontal D/F waveform compensates the focus dagradation at left and right sides, but the vertical
D/F waveform does at top and bottom sides.
The horizontal D/F and vertical D/F waveforms are separately created and mix two signals to
compensate the focus of the whole screen.
And the vertical Dynamic Focus waveform is composed of the horizontal Dynamic Focus waveforms as
much as the number of scanning lines. (See Figure 2.)
Fig. 1 Dynamic Focus Diagram (Horizantal)
Samsung Electronics
Fig. 2 H/V Dynamic Focus Waveform
2-3
Reference Information
2-3 IC Line Up
2-3-1 Progressive
2-4
Samsung Electronics
Reference Information
Samsung Electronics
2-5
Reference Information
2-4 MICOM IIC BUS LINE -UP
2-6
Samsung Electronics
Specifications
3. Specifications
Broadcasting System
NTSC
Scanning System
Progressive Scanning
Tuning Range
VHF : CH2 ~ CH13
Antenna Impedance
75 ohm Unbalanced
Video : 45.75 MHz
Intermediate Frequency
Sound : 42.25 MHz
Chrominance Subcarrier : 42.17 MHz
Sound Output
STD : 10W
MAX : 15W
Rated Voltage
W/B Coordinates
High Voltage
120V / 60 Hz
Hx : 266
Hy : 280
Y : 8.9
Lx : 268
Ly : 283
Y : 0.38
29KV
250V/6.3A
FUSE
Power Consumption
CODE NO : 3601-000300
240W
1002 X 450 X 1070mm
Dimension
Weight
Samsung Electronics
39.4 X 17.7 X 42.1 inch
49Kg 108lbs
3-1
Alignment and Adjustments
4. Alignment and Adjustments
4-1 When entering the service mode:
1. Turn on the TV, and then select “STANDARD”on the picture adjustment mode.
2. Turn off the TV (STAND-BY).
3. Enter the service mode by pressing the remote control keys in the following sequence :
Note : If necessary, re-do steps 1~3.
Initial display when the service mode is switched.
1. When a RF signal is received
SERVICE / Sim-474A
DEFLECTION
480P OFFSET
1080i OFFSET
CONVERGENCE OFFSET
VIDEO ADJUST 1
VIDEO ADJUST 2
VIDEO ADJUST 3
VIDEO ADJUST 4
OPTION (E3h 98h 0ch)
RESET / 02-05-03
3. Service Mode Control Keys
MAIN MENU
MENU DISPLAY
CH UP/DOWN
Select item by moving cursor
VOL UP/DOWN
Decrease or increase the adjustment values
< PRECAUTIONS >
1. When EEPROM IC (IC902) is replaced, first connect the power cord and wait for about 4~5 seconds.
2. After replacing EEPROM IC (IC902), enter the Service mode. Next, enter the standard data or the
previous EEPROM IC data before replacement. And then check and adjust any items related to
Geometric, Picture, Option.
Samsung Electronics
4-1
Alignment and Adjustments
4-2 Factory Data
☞
DVI connection item is corresponded to DVI application model.
4-2-1 Defection
ITEM
INITIAL DATA
V Amp
V Shift
32
H EW
4-2
EEP-ROM Copy Data
Range
Remark
RF
480P
1080i
0 ~ 63
31
-
-
variable
0 ~ 63
29
-
-
fix
0 ~ 63
31
-
-
variable
H Shift
32
0 ~ 63
31
-
-
fix
V Linearity
6
0 ~ 15
7
-
-
fix
Upper Linearity
7
0 ~ 15
0
-
-
fix
Lower Linearity
8
0 ~ 15
0
-
-
fix
VSC
3
0 ~ 15
7
-
-
fix
H Parabola
10
0 ~ 63
31
-
-
fix
Upper Corner
32
0 ~ 63
31
-
-
fix
Lower Corner
32
0 ~ 63
31
-
-
fix
H Trapezium
32
0 ~ 63
31
-
-
fix
Bow
32
0 ~ 63
31
-
-
fix
Angel
32
0 ~ 63
31
-
-
fix
V Position
32
0 ~ 63
31
-
-
fix
CXA Left Blk
35
0 ~ 63
35
-
-
fix
CXA Right Blk
35
0 ~ 63
35
-
-
fix
Samsung Electronics
Alignment and Adjustments
4-2-2 480P Offset
ITEM
INITIAL DATA
EEP-ROM Copy Data
Range
Remark
RF
480P
1080i
V Amp
0
-63 ~ 63
-
0
-
variable
V Shift
0
-63 ~ 63
-
0
-
variable
H EW
0
-63 ~ 63
-
0
-
variable
H Shift
0
-63 ~ 63
-
0
-
variable
V Linearity
0
-15~ 15
-
0
-
fix
Upper Linearity
0
-15~ 15
-
0
-
fix
Lower Linearity
0
-15~ 15
-
0
-
fix
VSC
0
-15~ 15
-
0
-
fix
H Parabola
0
-63 ~ 63
-
0
-
fix
Upper Corner
0
-63 ~ 63
-
0
-
fix
Lower Corner
0
-63 ~ 63
-
0
-
fix
H Trapezium
0
-63 ~ 63
-
0
-
fix
Bow
0
-63 ~ 63
-
0
-
fix
Angel
0
-63 ~ 63
-
0
-
fix
V Position
0
-63 ~ 63
-
0
-
fix
CXA Left Blk
-63 ~ 63
-
28
-
fix
CXA Right Blk
-63 ~ 63
-
36
-
fix
Samsung Electronics
4-3
Alignment and Adjustments
4-2-3 1080i Offset
ITEM
INITIAL DATA
EEP-ROM Copy Data
Range
Remark
RF
480P
1080i
V Amp
0
-63 ~ 63
-
-
0
variable
V Shift
0
-63 ~ 63
-
-
0
variable
H EW
0
-63 ~ 63
-
-
0
variable
H Shift
0
-63 ~ 63
-
-
0
fix
V Linearity
0
-15~ 15
-
-
0
Upper Linearity
0
-15~ 15
-
-
0
Lower Linearity
0
-15~ 15
-
-
0
VSC
0
-15~ 15
-
-
0
H Parabola
0
-63 ~ 63
-
-
0
Upper Corner
0
-63 ~ 63
-
-
0
Lower Corner
0
-63 ~ 63
-
-
0
H Trapezium
0
-63 ~ 63
-
-
0
Bow
0
-63 ~ 63
-
-
0
Angel
0
-63 ~ 63
-
-
0
V Position
0
-63 ~ 63
-
-
0
CXA Left Blk
-63 ~ 63
-
-
63
CXA Right Blk
-63 ~ 63
-
-
20
4-4
Samsung Electronics
Alignment and Adjustments
4-2-4 CONVERGRNCE OFFSET
ITEM
INITIAL DATA
Range
EEP-ROM Copy Data
RF
480P
Remark
1080i
Offset Enable
0
0~1
0
variable
V Amp
15
-63 ~ 63
15
variable
V Shift
0
-63 ~ 63
0
variable
H EW
15
-63 ~ 63
15
variable
V Amp 1080i
15
-63 ~ 63
15
variable
V Shift 1080i
0
-63 ~ 63
0
variable
H EW 1080i
15
-63 ~ 63
15
variable
Samsung Electronics
4-5
Alignment and Adjustments
4-2-5 VIDEO ADJUST 1
ITEM
4-6
INITIAL DATA
EEP-ROM Copy Data
Range
Remark
RF-Copy
W/B
Control Value
1080i
R Cutoff
20
0 ~ 63
31
20
31
variable
G Cutoff
20
0 ~ 63
31
20
31
variable
B Cutoff
20
0 ~ 63
31
20
31
fix
Color On/Off
1
0~1
1
CR offset
32
0 ~ 15
32
fix
CB offset
32
0 ~ 15
32
fix
R Driver
31
0 ~ 15
20
31
20
variable
G Driver
31
0 ~ 15
20
31
20
fix
B Driver
31
0 ~ 63
20
31
20
variable
Sub Bright
15
0 ~ 63
15
variable
Sub Contrast
7
0 ~ 15
7
variable
Sub Color
20
0 ~ 23
20
SubTint
7
0 ~ 13
CTI Level
1
0~3
1 (RF/AV/SV/DVD/480P/1080i)
fix
CDL AXIS
2
0~3
2
fix
LTI Level
0
0~3
8(AV/SV/DVD/480P)
1(RF/AV/SV/DVD/480P)
10
2
fix
fix
Samsung Electronics
Alignment and Adjustments
4-2-6 VIDEO ADJUST 2
ITEM
INITIAL DATA
EEP-ROM Copy Data
Range
RF
480P
Remark
1080i
ABL Mode
3
0~3
3
fix
Gamma
2
0~3
1
fix
DPIC Level
3
0~3
3
fix
DC Trans
3
0~3
1
fix
ABL TH
15
0 ~ 15
15
fix
VM Level
2
0~3
2
fix
VM Coring
0
0~3
VM f0
0
0~3
VM Limit
0
0~3
0
VM Delay
0
0~3
0 (RF/AV/DVD)
SHP CD
1
0~3
1
SHP f0
0
0~1
0
SHP f1 & P/O
11
0 ~ 15
AKB Time
13
0 ~ 31
16
Y/C Delay
30
0 ~ 31
30
PIP Y/C Delay
30
0 ~ 31
30
BAND PASS F
1
0~7
1
HIGH PASS F
3
0~7
3
Samsung Electronics
0
2 (RF/AV/SV/DVD/480P)
1
fix
1 (480P)
fix
1 (AV/SV/DVD/Comp2)
fix
13 1 (RF/AV/SVHS/DVD/Comp2)
fix
4-7
Alignment and Adjustments
4-2-7 VIDEO ADJUST 3
ITEM
INITIAL DATA
EEP-ROM Copy Data
Range
Remark
RF
480P
1080i
VSU
2
0 ~ 15
2
-
-
Melody Volume
4
0 ~ 20
4
-
-
H Comp
0
0 ~ 15
0
-
-
V Comp
0
0 ~ 15
0
-
-
Pin Comp
0
0 ~ 15
0
-
-
AFC Comp
0
0~7
0
-
-
Sync Comp
0
0~1
0
-
-
NR Off Value
5
0~9
5
-
-
V-Mute(x100ns)
8
0 ~ 10
8
-
-
4-8
Samsung Electronics
Alignment and Adjustments
4-2-8 VIDEO ADJUST 4
ITEM
INITIAL DATA
EEP-ROM Copy Data
Range
RF
480P
Remark
1080i
System RF
1
0~3
System_VSD_480P
1
0~3
System_1080i
2
0~3
Shp_Fo_VSD_480P
1
0~1
HPF_VSD
3
0~7
3
3 (AVS/SV/DVD)
BPF_VSD
1
0~7
1
1 (AVS/SV/DVD)
Chrm_bdwth_RF
28
0 ~ 63
28
fix
Chrm_bdwth_Video
28
0 ~ 63
28
fix
Chrm_bdwth_Svideo
30
0 ~ 63
30
fix
Chrm_bdwth_DVD
28
0 ~ 63
28
fix
IF_Comp_RF
2
0~7
2
fix
IF_Comp_Video
4
0~7
4
fix
IF_Comp_Svideo
5
0~7
5
fix
IF_Comp_DVD
4
0~7
4
fix
VM_Delay_480P
1
0~3
Samsung Electronics
1
1
2
fix
1
1
fix
fix
4-9
Alignment and Adjustments
4-2-9 OPTION
HCM4216W,HCM4215W,
HCM422W,HCM473WB
HCL4715WB,HCM4715W
(PCL545RB,PCM545R)
(PCL5415RB,PCM5415R)
HCM553WB
HCM5525WB,PTH5598W
ITEM
INITIAL DATA
Range
CRT
WIDE
WIDE ↔ 4:3
WIDE(4:3)
WIDE(4:3)
PIP
ON
ON ↔ OFF
ON
ON
3D-Comb Filter
OFF
ON ↔ OFF
OFF
ON
Blue Screen
OFF
ON ↔ OFF
ON
ON
BBE Effect
ON
ON ↔ OFF
ON
ON
Auto power On
ON
ON ↔ OFF
ON
ON
System
CT
CT (EN+SP+ER)→CT-A(E+SP+F)
CT
CT
Virtual Dolby
OFF
ON ↔ OFF
OFF
OFF
ACS
ON
ON ↔ OFF
ON
ON
V chip (CT,CTA)
ON
ON ↔ OFF
ON
ON
V chop Area
USA
USA
USA
USA
Sub Woofer
OFF
ON ↔ OFF
OFF
OFF
No Sync Mute
ON
ON ↔ OFF
ON
ON
DVI
ON
ON ↔ OFF
OFF
OFF
AGC
OFF
ON ↔ OFF
OFF
OFF
Tubo Effect
OFF
OFF
ON ↔ OFF
ON ↔ OFF
OFF
OFF
OFF
OFF
Large
ON
Large ↔ Double
ON ↔ OFF
Large
ON
Double
ON
Burst Screen
DW Multi
Letter Box
4-10
Samsung Electronics
Alignment and Adjustments
4-3 Screen Change (When adjusting I2C Bus Geometric items)
1
V SHIFT
6
V SIZE
2
V LINEARITY
7
V - S - CORRECTION
3
H SIZE
8
PIN PHASE
4
PIN AMP
9
H SHIFT
5
V ANGLE
10
V BOW
Samsung Electronics
4-11
Alignment and Adjustments
4-4 Other Adjustments
4-4-1 Screen Adjustment
2. In the stand-by mode, press the remote-control
keys in the following sequence :
1. Warm up the TV for at least 30 minutes.
2. Select the “ STANDARD” Video mode.
3. Select SBT by pressing the Volume
3. Turn to the Video Mode (No Signal) using a
remote-control.
4. Connect an oscilloscope to RK,GK,BK.
5. Adjust the VR (VR501, VR531, VR561) screen
so that RK, GK, BK pulse is 20Vp-p each.
(Turn the R,G,B VR screen fully
counterclockwise in the area of each flyback
line.)
4. Adjust so that the 63 step on the right side of
the screen is not seen (Use the Volume
keys).
5. Press the Menu key to exit.
4-4-4 High Voltage (29KV) Check
PRECAUTION
4-4-2 White Balance Adjustment
1. Input a lion head pattern.
1. Select the “STANDARD” video mode.
2. Select “STANDARD” video mode.
2. Input 100% white pattern.
3. Warm up the TV for at least 10 minutes.
3. In the stand-by mode, press the remote-control
keys in the following sequence:
4. Use a 1000:1 probe.
4. Warm up the TV for at least 30 minutes.
5. Input a 10-step signal.
6. R-cut off, B-cut off, and G-cut off by pressing
the Volume
keys.
7. Adjust the low light with viewing the dark
side of the screen.
8. Select R-drive, G-drive, and B-drive by
pressing the Volume
keys.
keys.
ADJUSTMENT
1. Connect the (+) terminal of the 1000:1 probe to
the high voltage distributor and the (-)
terminal to GND (located on the deflection
board).
2. Adjust RR471S (located on the deflection
board) so that the digital meter indicates
DC 29V ± 0.1V.
4-4-5 F.S. (Fail Safe) Adjustment
9. Adjust the high light with viewing the light
side of the screen.
Note : The finished product has a well-mounted
VR (RR402S).
If necessary, do the F.S. adjustments in the
following sequence.
10. If necessary, redo adjustments 6~9.
1.
Use a digital multimeter.
11. Press the Menu key to exit.
2.
Connect the digital multimeter to the JIG pin
(DZ482S) terminals
4-4-3 Sub-Brightness Adjustment
3.
Adjust VR (RR402S) so that the voltage
becomes 2.25V.
1. Input a sub-brightness adjustment signal.
(TOSHIBA PATTERN)
4.
After the adjustments are complete, be sure to
mount VR (RR402S) correctly.
4-12
Samsung Electronics
Alignment and Adjustments
4-4-6 F.S. (Fail Safe) Circuit Check
4-4-8 Lens Focus Adjustment
Note : The F.S. Circuit check must be performed
after servicing.
PRECAUTIONS
1. Turn on the TV.
2. Select the “STANDARD” video mode.
3. Short F/S Test point (located on the SUB PCB).
Then, both sound and picture disappear.
(Note: Even if the shorted terminals are
removed, both sound and
picture do not appear. This proves the F.S.
circuit is working. )
1. Do this adjustment after the static focus
adjustment and the tilt adjustment.
2. Select the “STANDARD” video mode.
(Contrast:100, Brightness:50)
3. Input a crosshatch pattern.
ADJUSTMENT
1. Loosen the lens screws.
4. To restore both sound and picture, turn off the
TV and reset it after about 30 seconds.
2. Cover the two lenses that are not being
adjusted.
4-4-7 Static Focus Adjustment
3. Adjust the lens, observing the color aberration
vertically and horizontally within 3 blocks of
the center of the crosshatch pattern.
PRECAUTION
1. Select the “STANDARD” video mode.
2. Input a crosshatch pattern.
3. Cover the lenses that are not being adjusted.
4. When the lens is turned clockwise, the color
aberration will change as follows:
Lens
R
G
B
Color Aberration Change
Orange - Crimson
Blue - Red
Purple - Green
4. Connect a convergence jig and read data.
5. Adjust the lens for best focus.
(See Fig, 4-1)
STATIC FOCUS (CONTINUED)
Vary the focus pack VR (Red, Blue) on the
front cabinet. Adjust the TV for best possible
focus around the center of the crosshatch
pattern, without losing overall screen balance.
Figure Crosshatch Pattern
Examine these points together.
5. Green lens adjustment:
Set the lens at the point where Blue just
changes to Red. If the color aberration is
irregular throughout the picture screen, adjust
the lens to show Red color aberration
(approximately 1~3 mm area) within a 3-block
grid around the horizontal center-line. If the
color aberration is irregular, adjust the lens as
shown in the diagram below. (Accurate
alignment of Green is important for overall
color quality.)
6. Red lens adjustment
Set the Red lens at the point where Orange
becomes Crimson.
7. Blue lens adjustment
Set the Blue lens at the point where Purple
becomes Green.
P
Examine these points together
L1
L2
Fig. 4-1 Crosshatch Pattern.
RED ABERRATION BLUE ABERRATION
L1, L2_< P
Fig. 4-2 Color Aberration
Samsung Electronics
4-13
Alignment and Adjustments
4-5 Beam alignment Adjustments
1. Select the “STANDARD” video mode.
2. Warm up the set at least for 10 minutes.
3. Enter the Convergence mode by pressing the remote control buttons in the following sequence
:
4. Set the Beam Alignment Adjustment CY to Zero magnetic field area.
(Creation of CPM Zero Magnet)
(Creation of the 2-pole/4-pole zero magnets)
5.
6.
7.
8.
Check the squarewave at the point where the focus is misaligned (Use an audio oscillator).
Press the
button on the remote control, and a vibrating dot-pattern appears.
Adjust the Focus-pack VR for defocusing.
G-FOCUS
Mute the other patterns CORE
(R/B) other than G-PATTERN.
(Use
/
buttons on the remote control.)
9. Adjust the 2, 4 polarities of VM-COIL as shown in figure below.
10. Adjust the G-Focus until any light around the core disappears.
G-FOCUS
CORE
CORE
G-FOCUS
Varying the 2-pole of VM
(Varying G-Focus Pack)
G-FOCUS
(Positioning the Core in the Center)
CORE
Varying the 4-pole of VM
(When VM 2-Pole Adjustment is completed)
(Adjust until the light around
the core becomes a circle)
11. Adjust G-Focus so that the surrounding flash can disappear from the spot.
12. After G-Focus adjustments are complete, adjust R-Focus as above procedures.
13. The B-CRT adjustments can be omitted because the variance of beam focus is small.
(Only Vm-coil is mounted.)
14. Adjust the Focus-pack VR for fine focusing.
15. Press the
button on the remote control, and the mode changes to the Convergence Adjustment
mode.
16. Press the
button on the remote control to return to normal viewing.
4-14
Samsung Electronics
Alignment and Adjustments
4-6 Hige Voltage Part
4-6-1 PWM REG Circuit
For the existing high voltage REG circuit (input
voltage variation type), a dynamic REG response
is not provided. So it is difficult for both beam
linearity and uniformity in screen size to be
maintained on the screen with rapidly changing
beams.
A PWM (Pulse Width Modulation) type of high
voltage, however, provides the maintenance of
beam linearity and uniformity in screen size via a
quick response to beam change by performing
sync lock every 1H line, and detecting beam
fluctuation at 1H line, and then controlling the IC
current of high voltage output circuit.
1. High Voltage Fluctuation Detect (DC Detect)
FBT pin 11 detects DC high voltage fluctuation.
The detected DC high voltage value is input to
PWM IC471 pin1 through R473, VR471, R471,
and then it is input to a differential AMP circuit
that differentiates the gap after comparing with
the reference voltage input to pin2.
3. PWM IC OSC Sync Lock
A PWM type IC needs sync lock for PWM pulse
and horizontal scan line.
The standard time constant of OSC circuit is
determined by C487, R475 (PWM IC pins 5 and 6).
And the standard OSC frequency is about 27
kHz . The horizontal frequency of scan line is
31.5kHz(NT), 3375kHz(DTV), 15.75kHz(Interface),
so sync lock for this horizontal frequency should
be performed using sync lock circuit. The sync
lock circuit consists of Q481(Tr KSC815-Y),
D479, D478, and C492. The input AFC signal is
connected to PWM IC pin 5 through D479 so
that it can be negative Trig.
OSC : 27KHz
AFC Waveform : 31.5KHz(NT)
Locked OSC Waveform : 31.5KHz
2. High Voltage Fluctuation Detect (AC Detect)
4. Dead Time (HV Protect)
To check AC high voltage fluctuation, the
output from FBT is detected by using a
capacitor inside the high voltage distributor. The
detection of AC high voltage fluctuation,
a detection of dynamic beam current change is
required in order to keep beam linearity and
uniformity in size.
Regarding the capacitor, a capacity of less than
3000P should be applied to a PWM type. (The
existing type needs a capacity of about 6000P.)
AC detect circuit eliminates unnecessary high
frequency by using C476, D472. Also, AC gain is
limited to + / - 0.7V (D472). This AC gain is
combined with the detection value of DC high
voltage fluctuation by using C478.
Samsung Electronics
Dead Time (PWM IN pin4) consists of C481,
delays high voltage for a certain time to soft
start in power on, a x-ray protection circuit.
The voltage of Dead Time is detected by FBT
pin7 and through DC Feedback. The normal
voltage of Dead Time is +27V. When high
voltage increases, however, detected voltage is
in proportion to high voltage. Then, the detected
voltage is applied to ICR01S(TL431).
If the voltage is over 2.5V (normal:about 2.25V),
TL431 turns ON, the base port of QR401S
becomes low, and then an emitter current flows.
At this time, a high voltage protection point is
set. When QR401S turns ON, high voltage is
applied to PWM IC pin4 and then muted.
4-15
Alignment and Adjustments
5. Output Circuit
The voltages, which are detected form an error
detection circuit of PWM IC (Differential AMP)
and Dead Time, each is applied to PWM
conparator . Due to these detection coltages, Q1,
Q2 (Output TR) parallel operate. Q482 (External
TR), however, functions as a buffer; natches
inpedance between the output port of PWM IC
and the final output TR(IRFS640). The PWM
pulse (applied to the final output FET (IRFS640
GATE) varies the IC current of high voltage
TR(Q473) by adjusting the load impedance of
starage Trans (T431). Due to this variation of
current, the gain for Q473 emitter pulse changes
T444(FBT)makes this emitter pulse became high
voltage. Such change keeps both dynamic and
static changes fixed. The output waveform of
high valtage TR emitter is as shown in the figure
below.
about 1V. A PWM modulation type REG detects
static, dynamic high voltage fluctuation for only
Ton Time (when the current of the output TR
collector flows) each 1H, and modulates the
width of PWM pulse. So, this PWM type has
better improvement in the characteristic of high
voltage REG as compared to the existing type.
High Voltage Drive Base Current
GND
Ton
GND
Toff
PWM Variation tange
PWM Input Waveform of FET GATE
8. Application Effects
1) Improvement of horizontal size fluctuation
2) Linearity improved
3) Embodiment of X-ray protection circuit
The figures below show characteristics when a
PWM high voltage REG circuit is applied.
6. Paraneters according to beam
High Voltage
To maintain the set high voltage value (31kV),
parmaters such as +Ve (DC), Vcp High Voltage
change (See the table below).
Factor of high
voltage change
Beam
Parameters
Width of FET
Gate Pulse
+ Ve (DC)
Vcp
High
Voltage
High Voltage OFF
High Voltage REG ON
Beam
(High voltage
)
Beam
(High voltage
)
BLACK
WHITE
7. Response Waveform
To reduce unstable high voltage fluctuation, the
existing high voltage type REG circuit controls
dynamic fluctuation by using C-block capacitor.
But, it can't detect actual dynamic fluctuation.
Also, its velocity of response to static fluctuation
is late because +B power supply changes per
4-16
PWM type
When a Toshiba Pattern
is recrived, the screen is
displayed as shown in
figute side
Existing type
Samsung Electronics
Alignment and Adjustments
4-7 Screen-Jig
4-7-1 HCM4215W/HCM422W/HCM4216W (NORMAL MODE)
42W5ScreenSize:X932,Y524(X:378=9*2+30*12,Y:440=28*2+64*6)
22.19mm
73.97mm
2 2 .1 9 m m
3 3 .3 5 m m
7 6 .2 2 m m
42W5 TV
3 3 .3 5 m m
4-7-2 HCM4215W/HCM422W/HCM4216W (DTV MODE)
42W5 DTV Mode : X 932, Y 524 (X:408=18*2+31*12, Y:488=40*2+68*6)
41.12mm
70.81mm
41.12mm
4 2 .9 5 m m
73.02mm
42W5 DTV
42.95mm
Samsung Electronics
4-17
Alignment and Adjustments
4-7-3 473W/4715W (NORMAL MODE)
4-7-4 473W/4715W (DTV MODE)
4-18
Samsung Electronics
Alignment and Adjustments
4-7-5 5415R/545R/54J9 (NORMAL MODE)
4-7-6 5415R/545R/54J9 (DTV MODE)
Samsung Electronics
4-19
Alignment and Adjustments
4-7-7 552W/5515W/5525W/553W/PTH5598 (NORMAL MODE)
4-7-8 552W/5515W/5525W/553W/PTH5598 (DTV MODE)
4-20
Samsung Electronics
Alignment and Adjustments
4-7-9 6215R (NORMAL MODE)
4-7-10 6215R (DTV MODE)
Samsung Electronics
4-21
Alignment and Adjustments
4-7-11 652W/653W/6515R (NORMAL MODE)
4-7-12 652W/653W/6515R (DTV MODE)
4-22
Samsung Electronics
Alignment and Adjustments
4-8 Remote Control for Servicing (Convergence Mode)
Samsung Electronics
4-23
Alignment and Adjustments
4-7-1 KEY Function
1. R-SELECT
Press to select RED color.
2. G-SELECT
Press to select GREEN color.
3. B-SELECT
Press to select BLUE color.
4. R-MUTE
Press to mute RED color.
5. G-MUTE
Press to mute GREEN color.
6. B-MUTE
Press to mute BLUE color.
7. CANCEL KEY
Press to revert to the previous data during the Convergence
Adjustment.
8. TEST/NORMAL
Press to check TV mode in the Convergence Mode.
9. LINE SHIFT
Press to move a line up/down or left/right.
10. FACTORY DATA SELECT BUTTON
Press to call the factory default values.
11. H/V DIRECTION SELECT BUTTON
Press to switch the cursor direction horizontally or vertically.
12. SAVE BUTTON
After the Convergence Adjustments are completed, press to save data.
13 EXIT BUTTON
After the Convergence adjustments are completed, press to exit to TV mode.
4-24
Samsung Electronics
Alignment and Adjustments
14. MOVE CURSOR FORWARD
Press to move the cursor right or down.
15. MOVE CURSOR REVERSE
Press to move the cursor left or up.
16. CONVERGENCE PICTURE MOVE BUTTON
17. CONVERGENCE MOVE BUTTON
Press to move the convergence left (
) or right (
).
18. CONVERGENCE DATA ZERO BUTTON
Press to zero the convergence correction data.
19. INITIAL DATA SET BUTTON
Changes when applying Almighty-Cg, Module (How to extract the basic Cg Data)
Model Name
Basic Data
Representative
Model
422W/4215W
42W5/4216W
PCL545R/
PCL5415R
Number after entring
the Cg-Mode
5-425 (Press in regular order)
62” (62J9)
PCL6215R
5-625 (Press in regular order)
55” (552W)
HCL552W/
5515W
5-552 (Press in regular order)
White Oval on the background
(white border)
65” (652W)
HCL652W/
6515W
5-652 (Press in regular order)
White Oval on the background
(white border)
47” (472W)
(473W)
HCL472W/
4715W
5-473 (Press in regular order)
65”(653W)
HCM653W
5-653 (Press in regular order)
55”(553W)
HCM5525W/
553W
5-553 (Press in regular order)
Inch (Type)
42” (42W5)
54” (54J9)
Samsung Electronics
5-545 (Press in regular order)
Screen Display
Discription
White Cross on the background
(white cross)
White Square on the backgrand
(white border )
White Square on the backgrand
(white border )
White Square on the backgrand
(white border )
4-25
Alignment and Adjustments
20. Move Convergence Pattern P55A Service Manual
After pressing the R.surf button, use the Channel Up/Down and Volume +/- buttons to move the
Convergence Pattern up/down/left/right.
21. Convergence Pattern Tilt Control Button
After pressing the ANT A/B button, use the Channel Up/Down and Volume +/- buttons to create
a tilt to the Convergence Pattern.
Note : Use the following two buttons only when they are indispensable.
21. Beam aligment Adjustment Pattern achieve Button
4-26
Samsung Electronics
Alignment and Adjustments
4-8 Convergence Adjustment
4-8-1 Convergence Adjustment)
Special Notes
✏ A sensor is attached on the center of each side of the Convergence Mode pattern
(see figure below). The sensors are required for normal Perfect Focus function.
✏ Use a screen jig to do the convergence adjustments correctly (Especially, perform
correct convergence adjustments on the center of each side where a sensor is located.)
✏ Do the convergence adjustments correctly. Otherwise, any Perfect Focus error can
happen.
1. Warm up the TV for a least 30 minutes.
2. Input an NTSC Signal.(Use an antenna or AV source.)
Make sure that deflection yoke are properly adjusted so that the center of
Green, Red, Blue pattern is aligned on the center of screen jig.
3. Enter the Convergence Mode by Pressing the remote control keys in the following sequence:
If OSD displayed as shown in figure below, press the
key to exit.
Then, redo step 3 to enter the Convergence Mode.
After entering the Convergence Mode, Stand by for about five seconds
before doing the adjustments.
Samsung Electronics
4-27
Alignment and Adjustments
4. To adjust GREEN, first press the
and the
Press to move the cursor right or down.
5. The
4-28
key.
key moves the cursor horizontally or vertically.
When the
6. . The
keys, and then press the
key is pressed once again, the cursor moves horizontally.
key moves the cursor right, and the
key moves the cursor left.
Samsung Electronics
Alignment and Adjustments
7. Use the
key for overall balance.
8. After the Line Shift is cancelled by pressing the
(Up/Down)to make big adjustments.
Samsung Electronics
key, use the Channel and Volume keys
4-29
Alignment and Adjustments
9. After the green convergence adjustments are completed, press the
key to save the data.
10. Superimpose the Red and Green colors by pessing the
keys.
and the
11. To adjust RED, redo steps 5~7.
When the cursor moves vertically
12. To superimpose the blue and green colors, press (1) the
to cancel the B-Mute, and (3) the
key for B- select
key for R-Mute, (2) the
key
13. To adjust BLUE, redo steps 5~7, 13.
14. If any color is not properly adjusted when displaying the red, blue and green colors, readjust the color.
4-30
Samsung Electronics
Alignment and Adjustments
15. After the color adjustments are completed, pree the (
) key to save the data.
The corser moves to center, and then automatically moves up and to
the left about five seconds later.
4-8-2 Perfect Focus (Factory Mode)
1. After the adjustment is completely saved, press the perfecr Focus key to perform Auto Convergence
(Factory Mode). Auto Covergence is porformed in the following sequences :
G
R
B
Up, Down
Left, Right
130
245
150
Perfect Focus
Mode On
Process : 83%
130
245
150
Exit
Perfect Focus
Mode On
Process : 83%
Exit
When auto Convergence is complete, the data is automatically saved and the convergence
pattern revets.
`
w After Factory Auto convergence is complete, make sure that the cursor flickers for about
1 second on the center and then it is saved.
w Check the presence of error though the flicker of the cursor.
w When any error happens, be sure to re-do Factory Auto Convergence.
w When Convergence Adjustment is not normally done or the convergence center is
misaligned with the sensing point, any adjustment error happens. Therefore, be sure to use
a screen jig to correctly adjust during troubleshooting.
Samsung Electronics
4-31
Alignment and Adjustments
2. After the Convergence Adjustments are completde, press the
key to exit.
3. DTV Convergence adjustment must be done same as the above Normal Mode Convergence Adjustment
(Use a 16 : 9 screen jig for DTV)
When Convergence Adjustment is not normally done or the convergence center is
misaligned with the sensing point, any adjustment error happens. Therefore, be sure to
use a screen jig to correctly adjust during troubeshooting.
4-32
Samsung Electronics
Alignment and Adjustments
4-9 MICOM and Pins Voltage
4-9-1 MICOM MODULE Pins
PIN
NO
ITEM
FUNCTION
VOLT
1
KEY 1
KEY SCAN 1
2.28[V]
2
PRO TECT
PROTECT PORT
0.83[mV]
3
KEY 2
KEY SCAN 2
2.25[V]
4
GND
-
5
KEY 3
GND
KEY SCAN 3
2.29[V]
6
STB-5[V]
VCC
4.91[V]
7
IR IN
REMOCON INPUT
3.74[V]
8
POWER
POWER ON/OFF RELAY CONTROL
1.03[V]
9
TIMER-LED
TIMER LED
2.07[V]
10
1080 i
1080i MODE SWITCHING
2.53[V]
11
GND
GND
-
12
V-RESET
VIDEO SIGNAL MUTE
2.84[mV]
13
SCL1
SERIAL CLOCK LINE 1
3.43[V]
14
GND
GND
-
15
SDA1
SERIAL DATA LINE 1
3.49[V]
16
S-RESET
SOUND RESET
4.21[V]
17
ST-BY-LED
STANDY-BY LED
2.95[V]
18
RESET
RESET
2.47[V]
19
AMP-MUTE
SOUND AMP MUTE
0.89[mV]
20
N.C
N.C
-
21
GND
GND
-
22
SW1
SW1 (CONTROL)
4.58[V]
23
SCL2
SERIAL CLOCK LINE 2
3.27[V]
24
C-SPK-MUTE
CENTER SPEAKER MUTE
3.26[V]
25
SDA2
SERIAL DATA LINE 2
3.27[V]
26
SW3
SW3 (CONTROL)
5[mV]
27
GND
GND
-
28
SW2
SW2 (CONTROL)
2.08[V]
29
SUB-AFT
SUB AFT CONTROL
2.57[V]
30
GND
GND
-
31
MAIN-AFT
MAIN TUNER AFT CONTROL
1.04[V]
32
Samsung Electronics
BUS-STOP
2
I C BUS STOP
3.27[V]
4-33
Alignment and Adjustments
4-34
ITEM
FUNCTION
VOLT
33
5[V]
5[V]
4.96[V]
34
J-BLANK
HORIZONTAL BLANK
215.8[mV]
35
GND
GND
-
36
V-BLANK
37
2RF-S
VERTICAL BLANK
2RF-SWITHING
-12.10[mV]
297.68[mV]
38
GND
GND
-
39
GND
GND
40
N.C
N.C
-
41
VS1
VERTICAL SYNC
-
42
N.C
N.C
-
43
HS1
HORIZONTAL SYNC
215.51[mV]
44
N.C
N.C
-
45
GND
GND
-
46
S-SW1
SUB TUNER SWITCH 1
3.74[V]
47
TTX-CVBS
TTX/CAPTION-CVBS
1.19[V]
48
GND
GND
-
49
GND
GND
-
50
S-SW2
SUB TUNER SWITCH 2
-
51
AV-LINK
NOT USE
-
52
M-SW1
MAIN TUNER SWITCH 1
-
53
GND
GND
-
54
M-SW2
MAIN TUNER SWITCH 2
-
55
RXD
RXD
-
56
GND
GND
-
57
TXD
-
58
OSD-TTX-R
TXD
ON SCREEN DISPLAY RED
168[mV]
59
GND
GND
-
60
OSD-TTX-G
ON SCREEN DISPLAY GREEN
0.46[V]
61
WP
WRITE PROTECT
-
62
OSD-TTX-B
ON SCREEN DISPLAY BLUE
0.46[V]
63
3.3[V]
3.3[V]
3.26[V]
64
OSD-TTX-FB
OSD/TTX-FB
7.31[mV]
Samsung Electronics
Alignment and Adjustments
4-9-2 PROSCAN MODULE Pins
PIN
NO
ITEM
FUNCTION
VOLT
1
EW
EAST WEST OUT
2.26[V]
2
V-BLK
VERTICAL BLANK
-12.07[mV]
3
ABL
ABL(Automtic Brightness Limiter)
2.26[V]
4
VD-
3.46[V]
5
VD+
VERTICAL DRIVE (- VOLTAGE)
VERTICAL DRIVE (+ VOLTAGE)
3.53[V]
6
H-BLK
HORIZONTAL BLANKING
215.93[mV]
7
HD
HORIZONTAL DRIVE
2.38[V]
8
GND
GND
-
9
OSD/TTX-FB
OSD/TTX-FB
7.29[mV]
10
OSD/TTX-B
ON SCREEN DISPLAY BLUE IN
0.46[mV]
11
OSD/TTX-G
ON SCREEN DISPLAY GREEN IN
0.46[mV]
12
OSD/TTX-R
ON SCREEN DISPLAY RED IN
167.99[mV]
13
V-RESET
VIDEO SIGNAL MUTE
2.94[mV]
14
GND
GND
-
15
SCL1
SERIAL CLOCK LINE
3.42[V]
16
SDA1
SERIAL DATA LINE
3.50[V]
17
HS1
HORIZONTAL SYNC
251.4[mV]
18
VS1
VERTICLA OUT
27.28[mV]
19
GND
GND
-
20
CG-R
CONVERGENCE RED
0.27[mV]
21
CG-G
CONVERGENCE GREEN
0.27[mV]
22
CG-B
CONVERGENCE BLUE
0.29[mV]
23
CG-SYNC
CONVERGENCE SYNC
180.03[mV]
24
D/F
DYNAMIC FOCUS
1.5[V]
25
GND
GND
-
26
9[V]
9[V]
9[V]
27
GND
GND
-
28
N.C
N.C
-
29
RXD
RXD
-
30
TXD
TXD
-
31
GND
GND
-
32
13.5[V]
13.5[V]
14.05[V]
Samsung Electronics
4-35
Alignment and Adjustments
4-36
ITEM
FUNCTION
VOLT
33
5[V]-DW1
5[V]-DW1
4.97[V]
34
VM-Y
VM-Y OUTPUT
1.97[V]
35
SW3
SW3 (CONTROL)
4.98[mV]
36
SW2
37
SW1
SW2 (CONTROL)
SW1 (CONTROL)
2.08[V]
4.58[V]
38
GND
GND
-
39
PIP-C
PIP-C INPUT
40
PIP-Y/C CVBS
PIP-Y/CVBS INPUT
1.20[mV]
1.33[mV]
41
GND
GND
-
42
MAIN-C
MAIN-C INPUT
1.34[mV]
43
MAIN-Y/C CVBS
MAIN-Y/CVBS INPIUT
1.57[mV]
44
N.C
N.C
-
45
GND
GND
-
46
N.C
N.C
-
47
GND
GND
-
48
RF2-CVBS
RF1-CVBS
-
49
DVD-Pr/R
DVD-Pr/R (COMPONENT1)
-
50
DVD-Y/G
DVD-Y/G (COMPONENT1)
-
51
DVD-Pb/R
DVD-Pr/B (COMPONENT1)
-
52
FB
NOT USE
-
53
GND
GND
-
54
DTV1-Pr
DTV1-Pr (COMPONENT3)
-
55
DTV1-Y
DTV1-Y (COMPONENT3)
-
56
DTV1-Pb
DTV1Pb (COMPONENT3)
-
57
GND
-
58
DTV2-Pr
GND
DTV2-Pr (COMPONENT3)
59
DTV2-Y
DTV2-Y (COMPONENT3)
-
60
DTV2-Pb
DTV2-Pb (COMPONENT3)
-
61
GND
GND
-
62
5[V]-DW2
5[V]-DW2
4.89[V]
63
DVI-ID
N.C
-
64
PC-ID
N.C
-
-
Samsung Electronics
Alignment and Adjustments
4-9-3 CONVERGENCE MODULE Pins
PIN
NO
ITEM
FUNCTION
VOLT
1
5[V]-CG
5[V]-CG
5.2[V]
2
GND
GND
-
3
D/F
DYNAMIC FOCUS
1.5[V]
4
GND
-
5
SCL1
GND
SERIAL CLOCK LINE 1
3.4[V]
6
CG-SYNC
CONVERGENCE SYNC
179[mV]
7
GND
GND
-
8
N.C
N.C
5.2[V]
9
CG-R
CONVERGENCE RED
0.27[mV]
10
CG-G
CONVERGENCE GREEN
0.26[mV]
11
CG-B
CONVERGENCE BLUE
0.29[mV]
12
SDA1
SERIAL DATA LINE 1
3.5[V]
13
N.C
N.C
-
14
IR
INPUT REMOCON
3.7[V]
15
N.C
N.C
-
16
GND
GND
-
17
GND
GND
-
18
GND
GND
-
19
BV
BULE VERTICAL OUT
34.27[mV]
20
BH
BULE HORIZONTAL OUT
-107.32[mV]
21
GV
GREEN VERTICAL OUT
101.52[mV]
22
GH
GREEN HORIZONTAL OUT
-15.83[mV]
23
RV
RED VERTICAL OUT
104.32[mV]
24
RH
RED HORIZONTAL OUT
-88.95[mV]
25
GND
26
H-BLK
HORIZONTAL BLANK
275[mV]
27
V-BLK
VERTICAL BLANK
-13.22[mV]
28
GND
GND
-
29
N.C
N.C
-
30
-5[V]
-5[V]
-4.99[V]
31
5[V]
5[V]
5.24[V]
32
GND
GND
-
Samsung Electronics
G ND
-
4-37
Troubleshooting
5. Troubleshooting
5-1 Convergence Misaligned
Nomal
Check the input
voltage of main
CNZ02 and sub CN803
Check the voltage of CNZ03
on the CG-AMP board and
the waveform of CNZ01
Nomal
Check connectors
MAIN ↔ CG-AMP
SUB ↔ CG-AMP
Abnomal
Replace FD101S,FD102S
and check associate circuits
Check the input/output
of ICZ103,ICZ104
on the CG-AMP board
Nomal
Abnomal
Check the circuits
related to ICZ103,ICZ104
Check the output from
CNZ02,CNZ04,CNZ05
on the CG-AMP board
Nomal
Check DY
Samsung Electronics
Check the output from
CG-MDL and FD855S,
FD802S on the SUB PCB
Abnomal
Check FD101S,FD102S
on the CG-AMP board
Nomal
Abnomal
Abnomal
Check the circuits related to
CNZ02,CNZ04,CNZ05
5-1
Troubleshooting
5-2 No Sound
Abnomal
Check the output
volume level of
MAIN CN601
Check SPEAKER
Check the input/output
circuits of IC601
Nomal
Nomal
Abnomal
Check the circuits
related to IC601
Check ICD603
Abnomal
Nomal
Check IC602
Nomal
Check the circuits
related to IC601
Abnomal
Check IC605
Check the circuits
related to IC602
Abnomal
Nomal
Check various input circuits
5-2
Check the circuits
related to IC605
Samsung Electronics
Troubleshooting
5-3 No Raster
Check the operating
status of remote control
and POWER S/W
Check the input voltage of PWE CORD
Check the Standby
voltage of ICS802
Check MICOM VCC
Check the operating status
of MICOM POWER PORT
Check QS802
Check the remote
control and
CONTROL ASSY
Check the input voltage
Check IC831,PC801S
Check the circuits related to
MICOM VCC input
Check the input
voltage/waveform of
CRT-PCB CN501,CN504
Check the input/output
circuits of IC501,IC531,IC561
Check the voltage/waveform
of CN801,CN802,CN401
Check the input of D/W-MDL
Check the output from
D/W-MDL CN03
Samsung Electronics
Check CONNECTOR WIRE
Check the circuits related to IR / MICOM
Check the voltage
of CRT,SCREEN
Check ICS801,PC811S
Check the circuits inside D/W-MDL
Check the circuits related to
the input/output of IC501,IC531,IC561
Check the circuits related to QS802
Check the circuits related to ICS801,PC811S
Check the circuits related to
CN801,CN802,CN401
Check the circuits related to
D/W-MDL input
5-3
Samsung Electronics
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
6-1 HCN4226WX/XAA
6. Exploded View & Parts List
Code No
BP91-00006Q
BP64-00199A
AA67-00207A
AA67-00193A
AA67-00193B
BP61-00025D
BP61-00023E
BP61-00026D
BP61-00024E
AA60-10011A
BP91-00005D
BP64-00029A
6005-001003
BP64-00230A
BP64-00231A
AA61-60003A
BP61-00273A
BP61-00272A
BP94-00515A
6003-001019
BP64-00233A
BP64-00232A
BP94-00505Z
6003-001019
AA61-01128C
AA64-02780C
AA61-01133A
6003-001019
BP59-00005A
BP91-00423A
AA60-00072B
AA26-00101A
AA94-08270A
AA95-02002A
AA67-00204A
BP61-00008A
6003-001026
AA64-02728A
6003-001026
AA64-02729B
6005-001003
BP96-00038H
6003-001026
BP94-00498A
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
1
1
1
1
1
1
1
1
20
1
1
2
1
1
1
1
1
1
2
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
2
4
1
7
1
3
1
4
1
Q’ty
ASSY-FRONT MASK;42W8,SV012P,HIPS,HB,GRY,
BADGE-BRAND;PJLCD,AL,T1.5,72,12.5,,DGN-S
SCREEN-FILTER;,T=82%,9,G=110,AG
SCREEN-TINT;42W,958*550,T=0.7,P
SCREEN FRESNEL;42W,960*552,T=2.0
BRACKET-SCREEN,ASSY(R);42W5,SECC,T1.0,NE
BRACKET-SCREEN,ASSY(TOP);42W5,SECC,T1.0
BRACKET-SCREEN,ASSY(L);42W5,SECC,T1.0,NE
BRACKET-SCREEN,ASSY(BOT);42W5,SECC,T1.0,
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
ASSY-CABINET,WOOD;,WOOD,MIJU,42W5
INLAY-SUPPORT;42W5,PS SHEET,T0.5,94V0
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A
CABINET FRONT-BOT;42W8,HIPS V0,GRAY,SV70
KNOB POWER;42W8,ABS,HB,GRAY,AL
SPRING ETC-CS;-,SUS304,-,-,OD7,N7,OD7,-,
HOLDER-RING;42W8,ABS,GRAY,AL
HOLDER-PCB POWER;42W8,ABS,SMOG,6G
ASSY PCB MISC-POWER-SW;HCN4226WX/XAA,P55
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
KNOB CONTROL;42W8,ABS,HB,GRAY,SVM1132
WINDOW-RMC;42W8,ABS,HB,CLEAR
ASSY PCB MISC-CONTROL;HCN4226WX/XAA,P55A
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
HOLDER-SIDE AV;42W5,ABS HB,G3676,SV-704P
DOOR-AV;42W5,ABS HB,G3676,SV-704P
VELCRO-B;COMMANDO,BST1 1/4H
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A
ASSY PRT;HCM4215WX/XAA,P55A,ASSY-PRT
SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF
TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
ASSY PCB MISC-DY JACK;COMMANDO
ASSY SUB-PCB,CG AMP;COMMANDO
MIRROR-FRONT;42W5,FSM,870*633*446
BRACKET-MIRROR,ASSY;42W5,SECC,T1.0,01123
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CABINET-BACK,TOP;42W5,HIPS,HB,G4309
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CABINET-BACK,BOT;42W5,HIPS,V0,G4309
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A
ASSY COVER P-TERMINAL,ANT;WIDE PJT,HIPS
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
ASSY PCB MAIN;HCN4727WX/XAA,P55A
Description;Specification
S.N.A
S.N.A
T0068
T0081
T0112
T0081
T0112
HC+CW
T0092
T0081
T0073
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
T0081
S.N.A
T0257
S.N.A
S.N.A
HC+CW S.N.A
S.N.A
T0023
S.N.A
CIS7
S.N.A
S.N.A
S.N.A
T0097
T0081
T0022
S.N.A
S.N.A
T0098
T0081
S.N.A
T0150
S.N.A
T0081
T0103
S.N.A
S.N.A
T0118
T0105
T0094
T0004
T0057
T0052
T0056
T0053
Remark S.N.A
6-1
Exploded View & Parts List
6-2
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
6-2 ST54T8PCS/XAX
Exploded View & Parts List
Code No
BP96-00338B
AA67-00130A
AA67-00199A
AA67-00116B
6005-001003
BP96-00342A
BP96-00342A
BP96-00341A
BP96-00341A
6009-001296
BP96-00339B
6005-001003
BP96-00340A
6002-000522
BP98-00192A
BP94-00519A
BP98-00181A
BP64-00153A
AA65-00023A
BP64-00153B
BP61-00180C
BP64-00152A
AA61-01134A
AA67-00080A
AA91-00489B
AA91-00887A
AA91-00887B
AA64-01379B
AA64-60449B
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5
CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK,
ASSY-HOLDER,MIRROR(L);,HIPS HB BLK,INLAY
ASSY-HOLDER,MIRROR(R);,HIPS HB BLK,INLAY
ASSY-BRKT,MIRROR;-,-,SECC-1 T1.0,54J8
MIRROR-BACK;54J8,GLASS,940.5*684.5*674.5
HOLDER-MIRROR,BOT;43,54T6,HIPS HB,BLK
CABINET-BACK,BOT;54T8,HIPS,HB,BLK
HOLDER-POWER;HIPS,T8,Q7,V0,BLK
CABINET-BACK SIDE L;54T8,HIPS,,,,HB,BLK,
TERMINAL-BOARD,ANT;,HIPS V0,BLK
CABINET-BACK,SIDE R;54T8,HIPS,HB,BLK
ASSY K/D-CPT R;ST54T8PCS/XAX,P55A
ASSY PCB MAIN;ST54T8PCS/XAX,P55A,MEXICO
ASSY K/D-WOOD;54T8,WOOD
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
ASSY COVER P-DOOR RACK;DP,BP64-00154A,54
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A
ASSY COVER P-FRONT BOT;DP,BP64-00151D,54
SCREW-SPECIAL;BH,+,-,M4,L12(11),ZPC(BLK)
ASSY MISC P-BRKT SCREEN TB;DP,BP61-00189
ASSY MISC P-BRKT SCREEN TB;DP,BP61-00189
ASSY MISC P-BRKT SCREEN RL;DP,BP61-00190
ASSY MISC P-BRKT SCREEN RL;DP,BP61-00190
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A
SCREEN FRESNEL;53,1125*854,T2
SCREEN-TINT;54,1123*852,P=0.5,DNP
SUN SCREEN-AG;54J8,1125*853*,T=82%,G=110
ASSY COVER P-FRONT MASK;DP,BP64-00164E,5
Description;Specification
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
6
1
22
2
2
2
2
6
1
1
1
1
Q’ty
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Remark S.N.A
Samsung Electronics
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
6-3 HCN4727W5S/XAA
ASSY K/D-CRT R;HCN4727WSC/XAA,P55A
AA61-01127A
BP94-00505N
BP94-00500C
BP96-00077L
23
24
25
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
Q’ty
ASSY COVER P-TERMINAL,ANT;DP WIDE PJT,HI
ASSY PCB MAIN;HCN4727WSC/XAA,P55A
1
1
ASSY PCB MISC-PWR-DEF;HCN4727WX/XAA,P55A 1
HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309
CABINET BACK-BOT;47W7,HIPS V0,BLK
CABINET-BACK,TOP;47W3,HIPS HB,BLK,DO
HOLDER-MIRROR,BOT;43,54T6,HIPS HB,BLK
HOLDER-MIRROR,SIDE(L);47W3,HIPS HB,BLK
HOLDER-MIRROR,SIDE(R);47W3,HIPS HB,BLK
BP64-00203A
SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF
22
AA60-00072B
14
21
BP98-00174A
13
KNOB CONTROL;47W7,ABS HB,G3676,SVM3132
ASSY-JACK,SIDE;,P54A PAL XAA,W3
AA64-02061B
AA91-00762D
12
20
BP64-00205A
11
CABINET-BACK,SIDE;47.55W3,HIPS V0,BLK
AA61-01134A
AA64-02065C
10
ASSY K/D-WOOD;47W7,XAA
19
BP98-00184A
9
SPACER-FELT;W7,L635,BLK,T0.35,W10
AA61-00879B
AA60-00091T
8
HOLDER-SCREEN SIDE ASSY;HIPS,47/55W7,HB,
AA61-00879A
BP61-00352A
7
HOLDER-SCREEN TOP ASSY;HIPS,47W7,HB,BLK,
18
BP61-00350A
6
SCREEN-TINT;47W,1070*612,T=0.7,P
SCREEN FRESNEL;47W,1072*614,T2
17
AA67-00196A
5
BRACKET-MIRROR;47W3,SECC,T1.0
AA67-00119B
4
SUN SCREEN-AG;47W,1072*614*,T=82%,G=110
AA61-00783B
AA67-00136A
3
CABINET FRONT-BOT;47W7,HIPS V0,G4309,SV0
CABINET FRONT-MASK;47W7,HIPS HB,GRY,DGM1
16
BP64-00202A
2
MIRROR-FRONT
BP64-00201A
1
Description;Specification
15
Code No
No
T0092
T0073
T0097
T0070
T0015
T0112
T0026
T0014
T0022
T0111
T0069
T0056
T0053
T0110
T0017
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Remark S.N.A
6-3
Exploded View & Parts List
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
7. Electrical Parts List
7-1 HCN4226WX/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY COVER FRONT
1
M0001 BP90-00152A ASSY COVER FRONT;,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
T0081 6003-001023
T0081 6003-001339
HC+CW 6005-001003
HC+CW 6005-001003
HC+CW 6005-001003
BCM+WO6006-001094
T0118 AA26-00101A
AA60-00072B
T0081 AA60-10011A
T0081 AA60-10011A
T0081 AA60-10011A
T0115 AA61-00475B
AA61-00618C
AA63-10002A
T0056 AA67-00193A
T0053 AA67-00193B
T0052 AA67-00207A
T0076 BP39-00009A
BP61-00023E
T0069 AA60-00091J
T0254 AA61-01121A
BP61-00043B
BP61-00052A
BP61-00024E
T0069 AA60-00091J
AA65-00020A
BP61-00043B
BP61-00052A
T0254 AA61-01121A
BP61-00025D
T0056 AA61-01122A
BP61-00043B
BP61-00052A
BP61-00026D
T0056 AA61-01122A
BP61-00043B
AA65-00020A
BP61-00052A
BP64-00029A
T0102 BP73-00004A
T0257 BP91-00005D
T0082 3001-001107
T0076 AA39-00086A
HC+CW AA60-10051A
AA61-00097A
AA61-00506B
AA61-00508D
AA61-00533B
AA64-02724A
AA98-00049A
T0121 3301-001201
BP61-00019A
BP61-00035A
AA61-00094C
T0082 3001-001353
T0004 BP91-00006Q
T0081 6003-001019
AA61-01133A
T0017 AA64-02727R
T0057 BP64-00199A
T0102 BP73-00004A
T0071 BP96-00285A
Samsung Electronics
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A
TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,GUIDE-FLOW;54J8,J7,ABS,IVORY,V0
S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
SCREEN-TINT;42W,958*550,T=0.7,P
SCREEN FRESNEL;42W,960*552,T=2.0
SCREEN-FILTER;,T=82%,9,G=110,AG
LEAD CONNECTOR-ASSY;P54A/SVP-42W5,UL2547
BRACKET-SCREEN,ASSY(TOP);42W5,SECC,T1.0 S.N.A
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,S.N.A
BRACKET-SCREEN,TB;42W5,SECC,T1.0
S.N.A
HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
HOLDER-WIRE;PJTV,NYLON,66,NATURAL
S.N.A
BRACKET-SCREEN,ASSY(BOT);42W5,SECC,T1.0, S.N.A
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,S.N.A
CLAMPER CORE-WIRE;55W9,NYLON 66
S.N.A
HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
HOLDER-WIRE;PJTV,NYLON,66,NATURAL
S.N.A
BRACKET-SCREEN,TB;42W5,SECC,T1.0
S.N.A
BRACKET-SCREEN,ASSY(R);42W5,SECC,T1.0,NE S.N.A
BRACKET-SCREEN,RL;42W5,SECC,T1.0
HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
HOLDER-WIRE;PJTV,NYLON,66,NATURAL
S.N.A
BRACKET-SCREEN,ASSY(L);42W5,SECC,T1.0,NE S.N.A
BRACKET-SCREEN,RL;42W5,SECC,T1.0
HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
CLAMPER CORE-WIRE;55W9,NYLON 66
S.N.A
HOLDER-WIRE;PJTV,NYLON,66,NATURAL
S.N.A
INLAY-SUPPORT;42W5,PS SHEET,T0.5,94V0
S.N.A
RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
ASSY-CABINET,WOOD;,WOOD,MIJU,42W5
S.N.A
SPEAKER;20W,8OHM,95DB,1300HZ
LEAD CONNECTOR-ASSY;,2.2UF,200MM,REC,REC
SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,S.N.A
HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL
S.N.A
HOLDER-JERSEY;W3,ABS V0,GRAY,G4309
S.N.A
BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,S.N.A
CABINET-WOOD;42W5,WOOD,SDE8336R
S.N.A
ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
HOLDER-PALLET;42W5,HIPS HB,BLK
S.N.A
BRACKET-GRILLE;42W5,SECC-1,T1.0
S.N.A
HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480
S.N.A
SPEAKER;25W,8OHM,90DB+/-3DB,60HZ+/-12HZ
ASSY-FRONT MASK;42W8,SV012P,HIPS,HB,GRY, S.N.A
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
VELCRO-B;COMMANDO,BST1 1/4H
S.N.A
CABINET-FRONT MASK;42W8,HIPS,HB,GRY,SV01
BADGE-BRAND;PJLCD,AL,T1.5,72,12.5,,DGN-S S.N.A
RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
ASSY COVER P-FRONT BOT;42W8,HIPS,V0,G430 S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
T0081
T0081
T0081
CIS7
T0023
T0022
Code No.
Description ; Specification
Remark
6003-001019
6003-001019
6003-001019
AA61-01132A
AA61-60003A
BP61-00272A
BP61-00273A
BP64-00230A
BP64-00231A
BP64-00232A
BP64-00233A
AA61-20129A
BH73-60304C
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
VELCRO-A;COMMANDO,BST1 1/4H
SPRING ETC-CS;-,SUS304,-,-,OD7,N7,OD7,-,
HOLDER-PCB POWER;42W8,ABS,SMOG,6G
HOLDER-RING;42W8,ABS,GRAY,AL
CABINET FRONT-BOT;42W8,HIPS V0,GRAY,SV70
KNOB POWER;42W8,ABS,HB,GRAY,AL
WINDOW-RMC;42W8,ABS,HB,CLEAR
KNOB CONTROL;42W8,ABS,HB,GRAY,SVM1132
HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25
RUBBER-SUPPORT;DP15LT,CR V0,GRAY,-,14*7*
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER REAR
1
M0002 BP90-00155A ASSY COVER REAR;,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
...3
...3
..2
T0081
T0081
T0081
T0081
T0081
HC+CW
HC+CW
T0081
T0081
T0081
T0081
T0112
T0112
T0068
T0092
6003-001026
6003-001026
6003-001026
6003-001026
6003-001026
6005-001003
6005-001003
AA60-10011A
AA60-10011A
AA60-10011A
AA60-10011A
AA64-02728A
AA64-02729B
AA64-60449B
AA65-30008A
AA67-00204A
BP61-00008A
AA61-01123A
BP60-00005A
BP96-00038H
AA64-02836J
AA65-00023A
AA64-60421C
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
CABINET-BACK,TOP;42W5,HIPS,HB,G4309
CABINET-BACK,BOT;42W5,HIPS,V0,G4309
INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5
S.N.A
CLAMPER CORE-CORD;-,PE,HB,-,BLK,S.N.A
MIRROR-FRONT;42W5,FSM,870*633*446
BRACKET-MIRROR,ASSY;42W5,SECC,T1.0,01123 S.N.A
BRACKET-MIRROR;42W5,SECC,T1.0
S.N.A
SPACER-SPONGE;42W5,RUBBER-SPONGE,T3
S.N.A
ASSY COVER P-TERMINAL,ANT;WIDE PJT,HIPS
INLAY-TERMINAL,NT;WIDE PJT,PS SHEET,T0.5 S.N.A
TERMINAL-BOARD,ANT;,HIPS V0,BLK
S.N.A
INLAY-COVER;-,PS,T0.3,-,-,BLK,SEA
S.N.A
ASSY PRT
1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
BP91-00423A ASSY PRT;HCM4215WX/XAA,P55A,ASSY-PRT
T0026
T0117
T0078
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0072
BP91-00420A
AA03-00200A
AA26-30006F
AA27-00249A
AA33-00016A
AA39-00018A
AA60-00126B
AA60-00127B
AA60-00128B
AA60-10011A
AA61-00056B
AA61-00806B
AA61-00810B
AA67-00187A
AA67-00188A
AA91-00722A
AA61-00473B
ASSY CPT-R;0
CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH,
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SPACER-CRT;PROJ(65),SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
CASE-COUPLER,R;PROJ,ALDC,T8,BLK
HOLDER-CAP;PROJ,PC,CLR
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,RED C ELEMENT
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-1
Electrical Parts List
Loc. No.
....4
....4
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
...3
T0027
T0117
T0078
T0076
T0081
T0114
T0109
T0051
T0107
T0072
T0028
T0117
T0078
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0072
Code No.
Description ; Specification
AA61-00615B
AA61-00812A
BP61-00091A
BP61-00079A
AA63-00076B
BP91-00421A
AA03-00201A
AA26-30006F
AA27-00249A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00807B
AA61-00809B
AA61-00810B
AA67-00187A
AA67-00189A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP61-00079A
AA63-00076B
BP91-00422A
AA03-00202A
AA26-30006F
AA27-00249A
AA33-00018A
AA39-00018A
AA60-00126B
AA60-00127B
AA60-00128B
AA60-10011A
AA61-00056B
AA61-00808B
AA61-00810B
AA67-00187A
AA67-00190A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP61-00091A
BP61-00079A
AA63-00076B
Remark
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
HOLDER-CRT;PJTV,PCABS GF20%,BLUE
S.N.A
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
SPACER-LENS;FELT,W7,BLK,T0.8
S.N.A
ASSY CPT-G;0
CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH, S.N.A
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
CASE-COUPLER,G;PROJ,ALDC,T8,BLK
S.N.A
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
S.N.A
HOLDER-CAP;PROJ,PC,CLR
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,GREEN C ELEMENT
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
SPACER-LENS;FELT,W7,BLK,T0.8
S.N.A
ASSY CPT-B;0
CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH, S.N.A
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CRT;PROJ(65),SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
CASE-COUPLER,B;PROJ,ALDC,T8,BLK
S.N.A
HOLDER-CAP;PROJ,PC,CLR
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,CLEAR C ELEMENT
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
HOLDER-CRT;PJTV,PCABS GF20%,BLUE
S.N.A
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
SPACER-LENS;FELT,W7,BLK,T0.8
S.N.A
ASSY CHASSIS
1
M0017 BP91-00771L ASSY CHASSIS;HCN4226WX/XAA,P55A
..2
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0098
RZ120
7-2
DZ106
DZ105
DZ102
T0083
T0083
T0083
QZ103
QZ106
QZ105
QZ104
RZ122
R125
R125
R125
R125
R125
R125
R125
R125
S.N.A
AA94-08268A ASSY PCB MISC-VM;COMMANDO
2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5
AA97-07230M ASSY AUTO-VM;COMMANDO
S.N.A
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
...3
...3
...3
...3
..2
...3
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
Code No.
R125
R125
R125
RZ110
RZ104
RZ105
RZ106
RZ114
RZ103
RZ111
RZ123
RZ113
RZ112
RFZ101
C598
C598
C598
C598
C598
C701
C701
C701
C701
C701
C701
C701
LZ101
CN906
CN906
CN906
PCB
QZ101
T0090
T0081
QZ102
T0090
T0081
T0121
T0079
T0081
T0076
T0105
R301
R302
R303
PCB
GT01
GT05
GT09
GT13
T0097
T0083
T0083
NT801S
CX802S
CX801S
C701
C701
C701
C701
C701
C701
FP801S
T481
T444S
T431
T461
LR401S
Description ; Specification
Remark
2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
2003-000532 R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m
2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
2201-000604 C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5
2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
AA41-00611A PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P S.N.A
AA96-00243M ASSY H/S;-,AMP,AA62-000450A,2SA1011,HERC S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
AA96-00243L ASSY H/S;-,CRT,AA62-000450A,2SC2344,HERC S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
AA33-00017A MAGNET CONVERGENCE;JH 92LT - 29G,-,29.1M
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
AA39-20055C LEAD CONNECTOR-ASSY;,6P,500,YBNH025-06,6
AA94-08270A ASSY PCB MISC-DY JACK;COMMANDO
AA97-07230N ASSY AUTO;COMMANDO
S.N.A
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
AA41-00632A PCB-DY CONNECTION;HCM4215W,FR-1,1L,A,1.6 S.N.A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA61-01197A HOLDER-PCB,DY;COMANDO,ABS V0,BLK
S.N.A
AA94-08574A ASSY PCB MISC-PWR-DEF; ,HCM4215W,P55A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP
0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10
AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,
AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60
Samsung Electronics
Electrical Parts List
Loc. No.
...3
...3
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0076
D856
D855
T0083
T0081
Q433
T0090
T0081
IC831S
CIS
T0081
IC063
CIS
D811S
T0083
T0081
IC301
T0088
T0081
D478
D479
DR401S
DR402S
D385
D436
D442
D443
D477
D301
DS802
DS804
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Code No.
Description ; Specification
AA39-00180A
AA96-00243E
AA96-00243E
0205-000129
0402-000231
6003-000335
AA62-00045A
AA96-00243H
0205-000129
0502-000298
6003-000335
AA62-00045A
AA96-00275J
0205-000129
6003-000333
AA13-00105A
AA62-00051A
AA96-00276A
0205-000129
0402-000549
6003-000335
AA60-30003A
AA62-00052A
AA96-00623A
0205-000129
1204-000517
6003-000334
AA62-00056A
AA97-07506Z
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000006
0401-000006
0402-000132
0402-000132
0402-000132
0402-000132
0402-000132
0402-000132
0402-000254
0402-000534
0402-000534
0402-000534
0402-000534
0402-000537
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0403-000704
0403-000716
0403-000720
0403-000720
0403-000720
0403-000734
0403-001167
0403-001316
0403-001319
0403-001319
0403-001325
0403-001325
0403-001325
0403-001327
0403-001327
0403-001327
0403-001328
0403-001329
0403-001329
Samsung Electronics
Remark
LEAD CONNECTOR-ASSY;,14P,100MM,YBNH250-1
ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;SCREW,SILICON-OIL,AA62-00051A,S S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
IC HYBRID;STR-X6456,7,-20TO+125,DIP,21A,
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
S.N.A
ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WAS S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-BRIDGE;RBV606,600V,6A,-,BK
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
WASHER;T1.5,SBHG-1
S.N.A
HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2
S.N.A
ASSY H/S;-,POWER,AA62-00056A,LA7845
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
ASSY AUTO-PWR DEF;HCM4215W
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DODIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
DZ016
DZ016
DS805
QR401S
Q482
Q432
Q461
Q471
Q474
Q481
Q851
QS801
QS802
Q301
Q381
Q382
Q401
Q402
Q421
Q451
IC012
VP801S
R125
R125
R125
R125
R308
R470
R422
R836
R493
RS804
R855
RS808
RS803
R814
R813
R812
R439
R438
R811
R834
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
Code No.
Description ; Specification
Remark
0403-001330
0403-001330
0404-001056
0501-000283
0501-000283
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
1203-001217
1405-000152
2001-000005
2001-000006
2001-000009
2001-000009
2001-000016
2001-000028
2001-000028
2001-000052
2001-000052
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000109
2001-000258
2001-000262
2001-000273
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000362
2001-000429
2001-000429
2001-000429
2001-000449
2001-000508
2001-000515
2001-000522
2001-000577
2001-000577
2001-000577
2001-000613
2001-000613
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000761
2001-000761
2001-000761
2001-000761
2001-000761
2001-000786
2001-000800
2001-000800
2001-000812
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
VARISTOR;560V,2500A,14x8.5mm,TP
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-3
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-4
R125
R125
RS807
R854
R839
R413
RR401S
R434
R837
R468
RS802
R433
R410
RS806
R459
R851
RP801S
RY801S
R428
R428A
R429
R430
R463
R310
R460
R426
R443A
R443
R464
R421
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R472
R465
R449
R445
R442
R441
R447
R442A
R307
R486
R838
R437
R485
R405
RR471S
RR402S
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
Code No.
2001-000924
2001-001031
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001108
2001-001122
2001-001124
2001-001155
2001-001155
2001-001168
2001-001192
2001-001196
2002-001010
2002-001013
2002-001017
2002-001017
2003-000586
2003-000586
2003-001024
2003-001024
2003-002044
2003-002153
2003-002156
2003-002156
2003-002158
2003-002159
2004-001369
2004-001386
2004-001395
2004-001408
2004-001892
2004-001892
2004-001897
2004-001897
2004-001984
2004-001984
2004-001984
2004-002011
2004-004001
2004-004046
2004-004046
2004-004366
2008-000252
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000290
2008-001018
2008-001053
2008-001087
2008-001137
2009-001109
2103-001024
2103-001086
2201-000119
2201-000119
2201-000119
2201-000119
2201-000132
2201-000132
2201-000132
2201-000132
2201-000132
2201-000138
2201-000146
2201-000146
2201-000180
2201-000180
2201-000017
Description ; Specification
Remark
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x
R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12
R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M
R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm
R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm
R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6
VR-SEMI;50Kohm,25%,0.3W,TOP
VR-SEMI;100KOHM,25%,0.3W,TOP
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C478
C479
C477
CS801
C493
C412
C831
C460
C311
C487
C309
C838
C865
C303
C301
C429
C428
C480
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L431
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
G101
G101
Code No.
2201-000017
2201-000017
2201-000332
2201-000332
2201-000332
2201-000370
2201-000406
2201-000551
2201-000551
2201-000551
2201-000551
2201-000551
2201-000558
2301-000020
2301-000200
2301-000213
2301-000356
2301-000356
2301-000383
2301-001216
2303-000331
2305-000149
2305-000178
2305-000285
2305-000412
2305-000427
2305-000427
2305-000427
2305-000704
2306-000122
2306-000122
2401-000164
2401-000262
2401-000262
2401-000302
2401-000302
2401-000360
2401-000360
2401-000365
2401-000365
2401-000480
2401-000603
2401-000660
2401-000703
2401-001026
2401-001026
2401-001192
2401-001397
2401-001428
2401-001527
2401-001622
2401-000025
2401-001989
2401-002144
2401-002144
2401-002216
2401-002216
2401-000050
2401-002288
2401-002288
2401-002300
2401-002463
2401-003114
2701-000116
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000299
3301-000287
3301-000287
Description ; Specification
Remark
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;0.22NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3
C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0
C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.
C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;1000uF,20%,25V,WT,TP,12.5x20,5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;470uF,20%,50V,GP,TP,10x20,5
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,250V,WT,TP,10x16,5
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
G101
G101
G101
G101
G101
FD801S
FD871S
FD854S
FD805S
F801B
F801A
CN906
EY45
EY44
EY43
EY36
EY35
EY34
EY31
EY30
EY67
EY66
EY65
EY64
EY50
EY49
EY47
EY46
EY21
EY20
EY19
EY18
EY17
EY16
EY155
EY154
EY29
EY28
EY27
EY26
EY25
EY24
EY23
EY22
EY91
EY90
EY89
EY88
EY87
EY86
EY85
EY99
EY98
EY97
EY96
EY95
EY94
EY93
EY92
EY75
EY74
EY73
EY72
EY71
EY70
EY69
EY68
EY82
EY81
EY80
EY79
EY78
EY77
EY76
EY153
EY111
EY11
Code No.
3301-000287
3301-000287
3301-000287
3301-000374
3301-000374
3601-000120
3601-001086
3601-001086
3601-001086
3602-000114
3602-000114
3711-002645
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Samsung Electronics
Description ; Specification
Remark
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
EY109
EY108
EY107
EY106
EY12
EY119
EY118
EY117
EY116
EY115
EY114
EY113
EY08
EY07
EY06
EY05
EY04
EY03
EY02
EY01
EY105
EY104
EY103
EY102
EY101
EY100
EY10
EY09
EY141
EY140
EY14
EY139
EY138
EY137
EY136
EY135
EY152
EY151
EY150
EY15
EY149
EY148
EY147
EY142
EY127
EY126
EY125
EY124
EY123
EY122
EY121
EY120
EY134
EY133
EY132
EY131
EY128
EY129
EY13
EY130
EY83
EY84
EY32
EY37
EY38
EY52
EY53
EY54
EY55
EY51
EY42
EY41
EY40
EY63
EY62
EY61
EY60
Code No.
Description ; Specification
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-5
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
7-6
EY59
EY58
EY57
EY56
EL08
EL07
EL06
EL05
EL04
EL03
EL02
EL01
EY39
EL16
EL15
EL14
EL10
EL11
EL12
EL13
GT35
GT34
GT33
GT404
GT801
GT802
GT810
GT811
GT14
GT15
GT16
GT17
GT807
GT433
T0083
R024
R024
R462
R125
C701
C701
C871
C701
R431
G101
R833
C701
FD802S
FD855S
R306
R125
R427
R427A
C701
R424
C432
C438
R440
R831
R832
R425
R853
0
R024
RS801S
R840
R841
R024
R801
DZ016
Q409
Q409
Q431
T0083
T0060
T0090
CIS
Code No.
Description ; Specification
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
0402-001286
2004-001893
2004-001402
2008-001145
2001-000745
2401-002619
2401-001655
2305-000289
2401-001486
2001-001153
3301-000287
2009-000017
2401-001625
3601-001228
3601-001228
2008-001076
2001-000554
2003-002152
2003-002152
2401-000698
2008-000289
2303-000002
2303-000002
2008-000282
2003-000512
2003-000512
2003-000417
2008-001152
AA41-00598D
2004-005051
3601-000102
2001-001045
2003-002102
2004-004029
2003-002285
0403-000698
0505-001723
0505-001723
BH99-00033H
0402-001296
BH61-70003A
0502-001230
BH62-00038B
Remark
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP
R-METAL(S);22Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;680uF,20%,25V,GP,TP,10x20,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
C-AL;2200uF,20%,16V,WT,TP,12.5x25,5
R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1
R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6
PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245
R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4
FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);68Kohm,5%,2W,AF,TP,4x12
R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL OXIDE(S);1.5KOHM,5%,2W,AF,TP,6X1
DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DOFET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
ASSY HEAT/SINK;BH62-00038A,SPRING,FJL692
DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
SPRING ETC;CVT4857,STS304-W1/2H,W3.8,-,L
TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F
HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
Code No.
CIS
CIS
TS801S
PC801S
PC811S
DU410
T0086
IC851
C598
C598
C598
C598
CR471S
CR436S
C491
CR473S
CR474S
L862
L863
LX801S
LX802S
LX803S
LX804S
C701
L864
T0086
IC421
T0083
IC012
T0081
C814
DZS801
T801S
CR430S
CR431S
T432
T0076
T0121
T0090
T0123
T0121
GT01
CN906
C598
C598
IC012
C701
VX801S
C832
L432
R384
Q473
CIS
T0090
Q409
T0081
CIS
CIS
T0099
VR501
VR531
VR561
V561
V531
V501
CN906
CN906
CN906
CN906
SG301
SG562
SG532
SG502
Description ; Specification
Remark
BH73-00028A SILICON/RUBBER-HS;CDT ALL,SILICON,26*33* S.N.A
0205-001027 OIL-SILICON;G746,-,S.N.A
BP26-00001A TRANS SWITCHING-POWER;19B012,P55A,HCM421
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA
1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14.
2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
2401-000142 C-AL;1000uF,20%,16V,WT,TP,10x20,5
AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300
AA96-00475B ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
2301-001041 C-FILM,PPF;15nF,5%,1.6KV,TP,29x14x21.5,2
0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS
BP26-00002A TRANS SWITCHING;EER5345,P55A,160V~280V,P
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,
BP39-00014A LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
0502-000405 TR-POWER;-,NPN,70W,TO-220,BK,10
1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
BP39-00017A LEAD CONNECTOR;P55A/HCM4215W,UL1617#22,U
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS
2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm
1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP
2301-001418 C-FILM,MPPF;1.5nF,5%,2kV,TP,29x7x13.5mm,
AA27-00056A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C
2002-001079 R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10
BP96-00006B ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A
0205-001027 OIL-SILICON;G746,-,S.N.A
0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,80505-001722 FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG
S.N.A
BP62-00001A HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A
AA94-08582A ASSY PCB MISC-CRT;COMMANDO,C2
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE
2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE
2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE
3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
4715-001050 SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA
AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
Samsung Electronics
Electrical Parts List
Loc. No.
...3
....4
....4
....4
....4
...3
...3
...3
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Q371
T0090
T0081
IC561
IC531
IC501
T0074
T0081
D372
D504
D509
D361
D362
D371
D510
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q563
Q534
Q533
Q504
Q361
Q362
Q502
T0090
T0090
T0090
R125
R125
R125
R125
R584
R554
R524
R580
R550
R520
R577
R547
R517
R366
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
Code No.
Description ; Specification
AA96-00244H
0205-000129
0502-000442
6003-000335
AA62-00046A
AA96-50311L
AA96-50311L
AA96-50311L
1201-001131
6003-000334
AA62-30175D
AA97-07608A
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000493
0402-000493
0402-000493
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0403-000508
0403-000508
0403-000508
0403-000708
0403-000708
0403-000708
0403-000708
0501-000283
0501-000283
0501-000283
0501-000283
0501-000283
0501-000366
0501-000389
0502-000006
0502-000006
0502-000006
2001-000009
2001-000009
2001-000009
2001-000009
2001-000028
2001-000028
2001-000028
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000109
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000539
2001-000577
2001-000613
2001-000613
2001-000660
2001-000723
2001-000734
2001-000734
2001-000734
2001-000734
2001-000938
2001-000995
2001-000995
Samsung Electronics
Remark
ASSY H/S;SCREW,2SC4636(2),CRT,SLICON-OIL S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
S.N.A
ASSY AUTO-CRT;HCM4215W
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R125
R581
R551
R521
R371
R370
R369A
R367
R368
R369
R567
R537
R507
R381
R361
R374
R373
R372
R377
R375
R365
R574
R544
R514
R583
R582
R553
R552
R523
R522
R589
R559
R529
R575
R545
R515
R579
R578
R549
R518
R519
R548
R588
R538
R508
R024
R024
R024
R573
R543
R513
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C565
C535
C505
C507
C537
C567
C361
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
Description ; Specification
Remark
2001-001015
2001-001052
2001-001052
2001-001052
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
2001-001088
2001-001088
2001-001088
2001-001088
2001-001097
2001-001110
2001-001110
2001-001110
2001-001110
2001-001113
2001-001120
2001-001122
2001-001122
2001-001122
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001015
2002-001015
2002-001015
2002-001017
2002-001017
2002-001017
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2003-000738
2003-000738
2003-000738
2004-001892
2004-001892
2004-001892
2008-001129
2008-001129
2008-001129
2201-000119
2201-000119
2201-000119
2201-000556
2201-000723
2201-000723
2201-000723
2201-000983
2201-000983
2201-000983
2305-000149
2305-000149
2305-000149
2305-000154
2305-000154
2305-000154
2306-000122
2401-002075
2401-002075
2401-002075
2401-000133
2401-000302
2401-000302
2401-000430
2401-000430
2401-000430
R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
7-7
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-8
C701
C701
C701
C701
L531
L501
SG561
SG563
SG533
SG501
SG503
SG531
EL06
EL03
EL563
EL537
EL536
EL535
EL564
EL565
EL566
EL567
EL534
EL01
EL02
EL04
EL05
EL533
EL505
EL504
EL503
GT537
GT561
GT536
GT535
GT534
GT562
GT568
GT567
GT564
GT563
GT503
GT502
GT501
GT373
GT372
GT371
GT504
GT533
GT532
GT531
GT506
GT374
GT375
R125
R125
R125
DZ016
DZ016
DZ016
R566
R536
R506
R125
R125
C598
C598
C598
C701
C701
C701
R125
R125
R125
R125
R125
R125
Code No.
Description ; Specification
2401-000430
2401-000430
2401-000430
2401-001621
2701-000114
2701-000114
4715-001036
4715-001036
4715-001036
4715-001036
4715-001036
4715-001036
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
2001-000362
2001-000362
2001-000362
0403-000334
0403-000334
0403-000334
2001-001049
2001-001049
2001-001049
2001-000007
2001-000006
2201-000599
2201-000599
2201-000599
2401-001571
2401-001571
2401-001571
2001-000319
2001-000472
2001-000563
2001-000232
2001-000908
2001-000908
Remark
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;6.8uF,20%,450V,GP,TP,13x20,5
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Loc. No.
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Code No.
R125
R125
R125
L561
R382
PCB
T0083
T0076
T0076
T0076
T0076
T0076
CN906
T0103
T0076
T0076
T0076
T0076
T0076
T0121
T0076
CN906
T0076
C701
T0094
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RZ109
RZ108
RZ107
RZ106
RZ105
RZ104
R857
R856
RZ142
RZ143
RZ144
RZ145
RZ146
RZ147
RZ123
RZ124
RZ125
RZ128
RZ127
RZ126
RZ132
RZ132A
RZ148
RZ148A
RZ149
RZ149A
RZ129
RZ129A
RZ130
RZ131A
RZ131
RZ130A
RFZ50
Description ; Specification
2001-000908
2001-000281
2001-000281
2701-000168
2002-001014
AA41-00600E
0402-000243
BP39-00004B
BP39-00004C
BP39-00004C
AA39-00112A
AA39-20031D
3711-002648
BP59-00005A
AA39-00198D
AA39-20010D
AA39-20010D
AA39-00120F
AA39-20027B
3301-001201
AA39-20010B
3711-002645
AA39-20010C
2401-000480
AA63-10002A
AA95-02002A
AA97-07418A
2001-000563
2001-000563
2001-000563
2001-000563
2001-000563
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001155
2001-001155
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2008-000261
Remark
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
R-COMPOSITION;6.8Kohm,10%,1/2W,AA,TP,3.7
PCB-CRT;HCM4215W,FR-1,1L,E,1.6T,245X197(
S.N.A
DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,10
LEAD CONNECTOR-ASSY;,9P,500,67096-009,S,
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1617
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;SIR-T165,UL1007#26,U
LEAD CONNECTOR-ASSY;,6P,400,67096-006,S,
CORE-FERRITE;AE,21x11x32mm,1500,280G
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
LEAD CONNECTOR-ASSY;,1P,600,YFH800-01,S,
C-AL;10uF,20%,50V,GP,TP,5x11,5
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
ASSY SUB-PCB,CG AMP;COMMANDO
ASSY AUTO;HCM4215WX/XAA,P55A
S.N.A
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
...3
...3
...3
..2
...3
...3
...3
....4
....4
....4
Code No.
RFZ51
RFZ52
RFZ53
RFZ19
RFZ20
RFZ21
RFZ22
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
CZ113
CZ114
C701
C701
C701
C701
LZ112
LZ111
LZ110
LZ109
LZ108
LZ107
FD102S
FD101S
ELZ01
ELZ02
ELZ03
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
R125
0
SGZ101
CN906
CN906
CN906
CN906
CN906
T0076
Description ; Specification
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2201-000327
2201-000327
2201-000327
2201-000327
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000205
2202-000205
2202-000205
2202-000205
2202-000205
2202-000561
2202-000561
2401-000183
2401-000183
2401-000962
2401-000962
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
3601-001065
3601-001065
6042-000002
6042-000002
6042-000002
2202-000825
2202-000825
2202-000825
2202-000825
2202-000825
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2001-000800
AA41-00601C
4715-000106
3711-003046
3711-003043
3711-003043
3711-003043
3711-003043
BP39-00005A
0202-000187
T0076 BP39-00015A
CZ101 BP96-00005A
T0081 6003-001021
CIS
BP62-00002A
CIS
BP62-00008A
CIS
BP73-00002A
T0074 1201-001225
AA65-30110A
BP61-00076A
BP61-00077A
T0101 BP94-00134E
0202-000187
CN906 3711-000447
BP97-00208A
Q01
0501-000342
PCB
AA41-00853A
D01
BP32-00001A
Samsung Electronics
Remark
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB;HCM4215W,PCB,CEM-1,1L,C,1.6,245X245, S.N.A
SURGE ABSORBER;300V,210-390V,-,-,AXIAL
S.N.A
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL2547
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1185
ASSY HEAT SINK P;BP62-00002A,SCREW,STK39 S.N.A
SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H14 S.N.A
HEAT SINK;COMMANDO CG AMP,AL6063,T2.0,W1S.N.A
SILICON/RUBBER;COMMANDO CG AMP,SILICON ,S.N.A
IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
HOLDER-PUSH,A;42W5,NYLON6.6,NATURAL
S.N.A
HOLDER-PUSH,B;42W5,NYLON6.6,NATURAL
S.N.A
ASSY PCB MISC-SENSOR ASSY;SENSOR
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,ASSY SMD;0
S.N.A
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTPCB-SERSOR;SVP-42W5HRC,FR-4,2L,A,1.6T,24 S.N.A
SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U
Loc. No.
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R01
R02
R03
T0073
IC802
IC012
C701
C701
X601
CNZ01
CNW02
CNW01
CN901
CN906
CN906
CN906
CN906
CN906
JA703
JA701
JA704
JA702
L802
L801
TU02
TU04
TU01
T0104
T0083
Q409
Q409
IC904
X901
CN901
D905
D906
D920
D923
D602
D901
D902
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q915
Q916
Q917
Q920
Q914
Q913
Q910
Q908
Q902
IC112
T0087
IC901
R981
R964
R960
R959
R965
R956
R953
R952
R969
R970
R972
Code No.
Description ; Specification
Remark
2007-000305
2007-000109
2007-000109
0202-001167
BP94-00498A
0202-000187
1203-000119
1203-000165
2401-000737
2401-001068
2801-004020
3703-001150
3703-001150
3703-001150
3703-001187
3711-003046
3711-003641
3711-003973
3711-003975
3711-004946
3722-001163
3722-001426
3722-001796
3722-001871
AA27-10001C
AA29-00004A
AA40-00049A
AA40-00049A
AA59-00164A
AA63-00396B
AA63-00397B
AA63-00610A
AA95-02001K
0402-000274
0505-000109
0505-000109
1203-001943
2801-004071
3703-001175
AA97-07275A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1103-000180
1203-002302
1204-001912
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
R-CHIP;10Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY PCB MAIN;HCN4727WX/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
C-AL;3300uF,20%,50V,GP,BK,22x40,10
CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PIN;9P,3.4mm,NI,BLK,JACK-PIN;7P(10P),-,NI,RD/RD/WH/WH/RD/BL/
JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O
SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A
ASSY SUB-PCB MICOM;,C2
DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH
CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A
ASSY SMD;SVP-47W3HRT,P55A, , ,
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
7-9
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-10
R979
R940
R909
R916
R918
R939
R923
R922
R907
R917
R911
R963
R901
R930
R933
R936
R974
R905
R921
R924
R925
R915
R913
R912
R978
R976
R971
R958
R980
R982
R985
R986
R903
R904
R906
R908
R955
R954
R928
R927
R983
R934
R987
R957
R944
R926
R975
R942
R941
R914
R988
R962
R961
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000081
2007-000081
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000097
2007-000121
2007-000123
2007-000123
2007-000123
2007-000290
2007-000583
2007-000939
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000189
2203-000221
2203-000236
2203-000236
2203-000236
2203-000236
2203-000260
2203-000357
2203-000440
2203-000440
2203-000440
2203-000444
Description ; Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;820ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/8W,TP,2012
R-CHIP;22Kohm,1%,1/10W,TP,1608
R-CHIP;47Kohm,1%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
Remark
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
....4
....4
...3
....4
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
...3
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C120
C120
C120
C120
C950
C936
C921
C918
C915
C913
C938
C917
C912
C911
L905
G101
G101
G101
G101
G101
G101
R949
R950
R951
R945
R946
R948
R966
PCB
IC902
IC801
T0087
T0123
T0081
T0123
IC601
T0124
T0081
T0093
L01
CN01
CN906
D13
D12
D11
D10
D14
D15
D16
D17
D18
D01
D02
D03
D04
D05
D09
D08
D07
D06
DZ016
DZ016
DZ016
Q02
Q03
Q10
Q04
Q409
Code No.
Description ; Specification
2203-000748
2203-000748
2203-001048
2203-005809
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2703-001245
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-000931
AA41-00599B
0202-001167
1102-001130
0202-000187
AA96-00475C
0205-000129
1203-000293
1203-002003
6003-000334
AA62-00066B
1203-001978
AA96-00623E
0205-000129
1201-001026
6003-000334
AA62-00056A
BP63-00030A
BP95-00146C
0202-000187
2701-001030
3703-001124
3711-003601
BP97-00513D
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0403-001016
0403-001016
0403-001016
0501-000280
0501-000280
0501-000342
0501-000342
0505-000110
Remark
C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.56NF,10%,50V,C0G,TP,201
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
INDUCTOR-SMD;8.2uH,10%,2x1.25x1.25mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/8W,TP,2012
PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4
ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
SHIELD CASE;COMMANDO,SPTE,T0.5,W26.0,L13 S.N.A
ASSY SUB PCB-CONV MOD;,P55A,CG MOD
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
INDUCTOR-AXIAL;43uH,10%,5x14mm
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;,P55A,CG MOD
S.N.A
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTFET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
Q409
Q409
IC104
IC104
IC104
IC08
IC13
IC112
DU410
DU410
DU410
DU410
DU410
T0074
IC03
T0087
IC17
R36
R35
R31
R30
R143
R144
R25
R122
R123
R141
R136
R15
R24
R45
R46
R09
R10
R129
R134
R135
R59
R65
R71
R77
R91
R53
R02
R16
R17
R20
R47
R62
R64
R68
R58
R56
R52
R70
R98
R94
R82
R80
R76
R74
R38
R37
R110
R11
R101
R03
R39
R50
R44
R43
R42
R41
R40
R128
R81
R75
Code No.
0505-000110
0505-000110
0801-002345
0801-002345
0801-002345
1001-000164
1001-001155
1103-001195
1201-001135
1201-001504
1201-001504
1201-001504
1201-001504
1201-001520
1203-001824
1203-002302
1209-001163
2007-000028
2007-000028
2007-000028
2007-000028
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000079
2007-000080
2007-000080
Samsung Electronics
Description ; Specification
Remark
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC
IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10
IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R69
R51
R57
R63
R109
R66
R61
R60
R55
R54
R79
R78
R73
R72
R67
R49
R08
R07
R06
R04
R01
R48
R133
R121
R119
R118
R86
R92
R93
R96
R97
R85
R113
R114
R115
R83
R84
R125
R05
R127
R100
R32
R34
R29
R28
R117
R107
R33
R120
R90
R89
R88
R87
R108
R139
R138
R137
R99
R95
R126
R27
R26
R116
RN04
RN05
RN06
RN01
RN02
RN03
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
Description ; Specification
2007-000080
2007-000080
2007-000080
2007-000080
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000091
2007-000102
2007-000109
2007-000118
2007-000119
2007-000122
2007-000122
2007-000122
2007-000122
2007-000122
2007-000124
2007-000124
2007-000133
2007-000133
2007-000133
2007-000133
2007-000381
2007-000402
2007-000402
2007-000402
2007-000704
2007-000704
2007-000857
2007-001167
2007-001167
2007-001179
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;12Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;13Kohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.3Kohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Remark
7-11
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-12
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C38
C40
C70
C84
C14
C06
C03
C01
Code No.
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000257
2203-000257
2203-000257
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000440
2203-000575
2203-000575
2203-000975
2203-000975
2203-000975
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001083
2203-001083
2203-001083
2203-001083
2203-001245
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
Description ; Specification
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
Remark
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C80
OSC01
F103
F103
F103
F103
G101
G101
G101
G101
G101
G101
T0119
1
IC125
IC808
CIS
T0081
CIS
IC012
D607
D608
D609
D601
D604
D605
T0083
DZ016
DZ016
DZ016
DZ016
Q603
Q602
Q601
R125
R810
R808
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R801
R674
R677
R682
R681
R811
R814
R805
R024
R024
R024
R024
R024
R024
Code No.
Description ; Specification
2402-001049
2804-001479
2901-000226
2901-000226
2901-000229
2901-000229
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
AA09-00032A
AA41-00717D
BP13-00003A
0202-001167
BP96-00020G
0205-000129
6003-000334
AA62-00045B
1203-000203
BP97-00511F
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0403-000700
0403-001039
0403-001319
0403-001325
0501-000389
0501-000389
0501-000389
2001-000007
2001-000066
2001-000066
2001-000273
2001-000290
2001-000290
2001-000290
2001-000290
2001-000331
2001-000508
2001-000522
2001-000577
2001-000660
2001-000734
2001-000734
2001-000734
2001-000739
2001-000739
2001-000739
2001-000739
2001-000739
2001-000780
2001-000780
2001-000812
2001-000812
2001-000812
2001-001000
2001-001077
2001-001103
2001-001103
2001-001146
2001-001146
2001-001182
2003-001098
2004-000970
2004-001390
2004-001390
2004-001970
2004-001970
2004-001970
2004-001970
Remark
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-,
S.N.A
PCB (FR 4) 4L(AU);CONVERGENCE,FR-4,4,1.6
S.N.A
IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY HEAT SINK P;AA62-00045B,TAPTITE,SIS.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;COMMANDO,AL1050,T1.0,H45.0
S.N.A
IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
ASSY AUTO;0
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16
R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C695
C694
C689
C687
C682
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
2301-000192
2301-000192
2305-000665
2305-000665
2305-000665
2401-000025
2401-000025
2401-000025
2401-000025
2401-000039
2401-000039
2401-000192
2401-000192
2401-000302
2401-000302
2401-000360
2401-000360
2401-000471
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000603
2401-000603
2401-000603
2401-000603
2401-000603
2401-000832
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-001192
2401-001397
2401-001513
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-002075
2401-002075
2401-002075
2401-002075
2401-002144
2401-002300
2401-002300
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002463
2401-002463
Samsung Electronics
Description ; Specification
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C701
C701
C701
C701
C701
C701
L105
L119
L120
L121
L122
L123
L124
L107
L108
L111
L114
L113
L112
L703
L106
L104
L103
L101
L706
L705
L102
G101
G101
G101
CN906
CN906
CN906
CN906
GT01
GT02
GT03
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q703
Q704
Q707
Q708
Q709
Q710
Q101
Q103
Q106
IC106
IC106
IC605
IC704
IC705
DU410
IC602
R789
R788
R777
R776
R775
R791
R97C
R904
Code No.
Description ; Specification
Remark
2401-002594
2401-002619
2401-002619
2401-002619
2401-002619
2401-002619
2701-000106
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000115
2701-000115
2701-000115
2701-000115
2701-001030
2701-001030
2701-001040
3301-000287
3301-000287
3301-000287
3711-002642
3711-002642
3711-002643
3711-002645
AA60-40014A
AA60-40014A
AA60-40014A
BP97-00513Q
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-001016
0403-001016
0403-001016
0403-001016
0403-001016
0403-001117
0403-001117
0403-001117
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1001-001177
1001-001177
1001-001178
1002-001048
1002-001048
1201-000541
1204-002002
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
INDUCTOR-AXIAL;1.5uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
ASSY SMD;HCN4226WX/XAA,P55A
S.N.A
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
7-13
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-14
R79B
R795
R794
R729
R145
R143
R117
R101
R712
R708
R706
R148
R646
R647
R703
R627
R626
R625
R624
R707
R773
R772
R757
R756
R724
R722
R709
R602
R115
R114
R113
R108
R107
R103
R102
R116
R601
R172
R171
R170
R127
R126
R125
R730
R166
R150
R157
R652
R651
R643
R642
R641
R653
R798
R797
R793
R728
R637
R630
R629
R628
R603
R106
R631
R636
R635
R634
R633
R632
R755
R771
R774
R780
R604
R611
R688
R750
Code No.
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
Description ; Specification
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Remark
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R749
R748
R747
R746
R744
R743
R741
R739
R164
R165
R149
R151
R155
R156
R716
R704
R110
R105
R762
R745
R742
R740
R738
R612
R607
R609
R608
R109
R104
R767
R754
R753
R752
R605
R610
R751
R713
R710
R702
R701
R174
R173
R714
R799
R792
R731
R727
R726
R725
R133
R132
R121
R120
R119
R118
R134
R142
R140
R138
R137
R613
R606
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000098
2007-000098
2007-000127
2007-000127
2007-000127
2007-000127
2007-000127
2007-000134
2007-000134
2007-000329
2007-000329
2007-000828
2007-000828
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001179
2007-001179
2203-000140
2203-000140
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
Description ; Specification
Remark
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
L701
L707
L708
L901
L902
L604
L125
L126
L601
L602
L603
G101
PCB
Code No.
Description ; Specification
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000332
2203-000332
2203-000440
2203-000440
2203-000440
2203-000440
2203-001071
2203-001071
2203-001071
2203-001211
2203-001211
2203-001211
2203-001211
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-005590
2203-005590
2203-005590
2203-005590
2203-005590
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001324
AA41-00597F
Samsung Electronics
Remark
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245 S.N.A
Loc. No.
.....5
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
T0095
FC48
FC59
FC58
EX01
T0122
T0122
CN02
CN01
CN906
CN906
FD13
FD14
FD15
FD16
FD17
FD10
FD01
FD02
FD07
FD08
FD09
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
SQ01
FQ13
FQ04
FQ03
FQ02
FQ08
FQ09
FQ12
PQ01
FQ06
FQ05
EQ15
EQ14
EQ13
FQ07
Q409
Q409
IC104
IC106
IC06
T0087
T0087
IC02
IC01A
IC118
SR08
FR80
FR79
FR78
FR57
FR35
FR07
ER90
FR76
FR96
SR09
SR22
ER29
ER04
ER05
ER06
ER13
ER19
ER18
ER17
SR03
Code No.
Description ; Specification
Remark
0202-001167
BP95-00142N
0202-000187
2305-000011
2305-000704
2309-000138
2801-004019
2802-001177
2802-001179
3703-001124
3703-001124
3711-001164
3711-003601
BP97-00169A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-000746
0403-001016
0403-001117
0403-001117
0403-001117
0403-001117
0501-000280
0501-000280
0501-000280
0501-000280
0501-000280
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000727
0505-000110
0505-000110
0801-000662
1001-001082
1203-001211
1203-002186
1203-002302
1204-001814
1204-001938
1204-001989
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY SUB PCB-PRO SCAN;HCN4727WX/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
C-FILM,MPEF;470nF,5%,250V,TP,21.5X13.0X7
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.
RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;HCM4215WJX/XAA,P55A
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1
IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL
IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS
IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM
IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
7-15
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-16
SR04
SR05
SR06
SR10
SR11
SR02
FR71
FR74
FR75
FR81
FR82
SR01
SR49
SR53
SR75
YR43
YR44
YR45
SR48
SR31
SR32
SR33
SR34
SR35
SR47
ER84
FR01
FR02
FR16
FR17
FR18
ER83
CR83
CR84
ER08
ER15
ER16
ER82
FR37
FR38
FR39
FR53
FR54
FR56
FR34
FR19
FR20
FR21
FR33
FR32
FR31
SR74
SR21
FR66
ER28
ER27
ER26
SR07
FR40
FR72
FR73
FR62
FR45
FR44
ER92
ER91
FR42
FR41
PR01
FR60
FR22
FR09
FR58
ER24
ER25
FR77
PR02
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000080
2007-000080
2007-000081
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000086
2007-000086
2007-000090
2007-000090
2007-000090
2007-000090
2007-000092
2007-000097
2007-000097
2007-000097
2007-000097
Description ; Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;15Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
Remark
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
ER20
ER21
ER22
ER23
FR63
FR70
FR47
FR46
FR15
FR14
FR13
FR10
FR11
FR12
SR73
SR26
SR25
SR23
FR36
FR43
ER14
SR36
SR37
SR38
SR39
SR40
ER12
EC30
EC31
ER03
ER11
ER10
ER09
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
2007-000097
2007-000097
2007-000097
2007-000097
2007-000118
2007-000124
2007-000124
2007-000124
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000259
2007-000309
2007-000309
2007-000309
2007-000691
2007-000869
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
Description ; Specification
Remark
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.6Kohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000491
2203-000491
2203-000491
2203-000575
2203-000575
2203-000575
2203-000575
2203-000626
2203-000626
2203-000681
2203-000681
2203-000681
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000896
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000998
2203-000998
2203-000998
2203-000998
2203-001140
2203-001222
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
Samsung Electronics
Description ; Specification
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C120
C120
C120
C120
C120
FC09
PC18
FC60
FC29
FC13
SC38
SC36
SC34
SC40
SC42
SC44
SC47
SC31
PC01
PC03
PC06
PC32
SC18
SC16
SC11
FC63
FC62
FC45
FC12
FC04
PC12
PC10
PC09
FC65
FC06
PC08
PC07
FC31
CC49
EL05
EL06
EL07
EL08
EL01
EL02
EL03
EL04
FL01
G101
G101
G101
G101
G101
G101
G101
G101
G101
G101
G101
G101
G101
CR27
0
T0098
T0121
SWY08
SWY07
SWY06
SWY05
SWY01
SWY03
SWY04
CN906
CN906
CN906
Code No.
Description ; Specification
Remark
2203-002494
2203-005384
2203-005384
2203-005384
2203-005809
2402-000170
2402-000173
2402-000173
2402-000173
2402-000173
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2402-001049
2402-001049
2402-001070
2402-001070
2402-001070
2402-001070
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-001070
3301-001082
3301-001186
3301-001186
3301-001186
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-000033
AA41-00610E
0202-001167
BP94-00505Z
0202-000187
3301-001201
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3711-000447
3711-000479
3711-003353
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;100uH,10%,4.5x3.2x3.2mm
CORE-FERRITE BEAD;AB,60OHM,3.2X2.5X1.3MM
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;0ohm,5%,1/4W,TP,3216
PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY PCB MISC-CONTROL;HCN4226WX/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,5P,1R,2.5mm,ANGLE,CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,
7-17
Electrical Parts List
Loc. No.
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-18
RMY01
T0076
CNW02
T0076
DZ016
DZ016
QY01
RY07
RY09
R125
R125
R125
R125
R125
RY08
C701
PCB
T0097
LEDY04
LEDY03
LEDY02
LEDY01
SWY02
CN906
PCB
T0100
SW101
CN906
CN906
JK101
JK102
T0081
T0076
T0076
R125
PCB
T0105
T0150
T0096
Q409
Q409
DX701
DX301
CN906
DD512
DD511
DD510
DD509
DD513
DD514
DD515
DD516
DD501
DD502
DD503
DD504
DD508
DD507
DD506
DD505
DD901
DZ016
DZ016
DZ016
IC104
IC01
IC112
T0123
IC05
Code No.
Description ; Specification
AA32-00012A
AA39-00223C
AA39-00259B
AA39-20020D
BP97-00511H
0403-000510
0403-000510
0504-000123
2001-000020
2001-000109
2001-000429
2001-000832
2001-000832
2001-000832
2001-000924
2001-001108
2401-002009
BP41-00023A
BP94-00515A
0601-001381
0601-001381
0601-001381
0601-001381
3404-001006
3711-000479
BP41-00022A
BP94-00527A
0202-000187
3404-000208
3711-000447
3711-003601
3722-000544
3722-001164
6003-001023
AA39-00257C
AA39-00260A
AA63-10002A
AA97-07429A
2001-000006
AA41-00499B
BP96-00007G
AA61-01128C
AA64-02086S
AA64-02780C
BP95-00071A
0202-000187
0505-000109
0505-000109
2801-001385
2801-001385
3711-002643
BP97-00166A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000160
0403-001016
0403-001016
0403-001016
0801-002345
1002-001333
1103-000180
1203-001419
1203-001824
Remark
MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL10
LEAD CONNECTOR;SVP-43W6,UL1007#26,UL/CSA
LEAD CONNECTOR-ASSY;,5P,600,67096-005,S,
ASSY AUTO;HCN4226WX/XAA,P55A
S.N.A
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PCB;SVP-43W8,PCB-CONTROL,1L,1.6T,330*245 S.N.A
ASSY PCB MISC-POWER-SW;HCN4226WX/XAA,P55
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,ANGLE,PCB;SVP-43W8,PCB-MASTER-S/W,1L,1.6T,245* S.N.A
ASSY PCB MISC-A/V FRONT;HCN4727WX/XAA,P5
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
JACK-VHS;4P,11.5mm,AG,BLK,N
JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL25
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
ASSY AUTO-A/V FRONT;HCM4215WX/XAA,P55A S.N.A
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB-FRONT A/V;SVP-54T6SR,FR-1,1L,A,1.6T,
S.N.A
ASSY COVER P-SIDE,JACK;42W5,ABS HB G3676
HOLDER-SIDE AV;42W5,ABS HB,G3676,SV-704P S.N.A
INLAY-AV;42W5,PS SHEET,T0.5,P55A,S/PG
S.N.A
DOOR-AV;42W5,ABS HB,G3676,SV-704P
ASSY SUB-DVI;HCM4215WJX/XAA,P55A,DVI
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
ASSY SMD;HCM4215WJX/XAA,DVI-AUTO,P55A S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLIC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-A/D&D/A CONVERTER;GM7030,10BIT,PQFP,1
IC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0123
DR514
DR515
DR516
DR517
DR501
DR502
DR504
DR506
DR513
DR512
DR510
DR109
DR301
DR901
DR519
DR518
DR511
DR508
DR701
DR520
DR509
DR210
DR702
DR703
DR704
DR706
DR707
DR201
DR202
DR203
DR204
DR205
DR209
DR208
DR207
DR206
DR902
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
1203-002351
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000072
2007-000072
2007-000072
2007-000078
2007-000079
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000102
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
Description ; Specification
Remark
IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
Code No.
Description ; Specification
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
DC420
DC417
DC413
DC410
DC407
DC406
DC404
DC402
DC706
DC701
DL701
DL409
DL408
DL406
DL404
DL401
G101
T0119
CR501
G101
G101
G101
G101
DR705
DR708
DR503
DR505
DR507
DR521
DR522
0
2203-000257
2203-000257
2203-000257
2203-000440
2203-000626
2203-000626
2203-000626
2203-000998
2203-000998
2203-000998
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-001129
2402-001155
2404-001020
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001202
BP09-00004A
2402-000108
3301-001593
3301-001593
3301-001593
3301-001593
2007-000070
2007-000070
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
AA41-00793B
0202-001167
CN906 3711-003641
T0121 3301-001201
AA63-10002A
IC112 1103-001211
T0076 AA39-20032B
PL1
3701-001173
Remark
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,120ohm,4.5x3.2x1.3m
IC MICOM;T89C51IC2-SLSCM,44,5V,32KBYTE,P
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.4
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
PCB;HCN473,PCB-DVI,2L,1.6T,245*180,P55A,
S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CORE-FERRITE;AE,21x11x32mm,1500,280G
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
IC-EEPROM;24C16-PC27 C,2048x8Bit,DIP,8P,
LEAD CONNECTOR-ASSY;,12P,300,67096-012,S
CONNECTOR-DSUB;24P,3R,FEMALE,ANGLE,AUF
Loc. No.
Code No.
Description ; Specification
Remark
ASSY ACCESSORY
1
..2
..2
..2
...3
...3
..2
..2
..2
..2
..2
M0016 BP92-00512C ASSY ACCESSORY;HCN553WX/XAA,P55A,DVI
T0116
T0074
T0122
T0119
T0113
CIS
6902-000018
AA39-00006A
AA59-00262A
2802-000194
AA09-00275A
AA61-20126A
AA68-00371C
AA68-40065B
AA69-30009C
BP68-00054A
S.N.A
BAG PE;LDPE,T0.1,W280,L400,GRY,8,2S.N.A
CABLE RCA;,3000MM
REMOCON;,TM63,COMMONDO,48,G6671B,EX,S/S
RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
IC MICOM;Z86L8808SSC-R51PX,SOP,ST,SZTM-8
HOLDER-LEG;-,ABS,-,-,-,BLK,HB
CARD WARRANTY-01;,SEA,W/P100(G),1 YEAR S.N.A
CARD-REGISTRATION;,SEA,A5,ENG,A/P220,2P( S.N.A
BAG-SHEET;LDPE,T0.08,W150,L120,-,-,S.N.A
MANUAL USERS;HCM473WJX,ENG,W/P100G,P55A,
ASSY P/MATERIAL
1
BP92-00542A ASSY P/MATERIAL;,P55A
S.N.A
..2
..2
..2
..2
..2
AA60-40006A
AA61-20285A
AA63-10007C
AA69-00305A
AA69-00744L
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
HOLDER-BOX;3456,PP,-,-,-,WHT,VO
BAND-PP;W18,CLEA,1G
BAG AIR;ALL,LDPE,1000,500,CLR,
BAG-SHEET;-,HDPE PE FOAM,T0.015,W1650,H1
ASSY FIXING
1
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
..2
BP91-00833Q ASSY FIXING;HCN436WX/XAA,P55A
T0081
T0081
T0076
T0076
T0070
T0066
T0077
T0121
6003-001023
6003-001023
AA39-20010B
AA39-20010B
AA61-01127A
AA63-10002A
AA65-30018A
AA65-30111A
AA96-00156A
3811-000401
AA39-10007Y
AA61-20284A
AA63-10002B
3301-001201
BP39-00047A
Samsung Electronics
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,WS.N.A
ASSY POWER CORD;-,EP2/YES(US),H/C100MM,K
WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22 S.N.A
CBF POWER CORD;-,EP2/YES,SPT-2 18AWGx2C,
HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
S.N.A
BAND-TIE;NYLON66 V2,L140,NTR
S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
LEAD CONNECTOR;P55A/HCM4215W,UL2547#26,U
7-19
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
7-2 HCN4226W3S/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY SKD PART
1
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
AA92-07170A ASSY SKD PART;HCN653WSC/XAA,P55A
T0118
T0066
T0077
T0121
AA26-00101A
AA63-10002A
AA65-30018A
AA65-30104C
AA96-00156A
3811-000401
AA39-10007Y
AA61-20284A
AA63-10002B
3301-001201
S.N.A
TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
ASSY POWER CORD;-,EP2/YES(US),H/C100MM,K
WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22 S.N.A
CBF POWER CORD;-,EP2/YES,SPT-2 18AWGx2C,
HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
S.N.A
BAND-TIE;NYLON66 V2,L140,NTR
S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
ASSY K/D-SKD P/MATERIAL
1
..2
..2
..2
..2
..2
AA98-01629A ASSY K/D-SKD P/MATERIAL;SKD FORMAT-3
AA69-00305A
AA69-00306A
AA69-90001A
AA60-40006A
WOODENAA63-10007C
BAG AIR;ALL,LDPE,1000,500,CLR,
BAG AIR;LDPE,-,1800,1000,CLR,ASSY,ALL,CHEMICALS-SILICAGEL;-,-,-,-,-,M2,5GR,-,PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
BAND-PP;W18,CLEA,1G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
...3
...3
....4
...3
...3
Code No.
Description ; Specification
T0081
T0081
6003-001019
6003-001019
AA61-01132A
AA61-20129A
CIS7
AA61-60003A
BP61-00272A
BP61-00273A
BP64-00230A
T0023 BP64-00231A
BP64-00232A
T0022 BP64-00233A
BP98-00191A
T0082 3001-001107
T0082 3001-001353
T0076 AA39-00086A
HC+CW AA60-10051A
AA61-00094C
AA61-00097A
AA61-00508D
AA61-00533B
AA61-00616B
AA61-00506B
AA64-02724A
AA98-00049A
T0121 3301-001201
BP61-00019A
BP61-00035A
ASSY COVER FRONT
1
M0001
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
..2
...3
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
..2
...3
T0081 6003-001023
T0081 6003-001339
HC+CW 6005-001003
HC+CW 6005-001003
HC+CW 6005-001003
BCM+WO6006-001094
T0118 AA26-00101A
AA60-00072B
T0069 AA60-00091J
T0081 AA60-10011A
T0081 AA60-10011A
T0081 AA60-10011A
T0115 AA61-00475B
AA61-00618C
AA63-10002A
AA65-00020A
T0056 AA67-00193A
T0053 AA67-00193B
T0052 AA67-00207A
BH73-60304C
T0076 BP39-00009A
T0254 BP61-00010A
T0254 AA61-01121A
T0056 BP61-00011A
T0056 AA61-01122A
BP61-00043B
BP61-00052A
BP64-00029A
T0102 BP73-00004A
BP98-00189A
T0081 6003-001019
AA61-01133A
T0017 AA64-02727R
T0057 BP64-00199A
T0102 BP73-00004A
BP98-00190A
T0081 6003-001019
7-20
BP90-00152B ASSY COVER FRONT;HCN4226W3S/XAA,P55A
Remark
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
VELCRO-A;COMMANDO,BST1 1/4H
S.N.A
HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25
S.N.A
SPRING ETC-CS;-,SUS304,-,-,OD7,N7,OD7,-,
S.N.A
HOLDER-PCB POWER;42W8,ABS,SMOG,6G
S.N.A
HOLDER-RING;42W8,ABS,GRAY,AL
S.N.A
CABINET FRONT-BOT;42W8,HIPS V0,GRAY,SV70 S.N.A
KNOB POWER;42W8,ABS,HB,GRAY,AL
S.N.A
WINDOW-RMC;42W8,ABS,HB,CLEAR
S.N.A
KNOB CONTROL;42W8,ABS,HB,GRAY,SVM1132 S.N.A
ASSY K/D-WOOD;42W8,WOOD
S.N.A
SPEAKER;20W,8OHM,95DB,1300HZ
SPEAKER;25W,8OHM,90DB+/-3DB,60HZ+/-12HZ
LEAD CONNECTOR-ASSY;,2.2UF,200MM,REC,REC
SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480
S.N.A
HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,S.N.A
HOLDER-JERSEY;W3,ABS V0,GRAY,G4309
S.N.A
BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,S.N.A
HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005
S.N.A
HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL
S.N.A
CABINET-WOOD;42W5,WOOD,SDE8336R
S.N.A
ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
HOLDER-PALLET;42W5,HIPS HB,BLK
S.N.A
BRACKET-GRILLE;42W5,SECC-1,T1.0
S.N.A
ASSY COVER REAR
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL)S.N.A
TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,GUIDE-FLOW;54J8,J7,ABS,IVORY,V0
S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;55W9,NYLON 66
S.N.A
SCREEN-TINT;42W,958*550,T=0.7,P
SCREEN FRESNEL;42W,960*552,T=2.0
SCREEN-FILTER;,T=82%,9,G=110,AG
RUBBER-SUPPORT;DP15LT,CR V0,GRAY,-,14*7* S.N.A
LEAD CONNECTOR-ASSY;P54A/SVP-42W5,UL2547
BRACKET-SCREEN,TB;DP,42W5,AA61-01121A,26 S.N.A
BRACKET-SCREEN,TB;42W5,SECC,T1.0
S.N.A
BRACKET-SCREEN,RL;DP,42W5,AA61-01122A,13 S.N.A
BRACKET-SCREEN,RL;42W5,SECC,T1.0
HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
HOLDER-WIRE;PJTV,NYLON,66,NATURAL
S.N.A
INLAY-SUPPORT;42W5,PS SHEET,T0.5,94V0
S.N.A
RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
ASSY K/D-FRONT MASK;42W8
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
VELCRO-B;COMMANDO,BST1 1/4H
S.N.A
CABINET-FRONT MASK;42W8,HIPS,HB,GRY,SV01
BADGE-BRAND;PJLCD,AL,T1.5,72,12.5,,DGN-S S.N.A
RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
ASSY K/D-FRONT BOT;42W8
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
1
M0002
BP90-00155B ASSY COVER REAR;HCN4226W3S/XAA,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
...3
....4
....4
T0081
T0081
T0081
T0081
T0081
HC+CW
HC+CW
T0081
T0081
T0081
T0081
T0112
T0112
6003-001026
6003-001026
6003-001026
6003-001026
6003-001026
6005-001003
6005-001003
AA60-10011A
AA60-10011A
AA60-10011A
AA60-10011A
AA64-02728A
AA64-02729B
AA64-60421C
AA64-60449B
AA65-30008A
AA67-00204A
BP61-00012A
AA61-01123A
BP60-00005A
BP96-00077L
BP96-00038H
AA64-02836J
AA65-00023A
T0092
T0092
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18 S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
CABINET-BACK,TOP;42W5,HIPS,HB,G4309
CABINET-BACK,BOT;42W5,HIPS,V0,G4309
INLAY-COVER;-,PS,T0.3,-,-,BLK,SEA
S.N.A
INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5
S.N.A
CLAMPER CORE-CORD;-,PE,HB,-,BLK,S.N.A
MIRROR-FRONT;42W5,FSM,870*633*446
BRACKET-MIRROR;DP,42W5,AA61-01123A,11.8K S.N.A
BRACKET-MIRROR;42W5,SECC,T1.0
S.N.A
SPACER-SPONGE;42W5,RUBBER-SPONGE,T3
S.N.A
ASSY COVER P-TERMINAL,ANT;DP WIDE PJT,HI
ASSY COVER P-TERMINAL,ANT;WIDE PJT,HIPS
INLAY-TERMINAL,NT;WIDE PJT,PS SHEET,T0.5 S.N.A
TERMINAL-BOARD,ANT;,HIPS V0,BLK
S.N.A
ASSY CHASSIS
1
M0017
..2
...3
...3
...3
...3
BP91-00935A ASSY CHASSIS;HCN4226WS,P55A,KAWA
S.N.A
BP91-00801Y ASSY MISC-CHASSIS PACK;HCN4226W,P55A,KAW
S.N.A
T0081
T0081
T0070
T0097
6003-001023
6003-001023
AA61-01127A
AA94-08574A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A
ASSY PCB MISC-PWR-DEF; ,HCM4215W,P55A
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
Code No.
Description ; Specification
Remark
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP
0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10
AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,
AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60
AA39-00180A LEAD CONNECTOR-ASSY;,14P,100MM,YBNH250-1
AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0083 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
Q433
AA96-00243H ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0090 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
IC831S AA96-00275J ASSY H/S;SCREW,SILICON-OIL,AA62-00051A,S S.N.A
CIS
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
IC063
AA13-00105A IC HYBRID;STR-X6456,7,-20TO+125,DIP,21A,
CIS
AA62-00051A HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
S.N.A
D811S AA96-00276A ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WAS S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0083 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA60-30003A WASHER;T1.5,SBHG-1
S.N.A
AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2
S.N.A
IC301
AA96-00623A ASSY H/S;-,POWER,AA62-00056A,LA7845
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0088 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC
T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
AA97-07506Z ASSY AUTO-PWR DEF;HCM4215W
S.N.A
D478
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D479
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DR401S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DR402S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D385
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D436
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D442
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D443
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D477
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D301
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DS802 0401-000006 DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DS804 0401-000006 DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
T0083 0402-000254 DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
T0083 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DZ016 0403-000704 DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DOT0083
T0083
NT801S
CX802S
CX801S
C701
C701
C701
C701
C701
C701
FP801S
T481
T444S
T431
T461
LR401S
T0076
D856
D855
Samsung Electronics
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DS805
QR401S
Q482
Q432
Q461
Q471
Q474
Q481
Q851
QS801
QS802
Q301
Q381
Q382
Q401
Q402
Q421
Q451
IC012
VP801S
R125
R125
R125
R125
R308
R470
R422
R836
R493
RS804
R855
RS808
RS803
R814
R813
R812
R439
R438
R811
R834
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
Code No.
0403-000716
0403-000720
0403-000720
0403-000720
0403-000734
0403-001167
0403-001316
0403-001319
0403-001319
0403-001325
0403-001325
0403-001325
0403-001327
0403-001327
0403-001327
0403-001328
0403-001329
0403-001329
0403-001330
0403-001330
0404-001056
0501-000283
0501-000283
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
1203-001217
1405-000152
2001-000005
2001-000006
2001-000009
2001-000009
2001-000016
2001-000028
2001-000028
2001-000052
2001-000052
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000109
2001-000258
2001-000262
2001-000273
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000362
2001-000429
2001-000429
2001-000429
2001-000449
2001-000508
2001-000515
2001-000522
2001-000577
Description ; Specification
Remark
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DODIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
VARISTOR;560V,2500A,14x8.5mm,TP
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-21
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-22
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RS807
R854
R839
R413
RR401S
R434
R837
R468
RS802
R433
R410
RS806
R459
R851
RP801S
RY801S
R428
R428A
R429
R430
R463
R310
R460
R426
R443A
R443
R464
R421
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R472
R465
R449
R445
R442
R441
R447
R442A
R307
R486
R838
R437
R485
Code No.
Description ; Specification
2001-000577
2001-000577
2001-000613
2001-000613
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000761
2001-000761
2001-000761
2001-000761
2001-000761
2001-000786
2001-000800
2001-000800
2001-000812
2001-000924
2001-001031
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001108
2001-001122
2001-001124
2001-001155
2001-001155
2001-001168
2001-001192
2001-001196
2002-001010
2002-001013
2002-001017
2002-001017
2003-000586
2003-000586
2003-001024
2003-001024
2003-002044
2003-002153
2003-002156
2003-002156
2003-002158
2003-002159
2004-001369
2004-001386
2004-001395
2004-001408
2004-001892
2004-001892
2004-001897
2004-001897
2004-001984
2004-001984
2004-001984
2004-002011
2004-004001
2004-004046
2004-004046
2004-004366
2008-000252
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000290
2008-001018
2008-001053
2008-001087
2008-001137
Remark
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x
R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12
R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M
R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm
R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R405
RR471S
RR402S
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C478
C479
C477
CS801
C493
C412
C831
C460
C311
C487
C309
C838
C865
C303
C301
C429
C428
C480
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
Description ; Specification
2009-001109
2103-001024
2103-001086
2201-000119
2201-000119
2201-000119
2201-000119
2201-000132
2201-000132
2201-000132
2201-000132
2201-000132
2201-000138
2201-000146
2201-000146
2201-000180
2201-000180
2201-000017
2201-000017
2201-000017
2201-000332
2201-000332
2201-000332
2201-000370
2201-000406
2201-000551
2201-000551
2201-000551
2201-000551
2201-000551
2201-000558
2301-000020
2301-000200
2301-000213
2301-000356
2301-000356
2301-000383
2301-001216
2303-000331
2305-000149
2305-000178
2305-000285
2305-000412
2305-000427
2305-000427
2305-000427
2305-000704
2306-000122
2306-000122
2401-000164
2401-000262
2401-000262
2401-000302
2401-000302
2401-000360
2401-000360
2401-000365
2401-000365
2401-000480
2401-000603
2401-000660
2401-000703
2401-001026
2401-001026
2401-001192
2401-001397
2401-001428
2401-001527
2401-001622
2401-000025
2401-001989
2401-002144
2401-002144
2401-002216
2401-002216
2401-000050
2401-002288
Remark
R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6
VR-SEMI;50Kohm,25%,0.3W,TOP
VR-SEMI;100KOHM,25%,0.3W,TOP
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;0.22NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3
C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0
C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.
C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;1000uF,20%,25V,WT,TP,12.5x20,5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;470uF,20%,50V,GP,TP,10x20,5
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;470uF,20%,25V,WT,TP,10x20,5
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C701
C701
C701
C701
L431
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
G101
G101
G101
G101
G101
G101
G101
FD801S
FD871S
FD854S
FD805S
F801B
F801A
CN906
EY45
EY44
EY43
EY36
EY35
EY34
EY31
EY30
EY67
EY66
EY65
EY64
EY50
EY49
EY47
EY46
EY21
EY20
EY19
EY18
EY17
EY16
EY155
EY154
EY29
EY28
EY27
EY26
EY25
EY24
EY23
EY22
EY91
EY90
EY89
EY88
EY87
EY86
EY85
EY99
EY98
EY97
EY96
EY95
EY94
EY93
EY92
Code No.
Description ; Specification
2401-002288
2401-002300
2401-002463
2401-003114
2701-000116
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000299
3301-000287
3301-000287
3301-000287
3301-000287
3301-000287
3301-000374
3301-000374
3601-000120
3601-001086
3601-001086
3601-001086
3602-000114
3602-000114
3711-002645
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Samsung Electronics
Remark
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,250V,WT,TP,10x16,5
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
EY75
EY74
EY73
EY72
EY71
EY70
EY69
EY68
EY82
EY81
EY80
EY79
EY78
EY77
EY76
EY153
EY111
EY11
EY109
EY108
EY107
EY106
EY12
EY119
EY118
EY117
EY116
EY115
EY114
EY113
EY08
EY07
EY06
EY05
EY04
EY03
EY02
EY01
EY105
EY104
EY103
EY102
EY101
EY100
EY10
EY09
EY141
EY140
EY14
EY139
EY138
EY137
EY136
EY135
EY152
EY151
EY150
EY15
EY149
EY148
EY147
EY142
EY127
EY126
EY125
EY124
EY123
EY122
EY121
EY120
EY134
EY133
EY132
EY131
EY128
EY129
EY13
Code No.
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Description ; Specification
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-23
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-24
EY130
EY83
EY84
EY32
EY37
EY38
EY52
EY53
EY54
EY55
EY51
EY42
EY41
EY40
EY63
EY62
EY61
EY60
EY59
EY58
EY57
EY56
EL08
EL07
EL06
EL05
EL04
EL03
EL02
EL01
EY39
EL16
EL15
EL14
EL10
EL11
EL12
EL13
GT35
GT34
GT33
GT404
GT801
GT802
GT810
GT811
GT14
GT15
GT16
GT17
GT807
GT433
T0083
R024
R024
R462
R125
C701
C701
C871
C701
R431
G101
R833
C701
FD802S
FD855S
R306
R125
R427
R427A
C701
R424
C432
C438
R440
R831
Code No.
Description ; Specification
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
0402-001286
2004-001893
2004-001402
2008-001145
2001-000745
2401-002619
2401-001655
2305-000289
2401-001486
2001-001153
3301-000287
2009-000017
2401-001625
3601-001228
3601-001228
2008-001076
2001-000554
2003-002152
2003-002152
2401-000698
2008-000289
2303-000002
2303-000002
2008-000282
2003-000512
Remark
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP
R-METAL(S);22Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;680uF,20%,25V,GP,TP,10x20,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
C-AL;2200uF,20%,16V,WT,TP,12.5x25,5
R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
.....5
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
R832
R425
R853
0
R024
RS801S
R840
R841
R024
R801
DZ016
Q409
Q409
Q431
T0083
T0060
T0090
CIS
CIS
CIS
TS801S
PC801S
PC811S
DU410
T0086
IC851
C598
C598
C598
C598
CR471S
CR436S
C491
CR473S
CR474S
L862
L863
LX801S
LX802S
LX803S
LX804S
C701
L864
T0086
IC421
T0083
IC012
T0081
C814
DZS801
T801S
CR430S
CR431S
T432
T0076
T0121
T0090
T0123
T0121
GT01
CN906
C598
C598
IC012
C701
VX801S
C832
L432
R384
Q473
CIS
T0090
Q409
T0081
Code No.
Description ; Specification
Remark
2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
2003-000417 R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1
2008-001152 R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6
AA41-00598D PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245 S.N.A
2004-005051 R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4
3601-000102 FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS
2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
2003-002102 R-METAL OXIDE(S);68Kohm,5%,2W,AF,TP,4x12
2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m
2003-002285 R-METAL OXIDE(S);1.5KOHM,5%,2W,AF,TP,6X1
0403-000698 DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DO0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
BH99-00033H ASSY HEAT/SINK;BH62-00038A,SPRING,FJL692 S.N.A
0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
BH61-70003A SPRING ETC;CVT4857,STS304-W1/2H,W3.8,-,L S.N.A
0502-001230 TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F
BH62-00038B HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80 S.N.A
BH73-00028A SILICON/RUBBER-HS;CDT ALL,SILICON,26*33* S.N.A
0205-001027 OIL-SILICON;G746,-,S.N.A
BP26-00001A TRANS SWITCHING-POWER;19B012,P55A,HCM421
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA
1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14.
2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
2401-000142 C-AL;1000uF,20%,16V,WT,TP,10x20,5
AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300
AA96-00475B ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
2301-001041 C-FILM,PPF;15nF,5%,1.6KV,TP,29x14x21.5,2
0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS
BP26-00002A TRANS SWITCHING;EER5345,P55A,160V~280V,P
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,
BP39-00014A LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
0502-000405 TR-POWER;-,NPN,70W,TO-220,BK,10
1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
BP39-00017A LEAD CONNECTOR;P55A/HCM4215W,UL1617#22,U
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS
2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm
1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP
2301-001418 C-FILM,MPPF;1.5nF,5%,2kV,TP,29x7x13.5mm,
AA27-00056A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C
2002-001079 R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10
BP96-00006B ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A
0205-001027 OIL-SILICON;G746,-,S.N.A
0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,80505-001722 FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
Samsung Electronics
Electrical Parts List
Loc. No.
.....5 CIS
.....5 CIS
...3
....4
....4
....4
...3 T0073
....4
....4 IC802
....4 IC012
....4 C701
....4 C701
....4 X601
....4 CNW01
....4 CNW02
....4 CNZ01
....4 CN901
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 JA703
....4 JA701
....4 JA704
....4 JA702
....4 L802
....4 L801
....4 T0076
....4 T0076
....4 TU02
....4 TU04
....4 TU01
....4
....4
....4
....4
....4
....4
....4 T0104
.....5 T0083
.....5 Q409
.....5 Q409
.....5 IC904
.....5 X901
.....5 CN901
.....5
......6 D905
......6 D906
......6 D920
......6 D923
......6 D602
......6 D901
......6 D902
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 Q915
......6 Q916
......6 Q917
......6 Q920
......6 Q914
......6 Q913
......6 Q910
......6 Q908
......6 Q902
......6 IC112
......6 T0087
......6 IC901
......6 R981
......6 R964
......6 R960
......6 R959
Code No.
Description ; Specification
AA60-30001A
BP62-00001A
AA98-01177B
AA63-10007C
AA69-01808A
AA69-01403A
BP94-00500C
0202-000187
1203-000119
1203-000165
2401-000737
2401-001068
2801-004020
3703-001150
3703-001150
3703-001150
3703-001187
3711-003046
3711-003641
3711-003973
3711-003975
3711-004946
3722-001163
3722-001426
3722-001796
3722-001871
AA27-10001C
AA29-00004A
AA39-20010B
AA39-20010B
AA40-00049A
AA40-00049A
AA59-00164A
AA63-00396B
AA63-00397B
AA63-00610A
AA63-10002A
AA65-30018A
AA65-30111A
AA95-02001K
0402-000274
0505-000109
0505-000109
1203-001943
2801-004071
3703-001175
AA97-07275A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1103-000180
1203-002302
1204-001912
2007-000070
2007-000070
2007-000070
2007-000070
Samsung Electronics
Remark
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG
S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A
ASSY K/D-P/MATERIAL;PJTV(COMANDO),P55A S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90
S.N.A
WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A
ASSY PCB MAIN;HCN4727WSC/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
C-AL;3300uF,20%,50V,GP,BK,22x40,10
CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PIN;9P,3.4mm,NI,BLK,JACK-PIN;7P(10P),-,NI,RD/RD/WH/WH/RD/BL/
JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O
SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,WS.N.A
ASSY SUB-PCB MICOM;,C2
DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH
CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A
ASSY SMD;SVP-47W3HRT,P55A, , ,
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
Loc. No.
......6 R965
......6 R956
......6 R953
......6 R952
......6 R969
......6 R970
......6 R972
......6 R979
......6 R940
......6 R909
......6 R916
......6 R918
......6 R939
......6 R923
......6 R922
......6 R907
......6 R917
......6 R911
......6 R963
......6 R901
......6 R930
......6 R933
......6 R936
......6 R974
......6 R905
......6 R921
......6 R924
......6 R925
......6 R915
......6 R913
......6 R912
......6 R978
......6 R976
......6 R971
......6 R958
......6 R980
......6 R982
......6 R985
......6 R986
......6 R903
......6 R904
......6 R906
......6 R908
......6 R955
......6 R954
......6 R928
......6 R927
......6 R983
......6 R934
......6 R987
......6 R957
......6 R944
......6 R926
......6 R975
......6 R942
......6 R941
......6 R914
......6 R988
......6 R962
......6 R961
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000081
2007-000081
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000097
2007-000121
2007-000123
2007-000123
2007-000123
2007-000290
2007-000583
2007-000939
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000189
2203-000221
2203-000236
2203-000236
2203-000236
Description ; Specification
Remark
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;820ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/8W,TP,2012
R-CHIP;22Kohm,1%,1/10W,TP,1608
R-CHIP;47Kohm,1%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
7-25
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C950
......6 C936
......6 C921
......6 C918
......6 C915
......6 C913
......6 C938
......6 C917
......6 C912
......6 C911
......6 L905
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 R949
......6 R950
......6 R951
......6 R945
......6 R946
......6 R948
......6 R966
......6 PCB
......6
.....5 IC902
.....5
....4 IC801
.....5
.....5 T0087
.....5 T0123
.....5 T0081
.....5
.....5 T0123
....4 IC601
.....5
.....5 T0124
.....5 T0081
.....5
....4
....4
....4 T0095
.....5
.....5 FC48
.....5 FC59
.....5 FC58
.....5 EX01
.....5 T0122
.....5 T0122
.....5 CN02
.....5 CN01
.....5 CN906
.....5 CN906
.....5
......6 FD13
......6 FD14
......6 FD15
......6 FD16
......6 FD17
......6 FD10
......6 FD01
......6 FD02
......6 FD07
......6 FD08
......6 FD09
7-26
Code No.
Description ; Specification
2203-000236
2203-000260
2203-000357
2203-000440
2203-000440
2203-000440
2203-000444
2203-000748
2203-000748
2203-001048
2203-005809
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2703-001245
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-000931
AA41-00599B
0202-001167
1102-001130
0202-000187
AA96-00475C
0205-000129
1203-000293
1203-002003
6003-000334
AA62-00066B
1203-001978
AA96-00623E
0205-000129
1201-001026
6003-000334
AA62-00056A
BP39-00036A
BP63-00030A
BP95-00142N
0202-000187
2305-000011
2305-000704
2309-000138
2801-004019
2802-001177
2802-001179
3703-001124
3703-001124
3711-001164
3711-003601
BP97-00169A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
Remark
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.56NF,10%,50V,C0G,TP,201
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
INDUCTOR-SMD;8.2uH,10%,2x1.25x1.25mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/8W,TP,2012
PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4
ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
LEAD CONNECTOR;J54A/SP42W5HP,UL2547#26,U
SHIELD CASE;COMMANDO,SPTE,T0.5,W26.0,L13 S.N.A
ASSY SUB PCB-PRO SCAN;HCN4727WX/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
C-FILM,MPEF;470nF,5%,250V,TP,21.5X13.0X7
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.
RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;HCM4215WJX/XAA,P55A
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
Loc. No.
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 SQ01
......6 FQ13
......6 FQ04
......6 FQ03
......6 FQ02
......6 FQ08
......6 FQ09
......6 FQ12
......6 PQ01
......6 FQ06
......6 FQ05
......6 EQ15
......6 EQ14
......6 EQ13
......6 FQ07
......6 Q409
......6 Q409
......6 IC104
......6 IC106
......6 IC06
......6 T0087
......6 T0087
......6 IC02
......6 IC01A
......6 IC118
......6 SR08
......6 FR80
......6 FR79
......6 FR78
......6 FR57
......6 FR35
......6 FR07
......6 ER90
......6 FR76
......6 FR96
......6 SR09
......6 SR22
......6 ER29
......6 ER04
......6 ER05
......6 ER06
......6 ER13
......6 ER19
......6 ER18
......6 ER17
......6 SR03
......6 SR04
......6 SR05
......6 SR06
......6 SR10
......6 SR11
......6 SR02
......6 FR71
......6 FR74
......6 FR75
......6 FR81
......6 FR82
......6 SR01
......6 SR49
......6 SR53
......6 SR75
......6 YR43
......6 YR44
......6 YR45
......6 SR48
......6 SR31
......6 SR32
......6 SR33
......6 SR34
......6 SR35
......6 SR47
Code No.
Description ; Specification
0403-000746
0403-001016
0403-001117
0403-001117
0403-001117
0403-001117
0501-000280
0501-000280
0501-000280
0501-000280
0501-000280
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000727
0505-000110
0505-000110
0801-000662
1001-001082
1203-001211
1203-002186
1203-002302
1204-001814
1204-001938
1204-001989
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
Remark
DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1
IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL
IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS
IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM
IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
......6 ER84
......6 FR01
......6 FR02
......6 FR16
......6 FR17
......6 FR18
......6 ER83
......6 CR83
......6 CR84
......6 ER08
......6 ER15
......6 ER16
......6 ER82
......6 FR37
......6 FR38
......6 FR39
......6 FR53
......6 FR54
......6 FR56
......6 FR34
......6 FR19
......6 FR20
......6 FR21
......6 FR33
......6 FR32
......6 FR31
......6 SR74
......6 SR21
......6 FR66
......6 ER28
......6 ER27
......6 ER26
......6 SR07
......6 FR40
......6 FR72
......6 FR73
......6 FR62
......6 FR45
......6 FR44
......6 ER92
......6 ER91
......6 FR42
......6 FR41
......6 PR01
......6 FR60
......6 FR22
......6 FR09
......6 FR58
......6 ER24
......6 ER25
......6 FR77
......6 PR02
......6 ER20
......6 ER21
......6 ER22
......6 ER23
......6 FR63
......6 FR70
......6 FR47
......6 FR46
......6 FR15
......6 FR14
......6 FR13
......6 FR10
......6 FR11
......6 FR12
......6 SR73
......6 SR26
......6 SR25
......6 SR23
......6 FR36
......6 FR43
......6 ER14
......6 SR36
......6 SR37
......6 SR38
......6 SR39
Code No.
Description ; Specification
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000080
2007-000080
2007-000081
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000086
2007-000086
2007-000090
2007-000090
2007-000090
2007-000090
2007-000092
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000118
2007-000124
2007-000124
2007-000124
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000259
2007-000309
2007-000309
2007-000309
2007-000691
2007-000869
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
Samsung Electronics
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;15Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.6Kohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
Remark
Loc. No.
......6 SR40
......6 ER12
......6 EC30
......6 EC31
......6 ER03
......6 ER11
......6 ER10
......6 ER09
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000491
2203-000491
2203-000491
2203-000575
2203-000575
2203-000575
Description ; Specification
Remark
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
7-27
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 FC09
......6 PC18
......6 FC60
......6 FC29
......6 FC13
......6 SC38
......6 SC36
......6 SC34
......6 SC40
......6 SC42
......6 SC44
......6 SC47
......6 SC31
......6 PC01
......6 PC03
......6 PC06
......6 PC32
......6 SC18
......6 SC16
......6 SC11
7-28
Code No.
Description ; Specification
2203-000575
2203-000626
2203-000626
2203-000681
2203-000681
2203-000681
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000896
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000998
2203-000998
2203-000998
2203-000998
2203-001140
2203-001222
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-005384
2203-005384
2203-005384
2203-005809
2402-000170
2402-000173
2402-000173
2402-000173
2402-000173
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
Remark
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
Loc. No.
......6 FC63
......6 FC62
......6 FC45
......6 FC12
......6 FC04
......6 PC12
......6 PC10
......6 PC09
......6 FC65
......6 FC06
......6 PC08
......6 PC07
......6 FC31
......6 CC49
......6 EL05
......6 EL06
......6 EL07
......6 EL08
......6 EL01
......6 EL02
......6 EL03
......6 EL04
......6 FL01
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 CR27
......6 0
......6
....4 T0093
.....5
.....5 L01
.....5 CN01
.....5 CN906
.....5
......6 D13
......6 D12
......6 D11
......6 D10
......6 D14
......6 D15
......6 D16
......6 D17
......6 D18
......6 D01
......6 D02
......6 D03
......6 D04
......6 D05
......6 D09
......6 D08
......6 D07
......6 D06
......6 DZ016
......6 DZ016
......6 DZ016
......6 Q02
......6 Q03
......6 Q10
......6 Q04
......6 Q409
......6 Q409
......6 Q409
......6 IC104
......6 IC104
......6 IC104
......6 IC08
Code No.
Description ; Specification
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2402-001049
2402-001049
2402-001070
2402-001070
2402-001070
2402-001070
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-001070
3301-001082
3301-001186
3301-001186
3301-001186
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-000033
AA41-00610E
0202-001167
BP95-00146C
0202-000187
2701-001030
3703-001124
3711-003601
BP97-00513D
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0403-001016
0403-001016
0403-001016
0501-000280
0501-000280
0501-000342
0501-000342
0505-000110
0505-000110
0505-000110
0801-002345
0801-002345
0801-002345
1001-000164
Remark
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;100uH,10%,4.5x3.2x3.2mm
CORE-FERRITE BEAD;AB,60OHM,3.2X2.5X1.3MM
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;0ohm,5%,1/4W,TP,3216
PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY SUB PCB-CONV MOD;,P55A,CG MOD
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
INDUCTOR-AXIAL;43uH,10%,5x14mm
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;,P55A,CG MOD
S.N.A
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTFET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
Samsung Electronics
Electrical Parts List
Loc. No.
......6 IC13
......6 IC112
......6 DU410
......6 DU410
......6 DU410
......6 DU410
......6 DU410
......6 T0074
......6 IC03
......6 T0087
......6 IC17
......6 R36
......6 R35
......6 R31
......6 R30
......6 R143
......6 R144
......6 R25
......6 R122
......6 R123
......6 R141
......6 R136
......6 R15
......6 R24
......6 R45
......6 R46
......6 R09
......6 R10
......6 R129
......6 R134
......6 R135
......6 R59
......6 R65
......6 R71
......6 R77
......6 R91
......6 R53
......6 R02
......6 R16
......6 R17
......6 R20
......6 R47
......6 R62
......6 R64
......6 R68
......6 R58
......6 R56
......6 R52
......6 R70
......6 R98
......6 R94
......6 R82
......6 R80
......6 R76
......6 R74
......6 R38
......6 R37
......6 R110
......6 R11
......6 R101
......6 R03
......6 R39
......6 R50
......6 R44
......6 R43
......6 R42
......6 R41
......6 R40
......6 R128
......6 R81
......6 R75
......6 R69
......6 R51
......6 R57
......6 R63
......6 R109
......6 R66
Code No.
Description ; Specification
1001-001155
1103-001195
1201-001135
1201-001504
1201-001504
1201-001504
1201-001504
1201-001520
1203-001824
1203-002302
1209-001163
2007-000028
2007-000028
2007-000028
2007-000028
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000079
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000082
2007-000084
Samsung Electronics
Remark
IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC
IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10
IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Loc. No.
......6 R61
......6 R60
......6 R55
......6 R54
......6 R79
......6 R78
......6 R73
......6 R72
......6 R67
......6 R49
......6 R08
......6 R07
......6 R06
......6 R04
......6 R01
......6 R48
......6 R133
......6 R121
......6 R119
......6 R118
......6 R86
......6 R92
......6 R93
......6 R96
......6 R97
......6 R85
......6 R113
......6 R114
......6 R115
......6 R83
......6 R84
......6 R125
......6 R05
......6 R127
......6 R100
......6 R32
......6 R34
......6 R29
......6 R28
......6 R117
......6 R107
......6 R33
......6 R120
......6 R90
......6 R89
......6 R88
......6 R87
......6 R108
......6 R139
......6 R138
......6 R137
......6 R99
......6 R95
......6 R126
......6 R27
......6 R26
......6 R116
......6 RN04
......6 RN05
......6 RN06
......6 RN01
......6 RN02
......6 RN03
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000091
2007-000102
2007-000109
2007-000118
2007-000119
2007-000122
2007-000122
2007-000122
2007-000122
2007-000122
2007-000124
2007-000124
2007-000133
2007-000133
2007-000133
2007-000133
2007-000381
2007-000402
2007-000402
2007-000402
2007-000704
2007-000704
2007-000857
2007-001167
2007-001167
2007-001179
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
Description ; Specification
Remark
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;12Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;13Kohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.3Kohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
7-29
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C38
......6 C40
......6 C70
......6 C84
......6 C14
......6 C06
......6 C03
......6 C01
......6 C80
......6 OSC01
......6 F103
......6 F103
......6 F103
......6 F103
7-30
Code No.
Description ; Specification
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000257
2203-000257
2203-000257
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000440
2203-000575
2203-000575
2203-000975
2203-000975
2203-000975
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001083
2203-001083
2203-001083
2203-001083
2203-001245
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2804-001479
2901-000226
2901-000226
2901-000229
2901-000229
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
Loc. No.
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 T0119
......6 1
......6 IC125
......6
....4 IC808
.....5 CIS
.....5 T0081
.....5 CIS
.....5 IC012
....4
.....5 D607
.....5 D608
.....5 D609
.....5 D601
.....5 D604
.....5 D605
.....5 T0083
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 Q603
.....5 Q602
.....5 Q601
.....5 R125
.....5 R810
.....5 R808
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R801
.....5 R674
.....5 R677
.....5 R682
.....5 R681
.....5 R811
.....5 R814
.....5 R805
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 C695
.....5 C694
.....5 C689
.....5 C687
.....5 C682
.....5 C701
Code No.
Description ; Specification
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
AA09-00032A
AA41-00717D
BP13-00003A
0202-001167
BP96-00020G
0205-000129
6003-000334
AA62-00045B
1203-000203
BP97-00511F
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0403-000700
0403-001039
0403-001319
0403-001325
0501-000389
0501-000389
0501-000389
2001-000007
2001-000066
2001-000066
2001-000273
2001-000290
2001-000290
2001-000290
2001-000290
2001-000331
2001-000508
2001-000522
2001-000577
2001-000660
2001-000734
2001-000734
2001-000734
2001-000739
2001-000739
2001-000739
2001-000739
2001-000739
2001-000780
2001-000780
2001-000812
2001-000812
2001-000812
2001-001000
2001-001077
2001-001103
2001-001103
2001-001146
2001-001146
2001-001182
2003-001098
2004-000970
2004-001390
2004-001390
2004-001970
2004-001970
2004-001970
2004-001970
2301-000192
2301-000192
2305-000665
2305-000665
2305-000665
2401-000025
Remark
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-,
S.N.A
PCB (FR 4) 4L(AU);CONVERGENCE,FR-4,4,1.6
S.N.A
IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY HEAT SINK P;AA62-00045B,TAPTITE,SIS.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;COMMANDO,AL1050,T1.0,H45.0
S.N.A
IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
ASSY AUTO;0
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16
R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
Description ; Specification
2401-000025
2401-000025
2401-000025
2401-000039
2401-000039
2401-000192
2401-000192
2401-000302
2401-000302
2401-000360
2401-000360
2401-000471
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000603
2401-000603
2401-000603
2401-000603
2401-000603
2401-000832
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-001192
2401-001397
2401-001513
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-002075
2401-002075
2401-002075
2401-002075
2401-002144
2401-002300
2401-002300
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002463
2401-002463
2401-002594
2401-002619
2401-002619
2401-002619
2401-002619
2401-002619
Samsung Electronics
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
Remark
Loc. No.
.....5 L105
.....5 L119
.....5 L120
.....5 L121
.....5 L122
.....5 L123
.....5 L124
.....5 L107
.....5 L108
.....5 L111
.....5 L114
.....5 L113
.....5 L112
.....5 L703
.....5 L106
.....5 L104
.....5 L103
.....5 L101
.....5 L706
.....5 L705
.....5 L102
.....5 G101
.....5 G101
.....5 G101
.....5 CN906
.....5 CN906
.....5 CN906
.....5 CN906
.....5 GT01
.....5 GT02
.....5 GT03
.....5
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 Q703
......6 Q704
......6 Q707
......6 Q708
......6 Q709
......6 Q710
......6 Q101
......6 Q103
......6 Q106
......6 IC106
......6 IC106
......6 IC605
......6 IC704
......6 IC705
......6 DU410
......6 IC602
......6 R789
......6 R788
......6 R777
......6 R776
......6 R775
......6 R791
......6 R97C
......6 R904
......6 R79B
......6 R795
......6 R794
......6 R729
......6 R145
......6 R143
Code No.
Description ; Specification
2701-000106
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000115
2701-000115
2701-000115
2701-000115
2701-001030
2701-001030
2701-001040
3301-000287
3301-000287
3301-000287
3711-002642
3711-002642
3711-002643
3711-002645
AA60-40014A
AA60-40014A
AA60-40014A
BP97-00513Q
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-001016
0403-001016
0403-001016
0403-001016
0403-001016
0403-001117
0403-001117
0403-001117
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1001-001177
1001-001177
1001-001178
1002-001048
1002-001048
1201-000541
1204-002002
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
Remark
INDUCTOR-AXIAL;1.5uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
ASSY SMD;HCN4226WX/XAA,P55A
S.N.A
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
7-31
Electrical Parts List
Loc. No.
......6 R117
......6 R101
......6 R712
......6 R708
......6 R706
......6 R148
......6 R646
......6 R647
......6 R703
......6 R627
......6 R626
......6 R625
......6 R624
......6 R707
......6 R773
......6 R772
......6 R757
......6 R756
......6 R724
......6 R722
......6 R709
......6 R602
......6 R115
......6 R114
......6 R113
......6 R108
......6 R107
......6 R103
......6 R102
......6 R116
......6 R601
......6 R172
......6 R171
......6 R170
......6 R127
......6 R126
......6 R125
......6 R730
......6 R166
......6 R150
......6 R157
......6 R652
......6 R651
......6 R643
......6 R642
......6 R641
......6 R653
......6 R798
......6 R797
......6 R793
......6 R728
......6 R637
......6 R630
......6 R629
......6 R628
......6 R603
......6 R106
......6 R631
......6 R636
......6 R635
......6 R634
......6 R633
......6 R632
......6 R755
......6 R771
......6 R774
......6 R780
......6 R604
......6 R611
......6 R688
......6 R750
......6 R749
......6 R748
......6 R747
......6 R746
......6 R744
......6 R743
7-32
Code No.
Description ; Specification
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
Remark
Loc. No.
......6 R741
......6 R739
......6 R164
......6 R165
......6 R149
......6 R151
......6 R155
......6 R156
......6 R716
......6 R704
......6 R110
......6 R105
......6 R762
......6 R745
......6 R742
......6 R740
......6 R738
......6 R612
......6 R607
......6 R609
......6 R608
......6 R109
......6 R104
......6 R767
......6 R754
......6 R753
......6 R752
......6 R605
......6 R610
......6 R751
......6 R713
......6 R710
......6 R702
......6 R701
......6 R174
......6 R173
......6 R714
......6 R799
......6 R792
......6 R731
......6 R727
......6 R726
......6 R725
......6 R133
......6 R132
......6 R121
......6 R120
......6 R119
......6 R118
......6 R134
......6 R142
......6 R140
......6 R138
......6 R137
......6 R613
......6 R606
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
Description ; Specification
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000098
2007-000098
2007-000127
2007-000127
2007-000127
2007-000127
2007-000127
2007-000134
2007-000134
2007-000329
2007-000329
2007-000828
2007-000828
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001179
2007-001179
2203-000140
2203-000140
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
Remark
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
Samsung Electronics
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 L701
......6 L707
......6 L708
......6 L901
......6 L902
......6 L604
......6 L125
......6 L126
......6 L601
......6 L602
......6 L603
......6 G101
......6 PCB
......6
..2 T0094
...3
...3 CN906
...3 CN906
...3 CN906
Code No.
Description ; Specification
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000332
2203-000332
2203-000440
2203-000440
2203-000440
2203-000440
2203-001071
2203-001071
2203-001071
2203-001211
2203-001211
2203-001211
2203-001211
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-005590
2203-005590
2203-005590
2203-005590
2203-005590
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001324
AA41-00597F
0202-001167
BP94-00155A
0202-000187
3711-003043
3711-003043
3711-003043
Samsung Electronics
Remark
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
ASSY PCB MISC-CG-AMP;DP,HCM4215W3S/XAA,P
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
Loc. No.
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
CN906
CN906
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RZ109
RZ108
RZ107
RZ106
RZ105
RZ104
R857
R856
RZ142
RZ143
RZ144
RZ145
RZ146
RZ147
RZ123
RZ124
RZ125
RZ128
RZ127
RZ126
RZ132
RZ132A
RZ148
RZ148A
RZ149
RZ149A
RZ129
RZ129A
RZ130
RZ131A
RZ131
RZ130A
RFZ50
RFZ51
RFZ52
RFZ53
RFZ19
RFZ20
RFZ21
RFZ22
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
CZ113
Code No.
Description ; Specification
3711-003043
3711-003046
AA65-30110A
AA97-07418A
2001-000563
2001-000563
2001-000563
2001-000563
2001-000563
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001155
2001-001155
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2201-000327
2201-000327
2201-000327
2201-000327
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000205
2202-000205
2202-000205
2202-000205
2202-000205
2202-000561
Remark
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
ASSY AUTO;HCM4215WX/XAA,P55A
S.N.A
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
7-33
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
...3
...3
....4
7-34
CZ114
C701
C701
C701
C701
LZ112
LZ111
LZ110
LZ109
LZ108
LZ107
FD102S
FD101S
ELZ01
ELZ02
ELZ03
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
R125
0
SGZ101
T0076
T0076
CZ101
T0081
CIS
CIS
CIS
T0074
T0099
VR561
VR531
VR501
T0121
V561
V531
V501
CN906
CN906
CN906
CN906
CN906
CN906
SG301
SG562
SG532
SG502
T0076
T0076
T0076
T0076
T0076
T0076
T0076
T0076
Q371
T0090
T0081
IC561
IC531
IC501
T0074
Code No.
Description ; Specification
2202-000561
2401-000183
2401-000183
2401-000962
2401-000962
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
3601-001065
3601-001065
6042-000002
6042-000002
6042-000002
2202-000825
2202-000825
2202-000825
2202-000825
2202-000825
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2001-000800
AA41-00601C
4715-000106
BP39-00005A
BP39-00015A
BP61-00076A
BP61-00077A
BP96-00005A
6003-001021
BP62-00002A
BP62-00008A
BP73-00002A
1201-001225
BP94-00234A
0202-000187
2101-000321
2101-000321
2101-000321
3301-001201
3704-001019
3704-001019
3704-001019
3711-002645
3711-002648
3711-003052
3711-003052
3711-003973
3711-003973
4715-001050
AA27-00084A
AA27-00084A
AA27-00084A
AA39-00112A
AA39-00120F
AA39-00198D
AA39-20010B
AA39-20010D
AA39-20010D
AA39-20027B
AA39-20031D
AA69-01396A
AA96-00244H
0205-000129
0502-000442
6003-000335
AA62-00046A
AA96-50311L
AA96-50311L
AA96-50311L
1201-001131
Remark
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB;HCM4215W,PCB,CEM-1,1L,C,1.6,245X245, S.N.A
SURGE ABSORBER;300V,210-390V,-,-,AXIAL
S.N.A
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL2547
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1185
HOLDER-PUSH,A;42W5,NYLON6.6,NATURAL
S.N.A
HOLDER-PUSH,B;42W5,NYLON6.6,NATURAL
S.N.A
ASSY HEAT SINK P;BP62-00002A,SCREW,STK39 S.N.A
SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H14 S.N.A
HEAT SINK;COMMANDO CG AMP,AL6063,T2.0,W S.N.A
SILICON/RUBBER;COMMANDO CG AMP,SILICON ,.N.A
IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS
ASSY PCB MISC-CRT;DP,HCM4215W3S/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
CORE-FERRITE;AE,21x11x32mm,1500,280G
SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,10
LEAD CONNECTOR-ASSY;SIR-T165,UL1007#26,U
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1617
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,6P,400,67096-006,S,
LEAD CONNECTOR-ASSY;,9P,500,67096-009,S,
BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO S.N.A
ASSY H/S;SCREW,2SC4636(2),CRT,SLICON-OIL S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
Loc. No.
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0081
D372
D504
D509
D361
D362
D371
D510
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q563
Q534
Q533
Q504
Q361
Q362
Q502
T0090
T0090
T0090
R125
R125
R125
R125
R584
R554
R524
R580
R550
R520
R577
R547
R517
R366
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R581
R551
R521
R371
R370
R369A
R367
R368
Code No.
Description ; Specification
6003-000334
AA62-30175D
AA97-07608A
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000493
0402-000493
0402-000493
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0403-000508
0403-000508
0403-000508
0403-000708
0403-000708
0403-000708
0403-000708
0501-000283
0501-000283
0501-000283
0501-000283
0501-000283
0501-000366
0501-000389
0502-000006
0502-000006
0502-000006
2001-000009
2001-000009
2001-000009
2001-000009
2001-000028
2001-000028
2001-000028
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000109
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000539
2001-000577
2001-000613
2001-000613
2001-000660
2001-000723
2001-000734
2001-000734
2001-000734
2001-000734
2001-000938
2001-000995
2001-000995
2001-001015
2001-001052
2001-001052
2001-001052
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
Remark
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
S.N.A
ASSY AUTO-CRT;HCM4215W
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R369
R567
R537
R507
R381
R361
R374
R373
R372
R377
R375
R365
R574
R544
R514
R583
R582
R553
R552
R523
R522
R589
R559
R529
R575
R545
R515
R579
R578
R549
R518
R519
R548
R588
R538
R508
R024
R024
R024
R573
R543
R513
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C565
C535
C505
C507
C537
C567
C361
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L531
L501
SG561
SG563
SG533
Code No.
Description ; Specification
2001-001065
2001-001088
2001-001088
2001-001088
2001-001088
2001-001097
2001-001110
2001-001110
2001-001110
2001-001110
2001-001113
2001-001120
2001-001122
2001-001122
2001-001122
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001015
2002-001015
2002-001015
2002-001017
2002-001017
2002-001017
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2003-000738
2003-000738
2003-000738
2004-001892
2004-001892
2004-001892
2008-001129
2008-001129
2008-001129
2201-000119
2201-000119
2201-000119
2201-000556
2201-000723
2201-000723
2201-000723
2201-000983
2201-000983
2201-000983
2305-000149
2305-000149
2305-000149
2305-000154
2305-000154
2305-000154
2306-000122
2401-002075
2401-002075
2401-002075
2401-000133
2401-000302
2401-000302
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-001621
2701-000114
2701-000114
4715-001036
4715-001036
4715-001036
Samsung Electronics
Remark
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;6.8uF,20%,450V,GP,TP,13x20,5
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
SG501
SG503
SG531
EL06
EL03
EL563
EL537
EL536
EL535
EL564
EL565
EL566
EL567
EL534
EL01
EL02
EL04
EL05
EL533
EL505
EL504
EL503
GT537
GT561
GT536
GT535
GT534
GT562
GT568
GT567
GT564
GT563
GT503
GT502
GT501
GT373
GT372
GT371
GT504
GT533
GT532
GT531
GT506
GT374
GT375
R125
R125
R125
DZ016
DZ016
DZ016
R566
R536
R506
R125
R125
C598
C598
C598
C701
C701
C701
R125
R125
R125
R125
R125
R125
R125
R125
R125
L561
R382
PCB
T0083
T0076
T0076
Code No.
Description ; Specification
4715-001036
4715-001036
4715-001036
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
2001-000362
2001-000362
2001-000362
0403-000334
0403-000334
0403-000334
2001-001049
2001-001049
2001-001049
2001-000007
2001-000006
2201-000599
2201-000599
2201-000599
2401-001571
2401-001571
2401-001571
2001-000319
2001-000472
2001-000563
2001-000232
2001-000908
2001-000908
2001-000908
2001-000281
2001-000281
2701-000168
2002-001014
AA41-00600E
0402-000243
BP39-00004B
BP39-00004C
Remark
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
R-COMPOSITION;6.8Kohm,10%,1/2W,AA,TP,3.7
PCB-CRT;HCM4215W,FR-1,1L,E,1.6T,245X197(
S.N.A
DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
7-35
Electrical Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
..2
...3
...3
7-36
T0076
T0103
T0076
C701
Code No.
Description ; Specification
Remark
BP39-00004C LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
BP59-00005A MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A
AA39-20010C LEAD CONNECTOR-ASSY;,1P,600,YFH800-01,S,
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
6902-000395 BAG PE;LDPE,T0.05,W200,L140,,,
S.N.A
T0098 BP94-00238A ASSY PCB MISC-VM;DP,HCM4215W3S/XAA,P55A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
RZ120 2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5
T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
T0079 AA33-00017A MAGNET CONVERGENCE;JH 92LT - 29G,-,29.1M
T0076 AA39-20055C LEAD CONNECTOR-ASSY;,6P,500,YBNH025-06,6
QZ102 AA96-00243L ASSY H/S;-,CRT,AA62-000450A,2SC2344,HERC S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0090 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
QZ101 AA96-00243M ASSY H/S;-,AMP,AA62-000450A,2SA1011,HERC S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0090 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
AA97-07230M ASSY AUTO-VM;COMMANDO
S.N.A
DZ106 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DZ105 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DZ102 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
QZ103 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
QZ106 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
QZ105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
QZ104 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
RZ122 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R125
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
RZ110 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
RZ104 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
RZ105 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
RZ106 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
RZ114 2003-000532 R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m
RZ103 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
RZ111 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
RZ123 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
RZ113 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
RZ112 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
RFZ101 2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
C598
2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C598
2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C598
2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C598
2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C598
2201-000604 C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T
C701
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C701
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C701
2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C701
2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C701
2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C701
2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5
C701
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
LZ101 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
PCB
AA41-00611A PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P S.N.A
T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
T0105 BP94-00239A ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA,
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
GT13
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
Loc. No.
...3
...3
...3
...3
...3
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
....4
GT09
GT05
GT01
R301
R302
R303
PCB
T0098
T0121
SWY08
SWY07
SWY06
SWY05
SWY04
SWY03
SWY01
CN906
CN906
CN906
RMY01
T0076
CNW02
T0076
DZ016
DZ016
QY01
RY07
RY09
R125
R125
R125
R125
R125
RY08
C701
PCB
T0100
SW101
CN906
CN906
JK101
JK102
T0081
T0076
T0076
R125
PCB
T0105
T0150
CIS
LEDY04
LEDY03
LEDY02
LEDY01
SWY02
CN906
PCB
T0096
Q409
Q409
DX301
DX701
CN906
DD512
Code No.
Description ; Specification
AA60-40012D
AA60-40012D
AA60-40012D
AA61-01197A
AA97-07230N
2001-001107
2001-001107
2001-001107
AA41-00632A
BP94-00517Z
0202-000187
3301-001201
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3711-000447
3711-000479
3711-003353
AA32-00012A
AA39-00223C
AA39-00259B
AA39-20020D
BP97-00511H
0403-000510
0403-000510
0504-000123
2001-000020
2001-000109
2001-000429
2001-000832
2001-000832
2001-000832
2001-000924
2001-001108
2401-002009
BP41-00023A
BP94-00559A
0202-000187
3404-000208
3711-000447
3711-003601
3722-000544
3722-001164
6003-001023
AA39-00257C
AA39-00260A
AA63-10002A
AA97-07429A
2001-000006
AA41-00499B
BP96-00007G
AA61-01128C
AA64-02086S
AA64-02780C
BP94-00564C
0601-001381
0601-001381
0601-001381
0601-001381
3404-001006
3711-000479
AA61-01140E
BP41-00022A
BP95-00075A
0202-000187
0505-000109
0505-000109
2801-001385
2801-001385
3711-002643
AA69-01396B
BP97-00166A
0401-000133
Remark
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
HOLDER-PCB,DY;COMANDO,ABS V0,BLK
S.N.A
ASSY AUTO;COMMANDO
S.N.A
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
PCB-DY CONNECTION;HCM4215W,FR-1,1L,A,1.6 S.N.A
ASSY PCB MISC-CONTROL;DP,HCN4226W,P55A,K
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,5P,1R,2.5mm,ANGLE,CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,
MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL10
LEAD CONNECTOR;SVP-43W6,UL1007#26,UL/CSA
LEAD CONNECTOR-ASSY;,5P,600,67096-005,S,
ASSY AUTO;HCN4226WX/XAA,P55A
S.N.A
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PCB;SVP-43W8,PCB-CONTROL,1L,1.6T,330*245 S.N.A
ASSY PCB MISC-A/V FRONT;DP,HCN4226W,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
JACK-VHS;4P,11.5mm,AG,BLK,N
JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL25
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
ASSY AUTO-A/V FRONT;HCM4215WX/XAA,P55A S.N.A
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB-FRONT A/V;SVP-54T6SR,FR-1,1L,A,1.6T,
S.N.A
ASSY COVER P-SIDE,JACK;42W5,ABS HB G3676
HOLDER-SIDE AV;42W5,ABS HB,G3676,SV-704P S.N.A
INLAY-AV;42W5,PS SHEET,T0.5,P55A,S/PG
S.N.A
DOOR-AV;42W5,ABS HB,G3676,SV-704P
ASSY PCB MISC-POWER S/W;DP, HCN4226W,P55
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
LED;ROUND,RED/GRN,5.0MM,650/563NM
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,ANGLE,CASE-PS BOX;ANTISTATIC,PS,295,295,32
S.N.A
PCB;SVP-43W8,PCB-MASTER-S/W,1L,1.6T,245* S.N.A
ASSY SUB-DVI;DP,HCM4215WJX/XAA,P55A,DVI
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
BAG PE;SKD CHASSIS,LDPE,T0.03,130,130,NO S.N.A
ASSY SMD;HCM4215WJX/XAA,DVI-AUTO,P55A S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
DD511
DD510
DD509
DD513
DD514
DD515
DD516
DD501
DD502
DD503
DD504
DD508
DD507
DD506
DD505
DD901
DZ016
DZ016
DZ016
IC104
IC01
IC112
T0123
IC05
T0123
DR514
DR515
DR516
DR517
DR501
DR502
DR504
DR506
DR513
DR512
DR510
DR109
DR301
DR901
DR519
DR518
DR511
DR508
DR701
DR520
DR509
DR210
DR702
DR703
DR704
DR706
DR707
DR201
DR202
DR203
DR204
DR205
DR209
DR208
DR207
DR206
DR902
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
Code No.
Description ; Specification
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000160
0403-001016
0403-001016
0403-001016
0801-002345
1002-001333
1103-000180
1203-001419
1203-001824
1203-002351
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000071
2007-000072
2007-000072
2007-000072
2007-000078
2007-000079
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000102
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
Samsung Electronics
Remark
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLIC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-A/D&D/A CONVERTER;GM7030,10BIT,PQFP,1
IC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;22ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
DC420
DC417
DC413
DC410
DC407
DC406
DC404
DC402
DC706
DC701
DL701
DL409
DL408
DL406
DL404
DL401
G101
T0119
CR501
G101
G101
G101
G101
DR705
DR708
DR503
DR505
DR507
DR521
DR522
0
CN906
T0121
IC112
Code No.
Description ; Specification
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000626
2203-000626
2203-000626
2203-000998
2203-000998
2203-000998
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-001129
2402-001155
2404-001020
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001202
BP09-00004A
2402-000108
3301-001593
3301-001593
3301-001593
3301-001593
2007-000070
2007-000070
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
AA41-00793B
0202-001167
3711-003641
3301-001201
AA63-10002A
1103-001211
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,120ohm,4.5x3.2x1.3m
IC MICOM;T89C51IC2-SLSCM,44,5V,32KBYTE,P
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.4
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
PCB;HCN473,PCB-DVI,2L,1.6T,245*180,P55A,
S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CORE-FERRITE;AE,21x11x32mm,1500,280G
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
IC-EEPROM;24C16-PC27 C,2048x8Bit,DIP,8P,
7-37
Electrical Parts List
Loc. No.
...3
...3
..2
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
...3
T0076
PL1
Q01
PCB
D01
R01
R02
R03
CN906
Code No.
Description ; Specification
AA39-20032B
3701-001173
BP95-00147D
0202-000187
AA69-01808B
BP97-00208A
0501-000342
AA41-00853A
BP32-00001A
2007-000305
2007-000109
2007-000109
0202-001167
3711-000447
Remark
LEAD CONNECTOR-ASSY;,12P,300,67096-012,S
CONNECTOR-DSUB;24P,3R,FEMALE,ANGLE,AUF
ASSY SUB PCB-SENSOR;DP,P54A,SENSOR
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,800,50
S.N.A
ASSY SMD;0
S.N.A
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTPCB-SERSOR;SVP-42W5HRC,FR-4,2L,A,1.6T,24 S.N.A
SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U
R-CHIP;10Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SNS.N.A
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-
ASSY P/MATERIAL
1
BP92-00542C ASSY P/MATERIAL;HCN4226W5S/XAA,P55A
S.N.A
..2
..2
...3
..2
..2
..2
AA60-40006A
AA61-00049B
AA61-20285A
AA63-10007C
AA69-00305A
AA69-00744L
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
HOLDER-BOX;-,PP,-,-,-,NTR,V0,AA61-20285A
HOLDER-BOX;3456,PP,-,-,-,WHT,VO
BAND-PP;W18,CLEA,1G
BAG AIR;ALL,LDPE,1000,500,CLR,
BAG-SHEET;-,HDPE PE FOAM,T0.015,W1650,H1
ASSY ACCESSORY
1
..2
..2
..2
...3
...3
..2
..2
..2
..2
..2
M0016
T0116
T0074
T0122
T0119
T0113
CIS
BP92-00577Q ASSY ACCESSORY;0
6902-000018
AA39-00006A
AA59-00262A
2802-000194
AA09-00275A
AA61-20126A
AA68-00371C
AA68-40065B
AA69-30009C
BP68-00054A
S.N.A
BAG PE;LDPE,T0.1,W280,L400,GRY,8,2S.N.A
CABLE RCA;,3000MM
REMOCON;,TM63,COMMONDO,48,G6671B,EX,S/S
RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
IC MICOM;Z86L8808SSC-R51PX,SOP,ST,SZTM-8
HOLDER-LEG;-,ABS,-,-,-,BLK,HB
CARD WARRANTY-01;,SEA,W/P100(G),1 YEAR S.N.A
CARD-REGISTRATION;,SEA,A5,ENG,A/P220,2P( S.N.A
BAG-SHEET;LDPE,T0.08,W150,L120,-,-,S.N.A
MANUAL USERS;HCM473WJX,ENG,W/P100G,P55A,
ASSY K/D-ASSY,CRT
1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
...3
...3
...3
....4
.....5
.....5
.....5
...3
...3
...3
...3
..2
...3
7-38
BP98-00091A ASSY K/D-ASSY,CRT;HCM4215W3S/XAA,P55A
T0262
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
T0078
T0117
T0261
BP98-00084A
AA03-00200A
AA33-00016A
AA39-00018A
AA60-00126B
AA60-00127B
AA60-00128B
AA60-10011A
AA61-00056B
AA61-00810B
AA61-00845A
AA61-00806B
AA63-10007C
AA63-00076A
AA67-00187A
AA67-00188A
AA91-00735B
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP61-00091A
BP61-00079A
AA27-00249A
AA26-30006F
BP98-00085A
AA03-00201A
ASSY K/D-CRT-R;HCM4215W3S/XAA
CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH,
MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SPACER-CRT;PROJ(65),SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
HOLDER-CAP;PROJ,PC,CLR
CASE-COUPLER,R;DP,PROJ,AA61-00806B
CASE-COUPLER,R;PROJ,ALDC,T8,BLK
BAND-PP;W18,CLEA,1G
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,RED C ELEMENT
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,SPRING ETC-WIRE;PROJ,STS,3.6
HOLDER-CRT;PJTV,PCABS GF20%,BLUE
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
ASSY K/D-CRT-G;HCM4215W3S/XAA
CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH,
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
...3
...3
...3
....4
.....5
.....5
.....5
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
...3
...3
...3
....4
.....5
.....5
.....5
...3
...3
...3
...3
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
T0078
T0117
T0260
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
T0078
T0117
Code No.
Description ; Specification
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA61-00846A
AA61-00807B
AA63-10007C
AA63-00076A
AA67-00187A
AA67-00189A
AA91-00735B
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP61-00079A
AA27-00249A
AA26-30006F
BP98-00086A
AA03-00202A
AA33-00018A
AA39-00018A
AA60-00126B
AA60-00127B
AA60-00128B
AA60-10011A
AA61-00056B
AA61-00810B
AA61-00847A
AA61-00808B
AA63-10007C
AA63-00076A
AA67-00187A
AA67-00190A
AA91-00735B
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP61-00091A
BP61-00079A
AA27-00249A
AA26-30006F
Remark
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
S.N.A
HOLDER-CAP;PROJ,PC,CLR
CASE-COUPLER,G;DP,PROJ,AA61-00807B
S.N.A
CASE-COUPLER,G;PROJ,ALDC,T8,BLK
S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,GREEN C ELEMENT
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
ASSY K/D-CRT-B;HCM4215W3S/XAA
CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH, S.N.A
MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CRT;PROJ(65),SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
HOLDER-CAP;PROJ,PC,CLR
CASE-COUPLER,B;DP,PROJ,AA61-00808B
S.N.A
CASE-COUPLER,B;PROJ,ALDC,T8,BLK
S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A
LENS-ASSY;DELTA71,CLEAR A/B
LENS;DELTA71,CLEAR C ELEMENT
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
HOLDER-CRT;PJTV,PCABS GF20%,BLUE
S.N.A
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
7-3 ST54T8PCS/XAX
Loc. No.
Code No.
Description ; Specification
Remark
ASSY SKD PART
1
AA92-07172AASSY SKD PART;ST54T8PCS/XAX,P55A
..2 T0118
..2
..2
..2
..2
..2 T0066
...3
...3 T0077
...3
AA26-00101A TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR
AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
AA65-30104B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
AA65-30111A CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W
AA96-20112C ASSY POWER CORD;-,EP2/NO,H/C250,KJ10,THA
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA39-10006K CBF POWER CORD;-,KJ-10,SPT-2 2/18AWG,240
AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY K/D-SKD P/MATERIAL
1
AA98-01629A ASSY K/D-SKD P/MATERIAL;SKD FORMAT-3
S.N.A
..2
..2
..2
..2
..2 WO
AA69-00305A BAG AIR;ALL,LDPE,1000,500,CLR,
AA69-00306A BAG AIR;LDPE,-,1800,1000,CLR,ASSY,ALL,AA69-90001A CHEMICALS-SILICAGEL;-,-,-,-,-,M2,5GR,-,AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
AA63-10007C BAND-PP;W18,CLEA,1G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER FRONT
1
M0001 BP90-00142H ASSY COVER FRONT;ST54T8PCS/XAX,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
....4
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
HC+CW 6009-001296 SCREW-SPECIAL;BH,+,-,M4,L12(11),ZPC(BLK)
T0076 AA39-00284A LEAD CONNECTOR-ASSY;SVP-47W3HD,UL2547#26
AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A
T0069 AA60-00091N SPACER-FELT;-,FELT,70X10,-,-,BLK,T1.0,-,
S.N.A
AA61-00618C GUIDE-FLOW;54J8,J7,ABS,IVORY,V0
S.N.A
T0069 AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4
S.N.A
T0069 AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4
S.N.A
T0069 AA63-60131A SPACER-FELT;SVP403J,FELT,-,-,-,BLK,T0.5,
S.N.A
AA65-00016A CLAMPER CORE-CABLE;PJTV,NYLON,NTR,6/6
S.N.A
AA98-00333M ASSY K/D-SPEAKER;20W(3001-001107),8 OHM S.N.A
T0082 3001-001107 SPEAKER;20W,8OHM,95DB,1300HZ
T0082 3001-001134 SPEAKER;30W,8OHM,93DB,60HZ
T0076 AA39-00042A LEAD CONNECTOR-ASSY;,2.2UF,200MM,REC,REC
AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A
T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET
S.N.A
BP65-00004A CLAMPER CORE-WIRE;52Q7,NYLON
S.N.A
T0064 BP65-00005A CLAMPER CORE;52Q7,NYLON
S.N.A
T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
T0076 BP96-00338B ASSY COVER P-FRONT MASK;DP,BP64-00164E,5 S.N.A
AA65-00020A CLAMPER CORE-WIRE;55W9,NYLON 66
S.N.A
T0017 BP64-00164E CABINET-FRONT MASK;54T8,HIPS,HB,G4309,SV S.N.A
T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
BP61-00285A HOLDER-MASK SNAP;54T8,HIPS HB,BLK
S.N.A
T0071 BP96-00339B ASSY COVER P-FRONT BOT;DP,BP64-00151D,54 S.N.A
T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
AA61-01104A HOLDER-LOCK;Z7,ABS
S.N.A
BP60-00004A SPACER-BUMPON;55W9,RUBBER,5MM
S.N.A
BP61-00108A GUIDE-KONB,CONTROL;42W4,G3676,42W4,ABS HS.N.A
BP64-00078A WINDOW REMOCON-LED;42W4,PC,42W4,PC,CLEAS.N.A
BP64-00151D CABINET FRONT-BOT;54T8,HIPS,HB,G4309,SV0 S.N.A
T0022 BP64-00165A KNOB CONTROL;54T8,ABS,HB,GRAY,G3676
T0023 BP64-00166A KNOB POWER;54T8,ABS,HB,GRAY,G3676
T0057 BP64-00178A BADGE-BRAND;ALL,AL,T1.5,78,13.0,,BLK,SIL
S.N.A
T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
CIS7
AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
S.N.A
Samsung Electronics
S.N.A
Loc. No.
...3
...3
..2
...3
...3
...3
...3
...3
...3
..2
...3
..2
...3
..2
...3
...3
...3
...3
....4
...3
...3
....4
...3
...3
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
..2
..2
..2
..2
Code No.
AA61-20129A
AA61-01132A
BP96-00340A
T0081 6003-001323
T0081 6003-001374
AA61-01116A
BP61-00181A
CIS1
BP64-00154A
BP64-00208A
BP96-00341A
T0254 BP61-00189A
BP96-00342A
T0056 BP61-00190A
BP98-00192A
AA61-00094C
AA61-00458C
AA61-00507B
AA61-00616B
AA61-00506B
AA61-01115A
AA63-00384A
AA63-00348B
AA64-02859A
BP61-00075A
T0069 AA63-00099C
AA61-00508D
BP61-00191A
BP61-00191B
BP64-00207A
HC+CW AA60-10051A
AA61-00097A
AA61-01133A
HC+CW AA60-10051B
BP61-00284A
AA61-00856B
T0115 AA61-00617B
T0115 AA61-00475B
AA63-10007C
T0053 AA67-00116B
T0110 AA67-00130A
T0056 AA67-00199A
T0069 AA60-00091A
Description ; Specification
Remark
HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25
VELCRO-A;COMMANDO,BST1 1/4H
ASSY COVER P-DOOR RACK;DP,BP64-00154A,54
SCREW-TAPTITE;BH,+,B,M4,L12,NI PLT,SWRCH
SCREW-TAPTITE;FH,+,B,M4,L12,NI PLT,SWRCH
BRACKET-HINGE;55W9,SECC,T2.0
BRACKET-DOOR,RACK;54T8,SECC,T1.0
CABINET-DOOR,RACK;54T8,HIPS,HB,GRAY
WINDOW-DOOR RACK;54T8,GLASS,T3.0,,,,BR,
ASSY MISC P-BRKT SCREEN TB;DP,BP61-00189
BRACKET-SCREEN,TB;54T8,SECC,T1.0,SCREEN
ASSY MISC P-BRKT SCREEN RL;DP,BP61-00190
BRACKET-SCREEN,RL;54T8,SECC,T1.0,SCREEN
ASSY K/D-WOOD;54T8,WOOD
HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480
CASTER;,URETHANE,OD40,BLK,H47,95’
HOLDER-CABINET,WOOD;43,54,62J8,ABS,-,-,HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005
HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL
HOLDER-VENT;55W9,HIPS HB,BLK
COVER-DUCT;DP 54J8,-,-,-,-,HB,-,AA63-003
COVER-DUCT;54,62J8,HIPS,-,-,-,HB,BLK,CABINET-BOSS,RACK;55W9,HIPS,HB,NTR
HOLDER-JERSEY,ASSY;W3,ABS V0,GRAY,63-000
SPACER-FELT;47W3,FELT,BLK,T0.35,30*30
HOLDER-JERSEY;W3,ABS V0,GRAY,G4309
HOLDER-MASK,TOP;54T8,ABS HB,BLK
HOLDER-MASK SIDE;54T8,ABS,HB,,,,BLK,
CABINET-WOOD;54T8,WOOD,,,,,SILVER(SDE833
SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP
HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,VELCRO-B;COMMANDO,BST1 1/4H
SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-,
HOLDER-MASK CORNER;54T8,ABS HB,BLK
BRACKET-DOOR;47W3,SECC,T1.0,BLK
BRACKET-CRT,MAIN;DP,54J7,AA61-00475B
BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,BAND-PP;W18,CLEA,1G
SCREEN FRESNEL;53,1125*854,T2
SUN SCREEN-AG;54J8,1125*853*,T=82%,G=110
SCREEN-TINT;54,1123*852,P=0.5,DNP
SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.35,
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER REAR
1
M0002 BP90-00143E ASSY COVER REAR;ST54T8PCS/XAX,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
..2
..2
..2
...3
....4
....4
T0081
T0081
T0081
T0081
T0081
T0081
T0081
HC+CW
HC+CW
HC+CW
HC+CW
HC+CW
T0112
CBT
T0068
T0068
T0069
6002-000522
6002-000522
6002-000522
6002-000522
6002-000522
6002-000522
6003-001019
6005-001003
6005-001003
6005-001003
6005-001003
6005-001003
AA61-01134A
AA64-01379B
0103-001229
AA64-60449B
AA65-30008A
AA91-00661A
AA91-00489B
AA60-00073A
AA61-00512B
S.N.A
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18 S.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18AS.N.A
HOLDER-MIRROR,BOT;43,54T6,HIPS HB,BLK
S.N.A
CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK,
RESIN-HIPS;HR-1360,GRY,C7425,HB
S.N.A
INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5
S.N.A
CLAMPER CORE-CORD;-,PE,HB,-,BLK,S.N.A
ASSY-BRKT,MIRROR;DP,91-00489B 22KG,54J9
S.N.A
ASSY-BRKT,MIRROR;-,-,SECC-1 T1.0,54J8
SPACER-FELT;54J8,FELT,-,-,-,-,T1.0,-,210
S.N.A
BRACKET-MIRROR;43,53,61J8,SECC-1,T1.0,-,
S.N.A
7-39
Electrical Parts List
Loc. No.
..2
...3
...3
..2
...3
...3
..2
..2
...3
..2
...3
..2
...3
..2
...3
....4
....4
..2
T0062
T0015
T0112
T0014
T0015
T0092
T0092
T0108
Code No.
AA91-00887A
AA61-00873A
AA64-00263H
AA91-00887B
AA61-00873B
AA64-00263H
BP61-00180C
BP64-00262A
BP64-00152A
BP64-00263A
BP64-00153A
BP64-00264A
BP64-00153B
BP96-00077E
BP96-00038A
AA64-02836B
AA65-00023A
AA67-00080A
Description ; Specification
Remark
ASSY-HOLDER,MIRROR(R);,HIPS HB BLK,INLAY
HOLDER-MIRROR,R;54J8,HIPS HB,BLK
INLAY-FORM;54J8,PVC FORM,T2.0,BLK,220X7
ASSY-HOLDER,MIRROR(L);,HIPS HB BLK,INLAY
HOLDER-MIRROR,L;54J8,HIPS HB,BLK
INLAY-FORM;54J8,PVC FORM,T2.0,BLK,220X7
HOLDER-POWER;HIPS,T8,Q7,V0,BLK
CABINET BACK-BOT;DP,BP64-00152A,54T8,HIP
CABINET-BACK,BOT;54T8,HIPS,HB,BLK
CABINET BACK-SIDE R;DP,BP64-00153A,54T8,
CABINET-BACK,SIDE R;54T8,HIPS,HB,BLK
CABINET BACK-SIDE L;DP,BP64-00153B,54T8,
CABINET-BACK SIDE L;54T8,HIPS,,,,HB,BLK,
ASSY COVER P-TERMINAL,ANT;DP,42W5,HIPS,V
ASSY COVER P-TERMINAL,ANT;42W5,HIPS VO,B
INLAY-TERMINAL,NT;42W5,PS SHEET,T0.5,BLK
TERMINAL-BOARD,ANT;,HIPS V0,BLK
MIRROR-BACK;54J8,GLASS,940.5*684.5*674.5
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CHASSIS
1
..2
...3
...3
...3
...3
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-40
M0017 BP91-00926A ASSY CHASSIS;ST54T8PCS/XAX,P55A
T0081
T0081
T0070
T0097
T0083
T0083
DZS801
T0090
PC811S
PC801S
DU410
IC012
T0086
T0123
IC851
T0086
NT801S
VX801S
R384
C598
C598
C598
C598
C598
C598
CR471S
CR431S
CR430S
CX801S
CX802S
CR436S
C491
CR473S
C832
CR474S
C701
C701
C701
C701
C701
C701
C701
C701
T0121
FP801S
CN906
BP91-00801T
6003-001023
6003-001023
AA61-01127A
AA98-01177B
AA63-10007C
AA69-01808A
AA69-01403A
BP94-00518S
0202-000187
0402-000236
0402-000250
0406-001007
0502-000405
0604-001032
0604-001032
1201-000191
1203-000162
1203-000610
1203-001006
1203-001400
1203-002177
1404-001195
1405-000187
2002-001079
2201-000446
2201-000446
2201-000446
2201-000446
2201-000963
2201-000963
2301-001091
2301-001343
2301-001343
2306-000112
2306-000112
2306-000235
2306-000322
2306-000322
2306-000323
2306-000326
2401-000142
2401-000701
2401-000701
2401-000787
2401-002251
2401-003076
2401-003076
2401-003076
3301-001201
3601-000300
3711-003043
S.N.A
ASSY MISC-CHASSIS PACK;ST54T8PCS/XAX,P55 S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A
ASSY K/D-P/MATERIAL;PJTV(COMANDO),P55A S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90
S.N.A
WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A
ASSY PCB MISC-PWR DEF;ST54T8PCX/XAX,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
DIODE-RECTIFIER;GI824,400V,5A,-,TP
DIODE-RECTIFIER;RG4C,1000V,1A,DIODE-TVS;P6KE180A,171/180/189V,600W,CAS
TR-POWER;-,NPN,70W,TO-220,BK,10
PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS
IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-POWER PRESCALER;SE110N,T0-220(SIP),3P
IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300
THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
VARISTOR;750V,1250A,12.5x7mm,TP
R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14.
C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x
C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m
C-AL;1000uF,20%,16V,WT,TP,10x20,5
C-AL;2200uF,20%,250V,GP,-,35x70mm,1
C-AL;2200uF,20%,250V,GP,-,35x70mm,1
C-AL;220uF,20%,160V,GP,TP,16x31.5mm
C-AL;470uF,20%,200V,GP,BK,25x40mm,1
C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
CORE-FERRITE;AE,21x11x32mm,1500,280G
FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
Loc. No.
....4 T432
....4 T481
....4 T444S
....4 T431
....4 T461
....4 L432
....4 L862
....4 L863
....4 L864
....4 LR401S
....4 LX801S
....4 LX804S
....4 LX803S
....4 LX802S
....4 T0076
....4 GT01
....4 D856
....4 D855
.....5
.....5 T0083
.....5 T0081
.....5
....4 Q433
.....5
.....5 T0090
.....5 T0081
.....5
....4 IC831S
.....5 T0081
.....5 T0081
.....5 CIS
.....5 CIS
.....5 IC063
.....5 CIS
....4 D811S
.....5
.....5 T0083
.....5 T0081
.....5
.....5
....4 IC421
.....5
.....5 T0083
.....5 IC012
.....5 T0081
.....5
....4 IC301
.....5
.....5 T0088
.....5 T0081
.....5
....4 Q431
.....5 T0083
.....5 T0060
.....5 T0090
.....5 CIS
.....5 CIS
.....5 CIS
....4 TS801S
....4 T801S
....4 T0076
....4
....4 Q473
.....5 CIS
.....5 T0090
.....5 Q409
.....5 T0081
.....5 CIS
.....5 CIS
....4
.....5 D477
.....5 D478
.....5 D479
.....5 DR401S
.....5 DR402S
.....5 D301
.....5 D385
Code No.
Description ; Specification
AA26-00053A
AA26-00091A
AA26-00100A
AA26-50001U
AA26-50001V
AA27-00056A
AA27-10001C
AA27-10001C
AA27-10002L
AA27-30003M
AA29-30002L
AA29-30002M
AA29-30002M
AA29-30002M
AA39-00180A
AA60-40012D
AA96-00243E
AA96-00243E
0205-000129
0402-000231
6003-000335
AA62-00045A
AA96-00243H
0205-000129
0502-000298
6003-000335
AA62-00045A
AA96-00275Q
6003-000333
6003-000334
AA62-00051A
AA62-30177A
BP13-00004A
0205-001027
AA96-00276A
0205-000129
0402-000549
6003-000335
AA60-30003A
AA62-00052A
AA96-00475B
0205-000129
0402-000233
1203-000165
6003-000334
AA62-00066B
AA96-00623A
0205-000129
1204-000517
6003-000334
AA62-00056A
BH99-00033H
0402-001296
BH61-70003A
0502-001230
BH62-00038B
BH73-00028A
0205-001027
BP26-00001A
BP26-00006A
BP39-00014A
BP39-00084A
BP96-00006B
0205-001027
0502-001100
0505-001722
6003-000333
AA60-30001A
BP62-00001A
BP97-00511P
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
Remark
TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,
TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10
TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,
COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60
FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V
FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
LEAD CONNECTOR-ASSY;,14P,100MM,YBNH250-1
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;,-,AA62-00051A,STR-X6459,K55A
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
S.N.A
HEAT SINK-PN;-,CUS-1,T1.0,-,KCV12D,-,-,1
S.N.A
IC HYBRID;STR-X6459A,COMMANDO,7,-20 TO +
OIL-SILICON;G746,-,S.N.A
ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WAS S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-BRIDGE;RBV606,600V,6A,-,BK
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
WASHER;T1.5,SBHG-1
S.N.A
HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2
S.N.A
ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-RECTIFIER;FML-G12S,200V,5A,-,IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
ASSY H/S;-,POWER,AA62-00056A,LA7845
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
ASSY HEAT/SINK;BH62-00038A,SPRING,FJL692 S.N.A
DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
SPRING ETC;CVT4857,STS304-W1/2H,W3.8,-,L S.N.A
TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F
HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80 S.N.A
SILICON/RUBBER-HS;CDT ALL,SILICON,26*33* S.N.A
OIL-SILICON;G746,-,S.N.A
TRANS SWITCHING-POWER;19B012,P55A,HCM421
TRANS SWITCHING;EER5345,P55A,HCM4215W,80
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007
LEAD CONNECTOR;HCL4715WB,UL1617#22,UL/CS
ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A
OIL-SILICON;G746,-,S.N.A
TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,8FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG
S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A
ASSY AUTO;ST54T8PCX/XAX,P55A
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Samsung Electronics
Electrical Parts List
Loc. No.
.....5 D436
.....5 D442
.....5 D443
.....5 DS804
.....5 DS802
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 T0083
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DS805
.....5 QR401S
.....5 Q482
.....5 Q432
.....5 Q461
.....5 Q471
.....5 Q474
.....5 Q481
.....5 Q851
.....5 QS801
.....5 QS802
.....5 Q301
.....5 Q381
.....5 Q382
.....5 Q401
.....5 Q402
.....5 Q421
.....5 Q451
.....5 Q409
.....5 Q409
.....5 IC012
.....5 VP801S
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R308
.....5 R470
.....5 R422
.....5 R493
.....5 R836
.....5 RS808
Code No.
0401-000005
0401-000005
0401-000005
0401-000006
0401-000006
0402-000132
0402-000132
0402-000132
0402-000132
0402-000132
0402-000132
0402-000254
0402-000534
0402-000534
0402-000534
0402-000534
0402-000537
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-001286
0403-000698
0403-000704
0403-000716
0403-000720
0403-000720
0403-000720
0403-000734
0403-001167
0403-001316
0403-001319
0403-001319
0403-001325
0403-001325
0403-001325
0403-001327
0403-001327
0403-001327
0403-001328
0403-001329
0403-001329
0403-001330
0403-001330
0404-001056
0501-000283
0501-000283
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0505-001723
0505-001723
1203-001217
1405-000152
2001-000005
2001-000006
2001-000009
2001-000009
2001-000016
2001-000028
2001-000028
2001-000052
2001-000052
2001-000066
Samsung Electronics
Description ; Specification
Remark
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP
DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DODIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DODIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
VARISTOR;560V,2500A,14x8.5mm,TP
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
Loc. No.
.....5 RS804
.....5 R855
.....5 RS803
.....5 R814
.....5 R813
.....5 R812
.....5 R811
.....5 R439
.....5 R438
.....5 R834
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R840
.....5 RS807
.....5 RR401S
.....5 R854
.....5 R839
.....5 R434
.....5 R413
.....5 R837
.....5 R468
.....5 RS802
.....5 R431
.....5 R433
.....5 R410
.....5 RS806
.....5 R459
.....5 R851
.....5 RP801S
.....5 RY801S
.....5 R428A
.....5 R428
.....5 R425
.....5 R832
.....5 R831
.....5 R430
.....5 R429
.....5 R310
.....5 R463
.....5 R460
Code No.
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000109
2001-000258
2001-000262
2001-000273
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000362
2001-000429
2001-000429
2001-000429
2001-000449
2001-000508
2001-000515
2001-000522
2001-000554
2001-000577
2001-000577
2001-000577
2001-000613
2001-000613
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000745
2001-000761
2001-000761
2001-000761
2001-000761
2001-000761
2001-000786
2001-000800
2001-000800
2001-000812
2001-000924
2001-001031
2001-001045
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001108
2001-001122
2001-001124
2001-001153
2001-001155
2001-001155
2001-001168
2001-001192
2001-001196
2002-001010
2002-001013
2002-001017
2002-001017
2003-000417
2003-000512
2003-000512
2003-000586
2003-000586
2003-001024
2003-001024
2003-002044
Description ; Specification
Remark
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x
7-41
Electrical Parts List
Loc. No.
.....5 R841
.....5 R427
.....5 R427A
.....5 R426
.....5 R443A
.....5 R443
.....5 R464
.....5 R421
.....5 R801
.....5 R408
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R472
.....5 R465
.....5 R449
.....5 R447
.....5 R445
.....5 R441
.....5 R442
.....5 R442A
.....5 R440
.....5 R424
.....5 R307
.....5 R486
.....5 R838
.....5 R306
.....5 R437
.....5 R485
.....5 R462
.....5 R853
.....5 R833
.....5 R405
.....5 RR471S
.....5 RR402S
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
.....5 C598
7-42
Code No.
2003-002102
2003-002152
2003-002152
2003-002153
2003-002156
2003-002156
2003-002158
2003-002159
2003-002285
2004-000531
2004-001369
2004-001386
2004-001395
2004-001402
2004-001408
2004-001892
2004-001892
2004-001897
2004-001897
2004-001984
2004-001984
2004-001984
2004-002011
2004-004001
2004-004029
2004-004046
2004-004046
2004-004366
2004-005051
2008-000252
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000282
2008-000289
2008-000290
2008-001018
2008-001053
2008-001076
2008-001087
2008-001137
2008-001145
2008-001152
2009-001096
2009-001109
2103-001024
2103-001086
2201-000017
2201-000017
2201-000017
2201-000119
2201-000119
2201-000119
2201-000119
2201-000132
2201-000132
2201-000132
2201-000132
2201-000132
2201-000138
2201-000146
2201-000146
2201-000180
2201-000180
2201-000332
2201-000332
2201-000332
2201-000370
2201-000406
2201-000551
2201-000551
2201-000551
2201-000551
Description ; Specification
Remark
R-METAL OXIDE(S);68Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12
R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M
R-METAL OXIDE(S);1.5KOHM,5%,2W,AF,TP,6X1
R-METAL;20Kohm,1%,1/2W,AA,TP,3.3x9mm
R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm
R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm
R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM
R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6
R-METAL PLATE;0.07ohm,5%,5W,CL,BK,5x14x1
R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6
VR-SEMI;50Kohm,25%,0.3W,TOP
VR-SEMI;100KOHM,25%,0.3W,TOP
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;0.22NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
Loc. No.
.....5 C598
.....5 C598
.....5 C478
.....5 C479
.....5 C477
.....5 C493
.....5 CS801
.....5 C412
.....5 C831
.....5 C438
.....5 C432
.....5 C460
.....5 C311
.....5 C487
.....5 C309
.....5 C871
.....5 C838
.....5 C865
.....5 C303
.....5 C301
.....5 C429
.....5 C480
.....5 C428
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 L431
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 F101
.....5 G101
.....5 G101
.....5 G101
.....5 G101
.....5 G101
Code No.
2201-000551
2201-000558
2301-000020
2301-000200
2301-000213
2301-000356
2301-000356
2301-000383
2301-001216
2303-000002
2303-000002
2303-000331
2305-000149
2305-000178
2305-000285
2305-000289
2305-000412
2305-000427
2305-000427
2305-000427
2305-000704
2306-000122
2306-000122
2401-000025
2401-000050
2401-000164
2401-000262
2401-000262
2401-000302
2401-000302
2401-000360
2401-000360
2401-000365
2401-000365
2401-000480
2401-000603
2401-000660
2401-000698
2401-000703
2401-001026
2401-001026
2401-001192
2401-001397
2401-001428
2401-001486
2401-001527
2401-001622
2401-001625
2401-001655
2401-001989
2401-002144
2401-002144
2401-002216
2401-002216
2401-002288
2401-002288
2401-002300
2401-002463
2401-002619
2401-003114
2701-000116
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000299
3301-000287
3301-000287
3301-000287
3301-000287
3301-000287
Description ; Specification
Remark
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3
C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0
C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;1000uF,20%,25V,WT,TP,12.5x20,5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2200uF,20%,16V,WT,TP,12.5x25,5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;470uF,20%,50V,GP,TP,10x20,5
C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
C-AL;680uF,20%,25V,GP,TP,10x20,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;4.7uF,20%,250V,WT,TP,10x16,5
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
Samsung Electronics
Electrical Parts List
Loc. No.
.....5 G101
.....5 G101
.....5 G101
.....5 RS801S
.....5 FD801S
.....5 FD871S
.....5 FD854S
.....5 FD805S
.....5 FD802S
.....5 FD855S
.....5 F801B
.....5 F801A
.....5 CN906
.....5 EY52
.....5 EY53
.....5 EY54
.....5 EY55
.....5 EY51
.....5 EY42
.....5 EY41
.....5 EY40
.....5 EY63
.....5 EY62
.....5 EY61
.....5 EY60
.....5 EY59
.....5 EY58
.....5 EY57
.....5 EY56
.....5 EL08
.....5 EL07
.....5 EL06
.....5 EL05
.....5 EL04
.....5 EL03
.....5 EL02
.....5 EL01
.....5 EY39
.....5 EL16
.....5 EL15
.....5 EL14
.....5 EL10
.....5 EL11
.....5 EL12
.....5 EL13
.....5 EY37
.....5 EY38
.....5 EY43
.....5 EY44
.....5 EY36
.....5 EY35
.....5 EY34
.....5 EY32
.....5 EY66
.....5 EY65
.....5 EY64
.....5 EY50
.....5 EY49
.....5 EY47
.....5 EY46
.....5 EY45
.....5 EY23
.....5 EY22
.....5 EY21
.....5 EY20
.....5 EY19
.....5 EY18
.....5 EY17
.....5 EY16
.....5 EY31
.....5 EY30
.....5 EY29
.....5 EY28
.....5 EY27
.....5 EY26
.....5 EY25
.....5 EY24
Code No.
3301-000287
3301-000374
3301-000374
3601-000102
3601-000120
3601-001086
3601-001086
3601-001086
3601-001228
3601-001228
3602-000114
3602-000114
3711-002645
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Samsung Electronics
Description ; Specification
Remark
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
Loc. No.
.....5 EY67
.....5 EY91
.....5 EY90
.....5 EY89
.....5 EY88
.....5 EY87
.....5 EY86
.....5 EY85
.....5 EY84
.....5 EY99
.....5 EY98
.....5 EY97
.....5 EY96
.....5 EY95
.....5 EY94
.....5 EY93
.....5 EY92
.....5 EY75
.....5 EY74
.....5 EY73
.....5 EY72
.....5 EY71
.....5 EY70
.....5 EY69
.....5 EY68
.....5 EY83
.....5 EY82
.....5 EY81
.....5 EY80
.....5 EY79
.....5 EY78
.....5 EY77
.....5 EY76
.....5 EY114
.....5 EY113
.....5 EY111
.....5 EY11
.....5 EY109
.....5 EY108
.....5 EY107
.....5 EY106
.....5 EY121
.....5 EY120
.....5 EY12
.....5 EY119
.....5 EY118
.....5 EY117
.....5 EY116
.....5 EY115
.....5 EY08
.....5 EY07
.....5 EY06
.....5 EY05
.....5 EY04
.....5 EY03
.....5 EY02
.....5 EY01
.....5 EY105
.....5 EY104
.....5 EY103
.....5 EY102
.....5 EY101
.....5 EY100
.....5 EY10
.....5 EY09
.....5 EY122
.....5 EY148
.....5 EY147
.....5 EY142
.....5 EY141
.....5 EY140
.....5 EY14
.....5 EY139
.....5 EY138
.....5 EY155
.....5 EY154
.....5 EY153
Code No.
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Description ; Specification
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-43
Electrical Parts List
Loc. No.
.....5 EY152
.....5 EY151
.....5 EY150
.....5 EY15
.....5 EY149
.....5 EY13
.....5 EY129
.....5 EY128
.....5 EY127
.....5 EY126
.....5 EY125
.....5 EY124
.....5 EY123
.....5 EY137
.....5 EY136
.....5 EY135
.....5 EY134
.....5 EY130
.....5 EY131
.....5 EY132
.....5 EY133
.....5 0
.....5 GT404
.....5 GT433
.....5 GT801
.....5 GT802
.....5 GT807
.....5 GT810
.....5 GT811
.....5 GT14
.....5 GT15
.....5 GT16
.....5 GT17
.....5 GT33
.....5 GT34
.....5 GT35
...3 T0073
....4
....4 IC802
....4 IC012
....4 C701
....4 C701
....4 X601
....4 CNZ01
....4 CNW02
....4 CNW01
....4 CN901
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 JA703
....4 JA701
....4 JA704
....4 JA702
....4 L802
....4 L801
....4 T0076
....4 T0076
....4 TU04
....4 TU02
....4 TU01
....4
....4
....4
....4
....4
....4
....4
....4 T0104
.....5 T0083
.....5 Q409
.....5 Q409
.....5 IC904
.....5 X901
.....5 CN901
7-44
Code No.
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
AA41-00598D
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
BP94-00519A
0202-000187
1203-000119
1203-000165
2401-000737
2401-001068
2801-004020
3703-001150
3703-001150
3703-001150
3703-001187
3711-003046
3711-003641
3711-003973
3711-003975
3711-004946
3722-001163
3722-001426
3722-001870
3722-001871
AA27-10001C
AA29-00004A
AA39-20010B
AA39-20010B
AA40-00049A
AA40-00049A
AA59-00164A
AA63-00396B
AA63-00397B
AA63-00608A
AA63-00610A
AA63-10002A
AA65-30018A
AA65-30111A
AA95-02001K
0402-000274
0505-000109
0505-000109
1203-001943
2801-004071
3703-001175
Description ; Specification
Remark
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245 S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
ASSY PCB MAIN;ST54T8PCS/XAX,P55A,MEXICO
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
C-AL;3300uF,20%,50V,GP,BK,22x40,10
CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PIN;9P,3.4mm,NI,BLK,JACK-PIN;5P(10P),8.3MM,NI,GRN/BLU/RED/WH
JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O
SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE;HERCULES TOP,SPTE,T0.5,W140. S.N.A
SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,WS.N.A
ASSY SUB-PCB MICOM;,C2
DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH
CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A
Loc. No.
.....5
......6D905
......6D906
......6D920
......6D923
......6D602
......6D901
......6D902
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6Q915
......6Q916
......6Q917
......6Q920
......6Q914
......6Q913
......6Q910
......6Q908
......6Q902
......6IC112
......6T0087
......6IC901
......6R981
......6R964
......6R960
......6R959
......6R965
......6R956
......6R953
......6R952
......6R969
......6R970
......6R972
......6R979
......6R940
......6R909
......6R916
......6R918
......6R939
......6R923
......6R922
......6R907
......6R917
......6R911
......6R963
......6R901
......6R930
......6R933
......6R936
......6R974
......6R905
......6R921
......6R924
......6R925
......6R915
......6R913
......6R912
......6R978
......6R976
......6R971
......6R958
......6R980
......6R982
......6R985
......6R986
......6R903
......6R904
......6R906
......6R908
......6R955
......6R954
......6R928
Code No.
Description ; Specification
AA97-07275A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1103-000180
1203-002302
1204-001912
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000081
2007-000081
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
Remark
ASSY SMD;SVP-47W3HRT,P55A, , ,
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
......6R927
......6R983
......6R934
......6R987
......6R957
......6R944
......6R926
......6R975
......6R942
......6R941
......6R914
......6R988
......6R962
......6R961
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C950
......6C936
......6C921
......6C918
......6C915
......6C913
......6C938
......6C917
......6C912
......6C911
......6L905
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6R949
......6R950
......6R951
......6R945
......6R946
......6R948
......6R966
......6PCB
......6
.....5 IC902
.....5
....4 IC801
.....5
.....5 T0087
.....5 T0123
.....5 T0081
.....5
.....5 T0123
Code No.
Description ; Specification
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000097
2007-000121
2007-000123
2007-000123
2007-000123
2007-000290
2007-000583
2007-000939
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000189
2203-000221
2203-000236
2203-000236
2203-000236
2203-000236
2203-000260
2203-000357
2203-000440
2203-000440
2203-000440
2203-000444
2203-000748
2203-000748
2203-001048
2203-005809
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2703-001245
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-000931
AA41-00599B
0202-001167
1102-001130
0202-000187
AA96-00475C
0205-000129
1203-000293
1203-002003
6003-000334
AA62-00066B
1203-001978
Samsung Electronics
Remark
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;820ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/8W,TP,2012
R-CHIP;22Kohm,1%,1/10W,TP,1608
R-CHIP;47Kohm,1%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.56NF,10%,50V,C0G,TP,201
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
INDUCTOR-SMD;8.2uH,10%,2x1.25x1.25mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/8W,TP,2012
PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4
Loc. No.
....4 IC601
.....5
.....5 T0124
.....5 T0081
.....5
....4
....4 T0095
.....5
.....5 FC48
.....5 EX01
.....5 T0122
.....5 T0122
.....5 CN02
.....5 CN01
.....5 CN906
.....5
......6FD13
......6FD14
......6FD15
......6FD16
......6FD17
......6FD10
......6FD01
......6FD02
......6FD07
......6FD08
......6FD09
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6SQ01
......6FQ13
......6FQ04
......6FQ03
......6FQ02
......6FQ08
......6FQ09
......6FQ12
......6PQ01
......6FQ06
......6FQ05
......6EQ15
......6EQ14
......6EQ13
......6FQ07
......6Q409
......6Q409
......6IC104
......6IC106
......6IC06
......6T0087
......6T0087
......6IC02
......6IC01A
......6IC118
......6SR08
......6FR80
......6FR79
......6FR78
......6FR57
......6FR35
......6FR07
......6ER90
......6FR76
......6FR96
......6SR09
......6SR22
......6ER29
......6ER04
......6ER05
......6ER06
......6ER13
......6ER19
......6ER18
Code No.
AA96-00623E
0205-000129
1201-001026
6003-000334
AA62-00056A
BP39-00047A
BP95-00077A
0202-000187
2305-000011
2801-004019
2802-001177
2802-001179
3703-001124
3703-001124
3711-001164
BP97-00169A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-000746
0403-001016
0403-001117
0403-001117
0403-001117
0403-001117
0501-000280
0501-000280
0501-000280
0501-000280
0501-000280
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000727
0505-000110
0505-000110
0801-000662
1001-001082
1203-001211
1203-002186
1203-002302
1204-001814
1204-001938
1204-001989
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
Description ; Specification
Remark
ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
LEAD CONNECTOR;P55A/HCM4215W,UL2547#26,U
ASSY SUB-PRO SCAN;HCM4215WJX/XAA,P55A,DV
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
C-FILM,MPEF;470nF,5%,250V,TP,21.5X13.0X7
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.
RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,ASSY SMD;HCM4215WJX/XAA,P55A
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1
IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL
IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS
IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM
IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
7-45
Electrical Parts List
Loc. No.
......6ER17
......6SR03
......6SR04
......6SR05
......6SR06
......6SR10
......6SR11
......6SR02
......6FR71
......6FR74
......6FR75
......6FR81
......6FR82
......6SR01
......6SR49
......6SR53
......6SR75
......6YR43
......6YR44
......6YR45
......6SR48
......6SR31
......6SR32
......6SR33
......6SR34
......6SR35
......6SR47
......6ER84
......6FR01
......6FR02
......6FR16
......6FR17
......6FR18
......6ER83
......6CR83
......6CR84
......6ER08
......6ER15
......6ER16
......6ER82
......6FR37
......6FR38
......6FR39
......6FR53
......6FR54
......6FR56
......6FR34
......6FR19
......6FR20
......6FR21
......6FR33
......6FR32
......6FR31
......6SR74
......6SR21
......6FR66
......6ER28
......6ER27
......6ER26
......6SR07
......6FR40
......6FR72
......6FR73
......6FR62
......6FR45
......6FR44
......6ER92
......6ER91
......6FR42
......6FR41
......6PR01
......6FR60
......6FR22
......6FR09
......6FR58
......6ER24
......6ER25
7-46
Code No.
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000080
2007-000080
2007-000081
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000086
2007-000086
2007-000090
2007-000090
2007-000090
2007-000090
2007-000092
2007-000097
2007-000097
Description ; Specification
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;15Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
Remark
Loc. No.
......6FR77
......6PR02
......6ER20
......6ER21
......6ER22
......6ER23
......6FR63
......6FR70
......6FR47
......6FR46
......6FR15
......6FR14
......6FR13
......6FR10
......6FR11
......6FR12
......6SR73
......6SR26
......6SR25
......6SR23
......6FR36
......6FR43
......6ER14
......6SR36
......6SR37
......6SR38
......6SR39
......6SR40
......6ER12
......6EC30
......6EC31
......6ER03
......6ER11
......6ER10
......6ER09
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
Code No.
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000118
2007-000124
2007-000124
2007-000124
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000259
2007-000309
2007-000309
2007-000309
2007-000691
2007-000869
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
Description ; Specification
Remark
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.6Kohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Samsung Electronics
Electrical Parts List
Loc. No.
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
Code No.
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000491
2203-000491
2203-000491
2203-000575
2203-000575
2203-000575
2203-000575
2203-000626
2203-000626
2203-000681
2203-000681
2203-000681
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000896
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000998
2203-000998
2203-000998
2203-000998
2203-001140
2203-001222
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
Samsung Electronics
Description ; Specification
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
Loc. No.
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6FC09
......6PC18
......6FC60
......6FC29
......6FC13
......6SC38
......6SC36
......6SC34
......6SC40
......6SC42
......6SC44
......6SC47
......6SC31
......6PC01
......6PC03
......6PC06
......6PC32
......6SC18
......6SC16
......6SC11
......6FC63
......6FC62
......6FC45
......6FC12
......6FC04
......6PC12
......6PC10
......6PC09
......6FC65
......6FC06
......6PC08
......6PC07
......6FC31
......6CC49
......6EL05
......6EL06
......6EL07
......6EL08
......6EL01
......6EL02
......6EL03
......6EL04
......6FL01
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6CR27
......60
......6
.....5 FC58
.....5 FC59
....4 T0093
.....5
.....5 L01
.....5 CN01
.....5 CN906
.....5
......6D13
......6D12
......6D11
Code No.
2203-002494
2203-002494
2203-002494
2203-005384
2203-005384
2203-005384
2203-005809
2402-000170
2402-000173
2402-000173
2402-000173
2402-000173
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2402-001049
2402-001049
2402-001070
2402-001070
2402-001070
2402-001070
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-001070
3301-001082
3301-001186
3301-001186
3301-001186
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-000033
AA41-00610E
0202-001167
2309-000138
2305-000704
BP95-00146C
0202-000187
2701-001030
3703-001124
3711-003601
BP97-00513D
0401-000160
0401-000160
0401-000160
Description ; Specification
Remark
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;100uH,10%,4.5x3.2x3.2mm
CORE-FERRITE BEAD;AB,60OHM,3.2X2.5X1.3MM
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;0ohm,5%,1/4W,TP,3216
PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
ASSY SUB PCB-CONV MOD;,P55A,CG MOD
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
INDUCTOR-AXIAL;43uH,10%,5x14mm
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;,P55A,CG MOD
S.N.A
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
7-47
Electrical Parts List
Loc. No.
......6D10
......6D14
......6D15
......6D16
......6D17
......6D18
......6D01
......6D02
......6D03
......6D04
......6D05
......6D09
......6D08
......6D07
......6D06
......6DZ016
......6DZ016
......6DZ016
......6Q02
......6Q03
......6Q10
......6Q04
......6Q409
......6Q409
......6Q409
......6IC104
......6IC104
......6IC104
......6IC08
......6IC13
......6IC112
......6DU410
......6DU410
......6DU410
......6DU410
......6DU410
......6T0074
......6IC03
......6T0087
......6IC17
......6R36
......6R35
......6R31
......6R30
......6R143
......6R144
......6R25
......6R122
......6R123
......6R141
......6R136
......6R15
......6R24
......6R45
......6R46
......6R09
......6R10
......6R129
......6R134
......6R135
......6R59
......6R65
......6R71
......6R77
......6R91
......6R53
......6R02
......6R16
......6R17
......6R20
......6R47
......6R62
......6R64
......6R68
......6R58
......6R56
......6R52
7-48
Code No.
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0403-001016
0403-001016
0403-001016
0501-000280
0501-000280
0501-000342
0501-000342
0505-000110
0505-000110
0505-000110
0801-002345
0801-002345
0801-002345
1001-000164
1001-001155
1103-001195
1201-001135
1201-001504
1201-001504
1201-001504
1201-001504
1201-001520
1203-001824
1203-002302
1209-001163
2007-000028
2007-000028
2007-000028
2007-000028
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
Description ; Specification
Remark
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTFET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC
IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10
IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
Loc. No.
......6R70
......6R98
......6R94
......6R82
......6R80
......6R76
......6R74
......6R38
......6R37
......6R110
......6R11
......6R101
......6R03
......6R39
......6R50
......6R44
......6R43
......6R42
......6R41
......6R40
......6R128
......6R81
......6R75
......6R69
......6R51
......6R57
......6R63
......6R109
......6R66
......6R61
......6R60
......6R55
......6R54
......6R79
......6R78
......6R73
......6R72
......6R67
......6R49
......6R08
......6R07
......6R06
......6R04
......6R01
......6R48
......6R133
......6R121
......6R119
......6R118
......6R86
......6R92
......6R93
......6R96
......6R97
......6R85
......6R113
......6R114
......6R115
......6R83
......6R84
......6R125
......6R05
......6R127
......6R100
......6R32
......6R34
......6R29
......6R28
......6R117
......6R107
......6R33
......6R120
......6R90
......6R89
......6R88
......6R87
......6R108
Code No.
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000079
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000091
2007-000102
2007-000109
2007-000118
2007-000119
2007-000122
2007-000122
2007-000122
2007-000122
2007-000122
2007-000124
2007-000124
2007-000133
2007-000133
2007-000133
2007-000133
2007-000381
Description ; Specification
Remark
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;12Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;13Kohm,5%,1/10W,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
......6R139
......6R138
......6R137
......6R99
......6R95
......6R126
......6R27
......6R26
......6R116
......6RN04
......6RN05
......6RN06
......6RN01
......6RN02
......6RN03
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
Code No.
2007-000402
2007-000402
2007-000402
2007-000704
2007-000704
2007-000857
2007-001167
2007-001167
2007-001179
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000257
2203-000257
2203-000257
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000440
2203-000575
2203-000575
Samsung Electronics
Description ; Specification
Remark
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.3Kohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
Loc. No.
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C38
......6C40
......6C70
......6C84
......6C14
......6C06
......6C03
......6C01
......6C80
......6OSC01
......6F103
......6F103
......6F103
......6F103
......6G101
......6G101
......6G101
......6G101
......6G101
......6G101
......6T0119
......61
......6IC125
......6
....4 IC808
.....5 CIS
.....5 T0081
.....5 CIS
.....5 IC012
....4
.....5 D609
.....5 D608
.....5 D607
.....5 D601
.....5 D604
.....5 D605
.....5 T0083
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 Q603
.....5 Q602
.....5 Q601
.....5 R125
.....5 R810
.....5 R808
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
Code No.
2203-000975
2203-000975
2203-000975
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001083
2203-001083
2203-001083
2203-001083
2203-001245
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2804-001479
2901-000226
2901-000226
2901-000229
2901-000229
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
AA09-00032A
AA41-00717D
BP13-00003A
0202-001167
BP96-00020G
0205-000129
6003-000334
AA62-00045B
1203-000203
BP97-00244A
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0403-000700
0403-001039
0403-001319
0403-001325
0501-000389
0501-000389
0501-000389
2001-000007
2001-000066
2001-000066
2001-000273
2001-000290
2001-000290
2001-000290
2001-000290
2001-000331
2001-000508
2001-000522
2001-000577
2001-000660
2001-000734
2001-000734
2001-000734
2001-000739
2001-000739
Description ; Specification
Remark
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-,
S.N.A
PCB (FR 4) 4L(AU);CONVERGENCE,FR-4,4,1.6
S.N.A
IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
ASSY HEAT SINK P;AA62-00045B,TAPTITE,SIS.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;COMMANDO,AL1050,T1.0,H45.0
S.N.A
IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
ASSY AUTO;0
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-49
Electrical Parts List
Loc. No.
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R811
.....5 R801
.....5 R677
.....5 R674
.....5 R681
.....5 R682
.....5 R814
.....5 R805
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 R024
.....5 C695
.....5 C694
.....5 C689
.....5 C687
.....5 C682
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
7-50
Code No.
2001-000739
2001-000739
2001-000739
2001-000780
2001-000780
2001-000812
2001-000812
2001-000812
2001-001000
2001-001071
2001-001077
2001-001103
2001-001103
2001-001146
2001-001146
2003-001098
2004-000970
2004-001390
2004-001390
2004-001970
2004-001970
2004-001970
2004-001970
2301-000192
2301-000192
2305-000665
2305-000665
2305-000665
2401-002075
2401-002075
2401-002075
2401-002075
2401-000039
2401-000039
2401-000192
2401-000192
2401-000302
2401-000302
2401-000360
2401-000360
2401-000471
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000603
2401-000603
2401-000603
2401-000603
2401-000603
2401-000832
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-001192
Description ; Specification
Remark
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16
R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
Loc. No.
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 L105
.....5 L119
.....5 L120
.....5 L121
.....5 L122
.....5 L123
.....5 L124
.....5 L107
.....5 L108
.....5 L111
.....5 L114
.....5 L113
.....5 L112
.....5 L703
.....5 L106
.....5 L104
.....5 L103
.....5 L101
.....5 L706
.....5 L705
.....5 L102
.....5 G101
.....5 G101
.....5 G101
.....5 CN906
.....5 CN906
.....5 CN906
.....5 CN906
.....5 GT03
.....5 GT02
.....5 GT01
.....5
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6DZ016
......6Q703
Code No.
Description ; Specification
2401-001397
2401-001513
2401-000025
2401-000025
2401-000025
2401-000025
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-002144
2401-002300
2401-002300
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002463
2401-002463
2401-002594
2401-002619
2401-002619
2401-002619
2401-002619
2401-002619
2701-000106
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000115
2701-000115
2701-000115
2701-000115
2701-001030
2701-001030
2701-001040
3301-000287
3301-000287
3301-000287
3711-002642
3711-002642
3711-002643
3711-002645
AA60-40014A
AA60-40014A
AA60-40014A
AA97-07233J
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-001016
0403-001016
0403-001016
0403-001016
0403-001016
0403-001117
0403-001117
0403-001117
0501-000344
Remark
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
INDUCTOR-AXIAL;1.5uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
ASSY SMD;HCM4215WX/XAA,P55A
S.N.A
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
Samsung Electronics
Electrical Parts List
Loc. No.
......6Q704
......6Q707
......6Q708
......6Q709
......6Q710
......6Q101
......6Q103
......6Q106
......6IC106
......6IC106
......6IC605
......6IC704
......6DU410
......6R777
......6R776
......6R775
......6R904
......6R101
......6R117
......6R143
......6R148
......6R145
......6R712
......6R789
......6R795
......6R706
......6R708
......6R788
......6R791
......6R794
......6R79B
......6R729
......6R97C
......6R626
......6R627
......6R646
......6R602
......6R601
......6R172
......6R647
......6R757
......6R756
......6R724
......6R722
......6R709
......6R707
......6R703
......6R116
......6R115
......6R114
......6R113
......6R108
......6R107
......6R103
......6R102
......6R171
......6R170
......6R127
......6R125
......6R126
......6R624
......6R625
......6R730
......6R166
......6R150
......6R157
......6R653
......6R652
......6R651
......6R632
......6R631
......6R630
......6R629
......6R628
......6R603
......6R106
......6R633
Code No.
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1001-001177
1001-001177
1001-001178
1002-001048
1201-000541
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
Samsung Electronics
Description ; Specification
Remark
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
Loc. No.
......6R643
......6R642
......6R641
......6R637
......6R634
......6R635
......6R636
......6R728
......6R793
......6R797
......6R798
......6R780
......6R755
......6R750
......6R604
......6R611
......6R688
......6R749
......6R748
......6R747
......6R746
......6R744
......6R743
......6R741
......6R739
......6R164
......6R165
......6R149
......6R151
......6R155
......6R156
......6R716
......6R704
......6R110
......6R105
......6R745
......6R742
......6R740
......6R738
......6R612
......6R607
......6R609
......6R608
......6R109
......6R104
......6R754
......6R753
......6R752
......6R751
......6R610
......6R605
......6R714
......6R713
......6R710
......6R701
......6R174
......6R799
......6R731
......6R727
......6R726
......6R725
......6R134
......6R133
......6R132
......6R121
......6R120
......6R119
......6R118
......6R173
......6R142
......6R140
......6R137
......6R138
......6R702
......6R792
......6R613
......6R606
Code No.
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000098
2007-000098
2007-000127
2007-000127
2007-000127
2007-000127
2007-000134
2007-000134
2007-000329
2007-000329
2007-000828
2007-000828
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001179
2007-001179
Description ; Specification
Remark
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
7-51
Electrical Parts List
Loc. No.
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6L701
......6L707
......6L708
......6L901
......6L902
......6L604
......6L125
......6L126
......6L601
......6L602
......6L603
......6G101
......6IC602
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
7-52
Code No.
2203-000140
2203-000140
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000332
2203-000332
2203-000440
2203-000440
2203-000440
2203-000440
2203-001071
2203-001071
2203-001071
2203-001211
2203-001211
2203-001211
2203-001211
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-005590
2203-005590
2203-005590
2203-005590
2203-005590
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001324
1204-002002
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
Description ; Specification
Remark
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
Loc. No.
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6C120
......6PCB
......6
..2 T0094
...3
...3 CN906
...3 CN906
...3 CN906
...3 CN906
...3 CN906
...3
...3
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 R125
....4 RZ109
....4 RZ108
....4 RZ107
....4 RZ106
....4 RZ105
....4 RZ104
....4 R857
....4 R856
....4 RZ142
....4 RZ143
....4 RZ144
....4 RZ145
....4 RZ146
....4 RZ147
....4 RZ123
....4 RZ124
....4 RZ125
....4 RZ128
....4 RZ127
....4 RZ126
....4 RZ132
....4 RZ132A
....4 RZ148
....4 RZ148A
....4 RZ149
....4 RZ149A
....4 RZ129
....4 RZ129A
....4 RZ130
....4 RZ131A
....4 RZ131
....4 RZ130A
....4 RFZ50
....4 RFZ51
Code No.
Description ; Specification
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
AA41-00597F
0202-001167
BP94-00155A
0202-000187
3711-003043
3711-003043
3711-003043
3711-003043
3711-003046
AA65-30110A
AA97-07418A
2001-000563
2001-000563
2001-000563
2001-000563
2001-000563
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001155
2001-001155
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2008-000261
2008-000261
Remark
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
ASSY PCB MISC-CG-AMP;DP,HCM4215W3S/XAA,P
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
ASSY AUTO;HCM4215WX/XAA,P55A
S.N.A
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
RFZ52
RFZ53
RFZ19
RFZ20
RFZ21
RFZ22
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
CZ113
CZ114
C701
C701
C701
C701
LZ112
LZ111
LZ110
LZ109
LZ108
LZ107
FD102S
FD101S
ELZ01
ELZ02
ELZ03
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
R125
0
SGZ101
T0076
T0076
CZ101
T0081
CIS
CIS
CIS
T0074
T0099
VR561
VR531
VR501
T0121
V561
V531
V501
CN906
CN906
CN906
CN906
CN906
CN906
Code No.
Description ; Specification
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2201-000327
2201-000327
2201-000327
2201-000327
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000205
2202-000205
2202-000205
2202-000205
2202-000205
2202-000561
2202-000561
2401-000183
2401-000183
2401-000962
2401-000962
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
3601-001065
3601-001065
6042-000002
6042-000002
6042-000002
2202-000825
2202-000825
2202-000825
2202-000825
2202-000825
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2001-000800
AA41-00601C
4715-000106
BP39-00005A
BP39-00015A
BP61-00076A
BP61-00077A
BP96-00005A
6003-001021
BP62-00002A
BP62-00008A
BP73-00002A
1201-001225
BP94-00234A
0202-000187
2101-000321
2101-000321
2101-000321
3301-001201
3704-001019
3704-001019
3704-001019
3711-002645
3711-002648
3711-003052
3711-003052
3711-003973
3711-003973
Samsung Electronics
Remark
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB;HCM4215W,PCB,CEM-1,1L,C,1.6,245X245, S.N.A
SURGE ABSORBER;300V,210-390V,-,-,AXIAL
S.N.A
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL2547
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1185
HOLDER-PUSH,A;42W5,NYLON6.6,NATURAL
S.N.A
HOLDER-PUSH,B;42W5,NYLON6.6,NATURAL
S.N.A
ASSY HEAT SINK P;BP62-00002A,SCREW,STK39 S.N.A
SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H14 S.N.A
HEAT SINK;COMMANDO CG AMP,AL6063,T2.0,W1S.N.A
SILICON/RUBBER;COMMANDO CG AMP,SILICON ,S.N.A
IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS
ASSY PCB MISC-CRT;DP,HCM4215W3S/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
CORE-FERRITE;AE,21x11x32mm,1500,280G
SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
...3
...3
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
SG301
SG562
SG532
SG502
T0076
T0076
T0076
T0076
T0076
T0076
T0076
T0076
Q371
T0090
T0081
IC561
IC531
IC501
T0074
T0081
D372
D504
D509
D361
D362
D371
D510
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q563
Q534
Q533
Q504
Q361
Q362
Q502
T0090
T0090
T0090
R125
R125
R125
R125
R584
R554
R524
R580
R550
R520
R577
R547
R517
R366
R125
R125
R125
R125
R125
Code No.
4715-001050
AA27-00084A
AA27-00084A
AA27-00084A
AA39-00112A
AA39-00120F
AA39-00198D
AA39-20010B
AA39-20010D
AA39-20010D
AA39-20027B
AA39-20031D
AA69-01396A
AA96-00244H
0205-000129
0502-000442
6003-000335
AA62-00046A
AA96-50311L
AA96-50311L
AA96-50311L
1201-001131
6003-000334
AA62-30175D
AA97-07608A
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000493
0402-000493
0402-000493
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0403-000508
0403-000508
0403-000508
0403-000708
0403-000708
0403-000708
0403-000708
0501-000283
0501-000283
0501-000283
0501-000283
0501-000283
0501-000366
0501-000389
0502-000006
0502-000006
0502-000006
2001-000009
2001-000009
2001-000009
2001-000009
2001-000028
2001-000028
2001-000028
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000109
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
Description ; Specification
Remark
SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,10
LEAD CONNECTOR-ASSY;SIR-T165,UL1007#26,U
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1617
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,6P,400,67096-006,S,
LEAD CONNECTOR-ASSY;,9P,500,67096-009,S,
BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO S.N.A
ASSY H/S;SCREW,2SC4636(2),CRT,SLICON-OIL S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A
IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
S.N.A
ASSY AUTO-CRT;HCM4215W
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-53
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-54
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R581
R551
R521
R371
R370
R369A
R367
R368
R369
R567
R537
R507
R381
R361
R374
R373
R372
R377
R375
R365
R574
R544
R514
R583
R582
R553
R552
R523
R522
R589
R559
R529
R575
R545
R515
R579
R578
R549
R518
R519
R548
R588
R538
R508
R024
R024
R024
R573
R543
R513
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C565
C535
C505
Code No.
2001-000539
2001-000577
2001-000613
2001-000613
2001-000660
2001-000723
2001-000734
2001-000734
2001-000734
2001-000734
2001-000938
2001-000995
2001-000995
2001-001015
2001-001052
2001-001052
2001-001052
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
2001-001088
2001-001088
2001-001088
2001-001088
2001-001097
2001-001110
2001-001110
2001-001110
2001-001110
2001-001113
2001-001120
2001-001122
2001-001122
2001-001122
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001015
2002-001015
2002-001015
2002-001017
2002-001017
2002-001017
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2003-000738
2003-000738
2003-000738
2004-001892
2004-001892
2004-001892
2008-001129
2008-001129
2008-001129
2201-000119
2201-000119
2201-000119
2201-000556
2201-000723
2201-000723
2201-000723
2201-000983
2201-000983
2201-000983
2305-000149
2305-000149
2305-000149
Description ; Specification
Remark
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C507
C537
C567
C361
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L531
L501
SG561
SG563
SG533
SG501
SG503
SG531
EL06
EL03
EL563
EL537
EL536
EL535
EL564
EL565
EL566
EL567
EL534
EL01
EL02
EL04
EL05
EL533
EL505
EL504
EL503
GT537
GT561
GT536
GT535
GT534
GT562
GT568
GT567
GT564
GT563
GT503
GT502
GT501
GT373
GT372
GT371
GT504
GT533
GT532
GT531
GT506
GT374
GT375
R125
R125
R125
DZ016
DZ016
DZ016
R566
R536
R506
R125
Code No.
Description ; Specification
2305-000154
2305-000154
2305-000154
2306-000122
2401-002075
2401-002075
2401-002075
2401-000133
2401-000302
2401-000302
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-001621
2701-000114
2701-000114
4715-001036
4715-001036
4715-001036
4715-001036
4715-001036
4715-001036
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
2001-000362
2001-000362
2001-000362
0403-000334
0403-000334
0403-000334
2001-001049
2001-001049
2001-001049
2001-000007
Remark
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;6.8uF,20%,450V,GP,TP,13x20,5
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R125
C598
C598
C598
C701
C701
C701
R125
R125
R125
R125
R125
R125
R125
R125
R125
L561
R382
PCB
T0083
T0076
T0076
T0076
T0103
T0076
C701
T0098
RZ120
T0121
T0079
T0076
QZ102
T0090
T0081
QZ101
T0090
T0081
DZ106
DZ105
DZ102
T0083
T0083
T0083
QZ103
QZ106
QZ105
QZ104
RZ122
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RZ110
RZ104
RZ105
RZ106
RZ114
RZ103
RZ111
RZ123
RZ113
RZ112
Code No.
Description ; Specification
2001-000006
2201-000599
2201-000599
2201-000599
2401-001571
2401-001571
2401-001571
2001-000319
2001-000472
2001-000563
2001-000232
2001-000908
2001-000908
2001-000908
2001-000281
2001-000281
2701-000168
2002-001014
AA41-00600E
0402-000243
BP39-00004B
BP39-00004C
BP39-00004C
BP59-00005A
AA39-20010C
2401-000480
AA63-10002A
6902-000395
BP94-00238A
0202-000187
2008-001097
3301-001201
AA33-00017A
AA39-20055C
AA96-00243L
0205-000129
0502-000153
6003-000335
AA62-00045A
AA96-00243M
0205-000129
0502-000131
6003-000335
AA62-00045A
AA97-07230M
0401-000005
0401-000005
0401-000005
0402-000546
0402-000546
0402-000546
0501-000283
0501-000389
0501-000389
0501-000389
2001-000019
2001-000221
2001-000221
2001-000241
2001-000241
2001-000258
2001-000258
2001-000331
2001-000331
2001-000554
2001-000666
2001-000832
2001-001100
2001-001100
2001-001139
2001-001139
2003-000532
2003-000713
2003-000713
2003-002157
2003-002157
2003-002157
Samsung Electronics
Remark
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
R-COMPOSITION;6.8Kohm,10%,1/2W,AA,TP,3.7
PCB-CRT;HCM4215W,FR-1,1L,E,1.6T,245X197(
S.N.A
DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A
LEAD CONNECTOR-ASSY;,1P,600,YFH800-01,S,
C-AL;10uF,20%,50V,GP,TP,5x11,5
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
BAG PE;LDPE,T0.05,W200,L140,,,
S.N.A
ASSY PCB MISC-VM;DP,HCM4215W3S/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5
CORE-FERRITE;AE,21x11x32mm,1500,280G
MAGNET CONVERGENCE;JH 92LT - 29G,-,29.1M
LEAD CONNECTOR-ASSY;,6P,500,YBNH025-06,6
ASSY H/S;-,CRT,AA62-000450A,2SC2344,HERC S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;-,AMP,AA62-000450A,2SA1011,HERC S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY AUTO-VM;COMMANDO
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
..2
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
RFZ101
C598
C598
C598
C598
C598
C701
C701
C701
C701
C701
C701
C701
LZ101
CN906
CN906
CN906
PCB
T0081
T0105
GT13
GT09
GT05
GT01
R301
R302
R303
PCB
T0098
LEDY01
T0121
SWY08
SWY07
SWY06
SWY05
SWY01
SWY02
SWY03
SWY04
CN906
CN906
RMY01
T0076
T0076
DZ016
DZ016
QY01
RY07
RY09
R125
R125
R125
R125
R125
RY08
C701
T0100
SW101
CN906
CN906
JK101
JK102
T0081
T0076
T0147
T0150
Code No.
2008-001086
2201-000193
2201-000193
2201-000516
2201-000516
2201-000604
2401-000480
2401-000832
2401-001157
2401-001220
2401-001220
2401-001513
2401-002144
2701-000002
3711-002642
3711-002642
3711-002642
AA41-00611A
6003-001023
BP94-00239A
0202-000187
AA60-40012D
AA60-40012D
AA60-40012D
AA60-40012D
AA61-01197A
AA97-07230N
2001-001107
2001-001107
2001-001107
AA41-00632A
BP94-00517Q
0202-000187
0601-001381
3301-001201
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3711-000447
3711-003353
AA32-00012A
AA39-00223A
AA39-00259A
BP97-00511J
0403-000510
0403-000510
0504-000123
2001-000020
2001-000109
2001-000429
2001-000832
2001-000832
2001-000832
2001-000924
2001-001108
2401-002009
BP41-00040A
BP94-00564F
0202-000187
3404-000208
3711-000447
3711-003601
3722-000544
3722-001164
6003-001023
AA39-00260A
AA63-10002A
AA91-00762U
AA61-00793E
AA64-02085F
AA64-02086F
AA97-07429A
Description ; Specification
Remark
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
HOLDER-PCB,DY;COMANDO,ABS V0,BLK
S.N.A
ASSY AUTO;COMMANDO
S.N.A
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
PCB-DY CONNECTION;HCM4215W,FR-1,1L,A,1.6 S.N.A
ASSY PCB MISC-CONTROL;DP, ST54T8PCS/XAX,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
LED;ROUND,RED/GRN,5.0MM,650/563NM
CORE-FERRITE;AE,21x11x32mm,1500,280G
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,
MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
LEAD CONNECTOR-ASSY;,11P,800MM,67096-011
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
ASSY AUTO-CONTROL;ST54T8,P55A
S.N.A
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PCB CONTROL;ST54T8,CONTROL,1L,1.6T,245*2 S.N.A
ASSY PCB MISC-A/V FRONT;ST54T8PCS/XAX,P5
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
JACK-VHS;4P,11.5mm,AG,BLK,N
JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
ASSY-JACK SIDE;54/62T8,SV704P,XAX
HOLDER-SIDE AV;47H1,ABS HB,GRAY,SV-704P
S.N.A
DOOR-AV;H1,ABS HB,GRAY,SV-704P
INLAY-AV;W3,PS SHEET,T0.5,P54A XAC
S.N.A
ASSY AUTO-A/V FRONT;HCM4215WX/XAA,P55A S.N.A
7-55
Electrical Parts List
Loc. No.
....4
....4
...3
..2
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
...3
Code No.
R125
2001-000006
PCB
AA41-00499B
CNW01ABP39-00016B
BP95-00147D
0202-000187
AA69-01808B
BP97-00208A
Q01
0501-000342
PCB
AA41-00853A
D01
BP32-00001A
R01
2007-000305
R02
2007-000109
R03
2007-000109
0202-001167
CN906 3711-000447
Description ; Specification
Remark
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB-FRONT A/V;SVP-54T6SR,FR-1,1L,A,1.6T,
S.N.A
LEAD CONNECTOR;HCL4715WB,UL2547#26,UL/CS
ASSY SUB PCB-SENSOR;DP,P54A,SENSOR
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,800,50
S.N.A
ASSY SMD;0
S.N.A
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTPCB-SERSOR;SVP-42W5HRC,FR-4,2L,A,1.6T,24 S.N.A
SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U
R-CHIP;10Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-
ASSY P/MATERIAL
1
BP92-00526B ASSY P/MATERIAL;ST54T8PCS/XAX,J54A
S.N.A
..2
..2
...3
..2
..2
..2
..2
AA60-40006A
AA61-00049B
AA61-20285A
AA63-10007C
AA69-00305A
AA69-00306A
AA69-00744L
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
HOLDER-BOX;-,PP,-,-,-,NTR,V0,AA61-20285A
HOLDER-BOX;3456,PP,-,-,-,WHT,VO
BAND-PP;W18,CLEA,1G
BAG AIR;ALL,LDPE,1000,500,CLR,
BAG AIR;LDPE,-,1800,1000,CLR,ASSY,ALL,BAG-SHEET;-,HDPE PE FOAM,T0.015,W1650,H1
ASSY ACCESSORY
1
..2
..2
..2
...3
...3
..2
..2
..2
..2
..2
..2
M0016 BP92-00577F ASSY ACCESSORY;ST54T8PCS/XAX,P55A
T0116
T0074
T0122
T0119
T0113
W/C
CIS
CIS
6902-000018
AA39-00006A
AA59-00262A
2802-000194
AA09-00275A
AA61-20126A
AA68-00559C
AA68-00560A
AA69-30009C
BP68-00056B
BP68-00057B
S.N.A
BAG PE;LDPE,T0.1,W280,L400,GRY,8,2S.N.A
CABLE RCA;,3000MM
REMOCON;,TM63,COMMONDO,48,G6671B,EX,S/S
RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
IC MICOM;Z86L8808SSC-R51PX,SOP,ST,SZTM-8
HOLDER-LEG;-,ABS,-,-,-,BLK,HB
CARD WARRANTY;-,-,W/P150(G),-,138X212,-,
S.N.A
CARD-SVC NETWORK;-,W/P100(G),-,-,SEM,1’,
S.N.A
BAG-SHEET;LDPE,T0.08,W150,L120,-,-,S.N.A
MANUAL USERS;ST47W3PC,ENG,W/P 100g,P55A,S.N.A
MANUAL USERS;ST47W3PC,SPA,W/P 100g,P55A,S.N.A
ASSY K/D-CPT
1
BP98-00180A ASSY K/D-CPT;ST54T8PCS/XAX,P55A
..2 T0026
...3
...3 T0117
...3 T0078
...3 T0079
...3 T0076
...3
...3
...3
...3 T0081
...3
...3
...3 T0114
...3
...3 T0109
...3 T0051
...3
...3
....4
....4
...3 T0107
....4 T0107
.....5 T0072
.....5
BP98-00181A
AA03-00200A
AA26-30006F
AA27-00249A
AA33-00016A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10008A
BP61-00079A
AA61-00845A
AA61-00806B
AA63-10007C
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
7-56
ASSY K/D-CPT R;ST54T8PCS/XAX,P55A
CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH,
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;-,DELTA,RED,PJT,-,77,79,HOLDER-DY;,PJTV,T0.5,NYLON66 V2
CASE-COUPLER,R;DP,PROJ,AA61-00806B
CASE-COUPLER,R;PROJ,ALDC,T8,BLK
BAND-PP;W18,CLEA,1G
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,-
Loc. No.
.....5
..2 T0027
...3
...3 T0117
...3 T0078
...3 T0076
...3
...3
...3
...3 T0081
...3
...3
...3 T0114
...3
...3 T0109
...3 T0051
...3
...3 T0107
....4 T0107
.....5 T0072
.....5
.....5
...3
....4
....4
..2 T0028
...3
...3 T0117
...3 T0078
...3 T0079
...3 T0076
...3
...3
...3
...3 T0081
...3
...3
...3 T0114
...3
...3 T0109
...3 T0051
...3
...3 T0107
....4 T0107
.....5 T0072
.....5
.....5
...3
....4
....4
Code No.
Description ; Specification
AA61-00812A
BP98-00182A
AA03-00201A
AA26-30006F
AA27-00249A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10071A
BP61-00079A
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
AA61-00846A
AA61-00807B
AA63-10007C
BP98-00183A
AA03-00202A
AA26-30006F
AA27-00249A
AA33-00018A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10007A
BP61-00079A
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
AA61-00847A
AA61-00808B
AA63-10007C
Remark
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
ASSY K/D-CPT G;ST54T8PCS/XAX,P55A
CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH, S.N.A
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
S.N.A
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;DELTA 77 79,-,GREEN,C ELEMENT,
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
CASE-COUPLER,G;DP,PROJ,AA61-00807B
S.N.A
CASE-COUPLER,G;PROJ,ALDC,T8,BLK
S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
ASSY K/D-CPT B;ST54T8PCS/XAX,P55A
CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH, S.N.A
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
S.N.A
SPACER-CAP;PROJ,EPDM,BLK
S.N.A
SPACER-LENS;PROJ,SILICONE,D/GRAY
S.N.A
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
S.N.A
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
S.N.A
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;-,DELTA,CLEAR,PJT,-,77,79,HOLDER-DY;,PJTV,T0.5,NYLON66 V2
S.N.A
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,S.N.A
BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,S.N.A
SPRING ETC-WIRE;PROJ,STS,3.6
S.N.A
CASE-COUPLER,B;DP,PROJ,AA61-00808B
S.N.A
CASE-COUPLER,B;PROJ,ALDC,T8,BLK
S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
7-4 HCN4727W5S/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY SKD PART
1
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
AA92-07174A ASSY SKD PART;HCN4727W5S/XAA,P55A
T0121
T0118
T0066
T0077
T0121
3301-001201
AA26-00101A
AA63-10002A
AA65-30018A
AA65-30104C
AA96-00156A
3811-000401
AA39-10007Y
AA61-20284A
AA63-10002B
3301-001201
CORE-FERRITE;AE,21x11x32mm,1500,280G
TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA
BAND-TIE;NYLON66 V2,L100,NTR
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
ASSY POWER CORD;-,EP2/YES(US),H/C100MM,K
WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
CBF POWER CORD;-,EP2/YES,SPT-2 18AWGx2C,
HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
BAND-TIE;NYLON66 V2,L140,NTR
CORE-FERRITE;AE,21x11x32mm,1500,280G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER FRONT
1
M0001
BP90-00150B ASSY COVER FRONT;,P55A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
..2
..2
..2
...3
...3
...3
...3
....4
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
....4
...3
...3
....4
...3
T0081 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
S.N.A
T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
S.N.A
T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
S.N.A
T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
S.N.A
T0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4.0,L15,BLK,SWRCH1 S.N.A
HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
HC+CW 6005-001005 SCREW-WOOD;HH,+,M4.0,L19,NI PLT,SWRCH18A S.N.A
BCM+CW 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A
T0076 AA39-00284A LEAD CONNECTOR-ASSY;SVP-47W3HD,UL2547#26
AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A
T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
T0115 AA61-00617B BRACKET-CRT,MAIN;DP,54J7,AA61-00475B
S.N.A
T0115 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,AA63-10007C BAND-PP;W18,CLEA,1G
S.N.A
AA61-00618C GUIDE-FLOW;54J8,J7,ABS,IVORY,V0
S.N.A
T0069 AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4
S.N.A
T0110 AA67-00136A SUN SCREEN-AG;47W,1072*614*,T=82%,G=110
AA98-00333M ASSY K/D-SPEAKER;20W(3001-001107),8 OHM S.N.A
T0082 3001-001107 SPEAKER;20W,8OHM,95DB,1300HZ
T0082 3001-001134 SPEAKER;30W,8OHM,93DB,60HZ
T0076 AA39-00042A LEAD CONNECTOR-ASSY;,2.2UF,200MM,REC,REC
AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A
T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
T0064 BP65-00005A CLAMPER CORE;52Q7,NYLON
S.N.A
BP98-00184A ASSY K/D-WOOD;47W7,XAA
S.N.A
HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
AA61-00094C HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480
S.N.A
AA61-00507B HOLDER-CABINET,WOOD;43,54,62J8,ABS,-,-,S.N.A
AA61-00616B HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005
S.N.A
AA61-00506B HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL
S.N.A
AA61-10247A BRACKET-FOCUS;S46DS,SECC,T1.0,-,-,-,S.N.A
AA63-00384A COVER-DUCT;DP 54J8,-,-,-,-,HB,-,AA63-003
S.N.A
AA63-00348B COVER-DUCT;54,62J8,HIPS,-,-,-,HB,BLK,S.N.A
AA64-02536B CABINET-HANDLE WOOD;47W7,HIPS,HB,GRY,DG7 S.N.A
Samsung Electronics
S.N.A
Loc. No.
...3
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
Code No.
Description ; Specification
BP61-00075A
AA63-00099C
AA61-00508D
BP61-00207A
BP61-00210A
BP64-00237A
AA61-00097A
AA61-00458B
AA61-00858C
HC+CW AA60-10051B
AA60-00078B
BP61-00210B
AA61-20129D
BP98-00185A
T0057 BP64-00177A
T0017 BP64-00201A
T0102 BP73-00004A
T0067 BP60-00032A
T0067 BP60-00032B
BP98-00188A
T0081 6003-001019
T0081 6003-001019
T0069 AA60-00091R
CIS7
AA61-60003J
BP60-00031A
BP64-00202A
T0023 BP64-00204A
T0022 BP64-00205A
BP64-00206A
T0053 AA67-00119B
T0056 AA67-00196A
BP61-00350A
T0081 6003-001019
BP61-00158A
BP61-00211A
T0069 AA60-00091U
BP61-00350B
T0081 6003-001019
BP61-00158A
BP61-00211A
T0064 BP65-00005A
T0069 AA60-00091U
BP61-00352A
T0081 6003-001019
BP61-00158A
BP61-00209A
T0069 AA60-00091T
T0069
Remark
HOLDER-JERSEY,ASSY;W3,ABS V0,GRAY,63-000
SPACER-FELT;47W3,FELT,BLK,T0.35,30*30
HOLDER-JERSEY;W3,ABS V0,GRAY,G4309
HOLDER-FOOT;47W7,HIPS HB BLK,,,,,
HOLDER-WOOD,TOP;55W7,ABS HB BLK,,,,,
CABINET-WOOD;47W7,WOOD,DE8326 D/GRY
HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,CASTER;-,TP4020-05 PLY,-,OH56,-,-,SR44.4
BRACKET-FRAME;,SECC,T2.0,NO-R PJTV
SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-,
SPACER-DUAL,LOCK;W3,#250,19*40
HOLDER-WOOD,SIDE;ABS,47W7,HB,650,BLK
HOLDER-WIRE;NYLON NTR,W7
ASSY K/D-FRONT MASK;47W7,XAA
BADGE-BRAND;ALL,AL,T1.5,70,11.3,,BLK,SIL
CABINET FRONT-MASK;47W7,HIPS HB,GRY,DGM1
RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
SPACER-SCREEN;47W7,EVA SPONGE,600,BLK,T1
SPACER-SCREEN;47W7,EVA SPONGE,1000,BLK,T
ASSY K/D-FRONT BOT;HCN4727WSCXAA
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SPACER-FELT;,FELT,250X10,,,BLK,T0.5,,
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
SPACER-DUAL LOCK;W7,20.6,3463
CABINET FRONT-BOT;47W7,HIPS V0,G4309,SV0
KNOB POWER;47W7,ABS HB,G3676,SVM3132
KNOB CONTROL;47W7,ABS HB,G3676,SVM3132
WINDOW REMOCON-LED;47W7,ABS HB,,,,,CLR,
SCREEN FRESNEL;47W,1072*614,T2
SCREEN-TINT;47W,1070*612,T=0.7,P
HOLDER-SCREEN TOP ASSY;HIPS,47W7,HB,BLK,
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
HOLDER-SENSOR;52Q7,PC,VIOLET
HOLDER-SCREEN TB;47W7,HIPS HB BLK,,,,,
SPACER-FELT;W7,L1035,BLK,T0.35,W10
HOLDER-SCREEN BOT ASSY;HIPS,47W7,HB,BLK,
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
HOLDER-SENSOR;52Q7,PC,VIOLET
HOLDER-SCREEN TB;47W7,HIPS HB BLK,,,,,
CLAMPER CORE;52Q7,NYLON
SPACER-FELT;W7,L1035,BLK,T0.35,W10
HOLDER-SCREEN SIDE ASSY;HIPS,47/55W7,HB,
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
HOLDER-SENSOR;52Q7,PC,VIOLET
HOLDER-SCREEN SIDE;55W7,HIPS HB BLK,,,,,
SPACER-FELT;W7,L635,BLK,T0.35,W10
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER REAR
1
M0002
BP90-00153B ASSY COVER REAR;,P55A
S.N.A
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
...3
...3
..2
...3
...3
..2
DVI+TB
T0069
6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
AA60-00091N SPACER-FELT;-,FELT,70X10,-,-,BLK,T1.0,-,
AA61-01134A HOLDER-MIRROR,BOT;43,54T6,HIPS HB,BLK
AA64-60421C INLAY-COVER;-,PS,T0.3,-,-,BLK,SEA
AA64-60449B INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5
AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,AA91-00751A ASSY-BRACKER,MIRROR;,47W3
AA60-00073G SPACER-FELT;PJT,FELT,T1.0,800*7
AA61-00783B BRACKET-MIRROR;47W3,SECC,T1.0
AA91-00921A ASSY-HOLDER,MIRROR;,HIPS HB BLK,47W3
AA60-00091A SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.35,
AA61-00879A HOLDER-MIRROR,SIDE(R);47W3,HIPS HB,BLK
AA91-00921B ASSY-HOLDER,MIRROR;,HIPS HB BLK,47W3
AA60-00091A SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.35,
AA61-00879B HOLDER-MIRROR,SIDE(L);47W3,HIPS HB,BLK
BP64-00203A CABINET BACK-BOT;47W7,HIPS V0,BLK
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
T0106
T0069
T0069
T0069
T0015
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-57
Electrical Parts List
Loc. No.
...3
..2
...3
....4
....4
..2
..2
..2
T0092
T0092
T0112
T0111
T0108
Code No.
Description ; Specification
0103-000161
BP96-00077L
BP96-00038H
AA64-02836J
AA65-00023A
AA64-02061B
AA64-02065C
AA67-00181A
Remark
RESIN-HIPS;BASFK456M,BLK,-,V0
ASSY COVER P-TERMINAL,ANT;DP WIDE PJT,HI
ASSY COVER P-TERMINAL,ANT;WIDE PJT,HIPS
INLAY-TERMINAL,NT;WIDE PJT,PS SHEET,T0.5
TERMINAL-BOARD,ANT;,HIPS V0,BLK
CABINET-BACK,TOP;47W3,HIPS HB,BLK,DO
CABINET-BACK,SIDE;47.55W3,HIPS V0,BLK
MIRROR-BACK;47W3,GLASS,861*677*421,T3.0
S.N.A
S.N.A
S.N.A
ASSY CHASSIS
1
M0017
..2
...3 T0081
...3 T0081
...3 T0070
...3
....4
....4
....4
...3 T0073
....4
....4 IC802
....4 IC012
....4 C701
....4 C701
....4 X601
....4 CNW01
....4 CNW02
....4 CNZ01
....4 CN901
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 CN906
....4 JA703
....4 JA701
....4 JA704
....4 JA702
....4 L802
....4 L801
....4 T0076
....4 T0076
....4 TU02
....4 TU04
....4 TU01
....4
....4
....4
....4
....4
....4
....4 T0104
.....5 T0083
.....5 Q409
.....5 Q409
.....5 IC904
.....5 X901
.....5 CN901
.....5
......6 D905
......6 D906
......6 D920
......6 D923
......6 D602
......6 D901
......6 D902
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
7-58
BP91-00917A ASSY CHASSIS;HCN4727WSC/XAA,P55A
BP91-00801R
6003-001023
6003-001023
AA61-01127A
AA98-01177B
AA63-10007C
AA69-01808A
AA69-01403A
BP94-00500C
0202-000187
1203-000119
1203-000165
2401-000737
2401-001068
2801-004020
3703-001150
3703-001150
3703-001150
3703-001187
3711-003046
3711-003641
3711-003973
3711-003975
3711-004946
3722-001163
3722-001426
3722-001796
3722-001871
AA27-10001C
AA29-00004A
AA39-20010B
AA39-20010B
AA40-00049A
AA40-00049A
AA59-00164A
AA63-00396B
AA63-00397B
AA63-00610A
AA63-10002A
AA65-30018A
AA65-30111A
AA95-02001K
0402-000274
0505-000109
0505-000109
1203-001943
2801-004071
3703-001175
AA97-07275A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
0403-001375
S.N.A
ASSY MISC-CHASSIS PACK;DP,HCN4727WSC/XAAS.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A
ASSY K/D-P/MATERIAL;PJTV(COMANDO),P55A S.N.A
BAND-PP;W18,CLEA,1G
S.N.A
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90
S.N.A
WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A
ASSY PCB MAIN;HCN4727WSC/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
C-AL;3300uF,20%,50V,GP,BK,22x40,10
CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PIN;9P,3.4mm,NI,BLK,JACK-PIN;7P(10P),-,NI,RD/RD/WH/WH/RD/BL/
JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT
COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),
MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O
SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-,
S.N.A
SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A
BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W S.N.A
ASSY SUB-PCB MICOM;,C2
DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH
CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A
ASSY SMD;SVP-47W3HRT,P55A, , ,
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLDIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LL-
Loc. No.
......6 DZ016
......6 Q915
......6 Q916
......6 Q917
......6 Q920
......6 Q914
......6 Q913
......6 Q910
......6 Q908
......6 Q902
......6 IC112
......6 T0087
......6 IC901
......6 R981
......6 R964
......6 R960
......6 R959
......6 R965
......6 R956
......6 R953
......6 R952
......6 R969
......6 R970
......6 R972
......6 R979
......6 R940
......6 R909
......6 R916
......6 R918
......6 R939
......6 R923
......6 R922
......6 R907
......6 R917
......6 R911
......6 R963
......6 R901
......6 R930
......6 R933
......6 R936
......6 R974
......6 R905
......6 R921
......6 R924
......6 R925
......6 R915
......6 R913
......6 R912
......6 R978
......6 R976
......6 R971
......6 R958
......6 R980
......6 R982
......6 R985
......6 R986
......6 R903
......6 R904
......6 R906
......6 R908
......6 R955
......6 R954
......6 R928
......6 R927
......6 R983
......6 R934
......6 R987
......6 R957
......6 R944
......6 R926
......6 R975
......6 R942
......6 R941
......6 R914
......6 R988
......6 R962
......6 R961
Code No.
Description ; Specification
0403-001375
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1103-000180
1203-002302
1204-001912
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000081
2007-000081
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000097
2007-000121
2007-000123
2007-000123
2007-000123
2007-000290
2007-000583
2007-000939
Remark
DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LLTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;820ohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/8W,TP,2012
R-CHIP;22Kohm,1%,1/10W,TP,1608
R-CHIP;47Kohm,1%,1/10W,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C950
......6 C936
......6 C921
......6 C918
......6 C915
......6 C913
......6 C938
......6 C917
......6 C912
......6 C911
......6 L905
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 R949
......6 R950
......6 R951
......6 R945
......6 R946
......6 R948
......6 R966
......6 PCB
......6
.....5 IC902
.....5
....4 IC801
.....5
.....5 T0087
.....5 T0123
.....5 T0081
.....5
.....5 T0123
....4 IC601
.....5
.....5 T0124
.....5 T0081
.....5
....4
....4
....4 T0095
.....5
.....5 FC48
.....5 FC59
.....5 FC58
.....5 EX01
.....5 T0122
Code No.
Description ; Specification
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000189
2203-000221
2203-000236
2203-000236
2203-000236
2203-000236
2203-000260
2203-000357
2203-000440
2203-000440
2203-000440
2203-000444
2203-000748
2203-000748
2203-001048
2203-005809
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2703-001245
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-000931
AA41-00599B
0202-001167
1102-001130
0202-000187
AA96-00475C
0205-000129
1203-000293
1203-002003
6003-000334
AA62-00066B
1203-001978
AA96-00623E
0205-000129
1201-001026
6003-000334
AA62-00056A
BP39-00036A
BP63-00030A
BP95-00142N
0202-000187
2305-000011
2305-000704
2309-000138
2801-004019
2802-001177
Samsung Electronics
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.03NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.56NF,10%,50V,C0G,TP,201
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
INDUCTOR-SMD;8.2uH,10%,2x1.25x1.25mm
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/8W,TP,2012
PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4
ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
LEAD CONNECTOR;J54A/SP42W5HP,UL2547#26,U
SHIELD CASE;COMMANDO,SPTE,T0.5,W26.0,L13 S.N.A
ASSY SUB PCB-PRO SCAN;HCN4727WX/XAA,P55A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
C-FILM,MPEF;470nF,5%,250V,TP,21.5X13.0X7
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.
Loc. No.
.....5 T0122
.....5 CN02
.....5 CN01
.....5 CN906
.....5 CN906
.....5
......6 FD13
......6 FD14
......6 FD15
......6 FD16
......6 FD17
......6 FD10
......6 FD01
......6 FD02
......6 FD07
......6 FD08
......6 FD09
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 SQ01
......6 FQ13
......6 FQ04
......6 FQ03
......6 FQ02
......6 FQ08
......6 FQ09
......6 FQ12
......6 PQ01
......6 FQ06
......6 FQ05
......6 EQ15
......6 EQ14
......6 EQ13
......6 FQ07
......6 Q409
......6 Q409
......6 IC104
......6 IC106
......6 IC06
......6 T0087
......6 T0087
......6 IC02
......6 IC01A
......6 IC118
......6 SR08
......6 FR80
......6 FR79
......6 FR78
......6 FR57
......6 FR35
......6 FR07
......6 ER90
......6 FR76
......6 FR96
......6 SR09
......6 SR22
......6 ER29
......6 ER04
......6 ER05
......6 ER06
......6 ER13
......6 ER19
......6 ER18
......6 ER17
......6 SR03
......6 SR04
......6 SR05
......6 SR06
......6 SR10
......6 SR11
......6 SR02
......6 FR71
......6 FR74
Code No.
2802-001179
3703-001124
3703-001124
3711-001164
3711-003601
BP97-00169A
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0401-000133
0403-000746
0403-001016
0403-001117
0403-001117
0403-001117
0403-001117
0501-000280
0501-000280
0501-000280
0501-000280
0501-000280
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000727
0505-000110
0505-000110
0801-000662
1001-001082
1203-001211
1203-002186
1203-002302
1204-001814
1204-001938
1204-001989
2007-000052
2007-000052
2007-000052
2007-000052
2007-000052
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
Description ; Specification
Remark
RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;HCM4215WJX/XAA,P55A
S.N.A
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1
IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL
IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS
IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM
IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;10Kohm,1%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
7-59
Electrical Parts List
Loc. No.
......6 FR75
......6 FR81
......6 FR82
......6 SR01
......6 SR49
......6 SR53
......6 SR75
......6 YR43
......6 YR44
......6 YR45
......6 SR48
......6 SR31
......6 SR32
......6 SR33
......6 SR34
......6 SR35
......6 SR47
......6 ER84
......6 FR01
......6 FR02
......6 FR16
......6 FR17
......6 FR18
......6 ER83
......6 CR83
......6 CR84
......6 ER08
......6 ER15
......6 ER16
......6 ER82
......6 FR37
......6 FR38
......6 FR39
......6 FR53
......6 FR54
......6 FR56
......6 FR34
......6 FR19
......6 FR20
......6 FR21
......6 FR33
......6 FR32
......6 FR31
......6 SR74
......6 SR21
......6 FR66
......6 ER28
......6 ER27
......6 ER26
......6 SR07
......6 FR40
......6 FR72
......6 FR73
......6 FR62
......6 FR45
......6 FR44
......6 ER92
......6 ER91
......6 FR42
......6 FR41
......6 PR01
......6 FR60
......6 FR22
......6 FR09
......6 FR58
......6 ER24
......6 ER25
......6 FR77
......6 PR02
......6 ER20
......6 ER21
......6 ER22
......6 ER23
......6 FR63
......6 FR70
......6 FR47
......6 FR46
7-60
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000077
2007-000080
2007-000080
2007-000081
2007-000082
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000086
2007-000086
2007-000090
2007-000090
2007-000090
2007-000090
2007-000092
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000097
2007-000118
2007-000124
2007-000124
2007-000124
Description ; Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;15Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
Remark
Loc. No.
......6 FR15
......6 FR14
......6 FR13
......6 FR10
......6 FR11
......6 FR12
......6 SR73
......6 SR26
......6 SR25
......6 SR23
......6 FR36
......6 FR43
......6 ER14
......6 SR36
......6 SR37
......6 SR38
......6 SR39
......6 SR40
......6 ER12
......6 EC30
......6 EC31
......6 ER03
......6 ER11
......6 ER10
......6 ER09
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
Description ; Specification
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000210
2007-000259
2007-000309
2007-000309
2007-000309
2007-000691
2007-000869
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000257
Remark
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.1Kohm,5%,1/8W,TP,2012
R-CHIP;1.6Kohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;10ohm,5%,1/10W,TP,1608
R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 FC09
......6 PC18
......6 FC60
Code No.
Description ; Specification
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000491
2203-000491
2203-000491
2203-000575
2203-000575
2203-000575
2203-000575
2203-000626
2203-000626
2203-000681
2203-000681
2203-000681
2203-000783
2203-000783
2203-000783
2203-000783
2203-000783
2203-000896
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000975
2203-000998
2203-000998
2203-000998
2203-000998
2203-001140
2203-001222
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-005384
2203-005384
2203-005384
2203-005809
2402-000170
2402-000173
2402-000173
Samsung Electronics
Remark
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201
C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
Loc. No.
......6 FC29
......6 FC13
......6 SC38
......6 SC36
......6 SC34
......6 SC40
......6 SC42
......6 SC44
......6 SC47
......6 SC31
......6 PC01
......6 PC03
......6 PC06
......6 PC32
......6 SC18
......6 SC16
......6 SC11
......6 FC63
......6 FC62
......6 FC45
......6 FC12
......6 FC04
......6 PC12
......6 PC10
......6 PC09
......6 FC65
......6 FC06
......6 PC08
......6 PC07
......6 FC31
......6 CC49
......6 EL05
......6 EL06
......6 EL07
......6 EL08
......6 EL01
......6 EL02
......6 EL03
......6 EL04
......6 FL01
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 CR27
......6 0
......6
....4 T0093
.....5
.....5 L01
.....5 CN01
.....5 CN906
.....5
......6 D13
......6 D12
......6 D11
......6 D10
......6 D14
......6 D15
......6 D16
......6 D17
......6 D18
......6 D01
......6 D02
......6 D03
......6 D04
......6 D05
......6 D09
Code No.
2402-000173
2402-000173
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-000179
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2402-001049
2402-001049
2402-001049
2402-001049
2402-001070
2402-001070
2402-001070
2402-001070
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-000274
2703-001070
3301-001082
3301-001186
3301-001186
3301-001186
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
2007-000033
AA41-00610E
0202-001167
BP95-00146C
0202-000187
2701-001030
3703-001124
3711-003601
BP97-00513D
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
0401-000160
Description ; Specification
Remark
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm
INDUCTOR-SMD;100uH,10%,4.5x3.2x3.2mm
CORE-FERRITE BEAD;AB,60OHM,3.2X2.5X1.3MM
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
R-CHIP;0ohm,5%,1/4W,TP,3216
PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN
ASSY SUB PCB-CONV MOD;,P55A,CG MOD
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
INDUCTOR-AXIAL;43uH,10%,5x14mm
CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
ASSY SMD;,P55A,CG MOD
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
S.N.A
S.N.A
S.N.A
S.N.A
7-61
Electrical Parts List
Loc. No.
......6 D08
......6 D07
......6 D06
......6 DZ016
......6 DZ016
......6 DZ016
......6 Q02
......6 Q03
......6 Q10
......6 Q04
......6 Q409
......6 Q409
......6 Q409
......6 IC104
......6 IC104
......6 IC104
......6 IC08
......6 IC13
......6 IC112
......6 DU410
......6 DU410
......6 DU410
......6 DU410
......6 DU410
......6 T0074
......6 IC03
......6 T0087
......6 IC17
......6 R36
......6 R35
......6 R31
......6 R30
......6 R143
......6 R144
......6 R25
......6 R122
......6 R123
......6 R141
......6 R136
......6 R15
......6 R24
......6 R45
......6 R46
......6 R09
......6 R10
......6 R129
......6 R134
......6 R135
......6 R59
......6 R65
......6 R71
......6 R77
......6 R91
......6 R53
......6 R02
......6 R16
......6 R17
......6 R20
......6 R47
......6 R62
......6 R64
......6 R68
......6 R58
......6 R56
......6 R52
......6 R70
......6 R98
......6 R94
......6 R82
......6 R80
......6 R76
......6 R74
......6 R38
......6 R37
......6 R110
......6 R11
......6 R101
7-62
Code No.
0401-000160
0401-000160
0401-000160
0403-001016
0403-001016
0403-001016
0501-000280
0501-000280
0501-000342
0501-000342
0505-000110
0505-000110
0505-000110
0801-002345
0801-002345
0801-002345
1001-000164
1001-001155
1103-001195
1201-001135
1201-001504
1201-001504
1201-001504
1201-001504
1201-001520
1203-001824
1203-002302
1209-001163
2007-000028
2007-000028
2007-000028
2007-000028
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
Description ; Specification
Remark
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTFET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC
IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10
IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST
IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA
IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL
IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;39ohm,5%,1/8W,TP,2012
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
Loc. No.
......6 R03
......6 R39
......6 R50
......6 R44
......6 R43
......6 R42
......6 R41
......6 R40
......6 R128
......6 R81
......6 R75
......6 R69
......6 R51
......6 R57
......6 R63
......6 R109
......6 R66
......6 R61
......6 R60
......6 R55
......6 R54
......6 R79
......6 R78
......6 R73
......6 R72
......6 R67
......6 R49
......6 R08
......6 R07
......6 R06
......6 R04
......6 R01
......6 R48
......6 R133
......6 R121
......6 R119
......6 R118
......6 R86
......6 R92
......6 R93
......6 R96
......6 R97
......6 R85
......6 R113
......6 R114
......6 R115
......6 R83
......6 R84
......6 R125
......6 R05
......6 R127
......6 R100
......6 R32
......6 R34
......6 R29
......6 R28
......6 R117
......6 R107
......6 R33
......6 R120
......6 R90
......6 R89
......6 R88
......6 R87
......6 R108
......6 R139
......6 R138
......6 R137
......6 R99
......6 R95
......6 R126
......6 R27
......6 R26
......6 R116
......6 RN04
......6 RN05
......6 RN06
Code No.
Description ; Specification
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000079
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000080
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000091
2007-000102
2007-000109
2007-000118
2007-000119
2007-000122
2007-000122
2007-000122
2007-000122
2007-000122
2007-000124
2007-000124
2007-000133
2007-000133
2007-000133
2007-000133
2007-000381
2007-000402
2007-000402
2007-000402
2007-000704
2007-000704
2007-000857
2007-001167
2007-001167
2007-001179
2011-000585
2011-000585
2011-000585
Remark
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;2Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;12Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;560ohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;330Kohm,5%,1/10W,TP,1608
R-CHIP;13Kohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.3Kohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
Samsung Electronics
Electrical Parts List
Loc. No.
......6 RN01
......6 RN02
......6 RN03
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
Description ; Specification
2011-000585
2011-000585
2011-000585
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000257
2203-000257
2203-000257
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000357
2203-000440
2203-000575
2203-000575
2203-000975
2203-000975
2203-000975
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001071
2203-001083
2203-001083
Samsung Electronics
Remark
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C38
......6 C40
......6 C70
......6 C84
......6 C14
......6 C06
......6 C03
......6 C01
......6 C80
......6 OSC01
......6 F103
......6 F103
......6 F103
......6 F103
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 G101
......6 T0119
......6 1
......6 IC125
......6
....4 IC808
.....5 CIS
.....5 T0081
.....5 CIS
.....5 IC012
....4
.....5 D607
.....5 D608
.....5 D609
.....5 D601
.....5 D604
.....5 D605
.....5 T0083
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 DZ016
.....5 Q603
.....5 Q602
.....5 Q601
.....5 R125
.....5 R810
.....5 R808
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R125
.....5 R801
.....5 R674
.....5 R677
Code No.
Description ; Specification
2203-001083
2203-001083
2203-001245
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001042
2402-001049
2804-001479
2901-000226
2901-000226
2901-000229
2901-000229
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
3301-001324
AA09-00032A
AA41-00717D
BP13-00003A
0202-001167
BP96-00020G
0205-000129
6003-000334
AA62-00045B
1203-000203
BP97-00511F
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0403-000700
0403-001039
0403-001319
0403-001325
0501-000389
0501-000389
0501-000389
2001-000007
2001-000066
2001-000066
2001-000273
2001-000290
2001-000290
2001-000290
2001-000290
2001-000331
2001-000508
2001-000522
2001-000577
2001-000660
2001-000734
2001-000734
2001-000734
2001-000739
2001-000739
2001-000739
2001-000739
2001-000739
2001-000780
2001-000780
2001-000812
2001-000812
2001-000812
2001-001000
2001-001077
2001-001103
2001-001103
Remark
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4
C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-,
S.N.A
PCB (FR 4) 4L(AU);CONVERGENCE,FR-4,4,1.6
S.N.A
IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
ASSY HEAT SINK P;AA62-00045B,TAPTITE,SIS.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;COMMANDO,AL1050,T1.0,H45.0
S.N.A
IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
ASSY AUTO;0
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
7-63
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-64
R682
R681
R811
R814
R805
R024
R024
R024
R024
R024
R024
C695
C694
C689
C687
C682
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
2001-001146
2001-001146
2001-001182
2003-001098
2004-000970
2004-001390
2004-001390
2004-001970
2004-001970
2004-001970
2004-001970
2301-000192
2301-000192
2305-000665
2305-000665
2305-000665
2401-000025
2401-000025
2401-000025
2401-000025
2401-000039
2401-000039
2401-000192
2401-000192
2401-000302
2401-000302
2401-000360
2401-000360
2401-000471
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000480
2401-000603
2401-000603
2401-000603
2401-000603
2401-000603
2401-000832
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-000962
2401-001192
2401-001397
2401-001513
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-001989
2401-002075
2401-002075
2401-002075
2401-002075
Description ; Specification
Remark
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16
R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,16V,GP,TP,10x16,5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;1000uF,20%,50V,GP,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
Loc. No.
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 C701
.....5 L105
.....5 L119
.....5 L120
.....5 L121
.....5 L122
.....5 L123
.....5 L124
.....5 L107
.....5 L108
.....5 L111
.....5 L114
.....5 L113
.....5 L112
.....5 L703
.....5 L106
.....5 L104
.....5 L103
.....5 L101
.....5 L706
.....5 L705
.....5 L102
.....5 G101
.....5 G101
.....5 G101
.....5 CN906
.....5 CN906
.....5 CN906
.....5 CN906
.....5 GT01
.....5 GT02
.....5 GT03
.....5
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 DZ016
......6 Q703
......6 Q704
......6 Q707
......6 Q708
......6 Q709
......6 Q710
......6 Q101
......6 Q103
......6 Q106
......6 IC106
......6 IC106
......6 IC605
......6 IC704
Code No.
Description ; Specification
2401-002144
2401-002300
2401-002300
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002459
2401-002463
2401-002463
2401-002594
2401-002619
2401-002619
2401-002619
2401-002619
2401-002619
2701-000106
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000115
2701-000115
2701-000115
2701-000115
2701-001030
2701-001030
2701-001040
3301-000287
3301-000287
3301-000287
3711-002642
3711-002642
3711-002643
3711-002645
AA60-40014A
AA60-40014A
AA60-40014A
BP97-00513Q
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-000314
0403-001016
0403-001016
0403-001016
0403-001016
0403-001016
0403-001117
0403-001117
0403-001117
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
1001-001177
1001-001177
1001-001178
1002-001048
Remark
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
INDUCTOR-AXIAL;1.5uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;43uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
ASSY SMD;HCN4226WX/XAA,P55A
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTIC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
Loc. No.
......6 IC705
......6 DU410
......6 IC602
......6 R789
......6 R788
......6 R777
......6 R776
......6 R775
......6 R791
......6 R97C
......6 R904
......6 R79B
......6 R795
......6 R794
......6 R729
......6 R145
......6 R143
......6 R117
......6 R101
......6 R712
......6 R708
......6 R706
......6 R148
......6 R646
......6 R647
......6 R703
......6 R627
......6 R626
......6 R625
......6 R624
......6 R707
......6 R773
......6 R772
......6 R757
......6 R756
......6 R724
......6 R722
......6 R709
......6 R602
......6 R115
......6 R114
......6 R113
......6 R108
......6 R107
......6 R103
......6 R102
......6 R116
......6 R601
......6 R172
......6 R171
......6 R170
......6 R127
......6 R126
......6 R125
......6 R730
......6 R166
......6 R150
......6 R157
......6 R652
......6 R651
......6 R643
......6 R642
......6 R641
......6 R653
......6 R798
......6 R797
......6 R793
......6 R728
......6 R637
......6 R630
......6 R629
......6 R628
......6 R603
......6 R106
......6 R631
......6 R636
......6 R635
Code No.
Description ; Specification
1002-001048
1201-000541
1204-002002
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
Samsung Electronics
Remark
IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
Loc. No.
......6 R634
......6 R633
......6 R632
......6 R755
......6 R771
......6 R774
......6 R780
......6 R604
......6 R611
......6 R688
......6 R750
......6 R749
......6 R748
......6 R747
......6 R746
......6 R744
......6 R743
......6 R741
......6 R739
......6 R164
......6 R165
......6 R149
......6 R151
......6 R155
......6 R156
......6 R716
......6 R704
......6 R110
......6 R105
......6 R762
......6 R745
......6 R742
......6 R740
......6 R738
......6 R612
......6 R607
......6 R609
......6 R608
......6 R109
......6 R104
......6 R767
......6 R754
......6 R753
......6 R752
......6 R605
......6 R610
......6 R751
......6 R713
......6 R710
......6 R702
......6 R701
......6 R174
......6 R173
......6 R714
......6 R799
......6 R792
......6 R731
......6 R727
......6 R726
......6 R725
......6 R133
......6 R132
......6 R121
......6 R120
......6 R119
......6 R118
......6 R134
......6 R142
......6 R140
......6 R138
......6 R137
......6 R613
......6 R606
......6 C120
......6 C120
......6 C120
......6 C120
Code No.
2007-000078
2007-000078
2007-000078
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000090
2007-000090
2007-000090
2007-000090
2007-000093
2007-000093
2007-000093
2007-000093
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000094
2007-000097
2007-000097
2007-000098
2007-000098
2007-000127
2007-000127
2007-000127
2007-000127
2007-000127
2007-000134
2007-000134
2007-000329
2007-000329
2007-000828
2007-000828
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001010
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001179
2007-001179
2203-000140
2203-000140
2203-000181
2203-000181
Description ; Specification
Remark
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;20Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;22Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;9.1Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;33Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;11Kohm,5%,1/10W,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;51Kohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
7-65
Electrical Parts List
Loc. No.
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 C120
......6 L701
......6 L707
7-66
Code No.
2203-000181
2203-000181
2203-000181
2203-000181
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000332
2203-000332
2203-000440
2203-000440
2203-000440
2203-000440
2203-001071
2203-001071
2203-001071
2203-001211
2203-001211
2203-001211
2203-001211
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-001652
2203-005590
2203-005590
2203-005590
2203-005590
2203-005590
2703-000398
2703-000398
Description ; Specification
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.012NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
Loc. No.
......6 L708
......6 L901
......6 L902
......6 L604
......6 L125
......6 L126
......6 L601
......6 L602
......6 L603
......6 G101
......6 PCB
......6
...3 T0097
....4
....4 T0083
....4 T0083
....4 DZS801
....4 T0090
....4 PC801S
....4 PC811S
....4 DU410
....4 IC012
....4 T0086
....4 T0123
....4 IC851
....4 T0086
....4 NT801S
....4 VX801S
....4 R384
....4 C598
....4 C598
....4 C598
....4 C598
....4 C598
....4 C598
....4 CR471S
....4 CR430S
....4 CR431S
....4 C832
....4 CX802S
....4 CX801S
....4 CR436S
....4 CR473S
....4 C491
....4 CR474S
....4 C701
....4 C701
....4 C701
....4 C701
....4 C701
....4 C701
....4 C701
....4 C701
....4 FP801S
....4 CN906
....4 T432
....4 T481
....4 T444S
....4 T431
....4 T461
....4 L432
....4 L862
....4 L863
....4 L864
....4 LR401S
....4 LX801S
....4 LX802S
....4 LX803S
....4 LX804S
....4 T0076
....4 GT01
....4 D855
....4 D856
.....5
.....5 T0083
.....5 T0081
.....5
Code No.
Description ; Specification
Remark
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,
AA41-00597F PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245
S.N.A
0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A
BP94-00505N ASSY PCB MISC-PWR-DEF;HCN4727WX/XAA,P55A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP
0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS
0502-000405 TR-POWER;-,NPN,70W,TO-220,BK,10
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS
1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA
1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P
1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300
1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP
2002-001079 R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,TP,15X
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14.
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,
2301-001418 C-FILM,MPPF;1.5nF,5%,2kV,TP,29x7x13.5mm,
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,
2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m
2401-000142 C-AL;1000uF,20%,16V,WT,TP,10x20,5
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1
2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm
2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,
AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10
AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,
AA27-00056A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R
AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60
AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,
AA39-00180A LEAD CONNECTOR-ASSY;,14P,100MM,YBNH250-1
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
Samsung Electronics
Electrical Parts List
Loc. No.
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
.....5
....4
....4
....4
....4
.....5
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
Code No.
Q433
Description ; Specification
AA96-00243H
0205-000129
T0090 0502-000298
T0081 6003-000335
AA62-00045A
IC831S AA96-00275J
CIS
0205-000129
T0081 6003-000333
IC063
AA13-00105A
CIS
AA62-00051A
D811S AA96-00276A
0205-000129
T0083 0402-000549
T0081 6003-000335
AA60-30003A
AA62-00052A
IC421
AA96-00475B
0205-000129
T0083 0402-000233
IC012
1203-000165
T0081 6003-000334
AA62-00066B
IC301
AA96-00623A
0205-000129
T0088 1204-000517
T0081 6003-000334
AA62-00056A
Q431
BH99-00033H
T0083 0402-001296
T0060 BH61-70003A
T0090 0502-001230
CIS
BH62-00038B
CIS
BH73-00028A
CIS
0205-001027
TS801S BP26-00001A
T801S BP26-00002A
T0076 BP39-00014A
BP39-00017B
T0121 3301-001201
BP97-00289A
D477
0401-000005
D478
0401-000005
D479
0401-000005
DR401S 0401-000005
DR402S 0401-000005
D301
0401-000005
D385
0401-000005
D436
0401-000005
D442
0401-000005
D443
0401-000005
DS804 0401-000006
DS802 0401-000006
T0083 0402-000132
T0083 0402-000132
T0083 0402-000132
T0083 0402-000132
T0083 0402-000132
T0083 0402-000132
T0083 0402-000254
T0083 0402-000534
T0083 0402-000534
T0083 0402-000534
T0083 0402-000534
T0083 0402-000537
T0083 0402-000546
T0083 0402-000546
T0083 0402-000546
T0083 0402-000546
T0083 0402-000546
T0083 0402-001286
DZ016 0403-000704
DZ016 0403-000716
DZ016 0403-000720
DZ016 0403-000720
DZ016 0403-000720
DZ016 0403-000734
DZ016 0403-001167
Samsung Electronics
Remark
ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
ASSY H/S;SCREW,SILICON-OIL,AA62-00051A,S S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
S.N.A
IC HYBRID;STR-X6456,7,-20TO+125,DIP,21A,
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
S.N.A
ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WAS S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-BRIDGE;RBV606,600V,6A,-,BK
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
WASHER;T1.5,SBHG-1
S.N.A
HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2
S.N.A
ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
DIODE-RECTIFIER;FML-G12S,200V,5A,-,IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00
S.N.A
ASSY H/S;-,POWER,AA62-00056A,LA7845
S.N.A
GREASE-SILICON;SC102,JAPAN
S.N.A
IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-,
S.N.A
ASSY HEAT/SINK;BH62-00038A,SPRING,FJL692 S.N.A
DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
SPRING ETC;CVT4857,STS304-W1/2H,W3.8,-,L
S.N.A
TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F
HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80 S.N.A
SILICON/RUBBER-HS;CDT ALL,SILICON,26*33*
S.N.A
OIL-SILICON;G746,-,S.N.A
TRANS SWITCHING-POWER;19B012,P55A,HCM421
TRANS SWITCHING;EER5345,P55A,160V~280V,P
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007
LEAD CONNECTOR;HCM4727,UL1617#22,UL/CSA, S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
ASSY AUTO;0
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP
DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DODIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DS805
QR401S
Q482
Q432
Q461
Q471
Q474
Q481
Q851
QS801
QS802
Q301
Q381
Q382
Q401
Q402
Q421
Q451
IC012
VP801S
R125
R125
R125
R125
R308
R470
R422
R836
R493
RS808
RS804
R855
RS803
R814
R813
R812
R811
R439
R438
R834
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
Code No.
0403-001316
0403-001319
0403-001319
0403-001325
0403-001325
0403-001325
0403-001327
0403-001327
0403-001327
0403-001328
0403-001329
0403-001329
0403-001330
0403-001330
0404-001056
0501-000283
0501-000283
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
1203-001217
1405-000152
2001-000005
2001-000006
2001-000009
2001-000009
2001-000016
2001-000028
2001-000028
2001-000052
2001-000052
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000085
2001-000109
2001-000258
2001-000262
2001-000273
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000362
2001-000429
2001-000429
2001-000429
2001-000449
2001-000508
2001-000515
2001-000522
2001-000554
2001-000577
2001-000577
2001-000577
2001-000613
2001-000613
2001-000734
Description ; Specification
Remark
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
VARISTOR;560V,2500A,14x8.5mm,TP
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-67
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-68
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RS807
RR401S
R854
R839
R413
R434
R837
R468
RS802
R431
R433
R410
RS806
R459
R851
RP801S
RY801S
R428
R428A
R425
R831
R832
R430
R429
R463
R310
R460
R427A
R427
R426
R443A
R443
R464
R421
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R024
R472
R465
R449
R447
R445
R441
R442
R442A
R440
Code No.
2001-000734
2001-000734
2001-000734
2001-000734
2001-000745
2001-000761
2001-000761
2001-000761
2001-000761
2001-000761
2001-000786
2001-000800
2001-000800
2001-000812
2001-000924
2001-001031
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001088
2001-001108
2001-001122
2001-001124
2001-001153
2001-001155
2001-001155
2001-001168
2001-001192
2001-001196
2002-001010
2002-001013
2002-001017
2002-001017
2003-000417
2003-000512
2003-000512
2003-000586
2003-000586
2003-001024
2003-001024
2003-002044
2003-002152
2003-002152
2003-002153
2003-002156
2003-002156
2003-002158
2003-002159
2004-001369
2004-001386
2004-001395
2004-001402
2004-001408
2004-001892
2004-001892
2004-001893
2004-001897
2004-001897
2004-001984
2004-001984
2004-001984
2004-002011
2004-004001
2004-004046
2004-004046
2004-004366
2008-000252
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000253
2008-000282
Description ; Specification
Remark
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12
R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M
R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);22Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R424
R307
R486
R838
R306
R437
R485
R462
R853
R833
R405
RR471S
RR402S
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C478
C479
C477
CS801
C493
C412
C831
C438
C432
C460
C311
C487
C309
C871
C838
C865
C303
C301
C429
C480
C428
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
Code No.
Description ; Specification
2008-000289
2008-000290
2008-001018
2008-001053
2008-001076
2008-001087
2008-001137
2008-001145
2008-001152
2009-000017
2009-001109
2103-001024
2103-001086
2201-000017
2201-000017
2201-000017
2201-000119
2201-000119
2201-000119
2201-000119
2201-000132
2201-000132
2201-000132
2201-000132
2201-000132
2201-000138
2201-000146
2201-000146
2201-000180
2201-000180
2201-000332
2201-000332
2201-000332
2201-000370
2201-000406
2201-000551
2201-000551
2201-000551
2201-000551
2201-000551
2201-000558
2301-000020
2301-000200
2301-000213
2301-000356
2301-000356
2301-000383
2301-001216
2303-000002
2303-000002
2303-000331
2305-000149
2305-000178
2305-000285
2305-000289
2305-000412
2305-000427
2305-000427
2305-000427
2305-000704
2306-000122
2306-000122
2401-000025
2401-000050
2401-000164
2401-000262
2401-000262
2401-000302
2401-000302
2401-000360
2401-000360
2401-000365
2401-000365
2401-000480
2401-000603
2401-000660
2401-000698
Remark
R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm
R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm
R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM
R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6
VR-SEMI;50Kohm,25%,0.3W,TOP
VR-SEMI;100KOHM,25%,0.3W,TOP
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5
C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4
C-CERAMIC,DISC;0.22NF,10%,50V,Y5P,TP,4X3
C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3
C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0
C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m
C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;1000uF,20%,25V,WT,TP,12.5x20,5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2200uF,20%,16V,WT,TP,12.5x25,5
Samsung Electronics
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L431
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
F101
G101
G101
G101
G101
G101
G101
G101
G101
FD801S
FD871S
FD854S
FD805S
FD802S
FD855S
F801B
F801A
CN906
EY52
EY53
EY54
EY55
EY51
EY42
EY41
EY40
EY63
EY62
EY61
EY60
EY59
EY58
EY57
EY56
EL08
EL07
EL06
EL05
EL04
EL03
EL02
EL01
EY39
EL16
Code No.
Description ; Specification
2401-000703
2401-001026
2401-001026
2401-001192
2401-001397
2401-001428
2401-001486
2401-001527
2401-001622
2401-001625
2401-001655
2401-001989
2401-002144
2401-002144
2401-002216
2401-002216
2401-002288
2401-002288
2401-002300
2401-002463
2401-002619
2401-003114
2701-000116
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000297
2901-000299
3301-000287
3301-000287
3301-000287
3301-000287
3301-000287
3301-000287
3301-000374
3301-000374
3601-000120
3601-001086
3601-001086
3601-001086
3601-001228
3601-001228
3602-000114
3602-000114
3711-002645
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
Samsung Electronics
Remark
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;470uF,20%,50V,GP,TP,10x20,5
C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
C-AL;680uF,20%,25V,GP,TP,10x20,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;4.7uF,20%,250V,WT,TP,10x16,5
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
EL15
EL14
EL10
EL11
EL12
EL13
EY37
EY38
EY43
EY44
EY36
EY35
EY34
EY32
EY66
EY65
EY64
EY50
EY49
EY47
EY46
EY45
EY23
EY22
EY21
EY20
EY19
EY18
EY17
EY16
EY31
EY30
EY29
EY28
EY27
EY26
EY25
EY24
EY67
EY91
EY90
EY89
EY88
EY87
EY86
EY85
EY84
EY99
EY98
EY97
EY96
EY95
EY94
EY93
EY92
EY75
EY74
EY73
EY72
EY71
EY70
EY69
EY68
EY83
EY82
EY81
EY80
EY79
EY78
EY77
EY76
EY114
EY113
EY111
EY11
EY109
EY108
Code No.
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
Description ; Specification
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-69
Electrical Parts List
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-70
EY107
EY106
EY121
EY120
EY12
EY119
EY118
EY117
EY116
EY115
EY08
EY07
EY06
EY05
EY04
EY03
EY02
EY01
EY105
EY104
EY103
EY102
EY101
EY100
EY10
EY09
EY122
EY148
EY147
EY142
EY141
EY140
EY14
EY139
EY138
EY155
EY154
EY153
EY152
EY151
EY150
EY15
EY149
EY13
EY129
EY128
EY127
EY126
EY125
EY124
EY123
EY137
EY136
EY135
EY134
EY130
EY131
EY132
EY133
GT404
GT433
GT801
GT802
GT807
GT810
GT811
GT14
GT15
GT16
GT17
GT33
GT34
GT35
0
R024
RS801S
R840
Code No.
Description ; Specification
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA41-00598D
2004-005051
3601-000102
2001-001045
Remark
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245
R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4
FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
.....5
.....5
.....5
.....5
.....5
.....5
....4
.....5
.....5
.....5
.....5
.....5
.....5
....4
..2
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
....4
....4
...3
..2
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Code No.
Description ; Specification
Remark
R841
R024
R801
DZ016
Q409
Q409
Q473
CIS
T0090
Q409
T0081
CIS
CIS
T0121
T0105
2003-002102 R-METAL OXIDE(S);68Kohm,5%,2W,AF,TP,4x12
2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m
2003-002285 R-METAL OXIDE(S);1.5KOHM,5%,2W,AF,TP,6X1
0403-000698 DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DO0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,
BP96-00006B ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A
0205-001027 OIL-SILICON;G746,-,S.N.A
0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,80505-001722 FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
S.N.A
AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG
S.N.A
BP62-00001A HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
BP94-00239A ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA,
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
GT13
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
GT09
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
GT05
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
GT01
AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66
S.N.A
AA61-01197A HOLDER-PCB,DY;COMANDO,ABS V0,BLK
S.N.A
AA97-07230N ASSY AUTO;COMMANDO
S.N.A
R301
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R302
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R303
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
PCB
AA41-00632A PCB-DY CONNECTION;HCM4215W,FR-1,1L,A,1.6 S.N.A
T0100 BP94-00338A ASSY PCB MISC-A/V FRONT;DP,HCM473W3S/XAA
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
SW101 3404-000208 SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
CN906 3711-000447 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,
JK101 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N
JK102 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22
T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
T0076 AA39-00260A LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR
S.N.A
T0014 AA91-00762D ASSY-JACK,SIDE;,P54A PAL XAA,W3
AA61-00793C HOLDER-JACK;W3,ABS HB,BLK,DG703P
S.N.A
T0150 AA64-02085D DOOR-AV;W3,ABS HB,BLK,DG703P
S.N.A
AA64-02086E INLAY-AV;W3,PS SHEET,T0.5,P55A
S.N.A
AA97-07429A ASSY AUTO-A/V FRONT;HCM4215WX/XAA,P55A S.N.A
R125
2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB
AA41-00499B PCB-FRONT A/V;SVP-54T6SR,FR-1,1L,A,1.6T,
S.N.A
CNW01A BP39-00016B LEAD CONNECTOR;HCL4715WB,UL2547#26,UL/CS
T0098 BP94-00346A ASSY PCB MISC-VM;DP,HCM5525J3S/XAA,P55A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
RZ120 2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5
T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
T0079 AA33-00017A MAGNET CONVERGENCE;JH 92LT - 29G,-,29.1M
T0076 AA39-20055F LEAD CONNECTOR-ASSY;,6P,700MM,YBNH250-06
QZ102 AA96-00243L ASSY H/S;-,CRT,AA62-000450A,2SC2344,HERC
S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0090 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
QZ101 AA96-00243M ASSY H/S;-,AMP,AA62-000450A,2SA1011,HERC S.N.A
0205-000129 GREASE-SILICON;SC102,JAPAN
S.N.A
T0090 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
S.N.A
AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
S.N.A
AA97-07230M ASSY AUTO-VM;COMMANDO
S.N.A
DZ106 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DZ105 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DZ102 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
QZ103 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
QZ106 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
QZ105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
QZ104 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
RZ122 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R125
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R125
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
...3
...3
....4
R125
R125
R125
R125
R125
R125
RZ110
RZ104
RZ105
RZ106
RZ114
RZ103
RZ111
RZ123
RZ113
RZ112
RFZ101
C598
C598
C598
C598
C598
C701
C701
C701
C701
C701
C701
C701
LZ101
CN906
CN906
CN906
PCB
T0081
T0099
VR501
VR531
VR561
C701
T0121
T0121
V501
V531
V561
CN906
CN906
CN906
CN906
CN906
CN906
SG301
SG562
SG532
SG502
T0076
T0076
T0076
T0076
T0076
T0076
T0076
T0076
T0076
Q371
T0090
T0081
IC501
IC531
IC561
T0074
Code No.
Description ; Specification
2001-000258
2001-000331
2001-000331
2001-000554
2001-000666
2001-000832
2001-001100
2001-001100
2001-001139
2001-001139
2003-000532
2003-000713
2003-000713
2003-002157
2003-002157
2003-002157
2008-001086
2201-000193
2201-000193
2201-000516
2201-000516
2201-000604
2401-000480
2401-000832
2401-001157
2401-001220
2401-001220
2401-001513
2401-002144
2701-000002
3711-002642
3711-002642
3711-002642
AA41-00611A
6003-001023
BP94-00503R
0202-000187
2101-000321
2101-000321
2101-000321
2401-000480
3301-001201
3301-001502
3704-001019
3704-001019
3704-001019
3711-002645
3711-002648
3711-003052
3711-003052
3711-003973
3711-003973
4715-001050
6902-000395
AA27-00084A
AA27-00084A
AA27-00084A
AA39-00112A
AA39-00120F
AA39-00198A
AA39-20010D
AA39-20010D
AA39-20010E
AA39-20010F
AA39-20027H
AA39-20031G
AA63-10002A
AA69-01396A
AA96-00244H
0205-000129
0502-000442
6003-000335
AA62-00046A
AA96-50311L
AA96-50311L
AA96-50311L
1201-001131
Samsung Electronics
Remark
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP
C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
ASSY PCB CRT-PCB EMI;DP,HCN4727WSC/XAA,P
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
VR-ROTARY;1Mohm,-,0.6W,SIDE
C-AL;10uF,20%,50V,GP,TP,5x11,5
CORE-FERRITE;AE,21x11x32mm,1500,280G
CORE-FERRITE;AE,16.5°ø7°ø30MM,-,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA
BAG PE;LDPE,T0.05,W200,L140,,,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,10
LEAD CONNECTOR-ASSY;SIR-T165,UL1007#26,U
LEAD CONNECTOR-ASSY;,3P,900/600MM,YFH800
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,800,YFH800-01,S,
LEAD CONNECTOR-ASSY;,1P,700,YFH800-01,S,
LEAD CONNECTOR-ASSY;,6P,700MM,67096-006,
LEAD CONNECTOR-ASSY;,9P,800,67096-009,S,
BAND-TIE;NYLON66 V2,L100,NTR
BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO
ASSY H/S;SCREW,2SC4636(2),CRT,SLICON-OIL
GREASE-SILICON;SC102,JAPAN
TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE
ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE
IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4
....4
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0081
D372
D504
D509
D361
D362
D371
D510
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
T0083
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
Q563
Q534
Q533
Q504
Q361
Q362
Q502
T0090
T0090
T0090
R125
R125
R125
R125
R584
R554
R524
R580
R550
R520
R577
R547
R517
R366
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R581
R551
R521
R371
R370
R369A
R367
R368
Code No.
Description ; Specification
6003-000334
AA62-30175D
AA97-07608A
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000493
0402-000493
0402-000493
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0403-000508
0403-000508
0403-000508
0403-000708
0403-000708
0403-000708
0403-000708
0501-000283
0501-000283
0501-000283
0501-000283
0501-000283
0501-000366
0501-000389
0502-000006
0502-000006
0502-000006
2001-000009
2001-000009
2001-000009
2001-000009
2001-000028
2001-000028
2001-000028
2001-000066
2001-000066
2001-000066
2001-000085
2001-000085
2001-000085
2001-000109
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000539
2001-000577
2001-000613
2001-000613
2001-000660
2001-000723
2001-000734
2001-000734
2001-000734
2001-000734
2001-000938
2001-000995
2001-000995
2001-001015
2001-001052
2001-001052
2001-001052
2001-001065
2001-001065
2001-001065
2001-001065
2001-001065
Remark
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
S.N.A
ASSY AUTO-CRT;HCM4215W
S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120TR-POWER;KSC1507,NPN,15W,TO-220,TP,120R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
7-71
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-72
R369
R567
R537
R507
R381
R361
R374
R373
R372
R377
R375
R365
R574
R544
R514
R583
R582
R553
R552
R523
R522
R589
R559
R529
R575
R545
R515
R579
R578
R549
R518
R519
R548
R588
R538
R508
R024
R024
R024
R573
R543
R513
C598
C598
C598
C598
C598
C598
C598
C598
C598
C598
C565
C535
C505
C507
C537
C567
C361
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L531
L501
SG561
SG563
SG533
Code No.
2001-001065
2001-001088
2001-001088
2001-001088
2001-001088
2001-001097
2001-001110
2001-001110
2001-001110
2001-001110
2001-001113
2001-001120
2001-001122
2001-001122
2001-001122
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001006
2002-001015
2002-001015
2002-001015
2002-001017
2002-001017
2002-001017
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2002-001021
2003-000738
2003-000738
2003-000738
2004-001892
2004-001892
2004-001892
2008-001129
2008-001129
2008-001129
2201-000119
2201-000119
2201-000119
2201-000556
2201-000723
2201-000723
2201-000723
2201-000983
2201-000983
2201-000983
2305-000149
2305-000149
2305-000149
2305-000154
2305-000154
2305-000154
2306-000122
2401-002075
2401-002075
2401-002075
2401-000133
2401-000302
2401-000302
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-000430
2401-001621
2701-000114
2701-000114
4715-001036
4715-001036
4715-001036
Description ; Specification
Remark
R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;6.8uF,20%,450V,GP,TP,13x20,5
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
SG501
SG503
SG531
EL06
EL03
EL563
EL537
EL536
EL535
EL564
EL565
EL566
EL567
EL534
EL01
EL02
EL04
EL05
EL533
EL505
EL504
EL503
GT537
GT561
GT536
GT535
GT534
GT562
GT568
GT567
GT564
GT563
GT503
GT502
GT501
GT373
GT372
GT371
GT504
GT533
GT532
GT531
GT506
GT374
GT375
R125
R125
R125
DZ016
DZ016
DZ016
R566
R536
R506
R125
R125
C598
C598
C598
C701
C701
C701
R125
R125
R125
R125
R125
R125
R125
R125
R125
L561
R382
PCB
T0083
T0076
T0076
Code No.
Description ; Specification
4715-001036
4715-001036
4715-001036
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
2001-000362
2001-000362
2001-000362
0403-000334
0403-000334
0403-000334
2001-001049
2001-001049
2001-001049
2001-000007
2001-000006
2201-000599
2201-000599
2201-000599
2401-001571
2401-001571
2401-001571
2001-000319
2001-000472
2001-000563
2001-000232
2001-000908
2001-000908
2001-000908
2001-000281
2001-000281
2701-000168
2002-001014
AA41-00600E
0402-000243
BP39-00004B
BP39-00004C
Remark
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
SURGE ABSORBER;500V,20%,-,-,TP
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
PIN-GT,ASSY;AUTO
S.N.A
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,
R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
R-COMPOSITION;6.8Kohm,10%,1/2W,AA,TP,3.7
PCB-CRT;HCM4215W,FR-1,1L,E,1.6T,245X197(
S.N.A
DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
Samsung Electronics
Electrical Parts List
Loc. No.
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
T0076
T0103
T0098
LEDY01
T0121
SWY08
SWY07
SWY06
SWY05
SWY04
SWY03
SWY02
SWY01
CN906
CN906
RMY01
T0076
T0076
DZ016
DZ016
QY01
RY07
RY09
R125
R125
R125
R125
R125
RY08
C701
0
T0094
CN906
CN906
CN906
CN906
CN906
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
RZ109
RZ108
RZ107
RZ106
RZ105
RZ104
R857
R856
RZ142
RZ143
RZ144
RZ145
RZ146
RZ147
RZ123
RZ124
RZ125
Code No.
Description ; Specification
BP39-00004C
BP59-00005A
BP94-00517C
0202-000187
0601-001381
3301-001201
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3404-001006
3711-000447
3711-003353
AA32-00012A
AA39-00223C
AA39-00259A
BP97-00503K
0403-000510
0403-000510
0504-000123
2001-000020
2001-000109
2001-000429
2001-000832
2001-000832
2001-000832
2001-000924
2001-001108
2401-002009
BP41-00025B
AA69-01396A
BP94-00517D
0202-000187
3711-003043
3711-003043
3711-003043
3711-003043
3711-003046
AA65-30110A
AA97-07418A
2001-000563
2001-000563
2001-000563
2001-000563
2001-000563
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000591
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-000857
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001114
2001-001155
2001-001155
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
2003-002148
Samsung Electronics
Remark
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239
MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A
ASSY PCB MISC-CONTROL;DP,HCN4727WSC/XAA,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
LED;ROUND,RED/GRN,5.0MM,650/563NM
CORE-FERRITE;AE,21x11x32mm,1500,280G
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,
MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL10
LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P
ASSY AUTO;HCN4727WX,P55A
S.N.A
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PCB CONTROL;HCN4727W,CONTROL,1L,1.6T,245 S.N.A
BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO
S.N.A
ASSY PCB MISC-CG AMP;DP,HCN4727WSC/XAA,P
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
ASSY AUTO;HCM4215WX/XAA,P55A
S.N.A
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
....4
RZ128
RZ127
RZ126
RZ132
RZ132A
RZ148
RZ148A
RZ149
RZ149A
RZ129
RZ129A
RZ130
RZ131A
RZ131
RZ130A
RFZ50
RFZ51
RFZ52
RFZ53
RFZ19
RFZ20
RFZ21
RFZ22
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
CZ113
CZ114
C701
C701
C701
C701
LZ112
LZ111
LZ110
LZ109
LZ108
LZ107
FD102S
FD101S
ELZ01
ELZ02
ELZ03
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
C689
R125
0
SGZ101
T0076
CZ101
T0081
CIS
CIS
CIS
Code No.
Description ; Specification
2003-002148
2003-002148
2003-002148
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2003-002171
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2008-000261
2201-000327
2201-000327
2201-000327
2201-000327
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000205
2202-000205
2202-000205
2202-000205
2202-000205
2202-000561
2202-000561
2401-000183
2401-000183
2401-000962
2401-000962
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
2701-000142
3601-001065
3601-001065
6042-000002
6042-000002
6042-000002
2202-000825
2202-000825
2202-000825
2202-000825
2202-000825
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2202-000863
2001-000800
AA41-00601C
4715-000106
BP39-00015A
BP61-00076A
BP61-00077A
BP96-00005A
6003-001021
BP62-00002A
BP62-00008A
BP73-00002A
Remark
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;1000uF,20%,35V,WT,TP,12.5x25,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
S.N.A
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB;HCM4215W,PCB,CEM-1,1L,C,1.6,245X245,
S.N.A
SURGE ABSORBER;300V,210-390V,-,-,AXIAL
S.N.A
LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1185
HOLDER-PUSH,A;42W5,NYLON6.6,NATURAL
S.N.A
HOLDER-PUSH,B;42W5,NYLON6.6,NATURAL
S.N.A
ASSY HEAT SINK P;BP62-00002A,SCREW,STK39 S.N.A
SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR
S.N.A
HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H14 S.N.A
HEAT SINK;COMMANDO CG AMP,AL6063,T2.0,W1 S.N.A
SILICON/RUBBER;COMMANDO CG AMP,SILICON , S.N.A
7-73
Electrical Parts List
Loc. No.
....4
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-74
Code No.
Description ; Specification
Remark
T0074 1201-001225 IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS
CNW01 BP39-00005B LEAD CONNECTOR;HCM4727,UL2547#26,UL/CSA,
T0096 BP95-00075A ASSY SUB-DVI;DP,HCM4215WJX/XAA,P55A,DVI
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
Q409
0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
Q409
0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
DX301 2801-001385 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
DX701 2801-001385 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CN906 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
AA69-01396B BAG PE;SKD CHASSIS,LDPE,T0.03,130,130,NO
BP97-00166A ASSY SMD;HCM4215WJX/XAA,DVI-AUTO,P55A
DD512 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD511 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD510 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD509 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD513 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD514 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD515 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD516 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD501 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD502 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD503 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD504 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD508 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD507 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD506 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD505 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8
DD901 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP
DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLDZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LLIC104
0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4
IC01
1002-001333 IC-A/D&D/A CONVERTER;GM7030,10BIT,PQFP,1
IC112
1103-000180 IC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10
T0123 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC05
1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI
T0123 1203-002351 IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI
DR514 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR515 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR516 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR517 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR501 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR502 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR504 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR506 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
DR513 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
DR512 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
DR510 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
DR109 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR301 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608
DR901 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR519 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR518 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR511 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR508 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR701 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR520 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR509 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR210 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR702 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR703 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR704 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR706 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR707 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR202 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR203 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR204 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR205 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR209 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR208 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR207 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR206 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR902 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
C120
2203-000041 C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C120
2203-000041 C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C120
2203-000041 C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
C120
DC420
DC417
DC413
DC410
DC407
DC406
DC404
DC402
DC706
DC701
DL701
DL409
DL408
DL406
DL404
DL401
G101
T0119
CR501
G101
G101
G101
G101
DR705
Code No.
Description ; Specification
2203-000041
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000626
2203-000626
2203-000626
2203-000998
2203-000998
2203-000998
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-000165
2402-001129
2402-001155
2404-001020
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
2703-000398
3301-001202
BP09-00004A
2402-000108
3301-001593
3301-001593
3301-001593
3301-001593
2007-000070
Remark
C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-CERAMIC,CHIP;10000nF,+80-20%,10V,Y5V,T
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,120ohm,4.5x3.2x1.3m
IC MICOM;T89C51IC2-SLSCM,44,5V,32KBYTE,P
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.4
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
CORE-FERRITE BEAD;AB,200OHM,2.0X1.2X1.3M
R-CHIP;0ohm,5%,1/10W,TP,1608
Samsung Electronics
Electrical Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
...3
DR708
DR503
DR505
DR507
DR521
DR522
0
CN906
T0121
IC112
T0076
PL1
Q01
PCB
D01
R01
R02
R03
CN906
Code No.
Description ; Specification
2007-000070
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
AA41-00793B
0202-001167
3711-003641
3301-001201
AA63-10002A
1103-001211
AA39-20032B
3701-001173
BP95-00147D
0202-000187
AA69-01808B
BP97-00208A
0501-000342
AA41-00853A
BP32-00001A
2007-000305
2007-000109
2007-000109
0202-001167
3711-000447
Remark
R-CHIP;0ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
PCB;HCN473,PCB-DVI,2L,1.6T,245*180,P55A,
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CORE-FERRITE;AE,21x11x32mm,1500,280G
BAND-TIE;NYLON66 V2,L100,NTR
IC-EEPROM;24C16-PC27 C,2048x8Bit,DIP,8P,
LEAD CONNECTOR-ASSY;,12P,300,67096-012,S
CONNECTOR-DSUB;24P,3R,FEMALE,ANGLE,AUF
ASSY SUB PCB-SENSOR;DP,P54A,SENSOR
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
BAG-SHEET;,LDPE(ANTISTATIC),T0.05,800,50
ASSY SMD;0
TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTPCB-SERSOR;SVP-42W5HRC,FR-4,2L,A,1.6T,24
SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U
R-CHIP;10Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
R-CHIP;1Mohm,5%,1/10W,TP,1608
SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY ACCESSORY
1
..2
..2
..2
...3
...3
..2
..2
..2
..2
..2
M0016
T0116
T0074
T0122
T0119
T0113
CIS
BP92-00577B ASSY ACCESSORY;HCN4727WSC/XAA,P55A
6902-000018
AA39-00006A
AA59-00262A
2802-000194
AA09-00275A
AA61-20126A
AA68-00371C
AA68-40065B
AA69-30009C
BP68-00054A
S.N.A
BAG PE;LDPE,T0.1,W280,L400,GRY,8,2S.N.A
CABLE RCA;,3000MM
REMOCON;,TM63,COMMONDO,48,G6671B,EX,S/S
RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
IC MICOM;Z86L8808SSC-R51PX,SOP,ST,SZTM-8
HOLDER-LEG;-,ABS,-,-,-,BLK,HB
CARD WARRANTY-01;,SEA,W/P100(G),1 YEAR
S.N.A
CARD-REGISTRATION;,SEA,A5,ENG,A/P220,2P(
S.N.A
BAG-SHEET;LDPE,T0.08,W150,L120,-,-,S.N.A
MANUAL USERS;HCM473WJX,ENG,W/P100G,P55A,
ASSY K/D-CRT
1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
....4
.....5
.....5
.....5
..2
...3
BP98-00173A ASSY K/D-CRT ASSY;HCN4727WSC/XAA,P55A
T0026
T0117
T0078
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
T0027
BP98-00174A
AA03-00200A
AA26-30006F
AA27-00249A
AA33-00016A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10008A
BP61-00079A
AA61-00845A
AA61-00806B
AA63-10007C
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
BP98-00175A
AA03-00201A
Samsung Electronics
ASSY K/D-CRT R;HCN4727WSC/XAA,P55A
CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH,
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;-,DELTA,RED,PJT,-,77,79,HOLDER-DY;,PJTV,T0.5,NYLON66 V2
CASE-COUPLER,R;DP,PROJ,AA61-00806B
CASE-COUPLER,R;PROJ,ALDC,T8,BLK
BAND-PP;W18,CLEA,1G
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,SPRING ETC-WIRE;PROJ,STS,3.6
ASSY K/D-CRT G;HCN4727WSC/XAA,P55A
CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH,
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
.....5
.....5
.....5
...3
....4
....4
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
.....5
.....5
.....5
...3
....4
....4
T0117
T0078
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
T0028
T0117
T0078
T0079
T0076
T0081
T0114
T0109
T0051
T0107
T0107
T0072
Code No.
Description ; Specification
AA26-30006F
AA27-00249A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10071A
BP61-00079A
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
AA61-00846A
AA61-00807B
AA63-10007C
BP98-00176A
AA03-00202A
AA26-30006F
AA27-00249A
AA33-00018A
AA39-00018A
AA60-00125B
AA60-00126B
AA60-00127B
AA60-10011A
AA61-00056B
AA61-00809B
AA61-00810B
AA63-00076A
AA67-00147A
AA67-10007A
BP61-00079A
AA91-00735A
AA91-00722A
AA61-00473B
AA61-00615B
AA61-00812A
AA61-00847A
AA61-00808B
AA63-10007C
Remark
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;DELTA 77 79,-,GREEN,C ELEMENT,
HOLDER-DY;,PJTV,T0.5,NYLON66 V2
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,SPRING ETC-WIRE;PROJ,STS,3.6
CASE-COUPLER,G;DP,PROJ,AA61-00807B
CASE-COUPLER,G;PROJ,ALDC,T8,BLK
BAND-PP;W18,CLEA,1G
ASSY K/D-CRT B;HCN4727WSC/XAA,P55A
CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH,
TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,
DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1
MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M
LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
SPACER-CRT;PROJ,SILICONE,D/GRAY
SPACER-CAP;PROJ,EPDM,BLK
SPACER-LENS;PROJ,SILICONE,D/GRAY
SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
HOLDER-CAP;PROJ,PC,CLR
SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN
LENS-ASSY;,DELTA 78,CLEAR A/B
LENS;-,DELTA,CLEAR,PJT,-,77,79,HOLDER-DY;,PJTV,T0.5,NYLON66 V2
ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
ASSY-BRKT,CRT;,SECC T1.6,PROJ
BRACKET-CRT;53,SECC,T1.6,-,-,-,BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,SPRING ETC-WIRE;PROJ,STS,3.6
CASE-COUPLER,B;DP,PROJ,AA61-00808B
CASE-COUPLER,B;PROJ,ALDC,T8,BLK
BAND-PP;W18,CLEA,1G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY K/D-SKD P/MATERIAL
S.N.A
1
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
..2
..2
..2
..2
..2
AA98-01629A ASSY K/D-SKD P/MATERIAL;SKD FORMAT-3
AA69-00305A
AA69-00306A
AA69-90001A
AA60-40006A
WOODEN AA63-10007C
BAG AIR;ALL,LDPE,1000,500,CLR,
BAG AIR;LDPE,-,1800,1000,CLR,ASSY,ALL,CHEMICALS-SILICAGEL;-,-,-,-,-,M2,5GR,-,PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
BAND-PP;W18,CLEA,1G
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-75
MEMO
7-76
Samsung Electronics
Samsung Electronics
Main
Power
Stand-by
Part
8-1 Current System
8. Block Diagram
730 mA
1500 mA
FMG-G26S
+30V
780 mA
FML-G12
13.5V
FML-G12
+20
975 mA
FMG-G26S
117V
745 mA
1.5 A
FML-F12
8.0V
FML-G12
-20
50 mA
KA7805
5.0V
293 mA
400 mA
807 mA
437 mA
523 mA
12.9 mA
1.34 mA
50 mA
SI-3050C 5.3V
KA278RA05(A) 5.3V
KA278RA05(A) 5.3V
Deflection
Tuner 33.0V
KA7808 8.0V
1500 mA
30 mA
H/V Drive
Sound AMP
700 mA
45 mA
KA7905 (-5.0V)
CG AMP
700 mA
450 mA
KA78R12 12.0V
CG AMP
280 mA
KA27RA09 9.0V
High Volt
VM 117V
50 mA
Micom / Eeprom
180 mA
AV- Terminal
15 mA
50 mA
CRT
CG-MDL
220 mA
H/V Protect, D-Focus
50 mA
CRT
VERTICAL
DRIVER
CRT
280 mA
-13.5V
HEATER
208V
+13.5V
14 mA
640 mA
29 mA
219 mA
380 mA
138 mA / 154mA / 90m
293 mA
Micom / 3D-Domb
SOUND
DUMMY TRANS
DW
3D-Comb / Tuner / Sound
AV SWITCH
CG MDL
8-1
Block Diagrams
8-2
FUSE
Line Filter
10mH / 5A
Line Filter
10mH / 5A
Line Filter
1mH / 5A
Line Filter
1mH / 5A
8-2 Power Supply System
Block Diagrams
AC IN
HOT
7V / 0.05A
Stand - by
Trans
PS2561
Switching IC
STR-X6456
INPUT RECTFIER
RBV-606
7805
Power
Control
PC
PS2561
Trans
EER 5345
OUTPUT
RECTIFIER
SE110
Micom
5V / 0.05A
Samsung Electronics
8.0V / 1.5A
13.5V / 0.78A
-20V / -0.75A
20V / 0.73A
30.0V / 1.5A
117V / 0.98A
COLD
Samsung Electronics
8.0V / 1.5A
-20V / 0.75A
20V / 0.7A
13.5V / 0.78A
117V / 0.98A
POWER Trans
8-3 Deflection System
12V REG.
3050
7905
20V
117V
5.0V
5.0V
12V
Dummy
Trans
117V
Cg
Module
20V
-20V
Vertical
Conv-Amp
CRT Drive
HV-OUT PUT
Horizantal
Conv-Amp
-20V
Horizantal HDT
HV Control
HV-HDT
13.5V
Screen Voltage(A)
Heater
220V
Collector
R-CY
G-CY
B-CY
FBT
Vertical
Amp
Horizantal
Out Put
Dynamic
Focus
Focus
voltage
High
voltage
R-DY
G-DY
B-DY
8-3
Block Diagrams
8-4
Down Sensor
Right Sensor
Left Sensor
Up Sensor
8-4 SDC Perfect Focus Block Diagram
Block Diagrams
AMP/LPF
AMP/LPF
R/G/B
MUX
Pattern Generator
(SDC12)
Cg MICOM
ADC (SDC12)
Convergence
Control (SDC12)
Samsung Electronics
Samsung Electronics
TV-R1
4
5
24
6
23
8
NC NC
7
21
20
9
Audio S/W
TEA6422D
(98h)
22
10
19
11
18
12
17
13
16
14
15
MONITOR-L OUT
MONITOR-R OUT
AV4/VIDEO3-L6
SCART3/VIDEO1-L5
S-V2
SCART2/VIDEO2-L4 S-V1
TV-L OUT
3
25
TV-R OUT
2
26
Adress
27
NC NC
EXT-L OUT
EXT-R OUT
SCART1-L3
1
28
S-V1
S-V2
MONITOR-L2
TV-L1
VCC
GND
SDA
SCL
MONITOR-R2
SCART2-R3
SCART2/VIDEO2-R4
SCART3/VIDEO1-R5
AV4/VIDEO3-R6
Input (MAIN)
8-5 Sound Switching Block Diagram -1
8-5
Block Diagrams
8-6
67 MAIN-SIF
MAIN-TUNER
AV1-R-IN
AV1-L-IN
AV2-R-IN
AV2-L-IN
AV3-R-IN
AV3-L-IN
AV4-R-IN
AV4-L-IN
57
56
54
53
51
50
48
47
DTV1-R
DTV1-L
DTV2-R
DTV2-L
EXR-R
EXT-L
DVD-R
DVD-L
28
27
25
24
SC1-OUT_L
37
36
34
SC2-OUT_L
SC1-OUT_R
33
SC2-OUT_R
SURROUND-OUT 31
CENTER-OUT 29
MAIN-L-OUT
MAIN-R-OUT
DACA-L-OUT
DACA-R-OUT
ICD601
MSP3452/MSP3420
QFP : 80PIN(80h)
60 A-MONO-IN
69 SUB-SIF
SUB-TUNER
8-6 Sound Switching Block Diagram -2
Block Diagrams
TV-R1
TV-L1
MONITOR-R
MONITOR-L
ICD603
TL062CDT
ICD602
TL062CDT
TDA7265 AMP
CENTER
SURROUND R,L (MONO) JACK
TDA7265 AMP
Samsung Electronics
SURROUND-L
SURROUND-R
CENTER
MAIN-L
MAIN-R
10
S1 - C
S1 - Y
5
AV2-CVBS
AV1-CVBS
Samsung Electronics
AV4-CVBS
VCC
10
8
6
3
RF1 - CVBS
AV3-CVBS
1
SDA
SCL
8
S2 - C
Input
(MAIN)
6
S2 - Y
3
1
VCC
5
Sub - CVBS
Main - CVBS
8-7 Video Signal Diagram
9
2
2
9
11
Video S/W
TEA6425
(96h)
4
4
Video S/W
TEA6425
(96h)
11
20
7
7
20
Sub - CVBS
Main - CVBS
VCC
Monitor OUT
MAIN C
MAIN Y / CVBS
Caption, TTX-cvbs
to micom
12
13
Component 3 Y/Pb/Pr
Component 2 Y/Pb/Pr
12
24
1
5
IN3
IN2
IN1
Y / Pb / Pr / H / V
V
H
Cr
Cb
Y
3
PIP C
PIPY/CVBS
C
Y
Component 1 Y/Pb/Pr
3D Comb
UPD64083
(B8h)
RF2 CVBS
Input
(PRO-SCAN)
Component 1 Y/Pb/Pr
14 SC3-OUT (Selectable Out)
15
16 SC1-OUT (Selectable Out)
17
18
19
12
13
14
15
16
17
18
19
Output
9407
Scanrate
Converter
(BOh)
IN2
IN1
OUT
Sync Counter
Comp. Switching
CXA2151
(84h)
Y Pb Pr H V
14
22
21
15
19
656100 ~ 656107
Digital - Signal
Switching
BA7657F
H
L
#16
58
57
56
55
54
V
H
Cr
Cb
Y
SW1
42
28
22
21
20
23
17
76
79
2
CG R / G / B
CRT Driver
CXA2165
(86Hh)
OSD R / G / B /YS / YM
V
H
Cr
Cb
Y
B
G
R
TO
CRT
8-7
Block Diagrams
-
T
U
N
E
R
T
U
N
E
R
-
-
Samsung Electronics
MAIN
A
/
V
S
I
D
E
R
GND
G
GND
B
GND
IK
C
G
1 17 V
NC
GND
1 3. 5 V
GND
VM-Y
1 : GND
2 : 5V
3 : UP
4 : GND
5 : 5V
6 : RI GHT
7 : GND
8 : 5V
9 : LEFT
10: GN D
11: 5V
12: DOWN
CN04
M
D
L
1:
2:
3:
4:
5:
6:
CN201
VM-OUT
VM -
S
C
A
N
P
R
O
1:
2:
3:
4:
5:
6:
7:
CN03
GND
CRT
B
210V
SENSE
GND
HEATER
GND
12V
B
GND
IK
SPOT
-
S
M
M
I
C
O
M
1 : S2 - C
2 : GND
3 : S2 - I D
4 : S2 - Y
5 : GND
6 : AV3 - R
7 : GND
8 : GND
9 : AV3 - L
1 0 : AV3 - I D
1 1 : GND
1 2 : AV4 - CVBS
KEY2
GND
GND
SCREEN
GND
CG-B
-
2
R
F
1 : S2 - C
2 : GND
3 : S2 - I D
4 : S2 - Y
5 : GND
6 : AV3 - R
7 : GND
8 : GND
9 : AV3 - L
1 0 : AV3 - I D
1 1 : GND
1 2 : AV4 - CVB
S
TDA72525
CNY01
CN902
KEY- 2
KEY- 1
STD- 5V
GND
KEY- 3
IR
TI MER- L ED
NC
SDA1
SCL 1
GND
KEY- 2
KEY- 1
STD- 5V
GND
KEY- 3
IR
TI MER- LED
NC
SDA1
SCL1
GND
KEY2
GND
GND
DY-B
BV
GND
BH
GV
GND
GH
RV
GND
RH
TO CG-AMP
9:
8:
7:
6:
5:
4:
3:
2:
1:
CNZ02
1 4 : 29 V
1 3 : 29 V
1 2 : 29 V- GND
1 1 : 29 V- GND
10: - 24V
9 : GND
8 : 8. 5V
7 : 8. 5V
6 : GND
5 : 13. 5V
4 : SUB- MUTE
3 : GND
2 : NC
1 : 117V
CNW801
1 5 : COMP
1 4 : POWER
1 3 : STD- BY5 V
1 2 : GND
1 1 : HD
1 0 : GND
9 : PROTECT
8 : EW
7 : VD6 : VD+
5 : ABL
4 : 1080i
3 : V- BL K
2 : GND
1 : H- BL K
CNW802
117V
NC
GND
13. 5V
GND
VM- Y
CN802
VM-OUT
POWER-SW
1 4 : 29 V
1 3 : 29 V
1 2 : 29 V- GND
1 1 : 29 V- GND
10: - 24V
9 : GND
8 : 8. 5V
7 : 8. 5V
6 : GND
5 : 13. 5V
4 : SUB- MUTE
3 : GND
2 : NC
1 : 117V
CN801
1 4 : POWER
1 3 : STD- BY5 V
1 2 : GND
1 1 : HD
1 0 : GND
9 : PROTECT
8 : EW
7 : VD6 : VD+
5 : ABL
4 : 1080i
3 : V- BL K
2 : GND
1 : H- BL K
VM-OUT
VM-
GND
210V
N. C
GND
HEATER
GND
12V
R
GND
IK
SPOT
3P X 3
VM
R/G/B
VM-
VM-OUT
VM-OUT
VM-
CRT
G
VM-
210V
SENCE
GND
HEATER
GND
12V
R
GND
IK
SPOT
R
GND
G
GND
B
GND
IK
SPOT. K
D/ F
CG-G
SCREEN
GND
DY-G
4 : - 24 V
3 : GND
2 : GND
1 : 2 4V
CN803
TO CG-AMP
GND
CRT
R
SCREEN
SUB
POWER
TRANS
B Focus
G Focus
R Focus
Dynami c
Focus
GND
FOCUS
PACK
DY- R /G / B (4P)
AC-INPUT
CN401
D/F
cir cuit
CG- R
GND-RGB(3P)
VM- OUT
VM-
210V
N. C
GND
HEATER
GND
12V
R
GND
IK
SPOT
SCREEN
GND
DY - R
208V
N. C
GND
HEATE
R
GND
12V
M
L- OUT
GND
R- OUR
GND
CN601
SPEAKER
C
O
N
T
R
O
L
9-1 Pcb Connection
9. Wiring Diagram
208V
N. C
GND
HEAT
ER
GND
12V
DY-B
FBT
Defelction
SCREEN
BV
GND
BH
GV
GND
GH
RV
GND
RH
DY-R
DY-G
9:
8:
7:
6:
5:
4:
3:
2:
1:
H1
H2
V1
V2
DY-R / G / B
4P X 3
TO
CRT-R
4P X 1
H1
H2
V1
V2
DY JACKC
CONNECTION
CONV- AMP
4P X 3
CY- R / G / B
9-1
Wiring Diagrams
Samsung Electronics
10-1 MAIN 1
10. Schematic Diagrams
TP02
TP01
TP02
TP01
10-1
Schematic Diagrams
10-2
10-2 MAIN 2
Schematic Diagrams
TP04
TP03
TP20
Samsung Electronics
TP20
TP04
TP03
Samsung Electronics
10-3 MAIN 3
TP13
TP12
TP13
TP12
10-3
Schematic Diagrams
10-4
10-4 MAIN 4
Schematic Diagrams
TP11
TP14
TP11
TP10
TP15
TP16
TP19
TP18
TP17
TP16
TP15
TP14
TP08 TP07
TP09
TP06
TP17
TP05
TP18
TP19
Samsung Electronics
TP10
TP09
TP08
TP07
TP06
TP05
Samsung Electronics
10-5 MICOM
10-5
Schematic Diagrams
10-6
10-6 CRT
Schematic Diagrams
Samsung Electronics
Samsung Electronics
10-7 SUB 1
TP21
TP21
10-7
Schematic Diagrams
10-8
10-8 SUB 2
TP23
Schematic Diagrams
TP24
TP22
Samsung Electronics
TP24
TP23
TP22
Samsung Electronics
10-9 CONVERGENCE ( SDC12 - 1 )
10-9
Schematic Diagrams
10-10
10-10 CONVERGENCE ( SDC12 - 2 )
Schematic Diagrams
Samsung Electronics
Samsung Electronics
10-11 PRO SCAN 1
10-11
Schematic Diagrams
10-12
10-12 PRO SCAN 2
Schematic Diagrams
Samsung Electronics
Samsung Electronics
10-13 PRO SCAN 3
10-13
Schematic Diagrams
10-14
10-14 PRO SCAN 4
Schematic Diagrams
Samsung Electronics
Samsung Electronics
10-15 CG AMP
10-15
Schematic Diagrams
10-16
10-16 AV FRONT
Schematic Diagrams
Samsung Electronics
Samsung Electronics
10-17 CONTROL
10-17
Schematic Diagrams
10-18
10-18 DY JACK, SENSOR
Schematic Diagrams
DY JACK
SENSOR
Samsung Electronics
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
