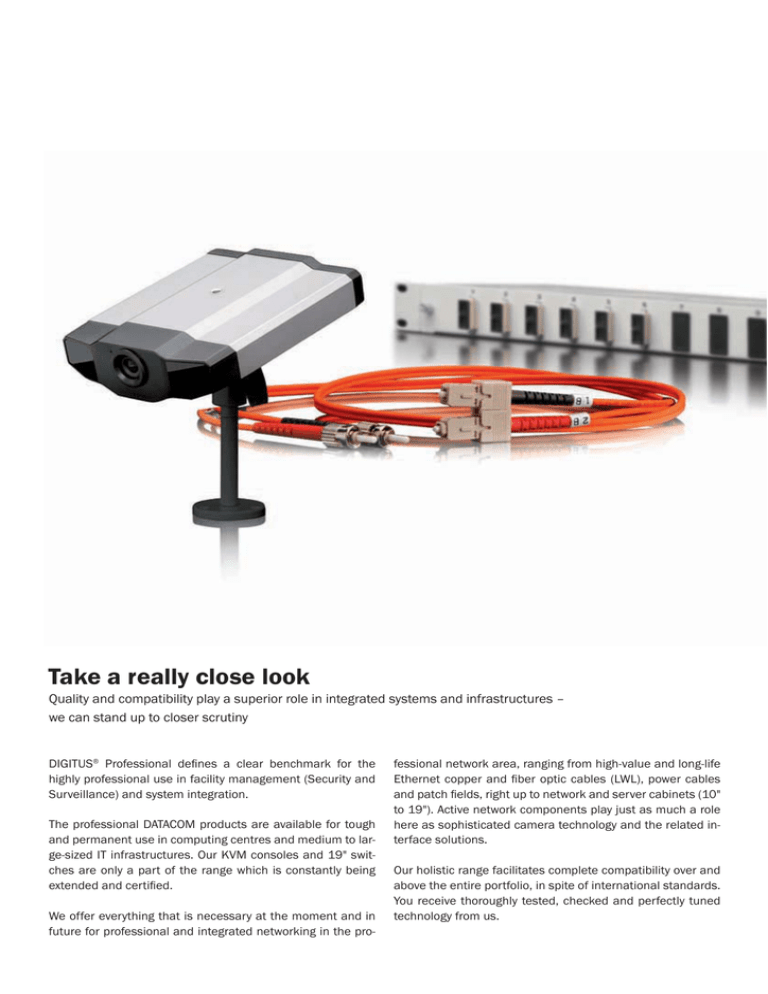

Take a really close look
Take a really close look
Quality and compatibility play a superior role in integrated systems and infrastructures –
we can stand up to closer scrutiny
DIGITUS® Professional defines a clear benchmark for the
highly professional use in facility management (Security and
Surveillance) and system integration.
The professional DATACOM products are available for tough
and permanent use in computing centres and medium to large-sized IT infrastructures. Our KVM consoles and 19" switches are only a part of the range which is constantly being
extended and certified.
We offer everything that is necessary at the moment and in
future for professional and integrated networking in the pro-
fessional network area, ranging from high-value and long-life
Ethernet copper and fiber optic cables (LWL), power cables
and patch fields, right up to network and server cabinets (10"
to 19"). Active network components play just as much a role
here as sophisticated camera technology and the related interface solutions.
Our holistic range facilitates complete compatibility over and
above the entire portfolio, in spite of international standards.
You receive thoroughly tested, checked and perfectly tuned
technology from us.
Copper components
The structured DIGITUS® cabling system
Different applications, data, speech and video-multimedia ran on
different transmission paths in past. This meant multiple installations to do justice to the requirements. The development up to
structured cabling has created uniform cabling in the building
CAT 6 Patch Cable ............................................................................ 42
CAT 5e Patch Cable .......................................................................... 44
Installation Cable ..............................................................................47
Patch Cable ...................................................................................... 49
Installation Cable ............................................................................. 52
Outlets............................................................................................... 55
Patch Panel ...................................................................................... 57
Keystone Jack................................................................................... 61
that concentrates the various applications into one system.
This cabling system must be independent from the manufacturer
and the system so that the various applications. Categories and
class can be met at any time.
Tolless Keystone Jack ...................................................................... 62
Coupler + Face Plates ...................................................................... 64
19" Housing for Keystone Jacks...................................................... 66
Modular Plugs .................................................................................. 67
Modular Couplers............................................................................. 68
19" IPC Housing ............................................................................... 69
SAS Connection cable...................................................................... 70
DIN EN 50173-3
Industrial area
DIN EN 50173-1
Office area
DIN EN 50288
Symmetrical cable
DIN EN 60603- 7
Connectors
DIN EN 50288-2- 1
(shielded up to 100MHz)
DIN EN 60603-7- 3
(shielded up to 100MHz)
DIN EN 50288-5- 1
(shielded up to 250MHz)
DIN EN 60603-7- 5
(shielded up to 250MHz)
DIN EN 50288-4- 1
(shielded up to 600MHz)
DIN EN 60603-7- 7
(shielded up to 600MHz)
Cabling standards
Various standards have been set down in international committees
to be independent from manufacturer and system. These divide
into various areas. The international range of validity is set down
in ISI/IEC 11801 and in the national German standard of DIN EN
50173.
DIN EN 50173-2
SoHo
DIN EN 50310
Potenzial Equalization
and Grounding
Part 1
Specification and
Quality Control
DIN EN 50174
Construction and Operation
Part 2
Installation Design and
Practices in Buildings
Part 3
Installation Design and
Practices in Outdoor
• Permanent Link
which covers the laid installation cable and also the patch panel
permanently connected to the end of the cable and the junction
box.
The standard series of EN 50173 is divided into five areas for various applications and covers „application-neutral communication
cablings for information technology".
•
•
•
•
•
EN 50173-1
EN 50173-2
EN 50173-3
EN 50173-4
EN 50173-5
General requirements
Office buildings
Industrially used buildings
Private residential units
Computing centres
There is also a difference in the individual components such as
cables and connection technology and also in the installation of
these components.
• Channel Link
Where the patch cable also used in the patch panel and the junction box can also be measured together with the components of
the Permanent Link.
The individual components are classified into the following
categories:
•
•
•
•
•
Category 5
Category 6
Category 6A
Category 7
Category 7A
up to 100 MHz
up to 250 MHz
up to 500 MHz
up to 600 MHz
up to 1000 MHz
A distinction is drawn between installed components according to
transmission classes
•
•
•
•
•
Class D
Class E
Class EA
Class F
Class FA
up to 100 MHz
up to 250 MHz
up to 500 MHz
up to 600 MHz
up to 1000 MHz
Certification and checking of the limiting values for the measurement technology of the installed transmission routes.
A distinction is drawn between two models for the transmission
routes for the cabling.
38
Defined electrical limiting values give a clear picture of the quality
of the installed system.
• Line length
• With return flow attenuation
• Max. attenuation
• Min. near end cross talk attenuation NEXT
• Min, OSNEXT
• Min. ACR
• Min. PSACR
• Min. ELFEXT
• Min. PSELFEXT
• Max. DC loop resistance
• Max. run time
• Max. run time difference
► The return flow attenuation is the measure for outstanding
reflection of the transmission signal which is created by sud
den increases in impedance in the cable run (Return Loss).
► PSNEXT = Power Sum NEXT
► The attenuation shows the lost part of the signal over the
cable run (Attenuation).
► PSELFEXT = Power Sum ELFEXT
► The near end cross talk attenuation is used as a measure of
cross talk at the near end of the cable run. Each pair of
strands will be measured at the other pairs respectively
(Near end crosstalk NEXT).
► The far end cross talk attenuation is measured as the same
way as NEXT (Far end crosstalk FEXT).
► PSACR = Power Sum ACR
Structure of the cabling system in accordance with EN 50173
Cabling takes place on different levels, not only storeys/floors
are cabled but also different floors are cabled with each other
and buildings are also cabled over outside surfaces.
There different areas are defined for these applications.
• Primary cabling
• Secondary cabling
• Tertiary cabling,
outside site areas, campus backbone
building area, building backbone
cabling in floors, horizontal cabling
► ACR measures the ratio between cross talk and attenuation.
► (Attenuation to crosstalk ratio ACR=NEXT - attenuation).
► Equal Level FEXT is the extent of crosstalk at the far end where
the pair attenuation is deducted from this (ELFEXT).
► Run time of the signal over the transmission distance
► (Propagation delay).
► Run time differences arise with simultaneous transmission of
a signal to various pairs (delay skew).
► Power Sum is the total of the faults which are coupled in from
the remaining pairs to the fourth pair (PS).
Basic standard specifications have been laid down in these cabling
areas, as far as the execution of the entire cabling system is concerned.
At least one sub-distribution panel is planned for an office space
of 1000m2. Such a sub distribution panel can also serve several
floors in smaller buildings. The jacks should be distributed over the
entire useable area where there have to be at least 2 connections
for each workplace. One of the connections should be at least made
with symmetric copper cable, the other one can be connected by
using LWL cable.
The following minimum and maximum requirements are imposed
on the lengths of cable for cabling in floors. The distance between
the user end device and the distribution components, including all
the patch cable used must not exceed 100 m.
Cabling areas
39
The length of the fixed cable between the jack and the patch panel
is set at a maximum of 90 m here.
The maximum distance in the Permanent Link can also be shorter,
since a consolidation point integrated into the cabling runs also
has effects on the technical transmission values of the laid cable.
Patch cables between jack and end device should not exceed a
maximum length of 20 m: the length of patch cable used in the
patch field at the floor sub-distribution cable has a maximum
length of 5 m. Consolidation points which are used should be
placed at least 15 m from the floor sub-distribution panel since
plug-in connections used in the immediate vicinity can exert influences on various transmission parameters. The types of cable
used in cabling on floors consist of 100 Ohm 4 paired twisted pair
cables and 50/125μ multi-mode glass fiber cables.
The maximum cable length of the transmission run should be
2000m for the site and building cabling of the secondary area.
The previously mentioned cable types are also preferred here. The
often larger distances between buildings also offer an area of use
for 07/15μ mono-mode glass fiber cable.
Connection technology for structured cabling
The cable which has been used for laying can be described with
the following, different characteristics.
•
Copper conductor consisting of solid copper for permanent
installation between sub-distribution panels on floors and
between distribution panels and jacks.
• Copper conductor as flexible conductor wire for use in the
manufacture of patch cables.
• Details of the diameter and/or cross section in mm, mm2 or
AWG (American Wire Gauge). The larger the wire diameter,
the smaller the attenuation.
This section shows the following examples:
AWG 24/1 = conductor consisting of solid wire with 0.511 mm
conductor diameter
AWG 26/7 = conductor consists of 7 wires with 0.48 mm
conductor diameter
• Strands are twisted into pairs and provided with a colour code
in the conductor insulation. The colour code is done according
to EIA/TIA 568 / IEC 708-1 with the wiring:
Pair 1 = wire 1 in white/blue, wire 2 in blue
Pair 2 = wire 1 in white / orange, wire 2 in orange
Pair 3 = wire 1 in white / green, wire 2 in green
Pair 4 = wire 1 in white / brown, wire 2 in brown
• The screening is used to improve transmission safety. In
accordance with the valid standard, it guarantees the limita
tion of electromagnetic disturbances and also the immunity of
the network against disturbances.
UTP
completely unscreened, paired unscreened,
twisted cable
F/UTP completely foil screened, paired unscreened, twisted
cable
SF/UTP cable completely screened with foil and braid, paired
unscreened, twisted cable
S/FTP cable completely screened with braid, paired foil
screened twisted cable
40
• External cladding consisting of PVC or a halogen-free, fame
resistant compound.
Halogen-free = no corrosive, or clearly less toxic gases and
very low quantities of smoke
Flame resistant = self extinguishing after removal of the heat
source, very limited propagation of fire
FR
LS
NC
OH, ZH
= flame retardant
= low smoke
= no corrosive fumes
= no halogen
The requirements for the patch panels and jacks are defined in
DIN EN 50173-1. These products are divided into various classes
in accordance with the performance class. Optimisation of the
products allows panels and jacks to satisfy the requirements when
a gigabit Ethernet is being operated. These have been set down
in the standards DIN EN 50173-1:2000 with both types, category
3 up to 16 MHz and category 5 up to 100 MHz and also in EIN EN
50173:2002 with the types, category5 up to 100 MHz, category 6
up to 250 MHz and category 7 up to 600 MHz. The designation,
category 5E which is generally used on the market corresponds to
category 5 in accordance with DIN EN 50173-1:2000.
All the category 5 products certified according to standard can be
used independently from their manufacturers in so-called „Mix &
Match" systems. They are combined into a class D connection in
the installation which has been created.
Class E products are characterized by the fact that each manufacturer has optimized his articles for his products with 250 MHz in
order to satisfy the requirements of class E.
All the products are clearly defined and only „work" with each
other according to certification. This means that „Mix & Match" is
not possible. These products also do not comply with category 6 in
accordance with DIN EN 50173-1:2002.
Category 6 products according to the new standard are only
products which have been tested according to „De-Embedded
Testing". This makes sure that the advantages reached by technical and mechanical improvements are used. Each category 6 jack
with a RJ45 plug produces a category 6 connection according to
standard.
„De-Embedded-Testing" - Logo
There is the option of using two configurations when cables are
laid to patch panels and junction boxes and also when patch
cables are being made. A distinction is made here according to
colour code in accordance with EIA/TIA 568A or EIA/TIA 568B. The
colour code used for the configuration is not important for the respective application, but has to be carried continuously throughout
the complete system. Care also has to be taken when processing
the patch cable to make sure that the paired twisting remains the
same with the exception of the last 13 mm and that the possible
pair screening is lead up to the LSA terminal rail.
Different applications run on the pairs / pins in the respective
combination.
•
•
•
•
•
•
•
•
Ethernet
Fast Ethernet
Gigabit Ethernet
10 Gigabit Ethernet
ISDN
Token Ring
FDDI
ATM
1-2, 3-6
1-2, 3-6
1-2. 3-6, 4-5, 7-8
1-2. 3-6, 4-5, 7-8
4-5, 3-6
4-5, 3-6
1-2, 7-8
1-2, 7-8
41
CAT 6 Patch Cable
DIGITUS® Premium CAT 6 S-FTP patch cable
Ready for
PoE
• Pairs with foil
and full braid shilding (PIMF) patch cables
• 4 x 2 x AWG 26/7, twisted pair, 100 Ohm
• 2 x RJ45 shielded connectors
• Boot with kink protection and strain relief
• Spot length on boot
• Connection 1 : 1
• Qualified for 1 Gbit Ethernet
• Ready for PoE
Copper
Spot
length on boot
Please choose your requested product by the corresponding article number or the EAN code.
grey
red
yellow
green
blue
black
crossover
DK-1641-005
DK-1641-005/R
DK-1641-005/Y
DK-1641-005/G
DK-1641-005/B
DK-1641-005/BL
DK-1641-005-CO
214922
215059
215066
215042
214939
215035
215912
1,0 m
DK-1641-010
DK-1641-010/R
DK-1641-010/Y
DK-1641-010/G
DK-1641-010/B
DK-1641-010/BL
DK-1641-010-CO
214946
215103
215110
215097
215073
215080
215929
2,0 m
DK-1641-020
DK-1641-020/R
DK-1641-020/Y
DK-1641-020/G
DK-1641-020/B
DK-1641-020/BL
DK-1641-020-CO
214953
215165
215172
215158
215127
215141
215936
DK-1641-030
DK-1641-030/R
DK-1641-030/Y
DK-1641-030/G
DK-1641-030/B
DK-1641-030/BL
DK-1641-030-CO
214960
215219
215226
215202
215189
215196
215943
5,0 m
DK-1641-050
DK-1641-050/R
DK-1641-050/Y
DK-1641-050/G
DK-1641-050/B
DK-1641-050/BL
DK-1641-050-CO
214977
215264
215271
215257
215233
215240
215950
7,0 m
DK-1641-070
DK-1641-070/R
DK-1641-070/Y
DK-1641-070/G
DK-1641-070/B
DK-1641-070/BL
DK-1641-070-CO
214984
215301
215318
215295
215288
215325
215967
DK-1641-100
DK-1641-100/R
DK-1641-100/Y
DK-1641-100/G
DK-1641-100/B
DK-1641-100/BL
DK-1641-100-CO
214991
215363
215370
215356
215332
215349
0,5 m
3,0 m
10,0 m
215974
DK-1641-150-CO
15,0 m
DK-1641-150
215004
215981
20,0 m
DK-1641-200
DK-1641-200-CO
215011
215998
30,0 m
DK-1641-300
DK-1641-300-CO
215028
216001
42
CAT 6 Patch Cable
DIGITUS® Premium CAT 6 U-UTP patch cable
Ready for
PoE
• Unshielded CAT 6 patch cables
• 4 x 2 AWG 26/7, twisted pair, 100 Ohm
• 2 x RJ45 connectors
• Boot with kink protection and strain relief
• Spot length on boot
• Qualified for 1 Gbit Ethernet
• Ready for PoE
• Connection 1 : 1
Copper
Spot
length on boot
Please choose your requested product by the corresponding article number or the EAN code.
grey
red
yellow
green
blue
black
white
DK-1611-005/R
DK-1611-005/Y
DK-1611-005/G
DK-1611-005/B
DK-1611-005/BL
DK-1611-005/WH
0,5 m
DK-1611-005
214205
214335
214359
214328
214304
214311
214342
1,0 m
DK-1611-010
DK-1611-010/R
DK-1611-010/Y
DK-1611-010/G
DK-1611-010/B
DK-1611-010/BL
DK-1611-010/WH
214212
214380
214410
214373
214366
214403
214397
DK-1611-020
DK-1611-020/R
DK-1611-020/Y
DK-1611-020/G
DK-1611-020/B
DK-1611-020/BL
DK-1611-020/WH
214229
214458
214472
214434
214427
214441
214465
3,0 m
DK-1611-030
DK-1611-030/R
DK-1611-030/Y
DK-1611-030/G
DK-1611-030/B
DK-1611-030/BL
DK-1611-030/WH
214236
214519
214533
214502
214489
214496
214526
5,0 m
DK-1611-050
DK-1611-050/R
DK-1611-050/Y
DK-1611-050/G
DK-1611-050/B
DK-1611-050/BL
DK-1611-050/WH
214243
214571
214595
214564
214540
214557
214588
DK-1611-070
DK-1611-070/R
DK-1611-070/Y
DK-1611-070/G
DK-1611-070/B
DK-1611-070/BL
DK-1611-070/WH
214250
214632
214649
214625
214601
214618
214656
10,0 m
DK-1611-100
DK-1611-100/R
DK-1611-100/Y
DK-1611-100/G
DK-1611-100/B
DK-1611-100/BL
DK-1611-100/WH
214267
214694
214717
214687
214663
214670
214700
15,0 m
DK-1611-150
20,0 m
DK-1611-200
30,0 m
DK-1611-300
2,0 m
7,0 m
214274
214281
214298
43
CAT 5e Patch Cable
DIGITUS® Premium CAT 5e SF-UTP patch cable
Ready for
PoE
• Foil and braid shielded CAT 5e patch cables
• 4 x 2 AWG 26/7, twisted pair, 100 Ohm
• 2 x RJ45 connectors
• Boot with kink protection and strain relief
• Spot length on boot
• Qualified for 1 Gbit Ethernet
• Ready for PoE
Copper
Spot
lenght on boot
Please choose your requested product by the corresponding article number or the EAN code.
grey
red
yellow
green
blue
black
CROSSOVER
DK-1531-005/R
DK-1531-005/Y
DK-1531-005/G
DK-1531-005/B
DK-1531-005/BL
DK-1531-005-CO
0,5 m
DK-1531-005
212249
213734
213741
213727
213703
213710
215820
1,0 m
DK-1531-010
DK-1531-010/R
DK-1531-010/Y
DK-1531-010/G
DK-1531-010/B
DK-1531-010/BL
DK-1531-010-CO
213079
213789
213796
213772
213758
213765
215905
2,0 m
DK-1531-020
DK-1531-020/R
DK-1531-020/Y
DK-1531-020/G
DK-1531-020/B
DK-1531-020/BL
DK-1531-020-CO
213086
213833
213840
213819
213802
213826
215837
3,0 m
DK-1531-030
DK-1531-030/R
DK-1531-030/Y
DK-1531-030/G
DK-1531-030/B
DK-1531-030/BL
DK-1531-030-CO
213093
213888
213895
213864
213857
213871
215844
5,0 m
DK-1531-050
DK-1531-050/R
DK-1531-050/Y
DK-1531-050/G
DK-1531-050/B
DK-1531-050/BL
DK-1531-050-CO
213109
213932
213949
213925
213901
213918
215851
7,0 m
DK-1531-070
DK-1531-070/R
DK-1531-070/Y
DK-1531-070/G
DK-1531-070/B
DK-1531-070/BL
213116
213987
213994
213970
213956
213963
10,0 m
DK-1531-100
DK-1531-100/R
DK-1531-100/Y
DK-1531-100/G
DK-1531-100/B
DK-1531-100/BL
213123
214038
214045
214021
214007
214014
215868
15,0 m
DK-1531-150
DK-1531-150/R
DK-1531-150/Y
DK-1531-150/G
DK-1531-150/B
DK-1531-150/BL
DK-1531-150-CO
213130
214083
214090
214076
214052
214069
215875
20,0 m
DK-1531-200
DK-1531-200/R
DK-1531-200/Y
DK-1531-200/G
DK-1531-200/B
DK-1531-200/BL
DK-1531-200-CO
213147
214137
214144
214120
214106
214113
215882
DK-1531-300
DK-1531-300/R
DK-1531-300/Y
DK-1531-300/G
DK-1531-300/B
DK-1531-300/BL
DK-1531-300-CO
213154
214175
214182
214168
214151
214199
215899
30,0 m
44
DK-1531-100-CO
CAT 5e Patch Cable
DIGITUS® Premium CAT 5e F-UTP patch cable
Ready for
PoE
• Foil shielded CAT 5e patch cables
• 4 x 2 AWG 26/7, twisted pair, 100 Ohm
• 2 x RJ45 shielded connectors
• Boot with kink protection and strain relief
• Spot length on boot
• Qualified for 1 Gbit Ethernet
• Ready for PoE
Copper
Spot
length on boot
Please choose your requested product by the corresponding article number or the EAN code.
grey
red
yellow
green
blue
black
crossover
DK-1521-003-CO
215721
0,3 m
0,5 m
DK-1521-005
212232
DK-1521-005/R
213192
DK-1521-005/Y
213208
DK-1521-005/G
213185
DK-1521-005/B
213161
DK-1521-005/BL
213178
DK-1521-005-CO
215738
1,0 m
DK-1521-010
212966
DK-1521-010/R
213246
DK-1521-010/Y
213253
DK-1521-010/G
213239
DK-1521-010/B
213215
DK-1521-010/BL
213222
DK-1521-010-CO
215745
2,0 m
DK-1521-020
212973
DK-1521-020/R
213291
DK-1521-020/Y
213307
DK-1521-020/G
213284
DK-1521-020/B
213260
DK-1521-020/BL
213277
DK-1521-020-CO
215752
3,0 m
DK-1521-030
212980
DK-1521-030/R
213345
DK-1521-030/Y
213352
DK-1521-030/G
213338
DK-1521-030/B
213314
DK-1521-030/BL
213321
DK-1521-030-CO
215769
5,0 m
DK-1521-050
212997
DK-1521-050/R
213390
DK-1521-050/Y
213406
DK-1521-050/G
213383
DK-1521-050/B
213369
DK-1521-050/BL
213376
DK-1521-050-CO
215776
7,0 m
DK-1521-070
213000
10,0 m
DK-1521-100
213017
DK-1521-100/R
213499
DK-1521-100/Y
213505
DK-1521-100/G
213482
DK-1521-100/B
213468
DK-1521-100/BL
213475
DK-1521-100-CO
215783
15,0 m
DK-1521-150
213024
DK-1521-150/R
213543
DK-1521-150/Y
213550
DK-1521-150/G
213536
DK-1521-150/B
213512
DK-1521-150/BL
213529
DK-1521-150-CO
215790
20,0 m
DK-1521-200
213031
DK-1521-200/R
213598
DK-1521-200/Y
213604
DK-1521-200/G
213581
DK-1521-200/B
213567
DK-1521-200/BL
213574
DK-1521-200-CO
215806
30,0 m
DK-1521-300
213048
50,0 m
DK-1521-500
213055
DK-1521-070/G
DK-1521-300-CO
215813
45
CAT 5e Patch Cable
DIGITUS® Premium CAT 5e U-UTP patch cable
Ready for
PoE
• Unshielded CAT 5e patch cables
• 4 x 2 AWG 26/7, twisted pair, 100 Ohm
• 2 x RJ45 connectors
• Boot with kink protection and strain relief
• Spot length on boot
• Connection 1 : 1
• Qualified for 1Gbit Ethernet
• Ready for PoE
Copper
Spot
length on boot
Please choose your requested product by the corresponding article number or the EAN code.
grey
red
yellow
green
blue
black
white
DK-1511-005
DK-1511-005/R
DK-1511-005/Y
DK-1511-005/G
DK-1511-005/B
DK-1511-005/BLACK
DK-1511-005/WH
212119
212287
212300
212270
212126
212263
212294
1,0 m
DK-1511-010
DK-1511-010/R
DK-1511-010/Y
DK-1511-010/G
DK-1511-010/B
DK-1511-010/BLACK
DK-1511-010/WH
212102
212348
212362
212324
212317
212331
212355
1,5 m
DK-1511-015
DK-1511-015/R
DK-1511-015/Y
DK-1511-015/G
DK-1511-015/B
DK-1511-015/BLACK
DK-1511-015/WH
212133
212409
212423
212393
212379
212386
212416
DK-1511-020/BLACK
DK-1511-020/WH
0,5 m
DK-1511-020
DK-1511-020/R
DK-1511-020/Y
DK-1511-020/G
DK-1511-020/B
212140
212454
212461
212447
212430
212485
212478
3,0 m
DK-1511-030
DK-1511-030/R
DK-1511-030/Y
DK-1511-030/G
DK-1511-030/B
DK-1511-030/BLACK
DK-1511-030/WH
212157
212522
212546
212515
212492
212508
212539
5,0 m
DK-1511-050
DK-1511-050/R
DK-1511-050/Y
DK-1511-050/G
DK-1511-050/B
DK-1511-050/BLACK
DK-1511-050/WH
212164
212584
212607
212577
212553
212560
212591
DK-1511-070/BLACK
DK-1511-070/WH
2,0 m
DK-1511-070
DK-1511-070/R
DK-1511-070/Y
DK-1511-070/G
DK-1511-070/B
212171
212645
212669
212621
212614
212638
212652
10,0 m
DK-1511-100
DK-1511-100/R
DK-1511-100/Y
DK-1511-100/G
DK-1511-100/B
DK-1511-100/BLACK
DK-1511-100/WH
212188
212706
212720
212690
212676
212683
212713
15,0 m
DK-1511-150
DK-1511-150/R
DK-1511-150/Y
DK-1511-150/G
DK-1511-150/B
DK-1511-150/BLACK
DK-1511-150/WH
212195
212768
212775
212751
212737
212744
212782
20,0 m
DK-1511-200
DK-1511-200/R
DK-1511-200/Y
DK-1511-200/G
DK-1511-200/B
DK-1511-200/BLACK
DK-1511-200/WH
212201
212829
212843
212812
212799
212805
212836
7,0 m
25,0 m
DK-1511-250
30,0 m
DK-1511-300
DK-1511-300/R
DK-1511-300/Y
DK-1511-300/G
DK-1511-300/B
DK-1511-300/BLACK
DK-1511-300/WH
212225
212928
212935
212911
212904
212959
212942
212218
46
Installation Cable
DIGITUS® CAT 7 Twisted Pair Installation Cable
4x2xAWG23 S-FTP CAT 7 1000 MHz LSZH Data cable
Category 7 S/FTP indoor cable, conforming to ISO/IEC-11801 & IEC 61156-5.
The cable contains 4 individually foil-shielded twisted pairs cabled together,
overall shielded with a tinned-copper braid overall jacketed with LS0H compound
for indoor use, conforming to IEC 60233-1.
Basic Conductor
Insulation
Total number of insulated conductors
Color code
Individual pair shield
Overall shield
Drain wire
Outer jacket
Outer jacket thickness
Color
Overall Diameter
Physical Description
Solid 23AWG, bare annealed copper (0.57mm nom.)
SFS-PO.
8, twisted in 4 pairs.
Blue x White, Orange x White, Green x White, Brown x White.
Aluminum foil, providing 100% coverage, foil face out.
Tin-coated copper wire braid, 35% nom. coverage.
None.
Low-smoke, Zero-halogen, Flame-retardant compound for indoor use.
0.6 mm nom.
Orange RAL 2000.
7.5 mm nom.
DIGITUS® DK-1741-VH-5 4x2x23# S/FTP CATEGORY 7 SHIELDED LS0H CABLE VERIFIED to CAT 7 ISO/
IEC-11801 & IEC 61156-5 FR IEC 60332-1 CE 2002/95/EC (RoHS) [Meter Mark] METER [Batch
Number]
Surface Marking
Bend Radius
Storage Temperature
Temperature installation range
Temperature operating range
Flame Tests
Pulling force
Caloric value
Total Weight
Mechanical Properties
Dynamic: 8xD mm min. Static: 4xD mm min
-20 to +75C
0 to +50C
-20 to +60C
IEC 60332-1 (Fire), IEC 60754 (gas) & IEC 61034 (smoke)
150 N max.
650 KJ/m
68 Kg/Km nom.
Mean Impedance
Vp
Capacitance
Capacitance unbalance to ground
Insulation Resistance
DC Resistance
DC Loop Resistance
Voltage rating
Coupling attenuation
PS-ANEXT Loss
PS-AACRF
Phase delay
Delay Skew
Electrical Properties @ 20C
100±5 Ohm @ 1-600 MHz
75-77% nom.
40 pF/m nom @ 1 KHz
1.6 pF/m max. @ 1 KHz
0.5 GOhm•Km min.
72 Ohm/Km max. (2% max. resistance unbalance).
147 Ohm/Km max. (2% max. resistance unbalance).
72Vdc max.
85dB min @ 30-100 MHz. 85-20Log(f/100) dB min. @ 100-1000 MHz.
92.5-15Log(f) dB min. @ 1-600 MHz (67dB max).
78.2-20Log(f) dB min. @ 1-600 MHz (67dB max.)
534+36/f½ nS/100m max. @ f=1-1000 MHz.
25 nS/100m max.
FREQ.
MHz
10.00
20.00
62.50
100.00
200.00
300.00
600.00
900.00
1000.00
Insertion Loss
dB/100m
Typ
5.5
7,9
14.5
18,5
29,6
32.8
47.6
60,4
55
64,8
59
NEXT
dB
Typ
Typ
98.0
98.0
98.0
98.0
88.0
87.0
86.0
80.0
86
78.0
83
Transmission Properties @ 20C
PS NEXT
EL FEXT
PS EL FEXT
dB
dB/100m
dB/100m
Typ
Typ Typ
Typ
Min
Typ
95.0
95.0
91.6
95.0
98.0
88.6
95.0
86.0
82.6
95.0
82.0
78.6
85.0
70.0
66.6
84.0
67.0
63.6
83.0
52.0
48.6
77.0
84
48.0
44.6
75.0 81
47.0
44.6
RL
dB
Min Typ
26.0
26.0
26.0
24.0
22.0
21.0
19.0
18.0
18.0
TCL
dB
Min Typ
40
36
32
30
27
NS
NS
NS
NS
Min
15
7.0
NS
NS
NS
NS
NS
NS
NS
EL-TCTL
dB
Typ
241324 / DK-1741-VH-5
500m drum, CAT 7 Twisted Pair Installation Cable
247449 / DK-1741-VH-1
100m ring, CAT 7 Twisted Pair Installation Cable
47
Installation Cable
DIGITUS® CAT 7 Twisted Pair Installation Cable
2x 4x2xAWG23 S-FTP CAT 7 1000 MHz LSZH installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class F, 1000 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1
Basic Conductor
Insulation
Total number of insulated conductors
Color code
Individual pair shield
Overall shield
Outer jacket
Outer jacket thickness
Color
Overall diameter
Copper (kg/km)
Physical description
solid AWG 23/1, bare annealed copper (0.57mm nom.)
SFS-PO
2x8, twisted in 2x4 pairs
blue x white, orange x white, green x white, brown x white
Aluminium foil, providing 100% coverage, foil face out
tin-coated copper wire braid, 35% nom. coverage
low-smoke, zero-halogen, flame retardant, non corrosive compound for indoor use
0.6 mm nom.
orange RAL 2000.
16x7.5 mm nom.
56
DIGITUS® DK-1741-VH-D-5 2x 4x2x23# S/FTP CATEGORY 7 SHIELDED LS0H CABLE VERIFIED to CAT 7
ISO/IEC-11801 & IEC 61156-5 FR IEC 60332-1 CE 2002/95/EC (RoHS) [Meter Mark] METER [Batch
Number]
Print
Bend radius
Storage temperature
Temperature installation range
Temperature operating range
Flame tests
Pulling force
Caloric value
Total weight
Mechanical properties
dynamic: 8xD mm min., static: 4xD mm min.
-20 to +75C
0 to +50C
-20 to +60C
IEC 60332-1 (fire), IEC 60754 (gas) & IEC 61034 (smoke)
150 N max.
650 KJ/m
136 Kg/Km nom.
Mean impedance
Vp
Capacitance
Capacitance unbalance to ground
Insulation resistance
DC resistance
DC loop resistance
Voltage resistance
Coupling attenuation
PS-ANEXT loss
PS-AACRF
Phase delay
Delay skew
Electrical properties
100±5 Ohm bei 1-600 MHz
75-77% nom.
40 pF/m nom bei 1 KHz
1.6 pF/m max. bei 1 KHz
0.5 GOhm•Km min.
72 Ohm/Km max. (2% max. resistance unbalance).
147 Ohm/Km max. (2% max. resistance unbalance).
72Vdc max.
85dB min bei 30-100 MHz. 85-20Log(f/100) dB min. at 100-1000 MHz.
92.5-15Log(f) dB min. at 1-600 MHz (67dB max).
78.2-20Log(f) dB min. at 1-600 MHz (67dB max.)
534+36/f½ nS/100m max. bei f=1-1000 MHz.
25 nS/100m max.
FREQ.
MHz
10.00
20.00
62.50
100.00
200.00
300.00
600.00
900.00
1000.00
Absorbability
dB/100m
Typ
5.5
7,9
14.5
18,5
29,6
32.8
47.6
60,4
64,8
247289 / DK-1741-VH-D-5
500m drum, duplex, halogenfree outer jacket
48
NEXT
dB
Typ
98.0
98.0
98.0
98.0
88.0
87.0
86.0
80.0
78.0
PS NEXT
dB
Typ
95.0
95.0
95.0
95.0
85.0
84.0
83.0
77.0
75.0
Transferproperties
EL FEXT
PS EL FEXT
dB/100m
dB/100m
Typ
Typ
95.0
91.6
98.0
88.6
86.0
82.6
82.0
78.6
70.0
66.6
67.0
63.6
52.0
48.6
48.0
44.6
47.0
44.6
RL
dB
Typ
26.0
26.0
26.0
24.0
22.0
21.0
19.0
18.0
18.0
TCL
dB
Typ
40
36
32
30
27
NS
NS
NS
NS
EL-TCTL
dB
Typ
15
7.0
NS
NS
NS
NS
NS
NS
NS
Installation Cable
DIGITUS® CAT 6 F-UTP Twisted Pair Installation Cable
4x2xAWG23 F-UTP CAT 6 250 MHz LSZH installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class E, 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1
Physical description
• Basic Conductor: solid AWG 23/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil
• Outer jacket: halogenfree (LSZH)
• Color: orange
Electrical properties
• Mean impedance: 100±5 Ohm @ 1-250 MHz
• Vp: 65% nom.
• Delay skew: 20 nS/100m max.
Installation cable
100m Drum
DK-1621-VH-1
256205
500m Drum
DK-1621-VH-5
251682
DIGITUS® CAT 6 U-UTP Twisted Pair Installation Cable
4x2xAWG23 U-UTP CAT 6 250 MHz installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class E, 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1
Physical description
• Basic Conductor: solid AWG 23/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: none
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±5 Ohm @ 1-250 MHz
• Vp: 65% nom.
• Delay skew: 20 nS/100m max.
Installation cable
100m Drum
DK-1611-V-1
241225
305m Drum
DK-1611-V-305
241232
49
Installation Cable
DIGITUS® CAT 5e SF-UTP LSOH twisted pair installation cable
4x2xAWG24 SF-UTP CAT 5e 100 MHz LSZH installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class E, 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1
Physical description
• Basic Conductor: solid AWG 24/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil and tin-coated copper wire braid
• Outer jacket: halogenfree (LSZH)
• Color: grey
Electrical properties
• Mean impedance: 100±5 Ohm @ 1-250 MHz
• Capacitance unbalance to ground: 1600pF/100m min.
• Insulation resistance: 0.5 GOhm•Km min.
• DC loop resistance: 19 Ohm/100m max. (2% max. resistance unbalance)
Installation cable
100m Drum
DK-1531-VH-1
241201
500m Drum
DK-1531-VH-5
241218
DIGITUS® CAT 5e SF-UTP Twisted Pair Installation Cable
4x2xAWG24 SF-UTP CAT 5e 100 MHz installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class E, 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1
Physical description
• Basic Conductor: solid AWG 24/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil and tin-coated copper wire braid
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±5 Ohm @ 1-250 MHz
• Capacitance unbalance to ground: 1600pF/100m min.
• Insulation resistance: 0.5 GOhm•Km min.
• DC loop resistance: 19 Ohm/100m max. (2% max. resistance unbalance)
Installation cable
100m Drum
DK-1531-V-1
241157
305m Drum
DK-1531-V-305
241164
50
Installation Cable
DIGITUS® CAT 5e F-UTP Twisted Pair Installation Cable
4x2xAWG24 F-UTP CAT 5e 100 MHz installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class D, 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1
Physical description
• Basic Conductor: solid AWG 24/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±5 Ohm @ 1-250 MHz
• Capacitance unbalance to ground: 1600pF/100m min.
• Insulation resistance: 0.5 GOhm•Km min.
• DC loop resistance: 19 Ohm/100m max. (2% max. resistance unbalance)
Installation cable
100m Drum
DK-1521-V-1
241119
305m Drum
DK-1521-V-305
241126
DIGITUS® CAT 5e U-UTP Twisted Pair Installation Cable
4x2xAWG24 U-UTP CAT 5e 100 MHz installation cable
Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class E, 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-3-1
Physical description
• Basic Conductor: solid AWG 24/1
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: none
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±15 Ohm @ 1-250 MHz
• Capacitance unbalance: max. 300pF/100m @ 20°C
• Insulation resistance: 50 GOhm•Km min.
• DC loop resistance: 125 Ohm/100m max.
• Mutual capacitance: 5600pF/100m max.
Installation Cable
100m Drum
DK-1511-V-1
241072
305m Drum
DK-1511-V-305
241126
51
Patch Cable
DIGITUS® CAT 6 S-FTP twisted pair patch cable
4x2xAWG26 S-FTP CAT 6 250 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class E, 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1
Physical description
• Basic Conductor: stranded AWG 26/7,
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue x white, orange x white, green x white, brown x white
• Individual pair shield: Aluminium foil, providing 100% coverage
• Overall shield: tin-coated copper wire braid
• Outer jacket: low-smoke, zero-halogen, flame retardant, non corrosive
compound for indoor use
• Color: grey
Mechanical property
• Flame test: IEC 60332-1 (fire)
Electrical properties
• Mean impedance: 100±6 Ohm @ 1-250 MHz
• Vp: 67% nom.
• Mutual capacitance: 55,8 nF/km max.
• Capacitance unbalance: 1.6 pF/m max.
• Insulation resistance: 0.5 GOhm * Km min.
• DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
• Phase delay: 5350 nS/km max.
• Delay skew: 40 nS/100m max.
Patchcable
100m Ring
DK-1641-PH-1
131786
305m Pulloutbox
DK-1641-PH-305
131793
DIGITUS® CAT 6 U-UTPtwisted pair patch cable
4x2xAWG24 U-UTP CAT 6 250 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class E , 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-6-2
Physical description
• Basic Conductor: stranded AWG 24/7,
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue x white, orange x white, green x white, brown x white
• Individual pair shield: none
• Overall shield: none
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±6 Ohm @ 1-250 MHz
• Vp: 67% nom.
• Mutual capacitance: 55,8 nF/km max.
• Capacitance unbalance: 1.6 pF/m max.
• Insulation resistance: 0.5 GOhm * Km min.
• DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
• Phase delay: 5350 nS/km max.
• Delay skew: 40 nS/100m max.
Patchcable
100m Ring
DK-1611-P-1
131755
305m Pulloutbox
DK-1611-P-305
131762
52
Patch Cable
DIGITUS® CAT 5e SF-UTP twisted pair patch cable
4x2xAWG26 SF-UTP CAT 5e 100 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class D , 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-2
Physical description
• Basic Conductor: stranded AWG 26/7
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil and tin-coated copper wire braid
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±10 Ohm @ 10-100 MHz
• Vp: 66% nom.
• Mutual capacitance: 55,8 nF/km max.
• Capacitance unbalance: 1.6 pF/m max.
• Insulation resistance: 0.5 GOhm * Km min.
• DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
• Phase delay: 5350 nS/km max.
• Delay skew: 40 nS/100m max.
Patchcable
100m Ring
DK-1531-P-1
202288
305m Pulloutbox
DK-1531-P-305
202295
DIGITUS® CAT 5e F-UTP twisted pair patch cable
4x2xAWG26 F-UTP CAT 5e 100 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class D , 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-2
Physical description
• Basic Conductor: stranded AWG 26/7
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: aluminium foil
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±10 Ohm @ 10-100 MHz
• Vp: 66% nom.
• Mutual capacitance: 55,8 nF/km max.
• Capacitance unbalance: 1.6 pF/m max.
• Insulation resistance: 0.5 GOhm * Km min.
• DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
• Phase delay: 5350 nS/km max.
• Delay skew: 40 nS/100m max.
Patchcable
100m Ring
DK-1521-P-1
186434
305m Pulloutbox
DK-1521-P-305
202271
53
Patch Cable
DIGITUS® CAT 5e U-UTP twisted pair patch cable
4x2xAWG24 U-UTP CAT 5e 100 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class D , 100 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-3-2
Physical description
• Basic Conductor: stranded AWG 24/7
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: none
• Overall shield: none
• Outer jacket: PVC
• Color: grey
Electrical properties
• Mean impedance: 100±10 Ohm @ 10-100 MHz
• Vp: 66% nom.
• Mutual capacitance: 55,8 nF/km max.
• Capacitance unbalance: 1.6 pF/m max.
• Insulation resistance: 0.5 GOhm * Km min.
• DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
• Phase delay: 5350 nS/km max.
• Delay skew: 40 nS/100m max.
Patchcable
100m Ring
DK-1511-P-1
202233
305m Pulloutbox
DK-1511-P-305
202257
Take a closer look
54
Outlets
DIGITUS® CAT 6 De Embedded certified
wall outlet, design compatible, flush mounted
• According to Link Performance Class E, 1 Gbit Ethernet
• CAT6 De Embedded certified
• Up to 250 MHz
• Design compatible with common switch programmes
• Shielded 2 x RJ45 sockets, 8P8C, strain relieving 40°socket angle with dust cover
• Integrated installation cable strain relief
• Shielded RJ45 sockets due to enclosed metal die cast housing
• Flush mount ready (with surface mountbox)
• Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
• Horizontal cable entry
• Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
• Color white RAL 9010
design compatible
241409 / DN-9005-KL-N
C AT 6 Outlet, fl ush mount
DIGITUS® CAT 6 De Embedded wall outlet,
design compatible, surface mounted
• According to Link Performance Class E, 1Gbit Ethernet
• CAT6 De Embedded certified
• Design compatible with common switch programmes
• Shielded 2 x RJ45 sockets, 8P8C, strain relieving 40°socket angle with dust cover
• Integrated installation cable strain relief
• Shielded RJ45 sockets due to enclosed metal die cast housing
• Flush mount ready
• Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
• Horizontal cable entry
• Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
• Color white RAL 9010
design compatible
241416 / DN-9006-KL-N
Cat6 Outlet, surface mount
DIGITUS® Class E CAT 6 wall outlet, flush mounted
• According to link performance Class E, 1Gbit Ethernet
• Up to 250 MHz
• Shielded 2 x RJ45 sockets, 8P8C, strain relieving 40°socket angle
• Integrated installation cable strain relief
• Shielded RJ45 sockets due to enclosed metal die cast housing
• Flush / surface mount ready (with surface mountbox)
• Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
• Horizontal cable entry
• Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
• Color white RAL 9010
Class E CAT 6 tested
Channel Link
certifi ed
175711 / DN-9005-N
Class E CAT 6 Outlet, fl ush mount
175759 / DN-9005/B5-N
Class E CAT 6 Outlet, Flush mount, 5 pcs.
55
Outlets
DIGITUS® Class E CAT 6 modular wall outlet, surface mounted
• According to link performance Class E, 1Gbit Ethernet
• Up to 250 MHz
• Shielded RJ45 sockets, 8P8C, strain relieving 40˚socket angle
• Integrated installation cable strain relief
• Shielded RJ45 sockets due to enclosed metal die cast housing
• Flush mount ready
• Cable installation via LSA strips, colour codes based on EIA/TIA 568 A & B
• Horizontal cable entry
• Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
• Color white RAL 9010
Class E CAT 6 tested
Channel Link
certifi ed
175735 / DN-9006-N
Class E CAT 6 wall outlet, surface mounted
175742 / DN-9006/B5-N
Class E CAT 6 wall outlet, surface mounted, 5 pcs.
DIGITUS® CAT 5e wall outlets, surface mounted
• CAT 5e, EIA TIA 568 and ISO IEC 11801 / EN 50173, 1Gbit Ethernet
• Up to 100 MHz
• Shielded 2 x RJ45 sockets, 8P8C, strain relieving 40° socket angle
• Integrated installation cable strain relief
• Metal die cast housing
• Flush / surface mount ready (with surface mountbox)
• Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
• Horizontal cable entry
• Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
• Color white RAL 9010
175650 / DN-9001-N
Cat5e outlet, fl ush mounted
175704 / DN-9001/B5-N
Cat5e outlet, fl ush mounted, 5 pcs.
DIGITUS® CAT 5e Wall Outlet, CAT 5e
surface mounted
•
•
•
•
•
•
•
•
•
•
CAT5e EIA TIA 568 and ISO IEC 11801 / EN 50173, 1Gbit Ethernet
Up to 100 MHz
Shielded RJ 45 sockets 8P8C, strain relieving 45° socket angle
Integrated installation cable strain relief
Shielding from enclosed metal die cast housing
Flush mount ready
Cable installation via LSA strips, colour codes based on EIA/TIA 568 A & B
Horizontal cable entry
Cover frame 80x80, incl. central frame 50x50 according to DIN 49075
Color white RAL 9010
175681 / DN-9002-N
Cat5e wall outlet, surface mounted
175698 / DN-9002/B5-N
Cat5e wall outlet, surface mounted, 5 pcs.
56
Patch Panel
DIGITUS® CAT 6 19" patch panel, De Embedded certified
• According to Link Performance Class E, 1Gbit Ethernet
• Cat 6 De Embedded certified
• Up to 250 Mhz
• Housing of steel sheet, grey color RAL 7035
• Shielded RJ45 female sockets, 8P8C with dust cover
• Cable installation via LSA strips, colour-coded to EIA/TIA 568 A & B
• Fixing option for cable ties
• Central ground connection
• shuttered RJ45 Jacks
• 1U
• Grey RAL 7035
241621 / DN-91624S-KL
CAT6, 19" Patch Panel, 24 port
DIGITUS® Class E CAT 6 19" patch panel
• Class E up to 250 MHz
• 1Gbit Ethernet
• Housing of steel sheet, grey color RAL 7035
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, colour-coded EIA/TIA 568B
• Fixing option for cable ties, central groand connection
• Central ground connection
• 1U
241607 / DN-91616S
<1CC*'1D38'1>5<'?BD+
241614 / DN-91624S
<1CC*'1D38'1>5<'?BD+
57
Patch Panel
DIGITUS® CAT 5e 19" patch panel
• CAT5e up to 100Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Grey RAL 7035
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color-coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
241522 / DN-91524S
@?BD*[email protected]@1>5<
241515 / DN-91516S
@?BD*[email protected]@1>5<
DIGITUS® Class E CAT 6 19" patch panel, unshielded
• Class E CAT6, up to 250 MHz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Black RAL 9005
• Unshielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, colour-coded as per EIA/TIA 568 B
• 1U
241546 / DN-91616U
<1CC*@[email protected]>5<@?BDE>C895<454
241553 / DN-91624U
<1CC*@[email protected]>5<@?BDE>C895<454
241560 / DN-91648U
<1CC*@[email protected]>5<@?BDE>C895<454
DIGITUS® CAT 5e 19" patch panel, unshielded
• CAT 5e, up to 100Mhz, ISO IEC 11801, EN 50173
•1 Gbit Ethernet
• Black RAL 9005
• Unshielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, colour-coded as per EIA/TIA 568 B
• 1U
241454 / DN-91516U
*[email protected]@1>5<@?BD+E>C895<454
241461 / DN-91524U
*[email protected]@1>5<@?BD+E>C895<454
241478 / DN-91548U
*[email protected]@1>5<@?BD+E>C895<454
58
Patch Panel
DIGITUS® Class E CAT 6 10" patch panel
• Class E CAT 6, up to 250Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Black RAL9005
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
241591 / DN-91612S
@?BDC895<454
241577 / DN-91608S
@?BDC895<454
DIGITUS® Class E CAT 6 dekstop patch panel
• Class E CAT 6, up to 250Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Black RAL9005
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
241584 / DN-91608SD
@?BDC895<4545C;[email protected]?>
DIGITUS® CAT 5e desktop patch panel
• CAT5e, up to 100Mhz, ISO/IEC 11801, EN50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Black RAL9005
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
108931 / DN-10001
*5'1D38'1>5<'?BD45C;[email protected]?>
59
Patch Panel
DIGITUS® CAT 5e 10" patch panel
• CAT 5e, up to 100Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Black RAL 9005
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color-coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
241508 / DN-91512S
*[email protected]@1>5<@?BDC895<454
241485 / DN-91508S
*[email protected]@1>5<@?BDC895<454
DIGITUS® CAT 5e 10" patch panel, unshielded
• CAT 5e, up to 100Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Black RAL 9005
• Unshielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color-coded to EIA/TIA 568 B
• 1U
241430 / DN-91508U
*[email protected]@1>5<@?BDE>C895<454
241447 / DN-91512U
*[email protected]@1>5<@?BDE>C895<454
DIGITUS® CAT 3 19" ISDN patch panel
• CAT 3
• Grey RAL 7035
• Unshielded RJ45 female sockets, 8P8C
• Cable instalation via LSA strips
• 1U
241645 / DN-91325
* )%@[email protected]>5<@?BD
241652 / DN-91350
* )%@[email protected]>5<@?BD
60
Keystone Jack
DIGITUS® Class E CAT 6 Keystone Jack,
shielded
DIGITUS® Class E CAT 6 Keystone Jack,
unshielded
•
•
•
•
•
•
•
•
Link Performance Class E, up to 250 MHz, EN 50173, ISO/IEC 11801
Cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B
1Gbit Ethernet
RJ45 female for patch panel installation
Link Performance Class E, up to 250 MHz, EN 50173, ISO/IEC 11801
Cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B
1Gbit Ethernet
RJ45 female for patch panel installation
245117 / DN-93611
245100 / DN-93601
shielded
unshielded
DIGITUS® CAT 5e Keystone Jack, shielded
DIGITUS® CAT 5e Keystone Jack, unshielded
• Tested for Link Performance CAT 5e
• Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
• RJ 45 female for patch panel installation
• Tested for Link Performance CAT 5e
• Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
• RJ 45 female for patch panel installation
245094 / DN-93511
245087 / DN-93501
shielded
unshielded
61
Toolless keystone Jack
DIGITUS® CAT 6 De Embedded Keystone Modul,
tool free connection
DN-93612
DN-93602
The fully downward compatible CAT 6a Keystone Jacks makes an easy installation in combination with excellent measurements possible. The Keystone Jack supports all current
1>46EBD85BCD1>41B4C<9;51C5*
*859>>?F1D9F58?EC9>745C97>?665BCAE93;1>4C165G9B5D5B=9>1D9?>CG9D8?EDEC175?61>[email protected]<D??<C
[email protected]?B=1<<?GC1EC175
of 24 Keystone Jacks in a row with a 19" 1U Patch Panel. These facts ensure an uncomplicated mounting and marking as well as a high reliability.
Shielded Keystone Jack
Unshielded Keystone Jack
Cable Entry:
Hole Plate Thickness:
Body:
Jack Contacts:
IDC Contacts:
Plating:
Wire Terminations:
Wiring Standard:
Conformance:
Cable Entry:
Hole Plate Thickness:
Body:
Jack Contacts:
IDC Contacts:
Plating:
Wire Terminations:
Wiring Standard:
Conformance:
Certifi cation:
Dimension:
Weight:
Rear
Jack will clip into a hole plate thickness of 1.6mm Max
/9>39531CD9>7>93;5<@<1D54
Phosphor Bronze
Phosphor Bronze
50μm of gold over 40μm of nickel
Tool Free with Cap.
EIA/TIA 568A/B
1D57?BI11C5*81>>5<
ANSI/EIA/TIA 568B.2.1:2002
ISO/IEC 11801:2002
%
Independent Laboratory
18x24x41mm
ca. 23g
245131 / DN-93612
CAT 6A De Embedded Keystone jack, toolless, shielded
245124 / DN-93602
CAT 6A De Embedded Keystone jack, toolless, unshielded
62
Certifi cation:
Dimension:
Weight:
Rear
Jack will clip into a hole plate thickness of 1.6mm Max
Plastic
Phosphor Bronze
Phosphor Bronze
50μm of gold over 40μm of nickel
Tool Free with Cap.
EIA/TIA 568A/B
1D57?BI11C5*81>>5<
ANSI/EIA/TIA 568B.2.1:2002
ISO/IEC 11801:2002
%
Independent Laboratory
18x24x41mm
ca. 10g
Toolless keystone Jack
Discover the simple Network Installation
with toolfree CAT 6A Keystone Jacks from DIGITUS®
1
2
Follow the color code to place the wires into the cap
slots. Keep the pairs twisted as possible and cut of
the surplus wires.
Puchdown Sequences:
Strip approximately 4cm of the cable jacket.
T568A
T568B
Pin 5 White / Blue
Pin 4 Blue
Pin 1 White / Green
Pin 2 Green
Pin 3 White / Orange
Pin 6 Orange
Pin 7 White / Brown
Pin 8 Brown
Pin 5 White / Blue
Pin 4 Blue
Pin 1 White / Orange
Pin 2 Orange
Pin 3 White / Green
Pin 6 Green
Pin 7 White / Brown
Pin 8 Brown
3
4
5
Put the cap into Keystone Jack
according to the color code.
Lock the side caps of the
Keystone Jack.
Fix the Keystone Jack with
a cable tie.
DN-93612
CAT 6A Certification
DN-93612
CAT 6 De Embedded Certification
DN-93602
CAT 6 De Embedded Certification
63
Coupler + Face Plates
DIGITUS® Class E CAT 6 RJ45 modular
coupler, shielded
DIGITUS® CAT 5e RJ45 modular coupler,
shielded
• 2x RJ45 socket
• Suitable for panel connection
• 2x RJ45 socket
• Suitable for panel connection
245186 / DN-93613
245179 / DN-93513
CAT 6, RJ45 Modular Coupler, shielded
CAT 5e, RJ45 Modular Coupler, shielded
Wallplate for keystone jacks,
german design
DIGITUS® Wallplate for keystone modules,
french design
• For connection of Keystone Jacks
• 2 port incl. dust cover
• Coverframe 80x80 mm incl. central frame 50x50 mm
• Expandable with surface mountbox DN-93803
• White RAL 9010
• For connection of Keystone Jacks
• 2 port incl. dust cover
• Cover frame 80x80 mm, incl. central frame 2x22,5 mm
• White RAL 9010
• Expandable with surface mountbox DN-93803
222361 / AT-AG KEY-S-FP
259350 / DN-93802
2 port wallplate for Keystone Modules, german system
2 Port Wallplate for Keystone Modules incl. shutter, french system
64
Coupler + Face Plates
Surface mountbox 80/80mm
DIGITUS® Wallplate for keystone modules,
british design
•Compatible with DIGITUS® outlets, keystone faceplates 80x80mm
• White RAL 9010
• For connection of keystone jacks
• 2 port
• 45° angle for plug insterted to maintain safe cable bend radius
• Full shielded metal structure for grounding
• 86/86mm frame + 2x22,5mm central frame
• White color RAL 9005
• Expandable with Surface mountbox DN-93806
259367 / DN-93803
259381 / DN-93805
Surface Mount Box 80x80mm
2 Port Wallplate for Keystone Modules incl. shutter
Surface mountbox 86/86mm
Desktop housing for keystone jacks
• Compatible with DIGITUS® outlets, keystone faceplates 86x86mm
• White RAL 9010
• Plastic housing for 6 keystone jacks
• White RAL 9005
259374 / DN-93806
259411 / DN-93705
Surface Mountbox 86/86mm
Desktop Housing for Keystone Jacks
65
19" Housing for Keystone Jacks
19" Housing for shielded keystone jacks,
incl. cable management
19" Housing for shielded keystone jacks,
incl. cable management
• Universal applicable for RJ45 and fiber optic keystone jacks
• Grey RAL 7035
• 1U
• Universal applicable for RJ45 and fiber optic keystone jacks
• Black RAL 9005
• 1U
222354 / A-PAN-24-MOD-S
256281 / A-PAN-24-MOD-S-B
Modular housing, 24 port, 1U
Modular housing, 24 port, 1U
19" Housing for keysone jacks, unshielded
• Universal applicable for RJ45 and Fiber optic keystone jacks
• Black RAL 9005
• 1U
157441 / A-PAN-16-MOD
$?4E<1B8?EC9>[email protected]?BD+
157465 / A-PAN-24-MOD
$?4E<1B8?EC9>7'?BD+
66
DIGITUS®
Professional
Modular Plugs
Class E CAT 6 RJ45 modular plug
for round cable
Hirose RJ 45 modular plug for
round cable
CAT 5e Modular plugs for
round cable
• Class E, up to 250 MHz
• Shielded with strain relief and black hood
• CAT 5e up to 100Mhz
132936 / A-MO6 8/8 SRS
184720 / A-MO 8/8 HRS
8P8C, Shielded
Modular plug, CAT 5e, inkl. cumb and boot
132929 / A-MO6 8/8 SR
132943 / A-MO6 8/8 HRS
065180 / A-MO 8/8 SRS
8P8C, unshielded
Modular plug, CAT 6, inkl. cumb and boot
Modular plug for roand cables, RJ45 8P8C, shielded, CAT 5e
Modular plugs for flat cable,
unshielded
Modular plugs for round cable,
unshielded
Kink protection boot for
RJ45 plugs
.
• For 8P8C RJ45 modular plugs
• Suitable for shielded and unshielded modular plugs
065197 / A-MOT 8/8
black
065203 / A-MOT/B 8/8
blue
065104 / A-MO 4/4 SF
057949 / A-MO 4/4 SR
065210 / A-MOT/E 8/8
RJ11 4P4C, unshielded
RJ11 4P4C, unshielded
grey
065111 / A-MO 6/4 SF
057956 / A-MO 6/4 SR
065234 / A-MOT/R 8/8
RJ12 6P4C, Unschielded
RJ12 6P4C, unschielded
red
065135 / A-MO 6/6 SF
057963 / A-MO 6/6 SR
065227 / A-MOT/G 8/8
RJ12 6P6C, Unschielded
RJ12 6P6C, unshielded
green
065159 / A-MO 8/8 SF
065173 / A-MO 8/8 SR
065241 / A-MOT/Y 8/8
RJ45 8P8C Unshielded
RJ45 8P8C, unshielded
yellow
67
Modular Couplers
Twisted pair cables connection box
Class E, CAT 6 modular coupler,
shielded
Cat 5e modular coupler, shielded
• Connection box in metal case
• Connection of twisted pair cables via LSA strips
• Integrated strain relief.
• 2 x RJ-45 female
• Shielded version
• According to Link performance class E
• 2 x RJ female
• Shielded version
• CAT 5e
118657 / AT-ALSA-M
132806 / AT-AG6 8/8
066583 / AT-AG 8/8
Connection box, CAT 5e
8P8C, CAT 6
1D5$?4E<[email protected]<9>7(!'C895<454
132837 / AT-ALSA6-M
132813 / AT-AG6 8/8CROSS
132813 / AT-AG6 8/8CROSS
Connection Box, CAT 6
8P8C, CAT 6, Crossover
1D$?4E<[email protected]<9>7'B?CC?F5B
Modular coupler, unshielded
CAT 5e Patchcable-Adapter,
shielded
CAT 5e modular coupler
• 2 x RJ female
•Connection 1 : 1
• AT-AG Cx2, CAT 5e, 1:1 assigned
• AT-AG Cx2 NEW assignment:
CAT 5e, 1-1, 2-2, 3-3, 4-1, 5-2, 6-6, 7-3, 8-6
• Three RJ45 sockets
• 8P8C
• CAT 5e
066552 / AT-A 6/6
066590 / AT-AG CX2
066576 / AT-AG 2X8/8
RJ12, 6P6C
CAT 5e Patch cable adapters, shielded
3 x RJ45 female, shielded
066569 / AT-A 8/8
052364 / AT-AG CX2NEW
066668 / AT-AT 8/8
RJ45, 8P8C
CAT 5e Patch cable adapters, shielded
3 x RJ45 female, unshielded
68
19" IPC Housing
19" IPC housing 2U
• 2 U Server housing
• Standard: 19" EIA (Electronic Industries Association)
• Drive slots: 1 x 5.25" & 7 x 3.5"
• Four PCI Slots, one USB 2.0 slot on the front
• Stable tempered metal construction
• Installation of max 13" mainboards are supported
• Four built-in 8cm fans
• Dimensions: 88mm(H) x 482mm(W) x 610mm(D)
200246 / AIPC-2S100B
19" IPC Housing,without power supply, black RAL 9005
200260 / AIPC-2S100B-300W
19" IPC Housing,Including power supply, black RAL 9005
19" IPC Housing 4U
• 4 U server housing
• Standard: 19" EIA (Electronic Industries Association)
• Drive slots: 3x 5.25", 7x3.5"
• Sturdy tempered metal construction
• Supports ATX, baby-AT and backplane mainboards
• Transverse stabiliser with two mounted 8cm fans built in
• 4 PCI Slots
• Switch: power on/off, system reset, USB2.0
• Dimensions 175mm(H) x 483mm(W) x 431mm(D)
200284 / AIPC-4S200
19" IPC Housing 4U, Without power supply, grey RAL 7035
200314 / AIPC-4S200-300W
19" IPC Housing, Including power supply, grey RAL 7035
19" IPC Housing 4U
• 4U server housing
• Standard: 19" EIA (Electronic Industries Association)
• Drive slots: 3x 5.25", 7x3.5"
• Sturdy tempered metal construction
• Supports ATX, baby-AT and backplane mainboards
• Transverse stabiliser with two mounted 8cm fans built in
• 4 PCI Slots
• Switch: power on/off, system reset, USB2.0
• Dimensions 175mm(H) x 483mm(W) x 431mm(D)
200291 / AIPC-4S200B
19" IPC Housing 4U, Without power supply, black RAL 9005
200307 / AIPC-4S200B-300W
19" IPC Housing 4U, including power supply, black RAL 9005
69
SAS Connection cable
SAS connection cable
SAS - SATA connection cable
SAS connection cable
This internal cable connects SAS (Serial Attached SCSI) devices to a
SAS controller.
SAS 29-pin plug (SFF-8484) - 2x SATA 7-pin plug + 5,25" power plug
This internal cable connects SAS (Serial Attached SCSI) devices.
• Molded housing
• Color: red
SAS 32-pin plug (SFF-8484) - SAS 32-pin plug (SFF-8484)
• Molded housing
• Color: red
SAS 29-pin plug (SFF-8482) - SAS 29-pin plug (SFF-8482)
• Molded housing
• Color: red
258438 / DK-127001
258445 / DK-127002
258452 / DK-127003
0,50 m
0,50 m
0,50 m
SAS connection cable
SAS - SATA connection cable
SAS - SATA connection cable
This internal cable connects four SAS (Serial Attached SCSI) devices to
a SAS controller.
This cable connects four Serial ATA devices to a SAS (Serial Attached
SCSI) controller.
This internal cable connects four Serial ATA devices to a SAS (Serial
Attached SCSI) controller.
SAS 32-pin plug (SFF-8484) - 4x SAS 29-pin plug + 5,25" power plug
SAS 32-pin plug (SFF-8484) - 4x SATA 7-pin plug
SAS 32-pin plug (SFF-8484) - 4x SATA 7-pin plug + 6-pin LED jack
• Molded housing
• Color: red
• Molded housing
• SATA plugs with metal latch
• Color: red
• Molded housing
• SATA plugs with metal latch
• LED power connection cable for drive cage LEDs
(2 x 3-pin female header)
• Color: red
258520 / DK-127007
1,0 m
258469 / DK-127004
258476 / DK-127005
258483 / DK-127006
0,50 m
0,50 m
0,50 m
70
SAS Connection cable
SAS connection cable
SAS connection cable
SAS - SATA connection cable
This internal cable connects SAS (Serial Attached SCSI) devices.
This internal cable connects (Serial Attached SCSI) devices.
This internal cable connects four Serial ATA devices to a SAS (Serial
Attached SCSI) device.
Mini SAS 36-pin plug (SFF-8087) - Mini SAS 36-pin plug (SFF-8087)
• Molded housing
• SFF-8087 plugs with metal latch
• Color: red with meshwork tupe
Mini SAS 36-pin plug (SFF-8087) - SAS 32-pin plug (SFF-8484)
• Molded housing
• SFF-8087 plug with metal latch
• Color: red with meshwork tupe
Mini SAS 36-pin plug (SFF-8087) - 4x SATA 7-pin plug
• Molded housing
• SFF-8087 plug with metal latch
• Color: red
258551 / DK-127008
258575 / DK-127009
258582 / DK-127010
0,50 m
0,50 m
0,50 m
SAS - SATA connection cable
SAS connection cable
SAS connection cable
This internal cable connects four Serial ATA devices to a SAS (Serial
Attached SCSI) device.
This internal cable connects SAS (Serial Attached SCSI) devices.
This external Infiniband cable connects SAS (Serial Attached SCSI)
devices.
Mini SAS 36-pin plug (SFF-8087) - 4x SATA 7-pin plug
Mini SAS 36-pin plug (SFF-8087) - SAS 29-pin plug (SFF-8482) +
4x 5,25" power plug
SAS Infiniband plug (SFF-8470) - SAS Infiniband plug (SFF-8470)
• Molded housing
• All plugs with metal latch
• Color: transparent/blue with meshwork tupe
• Moulded housing
• SFF-8087 plug with metal latch
• Color: black
• Metal housing
• Color: black
258599 / DK-127011
258605 / DK-127012
258612 / DK-127013
0,50 m
0,50 m
1,0 m
71
SAS Connection cable
SAS connection cable
SAS connection cable
This external cable connects SAS (Serial Attached SCSI) devices.
This external cable connects SAS (Serial Attached SCSI) devices.
Mini SAS 26-pin plug (SFF-8088) - Mini SAS 26-pin plug (SFF-8088)
SAS Infiniband plug (SFF-8470) - Mini SAS 26-pin plug (SFF-8088)
• Metal housing
• Color: black
• Metal housing
• Color: black
258629 / DK-127014
258636 / DK-127015
1,0 m
1,0 m
SAS connection cable
SAS - eSATA connection cable
This external cable connects SAS (Serial Attached SCSI) devices.
This external cable connects four Serial ATA devices to a SAS (Serial
Attached SCSI) device.
ini SAS 26-pin plug (SFF-8088) - Mini SAS 36-pin plug (SFF-8087)
Mini SAS 26-pin plug (SFF-8088) - 4x eSATA 7-pin plug
• SFF-8088 plug metal housing
• SFF-8087 plug molded housing
• Color: transparent/blue
• eSATA plugs with molded housing
• SFF-8088 plug with metal housing
• Color: transparent/blue
258643 / DK-127016
258650 / DK-127017
1,0 m
1,0 m
72
Table of contents
19" Cabinets
19" Network Cabinets .........................................................................8
19“ Server Cabinets......................................................................... 12
Unmounted Network- and Server Cabinets .................................... 14
19" Industry Cabinets ...................................................................... 15
19" Network Cabinets ...................................................................... 16
19" Wallmount Cabinets .................................................................. 19
19" Shelves....................................................................................... 22
Cooling Units..................................................................................... 26
Plinth ................................................................................................. 28
19" Accessories ................................................................................ 29
Copper components
CAT 6 Patch Cable ............................................................................ 42
CAT 5e Patch Cable .......................................................................... 44
Installation Cable ..............................................................................47
Patch Cable ...................................................................................... 49
Installation Cable ............................................................................. 52
Outlets............................................................................................... 55
Patch Panel ...................................................................................... 57
Keystone Jack................................................................................... 61
Tolless Keystone Jack ...................................................................... 62
Coupler + Face Plates ...................................................................... 64
19" Housing for Keystone Jacks...................................................... 66
Modular Plugs .................................................................................. 67
Modular Couplers............................................................................. 68
19" IPC Housing ............................................................................... 69
SAS Connection cable...................................................................... 70
LWL Network Components
Fiber-Optic Patch Cables ................................................................. 75
Fiber-Optic Installation cable........................................................... 79
Fiber-Optic Pigtails ........................................................................... 80
Fiber-Optic Couplers and Connectors ............................................. 81
Fiber-Optic Spliceboxes.................................................................... 82
Fiber-Optic Accessories.................................................................... 86
10" Network Components
10" Network Components ............................................................... 88
Stripes
19" Outlet Stripes ............................................................................ 90
Desktop Outlet Stripes ..................................................................... 93
IP Power Distribution Units .............................................................. 94
IP Monitoring Units ........................................................................... 95
UPS.................................................................................................... 96
Active Network Components
Gigabit Switche ................................................................................ 99
Fast Ethernet Switche .................................................................... 101
Gigabit Products ............................................................................. 103
Fast Ethernet Products .................................................................. 104
Medienconverter ............................................................................ 105
Power over Ethernet ....................................................................... 106
Wireless LAN Products ................................................................... 107
Wireless LAN Antennas.................................................................. 111
Printserver ...................................................................................... 113
Powerline Products ........................................................................ 115
NAS Server...................................................................................... 117
IP Cameras ..................................................................................... 118
Datacom
High-Quality 19" LCD-KVM Konsole, modulare Bauweise ........... 122
19" LCD-KVM consoles .................................................................. 124
KVM switches and extender .......................................................... 126
KVM cables and accessories ........................................................ 129
Video Solutions .............................................................................. 131
Tools and Tester
Crimping tools ................................................................................ 140
Cable tester .................................................................................... 142
Network tester ................................................................................ 143
19" Cabinets
DIGITUS® cabinet solutions a wide range of possibilities for your requirements
Network cabinets, server cabinets and wall-mounted cabinets from
DIGITUS® offer complete solutions for many requirements from the
areas of cabling technology and the computing centre.
Appealing design also offers the user attractively shaped solutions
for the „eye". Different dimensions and a wide range of accessories round off the delivery program.
19" Network Cabinets .........................................................................8
19“ Server Cabinets......................................................................... 12
Unmounted Network- and Server Cabinets .................................... 14
19" Industry Cabinets ...................................................................... 15
19" Network Cabinets ...................................................................... 16
19" Wallmount Cabinets .................................................................. 19
19" Shelves....................................................................................... 22
Cooling Units..................................................................................... 26
Plinth ................................................................................................. 28
19" Accessories ................................................................................ 29
DIGITUS® cabinets are made out of 2mm steel sheet metal and
can be delivered in various colours.
The colour is created by powder coating. RAL 7035 and RAL 9005
are standard colours. The robust steel construction provides
very good stability, a capacity of up to 1000kg can be reached with
the appropriate construction. A minimum number of welded
seams allows the cabinets to be completely dismantled in order
to reach set-up locations which are difficult to reach. Simple
dismantling of the front and back doors allows the stop to be
chan-ged without any trouble so that the existing door can also be
exchanged with other alternatives, double panelled, fully
glazed or perforated. The cabinets provided with ventilated roofs
facilitate air circulation and can be easily and quickly extended by
adding prefabricated, built-in air vane modules and thermostats
for active ventilation.
19" angular profiles installed at the back and front together with
3 to 4 pairs of deep struts allow extensive development with
19" products and give the opportunity of a clearly extended load
capacity.
Up to 3 options for the cable supply, protected by brush strips in
the roof area, in the base and also at the back offer comfortable
cable arrangement opportunities for many ranges of use.
These are also extended by using cable ducts with front panels
installed on the right and left hand side for cabinets with a width
of 800mm.
Extensive accessories for the cable arrangement, storage, active
ventilation and air extraction and also additional construction
and extension parts help to meet the many requirements and uses
in daily use.
Configuration Network Cabinet Width 800
Article Number Cabinet
DN-19 32U-8/8
DN-19 36U-8/8
DN-19 42U-8/8
DN-19 42U-8/8-ZT
DN-19 42U-8/8-SF
DN-19 42U-8/10
DN-19 47U-8/8
DN-19 47U-8/10
Height
1577
1755
2022
2022
2022
2022
2244
2244
Width
800
800
800
800
800
800
800
800
Depth
800
800
800
800
800
1000
800
1000
Color
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
Carrying capacity
700kg
700kg
700kg
700kg
400kg
700kg
700kg
700kg
Protection class
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
Base frame
1
1
1
1
1
1
1
1
Safety-glass frontdoor, steel frame with
ventilation slots
1
1
1
1
1
1
1
2-door steel backdoor, lockable
1
1
1
1
1
1
1
1
Side sections detachable and lockable
2
2
2
2
2
2
2
2
19“ profile rails, mounted in front of the cabinet
2
2
2
2
2
2
2
19“ profile rails, mounted in the rear of
the cabinet
2
2
2
2
2
2
2
Depth members (pair)
3
3
3
3
3
3
3
Roof, prepared to use roof cooling units with
brushes left and right
1
1
1
1
1
1
1
1
Bottom with movable sheet, rubber sealing and
brushes left and right
1
1
1
1
1
1
1
1
Levelling feets
4
4
4
4
4
4
4
4
Cable management panel with cover
2
2
2
2
2
2
2
Brush cable entry up and down at the rear front
1
1
1
1
1
1
1
1
Plinth with brush cable entry
DN-19 PLINTH-8/8
DN-19 PLINTH-8/8
DN-19 PLINTH-8/8
DN-19 PLINTH-8/8
DN-19 PLINTH-8/8
DN-19 PLINTH-8/10
DN-19 PLINTH-8/8
DN-19 PLINTH-8/10
Lockable castors
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
Fixed shelf
DN-19 TRAY-1-800
DN-19 TRAY-1-800
DN-19 TRAY-1-800
DN-19 TRAY-1-800
DN-19 TRAY-1
DN-19 TRAY-1-800
DN-19 TRAY-1-800
DN-19 TRAY-1-800
Sliding shelf
DN-19 TRAY-2-800
DN-19 TRAY-2-800
DN-19 TRAY-2-800
DN-19 TRAY-2-800
DN-19 TRAY-2-800
DN-19 TRAY-2-800
DN-19 TRAY-2-800
Roof cooling unit incl. fans and thermostat
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
Connecting Kit
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
Swing arm handhold, prepared to use profile
half cylinder (frontdoor)
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
Shipment
2-door safety-glass frontdoor, lockable
1
Swingframe
1
Bulk enclose
6
Caged nuts, screws and plastic washers
Configuration Network Cabinet Width 600
Article Number Cabinet
DN-19 22U-6/6
DN-19 26U-6/6
DN-19 32U-6/6
DN-19 42U-6/6
DN-19 22U-6/8
DN-19 26U-6/8
DN-19 32U-6/8
DN-19 42U-6/8
DN-19 26U-6/10
Hight
1132
1310
1577
2022
1132
1310
1577
2022
1310
Width
600
600
600
600
600
600
600
600
600
Depth
600
600
600
600
800
800
800
800
1000
Color
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
Carrying capacity
600kg
600kg
600kg
600kg
600kg
600kg
600kg
600kg
600kg
Protection class
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
IP 40
Base frame
1
1
1
1
1
1
1
1
1
Safety-glass frontdoor, steel frame with
ventilation slots
1
1
1
1
1
1
1
1
1
Steel backdoor, lockable
1
1
1
1
1
1
1
1
1
Side sections detachable and lockable
2
2
2
2
2
2
2
2
2
19"- profile rails, mounted in front of
the cabinet
2
2
2
2
2
2
2
2
2
19"- profile rails, mounted in the rear of
the cabinet
2
2
2
2
2
2
2
2
2
Depth members (pair)
2
2
3
3
2
2
3
3
2
Roof, prepared to use roof cooling units
1
1
1
1
1
1
1
1
1
Bottom with movable sheet and rubber sealing
1
1
1
1
1
1
1
1
1
Levelling feets
4
4
4
4
4
4
4
4
4
1
1
1
1
Shipment
Brush cable entry up and down at the rear front
Plinth with brush cable entry
DN-19 PLINTH-6/6
DN-19 PLINTH-6/6
DN-19 PLINTH-6/6
DN-19 PLINTH-6/6
DN-19 PLINTH-6/8
DN-19 PLINTH-6/8
DN-19 PLINTH-6/8
DN-19 PLINTH-6/8
DN-19 PLINTH-6/10
Lockable castors
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
DN-19 CASTOR
Fixed shelf
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
DN-19 TRAY-1-600
Sliding shelf
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
DN-19 TRAY-2-600
Roof cooling unit incl. fans and thermostat
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
2 + 4 Fans poss.
Connecting Kit
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
Swing arm handhold, prepared to use profile
half cylinder (frontdoor)
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
DN-19 PHS
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
Bulk enclose
Caged nuts, screws and plastic washers
Configuration Server Cabinet
Article Number Cabinet
DN-19 SRV-26U-N
DN-19 SRV-26U-GD
DN-19 SRV-42U-N
DN-19 SRV-42U-GD
DN-19 SRV-42U-8-N
DN-19 SRV-42U-8-GD
Height
1338
1338
2049
2049
2049
2049
Width
600
600
600
600
800
800
Depth
1000
1000
1000
1000
1000
1000
Color
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
RAL 7035
Carrying capacity
1000kg
1000kg
1000kg
1000kg
1000kg
1000kg
Protection class
IP 20
IP 20
IP 20
IP 20
IP 20
IP 20
Base frame
1
1
1
1
1
1
Perforated steel frontdoor with 3-point latching
1
Shipment
Glazed frontdoor, steel frame with 3-point
latching
1
1
1
1
1
2-door steel backdoor, perforated and lockable
1
1
1
1
1
1
Side sections detachable and lockable
2
2
2
2
2
2
19"- profile rails, mounted in front of
the cabinet
2
2
2
2
2
2
19"-profile rails, mounted in the rear of
the cabinet
2
2
2
2
2
2
Depth members (pair)
3
3
4
4
4
3
Roof, prepared to use roof cooling units with
rear brush cable entry
1
1
1
1
1
1
Bottom with movable sheet and rubber sealing
1
1
1
1
1
1
Anti-tipping device, extractable
1
1
1
1
1
1
Levelling feets
4
4
4
4
4
4
Castors
4
4
4
4
4
4
Plinth with blush cable entry
DN-19 PLINTH-6/10
DN-19 PLINTH-6/10
DN-19 PLINTH-6/10
DN-19 PLINTH-6/10
DN-19 PLINTH-8/10
DN-19 PLINTH-8/10
Fixing shelf
DN-19 TRAY-1-1000
DN-19 TRAY-1-1000
DN-19 TRAY-1-1000
DN-19 TRAY-1-1000
DN-19 TRAY-1-1000
DN-19 TRAY-1-1000
Sliding shelf
DN-19 TRAY-2-1000
DN-19 TRAY-2-1000
DN-19 TRAY-2-1000
DN-19 TRAY-2-1000
DN-19 TRAY-2-1000
DN-19 TRAY-2-1000
Roof cooling unit incl. fans and thermostat
4 + 6 Fans poss.
4 + 6 Fans poss.
4 + 6 Fans poss.
4 + 6 Fans poss.
4 + 6 Fans poss.
4 + 6 Fans poss.
Connecting Kit
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
DN-19 BGL
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
28 Sets
Bulk enclose
Käfigmuttern, Schrauben, Unterlegscheiben
7
19" Network Cabinets
19" Network Cabinet in 800mm width
The DIGITUS® network cabinets are made of a robust steel construction with a
minimum of seams. Ideal housing for active and passive 19” components.
The elegant design fits into every modern office or computer centre.
• 1.5 – 2mm strong sheet steel with high carrying capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 40
• Safety-glass door with steel frame, lockable
• Optional as 2-door-opening available
• Back door lockable, 2-door-opening
• Carrying capacity 700 kg
• 19" profile rails on the front and rear sides, adjustable in depth
• Brush cable entry sidewise on top and bottom to avoid dust
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Brush cable entry up and down at the rear front
• Levelling feet’s
• Incl. set of 28 x 19" assembly screws
• Side cable manager, mounted left and right at the 19" mounting angles, located in
front of the cabinet
• Roof module for ventilation unit
• Confirm to international standards IEC 297-1/2 and IEC 917-2-1
• Extensive range of accessories available
DN-19 42U-8/8 incl. Plinth (DN-19 Plinth-8/8)
Sophisticated cable management through
separated cable guide for data and power cables
into the levels (optional available).
8
Horizontal cable ducts allow optimum
shunt possibility for patch cables.
Standard mounted on all network cabinets with
800mm width.
Univesal cable entry on the button.
19" Network Cabinets
DN-19 42U-8/8
800x800mm (WxD)
grey RAL 7035
800x1000mm (WxD)
grey RAL 7035
800x800mm (WxD)
black RAL 9005
800x1000mm (WxD)
black RAL 9005
32 HE
DN-19 32U-8/8
148241
DN-19 32U-8/8-SW
220534
36 HE
DN-19 36U-8/8
148272
42 HE
DN-19 42U-8/8
135173
DN-19 42U-8/10
205791
DN-19 42U-8/8-SW
179818
DN-19 42U-8/10-SW
218395
47 HE
DN-19 47U-8/8
166733
DN-19 47U-8/10
206415
DN-19 47U-8/8-SW
255352
DN-19 47U-8/10-SW
255345
9
19" Network Cabinets
19" Network Cabinets in 600mm width
The DIGITUS® network cabinets are made of a robust steel construction with a
minimum of seams. Ideal housing for active and passive 19” components.
The elegant design fits into every modern office or computer centre.
• 1.5 – 2mm strong sheet steel with high carrying capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 40
• Safety-glass door with steel frame, lockable
• Back door lockable
• Carrying capacity 600 kg
• 19" profile rails on the front and rear sides, adjustable in depth
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Levelling feets
• Incl. set of 28 x 19" assembly screws
• Roof module for ventilation unit
• Confirm to international standards IEC 297-1/2 and IEC 917-2-1
• Extensive range of accessories available
DN-19 42U-6/6
Sophisticated cable management through
separated cable guide for data and power cables
into the levels (optional available).
10
Univesal cable entry on the button.
19" Network Cabinets
DN-19 42U-6/6
600x600mm (WxD)
grey RAL 7035
600x800mm (WxD)
grey RAL 7035
22 HE
DN-19 22U-6/6
135050
DN-19 22U-6/8
147121
26 HE
DN-19 26U-6/6
135678
DN-19 26U-6/8
135685
32 HE
DN-19 32U-6/6
135142
36 HE
600x1000mm (WxD)
grey RAL 7035
600x600mm (WxD)
black RAL 9005
600x800mm (WxD)
black RAL 9005
DN-19 22U-6/6-SW
179993
DN-19 22U-6/8-SW
173830
DN-19 26U-6/6-SW
201113
DN-19 26U-6/8-SW
176688
DN-19 32U-6/8
147114
DN-19 32U-6/6-SW
149422
DN-19 32U-6/8-SW
195931
DN-19 36U-6/6
148258
DN-19 36U-6/8
148265
DN-19 36U-6/6-SW
255291
DN-19 36U-6/8-SW
255307
42 HE
DN-19 42U-6/6
135159
DN-19 42U-6/8
135166
DN-19 42U-6/10
205371
DN-19 42U-6/6-SW
196549
DN-19 42U-6/8-SW
175728
DN-19 42U-6/10-SW
218388
47 HE
DN-19 47U-6/6
205357
DN-19 47U-6/8
141587
DN-19 47U-6/10
205807
DN-19 47U-6/6-SW
255314
DN-19 47U-6/8-SW
255321
DN-19 47U-6/10-SW
255338
DN-19 26U-6/10
211129
600x1000mm (WxD)
black RAL 9005
DN-19 26U-6/10-SW
255277
11
19" Server Cabinets
19" Server Cabinet with perforated
front door
The DIGITUS® server cabinets are especially suitable for server and switches with high
installation depth. The reasoned construction ensures an effectively air circulation and
cooling for installed devises. The cabinet can be taken apart for easy entry in small
rooms.
• 1.5 – 2mm strong sheet steel with high load capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 20
• Perforated front door
• Opening angle 180° with lockables wing handle
• Perforated double-wing steel rear doors
• Spring-mounted hinges enable easy installation of the door or door change
• 3-point locking system, optionally available with cylinder lock
• Suitable for all server types
• Up to 1000kg carrying capacity
• 19" profile rails on the front and rear sides, adjustable in depth
• Castors for better mobility
• Large cable entry with rubber-edged sliding mechanism on the floor
• Cable entries on the roof and buttom
• Height-adjustable levelling feet for the equalisation of uneven floors
• Tilt-prevention mechanism when pulling out servers
• Roof module for ventilation unit
• Inclusive set of 28 × 19” assembly screws
• Confirm to international standards IEC 297-2 and IEC 917-2-1
• Extensive range of accessories available
DN-19 SRV-42U-SW-N
Incl. fixed
Castors.
600x1000mm (WxD)
grey RAL 7035
800x1000mm (WxD)
grey RAL 7035
600x1000mm (WxD)
black RAL 9005
800x1000mm (WxD)
black RAL 9005
26 HE
DN-19 SRV-26U-N
182979
36 HE
DN-19 SRV-36U-N
217732
42 HE
DN-19 SRV-42U-N
182962
DN-19 SRV-42U-8-N
182986
DN-19 SRV-42U-SW-N
183488
DN-19 SRV-42U-8-SW-N
186151
47 HE
DN-19 SRV-47U-N
205838
DN-19 SRV-47U-8-N
205845
DN-19 SRV-47U-SW-N
205869
DN-19 SRV-47U-8-SW-N
205852
12
DN-19 SRV-26U-SW-N
184171
19" Server Cabinets
19" Server Cabinet with glazed front door
The DIGITUS® server cabinets are especially suitable for server and switches with high
installation depth. The reasoned construction ensures on effectively air circulation and
cooling for installed devices.
• 1.5 – 2mm strong sheet steel with high load capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 20
• Glas front door
• Perforated double-wing steel rear door
• Opening angle 180° with lockables wing handle
• Spring-mounted hinges enable easy installation of the door or door change
• 3-point locking system, optionally available with cylinder lock
• Suitable for all server types
• Up to 1000kg carrying capacity
• 19" profile rails on the front and rear sides, adjustable in depth
• Large cable entry with rubber-edged sliding mechanism on the roof and floor
• Height-adjustable levelling feet for the equalisation of uneven floors
• Castors for better mobility
• Tilt-prevention mechanism when pulling out servers
• Roof module for ventilation unit
• Inclusive set of 28 × 19” assembly screws
• Confirm to international standards IEC 297-1/2 and IEC 917-2-1
• Extensive range of accessories available
DN-19 SRV-26U-GD
600x1000mm (WxD)
grey RAL 7035
26 HE
800x1000mm (WxD)
grey RAL 7035
DN-19 SRV-26U-GD
157915
600x1000mm (WxD)
black RAL 9005
800x1000mm (WxD)
black RAL 9005
DN-19 SRV-26U-SW-GD
169604
36 HE
DN-19 SRV-36U-SW-GD
228721
42 HE
DN-19 SRV-42U-GD
145608
DN-19 SRV-42U-8-GD
170150
DN-19 SRV-42U-SW-GD
174318
DN-19 SRV-42U-8-SW-GD
191742
47 HE
DN-19 SRV-47U-GD
211006
DN-19 SRV-47U-8-GD
211105
DN-19 SRV-47U-SW-GD
211082
DN-19 SRV-47U-8-SW-G
211112
13
Unmounted 19" Network and Server Cabinets
DIGITUS® 19" Network cabinet, unmounted
The unmounted DIGITUS® 19" network cabinets save space and minimize the shipping costs.
The easily identifiable parts ensure a rapid assembly. The network cabinets are made of a
robust steel construction with a minimum of seams. Ideal housing for active and passive 19”
components. The elegant design fits into every modern office or computer centre.
• 1.5 – 2mm strong sheet steel with high load capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 40
• Safety-glass door with steel frame, lockable
• Steel rear door, lockable
• Carrying capacity 500 kg
• 19" profiles rails on the front and rear sides, adjustable in depth
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Levelling feets
• Incl. set of 28 x 19" assembly screws
• Roof module for ventilation unit
• IEC 297-2, DIN 41494/Part 7, DIN 41491/Part 1, EN 60950, VDE 0100
• Extensive range of accessories available
600x800mm (WxD)
grey RAL 7035
600x600mm (WxD)
grey RAL 7035
22 HE
DN-19 22U-6/8-EC
176732
DN-19 22U-6/6-EC
177548
32 HE
DN-19 32U-6/8-EC
176749
DN-19 32U-6/6-EC
177593
42 HE
DN-19 42U-6/8-EC
176756
DN-19 42U-6/6-EC
177609
DIGITUS® 19" Server cabinet, unmounted
The unmounted DIGITUS® 19" server cabinets save space and minimize the shipping costs.
The easy identifiable parts ensure a rapid assembly. The cabinets are suitable for all typical
server and telecommunication applications.
• 1.5 – 2mm strong sheet steel with high load capacity, powder coated
• Non-opening side sections are used as upright frames (unique body) gives extra stability
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 20
• Perforated steel front door, opening angle 180° with lockables wing handle
• Spring-mounted hinges enable easy installation of the door or door stop
• Suitable for all server typeswith 19" mounting
• Up to max. 400kg carrying capacity
• 19" profiles rails on the front and rear sides, adjustable in depth
• Multible cable entry points provide maximum versality. One sliding access on the bottom
and repunched holes on the top and bottom
• Height-adjustable levelling feet for the equalisation of uneven floors
• Roof module for ventilation unit
• Incl. 28 x 19" assembly screws
• Extensive range of accessories available
205944 / DN-19 SRV-26U-EC
26HE, HxWxD 1300x600x1000mm, grey RAL 7035
205951 / DN-19 SRV-26U-EC
42HE, HxWxD 2012x600x1000mm, grey RAL 7035
14
19" Industrial Cabinets
DIGITUS® 19" Network cabinet IP 55
• 1,5mm – 2,0mm sheet steel, powder coated
• Enclosure frame-closed form:1.5mm
• Door(s):2mm
• Cover:1.5mm
• Side panels:1.5mm
• Gland plates, three part:1.5mm
• C rails:1.5mm
• Foamed-in door sealing gasket and sturdy structure
• Enclosure of all-around solid construction
• Glazed front glass door, in solid metal frame
• Rear door foamed with sealing gasket(1ea.)
• Side panels foamed with sealing gasket(2ea.)
• Top cover foamed with sealing gasket(1ea.)
• Gland plate at bottom( 3parts=1set)
• 3point locking system at front and rear, convenient to use half profile cylinder(2set)
• All earthing points (on every panel.)
• Fixing materials for inner parts(1set)
• Plinth (100 mm)
• Protection rating IP 55
• Carrying capacity up to 1000 kg
• Removable front and rear 19” profiles
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Levelling feet’s
• Incl. set of 28 x 19" assembly screws
• confirm to international standards EN 60529
• Extensive accessories available
The special frame structure, in combination with foamed in
door, allows optimal protection against environmental effects.
Hugh cable entry with slide mechanism alleviate the
implementation of large cable quantities.
260189 / DN-19 42U-I-6/6
42HE, HxWxD 2100x600x600mm, grey RAL 7035
260196 / DN-19 42U-I-6/8
42HE, HxWxD 2100x600x800mm, grey RAL 7035
260202 / DN-19 42U-I-8/8
42HE, HxWxD 2100x800x800mm, grey RAL 7035
260189 / DN-19 42U-I-6/10
42HE, HxWxD 2100x600x1000mm, grey RAL 7035
15
19" Network Cabinets
DIGITUS® 19" 42U 8/8 Network Cabinet without side section
The DIGITUS® network cabinets are made of a robust steel construction with a minimum of
seams. Ideal housing for active and passive 19” components.
The elegant design fits into every modern office or computer centre.
• 1.5 – 2mm strong sheet steel with high carrying capacity, powder coated
• Without side sections
• Ventilation slots for active and passive ventilation and exhaustion
• Protection rating IP 40
• Safety-glass door with steel frame, lockable
• 2-door-opening available
• Back door lockable, 2-door-opening
• Carrying capacity 700 kg
• 19" profiles rails on the front and rear sides, adjustable in depth
• Brush cable entry sidewise on top and bottom to avoid dust
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Brush cable entry up and down at the rear side
• Levelling feet’s
• Incl. set of 28x 19" assembly screws
• Side cable manager, mounted left and right at the 19" mounting angles, located in front of the
cabinet
• Roof module for ventilation unit
• Including connection kit
• Confirm to international standards IEC 297-1/2 and IEC 917-2-1
• Extensive range of accessories available
261629 / DN-19 42U-8/8-WS
19" Network Cabinet without side section
DIGITUS® 19" Network Cabinet incl. swingframe
The DIGITUS® network cabinets are made of a robust steel construction with a minimum of
seams. Ideal housing for active and passive 19” components.
The elegant design fits into every modern office or computer centre.
• 1.5 mm - 2 mm strong sheet steel with high carrying capacity
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation
• Protection class IP 40
• Safety-Glass door with steel frame and lockable
• Optional as 2-door-opening available
• Back door lockable as 2-door-opening
• Up to 400kg carrying capacity
• 19" swingframe, useable 40U
• Brush cable entry sidewise on top and bottom to avoid dust
• Cable entry in the middle of the bottom with movable sheet and rubber sealing
• Levelling feet’s
• Roof module for ventilation unit
• Incl. set of 28 × 19” assembly screws
• Confirm to international standards IEC 297-1/2 and IEC 917-2-1
• Extensive range of accessories available
245711 / DN-19 42U-8/8-SF
19" Network Cabinet incl. swingframe
16
19" Network Cabinets
DIGITUS® 19" Industrial-PC-cabinet
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1.5mm - 2mm strong sheet steel with high load capacity
Color grey RAL 7035
Side sections detachable and lockable
Ventilation slots for active and passive ventilation and exhaustion
Protection rating IP 40
Perforated steel front door, opening angle 180° with lockables wing handle
Spring-mounted hinges enable easy installation of the door or door change
19" profiles rails on the front and rear sides
Large cable entry with rubber-edged sliding mechanism on the floor
Cable feeds with brush strips
Lockable and sliding keyboard drawer
Height-adjustable levelling feet for the equalisation of uneven floors
Roof module for ventilation unit
Extensive range of accessories available
211365 / DN-19 36U-6/8-PC
19" Industrial PC Cabinet 36U, 1745x600x800mm, Glass door
227205 / DN-19 36U-6/8-PC-SD
19" Industrial PC Cabinet 36U, 36U, 1745x600x800mm, Steeldoor
DIGITUS® 19" 42U relay rack, unmounted, 1000mm depth
The DIGITUS® 19" Relay racks offer a safe installation of 19" components. The torsion-resistant frame
of 2mm steel sheet ensures highest stability. In order to allow a cost-effective transportation we deliver
the relay racks in an unmounted way.
•
•
•
•
•
•
•
•
Universal mounting options on each profile
42 Units
Double frame
2mm steel sheet
Adjustable mounting and levelling feet
Inside height: 1870mm
Rack dimensions: 1982x536x1000mm
Package dimensions: 1965x175x215mm
236498 / DN-19 42U-D-SRV
42U, 1982x600x1000mm, double frame, grey color RAL 7035
257004 / DN-19 42U-D-SRV-SW
42U, 1982x600x1000mm, double frame, black color RAL 9005
17
19" Network Cabinets
DIGITUS® 19" relay rack, unmounted, 800mm depth
The DIGITUS® 19" Relay racks offer a safe installation of 19" components. The torsion-resistant frame
of 2mm steel sheet ensures highest stability. In order to allow a cost-effective transportation we deliver
the relay racks in an unmounted way.
• Universal mounting options on each profile
• 42 Units
• Double frame
• 2mm steel sheet
• Adjustable mounting and levelling feet
• Inside height: 1870mm
• Rack dimensions: 1982x536x800mm
• Package dimensions: 1965x175x215mm
189893 / DN-19 42U-D
42U, 1982x600x800mm, double frame, grey color RAL 7035
256991 / DN-19 42U-D-SW
42U, 1982x600x800mm, double frame, black color RAL 9005
DIGITUS® 19" 42U relay rack, unmounted, 600mm depth
The DIGITUS® 19" Relay racks offer a safe installation of 19" components. The torsion-resistant frame
of 2mm steel sheet ensures highest stability. In order to allow a cost-effective transportation we deliver
the relay racks in an unmounted way.
• Universal mounting options on each profile
• 42 Units
• Single frame
• 2mm steel sheet
• Adjustable mounting and levelling feet
• Inside height: 1870mm
• Weight: circa 25kg
• Rack dimensions: 1982x536x600mm
• Package dimensions: 1965x175x150mm
189879 / DN-19 42U-S
19" Universal Frame 42U, 1965x536x600mm, Single frame42U, grey color RAL 7035
257011 / DN-19 42U-S-SW
19" Universal Frame 42U, 1965x536x600mm, Single frame42U, black color RAL 9005
18
19" Wallmount Cabinets
DIGITUS® 19" wall mounting cabinet
The DIGITUS® wall mounting cabinets are made of a robust steel sheet construction with a minimum
of seams. The side sections are detachable and lockable. It is fast and easy to mount the cabinet.
Separately there are levelling feet or castors available. Due to their flexibility the cabinets are ideal for
all current IT- and Telecommunication applications.
•
•
•
•
•
•
•
•
•
•
1.1 – 1.5mm strong sheet steel with high load capacity, powder coated
Side sections detachable and lockable
Ventilation slots for active and passive ventilation and exhaustion
Protection rating IP 40
Safety-glass door with steel frame, lockable
19" profiles rails on the front and rear sides, adjustable in depth
Cable entry on top and bottom
Incl. set of 8x 19" assembly screws
Extensive range of accessories available
Grey color RAL 7035
600x450mm (BxT)
600x560mm (BxT)
7HE
DN-19 07-U
135203
DN-19 07-U-6/6
190103
9HE
DN-19 09-U
135210
DN-19 09-U-6/6
157519
12HE
DN-19 12-U
135227
DN-19 12-U-6/6
180517
16HE
DN-19 16-U
135234
DN-19 16-U-6/6
174097
20HE
DN-19 20-U
205968
DN-19 20-U-6/6
205975
DIGITUS® Double section 19" wall mounting cabinet
The DIGITUS® Double section wall cabinets are made of a robust steel construction with a minimum
of seams. The side sections are detachable and lockable. The double section simplifies the access and
installation of 19" components. Due to their flexibility the cabinets are ideal for all current IT- and
Telecommunication applications.
•
•
•
•
•
•
•
•
•
•
1.1 – 1.5mm strong sheet steel with high load capacity, powder coated
Side sections detachable and lockable
Ventilation slots for active and passive ventilation and exhaustion
Protection rating IP 40
Safety-glass door with steel frame, lockable
Double section lockable
19" profiles rails on the front and rear sides, adjustable in depth
Cable entry on top and bottom
Incl. set of 8x 19" assembly screws
Extensive range of accessories available
186724 / DN-19 07-U-3
19" Wallmount cabinet 7U, 402x600x610mm, Color grey RAL 7035
186731 / DN-19 09-U-3
19" Wallmount cabinet 9U, 491x600x610mm, Color grey RAL 7035
186748 / DN-19 12-U-3
19" Wallmount cabinet 12U, 624x600x610mm, Color grey RAL 7035
186755 / DN-19 16-U-3
19" Wallmount cabinet 16U, 802x600x610mm, Color grey RAL 7035
190820 / DN-19 20-U-3
19" Wallmount cabinet 20U, 980x600x610mm, Color grey RAL 7035
19
19" Wallmount Cabinets
DIGITUS® 19" SoHo wall mounting cabinet
The DIGITUS® SoHo wall mounting cabinets are made of a robust steel sheet construction with a
minimum of seams. Ideal for all current IT- and Telecommunication applications.
•
•
•
•
•
•
•
1.5mm strong sheet steel with high load capacity, powder coated
Ventilation slots for active and passive ventilation and exhaustion
Protection rating IP 20
Safety-glass door with steel frame, lockable
Two 19" profiles
Cable entry on top and bottom
Extensive range of accessories available
221692 / DN-19 07-U-EC
7U, 402x600x450mm, Color grey RAL 7035
221708 / DN-19 09-U-EC
9U, 491x600x450mm, Color grey RAL 7035
221715 / DN-19 12-U-EC
12U, 624x600x450mm, Color grey RAL 7035
221722 / DN-19 16-U-EC
16U, 802x600x450mm, Color grey RAL 7035
DIGITUS® SoHo 19" wall mounting cabinet, unmounted
The completely unmounted DIGITUS® wall cabinets save space and enormously save transport costs.
They can easily and swiftly be mounted. The mounting angles are adjustable in depth. Due to this
flexibility the wall mounting cabinets are ideal for all current IT and telecommunication applications.
•
•
•
•
•
•
•
•
1.1 – 1.5mm strong sheet steel with high load capacity, powder coated
Ventilation slots for active and passive ventilation and exhaustion
Safety-glass door with steel frame, lockable
19" profiles rails on the front and rear sides, adjustable in depth
Cable entry on top and bottom
Incl. 1 piece brush for cable entry
Incl. set of 8x 19" assembly screws
Extensive range of accessories available
135241 / DN-19 07-U-S
19" Wallmount cabinet 7U, 360x520x400mm, Color grey RAL 7035
135258 / DN-19 09-U-S
19" Wallmount cabinet 9U, 448x520x400mm, Color grey RAL 7035
135432 / DN-19 12-U-S
19" Wallmount cabinet 12U, 581x520x400mm, Color grey RAL 7035
20
19" Wallmount Cabinets
DIGITUS® 19" SoHo slim wall mount cabinet
The DIGITUS® Slim Line wall mount cabinets are ideal housings for active and passive 19" components.
The installation is easy and saves time. The elegant design fits into every modern office or home.
•
•
•
•
•
•
•
•
19" device mounting capacity for 5U: 3U horizontal and 2U vertical
Safety-glass door with steel frame, lockable
Strong sheet steel with high load capacity, powder coated
Ventilation slots for active and passive ventilation and exhaustion
Protection rating IP 20
Horizontal and vertical mountable
Carrying capacity 80kg
497x140x475mm
200109 / DN-19 04U-PB
Wallmount cabinet, anthracite grey RAL 7035
DIGITUS® 19" wall mounting patch bracket
The DIGITUS® 19" wall mounting patch brackets are economical solutions for the safe installation
of 19" components. The depth of the mounting rails carrying are adjustable, which offers variable
mounting possibilities.
•
•
•
•
•
Strong sheet steel with high carrying capacity, powder coated
Adjustable in depth up to 350mm
Hinged, rotable
Bracket width: 530mm
Delivered in flatpackage
205982 / DN-19 PB-2U
19" Patch Bracket, 2U, 530x350mm, Color grey RAL 7035
205999 / DN-19 PB-4U
19" Patch Bracket, 4U, 530x350mm, Color grau RAL 7035
206002 / DN-19 PB-8U
19" Patch Bracket, 8U, 530x350mm, Color grey RAL 7035
257325 / DN-19 PB-2U-SW
19" Patch Bracket, 2U, 530x350mm, Color black RAL 9005
250371 / DN-19 PB-4U-SW
19" Patch Bracket, 4U, 530x350mm, Color black RAL 9005
228806 / DN-19 PB-8U-SW
19" Patch Bracket, 8U, 530x350mm, Color black RAL 9005
21
19" Shelves
Shelf for DIGITUS® 19" network cabinet
Shelf for DIGITUS® 19" network cabinet
Up to
50kg
To store non 19" system components.
Suitable in mounted and unmounted DIGITUS® 19" network cabinets as well as 19" DIGITUS® relay racks.
•
•
•
•
•
•
•
Up to
50kg
To store non 19" system components.
Suitable in mounted and unmounted DIGITUS® 19" network cabinets as well as 19" DIGITUS® relay racks.
•
•
•
•
•
•
•
Fixed at the front and rear 19" frames
Fixed mounted
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 50kg
Requires 1U
Complete with fixing material
Fixed at the front and rear 19" frames
Fixed mounted
Perforated sheet steel
Black color RAL 9005
Load carrying capacity: up to 50kg
Requires 1U
Complete with fixing material
135449 / DN-19 TRAY-1-600
192954 / DN-19 TRAY-1-600SW
Shelf, 1 U, WxDxH mm 465x345x30
Shelf, 1 U, WxDxH 465x345x30mm
135463 / DN-19 TRAY-1-800
147305 / DN-19 TRAY-1-800-SW
Shelf, 1 U, WxDxH mm 465x525x30
Shelf, 1 U, WxDxH 465x525x30mm
Sliding shelf for DIGITUS® 19" network cabinet
Sliding Shelf for DIGITUS® 19" network cabinet
Up to
25kg
Up to
25kg
To store non 19" system components.
Suitable in mounted and unmounted DIGITUS® 19" network cabinets as well as 19" DIGITUS® relay racks.
To store non 19" system components.
Suitable in mounted and unmounted DIGITUS® 19" network cabinets as well as 19" DIGITUS® relay racks.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fixed at the front and rear 19" frames
Extractable, with handle bar
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 25kg
Requires 1U
Complete with fixing material
Fixed at the front and rear 19" frames
Extractable, with handle bar
Perforated sheet steel
Black color RAL 9005
Load carrying capacity: up to 25kg
Requires 1U
Complete with fixing material
135456 / DN-19 TRAY-2-600
149446 / DN-19 TRAY-2-600-SW
Shelf, 1 U, WxDxH mm 465x345x30
Shelf 1U, WxDxH mm 465x345x30
135470 / DN-19 TRAY-2-800
183495 / DN-19 TRAY-2-800SW
Shelf, 1 U, WxDxH mm 465x525x30
Shelf 1U, WxDxH mm 465x525x30
22
19" Shelves
Shelf for DIGITUS® 19" network and
server cabinet
Shelf for DIGITUS® 19" network
and server cabinet
Up to
100kg
Up to
100kg
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fixed at the front and rear 19" frames
Fixed mounted
Adjustable depth, 650 up to 780 mm
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 100kg
Requires 1U
Complete with fixing material
Fixed at the front and rear 19" frames
Fixed mounted
Adjustable depth, 650 up to 780mm
Perforated sheet steel
Black color RAL 9005
Load carrying capacity: up to 100kg
Requires 1U
Complete with fixing material
135487 / DN-19 TRAY-1-1000
147312 / DN-19 TRAY-1-1000-SW
Shelf, 1U , WxDxH 483x720x50mm
Shelf, 1 U, WxDxH mm 483x720x50 19"
Shelf for DIGITUS® 19" network
and server cabinet
Shelf for DIGITUS® 19" network
and server cabinet
Up to
50kg
Up to
50kg
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fixed at the front and rear 19" frames
Fixed mounted
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 50kg
Requires 1U
Complete with fixing material
Fixed at the front and rear 19" frames
Fixed mounted
Perforated sheet steel
Black color RAL 9005
Load carrying capacity: up to 50kg
Requires 1U
Complete with fixing material
206026 / DN-19 TRAY-1-1000-EC
262480 / DN-19 TRAY1-1000-ECB
Shelf, 1U , WxDxH 483x720x50mm
Shelf, 1U, WxDxH 483x720x50mm
23
19" Shelves
Sliding shelf for DIGITUS® 19" network
and server cabinet
Sliding shelf for DIGITUS® 19" network
and server cabinet
Up to
65kg
Up to
65kg
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
To store non 19" system components.
Suitable in mounted DIGITUS® 19" network cabinets as well as mounted and unmounted
DIGITUS® 19" server cabinets.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fixed at the front and rear 19" frames
Extractable, with handle bar
Adjustable depth, 650 upto 780mm
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 65kg
Rear cable management system
Requires 1U
Complete with fixing material
Fixed at the front and rear 19" frames
Extractable, with handle bar
Adjustable depth, 650 up to 780mm
Perforated sheet steel
Black color RAL 9005
Load carrying capacity: up to 65kg
Rear cable management system
Requires 1U
Complete with fixing material
135494 / DN-19 TRAY-2-1000
180401 / DN-19 TRAY-2-1000SW
19" shelf, 1 U, WxDxH mm 483x720x50
19" shelf, 1 U, WxDxH mm 483x720x50
Slide rail for DIGITUS® 19" cabinet
Suitable to support heavy 19" devices.
Insertable to DIGITUS® 19" network cabinets with a depth of 1000mm, as well as DIGITUS® 19" mounted
and unmounted server cabinets.
• Fixed at the front and rear 19" frames
• Fixed mounted
• Sheet steel
• Galvanised
• Load carrying capacity: up to 100kg
• Requires 1U
• Package: 2 pieces
• Complete with fixing material
161707 / DN-19 GS
DxWxH in mm 730x65x44
174295 / DN-19 GS-800
DxWxH in mm 490x60x44
226437 / DN-19 GS-600
DxWxH in mm 330x60x44
24
DIGITUS® Professional
19" Shelves
Shelf for DIGITUS® 19" cabinet
Shelf for DIGITUS® 19" cabinet
Up to
50kg
Up to
50kg
To store non 19" system components.
Suitable in all of the DIGITUS® 19" cabinets as well as 19" DIGITUS® relay racks, depending on the
depth of the 19" cabinets.
To store non 19" system components.
Suitable in all of the DIGITUS® 19" cabinets as well as 19" DIGITUS® relay racks, depending on the
depth of the 19" cabinets.
•
•
•
•
•
•
•
• Fixing at 19" mounting angles
• Fixed mounted
• Perforated sheet steel
• Black color RAL 9005
• Load carrying capacity: up to 50kg
• Requires 1U
• Complete with fixing material
Fixing at 19" mounting angles
Fixed mounted
Perforated sheet steel
Grey color RAL 7035
Load carrying capacity: up to 50kg
Requires 1U
Complete with fixing material
135500 / DN-19 TRAY-1
185772 / DN-19 TRAY-1-SW
Shelf, 1 U, WxDxH mm 483x250x44
Shelf, 1 U, WxDxH 483x250x44mm
205364 / DN-19 TRAY-1-400
245704 / DN-19 TRAY-1-400-SW
Shelf, 1 U, WxDxH mm 483x250x44
Shelf, 1 U, WxDxH 483x250x44mm
Shelf for DIGITUS® 19" cabinet
Up to
25kg
Shelf for DIGITUS® 19" cabinet
Up to
25kg
To store non 19" system components.
Suitable in all of the DIGITUS® 19" cabinets as well as 19" DIGITUS® relay racks, depending on the
depth of the 19" cabinets.
To store non 19" system components.
Suitable in all of the DIGITUS® 19" cabinets as well as 19" DIGITUS® relay racks, depending on the
depth of the 19" cabinets.
• Fixing at 19" mounting angles
• Fixed mounted
• Perforated sheet steel
• Load carrying capacity: up to 25kg
• Requires 2U
• Complete with fixing material
• Fixing at 19" mounting angles
• Fixed mounted
• Perforated sheet steel
• Load carrying capacity: up to 25kg
• Requires 2U
• Complete with fixing material
135517 / DN-19 TRAY-2
222613 / DN-19 TRAY-2-SW
Shelf, 2U, WxDxH 483x350x88mm, grey RAL7035
Shelf, 2U, WxDxH 483x350x88mm, black RAL9005
222613 / DN-19 TRAY-2-55
256830 / DN-19 TRAY-2-55-SW
Shelf, 2U, WxDxH 483x550x88mm, grey RAL7035
Shelf, 2 U, WxDxH 483x550x88mm, black RAL9005
25
19" Cooling Units
Roof cooling unit for DIGITUS® 19" server cabinet
Roof cooling unit for DIGITUS® 19" server cabinets
Suitable for mounted DIGITUS® 19" server cabinets.
For heat dissipation of the cabinets.
Suitable for mounted DIGITUS® 19" server cabinets.
For heat dissipation of the cabinets.
• For roof installation
• Noise Level: 47dBm
• 138m³ Air circulation per hour/fan
• Thermostat adjustable from 0 – 35°C
• On/Off Switch
• WxDxH 380x520x45mm
• For roof installation
• Noise Level: 47dBm
• 138m³ Air circulation per hour/fan
• Thermostat adjustable from 0 – 35°C
• On/Off Switch
• WxDxH 380x520x45mm
182955 / DN-19 FAN-4-1000-N
Cooling unit with 4 fans, grey color RAL 7035
182948 / DN-19 FAN-6-1000-N
Cooling unit with 6 fans, grey color RAL 7035
189534 / DN-19 FAN-4-1000SW-N
Cooling unit with 4 fans, black color RAL 9005
183471 / DN-19 FAN-6-1000SW-N
Cooling unit with 6 fans, black color RAL 9005
Roof cooling unit for DIGITUS®
19" networking cabinet
Roof cooling unit for dismounted DIGITUS®
19" network cabinet
Suitable for DIGITUS® 19" network cabinets.
For heat dissipation of the cabinets.
Suitable for unmounted DIGITUS® 19" network and server cabinets.
For heat dissipation of the cabinets.
• For roof installation
• Noise Level: 47dBm
• 138m³ Air circulation per hour/fan
• Thermostat adjustable from 0 – 35°C
• On/Off Switch
• WxDxH 440x400x65mm
• For roof installation
• Noise Level: 47dBm
• 138m³ Air circulation per hour/fan
• Thermostat adjustable from 0 – 35°C
• On/Off Switch
• WxDxT 340x410x44mm
135302 / DN-19 FAN-2
Cooling unit with 2 fans, grey color RAL 7035
135319 / DN-19 FAN-4
Cooling unit with 4 fans, grey color RAL 7035
192794 / DN-19 FAN-2-SW
Cooling unit with 2 fans, black color RAL 9005
186830 / DN-19 FAN-4-SW
178057 / DN-19 FAN-4-EC
Cooling unit with 4 fans,, black color RAL 9005
Cooling unit with 4 fans, grey color RAL 7035
26
19" Cooling Units
Roof cooling unit for
DIGITUS® 19" wallmounting cabinet
Vertical rear door cooling unit for
42U DIGITUS® 19" server cabinet
Suitable for mounted and unmounted DIGITUS® 19" wall mounting cabinets and unmounted network and
server cabinets. For heat dissipation of the cabinets.
• For installation into top-floor module
• 2 Fans
• Noise level: 47dBm
• 276m³ Air circulation per hour
• Thermostat adjustable from 0 – 35°C
• On/Off Switch
• WxDxH 350x190x44mm
•
•
•
•
For vertical installation into the rear door of the cabinet
Noise Level: 47dBm
138m³ Air circulation per hour/fan
Thermostat adjustable from 0 – 35°C
205913 / DN-19 FAN-6-42U
For cabinets with 600mm width, 6 fans, grey color RAL 7035
205906 / DN-19 FAN-6-42U-SW
For cabinets with 600mm width, 6 fans, black color RAL 9005
205920 / DN-19 FAN-8-42U
For cabinets with 800mm width, 8 fans, grey color RAL 7035
158752 / DN-19 FAN-2-WM-T
205937 / DN-19 FAN-8-42U-SW
Cooling unit with 2 fans, grey color RAL 7035
For cabinets with 800mm width, 8 fans, black color RAL 9005
19" Rackmount cooling unit
19" Rackmount cooling unit
Suitable for all DIGITUS® 19" cabinets.
For heat dissipation of the cabinets.
Suitable for all DIGITUS® 19" cabinets.
For heat dissipation of the cabinets.
•
•
•
•
•
•
•
•
•
•
•
•
For installation into 19" unit
Noise Level: 47dBm
276m³ Air circulation per hour
Thermostat adjustable from 0 – 35°C
On/Off Switch
WxDxH 483x150x44mm
174240 / DN-19 FAN-2-HO
For installation into 19" unit
Noise Level: 47dBm
276m³ Air circulation per hour
Thermostat adjustable from 0 – 35°C
On/Off Switch
WxDxH 483x150x44mm
185789 / DN-19 FAN-2-HO-SW
19" rackmount cooling unit with 2 fans, grey RAL 7035
19" rackmount cooling unit with 2 fans, black color RAL
174868 / DN-19 FAN-4-HO
189909 / DN-19 FAN-4-HO-SW
19" Rackmount cooling unit with 4 fans, grey RAL 7035
19" rackmount cooling unit with 4 fans, black color RAL
27
Plinth
Plinth for DIGITUS® 19" cabinets
Appropriate for DIGITUS® 19" network and server cabinets.
Raises the cabinets about 100mm from the groand.
Internal space is used for storage of cable bandles and for cable management.
Max. 2 plinths can be connected to reach a hight of 200mm.
• Easy to install among the cabinets
• Sheet steel
• Hight: 100mm
• Removable side panels
• Rear side panel with brush cable entry
grey RAL 7035
black RAL 9005
for unmounted
server cabinets
600x600mm
DN-19 PLINTH-6/6
135401
DN-19 PLINTH-6/6-SW
254614
DN-19 PLINTH-6/6-ECO
211150
600x800mm
DN-19 PLINTH-6/8
135418
DN-19 PLINTH-6/8-SW
245698
DN-19 PLINTH-6/8-ECO
187769
600x1000mm
DN-19 PLINTH-6/10
201786
DN-19 PLINTH-6/10-SW
231097
800x800mm
DN-19 PLINTH-8/8
135425
DN-19 PLINTH-8/8-SW
241782
800x1000mm
DN-19 PLINTH-8/10
201779
DN-19 PLINTH-8/10-SW
221449
28
19" Accessories
Cable management panel
for DIGITUS® 19" cabinet
Cable management panel
for DIGITUS® 19" cabinet
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Insertable for cable management.
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Insertable for cable management.
•
•
•
•
• Fixing at 19" mounting angles
• Sheet steel
• 5 cable clamps
• Black color RAL 9005
Fixing at 19" mounting angles
Sheet steel
5 cable clamps, mm 40x60
Grey color RAL 7035
135371 / DN-19 ORG-1U
173007 / DN-19 ORG-1U-SW
19" Management panel, 1U, WxDxH 483x80x44mm
19" Management panel, 1U, WxDxH 483x80x44mm
Cable management panel for DIGITUS® 19" cabinet
Cable management rings for DIGITUS® 19" cabinet
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Insertable for cable management.
Suitable for all DIGITUS® 19" cabinets.
For sorted management of cables.
Mounting on the side of the 19" mounting angles and at the frame of the cabinet.
• Fixing at 19" mounting angles
• Sheet steel
• 5 cable clamps, mm 40x60
• Sheet steel
• Incl. 19" assembly screw Set
160793 / DN-19 ORG
Cable management ring, Size of the ring 44 X 60 mm, 1pcs, grey RAL 7035
170488 / DN-19 ORG-1
Cable management ring, Size of the ring 44 X 60 mm, Set = 10 pcs, grey RAL 7035
170495 / DN-19 ORG-2
Cable management ring, Size of the ring 44 X 100 mm, Set = 10 pcs, grey RAL 7035
170501 / DN-19 ORG-3
Cable management ring, Size of the ring 70 X 150 mm, Set = 10 pcs, grey RAL 7035
240853 / DN-19 ORG-1-SW
Cable management ring, Size of the ring 44 X 60 mm, Set = 10 pcs, black RAL 9005
135388 / DN-19 ORG-2U
222606 / DN-19 ORG-2-SW
19" Management panel, 2U, WxDxH in mm 483x80x88, grey RAL 7035
Cable management ring, Size of the ring 44 X 100 mm, Set = 10 pcs, black RAL 9005
246138 / DN-19 ORG-2U-SW
255369 / DN-19 ORG-3-SW
19" Management panel, 2U, WxDxH in mm 483x80x88, black RAL 9005
Cable management ring, Size of the ring 70 X 150 mm, Set = 10 pcs, black RAL 9005
29
19" Accessories
DIGITUS® 19" cable management panel
DIGITUS® 19" cable management panel
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Usable for cable management.
Access hole for patch cords.
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Usable for cable management.
Access hole for patch cords.
•
•
•
•
•
•
•
•
• Fixing at 19" mounting angles
• Sheet steel
• Access hole with edge protection
• Size of the access hole: HxW 30x400 mm
• Rear shelf WxD 480x120 mm
• Black color RAL 9005
• 1U
• Complete with fixing material
• Incl. 19" assembly screw set
Fixed at 19" mounting angles
Sheet steel
Access hole with edge protection
Size of the access hole: HxW 30x400 mm
Rear shelf WxD 480x120 mm
Grey color RAL 7035
1U
Incl. 19" assembly screw set
135395 / DN-19 ORG-3U
197089 / DN-19 ORG-3U-SW
19" Management panel, WxDxH 483x124x44mm
19" Management panel, WxDxH 483x124x44mm
Cable fixing rail for DIGITUS® 19" cabinets
Cable fixing rail for DIGITUS® 19" cabinets
Suitable for mounted DIGITUS® 19" network and server cabinets.
Mounting into depth of the cabinet. Fixing of cables by cable straps.
Suitable for mounted DIGITUS® 19" network cabinets.
Mounting into depth of the cabinet. Fixing of cables by cable straps.
• Fixed at 19" mounting angles
• Depth of cabinets: 800 and 1000mm
• Sheet steel
• Incl. 19" assembly screw set
• Fixed at 19" mounting angles
• Depth of cabinets: 600mm
• Sheet steel
• Incl. 19" assembly screw set
163473 / DN-19 ORG-1S
190547 / DN-19 ORG-2S
Cable clamp rail, WxDxH 679x10x44 mm
Cable clamp rail, WxDxH 500x10x44 mm
30
19" Accessories
Cable clamp rail
Fixing set for 19‘‘ components
Suitable for all DIGITUS® 19" cabinets.
Secure mounting for 19" components at 19" mounting angles.
• Steel
• Screws
• Caged nuts
• Plastic washers
• 50 pcs
173854 / DN-19 ORG-4S
056713 / A-19-SET
Cable Clamp Rail 19"
Fixing set, Size M6
Potential equalisation panel for
DIGITUS® 19" cabinets
Cable tray for DIGITUS® 19" cabinets
For cable fixing and carrying.
Suitable in mounted and unmounted DIGITUS® 19" network and server cabinets.
Suitable for all DIGITUS® 19" cabinets.
For grounding of all installated components.
• Copper busbar
• 6 earthing leads
• Vertical installation
• Fixed mounting
• Perforated
• Galvanized sheet steel
• 16U
256854 / DN-19 TRAY-3-16U
Cable tray, DxHxW in mm 10x662x103
256922 / DN-19 TRAY-3-20U
Cable tray, DxHxW in mm 10x840x103
256915 / DN-19 TRAY-3-22U
Cable tray, DxHxW in mm 10x929x103
256908 / DN-19 TRAY-3-26U
Cable tray, DxHxW in mm 10x1107x103
256892 / DN-19 TRAY-3-32U
Cable tray, DxHxW in mm 10x1373x103
256885 / DN-19 TRAY-3-36U
Cable tray, DxHxW in mm 10x1551x103
256878 / DN-19 TRAY-3-42U
Cable tray, DxHxW in mm 10x1684x103
142027 / DN-19 EARTH
Potential equalisation panel
256861 / DN-19 TRAY-3-47U
Cable tray, DxHxW in mm 10x1813x103
31
19" Accessories
Cable duct for DIGITUS® 19" cabinets
From top to bottom, it is suitable to carry cable bundles through the vertical axis of DIGITUS® 19" network
cabinets. Including holes, which allowes to pass the cables in different levels.
A sliding cover hides and protects the cable bundle.
Adapted for DIGITUS® 19" network cabinets with a width of 800mm.
• To fix at the top and the bottom of the cabinet
• Sliding cover
• Holes as cable outlets
• 32U
• Suitable on left and right side
Network cabinets
grey RAL 7035
black RAL 9005
32HE
DN-19 CD-32
257073
DN-19 CD-32-SW
257141
36HE
DN-19 CD-36
257158
DN-19 CD-36-SW
257165
grey RAL 7035
black RAL 9005
42HE
DN-19 CD-42
257172
DN-19 CD-42-SW
257189
42HE
DN-19 CD-SRV-42
257219
DN-19 CD-SRV-42-SW
257226
47HE
DN-19 CD-47
257196
DN-19 CD-47-SW
257202
47HE
DN-19 CD-SRV-47
257233
DN-19 CD-SRV-47-SW
257257
Mounting frames for DIGITUS® 19" cabinets
Server cabinets
Cable management panel for DIGITUS® 19"
network cabinets
Applicable on the left and the right side of the 19“ mounting angles in 19“ DIGITUS® network cabinets
with a width of 800mm. Suitable for controlled managing of patch cables.
• To fix at the top and the bottom of the cabinet, beside the 19“ mounting angles
• Hinged cover
• Holes to pass the patch cables
• Sheet steel
• Set (2 pcs. le. and ri.)
Suitable for the admission of 19“ assemblies.
Insertable in mounted and unmounted DIGITUS® 19“ networking cabinets.
• Fixing left and right at the frame of the cabinets
• Galvanized steel
• Set = 2 pcs.
256939 / DN-19 ORG-32U
32 HE, WxDxH in mm 94x94x1450, grey RAL 7035
256946 / DN-19 ORG-32U-SW
32 HE, WxDxH in mm 94x94x1450, black RAL 9005
256953 / DN-19 ORG-36U
36 HE, WxDxH in mm 94x94x1620, grey RAL 7035
255444 / DN-19 MA-16U
246800 / DN-19 ORG-36U-SW
16 HE, WxDxH in mm 31x54x714
6 HE, WxDxH in mm 94x94x1620, black RAL 9005
255420 / DN-19 MA-22U
249757 / DN-19 ORG-42U
22 HE, WxDxH in mm 31x54x981
42 HE, WxDxH in mm 94x94x1893, grey RAL 7035
255413 / DN-19 MA-26U
246817 / DN-19 ORG-42U-SW
26 HE, WxDxH in mm 31x54x1159
42 HE, WxDxH in mm 94x94x1893, black RAL 9005
247739 / DN-19 MA-32U
256960 / DN-19 ORG-47U
32 HE, WxDxH in mm 31x54x1425
47 HE, WxDxH in mm 94x94x2116, grey RAL 7035
247470 / DN-19 MA-42U
256977 / DN-19 ORG-47U-SW
42 HE, WxDxH in mm 31x54x1870
47 HE, WxDxH in mm 94x94x2116, black RAL 9005
32
19" Accessories
Blank Panel for DIGITUS® 19" cabinet
Blank Panel for DIGITUS® 19" cabinet
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Used to cover empty spaces between the 19" mounting frames.
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Used to cover empty spaces between the 19" mounting frames.
• Fixing at 19" mounting angles
• Sheet steel
• Grey color RAL 7035
• Fixing at 19" mounting angles
• Sheet steel
• Black color RAL 9005
135272 / DN-19 BPN-01
171713 / DN-19 BPN-01-SW
19" Blank panel, 1U, WxDxH in mm 483x12x44
19" Blank panel, 1U, WxDxH in mm 483x12x44
135289 / DN-19 BPN-02
171720 / DN-19 BPN-02-SW
19" Blank panel, 2U, WxDxH in mm 483x12x88
19" Blank panel, 2HE, BxTxH in mm 483x12x88
184553 / DN-19 BPN-03
178460 / DN-19 BPN-03-SW
19" Blank panel, 3U, WxDxH in mm 483x12x133
19" Blank panel, 3HE, BxTxH in mm 483x12x133
254706 / DN-19 BPN-04
185710 / DN-19 BPN-04-SW
19" Blank panel, 4U, WxDxH in mm 483x12x177
19" Blank panel, 4HE, BxTxH in mm 483x12x177
254713 / DN-19 BPN-05
185727 / DN-19 BPN-05-SW
19" Blank panel, 5U, WxDxH in mm 483x12x222
19" Blank panel, 5HE, BxTxH in mm 483x12x222
254720 / DN-19 BPN-06
254737 / DN-19 BPN-06-SW
19" Blank panel, 6U, WxDxH in mm 483x12x266
19" Blank panel, 6HE, BxTxH in mm 483x12x266
Keyboard drawer for DIGITUS® 19" cabinet, 1U
Keyboard drawer for DIGITUS® 19" cabinet, 1U
Suitable for all DIGITUS® 19" cabinets excepting unmounted wall mounting cabinets.
For secure storage of keyboards, documents etc.
Suitable for all DIGITUS® 19" cabinets excepting unmounted wall mounting cabinets.
For secure storage of keyboards, documents etc.
• Fixing at 19" mounting angles
• Lockable
• Extensible
• Load carrying capacity: 25kg
• Inner size: WxD 420x390 mm
• Sheet steel
• 1U
• Incl. fixing for 19‘‘ mounting
• Grey color RAL 7035
• Fixing at 19" mounting angles
• Lockable
• Extensible
• Load carrying capacity: 25kg
• Inner size: WxD 420x390 mm
• Sheet steel
• 1U
• Incl. fixing for 19‘‘ mounting
• Black color RAL 9005
135340 / DN-19 KEY-1U
158516 / DN-19 KEY-1U-SW
19" Keyboard drawer, WxDxH 483x400x44 mm
19" Keyboard drawer, WxDxH 483x400x44 mm
33
19" Accessories
Document storage for DIGITUS® 19" cabinet, 2U
Document storage for DIGITUS® 19" cabinet, 2U
Suitable for all DIGITUS® 19" cabinets, except for unmounted DIGITUS® 19" wall mounted cabinets.
Useable for secure storage of documents etc.
Suitable for all DIGITUS® 19" cabinets, except for unmounted DIGITUS® 19" wall mounted cabinets.
Useable for secure storage of documents etc.
• Fixing at 19" mounting angles
• Extensible
• Lockable
• Load carrying capacity: 25kg
• 2U
• Sheet steel
• Incl. 19" assembly screw set
• Grey color, RAL 7035
•
•
•
•
•
•
•
•
Fixing at 19" mounting angles
Extensible
Lockable
Load carrying capacity: 25kg
2U
Sheet steel
Incl. 19" assembly screw set
Black, RAL 9005
254751 / DN-19 KEY-2U
254775 / DN-19 KEY-2U-SW
Document storage, 485x480x88 mm
Document storage, WxDxH 485x480x88 mm
Document storage for DIGITUS® 19" cabinet, 3U
Document storage for DIGITUS® 19" cabinet, 3U
Suitable for all DIGITUS® 19" cabinets, except for unmounted DIGITUS® 19" wall mounted cabinets.
Useable for secure storage of documents etc.
Suitable for all DIGITUS® 19" cabinets, except for unmounted DIGITUS® 19" wall mounted cabinets.
Useable for secure storage of documents etc.
• Fixed at 19" mounting angles
• Extensible
• Lockable
• Load carrying capacity: 25kg
• 3U
• Sheet steel
• Incl. 19" assembly screw set
• Grey color, RAL 7035
• Fixed at 19" mounting angles
• Extensible
• Lockable
• Load carrying capacity: 25kg
• 3U
• Sheet steel
• Incl. 19" assembly screw set
• Black color, RAL 9005
161714 / DN-19 KEY-3U
169444 / DN-19 KEY-3U-SW
19" storage, WxDxH 485x480x134mm
19" storage, WxDxH 485x480x134mm
34
19" Accessories
Lockable castors for
DIGITUS® 19" cabinet
Lockable castors
for DIGITUS® 19" wallmounting cabinets
Suitable for mounted and unmounted DIGITUS® 19" network and server cabinets.
Mounting among the cabinets.
Suitable for mounted and unmounted DIGITUS® 19" relay racks
and wallmounting cabinets. Mounting among the cabinets.
• Set = 4 pcs.
• Carrying capacity per castor: 250kg
• 2 x lockable,
• Rotating
•
•
•
•
Set = 4 pcs.
Resistant up to 250 kg
2 x lockable,
Rotating
135296 / DN-19 CASTOR
168423 / DN-19 CASTOR-WB
Lockable castor, WxDxH 70x80x80 mm
Lockable castors, WxDxH 50x80x80 mm
Levelling feet for DIGITUS® 19" cabinet
Connecting Kit for DIGITUS® 19" cabinet
Suitable for all DIGITUS® 19" cabinets. Mounting among the cabinets.
By using the levelling feet, DIGITUS® 19" wallmounting cabinets can be changed into free
standing cabinets.
Suitable for mounted DIGITUS® 19" network and server cabinets.
To connect cabinets in a row.
• Set = 4 pcs.
• Foot: PVC
• Carrying capacity per foot: 250kg
• Adjustable hight from 30mm to 45mm
193623 / DN-19 FEET
Levelling feet for 19" cabinets
• Connection at the vertical uprights
• Steel
• Galvanized
• Set = 4 pcs. with screws
162384 / DN-19 BGL
Connecting Kit WxDxH in mm 46x130x23
35
19" Accessories
Monitor drawer for DIGITUS® 19" cabinet
Swing arm handhold for DIGITUS® 19"
network cabinet
Adapted for all 15" & 17" CRT/TFT monitors.
Suitable for all 19" applications in every DIGITUS® 19" cabinet.
Suitable for DIGITUS® 19" network cabinets.
Mounting in doors, prepared to use profile half cylinder.
• Fixing at 19" mounting angles
• Sheet steel
• Lockable security glass plate
• 9U mounting highness
• Load carrying capacity: 25kg
135364 / DN-19 MONI
179245 / DN-19 PHS
19" Monitor drawer, WxHxD in mm 483x500x400, grey color RAL 7035
Swing arm handhold for network cabinets
158509 / DN-19 MONI-SW
222002 / DN-19 PHS-SRV
19" Monitor drawer, WxHxD in mm 483x500x400, black color RAL 9005
Swing arm handhold for server cabinets
19‘‘ Lighting fixture
Fan for DIGITUS® 19" cabinet
• With On / Off switch
• 220V / 11W
• Automatic door switch
• Aluminium profile
• Additional shuko outlet
Substitute fan for DIGITUS® fan units.
• Mounting in fan units
• Air volume: 138 cubic meter/h
• Noise: 47 dB
• RAL 9005
240655 / DN-19 LIGHT-1
194422 / DN-19 FAN
19‘‘ Lighting fi xture
Fan WxDxH 120x120x37 mm
36
Fiber-Optic Network Components
DIGITUS® Optical fiber cable
Construction of a glass fiber cable
A glass fiber cable consists mainly of three parts: The glass fiber
core, carrying the light signal, the glass jacket which reflects the
light and a plastic cladding which protects the glass fiber cable from
external influences and makes it flexible. .
The glass fiber core
There are various thicknesses of the glass fiber core which are
described with their cross section: The single mode fiber cable with
a cross section of 9μm and multi-mode fiber cables with cross sections of 50 μm and 62.5 μm.
Single mode fiber cables are more costly than multi-mode fiber
cables because of difficulties in the manufacture of an extremely
thin cable with a cross section of 9μm, but they have a greater
range.
Additional designations are used to describe them in terms of their
quality: OS1 and OS2 for single mode fiber cables, where OS2 is
the best quality and OM1, OM2 and OM3 for multi-mode cables
where OM3 is the best quality.
Fiber-Optic Patch Cables ................................................................. 75
Fiber-Optic Installation cable........................................................... 79
Fiber-Optic Pigtails ........................................................................... 80
Fiber-Optic Couplers and Connectors ............................................. 81
Fiber-Optic Spliceboxes.................................................................... 82
Fiber-Optic Accessories.................................................................... 86
The combined strand type represents an intermediate form of the
solid core type and the hollow core type. The hollow space of the
cladding is filled here with a gel or similar.
The difference between single mode and multi mode
The light is reflected in a zigzag pattern in the core of thicker multimode fiber cables. This results in higher attenuation, the range of
the signal reduces, in other words. The light does not refract so
frequently in single mode fiber cables and guarantees an enormous range.
Use of the individual glass fiber cables
Multi fire cables are usually found in cabling in buildings and in
short and medium distance runs. OM2 fiber cables are used the
most. OM3 fibers of better quality are used more and more frequently and replace OM2 fiber cables over the long run.
Single mode fiber cables are used because of their good signal
properties in long distance cabling.
LWL plugs
The widest distributed LWL plugs are ST-, SC- and LC plugs. The LC
plugs gains an ever increasing share of the market for glass fiber
plugs because of the compact size and their use with mini GBIC
modules in switches or media converters.
Cladding
There are several forms of cladding for glass fiber cables.
Pigtails
Pigtails are cables equipped with an LWL plug on one side and a
plain glass fiber cable on the other side. They are used at the end
points of laid cables and are spliced with each other.
Solid strand type
Hollow strand type
Combined strand type
Splicing
Splicing is understood to be the connection of two glass fiber
cables. These are adjusted at their end points and permanently
fused together.
The solid strand type surrounds the fiber directly. This has a disadvantageous effect when there is high strain and with temperature
differences.
Unlike the solid strand type, the hollow strand type does not
surround the fiber directly. There is a hollow space between the
cladding and the fiber which reduces the disadvantageous effects
of strain load and temperature differences.
Kabeltyp
A
Outside cable
I/J Inside cable
U
optoversal® cable (not VDE)
Ader
V
D
W
H
M
Uniform, abbreviated descriptions exist for LWL
cables in accordance with DIN-VDE Norm 0888
which consist of a series of number, as can be
seen in the table.
Solid strand
Bundled strand
Hollow strand, filled
Hollow strand, unfilled
Mini bundle (not VDE)
S
Metallic distribution element
F
Q
Filling compound for filling the cord cavities in the cable core
Source element (not VDE)
1. Outside cladding
H
LSOH cladding
Y
PVC cladding
2Y
PE cladding
(ZN)2Y
PE cladding with non-metallic strain relief elements
(ZN)(L)2Y PE laminated cladding with non-metallic strain relief elements
(ZN)(SR)2Y Steel spiral laminated cladding with non-metallic strain relief elements
2. Outside cladding
B
Reinforcement
BY
Reinforcement with PVC protective cover
B2Y Reinforcement with PE protective cover
Number of fibers
Number of bundled fibers x number of fibers per fiber bundle
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Construction
LG
stranding in layers
Bandwidth in MHz for 1 km
(Multimode fibers)
Dispersion in ps/nm x km
(Single mode fibers)
Wavelengths
B
850nm
F
1300nm
F
1310nm
H
1550nm
Attenuation coefficient in dB/km
Cladding diameter in μm (125μm)
Field diameter in μm for single mode fibers (9μm)
Core diameter in μm for multi mode fibers
(50μm or 62.5μm)
Subject to alterations.
74
Construction type
E
Single mode fiber
G
Multimode fiber
(multimode fibers)
(multimode fibers)
(single mode fibers)
(single mode fibers)
ST / ST
Fiber-optic patch cable, duplex
• ST / ST Connectors
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
• Connector with ceramic ferrule
• Two color Boot (Multimode cable)
• Single packed, with test report
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM1 - 62,5/125 μ
Multimode OM2 - 50/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
247999 / DK-2511-01
1,0 m
248194 / DK-2611-01
1,0 m
248279 / DK-2511-01/3
1,0 m
248330 / DK-2911-01
2,0 m
248033 / DK-2511-02
2,0 m
248217 / DK-2611-02
2,0 m
248286 / DK-2511-02/3
2,0 m
248347 / DK-2911-02
3,0 m
248064 / DK-2511-03
3,0 m
248224 / DK-2611-03
3,0 m
248293 / DK-2511-03/3
3,0 m
248354 / DK-2911-03
5,0 m
248118 / DK-2511-05
5,0 m
248231 / DK-2611-05
5,0 m
248309 / DK-2511-05/3
5,0 m
248361 / DK-2911-05
7,0 m
248101 / DK-2511-07
7,0 m
248255 / DK-2611-07
7,0 m
248316 / DK-2511-07/3
7,0 m
248378 / DK-2911-07
10,0 m
248095 / DK-2511-10
10,0 m
248262 / DK-2611-10
10,0 m
248323 / DK-2511-10/3
10,0 m
248385 / DK-2911-10
SC / SC
Fiber-optic patch cable, duplex
• Connector with ceramic ferrule
• Two color Boot (Multimode cable)
• Single packed, with test report
• SC / SC Connector
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM1 - 62,5/125 μ
Multimode OM2 - 50/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
248392 / DK-2522-01
1,0 m
248460 / DK-2622-01
1,0 m
248538 / DK-2522-01/3
1,0 m
248736 / DK-2922-01
2,0 m
248408 / DK-2522-02
2,0 m
248477 / DK-2622-02
2,0 m
248545 / DK-2522-02/3
2,0 m
248743 / DK-2922-02
3,0 m
248415 / DK-2522-03
3,0 m
248491 / DK-2622-03
3,0 m
248552 / DK-2522-03/3
3,0 m
248750 / DK-2922-03
5,0 m
248422 / DK-2522-05
5,0 m
248507 / DK-2622-05
5,0 m
248569 / DK-2522-05/3
5,0 m
248767 / DK-2922-05
7,0 m
248446 / DK-2522-07
7,0 m
248514 / DK-2622-07
7,0 m
248576 / DK-2522-07/3
7,0 m
248774 / DK-2922-07
10,0 m
248453 / DK-2522-10
10,0 m
248521 / DK-2622-10
10,0 m
248729 / DK-2522-10/3
10,0 m
248781 / DK-2922-10
75
LC / LC
Fiber-optic patch cable, duplex
• LC / LC Connector
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
• Connector with ceramic ferrule
• Single packed, with test report
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM2 - 50/125 μ
Multimode OM1 - 62,5/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
249030 / DK-2533-01
1,0 m
248798 / DK-2633-01
1,0 m
248859 / DK-2533-01/3
1,0 m
248910 / DK-2933-01
2,0 m
249054 / DK-2533-02
2,0 m
248804 / DK-2633-02
2,0 m
248866 / DK-2533-02/3
2,0 m
248927 / DK-2933-02
3,0 m
249047 / DK-2533-03
3,0 m
248811 / DK-2633-03
3,0 m
248873 / DK-2533-03/3
3,0 m
248934 / DK-2933-03
5,0 m
249061 / DK-2533-05
5,0 m
248828 / DK-2633-05
5,0 m
248880 / DK-2533-05/3
5,0 m
248941 / DK-2933-05
7,0 m
249078 / DK-2533-07
7,0 m
248835 / DK-2633-07
7,0 m
248897 / DK-2533-07/3
7,0 m
248958 / DK-2933-07
10,0 m
249085 / DK-2533-10
10,0 m
248842 / DK-2633-10
10,0 m
248903 / DK-2533-10/3
10,0 m
248965 / DK-2933-10
ST / SC
Fiber-optic patch cable, duplex
• Connector with ceramic ferrule
• Two color Boot (Multimode Cable)
• Single packed, with test report
• ST / SC Connector
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM1 - 62,5/125 μ
Multimode OM2 - 50/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
248606 / DK-2512-01
1,0 m
248668 / DK-2612-01
1,0 m
248972 / DK-2512-01/3
1,0 m
249092 / DK-2912-01
2,0 m
248613 / DK-2512-02
2,0 m
248675 / DK-2612-02
2,0 m
248989 / DK-2512-02/3
2,0 m
249108 / DK-2912-02
3,0 m
248620 / DK-2512-03
3,0 m
248682 / DK-2612-03
3,0 m
248996 / DK-2512-03/3
3,0 m
249115 / DK-2912-03
5,0 m
248637 / DK-2512-05
5,0 m
248699 / DK-2612-05
5,0 m
249009 / DK-2512-05/3
5,0 m
249122 / DK-2912-05
7,0 m
248644 / DK-2512-07
7,0 m
248705 / DK-2612-07
7,0 m
249016 / DK-2512-07/3
7,0 m
249139 / DK-2912-07
10,0 m
248651 / DK-2512-10
10,0 m
248712 / DK-2612-10
10,0 m
249023 / DK-2512-10/3
10,0 m
249146 / DK-2912-10
76
LC / ST
Fiber-optic patch cable, duplex
• Connector with ceramic ferrule
• Two color Boot (Multimode Cable)
• Single packed, with test report
• LC / ST connector
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM1 - 62,5/125 μ
Multimode OM2 - 50/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
249153 / DK-2531-01
1,0 m
249214 / DK-2631-01
1,0 m
249276 / DK-2531-01/3
1,0 m
249337 / DK-2931-01
2,0 m
249160 / DK-2531-02
2,0 m
249221 / DK-2631-02
2,0 m
249283 / DK-2531-02/3
2,0 m
249344 / DK-2931-02
3,0 m
249177 / DK-2531-03
3,0 m
249238 / DK-2631-03
3,0 m
249290 / DK-2531-03/3
3,0 m
249351 / DK-2931-03
5,0 m
249184 / DK-2531-05
5,0 m
249245 / DK-2631-05
5,0 m
249306 / DK-2531-05/3
5,0 m
249368 / DK-2931-05
7,0 m
249191 / DK-2531-07
7,0 m
249252 / DK-2631-07
7,0 m
249313 / DK-2531-07/3
7,0 m
249375 / DK-2931-07
10,0 m
249207 / DK-2531-10
10,0 m
249269 / DK-2631-10
10,0 m
249320 / DK-2531-10/3
10,0 m
249382 / DK-2931-10
LC / SC
Fiber-optic patch cable, duplex
• Connector with ceramic ferrule
• Two color Boot (Multimode Cable)
• Single packed, with test report
• LC / SC Connector
• Halogen free cable I-VH 2G-XXX (Multimode),
I-VH 2E-XXX (Singlemode)
• OM3 up to 10Gbit Ethernet, OM1 & 2 1Gbit Ethernet
Multimode
Singlemode
Please choose your requested product by the corresponding article number or the EAN code.
Multimode OM1 - 62,5/125 μ
Multimode OM2 50/125 μ
Multimode OM3 - 50/125 μ
Singlemode - 9/125 μ
1,0 m
249399 / DK-2532-01
1,0 m
249467 / DK-2632-01
1,0 m
249566 / DK-2532-01/3
1,0 m
249634 / DK-2932-01
2,0 m
249405 / DK-2532-02
2,0 m
249474 / DK-2632-02
2,0 m
249580 / DK-2532-02/3
2,0 m
249641 / DK-2932-02
3,0 m
249412 / DK-2532-03
3,0 m
249481 / DK-2632-03
3,0 m
249597 / DK-2532-03/3
3,0 m
249658 / DK-2932-03
5,0 m
249436 / DK-2532-05
5,0 m
249498 / DK-2632-05
5,0 m
249603 / DK-2532-05/3
5,0 m
249665 / DK-2932-05
7,0 m
249443 / DK-2532-07
7,0 m
249511 / DK-2632-07
7,0 m
249610 / DK-2532-07/3
7,0 m
249672 / DK-2932-07
10,0 m
249450 / DK-2532-10
10,0 m
249528 / DK-2632-10
10,0 m
249627 / DK-2532-10/3
10,0 m
249689 / DK-2932-10
77
E2000 / E2000, Fiberoptic patch cable, duplex
• Singlemode 09/125 μ with 8° APC
• Cable I-VH 2E-XXX, holgenfree
• Connector with ceramic ferrule
• Single packed with test report
Please choose your requested product by the corresponding article number or the EAN code.
E 2000 Duplex 8° APC
1,0 m
2,0 m
3,0 m
5,0 m
204725 / AL-9E2000-01I
204732 / AL-9E2000-02I
204749 / AL-9E2000-03I
204756 / AL-9E2000-05I
E 2000 / LC 8° APC
1,0 m
2,0 m
3,0 m
5,0 m
E 2000 / SC 8° APC
204763 / AL-9E2000LC-01I
204770 / AL-9E2000LC-02I
204787 / AL-9E2000LC-03I
204794 / AL-9E2000LC-05I
1,0 m
2,0 m
3,0 m
5,0 m
204800 / AL-9E2000SC-01I
204817 / AL-9E2000SC-02I
204824 / AL-9E2000SC-03I
204831 / AL-9E2000SC-05I
E 2000 Pigtail, 8° APC, simplex
E2000 Coupler, simplex
• Singlemode with 8° APC
• Single packed with test report
• Singlemode with 8° APC
• Zirconia sleeve
204848 / AL-9FPE2000-02I
204855 / ALWL-E2000
2m
78
Coupler
Fiber-Optic Installation cable
Fiber-optic universal indoor, outdoor cable
U-DQ(ZN)BH 50/125 μm, OM 3, multimode
•
•
•
•
•
•
•
•
Universally useable, for indoor and outdoor use
Halogen-free, flame-resistant as per IEC 332-3 C, longitudinally and laterally water-resistant
The cable can be delivered in additional lengths and in fabricated form
Tractive force: 1000N
Singlepressure stability permanent: 200N/cm
Rodent protection
Dry interstices
Non metallic
262626 / AL-5AN4-100/3
+>9F5BC1< >4??B&ED4??B12<5N==
262657 / AL-5AN8-100/3
+>9F5BC1< >4??B&ED4??B12<5N==
262725 / AL-5AN12-100/3
+>9F5BC1< >4??B&ED4??B12<5N==
262770 / AL-5AN24-100/3
+>9F5BC1< >4??B&ED4??B12<5N==
Fiber-optic universal indoor, outdoor cable
U-DQ(ZN) BH 50/125 μm, OM 2, multimode
•
•
•
•
•
•
•
•
Universally useable, for indoor and outdoor use
Halogen-free, flame-resistant as per IEC 332-3 C, longitudinally and laterally water-resistant
The cable can be delivered in additional lengths and in fabricated form
Tractive force: 1000N
Singlepressure stability permanent: 200N/cm
Rodent protection
Dry interstices
Non metallic
005070 / AL-5AN4-100
+>9F5BC1< >4??B&ED4??B12<5N==
005087 / AL-5AN8-100
+>9F5BC1<9>4??B?ED4??B312<5N==
005063 / AL-5AN12-100
+>9F5BC1<9>4??B?ED4??B312<5N==
262800 / AL-5AN24-100
+>9F5BC1< >4??B&ED4??B12<5HN==
Fiber-optic universal indoor, outdoor cable
U-DQ(ZN)BH 09/125 μm, OS1, singlemode
•
•
•
•
•
•
•
•
Universally useable, for indoor and outdoor use
Halogen-free, flame-resistant as per IEC 332-3 C, longitudinally and laterally water-resistant
The cable can be delivered in additional lengths and in fabricated form
Tractive force: 1000N
Singlepressure stability permanent: 200N/cm
Rodent protection
Dry interstices
Non metallic
262640 / AL-9AN4-100
+>9F5BC1< >4??B&ED4??B12<5N==
262695 / AL-9AN8-100
+>9F5BC1< >4??B&ED4??B12<5N==
2163466 / AL-9AN12-100
+>9F5BC1< >4??B&ED4??B12<5N==
262817 / AL-9AN24-100
+>9F5BC1< >4??B&ED4??B12<5HN==
79
Fiber-Optic Pigtails
DIGITUS® colored pigtails, SC OM2
50/125 μ
DIGITUS® colored pigtails, ST OM2
50/125 μ
ST fiber pigtail
• Simplex OM 2 50/125 μ 2m
• Semi tight buffer
• Colored buffer, according to IEC 302 in: white, violet, turquoise,
black, red, pink, orange, grey, green, yellow, brown, blue
• Set of 12 pcs
• Incl. test report
• Simplex OM 2 50/125 μ 2m
• Semi tight buffer
• Colored buffer, according to IEC 302 in: white, violet, turquoise,
black, red, pink, orange, grey, green, yellow, brown, blue
• Set of 12 pcs
• Incl. test report
• Simplex, 2m
• Tight buffer
• Single packed with test report
133643 / AL-5FPSC-02I
Multimode OM 2, 50/125 μ, 2m
133704 / AL-5FPSC-02/3I
Multimode OM 3, 50 / 125 μ, 2m
261643 / DK-25221-02
254225 / DK-25112-02
148500 / AL-9FPSC-02I
SC pigtail, OM2 50/125 μ 2m
ST simplex pigtail, OM2 50/125 μ 2m
Multimode OS 1, 09/125 μ, 2m
ST fiber pigtail
E 2000 fiber pigtail
• Simplex, 2m.
• Tight buffer
• Single packed with test report
• Singlemode with 8° APC
• Single packed with test report
LC / LC coupler
133629 / AL-5FPST-02I
Multimode OM 2, 50/125 μ, 2m
133681 / AL-5FPST-02/3I
163640 / ALWL-LC1D
Multimode OM 3, 50 / 125μ 2 m
phosphor bronze sleeve
148494 / AL-9FPST-02I
204848 / AL-9FPE2000-02I
186823 / ALWL-LC2D
Singlemode OS 1, 09/125 μ, 2m
Singlemode, OS 1 09/125 μ, 2m
zirconia sleeve
80
Fiber-Optic Couplers + Connectors
SC / SC coupler, duplex
ST / SC coupler, duplex
007562 / ALWL-SCK1D
007647 / ALWL-STSC1D
Phosphor bronze sleeve
Phosphor bronze sleeve
007586 / ALWL-SCK2D
180012 / ALWL-STSC2D-P
Zirconia sleeve
Zirconia sleeve
LC duplex connector
SC duplex connector
ST / ST coupler, simplex
007623 / ALWL-STK1
Zirconia sleeve
007630/ ALWL-STK2
Phosphor bronze sleeve
ST simplex connector
007555 / ALWL-SCD
007616 / ALWL-ST
Phosphor bronze sleeve, two color boots
Phosphor bronze, black boot
133742 / ALWL-LCD
179030 / ALWL-SCD-9
178927 / ALWL-ST-9
LC connector,Phosphor Bronze sleeve, incl. boot
Zirconia sleeve, blue color boot
Zirconia sleeve, yellow boot
81
Fiber-Optic Spliceboxes
19" Fiber-optic splicebox, equipped, LC couplers,
OM2 multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM2 fibers
LC couplers with phosphor bronze sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
grey RAL 7035
262763 / AL-19AZ-06LCD-K
6x LC Duplex, Multimode 50/125μ
221555 / AL-19AZ-12LCD-K
12x LC Duplex, Multimode 50/125μ
221579 / AL-19AZ-24LCD-K
24x LC Duplex, Multimode 50/125μ
19" Fiber-optic splicebox , equipped, LC couplers,
OM 3 multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM3 fibers
LC couplers with phosphor bronze sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey RAL 7035
262787 / AL-19AZ-06LCD-K-3
6x LC Duplex, Multimode 50/125μ
262855 / AL-19AZ-12LCD-K-3
12x LC Duplex, Multimode 50/125μ
262886 / AL-19AZ-24LCD-K-3
24x LC Duplex, Multimode 50/125μ
19" Fiber-optic splicebox, equipped, LC couplers,
OS1 Singlemode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Singlemode 09/125μ OS1 fibers
LC couplers with ceramic sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey RAL 7035
262794 / AL-19AZ-06LCD-K-9
6x LC Duplex, Singlemode 09/125μ
221586 / AL-19AZ-12LCD-K-9
12x LC Duplex, Singlemode 09/125μ
221593 / AL-19AZ-24LCD-K-9
24x LC Duplex, Singlemode 09/125μ
82
Fiber-Optic Spliceboxes
19" Fiber-optic splicebox, equipped, SC couplers,
OM2, multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM2 fibers
SC couplers with phosphor bronze sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey, RAL 7035
262749 / AL-19AZ-06SCD-K
6x SC Duplex, Multimode 50/125μ
163060 / AL-19AZ-12SCD-K
12x SC Duplex, Multimode 50/125μ
163077 / AL-19AZ-24SCD-K
24x SC Duplex, Multimode 50/125μ
19" Fiber-optic splicebox, equipped, SC couplers,
OM3, multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM3 fibers
SC couplers with phosphor bronze sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
grey, RAL 7035
262732 / AL-19AZ-06SCD-K-3
6x SC Duplex, Multimode 50/125μ
262824 / AL-19AZ-24SCD-K-3
24x SC Duplex, Multimode 50/125μ
19" Fiber-optic splicebox, equipped, SC couplers,
OS1, singlemode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Singlemode 09/125μ OS1 fibers
SC couplers with ceramic sleeve
Adapters in polymer housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey, RAL 7035
262756 / AL-19AZ-06SCD-K-9
6x SC Duplex, Singlemode 09/125μ
221500 / AL-19AZ-12SCD-K-9
12x SC Duplex, Singlemode 09/125μ
262831 / AL-19AZ-24SCD-K-9
24x SC Duplex, Singlemode 09/125μ
83
Fiber-Optic Spliceboxes
19" Fiber-optic splicebox , equipped, ST couplers,
OM2, multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM2 fibers
ST couplers with phosphor bronze sleeve
Adapters in metal housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey RAL 7035
262664 / AL-19AZ-06ST-K
6x ST Simplex, Multimode 50/125μ
163091 / AL-19AZ-12ST-K
12x ST Simplex, Multimode 50/125μ
163084 / AL-19AZ-24ST-K
24x ST Simplex, Multimode 50/125μ
19" Fiber-optic splicebox, equipped, ST couplers,
OM3, multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 50/125μ OM3 fibers
ST couplers with phosphor bronze sleeve
Adapters in metal housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey, RAL 7035
262671 / AL-19AZ-06ST-K-3
6x ST Simplex, Multimode 50/125μ
262633 / AL-19AZ-12ST-K-3
12x ST Simplex, Multimode 50/125μ
262701 / AL-19AZ-24ST-K-3
24x ST Simplex, Multimode 50/125μ
19" Fiber-optic splicebox , equipped, ST couplers,
OS1, multimode
•
•
•
•
•
•
•
•
•
•
•
Completely prefabricated, fiber pigtails removed and inserted into the splice cassette(s)
Colored pigtails
Multimode 09/125μ OS1 fibers
ST couplers with ceramic sleeve
Adapters in metal housing
Carrier housing of 1.5mm steel sheet
1U
19"
280mm depth
PG 16 screws, splice cassette + cover, crimp splice protection and cable clips included
Grey, RAL 7035
262688 / AL-19AZ-06ST-K-9
6x ST Simplex, Singlemode 09/125μ
221524 / AL-19AZ-12ST-K-9
12x ST Simplex, Singlemode 09/125μ
221531 / AL-19AZ-24ST-K-9
24x ST Simplex, Singlemode 09/125μ
84
Fiber-Optic Spliceboxes
SC Duplex 19" fiber-splicebox, 1U, unequipped,
extractable
ST Simplex 19" fiber-splicebox, 1U, unequipped,
extractable
• Carrier housing 1.5 mm sheet steel
• Grey RAL 7035
• Width 483 mm, depth 350 mm, pull-out depth 210mm, adjustable depth
• Holder for splice box
• Punched out ground to fix pigtails
• 4 PG entries and 2 cable entries
• PG 16 screws and mounting material
•
•
•
•
•
•
•
Carrier housing 1.5 mm sheet steel
Grey RAL 7035
Width 483 mm, depth 350 mm, pull-out depth 210mm, adjustable depth
Holder for splice box
Punched out ground to fix pigtails
4 PG entries and 2 cable entries
PG 16 screws and mounting material
137962 / AL-19AZ-12SCD
004844 / AL-19AZ-12ST
12 x SC Duplex Splice Box
12 x ST, 19" Splice Box
138662 / AL-19AZ-24SCD
004868 / AL-19AZ-24ST
24 x SC Duplex Splice Box
24 x ST, 19" Splice Box
LC Duplex , SC & E 2000 simplex 19" fiber-opticsplicebox, 1U, unequipped, extractable
Wallmounting type fiber-optic splicebox
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Carrier housing 1.5 mm sheet steel
Grey RAL 7035
Width 483 mm, depth 350 mm, pull-out depth 210mm, adjustable depth
Holder for splice box
Punched out ground to fix pigtails
4 PG entries and 2 cable entries
PG 16 Screws and mounting material
Carrier housing 1.5 mm sheet steel
Grey RAL 7035
Holder for splice cassettes
Punched out ground to fix pigtails
One PG entries and 2 cable entries
PG 16 screws and mounting material
Lockable front door
260349 / AL-19AZ-W-24ST
24xST simplex
2262619 / AL-19AZ-W-12SCD
12xSC duplex
195757 / AL-19AZ-12SC
12 x LC Duplex, SC & E 2000 Simplex
262602 / AL-19AZ-W-24SC
24xSC simplex, LC / E2000 duplex
85
Fiber-Optic Accessories
Splice cassette
Cover for splice cassette
Splice comb
Different cable entries allow an optimal core connection.
For splice cassette AL-SK1
• Incl. connection screw M3
• Measurements: 40 x 35 x 5mm
• Crimp splice
•
•
•
•
Suitable for up to 12 fiber cores
Four cable entries
Twist protection
Dimensions: 155x92x8mm (WxPxH)
007326 / AL-SK1
007371 / AL-SK4
007340 / AL-SK2
Splice cassette for 12 fi ber cores
Cover for splice cassette
Crimp splice comb for 12 fi ber cores
Crimp splice protection
ST fiber blind plate
SC and LC fiber blindplate
•
•
•
•
•
•
•
•
Sandwich crimp splice protection for fiber core
• Measurements: 1,2 x 3,2 x 30mm
for not used ports in splicebox
avoids dust
black color plastic
100 pcs. per unit
for not used ports in splicebox
avoids dust
black color plastic
100 pcs. per unit
262862 / AL-BP-SCD
Fiber blindplate SC duplex
007364 / AL-SK3
262848 / AL-BP-ST
Crimp splice protection, 15 pcs per unit
Fiber blind plate ST
86
262879 / AL-BP-LCD
Fiber blindplate LC duplex
10" Network Components
10" System
DIGITUS® 10" 6U wall mount
cabinet
DIGITUS® Class E CAT 6 10" patch
panel
DIGITUS® 10" CAT 5e patch panel,
unshielded
• Stable housing for wall or standing installation of 1.1 mm thick
steel sheet
• Attractive, assembly-friendly housing for the office area, in light grey
RAL 7035
• Two 10‘‘ snap-in bars front, cable entrance with brush strip from
bottom and top
• Single pane safety-glass door
• Housing complete grounded
• Incl. set of 19" assembly screws
• Class E CAT 6, up to 100Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Housing of sheet steel
• Shielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color coded to EIA/TIA 568 B
• Fixing option for cable ties
• Central ground connection
• 1U
• CAT 5e, up to 100Mhz, ISO IEC 11801, EN 50173
• 1 Gbit Ethernet
• Black RAL 9005
• Unshielded RJ45 female sockets, 8P8C
• Cable installation via LSA strips, color coded to EIA/TIA 568 B
• 1U
241591 / DN-91612S
241430 / DN-91508U
@?BDC895<454
*[email protected]@1>5<@?BDE>C895<454
139829 / DN-10 05-U
241577 / DN-91608S
241447 / DN-91512U
10" Wallmount cabinet 6U, 315 x 255 x 291mm, 12kg
@?BDC895<454
*[email protected]@1>5<@?BDE>C895<454
DIGITUS® 10" fixed shelf, 1U
DIGITUS® 10" cable management
panel, 1U
10" outlet strip with aluminium
profile
•
•
•
•
• Material: 1mm sheet steel
• Grey RAL 7035
• 3 rings
• 1U
• 16A, 220/250V AC, VDE and CE approved
• Arrangement of the outlets at 35° angle
• Plug with safety contacts and 2m cable (3 x 1.50 mm²)
• Aluminium profile
• Grey RAL 7035
Stable sheet steel
Perforated
Complete with fixing material
Grey RAL 7035
139836 / DN-10 TRAY-1
147176 / DN-10 ORG-1U
196938 / A-10-STRIP1
10" shelf, 1U
1U with 3 rings
3 way strip
88
Stripes
19" Outlet Stripes ............................................................................ 90
Desktop Outlet Stripes ..................................................................... 93
IP Power Distribution Units .............................................................. 94
IP Monitoring Units ........................................................................... 95
UPS.................................................................................................... 96
19" Outlet Stripes
DIGITUS® 19" outlet strip with switch, 7 outlets
DIGITUS® 19" outlet strip, 8 outlets
• 7 Socket outlets 230V / 16A / 3600W
• Solid body PVC compound
• 35° turned outlets
• Illuminated switch, 2 pole, 16A
• 2 metal fixings included
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• 8 Socket outlets 230V / 16A / 3600W
• Solid body PVC compound
• 35° turned outlets
• 2 metal fixings included
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
241683 / DN-19 PDU-7S
241690 / DN-19 PDU-8
19" outlet strip with switch, 7 outlets
19" outlet strip, 8 outlets
DIGITUS® 19" outlet strip incl. overvoltage
protection, 7 outlets
19" outlet strip with aluminium profile with switch,
7 outlets
• 7 Socket outlets 230V / 16A / 3600W
• Solid body PVC compound
• 35° turned outlets
• Overvoltage protection
• 2 metal fixings included
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• 16A, 220/250V AC, VDE and CE approved
• Arrangement of the outlets at 35° angle
• Plug with safety contacts and 2m cable (3 x 1.50 mm²)
• Outlet length without flanges 438 mm
• 2 m H05VV-F3G1.5 mm², with moulded right angle German type
plug, double earthing
• Solid, anodised aluminium profile
• Useful holding flanges. Mounting without tools in different heights
and angles
241706 / DN-19 PDU-7SO
233893 / A-19-STRIP1-1-AL
19" outlet strip with overvoltage protection, 7 outlets
19" outlet stripe with on/off switch, 7 outlets
90
19" Outlet Stripes
19" outlet strip with aluminium profile, 8 outlets
19" outlet strip with aluminium profile,
incl. overvoltage protection
• 16A, 220/250V AC, VDE and CE approved
• Arrangement of the outlets at 35° angle
• Plug with safety contacts and 2m cable (3 x 1.50 mm²)
• Outlet length without flanges 438 mm
• 2 m H05VV-F3G1.5 mm², with moulded right angle German type plug, double earthing
• Solid, anodised aluminium profile
• Useful holding flanges. Mounting without tools in different heights and angles
• 16A, 220/250V AC, VDE and CE approved
• Arrangement of the outlets at 35° angle
• Plug with safety contacts and 2m cable (3 x 1.50 mm²)
• Outlet length without flanges 438 mm
• 2 m H05VV-F3G1.5 mm², with moulded right angle German type
plug, double earthing
• Solid, anodised aluminium profile
• Useful holding flanges. Mounting without tools in different heights
and angles
233916 / A-19-STRIP2-1-AL
233947 / A-19-STRIP3-1-AL
19" outlet stripe, 8 outlets
19" outlet stripes incl. overvoltage protection
19" IEC 320 outlet strip with aluminium profile,
8 outlets with overvoltage protection
19" Outlet strip incl. digital amperemeter,
7 outlets
•
•
•
•
•
•
•
•
•
• 1U aluminium profile, anodized
• DIN 49 440, examinated: VDE0620-1;
• 2-pole with earthing contact, 16A/3600W, AC250V, IP20
• Measurement range: 0-16A
• 3x 7 segment display
• Max. current: 20A
• Accuracy: class 2,5
16A, 220/250V AC, VDE and CE approved
Arrangement of the outlets at 35° angle
Plug with safety contacts and 2m cable (3 x 1.50 mm²)
Outlet length without flanges 438 mm
2 m H05VV-F3G1.5 mm², with moulded right angle German type plug, double earthing
Solid, anodised aluminium profile
Useful holding flanges. Mounting without tools in different heights and angles
8 pcs. IEC 320 C13 sockets
Black color RAL 9005
247067 / A-51109
221463 / A-19-STRIP-DG
8 way with surge protection, without switch
19" Outlet strip, 7way with digital amperemeter
91
Outlet Stripes
19" outlet strip for vertical mounting
with IEC 320 C 13 sockets
•
•
•
•
•
•
3 x 6 IEC 320 C 13 sockets, black, grey and red color
3 circuits
19" aluminium profile
Max. 3x10A 40/230 V
3m Schuko connection cable H05VV-F 5G 2,5mm²
922mm highness
262473 / A-51112
3x6 way IEC 320 C13 power strip, vertical mounting
10" outlet strip with aluminium profile
• 16A, 220/250V AC, VDE and CE approved
• Arrangement of the outlets at 35° angle
• Plug with safety contacts and 2m cable (3 x 1.50 mm²)
• Aluminium profile
• Grey RAL 7035
196938 / A-10-STRIP1
3 way Strip
19" outlet strip for 19" cabinets,
vertical mounting
• Dual circuit
• 19" aluminium profile
• 2 pcs. 16 A miniature circuit breaker, 220/250V AC
• Max. 3600W 250V AC, 16A
221197 / A-19-STRIP26-1
12 way 19" power strip, 26U, vertical mounting
221203 / A-19-STRIP42-1
18 way 19" power strip, 42U, vertical mounting
92
Desktop Outlet Stripes
Desktop outlet strip, 3-port
Desktop outlet strip, 2x RJ45
The desktop outlet strips offer optimal conditions for flexible network, media and power management. With
these outlet strips you can combine future-proof products with design. The placement is individual: Free
standing or mounted on the table top with the included mounting angles - it depends on your application
The desktop outlet strips offer optimal conditions for flexible network, media and power management. With
these outlet strips you can combine future-proof products with design. The placement is individual: Free
standing or mounted on the table top with the included mounting angles - it depends on your application
• 3 Safety sockets rotated by 35°
• Warp resistant aluminium profile, anodized
• Three meter feed line H05VV-F 3G 1.50mm²
• Inclusive mounting angles for up to 50mm table top thickness
• 3 Safety sockets rotated by 35°
• Warp resistant aluminium profile, anodized
• Three meter feed line H05VV-F 3G 1.50mm²
• Inclusive mounting angles for up to 50mm table top thickness
• Two CAT 5e ports (Socket / Socket)
259183 / ASL-9021056
5C;[email protected]&ED<5D)[email protected]
259190 / ASL-9021057
5C;[email protected]&ED<5D)[email protected](!
Desktop outlet strip, 2x RJ45, 1x VGA
Desktop outlet strip, 2x RJ45, 1x USB
The desktop outlet strips offer optimal conditions for flexible network, media and power management. With
these outlet strips you can combine future-proof products with design. The placement is individual: Free
standing or mounted on the table top with the included mounting angles - it depends on your application
The desktop outlet strips offer optimal conditions for flexible network, media and power management. With
these outlet strips you can combine future-proof products with design. The placement is individual: Free
standing or mounted on the table top with the included mounting angles - it depends on your application
• 3 Safety sockets rotated by 35°
• Warp resistant aluminium profile, anodized
• Three meter feed line H05VV-F 3G 1.50mm²
• Inclusive mounting angles for up to 50mm table top thickness
• Two CAT 5e ports (Socket / Socket)
• VGA port (Socket / Socket)
• Audio port (3,5mm socket / two cinch sockets)
• 3 Safety sockets rotated by 35°
• Warp resistant aluminium profile, anodized
• Three meter feed line H05VV-F 3G 1.50mm²
• Inclusive mounting angles for up to 50mm table top thickness
• Two CAT 5e ports (Socket / Socket)
• USB Port (Type A / Type A)
259206 / ASL-9021058
5C;[email protected]&ED<5D)[email protected](!,
259213 / ASL-9021059
5C;[email protected]&ED<5D)[email protected]((!+)
93
IP Power Distribution Units
IP Watchdog Power Distribution Unit
Power ON - Watchdog over IP
The Power Distribution Unit controls any device (servers, routers, POS) using a web and mobile phone. The watchdog function monitors via
PING and restarts the devices in the event of a breakdown.
Independent control of two power outlets using IP access. Control function can be carried out using Watchdog, WEB interface (HTML) or WAP
and a mobile device.
Using PING on ICPM, the strip monitors the reaction of a remote device on two independent channels (each channel controls one of the power
outlets). If one of the remote devices breaks down, the PM 201-RD switches the device on and off for a pre-defined time period. This allows for
a restart of the device in the event of a malfunction. Sample applications include access routers, VPN gateways, servers, WIFI AP monitoring,
DSL / Cable modem monitoring, VoIP gateways, access and security systems.
A common problem: the connection router gets hung up in a branch location. It is the weekend, and there is nobody to restart the router. The
strip was developed to address this problem. It has two power outlets which can be entirely controlled using IP. In addition, a watchdog function
can be activated, which monitors the connection using an ICMP Ping. When a connected device cannot be detected, it (in this case the router) is
disconnected from the network for a pre-defined period of time and subsequently restarted. For example, by using the two ports which can be
controlled independently, a DSL modem and a firewall can be monitored separately and restarted if required. This ensures that the connection
can be accessed on the weekend without requiring the manual restarting of the devices.
•
•
•
•
•
•
•
•
•
•
IP-controlled power supply ON/OFF
ICMP ping-supported watchdog function
2 ports which can be controlled independent of each other
Time settings freely definable
Status LED
Protocol via syslog
Output: 2 groanded plug
Input: 1 groanded plug 2m
Max. power per port 8A AC3
Network capacity 10 Mbit
With automatic
Restart Function
262121 / ASL-PM201-RD
IP Watchdog Power Distribution Unit
IP Power Distribution Unit
Sockets Strips with Internet Control
Easy and affordable remote power control for the home office and other devices with the master/slave socket strip, switchable via the internet.
It’s quick and easy! Use the internet to switch your PC on and off via a WAP mobile phone, PDA or PC with web browser, whenever you are out
of the office.
The socket strip allows you to manage the power supply to electrical devices via a TCP/IP network. Simply connect the strip to your power source
and to the existing network.
The strip has an Ethernet interface and can thus be connected to any normal switch, hub or DSL router. It is controlled by an integrated web server, which enables the ntuitive configuration of all switching functions, as well as the administration of multiple users with different access rights.
The strip has an Ethernet interface and can thus be connected to any normal switch, hub or DSL router. It is controlled by an integrated web server, which enables the ntuitive configuration of all switching functions, as well as the administration of multiple users with different access rights.
The IP address for the socket strip can have a fixed configuration or it can be issued dynamically via a DHCP server. In addition to a master
output, the strip also has two slave connections, each with two sockets. This configuration enables you to switch the computer on via the internet
and also facilitates easier switching when actually in the office. For example, if the monitor connected to the master socket is switched on, the
socket strip automatically detects which consumer devices are connected to the slave connections and then supplies them with power.
In the event of a power failure, the strip notes the last switching status of the connections and switches the consumers on accordingly as soon as
the power supply is up and running again. Due to its low current consumption, the strip saves both energy and money.
•
•
•
•
•
•
•
•
•
1x Master / 2x2 Slave Sockets
Status LEDs
Max. current consumption 3300VA, max. 5A per slave output
Power output: 1.5 VA
Areas of application: floor, table, installation in furniture, wall assembly
Network: 10 MBit, RJ45
Protocols and standards: http, WAP, dhcp, dynDNS
Dimensions: 600x55x60 mm (LxBxH)
Weight: 1.5 kg
262183 / ASL-PM211-MIP
IP Power Distribution Unit
94
IP Monitoring Units
IP Monitoring unit
Monitoring and control via the Internet
Is the air-conditioning in the data centre working? Are all the rack doors closed? Is somebody entering
the server room without authorisation? Is a device reporting a malfunction through a PIO? Be on the safe
side when it comes to operating expensive hardware, and when a malfunction can result in considerable
costs.
The Monitoring unit is the answer to questions regarding the secure monitoring of your environment and
systems.
It monitors 8 digital TTL inputs and controls 4 potential-free relay outputs. It is operated via an
integrated web server that enables an intuitive configuration of all inputs and outputs and allows for the
administration of multiple users with different access rights.
Inputs and outputs can be fully monitored and controlled using the web browser and SNMP. The web
interface provides an overview of the status for all current inputs and outputs.
A matrix offers the option to logically link inputs and outputs. Each output is equipped with a timer which
allows for time-dependent switching. Alarms can be sent through the network using SNMP traps as well
as entries into a syslog. Alternatively, SMS and e-mail notifications are also supported.
The MIB of the Monitoring unit can also be integrated into network management software (NMS).
Using SNMP, all statuses are read out in the NMS, where they may also be graphically displayed.
•
•
•
•
•
•
•
•
8x digital TTL input
4x potential-free relay contact output
Implementation options: Floor, table, built-in rack or furniture unit, wall mounting
International power pack
Network: 10MBit, RJ45
Protocols: http, dhcp, smtp, snmp
Dimensions: 130x90x30 mm (LxBxH)
Weight: 0.35 kg
262145 / ASL-RMS200-IO
IP Monitoring unit
IP Monitoring unit for temperature and humidity
Temperature monitoring via Internet
How high is the temperature in the computer centre? Is the server or control cabinet adequately ventilated?
How high is the humidity in the server room? No-one is keen about relying on estimated values where expensive hardware
operation is concerned and failure would cause immense costs.
Up to now these questions could only be answered reliably by means of expensive and sophisticated measuring technology.
As of now, you have the Monitoring unit - the future has arrived.
The Monitoring unit permits the logging of up to 4 temperature and 4 humidity values. Combi-sensors permit the simultaneous logging of both values; due to intelligent reports sensors can be located up to 24 m away without device readjustment.
The Monitorung unit features an Ethernet interface and can be linked by it. It is controlled via an integrated web server that
permits the intuitive configuration of all measuring and reporting functions as well as the administration of several users with
different authorisation rights.
The IP address may be permanently assigned or acquired dynamically via DHCP server. On reaching critical threshold values
the Monitoring unit can trigger an alarm autonomously. A trap is transmitted directly via SNMP to a network management
console. In smaller scale environments converting to SMS may be performed free of charge with the help of the software
supplied.
This SMS may be sent via the SMS Alert Platform (www.sms-alert.de) to any mobile telephone in the world. Alternatively,
the Monitoring unit can also e-mail directly. It can optionally record measuring data continuously and display the results in
diagram form.
•
•
•
•
•
•
•
•
•
•
4x RJ11 sensor connection for Temperature / Humidity
Status LEDs
Temperature measuring range: -20°C...+70°C
Humidity measuring range: 10%RH - 90%RH
Implementation options: floor, table,rack, cabinet fitting, wall mounting
International power pack
Network: 10 MBit, RJ45
Protocols and standards: http, dhcp,smtp, snmp
Dimensions: 130x90x30 mm (LxBxH)
Weight: 0.35 kg
262138 / ASL-RMS200-TH
IP Monitoring unit for temperature and humidity
95
UPS
DIGITUS® Online 19" uninterruptible power system
• High frequency and double conversion online technology
• Fully digitized microprocessor control
• Wide input voltage range
• UPS start up without battery
• Cold start
• Advanced battery management
• Automatic battery charge in UPS off mode
• Lightning and surge protection
• Short circuit and overload protection
• Fan speed auto control when loads varies
• Optional extension battery pack
• EMI/RFI noise filter
• Smart RS232 communication with monitoring software
• Optional SNMP Card slot
• Intelligent LCD display
256298 / DN-170033
,-;7+H==
256304 / DN-170034
,-;7+H==
256311 / DN-170035
,-;7+H==
DIGITUS® Line Interactive uninterruptible power system with LCD
• Microprocessor controlled Line Interactive Technology
• Boost and buck automatic voltage regulation (AVR)
• Intelligent battery management system
• LCD display panel
• Input & output voltage display on the LCD panel
• Over/Under voltage, lightning, surge protections
• Short circuit, overload, over discharge protections
• Battery, load, operation status indicators
• Cold start & energy saving features
• Communication port RS 232
• Tel/fax/modem protection
• Availability to use without batteries as AVR
• Compact size and user friendly operation
• Input Voltage: 230V or 220V ± 25%
• Output Voltage: Simulated Sinewave 230V or 220V ± 10%
• Frequency: 50 or 60 Hz ± 1%
• Back up time: 5 - 30 minutes
(depending on computer load)
208341 / DN-170020
,;7-HH==HH
208358 / DN-170021
,;7-HH==HH
208365 / DN-170022
,;7-HH==HH
DIGITUS® Line Interactive uninterruptible power system
• Microprocessor controlled Line Interactive Technology
• Boost and buck automatic voltage regulation (AVR)
• Advanced battery management (ABM)
• Short circuit and overload protection
• Lightning and surge protection
• Fault status LEDs
• Cold start & energy saving features
• Communication port and remote monitoring software
• Telephone / modem internet surge protection
• Input Voltage: 230V or 220V ± 25%
• Output Voltage: simulated sinewave 220V ± 10%
• Frequency: 50 or 60 Hz ± 1%
• Communication: RS 232 port
• Back up time: 5 - 30 minutes (depending on computer load)
208273 / DN-170010
,;7-HH==HH
208280 / DN-170011
,
;7-HH==HH
208334 / DN-170012
,
;7-HH==HH
96
Active Network Components
DIGITUS® Active Network Components –
Cableless with Wireless LAN Technology or conventially via Ethernet
Network topology
Network topology is understood to be the manner in which individual network components are connected to each other. There
many ways of constructing networks. The most frequent form is
the star topology.
In star topology, all the end devices are connected to a central station, such as a switch or a hub, for example. The cabling is done by
making a point to point connection. Larger networks where several
star topologies are networked with each other from a tree topology.
Cell topology provides a connection without any cables and is used
in radio link networks which continue to spread.
a cable or by radio link, for example to
pass though all the levels again until it
has arrived at the application level to be
processed.
Hub
A hub is a distributor in a star-shaped
network. It connects the individual stations
to each other. The pure relay function is
a disadvantage of the hub. Information is
always relayed to the stations so that the
net load becomes greater and the hub only
has a low efficiency.
OSI Reference Model
The OSI Model, developed by the ISO consists of seven layers and
is used as a basis for the understanding of network architectures.
Each layer performs a specific task. In communication between
two devices, information flows from the application layer according to each level until it meets the opposite side via the medium,
OSI-Modell
Gigabit Switche ................................................................................ 99
Fast Ethernet Switche .................................................................... 101
Gigabit Products ............................................................................. 103
Fast Ethernet Products .................................................................. 104
Medienconverter ............................................................................ 105
Power over Ethernet ....................................................................... 106
Wireless LAN Products ................................................................... 107
Wireless LAN Antennas.................................................................. 111
Printserver ...................................................................................... 113
Powerline Products ........................................................................ 115
NAS Server...................................................................................... 117
IP Cameras ..................................................................................... 118
Switch
A switch represents the further development of a hub. Switches
distribute data in a network in a selective manner. The information packages are only relayed to the port which is connected to
the target that is addressed in the package. The bandwidth of the
network segment increases in this way and the package volume
is reduced. Switches are categorized with the support of the
individual OSI layers. The higher this level is located, the more intensive is the relay energy with the switch requiring more computing capacity. Professional versions offer a multiplicity of options for
monitoring and guiding data flow.
Spanning Tree Protocol (STP)
The Spanning Tree Protocol (STP) is a very important function in
switching. The network is an integral component in a company and
is often secured with multiple connections between switches so
create redundancies. Without the spanning tree protocol, these
redundancies can cause duplicated data packages leading to
faulty functions in the network. The STP provides a hierarchy in the
network and automatically recognises redundant paths. Further
developments of the protocol consist of the Rapid Spanning Tree
Protocol which provides a clear increase in speed and the Multiple
Spanning Tree Protocol which also includes virtual networks.
Virtual LAN (VLAN)
A VLAN is a separated, virtual network within a physical network or
within the internet. A differentiation is made between port-based
VLANs and newer package-based VLANs. They represent a considerable relief in the administration of a network. They also offer
many safety aspects.
Quality of Service (QoS)
QoS is the sorting of data packages according to their importance.
This technology allows trouble-free processing in a real time
application, such as is the case in VoIP telephony, for example.
Prioritisation is active if there is a bottleneck in the bandwidth. A
guarantee can be made in this way that the quality of the connection will not suffer. The bandwidth of the download is reduced if a
download is running at the same time in order to provide sufficient
bandwidth.
Simple Network Management Protocol (SNMP)
The SNMP Standard defines a uniform „language" for monitoring a
network. An end device supported by SNMP provides information
about its status when queried. The nature of this information can
be found in a separate database, called the MIB which is delivered
by the end device. A trap can also send a message to the monitoring station if a fault occurs.
Remote Monitoring (RMON)
The switch protocols different events, unlike the SNMP standard
where only one snapshot of the status of a switch is made respectively. This function is of considerable use in the administration
and analysis of a network.
98
Port Mirroring
A few professional switches master the technology of port switching. The complete data traffic of a port is duplicated with this
function and transmitted to another port where the data traffic is
usually analysed. Network administrators value this feature which
can be used for effective analysis without disturbing the data flow
in a network.
Store-and-Forward
The Store and Forward procedure describes fault control in a
switch. An incoming information package is not relayed at the
same moment. It is temporarily buffered and analysed. This represents a time delay compared to immediate relay but is, however,
a more effective method since faulty packages can be sorted out
and directly queried again.
Flow-Control
The switch buffer can overflow when there is a large data volume
in a network. The flow control function, or also flow control has
been developed for this case. A pause package us sent to the
subscriber in the network if the buffer of a switch overflows and
the data back log can be processed off. This function is used to
prevent lost data packages.
Port Trunking
Port Trunking describes the option of grouping bandwidths together. Switches with this function can gather several ports together.
The connection behaves like a port with a double bandwidth, if two
ports are grouped together.
Power over Ethernet (PoE)
This technology allows end devices, such as IP cameras, or VoIP
telephones, for example to operated only via one network cable.
Only four of the eight strands of a network cable are used during
normal network operations in the 100Mbit mode. PoE uses thus
state to guarantee energy supply to the individual end devices
via the remaining four strands. Complicated and time consuming
installations of power supply cables are not necessary. The current
standard IEEE 802.3af differentiates between power suppliers
(PSE) and end devices (PD). The integrated protection of end
devices not supported by PoE is a special feature of this standard.
If a short circuit normally showed that the end device is not PoE
compatible, a PSE in accordance with the 802.3af standard automatically recognises if this is a PoE end device and supplies it with
energy if necessary. There are special splitters which can be used
for non PoE capable end devices and which separate data and
energy supply from each other again in the network cable.
Gigabit Switche
DIGITUS® Layer 2+ managed Gigabit Ethernet 24 port Switch, 2 SFP ports
The DIGITUS® Gigabit Switches are perfect business solutions. The Quality of Service function allows
a dynamic bandwith usage. The Flow-Control and the Store and Forward technology as well as the
integrated Access Control List (ACL) ensure a safe data transmission. Two Gigabit combo ports, where
RJ45 ports or fiber SFP ports can be chosen to use and a data throughput of 48 Gigabit per second offer
enough power for now and for the future.
• Layer 2+ Managed Switch
• 24 RJ45 Ports
• 2 shared SFP Ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 9KB Jumbo Frames
• 512KB buffer memory
• 48 Gbps throughput
• QoS support
• Port Mirroring
• Port Trunking
• Management via console, web or telnet.
• SNMP, RMON Support
• Suitable for 19" rack mount (incl. mounting bracket)
• Access Control List (ACL)
SNMP
Layer 2+
Access Control List
SNMP
Layer 2+
Access Control List
252801 / DN-80231
#1I5B=1>175497129DD85B>[email protected]?BD)G9D38)'@?BDC
DIGITUS® Layer 2+ managed Gigabit Ethernet 48 port Switch, 4 SFP ports
The DIGITUS® Gigabit Switches are perfect business solutions. The support of the Simple Network
Management Protocol and the Remote Monitoring standard is the easy way of integration into the existing network and the existing surveillance software. The Quality of Service function allows a dynamic
bandwith usage. The Flow-Control and the Store and Forward technology as well as the integrated
Access Control List (ACL) ensure a safe data transmission. Four Gigabit combo ports, where RJ45 ports
or fiber SFP ports can be chosen to use and a data throughput of 96 Gigabit per second offer enough
power for now and for the future.
• Layer 2+ Managed Switch
• 48 RJ45 Ports
• 4 shared SFP Ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC
• 9KB Jumbo Frames
• 512KB buffer memory
• 96 Gbps throughput
• QoS support
• Port Mirroring
• Port Trunking
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for 19" rack mount (incl. mounting bracket)
• Access Control List (ACL)
252818 / DN-80232
#1I5B=1>175497129DD85B>[email protected]?BD)G9D38)'@?BDC
99
Gigabit Switche
DIGITUS® Layer 2 managed Gigabit Ethernet
24 SFP port Switch, 4 RJ45 ports
The DIGITUS® SFP Switches are optimized for telecommunication businesses with high flexibility. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the easiest
way of integration into the existing network and the existing surveillance software. The Management
ability makes the administration of your network more efficient. The Quality of Service function allows a
dynamic bandwith usage. The Flow-Control and the integrated Access Control List (ACL) ensure a safe data
transmission. Four Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen. These ports
offer enough power for now and for the future.
• Layer 2 Managed Switch
• 24 SFP ports
• 4 shared RJ45 ports
• Flow Control technology
• Auto MDI / MDI-X function
• 16K MAC addresses
• 9KB Jumbo Frames
• 48 Gbps throughput
• 1MB buffer memory
• QoS support
• Port Mirroring
• Port Trunking
• Management via web or telnet.
• SNMP, RMON support
• Suitable for 19" rack mount (incl. mounting bracket)
• Access Control List (ACL)
• VLAN for Performance and Security
SNMP
252825 / DN-80233
Layer 2 managed Gigabit Ethernet 24 SFP port Switch, 4 RJ45 ports
DIGITUS® Layer 2 Gigabit Ethernet Web Smart switch
with 4 SFP slots
DIGITUS® SFP fiber optic transceiver module
• Compliant with IEEE 802.3z Gigabit Ethernet Standard
• Class 1 Laser product compliant with EN 60825-1
• Differential LVPECL input and output
• Hot pluggable
• TTL Signal detect indicator
190752 / DN-8100
Duplex SFP module Multimode, LC 850nm / 0.55km
• IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE 802.3x compatible
• Automatic speed and half/full duplex detection / configuration
• Auto MDI / MDI-X function
• 8K MAC addresses, 340KB on chip frame buffer
• QoS support layer 4 classification
• Port Mirroring
• VLAN for Performance & Security
• Port Trunking
• 4 SFP Ports
• Built-in Web-based management
• Built-in switched power supply
190769 / DN-8101
Duplex SFP module Singlemode, LC 1310nm / 10km
190776 / DN-8102
Duplex SFP module Singlemode, LC 1550nm / 30km
190783 / DN-8103
Simplex SFP module BiDi Singlemode, LC 1550nm / 20km
190813 / DN-8104
Simplex SFP module BiDi Singlemode, LC 1310nm / 20km
254553 / DN-8105
Duplex SFP module Multimode, LC 1310nm / 2km
254560 / DN-8106
Simplex SFP module BiDi Singlemode, LC 1550nm / 10km
254577 / DN-8107
Simplex SFP module BiDi Singlemode, LC 1310nm / 10km
229131 / DN-8021B
254621 / DN-8108
Layer 2 managed Gigabit Ethernet 16 Port Switch, 4 SFP Ports
Simplex SFP module BiDi Singlemode, SC 1550nm / 10km
229148 / DN-8022B
254638 / DN-8109
Layer 2 managed Gigabit Ethernet 24 Port Switch, 4 SFP Ports
Simplex SFP Modul BiDi Singlemode, SC 1310nm / 10km
100
Fast Ethernet Switche
DIGITUS® Layer 2 managed Fast Ethernet 24 port Switch, 2 Combo ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage and the Flow-Control as well as the Store and
Forward Technology ensure a safe data transmission. Two Gigabit combo ports, where RJ45 ports or
fiber SFP ports can be chosen to use and a data throughput of 8.8 Gigabit per second offer enough
power for now and for the future.
• Layer 2 Managed Switch
• 24 x RJ45 Ports
• 2 x Gigabit combo Ports (RJ45 or Fiber SFP modules)
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 384KB buffer memory
• 8.8 Gbps throughput
• QoS support
• Port Mirroring
• Port Trunking
• Management via Console, Web or Telnet
• SNMP, RMON support
• Suitable for 19" rack mount (inlc. mounting bracket)
SNMP
252771 / DN-60031
Layer 2 managed Fast Ethernet 24 port Switch, 2 Combo ports
DIGITUS® Layer 2+ managed Fast Ethernet 24 port Switch, 2 Combo ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward
Technology as well as the integrated Access Control List (ACL) ensure a safe data transmission. Two
Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen to use and a data throughput
of 8.8 Gigabit per second offer enough power for now and for the future.
• Layer 2+ Managed Switch
• 24 x RJ45 Ports
• 2 x Gigabit combo Ports (RJ45 or Fiber SFP modules)
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 384KB buffer memory
• 8.8 Gbps throughput
• QoS support
• Port Mirroring
• Port Trunking
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for 19" rack mount (inlc. mounting bracket)
• Access Control List (ACL)
SNMP
Layer 2+
Access Control List
252788 / DN-60041
#1I5B=1>17541CDD85B>[email protected]?BD)[email protected]?BDC
101
Fast Ethernet Switche
DIGITUS® Layer 2+ managed Fast Ethernet 48 port Switch, 2 SFP ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward
technology as well as the integrated Access Control List (ACL) ensure a safe data transmission. Two
Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen to use and a data throughput
of 17.6 Gigabit per second offer enough power for now and for the future.
• Layer 2+ Managed Switch
• 48 RJ45 ports
• 2 Gigabit Combo ports (RJ45 or Fiber SFP modules)
• 2 Gigabit RJ45 ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 512KB buffer memory
• 17.6 Gbps throughput
• QoS support
• Port Mirroring
• Port Trunking
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for 19" rack mount (incl. mounting bracket)
• Access Control List (ACL)
SNMP
Layer 2+
252795 / DN-60051
#1I5B=1>17541CDD85B>[email protected]?BD)G9D38)'@?BDC
DIGITUS® Fast Ethernet N-Way 19" switch
DIGITUS® SFP fiber optic transceiver module
• Compliant with IEEE 802.3z Gigabit Ethernet Standard
• Class 1 Laser product compliant with EN 60825-1
• Differential LVPECL input and output
• Hot pluggable
• TTL Signal detect indicator
• IEEE 802.3 and IEEE 802.3u compatible
• 20/200 MBit full duplex
• Automatic speed and half / full duplex detection / configuration
• Store and forward architecture
• Auto MDI / MDI-X function
• Internal power supply
190752 / DN-8100
Duplex SFP module Multimode, LC 850nm / 0.55km
190769 / DN-8101
Duplex SFP module Simglemode, LC 1310nm / 10km
190776 / DN-8102
Duplex SFP module Singlemode, LC 1550nm / 30km
190783 / DN-8103
Simplex SFP module BiDi Singlemode, LC 1550nm / 20km
190813 / DN-8104
Simplex SFP module BiDi SM, LC 1310nm / 20km
254553 / DN-8105
Duplex SFP module Multimode, LC 1310nm / 2km
254560 / DN-8106
Simplex SFP module BiDi Singlemode, LC 1550nm / 10km
254577 / DN-8107
Simplex SFP module BiDi Singlemode, LC 1310nm / 10km
193241 / DN-6001D
254621 / DN-8108
1CDD85B>5D%[email protected]?BDCG9D38
Simplex SFP module BiDi Singlemode, SC 1550nm / 10km
136781 / DN-6002C
254638 / DN-8109
1CDD85B>5D%[email protected]?BDCG9D38
102
Simplex SFP Modul BiDi Singlemode, SC 1310nm / 10km
Gigabit Products
DIGITUS® Gigabit Ethernet PCI network card
DIGITUS® Gigabit Ethernet PCI Express network card
• Realtek chipset
• PCI Local Bus Master Rev.2.1 and 2.2 compatible
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab compatible
• IEEE 802.3x full-duplex Flowcontrol
• Supports 10/100/1.000 Mbps
• Supports Autonegotiation and Crossover detection
• Supports Wake On LAN function and IEEE 802.1Q VLAN tagging
• Suitable for all typical network environments
• Support for Windows Vista/XP/ME/2000/98SE
• Supports 10/100/1.000 Mbps auto negotiation
• Supports Auto MDI / MDIX crossover at all speed
• Supports Wake On LAN (WOL) power management
• Compliant with 10/100/1.000 IEEE 802.3 specification
• Compliant with PCI Express Base Specification 1.0a
• Installs in any available PCI Express slot with different lane width
• Support for Supports Windows 2000/XP/Server 2003/Vista
223542 / DN-1011-1
228080 / DN-1013-1
Gigabit Ethernet PCI network card
Gigabit Ethernet PCI Express network card
DIGITUS® Gigabit Ethernet USB 2.0 adapter
DIGITUS® Gigabit Ethernet Cardbus adapter
• Ethernet IEEE 802.3 100BaseT compatible
• USB 2.0 full speed (up to 480 Mbps)
• ASIX chipset
• 1 x RJ-45 (STP) port, USB female type A
• Compliant with 10/100/1000 Mbps standard
• Plug & Play
• Power supply via USB bus
• Suitable for all typical network environments
• Support for Windows 98SE/ME/2000/XP/Vista 32 and Vista 64
• 1 x RJ 45 connector for 10/100/1000Mbps transmission
• Realtek Chipset 8110
• Bus Interface: PCMCIA Type II
• Auto MDI / MDI-X function
• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Transmit/Receive FIFO (8k/64k) support
• Supports power down/link down power saving
• LEDs indicate link/activity
• Support for Windows 98SE/ME/NT/2000/XP/Vista
• Accessories: 1x manual, 1x driver CD
233510 / DN-3022
256984 / DN-10121
Gigabit Ethernet USB 2.0 adapter
Gigabit Ethernet Cardbus adapter
103
Fast Ethernet Products
DIGITUS® Fast Ethernet PCI
network card
DIGITUS® Fast Ethernet Cardbus
adapter
DIGITUS® Fast Ethernet USB 1.1
adapter
• Realtek Chipset
• IEEE 802.3 and IEEE 802.3u compatible
• 20/200 Mbit full duplex
• PCI Local Bus Rev.2.1 and 2.2 compatible
• Suitable for all typical network environments
• IEEE 802.3 and IEEE 802.3u compatible
• 32 Bit PC-Card compatible
• 20/200 Mbit in full duplex
• PCI Local Bus Rev.2.1 and 2.2 compatible
• Suitable for all typical network environments
• Support for Windows 98,98SE,ME,2000,XP,Vista
• Ethernet IEEE 802.3 10BaseT compatible, USB 1.1 full speed
(up to 12 Mbps)
• 1x RJ-45(STP) port, USB female type A
• Realtek chipset
• Plug & Play
• Power supply via USB bus
• Suitable for all typical network environments
• Support for Windows ME,98SE,2000,XP,Vista
228677 / DN-1001J
136736 / DN-2002C
190653 / DN-3015
Fast Ethernet PCI network card
Fast Ethernet Cardbus adapter
Fast Ethernet USB 1.1 adapter
DIGITUS® Fast Ethernet USB 2.0
adapter
DIGITUS® ADSL2+ broadband modem router
• Ethernet IEEE 802.3 10BaseT compatible, USB 2.0 full speed
(up to 100 Mbps)
• 1x RJ-45 (STP) port, USB female type A
• ADM 8515 chipset
• Plug & Play
• Power supply via USB bus
• Suitable for all typical network environments
• Support for 2000,XP, 2003, Vista 32 and Vista 64
• Integrated Modem ITU-T G.992.3 G.992.4 G.922.5
(ADSL2 / ADSL2+)
• Downstream up to 24 Mbps and Upstream up to 2Mbps
• Compatible to ADSL
• Supported protocols: TCP/IP, PPPoE, PPPoA
• Functions: NAT, DHCP Server, DDNS, DMZ, Port forwarding
• LED indicator for: ADSLs+ activity, switching hub and Power LED
• Broadband routing and IP sharing via xDSL or cable modem
• Comprehensive NAT / SPI firewall
• 4x RJ 45 LAN, 1x RJ11 (ADSL)
221968 / DN-11008-1
)#2B?1421>4=?45=B?ED5B>>5H
202806 / DN-3016-A
211938 / DN-11008-A
Fast Ethernet USB 2.0 adapter
)#B?1421>4$?45=(?ED5B>>5H
104
DIGITUS®
Professional
Medienconverter
DIGITUS® Fast Ethernet Media Converter
•
•
•
•
•
•
•
•
•
•
10/100Base-TX to 100Base-FX
Multimode Dual Fiber
Distance up to 2km
Transforms wire based network media to fiber optic
High quality and excellent reliability
Auto MDI/MDI-X
Auto-negotiation of Full- and Half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Standalone Converter with external power supply
Mountable in 19" chassis
Multimode
256212 / DN-82020
Fast Ethernet Media Converter, SC / RJ45
256229 / DN-82010
Fast Ethernet Medienkonverter, ST / RJ45
DIGITUS® Gigabit Ethernet Media Converter
•
•
•
•
•
•
•
•
•
•
10/100/1000Base-TX to 1000Base-SX
Multimode Dual Fiber
Distance up to 0.5km
Transforms wire based network media to fiber optic
High quality and excellent reliability
Auto MDI/MDI-X
Auto-negotiation of Full- and Half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Standalone Converter with external power supply
Mountable in 19" chassis
Multimode
256236 / DN-82120
Gigabit Ethernet Media Converter, SC / RJ45
256267 / DN-82110
Gigabit Ethernet Medien Converter, ST / RJ45
DIGITUS® Gigabit Ethernet Media Converter, SC / RJ45
• 10/100/1000Base-TX to 1000Base-LX
• Singlemode Dual Fiber
• Distance up to 10km
• SC Connector / RJ45 Connector
• Transforms wire based network media to fiber optic
• High quality and excellent reliability
• Auto MDI/MDI-X
• Auto-negotiation of Full- and Half-duplex
• Diagnostic and monitoring LEDs for the status of power, link and act of the ports
• Standalone Converter with external power supply
• Mountable in 19" chassis
Singlemode
256250 / DN-82121
Gigabit Ethernet Media Converter, SC / RJ45
105
Power over Ethernet
DIGITUS® Passive PoE cable kit
DIGITUS® Passive PoE wall mount box
By using DIGITUS® Power over Ethernet products you can work without installing separate cables to supply
your Ethernet devices with electricity! As most networking products need to be supplied with power, one often
faces the problem that at places where you would like to mount your surveillance camera, as an example,
there is no outlet. Here is the way out of this problem: The DIGITUS® PoE products help you to mount your
network components wherever you want to! Then your devices will be powered over the existing network
cable.
By using DIGITUS® Power over Ethernet products you can work without installing separate cables to supply
your Ethernet devices with electricity! As most networking products need to be supplied with power, one often
faces the problem that at places where you would like to mount your surveillance camera, as an example,
there is no outlet. Here is the way out of this problem: The DIGITUS® PoE products help you to mount your
network components wherever you want to! Your devices will be powered over the existing network cable.
Two cables are included in the DIGITUS® Passive PoE Cable Set: The incoming cable features a connector
with the DC power supply unit and a connector the network connection with Cat 5e cable. The outgoing cable
serves a connection with the device. This way you can supply your devices with power within a maximum
range of 5 meters.
• 1x Incoming cable, featuring RJ45 plug, DC jack and RJ45 jack
• 1x Outgoing cable for the device, featuring RJ45 plug, DC plug and RJ45 jack
• Suitable for 5.5mm DC plugs
• Connection speed: 10/100 Mbit/s
• PVC coating
• Assignment: 1/2/3/6 for data transfer, 4/5/7/8 for power supply
• RJ45 LAN jack
• DC jack
• PoE (RJ45) jack
• Suitable for 5.5mm DC plugs
• Connection speed: 10/100 Mbit/s
• CAT 5e patch cable
• PVC coating
• RJ45 plug
• Assignment: 1/2/3/6 for data transfer, 4/5/7/8 for power supply
260240 / DN-95001
260257 / DN-95002
Passive PoE cable kit
Passive PoE wall mount box
DIGITUS® PoE Power Sourcing Equipment, PSE
DIGITUS® PoE Splitter, PD
By using DIGITUS® Power over Ethernet products you can work without installing separate cables to supply
your Ethernet devices with electricity! As most networking products need to be supplied with power, one often
faces the problem that at places where you would like to mount your surveillance camera, as an example,
there is no outlet. Here is the way out of this problem: The DIGITUS® PoE products help you to mount your
network components wherever you want to! Your devices will be powered over the existing network cable.
By using DIGITUS® Power over Ethernet products you can work without installing separate cables to supply
your Ethernet devices with electricity! As most networking products need to be supplied with power, one often
faces the problem that at places where you would like to mount your surveillance camera, as an example,
there is no outlet. Here is your way out of this problem: The DIGITUS® PoE products help you to mount your
network components wherever you want to! Your devices will be powered over the existing network cable.
Our DIGITUS® PoE PSE features 48V output voltage. You can use it to bridge a distance of up to 90 meters
to a device in need of electricity. This products compatibility with 802.3af standards ensures automatic PoE
identification and protects your legacy devices without PoE. Using DIGITUS® PoE PSE excludes accidental
damages caused by your current supply system.
Our DIGITUS® PoE Splitter is a switchable device you can use for various purposes. You can choose between
input voltages complying with 802.3af standards (40V-57V) and non-compliant input voltages (18V-55V).
This product features the following selectable output voltages: 5V, 1.5A; 9V, 1.2A, and 12V, 1A. You will be
prepared for the requirements of your remote device.
• Compatible with 802.3af standard
• 48V output voltage, 16 W
• LAN (RJ45) input jack
• PoE (RJ45) output jack
• Connection: 10/100 Mbit/s
• Input voltage selectable between 802.3af standard (40V - 57V) and 18V - 55V
• PoE (RJ45) input jack
• Selectable output voltages: 5V 1.5A, 9V 1.2A and 12V 1A
• LAN (RJ45) output jack
• DC output jack, 5.5mm (plug / plug cable included in delivery)
• Connection: 10/100 Mbit/s
• CAT 5e patch cable
260264 / DN-95101
260271 / DN-95201
PoE Power Sourcing Equipment, PSE
PoE Splitter
106
Wireless Presentation Server + Router
DIGITUS® Wireless Presentation Server
Wireless integration of computers into your home cinema!
The latest 11n wireless technology offers real HD video transmission to your projector, TV or, monitor. You can
watch movies or photos in the highest quality in your home cinema. Make yourself comfortable! Instead of surfing
the internet on your computer, transmit images to your TV! According to the motto „Technology must be fun!" we
emphasize the user friendly interface and the simple handling.
Perfect presentations
The DIGITUS® Wireless Presentation Server lifts your business meetings to a new level of performance. With
the integrated access point you can transfer your presentations wireless in a user friendly way from your PC to a
projector, TV, or monitor. The interfaces VGA or HDMI are supported. The software program is installed in only a
few seconds. Start your presentations now - without any hassle or swapping! The heading presenter can choose
whose turn it is.
Video mode:
• Wireless video transmission from computers to your projector, TV or, monitor
• Various video formats: MPEG 1/2, H.264, DivX
• FullHD support
Presentation Mode:
• Wireless presentation of your computer projects on a projector, TV screen, or monitor
• Multiple user login supported
• Moderation of a meeting via network or via a push button on the device
• User friendly interface
• Inclusive remote controller
• 300Mbps access point integrated, complying Draft 2.0 802.11n
• Supports the operating systems Microsoft Windows 2000, XP, and Vista
Hardware specifications:
• CPU: Sigma SMP8635
• 8MB Flash memory
• 128MB DDR1 RAM
• 2x USB connectors
• Video output: 1x HDMI, 1x VGA
• Audio output
• 10/100 RJ45 LAN port for connections with local networks
257936 / DN-7030
Wireless Presentation Server
DIGITUS® GreyRapid N & DIGITUS® BlackRapid N+
The DIGITUS® Router combines design from Germany with highest technology.
• Complies with IEEE 802.11g/b standards and is forward compatible to IEEE 802.11n Draft 2.0
• High-speed data rate – up to 150Mbps
• Obtain WAN IP by PPPoE/Static IP/PPTP/DHCP
• Supports WPS (WiFi Protected Setup) - Push button for auto connection to a wireless adapter
(adapter must support this feature)
• A hardware switch offers switching on/off of the Wireless LAN
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• NAT/NAPT IP Sharing
• Anti-DoS Firewall
• Virtual Server/DMZ
• Supports Special Applications(Port Triggers)
• Supports DDNS(DynDNS, TZO)
• VPN Pass Through(IPSec/PPTP)
• DHCP Server
• Web User Interface(Remote Configuration)
• System Status/Security Log
• Upgradeable Firmware
• 1x RJ45 WAN Port
• 4x RJ45 LAN Ports
• 1 Antenna (1T1R)
GreyRapid N
<13;([email protected]%
262206 / DN-7049-1
B5I([email protected]%
271>[email protected]<5D?
>[email protected]
262190 / DN-7059-1
<13;([email protected]%
>[email protected]
107
Wireless USB Adapter
DIGITUS® Wireless 300N auto installation
USB adapter
DIGITUS® Wireless 300N USB Adapter
Auto Installation
With the DIGITUS® Wireless 300N auto installation USB adapter you will not need any additional
drivers! The integrated RAM contains the driver software.
The adapter complies with Draft 802.11n the next generation wireless standard. Utilizing the advanced
MIMO technology, it can support the data transmission rate of up to 300Mbps and the coverage distance
is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth enables you to
enjoy rich media network applications without any interruption.
• Auto Installation - No additional drivers needed due to the integrated RAM
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate – up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• USB 2.0 interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
• 2 Antennas (1T2R)
• Supports WPS (WiFi Protected Setup) - Push button for auto connection to the network
257929 / DN-7054
Wireless 300N auto installation USB adapter
DIGITUS® Wireless 150N USB Adapter
This USB adapter complies with Draft 802.11n next generation wireless standard. Utilizing the advanced MIMO technology, it can support the data transmission rate of up to 300Mbps and the coverage
distance is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth enables
you to enjoy rich media network applications without any interruption.
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate – up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports WPS (WiFi Protected Setup)
• USB 2.0 interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
• 2 Antennas (1T2R)
221838 / DN-7053
Wireless 300N USB adapter
DIGITUS® Wireless 150N USB Adapter
Tinys
ize
• High speed data rate with up to 150Mbps
• Supports 64/128-bit WEP, WPA and WPA2 Encryption
• Compatible to USB 1.1 and USB 2.0 interface
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirements
• Status LEDs for Link and data transfer
• Complies with IEEE 802.11b and 802.11g standards and is compatible to the 802.11n Draft 2.0
• Drivers for Windows 2000/XP/XP64/Vista
• Suitable for all common network environments
• 1 Antenna (1T1R)
• Supports WPS (WiFi Protected Setup) - Push button for auto connection to the network
• Dimensions: 0.5 x 3.5 x 1.5 cm
• High speed data rate with up to 150Mbps
• Integrated 3 dBi antenna
• Supports 64/128-bit WEP, WPA and WPA2 Encryption
• Compatible to USB 1.1 and USB 2.0 interface
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirements
• Status LEDs for Link and data transfer
• Complies with IEEE 802.11b and 802.11g standards and is compatible to the 802.11n standard
• Drivers for Windows 2000/XP/XP64/Vista
• 1 Antenna (1T1R)
• Suitable for all common network environments
• Supports WPS (WiFi Protected Setup) - Push button for auto connection to the network
-"+!!" !
performance antenna
254652 / DN-7043-1
262909 / DN-7044
Wireless 150N USB adapter
Wireless 150N USB Adapter
108
Wireless PCI Adapter
DIGITUS® Wireless 300N PCI adapter, 3 antennas
This PCI adapter complies with Wireless LAN 802.11n Draft 2.0. The next generation wireless standard.
Utilizing the advanced MIMO technology, it can support the data transmission rate of up to 300Mbps
and the coverage distance is far than IEEE 802.11g/b products. Stable wireless connection and high
bandwidth enables you to enjoy rich media network applications without any interruption.
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate–up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirement
• Supports WPS(WiFi Protected Setup)
• 32-bit PCI interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
• 3 Antennas (2T3R)
221845 / DN-7056
Wireless 300N PCI adapter, 3 antennas
DIGITUS® Wireless 300N PCI adapter, 2 antennas
This PCI adapter complies with Draft 802.11n next generation wireless standard. Utilizing the advanced
MIMO technology, it can support the data transmission rate of up to 300Mbps and the coverage distance
is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth enables you to
enjoy rich media network applications without any interruption.
• High-speed data rate – up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirement
• Supports WPS (WiFi Protected Setup)
• 32-bit PCI interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
• 2 Antennas (1T2R)
243298 / DN-7066
Wireless 300N PCI adapter, 2 antennas
DIGITUS® Wireless 300N PCI Express adapter, 3 antennas
This PCI Express adapter complies with Draft 802.11n next generation wireless standard. Utilizing
the advanced MIMO technology, it can support the data transmission rate of up to 300Mbps and the
coverage distance is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth
enable you to enjoy rich media network applications without any interruption.
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate-up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirement
• Supports WPS(WiFi Protected Setup)
• PCI Express interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
• 3 Antennas (2T3R)
221869 / DN-7057
Wireless 300N PCI Express adapter
109
Wireless Cardbus- and ExpressCard Adapter
DIGITUS® Wireless 300N Cardbus adapter
This cardbus adapter complies with Draft 802.11n next generation wireless standard. Utilizing the advanced MIMO technology, it can support the data transmission rate of up to 300Mbps and the coverage
distance is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth enables
you to enjoy rich media network applications without any interruption.
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate – up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports QoS-WMM, WMM-PS function to meet the multimedia data bandwidth requirement
• Supports WPS (WiFi Protected Setup)
• 32-bit cardbus interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
221852 / DN-7051
Wireless 300N Cardbus adapter
DIGITUS® Wireless 300N ExpressCard adapter
This ExpressCard adapter complies with Draft 802.11n next generation wireless standard. Utilizing
the advanced MIMO technology, it can support the data transmission rate of up to 300Mbps and the
coverage distance is far than IEEE 802.11g/b products. Stable wireless connection and high bandwidth
enables you to enjoy rich media network applications without any interruption.
• Complies with 2.4GHz Draft 802.11n and backward compatible with IEEE 802.11g/b standards
• High-speed data rate – up to 300Mbps
• Supports 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK Security
• Suitable for all common network environments
• Supports advanced MIMO technology, enhancing the throughput and coverage range significantly
• Supports QoS-WMM, WMM-PS function to meet the multi-media data bandwidth requirement
• Supports WPS (WiFi Protected Setup)
• ExpressCard interface
• Status LEDs for Link and data transfer
• Drivers for Windows 2000/XP/XP64/Vista
221876 / DN-7052
Wireless 300N ExpressCard adapter
DIGITUS® Professional
110
Wireless LAN Antenna
DIGITUS® Wireless LAN
rod antenna
DIGITUS® Wireless LAN
rod antenna
DIGITUS® Wireless LAN
rod antenna
• Wireless LAN high performance rod antenna
• Frequency range: 2,4-2,4835GHz
• Gain: 5 dBi (reception)
• Omnidirectional
• Suitable for 2,4 GHz Wireless LAN
• Connected via RP-SMA socket
• Length: 19.7cm
• diameter: 12mm
• Suitable for all DIGITUS® Wireless LAN products
• Suitable stand: DN-70101 or DN-70106
• Wireless LAN high performance rod antenna
• Frequency Range: 2,4-2,4835GHz
• Omnidirectional
• Gain: 7 dBi (reception)
• Suitable for 2,4GHz Wireless LAN
• Connected via RP-SMA socket
• Length: 30cm
• diameter: 1.3cm
• Suitable for all DIGITUS® Wireless LAN products
• Suitable stand: DN-70106
• Wireless LAN high performance rod antenna
• Frequency Range: 2,4-2,4835GHz
• Omnidirectional
• Gain: 9 dBi (reception)
• Suitable for 2,4GHz Wireless LAN
• Connected via RP-SMA socket
• Length: 38.5cm
• diameter: 1.3cm
• Suitable for all DIGITUS® Wireless LAN products
• Suitable stand: DN-70106
179221 / DN-70100
200550 / DN-70104
200567 / DN-70105
Wireless LAN rod antenna, 5 dBi
Wireless LAN rod antenna, 7 dBi
Wireless LAN rod antenna, 9 dBi
DIGITUS® Wireless LAN
flat antenna
DIGITUS® Wireless LAN
patch antenna
DIGITUS® Wireless LAN
sector antenna
• Wireless LAN high performance flat antenna
• Frequency Range: 2,4-2,4835GHz
• Gain: 5 dBi (reception)
• Omnidirectional
• Suitable for 2,4GHz Wireless LAN
• Connection via RP-SMA socket
• Dimensions: 16.5x2.6x0.6cm
• Delivery includes hook and loop fastener
• Suitable for use with all DIGITUS® Wireless LAN products
• Wireless LAN high performance patch antenna
• Frequency Range: 2,4-2,4835GHz
• Gain: 10 dBi (reception)
• Directional antenna
• Suitable for 2,4GHz Wireless LAN
• Connection via RP-SMA socket
• Dimensions: 10x7.5x2.2cm
• Delivery includes adjustable wall bracket and adapter
• Can be used indoors and outdoors
• Suitable for use with all DIGITUS® Wireless LAN products
• Wireless LAN heavy-duty sector antenna
• Frequency Range: 2,4–2,4835GHz
• Impedance: 50 ± 5
• Gain: 12dBi (reception)
• Directional antenna
• Polarization: Vertical
• Weight: 300g ± 20g
• Connector type: RP-SMA socket
• Cable Type: RG-316
• Cable length: 1m
• Dimension: 23.3x11x5cm
• Color: grey
• Suitable for use with all DIGITUS® Wireless LAN products
233497 / DN-70107
187530 / DN-70102
192749 / DN-70103
Wireless LAN fl at antenna, 5dBi
Wireless LAN patch antenna, 10 dBi
Wireless LAN sector antenna, 12 dBi
111
Stand for Wireless LAN Antenna
DIGITUS® Magnetic stand for
wireless LAN antennas
• Cable length 0.75m
• Connecting plug: RP-SMA socket
• High power magnet
• Antenna stand: RP-SMA male
• Connection cable length: 0.75m
179238 / DN-70101
Magnetic stand for wireless LAN antenna
DIGITUS® Stand for
wireless LAN antennas
• Antenna stand for using with Wireless LAN rod antennas
• RP-SMA connectors
• Suitable for 2,4GHz Wireless LAN
• Connection cable length: 0.75m
200574 / DN-70106
Stand for wireless LAN antennas
DIGITUS® Stand for
wireless LAN antennas 802.11n / MIMO
• Antenna stand for using with wireless LAN rod antennas
• RP-SMA connectors
• Suitable for 2.4GHz Wireless LAN - IEEE 802.11n / MIMO
• Connection cable length 1.5m
• Diameter: 105mm
233503 / DN-70108
Stand for wireless LAN antennas 802.11n / MIMO
112
Printserver
DIGITUS® Fast Ethernet print server, parallel
DIGITUS® Wireless LAN print server, parallel
• Complies with IEEE 802.3, IEEE 802.3u Wired Ethernet standards
• Provides one parallel port to connect to printer
• Supports TCP/IP, IPX/SPX, NetBEUI and AppleTalk network protocols
• Supports LPR, IPP, SMB/TCP, Raw Printing and Unix Logical printing protocols
• Supports Peer-to-Peer Printing (TCP/IP/IPX/NetBEUI/AppleTalk)
• Supports Server-based printing (Novell NetWare and Windows)
• Compatible with all major operating systems (Windows 95/98/Me/NT/2000/XP/Vista, NetWare 3.x and
above, Unix/Linux)
• Supports DHCP Server and Client protocol
• Supports Web-based management, Windows Configuration Utility and SNMP protocol
• Provides easy-to-use installation, setup and diagnostic programs
• Incl. Power Supply
• Share printers with a Centronics port to all PCs through wired or wireless Network.
• Complies with IEEE 802.3, IEEE 802.3u wired Ethernet and IEEE 802.11g/b Wireless LAN standards
• Supports 10/100Mbps speed in wired networks and up to 54Mbps data rate in Wireless LAN networks
• Provides one Centronics port to connect to the printer
• Supports TCP/IP, IPX/SPX, NetBEUI and AppleTalk network protocols and LPR, IPP, SMB/TCP, Raw Printing
and Unix Logical printing protocols
• Supports peer-to-peer printing (TCP/IP/IPX/NetBEUI/AppleTalk) and server-based printing (Novell
NetWare and Windows).
• Compatible with all major operating systems (Windows 95/98SE/Me/NT/2000/XP/2003/Vista, NetWare
(3.x above, MAC OS and Unix/Linux)
• Supports DHCP Server and Client protocol
• Supports Web-based management and Windows Configuration Utility
• Provides easy-to-use Windows installation and setup program
• Supports fault-tolerant firmware upgrade capability
209782 / DN-13001-W
200420 / DN-13016
Fast Ethernet print server, parallel
Wireless LAN print server, parallel
DIGITUS® Fast Ethernet print server, USB 2.0
DIGITUS® Wireless LAN print server, USB 2.0
• Complies with IEEE 802.3, IEEE 802.3u Wired Ethernet standards
• Provides one USB 2.0 port to connect to printer
• Supports TCP/IP, IPX/SPX, NetBEUI and AppleTalk network protocols
• Supports LPR, IPP, SMB/TCP, Raw Printing and Unix Logical printing protocols
• Supports Peer-to-Peer Printing (TCP/IP/IPX/NetBEUI/AppleTalk)
• Supports Server-based printing (Novell NetWare and Windows)
• Compatible with all major operating systems (Windows 95/98/Me/NT/2000/XP/Vista, NetWare 3.x and
above, Unix/Linux)
• Supports DHCP Server and Client protocol
• Supports Web-based management, Windows Configuration Utility and SNMP protocol
• Provides easy-to-use installation, setup and diagnostic programs
• Incl. Power Supply
• Share printers with a USB port to all PCs through wired or wireless Network
• Complies with IEEE 802.3, IEEE 802.3u wired Ethernet and IEEE 802.11g/b Wireless LAN standards
• Supports 10/100Mbps speed in wired networks and up to 54Mbps data rate in Wireless LAN networks
• Provides one USB 2.0 port to connect to printer
• Supports TCP/IP, IPX/SPX, NetBEUI and AppleTalk network protocols and LPR, IPP, SMB/TCP, Raw Printing
and Unix Logical printing protocols
• Supports peer-to-peer printing (TCP/IP/IPX/NetBEUI/AppleTalk) and server-based printing (Novell
NetWare and Windows).
• Compatible with all major operating systems (Windows 95/98SE/Me/NT/2000/XP/2003/Vista, NetWare
(3.x above, MAC OS and Unix/Linux).
• Supports DHCP Server and Client protocol
• Supports Web-based management and Windows Configuration Utility
• Provides easy-to-use Windows installation and setup program
• Supports fault-tolerant firmware upgrade capability
221913 / DN-13003-W
200413 / DN-13014
Fast Ethernet print server, USB 2.0
Wireless LAN print server with USB 2.0 interface
113
Multifunctionsserver
DIGITUS® 3-Port Fast Ethernet print server
• Comply with IEEE 802.3, IEEE 802.3u Wired Ethernet standards
• Provides two USB 2.0 and one parallel port to connect the printers
• Supports TCP/IP, IPX/SPX, NetBEUI, Rendezvous, AppleTalk and IPv6 network protocols
• Supports LPR, IPP, Raw Printing and Unix Logical printing protocols
• Supports Peer-to-Peer Printing (TCP/IP/IPX/NetBEUI/AppleTalk)
• Supports Server-based printing (Novell NetWare and Windows)
• Compatible with all major operating systems (Windows 95/98/Me/NT/2000/XP/Vista, NetWare 3.x and
above, Unix/Linux)
• Supports DHCP Server and Client protocol
• Supports Web-based management and Windows Configuration Utility
• Provides easy-to-use installation, setup and diagnostic programs
• Incl. Power Supply
DIGITUS® Mini multifunctionserver, USB 2.0
Print- File- and Scanserver in one device
• Share USB 2.0 High-speed Devices on the network
• Provide one USB 2.0 High-speed host port
• Share Printers, Storage Devices and Scanner on the Network
• NetUSB integrated
• Share USB Hard disk(FAT 16 and FAT 32), flashdrive and Cardreader
• Support Single user NTFS hard drive access
• Support SMB/CIFS and FTP file server with user level security
• LAN: 10/100 Mbps
• Provides Windows Tool for Windows 98SE/ME/2000/2003/XP/Vista
• Supports Easy Setup through Web Browser
• Dimension: (WxDxH) 79x60x22mm
221883 / DN-13006-W
211853 / DN-13008
1CDD85B>5D'B9>D)5BF5B'?BD+)'[email protected]<<5<
Mini multifunctionserver, USB 2.0
DIGITUS® Multifunctionserver, 2-port USB 2.0
DIGITUS® Wireless LAN multifunctionserver,
2-port USB 2.0
Print- File- and Scanserver in one device. NetUSB integrated
Wireless Print- File- and Scanserver in one device. NetUSB integrated
• Share USB 2.0 devices on the network
• Provides two USB 2.0 host ports
• Share Printers, Storage Devices and Scanner on the Network
• NetUSB integrated
• Share USB Harddisk (FAT16 and FAT32), flashdrive and Cardreader
• Support Single user NTFS hard drive access
• Support SMB/CIFS and FTP file server with user level security
• LAN: 10/100 Mbps
• Provides Windows Tool for Windows 98SE/ME/2000/2003/XP/Vista
• Supports Easy Setup through Web Browser
• Dimension: (WxDxH) 100 x 70 x 26mm
• Share USB 2.0 High-speed Devices on the network
• Provide two USB 2.0 High-speed host port
• Share Printers, Storage Devices and Scanner on the Network
• NetUSB integrated
• Share USB Harddisk (FAT 16 and FAT 32), flashdrive and Cardreader
• Support Single user NTFS hard drive access
• Support SMB/CIFS and FTP file server with user level security
• LAN: 10/100 Mbps
• Wireless LAN IEEE 802.11g, 54Mbps
• Provides Windows Tool for Windows 2000/2003/XP/Vista
• Supports Easy Setup through Web Browser
• Dimension: (WxDxH) 103 x 74 x 25mm
198727 / DN-13007
211860 / DN-13018
$E<D96E>3D9?>[email protected]?BD+)
-9B5<5CC#%=E<D96E>3D9?>[email protected]?BD+)
114
Powerline
DIGITUS® High-speed Powerline Router, 200 Mbps
• Usable for DSL / Cable - Modem
• Powerline High-speed Ethernet Bridge with Ethernet connection (RJ-45) for shared Internet access
via DSL modem over the existing indoor power network
• Data transmission rates of up to 200 Mbps over the building‘s own power network
• Range of up to 200 meters through rooms and across floors
• Eavesdropping security through integrated encryption process
• 3-port 10/100M-Ethernet switch
• Auto MDI / MDI X Fast Ethernet switch
• Integrated firewall
• Web-based configuration
• Supports access control
• Supports DDNS to automatically update dynamic domains
262589 / DN-15017
[email protected]'?G5B<9>5([email protected]
DIGITUS® High-speed Powerline Wireless 300N Access Point
This product features a wireless LAN access point and a Powerline adapter in a single device! It offers
numerous and flexible opportunities to create or extend a local / in-house network by making wireless
LAN available even in distant parts of your house. Plug and play - this device can easily be installed as
an extension of your existing in-house power supply system - there is no need to reinstall your cable
system! This device turns every wall socket in your house into a wireless access point, connecting it with
the internet or a local network!
• 300 Mbps wireless LAN access point
• 200 Mbps Powerline adapter
• Highest security features due to the support of all common encryption methods
• Extention of existing wireless LAN networks featured by the WDS Repeater mode
• Compliant with Wireless LAN IEEE 802.11b/g and IEEE 802.11n draft 2.0 standards
• Provides 128-bit AES Link Encryption with key management for secure Powerline communications
• Integrated enhanced Quality of Service (QoS) features
• Web user interface (remote configuration)
262565 / DN-15018
[email protected]'?G5B<9>5-9B5<5CC%335CC'?9>D
115
Powerline
DIGITUS® High-speed Powerline Ethernet adapter, 85 Mbps
• Powerline high-speed Ethernet Bridge with Ethernet connection (RJ-45) for shared Internet access
via DSL modem over the existing indoor power network
• Data transmission rates of up to 85 Mbps over the building‘s own power network
• Downward compatible to DIGITUS® 14 Mbps Powerline Adapter
• Range of up to 150 meters through rooms and across floors
• Eavesdropping security through integrated encryption process
• Particularly compact design-no larger than a plug-in power adapter
• 3 Country specific plugs included
• Supports the operating systems Microsoft Windows 98SE, ME, 2000 or XP, Vista
233466 / DN-15013
[email protected]'?G5B<9>5D85B>[email protected][email protected]
DIGITUS® High-speed Powerline Ethernet adapter, 200 Mbps
• Powerline High-speed Ethernet Bridge with Ethernet connection (RJ-45) for shared Internet access
via DSL modem over the existing indoor power network
• Data transmission rates of up to 200 Mbps over the building‘s own power network
• Range of up to 150 meters through rooms and across floors
• Eavesdropping security through integrated encryption process
• Particularly compact shape-no larger than a plug-in power adapter
• Supports the operating systems Microsoft Windows 98SE, ME, 2000 or XP, Vista
240778 / DN-15019
[email protected]'?G5B<9>5D85B>[email protected][email protected]
DIGITUS® High-speed Powerline Coaxial Ethernet adapter, 200 Mbps
From now on you got two options to establish a network connection: First option is you use the existing powerline,
second option is you use the existing coax cable line.
The Powerline Coaxial Ethernet adapter is able to establish a connection, where common adapters are failing. If there
are several seperate powerlines in a household, it is impossible to use common powerline adapters.
Not only cable TV users can benefit from the Powerline Coaxial adapter! If you have a legacy CCTV surveillance system,
it is no problem to send the signal of the CCTV cameras and the signal of newer IP cameras at the same time.
• Powerline High-speed Ethernet Bridge with Ethernet connection (RJ-45) for shared Internet access via DSL modem
over the existing indoor power network
• Coax plug for the network connection over the existing coaxial cable line without interruption of the analogue signal
• Data transmission rates of up to 200 Mbps over the building‘s own power network
• Range of up to 200 meters through rooms and across floors
• Eavesdropping security through integrated encryption process
• Supports the operating systems Microsoft Windows 2000, XP or Vista
262572 / DN-15019-1
[email protected]'?G5B<9>5?1H91<D85B>[email protected][email protected]
116
NAS Server
DIGITUS® NAS, 2-port SATA HDD enclosure
This powerfull Network Attached Storage System allows comfortable access to your data
With Gigabit connection nothing obstructs a passage at lightning speed. Offer all your
multimedia matters in your network. Transferring your data to NAS couldn‘t be easier.
Via USB-Connection you copy by push of a button. So a backup of your personal and
commercial data becomes a child’s play.
• Two HDD bays
• Easy HDD mounting
• Built-in FTP and Samba server
• Gigabit Ethernet
• Supports CIFS, FAT32, ext2, ext3 file systems
• Provides USB mass storage sharing function
• Share files via FTP or Network Neighborhood
• FTP/HTTP download agent
• Supports P2P download (Bit Torrent)
• Supports Media Server
• Supports iTunes Server
• Supports USB disk Auto-Copy function
• Web Configuration
243250 / DN-7024
NAS for 2 SATA HDDs, 2 USB mass storage devices
DIGITUS® External IDE to LAN / USB2.0 enclosure
• External enclosure for 3,5" hard disk drives with RJ45 network and USB 2.0 connectors
• NAS function (Network Attached Storage) to provide centralized data access and storage to the network
• Easy provides storage space for expansion, sharing and backup to the whole network
• Ideal, cost-efficient and mobile „stand alone" solution for office or home users
• RJ45 network connector for Fast Ethernet 10/100 Mbps
• High speed USB 2.0 port to serve as an external HDD connected to a computer, up to 480 Mbps data transfer
rate
• Internal Ultra ATA 133 IDE Interface
• Easy installation an administration by web interface - no additional driver software needed
• Provides FTP file server platform support
• Supported protocols: TCP/IP (Net BIOS Name Server), Microsoft Networks (CIFS/SMB), HTTP1.0 and
HTML2.0, DHCP Server / Client (auto detection), SNTP Client and Telnet Server
• LED indicators for operation, connection, data transfer
• Hot pluggable, hot swappable and Plug-n-Play capable
• Housing material aluminium, plastic
• Supported OS: WIN 98SE, 2000, ME, XP, Vista and MAC OS X
222347 / DA-70516
External HDD enclosure IDE to LAN / USB 2.0
233565 / DA-70520
HD5B>1<)*D?#%+)5>3<?CEB5
117
Dome Camera
DIGITUS® IP / CCTV Outdoor Speed Dome Camera
• 22x optical zoom with auto focus
• Intelligent auto tracking function to follow intruders
• Area Zoom functions – Draw a square in the live view with your mouse and the PTZ network camera
will zoom in the assigned area.
• Supports low light environment of 1 Lux
• External microphone input
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Pan 360°, Tilt 90°
• Resolution: 752x582 pixel (480 TV-Lines)
• Wall mount accessory exclusive
• Power supply not included
MPEG4
22x
Zoom
249573 / DN-16055
'*,&ED4??B)@554?=51=5B1
251712 / DN-16056
$?E>D9>72B13;5D6?BD85%)@5544?=531=5B1
252696 / DN-16057
PSU
The incorruptible security guards.
The DIGITUS® Security cameras have
been designed for outdoors and open
new opportunities for security in
your network environment.
118
IP Surveillance Camera
DIGITUS® IP / Analog Surveillance Camera
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 738x480 (420 TV-Lines)
MPEG4
249504 / DN-16050
IP / Analog Surveillance Camera
DIGITUS® IP / Analog Day & Night Surveillance Camera, MPEG 4
• Day & Night vision (IR)
• Built-in microphone & External microphone input
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 738x480 (420 TV-Lines)
• External audio out
MPEG4
Day&Night
249535 / DN-16051
IP / Analog Day & Night Surveillance Camera
DIGITUS® IP / Analog Day & Night Surveillance Camera, H.264
• Day & Night vision (IR)
• Built-in microphone & External microphone input
• Motion detection and alarm notification
• Real time H.264, MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 512 x 582 pixel (480 TV-Lines)
• External audio out
H.264
Day&Night
258568 / DN-16052
IP / Analog Day & Night Surveillance Camera, H.264
119
Camera Accessories
DIGITUS® Outdoor Camera Housing
DIGITUS® Mounting bracket for camera housing
• Outdoor Camera Housing
• Aluminium die casting
• Beige color
• Dimension: 157x155x428mm
• Window: 99x99mm
• Input Voltage: 220V
• Weight: 2,3kg
• Fan: on at 35°C +- 3°C, off at 25°C +- 3°C
• Heater: on at 15°C +- 3°C, off at 25°C +-3°C
• Protection class IP67
• Suitable for DN-16050, DN-16051, DN-16052 or smaller cameras
• Suitable bracket DN-16056-2
• Mounting bracket for camera housing
• Integrated cable duct
• Aluminium die casting
• Beige color
• Length: 210mm
• Maximum carrying capacity: 10kg
• Swivel angle: 360°
• Weight: 0,45kg
• Suitable for camera housing DN-16056-1
261513 / DN-16056-1
261520 / DN-16056-2
Outdoor Camera Housing with heater and fan
Mounting bracket for camera housing
DIGITUS® Inner corner bracket
DIGITUS® Outer Corner bracket
• Bracket for inner corner
• Material: Iron, painted
• Maximum carrying capacity: 10kg
• Dimensions: 170x120x30mm
• Weight: 0.82kg
• Suitable for bracket DN-16056, DN-16056-2
• Bracket for outer corner
• Material: Iron, painted
• Maximum load capacity: 10kg
• Dimensions: 145x120x110mm
• Weight: 1.4kg
• Suitable for bracket DN-16056-2
261537 / DN-16056-3
261544 / DN-16056-4
Inner corner bracket
Corner bracket
120
Datacom
High-Quality 19" LCD-KVM Konsole, modulare Bauweise ........... 122
19" LCD-KVM consoles .................................................................. 124
KVM switches and extender .......................................................... 126
KVM cables and accessories ........................................................ 129
Video Solutions .............................................................................. 131
High-Quality 19" LCD-KVM console, modular based
DIGITUS® Professional 19" KVM-TFT Konsolen
The professionally DIGITUS® KVM console offers through his absolute modular construction many of
possibly individual applications. The console can be composite for his intended application range. Therefore
this console is on the one hand cost-saving as well as upgrade- and rebuildable at every time and warrants
a high future-proof.
The console consists out of four main parts which can be ordered separately and comfortable and easy are
composed of following elements to match favored control element:
1. The main console, composed of the console-frame with monitor and touchpad
2. The 19” mounting frames for the mounting parts in a cabinet
3. A keyboard
4. A KVM-module
The matching connecting cables for every KVM-module are also available.
mounting frame
The main console
The main console consists of a rugged metal mounting frame, one 17" or 19" TFT-monitor and a built in touchpad.
Prominent features are:
• Rugged metal frame
• 1U construction
• Modular capability of connecting for touchpad, keyboard, monitor, 19” mounting frame and KVM-module
• Touchpad with simulated scroll-wheel control
• Two selectable monitors:
• 17" monitor (DS-75100)
• Resolution:
• Active screen area:
• Pixel-Pitch:
• Brightness:
• Contrast:
• Maximum angle:
1280x1024 Pixel at 60/70/75Hz
337,9x270,3(mm)²
0,264(H)x0,264(V)(mm)
300(cd/m²)
800:1
~80°
• 19" monitor (DS-76100)
• Resolution:
• Active screen area:
• Pixel-Pitch:
• Brightness:
• Contrast:
• Maximum angle:
1280x1024 Pixel at 60/70/75Hz
376,3x301,1(mm)²
0,294(H)x0,294(V)(mm)
300(cd/m²)
800:1
~85°
The 19" mounting frame
Depending on the cabinet installation depth are two several mounting frames selectable:
• DS-70100: For cabinet installation depth of 40cm (15"3/4) to 77cm (30" 5/16),
Lenght: 385mm (15" 3/20)
• DS-70101: For cabinet installation depth of 59cm (23" 7/32) to 96cm (37" 3/4),
Length: 575mm (22" 13/20)
Keyboards
The ergonomical keyboards are manufactured custom-fit for the console and will be connect easily via Mini-USB.
Layouts are available for the following countries:
Germany (DS-70000GE), United Kingdom (DS-70000UK), USA (DS-70000US),
France (DS-70000FR), Italy (DS-70000IT), Spain (DS-70000ES), Portugal (DS-70000PT)
More keyboard layouts after request.
detailed view
122
High-Quality 19" LCD-KVM console, modular based
The KVM-modules
Several KVM-modules are available for the console which are close to leave nothing to be desired.
The connection uses a built in connector from the console frame to the KVM-module.
Available are six modules with an eight or sixteen KVM-ports and with or without IP access.
DS-11210:
DS-11215:
DS-13210 / DS-14210:
DS-13215 / DS-14215:
Combo-KVM module for USB and PS/2, 1-Port
• Direct connection to a server or to an already existing KVM
• Video resolution up to 1920x1440 pixels; supports DDC2B
• Dimensions (WxDxH): 40x404x114mm; 1.02x15.91x4.49"
Combo-KVM module for USB and PS/2, 1-port, with IP access possibility
• Direct connection to a server or to an already existing KVM
• TCP/IP access possibility via web browser or VNC client
• Own internal firewall and security management functions
• Special On-Screen-Display menu
• Video resolution up to 1600x1200 pixels at 85Hz
• Dimensions (WxDxH): 43x404x220mm; 1.69x15.91x8.66"
Combo-KVM module for USB and PS/2, 8-ports or 16-ports
• Direct connection to a server or to an already existing KVM
• Auto scan function
• Password protection
• Special On-Screen-Display menu
• Video resolution up to 1920x1440 pixels; supports DDC2B
• Dimensions (WxDxH): 40x404x114mm; 1.02x15.91x4.49"
Combo-KVM module for USB and PS/2, 8-ports or 16-ports, with IP access possibility
• Direct connection to a server or to an already existing KVM
• Auto scan function
• Password protection
• TCP/IP access possibility via web browser or VNC client
• Own internal firewall and security management functions
• Special On-Screen-Display menu
• Video resolution up to 1600x1200 pixels at 85Hz
• Dimensions (WxDxH): 43x404x220mm; 1.69x15.91x8.66"
PS/2 connection cable
The Cables
The KVM connection cables are available from 1.8m (6’) up to 6.0m (20’)
PS/2:
DS-19111 (1,8m; 6’), DS-19112(3,0m; 10’), DS-19113(6,0m; 20’)
USB:
DS-19211 (1,8m; 6’), DS-19212(3,0m; 10’), DS-19213(5,0m; 20’)
For more details about the separate components please visit our website www.digitus.info.
USB connection cable
Product overview:
258667 / DS-75100
258773 / DS-11210
17" LCD Console, basic frame
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BD
258674 / DS-76100
258780 / DS-11215
19" LCD Console, basic frame
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BDG9D8 '1335CC
258919 / DS-70100
258797 / DS-13210
Mounting frame for modular based console, 385mm
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BD
258926 / DS-70101
258803 / DS-13215
Mounting frame for modular based console, 575mm
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BDG9D8 '1335CC
258681 / DS-70000GE
258810 / DS-14210
Keyboard for modular designed console, German
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BD
258698 / DS-70000UK
258827 / DS-14215
Keyboard for modular designed console, English
",$=?4E<56?B=?4E<1B21C543?>C?<[email protected]?BDG9D8 '1335CC
258704 / DS-70000US
258834 / DS-19111
Keyboard for modular designed console, American
')3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
258711 / DS-70000FR
258841 / DS-19112
Keyboard for modular designed console, French
')3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
258728 / DS-70000IT
258858 / DS-19113
Keyboard for modular designed console, Italian
')3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
258735 / DS-70000ES
258865 / DS-19211
Keyboard for modular designed console, Spanish
+)3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
258742 / DS-70000PT
258841 / DS-19112
Keyboard for modular designed console, Portugal
')3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
258858 / DS-19113
')3?>>53D9?>312<56?B=?4E<1B21C543?>C?<5=
123
19" LCD-KVM consoles
DIGITUS® 19" console with 15" TFT,
keyboard & touchpad
The DIGITUS® TFT consoles are a spacesaving and functional solution for a comfortable connection
to PCs, servers or KVM installations in a rack-mounting area. They combine three devices in one and
occupy only 1U in a rack.
• Non reflective and break-proof 15‘‘ LCD monitor
• Active Matrix LCD Panel
• Max. resolution: 1024x768 pixels at 75Hz, Cl. II
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 250cd/m2, response time 12ms
• Audio Speaker support (1x3.5mm Stereo Plug)
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 12.1kg
• Package content: 1x LCD Console, 1x USER Manual, 1x Power Cord, 2x Rack-Mount Brackets;
12x Screws (for Brackets); 2x Key
Consoles also available with other Keyboard layouts on request.
useable
cabeltyp:
P.: 129
Connection cable not in scope of delivery.
233534 / DC-71101GE
19" console 15" TFT, german keyboard
233558 / DC-71101US
3?>C?<5**+);5I2?1B4
233541 / DC-71101FR
19" console 15" TFT, french keyboard
DIGITUS® 19" console with 17" TFT,
keyboard & touchpad
The DIGITUS® TFT consoles are a spacesaving and functional solution for a comfortable connection
to PCs, servers or KVM installations in a rack-mounting area. They combine three devices in one and
occupy only 1U in a rack.
• Non reflective and break-proof 17‘‘ LCD monitor
• Active Matrix LCD Panel
• Max. resolution: 1280x1024 pixels at 60Hz, Cl.II
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 300cd/m², response time 8ms
• Audio Speaker support (1x3.5mm Stereo Plug)
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 13.2kg
• Package content: 1x LCD Console, 1x USER Manual, 1x Power Cord, 2x Rack-Mount Brackets;
12x Screws (for Brackets); 2x Key
Consoles also available with other Keyboard layouts on request.
useable
cabeltyp:
P.: 129
Connection cable not in scope of delivery.
233749 / DC-72101GE
19" console 17" TFT, german keyboard
233763 / DC-72101US
3?>C?<5**+);5I2?1B4
233756 / DC-72101FR
19" console 17" TFT, french keyboard
124
19" LCD-KVM consoles
DIGITUS® 19" console 15" TFT with 4-/8-/16-port KVM switch
The DIGITUS® TFT consoles with integrated KVM are a spacesaving and functional solution for a
comfortable connection to several PCs or servers in a rack-mounting area. They combine four devices in
one and occupy only 1U in a rack.
• 19” Control Panel with 15” TFT, keyboard, touchpad and built-in KVM switch
• Control up to 256 computers by cascading KVM
• PC selection via push button on front panel, hot key, mouse clicking or through OSD menue
• Monitors PC status by Auto Scan function
• Non reflective and break-proof 15‘‘ LCD monitor
• Active Matrix LCD Panel
• Max. resolution: 1024x768 pixels at 75Hz, Cl.II, and supports EDID & DDC2 of each PC
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 250cd/m², response time 12ms
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 12.2 / 12.25 / 12.3kg
• Package content: 1x LCD Console with integrated KVM, 1x USER Manual, 1x Power Cord,
1x Firmware Upgrade cable; 2x Rack-Mount Brackets; 12x Screws (for Brackets); 2x Key
useable
cabeltyp:
P.: 130
useable
cabeltyp:
P.: 130
Consoles also available with other Keyboard layouts on request.
Connection cables not in scope of delivery.
233657 / DC-71301GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233671 / DC-71301US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233664 / DC-71301FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
233688 / DC-71302GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233701 / DC-71302US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233695 / DC-71302FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
233718 / DC-71401GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233732 / DC-71401US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233725 / DC-71401FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
DIGITUS® 19" console 17" TFT with 4-/8-/16-port KVM switch
The DIGITUS® TFT consoles with integrated KVM are a spacesaving and functional solution for a
comfortable connection to several PCs or servers in a rack-mounting area. They combine four devices in
one and occupy only 1U in a rack.
• 19” Control Panel with 17” TFT, keyboard, touchpad and built-in KVM switch
• Control up to 256 computers by cascading KVM
• PC selection via push button on front panel, hot key, mouse clicking or through OSD menue
• Monitors PC status by Auto Scan function
• Non reflective and break-proof 17‘‘ LCD monitor
• Active Matrix LCD Panel
• Max. resolution: 1280x1024 pixels at 75Hz, Cl.II, and supports EDID & DDC2 of each PC
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 300cd/m², response time 8ms
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 13.3 / 13.35 / 13.4kg
useable
cabeltyp:
• Package content: 1x LCD Console with integrated KVM, 1x USER Manual, 1x Power Cord,
P.: 130
1x Firmware Upgrade cable; 2x Rack-Mount Brackets; 12x Screws (for Brackets); 2x Key
useable
cabeltyp:
P.: 130
Consoles also available with other Keyboard layouts on request.
Connection cables not in scope of delivery.
233770 / DC-72301GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233800 / DC-72301US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233787 / DC-72301FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
233817 / DC-72302GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233831 / DC-72302US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233824 / DC-72302FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
233848 / DC-72401GE
3?>C?<5**[email protected]?BD",$75B=1>;5I2?1B4
233862 / DC-72401US
3?>C?<5**[email protected]?BD",$+);5I2?1B4
233855 / DC-72401FR
3?>C?<5**[email protected]?BD",$6B5>38;5I2?1B4
125
KVM switches and extender
DIGITUS® USB-PS/2 Combo-KVM switch with OSD, HJ
• Controls several PCs with one PS/2- or USB-keyboard, one PS/2- or USB-mouse and
one monitor
• Simple installation - no additional software needed
• PC-choice over push-buttons, Hot-Key or OSD (On Screen Display)
• Excellent video quality - up to 2048x1536 pixels at 85Hz
• Supports DDC, DDC2
• Hot Plug and Play
• Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error
• Autoscan (5 to 250 sec.)
• incl. external power supply unit DC 5V 2A
• incl. 19"-Rack mounted iron panel with screw (DC-15002 => also separately available)
• Fully compliant with the USB 1.1/ 2.0 specification
• Supports Windows 95/98/98SE/ME/NT4.0/2000/2003 Server/XP/VISTA, Linux,
Mac and Sun Micro Systems
useable
cabeltyp:
P.: 130
useable
cabeltyp:
P.: 130
useable
cabeltyp:
P.: 130
useable
cabeltyp:
P.: 130
Connection cables not in scope of delivery.
201021 / DC-13201
+)')?=2?",$CG9D38G9D8&)@?BD
201038 / DC-14201
+)')?=2?",$CG9D38G9D8&)'?BD
DIGITUS® USB-PS/2 Combo-KVM switch with OSD, HJ
This high quality KVM switch is ideal for using in small to middle sized server rooms and provides direct
connection to eight server. Due to the possibility to upgrade the firmware, it fits simply to all new conditions.
• Controls several PCs with one PS/2- or USB-keyboard, one PS/2- or USB-mouse and one monitor
• Extension via cascading possible
• Simple installation - no additional software needed
• PC-choice over push-buttons, Hot-Key or OSD (On Screen Display)
• Excellent video quality - up to 2048x1536 pixels at 85Hz
• Supports DDC, DDC2
• Hot Plug and Play
• Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error
• Autoscan (5 to 250sec.)
• Incl. external power supply unit DC 5V 2A
• Incl. 19"-Rack mounted iron panel with screw (DC-15002 => also separately available)
• Fully compliant with the USB 1.1/ 2.0 specification
• Upgrade of firmware is possible
• Supports Windows 95/98/98SE/ME/NT4.0/2000/2003 Server/XP/VISTA, Linux, Mac and Sun Micro Systems
• Dimension (LxWxH; Weight): 440x157x45mm (17.3x6.1x1.5inch); 1750g (DS-13202), 1900g (DS-14202)
• Package contents: 1x KVM switch; 1x user manual, 1x power adapter; 1x 19" mounting frame
258407 / DS-13202
+)')?=2?",$CG9D38G9D8&)@?BD
258414 / DS-14202
+)')?=2?",$CG9D38G9D8&)@?BD
DIGITUS® KVM extender over CAT5
• The extension of VGA, PS/2 keyboard, PS/2 mouse signal up to 300 meter away by using the KVM
Extender and one CAT5 cable.
• Max.resolution 1280x1024 pixel
• Support Auto/Manual video quality adjustment.
• Support video gain, equalization and RGB skew adjust.
• Support 3 hot key to combine other equipment.
• Two control privilege modes – „Share" & „Local only".
• Extra console port is available on Local side.
• Auto console selection between Local and Remote.
223825 / DC-51101
",$5HD5>45B=<?31<B5=?D5
232711 / DC-51102
",$5HD5>45B=<?31<B5=?D5
126
Connection cables not in scope of delivery.
KVM Combo Extender
DIGITUS® USB-PS/2 Combo-KVM Switch with OSD
The Combo KVM Extender allows an extension of VGA video, USB and PS/2 signals up to a distance of
200 meter away of the signal source. With the built-in video and keyboard/mouse signals enhancement
the best video resolution quality is gained.
• Extend keyboard, video and mouse signals via Cat 5 cable
• Dual console operation – Control your system from both the local and remote side.
• Push button at local side to select active console
• Available active console option: local / remote / local and remote
• Support connection of USB and / or PS/2 keyboard / mouse for local and remote console arbitrarily
• Support connection of USB and / or PS/2 interface to computer at local side arbitrarily
• Support high resolution up to 1280x1024 pixel at 60Hz
• DDC2B support for remote monitor
• Adjustable control of focus, brightness and color skew to improve video quality at remote side
• No software or driver installation required
• Support BIOS level operation
• LEDs on each device to indicate the active console and connection status
• Firmware upgradeable
• Compatible with Windows® Vista/ Server 2003/ XP/ 2000/ ME/ 98SE, DOS, Linux, Mac OS9 and
higher and Sun Microsystems
• Dimensions local / remote (LxWxH): 125x78x46mm
• Package contains: 1x local unit; 1x remote unit; 1x user manual; 1x VGA female to male cable,
2x PS/2 male to male cable; 2x power adaptor DC 5V 2A
Local
Remote
263142 / DS-51110
",$?=2?HD5>45B
127
KVM switches and extender
DIGITUS® desktop KVM switch PS/2, OSD, 19", 8-port
• Controls up to eight PCs via a PS/2 keyboard, a PS/2 mouse and a monitor
• Easy installation - no additional software required
• PC selection via buttons, hot keys or mouse click
• Clear on-screen display (OSD)
• Excellent video quality - up to 1920x1440 pixels, 200MHz bandwidth
• Supports DDC, DDC2, DDC2B, DDC2AB
• Hot plug and play
• Keyboard and mouse emulation for error free booting of the computer
• Autoscan ( 5,10,15,20,25,30 sec. options) / autoskip function
• Power supply via mains adaptor; included
• Incl. 19" installation bracket 1HE
• Supports Standard-PS/2-Maus, Microsoft IntelliMouse plus complete support
for Microsoft IntelliPoint 5.0 mouse drivers & Logitech Mouse ware-drivers
• Supports Windows 95/98/98SE/ME/NT4.0/2000/XP/VISTA, DOS, Linux, FreeBSD
useable
cabeltyp:
P.: 129
useable
cabeltyp:
P.: 129
useable
cabeltyp:
P.: 129
Connection cables not in scope of delivery.
258186 / DS-13112
",$CG9D38')G9D8=?EC53<93;9>7&)@?BD
DIGITUS® desktop KVM switch PS/2
• Controls several PCs via a PS/2 keyboard, a PS/2 mouse and a monitor
• Easy installation - no additional software required
• PC selection via buttons, hot keys or mouse click (hot key function can be switched off)
• Excellent video quality - up to 1920x1440 pixels, 200MHz bandwidth
• Supports DDC, DDC2, DDC2B, DDC2AB
• Hot plug and play
• Keyboard and mouse emulation for error free booting of the computer
• Autoscan ( 5,10,15,20,25,30 sec. options) / autoskip function
• Incl. 19" installation brackets 1HE
• Supports Standard-PS/2-Maus, Microsoft IntelliMouse plus complete support for Microsoft
IntelliPoint 5.0 mouse drivers & Logitech Mouse ware-drivers
• Supports Windows 95/98/98SE/ME/NT4.0/2000/XP/VISTA, DOS, Linux, FreeBSD
useable
cabeltyp:
P.: 129
useable
cabeltyp:
P.: 129
useable
cabeltyp:
P.: 129
Connection cables not in scope of delivery.
258162 / DS-13110
",$CG9D38')G9D8=?EC53<93;9>[email protected]?BD
258179 / DS-13111
",$CG9D38')G9D8=?EC53<93;9>[email protected]?BD
DIGITUS® RS232 extender, 1000m
• Compatible with all RS232 protocols.
• Full-duplex data communication.
• Sends RS232 data at 230kbps up to 1000m (3300ft.)
• Pure hardware solution - real time data transfer, no software conflicts.
• Transfer data or files between PCs, equipments.
• Extension over CAT5 cable
223887 / DC-52101
RS232 extender
128
KVM cables and accessories
KVM cable
for e.g. manual switches
and KVM consoles
Octopus cable set for KVM switches with PS/2-connectors and VGA-female connectors
2x MiniDIN6 (PS/2) male <-> 2x MiniDIN6 (PS/2) male
1x HDB15 male <-> 1x HDB15 male
KVM cable
for DIGITUS® KVM switches,
(Basic-Line)
2x MiniDIN6 (PS/2) M <-> 2x MiniDIN6 (PS/2) M
1x HDB15 M <-> 1x HDB15 F
Color: black
Colored plugs: keyboard (purple), mouse (green), monitor (blue)
Cable Type
112822 / AK OC018MM
Cable Type
1,8 m
112846 / AK OC030MM
183051 / AK 806/GR
3,0 m
1,5 m
112853 / AK OC050MM
189701 / AK 806/GR-2M
5,0 m
2,0 m
112860 / AK OC100MM
189718 / AK 806/GR-3M
10,0 m
3,0 m
KVM cable
for DIGITUS® KVM switches,
(Basic-Line)
DIGITUS® KVM switch cable
with PS/2 to USB converter
2x MiniDIN6 (PS/2) M <-> 2x MiniDIN6 (PS/2) M
1x HDB15 M <-> 1x HDB15 F
Color: beige
Connectors color coded: keyboard (violet), mouse (green), monitor (blue)
• Built-in PS/2 to USB converter
• Cable length: 3 m
• Requires no external power supply
• Compatible with USB 1.1/2.0 specification
• Supports UHCI, OHCI, & EHCI USB controller
• For PS/2 KVM switches
• Works with PC, notebooks, Macintosh, SUN Micro
• DA-70150 - for KVM switches with FEMALE monitor connection
• DA-70151 - for KVM switches with MALE monitor connection
=> For DIGITUS® KVMs (Basic-Line)
Cable Type
050995 / AK 806/LC
=",$"125<=
051039 / AK 807/LC
=",$"125<=
051008 / AK 80605
Cable Type
=",$"125<=
051015 / AK 80607
169789 / DA-70150
=",$"125<=
",$312<5')D?+),=1<5=1<5=
051022 / AK 80610
169796 / DA-70151
=",$"125<=
",$312<5')D?+),65=1<5=1<5=
129
KVM cables and accessories
KVM cable
for DIGITUS® KVM switches,
(Combo-series)
PS/2 and USB long cable
for DIGITUS® KVM switches,
(Combo-series)
HDDB15/M <=> HDDB15/M, 2 x MiniDIN6/M, 1 x USB-A/M
color: black
Extra long connection cable length 10m for DIGITUS® Combo KVM switches
AK 82004:
HDDB15/M <=> HDDB15/M, 2 x MiniDIN6/M
color: black
AK 82304:
HDDB15/M < = > HDDB15/M, 1x USB-AIM
color: black
Cable Type
201151 / AK 82001
Cable Type
=",$12<5
=
201168 / AK 82002
223788 / AK 82004
=",$12<5
=
long cable only PS/2, 10m
201175 / AK 82003
223795 / AK 82304
=",$12<5
=
long cable only USB, 10m
DIGITUS® KVM cable PS/2
for DIGITUS® KVM consoles
DIGITUS® KVM cable USB
for DIGITUS® KVM consoles
2x MiniDIN6 (PS/2) male, 1x HDB15 male <-> 1x SPHD15 male
1x USB/A male, 1x HDB15 male <-> 1x SPHD15 male
• Suitable for DIGITUS® TFT consoles with integrated KVM
• Suitable for DIGITUS® TFT consoles with integrated KVM
• Built in PS/2 to USB converter
• Compatibel for USB specifications 1.0 , 1.1 and 2.0
• Support of UHCI, OHCI and EHCI host controller
Cable Type
Cable Type
254782 / DC-19101
255536 / DC-19201
1,8m
1,8m
254799 / DC-19102
255543 / DC-19202
3,0m
3,0m
254805 / DC-19103
255550 / DC-19203
5,0m
5,0m
130
Video Solutions
DIGITUS® DVI Repeater with HDCP support
DIGITUS® Active DVI to VGA conversion box
Extension of DVI (HDCP) signals of graphic cards or DVD player up to 24 meter away from the signal source
to DVI compatible displays such as LCD monitors or projectors or HDTV.
The repeater is ideal for test bench facilities, data center and help desks.
Diese Konverterbox konvertiert digitale Signale einer DVI-Videoquelle in analoge Signale. So ist es zum
This conversion box convert a digital signal from a DVI video source to an analog signal. So it is for example
possible to use an old analog monitor with a new DVI graphic card.
• Extension of DVI signals up to 24m
• HDCP Support
• Compliant with the specification of DVI 1.0
• Supports high-resolution display up to UXGA (25-165MHz), 480p, 480i, 720p, 1080i
• Use PanelLink digital technology
• Max. Resolution 1600x1200 pixels at 60Hz
• Maximum cable length: 12m
• Can be cascaded
• Dimensions (LxWxH, Weight): 118x75x29mm, 300g
• Package contents: 1x DVI repeater, 1x user manual, 1x power adapter DC 9V/600mA
• DVI to VGA converter - connect a video source with DVI connector to a monitor or projector with standard
VGA connection (HD DSUB 15)
• Compliant with the specification of DVI 1.0
• Max. cable length: 12m (single end)
• Max. resolution: 1600x1200 pixels at 60Hz
• Support high-resolution display up to UXGA (25-165MHz)
• Use PanelLink digital technology
• Package Contents: 1x conversion box, 1x user manual, 1x power adapter DC 9V/600mA,
1x DVI cable 1.2M (DVI-D Male to Male)
255789 / DC-54100
255574 / DC-40100
, ([email protected]'
, D?,3?>F5BC9?>2?H
DIGITUS® Active VGA to DVI conversion box
DIGITUS® Cat 5 Audio Extender
This conversion box convert an analog signal from a standard VGA video source to a digital DVI signal. So it
is for example possible to use an old analog graphic card with a new DVI monitor or projector.
With the DIGITUS® Cat 5 Audio Extender you are able to extend audio stereo and microphone signals up to
300 meter away by using the Audio Extender and one CAT5 cable.
• VGA to DVI converter - connect a video source with standard VGA connection (HD DSUB 15) to a monitor
or projector with DVI connector
• Compliant with the specification of DVI 1.0
• Max. cable length: 12m (single end)
• Max. resolution: 1600x1200 pixels at 60Hz
• Support high-resolution display up to UXGA (25-165MHz)
• Use PanelLink digital technology
• Package Contents: 1x conversion box, 1x user manual, 1x power adapter DC 9V/600mA,
1x VGA cable 1.2M (HD DSUB 15 Male to Male)
• Extension of audio signals up to 300m
• Audio Out supports multimedia speakers, Headphones or Earphones
• Mic In supports Condenser Microphone and Dynamic Microphone
• Built-in Microphone preamplifier
• Microphone gain can be adjustable
• Package contents: 1x Audio Extender Local Unit, 1x Audio Extender Remote Unit, 1x user manual,
1x power adapter DC 9V/300mA, 1x Connection cable to the audio source
255598 / DC-40200
254768 / DC-56100
,D?, 3?>F5BC9?>2?H
Cat 5 Audio Extender, 300m
131
Video Solutions
DIGITUS® VGA extender over CAT5
DIGITUS® VGA-RS232 extender over CAT5
Through the VGA Extender, you can use one PC to display identical image and extension of VGA signal
up to 180 meter on monitor.
• VGA extension over Cat5 cable
• Distance up to 180m between PC and monitor
• Video resolution up to 12801x1024 pixel at 60Hz
• VGA extension over Cat5 cable
• Connection of one remote display
• Connection of one Local display (only DC-53401)
• Equalization length is adjustable
• VGA signal gain is adjustable
• Package contents: 1x VGA Extender Local Unit, 1x VGA Extender Remote Unit, 1x user manual,
1x power adapter DC 12V/600mA, 1x VGA cable 1.2m cable (HD-15 Male to Male)
Example of use on P.134/135
255710 / DC-53100
,5HD5>45B=C9>7<[email protected]?BD
223894 / DC-53101
Through the VGA-RS232 extender you can receive a video an a RS232-control signal on a display in a
distance up to 300m.
• VGA amd RS232 extension over Cat5 cable
• Distance up to 300m between PC and monitor
• Video resolution up to 12801x1024 pixel at 60Hz
• Connection of one remote display
• Equalization length is adjustable
• VGA signal gain is adjustable
• Support RS232 pin: Tx, Rx, DTR, DSR, CTS, RTS (Expect CD, RI)
• RS232 support full-duplex data communication with Baudrate up to 19200bps
• Pure hardware solution - real time data transfer, no software conflicts
• Transfer data or files between PCs, equipments
• Dimensions (LxWxH, Weight): 93.5x74x26mm, 235g+240g (local+remote)
• Package contents: 1x VGA-RS232 extender local unit, 1x VGA-RS232 extender remote unit,
1x user manual, 1x power adapter DC 9V/600mA
,5HD5>45B=C9>7<[email protected]?BD
223900 / DC-53401
258124 / DS-52110
,5HD5>45B<?31<1>[email protected]?BD
,()5HD5>45B=C9>7<[email protected]?BD
DIGITUS® VGA extender / splitter over CAT5
Through the VGA Extender, you can use one PC to display indentical image and extension of VGA signal
up to 300m meter on monitors
• VGA extension over Cat5 cable
• Distance up to 300m between PC and monitor
• Video resolution up to 1280x1024 pixel at 60Hz
• Possibility to conect one local monitor
• Connection of two four or eight remote displays over remote units (not in scope of delivery)
• Equalization length is adjustable
• VGA signal gain is adjustable
DIGITUS® VGA extender-Remote unit
• Remoteunit for video-extender for a reach up to 180m or even up to 300m
• Dimensions (LxWxH, Weight): 92x34x22mm, 140g
• Package contents: 1x Remote Unit, 1x user manual, 1x power adapter DC 12V/600mA
Example of use on P.134/135
223917 / DC-53501
Example of use on P.134/135
,5HD5>[email protected]?BD
223924 / DC-53601
223948 / DC-59301
,5HD5>[email protected]?BD
(5=?D5E>9D6?BF945?5HD5>45B=
223931 / DC-53701
255796 / DC-59302
,5HD5>[email protected]?BD
(5=?D5E>9D6?BF945?5HD5>45B=
132
Video Solutions
DIGITUS® Cat 5 VGA Video distribution amplifier
DIGITUS® Cat 5 VGA Video/Audio
video/audio selector
Selector
These products are suitable for dividing a signal from a Cat 5 VGA video extender as source to one local
monitor connection and one, four or eight Cat 5 splitting ports.
Through a Cat 5 VGA video selector it is possible to connect several local units of VGA-Extender or of
AV-Extender with Cat 5 cable and to select one of the different Video/Audio signals for an output to a VGA
monitor/audio amplifier.
• Distributes a Cat 5 VGA video signal
• Input: 1x RJ-45 jack Connector
• Output: 1x VGA HD DSUB jack connector, 1x, 4x or 8x RJ-45 jack connector
• Max. Resolution 1280x1024 pixels at 60Hz
• Cable distance up to 300m
• Equalization length is adjustable
• VGA signal gain is adjustable
• Aluminum Housing
• Dimension (LxWxH, Weight): DC-53402: 130x110,5x25mm, 285g, DC-53602/DC-53702: 200x111x25mm,
322g/340g
• Package contents: 1x VGA Video Distribution Amplifier, 1x user manual, 1x power adapter DC 12V/600mA
• Cat5 VGA video/audio selector
• Support video resolution up to 1280x1024 pixels at 60Hz
• Equalization length is adjustable
• VGA signal gain is adjustable
• Support stereo audio digital transfer
• Total delay: 62ns
• Delay step increments: 2ns
• Memorize function
• Button locked function
• Max. Cable Distance: 300m
• Dimensions (LxWxH, Weight): DC-44400: 200x86x29mm, 320g - DC-45400: 200x86x29mm, 332g
• Package Contents: 1x Cat5 VGA video selector, 1x user manual, 1x power adapter DC 12V/600mA
Example of use on P.134/135
255727 / DC-53402
Example of use on P.134/135
1D,,945?49CDB92ED9?>[email protected]<[email protected]?BD
255741 / DC-53602
255673 / DC-44400
1D,,945?49CDB92ED9?>[email protected]<[email protected]?BD
1D,F945?1E49?C5<[email protected]?BD
255758 / DC-53702
255680 / DC-45400
1D,,945?49CDB92ED9?>[email protected]<9K5B'?BD
1D,F945?1E49?C5<[email protected]?BD
DIGITUS® Video RGB Skew calibrating unit
DIGITUS® Professional
For transmitted RGB signals over Cat 5 cable with more than 150 meter the skew delay becomes significant
and a correction is necessary. Below 150 meter the delay is negligible.
This unit allows a perfect skew delay correction of the video signals for a brilliant and sharp picture.
• Perfect RGB video skew delay correction
• Max. Resolution 1280x1024 60Hz
• Total delay: 62ns
• Delay step increments: 2ns
• Memorize function
• Button locked function
• Aluminum housing
• Dimensions (LxWxH, Weight): 130x85x29.5mm, 225g
• Package contents: 1x calibrating unit, 1x user manual, 1x power adapter DC 12V/600mA,
1x VGA cable 1.2m (HD-15 Male to Male)
Example of use on P.134/135
255765 / DC-59100
,945?();5G31<92B1D9>7E>9D
133
Video solutions - Examples of use
Examples of use 1 - Cat5 VGA extender:
VGA extender, local unit
DC-53100/ DC-53101
/ 180M
VGA extender, remote unit
DC-53100/ DC-53101
Examples of use 2 - Cat5 VGA extender/splitter and Cat5 VGA video selector:
Cat5 VGA Video/Audio Selector
DC-44400/ DC-45400
DC-53501/
DC-53601/
DC-53701
Cat5 VGA extender/splitter
DC-53501/ DC-53601/ DC-53701
DC-53501/
DC-53601/
DC-53701
DC-53501/ DC-53601/
DC-53701
134
Video solutions - Examples of use
Example of use 3 -
Cat5 VGA extender and extender/splitter with
Cat5 VGA video distributation amplifier
and RGB skew calibrating unit:
Cat5 VGA extender, remote unit
DC-59301/ DC-59302
RGB calibrating unit
DC-59100
DC-59301/ DC-59302
Cat5 VGA VideoDistribution Amplifier
DC-53602/ DC-53702
DC-59301/ DC-59302
Cat5 VGA extender/splitter
DC-53401
DC-59301/ DC-59302
Cat5 VGA extender/splitter
DC-53501/ DC-53601/ DC53701
DC-59301/ DC-59302
135
Video Solutions
DIGITUS® Video/audio matrix
Through a video/audio matrix , you can display / play different images / audio signals to up to 4 screens / speakers (or earphones) through 2 PC. And you can also control the source of image / audio by selecting PC signal
source 1 and 2 or turning off source input.
Video/Audio matrix is ideal for ,test bench facilities, data center, help desks, video broadcasting, presentation,
stock quotes, timetables, educational facilities, etc.
Features:
• Intelligent functionality
• Can be cascaded
• With 250 MHz video bandwidth, supports the DDC, DDC2, DDC2B
• Support VGA, SVGA, UXGA, QXGA resolutions
• Support Multi-Sync video type include RGBHV, RGsB, RGBS
• Support synchronous Include positive, negative; TTL or 1Vpp level
• The output is compatible with standard VGA card
• Extends the video signal up to 65 meter (213 feet)
• Audio Frequency Response 20Hz~20KHz
• The switches on panel can select PC signal source and OUT or turning off any signal
• Dimensions (LxWxH, Weight): DC-47100: 130x75x42mm, 450g - DC-47101: 200x75x42mm, 680g
• Package contents: 1x video/audio matrix, 1x user manual, 1x power adapter DC 12V 600mA
255697 / DC-47100
,945?1E49?=1DB9HH
255703 / DC-47101
,945?1E49?=1DB9HH
DIGITUS® Video/Audio Matrix
Through the video/audio matrix DC-48101, you can display / play different images / audio signals to 4 screens
/ speakers (or earphones) through 4 PC. And you can also control the source of image / audio by selecting PC
signal source 1 ~ 4 or turning off source input.
Video/Audio matrix is ideal for ,test bench facilities, data center, help desks, video broadcasting, presentation,
stock quotes, timetables, educational facilities, etc.
Features:
• Intelligent functionality
• Can be cascaded
• With 350 MHz pixel frequency, supports the DDC, DDC2, DDC2B
• Support VGA, SVGA, UXGA, QXGA resolutions
• Support Multi-Sync video type include RGBHV, RGsB, RGBS
• Support synchronous Include positive, negative; TTL or 1Vpp level
• Four sets of 7-Segment LED can indicate the input setting status of input port quickly
• The output is compatible with standard VGA card
• Extends the video signal up to 65 meter (213 feet)
• The switches on panel can select PC signal source 1 ~ 4 as OUT 1 ~ 4 or turning off any signal I/O
port / all I/O ports
233350 / DC-48101
Matrix switch 4x4
DIGITUS® VGA Matrix splitter, 250MHz
• 2 switchable inputs (PC) , 2, 4, 8 or 16 outputs (Monitor)
• Built-in line amplifier, up to 65m
• Maximum resolution 1920x1440 pixels at 60Hz
• Video bandwidth 250MHz
• DDC, DDC2, DDC2B support
• Cascadable
• Video IN/OUT: HDSUB15/jack
258261 / DS-47110
,,945?=1DB9H9>@[email protected]
258278 / DS-48110
,,945?=1DB9H9>@[email protected]
258285 / DS-49110
,,945?=1DB9H9>@[email protected]
258292 / DS-49115
,,945?=1DB9H9>@[email protected]
136
Video Solutions
DIGITUS® HDMI splitter, 8-port
With the DIGITUS® HDMI splitter you can supply several HDMI displays from only one HDMI device.
• 1 input, 8 outputs
• easy to install and simple to operate
• compatible with HDTV 480i, 480p, 720i, 720p, 1080i and 1080p
• supports VGA, SVGA, XGA and UXGA
• HDMI 1.3 compatible
• operation pixel frequency range: 25-165MHz
233077 / DC-43303
$ [email protected]<[email protected]?BD
DIGITUS® DVI splitter
• Maximum resolution 1600x1200 pixels at 60Hz
• By Panel Link Digital Technik highest Video resolution, up to UXGA
• UXGA 25 - 165MHz
• Input: DVI-I Female
• Outputs: DVI-I Female
• Cable lenght between Monitor and Splitter up to 10m
• Dimensions (LxWxH; Weight): 200x75x42mm; 620g
• Package Contents: 1x video splitter, 1x user manual; 1x power adapter DC 7.5V 1.5A
258360 / DS-41200
, [email protected]<[email protected]?BD
258384 / DS-42200
, [email protected]<[email protected]?BD
258391 / DS-43200
, [email protected]<[email protected]?BD
DIGITUS® VGA splitter, 400MHz
Through a video splitter, it is possible to use one video source to display identical image on 2,4,8,16
monitors or even more by cascading. With a video bandwidth of 400MHz and the consequent high
video resolution these video splitters are ideal test bench facilities, data centers, help desks, video
broadcasting, presentations and educational facilities.
• Video bandwidth 400MHz
• Maximum resolution 2048x1536 pixels at 60Hz
• Built-in line amplifier, up to 65m
• DDC, DDC2, DDC2B support
• Cascadable (max. 64)
• Metal housing for better EMI shielding
• Video IN/OUT: HDSUB15/Female
• Accessories: 1x video splitter; 1x manual; 1x power adapter
255635 / DC-41110
,[email protected]<[email protected]?BD
255642 / DC-42110
,[email protected]<[email protected]?BD
255659 / DC-43110
,[email protected]<[email protected]?BD
255666 / DC-43115
,[email protected]<[email protected]?BD
137
Video Solutions
DIGITUS® DVI selector
DIGITUS® VGA selector 250MHz
• 2 or 4 inputs (PC), 1 output (Monitor, Beamer etc.)
• Ideal for school class, workshops, training rooms etc.
• Combines Analog and Digital Video Signal output
• Maximum resolution 1280x1024 pixels
• Supports DDC2B at analog Video output
• Input: DVI-I Female
• Outputs: DVI-I Female
• Ideal for school class, workshops, training rooms etc.
• 2, 4 or 8 inputs (PC), 1 output (Monitor, Beamer etc.)
• Maximum resolution 1920x1440 pixels at 60Hz
• Video bandwidth 250MHz
• DDC, DDC2, DDC2B support
258230 / DS-44100
,945?C5<53D?B$J9>@[email protected]
258315 / DS-44200
258247 / DS-45100
, C5<53D?B9>@[email protected]
,945?C5<53D?B$J9>@[email protected]
258353 / DS-45200
258254 / DS-46100
, C5<53D?B9>@[email protected]
,945?C5<53D?B$J9>@[email protected]
Example of use 4 - Example of an appliation with cascaded videosplitters:
138
Tools and Tester
Crimping tools ................................................................................ 140
Cable tester .................................................................................... 142
Network tester ................................................................................ 143
Crimping tool
Crimping tool for "Hirose” plugs
TM11 male
Multi modular crimping tool,
solid metal
Modular crimping tool, RJ45
• Contacts, strain relief and latches are crimped in one step.
• Multi crimping tool incl. cable cutter and insulation stripper.
• Crimps 8P8C-RJ45; 6P6C-RJ12; 6P4C-RJ11; 4P4C; 4P2C; & 6P6C
DEC; and shielded 8P8C-RJ45, modular plugs.
• Installation tool for modular plugs and for cutting and stripping
cable insulation.
065920 / A-SK HRS
129608 / A-SK MMI
129561 / A-SK 312I
Crimping tool for "Hirose” plugs
Multi modular crimping tool
Modular crimping tool for 8P8C
Premium modular crimping tool
Crimping tool for coaxial plugs
Stripping tool for data cable
• Installation tool for modular plugs and for stripping insulation and
cutting the cable.
• Robust metal design.
• For BNC, TNC, UHF, N, Twinax contacts, RG58, RG62, etc.
• Inner wire ø 0.3 - 0.7 mm / outer ø 5 - 5.15 mm.
• For removing the sheaths from UTP / STP data cables of
Ø 5 - 15 mm
• With opening spring and locking slider
• High impact durable plastic tool with hardened steel blades
129578 / A-SK 314I
Crimping tool for 4P4C and 6P4C
129592 / A-SK 315I
129639 / A-SK 10I
240716 / A-SK 316I
Crimping Tool for 6P4C and 8P8C
Crimping tool for coaxial plugs
Data cable stripping tool
140
tools
DIGITUS® LSA punch tool
Krone LSA+ punch tool
• Punch tool for LSA strips
• Cable insulation and cutting of the extending cable ends
• Punch tool for ”Krone” LSA+ strips
• Cable insulation and cutting of the extendingcable ends
• Adjustable pressure
206569 / DN-LSA-PT
132868 / A-LSA-K
LSA punch tool
&B979>1<"B?>5#)@E>38D??<
Modular tool set in case
Network tool kit
Consists of:
The tool kit consists of the following tools:
• A-SK MM (multi modular crimping tool)
• A-SK 50 (stripper)
• Plastic case with compartments
• 20 x 8P8C plugs, 20 x 6P6C
• 40 x 4P4C
• Crimping tool for coax and fiber optic connectors with various batches.
• Four different crimp batches.
• A-SK 25 = stripping tool for coaxial cable
• A-SK CC = cable cutter
• Screw driver for changing the crimp batches, all together in a practical plastic case
• The following batches are included: Crimpt RG 6, 59, 62, 140, 210, Belden 8279, 55, 58, 141, 142, 223,
400 and fiber optic, diameter from 0.068 mm to 8.1 mm. Crimpt RG 59, 62, 8x, 140, 210, Belden 8279,
55, 58, 141, 142, 174, 223, RG 303, 400 and fiber optic, diameter from 0.043 to 6.48 mm. Crimpt RG 122,
174, 179, 180, 187, 188, 195, fiber optic 178, 316, Belden 8218, diameter from 0.042 mm to 4.52 mm.
Crimpt RG 8, 9, 11, 87a, 149, 165, 213, 214, 216, 225, 393, 174, 179, 187, 188, 316 and Belden 9913,
diameter from 0.1 mm to 10.9 mm.
052227 / A-SK KIT1
052234 / A-SK KIT2
Modular tool set
Network tool kit, arranged in plastic case
141
Cable tester
DIGITUS® Network- and communication cable tester,
RJ45 and BNC
•
•
•
•
•
•
•
•
•
•
•
Test function for cables with RJ45, RJ12, RJ11 and BNC male.
Auto-scan and step by step testing.
Loop-back: for testing and localising of already laid network or communication cables.
Continuity: for continuity testing of network or communication cables.
Open: for localising of disconnected single wires.
Shorts: locating of short-circuited single wires.
Miss-wire: identification of non-conform wire assignment.
Pin to pin configuration: 1 assignment testing.
Main device with 2 x RJ45 female, remote unit with 1 x RJ45 female.
Various LEDs for status display, operates with 9 Volt block battery.
Includes two-language manual and modular BNC adapter.
126454 / DN-14001
12<5D5CD5B(!1>4%
Premium network cable tester, RJ45, BNC
• Backlit LCD display
• 2 x RJ45 connections
• Remote unit with 1 x RJ45 connection
• Preset test modes for 10(100)Base-T, Token Ring, TP-PMD, AT&T 258A, EIA/TIA-568A/B USOC,
10Base-2 (BNC)
• 4 additional user test modes can be configured
• Tests assignment, pairs, connection and shielding
• Terminator loopback test, cable testing with up to 16 remote units
• Automatic cable identification
• Delivery includes 2 RJ45 / BNC adapters, 30cm patch cable and storage bag
079248 / ACT-LCS-400
Network cable tester
Modular cable tester, RJ45 & BNC
• Test function for cables with RJ45, RJ12, RJ11 male plugs.
• Tests: continuity, assignment, pairing and shielding.
• Line / voltage detection.
• Main device with 2 x RJ45, 1 x BNC female, remote unit with 1 x RJ45, female.
• Even already laid cable can be tested with the remote unit.
• Various LEDs for status display, operates with 9 Volt block battery.
• Includes synthetic leather carry case.
126096 / ACT-LAN-CT
Interchangeable Crimpinset, MIC ConnectorInterchangeable Crimpinset, MIC Connector
142
Network tester
Network cable tester, RJ45 & BNC
• Test function for cable with RJ45/11 UTP/STP and BNC plugs, patch panels and modular sockets
• Coaxial cable test using BNC adapter
• Manual or automatic test procedure
• What is tested: throughput, assignment, shielding, pairing based on EIA/TIA 356A / 568A / 568B /
Token Ring
• Main device with 2 x RJ45 jack, remote unit with 1 x RJ45 jack
• With the remote unit even cable that has already been laid can be tested
• Supplied with case and BNC adapter
126089 / ACT-LAN-PRO
Network cable tester, RJ45 & BNC
Network and cable tester with remote ID modules
• Cable tester with soand generator, network tester and port ID finder.
• 2 x RJ45 connections
• Remote unit with 1 x RJ45 connection.
• Manual or automatic test execution
• Tests: Continuity, assignment, shielding, pairing as per EIA/TIA 356A / 568A / 568B / Token Ring.
• 2-digit, 7-segment display shows the ID for the selected remote unit.
• Display of the network type and network speed.
• Soand generator for detected defective cables. (Tracer not included!)
• Terminator loopback test, cable measurement with up to 25 remote units.
• Automatic cable identification.
• Package includes 25 remote ID modules.
158745 / ACT-LAN-MOD
%5DJG5B;1>4"125<D5CD75BOD
DTX-1800
• Intuitive user interface: technicians require less training/adjustment and have more time for testing.
• Test speed: 12 seconds for a Cat 6 certification
• Precision conforms to Level IV. The most accurate test results in the shortest possible time.
• Frequenz range of up to 900MHz ( ideal for 10 Gigabit Ethernet, Class F and CATV )
• Extended, time-saving diagnosis. Accurately determines the error location and is the only tester to
suggest remedial action –> this saves time when troubleshooting.
• Certifies a glass fiber pair in 12 seconds with DTX single mode and multi-mode glass fiber modules.
• 12 hour battery operation
• Achieve faster results. From configuration to compilation of test reports:
LinkWare™ cable test management software provides you with a simple user interface and time-saving
features so you can work more productively.
170686 / ACT-DTX 1800
DTX 1800 CableAnalyzer 900MHz
143
Network tester
Intellitone 100
• Localise cables quickly and easily
• No more confusion when localising cable: hiss and interference are eliminated
• Remote cable localisation: even in an active network
• Precise identification of cables and wires in a bandle, despite signal radiation
• Visual monitoring of twisted pair installation with end-to-cnd cable map
(interruptions, short circuits and interchanged pairs)
• Safe and effective localisation in active networks
• Compatible with analog toners and probes
• Suitable for copper wire, included shielded (STP) and UTP cables,
coaxial cables at 75 or 50 Ohm,
• Tested 2-core cables in control, safety and general wiring.
• 10 Base-T or 10/100 Base-T data communication networks and conventional phone services
• Dimensions 14.1cm x 7.5cm x 3.2cm
179863 / ACT-MT-8200-50A
Intellitone 100
NetTool - The Network Tester
• Suitable for Ethernet, telephone, Token Ring networks.
• Identification of IP address, standard gateway, e-mail and Web servers, etc.
• Tests network connections for speed, full / half duplex.
• Separate display for both network connection directions.
• Creation of an error log that can be printed out on a PC.
• Integrated cable test function; media access: 10Base-T and 100Base-TX.
• Cable tests: pin assignment, length, interruption, short-circuit, split pairs.
• Connections: hub / NIC connector (RJ45), serial port.
• Keyboard: symbol / menu controlled operation with buttons.
• Battery: Replaceable alkaline batteries or rechargeable NiMH batteries.
• Dimensions / cm: 12.5 x 7.8 x 4.3; weight: 210 kg
• NetTool pro also has ping function and report generation.
084082 / ACT-NT
NetTool
132585 / ACT-NT-PRO
NetTool PRO
Take a closer look
144
Patch through
to performance.
DN-91524U
The entire DIGITUS® professional patching equipment offers multiple possibilities
to small offices and facility infrastructure.
DIGITUS® 19“ CAT 5e patch panel
- in all specifications available
DN-9002-N
DN-93602
DN-9005-N
DN-93612
DIGITUS® wall outlets - flush or surface mount
Discover the simple Network Installation with
toolfree CAT 6a Keystone Jacks from DIGITUS®.
Enjoy connections. Live.
www.digitus-professional.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
