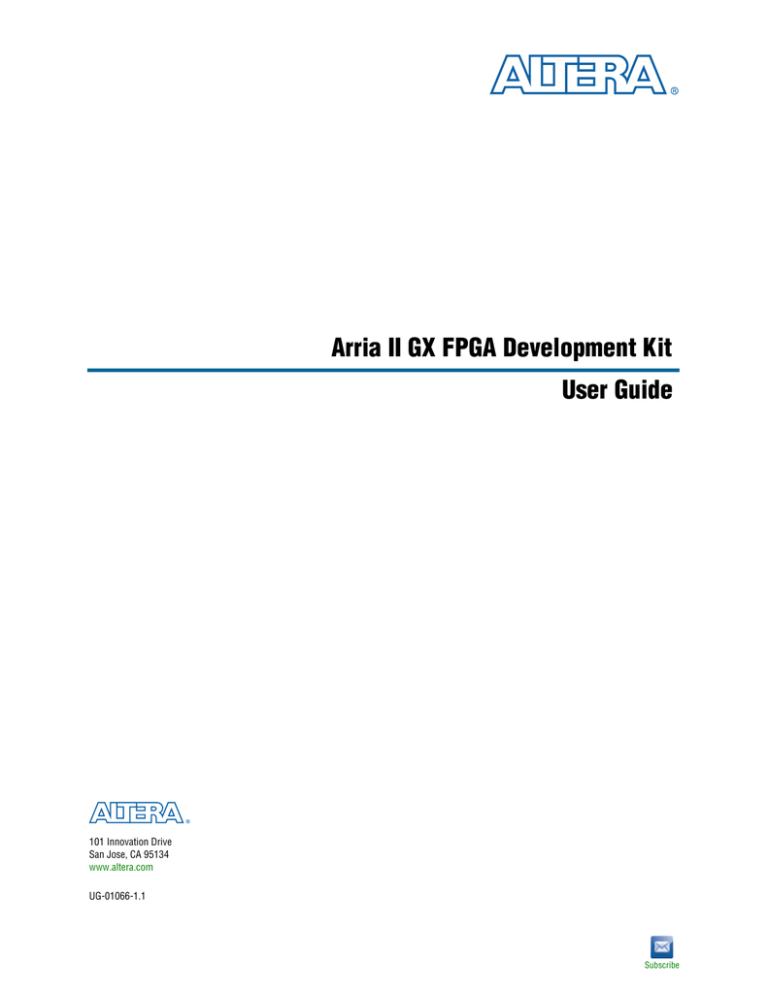

Arria II GX FPGA Development Kit
User Guide
101 Innovation Drive
San Jose, CA 95134
www.altera.com
UG-01066-1.1
Subscribe
Copyright © 2011 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, and specific device designations
are trademarks and/or service marks of Altera Corporation in the U.S. and other countries. All other words and logos identified as trademarks and/or service marks
are the property of Altera Corporation or their respective owners. Altera products are protected under numerous U.S. and foreign patents and pending applications,
maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard
warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of
the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to
obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Contents
Chapter 1. About This Kit
Kit Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Quartus II Subscription Edition Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Arria II GX FPGA Development Kit Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Chapter 2. Getting Started
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Inspect the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Chapter 3. Software Installation
Installing the Quartus II Subscription Edition Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Licensing Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Installing the Arria II GX FPGA Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Installing the USB-Blaster Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Chapter 4. Development Board Setup
Setting Up the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Factory Default Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Chapter 5. Board Update Portal
Connecting to the Board Update Portal Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1
Using the Board Update Portal to Update User Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
Chapter 6. Board Test System
Preparing the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Running the Board Test System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Using the Board Test System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4
The Configure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4
The Config Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4
MAX II Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5
JTAG Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6
Board Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6
Flash Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6
The GPIO Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
User Dipswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
User LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
Pushbutton Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
The Flash Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
Random Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
CFI Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
Increment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
iv
Contents
Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
Flash Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9
The SSRAM Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10
Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10
Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
Random Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
Increment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
The DDR3 Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Performance Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Error Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Number of Addresses to Write/Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Data Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
W/R Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13
The DDR2 Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
Performance Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
Error Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
Number of Addresses to Write/Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
Data Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
W/R Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–15
The HSMC Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–15
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–16
Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–16
PMA Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–16
Data Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–16
Error Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17
Performance Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17
The Power Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–18
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–19
Power Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–19
Power Graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–19
Graph Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–19
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–19
Calculating Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–20
Configuring the FPGA Using the Quartus II Programmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–20
Appendix A. Programming the Flash Memory Device
CFI Flash Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing Design Files for Flash Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating Flash Files Using the Nios II EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming Flash Memory Using the Board Update Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming Flash Memory Using the Nios II EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring the Flash Device to the Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring the MAX II CPLD to the Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–1
A–2
A–2
A–3
A–3
A–4
A–5
Additional Information
Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1
How to Contact Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Contents
v
Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
vi
Arria II GX FPGA Development Kit User Guide
Contents
February 2011
Altera Corporation
1. About This Kit
The Altera® Arria® II GX FPGA Development Kit is a complete design environment
that includes both the hardware and software you need to develop Arria II GX FPGA
designs. The PCI-SIG-compliant board and the one-year license for the Quartus® II
software provide everything you need to begin developing custom Arria II GX FPGA
designs. The following list describes what you can accomplish with the kit:
■
Develop and test PCI Express® (PCIe) designs.
■
Develop and test memory subsystems consisting of DDR2 and DDR3 memories.
■
Take advantage of the modular and scalable design by using the high-speed
mezzanine card (HSMC) connectors to interface to over 30 different HSMCs
provided by Altera partners, supporting protocols such as Serial RapidIO®,
10 Gigabit Ethernet, SONET, Common Public Radio Interface (CPRI), Open Base
Station Architecture Initiative (OBSAI) and others.
Kit Features
This section briefly describes the Arria II GX FPGA Development Kit contents.
Hardware
The Arria II GX FPGA Development Kit includes the following hardware:
■
Arria II GX FPGA development board—A development platform that allows you
to develop and prototype hardware designs running on the Arria II GX
EP2AGX125 FPGA.
f For detailed information about the board components and interfaces, refer
to the Arria II GX FPGA Development Board Reference Manual.
■
Power supply and cables—The kit includes the following items:
■
Power supply and AC adapters for North America/Japan, Europe, and the
United Kingdom
■
USB cable
■
Ethernet cable
■
HSMC loopback board—A daughtercard that allows for loopback testing all
signals on the HSMC interface using the Board Test System
■
HSMC debug breakout board—A daughtercard that routes 40 CMOS signals to
a 0.1-inch header and adds 20 LEDs to the remaining 40 CMOS signals
Software
The software for this kit, described in the following sections, is available on the Altera
website for immediate downloading. You can also request to have Altera mail the
software to you on DVDs.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
1–2
Chapter 1: About This Kit
Kit Features
Quartus II Subscription Edition Software
The Quartus II Subscription Edition Software is a licensed set of Altera tools with full
functionality. Your kit includes a one-year license for the Quartus II software
(Windows platform only). This license entitles you to all the features of the
subscription edition for a period of one year. After the year, you must purchase a
renewal subscription to continue using the software. For more information, refer to
the Altera website (www.altera.com).
f Download the Quartus II Subscription Edition Software from the Quartus II
Subscription Edition Software page of the Altera website. Alternatively, you can
request a DVD from the Altera IP and Software DVD Request Form page of the Altera
website.
The Quartus II Subscription Edition Software includes the following items:
■
Quartus II Software—The Quartus II software, including the SOPC Builder system
development tool, provides a comprehensive environment for
system-on-a-programmable-chip (SOPC) design. The Quartus II software
integrates into nearly any design environment and provides interfaces to
industry-standard EDA tools.
■
MegaCore® IP Library—A library that contains Altera IP MegaCore functions. You
can evaluate MegaCore functions by using the OpenCore Plus feature to do the
following:
■
Simulate behavior of a MegaCore function within your system.
■
Verify functionality of your design, and quickly and easily evaluate its size and
speed.
■
Generate time-limited device programming files for designs that include
MegaCore functions.
■
Program a device and verify your design in hardware.
1
The OpenCore Plus hardware evaluation feature is an evaluation tool for
prototyping only. You must purchase a license to use a MegaCore function
in production.
f For more information about OpenCore Plus, refer to AN 320: OpenCore Plus
Evaluation of Megafunctions.
■
Nios® II Embedded Design Suite (EDS)—A full-featured set of tools that allows
you to develop embedded software for the Nios II processor which you can
include in your Altera FPGA designs.
Arria II GX FPGA Development Kit Installer
The license-free Arria II GX FPGA Development Kit installer includes all the
documentation and design examples for the kit.
Download the Arria II GX FPGA Development Kit installer from the Arria II GX
FPGA Development Kit page of the Altera website. Alternatively, you can request a
development kit DVD from the Altera Kit Installations DVD Request Form page of
the Altera website.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
2. Getting Started
The remaining chapters in this user guide lead you through the following Arria II GX
FPGA development board setup steps:
■
Inspecting the contents of the kit
■
Installing the design and kit software
■
Setting up, powering up, and verifying correct operation of the FPGA
development board
■
Configuring the Arria II GX FPGA
■
Running the Board Test System designs
f For complete information about the FPGA development board, refer to the Arria II GX
FPGA Development Board Reference Manual.
Before You Begin
Before using the kit or installing the software, check the kit contents and inspect the
board to verify that you received all of the items listed in “Kit Features” on page 1–1.
If any of the items are missing, contact Altera before you proceed.
Inspect the Board
To inspect the board, perform the following steps:
1. Place the board on an anti-static surface and inspect it to ensure that it has not been
damaged during shipment.
c
Without proper anti-static handling, you can damage the board.
2. Verify that all components are on the board and appear intact.
1
In typical applications with the Arria II GX FPGA development board, a heat sink is
not necessary. However, under extreme conditions or for engineering sample silicon
the board might require additional cooling to stay within operating temperature
guidelines. You can perform power consumption and thermal modeling to determine
whether your application requires additional cooling. The board has two holes near
the FPGA that accommodate many different heat sinks, including the Dynatron V31G.
f For more information about power consumption and thermal modeling, refer to
AN 358: Thermal Management for FPGAs.
c To avoid damage to the board, always have the board POWER switch (SW1) in the
OFF position before inserting the DC power jack (J4).
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
2–2
Chapter 2: Getting Started
References
References
Use the following links to check the Altera website for other related information:
■
For the latest board design files and reference designs, refer to the Arria II GX
FPGA Development Kit page.
■
For additional daughter cards available for purchase, refer to the Development
Board Daughtercards page.
■
For the Arria II GX device documentation, refer to the Literature: Arria II GX
Devices page.
■
To purchase devices from the eStore, refer to the Devices page.
■
For Arria II GX OrCAD symbols, refer to the Capture CIS Symbols page.
■
For Nios II 32-bit embedded processor solutions, refer to the Embedded
Processing page.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
3. Software Installation
This chapter explains how to install the following software:
■
Quartus II Subscription Edition Software
■
Arria II GX FPGA Development Kit
■
USB-Blaster™ driver
Installing the Quartus II Subscription Edition Software
The Quartus II Subscription Edition Software provides the necessary tools used for
developing hardware and software for Altera FPGAs. Included in the Quartus II
Subscription Edition Software are the Quartus II software, the Nios II EDS, and the
MegaCore IP Library. The Quartus II software (including SOPC Builder) and the
Nios II EDS are the primary FPGA development tools used to create the reference
designs in this kit. To install the Altera development tools, perform the following
steps:
1. Run the Quartus II Subscription Edition Software installer you acquired in
“Software” on page 1–1.
2. Follow the on-screen instructions to complete the installation process.
f If you have difficulty installing the Quartus II software, refer to Altera Software
Installation and Licensing Manual.
Licensing Considerations
Purchasing this kit entitles you to a one-year license for the Quartus II Subscription
Edition Software. Before using the Quartus II software, you must activate your
license, identify specific users and computers, and obtain and install a license file.
If you already have a licensed version of the subscription edition, you can use that
license file with this kit. If not, you need to obtain and install a license file. To begin,
go to the Self Service Licensing Center page of the Altera website, log into or create
your myAltera account, and take the following actions:
1. On the Activate Products page, enter the serial number provided with your
development kit in the License Activation Code box.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
3–2
Chapter 3: Software Installation
Installing the Arria II GX FPGA Development Kit
1
Your serial number is printed on the development kit box below the bottom
bar code. The number is 10 or 11 alphanumeric characters and does not
contain hyphens. Figure 3–1 shows 3S150SPXXXX as an example serial
number.
Figure 3–1. Locating Your Serial Number
2. Consult the Activate Products table, to determine how to proceed.
a. If the administrator listed for your product is someone other than you, skip the
remaining steps and contact your administrator to become a licensed user.
b. If the administrator listed for your product is you, proceed to step 3.
c. If the administrator listed for your product is Stocking, activate the product,
making you the administrator, and proceed to step 3.
3. Use the Create New License page to license your product for a specific user (you)
on specific computers. The Manage Computers and Manage Users pages allow
you to add users and computers not already present in the licensing system.
1
To license the Quartus II software, you need your computer’s network
interface card (NIC) ID, a number that uniquely identifies your computer.
On the computer you use to run the Quartus II software, type ipconfig
/all at a command prompt to determine the NIC ID. Your NIC ID is the
12-digit hexadecimal number on the Physical Address line.
4. When licensing is complete, Altera emails a license.dat file to you. Store the file on
your computer and use the License Setup page of the Options dialog box in the
Quartus II software to enable the software.
f For complete licensing details, refer to Altera Software Installation and Licensing Manual.
Installing the Arria II GX FPGA Development Kit
To install the Arria II GX FPGA Development Kit, perform the following steps:
1. Run the Arria II GX FPGA Development Kit installer you acquired in “Software”
on page 1–1.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 3: Software Installation
Installing the USB-Blaster Driver
3–3
2. Follow the on-screen instructions to complete the installation process. Be sure that
the installation directory you choose is in the same relative location to the
Quartus II software installation.
The installation program creates the Arria II GX FPGA Development Kit directory
structure shown in Figure 3–2.
Figure 3–2. Arria II GX FPGA Development Kit Installed Directory Structure (1)
<install dir>
The default Windows installation directory is C:\altera\<version>\.
kits
arriaIIGX_2agx125_fpga
board_design_files
demos
documents
examples
factory_recovery
Note to Figure 3–2:
(1) Early-release versions might have slightly different directory names.
Table 3–1 lists the file directory names and a description of their contents.
Table 3–1. Installed Directory Contents
Directory Name
Description of Contents
board_design_files
Contains schematic, layout, assembly, and bill of material board design files. Use these files as a
starting point for a new prototype board design.
demos
Contains demonstration applications.
documents
Contains the kit documentation.
examples
Contains the sample design files for the Arria II GX FPGA Development Kit.
factory_recovery
Contains the original data programmed onto the board before shipment. Use this data to restore
the board with its original factory contents.
Installing the USB-Blaster Driver
The Arria II GX FPGA development board includes integrated USB-Blaster circuitry
for FPGA programming. However, for the host computer and board to communicate,
you must install the USB-Blaster driver on the host computer.
f Installation instructions for the USB-Blaster driver for your operating system are
available on the Altera website. On the Cable & Adapter Driver Information page of
the Altera website, locate the table entry for your configuration and click the link to
access the instructions.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
3–4
Arria II GX FPGA Development Kit User Guide
Chapter 3: Software Installation
Installing the USB-Blaster Driver
February 2011
Altera Corporation
4. Development Board Setup
The instructions in this chapter explain how to set up the Arria II GX FPGA
development board.
Setting Up the Board
To prepare and apply power to the board, perform the following steps:
1. The Arria II GX FPGA development board ships with its board switches
preconfigured to support the design examples in the kit. If you suspect your board
might not be currently configured with the default settings, follow the instructions
in “Factory Default Switch Settings” on page 4–2 to return the board to its factory
settings before proceeding.
2. The FPGA development board ships with design examples stored in the flash
memory device. Verify the USER_LOAD switch (SW4.4) is set to the off position to
load the design stored in the factory portion of flash memory. Figure 4–1 shows the
switch location on the Arria II GX FPGA development board.
3. Set the POWER switch (SW1) to the off position.
c
To avoid damage to the board, always have the board POWER switch
(SW1) in the off position before inserting the DC power jack (J4).
4. Connect the DC adapter (+16 V, 3.75 A) to the DC power jack (J4) on the FPGA
board and plug the cord into a power outlet.
c
Use only the supplied 16-V power supply. Power regulation circuitry on the
board can be damaged by power supplies with greater voltage.
5. Set the POWER switch (SW1) to the on position. When power is supplied to the
board, a blue LED (D18) illuminates indicating that the board has power.
The MAX II device on the board contains a parallel flash loader (PFL) megafunction.
When the board powers up, the PFL reads a design from flash memory and
configures the FPGA. The USER_LOAD switch (SW4.4) controls which design to load.
When the switch is in the off position, the PFL loads the design from the factory
portion of flash memory. When the switch is in the on position, the PFL loads the
design from the user portion of flash memory.
1
The kit includes a MAX II design which contains the MAX II PFL megafunction. The
design resides in the <install dir>\kits\arriaIIGX_2agx125_fpga\examples\max2
directory.
When configuration is complete, the CONF DONE LED (D14) illuminates, signaling
that the Arria II GX device configured successfully.
f For more information about the PFL megafunction, refer to Parallel Flash Loader
Megafunction User Guide.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
4–2
Chapter 4: Development Board Setup
Factory Default Switch Settings
Factory Default Switch Settings
This section shows the factory switch settings for the Arria II GX FPGA development
board. Figure 4–1 shows the switch locations and the default position of each switch.
Figure 4–1. Switch Locations and Default Settings on the FPGA Development Board
User
DIP Switch
ON = 0
OFF = 1
1 2 3 4
SW2
(not installed)
(installed)
(installed)
(installed)
ON
PCIe MODE
DIP Switch
ON
J9
JTAG Control
Jumpers
Board Settings
DIP Switch
ON = 0
OFF = 1
1 2 3 4 5 6 7 8
SW4
ON
1 2 3 4
SW3
To restore the switches to their factory default settings, perform the following steps:
1. Set DIP switch bank (SW3) to match Table 4–1 and Figure 4–1.
Table 4–1. SW3 Dip Switch Settings
Board
Label
Switch
Default
Position
Function
Switch 1 has the following options:
1
PCIe x1
■
When off, the PCIe card PCIE_PRSNT2n_x1 signal is connected to PCIe
card PRSNT1 signal.
■
When on, the PCIe card PCIE_PRSNT2n_x1 signal floats.
On
Switch 2 has the following options:
2
PCIe x4
■
When off, the PCIe card PCIE_PRSNT2n_x4 signal is connected to PCIe
card PRSNT1 signal.
■
When on, the PCIe card PCIE_PRSNT2n_x4 signal floats.
On
Switch 3 has the following options:
3
4
PCIe x8
—
■
When off, the PCIe card PCIE_PRSNT2n_x8 signal is connected to PCIe
card PRSNT1 signal.
■
When on, the PCIe card PCIE_PRSNT2n_x8 signal floats.
■
—
Arria II GX FPGA Development Kit User Guide
On
—
February 2011
Altera Corporation
Chapter 4: Development Board Setup
Factory Default Switch Settings
4–3
2. Set DIP switch bank (SW4) to match Table 4–2 and Figure 4–1.
Table 4–2. SW4 Dip Switch Settings
Board
Label
Switch
Default
Position
Function
Switch 1 has the following options:
1
DIP0
■
When on, reserved.
■
When off, reserved.
Off
Switch 2 has the following options:
2
DIP1
■
When on, reserved.
■
When off, reserved.
Off
Switch 3 has the following options:
3
DIP2
■
When on, reserved.
■
When off, reserved.
Off
Switch 4 has the following options:
4
USER LOAD
■
When on, the PFL loads the user hardware 1 design on power up.
■
When off, the PFL loads the factory design on power up.
Off
Switch 5 has the following options:
5
PWR MON
■
When on, reserved.
■
When off, reserved.
Off
Switch 6 has the following options:
6
USB DISn
■
When on, reserved.
■
When off, reserved.
Off
Switch 7 has the following options:
7
CLK EN
On
■
When on, all on-board oscillators are enabled.
■
When off, on-board oscillators to the FPGA are disabled.
Switch 8 has the following options:
8
CLK SEL
■
When on, programmable oscillator clock (U30) is selected.
■
When off, LVPECL SMA clock (J10 and J11) is selected.
On
3. Set the board jumpers to match Table 4–3 and Figure 4–1.
Table 4–3. JTAG Chain Jumper Settings (Part 1 of 2)
Board
Reference
Board
Label
Default
Shunt Position
Function
This jumper has the following options:
■
J9 pins 1-2
MAX DIS
■
Installing the shunt removes the MAX II EPM2210 device from the
JTAG chain.
Not installed
Removing the shunt includes the MAX II EPM2210 device in the
JTAG chain.
This jumper has the following options:
J9 pins 3-4
February 2011
HSMA DIS
Altera Corporation
■
Installing the shunt removes HSMC port A from the JTAG chain.
■
Removing the shunt includes HSMC port A in the JTAG chain.
Installed
Arria II GX FPGA Development Kit User Guide
4–4
Chapter 4: Development Board Setup
Factory Default Switch Settings
Table 4–3. JTAG Chain Jumper Settings (Part 2 of 2)
Board
Reference
Board
Label
Default
Shunt Position
Function
This jumper has the following options:
J9 pins 5-6
HSMB DIS
■
Installing the shunt removes HSMC port B from the JTAG chain.
■
Removing the shunt includes HSMC port B in the JTAG chain.
Installed
This jumper has the following options:
J9 pins 7-8
PCIe DIS
■
Installing the shunt removes the PCIe device from the JTAG chain.
■
Removing the shunt includes the PCIe device in the JTAG chain.
Installed
For more information about the FPGA board settings, refer to the Arria II GX FPGA
Development Board Reference Manual.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
5. Board Update Portal
The Arria II GX FPGA Development Kit ships with the Board Update Portal design
example stored in the factory portion of the flash memory on the board. The design
consists of a Nios II embedded processor, an Ethernet MAC, and an HTML web
server.
When you power up the board with the USER_LOAD switch (SW4.4) in the off
position, the Arria II GX FPGA configures with the Board Update Portal design
example. The design can obtain an IP address from any DHCP server and serve a web
page from the flash on your board to any host computer on the same network. The
web page allows you to upload new FPGA designs to the user hardware portion of
flash memory, and provides links to useful information on the Altera website,
including kit-specific links and design resources.
1
After successfully updating the user hardware flash memory, you can load the user
design from flash memory into the FPGA. To do so, set the USER_LOAD switch
(SW4.4) to the on position and power cycle the board.
The source code for the Board Update Portal design resides in the <install
dir>\kits\arriaIIGX_2agx125_fpga\examples directory. If the Board Update Portal is
corrupted or deleted from the flash memory, refer to “Restoring the Flash Device to
the Factory Settings” on page A–4 to restore the board with its original factory
contents.
Connecting to the Board Update Portal Web Page
This section provides instructions to connect to the Board Update Portal web page.
1
Before you proceed, ensure that you have the following:
■
A PC with a connection to a working Ethernet port on a DHCP enabled network.
■
A separate working Ethernet port connected to the same network for the board.
■
The Ethernet and power cables that are included in the kit.
To connect to the Board Update Portal web page, perform these steps:
1. With the board powered down, set the USER_LOAD switch (SW4.4) to the off
position.
2. Attach the Ethernet cable from the board to your LAN.
3. Power up the board. The board connects to the LAN’s gateway router, and obtains
an IP address. The LCD on the board displays the IP address.
4. Launch a web browser on a PC that is connected to the same network, and enter
the IP address from the LCD into the browser address bar. The Board Update
Portal web page appears in the browser.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
5–2
Chapter 5: Board Update Portal
Using the Board Update Portal to Update User Designs
5. Click Arria II GX FPGA Development Kit on the Board Update Portal web page to
access the kit’s home page. Visit this page occasionally for documentation updates
and additional new designs.
f You can also navigate directly to the Arria II GX FPGA Development Kit page of the
Altera website to determine if you have the latest kit software.
Using the Board Update Portal to Update User Designs
The Board Update Portal allows you to write new designs to the user portion of flash
memory. Designs must be in the Nios II Flash Programmer File (.flash) format.
1
Design files available from the Arria II GX FPGA Development Kit page include
.flash files. You can also create .flash files from your own custom design. Refer to
“Preparing Design Files for Flash Programming” on page A–2 for information about
preparing your own design for upload.
To upload a design over the network into the user portion of flash memory on your
board, perform the following steps:
1. Perform the steps in “Connecting to the Board Update Portal Web Page” to access
the Board Update Portal web page.
2. In the Hardware File Name field specify the .flash file that you either downloaded
from the Altera website or created on your own. If there is a software component
to the design, specify it in the same manner using the Software File Name field,
otherwise leave the Software File Name field blank.
3. Click Upload. The progress bar indicates the percent complete.
4. To configure the FPGA with the new design after the flash memory upload process
is complete, set the USER_LOAD switch (SW4.4) to the on position and power
cycle the board, or press the IMAGE SEL button (PB6) until the CONFIG1 LED
(D12) illuminates and then press the LOAD IMAGE button (PB5). Refer to
Table 6–1 on page 6–5 for information about the CONFIG LEDs.
1
As long as you don’t overwrite the factory image in the flash memory device, you can
continue to use the Board Update Portal to write new designs to the user portion of
flash memory. If you do overwrite the factory image, you can restore it by following
the instructions in “Restoring the Flash Device to the Factory Settings” on page A–4.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
6. Board Test System
The kit includes a design example and application called the Board Test System to test
the functionality of the Arria II GX FPGA development board. The application
provides an easy-to-use interface to alter functional settings and observe the results.
You can use the application to test board components, modify functional parameters,
observe performance, and measure power usage. The application is also useful as a
reference for designing systems. To install the application, follow the steps in
“Installing the Arria II GX FPGA Development Kit” on page 3–2.
The application provides access to the following Arria II GX FPGA development
board features:
■
General purpose I/O (GPIO)
■
SRAM
■
Flash memory
■
DDR2 and DDR3 memories
■
HSMC connectors
■
Character LCD
■
Programmable oscillator
The application allows you to exercise most of the board components. While using the
application, you reconfigure the FPGA several times with test designs specific to the
functionality you are testing.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–2
Chapter 6: Board Test System
The Board Test System GUI communicates over the JTAG bus to a test design running
in the Arria II GX device. Figure 6–1 shows the initial GUI for a board that is in the
factory configuration.
Figure 6–1. Board Test System Graphical User Interface
Several designs are provided to test the major board features. Each design provides
data for one or more tabs in the application. The Configure menu identifies the
appropriate design to download to the FPGA for each tab.
After successful FPGA configuration, the appropriate tab appears and allows you to
exercise the related board features. Highlights appear in the board picture around the
corresponding components.
The Power Monitor button starts the Power Monitor application that measures and
reports current power information for the board. Because the application
communicates over the JTAG bus to the MAX II device, you can measure the power of
any design in the FPGA, including your own designs.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Preparing the Board
1
6–3
The Board Test System and Power Monitor share the JTAG bus with other
applications like the Nios II debugger and the SignalTap® II Embedded Logic
Analyzer. Because the Quartus II programmer uses most of the bandwidth of the
JTAG bus, other applications using the JTAG bus might time out. Be sure to close the
other applications before attempting to reconfigure the FPGA using the Quartus II
Programmer.
Preparing the Board
With the power to the board off, perform the following steps:
1. Connect the USB cable to the board.
2. Verify the settings for the board settings DIP switch bank (SW4) match Table 4–2
on page 4–3.
3. Set the USER_LOAD switch (SW4.4) to the on position.
4. Verify the settings for the JTAG jumper block (J9) match Table 4–3 on page 4–3.
These settings determine the devices to include in the JTAG chain.
f For more information about the board’s DIP switch and jumper settings,
refer to the Arria II GX FPGA Development Board Reference Manual.
5. Turn the power to the board on. The board loads the design stored in the user
hardware 1 portion of flash memory into the FPGA. If your board is still in the
factory configuration or if you have downloaded a newer version of the Board Test
System to flash memory through the Board Update Portal, the design loads the
GPIO, SRAM, and flash memory tests.
c
To ensure operating stability, keep the USB cable connected and the board
powered on when running the demonstration application. The application
cannot run correctly unless the USB cable is attached and the board is on.
Running the Board Test System
To run the application, navigate to the <install
dir>\kits\arriaIIGX_2agx125_fpga\examples\board_test_system directory and run
the BoardTestSystem.exe application.
1
On Windows, click Start > All Programs > Altera > Arria II GX FPGA Development
Kit <version> > Board Test System to run the application.
A GUI appears, displaying the application tab that corresponds to the design running
in the FPGA. The Arria II GX FPGA development board’s flash memory ships
preconfigured with the design that corresponds to the Config, GPIO, and SSRAM,
and Flash tabs.
1
February 2011
If you power up your board with the USER_LOAD switch (SW4.4) in the off position,
or if you load your own design into the FPGA with the Quartus II Programmer, you
receive a message prompting you to configure your board with a valid Board Test
System design. Refer to “The Configure Menu” for information about configuring
your board.
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–4
Chapter 6: Board Test System
Using the Board Test System
Using the Board Test System
This section describes each control in the Board Test System application.
The Configure Menu
Each test design tests different functionality and corresponds to one or more
application tabs. Use the Configure menu to select the design you want to use.
Figure 6–2 shows the Configure menu.
Figure 6–2. The Configure Menu
To configure the FPGA with a test system design, follow these steps:
1. On the Configure menu, click the configure command that corresponds to the
functionality you wish to test.
2. In the dialog box that appears, click Configure to download the corresponding
design’s SRAM Object File (.sof) to the FPGA. The download process usually takes
about a minute.
3. When configuration finishes, click Close to complete the configuration process
and run the design in the FPGA. A corresponding application tab appears in the
GUI that interfaces with the design in the FPGA.
The Config Tab
The Config tab shows information about the board’s current configuration.
Figure 6–1 on page 6–2 shows the Config tab. The tab displays the contents of the
MAX II registers, the MAX II code version, the JTAG chain, the board’s MAC address,
and the flash memory map.
The following sections describe the controls on the Config tab.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–5
MAX II Registers
The MAX II registers control allow you to view and change the current MAX II
register values as described in Table 6–1. Changes to the register values with the GUI
take effect immediately. For example, selecting a new frequency in the OCR1 list
immediately changes the clock frequency on the board.
Table 6–1. MAX II Registers
Register Name
Read/Write
Capability
Description
System Reset
(SRST)
Write only
Set to 0 to initiate an FPGA reconfiguration.
Page Select Register
(PSR)
Read / Write
Determines which of the up to eight (0-7) pages of flash
memory to use for FPGA reconfiguration. The flash memory
ships with pages 0 and 1 preconfigured.
Read / Write
When set to 0, the value in PSR determines the page of
flash memory to use for FPGA reconfiguration. When set to
1, the value in PSS determines the page of flash memory to
use for FPGA reconfiguration
Page Select Override
(PSO)
Holds the current value of the illuminated CONFIG LED
(D11-D13) based on the following encoding:
Page Select Switch
(PSS)
Read only
■
0 = CONFIG LED (D13) and corresponds to the flash
memory page for the factory hardware design
■
1 = CONFIG LED (D12) and corresponds to the flash
memory page for the user hardware 1 design
■
2 = CONFIG LED (D11) and corresponds to the flash
memory page for the user hardware 2 design
Determines the U26 oscillator output frequency based on
the following options:
Oscillator Control
Register 1 (OCR1)
Read / Write
■
0 = 100 MHz
■
1 = 125 MHz
■
2 = 150 MHz
■
3 = 156.25 MHz
Determines the U30 oscillator output frequency based on
the following options:
Oscillator Control
Register 2 (OCR2)
Read / Write
■
0 = 100 MHz
■
1 = 125 MHz
■
2 = 150 MHz
■
3 = 156.25 MHz
You cannot change OCR2 from the GUI.
■
February 2011
PSO—Sets the MAX II PSO register. The following options are available:
■
Use PSR—Allows the PSR to determine the page of flash memory to use for
FPGA reconfiguration.
■
Use PSS—Allows the PSS to determine the page of flash memory to use for
FPGA reconfiguration.
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–6
Chapter 6: Board Test System
Using the Board Test System
1
■
PSR—Sets the MAX II PSR register. The numerical values in the list corresponds to
the page of flash memory to load during FPGA reconfiguration. Refer to Table 6–1
for more information.
■
PSS—Displays the MAX II PSS register value. Refer to Table 6–1 for the list of
available options.
■
OCR1—Sets the MAX II OCR1 register. Refer to Table 6–1 for the list of available
options.
■
SRST—Resets the system and reloads the FPGA with a design from flash memory
based on the other MAX II register values. Refer to Table 6–1 for more information.
Because the Config tab requires that a specific design is running in the FPGA at a
specific clock speed, writing a 0 to SRST; writing a 1, 2, or 3 to OCR2; or changing the
PSO value can cause the Board Test System to stop running.
JTAG Chain
This control shows all the devices currently in the JTAG chain. The Arria II GX device
is always the first device in the chain.
1
Uninstalling the shunt jumper from jumper J9 pins 1-2 includes the MAX II device in
the JTAG chain.
Board Information
This control displays static information about your board.
■
MAX-II rev—Indicates the version of MAX II code currently running on the
board. The MAX II code resides in the <install
dir>\kits\arriaIIGX_2agx125_fpga\examples directory. Newer revisions of this
code might be available on the Arria II GX FPGA Development Kit page of the
Altera website.
■
MAC—Indicates the MAC address of the board.
Flash Memory Map
This control shows the memory map of the flash memory device on your board.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–7
The GPIO Tab
The GPIO tab allows you to interact with all the general purpose user I/O
components on your board. You can write to the LCD, read DIP switch settings, turn
LEDs on or off, and detect push button presses. Figure 6–3 shows the GPIO tab.
Figure 6–3. The GPIO Tab
The following sections describe the controls on the GPIO tab.
LCD
This control allows you to display text strings on the character LCD on your board.
Type text in the text boxes and then click Write.
1
If you exceed the 16 character display limit on either line, a warning message appears.
User Dipswitch
This read-only control displays the current positions of the switches in the user DIP
switch bank (SW2). Change the switches on the board to see the graphical display
change accordingly.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–8
Chapter 6: Board Test System
Using the Board Test System
User LEDs
This control displays the current state of the user LEDs. Click the graphical
representation of the LEDs to turn the board LEDs on and off.
Pushbutton Switches
This read-only control displays the current state of the board user push buttons. Press
a push button on the board to see the graphical display change accordingly.
The Flash Tab
The Flash tab allows you to read and write flash memory on your board. Figure 6–4
shows the Flash tab.
Figure 6–4. The Flash Tab
The following sections describe the controls on the Flash tab.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–9
Read
The Read control reads the flash memory on your board. To see the flash memory
contents, type a starting address in the text box and click Read. Values starting at the
specified address appear in the table. The base address of flash memory in this
Nios II-based BTS design is 0x0800.0000. The valid address range within the 64-MB
flash memory is 0x0000.0000 through 0x03FF.FFFF, as shown in the GUI.
1
If you enter an address outside of the 0x0000.0000 to 0x003F.FFFF flash memory
address space, a warning message identifies the valid flash memory address range.
Write
The Write control writes the flash memory on your board. To update the flash
memory contents, change values in the table and click Write. The application writes
the new values to flash memory and then reads the values back to guarantee that the
graphical display accurately reflects the memory contents.
1
To prevent overwriting the dedicated portions of flash memory, the application limits
the writable flash memory address range from 0x03FE.0000 to 0x003F.FFFF (which
corresponds to the unused flash memory address range shown in Figure 6–1 on
page 6–2 and Table A–1 on page A–1).
Random Test
Starts a random data pattern test to flash memory. Limited to scratch page in the
upper 128K block.
CFI Query
The CFI Query control updates the memory table, displaying the CFI ROM table
contents from the flash device.
Increment Test
Starts an incrementing data pattern test to flash memory. Limited to scratch page in
the upper 128K block.
Reset
The Reset control executes the flash device’s reset command and updates the memory
table displayed on the Flash tab.
Erase
Erases flash memory. Limited to scratch page in the upper 128K blocks.
Flash Memory Map
Displays the flash memory map for the Arria II GX FPGA Development Kit.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–10
Chapter 6: Board Test System
Using the Board Test System
The SSRAM Tab
The SSRAM tab allows you to read and write SRAM and flash memory on your
board. Figure 6–5 shows the SSRAM tab.
Figure 6–5. The SSRAM Tab
The following sections describe the controls on the SSRAM tab.
Read
This control allows you to read and write the SRAM on your board. Type a starting
address in the text box and click Read. Values starting at the specified address appear
in the table. The base address of SRAM in this Nios II-based BTS design is
0x0D00.0000. The valid address range within the 2-MB SRAM is 0x0000.0000 through
0x001F.FFFF, as shown in the GUI.
1
If you enter an address outside of the 0x0000.0000 to 0x001F.FFFF SRAM address
space, a warning message identifies the valid SRAM address range.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–11
Write
The Write control writes the SRAM on your board. To update the SRAM contents,
change values in the table and click Write. The application writes the new values to
SRAM and then reads the values back to guarantee that the graphical display
accurately reflects the memory contents.
Random Test
Starts an random data pattern test to flash memory.
Increment Test
Starts an incrementing data pattern test to flash memory.
The DDR3 Tab
The DDR3 tab allows you to read and write the DDR3 memory on your board.
Figure 6–6 shows the DDR3 tab.
Figure 6–6. The DDR3 Tab
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–12
Chapter 6: Board Test System
Using the Board Test System
The following sections describe the controls on the DDR3 tab.
Start
This control initiates DDR3 memory transaction performance analysis.
Stop
This control terminates transaction performance analysis.
Performance Indicators
These controls display current transaction performance analysis information collected
since you last pressed Start:
■
Write, Read, and Total performance bars—Show the percentage of maximum
theoretical data rate that the requested transactions are able to achieve.
■
Write (MBytes/s), Read (MBytes/s), and Total (MBytes/s)—Show the number of
bytes of data analyzed per second. The data bus is 16 bits wide and the frequency1
is 400 MHz double data rate (800 Mbps per pin), equating to a theoretical
maximum bandwidth of 1600 MBps.
Error Control
These controls display data errors detected during analysis and allow you to insert
errors:
■
Detected Errors—Displays the number of data errors detected in the hardware.
■
Inserted Errors—Displays the number of errors inserted into the transaction
stream.
■
Insert Error—Inserts a one-word error into the transaction stream each time you
click the button. Insert Error is only enabled during transaction performance
analysis.
■
Clear—Resets the Detected errors and Inserted errors counters to zeros.
Number of Addresses to Write/Read
This control determines the number of addresses to use in each iteration of reads and
writes. Valid values range from 8 to 67108864.
■
The minimum range, when on the slider is at the Min position on the left, is the
maximum PHY burst of 8.
■
The maximum range, when the slider is at the Max position on the right, fills the
full address space of the DDR3.
Data Type
This control specifies the type of data contained in the transactions. The following
data types are available for analysis:
■
1 Frequency
PRBS—Selects pseudo-random bit sequences.
rates for production silicon speed grade C4N only.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–13
■
Memory—Selects a generic data pattern stored in the on chip memory of the
Arria II GX device.
■
Math—Selects data generated from a simple math function within the FPGA
fabric.
W/R Control
This control specifies the type of transactions to analyze. The following transaction
types are available for analysis:
■
Write/Read—Selects read and write transactions for analysis.
■
Read Only—Selects read transactions for analysis.
■
Write Only—Selects write transactions for analysis.
The DDR2 Tab
The DDR2 tab allows you to read and write the DDR2 memory on your board.
Figure 6–7 shows the DDR2 tab.
Figure 6–7. The DDR2 Tab
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–14
Chapter 6: Board Test System
Using the Board Test System
The following sections describe the controls on the DDR2 tab.
Start
This control initiates DDR2 memory transaction performance analysis.
Stop
This control terminates transaction performance analysis.
Performance Indicators
These controls display current transaction performance analysis information collected
since you last clicked Start:
■
Write, Read, and Total performance bars—Show the percentage of maximum
theoretical data rate that the requested transactions are able to achieve.
■
Write (MBytes/s), Read (MBytes/s), and Total (MBytes/s)—Show the number of
bytes of data analyzed per second. The data bus is 64 bits wide and the frequency1
is 333 MHz double data rate (667 Mbps per pin), equating to a theoretical
maximum bandwidth of 5333 MBps.
Error Control
This control displays data errors detected during analysis and allows you to insert
errors:
■
Detected Errors—Displays the number of data errors detected in the hardware.
■
Inserted Errors—Displays the number of errors inserted into the transaction
stream.
■
Insert Error—Inserts a one-word error into the transaction stream each time you
click the button. Insert Error is only enabled during transaction performance
analysis.
■
Clear—Resets the Detected errors and Inserted errors counters to zeros.
Number of Addresses to Write/Read
This control determines the number of addresses to use in each iteration of reads and
writes. Valid values range from 8 to 134217728.
■
The minimum range, when on the slider is at the Min position on the left, is the
maximum PHY burst of 8.
■
The maximum range, when the slider is at the Max position on the right, fills the
full address space of the DDR2 SODIMM.
Data Type
This control specifies the type of data contained in the transactions. The following
data types are available for analysis:
■
1 Frequency
PRBS—Selects pseudo-random bit sequences.
rates for production silicon speed grade C4N only.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–15
■
Memory—Selects a generic data pattern stored in the on chip memory of the
Arria II GX device.
■
Math—Selects data generated from a simple math function within the FPGA
fabric.
W/R Control
This control specifies the type of transactions to analyze. The following transaction
types are available for analysis:
■
Write/Read—Selects read and write transactions for analysis.
■
Read Only—Selects read transactions for analysis.
■
Write Only—Selects write transactions for analysis.
The HSMC Tab
The HSMC tab allows you to perform loopback tests on the HSMC port. Figure 6–8
shows the HSMC tab.
Figure 6–8. The HSMC Tab
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–16
Chapter 6: Board Test System
Using the Board Test System
1
You must have the loopback HSMC installed on the HSMC connector that you are
testing for this test to work correctly.
The following sections describe the controls on the HSMC tab.
Status
This control displays the following status information during the loopback test:
■
PLL lock—Shows the PLL locked or unlocked state.
■
Channel lock—Shows the channel locked or unlocked state. When locked, all
lanes are word aligned and channel bonded.
■
Pattern sync—Shows the pattern synced or not synced state. The pattern is
considered synced when the start of the data sequence is detected.
Port
This control allows you to specify the type of test to run on the HSMC ports. The
following HSMC port tests are available:
■
HSMA x4 Tranceivers [0..3]
■
HSMA x17 LVDS SERDES
■
HSMA x3 single-ended loopback
PMA Setting
The PMA Setting button allows you to make changes to the PMA parameters that
affect the active transceiver interface. The following settings are available for analysis:
■
Serial Loopback—Routes signals from the receiver to the transmitter.
■
VOD—Specifies the voltage output differential of the transmitter buffer.
■
Pre-emphasis tap
■
Pre—Specifies the amount of pre-emphasis on the pre-tap of the transmitter
buffer.
■
First post—Specifies the amount of pre-emphasis on the first post tap of the
transmitter buffer.
■
Second post—Specifies the amount of pre-emphasis on the second post tap of
the transmitter buffer.
■
Equalizer—Specifies the setting for the receiver equalizer.
■
DC gain—Specifies the DC portion of the receiver equalizer.
f For restrictions on the PMA settings, refer to Volume 2: Transceivers of the Arria II
Device Handbook.
Data Type
This control specifies the type of data contained in the transactions. The following
data types are available for analysis:
■
PRBS—Selects pseudo-random bit sequences.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
Using the Board Test System
6–17
■
Memory—Selects a generic data pattern stored in the on chip memory of the
Arria II GX device.
■
Math—Selects data generated from a simple math function within the FPGA
fabric.
Error Control
This control displays data errors detected during analysis and allows you to insert
errors:
■
Detected Errors—Displays the number of data errors detected in the hardware.
■
Inserted Errors—Displays the number of errors inserted into the transmit data
stream.
■
Insert Error—Inserts a one-word error into the transmit data stream each time you
click the button. Insert Error is only enabled during transaction performance
analysis.
■
Clear—Resets the Detected errors and Inserted errors counters to zeros.
Start
This control initiates HSMC transaction performance analysis.
Stop
This control terminates transaction performance analysis.
Performance Indicators
These controls display current transaction performance analysis information collected
since you last clicked Start:
February 2011
■
TX and RX performance bars—Show the percentage of maximum theoretical data
rate that the requested transactions are able to achieve.
■
Tx (MBytes/s) and Rx (MBytes/s)—Show the number of bytes of data analyzed
per second. The HSMA transceiver bus is 4 bits wide and the data rate is
3.75 Gbps, totaling 1.5625 GBps full-duplex. The LVDS SERDES bus is 17 bits
wide. The transmit data bus is 16 bits wide and the frequency is 300 MHz double
data rate (600 Mbps per pin), equating to a theoretical maximum bandwidth of
1200 MBps.
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–18
Chapter 6: Board Test System
The Power Monitor
The Power Monitor
The Power Monitor measures and reports current power information for the board. To
start the application, click Power Monitor in the Board Test System application.
1
You can also run the Power Monitor as a stand-alone application. PowerTool.exe
resides in the <install
dir>\kits\arriaIIGX_2agx125_fpga\examples\board_test_system directory. On
Windows, click Start > All Programs > Altera > Arria II GX FPGA Development Kit
<version> > Power Monitor to start the application.
The Power Monitor communicates with the MAX II device on the board through the
JTAG bus. A power monitor circuit attached to the MAX II device allows you to
measure the power that the Arria II GX FPGA device is consuming regardless of the
design currently running. Figure 6–9 shows the Power Monitor.
Figure 6–9. The Power Monitor
The following sections describe the Power Monitor controls.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Chapter 6: Board Test System
The Power Monitor
6–19
General Information
The General information controls display the following information about the
MAX II device:
■
MAX II Version—Indicates the version of MAX II code currently running on the
board. The MAX II code resides in the <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery and <install
dir>\kits\arriaIIGX_2agx125_fpga\examples\max2 directories. Newer revisions
of this code might be available on the Arria II GX FPGA Development Kit page of
the Altera website.
■
Power Rail—Selects the power rail to measure. After selecting the desired rail,
click Reset to refresh the screen with new board readings.
f A table with the power rail information is available in the Arria II GX FPGA
Development Board Reference Manual.
Power Information
This control displays RMS current, maximum, and minimum power readings for the
following units:
■
mVolt
■
mAmp
■
mWatt
Power Graph
This control displays the mWatt power consumption of your board over time. The
green line indicates the current value. The red line indicates the maximum value read
since the last reset. The yellow line indicates the minimum value read since the last
reset.
Graph Settings
The following controls allow you to define the look and feel of the power graph:
■
Scale Select—Specifies the amount to scale the power graph. Select a smaller
number to zoom in to see finer detail. Select a larger number to zoom out to see the
entire range of recorded values.
■
Update Speed—Specifies how often to refresh the graph.
Reset
This control clears the graph, resets the minimum and maximum values, and restarts
the Power Monitor.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
6–20
Chapter 6: Board Test System
Configuring the FPGA Using the Quartus II Programmer
Calculating Power
The Power Monitor calculates power by measuring two different voltages with the
LT2418 A/D and applying the equation P = V × I to determine the power
consumption. The LT2418 measures the voltage after the appropriate sense resistor
(Vsense) and the voltage drop across that sense resistor (Vdif). The current (I) is
calculated by dividing the measured voltage drop across the resistor by the value of
the sense resistor (I = Vdif/R). Through substitution, the equation for calculating
power becomes P = V × I = Vsense × (Vdif/R) = (Vsense) × (Vdif) × (1/.009), except for
the A2VCC rail which uses .001 for R.
You can verify the power numbers shown in the Power Monitor with a digital
multimeter that is capable of measuring microvolts to ensure you have enough
significant digits for an accurate calculation. Measure the voltage on one side of the
resistor (the side opposite the power source) and then measure the voltage on the
other side. The first measurement is Vsense and the difference between the two
measurements is Vdif. Plug the values into the equation to determine the power
consumption.
Configuring the FPGA Using the Quartus II Programmer
You can use the Quartus II Programmer to configure the FPGA with a specific .sof.
Before configuring the FPGA, ensure that the Quartus II Programmer and the
USB-Blaster driver are installed on the host computer, the USB cable is connected to
the FPGA development board, power to the board is on, and no other applications
that use the JTAG chain are running.
To configure the Arria II GX FPGA, perform the following steps:
1. Start the Quartus II Programmer.
2. Click Add File and select the path to the desired .sof.
3. Turn on the Program/Configure option for the added file.
4. Click Start to download the selected file to the FPGA. Configuration is complete
when the progress bar reaches 100%.
1
Using the Quartus II programmer to configure a device on the board causes other
JTAG-based applications such as the Board Test System and the Power Monitor to
loose their connection to the board. Restart those applications after configuration is
complete.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
A. Programming the Flash Memory
Device
As you develop your own project using the Altera tools, you can program the flash
memory device so that your own design loads from flash memory into the FPGA on
power up. This appendix describes the preprogrammed contents of the common flash
interface (CFI) flash memory device on the Arria II GX FPGA development board and
the Nios II EDS tools involved with reprogramming the user portions of the flash
memory device.
The Arria II GX FPGA development board ships with the CFI flash device
preprogrammed with a default factory FPGA configuration for running the Board
Update Portal design example and a default user configuration for running the Board
Test System demonstration. There are several other factory software files written to
the CFI flash device to support the Board Update Portal. These software files were
created using the Nios II EDS, just as the hardware design was created using the
Quartus II software.
f For more information about Altera development tools, refer to the Design Software
page of the Altera website.
CFI Flash Memory Map
Table A–1 shows the default memory contents of the 512-Mb (64-MB) CFI flash device
(Numonyx, PC28F512P30BF). For the Board Update Portal to run correctly and
update designs in the user memory, this memory map must not be altered.
Table A–1. Byte Address Flash Memory Map (Part 1 of 2)
Block Description
February 2011
Size
Address Range
Unused
32 KB
0x03FFFFFF
0x03FF8000
Unused
32 KB
0x03FF7FFF
0x03FF0000
Unused
32 KB
0x03FEFFFF
0x03FE8000
Unused
32 KB
0x03FE7FFF
0x03FE0000
User software
24,320 KB
0x03FDFFFF
0x02820000
Factory software
8,192 KB
0x0281FFFF
0x02020000
zipfs (html, web content)
8,192 KB
0x0201FFFF
0x01820000
Unused
6,357 KB
0x0181FFFF
0x01280000
User hardware 2
6,357 KB
0x0127FFFF
0x00C60000
Altera Corporation
Arria II GX FPGA Development Kit User Guide
A–2
Appendix A
Preparing Design Files for Flash Programming
Table A–1. Byte Address Flash Memory Map (Part 2 of 2)
Block Description
Size
Address Range
User hardware 1
6,357 KB
0x00C5FFFF
0x00640000
Factory hardware
6,357 KB
0x0063FFFF
0x00020000
PFL option bits
32 KB
0x0001FFFF
0x00018000
Board information
32 KB
0x00017FFF
0x00010000
Ethernet option bits
32 KB
0x0000FFFF
0x00008000
User design reset vector
32 KB
0x00007FFF
0x00000000
c Altera recommends that you do not overwrite the factory hardware and factory
software images unless you are an expert with the Altera tools. If you unintentionally
overwrite the factory hardware or factory software image, refer to “Restoring the
Flash Device to the Factory Settings” on page A–4.
Preparing Design Files for Flash Programming
You can obtain designs containing prepared .flash files from the Arria II GX FPGA
Development Kit page of the Altera website or create .flash files from your own
custom design.
The Nios II EDS sof2flash command line utility converts your Quartus II-compiled
.sof into the .flash format necessary for the flash device. Similarly, the Nios II EDS
elf2flash command line utility converts your compiled and linked Executable and
Linking Format File (.elf) software design to .flash. After your design files are in the
.flash format, use the Board Update Portal or the Nios II EDS
nios2-flash-programmer utility to write the .flash files to the user hardware 1 and
user software locations of the flash memory.
f For more information about Nios II EDS software tools and practices, refer to the
Embedded Software Development page of the Altera website.
Creating Flash Files Using the Nios II EDS
If you have an FPGA design developed using the Quartus II software, and software
developed using the Nios II EDS, follow these instructions:
1. On the Windows Start menu, click All Programs > Altera > Nios II EDS > Nios II
Command Shell.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Appendix A
Programming Flash Memory Using the Board Update Portal
A–3
2. In the Nios II command shell, navigate to the directory where your design files
reside and type the following Nios II EDS commands:
■
For Quartus II .sof files:
sof2flash --input=<yourfile>_hw.sof --output=<yourfile>_hw.flash --offset=0x00640000 -pfl --optionbit=0x18000 --programmingmode=PSr
■
For Nios II .elf files:
elf2flash --base=0x08000000 --end=0x0BFFFFFF --reset=0x0A020000
--input=<yourfile>_sw.elf --output=<yourfile>_sw.flash
--boot=$SOPC_KIT_NIOS2/components/altera_nios2/boot_loader_cfi.srecr
1
For boards with dual-die CFI flash devices, use --base=0x0A000000. For
more information, refer to the Board Revision History appendix of the
Arria II GX FPGA Development Board Reference Manual.
The resulting .flash files are ready for flash device programming. If your design uses
additional files such as image data or files used by the runtime program, you must
first convert the files to .flash format and concatenate them into one .flash file before
using the Board Update Portal to upload them.
1
The Board Update Portal standard .flash format conventionally uses either
<filename>_hw.flash for hardware design files or <filename>_sw.flash for software
design files.
Programming Flash Memory Using the Board Update Portal
Once you have the necessary .flash files, you can use the Board Update Portal to
reprogram the flash memory. Refer to “Using the Board Update Portal to Update User
Designs” on page 5–2 for more information.
1
If you have generated a .sof that operates without a software design file, you can still
use the Board Update Portal to upload your design. In this case, leave the Software
File Name field blank.
Programming Flash Memory Using the Nios II EDS
The Nios II EDS offers a nios2-flash-programmer utility to program the flash memory
directly. To program the .flash files or any compatible S-Record File (.srec) to the
board using nios2-flash-programmer, perform the following steps:
1. Set the USER_LOAD switch (SW4.4) to the off position to load the Board Update
Portal design from flash memory on power up.
2. Attach the USB-Blaster cable and power up the board.
3. If the board has powered up and the LCD displays either "Connecting..." or a valid
IP address (such as 152.198.231.75), proceed to step 8. If no output appears on the
LCD or if the CONF DONE LED (D14) does not illuminate, continue to step 4 to
load the FPGA with a flash-writing design.
4. Launch the Quartus II Programmer to configure the FPGA with a .sof capable of
flash programming. Refer to “Configuring the FPGA Using the Quartus II
Programmer” on page 6–20 for more information.
February 2011
Altera Corporation
Arria II GX FPGA Development Kit User Guide
A–4
Appendix A
Restoring the Flash Device to the Factory Settings
5. Click Add File and select <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery\ArriaIIGX_2agx125_dev_
bup.sof.
6. Turn on the Program/Configure option for the added file.
7. Click Start to download the selected configuration file to the FPGA. Configuration
is complete when the progress bar reaches 100%. The CONF DONE LED (D14)
and the four user LEDs (D7-D10) illuminate indicating that the flash device is
ready for programming.
8. On the Windows Start menu, click All Programs > Altera > Nios II EDS > Nios II
Command Shell.
9. In the Nios II command shell, navigate to the <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery directory (or to the
directory of the .flash files you created in “Creating Flash Files Using the Nios II
EDS” on page A–2) and type the following Nios II EDS command:
nios2-flash-programmer --base=0x08000000 <yourfile>_hw.flash r
10. After programming completes, if you have a software file to program, type the
following Nios II EDS command:
nios2-flash-programmer --base=0x08000000 <yourfile>_sw.flash r
1
For boards with dual-die CFI flash devices, use --base=0x0A000000. For
more information, refer to the Board Revision History appendix of the
Arria II GX FPGA Development Board Reference Manual.
11. Set the USER_LOAD switch (SW4.4) to the on position and power cycle the board
to load and run the new user design.
Programming the board is now complete.
f For more information about the nios2-flash-programmer utility, refer to the Nios II
Flash Programmer User Guide.
Restoring the Flash Device to the Factory Settings
This section describes how to restore the original factory contents to the flash memory
device on the FPGA development board. Make sure you have the Nios II EDS
installed, and perform the following instructions:
1. Set the board switches to the factory default settings described in “Factory Default
Switch Settings” on page 4–2.
2. Launch the Quartus II Programmer to configure the FPGA with a .sof capable of
flash programming. Refer to “Configuring the FPGA Using the Quartus II
Programmer” on page 6–20 for more information.
3. Click Add File and select <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery\ArriaIIGX_2agx125_dev_
bup.sof.
4. Turn on the Program/Configure option for the added file.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Appendix A
Restoring the MAX II CPLD to the Factory Settings
A–5
5. Click Start to download the selected configuration file to the FPGA. Configuration
is complete when the progress bar reaches 100%. The CONF DONE LED (D14)
and the four user LEDs (D7-D10) illuminate indicating that the flash device is
ready for programming.
6. On the Windows Start menu, click All Programs > Altera > Nios II EDS > Nios II
Command Shell.
7. In the Nios II command shell, navigate to the <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery directory and type the
following command to run the restore script:
./restore.sh r
Restoring the flash memory might take several minutes. Follow any instructions
that appear in the Nios II command shell.
8. After all flash programming completes, cycle the POWER switch (SW1) off then
on.
9. Using the Quartus II Programmer, click Add File and select <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery\ArriaIIGX_2agx125_dev_
bup.sof.
10. Turn on the Program/Configure option for the added file.
11. Click Start to download the selected configuration file to the FPGA. Configuration
is complete when the progress bar reaches 100%. The CONF DONE LED (D14)
and the four user LEDs (D7-D10) illuminate indicating the flash memory device is
now restored with the factory contents.
12. Cycle the POWER switch (SW1) off then on to load and run the restored factory
design.
13. The restore script cannot restore the board’s MAC address automatically. In the
Nios II command shell, type the following Nios II EDS command:
nios2-terminal r
and follow the instructions in the terminal window to generate a unique MAC
address.
f To ensure that you have the most up-to-date factory restore files and information
about this product, refer to the Arria II GX FPGA Development Kit page of the Altera
website.
Restoring the MAX II CPLD to the Factory Settings
This section describes how to restore the original factory contents to the MAX II CPLD
on the FPGA development board. Make sure you have the Nios II EDS installed, and
perform the following instructions:
1. Set the board switches to the factory default settings described in “Factory Default
Switch Settings” on page 4–2.
1
February 2011
Altera Corporation
Uninstalling the shunt jumper from jumper J9 pins 1-2 includes the MAX II
device in the JTAG chain.
Arria II GX FPGA Development Kit User Guide
A–6
Appendix A
Restoring the MAX II CPLD to the Factory Settings
2. Launch the Quartus II Programmer.
3. Click Auto Detect.
4. Click Add File and select <install
dir>\kits\arriaIIGX_2agx125_fpga\factory_recovery\max2.pof.
5. Turn on the Program/Configure option for the added file.
6. Click Start to download the selected configuration file to the MAX II CPLD.
Configuration is complete when the progress bar reaches 100%.
f To ensure that you have the most up-to-date factory restore files and information
about this product, refer to the Arria II GX FPGA Development Kit page of the Altera
website.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Additional Information
This chapter provides additional information about the document and Altera.
Document Revision History
The following table shows the revision history for this document.
Date
Version
Changes
February 2011
1.1
Updates for production silicon speed grade C4N device, new single-die flash device, LVDS,
DDR2 and DDR3 speed improvements.
July 2009
1.0
Initial release.
How to Contact Altera
To locate the most up-to-date information about Altera products, refer to the
following table.
Contact (1)
Technical support
Technical training
Product literature
Contact Method
Address
Website
www.altera.com/support
Website
www.altera.com/training
Email
[email protected]
Website
www.altera.com/literature
Non-technical support (General)
Email
[email protected]
(Software Licensing)
Email
[email protected]
Note to Table:
(1) You can also contact your local Altera sales office or sales representative.
Typographic Conventions
The following table shows the typographic conventions this document uses.
Visual Cue
Meaning
Bold Type with Initial Capital
Letters
Indicate command names, dialog box titles, dialog box options, and other GUI
labels. For example, Save As dialog box. For GUI elements, capitalization matches
the GUI.
bold type
Indicates directory names, project names, disk drive names, file names, file name
extensions, software utility names, and GUI labels. For example, \qdesigns
directory, D: drive, and chiptrip.gdf file.
Italic Type with Initial Capital Letters
Indicate document titles. For example, Stratix IV Design Guidelines.
Indicates variables. For example, n + 1.
italic type
February 2011
Variable names are enclosed in angle brackets (< >). For example, <file name> and
<project name>.pof file.
Altera Corporation
Arria II GX FPGA Development Kit User Guide
Info–2
Additional Information
Typographic Conventions
Visual Cue
Meaning
Initial Capital Letters
Indicate keyboard keys and menu names. For example, the Delete key and the
Options menu.
“Subheading Title”
Quotation marks indicate references to sections within a document and titles of
Quartus II Help topics. For example, “Typographic Conventions.”
Indicates signal, port, register, bit, block, and primitive names. For example, data1,
tdi, and input. The suffix n denotes an active-low signal. For example, resetn.
Courier type
Indicates command line commands and anything that must be typed exactly as it
appears. For example, c:\qdesigns\tutorial\chiptrip.gdf.
Also indicates sections of an actual file, such as a Report File, references to parts of
files (for example, the AHDL keyword SUBDESIGN), and logic function names (for
example, TRI).
r
An angled arrow instructs you to press the Enter key.
1., 2., 3., and
a., b., c., and so on
Numbered steps indicate a list of items when the sequence of the items is important,
such as the steps listed in a procedure.
■ ■
Bullets indicate a list of items when the sequence of the items is not important.
■
1
The hand points to information that requires special attention.
h
A question mark directs you to a software help system with related information.
f
The feet direct you to another document or website with related information.
c
A caution calls attention to a condition or possible situation that can damage or
destroy the product or your work.
w
A warning calls attention to a condition or possible situation that can cause you
injury.
The envelope links to the Email Subscription Management Center page of the Altera
website, where you can sign up to receive update notifications for Altera documents.
Arria II GX FPGA Development Kit User Guide
February 2011
Altera Corporation
Was this manual useful for you? yes no
Thank you for your participation!
