freezer

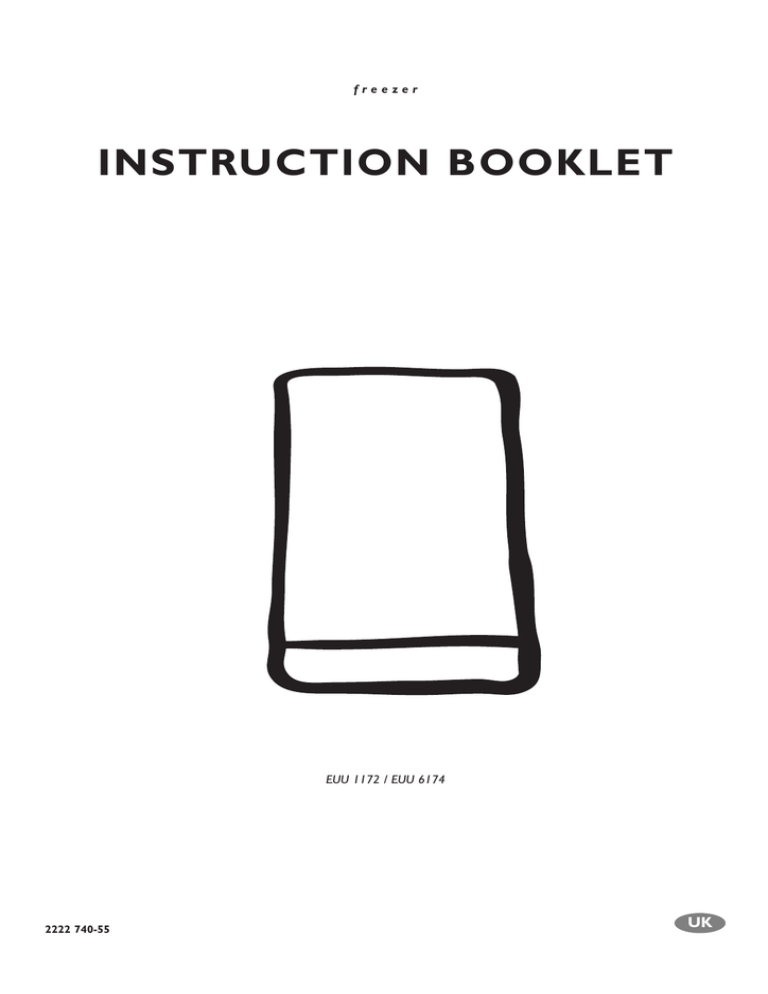

INSTRUCTION BOOKLET
EUU 1172 / EUU 6174
2222 740-55
UK
CONTENTS
Instructions for the User
Instructions for the Installer
Important Safety Instructions
3
Technical Specifications
13
Operation
5
Installation
13
Before use
Freezer controls
Starting your appliance
Temperature control
Warning light (red)
Temperature acoustic alarm
Freezing fresh food
Frozen food storage
Thawing
Ice making
5
5
5
5
5
5
5
6
6
6
Positioning
13
Electrical Connection
14
Building-in Instructions
15
Grid preparation
Door reversal
Building the appliance in under a worktop
Fitting the plinth
15
15
16
20
Health and safety guidelines
7
Defrosting
8
Maintenance and Cleaning
9
Internal cleaning
Periodic cleaning
When the appliance is not in use
9
9
9
Something Not Working?
10
Service and Spare Parts
11
Customer Care Departments
11
Guarantee Conditions
12
2
IMPORTANT SAFETY INSTRUCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings of these warnings contact the Customer Care Department.
Prior to Installation
General Safety
¥ Check the appliance for transport damage. Under
no circumstance should a damaged appliance be
installed. In the event of damage please contact
your retailer.
¥ This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorised
technicians.
¥ Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
¥ The appliance must not be located close to radiators or boilers.
¥ Avoid prolonged exposure of the appliance to
direct sunlight.
¥ Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances.
Installation
¥ This appliance is heavy. Care should be taken when
moving it.
¥ It is dangerous to alter the specifications or attempt
to modify this product in any way.
¥ Ensure that the appliance does not stand on the
electrical supply cable. Important: if the supply
cable is damaged, it must be replaced by authorised service or qualified personnel using a special
cable of the same type.
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
¥ The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
During Use
¥ This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
It is not intended for commercial or industrial use.
¥ Containers with flammable gases or liquids can leak
at low temperatures. Do not store any containers
with flammable materials, such as spray cans, fire
extinguisher refill cartridges etc. in the refrigerator.
¥ Frozen food should not be refrozen once it has
thawed out.
¥ Do not place carbonated or fizzy drinks in the freezer compartment.
¥ Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the star compartement.
¥ Do not remove items from the freezer compartement if your hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
¥ Bottles and cans must not be placed in the freezer
compartment they can burst when the contents
freeze.
¥ Manufacturers’ recommended storage times should
be adhered to. Refer to relevant instructions.
Refrigerant
¥ The refrigerant isobutane (R600a) is contained
within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibly, which is nevertheless flammable.
¥ During transportation and installation of the appliance, be certain that none of the components of the
refrigerant circuit become damaged.
¥ If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition.
- thoroughly ventilate the room in which the
appliance is situated.
Maintenance and Cleaning
Child Safety
¥ Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
¥ When unplugging always pull the plug from the
mains socket, do not pull on the cable.
¥ Do not allow children to tamper with the controls or
play with the product.
¥ There is a risk of suffocation! Keep packaging material away from children!
3
Servicing
¥ This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥ Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre.
At the end of the Appliance Life
¥ When disposing of your appliance use an authorised disposal site.
¥ Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
4
OPERATION
Before use
Remove all securing tapes. Wash inside the appliance
with lukewarm water and bicarbonate of soda
(5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.
Freezer controls
➀ ➁
➀
➁
➂
➂➃➄
➅
➃
➄
➅
➆
Symbol for audible alarm (temperature warning only for EUU1172)
Push button for fast-freezing
Fast-freezing indicator light (yellow)
➆
Warning light (red)
Pilot light (green)
Push button ON/OFF
Thermostat control knob
Starting your appliance
Warning light (red)
Insert the plug into the wall socket. The appliance can
be activated/deactivated by pressing the ON/OFF button.When the pilot light ➄ is illuminated this shows
If the temperature warning light ➃ lights up, it indicates that the temperature within the freezer has
reached a level where the safe food storage is no
longer ensured.
When the freezer is first switched on, the warning light
will stay on until the temperature has dropped to a
safe level for the storage of frozen food.
that the appliance is on.
Temperature control
The temperature within the freezer is controlled by the
thermostat ➆ situated at the bottom of the cabinet .
Temperature acoustic alarm
(only for EUU1172)
To operate the freezer proceed as follows:
Turn the thermostat control knob beyond the «■»
position. When you first start the freezer, we suggest
that you turn the thermostat control knob to a medium
setting. For easier turning of this control, use a small
coin. The internal temperature of the freezer is automatically adjusted by the thermostat to ensure safe
food storage. However, if the appliance is working in
unfavourable room conditions such as high temperature and frequent door openings, it may be necessary
to select a more suitable setting.
To obtain a lower temperature, turn the thermostat
control knob towards max.; to obtain a higher temperature turn the control knob towards min.
This appliance incorporates an alarm which gives off
an audible signal whenever the warning light comes
on. This signal can be temporarily stopped by
depressing the push button for fast-freezing ➁.
The fast-freezing push button can be released as
soon as the warning light is off.
Freezing fresh food
In any 24 hour period you can freeze up to 18 kg of
fresh food.
Activate fast freeze by depressing the fast-freeze button ➁ 24 hours before you want to freeze your fresh
5
food, the yellow light ➂ illuminates. This time can be
shortened, depending on the quantity of food to be
frozen. After the time has elapsed place the food to be
frozen in the two top compartments of the freezer as
this is the coldest part; if freezing only a small amount
of food, always use the top compartment. Once the
food is completely frozen (which could take up to 24
hours) press the fast freeze button to deactivate the
fast freeze mode; the yellow light ➂ goes off.
Distribute the frozen food packages in the other compartments, so that the top compartments can be used
for a further freezing operation.
Only freeze top quality, fresh and thoroughly cleaned
foodstuffs.
Do not allow fresh food to touch food which is already
frozen.
During the freezing process, ensure that the freezer
door remains closed.
To remove the drawers, proceed as follows: pull the
drawer out until it comes to a stop, then tilt it upwards
(see figure).
Frozen food storage
Thawing
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least two hours in the «fast
freeze» mode before storing frozen food.
Frozen food, prior to being used, can be thawed in the
fridge or at room temperature depending on the time
available. Small food items may even be cooked from
frozen; in this case cooking will take longer.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Defrosted cooked food must never be refrozen.
PR001c
To obtain the best performance from this appliance,
we strongly recommend that you make sure that the
commercially frozen foodstuffs were adequately
stored by the retailer and, furthermore, be sure that
these frozen foodstuffs are transferred from the foodstore to the consumer in the shortest possible time (a
temperature increase of the frozen food could shorten
its storage period).
Making ice cubes
It is also advisable not to exceed the storage period
indicated by the producer of the food.
The appliance is provided with a plastic ice cube tray.
Fill the tray 3/4 full to allow the ice to expand and
place it in the freezer. To turn out the ice cubes simply
give the tray a slight twist to release the cubes.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Important
Do not put carbonated liquids, (fizzy drinks
etc.), in the freezer compartment.
Ice lollies, if consumed immediately after
removal from the freezer, can possibly result in
a low temperature skin burn.
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or "frost/freezer burns".
If there is a power failure during the storage of
frozen food, do not open the door during the
whole time of the power failure. If the freezer is
fully loaded, the frozen food will not be affected
if the power cut is of short duration; otherwise,
it is recommended to consume the food within
a very short time.
Never tray to free an ice tray that is frozen to the
freezer using a sharp or pointed object.
6
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
¥ Keep the freezer door closed as much as possible.
¥ Do not push food together too much, try to allow air
to circulate around each item.
¥ Cool cooked food as quickly as possible but do
NOT place in the freezer until cool. (Leave food in a
place as cool as possible in order that it can then be
placed in the refrigerator as soon as possible).
¥ Do not store food uncovered.
¥ The best way to defrost food is to put it in the refrigerator to thaw slowly.
¥ Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food
is consumed at its best.
¥ It is important that food is used before its “best
before” date.
¥ Always wash your hands with soapy water and dry
them with a clean towel before handling food.
¥ Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife,
without washing them thoroughly in between.
¥ The foods to be frozen must be fresh and of the
best quality.
¥ The size of each pack should be small enough to
ensure that it is used in one go. Small packs freeze
more quickly and uniformly and give better results.
¥ Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
¥ Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and provide an airtight seal.
¥ Packaging which is swollen or has traces of
refrozen water droplets on the pack could indicate
that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it
must be consumed within 24 hours. Never exceed
the storage time indicated.
¥ Never place hot food, bottles or cans of fizzy drink
in the freezer as they may explode. Containers with
a lid must not be filled to the brim.
¥ Do not open the door or place extra fresh food in the
freezer next to food which is already frozen as this
could cause the temperature of the frozen food to
rise and its quality and storage life to reduce.
7
DEFROSTING
The freezer compartment will become progressively
covered with frost. This should be removed with the
special plastic scraper provided, whenever the thickness of the frost exceeds 1/4".
Important
In the event of a power failure causing t h e
temperature within your freezer to rise, do
not re-freeze the food without checking its
condition. The following guidelines should
assist you:
During this operation it is not necessary to switch off
the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
and it is advisable to carry out this operation when the
appliance is empty.
To carry out complete defrosting proceed as follows:
Ice-cream: once thawed should be discard-ed.
Fruits & Vegetables: if soft should be cooked
and used up.
Breads & Cakes: can be re-frozen without
danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing there are still ice crystals remaining within them.
Small Joints: should be cooked and can then
be re-frozen as cooked dishes.
Chicken: should also be cooked and re-frozen
as a cooked dish.
1. Remove any stored food, wrap it in several layers
of newspaper and put it in a cool place.
2. Turn the thermostat control knob ➆ to the «■»
setting.
3. Leave the door open.
4. Remove the three large drawers.
5. When defrosting is completed, remove the water
that has collected in the small bottom drawer and
dry the interior thoroughly.
Turn the thermostat control to a medium setting and,
after letting the appliance run for at least two hours in
the «fast freeze» mode, replace the previously
removed food into the compartments.
Important
A temperature rise of the frozen food packs
during defrosting may shorten their storage life.
Never use sharp metal tools to scrape off frost
from the evaporator as you could damage the
appliance beyond repair.
8
MAINTENANCE AND CLEANING
Warning
Before any maintenance or cleaning work is
carried out, DISCONNECT the appliance
from the ELECTRICITY supply.
Important
This appliance contains hydrocarbons in its
cooling unit maintenance and recharging
must therefore only be carried out by authorised technicians.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE
AND LEAVE A STRONG SMELL.
Important
Do not use abrasive products.
Periodic cleaning
The appliance is equipped with a ventilation grid.
Keep clean to guarantee good ventilation and good
working order of the appliance.
An accumulation of dust will affect the performance of
the appliance and cause excessive electricity consumption.
The structure of the appliance permits cleaning of the
rear zone close to the wall, using a vacuum cleaner.
1. Remove the plinth (1), then the ventilation grid (2);
2. Carefully pull the air deflector out (3).
3
S.I.013
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door ajar to prevent unpleasant smells.
9
2
1
SOMETHING NOT WORKING?
Before contacting your local Service Force Centre check the following points.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Symptom
Solution
No power to the appliance
- Check there is power at the socket.
- Check there is not a power cut by checking the household lights.
- Check the fuse has not blown.
The temperature in the freezer is too high
- Check the thermostat control knob is turned to the correct setting relative to ambient conditions.
- Check the ambient temperature is within the appliances
operating limits of 10°C to 38°C.
The freezer door will not open
- Has door just been opened?
- If so leave for a few minutes to allow the air pressure to
equalise.
The compressor runs continuously
- Adjust the thermostat control knob to give correct temperature control. See page 5.
- Check that the door is closed.
- Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
- Check that air ventilation is not obstructed.
Excessive frost and ice has built up.
- Ensure the door is not left opened.
- Check that nothing is preventing the door from closing.
- Is the door gasket intact and clean.
- Has advised periodic defrosting been carried out.
Noise
Refer to normal operating sounds.
If after the above checks, there is still a fault, call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
10
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:-
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance
(found on the rating plate)
5. The purchase date
08705 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at www.serviceforce.co.uk
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.
Before calling out an engineer, please ensure you
have read the details under the heading “Something
Not Working.”
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux
appliance or for further information on Electrolux
products, please contact our Customer Care
Department by letter or telephone at the address
below or visit our website at www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 (*)
* calls to this number may be recorded for training
purposes.
11
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part
thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair
or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufactuer's
instructions.
• The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not
authoried by us.
• All service work under this guarantee must be undertaken by an Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look after
you and your appliance.
France
Senlis
+33 (0) 3 44 62 20 13
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117 511
Sweden
Stockholm
+46 (0) 20 78 77 50
UK
Slough
+44 (0) 1753 219898
12
TECHNICAL SPECIFICATIONS
DIMENSIONS
Height
Width
Depth
81,5
59,6
54
POWER SUPPLY VOLTAGE AND FREQUENCY
TOTAL POWER ABSORBED
AVERAGE DAILY UNITS ELECTRICITY(*)
220-240 V / 50 Hz
90 W
0,78 kWh
GROSS CAPACITY
108 l
NET CAPACITY
100 l
cm
cm
cm
STAR RATING
(*)This figure is based on standard test results in accordance with European Standard EN153. Actual consumption will depend on how the appliance is used and where it is located.
INSTALLATION
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the climate classification indicated on the rating plate, which
is located on the inside left of the appliance.
The following table shows which ambient temperature
is correct for each climate classification.
SN
+10°C to +32°C
ST
+18°C to +38°C
The appliance should be located in a dry atmosphere,
out of direct sunlight and away from continuous heat
and extreme temperature, e.g. not next to a boiler or
radiator, or in a very cold room e.g. an outhouse. If
these temperatures are exceeded i.e. warmer or colder, then the appliance may not operate correctly.
For building-in and door reversal instructions please
refer to the relevant instructions on the following
pages.
13
ELECTRICAL CONNECTION
If you fit your own plug, the colours of the wires in the
mains lead of your appliance, may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
Connect the Green and the Yellow (earth) wire to the
terminal in the plug which is marked with the letter
WARNING
THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the
appropriate plug fitted.
«E» or the earth symbol
yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into
a 13amp socket in another part of your home.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
Important
The wires in the mains lead are coloured in
accordance with the following code:
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
Green and Yellow - Earth
Blue
- Neutral
Brown
- Live
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
13 AMP. FUSE
This appliance complies with the following E.E.C.
Directive:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent amendments.
- 87/308 of 2.6.87 (Radio Interference
Suppression) and subsequent amendments.
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
amendments.
13 AMP
GREEN & YELLOW
BROWN
BLUE
D207
, or coloured green and
CORD CLAMP
Please ensure that when the appliance is installed
it is easily accessible for the engineer in the event
of breakdown.
14
BUILDING-IN INSTRUCTIONS
Before carrying out any work, remove the plug from
the power socket.
Grid preparation
Left door opening:
A
Remove the left side (A) of the grid cutting it from the
rear (see figure).
B
Right door opening:
Remove the right side (B) of the grid cutting it from the
rear (see figure).
DO002/2
To position the grid on the appliance proceed as follows:
Apply the grid to the base of the appliance by pushing
on to the clasps (a) until they click.
a
a
DO001
Door reversal
To reverse the opening direction of the door, proceed as
shown in the figures:
6
4
1
7
8
5
2
3
1
2
15
Attention
After completion of the door reversing operation, check that the door gasket adheres to the
cabinet. If the ambient temperature is cold (i.e.
in Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by
heating up the part involved with a normal
hairdryer on a low setting.
10
13
9
12
11
3
Building the appliance in under a worktop
1. The dimensions of the recessed installation area
must correspond with those indicated in the figure.
60
0
5
min50
.
600
DO013
2. Installation kit
1xB
2xC
1xA
12
1
16
2
1
2
1
2
3. Two cabinet securing brackets are supplied with
the installation pack. They need to be assembled
onto the cabinet prior to cabinet being pushed into
the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
Right hand
bracket
Left hand
bracket
1/a
4. Push the appliance into place. The plug socket
necessary for connection of the appliance to the
electricity supply should be positioned, so that the
plug is not placed in the recess.
596
5. To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the screw in
the front kick plate to the left or right.
5
55 x
ma
-
2Li89
+
6. If necessary, pads are supplied for the rear feet to
make sliding the appliance in and out of the recess
easier. To fit the pads, press them onto the rear
feet.
If required, the dimensions of these pads can be
reduced by breaking them where marked.
II52
2/a
2
1
B
115°
3
4
N.B. The joint cover (B) is to be assembled after having installed the appliance in the recess.
17
7. Screw appliance into place and retain the cabinet
with screws through the securing brackets into the
worktop or adjacent woodwork as necessary.
5
8. To mount the furniture door proceed as shown in
the figures:
2
1
a
10
C
4
3
b
6
a
b
C
clic
C
clic
7
8
18
c
UPPER PART OF KITCHEN FURNITURE PANEL
1
a
=
=
LOWER PART OF KITCHEN FURNITURE PANEL
2
275
275
x
ma
b
9
1
45
°
9/a
2
=
3
10
=
11
10
12
19
100
9. Refit the covering strip.
A
13
Fitting the plinth
Important
For the efficient operation of the appliance, it is
important that the original ventilation grid is
used.
a = 100
b = 150
A = 820
B = 870
¥ For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
¥ For plinth heights greater than a=100 mm,
b=150 mm, a cut should be made in the plinth,
580 mm wide, in the centre of the appliance position, leaving a remaining height of a=100 mm,
b=150 mm.
¥ Attach plinth to the kitchen units.
580
25
25
DO008
Important
The plinth must be positioned at a minimun distance of 25 mm from the door.
20
- 80
ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE
922 822 666 / 922 822 667
© Electrolux plc 2003
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
