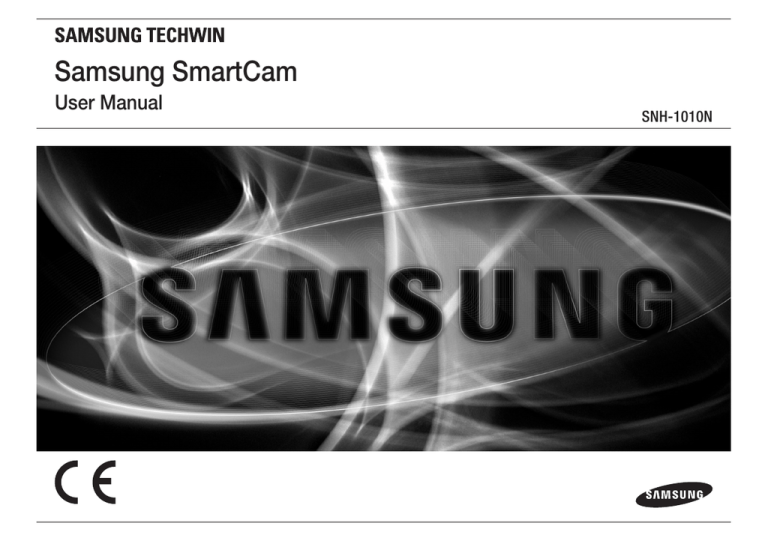

Samsung SmartCam
User Manual
SNH-1010N
SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
Samsung SmartCam
User Manual
Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective
company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no
circumstances, this document shall be reproduced, distributed or changed, partially or wholly,
without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in
this document, but no formal guarantee shall be provided. Use of this document and the
subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin
reserves the right to change the contents of this document without prior notice.
Instructions & Warranty
The manufacturer is not responsible for any loss or radio/TV interference caused by
unauthorized modification of the product.
Such modification will void the warranty of the product as well as the user’s right of use.
Warning
• The product must be assembled and installed by an adult.
• Before using, read all instructions on this manual thoroughly and follow operational
instructions, warnings on this manual and printed on the product.
• To avoid entangled power cord, do not place it around the baby bed or other infant
furniture. Keep this product and its power cord out of children’s reach.
• Especially, the power cord should be installed carefully while keeping it out of
children’s reach.
• Never use the product near bath tub, sink, washing machine and in wet basement to
avoid moisture.
• The product is designed for indoor use.
• The product is not designed for medical monitoring, and requires a grown-up’s
protective supervision on its use.
• To avoid overheating of the product, do not expose the product to direct sunlight; do
not install or use near a heat source such as heater, radiator, cooking devices (ex:
electric stove or oven) and other warming devices (ex: audio amplifier, TV, etc.).
• Make sure to keep ventilated while using the product.
Avoid pillar or furniture that may block ventilation, when installing the product.
• Make sure to use the power adaptor provided. If used with unidentified adaptor, it may
damage the product. The power adaptor must be used with regular household electric
supply.
• Avoid sharp, pointed objects around the adaptor’s cable, not to damage the cable.
• Be warned and never hold the cable’s stripped part when connecting / disconnecting
the adaptor to/from the wall outlet.
• To avoid entangled cable lines, avoid using cable extension for adaptor’s power cord.
• The product’s servicing is allowed only to authorized Samsung Techwin’s service
personnel.
• When using the product for children’s care, be careful to keep the product out of
children’s reach.
• The product partially contains component which might cause respiration difficulty.
Accessories and small parts of the product should be stored keeping out of children’s
reach.
• The product is not designed to replace responsibility of human supervision on children.
• The product is not equipped with device of immediate notification to adult with
accidental/sudden children‘s move; it requires periodic checks and human
supervision.
Contents
Getting Started
Key Features… ………………………………………………… 4
Basic Information… …………………………………………… 6
Installation & Network Connection
Installation… …………………………………………………… 8
Network Connection and Settings……………………………… 11
Monitoring
Settings… ……………………………………………………… 13
Live Video Setting… …………………………………………… 23
Appendix
Specifications… ………………………………………………… 27
Troubleshooting… ……………………………………………… 30
01
Getting Started
Key Features
Product and Accessories
4
5
Basic Information
6
Product At a Glance
Power Supply
6
7
Key Features
• Easy to install
- With the help of WPS (Wi-Fi Protected Setup), wireless sharing and easy
connection are enabled.
- Simply visit the home page (www.samsungsmartcam.com) and download
and install the program without a separate installer program.
• Remote monitoring
- Whenever and wherever if you are in the Internet enabled environment,
remote monitoring is ready for you.
- PC, laptop or smart phone can be used for monitoring.
• Real-time alarm
- Detect motion and sound before outputting the alarm in real time via
Google Talk Messenger or with smart phone.
• Cloud Storage
- Upload the event video and images to the user’s YouTube (video) or Picasa
(images) account automatically.
- Anytime anywhere you can enjoy the video and images stored in the cloud
storage.
• Two-way Audio
- With the built-in speakers and microphone, you can make Two-way
communications.
However, it is available only with the smart phone. (Not applicable to the
PC or laptop computer.)
• SNS (Social Networking Service) Alarm supported
- Provide the event alarm (message, video, image) via YouTube, Picasa or Twitter.
- Share special video footage and images with your friends.
• IR Flash
- In a low contrast scene, you can use IR Flash for the monitoring purpose.
· English
Product and Accessories
System Components
01
Power Adaptor
Quick Start Guide
License Information
Warranty Card
Bracket
Double-sided Tape
Network Cable
Getting Started
Camera
Check for above components when opening the product package.
Basic Information
Product At a Glance
Front View
High quality camera lens
Built-in IR LEDs for night vision
Power status LED
Wi-Fi status LED
Flashing White: Searching for wireless network
Steady White: Wireless network connected
Off: Connected via network cable
Bottom View
Holes for wall mount bracket
Built-in speaker
· English
Red: Power On, Boot-up in process
White: Camera ready
Yellow: Privacy mode enabled
Magenta: Updating firmware
Built-in Mic
Power Supply
Side View
Plug-in the camera power adapter to the wall outlet and connect the camera as
shown.
01
Getting Started
WPS Button
Used to connect to the Wireless
Access Point
Privacy button
Press once to stop transmitting
video/audio
Press and hold for 5sec to reset
the camera to default settings
Rear View
n`
Make sure to use the provided power adaptor. Otherwise, the product may not
operate properly.
` It will take about 1min for the camera to boot-up completely.
` When the boot-up is complete, the power LED color will change from red to
white.
DC 5V Power Input
Network port
Used if WPS is not supported on
the Wireless Access Point or if
you do not have a Wireless
Access Point
02
Installation & Network
Connection
Installation
Precautions
Stand mounting
Wall mounting
8
8
9
9
Network Connection and Settings 11
Precautions
11
If using a cable router
11
If using a Wireless Access Point not equipping WPS12
To connect to a wireless network with WPS
12
· English
Installation
Precautions
1. Install the camera in a place where it can receive the video signal with no
interference.
2. Keep it away from humidity such as around the humidifier.
3. Keep it away from the direct sunlight, strong light or dust; install it in a place of
clear view.
4. Do not install it in a place interrupted by an obstacle.
5. Keep the lens clean at all times.
Wipe it off of dust with a soft cloth.
Stand mounting
1.
Place the camera in a desired position
on the surface.
Wall mounting
1.
Use a double-sided tape to secure the bracket to
a desired position.
n`
You can use the screws to tighten the camera. (not
included)
02
` The double-sided tape cannot be reused after being
used once.
2.
Adjust the camera’s shooting angle as appropriate.
Do not put excessive force.
Otherwise, it may cause damage
to the camera.
` If you use the camera in contact
with the base unit, this may
cause noise on the video. It is
advisable to use the camera in a
5º to 10º tilt.
3.
2.
Installation & Network Connection
n`
` Keep the installation surface clean before attaching
the double-sided tape to the bracket.
Otherwise, the adhesive force may be deteriorated,
causing a fall of the camera.
Fit the protruding points (x2) of the bracket into the corresponding holes
of the camera before turning clockwise to fix the camera.
Connect the power
cable.
n`
When done, remove the protective film from the lens.
3.
Adjust the camera’s shooting angle as appropriate (left and right) and
tighten the screws on the bottom of the bracket.
n`
5.
Plug in the power cable and arrange the cables through the bracket
holes.
You can also use a coin or flat-head screwdriver to tighten them.
n`
4.
Adjust the camera’s shooting angle (top
and bottom).
n`
Do not put excessive force. Otherwise, it
may cause damage to the camera.
` If you use the camera in contact with the
base unit, this may cause noise on the
video. It is advisable to use the camera in a
5º to 10º tilt.
10 · English
When done, remove the protective film from the lens.
Network Connection and Settings
Precautions
• The wireless network access may fail, depending on the communications environment.
• For details about the network settings and password, contact your network
administrator or service provider.
• Do not access the unauthorized network.
If you do not have a Wireless Access Point, you must connect the camera using LAN
cable directly to your home router.
1.
Connect the network cable to the camera and to the home router as shown
below . Please refer to <Wired Network> on page 24.
• The farther the distance from the Wireless Access Point, the longer time the network
connection may take.
<Hub>
• If you fail to access the selected wireless network, try a different Wireless Access
Point to make access.
• For more information about the router or the wireless connection, refer to the
documentation of the router or contact the router manufacturer.
<Modem>
Internet Service
OR
• If the camera is connected to a multiple-Wireless Access Point network environment,
some video packets may be lost, depending on the network traffic load.
• According to the network policy (blocking UDP) of the service provider, the video
transmission can be limited to one minute.
• In addition to the above two situations, you may encounter a network delay or
interruption due to the network conditions.
• This product has gone through the compatibility test with worldwide top ranking
routers in the market but you may still have a problem in compatibility with some
conventional routers or other routers manufactured by other than the industry leading
companies.
11
02
Installation & Network Connection
• For a specific Internet service requiring user authentication, you may not access the
service. If this is the case, contact the service provider.
If using a cable router
If using a Wireless Access Point not equipping WPS
To connect to a wireless network with WPS
If you want to connect the camera using a non-WPS Wireless Access Point, change
the network setting to Wire and try the wireless network.
What is WPS?
WPS enables to make connection between the camera and the Wireless Access
Point with a simple click of the button.
1.
Use the network cable (LAN cable) to connect the LAN port of the unit to the
LAN port of the Wireless Access Point.
1.
When you apply the power, the power status LED is lit red, and it will change
to white when the booting is completed.
2.
Press the WPS button on the camera and the WiFi status LED will flash rapidly.
press the WPS button on the Wireless Access Point within 2min.
WPS Button
WPS Button
<Wireless Access Point>
Internet Service
<Modem>
2.
Register and select the camera according to guide of 03. Monitoring.
3.
Set your wireless network environment using the guideline <Wireless
Network> on page 24.
n``
12 · English
When the wireless network settings are completed, remove the LAN cable.
If you fail to connect to the Internet service, contact the service provider for
details.
<Wireless Access Point>
Wi-Fi
Indicator LED
Internet Service
<Modem>
3.
The WiFi status LED will become steady white once the camera is connected
to the Wireless Access Point. (may take up to 30sec).
4.
If the Wi-Fi status LED (white) is not lit, repeat steps 2 through the end and
check it again.
n`
If the Wireless Access Point do not support WPS or you do not have wirelss
router, please go to Wired Connection.
` If no WPS button is displayed or visible on the display, see the Wireless Access
Point’s manual or contact the manufacturer of your Wireless Access Point for
technical assistance.
` On some routers, you may need to log in to the web interface and click on an
on-screen button to activate the WPS feature.
` If you fail to connect to the Internet service, contact the service provider for details.
Settings
Monitoring
03
Account Setup and Registering the Camera
Live Video
Alarm Settings
Live Video Setting
Setup
Network Setup
Time Setting
Administrator
13
13
19
20
23
23
24
25
25
Once you register the product with the site, you can monitor the camera video on the
PC or laptop computer.
Web browser requirements
Windows
Mac
03
- Windows 7, XP supported
- Internet Explorer 7 or 8
(The 64-bit Internet Explorer 8 is not
supported.)
- Firefox
- Safari
- Firefox
- Chrome
- Chrome
n`
If you fail to make network connection with MAC Safari, follow the instructions
below:
1) Click to run the Finder.
2) Click the application, and double-click the Utilities icon.
3) Double-click on the Java Preferences icon.
4) When the Java installer screen appears, click Install.
5) When the installation is completed, check the option of “Enable Web Start
and applet plug-in applications” from the Java preference window.
13
Monitoring
Settings
Account Setup and Registering the Camera
1.
Enter www.samsungsmartcam.com on the web browser’s address field.
Java-uninstalled PC
1.
Verify the Java version
• In the SmartCam Web service access page, make search for JAVA Runtime
Environment (hereinafter “JRE”) and check if your PC has installed the
recommended version of JRE 1.6.10 or later. If not, install the latest version of
JRE as recommended by the Company.
2.
Move to the Verify Java page
• If you agree to upgrade the current Java version for a PC installing JRE version
1.6.10 or earlier or a PC not installing JRE yet, you will move to the Java Verify page.
n
` If you do not have Java installed on your computer, you will be asked to click on
the link to download the Java plug-in and install. This process may take up to 10
minutes depending on your internet connection speed.
n`
14 · English
This product is designed to automatically install JAVA but, in many situations, if
it is not installed automatically, visit by www.java.com and follow the onscreen
instructions to install the product.
• If you have not installed Java yet, you will be prompted to install JRE with a
message.
3.
Start installing Java
5.
Start the SmartCam Web service
03
1.
• In the SmartCam Web service access page, make search for JAVA Runtime
Environment (hereinafter “JRE”) and check if your PC has installed the
recommended version of JRE 1.6.10 or later. If not, install the latest version of
JRE as recommended by the Company.
• If you accept the installation of JRE, the installation process will start.
4.
Verify Certificate
• When JRE is installed completely, you will move to the SmartCam Web page.
And, you will be prompted to agree to run the application published by
Samsung Techwin Co., Ltd.
Verify the Java version
• From the Verify Java page, click on the given button to check the Java version.
2.
Verifying the Java version
• Search for the current version of JRE on the PC
3.
Check the JRE version of the current PC
• Check the current JRE version and download the latest version if necessary
( version 6 Update 31 as of 2012/04)
15
Monitoring
PC having JRE 1.6 or earlier installed
4.
Agree to install JRE
6.
Start installing Java
• Agree to install the latest version of JRE
5.
Move to the Verify Java page
• If you agree to upgrade the current Java version for a PC installing JRE version
1.6.10 or earlier or a PC not installing JRE, you will move to the Java Verify
page.
• If you have not installed Java yet, you will be prompted to install JRE with a
message.
• If you accept the installation of JRE, the installation process will start.
16 · English
7.
Verify Certificate
1.
Select <Sign Up> to register.
After reading the terms of use, check on “Agree”, and click <Next>.
• Move to the SmartCam Web page (www.samsungsmartcam.com), and you
will be prompted to agree to run the application published by Samsung
Techwin Co., Ltd.
8.
Start the SmartCam Web service
03
2.
Provide the requested information, and click <Sign Up>.
Monitoring
• ID: Enter the user ID and perform the duplicate check.
Fill in the user ID in 8 ~ 12 alphanumeric characters.
• Password: For security reason, provide the user ID in 8 ~ 12 alphanumeric characters.
• Confirm Password: Please enter the password again for confirmation.
• Name: Enter the user name.
• E-mail: Enter the correct email address as it is used for reference in case you
forgot the user ID or password.
• Country: Please select your country.
17
3.
Enter the <Serial no.> and click the check.
6.
When done, click <Registration>.
<Bottom Label of the Product>
4.
Create a <Private key>.
n`
n
` Private key is required to prevent unauthorized access to the camera.
` If you lose the private key, you are not able to access the camera.
Refer to the <Trouble shooting> section of the manual and make the settings again.
` You can use one to eight length strings of letters, numbers, and characters except ‘-’ and ‘,’.
5.
7.
Once the camera is successfully registered, you can check the camera in the
<Camera List>.
Create a <Camera Name>.
 Camera Name : You can provide the camera name to your preference for identification
in the multi-camera network. (ex: Living room, Kitchen...)
n
If you want to change the private
key, move to <Admin> 
<Private Key> and make a
change.
` The private key can be
changed only in admin mode.
` Keep the private key in a safe place as it is used for viewing the live screen of
the camera or for changing the display settings.
` You can use one to fifteen length string of letters, numbers, and characters
‘~`[email protected]#$%^&*()_-|{}[];’,./?’.
18 · English
cam-room1
xxxxxxxxx
cam-room2
xxxxxxxxx
Live Video
1.
From the <Camera List>, select the camera to monitor and click <
cam-room1
xxxxxxxxx
cam-room2
xxxxxxxxx
3.
When done, click <OK>.
4.
Select <Video>  <Live> to display the live feed from the selected camera.
>.
03
2.
The <
now.
Monitoring
n`
> icon indicates the camera is inactive so you cannot monitor it right
• < Mid speed network > : Select frame rate based on your network speed.
Enter the Private Key and select preferred language.
Profile Name
Recommended
bandwidth
Resolution
Frame rate
Low Speed Network
VGA
5 fps
768Kbps
Mid Speed Network
VGA
10 fps
1Mbps
High Speed Network
VGA
20 fps
1.5Mbps
n`
If the bandwidth provided by the cable service provider is lower than recommended,
you may encounter a blurry image or a temporary loss of video signal.
19
Alarm Settings
•<
•<
n`
> : Takes a picture of current live image you are viewing.
> : When enabled, you can hear what’s happening around the camera.
Depending on the policy of the Internet service provider, the sound output may not be
supported. (in either 3G UDP or Relay mode)
•<
> : Enable and disable night vision.
• IR Flash will run for 2 minutes after accessing the live screen.
• Even if you click the IR Flash icon while it is working, it will still run
for just two minutes.
• Even if the surrounding brightness increases enough to switch to
the color mode while in IR-Flash mode, the IR-Flash icon will be
active after 2 minutes.
• If there exists an object near the camera, IR Flash can be activated.
n`
Depending on your internet provider, When the camera can’t connect your phone or
PC directly, Relay mode show on display screen and the live video viewing may
time-out after 1 minute.
` The Night Vision video produces a different visibility according to the distance
between camera and subject. (See the picture below)
1m distant (1.0 field)
20 · English
Camera has ability to send event notifications when motion or audio is detected.
See the notification bar below the live view.
2m distant (0.65 field)
3m distant (0.5 field)
1.
From the bottom menu bar of the live screen, select to click one of SNS,
Messenger, and Email. The context menu should appear.
n``
Provide the user ID and password that you have created and set in the previous site.
If you fail to synchronize time, no event alarm will occur.
` In order to synchronize time, the device should be connected to the Internet.
<YouTube> Notification
3. Click Apply.
When enabled, you can record up to 30 seconds of video to your private YouTube
account.
1. Select Enable.
2. Enter your YouTube user ID and password.
3. Select public or private folder to save. By default, it’s set to private folder.
4. Click Apply.
n``
If you have set the private setting of the video image, no image will be found in portal sites.
Refer to the policy of Picasa for the maximum number of uploaded images.
` YouTube and Picasa must be enabled to receive notifications.
03
<My Friends> Notification
When enabled, camera will send event notifications to listed user IDs.
Notifications can be viewed in Smartcam App or Google Talk.
You can check the recorded video at the YouTube homepage “Video Manager”
“Uploaded”.
` Note that depending on the policies of YouTube, the video may not be uploaded.
` If setting to “public”, the video may be exposed to the public.
` It is advisable to create and use one YouTube account for each camera.
` Even when you have set the YouTube alarm, the video will not be transferred if
the event alarm is not set to Enabled (see page 23).
` If a continuous motion is detected or the audio alarm occurs, the camera can
recognize the next event only after the uploading to YouTube is completed.
(In other words, it does not recognize any event until the YouTube upload is
finished.)
- If this is set to <Enabled>, the video and image link recorded in YouTube and Picasa
will be transferred to the listed friends in real time in the event of an alarm.
- The video/image alarm will be transferred only if you have set the Youtube and
Picasa enabled. Otherwise, no alarm will be triggered.
- You will have no video displayed if you don’t have any Youtube ID and access a private content.
- Even when you access the Youtube site, no video will be played automatically.
Be sure to click the Play icon to play a video.
If you fail to play the video, log into the Youtube site and install Flash Player and try again.
- The Friend list will have user IDs registered at the Web site (www.
samsungsmartcam.com). When an alarm occurs, the PUSH alarm will be notified to
the respective smart phones via the Web site.
- If you want to receive the notification with Google Talk, follow the instructions below
to configure the Google Talk settings.
<Picasa> Notification
When enabled, camera will send a picture of the event to your Picasa account.
1. Enter your Picasa user ID and password.
1. [email protected]
2. [email protected]
2. Select either public or private folder to save. By default, it’s set to private folder.
21
Monitoring
n`
 <Google Talk> Notification
<E-mail> Notification
1. In the friend’s list, it shows the IDs that camera is registered to and Google Talk
friends that receives real-time notification from the camera.
<Receiver email address>
2. When enabled, you can receive real-time event notification through Google Talk
messenger and Smartphone push service.
3. To receive instant event notification, add the camera as a friend to your Google Talk
messenger account. You have to add the following user ID. (camera serial [email protected]
xmpp.samsungsmartcam.com) (i.e., [email protected])
4. Once camera is invited, you will receive an instant message to enter the private key
for authentication. Enter the private key of the camera you are adding.
5. Once completed, you can see the Google Talk messenger ID in the camera My
Friends list.
1. Please see the below table for the popular email server information.
Gmail
Yahoo
Yahoo Plus
Server Address
smtp.gmail.com
smtp.mail.yahoo.
com
Port
465
25
465
Use SSL.
Use
Don’t Use
Use
User Authentication
on
on
on
2. Click on Get Token.
ID
Full email address
3. Twitter web page will pop-up for authorization.
Only ID without
“@yahoo.com”
Only ID without
“@yahoo.com”
Password
Email password
Email password
Email password
Sender
Full email address Full email address Full email address
6. Click Apply.
<Twitter> Notification
When enabled, camera will send a notification as a message to your twitter account.
1. Click on “Request URL”.
4. Enter your Twitter user ID and password and click on “Authorize app” to get the
Access Token.
5. You will see the pin number generated. Copy the pin numbers and go back to the
camera page and paste the pin number in the Access Token section.
6. Click Apply.
n`
22 · English
The alarm notification will be sent to the specified user account via Twitter.
plus.smtp.mail.
yahoo.com
2. If your email provider is not listed, you need to get the email server information
from your email provider.
3. A
dd above information and receiver full email address and then click Add
buttion.
Live Video Setting
No.
Description
Setup
4
Adjust the volume of the built-in microphone and speaker of the
camera as appropriate.
Note that the Two-way audio transfer function is available only
with the smart phone application.
Audio
You can configure the camera-related settings.
1
2
3
5
• Flip: You can flip over the video image.
: Disable the screen rotation.
5
Camera
: Horizontally mirrors the video image against the vertical axis.
: Vertically flips over the video image against the horizontal axis.
: Rotate the screen by 180°
4
6
6
Description
1
Event Alarm
Specify whether to trigger the alarm or not, and specify the sensitivity.
The higher the sensitivity is, the subtler motion/sound events will be
detected.
2
Flickerless
This will prevent possible screen distortion due to a mismatch between
the vertical sync frequency and the blinking frequency of the lighting.
Day/Night
Set the IR lighting.
If you set it to <Auto>, the IR flash will stay active for 2 minutes before
turning off in a low contrast scene.
In order to reactivate the IR flash, access Video Live, or press the
IR-Flash button at the bottom of the live screen. The IR flash will be
active for 2 more minutes.
If you set it to <Color>, the camera will not switch to the Day/Night
mode.
3
Activation
Time
You can activate the motion and audio detection at a desired time.
• Always: It will work at all times.
• Scheduled: You can select the time of activation.
n`
If you display more than one live video with the Web browser, they can be
overlapped in some portion. It is recommended to use one browser at one time.
` If camera is capturing a close object, the video analysis capability may degrade.
In the following cases, the video analysis function may not produce a proper
result on the default event and motion detections.
- The object color or brightness is similar to the background.
-M
ultiple movements continue occurring at random due to a scene change or other reasons.
- A fixed object continues moving in the same position.
- An object hides other objects behind.
- Two or more objects overlap or one object divides in multiple portions.
- Too fast object (for a proper detection, one object should be found overlapping
between contiguous frames).
- Reflection / blur / shadow due to a strong light such as direct sunlight, illumination, or headlamp.
- In severe snow, rain, wind or in dawn / dusk.
- A moving object comes close to the camera.
23
Monitoring
• Brightness: You can adjust the brightness of the screen image.
No.
03
Network Setup
<Wired Network>
<Wireless Network>
1
1
2
2
3
No.
1
2
Description
If you select “Dynamic IP Address”, the IP address will be
Dynamic IP Address
obtained automatically.
Static IP Address
n``
You must manually provide the information of: IP address,
subnet mask, gateway, DNS server address.
If you have both cable and wireless network connections simultaneously, the
cable network connection is prioritized.
` If you switch from the current wireless connection to the cable connection, the
network will switch to cable connection accordingly.
` For more information about the router or the wireless connection, refer to the
documentation of the router or contact the router manufacturer.
Description
1
You can select to activate or deactivate the wireless network
connection.
2
AP (Access Point)
list
You will see a list of APs (Access Point) available. Select a
desired one from the list of APs (Access Point).
3
AP (Access Point)
password
If you select a secured AP (Access Point), you must enter the
password before you can access the network.
For the password, contact your network administrator.
If any of the manual settings is wrong, the network settings will not be applied.
` Press WPS to set the network connection to Wireless regardless of the current
network settings. When the system reboots, it will switch to Cable if the cable
network connection is already established.
24 · English
No.
Wireless On/
Wireless Off
n`
If you select a non-secured AP (Access Point), you just can access the network
without providing a specific password.
` If you entered a wrong password, you cannot access the network whatsoever.
` When the wireless network settings are completed, remove the LAN cable. If
you do not remove the LAN cable, the wireless network will not be available.
Time Setting
Administrator
<Private Key>
1
2
1
03
1
Time Zone
Select your region.
2
Summer Time
Check this option if you live in a country or region where
DST(Daylight Saving Time) is applied.
n`
No.
Description
The time will synchronize with the NTP(Network Time Protocol) server
automatically.
` For this, Internet connection is required.
1
Description
Change the private
Key
n`
You can change the private Key.
Enter the current private Key, and type a new private Key.
If you change the private key, you will be logged out and return to the private
key input page.
` The private key can be changed only in admin mode.
` Keep the private key in a safe place as it is used for viewing the live screen of
the camera or for changing the display settings.
` You need to set the timezone correctly to obtain the exact time setting.
` The time displayed without Internet connection may not be accurate.
25
Monitoring
No.
<Update Firmware>
<My Account>
1
No.
1
Please update your current software version if it is lower
than the final version.
If the final version is the same as or lower than the current
version, the “Update Firmware” button will not be active. No
update will proceed.
Use the cable network if possible to update the firmware.
If the power is off during the update, it will cause a fatal damage to the
product.
` The duration of the firmware update depends on the size of the firmware file
and the network connection speed.
26 · English
xxxxxxxxx
xxxxxxxxx
Description
Update Firmware
n``
cam-room1
cam-room2
n`
If you want to change your information, move to My account” page and select
an item (password and/or email address) and make changes as necessary.
Appendix
04
Specifications
Specifications
Sensor
Item
Imaging Device
SNH-1010N
VGA 1/6 inch CMOS
Lens
Focal Length (Zoom Ratio)
2.17mm
Angular Field of View (D/V/H)
64.5°/ 41.0°/ 50.0°
Focus Control
Fixed
Lens Type
3 Plastic lens
04
Pan / Tilt / Rotate
Specifications
Product Appearance
Troubleshooting
27
27
29
30
Pan Range
-35°~35° (Manual)
Tilt Range
0°~150° (Manual)
Appendix
Specifications
Operational
On Screen Display (Web
Browser, Local page)
English, French, Germany, Spanish, Italian, Korean
Day & Night
Support (IR LED 940nm 8EA, 3m distance)
OS
Linux
Audio Detection
Support
Motion Detection
Video Motion Detection
White Balance
Auto
27
Item
Item
SNH-1010N
Network
SNH-1010N
Environmental
Operating Temperature /
Humidity
Ethernet
RJ-45 (10/100BASE-T)
Wireless
Wi-Fi 802.11 b/g/n
WPS (Wi-Fi Protected Setup)
Support WPS Button
Video Compression Format
H.264, MJPEG
Resolution
640x480, 320x240
Max. Framerate
20fps (640x480)
Video Quality Adjustment
H.264: Compression Level
MJPEG : Quality Level Control
Color
Body : White and Gray
Audio Compression Format
G.711
Dimension
Ø80mm, Height : 29.46mm
Audio Communication
Two-way Audio (Built-in Microphone, Speaker)
Weight
80g
Protocol
TCP/IP, DHCP, SMTP, DNS, RTSP, RTCP, RTP,
HTTP, TCP, UDP, STUN, XMPP, SIP, uPNP, ICE,
SNTP, IPv4/v6, ICMP
Max. User Access
5 users (Unicast)
Web Viewer
Supported Browser :
Windows : Internet Explore 7,8 / Firefox / Chrome
Mac : Safari / Firefox / Chrome
Mobile application support
iPhone 3Gs, 4
Galaxy S, S2 (Recommended Smartphone)
28 · English
0°C ~ +40°C (+32°F ~ +104°F)/ 20% ~ 80% RH
Electrical
Input Voltage / Current
5V DC / 2.2A
Power Consumption
Max. 6W
CPU & Memory
TI DM365 (216Mhz), SDRAM:256MB, NAND : 128MB
Mechanical
Product Appearance
04
Appendix
29
Troubleshooting
If you encounter a problem with your system, see the table below to solve the problem
as quickly and easily as possible. Please follow the instruction below:
Problem
I forgot my user
ID/password.
Action
ove to “Log-in page -> Find ID/PW”, and enter the registered
- M
e-mail address to which we will send you the user ID and/or a
new password.
It can be spammed out depending on the policy of the email server.
After logged in, it is advisable to change the temporary password
provided.
I failed to connect
wirelessly with
the camera.
-
After logged in, I
failed to register
the camera.
The camera is
registered, but
is not ready
for network
connection.
30 · English
If you encounter a frequent turnoff of the wireless Internet LED,
this may be caused by an improper place for the wireless Internet
network. Come closer to the AP and try again.
If the wireless network is unstable, you can still make connection
via the cable network.
- Check if the entered serial number matches with the label on the
bottom of the camera.
- Please re-enter the valid private key and try again.
- If the problem persists, reset the camera to the factory default and
start all over again.
(To reset the camera to the factory default, press and hold the
Privacy button on the side of the camera. The camera will reboot
when the factory reset is completed.)
- Check if the front LED on the camera turns on.
- If the wireless LAN LED turns off, follow the applicable instructions
to make the wireless LAN connection using WPS.
- If the problem persists even if the wireless LAN LED turns off,
move the camera near the wireless AP and try again.
- If you use the cable LAN network, the wireless LAN LED should
turn off. If the cable LAN is connected, the product will be
connected to the server automatically by the AP.
Problem
Action
ove to Setup  Video  Motion/Audio and adjust the sensitivity
- M
as necessary.
- F rom the Notification settings page on the bottom of the live
screen, configure the YouTube notification settings. (See page 21
of the manual)
The camera video
is not uploaded to - Youtube has different service policies according to the country.
Youtube.
The policy for your country may prohibit uploading to Youtube.
Please first check the Youtube policy for your country.
ccording to the Youtube policy, it may limit the uploading size.
- A
Check the allowable free space of your Youtube account, and if
insufficient, delete the exiting video clips or increase the upper limit.
ove to Setup  Video  Motion/Audio and adjust the sensitivity
- M
as necessary.
The capture
images in the
camera will not
be uploaded to
Picasa.
- F rom the Notification settings page on the bottom of the live
screen, configure the Picasa notification settings. (See page 21
of the manual)
icasa has different service policies according to the country. The
- P
policy for your country may prohibit uploading to Picasa. Please
first check the Picasa policy for your country.
ccording to the Picasa policy, it may limit the uploading size.
- A
Check the allowable free space of your Picasa account, and if
insufficient, delete the exiting images or increase the upper limit.
Notification from
the camera is not
transferred to
Twitter.
ove to Setup  Video  Motion/Audio and adjust the sensitivity
- M
as necessary.
- F rom the Notification settings page on the bottom of the live
screen, configure the Twitter notification settings. (See page 22
of the manual)
Problem
The message of
Privacy mode
appears and
no video is
displayed.
The video from
the camera is
temporarily lost.
Action
he Company supports the privacy policy or mode for protecting
- T
your privacy. The Privacy mode can be set using the button on
the side of the product. (See page 7 of the manual)
- In Privacy mode, neither camera video will be displayed nor is it
transferred outside.
- To release the Privacy mode, press the same button again.
he video from the camera will be affected by the illumination of
- T
the installation site of the camera. This is why the video from the
camera looks lost if the camera is installed in a low illumination
environment.
he video from the camera can be delayed according to a
- T
network delay. Please check if the camera is installed in a place of
proper wireless Internet communications.
djust the volume of the microphone or audio sound in the Setup
- A
page of the camera.
No sound is
output from the
video.
epending on the policy of the Internet service provider, the
- D
sound output may not be supported. (in either 3G UDP or Relay
mode)
Appendix
I forgot my
Private key.
04
lick the Voice icon in the video playback page, or check if the
- C
voice is turned On in your smart phone app.
- You must create a new private key.
- Press and hold the Privacy button in the rear of the product for at least 5
seconds to reset to the factory default.
- After the factory reset, access the camera and set the Private key again.
I want to change
my password
and/or email
address.
fter logging in, move to the “My account” page, select an
- A
item (password and/or email address) and make changes as
necessary.
31
Samsung Techwin cares for the environment at all product manufacturing stages,
and is taking measures to provide customers with more environmentally friendly
products.
The Eco mark represents Samsung Techwin’s devotion to creating environmentally
friendly products, and indicates that the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with
other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life.
Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are
not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
SALES NETWORK
• S AMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL: +82-70-7147-8740~60, FAX: +82-31-8018-3745
• SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
www.samsungsv.com
• SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
