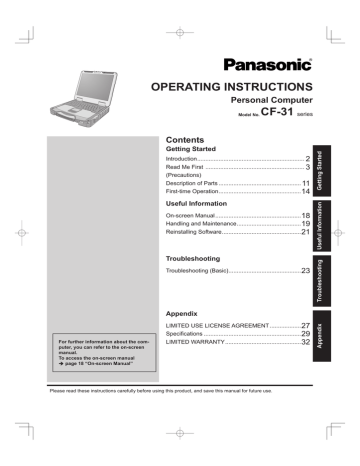

OPERATING INSTRUCTIONS
Personal Computer
Model No.
CF-31 series
Useful Information
On-screen Manual .................................................... 18
Handling and Maintenance ....................................... 19
Reinstalling Software ................................................ 21
Troubleshooting
Troubleshooting (Basic) ............................................ 23
Useful Information
Introduction ................................................................. 2
Read Me First ............................................................ 3
(Precautions)
Description of Parts .................................................. 11
First-time Operation .................................................. 14
Troubleshooting
Getting Started
Getting Started
Contents
For further information about the computer, you can refer to the on-screen
manual.
To access the on-screen manual
page 18 “On-screen Manual”
LIMITED USE LICENSE AGREEMENT ................... 27
Specifications ........................................................... 29
LIMITED WARRANTY .............................................. 32
Please read these instructions carefully before using this product, and save this manual for future use.
Appendix
Appendix
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
Terms and illustrations in these instructions
CAUTION :
NOTE
:
Conditions that may result in minor or moderate injury.
Useful and helpful information.
Enter :
Press [Enter] key.
Fn + F5 :
Press and hold [Fn] key, and then press [F5] key.
(Start) - [All Programs] : Click
cases.
Getting Started
:
(Start), and then click [All Programs]. You may need to double-click in some
Page in these Operating Instructions or in the Reference Manual.
:
Reference to the on-screen manuals.
Some illustrations are simplified to help your understanding and may look different from the actual unit.
If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
Refer for the latest information about optional products to the catalogs, etc.
In these instructions, the names and terms are referred as follows.
“Genuine Windows® 7 Professional 32-bit Service Pack 1” and “Genuine Windows® 7 Professional 64-bit Service
Pack 1” as “Windows” or “Windows 7”
DVD MULTI drive as “CD/DVD drive”
Circular media including DVD-ROM and CD-ROM as “discs”
Disclaimer
Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the
manuals.
Trademarks
Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft Corporation of the
United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDXC Logo is a trademark of SD-3C, LLC.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
