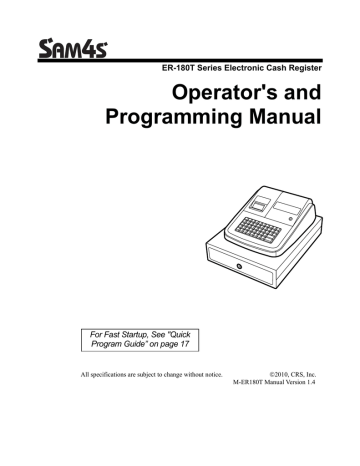

ER-180T Series Electronic Cash Register
Operator's and
Programming Manual
For Fast Startup, See "Quick
Program Guide” on page 17
All specifications are subject to change without notice.
2010, CRS, Inc.
M-ER180T Manual Version 1.4
CRS, Inc.
Limited Warranty and Disclaimers of Warranty
This manual has been developed by CRS, Inc. It is intended for the use of its customers and service personnel and should be read in its
entirety before attempting to install, use or program the product(s).
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation with respect
to, the product or any of the products to which this manual applies. This manual is subject to change without notice and CRS, Inc. has no
obligation to provide any updates or corrections to this manual. Further, CRS, Inc. also reserves the right, without prior notice, to make
changes in equipment design or components as it deems appropriate. No representation is made that this manual is complete or accurate
in all respects and CRS, Inc. shall not be liable for any errors or omissions contained in this manual. In no event shall CRS, Inc. be liable
for any incidental or consequential damages relating to or arising out of the use of this manual. This document contains proprietary
information that is protected by copyright. All rights are reserved. No part of this document may be photocopied or reproduced without
prior written consent of CRS, Inc.
NOTICE
IF ANY WARRANTY IS EXTENDED TO YOU WITH REGARD TO THE PRODUCT(S) TO WHICH THIS MANUAL APPLIES, IT
IS A WARRANTY FROM THE ENTITY OR INDIVIDUAL FROM WHOM YOU DIRECTLY PURCHASED THE PRODUCT(S).
SUBJECT TO THE FOREGOING, UNLESS YOU ARE A DIRECT END USER CUSTOMER OF CRS, INC., CRS, INC. DOES NOT
EXTEND TO YOU ANY EXPRESS WARRANTY OR ANY IMPLIED WARRANTY AND EXPRESSLY DISCLAIMS ANY
IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR USE, OR FITNESS FOR ANY PARTICULAR PURPOSE, OR
ANY WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS IN CONNECTION WITH THE
PRODUCT(S) OR ANY SOFTWARE, DRIVERS, OR PROGRAMMING PRODUCT, WHETHER EMBEDDED IN PRODUCT(S) OR
PROVIDED AS A SEPARATE PROGRAM, OR USED IN CONJUNCTION WITH THIS/THESE PRODUCT(S). CRS, INC.
SPECIFICALLY DOES NOT WARRANT THAT THE OPERATION OF ANY DRIVERS, SOFTWARE, OR PROGRAMMING
PRODUCTS LICENSED HEREUNDER, WHETHER EMBEDDED IN PRODUCTS OR PROVIDED AS SEPARATE PROGRAMS,
SHALL BE UNINTERRUPTED OR ERROR FREE OR THAT FUNCTIONS CONTAINED IN SUCH DRIVERS, SOFTWARE OR
PROGRAMMING PRODUCTS SHALL OPERATE IN COMBINATION(S) WHICH MAY BE SELECTED FOR USE BY YOU OR
OTHERWISE MEET YOUR REQUIREMENTS.
CRS, Inc. is not responsible for any damages or loss, either direct, indirect, special, incidental or consequential, which you may
experience as a result of your purchase or use of the product(s). Your sole remedy in the event that you encounter any difficulties with
the product(s) is against the entity or individual from whom you purchased the product(s).
Revision 2.0 - April 1, 2005
WARNING - U.S.
THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY, AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTIONS MANUAL, MAY CAUSE INTERFERENCE TO RADIO COMMUNICATIONS. IT HAS
BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A COMPUTING DEVICE PURSUANT TO SUBPART J
OF PART 15 OF FCC RULES WHICH ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST SUCH
INTERFERENCE WHEN OPERATED IN A COMMERCIAL ENVIRONMENT. OPERATIONS OF THE EQUIPMENT IN A RESIDENTIAL
AREA IS LIKELY TO CAUSE INTERFERENCE IN WHICH CASE THE USER, AT HIS OWN EXPENSE, WILL BE REQUIRED TO TAKE
WHATEVER MEASURES MAY BE REQUIRED TO CORRECT THE INTERFERENCE.
NOTICE - CANADA
THIS APPARATUS COMPLIES WITH THE CLASS “A” LIMITS FOR RADIO INTERFERENCE AS SPECIFIED IN THE CANADIAN
Department OF COMMUNICATIONS RADIO INTERFERENCE REGULATIONS.
CET APPAREIL EST CONFORME AUX NORMES CLASS “A” D’INTERFERENCE RADIO TEL QUE SPECIFIER PAR MINISTRE
CANADIEN DES COMMUNICATIONS DANS LES REGLEMENTS D’INTERFERENCE RADIO.
ATTENTION
The product that you have purchased may contain a battery that may be recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of the battery into the municipal waste system.
Check with your local solid waste officials for details concerning recycling options or proper disposal.
Precaution Statements
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1
Safety Precautions
1. Be sure that all built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies,
be sure to restore all protective devices, including
nonmetallic control knobs and compartment
covers.
3. Make sure there are no cabinet openings through
which people - particularly children - might insert
fingers and contact dangerous voltages.
Such openings include excessively wide cabinet
ventilation slots and improperly fitted covers and
drawers.
4. Design Alteration Warning:
Never alter or add to the mechanical or electrical
design of the SECR. Unauthorized alterations
might create a safety hazard. Also, any design
changes or additions will void the manufacturer’s
warranty.
5. Components, parts and wiring that appear to have
overheated or that are otherwise damaged should
be replaced with parts that meet the original
specifications. Always determine the cause of
damage or over- heating, and correct any potential
hazards.
6. Observe the original lead dress, especially near the
following areas: sharp edges, and especially the
AC and high voltage supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do not
change the spacing between components and the
printed circuit board. Check the AC power cord
for damage. Make sure that leads and components
do not touch thermally hot parts.
7. Product Safety Notice:
Some electrical and mechanical parts have special
safety-related characteristics that might not be
obvious from visual inspection. These safety
features and the protection they give might be lost
if the replacement component differs from the
original - even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading, ( )
or ( ). Use replacement components that have
the same ratings, especially for flame resistance
and dielectric strength specifications. A
replacement part that does not have the same
safety characteristics as the original might create
shock, fire or other hazards.
CAUTION
There is the danger of explosion if battery is incorrectly
replaced.
ATTENTION
ll y a danger d’explosion s’il y a remplacement incorrect
de la batterie.
Remplacer uniquement avec une batterie du même type
ou d’un type équivalent recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément aux
instructions du fabricant.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose used batteries according to the manufacturer’s
instructions.
SAFETY NOTICE: "For pluggable equipment, the socket-outlet shall be installed near
the equipment and shall be easily accessible."
1-2
Servicing Precautions
WARNING: First read the-Safety Precautions-section of this manual. If some unforeseen circumstance creates a
conflict between the servicing and safety precautions, always follow the safety precautions.
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the cabinet.
Follow them.
2. Always unplug the units AC power cord from the
AC power source before attempting to:
(a) Remove or reinstall any component or assembly
(b) Disconnect an electrical plug or connector
(c) Connect a test component in parallel with an
electrolytic capacitor
3. Some components are raised above the printed
circuit board for safety. An insulation tube or tape
is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around the
serviced part has not been damaged.
1-3
5. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples:
metal panels and input terminals).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the power
switch ON. Connect an insulation resistance meter
(500V) to the blades of AC plug.
The insulation resistance between each blade of the
AC plug and accessible conductive parts (see
above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
8. Always connect an instrument’s ground lead to the
instrument chassis ground before connecting the
positive lead; always remove the instrument’s
ground lead last.
Precautions for Electrostatic Sensitive Devices (ESDs)
1. Some semiconductor (solid state) devices are easily
damaged by static electricity. Such components are
called Electrostatic Sensitive Devices (ESDs);
examples include integrated circuits and some fieldeffect transistors. The following techniques will
reduce the occurrence of component damage caused
by static electricity.
2. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wriststrap device. (Be sure to remove it prior to applying
power - this is an electric shock precaution.)
3. After removing an ESD-equipped assembly, place
it on a conductive surface such as aluminum foil to
prevent accumulation of electrostatic charge.
4. Do not use Freon-propelled chemicals. These can
generate electrical charges that damage ESDs.
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as antistatic; these can accumulate sufficient electrical
charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to install it.
Most replacement ESDs are packaged with leads
that are electrically shorted together by conductive
foam, aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing
clothes together, or lifting a foot from a carpeted
floor can generate enough static electricity to
damage an ESD.
Contents
Getting Started
9
About the ER-180T Series......................................................................................................... 9
Unpacking.................................................................................................................................. 9
Installing the Paper Roll .......................................................................................................... 10
Basic Features and Functions .................................................................................................. 11
Standard Hardware .................................................................................................... 11
Software Features ...................................................................................................... 11
Display ...................................................................................................................... 11
Control Lock ............................................................................................................. 13
Keyboard ................................................................................................................... 14
Ram Clearing ........................................................................................................................... 15
All Memory Clear ..................................................................................................... 15
Initial Clear................................................................................................................ 16
Quick Program Guide
17
Introduction ............................................................................................................................. 17
Date and Time Programming................................................................................................... 18
Tax Percentage Rate Programming ......................................................................................... 19
Quick Department Programs ................................................................................................... 20
Department Taxable and Preset Status ...................................................................... 20
Setting Department Preset Amount ........................................................................... 21
Operating Instructions
23
Key Descriptions ..................................................................................................................... 23
Clerk Sign-On/Sign-Off .......................................................................................................... 25
Sign-On ..................................................................................................................... 25
Sign-Off..................................................................................................................... 25
Calculator Function ................................................................................................................. 25
Training Operation .................................................................................................................. 25
Department Registrations ........................................................................................................ 26
Open Department Entry............................................................................................. 27
Preset Price Department Entry .................................................................................. 27
Department Repeat Entry .......................................................................................... 27
Department Multiplication ........................................................................................ 28
Department Multiplication with Decimal Point ........................................................ 28
Single Item Department............................................................................................. 29
Split Pricing............................................................................................................... 29
PLU (Price Look Up) Registrations ........................................................................................ 30
Open PLU.................................................................................................................. 30
Preset Price PLU ....................................................................................................... 30
PLU Multiplication.................................................................................................... 31
Shifting Tax ............................................................................................................................. 31
Percent Key (+% and -%) Operations ..................................................................................... 32
SAM4s ER-180T Operator's & Programming Manual v1.4
Contents  5
Preset Percent on a Department or PLU Item............................................................32
Enter a Percent on a Department or PLU ..................................................................32
Percent On Sale Total ..............................................................................................................33
- (Minus) Key Registrations ....................................................................................................33
Return Merchandise Registrations...........................................................................................34
Voids........................................................................................................................................34
Void Last Item...........................................................................................................34
Void Previous Item....................................................................................................34
Cancel........................................................................................................................35
Void Position Operations ..........................................................................................35
No Sale Operations ..................................................................................................................35
Open Drawer .............................................................................................................35
Received On Account Operations............................................................................................36
Paid Out Operations.................................................................................................................37
Totaling and Tendering............................................................................................................38
Subtotaling a Sale ......................................................................................................38
Totaling a Cash Sale ..................................................................................................38
Totaling a Check Sale................................................................................................38
Tendering a Cash Sale ...............................................................................................39
Tendering a Check Sale.............................................................................................39
Totaling a Charge Sale ..............................................................................................40
Tendering a Charge Sale ...........................................................................................40
Split Tender ...............................................................................................................41
Post Tender................................................................................................................41
Currency Conversion.................................................................................................42
Management Reports
43
X & Z Reports .........................................................................................................................43
Running a Report - General Instructions...................................................................43
Report Table ..............................................................................................................43
Cash Declaration......................................................................................................................44
Report Samples ........................................................................................................................45
Financial Report ........................................................................................................45
PLU Report................................................................................................................46
Clerk Report ..............................................................................................................47
Balancing Formulas .................................................................................................................48
Net Sales Total ..........................................................................................................48
Gross Total ................................................................................................................48
Grand Total................................................................................................................48
Program Mode Programming
49
Default Programming ..............................................................................................................49
Tax Table Programming ..........................................................................................................50
Descriptor Programming Methods...........................................................................................52
Text Entry Descriptor Program Method ....................................................................53
Department Programming........................................................................................................55
Program 500 - Department Status Programming.......................................................55
Program 520 - Department Price/HALO Programming ............................................56
Program 530 - Department Descriptor Programming................................................57
Descriptor Code Chart...............................................................................................57
PLU Programming...................................................................................................................58
Program 100 - PLU Status Programming..................................................................59
Program 200 - PLU Price/HALO Programming .......................................................60
6  Contents
SAM4s ER-180T Operator's & Programming Manual v1.4
Program 300 - PLU Descriptor Programming........................................................... 61
Descriptor Code Chart............................................................................................... 61
Program 350 - PLU Link Programming.................................................................... 62
System Option Programming................................................................................................... 63
System Option Table ................................................................................................. 64
Print Option Programming ...................................................................................................... 65
Print Option Table ..................................................................................................... 66
Function Key Programming .................................................................................................... 68
Program 70 - Function Key Options ......................................................................... 68
Program 80 - Function Key Descriptor ..................................................................... 69
Program 90 - Function Key HALO ........................................................................... 69
CASH/TEND, CHECK & CHARGE Function Key Options ................................... 70
Currency Conversion................................................................................................. 71
-% / +% Key Programming ....................................................................................... 72
- (Minus) Key Programming ..................................................................................... 73
Cancel Key Programming ......................................................................................... 74
Miscellaneous Programming ................................................................................................... 75
Clerk Description Programming................................................................................ 75
Logo Programming.................................................................................................... 76
Machine Number Programming ................................................................................ 78
Program Scans ......................................................................................................................... 79
Service Mode Programming
81
Clear Totals.............................................................................................................................. 81
Clear Grand Total .................................................................................................................... 81
EPROM Information ............................................................................................................... 81
Glossary of Terms
83
Manual Revision Record
89
SAM4s ER-180T Operator's & Programming Manual v1.4
Contents  7
8  Contents
SAM4s ER-180T Operator's & Programming Manual v1.4
Getting Started
About the ER-180T Series
The ER-180T features a 48-position keyboard with traditional raised keys. This keyboard
provides 16 department keys and works best in retail stores, shops, or small food stands. The
high-speed thermal printer produces high-quality receipts with easy-to-read alpha numeric
descriptors and messages. The ER-180T records a sale journal in memory that can be printed
at the end of day.
Unpacking
1. Unpack and unwrap the cash register.
2. Locate in the packing the following items:
a. 1 roll of paper
b. 1 rewind spindle
c. 1 set of control keys
3. Remove the cardboard protectors from the cash drawer.
4. Plug the register power adaptor into a grounded outlet, connect the adaptor cord to
the right-side of the regiser, insert a control key and turn the key to the REG control
lock position.
SAM4s ER-180T Operator's & Programming Manual v1.4
Getting Started  9
Installing the Paper Roll
Load paper as shown in steps A through E.
If you are using journal paper, load the paper on the spool as shown in steps F through K. If
you are using receipt, thread the paper through the printer cover and replace the cover.
10  Getting Started
SAM4s ER-180T Operator's & Programming Manual v1.4
Basic Features and Functions
Standard Hardware

8 position front display

48 position keyboard
Software Features

16 Department Keys on the Keyboard

500 Price Look Ups (PLUs) for Open or Preset Item Registration

12-Character Programmable Descriptors for Departments and PLUs

8-Character Programmable Descriptors for Functions

Cash, Check & Charge Payment Functions

Currency Conversion

Calculator Operation

Operation for up to 10 clerks

Tax Calculation by Percentage for up to Four Tax Rates

Electronic Sales Journal (2,500 line capacity)
Display
The front display is an 8-digit florescent display that allows you to monitor the transaction
and view the sale total.
Display Information
Item Count
The number of times an item has been repeated is displayed
Amount
The amount of the item, subtotal or total, is displayed in the
rightmost portion of the display
Display Messages
C
Change Due
-
Negative entry
Sub
Subtotal of the sale
=
Total of the sale
SAM4s ER-180T Operator's & Programming Manual v1.4
Getting Started  11
Change Due
Numbered Error Conditions
Error Message List
E0
SEQUENCE ERROR
E1
PLU NO DATA
E2
CLERK ERROR
E3
AMOUNT COUNT OVER
E4
TIME AND DATE
E5
LIMIT OVER
E6
REQ.DRAWER
E7
CONSOL OVER
E8
REQ.SUBTOTAL
E9
NO VOID PLU
E10
REQ.PRESET VALUE
E11
REQ.OPEN VALUE
E12
REQ. AMOUNT
E13
INVALID FUNCTION
E14
EJ FULL
E15
Z REPORT REQUIRED
E16
INACTIVE
PEA
RECEIPT PRINTER PAPER END
12  Getting Started
SAM4s ER-180T Operator's & Programming Manual v1.4
Control Lock
The control lock has 7 positions, accessed with 5 keys. Each cash register is shipped with
one full set of keys.
OFF
VOID Use to void (correct) items outside of a sale.
VOID
REG
X
Z
P
S
OFF The register is inoperable.
REG Use for normal registrations.
X
Use to read register reports.
Z
Use to read register reports and reset totals to zero.
P
Use to program the register.
S
The S position is a hidden position reserved for
dealer access.
Before performing any operations in Register Mode a clerk must be signed on. See “Clerk
Sign-On/Sign-Off” for a description of clerk operations.
Control Keys
The ER-180T Series includes keys that may be used to access the following control lock
positions.
Key
Positions Accessible
REG
OFF, REG
VD
VOID, OFF, REG, X
Z
VOID, OFF, REG, X, Z
P
VOID, OFF, REG, X, Z, P
C
ALL POSITIONS
Note: Keys may be removed from the control lock in the OFF or REG positions.
SAM4s ER-180T Operator's & Programming Manual v1.4
Getting Started  13
Keyboard
The ER-180T keyboard is shown below with the default legends.
This configuration has 16 keyboard Department locations.
FEED
RETURN
CLEAR
7
PLU
8
X/TIME
(X)
9
RCPT
5
6
2
1
2
3
SPACE
14  Getting Started
00
.
DEF
10
JKL
7
PQRS
0
13
NO
CALC
SALE
RA
PO
(+)
(-)
CHECK
CHARGE
14
MNO
11
15
SUBTOTAL
BACK
TAX
6
3
+%
9
ABC
GHI
CAPS
CANCEL
5
@:/
4
-%
-
C/CONV
1
DOUBLE
VOID
CLERK
ON/OFF
4
TUV
8
*
WXYZ
12
.,?!
16
#
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Ram Clearing
All Memory Clear
RAM clearing the cash register erases all programming and totals. Use this program the first
time the cash register is programmed.
WARNING: This is a one time procedure. Do not repeat this procedure after the cash
register is programmed; it causes all programs and totals to be erased.
Follow this procedure to clear totals from memory:
1. Unplug the ECR.
2. Turn the control lock to the S position. (The S position is a hidden position one
position clockwise from the PRG position.)
3. Press and hold the CHARGE key on key board and plug the ECR into a power
source.
4. When the buzzer beeps release the CHARGE key. Press the upper left key of the
keyboard, then the lower left key, then the upper right key, and finally press the lower
right key.
1
3
CHARGE
2
4
5. When memory is cleared, the register prints a message “RAM ALL CLEAR OK!”
Memory is cleared and the default program is installed.
SAM4s ER-180T Operator's & Programming Manual v1.4
Getting Started  15
Initial Clear
CAUTION: Do not share this information with unauthorized users. Distribute the C
key only to those you may want to perform this function.
The initial clear function allows you to exit any register activity and return to a beginning or
cleared state. Any transaction that is in progress will be exited and totals for that transaction
will not be updated.
Here are some reasons you may want to perform an initial clear:

The register is in an unknown state, and you wish to exit the current program or
transaction without following normal procedures.

An initial clear may be necessary as part of servicing, or troubleshooting.
To Perform an Initial Clear:
1. Unplug the ECR.
2. Turn the control lock to the PGM position.
3. Press and hold the key position where the SUBTOTAL key is located on the
default keyboard layout.
4. Continue to hold the SUBTOTAL key and turn the power switch ON.
5. The message “****** INITIAL CLEAR ******” prints when the initial clear is
complete.
This procedure will not affect register programming, or clear previously stored totals in ECR
memory.
16  Getting Started
SAM4s ER-180T Operator's & Programming Manual v1.4
Quick Program Guide
Introduction
First, refer to “Getting Started” on page 9 to unbox, clear memory, and load the paper on your
SAM4s ER-180T. Next, you will need to perform a few basic programs to get your register
up and running:
1. Set the date and time.
2. Program your tax rate.
3. Set departments for open or preset and taxable or non-taxable operation.
Your register is now ready for most merchant environments.
There are many other programs described in this manual that allow you to customize your
cash register program. Read the manual carefully and if necessary, consult with your SAM4s
dealer for assistance.
SAM4s ER-180T Operator's & Programming Manual v1.4
Quick Program Guide  17
Date and Time Programming
Use this program to set the clock and calendar on your ER-180T Series. The date changes
automatically. After initial setting, time changing will probably be required only for
beginning and ending daylight savings time.
1. Turn the control lock to the P position.
2. To begin the program, enter 1 3 0 0, press the SBTL key.
1
3
0
0
SUBTOTAL
3. Enter time in military standard time (based on 24 hours), must be four digits
(i.e. 1300 hours = 1:00 PM); press the X/TIME key.
H
H
M
M
X/TIME
(X)
4. Enter the date in MM (month) DD (day) and YY (year) format. Press the
X/TIME key:
M
M
D
D
Y
Y
X/TIME
(X)
5. Press the CASH/TEND key to finalize the program.
CASH/TEND
(=)
18  Quick Program Guide
SAM4s ER-180T Operator's & Programming Manual v1.4
Tax Percentage Rate Programming
Most sales taxes can be programmed by entering a tax percentage rate. Use the instructons in
this section to set your rate. In some cases you may find that tax that is entered as a
percentage does not follow exactly the tax chart that apply in your area. If this is the case,
you must enter your tax using tax table programming. This method will match tax collection
exactly to the break points of your tax table. See the “Tax Table Programming” on page 50.
Important Note: After you have entered your tax program, test for accuracy by
entering several transactions of different dollar amounts. Carefully check to make sure
the tax charged by the cash register matches the tax amounts on the printed tax chart
for your area. As a merchant, you are responsible for accurate tax collection. If the
cash register is not calculating tax accurately, or if you cannot program your tax
properly from the information in this manual, contact your local SAM4s dealer for
assistance.
If you need to collect separate state and local sales taxes, you can program up to four separate
tax rates.
1. Turn the control lock to the P position.
2. Enter 53 and press the SUBTOTAL key.
3. Enter the tax rate including the decimal in a 5-digit format, i.e. enter 5% as 05.000 or
enter 10 ½ % as 10.500.
4. Enter 0 for an add-on tax, or enter 2 for a value added tax.
5. Enter the numeral that represents the number of the tax, i.e. enter 1 for tax 1, 2 for tax
2, 3 for tax 3 or 4 for tax 4.
6. Press the X/TIME key.
7. If needed, enter the data for another tax rate. Press the CASH/TEND key to end tax
programming. The tax program information will print.
Tax Program Entry Flowchart
Repeat for each
tax rate
5
3
SBTL
.
Decimal
Key
X/TIME
CASH
Tax Kind Tax No
Tax Program Examples
Tax Situation
Tax Program Entry
6.5% add-on tax for tax rate #1
06.50001
2.5% add-on tax for tax rate #3
02.50003
10% Value added tax (VAT) for tax rate #1
10.00021
10 3/8 % add on tax for tax rate #4
10.37504
SAM4s ER-180T Operator's & Programming Manual v1.4
Quick Program Guide  19
Quick Department Programs
These steps allow you to quickly set tax rate 1 status and open enter/preset status for each
department. Refer to the complete department program instructions on page 52 if you need to
program status for additional tax rates or set any of the additional department options.
Department Taxable and Preset Status
Use the following steps to set the status for each department.
1. Turn the key lock to the P position.
2. To begin the program, enter 5 0 0 and press the SUBTOTAL key.
5
0
0
SUBTOTAL
3. Press the Department key on the keyboard you wish to program:
1
4. To set a taxable open entry department,
Enter 100 and press the X/TIME key, or
1
0
0
X/TIME
(X)
To set a non-taxable open department,
Enter 000 and press the X/TIME key, or
0
0
0
X/TIME
(X)
To set a taxable preset department,
Enter 101 and press the X/TIME key, or
1
0
1
X/TIME
(X)
To set a non-taxable preset department,
Enter 001 and press the X/TIME key, or
0
0
1
X/TIME
(X)
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
20  Quick Program Guide
SAM4s ER-180T Operator's & Programming Manual v1.4
Setting Department Preset Amount
1. Turn the key lock to the P position.
2. To begin the program, enter 5 2 0 and press the SUBTOTAL key.
5
2
0
SUBTOTAL
3. Press the Department key on the keyboard you wish to program:
1
4. Enter a preset price, press the X/TIME key. (The maximum preset price you can
enter is $99,999.99)
X/TIME
(X)
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Quick Program Guide  21
22  Quick Program Guide
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions
Key Descriptions
Key
Description
FEED
Press to advance the printer paper.
Numeric Keypad:
0-9 and 00
Use the numeric keypad to enter amounts, other numeric values.
CLEAR
Press to clear numeric errors made on keyboard prior to pressing the
registration key. Also press to stop the error alarm when incorrect
entries are made.
Department Keys
There are 16 department keys on the keyboard to register different
types of merchandise. Departments may be used to accept open
priced entries, or may be programmed to register preset prices.
NO SALE
Press to open the cash drawer when you have not already started a
transaction. No sale activity is logged on the financial report. Also,
may be used to print any number (up to 8 digits) on the printer paper.
X/TIME
(x)
Enter a quantity and then press the X/TIME key to enter multiple
items. Use to enter “split pricing” items, such as 1 item at 3 for $.89.
Also use to perform the multiplication function in calculator mode.
VOID
Press to void (or erase) the last item entered. You can also void an
item previously entered within a transaction by pressing CLEAR,
then VOID then re-entering the item you wish to correct.
RETURN
If you wish to return or refund an item, press Return Merchandise,
then re-enter any item you wish to return.
CLERK
- (MINUS)
Outside of a sale, use to sign on or sign off a clerk. Inside of a sale
use this key to enter a negative amount (such as a coupon or deposit)
by entering a price, then pressing the - (MINUS) key.
CANCEL
Press to void (or erase) all items entered in any transaction.
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  23
Key
Description
RCPT ON/OFF
C/CONV
Outside of a sale, press to toggle the recipt from OFF to ON.
-% , +%
Use the Percent keys to add a percentage surcharge or subtract a
percentage from an item or the subtotal of the sale. You can enter the
amount of the percentage before pressing the -% or +% keys, or you
can program a preset percentage if you are consistently using the
same percentage.
PLU
Use to register a Price Look Up (PLU).
RA (RECD ACCT)
(+)
Use to accept cash into the cash drawer when you are not actually
selling merchandise. For example, use the Received on Account key
to accept payments for previously sold merchandise or record loans
to the cash drawer.
Inside of a sale use the Currency Conversion key to convert the sale
subtotal into an equivalent value in foreign currency. You must first
program foreign currency exchange rates.
Also use as the add key when in calculator mode.
PO (PAID OUT)
(-)
Use to track cash paid out for merchandise or to record loans from
the cash drawer.
Also use as a subtract key in calculator mode (press first before
entering an amount to subtract.)
. (Decimal)
Use the Decimal key to enter fractions of percentages. For example
to enter a one third off discount, enter 3 3 . 3 3 before pressing the % key.
SUB TOTAL
Press to see the subtotal of a sale.
CHARGE
Press to total a transaction paid by charge or credit card.
CHECK
Press to total a transaction paid by check. Also if the check amount
is over the amount purchased, enter the amount of the check, then
press the CHECK key. The drawer will open and the cash change
will be computed.
CASH/TEND
(=)
Press to total a transaction paid by cash. Also if the cash amount
tendered is over the amount purchased, enter the amount of the
tender, then press the CASH/TEND key. The drawer will open and
the cash change will be computed.
Also use at the total function in calculator mode.
TAX
Enter the tax number and press TAX to reverse the programmed tax
status of a department or PLU key. For example, by using the TAX
key prior to registering a taxable item, the item will be sold without
sales tax added.
CALC
Press CALC when outside of a sale to use the ER-180T as a basic
calculator.
24  Operating Instructions
SAM4s ER-180T Operator's & Programming Manual v1.4
Clerk Sign-On/Sign-Off
Sign-On
To sign on, enter the clerk number and press the CLERK key.
CLERK
Clerk # (1-10)
Sign-Off
To sign the clerk off, Enter 0 (Zero) and press the CLERK key.
0
CLERK
Calculator Function
You can use the ER-180T to perform simple addition, subtraction and multiplication
calculator functions outside of a sale.

Press the CALC key to enter calculator mode:
CALC
Addition
Enter amount, press
RA
(+)
Enter amount, press
CASH/TEND
(=)
PO
(-)
Enter amount, press
CASH/TEND
(=)
X/TIME
(X)
Enter amount, press
CASH/TEND
(=)
Subtraction
Enter amount, press
Multiplication
Enter amount, press

Press the CLEAR key to exit calculator mode:
CLEAR
Training Operation
Training operations do not add to department, PLU, or function key totals. If you wish to
perform training operations, designate one of the clerks (see address #21 in “System Option
Programming” on page 63. You must clear (Z) the register before the training clerk can
be used. When that clerk is signed on, the register is in “training mode”.
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  25
Department Registrations
Departments are open (enter the price and press the department key) or preset (press the key
to register the pre-programmed price.)
Note: When multiples of an item are entered, either by multiplication or by pressing the
department again (the repeat function), the left-most 2 characters in the display will show a
count of the items entered.
In the following examples:
Dept 1 is programmed for open entries, and is taxable by Tax 1.
Dept 2 is programmed for open entries, and is taxable by Tax 2.
Dept 3 is programmed with a preset price of $3.00, and is taxable by Tax 3.
Tax 1 is programmed at 5%; Tax 2 is programmed at 10%; Tax 3 is programmed at 15%.
26  Operating Instructions
SAM4s ER-180T Operator's & Programming Manual v1.4
Open Department Entry
1.
Enter an amount on the ten-key pad. Do
not use the decimal key. For example,
for $2.99, enter:
2
2.
9
9
Press a department key. For example,
press department #1:
1
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
$2.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$2.99
TAX 1
$0.15
TOTAL
$3.14
C A S H
$ 3 . 1 4
KELLY
000023 000000
Preset Price Department Entry
1.
Press a preset department key. For
example, press department #3:
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT3 T3
$3.00
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$3.00
TAX 1
$0.45
TOTAL
$3.44
C A S H
$ 3 . 4 5
KELLY
000024 000000
3
Department Repeat Entry
1.
Enter an amount on the ten-key pad. Do
not use the decimal key. For example,
for $2.99, enter:
2
2.
9
9
Press a department key. For example,
press DEPT1:
1
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
$2.99
DEPT1 T1
$2.99
2.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$5.98
TAX 1
$0.30
TOTAL
$6.28
C A S H
$ 6 . 2 8
KELLY
000025 000000
To register a second item exactly as
the first, press the department key a
second time. For example, press
department #1:
1
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  27
Department Multiplication
1.
Enter the quantity of items being
purchased, press the X/TIME key. For
example, enter 4 on the numeric key pad
and press the X/TIME key:
4
2.
X/TIME
(X)
Enter an amount on the ten-key pad. Do
not use the decimal key. For example,
for $1.99, enter:
1
3.
9
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
4X
1.99
DEPT1 T1
$7.96
4.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$7.96
TAX 1
$0.40
TOTAL
$8.36
C A S H
$ 8 . 3 6
KELLY
000026 000000
9
Press a department key. For example,
press department #1:
1
Department Multiplication with Decimal Point
If you are selling items by weight, or decimal quantities such as half-pints, you can multiply a
fraction of a unit.
1.
Enter the amount with the decimal point,
press the X/TIME key. For example, for
3.75 kilos of produce, enter:
3
2.
.
5
X/TIME
(X)
Enter an amount on the ten-key pad. Do
not use the decimal key. For example, if
the price is $.99 per kilo, enter:
9
3.
7
9
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
3.75X
0.99
DEPT1 T1
$3.71
3.75xITEMS
- - - - - - - - - - - - TAXABLE 1
$3.71
TAX 1
$0.19
TOTAL
$3.71
C A S H
$ 3 . 9 0
KELLY
000027 000000
Press a DEPT key. For example, press
DEPT 1:
1
28  Operating Instructions
SAM4s ER-180T Operator's & Programming Manual v1.4
Single Item Department
Single item departments automatically total as a cash sale immediately after registration. Use
single item departments for speedy one item sales. For example if you are selling admission
tickets, and all ticket sales are one item sales, you can assign open or preset department single
item department for ticket sales. After each registration, the drawer will immediately open,
and a separate receipt is printed. See “Program 500 - Department Status Programming” on
page 55 to program a single item department.
1.
Press a single item preset department
key. (or enter a price and press a single
item open department key.) For
example, press DEPT 6:
6
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT6
$3.71
1.00 xITEMS
- - - - - - - - - - - - TOTAL
$3.71
C A S H
$ 3 . 7 1
KELLY
000028 000000
Split Pricing
When items are priced in groups, i.e. 3 for $1.00, you can enter the quantity purchased and let
the register calculate the correct price.
1.
Enter the quantity purchased, press the
X/TIME key. For example, enter:
2
2.
Enter the quantity of the group price,
press the X/TIME key. For example, if
the items are priced 3 for $1.00, enter:
3
3.
X/TIME
(X)
X/TIME
(X)
Enter an amount on the ten key pad. For
example, if the items are priced 3 for
$1.00, enter:
1
4.
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
2/3FOR
1.00
DEPT1 T1
$0.67
2.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$0.67
TAX 1
$0.03
TOTAL
$0.70
C A S H
$ 0 . 7 0
KELLY
000029 000000
0
0
Press a department key. For example,
press department #1:
1
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  29
PLU (Price Look Up) Registrations
PLUs must be programmed before they may be operated. See “PLU Programming” on page
58 to program open or preset PLUs.
Open PLU
If the PRESET status of a PLU is set to N (no), the PLU will operate as an open PLU.
1.
Enter the PLU number; press the PLU
key. For example, enter:
2
2.
9
09:23
#2 T1
The display will prompt "ENTER
PRICE". Enter an amount on the tenkey pad. Do not use the decimal key.
For example, for $2.99, enter:
2
3.
PLU
THANK-YOU
CALL AGAIN
02/17/2010 MON
$2.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$2.99
TAX 1
$0.15
TOTAL
$3.14
C A S H
$ 3 . 1 4
KELLY
000035 000000
9
Press the PLU key again.
PLU
Preset Price PLU
1.
Enter the PLU number; press the PLU
key. For example, enter:
1
30  Operating Instructions
PLU
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
#1 T1
$2.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$2.99
TAX 1
$0.15
TOTAL
$3.14
C A S H
$ 3 . 1 4
KELLY
000040 000000
SAM4s ER-180T Operator's & Programming Manual v1.4
PLU Multiplication
When several of the same items are to be entered into the same PLU, you can use
multiplication. You can enter a quantity (1 to 999.999) using the X/TIME key. You can
multiply open or preset PLUs.
1.
Enter the quantity of items being
purchased, press the X/TIME key. For
example, enter 4 on the numeric key pad
and press the X/TIME key:
4
2.
X/TIME
(X)
Enter the PLU number; press the PLU
key. For example, enter:
1
PLU
THANK-YOU
CALL AGAIN
02/17/2010 MON
4X
#1 T1
09:23
2.99
$11.96
4.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$11.96
TAX 1
$0.60
TOTAL
$12.56
C A S H
$ 1 2 . 5 6
KELLY
000041 000000
Shifting Tax
You can shift the pre-programmed status of a department or PLU by entering the tax number
(1-4) and pressing the TAX key before entering an item. Using this sequence you can make
normally taxable items non-taxable; or make normally non-taxable items taxable.
You can also exempt tax from an entire sale by first pressing the SUBTOTAL key, and the
entering the tax number (1-4) and pressing the TAX key before tendering the sale
1.
Enter the tax number; press the TAX
key. For example, enter:
1
2.
9
09:23
DEPT1
Enter the item. In this example
department #1 is normally taxable:
2
3.
TAX
THANK-YOU
CALL AGAIN
02/17/2010 MON
9
$2.99
1.00xITEMS
- - - - - - - - - - - - TOTAL
$2.99
C A S H
$ 2 . 9 9
KELLY
000023 000000
1
The normal tax status is shifted.
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  31
Percent Key (+% and -%) Operations
Use the Percent keys to add a percentage surcharge or subtract a percentage from an item or
the subtotal of a sale. You can enter the amount of the percentage before pressing the -% or
+% keys, or you can program a preset percentage if you are consistently using the same
percentage. Programming determines whether it is possible to enter a percentage when the
key is also programmed with a preset percentage. See “-% / +% Key Programming” on page
72 to set a preset percentage.
Preset Percent on a Department or PLU Item
In this example the -% key is preset with a rate of %10.00.
1.
Register the discounted item.
2.
Press the -% key:
THANK-YOU
CALL AGAIN
02/17/2010 MON
-%
3.
The discount is automatically subtracted.
09:23
DEPT1 T1
-%
DEPT1 T1
$10.00
-10.000%
-1.00
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$9.00
TAX 1
$0.45
TOTAL
$9.45
C A S H
$ 9 . 4 5
KELLY
000045 000000
Enter a Percent on a Department or PLU
You can also operate the -% or +% keys by entering the percentage of the discount or
surcharge. If necessary, you can enter the percentage with a decimal key (up two 3 digits, i.e.
99.999%).
1.
Register the discounted item.
2.
Enter the percentage. If you are entering
a fraction of a percent, you must use the
decimal key. For example, for 1/3 off
enter:
3
3.
3
.
3
3
3
Press the -% key:
-%
4.
32  Operating Instructions
THANK-YOU
CALL AGAIN
02/17/2010 MON
DEPT1 T1
-%
DEPT1 T1
09:23
$10.00
33.333%
-3.33
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$6.67
TAX 1
$0.50
TOTAL
$7.17
C A S H
$ 7 . 1 7
KELLY
000048 000000
The discount is automatically subtracted.
SAM4s ER-180T Operator's & Programming Manual v1.4
Percent On Sale Total
In this example a surcharge of 15% is applied.
1.
Register the items you wish to sell.
2.
Press SUBTOTAL:
SUB
TOTAL
3.
Enter the percentage. For example, for
15% enter:
1
4.
5
Press the +% key:
THANK-YOU
CALL AGAIN
02/17/2010 MON
DEPT1 T1
+%
+%
09:23
$10.00
15.000%
$1.50
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$11.50
TAX 1
$0.58
TOTAL
$11.50
C A S H
$ 1 2 . 0 8
KELLY
000054 000000
-%
5.
The surcharge is automatically added.
- (Minus) Key Registrations
You can register a negative amount by entering a price, then pressing the - (Minus) key. For
example, you can enter bottle returns or coupons using the - (Minus) key.
1.
Register the items you wish to sell.
2.
Enter the amount you wish to subtract
from the sale, for example for a $.50
coupon, enter:
5
0
Press the CLERK/ - (Minus) key.
CLERK
-
SAM4s ER-180T Operator's & Programming Manual v1.4
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
$10.00
-0.50
DEPT1 CT1
-0.50
2.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$15.00
TAX 1
$0.75
TOTAL
$15.25
C A S H
$ 1 5 . 2 5
KELLY
000056 000000
Operating Instructions  33
Return Merchandise Registrations
If you wish to return or refund an item press RETURN, then re-enter any item. You can
return merchandise as part of a sale, or you can return merchandise as a separate transaction
and return cash to the customer.
1.
Press RETURN:
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
RETURN
2.
Enter the price of the item you wish to
return, and then press the PLU key where it
was registered originally.
2
3.
9
9
2
Total the sale with CASH, CHECK, or a
CHARGE function.
RETURN ******************
DEPT2 T2
-2.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 2
-2.99
TAX 2
-0.30
TOTAL
-3.29
C A S H
- 3 . 2 9
KELLY
000057 000000
Voids
Void Last Item
You can correct any mistakenly entered item by pressing VOID immediately after the item
entry.
Void Previous Item
This function allows you to correct an item registered previously in a transaction.
1.
Register an item. Then register a second
item.
2.
To correct the first item, press CLEAR
and then VOID:
VOID
CLEAR
3.
Enter the price of the first item, and then
press the PLU key where it was
registered originally.
1
34  Operating Instructions
9
9
2
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT2
DEPT1
VOID
DEPT2
T2
$1.99
T1
$2.99
*******************
T2
-1.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$2.99
TAX 1
$0.15
TOTAL
$3.14
C A S H
$ 3 . 1 4
KELLY
000061 000000
SAM4s ER-180T Operator's & Programming Manual v1.4
Cancel
The CANCEL key allows you to stop any transaction. Anything registered within the
transaction before the CANCEL key is pressed is automatically corrected.
1.
Register the items you wish to sell.
2.
Press the CANCEL key
CANCEL
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
PLU1 T1
$2.29
CANCEL ******************
TOTAL
$0.00
KELLY
000062 000000
Void Position Operations
You can use the VOID control lock position to correct any complete transaction. To correct
any transaction:
1.
Turn the control lock to the VOID
position.
2.
Enter the transaction you wish to correct
exactly as it was entered originally in the
REG control lock position. You can
enter discounts, voids, returns, tax
exemptions or any other function.
3.
All totals and counters are corrected as if
the original transaction did not take
place.
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
VOID MODE ***************
DEPT2 T2
-2.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 2
-2.99
TAX 2
-0.30
TOTAL
-3.29
C A S H
- 3 . 2 9
KELLY
000063 000000
No Sale Operations
Open Drawer
The NO SALE key will open the cash drawer when you have not already started a
transaction.
1.
Press NO SALE:
NO
SALE
2.
The drawer will open and the receipt
will print as in the example on the right.
SAM4s ER-180T Operator's & Programming Manual v1.4
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
NO SALE ----------------KELLY
000063 000000
Operating Instructions  35
Received On Account Operations
You can use the received on account function to accept cash or checks into the cash drawer
when you are not actually selling merchandise. For example, use received on account to
accept payments for previously sold merchandise or record loans to the cash drawer.
1.
Press the RA/(+) key
THANK-YOU
CALL AGAIN
02/17/2010 MON
RA
(+)
2.
Enter the amount of cash received, press
CASH/TEND.
1
3.
0
CASH/
TEND
0
0
0
000065
$10.00
$10.00
$10.00
$30.00
000000
CHECK
Enter the charge amount received, press
CHARGE.
1
5.
0
Enter the check amount received, and
press CHECK.
1
4.
0
RA
CASH
CHECK
CHARGE
RA
KELLY
09:23
0
0
0
CHARGE
You can continue to itemize receipts, or
you can finalize by pressing the RA/(+)
key.
RA
(+)
36  Operating Instructions
d
SAM4s ER-180T Operator's & Programming Manual v1.4
Paid Out Operations
You can use the paid out function to track cash or checks paid out or to record loans from the
cash drawer.
1.
Press the PO/(-) key
THANK-YOU
CALL AGAIN
02/17/2010 MON
PO
(-)
2.
Enter the amount of cash paid out, press
CASH/TEND.
1
3.
0
CASH/TEND
(=)
000066
0
0
0
CHECK
Enter the charge amount paid out, press
CHARGE.
1
5.
0
-10.00
-10.00
-10.00
-30.00
000000
Enter the check paid out, and press
CHECK.
1
4.
0
PO
CASH
CHECK
CHARGE
PO
KELLY
09:23
0
0
0
CHARGE
You can continue to itemize paid outs, or
you can finalize by pressing the PO/(-)
key.
PO
(-)
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  37
Totaling and Tendering
Separate CASH, CHECK and CHARGE keys are located on the keyboard.
Subtotaling a Sale
1.
Register the items you wish to sell.
2.
Press SUBTOTAL. The subtotal will
display with the message "Sub"
indicated on the display.
SUBTOTAL
3.
The subtotal can be printed if the system
option is set. See "Print Option
Programming" in the "Program Mode
Programming" chapter.
Totaling a Cash Sale
1.
Register the items you wish to sell.
2.
To total a cash sale, press CASH/TEND:
09:23
#1 T1
$5.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$5.99
TAX 1
$0.30
TOTAL
$6.29
C A S H
$ 6 . 2 9
KELLY
000069 000000
CASH/TEND
(=)
3.
THANK-YOU
CALL AGAIN
02/17/2010 MON
The display will indicate the total
amount of the cash sale.
Totaling a Check Sale
1.
Register the items you wish to sell.
2.
To total a cash sale, press CHECK:
THANK-YOU
CALL AGAIN
#1 T1
CHECK
3.
The display will indicate the total
amount of the cash sale.
38  Operating Instructions
$4.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$4.99
TAX 1
$0.25
TOTAL
$5.24
C H E C K
$ 5 . 2 4
KELLY
000070 000000
SAM4s ER-180T Operator's & Programming Manual v1.4
Tendering a Cash Sale
1.
Register the items you wish to sell.
2.
Enter the amount tendered by the
customer. For example, for $20.00
enter:
2
3.
0
0
0
Press CASH/TEND:
CASH/TEND
(=)
4.
The display will indicate the total
amount of the cash tendered and the
change due, if any.
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
DEPT1 T1
4X
DEPT2 T2
$2.99
$2.99
1.99
$7.96
6.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$5.98
TAX 1
$0.30
TAXABLE 2
$7.96
TAX 2
$0.80
TOTAL
$15.04
C A S H
$ 2 0 . 0 0
CHANGE
$4.96
KELLY
000072 000000
Tendering a Check Sale
1.
Register the items you wish to sell.
2.
Enter the amount tendered by the
customer. For example, for $20.00
enter:
2
3.
0
0
0
Press CHECK:
CHECK
4.
The display will indicate the total
amount of the check tendered and the
change due, if any.
SAM4s ER-180T Operator's & Programming Manual v1.4
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
DEPT1 T1
4X
DEPT2 T2
$2.99
$2.99
1.99
$7.96
- - - TAXABLE
TAX 1
TAXABLE
TAX 2
TOTAL
C H E C
CHANGE
KELLY
6.00xITEMS
- - - - - - - - 1
$5.98
$0.30
2
$7.96
$0.80
$15.04
K
$ 2 0 . 0 0
$4.96
000074 000000
Operating Instructions  39
Totaling a Charge Sale
Use the charge key to track charge or credit card sales. See "Function Key Programming" in
the "Program Mode Programming" chapter to change the descriptor for the charge tender
function. You can set tendering options for the charge key, i.e. whether to allow over
tendering or to enforce tendering.
1.
Register the items you wish to sell.
2.
Press one of the charge key if it is
located on the keyboard:
CHARGE
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
DEPT1 T1
4X
DEPT2 T2
$2.99
$2.99
1.99
$7.96
- - - TAXABLE
TAX 1
TAXABLE
TAX 2
TOTAL
C H A R
KELLY
6.00xITEMS
- - - - - - - - 1
$5.98
$0.30
2
$7.96
$0.80
$15.04
G E
$ 1 5 . 0 4
000076 000000
Tendering a Charge Sale
Tendering a charge sale may or may not be allowed. See "Function Key Programming" in the
"Program Mode Programming" chapter to set tendering options for the charge keys, i.e.
whether to allow over tendering or to enforce tendering.
1.
Register the items you wish to sell.
2.
Enter the amount of the charge and press
one of the charge keys if it is located on
the keyboard:
2
0
0
0
CHARGE
THANK-YOU
CALL AGAIN
02/17/2010 MON
09:23
DEPT1 T1
DEPT1 T1
4X
DEPT2 T2
$2.99
$2.99
1.99
$7.96
- - - TAXABLE
TAX 1
TAXABLE
TAX 2
TOTAL
C H A R
CHANGE
KELLY
40  Operating Instructions
6.00xITEMS
- - - - - - - - 1
$5.98
$0.30
2
$7.96
$0.80
$15.04
G E
$ 2 0 . 0 0
$4.96
000078 000000
SAM4s ER-180T Operator's & Programming Manual v1.4
Split Tender
Split tendering is paying for one transaction by more than one payment method. For
example, a $22.00 sale could be split so $10.00 is paid in cash, and the remaining $12.00 is
paid by a check. If necessary, you can make several different payments.
1.
Register the items you wish to sell.
2.
Enter the amount of cash tendered by the
customer. For example, enter $10.00 and
press CASH/TEND:
1
0
0
0
CASH/TEND
(=)
3.
The display will indicate the $10.00 cash
tender and the $10.00 total still due.
4.
Enter the amount of check tendered by
the customer. For example, enter $12.00
and press CHECK:
1
5.
2
0
0
THANK-YOU
CALL AGAIN
02/17/2010 MON
DEPT2 T2
- - - TAXABLE
TAX 2
TOTAL
C A S H
TOTAL
C H E C
KELLY
09:23
$20.00
1.00xITEMS
- - - - - - - - 2
$20.00
$2.00
$22.00
$ 1 0 . 0 0
$12.00
K
$ 1 2 . 0 0
000081 000000
CHECK
When the total tendered equals or
exceeds the total due, the receipt will
print and the transaction is complete.
Post Tender
Post tendering means computing change after the sale has been totaled and the drawer is
open. System option #12 must be set to a value of “1” to allow this function. See “System
Option Programming” on page 63.
1.
Register the items you wish to sell.
2.
Press CASH:
3.
The display will indicate the total of the
cash sale.
4.
Enter the amount of the new tender,
Press CASH/TEND:
5.
0
09:23
#1 T1
CASH/TEND
(=)
2
THANK-YOU
CALL AGAIN
02/17/2010 MON
0
0
$5.99
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$5.99
TAX 1
$0.30
TOTAL
$6.29
C A S H
$ 6 . 2 9
KELLY
000082 000000
CASH/TEND
(=)
The display will indicate the change due.
SAM4s ER-180T Operator's & Programming Manual v1.4
Operating Instructions  41
Currency Conversion
If you normally accept currency from neighboring nations, you can program to convert the
subtotal of a sale to the equivalent cost in the foreign currency. To do this, you need to
program the conversion factor. For example, if the US dollar (home currency) is worth
1.3720 Canadian dollars (foreign currency), the conversion factor is 1.3720. See "Function
Key Programming" in the "Program Mode Programming" chapter to set a conversion factor.
1.
Register the items you wish to sell.
2.
Press the RCPT ON/OFF-C/CONV key:
RCPT
ON/OFF
C/CONV
3.
4.
09:23
DEPT T1
Enter the amount of the foreign currency
tender, Press CASH:
1
THANK-YOU
CALL AGAIN
02/17/2010 MON
0
0
0
CASH/TEND
(=)
$2.00
1.00xITEMS
- - - - - - - - - - - - TAXABLE 1
$2.00
TAX 1
$0.10
TOTAL
$2.10
CONV
€10.00
CHANGE RATE
@1.3720
HOME AMT
$7.29
TOTAL
$5.19
KELLY
000085 000000
The display will indicate the amount of
foreign currency tendered and display
$5.19 change due. The change due is
computed in home currency!
The currency symbol you
program will display here. See
"Print Option Programming" in
the "Program Mode
Programming" chapter.
42  Operating Instructions
SAM4s ER-180T Operator's & Programming Manual v1.4
Management Reports
X & Z Reports
System reports are divided into two basic categories:

X reports, which read totals without resetting

Z reports, which read totals and reset them to zero
Running a Report - General Instructions
1. Refer to the “Report Table“.
2. Select a report type and the report mode.
3. Turn the control lock to the position indicated.
4. Enter the key sequence for the report you have selected.
Report Table
Report Type
Report
Number
Report
Mode
Control Lock
Position
Key Sequence
1
X
X
1 – SBTL
Z
Z
1 – SBTL
X2
X
201 – SBTL
Z2
Z
201 – SBTL
X
X
2 – SBTL
Z
Z
2 – SBTL
X
X
3 – SBTL
Z
Z
3 – SBTL
X
X
300 - SBTL
Z
Z
399- SBTL
Financial/Dept
All PLU
All Clerk
Print Electronic
Journal
Reset Electronic
Journal
2
3
300
399
SAM4s ER-180T Operator's & Programming Manual v1.4
Management Reports  43
Cash Declaration
If compulsory cash declaration is required, you must declare the count of the cash drawer
prior to taking X or Z financial and clerk reports.
You can enter the cash drawer total in one step, or to facilitate the counting of the cash
drawer, you can enter each type of bill/coin and checks separately and let the register act as
an adding machine. You can also use the X/TIME key to multiply the denomination of
currency times your count.
Either way you choose to enter cash, the register will compare your declaration with the
expected cash and check in drawer totals and print the over or short amounts on the report.
For example:
1.
2.
Turn the control lock to the X or Z
position (depending upon the type of
report you are taking.)
THANK-YOU
CALL AGAIN
02/17/2010 MON
Enter 90 and press the SUBTOTAL key.
**
9
3.
8
7
6
**
CASH
$98.76
CHECK
$20.00
INPUT AMT
$118.76
DRAWER TOTAL
$375.83
DIFFERENCE
$257.07
KELLY
000091 000000
CASH/TEND
(=)
Enter the total of checks and press the
CHECK key..
2
5.
SUBTOTAL
Enter the total of cash and press the
CASH/TEND key.
9
4.
0
CASH DECLARATION
09:23
0
0
0
CHECK
Press the CASH/TEND key to total the
declaration.
CASH/TEND
(=)
44  Management Reports
SAM4s ER-180T Operator's & Programming Manual v1.4
Report Samples
Financial Report
Note: This sample report is shown with items of zero value listed on the report. Your
report may only show totals with values other than zero, depending on the setting for
system option #5.
Date, Day & Time ->
Report Type/Reset (Z) Counter ->
Report Name ->
Department Name ->
Department Sales Activity Counter & Total ->
Department Counters and Totals are
listed for each department)
Count & Total of all Departments ->
Total of non-taxable sales ->
Taxable sales for each tax ->
Tax collected for each tax ->
Taxable sales exempted for each tax ->
Count and total for item coupons ->
(- key used as item coupon function)
Count and total for sale coupons ->
(- key used as sale coupon function)
Count and total for item discounts by percentage ->
(-% key used as item % discount function)
Count and total for sale discounts by percentage ->
(-% key used as sale % discount function)
Count and total for item surchages by percentage ->
(+% key used as item % surcharge function)
Count and total for Sale surcharges ->
(+% key used as sale % surcharge function)
02/17/2010 MON
09:23
Z 1 REPORT
00002
-----------------------FINANCIAL
DEPT1
21
$192.45
DEPT2
5
$3.10
.
DEPT16
0
$0.00
DEPT TTL
26
$195.55
-----------------------NONTAX
$0.00
TAX1 SALES
$10.00
TAX2 SALES
$0.00
TAX3 SALES
$0.00
TAX4 SALES
$0.00
TAX1
$0.04
TAX2
$0.00
TAX3
$0.00
TAX4
$0.00
XMPT1 SALES
$0.00
XMPT2 SALES
$0.00
XMPT3 SALES
$0.00
XMPT4 SALES
$0.00
ITEM CPN TTL
0
$0.00
SALE CPN TTL
0
$0.00
ITEM -% TTL
0
$0.00
SALE -% TTL
0
$0.00
ITEM +% TTL
0
$0.00
SALE +% TTL
0
$0.00
Continued on the next page ...
SAM4s ER-180T Operator's & Programming Manual v1.4
Management Reports  45
Customer Count
Net Sales Amount
Count of Return Merchandise items
Total of Return Merchandise
Count of Last Item Voids (Error Corrections)
Total of Last Item Voids (Error Corrections)
Count of Previous Item Voids
Total of Previous Item Voids
Number of VOID key position transactions
Dollar amount of VOID key position
# of canceled transactions
Amount of canceled transactions
Gross Sales
# of Cash sales
Dollar amount of Cash sales
# of Check sales
Dollar amount of Check sales
# of Charge sales
Dollar amount of Charge sales
# of Rec’d on Account transactions
Total of Rec’d on Accounts
# of Paid Out transactions
Total of Paid Out transactions
Count of no sales
Total of non-add # entries
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
->
Cash in drawer amount ->
# of Checks in Drawer ->
Check in drawer amount - >
# of Charge Sales ->
Total of Charges in Drawer ->
Total of all Media in Drawer ->
Foreign Currency Total ->
Non-resettable Grand Total ->
NET SALE
1
$10.50
RETURN
0
$0.00
ERROR CORR
0
$0.00
PREVIOUS VD
0
$0.00
VOID MODE
0
$0.00
CANCEL
0
$0.00
GROSS SALES
$10.50
CASH SALES
1
$10.50
CHECK SALES
0
$0.00
CHARGE SALES
0
$0.00
R/A
0
$0.00
P/O
0
$0.00
NO SALE
0
$0.00
CASH-IN-D
0
$10.50
CHECK-IN-D
0
$0.00
CHARGE-IN-D
0
$0.00
DRWR TTL
0
FOREIGN
.0.00
************************
GRAND
$221.40
CLERK 2
000045
000000
PLU Report
Date, Day & Time ->
Report Type/Reset (Z) Counter ->
Report Name ->
PLU Name ->
PLU Sales Activity Counter & Total ->
Count & Total of all PLUs ->
02/17/2010 MON
X 1 REPORT
00002
-----------------------PLU
DEPT22
CNT 1
$4.95
DEPT25
CNT 5
$8.85
************************
TOTAL CNT
6
TOTAL AMT
$13.80
CLERK 2
46  Management Reports
09:23
000045
000000
SAM4s ER-180T Operator's & Programming Manual v1.4
Clerk Report
Date, Day & Time ->
Report Type/Reset (Z) Counter ->
Report Name
Clerk Name
Clerk’s Net Sales
Clerk’s Gross Sales
Clerk’s Drawer Total
->
->
->
->
->
02/17/2010 MON
X 1 REPORT
00002
-----------------------ALL CLERK
CLERK 1
NET SALE
$207.40
GROSS SALES
$210.90
DRWR TTL
$209.40
************************
CLERK 2
NET SALE
$71.85
GROSS SALES
$76.75
DRWR TTL
$71.85
************************
CLERK 3
***********************
CLERK 4
NET SALE
$10.50
GROSS SALES
$10.50
DRWR TTL
$10.50
************************
CLERK 5
************************
CLERK 6
************************
CLERK 7
************************
CLERK 8
************************
CLERK 9
************************
CLERK 10
************************
CLERK 2
SAM4s ER-180T Operator's & Programming Manual v1.4
09:23
000071
000000
Management Reports  47
Balancing Formulas
Net Sales Total
+
Total of all Departments
+
TAX1 AMOUNT
+
TAX2 AMOUNT
+
TAX3 AMOUNT
+
TAX4 AMOUNT
+
+% (Sale Surcharge Total)
-
-% (Sale Discount Total)
-
- (Sale Minus Key Total)
=
NET SALE TTL
Gross Total
+
NET TTL
+
RETURN MDSE
+
VOID MODE
+
-% (Sale Discount Total)
+
- (Sale Minus Key Total)
=
GROSS SALES TTL
Grand Total
+
Yesterdays Grand Total
+
Gross Sales Total
=
GRAND TOTAL
48  Management Reports
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming
Default Programming
All departments are nontaxable and open, without entry limits by default status programming
of "00000000".
All system options are set to 0 in default programming, unless otherwise noted. Change only
the options that will deviate from default programming. There is no need to re-enter an option
status of 0, since 0 is its original setting.
All programming (unless otherwise noted) is done with the control lock in the P position.
Each section details a specific area of register programming.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  49
Tax Table Programming
See “Tax Percentage Rate Programming” on page 19 to set a simple tax percentage.
In some cases, a tax that is entered as a percentage does not follow exactly the tax charts that
apply in your area (even if the tax chart is based on a percentage). In these cases, we
recommend that you enter your tax using tax table programming. This method will match tax
collection exactly to the break points of your tax table.
Before programming, obtain a copy of the tax table you wish to program. You will need the
printed tax table if you wish to determine the break point entries yourself.
Note: You can enter up to 60 break points.
Determining Break Point Entries
1. Examine the printed tax table for the tax you are programming.
2. Refer to the “Tax Table Programming Example - Illinois 6% Tax Table” to help
with this exercise.
3. Calculate the break point differences by subtracting the high side of the previous
range from the high side of the dollar range.
4. Examine the pattern of break point differences to determine when the break
points begin to repeat. Mark the beginning break points that do not fit a pattern
as “non-repeat breaks.” Mark the break points that are repeating in a pattern as
“repeat breaks.”
Programming a Tax Table
1. Turn the control lock to the PGM position.
2. Enter 10.
3. Enter a digit to represent the tax you are programming:
1 for TAX 1
2 for TAX 2
3 for TAX 3
4 for TAX 4
4. Press the TAX key.
5. Enter the maximum amount that is not taxed and press the appropriate TAX key.
6. Enter the first tax amount charged and press the appropriate TAX key.
7. For each non-repeat break point, up to the last non-repeat break point, enter the
high side from the sale dollar range and press the appropriate TAX key.
8. For the last non-repeat break point, enter the high side from the sale dollar range
and press the X/TIME key.
9. For each repeat break point, enter the high side from the sale dollar range and
press the appropriate TAX key.
10. Press the CASH/TEND key to end the tax table program.
50  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Tax Table Programming Example - Illinois 6% Tax Table
Break point
Differences
Tax Charged
Sale Dollar Range
$0.00
$0.00 - $0.10
$0.01
$0.11 - $0.21
11
$0.02
$0.22 - $0.38
17
$0.03
$0.39 - $0.56
18
$0.04
$0.57 - $0.73
17
$0.05
$0.74 - $0.91
18
$0.06
$0.92 - $1.08
17
$0.07
$1.09 - $1.24
16
$0.08
$1.25 - $1.41
17
$0.09
$1.42 - $1.58
17
$0.10
$1.59 - $1.74
16
$0.11
$1.75 - $1.91
17
$0.12
$1.92 - $2.08
17
$0.13
$2.09 - $2.24
16
$0.14
$2.25 - $2.41
17
Non-Repeat
Repeat
To enter the sample program for the Illinois 6% tax table in tax 1:
1. Enter 1 0 1 press the TAX key.
2. Enter 1 0 (the maximum amount that is not taxed), press the TAX key.
3. Enter 1 (the first tax amount charged), press the TAX key.
4. Enter 2 1 (non-repeat break point), press the TAX key.
5. Enter 3 8 (non-repeat break point), press the TAX key
6. Enter 5 6 (non-repeat break point), press the TAX key.
7. Enter 7 3 (non-repeat break point), press the TAX key.
8. Enter 9 1 (non-repeat break point), press the X/TIME key.
9. Enter 1 0 8 (repeat break point), press the TAX key.
10. Enter 1 2 4 (repeat break point), press the TAX key.
11. Enter 1 4 1 (repeat break point), press the TAX key.
Press the CASH/TEND key to complete the tax program.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  51
Descriptor Programming Methods
Descriptors are programmable for each department, PLU, clerk, some function keys and the
receipt message.
There are two methods available for programming descriptors:
1. Descriptor Entry by Code
In this method, there is a 3-digit code assigned for each character (see the “Descriptor
Code Chart” on page 57.) The detailed instructions for programming by this method
are included in the programming instructions for each Department, PLU, Clerk, etc.
that follow in this chapter.
2. Text Entry Method
Refer to the default keyboard shown below. Note the characters that are printed in
the lower-right corner of Departments 1-12, much like the characters on a cell phone
10-keypad. You can program descriptors directly using this method; you do not need
go the the appropriate descriptor program, i.e. program 530 for departments or
program 300 for PLUs.
Use the instructions on the following page to program descriptor using this method.
FEED
CLEAR
RETURN
7
PLU
X/TIME
8
(X)
9
RCPT
5
6
2
CANCEL
1
2
3
0
00
.
52  Program Mode Programming
DEF
JKL
NO
CALC
SALE
RA
PO
(+)
(-)
CHECK
CHARGE
14
MNO
11
15
SUBTOTAL
4
TUV
8
*
Use the 10keypad to
enter numerals
as descriptors
13
10
7
PQRS
SPACE
Use for
Double,
CAPS, BACK
& SPACE
Functions
6
3
BACK
TAX
ABC
GHI
CAPS
+%
9
5
@:/
4
-%
-
C/CONV
1
DOUBLE
VOID
CLERK
ON/OFF
WXYZ
12
.,?!
16
#
CASH/TEND
(=)
Use Depts 1-12 to
enter characters.
SAM4s ER-180T Operator's & Programming Manual v1.4
Text Entry Descriptor Program Method
1. Turn the key lock to the P position.
2. Refer to the chart on the next page. Enter the address “Y” to determine the type of
descriptor you are programming (i.e. Department, PLU, Function, etc.) For example
press “1” to program a department.
3. Again referring to the chart, enter the number “XXXX” that determines the specific
department, PLU, function, etc. that you wish to program. For example, press “0012” to
program department #12.
4. Enter the text by pressing a text key one or more times to select the desired character or
symbol. Wait 2-seconds before entering the next character. The display will count the
number of characters you have entered. Always wait until you see the display counter
increment before entering the next character. For example:
5
a. Press
ABC
3-times for “C”. Wait 2-seconds.
ABC
1-time for “A”. Wait 2-seconds.
TUV
1-time for “T”. Your descriptor will read “CAT”
5
b. Press
7
c. Press



To enter numerals as text, press the appropriate numeral key on the 10-keypad.
RETURN
To enter double-size characters, press the RETURN/DOUBLE key before each
character. Note that each double-size character uses 2-character positions.
DOUBLE
VOID
All characters are capitalized by default. To enter lower-case descriptors, press
VOID/CAPS before entering characters. All characters for this descriptor will be
lower-case until you press the VOID/CAPS key again.
CAPS
CANCEL

BACK
TAX


To back up a character, press CANCEL/BACK.
SPACE
To insert a space, press TAX/SPACE.
Note that preamble/postamble characters will always be centered.
5. After you have completed your descriptor entry, press the SUBTOTAL key.
6. If you wish to enter additional descriptors, continue from step 2 above. When you are
completed, press the CASH/TEND key to end the program.
Use the flowchart below as a program guide.
Repeat for each
Descriptor
Y
X
X
X
X
SUBTOTAL
SAM4s ER-180T Operator's & Programming Manual v1.4
CHARACTERS
SUBTOTAL
CASH/TEND
(=)
Program Mode Programming  53
Text Entry Descriptor Program Method Chart
Descriptor
Department
PLU
Receipt Message
Receipt Message
Clerk
Function Key:
Return
Prev Void
All Cancel
Conv
-%
+%
X/Time
No Sales
Recd Acct
Paid Out
Check
Charge
Subtotal
Cash
Home Currency
Foreign Currency
54  Program Mode Programming
Addres
s
Y
Number
XXXX
# of
Characters
1
2
3
4
5
0001 ~ 0016
0001 ~ 0500
0001 ~ 0006
0001 ~ 0006
0001 ~ 0010
12.
12.
24
24
8
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
0030
0031
0032
0034
0035
0036
0037
0040
0041
0043
0044
0045
0046
0047
0048
0001
0001
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
5
5
Remarks
Preamble
Postamble
SAM4s ER-180T Operator's & Programming Manual v1.4
Department Programming
Program 500 - Department Status Programming
Use the following steps to set the status for each department.
1. Turn the key lock to the P position.
2. To begin the program, enter 5 0 0 and press the SUBTOTAL key.
5
0
0
SUBTOTAL
3. Select the Department or Departments you wish to program in one of the following
ways:
Press a Department key on the keyboard, or
1
To set a group of departments with the same status, press the first department in the
series and then press the last department.
1
16
4. Refer to the "Department Status Chart" below to determine the values for N1 through
N8. Enter the values you have selected, press the X/TIME key. (You do not need to
enter preceding zeros.)
N1
N2
N3
N4
N5
N6
N7
N8
X/TIME
(X)
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
Department Status Chart
Address
Program Option
N1
Department is negative item
N2
Department is single item
N3
Department is taxable by rate 4?
N4
Department is taxable by rate 3?
N5
Department is taxable by rate 2?
N6
Department is taxable by rate 1?
N7
Department is override preset ?
N8
Department is preset?
Value
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Note: Default settings are shown in bold type.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  55
Program 520 - Department Price/HALO Programming
Use the following steps to set the high amount lock out or preset price for each department.
1. Turn the key lock to the P position.
2. To begin the program, enter 5 2 0 and press the SUBTOTAL key.
5
2
0
SUBTOTAL
3. Select the Department or Departments you wish to program in one of the following
ways:
Press a Department key on the keyboard, or
1
To set a group of departments with the same price/HALO, press the first department
in the series and then press the last department.
1
16
4. If the Department is open, enter a HALO of up to 7 digits. If the Department is
preset, enter a preset price. (The maximum preset price you can enter is $99,999.99)
X/TIME
(X)
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
56  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Program 530 - Department Descriptor Programming
1. Turn the key lock to the P position.
2. To begin the program, enter 5 3 0 and press the SUBTOTAL key.
5
3
0
SUBTOTAL
3. Press the Department key on the keyboard you wish to program.
1
4. Enter up to 12 three character codes and press the X/TIME key. Refer to the
descriptor code chart shown in the below:
065
080 080
076
X/TIME
(X)
069
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
Descriptor Code Chart
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
Ç
001
è
011
ö
021
€
031
)
041
3
051
=
061
G
071
Q
081
ü
002
ï
012
ò
022
SPACE
032
*
042
4
052
>
062
H
072
R
082
091
e
101
o
111
y
121
092
f
102
p
112
z
122
é
003
î
013
û
023
!
033
+
043
5
053
?
063
I
073
S
083
â
004
ì
014
ù
024
"
034
,
044
6
054
@
064
J
074
T
084
ä
005
Ä
015
ÿ
025
#
035
045
7
055
A
065
K
075
U
085
à
006
Å
016
Ö
026
$
036
.
046
8
056
B
066
L
076
V
086
093
094
095
g
h
I
103
104
105
q
r
s
113
114
115
BACKSPACE
150
096
j
106
t
116
SAM4s ER-180T Operator's & Programming Manual v1.4
å
007
É
017
Ü
027
%
037
/
047
9
057
C
067
M
077
W
087
a
097
k
107
u
117
ç
008
æ
018
¢
028
&
038
0
048
:
058
D
068
N
078
X
088
b
098
l
108
v
118
Double
999
ê
009
Æ
019
£
029
'
039
1
049
;
059
E
069
O
079
Y
089
c
099
m
109
w
119
ë
010
ô
020
¥
030
(
040
2
050
<
060
F
070
P
080
Z
090
d
100
n
110
x
120
Program Mode Programming  57
PLU Programming
PLU options are set through separate programs:

Program 100 – PLU Status Programming determines whether the PLU is open or preset.
Also selected here are tax, negative, and single item options.

Program 200 - PLU Price/HALO Programming determines the PLU price if the PLU is
preset, or the high amount lock out (HALO) if the PLU is open.

Program 300 allows you to set a unique, up to 18-character descriptor for each PLU.

Program 350 - PLU Link Programming allow you to link a PLU to another PLU, so that
registration of the first PLU will automatically trigger registration of the linked PLU..
58  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Program 100 - PLU Status Programming
1. Turn the control lock to the P position.
2. To begin the program, enter 1 0 0, press the SBTL key.
1
0
0
SUBTOTAL
3. Select the PLU or PLUs you wish to program in one of the following ways:

Enter the PLU number (1-500) and press the PLU key, or
Enter the PLU#,
(1-500)

PLU
Enter the number of the first PLU in a range of PLUs that are to receive the
same setting; press the PLU key. Enter the last number in the range; press
the PLU key.
Enter the PLU#,
(1-500)
Enter the PLU#,
(1-500)
PLU
PLU
4. Refer to the "PLU” Status Chart" to determine the values for N1 through N8.
Enter the values you have selected, press the X/TIME key. (You do not need to
enter preceding zeros.)
N1
N2
N3
N4
N5
N6
N7
N8
X/TIME
(X)
5. To program additional PLUs, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
PLU Status Chart
Address
N1
Program Option
N2
PLU is single item
N3
PLU is taxable by rate 4?
N4
PLU is taxable by rate 3?
N5
PLU is taxable by rate 2?
N6
PLU is taxable by rate 1?
N7
PLU is override preset ?
N8
PLU is preset?
PLU is negative item
SAM4s ER-180T Operator's & Programming Manual v1.4
Value
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Program Mode Programming  59
Program 200 - PLU Price/HALO Programming
If a PLU is open, set the HALO (high amount lock out) here. If a PLU is preset set the preset
price here.
1. Turn the control lock to the P position.
2. To begin the program, enter 2 0 0, press the SBTL key.
2
0
0
SUBTOTAL
3. Select the PLU or PLUs you wish to program in one of the following ways:

Enter the PLU number (1-500) and press the PLU key, or
Enter the PLU#,
(1-500)

PLU
Enter the number of the first PLU in a range of PLUs that are to receive the
same setting; press the PLU key. Enter the last number in the range; press
the PLU key.
Enter the PLU#,
(1-500)
PLU
Enter the PLU#,
(1-500)
PLU
4. If the PLU is open, enter a HALO of up to 7 digits. If the PLU is preset, enter a
preset price.
X/TIME
(X)
5. To program additional PLUs, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
60  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Program 300 - PLU Descriptor Programming
1. Turn the key lock to the P position.
2. To begin the program, enter 3 0 0 and press the SUBTOTAL key.
3
0
0
SUBTOTAL
3. Enter the PLU number (1-500) and press the PLU key.
Enter the PLU#,
(1-500)
PLU
4. Enter up to 12 three character codes (from the chart)and press the X/TIME key.
065
080 080
076
X/TIME
(X)
069
5. To program additional Departments, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
Descriptor Code Chart
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
CHAR
CODE
Ç
001
è
011
ö
021
€
031
)
041
3
051
=
061
G
071
Q
081
ü
002
ï
012
ò
022
SPACE
032
*
042
4
052
>
062
H
072
R
082
091
e
101
o
111
y
121
092
f
102
p
112
z
122
é
003
î
013
û
023
!
033
+
043
5
053
?
063
I
073
S
083
â
004
ì
014
ù
024
"
034
,
044
6
054
@
064
J
074
T
084
ä
005
Ä
015
ÿ
025
#
035
045
7
055
A
065
K
075
U
085
à
006
Å
016
Ö
026
$
036
.
046
8
056
B
066
L
076
V
086
093
094
095
g
h
I
103
104
105
q
r
s
113
114
115
BACKSPACE
150
096
j
106
t
116
SAM4s ER-180T Operator's & Programming Manual v1.4
å
007
É
017
Ü
027
%
037
/
047
9
057
C
067
M
077
W
087
a
097
k
107
u
117
ç
008
æ
018
¢
028
&
038
0
048
:
058
D
068
N
078
X
088
b
098
l
108
v
118
Double
999
ê
009
Æ
019
£
029
'
039
1
049
;
059
E
069
O
079
Y
089
c
099
m
109
w
119
ë
010
ô
020
¥
030
(
040
2
050
<
060
F
070
P
080
Z
090
d
100
n
110
x
120
Program Mode Programming  61
Program 350 - PLU Link Programming
When a PLU is registered, the amount of the PLU is “linked” or reported to a department.
The sale amount of the PLU will be reported in for the appropriate PLU in the PLU report
and also in the department it is linked to.
Note: If a PLU is not linked to a Department, it’s sales will by default link to
Department #1.
1. Turn the control lock to the P position.
2. To begin the program, enter 3 5 0, press the SUBTOTAL key.
3
5
0
SUBTOTAL
3. Enter the PLU number (1-500) and press the PLU key.
Enter the PLU#,
(1-500)
PLU
4. Press the Department key on the keyboard where you wish the PLU sales
reported.
12
5. To program additional PLUs, repeat from step 3, or press the CASH/TEND
key to finalize the program.
CASH/TEND
(=)
62  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
System Option Programming
Read each option carefully to determine if you wish to make any changes.
NOTE: Because after clearing memory all options settings are automatically set to 0,
and because your most likely option selections require a status setting of 0, you do not
need to program this section unless you wish to change the default status.
Programming a System Option
1. Turn the control lock to the P position.
2. Enter 3 0, press the SUBTOTAL key.
3. Enter a system option address, and then press the X/TIME key.
4. Enter the number representing the status you have selected. Press the
SUBTOTAL key.
5. Repeat from step 3 for each system option you wish to change.
6. Press the CASH/TEND key to end system option programming.
System Option Flowchart
Repeat for each
System Option
3
0
X/TIME
SUBTOTAL
Option #
SAM4s ER-180T Operator's & Programming Manual v1.4
SUBTOTAL
CASH/TEND
(=)
Status
Program Mode Programming  63
System Option Table
Address
1
SYSTEM OPTION
VALUE
Beeper is active?
2
Date format is:
Reset the Financial report Z counter after a
Z1 Financial report?
Reset the PLU report Z counter after a Z1
PLU report?
Reset the Clerk report Z counter after a Z1
Clerk report?
Yes = 1
No = 0
0(default)
1
2
0-3
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Yes = 1
No = 0
Triple multiplication (split pricing not
allowed)
Rounding option
European Round
Swedish Round
Thai Round
New Zealand Round
Training Clerk
Yes = 1
No = 0
1
2
3
4
0-10
5
MMDDYY
=
DDMMYY
=
YYMMDD
=
Decimal place: (0,1,2,3) default=2
Cash drawer will open when reports are
run?
Drawer needs to be shut to operate?
6
Use Spool?
7
Enable Electronic Journal?
8
9
Prompt operator when Electronic Journal is
full
Electronic Journal is Oldest?
10
Allow Direct Multiply?
11
Allow multiple receipts?
12
Allow the post tender function?
13
Cash Declaration Required before Z
Financial report?
Consecutive number is reset after a
financial report?
Reset Grand Total after Z financial Report?
3
4
14
15
16
17
18
19
20
21
Note: Default settings are shown in bold.
64  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Print Option Programming
Read each option carefully to determine if you wish to make any changes.
NOTE: Because after clearing memory all options settings are automatically set to 0,
and because your most likely option selections require a status setting of 0, you do not
need to program this section unless you wish to change the default status.
Programming a Print Option:
1. Turn the control lock to the P position.
2. Enter 4 0, press the SBTL key.
3. Enter a print option address, and then press the X/TIME key.
4. Enter the number representing the status you have selected, or if there is more
than one decision to be made in an address, add the values representing your
choices for each decision and enter the sum. Press the SUBTOTAL key.
5. Repeat from step 3 for each print option you wish to change.
6. Press the CASH/TEND key to end print option programming.
Print Option Flowchart
Repeat for each
Print Option
4
0
SBTL
X/TIME
Option #
SUBTOTAL
CASH
Status
NOTE 1: Print Option# 3 – Users outside of the USA can designate a different currency
symbol. To select a different symbol enter three digit alpha character codes.
NOTE 2: Print Option# 4 – If you are using the currency conversion feature, you can
select the appropriate symbol for each foreign currency you are accepting. To select a
different symbol enter three digit alpha character codes.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  65
Print Option Table
Address
1
PRINT OPTION
VALUE
Print Z counter on reports?
Yes = 1
No = 0
2
Skip media totals with zero activity on the
report?
Yes = 1
No = 0
3
Home Currency symbol ($)
Up to 5
digits
4
Currency Symbol
Up to 5
digits
5
Issue a second receipt for the same
transaction?
Yes = 1
No = 0
6
Subtotal is printed when the SUBTOTAL key
is pressed?
Yes = 1
No = 0
7
Print consecutive number counter on receipt?
Yes = 1
No = 0
8
Print date on receipt?
Yes = 1
No = 0
9
Print time on receipt?
Yes = 1
No = 0
10
Print clerk name on receipt?
Yes = 1
No = 0
11
Void/Return totals will print on the Financial
report?
Yes = 1
No = 0
12
Print PLU sale item quantity on receipt?
Yes = 1
No = 0
13
Print tax symbol?
Yes = 1
No = 0
14
Print the tax amount on receipt?
Yes = 1
No = 0
15
Print taxable totals?
Yes = 1
No = 0
16
Print the tax rate if tax calculation is by
straight percentage?
Yes = 1
No = 0
17
Print a breakdown of the VAT eligible sale?
Yes = 1
No = 0
18
Print Grand total on the Financial report?
Yes = 1
No = 0
19
Print Gross total on the Financial report?
Yes = 1
No = 0
20
Grand total is:
Net sale
Gross sale
=
=
1
0
21
Print on NO SALE performed
Yes = 1
No = 0
22
Print preamble message on receipt?
Yes = 1
No = 0
66  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Address
23
PRINT OPTION
VALUE
Print postamble message on receipt?
Yes = 1
No = 0
24
Send Z report to Electronic Jounal
Yes = 1
No = 0
25
Print training mode message on the receipt
during training mode operations?
Yes = 1
No = 0
26
Print the PLU/Department number on the
receipt?
Yes = 1
No = 0
27
Print the PLU number on the PLU Report?
Yes = 1
No = 0
Note: Default settings are shown in bold.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  67
Function Key Programming
Three programs are used to program function keys:

Program 70 - is used to set each keys individual options

Program 80 - is used to program a 8 character alpha numeric descriptor

Program 90 - is used to set a high amount limit (HALO)
In this chapter you will find:

General instructions for programs 70, 80 and 90.

Specific programming instructions for each function key.
Program 70 - Function Key Options
Use Program 70 to set options for function keys. Because of the differences inherent in
function keys, individual options will be different. See the specific instructions for each key
in this chapter to find the options for each key.
1. Turn the control lock to the P position.
2. To begin the program, enter 7 0, press the SUBTOTAL key.
7
0
SUBTOTAL
3. Enter the values for the option digit or digits. For CASH/TEND, CHECK,
CHARGE and CURRENCY CONVERSION key options you will enter up to
7-digits; for -% and +% keys you will enter up to 5-digits. Press the function
key you wish to program. (See the specific options for each key that follow in
this chapter.)
N1
N2
N3
N4
N5
N6
N7
FUNCTION
KEY
4. To program additional function keys, repeat from step 3, or press the
CASH/TEND key to finalize the program.
CASH/TEND
(=)
68  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Program 80 - Function Key Descriptor
1. Turn the control lock to the P position.
2. To begin the program, enter 8 0, press the SUBTOTAL key.
8
0
SUBTOTAL
3. Enter up to 8 three-character codes and press the FUNCTION KEY. Refer to
the descriptor code chart on 57.
Enter up to 8
three-character
codes
FUNCTION
KEY
4. To program additional function keys, repeat from step 3, or press the
CASH/TEND key to finalize the program.
CASH/TEND
(=)
Program 90 - Function Key HALO
Use Program 90 to program a high amount lock out (HALO) for a function key. Only specific
keys require this program. For example, you can set a HALO for the CASH/TEND, CHECK
or CHARGE keys. Refer to the specific function key programming information in this
chapter to determine when the HALO option is available.
1. Turn the control lock to the P position.
2. To begin the program, enter 9 0, press the SUBTOTAL key.
9
0
SUBTOTAL
3. Enter a HALO of up to eight digits, (or "0" for no HALO).
Enter 1-8 digit
HALO
4. Press the function key on the keyboard you wish to program.
FUNCTION
KEY
5. To program additional function keys, repeat from step 2, or press the
CASH/TEND key to finalize the program.
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  69
CASH/TEND, CHECK & CHARGE Function Key Options
Options - Program 70
Repeat for another
function key
7
SUBTOTAL
0
Address
N1
N2
N3
N4
N5
N6
N7
FUNC
OPTION
VALUE
N1
Amount tender is compulsory?
Yes = 1
No = 0
N2
Allow over tendering?
Yes = 1
No = 0
N3
Disable under tendering?
Yes = 1
No = 0
N4
Exempt tax 1?
Yes = 1
No = 0
N5
Exempt tax 2?
Yes = 1
No = 0
N6
Exempt tax 3?
Yes = 1
No = 0
N7
Exempt tax 4?
Yes = 1
No = 0
70  Program Mode Programming
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Currency Conversion
Note: The currency conversion function is located on the same key as the receipt on/off
function. Inside of a sale, the function operates as currency conversion; outside of a sale
the key operates as the receipt on/off function.
Currency Conversion Rate - Program 90
1. Turn the control lock to the P position.
2. To begin the program, enter 9 0, press the SBTL key.
9
0
SUBTOTAL
3. Enter the exchange rate of up to 7 digits (do not enter the decimal point), and
then enter a number from 0 to 7 to indicate the decimal position. See "Currency
Exchange Rate Programming Examples" below.
Exchange Rate
Decimal
Position
4. Press the RECEIPT ON/OFF C/CONV keky on the keyboard.
RCPT ON/OFF
C/CONV
5. Press the CASH/TEND key to finalize the program.
CASH/TEND
(=)
Currency Exchange Rate Programming Examples
Note: Foreign currency exchange rates may be stated as “foreign currency in dollars”, or
“dollars in foreign currency”. Use the rate stated in “dollars in foreign currency” when you
are programming this section.
The US dollar (home currency) is worth 1.3720 Canadian dollars (foreign currency).
1
3
7
2
0
Exchange Rate
4
RCPTON/OFF
C/CONV
CASH/TEND
(=)
Decimal
Position
The US dollar (home currency) is worth 110.24 Japanese Yen (foreign currency).
1
1
0
Exchange Rate
2
4
2
RCPTON/OFF
C/CONV
CASH/TEND
(=)
Decimal
Position
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  71
-% / +% Key Programming
Options - Program 70
Repeat for another
function key
7
SUBTOTAL
0
Address
OPTION
N1
% Key is:
N1
N2
N3
N4
%
N5
CASH/TEND
(=)
VALUE
Open
=
1
Preset
=
0
N2
% Amount taxable tax 1?
Yes = 1
No = 0
N3
% Amount taxable tax 2?
Yes = 1
No = 0
N4
% Amount taxable tax 3?
Yes = 1
No = 0
N5
% Amount taxable tax 4?
Yes = 1
No = 0
Descriptor
Refer to “Program 80 - Function Key Descriptor” on page 69.
HALO - Program 90
Repeat for another
function key
9
0
SUBTOTAL
Enter 5 digit rate or
amount (see note below)
%
CASH/TEND
(=)
Note: If key is amount, enter 5 digit HALO, or 0 for no HALO. If key is percentage
enter the percentage in a five-digit format, without the decimal (XX.XXX). For
example: for 10%, enter 10000; for 5.55%, enter 05550; for 99.999%, enter 99999.
72  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
- (Minus) Key Programming
Note: The – (Minus) function is located on the same key as the clerk function. Inside of
a sale, the function operates as a – (minus) key; outside of a sale the key is used to sign
on or off clerks.
Options - Program 70
Repeat for another
function key
7
0
SUBTOTAL
Address
OPTION
N1
% Key is:
N1
N2
N3
N4
N5
CLERK
-
CASH/TEND
(=)
VALUE
Open
=
1
Preset
=
0
N2
% Amount taxable tax 1?
Yes = 1
No = 0
N3
% Amount taxable tax 2?
Yes = 1
No = 0
N4
% Amount taxable tax 3?
Yes = 1
No = 0
N5
% Amount taxable tax 4?
Yes = 1
No = 0
Descriptor
Refer to “Program 80 - Function Key Descriptor” on page 69.
HALO - Program 90
Refer to “Program 90 - Function Key HALO” on page 69.
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  73
Cancel Key Programming
Note: The CANCEL key can be disabled if necessary for security reasons.
Options - Program 70
Repeat for another
function key
7
0
SUBTOTAL
N1
CANCEL
CASH/TEND
(=)
N1=0 Cancel Allowed (default)
N1=1 Cancel Not Allowed
74  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Miscellaneous Programming
Clerk Description Programming
You can program a clerk name to print on receipts and reports.
1.
Turn the control lock to the P position.
2.
To begin the program, enter 8 1 0, press the SSUBOTAL key.
8
1
0
SUBTOTAL
3. Enter the number of the clerk you wish to program; press the X/TIME key.
X/TIME
(X)
4.
Enter up to 8
three-character
codes
SUBTOTAL
5. Press the CASH/TEND key to finalize the program.
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  75
Logo Programming
Programming the Preamble Logo Message
A preamble message of up to six lines can be printed at the top of each receipt. Each line can
consist of up to 24 characters.
1.
Turn the key lock to the P position.
2.
To begin the program, enter 7 0 0, press the SUBTOTAL key.
7
0
0
SUBTOTAL
3. Refer to the chart below and enter the number that represents the line you wish
to program; press the X/TIME key.
X
X/TIME
(X)
X
Message Line
1
2
3
4
5
6
1st line of Preamble
2nd line of Preamble
3rd line of Preamble
4th line of Preamble
5th line of Preamble
6th line of Preamble
4.
Enter up to 24
three-character
codes
SUBTOTAL
5. Continue from step 3 to program additional lines or press the CASH/TEND key
to finalize the program.
CASH/TEND
(=)
76  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Programming the Postamble Logo Message
A preamble message of up to six lines can be printed at the top of each receipt.
Each line can consist of up to 24 characters.
1.
Turn the key lock to the P position.
2.
To begin the program, enter 7 5 0, press the SUBTOTAL key.
7
3.
5
0
SUBTOTAL
Refer to the chart below and enter the number that represents the line you wish
to program; press the X/TIME key.
X
X/TIME
(X)
X
Message Line
1
2
3
4
5
6
1st line of Postamble
2nd line of Postamble
3rd line of Postamble
4th line of Postamble
5th line of Postamble
6th line of Postamble
4.
Enter up to 24
three-character
codes
5.
SUBTOTAL
Press the CASH/TEND key to finalize the program.
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  77
Machine Number Programming
The machine number is printed on the register receipt. You can program a machine number
so that any receipt can be identified with the store or register where the transaction took
place.
Turn the control lock to the P position.
1. Turn the control lock to the P position.
2. To begin the program, enter 1 6 0 0, press the SUBTOTAL key.
1
6
0
0
SUBTOTAL
3. Enter a machine number (up to 6 digits); press the X/TIME key.
X/TIME
(X)
4. Press the CASH/TEND key to finalize the program.
CASH/TEND
(=)
78  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Scans
Since much time and energy has been invested in the planning and programming of your ER180T, it is advisable to print a hard copy of the final program for future reference. This copy
should be kept in a safe place.
1. Move to the P position.
2. To print a program scan, enter 1 5, press the SUBTOTAL key.
1
5
SUBTOTAL
Department Program Scan
To read the program information for one department, press the department key on
the keyboard and press the same department key again.
DEPT1
DEPT1
To read the program information for multiple departments, press the first
department key on the keyboard and press the ending department.
DEPT1
DEPT10
PLU Program Scan
To read program information for a single PLU, enter the number of the PLU and
press the PLU key and enter the same PLU number and press the PLU key again.
Enter the PLU#,
(1-500)
PLU
Enter the PLU#,
(1-500)
PLU
To read program information for multiple PLU program information, enter
number of the first PLU in the series, press the PLU key, enter the number of the
last PLU in the series, and press the PLU key again.
Enter the first
PLU# (1-500)
PLU
Enter the last
PLU# (1-500)
PLU
Other Program Scans
To read other programs enter the code from the chart below and press the
X/TIME key.
X
X/TIME
(X)
Or,
4
X/TIME
(X)
Function
Key
X
Program
1
2
3
4
5
6
Tax
System option
Print option
Function keys (and press key to scan)
Clerk
Preamble message/ Postamble message
3. Press the CASH/TEND key to
finalize the program scan.
CASH/TEND
(=)
SAM4s ER-180T Operator's & Programming Manual v1.4
Program Mode Programming  79
80  Program Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Service Mode Programming
Clear Totals
Use this function to clear all totals and counters including the grand total. Programming will
not be cleared.
1. Turn the control lock to the S position.
2. Enter 20, and then press the SUBTOTAL key.
2
0
SUBTOTAL
3. The message “ALL TOTAL CLEAR” prints.
Clear Grand Total
The register mbe be cleared (Z Financial/Dept Report) before the grand total can be cleared.
1. Turn the control lock to the S position.
2. Enter 20, and then press the SUBTOTAL key.
3
0
SUBTOTAL
3. The message “GRAND TOTAL CLEAR” prints.
EPROM Information
To read the current EPROM version:
1. Turn the control lock to the S position.
2. Enter 50, and then press the SUBTOTAL key.
5
0
SUBTOTAL
3. The display will show a series of equal signs, the version, checksum and EPROM date
will print, and then the display will clear.
SAM4s ER-180T Operator's & Programming Manual v1.4
Service Mode Programming  81
82  Service Mode Programming
SAM4s ER-180T Operator's & Programming Manual v1.4
Glossary of Terms
Activity Count
The activity counter increments each time an entry is made on a particular PLU, or function
key. The counter prints on the appropriate reports.
Cancel
Press the CANCEL function to abort a transaction in progress. All current items are removed
(voided).
Cash Declaration
This option forces the operator to count the cash drawer and input the results before the
financial report can be taken. Absentee owners may want clerks or managers to declare the
drawer counts to insure that all cash is deposited, regardless of overages, or shortages.
Clerk
Sales clerks are individuals who are responsible for selling the merchandise to the customer.
Typically, management wants to know merchandise sales levels for each clerk, in order to
monitor productivity, account for cash and other media, and/or pay commissions.
Compulsory
When an operation is programmed compulsory, the appropriate entry must be performed in
order to complete the operation.
Consecutive Number
A sequential number is printed on each receipt issued. This is not a “customer count” as this
number is incremented for non-sales activity such as no-sales and reports. A count of revenue
generating transactions (true customer count) is printed with the Net Sales total on the
financial report.
SAM4s ER-180T Operator's & Programming Manual v1.4
Glossary of Terms  83
Currency Conversion
Use the currency conversion function to convert and display the value of the transaction in
foreign currency. Only cash tender is allowed after pressing the currency conversion
function. Change is calculated and issued in home currency.
Default Program
The original program installed in the ER-180T. The register has a default program which
makes it operational after a RAM clear. Nearly all option, rate, and status programs are set to
zero as the default condition.
Compulsory Amount Tendering
The change will always be computed by the register when a customer tenders an amount
greater than the total due. This will reduce cashier change errors.
Consecutive Number
A sequential number is printed on each receipt issued. This is not a “customer count” as the
number is incremented for non-sales activity such as no-sales and reports. A count of revenue
generating transactions (true customer count) is printed with the Net Sales total on the
financial report.
Department
Traditionally cash registers have category keys to separate sales by departments within the
store. For example, a grocery store may have grocery, meat and produce departments. When
a clerk enters items sold, they will input the amount of the item, and then press the
appropriate department the item is from. Management will get reports of activity and dollar
volume for sales in each of the store’s departments. Today, departments have considerable
flexibility. They may be “open” to accept price entries, or “preset” to automatically ring the
item’s price. Where price look-ups (PLUs) are used, each PLU reports its sales to one of the
departments.
Electronic Journal
The electronic journal is an area of memory designated to keep a sales journal. The
electronic journal can be printed, if necessary, to provide a traditional record of all register
activity.
Error Condition
An error condition signals that mis-operation has occurred. It is identified by an audible tone
and an error descriptor appearing on the display.
84  Glossary of Terms
SAM4s ER-180T Operator's & Programming Manual v1.4
Error Correct
An error correct operation voids the last item entered, it must be used within a sale.
EPROM
Erasable, Programmable Read-Only Memory (EPROM) is used by the manufacturer to
contain the program that runs the register. EPROMs maintain memory when power is off,
allowing the register to be especially stable and reliable. In the case that the register’s
program is improved, or updated, the EPROM can be updated by a qualified technicial.
HALO
The high amount lock-out (HALO) limits the amount allowed to be entered in a PLU, or
function key.
Machine Number
The number of the register can be set and printed on each receipt. If the merchant uses more
than one register, or has more than one location, the register where the transaction or report
was taken is easily identified.
Multiple Receipts
In some cases, for example where a mail-in rebate is offered, and extra copy of a receipt is
needed. If allowed, the receipt must be re-printed immediately, before another transaction is
started.
Negative Departments/PLUs
As you program Departments and PLUs, you will find a setting to make them negative
(normally they are positive). Positive Departments/PLUs are used for items that add to the
sale. Negative Departments/PLUs are used for items that subtract from a sale, like individual
coupons or bottle deposit credits.
No Sale
No sale is an operation to simply open the cash drawer.
Override
Override is an operation used to bypass a programmed price or entry limit (HALO).
PLUs
Price look-ups (PLUs) are accessed by indexing a code number and pressing the PLU key, or
by pressing a PLU key. PLUs can be programmed with a preset or open price. PLUs record
their own activity count and dollar total on the PLU report. PLU sales are also reported to a
department
SAM4s ER-180T Operator's & Programming Manual v1.4
Glossary of Terms  85
Over-Tendering/Under-Tendering
When a payment is made for an amount less than the amount due, it is called an under-tender.
After an under-tender, the register calculates and displays the remaining balance for the sale.
Additional payments must be made until the total due is satisfied. When the sale is fully paid,
the cash drawer will then open and the receipt is completed. When a payment is made for an
amount more than the amount due, it is called an over-tender. The register will compute and
display the change due and the receipt will be completed. Note that register options can be
set to allow or disallow over-tendering for check and charge payments.
Paid Out
The Paid Out key is used to track cash paid out of the cash drawer or to record pick ups from
the cash drawer.
PLU Link
If you wish the registration a PLU to automatically cause the registration of another PLU,
enter the number of the PLU you wish to register automatically in the LINK PLU of the PLU.
Post Tender
The Post Tendering feature allows the operator to use the register to compute change on cash
transactions after the sale has been finalized.
To calculate change due after finalizing the sale, enter the cash amount presented by the
customer and then press CASH. The amount of change due to the customer is then
displayed, and the cash drawer may open.
This is a calculation function only, and no totals or counters are updated by the use of this
feature.
Preamble/Postamble Message
Programmable messages allow each merchant to customize his receipt with the store name,
address, phone number, website or other critical identification information or advertising
messages. The SAM4s ER-180T allows a preamble message of up to six lines, each with up
to 24-characters, to be printed at the top of each receipt. A postamble of up to 6-lines of 24characters can also be printed at the bottom of the receipt.
Preset (Department/PLU)
When a department or PLU is pre-programmed or pre-set with a fixed amount, the preset
amount will automatically register when the department is pressed or the PLU is entered.
Merchants use presets to accurately price individual items and report a sales count for each
item.
86  Glossary of Terms
SAM4s ER-180T Operator's & Programming Manual v1.4
Preset Override
When a department is preset, it is possible to override the preset price with a different price.
If the override function is set to be allowed in the department program, you can simply enter
a new price and press the department key.
Receipt
A receipt is a printed tape given to a customer as a record of the sale transaction.
Register Number
The register number is a programmable number which prints on the receipt and journal tapes.
It identifies the electronic cash register the sale or report was performed on.
Received on Account
The Received on Account key is used to track cash received into the cash drawer or to record
loans to the cash drawer.
Single Item
The transaction is finalized automatically when a single item Department or PLU is registered
as the first item in a sale. Single item status is used to speed transaction entry when an item
normally sold singly is sold, for example, a pack of cigarettes, a newspaper or an admission
ticket.
Split Pricing
Often merchants price items in multiples, for example 3 for $1. The register will compute the
price of items when the exact quantity is not purchased. If the customer chooses to buy 2
items at 3 for $1, enter 2, press the X/TIME key, enter 3, press the X/TIME key and then
enter the price and the department or PLU. The register will compute the price for the items
purchased.
Surcharge (Item)
An item percent surcharge adds a percentage to the price of an item. This addition nets the
PLU total.
Surcharge (Sale)
A sale percent surcharge adds a percentage to the entire sale.
Tax Exempt
Tax exempt is used to exclude the tax from an entire sale.
SAM4s ER-180T Operator's & Programming Manual v1.4
Glossary of Terms  87
Tax Shift
Tax shift keys are used to reverse the tax status of a PLU entry.
Tender
The method of register operation in which payment is made and the transaction is finalized.
Transaction Number
See consecutive number.
Void
A void operation will erase a previous item entry. It must be used inside of a sale only.
Tax Computation by Rate/Tax Computation by Table
In the simplest method of tax calculation, the register is set with a tax rate (or rates) and the
taxes are computed by a percentage calculation. In some cases, a tax that is entered as a
percentage does not follow exactly the tax charts that apply in your area (even if the tax chart
is based on a percentage). In these cases, we recommend that you enter your tax using tax
table programming. This method will match tax collection exactly to the break points of your
tax table.
Training Operation
Training operations do not add to department, PLU, or function key totals. This allows an
operator to practice making entries without updating sales totals. If you wish to perform
training operations, designate one of the clerks for training. You must clear (Z) the register
before the training clerk can be used. When that clerk is signed on, the register is in
“training mode”.
Triple Multiplication
You can perform a sequential multiplication using the X/TIME key. For example four cases
of 24 beverages at $.89 each could be calculated by entering 4 X/TIME 24 X/TIME $.89 and
would calculate $85.44. If triple multiplication is selected, split pricing is not allowed.
VAT
Value-Added Tax (VAT) is a tax collection system where a portion of the item’s sale price is
tax. VAT is different than most sales taxes where tax amounts are calculated and added-on to
the sale. Value added taxes are included in the item price. Most locales in the USA do not
use VAT, which is used in Canada and other nations.
X & Z Reports
X (eXamine) read reports without resetting and Z (Zero) reports read and reset your sales
totals.
88  Glossary of Terms
SAM4s ER-180T Operator's & Programming Manual v1.4
Manual Revision Record
Edition
Date published
V1.0
Revison contents
First Publication
V1.1
11/23/2010
Register key information updated; Glossary of Terms
added.
V1.2
1/18/2011
Descriptor Programming by Text Method added.
Default keyboard updated.
V1.3
10/13/2011
Clarified keys: one set included with ECR
V1.4
5/17/2012
The correct entry for VAT tax on page 19, step #4 is
“2”.
SAM4s ER-180T Operator's & Programming Manual v1.4
Manual Revision Record  89
