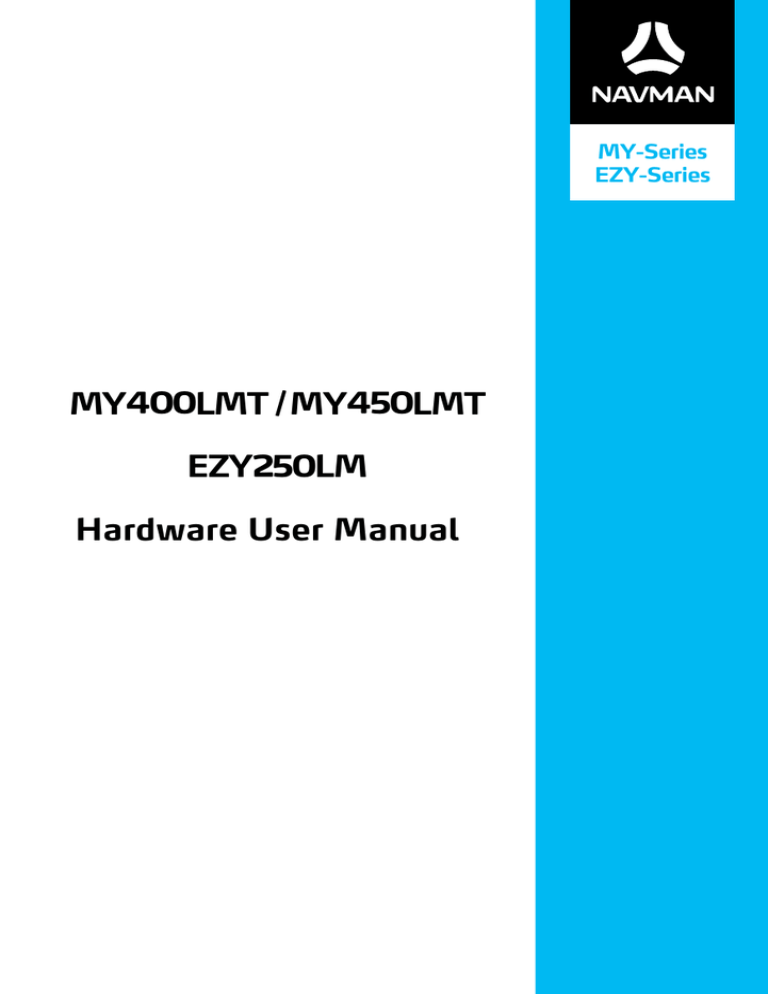

MY-Series
EZY-Series
MY₄₀₀LMT / MY₄₅₀LMT
EZY₂₅₀LM
Hardware User Manual
Important safety information
PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation
which, if not avoided, may result in property damage.
Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle’s safety or
make it illegal to operate in some jurisdictions.
Follow all product instructions and all instructions in your vehicle owner’s manual regarding accessories or
modifications.
Consult your country’s and/or state’s laws regarding operation of a vehicle with any accessories or
modifications.
It is your sole responsibility to place, secure and use your Navman in a manner that will not cause accidents,
personal injury or property damage. Always observe safe driving practices.
Do not mount your Navman in a way that may interfere with the safe operation of the vehicle, the deployment
of air bags or other safety equipment.
Do not operate your Navman while driving.
Before you use your Navman for the first time, familiarise yourself with your device and its operation.
On main roads, the distance to an exit calculated by your Navman may be further than the distance shown on
road signs. Road signs show the distance to the start of an exit while your Navman shows the distance to the
next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance
information on road signs.
The use of information regarding safety or speed camera locations may be subject to local laws in the country
of use. You are responsible for checking that you can legally use the information in your country or in the
country where the information will be used.
Do not handle your Navman while it is hot. Let the product cool, out of direct sunlight.
At full power, prolonged listening to your Navman via headphones or earphones can damage the ear of the
user.
Do not expose your Navman to direct sunlight in an unattended vehicle for prolonged periods. Overheating
may damage the unit and void warranty.
To discourage theft, do not leave your Navman, mounting bracket or any cables in plain view in an unattended
vehicle.
Warning Notice to Drivers in the United States
State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on
their windshields while driving. Please make sure you research and follow your most current State laws. An
alternative mounting option may be provided in the box with your product; or see our website for additional
mounting alternatives. Navman does not take any responsibility for any fines, penalties, or damages that may
be incurred as a result of disregarding this notice.
Home charger-specific safety information
To charge your Navman from the mains power, use the home charger (sold separately) supplied by Navman as
an accessory. Using other home chargers with your Navman could result in serious injury or property damage.
Never use the charger if the plug or cord is damaged.
Do not expose the charger to moisture or water. Do not use the charger in a high moisture environment.
Exposure to water may cause electrical sparks or fires.
Never touch the charger when your hands or feet are wet.
Allow adequate ventilation around the charger when using it to operate your Navman or charge the internal
battery. Do not cover the charger with paper or other objects that will reduce ventilation. Do not use the
charger while it is inside a carrying case or other container.
Ensure that the charger is connected to a power source with the correct fitting and voltage requirements. The
voltage requirements can be found on the home charger casing and/or packaging.
Do not attempt to service the charger as this could result in personal injury. Replace the charger if it is damaged
or exposed to excess moisture.
Internal battery-specific safety information
Your Navman contains a non-replaceable internal lithium-ion battery. The battery may burst or explode if
mishandled, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush or
puncture the battery.
Recycle or dispose of the battery safely and properly according to local laws and regulations. Do not dispose of
the battery in fire or water.
About the battery
ƒ Use a specified battery in the equipment.
CAUTION: The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or
burns, do not disassemble, crush, puncture, or dispose of in fire or water.
ƒ Important instructions (for service personnel only)
„
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
„
Replace only with the same or equivalent type recommended by the manufacturer.
„
The battery must be recycled or disposed of properly.
„
Use the battery only in the specified equipment.
Only use the correct home charger (sold separately), usb cable or in-car charger supplied by Navman to charge
your Navman internal battery.
Only use your Navman internal battery with your Navman unit.
3
The Navman battery will stop charging when the ambient temperature is less than 0ºC (32ºF) or more than
45ºC (113ºF).
Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage.
Navman disclaims all liability for installation or use of your Navman that causes or contributes to death,
injury or property damage or that violates any law.
Compliance
WARNING: This product, its packaging and its components contain chemicals known to the State of
California to cause cancer, birth defects or reproductive harm. This Notice is being provided in
accordance with California’s Proposition 65.
For regulatory identification purposes: EZY250LM/MY400LMT/MY450LMT is assigned a model name of
N393-5000.
Marking labels located on the exterior of your Navman indicate the regulations that your model
complies with. Please check the marking labels on your Navman and refer to the corresponding
statements in this chapter. Some notices apply to specific models only.
The user needs to switch off the Navman when exposed to areas with potentially explosive atmospheres
such as petrol stations, chemical storage depots and blasting operations.
Bluetooth (for models with Bluetooth capabilities)
Bluetooth QD ID B018983
WEEE
This product must not be disposed of as normal household waste, in accordance with the EU
directive for waste electrical and electronic equipment (WEEE - 2002/96/EC). Instead, it should be
disposed of by returning it to the point of sale, or to a municipal recycling collection point.
Contents
Important safety information ....................................................................................................... 2
Home charger-specific safety information............................................................................ 3
Internal battery-specific safety information......................................................................... 3
Compliance .................................................................................................................................. 4
Bluetooth (for models with Bluetooth capabilities) ........................................................... 4
WEEE.............................................................................................................................................. 4
Contents ............................................................................................................................................ 5
Welcome............................................................................................................................................ 6
Important information for using the manual........................................................................ 6
Disclaimer..................................................................................................................................... 6
Mounting your Navman in a vehicle............................................................................................ 7
Enabling Traffic (TMC) Reception............................................................................................ 8
Getting to know your Navman ..................................................................................................... 9
EZY Series ..................................................................................................................................... 9
MY Series .................................................................................................................................... 10
How do I turn on my Navman? ...................................................................................................11
Using the Power button............................................................................................................11
Resetting the device ................................................................................................................. 12
How do I charge the battery?...................................................................................................... 13
How do I charge the battery in a vehicle? ........................................................................... 13
How do I charge the battery via my computer? ................................................................ 13
How do I charge the battery at home or work? ................................................................. 13
How do I insert a memory card? ................................................................................................ 14
How do I connect my Navman to my computer? .................................................................. 15
Other features ................................................................................................................................ 16
How do I make a hands-free call? ......................................................................................... 16
How do I search for a place using Live Local Search? ....................................................... 16
How can I play external AV equipment through my Navman?...................................... 16
Reference ..........................................................................................................................................17
What is GPS? ..............................................................................................................................17
How does my Navman receive GPS signals?.......................................................................17
Caring for your Navman...........................................................................................................17
Troubleshooting ........................................................................................................................ 18
Navman Customer Support.................................................................................................... 18
5
Welcome
Thank you for purchasing this Navman. Please read this manual carefully before using your Navman for the first
time. Keep this manual in a safe place and use as your first point of reference.
Important information for using the manual
It is important to understand the terms and typographical conventions used in this manual.
Formatting
The following kinds of formatting in the text identify special information:
Convention
Type of Information
Bold
Components or items displayed on screen, including buttons, headings, field names and
options.
Italics
Indicates the name of a screen.
Icons
The following icons are used throughout this manual:
Icon
Description
Note
Tip
Warning
Terms
The following terms are used throughout this manual to describe user actions.
Term
Description
Press
Press and release a button quickly.
Tap
Press and release an item displayed on the touch screen.
Select
Tap an item in a list or tap a command from a menu.
Disclaimer
Not all models are available in all regions.
Depending on the specific model purchased, the colour and look of your device and accessories may not exactly
match the graphics shown in this document.
Navman operates a policy of ongoing development. Navman reserves the right to make changes and
improvements to any of the products described in this document without prior notice. Navman does not warrant
that this document is error-free. The screenshots and other presentations shown in this manual may differ from the
actual screens and presentations generated by the actual product. All such differences are minor and the actual
product will deliver the described functionality as presented in this User Manual in all material respects.
6
Mounting your Navman in a vehicle
CAUTION:
ƒ
Never mount your Navman where the driver’s field of vision is blocked.
ƒ
If the windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In
this instance, please mount your Navman where there is a “clear area” - usually just beneath the
rear-view mirror.
ƒ
To protect your Navman against sudden surges in current, connect the in-car charger only after the car
engine has been started.
ƒ
Never expose your Navman to extreme heat or direct sunlight for prolonged periods. Overheating may
damage your Navman.
1
2
3
1
2
3
4
3
1
2
5
7
Enabling Traffic (TMC) Reception
Traffic information is not available on all models and is only available in selected countries.
Depending on the model of your Navman you can receive live traffic information via the in-car charger which is
used as an antenna. Please ensure your car charger is connected to your Navman and power source to receive
TMC live traffic information.
Please note that you will not be able to receive the traffic information while using the third-party accessory
(such as your own car charger).
For information on using traffic information on your Navman, see the Software User Manual.
8
Getting to know your Navman
EZY Series
1
4
6
5
7
3
Item Description
n
Power button
o
Reset button
p
Speaker
q
Battery indicator
r
Touch screen
s
Slot for MicroSD memory card
t
Connector for in-car charger, USB cable, home charger* and TMC accessory kit*
* may be sold separately
9
2
MY Series
Item Description
n
Power button
o
Reset button
p
Speaker
q
Battery indicator
r
Touch screen
s
Microphone (not on all models)
t
Slot for MicroSD memory card
u
Connector for AV cable (for MY450LMT only)
v
Connector for in-car charger, USB cable, home charger* and TMC accessory kit*
* may be sold separately
10
How do I turn on my Navman?
Using the Power button
Turning on your Navman
Press and hold the Power button for 2 seconds to turn on your Navman
2 sec
Suspend mode
EZY series
MY series
For normal operation, you can suspend the device
by briefly pressing the Power button.
Press the Power button briefly and then tap Sleep
from the Lock/Sleep screen.
Your Navman will enter a suspended state. When
you next briefly press the Power button, your
Navman will return to the Main Menu.
Your Navman will enter a suspended state. When you
next turn it on, your Navman will return to the last
screen that you used.
To lock the screen, press the Power button briefly
and then tap Lock. To unlock the screen, press the Power
button briefly and then tap Unlock.
Turning off your Navman
Press and hold the Power button for 5 seconds to turn off your Navman.
5 sec
11
Resetting the device
Occasionally, you may need to perform a hardware reset if your Navman stops responding; or appears to be
“frozen” or “locked-up.” Insert a pointed object, such as a straightened paperclip, into the Reset button of your
Navman.
12
How do I charge the battery?
Your Navman has an internal battery that when fully charged, should provide power for up to 1.5 hours. The
battery can take up to 4 hours to fully charge. The battery may not be fully charged when you use your
Navman for the first time.
The settings on your Navman can impact the battery life, e.g. volume, brightness settings, Bluetooth use, etc.
CAUTION!
For optimal performance of the battery, note the following:
ƒ
Do not charge the battery when the temperature is high (e.g. in direct sunlight).
ƒ
There is no need to fully discharge the battery before charging.
ƒ
When leaving your Navman for long periods, turn off your Navman to save battery power.
ƒ
Fully charging the battery once per month will help the device retain GPS fix.
The battery indicator light on your Navman indicates the level of internal battery charge:
ƒ Green - battery full
ƒ Orange - battery charging
How do I charge the battery in a vehicle?
To charge your Navman in a vehicle, plug the in-car charger into
the other end into the vehicle power socket.
on the bottom of your Navman and
How do I charge the battery via my computer?
For optimal charging results, ensure that your Navman is turned off while connected to your computer.
1.
Turn on your computer.
2.
Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug
3.
Select the Charge only option from the pop-up message screen. You will be able to continue using your
Navman with the battery in charging mode via the computer.
the small end into
on the bottom of your Navman.
For more information, refer to the “How do I connect my Navman to my computer?” section.
How do I charge the battery at home or work?
You can use an optional AC home charger to charge the battery.
To charge your Navman using a mains power socket, plug the home charger cable into
your Navman and the mains power charger into the power socket.
on the bottom of
The AC home charger is not included and may be purchased separately. Visit www.navman.com.au
(Australia) or www.navman.co.nz (New Zealand) for details.
13
How do I insert a memory card?
Hold the MicroSD card by the edges and gently insert it into the slot as shown in the above diagram of your
Navman.
Do not apply pressure to the centre of the memory card.
ƒ
To remove a card, gently push the top edge of the card inwards to release it, then pull it out of the slot.
14
How do I connect my Navman to my
computer?
1.
Turn on your computer.
2.
Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug
on the left side of your Navman.
the small end into
3.
When your Navman is turned on and connected to the computer, you can select the desired connection
type from the pop-up message screen:
4.
ƒ
Charge only: You will be able to continue using your Navman with the battery in charging mode via
the computer.
ƒ
Computer: Your Navman will be recognised as an external mass-storage device named by the model
name. A USB Connection screen will appear to prevent you from using your Navman.
When you select the Computer option, you can use Windows File Explorer to copy/move the files from the
computer to your Navman.
Before disconnecting your Navman from the computer, it is recommended to safely remove the USB drive
from the system. This prevents data loss on the device.
WARNING: DO NOT delete any files that are pre-installed on the device. Deleting the files can
cause the device to crash. Navman is not responsible for product quality caused by file deletion.
15
Other features
How do I make a hands-free call?
Hands-free calling is not available on all models.
If you have a compatible mobile phone with Bluetooth wireless technology, you can use your Navman as a
hands-free car kit. Before you can use this feature you must pair your mobile phone with your Navman.
Ensure that the Bluetooth wireless feature of your mobile phone is turned on before you begin pairing. Not all
phones with Bluetooth wireless technology are compatible with your Navman. For a list of compatible phones,
visit www.navman.com.au (Australia) or www.navman.co.nz (New Zealand).
How do I search for a place using Live Local Search?
Live Local Search is not available on all models and is only available in selected countries (not available in
New Zealand).
Using Live Local Search, you can search online for places near a specific location. For information about Live
Local Search and using Bluetooth wireless, refer to the Software User Manual.
To use Live Local Search, you must pair your Navman with your mobile phone. If your Navman isn’t paired with
your mobile phone, then the Bluetooth screen will display. Not all phones with Bluetooth wireless technology
are compatible with your Navman. For a list of compatible phones, visit www.navman.com.au (Australia) or
www.navman.co.nz (New Zealand).
How can I play external AV equipment through my Navman?
The AV IN connector is not available on all models.
Your Navman can receive AV input from external equipment, such as a DVD player. This means that you can
use your Navman as a second screen.
WARNING: Your Navman MUST NOT be used to play video when driving. Using this feature may cause an
accident. Please make sure you comply with this warning. Navman accepts NO liability whatsoever in this
regard.
Connect the video (yellow) and audio (red and white) signal ends of the supplied AV cable to the AV output
connectors on the external video device. Then connect the other end of the AV cable to the AV IN connector on
your Navman. Please ensure that your external video device's AV out feature is enabled.
For more information about playing external AV equipment via your Navman, refer to the Software User Manual.
16
Reference
What is GPS?
The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft).
GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi).
Each satellite transmits a range of signals which are utilised by GPS receivers, such as your Navman, to
determine an exact location. Although a GPS receiver can detect signals from up to 12 satellites at any time,
only four signals are required to provide a position or "GPS fix" (latitude and longitude), for vehicle navigation
systems.
How does my Navman receive GPS signals?
Your Navman receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength,
ensure your Navman is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS
reception is not usually affected by weather, however, very heavy rain or snow may have a negative effect on
your reception.
To obtain a faster GPS fix, ensure car is stationary and battery is fully charged once per month.
Caring for your Navman
Taking good care of your Navman will ensure trouble-free operation and reduce the risk of damage to your
Navman:
ƒ
Keep your Navman away from excessive moisture and extreme temperatures.
ƒ
Avoid exposing your Navman to direct sunlight or strong ultraviolet light for extended periods of time.
ƒ
Do not place anything on top of your Navman or drop objects on your Navman.
ƒ
Do not drop your Navman or subject it to severe shock.
ƒ
Do not subject your Navman to sudden and severe temperature changes. This could cause moisture
condensation inside the unit, which could damage your Navman. In the event of moisture condensation,
allow your Navman to dry out completely before use.
ƒ
The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic
screen protectors designed specifically for use on portable devices with LCD panels may be used to help
protect the screen from minor scratches.
17
ƒ
Never clean your Navman when it is turned on. Use a soft, lint-free cloth to wipe the screen and the
exterior of your Navman.
ƒ
Do not use paper towels to clean the screen.
ƒ
Never attempt to disassemble, repair or make any modifications to your Navman. Disassembly,
modification or any attempt at repair could cause damage to your Navman and even bodily injury or
property damage and will void any warranty.
ƒ
Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your
Navman, its parts or accessories.
Troubleshooting
If you encounter a problem you cannot solve, contact an authorised service centre for assistance.
Problem
Steps to Take and things to check
What Next?
The unit is not turning
on/charging
Try to charge the unit through a USB cable
connected to a computer. If the unit
charges then the issue is with the in car
charger. If the unit still fails to charge,
then the fault is with the unit.
Contact technical support and an
RMA will be created to fix the
unit or replace the in car charger.
I can not get a GPS Signal
Make sure you are stationary and have a
clear line of site to the sky. If this fails to
resolve the issue, please reset the GPS
chip through the Settings menu of your
unit.
If the fault is still not resolved,
please visit our self help site (see
the information below), or
contact our technical support
team.
My unit is always
showing that the speed
limit is 110 kph even
when it is not
The units are set at a manual speed limit
defaulted at 110 kph. This can be changed
through the 'Safety' section of your
'Settings' menu.
If the fault is still not resolved,
please visit our self help site (see
the information below), or
contact our technical support
team.
Where is my product
key? I want to activate
my unit.
There is no need to activate your unit in
anyway. This Activation tab within the
NavDesk software is for subscriptions,
travel books, international maps and map
upgrades only. Your unit will work straight
out of the box and there is no need to
activate it in anyway.
If the fault is still not resolved,
please visit our self help site (see
the information below), or
contact our technical support
team.
Navman Customer Support
To report a faulty product or speak to a member of our Technical Support team, contact:
Australia: 1300 NAVMAN (628626), New Zealand: 0800 GONAVM (466286);
or visit our tech support Website: www.navmansupport.com.au (Australia), www.navmansupport.co.nz (New
Zealand).
18
MY-Series
EZY-Series
MY₄₀₀LMT / MY₄₅₀LMT
EZY₂₅₀LM
Software User Manual
Contents
Contents ............................................................................................................................................ 2
How do I get started? ..................................................................................................................... 5
How do I use the touch screen?.................................................................................................... 6
Navigating on the screen .......................................................................................................... 6
Main Menu.................................................................................................................................... 7
How do I navigate through the menu screens?.................................................................... 8
How do I use the Keyboard screen?........................................................................................ 9
How do I go from A-B? ................................................................................................................. 10
How do I use the FIND wizard?.............................................................................................. 10
How do I plan my first trip?.....................................................................................................11
How do I preview the destination on map? ........................................................................ 12
How do I preview a route?...................................................................................................... 13
How do I change the navigation mode? .............................................................................. 13
How do I view my route? ............................................................................................................. 15
How do I select the route type using Trip Select? ............................................................. 15
The driving map......................................................................................................................... 15
How do I change the route configuration? ......................................................................... 16
How do I view my route statistics?........................................................................................17
How do I adjust the volume? ..................................................................................................17
How do I zoom in/out the map?............................................................................................ 18
How do I view the traffic status on my route?................................................................... 18
Advanced Routing Functions.................................................................................................. 19
How do I create a trip with multiple stops?.............................................................................20
How do I capture a location or a journey? ............................................................................... 22
How do I capture the GPS co-ordinates of my location? ................................................ 22
How do I capture a journey? .................................................................................................. 22
How do I navigate to a location I have captured? .............................................................23
How do I navigate to the saved car location? ....................................................................23
How to view a journey I have captured? .............................................................................23
My Places .........................................................................................................................................24
How do I save a location as My Place or Home? ...............................................................24
How do I navigate to a location I have saved? ...................................................................24
How do I navigate to Home? ................................................................................................. 25
How do I navigate to a recent place? ...................................................................................25
How do I edit a saved location in My Places?..................................................................... 25
How do I navigate to a NavPix™?.........................................................................................26
How do I search for a POI? ..........................................................................................................28
How do I find the nearest POIs using NEAR ME?...............................................................28
How do I find the nearest POIs using EXPLORE?...............................................................29
How do I find the nearest POIs using the POI category buttons? .................................32
How do I search for a POI by type? ......................................................................................33
2
How do I search for a POI by Smart Find Keyword? .........................................................34
How do I receive current traffic information via TMC?.........................................................36
How will I know when a Traffic Event occurs? ...................................................................36
Traffic overview screen ............................................................................................................ 37
How do I view a list of all events on my route? ................................................................. 37
How do I view traffic details?.................................................................................................38
Traffic messages........................................................................................................................39
Traffic preferences ....................................................................................................................40
What is Travel Book? .................................................................................................................... 41
How do I search for a POI in a city I am visiting using Travel Book? ............................. 41
How do I play videos on my Navman via AV IN? ...................................................................42
How do I make a hands-free call? ..............................................................................................43
How do I pair my Navman with a Bluetooth device? .......................................................43
How do I make a phone call? .................................................................................................45
How do I view my call history?..............................................................................................47
What is NAVMAN CONNECT?...................................................................................................48
How do I search for a POI using TrueLocal.com.au? .........................................................48
How do I receive weather information using NAVMAN CONNECT? ...........................49
How do I search for roadside assistance?............................................................................50
How do I control my Navman using Voice Command? ........................................................ 51
How do I plan my route using Voice Command? .............................................................. 51
How do I answer an incoming call using Voice Command? ............................................ 51
What can I customise?.................................................................................................................. 52
Audio............................................................................................................................................ 52
Screen ..........................................................................................................................................53
Safety...........................................................................................................................................53
Route options ............................................................................................................................54
Map display ................................................................................................................................56
My Maps...................................................................................................................................... 57
Language..................................................................................................................................... 57
Answer calls by voice ...............................................................................................................58
Units.............................................................................................................................................58
Time Zone...................................................................................................................................59
Bluetooth....................................................................................................................................59
Trip Meter ...................................................................................................................................60
Device ..........................................................................................................................................60
Demo ........................................................................................................................................... 61
Help..............................................................................................................................................62
What is NavDesk?..........................................................................................................................63
How do I install NavDesk onto my computer? ..................................................................63
How do I get started? ..............................................................................................................64
My Subscriptions.......................................................................................................................66
My Maps...................................................................................................................................... 67
VOICE COMMAND...................................................................................................................69
Custom POIs ..............................................................................................................................70
3
Photo Album .............................................................................................................................. 72
Image Search.............................................................................................................................. 76
Application Gallery................................................................................................................... 77
Unlock Features.........................................................................................................................78
My Places ....................................................................................................................................78
TRIP PLANNER...........................................................................................................................80
MY NAVMAN.............................................................................................................................82
CONNECT ..................................................................................................................................86
For more information....................................................................................................................88
Online support...........................................................................................................................88
Navman Customer Support....................................................................................................88
Speed Limit.................................................................................................................................88
Safety Camera POIs .................................................................................................................88
Point of Interest categories ....................................................................................................88
Traffic and other TMC Events................................................................................................. 91
Copyright ....................................................................................................................................92
4
How do I get started?
The first time you use your Navman it may take several minutes to establish a GPS connection.
How do I turn my Navman on for the first time?
To get started for the first time, complete the following steps:
1.
2.
Read the Important Safety Information
Position your Navman in your vehicle
Follow the instructions in the Quick Start Guide.
CAUTION: Ensure that your Navman does not obstruct the driver's view, or interfere with the
operation of the vehicle airbags and safety devices.
3.
Turn your Navman on
Your Navman will turn on and display the Language screen.
4.
Select your preferred language
From the Select Language screen, tap your preferred language.
ƒ You can change your preferred language while using your Navman.
5.
Read the warning message
The Safety Agreement screen will display after you have selected your preferred language. Read the Safety
Agreement message. To confirm that you have read and understood the message, tap Accept.
6.
View the Tutorial
ƒ To move forward through the Tutorial screen, tap Next. To view the previous screen, tap
.
ƒ To skip the Tutorial screen, tap Skip.
To prevent the Tutorial from displaying on each start-up, tap the Show tutorial on start-up option to
deselect it. To enable the tutorial again, select the option from Main Menu Æ
Tutorial.
7.
Æ Help Æ View
Customise the device
Follow the onscreen instructions to select your preferred distance unit, date format, and time format.
8.
Set up Home
The Home setup wizard only appears on the first time you start your Navman.
ƒ Tap OK to set up your home immediately using the address-entry wizard.
ƒ You can tap Cancel to skip the wizard, and then select you home later in MY PLACES.
When you have finished the steps above, the Main Menu screen will display. If you have a GPS fix, you can start
to use Navman to plan your trip.
5
How do I use the touch screen?
Navigating on the screen
To operate your Navman, touch the screen with your fingertip. You can perform the following actions:
ƒ
Tap
Press and release an item displayed on the touch screen.
ƒ
Select
Tap an item in a list or tap a command from a menu.
6
Main Menu
The Main Menu is your starting point for searching for a destination. The Main Menu also allows you to
customise your Navman, view saved locations as My Place/Home, and search for POIs nearby, and so on.
Menu display may differ from the below, depending on your region, maps installed or model of Navman.
Tap
to show the next page of Main Menu.
EZY series
Icon
MY series
EZY series
MY series
√
√
Search for places, areas and streets to help plan your route.
√
√
Display the Map screen.
√
√
Access your saved locations.
√
Explore the area around your current position or destination.
√
Configure your Navman to enhance your navigation experience.
√
√
Description
Search for Points of Interest nearby.
√
Receive live traffic information on your route and set traffic
preferences*.
* May require optional TMC kit or subscription, available separately.
√
√
Control your Navman by voice, allowing you to search
address/place/POI easily.
√
Add or begin a planned trip with multiple waypoints.
√
Use your Navman as a hands-free car kit.
√
Select your navigation mode: Car, Large Vehicle*, Professional Truck*,
or Pedestrian.
* For selected models.
7
Icon
EZY series
MY series
Description
√
Display the calculated route in simulation mode.
√
Record GPS co-ordinates of a location or a journey.
√
Search for information and POIs for the city you are visiting using
Travel Book.
√
Search online for live POI information (using TrueLocal.com.au) and
latest weather information.
√
Switch to AV mode to receive the video signal from the external AV
device.
√
Get help with just a phone call once you breakdown on the road.
√
Set or navigate to your home address.
√
Search for the nearest petrol stations.
√
Search for the nearest emergency services, including hospitals and
police.
√
Search for the nearest restaurants, cafes, fast-food premises and other
dining establishments.
√
Search for the nearest cafe.
√
Search for the nearest hotels/motels.
√
Search for the nearest parking places.
√
Search for the nearest banks and ATMs.
How do I navigate through the menu screens?
How do I use the BACK button and MAIN MENU button in the title bar?
1.
On the Main Menu screen, tap the desired menu button to enter the menu screen.
For example, tapping
will lead you to the FIND screen.
8
2.
The system provides the BACK button (
) and MAIN MENU button (
) in the title bar of the
menu screen, which allow you to navigate through the menu screens easily. You can:
ƒ
Return to the previous screen by tapping the BACK button.
ƒ
Return to the Main Menu by tapping the MAIN MENU button.
In some menu screens, the MAIN MENU button will not appear in the title bar. In this instance, you
may have to tap the BACK button twice.
How do I use the tabs in the title bar?
In some menu screens, such as the map Overview screen, the system provides the tab buttons in the title bar
that allow you to enter the additional page in the menu screen.
Simply tap the desired tab to change the view. The selected tab will be highlighted as a darker-colour tab.
Æ
How do I use the Keyboard screen?
The Keyboard screen will display when you are required to enter text, such as when searching for a street name.
Search results will be listed in matching order, with the closest matches appearing on the screen. A maximum of
99 results will display.
The Keyboard screen can display with various layouts depending on the information you need to enter,
including alphabet, number, alternate characters and combinations of these.
Æ
How do I enter characters/numbers?
ƒ
To select a character, tap the character.
ƒ
To delete a character, tap
Tap and hold
ƒ
.
to delete the entire text.
To enter numbers, tap
.
How can I set my keyboard preference?
1.
From the Keyboard screen, tap
2.
Select the preferred keyboard type from the list.
. The Keyboard preference screen will display.
9
How do I go from A-B?
WARNING: For your safety, enter destination information before you start a journey. Do not enter a
destination while driving.
How do I use the FIND wizard?
Your Navman is equipped with maps that provide street-level detail for door-to-door navigation, including
Points of Interest such as accommodation, parking areas, petrol stations, railway stations and airports. The
FIND wizard allows you to search the location easily.
1.
On the Main Menu, tap
to display the FIND screen.
FIND screen display and the order of the options may differ from the below, depending on your region,
maps installed or model of Navman.
EZY series
2.
MY series
Complete the following:
If you want to …
Then …
search all information on the device - city, streets,
named sites, features, landmarks or venues,
tap
search for an address,
tap
search for a city/area,
tap
search for a location from the Map screen,
EZY series
MY series
√
√
√
√
.
√
√
tap
.
√
search for a location using a GPS coordinate,
tap
.
search a location by postcode,
tap
.
search for a street intersection,
tap
.
search for a Point of Interest,
tap
.
navigate to a recently visited location,
tap
.
.
.
√
√
√
√
For further instructions on searching for a POI, refer to the “How do I search for a POI?” section.
10
√
√
√
How do I plan my first trip?
Menu display may differ from the below, depending on the model of Navman.
Using your Navman to plan your first trip is easy. There are several ways to select your destination. The
following steps will show you how to plan your route by searching the address.
1.
On the Main Menu, tap
the FIND address wizard.
. Complete the following to navigate to a street address that you know using
Æ
Æ
Æ
Æ
Æ
2.
On the Destination screen, complete the following:
If you want to …
Then …
calculate the route and start navigating,
tap
ƒ
save the location as a favourite,
The Map screen will display.
explore the map,
.
tap
ƒ
save the location as Home,
.
The location will be saved in My Places immediately.
Æ
tap
tap
11
.
Æ
.
How do I preview the destination on map?
After searching an address (or a POI), you can preview the destination on map to explore the area near the
location.
1.
On the Destination screen, tap the
2.
The destination Preview map screen will display.
button to display the destination preview map as below.
EZY series
MY series
On the Preview map screen, you can:
ƒ
Tap the
ƒ
View the information of your destination that is shown at the top of the Map screen.
ƒ
Tap on a street/area/POI to display the related information of the location near your destination.
ƒ
Tap the grey arrow icon (
ƒ
Tap on the map to select the other destination. The information of the selected street/area/POI near
your destination will be displayed. Tapping the check mark will bring up the Destination screen of the
selected location.
/
button to zoom in/out the map.
) to display your current position on the map.
Æ
12
How do I preview a route?
Route simulation is not available on all models.
Depending on your Navman model, you will be able to plan a route in simulation mode that allows you to:
ƒ
preview a route.
ƒ
plan and view a route without a GPS fix, such as when you are inside a building.
The following steps will show you how to preview a route.
.
1.
On the Main Menu, tap
2.
Select a departure point through the Leaving from screen.
If you have a GPS fix, you can simply select the Here button (
) so that you do not need to
select a departure point. Otherwise, use the FIND address wizard, Explore map, My Places/Recent places
menu or Home to set the departure point if you want the demonstrated route to start elsewhere.
3.
Select a destination point through the Going to screen. When done, tap
.
4.
The Map screen will display the calculated route in route simulation mode. Select a route type and tap
and the route demonstration will start automatically.
,
The simulated route will be displayed as orange colour.
How do I change the navigation mode?
This feature is not available on all models.
Large Vehicle mode & Professional Truck mode
The Large Vehicle mode and Professional Truck mode are specifically designed for large vehicles. With the input
of your vehicle or trailer details, the mode enables to calculate safer and more efficient routes to avoid the
length/width/height/weight restricted tunnels and bridges, as well as sharp turns and narrow country lanes.
WARNING: Do not rely solely on this product and its features. Using this product does not change the
requirement for a driver to take full responsibility for his behaviour. This responsibility includes observing
all traffic rules and regulations in order to avoid accidents, personal injury or property damage.
1.
On the Main Menu, tap the Mode button.
2.
Tap the Large Vehicle or Professional Truck option depending on your large vehicle type.
ƒ If your vehicle is up to 9 tonnes, select Large Vehicle
ƒ If your vehicle is up to 65 tonnes, select Professional Truck
13
3.
Complete the following:
If you want to …
set the details for your truck,
Then …
enter the following data of the truck:
ƒ
total truck weight
ƒ
total truck length
ƒ
maximum truck width
ƒ
maximum truck height
ƒ
maximum axle weight
You must complete the details of the truck settings
before you can use Large Vehicle/Professional Truck mode
to plan your route.
drive the road train type vehicles,
tap B-Double to turn it on or off.
(for Professional Truck mode)
limit the route planning while shipping
hazardous materials in the truck,
tap Hazmat (Hazardous Materials) and then select the
correct option from the list.
(for Professional Truck mode)
set how you want to receive the speed
limit alerts,
4.
tap Speed limit display / Speed limit alerts to turn it on
or off.
When in Large Vehicle/Professional Truck mode, your route will be displayed using
screen.
icon on the Map
Pedestrian mode
The Pedestrian mode allows you to navigate to your destination using roads and paths appropriate for a
pedestrian, including road where driving may be prohibited (like pedestrian zones for example).
When in Pedestrian mode, you will not be routed onto motorways and their associated on/off ramps (slip
roads). If your destination is more than 10 kilometres (6.3 miles) away, a warning message is displayed
indicating that the route is a long way to walk.
1.
On the Main Menu, tap the Mode button.
2.
Tap Pedestrian.
3.
When in Pedestrian mode, your route will be displayed using
14
icon on the Map screen.
How do I view my route?
How do I select the route type using Trip Select?
Trip Select is not available on all models.
from the
Depending on your Navman model, the Trip Select screen will be displayed when you tap
Destination screen. All of the four route types (Fastest, Economical, Easiest, and Shortest) will be calculated.
Select your preferred route and tap
to start navigating.
For more information about setting the preferred route type, refer to the Route Options section in “What can I
customise?”
The driving map
When you select a route type and tap
by spoken and visual instructions.
, the Map screen will display. You will be directed to your destination
The driving map will be displayed automatically when:
ƒ
a route is calculated and selected.
ƒ
the device is reset and the user is on a route.
Alternatively, you can access the Map screen manually by tapping
15
on the Main Menu.
Item
Description
Direction and distance of
next turn
The direction and distance to your next turn.
ƒ
Tap
to repeat the vocal instruction.
Current route
Your current route is highlighted.
Current position
Your current position is marked with
Address bar
The current address will be displayed in the text box at the bottom of
the Map screen.
Distance and time
information
Tap to expand and select the following options:
.
ƒ
DTG (Distance to Go)
ƒ
TTG (Time to Go)
ƒ
km/h or mph (speed) and compass heading
ƒ
ETA (Estimated Time of Arrival)
ƒ
Time
Depending on your driving route, you may see some icons that provide different information on your Map
screen. Please note that these icons will not be always displayed during your journeys.
For example: the Speed Limit icon (
) on the Map screen. The Speed Limit icon shows the speed limit of
the current road. If greyed out, you are below this speed limit. When over set limit, you will be warned with an
audible and visual warning.
How do I change the route configuration?
Tap anywhere on the Map screen to bring up the Map options screen, which allows you to change the
route-related configuration.
Map options screen display and the order of the items may differ from the below, depending on your region,
maps installed or model of Navman.
EZY series
MY series
For more information about changing the route configuration, refer to the following sections in this manual.
16
How do I view my route statistics?
1.
From the Map options screen, tap
.
2.
Tap the tabs in the title bar to view the additional information in the different screens.
3.
Your Navman provides information on your:
ƒ
time to destination
ƒ
time taken for trip
ƒ
distance to go
ƒ
stationary time
ƒ
estimated time of arrival
ƒ
TTD/DTG/ETA for the journey*
ƒ
distance travelled
ƒ
Traffic delay*
* Depending on the route calculated, you may see more information on the screen such as the estimated
time/distance to the next stop when your trip contains multiple waypoints and the traffic delay
information if a traffic event occurs in your trip.
How do I adjust the volume?
1.
From the Map options screen, tap
.
2.
The volume buttons will be displayed on the Map screen in translucent mode.
17
3.
Complete the following:
If you want to …
Then …
increase/decrease the volume,
tap
ƒ
mute/unmute,
/
The volume bar indicates the current volume level.
.
tap
ƒ
.
The speaker icon indicates the status:
: muted
: unmuted
The volume buttons will automatically disappear after the map is idled for 5 seconds.
How do I zoom in/out the map?
1.
From the Map options screen, tap
.
2.
The zoom buttons will be displayed on the Map screen in translucent mode.
3.
Complete the following:
If you want to …
Then …
zoom in the map,
tap and hold
.
zoom out the map,
tap and hold
.
The zoom buttons will automatically disappear after the map is idled for 5 seconds.
How do I view the traffic status on my route?
Traffic information is not available on all models and is only available in selected countries.
Depending on your Navman model, you can view the traffic status by:
ƒ
(for EZY series) tapping
ƒ
(for MY series) tapping
from the Map options screen.
on the Main Menu.
For more information, refer to the “How do I receive current traffic information via TMC?” section.
18
Advanced Routing Functions
Smart Route
Your Navman features Smart Route, which intelligently anticipates congested roads at peak times so that they
can be avoided. Smart Route does this by using historical, anomalised data from millions of fellow drivers. Since
Smart Route helps you automatically avoid predicted heavy congestion, you will be able to save time and
money during your journeys.
My Drive
With My Drive technology, your Navman includes an intelligent capability that learns and adapts to your
personal driving style. Over time, your Navman learns your preference for road types and driving speeds, turns
and more. Your Navman will save the information and provide a more personalised route and accurate time of
arrival the next time you plan a trip.
For more information about Smart Route and My Drive settings, refer to the Route Options section in
“What can I customise?”
Back-On-Track™ Automatic Rerouting
You will be redirected if you make a wrong turn. A message informing you that your route is being re-calculated
will display at the top of the screen.
To cancel a route re-calculation, tap
from the Map options screen. A warning will display asking you to
confirm the cancellation. If confirmed, both the re-calculation and your current route will be cancelled.
Parking Assistant
Parking Assistant is not available on all models.
You will be reminded of the parking information when you are arriving at the destination (within 1 km) of the
route. Simply tap the
icon on the Map screen to show the nearby parking lots that are sorted by distance.
Æ
19
How do I create a trip with multiple
stops?
TRIP PLANNER is not available on all models.
Depending on your Navman model, you will be able to set multiple stops or waypoints for your trip. Your route
will be calculated to go via each of these points in the specified order.
1.
On the Main Menu, tap
2.
Tap Create New Trip. The Edit screen will display.
. The TRIP PLANNER screen will display.
Æ
3.
Tap Add. The Add as waypoint screen will display. Use the FIND address wizard, Explore map, My
Places/Recent Locations menu or Here/Return to start to set the waypoint.
4.
When your search is done, tap
. The waypoint is added and the Edit screen will display.
Æ
5.
Complete the following:
If you want to …
Then …
add another waypoint,
tap Add.
Waypoints added after a multi-stop
trip has commenced will not be included
in the current route.
navigate to your selected destination,
ƒ
The Add as waypoint screen will display.
ƒ
Return to step 3.
ƒ
edit the trip,
.
tap
The Map screen will display the calculated route.
tap Edit, then you can:
ƒ optimise your trip by selecting Optimise.
ƒ change the trip title by selecting Rename.
ƒ delete the planned trip by selecting Delete.
20
The Optimise function does not take all factors into account. Your waypoints might be reordered to
reduce your estimated travel distance. Be sure to confirm the trip on the map and make adjustments as
appropriate, particularly if your trip returns to the start location.
How do I edit the waypoints in the trip?
1.
On the Main Menu, tap
2.
Tap the trip to edit.
3.
Tap a waypoint in the trip. The Preview screen will display.
. The Trip Planner screen will display.
Æ
4.
Complete the following:
If you want to …
Then …
delete a waypoint,
tap Delete, then select OK.
change the order of the waypoint,
tap
or
.
How do I skip a waypoint during a multi-stop trip?
1.
Tap anywhere on the Map screen to bring up the Map options screen.
2.
Tap
, then select Yes. The next waypoint will be skipped and the route recalculated to the following
waypoint.
You can also add waypoints during the trip by selecting
21
from the Map options screen.
How do I capture a location or a
journey?
The capture functionality is not available on all models.
Your Navman has a capture feature which allows you to record GPS co-ordinates of a location or a journey, and
then save them so you can navigate back at a later time.
How do I capture the GPS co-ordinates of my location?
1.
On the Main Menu, tap
. The Capture screen will display.
2.
Tap Save, or wait for 5 seconds. You will hear a shutter sound to indicate that the GPS co-ordinates have
been saved. The location is saved in My Places.
Tap Save as Car will save the current car location in My Places.
How do I capture a journey?
To enable capturing of journeys, you must first enable Capture Journey from Main Menu Æ
options. For more information, refer to the “What can I customise?”
Æ Route
1.
At the beginning of the journey you would like to record, tap Clear. All travel that you have made (i) since
midnight, (ii) the previous time you tapped Clear, or (iii) last captured a journey, will be deleted.
2.
Travel on your journey. Your Navman will keep a record of where you travel.
3.
At the end of your journey, tap
4.
On the Capture screen, tap
5.
Tap Save, then Yes. The journey is saved in My Places.
from the Main Menu. The Capture screen will display.
. The Journey screen will display.
22
How do I navigate to a location I have captured?
1.
On the Main Menu, tap
. The My Places screen will display.
2.
Tap the captured destination you want to travel to (
3.
Tap
). The Preview screen will display.
. Your Navman will calculate the route from your current location. The Map screen will display.
How do I navigate to the saved car location?
1.
On the Main Menu, tap
2.
Tap Find My Car. The Find My Car screen will display.
. The MY PLACES screen will display.
3.
Tap
. Your Navman will calculate the route (in Pedestrian mode) from your current location.
The Map screen will display.
How to view a journey I have captured?
1.
On the Main Menu, tap
. The My Places screen will display.
2.
Tap the captured journey you want to view (
).
23
My Places
My Places has all your saved locations.
How do I save a location as My Place or Home?
1.
Search for an address until the Preview screen is displayed.
2.
Tap
3.
To save the location as Home, tap
. The Save screen will display. The location has been added to My Places.
Æ
. The location has been set as Home.
Æ
How do I navigate to a location I have saved?
1.
On the Main Menu, tap
. The My Places screen will display.
Tap the Sort by button on the top of the scrolling buttons to change the sorting order of the items:
: by time
: by name
: by type
2.
Tap the favourite destination you want to travel to. The Preview screen will display.
3.
Tap
. Your Navman will calculate the route from your current location. The Map screen will display.
24
How do I navigate to Home?
If you have not set an address as Home, the first time you try to navigate to Home you will be prompted to
search for an address using the address-entry wizard.
1.
On the Main Menu, tap
2.
Tap
. The Preview screen will display.
3.
Tap
. Your Navman will calculate the route from your current location. The Map screen will display.
. The My Places screen will display.
Depending on your Navman model, you can simply tap
to Home quickly once your home has been set on your Navman,
on the Main Menu and you will be directed
How do I navigate to a recent place?
To make navigating to an address easier, your Navman will automatically save all your start locations and
destinations in a list of recent places.
1.
On the Main Menu, tap
2.
Tap
3.
Tap a recent place. The Preview screen will display.
4.
Tap
. The My Places screen will display.
. The Recent Locations screen will display.
. Your Navman will calculate the route from your current location. The Map screen will display.
How do I edit a saved location in My Places?
1.
On the Main Menu, tap
. The My Places screen will display.
2.
Select a location to edit. The Preview screen will display.
3.
Tap
4.
Complete the following:
. The Edit screen will display.
If you want to …
Then …
save the location as Home,
tap
rename the location,
tap
delete the location,
.
.
ƒ
The Keyboard screen will display.
ƒ
After you have edited the name, tap OK.
tap
25
.
How do I navigate to a NavPix™?
NavPix™ is not available on all models and is only available in selected countries.
NavPix™ is an image or picture, normally of a location, which contains embedded GPS co-ordinates that you
can navigate to.
To navigate to a NavPix™ location, either a GPS fix must have been available when the NavPix™ was taken,
or GPS co-ordinates have been added using NavDesk.
How do I navigate to a NavPix™ in an album?
For more information about importing the NavPix™ to your Navman, refer to the Photo Album section
in “What is the NavDesk?”
. The My Places screen will display.
1.
On the Main Menu, tap
2.
Tap NavPix.
3.
From the list select the album (
thumbnails.
) you want. The album contains your pictures and displays them as
Æ
Item
Description
Tap to return to the previous screen.
Album title
Display the title of the album.
Indicates that the picture is a NavPix™, with embedded GPS co-ordinates.
NavPix™
thumbnail
A thumbnail of a NavPix™ contained in the album.
Slide Show
Displays all images in the album as a full-screen slideshow.
ƒ To select a NavPix™, tap the thumbnail.
26
4.
Tap the thumbnail of the NavPix™. The NavPix™ will appear in full-screen.
Item
Description
Tap to return to the previous screen.
/
/
Tap to display the previous/next NavPix™.
Tap to start/stop slideshow.
Tap to display the Navpix Details screen.
Tap to calculate the route, open the Map screen and start navigating.
How do I edit the NavPix™?
1.
From the Album screen, tap the thumbnail of the NavPix™. The NavPix™ will appear in full-screen.
2.
Tap
3.
Complete the following:
. The NavPix Details screen will display.
If you want to …
Then …
calculate the route and start
navigating,
.
tap
ƒ The Map screen will display.
edit the NavPix™,
tap
explore the map,
.
ƒ
To save the location as Home, tap
ƒ
To rename the title of the NavPix™, tap
ƒ
To delete the NavPix™, tap
tap
.
27
.
.
.
How do I search for a POI?
A POI (Point of Interest) is a named site, feature, landmark or public venue which can be displayed as an icon on
the map. POIs are grouped by category, such as petrol stations, parks, beaches and museums.
Your Navman provides several ways to search for the nearby POIs. Depending on your Navman model, you can
search for the nearest POIs by using:
ƒ
NEAR ME
ƒ
EXPLORE
ƒ
the POI category buttons on the Main Menu
How do I find the nearest POIs using NEAR ME?
NEAR ME is not available on all models.
NEAR ME services allows you to quickly search the local area for common types of important POIs.
Search for the nearest restaurants, cafes, fast-food premises and other dining establishments.
Search for the nearest petrol stations.
Search for the nearest parking places.
Search for the nearest hotels and motels.
Search for the nearest banks and ATMs.
Search for the nearest emergency services, including hospitals and police.
1.
On the Main Menu, tap
2.
Select the desired POI category (for example, Food). The search result will be listed in the Select POI
screen.
3.
Tap
4.
Select the desired item to display the destination screen.
or
. The Near Me screen will display.
to scroll up or down the list.
28
5.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
tap
save the location as a favourite,
tap
ƒ
ƒ
explore the map,
place a phone call to the POI,
.
The Map screen will display.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
How do I find the nearest POIs using EXPLORE?
EXPLORE is not available on all models.
Depending on your Navman model, you can search for the POIs using Explore map. The Explore map allows you
to explore the local area to find Points of Interest (POIs) or navigate to an address. If you do not have a GPS fix,
the map will display your last known position.
1.
On the Main Menu, tap
2.
On the Explore map, you can:
. The Explore screen will display.
ƒ View the information of the selected POI that is shown at the top of the screen.
ƒ Tap and drag the map to explore your desired local area.
ƒ Tap the map to display a POI Cluster showing POIs in the surrounding area. Tap a POI icon to show
more information and navigate to the POI.
Item
Description
Tap to return to the previous screen.
Information area
Display the information of the selected POI/position.
Current position
Your current position is marked with
POI Cluster
To display a POI Cluster, tap an area on the Explore map.
29
.
Item
Description
ƒ Tap an icon or street name in the POI Cluster to view information and
options.
Tap to display the POI Display screen, allowing you to set POI preferences.
/
To zoom in or out, tap and hold
or
. Zooming in or out will increase
or decrease the area contained within the Explore area.
How do I find a POI using the POI Cluster?
1.
Tapping on the POI selected will bring up the screen with the POI destination details.
Æ
Æ
Æ
2.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
tap
save the location as a favourite,
ƒ
place a phone call to the POI,
The Map screen will display.
tap
ƒ
explore the map,
.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
30
How do I set my POI preferences?
Points of Interest (POIs) are grouped into categories. You may choose to either display (or hide) icons of all POI
categories on the Map screen, or only display the icons from selected categories.
For example, you may only be interested in entertainment venues and want to disable other categories such as
schools.
1.
Tap
2.
Complete the following:
. The POI Display screen will display.
If you want to …
Then …
display all POI icons (i.e. icons from
all categories),
tap Show all.
display no POI icons,
tap Hide all.
Hiding POIs will stop you from finding them when using
explore mode/cluster search.
select a specific POI category icon for
display on the Map screen,
ƒ
ƒ
return to the Explore map,
ƒ
tap the required POI category to show (
) or hide
) on the Map screen.
(
repeat until all required categories are selected.
.
tap
Your preferences are automatically saved.
31
How do I find the nearest POIs using the POI category
buttons?
The POI category buttons are not available on all models.
1.
From the Main Menu, select one of the following:
If you want to ...
Then ...
search for the nearest petrol stations
tap
search for the nearest emergency service
tap
search for the nearest restaurants
tap
search for the nearest hotels/motels
tap
search for the nearest parking places
tap
search for the nearest banks and ATMs
tap
search for the nearest cafe
Tap
2.
A list of the selected POI category based upon your current location is displayed.
3.
Select the desired item to display the destination screen.
4.
Complete the following:
If you want to …
calculate the route and start
navigating,
save the location as a favourite,
Then …
tap
ƒ
tap
ƒ
explore the map,
place a phone call to the POI,
.
The Map screen will display.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
32
How do I search for a POI by type?
1.
On the Main Menu, tap
2.
Tap
3.
Complete the following:
.
. The Find a POI screen will display.
If you want to …
Then …
search for the POIs near your
current location,
tap
search for the POIs in a specified
city or area,
4.
.
tap
.
ƒ
The Keyboard screen will display.
ƒ
After you have entered a name of a city/area, tap OK.
search for the POIs on your route,
tap
search for the POIs near your
destination,
tap
.
.
The POI Type Selection screen will display. Complete the following:
If you want to …
search for POIs by keyword,
search for restaurants, cafes,
fast-food premises and other dining
establishments,
search for petrol stations,
search for parking places,
view more POI types,
Then …
.
tap
ƒ
The Keyboard screen will display.
ƒ
After you have entered a keyword, tap OK.
tap
.
tap
.
tap
.
.
tap
ƒ
The POI Type List screen will display.
ƒ
Select a POI type.
search for hotels and motels,
tap
.
search for banks and ATMs,
tap
.
search for emergency services,
tap
.
33
5.
The POI List screen will display. Tap the desired item from the list.
6.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
tap
save the location as a favourite,
tap
ƒ
ƒ
explore the map,
place a phone call to the POI,
.
The Map screen will display.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
How do I search for a POI by Smart Find Keyword?
Complete the following to navigate to a POI or the street address that you find by keyword.
1.
On the Main Menu, tap
2.
Tap
.
. Enter the keyword of the POI or Street Address that you want to search.
Example 1: searching for a POI (Inn) by keyword
Æ
Æ
34
Æ
Example 2: searching for the street address (Elizabeth street) by keyword
Æ
Æ
Æ
3.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
tap
save the location as a favourite,
ƒ
tap
ƒ
explore the map,
place a phone call to the POI,
.
The Map screen will display.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
35
How do I receive current traffic
information via TMC?
Traffic information is not available on all models.
Your Navman can receive current traffic information for all main roads, motorways and major cities, enabling
you to avoid potential delays on your route. Event messages and traffic icons will display as they occur. If an
event message obscures your current location, the map will adjust to display both the message and your
location.
How does my Navman receive traffic information?
Depending on your Navman model, you may receive current traffic information on your Navman using the
built-in TMC receiver or via the Navman traffic accessory kit (may be sold separately).
The Traffic Message Channel (TMC) broadcasts real-time traffic information via the FM Radio Data System
(RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of events able to be
broadcast to TMC receivers.
You have to pay for TMC service in other countries.
How will I know when a Traffic Event occurs?
When travelling through an area in which you can receive traffic updates, your Navman will decode these
events and display them on-screen. An icon will display at the event location on the Map screen, and an audible
warning is given if an event is on your route. Where an event spans a specific distance, the road will be
highlighted and arrows will indicate the direction affected.
A message will display at the bottom of the screen with the road name, the section of road affected and the
type of event that has occurred. The message remains on screen for 8 seconds and is added to the All traffic
events.
When the message is suppressed, the TMC icon (
the icon to bring up the All traffic events screen.
) will be displayed on the Map screen. You can tap
36
Traffic overview screen
When you see the traffic event message on your driving Map screen, you can open the Traffic screen to display a
general overview of the traffic situation on your route, including all events in the immediate vicinity.
Depending on your Navman model, you can view the traffic status by:
ƒ
(for EZY series) tapping
ƒ
(for MY series) tapping
Item
on the Map options screen.
on the Main Menu.
Description
Tap to return to the previous screen.
Event icon
Displays icon to indicate type of event.
Current position
Your current position is marked with
Title bar tabs
Tap to change the display between the Traffic, All traffic events, and Traffic
Options windows.
/
To zoom in or out, tap and hold
.
or
.
How do I view a list of all events on my route?
Your Navman creates a list of events as they are received, which is displayed on the All traffic events screen.
On the Traffic screen, tap
.
37
Item
Description
Tap to return to the previous screen.
Event icon
Displays an icon to indicate type of event.
Event description
Displays details of the Event, including:
ƒ
Name of road and direction in which Event is taking place.
ƒ
Location of where Event begins and ends.
o > indicates an Event from a location, to a location.
o < > indicates an Event between locations.
ƒ
Sort by
Type of Event.
Tap to change the sorting order of the items:
: by distance
: by road name
How do I view traffic details?
On the All traffic events screen, tap the event you want to view. The Event Details screen will display.
Item
Description
Tap to return to the previous screen.
Event icon and
description
Displays details of the Event, including:
ƒ
Name of road and direction in which Event is taking place.
ƒ
Location of where Event begins and ends.
o > indicates an Event from a location, to a location.
o < > indicates an Event between locations.
ƒ
Type of Event.
Detour information
Displays the information of detour recommendation, if any.
Avoid
Tap to initiate a new route to avoid the event. Only available if a detour or
re-route is available.
Tap
to explore the recommended route on the map.
The Unavoid button is displayed when a re-route has been calculated.
38
How do I know if a detour is recommended?
When a Traffic or Clearance event occurs on your route, a detour will often be recommended. The detour event
message will display in the status bar on Map screen.
Detours are only recommended for Traffic or Clearance Events on a calculated route.
How do I avoid an event on my route?
1.
On the All traffic events screen, tap the event. The Event Details screen will display.
2.
If a detour has been calculated to avoid an event on your route, Avoid is available; tap to accept the new
route and avoid the event. The Map screen will display.
Traffic messages
The Event Details screen displays detour status information.
Detour Not Available messages
If a detour is not available, one of the following messages will display:
Message
Description
This Event is not locatable
A specific location for the Event cannot be identified.
This clearance is not locatable
This Event does not affect your route
This clearance does not affect your route
You are avoiding this Event
The Event is not on the current leg of your journey, or is
behind your current position.
The Event is not on the current leg of your journey.
You have accepted this clearance
You are too distant to re-route
You are too distant to accept this clearance
Detour not found
The Event is currently too distant to affect your journey.
A detour / re-route could not be calculated.
Clearance route not found
Detour recommended messages
If a detour is recommended, one of the following messages will display:
Message
Description
Finding detour …
Your Navman is calculating a new route. During calculation, the %
complete will display.
Recalculating route …
Exiting this screen before the new route is calculated will cancel
the operation.
Detour distance …
Clearance change
A detour has been calculated. The difference between the distance of
your current route and the proposed route is displayed.
39
Traffic preferences
You can view your current traffic system status and change options by customising the traffic preferences.
TMC Service
1.
On the Traffic Options screen, tap Traffic Service. The Traffic Service screen will display.
The TMC service screen displays the frequency of the radio station currently used to receive traffic event
information. A bar shows the strength of the traffic signal being received; the more green bars the stronger
the signal.
2.
To change your preferred radio station, select your preferred radio station from the list. You can select
Automatic to receive the traffic signal automatically.
Accept recommended detours automatically
When the Accept recommended detours is selected, your route will be re-planned automatically when the
detour is recommended by the traffic event.
Traffic event notification
1.
On the Traffic Options screen, tap Traffic notifications. The Traffic notifications screen will display.
2.
Complete the following:
If you want to …
Then …
view all traffic events nearby,
select All events nearby.
view the traffic events on your route,
select Only events on my route.
view the traffic events with detour
information provided,
select Only if a detour is recommended.
reject the traffic signal,
select Turn off notifications.
40
What is Travel Book?
TRAVEL BOOK is not available on all models and is only available in selected countries.
Travel Book is a collection of city guides that provide detailed Points of Interest maps for major cities in local
region. The city guides provide information on accommodation, dining, night life, business essentials, shopping,
important tourist spots and practical information such as banks, medical centres, bus stations, etc.
Travel Book is provided by third party. Navman does not guarantee the accuracy of the data contained
within this database either expressed or implied.
How do I search for a POI in a city I am visiting using Travel
Book?
1.
On the Main Menu, tap
. The TRAVEL GUIDES screen will display.
2.
Select your city from the list.
3.
Select a POI category from the list.
4.
Enter the keyword to search a POI. When done, tap OK.
5.
Select a POI from the list. The POI details screen will display.
6.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
tap
save the location as a favourite,
tap
ƒ
ƒ
explore the map,
place a phone call to the POI,
.
The Map screen will display.
.
The location will be saved in My Places immediately.
tap
.
tap
.
This feature is not available on all models.
41
How do I play videos on my
Navman via AV IN?
AV IN function is not available on all models and is only available in selected countries.
Depending on your Navman model, you can turn your Navman into an external screen to display video
playback from an external composite video source.
The AV IN function supports NTSC/PAL (interlace) formats.
1.
Before you use the AV IN function, connect your Navman to an AV external source according to the
instructions in the Hardware User Manual.
2.
On the Main Menu, tap
3.
You can now start playing back the video. The playback screen will appear on your Navman.
4.
To exit the playback, tap
. The AV screen will display.
.
42
How do I make a hands-free call?
Hands-free calling is not available on all models.
If you have a compatible mobile phone with Bluetooth wireless technology, you can use your Navman as a
hands-free car kit or to provide an internet connection. It can also be used to connect to a Bluetooth
mono/stereo earphone to output audio. Models with Bluetooth capabilities can exchange information over a
distance of about 10 metres (30 feet) without requiring a physical connection.
Before you can use this feature you must pair your mobile phone with your Navman. Ensure that the Bluetooth
wireless feature of your mobile phone is turned on before you begin pairing. When you search for or connect to
a mobile phone/ headset, the Bluetooth on your Navman will be turned on automatically. To save power,
Bluetooth is set to OFF by default.
A list of compatible mobile phones is listed at www.navman.com.au (Australia) or www.navman.co.nz
(New Zealand).
How do I pair my Navman with a Bluetooth device?
When you pair the Bluetooth device with your Navman, a connection is established between them. The 12 most
recently paired devices will be displayed on the My Paired Devices screen.
1.
On the Main Menu, tap
2.
Tap
Æ Bluetooth. The Bluetooth screen will display.
. The Search New Devices screen will display a list of nearby Bluetooth devices.
3.
Select the device from the list. The Connecting screen will display.
4.
Complete the following:
5.
If you want to …
Then …
pair with a mobile phone,
enter 1234 on the mobile phone when prompted.
pair with a headset,
on the Enter Passcode screen, enter the passcode and tap OK.
When done, the Bluetooth screen will display.
43
Paired device detail screen
1.
On the Bluetooth screen, tap
2.
The Bluetooth icon next to the paired device indicates the connection status:
icon
. The My Paired Devices screen will display.
Status
Used for…
Connected
headset
Connection with hands-free enabled
phone
Connection with dial-up networking enabled
phone
How do I configure Internet settings?
Once the Internet connection is turned on, you are able to access live information over the internet.
1.
Tap the paired device from the My Paired Devices screen, then tap
.
Æ
2.
Tap Internet Settings. The Internet settings screen will display.
3.
Complete the following:
If you want to …
Then …
configure the Internet settings
by mobile phone’s setting,
tap Automatic (copy from phone).
change the operator for your
region,
tap By Operator, then you can:
enter your internet settings,
ƒ
tap Country/Region to change your country/region. The Select a
country screen will display. Select your country from the list.
ƒ
tap Operator to change the operator for your region. The Select
an operator screen will display. Select your operator from the list.
tap User Defined and define your User Name, Password, Dial
Number, and Access Point Name.
When internet settings are not available, a warning message will be displayed. For more information,
contact your mobile phone service provider.
44
How do I make a phone call?
The hands-free feature on your Navman can be turned ON or OFF. When turned ON, the following features
can be used:
ƒ
Display caller’s number
ƒ
Download phonebook
ƒ
Answer or ignore incoming call
ƒ
Dial a number through the Dial, Favorites, Contacts, and Call History screens
1.
On the Main Menu, tap
2.
From the Phone screen, tap
3.
Enter the number you want to call.
. The Phone screen will display.
. The Dial screen will display.
ƒ
To delete the last digit entered, tap
ƒ
To clear the entire number, tap and hold
.
.
The number of the last call will display when you next access the Dial screen. The number will be cleared as
you start entering a new number.
International calls require a country code to be included in the phone number. On your Navman, the
country code is separated from the rest of the number sequence by a + sign. If you are making an
international call, tap and hold 0 until the + sign displays.
4.
Tap
5.
Complete the following:
to place the call. The Dialling screen will display.
If you want to …
Then …
adjust the volume,
tap
the volume.
end or cancel the call,
tap Hang up.
to increase or decrease
45
How do I receive a phone call?
1.
When you receive a call, the Incoming call screen will display.
2.
Complete the following:
If you want to …
Then …
answer the call,
tap Answer.
If you want to answer the call using your mobile phone, tap Voice
to Phone.
reject the call,
tap Ignore.
If your Navman supports Voice Command function, you can receive or reject the incoming call by
simply saying “Answer” or “Ignore”.
In-call options
1.
When a call is in progress, the in-call screen will display as below:
2.
Complete the following:
If you want to …
Then …
display the Main Menu,
tap
.
display the keypad screen,
tap
.
switch off the microphone
so the receiving party
cannot hear you,
ƒ
tap
to mute.
ƒ
tap
to unmute.
transfer the call to your
phone,
tap Voice to Phone.
end the call,
tap Hang Up.
adjust the volume,
tap
the volume.
to increase or decrease
The phone volume adjustment does not change the device volume.
46
How do I make a phone call to a contact?
1.
From the Phone screen tap
2.
Select a contact from the list. The Contact Detail screen will display.
3.
Tap
4.
Complete the following:
. The Contacts screen will display.
. The Select Number screen will display.
If you want to …
Then …
call the contact on their mobile phone,
home number, work number, or any
other number,
tap
next to the number you want to call.
add the number to your Favorites,
tap
next to the desired number.
How do I view my call history?
From the Call History screen you can view a list of Incoming Calls, Outgoing Calls and Missed Calls.
The Call History screen lists the calls made during the time your Navman is connected to a mobile phone.
Numbers are arranged by time with the most recent time at the top. Your Navman can store up to 30 numbers;
limited to 10 entries for incoming, outgoing and missed calls each.
1.
From the Phone screen tap
2.
Tap an item in the list. The Call Record screen will display.
3.
Complete the following:
. The Call History screen will display.
If you want to …
Then …
delete the call from history,
tap
.
place a call,
tap
.
To delete all calls in call history, tap
from the Call History screen.
47
What is NAVMAN CONNECT?
NAVMAN CONNECT is not available on all models and is only available in selected countries.
NAVMAN CONNECT allows you to search online for live POI information and receive weather updates for up
to five cities. Using Connect you can search for and navigate to POIs using your Navman or you can navigate to
POIs you have downloaded using NavDesk.
To search for POIs and to receive updated weather information using your Navman, you must pair your
Navman with your mobile phone. If your Navman isn’t paired with your mobile phone, the Bluetooth screen will
display. For more instructions, refer to the “How do I pair my Navman with a Bluetooth device?” section.
Additional data charges may apply. All charges are billed by your service provider. Please check with your
service provider for more information.
How do I search for a POI using TrueLocal.com.au?
1.
On the Main Menu, tap
2.
Complete the following:
Æ Local Search. The Local Search screen will display.
If you want to ...
Then ...
search for POI information by keyword,
tap the Find field to enter keyword.
ƒ
The Keyboard screen will display. Use the Keyboard
screen to search for a POI, then tap OK.
search for POI information near your
current location,
tap the Near field to:
ƒ
Select My Places to search for a POI information near
a My Place location.
ƒ
Select Find a Place to search for POI information in a
new location.
ƒ
Select Recent Places to search for POI information
near a recent location.
ƒ
Select Pick on Map to search for POI information
around a particular area.
3.
Tap Search. The Select Result screen will display. From the result list, tap a POI to display the Preview screen.
4.
Complete the following:
If you want to …
Then …
calculate the route and start
navigating,
.
tap
ƒ The Map screen will display.
save the location as a favourite,
.
tap
ƒ The location will be saved in My Places immediately.
explore the map,
place a phone call to the POI,
tap
.
tap
.
This feature is not available on all models.
48
How do I receive weather information using NAVMAN CONNECT?
Æ Weather.
1.
On the Main Menu, tap
2.
Tap Add City, then follow the prompts to select your region, country, and city. When done, the selected
city is added to the list.
Æ
How do I view weather information for a city I have added?
1.
On the Weather screen, tap Update now. The latest weather information will be updated automatically.
2.
Tap the city to view current weather information. The Weather Information screen for the selected city will
display.
3.
Depending on the city you have selected, a range of current and forecast weather and temperature
information may be displayed. If available, tap More to view the forecast information.
How do I change between Celsius and Fahrenheit for displaying temperature?
On the Weather screen, tap the Unit button to change the temperature unit between Celsius and Fahrenheit.
The button icon indicates the current setting:
: Celsius
: Fahrenheit
How do I remove a city I have added?
On the Weather Information screen, tap
. The city is removed from the list.
49
How do I search for roadside assistance?
Roadside Assistance is not available on all models. Additional data charges may apply. All charges are
billed by your service provider. Please check with your service provider for more information.
1.
On the Main Menu, tap
2.
Tap Yes to set the home base before using this service.
3.
Select your home base from the list.
4.
The Assistance Details screen will display.
5.
Complete the following:
.
If you want to …
Then …
place a phone call to the assistance
centre,
tap
.
This feature is not available on all models.
change the region for a new search,
tap Settings.
ƒ
Select your preferred region.
50
How do I control my Navman using
Voice Command?
Voice Command is not available on all models and is only available in selected countries.
Voice Command is a tool that allows you to complete a task without touching the screen. Simply say a
command and your Navman will be able to:
ƒ
set your destination
ƒ
answer an incoming call
Voice Command requires the respective voice file, English (AUS) or English (UK/NZ), installed and used on
your Navman. For further instructions on installing your preferred language, refer to the Voice Command
section in “What is the NavDesk?”
How do I plan my route using Voice Command?
1.
On the Main Menu, tap
. The Voice Command screen will display.
When in navigation mode, you can launch Voice Command directly by tapping the
map screen.
2.
You can set the destination by saying the following commands after the “beep” sound:
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
3.
icon on the
Address
Home
Intersection
My Places
Nearby Parking
Nearby Food
Nearby Hotels & Motels
Nearby SOS
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Nearby Cash
Nearby Petrol
Nearby (Airport, Library, Zoo…)
Increase volume
Decrease volume
Increase brightness
Decrease brightness
Follow the prompts to finish your route setting.
Example 1: navigate to a saved location by saying “My Places” Æ “item number” in the list Æ “Yes” to
confirm destination.
Example 2: directed to your home simply by saying “Home”.
Only when your home has been set on your Navman can you be directed Home by Voice Command.
4.
When done, say “Yes” and your Navman starts to plan the route.
How do I answer an incoming call using Voice Command?
To use Voice Command to answer an incoming call, the Answer calls by voice option in SETTINGS must be
enabled. For more information, refer to the “What can I customise?” section.
1.
When you receive a call, the Incoming call screen will display.
2.
Say “Answer” to answer the call, or “Ignore” to reject the call.
51
What can I customise?
Depending on your Navman model, certain setting options may not be available.
There are various customisation options available to enhance your navigation experience.
1.
On the Main Menu, tap
2.
Select the option you want to customise from the Settings screen.
3.
Once you change the settings and return to the previous screen, your preferences are automatically saved.
. The Settings screen will display.
Settings screen options and the order of the options may differ, depending on your region, maps installed or
model of Navman.
While changing the settings, the checkbox next to the option indicates the setting status:
: on/enabled
: off/disabled
Audio
Complete the following:
If you want to …
Then …
increase/decrease the volume,
tap
/
.
You can simply tap on the Volume bar so that the volume will
be set immediately at the position you tapped. The Volume bar
indicates the current volume level.
mute/unmute,
tap
ƒ
.
The speaker icon indicates the status:
: muted
hear which letter you have tapped
when you tap the touch screen,
: unmuted
tap Touch audio to turn it on or off.
52
Screen
Complete the following:
If you want to …
change the displayed screen mode,
Then …
tap Screen mode and select:
ƒ
change the screen brightness in day
/night mode,
Auto: set to automatically change between Day and Night
modes.
ƒ
Day: set the screen to be displayed in Day mode.
ƒ
Night: set the screen to be displayed in Night mode.
/
tap
ƒ
on the Day brightness/Night brightness bar.
The brightness bar indicates the brightness level.
Warning: Your Navman can heat up when the brightness scale is
set high, therefore, use lower brightness whenever acceptable.
You can simply tap on the brightness bar so that the screen
brightness will be set immediately at the position you tapped.
Safety
Complete the following:
If you want to …
Then …
Enable/disable the warning message
after long-distance driving,
tap Driver fatigue alert to turn it on or off.
enable/disable speed limit alerts,
which warn you of the speed limit
on any given road,
ƒ
tap Speed limit display to turn it on or off.
ƒ
tap Speed limit alerts and select:
o Off: disable the speed limit alert.
o Auto: set the system to alert automatically while your
speed is above the limit.
53
If you want to …
Then …
o Speed limit + 5 km/h (Speed limit + 3 mph): set the
system to alert while your speed is 5 km/h (3 mph) or more
above the limit.
o Speed limit + 10 km/h (Speed limit + 7 mph): set the
system to alert while your speed is 10 km/h (7 mph) or
more above the limit.
set the speed limit alerts manually,
tap Set manual speed alert to select the speed limit or turn it off.
enable/disable a visual warning if
the screen is accessed in a moving
vehicle,
tap Warn me not to operate my Navman while driving to turn it
on or off.
set how you want to receive the
camera and safety alerts,
tap Speed Camera / Mobile Speed Camera / Red Light Camera /
Accident Black Spot / School Zone / Railway Crossing / Speed
Check to select:
set how you want to receive the
driver alerts,
ƒ
No alerts
ƒ
Visual alert
ƒ
Visual & Audible alerts
tap Driver Alert to select:
ƒ
Auto (default): When the driving speed is above 80 km/h, the
audio and visual alerts of all driver alert options will be
enabled automatically.
When the driving speed is below 80 km/h, the audio and visual
alerts for overtaking lane and merging lane options will be
enabled, but all other driver alerts will have visual alert only.
ƒ
User-defined: Allows you to set all of the driver alerts
manually by selecting:
o No alerts
o Visual alert
o Visual & Audible alerts
Route options
54
Complete the following:
If you want to …
Then …
change the navigation mode*,
tap Mode to select Car, Large vehicle, Professional Truck, or
Pedestrian.
* for selected models
Large vehicle, Professional Truck and Pedestrian are not
available on all models.
set route type options for your
route,
tap Route type to select your route type preference from the list:
ƒ
Fastest – The route that should be the fastest when
navigating.
ƒ
Easiest – The simplest route with the least number of turns
and favours motorways where appropriate.
ƒ
Economical – The route with least number of stops, turns and
urban areas which should save on fuel usage.
ƒ
Shortest – The route with the shortest physical length.
If you do not select the preferred route type, Choose on map
is set as default for this option. All of the four route types will be
calculated after your search. Then, you have to select one route
type on the map to start navigating.
set types of road options for your
route,
tap Types of road.
ƒ
The Types of road screen will display.
ƒ
Select your road preference from the list.
Avoiding ferry routes may prevent you from navigating
between certain countries, even when a bridge or tunnel exists.
set the routing preference,
set the avoidance manually,
tap Advanced routing to turn the Smart Route / My Drive
functions on or off.
ƒ
Use historic traffic speed date: enable/disable the Smart
Route function.
ƒ
Use learned driver behaviour: enable/disable the My Drive
function.
ƒ
Driving speed records: display the information of your driving
speed in Motorway / Highway / Major road / Minor road.
tap Custom Avoidance.
ƒ
Tap Add Avoid Road and then follow the on screen
instructions to select the avoid road from the map view screen.
ƒ
Tap Add Avoid Area and then follow the on screen
instructions to select the avoid area from the map view screen.
Once the avoidance has been set, it will not be added to your route
while you are planning the trip.
To edit the assigned avoidance, tap the item from the Custom
Avoidance screen and then select Enabled/Disabled, Rename, or
Delete.
55
If you want to …
Then …
display the installed custom POI,
tap Custom POI alerts.
give spoken navigation by landmark
or other descriptive reference,
tap Landmark guidance PLUS to turn it on or off.
Landmark guidance PLUS is not available on all models and is
only available in selected countries.
display landmarks on your route,
tap Landmark guidance to turn it on or off.
record mileage for your route to
generate expense reports,
tap Mileage recorder to turn it on or off.
record your journey,
tap Capture Journey to turn it on or off.
Map display
Complete the following:
If you want to …
Then …
enable/disable automatic zooming
during navigation,
tap Auto-zoom map when navigating to turn it on or off.
display North at the top of the 2D
Map screen,
ƒ
If selected, the Map screen will automatically zoom in or out,
depending on your speed, to allow optimal viewing of your
route.
tap Keep North at top of 2D Map screen to turn it on or off.
ƒ
If set to Off, the direction you are travelling in will display at
the top of the 2D Map screen.
This option is available only when the Map option is set as
2D view mode.
display “no entry” icons on “no entry”
roads on the Map screen,
tap Show no-entry road signs to turn it on or off.
set your Map screen preference,
tap Map to select between a 3D or 2D view of the Map screen.
ƒ
When turned on, the map display performance can slow down
due to the number of no entry roads in some major cities.
set how to display the junction views,
tap the Junction views option to select: Off or Still.
change the map colour scheme,
tap Map scheme, then select a colour scheme from the list.
56
My Maps
Complete the following:
If you want to …
Then …
view the map information,
tap Map Version to display a list of all maps, providing the
following information:
ƒ Name
ƒ Date
ƒ Version/Build number
ƒ Coverage area
select a set of maps to load,
tap Map set, then select your preference from the list.
Language
The available settings of the Language option can be customised by adding/deleting the voice file through
NavDesk when your Navman is connected to the computer. For more information, refer to the My Navman
section in “What is the NavDesk?”
Complete the following:
If you want to …
Then …
change the on-screen language,
tap Language and select your preferred language from the list.
change the voice scheme,
tap Voice and select your preferred voice scheme from the list.
57
Answer calls by voice
Answer calls by voice is not available on all models and is only available in selected countries with a
compatible mobile phone.
Complete the following:
If you want to …
Then …
enable Voice Command function
while receiving the incoming call,
tap On.
disable Voice Command function
while receiving the incoming call,
tap Off.
Units
Complete the following:
If you want to …
Then …
change the distance units,
tap Distance Units and then select your preferred distance unit type.
change the time format,
tap Time format and then select your preferred time format.
change the date format,
tap Date Format and then select your preferred date format type.
58
Time Zone
Complete the following:
If you want to …
Then …
set the time zone automatically,
select Auto time zone.
change the time zone manually,
select Manual time zone and then adjust the setting by tapping - / +.
Bluetooth
Bluetooth is not available on all models. The Bluetooth option allows you to pair and select a mobile phone or
the headset with your Navman. For compatibility list, please see Website: www.navman.com.au (Australia) or
www.navman.co.nz (New Zealand).
Complete the following:
If you want to …
Then …
enable/disable Bluetooth on your
Navman,
tap Settings.
ƒ
Tap Bluetooth to turn enable/disable Bluetooth.
ƒ
Tap Auto Connection to enable/disable auto connection
function.
connect to a Bluetooth device,
tap Search New Devices and then select a device from the list.
view details of the paired device,
tap My Paired Devices and then select a device from the list.
59
Trip Meter
Trip Meter is not available on all models. The Trip Meter option displays the information of your trips.
: display the current trip
: display all trips
Device
Complete the following:
If you want to …
Then …
delete the saved information on
your Navman,
tap Delete saved information:
restore factory default settings,
ƒ
Tap Delete My Places and tap Yes when the warning dialog
box displays. The data saved in My Places will be deleted.
ƒ
Tap Delete recent locations and tap Yes when the warning
dialog box displays. The data of recent locations will be
deleted.
ƒ
Tap Delete planned trips and tap Yes when the warning
dialog box displays. The planned trips saved on your Navman
will be deleted.
ƒ
Tap Delete phone data and tap Yes when the warning dialog
box displays.
tap Restore factory defaults.
ƒ
When the warning dialog box displays, tap Yes. Your Navman
will restart.
The Restore factory defaults option allows you to restore default
factory settings; the recent locations and saved My Places
destinations on the device will be deleted.
When you restore factory defaults, your My Drive profile will
be cleared form the device.
60
If you want to …
Then …
reset the GPS,
tap Reset GPS.
ƒ
When the warning dialog box displays, tap Yes.
Occasionally, the GPS fix may need to be reset. This may occur if
the receiver has been transported a long distance since last being
used; for example, to a different country, and is still trying to
establish the previous position.
record a GPS log of your trip,
tap GPS logging to turn it on or off.
Demo
Demo will begin when the device is connected to power via genuine Navman AC Chargers.
Complete the following:
If you want to …
Then …
enable a shop demonstration of
Navman Spirit to be played,
ƒ
select a demonstration country from the list and tap Start.
Tap OK. Your Navman will restart.
When your Navman is in Shop demo mode, you will see the
navigation demonstration of the pre-defined route without having
to set a destination.
You cannot operate your Navman properly in Shop demo
mode.
enable the screen saver feature on
your Navman,
tap Screen Saver Video.
ƒ
When your Navman is idle for 10/30/60 minutes, the screen
saver will display.
The screen saver will only display if your Navman is connected
to a power supply.
61
Help
Complete the following:
If you want to …
Then …
view the tutorial,
tap View Tutorial.
ƒ
view copyright and trademark
information, obtain UUID or
hardware ID number,
To display the tutorial on each start-up, select the Show
tutorial on start-up option on the initial screen of tutorial.
tap About.
62
What is NavDesk?
NavDesk is a suite of tools you can use to access greater functionality and product information via your
computer.
NavDesk allows you to:
ƒ
obtain software updates
ƒ
manage maps
ƒ
search online for local POIs
ƒ
manage custom POIs
ƒ
plan trips
ƒ
manage safety camera subscriptions
ƒ
browse the Navman website for special offers
Can I use NavDesk with my computer?
Ensure your computer has the following minimum system requirements before installing NavDesk:
Requirement
IBM compatible PC
MAC
Operating system
Microsoft Windows XP SP2/SP3,
Windows Vista, Windows 7
OS X v10.6 and above
Microsoft .NET 2.0, 3.0 and 3.5 will
be installed on your computer as part of
the installation of NavDesk.
DVD drive
√
USB port
√
√
Internet connection
for activation
√
√
How do I install NavDesk onto my computer?
Before you begin, ensure that your computer meets the minimum system requirements for NavDesk, especially:
ƒ
Ensure that Internet Explorer 6 or higher is installed on you computer before you install NavDesk, even if it
is not your default browser.
ƒ
(for Windows XP users) Ensure that Windows XP Service Pack 2 or higher has been applied before you
install NavDesk.
CAUTION: When your Navman is turned on and connected to a computer, it is recognised as an external
mass-storage device. Do NOT delete any files that are pre-installed on your Navman. Deleting the files can
cause your Navman to crash.
1.
Close all programs on your computer.
2.
Insert the NavDesk Application Installer DVD into your computer DVD drive. The NavDesk installer will start.
If your computer does not automatically launch the DVD, start the installation manually: Start Æ Run.
Type D:\Install.exe where “D” is the letter assigned to your DVD drive, then click OK.
For MAC users, please visit www.navman.com.au/macsoftware (Australian residents) or
www.navman.co.nz/macsoftware (New Zealand residents) to download the NavDesk installer.
63
3.
Select your preferred language for NavDesk.
4.
Click Install Software, then Install NavDesk.
5.
6.
Follow the screen prompts to install NavDesk:
ƒ
Review and accept the Licence Agreement for NavDesk when prompted.
ƒ
Select a destination folder for NavDesk when prompted.
ƒ
When the installation is complete, click Finish. NavDesk will open.
If prompted to connect your Navman to your computer, complete the following:
ƒ
Plug the large end of the USB cable (supplied) directly into a USB port on your computer (not a USB
hub) and plug the small end into the USB Socket (
) on the bottom of your Navman. Where
possible, plug the USB cable into a USB port at the back of your computer.
ƒ
Press the Power button for 2 seconds to turn on your Navman, and then select the Computer option
from the pop-up message screen.
How do I get started?
You are now ready to use NavDesk for your Navman. You can access NavDesk via: Start Æ All Programs Æ
Navman Æ NavDesk
Knowing the NavDesk Menu
Depending on your Navman model, certain NavDesk Menu options may not be available.
64
Component
PC
MAC
Description
Navman
Online
√
√
My
Subscriptions
√
√
Information on your current subscriptions, including safety camera
subscriptions.
My Maps
√
√
Install and manage maps.
VOICE
COMMAND
√
Custom POIs
√
Photo Album
√
Display the Navman website, Navman Store and other online features.
Install or remove a voice command file.
√
Application that allows you to import custom POIs.
Import and edit NavPix™ images.
Search online and download NavPix™ which can be added to My
Places or Navman.
Image Search
√
This feature is powered by Flickr™.
Application
Gallery
√
Unlock
Features
√
Customise and rearrange applications available on the Main Menu
screen of your Navman.
√
MY PLACES
Allow you to enter the activation key for the service you purchased.
√
View and modify all places including addresses, Points of Interest,
NavPix™, and others added using NavDesk and stored on your
Navman.
TRIP
PLANNER
√
Add or begin a planned trip with multiple waypoints on your
computer, and then save the trip to your Navman.
MY
NAVMAN
√
CONNECT
√
√
A collection of applications that allow you to configure NavDesk,
download updates, and transfer data to and from your Navman.
Search for and add live POIs to My Places.
The First Use Date information
Once your Navman is connected and the system retrieves the device’s data from the server, the First Use Date
(FUD) information will be displayed in the status bar (at the bottom of the NavDesk window).
65
My Subscriptions
NavDesk Æ My Subscriptions
Your Navman contains pre-loaded subscriptions, such as safety camera and travel book information. For the
latest subscription updates, visit www.navman.com.au (Australia) or www.navman.co.nz (New Zealand).
Subscription information is not available on all models and is only available in selected countries.
Safety Camera alerts can be set to enable a warning sound or visual warning when on your route.
How do I purchase a subscription?
1.
Select a type of subscription. A list of regions will display.
2.
Select a region. A list of available subscriptions will display.
3.
Select a subscription or offer, then click Purchase an activation key from the Navman store. The
Navman Store website will open.
4.
Follow the prompts to purchase your subscription.
A product key will be sent to you via email when you have subscribed. You will need to use this product key to
activate your subscription.
How do I activate my subscription?
NavDesk Æ Unlock Features
1.
Enter your product key.
2.
Follow the prompts to activate your subscription.
How do I update subscriptions on my Navman?
The My Subscriptions section will display a list of subscriptions already installed on your Navman:
Icon
Description
Red
Expired subscriptions.
ƒ Right click to purchase a new subscription.
66
Icon
Description
Yellow
Available subscriptions.
ƒ Right click to update and purchase new subscription.
Green
Active subscriptions.
No updates are available for these subscriptions.
How do I recover my subscription?
If your subscriptions are deleted and you want to recover them, click Recover Subscriptions at the
bottom-right corner in My Subscriptions to recover all subscriptions.
My Maps
My Maps allows you to install new maps, remove maps from your Navman and purchase new maps.
NavDesk Æ My Maps
Component
Description
Loadable Maps
A list of maps on the DVD or available for purchase via the Navman Store
website.
ƒ
Select a map source (e.g. DVD Drive) and then click Open to display the
Map Source section.
ƒ
From the map Source section, click Install Maps to install the selected
map to your Navman. Otherwise, click Upwards to return to the
Loadable Maps section.
My Navman
A list of maps installed on your Navman.
Remove Maps
Click to remove the selected map from your Navman.
67
How do I install maps onto my Navman?
Your Navman comes with one or more pre-activated maps. Map files take up space on your Navman’s internal
memory. If you do not use a map file, you can remove it to free up space. You can later reinstall it to your
Navman if required.
You can install maps from the following:
ƒ
DVD that came with your Navman.
You may need to purchase a Map Product Key to activate maps on the DVD that came with your Navman.
ƒ
The downloaded map update.
For more information about downloading the free map update, refer to the “How do I update my
Navman?” section.
ƒ
The map that you have purchased separately to a memory card or your Navman internal memory.
Features available in your home country may not be available overseas, e.g. postcode search.
1.
Open NavDesk, and then click My Maps.
2.
Select a map source (e.g. DVD Drive when a Map DVD has been inserted into your computer DVD drive)
and then click Open to display the Map Source section.
ƒ
The maps already installed on your Navman are green.
ƒ
The maps that are unlocked and ready to be installed to your Navman are yellow.
ƒ
The maps that require activation before being installed to your Navman are red.
ƒ
The maps that are available for purchase from Navman are blue.
If your computer opens Windows Explorer when the DVD is inserted, close the Windows Explorer
window.
3.
Complete the following:
If the map to be installed is …
Then …
yellow
go to step 6.
red
the map needs to be activated via the Internet before it can be
installed; continue to step 4.
4.
If you connect to the Internet via a dial-up connection, connect to the Internet now.
5.
Follow the prompts to activate your Map Product Key, including:
6.
ƒ
Enter the Map Product Key when prompted.
ƒ
Your computer will connect to the Internet and activate your Map Product Key.
ƒ
When activation has completed, the map will change colour to yellow; continue to step 6.
Click the map you want to install to your Navman. The map will change colour to a brighter yellow to
indicate it has been selected. To deselect a map, click the map again.
You may need to install multiple maps to cover the required geographical area.
68
7.
Complete the following:
If you want to …
Then …
install a yellow map,
go back to step 6.
install a red map,
the map needs to be activated via the Internet before
it can be installed; go back to step 4.
install the selected maps to your Navman,
continue to step 8.
8.
Select the destination media (Navman internal memory) for the selected maps, then click Install Maps.
The selected maps will be installed and change colour to green.
9.
To use your Navman, disconnect the USB cable. You may need to manually reset your Navman.
WARNING: Do not disconnect the USB cable from the Navman USB Socket until the installed
map or maps have changed colour to green.
How do I remove maps from my Navman?
1.
Open NavDesk, and then click My Maps.
2.
From the My Navman section, select the checkbox next to the map you want to remove.
3.
Click Remove Maps to remove the selected maps.
4.
Confirm that you want to remove the selected map when prompted. The map is removed from your
Navman. You can reinstall these maps at any time via NavDesk.
VOICE COMMAND
Voice Command is not available on all models.
Depending on your Navman model, you will be able to set the destination quickly by using Voice Command.
Voice Command is a NavDesk application that allows you to install or remove voice file for the Voice
Command function.
NavDesk Æ VOICE COMMAND
69
You can download and install free Voice Command updates when available. For more information about
downloading the update,s refer to the “How do I update my Navman?” section.
1.
Open NavDesk, and then click VOICE COMMAND.
2.
Complete the following:
If you want to …
Then …
install a voice command file,
from the Loadable files section, select a file source (e.g. DVD) and
then click Open to display the Available voice command files section.
ƒ In the Available voice command files section, click Install selected
files to install the selected voice command file. Otherwise, click
Upwards to return to the Loadable files section.
remove a voice command file,
in the Installed voice command files section, select the voice file you
would like to remove.
ƒ Click Remove selected files.
Custom POIs
Depending on your Navman model, some Custom POIs features may not be available.
The Custom POIs (Points of Interest) application allows you to create or import your own POI files. These are
called custom POIs. Unlike preinstalled POIs, custom POIs can be removed from your Navman and can have
audio as well as visual alerts associated with them.
NavDesk Æ Custom POIs
Various POI files are available for download free or by subscription from third-party websites. Ensure that
downloaded files are in .csv (Comma Separated Values) format. Navman is not responsible for the content or
accuracy of the information or the reliability or availability of these websites. The use of information regarding
safety camera locations may be subject to local laws in the country of use. You are responsible for checking
that you can use the information in your country or in the country where the information will be used.
To create your POI files, open Microsoft Excel and then enter the POI location details (including Longitude,
Latitude, Name, and Description) in separate cells. Always use decimal degrees for coordinates and start a new
location from a new line. When done, click File Æ Save As to save it as a *.csv file. Now you have successfully
created a POI CSV file.
70
How do I install custom Points of Interest?
1.
In the Add new POIs section, click Browse to select a source file. The Open dialog box will open.
2.
Select the file from your local or network drive, then click Open.
3.
From the POI Category section:
If you want to …
Then …
use an existing custom POI category,
select the Existing category option, then select a type
from the drop-down list.
Replace an existing POI,
select the Existing category option and a type from the
drop-down list, then select Replace existing POIs.
If you want to create a new POI instead, then select
Add to existing POIs.
create a new custom POI category,
4.
select the New category option, then type a name for
the POI category.
Set Alert setting as required:
If you want to …
Then …
enable a visual warning when a POI of this
category is in close proximity,
select the Visual alert checkbox.
select an icon to display on the Map
screen for POIs of this category,
click Browse to select the icon file from your local or
network drive.
ƒ
When you have located the icon file, select it and
click Open.
ƒ
The icon file must be a bitmap (*.png and *.bmp)
graphic with a minimum size of 6x6 pixels and a
maximum size of 32x32 pixels.
If you do not select a custom icon, a default icon will
display.
select the distance from a POI of this
category at which the visual warning
should display or the warning chime
should sound,
select the distance from the Distance box.
To change the units used to measure distance for this
POI category, from the tools menu click on options and
from the general option select Use metric units checkbox.
enable a warning sound when a POI of this
category is in close proximity,
select the Audio alert checkbox.
select a custom sound alert file to play
when a POI of this category is in close
proximity,
ƒ
either select a sound file from the list, or
ƒ
click Add to select a sound file (.WAV format) from
your local or network drive. When you have located
the file, select it and click Open.
If you do not select a custom sound file, a default
sound alert will play.
5.
Click Add to device to add the POI to your Navman.
Each file corresponds to a POI category; for example, Hotels.csv will be listed on your Navman as the
Hotels category.
71
How do I delete a Custom POI file/category from my Navman?
1.
In the Installed POIs section, click Delete next to the file name. The file is removed from the list, but is not
yet deleted.
2.
Accept the warning message. The selected file/category is deleted.
Photo Album
Depending on your Navman model, certain Photo Album features may not be available.
Photo Album is a NavDesk application which allows you to copy, delete or move pictures or albums between
the NavPix™ library on your Navman and the NavPix™ library on your computer.
NavDesk Æ Photo Album
Component
Description
Desktop albums
Displays a list of all albums stored in the NavPix™ library on your
computer.
My Navman albums
ƒ
Click an album to display its contents in the Album display area.
ƒ
Click View all NavPix to display all pictures stored in the
NavPix™ library on your computer.
Displays a list of albums stored on the Navman internal memory and on
the memory card if one is inserted.
ƒ
Click an album to display its contents in the Album display area.
Selected picture
When a thumbnail is selected it displays with a blue border.
Album display area
Displays thumbnails of pictures in the selected album.
Search
Type to search for a NavPix™ by name.
Toolbar
When a picture is selected, the icons which can be used will be active.
72
Toolbar
Button
Description
Create new album
Click to create a new album in the NavPix™ library you are viewing.
Add to My Places
Click to transfer NavPix™ to My Places.
Transfer to your
Navman
or
Transfer to your
computer
ƒ
If you are viewing NavPix™ in the NavPix™ library on your
computer, this will display as Transfer to your Navman.
Click to transfer the selected NavPix™ to your Navman.
ƒ
If you are viewing NavPix™ in the Navman library this will display
as Transfer to your computer.
Click to transfer the selected photo(s) to the NavPix™ library on
your computer.
Import NavPix™
Imports NavPix™ from your computer to the NavPix™ library on
your computer.
Export to disk
Click to save NavPix™ to your computer or a network drive.
View details
Click to view the selected NavPix™ and edit NavPix™ details,
including:
ƒ
NavPix™ name
ƒ
latitude
ƒ
longitude
ƒ
description
Rotate left
Rotates the selected NavPix™ 90° to the left.
Rotate right
Rotates the selected NavPix™ 90° to the right.
Delete NavPix™
Click to delete the selected NavPix™.
How do I transfer pictures from Photo Album to my Navman?
You can transfer pictures from your computer to your Navman. You can import any JPEG (.jpg) into Photo
Album, add or edit GPS information, and then copy the picture to your Navman.
1.
From the Toolbar section, select Import NavPix. The Open dialog box will display.
2.
Select a NavPix™ from a folder on your computer and click Open. Thumbnails of the NavPix™ will
display in the Album display area.
You can also drag and drop a NavPix™ from a folder on your computer to an Album on your
NavDesk.
3.
Either click and drag the required NavPix™ to an album in the Navman albums section, or click the
Transfer to your Navman icon on the toolbar.
If you have transferred a NavPix™ with GPS coordinates you can then navigate to where the picture
was taken.
73
How can I view and edit pictures or albums on my computer?
If you want to …
Then …
rotate a picture to left,
select the picture from the Album display area.
ƒ Click Rotate left on the toolbar.
rotate a picture to right,
select the picture from the Album display area.
ƒ Click Rotate Right on the toolbar.
view the picture details,
select the picture from the Album display area.
ƒ Right-click and select View Details, or click View Details on the
toolbar.
edit GPS information,
select the picture from the Album display area.
ƒ Double click on the picture or click View Details on the toolbar.
The following information will display:
o Name
o Latitude and Longitude
o Description
ƒ Edit the details you want to modify.
ƒ Click OK to save the changes.
delete a picture,
select the picture from the Album display area.
ƒ Right click and select Delete or click Delete on the toolbar.
What else can I do with pictures and albums on my computer?
From the NavPix™ library on your computer, you can:
ƒ
add a picture to another album
ƒ
remove pictures from an album
ƒ
add a NavPix™ to My Places
ƒ
view and edit details of a selected picture
ƒ
upload pictures to Flickr™
ƒ
export to disk
ƒ
export pictures to Google Earth™
ƒ
search for pictures
ƒ
view all pictures in the library
If you want to …
Then …
add a picture to another album,
in the Desktop albums section, select the album containing the
NavPix™ you want to include in another album.
ƒ
Select the NavPix™ then drag it to the other album.
The selected NavPix™ is included in the new album, but is not
moved, i.e., one instance of the NavPix™ in the library may be
included in multiple albums.
74
If you want to …
Then …
remove a picture from an album,
in the Desktop albums section, select the album containing the
NavPix™ you want to remove.
ƒ
Select the NavPix™, right click and select Remove from
album.
Click the Delete icon on the toolbar if you want to delete the
NavPix™ from all albums.
add a NavPix™ to My Places,
in the Desktop albums section, select the album containing the
NavPix™ you want to add to My Places.
ƒ
view and edit picture details,
select the picture then click the View Details icon on the toolbar.
ƒ
upload picture to the Flickr website,
Select the NavPix™, right click and select Add to My Places.
Edit the fields as required.
in the Desktop albums section, select the album containing the
NavPix™ you want to upload to the Flickr website.
ƒ
Select the NavPix™, right click and select Upload to Flickr.
You need a Flickr account to upload NavPix™. To create a
Flickr account visit www.flickr.com
save a picture to your computer,
export to Google Earth™
(only NavPix™ with GPS
coordinates can be exported to
Google Earth),
select the picture from the Album display area.
ƒ
Right click and select Export to disk or click Export to disk on
the toolbar.
ƒ
Navigate to a folder on your computer where you want to save
the NavPix™.
in the Desktop albums section, select the album containing the
picture you want to export to Google Earth.
ƒ
Select the NavPix™, right click and select Export to Google
Earth.
ƒ
Navigate to a folder on your computer to save the file and then
open it in Google Earth.
You need to install the Google Earth software on your computer
to be able to view the file you have created. You can download Google
Earth from earth.google.com
search for other NavPix™,
right-click on the desired NavPix™ and select Search for NavPix
near this.
view all pictures in the library,
click View all NavPix at the bottom of the Desktop album section.
75
Photo Album preferences
NavDesk Æ MY NAVMAN Æ Options Æ Photo Album
Complete the following:
If you want to …
Then …
change your NavPix™ location on your
computer,
click Change.
ƒ Select a location for your NavPix™ library.
ƒ
Click Save or OK. The warning message will display and you
will be prompted to confirm your action.
Your NavPix™ library is moved to the new location.
receive a warning message before deleting
an image from your device,
select Warn me when permanently deleting a NavPix from
my Navman checkbox.
receive a warning message before deleting
an image from your NavPix™ library,
select Warn me when permanently deleting a NavPix from
my library checkbox.
create a new folder every time you import
new photos,
select the Import photos to a new album checkbox.
view NavPix™ when on a route,
select the Show NavPix on map checkbox.
Image Search
Image Search is a NavDesk application powered by Flickr™ allowing you to download photos and import them
to Photo Album. You can then upload the photo to the Flickr website, transfer photos to your Navman, export
pictures to Google Earth or search for other NavPix™ near the longitude and latitude of your NavPix™.
NavDesk Æ Image Search
How do I download NavPix™ from the internet?
1.
In the Description field enter a search description for the image you are looking for.
2.
Select one of the Sort by options.
3.
Click Search. Thumbnails of the NavPix™ will be displayed in the NavPix™ display area.
76
You can narrow your search by selecting the Advanced search checkbox and then selecting a city from the
drop-down list or by entering latitude and longitude details.
How do I import NavPix™ to My Places?
1.
Select a picture or group of pictures you want to add to your My Places.
2.
Do one of the following to add the selected image to My Places:
ƒ
click the Add to My Places button; or
ƒ
right click on the selected picture and then select Add to My Places from the shortcut menu.
Application Gallery
Application Gallery is not available on all models.
Application Gallery is a NavDesk application that allows you to add, remove and rearrange applications on the
Main Menu screen of your Navman. Application Gallery screen items and the order of the options may differ
from the below, depending on your region, maps installed or model of Navman.
NavDesk Æ Application Gallery
How do I rearrange Main Menu applications on my Navman Main Menu?
1.
Select any application from the Device Main Menu screen section.
2.
Drag the application to the position that you would like it to appear on your Navman.
3.
Click Save to Device. The order of the Main Menu screen is saved on your Navman.
How do I remove an application from my Navman?
1.
Select any application from the Device Main Menu screen section.
2.
Drag and drop the application to the Available Settings section.
3.
Click Save to Device. The application is removed from the Main Menu screen on your Navman and is no
longer accessible.
How do I add an application to my Navman?
1.
Select any application from the Available Settings section.
2.
Drag and drop the application to the Device Main Menu screen section.
77
3.
Click Save to Device. The application is added to the Main Menu screen on your Navman.
How do I reset the Main Menu screen?
Click Reset to Default Settings to restore the Main Menu screen to the factory default configuration.
Unlock Features
If you have purchased a map unlock code or subscriptions for your Navman, you have to enter the activation
key using the Unlock Features application. The activation key will be sent to you by email, or printed on the
inside cover of the box if you purchase the map update DVD. You can click the link on the screen to purchase an
activation key online.
Make sure you have an active Internet connection for this feature.
NavDesk Æ Unlock Features
My Places
NavDesk Æ My Places
78
My Places includes saved addresses, captured journeys and sound, Points of Interest, NavPix™, and other
locations. You can select, modify and delete places. You can also add locations from Connect and Image Search
to My Places. You can install a maximum of 99 locations on your Navman via My Places.
Make sure you have an active Internet connection for this feature.
How do I sort My Place locations?
You can sort My Place locations by type and name:
If you want to …
Then …
sort My Place locations by type,
click Type on the My Places panel.
sort My Place locations by name,
click Name on the My Places panel.
How do I import or export a location?
Complete the following:
If you want to …
Then …
import a location from the
computer to your Navman,
from the My Places panel, click Import.
ƒ The Open dialog box will open. Locate the file you want to import
and then click Open.
export a location from your
Navman to the computer,
from the My Places panel, select a location and then click Export.
ƒ The Save as dialog box will open. Enter a descriptive name for the file
and then click Save.
The supported file format for importing includes: *.KML and *.KMZ.
The supported file format for exporting includes: *.KMZ.
You can import/export a location by clicking File Æ Import (or Export) Æ My Places from the top of
NavDesk Menu.
How do I edit a location from the map screen?
1.
From the My Places panel select the location you want to edit.
2.
Click the location icon on the map screen. The location summary pop-up will display.
3.
Complete the following:
If you want to …
Then …
edit the location name,
click the location name.
ƒ
edit the location notes,
share the location,
Enter a new name or edit the existing name. The location name is
changed in both NavDesk and your Navman.
click Edit notes.
ƒ
Enter notes. The location note is changed in both NavDesk and your
Navman.
click
.
An email will open ready to send to your friends. Your friend will
receive the email with links to either save the image or to save the
location in My Places in NavDesk.
ƒ
79
If you want to …
Then …
If the location is a NavPix™, your friend will receive the image as
an attachment to the email.
If the location is a captured journey, your friend will receive the
journey as a *.KMZ file attached to the email. Your friend will need to
have Google Earth installed on the computer to view the KMZ file.
If the location is a captured voice recording, your friend will receive
the voice recording as a *.wav file attached to the email.
delete the location,
click
, then click Yes to delete the location.
You can delete all locations in My Places by clicking Delete on the
My Places panel.
Export the location,
click
ƒ
.
The Save as dialog box will open. Enter a descriptive name for the file
and then click Save.
TRIP PLANNER
TRIP PLANNER is not available on all models.
In addition to TRIP PLANNER (
your trip on the computer.
) on your Navman, TRIP PLANNER in NavDesk allows you to pre-plan
NavDesk Æ TRIP PLANNER
Component
Description
Route planner
Plan a route by entering From point and To point. A list of planned routes will
display in the Pre-planned Routes section.
Display area
Display the route on the map. You can also plan your route directly on the map.
80
How do I pre-plan a route by search?
1.
From the Route planner panel, set your From point and To point.
You can find a location by:
: Keyword
: Address
: Postcode
Input your content and click
your search results.
2.
to start a search. You may need to select from a category list to narrow
Complete the following:
If you want to …
Then …
add a waypoint,
click Add Waypoint.
reset or remove a waypoint,
set the route preferences,
click
next to the waypoint.
click Route option and select:
ƒ
Mode: Select the Driving, Walking, or Large vehicle
mode to plan your route.
ƒ
Type of route: Select the Fastest, Shortest, Easiest, or
Economical way to plan your route.
ƒ
Avoidance: Avoid Unsurfaced roads, Toll roads, Ferry
routes, or Special zone in your route.
The Route option settings will only apply to the route
you are editing.
arrange the destinations in the most
efficient order while two or more
waypoints are included in the
planned trip,
click Waypoint Optimization.
3.
Click Plan Route to calculate your route. The route will be displayed on the map.
4.
Click Save this route. The route is saved to the Pre-planned Routes section and your Navman
simultaneously.
How do I pre-plan a route using the map?
1.
From the map displayed in the Display area, click
2.
The cursor will be marked with “Add route”. Move the cursor and then click on the map to set the From
point.
3.
The cursor will be marked with “Click to set destination”. You can:
4.
.
„
Move the cursor and then click on the map to set the waypoint.
„
Move the cursor and then double-click on the map to set the To point.
When done, click Save this route. The route is saved to the Pre-planned Routes section and your Navman
simultaneously.
81
How do I edit a route?
1. From the Pre-planned Routes section select a route to edit.
2.
Complete the following:
If you want to …
Then …
rename the route,
click the title of the route in the Name column, then enter a new name and
press ENTER. Your changes are automatically saved.
delete a saved route,
click
next to the route you want to remove.
MY NAVMAN
NavDesk Æ MY NAVMAN
How do I change the displayed language for NavDesk?
You can change the language for NavDesk.
1.
Click Language.
2.
Select your preferred language.
How do I install or remove a voice file for my Navman?
My Voices is a NavDesk application that allows you to install or remove voice files on your Navman. Voice files
take up space on your Navman’s internal memory. If you do not use a voice file, you can remove it to free up
space. You can later reinstall it to your Navman if required.
1.
Click My Voices.
2.
Complete the following:
If you want to …
Then …
install a voice file,
in the Available voice files section, select the voice file you would like to install.
ƒ Click Install selected voices.
remove a voice file,
in the Available voice files section, select the voice file you would like to remove.
ƒ Click Remove selected voices.
82
The provided DVD of your Navman is needed while installing the voice file.
How do I register my Navman and set a PIN?
PIN is a NavDesk application that allows you to set a security PIN on your Navman. The PIN will disable your
Navman in the event of theft. To set a PIN, you must first register your Navman on Navman’s website.
1.
Click PIN.
2.
Click Register now and follow the prompts to complete the registration form online.
3.
When registration is complete, click I have registered my Navman. The PIN screen displays.
4.
In the User Name and Password fields, enter the Username and Password that you entered when
registering online.
5.
In the PIN field, enter the PIN you want to assign to your Navman. Your PIN must be between four and
eight numerical digits.
6.
Click OK. The PIN for your Navman has been set. The Enter your PIN screen will now display on your
Navman when you turn your Navman on.
7.
When you want to change the PIN on your Navman at a later time, enter the User Name and Password to
enter the PIN screen. Do one of the following:
ƒ
Leave the PIN field blank and click OK. The PIN is removed and your Navman will no longer require
you to enter a PIN.
ƒ
In the PIN field, enter a new PIN you want to assign to your Navman. The new PIN for your Navman
has been set.
How do I report mileage?
Mileage Reporter is a NavDesk feature that allows you to create expense reports (.csv format) based on the
mileage and estimated fuel usage recorded by your Navman. To use the Mileage Reporter function of NavDesk,
the Mileage recorder option must be enabled on your Navman. For more information, refer to the Route
Options section in “What can I customise?”
Mileage Reporter is not available on all models.
83
Component
Description
Timeframe
Specifies the time for which the mileage report will be created.
ƒ
Select Show All to include all recorded mileage.
Report panel
Displays your trip log data.
Fuel
Select to include the amount of fuel (estimate) used for the mileage
recorded. If selected, specify the number of miles travelled per gallon,
or miles/kilometres travelled per litre.
Report data buttons
Import report data from your Navman, clear all report data from your
Navman or export data to a report (.csv and .HTML).
To change the Mileage Reporter preferences, click NavDesk Æ MY NAVMAN Æ Options Æ Mileage
Reporter.
How do I backup and restore my Navman?
You can save backups of data from your Navman, and later restore it if required. You are recommended to do
backup at least once a month.
1.
Click Backup and Restore.
2.
Complete the following:
If you want to …
Then …
backup your Navman,
click Create new backup.
ƒ Select the data you would like to backup.
ƒ Click OK. The backup will be saved to your computer. The backup will
be listed on the Backup & Restore window.
restore a backup to your
Navman,
select the backup from the list that you would like to restore.
delete a backup,
select the backup from the list that you would like to delete.
ƒ Click Restore, then click OK. The backup will be restored to your
Navman.
ƒ Click Delete, then click OK. The backup will be deleted.
How do I recover maps and voice files for my Navman?
The Smart Recovery application allows you to recover all data to fix your Navman if a problem occurs during
operation, including software, maps, voice files, and subscriptions.
1.
Click Smart Recovery.
To use the Smart Recovery application to recover data, make sure you have an active Internet
connection and the Installer DVD is inserted into your computer DVD drive.
2.
The available data will be displayed in the Maps and Voices fields. Select the desired data and click
Recover to recover the data on your Navman.
84
How do I update my Navman?
Occasionally Navman may offer you free updates, including software applications, maps, voice commands, and
more. You can check the available updates via the Device Updates function.
1.
If a free update is available and your Navman is connected to your computer, a message will display when
you start NavDesk.
From the pop-up message window, click View to display the Device Updates screen that contains the
available updates.
You can also open the Device Updates screen by clicking the New Update button at the top-right
corner of NavDesk.
In some certain updates, you must upgrade your system to the latest version (including the NavDesk
and your Navman) before you can use the updates. If the new version is detected, a message will display to
ask you to upgrade the system. When prompted, click Yes to start upgrading the system.
2.
Complete the following:
If you want to …
Then …
download the updates,
select the available update from the list, and then lick Download.
stop/pause the download,
during the download:
ƒ You can view the download status from the downloading bar.
ƒ click
to stop the download.
to pause the download; when paused, click
ƒ click
downloading.
change the download folder,
3.
to resume
click Change Path.
When completed, the downloaded file will be saved to the assigned folder.
„
„
For software update, the *.exe file will be launched automatically to install the update.
For map/voice command update, the system will display the My Maps/Voice Command screen
automatically to install the update.
How do I recover keys on my Navman?
The Recover keys application allows you to fix your Navman if a problem occurs during operation. Click the
Recover keys option in the menu and then follow the prompts to complete the process.
Make sure you have an active Internet connection to recover keys.
How do I configure NavDesk?
Depending on your Navman model, certain setting options may not be available.
1.
Click Options, and then select the desired setting options to configure.
2.
Complete the following:
If you want to …
Then …
keep NavDesk updated,
click General, and then select the Auto check for updates checkbox.
ƒ
When you select this option, every time you open NavDesk, the
available service packs and bug fixes will be downloaded from the
Navman server and applied to your Navman.
85
If you want to …
Then …
change the units of
measurement that
NavDesk uses,
click General, and then:
ƒ select or clear the Use metric units checkbox to change between
imperial and metric units.
ƒ select or clear the Use decimal degrees checkbox to change
between decimal degrees and latitude/longitude co-ordinates.
change the Mileage
Reporter settings,
click Mileage Reporter, and then:
ƒ select or clear the Warn me when deleting all log files from my
Navman checkbox.
ƒ select Distance per volume or Volume per distance to change
the fuel economy style.
change the NavPix™
library location,
click Photo Album, and then click Change.
ƒ Select a folder for the NavPix™ library. The downloaded
NavPix™ is moved to the new location.
For more information about configuring your Photo Album, refer
to the “Photo Album” section.
change the location of
where downloaded
updates will be saved,
click My Maps, and then click Change.
ƒ Select a folder for the updates. The downloaded updates are
moved to the new location.
CONNECT
CONNECT is not available on all models.
CONNECT is a NavDesk application that allows you to search and install local POIs information from your
computer to your Navman. POI locations will be shown in My Places.
Before you begin, ensure your Navman is correctly plugged into your computer: plug the large end of the USB
cable directly into a USB port on your computer (not a USB hub); plug the small end into
on the bottom
of your Navman.
NavDesk Æ CONNECT
86
Make sure you have an active Internet connection for this feature.
How do I search for a POI using Connect?
You can either search for a new location, or search using the last known location on your Navman by
completing the following:
1.
In the Select Location field, you can :
ƒ
Select a custom location to search. Follow the prompts to select your Country Æ Region/State Æ
Place name, and then select your preference.
ƒ
Use the last known location on your Navman to search if your Navman stores the navigation data.
2.
Click Continue. The Available Services page will display.
3.
Select your preferred search service. The selected services page will display.
4.
Enter your search criteria, then click Search. A list of search results will display. For some countries you are
required to accept the terms of use.
5.
Click
Depending on the country you are navigating, the available search services may vary.
next to the POI you want to install to your Navman. The POI will be added to My Places.
87
For more information
Online support
For 24/7 help and support with Navman products, visit our Technical Support Website:
www.navmansupport.com.au (Australia), or www.navmansupport.co.nz (New Zealand).
Navman Customer Support
If you have a faulty product or you would like to speak to a member of our Technical Support team, contact:
Australia: 1300 NAVMAN (628626), or visit www.navman.com.au
New Zealand: 0800 GONAVM (466286), or visit www.navman.co.nz
Speed Limit
Navman products are designed to be used as an aid to safer driving. Navman does not condone speeding or any
other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed
limit at all times and to drive in a careful manner. Navman accepts NO liability whatsoever for you receiving
any speeding fines or points on your license through using this device. Navman does not guarantee the accuracy
of the data contained within this database either expressed or implied. In the event you receive a fine or any
other penalty for speeding or contravention of any traffic law, or are involved in an accident, Navman is not
responsible for any damages of any type. In some countries the data information regarding speed limits may
conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in
compliance with local laws and/or regulations. Usage is at your own risk.
Safety Camera POIs
Navman products are designed to be used as an aid to safer driving. You can receive messages to alert you to
locations of safety cameras, which will enable you to monitor your speed through these areas. Navman does
not warrant that all types and locations of safety camera data are available, as cameras may be removed,
relocated or new cameras installed. Navman does not condone speeding or any other failure to comply with
your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a
careful manner. Navman accepts NO liability whatsoever for you receiving any speeding fines or points on your
license through using this device. Navman does not guarantee the accuracy of the data contained within this
database either expressed or implied. In the event you receive a fine or any other penalty for speeding or
contravention of any traffic law, or are involved in an accident, Navman is not responsible for any damages of
any type. In some countries the data information regarding safety or speed cameras may conflict with local law
and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local
laws and/or regulations. Usage is at your own risk.
Point of Interest categories
Icon
Description
Icon
Description
Airport
Amusement park
Art centre
ATM/Cash dispenser
Bank
Bar/Pub
Beach
Breakdown service/Car repair facility
88
Icon
Description
Icon
Description
Bowling centre
Business facility or company
Business office
Bus station
Camping ground
Car dealer/Automobile dealer
Casino
Cemetery
Church
Cinema
City hall
City, town or village
Coffee shop
College/University
Community centre
Commuter railway station
Courthouse
Dentist
Doctor
Embassy
Exhibition centre
Ferry terminal
Fire Brigade
Golf course
Government office
Grocery store
Guest house
Higher education
Hospital/Polyclinic
Hotel
Ice skating
Important tourist attraction
Information/Tourist information
office
Library
Marina/Yacht basin
Medical
Monument
Motorcycle dealer
Motoring organisation office
Mountain pass
Museum
Music centre
Natural attraction
Nightlife
Park and ride
Parking
Parking garage
Park/Recreation area
Performance art/Theater
Petrol station
Pharmacy
Place of worship
Police station
Post office
Public restroom/Toilet facilities
Public sport airport
89
Icon
Description
Icon
Description
Railway crossing
Rental car agency
Rest area
Restaurant
Road accident black spot
Scenic/Panoramic views
School
School zone
Shop
Shopping
Ski resort/Ski lift station
Speed check
Sport centre
Sports hall
Sports complex
Stadium
Tennis court
Travel agency
Transport ferry
Veterinarian
Winery
Zoo
The POI categories and the order may differ, depending on your region, maps installed or model of
Navman.
Branded Points of Interest
Branded Points of Interest are available on some maps. These include well known restaurants, accommodation
providers, tourist attractions, Petrol stations, etc. The icon will usually display the company logo.
Point of Interest categories by subscription
Icon
Description
Safety Cameras
Safety Camera (Mobile)
Red Light Camera
Combine Camera
My Places categories
Icon
Description
Home
Saved locations
Captured journey (for selected models)
90
Traffic and other TMC Events
Each TMC Event is sorted in to one of nine categories. When an Event is received, one of the following icons will
display:
Event
Avoided
Event
Message Type
Event Description
Danger
There is a dangerous situation on the route; for example,
people are on the road.
Traffic
Any event that will cause a delay on a route.
Weather
Weather conditions are adversely affecting a route; for
example, there is ice on the road.
Warnings
There is a situation of which you should be aware on the route,
but it is not serious enough to be considered a dangerous
situation; for example, a minor accident has taken place.
Forecast
An event is expected to occur on a route.
Restrictions
There is a restricted flow of traffic on a route; for example, a
lane has been closed on a motorway.
Clearance
A traffic event that has now been cleared.
Information
All other events.
Roadworks
Roadworks are taking place on a route.
If a Traffic or Clearance event has a recommended detour, the following icons will display:
Event
Avoided
Event
Message Type
Event Description
Traffic Detour
A Traffic Event, for which a detour is recommended.
Clearance
Re-route
A Clearance Event, for which a re-route is recommended.
Avoided Event icons will only display on the Map screen, at the event location.
91
Copyright
© 2013 MiTAC International Corporation. Navman is either a registered trademark or trademark of MiTAC
International Corporation and is used under licence by Navman Technology Limited. All rights reserved.
The software contains proprietary information of MiTAC International Corporation; it is provided under a
licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse
engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission
of Navman.
Microsoft, Windows, Windows Vista, Windows 7, and Internet Explorer are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.
© 2013 Microsoft Corporation. All rights reserved. Microsoft, MSN, and the MSN logo are trademarks of the
Microsoft group of companies.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Navman Technology Limited is under license.
Location Identifiers © 2013 International Air Transport Association.
POI Data © 2013 InfoUSA.
The software is based in part on the work of the Independent JPEG Group.
All other trademarks and registrations are the property of their respective owners.
Revision: R02
(08/2013)
92
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
