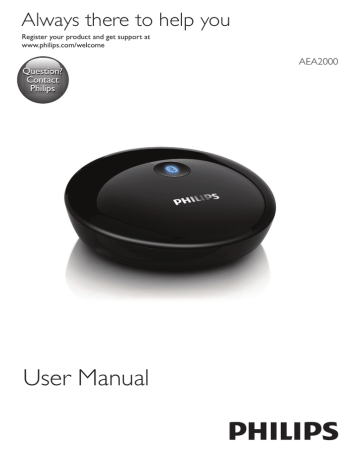

User Manual

Always there to help you

Register your product and get support at www.philips.com/welcome

Question?

Philips

AEA2000

User Manual

Contents

1 Important

Important Safety Instructions

2 Your Bluetooth Adapter 4

Introduction 4

What's in the box 4

3 Play

Connect audio cables

Connect power

Enter pairing mode

Play from Bluetooth-enabled devices

4

5

5

4

5

3

3

4 Product information

Specifications

5 Troubleshooting

About Bluetooth device

6 Notice

Disposal of your old product

7

7

6

6

8

8

EN

2

1 Important

3

EN

Important Safety Instructions

a

Read these instructions.

b

Keep these instructions.

c

Heed all warnings.

d

Follow all instructions.

e

Do not use this apparatus near water.

f

Clean only with dry cloth.

g

Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

h

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. i

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

j

Only use attachments/accessories specified by the manufacturer.

k

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. l

Unplug this apparatus during lightning storms or when unused for long periods of time. m

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

n

Apparatus shall not be exposed to dripping or splashing. o

Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). p

This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries

Alliance: www.eiae.org.

q

Where the plug of the Direct Plug-in

Adapter is used as the disconnect device, the disconnect device shall remain readily operable.

Warning

Never remove the casing of this apparatus.

Never place this apparatus on other electrical equipment.

Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the apparatus from the power.

2 Your Bluetooth

Adapter

Introduction

By connecting the Bluetooth adapter to your

Hi-Fi speaker system, you can enjoy audio from your Bluetooth-enabled device on your Hi-Fi system through Bluetooth wireless connection.

What's in the box

Check and identify the contents of your package:

• Main unit

• AC power adaptor

• RCA audio cable

• User manual

3 Play

Always follow the instructions in this chapter in sequence.

Connect audio cables

There are two ways to connect the Bluetooth adaptor to your Hi-Fi system. Select one fit for the Hi-Fi system.

Option 1 (Fig. A)

R L

Option 2 (Fig. B)

AUDIO IN

LINE OUT

R L

EN

4

5

EN

Connect power

Caution

Risk of product damage! Make sure that the power supply voltage matches the voltage printed on the bottom of the unit.

Risk of electric shock! Hold the plug securely when unplugging the device.

Note

The type plate is located on the bottom of the

Bluetooth adaptor.

Connect the power adaptor to:

• the DC IN socket at the back of the

Bluetooth adapter.

• the wall outlet.

DC IN

Enter pairing mode

When connected to power, the Bluetooth adaptor goes to Bluetooth pairing mode automatically.

• If your Bluetooth device has not been paired with the Bluetooth adapter before, you need pair with the Bluetooth adapter first, then play audio on the device (See the section “Play from Bluetooth-enabled devices”).

• If your Bluetooth device has been paired with the Bluetooth adapter before, press .

»

The Bluetooth adapter attempts to connect the previously connected Bluetooth device.

If it fails, the adapter returns to the pairing mode.

Tip

If the Bluetooth adapter fails to pair with a Bluetooth device, the Bluetooth adapter exits the pairing mode in 2 minutes, and the LED light becomes dim. You can press to return to pairing mode.

LED indications

Solid blue

Flashing blue

Dim light

Description

The Bluetooth adapter and your

Bluetooth-enabled device are connected.

The Bluetooth adapter is waiting to be paired with a Bluetoothenabled device.

The Bluetooth adapter is neither in connection with a Bluetooth device nor in the pairing mode.

Play from Bluetooth-enabled devices

Note

The effective operating range between the Bluetooth adapter and the paired device is approximately 10 meters (30 feet).

Keep this Bluetooth adapter away from other electronic devices that may cause interference.

Compatibility with all Bluetooth devices is not guaranteed.

Make sure that the Bluetooth adapter is connected to the powered Hi-Fi system correctly.

Make sure that your Hi-Fi system is in Audio-in or line-in mode.

1

On your Bluetooth device, turn on

Bluetooth function and search for

Bluetooth devices (refer to the device's user manual).

2

When [PhilipsBT] (Philips Bluetooth adapter) is displayed on your device, select it to start pairing and connection. If necessary, enter default password “0000”.

»

If connection is successful, the

Bluetooth indicator becomes solid blue.

3

Play audio on your device.

» Audio streams from your device to your Hi-Fi system.

Note

If your Bluetooth device has been paired with AEA2000 before, you just need to find out [PhilipsBT] on your

Bluetooth menu, then start the connection.

This Bluetooth adaptor can memorize up to 8 previously paired devices.

To disconnect the Bluetooth-enabled device:

• Press again;

• Tap [PhilipsBT] on the Bluetooth menu again;

• Deactivate Bluetooth function on your device; or

• Move the device beyond the communication range.

To connect another Bluetooth device:

1

Disconnect the previously connected device.

2

Pair with your selected Bluetooth device.

To clear pairing history in the Bluetooth adapter:

Press and hold for 7 seconds.

»

The Bluetooth indicator stays in solid blue for 2 seconds, then returns to the previous status.

4 Product information

Note

Product information is subject to change without prior notice.

Specifications

Amplifier

Output Voltage

Signal to Noise Ratio

1000 mV RMS

> 62 dBA

Total Harmonic Distortion < 2 %

Bluetooth

Standard

Frequency Band

Range

Bluetooth Standard

Version 2.1+EDR

2.402~2.480 GHz

10m (Free space)

General information

AC Power Model: AS030-090-

EA033 (Philips);

Input: 100-240 V ~,

50/60 Hz, 0.15 A;

Output: 9 V 0.33 A

Operation Power

Consumption

Dimensions - Main Unit

(W x H x D)

Weight - Main Unit

< 3 W

74 x 28 x 72 mm

0.04 kg

EN

6

5 Troubleshooting

Warning

Never remove the casing of this device.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page

(www.philips.com/support). When you contact

Philips, make sure that the device is nearby and the model number and serial number are available.

No power

• Make sure that the AC power adapter is connected properly.

• Make sure that there is power at the AC outlet.

No sound from your Hi-Fi system

• Check if the Hi-Fi system is connected to power.

• Make sure that the system is connected with the Bluetooth adapter properly.

• Make sure that the Bluetooth wireless connection is successful.

• Adjust the volume of your system and

Bluetooth device.

• Make sure that the Hi-Fi system is in

Audio-in or line-in mode.

About Bluetooth device

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor. Move the device closer to the Bluetooth adaptor or remove any obstacle between the device and the adaptor.

Cannot connect with the device.

• The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.

• The adapter is already connected with another Bluetooth-enabled device.

Disconnect that device and then try again.

The paired device connects and disconnects constantly.

• The Bluetooth reception is poor. Move the device closer to the Bluetooth adapter or remove any obstacle between the device and the adapter.

• For some devices, the Bluetooth connection may be deactivated automatically as a power-saving feature.

This does not indicate any malfunction of the system.

7

EN

6 Notice

Any changes or modifications made to this device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

Notice for the USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate the receiving antenna.

• Increase the separation between equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications made to this equipment not expressly approved by Philips many void the FCC authorization to operate this equipment.

This equipment complies with FCC’s and IC's

RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm separation distance will be maintained between the device (excluding its handset) and users.

This Class B digital apparatus complies with

Canadian ICES-003.

This device complies with Industry Canada license-exempt RSS standard(s).

The set complies with the FCC-Rules, Part

15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries.

The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of

EN

8

packaging materials, exhausted batteries and old equipment.

2012 © Koninklijke Philips Electronics N.V.

Specifications are subject to change without notice. Trademarks are the property of

Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

9

EN

Philips Consumer Lifestyle

A division of Philips Electronics North America Corporation

P.O. Box 10313

Stamford, CT 06904

Phone: 1-888-PHILIPS (744-5477)

Meet Philips at the Internet http://www.philips.com/welcome

Specifications are subject to change without notice

© 2012 Koninklijke Philips Electronics N.V.

All rights reserved.

AEA2000_37_UM_V1.1
