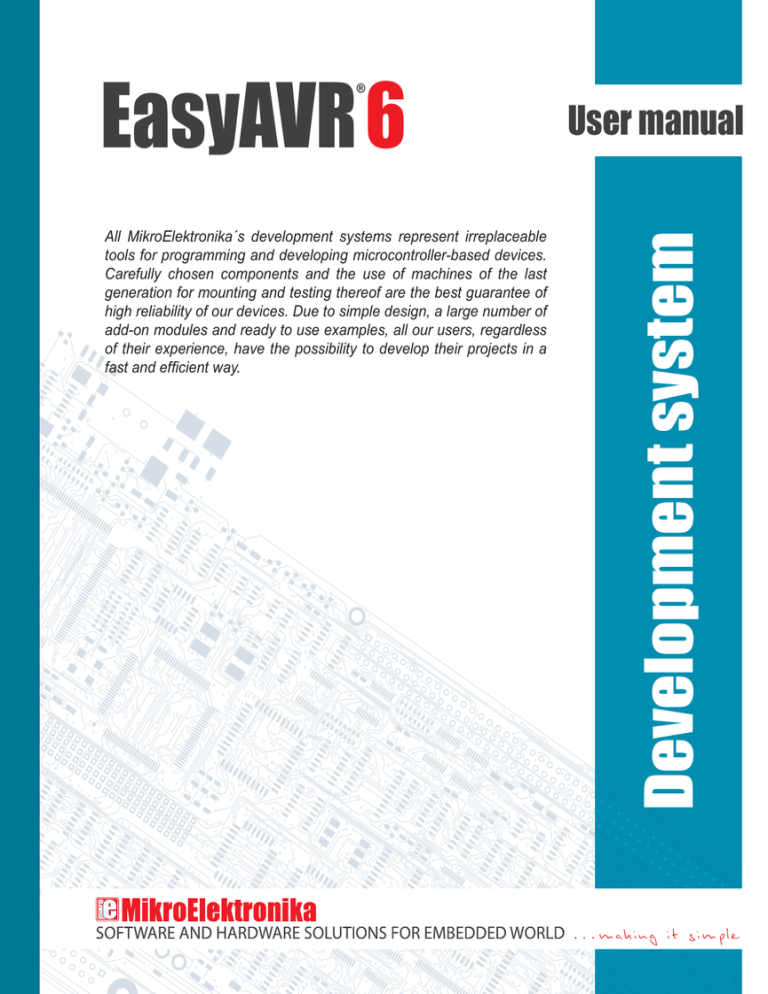

EasyAVR6 User Manual

EasyAVR6 User Manual

EasyAVR

6

User manual

All MikroElektronika´s development systems represent irreplaceable tools for programming and developing microcontroller-based devices.

Carefully chosen components and the use of machines of the last generation for mounting and testing thereof are the best guarantee of high reliability of our devices. Due to simple design, a large number of add-on modules and ready to use examples, all our users, regardless of their experience, have the possibility to develop their projects in a fast and effi cient way.

TO OUR VALUED CUSTOMERS

I want to express my thanks to you for being interested in our products and having confi dence in

MikroElektronika.

It is our intention to provide you with the best quality products. Furthermore, we will continue to improve our performance to better suit your needs.

Nebojsa Matic

General Manager

Introduction to EasyAVR6 Development System.............................................................................. 4

Key Features..................................................................................................................................... 5

1.0. Connecting the System to your PC............................................................................................ 6

2.0. Supported Microcontrollers......................................................................................................... 7

3.0. On-Board USB 2.0 AVRprog Programmer................................................................................. 8

4.0. External AVRISP mkII Programmer........................................................................................... 9

5.0 JTAG Connector......................................................................................................................... 10

6.0 Clock Oscillator........................................................................................................................... 10

7.0. Power Supply............................................................................................................................. 11

8.0. RS-232 Communication Interface.............................................................................................. 12

9.0. PS/2 Communication Interface.................................................................................................. 13

10.0. DS1820 Temperature Sensor................................................................................................... 14

11.0. A/D Converter Test Inputs........................................................................................................ 15

12.0. LEDs........................................................................................................................................ 16

13.0. Push Buttons........................................................................................................................... 17

14.0. Keyboards............................................................................................................................... 18

15.0. Alphanumeric 2x16 LCD Display............................................................................................. 19

16.0. On-Board 2x16 LCD Display with Serial Communication........................................................ 20

17.0. 128x64 Graphic LCD Display................................................................................................... 21

18.0. Touch Panel............................................................................................................................. 22

19.0. I/O Ports................................................................................................................................... 23

20.0. Port Expander (Additional I/O Ports)........................................................................................ 25

3

MikroElektronika

4

Introduction to EasyAVR6 Development Board

The EasyAVR6 development system is an extraordinary development tool suitable for programming and experimenting with AVR

®

microcontrollers from Atmel

®

. Such development system includes an on-board programmer providing an interface between the microcontroller and the PC. You are simply expected to write a code in one of the AVR compilers, generate a HEX fi le and program your microcontroller using the AVRprog

®

programmer. Numerous on-board modules, such as 128x64 graphic LCD display, alphanumeric

2x16 LCD display, on-board 2x16 LCD display with serial communication, keypad 4x4, port expander etc., allow you to easily simulate the operation of the target device.

AVR

DEVELOPMENT

BOARD

Full-featured and user-friendly development board for AVR microcontrollers

High-Performance USB 2.0

On-Board Programmer

Port Expander provides easy

I/O expansion (2 additional ports) using data format conversion

Alphanumeric On-Board

2x16 LCD Display with Serial

Communication

Graphic LCD display with backlight

The AVRfl ash program provides a complete list of all supported microcontrollers.

The latest version of this program with updated list of supported microcontrollers can be downloaded from our website www.mikroe.com

Package contains:

Development board:

CD:

EasyAVR6

product CD with appropriate software

Documentation: EasyAVR6 and AVRfl ash manuals, Installing

System specifi cation:

Power supply: over a DC connector (7V to 23V AC or 9V to 32V DC); or over a USB cable (5V DC)

Power consumption: 50mA in idle state (when on-board modules are inactive)

Size: 26,5 x 22cm (10,4 x 8,6inch)

Weight:

MikroElektronika

1

2

3

4 5 6 7 8 9

29

28

27

26

25

24

23

22

21

Key Features

1. Power supply voltage regulator

2. On-board programmer’s USB connector

3. On-boad USB 2.0 programmer AVRprog

4. External AVRISP

® programmer’s connector

5. JTAG

®

interface connector

6. A/D converter test inputs

7. PS/2 connector

8. On-board 2x16 LCD display

9. DIP switches to enable pull-up/pull-down resistors

10. Pull-up/pull-down mode selection

11. I/O port connectors

12. AVR microcontroller sockets

13. Touch panel controller

14. Port expander

20 19 18 17

16 15

15. 128x64 graphic LCD display contrast potentiometer

16. 128x64 graphic LCD display connector

17. Clock oscillator

18. Touch panel connector

19. MENU keypad

20. Keypad 4x4

21. Push buttons to simulate digital inputs

22. Logic state selector

23. Protective resistor ON/OFF jumper

24. Reset button

25. 35 LEDs to indicate pins’ logic state

26. DS1820 temperature sensor socket

27 Alphanumeric LCD display contrast adjustment

28. Alphanumeric LCD display connector

29. RS-232 communication connector

MikroElektronika

10

11

12

13

14

5

6

1.0. Connecting the System to your PC

Step 1:

Follow the instructions for installing USB drivers and the AVRfl ash program provided in the relevant manuals. It is not possible to program

AVR microcontrollers without having these devices installed fi rst. In case that you already have some of the MikroElektronika’s compilers installed on your PC, there is no need to reinstall the AVRfl ash program as it will be automatically installed along with the compiler.

Step 2:

Use the USB cable to connect the EasyAVR6 development system to your PC. One end of the USB cable provided with a connector of the USB B type should be connected to the development system as shown in Figure 1-2, whereas the other end of the cable (USB A type) should be connected to your PC. When establishing a connection, make sure that jumper J6 is placed in the USB position as shown in

Figure 1-1.

DC connector USB connector

1

2

J6 power supply selector

Figure 1-2: Connecting USB cable (J6 in USB position)

POWER SUPPLY switch

Figure 1-1: Power supply

Step 3:

Turn on your development system by setting the power supply switch to the ON position. Two LEDs marked as ‘POWER’ and ‘USB LINK’ will be turned on to indicate that your development system is ready to use. Use the on-board AVRprog programmer and AVRfl ash program to dump a code into the microcontroller and employ the board to test and develop your projects.

NOTE:

If you use some additional modules, such as LCD, GLCD, extra boards etc., it is necessary to place them properly on the development system before it is turned on. Otherwise, they can be permanently damaged. Refer to Figure 1-3 for their proper placing.

MikroElektronika

Figure 1-3: Placing additional modules on the board

2.0. Supported Microcontrollers

The EasyAVR6 development system provides eight separate sockets for AVR microcontrollers in DIP40, DIP28, DIP20, DIP14 and

DIP8 packages. These sockets allow supported devices in DIP packages to be plugged directly into the development board.

There are two sockets for AVR microcontrollers in DIP40, DIP20 and DIP8 packages provided on the board. Which of these sockets will you use depends solely on the pinout of the microcontroller in use. The EasyAVR6 development system comes with the microcontroller in a DIP40 package.

Jumpers J10 and J11 next to the sockets DIP28 and DIP8 are used for selecting functions of the microcontroller pins:

Jumper Position

PB3

J10

OSC

PB3 is an I/O pin

Function

Pin PB3 is fed with a clock signal from the on-board oscillator

VCC Pin is connected to VCC

J11

PC7 PC7 is an I/O pin

Figure 2-1: Microcontroller sockets

AVR microcontrollers can use either built-in (internal) or on-board (external) oscillator as a clock signal source. The clock oscillator provided on the board generates clock signals for most supported microcontrollers.

- Microcontrollers plugged into the DIP8A socket use built-in oscillator for clock generation and are not connected to the on-board oscillator.

- Microcontrollers plugged into the DIP8B socket may use either internal or external oscillator, which depends on the jumper J10 position.

1 3 4

7

Figure 2-2: Plugging microcontroller into appropriate socket

Prior to plugging the microcontroller into the appropriate socket, make sure that the power supply is turned off. Figure 2-2 shows how to correctly plug a microcontroller into the appropriate socket. Figure 1 shows an unoccupied DIP40 socket. Place one end of the microcontroller into the socket as shown in Figure 2. Then put the microcontroller slowly down until all the pins thereof match the socket as shown in Figure 3. Check again that everything is placed correctly and press the microcontroller easily down until it is completely plugged into the socket as shown in Figure 4.

NOTE:

Only one microcontroller may be plugged into the development board at the same time.

MikroElektronika

8

3.0. On-Board USB 2.0 AVRprog Programmer

The AVRprog programmer is a tool used for dumping .hex code into the microcontroller. The EasyAVR6 has an on-board AVRprog programmer which allows you to establish a connection between the microcontroller and your PC. Figure 3-2 shows the connection between a compiler, AVRfl ash program and microcontroller.

Programmer’s USB connector

Programmer’s chip

Jumper J8 used for selecting programmer

(built-in or external) to be used for programming AVR chip

Figure 3-1: AVRprog programmer

1

Compiling program

1110001001

0110100011

Bin.

Hex.

DA67F0541

Loading HEX code

2

3 compilers and generate a HEX fi le;

2 select an appropriate microcontroller and to load the HEX fi le;

3

Write button to load the program into the microcontroller.

On the right side of the AVRfl ash program’s main window there are a number of buttons which make the programming process easier. There is also an option at the bottom of the window which enables you to monitor the programming progress.

Write a code in some of AVR compilers, generate a .hex fi le and the on-board programmer will take care of loading data into the microcontroller.

Figure 3-2: The principle of programmer’s operation

NOTE:

For more information on the AVRprog programmer refer to the relevant manual provided in the EasyAVR6 development

MikroElektronika

AVR microcontrollers are programmed by means of SPI serial communication using the following microcontroller pins MISO, MOSI and SCK.

Build-in programmer AVRprog

Multiplexer

MISO

MISO

MOSI

MOSI

PROG

CHIP

VCC

D-

D+

GND

USB

SCK

SCK

DATA

Programming lines User interface

R

R

R

During the programming, a multiplexer disconnects the microcontroller pins used for programming from the rest of the board and connects them to the AVRprog programmer. After the programming is complete, these pins are disconnected from the programmer and may be used as input/output pins.

4.0. External AVRISP mkII Programmer

In addition to the on-board programmer, the EasyAVR6 development system may also use the external AVRISP programmer from

Atmel for programming microcontrollers. Such programmer is plugged into the AVRISP connector.

In order to enable a microcontroller to be programmed using this programmer, it is necessary to set jumper J8 in the EXTERNAL position prior to turning the programmer on. Then use jumper J7 to select the appropriate microcontroller socket.

Jumper J8 in the EXTERNAL position enables external

AVRISP programmer

The position of jumper J7 when the external programmer is used for programming microcontrollers in DIP20B and

DIP8 packages

Jumper J8 in the ON-BOARD position enables on-board programmer

The position of jumper J7 when the external programmer is used for programming microcontrollers in DIP14 package

Figure 4-1: Setting jumper J7

The position of jumper J7 when the external programmer is used for programming microcontrollers in DIP40 and

DIP20A packages

The position of jumper J7 when the external programmer is used for programming microcontrollers in DIP28 package

Figure 4-2: AVRISP mkII connected to the development system

MikroElektronika

9

10

5.0. JTAG Connector

JTAG ICE is an emulator used for AVR microcontrollers with built-in JTAG interface (Mega AVR microcontrollers). JTAG ICE is primarily intended for work with the AVR Studio program. The JTAG connector built into AVR microcontrollers is a modifi ed version of the original JTAG interface. It enables contents of internal EEPROM and FLASH memory to be changed (programming microcontroller).

JTAG ICE emulator employs a male 2x5 connector to establish connection with the development system

Figure 5-1: JTAG connector

Figure 5-2: JTAGICE mkII connected to the development system

The JTAG connector is directly connected to the microcontroller pins so that it doesn’t depend on jumpers J7 and J8 settings which otherwise have to be performed when using AVRprog and AVRISP programmers.

6.0. Clock Oscillator

There is a clock oscillator provided on the board used as a clock signal external source. The quartz crystal used for the purpose of stabilizing clock frequency is plugged into the appropriate socket and therefore can always be replaced with another one. Its maximum value depends on the maximum operating frequency of the microcontroller.

Figure 6-1: Oscillator

Quartz crystal X2 plugged into the appropriate socket, which enables it to be easily replaced

R64

1M

U9E

74HC04

U9C

74HC04

C34

22pF

X2

8MHz

C35

22pF

EXT CLOCK

R65

1K

VCC

C33

100nF

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

Figure 6-2: Oscillator connection schematic

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

VCC

MikroElektronika

7.0. Power Supply

The EasyAVR6 development system may use one of two power supply sources:

1. +5V PC power supply through the USB programming cable;

2. External power supply connected to a DC connector provided on the development board.

The MC34063A voltage regulator and Gretz rectifi er are used for enabling external power supply voltage to be either AC (in the range of 7V to 23V) or DC (in the range of 9V to 32V). Jumper J6 is used as a power supply selector. When using USB power supply, jumper

J6 should be placed in the USB position. When using external power supply, jumper J6 should be placed in the EXT position. The development system is turned on by setting the POWER SUPPLY switch in the ON position.

Power supply voltage regulator

DC connector

USB connector

11

Jumper J6 as a power supply selector

POWER SUPPLY switch

Figure 7-1: Power supply

System is powered through DC connector

EXT

J6

USB

EXT

J6

USB

System is powered through

USB connector

AC/DC

CN16

Side view

4x1N4007

D13

Side view

A

D14

K

Side view

D12

Bottom view

D15

E1

330uF

OFF

C8

220pF

Side view

R57

U10

SWC

SWE

CT

GND

0.22

DRVC

IPK

Vin

CMPR

MC34063A

R56

1K

Side view

R55

3K

Side view

A

221

Top view

L2

220uH

VCC-5V

D7

MBRS140T3

K

Side view

E2

10uF

+

J6

Figure 7-2: Power supply source connection schematic

ON

VCC-USB

E3

330uF

VCC

LD42

POWER

R14

2K2

MikroElektronika

12

8.0. RS-232 Communication Interface

The USART (universal synchronous/asynchronous receiver/transmitter) is one of the most common ways of exchanging data between the PC and peripheral components. RS-232 serial communication is performed through a 9-pin SUB-D connector and the microcontroller USART module. In order to enable such communication, it is necessary to establish a connection between RX and TX communication lines and microcontroller pins provided with USART module using a DIP switch SW9. The microcontroller pins used in such communication are marked as follows: RX - receive data and TX - transmit data. Baud rate goes up to 115 kbps.

In order to enable the USART module of the microcontroller to receive input signals with different voltage levels, it is necessary to provide a voltage level converter such as MAX-202C.

RS-232 connector

Figure 8-1: RS-232 module

The function of DIP switch SW9 is to determine which of the microcontroller pins are to be used as RX and TX lines. The microcontroller pinout varies depending on the type of the microcontroller. Figure 8-2 shows the connection between the RS-232 module and the microcontroller in DIP40 package (ATMEGA16).

SW9: RX=PB2, TX=PB3 = ON

SUB-D 9p

RS232

9

5

Bottom view

1

6

C28

100nF

C30

100nF

C29

100nF

C1+

V+

C1-

C2+

VCC

GND

T1 OUT

R1 IN

C2-

V-

R1 OUT

T1 IN

T2 OUT

R2 IN

T2 IN

R2 OUT

MAX202

VCC

100nF

RX

TX

SW9

VCC

R54

1K

5

9 6

1

PB2

PD0

PD2

PB3

PD1

PD3

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

VCC

Figure 8-2: RS-232 module schematic

NOTE:

Make sure that your microcontroller is provided with the USART module as it is not necessarily integrated in all AVR microcontrollers.

MikroElektronika

9.0. PS/2 Communication Interface

The PS/2 connector enables input units, such as keyboard and mouse, to be connected to the development system. In order to enable PS/2 communication, it is necessary to correctly place jumpers J16 and J17, thus connecting DATA and CLK lines to the microcontroller pins PC0 and PC1. Do not connect/disconnect input units to the PS/2 connector while the development system is turned on as it may permanently damage the microcontroller.

13

PS/2 connector

Figure 9-1: PS/2 connector

(J16 and J17 are not placed)

Figure 9-2: PS/2 connector

(J16 and J17 are placed)

Jumpers J16 and J17 are placed

VCC

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

PC0

PD7

VCC

PC0

J16

PC1 J17

DIP40

Figure 9-3: PS/2 connector connection schematic

R38

1K

R37

1K

NC

DATA

NC

GND

VCC

CLK

NC

PS/2

CLK

+5V

NC

Front view

DATA

4 2 1 3

6 5

Bottom view

Figure 9-4: EasyAVR6 connected to keyboard

MikroElektronika

14

10.0. DS1820 Temperature Sensor

1-wire

®

serial communication enables data to be transferred over one single communication line while the process itself is under the control of the master microcontroller. The advantage of such communication is that only one microcontroller pin is used. All slave devices have by default a unique ID code, which enables the master device to easily identify all devices sharing the same interface.

DS1820 is a temperature sensor that uses 1-wire standard for its operation. It is capable of measuring temperatures within the range of -55 to 125°C and provides ±0.5°C accuracy for temperatures within the range of -10 to 85°C. Power supply voltage of 3V to 5.5V is required for its operation. It takes maximum 750ms for the DS1820 to calculate temperature with 9-bit resolution. The

EasyAVR6 development system provides a separate socket for the DS1820. It may use either PA4 or PB2 pin for communication with the microcontroller. Jumper J9’s purpose is selection of the pin to be used for 1-wire communication. Figure 10-4 shows 1-wire communication with microcontroller through the PA4 pin.

NOTE: Make sure that half-circle on the board matches the round side of the

DS1820

Figure 10-1: DS1820 connector (1-wire communication is not used)

Figure 10-2: J11 in the left-hand position (1-wire communication through the PA4 pin)

Figure 10-3: J11 in the right-hand position (1-wire communication through the PB2 pin)

Jumper J9 set in the PA4 position

125 C

-55 C

VCC

DS1820

DQ

R1

1K

J9

PA4

PB2

DS

1820

GND

DQ

VCC

Botoom view

DQ

VCC GND

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

Figure 10-4: 1-wire communication connection schematic

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

VCC

MikroElektronika

An A/D converter is used for converting an analog signal into the appropriate digital value. A/D converter is linear, which means that the converted number is linearly dependent on the input voltage value.

The A/D converter within the microcontroller converts an analog voltage value into a 10-bit number. Voltages varying from 0V to 5V DC may be supplied through the A/D test inputs. Jumper J12 is used for selecting some of the following pins PA0, PA1, PA2, PA3 or PA4. The

R63 resistor has a protective function as it is used for limiting current fl ow through the potentiometer or the microcontroller pin. The value of the input analog voltage can be changed linearly using potentiometer P1 (10k).

PA0 is A/D input

VCC

VCC

PB0

PB1

PB3

PB2

PA7

PA 6

DIP14

GND

PA0

PA1

PA2

PA3

PA4

P A5

J12

R63

220R

VCC

P1

10K

P1

10K

Figure 11-1: ADC (default jumper positions)

Figure 11-2: The PA0 pin used as A/D conversion input

Top view

Figure 11-3: AVR microcontroller in DIP14 package and A/D converter test inputs connection

PA0 is A/D input

VCC

J12

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

R63

220R

Top view

P1

10K

P1

10K

DIP40

Figure 11-4: Microcontroller in DIP40 package and A/D converter test inputs connectiion

PA0 is A/D input

VCC

PB0

PB1

P B2

P B3

V CC

G ND

P B4

P B5

P B6

P B7

P A0

PA1

PA2

P A3

A GND

A VCC

P A4

P A5

P A6

P A7

VCC

J12

R63

220R

Top view

VCC

P1

10K

P1

10K

Figure 11-5: Microcontroller in DIP20B package and A/D converter test inputs connection

NOTE:

In order to enable the microcontroller to accurately perform A/D conversion, it is necessary to turn off LED diodes and pull-up/pull-down resistors on port pins used by the A/D converter.

MikroElektronika

15

16

LED diode (Light-Emitting Diode) is a highly effi cient electronic light source. When connecting LEDs, it is necessary to place a current limiting resistor, the value of which is calculated using formula R=U/I where R is referred to resistance expressed in ohms, U is referred to voltage on the LED and I stands for LED diode current. A common LED diode voltage is approximately 2.5V, while the current varies from

1mA to 20mA depending on the type of LED diode. The EasyAVR6 development system uses LEDs with current I=1mA.

The EasyAVR6 has 35 LEDs which visually indicate the state of each microcontroller I/O pin. An active LED diode indicates that a logic one (1) is present on the pin. In order to enable the pin state to be shown, it is necessary to select appropriate port PORTA/E, PORTB,

PORTC or PORTD using the DIP switch SW8.

Notch indicating the SMD LED cathode

A K

MCU

PA0

PA1

PA2

PA3

PA4

Microcontroller

A

I

K

SMD LED

472

R

R=U/I

SMD resistor limiting current fl ow through an LED

Figure 12-1: LEDs

SW8: PORTA = ON

VCC

PB0

PB1

PB2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

Figure 12-2: LED diode and PORTA connection schematic

PA0 LD1

PA1 LD2

PA2 LD3

PA3 LD4

PA4 LD5

PA5 LD6

PA6 LD7

PA7 LD8

RN13

8x4K7

PORTA/E

SW8

MikroElektronika

The logic state of all microcontroller digital inputs may be changed using push buttons. Jumper J13 is used to determine the logic state to be applied to the desired microcontroller pin by pressing the appropriate push button. The purpose of the protective resistor is to limit the maximum current thus preventing a short circuit from occurring. If needed, advanced users may short such resistor using jumper J18. Just next to the push buttons, there is a RESET button which is not connected to the MCLR pin. The reset signal is generated by the programmer.

VCC

RSTbut

C 32

100nF

R20

10K

RESET

RESET button

Jumper J18 used for shorting protective resistor

Top view

Inside view

Side view

Jumper J13 used for selecting logic state to be applied to the pin by pressing button

Push buttons used for simulating digital inputs

Figure 13-1: Push buttons used for simulating digital inputs

By pressing any push button (PA0-PA7) when jumper J13 is in the VCC position, a logic one (5V) will be applied to the appropriate microcontroller pin as shown in Figure 13-2.

Jumper J13 in the VCC position

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0

5V

0V

5V

0V

J18

VCC

J13

R58

220R

VCC

J13

Figure 13-2: PORTA push button connection schematic

MikroElektronika

17

18

There are two keypads provided on the EasyAVR6 development system. These are keypad 4x4 and keypad MENU. Keypad 4x4 is a standard alphanumeric keypad connected to the microcontroller PORTC. The performance of such keypad is based on the ‘scan and sense’ principle where the PC0, PC1, PC2 and PC3 pins are confi gured as inputs connected to pull-down resistors. The PC4, PC5,

PC6 and PC7 pins are confi gured as high level voltage outputs. Pressing any button will cause a logic one (1) to be applied to input pins. Push button detection is performed from within software. For example, pressing button ‘6’ will cause a logic one (1) to appear on the PC2 pin. In order to determine which of the push buttons is pressed, a logic one (1) is applied to each of the following output pins PC4, PC5, PC6 and PC7.

Keypad MENU buttons are connected in a similar way to the PORTA buttons. The only difference is in the button arrangement. The keypad MENU buttons are arranged so as to provide easy navigation through menus.

PC7

PC6

PC5

PC4

"1"

PC3

PC2

"1"

"1"

PC1

"1"

PC0

Pull-down

Figure 14-2: Keypad 4x4 performance

Figure 14-1: Keypad 4x4

Figure 14-3: Keypad MENU

Jumper J13 is in the VCC position.

Pins PC0, PC1,

PC2 and PC3 are connected to pull-down resistors through DIP switch SW3

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

PD0

PD1

PD2

PD3

PD4

PD5

PD6

RESET

VCC

GND

XTAL2

XTAL1

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

VCC up pull down

RN3

J3

SW3

PC4

PC5

PC6

PC7

R59

220R

R60

220R

R61

220R

R62

220R

D8

D9

D10

D11

8x10K

A

BAT43

K Side view

1

4

7

*

T37

T38

T39

T40

2

5

8

0

T42

T43

T44

T45

3

T46

A

T50

6

9

#

T47

T48

T49

B

C

D

T51

T52

T53

J13

VCC

J18

R58

220R

T55

T54

T56

T58

ENTER

T57

T59

CANCEL

Figure 14-4: Keypads (4x4 and MENU) and microcontroller connection schematic

MikroElektronika

15.0. Alphanumeric

LCD Display

The EasyAVR6 development system provides an on-board connector so that the alphanumeric 2x16 LCD display can be plugged in.

Such connector is linked to the microcontroller through the PORTD port. Potentiometer P7 is used for display contrast adjustment. The

DISP-BCK switch on the DIP switch SW10 is used for turning on/off display backlight.

Communication between an LCD display and the microcontroller is established using a 4-bit mode. Alphanumeric digits are displayed in two lines each containing up to 16 characters of 7x5 pixels.

19

Connector for alphanumeric LCD display

Figure 15-1: Alphanumeric 2x16 LCD display connector

SW10: DISP-BCK = ON

VCC

PB0

PB1

PB2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

PD3

PD2

PD7

PD6

PD5

PD4

Contrast adjustment potentiometer

VCC

CN7

1

Figure 15-2: 2x16 LCD display

VCC

P7

10K

Top view

DISP-BCK

R43

10

SW10

VCC

LCD Display

4-bit mode

Figure 15-3: Alphanumeric 2x16 LCD display connection schematic

MikroElektronika

20

16.0.

On-Board 2x16 LCD with Serial Communication

On-board 2x16 display is connected to the microcontroller through a port expander. In order to use this display, it is necessary to set switches (1-6) on the DIP switch SW10 to the ON position, thus connecting the on-board LCD display to port expander’s port 1. The following DIP switches SW6, SW7 and SW9 enable the port expander to use serial communication. Potentiometer P5 is used for display contrast adjustment.

Unlike common LCD display, the on-board LCD display has no backlight and receives data to be displayed through the port expander which employs SPI communication for the purpose of communicating with the microcontroller. Such display also shows digits in two lines each containing up to 16 characters of 7x5 pixels.

Contrast adjustment potentiometer

DIP switch SW10 to turn the on-board 2x16

LCD display ON

Figure 16-1: On-board 2x16 LCD display

SW6, SW7: CS, RST, SCK, MISO, MOSI = ON

SW10: 1-6 = ON

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

PD0

PD1

PD2

PD3

PD4

PD5

PD6

RESET

VCC

GND

XTAL2

XTAL1

DIP40

SW9

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PA0

PA1

PA2

PA3

PA4

PD7

VCC

PD2

PD3

PB5

PB3

PB0

PA6

PB6

PB4

PB1

PA5

SW7

PB7

PB5

PB2

PA4

PB1

PB3

PB2

PB5

SW6

PE-INTA

PE-INTB

SPIMOSI

SPIMISO

SPI-SCK

PECS#

PERST #

LCD Display

COG 2x16

VCC

P5

10K

CN17

SW10

U5

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

VCC

PECS#

SPISCK

SPIMOSI

SPIMISO

GPB0

GPB1

GPB2

GPB3

GPB4

GPB5

GPB6

GPB7

VCC

GND

CS

SCK

SI

SO

R2

100K

VCC

MCP23S17

GPA7

GPA6

GPA5

GPA4

GPA3

GPA2

GPA1

GPA0

INTA

INTB

RESET

A2

A1

A0

PE-INTA

PE-INTB

PERST #

Top view

Figure 16-2: On-board 2x16 LCD display connection schematic

MikroElektronika

128x64 graphic LCD display (128x64 GLCD) provides an advanced method for displaying graphic messages. It is connected to the microcontroller through PORTC and PORTD. GLCD display has the screen resolution of 128x64 pixels which allows you to display diagrams, tables and other graphic contents. Since the PORTD port is also used by 2x16 alphanumeric LCD display, you cannot use both displays simultaneously. Potentiometer P6 is used for the GLCD display contrast adjustment. Switch 7 on the DIP switch SW10 is used for turning on/off display backlight.

Contrast adjustment potentiometer

GLCD connector

Touch panel connector

21

Figure 17-1: GLCD display

SW10: DISP-BCK = ON

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

VCC

VCC

1

Top view

Figure 17-2: GLCD connector

P6

10K

R28

10

DISP-BCK

SW10

CN6

20

VCC

Figure 17-3: GLCD display connection schematic

MikroElektronika

22

The touch panel is a thin, self-adhesive, transparent panel sensitive to touch. It is placed over a GLCD display. The main purpose of this panel is to register pressure at some specifi c display point and to forward its coordinates in the form of analog voltage to the microcontroller. Switches 5,6,7 and 8 on the DIP switch SW8 are used for connecting touch panel to the microcontroller.

1 3

4

Figure 18-1: Touch panel

Figure 18-1 shows how to place a touch panel over a GLCD display. Make sure that the fl at cable is to the left of the GLCD display, as shown in Figure 4.

CN13

RIGHT

TOP

LEFT

BOTTOM

1

20

GLCD

RIGHT

VCC-MCU

Q 15

BC856

VCC-MCU

Q14

BC856

R49

R48

1K

VCC-MCU

Q 13

BC846

R44

1K

R47

R46

TOP

LEFT

BOTTOM

R52

100 K

Q 16

BC846

R45

VCC-MCU

R50

1K

R53

100 K

Q12

BC846

R51

TOUCHPANEL

CONTROLLER

LEFT

DRIVEA

DRIVEB

SW8

PA0

PA1

PA2

PA3

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

VCC

SW8: BOTTOM, LEFT, DRIVEA, DRIVEB = ON

Figure 18-2: Touch panel connection schematic

1 3

4

Figure 18-3: Placing touch panel

Figure 18-3 shows in detail how to connect a touch panel to the microcontroller. Bring the end of the fl at cable close to the CN13 connector as shown in Figure 1. Plug the cable into the connector, as shown in Figure 2, and press it easily so as to fi t the connector, as shown in Figure

3. Now you can plug a GLCD display into the appropriate connector as shown in Figure 4.

NOTE:

LEDs and pull-up/pull-down resistors on the PORTA port must be turned off when using a touch panel.

MikroElektronika

Along the right side of the development system, there are seven 10-pin connectors which are connected to the microcontroller’s I/O ports. Some of the connector pins are directly connected to the microcontroller pins, whereas some of them are connected using jumpers. DIP switches SW1-SW5 enable each connector pin to be connected to one pull-up/pull-down resistor. Whether port pins are to be connected to a pull-up or pull-down resistor depends on the position of jumpers J1-J5.

2x5 PORTB male connector

Jumper for pull-up/pulldown resistor selection

Figure 19-2: J3 in the pull-down position

DIP switch to turn on pull-up/pull-down resistors for each pin

Additional module connected to PORTC

Figure 19-3: J3 in the pull-up position

Figure 19-1: I/O ports

SW1: 1-8 = OFF

Jumper J1 in the pull-down position

Jumper J13 in the VCC position

up pull down

VCC

RN1

J1

SW1

8x10K

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

PD0

PD1

PD2

PD3

PD4

PD5

PD6

RESET

VCC

GND

XTAL2

XTAL1

DIP40

PA0

PA2

PA4

PORTA

PA1

PA3

PA5

PA6 PA7

CN8

VCC

PA0 LD1

PA1 LD2

PA2 LD3

PA3 LD4

PA4 LD5

PA5 LD6

PA6 LD7

RN13

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

VCC

8x4K7

PA0 PA1 PA2 PA3 PA4 PA5 PA6

PA7 LD8

PA7

J18

R58

220R

VCC

J13

T1 T2 T3 T4 T5 T6 T7 T8

Figure 19-4: PORTA connection schematic

MikroElektronika

23

24

Pull-up/pull-down resistors enable you to set the logic level on all microcontroller input pins when they are in idle state. Such level depends on the position of the pull-up/pull-down jumper. The PA0 pin with the relevant DIP switch SW1, jumper J1 and PA0 push button with jumper J13 are used here for the purpose of explaining the performance of pull-up/pull-down resistors. The principle of their operation is identical for all the microcontroller pins.

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

PD1

PD2

PD3

PD4

PD5

PD6

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7 up pull down

VCC

VCC

RN1

J1

SW1

PA0

5V

0V

Figure 19-5: Jumper J1 in pull-down and J13 in pull-up position

J18

8x10K

R58

220R

VCC

J13

VCC

PD1

PD2

PD3

PD4

PD5

PD6

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

RESET

VCC

GND

XTAL2

XTAL1

PD0

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7 up pull down

VCC

RN1

J1

SW1

VCC

PA0

5V

0V

Figure 19-6: Jumper J1 in pull-up and J13 in pull-down position

J18

8x10K

R58

220R

VCC

J13

In order to enable the port PORTA pins to be connected to the pull-down resistors, fi rst it is necessary to set jumper J1 in the Down position.

This enables any port PORTA pin to be provided with a logic zero (0V) in idle state over jumper J1 and

8x10K resistor network. To provide the PA0 pin with such signal, it is necessary to set switch PA0 on the

DIP switch SW1 in the ON position.

As a result, every time you press the PA0 push button, a logic one (1) will appear on the PA0 pin, provided that jumper J13 is set in the VCC position.

In order to enable port PORTA pins to be connected to pull-up resistors and the port input pins to be acivated with logic zero (0), it is necessary to set jumper J1 in the Up position (5V) and jumper J13 in the GND position (0V). Also, the PA0 pin on the

DIP switch SW1 should be set in the ON position so as to enable all port PORTA input pins, over the 10k resistor, to be provided with logic one (5V) in their idle state. The PA0 switch supplies the PA0 pin with this voltage over the 10k resistor.

As a result, every time you press the PA0 push button, a logic zero (0) will appear on the PA0 pin. up pull down

VCC

J1

VCC

5V

J13

0V

In case that jumpers J1 and J13 have the same logic state, pressure on any button will not cause input pins to change their logic state.

Figure 19-7: Jumpers J1 and J13 in the same position

MikroElektronika

20.0.

(Additional Input/Output Ports)

The SPI communication lines and MCP23S17 circuit provide the EasyAVR6 development system with a means of increasing the number of available I/O ports by two. If the port expander communicates to the microcontroller over the DIP switches SW6 and SW7, then the microcontroller pins used for SPI communication cannot be used as I/O pins. Switches INTA and INTB on the DIP switch

SW9 enable interrupt used by MCP23S17.

25

Jumper for selecting pull-up/pull-down resistor

DIP switch connecting port expander to the microcontroller

PORT0

PORT1

Figure 20-2: DIP switches SW6 and SW7 when port expander is enabled

Figure 20-1: Port expander

The microcontroller communicates to the port expander (MCP23S17 circuit) using serial communicaion (SPI). The advantage of such communication is that only four lines are used for transmitting and receiving data simultaneously:

MOSI - Master Output, Slave Input (microcontroller output, MCP23S17 input)

MISO - Master Input, Slave Output (microcontroller input, MCP23S17 output)

SCK - Serial Clock (microcontroller clock signal)

CS - Chip Select (enables data transfer)

Data transfer is performed in both directions simultaneously by means of MOSI and MISO lines. The MOSI line is used for transferring data from the microcontroller to the port expander, whereas the MISO line transfers data from the port expander to the microcontroller.

The microcontroller initializes data transfer when the CS pin is driven low (0V). It causes the microcontroller to send clock signal (SCK) and therefore starts data exchange.

SPI

Master

AVR MCU

MOSI

MISO

SCK

CS

Serial output

PORT

EXPANDER

MOSI

MISO

SCK

CS

Parallel input

SPI Slave

MCP23S17

Figure 20-3: SPI communication block diagram

8bit PORT0

8bit PORT1

The principle of operation of the port expander’s ports 0 and 1 is almost identical to the operation of other ports on the development system. The only difference here is that port signals are received in parallel format. The MCP23S17 converts such signals into serial format and sends them to the microcontroller. The result is a reduced number of lines used for sending signals from ports 0 and 1 to the microcontroller.

MikroElektronika

26

SW6: CS#=PB1, RST=PB2, SCK = PB7

SW7: PB6 =MISO, PB5=MOSI

Jumpers J14 and J15 in the pull-up position

8x2K2

RN11

SW10

RN12

8x2K2

LD60 LD59 LD58 LD57 LD56 LD55 LD54 LD53

P1.7

P1.6

P1.5

P1.4

P1.3

P1.2

P1.1

P1.0

LD52 LD51 LD50 LD49 LD48 LD47 LD46 LD45

P0.7

P0.6

P0.5

P0.4

P0.3

P0.2

P0.1

P0.0

VCC

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PB7

RESET

VCC

GND

XTAL2

XTAL1

DIP40

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

AREF

GND

AVCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PD7

VCC

VCC

J15 up pull down

RN7

8x10K

PB7

PB5

PB2

PA4

PB1

PB3

PB2

PB5

SW6

P1.0

P1.2

PORT1

P1.4

P1.6

P1.1

P1.3

P1.5

P1.7

VCC

CN14

SPI-SCK

PECS#

PERST #

U5

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

R2

100K

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

VCC

CS#

SCK

MOSI

MISO

GPB0

GPB1

GPB2

GPB3

GPB4

GPB5

GPB6

GPB7

VCC

GND

CS

SCK

SI

SO

MCP23S17

GPA7

GPA6

GPA5

GPA4

GPA3

GPA2

GPA1

GPA0

INTA

INTB

RESET

GND

GND

GND

VCC

P0.1

P0.0

INTA

INTB

RST

P0.7

P0.6

P0.5

P0.4

P0.3

P0.2

P0.0

P0.1

P0.2

P0.3

P0.4

P0.5

P0.6

P0.7

PEINTA

PE-INTB

SW9

P0.0

P0.2

P0.4

P0.6

PORT0

P0.1

P0.3

P0.5

P0.7

VCC

CN15

PD2

PD3

VCC

J14 up pull down

RN6

8x10K

PB5

PB3

PB0

PA6

PB6

PB4

PB1

PA5

SW7

SPIMOSI

SPIMISO

Figure 20-3: Port expander connection schematic

MikroElektronika

TÉRMINOS Y CONDICIONES

Todos los productos de MikroElektronika son protegidos por la ley y por los tratados internacionales de derechos de autor. Este manual es protegido por los tratados de derechos de autor, también. Es prohibido copiar este manual, en parte o en conjunto sin la autorización previa por escrito de MikroElektronika. Se permite imprimir este manual en el formato PDF para el uso privado. La distribución y la modifi cación de su contenido son prohibidas.

MikroElektronika proporciona este manual “como está” sin garantías de ninguna especie, sean expresas o implícitas, incluyendo las garantías o condiciones implícitas de comerciabilidad y aptitud para fi nes específi cos.

Aunque MikroElektronika ha puesto el máximo empeño en asegurar la exactitud de la información incluida en este manual, no asume la responsabilidad de ninguna especie de daños derivados del acceso a la información o de los programas y productos presentados en este manual (incluyendo daños por la pérdida de los benefi cios empresariales, información comercial, interrupción de negocio o cualquier otra pérdida pecuniaria).Las informaciones contenidas en este manual son para el uso interno. Pueden ser modifi cadas en cualquier momento y sin aviso previo.

ACTIVIDADES DE ALTO RIESGO

Los productos de MikroElektronika no son tolerantes a fallos y no están diseñados, fabricados o pensados para su uso o reventa como equipo de control en línea en entornos peligrosos que requieran un funcionamiento sin fallos, como en instalaciones nucleares, en la navegación aérea o en sistemas de comunicaciones, de tráfi co aéreo, máquinas de auxilio vital o sistemas de armamento, en los que un fallo del software podría conducir directamente a la muerte, lesiones corporales o daños físicos o medioambientales graves

(“Actividades de alto riesgo”). MikroElektronika y sus proveedores niegan específi camente cualquier garantía expresa o implícita de aptitud para Actividades de alto riesgo.

MARCAS REGISTRADAS

Los productos y los nombres corporativos utilizados en este manual son protegidos por la ley de los derechos de autor, sin reparar en la ausencia de notas adicionales. Las marcas registradas son utilizadas exlusivamente con el propósito de identifi car y explicar los conceptos correspondientes y en benefi cio de sus respectivos propietarios, sin intención de infringirlas.

Copyright© 2003 – 2009 por MikroElektronika. Todos los derechos reservados.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
