fridge - freezer

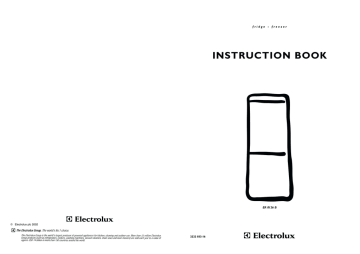

INSTRUCTION BOOK
ER 8126 B
© Electrolux plc 2002
2222 033-16
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Installation
•
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
•
•
•
•
•
Child Safety
•
Do not allow children to tamper with the controls or
play with the product.
•
Keep all packaging well away from children.
Maintenance and Cleaning
•
Servicing
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
•
When disposing of your appliance, use an authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
•
Frozen food must NOT be re-frozen once it has
thawed out.
•
Do not place carbonated or fizzy drinks in the freezer.
•
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions
or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
•
Manufacturers’ storage recommendations should be
strictly adhered to. Refer to relevant instructions.
•
The cooling plate or refrigerated freezer shelves in
this appliance contain channels through which the
refrigerant passes. If these are punctured this will
cause substantial damage to the appliance and
2
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Description of the Appliance
4
Technical Specification
14
Operation
5
Installation
15
Before use
5
Positioning
15
Setting the temperature
5
Rear Spacers
15
The freezer compartment
5
Electrical Connection
16
Freezing fresh food
5
6
Door Reversal
17
Frozen food storage
Thawing
6
Making ice cubes
6
Fresh food refrigeration
6
Normal operating sounds
6
Movable shelves
7
Health and Safety Guidelines
8
Maintenance and Cleaning
9
Internal cleaning
9
External cleaning
9
When the appliance is not in use
9
Changing the light bulb
9
Defrosting
9
Something Not Working
11
Service and Spare Parts
12
Customer Care
12
Guarantee Conditions
13
2222 033-16
3
DESCRIPTION OF THE APPLIANCE
Door reversal directions
1. Disconnect from the electricity supply.
3
2. Remove all loose items, including food, store food
in a cool place.
A
B
J
C
I
H
G
F
D
1-
3-4
3-
3-
3-
3-
10 -
10 -
10 -
10 -
E
3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing;
1
4. Remove the feet (3)
5. Remove bottom hinge (1).
D715 PIED/C
6. Remove the freezer door by releasing it from the
middle hinge (H).
7. Unscrew the middle hinge.
H
8. Slide out the fridge door from pin (G), unscrew
the latter and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs (I) which should then be
fitted on the opposite side.
9. Refit the fridge door and replace the middle hinge
to the left hand side.
10.Replace the door and bottom hinge (1) on the
opposite side.
11. Refit the feet (3) on the opposite side.
Attention
G
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a cool setting.
A - Thermostat control for fridge and freezer compartments
B - Dairy compartment
C - Can storage shelf
I
D - Bottle storage shelf
E - Compartments for frozen food storage
F - Compartment for freezing fresh foods
G - Pizza box compartment
I
H - Salad drawers
I - Glass shelf
I
J - Wire shelves
4
17
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
OPERATION
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
Before using
A replacement cover/carrier must be obtained from
your local Service Force Centre.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
This appliance complies with the following
E.E.C. Directives:
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator is regulated
by a thermostat with 6 temperature positions and an
“OFF” (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
13 AMP
13 AMP. FUSE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the
knob to a lower number will cause the automatic
defrosting to resume.
Low Room Temperature Switch
BROWN
BLUE
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
D710
A - Low Room Temperature Switch
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Freezing fresh food
When freezing large amounts of fresh food turn the
thermostat to maximum approximately 1 hour prior to
freezing.
When the food is frozen return to the normal
position.
In any 24 hours you can freeze up to 10 kg.
Important
GREEN & YELLOW
A
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
Important
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
To ensure that the appliance is working efficiently
when the room temperature drops below 16°C, the
switch mounted next to the thermostat control should
be switched on.
No damage can be caused by leaving the switch in
this position for any period of time (see page 11 Low
room temperature operation). However should the
temperature rise above 16°C remember to turn the
switch off again.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
16
5
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not exceed the storage period indicated by the
manufacturer.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
Thawing
Deep frozen or frozen food, prior to being used, can
be thawed in the fridge or at room temperature
depending on the time available. Small food items
may even be cooked from frozen; in this case
cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Making ice cubes
The appliance is provided with two plastic ice cube
trays.
Fill the trays 3/4 full to allow the ice to expand and
place them in one of the freezer drawers.
To turn out the ice cubes simply give the tray a slight
twist to release the cubes.
6
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Normal Operating Sounds
•
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions” paragraph.
Positioning
This appliance is designed to operate in ambient
temperatures between 10°C (50°F) and 32°C (90°F).
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10°C (50°F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4”) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
A
B
10 mm
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to
depress the ambient switch for at least two hours
before storing frozen food.
INSTALLATION
100 mm
Fresh food refrigeration
10 mm
Frozen food storage
NP002
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath. The back of the cabinet may be placed
close to the wall but must not touch it. DO NOT
install in places with restricted ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.
D200
Rear spacers
The plastic bag containing all relevant
documentation also contains two spacers to be fitted
into special holes in the back of the appliance.
Fit the spacers into the holes, taking care to ensure
that the arrow (A) is positioned as shown in the
diagram. Then turn them through 45° (arrow (A)
vertical) until they lock into place.
A
45°
PR60
15
TECHNICAL SPECIFICATIONS
Movable shelves
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
DIMENSIONS
Height
184
cm
Width
55
cm
Depth
60
cm
D040
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
Positioning the door shelves
TOTAL POWER ABSORBED
150 W
AVERAGE DAILY UNITS ELECTRICITY *
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.
1.5 kWh
To do this proceed as shown in the diagram.
GROSS CAPACITY
Fridge
167 l
Freezer
143 l
NET CAPACITY
PR187
Fridge
165 l
Freezer
122 l
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
14
7
HEALTH AND SAFETY GUIDELINES
GUARANTEE CONDITIONS
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
Standard guarantee conditions
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
•
Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty
food, salt reduces the storage time.
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
•
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airtight seal.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
•
Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated.
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.
•
Keep the refrigerator door closed as much as
possible.
•
Do not push food together too much, try to allow
air to circulate around each item.
•
•
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
placed in the refrigerator as soon as possible).
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
•
Do not store food uncovered.
•
The best way to defrost food is to put it in the
refrigerator to thaw slowly.
•
Remove suspect food from your refrigerator and
clean (refer to “Maintenance and Cleaning).
•
Never allow spillages to dry and harden.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
•
It is important that food is used before its “best
before” date.
•
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
•
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
•
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
•
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
•
The fresh foods to be frozen must be fresh and of
the best quality.
•
The size of each pack should be small enough to
ensure that it is used in one go. Small packs
freeze more quickly and uniformly and give better
results.
8
•
•
•
•
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
Never place bottles or cans of fizzy drink in the
freezer as they may explode. Containers with a
lid must not be filled to the brim.
This guarantee does not cover:
Do not open the door or place extra fresh food in
the freezer next to food which is already frozen
as this could cause the temperature of the frozen
food to rise and its quality and storage life to
reduce.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
The symbols on the drawers show different types
of frozen goods.
The numbers indicate storage times in months for
the appropriate types of frozen goods. Whether
the upper or lower value of the indicated storage
time is valid depends on the quality of the foods
and pre-treating before freezing.
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
13
During a normal night time period of approximately 8 hours a traditional fridge freezer can normally maintain the
frozen food temperature but if the appliance is left for a longer period in a low ambient temperature the freezer
will defrost .
MAINTENANCE AND CLEANING
If, after the above checks, there is still a fault, call your local Service Force Centre.
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
SERVICE AND SPARE PARTS
Internal cleaning
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working.’
When you contact the Service Force Centre you will need to give the following details:
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Electrolux Service Force Centre by telephoning:-
0870 5 929929
Changing the light bulb
External cleaning
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it
is recommended that the outer casing of this
appliance is only cleaned with warm water with a
little washing-up liquid added.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force Centre).
Replace the light cover by sliding it into its original
position and replacing the screw.
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone as follows:Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
*
12
calls to this number may be recorded for training purposes.
D037
PR259
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
9
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
SOMETHING NOT WORKING
Freezer
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.
For complete defrosting (once or twice a year)
proceed as follows:
-
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
turn the thermostat dial to the «OFF» position (O)
or disconnect the appliance from the mains.
-
Remove any food from inside the freezer and
fridge, wrap it in several sheets of newspaper and
store in a cool,dry place.
-
Leave the door open and insert the ice scraper
under the channel in the centre of the lower part
of the appliance; place a low-sided container
beneath the scraper to collect the water (see fig.).
-
Clean and dry thoroughly.
-
Replace the scraper in one of the drawers .
-
Reconnect the appliance to the mains or reset
the thermostat to a functioning position.
-
After letting the appliance run for a least half an
hour, replace the previously removed food into
the compartment.
Check the fuse has not blown.
The light does not come on
Replace the bulb if it has blown.
Check the door light switch is not jammed.
D068/2
The temperature in the fridge or freezer section is
too high
Check the thermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
Check the ambient temperature is within the
appliance’s operating limits of 10°C to 32°C.
The freezer door will not open
The compressor runs continously
Important
Relocate the appliance if necessary.
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
When defrosting the freezer, the fridge is also
controlled by the thermostat and will not be
operational during this period. A temperature rise of
the frozen food packs, during defrosting, may
shorten their safe storage life.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Attention!
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
«In the event of a power failure causing the
temperature within your freezer to rise, do not refreeze the food without checking its condition.
The following guidelines should assist you.»
Ice-cream: once thawed should be discarded.
Fruits & Vegetables: if soft should be cooked and
used up.
Breads & Cakes: can be re-frozen without danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing
there are still ice crystals remaining within them.
Small Joints: should be cooked and can then be refrozen as cooked dishes.
Chicken: should also be cooked and re-frozen as a
cooked dish.
10
Ensure that the bulb is correctly fitted.
Is the door gasket intact and clean.
Has advised periodic defrosting been carried out.
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
Low room temperature operation
During prolonged periods of low room temperatures,ie;10°C and lower, the compressor on single compressor
fridge freezer can remain inoperative during this time .
This is due to the air temperature within the refrigerator compartment being maintained at 6°C or under thus not
calling the thermostat to energise the compressor .
11
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
SOMETHING NOT WORKING
Freezer
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.
For complete defrosting (once or twice a year)
proceed as follows:
-
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
turn the thermostat dial to the «OFF» position (O)
or disconnect the appliance from the mains.
-
Remove any food from inside the freezer and
fridge, wrap it in several sheets of newspaper and
store in a cool,dry place.
-
Leave the door open and insert the ice scraper
under the channel in the centre of the lower part
of the appliance; place a low-sided container
beneath the scraper to collect the water (see fig.).
-
Clean and dry thoroughly.
-
Replace the scraper in one of the drawers .
-
Reconnect the appliance to the mains or reset
the thermostat to a functioning position.
-
After letting the appliance run for a least half an
hour, replace the previously removed food into
the compartment.
Check the fuse has not blown.
The light does not come on
Replace the bulb if it has blown.
Check the door light switch is not jammed.
D068/2
The temperature in the fridge or freezer section is
too high
Check the thermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
Check the ambient temperature is within the
appliance’s operating limits of 10°C to 32°C.
The freezer door will not open
The compressor runs continously
Important
Relocate the appliance if necessary.
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
When defrosting the freezer, the fridge is also
controlled by the thermostat and will not be
operational during this period. A temperature rise of
the frozen food packs, during defrosting, may
shorten their safe storage life.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Attention!
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
«In the event of a power failure causing the
temperature within your freezer to rise, do not refreeze the food without checking its condition.
The following guidelines should assist you.»
Ice-cream: once thawed should be discarded.
Fruits & Vegetables: if soft should be cooked and
used up.
Breads & Cakes: can be re-frozen without danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing
there are still ice crystals remaining within them.
Small Joints: should be cooked and can then be refrozen as cooked dishes.
Chicken: should also be cooked and re-frozen as a
cooked dish.
10
Ensure that the bulb is correctly fitted.
Is the door gasket intact and clean.
Has advised periodic defrosting been carried out.
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
Low room temperature operation
During prolonged periods of low room temperatures,ie;10°C and lower, the compressor on single compressor
fridge freezer can remain inoperative during this time .
This is due to the air temperature within the refrigerator compartment being maintained at 6°C or under thus not
calling the thermostat to energise the compressor .
11
During a normal night time period of approximately 8 hours a traditional fridge freezer can normally maintain the
frozen food temperature but if the appliance is left for a longer period in a low ambient temperature the freezer
will defrost .
MAINTENANCE AND CLEANING
If, after the above checks, there is still a fault, call your local Service Force Centre.
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
SERVICE AND SPARE PARTS
Internal cleaning
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working.’
When you contact the Service Force Centre you will need to give the following details:
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Electrolux Service Force Centre by telephoning:-
0870 5 929929
Changing the light bulb
External cleaning
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it
is recommended that the outer casing of this
appliance is only cleaned with warm water with a
little washing-up liquid added.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force Centre).
Replace the light cover by sliding it into its original
position and replacing the screw.
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone as follows:Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
*
12
calls to this number may be recorded for training purposes.
D037
PR259
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
9
HEALTH AND SAFETY GUIDELINES
GUARANTEE CONDITIONS
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
Standard guarantee conditions
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
•
Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty
food, salt reduces the storage time.
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
•
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airtight seal.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
•
Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated.
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.
•
Keep the refrigerator door closed as much as
possible.
•
Do not push food together too much, try to allow
air to circulate around each item.
•
•
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
placed in the refrigerator as soon as possible).
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
•
Do not store food uncovered.
•
The best way to defrost food is to put it in the
refrigerator to thaw slowly.
•
Remove suspect food from your refrigerator and
clean (refer to “Maintenance and Cleaning).
•
Never allow spillages to dry and harden.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
•
It is important that food is used before its “best
before” date.
•
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
•
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
•
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
•
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
•
The fresh foods to be frozen must be fresh and of
the best quality.
•
The size of each pack should be small enough to
ensure that it is used in one go. Small packs
freeze more quickly and uniformly and give better
results.
8
•
•
•
•
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
Never place bottles or cans of fizzy drink in the
freezer as they may explode. Containers with a
lid must not be filled to the brim.
This guarantee does not cover:
Do not open the door or place extra fresh food in
the freezer next to food which is already frozen
as this could cause the temperature of the frozen
food to rise and its quality and storage life to
reduce.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
The symbols on the drawers show different types
of frozen goods.
The numbers indicate storage times in months for
the appropriate types of frozen goods. Whether
the upper or lower value of the indicated storage
time is valid depends on the quality of the foods
and pre-treating before freezing.
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
13
TECHNICAL SPECIFICATIONS
Movable shelves
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
DIMENSIONS
Height
184
cm
Width
55
cm
Depth
60
cm
D040
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
Positioning the door shelves
TOTAL POWER ABSORBED
150 W
AVERAGE DAILY UNITS ELECTRICITY *
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.
1.5 kWh
To do this proceed as shown in the diagram.
GROSS CAPACITY
Fridge
167 l
Freezer
143 l
NET CAPACITY
PR187
Fridge
165 l
Freezer
122 l
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
14
7
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not exceed the storage period indicated by the
manufacturer.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
Thawing
Deep frozen or frozen food, prior to being used, can
be thawed in the fridge or at room temperature
depending on the time available. Small food items
may even be cooked from frozen; in this case
cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Making ice cubes
The appliance is provided with two plastic ice cube
trays.
Fill the trays 3/4 full to allow the ice to expand and
place them in one of the freezer drawers.
To turn out the ice cubes simply give the tray a slight
twist to release the cubes.
6
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Normal Operating Sounds
•
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions” paragraph.
Positioning
This appliance is designed to operate in ambient
temperatures between 10°C (50°F) and 32°C (90°F).
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10°C (50°F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4”) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
A
B
10 mm
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to
depress the ambient switch for at least two hours
before storing frozen food.
INSTALLATION
100 mm
Fresh food refrigeration
10 mm
Frozen food storage
NP002
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath. The back of the cabinet may be placed
close to the wall but must not touch it. DO NOT
install in places with restricted ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.
D200
Rear spacers
The plastic bag containing all relevant
documentation also contains two spacers to be fitted
into special holes in the back of the appliance.
Fit the spacers into the holes, taking care to ensure
that the arrow (A) is positioned as shown in the
diagram. Then turn them through 45° (arrow (A)
vertical) until they lock into place.
A
45°
PR60
15
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
OPERATION
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
Before using
A replacement cover/carrier must be obtained from
your local Service Force Centre.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
This appliance complies with the following
E.E.C. Directives:
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator is regulated
by a thermostat with 6 temperature positions and an
“OFF” (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
13 AMP
13 AMP. FUSE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the
knob to a lower number will cause the automatic
defrosting to resume.
Low Room Temperature Switch
BROWN
BLUE
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
D710
A - Low Room Temperature Switch
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Freezing fresh food
When freezing large amounts of fresh food turn the
thermostat to maximum approximately 1 hour prior to
freezing.
When the food is frozen return to the normal
position.
In any 24 hours you can freeze up to 10 kg.
Important
GREEN & YELLOW
A
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
Important
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
To ensure that the appliance is working efficiently
when the room temperature drops below 16°C, the
switch mounted next to the thermostat control should
be switched on.
No damage can be caused by leaving the switch in
this position for any period of time (see page 11 Low
room temperature operation). However should the
temperature rise above 16°C remember to turn the
switch off again.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
16
5
DESCRIPTION OF THE APPLIANCE
Door reversal directions
1. Disconnect from the electricity supply.
3
2. Remove all loose items, including food, store food
in a cool place.
A
B
J
C
I
H
G
F
D
1-
3-4
3-
3-
3-
3-
10 -
10 -
10 -
10 -
E
3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing;
1
4. Remove the feet (3)
5. Remove bottom hinge (1).
D715 PIED/C
6. Remove the freezer door by releasing it from the
middle hinge (H).
7. Unscrew the middle hinge.
H
8. Slide out the fridge door from pin (G), unscrew
the latter and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs (I) which should then be
fitted on the opposite side.
9. Refit the fridge door and replace the middle hinge
to the left hand side.
10.Replace the door and bottom hinge (1) on the
opposite side.
11. Refit the feet (3) on the opposite side.
Attention
G
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a cool setting.
A - Thermostat control for fridge and freezer compartments
B - Dairy compartment
C - Can storage shelf
I
D - Bottle storage shelf
E - Compartments for frozen food storage
F - Compartment for freezing fresh foods
G - Pizza box compartment
I
H - Salad drawers
I - Glass shelf
I
J - Wire shelves
4
17
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Description of the Appliance
4
Technical Specification
14
Operation
5
Installation
15
Before use
5
Positioning
15
Setting the temperature
5
Rear Spacers
15
The freezer compartment
5
Electrical Connection
16
Freezing fresh food
5
6
Door Reversal
17
Frozen food storage
Thawing
6
Making ice cubes
6
Fresh food refrigeration
6
Normal operating sounds
6
Movable shelves
7
Health and Safety Guidelines
8
Maintenance and Cleaning
9
Internal cleaning
9
External cleaning
9
When the appliance is not in use
9
Changing the light bulb
9
Defrosting
9
Something Not Working
11
Service and Spare Parts
12
Customer Care
12
Guarantee Conditions
13
2222 033-16
3
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Installation
•
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
•
•
•
•
•
Child Safety
•
Do not allow children to tamper with the controls or
play with the product.
•
Keep all packaging well away from children.
Maintenance and Cleaning
•
Servicing
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
•
When disposing of your appliance, use an authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
•
Frozen food must NOT be re-frozen once it has
thawed out.
•
Do not place carbonated or fizzy drinks in the freezer.
•
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions
or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
•
Manufacturers’ storage recommendations should be
strictly adhered to. Refer to relevant instructions.
•
The cooling plate or refrigerated freezer shelves in
this appliance contain channels through which the
refrigerant passes. If these are punctured this will
cause substantial damage to the appliance and
2
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
fridge - freezer
INSTRUCTION BOOK
ER 8126 B
© Electrolux plc 2002
2222 033-16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
