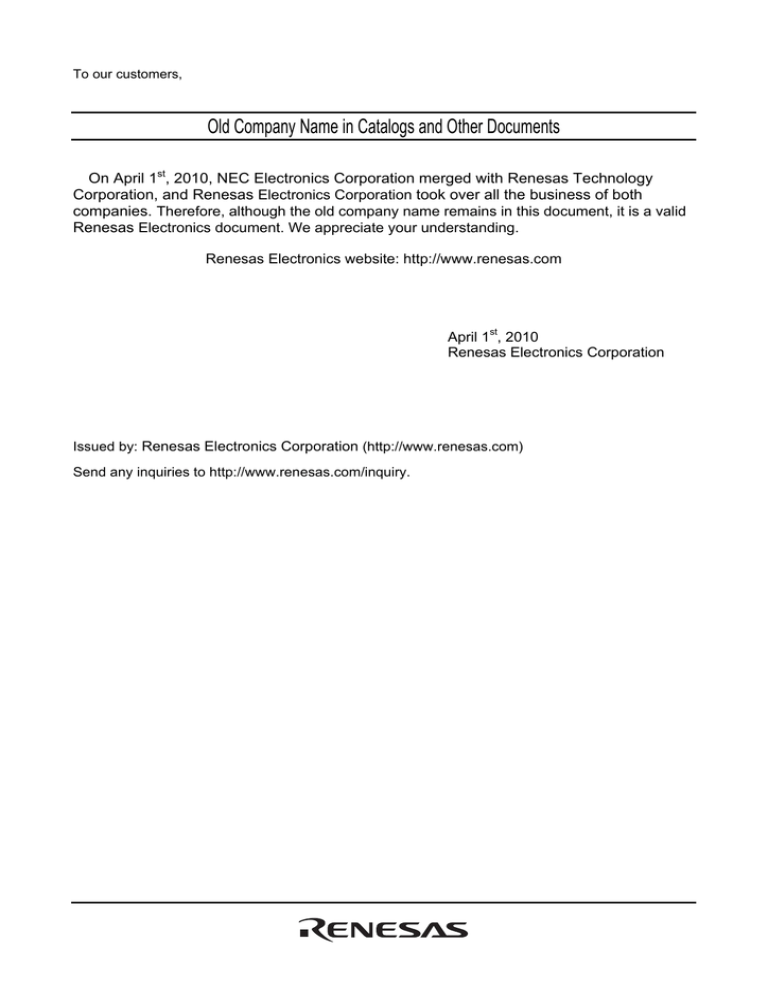

To our customers,

Old Company Name in Catalogs and Other Documents

On April 1

st

, 2010, NEC Electronics Corporation merged with Renesas Technology

Corporation, and Renesas Electronics Corporation took over all the business of both companies.

Therefore, although the old company name remains in this document, it is a valid

Renesas

Electronics document. We appreciate your understanding.

Renesas Electronics website: http://www.renesas.com

April 1

st

, 2010

Renesas Electronics Corporation

Issued by: Renesas Electronics Corporation (http://www.renesas.com)

Send any inquiries to http://www.renesas.com/inquiry.

Notice

1. All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.

2. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.

No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others.

3. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.

4. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information.

5. When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas

Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations.

6. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.

7. Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and

“Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc.

“Standard”: Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots.

“High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support.

“Specific”: Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.

8. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges.

9. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,

Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a

Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you.

10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS

Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.

11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas

Electronics.

12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.

(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries.

(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

User’s Manual

Multimedia Processor for

Mobile Applications

SD Memory Card Interface

EMMA Mobile

TM

1

Document No. S19361EJ4V0UM00 (4th edition)

Date Published September 2009

2009

Printed in Japan

[MEMO]

2

User’s Manual S19361EJ4V0UM

NOTES FOR CMOS DEVICES

1

VOLTAGE APPLICATION WAVEFORM AT INPUT PIN

Waveform distortion due to input noise or a reflected wave may cause malfunction. If the input of the

CMOS device stays in the area between V

IL

(MAX) and V

IH

(MIN) due to noise, etc., the device may malfunction. Take care to prevent chattering noise from entering the device when the input level is fixed, and also in the transition period when the input level passes through the area between V

IL

(MAX) and

V

IH

(MIN).

2 HANDLING OF UNUSED INPUT PINS

Unconnected CMOS device inputs can be cause of malfunction. If an input pin is unconnected, it is possible that an internal input level may be generated due to noise, etc., causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed high or low by using pull-up or pull-down circuitry. Each unused pin should be connected to V

DD

or GND via a resistor if there is a possibility that it will be an output pin. All handling related to unused pins must be judged separately for each device and according to related specifications governing the device.

3

PRECAUTION AGAINST ESD

A strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and ultimately degrade the device operation. Steps must be taken to stop generation of static electricity as much as possible, and quickly dissipate it when it has occurred. Environmental control must be adequate. When it is dry, a humidifier should be used. It is recommended to avoid using insulators that easily build up static electricity. Semiconductor devices must be stored and transported in an anti-static container, static shielding bag or conductive material. All test and measurement tools including work benches and floors should be grounded. The operator should be grounded using a wrist strap.

Semiconductor devices must not be touched with bare hands. Similar precautions need to be taken for

PW boards with mounted semiconductor devices.

4

STATUS BEFORE INITIALIZATION

Power-on does not necessarily define the initial status of a MOS device. Immediately after the power source is turned ON, devices with reset functions have not yet been initialized. Hence, power-on does not guarantee output pin levels, I/O settings or contents of registers. A device is not initialized until the reset signal is received. A reset operation must be executed immediately after power-on for devices with reset functions.

5

POWER ON/OFF SEQUENCE

In the case of a device that uses different power supplies for the internal operation and external interface, as a rule, switch on the external power supply after switching on the internal power supply.

When switching the power supply off, as a rule, switch off the external power supply and then the internal power supply. Use of the reverse power on/off sequences may result in the application of an overvoltage to the internal elements of the device, causing malfunction and degradation of internal elements due to the passage of an abnormal current.

The correct power on/off sequence must be judged separately for each device and according to related specifications governing the device.

6

INPUT OF SIGNAL DURING POWER OFF STATE

Do not input signals or an I/O pull-up power supply while the device is not powered. The current injection that results from input of such a signal or I/O pull-up power supply may cause malfunction and the abnormal current that passes in the device at this time may cause degradation of internal elements.

Input of signals during the power off state must be judged separately for each device and according to related specifications governing the device.

User’s Manual S19361EJ4V0UM

3

The names of other companies and products are the registered trademarks or trademarks of the respective company.

The information in this document is current as of September, 2009. The information is subject to change without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets, etc., for the most up-to-date specifications of NEC Electronics products. Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information.

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may appear in this document.

NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from the use of NEC Electronics products listed in this document or any other liability arising from the use of such products. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.

Descriptions of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of a customer's equipment shall be done under the full responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by customers or third parties arising from the use of these circuits, software and information.

While NEC Electronics endeavors to enhance the quality and safety of NEC Electronics products, customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. In addition, NEC

Electronics products are not taken measures to prevent radioactive rays in the product design. When customers use NEC Electronics products with their products, customers shall, on their own responsibility, incorporate sufficient safety measures such as redundancy, fire-containment and anti-failure features to their products in order to avoid risks of the damages to property (including public or social property) or injury (including death) to persons, as the result of defects of NEC Electronics products.

NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and

"Specific".

The "Specific" quality grade applies only to NEC Electronics products developed based on a customerdesignated "quality assurance program" for a specific application. The recommended applications of an NEC

Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of each NEC Electronics product before using it in a particular application.

"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots.

"Special":

"Specific":

Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support).

Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems and medical equipment for life support, etc.

The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC

Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to determine NEC Electronics' willingness to support a given application.

(Note)

(1)

"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its majority-owned subsidiaries.

(2)

"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as defined above).

M8E0904E

4

User’s Manual S19361EJ4V0UM

PREFACE

Readers This manual is intended for hardware/software application system designers who wish to understand and use the SD card interface functions of EMMA Mobile1 (EM1), a multimedia processor for mobile applications.

Purpose This manual is intended to explain to users the hardware and software functions of the SD card interface of EM1, and be used as a reference material for developing hardware and software for systems that use EM1.

Organization This manual consists of the following chapters.

 Chapter 1

 Chapter 2

 Chapter 3

 Chapter 4

Overview

Pin functions

Registers

Description of functions

How to Read This Manual It is assumed that the readers of this manual have general knowledge of electricity, logic circuits, and microcontrollers.

To understand the functions of the SD card interface of EM1 in detail

 Read this manual according to the CONTENTS.

To understand the other functions of EM1

 Refer to the user’s manual of the respective module.

To understand the electrical specifications of EM1

 Refer to the Data Sheet.

Conventions

Data significance:

Note:

Caution:

Higher digits on the left and lower digits on the right

Footnote for item marked with Note in the text

Information requiring particular attention

Numeric representation:

Data type:

Binary ... xxxx or xxxxB

Decimal ... xxxx

Hexadecimal ... xxxxh

Word … 32 bits

Halfword … 16 bits

Byte … 8 bits

User’s Manual S19361EJ4V0UM

5

Related Documents

The related documents indicated in this publication may include preliminary versions.

However, preliminary versions are not marked as such.

MC-10118A Data sheet

PD77630A Data sheet

User’s manual

Document Name

Audio/Voice and PWM Interfaces

Document No.

S19657E

S19686E

S19253E

S19254E DDR SDRAM Interface

DMA Controller

I

2

C Interface

ITU-R BT.656 Interface

S19255E

S19256E

S19257E

LCD Controller S19258E

MICROWIRE S19259E

NAND Flash Interface S19260E

SPI S19261E

UART Interface S19262E

Image Composer

Image Processor Unit

System Control/General-Purpose I/O Interface

S19263E

S19264E

S19265E

Timer S19266E

Terrestrial Digital TV Interface S19267E

Camera Interface

USB Interface

SD Memory Card Interface

S19285E

S19359E

This manual

PDMA S19373E

One Chip (MC-10118A) S19598E

One Chip (

PD77630A) S19687E

Caution The related documents listed above are subject to change without notice. Be sure to use the latest version of each document when designing.

6

User’s Manual S19361EJ4V0UM

CONTENTS

CHAPTER 1 OVERVIEW............................................................................................................................9

1.1

Features .......................................................................................................................................9

CHAPTER 2 PIN FUNCTIONS ................................................................................................................10

2.1

SD Card Interface Pins .............................................................................................................10

CHAPTER 3 REGISTERS ........................................................................................................................11

3.1

Registers....................................................................................................................................11

3.2

Register Functions ...................................................................................................................13

3.2.1

SD memory card command register .............................................................................................13

3.2.2

SD memory card port select register............................................................................................. 15

3.2.3

SD memory card command parameter register 0 .........................................................................16

3.2.4

SD memory card command parameter register 1 .........................................................................16

3.2.5

SD memory card stop register ...................................................................................................... 17

3.2.6

SD memory card transfer sector count register............................................................................. 17

3.2.7

SD memory card response register 0 ...........................................................................................18

3.2.8

SD memory card response register 1 ...........................................................................................18

3.2.9

SD memory card response register 2 ...........................................................................................19

3.2.10

SD memory card response register 3 ...........................................................................................19

3.2.11

SD memory card response register 4 ...........................................................................................20

3.2.12

SD memory card response register 5 ...........................................................................................20

3.2.13

SD memory card response register 6 ...........................................................................................21

3.2.14

SD memory card response register 7 ...........................................................................................21

3.2.15

SD memory card information register 1 ........................................................................................22

3.2.16

SD memory card information register 2 ........................................................................................23

3.2.17

SD memory card information mask register 1 ...............................................................................25

3.2.18

SD memory card information mask register 2 ...............................................................................26

3.2.19

SD memory card transfer clock control register ............................................................................ 27

3.2.20

SD memory card transfer data size register..................................................................................28

3.2.21

SD memory card option setting register ........................................................................................29

3.2.22

SD memory card error interrupt status register 1 ..........................................................................31

3.2.23

SD memory card error interrupt status register 2 ..........................................................................33

3.2.24

SD memory card data buffer 0 register .........................................................................................34

3.2.25

SDIO mode setting register........................................................................................................... 34

3.2.26

SDIO information register.............................................................................................................. 35

3.2.27

SDIO information mask register .................................................................................................... 36

3.2.28

Expansion mode control register................................................................................................... 37

3.2.29

SDIx software reset control register .............................................................................................. 38

3.2.30

SDIx use register .......................................................................................................................... 39

3.2.31

SDIx use register 2 ....................................................................................................................... 40

3.2.32

SDIx DMA mode SD buffer register ..............................................................................................41

CHAPTER 4 DESCRIPTION OF FUNCTIONS ......................................................................................42

4.1

Selecting SD Memory Card Transfer Clock Signal (in Synchronous Mode) ......................42

4.2

SDIO Interrupts..........................................................................................................................42

User’s Manual S19361EJ4V0UM

7

LIST OF FIGURES

Title Figure No. Page

4-1. SDIO Interrupt Timing When SDIA Is Used in 1-Bit Mode ................................................................................... 43

4-2. SDIO Interrupt Timing When SDIA Is Used in 4-Bit Mode (When Single Block Transfer Command Is Used) ..... 43

4-3. SDIO Interrupt Timing When SDIA Is Used in 4-Bit Mode (When Multiple Block Transfer Command Is Used)... 44

LIST OF TABLES

Table No. Title Page

4-1. SD Memory Card Transfer Clock Signals That Can Be Selected (in Asynchronous Mode)................................. 42

8

User’s Manual S19361EJ4V0UM

CHAPTER 1 OVERVIEW

This manual describes the functional specifications of the modules related to the SDIO card and non-secure SD memory card interfaces (SDIA, SDIB, and SDIC, which are represented as SDIx below) provided in EM1.

1.1 Features

The main features of SDIx are as follows.

 Supports a line width of 1 bit or 4 bits for transferring data to and from SD memory cards or SDIO cards.

 Supports data transfers in frame units.

 Supports CRC7 error checks on the command line and CRC16 checks (hardware) on each data bit line.

 Provides three SD memory card and SDIO card ports.

 The data transfer buffer for SD memory cards is configured of two blocks of 16 bits

 256 words.

 Supports data transfers from 1 to 512 bytes.

 The SD memory card transfer clock signal can be derived from the source clock signal in the SDIx module (by selecting to divide the source clock frequency by 2, 4, 8, 16, …, or 512).

 Supports SD Specifications Part 1 Physical Layer Simplified Specification Ver. 2.0, SDIO Physical Specifications

2.0, and specifications equivalent to MMC 4.2.

User’s Manual S19361EJ4V0UM

9

CHAPTER 2 PIN FUNCTIONS

2.1 SD Card Interface Pins

Pin Name I/O After Reset Function

SD2_CKO Output 0

Clock input

Clock output

Alternate Pin Function

GIO_P88

GIO_P89

GIO_P90

-

-

-

GIO_P91

CAM_YUV5

CAM_YUV6

CAM_YUV7

CAM_VS

CAM_HS

GIO_P92, CAM_CLKI

GIO_P112, NAND_D2

Clock input GIO_P93, NAND_OE

10

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.1 Registers

The registers that control SDIx consist of 16 bits. The registers are accessed from the ACPU, ADSP, and DMAC in word (32-bit) units, of which the higher 16 bits are invalid data. Invalid data means that the data written is ignored and the data read is 0. Do not access reserved registers. Do not write any value other than 0 to reserved bits in each register.

Base addresses:

SD0 (SDIA) 5005_0000H

SD1 (SDIB) 5006_0000H

SD2 (SDIC) 5009_0000H

(1/2)

Address Register Name Register Symbol R/W After Reset

500x_0000h SD memory card command register

500x_0004h SD memory card port select register

500x_0008h SD memory card command parameter register 0

500x_000Ch SD memory card command parameter register 1

500x_0010h SD memory card stop register

500x_0014h SD memory card transfer sector count register

500x_0018h SD memory card response register 0

500x_001Ch SD memory card response register 1

500x_0020h SD memory card response register 2

500x_0024h SD memory card response register 3

500x_0028h SD memory card response register 4

500x_002Ch SD memory card response register 5

500x_0030h SD memory card response register 6

500x_0034h SD memory card response register 7

500x_0038h SD memory card information register 1

SDIx_CMD

SDIx_PORT

SDIx_ARG0

SDIx_ARG1

SDIx_STOP

SDIx_SECCNT

SDIx_RSP0

SDIx_RSP1

SDIx_RSP2

SDIx_RSP3

SDIx_RSP4

SDIx_RSP5

SDIx_RSP6

SDIx_RSP7

SDIx_INFO1

500x_003Ch SD memory card information register 2

500x_0040h SD memory card information mask register 1

500x_0044h SD memory card information mask register 2

500x_0048h SD memory card transfer clock control register

500x_004Ch SD memory card transfer data size register

500x_0050h SD memory card option setting register

500x_0054h Reserved

500x_0058h SD memory card error interrupt status register 1

500x_005Ch SD memory card error interrupt status register 2

SDIx_INFO2

SDIx_INFO1_MASK

SDIx_INFO2_MASK

SDIx_CLK_CTRL

SDIx_SIZE

SDIx_OPTION

SDIx_ERR_STS1

SDIx_ERR_STS2

R/W

R/W

R/W

R

R

R

R

R/W

R/W

R/W

R

R

R

R

R/W, R

0000_0000h

0000_0000h

0000_0000h

Undefined

(0000_068D)

R/W, R Undefined

(0000_2080h)

R/W

R/W

R/W

0000_031Dh

0000_8B7Fh

0000_0020h

R/W

R/W

R

R

0000_0200h

0000_00EEh

0000_2000h

0000_0000h

0000_0000h

0000_0100h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

0000_0000h

User’s Manual S19361EJ4V0UM

11

Address Register Name

500x_0060h SD memory card data buffer 0 register

500x_0064h Reserved

500x_0068h SDIO mode setting register

500x_006Ch SDIO information register

500x_0070h SDIO information mask register

500x_0074h to Reserved

500x_01ACh

500x_01B0h Expansion mode control register

500x_01B4h

500x_01BCh

Reserved

500x_01C0h SDIx software reset control register

500x_01C4h to

Reserved

500x_01E0h

500x_0200h SDIx use register

500x_0204h SDIx use register 2

500x_0210h to Reserved

500x_02FCh

500x_0300h SDIx DMA mode SD buffer register

CHAPTER 3 REGISTERS

Register Symbol

SDIx_BUF0

SDIx_SDIO_MODE

SDIx_SDIO_INFO1

SDIx_SDIO_INFO1_

MASK

R/W

R/W

R/W

(2/2)

After Reset

Undefined

0000_0000h

R/W 0000_0000h

R/W 0000_C007h

 

SDIx_CC_EXT_MODE R, R/W 0000_1000h

  

SDIx_SOFT_RST

R/W

0000_0000h

SDIx_USER

SDIx_USER2

SDIx_DMASD

R/W, R 0000_0004h

R/W

0000_0000h

R/W

12

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.1 SD memory card command register

This register (SDIA_CMD: 5005_0000h, SDIB_CMD: 5006_000h, SDIC_CMD: 5009_000h) controls the SD memory card commands and responses.

15 14 13 12 11 10 9 8

MD7 MD6 MD5 MD4 MD3 MD2 MD1 MD0

7 6 5 4 3 2 1 0

C1 C0 CF45 CF44 CF43 CF42 CF41 CF40

MD[7:6]

MD5

MD4

MD3

MD[2:0]

C[1:0]

CF[45:40]

R/W

R/W

R/W

R/W

R/W

R/W

R/W

15:14

13

12

11

10:8

7:6

5:0

0

0

0

0

0

0

0

Function

Specifies the CMD12 mode.

Selects between single- or multiple-block transfers.

0: Single-block transfer

1: Multiple-block transfer

Specifies the write or read mode.

0: Write

1: Read

Specifies the data mode.

0: No data

1: Data is present

Specifies an expansion command and the response type.

Specifies the command mode.

Specifies the command index.

Caution For details about setup commands and responses, see SD Specifications Part 1 Physical Layer

Simplified Specification Ver. 2.0.

MD[7:6] CMD12 mode specification

MD7 MD6

0

0

0

1

Function

Automatic CMD12 transfer

Non-automatic transfer of CMD12 (SDIO command) (transfer between host and SD card)

Remark Automatic CMD12 transfer means that CMD12 is automatically transferred according to the sector count, after which data transfer stops.

User’s Manual S19361EJ4V0UM

13

CHAPTER 3 REGISTERS

MD[2:0] Expansion command and response type specification

MD2 MD1 MD0 Command Mode

0

0

1

1

1

0

1

0

0

1

0

1

0

1

1

Normal mode

Expansion command

Expansion command

Expansion command

Expansion command

Response Type

Decoding command for SD memory cards and multimedia cards

Reserved

Reserved

No response

R1, R6, R5

R1b, R5b

R2

R3, R4

C[1:0] Command mode specification

C1 C0

0

0

1

0

1

0

Function

SD memory card or multimedia card command

ACMD following CMD55 of an SD memory card

Mutual recognition command

CF[45:40] Command index specification

Specifies the command index set to bits 45 to 40 in the SD memory card command format.

5 4 3 2 1 0

CF45 CF44 CF43 CF42 CF41 CF40

14

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.2 SD memory card port select register

This register (SDIA_PORT: 5005_0004h, SDIB_PORT: 5006_0004h, SDIC_PORT: 5009_0004h) specifies the port used when multiple SD memory card ports are mounted.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

Reserved

NP[2:0]

Reserved

P[1:0]

 15:11 

R 10:8 1

 7:2 

R/W 1:0 0

Function

Specifies the number of supported SD memory cards.

Selects the port number of the selected SD memory card.

NP[2:0] Number of supported SD memory cards

NP2 NP1 NP0 Function

0 0 1 1 port (default)

P[1:0] Port number of the selected SD memory card

P1 P0 Function prohibited

Note

prohibited

Note

prohibited

Note

Note Operation is not guaranteed if a value other than 0 is specified for bits P1 and P0.

User’s Manual S19361EJ4V0UM

15

CHAPTER 3 REGISTERS

3.2.3 SD memory card command parameter register 0

This register (SDIA_ARG0: 5005_0008h, SDIB_ARG0: 5006_0008h, SDIC_ARG0: 5009_0008h) stores the SD card command parameters.

15 14 13 12 11 10 9 8

CF23 CF22 CF21 CF20 CF19 CF18 CF17 CF16

7 6 5 4 3 2 1 0

CF15 CF14 CF13 CF12 CF11 CF10 CF9 CF8

Function

CF[23:8] R/W 15:0 0x0000 Specifies the parameters for the command to be transferred to the SD memory card. The settings of these bits correspond to bits 23 to 8 of the command format.

Remark For details about the command parameters, see SD

Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

3.2.4 SD memory card command parameter register 1

This register (SDIA_ARG1: 5005_000Ch, SDIB_ARG1: 5006_000Ch, SDIC_ARG1: 5009_000Ch) stores the SD card command parameters.

15 14 13 12 11 10 9 8

CF39 CF38 CF37 CF36 CF35 CF34 CF33 CF32

7 6 5 4 3 2 1 0

CF31 CF30 CF29 CF28 CF27 CF26 CF25 CF24

CF[39:24] R/W 15:0 0x0000

Function

Specifies the parameters for the command to be transferred to the SD memory card. The settings of these bits correspond to bits 39 to 24 of the command format.

Remark For details about the command parameters, see SD

Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

16

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.5 SD memory card stop register

This register (SDIA_STOP: 5005_0010h, SDIB_STOP: 5006_0010h, SDIC_STOP: 5009_0010h) specifies stopping SD transfers.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

Reserved

SEC

Reserved

 15:9

R/W 8

 7:1

0

Function

0 Enables or disables the SDIx_SECCNT register.

0: Disables the SDIx_SECCNT register.

0

1: Enables the SDIx_SECCNT register.

0 bit

0: Do not stop transfer.

Set this bit to 0 before CMD17, CMD18, CMD24, CMD27,

CMD30, CMD42, CMD56, CMD43 to CMD48, ACMD18, or

ACMD25 is set.

1: Stop transfer.

3.2.6 SD memory card transfer sector count register

This register (SDIA_SECCNT: 5005_0014h, SDIB_SECCNT: 5006_0014h, SDIC_SECCNT: 5009_0014h) counts the number of transfer sectors.

15 14 13 12 11 10 9 8

CNT15 CNT14 CNT13 CNT12 CNT11 CNT10 CNT9 CNT8

7 6 5 4 3 2 1 0

CNT7 CNT6 CNT5 CNT4 CNT3 CNT2 CNT1 CNT0

CNT[15:0] R/W 15:0 0x0000

Function

16-bit counter that counts the number of transfer sectors

Remark If SDIx_SECCNT is 0x0001, the number of transfer sectors is 1.

If SDIx_SECCNT is 0xFFFF, the number of transfer sectors is 65,535. if SDIx_SECCNT is 0x0000, the number of transfer sectors is 65,536.

User’s Manual S19361EJ4V0UM

17

CHAPTER 3 REGISTERS

3.2.7 SD memory card response register 0

This register (SDIA_RSP0: 5005_0018h, SDIB_RSP0: 5006_0018h, SDIC_RSP0: 5009_0018h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R23 R22 R21 R20 R19 R18 R17 R16

7 6 5 4 3 2 1 0

R15 R14 R13 R12 R11 R10 R9 R8

R[23:8] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 23 to 8 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

3.2.8 SD memory card response register 1

This register (SDIA_RSP1: 5005_001Ch, SDIB_RSP1: 5006_001Ch, SDIC_RSP1: 5009_001Ch) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R39 R38 R37 R36 R35 R34 R33 R32

7 6 5 4 3 2 1 0

R31 R30 R29 R28 R27 R26 R25 R24

R[39:24] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 39 to 24 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

18

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.9 SD memory card response register 2

This register (SDIA_RSP2: 5005_0020h, SDIB_RSP2: 5006_0020h, SDIC_RSP2: 5009_0020h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R55 R54 R53 R52 R51 R50 R49 R48

7 6 5 4 3 2 1 0

R47 R46 R45 R44 R43 R42 R41 R40

R[55:40] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 55 to 40 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

3.2.10 SD memory card response register 3

This register (SDIA_RSP3: 5005_0024h, SDIB_RSP3: 5006_0024h, SDIC_RSP3: 5009_0024h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R71 R70 R69 R68 R67 R66 R65 R64

7 6 5 4 3 2 1 0

R63 R62 R61 R60 R59 R58 R57 R56

R[71:56] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 71 to 56 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

User’s Manual S19361EJ4V0UM

19

CHAPTER 3 REGISTERS

3.2.11 SD memory card response register 4

This register (SDIA_RSP4: 5005_0028h, SDIB_RSP4: 5006_0028h, SDIC_RSP4: 5009_0028h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R87 R86 R85 R84 R83 R82 R81 R80

7 6 5 4 3 2 1 0

R79 R78 R77 R76 R75 R74 R73 R72

R[87:72] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 87 to 72 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

3.2.12 SD memory card response register 5

This register (SDIA_RSP5: 5005_002Ch, SDIB_RSP5: 5006_002Ch, SDIC_RSP5: 5009_002Ch) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

R95 R94 R93 R92 R91 R90 R89 R88

R[103:88] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 103 to 88 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

20

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.13 SD memory card response register 6

This register (SDIA_RSP6: 5005_0030h, SDIB_RSP6: 5006_0030h, SDIC_RSP6: 5009_0030h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

R119 R118 R117 R116 R115 R114 R113 R112

7 6 5 4 3 2 1 0

R111 R110 R109 R108 R107 R106 R105 R104

R[119:104] R 15:0 0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 119 to 104 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

3.2.14 SD memory card response register 7

This register (SDIA_RSP7: 5005_0034h, SDIB_RSP7: 5006_0034h, SDIC_RSP7: 5009_0034h) stores the responses returned from the SD memory card.

15 14 13 12 11 10 9 8

0 0 0 0 0 0 0 0

7 6 5 4 3 2 1 0

R127 R126 R125 R124 R123 R122 R121 R120

Reserved

R[127:120]

 15:8

R 7:0

0

0x0000

Function

Stores the responses returned from the SD memory card. The settings of these bits correspond to bits 127 to 120 of the response format.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

User’s Manual S19361EJ4V0UM

21

CHAPTER 3 REGISTERS

3.2.15 SD memory card information register 1

This register (SDIA_INFO1: 5005_0038h, SDIB_INFO1: 5006_0038h, SDIC_INFO1: 5009_0038h) indicates two of the interrupt sources of SDIx.

15 14 13 12 11 10 9 8

0 0 0 0 0 0 0 0

7 6 5 4 3 2 1 0

Reserved

INFO2

Reserved

INFO0

 15:3

0

Function

R/W 2 0 Indicates whether all read/write accesses have finished.

0: Not all accesses have finished.

1: All accesses have finished.

 1

0

R/W 0 0 Indicates whether the response has ended.

0: The response has not ended.

1: The response has ended.

22

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.16 SD memory card information register 2

This register (SDIA_INFO2: 5005_003Ch, SDIB_INFO2: 5006_003Ch, SDIC_INFO2: 5009_003Ch) indicates the error and buffer status interrupt sources of SDIx.

15 14 13 12 11 10 9 8

0 0 0 BWE BRE

ILA

7 6 5 4 3 2 1 0

DAT0 ERR6 ERR5 ERR4 ERR3 ERR2 ERR1 ERR0

CBSY

SCLKDIVEN

Reserved

R/W

R

R

15

14

13

 12:10

(1/2)

Function

0 Illegal access error

Note 1

0: Normal access

1: Illegal access error

0 Command register busy

0: Transfer is complete.

1: Transfer is in progress.

SD_CLK_DIV enable bit 0

0

0: The SD bus is being used to transmit commands and data.

1: The SD bus is not being used to transmit commands and data.

0: Writing to the SD memory card is disabled.

1: Writing to the SD memory card is enabled. (The data buffer in

SDIx is empty.)

DAT0

ERR5

R

R/W

7

5

0: Reading from the SD memory card is disabled.

1: Reading from the SD memory card is enabled. (The data buffer in SDIx is full.)

Undefined SD data line 0 bit

0: SDDATA0 = 0

1: SDDATA0 = 1

0

0: No response timeout error occurred.

1: A response timeout error occurred (because no command response or SD_STOP response was issued for 64 SD transfer clock cycles or more).

Invalid data buffer read error bit

0: No invalid data buffer read error occurred.

1: An invalid data buffer read error occurred (because an attempt was made to read data from the data buffer even though the data buffer was empty).

User’s Manual S19361EJ4V0UM

23

CHAPTER 3 REGISTERS

(2/2)

ERR4

ERR3

ERR2

ERR1

ERR0

R/W

R/W

R/W

R/W

R/W

4

3

2

1

0

0

0

0

0

0

Function

Invalid data buffer write error bit

0: No invalid data buffer write error occurred.

1: An invalid data buffer write error occurred

Note 2

.

Timeout (other than a response) error

0: No timeout error occurred.

1: A timeout error occurred

Note 3

.

End error status bit

0: No end error occurred.

1: An end error occurred

Note 4

.

CRC error status bit

0: No CRC error occurred.

1: A CRC error occurred

Note 5

.

Command error status bit

0: No command error occurred.

1: A command error occurred

Note 6

.

Remark For details about the response formats, see SD Specifications Part 1 Physical Layer Simplified

Specification Ver. 2.0.

Notes 1. This error occurs in any of the following cases:

 If the command register is rewritten during a transfer.

 If “No response” (MD[2:0] = 011) and “Data is present” (MD3 = 1) is specified in the SDIx_CMD register.

 If CMD12 for which data is present is specified in the SDIx_CMD register.

2. This error occurs in any of the following cases:

 If data is written to data buffer SDIx_BUF0 when the data read or data write command status is not asserted.

 If data is written before SDIx_BUF0 becomes empty during a single block write.

 If data is written to bank 1 of the data buffer before the bank becomes empty during a multiple block write.

3. This error occurs in any of the following five cases:

 If SDDAT0 is 0 (busy) for a longer period of time than the number of cycles specified by bits 7 to 4 of the SDIx_OPTION register after an R1b response is received.

 If SDDAT0 is 0 (busy) for a longer period of time than the number of cycles specified by bits 7 to 4 of the SDIx_OPTION register after the CRC status is written.

 If the CRC status is not written for a longer period of time than the number of cycles specified by bits

7 to 4 of the SDIx_OPTION register after a write access.

 If SDDAT0 is 0 (busy) for a longer period of time than the number of cycles specified by bits 7 to 4 of the SDIx_OPTION register after a read command is issued.

 If SDDAT0 is 0 (busy) for a longer period of time than the number of cycles specified by bits 7 to 4 of the SDIx_OPTION register after an SD_STOP response is issued.

4. End error refers to an END bit error in a command response (response length), in the data read (data length), when the CRC status is written (CRC status length), or in an SD_STOP response.

5. CRC error refers to a CRC status write error, a CRC16 error in the data read, a CRC7 error in a stop response, or a CRC7 error in a response.

6. Command error refers to a command index error in a command response or in an SD_STOP response.

24

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.17 SD memory card information mask register 1

This register (SDIA_INFO1_MASK: 5005_0040h, SDIB_INFO1_MASK: 5006_0040h, SDIC_INFO1_MASK:

5009_0040h) masks the SDIx interrupts specified in the SDIx_INFO1 register.

15 14 13 12 11 10 9 8

0 0 0 0 0 0 0 0

7 6 5 4 3 2 1 0

Reserved

IMASK2

Reserved

IMASK0

 15:3

0

Function

R/W 2 1

0: The interrupt is not masked.

1: The interrupt is masked.

 1

0

R/W 0 1

Masks the interrupt that detects whether all read/write accesses have finished.

Masks the interrupt that detects whether the response has ended.

0: The interrupt is not masked.

1: The interrupt is masked.

User’s Manual S19361EJ4V0UM

25

CHAPTER 3 REGISTERS

3.2.18 SD memory card information mask register 2

This register (SDIA_INFO2_MASK: 5005_0044h, SDIB_INFO2_MASK: 5006_0044h, SDIC_INFO2_MASK:

5009_0044h) masks the SDIx interrupts specified in the SDIx_INFO2 register.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

0 EMASK6 EMASK5 EMASK4 EMASK3 EMASK2 EMASK1 EMASK0

IMASK

Reserved

BMASK1

BMASK0

Reserved

EMASK6

EMASK5

EMASK4

EMASK3

EMASK2

EMASK1

EMASK0

Function

R/W 15 1 Masks the illegal access interrupt.

0: The interrupt is not masked.

 14:10 0

1: The interrupt is masked.

R/W 9 1 Masks the write enable interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

R/W 8 1 Masks the read enable interrupt.

0: The interrupt is not masked.

R/W 6 1

1: The interrupt is masked.

 7 0 

Masks the response timeout interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

R/W 5 1

R/W 4 1

Masks the illegal data buffer read access interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

Masks the illegal data buffer write access interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

R/W 3 1

R/W

R/W

R/W

2

1

0

1

1

1

Masks the timeout (other than response) interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

Masks the end error interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

Masks the CRC error interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

Masks the command error interrupt.

0: The interrupt is not masked.

1: The interrupt is masked.

26

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.19 SD memory card transfer clock control register

This register (SDIA_CLK_CTRL: 5005_0048h, SDIB_CLK_CTRL: 5006_0048h, SDIC_CLK_CTRL: 5009_0048h) specifies the ratio for dividing the SD memory card transfer clock frequency.

15 14 13 12 11 10 9 8

SCLKEN

7 6 5 4 3 2 1 0

DIV7 DIV6 DIV5 DIV4 DIV3 DIV2 DIV1 DIV0

Reserved

SDCLKSEL

 15:11

0

R/W 10 0

Function

Selects the type of SD memory card according to the transfer clock speed.

0: SD normal card

1: SD high-speed card

SCLKEN

DIV[7:0]

R/W

R/W

8

7:0

0

20H transfer clock signal (SDCLK).

0: Disables turning on and off SDCLK.

1: Enables turning on and off SDCLK. (The clock signal can be turned off when no transfers are being executed).

Enables or disables the SD memory card transfer clock signal.

0: Disables the SD memory card transfer clock signal (low output).

1: Enables the SD memory card transfer clock signal.

Specifies the ratio for dividing the SD memory card transfer clock frequency.

SDIx_CLK_CTRL[7:0] These bits specify the ratio for dividing the SD memory card transfer clock frequency.

0

1

2

4

8

16

32

64

128

Specify the division ratio of the signal derived from SDIx_CLK.

Division by 2

Division by 4

Division by 8

Division by 16

Division by 32

Division by 64

Division by 128

Division by 256

Division by 512

Remark The SD memory card transfer clock signal stops if a value other the above is specified.

User’s Manual S19361EJ4V0UM

27

CHAPTER 3 REGISTERS

3.2.20 SD memory card transfer data size register

This register (SDIA_SIZE: 5005_004Ch, SDIB_SIZE: 5006_004Ch, SDIC_SIZE: 5009_004Ch) specifies the transfer data size.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

LEN7 LEN6 LEN5 LEN4 LEN3 LEN2 LEN1 LEN0

Reserved

LEN[9:0]

 15:10

R/W 9:0

0

0200H

Function

Specifies the size of the SD data to be transferred.

1 to 512 bytes can be specified in byte units. Do not set this field to 0. Do not specify 513 or more bytes.

28

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.21 SD memory card option setting register

This register (SDIA_OPTION: 5005_0050h, SDIB_OPTION: 5006_0050h, SDIC_OPTION: 5009_0050h) specifies various options.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

WIDTH

Reserved

TOP[27:24]

CTOP[24:21]

R/W 15

 14:8

R/W 7:4

R/W 3:0

Function

0

0

EH

Specifies the SD data transfer bit width.

0: 4 bits

1: 1 bit

Response timeout counter

EH Card detection stabilization time counter

TOP[27:24] Response timeout counter

TOP27 TOP26 TOP25 TOP24 Function transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer transfer

User’s Manual S19361EJ4V0UM

29

CHAPTER 3 REGISTERS

CTOP[24:21] Card detection stabilization time counter

CTOP24 CTOP23 CTOP22 CTOP21 Function

30

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.22 SD memory card error interrupt status register 1

This register (SDIA_ERR_STS1: 5005_0058h, SDIB_ERR_STS1: 5006_0058h, SDIC_ERR_STS1: 5009_0058h) displays the status of the interrupts that are generated by an SDIx error.

15 14 13 12 11 10 9 8

0 E14 E13 E12 E11 E10 E9 E8

Reserved

E[14:12]

E11

E10

E9

E8

E4

E3

E2

7 6 5 4 3 2 1 0

0 0 E5 E4 E3 E2 E1 E0

Reserved

E5

 15

0

R 14:12 010

Function

Stores the CRC status in data sent from the SD memory card.

R 11 0 Indicates whether there is a CRC write error.

0: No error has occurred.

1: The error has occurred.

R 10 0

R 9 0

Indicates whether there is a CRC error in read data.

0: No error has occurred.

1: The error has occurred.

Indicates whether there is a CRC error in an SD_STOP response.

0: No error has occurred.

1: The error has occurred.

R 8

 7:6

R

R

R

R

5

4

3

2

0 Indicates whether there is a CRC error in a command response.

0: No error has occurred.

1: The error has occurred.

0

0

Indicates whether there is an end bit error during CRC status writing.

0: No error has occurred.

1: The error has occurred.

0

0

Indicates whether there is an end bit error in read data.

0: No error has occurred.

1: The error has occurred.

Indicates whether there is an end bit error in an SD_STOP response.

0: No error has occurred.

1: The error has occurred.

0 Indicates whether there is an end bit error in a command response.

0: No error has occurred.

1: The error has occurred.

(1/2)

User’s Manual S19361EJ4V0UM

31

E1

E0

R 1

R 0

CHAPTER 3 REGISTERS

0

0

(2/2)

Function

Indicates whether there is a command index error in an

SD_STOP response.

0: No error has occurred.

1: The error has occurred.

Indicates whether there is a command index error in a command response.

0: No error has occurred.

1: The error has occurred.

32

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.23 SD memory card error interrupt status register 2

This register (SDIA_ERR_STS2: 5005_005Ch, SDIB_ERR_STS2: 5006_005Ch, SDIC_ERR_STS2: 5009_005Ch) displays the status of the interrupts that are generated by an SDIx error.

15 14 13 12 11 10 9 8

0 0 0 0 0 0 0 0

7 6 5 4 3 2 1 0

0 E6 E5 E4 E3 E2 E1 E0

Reserved

E6

E5

E4

E3

E2

E1

E0

 15:7

R 6

R

R

R

R

R

R

5

4

3

2

1

0

0

0

Function

0: No error has occurred.

1: An error has occurred (because the busy status continued for a period of time longer than the number of cycles specified by

SDIx_OPTION [7:4], after the CRC status was written).

0

0

0

0: No error has occurred.

1: An error has occurred (because the CRC write status was not returned for a period of time longer than the number of cycles specified by SDIx_OPTION [7:4] after a write access).

0: No error has occurred.

1: An error has occurred (because the read data was not returned for a period of time longer than the number of cycles specified by SDIx_OPTION [7:4] after the read command was issued).

0: No error has occurred.

1: An error has occurred (because the status continued for a period of time longer than the number of cycles specified by

SDIx_OPTION [7:4] after a SD_STOP response was returned)

0

0

0

0: No error has occurred.

1: An error has occurred (because the busy status continued for a period of time longer than the number of cycles specified by

SDIx_OPTION [7:4], after an R1b response was returned).

0: No error has occurred.

1: An error has occurred (because no SD_STOP response was returned for 640 SD transfer clock cycles or more).

0: No error has occurred.

1: An error has occurred (because no command response was returned for 640 SD transfer clock cycles or more).

User’s Manual S19361EJ4V0UM

33

CHAPTER 3 REGISTERS

3.2.24 SD memory card data buffer 0 register

This buffer register (SDIA_BUF0: 5005_0060h, SDIB_BUF0: 5006_0060h, SDIC_BUF0: 5009_0060h) stores the data read from and written to the SD memory card in SDIx.

15 14 13 12 11 10 9 8

BUF15 BUF14 BUF13 BUF12 BUF11 BUF10 BUF9 BUF8

7 6 5 4 3 2 1 0

BUF7 BUF6 BUF5 BUF4 BUF3 BUF2 BUF1 BUF0

RBUF[15:0] R/W 15:0

Function

Undefined Register for inputting and outputting data to and from the 512- byte

 2-bank data buffer

3.2.25 SDIO mode setting register

This register (SDIA_SDIO_MODE: 5005_0068h, SDIB_SDIO_MODE: 5006_0068h, SDIC_SDIO_MODE:

5009_0068h) controls selection of the SDIO mode.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

Reserved

C52PUB

IOABT

Reserved

RWREQ

IOMOD

 15:10

R/W 9

R/W

 7:3

R/W 2

R/W

8

0

0

0

Function

SD IO abort (Data being transferred is guaranteed.)

1: CMD52 is sent and the SD host holds IP transmission pending. The value before setting this bit is used as the

CMD52 parameter. This bit is cleared after a CMD52 response is issued.

0: Default

0 SD IO abort (Data being transferred is lost.)

This bit must be specified only during multiple IO transactions.

1: CMD52 is sent and the SD host stops IP transmission. The value before setting this bit is used as the CMD52 parameter.

0: Default

0

0

Read wait request signal used during a multiple block read

0 SDIO mode specification bit

0: Disables acknowledgment of interrupts from SDIO.

1: Enables acknowledgment of interrupts from SDIO.

34

User’s Manual S19361EJ4V0UM

CHAPTER 3 REGISTERS

3.2.26 SDIO information register

This register (SDIA_SDIO_INFO1: 5005_006Ch, SDIB_SDIO_INFO1: 5006_006Ch, SDIC_SDIO_INFO1:

5009_006Ch) indicates the interrupt sources when SDIx is used in SDIO mode.

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

Reserved

RWRDY

C52RDY

IOIRQ

Function

0: No request was issued.

1: A request was issued.

 13:3

R/W 2

R/W

R/W

1

0

0: Data was written

0

1: C52PUB was set to 1 other than when a read or write transfer was performed

0 Indicates the read wait mode ready status.

0: The read wait mode is not ready.

1: The read wait mode is ready.

0

0

Indicates the CMD52 ready status.

0: CMD52 is not ready to be issued.

1: CMD52 is ready to be issued.

Indicates the SDIO interrupt status.

0: No interrupt was issued from the SDIO card.

1: An interrupts was issued from the SDIO card.

User’s Manual S19361EJ4V0UM

35

CHAPTER 3 REGISTERS

3.2.27 SDIO information mask register

This register (SDIA_SDIO_INFO1_MASK: 5005_0070h, SDIB_SDIO_INFO1_MASK: 5006_0070h,

SDIC_SDIO_INFO1_MASK: 5009_0070h) specifies masking the interrupt sources assigned to the corresponding bits in SDIO mode.

15 14 13 12 11 10 9 8

EXWT_MASK EXPUB52_

MASK

0 0 0 0 0 0

7 6 5 4 3 2 1 0

IOIRQ_MASK

MASK MASK

EXWT_MASK

EXPUB52_MASK

Reserved

RWRDY_MASK

C52RDY_MASK

IOIRQ_MASK

R/W

R/W

 13:3

R/W 2

R/W

R/W

15
