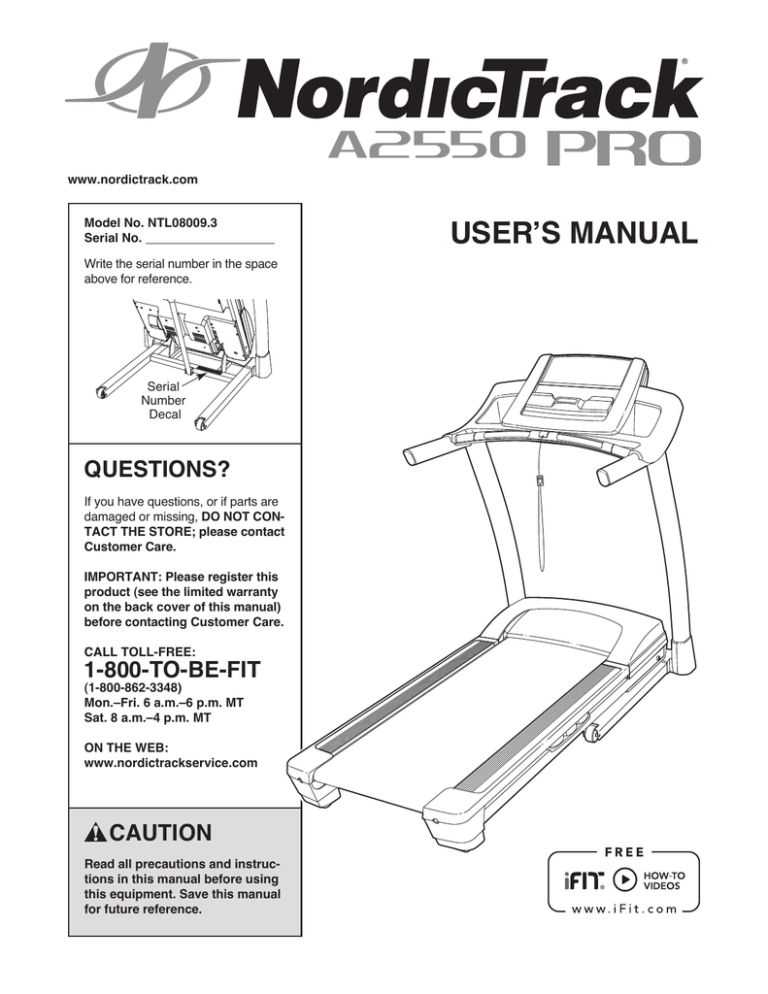

USER`S MANUAL

www.nordictrack.com

Model No. NTL08009.3

Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if parts are damaged or missing, DO NOT CON-

TACT THE STORE; please contact

Customer Care.

IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual) before contacting Customer Care.

CALL TOLL-FREE:

1-800-TO-BE-FIT

(1-800-862-3348)

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB: www.nordictrackservice.com

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER’S MANUAL

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing

or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location

shown. Note: The decals may not be shown at actual size.

NordicTrack is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems. other electrical devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit.

2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

7. Keep children under age 12 and pets away from the treadmill at all times.

8. The treadmill should be used only by persons weighing 350 lbs. (159 kg) or less.

9. Never allow more than one person on the treadmill at a time.

10. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

11. Plug the power cord into a surge suppressor

(not included), and plug the surge suppressor into an appropriate outlet (see page 14). To avoid overloading the circuit, do not plug

12. Use only a surge suppressor that meets all of the specifications described on page 14. To purchase a surge suppressor, see your local

NordicTrack dealer, call the telephone number on the front cover of this manual, or see your local electronics store

13. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

14. Keep the power cord and the surge suppressor away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROU-

BLESHOOTING on page 22 if the treadmill is not working properly.)

16. Read, understand, and test the emergency stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 16).

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

3

20. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and press the power switch into the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the power switch.)

21. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 21.)

You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

24. Inspect and properly tighten all parts of the treadmill regularly.

25.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

26. This treadmill is intended for in-home use only. Do not use this treadmill in a commercial, rental, or institutional setting.

22. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

23. Never insert any object into any opening on the treadmill.

27. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack

®

A2550 PRO treadmill. The A2550 PRO treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable and effective.

And when you’re not exercising, the unique treadmill can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, please note the product model number and serial number before contacting us.

The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Walking Belt

Foot Rail

Accessory Tray

Handrail

Upright

Console

Pulse Sensor

Key/Clip

Power Switch

Power Cord

Platform Cushion

Idler Roller

Adjustment Bolts

5

ASSEMBLY

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-

aging parts, do not use power tools for assembly. Extra hardware may be included.

3/8" Nut (10)–4

3/8" x 2" Bolt (3)–1

3/8" x 2 1/4" Latch Patch Bolt (6)–1 3/8" x 2 1/4" Patch Bolt (31)–2

3/8" x 3" Bolt (67)–2

3/8" x 3 3/4" Patch Bolt (97)–2

3/8" x 5 1/2" Patch Bolt (7)–2

6

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver , adjustable wrench , needlenose pliers , and scissors .

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the

Frame (55) so that the treadmill is more stable;

do not fully fold the Frame yet.

Locate the Upright Wire (85), which is bundled at the front of the Base (94). Remove the packaging from the Upright Wire. Insert the Upright

Wire into the end of the Base and pull it out of the indicated hole. If necessary, use the plastic tie to pull the Upright Wire out of the hole.

Attach two Base Feet (92) and two Base Foot

Spacers (36) to the Base (94) in the locations shown with two #8 x 1" Tek Screws (2).

Then, attach the other two Base Feet (92) with two #8 x 1" Tek Screws (2).

See the inset drawing. Cut the plastic tie near the Upright Wire (85).

1

55

36

36

92

85

2

Tie

92

2

Hole

85

Tie

Cut

92

94

92

2

2

2. Attach a Wheel (95) to the Base (94) with a 3/8" x 3" Bolt (67), two Wheel Spacers (96), and a

3/8" Nut (10). Do not overtighten the Nut; the

Wheel must turn freely.

2

96

67

95

96

10

94

7

3. Identify the Right Upright (83), which is marked with a “Right” sticker. Have a second person hold the Right Upright near the Base (94).

See the inset drawing. Tie the wire tie in the

Right Upright (83) securely around the end of the Upright Wire (85). Then, pull the other end of the wire tie until the Upright Wire is routed completely through the Right Upright.

3

85

Wire Tie

83

85

94

4. Insert a 3/8" x 5 1/2" Patch Bolt (7), a 3/8" x

3 3/4" Patch Bolt (97), and a 3/8" x 2 1/4" Patch

Bolt (31) with three 3/8" Star Washers (11) into the Right Upright (83) in the locations shown.

Hold the Right Upright (83) against the Base

(94). Be careful not to pinch the Upright Wire

(85). Partially tighten the 3/8" x 5 1/2" Patch Bolt

(7) and the 3/8" x 3 3/4" Patch Bolt (97) until the heads of the Patch Bolts touch the Right

Upright; do not fully tighten the Patch Bolts

yet. Then, partially tighten the 3/8" x 2 1/4"

Patch Bolt (31).

4

85

83

Wire

Tie

83

11

31

7

97

11

85

94

8

5. With the help of a second person, carefully tip the treadmill onto its right side. Partially fold the

Frame (55) so that the treadmill is more stable;

do not fully fold the Frame yet.

Insert a 3/8" x 5 1/2" Patch Bolt (7), a 3/8" x

3 3/4" Patch Bolt (97), and a 3/8" x 2 1/4" Patch

Bolt (31) with three 3/8" Star Washers (11) into the Left Upright (82) in the locations shown.

Hold the Left Upright (82) against the Base (94).

Partially tighten the 3/8" x 5 1/2" Patch Bolt (7) and the 3/8" x 3 3/4" Patch Bolt (97) until the heads of the Patch Bolts touch the Left Upright;

do not fully tighten the Patch Bolts yet. Then, partially tighten the 3/8" x 2 1/4" Patch Bolt (31).

5

97

7

31

11

11

94

82

55

6. Attach a Wheel (95) to the Base (94) with a 3/8" x 3" Bolt (67), two Wheel Spacers (96), and a

3/8" Nut (10). Do not overtighten the Nut; the

Wheel must turn freely.

Attach the Base Cover (84) to the Base (94) with four #8 x 1/2" Screws (1). Be careful not

to overtighten the Screws.

6

84

1

94

1

1

67

96

10

95

96

9

7. Attach the Frame Crossbar (107) to the Frame

(55) with two 1/4" x 1 3/4" Patch Bolts (91).

With the help of a second person, tip the treadmill so that the Base (94) is flat on the floor.

7

55

107 91

94

8. Set the console assembly face down on a soft surface to avoid scratching the console.

Identify the Right Handrail (79). Hold the Right

Handrail near the console assembly. Route the console wire through the large holes in the top and bottom of the Right Handrail.

Set the Right Handrail (79) on the Console

Frame (81). Start a 1/4" x 1/2" Patch Bolt (8) with a 1/4" Star Washer (12) into the Right

Handrail. Then, start two 5/16" x 1 1/2" Patch

Bolts (4) with two 5/16" Star Washers (9) into the Right Handrail. Make sure that the console

wire is not pinched. Start all three Patch

Bolts, and then tighten each of them.

Attach the Left Handrail (not shown) as described above. Note: There is not a wire on

the left side.

8

Console

Assembly

79

12

8

Console

Wire

91

81

4

9

10

9. With the help of a second person, hold the console assembly near the Right Upright (83) and the Left Upright (not shown).

Connect the Upright Wire (85) to the console wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Remove the wire tie from the

Upright Wire.

9

Console

Assembly

Console

Wire

Wire

Tie

85

83

Console

Wire

85

10. Set the console assembly on the Left and Right

Uprights (82, 83). Be careful not to pinch any

wires. Insert the excess wire into the Right

Upright.

Start two 5/16" x 3/4" Patch Bolts (5) with two

5/16" Star Washers (9) into the Right Upright

(83). Then start a 5/16" x 1 1/2" Patch Bolt (4) into the Right Upright. Repeat this step on the

left side of the treadmill. Then, firmly tighten all six Patch Bolts.

10

4

Console

Assembly

9

83

5

5

82

9

4

11

11. See steps 4 and 5. Tighten all the Patch Bolts used in these steps.

Attach the Left Accessory Tray (101) and the

Right Accessory Tray (104) to the console assembly with eight #8 x 1/2" Screws (1).

11

Console

Assembly

1

1

12. Press the Left Outside Upright Cover (87) and the Left Inside Upright Cover (90) around the

Left Upright (82). Attach the Upright Covers with a #8 x 1/2" Screw (1).

Attach the Right Outside Upright Cover (86) and the Right Inside Upright Cover (88) in the same way.

12

83

1

104

101

1

1

82

87

1

90

86

88

12

13. Raise the Frame (55) to the position shown.

Have a second person hold the Frame until this step is completed.

Orient the Storage Latch (51) so that the large barrel and the latch knob are oriented as shown.

Attach the upper end of the Storage Latch (51) to the Frame Crossbar (107) with a 3/8" x 2"

Bolt (3) and a 3/8" Nut (10).

Attach the Storage Latch (51) to the Base (94) with a 3/8" x 2 1/4" Latch Patch Bolt (6) and a

3/8" Nut (10). Note: It may be necessary to move the Frame (55) back and forth to align the

Storage Latch with the Base.

Lower the Frame (55) (see HOW TO LOWER

THE TREADMILL FOR USE on page 21).

13

55

107

10

Latch Knob

Large Barrel

94

10

3

51

6

14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.

Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is used to adjust the walking belt (see pages 23 and 24).

13

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the risk of

damaging the treadmill, always use a surge suppressor with the treadmill. To purchase a surge suppressor, see precaution 12 on page 3.

nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do not plug other electrical devices, except for lowpower devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit. IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible with AFCI-equipped outlets.

1

Grounded Outlet

Grounding Pin

Use only a surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must also be electrically rated for 120 volts AC and 15 amps.

There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly.

Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill and serious injury to users.

Grounding Pin

Surge

Suppressor

Plug in the Power Cord

The treadmill must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The treadmill power cord has a plug with a grounding pin (see drawing 1 on this page).

DANGER:

Improper connection of the power cord increases the risk of electric shock. Do not modify the plug—if it will not fit an outlet, have a proper outlet installed by a qualified electrician. If you are unsure whether the treadmill is properly grounded, contact a qualified electrician.

Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. The outlet must be on a

A temporary adapter may be used to connect the surge suppressor to a 2pole receptacle if a prop-

2

Lug

2-pole Receptacle

Adapter erly grounded outlet is not available. The lug or wire ex-

Metal

Screw tending from the adapter must be connected with a metal screw to a permanent ground such as a properly grounded outlet box cover. Some 2-pole receptacle

outlet box covers are not grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet box cover is grounded. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.

14

CONSOLE

DIAGRAM

Audio

Jack

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective and enjoyable. When you use the manual mode of the console, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor.

In addition, the console features sixteen preset workouts—four weight loss workouts, four distance workouts, four timed workouts, and four performance workouts. Each preset workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

The console also features an iFit training mode that enables the treadmill to communicate with your wireless network through an optional iFit Live module. With the iFit training mode, you can download personalized workouts, create your own workouts, track your workout results, and access many other features. To pur-

chase an iFit Live module at any time, go to www.iFit.com or call the telephone number on the front cover of this manual.

You can even listen to your favorite workout music or audio books with the console’s stereo sound system.

To turn on the power, see page 16. To use the man-

ual mode, see page 16. To use a preset workout, see page 18. To use the iFit training mode, see page 19. To use the stereo sound system, see page

19. To use the information mode, see page 20.

IMPORTANT: If there is a sheet of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time the treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 24).

Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE on page 20. For simplicity, all instructions in this

manual refer to miles.

15

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before turning on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 14). Next, locate the power switch on the treadmill frame near the power cord. Make sure that the switch is in the reset position.

Reset

IMPORTANT: The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as you plug in the power cord and press the power switch into the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page

20 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Locate the clip attached to the key, and slide the clip securely onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light.

Key

Clip

IMPORTANT: In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Each time the key is inserted, the main menu will appear. To select the manual mode, use the Increase and

Decrease buttons next to the Enter button and highlight START. Press the Enter button. If you have selected a workout or the iFit Training mode, press the Menu button to return to the main menu.

3. Start the walking belt and adjust the speed.

To start the walking belt, press the Start button, the

Speed increase button, or one of the numbered 1

Step Speed buttons.

If you press the Start button or the Speed increase button, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons next to the Stop button. Each time you press one of the buttons, the speed setting will change by 0.1 mph; if you hold down the button, the speed setting will change in increments of 0.5 mph.

If you press one of the numbered 1 Step Speed buttons, the walking belt will gradually change speed until it reaches the selected speed setting.

To select a speed setting that includes a decimal— such as 3.5 mph—press two numbered buttons in succession. For example, to select a speed setting of 3.5 mph, press the 3 button and then immediately press the 5 button.

To stop the walking belt, press the Stop button. To restart the walking belt, press the Start button, the

Speed increase button, or one of the numbered 1

Step Speed buttons.

16

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button, or one of the 1

Step Incline buttons numbered 0 to 10. Each time you press one of the buttons, the incline will gradually change until it reaches the selected incline setting.

5. Select a display mode and monitor your progress with the display.

The console offers several display modes. The display mode that you select will determine which workout information is shown. To select the desired display mode, repeatedly press the Display button or the Increase and Decrease buttons next to the Enter button.

As you walk or run on the treadmill, the center display can show the following workout information:

• The incline level of the treadmill

• The speed of the walking belt

• The distance that you have walked or run

• The elapsed time

• Your heart rate (see step 6 on this page)

• The approximate number of calories you have burned

Regardless of which display mode you select, the speed and incline settings will appear in the speed and incline displays.

6. Measure your heart rate if desired.

Before using the handgrip pulse sensor, remove the sheets of plastic from the metal contacts.

In addition, make sure that your hands are clean.

Contacts

To measure your heart rate, stand on the foot

rails and hold the contacts—avoid moving your

hands. When your pulse is detected, your heart rate will be shown. For the most accurate heart

rate reading, continue to hold the contacts for about 15 seconds.

7. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when you fold the treadmill to the storage position, or you may damage the treadmill.

Next, remove the key from the console and put it in a secure place.

When you are finished using the treadmill, press the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

17

HOW TO USE A PRESET WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 16.

2. Select a preset workout.

If you have selected a workout or the iFit Training mode, press the Menu button to return to the main menu.

To select a preset workout, use the Increase and

Decrease buttons next to the Enter button and highlight WORKOUTS. Press the Enter button.

You can also press the Weight Loss Workouts button, Distance Workouts button, Timed Workouts button, or Performance Workouts button.

Use the Increase and Decrease buttons to select the desired workout. When you select a workout, the display will show the name, the duration, the maximum speed setting, the maximum incline setting, and a profile of the speed settings of the workout. Press the Enter button. Note: When a distance workout is selected, the duration of the workout will not appear in the display.

3. Start the workout.

Press the Start button to start the workout. A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

Each preset workout is divided into segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed and/or incline setting may be programmed for consecutive segments.

During the workout, the profile will show your progress. Press the Display button repeatedly to view the profile. The flashing segment of the profile represents the current segment of the workout.

The height of the flashing segment indicates the speed setting for the current segment.

At the end of each segment, a series of tones will sound and the next segment of the profile will begin to flash. If a new speed and/or incline setting is programmed for the next segment, the speed and/or incline setting will

Current Segment flash in the displays for a few seconds and the treadmill will automatically adjust to the new speed and incline settings.

The workout will continue in this way until the last segment of the profile flashes in the display and the last segment ends. The walking belt will then slow to a stop.

Note: The calorie goal for each weight loss workout is an estimate of the number of calories that you will burn during the workout. The actual number of calories that you burn will depend on your weight. In addition, if you manually change the speed or incline of the treadmill during the workout, the number of calories you burn will be affected.

If the speed or incline setting is too high or too low at any time during the workout, you can manually override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop button. To restart the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Select a display mode and monitor your progress with the display.

See step 5 on page 17.

5. Measure your heart rate if desired.

See step 6 on page 17.

6. When you are finished exercising, remove the key from the console.

See step 7 on page 17.

18

HOW TO USE THE IFIT TRAINING MODE

The optional iFit Live module allows your treadmill to communicate with your wireless network and unlocks exciting new features. For example, you can download personalized workouts, create your own workouts, track your workout results, and access many other features. To purchase an iFit Live module at any time,

go to www.iFit.com or call the telephone number

on the front cover of this manual. You must have an iFit Live module to use the iFit training mode.

To use the iFit training mode, insert the iFit Live module into the console. Use the increase and decrease buttons next to the Enter button and highlight IFIT

TRAINING. Press the Enter button.

For more information about the iFit training mode, go to www.iFit.com. Note: To use an iFit Live module, you must have access to a computer with an internet connection and a USB port. You must also have your own wireless network including an 802.11b router with

SSID broadcast enabled (hidden networks are not supported). You will also need an iFit.com membership.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the console.

Plug one end of your audio wire into the audio jack on the console. Plug the other end into a jack on your

MP3 player, CD player, or other personal audio player.

Make sure that the audio wire is fully plugged in.

Next, press the Play button on your MP3 player, CD player, or other personal audio player. Then, adjust the volume on your personal audio player or press the Vol increase and decrease buttons on the console.

If you are using a personal CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.

19

THE INFORMATION MODE

The console features an information mode that keeps track of the total distance that the walking belt has moved and the total number of hours that the treadmill has been used. The information mode also allows you to select miles or kilometers to measure distance, and to turn on and turn off the display demo mode. You can also adjust the contrast level of the display and view the status of the optional iFit Live module.

To select the information mode, hold down the Stop button, insert the key into the console, and then release the Stop button. When the information mode is selected, the following information will appear in the display:

The display will show the total number of miles that the walking belt has moved and the total number of hours the treadmill has been used.

The display will show the selected unit of measurement. To change the unit of measurement, press the

Speed increase button. To view distance in miles, select ENGLISH. To view distance in kilometers, select

METRIC.

The console features a display demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, press the power switch into the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, the word “ON” will appear in display while the information mode is selected. To turn on or turn off the demo mode, press the

Speed decrease button.

The display will also show the contrast level of the display. Press the Incline increase and decrease buttons to adjust the contrast.

The display will show whether an accessory is plugged into the console. If the iFit Live module is plugged in, the display will show the words “WIFI STATUS.” If a

USB device is plugged in, the display will show the words “USB STATUS.” If nothing is plugged in, the display will show the words “NO MODULE DETECTED.”

To exit the information mode, remove the key from the console.

20

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs and keep your back straight.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

1

Frame

1

Handrail

Frame

Wheel

2. Raise the frame until the latch knob locks in the storage position. CAUTION: Make sure that the

latch knob locks.

2

Latch

Knob

Frame

To protect the floor or carpet, place a mat under the treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill frame with your left hand. Pull the latch knob to the right; if necessary, push the frame forward slightly.

Pivot the frame downward a few inches, and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame firmly with both hands, and lower it to the floor.

CAUTION: Do not hold the frame by the plastic foot rails, and do not drop the frame. Bend your legs and keep your back straight.

21

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge suppressor that meets all of the specifications described on page 14. IMPORTANT: The treadmill is not

compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the switch, wait for five minutes and then press the switch back in. c

Tripped Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please see the front cover of this manual.

PROBLEM: The console displays remain lit when you remove the key from the console

SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 20 to turn off the demo mode.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG

THE POWER CORD. Place the treadmill in the storage position (see HOW TO FOLD THE TREADMILL on page 21). Remove the two #8 x 1 /12" Screws

(52).

Then, lower the treadmill (see HOW TO LOWER

THE TREADMILL FOR USE on page 21).

a

52

52

22

Remove the four #8 x 1" Screws (49) and carefully remove the Motor Hood (61).

61

49

Locate the Reed Switch (44) and the Magnet (43) on the left side of the Pulley (42). Turn the Pulley until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and

the Reed Switch is about 1/8 in. (3 mm). If necessary, move the Reed Switch slightly using a slotted screwdriver. Reattach the Motor Hood (not shown) with the four #8 x 1" Screws (not shown) and the two #8 x 1 1/2" Screws (not shown). Run the treadmill for a few minutes to check for a correct speed reading.

1/8 in.

Top

View

44

43

42

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and then release the Stop button and the Speed increase button. Press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline does not calibrate, press the Stop button, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 14.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both idler roller bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

2–3 in.

Idler Roller Bolts c. If the walking belt still slows when walked on, see the front cover of this manual.

23

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the

right, turn the left idler roller bolt counterclockwise

1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered. a b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

PROBLEM: The console display has lines running through it

SOLUTION: a. If lines appear in the console display, see THE INFORMATION MODE on page 20 and adjust the contrast level of the display.

24

EXERCISE GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

25

PART LIST —Model No. NTL08009.3

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty.

29

30

31

32

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

45

46

47

48

41

42

43

44

49

50

37

38

39

40

33

34

35

36

2

1

2

4

2

6

2

2

4

1

4

2

4

2

11

10

2

2

1

28

6

2

8

8

2

2

4

1

1

6

23

4

1

1

1

1

8

1

1

1

1

1

2

1

2

1

1

2

2

4

Description

#8 x 1/2" Screw

#8 x 1" Tek Screw

3/8" x 2" Bolt

5/16" x 1 1/2" Patch Bolt

5/16" x 3/4" Patch Bolt

3/8" x 2 1/4" Latch Patch Bolt

3/8" x 5 1/2" Patch Bolt

1/4" x 1/2" Patch Bolt

5/16" Star Washer

3/8" Nut

3/8" Star Washer

1/4" Star Washer

Pulse Crossbar

#8 x 3/4" Screw

1/4" x 2 1/2" Bolt

3/8" x 1 3/4" Bolt

#8 x 1/2" Washer Head Screw

#12 x 1/2" Screw

Belt Guide Screw

Drive Motor Bolt

3/8" x 2 1/8" Bolt

3/8" x 1 1/8" Bolt

5/16" x 1 1/4" Bolt

Drive Roller Bolt

1/4" Flat Washer

1/4" Lock Washer

U-nut

#8 x 3/4" Truss Head Screw

3/8" Jam Nut

5/16" Flange Nut

3/8" x 2 1/4" Patch Bolt

1/4" Star Washer

#8 Star Washer

#8 x 1" Truss Head Screw

Left Foot Rail

Base Foot Spacer

Platform Cushion

Walking Platform

Belt Guide

Left Foot Rail Cover

Right Foot Rail Cover

Drive Roller/Pulley

Magnet

Reed Switch

Reed Switch Clamp

Drive Motor Belt

Drive Motor

Walking Belt

#8 x 1" Screw

Right Foot Rail

Key No. Qty.

79

80

81

82

75

76

77

78

71

72

73

74

67

68

69

70

63

64

65

66

59

60

61

62

55

56

57

58

51

52

53

54

95

96

97

98

91

92

93

94

99

100

87

88

89

90

83

84

85

86

1

1

1

2

2

1

1

7

1

2

1

2

1

1

2

2

1

1

2

2

1

3

1

1

1

1

1

1

1

1

1

2

2

1

2

4

8

1

0

1

2

4

2

1

1

1

1

1

1

1

Description

Storage Latch

#8 x 1 1/2" Screw

Electronics Bracket

Controller

Frame

Idler Roller

Right Frame Foot

Left Frame Foot

Hex Key

5/32" Hex Key

Motor Hood

Pulse Ground Wire

Lift Frame Spacer

Frame Spacer

Lift Frame

Incline Motor

3/8" x 3" Bolt

Hood Mount

Belly Pan

Power Switch

Power Cord

Grommet

Lift Motor Wire

Releasable Tie

15 1/2" Tie

8" Tie

Handrail Cap

Left Handrail

Right Handrail

Console Clamp

Console Frame

Left Upright

Right Upright

Base Cover

Upright Wire

Right Outside Upright Cover

Left Outside Upright Cover

Right Inside Upright Cover

Caution Decal

Left Inside Upright Cover

1/4" x 1 3/4" Patch Bolt

Base Foot

Not Used

Base

Wheel

Wheel Spacer

3/8" x 3 3/4" Patch Bolt

Key/Clip

Wire Tie

Console

R1112A

26

Key No. Qty.

101

102

103

104

105

106

107

108

1

2

1

1

1

1

1

1

Description

Left Accessory Tray

Console Base

Module Housing

Right Accessory Tray

Access Door

Pulse Bar

Frame Crossbar

Incline Motor Bushing

Key No. Qty.

109

110

111

112

113

114

*

4

4

1

1

4

1

Description

Hood Clip

Latch Warning Decal

Site Warning Decal

Wire Tie Clamp

#8 x 3/4" Tek Screw

Small Platform Cushion

User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

27

EXPLODED DRAWING A—Model No. NTL08009.3

R1112A

28

EXPLODED DRAWING B—Model No. NTL08009.3

49

49

109

109

R1112A

109

49

75

112

22

61

76

74

64

73

10

65

29

63

66

16

10

68

49

29

14

108

69

16

70

63

64

22

71

17

72

49

52

49

52

49

14

68

14

29

EXPLODED DRAWING C—Model No. NTL08009.3

9

81

17

80

78

27

4

34

77

4

9

8

12

5

80

62

34

R1112A

9

4

79

82

84

77

5

9

8

12

85

4

27

87

97

31

11

7

11

90

1

89

10

21

111

1

2

92

21

10

1

83

72

67

1

11

97

94

96

95 96

10

36

2

92

10

96

95

96

67

30

36

2

92

1

89

85

1

88

2

92

11

86

7

31

EXPLODED DRAWING D—Model No. NTL08009.3

98

99

100

R1112A

101

14

14

1

1

102

14

14

1

1

103

14

106

105

17

62

14

14

17

14

13

14

14

62

14

1

104

1

31

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED 

DRAWING near the end of this manual)

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added fees for service needed under warranty. Go to www.nordictrackservice.com/registration.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The frame and drive motor are warranted for a lifetime. Parts are warranted for two (2) years from the date of purchase. Labor is warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser. ICON’s obligation under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Part No. 303981 R1112A Printed in USA © 2012 ICON IP, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
