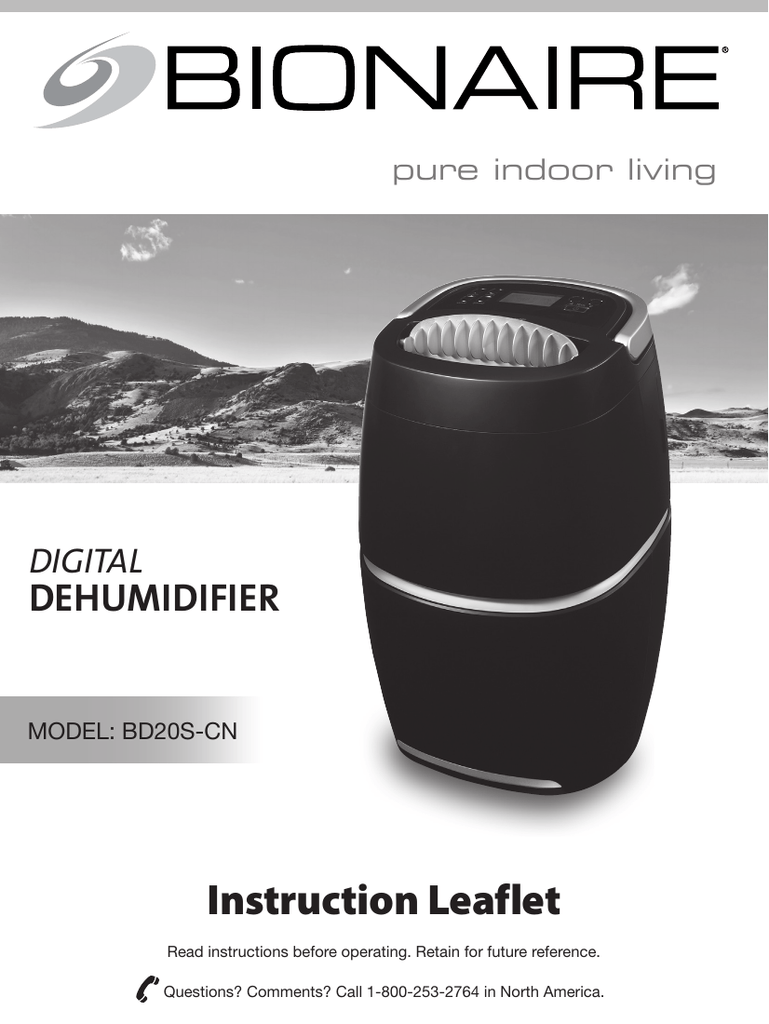

Bionaire BD20S-CN Instruction Leaflet

pure indoor living
DIGITAL
DehumiDifier
MODEL: BD20S-CN
Instruction Leaflet
Read instructions before operating. Retain for future reference.
Questions? Comments? Call 1-800-253-2764 in North America.
P L E A S E R E A d A N d S AV E T H E S E
I M P O R TA N T S A F E T Y I N S T R U C T I O N S
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the
following:
1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance
directly into a 120V AC electrical outlet.
3. Keep the cord out of heavy traffic areas. To avoid
fire hazard, NEVER put the cord under rugs or near
heat registers.
4. DO NOT place dehumidifier near heat sources such as
stoves, radiators, and heaters. Locate your
dehumidifier on an inside wall near an electrical
outlet. The dehumidifier should be at least 4 inches
(10cm) away from the wall for best results.
5. NEVER place dehumidifier in an area where it is
accessible to children.
6. Never place anything over the grill when the unit is
running.
7. NEVER drop or insert any object into any openings.
8. DO NOT operate any appliance with a damaged cord
or plug, after the appliance malfunctions, or if it has
been dropped or damaged in any manner. Return
appliance to manufacturer for examination, electrical
or mechanical adjustment, or repair.
9. Use appliance only for intended household use as
described in this manual. Any other use not
recommended by the manufacturer may cause fire,
electric shock, or injury to persons. The use of
attachments not recommended or sold by the
manufacturer may cause hazards.
10. DO NOT use outdoors.
11. Always place dehumidifier on a firm, flat, level
surface. A waterproof mat or pad is recommended
for under the dehumidifier. NEVER place it on a
surface that may become damaged by exposure to
water and moisture (i.e. finished floor).
12. Dehumidifier should be unplugged when not in use.
13. NEVER tilt, move, or attempt to empty unit while it is
operating. Shut off and unplug before cleaning or
moving the dehumidifier. DO NOT attempt to remove
the water tank within 15 minutes after the
dehumidifier is turned off and unplugged. Serious
injury may result. Be sure to unplug the appliance by
pulling on the plug and not the cord.
14. NEVER use detergents, gasoline, glass cleaner,
furniture polish, paint thinner, or other household
solvents to clean any part of the dehumidifier.
15. DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void
your warranty. The inside of this dehumidifier
contains no user serviceable parts. All servicing
should be performed by qualified personnel only.
16. Never place housing under water flow or immerse in
liquids.
17. Do not plug in the cord with wet hands: electric shock
could result.
18. NEVER operate the dehumidifier without the water
reservoir in place.
19. Use both hands when carrying the water reservoir.
20. This dehumidifier requires regular maintenance to
operate appropriately. Refer to cleaning and
maintenance procedures.
21. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person.
22. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
THIS PROdUCT IS EQUIPPEd WITH A 3-PRONG PLUG
This product is for use on 120 volts. The cord has a plug (A) as shown. An adapter
(C) (not included) is available for connecting three-blade grounding-type plugs to
two-slot receptacles (B). The green grounding lug extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet box.
The adapter should not be used if a three-slot grounded receptacle is available.
F E AT U R E S - O P E R AT I O N S
23. CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external
switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the
utility.
PLEASE REAd ANd SAVE
THESE IMPORTANT
SAFETY INSTRUCTIONS
HOW YOUR dEHUMIdIFIER WORKS
Your Bionaire® dehumidifier draws moisture laden air
through the intake grills on the appliance. Humid air
passes through refrigerated coils where the moisture is
removed and collected in the water reservoir.
For optimum performance, it is not recommended to use
this appliance in environments where the temperature
exceeds 37 °C or is lower than 5 °C.
The unit should only be used indoors in such areas as a
living room or bedroom. Never use it outdoors. Make
sure doors and windows are closed before using the
appliance.
PRE-OPERATING INSTRUCTIONS
1. Select a location for your dehumidifier, on a flat/
level surface, about 4 inches (10cm) away from the
wall.
2. Place unit on a stable and flat floor surface. If the
floor surface is not even, there is a risk the unit
might be unstable or topple over. Also, it may result
in excessive vibration and noise.
3. Plug the power cord into a 120V AC electrical outlet.
OPERATING INSTRUCTIONS
Automatic dehumidifying
1. Plug unit into an appropriate electrical outlet. The
unit will beep 3 times. If open, the air oscillator will
return to its closed position.
2. Press the on/off button to start the unit. The air
oscillator will open to its maximum position and
the unit will start the automatic dehumidification
function.
3. The auto button enables you to select between
automatic dehumidification and automatic whisper
quiet dehumidification.
4. Press the auto button once to switch the unit between
automatic dehumidification and whisper quiet
dehumidification.
5. In automatic dehumidification mode, the unit will
monitor the relative humidity of the environment and
adjust its functionality accordingly, cycling on and off
to maintain your desired comfort level.
6. In whisper quiet mode, the unit will operate as in the
automatic dehumidification mode but at low speed.
The quiet icon will be highlighted in the LCD display.
7. The default humidity level is set at 60% relative
humidity (RH). Press the humidity control buttons
up and down to adjust the humidity level as desired.
Please refer to the humidity control instructions below
for additional operating instructions.
8. To turn the unit off, press the On/Off button again.
The air oscillator will close and the unit will stop
working.
Continuous dehumidifying
To set the unit to operate continuously, turn the unit on and
then press the continuous operation button. The unit will
operate in high speed, at 60% RH. When you activate this
mode, the continuous icon will be shown in the LCD display.
NOTE: If you adjust the humidity control buttons during
the continuous operation, the unit will resume the
automatic dehumidification mode.
NOTE: If continuous drain function is not in use and the
water reservoir is not manually emptied, the unit will
automatically shut off when the water reservoir becomes
full.
Using The Timer
Once the unit is powered on and an operating mode is
selected, press the timer button continuously, choosing
from 1 to 8 hours as desired. The timer icon will be
highlighted on the LCD display and show the number of
hours remaining until the unit shuts off.
F E AT U R E S - O P E R AT I O N S
Oscillating Function
Press the oscillation button to set the air oscillator to
oscillate automatically between 45 and 90 degrees. Press
again to select a stationary position for the air oscillator
at the desired angle between 45 and 90 degrees.
Humidity Control
When the unit starts, the humidity level of the
environment will be shown on the LCD display.
1. For automatic or whisper quiet modes, press the
humidity control buttons to select the desired
humidity level. The control allows you to adjust level
in 5% intervals from 40% to 80%.
A
Figure 1
E
Handle
Air Intake Slats
Water Reservoir
Drain Plug
Water Level Pane
Drainage Hose
Figure 2
I
B
O
CONTROL PANEL (close-up)
K
J
Figure 3
E
F
G
H
L. Humidity Control
Buttons
M. On/Off Button
N. Oscillation Button
O. Auto Button
LCD DISPLAY (close-up)
S
R
Q
C
D
L
M
N
I. Continuous Operation
Button
J. Timer Button
K. LCD Display (see
Figure 3 for close-up)
A. Control Panel
(see Figure 2 for
close-up)
B. Air Oscillator
C.
D.
E.
F.
G.
H.
2. If the unit humidity level sensor detects humidity
levels in the environment that are lower than the
selected humidity level, the compressor will shut off
and the fan will work on low speed. The humidity
level of the environment must be higher than the
humidity level selected in order for the unit to start
operating again.
W
V
T
U
P
P. Speed
Q. Water Reservoir Full
R. Continuous
Dehumidification
S. Timer
T. Oscillation
U. Automatic Defrost
X
Y
V. Whisper Quiet
Automatic
Dehumidification
W. Automatic
Dehumidification
X. Ambient Temperature
Y. Ambient Humidity
Level
F E AT U R E S - O P E R AT I O N S
CLEANING / MAINTENANCE
Automatic defrosting
NOTE: Please make sure to place the open end of the
hose flat on the ground ensuring it is not entangled.
If the room temperature drops down to 16 °C or lower,
CAUTION: The drain hose must be below the drain plug
the unit’s temperature sensor will set the compressor
in order for the unit to drain properly.
to dehumidify for 25 minutes and then shut off
automatically. The fan will keep running for 7 minutes to NOTE: To help prevent leakage, you should use a marker
to denote the location where the hose meets the housing
defrost in a cycle.
NOTE: When the defrost icon is shown on the LCD display, on the rear of the unit. Periodically check to make sure
this indicator has not moved away from the housing to enthe compressor will shut off and the fan will run at high
sure that your hose will not leak. Leakage inside the unit
speed.
will fall into the water reservoir. If this happens you can
Water Full Protection & Auto-Shutoff
empty the water reservoir by following the instructions
When the water reservoir is full, the unit will sound an
above in the “Emptying the Water Reservoir” section.
alarm beeping 10 times (for about 5 seconds). The water
reservoir full icon will be displayed on the screen and the CLEANING ANd MAINTAINANCE
unit will shut off automatically. This indicates that it is
1. Turn the unit off and unplug it from the electrical
time to empty the water reservoir before using the unit
outlet.
again. Once the empty water reservoir is placed back into 2. Carefully remove water reservoir to empty it. Rinse
the unit, it will take up to 3 minutes for the dehumidifier
the reservoir with warm water.
compressor to work again. This is a protection feature.
3. Use a soft clean cloth to wipe the unit. Do not use
If you wish to restart the unit without waiting, unplug it
gasoline, paint thinner or other cleaning products to
from the electrical outlet and plug it in again.
clean the unit.
4. To clean the mesh filter, carefully remove the filter
Water drip Protection
and clean it with a vacuum cleaner or rinse with cool
When the water reservoir is removed for emptying, this
water. Place it in a well-ventilated location and allow
device will keep the condensed water that continues to
to dry before replacing filter into unit.
drip. Once the water reservoir is placed back in the unit,
NOTE: Do not expose unit to direct sunlight.
it will release this water into the reservoir.
Continuous drainage
For added user convenience, this dehumidifier includes a
hose that can be attached to it to operate with continuous
drainage. To use it, simply remove the drain plug located
in the back of the unit and connect the PVC hose that
comes with the unit. Find a suitable location for the unit
where the open end of the hose can drain the outgoing
water into an appropriate receptacle or outside of your
home, far enough away from the foundation to ensure
proper drainage. The unit will now direct water from the
bypass port and through the hose, rather than into the
water reservoir.
TROUbLESHOOTING
TROUbLESHOOTING
Trouble
• Dehumidifier
shuts off
automatically.
Probable Cause
☛ Reservoir is full.
☛ The compressor starts to
malfunction during the operation.
Solution
✔ Follow Water Full Protection & Auto-Shutoff
instructions in this manual.
✔ Wait for 3 minutes and then restart the unit
again. If you wish to restart the unit without
waiting for 3 minutes, unplug it from the
electrical outlet and plug it again.
• Signal with 3 long ☛ The unit’s sensor detects the room ✔ Wait until room temperature is within safe
beep sounds
temperature is below 0 °C or
operating temperature (0-40 °C).
followed by 2
above 40 °C.
✔ Relocate your dehumidifier to another room
short ones, and
and operate normally. To restart the unit it
then the
will be necessary to unplug it from the
dehumidifier
electrical outlet and plug it back in.
automatically
shuts off.
• EO Code on
Display.
☛ The sensor malfunctions.
• Appliance cycles
on/off.
☛ This is normal operation when
✔ This is normal operation.
using the automatic
dehumidification setting. The
humidistat within the appliance
adjusts to maintain your desired
comfort level. To run continuously,
select the continuous mode (see
operating instructions).
• Warm air coming
from outlet grill.
☛ Heat exchange while the
compressor is on.
✔ Restart the unit after troubleshooting.
✔ This is normal operation.
WA R R A N T Y I N F O R M AT I O N
2 Y E A R L I M I T E d WA R R A N T Y
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of two years from
the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair
or replace this product or any component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT
attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a
particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any questions regarding this warranty or would like to obtain warranty service, please call
1-800-253-2764 and a convenient service center address will be provided to you.
In Canada
If you have any questions regarding this warranty or would like to obtain warranty service, please call
1-800-253-2764 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located
in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any
other problem or claim in connection with this product, please write our Consumer Service Department. PLEASE dO
NOT RETURN THIS PROdUCT TO ANY OF THESE AddRESSES OR TO THE PLACE OF PURCHASE.
STORAGE INSTRUCTIONS
STORAGE INSTRUCTIONS
If you will not be using your dehumidifier for an extended period of time, please follow these instructions to properly
store it:
1. Turn the dehumidifier off and unplug it from the electrical outlet.
2. Clean and dry the dehumidifier thoroughly as per the cleaning instructions above.
3. Make sure all parts are dry before storing. Do not store the appliance with any water in the reservoir.
4. Store upright in a cool, dry location.
If you have any questions regarding your product or would like to learn more about other Bionaire® products,
please contact our Consumer Service Department at 1-800-253-2764 or visit our website at www.bionaire.com.
© 2011 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Imported and
distributed by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, 20B Hereford
Street, Brampton, Ontario L6Y 0M1.
Printed In China

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
