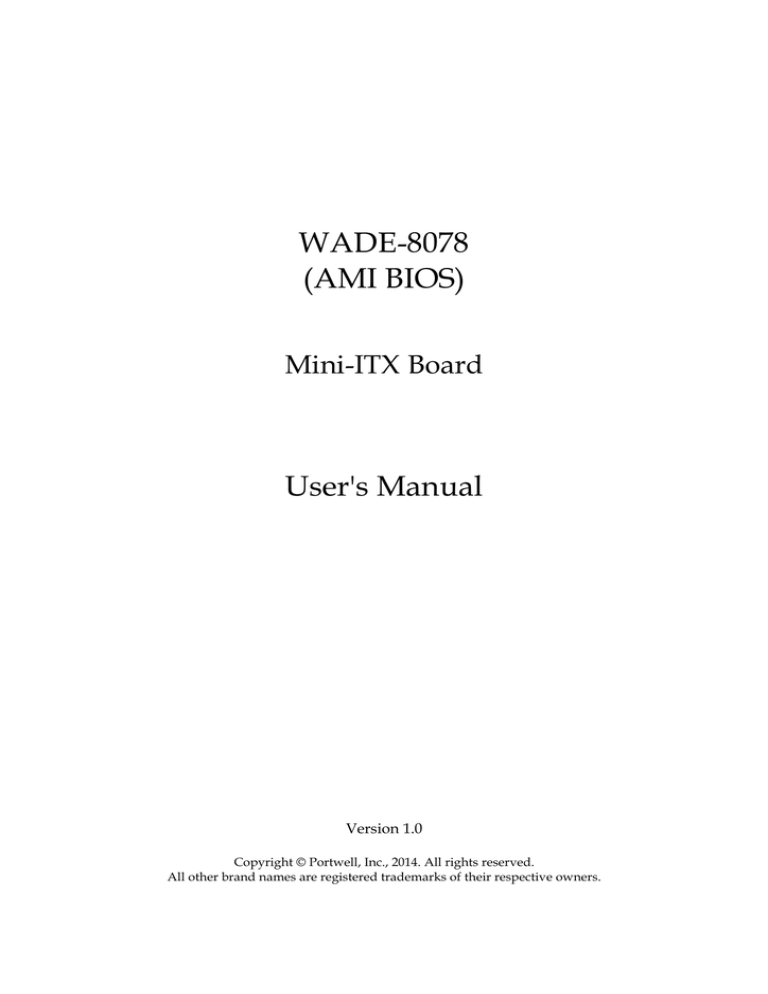

WADE-8078

(AMI BIOS)

Mini-ITX Board

User's Manual

Version 1.0

Copyright © Portwell, Inc., 2014. All rights reserved.

All other brand names are registered trademarks of their respective owners.

Preface

Table of Contents

How to Use This Manual

Chapter 1 System Overview....................................................................................................... 1-1

1.1 Introduction ....................................................................................................... 1-1

1.2 Check List........................................................................................................... 1-1

1.3 Product Specification........................................................................................ 1-2

1.3.1 Mechanical Drawing................................................................................ 1-4

1.4 System Architecture.......................................................................................... 1-6

Chapter 2 Hardware Configuration ........................................................................................... 2-1

2.1 Jumper Setting................................................................................................... 2-1

2.2 Connector Allocation........................................................................................ 2-9

Chapter 3 System Installation.................................................................................................... 3-1

3.1 Intel® Valleyview CPU .................................................................................... 3-1

3.2 Main Memory .................................................................................................... 3-1

3.3 Installing the Single Board Computer............................................................ 3-1

3.3.1 Chipset Component Driver .................................................................... 3-2

3.3.2 Intel® HD Graphics 4600 ........................................................................ 3-2

3.3.3 Intel LAN I210IT / I210IAT co-lay Gigabit Ethernet Controller....... 3-2

3.3.4 Realtek ALC892 HD Audio Controller................................................. 3-2

3.4 Clear CMOS Operation .................................................................................... 3-2

3.5 WDT Function ................................................................................................... 3-3

3.6 GPIO.................................................................................................................... 3-5

Chapter 4 BIOS Setup Information............................................................................................ 4-1

4.1 Entering Setup -- Launch System Setup ........................................................ 4-1

4.2 Main .................................................................................................................... 4-2

4.3 Configuration .................................................................................................... 4-3

4.4 Security ............................................................................................................. 4-16

4.5 Boot ................................................................................................................... 4-17

4.6 Save & Exit ....................................................................................................... 4-19

Chapter 5 Troubleshooting ........................................................................................................ 5-1

5.1 Hardware Quick Installation........................................................................... 5-1

5.2 BIOS Setting ....................................................................................................... 5-2

5.3 Q&A .................................................................................................................... 5-2

Preface

How to Use This Manual

The manual describes how to configure your WADE-8078 system board to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of Single Host Board.

Chapter 1: System Overview.

Presents what you have in the box and give you an overview of the product specifications and basic system architecture for this series model of single host board.

Chapter 2: Hardware Configuration.

Show the definitions and locations of Jumpers and Connectors that you can easily configure your system.

Chapter 3: System Installation.

Describes how to properly mount the CPU, main memory and Compact Flash to get a safe installation and provides a programming guide of Watch Dog Timer function.

Chapter 4: BIOS Setup Information.

Specifies the meaning of each setup parameters, how to get advanced BIOS performance and update new BIOS. In addition, POST checkpoint list will give users some guidelines of trouble-shooting.

Chapter 5: Troubleshooting.

Provide various of useful tips to quickly get

WADE-8078 running with success. As basic hardware installation has been addressed in Chapter 3, this chapter will basically focus on system integration issues, in terms of backplane setup, BIOS setting, and OS diagnostics.

The content of this manual is subject to change without prior notice. These changes will be incorporated in new editions of the document. The vendor may make supplement or change in the products described in this document at any time.

System Overview

Chapter 1

System Overview

1.1 Introduction

Powell Inc., a world-leading innovator in the Industrial PC (IPC) market and a member of the Intel® Communications Alliance, has launched its new

WADE-8078 series in response to market demand for a simplified embedded system board

(ESB) that combines a smaller footprint, lower power consumption, robust computing power and with longevity support.

Built with Intel’s latest chipset, WADE-8078 series take advantage of the Intel®

Atom™ Valleyview E38XX series processors.

WADE-8078 has lots of features, also features one SATA connectors (SATA

3Gb/s) storage specification , one DDR3 SO-DIMM memory slot for DDR3L ECC

SDRAM up to 4GB, support total 3 USB ports (1x USB3.0 on REAR I/O,2x USB2.0 on board), VGA / HDMI display ,one Gigabit Ethernet, and one PCIe x4 slot

(PCIe x2 signal) and support CFEX.

WADE-8078’s ability to drive two displays simultaneously makes them particularly suitable for lottery and gaming applications. They are also ideal for applications such as point-of-sale (POS), digital signage, kiosks .

The WADE-8078 package should cover the following basic items

9 One WADE-8078 Mini-ITX Main Board

9 One 8 Pin Power Cable

9

One SATA Cable

9 One I/O Shield bracket

9 One Installation Resources CD-Title

If any of these items is damaged or missing, please contact your vendor and keep all packing materials for future replacement and maintenance.

WADE-8078 User’s Manual 1-1

System Overview z Main Processor

-

Intel®

Atom™

Valleyview E38XX series processor z

System BIOS

AMI BIOS z Main Memory

One 204 - pin DDR3 SODIMM socket support DDR3L up to 4GB 1066/1333

MHz ECC memory(only use ECC memory)

- E3845 / E3827 support 1333MHz memory

- E3826 / E3825 / E3815 support 1066MHz memory z

Expansion Interface

One PCIex4(PCIex2 signal) z SATA Interface

One SATA ports(SATA 3Gb) z Serial Port

Support one RS232 / one RS232/422/485 z

USB Interface

Support three USB (Universal Serial Bus) ports, one USB3.0 on rear I/O and two USB2.0 on board header for internal devices z

Audio Interface

Connector for Line-Out(Line in / Line out / Mic in on board 8 pin header) z Real Time Clock/Calendar (RTC)

Support Y2K Real Time Clock/Calendar z Watch Dog Timer

-

Support WDT function through software programming for enable/disable and interval setting

- General system reset z On-board Ethernet LAN

One Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports z

High Drive GPIO z One pin-header for 8 bit GPIO z

System Monitoring Feature

Monitor system temperature and major power sources.

z Outline Dimension (L x W)

170mm(6.69’’) x 170mm(6.69’’) z

Power Requirements

WADE-8078 User’s Manual 1-2

System Overview z Configuration

CPU Type

SBC BIOS

ECC Memory

Genuine Intel® [email protected] 1.91 GHz Atom L3:2M Bytes

Portwell, Inc. WADE-8078 BIOS ( 30903T00 ) EVALUATION COPY

WARIS DDR3L SO-DIMM 1333 4GB*1 (hynix H5TC2G83EFR)

VGA Card

VGA Driver

LAN Card

LAN Driver

Audio Card

Audio Driver

Chip Driver

USB 3.0 Driver

Onboard Intel(R) HD Graphics

Intel(R) HD Graphics Version:10.18.10.3266

Onboard Intel(R) I210 Gigabit Network Connection

Intel(R) I210 Gigabit Network Connection Version:12.7.28.0

Onboard Realtek High Definition Audio Controller

Realtek High Definition Audio Version:6.0.1.6873

Intel (R) Chipset Device Software Version:9.4.4.1005

Intel (R) USB 3.0 eXtensible Host Controller Version: 6.2.9200.16384

3.5” SATA-2 HDD

Western Digital WD5002ABYS 500GB

CFEX

WARIS CFEX 4GB PWG B473D350-002

USB DVD-ROM

Transcend TS8XDVDRW-K

Power Supply

Portwell, ORION-D4601 460W z Operating Temperature

0 °C ~ 60 °C z Storage temperature

-20 ~ 80 °C z

Relative Humidity

0% ~ 90%, non-condensing

WADE-8078 User’s Manual 1-3

System Overview

WADE-8078 User’s Manual 1-4

System Overview

WADE-8078 User’s Manual 1-5

System Overview

All of details operating relations are shown in WADE-8078 System Block

Diagram.

WADE-8078 User’s Manual

WADE-8078 System Block Diagram

1-6

Hardware Configuration

Chapter 2

Hardware Configuration

This chapter gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on WADE-8078 are in the proper position. The default settings shipped from factory are marked with an asterisk (♣).

In general, jumpers on the single board computer are used to select options for certain features. Some of the jumpers are designed to be user-configurable, allowing for system enhancement. The others are for testing purpose only and should not be altered. To select any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins according to the following instructions. Here NC stands for

“Not Connect”.

WADE-8078 User’s Manual 2-1

Hardware Configuration

WADE-8078 User’s Manual 2-2

Hardware Configuration

The jumper settings are schematically depicted in this manual as follows:

JP1: Watch Dog Timer Enable

PIN No

1-2 open

Signal Function

Disable

Ì

1-2 short Enable

JP2: GPO Voltage Select

PIN No

1-2 short

2-3 short

Signal Function

+5V

Ì

+3.3V

WADE-8078 User’s Manual 2-3

Hardware Configuration

JP5: BIOS Select

PIN No

1-2 short

Signal Function

SPI Flash

Ì

2-3 short CFEX BIOS

JP6: Clear CMOS

PIN No

1-2 short

2-3 short

J1: GPIO

Signal Function Function

Normal

Ì

Clear CMOS

Pin No.

1

3

5

7

Signal Description

LPC_GPIO0 (GPJ0)

LPC_GPIO1 (GPJ1)

LPC_GPIO2 (GPJ2)

LPC_GPIO3 (GPJ3)

J2: Keyboard & Mouse Pin HDR

Pin No.

2

4

6

Signal Description

EC_GPO4 (GPE0)

EC_GPO5 (GPE7)

EC_GPO6 (GPC0)

8 EC_GPO7 (GPG0)

10 +5V

Pin No.

1

3

Signal Description

Mouse Data

Key( no pin )

5 Ground

7 +5V_Dual

9 Mouse Clock

Pin No.

2

4

Signal Description

Keyboard Date

Key( no pin )

6 Ground

8 +5V_Dual

10 Keyboard Clock

WADE-8078 User’s Manual 2-4

Hardware Configuration

J3:Front Panel System Connector

Pin No. Signal Description

1 PWR_LED(+)

3 PWR_LED(-)

9 N/C

11 N/C

13 HDD_LED(+)

15 HDD_LED(-)

J4: TPM Connector

Pin No. Signal Description

3 LFRAME#

5 PLTRST#

7 LAD3

9 +3.3V

11 LAD0

13 SMB_CLK

J6: System FAN Connector

Pin No. Signal Description

2 Speaker(+)

4 N/C

6 N/C

8 Speaker(-)

10 GND

14 Rest

16 GND

Pin No. Signal Description

2 Ground

4 N/C

6 +5V

8 LAD2

10 LAD1

12 Ground

14 SMB_DATA

PIN No

1

Signal Function

GND

2 +12V

3 SENSE

WADE-8078 User’s Manual 2-5

Hardware Configuration

J9: SATA Power

PIN No

1

Signal Function

+12V

2 Ground

3 Ground

4 +5V

J10: External USB Connector

Pin No. Signal Description

1 5V Dual

3 USB-

5 USB+

7 Ground

9

J14: COM2

Pin No. Signal Description

2 5V Dual

4 USB-

6 USB+

8 Ground

10 N/C

Pin No. Signal Description

1

3

5

7

Data Carrier Detect

Transmit Data

GND

Request To Send

Pin No. Signal Description

2 Receive Data

4

6

Data Terminal Ready

Data Set Ready

8 Clear To Send

10 KEY

J18: Audio MIC/Line-in/Line-out Connector

WADE-8078 User’s Manual 2-6

Hardware Configuration

Pin No. Signal Description

1 MIC with Reference Voltage

Pin No. Signal Description

2 Analog Ground

3 Line-in Left Channel 4 Analog Ground

5

7

9

Line-in Right Channel

Line-out Left Channel

Line-out Right Channel

CN1: 8 Pin ATX Connector

6

8

10

Analog Ground

Analog Ground

KEY

PIN No

1

Signal Description

+5V

2 +5V

3 +5Vsb

4 +12V

5 PS_ON#

6 Ground

7 Ground

8 Ground

SW1: ATX Detect &BIOS Recovery Switch

No.

1

Signal Description On

ATX Detect AT Mode

Off

ATX Mode

WADE-8078 User’s Manual 2-7

Hardware Configuration

J20: HDMI Connector

Pin No. Signal Description

1 D_HDMI_D0+

3 D_HDMI_D0-

5 GND

7 D_HDMI_D2+

9 D_HDMI_D2-

11 GND

Pin No. Signal Description

2 GND

4 D_HDMI_D1+

6 D_HDMI_D1-

8 GND

10 D_HDMI_D3+

12 D_HDMI_D3-

13 N/C 14 N/C

15 D_HDMI_DDC_CLK 16 D_HDMI_DDC_DATA

17 GND

19 D_HDMI_HPD_IN

18 VCC

20

J19: Audio connector

PIN No

Green

Signal Description

Line-Out

J21: COM1 Serial Port Connector

4

5

6

7

8

Pin No. Signal Description

1

RS-232 RS-422 (COM2) RS-485 (COM2)

DCD (Data Carrier Detect) TX- DATA-

2

3

DSR (Data Set Ready)

RXD (Receive Data)

N/C

TX+

N/C

DATA+

RTS (Request to Send)

TXD (Transmit Data)

CTS (Clear to Send)

RI (Ring Indicator)

10 N/C

J22: VGA Connector

N/C

RX+

N/C

DTR (Data Terminal Ready) RX-

N/C

GND

N/C

N/C

N/C

N/C

N/C

N/C

GND

N/C

Pin No. Signal Description

1 CRT_R

2 CRT_G

3 CRT_B

4 N/C

5 GND

6 GND

7 GND

8 GND

Pin No. Signal Description

9 VCC

10 GND

11 N/C

12 VGA_DDCDA

13 CRT_HS

14 CRT_VS

15 VGA_DDCCL

WADE-8078 User’s Manual 2-8

Hardware Configuration

I/O peripheral devices are connected to the interface connectors.

Connector Function List

Connector

J1 GPIO

J2

J3

Function

Keyboard & Mouse Pin HDR

Front Panel System Connector

J6

J7

J8

System FAN Connector

DDR3L ECC SO-DIMM Connector

Mini PCI-E

Remark

J10 External USB Connector

J12

J14

J16

J18

J19

PCI-E X4 Connector (Only X2 Lan)

COM 2 Serial Port Connector

USB 3.0 Connector

Audio MIC/Line-in/Line-out Connector

Audio Jack (Line-Out)

Only Support RS-232

J21

J23

JP1

JP2

SW1

U2

U14

COM 1 Serial Port Connector

CFEX Connector

Watch Dog Timer Enable

GPO Voltage Select

ATX Detect &BIOS Recovery Switch

EC EEPROM Socket

Bay Trail-I CPU

Support RS-232/422/485

WADE-8078 User’s Manual 2-9

System Installation

Chapter 3

System Installation

This chapter provides you with instructions to set up your system. The additional information is enclosed to help you set up onboard PCI device and handle Watch Dog

Timer (WDT) and operation of GPIO in software programming.

3.1 Intel® Valleyview CPU

Intel® Atom(TM) E3845 CPU (4 Core, 10W, 1.91GHz, 1333MT)

WADE-8078 provides 1 x 204-pin SO-DIMM sockets which supports DDR3L memory

(support ECC function only) as main memory, ECC (Error Checking and Correcting).

The maximum memory can be up to 4GB. Memory clock and related settings can be detected by BIOS via SPD interface.

Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket. Before locking, make sure that all modules have been fully inserted into the card slots.

3.3 Installing the Single Board Computer

WADE-8078 provides 1 x 204-pin SO-DIMM sockets which supports DDR3L memory

(support ECC function only) as main memory, ECC (Error Checking and Correcting).

The maximum memory can be up to 4GB. Memory clock and related settings can be detected by BIOS via SPD interface.

Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket. Before locking, make sure that all modules have been fully inserted into the card slots.

WARNING

Please ensure that SBC is properly inserted and fixed by mechanism.

Note:

Please refer to section 3.3.1 to 3.3.6 to install INF/VGA/LAN/Audio/Sideband

Fabric Device/Trusted Execution Engine drivers.

WADE-8078 User’s Manual 3-1

System Installation

3.3.1 Chipset Component Driver

WADE-8078 uses state-of-art Intel® BayTrail-I chipset. It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in WADE-8078 CD-title

3.3.2 Intel® HD Graphics 4600

WADE-8078 has integrated Intel® HD Graphics 4600 which supports DX11,

OpenGL3.2. It is the most advanced design to gain an outstanding graphic performance. WADE-8078 supports VGA and dual display. This combination makes

WADE-8078 an excellent piece of multimedia hardware.

Drivers Support

Please find the Graphic driver in the WADE-8078 CD-title. The driver supports

Windows 8.

3.3.3 Intel LAN I210IT / I210IAT co-lay Gigabit Ethernet Controller

Drivers Support

Please find Intel LAN I210IT / I210IT co-lay LAN driver in /Ethernet directory of

WADE-8078 CD-title. The driver supports Windows 8.

3.3.4 Realtek ALC892 HD Audio Controller

Please find Realtek ALC892 HD Audio driver form WADE-8078 CD-title. The driver supports Windows 8.

3.4 Clear CMOS Operation

The following table indicates how to enable/disable Clear CMOS Function hardware circuit by putting jumper in the board.

JP6: CMOS Setting

*

1-2

2-3

JP1

Normal

Jumper Setting Describe

Clean CMOS

WADE-8078 User’s Manual 3-2

System Installation

3.5 WDT Function

#include <stdio.h>

#include <stdlib.h>

#include <conio.h>

#include <dos.h>

#define EC_DATA 0x62

#define EC_CMD 0x66

#define EC_CMD_READ 0x80

#define EC_CMD_WRITE 0x81

#define WDT_MODE 0x06 // WDT Select mode.

#define WDT_MIN 0x07 // Minute mode counter

#define WDT_SEC 0x08 // Second mode counter

// Use port 62 and port 66 to access EC command / data.

WADE-8078 User’s Manual 3-3

System Installation static int IBF_Check()

{

System Installation

WADE-8078 User’s Manual 3-4 unsigned char IBF_status; do

{ pw_udelay (20); // delay 20 us outportb (EC_CMD, &IBF_status);

} while (IBF_status & 0x02); return 1;

} static int OBF_Check ()

{ unsigned char OBF_status; do

{ pw_udelay (20); // delay 20 us

OBP_status = inportb (EC_CMD);

} while (!(OBF_status & 0x01)); return 1;

} static void Write_EC (unsigned char index, unsigned char data)

{

IBF_Check (); outportb (EC_CMD, EC_CMD_WRITE);

IBF_Check (); outportb (EC_DATA, index);

IBF_Check (); outportb (EC_DATA, data);

} static unsigned char Read_EC (unsigned char address)

{ unsigned char data;

IBF_Check (); outportb (EC_CMD, EC_CMD_READ);

IBF_Check (); outportb (EC_DATA, address);

OBF_Check(); data = inportb (EC_DATA); return data;

} void EC_WDT_Trigger ()

{

/* WDT Counter */

Write_EC (WDT_SEC, 0x05);

WADE-8078 User’s Manual 3-4

System Installation

System Installation

WADE-8078 User’s Manual 3-5

/* if use minute mode */

/* Write_EC (WDT_MIN, 0x05); */

/* 0x01 is second mode */

/* 0x03 is minute mode */

Write_EC (WDT_MODE, 0x01);

}

Write_EC ((b->wdt.ec.count_m_addr & 0xFF), b->wdt.ec.timeout);

Write_EC ((b->wdt.ec.cfg_addr & 0xFF), 0x03); //

WDTCFG[1:0]=11 int main ()

{ int i;

EC_WDT_Trigger (); for (i = 0; i < 5; i++)

{ printf ("Reset counter ...................%d\n", 5 - i); delay (1000);

} return 0;

}

3.6 GPIO

#include <stdio.h>

#include <stdlib.h>

#include <conio.h>

#include <dos.h>

#define EC_DATA 0x62

#define EC_CMD 0x66

#define EC_CMD_READ 0x80

#define EC_CMD_WRITE 0x81

#define GPIO_DIR 0x2B // GPIO Direction (Input/Output) Reg.

#define GPIO_DATA 0x2C // GPIO High/Low Reg.

// Use port 62 and port 66 to access EC command / data. static int IBF_Check()

{ unsigned char IBF_status; do

{ pw_udelay (20); // delay 20 us

System Installation

WADE-8078 User’s Manual 3-6 outportb (EC_CMD, &IBF_status);

} while (IBF_status & 0x02);

WADE-8078 User’s Manual 3-5

System Installation return 1;

} static int OBF_Check ()

{ unsigned char OBF_status; do

{ pw_udelay (20); // delay 20 us

OBP_status = inportb (EC_CMD);

} while (!(OBF_status & 0x01)); return 1;

} static void Write_EC (unsigned char index, unsigned char data)

{

IBF_Check (); outportb (EC_CMD, EC_CMD_WRITE);

IBF_Check (); outportb (EC_DATA, index);

IBF_Check (); outportb (EC_DATA, data);

} static unsigned char Read_EC (unsigned char address)

{ unsigned char data;

IBF_Check (); outportb (EC_CMD, EC_CMD_READ);

IBF_Check (); outportb (EC_DATA, address);

OBF_Check(); data = inportb (EC_DATA); return data;

} int main ()

{ unsigned char d2; printf("\n\n"); printf("WADE-8078 GPIO TEST Program v1.0\n"); printf("Please short the following pins with 2.54mm-pitched jumper on

JP8\n"); printf("PIN 1,3,5,7 is output ; PIN 2,4,6,8 is input\n");

System Installation

WADE-8078 User’s Manual 3-7 printf("GPIO1 ---- GPIO5\n"); printf("GPIO2 ---- GPIO6\n"); printf("GPIO3 ---- GPIO7\n"); printf("GPIO4 ---- GPIO8\n"); printf("GND xxxx Vcc <==PWR/GND pins, DO NOT short them!\n\n");

WADE-8078 User’s Manual 3-6

System Installation printf("Test Begins...\n");

/* Set GPIO Port In/Out mode */

/* Port 1 ~ 4 Out mode, 5 ~ 8 In mode*/

Write_EC (GPIO_DIR, 0xF0); delay (5);

/* Set Port 1 ~ 4 Low, 5 ~ 8 High */ outportb (0x22E, 0xF0);

Write_EC (GPIO_DATA, 0xF0); delay (5); d2 = Read_EC (GPIO_DIR); if ((d2 & 0x10) == 0) printf ("GPIO70->GPIO74 test ok !! (pull low)\n"); else printf ("GPIO70->GPIO74 test fail (pull high) \n"); if ((d2 & 0x20) == 0) printf ("GPIO71->GPIO75 test ok !! (pull low)\n"); else printf ("GPIO71->GPIO75 test fail (pull high)\n"); if ((d2 & 0x40) == 0) printf ("GPIO72->GPIO76 test ok !! (pull low)\n"); else printf ("GPIO72->GPIO76 test fail (pull high)\n"); if ((d2 & 0x80) == 0) printf ("GPIO73->GPIO77 test ok !! (pull low)\n"); else printf ("GPIO73->GPIO77 test fail (pull high)\n"); return 0;

}

WADE-8078 User’s Manual 3-7

BIOS Setup Information

Chapter 4

BIOS Setup Information

WADE-8078 is equipped with the Phoenix BIOS stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods. When system is turned on, WADE-8078 communicates with peripheral devices and checks its hardware resources against the configuration information stored in the CMOS memory. If any error is detected, or the CMOS parameters need to be initially defined, the diagnostic program will prompt the user to enter the SETUP program. Some errors are significant enough to abort the start up.

4.1 Entering Setup -- Launch System Setup

Power on the computer and the system will start POST (Power On Self Test) process.

When the message below appears on the screen, press <Del> key will enter BIOS setup screen.

Press <Del> to enter SETUP

If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously.

Press <F1> to Run General Help or Resume

The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help screen.

WADE-8078 User’s Manual 4-1

BIOS Setup Information

4.2 Main

Use this menu for basic system configurations, such as time, date etc.

System Date

View or set system date

The date format is <Day>, <Month> <Date> <Year>. Use [+] or [-] to configure system Date.

System Time

View or set system time

The time format is <Hour> <Minute> <Second>. Use [+] or [-] to configure system

Time.

WADE-8078 User’s Manual 4-2

BIOS Setup Information

4.3 Configuration

CPU Configuration

WADE-8078 User’s Manual 4-3

BIOS Setup Information

Active Processor Cores

Number of cores to enable in each processor package

Choices: All, 1.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by

Vanderpool Technology

Choices: Disable, Enable.

EIST

Enable/Disable Intel SpeedStep

Choices: Disable, Enable.

CPU C6 report

Enable/Disable CPU C6 (ACPI C3) report to OS

Choices: Disable, Enable.

Chipset configuration

High Precision Timer

Enable or Disable the High Precision Event Timer.

Choices: Disable, Enable.

WADE-8078 User’s Manual 4-4

BIOS Setup Information

Audio Controller

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally enabled. Auto = Azalia will be enabled if present. Disable otherwise

Choices: Disable, Enable.

LAN Configuration

Launch Legacy PXE Rom

Launch Legacy PXE Rom. [Disable] Not launch Rom, [Enable] Force Launch Rom,

[Auto] Auto detect LAN Cable status to Enable/Disable Rom initial.

Choices: Disable, Enable, Auto

Wake On Lan Controller

Enable/Disable Intel Lan WGI210AT wakeup function.

Choices: Disable, Enable

WADE-8078 User’s Manual 4-5

BIOS Setup Information

Graphics Configuration

GOP Configuration

GOP Driver

Enable GOP Driver will unload VBIOS; Disable it will load VBIOS

Choices: Enable, Disable.

Intel IGD Configuration

IGD Turbo Enable

Enable: Enable IGD Turbo Enable. Disable: IGD Turbo Disable.

Choices: Enable, Disable.

Primary Display

Select which of IGD/PCI Graphics device should be Primary Display.

Choices: Auto, IGD, PCI, SG.

WADE-8078 User’s Manual 4-6

BIOS Setup Information

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory sized used by the Internal

Graphic Device

Choices: 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M,

416M, 448M, 480M, 512M

DVMT Total Gfx Mem

Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device.

Choices: 128MB, 256MN, Max.

Primary UGFX Boot Display

Select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your election. VGA modes will be supported only on primary display.

Choices: CRT, EFP.

LCD Panel Type

Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item.

Choices:VBIOS Default, 640x480 LVDS, 800x600 LVDS, 1024x768 LVDS, 1280x1024

LVDS, 1400x1050 (RB) LVDS, 1400x1050 LVDS, 1600x1200 LVDS, 1366x768 LVDS,

1680x1050 LVDS, 1920x1200 LVDS, 1440x900 LVDS, 1600x900 LVDS..etc.

Panel Scaling

Select the LCD Panel scaling option used by Internal Graphic device

Choices: Auto, Off, Force Scaling.

Backlight Control

Back Light Control Setting

Choices: PWM Inverted, PWM Normal, GMBus Inverted, FMBus Normal.

Active LFP

Select the Active LFP configuration.

Choices: No LVDS, Int-LVDS, SDVD LVDS, Edp Port-A, Edp Port-D

WADE-8078 User’s Manual 4-7

BIOS Setup Information

PCI/PCIE Configuration

PCI Express Configuration

WADE-8078 User’s Manual 4-8

BIOS Setup Information

PCI Express Root Port 0-3

Enable or Disable the PCI Express Port 0 in the Chipset.

Choices: Enable, Disable.

Speed

Configuration PCIe Port Speed.

Choices: Auto, Gen2, Gen1

SATA configuration

Serial-ATA (SATA)

Choices: Enable, Disable.

SATA Mode

Choices: IDE Mode, AHCI Mode.

SATA-ATA Port 0-1

Choices: Enable, Disable.

SATA Port 0-1 Hot Plug

Choices: Enable, Disable.

WADE-8078 User’s Manual 4-9

BIOS Setup Information

USB Configuration

USB Configuration settings

Legacy USB Support

Choices: Enable, Disable, Auto.

xHCI Legacy Support

Choices: Enable, Disable.

xHCI Hand-off

Choices: Enable, Disable.

EHCI Hand-off

Choices: Enable, Disable.

USB Mass Storage Driver Support

Choices: Enable, Disable.

WADE-8078 User’s Manual 4-10

BIOS Setup Information

USB Configuration

USB OTG Support

Enable/Disable USB OTG Support

Choices: Disable, PCI Mode, ACPI Mode.

USB VBUS

Choices: On, off.

XHCI Mode

Choices: Enable, Disable, Auto, Smart Auto.

USB Link Power Management

Choices: Enable, Disable.

USB Port #0~#3

Disable USB port

Choices: Disable, Enable

WADE-8078 User’s Manual 4-11

BIOS Setup Information

Power Control Configuration

Enable Hibernation

Enable or Disable system ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

Choices: Disable, Enable.

ACPI Sleep state

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Choices: Suspend Disable, S3 (Suspend to RAM).

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

Choices: Power off, Power On.

Wake on Ring Controller

Enable/Disable GPIO wake on ring function.

Choices: Disable, Enable.

WADE-8078 User’s Manual 4-12

BIOS Setup Information

TPM

TPM configuration

Security Device Support

Enabke or diacble BIOS support for security device. OS will not show security device.

TCG EFI protocol and INT1A interface will not be abailabe.

Choices: Disable, Enable.

Current Status Information

Security Device Support

Enabke or diacble BIOS support for security device. OS will not show security device.

TCG EFI protocol and INT1A interface will not be abailabe.

Choices: Disable, Enable.

WADE-8078 User’s Manual 4-13

BIOS Setup Information

Super I/O

Super I/On configuration

Serial Port

Enable or Disable serial port (COM).

Choices: Disable, Enable.

UART Mode

Set current UART MODE RS232, RS485, RS485/RS232 FULL DEFLEX.

Watch Dog Timer

Enable or Disable watch dog timer

Choices: Disable, Enable.

WADE-8078 User’s Manual 4-14

BIOS Setup Information

PC Health Status

Serial Port Console Redirection

WADE-8078 User’s Manual 4-15

BIOS Setup Information

COM 0-1 (Disable)

Console Redirection

Choices: Disable, Enable.

4.4 Security

Administrator Password

Set Administrator Password

User Password

Set User Password

WADE-8078 User’s Manual 4-16

BIOS Setup Information

4.5 Boot

Boot configuration

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Choices: 0, 1.etc

Bootup NumLock State

Select the keyboard Numlock state

Choices: On, off.

Post Report

Post report support enable/disable

Choices: Disable, Enable.

Summary Screen

Choices: Disable, Enable.

CSM Support

Choices: Disable, Enable.

WADE-8078 User’s Manual 4-17

BIOS Setup Information

GateA20 Active

Choices: Upon Request, Always.

Option ROM Messages

Set display mode for option ROM

Choices: Force BIOS, Keep Current.

INI19 Trap Response

BIOS reaction on INT19 trapping by option ROM: IMMEDIATE – execute the trap right away; POSTPONED – execute the trap during legacy boot.

Choices: Immediate, Postponed.

Storage

Controls the execution of UEFI and Legacy Storage opROM

Choices: Do not launch, UEFI only, Legacy only.

Fill Screen Logo

Enable or Disable quiet boot option and full screen logo

Choices: Disable, Enable.

OS Selection

Choices: Windows 8.X, windows 7.

Fast Boot

Enable or disable boot with initialization of a minimal set of devices required to launch active for BBS boot options.

Choices: Disable, Enable.

Boot option priorities

Boot Option #1

Sets the system boot order

Choices: UEFI: Built-in EFI Shell, Disable.

WADE-8078 User’s Manual 4-18

BIOS Setup Information

4.6 Save & Exit

Save Changes and Reset

Reset the system after saving the changes

Disable Changes and Reset

Reset system setup without saving any changes

Restore Defaults

Restore/Load Default values for all the setup options

WADE-8078 User’s Manual 4-19

Troubleshooting

Chapter 5

Troubleshooting

This chapter provides a few useful tips to quickly get WADE-8078 running with success. As basic hardware installation has been addressed in Chapter 2, this chapter will primarily focus on system integration issues, in terms of BIOS setting, and OS diagnostics.

5.1 Hardware Quick Installation

ATX Power Setting

Unlike other Single board computer, WADE-8078 supports ATX only. Therefore, there is no other setting that really needs to be set up. However, there is 8 Pin ATX

Connector—CN1 in the WADE-8078 board.

Serial ATA

Unlike IDE bus, each Serial ATA channel can only connect to one SATA hard disk at a time; The installation of Serial ATA is simpler and easier than IDE, because SATA hard disk doesn’t require setting up Master and Slave, which can reduce mistake of hardware installation.

The WADE-8078 can support two SATA interface (SATAII, 3.0 GB/s) with AHCI or

IDE mode. It has two J11 SATA ports in the board.

WADE-8078 User’s Manual 5-1

Troubleshooting

It is assumed that users have correctly adopted modules and connected all the devices cables required before turning on ATX power. 204-pin DDR3 Memory, keyboard, mouse, SATA hard disk, VGA connector, power cable of the device, ATX accessories are good examples that deserve attention. With no assurance of properly and correctly accommodating these modules and devices, it is very possible to encounter system failures that result in malfunction of any device.

To make sure that you have a successful start with WADE-8078, it is recommended, when going with the boot-up sequence, to hit “Del” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.

Loading the default optimal setting

When prompted with the main setup menu, please scroll down to “Load Setup

Defaults”, press “Enter” and select “Yes” to load in default optimal BIOS setup. This will force your BIOS setting back to the initial factory configuration. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any time when system appears to be unstable in boot up sequence.

5.3 Q&A

Information & Support

Question: I forget my password of system BIOS, what am I supposed to do?

Answer: You can switch off your power supply then find the JP6 to set it from 1-2 short to 2-3 short and wait 5 seconds to clean your password then set it back to 1-2 short to switch on your power supply.

JP6CMOS Setting

Jumper Setting Describe

* 1-2 Normal

WADE-8078 User’s Manual 5-2

Troubleshooting

Question: How to update the BIOS file of the WADE-8078?

Answer:1. Please visit web site of the Portwell download center as below hyperlink http://www.portwell.com.tw/support/download_center.php

But you must register an account first. (

The E-Mail box should be an existing Company email address that you check regularly.

) http://www.portwell.com.tw/member/newmember.php

2. Input your User name and password to log in the download center.

3. Select the

“Search download

” to input the keyword

“WADE-8078

”.

4. Find the “

BIOS

“page to download the ROM file and flash utility.

5. Execute the zip file to root of the bootable USB pen drive. You can get the

“Update.efi”,”Readme.txt” two

files

WADE-8078 User’s Manual 5-3

Troubleshooting

6. Insert your USB pen drive in USB port of the WADE-8078 board and power-on.

7. Boot to DOS mode then input the

“fs0:”

command to switch to the root of the USB drive.

8. Type the

” cd update”

command to start flash BIOS processes.

9. When it finished all update processes, it will reboot in 5 seconds automatically.

WADE-8078 User’s Manual 5-4

Troubleshooting

10. Please press the

“Del”

key to BIOS setup menu to select

“Load Setup

Defaults”

and then select

“Exit Saving Changes”

option to finish all BIOS flash processes.

Question: How to install Windows 7 on the WADE-8078?

Answer:

Because of the WADE-8078 is Bay Trail platform, you have to adjust the XHCI mode item from BIOS, but windows 8 or Linux OS doesn’t.

You must adjust the XHCI mode to [Smart Auto] from BIOS setup menu before install windows 7.

Following this step, it can install the windows 7 OS successfully.

Note:

Please visit our Download Center to get the Catalog, User manual, BIOS, and driver files.

http://www.portwell.com.tw/support/download_center.php

If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink.

http://www.portwell.com.tw/support/problem_report.php

We will do our best to provide a suggestion or solution for you.

Thanks



WADE-8078 User’s Manual 5-5

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
