A270 SBC - Winmate

A270 SBC

Mini-ITX SBC w/ Socket AM2 AMD Athlon

64 X2 / Athlon 64 35W and 65W CPU,

VGA, DVI, LCD, Ethernet and Mini-PCI

Interface.

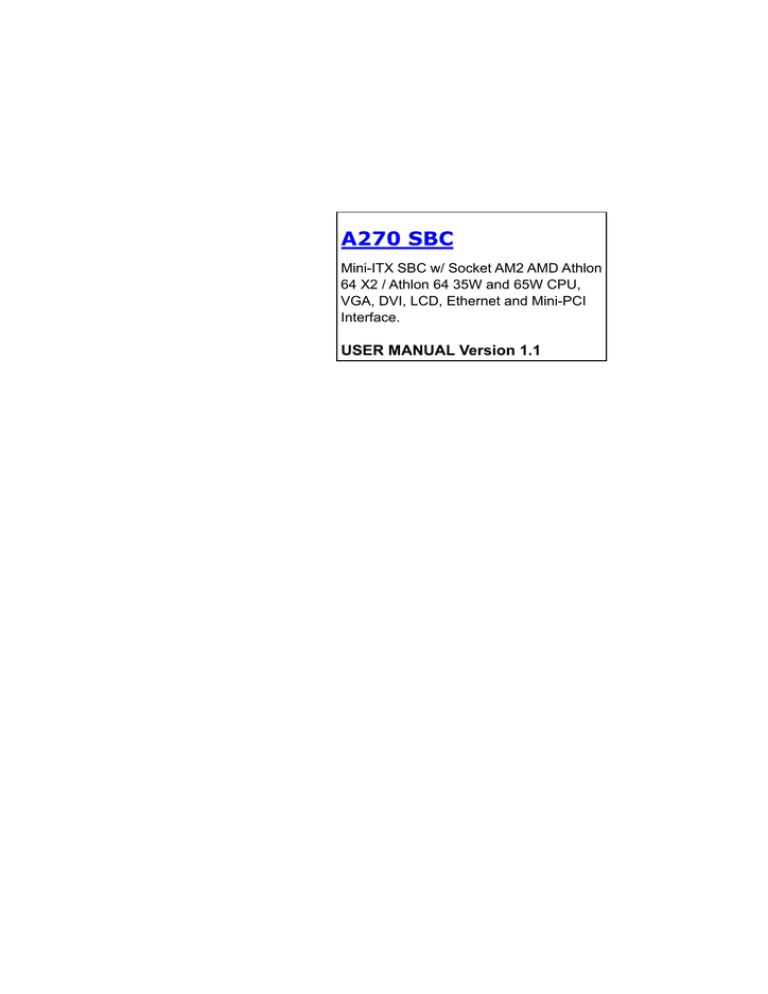

USER MANUAL Version 1.1

FCC Statement

This device complies with part 15 FCC rules. Operation is subject to the following two conditions: z z

This device may not cause harmful interference.

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class "a" digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at him own expense.

Copyright Notice

Copyright © 2007 Winmate Technology Inc., ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

Winmate Communication Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Winmate Communication assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Winmate Communication

Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Warranty

Winmate warrants that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, Winmate will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid. The returned product must be properly packaged in it’s original packaging to obtain warranty service.

If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be made according to the shipping date. In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December).

For example, the serial number 1W07Axxxxxxxx means October of year 2007.

Packing List

Before using this Motherboard, please make sure that all the items listed below are present in your package:

¾ 1 x A270 Motherboard

¾ 1 x A270 SBC User Manual

¾ 1 x A270 SBC User’s Manual & Driver CD

¾ 1 x A270 CPU Sink

¾ 1 x A270 CPU Holder

¾ 1 x 44pin HDD IDE Cable

¾ 1 x HDD SATA Cable

¾ 1 x RS-232 Cable

¾ 1 x USB Cable

If any of these items are missing or damaged, contact your distributor or sales representative immediately.

Customer Service

We provide service guide for any problem as follow steps:First, visit the website at http://www.winmate.com to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You may have the following information ready before you call:

¾ Product serial number

¾ Peripheral attachments

¾ Software (OS, version, application software, etc.)

¾ Description of complete problem

¾ The exact wording of any error messages

In addition, free technical support is available from our engineers every business day.

We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. Please do not hesitate to call or e-mail us.

Warranty

Winmate warrants that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, Winmate will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid. The returned product must be properly packaged in it’s original packaging to obtain warranty service.

If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be made according to the shipping date. In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December).

For example, the serial number 1W07Axxxxxxxx means October of year 2007.

‹

Safety Precautions

‹

Warning!

Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

Caution!

Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

Safety and Warranty

1. Please read these safety instructions carefully.

2. Please keep this user's manual for later reference.

3. Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open the equipment.

14. If any of the following situations arises, get the equipment checked by service personnel:

A. The power cord or plug is damaged.

B. Liquid has penetrated into the equipment.

C. The equipment has been exposed to moisture.

D. The equipment does not work well, or you cannot get it to work according to the user’s manual.

E. The equipment has been dropped and damaged.

F. The equipment has obvious signs of breakage.

15. Do not leave this equipment in an uncontrolled environment where the storage temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the equipment.

Revision History

Version Date Note Author

Tin Lai

Tin Lai

9 Revise BIOS Item solution Selector

9 Revise BIOS Item

9 Increase Chapter 2.5.7 Multiple Display

1.0 2007.07.15

9 Increase Chapter 7 Cool n’ Quiet Driver

Installation

Tin Lai

Tin Lai

Aladin

Aladin

Contents

CHAPTER 1 GENERAL INFORMATION .................................................................................... 2

1.1

I

NTRODUCTION

....................................................................................................................... 2

1.2

F

EATURE

................................................................................................................................ 2

1.3

M

OTHERBOARD

S

PECIFICATIONS

........................................................................................... 3

1.4

B

OARD DIMENSIONS

............................................................................................................... 5

CHAPTER 2 INSTALLATIONS ..................................................................................................... 7

2.1

M

EMORY

M

ODULE

(DIMM)I

NSTALLATION

....................................................................... 7

2.2

I/O E

QUIPMENT

I

NSTALLATION

.............................................................................................. 8

2.3

J

UMPERS AND

C

ONNECTORS

................................................................................................. 10

2.4

J

UMPER

S

ETTING

.................................................................................................................. 11

2.5

R

EAR

I/O C

ONNECTORS ON

A270 M

OTHERBOARD

.............................................................. 13

2.6

C

ONNECTORS AND

P

IN

A

SSIGNMENT

.................................................................................... 16

CHAPTER 3 PHOENIX BIOS SETUP ........................................................................................ 24

3.1

S

TARTING

S

ETUP

.................................................................................................................. 24

3.2

P

HOENIX

BIOS S

ETUP

.......................................................................................................... 26

3.3

M

AIN

M

ENU

......................................................................................................................... 27

3.4

A

DVANCED

M

ENU

................................................................................................................ 33

3.5

S

ECURITY

M

ENU

.................................................................................................................. 36

3.6

P

OWER

M

ENU

...................................................................................................................... 38

3.7

B

OOT

M

ENU

......................................................................................................................... 39

3.8

E

XIT

M

ENU

.......................................................................................................................... 41

CHAPTER 4 CHIPSET DRIVER INSTALLATION .................................................................. 45

4.1

S

TANDARD

CMOS F

EATURES

.............................................................................................. 45

CHAPTER 5 ETHERNET DRIVER INSTALLATION .............................................................. 49

5.1

I

NTRODUCTION

..................................................................................................................... 49

5.2

I

NSTALLATION OF

E

THERNET

D

RIVER

.................................................................................. 50

CHAPTER 6 AUDIO DRIVER INSTALLATION....................................................................... 53

6.1

I

NTRODUCTION

..................................................................................................................... 53

6.2

I

NSTALLATION OF

A

UDIO

D

RIVER

......................................................................................... 53

CHAPTER 7 AMD COOL N’ QUIET DRIVER INSTALLATION ........................................... 56

7.1

I

NTRODUCTION

..................................................................................................................... 56

7.2

I

NSTALLATION OF

AMD C

OOL N

’ Q

UIET

D

RIVER

................................................................. 57

1

General Information

This chapter includes A270 Motherboard background information.

Sections include: z

Introduction z z z z

Feature

Motherboard Specification

Function Block

Board Dimensions

Chapter 1 General Information

1.1 Introduction

A270 Mini ITX board incorporates the AMD M690G Chipset for Embedded

Computing, consisting of the two core components: AMD M690G and SB600

Chipset, an optimized integrated graphics solution with a 1000MHz

HyperTransport Technology. Dimensions of the board are 170mm x 170mm.

AMD M690G Chipset integrated powerful 3D graphics engine, based on ATI

Radeon X700-based Graphics architecture. It features a low-power design, is validated with the AMD® Athlon™ 64 and AMD® Athlon™ 64 X2 35W and

65W processors on 90nm process. With dual channel DDR2 533/667/800 MHz two DIMM socket on board, up to 4GB of DDR2 system memory.

AMD SB600 Chipset provides leading performance and the most universal connectivity options today. Eliminating the need for a USB hub, the SB600 provides up to 10 USB 2.0 ports. Connect with all types of peripherals with full compliancy to PCI and LPC bus support for all legacy devices. Complete the multimedia experience with high-definition audio and support for HD DVD and

Blu-Ray HD audio.

1.2 Feature

¾ Designed for Mini-ITX Motherboard

¾ Socket AM2 supports AMD Athlon™ 64 / Athlon™ 64 X2 35W processor, up to 1.8GHz

¾ Socket AM2 supports AMD Athlon™ 64 / Athlon™ 64 X2 65W processor, up to 2.6GHz

¾ System memory up to 4GB DDR2 533/667/800 SDRAM

¾ Integrated AMD M690G + SB600 Chipset

¾ Integrated VGA / LVDS / DVI, ATI Graphic Integrate X700-based

¾ Dual Gigabit LAN

¾ High Performance and Anti-Vibration to ensure maximum reliability

¾ 2 x SATAI/II, 10 x USB 2.0, 4 x COM, 2 x RJ-45,

¾ 1 x Mini PCI, 1 x PCI, 1 x VGA, 1 x DVI

1.3 Motherboard Specifications

CPU Type

CPU HT

AMD

®

Athlon™ 64 X2 / Athlon™ 64 35W or 65W processors, up to 2.6GHz

HyperTransport™ interface speed is depended on AMD processors, up to 2000MHz

Socket AM2

CPU Socket

Chipset

BIOS

Cache

VGA

LVDS

AMD M690G / SB600 chipset

Phoenix 8Mbit BIOS

1MB

AMD M690G built-in ATI Radeon X700-based Graphics

256MB shared with system

AMD M690G built-in, single- or dual-channel panel support up to WUXGA panel resolution. Max. to 1920x1200, 24bit

DVI out

DVI

LAN

IDE Interface

Sound

USB

2 x Gigabit Ethernet ( Dual Realtek RTL8111B Gigabit LAN

COntroller, Optional Dual Realtek RTL8101E 10/100Base

-T LAN Controller )

Memory Type

2 x DDR2 DIMM socket, supports up to 4GB DDR

533/667/800 SDRAM

LPC I/O

ITE 8712

Keyboard/Mouse

2 x PS/2 Keyboard/Mouse connectors

One channels; supports Ultra DMA 33/66/100

Realtek ALC655 5.1 channel (Line-out, Line-in & Mic in)

Edge Connectors

On Board

Pin-Header

Connectors

10 ports, USB 2.0 ( 4 x USB Conn., 6 x USB pin-header )

2 x PS/2 connector for keyboard/mouse

1 x Gigabit LAN RJ-45 + 1 x dual USB stack connector

1 x Gigabit LAN RJ-45 + 1 x dual USB stack connector

2 x DB9 for COM 1 & COM 2

1 x VGA out connector + 1 x DVI out connector

1 x Audio Jack for Audio (Line-Out, Line-In)

1 x 44 pins box-header

2 x SATA connector for SATAI/II ports,

2 x 10pins pin-header for COM 3 & COM 4 (RS232)

2 x 3pins pin-header for COM4 selection (RS232/422/485)

1 x 5pins pin-header for RS-422/485 insert

2 x 5pins pin-header for USB 5/6, 7/8, 9/10 x 3

2 x 6pins pin-header for Front Audio

1 x 40pins DF13 Connector for LVDS

1 x 20pins ATX connector.

2 x 5pins pin-header for Front Panel

1 x 3pins pin-header for CPU Fan

1 x 3pins pin-header for System Fan

1 x 3pins pin-header for NB Fan

1 x 2pins pin-header for 5V, 12V Voltage input

Power Connector Input: 20-pin ATX Power input

Expansion Slots

1 x PCI, 1 x Mini-PCI

Form Factor

Mini-ITX

Dimensions

170mm x 170mm

¾ Function Block

65W/

1.4 Board dimensions

2

Installations

This chapter provides information on how to use the jumps and connectors on A270 Motherboard.

The Sections include: z

Memory Module Installation z z z

I / O Equipment Installation

Setting the Jumpers

Connectors on A270 Motherboard

Chapter 2 Installations

2.1 Memory ModuleDIMMInstallation

A270 motherboard supports two DDR2 memory socket for a maximum total memory of 4GB in DDR2 memory type.

Installing and Removing Memory Modules

To install the DDR2 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR2 module so that the key of the DDR module align with those on the memory slot.

2. Gently push the DDR2 module in an upright position until the clips of the slot close to hold the DDR2 module in place when the DDR module touches the bottom of the slot.

3. To remove the DDR2 module, press the clips with both hands.

DDR2 Module

Lock Lock

Lock Lock

2.2 I/O Equipment Installation

2.5.1 Audio function

The Audio 5.1 channel capabilities are provided by a Realtek ALC655 chipset supporting digital audio outputs. The audio interface includes two jacks: line-in and line-out.

2.5.2 Serial COM ports

Two RS-232 connectors build in the rear I/O. One optional COM ports support

RS-232. When an optional touch-screen is ordered with PPC, serial com port can connect to a serial or an optional touch-screen. One optional COM port supports

RS232/422/485 choice through jumper setting.

2.5.3 Ethernet interface

The Motherboard is equipped with Dual Realtek RTL8111B (Optional Dual Realtek

RTL8101E) chipset which is fully compliant with the PCI 10/100/1000 Mbps

Ethernet protocol compatible. It is supported by major network operating systems.

The Ethernet ports provide the standard RJ-45 jack.

2.5.4 USB ports

Ten USB device may be connected to the system though an adapter cable. Various adapters may come with USB ports. USB usually connect the external system to the system. The USB ports support hot plug-in connection. Whatever, you should install the device driver before you use the device.

2.5.5 External VGA

The Motherboard has one VGA port that can be connected to an external CRT/ LCD monitor. Use VGA cable to connect to an external CRT / LCD monitor, and connect the power cable to the outlet. The VGA connector is a standard 15-pin D-SUB connector.

2.5.6 External DVI

The Motherboard has one DVI port that can be connected to an external DVI/ LCD monitor. Use DVI cable to connect to an external DVI / LCD monitor, and connect the power cable to the outlet. The DVI connector is a standard DVI-D connector.

2.5.7 Multiple Display Function

A270 SBC integrated AMD M690G chipset, and provided VGA / LVDS / DVI outputs. The Mutli-display application is available for A270 SBC. Customers can

select two display devices of the VGA / DVI / LVDS output interface display. Then these displays can be set as desktop or extended desktop display via ATI Graphic utility. Possible configurations include:

9 LCD and CRT

9 LCD and DVI

9 CRT and DVI

2.3 Jumpers and Connectors

SW1

Locating Jumpers and Connectors (front side)

2.4 Jumper Setting

A270 has a number of jumpers that allow you to configure your system to suit your application. The table below lists the functions of the various jumpers.

The following tables list the function of each of the board's jumpers.

Label

JP1

JP2

SW1

Function

Clear CMOS

Brightness control VR

Panel Solution Selector

Note

3x1 header, pitch 2.0mm

3x1 header, pitch 2.0mm

3x4 header ,pitch 2.0mm

6 x 2 Jumper

2.4.1 JP1: Clear CMOS

User must make sure the power supply to turn off the power supply before setting

Clear CMOS. Users remember to setting jumper back to Normal before turning on the power supply.

1

2

Description

3

Power on Mode

2.4.2 JP2: Brightness control VR

JP2 is Brightness control VR

1

2

Description

3

Brightness control

VR

Function

Clear CMOS

Normal *

Pin#

Pin#

1 Short 2

2 Short 3

Function

3 Gnd

2.4.3 JP602: RS232/422/485 Selector

The jumper can be configured to operate in RS-232/422/485 mode.

1

3

5

2

4

6

Description

RS232/422/485

Selection

Function

RS232*

RS422

RS485

2.4.4 SW1: Panel Resolution Selector

The Switch can be configured to select Panel Resolution mode.

0

0

0

0

0

0

6

5

4

3

2

1

1

ID5

1

ID4

1

ID3

1

ID2

1

ID1

1

ID0

Panel Resolution

ID0 ID1 ID2 ID3 ID4

For A270 SBC

Default

1024 x 768

1280 x 1024

1600 x 1200

1680 x 1050

640 x 480

800 x 600

1366 x 768

1920 x 1080

1920 x 1200

ID5

* : default

Pin#

1 Short 2

3 Short 4

5 Short 6

2.5 Rear I/O Connectors on A270 Motherboard

CN1

CN2

CN3 CN4

CN5

CN7

CN6

2.5.1 CN1PS/2 Keyboard and PS/2 Mouse Connectors

PS/2 Mouse

PS/2 Keyboard

Signal Name

Keyboard data 1

GND 3 3 GND

Keyboard clock

Keyboard

2.5.2 CN2COM1 and COM2 serial Ports

5

Mouse

1

5

Signal Name

Mouse data

Mouse clock

CN2 is a stacked connector with COM2 on top and COM1 at the bottom.

1 2 3 4 5

6 7 8 9

1 2 3 4 5

6

7

8 9

COM 2

COM 1

Pin No.

SYMBOL

1 DCD

2 RxD

3 TxD

4 DTR

5 Ground

6 DSR

7 RTX

8 CTS

9 RI

2.5.3 CN3 RJ45 and 2 USB Ports

CN3 is a stacked connector with RJ45 on top and 2 USB Port at the bottom.

2.5.4 CN4 RJ45 and 2 USB Ports

CN4 is a stacked connector with RJ45 on top and 2 USB Port at the bottom

2.5.5 CN5 VGA Connector

Pin No.

SYMBOL

1 RED

2 GREEN

3 BLUE

4 NA

5 GND

6 GND

7 GND

8 GND

9 LVGA5V

10 GND

11 NA

12 DAC_SDAT

13 HSYNC#

14 VSYNC#

15 DAC_SCL

2.5.6 CN6 DVI Connector

Pin # Signal Name Pin # Signal Name Pin # Signal Name

1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-

2 TMDS Data2+

3

4

TMDS Data2/4

Shield

TMDS Data4-

10 TMDS Data1+ 18 TMDSData0+

11

TMDS Data1/3

Shield

12 TMDS Data3-

19

20

TMDS Data0/5

Shield

TMDS Data5-

5

6

7

TMDS Data4+

DDC Clock [SCL]

13

14

TMDS Data3+

+5 V Power

21 TMDS Data5+

22

TMDS Clock

Shield

DDC Data [SDA] 15

Ground (for +5

V)

Clock

Analog vertical sync 16 Hot Plug Detect 24 TMDS Clock - 8

C1 N/A C3 N/A C2 N/A

C4 N/A C5 N/A

2.5.7 CN7: Audio Connector

The audio connector, from top to bottom, is composed of Line in and Line out.

2.6 Connectors and Pin Assignment

The table below lists the function of each of the board’s connectors.

Label

CON3

CON4

CON5

CON6

CON7

CON8

COM3/COM4

IDE1

ATX1

CPU FAN1

SYS FAN1

SYS FAN2

USB5.6

USB7.8

USB9.10

PANEL 1

Audio 2

Function

LVDS LCD Output Connector

Control Digital Panel Power

On / Off

Digital Panel Backlight

Brightness Control

RS-422 / RS-485 Header

VCC(+5V)

VCC(+12V)

RS-232 Series Port

Primary IDE Connector

ATX Power Connector

CPU FAN Conn.

System FAN Conn.

System FAN Conn.

USB Ports

USB Ports

USB Ports

System Function Connector

Audio Function Connector

Note

DF13-40DP-1.25V

3x2 header, pitch 2.54mm

7x1 header, pitch 2.0 mm

5x1 header, pitch 2.0 mm

2x1 header, pitch 2.0 mm

2x1 header, pitch 2.0 mm

2x10 header, pitch 2.0mm

2x22 pin IDE Conn.

20 pin ATX Power Conn.

3x1 header, pitch 2.54mm

3x1 header, pitch 2.54mm

3x1 header, pitch 2.54mm

5x2 header, pitch 2.0 mm

5x2 header, pitch 2.0 mm

5x2 header, pitch 2.0 mm

5x2 header ,pitch 2.0mm

6x2 header ,pitch 2.0mm

2.6.1 CON3: LVDS LCD Output Connector

40

39

Pin No. SYMBOL Pin No.

1 LCDVDD 21

2 LVDS_TXL0N 22

3 LCDVDD 23

4 LVDS_TXL0P 24

5 LCDVDD 25

6 LVDS_TXL1N 26

7 GND 27

8 LVDS_TXL1P 28

9 GND 29

10 LVDS_TXL2N 30

11 GND 31

12 LVDS_TXL2P 32

13 GND 33

14 LVDS_TXLCKN 34

15 GND 35

16 LVDS_TXLCKP 36

17 GND 37

18 LVDS_TXL3N 38

19 GND 39

20 LVDS_TXL3P 40

2

1

1

SYMBOL

GND

LVDS_TXU0N

GND

LVDS_TXU0P

GND

LVDS_TXU1N

GND

LVDS_TXU1P

GND

LVDS_TXU2N

GND

LVDS_TXU2P

GND

LVDS_TXUCKN

GND

LVDS_TXUCKP

GND

LVDS_TXU3N

GND

LVDS_TXU3P

2.6.2 CON4: Control Digital Panel Power On / Off

* : default

1

7

1

3

2

4

6

Description

Control Digital Panel

Function

VCC3(3.3V)*

5

Power On / Off

VCC( 5V)

+12V

2.6.3 CON5: Digital Panel Backlight Brightness Control

3

4

5

6

7

1

2

Pn#

1 Short 2

3 Short 4

5 Short 6

Pin No. SYMBOL

1 +12V

2 +12V

3 +12V

4 Gnd

6 Gnd

2.6.4 CON6: RS-422 / RS-485 Header

Pin No.

1

422 RX2-

2

422 RX2+

485TXRX2-

3

485TXRX2+

4

5

Gnd

SYMBOL

4 485TXRX2+

5 Gnd

2.6.5 CON7: VCC(+5V)

Pin No.

1

1

2

2

2.6.6 CON8: VCC(+12V)

1

Pin No.

2

1

2

SYMBOL

+5V

Gnd

SYMBOL

+12V

Gnd

2.6.7 COM3/COM4: RS-232 Series Port

F81216D

Pin No. SYMBOL Pin No.

SYMBOL

1 FK_NDCD1 11 FK_NDCD2

20 19

2 17

2 FK_NDSR1 12 FK_NDSR2

16 15

14 13

12 11

10 9

8

6

7

5

4 3

2 1

3 FK_NSIN1 13 FK_NSIN2

4 FK_NRTS1 14 FK_NRTS2

5 FK_NSOUT1 15 FK_NSOUT2

6 FK_NCTS1 16 FK_NCTS2

7 FK_NDTR1 17 FK_NDTR2

8 FK_NRI1 18 FK_NRI2

9 GND 19 GND

10 GND 20 GND

2.6.8 IDE1: 44Pin IDE Connector

Pin No.

SYMBOL Pin No.

SYMBOL

1 DD7 2 GND

3 DD6 4 DD8

5 DD5 6 DD9

7 DD4 8 DD10

9 DD3 10 DD11

11 DD2 12 DD12

13 DD1 14 DD13

15 DD0 16 DD14

17 DMARQ 18 DD15

21 DIOR- 22 GND

23 IORDY 24 GND

25 DMACK- 26 GND

27 INTRQ 28 CSEL

29 DA1 30 GND

31 DA0 32 IOCS16-

33 CS1FX- 34 PDIAG-

35 DASP- 36 DA2

37 CS1FX- 38 CS3FX-

41 5VDC(Logic)

43 GND(Logic)

2.6.9 ATX1: ATX Power Connector

42 5VDC(Motor)

44 Reserved

PIN

SYMBOL

PIN SYMBOL

11 3.3V

12 -12V

1 3.3V

2 3.3V

13 Ground 3 Ground

14 PS_ON (Soft on/off) 4 VCC

15 Ground

16 Ground

17 Ground

18 -5V

19 VCC

20 VCC

5 Ground

6 VCC

7 Ground

9 5V SB (Stand by +5V)

10 +12V

2.6.10 CPU FAN1: CPU FAN Connector

Pin No.

1

SYMBOL

1 GND

2 +12V

3

3 SENSE

2.6.11 SYS FAN1/ SYS FAN2: System FAN Connector

Pin No. SYMBOL

1

1 GND

2 +12V

3

3 SENSE

2.6.12 USB5.6 / USB7.8 / USB9.10 : USB Ports Pin Header

2

10

1

9

Pin Signal Name Pin Signal Name

1 USBPWR1 2 USBPWR1

3 USBPxN 4 USBPxN

5 USBPxP 6 USBPxP

7 GND 8 GND

9 GND 10 N/C

2.6.13 PANEL 1: System Function Connector

Pin Signal Name Pin Signal Name

2 1

1 PW ON LED+ 2 HDD_LED+

3 PW ON LED- 4 HDD_LED-

5 PW ON Button+ 6 Reset Button-

7 PW ON Button- 8 Reset Button+

10 9

9 N/C 10 5VSB

2.6.14 Audio 2: Audio Function Connector

2

1

Pin Signal Name Pin

2 NC

Signal Name

1 VCC

4 NC 3 GND

6 MIC-R

8 GND 7 GND

12

11

10 MIC-L

12 GND 11 GND

Phoenix BIOS Setup

This chapter describes how to set

BIOS configuration

3

Chapter 3 Phoenix BIOS SETUP

Your computer comes with a hardware configuration program called BIOS Setup that allows you to view and set system parameters.

The BIOS (Basic Input / Output System) is a layer of software, called ‘firmware’, that translates instructions from software (such as the operating system) into instructions that the computer hardware can understand. The BIOS settings also identify installed devices and establish special features.

¾ USE BIOS SETUP TO

„ Set the current time and date.

„ Customize your hardware settings according to your needs,

„ Secure your computer with a password.

Note:

Values for the various setup items that appear on your own screen (including default values) may not be the same as the values shown on the screen figures in this chapter. This is because the BIOS is revised and updated from time to time.

If in doubt, check Winmate website for the latest BIOS versions and related information.

¾ ENTERING BIOS SETUP

You can access the BIOS program just after you turn on your computer. Just press the

F2 key when the following prompt appears:

Press <F2> to enter Setup.

When you press F2 to enter BIOS Setup, the system interrupts the Power-On Self-Test

(POST). If the system detects an error during POST, it prompts you with a double beep and a message: Press <F1> to resume. If you press F1, the system enters the

BIOS Setup program. If you want to fix the error, carefully read the error message that appears above the prompt (taking notes if you want) and press F2.

Note:

If you receive this message repeatedly and the date displayed by your computer is inaccurate, then your CMOS battery may have lost charge. Contact your

Technical Support Centre for advice.

¾ BIOS SETUP SCREENS

After you press F2, the system displays the BIOS Setup interface. Use the left and right arrow keys to toggle through the BIOS Setup menu items.

¾ LOOKING AT SCREENS

BIOS setup screens have four areas:

„ Menu items - the top of the screen. This area highlights which menu are active.

„ Parameters - the left side of the screen. This area lists parameters and their current settings.

„ Available Options and Help - the right side of the screen. This area lists alternate settings and Help text for each parameter.

„ Key Legend - the bottom of the screen. These lines display the keys that move the cursor and select parameters.

Options that are grayed out are not available for the current selection. Settings displayed in blue are automatically detected by your computer.

¾ USING KEYS

The following table lists the BIOS Setup keys and their functions:

Table 1: BIOS Setup Keys and Associated Functions

Key

F1

and

and

Enter

F5/F6

Tab

Esc

F9

F10

Function

Displays a general help screen

Moves between the available menus.

Moves the cursor between the displayed parameters.

Selects a sub-menu (sub-menus are indicated with a at the beginning of the line), a menu command (such as Exit Discarding Changes), or displays the options available for the currently selected parameter.

Steps forward/backward through the settings available for the selected parameter.

For some parameter settings, moves the cursor between the subfields. For example, for System Time, Tab moves the cursor from hour to minute to second.

Exits any pop-up window and from any menu screen, pressing Escape jumps directly to the Exit menu.

Loads the default configurations, as recorded before the computer left the factory.

Saves and exits the BIOS setup utility.

Once you enter the Phoenix BIOS™ CMOS Setup Utility, the Main Menu will appear on the screen.

The Setup Utility features five menus which are listed on the menu bar at the top of the screen. The Main Menu allows you to select from several setup functions and two exit choices. User the arrow keys to select among the items and press <← and → > to accept and enter the sub-menu.

¾ Main - use this menu for basic system configuration.

¾ Advanced - use this menu to set I/0 device configuration and more.

¾ Security - use this menu to set user and administrator passwords, and other security features.

¾ Power - Use this menu to specify your setting for power management.

¾ Boot - use this menu to set the boot sequence.

¾ Exit - use this menu to exit the Setup utility with various save or discard options.

These menus are described in detail in the following pages.

Menu

Use the Main menu screen to view the System Time, System Date and to modify drive parameters and related settings via the HDD Sub-menu.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

System Time:

System Date:

IDE Channel 0 Master [HTS541040G9AT00-(PM)]

IDE Channel 0 Slave

SATA Port 1

SATA Port 2

[None]

[None]

[None]

Keyboard Features

Boot Features

System Memory

[01/01/2007]

633 KB

Extended Memory

[20:27:01]

915456 KB

Item Specific Help

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

The Main Menu allows users to configure system components such as date, time, hard disk drive, floppy drive and display. Use the arrow keys to highlight the item and then use the <Page Up> or <Page Down> keys to select the value you want in each item.

The Main Menu screen is shown above. Follow each item:

¾ System Time (hh/mm/ss)

Set the time. Enter the current hour, minute and second in hr/min/sec,

24-hour format.

To set the time use the Tab or Enter keys to move from field to field. Simply type the new number required.

¾ System Date (mm/dd/yyyy)

Set your system's calendar month, day and year. These settings remain in the memory even after you turn off system power.

To set the date use the Tab or Enter keys to move from field to field. Simply type the new number required.

¾ IDE Channel1 0 Master / Slave

Press <Enter> to enter the sub-menu to detailed options.

The Master and Slave sub-menus accessed from the Main Menu control these types of devices:

Hard-disk drives

Removable-disk drives such as Zip drives

CD-ROM drives

If you need to change your drive settings, selecting one of the Master or

Slave drives on the Main Menu displays a sub-menu like this:

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

IDE Channel Master

Type

[HTS541040G9AT00-(PM)]

[Auto]

Item Specific Help

User= your enter

Format Parameters of hard-disk

Total Sectors 78140160 driver installed at this

Maximum Capacity 40008MB connection.

Auto = autotypes

Multi-Sector Transfers [16 Sectors]

Hard-disk driver

LBA Mode Control:

32 Bit I/O:

[Enabled]

[Disabled]

Installed here.

CD-ROM = a CD-ROM driver is installed here.

Transfer Mode:

Ultra DMA Mode:

[FPIO 4 / DMA 2]

[Mode2]

ATAPI Removable = removable disk driver is installed here

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

Selecting ‘Manual’ lets you set the remaining fields on this screen and select the type of fixed disk.

„ The type choice: Auto*, None, User, ATAPI Removable, IDE

Removable and CD-ROM

„ Default: Auto*

‹ Auto = Autotyping, the drive itself supplies the correct drive

information.

When set to Auto, the BIOS detects what the drive is capable of, not the translation mechanism that was used to format the drive. If a drive is run in a mode other than the mode in which it was partitioned and formatted, unpredictable results may occur, including data loss.

‹ None = Autotyping is not able to supply the drive type or end user has

selected None, disabling any drive that may be installed.

When set to None, this informs the system to ignore this drive.

‹ User = You supply the hard-disk drive information in the following

fields.

When set to User, allows the manual entry of some of the fields described below. In most cases, we recommend you not to configure your hard disk drive manually using the CHS (Cylinders, Heads,

Sectors) mode. This should be done only for hard disk drives which don’t support the LBA mode, or are not automatically detected.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

IDE Channel Master

Type

[HTS541040G9AT00-(PM)]

[User]

Cylinders [16383]

Heads [16]

Sectors [63]

Maximum Capacity 8455MB

Item Specific Help

User= your enter

Parameters of hard-disk driver installed at this connection.

Auto = autotypes

Hard-disk driver

Installed here.

Total Sectors

Maximum Capacity

Multi-Sector Transfers

78140160

40008MB

[16 Sectors]

CD-ROM = a CD-ROM driver is installed here.

ATAPI Removable = removable disk driver is installed here

LBA Mode Control:

32 Bit I/O:

[Enabled]

[Disabled]

Transfer Mode:

Ultra DMA Mode:

[FPIO 4 / DMA 2]

[Mode2]

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

Feature Options

Multi-Sector Transfers Disabled

2 Sectors

4 Sectors

8 Sectors

LBA Mode Control

16 Sectors

Enabled

Disabled

32-Bit I/O Enabled

Disabled

Transfer Mode

Ultra DMA Mode

Standard

Fast PIO 1

Fast PIO 2

Fast PIO 3

Fast PIO 4

FPIO3 / DMA1

FPIO4 / DMA2

Disabled

Mode 0

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Description

Any selection except Disabled determines the number of sectors transferred per block.

Enabling LBA causes Logical Block Addressing to be used in place of Cylinders, Heads & Sectors.

Enables 32-bit communication between CPU and

IDE card. Requires PCI or local bus.

Selects the method for transferring the data between the hard disk and system memory. The

Setup menu only lists those options supported by the drive and platform.

Selects the Ultra DMA mode used for moving data to/from the drive.

‹ IDE Removable = Removable read-and-write media (e.g., IDE Zip

drive).

When set to IDE Removable, allows the manual entry of some fields.

‹ CD-ROM = Readable CD-ROM drive.

When set to CD-ROM, allows the manual entry of some fields.

‹ ATAPI Removable = Read-and-write media (e.g., LS120, USB Floppy,

USB Zip).

When set to ATAPI Removable, allows the manual entry of some fields.

WARNING:

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults with <F9> and re-enter the correct drive parameters.

¾ SATA Part 1 / 2

Press <Enter> to enter the sub-menu to detailed options.

„

The choice: None, User, Auto*, ATAPI Removable, IDE Removable and

CD-ROM

„

Default: Auto*

¾ Keyboard Features

Selecting "NumLock" on the Main Menu displays the Keyboard Features menu:

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

Keyboard Features

NumLock

Key Click

Keyboard auto-repeat rate

Keyboard auto-repeat delay

[Auto]

[Disabled]

[30/ sec]

[1/2 sec]

Item Specific Help

Selects Power-on state for NumLock

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

Use the following chart to configure the keyboard features:

Feature Options Description

* Default

Key Click

On

Off

Enabled

Disabled*

Keyboard auto-repeat rate 2/sec

6/sec

10/sec

13.3/sec

21.8/sec

26.7/sec

30/sec*

Keyboard auto-lag delay ¼ sec

¼ sec

½ sec

¾ sec

1 sec at boot up. Auto turns NumLock on if it finds a numeric key pad.

Turns audible key click on.

Sets the number of times a second to repeat a keystroke when you hold the key down.

Sets the delay time after the key is held down before it begins

¾ Boot Features

„

Summary screen: Display system configuration on boot.

„ Boot-time Diagnostic Screen: Display the diagnostic screen during boot.

„

QuickBoot Mode: Allows the system to skip certain tests while booting.

This will decrease the time needed to boot the time needed to boot the system.

.

Selecting "Advanced" from menu bar on the Main Menu displays a menu like this:

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

PnP Configuration

Video Display Configuration

Advanced Chipset Control

I/O Device Configuration

PS/2 Mouse

On chip SATA

[Enabled]

[Enabled]

Item Specific Help

Additional setup

Menus to configure

PCI devices

SATA Class ID

USB Host Controller:

USB BIOS Legacy Support

[IDE native class]

[Enabled]

[Enabled]

LOM Boot Rom [Disabled]

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

This section allows you to configure your system for basic operation.

¾ PnP Configuration

You can additional setup menus to configure the PCI devices.

„

PCI/PNP ISA UMB Region Exclusion

Reserve specific upper memory blocks for use by legacy ISA devices.

„

PCI/PNP ISA IRQ Resource Exclusion

Reserve specific IRQs for use by legacy ISA devices.

¾ Video Display Configuration

Select options for video display.

„ The choice: Auto*, CRT Only, LCD Only, CRT/DVI Force, Others

Auto

.

„ Default: Auto*

¾ Advanced Chipset Control

Select options for Advanced Chipset.

„ Advanced NB Options:

‹

PCIE

Options:

Direct TMDS Support the choice: Enabled* or Disabled.

‹ Primary Display:

Use PCI Gfx or IGP Gfx for the boot display device.

‹ UMA Frame Buffer Size:

9 The choice: AUTO*, 32MB, 64MB, 96MB, 128MB,

160MB, 192MB, 224MB, 256MB.

9 Default: Auto*

„ Advanced SB Options:

‹ Audio Onboard Choice:

9 The choice: Enabled*, Disabled

9 Default: Enabled *

¾ I/O Device Configuration

Many systems allow you to control the configuration settings for the I/O ports. Select "I/O Device Configuration" on the Advanced Menu to display this menu and specify how you want to configure these I/O Devices:

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

I/O Device Configuration Item Specific Help

Serial port A:

Base I/O address/IRQ

[Enabled]

[3F8/IRQ 4]

Configure serial port A using options:

Serial port B: [Enabled]

Base I/O address/IRQ

Serial port C:

Base I/O address/IRQ

[2F8/IRQ 3]

[Enabled]

[3F8/IRQ 5]

[Disabled]

No configuration

[Enabled]

User configuration

Serial port D: [Enabled]

Base I/O address/IRQ [2F8/IRQ 11]

[Auto]

BIOS or OS chooses configuration

(OS controlled)

Display when

Controlled by OS

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

Use the following chart to configure the Input/Output settings:

Feature

Serial port A:

Serial port B:

Serial port C:

Serial port D:

Base I/O Address/IRQ

Options

Enabled*

Disabled

Auto

3F8, IRQ 4

2F8, IRQ 3

3E8, IRQ 5

2E8, IRQ 11

* Default

Description

Disabled turns off the port.

Enabled requires you to enter the base Input/Output address and the

Interrupt number on the next line.

Auto makes the BIOS configure the port automatically during POST.

If you select Enabled, choose one of these combinations.

¾ PS/2 Mouse

Disabled disables any installed PS/2 mouse, but frees up IRQ 12 for use by another device. Auto lets the BIOS control the mouse.

„

The choice: Enabled*, Disabled, Auto

„

Default: Enabled*

¾ On Chip SATA

„

The choice: Enabled*, Disabled

„

Default: Enabled*

¾ SATA Class ID

„

The choice: IDE native class*, IDE Legacy class

„

Default: IDE native class *

¾ USB Host Controller

„

The choice: Enabled*, Disabled

„

Default: Enabled*

¾ USB BIOS Legacy Support

„

The choice: Enabled*, Disabled

„

Default: Enabled*

¾ LOM Boot Rom

„

The choice: Enabled, Disabled*

„

Default: Disabled*

WARNING:

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults with <F9> and re-enter the correct drive parameters

Use the Security Menu to establish system passwords.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

Item Specific Help

Supervisor Password is

User Password is

Set Supervisor Password

Set User Password

Diskette access:

Clear

Clear

[Enter]

[Enter]

Fixed disk boot

Virus check remi

System backup re

Password on boot

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

Your computer supports a password for system security on several levels. Keep in mind that you must set the supervisor password before the BIOS Setup utility allows you to set a user password.

Once you set a supervisor password, you must type it before you can enter BIOS

Setup, and then depending on the selections made in the Security menu, access the system at start-up or Hibernation (Save To File).

Note:

1. When entering BIOS Setup using the user password, only a limited number of fields can be changed; the most sensitive items are read-only

2. In some systems, the User and Supervisor passwords are related; you cannot have a User password without first creating a Supervisor password. In other systems, you can create and use them independently.

Use the following chart to configure the system-security and anti-virus options.

Feature

Set Supervisor Password

Options

Up to seven alphanumeric characters

* Default

Description

Pressing <Enter> displays dialog box for entering the supervisor password.

In related systems, this password gives full access to Setup menus.

Set User Password

Fixed disk boot sector

Virus check reminder

System backup reminder

Up to seven alphanumeric characters

Normal*

Write Protect

Disabled*

Daily

Weekly

Monthly

Disabled*

Daily

Weekly

Monthly

Pressing <Enter> displays the dialog box for entering the user password.

In related systems, this password gives restricted access to SETUP menus.

Write protects the boot sector on the hard disk for virus protection.

Requires a password to format or

Fdisk the hard disk

Displays a message during boot up asking (Y/N) if you have backed up the system or scanned it for viruses.

Message returns on each boot until you respond with "Y".

Daily displays the message on the first boot of the day, Weekly on the first boot after Sunday, and Monthly on the first boot of the month.

Displays a message during boot up asking (Y/N) if you have backed up the system or scanned it for viruses.

Message returns on each boot until you respond with "Y".

Daily displays the message on the first boot of the day, Weekly on the first boot after Sunday, and Monthly on the first boot of the month.

Use this menu to specify your settings for Power Management. Remember that the options available depend upon the hardware installed in your system. Those shown here are from a typical system.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

Item Specific Help

Enable ACPI (debug only)

Enable Cool’ n’ Quiet:

High Precision Event Timer:

PWRON After PWR-Fail

[Yes]

[Enabled]

[No]

[Off]

En/Disable ACPI BIOS

(Advance Configuration and Power Interface)

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

¾ Enable Cool n’ Quiet

If you want to enable Cool n’ Quiet function, please refer the chapter 7.

¾ PWRON After PWR-Fail

Select the item “On”, the system can be reboot automatically when power fail. Select “Former-Sts” will follow former setting. Select “Off”, you need to reboot the system manually.

„

The choice: Off*, On, Former-Sts

„

Default: Off*

Use the following chart in making your selections:

Feature

Enable Cool n’ Quiet

High Precision Event Timer

PWRON After PWR-Fail

Options

Enabled*

Disabled

Yes*

No

Off*

On

Former-Sta

* Default

Description

Enable / Disable Cool n’ Quiet for

CPU Power management.

Enable / Disable High Precision

Event Timer

System can be reboot automatically / follow former setting / Off when power fail

Use this menu to modify the boot options, and to specify the order of the bootable devices.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

Boot priority order

Item Specific Help

Keys used to view or

1: All USB Floppy Clear

2: All USB HDD

3: All PCI SCSI

4: Legacy Network Card

[Enter]

[Enter] configure devices:

Up and Down arrows select a device.

<+> and <-> moves the

5:

6:

7:

8: device up or down.

<f> and <r> specifies the device fixed or removable.

Excluded form boot order

: All IDE HDD

: All IDE CDROM

: All USB KEY

<x> exclude or include the device to boot.

<Shift + 1> enables or disable a device.

: All USB ZIP

: All USB LS120

<1 – 4> Loads default boot sequence.

: All PCI BEV

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

The entries from this field represent devices that can be used to start your computer.

When your computer starts it will search each device, following the order defined in the list, for any 'boot' (start-up) instructions available. If a disk is found that contains such information, it will be used to start your computer.

This can be useful if the disk contains a 'rescue' program, that will solve a serious problem with your computer (your Recovery Disk or Recovery CD does this).

Consequently, you should keep removable devices above your main hard drive in this list. Should your computer's hard drive develop a major fault, you will also be able to use a bootable CD or floppy disk to start your computer.

¾ Move the devices up or down the list by using the <+> or <-> keys on

the keyboard.

¾ Fixed or removable the device by using the <f> or <r> key on the

keyboard.

¾ Should you have more than one of the type of device specified, you can

expand the entry to see a list of peripherals by pressing the <x> key.

¾ Boot priority order

„ The choice: All USB Floppy, All USB HDD, All PCI SCSI, Legacy

Network Card, All IDE HDD, All IDE CDROM, All USB KEY, All

USB CDROM, ALL USB ZIP, All USB LS120, All PCI BEV.

Use this menu to implement or discard the changes you made to the BIOS Setup, and/or to exit the utility. Select any parameter and press Enter to perform the corresponding action.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

Item Specific Help

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

Discard Changes

Save Changes

Exit System Setup and save your changes to

CMOS.

F1 Help

↑ ↓ Select Item -/+ Change Values

F9 Setup Defaults

Esc Exit

←→ Select Menu Enter Select

Sub-Menu F10 Save and Exit

¾ Exit Saving Changes

„ Save configuration changes and exit now? (Yes / No )

„ Pressing ‘Y’, and the BIOS accepts changes made to current settings, and exits BIOS Setup.

¾ Exit Discarding Changes

„ Configuration has not been saved! Save before exiting? (Yes / No )

„ Pressing ‘Y’, and the BIOS exits Setup without applying any changes that have been made during this session.

¾ Load Setup Defaults

Loads default configuration settings that were defined before the computer left the factory.

To display the default values for all the Setup menus, select "Load Setup

Defaults" from the Main Menu. The program displays this message:

ROM Default values have been loaded!

Press <space> to continue

If, during boot up, the BIOS program detects a problem in the integrity of values stored in CMOS, it displays these messages:

System CMOS checksum bad - run SETUP

Press <F1> to resume, <F2> to Setup

The CMOS values have been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS.

Setup Confirmation

Load default configuration now?

[Yes] [No]

¾ Discard Changes

Use this option to exit Setup without storing in CMOS any new selections you may have made. The selections previously in effect remain in effect.

Setup Confirmation

Load previous configuration now?

[Yes] [No]

¾ Save Changes

Selecting “Save Changes” saves all the selections without exiting Setup.

You can return to the other menus if you want to review and change your selections.

Setup Confirmation

Save configuration changes now?

[Yes] [No]

4

Chipset Driver Installation

This chapter offers information on the chipset software installation utility.

Sections include: z

Installation of Chipset Utility z

Further Information

Chapter 4 Chipset Driver Installation

The Motherboard is equipped with AMD M690G / SB600 Companion Device. The

ATi Chipset Drivers should be installed first, and it will enable “SM Bus Controller” and “Video Controller (VGA Compatible)”. Follow the instructions below to complete the installation. You will quickly complete the installation.

Setp.1. Insert the CD that comes with the motherboard. Open the file document

“ati_chipset_8.37” and click on “Setup.exe” to execute the setup.

Setp.2.

Click on “Next“ to install driver.

Setp.3.

Click on “Yes“ to agree License.

Step.4.

Click on “Express: Recommended” to install Driver.

Step.5. Click on “Continue Anyway” to go on.

Step.5. Click on “Yes, I want to restart my computer now” to go on.

5

Ethernet Driver Installation

This chapter offers information on the Ethernet software installation utility.

Sections include: z

Introduction z

Installation of Ethernet Driver

Chapter 5 Ethernet Driver Installation

5.1 Introduction

A270 Motherboard is equipped with the Realtek RTL8111B Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory.

With state-of-the-art DSP technology and mixed-mode signal technology, it offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable.

Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

The device supports the PCI Express 1.0a bus interface for host communications with power management and is compliant with the IEEE 802.3u specification for

10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.

The Users must make sure which operating system you are using in A270

Motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Realtek RTL8111 LAN drivers. You will quickly complete the installation.

Setp.1. Insert the CD that comes with the motherboard. Open the file document

“Lan_PCIE_Realtek” and click on “Setup.exe” to execute the setup.

Setp.2.

Click on “Next“ to install driver.

Setp.3.

Click on “install“ to go on.

Setp.4.

Click on “Finish“ to complete installation.

6

Audio Driver Installation

This chapter offers information on the Audio software installation utility.

Sections include: z

Introduction z

Installation of Audio Driver

Chapter 6 Audio Driver Installation

6.1 Introduction

A270 Motherboard is equipped with the ALC655 is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC designed for PC multimedia systems, including host/soft audio and AMR/CNR-based designs..

The ALC655 CODEC provides three pairs of stereo outputs with 5-bit volume control, a mono output, and multiple stereo and mono inputs, along with flexible mixing, gain, and mute functions to provide a complete integrated audio solution for PCs.

6.2 Installation of Audio Driver

The users must make sure which operating system you are using in A270

Motherboard before installing the Audio drivers. Follow the steps below to complete the installation of the Realtek ALC655 Audio drivers. You will quickly complete the installation.

Step.1.

Insert the CD that comes with the motherboard. Open the file document

“Audio_alc_655” and click on “Setup.exe” to execute the setup.

Step.2. Click on “Next“ to install driver.

Step.2.

Click on “Yes, I want to restart my computer now” to finish installation.

7

Cool n’ Quiet Driver Installation

This chapter offers information on the AMD Cool n’ Quiet software installation utility.

Sections include: z

Introduction z

Installation of AMD Cool n’ Quiet Driver

Chapter 7 AMD Cool n’ Quiet Driver Installation

7.1 Introduction

AMD Cool n’ Quiet™ technology is an innovative solution available on AMD

Athlon™TM 64 processor-based systems that can effectively lower the power consumption and enable a quieter-running system while delivering performance on demand, for the ultimate computing experience.

Some applications require less processing power than others. Word processing, for example, consumes relatively few processor cycles, but if you run games, video editing or other multimedia applications on the same system, more processor cycles will be required for responsive performance. AMD Cool ‘n’ Quiet™ technology controls your system’s level of processor performance automatically, dynamically adjusting the operating frequency and voltage up to 30 times per second, according to the task at hand. When an application does not require full performance, significant amounts of power can be saved.

7.2 Installation of AMD Cool n’ Quiet Driver

The users must make sure which using AMD Cool n’ Quiet function before enable the AMD Cool n’ Quiet in BIOS setting.( Please see the page.38)

Follow the steps below to complete the installation of the “AMD Cool n’ Quiet” drivers. You will quickly complete the installation.

Step.1.

Insert the CD that comes with the motherboard. Open the file document

“Test_cool'n'quiet” and click on “amdcpu.exe” to execute the setup.

Step.2.To enable the Cool ‘n’ Quiet feature on a Windows XP system, you have to change the power scheme. Open the ‘Power Options’ from the Control Panel. Choose the power scheme ‘Minimal Power Management’ and click ‘OK’ to enable Cool ‘n’

Quiet.

Copyright Notice

Copyright © 2007 Winmate Communication Inc., ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
