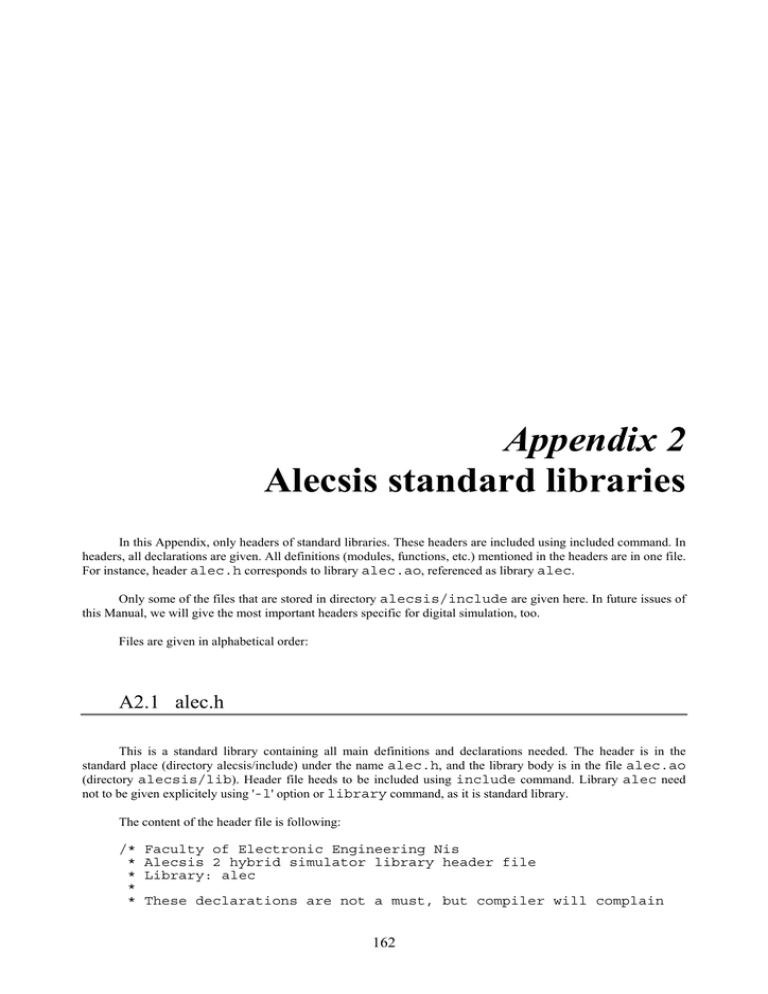

In this Appendix, only headers of standard libraries. These headers are included using included command. In headers, all declarations are given. All definitions (modules, functions, etc.) mentioned in the headers are in one file.

For instance, header alec.h

corresponds to library alec.ao

, referenced as library alec .

Only some of the files that are stored in directory alecsis/include are given here. In future issues of this Manual, we will give the most important headers specific for digital simulation, too.

Files are given in alphabetical order:

A2.1 alec.h

This is a standard library containing all main definitions and declarations needed. The header is in the standard place (directory alecsis/include) under the name alec.h

, and the library body is in the file alec.ao

(directory alecsis/lib ). Header file heeds to be included using include command. Library alec need not to be given explicitely using ' -l ' option or library command, as it is standard library.

The content of the header file is following:

/* Faculty of Electronic Engineering Nis

* Alecsis 2 hybrid simulator library header file

*

* These declarations are not a must, but compiler will complain

162

Appendix 2. Alecsis standard libraries 163

* about parameters for functions listed below.

*

*/

#ifndef _ALEC_INCLUDED

# define _ALEC_INCLUDED

# ifndef NULL

# define NULL (0)

# endif /* NULL */

# ifndef EOF

# define EOF (-1)

# endif /* EOF */

# ifndef MAX

# define MAX(_x, _y) ((_x)>(_y) ? (_x) : (_y))

# endif /* MAX */

# ifndef MIN

# define MIN(_x, _y) ((_x)<(_y) ? (_x) : (_y))

# endif /* MIN */

# define cout stdout

# define cin stdin

# define cerr stderr

typedef struct {

int __cnt;

char *__ptr;

char *__base;

int __flag;

char __file;

} FILE;

/* standard built-in function prototypes */

extern int printf(const char *, ... );

extern int fprintf(FILE *, const char *, ...);

extern int sprintf(char *, const char *, ...);

extern int fputc(char, FILE *);

extern int putc(char, FILE *);

extern int putchar(char);

extern char fgetc(FILE *);

extern char getc(FILE *);

extern char *gets(char *);

extern char *fgets(char *, int, FILE*);

extern char getchar(void);

extern int exit(int=0);

extern FILE *fopen(const char *, const char *);

extern int fclose(FILE *);

extern int fflush(FILE *);

extern int feof(FILE *);

extern int fseek(FILE *, int, int);

extern int ftell(FILE *);

extern int rewind(FILE *);

extern int fwrite(const void *, int, int, FILE *);

extern int fread(void *, int, int, FILE *);

extern void *calloc(int, int);

extern void *malloc(int);

extern void free(void *);

extern double node_value(int, int);

extern double drand(void);

extern void srand(int=1);

164

Alecsis 2.3 - User’s manual

extern double time_now(void);

extern void warning (const char *, int=0);

extern char *strcpy(char *, const char *);

extern int strcmp(const char *, const char *);

extern int strlen(const char *);

extern int get_info (int);

extern int get_info (int, char *);

extern int atoi(const char*);

extern double atof(const char*);

extern int system(const char*);

extern int set_bpoint(double);

/* standard Boolean choices */

# define True 1

# define False 0

/* alternative solution - Bool type */ typedef enum { false, true } Bool;

/* switch-like choices */

# define On 1

# define Off 0

/* Integration method choices */

# define None 0

# define EulerBackward 1

# define Gear2 2

/* Matrix renumeration options */

// # define None 0

# define Fast 1

# define Best 2

# define Frontal 3

/* dcon choices */

# define Initial 1

# define Always 2

/* get_info selection indx */

# define CurrentPath 0

# define ParentPath 1

# define CurrentLevel 2

/* the most common implicit aliases */ implicit {

resistor r;

capacitor c;

inductor l;

mosfet m;

bjt

jfet q; j;

diode

switch

}; d; s;

/* pulse generator defined as a module */ module pulse (n1, n2) action ( double vlo, double vhi, double tr,

// high level

// rise delay

// low level

Appendix 2. Alecsis standard libraries 165

double twl, double td=0

);

# ifndef _BIT_INCLUDED

// high level pulse width double tf=0, // fall delay double twh=0, // low level pulse width

// start delay time

# include <bit.h>

# endif /* _BIT_INCLUDED */

/* overloaded << and >> - C++ style I/O */

FILE *operator<< (FILE *fp, int i);

FILE *operator<< (FILE *fp, double d);

FILE *operator<< (FILE *fp, const char *s);

FILE *operator<< (FILE *fp, char c);

FILE *operator>> (FILE *fp, char &c);

#endif /* _ALEC_INCLUDED */

This library contains prototypes of all intrinsic functions of general usage. The rest of C functions (except the mathematical) are not implemented and cannot be called.

Command implicit , used in this file, gives possibility to use Alecsis similarly as SPICE.

We realized trapezoidal voltage generator as a module - its declaration is given above.

Beside standard C functions, alec.h

contains a prototype of function

warning

, that is specific for simulaiton, and is therefore not a standard C-function. You can use this function to print information of place, time and context (the process, current component, etc.) during the execution. If the argument differs from 0, the simulator stops the execution, otherwise the simulation continues.

A2.2. ctype.h

This is not a real library since it has only the header file - there is no file named ctype.ao

. This library contains the definitions of macros for work with characters:

#ifndef _CTYPE_INCLUDED

# define _CTYPE_INCLUDED

# define _U 01

# define _L 02

# define _N 04

# define _S 010

# define _P 020

# define _C 040

# define _B 0100

extern const char __ctype[];

extern const char __upshift[];

extern const char __downshift[];

# define isalpha(__c) (__ctype[__c]&(_U|_L))

# define isupper(__c) (__ctype[__c]&_U)

# define islower(__c) (__ctype[__c]&_L)

# define isdigit(__c) (__ctype[__c]&_N)

# define isalnum(__c) (__ctype[__c]&(_U|_L|_N))

# define isspace(__c) (__ctype[__c]&_S)

166

Alecsis 2.3 - User’s manual

# define ispunct(__c) (__ctype[__c]&_P)

# define isprint(__c) (__ctype[__c]&(_P|_U|_L|_N|_B))

# define isgraph(__c) (__ctype[__c]&(_P|_U|_L|_N))

# define iscntrl(__c) (__ctype[__c]&_C)

# define isascii(__c) ((__c) <= 0177)

# define toupper(__c) ((__upshift)[__c])

# define tolower(__c) ((__downshift)[__c])

# define toascii(__c) ((__c))

#endif

A2.3. bit.h

This file contains only declarations, while the definitions are in the library

alec

. This is the elementary system of state bit containing '0' and '1' - logic zero and one, as well as the functions for overload of elementary operators:

/*

* Faculty of Electronic Engineering Nis

* Alecsis 2.0 hybrid simulator library header file

* Library: alec

* Content: predefined two-valued logic system

*/

#ifndef _BIT_INCLUDED

# define _BIT_INCLUDED

typedef enum { '0', '1', ' '=void, '_' = void } bit;

/* overloaded logical operators for type "bit" */

extern bit operator~ (bit);

extern bit operator& (bit, bit);

extern bit operator| (bit, bit);

extern bit operator^ (bit, bit);

extern bit operator~& (bit, bit);

extern bit operator~| (bit, bit);

#endif

A2.4. gnulib.h

Functions declared here are used for on-line viewing of simulation results. They enable inter-process communication with program gnuplot , that is used for viewing of simuation results. Function bodies are in library gnulib , that is to be appended using library command or ' -l ' command option.

#ifndef _GNULIB_INCLUDED

# define _GNULIB_INCLUDED

#include <alec.h>

#include <unistd.h> typedef enum { Lines, Points, LinesPoints, Impulses } LineStyle; struct TraceList {

char *name;

int channel;

LineStyle lst;

Appendix 2. Alecsis standard libraries 167

struct TraceList *next;

}; typedef enum { CallGnu, Close } ExitStyle; class gnu {

protected:

char *gnufile;

char *title;

FILE *fp;

int ntraces, nchannels;

LineStyle line_style;

TraceList *traceh, *tracet;

public:

gnu (const char* ="gnu.dat", const char* = "Alecsis results");

~gnu();

set_line_style(LineStyle);

add_trace(const char*, LineStyle = Lines, int = 1);

add_traces (const char*, ...);

add_data(double, Bool);

update (double, ...);

close_data ( ExitStyle, const char *geom="" );

report();

}; struct ResultBuffer {

double time;

double *values;

struct ResultBuffer *next;

}; class GnuOnLine: public gnu {

protected:

double tstop, update_period;

double tprint, last_time;

double vmin, vmax;

double cmin, cmax;

Bool channel_open, first_update;

int channel[2];

ResultBuffer *rbh, *rbt;

char *plot_mess;

create_plot_mess();

initialize();

flush_results();

tell_gnu(const char*);

set_value_margins();

public:

GnuOnLine (const char* ="gnu.dat",

const char* = "Alecsis results");

~GnuOnLine ();

time_frame(double, double, double=0.0);

value_frame (double, double);

open_channel (const char* ="");

open_channel (double, double, double, double, double = 0.0, const char* = "");

send_data (double, ...);

main_loop();

};

#endif

The most appropriate way to explain these functions is to give an example. Here is an ring oscillator description, where CMOS inverter is used as ring element. This inverter is cloned using clone command in an ring of inverters (5 inverters in our example).

168

Alecsis 2.3 - User’s manual

/***************************************************************/ spice {

# include "omos.mod"

}

# include <alec.h>

#include <gnulib.h> library gnulib;

/***************************************************************/

/* define analog inverter as a subcircuit */ module inverter ( In, Out, vdd, vss ) {

mup (Out, In, vdd, vdd){ model=pomos;l=5u; w=35u;ad=as=170p;

pd=ps=50u;};

mdwn(Out, In, vss, vss){ model=nomos;l=5u; w=10u;ad=as=50p;

pd=ps=35u;};

}

/***************************************************************/ module ring (node vdd, vss; node nodes[]) {

inverter inv;

action structural (int nring) {

int i;

for (i=0; i<nring; i++) {

if (i==nring-1)

clone inv [i] (nodes[0], nodes[i], vdd, vss);

else

clone inv [i] (nodes[i+1], nodes[i], vdd, vss);

}

}

}

/***************************************************************/

#define Period 50ns root module ring_oscilator () {

ring rn;

vgen vdd;

node tmp[5] <- { 0.5v, 4.5v, 0.5v, 4.5v, 0.5v };

vdd (Vdd, 0) 5v;

rn (Vdd, 0, tmp) action (5);

timing { tstop = Period; a_step = a_stepmin = Period/200; }

out { node tmp[0];

node tmp[1];

node tmp[2];

node tmp[3];

node tmp[4]; }

#ifdef GNU

action {

static GnuOnLine gp ("ring", "Ring oscillator");

process initial {

gp.add_traces("tmp0", "tmp1", "tmp2", "tmp3", "tmp4", 0);

gp.time_frame(Period, Period/100);

gp.value_frame(0v, 5v);

gp.open_channel();

}

process post_moment {

gp.send_data(tmp[0], tmp[1], tmp[2], tmp[3], tmp[4]);

}

process final {

gp.main_loop();

Appendix 2. Alecsis standard libraries 169

}

}

#endif

}

/*************************************************************/

Usage of gnulib functions are under preprocessor option

# ifdef GNU so they will be activated if Alecsis is invoked using: alec -DGNU ring where ring.ac

is the name of the file listed above.

Firstly, an instance of class GnuOnLine with name gp is declared. Constructor receives two parameters

(both have default values). First is the file name, used to store waveform data, in this example ring.dat

(extension ' .dat

' is added to the given name). The second parameter is waveform title, to appear above the graphics.

Class method a dd_traces is invoked in process initial . It gives the number of waveforms to be traced, and their names. This method is realized as the function with variable name of arguments, and the list of arguments has to be finished with 0 . All waveforms are drawn on one graphics, i.e. with one y-axis.

Method time_frame gives the last time point for x-axis (the first time point is assumed to be 0) , and the time step for waveform updating. Method value_frame gives initial range for y-axis scale (min and max). It is to be noted that y-axis range will be automatically updated during the simulation, as we usually do not know range of our simulation results in advance. However, x-axis cannot be updated, so arguments to time_frame must be correct.

Method open_channel opens the communication channel with gnuplot .

In the process post_moment , method send_data is used. It is invoked as post_moment , since simulation results can be sent after given time instant is solved. The number of arguments has to agree with number of non-zero arguments of add_traces .

In the process final, function main_loop is invoked. Without this function, gnuplot will close the drawing when the simulation is finished. Function main_loop leave program gnuplot active and gives you normal gnuplot prompt, so you can analyse the waveforms, create different output formats, etc., when the simulation is finished.

Class GnuOnLine can be used for all standard simulation problems. However, we have used Alecsis to solve partial differential equations (simulation of micromechanical sensors), and have also created on-line viewing for spatial 3D drawings. Class GnuOnLine was used there as a base class to create derived classes for specific problems.

A2.5. math.h

We implemented all mathematics functions as instructions of virtual processor of simulation, so their execution does not require including this header nor appending of a library body. The following declarations are given so you can see what was implemented, and what was not:

/*****************************************************************

* This file contains prototype declarations for ALECSIS2.0

* built-in math functions. Since they really work as

* instructions, the declarations are necessary just that compiler

170

Alecsis 2.3 - User’s manual

* does not complain about arguments when invoked with -O

* (optimizer) option. The simulator works O.K. without this file.

****************************************************************/

#ifndef MATH_INCLUDED

# define MATH_INCLUDED

extern double acos(double);

extern double asin(double);

extern double atan(double);

extern double atan2(double, double);

extern double cos(double);

extern double sin(double);

extern double tan(double);

extern double cosh(double);

extern double sinh(double);

extern double tanh(double);

extern double exp(double);

extern double log(double);

extern double log10(double);

extern double pow(double, double);

extern double sqrt(double);

extern double ceil(double);

extern double fabs(double);

extern double floor(double);

extern int abs(int);

// These constants may be of some help in modelling

# define M_E 2.7182818284590452354

# define M_LOG2E 1.4426950408889634074

# define M_LOG10E

# define M_LN2

# define M_LN10

# define M_PI

0.43429448190325182765

0.69314718055994530942

2.30258509299404568402

3.14159265358979323846

# define M_PI_2

# define M_PI_4

# define M_1_PI

# define M_2_PI

1.57079632679489661923

0.78539816339744830962

0.31830988618379067154

0.63661977236758134308

# define M_2_SQRTPI 1.12837916709551257390

# define M_SQRT2 1.41421356237309504880

# define M_SQRT1_2 0.70710678118654752440

#endif

A2.6. unistd.h

An equivalent of UNIX unistd.h

file. There is no appropriate library. Here are declarations of functions for forking and pipelining, used to enable simultaneous simulation and viewing of results (see section on gnulib.h

).

#ifndef _UNISTD_INCLUDED

# define _UNISTD_INCLUDED

/*

* unistd.h

* symbolic constants and structures which are used

* for support of the /usr/group standard.

*

*/

Appendix 2. Alecsis standard libraries 171

# ifndef NULL

# define NULL 0

# endif

# ifndef R_OK

/* Symbolic constants for the "access" function: */

# define R_OK 4

# define W_OK 2

# define X_OK 1

# define F_OK 0

# endif

/* Symbolic constants for the "lseek" function: */

# ifndef SEEK_SET

# define SEEK_SET 0

# define SEEK_CUR 1

# define SEEK_END 2

# endif

# include <time.h>

extern int close(int);

extern int dup(int);

extern int execl(const char *, const char *, ...);

extern int execv(const char *, const char **);

extern int pipe(int *);

extern int read(int, char *, int);

extern int write(int, const char *, int);

extern int fork();

extern int _wait();

extern int select(int, int*, int*, int*, struct timeval*);

#endif

A2.7. varargs.h

Two macros for work with functions and action blocks with variable number of arguments (no library body) are in the file varargs.h

. Explanations of how to use them are in Chapter 4 for functions, and in Chapter

5 for action parameters. Meaning of definition of DWORD_ALIGNMENT is explained there, too.

#ifndef VARARGS_INCLUDED

# define VARARGS_INCLUDED

// ALECSIS2.0 Header file

// (from standard C "varargs.h")

// Use __mode int for char and short types.

# define TYPE_DOUBLE 8

# define DWORD_SIZE 8

# define va_start(__list, __par) (__list = ((char *) (&__par) + sizeof(__par)))

# ifndef DWORD_ALIGNMENT

# define va_arg(__list,__mode) ((__mode *)(__list += \

sizeof(__mode)))[-1]

# else /* DWORD_ALIGNMENT */

# define va_arg(__list,__mode) ((sizeof(__mode)==TYPE_DOUBLE && \

((int)__list%DWORD_SIZE) ) ? \

((__mode *)(__list+=sizeof(__mode)+ \

(DWORD_SIZE-((int)__list%DWORD_SIZE)))) \

: ( (__mode *)(__list += sizeof(__mode)) ) )[-1]

172

# endif /* DWORD_ALIGNMENT */

# endif /* VARARGS_INCLUDED */

Alecsis 2.3 - User’s manual

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
