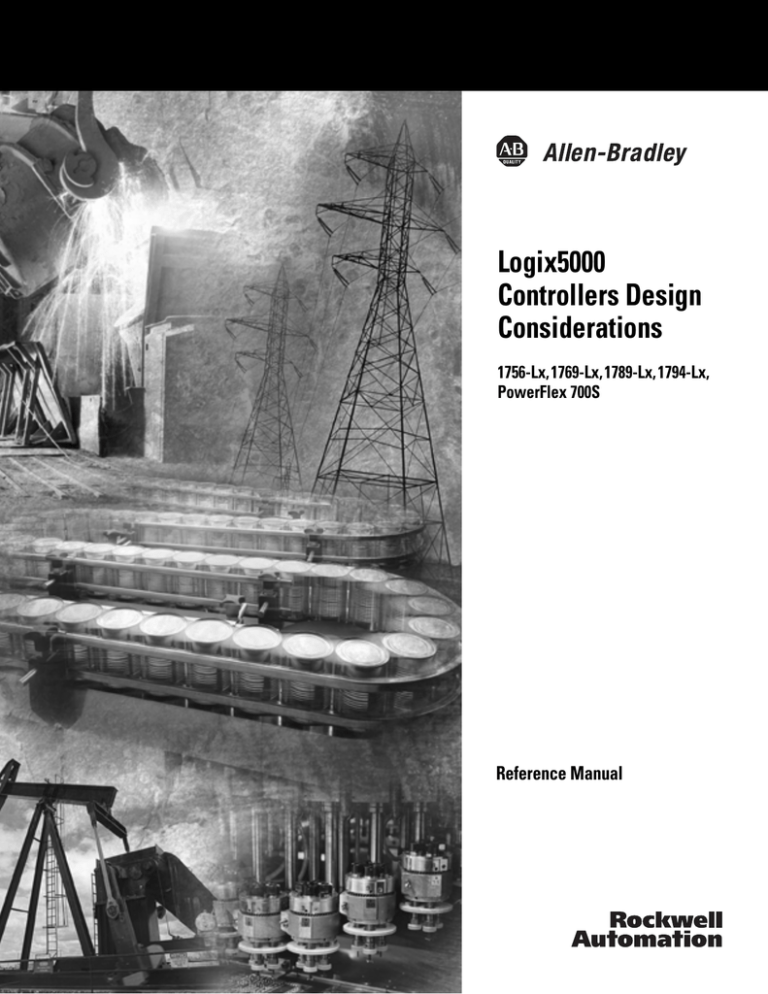

Logix5000 Controllers Design Considerations 1756-Lx, 1769-Lx, 1789-Lx, 1794-Lx, PowerFlex 700S Reference Manual embedded in PowerFlex 700S • • • • panel mount DIN rail • • • • none • • • • • panel mount DIN rail • • • • 1756-L55M12 1756-L55M13 1756-L55M15 1756-L55M16 1756-L55M22 1756-L55M23 1756-L55M24 1756-L6x 1 port RS-232 serial (DF1 or ASCII) EtherNet/IP ControlNet DeviceNet Data Highway Plus Universal Remote I/O serial Modbus via ladder routine DH-485 SynchLink SERCOS interface analog interface hydraulic interface 1756 chassis • • • • built-in communication ports communication options (these options have specific products and profiles for their platform - other options are available via 3rd party products and generic profiles) integrated motion support mounting and /or installation options programming languages relay ladder structured text function block sequential function chart none none none none yes yes yes CompactFlash relay ladder structured text function block sequential function chart not applicable EtherNet/IP DeviceNet serial Modbus via ladder routine DH-485 • • 1769-L20: 1 RS-232 serial port (DF1 or ASCII) 1769-L3, -L31: 2 RS-232 serial ports (one DF1 only, other DF1 or ASCII) 1769-L32E, -L35E: 1 EtherNet/IP port and 1 RS-232 serial port (DF1 or ASCII) yes yes CompactFlash CompactFlash CompactFlash 1769-L20 1769-L30 1769-L31 1769-L32E 1769-L35E • 64 Kbytes 256 Kbytes 512 Kbytes 750 Kbytes 1.5 Mbytes 1769-L20 1769-L30 1769-L31 1769-L32E 1769-L35E 2 Mbytes 3 slots, no motion 64 Mbytes 5 slots 64 Mbytes 16 slots relay ladder structured text function block sequential function chart external routines SERCOS interface analog interface EtherNet/IP ControlNet DeviceNet serial depends on personal computer none 1789-L60 1789-L30 1789-L10 1 RS-232 serial port (DF1 or ASCII) 2 slots for 1788 communication cards yes yes 64 Kbytes 512 Kbytes relay ladder structured text function block sequential function chart not applicable EtherNet/IP ControlNet DeviceNet serial Modbus via ladder routine DH-485 • • 1794-L33 1794-L34/B 1794-L33 1794-L34 1 RS-232 serial port (DF1 or ASCII) 1 slot for 1788 communication cards relay ladder structured text function block sequential function chart 1 full servo 1 feedback axis EtherNet/IP ControlNet DeviceNet serial Modbus via ladder routine DH-485 • • yes (expansion memory) 256 Kbytes 768 Kbytes with expansion memory 8 tasks (only 1 continuous) event tasks: supports axis and motion event triggers nonvolatile user memory 750 Kbytes 1.5 Mbytes 3.5 Mbytes 7.5 Mbytes 750 Kbytes 1.5 Mbytes 3.5Mbytes 2 Mbytes 4 Mbytes 8 Mbytes • • 1756-L55M12 1756-L55M13 1756-L55M15 1756-L55M16 1756-L55M22 1756-L55M23 1756-L55M24 1756-L61 1756-L62 1756-L63 8 tasks (only 1 continuous) event tasks: supports consumed tag trigger and EVENT instruction • • 32 tasks (only 1 continuous) event tasks: supports all event triggers • • user memory 1769-L35E: 8 tasks 1769-L32E: 6 tasks 1769-L31: 4 tasks 1769-L20, -L30: 4 tasks only 1 task can be continuous event tasks: supports consumed tag trigger and EVENT instruction • • • • • • 32 tasks (only 1 continuous) event tasks: supports all event triggers • • PowerFlex 700S DriveLogix controller tasks • continuous • periodic • event 1794 FlexLogix 1789 SoftLogix5800 1769 CompactLogix 1756 ControlLogix Common Characteristic: Logix5000 Controllers Comparison Preface Designing Logix5000 Systems Introduction This reference manual provides guidelines you can follow to optimize your system. This manual also provides system information you need to make system design choices. As you read this manual: This symbol: Indicates: guidelines you should follow programming practices that can improve system performance things you can do considerations you should know when making design choices system information that can affect system performance things you should know In addition to the controller-specific topics covered in each chapter, the back of this manual includes a: • glossary of commonly used terms • list of related publications This manual is meant for experienced Logix-system programmers. The information in this manual is presented with the assumption that the reader understands how to implement the guidelines. The list of related publications at the back of the manual identifies resources you can use for more details on how to implement the guidelines. i Publication 1756-RM094A-EN-P - May 2004 ii Designing Logix5000 Systems Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.ab.com/manuals/gi) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc. is prohibited. Throughout this manual we use notes to make you aware of safety considerations. WARNING IMPORTANT ATTENTION Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss. Identifies information that is critical for successful application and understanding of the product. Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you: • identify a hazard • avoid a hazard • recognize the consequence Publication 1756-RM094A-EN-P - May 2004 SHOCK HAZARD Labels may be located on or inside the drive to alert people that dangerous voltage may be present. BURN HAZARD Labels may be located on or inside the drive to alert people that surfaces may be dangerous temperatures. Table of Contents Chapter 1 Logix5000 Controller Resources Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Using Connections for Communications . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Determining Total Connection Requirements. . . . . . . . . . . . . . . . . . . . . 1-5 Chapter 2 Dividing Logic into Tasks, Programs, and Routines Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Deciding When to Use Tasks, Programs, and Routines. . Specifying Task Priorities . . . . . . . . . . . . . . . . . . . . . . . Managing User Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . Factors that Affect Task Execution . . . . . . . . . . . . . . . . Configuring a Continuous Task. . . . . . . . . . . . . . . . . . . Configuring a Periodic Task . . . . . . . . . . . . . . . . . . . . . Configuring an Event Task . . . . . . . . . . . . . . . . . . . . . . Guidelines for Configuring an Event Task . . . . . . . . . . . Selecting a System Overhead Percentage. . . . . . . . . . . . Managing the System Overhead Timeslice Percentage . . Developing Application Code in Routines . . . . . . . . . . . Programming Methods . . . . . . . . . . . . . . . . . . . . . . . . . Controller Prescan of Logic. . . . . . . . . . . . . . . . . . . . . . Controller Postscan of SFC Logic. . . . . . . . . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2-2 2-3 2-5 2-6 2-8 2-8 2-8 2-9 2-10 2-11 2-12 2-13 2-14 2-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3-2 3-3 3-4 3-5 3-6 3-6 3-7 3-8 3-9 3-10 3-10 3-11 3-12 3-13 3-13 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for Creating Produced and Consumed Tags . . . . . . . . . . . . . Guidelines for Specifying an RPI Rate . . . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for Managing Connections for Produced and Consumed Tags Configuring an Event Task Based on a Consumed Tag . . . . . . . . . . . . . Comparing Messages and Produced/Consumed Tags . . . . . . . . . . . . . . . 4-1 4-2 4-3 4-3 4-3 4-4 Chapter 3 Addressing Data Introduction. . . . . . . . . . . . . . . . . . . . Guidelines for Data Types . . . . . . . . . Arrays . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for Arrays . . . . . . . . . . . . . Indirect Addressing of Arrays . . . . . . . Guidelines for Array Indexes . . . . . . . Prescan of an Array Index . . . . . . . . . Guidelines for User-Defined Structures Selecting a Data Type for Bit Tags . . . Serial Bit Addressing . . . . . . . . . . . . . Guidelines for String Data Types. . . . . PLC-5/SLC 500 Access of Strings . . . . . Configuring Tags . . . . . . . . . . . . . . . . Guidelines for Base Tags . . . . . . . . . . Creating Alias Tags. . . . . . . . . . . . . . . Guidelines for Data Scope . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 4 Sharing Tag Data with Other Controllers (Produced and Consumed Tags) 1 Publication 1756-RM094A-EN-P - May 2004 Table of Contents 2 Chapter 5 Designing Networks Introduction. . . . . . . . . . . . . . . Select a Network . . . . . . . . . . . EtherNet/IP Network Topology. Guidelines for EtherNet/IP . . . . ControlNet Network Topology . Guidelines for ControlNet. . . . . DeviceNet Network Topology. . Guidelines for DeviceNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5-1 5-2 5-3 5-4 5-5 5-6 5-7 .. .. .. .. .. .. .. .. . . . . . . . . .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6-1 6-2 6-3 6-4 6-5 6-6 6-7 Chapter 6 Communicating with I/O Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Buffering I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for Specifying an RPI Rate for I/O Modules . Communication Formats for I/O Modules . . . . . . . . . . . Guidelines for Managing I/O Connections. . . . . . . . . . . Guidelines for Managing I/O Connections (continued) . Creating Tags for I/O Data . . . . . . . . . . . . . . . . . . . . . . Controller Ownership. . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 7 Communicating with Other Devices Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . Caching Messages . . . . . . . . . . . . . . . . . . . . . . Message Buffers . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for Messages . . . . . . . . . . . . . . . . . . Guidelines for Managing Message Connections . Guidelines for Block-Transfer Messages . . . . . . Mapping Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 7-2 7-2 7-4 7-5 7-6 7-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1 8-1 8-2 8-2 8-3 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Guidelines for HMI Applications . . . . . . . . . . . . . . . . . . . . . . . . . Comparison of RSView32 and RSView Enterprise . . . . . . . . . . . . How RSLinx Software Communicates with Logix5000 Controllers . Guidelines for RSLinx Software . . . . . . . . . . . . . . . . . . . . . . . . . . Comparison of RSLinx Classic and RSLinx Enterprise . . . . . . . . . . Guidelines for Configuring Controller Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1 9-2 9-2 9-3 9-4 9-5 9-6 . . . . . . . . . . . . . . . . . . . . . . . . . 10-1 10-1 10-2 10-3 10-3 Chapter 8 Optimizing an Application for Motion Control Introduction. . . . . . . . . . . . Coarse Update Rate . . . . . . Axis Limits . . . . . . . . . . . . . Performance Limits. . . . . . . Motion Event Task Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 9 Optimizing an Application for Use with HMI Chapter 10 Optimizing an Application for Process Control Publication 1756-RM094A-EN-P - May 2004 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Comparison of PID and PIDE Instructions . . . . . . . . . . . Guidelines for Programming PID Loops . . . . . . . . . . . . Advanced Process Instructions . . . . . . . . . . . . . . . . . . . Faceplates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. .. .. . . . . . .. .. .. .. .. .. .. .. .. .. Chapter 1 Logix5000 Controller Resources Introduction Depending on the controller, resources are divided differently: ControlLogix controllers - memory is separated into two, isolated sections Logic and Data Memory I/O Memory I/O data program source code Logix CPU tag data Backplane CPU I/O force tables message buffers RSLinx tag group lists produced/consumed tags • The Logix CPU executes application code and messages. • The backplane CPU communicates with I/O and sends/receives data from the backplane. This CPU operates independently from the Logix CPU, so it sends and receives I/O information asynchronous to program execution. CompactLogix, FlexLogix, and DriveLogix controllers - memory is in one, contiguous section Logic, Data, and I/O Memory program source code I/O data tag data I/O force tables RSLinx tag group lists message buffers Logix CPU I/O task comms task produced/consumed These controllers have a single CPU that performs all operations. Isolated tasks perform I/O and communications and interact with networks. These tasks simulate the backplane CPU. For this controller: CompactLogix, FlexLogix, and DriveLogix 1 The I/O task is priority: 6 The communications task is priority: 12 Publication 1756-RM094A-EN-P - May 2004 1-2 Logix5000 Controller Resources SoftLogix controllers - memory is in one, contiguous section Logic, Data, and I/O Memory program source code I/O data tag data I/O force tables RSLinx tag group lists message buffers Logix CPU Windows operating system produced/consumed The SoftLogix controller has a single CPU that works in conjunction with the Windows operating system to perform all operations. Rather than using controller priority levels for I/O and communications tasks, the SoftLogix controller uses Windows priority levels for these tasks. For this controller: The I/O task is: The communications task is: SoftLogix Windows priority 16 (Idle) Windows priority 16 (Idle) For all controllers, memory is used at run time for: • message processing to buffer incoming and outgoing messages • RSLinx data handling to store tag groups • online edits to store edit rungs • graphical trends to buffer data Estimating memory use The following equations provide an estimate of the memory needed for a controller. Controller tasks _____ * 4000 = _____ bytes (minimum 1 needed) Discrete I/O points _____ * 400 = _____ bytes Analog I/O points _____ * 2600 = _____ bytes DeviceNet modules1 _____ * 7400 = _____ bytes Other communication modules2_____ * 2000 = _____ bytes Motion axis _____ * 8000 = _____ bytes Total = _____ bytes 1 The first DeviceNet module is 7400 bytes. Additional DeviceNet modules are 5800 bytes each. 2Count all the communication modules in the system, not just those in the local chassis. This includes device connection modules, adapter modules, and ports on PanelView terminals. Reserve 20-30% of the controller memory to accommodate growth. Publication 1756-RM094A-EN-P - May 2004 Logix5000 Controller Resources 1-3 RSLinx use of Logix5000 controller memory The amount of memory RSLinx needs depends on the type of data RSLinx reads. The following equations provide an estimate of the memory needed for RSLinx communications. RSLinx overhead (per connection) _____ * 1345 = _____ bytes (4 connections by default) Individual tags _____ * 45 = _____ bytes Arrays / structures _____ * 7 = _____ bytes Total = _____ bytes Consolidating tags into an array or a structure reduces the communications overhead and the number of connections needed to obtain the data. PLC/SLC memory comparison The Logix5000 controllers used compiled instructions to provide faster execution times than PLC or SLC processors. The compiled instructions use more memory when compared to the instructions in PLC and SLC processors. If you have a PLC/SLC program, you can estimate the number of bytes it will take in a Logix5000 controller by: number PLC/SLC words ∗ 18 = number of Logix5000 bytes Using Connections for Communications A Logix5000 controller uses a connection to establish a communication link between two devices. Connections can be: • controller to local I/O modules or local communication modules • controller to remote I/O or remote communication modules • controller to remote I/O (rack optimized) modules For more information on connections for I/O, see Chapter 6 “Communicating with I/O.” • produced and consumed tags For more information, see Chapter 4, “Sharing Tag Data with Other Controllers.” • messages For more information, see Chapter 7 “Communicating with Other Devices.” • access to RSLogix 5000 programming software • RSLinx software access for HMI or other software applications Publication 1756-RM094A-EN-P - May 2004 1-4 Logix5000 Controller Resources These controllers support: Controller: Number of Connections: ControlLogix 250 SoftLogix 1769-L31, -L32E, -L35E CompactLogix 100 DriveLogix FlexLogix 1769-L20, -L30 CompactLogix 17 The limit of connections may ultimately reside in the communication module you use for the connection. If a message path routes through a communication module, the connection related to the message also counts towards the connection limit of that communication module. For this controller: This communication device: Supports this number of connections: ControlLogix 1756-CNB 64 connections depending on RPI, recommend using only 48 connections (any combination of scheduled and message connections) 1756-ENBT 128 connections (all connections are message connections) CompactLogix 1769-L32E, -L35E 32 connections (over EtherNet/IP only) FlexLogix 1788-CNx, -CNxR 32 connections depending on RPI, as many as 22 connections can be scheduled PowerFlex 700S with DriveLogix The remaining connections (or all 32, if you have no scheduled connections) can be used for message connections SoftLogix5800 1788-ENBT 32 connections (all 32 connections are message connections) 1784-PCICS 128 connections 127 of which can be scheduled connections Publication 1756-RM094A-EN-P - May 2004 Logix5000 Controller Resources Determining Total Connection Requirements 1-5 The total connections for a Logix5000 controller include both local and remote connections. Tallying local connections is not an issue for FlexLogix or CompactLogix controllers because both support the maximum number of modules allowed in their systems. The ControlLogix and SoftLogix controllers support more communication modules than the other controllers, so you must tally local connections to make sure you stay within the 250 connection limit. Use this table to tally local connections. Connection Type: Device Quantity: x Connections per Module: = local I/O module (always a direct connection) x 1 = motion servo module x 3 = ControlNet communication module x 0 = EtherNet/IP communication module x 0 = DeviceNet communication module x 2 = DH+/Remote I/O communication module x 1 = RSLogix 5000 programming software access to controller x 1 = Total Connections: total The communication module(s) you select determines how many remote connections are available for I/O and information. Use this table to tally remote connections: Connection Type: Device Quantity: x Connections per Module: = remote ControlNet communication module configured as a direct (none) connection configured as a rack-optimized connection x distributed I/O module over ControlNet (direct connection) x remote EtherNet/IP communication module configured as a direct (none) connection configured as a rack-optimized connection x distributed I/O module over EtherNet/IP (direct connection) x 1 = remote device over DeviceNet (accounted for in rack-optimized connection for local DeviceNet module) x 0 = other remote communication adapter x 1 = produced tag and first consumer x 1 = Total Connections: = 0 or 1 1 = = 0 or 1 each additional consumer 1 consumed tag x 1 = connected message (CIP Data Table Read/Write and DH+) x 1 = block-transfer message x 1 = RSLinx software access for HMI or other software applications x 4 = RSLinx Enterprise software for HMI or other software applications x 5 = total Publication 1756-RM094A-EN-P - May 2004 1-6 Logix5000 Controller Resources Notes: Publication 1756-RM094A-EN-P - May 2004 Chapter 2 Dividing Logic into Tasks, Programs, and Routines Introduction The controller operating system is a preemptive multitasking system that is IEC 61131-3 compliant. This environment provides: tasks to configure controller execution A task provides scheduling and priority information for a set of one or more programs. You can configure tasks as either continuous, periodic, or event. programs to group data and logic A task can have as many as 32 programs, each with its own routines and program-scoped tags. Once a task is triggered (activated), all the programs assigned to the task execute in the order in which they are listed in the Controller Organizer. Programs are useful for projects developed by multiple programmers. During development, the code in one program that makes use of program-scoped tags, can be duplicated in a second program and minimize the possibility of tag names colliding. routines to encapsulate executable code written in a single programming language Routines contain the executable code. Each program has a main routine that is the first routine to execute within a program. Use logic, such as the Jump to Subroutine (JSR) instruction, to call other routines. You can also specify an optional program fault routine. See “Developing Application Code in Routines” on page 2-12 for information on selecting programming languages and how the controller prescans and postscans logic. 1 Publication 1756-RM094A-EN-P - May 2004 2-2 Dividing Logic into Tasks, Programs, and Routines Deciding When to Use Tasks, Programs, and Routines Use these considerations to determine when to use a task, program or routine: Comparison: Task: Program: Routine: Quantity available varies by controller (4, 8, or 32) 32 programs per task unlimited number of routines per program Function determines how and when code will be executed organizes groups of routines that need to share a common data area contains executable code (relay ladder, function block diagram, sequential function chart, or structured text) that controls the machine Use • most code should reside in a continuous task • use a periodic task for slower processes or when time-based operation is critical Considerations • put major equipment pieces or plant cells into isolated programs • use programs to isolate different programmers or create reusable code • isolate machine or cell functions in a routine • use the appropriate language for the process • modularize code into subroutines that can be called multiple times • use an event task for operations that require synchronization to a specific event • configurable execution order within a task • a high number of tasks can be difficult to debug • data spanning multiple programs must go into controller-scoped area • subroutines with multiple calls can be difficult to debug • listed in the Controller Organizer in the order of execution • data can be referenced from program-scoped and controller-scoped areas • may need to disable output processing on some tasks to improve performance • tasks can be inhibited to prevent execution • calling a large number of routines impacts scan time • listed in the Controller Organizer as Main, Fault, and then alphabetically Publication 1756-RM094A-EN-P - May 2004 Dividing Logic into Tasks, Programs, and Routines Specifying Task Priorities This Logix5000 controller: 2-3 Each task in the controller has a priority level that determines which task executes when multiple tasks are triggered. A higher priority task (such as 1) interrupts any lower priority task (such as 15). The continuous task has the lowest priority and is always interrupted by a periodic or event task. Supports this many user tasks: And has this many priority levels: ControlLogix 32 15 1769-L35E CompactLogix 8 15 1769-L32E CompactLogix 6 15 1769-L20, -L30, -L31 CompactLogix 4 15 FlexLogix 8 15 PowerFlex 700A with DriveLogix 8 15 SoftLogix5800 32 3 If a periodic or event task is executing when another is triggered and both tasks are at the same priority level, the tasks timeslice execution time in 1 msec increments until one of the tasks completes execution The Logix5000 controller has these types of tasks. Publication 1756-RM094A-EN-P - May 2004 2-4 Dividing Logic into Tasks, Programs, and Routines Priority: Highest User Task: Description: na CPU overhead - serial port and general CPU operations na Motion planner - executed at coarse update rate na Redundancy task - communications to 1757-SRM in redundant systems na Trend data collection - high-speed collection of trend data values Priority 1 Event/Periodic na Priority 2 Event/Periodic na Priority 3 Event/Periodic na Priority 4 Event/Periodic na Priority 5 Event/Periodic na Priority 6 Event/Periodic CompactLogix and FlexLogix controllers process I/O as a periodic task based on the chassis RPI setting Priority 7 Event/Periodic na Priority 8 Event/Periodic na Priority 9 Event/Periodic na Priority 10 Event/Periodic na Priority 11 Event/Periodic na Priority 12 Event/Periodic DriveLogix communications to drives. CompactLogix and FlexLogix communications and scheduled connection maintenance Lowest Priority 13 Event/Periodic na Priority 14 Event/Periodic na Priority 15 Event/Periodic na Continuous Message handler - based on system overhead timeslice Publication 1756-RM094A-EN-P - May 2004 Dividing Logic into Tasks, Programs, and Routines Managing User Tasks 2-5 You can configure these user task: If you want logic to execute: Then use a: Description: all of the time continuous task The continuous task runs in the background. Any CPU time not allocated to other operations or tasks is used to execute the continuous task. • The continuous task runs all the time. When the continuous task completes a full scan, it restarts immediately. • A project does not require a continuous task. If used, there can be only one continuous task. • at a constant period (e.g., every 100 ms) periodic task • multiple times within the scan of your other logic A periodic task performs a function at a specific time interval. Whenever the time for the periodic task expires, the periodic task: • interrupts any lower priority tasks • executes one time • returns control to where the previous task left off immediately when an event occurs event task An event task performs a function only when a specific event (trigger) occurs. Whenever the trigger for the event task occurs, the event task: • interrupts any lower priority tasks • executes one time • returns control to where the previous task left off See “Configuring an Event Task“on page 2-8 for the triggers for an event task. Some Logix5000 controllers do not support all triggers. The user tasks you create show up in the Tasks folder of the controller. These pre-defined, system tasks do not show up in the Tasks folder and they do not count toward the task limit of the controller: • motion planner • I/O processing • system overhead • output processing Publication 1756-RM094A-EN-P - May 2004 2-6 Dividing Logic into Tasks, Programs, and Routines Factors that Affect Task Execution The motion planner interrupts all other tasks, regardless of their priority. motion planner See also “Optimizing an Application for Motion Control“on page 8-1. I/O processing • The number of axes and coarse update period for the motion group affect how long and how often the motion planner executes. • If the motion planner is executing when a task is triggered, the task waits until the motion planner is done. • If the coarse update period occurs while a task is executing, the task pauses to let the motion planner execute. CompactLogix, FlexLogix, DriveLogix, and SoftLogix controllers use a dedicated periodic task to process I/O data. This I/O task: • For CompactLogix, FlexLogix, and DriveLogix, operates at priority 6. For SoftLogix, operates at Windows priority 16 (Idle). • Higher-priority tasks take precedence over the I/O task and can impact processing. • Executes at the fastest RPI you have scheduled for the system. • Executes for as long as it takes to scan the configured I/O modules. • For local I/O, updates also occur at the end of each task. system overhead System overhead is the time that the controller spends on message communication and background tasks. • Message communication is any communication that you do not configure through the I/O configuration folder of the project, such as MSG instructions. See also “Selecting a System Overhead Percentage“on page 2-10. • Message communication occurs only when a periodic or event task is not running. If you use multiple tasks, make sure that their scan times and execution intervals leave enough time for message communication. • System overhead interrupts only the continuous task. • The system overhead time slice specifies the percentage of time (excluding the time for periodic or event tasks) that the controller devotes to message communication. • The controller performs message communication for up to 1 ms at a time and then resumes the continuous task. • Adjust the update rates of the tasks as needed to get the best trade-off between executing your logic and servicing message communication. output processing At the end of a task, the controller performs overhead operations (output processing) for the output modules in your system. This output processing may effect the update of the I/O modules in your system. You can turn off output processing for a specific task, which reduces the elapsed time of that task. If you have too many tasks, then: too many tasks • The continuous task may take too long to complete. • Other tasks may experience overlaps. If a task is interrupted too frequently or too long, it may not complete its execution before it is triggered again. • Controller communications might be slower. • If your application is designed for data collection, try to avoid multiple tasks. Switching between multiple tasks limits communication bandwidth. Publication 1756-RM094A-EN-P - May 2004 Dividing Logic into Tasks, Programs, and Routines 2-7 The following example depicts the execution of a project with these tasks: Task: Priority: Period: Execution time: Duration: motion planner n/a 8 ms (course update rate) 1 ms 1 ms event task 1 1 n/a 1 ms 1 to 2 ms periodic task 1 2 12 ms 2 ms 2 to 4 ms I/O task—n/a to ControlLogix and SoftLogix controllers 7 5 ms (fastest RPI) 1 ms 1 to 5 ms system overhead n/a time slice = 20% 1 ms 1 to 6 ms continuous task n/a n/a 20 ms 48 ms Legend: Task executes. Task is interrupted (suspended). motion planner event task 1 periodic task 1 I/O task system overhead continuous task 5 1 10 2 15 3 20 4 25 30 35 40 45 5 50 6 Description: 1 Initially, the controller executes the motion planner and the I/O task (if one exists). 2 After executing the continuous task for 4 ms, the controller triggers the system overhead. 3 The period for periodic task 1 expires (12 ms), so the task interrupts the continuous task. 4 After executing the continuous task again for 4 ms, the controller triggers the system overhead. 5 The triggers occur for event task 1. Event task 1 waits until the motion planner is done. Lower priority tasks experience longer delays. 6 The continuous task automatically restarts. Publication 1756-RM094A-EN-P - May 2004 2-8 Dividing Logic into Tasks, Programs, and Routines Configuring a Continuous Task The continuous task is created automatically when you open an RSLogix 5000 project. A continuous task is similar to how logic executes on PLC-5 and SLC 500 processors. A Logix5000 controller supports one continuous task, but a continuous task is not required. You can configure whether the task updates output modules at the end of the continuous task. You can change the continuous task to either a periodic or event task. The CPU timeslices between the continuous task and system overhead. Each task switch between user task and system overhead takes additional CPU time to load and restore task information. See “Selecting a System Overhead Percentage” on page 2-10. Configuring a Periodic Task A periodic task executes automatically based on a preconfigured interval. This task is similar to selectable timed interrupts in PLC-5 and SLC 500 processors. You can configure whether the task updates output modules at the end of the periodic task. After the task executes, it does not execute again until the configured time interval has elapsed. If your application has a lot of communications (such as message instructions or RSLinx communications), use a periodic task rather than a continuous task. This avoids the overhead associated with task switching, which can improve performance. Configuring an Event Task An event task executes automatically based on a preconfigured event occurring. You can configure whether the task updates output modules at the end of the task. After the task executes, it does not execute again until the configured event occurs again. Each event task requires a specific trigger that defines when the task is to execute. You can select from: Use this trigger: Description: Module Input Data State Change The input module (digital or analog) triggers the event task based on the change of state (COS) configuration for the module. Enable COS for only one point on the module. If you enable COS for multiple points, a task overlap of the event task may occur. The ControlLogix sequence of events modules (1756-IB16ISOE, 1756-IH16ISOE) use the Enable CST Capture feature instead of COS. Consumed Tag Only one consumed tag can trigger a specific event task. Use an IOT instruction in the producing controller to signal the production of new data. Axis Registration 1 or 2 A registration input triggers the event task. Axis Watch A watch position triggers the event task. Motion Group Execution The coarse update period for the motion group triggers the execution of both the motion planner and the event task. Because the motion planner interrupts all other tasks, it executes first. EVENT instruction Multiple EVENT instructions can trigger the same task. Publication 1756-RM094A-EN-P - May 2004 Dividing Logic into Tasks, Programs, and Routines 2-9 For more information on event tasks, see: • Logix5000 Controllers Common Procedures Programming Manual, publication 1756-PM001 • Using Event Tasks with Logix5000 Controllers, LOGIX-WP003 Guidelines for Configuring an Event Task Place the I/O module being used to trigger an event in the same chassis as the controller Limit events on digital inputs to a single input bit on a module Set the priority of the event task as the highest priority on the controller Limit the number of event tasks Placing the I/O module in a remote chassis adds additional network communications and processing to the response time. All inputs on a module trigger a single event, so using multiple bits increases the chance of a task overlap. Configure the module to detect change-of-state on the trigger input and turn off the other bits. If the priority of the event task is lower than a periodic task, the event task will have to wait for the periodic task to complete execution. Increasing the number of event tasks reduces the available CPU bandwidth and increases the chances of task overlap. Additional considerations for event tasks Consideration: Description: amount of code in the event task Each logic element (rung, instruction, structured text construct, etc…) adds to scan time. task priority If the event task is not the highest priority task, a higher priority task may delay or interrupt the execution of the event task. CPS and UID instructions If one of these instructions are active, the event task cannot interrupt the currently executing task. (The task with the CPS or UID.) communication interrupts The following actions interrupt a task, regardless of the priority of the task: • arrival of scheduled module and consumed tag information via the backplane • serial port communication motion planner The motion planner takes precedence over an event task. trends Trend data collection takes precedence over an event task. Publication 1756-RM094A-EN-P - May 2004 2-10 Dividing Logic into Tasks, Programs, and Routines Selecting a System Overhead Percentage The system overhead timeslice specifies the percentage of continuous task execution time that is devoted to communication and background functions. System overhead functions include: • communicating with programming and HMI devices (such as RSLogix 5000 software) • responding to messages • sending messages • serial port message and instruction processing The controller performs system overhead functions for up to 1 ms at a time. If the controller completes the overhead functions in less than 1 ms, it resumes the continuous task. The following chart compares a continuous and periodic task. Continuous task restarts Continuous task 10% CPU Overhead Continuous task 25% CPU overhead Periodic task CPU Overhead Periodic task restarts Example: Description: Continuous task 10% CPU overhead In the top example, the system overhead timeslice is set to 10%. Given 40 msec of code to execute, the continuous task completes the execution in 44 msec. During a 60 msec timespan, the controller is able to spend 5 msec on communications processing. Continuous task 25% CPU overhead By increasing the system overhead timeslice to 25%, the controller completes the continuous task scan in 57 msec and spends 15 msec of a 60 msec timespan on communications processing. Periodic task Placing the same code in a periodic task yields even more time for communications processing. The bottom example assumes the code is in a 60 msec periodic task. The code executes to completion and the goes dormant until the 60 msec, time-based trigger occurs. While the task is dormant, all CPU bandwidth can focus on communications. Since the code only takes 40 msec to execute, the controller can spend 20 msec on communications processing. Depending on the amount of communications to process during this 20 msec window, it can be delayed as it waits for other modules in the system to process all the data that was communicated. The Logix5000 CPU timeslices between the continuous task and system overhead. Each task switch between user task and system overhead takes additional CPU time to load and restore task information. You can calculate the continuous task interval as: ContinuousTime=(100/SystemOverheadTimeSlice%) - 1 Publication 1756-RM094A-EN-P - May 2004 Dividing Logic into Tasks, Programs, and Routines Increasing the system overhead timeslice percentage decreases execution time for the continuous task while it increases communications performance. Increasing the system overhead timeslice percentage also increases the amount of time it takes to execute a continuous task - increasing overall scan time. Tags Per Second Program Scan Time Tags per Second impact on communications and scan time As the system overhead timeslice percentage increases, time allocated to executing the continuous task decreases. If there are no communications for the controller to manage, the controller uses the communications time to execute the continuous task. Program Scan Time in Milliseconds Managing the System Overhead Timeslice Percentage 2-11 System Timeslice % Individual applications may differ, but the overall impact on communications and scan time remains the same. The above data is based on a ControlLogix5555 controller running a continuous task with 5000 tags (no arrays or user-defined structures). Publication 1756-RM094A-EN-P - May 2004 2-12 Dividing Logic into Tasks, Programs, and Routines Developing Application Code in Routines Each routine contains logic in one programming language. Choose a programming language based on the application In general, if a section of your code represents: Then use this language: continuous or parallel execution of multiple operations (not sequenced) ladder logic boolean or bit-based operations complex logical operations message and communication processing machine interlocking operations that service or maintenance personnel may have to interpret in order to troubleshoot the machine or process. servo motion control continuous process and drive control function block diagram loop control calculations in circuit flow high-level management of multiple operations sequential function chart (SFC) repetitive sequences of operations batch process motion control sequencing (via sequential function chart with embedded structure text) state machine operations complex mathematical operations specialized array or table loop processing ASCII string handling or protocol processing Publication 1756-RM094A-EN-P - May 2004 structured text Dividing Logic into Tasks, Programs, and Routines Programming Methods 2-13 The capabilities of the Logix5000 controllers make different programming methods possible. There are tradeoffs to consider when selecting a programming method: Write multiple copies of the code with different tag references. Inline duplication • uses more memory • fastest execution time because all tag references are defined before run time • easiest to maintain because rung animation matches tag values • requires more time to create and modify Indexed routine • one copy of code is faster to develop Write one copy of code and use indexed references to data stored in arrays. • slowest execution time because all tag references are calculated at run time • can be difficult to maintain because the data monitor is not synchronized to execution The JSR instruction passes the index Buffered routine • one copy operation can occur faster than multiple index offsets Each indexed reference adds to scan time Copy the values of an array into tags and reference these buffer tags directly. • eliminates the need to calculate array offsets at run time • the amount of code increases, but so do the benefits A user-defined structure consolidates control data • can be difficult to maintain because the data monitor is not synchronized to execution Direct reference to a local copy of data The JSR instruction passes all control instance data Publication 1756-RM094A-EN-P - May 2004 2-14 Dividing Logic into Tasks, Programs, and Routines Controller Prescan of Logic On power-up, the controller prescans logic to initialize instructions. The controller resets all state-based instructions, such as outputs (OTE) and timers (TON). Some instructions also perform operations during prescan. For example, the ONSR instructions turns off the storage bit. For information on prescan, see: • Logix5000 Controllers General Instructions Reference Manual, publication 1756-RM003 • Logix5000 Controllers Common Procedures Programming Manual, publication 1756-PM001 • Logix5000 Controllers Process Control and Drives Instructions Reference Manual, publication 1756-RM006 During prescan, input values are not current and outputs are not written. The controller resets non-retentive I/O and internal values. affects of prescan on relay ladder logic affects of prescan on function block diagram logic In addition to resetting non-retentive I/O and internal values, the controller clears the EnableIn parameter for every function block diagram. The controller resets bit tags and forces numeric tags to zero (0). affects of prescan on structured text logic Use the bracketed assignment operator ([:=]) to force a value to be reset during prescan. If you want a tag left in its last state, use the non-bracketed assignment operator (:=). Embedded structured text follows the same rules as listed above. affects of prescan on sequential function chart logic affects of prescan on array indexed values Controller Postscan of SFC Logic Publication 1756-RM094A-EN-P - May 2004 Array index values can fault the controller during prescan. If an array index value is larger than the dimension of the array, the controller will detect a major fault during prescan. To avoid this, make sure the index is always set properly or use a fault routine to handle this error during prescan. See “Prescan of an Array Index” on page 3-6. SFCs support an automatic reset option that performs a postscan of the actions associated with a step once a transition indicates that the step is completed. Also, every Jump to Subroutine (JSR) instruction causes the controller to postscan the called routine. During this postscan: • output energize (OTE) instructions are turned off and non-retentive timers are reset. • in structured text code, use the bracketed assignment operator ([:=]) to have tags reset • in structured text code, use the non-bracketed assignment operator (:=) to have tags left in their last state. Chapter 3 Addressing Data Introduction atomic data type (BOOL, SINT, INT, DINT, REAL) Logix5000 controllers support IEC 61131-3 atomic data types, such as BOOL, SINT, INT, DINT, and REAL. The controllers also support compound data types, such as arrays, predefined structures (such as counters and timers) and user-defined structures. Benefits: • individual names • each tag uses 32 bits of memory • no limit to the number of tags • require more communications overhead and, potentially, more controller memory than compound data types • Tag Editor and Data Monitor can filter individual tags and display any references • always listed alphabetically in the Tag Editor and Data Monitor • full alias tag support (both the base tag and its bits) • can be added when programming online compound data type (array, structure) Benefits: • can only change a tag’s data type when programming offline • the root tag is listed alphabetically in the Tag Editor and Data Monitor, but the structure members are listed in the order in which they were defined in the structure Considerations: • allow for specific names and user-defined organization • 2 Mbyte data limit per user-defined structure or array • consolidates information in controller memory • user-defined structures are padded to enforce 32-bit data alignment • optimizes communications time and memory impact • alias tags cannot point to the root tag of an array • arrays can be dynamically indexed • Tag Editor and Data Monitor filtering limited • can create new arrays when programming online • alias support for user-defined structures, members of an array, and bits of a member 1 Considerations: • can only create or change a user-defined structure when programming offline • can only change an array when programming offline Publication 1756-RM094A-EN-P - May 2004 3-2 Addressing Data The Logix CPU reads and manipulates 32-bit data values. All data starts at 32-bit offsets, so the minimum memory allocation for a tag is 4 bytes. When you create a standalone tag that stores data that is less than 4 bytes, the controller allocates 4 bytes, but the data only fills the part it needs. Data type Bits 31 16 15 BOOL not used SINT not used INT not used DINT -2,147,483,648 to +2,147,483,647 REAL -3.40282347E38 to -1.17549435E-38 (negative values) 8 7 1 0 0 or 1 -128 to +127 -32,768 to +32767 0 1.17549435E-38 to 3.40282347E38 (positive values) To manipulate SINT or INT data, the controller converts the values to DINT values, performs the programmed manipulation, and then returns the result to a SINT or INT value. This requires additional memory and execution time when compared to using DINT values for the same operation. Guidelines for Data Types Use DINT data types whenever possible The Logix5000 controllers perform DINT (32 bit) and REAL (32 bit) math operations. DINT data types use less memory and execute faster than other data types. Use: • DINT for most numeric values and array indexes • REAL for manipulating floating-point, analog values • SINT (8 bit) and INT (16 bit) primarily in user-defined structures or when communicating with an external device that does not support DINT values SINT INT DINT REAL memory reserved for a stand-alone tag 4 bytes 4 bytes 4 bytes 4 bytes memory reserved for data in a user-defined structure 1 byte (8-bit aligned) 2 bytes (16-bit aligned) 4 bytes (32-bit aligned) 4 bytes (32-bit aligned) memory used to access a tag in an ADD instruction 236 bytes 260 bytes 28 bytes 44 bytes execution time on a 1756-L63 controller required to perform an ADD instruction 3.31 µsec 3.49 µsec 0.26 µsec 1.45 µsec Group BOOL values into arrays Publication 1756-RM094A-EN-P - May 2004 When using BOOL values, group them into DINT arrays to best use controller memory and to make the bits accessible via FBC or DDT instructions. Addressing Data Arrays 3-3 An array allocates a contiguous block of memory to store a specific data type as a table of values. • Tags support arrays in one, two, or three dimensions. • User-defined structures can contain a single-dimension array as a member of the structure. This array: Stores data like: For example: one dimension Tag name: Type Dimension 0 Dimension 1 Dimension 2 one_d_array DINT 7 -- -- total number of elements = 7 valid subscript range DINT[x] where x=0–6 two dimension Tag name: Type Dimension 0 Dimension 1 Dimension 2 two_d_array DINT[4,5] 4 5 -- total number of elements = 4 ∗ 5 = 20 valid subscript range DINT[x,y] where x=0–3; y=0–4 three dimension Tag name: Type Dimension 0 three_d_array DINT[2,3,4] 2 Dimension 1 Dimension 2 3 4 total number of elements = 2 ∗ 3 ∗ 4 = 24 valid subscript range DINT[x,y,z] where x=0–1; y=0–2, z=0–3 The data type you select for an array determines how the contiguous block of memory gets used. BOOL = 12 bytes BOOL arrays use 32-bit increments of memory SINT = 12 bytes of memory (2 bytes unused) SINT arrays are padded to use any left over bytes INT = 12 bytes of memory (2 bytes unused) INT arrays are padded to use any left over bytes DINT = 12 bytes and REAL = 12 bytes DINT and REAL arrays use 4-byte increments of memory Publication 1756-RM094A-EN-P - May 2004 3-4 Addressing Data Guidelines for Arrays You can create arrays of most data types, except for AXIS, MOTION_GROUP, and MESSAGE data types A subscript identifies an individual element within the array. A subscript starts at 0 and extends to the number of elements minus 1 (zero based). • Single-dimension arrays take less memory and execute faster than 2-dimension or 3-dimension arrays. • Direct references to array elements execute faster than indexed references • An array can be as large as 2 Mbytes • If you create an array of structures, the memory for each element is allocated based on the structure definition Type of Array Single (1) dimension Benefits: Considerations: • better support by native file instructions • fully supported in user-defined structures and arrays • smallest impact (execution time and memory) for indexed references Double (2) dimension and Triple (3) dimension • multiple arrays cannot be indirectly referenced like in PLC or SLC processors (i.e., N[N7:0]:5) • BOOL arrays not directly supported by file instructions • can create new arrays when programming online • can only be changed when programming offline • can provide a more accurate data representation for a physical system • larger impact (execution time and memory) for indexed references • can emulate PLC file/word indirection with a 2 dimension array • file manipulation requires extra code in addition to file instructions • can create new arrays when programming online • can only be changed when programming offline Nest arrays Select the data type of the array based on the data, as well as the instructions that manipulate that data Limit arrays to 2 Mbytes of data Publication 1756-RM094A-EN-P - May 2004 The file instructions offer limited support for arrays. To work with array data, create a user-defined structure with one array as a member of the structure. Then create an array tag using the user-defined structure as its data type. While SINT and INT arrays can compact more values into a given memory area, they require additional memory and execution time for each instruction that references the array. The maximum array size is 2 Mbytes. The software displays a warning if you try to create an array that is too large. The software also displays a warning if an array is 1.5-2 Mbytes in size, even though these sizes are valid. Addressing Data Indirect Addressing of Arrays 3-5 If you want an instruction to access different elements in an array, use a tag in the subscript of the array (an indirect address). By changing the value of the tag, you change the element of the array that your logic references. When index equals 1, array[index] points here. array 4500 array 6000 array 3000 array 2500 When index equals 2, array[index] points here. Directly referencing an element in an array (such as MyArray), uses less memory and executes faster than an indirect reference (MyArray[MyIndex]). You can also indirectly address bits in a tag (MyDint.[Index]). If you use indirect addresses, use DINT tags because other data types require conversion and execute slower. For each indexed access to data, the controller recalculates the array index. If you access a specific array element multiple times, copy the data out of the array into a fixed tag and use that tag in subsequent logic. You can also use an expression to specify the index value. For example: MyArray[10 + MyIndex]. • An expression uses operators to calculate a value. • The controller computes the result of the expression and uses it as the index. • Valid operators include: Optimal: Operator: Description: add DINT, REAL LN natural log REAL subtract/negate DINT, REAL LOG log base 10 REAL * multiply DINT, REAL MOD modulo-divide DINT, REAL / divide DINT, REAL NOT bitwise complement DINT Operator: Description: + - Optimal: ** exponent (x to y) DINT, REAL OR bitwise OR DINT ABS absolute value DINT, REAL RAD degrees to radians DINT, REAL ACS arc cosine REAL SIN sine REAL AND bitwise AND DINT SQR square root DINT, REAL ASN arc sine REAL TAN tangent REAL ATN arc tangent REAL TOD integer to BCD DINT COS cosine REAL TRN truncate DINT, REAL DEG radians to degrees DINT, REAL XOR bitwise exclusive OR DINT FRD BCD to integer DINT Publication 1756-RM094A-EN-P - May 2004 3-6 Addressing Data Guidelines for Array Indexes Use the SIZE instruction to determine the number of elements in an array Use immediate values to reference array elements By determining the number of elements in an array at run time, you can write reusable code that adjusts itself to meet each instance where it is used. Immediate value references to array elements are quicker to process and execute faster than indexed references. Use DINT tags for array indexes DINT tags execute the fastest. SINT, INT, and REAL tags require conversion code that can add additional scan time to an operation. Avoid using array elements as indexes The Logix5000 controller does not directly support the use of an array element as the index to look up a value in another array. To work around this, you can create an alias to the element and then use this as the index. Or copy the element to a base tag and use that base tag as the index. Prescan of an Array Index During prescan, the controller resets state based on instructions such as outputs and timers. If you use calculated array indexes based on program execution, an “Indexed address out of range” error occurs because the program has not executed and the index was not initialized. You can use a fault handler routine to address this: • Place an unconditional rung with an OTE instruction referencing an internal bit in the first program of the first task. During prescan, the prescan bit will be turned off. During normal scan, the prescan bit will be on at all times. • “Indexed address out of range” error occurs and the prescan bit is off, reset the error and continue. See the Logix5000 Controllers Common Procedures Programming Manual, publication 1756-PM001 for information and sample code to handle faults. IMPORTANT Publication 1756-RM094A-EN-P - May 2004 This prescan condition no longer exists in controllers with firmware revision 13 and greater. You do not need to program a fault handler routine to handle indexed address out-of-range errors. Addressing Data Guidelines for User-Defined Structures Group members of the same data type within a structure 3-7 User-defined structures let you combine multiple data types into one structure. All the elements in a structure align along 8-bit boundaries. When you use the BOOL, SINT, or INT data types, place members that use the same data type in sequence: A Logix5000 controller aligns every data type along an 8-bit boundary for SINTs, a 16-bit boundary for INTS, or a 32-bit boundary for DINTs and REALs. BOOLs also align on 8-bit boundaries, but if they are placed adjacent to each other in a user-defined structure, they are mapped so that they share the same byte. Arrays within structures can only be 1-dimension I/O data used in structure must be copied into the members Limit user-defined structures to 500 members Limit the size of user-defined structures if they are to be communicated If you include an array as a member, limit the array to a single dimension. Multi-dimension arrays are not permitted in a user-defined structure. If you include members that represent I/O devices, you must use logic to copy the data into the members of the structure from the corresponding I/O tags. Logix5000 controllers limit user-defined structures to 500 members. If you need more, consider nesting structures within the main structure. Produced and consumed tags are limited to 500 bytes over the backplane and 480 bytes if over a network. RSLinx can optimize user-defined structures that are less than 480 bytes. Publication 1756-RM094A-EN-P - May 2004 3-8 Addressing Data Selecting a Data Type for Bit Tags Bits in a Logix5000 controller can exist as: BOOL tags, bits in a BOOL array, bits in elements of a SINT, INT, DINT array, members of a user-defined structure, or as bits in a SINT, INT, DINT member of a user-defined structure. Each tag accesses a specific bit. Each tag uses 4 bytes. BOOL tag MyBit:BOOL Benefits: Considerations: • each bit has a specific tag • requires extra bandwidth to communication • uses more memory; 32-bits for each tag • cannot use FBC/DDT bit file instructions A BOOL array combines multiple bits into adjacent words (32-bit words). BOOL array BitTable:BOOL Benefits: Considerations: • consolidates multiple bits into a single word • BOOL data type only supported by bit instructions • better use of memory • cannot use file instructions, copy instructions, or DDT/FBC instructions • can address all bits in an array using indirect addressing A DINT combines multiple bits into adjacent words. DINT array FaultTable:DINT Benefits: Considerations: • consolidates multiple bits into a single word • requires extra planning to indirectly address bits • file instructions, copy instructions, and DDT/FBC instructions support DINT arrays • difficult to address bits in the array using indirect addressing • lets you access the bits by element (word) and bit number A user-defined structure combines multiple bits into adjacent, individually-named words. user-defined structure BitStructure Bit1:BOOL Bit2:BOOL Fault:BitStructure Benefits: • object based • consolidates multiple bits into a single word Considerations: • structures are not directly supported by 3rd party MMI/EOI products (RSView does support 32-bit tags and structures) • cannot use FBC/DDT bit file instructions Publication 1756-RM094A-EN-P - May 2004 Addressing Data Serial Bit Addressing 3-9 The BOOL “B” data table in the PLC-5 and SLC 500 processors supports two addressing modes that can address the same bit: Addressing mode: Description: serial bit Serial bit addressing provides the ability to reference all bits as a contiguous list (array) of bits. For example, if you wanted to reference the 3rd bit in the 2nd word of a “B” file, you specify B3/18. This method similar to a BOOL array in a Logix5000 controller where you would specify FaultBit. In PLC-5 or SLC software, this addressing mode is represented as “/Bit” word bit In PLC-5 or SLC software, this addressing mode is represented as “Word/Bit” Word bit addressing identifies a bit within a specific word. For example, B3:1/2 is the same as B3/18 from the serial bit example. This method is similar to accessing the bits of a SINT, INT, DINT array in a Logix5000 controller where you would specify FaultTable.2. The Logix5000 controller supports both of these addressing modes, but you cannot use both to reference bits in the same array due to conformance with the IEC 61131-3 standard. Choose the method that best meets your application needs. You can copy data between arrays using both methods. You can also use an expression to indirectly reference a bit in a DINT array using a serialized bit number. For example: Tag MyBits : DINT BitRef : DINT EndTag MOV(34, BitRef) XIC(MyBits[BitRef / 32].[BitRef AND 31]) where: This expression: Calculates the: [BitRef / 32] element in the DINT array Note: If the tag MyBits is an INT or SINT, the divisor would be 16 or 8, respectively. [BitRef AND 31] bit within the element Note: If the tag MyBits is an INT or SINT, the mask value would be 15 or 7, respectively. The Diagnostic Detect (DDT) and File Bit Compare (FBC) instructions provide a bit number as a result of their operation. These instructions are limited to DINT arrays so you can use them to locate the bit number returned from the example above. Publication 1756-RM094A-EN-P - May 2004 3-10 Addressing Data Guidelines for String Data Types You can create a string data type that is longer or shorter than the default string data type String data types are structures that hold ASCII characters. The first member of the structure defines the length of the string; the second member is an array that holds the actual ASCII characters. The default string data type can contain as many as 82 characters, but you can create custom-length string data types to hold as many characters as needed. These comparison instructions support string tags: EQU, NEQ, GRT, GEG, LES, LEQ, CMP. Only some instructions support string data types These serial port instructions support string tags: ARD, ARL, AWA, AWT. These string-handling instructions support string tags: STOD, DTOS, STOR, RTOS, CONCAT, MID, FIND, DELETE, INSERT, UPPER, LOWER, SIZE. These file instructions support string arrays: FAL, FFL, FFU, LFL, LFU, COP, CPS, FSC. Use the SIZE instruction to determine the number of characters in a string Using the DTOS, RTOS, and CONCAT instructions, you can embed tag values within a string PLC-5/SLC 500 Access of Strings Publication 1756-RM094A-EN-P - May 2004 By determining the number of characters in a string at run time, you can write reusable code that adjusts itself to meet each instance where it is used. The SLC 500 processor supports the ability to embed a data table reference address within a string (inline indirection). The SLC 500 AWA and AWT instructions can then look up the data value and place an ASCII representation into the outgoing string. The Logix5000 controller does not directly support this ability. Use the DTOS or RTOS instructions to convert a value to a string and the CONCAT instruction to merge characters with another string. The ASCII “A” data table in the PLC-5 and SLC 500 processors uses a string format that is similar to the Logix string data type. The main difference is that the LEN field (length) in a PLC-5/SLC 500 processor is a 16-bit, INT value whereas the LEN field in a Logix5000 controller is a 32-bit, DINT field. This difference can impact converted logic and data communications. The Logix5000 controller will convert the LEN field to the appropriate value and size when a PLC-5/SLC 500 message format is used to read or write a string. Addressing Data Configuring Tags 3-11 A tag is a text-based name for an area of the controller’s memory where data is stored. Tags are the basic mechanism for allocating memory, referencing data from logic, and monitoring data. If you want the tag to: Then choose this type: store a value for use by logic within the project Base use a different name for an existing tag’s data Alias (can help simplify long, pre-determined tag names, such as for I/O data or user-defined structures) send (broadcast) data to another controller Produced receive data from another controller Consumed For more information on I/O tags, see Chapter 6 “Communicating with I/O.” Publication 1756-RM094A-EN-P - May 2004 3-12 Addressing Data Guidelines for Base Tags The controller supports pre-defined, stand-alone tags. Create stand-alone atomic tags • Atomic tags are listed directly in the Tag Editor and Data Monitor and can be easily located by browsing the alphabetical list. • Atomic tags can be created on-line, but the data type can only be modified off-line. • Using only atomic tags can impact HMI communications performance as more information must be passed and acted on. Create user-defined structures User-defined structures (data types) let you organize your data to match your machine or process. • One tag contains all the data related to a specific aspect of your system. This keeps related data together and easy to locate, regardless of its data type. • Each piece of data (member) gets a descriptive name. • You can use the structure to create multiple tags with the same data layout. • User-defined structure can only be modified off-line • RSLinx optimizes user-defined structures more than stand-alone tags. An array creates multiple instances of a data type under a common tag name. Use arrays like files to quickly create a group of similar tags • Arrays let you organize a block of tags that use the same data type and perform a similar function. • You organize the data in 1, 2, or 3 dimensions to match what the data represents. • Arrays can only be modified off-line. • RSLinx optimizes array data types more than stand-alone tags. Minimize the use of BOOL arrays. Many array instructions do not operate on BOOL arrays. This makes it more difficult to initialize and clear an array of BOOL data. Take advantage of program-scoped tags If you want multiple tags with the same name, define each tag at the program scope (program tags) for a different program. This lets you re-use both logic and tag names in multiple programs. Avoid using the same name for both a controller tag and a program tag. Within a program, you cannot reference a controller tag if a tag of the same name exists as a program tag for that program. Use mixed case and the underscore characters Although tags are not case sensitive (upper case A is the same as lower case a), mixed case is easier to read. For example, “Tank_1” can be easier to read than “tank1.” Consider alphabetical order RSLogix 5000 software displays tags of the same scope in alphabetical order. To make it easier to monitor related tags, use similar starting characters for tags that you want to keep together. For example, consider using “Tank_North” and “Tank_South” rather than North_Tank” and “South_Tank.” Use leading zeroes (0) when numbers are part of tag names RSLogix 5000 software uses a simple sort to alphabetize tag names in the Tag Editor and Data Monitor. This means if you have Tag1, Tag2, Tag11, and Tag12, the software displays them in order as Tag1, Tag11, Tag12, and then Tag2. If you want to keep them in numerical order, name them Tag01, Tag02, Tag11, and Tag12. Publication 1756-RM094A-EN-P - May 2004 Addressing Data Creating Alias Tags 3-13 An alias tag lets you create one tag that represents another tag. • both tags share the same value as defined by the base tag • when the value of a base tag changes, all references (aliases) to the base tag reflect the change When assigning aliases, avoid An alias tag references a base tag • nesting aliases (you cannot have an alias of an alias) • using multiple aliases to the same tag On upload, the software decompiles the program and uses the physical memory addresses to determine which tags are referenced in the code. All references to a base tag reverts to an alias if one exists. If multiple aliases point to the same tag, RSLogix 5000 software uses the first alias tag (alphabetically) that it finds. Alias tags do not affect controller execution During download, the program is compiled into machine executable code and physical memory addresses. While the existence of an alias requires controller memory to store the name, the program performs the same operation for a reference with an alias or its associated base tag. Accessing alias tags from RSLinx software Because an alias tag appears as a stand-alone tag to RSLinx software, an alias tag that references a compound array or structure might require additional communication time. When referencing tags from RSLinx software or other HMI, it might be fastest to reference base tags directly. Guidelines for Data Scope controller scope program scope Data scope defines where you can access tags. When you create a tag, you assign scope as either controller or program. Controller-scoped tags are accessible by all programs. Program-scoped tags are only accessible by the code within a specific program. If you want to: Then assign this scope: use a tag in more than one program in the same project controller scope (controller tags) use a tag in a message (MSG) instruction produce or consume data use motion tags communicate with a PanelView terminal reuse the same tag name multiple times for different parts or processes within a controller program scope (program tags) have multiple programmers working on logic and you want to merge logic into one project Isolate portions of a machine or different stations into separate programs and use program-scoped tags within each program. This: • provides isolation between programs • prevents tag name collisions • improves the ability to reuse code Publication 1756-RM094A-EN-P - May 2004 3-14 Addressing Data Notes: Publication 1756-RM094A-EN-P - May 2004 Chapter 4 Sharing Tag Data with Other Controllers (Produced and Consumed Tags) Introduction Logix5000 controllers support the ability to produce (broadcast) and consume (receive) system-shared tags. For two controllers to share produced or consumed tags, both controllers must be attached to the same control network (such as a ControlNet or Ethernet/IP network). You cannot bridge produced and consumed tags over two networks. Logix5000 controllers can produce and consume tags over these networks (as long as they support communications over these networks): • the ControlLogix backplane • a ControlNet network • an EtherNet/IP network If there are no other connections, the controller supports: As a: The controller supports: producer (number of produced tags) ≤ 127 consumer (number of consumed tags) ≤ 250 (or controller maximum) The total combined number of consumed and produced tags that a controller supports is: (produced tags) + (consumed tags) + (other connections) ≤ 250 (or controller maximum) IMPORTANT 1 The actual number of produced and consumed tags that you can configure in project depends on the connection limits of the communication module through which you produce or consume the tags. Publication 1756-RM094A-EN-P - May 2004 4-2 Sharing Tag Data with Other Controllers (Produced and Consumed Tags) Guidelines for Creating Produced and Consumed Tags You cannot bridge produced and consumed tags over different networks For two controllers to share produced or consumed tags, both controllers must be attached to the same network. You can produce and consume tags over ControlNet or EtherNet/IP networks. You can only produce and consume (share) controller-scoped tags. Create the tag at controller scope If you transfer a tag with more than 500 bytes, create logic to transfer the data in packets. Limit the size of the tag to ≤ 500 bytes If you consume a tag over a ControlNet hop, the tag must be ≤ 480 bytes. This is a limitation of the ControlNet network, not the controller. If you are producing several tags for the same controller: Combine data that goes to the same controller • Group the data into one or more user-defined structures. This uses less connections than producing each tag separately. • Group the data according to similar update intervals. To conserve network bandwidth, use a greater RPI for less critical data. Use one of these data types: • DINT To share data types other than DINT or REAL, create a user-defined structure to contain the required data. Use the same data type for the produced tag and the corresponding consumed tag or tags. • REAL • array of DINTs or REALs • user-defined structure Use a user-defined structure to produce or consume INT or SINT data The data type in the producer and the consumer must match Produce tags based on user-defined structures to non-Logix devices Use a CPS instruction to buffer produced and consumed data Publication 1756-RM094A-EN-P - May 2004 To produce or consume INT or SINT data, create a user-defined structure with INT or SINT members. The members can be individual INTs or SINTs or the members can be INT or SINT arrays. The resulting user-defined structure can then be produced or consumed. The data type for a produced or consumed tag must be the same in both the producer and the consumer. The controller produces tags in 32-bit words. For devices that communicate in other word boundaries, such as 16-bit words, the resulting data in the target device can be misaligned. To help avoid misalignment, structure the produced data in a user-defined structure. Use the CPS instruction to copy the data to the outgoing tag on the producer side. Then use another CPS instruction to copy the data into a buffer tag on the consumer side. The CPS instructions provides data integrity for data structures greater than 32 bits. Sharing Tag Data with Other Controllers (Produced and Consumed Tags) Guidelines for Specifying an RPI Rate Make sure the RPI is equal to or greater than the NUT The smallest (fastest) consumer RPI determines the RPI for the produced tag 4-3 When configuring produced and consumed tags, you specify an Requested Packet Interval (RPI) rate. The RPI value is the rate at which the controller attempts to communicate with the module. You use RSNetWorx for ControlNet software to select the network update time (NUT) and the software schedules the network connections. RSNetWorx cannot schedule a ControlNet network if a module and/or produced/consumed tag on the network has an RPI that is faster than the network update time. If multiple consumers request the same tag, the smallest (fastest) request determines the rate at which the tag is produced for all the consumers. Guidelines for Managing Connections for Produced and Consumed Tags Minimize the use of produced and consumed tags To reduce network traffic, minimize the size of produced and consumed tags. Also, minimize the use of produced and consumed tags to high-speed, deterministic data, such as interlocks. Use arrays or user-defined structures When sending multiple tags to the same controller, use an array or user-defined structure to consolidate the data. The byte limit of ≤ 500 bytes per produced and consumed tag still applies. Configure the number of consumers accurately Make sure the number of consumers configured for a produced tag is the actual number of controllers that will consume the tag. If you set the number higher than the actual number of controllers, you unnecessarily use up connections. The default is 2 consumers per produced tag. Multiple produced/consumed connections are linked Configuring an Event Task Based on a Consumed Tag If there are multiple produced and consumed connections between two controllers and one connection fails, all the produced and consumed connections fail. Consider combining all produced and consumed data into one structure or array so that you only need one connection between the controllers. An event task executes automatically based on a preconfigured event occurring. One such event can be the arrival of a consumed tag. • Only one consumed tag can trigger a specific event task. • Typically, use an IOT instruction in the producing controller to signal the production of new data. • When a consumed tag triggers an event task, the event task waits for all the data to arrive before the event task executes. Publication 1756-RM094A-EN-P - May 2004 4-4 Sharing Tag Data with Other Controllers (Produced and Consumed Tags) For information on configuring an event task, see Chapter 2 “Dividing Logic into Tasks, Programs, and Routines.” Comparing Messages and Produced/Consumed Tags Method: Read/Write Message Benefits: • programatically initiated • communications and network resources only used when needed • support automatic fragmentation and reassembly of large data packets, up to as many as 32,767 elements • some connections can be cached to improve re-transmission time • Generic CIP message useful for third-party devices Produced/Consumed Tag • configured once and sent automatically based on Requested Packet Interval (RPI) • multiple consumers can simultaneously receive the same data from a single produced tag • can trigger an event task when consumed data arrives • ControlNet resources are reserved up front • does not impact the scan of the controller Publication 1756-RM094A-EN-P - May 2004 Considerations: • controller limited to 32 active messages active at the same time (limit of 16 in revision 11 and earlier) • delay may occur if resources are not available when needed • MSG instruction and processing impacts controller scan (system overhead timeslice) • data arrives asynchronous to program scan (use CPS instruction to reduce impact, no event task support) • fragmentation and reassembly limited to exchanges between Logix5000 controllers • support limited to Logix5000 and PLC-5 controllers, and the 1784-KTCS I/O Linx and select third party devices • limited to 500 bytes over the backplane and 480 bytes over a network • must be scheduled when using ControlNet • data arrives asynchronous to program scan (use CPS instruction and event tasks to synchronize) • connection status must be obtained separately Chapter 5 Designing Networks Introduction NetLinx Open Network Architecture is the Rockwell Automation strategy of using open networking technology for seamless, top-floor to shop-floor integration. The networks in the NetLinx architecture — DeviceNet, ControlNet, and EtherNet/IP — share a universal set of communication services. These are the recommended networks for Logix control systems. Select a Network Comparison: ControlNet: DeviceNet: Control I/O better BEST low density Configuration devices BEST BEST BEST Collect data BEST Better good Peer interlocking better BEST good Devices better better BEST star trunkline/dropline trunkline/dropline requires switches star with repeaters many nodes 99 nodes 63 nodes BEST BEST good Topologies Capacity Performance 1 EtherNet/IP: Publication 1756-RM094A-EN-P - May 2004 5-2 Designing Networks EtherNet/IP Network Topology EtherNet/IP network: • EtherNet/IP supports messaging, produced/consumed tags, and distributed I/O • EtherNet/IP supports half/full duplex 10 Mbps or 100 Mbps operation Topology: example 1 device • EtherNet/IP requires no network scheduling and no routing tables • There are several methods available to configure EtherNet/IP network parameters for devices. Not all methods are available at all times. These methods are device and configuration dependent. switch device device example 2 − DHCP router − Rockwell Automation BOOTP/DHCP utility − RSLinx software switch switch − RSLogix 5000 software − RSNetWorx for EtherNet/IP software Application Ideas • connect many computers • default gateway to business systems • star topology best for few nodes and short distances Publication 1756-RM094A-EN-P - May 2004 device device device device Designing Networks 5-3 Guidelines for EtherNet/IP For EtherNet/IP control, you must use an industrial-grade switch that supports: Make sure the switch has the required features • full-duplex on all ports • IGMP snooping − constrains multicast traffic to ports associated with a specific IP multicast group − most switches require a router for IGMP snooping to function − if you have a stand-alone network, make sure the switch supports IGMP snooping without a router present • port mirroring • VLAN (virtual local area network) to isolate traffic flow for different systems • both autonegotiation and manual configuration of duplex and speed • wire-speed switching fabric • SNMP (Simple Network Management Protocol) to obtain statistical information about a device • IEEE 802.1D spanning tree protocol to support redundant backbone connections for improved fault tolerances • IEEE 802.1P frame prioritization • IP address blocking to restrict traffic to a specific range • auto-restore of switch configuration for replacement • per port broadcast and multicast storm control • port trunking for applications with multiple switches • method for backing up configuration information Consider using switches from Encompass partners These Encompass partners have switches that meet the required features: Cisco, Hirschmann, and N-Tron. Publication 1756-RM094A-EN-P - May 2004 5-4 Designing Networks ControlNet Network Topology ControlNet network: Topology: • ControlNet allows both I/O and messaging on the same wire. • Multiple controllers and their respective I/O can also be placed on the same ControlNet wire. Shared I/O • When new I/O is added or an existing I/O module’s communication structure is changed, you must use RSNetWorx for ControlNet software to reschedule the network. ControlNet • If the network timing changes, every device with scheduled traffic on the network is affected. CPU I/O ControlNet • Place shared I/O and produced/consumed tags on a common network available to each CPU that needs the information. ControlNet • To reduce the impact of changes, place each CPU and its respective I/O on isolated ControlNet networks. CPU I/O Application Ideas • default Logix network • best replacement for Universal Remote I/O • backbone to multiple distributed DeviceNet networks • peer interlocking network • common devices include: Logix5000 controllers, PanelView terminals, I/O modules, and drives Publication 1756-RM094A-EN-P - May 2004 I/O I/O Designing Networks 5-5 Guidelines for ControlNet Use these publications when installing a ControlNet network: Use the installation publications when installing a ControlNet network Limit the number of nodes per ControlNet network to 40 • ControlNet Coax Media Planning and Installation Guide, publication CNET-IN002 • ControlNet Fiber Media Planning and Installation Guide, publication CNET-IN001 ControlNet was designed with a limit of 99 nodes per network, but this number of nodes decreases network performance. A maximum of 40 nodes per network results in better performance and leaves bandwidth for other communications. Change these settings in the RSNetWorx for ControlNet software: Adjust the default RSNetWorx settings • UMAX (highest unscheduled node on the network) − default is 99 − the network takes the time to process the total number of nodes specified in this setting, even if there are not that many devices on the network − change to a reasonable level to accommodate the active devices on the network and any additional devices that might be connected • SMAX (highest scheduled node on the network) − default is 1 − this must be changed for all systems − set SMAX < UMAX Design for at least 400 Kbytes of available, unscheduled network bandwidth Place DeviceNet (DNB) and serial (MVI) communication modules in the local chassis Limit 1756-CNB, -CNBR connections Leaving too little memory for unscheduled network bandwidth results in poor message throughput and slower workstation reponse. DeviceNet (DNB) and serial (MVI) communication modules have multiple, 500-byte data packets that will impact scheduled bandwidth. Placing these modules in the same chassis as the controller avoids this data being scheduled over the ControlNet network If you must place these communication devices in remote chassis, configure the input and output sizes to match the data configured in RSNetWorx for DeviceNet software. This reduces the amount of data that must be transmitted. For best performance, limit the 1756-CNB, -CNBR to 40-48 connections. Add additional modules in the same chassis if you need more connections. Adding more modules and splitting connections among the modules can improve system performance. If the chassis that contains the CNB module also contains multiple digital I/O modules, configure the CNB module’s communication format for “Rack Optimization.” Otherwise, use “None.” See the examples on page 6-5. If you change network settings, resave each controller’s project Any time you use RSNetWorx software and you save or merge your edits, attach to each controller in the system with their respective RSLogix 5000 project file and perform a save. This copies the ControlNet settings into the offline, database file and ensures that future downloads of the controller permit it to go online without having to run RSNetWorx software. Publication 1756-RM094A-EN-P - May 2004 5-6 Designing Networks DeviceNet Network Topology DeviceNet network: • You need a DeviceNet scanner to connect the controller to DeviceNet devices • You must use RSNetWorx for DeviceNet to configure devices and create the scanlist for the scanner. • You can configure the network baud rate as 125K bit/s (default and a good starting point), 250K bit/s, or 500K bit/s. • If each device on the network (except the scanner) sends ≤ 4 bytes of input data and receives ≤ 4 bytes of output data, you can use the AutoScan feature on the scanner to configure the network. Application Ideas • distributed devices • drives network • diagnostic information Publication 1756-RM094A-EN-P - May 2004 Topology: single network CPU scanner device device device device device several smaller distributed networks (subnets) linking device CPU device device linking device device device device device Designing Networks 5-7 Guidelines for DeviceNet Use this publication when installing a DeviceNet network: Use the installation publications when installing a DeviceNet network Place DeviceNet (DNB) communication modules in the local chassis • DeviceNet Cable System Manual, publication DN-UM072 Placing DNB modules in the local chassis maximizes performance, especially in ControlLogix systems. Size the input and output image for the DNB modules to the actual devices that are connected plus 20% for future growth. If you have to place DNB modules in remote chassis, sizing the input and output images is critical for best performance. A DNB supports: Verify the total network data does not exceed the maximum DNB data table size • 124, 32-bit input words • 123 32-bit output words • 32, 32-bit status words You can use RSNetWorx for DeviceNet software offline to estimate network data. Use a second DNB if there is more network data than one module can support. Set up slaves first Configure a device’s parameters before adding that device to the scanlist. You cannot change the configuration of many devices once they are already in the scanlist. If you configure the scanner first, there is a chance that the scanner configuration will not match the current configuration for a device. If the configuration does not match, the device will not show up when you browse the network. Leave node address 63 open to add nodes Leave node address 62 open to connect a computer Don’t forget to set the scanner run bit Make sure you have the most current EDS files for your devices Devices default to node 63 out-of-the-box. Leave node address 63 unused so you can add a new devices to the network. Then change the address of the new device. Always leave at least one open node number to let a computer be attached to the network if needed for troubleshooting, configuration, etc. For the scanner to be in Run mode, the controller must be in Run mode and the logic in the controller must set the scanner’s run bit. RSNetWorx for DeviceNet software uses EDS file to recognize devices. If the software is not properly recognizing a device, you are missing the correct EDS file(s). For some devices, you can create an EDS file by uploading information from the device. Or you can get EDS files from: http://www.ab.com/networks/eds. Publication 1756-RM094A-EN-P - May 2004 5-8 Designing Networks Notes: Publication 1756-RM094A-EN-P - May 2004 Chapter 6 Communicating with I/O Introduction In Logix5000 controllers, I/O values update at a period (Requested Packet Interval, RPI) that you configure via Module Property dialog in the I/O configuration folder of the project. The values update asynchronously to the execution of logic. The module sends input values to the controller at the specified RPI. Because this transfer is asynchronous to the execution of logic, an I/O value in the controller can change in the middle of a scan. Buffering I/O Data If you reference an I/O tag multiple times and the application could be impacted if the value changes during a program scan, you must copy the I/O value into a buffer tag prior to the first reference of that tag in your code. In your code, reference the buffer tag rather than the I/O tag. Use the synchronous copy (CPS) instruction to buffer I/O data. While the CPS instruction copies data, no I/O updates or other tasks can change the data. Tasks that attempt to interrupt a CPS instruction are delayed until the instruction is done. Buffer I/O data to: • prevent an input or output value from changing during the execution of a program. (I/O updates asynchronous to the execution of logic.) • copy an input or output tag to a member of a structure or element of an array. • prevent produced or consumed data from changing during the execution of a program. • ensure all produced and consumed data arrives or is sent as a group (not mixed from multiple transfers) • only use the CPS instruction if the I/O data that you want to buffer is greater than 32 bits (or 4 bytes) in size If you have a user-defined structure with members that represent I/O devices, you must use logic to copy the data into the members of the structure from the corresponding I/O tags 1 Publication 1756-RM094A-EN-P - May 2004 6-2 Communicating with I/O Guidelines for Specifying an RPI Rate for I/O Modules When adding I/O modules to a controller project, you specify a Requested Packet Interval (RPI) rate. Depending on the controller platform, you can select an RPI rate per module (ControlLogix) or an RPI rate per controller (CompactLogix and FlexLogix). The RPI value is the rate at which the controller attempts to communicate with the module. Specify an RPI at 50% of the rate you actually need Setting the RPI faster (specifying a smaller number) than what your application needs wastes network resources, such as ControlNet schedule bandwidth, network processing time, and CPU processing time. For example, if you need information every 80 msec, set the RPI at 40 msec. The data is asynchronous to the controller scan, so you sample data twice as often (but no faster) than you need it to make sure you have the most current data. Group devices with similar performance needs onto the same module Set the ControlNet network update time (NUT) equal to or less than the fastest RPI The RPI should be an even multiple of the NUT Publication 1756-RM094A-EN-P - May 2004 By grouping devices with similar performance needs on the same module, you consolidate data transmission to one module rather than multiple modules. This conserves network bandwidth. When configuring a ControlNet network, set the network update time (NUT) equal to or less than the fastest RPI of the I/O modules and produced/consumed tags in the system. For example, if your fastest RPI is 10 msec, set the NUT to 5 msec for more flexibility in scheduling the network. Set the RPI to a binary multiple of the NUT. For example, if the NUT is 10 msec, select an RPI such as 10, 20, 40, 80, 160, etc. msec. Communicating with I/O Communication Formats for I/O Modules direct connection 6-3 The communication format determines whether the controller connects to the I/O module via a direct or a rack-optimized connection. The communication format also determines the type and quantity of information that the module will provide or use. Each module passes its data to/from the controller individually. Communication modules bridge data across networks. digital inputs communication module Local chassis Benefits: digital outputs communication module controller Remote chassis Considerations: • each module can determine its own rate (RPI) • requires additional connections and network resources • more data can be sent per module, such as diagnostic and analog data • this is the only method supported in the local chassis • I/O data presented as individual tags • supports event task communications rack-optimized connection The communications module in a remote chassis consolidates data from multiple modules into a single packet and transmits that packet as a single connection to the controller. digital inputs communication module communication module Local chassis digital outputs controller Remote chassis . Benefits: Considerations: • one connection can service a full chassis of digital modules • all modules are sent at the same rate • reduces network resources and loading • unused slots are still communicated • still need a direct connection for analog and diagnostic data • limited to remote chassis • I/O data presented as arrays with alias tags for each module Publication 1756-RM094A-EN-P - May 2004 6-4 Communicating with I/O The rack-optimized format limits data to a single 32-bit input word per module in a chassis. If you place a diagnostic module in a chassis, the rack-optimized format eliminates the value that the diagnostic module offers. In this case, it’s better to use a direct connection so that all of the module's diagnostic information is passed to the controller. Guidelines for Managing I/O Connections The type of I/O module can determine the type of connection Analog modules always use direct connections, except for 1771 analog modules which use connected messaging. Digital modules can use direct or rack-optimized connections. Communication formats that include “optimization” in the title are rack-optimized connections; all other connection options are direct connections. For a remote adapter: Select the communication format for a remote adapter based on the remote I/O modules Use rack-optimized connections to conserve connection use Publication 1756-RM094A-EN-P - May 2004 Select: If: None the remote chassis contains only analog modules, diagnostic digital modules, fused output modules, or communication modules Rack-Optimized the remote chassis only contains standard, digital input and output modules (no diagnostic modules or fused output modules) Listen Only Rack-Optimized you want to receive I/O module and chassis slot information from a rack-optimized remote chassis owned by another controller If you are trying to limit the number of controller and network connections, rack-optimized connections can help. Communicating with I/O 6-5 Guidelines for Managing I/O Connections (continued) In some cases, all direct connections work best For a remote adapter module configured for rack-optimized connections, there is always data sent for each slot in the chassis, even if a slot is empty or contains a direct connection module. There are 12 bytes of data transferred for rack-optimized overhead between the controller and the remote adapter module. In addition, the remote adapter module sends 8 bytes per slot to the controller; the controller sends 4 bytes per slot to the remote adapter. For a small number of digital modules in a large chassis, it might be better to use direct connections because transferring the full chassis information might require more system bandwidth than direct connections to a few modules. For example: Example: Description: Remote 17-slot chassis Option 1: Select Rack Optimization for remote adapter’s communication format. This example uses 16 controller connections (15 for analog modules and 1 for the rack-optimized connection). This example also transfers: Slot 0: 1756-CNBR/D Slots 1-15: analog modules • 12 bytes for rack-optimized overhead Slot 16: standard digital module • 12 bytes for the digital module • 12 bytes for each of the 15 analog modules, for a total of 180 bytes Option 2: Select None for the remote adapter’s communication format. This example also uses 16 controller connections (1 direct connection to each I/O module). There is no rack-optimized overhead data to transfer. Recommendation: Option 2 is recommended because it avoids unnecessary network traffic, and thus improves network performance. Remote 17-slot chassis Slot 0: 1756-CNBR/D Option 1: Select Rack Optimization for the remote adapter’s communication format. This example uses 9 controller connections (8 for analog modules and 1 for the rack-optimized connection). This example also transfers: Slots 1-8: analog modules • 12 bytes for rack-optimized overhead Slots 9-16: digital modules • 12 bytes for each of the 8 digital modules, for a total of bytes 96 bytes • 12 bytes for each of the 8 analog modules, for a total of 96 bytes Option 2: Select None for remote adapter’s communication format. This example uses 16 controller connections (1 direct connection to each I/O module). There is no rack-optimized overhead data to transfer. Recommendation: The best option for this example depends on the type of digital I/O modules in the system and other controller connections. If the total system has many analog modules, diagnostic modules, fused output modules, or produced/consumed tags, select Option 1 to conserve controller connections. If there are plenty of controller connections available, select Option 2 to reduce unnecessary network traffic. Publication 1756-RM094A-EN-P - May 2004 6-6 Communicating with I/O Creating Tags for I/O Data Each I/O tag is automatically created when you configure the I/O module through the programming software. Each tag name follows this format: Location:SlotNumber:Type.MemberName.SubMemberName.Bit This address variable: Is: Location Identifies network location LOCAL = local chassis or DIN rail ADAPTER_NAME = identifies remote adapter or bridge SlotNumber Slot number of I/O module in its chassis Type Type of data: I = input C = configuration O = output S = status MemberName Specific data from the I/O module, such as Data and Fault; depends on the module SubMemberName Specific data related to a MemberName. Bit (optional) Specific point on the I/O module; depends on the size of the I/O module (0-31 for a 32-point module) If you configure a rack-optimized connection, the software creates a rack-object tag for the remote communication module. You can reference the rack-optimized I/O module individually, or by its element within the rack-object tag. For example, a remote ControlNet communication module (remote_cnb) has an I/O module in slot 1. This is the individual tag created for the I/O module in remote slot 1. This is the entry in the rack-object tag for the remote communication module that identifies the I/O module in remote slot 1. Publication 1756-RM094A-EN-P - May 2004 Communicating with I/O Controller Ownership 6-7 When you choose a communication format, you have to choose whether to establish an owner or listen-only relationship with the module. The owner controller writes configuration data and can establish a connection to the module. owner A controller using a listen-only connection only monitors the module. It does not write configuration data and can only maintain a connection to the I/O module when the owner controller is actively controlling the I/O module. listen-only There is a noted difference in controlling input modules versus controlling output modules. Controlling: This ownership: Description: input modules owner An input module is configured by a controller that establishes a connection as an owner. This configuring controller is the first controller to establish an owner connection. Once an input module has been configured (and owned by a controller), other controllers can establish owner connections to that module. This allows additional owners to continue to receive multicast data if the original owner controller breaks its connection to the module. All other additional owners must have the identical configuration data and identical communications format that the original owner controller has, otherwise the connection attempt is rejected. output modules listen-only Once an input module has been configured (and owned by a controller), other controllers can establish a listen-only connection to that module. These controllers can receive multicast data while another controller owns the module. If all owner controllers break their connections to the input module, all controllers with listen-only connections no longer receive multicast data. owner An output module is configured by a controller that establishes a connection as an owner. Only one owner connection is allowed for an output module. If another controller attempts to establish an owner connection, the connection attempt is rejected. listen-only Once an output module has been configured (and owned by one controller), other controllers can establish listen-only connections to that module. These controllers can receive multicast data while another controller owns the module. If the owner controller breaks its connection to the output module, all controllers with listen-only connections no longer receive multicast data. Publication 1756-RM094A-EN-P - May 2004 6-8 Communicating with I/O Notes: Publication 1756-RM094A-EN-P - May 2004 Chapter 7 Communicating with Other Devices Introduction The MSG instruction asynchronously reads or writes a block of data to another device. If the target device is a: Select one of these message types: Logix5000 controller CIP Data Table Read CIP Data Table Write I/O module that you configure using RSLogix 5000 software Module Reconfigure PLC-5 controller PLC5 Typed Read CIP Generic PLC5 Typed Write PLC5 Word Range Read PLC5 Word Range Write SLC controller SLC Typed Read MicroLogix controller SLC Typed Write Block-transfer module Block-Transfer Read Block-Transfer Write PLC-3 processor PLC3 typed read PLC3 typed write PLC3 word range read PLC3 word range write PLC-2 processor PLC2 unprotected read PLC2 unprotected write 1 Publication 1756-RM094A-EN-P - May 2004 7-2 Communicating with Other Devices Caching Messages Some types of messages use a connection to send or receive data. Some also give you the option of either leaving the connection open (cache) or closing the connection when the message is done transmitting. The following table shows which messages use a connection and whether or not you can cache the connection: This type of message: Using this communication method: Uses a connection: Which you can cache: CIP data table read or write CIP X X PLC2, PLC3, PLC5, or SLC (all types) CIP DH+ X X CIP generic N/A your option(1) your option(1) block-transfer read or write N/A X X CIP with Source ID (1) You can connect CIP generic messages, but for most applications we recommend you leave CIP generic messages unconnected A cached connection remains open until one of the following occurs: • The controller goes to Program mode • You rerun the message as uncached • Another message is initiated and a cached buffer is needed • An intermediate node in the connection goes down. Message Buffers A Logix5000 controller has buffers for unconnected messages and for cached messages. Buffers store incoming and outgoing message data until the controller can process the data. Unconnected Buffers MSG and Block-Transfer Instructions 3 Incoming Open/Close Connections CIP Generic MSG Unconnected MSG 10 - 40 Outgoing Communications Handler Controller Connections Data To and From Logix5000 Controller 250 Connections (Buffers) Uncached Connected CIP MSG or Block-Transfer Cache Buffers Cached Connected MSG or Block-Transfer 16 MSG Buffers 16 BT Buffers Revision 12 and higher controller firmware allows 32 cached, shared between MSGs and block-transfers Publication 1756-RM094A-EN-P - May 2004 Communicating with Other Devices Buffer: Description: 10 outgoing unconnected buffers The outgoing unconnected buffers are for: You can increase this to 40 by using a CIP Generic message instruction. See the MSG section in the Logix 5000 Controllers General Instructions Reference Manual, publication 1756-RM003 7-3 • establishing I/O connections to local I/O modules and remote devices on ControlNet, EtherNet/IP, and Universal remote I/O networks • executing unconnected PLC2, PLC3, PLC5, or SLC (all types) messages over Ethernet or ControlNet (CIP and CIP with Source ID) • initiation of messaging over DH+ (uses 2 buffers, one to open the connection and one to transfer data) • initiation of uncached block transfers • initiation of uncached CIP read/write message instructions • initiation of cached block transfers • initiation of cached CIP read/write messages instructions • CIP Generic message instructions 3 incoming unconnected buffers The incoming unconnected buffers are for: • initial receiving of a cached CIP message instruction • receiving an uncached CIP message instruction • receiving a message over DH+ • receiving a CIP Generic message instruction • receiving a read or write request from a ControlNet PanelView (unconnected messaging) • initial receiving of a read request from an Ethernet PanelView (connected messaging) • receiving a write request from an Ethernet PanelView (unconnected messaging) • receiving a initial request from RSLogix 5000 to go online • initial receiving of RSLinx connections 16 cached message buffers 16 cached block-transfer buffers The cached buffers are outgoing buffers for cached messages and cached block-transfers. A cached connection helps message performance because the connection is left open and does not need to be reestablished next time it is executed. If you cache more than 16 messages in either set of buffers, the controller looks at the current buffers to determine how to deal with the additional cached messages. The controller will look for a connection that has been inactive for the longest time and close that connection and allow a new one to take its place. But if all 16 cached connections are in use, the message will use one of the 10 unconnected out going buffers. If all the unconnected buffers are in use, the message instruction will error with code 301 (No Buffer Memory) or 302 (Bandwidth Not Available). With revision 12 and higher controller firmware, you can cache 32 messages. For optimum performance, do not cache more than 32 messages. If you cache more than 32 messages, the controller looks for a connection that has been inactive for the longest time, closes that connection, and allows a new connection take its place. The controller will close a cached message or block-transfer, depending on which has been inactive the longest. If all 32 cached connections are in use, the message will use one of the unconnected out going buffers. The first time a cached message is executed, it uses one of the 10 out going unconnected buffers. When the connection is established it will then move into the appropriate cached buffer area. Publication 1756-RM094A-EN-P - May 2004 7-4 Communicating with Other Devices In controllers with firmware revision 12 or earlier, the maximum number of messages you can have active at the same time depends on the type of message. If you are doing cached block transfers, you have memory set aside for 16 cached block transfer connections. If you are doing Logix-to-Logix or other message styles that can be cached, you have another set of 16 cached connections. You then still have the 10 unconnected out going buffers to use. So you could have 42 messages active at once. Using outgoing unconnected buffers Buffers: Use: 1-10 The first 10 buffers (default) are shared for unconnected messaging, initiating connected messaging, establishing I/O connections, and establishing produced/consumed connections. 11 The 11th buffer is dedicated to establishing I/O and produced/consumed connections. 12-40 The 12th to the 40th buffers are used only for initiating connected messages and executing unconnected messages. To increase the outgoing buffers to a value higher than 11, execute a CIP generic message to configure that change. Guidelines for Messages Message tags must exist as controller-scoped, base tags The information in a message tag is accessed by the operating system asynchronously to the program scan. In addition to the visible fields within the message tag, there are hidden attributes only referenced by the background operating system. You can have more than 32 messages in a program The controller supports 32 active messages at a time. If you determine that there are more than 32 messages, you will not be able to keep them cached. You will need extra programming to ensure that no more than 32 messages are active at the same time. Prior to controller revision 12, the controller supported 16 active messages at a time. You can use a message to send a large amount of data Publication 1756-RM094A-EN-P - May 2004 Even though there are network packet limitations (such as 500 bytes on ControlNet and 244 bytes on DH+), the controller can send a large amount of data from a single MSG instruction. When configuring the message, select an array as the source/destination tags and select the number of elements (as many as 32,767 elements) you want send. The controller automatically breaks the array into small fragments and sends all the fragments to the destination. On the receiving side, the data appears in fragments, so some application code may be required to detect the arrival of the last piece. Communicating with Other Devices 7-5 Guidelines for Managing Message Connections User-defined structures let you organize your data to match your machine or process. Create user-defined structures or arrays • One tag contains all the data related to a specific aspect of your system. This keeps related data together and easy to locate, regardless of its data type. • Each individual piece of data (member) gets a descriptive name. This automatically creates an initial level of documentation for your logic. • You can use the structure to create multiple tags with the same data lay-out. • RSLinx optimizes user-defined structures more than stand-alone tags. Cache connections when appropriate If a message executes repeatedly, cache the connection. This keeps the connection open and optimizes execution time. Opening a connection each time the message executes increases execution time. If a message executes infrequently, do not cache the connection. This closes the connection upon completion of the message, which frees up that connection for other uses. Use one message instruction multiple times for multiple devices Each message uses one connection, regardless of how many devices are in the message path. To conserve connections, you can configure one message instruction to sequentially read from or write to a different device each time it executes. On each execution, the instruction breaks its connection from one device and re-establishes the connection to a subsequent device. The system overhead timeslice percentage you configure for the controller determines the percentage of controller time (excluding the time for periodic and event tasks) that is devoted to communication and background functions. This includes sending and receiving messages. For information on specifying a system overhead percentage, see “Selecting a System Overhead Percentage” on page 2-10. Publication 1756-RM094A-EN-P - May 2004 7-6 Communicating with Other Devices Guidelines for Block-Transfer Messages Distribute 1771 analog modules across multiple chassis Isolate different 1771 chassis on different networks Increase ControlNet unscheduled bandwidth Increase the system overhead timeslice percentage Mapping Tags Distributing 1771 analog modules across multiple chassis reduces the number of block-transfers that a single 1771-ACN or 1771-ASB module needs to manage. Isolating different chassis onto different networks diversifies the communications so that no single network or communication module has to deal with all of the communications. If communicating over ControlNet, increase the amount of ControlNet unscheduled bandwidth to permit additional time on the network for data exchange. Increase the Logix5000 controller’s system overhead timeslice to allocate more CPU time to communication processing from the continuous task. A Logix5000 controller stores tag names on the controller so that other devices can read or write data without having to know physical memory locations. Many products only understand PLC/SLC data tables, so the Logix5000 controller offers a PLC/SLC mapping function that lets you map Logix tag names to memory locations. • You only have to map the file numbers that are used in messages; the other file numbers do not need to be mapped. • The mapping table is loaded into the controller and is used whenever a “logical” address accesses data. • You can only access controller-scoped tags (global data). When mapping tags: • Do not use file numbers 0, 1, and 2. These files are reserved for Output, Input, and Status files in a PLC-5 processor. • Use PLC-5 mapping only for tag arrays of data type INT, DINT, or REAL. Attempting to map elements of system structures may produce undesirable effects. • Use these file types and identifiers: Publication 1756-RM094A-EN-P - May 2004 For this Logix5000 array type: Use this PLC file identifier: INT array N or B DINT array L REAL array F Chapter 8 Optimizing an Application for Motion Control Introduction The Logix5000 controller contains a high-speed motion task which executes motion commands (relay ladder and structured text) and generates position and velocity profile information. The controller sends this profile information to one or more motion modules. RSLogix 5000 programming software provides complete axis configuration and motion programming support. For more information on motion, see: • The Motion Book • Logix5000 Controllers Motion Instructions Reference Manual, publication 1756-RM007 • ControlLogix Motion Module Setup and Configuration Manual, 1756-UM006 Coarse Update Rate The coarse update rate determines the periodic rate at which the motion task executes to compute the servo commanded position, velocity, and accelerations to be sent to the motion modules when executing motion instructions. To calculate the coarse update rate: • 2 ∗ (task execution time + number of actions for every axis) • divide the result by 1000 and round to the nearest msec If the coarse rate is too small, the controller might not have time to execute non-motion logic. As a general rule, one millisecond per axis is required by the motion task in order to allow the controller reasonable execution time. The motion planner takes almost its entire minimum coarse iteration time. The coarse iteration time is minimally set 1 msec per axis. So if you have a periodic task running every 5 msec and 2 axes of motion, the motion planner runs twice consuming close to 4 of the 5 msec. In this case, it’s possible to never finish executing the periodic task. 1 Publication 1756-RM094A-EN-P - May 2004 8-2 Optimizing an Application for Motion Control Axis Limits Controller: Supported Motion Modules and Axes: Applications: ControlLogix 1756-M03SE (3 axes) RA SERCOS drives 1756-L60M03SE (3 axes) 1756-L60 controller with embedded SERCOS interface RA SERCOS drives 1756-M08SE (8 axes) RA SERCOS drives 1756-M16SE (16 axes) RA SERCOS drives 1756-M02AE (2 axes) RA and third party: • analog command signal • quadrature encoder feedback 1756-HYD02 RA and third party: • analog command signal • linear transducer feedback 1756-M02AS RA and third party: • analog command signal • SSI feedback SoftLogix 1784-PM16SE (16 axes) RA SERCOS drives • maximum of four 1784-PM16SE cards per computer • associate only one 1784-PM16SE card with one controller 1784-PM02AE (2 axes) RA and third party: • maximum of four 1784-PM02AE cards per computer • analog command signal • maximum of four 1784-PM02AE cards can be associated with one controller • quadrature encoder feedback • cannot associate a 1784-PM02AE motion card with the same controller as a 1784-PM16SE card Performance Limits Publication 1756-RM094A-EN-P - May 2004 The motion planner interrupts all other tasks, regardless of priority. • The number of axes and coarse update period for the motion group effect how long and how often the motion planner executes. • If the motion planner is executing when a task is triggered, the task waits until the motion planner is done. • If the coarse update rate occurs while a task is executing, the task pauses to let the motion planner execute. Optimizing an Application for Motion Control Motion Event Task Triggers An event task executes automatically based on a preconfigured event occurring. There are different motion-based events. To trigger an event task when: Use this trigger: registration input for an axis turns on (or off) 8-3 Axis Registration 1 or 2 With these considerations: • In order for the registration input to trigger the event task, first execute a Motion Arm Registration (MAR) instruction. This lets the axis detect the registration input and in turn trigger the event task. • Once the registration input triggers the event task, execute the MAR instruction again to re-arm the axis for the next registration input. • If the scan time of your normal logic is not fast enough to re-arm the axis for the next registration input, consider placing the MAR instruction within the event task. axis reaches the position that is defined as the watch point Axis Watch • In order for the registration input to trigger the event task, first execute a Motion Arm Watch (MAW) instruction. This lets the axis detect the watch position and in turn trigger the event task. • Once the watch position triggers the event task, execute the MAW instruction again to re-arm the axis for the next watch position. • If the scan time of your normal logic is not fast enough to re-arm the axis for the next watch position, consider placing the MAW instruction within the event task motion planner completes its execution Motion Group Execution • The coarse update period for the motion group triggers the execution of both the motion planner and the event task. • Because the motion planner interrupts all other tasks, it executes first. If you assign the event task as the highest priority task, it executes after the motion planner. For information on configuring an event task, see Chapter 2 “Dividing Logic into Tasks, Programs, and Routines.” Publication 1756-RM094A-EN-P - May 2004 8-4 Optimizing an Application for Motion Control Notes: Publication 1756-RM094A-EN-P - May 2004 Chapter 9 Optimizing an Application for Use with HMI Introduction Rockwell Automation offers several HMI (human-machine interface) platforms: Platform: Description: PanelView Plus dedicated, machine-level HMI RSView ME open, machine-level HMI RSView SE Station single-workstation, supervisory-level HMI RSView SE Distributed multi-server, multi-client, supervisory-level HMI RSView32 single-station or single-server, multi-client, supervisory-level HMI RSLinx software software products that provide plant-floor device connectivity for HMI applications includes: • RSLinx Classic, also known as RSLinx 2.x • RSLinx Enterprise Deciding how to implement HMI Method: Single HMI Multiple, Independent HMI Benefits: Considerations: • all HMI/EOI support this method • single point of failure for visualization • limited number of controller connections • no server to setup and manage • only one person can monitor a single display at a time • all HMI/EOI support this method • more controller connections are required • the same HMI screens can be viewed at multiple stations • additional burden on controller to service all communications (program scan impact) • multiple people can monitor different parts of system simultaneously • no sharing of data • each HMI gets its own data • adding additional HMIs has larger increase on system • no server to setup and manage Client/Server HMI: • the same HMI screens can be viewed at multiple stations • additional server computer to administer • server collects data for multiple clients • little communications overhead savings if each client wants different data • fewer controller connections required • impact on system is smaller than with multiple HMIs • server is a single point of failure for all HMIs • adds communications Most third-party HMIs are limited to direct communications similar to the multiple HMI method above. 1 Publication 1756-RM094A-EN-P - May 2004 9-2 Optimizing an Application for Use with HMI Guidelines for HMI Applications On one machine, the maximum is: Limit the number of servers on one machine • one HMI server • one data server Configure no more than two HMI servers per application: Maximum of two HMI servers per application • use one computer for each server • maximum of 20,000 tags per HMI server Configure no more than two data servers per application: Maximum of two data servers per application • use one computer for each server Configure no more than 20 HMI clients per application: Maximum of 20 HMI clients per application • RSLinx Classic supports a maximum of 10 HMI clients • RSLinx Enterprise supports a maximum of 20 HMI clients See the “Comparison of RSLinx Classic and RSLinx Enterprise“on page 9-5. Comparison of RSView32 and RSView Enterprise HMI product: RSView32 Benefits: • support Windows NT, Windows 2000, and Windows XP Considerations: • RSView32 only supports development for PC-based HMIs • must use PanelBuilder software for PanelView terminals RSView Enterprise • supports Windows 2000 and Windows XP • single RSView Studio development environment for PC-based HMIs, PanelView Plus terminals, and VersaView CE terminals • FactoryTalk enabled Publication 1756-RM094A-EN-P - May 2004 • does not support Windows NT Optimizing an Application for Use with HMI Important: Unless otherwise indicated, references to RSLinx software include both RSLinx Classic software and RSLinx Enterprise software RSLinx software acts as a data server to optimize communications to HMI applications. RSLinx software groups data items into a single network packet to reduce the number of messages that get sent over the network and that need to be processed by a controller. 1. When RSLinx software first connects to a Logix5000 controller, it queries the tag database and uploads definitions for all controller-scoped tags. If there are multi-layer, user-defined structures that are controller-scoped, RSLinx software just queries the upper layer. 2. When the HMI client requests data, RSLinx software queries the definitions for program-scoped tags and the lower layers of multi-layer user-defined structures. 3. RSLinx software receives requests for data items from local or remote HMI/EOI clients and combines multiple requests in optimized packets. Each data item is a simple Logix tag, array or user-defined structure. Each optimized packet can be as large as 480 bytes of data and can contain one or more data items. 4. The Logix5000 controller allocates unused system RAM to create an optimization buffer to contain the requested data items. – a single optimization buffer can contain as much data as will fit into a single 480-byte packet (optimization is limited to 480 bytes) – currently, RSLinx Enterprise only provides optimization for array tags – if you use RSLogix 5000 software to monitor controller RAM, you can see used memory increase – the controller creates an optimization buffer for each RSLinx optimization packet in the scan. Kbytes of Memory Needed How RSLinx Software Communicates with Logix5000 Controllers 9-3 Standalone tags Optimized array tags Tags on Scan in RSLinx Publication 1756-RM094A-EN-P - May 2004 9-4 Optimizing an Application for Use with HMI Guidelines for RSLinx Software For multiple HMI stations: Use RSLinx software as the data server for multiple HMIs • leverage remote OPC (RSLinx Classic software) or FactoryTalk (RSLinx Enterprise software) for data collection • only the RSLinx data server should have an active topic • do not configure or use topics on the HMI stations • RSLinx software does not need to be on the HMI stations Do not use too many RSLinx stations Account for delay time when adding/removing scanned tags The performance of tag collection decreases as the more RSLinx stations collect data from the same controller. Use an RSLinx Gateway station and have the other data collection stations use remote OPC for data collection. When switching from one HMI screen to another, it takes time to put items in the controller on scan and take items off scan. Part of this time delay is due to the controller allocating system RAM for the optimization buffer. To eliminate this delay, when switching between HMI screens, put the items in the HMI screens on scan and leave them on scan. For example, you can create a data log to keep the items on scan. Then when switching between HMI screens, data collection continues without interruption. RSLinx Enterprise and RSView SE software account for this time delay. When HMI screens change, these applications deactivate tags rather than remove them from scan. Publication 1756-RM094A-EN-P - May 2004 Optimizing an Application for Use with HMI 9-5 Comparison of RSLinx Classic and RSLinx Enterprise Comparison: RSLinx Classic (RSLinx 2.x) Software: Supported platforms RSLinx Enterprise Software: • Windows 98 • Windows CE • Windows ME • Windows 2000 • Windows NT • Windows XP • Windows 2000 • Windows XP Architecture single-threaded multi-threaded Data server OPC data server Factory Talk Live data server preferred data server for PLC/SLC platforms and applications requiring complex network routings preferred data server for Logix5000 platforms maximum 20 clients per data server maximum 10 clients per data server PLC/SLC systems maximum 20 controllers per data server via Ethernet maximum 20 controllers per data server via Ethernet Logix5000 systems maximum: maximum: User interface and event logs Benefits • 10 controllers per data server via Ethernet • 20 controllers per data server via Ethernet • 10,000 active (on-scan) tags per data server • 20,000 active (on-scan) tags per data server • 3 RSLinx data servers per controller • 3 RSLinx Enterprise data servers per controller yes currently no • supports topic switching with redundant ControlLogix system • uses 4 read and 1 write uni-directional connections (fewer than RSLinx software) • support used-defined tag optimization • automatically handles Logix tag changes • RSLinx Gateway consolidates multiple HMI requests to reduce network traffic • FactoryTalk Live consolidates multiple HMI requests to reduce network traffic • works with integrated OPC server Considerations • requires HMI to be restarted if Logix5000 controller is reloaded with changes to tags on scan • does not support topic switching with redundant ControlLogix system • uses 4 bi-directional connections • does not yet support OPC • optimization limited to array tags • ActiveX faceplates require a separate OPC server Publication 1756-RM094A-EN-P - May 2004 9-6 Optimizing an Application for Use with HMI Guidelines for Configuring Controller Tags Use INT data types with third party products Most third party operator interface products do not support DINT (32-bit) data types. However, there are additional performance and memory-use considerations when using INT data types. See “Guidelines for Data Types” on page 3-2. RSView supports native Logix5000 data types (including BOOL, SINT, INT, DINT, and REAL), structures, and arrays. Group related data in arrays Most third party operator interface products do not support user-defined structures. Arrays also ensure that data is in contiguous memory, which optimizes data transfer between the controller and RSLinx or other operator interface. Arrays of tags transfer more quickly and take up less memory than groups of individual tags. Map tags to PLC addresses To optimize data transfer between the controller and RSLinx or other operator interface, use PLC mapped tags. The RSLinx topic must have the Optimize Poke Packets enabled. The RSView application must write the values through a DownloadAll command or the WritePendingValues VBA method. Use RSLinx OPC services Use RSLinx OPC services to bundle multiple tag requests into a single message to reduce communications overhead. OPC provides better optimization than DDE. Referencing controller data from RSView This table shows how to reference data in RSView tag address. Logix5000 Array Data Type: Description: PLC File Identifier: RSView Tag Data Type: INT 16-bit integer N Integer DINT 32-bit integer L Long Integer SINT 8-bit integer A Byte REAL floating point F Floating Point BOOL value of 0, 1, or -1 B Digital When addressing a Logix5000 string tag, use the address syntax “[OPC_Topic]StringTag.Data,SC82” to address a SINT array. The string data is stored in the SINT array “.Data” of the string tag, and you address the first element of this array (“.Data”). The maximum number of characters in a STRING tag is 82. If you need more characters than that, create your own user-defined structure to hold the characters. See “Guidelines for String Data Types” on page 3-10. Publication 1756-RM094A-EN-P - May 2004 Chapter 10 Optimizing an Application for Process Control Introduction The Logix5000 controller integrates a function block diagram editor and several process control instructions. The controller can generally execute more loops than typical applications require. Comparison of PID and PIDE Instructions The function block PIDE instruction offers additional enhancements over the relay ladder PID instruction: Enhanced PID (PIDE): Standard PID: velocity form algorithm which works on change in error value position form algorithm which works on error values This algorithm is the same type as used in most DCS systems. The algorithm also makes it easier to implement adaptive gains. full set of modes: limited set of modes • program/operator control • auto mode • cascade/ratio mode • software manual mode (similar to PIDE manual mode) • auto mode • manual mode (similar to PIDE hand mode) • manual mode • override mode • hand mode available selection of timing modes: no timing modes • periodic • oversample • real time sampling handling for PV/CV faults no handling for PV/CV faults The PIDE block has built-in PVFault and CVFault members. full bumpless transfer into and out of cascade mode 1 no bumpless transfer into or out of cascade mode Publication 1756-RM094A-EN-P - May 2004 10-2 Optimizing an Application for Process Control Guidelines for Programming PID Loops Configure the periodic tasks to execute at the desired rate. Place PID loops in a periodic task Estimate the number of PID loops that can be executed as: Estimate the number of loops based on task execution time (execution time of periodic tasks in msec) / 2 This leaves sufficient time for the controller to manage other logic in lower-priority tasks. Estimating number of loops The number of loops depends on the execution time of the periodic task as well as the controller. Periodic Task Execution Times (msec) Controller 10 20 40 100 250 500 1000 1756-L55 6 13 26 64 161 322 644 1756-L6x 18 36 72 180 450 899 1799 Publication 1756-RM094A-EN-P - May 2004 Optimizing an Application for Process Control 10-3 Advanced Process Instructions Instruction: Description: Alarm (ALM) provides alarming for any analog signal. Enhanced PID (PIDE) provides enhanced capabilities over the standard PID instruction. The instruction uses the velocity form of the PID algorithm. The gain terms are applied to the change in the value of error or PV, not the value of error or PV. Ramp/Soak (RMPS) provides for a number of segments of alternating ramp and soak periods. Scale (SCL) converts an unscaled input value to a floating point value in engineering units. Position Proportional (POSP) opens or closes a device by pulsing open or close contacts at a user-defined cycle time with a pulse width proportional to the difference between the desired and actual positions. Split Range Time Proportional (SRTP) takes the 0-100% output of a PID loop and drives heating and cooling digital output contacts with a periodic pulse. Lead Lag (LDLG) provides a phase lead-lag compensation for an input signal. Function Generate (FGEN) converts an input based on a piece-wise linear function. Totalizer (TOT) provides a time-scaled accumulation of an analog input value. Deadtime (DEDT) performs a delay of a single input. You select the amount of deadtime delay. Discrete 2-State Device (D2SD) controls a discrete device which has only two possible states such as on/off, open/closed, etc. Discrete 3-State Device (D3SD) controls a discrete device having three possible states such as fast/slow/off, forward/stop/reverse, etc. Faceplates The RSLogix 5000 programming software includes faceplates for some function block instructions. These faceplates are Active-X controls that read the entire data structure for the associated instruction You can use these faceplates with RSView software or any other application that acts as an Active-X container. IMPORTANT RSLogix 5000 programming software is not a valid Active-X container. Publication 1756-RM094A-EN-P - May 2004 10-4 Optimizing an Application for Process Control The faceplates communicate with the controller via the RSLinx OPC server. The RSLinx OPC server is not available in the RSLinx Lite software that comes with RSLogix 5000 programming software. You have to purchase a package such as RSLinx OEM, Professional, or Gateway. These instructions have faceplates: • Alarm (ALM) • Enhanced Select (ESEL) • Totalizer (TOT) • Ramp/Soak (RMPS) • Discrete 2-State Device (D2SD) • Discrete 3-State Device (D3SD) • Enhanced PID (PIDE) Publication 1756-RM094A-EN-P - May 2004 Glossary A Term: Definition: atomic data type BOOL, SINT, INT, DINT, and REAL data types. B Term: Definition: buffer A temporary memory area used for queuing incoming and outgoing messages. The buffer area of a device determines how many messages can be queued for processing. C Term: Definition: cache To leave a connection open for a MSG instruction that executes repeatedly. coarse update rate Determines the periodic rate at which the motion task executes to compute the servo commanded position, velocity, and accelerations to be sent to the motion modules when executing motion instructions. compound data type array, structure, and string data types. connection A communication link between two devices, such as between a controller and an I/O module, PanelView terminal, or another controller: • connections are allocations of resources that provide more reliable communications between devices than unconnected messages • you indirectly determine the number of connections the controller uses by configuring the controller to communicate with other devices in the system consumed tag A tag that receives the data that is broadcast by a produced tag over an EtherNet/IP network, ControlNet network, or ControlLogix backplane. A consumed tag must be: • controller scope • same data type (including any array dimensions) as the remote tag (produced tag) See produced tag. controller scope Data accessible anywhere in the controller. The controller contains a collection of tags that can be referenced by the routines and alias tags in any program, as well as other aliases in the controller scope. See program scope. D Term: Definition: direct connection A direct connection is a real-time, data transfer link between the controller and an I/O module. The controller maintains and monitors the connection with the I/O module. Any break in the connection, such as a module fault or the removal of a module while under power, sets fault bits in the data area associated with the module. See rack-optimized connection. E 1 Term: Definition: element An addressable unit of data that is a sub-unit of a larger unit of data. A single unit of an array or structure. explicit A connection that is non-time critical and is request/reply in nature. Executing a MSG instruction or executing a program upload are examples of explicit connections. Explicit refers to basic information (source address, data type, destination address, etc.) that is included in every message. See implicit. Publication 1756-RM094A-EN-P - May 2004 2 I Term: Definition: implicit A connection that is time critical in nature. This includes I/O and produced/consumed tags. Implicit refers to information (source address, data type, destination address, etc.) which is implied in the message but not contained in the message. See explicit. index A reference used to specify an element within an array. L Term: Definition: local connection A connection to a module in a local chassis, extended-local chassis, or any of the I/O banks configured for the controller. Communication occurs across the backplane or virtual backplane and does not require an additional communication module or adapter. M Term: Definition: member An element of a structure that has its own data type and name. • Members can be structures as well, creating nested structure data types. • Each member within a structure can be a different data type. N Term: Definition: network update time (NUT) The repetitive time interval in which data can be sent on a ControlNet network. The network update time ranges from 2ms-100ms. P Term: Definition: postscan A function of the controller where the logic within a program is examined before disabling the program in order to reset instructions and data. prescan Prescan is an intermediate scan during the transition to Run mode. • The controller performs prescan when you change from Program mode to Run mode. • The prescan examines all programs and instructions and initializes data based on the results. • Some instructions execute differently during prescan than they do during the normal scan. produced tag A tag that a controller is making available for use by other controllers. Produced tags are always at controller scope. See consumed tag. program scope Data accessible only within the current program. Each program contains a collection of tags that can only be referenced by the routines and alias tags in that program. See controller scope. Publication 1756-RM094A-EN-P - May 2004 3 R Term: Definition: rack-optimized connection For digital I/O modules, you can select rack-optimized communication. A rack-optimized connection consolidates connection usage between the controller and all the digital I/O modules in the chassis (or DIN rail). Rather than having individual, direct connections for each I/O module, there is one connection for the entire chassis (or DIN rail). See direct connection. remote connection A connection to a module in a remote chassis or DIN rail. Communication requires a communication module and/or adapter. requested packet interval (RPI) When communicating over a the network, this is the maximum amount of time between subsequent production of input data. • Typically, this interval is configured in microseconds. • The actual production of data is constrained to the largest multiple of the network update time that is smaller than the selected RPI. S Term: Definition: scheduled connection A scheduled connection is unique to ControlNet communications. A scheduled connection lets you send and receive data repeatedly at a predetermined rate, which is the requested packet interval (RPI). For example, a connection to an I/O module is a scheduled connection because you repeatedly receive data from the module at a specified rate. Other scheduled connections include connections to: • communication devices • produced/consumed tags On a ControlNet network, you must use RSNetWorx for ControlNet to enable all scheduled connections and establish a network update time (NUT). structure Some data types are a structure. • A structure stores a group of data, each of which can be a different data type. • Within a structure, each individual data type is called a member. • Like tags, members have a name and data type. • You create your own user-defined structure, using any combination of individual tags and most other structures. • To copy data to a structure, use the COP instruction. system overhead timeslice Specifies the percentage of controller time (excluding the time for periodic tasks) that is devoted to communication and background functions (system overhead): U Term: Definition: unconnected message An unconnected message is a message that does not require connection resources. An unconnected message is sent as a single request/response. Publication 1756-RM094A-EN-P - May 2004 4 Notes: Publication 1756-RM094A-EN-P - May 2004 Available Publications Logix5000 Platform: Logix5000 Controllers Publications: • Logix5000 Controllers Quick Start, 1756-QS001 • Logix5000 Controllers System Reference Manual, 1756-QS107 • EtherNet/IP Modules in Logix5000 Control Systems User Manual, ENET-UM001 • ControlNet Modules in Logix5000 Control Systems User Manual, CNET-UM001 • DeviceNet Modules in Logix5000 Control Systems User Manual, DNET-UM004 • Logix5000 Controllers General Instructions Reference Manual, 1756-RM003 • Logix5000 Controllers Process Control and Drives Instructions Reference Manual, 1756-RM006 • Logix5000 Controllers Motion Instructions Reference Manual, 1756-RM007 • Logix5000 Common Procedures Programming Manual, 1756-PM001 • Logix5000 Controllers Import/Export Reference Manual, 1756-RM084G • Converting PLC-5 or SLC 500 Logic to Logix5000 Logic Reference Manual, 1756-RM085 ControlLogix Controllers • ControlLogix Controllers Installation Instructions, 1756-IN101 • ControlLogix System User Manual, 1756-UM001 • ControlLogix Motion Module Setup and Configuration Manual, 1756-UM006 CompactLogix Controllers • 1769-L31 CompactLogix Controllers Installation Instructions, 1769-IN069 • 1769-L32, -L35E CompactLogix Controllers Installation Instructions, 1769-IN020 • 1769-L20, -L30 CompactLogix Controllers Installation Instructions, 1769-IN047 • 1769-L31, -L32E, -L35E CompactLogix System User Manual, 1769-UM011 • 1769-L20, -L30 CompactLogix System User Manual, 1769-UM007 FlexLogix Controllers • FlexLogix Controllers Installation Instructions, 1794-IN002 • FlexLogix System User Manual, 1794-UM001 SoftLogix Controllers • SoftLogix Controllers Installation Instructions, 1789-IN001 • SoftLogix System User Manual, 1789-UM002 RSLogix 5000 programming software includes PDF files of these publications, in addition to online help and a tutorial. 1 Publication 1756-RM094A-EN-P - May 2004 Rockwell Automation Support Rockwell Automation provides technical information on the web to assist you in using our products. At http://support.rockwellautomation.com, you can find technical manuals, a knowledge base of FAQs, technical and application notes, sample code and links to software service packs, and a MySupport feature that you can customize to make the best use of these tools. For an additional level of technical phone support for installation, configuration and troubleshooting, we offer TechConnect Support programs. For more information, contact your local distributor or Rockwell Automation representative, or visit http://support.rockwellautomation.com. Installation Assistance If you experience a problem with a hardware module within the first 24 hours of installation, please review the information that's contained in this manual. You can also contact a special Customer Support number for initial help in getting your module up and running: United States 1.440.646.3223 Monday – Friday, 8am – 5pm EST Outside United States Please contact your local Rockwell Automation representative for any technical support issues. New Product Satisfaction Return Rockwell tests all of our products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned: Publication 1756-RM094A-EN-P - May 2004 2 United States Contact your distributor. You must provide a Customer Support case number (see phone number above to obtain one) to your distributor in order to complete the return process. Outside United States Please contact your local Rockwell Automation representative for return procedure. PN 957867-08 Copyright © 2004 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
