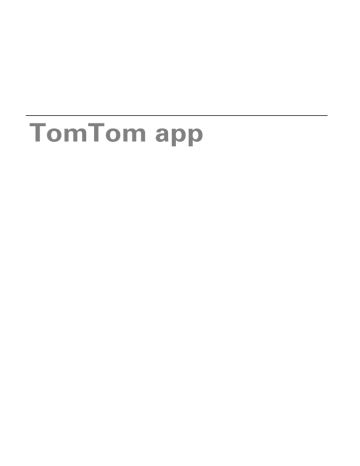

TomTom app
TomTom app
1. Getting started
Getting
started
Tap this button on your iPhone to start the TomTom app.
The language used for buttons and menus in the TomTom app is the
same as the language you selected in the iPhone settings.
TomTom
Updating your app
If you have an old version of the TomTom app on your iPhone or iPod Touch, you need
to update to the latest version of the app before continuing to read this guide.
To download and update your iPhone or iPod Touch with the latest version of the
TomTom app, go to the Apple App Store.
GPS reception
The iPod touch and some models of the iPhone do not include a GPS receiver. To use
these devices for navigation, you need to use them with a GPS accessory device such as
the TomTom car kit.
The TomTom car kit contains a GPS receiver and has a speaker for playing navigation
instructions. The iPhone version also has a microphone for making hands-free calls.
We recommend using the TomTom car kit with the iPhone and the iPod touch. For more
information, go to iphone.tomtom.com.
When you first start the TomTom app, it may need a few minutes to find your GPS position
and show your current location on the map.
To make sure you have good GPS reception, you should use your device outdoors. Large
objects such as tall buildings can sometimes interfere with reception.
Important: TomTom app cannot give you route instructions until it has GPS reception.
If your device has no GPS reception, TomTom app uses positioning information from WiFi
networks or mobile phone towers. This information is used for route planning and to
determine your approximate location.
2
2. Planning a route
Planning a
route
Important: In the interest of safety and to reduce distractions while you are driving, you
should always plan a route before you start driving.
To plan a route with your TomTom app, do the following:
1. Tap the screen to open the Main menu.
2. Tap Navigate To...
3. Tap Address.
Tip: The first time you plan a route, you are asked to select a country, state or region. Your
selection is saved and used for all future routes until you change this setting.
You can change this setting by tapping the flag before you select a city.
4. Start to type the name of the town where you want to go.
As you type, the names of the towns that match what you have typed are shown. When
your destination appears in the list, tap the name of the town to set the destination.
5. Start to type the name of the street.
Just as for place names, the names of the streets that match what you have typed are
shown. When your destination appears in the list, tap the name of the street to set the
destination.
Tip: The keyboard automatically hides when you scroll the search results. This allows you
to see more results on the screen.
6. Enter the house number and then tap Select.
You can also select the point where two streets meet by tapping Crossing.
The route is calculated.
3
By default, the fastest route is planned. You can change this setting in the Route Planning settings menu.
If IQ Routes is available on your map, this information is used to plan the best possible
route taking into account the real average speeds measured on the roads.
7. When the new route is shown, tap Done.
The TomTom app starts to guide you to your destination using spoken instructions and
on-screen directions.
Route summary
After you plan a route, a summary of the route is shown.
The route summary shows an overview of your route on the map and the estimated travel
time including delays caused by busy roads. If you have a TomTom Traffic subscription,
the estimated travel time includes delays due to traffic incidents on your route.
You can view the route summary at any time by tapping the right-hand side of the status
bar at the bottom of the Driving View.
Sharing your route
After planning a route, you can share a summary of your route with friends and colleagues
via email.
To share your route, make sure your device is set up to send emails and then do the following:
1. Tap Route Options in the Main menu.
2. Tap Share my route.
3. Enter an email address for everyone you want to see the route.
4. Tap Send.
A summary of your route is sent via email. The email contains browser links which allow
recipients to view the starting point and destination of your route using the TomTom app,
iPhone Maps application or an internet browser.
Other destination options
When you tap Navigate To..., you can set your destination in the following ways:
4
Tap this button to plan a route to your Home location.
To set your Home location, tap Home in the Settings menu.
Home
Tap this button to select a Favorite as your destination.
Favorite
To add Favorite locations, tap Manage Favorites in the Main menu
and tap Add Favorite.
Tap this button to enter an address as your destination.
Address
Tap this button to select a photo from your iPhone gallery and use it
as your destination.
Navigate to
Note: Only photos that contain location data can be used. This feature can be enabled in the iPhone Camera application.
Tap this button to select your destination from a list of places you
have recently used as destinations.
Recent
Destination
Tap this button to run an internet search of the local area and use the
location of one of the search results as your destination.
Local Search
Tap this button to navigate to a Point of Interest (POI).
Point of Interest
Tap this button to plan a route to the address of a contact in your
address book.
Contact
Tap this button to enter a postcode as your destination.
Postcode
Note: Information about postcodes is only available for addresses in
the U.K. and the Netherlands.
Tap this button to select a point on the map as your destination using
the Map Browser.
Point on Map
Tap this button to enter the map coordinates of a location on the map
as your destination.
Coordinates
Finding alternative routes
Once you have planned a route, you may want to change something about the route, without changing your destination.
5
Here are some reasons why you might want to find an alternative route:
• You can see a roadblock or a line of traffic ahead.
• You want to travel via a particular location to pick someone up, stop for lunch or get gas.
• You want to avoid a difficult junction or a busy narrow street.
To change your route, tap Find Alternative... in the Route Options
menu.
Find Alternative
You can open the route options as follows:
• Tap Route Options in the Main menu.
Tip: Route Options is only available when you have planned a route.
• Tap Options on the Route Summary screen after you plan a route.
• Tap the right hand section of the status bar in the Driving View to
open the Route Summary screen, then tap Options.
Then select one of the following options:
Tap this button to re-plan your route based on the latest traffic information.
Minimize Delays
This button is only available if you have a subscription to TomTom
Traffic.
Tap this button to calculate an alternative to the current route.
Calculate
Alternative
The TomTom app looks for another route from your current location
to your destination.
If you decide you would prefer to use the original route after all, tap
Recalculate Original.
Apart from the roads near your position and near your destination,
the new route uses totally different roads to reach your destination.
This is an easy way of calculating a totally different route.
Tap this button to return to the original route. This ignores any previous instructions you have given to avoid roadblocks or travel via a
particular location.
Recalculate
Original
Tap this button if you can see a roadblock or a line of traffic ahead.
You then have to choose how much of the route ahead you want to
avoid.
Avoid
Roadblock
Choose from the different options available. The TomTom app recalculates your route avoiding the section of the route for the distance
you selected.
Don’t forget that once a new route is calculated, you may have to
turn off the road you are on very soon.
If the roadblock suddenly clears, tap Recalculate Original to return
to your original route.
6
Travel Via...
Tap this button to change your route so that it passes a particular
location, perhaps to pick someone up on the way. When you do this,
a marker is shown on the map for the location you choose to travel
via.
You choose the location you want to pass in the same way as you
choose a destination. This means you can select from all the same
options that are offered when you choose a destination, for example,
Address, Favorite, Point of Interest and Point on Map.
The TomTom app will calculate a new route to your destination that
passes the location you chose. Unlike your final destination, the
TomTom app does not inform you when you pass by this location.
Tap this button to avoid a part of the route. Use this button if you see
that your route includes a road or junction you don’t like, or which is
well-known for traffic problems.
Avoid Part of
Route
You then choose the road you want to avoid from a list of the roads
on your route.
Planning a route in advance
You can use the TomTom app to plan a route in advance by selecting your starting point
and your destination.
Here are some reasons why you might want to plan a route in advance:
• Find out how long a trip is going to take before you start.
You can also compare trip times for the same route at different times of the day or on
different days of the week. The TomTom app uses IQ Routes when planning a route. IQ
Routes calculates routes based on the real average speeds measured on roads.
• Check the route of a trip you are planning.
• Check a route for someone who is coming to visit you and share the route with them.
To plan a route in advance, do the following:
1. Tap the screen to open the Main menu.
2. Tap Advanced Planning.
Advanced Planning
3. Select the starting point for your trip in the same way that you would select your destination.
4. Set the destination for your trip.
5. Choose the type of route that should be planned.
• Fastest Route - the route which takes the least time.
• Eco Route - the most fuel-efficient route.
• Shortest Route - the shortest distance between the locations you set. This may not
be the quickest route, especially if the shortest route is through a town or city.
• Avoid Highways - a route which avoids highways.
• Walking Route - a route designed for making the trip on foot.
• Bicycle Route - a route designed for making the trip on a bicycle.
• Limited Speed - a route for a vehicle which can only be driven at a limited speed. You
have to specify the maximum speed.
7
6. If IQ Routes is supported by your map, you can choose when you will make the journey
you are planning. You can set the date and time in 5 minute intervals.
The TomTom app uses IQ Routes to work out the best possible route at that time, using
the real average speeds measured on roads. In this way you can compare how long a
trip takes at different times of day, or on different days of the week.
7. The TomTom app plans the route between the two locations you selected.
Setting a reminder
You can use the TomTom app to set a reminder for a route that you have planned in
advance. The reminder is added to your iPhone calendar and set to alert you a short time
before you need to depart. The reminder contains a link which opens the TomTom app
and automatically plans the route.
To set a reminder, do the following:
1. Select Options in the Route Summary view.
2. Tap Add to Calendar.
3. Add any additional notes you want to save in the reminder.
4. Tap Save.
The reminder is saved in your iPhone calendar.
8
3. Driving View
Driving
View
Driving View
1. Music button.
2. Your current position.
3. The remaining distance of your trip and your current speed. If known, the speed limit is also shown.
4. Navigation instruction for the road ahead.
Tap this area to open the volume control and to
repeat the previous instruction.
5. The remaining trip time and the estimated arrival
time.
Tap this area to open the Route Summary screen.
6. Traffic button.
Tap this button to buy a traffic subscription or to
open the traffic sidebar.
The following items are only available if you have
a traffic subscription:
7. Information about the traffic incident that this box
points to on the traffic sidebar.
8. Traffic sidebar.
Moving around in the Driving View
When you plan a new route, you are shown the Driving View together with detailed information about your current location.
Tap the center of the screen at any time to open the Main menu.
Zoom by tapping the screen twice with one finger to zoom in, or tap once with two fingers
at the same time to zoom out.
You can also zoom in and out by placing your fingers on the screen and pinching them
together and stretching them apart.
Setting the volume
Tap the left-hand side of the status bar in the Driving View to see the volume control.
Move the slider from left to right to increase the volume for both music and voices at the
same time.
9
Playing music
Tap the music button to play or pause music.
You can tap play/pause, next and previous to control the music track that is currently playing.
The buttons disappear on their own after a few seconds or you can tap the musical note
again to make the buttons disappear yourself.
Driving View options
Tap these buttons in the Main menu to change the Driving View:
Tap this button to mute all sounds from the TomTom app.
Mute Sound
If the sound is muted, this button changes to Enable Sound. Tap the
button again to switch sound back on.
When the sound is muted, the mute sound indicator is shown in the
bottom left corner of the Driving View.
Tap this button to use night colors on the menus and maps. If night
colors are being used, this button changes to Day Colors. Tap the
button again to switch back to day colors.
Night Colors
Tap this button to use a 2D map in the Driving View.
2D Map
If the 2D map is being used, this button changes to 3D Map. Tap the
button again to use the 3D map.
Map
Day Colors / Night Colors
Tap Day Colors to select a day color scheme consisting of bright colors.
Tap Night Colors to select a night color scheme consisting of darker colors.
Auto-Switch automatically changes between day and night colors depending on the time
of day.
Tap Car Symbol to select the car symbol that shows your current location in the Driving
View.
2D Map North Up
When this setting is on, the 2D map is fixed in place with north at the top of the screen.
When this setting is off, the 2D map moves so that your current direction is always at the
top of the screen.
Show Current Street
10
When this setting is on, the current street name or number is shown in the Driving View,
just below your position on the map.
Streets on Map
When this setting is on, street names are shown on the map.
POIs on Map
When this setting is on, POIs are shown on the map.
POI Types
Select which POIs are shown on the map.
Auto-Zoom
Auto-Zoom automatically adjusts the area of the map and level of detail shown in the Driving View. Switch off Auto-zoom to manually control the use of zoom in the Driving View.
11
4. Advanced Lane Guidance
Advanc
ed
Lane
Guidance
Advanced Lane Guidance
Your TomTom app helps you prepare for highway exits and intersections by showing you
which lane you should be in.
Note: Advanced Lane Guidance is not available for all junctions or in all countries. To find
out if Advanced Lane Guidance is available in your country, go to iphone.tomtom.com.
For some exits and junctions, an image shows the lane you should be in. To turn the
images off, switch Lane images to off in the Advanced Settings menu.
For other exits and junctions, your TomTom app shows the lane you should take in the
status bar.
12
5. Route options
Route
options
You can find out more information about your route or change the route
using the route options.
Route
Options
You can open the route options as follows:
• Tap Route Options in the Main menu.
Tip: Route Options is only available when you have planned a route.
• Tap Options on the Route Summary screen after you plan a route.
• Tap the right hand section of the status bar in the Driving View to
open the Route Summary screen, then tap Options.
Finding alternative routes
Once you have planned a route, you may want to change something about the route, without changing your destination.
Here are some reasons why you might want to find an alternative route:
• You can see a roadblock or a line of traffic ahead.
• You want to travel via a particular location to pick someone up, stop for lunch or get gas.
• You want to avoid a difficult junction or a busy narrow street.
To change your route, tap Find Alternative... in the Route Options
menu.
Find Alternative
You can open the route options as follows:
• Tap Route Options in the Main menu.
Tip: Route Options is only available when you have planned a route.
• Tap Options on the Route Summary screen after you plan a route.
• Tap the right hand section of the status bar in the Driving View to
open the Route Summary screen, then tap Options.
13
Then select one of the following options:
Tap this button to re-plan your route based on the latest traffic information.
Minimize Delays
This button is only available if you have a subscription to TomTom
Traffic.
Tap this button to calculate an alternative to the current route.
Calculate
Alternative
The TomTom app looks for another route from your current location
to your destination.
If you decide you would prefer to use the original route after all, tap
Recalculate Original.
Apart from the roads near your position and near your destination,
the new route uses totally different roads to reach your destination.
This is an easy way of calculating a totally different route.
Tap this button to return to the original route. This ignores any previous instructions you have given to avoid roadblocks or travel via a
particular location.
Recalculate
Original
Tap this button if you can see a roadblock or a line of traffic ahead.
You then have to choose how much of the route ahead you want to
avoid.
Avoid
Roadblock
Choose from the different options available. The TomTom app recalculates your route avoiding the section of the route for the distance
you selected.
Don’t forget that once a new route is calculated, you may have to
turn off the road you are on very soon.
If the roadblock suddenly clears, tap Recalculate Original to return
to your original route.
Travel Via...
Tap this button to change your route so that it passes a particular
location, perhaps to pick someone up on the way. When you do this,
a marker is shown on the map for the location you choose to travel
via.
You choose the location you want to pass in the same way as you
choose a destination. This means you can select from all the same
options that are offered when you choose a destination, for example,
Address, Favorite, Point of Interest and Point on Map.
The TomTom app will calculate a new route to your destination that
passes the location you chose. Unlike your final destination, the
TomTom app does not inform you when you pass by this location.
Tap this button to avoid a part of the route. Use this button if you see
that your route includes a road or junction you don’t like, or which is
well-known for traffic problems.
Avoid Part of
Route
You then choose the road you want to avoid from a list of the roads
on your route.
14
Route Demo
Tap this button to watch a demo of the trip. To stop a demo, tap Stop
Demo in the Route Options menu, when a demo is running.
Route Demo
Clear Route
Tap this button to clear the currently planned route.
Clear Route
Instructions
Tap this button for a list of all the turn instructions on the route.
Instructions
Map of Route
Tap this button to see an overview of the route using the Map Browser.
Map of Route
15
6. Settings
Settings
To change the way the TomTom app looks and behaves, tap Change Settings in the Main
menu.
Set Home Location
Tap this option to set or change your Home location. Select the address for your Home
location in the same way that you select a destination.
Your Home location can be somewhere you often visit, such as your office. This feature
provides an easy way to navigate there by tapping the Home button in the Navigate To
menu.
Voice
Tap this option to select the voice used for instructions. The TomTom app has two different kinds of voices.
• Computer voices
The TomTom app makes use of text-to-speech technology to generate computer
voices. They provide spoken instructions while you are driving and can pronounce
street names and status messages.
A text-to-speech program converts written text, for example an instruction like “Turn
right”, into the sound of a human voice.
Note: Computer voices are not available in all languages.
If you select a recorded human voice, this can say instructions but is unable to read aloud
street names. If you would like street names to be included with instructions, you need to
select a computer voice.
• Human voices
These are recorded by an actor.
When you select a voice, a sample of that voice is played.
You can select a voice in any language. The language used for menus and buttons does
not change if you select a voice in a different language.
Alerts
Tap this option to switch on safety alerts.
Safety Camera
Adjust this setting to switch on visual warnings in the Driving View. You can also select a
safety warning alert sound.
16
If both visual warnings and sounds are set to on, the safety camera location is shown on
the map and a warning sound is played. This warns you that you are approaching an area
where a safety camera is located.
Note: Information about safety cameras is not available in all countries. To find out if information about safety cameras is available in your country, go to iphone.tomtom.com.
Speed Limit
Adjust this setting to warn you when you are driving above the speed limit. You can also
select a warning alert sound.
Important: It is important to pay attention to road signs and drive within the local speed
limit. TomTom speed limit alerts should not be relied on exclusively while driving.
Audio
Tap this option to set the following music and volume options.
Fade Music
Adjust this setting to fade the music when instructions and warnings are given.
When this setting is off, the music pauses instead of fading when instructions and warnings are given.
Voice Volume
Adjust this setting to set the volume of voice instructions as a percentage of the music volume.
For example, you can move the slider to the middle of the slider bar to set the volume of
voice instructions at 50% of the music volume.
If the slider is set to off, the music volume and voice volume are set to the same level.
Tip: It is important to pay attention to road signs and drive within the local speed limit.
TomTom speed limit alerts should not be relied on exclusively while driving.
Map
Day Colors / Night Colors
Tap Day Colors to select a day color scheme consisting of bright colors.
Tap Night Colors to select a night color scheme consisting of darker colors.
Auto-Switch automatically changes between day and night colors depending on the time
of day.
Tap Car Symbol to select the car symbol that shows your current location in the Driving
View.
2D Map North Up
When this setting is on, the 2D map is fixed in place with north at the top of the screen.
When this setting is off, the 2D map moves so that your current direction is always at the
top of the screen.
Show Current Street
17
When this setting is on, the current street name or number is shown in the Driving View,
just below your position on the map.
Streets on Map
When this setting is on, street names are shown on the map.
POIs on Map
When this setting is on, POIs are shown on the map.
POI Types
Select which POIs are shown on the map.
Auto-Zoom
Auto-Zoom automatically adjusts the area of the map and level of detail shown in the Driving View. Switch off Auto-zoom to manually control the use of zoom in the Driving View.
Route planning
Adjust the Route planning settings to set how routes are planned.
Default Route Type
Adjust this option to set the type of route that will be planned when you plan a new route.
You can select the following types of route.
• Fastest - the fastest route to your destination.
• Shortest - the shortest route to your destination. This may take much longer than the
fastest route.
• Avoid Highways - this type of route avoids all highways.
• Walking Routes - this type of route is optimized for walking.
• Bicycle Routes - this type of route is optimized for bicycles.
• Limited Speed - if you select this type of route, you must enter a maximum speed for
your vehicle. The route planned takes this restriction into account.
• Eco routes - always plan the most fuel-efficient route.
• Always Ask Me - if you select this option, you will always be asked to select the type of
route that should be planned.
You can set how each type of road is handled when a new route is planned.
• Toll Roads
• Ferry Crossing
• HOV Lanes
• Unpaved Lanes
You can set the following actions to be taken for each type of road.
• Avoid - the type of road is always avoided automatically.
• Don’t Avoid - the type of road is not avoided automatically.
• Always Ask - when the route is planned, you have to select how to handle these roads
when they occur on your route.
18
Distance Units
You can choose to use either Kilometers or Miles for all distances and speeds.
About
Tap About to see information about the application and map version as well as copyright
and the license notices.
Advanced
Tap Advanced to adjust the following settings:
Lane Images
Adjust this setting to switch lane images on and off.
Lane images help you prepare for highway exits and junctions by showing you which lane
you should be in.
IQ Routes™
Adjust this setting to switch IQ Routes on and off.
IQ Routes is used when you plan a route. Your route is calculated using information about
the real average speeds measured on roads, so your route may change depending on the
time of day and day of the week.
Note: IQ Routes information is not available for all regions. For more information on IQ
Routes, go to tomtom.com/iq-routes.
Traffic
Adjust this setting to switch Traffic on and off.
Traffic incidents are shown on the traffic sidebar and in the Browse Map screen and traffic
delays are taken into account when you plan a new route.
Note: TomTom Traffic is a TomTom subscription service which is only available in supported countries. For more information on TomTom Traffic and other services in your
country, go to iphone.tomtom.com.
GPS Enhancer
Adjust this setting to switch the TomTom GPS Enhancer on and off.
The GPS Enhancer helps the TomTom app to find your location more accurately.
Reset to Defaults
Tap this setting to restore the factory settings to your TomTom app.
All your personal settings will be deleted, including your Favorites and your Home location.
19
7. Main menu
Main
menu
When you start the TomTom app without having earlier planned a route, the Main menu
is shown.
To open the Main menu from the Driving View, tap the screen.
The following buttons are available in the Main menu:
Tap this button to start planning a route.
Navigate To...
Tap this button to find out more information about your route or change
the route.
Route
Options
Note: This button is only shown if a route is planned.
Tap this button to mute all sounds from the TomTom app.
Mute Sound
If the sound is muted, this button changes to Enable Sound. Tap the
button again to switch sound back on.
When the sound is muted, the mute sound indicator is shown in the
bottom left corner of the Driving View.
Tap this button to use night colors on the menus and maps. If night colors are being used, this button changes to Day Colors. Tap the button
again to switch back to day colors.
Night Colors
Tap this button to use a 2D map in the Driving View.
2D Map
If the 2D map is being used, this button changes to 3D Map. Tap the
button again to use the 3D map.
Tap this button to plan a route in advance, selecting your starting point
and your destination.
Advanced
Planning
Tap this button to browse the map in the same way as you might look
at a traditional paper map.
Browse Map
20
Tap this button to go to the TomTom Store to purchase a TomTom Traffic subscription and other navigation products and services.
TomTom
Traffic
If you have a Traffic subscription, you can tap this button to view your
subscription status.
Tap this button to call or drive to the nearest emergency services.
Help Me
The Help Me menu also gives a description of your location so you can
tell the emergency services where you are.
Tap this button to create and manage your Favorites.
Manage
Favorites
Favorites provide an easy way to select a location without the need to
enter the address. They do not need to be favorite places, they can simply be seen as a collection of useful addresses.
Tap this button to call a POI. You can, for example, search for a restaurant and call to make a reservation.
Call POI
Tap this button to change how the TomTom app behaves.
Change
Settings
Navigate To menu
When you tap Navigate To in the Main menu, you can select your destination in the following ways:
Tap this button to plan a route to your Home location.
To set your Home location, tap Home in the Settings menu.
Home
Tap this button to select a Favorite as your destination.
Favorite
To add Favorite locations, tap Manage Favorites in the Main menu
and tap Add Favorite.
Tap this button to enter an address as your destination.
Address
Tap this button to select a photo from your iPhone gallery and use it
as your destination.
Navigate to
Note: Only photos that contain location data can be used. This feature can be enabled in the iPhone Camera application.
Tap this button to select your destination from a list of places you
have recently used as destinations.
Recent
Destination
21
Tap this button to run an internet search of the local area and use the
location of one of the search results as your destination.
Local Search
Tap this button to navigate to a Point of Interest (POI).
Point of Interest
Tap this button to plan a route to the address of a contact in your
address book.
Contact
Tap this button to enter a postcode as your destination.
Postcode
Note: Information about postcodes is only available for addresses in
the U.K. and the Netherlands.
Tap this button to select a point on the map as your destination using
the Map Browser.
Point on Map
Tap this button to enter the map coordinates of a location on the map
as your destination.
Coordinates
22
8. Browse map
Browse
map
Tap Browse Map in the Main menu to open the Map Browser. Using the Map Browser you
can browse the map in the same way as you might look at a traditional paper map.
You can move around the map by using your finger to drag the map across the screen.
Zoom in and out by pinching your fingers together and apart on the screen. You can also
zoom by tapping the screen twice with one finger to zoom in, or tap once with two fingers
at the same time to zoom out.
Markers
Markers are placed on the map to show the distance to various locations. Tap a marker to
center the map on the marker location. Markers point toward one of the following locations:
• Your current location.
• Your home location.
• Your destination.
To set your own marker, position the cursor over the required location on the map, then
tap the cursor button and then tap Set marker position.
The cursor
Tap the map to place the cursor at the location you tap.
You can also drag the cursor around the map by holding your finger on it until it expands.
When you drag the cursor, the area within the expanded cursor is magnified.
23
When you place the cursor, a part of the map is selected. Details of this location are
shown, along with an arrow.
Tap the arrow to use the cursor position. You can choose from the following options:
• Navigate There - tap this button to plan a route from your current location to the cursor
position.
• Local Search - tap this button to do a local search and plan a route to a location.
• Set marker position - tap this button to place a marker at the cursor position.
• Find POI Nearby - tap this button to search for a Point of Interest (POI) near the cursor
position.
• Call... - tap this button to call a POI at the cursor position. This option is only shown if a
POI with a phone number is selected.
• Center on Map - tap this button to move the map so that the cursor position is in the
center of the screen. The map zooms in on the cursor position.
• Add as Favorite - tap this button to add the cursor position as a Favorite. You have to
give the Favorite a name.
• Travel Via... - tap this button to travel via the cursor position in the trip that is currently
planned. This option is only shown if you have already planned a route.
Tap this button to center the map on your current location.
Tap this button to show traffic incidents in the Map Browser. Traffic is a
subscription service.
Tap this button to search for a location on the map. Select the location
in the same way as you select a destination when planning a trip. The
cursor then moves to the selected location.
24
Tap this button to select the information shown on the map. You can
select to show the following information:
• Traffic
• Favorites
• Names
• Coordinates
• POI
Tap POI Types to select which POIs are shown on the map.
25
9. Points of Interest (POIs)
Points
of Interest
(POIs)
Points of Interest or POIs are useful places on the map.
Here are some examples:
• Restaurants
• Hotels
• Museums
• Parking garages
• Gas stations
There are several places where you can use POIs in the TomTom app:
• Selecting your destination when planning a route.
• Calling a POI from the Main menu.
• Selecting which POIs to show on the map.
Selecting a POI
You can select a POI as your destination. For example, when you are traveling to an unfamiliar city location you can use the POI search button to find a restaurant.
You can also call a POI location by tapping the button displaying the phone number. If your
device does not have a phone connection, the phone number is still displayed so you can
dial using another phone to make the call.
When calling a POI or navigating to a POI, you select the POI in the same way:
1. Tap the screen to bring up the Main menu.
2. Tap Navigate To... or Call POI in the Main menu, then tap Point of Interest.
3. Narrow your choice of POIs by selecting the area where the POI is located.
The following options are available:
Tap this button to choose from a list of POIs near to your current
location.
POI Near Me
Tap this button to find a POI in a particular town or city.
POI in City
26
Tap this button to choose from a list of POIs near to your Home
location.
POI near Home
These options are available when a route is already planned:
Tap this button to find a POI along your planned route.
POI Along Route
Tap this button to find a POI near your planned destination.
POI Near
Destination
4. If you selected POI in city, type the name of the town you want to visit and select the
town when it appears in the list.
5. Select the category of POI.
Tap Search to search to look for a POI by name. All POIs in all categories are searched.
Tap the category of POI, if it is shown.
Tap More to choose from the complete list of categories. Select the category from the
list.
6. From the list of POIs shown, select the POI you want to navigate to.
The table below explains the distances listed next to each POI.
POI Near You
Distance from your current location
POI in City
Distance from the city center
POI Near Home
Distance from your Home location
POI Along Route
Distance from your current location
POI Near Destination
Distance from your destination
If you have planned a route, a symbol is also shown next to each POI.
POI is on your route
POI is close to your route
POI is fairly close to your route.
POI is off your route.
After you select a POI, tap the information button to view detailed information such as the
phone number and a short description.
27
Tap Select to confirm you want to plan a route to this POI.
Tap Call to call the POI.
Showing POIs on the map
POIs can be shown on the map in the Driving View and in the Map Browser.
To show POIs in the Driving View, do the following:
1. Tap Change Settings in the Main menu.
2. Tap Map.
3. Make sure that the setting POIs on Map is selected.
To show POIs on the map in the Map Browser, do the following:
1. In the Main menu, tap Browse Map.
2. Tap the information button in the bottom right-hand corner of the screen.
3. Make sure that the setting POI is selected.
Selecting which POIs to show on the map
You can select the categories of POIs that are shown, for example, gas stations, restaurants and hotels.
The selection you make is used for both maps.
To change the POI categories shown in the Settings menu, do the following:
1. Tap Change Settings in the Main menu.
2. Tap Map.
3. Tap POI Types.
4. Select which POIs you want to be shown on the map.
To change the POI categories that are shown in the Map Browser, do the following:
1. Tap Browse Map in the Main menu.
2. Tap the information button in the bottom right-hand corner of the screen.
3. Tap POI Types.
4. Select which POIs you want to be shown on the map.
28
10. Help Me
Help
Me
Help Me provides an easy way to navigate to emergency service centers and other specialized services and contact them by phone.
For example, if you are involved in a car accident, you could use Help Me to call the nearest hospital and tell them your exact location.
Using Help Me to phone a local service
You can use Help Me to search for a service garage, make contact by phone and inform
the garage about the precise details of your current location.
When you search for a service center, you are shown a list of nearby locations. Select one
of the centers in the list to view their address and phone number and your current location
on the map.
To use Help Me to locate a service garage, contact the garage by phone and navigate from
your current location to the garage, do the following:
1. Tap the screen to bring up the Main menu.
2. Tap Help Me.
3. Tap Call for Help.
4. Select the type of service you require, for example, Nearest hospital.
5. To dial, select a center from the list, the nearest is shown at the top of the list.
If your device has a phone feature, you can tap the button showing the phone number
to dial it immediately. If your device does not have a phone feature, you are shown the
number so you can dial using another device.
Once the call is answered, to obtain a description of your current location, open the
TomTom app again and tap Help Me. A description of your current location is shown.
Tap the description to copy the text. You can then paste the description into a text message or email.
6. To navigate your way to the garage by car, tap Drive to Help.
Your TomTom app starts guiding you to your destination.
29
11. Favorites
Favorites
Favorites are places that you often visit. You can create Favorites so that you don’t have
to enter the address every time you want to navigate there.
They do not need to be favorite places or even locations you often visit, they can simply
be seen as a collection useful addresses.
Creating a Favorite
To create a Favorite, tap Manage Favorites in the Main menu, then tap Add Favorite and
enter the address. Tap Done to save the Favorite.
Give your Favorite a name that is easy to remember. The TomTom app will always suggest
a name, usually the address of the Favorite. If you don’t like the suggested name, delete it
and enter a new one.
To select the location of the Favorite, tap one of the following buttons:
Tap this button to set your Home location as a Favorite. You might do
this if you want to change your Home location but keep the current
Home location as a Favorite.
Home
Tap this button to create a Favorite from another Favorite.
Favorite
To rename a Favorite, tap the Favorite and then tap Name and enter
the new name.
Tap this button to enter a specific address as a Favorite.
Address
Tap this button to select a photo from your iPhone gallery and use
the location to create a favorite.
Navigate to
Note: Only photos that contain location data can be used. This feature can be enabled in the iPhone Camera application.
Tap this button to select a Favorite location from a list of places you
have recently used as destinations.
Recent
Destination
30
Tap this button to run an internet search of the local area and use the
location of one of the search results as a Favorite.
Local Search
Tap this button to add a Point of Interest (POI) as a Favorite.
Point of Interest
Tap this button to add a contact’s address as a Favorite.
Contact
Tap this button to enter a postcode as a Favorite.
Zip code
Note: Information about postcodes is only available for addresses
in the U.K. and the Netherlands.
Tap this button to add your current position as a Favorite.
My Location
For example, if you stop somewhere interesting, while you are there
you can tap this button to create the Favorite.
Tap this button to create a Favorite using the Map Browser.
Select the location of the Favorite using the cursor, then tap Select.
Point on Map
Tap this button to enter the map coordinates of a location on the
map as a Favorite.
Coordinates
Using a Favorite
You will normally use a Favorite as a way of navigating to a place without having to enter
the address. To navigate to a Favorite, do the following:
1. Tap the screen to bring up the Main menu.
2. Tap Navigate To...
3. Tap Favorite.
4. Select a Favorite from the list.
The TomTom app calculates the route for you.
5. Tap Done.
The TomTom app immediately starts guiding you to your destination using spoken
instructions and on-screen directions.
Changing the name of a Favorite
1. Tap the screen to bring up the Main menu.
2. Tap Manage Favorites.
3. Tap the Favorite you want to rename.
4. Tap Name.
31
5. Enter the new name for the Favorite.
6. Tap done.
The Favorite is renamed.
Deleting a Favorite
1. Tap the screen to bring up the Main menu.
2. Tap Manage Favorites.
3. Tap Edit. A red symbol is shown next to each Favorite.
4. Tap the red symbol next to the Favorite you want to delete.
A Delete button is shown for that Favorite.
5. Tap Delete.
The Favorite is deleted.
32
12. Traffic information
Traffic
information
TomTom HD Traffic
TomTom HD Traffic is a unique TomTom service providing real-time traffic
information. Using the latest traffic information in combination with IQ Routes.
TomTom HD Traffic helps you plan the optimum route to your destination. For more information about TomTom services and subscriptions, go to iphone.tomtom.com.
Important: TomTom Traffic and the TomTom App for iPhone are only supported for use
with the iPhone and are not supported for use with the iPod Touch.
To use the TomTom Traffic service, you need a continuous data connection (GPRS, EDGE,
UMTS or CDMA). Your mobile operator may charge you for using a wireless data connection.
Tip: The TomTom app automatically downloads traffic updates and may incur mobile
roaming charges when traveling abroad.
To prevent this, tap Change Settings in the Main menu, then tap Advanced, then scroll
down to Traffic and tap the button to switch off the service.
Regional availability
Note: You can use TomTom services when traveling abroad, but when planning a route
you need to consider that not all services are available in all countries.
33
For more information on available services, go to iphone.tomtom.com.
Buying a new Traffic subscription
To buy a new subscription, do the following:
1. Start your TomTom app.
2. Go to the TomTom Store by tapping one of the following buttons:
• Tap TomTom Traffic in the Main menu.
• Tap the car in the top right-hand corner of the Driving View.
• Tap the car button in the Map Browser.
3. Choose a subscription from the list of available traffic services.
You are requested to create a new TomTom account.
4. Create a new TomTom account.
5. Login to your new TomTom account.
Your purchase is completed in the Apple App Store. If payment is successful, Traffic starts
within a few minutes on your TomTom app.
Tip: If you already own a TomTom navigation device, then we recommend that you open
a new TomTom account for your iPhone using a different email address.
For more information on MyTomTom accounts, go to tomtom.com/mytomtom.
Checking your Traffic subscription
You can check the status of your subscription at any time, by tapping TomTom Traffic in
the Main menu.
Your TomTom app also warns you when your subscription is approaching the renewal
date.
Renewing your Traffic subscription
You can renew your Traffic subscription after it has expired or extend it before it reaches
its expiry date.
To extend an existing subscription, tap TomTom Traffic in the Main menu and then select
how long you want to extend your subscription.
To renew an expired subscription, do the following:
1. Go to the TomTom Store by tapping one of the following buttons:
• Tap TomTom Traffic in the Main menu.
• Tap the car in the top right-hand corner of the Driving View.
• Tap the car button in the Map Browser.
34
The current status of your traffic subscription is shown.
2. Tap the service you want to renew.
Your TomTom app confirms that you want to renew your subscription.
3. Tap Yes.
Your purchase is completed in the Apple App Store.
Using traffic information
Tap the car in the top right-hand corner of the Driving View to show the traffic sidebar.
The traffic sidebar shows all the major traffic incidents as they occur on your route. Glowing dots show where the incidents are located on the route.
The car at the top of the traffic sidebar shows the total delay caused by traffic
incidents on your route.
The central section of the traffic sidebar shows individual traffic incidents in the
order they occur on your route.
The bottom of the traffic sidebar represents your current location.
Scroll the traffic sidebar up and down using your finger to see all the traffic incidents on your route.
As the traffic sidebar scrolls, it stops moving when it reaches the next incident.
The total delay caused by traffic incidents on your route is shown using different colored cars at the top of the traffic sidebar.
There is no delay on your route.
Less than 15 minutes delay on your route.
More than 15 minutes delay on your route.
Traffic service updating.
No route planned, traffic up to date.
35
No subscription to TomTom Traffic.
Traffic service is unavailable.
Getting more information about an incident
When a traffic incident is shown on the map, the starting point of the incident is indicated
with a traffic symbol.
As you scroll the traffic sidebar up and down, the panel above the status bar shows more
information about each incident. This includes the type of incident, such as road works,
and the delay caused by this incident.
Tap the panel to view more information about the incident.
36
Tap the up and down arrow buttons to view separate incidents in the order they occur on
your route.
Tap Minimize Delays to check whether you can save time by using an alternative route.
Taking the fastest route
Your TomTom app constantly looks for changes in the traffic on your route and checks if
there is a faster route to your destination. If a faster route is found, you are asked if you
want to use the faster route.
To check if you are using the fastest route, do the following:
1. Tap the screen to open the Main menu.
2. Tap Route Options.
3. Tap Minimize Delays.
If a faster route is found you are asked if you want to use the new route.
Checking traffic incidents in your area
For an overview of traffic incidents in your area and to view the details, do the following:
1. Tap Browse map in the Main menu.
The map is shown.
2. Tap the traffic button in the status bar to show traffic incidents on the map.
3. If the map does not show your current location, tap this button to center the
map on your current location.
The map shows traffic incidents in your area.
4. Tap on a traffic incident for detailed information.
The incident viewer opens and shows you detailed information about the incident.
37
Traffic incidents
Traffic incidents and warnings are shown on the map, in the Driving View and on the traffic
sidebar.
There are two types of incident and warning signs:
• Symbols shown in a red square are traffic incidents. Your TomTom app can replan your
route to avoid new incidents.
• Symbols shown in a red triangle are weather-related. Your TomTom app is unable to
replan your route to avoid these warnings.
Traffic incident symbols:
Accident
Road works
One or more lanes closed
Road closed
Traffic incident
Traffic jam
Weather-related symbols:
Fog
Rain
Wind
Ice
Snow
38
13. TomTom Local Search with Google
TomTo
m
Local
Search
with
Google
You can use Local Search to find stores and businesses and plan a route to the
store or office location.
Note: Local Search requires a WiFi network or a wireless data connection
(GPRS, EDGE, UMTS or CDMA). Your mobile operator may charge you for using a wireless
data connection. Using Local Search when traveling abroad may cost you more than
when you use the service at home.
Using local search
To use local search to plan a route, do the following:
In this example, you will search for a restaurant near to your current location.
1. Tap the screen to open the Main menu, then tap Navigate to.
2. Tap Local search.
3. Tap Search near me.
4. Type "restaurant", then tap Done.
The locations that match your search are shown in a list.
5. Tap one of the locations in the list.
The location is shown on the map together with the address, Google rating and phone
number.
Tap anywhere in the address area to see more information about this location.
6. Tap Select to plan a route to the location.
Your TomTom app plans a route to the location.
You can also tap on the phone number to call the restaurant.
Tip: When you select a phone number to make a call, the TomTom app will close on
devices that do not support multi-tasking.
39
14. "Add to TomTom"
"Add to
TomTo
m"
About "Add to TomTom"
The "Add to TomTom" button is shown on websites including those for supermarkets,
movie theaters and tourist attractions.
When you see the "Add to TomTom" button on a website, you can click the button to view
the location in the TomTom app.
For example, if your favorite restaurant has an "Add to TomTom" button on their website,
click the button to show the restaurant location on the map.
Using the "Add to TomTom" button
1. Using your iPhone, go to a website that has an "Add to TomTom" button.
2. Click the "Add to TomTom" button.
The TomTom app starts.
What happens next depends on what the "Add to TomTom" button is designed to do.
3. Choose one of the following actions.
• Show the location on the map.
• Calculate a route from your current location.
• Add the location as a Favorite or Point of Interest.
The TomTom app performs the selected action.
40
15. Addendum
Addendum
Important Safety Notices and Warnings
Global Positioning System
The Global Positioning System (GPS) is a satellite-based system that provides location and
timing information around the globe. GPS is operated and controlled under the sole
responsibility of the Government of the United States of America, which is responsible for
its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of TomTom software. TomTom does not
accept any liability for the availability and accuracy of GPS.
Use with Care
Even when using TomTom software and devices for navigation, you must still drive with
due care and attention.
Aircraft and Hospitals
Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in
many other locations. TomTom software and devices must not be used in these environments.
SPECIAL NOTE REGARDING DRIVING IN CALIFORNIA AND MINNESOTA
California Vehicle Code Section 26708 (a) (1) provides that “No persons shall drive any
motor vehicle with an object or material placed, displayed, installed, affixed or applied
upon the windshield or side or rear windows.” Drivers in California should not use a suction mount on their windshield, side or rear windows.
Note: this section of the California Vehicle Code applies to anyone driving in California, not
just California residents.
Minnesota State Legislature Statutes Section 169.71, subdivision 1, section 2 provides that
“A person shall not drive or operate with any objects suspended between the driver and
the windshield other than sun visors and rearview mirrors and electronic toll collection
devices.”
Note: this Minnesota Stature applies to anyone driving in Minnesota, not just Minnesota
residents.
TomTom Inc. bears no responsibility for any fines, penalties or damage that may be
incurred by disregarding this notice.
This Document
Great care was taken in preparing this manual. Constant product development may mean
that some information is not entirely up to date. The information in this document is subject to change without notice.
TomTom shall not be liable for technical or editorial errors or omissions contained herein;
nor for incidental or consequential damages resulting from the performance or use of this
41
material. This document contains information protected by copyright. No part of this document may be photocopied or reproduced in any form without prior written consent from
TomTom N.V.
42
16. Copyright notices
Copyright
notices
© 2010 TomTom N.V., The Netherlands. TomTom®, and the "two hands" logo, among others, are Trademarks owned by TomTom N.V. or one of its subsidiaries. Please see
www.tomtom.com/legal for warranties and end user licence agreements applying to this
product.
© 2010 TomTom N.V., Niederlande. TomTom®, das 'Zwei Hände'-Logo usw. sind registrierte Marken von TomTom N.V. oder eines zugehörigen Tochterunternehmens. Die für
dieses Produkt geltenden Garantien und Endnutzerlizenzvereinbarungen finden Sie unter
www.tomtom.com/legal.
© 2010 TomTom N.V., Pays-Bas. TomTom® et le logo composé de « deux mains », entre
autres, font partie des marques commerciales appartenant à TomTom N.V. ou l'une de
ses filiales. L'utilisation de ce produit est régie par notre garantie limitée et le contrat de
licence utilisateur final, que vous pouvez consulter à l'adresse suivante :
www.tomtom.com/legal
© 2010 TomTom N.V., Nederland. TomTom® en het logo met twee handen zijn onder
andere handelsmerken die eigendom zijn van TomTom N.V. of een van haar dochterondernemingen. Ga naar www.tomtom.com/legal voor garanties en licentieovereenkomsten voor eindgebruikers die van toepassing zijn op dit product.
© 2010 TomTom N.V., The Netherlands TomTom® e il logo delle "due mani", fra gli altri,
sono marchi registrati di proprietà di TomTom N.V. o di una delle sue filiali. Consultare
www.tomtom.com/legal per le garanzie e i contratti di licenza per l'utente finale applicabili a questo prodotto.
© 2010 TomTom NV, Países Bajos. TomTom™ y el logotipo "dos manos" son marcas comerciales, aplicaciones o marcas registradas de TomTom NV. Nuestra garantía limitada y
nuestro acuerdo de licencia de usuario final para el software integrado son de aplicación
para este producto; puede consultar ambos en www.tomtom.com/legal.
© 2010 TomTom N.V., Països Baixos. TomTom®, i el logotip amb les "dues mans", entre
altres, formen part de les marques comercials de TomTom N.V. o d'una de les seves filials.
Visiteu www.tomtom.com/legal per a obtenir informació sobre les garanties i els acords
de llicència d'usuari final d'aquest producte.
© 2010 TomTom N.V., Holanda. TomTom® e o logótipo das "duas mãos", entre outras,
são marcas comerciais detidas pela TomTom N.V. ou por uma das suas subsidiárias. Vá
a www.tomtom.com/legal para consultar as garantias e o contratos de licença do utilizador final aplicáveis a este produto.
© 2010 TomTom NV, Holland. TomTom™ og logoet med "de to hænder" er blandt de
varemærker, produkter og registrerede varemærker, der tilhører TomTom International
B.V. Vores begrænsede garanti og slutbrugerlicensaftale for indlejret software gælder for
dette produkt; begge dokumenter findes på www.tomtom.com/legal.
© 2010 TomTom N.V., Alankomaat. Muun muassa TomTom® ja kaksi kättä -logo ovat
TomTom N.V:n tai sen tytäryhtiöiden omistamia tavaramerkkejä. Katso osoitteesta
www.tomtom.com/legal tätä tuotetta koskevat takuut ja käyttöehtosopimukset.
43
© 2010 TomTom N.V., Nederland. TomTom®, og de "to hender"-logoen, blant andre, er
varemerker eid av TomTom N.V. eller en av deres underleverandører. Vennligst se
www.tomtom.com/legal for gjeldende garantier og lisensavtaler for sluttbrukere for
dette produktet.
© 2010 TomTom NV, Nederländerna. TomTom™ och logotypen "två händer" tillhör de varumärken, programvaror eller registrerade varumärken som ägs av TomTom International
B.V. Vår begränsade garanti och vårt slutanvändarlicensavtal för inbyggd programvara
kan gälla för denna produkt. Du kan läsa dem båda på www.tomtom.com/legal.
© 2010 TomTom N.V., Nizozemsko. TomTom® a logo „dvou rukou“ jsou, mimo jiné,
ochranné známky společnosti TomTom N.V. nebo jejích poboček. Navštivte prosím
adresu www.tomtom.com/legal, kde naleznete informace o zárukách a licenčních
smlouvách s koncovým uživatelem vztahujících se k tomuto výrobku.
© 2010 TomTom N.V., Hollandia. A TomTom®, és a „két kéz” embléma, többek között, a
TomTom N.V. vagy leányvállalatai védjegye. A termékre vonatkozó garanciáról és a végfelhasználói licencszerződésekről részleteket a www.tomtom.com/legal oldalon
olvashat.
© 2010 TomTom N.V., Holandia. TomTom™ i logo z dwiema dłońmi, oraz inne, są zarejestrowanymi znakami towarowymi firmy TomTom N.V. lub jednej z jej spółek zależnych.
Informacje o gwarancjach i umowach licencyjnych dla końcowego użytkownika tego
produktu znajdują się na stronie www.tomtom.com/legal.
© 2010 TomTom N.V., Holandsko. TomTom® a logo „dve ruky“ sú okrem ďalších ochranné známky, ktoré vlastní spoločnosť TomTom N.V. alebo jedna z jej dcérskych spoločností. Pozrite si stránku www.tomtom.com/legal, ak chcete informácie o zárukách a
dohody o licencii pre koncového používateľa týkajúce sa tohto produktu.
© 2010 TomTom N.V., Madalmaad. TomTom® ja "kahe käe" logo kuuluvad nende kaubamärkide hulka, mille omanikuks on TomTom N.V. või mõni selle filiaal. Tootele kehtivad
garantiid ja lõppkasutaja litsentsilepingud leiad aadressilt www.tomtom.com/legal.
© 2010 TomTom N.V., Nyderlandai. TomTom® ir "dviejų plaštakų" formos logotipas, kaip
ir daugelis kitų, priklauso TomTom N.V. arba kuriai nors dukterinei įmonei. Apie šiam
produktui taikomas garantijas ir licencijavimo galutiniam vartotojui sutartis skaitykite
internete adresu www.tomtom.com/legal.
© 2010 TomTom N.V., Nyderlandai. TomTom® ir "dviejų plaštakų" formos logotipas, kaip
ir daugelis kitų, priklauso TomTom N.V. arba kuriai nors dukterinei įmonei. Apie šiam
produktui taikomas garantijas ir licencijavimo galutiniam vartotojui sutartis skaitykite
internete adresu www.tomtom.com/legal.
© 2010 TomTom N.V., Hollanda. TomTom® ve diğer logolar ile birlikte "iki el" logosunun
mülkiyeti, TomTom N.V. veya bağlı şirketlerine aittir. Bu ürün için geçerli garanti ve son
kullanıcı lisans sözleşmeleri için www.tomtom.com/legal sayfasına bakın.
© 2010 TomTom N.V., Holanda. TomTom® e o logotipo "duas mãos" entre outros, são
marcas comerciais de propriedade da TomTom N.V. ou de uma de suas subsidiárias. Consulte www.tomtom.com/legal para obter garantias e contratos de licença de usuário
final que se aplicam a este produto.
© 2010 TomTom N.V., Ολλανδία. Το όνομα TomTom® και το λογότυπο "δύο χέρια", μεταξύ
άλλων, είναι εμπορικά σήματα ιδιοκτησίας της TomTom N.V. ή κάποιας από τις θυγατρικές
της. Για πληροφορίες σχετικά με τις εγγυήσεις και τις άδειες χρήσης τελικού χρήστη που
ισχύουν γι' αυτό το προϊόν, ανατρέξτε στη διεύθυνση www.tomtom.com/legal.
© 2010 TomTom N.V., Нидерланды. TomTom® и логотип "с двумя руками", наряду с
другими, являются товарными знаками компании TomTom N.V. или одной из ее
дочерних компаний. Гарантии и лицензионные соглашения для конечного
пользователя, применяемые к данному продукту, см. на странице
www.tomtom.com/legal.
44
© 2010 TomTom International BV, Nederland. TomTom™ en die "twee hande"-logo is
onder die handelsmerke, toepassings of geregistreerde handelsmerke wat deur TomTom
International B.V. besit word. Ons beperkte waarborg en eindgebruikerlisensieooreenkoms vir ingebedde sagteware geld vir hierdie produk, hoewel die beperkte waarborg in
sommige markte deur ons plaaslike verspreider hanteer word. Kry gerus meer inligting
by www.tomtom.com/legal.
Data Source
© 2010 Tele Atlas N.V. Based upon:
Topografische ondergrond Copyright © dienst voor het kadaster en de openbare registers, Apeldoorn 2006.
© Ordnance Survey of Northern Ireland.
© IGN France.
© Swisstopo.
© BEV, GZ 1368/2003.
© Geonext/DeAgostini.
© Norwegian Mapping Authority, Public Roads Administration / © Mapsolutions.
© DAV, violation of these copyrights shall cause legal proceedings.
This product includes mapping data licensed from Ordnance Survey with the permission
of the Controller of Her Majesty’s Stationery Office. © Crown copyright and/or database
right 2010. All rights reserved. Licence number 100026920.
© Roskartographia
Data Source
© 2010 Tele Atlas North America. Inc. All rights reserved.
Compatible with all iPhone models
“Works with iPhone” means that an electronic accessory has been designed to connect
specifically to iPhone and has been certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.
iPhone is a registered trademark of Apple Inc.
Some images are taken from NASA’s Earth Observatory.
The purpose of NASA’s Earth Observatory is to provide a freely-accessible publication on
the Internet where the public can obtain new satellite imagery and scientific information
about our home planet.
The focus is on Earth’s climate and environmental change: earthobservatory.nasa.gov/
45
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
