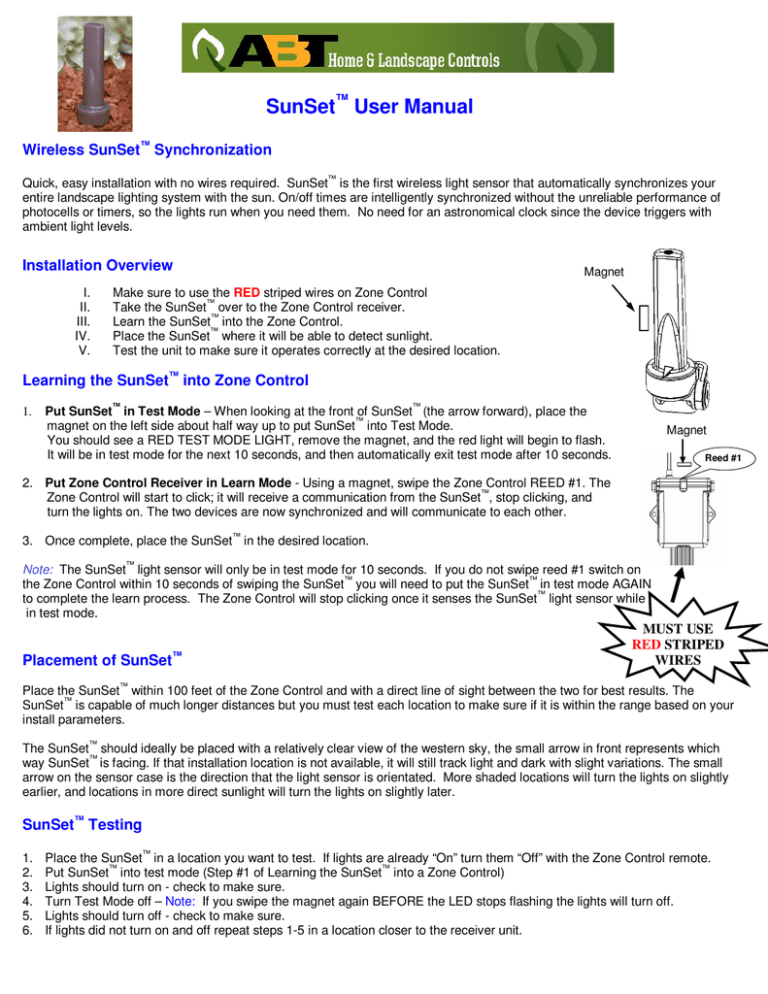

SunSet™ User Manual
Wireless SunSet™ Synchronization
Quick, easy installation with no wires required. SunSet™ is the first wireless light sensor that automatically synchronizes your
entire landscape lighting system with the sun. On/off times are intelligently synchronized without the unreliable performance of
photocells or timers, so the lights run when you need them. No need for an astronomical clock since the device triggers with
ambient light levels.
Installation Overview
I.
II.
III.
IV.
V.
Magnet
Make sure to use the RED striped wires on Zone Control
Take the SunSet™ over to the Zone Control receiver.
™
Learn the SunSet into the Zone Control.
™
Place the SunSet where it will be able to detect sunlight.
Test the unit to make sure it operates correctly at the desired location.
Learning the SunSet™ into Zone Control
1.
Put SunSet™ in Test Mode – When looking at the front of SunSet™ (the arrow forward), place the
magnet on the left side about half way up to put SunSet™ into Test Mode.
You should see a RED TEST MODE LIGHT, remove the magnet, and the red light will begin to flash.
It will be in test mode for the next 10 seconds, and then automatically exit test mode after 10 seconds.
Magnet
Reed #1
2. Put Zone Control Receiver in Learn Mode - Using a magnet, swipe the Zone Control REED #1. The
Zone Control will start to click; it will receive a communication from the SunSet™, stop clicking, and
turn the lights on. The two devices are now synchronized and will communicate to each other.
3. Once complete, place the SunSet™ in the desired location.
Note: The SunSet™ light sensor will only be in test mode for 10 seconds. If you do not swipe reed #1 switch on
the Zone Control within 10 seconds of swiping the SunSet™ you will need to put the SunSet™ in test mode AGAIN
to complete the learn process. The Zone Control will stop clicking once it senses the SunSet™ light sensor while
in test mode.
Placement of SunSet™
MUST USE
RED STRIPED
WIRES
Place the SunSet™ within 100 feet of the Zone Control and with a direct line of sight between the two for best results. The
SunSet™ is capable of much longer distances but you must test each location to make sure if it is within the range based on your
install parameters.
The SunSet™ should ideally be placed with a relatively clear view of the western sky, the small arrow in front represents which
way SunSet™ is facing. If that installation location is not available, it will still track light and dark with slight variations. The small
arrow on the sensor case is the direction that the light sensor is orientated. More shaded locations will turn the lights on slightly
earlier, and locations in more direct sunlight will turn the lights on slightly later.
SunSet™ Testing
1.
2.
3.
4.
5.
6.
Place the SunSet™ in a location you want to test. If lights are already “On” turn them “Off” with the Zone Control remote.
™
™
Put SunSet into test mode (Step #1 of Learning the SunSet into a Zone Control)
Lights should turn on - check to make sure.
Turn Test Mode off – Note: If you swipe the magnet again BEFORE the LED stops flashing the lights will turn off.
Lights should turn off - check to make sure.
If lights did not turn on and off repeat steps 1-5 in a location closer to the receiver unit.
™
PROGRAMMING TIMERS FOR USE WITH SunSet
Example Scenarios:
Ex. #1
Want the SunSet™ to turn on at sunset and the lights off at sunrise
- Simply follow the “Learning SunSet™ into a Zone Control” instructions on the first page of these instructions.
No need to set timers, just learn the SunSet™ to the Zone Control and it will turn on at sunset and off at
sunrise.
Ex. #2
Want SunSet™ to turn the lights on at sunset and the timer to turn the lights off at a predetermined time
On time – Sunset (about 6:30pm in this example)
Off time – Zone 1 & 2 – 10:00pm, Zone 3 –11:30pm
Important Programming Notes:
- Both an on and an off time must be set for EACH zone that is enabled
- The on timer should be set after sunset and before the timer turns the lights off
- The off timers can vary.
Set ON
Zone 1 & 2
Timer
Sunset
Sunrise
OFF Timer
Zone 3
OFF Timer
Zone 1
Zone 2
Zone 3
6:30pm
8:00pm
10:00pm
11:30pm
Read for further explanation:
The SunSet™ will be turning the lights on at sunset and the timer will be turning the lights off at the user defined time. In this
example the sun sets at 6:30pm, at that time the lights will turn on via the SunSet™ sensor. The on timer in the Zone Control is
™
set for 9:00pm so it does not interfere with the SunSet sensor, the lights remain on. The customer wants Zones 1 and 2 to turn
off at 10:00pm and Zone 3 to turn off at 11:30pm, the off timer in Zones 1 and 2 is set for 10:00pm, and the off time for Zone 3 is
set for 11:30pm.
NOTE: Just to emphasize, if you set the “on timer” for a time BEFORE sunset (6:30 in this case), the lights will come on with
that timer. First come, first serve basically, light sensor or timer. That is why if you want the SunSet™ to turn on the system,
the “on timer” must be set for some time later than actual sunset. Since the summer months don’t see the sun setting until the
later hours of the day, you should set the timer for even later than usual so you don’t have to come back and reset timers as the
days get longer.
