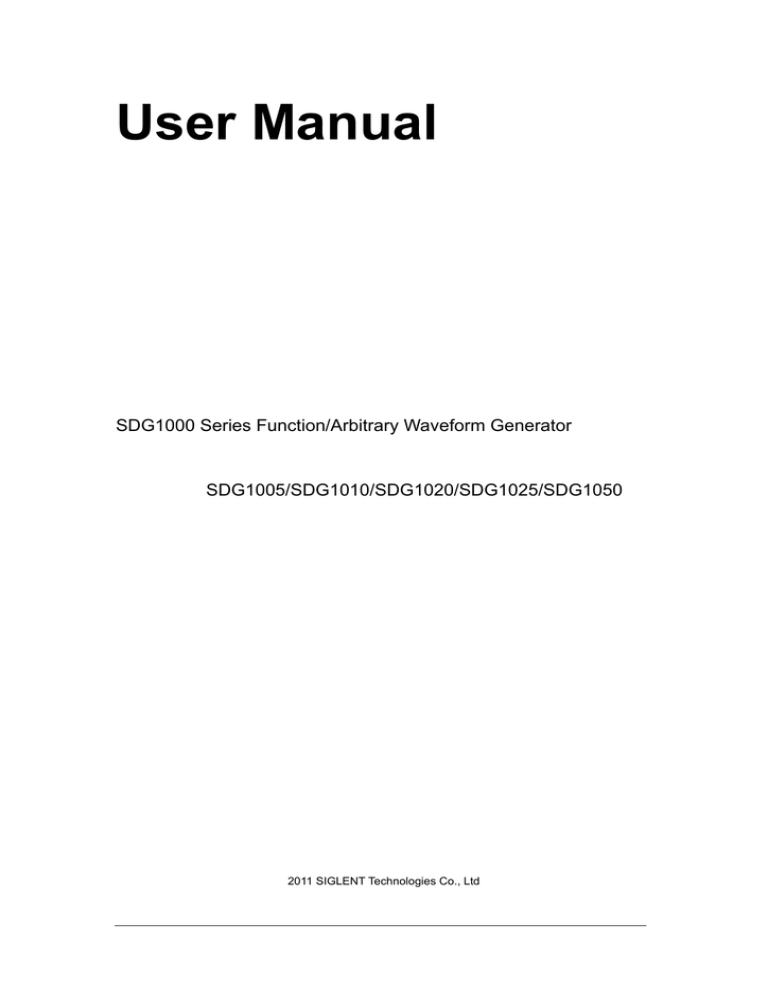

SDG1000 Series Function/Arbitrary Waveform Generator

SDG1005/SDG1010/SDG1020/SDG1025/SDG1050

2011 SIGLENT Technologies Co., Ltd

Declaration

Copyright © SIGLENT Technologies Co., Ltd. All rights reserved.

Contents in this Manual are not allowed to be copied, extracted and translated before being allowed by SIGLENT Company

SDG1000 User Manual I

General Safety Summary

Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified.

Only qualified personnel should perform service procedures.

To Avoid Fire or Personal Injury

z Use proper power line. Only the special power line of the products approved by the state should be used. z Ground the instrument. This generator is grounded through the protective terra conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to the earth ground. Make sure that the instrument is properly grounded before connecting the input or output terminals. z Observe all the ratings of the terminal. To avoid fire or shock, observe all the ratings and symbols that marked on the instrument. Read the user guide carefully before making connections to the instrument. z Do not operate without Covers. Do not operate the product with covers or panels removed. z Avoid circuit or wire exposed. Do not touch the exposed connections or components when the power is on.

SDG1000 User Manual II

z Do not operate with suspected failures. If you suspect there is damage with this product, you should have it inspected by qualified service personnel authorized by SIGLENT before further operations. z Provide proper ventilation. z

Do not operate in wet/damp conditions. z Do not operate in an explosive atmosphere. z Keep the product’s surfaces clean and dry.

SDG1000 User Manual III

Safety Terms and Symbols

Terms in this guide, these terms may appear in this manual:

Terms on the product, terms below may appear on the product:

DANGER

: Indicates an injury or hazard that may immediately happen.

WARNING

: Indicates an injury or hazard that may not immediately happen.

CAUTION

: Indicates that a potential damage to the instrument or other property might occur.

Symbols on the product

: Symbols as followed may appear on the product:

SDG1000 User Manual IV

Introduction of SDG1000 Series

The manual covers the following 5 types of SDG1000 Series

Function/Arbitrary Waveform Generators: SDG1005, SDG1010, SDG1020,

SDG1025, SDG1050.

SIGLENT SDG1000 Series Function/Arbitrary Waveform Generators adopt the direct digital synthesis (DDS) technology, which can provide stable, high-precision, pure and low distortion signals. Its combination of excellent system features, easiness in usage and versatile functions makes this generator a perfect solution for your job now and in the future.

SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front-panel. The user-friendly panel layout and instructions, versatile terminals, direct graph interface, built-in instructions and help system have greatly simplified the operation process, with the help of which, users do not have to spend a great deal of time learning and familiarizing the operation of the generator before they can use it proficiently. The built-in AM, FM, PM,

ASK, FSK and PWM modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while GPIB is optional. Remote instructions meet the

SCPI specification requirements.

From the characteristics and specifications given below, you will understand how SDG1000 can satisfy your requirements.

SDG1000 User Manual V

z DDS technology provides precise, stable and low distortional output signal. z 3.5’TFT color LCD display. z 125MSa/s sampling rate, 14-bit resolution. z Frequency

Sine: 1μHz to 50MHz

Square: 1μHz to 25 MHz

Ramp: 1μHz to 300kHz

Pulse: 500μHz to 5MHz

White Noise: 50MHz bandwidth (-3dB)

Arbitrary: 1μHz to 5MHz z 5 standard waveforms: Sine, Square, Ramp, Pulse, Noise z Self-defined waveform z

Multiple modulation function: AM, FM, PM, ASK, FSK, PWM, DSB-AM,

Sweep and Burst. z Multiple I/O: external modulation source, external 10 MHz reference input, external trigger source, waveform output, synchronous signal output. z Support USB storage device. Software updating could also be performed using USB devices. z

Up to 16k sample points of internal waveform depth, which can rebuild or simulate any complex waveform. z Remote control is realized using the USB. z

Multiple interfaces: USB host & device, GPIB (IEEE-488) (option). z Support the seamless connection with SIGLENT Series Digital

Oscilloscopes; can directly read and rebuild the stored waveform in the oscilloscopes. z 2 languages (English and Chinese) user interface and built-in help

SDG1000 User Manual VI

system.

Note

:

All the specifications described in this guide are according to SDG1050. If you need to know the particular specifications about the other types, please see ‘Specifications’ in Chapter 6.

SDG1000 User Manual VII

Catalogue

General Safety Summary.................................................................................II

Introduction of SDG1000 Series ..................................................................... V

1.

Getting Started...........................................................................................1

1.1.

General Inspection ...........................................................................2

1.2.

Handle Adjustment ...........................................................................3

1.3.

The Front/Rear Panel.......................................................................4

1.4.

To Set a Waveform...........................................................................7

1.5.

To Set Modulate/Sweep/Burst ........................................................12

1.6.

To Set Output .................................................................................14

1.7.

To Use Digital Input ........................................................................15

1.8.

To Use Store/Utility/Help Function ..................................................16

2.

Operating Your Generator........................................................................17

2.1.

To Set Sine Signals ........................................................................18

2.2.

To Set Square Signals....................................................................23

2.3.

To Set Ramp Signals......................................................................26

2.4.

To Set Pulse Signals ......................................................................29

2.5.

To Set Noise Signals ......................................................................33

2.6.

To Set Arbitrary Signals ..................................................................35

2.7.

To Generate the Modulated Waveform...........................................42

2.8.

To Generate Sweep........................................................................53

2.9.

To Generate Burst ..........................................................................55

2.10.

To Store and Recall .....................................................................59

2.11.

To Set the Utility Function............................................................65

2.12.

Test/Cal .......................................................................................76

2.13.

Edition Information ......................................................................81

2.14.

Updating Firmware......................................................................83

SDG1000 User Manual VIII

2.15.

How to Use the Built-in Help System ..........................................84

3.

Application and Examples .......................................................................85

3.1.

Example 1:Generate a Sine Wave .................................................86

3.2.

Example 2:Generate a Square Wave .............................................88

3.3.

Example 3:Generate a Ramp Wave...............................................90

3.4.

Example 4:Generate a Pulse Wave ...............................................92

3.5.

Example 5:Generate a Noise Wave ...............................................94

3.6.

Example 6:Generate an Arbitrary Wave .........................................95

3.7.

Example 7:Generate a Sweep Linear Wave...................................97

3.8.

Example 8:Generate a Burst Wave ................................................99

3.9.

Example 9:Generate an AM Wave ...............................................101

3.10.

Example 10:Generate a FM Wave ............................................103

3.11.

Example 11:Generate a PM Wave ............................................105

3.12.

Example 12:Generate a FSK Wave ..........................................107

3.13.

Example 13:Generate an ASK Wave ........................................109

3.14.

Example 14: Generate a PWM Wave........................................ 111

3.15.

Example 15: Generate a DSB-AM Wave .................................. 113

4.

Troubleshooting ..................................................................................... 115

General Inspecting................................................................................ 115

Troubleshooting .................................................................................... 116

5.

Service and Support .............................................................................. 117

Maintain summary ................................................................................ 117

Contact with SIGLENT.......................................................................... 118

6.

Appendix................................................................................................ 119

Appendix A: Accessories....................................................................... 119

Appendix B: Daily Maintain and Cleaning .............................................120

SDG1000 User Manual IX

This chapter covers the following topics:

„ General

„

Handle

„

The Front/Rear Panel

„ To Set a Waveform

„ To Set Modulate/Sweep/Burst

„ To Set Output

„ To Use Digital Input

„ To Use Store/Utility/Help Function

SDG1000 User Manual 1

When you get a new SDG1000 Series Function/Arbitrary Waveform

Generator, you are suggested to take the following steps to inspect the instrument.

1. Inspect the shipping container for damage.

If there are damages in the packing or foam, keep them until the whole machine and the accessories pass the electric and mechanical testing.

2. Check the accessories.

Accessories supplied with the instrument are listed in chapter 6

‘Appendix A: Accessories’.

If the contents are incomplete or damaged, please notify your sales representative.

3. Inspect the instrument.

In case any mechanical damage or defect, or if the instrument does not operate properly or pass performance tests, notify your sales representative. If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier as well as your sales office. Keep the shipping materials for the carrier’s inspection. Offices will arrange for repair or replacement at their option without waiting for claim settlement.

SDG1000 User Manual 2

To adjust the handle position of SDG1000 Function/Arbitrary Waveform

Generator, please grip the handle by the sides and pull it outward. Then, make the handle rotate to the desired position.

Figure 1- 1 Viewing Position and Carrying Position

SDG1000 User Manual 3

1.3. The Front/Rear Panel

When you get a new SDG1000 Series Function/Arbitrary Waveform

Generator, first you need to understand how to operate the front/rear panel correctly. This chapter will make a brief introduction and description for the operation and functions of the front/rear panel.

The SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front panel. See Figure 1- 2 and Figure 1- 3. The front panel has a knob and functional keys. The 5 blue grey buttons on the right side of the screen are menu buttons (named F1 to F5 from up to down) with the help of which, you can enter different functions menu or have direct specific applications. The signal input and output interfaces are set at the front and rear panels which can help generating multiple arbitrary waveforms. The various interfaces can meet the need of the multiple interface communications.

Figure 1- 2 Front Panel of SDG1000 Series

SDG1000 User Manual 4

USB

Waveform keys

Number keys

Knob

Power LCD

Display

Menu

Operation

Function keys

10MHz In

Figure 1- 3 Front Panel of SDG1000 Series

Sync Out

Output Direction

Control keys

USB

Modulation

Ext Trig/Gate/

FSK/Burst

In

Figure 1- 4 Rear Panel of SDG1000 Series

Power

Socket

SDG1000 User Manual 5

Waveform Display

Window

Operation Menu:

Different functions have different menus

Parameter Display and

Editing Window

Figure 1- 5 Display Interface (Sine Wave is the default display signal)

Character definitions in this User Manual:

The signs for buttons in this manual are the same as the panel buttons.

Please note that, the signs for the functional buttons on the operation panel are represented by squared words, such as Sine , which represents the transparent functional key with Sine on it on the front panel, while the menu buttons are represented by brighten words such as Freq, which means the frequency option in the Sine menu.

SDG1000 User Manual 6

1.4. To Set a Waveform

On the operation panel, there is a set of buttons with waveform icon. See

Figure 1- 6. The exercise below will help you familiarize with the waveform selection settings.

Figure 1- 6 Waveform Selection Buttons

1. Press Sine button and the waveform window will display sine waveform.

SDG1000 Series Generator can generate sine signal with a frequency from 1μHz to 50MHz. By setting frequency/period, amplitude/high level, offset/low level, sine signal with different parameters can be generated.

SDG1000 User Manual 7

Figure 1- 7 Sine Signal Display Interface

As is shown in Figure 1- 7, the default signal parameters are: 1kHz frequency,

4.0Vpp amplitude and 0Vdc offset.

2. Press Square button, and the waveform window displays square waveform. SDG1000 Series Generator can generate square signal with a frequency from 1μHz to 25MHz and variable duty cycle.

Figure 1- 8 Square Signal Display Interface

SDG1000 User Manual 8

As is shown in Figure 1- 8, the default signal parameters are: 1kHz frequency,

4.0Vpp amplitude, 0Vdc offset and 50% duty cycle.

3. Press Ramp button, and the waveform window displays ramp waveform.

SDG1000 Series Generator can generate ramp signal with a frequency of from 1μHz to 300kHz and variable symmetry.

Figure 1- 9 Ramp Signal Display Interface

As is shown in Figure 1- 9, the default signal parameters are: 1kHz frequency,

4.0Vpp amplitude, 0Vdc offset and 50% symmetry.

4. Press Pulse button, and the waveform window displays pulse waveform.

SDG1000 Series Generator can generate pulse signal with a frequency from 500μHz to 5 MHz and variable pulse width and delay.

SDG1000 User Manual 9

Figure 1- 10 Pulse Signal Display Interface

As is shown in Figure 1- 10, the default signal parameters are: 1kHz frequency, 4.0Vpp amplitude, 0Vdc offset, 200μs pulse width.

5. Press Noise button, and the waveform window displays noise waveform.

SDG1000 Series Generator can generate noise signal with a band width up to 50MHz.

Figure 1- 11 Noise Signal Display Interface

As is shown in Figure 1- 11, the default signal parameters are: 2.0V Variance and 10mV Mean.

SDG1000 User Manual 10

6. Press Arb button, and the waveform window displays arbitrary waveform.

SDG1000 Series Generator can generate repeatable arbitrary waveform signals with at most 16K points and 5MHz frequency.

Figure 1- 12 Arbitrary Waveform Signal Display Interface

As is shown in Figure 1- 12, the default signal parameters are: 1kHz frequency, 4.0Vpp amplitude and 0mVdc offset.

SDG1000 User Manual 11

1.5. To Set Modulate/Sweep/Burst

As shown in Figure 1- 13, there are three buttons on the front panel, which are used for modulation, sweep and burst settings. The instructions below will help you familiarize with the setting of these functions.

Figure 1- 13 Modulate/Sweep/Burst Button

1. Press Mod button, the modulated waveforms will be generated. The modulated waveform can be changed by modifying the parameters such as type, internal/external modulation, depth, frequency, waveform, etc.

SDG1000 Series can modulate waveform using AM, FM, PM, ASK, FSK,

PWM and DSB-AM. Sine, square, ramp and arbitrary waveforms can be modulated (pulse, noise and DC can not be modulated).

Figure 1- 14 Modulated Waveform Display Interface

SDG1000 User Manual 12

2. Press Sweep button, sine, square, ramp or arbitrary waveform can be swept (pulse, noise and DC can not be swept).

In the sweep mode, SDG1000 Series generate signal with variable frequencies.

Figure 1- 15 Sweep Waveform Display Interface

3. Press Burst button, burst for sine, square, ramp, pulse or arbitrary waveform can be generated.

Figure 1- 16 Burst Waveform Display Interface

SDG1000 User Manual 13

Term Explanation

Burst:

Output waveforms with set cycle times.

Burst can last for certain times of waveform cycle (N-Cycle Burst) or be controlled by external gated signals (Gated Burst). Burst applies to all kinds of waveforms, but noise can only be used in gated burst. Generally it is called burst function within every signal generator.

1.6. To Set Output

As is shown in Figure 1- 17, there are two buttons on the right side of the operation panel, which are used to output control. The instruction below will help you familiarize with these functions.

Figure 1- 17 Output Buttons

Press Output button, activate or deactivate the output signal.

SDG1000 User Manual 14

1.7. To Use Digital Input

As is shown in Figure 1- 18, there are three sets of buttons on the operation panel, which are direction button, the knob and the keypad. The instruction below will help you familiarize with the digital input function.

Figure 1- 18 Front Panel Digital Input

1. The up and down keys are used to shift parameters and the left and right keys are used to shift digits.

2. Keypad is used to directly set the parameters value.

3. Knob is used to change a signal digit value whose range is 0~9.

SDG1000 User Manual 15

1.8. To Use Store/Utility/Help Function

As is shown in Figure 1- 19, there are three buttons on the operation panel, which are used to call the store/recall, utility and help function. The instruction below will help you familiarize with these functions.

Figure 1- 19 Store/Recall Utility and Help Button

1. The Store/Recall button is used to store waveform data and configure information.

2. The Utility button is used to set the auxiliary system function, change the output configure parameters, interface setting, system setting information or perform the instrument self-test and read the calibration information, etc.

3. The Help button is used to read the help information.

SDG1000 User Manual 16

Up to now you have got a brief understanding about SDG1000 series with the front/rear panel, every function control area and keys. You should also know how to set your Function/Arbitrary Waveform Generator for your usage. If you are not familiar with these operations, you are suggested to read chapter one

‘Getting Started’ again.

This chapter covers the following topics:

„ Setting Sine Signal

„ Setting Square Signal

„ Setting Ramp Signal

„ Setting Pulse Signal

„ Setting Noise Signal

„ Setting Signal

„ Output Modulated Signal

„ Output Sweep Signal

„ Output Burst Signal

„ Store/Recall

„ Utility

„ Help

You are suggested to read this chapter carefully so as to understand

SDG1000 Series Generator’s versatile waveform setting functions and more operation methods.

SDG1000 User Manual 17

2.1. To Set Sine Signals

Press Sine button to call the sine operation. The sine waveform parameters are set by using the sine operation menu.

The parameters of sine waveforms are: frequency/period, amplitude/high level, offset/low level and phase. Different sine signals are generated by setting these parameters. As is shown in Figure 2- 1, in the soft key menu, select Freq. Cursor is located in the frequency parameter area in the parameter display window, and users can set the frequency value here.

Figure 2- 1 Sine Parameter Display Interface

SDG1000 User Manual 18

Figure 2- 2 Table2- 1 Menu Explanations of Sine Waveform

Function menu

Freq/

Period

Ampl/

HLevel

Offset/

LLevel

Phase/

EqPhase

Setting Explanations

Set the signal frequency or period;

The current parameter will be switched at a second press.

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Set the signal offset or low level;

The current parameter will be switched at a second press.

Set the phase of the signal;

The current parameter will be switched at a second press.

To Set the Output Frequency/Period

The frequency shown on the screen when the instrument is powered is the default value or the set value beforehand. When setting the function, if the current value is valid for the new waveform, it will be used sequentially. If you want to set the period for the waveform, press

Freq/Period button again, to switch to the period parameter (the current operation is displayed in inverse color).

2. Input the desired frequency.

Use the keypad to input the parameter value directly, and press the corresponding button to select the parameter unit. Or you can use the direction button to select the digit you want to edit, and then use the knob to change its value.

SDG1000 User Manual 19

Figure 2- 3 Setting the Frequency

Instruction

:

When using the keypad to enter the digit, you can use the left direction button to move the cursor backward and delete or change the value of the previous digit.

To Set the Output Amplitude

The amplitude shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially. If you want to set the waveform by high level or low level, press the Ampl/HLevel or Offset/LLevel button again, to switch into the high level or low level parameter (the current operation is displayed in inverse color).

SDG1000 User Manual 20

2. Input the desired Amplitude

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button.

Figure 2- 4 Setting the Amplitude

To Set the Output Offset

The offset shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially.

2. Input the desired Offset

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button.

SDG1000 User Manual 21

Figure 2- 5 Setting the Offset

SDG1000 User Manual 22

2.2. To Set Square Signals

Press Square button to call the Square operation. The square waveform parameters are set by using the Square operation menu.

The parameters of Square waveforms are: frequency/period, amplitude/high level, offset/low level, phase and duty. As is shown in Figure 2- 6, select Duty.

Cursor is located in the duty parameter area in the parameter display window, and users can set the duty value here.

Figure 2- 6 Square Parameter Display Interface

SDG1000 User Manual 23

Figure 2- 7 Table2- 2 Menu Explanations of Square Waveform

Function

Menu

Freq/

Period

Ampl/

HLevel

Offset/

LLevel

Phase/

EqPhase

Duty

Settings Explanation

Set the signal frequency or period;

The current parameter will be switched at a second press.

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Set the signal offset or low level;

The current parameter will be switched at a second press.

Set the phase of the signal;

The current parameter will be switched at a second press.

Set the duty cycle for square waveform.

Term Explanation:

Duty Cycle:

The percentage that the high level takes up the whole period.

Please Note : for the Frequency Duty Cycle Value

Below 10MHz: 20% to 80%

From 10MHz to20MHz (included): 40% to 60%

Higher than 20MHz: 50%

To Set the Duty Cycle

1. Press Square →Duty, to set the duty cycle.

The duty cycle shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially.

SDG1000 User Manual 24

2. Input the desired Duty Cycle

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button. The generator will change the waveform immediately.

Figure 2- 8 Setting the Duty Cycle

SDG1000 User Manual 25

2.3. To Set Ramp Signals

Press Ramp button to call the ramp operation. The ramp waveform parameters are set by using the ramp operation menu.

The parameters for ramp waveforms are: frequency/ period, amplitude/ high level offset/ low level, phase and symmetry. As is shown in Figure 2- 9, in the soft key menu, select Symmetry. Cursor is located in the symmetry parameter area in the parameter display window, and users can set the symmetry value here.

Figure 2- 9 Ramp Parameter Display Interface

SDG1000 User Manual 26

Figure 2- 10 Table2- 3 Menu Explanations of Ramp Waveform

Function

Menu

Freq/

Period

Ampl/

HLevel

Offset/

LLevel

Phase/

EqPhase

Symmetry

Settings Explanation

Set the signal frequency or period;

The current parameter will be switched at a second press.

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Set the signal offset or low level;

The current parameter will be switched at a second press.

Set the phase of the signal;

The current parameter will be switched at a second press.

Set the symmetry for ramp waveform.

Term Explanation:

Symmetry:

The percentage that the rising period takes up the whole Period.

Input Range:

0~100%.

To Set the Symmetry

The symmetry shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially.

SDG1000 User Manual 27

2. Input the desired Symmetry

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button. The generator will change the waveform immediately.

Figure 2- 11 Setting the Symmetry

SDG1000 User Manual 28

2.4. To Set Pulse Signals

Press Pulse button to call the pulse operation. The pulse waveform parameters are set by using the pulse operation menu.

The parameters for pulse waveforms are: frequency/period, amplitude/high level, offset/low level, pulse width and delay. As is shown in Figure 2- 12, in the soft key menu, select PulWidth. Cursor is located in the pulse width parameter area in the parameter display window, and users can set the pulse width value here.

Figure 2- 12 Pulse Parameter Display Interface

SDG1000 User Manual 29

Figure 2- 13 Table 2- 4 Menu Explanations of Pulse Waveform

Function

Menu

Settings Explanation

Freq/

Period

Ampl/

HLevel

Offset/

LLevel

PulWidth

/Duty

Delay

Set the signal frequency or period;

The current parameter will be switched at a second press.

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Set the signal offset or low level;

The current parameter will be switched at a second press.

Set the signal pulse width or duty;

The current parameter will be switched at a second press.

Setting the delay for pulse waveform.

Term Explanation:

Pulse Width:

Positive Pulse Width: the time span between thresholds of 50% of the rising edge amplitude to the next 50% of the falling edge amplitude;

Negative Pulse Width: the time span between thresholds of 50% of the falling edge amplitude to the next 50% of the rising edge amplitude.

To Set the Pulse Width

The pulse width shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially.

SDG1000 User Manual 30

2. Input the desired Pulse Width

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button. The Generator will change the waveform immediately.

To Set the Delay

Figure 2- 14 Setting the Pulse Width

The delay shown on the screen when the instrument is powered is the default value or the set value beforehand. When changing the function, if the current value is valid for the new waveform, it will be used sequentially.

2. Input the desired delay

Use the keypad or the knob to input the desired value, choose the unit, and press the corresponding button. The generator will change the waveform immediately.

SDG1000 User Manual 31

Figure 2- 15 Setting the Delay

SDG1000 User Manual 32

2.5. To Set Noise Signals

Press Noise button to call the Gaussian White noise operation. The noise waveform parameters are set by using the noise operation menu.

The parameters for noise waveforms are: Variance and mean. As is shown in

Figure 2- 16, in the soft key menu, select Variance, Cursor is located in the

Variance parameter area in the parameter display window, and users can set the Variance value here. Noise is non-regulated signal which has no frequency or period.

Figure 2- 16 Noise Parameter Display Interface

SDG1000 User Manual 33

Figure 2- 17 Table 2- 5 Menu Explanations of Noise Waveform

Function

Menu

Variance

Mean

Settings Explanation

Set the signal Variance

Set the signal mean

SDG1000 User Manual 34

2.6. To Set Arbitrary Signals

Press Arb button to call the Arb operation. The Arb waveform parameters are set by using the Arb operation menu.

The Arb signal consists of two types: the system built-in waveform and the user-definable waveform. The parameters for Arb waveforms are: frequency/period, amplitude/high level, offset/ low level and phase.

Figure 2- 18 Arb Parameter Display Interface

SDG1000 User Manual 35

Figure 2- 19 Table 2- 6 Menu Explanations of Arb Waveform (Page 1/2)

Function

Menu

Settings Explanation

Freq/

Period

Ampl/

HLevel

Offset/

LLevel

Set the signal frequency or period;

The current parameter will be switched at a second press.

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Set the signal offset or low level;

The current parameter will be switched at a second press.

Set the phase of the signal;

The current parameter will be switched at a second press.

Phase/

EqPhase

Figure 2- 20 Table 2- 7 Menu Explanations of Arb Waveform (Page 2/2)

Function

Menu

Load Wform

Settings Explanation

Select the built-in arbitrary signal as output.

SDG1000 User Manual 36

To select the built-in Arbitrary Waveform

There are forty-eight built-in Arbitrary Waveforms and user-definable Arbitrary

Waveforms inside the Generator. To select one of them, follow the instructions below:

Press Arb →Load Wform, to enter the interface below.

Figure 2- 21 Table 2- 8 Menu Explanations of Built-in Arbitrary Waveform

Function

Menu

Settings

Built-In

Explanation

Stored

Wforms

Cancel

Select one of the forty-eight built-in arbitrary waveforms (see ).

Select one of arbitrary waveforms stored in the non-volatile memory.

Cancel the current operation, and return to the upper menu (the followings are the same and will not be explained).

1. To Select the Built-in Waveform

Press Arb →Load Wform->Built-In, and enter the following interface.

As is shown in Figure 2- 22, there are five kinds of arbitrary waveform.

SDG1000 User Manual 37

Figure 2- 22 Table 2- 9 Menu Explanations of Built-In Arbitrary Waveform

Function

Menu

Settings Explanation

Project

Winfun/

Triangle

Select

Select project waveform.

Select windows function

/triangle waveform.

Validate the built-in waveform.

Figure 2- 23 Common Built-In Arbitrary Waveform interface

Table 2- 10 Menu Explanations of Common Built-In Arbitrary Waveform

Function

Menu

StairUp

StairDn

StairUD

PPulse

NPulse

Trapezia

UpRamp

DnRamp

Settings Explanation

Select the built-in stair up waveform.

Select the built-in stair down waveform.

Select the built-in stair up waveform.

Select the built-in positive pulse waveform.

Select the built-in negative pulse waveform.

Select the built-in trapezoid waveform

Select the built-in up ramp waveform.

Select the built-in down ramp waveform.

SDG1000 User Manual 38

Figure 2- 24 Math Built-In Arbitrary Waveform Interface

Table 2- 11 Menu Explanations of Math Built-in Arbitrary Waveform

Function

Menu

ExpFall

ExpRise

LogFall

LogRise

Sqrt

Root3

X^2

X^3

Settings Explanation

Select the built-in exponential fall waveform.

Select he built-in exponential rise waveform.

Select the built-in logarithmic fall waveform.

Select the built-in logarithmic rise waveform.

Select the built-in square root waveform.

Select the built-in Root3 waveform.

Select the built-in X^2 waveform.

Select the built-in X^3 waveform.

Gaussian

Dlorentz

Haversin

Lorentz

Gauspuls

Gmonpuls

Tripuls

Select the built-in gaussian waveform.

Select the built-in D-lorentz waveform.

Select the built-in haversine waveform.

Select the built-in lorentz Waveform.

Select the built-in gaussian-modulated sinusoidal pulse waveform.

Select the built-in Gaussian monopulse waveform.

Select the built-in triangle pulse waveform.

Figure 2- 25 Project Built-In Arbitrary Waveform interface

SDG1000 User Manual 39

Table 2- 12 Menu Explanations of Project Built-in Arbitrary Waveform

Function

Menu

Settings Explanation

Cardiac

Quake

Chirp

TwoTone

SNR

Select the built-in electrocardiogram (ECG) signal waveform.

Select the built-in loma prieta earthquake waveform.

Select the built-in swept-frequency cosine waveform.

Select the built-in two tone signal waveform.

Select the built-in sin wave with white noise waveform.

Figure 2- 26 Winfun/Triangle Built-In Arbitrary Waveform interface

Table 2- 13 Menu Explanations of Winfun/Triangle Built-in Arbitrary Waveform

Function

Menu

Hamming

Hanning

Kaiser

Blackman

Gaussian

Triangle

Hairs

Bartlett

Tan

Cot

Sec

Csc

Asin

Acos

Settings Explanation

Select the built-in hamming window waveform.

Select the built-in hanning window waveform.

Select the built-in kaiser window waveform.

Select the built-in blackman windows waveform.

Select the built-in gaussian window waveform.

Select the built-in triangle window waveform.

Select the built-in hairs window waveform.

Select the built-in bartlett window waveform.

Select the built-in tangent waveform.

Select the built-in cotangent waveform.

Select the built-in secant waveform.

Select the built-in cosecant waveform

Select the built-in inverse sine waveform.

Select the built-in inverse cosine waveform.

SDG1000 User Manual 40

Atan

Acot

Select the built-in tangent waveform.

Select the built-in inverse cotangent waveform.

2. To Select the Stored Waveform

Press Arb →Load Wform->Stored Wforms, and enter the following interface.

As is shown in Figure 2- 27, use the direction keys or knob to choose the corresponding arbitrary waveform and press Select.

Figure 2- 27 Stored Wform Display Interface

SDG1000 User Manual 41

2.7. To Generate the Modulated Waveform

Use the Mod button to generate modulated waveform.SDG1000 Series can generate AM, FM, ASK, FSK, PM, PWM and DSB-AM modulated waveforms.

Modulating parameters vary with the types of the modulation. In AM, users can set the source (internal/external), depth, modulating frequency, modulating waveform and carrier waveform; In FM, users can set the source

(internal/ external),modulating frequency, frequency deviation, modulating waveform and carrier waveform; In ASK, users can set the source

(internal/external), Key Freq and carrier waveform; In FSK, users can set the source (internal/external), key frequency, Hop Freq and carrier waveform; In

PM, users can set the source (internal/external),phase deviation, modulating frequency, modulating waveform and carrier waveform.

We will cover how to set these parameters in details according to the modulation types.

Modulating

Frequency

Carrier

Carrier

Amplitude

Frequency

Figure 2- 28 Display Interface of Modulated Waveform Parameter

SDG1000 User Manual 42

AM

The modulated waveform consists of two parts: the carrier waveform and the modulating waveform. In AM, the amplitude of the carrier waveform varies with the instantaneous voltage of the modulating waveform. The parameters for the AM are in Figure 2- 29

Press Mod →Type→ AM, to enter the following menu.

Figure 2- 29 Table 2- 14 Menu Explanations of the AM Parameters

Function

Menu

Settings Explanation

AM Freq

AM Depth

Set the modulating waveform frequency. Frequency range:

2mHz~20kHz (internal source only).

Set the amplitude range.

Shape

Source

Sine

Square

Triangle

UpRamp

DnRamp

Noise

Arb

Internal

External

Choose the modulating waveform.

To change the carrier waveform parameter, press Sine, Square, Ramp,

Arb

The source is internal

The source is external. Use the

[Modulation In] connector in the rear panel.

SDG1000 User Manual 43

Term Explanation

Modulation Depth

The amplitude range (also called ‘Percentage Modulation’). Modulation depth varies from 1% to 120%. z In the 0% modulation, the output amplitude is the half of the set one. z In the 100% modulation, the output amplitude is the same with the set one. z For an external source, the depth of AM is controlled by the voltage level of the connector connected to the [Modulation In]. ±6V corresponds to the currently set depth 100%.

FM

The modulated waveform consists of two parts: the carrier waveform and the modulating waveform. In FM, the frequency of the carrier waveform varies with the instantaneous voltage of the modulating waveform. The parameters for the FM are as shown in Figure 2- 30.

Figure 2- 30 Setting Interface of FM Waveform Parameter

SDG1000 User Manual 44

Press Mod →Type→ FM, to enter the following menu.

Figure 2- 31 Table 2- 15 Menu Explanations of the FM Parameters

Function

Menu

FM Freq

FM Dev

Settings Explanation

Set the modulating waveform frequency.

Frequency range 2mHz~20kHz (internal source).

Set the maximum frequency deviation

Shape

Source

Sine

Square

Triangle

UpRamp

Choose the modulating waveform. To change the carrier waveform parameter, press Sine, Square, Ramp, Arb DnRamp

Noise

Arb

Internal The source is internal.

External

The source is external. Use the

[Modulation In] connector in the rear panel.

Term Explanation

Frequency Deviation

z The deviation should be equal to or less than the carrier waveform frequency. z The sum of the deviation and the carrier frequency should be equal to or less than maximum frequency of the selected function. z For an external source, the deviation is controlled by the voltage level of the connector connected to the [Modulation In]. +6V corresponds to the selected deviation and -6V to the negative selected deviation.

SDG1000 User Manual 45

ASK

ASK is a form of modulation that represents digital data as variations in the amplitude of a carrier wave. The amplitude of an analog carrier signal varies in accordance with the bit stream (modulating signal), keeping frequency and phase constant. The parameters for the ASK are as shown in Figure 2- 32

Figure 2- 32 Setting Interface of ASK Waveform Parameter

Press Mod →Type→ ASK, to enter the following menu.

Figure 2- 33 Table 2- 16 Menu Explanations of the ASK Parameters

Function

Menu

Settings Explanation

Key Freq

Type

Source

Set the frequency at which the output amplitude shifts between the carrier amplitude and zero (internal modulation only): 2mHz~50kHz.

ASK Amplitude shift keying modulation.

Internal The source is internal.

External

The source is external; Use the

[ExtTrig/Gate/FSK/Burst] connector in the rear panel.

SDG1000 User Manual 46

FSK

The FSK Modulation is a modulation method, the output frequency of which switches between two the pre-set frequencies (carrier waveform frequency and the hop frequency). The frequency at which the output frequency switches is called the key frequency.

Figure 2- 34 Setting Interface of FSK Waveform Parameter

Press Mod →Type→ FSK, to enter the following interface

Figure 2- 35 Table 2- 17 Menu Explanations of the FSK Parameters

Function

Menu

Settings

Key Freq

Type

Hop Freq

Source

Explanation

Set the frequency at which the output frequency shifts between the carrier frequency and the hop frequency (internal modulation only):

FSK

2mHz~50kHz.

Frequency shift keying modulation.

Set the hop frequency.

Internal The source is internal.

External

The source is external. Use the

[ExtTrig/Gate/FSk/Burst] connector in the rear panel.

SDG1000 User Manual 47

PM

The modulated waveform consists of two parts: the carrier waveform and the modulating waveform. In PM, the phase of the carrier waveform varies with the instantaneous voltage level of the modulating waveform. The parameters for the PM are as shown in Figure 2- 36.

Figure 2- 36 Setting Interface of PM Waveform Parameter

Press Mod →Type →PM, enter the following interface.

SDG1000 User Manual 48

Figure 2- 37 Table 2- 18 Menu Explanations of the PM Parameters

Function

Menu

PM Freq

Phase

Dev

Settings Explanation

Set the modulating waveform frequency.

Frequency range:

2mHz~20kHz

Range from 0° ~ 360°.

Shape

Source

Sine

Square

Triangle

UpRamp

DnRamp

Noise

Arb

Choose the modulating waveform.

To change the carrier waveform parameter, press Sine, Square, Ramp, Arb

Internal The source is internal.

External

The source is external. Use the

[ExtTrig/Gate/FSK/Burst] connector in the rear panel.

SDG1000 User Manual 49

PWM

The modulated waveform consists of two parts: the carrier waveform and the modulating waveform, the carrier waveform is only pulse. In PWM, the pulse width of pulse varies with the instantaneous voltage of the modulating waveform. The parameters for the FM are as shown in Figure 2- 38.

Figure 2- 38 Setting Interface of PWM Waveform Parameter

Press Mod→ Pulse →PWM, to enter the following menu.

SDG1000 User Manual 50

Figure 2- 39 Table 2- 19 Menu Explanations of the PWM Parameters

Function

Menu

PWM Freq

Width Dev

Duty Dev

Shape

Source

Settings Explanation

Set the modulating waveform frequency. Frequency range:

2mHz~20kHz (internal source only).

Set the width range.

Set the duty range.

Sine

Square

Triangle

UpRamp

DnRamp

Noise

Arb

Choose the modulating waveform.

The carrier waveform is pulse.

Internal The source is internal

External

The source is external. Use the

[Modulation In] connector in the rear panel.

SDG1000 User Manual 51

DSB-AM

Press Mod→ Type →DSB-AM. The parameters for the DSB-AM are as shown in Figure 2- 40.

Figure 2- 40 Setting Interface of DSB-AM Waveform Parameter

Figure 2- 41 Table 2- 20 Menu Explanations of the DSB-AM Parameters

Function

Settings Explanation

Menu

DSB Freq

Set the modulating waveform frequency.

Frequency range: 2mHz~20kHz (internal source only).

Type DSB-AM Amplitude

Shape

Source

Sine

Square

Triangle Choose the modulating waveform.

UpRamp

DnRamp

Noise

Arb

To change the carrier waveform parameter, press Sine, Square, Ramp, Arb

Internal The source is internal

External

The source is external. Use the [Modulation In] connector in the rear panel.

SDG1000 User Manual 52

2.8. To Generate Sweep

In the frequency sweep mode, the function generator ‘steps’ from the start frequency to the stop frequency at the sweep time you specify. Sweep can be generated by sine, square, ramp or arbitrary waveforms (pulse, noise and DC are not allowed).

Figure 2- 42 Setting Interface of Sweep Waveform Parameter

Press Sweep button to enter the following menu. Set the waveform parameters by using the operation menu.

SDG1000 User Manual 53

Figure 2- 43 Table 2- 21 Menu Explanations of Waveform Sweep (Page 1/2)

Function

Menu

Settings Explanation

Swp Time

Stop Freq

Freq Span

Start Freq

Mid Freq

Source

Set the time span of the sweep in which the frequency changes from the start frequency to stop frequency.

Set the stop frequency of the sweep;

Set the frequency span of the sweep.

Internal Choose internal source.

Choose external source, use the [Ext

External

Set the start frequency of the sweep;

Set the center frequency of the sweep.

Trig/Gate/FSK/Burst] connector in the rear panel.

Manual Set the start and stop time by hand.

Sweep Frequency Setting

Use start freq and stop freq or center freq and freq span to set the range of the frequency. Press the button again to switch between each other.

Figure 2- 44 Table 2- 22 Menu Explanations of Waveform Sweep (Page 2/2)

Function

Menu

Settings Explanation

Trig Out

Linear/

Log

Direct

Open

Off

Set signal triggered at rise edge;

Turn off trigger setting.

Set the sweep with linear spacing;

Set the sweep with logarithmic spacing.

Sweep upward;

Sweep downward.

SDG1000 User Manual 54

2.9. To Generate Burst

Burst function can generate versatile waveforms in burst, which can last specific times of waveform cycle (N-Cycle burst), or when external gated signals (gated burst) is applied, any waveform could be used, but noise can only be used in Gated Burst.

Press Burst button to enter the following interface. Set the waveform parameters by using the operation menu.

Figure 2- 45 Setting Interface of Burst Waveform Parameter

SDG1000 User Manual 55

Set the N-Cycle Burst

Press Burst → N Cycle, to enter the following interface.

Figure 2- 46 Table 2- 23 Menu Explanations of the N-Cycle Parameters(Page 1/2)

Function

Menu

Period

Start

Phase

NCycle

Gated

Settings Explanation

Set the burst Period.

Set the start phase of the burst.

Source

Use the N-Cycle mode.

Use the Gated mode.

Internal Choose internal source.

Choose external source, use the

External [EXTTrig/Gate/FSK/Burst] connector in the rear panel.

Manual

Choose external source, set the start time by hand.

Burst Period

Set the time span between an N-Cycle burst and the next. If necessary the period will increase to allow the specific number of cycles in a burst. Burst

Period>Carrier Period × Burst Number

Start Phase

Define the start point in a waveform. The phase varies from 0° to 360°, and the default setting is 0°. For an Arbitrary Waveform, 0° is the first waveform point.

SDG1000 User Manual 56

N-Cycle/Gated

N-Cycle has specific number of waveform cycles, and every burst is activated by a trigger event. Gated burst use external source to control burst as when to be activated.

Figure 2- 47 Table 2- 24 Menu Explanations of the N-Cycle Parameters (Page2/2)

Function

Menu

Settings Explanation

Trig Out

Cycles/

Infinite

Delay

Off

Signal Triggered at Rise Edge.

Signal Triggered at Fall Edge.

Turn off Trigger Setting.

Set the number of the bursts in a N-Cycle.

Set the number of the bursts in a N-Cycle to be infinite.

Set the delay time before the burst starts.

Cycles

Set the number of waveform cycle in an N-Cycle (1 to 50,000 or Infinite).

If you choose Infinite, then a continuous waveform will be generated which will not stop until a trigger event happens. z If needed, Burst Period will increase to cater to the specific number of cycles. z For an infinite-cycle burst, external or manual trigger is needed to activate burst.

SDG1000 User Manual 57

Delay

Set the time delay between the trigger input and the start of the N-Cycle burst.

The max delay is 240ns.

Set the Gated Burst

Press Burst →Gated, to enter the following interface.

Figure 2- 48 Table 2- 25 Menu Explanations of the Gated Burst Parameters

Function

Menu

NCycle

Gated

Settings Explanation

Set the NCycle mode;

Set the gated mode.

Polarity

Positive

Negative

Set the polarity for the gated signal.

SDG1000 User Manual 58

2.10. To Store and Recall

Press Store/Recall button to enter the following interface. You can save or recall the state documentation inside the generator. The state file on the U

Disk is also allowed to recall or delete. File names can only be English. User can only recall or delete the data documentation you save via CSV of the

Oscilloscopes.

Figure 2- 49 Save and Read Interface

SDG1000 User Manual 59

Figure 2- 50 Table 2- 26 Menu Explanations of Save and Recall (Page 1/2)

Function

Menu

Settings Explanation

File Type

Browser

State

Data

Directory

File

The setting of the generator;

Arbitrary waveform file;

Shift between the directory and file.

Save place.

Recall the waveform or setting

Delete memory.

Delete the selected file.

About the browser

The directory selection shift is done by the direction keys. In the directory mode, pressing the right key will open the lower directory while the left key will fold the directory. Up and down key are used to shift between the directories;

To Save the Instrument State

Users are allowed to store the instrument state in any of the 10 non-volatile memories. The state storage will ‘memorize’ the selected function (including the arbitrary waveform, frequency, amplitude, DC offset, duty cycle, symmetry, and other modulation parameter used.)

SDG1000 User Manual 60

To save the instrument state, the procedures are given as followed:

1. Choose the file type to store

Press Store/Recall →Type→ State, and choose state as the storage type.

2. Choose the location of the file.

There are ten positions in the Local(C :), choose anyone of them by rotating the knob.

3. Name the file and save it

Press Save button, enter the desired name. Press Save to finish.

To Use USB Storage

As is shown in Figure 2- 51, the storage location is divided into: The internal storage Local(C :) and the U Disk storage USB Device (A :). At the left side of the front panel, there is a USB interface. When a USB storage is connected, the storage menu will show ‘USB Device (A:)’. Otherwise, the default location is the internal location Local(C :).

Figure 2- 51 USB Storage Interface

SDG1000 User Manual 61

1. Install the USB Device

Insert the USB Device into the USB interface on the front panel, and the screen will show ‘USB flash device plug in’, and storage menu will show

‘USB Device (A :)’

2. Choose the USB Device

Press Browser->Directory, move the cursor with the up or down direction key to select ‘USB Device (A :)’. Press the right key to open the lower directory, use the up and down direction key to choose the file

‘SDG1000’. Use the right key to open the lower directory, and up and down key to select the file ‘Workspace’. Input the file name and save.

3. Remove the USB Device

Remove the USB Device from the interface. The system will inform you

‘USB flash device plug out’, and the ‘USB Device (A :)’ in the storage menu will disappear.

Note:

USB Device can only be used by U Disk; portable hard disk is not supported.

To Save a File

Press Store/Recall →Store, to enter the following interface. Enter the desired file name in the ‘File Name’ frame. In the middle of the figure below is the input keypad, used to edit the file name. Use the up and down direction keys and knob to select the desired character; use the left and right direction keys to edit the input file name.

SDG1000 User Manual 62

Figure 2- 52 File Storage Interface

Figure 2- 53 Table 2- 27 Menu Explanation of File Storage

Function

Menu

Input

Type

Select

Delete

Save

Settings Explanation

En English input.

Select the current character.

Delete the current character.

Store the file with the current name

SDG1000 User Manual 63

1. English Input

The English input interface is as shown in Figure 2- 54, to save a file named

‘NEWFILE’, follow the steps below:

Figure 2- 54 English Input Interface

(1) Press InType->En, to enter the English interface.

(2) Input the file name’ NEWFILE’.

Use the Knob to adjust the cursor’s horizontal position and the up and down key to adjust the vertical position. Select the Character ‘N’ and press Select. Repeat this until you have inputted ‘NEWFILE’.

(3) Edit the File Name

When you have entered a wrong character, move the cursor to the wrong character to be deleted and press Delete to remove it. Reenter the file name.

(4) Press Save, to finish and save the file.

SDG1000 User Manual 64

2.11. To Set the Utility Function

With the Utility Function, you can set the parameters of the generator such as:

DC On/Off, Sync On/Off, Output Parameter, Interface Parameter, System

Setting and Testing Parameter. The DC switch offers the options of DC output or Arbitrary Waveform Output. Sync Switch offers the option to choose the

Sync Signal or not. Output Setting provides the parameter setting for

Load/HighZ and Normal/Inverse. The System Setting provides the setting for

Language, Display, Beep, Screen Guard, Format, Power System Configure and default setting; Test provides the self-testing and calibration function.

Press Utility button, to enter the Utility Menu. Its functions are listed below in

Figure 2- 55

Figure 2- 55 Table 2- 28 Menu Explanations of Utility System Setting (Page1/2)

Function

Menu

Settings Explanation

DC

IO Setup

Output

Setup

On

Off

USB Setup

GPIB

Set the output waveform to be DC.

Set the output waveform to be arbitrary.

Set USB function.

Set the GPIB address.

Set the output parameter.

SDG1000 User Manual 65

Figure 2- 56 Table 2- 29 Menu Explanations of Utility System Setting (Page2/2)

Function

Menu

System

Test/Cal

EditInfo

Settings Explanation

Set the system configuration.

Test and calibrate the instrument.

Information of the system.

To Set the DC Output

Press Utility →DC→DC On, to enter the following interface. Please note that there is a ‘DC On’ sign at the middle left of the screen.

Figure 2- 57 DC Setting Interface

DC Offset

Set the DC voltage level.

SDG1000 User Manual 66

To Shift into the Arbitrary Waveform Output

1. Press Utility →DC→DC Off, to close DC output and return to arbitrary waveform output.

2. Press any functional button, and the waveform output setting turns into the arbitrary waveform output. The DC output is turned off automatically.

To Set IO

Press Utility →IO Setup, to set the IO interface. The equipment stands for

RAW protocol and TMC protocol, user may setup corresponding protocol by

IO Setup.

To Set Output Parameter

Press Utility →Output Setup, to enter the following interface.

Figure 2- 58 Table 2- 30 Menu Explanations of Output Setting (Page 1/2)

Function

Menu

Settings Explanation

Load

HighZ

Normal

Invert

Sync

ChCopy

On

Off

Set the load connected to the Output

Connector;

Set the load connected to the Output

Connector to be HighZ.

Normal output;

Inverse output.

Open Sync output;

Close Sync output.

Copy one channel to the other

SDG1000 User Manual 67

1. To Set the Output Load

For the [Output] connector on the front panel, the generator has a built-in

50Ω series impendence. If the actual load does not match the set one, the displayed amplitude and offset will be incorrect. This function is used to match the displayed voltage with the expected one.

Steps for setting the load:

Press Utility →Output Setup→ Load, to enter the following interface.

Please note that the load parameter shown on the right bottom is the default setting when the power is on or the pre-set load value. If the current value is valid for the output, then current value will be used.

Figure 2- 59 Set the Output Load

Instruction

SDG1000 Series has a fixed 50Ω Series Impendence. No matter what value the set parameter is, if the real load is different from the set one, the displayed voltage will not equal the real voltage.

SDG1000 User Manual 68

2. To Set the Invert Waveform

Press Utility →Output Setup→ Invert, to set the Inverse Waveform Output.

When the waveform is inverse, no offset will change.

3. To Set the Sync Output

The generator provides Sync output through the [Sync] connector on the rear panel. All standard output functions (except DC and Noise) have a corresponding Sync signal. For some applications, they can be disabled if users do not want to use it, z In the default setting, the Sync signal should be connected to the [Sync] connector (activated). When the Sync Signal is disabled, the output voltage of the [Sync] connector is level low. z In the Inverse Mode, the Waveform that corresponds to the Sync Signal does not inverse. z The Sync Signal is a Pulse Signal with fixed positive pulse width, which is more than 50ns. z For non-modulated waveform, the Sync Signal reference is the carrier. z

For internal modulating AM, FM and PM, the Sync signal reference is the modulated signal (not the carrier signal). z For ASK and FSK, the Sync Signal Reference is the keying Frequency. z

For a Sweep, when the sweep starts, the Sync Signal becomes TTL Level

High. The Sync frequency equals the specific Sweep time. z For the Burst, when the burst starts, the Sync Signal is Level High. z

For the External Gated Burst, the Sync Signal follows the External Gated

Signal.

SDG1000 User Manual 69

To measure the frequency

SDG1000 Series have included a frequency counter which could measure frequency from 100mHz to 200MHz. Press Utility →Count, to enter the following interface.

Figure 2- 60 Table 2- 31 Menu Explanations of Frequency Counter

Function

Menu

Freq

Period

PWidth

NWidth

Settings Explanation

Measure period.

Measure positive width;

Measure negative width.

RefeFreq

TrigLev

Setup

Set the reference frequency

Set the trigger level voltage.

Set the count configuration.

Figure 2- 61 Table 2- 32 Menu Explanations of Setup

Function

Menu

Settings Explanation

Mode

HFR

Default

DC

AC

On

Off

Set the coupling mode to DC;

Set the coupling mode to AC.

Open the high frequency rejection filter.

Close the high frequency rejection filter.

Set count settings to default.

SDG1000 User Manual 70

To Set the System

Press Utility → System, to enter the following interface.

Figure 2- 62 Table 2- 33 Menu Explanations of System Setup (Page 1/2)

Function

Menu

Number format

Language

Settings Explanation

Set the number format.

Power On

Default

Last

Set the display language.

All the settings return to default when powered;

All the settings return to the last one when powered.

Set to

Default

Set all the settings to default.

Figure 2- 63 Table 2- 34 Menu Explanations of System Setup (Page 2/2)

Function

Menu

Settings Explanation

Beep

ScrnSvr

ClKSource

On

Off

1min

5min

15min

30min

1hour

2hour

5hour

Off

Internal

External

Open beep;

Close beep.

Activate the screen saver program.

Screen saver will be on if no action is taken within the time that you have selected. Press any button the resume.

Deactivate the screen saver program.

Choose the system clock source.

SDG1000 User Manual 71

Key points:

Power On

Choose the configuration setting when the machine is powered.

Two choices are available: the default setting and the latest. Once selected, the setting will be used when the instrument is powered.

Beep

Activate or deactivate the sound when an error occurs from the front panel or the remote interface. Activate or deactivate any sound made by the button or knob on the front panel. The current setting is stored in the non-volatile memory.

1. Set the Format

Press Utility →System→ Number Format, to enter the following interface.

Figure 2- 64 Set the number Format

SDG1000 User Manual 72

Figure 2- 65 Table 2- 35 Menu Explanations of Setting the Number Format

Function

Menu

Settings Explanation

Point

Separator

On

Off

Space

Using dot to represent point;

Using comma to represent point.

Enable the Separator;

Close the Separator;

Use Space to separate.

According to the different choices of the point and the separator, the format can have various forms.

(1) as point, press Separator->On, the example is as followed:

Figure 2- 66 Set Format

(2) as point, press ->Separator->On, the example is as followed:

Figure 2- 67 Set Format

(3) as point, press Separator->Off, the example is as followed:

Figure 2- 68 Set Format

SDG1000 User Manual 73

(4) as point, press Separator->Off, the example is as followed:

Figure 2- 69 Set Format

(5) as point, press Separator->Space, the example is as followed:

Figure 2- 70 Set Format

(6) as point, press Separator->Space, the example is as followed:

Figure 2- 71 Set Format

The SDG1000 Series Generator offers two languages (English and Simplified

Chinese) for user to choose.

To Select Language, press Utility and then Language to select the language.

The Procedure is as followed:

Press Utility →System→ Language, to change the language.

SDG1000 User Manual 74

3. To Return to Default Setting

Press Utility →System→ Set to Default, to set the system to the default setting. The default settings of the system are as followed:

Table 2- 36 Factory Default Setting

Output Default

Frequency 1kHz

Amplitude/Offset 4Vpp/0Vdc

Phase 0°

Modulation Default

Carrier 1kHz Sine Wave

Modulating

AM Depth

FM Deviation

100Hz Sine Wave

100%

500Hz

Key Freq

Key Freq

FSK Hop Frequency

Phase Deviation

100Hz

100Hz

1MHz

180°

Sweep Default

Start/Stop Frequency 100Hz/1.9kHz

Sweep Time

Trig Out

1S

Off

Mode Linear

Direction ↑

Burst Default

Period 10ms

Phase 0°

Count 1Cycle

Trig Off

Trigger Default

Source Internal

SDG1000 User Manual 75

2.12. Test/Cal

Press Utility →Test/Cal, to enter the following menu.

Figure 2- 72 Test/Cal function Menu

Figure 2- 73 Table 2- 37 Menu Explanations of Test Setting

Function

Menu

SelfTest

SelfCal

Settings Explain

Perform system self-test.

Do self calibration

SDG1000 User Manual 76

SelfTest

Press Utility →Test/Cal →SelfTest, to enter the following menu.

Figure 2- 74 Table 2- 38 Menu Explanations of Self Test

Function

Menu

Scr Test

Key Test

LED Test

Settings Explain

Run screen test program.

Run keyboard test program.

Run LED test program.

Select Scr Test to enter the screen test interface. The clew words ‘Press ‘7’

Key to continue, Press ‘8’ Key to exit’ is displayed. You could press the ‘7’ for test.

Figure 2- 75 Screen Test Interface

SDG1000 User Manual 77

Select ‘keyboard Test’ to enter the keyboard test interface, the on-screen lathy rectangle shapes represent the front panel keys. The shapes with two arrows beside them represent the front panel knobs. Test all keys and knobs and you should also verify that all the backlit buttons illuminate correctly.

Note:

z When you operate, the screen would display the white (color LCD). z The tested button or knobs corresponding area would display green

(color LCD). z At the bottom of the screen display ‘Press ‘8’ Key Three Times to exit’ information prompt to show that press ‘8’ three times for quitting the test.

Figure 2- 76 Key Test Interface

SDG1000 User Manual 78

Select ‘LED Test’ to enter the lighten interface, the on-screen lathy rectangle shapes represent the front panel keys; the shapes with two arrows beside them represent the front panel knobs. The clew words ‘Press ‘7’ Key to continue, ‘Press ‘8’ Key to exit’ is displayed, You could press the ‘7’ button continuously for testing, when buttons are lighted ,the corresponding area on the screen would display green(color LCD).

Figure 2- 77 Led Test Interface

SDG1000 User Manual 79

SelfCal

Press Utility →1/2→Test/Cal →SelfCal, to enter SelfCal, as is shown in

Figure 2- 78.

SelfCal: do self calibration, environment you use the generator changes, system may calibrate data based on change of current environment

Figure 2- 78 SelfCal Interface

SDG1000 User Manual 80

2.13. Edition Information

Press the EditInfo option button of the Utility Menu to view the generator’s hardware and software configuration.

Figure 2- 79 Edit Info Interface

Edition Information introduce

Boot-strap No:

The times of boot-strap

Software version:

Software version of current equipment

Hardware version:

00-00-00-15-22 represents ordinally: PCB version, BOM version, Daughter card version, FPGA version, CPLD version.

Model:

Contains information of brand of product, series, bandwidth.

For example: SDG1050 represents SIGLENT’s 1000 series function/arbitrary waveform generator, the bandwidth is 50MHz.

SDG1000 User Manual 81

Serial No:

Bit 1-6 represent maker and series of the product. Bit 7-10 represent production date. Bit 11-14 represent serial number of product.

For example: SDG00002110008 represents the eighth generator made by

SIGLENT in the second quarter of 2011.

SDG1000 User Manual 82

2.14. Updating Firmware

Using USB flash drive update firmware

The software of the generator can be updated directly via USB flash drive.

This process takes about two minutes. Follow the next steps:

1. Insert USB flash drive with firmware procedure to USB host interface on the front panel of the generator.

2. Press the Utility button to enter the ‘Utility Menu’.

4. Press the ‘Update’ option button.

5. Press ‘Brower’ option button to select ‘Directory’, then select the ‘USB

Device (A:)’ through direction key.

6. Press ‘Brower’ option button to select ‘File’, then select the ‘XXXX.ADS’ file by direction key.

7. Press the ‘Recall’ option button to updating.

8. After accomplish update, restart the generator.

Note

: Don’t cut off the power during product is being updating.

SDG1000 User Manual 83

2.15. How to Use the Built-in Help System

You can get a particularly help for every button on the front panel by using the built-in help system. Or you can get help about the operation of the front panel buttons with the help list.

Press Help to enter the following interface.

Figure 2- 80 Help Menu

Figure 2- 81 Table 2- 39 Help Menu Explanations

Function

Menu

Choice

Settings Explanation

Cursor upward to select.

Cursor downward to select.

Select to read the information.

SDG1000 User Manual 84

3. Application and Examples

To help the user master how to use the Function/ Arbitrary Waveform

Generator more efficiently, we will describe some examples in detail. All the examples below use the default setting of the instrument except especial explanations.

This chapter includes the following topics: z Example 1: Generate a Sine Wave z Example 2: Generate a Square Wave z Example 3: Generate a Ramp Wave z Example 4: Generate a Pulse Wave z Example 5: Generate a Noise Wave z Example 6: Generate an Arbitrary Wave z Example 7: Generate a Sweep Wave z Example 8: Generate a Burst Wave z Example 9: Generate an AM Wave z Example 10:Generate a FM Wave z Example 11:Generate a PM Wave z Example 12:Generate a FSK Wave z Example 13:Generate an ASK Wave z Example 14:Generate a PWM Wave z Example 15:Generate a DSB-AM Wave

SDG1000 User Manual 85

3.1. Example 1:Generate a Sine Wave

Generate a sine wave with 50kHz frequency, 5Vpp amplitude and 1Vdc offset.

¾ Steps: z Set the frequency.

2. Input ‘50’ from the keyboard and choose the unit ‘kHz’. The frequency is set to be 50kHz. z Set the amplitude.

1. Press Ampl to choose Ampl which will display in white color.

2. Input ‘5’ from the keyboard and choose the unit ‘Vpp’. The amplitude is set to be 5Vpp. z Set the Offset.

1. Press Offset to choose Offset which will display in white color

2. Input ‘1’ from the keyboard and choose the unit ‘Vdc’. The offset is set to be 1Vdc.

When the frequency, amplitude and offset are set, the wave generated is shown in Figure 3- 1;

SDG1000 User Manual 86

Figure 3- 1 Sine Waveform

SDG1000 User Manual 87

3.2. Example 2:Generate a Square Wave

Generate a square wave with 5kHz frequency, 2Vpp amplitude, 0Vdc offset and 30% duty cycle.

¾

Steps: z Set the frequency. color.

2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is set to be 5kHz. z Set the amplitude.

1. Press Ampl to choose Ampl which will display in white color.

2. Input ‘2’ from the keyboard and choose the unit ‘Vpp’. The amplitude is set to be 2Vpp. z Set the offset.

1. Press Offset to choose Offset which will display in white color

2. Input ‘0’ from the keyboard and choose the unit ‘Vdc’. The Offset is set to be 0Vdc. z Set the duty

1. Press Duty to choose Duty which will display in white color

2. Input ‘30’ from the keyboard and choose the unit ‘%’. The duty is set to be

30%.

When the frequency, amplitude, offset and duty cycle are set, the wave generated is shown in Figure 3- 2.

SDG1000 User Manual 88

Figure 3- 2 Square Waveform

SDG1000 User Manual 89

3.3. Example 3:Generate a Ramp Wave

Generate a ramp wave with 10μs period, 100mVpp amplitude, 20mVdc offset,

45°phase and 30% symmetry.

¾ Steps: z Set the period.

2. Input ‘10’ from the keyboard and choose the unit ‘μs’. The period is set to be 10μs. z Set the amplitude.

1. Press Ampl to choose Ampl which will display in white color.

2. Input ‘100’ from the keyboard and choose the unit ‘mVpp’. The amplitude is set to be 100mVpp. z Set the offset.

1. Press Offset to choose Offset which will display in white color

2. Input ‘20’ from the keyboard and choose the unit ‘mVdc’. The offset is set to be 20mVdc. z Set the phase

1. Press Phase to choose Phase which will display in white color

2. Input ‘45’ from the keyboard and choose the unit ‘ °’. The phase is set to be 45°.

SDG1000 User Manual 90

z Set the symmetry

1. Press Symmetry to choose Symmetry which will display in white color.

2. Input ‘30’ from the keyboard and choose the unit ‘30%’. The symmetry is set to be 30%.

When the period, amplitude, offset, phase and symmetry are set, the wave generated is shown in Figure 3- 3:

Figure 3- 3 Ramp Waveform

SDG1000 User Manual 91

3.4. Example 4:Generate a Pulse Wave

Generate a pulse wave with 5kHz frequency, 5V high level, -1V low level,

40μs pulse width and 20ns delay.

¾ Steps: z Set the frequency.

2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is set to be 5 kHz. z Set the high level

1. Press Ampl and choose the HLevel which will display in white color.

2. Input ‘5’ from the keyboard and choose the unit ‘V’. The high level is set to be 5V. z Set the low level

1. Press Offset and choose the LLevel which will display in white color.

2. Input ‘-1’ from the keyboard and choose the unit ‘V’. The low level is set to be -1V. z Set the pulse width

1. Press PulWidth and choose PulWidth which will display in white color.

2. Input ‘40’ from the keyboard and choose the unit ‘μs’. The pulse width is set to be 40μs.

SDG1000 User Manual 92

z Set the Delay

1. Press Delay and choose Delay which will display in white color.

2. Input ‘20’ from the keyboard and choose the unit ‘ns’. The delay is set to be 20ns.

When the frequency, high level, low level, pulse width and delay are set, the wave generated is shown in Figure 3- 4

Figure 3- 4 Pulse Waveform

SDG1000 User Manual 93

3.5. Example 5:Generate a Noise Wave

Generate a noise waveform with 2V variance and 1 V mean.

¾

Steps: z Set Amplitude

2. Input ‘2’ from the keyboard and choose the unit ‘V’. The amplitude is set to be 2 V. z Set the Offset

2. Input ‘1’ from the keyboard and choose the unit ‘1’. The offset is set to be

1V.

When the amplitude and offset are set, the wave generated is shown in

Figure 3- 5

Figure 3- 5 Noise Waveform

SDG1000 User Manual 94

3.6. Example 6:Generate an Arbitrary Wave

Generate an arbitrary waveform (Sinc) with 5MHz frequency, 2Vrms amplitude and 0Vdc offset.

¾

Steps: z Set the type of the arbitrary waveform.

3. Choose Sinc, and press Select to enter Arb Main Menu. z Set the frequency.

1. Press Freq and choose Frequency which will display in white color.

2. Input ‘5’ from the keyboard and choose the unit ‘MHz’. The frequency is set to be 5MHz. z Set the amplitude

1. Press Ampl to choose Ampl which will display in white color.

2. Input ‘2’ from the keyboard and choose the unit ‘Vrms’. The amplitude is set to be 2Vrms. z Set the offset

1. Press Offset to choose Offset which will display in white color.

2. Input ‘0’ from the keyboard and choose the unit ‘Vdc’. The offset is set to be 0Vdc.

When the arbitrary waveform’s type, frequency, amplitude and offset are set,

SDG1000 User Manual 95

the wave generated is shown in Figure 3- 6:

Figure 3- 6 Sinc Waveform

SDG1000 User Manual 96

3.7. Example 7:Generate a Sweep Linear Wave

Generate a sine sweep waveform whose frequency starts from 100Hz to

10kHz. Use internal trigger mode, linear sweep, and the sweep time is 2s.

¾ Steps: z Set the sweep function:

Press Sine and choose the sine waveform as the sweep function.

The default setting of the source is internal. z Set the frequency, amplitude and offset.

1. Press Freq and choose Freq which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz.

2. Press Ampl to choose Ampl which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.

3. Press Offset to choose Offset which will display in white color. Input ‘0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc z Set the sweep time.

Press Sweep →Sweep Time, Input ‘2’ from the keyboard and choose the unit ‘s’ to set sweep time 2s. z Set the start frequency

Press Start Freq, Input ‘100’ from the keyboard and choose the unit ‘Hz’ to set start freq 100Hz.

SDG1000 User Manual 97

z Set the end frequency

Press Stop Freq, Input ‘10’ from the keyboard and choose the unit ‘kHz’ to set stop freq 10kHz. z Set the Sweep Mode

Press (1/2↓) →Linear, and choose Linear.

When all parameters above are set, the linear sweep wave generated is shown in Figure 3- 7

Figure 3- 7 Sweep Waveform

SDG1000 User Manual 98

3.8. Example 8:Generate a Burst Wave

Generate a burst waveform of 5 cycles. The period is 3ms. Use internal trigger and 0 degree phase.

¾

Steps: z Set the sweep function:

Press Sine, and choose the sine waveform as the burst function. The default setting of the source is internal. z Set the frequency, amplitude and offset

1. Press Freq and choose Freq which will display in white color. Input ‘10’ from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz.

2. Press Ampl to choose Ampl which will display in white color. Input ‘1’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.

3. Press Offset to choose Offset which will display in white color. Input ‘0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc z Set the sweep mode.

Press Burst →N Cycle, choose N Cycle Mode. z Set the burst period

Press Period, input ‘3’ from the keyboard and choose the unit ‘ms’ to set the period 3ms. z Set the start phase

Press Start Phase, input ‘0’ from the keyboard and choose the unit ‘ °’ to

SDG1000 User Manual 99

set the start phase 0°. z Set the burst cycles

Press (1/2↓) →Choose Cycles, Input ‘5’ from the keyboard and choose the unit ‘Cycle’ to set the burst cycle 5. z Set the delay

Press Delay, and input ‘100’ from the keyboard and choose the unit ‘μs’ to set the delay 100μs.

When all parameters above are set, the wave generated is shown in Figure

3- 8:

Figure 3- 8 Burst Waveform Output

SDG1000 User Manual 100

3.9. Example 9:Generate an AM Wave

Generate an AM waveform with 80% depth. The carrier is a sine wave with

10kHz frequency, and the modulating wave is a sine wave with 200Hz frequency.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine , and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input’10’ from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz

3. Press Ampl and choose Ampl which will display in white color. Input’1’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.

4. Press Offset and choose Offset which will display in white color. Input’0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type AM and parameters.

1. Press Mod →Type → AM, choose AM. Please notice that the message shown on the middle left side of the screen is ‘AM’.

2. Press AM Freq, input’200’ from the keyboard and choose the unit ‘Hz’ to set the AM freq 200Hz.

3. Press AM Depth, input’80’ from the keyboard and choose the unit ‘%’ to set the AM depth 80%.

When all parameters above are set, the wave generated is shown in Figure

3- 9:

SDG1000 User Manual 101

Figure 3- 9 AM Waveform

SDG1000 User Manual 102

3.10. Example 10:Generate a FM Wave

Generate a FM waveform, the carrier is a sine wave with 10kHz frequency, and the modulating wave is a sine wave with 1 Hz frequency, 2kHz frequency deviation.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input’10’ from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz

3. Press Ampl and choose Ampl which will display in white color. Input’1’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 1Vpp.

4. Press Offset and choose Offset which will display in white color. Input’0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type FM and parameters.

1. Press Mod →Type → FM, choose FM. Please notice that the message shown on the middle left side of the screen is ‘FM’.

2. Press FM Freq, input ‘1’ from the keyboard and choose the unit ‘Hz’ to set the AM Freq 1Hz.

3. Press FM Dev, input ‘2’ from the keyboard and choose the unit ‘kHz’ to set the FM deviation 2kHz.

When all parameters above are set, the wave generated is shown in Figure

SDG1000 User Manual 103

3- 10:

Figure 3- 10 FM Waveform

SDG1000 User Manual 104

3.11. Example 11:Generate a PM Wave

Generate a PM waveform, the carrier is a sine wave with 10kHz frequency, and the modulating wave is a sine wave with 2kHz frequency, 90°phase deviation.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine , and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input’10’ from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz

3. Press Ampl and choose Ampl which will display in white color. Input’5’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.

4. Press Offset and choose Offset which will display in white color. Input’0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type PM and parameters.

1. Press Mod →Type → PM, choose PM. Please notice that the message shown on the middle left side of the screen is ‘PM’.

2. Press PM Freq, input ‘2’ from the keyboard and choose the unit ‘kHz’ to set the PM freq 2kHz.

3. Press Phase Dev, input ‘90’ from the keyboard and choose the unit ‘ °’ to set the phase deviation 90°.

When all parameters above are set, the wave generated is shown in Figure

3- 11:

SDG1000 User Manual 105

Figure 3- 11 PM Waveform

SDG1000 User Manual 106

3.12. Example 12:Generate a FSK Wave

Generate a FSK waveform with 200Hz key frequency. The carrier is a sine wave with 10kHz frequency, and the hop frequency is 500Hz.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine , and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input’10’ from the keyboard and choose the unit ‘kHz’ to set the frequency 10kHz

3. Press Ampl and choose Ampl which will display in white color. Input’5’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.

4. Press Offset and choose Offset which will display in white color. Input’0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type FSK and parameters. shown on the middle left side of the screen is ‘FSK ’.

2. Press Key Freq, input’200’ from the keyboard and choose the unit ‘Hz’ to set the key frequency 200 Hz.

3. Press Hop Freq, input ‘500’ from the keyboard and choose the unit ‘Hz’ to set the hop frequency 500Hz.

When all parameters above are set, the wave generated is shown in Figure

3- 12:

SDG1000 User Manual 107

Figure 3- 12 FSK Waveform

SDG1000 User Manual 108

3.13. Example 13:Generate an ASK Wave

Generate an ASK waveform with 500Hz key frequency. The carrier is a sine wave with 5kHz frequency.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine , and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz

3. Press Ampl and choose Ampl which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.

4. Press Offset and choose Offset which will display in white color. Input ‘0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type ASK and parameters. shown on the middle left side of the screen is ‘ASK ’.

2. Press Key Freq, input ‘500’ from the keyboard and choose the unit ‘Hz’ to set the key freq 500 Hz.

When all parameters above are set, the wave generated is shown in Figure

3- 13

SDG1000 User Manual 109

Figure 3- 13 ASK Waveform

SDG1000 User Manual 110

3.14. Example 14: Generate a PWM Wave

Generate a PWM waveform with 200Hz key frequency. The carrier is a pulse wave with 5kHz frequency.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Pulse , and choose the Pulse waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘kHz’ to set the frequency 5kHz

3. Press Ampl and choose Ampl which will display in white color. Input ‘5’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 5Vpp.

4. Press Offset and choose Offset which will display in white color. Input ‘0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc.

5. Press PulWidth and choose PulWidth which will display in white color.

Input ‘40’ from the keyboard and choose the unit ‘us’ to set the PulWidth

40us z Set the modulation type PWM and parameters.

1. Press Mod →Type →PWM, Please notice that the message shown on the middle left side of the screen is ‘PWM ’.

2. Press Key Freq, input ‘200’ from the keyboard and choose the unit ‘Hz’ to set the key freq 200 Hz.

3. Press Width Dev, input ‘20’ from the keyboard and choose the unit ‘us’ to set the Width Dev 20us

SDG1000 User Manual 111

When all parameters above are set, the wave generated is shown in Figure

3- 14

Figure 3- 14 PWM Waveform

SDG1000 User Manual 112

3.15. Example 15: Generate a DSB-AM Wave

Generate a DSB-AM waveform with 100Hz key frequency. The carrier is a sine wave with 2kHz frequency.

¾ Steps: z Set the frequency, amplitude and offset of the carrier wave.

1. Press Sine , and choose the sine waveform as the carrier wave

2. Press Freq and choose Freq which will display in white color. Input ‘2’ from the keyboard and choose the unit ‘kHz’ to set the frequency 2kHz

3. Press Ampl and choose Ampl which will display in white color. Input ‘4’ from the keyboard and choose the unit ‘Vpp’ to set the amplitude 4Vpp.

4. Press Offset and choose Offset which will display in white color. Input ‘0’ from the keyboard and choose the unit ‘Vdc’ to set the offset 0Vdc. z Set the modulation type DSB-AM and parameters.

1. Press Mod →Type →DSB-AM, choose DSB-AM. Please notice that the message shown on the middle left side of the screen is ‘DSB-AM ’.

2. Press Key Freq, input ‘100’ from the keyboard and choose the unit ‘Hz’ to set the key freq 100Hz.

When all parameters above are set, the wave generated is shown in Figure

3- 15

SDG1000 User Manual 113

Figure 3- 15 DSB-AM Waveform

SDG1000 User Manual 114

4. Troubleshooting

General Inspecting

After receiving a new SDG1000 Series Function/Arbitrary Waveform

Generator, please inspect the instrument as followed:

1. Inspect the shipping container for damage

.

Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has been checked mechanically and electrically.

2. Inspect the whole instrument

.

In case there is any mechanical damage or defect, or the instrument does not operate properly or fails performance tests, notify the SIGLENT sales representative.

If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier as well as the SIGLENT sales department. Keep the shipping materials for carrier’s inspection.

3. Check the accessories

.

Accessories supplied with the instrument are listed below. If the contents are incomplete or damaged, notify the SIGLENT sales representative.

Standard Accessories: z A User Manual z A Certification z A Guaranty Card z A CD(including EasyWave1.0 computer software system) z A Power Cord that fits the standard of destination country z

A USB Cable

SDG1000 User Manual 115

Troubleshooting

1. After the waveform generator is powered on, the screen remains dark, please do the following steps:

(1) Check the power cable’s connection.

(2) Ensure the power switch is turned on.

(3) After the inspections above, restart the waveform generator.

(4) If the generator still doesn’t work after the checking, please connect with SIGLENT company

2. If there is no signal wave output after setting the parameters, please do as following steps:

(1) Check whether the BNC cable has connected with output channel or not.

(2) Check whether the output button have been turned on or not.

SDG1000 User Manual 116

5. Service and Support

Maintain summary

SIGLENT

warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years from the date of shipment from an authorized SIGLENT distributor. If a product proves defective within the respective period, SIGLENT will provide repair or replacement as described in the complete warranty statement.

To arrange for service or obtain a copy of the complete warranty statement, please contact your nearest SIGLENT sales and service office.

Except as provided in this summary or the applicable warranty statement,

SIGLENT

makes no warranty of any kind, express or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose. In no event shall SIGLENT be liable for indirect, special or consequential damages

SDG1000 User Manual 117

Contact with SIGLENT

MTR Add: 3/F, Building 4, Antongda Industrial Zone, Liuxian Road,

68 District, Baoan District, Shenzhen, P.R. CHINA

Service Tel: 0086 755 3661-5186

Post Code: 518101

E-mail:[email protected] http://www.siglent.com

SDG1000 User Manual 118

6. Appendix

Appendix A: Accessories

SDG1000 Series Function/ Arbitrary Waveform Generator Accessories:

Standard Accessories:

z A User Manual z A Certification z A Guaranty Card z

A CD(including EasyWave1.0 computer software system) z A Power Cord that fits the standard of destination country z A USB Cable

Optional Accessories:

z BNC Cable z GPIB(IEEE 488.2)

SDG1000 User Manual 119

Appendix B: Daily Maintain and Cleaning

Daily Maintain

Do not store or leave the instrument in where the LCD will be exposed to direct sunlight for long periods of time.

CAUTION: To avoid damage to the instrument, do not expose them to sprays, liquids, or solvents.

Cleaning

If this instrument requires cleaning, disconnect it from all power sources and clean it with a mid detergent and water. Make sure the instrument is completely dry before reconnecting it to a power source.

To clean the exterior surface, perform the following steps:

1. Remove loose dust on the outside of the instrument with a lint-free cloth. Use care to avoid scratching the clear plastic display filter.

2. Use a soft cloth dampened with water to clean the instrument.

WARNING: To avoid damage to the surface of the instrument, do not use any abrasive or chimerical cleaning agents.

SDG1000 User Manual 120

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
