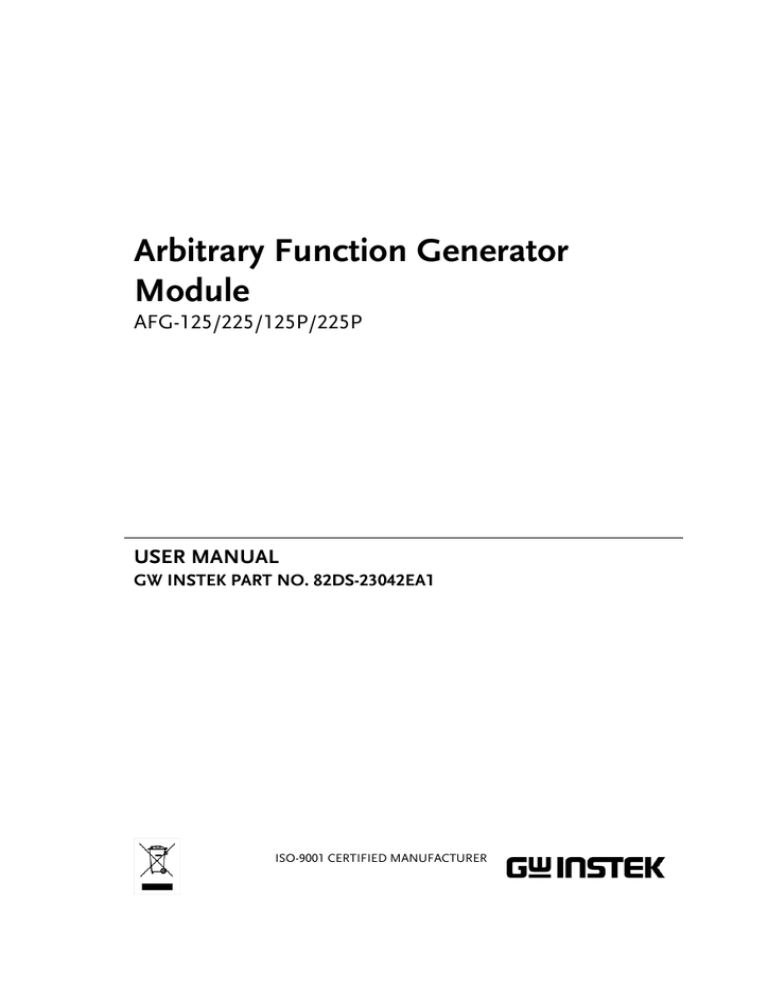

AFG-125 User Manual

Arbitrary Function Generator

Module

AFG-125/225/125P/225P

USER MANUAL

GW INSTEK PART NO. 82DS-23042EA1

ISO-9001 CERTIFIED MANUFACTURER

August 2014

This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan

TABLE OF CONTENTS

Table of Contents

S AFETY INSTRUCTIONS ................................................... 4

G ETTING STARTED ........................................................... 8

AFG-125/225/125P/225P Overview ........ 9

Panel Overview .................................... 12

DS2-FH1 Housing Installation ............. 14

Module Installation/Removal ............... 15

USB Configuration ............................... 17

AFG App Installation ........................... 18

Uninstalling the AFG App .................... 19

Q UICK REFERENCE ......................................................... 20

Options Menu Tree .............................. 21

O PERATION .................................................................... 25

Basic Operation ................................... 26

Modulation .......................................... 40

Sweep .................................................. 50

Burst .................................................... 53

ARB ...................................................... 56

Power Supply Function ........................ 70

A PPENDEX ...................................................................... 71

Dimensions ......................................... 71

Preset ARB Waveform .......................... 72

Declaration of Conformity .................... 80

I NDEX............................................................................. 81

3

AFG-125/225 Series Options Manual

S

AFETY INSTRUCTIONS

This chapter contains important safety instructions that should be followed when operating and storing the function generator.

Read the following before any operation to ensure your safety and to keep the function generator in the best condition.

Safety Symbols

These safety symbols may appear in this manual or on the instrument.

WARNING

Warning: Identifies conditions or practices that could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that could result in damage to the function generator or to other objects or property.

DANGER High Voltage

Attention: Refer to the Manual

Protective Conductor Terminal

Earth (Ground) Terminal

DANGER Hot Surface

4

SAFETY INSTRUCTIONS

Double Insulated

Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.

Safety Guidelines

General

Guideline

CAUTION

Do not place heavy objects on the instrument.

Do not place flammable objects on the instrument.

Avoid severe impact or rough handling that may damage the function generator.

Avoid discharges of static electricity on or near the function generator.

Use only mating connectors, not bare wires, for the terminals.

The instrument should only be disassembled by a qualified technician.

Power Supply 

DC Input voltage: 5V/2A.

Do not exceed an input voltage of 5V±5%.

WARNING

Fuse

WARNING

Fuse type: F3.15A/125V.

Only qualified technicians should replace the fuse.

To ensure fire protection, replace the fuse only with the specified type and rating.

Disconnect the power and all test leads before replacing the fuse.

Make sure the cause of fuse blowout is fixed before replacing the fuse.

5

Cleaning the function generator

Operation

Environment

Storage environment

AFG-125/225 Series Options Manual

Disconnect the power cord before cleaning the function generator.

Use a soft cloth dampened in a solution of mild detergent and water. Do not spray any liquid into the function generator.

Do not use chemicals containing harsh products such as benzene, toluene, xylene, and acetone.

Location: Indoor, no direct sunlight, dust free, almost non-conductive pollution (Note below) and avoid strong magnetic fields.

Relative Humidity: < 80%

Altitude: < 2000m

Temperature: 0°C to 40°C

(Pollution Degree) EN 61010-1:2010 specifies pollution degrees and their requirements as follows. The function generator falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, nonconductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled.

Location: Indoor

Relative Humidity: < 70%

Temperature: -10°C ~ 70°C

6

Disposal

SAFETY INSTRUCTIONS

Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.

7

8

AFG-125/225 Series Options Manual

G

ETTING STARTED

This chapter gives a brief overview of how to install the AFG-125/225/125P/225P module onto the GDS-2000A.

AFG-125/225/125P/225P Overview .................................... 9

Model Lineup ......................................................................... 9

Main Features ....................................................................... 10

Accessories ............................................................................ 11

Optional Accessories ........................................................... 11

Panel Overview ............................................................... 12

Front Panel ........................................................................... 12

Rear Panel ............................................................................. 13

DS2-FH1 Housing Installation ......................................... 14

Module Installation/Removal .......................................... 15

USB Configuration .......................................................... 17

AFG App Installation ....................................................... 18

Uninstalling the AFG App ................................................ 19

GETTING STARTED

AFG-125/225/125P/225P Overview

The AFG-125, AFG-225, AFG-125P and AFG-225P are arbitrary function generator modules for use with the GDS-2000A series

DSOs. The options require the DS2-FH1 module extension bay to secure the module to the DSO. This user manual will explain how to become familiar with the arbitrary function generator modules.

The Getting Started chapter will introduce the modules with an overview of the features and installation of the APP and accompanying PC software. The Operation chapter will go over the operation details.

Note1: The AFG-125/225/125P/225P are only supported with

GDS-2000A series DSOs with firmware version V1.19 or above installed.

Note2: Throughout this manual AFG-125 will refer to both the

AFG-125 and the AFG-125P, unless stated otherwise. Similarly,

AFG-225 will refer to both the AFG-225 and AFG-225P, unless stated otherwise.

Model Lineup

Model

Frequency Range

Output Channels

Power Output

AFG-125 AFG-125P AFG-225 AFG-225P

1uHz-25MHz

1 1

None Yes

2

None

2

Yes

9

AFG-125/225 Series Options Manual

Main Features

Performance

DDS signal generator

1μHz resolution over the full range

20ppm frequency stability

Arbitrary Waveform Capability

120 MSa/s sample rate

60 MSa/s repetition rate

4 k-point waveform length

4k waveform memory, 10 groups

User-defined output

DWR (Direct waveform reconstruction) capability

PC waveform editing

Features

Interface

Power Supply

(AFG-125P/

225P only

Sine, Square, Ramp, Pulse & Noise as standard waveforms

Internal LIN/LOG sweeps with marker output

AM, FM, FSK, SUM modulation

Triggered burst function

Save/recall 10 setup memories

Output overload protection

USB interface as standard

AWES (arbitrary waveform editing software) PC software

2.5V/3.3V/5V supply output

0.6A current output

10

Accessories

Part Number Description

DS2-FH1

GTL-254

Module extension bay

USB A – USB A/B converter

Quick start guide

CD User manual

Optional Accessories

Part Number Description

GPA-501 Power adapter

GTL-246

GTL-201A

USB Type A – Type B cable

Ground lead

GETTING STARTED

11

AFG-125/225 Series Options Manual

Panel Overview

Front Panel

Power Supply

Status LEDs GND SYNC Output CH1 Output

GD C CH CH



WP

FIED

V V V







Negative Output

Power Supply

Status LEDs

V

FIED

V

Positive Output

V

CH2 Output

These LEDs indicate the immediate status of the power supply function on the AFG-125/225:

2.5V

3.5V

2.5V output is on

3.5V output is on

Negative Output

GND

Positive Output

SYNC

CH1

GD

8

C

CH

5V

5V output is on

OVER LOAD

Overload condition

Negative output port

Ground port

Positive output port

Sync output. A TTL signal is output as the sweep marker or sync output

signal. See page 50 for sweep

details or page 34 for sync details.

CH1 (Signal 1) output.



12

CH2

CH

GETTING STARTED

CH2 (Signal 2) output (AFG-225 only).



Rear Panel

Vent USB Device Port Input Power

 V

INPUT

 MX

Vent

USB Device Port

Input Power

Cooling vent.

Interfaces with the GDS-2000A and can also provide power.

V

INPUT

MX

Input power source:

DC 5V; 2A max.

13

AFG-125/225 Series Options Manual

DS2-FH1 Housing Installation

Background

The DS2-FH1 consists of 2 housings that are attached to the feet on the underside of the case.

Note

Steps

Make sure the power is turned off before installing the

AFG-125/225 module.

1. Slip the housing over the front of the feet on the

GDS-2000A.

2. Make sure that the rear tab clips securely over the fan vent grid on the rear panel, as shown below.

1

2

3. The AFG-125/225 module is now ready to be installed.

14

GETTING STARTED

Module Installation/Removal

Background

The AFG-125/225 modules are installed into the area that is left between both of the DS2-FH1 housings.

Note

Make sure the power is turned off before installing the

AFG-125/225 module.

Installation Steps

1. Slide the module into the slot that was created between the DS2-FH1 housings. The front of the module should be facing forwards.

2. Make sure the module is secure. The module will click into place when it is inserted properly.

3. Make sure the GDS-2000A is turned off before proceeding.

4. Connect one end of the GTL-254 USB cable to the rear panel USB Device port and to the USB

Host port. Connect the other end to the Device port on the AFG-125/225, as shown below.

5. Turn the power back on. The AFG-125/225 will now be accessible in the Option menu.

15

AFG-125/225 Series Options Manual

Removal

1. At the rear of the housings are two tabs. Pull both tabs outwards.

2. The module can now be slid out from the housing (back to front).

16

GETTING STARTED

USB Configuration

Background

The USB Device port needs to be configured to provide power for the AFG-125/225 if an external power supply is not used.

Steps

1. As shown previously in the “AFG-125/225

Module Installation/Removal” section, connect the GTL-254 USB cable.

2. Press the Utility key then I/O from the bottom menu.

Utility

3. From the side menu press USB

Device Port and select USB Power.

Caution

The port will now supply power to the AFG-125/225.

The USB Device Port should be reconfigured to

“Computer” or “Printer” when the AFG-125/225 is not used. Failure to do so may damage the PC or printer when connected in the “USB Power” mode.

17

AFG-125/225 Series Options Manual

AFG App Installation

Background

Install the AFG app as you would any application for the GDS-2000A series.

The AFG app file (AFG.gz) can be found on the

User Manual CD under the APP directory.

For the latest files and information for applications, see the GW Instek website: www.gwinstek.com or contact your nearest distributor.

Steps

1. Make sure the DS2-FH1 and AFG-125/225 are installed and turned on.

Panel Operation

2. Insert a USB flash drive that has the AFG app file (AFG.gz) copied onto it into the front panel USB port.

Demo

3. Press the Utility key then the File

Utilities soft-key.

Utility

4. Navigate to the desired file in the

USB file path.

When the AFG.gz file has been found, press the Select key twice to start the installation.

VARIABLE



18

GETTING STARTED

5. The installation will complete in a few seconds.

When finished a pop-up message will appear asking you to restart the GDS-2000A.

6. Restart the GDS-2000A.

Uninstalling the AFG App

Background

The AFG app can be uninstalled from the TEST menu, like the other optional apps.

Panel Operation

1. Press the Test key.

T

1. Press the APP button from the bottom menu.

2. Use the Variable knob to select the

AFG app.

Up Down

VRIBL

2. Press Uninstall on the side menu twice. Once to select and once to confirm uninstallation.

3. The uninstallation process is complete when a message showing “Please turn off the oscilloscope and turn on again” appears.

19

20

AFG-125/225 Series Options Manual

Q

UICK REFERENCE

This chapter describes the menu tree for the AFG-

125/225.

Options Menu Tree ......................................................... 21

Option Key ........................................................................... 21

Arbitrary Function Generator ............................................ 22

Arbitrary Function Generator – Signal 1/2 Setup ........... 23

Arbitrary Function Generator – MOD part II ................ 24

Power Supply ........................................................................ 24

Options Menu Tree

Option Key

Accesses the functions in the Option menu.

O

QUICK REFERENCE

L

z

Function

Gen 1

Function

Gen 2

DVM

AFG

I/O

Logic

Analyzer

Function

Gen 1

Function

Gen 2

I/O

Goes to the Logic Analyzer menu

Goes to the Function Generator menu for the GEN 1 output

Goes to the Function Generator menu for the GEN 2 output

Goes to the options I/O menu

AFG Goes to the options AFG menu

*Note: Any option that is not installed/turned on will be grayed-out.

21

AFG-125/225 Series Options Manual

Arbitrary Function Generator

Set up the AFG-225/125 arbitrary function generator.

Note: The Power Supply function is only available for the AFG-125P and AFG-225P

The Dual Chan and Sync Setup functions are only available for the

AFG-225 and AFG-225P.

O

Signal 1 Setup Signal 1 Setup

 UTIL P

Select

Signal 1

Signal 2

Output

On

Off

Load

50

High Z

Phase

-180.0º~180.0º

_P

Signal 1 Setup

Signal 2 Setup

Power Supply

ON

O



P



Sync

On

Off

Source

Signal 1

Signal 2

Mode

Carrier

Marker

Polarity

Normal

Inverted

Goes to the Signal 1/2 Setup menu

Freq Cpl Type

OFF

Offset

Ratio

Offset

-999.99Hz ~

24.999MHz

Ratio

0.001 ~

1000.000

Goes to the Power Supply menu



Ampl Cpl

On

Off

Tracking

OFF

ON

Inverted

_P

Bk

22

QUICK REFERENCE

Arbitrary Function Generator – Signal 1/2 Setup

Setup the signal type for each channel. From the AFG Arbitrary

Function Generator menu on page 22.

Waveform Mode ARB

MO  B

Go Back

AM

FM

FSK

PM

SUM

Sine

Square

Pulse

Rm

N

ARB

On

Off

L



Om

M1

MOD

On

Off

M

M

K

M1

Frequency

User

1

μHz ~ 60MHz

Amplitude

1mVpp to

2.5Vpp

(into 50

Ω)

2mVpp to 5Vpp

(open-circuit)

Offset

±1.25Vpk ac+dc

(into 50

Ω)

±2.5Vpk ac+dc

(Open circuit)

Rate

User

2

μHz ~ 120MHz

M

PM

SUM

Sweep

On

Off

Type

Linear

Log

Start

1

μHz~ 25MHz

1

μHz~ 15MHz

(Square)

1

μHz~ 1MHz

(Ramp)

Stop

1

μHz~ 25MHz

1

μHz~ 15MHz

(Square)

1

μHz~ 1MHz

(Ramp)

M1

SWP Time

0.001 ~ 500.000

Sec

Span

1

μHz ~ 25MHz

1

μHz ~ 15MHz

(Square)

1

μHz ~ 1MHz

(Ramp)

Center

450Hz ~ 25MHz

450Hz ~ 15MHz

(Square)

450Hz ~ 1MHz

(Ramp)

Mk

M

Burst

On

Off

N

Goes to the Signal 1 Setup menu -MOD part II

Cycles

1~65535 cycles

Infinite

Phase

-360º ~ 360º

Period

1ms ~ 500 seconds

TRI

INT

Manual Trigger

Delay

0~655350 nS

Bk

Marker

On

Off

Frequency

1

μHz ~ 25 MHz

1

μHz ~ 1 MHz

(Ramp)

Bk

23

AFG-125/225 Series Options Manual

Arbitrary Function Generator – MOD part II

Configures AM, FM, FSK, PM or SUM modulation. From the

Arbitrary Function Generator – Signal 1/2 Setup – MOD menu on

page 23.

M M K

PM UM

Depth

0.0% ~ 120.0%

AM Freq

0.002Hz ~

20kHz

Shape

Sine

Square

Triangle

UpRamp

DnRamp

Bk

Freq Dev

DC~25MHz

DC~15MHz

(square)

DC~1MHz

(Ramp)

FM Freq

0.002Hz ~

20kHz

Shape

Sine

Square

Triangle

UpRamp

DnRamp

Bk

Hop Freq

1

μHz~25MHz

(sine)

1

μHz~15MHz

(Square, Pulse)

1

μHz~1MHz

(Ramp)

FSK Rate

0.002Hz ~

100kHz

Bk

Phase Dev

0.0º ~ 360º

PM Freq

0.002Hz ~

20kHz

Shape

Sine

Square

Triangle

UpRamp

DnRamp

Bk

Power Supply

Power supply menu for the AFG-125P and AFG-225P.

P

SUM Ampl

0.0% ~ 100.0%

SUM Freq

0.002Hz ~

20kHz

Shape

Sine

Square

Triangle

UpRamp

DnRamp

Bk

Power

On

Off

Voltage

2.5V

3.3V

5V

24

OPERATION

O

PERATION

Basic Operation .............................................................. 26

Entering the AFG Menu ..................................................... 26

State Display ......................................................................... 27

Selecting a Basic Waveform ................................................ 28

Turning the Output On ...................................................... 29

Dual Channel Tracking ....................................................... 31

Recalling the Preset Settings ............................................... 33

Sync Setup ............................................................................. 34

Modulation ..................................................................... 40

AM Modulation .................................................................... 40

FM Modulation .................................................................... 42

FSK Modulation ................................................................... 44

PM Modulation .................................................................... 46

SUM Modulation .................................................................. 48

Sweep ............................................................................. 50

Sweep ..................................................................................... 50

Burst ............................................................................... 53

Burst Waveform ................................................................... 53

ARB ................................................................................. 56

Loading a Preset ARB Waveform ...................................... 56

Creating/Editing a Preset ARB Waveform ...................... 59

Setting ARB Output Length ............................................... 67

Setting ARB Frequency, Rate, Amplitude & Offset ........ 68

25

AFG-125/225 Series Options Manual

Basic Operation

Entering the AFG Menu

Background

Like the other options for the GDS-2000A, the AFG option can be accessed via the front panel option key.

Panel Operation

1. Press the Option key.

O

2. Press AFG from the bottom menu to enter the first level of the AFG menu. (The model type will be shown below the icon)

AFG Menu

26

OPERATION

State Display

Background

The state display function provides a visual display of the status of each channel and the function that is used.

The state display is on by default.

The state display is also used as a visual guide when editing/creating an ARB waveform.

State Display

Signal1

Status

Signal1

Function

Settings

Signal2

Status

Signal2

Function

Settings

Signal1 Function

Visual Display

Signal2 Function

Visual Display

Panel Operation

1. From the first level AFG menu, press State Disp to toggle the display pop-up on or off.

27

AFG-125/225 Series Options Manual

Selecting a Basic Waveform

Background

The AFG-125/225 can output 5 different types of basic waveforms: Sine, Square, Pulse, Ramp,

Noise.

The basic waveforms can be output as is or they can be used as the baseband waveforms for the modulation functions or as the primary waveforms for the sweep and burst functions.

Connection

1. The AFG-125/225 arbitrary function has 2 output channels, CH1 and CH2. Each output can be selected individually.

2. Connect a BNC cable to the appropriate output (CH1 or CH2).

Panel Operation

1. From the first level AFG menu, select Signal 1 Setup or Signal 2

Setup from the bottom menu to select the output channel.

2. Press Waveform Mode from the bottom menu and then select a waveform from the side menu.

Waveforms

Sine, Square, Pulse Ramp, Noise

3. See page 29 to set the output

settings and turn the output on.

Page 29

28

OPERATION

Turning the Output On

Background

The AFG-125/225 can output 5 different types of basic waveforms: Sine, Square, Pulse, Ramp,

Noise.

The basic waveforms can be output as is or they can be used as the baseband waveforms for the modulation functions or as the primary waveforms for the sweep and burst functions.

Connection

Steps

1. The AFG-125/225 arbitrary function has 2 output channels, CH1 and CH2. Each output can be selected individually.

2. Connect a BNC cable to the appropriate output (CH1 or CH2).

1. Press the Output Setup key to set the amplitude.

2. From the side menu choose the output parameters

Choose the signal that will be output:

Signal 1:

Signal 2:

CH1

CH2

Turns the output of the selected signal on/off.

Sets the output impedance to 50Ω or

High Z.

29

AFG-125/225 Series Options Manual

Sets the output phase relative to 0º.

Synchronizes the phase of both channels on dual channel models.

The signal will be output as soon as the output is turned on.

30

OPERATION

Dual Channel Tracking

Background

Dual Channel

Functions

As only the AFG-225 has dual channels, it has a number of tracking functions not available on the

AFG-125. The tracking functions are listed below.

Function Description

Frequency Coupling

Frequency coupling will couple the channel outputs by frequency. Frequency coupling can be achieved by frequency offset or by a frequency ratio.

Amplitude Coupling

Amplitude coupling will couple the both channel outputs by amplitude. Any changes in amplitude in one channel is reflected in the other channel.

Tracking

S_Phase

There are two tracking modes,

ON and Inverted. When turned on, tracking performs frequency and amplitude tracking so the channels behave as a single channel.

When set to inverted, the one channel will output the inverse of the other.

S_Phase will synchronize the phase of both channels.

Steps

1. From the first level AFG menu, press UTIL and then press Dual

Chan on the side menu.

31

AFG-125/225 Series Options Manual

2. From the side menu choose the relevant tracking function(s):

Turns frequency coupling on and sets the type of frequency coupling:

Offset: Sets frequency coupling as an offset.

Ratio: Sets frequency coupling as a ratio.

Turns amplitude coupling on or off.

Ampl Cpl: OFF, ON

Turns tracking on or off, or turns tracking on and inverts the output of the second output.

Tracking: OFF, ON, INVERTED

Press S_Phase to synchronize the phase of the both channels.

32

OPERATION

Recalling the Preset Settings

Background

Preset Settings

Recalling the preset settings will effectively reset the settings to the factory defaults.

Waveform Mode

Frequency

Amplitude

Offset

Sine

1kHz

1.000Vpp

0.0Vdc

Phase

Load

Output

ARB

MOD

Sweep

Burst

0.0º

50Ω

Off

Off

Off

Off

Off

Frequency Coupling*

Amplitude Coupling*

Off

Off

Tracking* Off

*Only applicable to the AFG-225.

Steps

1. From the first level of the AFG menu, press UTIL.

2. Press Preset. The preset settings will be recalled straight away.

33

AFG-125/225 Series Options Manual

Sync Setup

Background

Sync Signal

Output

The sync output signal is output from the SYNC port on the front panel. The sync output signal is based on either the channel 1 or channel 2 output signals. Each periodic type of waveform output function has an associated sync output signal.

The characteristics of the sync output depend on the selected signal source.

Sine, Square, Pulse,

Ramp Source

For these types of waveforms, the sync output is a square wave pulse. The pulse is high for the positive transition of the waveform and low for the negative transition. The signal is a TTL level signal.

Sine output 0V

SYNC output

0V

34

MOD waveform

Source

OPERATION

The sync output is a positive pulse for the positive transition of the modulating waveform and low for the negative transition. The signal is a TTL level signal.

FM output 0V

SYNC output

Arbitrary Waveform

Source

0V

The ARB function can output either carrier or marker signals.

Carrier: The sync output is a single TTL positive pulse for the positive transition of the

ARB waveform and low for the negative transition.

Marker: A single TTL level positive pulse is output at the start of each period of the ARB waveform.

35

Carrier

ARB output

AFG-125/225 Series Options Manual

0V

SYNC output

Marker

ARB output

0V

0V

SYNC output

Sweep Source

0V

The sweep function can output either carrier or marker signals.

Carrier: The sync signal output is a positive TTL level pulse for the positive transition of the sweep waveform and low for the negative transition.

Marker: The marker signal output is a TTL level positive pulse from the “marker” frequency to the stop frequency and a low level signal from the start frequency to the “marker” frequency. See

page 50 to set the marker

settings.

36

Carrier

Sweep output

OPERATION

0V

SYNC output

Marker

Sweep output

0V

SYNC output

Burst Source

0V

Marker frequency

0V

Like the sweep function, the burst function can output

Carrier or Marker signals from the SYNC output.

Carrier: The sync signal output is a positive TTL level pulse for the positive transition (0V and above) of the burst waveform and low for the negative transition.

Marker: The marker signal output is a TTL level positive pulse for the duration of the burst period and low for the remainder of waveform period

37

38

Steps

Carrier

FSK output

AFG-125/225 Series Options Manual

0V

SYNC output

Marker

FSK output

0V

0V

SYNC output

0V

1. From the first level of the AFG menu, press UTIL and then press

Sync Setup on the side menu.

2. From the side menu choose the sync setting:

The Sync function will turn the sync output on for all waveforms except for noise.

(Note: If Marker is turned on in the

Sweep function, the Sync On setting will be overridden.

Selects the source signal on which to base the sync signal.

Source: Signal 1, Signal 2

When Sync is on, You can force the sync signal to follow the carrier or the marker* mode.

Mode: Carrier, Marker

Note

OPERATION

The polarity can be set to Normal or

Inverted.

Polarity: Normal, Inverted

The marker mode can only be used for the ARB and mod waveforms.

For the Sweep function, the marker output must be turned on in the Sweep function menu. It cannot be

activated in the Sync Setup menu. See page 51 to turn

the marker option on.

39

AFG-125/225 Series Options Manual

Modulation

AM Modulation

Background

The AM Modulation function can set the carrier frequency (AM Freq), amplitude modulation depth

(Depth) and carrier waveform (Shape).

Steps

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

MOD.

4. From the side menu turn MOD On and then select the AM modulation.

Note

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

5. Select the AM parameters from the side menu:

40

Example

OPERATION

Sets the amplitude modulation depth: 0~ 120%

Sets the AM frequency:

2 mHz~20kHz.

Sets the carrier waveform shape:

Sine, Square, Triangle, Upramp,

Dnramp.

6. See page 29 to set the output

settings and turn the output on.

Page 29

Amplitude Modulation

41

Note

AFG-125/225 Series Options Manual

FM Modulation

Background

Steps

The FM Modulation function can set the carrier frequency (FM Freq), frequency deviation (FM

DEV) and carrier waveform (Shape).

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

MOD.

4. From the side menu turn MOD On and then select the FM modulation.

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

5. Select the FM parameters from the side menu:

42

Example

OPERATION

Sets the frequency deviation:

DC~25MHz

DC~15MHz(square)

DC~1MHz (Ramp)

Sets the FM frequency:

2mHz~20kHz.

Sets the carrier waveform shape:

Sine, Square, Triangle, Upramp,

Dnramp.

6. See page 29 to set the output

settings and turn the output on.

Page 29

Frequency Modulation

43

44

Note

AFG-125/225 Series Options Manual

FSK Modulation

Background

The FSK Modulation function can set the hop frequency (FSK Hop) and the frequency-shift keying rate (FSK Rate). FSK Modulation essentially jumps between the carrier frequency and the hop frequency at a rate determined by the FSK rate frequency.

Steps

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

MOD.

4. From the side menu turn MOD On and then select the FSK modulation.

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

5. Select the FSK parameters from the side menu:

Example

OPERATION

Sets the hop frequency:

1μHz~25MHz (Sine)

1μHz~15MHz (Square, Pulse)

1μHz~1MHz (Ramp)

Sets the FSK rate:

2mHz~100kHz.

6. See page 29 to set the output

settings and turn the output on.

Page 29

Frequency-Shift Keying Modulation

45

AFG-125/225 Series Options Manual

PM Modulation

Background

The PM Modulation function can set the phase modulation frequency (PM Freq), phase deviation

(Phase Dev) and the PM shape (Shape).

The phase deviation of the carrier waveform deviates from a reference phase value in proportion to changes in the modulating waveform.

Steps

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

MOD.

4. From the side menu turn MOD On, press more 1 of 2 and then select the

PM modulation.

Note

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

46

Example

OPERATION

5. Select the PM parameters from the side menu:

Sets the phase deviation: 0º ~ 360º

Sets the phase modulation frequency: 2mHz ~ 20kHz

Sets the PM wave shape:

Sine, Square, Triangle, UpRamp,

DnRamp.

6. See page 29 to set the output

settings and turn the output on.

Page 29

Pulse Modulation

47

Note

AFG-125/225 Series Options Manual

SUM Modulation

Background

The SUM Modulation function can set the SUM amplitude (SUM Ampl) the carrier frequency

(SUM Freq) and carrier waveform (Shape).

In general SUM modulation adds a modulating signal to a carrier wave. Typically, sum modulation is used to add noise to a carrier wave.

The modulating signal is added as a percentage of the carrier amplitude.

Steps

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

MOD.

4. From the side menu turn MOD On, press more 1 of 2 and then select the

SUM modulation.

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

48

Example

OPERATION

5. Select the SUM parameters from the side menu:

Sets the SUM amplitude (relative to the carrier): 0.0% ~ 100.0%

Sets SUM modulation frequency:

2mHz ~ 20kHz

Sets the SUM wave shape.

6. See page 29 to set the output

settings and turn the output on.

Page 29

SUM Modulation

49

AFG-125/225 Series Options Manual

Sweep

Sweep

Background

Steps

Note

The AFG-125/225 can perform a sweep for sine, square or ramp waveforms. In Sweep mode, the function generator will sweep from a start frequency to a stop frequency. The sweep can be performed in a linear or logarithmic fashion. The

AFG-125/225 can also output a TTL signal from the SYNC output when the marker function is turned on.

1. Set the carrier waveform and frequency. You can set the carrier waveform and frequency in the

Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press

Sweep.

4. From the side menu turn Sweep

On.

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

50

Note

Marker

OPERATION

5. Select the sweep parameters from the side menu:

Selects the type of sweep: logarithmic or linear.

Sets the start frequency*:

1μHz ~ 25MHz

1μHz ~ 15MHz (Square)

1μHz ~ 1MHz (Ramp)

Sets the Stop frequency*:

1μHz ~ 25MHz

1μHz ~ 15MHz (Square)

1μHz ~ 1MHz (Ramp)

Press to access the remaining sweep settings, shown below:

Sets the sweep time: 1ms ~ 500s.

Sets the Span*:

1μHz ~ 25MHz

1μHz ~ 15MHz (Square)

1μHz ~ 1MHz (Ramp)

Sets the center frequency*.

*Setting the Start and Stop frequencies will override the Span and Center settings, and conversely setting the Span and Center settings will override the Start and Stop settings.

6. To set a marker signal, press

Marker and turn Marker On. The marker will output a TTL-level square wave signal at the designated frequency from the

SYNC output port.

51

Example

AFG-125/225 Series Options Manual

7. Press Frequency and set a marker frequency. The marker frequency cannot be lower than the center frequency.

1μHz ~ 25MHz

1μHz ~ 1MHz (Ramp)

8. See page 29 to set the output

settings and turn the output on.

Page 29

Sweep Waveform (CH1) with marker output

(CH2).

52

OPERATION

Burst

Burst Waveform

Background

The function generator can create a waveform burst with a designated number of cycles. Burst mode supports sine, square and ramp waveforms.

Steps

Note

1. Set the carrier waveform and burst frequency. You can set the carrier waveform and burst frequency in the Selecting a Basic Waveform section.

Page 26

2. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

3. From the bottom menu press Burst.

4. From the side menu turn Burst On.

Only one modulation mode can be active at any one time. The function generator also will not allow sweep, burst or ARB mode to be used with a modulation function. Activating a modulation mode will turn the previous modulation mode off.

5. Press N Cycle from the side menu.

53

AFG-125/225 Series Options Manual

6. Select the N Cycle parameters from the side menu:

Sets the number of burst cycles* :

1~ 65,535, infinite.

Note

Sets the starting phase of the burst waveform.

Sets the period* length in seconds for the burst waveform.

*The Period setting will affect the number of cycles that can be chosen for any given frequency. The relationship is shown in the following equation:

Burst Cycle < (Burst Period x Wave Frequency)

Trigger Settings

7. Press Trigger set from the side menu.

8. Select the Trigger parameters from the side menu:

Sets the trigger as internal. An internal trigger is generated at the end of each period.

Sets the trigger to Manual mode.

This Manual Trigger key must be pressed each time to output a burst waveform.

Sets a delay time between the trigger and the burst waveform output: 0 ~ 655350nS.

9. See page 29 to set the output

settings and to turn the output on.

Page 29

54

Example

OPERATION

Burst Waveform

55

AFG-125/225 Series Options Manual

ARB

Loading a Preset ARB Waveform

Background

The AFG-225 can load a number of different waveforms as an arbitrary waveform file:

CH1~CH4, Ref1~Ref4, Wave1~Wave20, a previously saved waveform (LSF and fast CSV format*), a previously created ARB waveform or one of the 66 preset ARB waveforms**. The preset waveforms are categorized into Common, Math,

Window and Engineer waveforms, as shown in the table below.

Preset waveforms

* See the DSO user manual for save file formats.

** See the appendix on page 72 for a full list and

description of the preset ARB waveforms.

Common:

Absatan, Abssin, Abssinehalf, Ampalt, Attalt,

Direven, Diriodd, Gauspuls, Havercos, Haversin,

Negramp, N_pulse, Rectpuls, Roundhaf, Sawtooth,

Sinetra, Sinever, Stair_dw, Stair_ud, Stair_up, stepresp, trapezia, tripuls

Math:

Arccos, Arccot, Arccsc, Arcsec, Arcsin, Arcsinh,

Arctan, Arctanh, Cosh, Cot, Csc, Dlorentz,

Expofall, Exporise, Gauss, Ln, Lorentz, Sec, Sech,

Sinec, Sinh, Sqrt, Tan, Tanh, Xsquare

Window:

Barthwin, Bartlett, Blackman, Bohmwin, Chebyshe,

Flattwin, Hamming, Hann, Hanning, Kaiser,

Triang, Tukeywin

Engineer:

56

Steps

Note

OPERATION

Airy, Bessel, Betainc, Gamm, Legendre, Neumann

1. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

2. From the bottom menu press ARB.

3. From the side menu turn ARB On.

The function generator also will not allow ARB to be turned on when sweep, burst or a modulation function is active. Turn off any other active modes before using

ARB mode.

4. Press Load from the side menu.

5. You can load an ARB waveform from one of the source channels, from internal memory or from a number of predefined waveforms:

Press From to select an input channel or internally saved waveform.

From: CH1 ~ CH4

Ref1 ~ Ref4

Math

Wave1 ~ Wave20

Press From File to load a previously saved waveform or a predefined waveform.

57

AFG-125/225 Series Options Manual

From File: LSF, Fast CSV, User

Preset, Common, Math,

Window, Engineer

If a previously saved waveform or predefined waveform type was chosen above, use the File Utilities to select the desired ARB waveform.

Press Recall Now to load the ARB waveform.

A message will appear on the screen when the ARB waveform is successfully recalled.

Example

Triangle Pulse waveform

58

OPERATION

Creating/Editing a Preset ARB Waveform

Background

The AFG-125/225 has a number of methods to create and edit arbitrary waveforms. The ARB waveforms can have a maximum of 4096 (0~4095) points in length and 1023 (0±511) points in amplitude.

Editing Methods

Point/Line:

Creates a vertical line of a user-defined length and amplitude.

Diagonal:

Creates a diagonal line of a user-defined length and amplitude.

Scale:

Scales the full-scale of the ARB waveform.

Copy/Paste:

This method will copy and paste a user-defined section of the ARB waveform.

Clear:

This will clear a user-defined section of the ARB waveform.

Note: By default, any section of the ARB waveform that is not edited will be set to 0Vpp. By default the editing will automatically match the amplitude of each point.

Steps

1. From the first level of the AFG menu, press the Signal 1 Setup or

Signal 2 Setup key to select the signal source.

59

Note

Point/Line

Editing

AFG-125/225 Series Options Manual

2. From the bottom menu press ARB.

3. From the side menu turn ARB On.

The function generator also will not allow ARB to be turned on when sweep, burst or a modulation function is active. Turn off any other active modes before using

ARB mode.

4. Press Edit from the side menu.

5. Press Edit Method and choose Point

Line.

6. Press Action to begin editing the waveform using the Point/Line method.

7. Use the side menu to create a point or vertical line:

Press Address to set the starting address of the line or point.

The maximum address depends on the Length setting below:

Max address = 4096 – Length

Range: 0 ~ 4095

Press Length to set the length of the line. The maximum length depends on the address set above:

Max length = 4096 – Address

Length 1 ~ 4096

60

OPERATION

Press Data to set the amplitude of the point/line.

Data -511 ~ 0 ~ +511

When the point/line has been edited, press Preview to view the edited line.

Press Undo to cancel the point/line edit.

Press Done to confirm and save the point/line edit.

Example

Figure showing a horizontal line (black highlight)

Diagonal Editing

1. Press Edit Method and choose

Diagonal.

2. Press Action to begin editing the waveform using the Diagonal method.

3. Use the side menu to create a diagonal line:

61

AFG-125/225 Series Options Manual

Press Addr1/Data1 to set the first data point for the diagonal line.

Press once to set the Addr1, press again to set Data1 (amplitude).

Addr1 range:

Data1 range:

0 ~ 4095

±511

Press Addr2/Data2 to set the second data point for the diagonal line.

Press once to set the Addr2, press again to set Data2 (amplitude).

Addr2 range:

Data2 range:

0 ~ 4095

±511

When the line has been edited, press Preview to view the edited line.

Press Undo to cancel the line edit.

Press Done to confirm and save the line edit.

Example

62

Figure showing a diagonal line (black highlight).

OPERATION

Scale Editing

Example

1. Press Edit Method and choose Scale.

2. Press Action to begin editing the waveform using the Scale method.

3. Use the side menu to set the scale:

The scale function sets the vertical scaling factor* for the whole ARB waveform.

Scale 0.1 ~ 10X

Note

Copy / Paste

Figure of 2.0X scaling. Notice that the waveform is clipped at the bottom.

* If any data points that exceed a magnitude of ±511 will be clipped.

1. Press Edit Method and choose

Copy /Paste.

63

AFG-125/225 Series Options Manual

2. Press Action to enter the

Copy/Paste menu.

3. Use the side menu to copy a section of the ARB waveform:

Press Start* to set the start address of the section you want to copy.

Start range: 0 ~ 4095

Press Length* to set the length of the section you wish to copy.

Length range 1~ 4096

Press Paste To to choose the position to paste the copied section of waveform**.

Paste range 0~ 4095

When the copy and paste areas have been selected, press Preview to view the result.

Press Undo to cancel the copy/paste operation.

Press Done to confirm and save the copy/paste operation.

64

Example

OPERATION

Clear

Note

Figure showing the copied section (black) and the pasted section (red bars).

* The maximum start address depends on the Length setting: Max Start = 4096 – Length

The maximum length depends on the start address set above: Max Length = 4096 – Start

** You cannot paste over an area that was originally copied. For example, if you copy from points 100 ~

200, you cannot paste that to points 150 ~ 250. A setting conflict error will appear on the screen when the “Copy” and “Paste To” area overlap.

1. Press Edit Method and choose

Clear.

2. Press Action to enter the Clear menu.

3. Use the side menu to select a section of the ARB waveform to clear or to clear the whole ARB waveform:

65

Example

AFG-125/225 Series Options Manual

Sets the start address of the section of the ARB waveform to be cleared.

Start range 0 ~ 4095

Sets the length of the section of the

ARB waveform to be cleared.

Length range 1 ~ 4096

Press Done to confirm and then clear the selected section of the ARB waveform.

Press Done to clear the whole ARB waveform instantly.

Figure showing the cleared section of the waveform.

Saving the ARB

Waveform

After you have created/edited your waveform,

you can save it for use at a later time. See page 56

to load a User Preset ARB waveform.

1. Press Save Now to save the ARB waveform to the current directory.

66

OPERATION

Setting ARB Output Length

Background

Steps

The Output Confirm menu allows the user to specify a section of the ARB waveform to be output.

The length of the outputted section will directly affect the possible frequency or rate of the ARB

waveform. See page 68 for details.

1. From the ARB menu press Output

Confirm.

2. Select the section of the ARB waveform that you wish to have output from the side menu:

Press Start* to set the start address for the output section.

Press Length* to set the total length of the output section.

Example

Output section is shown in black.

67

AFG-125/225 Series Options Manual

Note

* The maximum length depends on the start address setting.

The maximum length = 4096 – Start address.

3. Press Confirm to set the chosen output section.

4. See page 29 to set the output

settings and turn the output on.

Page 29

Setting ARB Frequency, Rate, Amplitude & Offset

Background

Steps

The rate, frequency, amplitude and

(amplitude)offset output parameters can also be set.

1. From the ARB menu press more 1

of 2.

2. Select the parameters from the side menu:

Sets the frequency* of the ARB waveform.

Sets the amplitude** of the waveform:

1mVpp to 2.5Vpp (into 50Ω)

2mVpp to 5Vpp (open-circuit)

Sets the Offset** of the ARB waveform:

±1.25Vpk ac +dc (into 50Ω)

±2.5Vpk ac +dc (Open circuit)

68

Note

OPERATION

Sets the rate of the ARB waveform*.

This will set the number of times the ARB waveform will be output each second.

*The frequency setting is inversely proportional to the

Rate setting. The frequency and rate settings are also directly affected by the length of the output ARB

waveform. See page 67 for setting the output length of

the ARB waveform.

**The amplitude and offset are linked. Together the amplitude and offset cannot exceed 2.5Vpp (into

50Ω).

3. See page 29 to set the output

settings and turn the output on.

Page 29

69

AFG-125/225 Series Options Manual

Power Supply Function

Using the Power Supply Function (AFG-125P & AFG-225P only)

Background

The AFG-125P and AFG-225P have an additional power supply function. The power supply has three fixed output levels: 2.5V, 3.3V, 5V.

Steps

1. Press Power Supply from the first level of the AFG menu.

2. Press Power to turn the power supply output on.

3. Press Voltage to select one of the fixed output levels. Status LEDs on the front panel will light up appropriately.

Voltage

2.5V, 3.3V, 5V

Note

The current power supply has a current output of 6A and a voltage output of (2.5V, 3.3V or 5V)±5%.

If the power supply is overload, the OVER LOAD LED on the front panel will light up.

70

A

PPENDEX

Dimensions

APPENDEX

30.7

223.6

106.9

71

AFG-125/225 Series Options Manual

Preset ARB Waveform

Common

Function

Description

ABSATAN

The absolute of atan(x)

Function

Description

Sampled aperiodic rectangle

ABSSIN y=|sin(x)| y=sqrt(1-x^2)

The absolute of sin(x) Half round function

ABSSINEH y=sin(x),0<x<pi y=0,pi<x<2pi

Half- wave function

SAWTOOT

Sawtooth or triangle wave

AMPALT

Oscillation rise

Piecewise function

72

ATTALT

Oscillation fall

APPENDEX

Piecewise function

DIRIEVEN f(x)=-1^(x*(n-1)/2*pi) x=0,±2*pi,±4*pi,……

Step down

DIRIODD

Odd

STAIR_UD f(x)=sin(nx/2)/n*sin(x/2) x=±pi,±3pi,……

Step up and step down

GAUSPULS

Gaussian-modulated sinusoidal pulse

Step up

HAVERCOS y=(1-sin(x))/2

Havercosine function

Heaviside step function

73

HAVERSIN

Haversine function

AFG-125/225 Series Options Manual

Piecewise function

NEGRAMP

Line segment

Sampled aperiodic triangle

N_PULSE

Negative pulse

Math

Function

Description

ARCCOS

Basic trigonometric function

Function

Description

EXPORISE

Exponential rise

74

ARCCOT

Basic trigonometric function

GAUSS

APPENDEX

A waveform representing a gaussian bell curve

ARCCSC

ARCSEC

ARCSIN

Basic trigonometric function

LN

Logarithm function

Basic trigonometric function

LORENTZ

The derivative of the lorentz function y=1/(k*x^2+1)

Basic trigonometric function

SEC

Basic trigonometric function

ARCSINH

Basic trigonometric function

SECH

Basic trigonometric function

75

ARCTAN

Basic trigonometric function

AFG-125/225 Series Options Manual

SINEC y=sin(x)/x

ARCTANH

Basic trigonometric function

SINH

COSH

Basic trigonometric function

SQRT

Basic trigonometric function y=sqrt(x)

COT

Basic trigonometric function

TAN

Basic trigonometric function

CSC

Basic trigonometric function

TANH

Basic trigonometric function

76

DLORENTZ

The derivative of the lorentz function. y=-2x/(k*x^2+1)

XSQUARE

Parabola

APPENDEX

EXPOFALL

Exponential decay

Window

Function

Description

BARTHWIN

Modified Bartlett-Hann window

Function

Description

HAMMING

The Hamming window function

BARTLETT

The Bartlett window is very similar to a triangular

HANN window as returned by the TRIANG function.

The Hann window function

77

BLACKMAN

The Blackman window function

AFG-125/225 Series Options Manual

HANNING

The Hanning window function

BOHMWIN

The Bohman window function

KAISER

The Kaiser window function

CHEBYSHE

The Chebyshev window function

TRIANG

The Triang window function

FLATTWIN

The Flattopwin window function

TUKEYWIN

The Tukey window function

Engineer

Function

Description

AIRY

The Airy function

Function

Description

GAMM

The Gamma function

78

BESSEL

The Bessel function

APPENDEX

LEGENDRE

Associated Legendre functions

BETA

The Beta function

NEUMANN

The Neumann function

79

AFG-125/225 Series Options Manual

Declaration of Conformity

We

GOOD WILL INSTRUMENT CO., LTD.

No. 7-1, Jhongsing Rd, Tucheng Dist., New Taipei City 236, Taiwan

GOOD WILL INSTRUMENT (SUZHOU) CO., LTD.

No. 69 Lushan Road, Suzhou New District Jiangsu, China. declare that the below mentioned products

Type of Product: Arbitrary Function Generator (With DC Power Supply)

Model Number: AFG-125, AFG-225, AFG-125P & AFG-225P are herewith confirmed to comply with the requirements set out in the

Council Directive on the Approximation of the Law of Member States relating to Electromagnetic Compatibility (2004/108/EC).

For the evaluation regarding the Electromagnetic Compatibility, the following standards were applied:

EMC

EN 61326-1: Electrical equipment for measurement, control and laboratory use –– EMC requirements (2013)

Conducted and Radiated Emissions

EN 55011: 2009+A1: 2010

Electrostatic Discharge

EN 61000-4-2: 2009

Current Harmonic

EN 61000-3-2: 2006+A1: 2009+A2:

2009

Voltage Fluctuation

EN 61000-3-3: 2008

-------------------------

-------------------------

-------------------------

-------------------------

Radiated Immunity

EN 61000-4-3: 2006+A1:

2008+A2 :2010

Electrical Fast Transients

EN 61000-4-4: 2012

Surge Immunity

EN 61000-4-5: 2006

Conducted Susceptibility

EN 61000-4-6: 2009

Power Frequency Magnetic Field

EN 61000-4-8: 2010

Voltage Dips/Interrupts

EN 61000-4-11: 2004

80

INDEX

I

NDEX

Accessories ................................. 11

AFG menu .................................. 26

App installation ......................... 18

App uninstallation ..................... 19

Appendix .................................... 71

ARB

Amplitude ..................................... 68

Clear................................................ 65 copy/paste ..................................... 63 diagonal line .................................. 61

Editing ............................................ 59

Frequency ...................................... 68 line .................................................. 60

Load waveforms ........................... 56

Offset .............................................. 68

Output ............................................ 67 point ................................................ 60

Preset waveform list .................... 72

Preset waveforms ......................... 56

Rate ................................................. 68

Save ................................................. 66 scale ................................................ 63

Baseband waveforms ................ 28

Basic waveforms ........................ 28

Burst ............................................ 53

Caution symbol ............................ 4

Cleaning the instrument ............. 6

Coupling ..................................... 31

Declaration of conformity ......... 80

Default settings .......................... 33

Disposal symbol .............................................. 5

Disposal instructions ................... 7

DS2-FH1 installation ................. 14

Dual tracking .............................. 31

EN61010 pollution degree.............................. 6

Entering the ARB function menu ........................................ 26

Environment safety instructions .......................... 6

Front panel diagram .................. 12

Function generator operation ........................................ 26

Fuse type ................................................... 5

Ground symbol .............................................. 4

List of features ............................ 10

Main features .............................. 10

Menu tree .................................... 21

Modulation

AM .................................................. 40

FM ................................................... 42

FSK .................................................. 44

PM ................................................... 46

SUM ................................................ 48

Module installation .................... 15

Module removal ......................... 15

Operation .................................... 25

Output ................................... 29, 34

Overview ....................................... 9

Power on/off safety instruction ............................ 5

Power supply operation ............ 70

Preset settings ............................. 33

Rear panel diagram ................... 13

Service operation about disassembly .......................... 5

State display ................................ 27

Sweep .......................................... 50

Sync Output ................................ 34

Tracking ...................................... 31

Turn the output on or off .......... 29

81

USB configuration ..................... 17

AFG-125/225 Series Options Manual

Warning symbol .......................... 4

82

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
