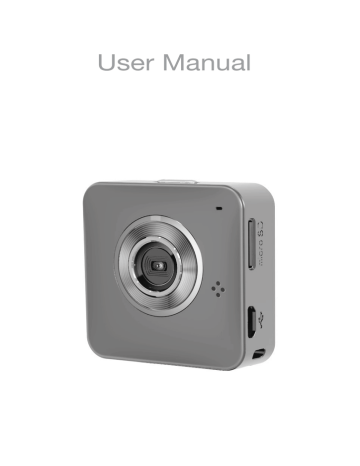

User Manual

User Manual
Names of Parts
Record Button
Mic
Status
Indicator
Micro SD
Card Slot
Speaker
Micro USB Port
Strap Hook
Video Mode
Photo Mode
Mode Button
Local Mode
Cloud Mode
Power Button
Tripod Mount
Clip Mount
Magnet Mount
Strap Mount
English | 1
Getting Started
Charging the Unit
• Before initial use, fully charge the camera via power adapter or
USB to computer system.
‡'XULQJFKDUJLQJWKHVWDWXVLQGLFDWRUÀDVKHVLQUHG:KHQWKH
camera is fully charged, the indicator turns off.
Modes Navigation
• Press Power button to turn on camera.
• Press Mode button to switch between modes.
With micro SD
card inserted
Without micro
SD Card
Camera Modes
:LUHOHVV0RGHV
:LUHOHVV0RGHV
Video Mode
Photo Mode
Local Mode
Cloud Mode
Local Mode
Cloud Mode
Video Mode Press Record button to shoot and press again to stop.
Photo Mode Press Record button to take pictures.
Connecting camera to mobile or PC directly for remote
Local Mode controlling, live viewing, album managing, and camera
setup.
&RQQHFWLQJFDPHUDWRFORXGVHUYHUYLDDFFHVVSRLQW$3
Cloud Mode or mobile hotspot for internet video or live monitoring.
Install [Unieye] or [PC APP]
Before using wireless mode, install below applications to setup
for both Local Mode and cloud setup, and also use them to watch
live view in Local Mode.
• Mobile app: Download [Unieye] from Google Play or Apple Store.
‡3&VRIWZDUH,QVWDOO>3&$33@IURPFDPHUD:LQGRZVSDJH
2 | English
Local Mode (WLAN)
For initial use, install [Unieye] app on
mobile. Each camera has a unique
Mobile / PC
Camera ID. (
8[[[[[[[[
Password is not required for the initial use, however, it is advised
to go to [Setup] in app to setup password after connected.
Connect to Camera
For iOS user:
• Set camera to Local Mode
and wait until the indicator
stops flashing.
• On mobile, go to [Settings]
>:L)L@ Choose a camera.
3G connection will switch to
:L)LZLWKLQPLQ
• Run [Unieye].
• Press camera bar to start.
For Android user:
• Set camera to Local Mode
and wait until the indicator
stops flashing.
‡2QPRELOHDFWLYDWH:L)L
• Run [Unieye].
• Press camera bar to start.
iOS:
Android:
Zoom In
Zoom out
Take Photo
Shoot Video
6'FDUGUHTXLUHG
6'FDUGUHTXLUHG
Invert Image
Loop Recording
Two Way Voice
Quad View
• Tap to talk to the camera from mobile; tap
again to allow the camera to talk back to
mobile.
‡3UHVVWRHQDEOH4XDG9LHZXSWRIRXUFDPHUDV
‡7DS>@EXWWRQWRUHWXUQWRVLQJOHYLHZ
• Record and archive in 3 min interval
1RWH0RYHWKHFDPHUDIXUWKHUDZD\IURPPRELOHZKHQHFKRRFFXUV
2. Mobiles with poor CPU performance may affect audio during broadcasting.
English | 3
Cloud Mode (Internet)
AP
USTREAM
Cloud AP
AP
Cloud Server
3G/4G
Mobile / PC
Mobile Hotspot
Recommended Cloud Server for Access:
USTREAM
A live broadcasting social media.
Before using Cloud Mode, it is required to setup cloud AP and
cloud server in Local Mode.
Step 1: Setup Cloud AP in Local Mode
On mobile, start [Unieye], go to app [Setup] [Cloud Settings]
>&ORXG$3@6HOHFWD:L)LQHWZRUNIURP>$3/LVW@DQGHQWHU
password. If no preferred AP is found, press [Other...] from [AP
List] Enter network name and password.
Note: Mobile hotspot can be act as cloud AP.
Step 2: Setup Cloud Server in Local Mode
• New user, press
then enter email/username/password/
FRQ¿UPIRUauto-registration. Returning user, enter username/
password only.
• Press [Save to Camera].
4 | English
Cloud Mode (Internet)
Step 3: Connect Camera to Cloud Server
Two ways to connect to cloud server:
2Q>8QLH\H@SUHVV>&DPHUDWR&ORXG@LQ>6HWXS@SDJH
2. On camera, set to Cloud Mode .
:KLOHFRQQHFWLQJWKHVWDWXVLQGLFDWRUÀDVKHVUDSLGO\LQRUDQJH
2QFHFRQQHFWHGWKHVWDWXVLQGLFDWRUÀDVKHVLQJUHHQ,IFRQQHFWLRQ
IDLOVWKHVWDWXVLQGLFDWRUÀDVKHVLQUHGDQGDOHUWVLQGLIIHUHQW
beeping frequencies.
Alert
Cause/Solution
One time
Cannot connect to cloud AP or invalid network password.
&DPHUDQRWLQVLGH:L)LDUHDRUZHDNVLJQDO
Check AP settings or move camera closer to cloud AP.
Two times
No internet access or the cloud server is not accessible.
Cannot log in cloud server via internet.
&ORXGVHUYLFHPD\EHEORFNHGE\¿UHZDOO
Cloud server username or password is incorrect. Refer
Three times to
in [Setup] for instructions.
Username already taken. Create new account in [Unieye].
Or go into [Unieye] to view the error message.
Step 4: View Live Videos on Cloud Server
Options to view live videos:
8VHPRELOHDSSUSTREAM is available in Google Play or
Apple Store.
2. Visit website: http://www.ustream.tv
Then search for username and select "username's show" to watch
live video through camera.
1RWH8675($0FORXGVHUYHUKDVULJKWWRFKDQJHVHUYLFHSROLF\
:KHQXVLQJFORXGPRGHPDNHVXUHWKHPRELOHLVFRQQHFWHGWR**
3. Experiencing delays while viewing live video may be due to high
LQWHUQHWWUDI¿F
English | 5
Use PC APP
Mass Storage and Webcam Modes
:KLOHFDPHUDLVSOXJJHGLQWR3&SUHVV0RGHEXWWRQRQFDPHUD
WRVZLWFKEHWZHHQ0DVV6WRUDJH0RGHGHIDXOWDQG:HEFDP
Mode. The status indicator shows steady red in Mass Storage
0RGHDQGVWHDG\JUHHQLQ:HEFDP0RGHIn Skype or QQ, select
89&B:(%&$0.
7RXVH>8QLH\H@IHDWXUHVLQ3&LQVWDOO>3&$33@VRIWZDUH¿UVW
The [PC APP] has similar features and interface to [Unieye] for
easy user experience.
Installing [PC APP] from Camera
• Connect the camera to PC via a USB cable.
• [PC APP] AutoRun/AutoPlay activates.
• If AutoRun/AutoPlay is not starting:
Go to [My computer] and search [PC APP] for installation.
• Once installed, unplug the camera from PC then run [PC APP].
Local Mode - [PC APP]
Use [Unieye] to setup camera's Local Mode and Cloud Mode. [PC
APP] has more features than [Unieye].
• Press [View HD] or double-click the viewing window to
maximize it into full screen. Double-click again to return to the
[PC APP] interface.
• To save videos or photos to PC:
Go to [Album]
Select videos or photos
Press [Save to PC].
6 | English
Camera Indication
Condition
Status Indicator
Alert
Recording
Flashing green
One time
Loop Recording
Flashing orange
One time
Charging
Flashing red
None
Fully Charged
No indication
Two times
Low Battery
Flashing red every 5 sec.
:DUQLQJ
Five times
6KXWGRZQ
Power Off
No indication
Two times
Auto Power Off
PLQVLGOH
Flashing red
Two times
Memory Full
SD Card Error
Flashing red
Three times
Forced Shutdown
Camera Hotkey
Press and hold Power button for 5 sec. to
turn off camera.
Forced Default
Settings
Press and hold Mode and Record buttons
for 5 sec. to restore default settings.
Car Camcorder
Press and hold Record button for 3 sec. to start
loop recording and invert image.
English | 7
Troubleshooting
Situation
Cause/Solution
Camera cannot turn on Battery power is low. Recharge the battery.
Camera is frozen
Press Power button for 5 sec. to turn off.
Press Power button twice to turn on.
Camera cannot record
No SD card or SD card is full.
SD card cannot be recognized. Format SD
card in [Unieye] or replace SD card.
Camera not found
Turn on camera, switch to Local Mode. Press
"Refresh" on mobile or PC to scan again.
Forgot camera password
Press both Mode and Record buttons for 5
sec. to reset.
Cannot watch live view Move camera closer to mobile.
Flickering segments on
79V\VWHPVHWWLQJ+]+]LVLQFRUUHFW
live view
