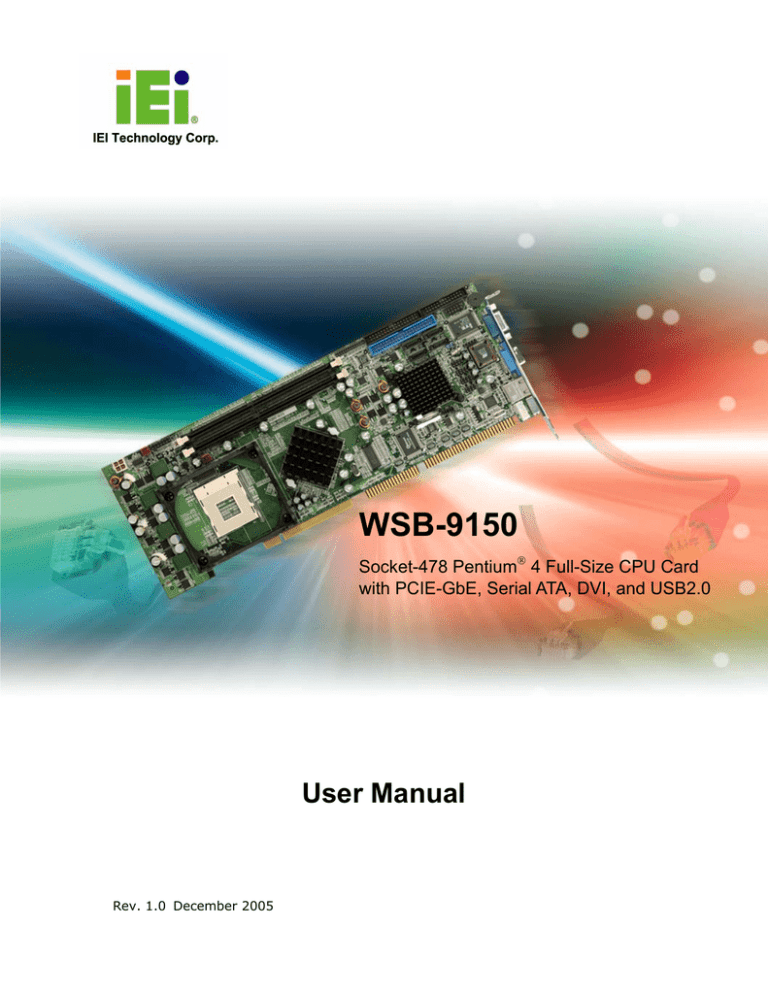

WSB-9150

Socket-478 Pentium

®

4 Full-Size CPU Card with PCIE-GbE, Serial ATA, DVI, and USB2.0

Rev. 1.0 December 2005

User Manual

Copyright Notice

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

Trademarks

WSB-9150 is registered trademarks of ICP Electronics Inc.; IBM PC is a registered trademark of International Business Machines Corporation. INTEL is a registered trademark of INTEL Corporation. AMI is registered trademarks of American Megatrends

Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.

Support

Any questions regarding the content of this manual or related issue can be e-mailed to us directly at: [email protected]

Page 2 of 100 IEI

®

Technology Corp.

Package Contents

The WSB-9150 package includes the following items: z

1 x WSB-9150 single board computer z z

1 x RS-232 cable P/N: 19800-000047-RS

1 x USB cable P/N: CB-USB02 z z z z

1 x ATA 66/100 flat cable P/N: 32200-000052-RS

1 x ATX-12V cable P/N: 32100-087100-RS

2 x SATA cable P/N: 32000-062800-RS

1 x SATA power cable P/N: 32100-088600-RS z z z

1 x Keyboard/ PS2 mouse Y cable P/N: 32000-000138-RS

1 x mini jumper pack P/N: 33100-000079-RS

1 x Utility CD P/N: IEI-7B000-000087/CD1 z

1 x QIG (quick installation guide) P/N: 51000-001069-RS

Ordering Information

Standard

z WSB-9150-R10

PICMG 1.0 Socket 478 800MHz FSB CPU Card with VGA, PCI-Express GbE, S-ATA,

USB 2.0 and Audio

Optional:

1. DVI function please contact supplier (ship with DVI cable: IO-KIT-001)

2. Audio cable P/N: AC-KIT08R

3. CPU Cooler P/N: CF-519

4. FDD cable P/N: 32200-000017-RS

5.

LPT cable P/N: 32200-000040-RS

If any of these items are missing or damaged, please contact the dealer from whom you purchased this product. Save the shipping materials and carton in case you want to ship or store the product in the future.

Page 3 of 100

Table of Contents

Trademarks.....................................................................................................2

Support ...........................................................................................................2

ESD Precautions ............................................................................................7

Conventions Used in This Manual................................................................7

Chapter 1 Introduction

1.1 Introduction ........................................................................................................... 9

1.2 Features ............................................................................................................... 10

1.3 Specification ........................................................................................................ 10

1.4 Jumpers and Connectors ................................................................................... 14

1.5 Board Layout: Jumper and Connector Locations ........................................... 15

1.6 Block Diagram ..................................................................................................... 16

1.7 Jumper Settings .................................................................................................. 17

1.8 System Memory................................................................................................... 18

1.9 Cache Memory..................................................................................................... 20

1.10 Processor Installation...................................................................................... 20

Chapter 2 Connecting Peripherals

2.1 PCI E-IDE Disk Drive Connector (PIDE1) .......................................................... 23

2.2 Floppy Disk Drive Connector (FDD1) ................................................................ 24

2.3 Parallel Port (LPT1) ............................................................................................. 25

2.4 Serial Ports (COM1 & COM2).............................................................................. 26

2.5 IrDA Infrared Interface Port (IR1) ....................................................................... 27

2.6 DVI Connector (DVI1) .......................................................................................... 27

2.7 USB Port Connectors (USB01, USB23, USB45, & USB67)............................... 28

2.8 Keyboard & Mouse Connector (KB_MS1 & KB1)............................................. 29

2.9 Fan Connectors (CPU_FAN1)............................................................................ 29

2.10 Serial ATA Connectors (S_ATA1, S_ATA2, S_ATA3, & S_ATA4,) ................. 30

2.11 External Switches and Indicators................................................................... 31

2.12 LAN RJ45 Connectors (LAN1) ........................................................................ 31

2.13 AC’97 Connector (J_AUDIO1) ......................................................................... 32

2.14 VGA Connector (VGA1) ................................................................................... 33

2.15 ATX _12V Power Connector (CPU12V1)......................................................... 33

2.16 ATXCTL Connector (ATXCTL1) ....................................................................... 34

Page 4 of 100 IEI

®

Technology Corp.

Chapter 3 AMI BIOS Setup

3.1 Introduction ......................................................................................................... 36

3.2 Starting Setup ...................................................................................................... 36

3.3 Using Setup ......................................................................................................... 37

3.4 Getting Help ......................................................................................................... 37

3.5 BIOS menu bar .................................................................................................... 38

3.6 Main ...................................................................................................................... 39

3.7 Advanced ............................................................................................................. 39

3.7.1 CPU Configuration............................................................................................. 41

3.7.2 IDE Configuration .............................................................................................. 42

3.7.3 Floppy Configuration ........................................................................................ 44

3.7.4 Super IO Configuration ..................................................................................... 45

3.7.5 Hardware Health Configuration........................................................................ 45

3.7.6 ACPI Configuration............................................................................................ 47

3.7.7 MPS Configuration ............................................................................................ 48

3.7.8 PCI Express Configuration ............................................................................... 48

3.7.9 Remote Access Configuration ......................................................................... 49

3.7.10 USB Configuration........................................................................................... 50

3.8 PCI PnP ................................................................................................................ 51

3.9 Boot ...................................................................................................................... 53

3.10 Security ............................................................................................................... 54

3.11 Chipset ................................................................................................................ 56

3.11.1 North Bridge Configuration ............................................................................ 57

3.11.2 South Bridge Configuration............................................................................ 58

3.12 Power................................................................................................................... 59

3.13 Exit....................................................................................................................... 61

Chapter 4 Chipset Software Installation

4.1 Before you begin ................................................................................................. 63

4.2 Introduction ......................................................................................................... 63

4.3 Windows XP Driver Setup .................................................................................. 64

Chapter 5 VGA Setup

5.1 Introduction ......................................................................................................... 68

5.2 Windows XP Driver Setup .................................................................................. 68

Chapter 6 LAN Configuration

6.1 Introduction ......................................................................................................... 72

Page 5 of 100

6.2 Windows XP Driver Setup .................................................................................. 72

Chapter 7 USB 2.0 Configuration

7.1 Introduction ......................................................................................................... 78

7.2 Installation............................................................................................................ 78

Appendix A Watchdog Timer

AH – 6FH Sub-function: ............................................................................................. 84

Appendix B Address Mapping

B.1 IO Address Map .................................................................................................... 87

B.2 1st MB Memory Address Map ............................................................................. 87

B.3 IRQ Mapping Table ............................................................................................... 88

B.4 DMA Channel Assignments................................................................................. 88

Appendix C ATX Power Supply

Appendix D Intel RAID for SATA Configuration

Page 6 of 100 IEI

®

Technology Corp.

ESD Precautions

Observe all conventional anti-ESD methods while handling the CPU board. The use of a grounded wrist strap and an anti-static work pad is recommended.

Avoid dust and debris or other static-accumulating materials in your work area.

Conventions Used in This Manual

Naming

From this point on and throughout the rest of this manual, the subject product is referred to as simply the “subsystem” or the “system.”

WARNING

Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word

“warning” is written as “WARNING,” both capitalized and bold and is followed by text in italics.

The italicized text is the warning message.

CAUTION

Cautionary messages should also be heeded to help you reduce the chance of losing data or damaging the system. Cautions are easy to recognize. The word “caution” is written as

CAUTION,” both capitalized and bold and is followed by text in italics. The italicized text is the cautionary message.

NOTE

These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help you avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,” both capitalized and bold and is followed by text in italics. The italicized text is the cautionary message.

Lists

Bulleted Lists: Bulleted lists are statements of non-sequential facts that can be read in any order.

Each statement is preceded by a round black dot “

•.”

Numbered Lists: Numbered lists describe sequential steps you should follow in order.

Page 7 of 100

Chapter

1

Hardware Configuration

Page 8 of 100 IEI

®

Technology Corp.

1.1 Introduction

Thank you for choosing the WSB-9150 SOCKET 478 PENTIUM 4 Single Board Computer.

The WSB-9150 board is a PICMG form factor board, which comes fully equipped with high performance Processor and advanced high performance multi-mode I/O, designed for the system manufacturers, integrators, or VARs that want to provide all the performance, reliability, and quality at a reasonable price.

In addition, the GMCH provides an integrated graphics device (IGD) delivering cost competitive 3D, 2D and video capabilities. The GMCH’s analog port uses an integrated

400 MHz RAMDAC that can directly drive a standard progressive scan analog monitor up to a resolution of 2048x1536 pixels with 32-bit color at 85 Hz.

WSB-9150 supports one or two 64-bit wide DDR400 data channels. Available bandwidth is up to 3.2GB/s in single-channel mode and 6.4GB/s in dual-channel mode.

The single-chip PCI Express based 88E8053 device with a Gigabit Ethernet controller. It supports full 100/1000-base-T Ethernet. It is fully integrated 10BASE-T/100BASE-TX

LAN solution with high performance networking functions and low power features.

The ICH6 integrates SATA Host Controller, supporting four SATA ports with up to

150MB/s maximum transfer rate. The ICH6R also offers data striping for higher performance (RAID Level 0), and mirroring for Data security (RAID Level 1).

For applications that need high-speed serial transmission, WSB-9150 provides eight

USB2.0 ports for your convenience. The high speed USB2.0 host controller implements an ECHI interface that provides bandwidth up to 480Mb/s.

Page 9 of 100

1.2 Features

z z z z z

Intel long term support product

Intel P4 / Prescott / Celeron CPU supports up to FSB 800 MHz

Intel GMA900 graphic accelerator

Dual channel DDR400 SDRAM memory support

High performance PCI Express Gigabit Ethernet controller

1.3 Specification

General Specifications

z

CPU: Intel Socket-478 P4/Prescott/Celeron-D up to 800 MHz FSB z z z

Interface: PICMG 1.0 compliant, PCI 2.1

Chipset: Intel 915GV and ICH6/ICH6R.

BIOS: AMI Bios

Page 10 of 100 IEI

®

Technology Corp.

z z z z z

System memory: Two 184-pin DIMM sockets support Dual Channel

DDR333/400 SDRAM, support one or two 64-bit wide DDR data channels.

The maximum memory is up to 2 GB. Installing two identical DIMMs in pairs will result in Dual Channel operations, which theoretically will double the memory bandwidth.

Enhanced IDE interface: Supports up to 2 PCI Enhanced IDE hard drives.

The Ultra DMA 100 IDE can handle data transfer up to 100 MB/s, compatible with existing ATA IDE specifications.

Serial ATA: Intel ICH6 integrates 4 SATA interfaces with transfer rate up to

150MB/s. It supports RAID 0, 1.(ICH6R only)

Real Time Clock: Intel ICH6 built-in RTC with Lithium battery

Hardware monitor: Built-in to monitor CPU Vcore, Vcc, CPU/System fan speed and temperature detecting function.

Display

z z

Chipset: Intel 915GV GMCH (Graphic Memory Controller Hub), which integrates Intel® Graphics Media Accelerator (GMA) 900. It supports widescreen LCD displays and accelerated DirectX* 9. Onboard SDVO chip

(SIL1362) supports color DVI display (optional).

Connector: DB-15 connector for VGA display on rear I/O panel.

Ethernet

z

Chipset: Marvell 88E8053 Gigabit Ethernet controller supports full

100/1000-base-T Ethernet. z

Connector: Dual RJ-45 connectors with LED on rear I/O panel

Multi I/O Ports

z

Chipset: Intel ICH6 with ITE IT8712F Super I/O controller z z z

Serial ports: Two RS-232 ports by pin-header. Ports can be individually configured to COM1, COM2 or disabled.

Bi-directional parallel port: One LPT port, supports EPP/ECP/SPP parallel mode

FDD port: One FDD port, supports up to two floppy disk drives, 5.25”

Page 11 of 100

z z z z

(360KB and 1.2MB) and/or 3.5” (720KB, 1.44MB and 2.88MB).

IrDA port: Supports Serial Infrared (SIR) and Amplitude Shift Keyed IR

(ASKIR) interface

USB port: Supports eight USB 2.0 ports, by pin-headers

Watchdog timer: Software Programmable Reset, automatically generated when CPU does not periodically trigger the timer (hung).

PS/2 Keyboard and Mouse: PS/2 Keyboard/Mouse connector on rear I/O panel.

Audio

z z

Audio: Realtek ALC655 AC’97 Audio CODEC, 16-bit, full-duplex AC'97 Rev.

2.3 compatible six-channel audio CODEC designed for PC multimedia systems.

Connector: Line-out connector on rear I/O panel and CD-in, line-out, mic-in pin-headers for Audio Module

Power Consumption & Environment

z

Power consumption:

z z

Pentium 4 Northwood 3.0GHz CPU (2GB DDR400 DDR-SDRAM):

[email protected], [email protected], [email protected], [email protected]

Pentium 4 Prescott 3.4GHz CPU (2GB DDR400 DDR-SDRAM):

[email protected], [email protected], [email protected], [email protected] z z z z

Power Supply: 350-Watt power supply or higher is recommended.

Power control function: meets ACPI 1.1 specification.

(*CPU needs Cooler & silicone heat sink paste)

Relative Humidity: 5%~95%, non condensing

Page 12 of 100 IEI

®

Technology Corp.

WARNING!

1. Never run the processor without the heat sink and CPU Fan.

2. Be sure to connect ATX_12V power connector (PW) for the CPU power.

Page 13 of 100

1.4 Jumpers and Connectors

Jumpers on WSB-9150 can be used to set the system configuration according to your application. WSB-9150 is also equipped with Connectors that allow you to connect external devices such as HDD, FDD, K/B, Printer, etc.

The tables below list the function of jumpers and connectors on WSB-9150.

Jumpers

Label

J_COMS1

Function

Clear CMOS Setup

Page 14 of 100 IEI

®

Technology Corp.

1.5 Board Layout: Jumper and Connector Locations

Page 15 of 100

1.6 Block Diagram

Intel Socket 478 Pentium

4 Supporting

HT Technology

Clock Generator

SDVO-DVI

Intel 915GV

GMCH

PWM-ISL6556I

VCORE

PWM-ISL6537I OTHER

CHANNEL A

DDR SDRAM DIMM X 1

CHANNEL B

DDR SDRAM DIMM X 1

IDE PRIMARY

4 SERIAL ATA Ports

8 Hi Speed USB 2.0

Intel ICH 6

PCI SLOT

PCI EXPRESS

GIGA LAN

WINBOND

AC 97

Page 16 of 100 IEI

®

Technology Corp.

FWH/HWM

LPC ITE8712HX

COMA COMB LPT PS2 IR

FDD

FRONT PANNEL / CPU FAN

1.7 Jumper Settings

This section provides instructions on how to configure WSB-9150 by setting the jumpers. It also includes WSB-9150’s default settings and options for each jumper.

1.7.1 How to set jumpers

A jumper is a metal bridge that closes an electrical circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from the jumper.

NOTE:

The default jumper setting is marked in GREY color.

1.7.2 CMOS clear (J_COMS1)

In case WSB-9150 fails to boot due to user’s improper BIOS setting, CLR_CMOS jumper can be used to clear the CMOS data and reset the system BIOS information by shorting pin 2-3 for few seconds and then moving the jumper back to pin 1-2.

If WSB-9150 shows “CMOS Settings Wrong” message during the boot up, press F1 to

Page 17 of 100

go into the CMOS Setup menu. You may then enter the correct CMOS setting or Load

Optimal Defaults or Load Failsafe Defaults. Save your changes and exit the CMOS Setup menu.

NOTE:

1. In normal operation, pin 1-2 must stay in CLOSED condition.

2. Power must be turned OFF before clearing CMOS data

J_COMS1

1-2

2-3

DESCRIPTION

(Normal Operation)

Clear CMOS Setup

1.8 System Memory

WSB-9150 has two 184-pin DIMM sockets for a maximum total memory module up to

2GB 2.5V DDR SDRAM. Dual Channel Technology is applied only when two same modules are used. Installing two identical DIMMs results in dual-channel operation mode, which will double the memory bandwidth to 6.4GB/s.

To install memory module, first make sure the two handles of the DIMM socket are in the "open" position (the handles lean outward).

Page 18 of 100 IEI

®

Technology Corp.

Slowly slide the DIMM module along the plastic guides on both ends of the socket, then press the DIMM module right down into the socket, until you hear a ‘click’ sound. This is when the two handles have automatically locked the memory module into the correct position of the DIMM socket. To remove the memory module, just push both handles outward, and the memory module will be ejected by the mechanism in the socket.

Page 19 of 100

1.9 Cache Memory

Since the second-level (L2) cache has been embedded into the Intel® socket 478

Pentium® 4/Celeron processor, you do not have to take care of either SRAM chips or

SRAM modules. The built-in second-level cache in the processor yields much higher performance than the external cache memories. The cache size in the Intel Pentium 4 processor 3.0GHz, for example, is 1024 KB.

The WSB-9150 is designed for Intel Pentium

®

4 processor/Celeron (socket 478)

Step 1:

Lift the processor socket lever

Step 2: Align the corner having the triangle marking on the processor

with the

corner where the lever is attached to the socket

Page 20 of 100 IEI

®

Technology Corp.

Step 3: Lower the lever to its original position

Page 21 of 100

Chapter

2

Connecting Peripherals

Page 22 of 100 IEI

®

Technology Corp.

2.1 PCI E-IDE Disk Drive Connector (PIDE1)

NOTE:

Please refer to Appendix B for detailed information about pin assignments.

You can attach up to two IDE (Integrated Drive Electronics) drives to the WSB-9150’s built-in controller. WSB-9150’s Ultra DMA100 IDE supports data transfer up to 100MB/s.

Ultra DMA 100 IDE drive must be equipped with Ultra DMA 100 cable, for optimum performance.

IDE: IDE Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RESET# 2 GND

3

5

7

DATA 7

DATA 6

DATA 5

4

6

8

DATA 8

DATA 9

DATA 10

11

13

15

DATA 3

DATA 2

DATA 1

12

14

16

DATA 12

DATA 13

DATA 14

17 DATA 0 18 DATA 15

19 GND 20 N/C

21 DRQ 22 GND

23 IOW# 24 GND

25 IOR# 26 GND

27 CHRDY 28 REV. PULL LOW

31 INTERRUPT 32 N/C

33 SA1 34 N/C

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

GND

Page 23 of 100

2.2 Floppy Disk Drive Connector (FDD1)

You can attach up to two floppy disk drives to the WSB-9150’s onboard controller. You can use 3.5" (360KB, 720KB, 1.2MB, 1.44MB and 2.88MB) drives. The motherboard comes with a 34-pin daisy-chain drive connector cable. On one end of the cable is a

34-pin flat-cable connector. On the other end are two sets of 34-pin flat-cable connector (usually used for 3.5" drives). The set on the end (after the twist in the cable) connects to the A: floppy drive. The set in the middle connects to the B: floppy drive.

Please connect the red power connector wire to the pin1 position.

FDD: Floppy Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 RWC0-

3 GND 4 NC

5 GND 6 RWC1-

7 GND 8 INDEX-

9 GND 10 MO-A

11 GND 12

13 GND 14

DS-B

DS-A

15 GND 16

17 GND 18

19 GND 20

21 GND 22

23 GND 24

25 GND 26

27 GND 28

29 GND 30

31 GND 32

33 GND 34

MO-B

DIR-

STEP-

WD-

WGATE-

TRK0-

WP-

RDATA-

HEAD-

DSKCHG-

Page 24 of 100 IEI

®

Technology Corp.

2.3 Parallel Port (LPT1)

Usually, a printer is connected to the parallel port. The WSB-9150 includes an on-board parallel port, accessed via a 26-pin flat-cable connector LPT.

LPT: Parallel Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #

2 DATA0 15 ERROR#

3 DATA1 16 INITIALIZE

4 DATA2 17 PRINTER SELECT LN#

5 DATA3 18 GND

6 DATA4 19 GND

7 DATA5 20 GND

8 DATA6 21 GND

9 DATA7 22 GND

10 ACKNOWLEDGE 23 GND

11 BUSY 24 GND

GND

NC

Page 25 of 100

2.4 Serial Ports (COM1 & COM2)

The WSB-9150 offers two high speed NS16C550 compatible UART’s with 16-byte

Read/Receive FIFO serial ports.

COM1: 9-pin external connector

Connector Ports Address Interrupt

COM1 COM1 2F8 IRQ3

1

PIN

1

2

5

9

COM1:DB-9 Serial Port Connector

DESCRIPTION

DATA CARRIER DETECT (DCD)

RECEIVE DATA (RXD)

7

8

9

4 DATA TERMINAL READY (DTR)

5 GND

6 DATA SET READY (DSR)

REQUEST TO SEND (RTS)

CLEAR TO SEND (CTS)

RING INDICATOR (RI)

COM2: 10-pin external connector

Connector Ports Address Interrupt

COM2 COM2 3F8 IRQ4

Page 26 of 100 IEI

®

Technology Corp.

COM2: 10Pin Serial Port Connector

PIN DESCRIPTION

1 DATA CARRIER DETECT (DCD)

2 RECEIVE DATA (RXD)

6

7

4 DATA TERMINAL READY (DTR)

5 GND

DATA SET READY (DSR)

REQUEST TO SEND (RTS)

8

9

CLEAR TO SEND (CTS)

RING INDICATOR (RI)

10 GND

2.5 IrDA Infrared Interface Port (IR1)

The product has a built-in IrDA port which supports Serial Infrared (SIR) or Amplitude

Shift Keyed IR (ASKIR) interface. If you want to use the IrDA port, you have to configure SIR or ASKIR model in the BIOS under Peripheral Setup COM2. Then the normal RS-232 COM 2 will be disabled.

PIN

IR: IrDA connector

DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

5 4 3 2 1

● ● ● ● ■

2.6 DVI Connector (DVI1)

The WSB-9150 provides DVI interface for your DVI display.

Page 27 of 100

DVI: DVI Connector

PIN DESCRIPTION PIN DESCRIPTION

1 DATA2- 14 VCC

2 DATA2+ 15 NC

3 GND 16 HP_DET

4 NC 17 DATA0-

5 NC 18 DATA0+

6 DDCCLK 19

7 DDCDATA 20

GND

NC

8 NC 21 NC

9 DATA1- 22 GND-

10 DATA1+ 23 CLK+

11 GND 24 CLK-

12 NC 25 GND

13 NC

2.7 USB Port Connectors (USB01, USB23, USB45, &

USB67)

The WSB-9150 provides up to four USB (Universal Serial Bus) ports, which gives complete Plug & Play and hot swapping for up to 127 external devices. The USB interface complies with USB Specification Rev. 2.0 support transmission rate up to 480

Mbps and is fuse-protected. The USB interface can be disabled in the system BIOS setup.

USB1, USB2, USB3, UBS4: 2 ports USB Connector

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 GND

3 DATA0- 4 DATA1+

5 DATA0+ 6

7 GND 8

DATA1-

VCC

Page 28 of 100 IEI

®

Technology Corp.

2.8 Keyboard & Mouse Connector (KB_MS1 & KB1)

The WSB-9150 has a 6-pin DIN keyboard/mouse connector (KB/MS). For alternative application, a keyboard pin header connector (KB) is also available on board, located on

KB respectively.

KB_MS1: Mini DIN Keyboard/Mouse Connector

PIN DESCRIPTION

1 DATA

6

4

5

3

2 1

3 GND

4 +5V

PIN

KB1: 5-pin Header Keyboard Connector

DESCRIPTION

3 N/C

4 GND

5 +5V

2.9 Fan Connectors (CPU_FAN1)

The WSB-9150 also has a CPU with cooling fan connector and chassis fan connector, which can supply 12V/500mA to the cooling fan. There is a “rotation” pin in the fan connector, which transfers the fan’s rotation signal to the system BIOS in order to recognize the fan speed. Please note that only some specific types of fans offer a rotation signal.

Page 29 of 100

CPU_FAN1: Fan Connector

PIN DESCRIPTION

1 GND

2 +12V

3 2 1

2.10 Serial ATA Connectors (S_ATA1, S_ATA2, S_ATA3,

& S_ATA4,)

The WSB-9150 provides four Serial ATA ports (S_ATA1, S_ATA2, S_ATA3, and S_ATA4) to connect with Serial ATA devices. Serial ATA can provide data transfer rate up to

150MB/s. Serial ATA also provides Hot-Plug support, lower pin-count, lower signaling voltage, easier cabling and CRC Error Detection. Please refer to the BIOS setting for the

Serial ATA and install the proper driver in order to work properly.

S_ATA1, S_ATA2, S_ATA3, S_ATA4: Serial ATA

Connector

PIN DESCRIPTION

1 GND

2 S_TXP

3 S_TXN

4 GND

5 S_RXP

6 S_RXN

7 GND

Page 30 of 100 IEI

®

Technology Corp.

2.11 External Switches and Indicators

There are several external switches and indicators for monitoring and controlling your

CPU board. All functions are in the CN1 connector.

F_Panel1 : External Switches and Indicators panel

Power LED

PWRBTN

PIN DESCRIPTION PIN DESCRIPTION

1 +5V 2 +5V

3 N/C 4 N/C

Speaker

5 GROUND 6 N/C

7 PWRBTSW- 8 Speaker

9 GROUND 10 N/C

HDDLED

13 HDLED- 14 GND

2.12 LAN RJ45 Connectors (LAN1)

The WSB-9150 is equipped with one built-in 100/1000Mbps (LAN1) Ethernet controller.

You can connect it to your LAN through RJ45 LAN connectors.

LAN1: 100/1000 LAN RJ45 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 TX0+ 2 TX0-

3 TX1+ 4 TX1-

5 VCC 6 GND

7 TX2+ 8 TX2-

9 TX3+ 10 TX3-

11 SPEED1000- 12

13 LINK- 14

SPEED100+

ACT+

Page 31 of 100

2.13 AC’97 Connector (J_AUDIO1)

The product does not build in AC’97 AUDIO CODEC; it needs to connect to the AUDIO

CODEC module.

AC’97 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 SYNC 2 BITCLK

3 SDOUT 4 PCBEEP

7 VCC 8 GND

9 +12V 10

9 7 5 3 1

● ● ● ● ■

● ● ● ● ●

10 8 6 4 2

GND

Page 32 of 100 IEI

®

Technology Corp.

2.14 VGA Connector (VGA1)

The WSB-9150 includes a VGA interface that can drive conventional CRT displays. It is a standard 15-pin D-SUB connector commonly used for VGA.

VGA: 15-pin Female Connector

PIN DESCRIPTION PIN DESCRIPTION

1

3

RED

BLUE

2

4

GREEN

NC

5

7

9

11

13

15

GND

GND

VCC / NC

NC

HSYNC

DDCCLK

6

8

10

12

14

GND

GND

GND

DDC DAT

VSYNC

2.15 ATX _12V Power Connector (CPU12V1)

The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start.

CPU12V1: ATX_12V Power Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 GND

3 +12V 4 +12V

Page 33 of 100

2.16 ATXCTL Connector (ATXCTL1)

Connect this connector to the ATX Control Connector of your backplane.

ATXCTL: Backplane to Mainboard Connector

PIN DESCRIPTION

1 GND

2 ATX_ON

3 5VSB

Power source from Backplane with ATX Connector

(Through Power Button & +5VSB)

Page 34 of 100 IEI

®

Technology Corp.

Chapter

3

AMI BIOS Setup

Page 35 of 100

3.1 Introduction

This manual describes AMI's Setup program, which is built into the ROM BIOS. The

Setup program allows users to modify the basic system configuration. This special information is then stored in battery-backed RAM so that it retains the Setup information when the power is turned off.

3.2 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del>key when the following message appears briefly at the bottom of the screen during the POST.

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and

<Delete> keys. If you do not press the keys at the correct time and the system does

not boot, an error message will be displayed and you will

again be asked to...

Page 36 of 100 IEI

®

Technology Corp.

3.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the

PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow

Left arrow

Right arrow

Esc key

Page Up key

Page Dn key

F1 key

F2 /F3 key

F10 key

Move to previous item

Move to next item

Move to the item in the left hand

Move to the item in the right hand

Main Menu -- Quit and not save changes into

CMOS

Status Page Setup Menu and Option Page Setup

Menu -- Exit current page and return to Main

Menu

Increase the numeric value or make changes

Decrease the numeric value or make changes

General help, only for Status Page Setup Menu and Option Page Setup Menu

Change color from total 16 colors. F2 to select color forward.

Save all the CMOS changes, only for Main Menu

3.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the AMI BIOS supports an override to the CMOS settings that resets your system to its defaults.

Page 37 of 100

The best advice is to only alter settings that you thoroughly understand. To this end, we strongly recommend that you avoid making any changes to the chipset defaults.

These defaults have been carefully chosen by both AMI and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override.

3.5 BIOS menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system configuration.

Advanced For changing the advanced system settings.

PCI PnP

This entry appears if your system supports PnP / PCI.

Boot For changing the system boot configuration.

Security

Use this menu to set User and Supervisor Passwords.

Chipset For changing the chipset setting.

Power For changing the advanced power management configuration.

Exit For selecting the exit options and loading default settings.

Page 38 of 100 IEI

®

Technology Corp.

3.6 Main

When you enter the BIOS Setup program, the Main menu screen shows the basic system information.

AMI BIOS This part shows the auto-detected BIOS information.

Processor This part shows the auto-detected CPU specification.

System Memory This part shows the auto-detected system memory.

System Time [HH:MM:SS] It shows the current time. You may set the time according to your local time.

System Date [Day MM/DD/YYYY] This item allows you to set the system date.

3.7 Advanced

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Page 39 of 100

WARNING!

¾

Don’t make any change to the BIOS setting unless you understand the impact thoroughly.

¾

The default setting has been carefully chosen/set by both AMI and your system manufacturer to provide the absolute maximum performance and reliability.

Setting wrong values in some critical section may cause system to malfunction.

Page 40 of 100 IEI

®

Technology Corp.

3.7.1 CPU Configuration

This sub menu shows the CPU-related information, which is detected by BIOS. User may set the CPU operating speed with following options:

Max CPUID Value Limit: [Disabled]

Enable this item to boot legacy Operating System that cannot support CPU with extended CPUID function. If your Operating System is NT, this item must be set to

[Enabled].

Configuration options: [Disabled] [Enabled]

Hardware Prefetcher: [Disabled]

A third mechanism used to reduce the time waiting for DRAM is through a hardware-prefetching scheme. The hardware prefetcher looks for streams of data and tries to predict what data will be needed next by the processor and proactively tries to fetch these data. All Intel Pentium 4 processors contain a hardware prefetcher that can prefetch both code and data streams, where the data stream can be accessed by loads and/or stores.

Adjacent Cache Line Prefetch [Disabled]

This menu allows you to enable or disable the adjacent cache line prefetch mode.

Configuration options: [Disabled] [Enabled]

Hyper-Threading Technology [Enabled]

This item allows you to enable or disable the processor Hyper-Threading Technology.

This technology allows a single processor supporting Hyper-Threading Technology presents itself to modern operating systems and applications as two virtual processors.

The processor can work on two sets of tasks simultaneously; use resources that

Page 41 of 100

otherwise would sit idle, and get more work done in the same amount of time.

Configuration options: [Disabled] [Enabled]

IDE Configuration

The items in this menu allow you to set or change the configurations for the IDE devices installed in the system. Select an item then press Enter if you wish to configure the item.

ATA/IDE Configuration [Compatible]

This item allows you to configure the ATA/IDE.

Configuration options: [Disabled] [Compatible] [Enhanced]

Legacy IDE Channels [SATA Pri, PATA Sec]

Primary and Secondary IDE Master/Slave

While WSB-9150 is turned ON, the BIOS auto detects the presence of IDE devices. This menu, when entered, shows detail information of the IDE devices (Device type, Vendor,

Size, LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring).

This information is auto-detected by BIOS and is not user-configurable. It will show

"Not Detected” if no IDE device is installed in the system.

Type [Auto]

Selects the type of IDE drive. Setting to Auto allows automatic selection of the appropriate IDE device type. Select CDROM if you are specifically configuring a

CD-ROM drive. Select ARMD (ATAPI Removable Media Device) if your device is either a ZIP, LS-120, or MO drive.

Configuration options: [Not Installed] [Auto] [CDROM] [ARMD]

LBA/Large Mode [Auto]

Enables or disables the LBA (Logical Block Addressing)/Large mode. Setting to

Page 42 of 100 IEI

®

Technology Corp.

Auto enables the LBA mode if the device supports this mode, and if the device was not previously formatted with LBA mode disabled.

Configuration options: [Disabled] [Auto]

Block (Multi-sector Transfer) [Auto]

Enables or disables data multi-sectors transfers. When set to Auto, the data transfer from and to the device occurs multiple sectors at a time if the device supports multi-sector transfer feature. When set to Disabled, the data transfer from and to the device occurs one sector at a time.

Configuration options: [Disabled] [Auto]

PIO Mode [Auto]

IDE Programmed I/O (PIO) Mode programs the timing cycle between IDE drive and the programmable IDE controller. As PIO mode increases, the cycle time decreases. Select [Auto] to let AMIBIOS select the PIO mode. If you select a specific value for the PIO mode, you must be absolutely sure that the value you are selecting is supported by the IDE being configured.

Configuration options: [Auto] [0] [1] [2] [3] [4]

DMA Mode [Auto]

Selects the DMA mode for the device.

Configuration options: [Auto] [SWDMA0] [SWDMA1] [SWDMA2] [MWDMA0]

[MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4] [UDMA5]

SMART Monitoring [Auto]

SMART stands for Smart Monitoring, Analysis, and Reporting Technology. It allows

AMIBIOS to use the SMART protocol to report server system information over a network.

Configuration options: [Auto] [Disabled] [Enabled]

32Bit Data Transfer [Disabled]

Enables or disables 32-bit data transfer. If the host controller does not support

32-bit data transfer, this menu must be set to [Disabled]

Configuration options:[Disabled] [Enabled]

Hard Disk Write protect [Disabled]

This menu allows you to enable or disable the hard disk write protect.

Configuration options: [Disabled] [Enabled]

IDE Detect Time Out (Sec) [35]

Selects the time out value for detecting ATA/ATAPI devices.

Configuration options: [0] [5] [10] [15] [20] [25] [30] [35]

ATA(PI) 80Pin Cable Detection [Host & Device]

This menu allows you to configure the mechanism for detecting 80-pin ATA(PI) cable.

Configuration options: [Host & Device] [Host] [Device]

Page 43 of 100

3.7.3 Floppy Configuration

Floppy A [1.44 MB 3”]

Select the type of floppy drive connected to WSB-9150.

Configuration options: [Disabled][360K, 5.25”][1.2M, 5.25”][720K, 3.5”] [1.44M, 3.5”]

[2.88M, 3.5”]

Floppy B [Disabled]

Select the type of floppy drive connected to WSB-9150.

Configuration options: [Disabled][360K, 5.25 in.][1.2M, 5.25 in.][720K, 3.5 in.]

[1.44M, 3.5 in.] [2.88M, 3.5in.]

Page 44 of 100 IEI

®

Technology Corp.

3.7.4 Super IO Configuration

On Board Floppy Controller [Enabled]

Allow you to enable or disable the floppy disk controller.

Configuration options: [Disabled] [Enabled]

Floppy Drive Swap [Disabled]

Configuration options: [Disabled] [Enabled]

Serial Port1 Address [3F8/IRQ4]

Allow you to select the Serial Port1 base address.

Configuration options: [Disabled] [3F8/IRQ4] [3E8/IRQ4] [2E8/IRQ3]

Serial Port2 Address [2F8/IRQ3]

Allow you to select the Serial Port2 base address.

Configuration options: [Disabled] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]

Parallel Port Address [378]

Allow you to select the Parallel Port base addresses.

Configuration options: [Disabled] [378] [278] [3BC]

Parallel Port Mode [Normal]

Allow you to select the Parallel Port mode.

Configuration options: [Normal] [Bi-directional] [EPP] [ECP]

Parallel Port IRQ [IRQ7]

Configuration options: [IRQ5] [IRQ7]

This screen shows you the CPU, System and Power temperature, Fan speed and CPU core voltage. It also allows your to configure the Hardware Health Monitoring.

H/W Health Function [Enabled]

To enable/disable H/W Health function

Page 45 of 100

FAN1 Mode Setting [Full On Mode]

To configure Fan mode as Full On, Automatic or PWM Manually mode.

Page 46 of 100 IEI

®

Technology Corp.

This menu is used to change the settings for the Advanced Power Management (APM).

Select an item then press Enter to display the configuration options.

ACPI Aware O/S

This menu allows you to enable or disable ACPI support for Operating System.

Select [Yes] is OS supports ACPI and select [No] is OS does not support ACPI.

Configuration options: [Yes] [No]

General ACPI Configuration

This menu configures the general ACPI setting.

Advanced ACPI Configuration

Use this section to configure additional ACPI options. It contains below sub-menus:

ACPI 2.0 Features [No]

This menu allows you to enable or disable RSPD pointers to 64-bit Fixed System

Description Tables.

Configuration options: [No] [Yes]

ACPI APIC support [Enabled]

This menu allows you to enable or disable the ACPI support in the ASIC. When set to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list.

Configuration options: [Disabled] [Enabled]

AMI OEMB table [Enabled]

Allow you to enable or disable the inclusion of the BIOS -> AML exchange pointer to R(X)SDT pointer lists.

Configuration options: [Disabled] [Enabled]

Page 47 of 100

Headless mode [Disabled]

Allow you to enable or disable headless operation mode through ACPI.

Chipset ACPI Configuration

It contains chipset ACPI related Configuration settings. You may enable or disable the

APIC ACPI SCI IRQ.

This menu allows you to configure MPS Revision [1.4]

Configuration options: [1.1] [1.4]

3.7.8 PCI Express Configuration

This menu allows you to enable or disable the PCI express link power states.

Configuration options: [Enable] [Disable]

Page 48 of 100 IEI

®

Technology Corp.

3.7.9 Remote Access Configuration

This menu allows you to enable or disable Remote Access.

Configuration options: [Disabled] [Enabled]. If you choose [Enable], below sub menus will show up:

Serial port number [COM1]

This menu allows you to select the serial port for console redirection. Make sure the selected port is enabled.

Configuration options: [COM1] [COM2]

Serial Port Mode [115200 8,n,1]

This menu allows you to select serial port settings.

Configuration settings: [115200 8,n,1] [57600 8,n,1] [38400 8,n,1] [19200 8,n,1]

[09600 8,n,1]

Flow Control [None]

This menu allows you to select flow control for console redirection

Configuration options: [None] [Hardware] [Software]

Redirection After BIOS POST

This menu allows you to set Redirection configuration after BIOS POST. You may turn off the redirection after POST [Disable] or set the Redirection to be active during POST and Boot Loader [Boot Loader] or to set the Redirection to be always active [Always]

Configuration options: [Disable] [Boot Loader] [Always]

Terminal Type [ANSI]

This menu allows you to select the target terminal type.

Configuration options: [ANSI] [VT100] [VT-UTF8]

Page 49 of 100

VT-UTF8 Combo Key Support [Disabled]

This menu allows you to enable or disable VT-UTF8 combination key support for

ANSI/VT100 terminals.

Configuration options: [Disabled] [Enabled]

3.7.10 USB Configuration

The items in this menu allow you to change the USB-related features.

Select an item then press Enter to display the configuration options.

USB Function [8 USB Ports]

Allow you to set the number of USB ports to activate.

Configuration options: [Disabled] [2 USB Ports] [4 USB Ports] [6 USB Ports] [8 USB

Ports]

Legacy USB Support [Enable]

Enable support for legacy USB/ older USB devices.

Configuration options: [Disabled] [Enabled]

USB 2.0 Controller [Enabled]

Allow you to enable or disable the USB 2.0 controller.

Configuration options: [Disabled] [Enabled]

Page 50 of 100 IEI

®

Technology Corp.

3.8 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.

The menu includes setting IRQ and DMA channel memory size block for legacy ISA devices.

WARNING!

¾

Don’t do any change to the PCIPnP setting, unless you understand the impact thoroughly.

¾

Setting wrong values may cause system to malfunction.

Clear NVRAM [NO]

Clear NVRAM during system boot.

Plug & Play O/S [NO]

This menu is to configure whether or not the Operating System installed is Plug & Play aware. AMIBIOS detects and enables PnP card, which is required for system boot.

Select [No] if the Operating System (like OS/2, DOS) does not support PnP.

Configuration options: [No] [Yes]

PCI Latency Timer [64]

This menu allows you to select the value in units of PCI clocks for the PCI device latency timer register.

Configuration options: [32] [64] [96] [128] [160] [192] [224] [248].

Page 51 of 100

Allocate IRQ to PCI VGA [Yes]

When set to [Yes], BIOS assigns an IRQ to PCI VGA card if the card requests for an IRQ.

When set to [No], BIOS does not assign an IRQ to the PCI VGA card even if requested.

Configuration options: [No] [Yes]

Palette Snooping [Disabled]

When set to [Enabled], the palette snooping feature informs the PCI devices that an

ISA graphics device is installed in the system so that the device can function correctly.

Setting to [Disabled] deactivates this feature.

Configuration options: [Disabled] [Enabled]

PCI IDE Bus Master [Disabled]

If set to [Enabled], AMIBIOS is allowed to use PCI bus mastering when reading/writing to IDE devices. Configuration options: [Disabled] [Enabled]

Off Board PCI/ISA IDE Card [Auto]

Some PCI IDE cards may require this to be set to the PCI slot number that is holding the card. It is to specify the PCI slot number where the off-board PCI IDE controller is installed.

Configuration options: [Auto] [PCI Slot1]~[PCI Slot6]

IRQ xx [Available]

When set to [Available], the specified IRQ is available for use by PCI/PnP devices. When set to [Reserved], the IRQ is reserved for legacy ISA devices.

Configuration options: [Available] [Reserved]

DMA Channel # [Available]

When set to [Available], the specified DMA is available for use by PCI/PnP devices.

When set to [Reserved], the specified DMA is reserved for legacy ISA devices.

Reserved Memory Size [Disabled]

This is to set the size of memory block to be reserved for legacy USB devices.

Configuration options: [Disabled] [16k] [32k] [64k]

Page 52 of 100 IEI

®

Technology Corp.

3.9 Boot

The Boot menu items allow you to change the system boot options. Select an item then press Enter to display the sub-menu.

Boot Settings Configuration

It is used to configure system boot setting with below submenus:

Quick Boot [Enabled]

Enabling this item allows BIOS to skip some Power On Self Tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled],

BIOS performs all the POST items.

Configuration options: [Disabled] [Enabled]

Quiet Boot [Disabled]

This allows you to enable or disable the full screen logo display feature.

Configuration options: [Disabled] [Enabled]

LAN Boot ROM support [Disabled]

This allows you to enable or disable the LAN boot function.

Configuration options: [Disabled] [Enabled]

Add On ROM Display Mode [Force BIOS]

Sets the display mode for option ROM.

Configuration options: [Force BIOS] [Keep Current]

Bootup Num-Lock [On]

Allow you to select the power-on state for the NumLock.

Configuration options: [Off] [On]

Page 53 of 100

PS/2 Mouse Support [Auto]

Allow you to enable or disable support for PS/2 mouse.

Configuration options: [Disabled] [Enabled] [Auto]

Wait for ‘F1’ If Error [Enabled]

When set to Enabled, the system waits for F1 key to be pressed when error occurs.

Configuration options: [Disabled] [Enabled]

Hit ‘DEL’ Message Display [Enabled]

When set to Enabled, the system displays the message ‘Press DEL to run Setup’ during POST.

Configuration options: [Disabled] [Enabled]

Interrupt 19 Capture [Disabled]

When set to [Enabled], this function allows the option ROMs to trap Interrupt 19.

Configuration options: [Disabled] [Enabled]

Boot Device Priority

This menu is used to specify the boot device priority sequence.

Hard Disk Drives

This menu is used to specify the boot device priority sequence from available Hard Disk

Drives.

Removable Drives

This menu is used to specify the boot device priority sequence from available removable drives.

CD/DVD Drives

This menu is used to specify the boot device priority sequence from available CD/DVD drives.

3.10 Security

The Security menu items allow you to change the system security settings. Select an item then press Enter to display the configuration options.

Change Supervisor Password

Select this item to set or change the supervisor password. The Supervisor Password item on top of the screen shows the default Not Installed. After you have set a password, this item shows Installed.

Change User Password

Select this item to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you have set a password, this item shows Installed.

Boot Sector Virus Protection [Disabled]

Allow you to enable or disable the boot sector virus protection. If enabled, AMI BIOS will issue a warning when a virus or program attempts to write to the HDD’s boot sector or attempts to execute Disk Format command. Note: you must disable this function when

Page 54 of 100 IEI

®

Technology Corp.

formatting a HDD.

Configuration options: [Disabled] [Enabled]

Page 55 of 100

3.11 Chipset

The Chipset menu items allow you to change the advanced chipset settings. Select an item then press Enter to display the sub-menu.

WARNING!

¾

Don’t do any change to the Advanced Chipset Settings, unless you understand the impact thoroughly.

¾

Setting wrong values may cause system to malfunction.

Page 56 of 100 IEI

®

Technology Corp.

3.11.1 North Bridge Configuration

DRAM Frequency [Auto]

This menu allows you to configure DRAM Frequency.

Configuration options: [Auto] [333MHz] [400MHz]

Configure DRAM Timing by SPD [Enabled]

When this item is enabled, the DRAM timing parameters are set according to the DRAM

SPD (Serial Presence Detect). When disabled, you can manually set the DRAM timing parameters through the DRAM sub-items.

Configuration options: [Disabled] [Enabled]

Memory Hole [Disabled]

Configuration options: [Disabled] [15MB-16MB]

Boots Graphic Adapter Priority [PCI/IGD]

Allows selection of the graphics controller to use as primary boot device.

Configuration options: [Internal VGA] [PCI/Int-VGA]

Internal Graphics Mode Select [Enable, 8MB]

Select the amount of system memory used by the internal graphics device.

Configuration options: [Enable, 1MB] [Enable, 4MB] [Enable, 8MB] [Enable, 16MB]

[Enable, 32MB]

Aperture Size Select [256MB]

Allow you to select the size of mapped memory for AGP graphic data.

Configuration options: [4MB] [8MB] [16MB] [32MB] [64MB] [128MB] [256MB]

Video Function Configuration

DVMT Mode Select [Combo Mode]

Page 57 of 100

Configuration options: [Fixed Mode][DVMT Mode][Combo Mode]

Boot Display Device [CRT+EFP]

Allow you to select the boot display device.

Configuration options: [CRT][EFP][CRT+EFP]

3.11.2 South Bridge Configuration

Azalia/AC’97 Selection [Enable]

Allow you to enable or disable the AC’97 Audio.

Configuration options: [Enable] [Disabled]

PRO-NIC Controller [Enable]

Allow you to enable or disable the onboard 10/100 LAN device.

Configuration options: [Enable] [Disabled]

Giga LAN Controller [Enable]

Allow you to enable or disable the onboard Giga LAN device.

Configuration options: [Enable] [Disabled]

Spread Spectrum Mode [Disable]

Allow you to enable or disable the spread spectrum modulation.

Configuration options: [Enable] [Disabled]

Restore on AC Power Loss [Last State]

When set to [Power Off], the system goes into off state after an AC power loss.

When set to [Power On], the system goes on after an AC power loss.

When set to [Last State], the system goes into either off or on state

Whatever the system was state before the AC power loss.

Configuration options: [Power Off] [Power On] [Last State]

Page 58 of 100 IEI

®

Technology Corp.

3.12 Power

Power Type Select [ATX]

Allow you to select the power type mode.

Configuration options: [ATX] [AT]

Power Management/APM [Enabled]

Allow you to enable or disable the Advanced Power Management (APM) feature.

Configuration options: [Disabled] [Enabled]

Video Power Down Mode [Suspend]

Allow you to select the video power down mode.

Configuration options: [Disabled] [Standby] [Suspend]

Hard Disk Power Down Mode [Suspend]

Allow you to select the hard disk power down mode.

Configuration options: [Disabled] [Standby] [Suspend]

Standby Time Out [Disabled]

Allow you to select the specified time at which the system goes on standby.

Configuration options: [Disabled] [1 Min] [2 Min] [4 Min] [8 Min] [10 Min] [20 Min]

[30 Min] [40 Min] [50 Min] [60 Min]

Suspend Time Out [Disabled]

Allow you to select the specified time at which the system goes on suspend.

Configuration options: [Disabled] [1 Min] [2 Min] [4 Min] [8 Min] [10 Min] [20 Min]

[30 Min] [40 Min] [50 Min] [60 Min]

Power Button Mode [On/Off]

Allows the system to go into On/Off mode or suspend mode when the power button is

Page 59 of 100

pressed.

Configuration options: [On/Off] [Suspend]

Resume On Ring [Disabled]

Allow you to enable or disable RI to generate a wake event.

Configuration options: [Disabled] [Enabled]

Resume On LAN [Disabled]

Allow you to enable or disable LAN GPI to generate a wake event.

Configuration options: [Disabled] [Enabled]

Resume On PME# [Disabled]

Allows you to enable or disable PCI PME# to generate a wake event.

Configuration options: [Disabled] [Enabled]

Resume On RTC Alarm [Disabled]

Allow you to enable or disable RTC to generate a wake event. When this item is set to

Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute, and RTC

Alarm Second appear with set values.

Configuration options: [Disabled] [Enabled]

Page 60 of 100 IEI

®

Technology Corp.

3.13 Exit

The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items.

Save Changes and Exit

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off.

When you select this option, a confirmation window appears.

Select [Yes] to save changes and exit.

Discard Changes and Exit

Select this option only if you do not want to save the changes that you made to the

Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting.

Discard Changes

This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values.

Load Optimal Defaults

This option allows you to load optimal default values for each of the parameters on the

Setup menus, which will provide the best performance settings for your system. F9 key can be used for this operation.

Load Failsafe Defaults

This option allows you to load failsafe default values for each of the parameters on the

Setup menus, which will provide the most stable performance settings. F8 key can be used for this operation.

Page 61 of 100

Chapter

4

Chipset Software

Installation

Page 62 of 100 IEI

®

Technology Corp.

4.1 Before you begin

To facilitate the installation of the enhanced display device drivers and utility software, you should read the instructions in this chapter carefully before you attempt installation.

The device drivers for the WSB-9150 board are located on the software installation CD.

The auto-run function of the driver CD will guide and link you to the utilities and device drivers under a Windows system. The Intel Chipset Software Installation Utility is not required on any systems running Windows NT 4.0. Updates are provided via Service

Packs from Microsoft.

NOTE:

The files on the software installation CD are compressed. Do not attempt to install the drivers by copying the files manually. You must use the supplied SETUP program to install the drivers.

Before you begin, it is important to note that most display drivers need to have the relevant software application already installed in the system prior to installing the enhanced display drivers. In addition, many of the installation procedures assume that you are familiar with both the relevant software applications and operating system commands. Review the relevant operating system commands and the pertinent sections of your application software’s user’s manual before performing the installation.

4.2 Introduction

The Intel Chipset Software Installation (CSI) utility installs to the target system the

Windows INF files that outline to the operating system how the chipset components will be configured. This is needed for the proper functioning of the following features: z

Core PCI and ISA PnP services z z z z z

AGP support

IDE Ultra ATA 100/66/33 interface support

USB 1.1 support (USB 2.0 driver needs to be installed separately)

Identification of Intel chipset components in the Device Manager

Integrates superior video features. These include filtered sealing of 720 pixel DVD content, and MPEG-2 motion compensation for software DVD

Page 63 of 100

NOTE:

This utility is used for the following versions of Windows system, and it has to be installed before installing all the other drivers:

z z z z

Windows 98SE

Windows 2000

Windows Me

Windows XP

4.3 Windows XP Driver Setup

1. Insert the driver CD into your system’s CD-ROM drive. In a few seconds, the software installation main menu appears. Move the mouse cursor over the "Auto" button under the "CSI UTILITY" heading, a message pops up telling you to install the CSI utility before other device drivers. Click on this button. Taking Windows

XP as example.

2. Click "Next" when you see the following message.

Page 64 of 100 IEI

®

Technology Corp.

3. Click "Yes" when you see the following message.

4. Click "Next" when you see the following message.

5. When the following message appears, click "Finish" to complete the installation and restart Windows.

Page 65 of 100

Page 66 of 100 IEI

®

Technology Corp.

Chapter

5

VGA Setup

Page 67 of 100

5.1 Introduction

The WSB-9150 has VGA onboard, you need to install the VGA driver to enable the function.

The Intel 915GV Express chipset, designed for the Intel Pentium 4 processor supporting

Hyper-Threading Technology, in the LGA775 package, delivers a decade's worth of innovation: z z z

Intel Graphics Media Accelerator (GMA) 900, which supports widescreen LCD displays and accelerated DirectX* 9

Intel High Definition Audio and Intel Matrix Storage Technology integrated into the chipset

Flexible memory support for both dual channels DDR2 533 memory, which can deliver up to 8.5 GB/s bandwidth

5.2 Windows XP Driver Setup

NOTE:

Before installing this driver, make sure the CSI utility has been installed in your system. See Chapter 4 for information on installing the CSI utility.

Insert the driver CD into your system’s CD-ROM drive. In a few seconds, the software installation main menu appears, as shown in the following figure. Under the "VGA

DRIVERS" heading, click on one of the buttons (labeled "W2K XP", "WIN9X ME", and

"WIN NT" respectively) according to the operating system you are using. The following installation procedure is for Windows XP. For other operating systems, please follow the on-screen installation guide.

Page 68 of 100 IEI

®

Technology Corp.

Installation Steps:

1. You will see a welcome window. Please chick on "Next" to continue the installation.

2. Click "Yes" when you see the following message.

Page 69 of 100

3. Click "Finish" to complete the installation and restart the computer now or later.

Page 70 of 100 IEI

®

Technology Corp.

Chapter

6

LAN Configuration

Page 71 of 100

6.1 Introduction

The WSB-9150 features the 32-bit 10/100/1000 Mbps Ethernet network interface. This interface supports bus mastering architecture and auto-negotiation features. Therefore standard twisted-pair cabling with RJ-45 connectors for 10 Mbps, 100 Mbps and 1000

Mbps connections can be used. Extensive driver support for commonly used network systems is also provided.

6.2 Windows XP Driver Setup

NOTE:

Before installing the LAN drivers, make sure the CSI utility has been installed in your system. See Chapter 4 for information on installing the

CSI utility.

The WSB-9150’s onboard Ethernet interface supports all major network operating systems. However, the installation procedure varies with different operating systems.

In the following sections, refer to the one that provides driver setup procedure for the operating system you are using.

1. From Windows XP, select Start and click on Control Panel. In the window of

Control Panel, click on icon System.

Page 72 of 100 IEI

®

Technology Corp.

2. Choose the option "Hardware", and then click on "Device Manager."

3. In Device Manager, choose "Ethernet Controller" and then double click.

Page 73 of 100

Page 74 of 100 IEI

®

Technology Corp.

4. Choose the option "Driver" and then click on "Update Driver".

5. In Hardware Update Wizard, choose "Install from a list or specific location

(Advanced)" and then click on " Next".

Page 75 of 100

6. Tick "Search removable media (floppy, CD-ROM…)" and click "Next".

7. In the following window, please click on "Finish" to complete USB driver installation.

Page 76 of 100 IEI

®

Technology Corp.

Chapter

7

USB 2.0 Configuration

Page 77 of 100

7.1 Introduction

The WSB-9150 is designed with Intel ICH6 that supports both USB1.1 and USB 2.0 high-speed transmission. It still remains the compatibility with today’s USB device.

High-speed USB 2.0 provides data transfer up to 480Mb/s which is 40 times faster than

USB 1.1. It is ideal for today’s speed-demanding I/O peripherals. z z z

Provides data transmission rate up to 480Mb/s

Offer 40 greater bandwidth than USB 1.1

Offers complete compatibility with current USB device

7.2 Installation

NOTE:

1. Before installing the LAN drivers, make sure the CSI utility has been installed in your system. See Chapter 4 for information on installing the CSI utility.

2. USB 2.0 driver is not available for Windows 98SE/ME from

WSB-9150 driver CD. Under these operating systems, the USB device will operate at USB 1.1 speeds.

1. From Windows XP, select Start and click on Control Panel. In the window of

Control Panel, click on icon System.

Page 78 of 100 IEI

®

Technology Corp.

2. Choose the option "Hardware", and then click on "Device Manager.”

3. In Device Manager, choose "USB Controller" and then double click.

Page 79 of 100

Page 80 of 100 IEI

®

Technology Corp.

4. Choose the option "Driver" and then click on "Update Driver".

5. In Hardware Update Wizard, choose "Install from a list or specific location

(Advanced)" and then click on " Next."

Page 81 of 100

6. Tick "Include this location in the search" and click "Next".

7. In the following windows, please specify the location "D:\USB20\Intel\WinXP" and then click on "OK".

8. In the following window, please click on "Finish" to complete USB driver installation.

Page 82 of 100 IEI

®

Technology Corp.

Appendix

A

Watchdog Timer

Page 83 of 100

The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMI or a software bug. When the CPU stops working correctly,

Watchdog Timer will either perform a hardware reset (cold boot) or a Non-Maskable

Interrupt (NMI) to bring the system back to a known state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H:

AH – 6FH Sub-function:

AL – 2: Sets the Watchdog Timer’s period.

BL: Time-out value (Its unit-second is dependent on the item “Watchdog

Timer unit select” in CMOS setup).

You have to call sub-function 2 to set the time-out period of Watchdog Timer first. If the time-out value is not zero, the Watchdog Timer will start counting down. While the timer value reaches zero, the system will reset. To ensure that this reset condition does not occur, calling sub-function 2 must periodically refresh the Watchdog Timer. However, the Watchdog timer will be disabled if you set the time-out value to be zero.

A tolerance of at least 10% must be maintained to avoid unknown routines within the operating system (DOS), such as disk I/O that can be very time-consuming.

NOTE:

When exiting a program it is necessary to disable the Watchdog

Timer, otherwise the system will reset.

Page 84 of 100 IEI

®

Technology Corp.

Example program:

; EXIT ;

; INITIAL TIMER PERIOD COUNTER

;

W_LOOP:

MOV AX, 6F02H

MOV BL, 30

INT 15H

;

;setting the time-out value

;time-out value is 48 seconds

; ADD YOUR APPLICATION PROGRAM HERE

;

CMP EXIT_AP, 1

JNE W_LOOP

;is your application over?

;No, restart your application

MOV AX, 6F02H

MOV BL, 0

INT 15H

;

;disable Watchdog Timer

;

Page 85 of 100

Appendix

B

Address Mapping

Page 86 of 100 IEI

®

Technology Corp.

I/O address

Range

Description

070-07F System CMOS/Real time Clock

0F0-0FF

1F0-1F7

2F8-2FF

378-37F

3B0-3BB

3C0-3DF

3F6-3F6

3F7-3F7

3F8-3FF

Numeric data processor

Primary IDE Channel

Serial Port 2 (COM2)

Parallel Printer Port 1 (LPT1)

Intel(R) 82915 Graphics Controller

Intel(R) 82915 Graphics Controller

Primary IDE Channel

Standard floppy disk controller

Serial Port 1 (COM1)

B.2 1st MB Memory Address Map

Memory address Description

1000000-

Extend BIOS

Page 87 of 100

B.3 IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock

ACPI

LAN

PS/2 mouse

FPU

Primary IDE

IRQ7 Available Secondary IDE

Channel Function

0 Available

1 Available

2 Floppy disk (8-bit transfer)

3 Available

4 Cascade for DMA controller 1

5 Available

6 Available

7 Available

Page 88 of 100 IEI

®

Technology Corp.

Appendix

C

ATX Power Supply

Page 89 of 100

The following notes show how to connect ATX Power Supply to the backplanes and / or the ISBC card.

1. Using ATX Power Switch

Step 1. Disconnect the AC cord of the Power Supply from the AC source to prevent sudden electric surge to the board.

ON 5VSE

ATXCTL

(Through Power Button and GND)

PW SW

5VSE

PW2

POWER

ON

ATX

Power

Supply

ATX Power

Switch

Step 2. Connect the ATX power button switch to the PW_SW (power button). And connect the power cable from Backplane to ATXCTL connector of CPU card.

Step 3. To turn on the system press the button once. To turn off the power supply press the ATX power switch button for about 4 seconds.

2. Using AT Power Switch

You can also control ATX power supply through the PS ON connector of backplane.

Step 1. Install WSB-9150 on the backplane.

Step 2. Connect the ON/OFF (ordinary one) switch to Pin 2 (PS ON) and Pin 3 (GND) of connector CN2.

Page 90 of 100 IEI

®

Technology Corp.

Step 3. You may now turn the power ON/OFF by the power switch.

5VSE

PS ON

GND

PW2

CN2

ATX

ATX SW

ATX

Power

Supply

ON/OFF

SWITCH

Page 91 of 100

Appendix

D

Intel ® RAID for SATA

Configuration

Page 92 of 100 IEI

®

Technology Corp.

The Intel RAID Option ROM should be integrated with the system BIOS on all motherboards with a supported Intel chipset. The Intel RAID Option ROM is the Intel

RAID implementation and provides BIOS and DOS disk services. Please use <Ctrl> +

<I> keys to enter the “Intel(R) RAID for Serial ATA” status screen, which should appear early in system boot-up, during the POST (Power-On Self Test).

Using the Intel RAID Option ROM

1. Creating, Deleting and Resetting RAID Volumes:

The Serial ATA RAID volume may be configured using the RAID Configuration utility stored within the Intel RAID Option ROM. During the Power-On Self Test

(POST), the following message will appear for a few seconds:

After the above message shows, press <Ctrl> and <I> keys simultaneously to enter the RAID Configuration Utility.

2. Creating, Deleting and Resetting RAID Volumes:

After pressing the <Ctrl> and <I> keys simultaneously, the following window will appear:

Page 93 of 100

(1) Create RAID Volume

1. Select option 1 “Create RAID Volume” and press <Enter> key. The following screen appears:

2. Specify a RAID Volume name and then press the <TAB> or <Enter> key to go to the next field.

Page 94 of 100 IEI

®

Technology Corp.

3. Select the strip value for the RAID 0 or RAID 1 array by using the “upper arrow” or

“down arrow” keys to scroll through the available values, and pressing the

<Enter> key to select and advance to the next field. The available values range from 4KB to 128 KB in power of 2 increments. The strip value should be chosen based on the planned drive usage. Here are some suggested selections:

16KB: Best for sequential transfers

64KB: Good general purpose strip size

128KB: Best performance for most desktops and workstations

Select the RAID level (Striping for RAID0 and Mirror for RAID1) by scrolling through the available values by using the “upper arrow” or “down arrow”, and press the <Enter> key to select and advance to the next field.

Page 95 of 100

4. From the Strip size, press the <Tab> or <ENTER> key to advance to the Create

Volume prompt. The window will appear as follow:

5. Then press <Enter> to create the specified volume and the following prompt will show:

6. Press <Y> to confirm the selection or press <N> to create the RAID volume again.

Then you will return to the main menu with an updated status as follows:

Page 96 of 100 IEI

®

Technology Corp.

7. Scroll to option 4 Exit and press <Enter> to exit the RAID Configuration utility.

The following prompt appears:

8. Click <Y> to confirm the exit.

Page 97 of 100

(2) Delete RAID Volume

Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost.

Select option 2 Delete RAID Volume from the main menu window and press

<Enter> key to select a RAID volume for deletion. The following window will appear:

Select the volume and press <Delete> key to delete the RAID volume. The following prompt appears:

Page 98 of 100 IEI

®

Technology Corp.

Press <Y> key to accept the volume deletion.

Page 99 of 100

(3) Reset Disks to Non-RAID

Select option 3 Reset Disks to Non-RAID and press <Enter> to delete the RAID volume and remove any RAID structures from the drives. The following screen appears:

Press <Y> key to accept the selection.

Page 100 of 100 IEI

®

Technology Corp.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
