Multimedia Processor for Mobile Applications (EMMA

Multimedia Processor for Mobile Applications (EMMA

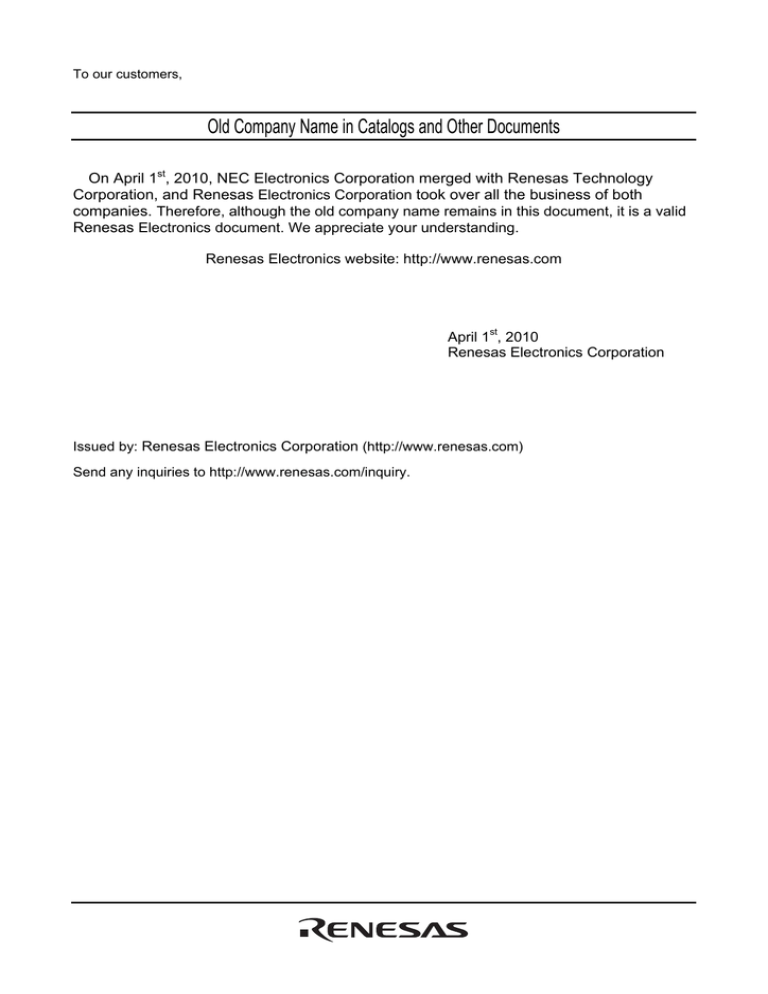

To our customers,
Old Company Name in Catalogs and Other Documents
On April 1st, 2010, NEC Electronics Corporation merged with Renesas Technology
Corporation, and Renesas Electronics Corporation took over all the business of both
companies. Therefore, although the old company name remains in this document, it is a valid
Renesas Electronics document. We appreciate your understanding.
Renesas Electronics website: http://www.renesas.com
April 1st, 2010
Renesas Electronics Corporation
Issued by: Renesas Electronics Corporation (http://www.renesas.com)
Send any inquiries to http://www.renesas.com/inquiry.
Notice
1.
2.
3.
4.
5.
6.
7.
All information included in this document is current as of the date this document is issued. Such information, however, is
subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please
confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to
additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.
Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights
of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.
No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights
of Renesas Electronics or others.
You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.
Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of
semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software,
and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by
you or third parties arising from the use of these circuits, software, or information.
When exporting the products or technology described in this document, you should comply with the applicable export control
laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas
Electronics products or the technology described in this document for any purpose relating to military applications or use by
the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and
technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited
under any applicable domestic or foreign laws or regulations.
Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics
does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages
incurred by you resulting from errors in or omissions from the information included herein.
Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and
“Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as
indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular
application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior
written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for
which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way
liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an
application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written
consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise
expressly specified in a Renesas Electronics data sheets or data books, etc.
“Standard”:
8.
9.
10.
11.
12.
Computers; office equipment; communications equipment; test and measurement equipment; audio and visual
equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots.
“High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support.
“Specific”:
Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or
systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare
intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.
You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics,
especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation
characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or
damages arising out of the use of Renesas Electronics products beyond such specified ranges.
Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have
specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,
Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to
guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a
Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire
control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because
the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system
manufactured by you.
Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental
compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable
laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS
Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with
applicable laws and regulations.
This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas
Electronics.
Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this
document or Renesas Electronics products, or if you have any other inquiries.
(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries.
(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.
User’s Manual
Multimedia Processor for
Mobile Applications
Terrestrial Digital TV Interface
EMMA MobileTM1
Document No. S19267EJ4V0UM00 (4th edition)
Date Published October 2009
2009
Printed in Japan
[MEMO]
2
User’s Manual S19267EJ4V0UM
NOTES FOR CMOS DEVICES
1
VOLTAGE APPLICATION WAVEFORM AT INPUT PIN
Waveform distortion due to input noise or a reflected wave may cause malfunction. If the input of the
CMOS device stays in the area between VIL (MAX) and VIH (MIN) due to noise, etc., the device may
malfunction. Take care to prevent chattering noise from entering the device when the input level is fixed,
and also in the transition period when the input level passes through the area between VIL (MAX) and
VIH (MIN).
2
HANDLING OF UNUSED INPUT PINS
Unconnected CMOS device inputs can be cause of malfunction. If an input pin is unconnected, it is
possible that an internal input level may be generated due to noise, etc., causing malfunction. CMOS
devices behave differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed
high or low by using pull-up or pull-down circuitry. Each unused pin should be connected to VDD or GND
via a resistor if there is a possibility that it will be an output pin. All handling related to unused pins must
be judged separately for each device and according to related specifications governing the device.
3
PRECAUTION AGAINST ESD
A strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and
ultimately degrade the device operation. Steps must be taken to stop generation of static electricity as
much as possible, and quickly dissipate it when it has occurred.
Environmental control must be
adequate. When it is dry, a humidifier should be used. It is recommended to avoid using insulators that
easily build up static electricity. Semiconductor devices must be stored and transported in an anti-static
container, static shielding bag or conductive material. All test and measurement tools including work
benches and floors should be grounded.
The operator should be grounded using a wrist strap.
Semiconductor devices must not be touched with bare hands. Similar precautions need to be taken for
PW boards with mounted semiconductor devices.
4
STATUS BEFORE INITIALIZATION
Power-on does not necessarily define the initial status of a MOS device. Immediately after the power
source is turned ON, devices with reset functions have not yet been initialized. Hence, power-on does
not guarantee output pin levels, I/O settings or contents of registers. A device is not initialized until the
reset signal is received. A reset operation must be executed immediately after power-on for devices
with reset functions.
5
POWER ON/OFF SEQUENCE
In the case of a device that uses different power supplies for the internal operation and external
interface, as a rule, switch on the external power supply after switching on the internal power supply.
When switching the power supply off, as a rule, switch off the external power supply and then the
internal power supply. Use of the reverse power on/off sequences may result in the application of an
overvoltage to the internal elements of the device, causing malfunction and degradation of internal
elements due to the passage of an abnormal current.
The correct power on/off sequence must be judged separately for each device and according to related
specifications governing the device.
6
INPUT OF SIGNAL DURING POWER OFF STATE
Do not input signals or an I/O pull-up power supply while the device is not powered. The current
injection that results from input of such a signal or I/O pull-up power supply may cause malfunction and
the abnormal current that passes in the device at this time may cause degradation of internal elements.
Input of signals during the power off state must be judged separately for each device and according to
related specifications governing the device.
User’s Manual S19267EJ4V0UM
3
The names of other companies and products are the registered trademarks or trademarks of the respective company.
• The information in this document is current as of September, 2009. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC Electronics data
sheets, etc., for the most up-to-date specifications of NEC Electronics products. Not all products
and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
• No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
• NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
• Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
• While NEC Electronics endeavors to enhance the quality and safety of NEC Electronics products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. In addition, NEC
Electronics products are not taken measures to prevent radioactive rays in the product design. When customers
use NEC Electronics products with their products, customers shall, on their own responsibility, incorporate
sufficient safety measures such as redundancy, fire-containment and anti-failure features to their products in
order to avoid risks of the damages to property (including public or social property) or injury (including death) to
persons, as the result of defects of NEC Electronics products.
• NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customerdesignated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1) "NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2) "NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E0904E
4
User’s Manual S19267EJ4V0UM
PREFACE
Readers
This manual is intended for hardware/software application system designers who wish
to understand and use the terrestrial digital TV interface functions of EMMA Mobile1
(EM1), a multimedia processor for mobile applications.
Purpose
This manual is intended to explain to users the hardware and software functions of
the terrestrial digital TV interface of EM1, and be used as a reference material for
developing hardware and software for systems that use EM1.
Organization
How to Read This Manual
This manual consists of the following chapters.
 Chapter 1
Overview
 Chapter 2
Pin functions
 Chapter 3
DTV details
 Chapter 4
DTV2 datails
It is assumed that the readers of this manual have general knowledge of electricity,
logic circuits, and microcontrollers.
To understand the functions of the terrestrial digital TV interface of EM1 in detail

Read this manual according to the CONTENTS.
To understand the other functions of EM1

Refer to the user’s manual of the respective module.
To understand the electrical specifications of EM1

Conventions
Refer to the Data Sheet.
Data significance:
Higher digits on the left and lower digits on the right
Note:
Footnote for item marked with Note in the text
Caution:
Information requiring particular attention
Remark:
Supplementary information
Numeric representation:
Binary ... xxxx or xxxxB
Decimal ... xxxx
Hexadecimal ... xxxxH
Data type:
Word
… 32 bits
Halfword … 16 bits
Byte
User’s Manual S19267EJ4V0UM
… 8 bits
5
Related Documents
The related documents indicated in this publication may include preliminary versions.
However, preliminary versions are not marked as such.
Document Name
Document No.
MC-10118A Data sheet
S19657E
μPD77630A Data sheet
S19686E
User’s manual
Audio/Voice and PWM Interfaces
S19253E
DDR SDRAM Interface
S19254E
DMA Controller
S19255E
2
Caution
I C Interface
S19256E
ITU-R BT.656 Interface
S19257E
LCD Controller
S19258E
MICROWIRE
S19259E
NAND Flash Interface
S19260E
SPI
S19261E
UART Interface
S19262E
Image Composer
S19263E
Image Processor Unit
S19264E
System Control/General-Purpose I/O Interface
S19265E
Timer
S19266E
Terrestrial Digital TV Interface
This manual
Camera Interface
S19285E
USB Interface
S19359E
SD Memory Card Interface
S19361E
PDMA
S19373E
One Chip (MC-10118A)
S19268E
One Chip (μPD77630A)
S19687E
The related documents listed above are subject to change without
notice. Be sure to use the latest version of each document when
designing.
6
User’s Manual S19267EJ4V0UM
CONTENTS
CHAPTER 1 OVERVIEW..........................................................................................................................11
1.1
1.2
1.3
1.4
1.5
1.6
General.......................................................................................................................................11
Features .....................................................................................................................................11
Module Structure (DTV and DTV2) ..........................................................................................12
Clock Supply .............................................................................................................................12
Reset / Reset release ................................................................................................................12
At the timing of DTV / DTV2 change........................................................................................12
CHAPTER 2 PIN FUNCTIONS ................................................................................................................13
2.1
Terrestrial Digital TV Interface Pins ........................................................................................13
CHAPTER 3 DTV Details .........................................................................................................................14
3.1
3.2
3.3
Function Block Diagram...........................................................................................................14
Registers....................................................................................................................................15
Register Functions ...................................................................................................................16
3.3.1
DTV / DTV2 change register ......................................................................................................... 16
3.3.2
Interface status register ................................................................................................................ 16
3.3.3
Interface raw status register.......................................................................................................... 18
3.3.4
Interrupt enable set register .......................................................................................................... 19
3.3.5
Interrupt enable clear register ....................................................................................................... 20
3.3.6
Interrupt source clear register ....................................................................................................... 21
3.3.7
Error address register ................................................................................................................... 22
3.3.8
Transfer control register ................................................................................................................ 23
3.3.9
Transfer request register............................................................................................................... 24
3.3.10 Transfer request cancellation register ........................................................................................... 25
3.3.11 Start address register.................................................................................................................... 26
3.3.12 Buffer size register ........................................................................................................................26
3.3.13 Blank size register.........................................................................................................................27
3.3.14 Current packet register ................................................................................................................. 28
3.3.15 DMA completion interrupt setting register .....................................................................................29
3.3.16 Module control register ................................................................................................................. 30
3.4
Function details.........................................................................................................................31
3.4.1
Input Signal Timing ....................................................................................................................... 31
3.4.2
Data Format ..................................................................................................................................32
3.4.3
DTV Transfer Processing.............................................................................................................. 33
3.4.4
Interrupt Control ............................................................................................................................34
3.4.5
Clocks Control...............................................................................................................................35
3.4.6
Return method from synchronous difference ................................................................................38
CHAPTER 4 DTV2 Details .......................................................................................................................39
4.1
4.2
Function Block Diagram...........................................................................................................39
Registers....................................................................................................................................40
User’s Manual S19267EJ4V0UM
7
4.3
Register Functions....................................................................................................................41
4.3.1
DTV / DTV2 change register .........................................................................................................41
4.3.2
Interface status register.................................................................................................................42
4.3.3
Interface raw status register ..........................................................................................................43
4.3.4
Interrupt enable set register ..........................................................................................................44
4.3.5
Interrupt enable clear register .......................................................................................................46
4.3.6
Interrupt source clear register .......................................................................................................47
4.3.7
Error address register....................................................................................................................48
4.3.8
Transfer control register ................................................................................................................49
4.3.9
Transfer request register ...............................................................................................................50
4.3.10 Transfer request cancellation register ...........................................................................................51
4.3.11 Start address register ....................................................................................................................52
4.3.12 Buffer size register ........................................................................................................................52
4.3.13 Blank size register .........................................................................................................................53
4.3.14 Current packet register..................................................................................................................54
4.3.15 DMA completion interrupt setting register .....................................................................................55
4.3.16 Module control register..................................................................................................................56
4.3.17 DTVPSYNC / DTVVLD Polarity designation register ....................................................................57
4.3.18 Input pin status monitor register ....................................................................................................58
4.4
8
Function details.........................................................................................................................59
4.4.1
Input Signal Timing .......................................................................................................................59
4.4.2
Data Format ..................................................................................................................................63
4.4.3
DTV Transfer Processing ..............................................................................................................64
4.4.4
Interrupt Control ............................................................................................................................66
4.4.5
Clocks Control...............................................................................................................................69
User’s Manual S19267EJ4V0UM
LIST OF FIGURES
Figure No.
Title
Page
Figure 1-1. Block diagram ............................................................................................................................................12
Figure 3-1. DTV Block diagram....................................................................................................................................14
Figure 3-2. DMA Stop Timing.......................................................................................................................................25
Figure 3-2. Current Packet Register Values ................................................................................................................28
Figure 3-4. DTV Interface DMA Completion Interrupt Set Timing ................................................................................29
Figure 3-5. DTV Interface Signal Timing......................................................................................................................31
Figure 3-6. Stream Timing (Burst Serial Output)..........................................................................................................31
Figure 3-7. Stream Data Storage Format.....................................................................................................................32
Figure 3-8. Ring Buffer Mapping ..................................................................................................................................33
Figure 3-9. Transfer error interrupt timing ....................................................................................................................34
Figure 3-10. DMA completion interrupt Timing.............................................................................................................34
Figure 3-11. DMA stop interrupt Timing .......................................................................................................................35
Figure 3-12. DMA_SWT_CLKREQ Timing ..................................................................................................................36
Figure 3-13. Frequency conversion of DTV_CLK and DTVBCLK ................................................................................37
Figure 3-14. Relation between DTVBCLK and input data............................................................................................37
Figure 4-1. DTV Block diagram....................................................................................................................................39
Figure 4-2. Change of transfer request register value..................................................................................................50
Figure 4-3. Current Packet Register Values ................................................................................................................54
Figure 4-4. DTV Interface DMA Completion Interrupt Set Timing ................................................................................55
Figure 4-5. DTV2 Interface Signal Timing....................................................................................................................59
Figure 4-6. Stream Timing (Burst Serial Output)..........................................................................................................59
Figure 4-7. Judgment of DTVPSYNC data (Burst Serial Output) ................................................................................59
Figure 4-8. When DTVPSYNC reaches continuously (Burst Serial Output)................................................................60
Figure 4-9. When DTVVLD intermits (Burst Serial Output) .........................................................................................60
Figure 4-10. When DTVVLD intermits while DTVPSYNC is HIGH (Burst Serial Output) ............................................60
Figure 4-11. When DTVPSYNC stands up and goes down during a DTVVLD intermission period (Burst Serial
Output)...................................................................................................................................................................61
Figure 4-12. When BCLK intermits (Burst Serial Output)............................................................................................61
Figure 4-13. When DTVPSYNC stands up and goes down during a BCLK intermission period (Burst Serial Output)61
Figure 4-14. The bit just before the DTVPSYNC arrival was filled in 8bits, when I don't have that (Burst Serial Output)
...............................................................................................................................................................................62
Figure 4-15. The bit line just before the DTVPSYNC arrival, when 8bits non-rise and DTVPSYNC are 8bits non-rise
(Burst Serial Output) ..............................................................................................................................................62
Figure 4-16. Until DTVPSYNC comes to the data just after the reset, invalid data (Burst Serial Output) ....................62
Figure 4-17. It was filled in 8bits just before the reset, the data I don't have is invalid data (Burst Serial Output)........63
Figure 4-18. Stream Data Storage Format...................................................................................................................63
Figure 4-19. Ring Buffer Mapping ................................................................................................................................64
Figure 4-20. Stock method of a packet (at DTVMODE=0) ...........................................................................................65
Figure 4-21. Packet stock method when next SyncByte has come, (at DTVMODE=0) ...............................................65
Figure 4-21. Transfer error interrupt timing ..................................................................................................................66
Figure 4-23. At the timing of the interruption when DMA transfer is being done, and transfer has been reserved to cry
...............................................................................................................................................................................67
Figure 4-24. At the timing of the interruption when transfer has been reserved during DMA transfer..........................67
User’s Manual S19267EJ4V0UM
9
Figure 4-25. Interrupt timing of the word transfer which includes PSYNC part-time work by less than 187 bytes (at
DTVMODE=0)....................................................................................................................................................... 68
Figure 4-26. Interrupt timing when also not having complete set of word data including SyncByte beyond 188byte, (at
DTVMODE=0)....................................................................................................................................................... 68
Figure 4-27. Interrupt timing when PSYNC part-time work is the unjust value, (at DTVMODE=0).............................. 69
LIST OF TABLES
Table No.
Title
Page
Table 3-1. Interrupt Sources........................................................................................................................................ 34
Table 4-1. Interrupt Sources........................................................................................................................................ 66
10
User’s Manual S19267EJ4V0UM
CHAPTER 1 OVERVIEW
1.1 General
The terrestrial digital television interface (DTV interface) has a function to transfer stream data sent from an
externally connected terrestrial digital TV channel decoder LSI to memory, via DMA. The DTV interface only supports
burst output (serial) mode.
1.2 Features
The main features of DTV are as follows.
The DTV interface only supports serial output.
 DTV interface signals
 DTV_DATA[7] is used in the serial output mode.
 Packet synchronization pulse (DTV_PSYNC)
 Stream data enable signal (DTV_VLD)
 Bus clock (DTV_BCLK)
 DMA transfer destination buffer
 A ring buffer area can be specified.
 Reception data selection
 Whether to receive parity fields can be selected.
 Buffer memory
 A buffer memory of 32 bits  4 words is incorporated.
User’s Manual S19267EJ4V0UM
11
CHAPTER 1 OVERVIEW
1.3 Module Structure (DTV and DTV2)
EM1 has 2 of DTV macro (DTV2 function module (in the following, DTV2) and DTV function module (in the
following, DTV)). A circuit and a register of each module are separate perfectly. The register address is common. A
mutual function module is sharing OFDM interface and AHB bus interface. The main features of DTV are as follows.
Exclusion moves by setting of DTV/DTV2 change register SWITCH for each module. When 1 is set as DT_SWITCH,
DTV2 is chosen, and when 0 is established, DTV is chosen. Defaults are DT_SWITCH=0, and DTV will be in the
chosen state.
AHB
Crocus DTV
APB
DTVPSYNC
System Bus
AHB
DTVDATA[7:0]
DTVVLD
Clock
Reset
TM
APB
DTVDATA[7:0]
DTVPSYNC
DTV_BCLK
Reset
DTVVLD
AHB
DTV2
DTVDATA[7:0]
APB
DTVPSYNC
Clock
Reset
TM
DTVVLD
Clock
Reset
TM
DTV_BCLK
Reset
DTV_BCLK
Reset
Figure 1-1. Block diagram
1.4 Clock Supply
All clocks are supplied only the function module chosen by DTV / DTV2 change register DT_SWITCH with. It isn't
supplied non-selection function module with.
1.5 Reset / Reset release
All resets are reflected by only the function module chosen by DTV / DTV2 change register DT_SWITCH. Nonchoice module will be always in the reset state.
Next to DTV / DTV2 change register DT_SWITCH=0 and DTV become effective just after the hardware reset. After
reset release, it's necessary to establish DTV / DTV2 change register DT_SWITCH=1 to make DTV2 effective.
1.6 At the timing of DTV / DTV2 change
When changing DTV / DTV2, be sure to change by the following procedure.
1. H/W reset
2. H/W reset release
3. DT_SWITCH setting
12
User’s Manual S19267EJ4V0UM
CHAPTER 2 PIN FUNCTIONS
2.1 Terrestrial Digital TV Interface Pins
Pin Name
I/O
After Reset
Function
Alternate Pin Function
DTV_BCLK
Input

Data clock
SP2_CLK
DTV_DATA
Input

YUV data
SP2_SI
DTV_PSYNC
Input

Packet synchronization signal
SP2_SO
DTV_VLD
Input

Packet data enable
SP2_CS0
1
User’s Manual S19267EJ4V0UM
13
CHAPTER 3 DTV Details
3.1 Function Block Diagram
DTVIF
Data Buffer
AHB
Frame Buffer
Interface
Packet
Control
Stream
Interface
DTVDATA[7:0]
System Bus
DTVPSYNC
DTVVLD
APB
Processor
Interface
DTVIF Internal All Unit
Clock
Reset
TM
DTV_BCLK
Figure 3-1. DTV Block diagram
14
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.2 Registers
Do not access reserved registers.
Any value written to reserved bits in each register is ignored.
Base address: 4015_0000H
Address
0020H
Register Name
DTV / DTV2 change register
Register Symbol
DT_SWITCH
R/W
R/W
After Reset
0000_0000H
DTV/DTV2 change register DT_SWITCH=0 can use following register.
4015_0000H to 4015_0040H overlaps DTV2 , but at DT_SWITCH=0, register operation is reflected by only a DTV
register.
Base address: 4015_0000H
Address
Register Name
Register Symbol
R/W
After Reset
0000H
Interface status register
DT_STATUS
R
0000_0000H
0004H
Interface raw status register
DT_RAWSTATUS
R
0000_0000H
0008H
Interrupt enable set register
DT_ENSET
R/W
0000_0000H
000CH
Interrupt enable clear register
DT_ENCLR
W
0000_0000H
0010H
Interrupt source clear register
DT_FFCLR
W
0000_0000H
0014H
Error address register
DT_ERRORADR
R/W
0000_0000H
0020H
Transfer control register
DT_DMACNT
R/W
0000_0003H
0024H
Transfer request register
DT_DMAREQ
R/W
0000_0000H
0028H
Transfer request cancellation register
DT_DMASTOP
W
0000_0000H
002CH
Start address register
DT_START
R/W
0000_0000H
0030H
Buffer size register
DT_BUFSIZE
R/W
0000_0000H
0034H
Blank size register
DT_BLANK
R/W
0000_0000H
0038H
Current packet register
DT_CURRENT
R
0000_0000H
003CH
DMA completion interrupt setting register
DT_INTCONT
R/W
0000_0000H
0040H
Module control register
DT_MODULECONT
R/W
0000_0000H
User’s Manual S19267EJ4V0UM
15
CHAPTER 3 DTV Details
3.3 Register Functions
3.3.1 DTV / DTV2 change register
This register (DT_SWITCH:4015_0200H) changes DTV and DTV2 exclusively.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
SWITCH
R/W
Bit
After Reset
Function
Reserved
R
31:1
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
SWITCH
R/W
0
0
DTV / DTV2 change
0 : DTV
1 : DTV2
3.3.2 Interface status register
This read-only register (DT_STATUS: 4015_0000H) can be used to read the status of the interrupt sources enabled
by the interrupt enable set register (DT_ENSET).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSTOP
DTVOR
DTVDMA
DMAERR
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
Reserved
Name
4
R/W
Bit
After Reset
Function
Reserved
R
31:4
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
DTVSTOP
R
3
0
Indicates the status of the DMA stop interrupt.
This interrupt is issued when DMA stops.
16
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
DTVOR
R
2
0
DTVDMA
R
1
0
Indicates the status of the packet overrun error interrupt.
This interrupt is issued when the internal buffer overruns.
Indicates the status of the DMA completion interrupt.
This interrupt is issued every time the number of packets specified in the DMA
completion interrupt setting register (4015_003CH) have been transferred via
DMA.
DMAERR
R
0
0
Indicates the status of the transfer error interrupt.
This interrupt is issued when an error response is received during internal bus
transfer.
This interrupt is issued upon a prohibited operation such as writing to the
transfer-prohibited area.
User’s Manual S19267EJ4V0UM
17
CHAPTER 3 DTV Details
3.3.3 Interface raw status register
This read-only register (DT_RAWSTATUS: 4015_0004H) can be used to read the status of the interrupt sources,
regardless of the setting of the interrupt enable set register (DT_ENSET).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSTOPRAW
DTVORRAW
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:4
0
DTVSTOP
R
3
0
RAW
DTVORRAW
DTVDMARAW DMAERRRAW
Function
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
Indicates the status of the DMA stop interrupt.
This interrupt is issued when DMA stops.
R
2
0
Indicates the status of the packet overrun error interrupt.
This interrupt is issued when the internal buffer overruns.
DTVDMA
R
1
0
RAW
Indicates the status of the DMA completion interrupt.
This interrupt is issued every time the number of packets specified in the DMA
completion interrupt setting register (4015_003CH) have been transferred via
DMA.
DMAERR
RAW
R
0
0
Indicates the status of the transfer error interrupt.
This interrupt is issued when an error response is received during internal bus
transfer.
This interrupt is issued upon a prohibited operation such as writing to the
transfer-protected area.
18
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.4 Interrupt enable set register
This register (DT_ENSET: 4015_0008H) enables issuance of interrupt requests. When the bit corresponding to an
interrupt source is set to 1 in this register, if the interrupt source is set, an interrupt request is issued and the
corresponding bit of the interrupt status register (DT_STATUS) is set to 1. Writing 0 to this register does not affect the
setting. The interrupt request issuance enable status can be checked by reading this register.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSTOP_EN
DTVOR_EN
DTVDMA_EN
DMAERR_EN
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:4
0
DTVSTOP_
R
3
0
EN
Function
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
Indicates whether issuance of DMA stop interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of DMA stop interrupt requests.
1: Cancels interrupt masking.
DTVOR_EN
R
2
0
Indicates whether issuance of packet overrun error interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance packet overrun error interrupt requests.
1: Cancels interrupt masking.
DTVDMA_EN
R
1
0
Indicates whether issuance of DMA completion interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of DMA completion interrupt requests.
1: Cancels interrupt masking.
DMAERR_EN
R
0
0
Indicates whether issuance of transfer error interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of transfer error interrupt requests.
1: Cancels interrupt masking.
User’s Manual S19267EJ4V0UM
19
CHAPTER 3 DTV Details
3.3.5 Interrupt enable clear register
This register (DT_ENCLR: 4015_000CH) disables issuance of interrupt requests. When the bit corresponding to
an interrupt source is set to 1 in this register, an interrupt request is not issued even if an interrupt source occurs. The
status of the corresponding bit of the interrupt status register (DT_STATUS) also remains unchanged. Writing 0 to this
register does not affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
DTVSTOPMASK DTVORMASK DTVDMAMASK DMAERRMASK
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:4
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
DTVSTOP
W
3
0
Disables issuance of DMA stop interrupt requests.
MASK
DTVOR
1: Disable
W
2
0
MASK
DTVDMA
MASK
20
Disables issuance of packet overrun error interrupt requests.
1: Disable
W
1
0
MASK
DMAERR
Function
Disables issuance of DMA completion interrupt requests.
1: Disable
W
0
0
Disables issuance of transfer error requests.
1: Disable
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.6 Interrupt source clear register
This write-only register (DT_FFCLR: 4015_0010H) clears the interrupt source by setting the bit corresponding to
the interrupt source to 1. Writing 0 to this register does not affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSTOPCLR
DTVORCLR
DTVDMACLR
DMAERRCLR
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
Reserved
Name
4
R/W
Bit
After Reset
Reserved
R
31:4
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
DTVSTOPCL
W
3
0
Clears the DMA stop interrupt source.
R
DTVORCLR
Function
1: Clears the source.
W
2
0
Clears the packet overrun error interrupt source.
1: Clears the source.
DTVDMACLR
W
1
0
Clears the DMA completion interrupt source.
1: Clears the source.
DMAERRCLR
W
0
0
Clears the transfer error interrupt source.
1: Clears the source.
User’s Manual S19267EJ4V0UM
21
CHAPTER 3 DTV Details
3.3.7 Error address register
This register (DT_ERRORADR: 4015_0014H) holds the current HADDR status when an internal bus response
ERROR, RETRY or SPLIT is received during DMA transfer.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
LOCK
ERRADR
23
22
21
20
ERRADR
15
14
13
12
ERRADR
7
6
5
4
ERRADR
Name
R/W
Bit
After Reset
ERRADR
R
31:2
0
Stores the HADDR status upon occurrence of an error response.
Reserved
R
1
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
R/W
0
0
LOCK
Function
Sets error status.
0: Stores the address when an error response occurs.
1: An error response occurred and the address was stored.
Caution
If an error response occurs when the LOCK bit is 0, the current HADDR status is stored in the
ERRADR bit and the LOCK bit is set to 1.
To acquire the error status again, set the LOCK bit to 0.
Writing 1 to the LOCK bit does not affect the setting.
22
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.8 Transfer control register
This register (DT_DMACNT: 4015_0020H) controls data transfer.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
The DTVSP bit must be set to 1 after activation.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSP
DTVMODE
DTVENDIAN
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
Reserved
DTVSP
R/W
Bit
After Reset
Function
R
31:3
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
R/W
2
0
Specifies the data bus type of DTV stream.
0: Burst parallel output (setting prohibited)
1: Burst serial output
DTVMODE
R/W
1
1
Specifies the size of a packet.
0: Transfer of synchronization field + data field (188 bytes = 47 words)
1: Transfer of synchronization field + data field + parity field (204 bytes =
51 words)
DTVENDIAN
R/W
0
1
Specifies the DTV stream data format.
0: Big endian
1: Little endian
User’s Manual S19267EJ4V0UM
23
CHAPTER 3 DTV Details
3.3.9 Transfer request register
This register (DT_DMAREQ: 4015_0024H) specifies the activation of DMA transfer.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
DMAREQ
R/W
Bit
After Reset
Function
Reserved
R
31:1
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
DMAREQ
R
0
0
This bit is set to 1 when DMAREQ is acknowledged.
This bit is cleared when the transfer request cancellation register (4015_0028H)
is set.
W

Writing 1 to this bit issues a DMA transfer request.
DMA is repeated until the transfer request cancellation register (4015_0028H) is
set.
Writing 0 to this bit does not affect the setting.
Caution) Data transfer is begun from the start address at the time of a DMA transfer request.
24
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.10 Transfer request cancellation register
This register (DT_DMASTOP: 4015_0028H) stops DMA transfer. It'll be the stop reservation state by setting this
register, and when not forwarding to the occasion during packet transfer after transfer, DMA is stopped immediately.
The DMA transfer request status can be checked by reading the transfer request register (DT_DMAREQ). DMA stop
interrupt is issued by the time of a fall of status (the lead value of the transfer request register).
This is a write-only register. If the register is set to 1, DMA transfer is finished. Writing 0 to this register does not
affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
W
31:1
0
DMASTOP
W
0
0
DMASTOP
Function
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
Stops DMA transfer.
1: Transfer stop
When DMA transfer is being performed, the transfer stops after sending the
current packet. Otherwise, the transfer immediately stops
Caution1) That one for 10 cycles of DTVBCLK leave a space by the (transfer request register
set) which resumes DMA after DMA stop interruption.
Caution2) By DMA stop request fixation time, the effective data length, that, even packet data is forwarded
to a memory. The data of the buffering way I don't have filled in the effective data length is
broken.
Figure 3-2. DMA Stop Timing
Transfer
request
DTV stream data output
Transfer
request
Packet 0
Packet 1
Packet 2
Packet 3
DMA transfer period
(AHB_Write)
DMA status
DMA stop request
User’s Manual S19267EJ4V0UM
25
CHAPTER 3 DTV Details
3.3.11 Start address register
This register (DT_START: 4015_002CH) specifies the start address of the DMA transfer destination.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
0
DTV_START
23
22
21
20
DTV_START
15
14
13
12
DTV_START
7
6
5
4
DTV_START
Name
R/W
Bit
After Reset
DTV_START
R/W
31:0
0
Function
Specifies the start address of the DMA transfer destination (the lower 2 bits are
fixed to 0).
3.3.12 Buffer size register
This register (DT_BUFSIZE: 4015_0030H) specifies the size of the DMA transfer destination area in units of
packets.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
Reserved
23
22
21
20
Reserved
15
14
DTV_BUFSIZE
13
12
11
10
9
8
2
1
0
0
0
DTV_BUFSIZE
7
6
5
4
3
DTV_BUFSIZE
Name
Reserved
DTV_
BUFSIZE
26
R/W
Bit
After Reset
Function
R
31:20
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
R/W
19:0
0
Specifies the size of the DMA transfer destination area in units of packets (the
lower 2 bits are fixed to 0).
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.13 Blank size register
This register (DT_BLANK: 4015_0034H) specifies the blank size between packets during DMA transfer.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
DTV_BLANK
Name
Reserved
DTV_BLANK
R/W
Bit
After Reset
Function
R
31:8
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
R/W
7:0
0
Specifies the blank size between packets (the lower 2 bits must be set to 0).
User’s Manual S19267EJ4V0UM
27
CHAPTER 3 DTV Details
3.3.14 Current packet register
This register (DT_CURRENT: 4015_0038H) indicates the number of packets that have been transferred via DMA.
This register shows the value from 0 to “DT_BUFSIZE register value  1”.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
Reserved
23
22
21
20
Reserved
15
14
DTV_CURRENT
13
12
11
10
9
8
2
1
0
DTV_CURRENT
7
6
5
4
3
DTV_CURRENT
Name
R/W
Bit
After Reset
Function
Reserved
R
31:20
0
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
DTV_
R
19:0
0
Stores the number of packets that have been transferred via DMA minus 1.
CURRENT
Figure 3-2. Current Packet Register Values
Transfer
request
DTV stream data output
Packet 0
Packet 1
Packet 2
Packet 3
Packet 4
Packet 5
DMA transfer period
(AHB_Write)
Current packet
Remark
0
1
2
3
0
When the DTV buffer size is set to 4H
Caution) Only while the count value is DT_DMAREQ=1, the count value is effective. While it's
DT_DMAREQ=0, it'll be 0.
28
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.3.15 DMA completion interrupt setting register
This register (DT_INTCONT: 4015_003CH) specifies the interval at which a DMA transfer completion interrupt is
issued, in units of packets. A DMA transfer completion interrupt is issued each time DMA transfer of “DT_INTCONT
register value + 1” packets is completed.
Settings can be changed only when DMA transfer is not being performed (DT_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
DTV_INTCONT
Name
Reserved
DTV_
R/W
Bit
After Reset
R
31:8
0
R/W
7:0
0
INTCONT
Function
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
Specifies in units of packets the interval at which a DMA transfer completion
interrupt is issued.
An interrupt is issued every time the number of packets equal to the set value
plus 1 are received.
Figure 3-4. DTV Interface DMA Completion Interrupt Set Timing
Transfer request
DTV stream data output
Packet 0
Packet 1
Packet 2
Packet 3
Packet 4
Packet 5
DMA transfer period
(AHB_Write)
DMA completion interrupt
Interrupt source clear
Remark
When the DMA completion interrupt setting register is set to 1H
User’s Manual S19267EJ4V0UM
29
CHAPTER 3 DTV Details
3.3.16 Module control register
This register (DT_MODULECONT: 4015_0040H) initializes the operation of the data capturing circuit that
synchronizes with DTV_BCLK.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:1
0
HW_RSTZ
R/W
0
0
HW_RSTZ
Function
Reserved. Don't write in anything but 0. It's prohibited to write in 1.
Specifies hardware reset.
Specifies whether to initialize the operation of the data capturing circuit that
synchronizes with DTV_BCLK.
0: Reset
1: Cancels reset
30
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
3.4 Function details
3.4.1 Input Signal Timing
(1) DTV I/F signal timing
Figure 3-5. DTV Interface Signal Timing
DTV_BCLK
DTV_PSYNC,
DTV_VLD,
DTV_DATA[7:0]
Thold
Tsetup
(2) Stream timing
Figure 3-6. Stream Timing (Burst Serial Output)
DTV_BCLK
DTV_PSYNC
DTV_VLD
DTV_DATA[7]
7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
Sync (1 byte)
Caution
Data (187 bytes)
4 3 2 1 0 7
2 1 0
Parity (16 bytes)
When reception of the parity field is selected, a blanking interval of at least 2T DTV_BCLK cycles
must be inserted between packets.
User’s Manual S19267EJ4V0UM
31
CHAPTER 3 DTV Details
3.4.2 Data Format
Figure 3-7. Stream Data Storage Format
DTV_PSYNC
DTV_VLD
D0
DTV_DATA[7:0]
D1
D2
D3
D185 D186
P0
Parity (16 bytes)
Data (187 bytes)
Sync
(1 byte)
P15
Data input as shown in Figure 3-7 is stored in the memory in the following format, in accordance with the value set
to the DTVENDIAN bit of the transfer control register (DT_DMACNT).
Bit alignment 31 to 24
23 to 16
15 to 8
7 to 0
31 to 24
23 to 16
15 to 8
7 to 0
50 words
P15
P14
P13
P12
P14
P15
P12
P13
49 words
P11
P10
P9
P8
P10
P11
P8
P9
48 words
P7
P6
P5
P4
P6
P7
P4
P5
47 words
P3
P2
P1
P0
P2
P3
P0
P1
46 words
D186
D185
D184
D183
D185
D186
D183
D184
:
:
:
:
:
:
:
:
3 words
D14
D13
D12
D11
D13
D14
D11
D12
2 words
D10
D9
D8
D7
D9
D10
D7
D8
1 word
D6
D5
D4
D3
D5
D6
D3
D4
0 words
D2
D1
D0
Sync
D1
D2
Sync
D0
Little endian
32
User’s Manual S19267EJ4V0UM
Big endian
CHAPTER 3 DTV Details
3.4.3 DTV Transfer Processing
Stream data is transferred to the specified buffer area in the memory, in units of packets. The buffer is used as a
ring buffer in which the pointer returns to the beginning of the buffer after the specified number of packets are stored.
The following three registers are used to set up the buffer.
 Start address register (32 bits): Specifies the ring buffer start address.
 Buffer size register (20 bits): Specifies the ring buffer area by a packet count.
 Blank size register (8 bits): Specifies the blanking interval between packets.
Figure 3-8. Ring Buffer Mapping
Ring buffer area
Buffer size 
1 packet size
Packet 1
Blank size
Packet 0
Start address
The valid size of a packet can be set to 188 or 204 bytes by using the DTVMODE bit of the transfer control register
(DT_DMACNT).
The size of a packet to be mapped to a buffer is the valid size selected by the DTVMODE bit plus the blank size.
The total ring buffer size is the above packet size multiplied by the buffer size.
User’s Manual S19267EJ4V0UM
33
CHAPTER 3 DTV Details
3.4.4 Interrupt Control
The DTV interface uses four interrupts. The bits of the interrupt status register (DT_STATUS) are used to control
the interrupts. For details, see Table 3-1.
Table 3-1. Interrupt Sources
Interrupt Type
When to Issue
Bit Assignment
DMA stop interrupt
Issued when the DMA transfer stops.
Bit 3 (DTVSTOP)
Packet overrun
Issued when the internal buffer overruns.
Bit 2 (DTVOR)
DMA completion
Issued when the specified number of packets have been transferred.
Bit 1 (DTVDMA)
Issued when the ERROR response is received during internal bus
Bit 0 (DMAERR)
interrupt
Transfer error interrupt
transfer.
(1) Transfer error interrupt
When a ERROR reply is received during Internal bus transfer, interrupt is generated.
DTVCLK
hready
2
htrans
0
2
a100
hwaddr
OK
hresp
2
a101
a100
hwdata
0
OK
0
2
a102
a101
a103
a102
OK ER ER OK OK
0
OK
a103
OK
OK
DTV_INT
Figure 3-9. Transfer error interrupt timing
(2) DMA completion interrupt
Trabsfer Request
DTV Stream Data output
Packet0
Packet1
Packet2
Packet3
Packet4
Packet5
DMA Transfer time(AHB_Write)
DTV DMA Transfer Completion Interrupt
When DTV DMA completion interrupt setting register is 0x1.
Figure 3-10. DMA completion interrupt Timing
34
User’s Manual S19267EJ4V0UM
Factor Clear
CHAPTER 3 DTV Details
(3) Packet overrun interrupt
The DTV interface uses internal memory (32 bits × 128 words) as a buffer having two banks. Banks are
switched for each packet for buffering and the data in the filled bank is transferred to the memory via DMA.
In stream data transfer via the DTV interface, the case where the DMA transfer of the previous packet data is
not completed within the period in which a packet is loaded is defined as a packet overrun. If a packet overrun
occurs, the corresponding bit of the interrupt source register is immediately set.
If a packet overrun occurs, packet data input via the channel decoder LSI and data stored in the ring buffer
becomes inconsistent. In such a case, terminate DMA once, reserve a sufficient band for the internal bus, and
then load data again.
(4) DMA stop interrupt
Transfer Request
DTV Stream Data output
Packet0
Transfer Request
Packet1
Packet2
Packet3
DMA Transfer time(AHB_Write)
DMA Status
DMA Stop Request
Figure 3-11. DMA stop interrupt Timing
Caution : Leave the space for 10 cycles of DTVBCLK by the (transfer request register set) which resumes
DMA after DMA stop interruption.
3.4.5 Clocks Control
In EM1, supply of the internal bus clock is controlled by each module to save power.
The internal bus clock is supplied upon requests from modules and upon register access.
In the DTV interface, a clock supply request is set when a DMA transfer is requested through register access, and
the clock supply request is cleared when transfer of the current DMA is completed with no other transfers
requested.
(1) Clocks used in DTV interface
(a)
DTV_BCLK (external input clock)
Used for capturing the DTV data clock and data.
(b)
DTV_CLK (DTV internal clock)
Used for the AHB bus clock and the internal operation of the DTV interface.
(c)
DTV_PCLK (APB clock)
Used for the accessing the APB bus (registers).
For details about clock/reset settings, see the Multimedia Processor for Mobile Applications - System
Control/General-Purpose I/O Interface User's Manual (S19265E).
User’s Manual S19267EJ4V0UM
35
CHAPTER 3 DTV Details
(2) DTV_CLKREQ set timing
When the DTV transfer request register is set.
(3) DTV_CLKREQ clear timing
When the DTV transfer request cancellation register is set and DMA transfer of the current packet is completed.
(4) DTV_SWT_CLKREQ output timing
The signal 1CLK preceded to transaction is output as CLKREQ for bus switches.
Signal rising is 1CLK precedence of transaction, and a fall is at the timing of an end of the data phase.
: IDLE
DTV_CLK
DTV_SWT_CLKREQ
1clk preceding supply
DTV_SWT_HTRANS
NOSEQ
SEQ
NOSEQ
DTV_SWT_HADDR
DTV_SWT_HWDATA
SWT_DTV_HREADY
Figure 3-12. DMA_SWT_CLKREQ Timing
(5) Clock restriction
DTV_3 clocks of CLK is need to 32 clocks of DTVBCLK for a data delivery between the external clock and the
internal clock.
32 / DTVBCLK > 3 / DTV_CLK
DTV_CLK > 0.093*DTVBCLK
Caution : Even when a clock stop period occurs in clock changes, convert it into a frequency and judge
normal movement pros and cons.
36
User’s Manual S19267EJ4V0UM
CHAPTER 3 DTV Details
DTVBCLK
When 4 clocks stopped
DTV_CLK
Converted by 0.2MHz
1MHz
Figure 3-13. Frequency conversion of DTV_CLK and DTVBCLK
(6) Relation between DTVBCLK and input data
Supply is also necessary to DTVBCLK by the following case outside the effective data area.
(1) Before a head packet just after the DMA start (DMAREQ register) is input, it's needed beyond 5 clocks.
(2) It's needed between the packet beyond 10 clocks.
A clock in front of the head packet is for data fetch preparations, and a clock between the packet is necessary to
take it in and deliver data to a AHB clock from DTVBCLK.
DMA start
5 clocks need
Head packet
data area
effective
10 clocks need
Effective data area
DTVBCLK
DTVPSYNC
DTVVLD
DTVDATA[7:0]
D0
D1
D2
D0
D185 D186
Caution : When taking Parity data in,
it’s 10 clocks of need after a Parity bustle.
Figure 3-14. Relation between DTVBCLK and input data
User’s Manual S19267EJ4V0UM
37
CHAPTER 3 DTV Details
3.4.6 Return method from synchronous difference
(1) The bit difference chosen at the timing of a start
When it's piled in a H period of DTVPSYNC input (between 8 clocks) at the timing of a DMA start (DMAREQ), a
bit difference occurs to bustle data.
When a bit difference occurs, head packet data after a DMA start is forwarded by the data unit which isn't an
original byte boundary. To evade that, head packet data after a DMA start check a Sync code, and please
confirm that there are no bit differences. When it isn't a Sync code, a bit difference occurs, so please break
packet data.
A bit difference is canceled automatically, and the next packet after a while is forwarded at a normal byte
boundary.
(2) Return from a synchronous difference by prescritive outside input
When the case when a clock (DTVBCLK) isn't supplied right and at the timing of prescribed input did, and were
different input such as noise occurred to a clock, a same year can't slip and sometimes forward data right.
It's possible to make them return from a synchronous difference by the next processing. Further, the data
maintained in the circuit is broken.
(1) Head 1byte data of packet data is checked and a synchronous difference is judged.
(2) DMA transfer stop (DMASTOP register).
(3) The DMA stop interruption is confirmed.
(4) The DTV I/F is reset in HW of a MODULECONT register_RSTZ (note).
(5) The reset release which is the DTV I/F in HW of a MODULECONT register_RSTZ.
(6) Restart of DMA transfer (DMAREQ register).
Note : For HW_RSTZ to initialize only DTV_IF part (the circuit which moves in DTVBCLK), register setting is
maintained. Register's readjustment isn't necessary.
38
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.1 Function Block Diagram
DTV_IF
DTV_DMA
Data Buffer
AHB
Frame Buffer
Interface
Packet
Control
Stream
Interface
DTVDATA[7:0]
System Bus
DTVPSYNC
DTVVLD
APB
Processor
Interface
DTVIF Internal All Unit
Serial/Parallel IF
Clock
Reset
TM
DTV_BCLK
Reset
Figure 4-1. DTV Block diagram
User’s Manual S19267EJ4V0UM
39
CHAPTER 4 DTV2 Details
4.2 Registers
Do not access reserved registers.
Any value written to reserved bits in each register is ignored.
Base address: 4015_0000H
Address
0020H
Register Name
DTV / DTV2 change register
Register Symbol
DT_SWITCH
R/W
R/W
After Reset
0000_0000H
DTV/DTV2 change register DT_SWITCH=1 can use following register.
4015_0000H to 4015_0040H overlaps DTV2 , but at DT_SWITCH=1, register operation is reflected by only a DTV2
register.
Base address: 4015_0000H
Address
Register Name
Register Symbol
R/W
After Reset
0000H
Interface status register
DT2_STATUS
R
0000_0000H
0004H
Interface raw status register
DT2_RAWSTATUS
R
0000_0000H
0008H
Interrupt enable set register
DT2_ENSET
R/W
0000_0000H
000CH
Interrupt enable clear register
DT2_ENCLR
W
0000_0000H
0010H
Interrupt source clear register
DT2_FFCLR
W
0000_0000H
0014H
Error address register
DT2_ERRORADR
R/W
0000_0000H
0020H
Transfer control register
DT2_DMACNT
R/W
0000_0003H
0024H
Transfer request register
DT2_DMAREQ
R/W
0000_0000H
0028H
Transfer request cancellation register
DT2_DMASTOP
W
0000_0000H
002CH
Start address register
DT2_START
R/W
0000_0000H
0030H
Buffer size register
DT2_BUFSIZE
R/W
0000_0000H
0034H
Blank size register
DT2_BLANK
R/W
0000_0000H
0038H
Current packet register
DT2_CURRENT
R
0000_0000H
003CH
DMA completion interrupt setting register
DT2_INTCONT
R/W
0000_0000H
0040H
Module control register
DT2_MODULECONT
R/W
0000_0000H
0044H
DTVPSYNC / DTVVLD Polarity designation register
DT2_SIGNALINVERT
R/W
0000_0000H
0048H
Input pin status monitor register
DT2_MONITOR
R
0000_0000H
40
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3 Register Functions
4.3.1 DTV / DTV2 change register
This register (DT_SWITCH:4015_0200H) changes DTV and DTV2 exclusively.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
SWITCH
R/W
Bit
After Reset
Function
Reserved
R
31:1
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
SWITCH
R/W
0
0
DTV / DTV2 change
0 : DTV
1 : DTV2
User’s Manual S19267EJ4V0UM
41
CHAPTER 4 DTV2 Details
4.3.2 Interface status register
This read-only register (DT2_STATUS: 4015_0000H) can be used to read the status of the interrupt sources
enabled by the interrupt enable set register (DT_ENSET).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
3
2
1
0
Reserved
DTVLP
DTVSP
DTVSYNC
DTVSTOP
DTVOR
DTVDMA
DMAERR
Name
R/W
Bit
After Reset
Function
Reserved
R
31:7
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVLP
R
6
0
Indicates the status of the packet length excess.
This interrupt is issued when 1 packet exceeded 188byte or 204byte, interrupt is
generated.
DTVSP
R
5
0
Indicates the status of the packet length short.
This interrupt is issued transfer data includes SyncByte and the transfer amount
of the just before packet data generates interrupt in case of less than 187 bytes
or less than 203 bytes.
DTVSYNC
R
4
0
Indicates the status of the illegal SyncByte.
This interrupt is issued the value of SyncByte generates interrupt in case of 47H
or anything but B8H.
DTVSTOP
R
3
0
Indicates the status of the DMA stop interrupt.
This interrupt is issued when DMA stops.
DTVOR
R
2
0
Indicates the status of the packet overrun error interrupt.
This interrupt is issued when the internal buffer overruns.
DTVDMA
R
1
0
Indicates the status of the DMA completion interrupt.
This interrupt is issued every time the number of packets specified in the DMA
completion interrupt setting register (4015_003CH) have been transferred via
DMA.
DMAERR
R
0
0
Indicates the status of the transfer error interrupt.
This interrupt is issued when an error response is received during internal bus
transfer.
This interrupt is issued upon a prohibited operation such as writing to the
transfer-prohibited area.
42
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.3 Interface raw status register
This read-only register (DT2_RAWSTATUS: 4015_0004H) can be used to read the status of the interrupt sources,
regardless of the setting of the interrupt enable set register (DT2_ENSET).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
3
2
Reserved
DTVLPRAW
DTVSPRAW
DTVSYNCR
DTVSTOPRAW
DTVORRAW
DTVDMARAW DMAERRRAW
AW
Name
R/W
Bit
After Reset
Function
Reserved
R
31:7
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVLPRAW
R
6
0
Indicates the status of the packet length excess.
This interrupt is issued when 1 packet exceeded 188byte or 204byte, interrupt is
generated.
DTVSPRAW
R
5
0
Indicates the status of the packet length short.
This interrupt is issued transfer data includes SyncByte and the transfer amount
of the just before packet data generates interrupt in case of less than 187 bytes
or less than 203 bytes.
DTVSYNCRA
R
4
0
W
Indicates the status of the illegal SyncByte.
This interrupt is issued the value of SyncByte generates interrupt in case of 47H
or anything but B8H.
DTVSTOP
R
3
0
RAW
DTVORRAW
Indicates the status of the DMA stop interrupt.
This interrupt is issued when DMA stops.
R
2
0
Indicates the status of the packet overrun error interrupt.
This interrupt is issued when the internal buffer overruns.
DTVDMA
R
1
0
RAW
Indicates the status of the DMA completion interrupt.
This interrupt is issued every time the number of packets specified in the DMA
completion interrupt setting register (4015_003CH) have been transferred via
DMA.
DMAERR
RAW
R
0
0
Indicates the status of the transfer error interrupt.
This interrupt is issued when an error response is received during internal bus
transfer.
This interrupt is issued upon a prohibited operation such as writing to the
transfer-protected area.
User’s Manual S19267EJ4V0UM
43
CHAPTER 4 DTV2 Details
4.3.4 Interrupt enable set register
This register (DT2_ENSET: 4015_0008H) enables issuance of interrupt requests. When the bit corresponding to
an interrupt source is set to 1 in this register, if the interrupt source is set, an interrupt request is issued and the
corresponding bit of the interrupt status register (DT2_STATUS) is set to 1. Writing 0 to this register does not affect
the setting. The interrupt request issuance enable status can be checked by reading this register.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
Reserved
6
DTVLP_EN
5
4
3
2
1
0
DTVSP_EN
DTVSYNC_
DTVSTOP_EN
DTVOR_EN
DTVDMA_EN
DMAERR_EN
EN
(1/2)
Name
R/W
Bit
After Reset
Function
Reserved
R
31:7
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVLP_EN
R
6
0
Indicates whether issuance of packet length excess interrupt request is enabled.
0: Not enabled.
W
1: Enabled.
Specifies whether to enable issuance of packet length excess interrupt requests.
1: Cancels interrupt masking.
DTVSP_EN
R
5
0
Indicates whether issuance of packet length short interrupt request is enabled.
0: Not enabled.
W
1: Enabled.
Specifies whether to enable issuance of packet length short interrupt requests.
1: Cancels interrupt masking.
DTVSYNC_E
R
4
0
N
Indicates whether issuance of illegal SyncByte interrupt request is enabled.
0: Not enabled.
W
1: Enabled.
Specifies whether to enable issuance of illegal SyncByte interrupt requests.
1: Cancels interrupt masking.
DTVSTOP_
R
3
0
EN
Indicates whether issuance of DMA stop interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of DMA stop interrupt requests.
1: Cancels interrupt masking.
DTVOR_EN
R
2
0
Indicates whether issuance of packet overrun error interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance packet overrun error interrupt requests.
1: Cancels interrupt masking.
44
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
(2/2)
Name
R/W
Bit
After Reset
DTVDMA_EN
R
1
0
Function
Indicates whether issuance of DMA completion interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of DMA completion interrupt requests.
1: Cancels interrupt masking.
DMAERR_EN
R
0
0
Indicates whether issuance of transfer error interrupt requests is enabled.
0: Not enabled.
1: Enabled.
W
Specifies whether to enable issuance of transfer error interrupt requests.
1: Cancels interrupt masking.
User’s Manual S19267EJ4V0UM
45
CHAPTER 4 DTV2 Details
4.3.5 Interrupt enable clear register
This register (DT2_ENCLR: 4015_000CH) disables issuance of interrupt requests. When the bit corresponding to
an interrupt source is set to 1 in this register, an interrupt request is not issued even if an interrupt source occurs. The
status of the corresponding bit of the interrupt status register (DT2_STATUS) also remains unchanged. Writing 0 to
this register does not affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
Reserved
DTVLPMAS
DTVSPMAS
K
K
Name
4
DTVSYNCM DTVSTOPMASK DTVORMASK DTVDMAMASK DMAERRMASK
ASK
R/W
Bit
After Reset
Function
Reserved
R
31:7
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVLPMASK
W
6
0
Disables issuance of packet length excess interrupt requests.
1: Disable
DTVSPMASK
W
5
0
Disables issuance of packet length short interrupt requests.
1: Disable
DTVSYNCMA
W
4
0
SK
DTVSTOP
W
3
0
MASK
DTVOR
W
2
0
MASK
46
Disables issuance of packet overrun error interrupt requests.
1: Disable
W
1
0
Disables issuance of DMA completion interrupt requests.
W
0
0
Disables issuance of transfer error requests.
MASK
DMAERR
Disables issuance of DMA stop interrupt requests.
1: Disable
MASK
DTVDMA
Disables issuance of illegal SyncByte interrupt requests.
1: Disable
1: Disable
1: Disable
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.6 Interrupt source clear register
This write-only register (DT2_FFCLR: 4015_0010H) clears the interrupt source by setting the bit corresponding to
the interrupt source to 1. Writing 0 to this register does not affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
3
2
1
0
Reserved
DTVLPCLR
DTVSPCLR
DTVSYNCC
DTVSTOPCLR
DTVORCLR
DTVDMACLR
DMAERRCLR
LR
Name
R/W
Bit
After Reset
Function
Reserved
R
31:7
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVLPCLR
W
6
0
Clears the packet length excess interrupt source.
1: Clears the source.
DTVSPCLR
W
5
0
Clears the packet length short interrupt source.
1: Clears the source.
DTVSYNCCL
W
4
0
R
DTVSTOPCL
1: Clears the source.
W
3
0
R
DTVORCLR
Clears the illegal SyncByte interrupt source.
Clears the DMA stop interrupt source.
1: Clears the source.
W
2
0
Clears the packet overrun error interrupt source.
1: Clears the source.
DTVDMACLR
W
1
0
Clears the DMA completion interrupt source.
DMAERRCLR
W
0
0
Clears the transfer error interrupt source.
1: Clears the source.
1: Clears the source.
User’s Manual S19267EJ4V0UM
47
CHAPTER 4 DTV2 Details
4.3.7 Error address register
This register (DT2_ERRORADR: 4015_0014H) holds the current HADDR status when an internal bus response
ERROR, RETRY or SPLIT is received during DMA transfer.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
LOCK
ERRADR
23
22
21
20
ERRADR
15
14
13
12
ERRADR
7
6
5
4
ERRADR
Name
R/W
Bit
After Reset
Function
ERRADR
R
31:2
0
Stores the HADDR status upon occurrence of an error response.
Reserved
R
1
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
LOCK
R/
0
0
Sets error status.
0: Stores the address when an error response occurs.
1: An error response occurred and the address was stored.
W
Clear error status.
0: Stores the address when an next error response occurs.
1: Nothing action.
Caution
If an error response occurs when the LOCK bit is 0, the current HADDR status is stored in the
ERRADR bit and the LOCK bit is set to 1.
To acquire the error status again, set the LOCK bit to 0.
Writing 1 to the LOCK bit does not affect the setting.
48
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.8 Transfer control register
This register (DT2_DMACNT: 4015_0020H) controls data transfer.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
The DTVSP bit must be set to 1 after activation.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVSP
DTVMODE
DTVENDIAN
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
Reserved
DTVSP
R/W
Bit
After Reset
Function
R
31:3
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
R/W
2
0
Specifies the data bus type of DTV stream.
0: Burst parallel output (setting prohibited)
1: Burst serial output
DTVMODE
R/W
1
1
Specifies the size of a packet.
0: Transfer of synchronization field + data field (188 bytes = 47 words)
1: Transfer of synchronization field + data field + parity field (204 bytes =
51 words)
DTVENDIAN
R/W
0
1
Specifies the DTV stream data format.
0: Big endian
1: Little endian
User’s Manual S19267EJ4V0UM
49
CHAPTER 4 DTV2 Details
4.3.9 Transfer request register
This register (DT2_DMAREQ: 4015_0024H) specifies the activation of DMA transfer.
After setting 1 in this register, the lead value of this register is 0 until DMA transfer begins it. When DMA transfer
begins it, the lead value changes into 1. 1 is set by a transfer release request cashier, and when DMA transfer stops,
the lead value of this register changes into 0.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:1
0
DMAREQ
R
0
0
DMAREQ
Function
Reserved. Reading returns the unsettled value. Writing in is ignored.
This bit is set to 1 when DMAREQ is acknowledged.
This bit is cleared when the transfer request cancellation register (4015_0028H)
is set.

W
Writing 1 to this bit issues a DMA transfer request.
DMA is repeated until the transfer request cancellation register (4015_0028H) is
set.
Writing 0 to this bit does not affect the setting.
Transfer clear request:
1 is written in transfer request
DT2_DMASTOP
Transfer request:
1 is written in transfer
request DT2_DMAREQ.
Register Write
DT_M2H_DMAREQ
0
htrans
0
2
2
2
2
2
2
2
0
2
2
2
2
2
2
2
2
2
2
2
2
2
hwaddr
hwdata
When DMA transfer is 0
begun, DT2_DMAREQ
will be 1.
1
0
2
When DMA transfer
is stopped,
DT2_DMAREQ
Figure 4-2. Change of transfer request register value
Caution) At the time of a DMA transfer request, a data transfer, just before, DMASTOP, it begins from the
address location. When beginning DMA transfer from the start address, do a DMA transfer request after H/W
is reset.
50
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.10 Transfer request cancellation register
This register (DT2_DMASTOP: 4015_0028H) stops DMA transfer. It'll be the stop reservation state by setting this
register, and when not forwarding to the occasion during packet transfer after transfer, DMA is stopped immediately.
The DMA transfer request status can be checked by reading the transfer request register (DT2_DMAREQ). DMA stop
interrupt is issued by the time of a fall of status (the lead value of the transfer request register).
This is a write-only register. If the register is set to 1, DMA transfer is finished. Writing 0 to this register does not
affect the setting.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
W
31:1
0
DMASTOP
W
0
0
DMASTOP
Function
Reserved. Reading returns the unsettled value. Writing in is ignored.
Stops DMA transfer.
1: Transfer stop
When DMA transfer is being performed, the transfer stops after sending the
current packet. Otherwise, the transfer immediately stops
Caution1) The restriction matter in DTV "One for 10 cycles of DTVBCLK leave a space by the (transfer
request register set) which resumes DMA after DMA stop interruption, please." is unnecessary
in DTV2.
Caution2) Word data until DMA stop request fixation time is forwarded to a memory. Transfer data was
filled in the effective data length of 1 packet (188byte or 204byte), when not having that, even a
packet next to the stop request fixation after a while will be unsettled data..
User’s Manual S19267EJ4V0UM
51
CHAPTER 4 DTV2 Details
4.3.11 Start address register
This register (DT2_START: 4015_002CH) specifies the start address of the DMA transfer destination.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
0
DTV_START
23
22
21
20
DTV_START
15
14
13
12
DTV_START
7
6
5
4
DTV_START
Name
R/W
Bit
After Reset
DTV_START
R/W
31:0
0
Function
Specifies the start address of the DMA transfer destination (the lower 2 bits are
fixed to 0).
4.3.12 Buffer size register
This register (DT2_BUFSIZE: 4015_0030H) specifies the size of the DMA transfer destination area in units of
packets.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
Reserved
23
22
21
20
Reserved
15
14
DTV_BUFSIZE
13
12
11
10
9
8
2
1
0
0
0
DTV_BUFSIZE
7
6
5
4
3
DTV_BUFSIZE
Name
Reserved
DTV_
BUFSIZE
52
R/W
Bit
After Reset
Function
R
31:20
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
R/W
19:0
0
Specifies the size of the DMA transfer destination area in units of packets (the
lower 2 bits are fixed to 0).
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.13 Blank size register
This register (DT2_BLANK: 4015_0034H) specifies the blank size between packets during DMA transfer.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
0
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
DTV_BLANK
Name
Reserved
DTV_BLANK
R/W
Bit
After Reset
Function
R
31:8
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
R/W
7:0
0
Specifies the blank size between packets (the lower 2 bits must be set to 0).
User’s Manual S19267EJ4V0UM
53
CHAPTER 4 DTV2 Details
4.3.14 Current packet register
This register (DT2_CURRENT: 4015_0038H) indicates the number of packets that have been transferred via DMA.
This register shows the value from 0 to “DT2_BUFSIZE register value  1”.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
Reserved
23
22
21
20
Reserved
15
14
DTV_CURRENT
13
12
11
10
9
8
2
1
0
DTV_CURRENT
7
6
5
4
3
DTV_CURRENT
Name
R/W
Bit
After Reset
Function
Reserved
R
31:20
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTV_
R
19:0
0
Stores the number of packets that have been transferred via DMA minus 1.
CURRENT
Figure 4-3. Current Packet Register Values
Transfer
request
DTV stream data output
Packet 0
Packet 1
Packet 2
Packet 3
Packet 4
Packet 5
DMA transfer period
(AHB_Write)
Current packet
Remark
0
1
2
When the DTV buffer size is set to 4H
Caution) The count value is maintained until H/W resets.
54
User’s Manual S19267EJ4V0UM
3
0
CHAPTER 4 DTV2 Details
4.3.15 DMA completion interrupt setting register
This register (DT2_INTCONT: 4015_003CH) specifies the interval at which a DMA transfer completion interrupt is
issued, in units of packets. A DMA transfer completion interrupt is issued each time DMA transfer of “DT2_INTCONT
register value + 1” packets is completed.
Settings can be changed only when DMA transfer is not being performed (DT2_DMAREQ register = 0H).
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
DTV_INTCONT
Name
Reserved
DTV_
R/W
Bit
After Reset
R
31:8
0
R/W
7:0
0
INTCONT
Function
Reserved. Reading returns the unsettled value. Writing in is ignored.
Specifies in units of packets the interval at which a DMA transfer completion
interrupt is issued.
An interrupt is issued every time the number of packets equal to the set value
plus 1 are received.
Figure 4-4. DTV Interface DMA Completion Interrupt Set Timing
Transfer request
DTV stream data output
Packet 0
Packet 1
Packet 2
Packet 3
Packet 4
Packet 5
DMA transfer period
(AHB_Write)
DMA completion interrupt
Interrupt source clear
Remark
When the DMA completion interrupt setting register is set to 1H
User’s Manual S19267EJ4V0UM
55
CHAPTER 4 DTV2 Details
4.3.16 Module control register
This register (DT2_MODULECONT: 4015_0040H) initializes the operation of the data capturing circuit that
synchronizes with DTV_BCLK.
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
R/W
Bit
After Reset
Reserved
R
31:1
0
HW_RSTZ
R/W
0
0
HW_RSTZ
Function
Reserved. Reading returns the unsettled value. Writing in is ignored.
Specifies hardware reset.
Specifies whether to initialize the operation of the data capturing circuit that
synchronizes with DTV_BCLK.
0: Reset
1: Cancels reset
56
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.3.17 DTVPSYNC / DTVVLD Polarity designation register
This register (DT2_SIGNALINVERT: 4015_0044H) assign polarity of used DTVPSYNC and DTVVLD respectively..
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
DTVPSYNC
DTVVLD
Reserved
23
22
21
20
Reserved
15
14
13
12
Reserved
7
6
5
4
Reserved
Name
Reserved
DTVPSYNC
R/W
Bit
After Reset
Function
R
31:2
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
R/W
1
0
Polarity of DTVPSYNC is assigned.
0: Normal
1: Reverse
DTVVLD
R/W
0
0
Polarity of DTVVLD is assigned.
0: Normal
1: Reverse
User’s Manual S19267EJ4V0UM
57
CHAPTER 4 DTV2 Details
4.3.18 Input pin status monitor register
This register (DT2_MONITOR: 4015_0048H) indicates terminal input status of DTVPSYNC, DTVVLD, DTVDATA,
BCLK..
31
30
29
28
27
26
25
24
19
18
17
16
11
10
9
8
3
2
1
0
Reserved
DTVBCLK
DTVPSYNC
DTVVLD
Function
Reserved
23
22
21
20
Reserved
15
14
13
12
DTVDATA
7
Name
6
5
4
R/W
Bit
After Reset
Reserved
R
31:16
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVDATA
R
15:8
0
DTVDATA is indicated.
Reserved
R
7:3
0
Reserved. Reading returns the unsettled value. Writing in is ignored.
DTVBCLK
R
2
0
DTVBCLK is indicated.
DTVPSYNC
R/
1
0
DTVPSYNC is indicated.
DTVVLD
R/
0
0
DTVVLD is indicated.
58
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
4.4 Function details
4.4.1 Input Signal Timing
(1) DTV2 I/F signal timing
Figure 4-5. DTV2 Interface Signal Timing
DTV_BCLK
DTV_PSYNC,
DTV_VLD,
DTV_DATA[7:0]
Thold
Tsetup
(2) Stream timing
Figure 4-6. Stream Timing (Burst Serial Output)
DTV_BCLK
DTV_PSYNC
DTV_VLD
DTV_DATA[7]
7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
Sync (1 byte)
Caution
4 3 2 1 0 7
2 1 0
Parity (16 bytes)
Data (187 bytes)
Polarity assignation is possible by register setting in DTVSYNC,DTVVLD.
(3) At the timing of a receipt of DTV2 I/F signal (Burst Serial Output)Stream timing
When DTVVLD=1 and DTVPSYNC=1 reached for 8 cycles continuously, the 8bits data received at that time is
made SYNC. It's made DATA from 8bits following that.
Figure 4-7. Judgment of DTVPSYNC data (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
6
7
0
SYNC
User’s Manual S19267EJ4V0UM
1
2
3
4
5
6
7
DATA
59
CHAPTER 4 DTV2 Details
It's made SYNC continued by the 8bits unit as it indicates on figure 4-8 when DTVVLD=1 and DTVPSYNC=1
reached more than 16 cycles continuously.
Figure 4-8. When DTVPSYNC reaches continuously (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
0
DTVDATA
(Serial)
1
2
3
4
5
6
7
0
1
2
SYNC
3
4
5
6
7
SYNC
When it was DTVVLD=0 during reception, the effective Data bit is made data using 8bits except for DTVVLD=0
period (figure 4-9). In case of DTVPSYNC=1, like, it's made SYNC using 8bits except for DTVVLD=0 period (figure 410). But, when changing into DTVPSYNC=0 during DTVVLD=0 period, it's made DATA, not SYNC (figure 4-11).
Figure 4-9. When DTVVLD intermits (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
*
*
6
7
0
1
2
3
4
5
DATA
Figure 4-10. When DTVVLD intermits while DTVPSYNC is HIGH (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
*
*
6
SYNC
60
User’s Manual S19267EJ4V0UM
7
0
1
2
3
4
5
CHAPTER 4 DTV2 Details
Figure 4-11. When DTVPSYNC stands up and goes down during a DTVVLD intermission period (Burst Serial
Output)
DTVCLK
DTVVLD
DTVPSYNC
0
DTVDATA
(Serial)
1
2
3
4
5
*
*
6
7
0
1
2
3
4
5
Even DTVVLD=1 doesn't receive data in the period when DTVBCLK doesn't enter (figure 4-12, 4-13).
Figure 4-12. When BCLK intermits (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
0
DTVDATA
(Serial)
1
2
3
4
5
*
*
6
7
0
1
2
3
4
5
SYNC
Figure 4-13. When DTVPSYNC stands up and goes down during a BCLK intermission period (Burst Serial
Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
*
*
6
7
0
1
2
3
4
5
Data
The bit line was filled in 8bits, when it was DTVPSYNC=1 in the state I don't have, it's made Data after that 8 bits in
even time. When DTVPSYNC continues it 8 cycles, just after making the rising of DTVPSYNC a cardinal point, it's
made SYNC with 8bits (figure 4-14). DTVPSYNC=1 was filled in 8 cycles, when not having that, it's made effective
data just before from the bit line 8bits later (figure 4-15).
User’s Manual S19267EJ4V0UM
61
CHAPTER 4 DTV2 Details
Figure 4-14. The bit just before the DTVPSYNC arrival was filled in 8bits, when I don't have that (Burst Serial
Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
6
0
1
2
Data
3
4
5
6
7
0
PSYNC
Figure 4-15. The bit line just before the DTVPSYNC arrival, when 8bits non-rise and DTVPSYNC are 8bits nonrise (Burst Serial Output)
DTVBCLK
DTVVLD
DTVPSYNC
DTVDATA
(Serial)
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
PSYNC: less than 8bits
Data
Data
The bit line received just after just after the start and the reset will be an invalid bit, and it's made the effective bit
from first DTVPSYNC (figure 4-16). It was filled in 8bits which has been received at the end in a case with a reset
when receiving an effective bit, the data I don't have is made invalid data (figure 4-17).
Figure 4-16. Until DTVPSYNC comes to the data just after the reset, invalid data (Burst Serial Output)
DTVBCLK
SRSTZ
DTVVLD
DTVPSYNC
0
DTVDATA
(Serial)
Invalid data
62
1
2
3
4
Valid data
User’s Manual S19267EJ4V0UM
5
6
7
0
1
2
CHAPTER 4 DTV2 Details
Figure 4-17. It was filled in 8bits just before the reset, the data I don't have is invalid data (Burst Serial
Output)
DTVBCLK
SRSTZ
DTVVLD
DTVPSYNC
0
DTVDATA
(Serail)
1
2
3
4
0
Invalid data
1
Invalid data
2
3
4
5
Valid data
4.4.2 Data Format
Figure 4-18. Stream Data Storage Format
DTV_PSYNC
DTV_VLD
D1
D0
DTV_DATA[7:0]
D2
D3
D185 D186
P0
Parity (16 bytes)
Data (187 bytes)
Sync
(1 byte)
P15
Data input as shown in Figure 4-18 is stored in the memory in the following format, in accordance with the value
set to the DTVENDIAN bit of the transfer control register (DT2_DMACNT).
Bit alignment 31 to 24
23 to 16
15 to 8
7 to 0
31 to 24
23 to 16
15 to 8
7 to 0
50 words
P15
P14
P13
P12
P14
P15
P12
P13
49 words
P11
P10
P9
P8
P10
P11
P8
P9
48 words
P7
P6
P5
P4
P6
P7
P4
P5
47 words
P3
P2
P1
P0
P2
P3
P0
P1
46 words
D186
D185
D184
D183
D185
D186
D183
D184
:
:
:
:
:
:
:
:
3 words
D14
D13
D12
D11
D13
D14
D11
D12
2 words
D10
D9
D8
D7
D9
D10
D7
D8
1 word
D6
D5
D4
D3
D5
D6
D3
D4
0 words
D2
D1
D0
Sync
D1
D2
Sync
D0
Little endian
User’s Manual S19267EJ4V0UM
Big endian
63
CHAPTER 4 DTV2 Details
4.4.3 DTV Transfer Processing
Stream data is transferred to the specified buffer area in the memory, in units of packets. The buffer is used as a
ring buffer in which the pointer returns to the beginning of the buffer after the specified number of packets are stored.
The following three registers are used to set up the buffer.
 Start address register (32 bits): Specifies the ring buffer start address.
 Buffer size register (20 bits): Specifies the ring buffer area by a packet count.
 Blank size register (8 bits): Specifies the blanking interval between packets.
Figure 4-19. Ring Buffer Mapping
Ring buffer area
Buffer size 
1 packet size
Packet 1
Blank size
Packet 0
Start address
Effective size of 1 packet and data is established by the DTVMODE bit of the transfer control register
(DT2_DMACNT) by 188 bytes or 204 bytes.
The capacity of 1 packet unit by which the mapping is made a buffer will be the effective size chosen by the
DTVMODE bit+ blank size. The total capacity of the ring buffer will be a packet of above-mentioned volume x buffer
size.
The DTV flow received from OFDM is the part-time work unit, and buffering is done by FIFO inside DTV2, and
every time it gathers 4 bytes, DMA is forwarded to a memory (figure 4-20).
Data is stocked by new address aligning which made SyncByte the head as I come and show in figure 4-21 at the
time of the following exception occurrence at the time of SyncByte reception at the time of normal operation.
a) When next SyncByte has come after restoration from a FIFO overflow by a packet overrun.
b) When next SyncByte has come (An excess is repealed.) after the transfer amount of the data exceeded a packet
of effective size.
c) When the transfer amount of the data is a packet of effective size sheep rise, and next SyncByte has come (The
shortage will be unsettled data.)
d) When it's different from the expectation value (47H or B8H is established by the DTVMODE bit of the DMA
control register.) in the price of received SyncByte.
64
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
Figure 4-20. Stock method of a packet (at DTVMODE=0)
CLK
PSYNC
ByteData
a0
a1
a2
a3
b0
haddr
b1
b2
b3
c0
a
c1
d0
b
1st word
d3
3rd word
c
1packet
Data [187Byte]
bytes, DMA is forwarded.
d2
c
2nd word
b
a
d1
c
a
+0
c3
b
hwdata
Every time I match FIFO 4
c2
:
+188
+188×(N-1)
Data [187Byte]
N packet
memory image
Figure 4-21. Packet stock method when next SyncByte has come, (at DTVMODE=0)
CLK
PSYNC
ByteData
a0
a1
a2
a3
haddr
b0
b1
c0
c1
a
hwdata
c3
b
a
d2
d3
e0
e1
d
c
d
Sync
a
+188
1packet
不定データ
b
blank
c
d
Data [187Byte]
+376
d1
2nd word
3rd word
(last 2bytes are dummy)
Data [187Byte]
+188+blank
d0
c
b
1st word
+0
c2
2packet
:
Memory image
User’s Manual S19267EJ4V0UM
65
CHAPTER 4 DTV2 Details
4.4.4 Interrupt Control
DTV2 I/F issues 7 kinds of interrupt.
Control of each interrupt interrupts, and it's assigned to each bit of the status register. Please refer to table 4-1 for
details.
Table 4-1. Interrupt Sources
Interrupt Type
When to Issue
Bit Assignment
Packet length excess interrupt
Issued when 1 packet exceeded 188byte or 204byte.
DT2_STATUS[6] : DTVLP
Packet length short interrupt
Issued when DTVPSYNC=1 and reception data are less
DT2_STATUS[5] : DTVSP
than 187 bytes or less than 203 bytes.
Illegal SyncByte onyerrupt
Issued when the price of DTVPSYNC=1 and SyncByte
DT2_STATUS[4] : DTVSYNC
is 47H or anything but B8H.
DMA stop interrupt
Issued when the DMA transfer stops.
DT2_STATUS[3] : DTVSTOP
Packet overrun
Issued when the internal buffer overruns.
DT2_STATUS[2] : DTVOR
DMA completion
Issued when the specified number of packets have
DT2_STATUS[1] : DTVDMA
interrupt
been transferred.
Transfer error interrupt
Issued when the ERROR response is received during
DT2_STATUS[0] : DMAERR
internal bus transfer.
(1) Transfer error interrupt
When a ERROR reply is received during Internal bus transfer, interrupt is generated.
DTVCLK
hready
htrans
2
2
a100
hwaddr
OK
0
2
a101
a100
hwdata
hresp
0
OK
0
2
a102
a101
OK ER ER OK OK
0
a103
a102
OK
a103
OK
OK
DTV_INT
Figure 4-21. Transfer error interrupt timing
(2) DMA completion interrupt
Every time DMA of the number of packets set as register DT2_INTCONT is completed, interrupt is generated.
(3) Packet overrun interrupt
DTV2 I/F uses the inner memory (32 bits x 128 words) as a buffer. A bustle of a word does DMA transfer of
completed data. When the interior buffer overflows, overrun interrupt is generated. When a packet overrun
occurred, the adjustment-lessness occurs to the packet data input from DTV and the range stocked in a ring buffer,
but after return, a normal packet bustle is resumed from next Psync from a packet overrun.
66
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
(4) DMA stop interrupt
When doing DMA transfer of DMA immediately when not forwarding, when DMA transfer stop reservation was
formed out of register DT2_DMASTOP, when the transfer has been completed, interrupt is generated.
Figure 4-23. At the timing of the interruption when DMA transfer is being done, and transfer has been
reserved to cry
DTVCLK
dma_stop
htrans
2
0
a100
hwaddr
OK
0
a101
a100
hwdata
hresp
2
OK
a101
OK
OK
DTV_INT
Figure 4-24. At the timing of the interruption when transfer has been reserved during DMA transfer
DTVCLK
dma_stop
htrans
2
2
a100
hwaddr
OK
0
a101
a100
hwdata
hresp
0
OK
a101
OK
OK
DTV_INT
User’s Manual S19267EJ4V0UM
67
CHAPTER 4 DTV2 Details
(5) Packet length short interrupt
When next SyncByte has arrived in less than 203 bytes of state at less than 187 bytes and packet chief
effective size 204byte at packet chief effective size 188byte, the forwarded data length generates interrupt.
Effective size is established by the DTVMODE bit of the transfer control register.
Figure 4-25. Interrupt timing of the word transfer which includes PSYNC part-time work by less than 187 bytes
(at DTVMODE=0)
DTVCLK
hready
htrans
2
0
2
a180
hwaddr
2
PSYNC
a180
hwdata
0
0
2
b00
PSYNC
0
b01
b00
b01
DTV_INT
(6) Packet length excess interrupt
When a packet chief closes beyond effective size (188byte or 204byte), interrupt is generated. Effective size is
designated by the DTVMODE bit of the transfer control register.
Figure 4-26. Interrupt timing when also not having complete set of word data including SyncByte beyond
188byte, (at DTVMODE=0)
DTVCLK
hready
htrans
hwaddr
hwdata
DMA transmission for 188 bytes has
been completed,
but the next data in FIFO doesn't
include
S
B t
2
a187
a187
DTV_INT
68
User’s Manual S19267EJ4V0UM
CHAPTER 4 DTV2 Details
(6) Illegal SyncByte interrupt
SyncByte shows 47H or B8H. The time 47H the price is decided about by DTVMODE of a transfer control
register, and which is DTVMODE=0, the B8H is made the expectation value at DTVMODE=1. In case of all
except for the expectation value, SyncByte of DMA transfer word data including SyncByte brings about unjust
SyncByte interrupt.
Figure 4-27. Interrupt timing when PSYNC part-time work is the unjust value, (at DTVMODE=0)
DTVCLK
SWT_DTV_
The value which is a word
including
SyncByte and a relevant byte
i 47H
htrans
2
hwaddr
0
2
a00
hwdata
It's a word including SyncByte,
but the price of the relevant
byte isn't 47H.
0403_0247
0
a01
4433_2211
2
0
2
b00
4433_2211
0
b01
eeff_aabb
DTV_INT
4.4.5 Clocks Control
In EM1, supply of the internal bus clock is controlled by each module to save power.
The internal bus clock is supplied upon requests from modules and upon register access.
In the DTV interface, a clock supply request is set when a DMA transfer is requested through register access, and
the clock supply request is cleared when transfer of the current DMA is completed with no other transfers
requested.
(1) Clocks used in DTV interface
(a)
DTV_BCLK (external input clock)
(b)
DTV_CLK (DTV internal clock)
(c)
DTV_PCLK (APB clock)
Used for capturing the DTV data clock and data.
Used for the AHB bus clock and the internal operation of the DTV interface.
Used for the accessing the APB bus (registers).
For details about clock/reset settings, see the Multimedia Processor for Mobile Applications - System
Control/General-Purpose I/O Interface User's Manual (S19265E).
(2) DTV_CLKREQ set timing
When the DTV transfer request register is set.
(3) DTV_CLKREQ clear timing
When the DTV transfer request cancellation register is set and DMA transfer of the current packet is completed.
(4) DTV_SWT_CLKREQ output timing
The signal 1CLK preceded to transaction is output as CLKREQ for bus switches.
Signal rising is 1CLK precedence of transaction, and a fall is at the timing of an end of the data phase.
User’s Manual S19267EJ4V0UM
69
Revision History
Date
Revision
Comments
February 10, 2009
1.0
−
April 27, 2009
2.0
Incremental update from comments to the 1.0.
September 30, 2009
3.0
Incremental update from comments to the 2.0.
4.5 chapters and 4.6 chapters are added.
October 13, 2009
70
4.0
The item of DTV2 is added. (chapter 4)
User’s Manual S19267EJ4V0UM
For further information,
please contact:
NEC Electronics Corporation
1753, Shimonumabe, Nakahara-ku,
Kawasaki, Kanagawa 211-8668,
Japan
Tel: 044-435-5111
http://www.necel.com/
[America]
[Europe]
[Asia & Oceania]
NEC Electronics America, Inc.
2880 Scott Blvd.
Santa Clara, CA 95050-2554, U.S.A.
Tel: 408-588-6000
800-366-9782
http://www.am.necel.com/
NEC Electronics (Europe) GmbH
Arcadiastrasse 10
40472 Düsseldorf, Germany
