Xucai Technology (Hk)

Xucai Technology (Hk)

LED

Multimedia

Projector

1

2

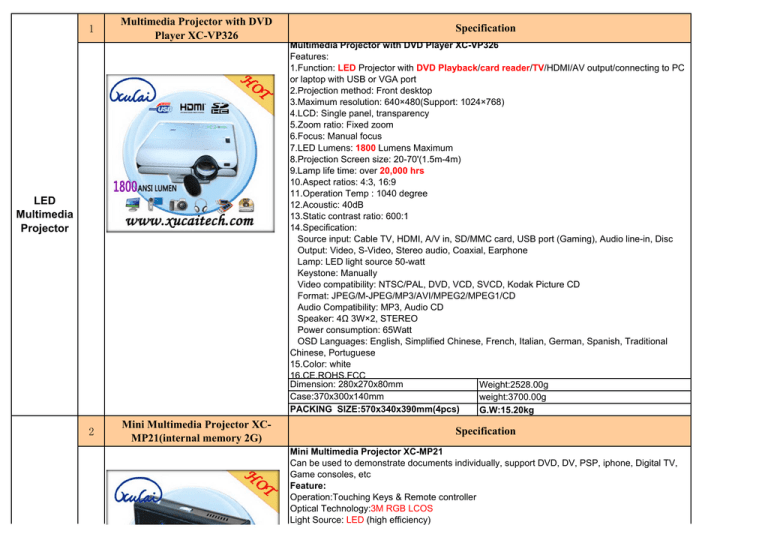

Multimedia Projector with DVD

Player XC-VP326

Mini Multimedia Projector XC-

MP21(internal memory 2G)

Specification

Multimedia Projector with DVD Player XC-VP326

Features:

1.Function:

LED

Projector with

DVD Playback

/

card reader

/

TV

/HDMI/AV output/connecting to PC or laptop with USB or VGA port

2.Projection method: Front desktop

3.Maximum resolution: 640×480(Support: 1024×768)

4.LCD: Single panel, transparency

5.Zoom ratio: Fixed zoom

6.Focus: Manual focus

7.LED Lumens: 1800 Lumens Maximum

8.Projection Screen size: 20-70'(1.5m-4m)

9.Lamp life time: over

20,000 hrs

10.Aspect ratios: 4:3, 16:9

11.Operation Temp : 1040 degree

12.Acoustic: 40dB

13.Static contrast ratio: 600:1

14.Specification:

Source input: Cable TV, HDMI, A/V in, SD/MMC card, USB port (Gaming), Audio line-in, Disc

Output: Video, S-Video, Stereo audio, Coaxial, Earphone

Lamp: LED light source 50-watt

Keystone: Manually

Video compatibility: NTSC/PAL, DVD, VCD, SVCD, Kodak Picture CD

Format: JPEG/M-JPEG/MP3/AVI/MPEG2/MPEG1/CD

Audio Compatibility: MP3, Audio CD

Speaker: 4Ω 3W×2, STEREO

Power consumption: 65Watt

OSD Languages: English, Simplified Chinese, French, Italian, German, Spanish, Traditional

Chinese, Portuguese

15.Color: white

16.CE,ROHS,FCC

Dimension: 280x270x80mm

Weight:2528.00g

Case:370x300x140mm weight:3700.00g

PACKING SIZE:570x340x390mm(4pcs)

G.W:15.20kg

Specification

Mini Multimedia Projector XC-MP21

Can be used to demonstrate documents individually, support DVD, DV, PSP, iphone, Digital TV,

Game consoles, etc

Feature:

Operation:Touching Keys & Remote controller

Optical Technology: 3M RGB LCOS

Light Source: LED (high efficiency)

3

4

Mini Multimedia Projector with WiFi

g ( g

Luminous Flux: 20-50Lumens

Lamp Life: Over

20,000hrs

Resolution: 640*480 pixels

Aspect Ratio: 4:3

Contrast Ratio: 200:1

Projection Image Size:

6-150''

Projection Distance: 40-450cm

Zoom& Focus: Manual y)

Build-in speaker: 1w*1

Internal Memory:

2GB

(optional: 4GB,8GB)

Remote Control

: Yes

External memory: Micro SD Card

USB Transfer: usb 2.0 high-speed

VGA/AV-in / YPbPr / YCbCr in / Audio output

Image format: JPEG, BMP, GIF

Video format: MPEG4, AVI, RM, RMVB, FLV, WMV, 3GP, MP4

Audio format: MP3, WMA, WAV, APE, FLAV, ACC, AC3, OGG

Power Supply: DC 5V 4A Adapter, Removable Lithium Battery 1780mAH

Power consumption: 5w

Language support: Multi-language

Dimension: 121X68X25mm

Weight:186g

Case:170*170*100mm weight:842g

PACKING SIZE:535*355*355mm(20pcs)

G.W:18.20kg

Specification

XC-MP23W(internal memory 2G)

Mini Multimedia Projector XC-

MP23(internal memory 2G)

Mini Multimedia Projector XC-MP23W

Can be used as a mini computer and demonstrate individually based on Win CE operation System without connection to computer, compatible with USB2.4GHz mouse/ keyboard, very convenient for using, support DVD, DV, PSP, iphone, Digital TV, Game consoles, etc.

Feature:

Operation system:

Win CE5.0

CPU:

Dual Core 500MHz

Operation: Keys, Mouse, keyboard

Optical Technology: 3M RGB LCOS

Light Source:

LED

(high efficiency)

Luminous Flux: 20-50Lumens

Lamp Life: Over 20,000hrs

Resolution: 640*480 pixels

WiFi

: Yes(only for XC-MP23W)

DVB-T: optional

Aspect Ratio: 4:3

Contrast Ratio: 200:1

Projection Image Size:

6-150”

Projection Distance: 40-450cm

Zoom& Focus: Manual

Build in speaker: 1w*1

LED Mini

Projector

5

Mini Multimedia Projector XC-

MP25(internal memory 4G)

Build-in speaker: 1w 1

Build-in TV tuner: Optional

Internal Memory:

2GB

(optional: 4GB,8GB)

External memory: Micro SD Card

USB Transfer: usb2.0 high-speed

USB to OTG

: Yes

Image format: JPEG, BMP, GIF

Video format: MPEG4, AVI, RM, RMVB, FLV, WMV, 3GP, MP4

Audio format: MP3, WMA, WAV

Power Supply: DC5V 4A Adapter, Lithium Battery 1980mAH

Power consumption: 6w

Language support: Chinese, English, Japanese

Certifications: CE, FCC, ROHS

Standard accessories

: User Manual, Battery, Stand, DC Adapter, AV cable, USB cable, RCA

Dimension: 125X65X25mm

Weight:228g

Case:170*170*100mm weight:763g

PACKING SIZE:535*355*355mm(20pcs)

G.W:16.5kg

Specification

Mini Multimedia Projector XC-MP25

720P High definition picture decoding, Support DVD, DV, PSP, iphone, digital TV, game consoles, digital camera, mobile phone, etc.

It is our newly mini smart projector, the first one using HD projection using 720P source decode chip in the world, can be used to demonstrate documents without connection to computer.

Feature:

Operation: Keys, Remote controller

Optical Technology:

3M RGB LCOS

Light Source:

LED

(high efficiency)

Luminous Flux: 20-50Lumens

Lamp Life: Over

20,000hrs

Resolution: 640*480 pixels

Aspect Ratio: 4:3

Contrast Ratio: 200:1

Projection Image Size:

6-150”

Projection Distance: 40-450cm

Image reversal

: Yes

Zoom& Focus: Manual

Build-in speaker: 1w*1

Internal Memory:

4GB

(optional: 8GB)

Remote control : Yes

External memory: Micro SD Card

USB Transfer: 2.0 high-speed

USB to OTG: optional

Interface: VGA/AV-in / YPbPr /YCbCr in /Audio output

Image format: JPEG BMP GIF

6

7

MINI Projector XC-MP210

Multimedia projector with mp4 player XC-M250

Image format: JPEG, BMP, GIF

Video format:MPEG4,AVI,RM,RMVB,FLV,WMV,3GP,MP4,MKV,MOV

Audio format: MP3, WMA, WAV, APE, FLAV, AAC, AC3, OGG

Power Supply: DC 5V 4A Adapter, Built-in Lithium Battery 2100mAH

Power consumption: 6w

Language support: Multilanguage

Certifications: CE, FCC, ROHS

Dimension: 120X65X29mm

Weight:142g

Case:170*170*100mm weight:750g

PACKING SIZE:535*355*355mm(20pcs)

G.W:17.3kg

Specification

MINI Projector XC MP210

Method of projector: LCOS (Liquid Crystal on Silicon)

Panel size: 0.44 inches

Resolution: 640x480(VGA type)

Brightness: 50 Lumens

Lamp source: High power LED(5W)

Lamp life time: over 20,000 hrs

Screen size: 15-48''

Contract Ratio: 200:1

Focus: Manual

Speaker: one Watters Video/Audio

Terminal: Mini AV cable

Power source: DC 5V, 2A

Dimension: 61.25x52.90x37.60 mm

Color:black,red,argent,golden

Case:200x179x54mm weight:475.50g

Secification

Multimedia projector with mp4 player XC-M250

Method of projector: LCOS (Liquid Crystal on Silicon)

Light source:LED

Resolution:320*240

Brightness: ANSI / 8 -9 Lumens

Focusing: Munual

Lamp Source: LED

Lamp Lifetime: Over 20,000 Hours

Projection Angle: 51 Degree

Projection Size:8.5 - 40 Diagonal Inch

Aspect Ratio: 4:3

Battery: Built-In Rechargeable Lithium Battery

Built-In: Stereo Speakers

External expansion: Micro-SD Memory

8

MINI GPS Dongle XC-GD75

External expansion: Micro-SD Memory

Key:ESC key, ON/OFF, Focus knob, Navigation key(five factors:up,down,left,right,enter)

Focus: Manual

Function: MP4 Player;Video & Movie Playing;e-Book Reading;Calendar;Image;Setting;File Explore and so on.

Audio: MP3, OGG, WAV, WMA

Video: AVI, 3GP, MPEG, RM, RMVB

Image format: JPEG, BMP, GIF

Ebook format: TXT

Weight:294.00g

Specification

9

GPS

Receiver

10

GPS Mouse GM1-86

Marine GPS Antenna XC-MA97

GPS Mouse GM1-86

1.SiRF III Chipset

2.Tracks up to 20 satellites.

3.Receiver: L1, C/A code

4.Max update rate: 1 HZ

5.Acquisition time

Reacquisition: 0.1 sec average

Hot start: 1 sec.

Warm start: 38 sec.

Cold start: 42 sec.

6.Position Accuracy Non DGPS (Differential GPS): 5-25 meter CEP without SA

horizontal postition Accuracy < 2.2 meters, WAAS / EGNOS 95% after revision

vertical position Accuracy < 5 meters, WAAS / EGNOS 95% after revision

7.Velocity: 0.1 meters/second, without SA

8.Time: 1 microsecond synchronized GPS time

9.DGPS (Differential GPS)

10.Position: 1 to 5 meters

11.Velocity: 0.05 meters/second

12.EGNOS/WAAS/Beacon

13.Dynamic Conditions:

Altitude: 18,000 meters (60,000 feet ) max

Velocity 515 meters (700 knots) / second max

Acceleration: 4 G, max

Jerk: 20 meters/second, max

14.Antenna Type: Built in Patch Antenna

15.Minimum signal tracked: -159dBm

16 E i t l

11

Marine GPS Antenna XC-MA98

16.Environmental:

Operating temperature: -40°C to +80°C

Storage temperature: -45°C to +100°C

Operating humidity: 5% to 95% No condensing.

Power consumption: < 80mA at 4.5- 5.5V input

17.Protocol and interface

NMEA output protocol: V.3.0

Baud rate: 4800 bps

Data bit: 8

Parity: N

Stop bit: 1

interface:usb(ps2, RJ11, DB9 port can be customized)

12

USB Fingerprint security lock Flash

Device XC-FP65 (without flash

Specification

USB Fingerprint security lock Flash Device XC-FP65

1.Fingerprint recognition protecting data from unauthorized access such as fingerprint windows logon,fingerprint screen saver,access to File / Folder Encryption

2.Windows logon: can prevent your computer from being used by others. Users have to verify the fingerprint.

3.3-dimension live capturing of fingerprint images

4.Scanner Specification:

- Resolution: 500 DPI

- Field Size: 124 x 8 pixels

- Gray Level: 256 levels (8 bits / pixel)

5.Fingerprint Capacity: 10 templates

6.USB interface: USB 2.0 & 1.1

7.Flash memory:1GB/4GB/8GB/16GB

8.Compatible OS: Windows 7/ Vista / XP /2000, Mac OS9.0 and above

9.Operating Temperature 0°C ~ 50°C

10.Read Speed > 8MB / second

11.Write Speed > 7MB / second

12.Support Language: English, Traditional Chinese, Simplified Chinese, Japanese,Arabic...

13.Installation of driver is not required. Purely plug and play for Windows XP and Vista to access data with any computer directly.

14.Color: White with Blue Cover

15.Warranty Time:non-human damage,one year guaranteed replace

Encryption

USB Flash

Device

13

14

Case:154x102x30mm

PACKING SIZE

:488x365x252mm(90pcs) weight:95.00g

G.W:10550.00g

Code USB Flash Drive XC-CE45

(without flash memory)

Specification

Code USB Flash Drive XC-CE45

specification:

1.password length:30bit

2.Interface:USB2.0

3.Storage Capacity:1~16GB

4.Operating Systerms:windows 7/vista/XP/2000/ME/98/95 etc.

5.Date Retention:10years min.

6.Data Transfer speed:

Read speed: 15MB/s-21MB/s

Write speed: 5MB/s-8MB/s

7.Compatibility:PC or Mac with a USB interface

8.Led Indicator:

blue-locked

red-unlocked

9.Installation of driver is not required

There are 4 key press for you to set up the password. Before you start to use the USB flash, you must press the password to unlock it. Therefore, this USB flash can be considered as a definitely confidential device for you to store your important data file.

Dimension: 70x23x10mm

Weight:12.00g

Case:Case:126x46x26mm weight:28.00g

SKYPE USB LOCK DRIVE(XC-

Specification

SP09) (without flash memory)

SKYPE USB DRIVE XC-SP09

Skype USB drive is the newest produce,which is with portable skype,encryption and storage .

inputting your skype account and password in the Skype USB Drive,wherever you are in.you could view your old chat record and sound record when connect it to any computer.

There has two file in the Skype USB drive:

1, encrypt file :when your file is setted in encrypt file,it is encryptted.

2, public file :normal USB storage.

3.USB storage capacity: 1GB-16GB .

4.Function:portable skype+encrypt+USB storage

5.

Capacity:1GB/2GB/4GB/8GB/16GB

6.Any customization appearance are available.

7.Suitable for desktop notebook and portable computer.

8.Operatingsystem:Windows 98/SE,WindowsMe/2000/XP,Linux2.4X,Mac OS9.1/Mac OSX

9.USB interface:USB1.1/USB2.0

10.Operating current:<33mA

11.Suspend current:<28mA

12 Data storation:over 10 years

15

Wireless

Mouse

16

Wireless Mouse XC-RM07

Wireless Mouse XC-RM19

12.Data storation:over 10 years

13.Read Speed > 8MB / second

14.Write Speed > 7MB / second

15.color: black(if you have requirement,any shape,any color and you logos can be done.)

16.Warranty Time:non-human damage,one year guaranteed replace

Case:80x42x18mm

PACKING SIZE

:488x365x252mm(743pcs) weight:25.00g

G.W:

20575.00g

Specification

Wireless Mouse XC-RM07

1. 4 modes in 1 without extra software and equipments

2. Supports all PC games, not any software or equipment required, such as shooting , race and sport

3. Fly(air)mouse:control it with long distance (up to 10 meters)

4. Windows Media Player: Use as a remote control and more conveniently

5. Multi-functional Wireless presenter : like normal presenter ,can note ,can Page Turn ,and so on

All 4 modes can use in hand with long distance(up to 10meters).And so it can be use as Wii too

6. 2.4GHz wireless USB connected to PC 7. Plug-n-play: not need to install any software/equipments 8. Battery: SIZE AA×2.

9. Saft code: CE FCC. 10.DPI:1600

Dimension: 160x35x37mm

Case:205x150x57mm

PACKING SIZE

:488x365x252mm(25pcs)

Weight:71.00g

weight:449.00g

G.W:

13000.00g

Specification

Wirelese Mouse/Multi Controller XC-RM19

Brief Introduction:

Take full control of your presentation anywhere in the room

Unleash your presentation skills and excel in your professional like

Easy to use for anybody in your home

Watch Movies, Listen Music, and Play Games, anywhere anytime

Accessories:wireless mouse(1 Unit);Mini USB Receiver(1 Unit);Battery(2*AAA );User Guide(1

Unit)

Dimension: 107x45x50mm

Case:225x155x50mm

Weight:65.00g

weight:140g

Full Media

Player

17

18

Full HD Media Player XC-

HD25(without HD)

USB3.0 to 2.5"SATA HDD BOX XC-

UH35

PACKING SIZE

:

G.W:

Specification

Main decription:

1.Full HD multimedia player supports video online play and download

2.Tri video output interface including AV, YPbPr and HDMI OUT

3.1080P video upmost decoding capability for HDMI output

4.Tri audio output interface including AV, optical and HDMI OUT

5.HDD enclosure, USB host U disk, USB device and card reader all available for same mold

6.Dual USB Interface including USB host and USB device (5PIN)

7.Max 1920 X 1080P (Support RMVB 720P)

Key Specification:

1.HDD:size&capacity2.5'' (SATA),>1000GB

2.Audio Format:MP3/WAA/AAC/OGG/WAV/FLAC

3.Video Format:AVI/DAT/HD MPEG2/HD MPEG 4 SP/ASP/ISO/TS/IFO/VOB/MKV/RM/RMVB

4.HD Photo File Format:JPG/JPEG/BMP

5.File Format:FAT16/FAT32/NTFS/UDF/EXT3

6.Video Output:1080p HD Decode, HD Video,CVBS&component&HDMI

7.Display Ratio:Pan San4:3/Letterbox4:3/16:9

8.Network:RJ-45 10/100 Mbps Ethernet port

10.AC adapter input:100-240v Output:GS 12V 2A

11.HDMI output:HDMI V1.3

12.TV system support:NTSC/PAL (optional:SECAM)

13.Subtitle-code:UTF8,GBK,BIG5,CP1252,CP1254,CP1250,CP1253,CP1251,CP1255,ISO 8859-

16.etc

Dimension:115x171x37mm Weight:1180g

Specification

USB 3.0

USB3.0 to 2.5"SATA HDD BOX XC-UH35

• Compliant with USB 3.0 Specification and USB 2.0 Specification

• Serial ATA Revision 2.5 Specification Compliant

• Embedded SATA PHY and Controller

• USB Mass Storage Class Bulk-Only Transport Specification Compliant. No device driver installation needed in Linux (kernel 2.4.18 or above), Mac OS 9.x or above, and Windows

ME or above. Installing drivers may be required for USB 3.0 host controllers.

• Integrated SuperSpeed(5Gbps), Hi-Speed(480Mbps), and Full-Speed(12Mbps) transceiver

19

XC-PTP2.0 A-to-A USB2.0 Cable for transfering data between two PCs

PACKING SIZE:150*110*50mm(1pcs)

G.W:

140.00g

Secification

USB Cable

20

ISDB-T USB TV receiver XC-TV26

A-to-A USB2.0 Cable for transfering data between two PCs XC-PTP2.0

High speed transfer,and date transfer rate:up to 480/MB

Easy plug and play installation

Simply and quickly Sharing resources,such as OUTLOOK printer,CD-ROM,modems,scanners,etc.

TCP/IP protocol support

Gold plated connectors for best signal and continuity

OS Requirements:window98/SE/ME/2000/XP/VISTSA,window 7

(vistsa & window7 needn’t set up driver)

Cable length:1.5m

Dimension: 150x120x30mm Weight:74.00g

Specification

ISDB TV

Receiver

ISDB-T USB TV receiver XC-TV26

Features:

- Compact size with extra mini antenna for better signal reception

- Supports 1 segment Digital TV (ISDB-T)

- Scaling TV window display (full screen support)

- Schedule recording support

- EPG and iEGP

- RF Reception Range:ISDB-T,Terrestrial Digital TV

- TV System Support:ISDB-T

Operation System:

Window XP,Windows Vista,Windows 7

P4 2.0GHz CPU or above

256MB RAM or above

1GB free HD space

VGA Card at the least 32MB memory

Graphics card (must support Microsoft DirectX 9.0 or above)

Package:

*ISDB-T TV STICK 1pc

*Infrared Remote Control 1pc

*User’s Manual 1pc

*Driver & Application CD 1pc

*Antenna 1pc

Product Specification:

USB ISDB-T TV Receiver XC-TV26 adopts the most advanced technology on ISDB-T digital TV signal receiving.

You can watch TV program on your PC. Enjoy the high Quality TV on your PC or laptop.

XC-TV26 is the perfect option for you to experience the future of the ISDB-T digital TV.

Dimension:77*25*11cm

Case:170*125*40 mm

Weight:50g

N.W.:155g

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
