Rotor module for SDT, User Manual

Rotor module for SDT, User Manual

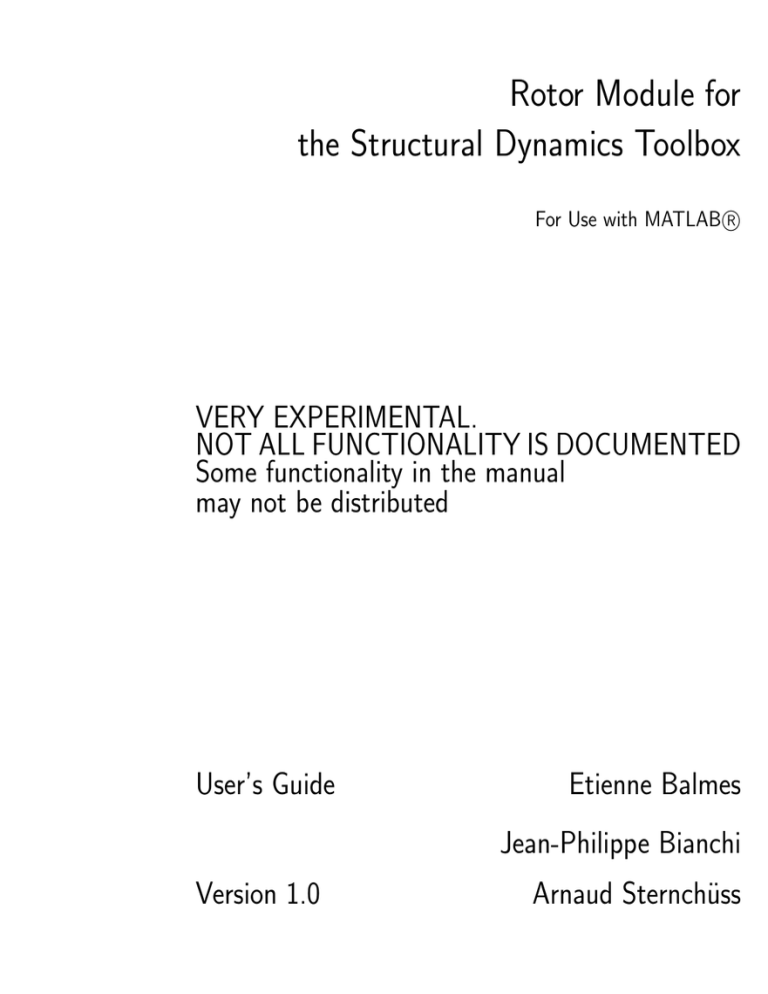

Rotor Module for
the Structural Dynamics Toolbox
R
For Use with MATLAB
VERY EXPERIMENTAL.
NOT ALL FUNCTIONALITY IS DOCUMENTED
Some functionality in the manual
may not be distributed
User’s Guide
Etienne Balmes
Jean-Philippe Bianchi
Version 1.0
Arnaud Sternchüss
How to Contact SDTools
33 +1 44 24 63 71
33 +6 77 17 29 99
SDTools
44 rue Vergniaud
75013 Paris (France)
Phone
Fax
Mail
www.sdtools.com
support.sdtools.com
Web
Support web site
support.sdtools.com/gf/project/openfem/
The FEM engine developped by SDT
[email protected]
Sales, pricing, and general information
SDT Rotor Module User’s Guide on October 1, 2012
c Copyright 1991-2012 by SDTools
The software described in this document is furnished under a license agreement.
The software may be used or copied only under the terms of the license agreement.
No part of this manual in its paper, PDF and HTML versions may be copied, printed, photocopied
or reproduced in any form without prior written consent from SDTools.
Structural Dynamics Toolbox is a registered trademark of SDTools
OpenFEM is a registered trademark of INRIA and SDTools
MATLAB is a registered trademark of The MathWorks, Inc.
Other products or brand names are trademarks or registered trademarks of their respective holders.
Contents
1 Installation
5
2 Theoretical reminders
2.1 Rotating bodies . . . . . . . . . . . . . . . . . . .
2.1.1 Problem definition in a rotating frame . .
2.2 Problem definition in a fixed frame . . . . . . . .
2.3 Fourier analysis of structures . . . . . . . . . . .
2.3.1 cyclic structure basics . . . . . . . . . . .
2.3.2 Fourier transform for shaft computations
2.3.3 Solutions in periodic media . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3 Toolbox tutorial
3.1 Rotor meshing . . . . . . . . . . . . . . . . . . . . . . . .
3.1.1 Meshing utilities . . . . . . . . . . . . . . . . . . .
3.1.2 Basic 1D rotor example . . . . . . . . . . . . . . .
3.1.3 Meshing 3D rotor from 1D and 2D models . . . . .
3.1.4 From sector to shaft in the case of cyclic symmetry
3.1.5 Utilities for handling slanted blades . . . . . . . .
3.1.6 Disk connections in multi-stage cyclic symmetry .
3.1.7 View meshes for cyclic symmetry . . . . . . . . . .
3.2 Bearing and support representations . . . . . . . . . . . .
3.2.1 Linear bearing . . . . . . . . . . . . . . . . . . . .
3.2.2 Non-linear bearings in the time domain . . . . . .
3.3 Gyroscopic effects . . . . . . . . . . . . . . . . . . . . . . .
3.3.1 Fixed frame models . . . . . . . . . . . . . . . . .
3.3.2 Rotating frame models . . . . . . . . . . . . . . . .
3.4 Frequency domain analysis, full model . . . . . . . . . . .
3.4.1 Campbell diagrams, full model . . . . . . . . . . .
3.4.2 Blade with centrifugal stiffening . . . . . . . . . .
1
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7
8
8
10
10
11
12
12
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
15
17
17
19
20
22
23
23
25
26
27
28
28
28
29
29
30
30
2
CONTENTS
3.5
3.6
3.7
3.4.3 Complex modes . . . . . . . . . . . . . . . . .
3.4.4 Forced frequency response to unbalanced load
Solvers for models with cyclic symmetry . . . . . . .
3.5.1 Static response . . . . . . . . . . . . . . . . .
3.5.2 Single stage mode computations . . . . . . .
3.5.3 Multi-stage harmonic mode computations . .
3.5.4 Campbell diagrams . . . . . . . . . . . . . . .
3.5.5 Complex modes . . . . . . . . . . . . . . . . .
3.5.6 Forced frequency response to unbalanced load
Full rotor model from cyclic computation . . . . . .
3.6.1 Single stage full rotor example . . . . . . . .
Time domain analysis . . . . . . . . . . . . . . . . .
3.7.1 Simple example . . . . . . . . . . . . . . . . .
3.7.2 Gyroscopic effects . . . . . . . . . . . . . . .
3.7.3 Other representations of bearings . . . . . . .
4 Validation
4.1 Rigid disk example . . . . . . . . . . . . . .
4.1.1 Matrices in rotating frame . . . . . .
4.1.2 Matrices in global fixed frame . . . .
4.1.3 Validation with 3D model disk . . .
4.2 Simple 2DOF model of shaft with disk . . .
4.3 1D models . . . . . . . . . . . . . . . . . . .
4.3.1 1D example in a fixed frame . . . . .
4.3.2 1D models in a rotating (body-fixed)
4.4 3D rotor . . . . . . . . . . . . . . . . . . . .
4.5 Data structure reference . . . . . . . . . . .
5 Function reference
fe cyclic
fe rotor
rotor1d
rotor2d
demo cyclic
fe cyclicb Mesh
fe cyclicb
obsolete
nl spring
mkl utils
Non linearities list
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
31
32
33
33
34
35
36
37
37
37
37
38
39
39
42
43
44
44
45
47
50
54
54
57
57
59
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
frame
. . . .
. . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
61
. 62
. 65
. 71
. 74
. 75
. 79
. 83
. 95
. 103
. 112
. 114
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
CONTENTS
Creating a new non linearity: nl fun.m
nl solve
. . . .
nl mesh
. . . .
. . .
spfmex utils
extrotor
. . . .
3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
130
132
135
142
144
Bibliography
145
Index
146
4
CONTENTS
1
Installation
Contents
6
CHAPTER 1. INSTALLATION
The SDT/Rotor toolbox is intalled as a patch on an SDT installation. You can
download the toolbox from
http://www.sdtools.com/distrib/beta/rotor_patch_dis.p
Then within Matlab,
% 1/ cd to location where you saved the patch
% MUST differ from SDT path
cd tempdir
% 2/ check that you will overwrite the expected SDT installation
path
which(’feplot’);
% 3/ install the patch (you must have write permission on the directory)
rotor_patch_dis
2
Theoretical reminders
Contents
2.1
Rotating bodies . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1
Problem definition in a rotating frame . . . . . . . . . . . .
8
8
2.2
Problem definition in a fixed frame . . . . . . . . . . . . .
10
2.3
Fourier analysis of structures . . . . . . . . . . . . . . . .
10
2.3.1
cyclic structure basics . . . . . . . . . . . . . . . . . . . . . 11
2.3.2
Fourier transform for shaft computations . . . . . . . . . . 12
2.3.3
Solutions in periodic media . . . . . . . . . . . . . . . . . . 12
8
CHAPTER 2. THEORETICAL REMINDERS
The following sections give a number of theoretical reminders on things used for
the toolbox. THIS IS VERY INCOMPLETE AND NOT VERY ORDERED.
2.1
2.1.1
Rotating bodies
Problem definition in a rotating frame
The developments of this section are derived from internal work on the SDT Rotor
module which is currently only distributed to SNECMA. The results shown here can
be seen as a summary of those found in Ref. [1] which treats the problem with a
strong emphasis on the theoretical formalism. Other classical references that treat
of the problem of rotating bodies are [2],[3], [4].
Particles located in point p of the body fixed frame are at location x at time t.
One defines the displacement u by
{x(p, t)} = {p} + {u(p, t)}
(2.1)
At time t, a reference point of the rotating body is assumed to have a rigid rotation
speed {ω} with respect to the reference frame (in the present study, this speed is
related to a global rotation around a fixed axis characterized by angle θ). The
velocity is thus given by
{vx } (p, t) =
∂{x}
+ {ω(t)} ∧ {x(p, t)}
∂t
(2.2)
This expression can easily be derived by decomposing the position in body fixed coordinates {x} = xi {ebi } and noting that the derivatives the base vectors ∂ {ebi } /∂t =
{Ω} (t) ∧ {ebi }. In implementations, one replaces the vector product ω(t)∧ by the
product by the corresponding skew-symmetric matrix


0
−ωz (t) ωy (t)


0
−ωx (t)  .
Ω(t) =  ωz (t)
−ωy (t) ωx (t)
0
(2.3)
The acceleration, derived from the velocity expression, is given by
{a} (p, t) = {ẍ}
h
i
+ Ω̇(t) {x} + 2 [Ω] {ẋ}
+ Ω2 {x}
h
i
= {ü} + Ω̇(t) (p + u) + 2 [Ω] {u̇} + Ω2 {p + u}
(2.4)
2.1. ROTATING BODIES
9
where three contributions (rows of the equation) are typically considered : the acceleration in the rotating frame, the Coriolis acceleration and the centrifugal acceleration.
The virtual work of acceleration quantities is thus typically expressed as
{q̂} ([M ] {q̈} + [Dg ] {q̇} + [Ka + Kc ] {q} + fc + fg )
(2.5)
with the following element level expressions. The displacement within an element
is given by the position and the element shape functions [N ] in the three directions
xyz
{x} = {p} + [Nxyz ] {q}
The matrices and loads are integrated over the volume S0 in the reference configuration and are given by
ρ0 [Nxyz ]> [I] [Nxyz ] dS0 the mass in the rotating frame
• [M ] =
R
• [Dg ] =
R
S0
2ρ0 [Nxyz ]> [Ω] [Nxyz ] dS0 the gyroscopic coupling
• [Kc ] =
R
S0
ρ0 [Nxyz ]> Ω2 [Nxyz ] dS0 the centrifugal softening/stiffening
• [Ka ] =
R
S0
S0
ρ0 [Nxyz ]>
∂[Ω]
∂t
[Nxyz ] dS0 the centrifugal acceleration
• fc = S0 ρ0 [Nxyz ]> Ω2 {p} dS0 the centrifugal load
R
> ∂[Ω]
R
• fg =
S0
ρ0 [Nxyz ]
∂t
{p} dS0 the Coriolis load
It is acknowledged that the notations used can be somewhat confusing. Indeed,
in a discretized vectors DOFs are placed either sequentially x,y,z at all nodes of the
element, or separated x at all nodes, ... while the operations [Nxyz ]> [I] [Nxyz ] imply
the use of vectors. This 2 dimensional product notation however directly reflects
the numerical implementation as is thus deemed preferable.
In the applications considered in this study, one will use a fixed axis of rotation
Ω = ω(t) {ez } ∧. The matrices and loads are thus proportional to the scalars ω, ω 2
and ω̇. One will thus simply use
[Dg (ω)] = ω [Dg (1)]
which results in significant computational cost savings since the matrix only needs
to be computed for a single velocity. One proceeds similarly for the other matrices
and loads.
10
CHAPTER 2. THEORETICAL REMINDERS
2.2
Problem definition in a fixed frame
Fully axisymmetric rotors can be modeled in a fixed frame using an Eulerian representation, where particles are moving under a deformed mesh. Particles located at
point {p(p0 , t)} = {p0 } + {u(p0 , t)} in the deformed Eulerian frame have a velocity
given by xxx
{v(x, t)} =
∂x(p + u(p, t), t) ∂x(p + u(p, t), t)
+
∂t
∂x
(2.6)
The body fixed frame verifies θ = φ+Ωt, which can be written as pG = {r, θ, z} =
RΩt {p}. The matching of displacements in both frames is given by
{u(p, t)} = {uG (pG , t)}
(2.7)
The velocity of a particle in the disk is given by
{v(pG , t)} = [Ω] {pG } + [Ω]
∂u
∂pG
+
∂uG
∂t
(2.8)
Validation example : One first considers a disk that has a steady state deformation in the global frame. That is the Eulerian frame, one has ∂u
∂t = 0 and
{u(r, θ, z)} = {u(p)} = (2 − cos2 θ) {eθ }.
One now considers a disk that has a steady state deformation in the rotating
2
frame: ∂u
∂t = 0 and {u(r, φ, z)} = (1 − cos φ) {eφ }. The displacement of a particle
located at at time t is given by
n
o
{uG (pG , t)} = (1 − cos2 (θ − Ωt)) e(θ−Ωt) = [RΩt ] {u(p)}
its velocity is
2.3
Fourier analysis of structures
For more details, you can refer to[5] that is available on-line.
2.3. FOURIER ANALYSIS OF STRUCTURES
2.3.1
11
cyclic structure basics
For cyclic system with N sectors (angle α = 2π/N ), a point load placed at angle nα
is associated with the harmonic load
Y (k) =
−1
1 NX
y(n)e−jαnk
N n=0
(2.9)
this can be used to simply compute the k diameter response. Using the symmetry of
the spectrum, one can recover the full spatial response by inverse fourier transform.
For N odd
(N −1)/2
y(n) = Y (0) +
X
2Re(Y (k)ejαnk )
(2.10)
k=1
for N even
N/2−1
X
y(n) = Y (0) + (−1)n Y (N/2) +
2Re(Y (k)ejαnk )
(2.11)
k=1
The displacements y(n) of each sector are however expressed in local coordinates,
when applying conditions a transformation θαn to global coordinates is thus needed



 q(n)x 

q(n)
y

 q(n) 

z
n 

Glob


cosα −sinα 0
 q(n)x 



q(n)y
=  sinα cosα 0 

 q(n) 

0
0
1
z
Loc
(2.12)
For a point on the axis, the in plane response is given by two components
u(0), v(0), the response at other points of the series is given by (2.10) but the point
being coincident on has {u(0), v(0)} = (θα )n {u(n), v(n)}. It follows that Y (k) = 0
for all k 6= 1.
The intersector continuity condition says that the nodes that are common to two
sectors have the same motion. By convention the left nodes in SDT rotor are those
with the lowest clockwise polar angle, the left nodes of sector 0 have thus equal
motion than the right nodes or sector N − 1. Thus cL − cR (Y (k)e−jαk ) = 0. Which
leads to the constraint
"
[cl ] − cos(k α) [cr ]
− sin(k α) [cr ]
sin(δ α) [cr ]
[cl ] − cos(δ α) [cr ]
#
(
2Nr ×2N
Re(q)
Im(q)
)
=0
(2.13)
12
CHAPTER 2. THEORETICAL REMINDERS
The Fourier transform being a linear relation, one can actually rewrite the relation as a {y} = [E] {Y }. For N even

y0




..



 .





















yn
=


.. 
 

. 



yN −1
1 ···
..
.
2
..
.
0
..
.
···
1 · · · 2cos(αkn) −2sin(αkn) · · ·
..
..
..
.
.
.


 Y0 






..


1




.



..





.
 Re(Yk )
(2.14)

n
Im(Yk ) 
(−1) 






..
..






.
.






YN/2
Note that E T E is a diagonal matrix with [N 2N · · · 2N N ] on the diagonal.
Posing [IN Q ] is the identity matrix whose size is the number of physical DOF
of the sector and ⊗ is the Kronecker product, the fourier DOFs Qk (sorted as in
(2.14)) and physical DOFs on the whole disk are related by
{q} = [E ⊗ IN Q ] {Qk }
(2.15)
When performing harmonic computations, one typically uses the fact that the
model matrices are identical for each sector. As a result, the transformed matrices
are block-diagonal, which is the basis for the ability to compute full responses based
on independent computation of each Fourier solution Qk .
When adding a matrix to sector n, the relation to to the Fourier DOFs is given
by a row En , the product EnT En is not block diagonal as a result one has coupling
between the Fourier harmonics.
2.3.2
Fourier transform for shaft computations
To simplify computations XXX
2.3.3
Solutions in periodic media
This really does not apply to rotors but is implemented in fe cyclic, and thus
documented here. One considers a model whose properties are spatially periodic.
For a physical response, known at regularly spaced positions n∆x, one can compute
the its fourier transform
U (κ) =
+∞
X
n=−∞
u(n∆x)e−jn(κ∆x)
(2.16)
2.3. FOURIER ANALYSIS OF STRUCTURES
13
U (κ) is a complex shape defined on the mesh of the repeated cell. One actually
uses two cells to represent the real and imaginary parts of U . The wave number
2π
κ varies in the [0, ∆x
] interval (or any interval of the same length, since U (κ) is
periodic in the wavelength domain).
Given the fourier transform U (κ), on can recover the physical motion by computing the inverse Fourier transform
u(n∆x) =
∆x
2π
Z
2π
δx
U (κ)ejκn∆x dκ
(2.17)
0
For a mono-harmonic
response (fixed wave number κ), the spatial transform is
given by u(n∆x) = U (κ)ejn(κ∆x) , using the continuity condition linked to the fact
that ulef t (n∆x) = uright ((n−1)∆x), one thus has [cL ] {U (κ)} = [cR ] {U (κ)} e−j(κ∆x) .
Hence in the real/imaginary format, one has the constraint equation
"
[cl ] − cos(κ∆x) [cr ]
− sin(κ∆x) [cr ]
sin(κ∆x) [cr ]
[cl ] − cos(κ∆x) [cr ]
#
(
2Nr ×2N
Re(U )
Im(U )
)
=0
(2.18)
and one solves for U (κ) knowning the transform of the applied loads. For a discrete
load on the first slice n = 0, the fourier coefficients of the load is F (κ) = f (0).
One can usefully note that the wave length L = π/κ covers the full interval of
positive lengths, that U ( 2π
δx − κ) = Ū (κ), and that the half spectrum corresponds to
a wavelength of ∆x. Using the property of symmetry allows the use of computations
for wavelengths larger than ∆x only. In the fe cyclic eig calls, one specifies the
period as a number of steps p∆x. The phase angle is thus κ∆x = 2π
p and the
spectrum is symmetric for p0 = 2/p.
mo1=femesh(’testhexa8b divide 2 1 1’);
mo1=fe_cyclic(’build -1 1 0 0’,mo1);
% symmetry along right edge
r2=fe_cyclic(’build -1 0 1 0’,mo1);
r2=fe_case(r2,’getdata’,’Symmetry’);
mo1=fe_case(mo1,’FixDof’,’y_symmetry’,r2.IntNodes(:,1)+.02);
mo1=stack_set(mo1,’info’,’EigOpt’,[2 2 1e3]);
range=1./linspace(.01,.99,21);
def=fe_cyclic([’teig -all’ sprintf(’ %g’,range)],mo1);
figure(1);plot(1./def.data(:,2),def.data(:,1),’x’)
14
CHAPTER 2. THEORETICAL REMINDERS
feplot(mo1,def)
[r1,i1]=unique(def.data(:,2),’first’);
Ek=fe_caseg(’enerm -bygroup’,mo1,fe_def(’subdef’,def,i1));
if norm(Ek.Y*4-1)>sqrt(eps); error(’Inconsistent energy’);end
if 1==2 % manual verification
[m,k,mdof]=fe_mknl(mo1,’assemble NoT’);
def=feutilb(’placeindof’,mdof,def);
feutilb(’dtkt’,real(def.def),m)+feutilb(’dtkt’,imag(def.def),m)
end
3
Toolbox tutorial
Contents
3.1
3.2
3.3
3.4
3.5
3.6
Rotor meshing . . . . . . . . . . . . . . . . . . . . . .
3.1.1 Meshing utilities . . . . . . . . . . . . . . . . . . . .
3.1.2 Basic 1D rotor example . . . . . . . . . . . . . . . .
3.1.3 Meshing 3D rotor from 1D and 2D models . . . . . .
3.1.4 From sector to shaft in the case of cyclic symmetry .
3.1.5 Utilities for handling slanted blades . . . . . . . . .
3.1.6 Disk connections in multi-stage cyclic symmetry . .
3.1.7 View meshes for cyclic symmetry . . . . . . . . . . .
Bearing and support representations . . . . . . . . .
3.2.1 Linear bearing . . . . . . . . . . . . . . . . . . . . .
3.2.2 Non-linear bearings in the time domain . . . . . . .
Gyroscopic effects . . . . . . . . . . . . . . . . . . . .
3.3.1 Fixed frame models . . . . . . . . . . . . . . . . . .
3.3.2 Rotating frame models . . . . . . . . . . . . . . . . .
Frequency domain analysis, full model . . . . . . . .
3.4.1 Campbell diagrams, full model . . . . . . . . . . . .
3.4.2 Blade with centrifugal stiffening . . . . . . . . . . .
3.4.3 Complex modes . . . . . . . . . . . . . . . . . . . . .
3.4.4 Forced frequency response to unbalanced load . . . .
Solvers for models with cyclic symmetry . . . . . .
3.5.1 Static response . . . . . . . . . . . . . . . . . . . . .
3.5.2 Single stage mode computations . . . . . . . . . . .
3.5.3 Multi-stage harmonic mode computations . . . . . .
3.5.4 Campbell diagrams . . . . . . . . . . . . . . . . . . .
3.5.5 Complex modes . . . . . . . . . . . . . . . . . . . . .
3.5.6 Forced frequency response to unbalanced load . . . .
Full rotor model from cyclic computation . . . . . .
15
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
17
17
19
20
22
23
23
25
26
27
28
28
28
29
29
30
30
31
32
33
33
34
35
36
37
37
37
3.6.1
3.7
Single stage full rotor example . . . . . . . . . . . . . . . . 37
Time domain analysis . . . . . . . . . . . . . . . . . . . . .
38
3.7.1
Simple example . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.7.2
Gyroscopic effects . . . . . . . . . . . . . . . . . . . . . . . 39
3.7.3
Other representations of bearings . . . . . . . . . . . . . . . 42
3.1. ROTOR MESHING
17
fe rotor module can use 2 different frames to describe rotating effects (rotating
frame and fixed frame). Rotors can also be describes at 3 levels of modelization :
1d, 2d or 3d.
The next section illustrates meshing capabilities, supported computations are
described next
• Frequency domain analyses (section 3.4) : Campbell diagram building, Direct
computation of critical speeds, response to unbalanced mass, asynchronous
load, and harmonic loads on bearings.
• Time domain simulation accounting for non-linear bearings is under development (these are performed with the shaft in a rotating frame and the stator
fixed).
3.1
Rotor meshing
3.1.1
Meshing utilities
1D
The SDT/Rotor toolbox supports analysis of 1D models of symmetric rotors composed of
• shafts represented by beam1 element (see sdtweb(’beam1’) and sdtweb(’p beam’)
The rotation axis is taken to be that of the beam.
• disks represented by mass1 (see sdtweb(’mass1’)). The rotation axis is the
one whose moment of inertia is different from the 2 others that are equal.
• bearings supports by celas.
You can generate a beam model of your rotor by providing a skyline (points not
on the axis defining the radius at various locations). Use NaN to define 2 segments.
See rotor1d Skyline for more details.
18
CHAPTER 3. TOOLBOX TUTORIAL
xy=[0 0; 0 .1;1 .1;1 1;1.1 1;1.1 .1;2 .1];
xy(:,3)=0; figure(1);plot(xy(:,1),xy(:,2));
% Mesh as beams
mo1d=rotor1d(’skylineToBeam’,xy);
% Add bearings as spring elements:
mo1d=rotor1d(’AddBearing DOF -123 k 1e4 -keep’,mo1d,[0.1 0 0]);
mo1d=rotor1d(’AddBearing DOF -123 k 1e4 -keep’,mo1d,[1.9 0 0]);
% now view as 3D model
mo2d=rotor1d(’1To2d lc 5e-2’,mo1d);
cf=feplot;cf.model=rotor2d(’buildFrom2D nsec16’,mo2d);
You can also add beam through rotor1d Addbeam command.
mo1d=rotor1d(’AddBeam x1 0 x2 0.7 r2 0.77 MatID 1’,[]); % add rod
mo1d=rotor1d(’AddBeam x1 0.5 x2 0.8 r1 0.77 r2 0.90 MatID 1’,mo1d); %add tube
mo2d=rotor1d(’1To2d lc 5e-2’,mo1d);
cf=feplot; cf.model=mo2d; fecom colordatapro;
2D
For 2D rotor representations, the SkyLineTo2d command eases the generation of
simple rotors. Note how in the following example Nan separators are used to generate
a rotor in multiple parts : center shaft first, then after the separator various disks.
xy=[ 0 0;0 0.00945;0.0088 0.00945; 0.0088 0.0057;
0.042 0.0057;0.042 0.00938; 0.057 0.00938;
0.057 0.008;0.0637 0.008; 0.0637 0.00595;
0.0919 0.00595;0.0919 0.00925; 0.0979 0.00925;
0.0979 0.006;0.121 0.006; 0.121 0.008;
0.127 0.008;0.127 0.0095; 0.142 0.0095;
0.142 0.006;0.175 0.00565; 0.226 0.00565; 0.226 0.0088;
0.232 0.0088;
NaN 0.0057; % Disk
0.00952 0.0057;0.00952 0.008;
0.0209 0.008; 0.0209 0.0369;
0.0242 0.0369; 0.0242 0.0572; 0.0266 0.0572;0.0266 0.0369;
0.0299 0.0369; 0.0299 0.008;0.0413 0.008
NaN .00565; % Separator giving non zero internal diameter .00565
0.177+.01 0.0057;0.177+.01 0.02;0.191 0.02; 0.191 0.0057;
NaN .00565; % Separator giving non zero internal diameter .00565
3.1. ROTOR MESHING
19
0.197+.005 0.0374; 0.215-.005 0.0374; % Impeller
0.215-.005 0.006+.003;0.222-.002 0.006+.003; % between sub disks
0.222-.002 0.0775; 0.2259 0.0775;
];
xy(:,3)=0;
mo2d=rotor1d(’skyline To2d -lc .005’,xy); % x axis
mo2d.pl=[ ...
1 fe_mat(’m_elastic’,1,1) 200000000000 0.29 7800
2 fe_mat(’m_elastic’,1,1) 7.17e10 0.33 2830 %2830
3 fe_mat(’m_elastic’,1,1) 3.07e12 0.3 .78 % 7800
];
mo2d.Elt(feutil(’findelt matid 2 3 4 5’,mo2d),5:6)=2;
mo2d.Elt(feutil(’findelt innode {x>=.15 & y<=.0057}’,mo2d),5:6)=3;
mo2d.Elt(feutil(’findelt innode {x>=.22 & y<=.01}’,mo2d),5:6)=3;
feplot(mo2d); fecom colordatamat
cf=feplot;cf.model=rotor2d(’buildFrom2D nsec16’,mo2d);
cf.sel={’-disk1’,’ColorDataMat’};fecom(’;view1’)
Figure 3.1: Example rotor generated with meshing utilities
3.1.2
Basic 1D rotor example
Following example builds by hand a simple 1D rotor, with one shaft, one disk
and 2 bearing stifnesses. It is almost the same as one accessible through d rotor
TestShaftDiskMdl.
% define mesh :
model=struct(’Node’, ...
[1 0 0 0 0 0 0; 2 0 0 0
0.4/3 0 0;
20
CHAPTER 3. TOOLBOX TUTORIAL
3 0 0 0 0.4*2/3 0 0; 4 0 0 0 0.4 0 0]);
model.Elt=feutil(’ObjectBeamLine’,(1:4)’); % define shaft
model.Elt=feutil(’ObjectMass’,model,2,...
[16.5 16.5 16.5 0.18608 0.093 0.093]); % add disk
model=feutil(’AddElt’,model,’celas’, ...
[3 0 2 0 100 0 0; 3 0 3 0 101 0 0]); % add bearings (y and z stifness)
% define properties
model.pl=m_elastic(’dbval 1 steel’); % shaft material
model.il=p_beam(’dbval 1 circle 1e-2’); % shaft, r=1e-2
model.il=p_spring(model.il,’dbval 100 5e5’,’dbval 101 5e5’); % bearings
% ends boundaries :
model=fe_case(model,’fixdof’,’Ends’,...
[1.01;1.02;1.03;4.01;4.02;4.03]);
% Assemble nominal matrices:
model=fe_caseg(’assemble -reset -secdof -matdes 2 1 70’,model);
cf=feplot(model);
% For solution see sdtweb(’freqstud’)
Note that at this time only fixed frame representation is available for such 1d
rotors (beam1 and mass1 elements). Gyroscopic coupling is then computed under
MatType 70 ( The formula for gyroscopic coupling can be found in [6]) The nominal representation for these models is then the Eulerian point of view where the
displacement of the rotor is expressed in a non-rotating frame. For the 1D representation, the model nodes are always placed on the nominal rotation axis. Thermal
and pre-stress effects are not accounted for.
3.1.3
Meshing 3D rotor from 1D and 2D models
The rotor module supports all 3D elements of SDT. 2D models are only considered through an extrusion and 3D cyclic symmetry. One can import a volume model,
or mesh it using feutil meshing commands. This section describes procedures to
mesh volumes from 1D and 2D models.
From 1D rotor model meshed using beam1 elements, one can create a 2D model
using rotor1d 1To3D command. Note that mass1 elements can not be converted
for the moment. For example, with section ?? rotor model
xy=[0 0; 0 .1;1 .1;1 1;1.1 1;1.1 .1;2 .1];
mo1d=rotor1d(’skyline ToBeam’,xy); % Mesh as beams
% Add bearings as spring elements:
3.1. ROTOR MESHING
21
mo1d=rotor1d(’AddBearing DOF -123 k 1e4 -keep’,mo1d,[0.1 0 0]);
mo1d=rotor1d(’AddBearing DOF -123 k 1e4 -keep’,mo1d,[1.9 0 0]);
mdl3d=rotor1d(’1To3d-quad-lc0.02-div24’,mo1d); % build 3d rotor
cf=feplot(mdl3d)
Command option -quad force the use of quadratic elements (hexa20) instead of
linear elements (hexa8).
Shaft is meshed using hexa8 degenerated elements. The edges on the axis of the
shaft are using the same nodes as the beam nodes so that bearings described by
celas in 1D intial rotor can remain the same. RBE3 rings are created at each bearing celas. Concentrated masses (no inertia) on the axis are also left.
THIS IS NO LONGER TRUE BUT SHOULD BE REACTIVATED XXX: mass1
elements with inertia that represents disks, are meshed as volume disks of arbitrary
thickness (dt) 0.005, with radius R2 computed so that inertia along rotation axis is
the same (Ir = 0.5m(R22 + R12 )) and then density is computed to match the mass m
(m = π ∗ (R22 − R12 ) ∗ dt). (R1 is shaft radius). Young modulus of disk is taken at
100*steel modulus.
Gyroscopic coupling and centrifugal stifness for 3D elements are only described
in the rotating frame, that is to say under MatType 7 and MatType 8.
mdl3d=fe_mat(’defaultil’,mdl3d); % default element pro
mdl3d=fe_mat(’defaultpl’,mdl3d); % default material pro
% Assemble nominal matrices:
mdl3d=fe_caseg(’assemble -reset -secdof -matdes 2 1 7 8’,mdl3d);
One can also find an example of a 3D rotor in d rotor(’TestVolShaftDiskMdl’).
data={’Rs’ ,0.01 , ’shaft radius’;
’Rd’ ,0.15 , ’disk radius’;
’Ls’ ,0.4
, ’shaft length’;
’Ld’ ,0.03,
’disk thickness’;
’yd’ ,0.4/3, ’disk position on the shaft’
’yb’ ,0.4*2/3,’bearing stifness position on the shaft’
’Tol’ ,0.05,
’elt length Tol’
};
model=d_rotor(’TestVolShaftDiskMdl’,data);
rotor2d BuildFrom2D convert 2d model to 3d model using cyclic symetry. For
example, to convert previous 2D model:
mdl2d=rotor1d(’1To2d-quad-lc0.02’,mo1d);
mdl3d=rotor2d(’buildFrom2D -close nsec3 div8’,mdl2d);
22
3.1.4
CHAPTER 3. TOOLBOX TUTORIAL
From sector to shaft in the case of cyclic symmetry
Closing a disk
The SDT fe cyclic function only handles single sector models using symmetry
conditions. SDT/Rotor extends the capabilities by dealing with a full (possibly
multi-stage, then called shaft) rotor model.
Building a disk/shaft model is done in two steps. For each sector, one defines matching edges using a fe cyclic Build command, the generates a disk/shaft
model using fe cyclicb DiskFromSector.
demosdt([’download-back ’ ...
’http://support.sdtools.com/gf/download/forummessage/4/11/donnees_secteur.dat’]
% -removeface : removes skin elements
samcef(’read-removeface’,fullfile(sdtdef(’tempdir’),’donnees_secteur.dat’));
cf=feplot;
% Fix sector edges
fe_cyclic(’buildepsl .1 fix’,cf.mdl);
fecom(’curtabCases’,’Symmetry’)
fecom(’;view3;proViewOn’);
Figure 3.2: Left and right sides of the sector
The left and right edges of sectors should be conform ! Practically you need to
mesh the two surfaces first (possibly generate the second by rotation of the first).
Then mesh the interior. You will note that this typically requires at least two layers
of element for tetra10 meshing.
3.1. ROTOR MESHING
3.1.5
23
Utilities for handling slanted blades
Typically blades have an angle with respect to the er , ez plane. In a number
of cases, removing this angle makes node and element selection easier. With two
nodes the FixTheta command modifies node positions by removing the angle. The
transformation is saved in info,FixTheta stack entry and the back transformation
is obtained using a FixTheta call with no argument.
cf=feplot(2);cf=d_rotor(’TestSector’);%sdtweb(’d_rotor.m#TestSector’)
n1=cf.mdl.Node; % save nodes
cg=feplot(5); % place rectified model in figure(5)
cg.mdl=fe_cyclicb(’MeshFixTheta 10061 10086 -offset 80’,cf.mdl);
fecom(cg,’view2’)
% verify that the back step works
cf.mdl=fe_cyclicb(’MeshFixTheta’,cg.mdl);fecom(cf,’view1’)
if norm(cf.mdl.Node-n1)>1e-10; error(’Back transform failed’);end
3.1.6
Disk connections in multi-stage cyclic symmetry
In multi-stage cyclic symmetry, each stage is modeled using a superelement called
diski (see fe cyclic DiskFromSector). Coupling between stages is done using
elements. The most consistent approach is to use a physical area that is properly
meshed for the full 360 degrees, but this may be difficult in particular when the
mesh refinement is notably different between the two stages, so that a node to
surface penalized connection is also implemented and an example given at the end
of this section.
Two steps are required:
1. the first step is a manual declaration of the nodes that belong to the two
regarding surfaces. The declaration of the nodes in the 2D cut provided by
fe cyclicb DisplayAllEdges command is sufficient (and therefore recommended).
2. the second step is the automatic reconstruction of the rims as volumes (using
automated 3D tessellation) or penalty based node to surface bilateral contact
in the MeshRim command.
Note that fe shapeoptim can be used to local deform the disk in order to
allow rim meshing.
24
CHAPTER 3. TOOLBOX TUTORIAL
% load two disk example with space between disks
cf=demo_cyclic(’TestForMeshRimVol’)
% RimStep1: select nodes at the matching interfaces
fe_cyclicb(’DisplayAllEdges’,cf);
% start cursor to pick values : fe_fmesh(’3dlineinit’)
n1=[12 18 24 1127 1133 1139];
% RimStep2: build rims and tessellate
fe_cyclicb(’MeshRimStep2 epsl.1’,cf,n1);
cf.sel=’EltName~=SE’;fecom(’showpatch’);
Figure 3.3: Selected disk edge nodes for rim tesselation
If you choose the penalty approach here is a working example where the edges
of sector edges are assumed coincident thus allowing an automated search of intersection with the -FindIntersect option.
% load two disk example with space between disks
cf=demo_cyclic(’testrotor 7 10 3 -NoRim -RimH .1 -blade -cf 2 reset’);
% RimStep1: find nodes at the matching interfaces
n1=fe_cyclicb(’DisplayAllEdges -FindIntersect epsl .2’,cf);
% RimStep2: build rims as springs
fe_cyclicb(’MeshRimStep2 epsl.1 -kp 1e12 -slavedisk 1 3 -masterdisk 2’,cf,n1);
cf.sel={’groupall’,’colordatagroup -edgealpha .05 -alpha.1’}
def=fe_cyclicb(’shaft eig 0’,cf.mdl);
sel={’disk1’,’groupall’;’disk2’,’groupall’;’disk3’,’groupall’;’rim’,’’};
3.1. ROTOR MESHING
25
cf.def=fe_cyclicb(’DisplaySel’,cf,def,sel);
fecom(’ColorDataEvalTanz’)
3.1.7
View meshes for cyclic symmetry
Figure 3.4: Sample viewing mesh for post-processing multi-stage computations
Meshing tools also include procedures to build viewing meshes from the finite
element mesh. fe cyclicb(’MeshRimLine2Patch’,cf,sel) aims to build viewing
meshes made of surface elements connecting selected nodes of the true mesh of the
rotor. sel can be:
• an array of lines connecting nodes of the inner disk parts in the 2D cut of the
rotor (returned by a previous fe fmesh(’3dLineInit’)). Note that this function automatically removes the segments that connect nodes of two different
disks.
• an array of elements connecting nodes of the blades of each disk (returned by
a previous fe fmesh(’3dLineInitAddInfo Quad4’)).
The selection is stored in the cf.mdl.Stack{’info’,’ViewMesh’}. If the -reset
26
CHAPTER 3. TOOLBOX TUTORIAL
option is not specified, the current selection is appended to the existing one. For
each project, you should typically edit a script similar to the following
cf=demo_cyclic(’BuildStep0’);
% Viewing mesh step 1: disk elements
fe_cyclicb(’DisplayAllEdges’,cf);
%fe_fmesh(’3dLineInit’,cf); % right click ’Type’ or ’Done’
L=[1 3 5 15 26 0 1121 1123 1125 1135 1146 0 13 15 18 1133 1135 1138];
fe_cyclicb(’MeshRimLine2Patch -reset’,cf,L);
% Viewing mesh step 2: blade elements
% disk1
fe_cyclicb(’DisplayFirst’,cf,{’disk1’});
%fe_fmesh(’3dLineInitAddInfo Quad4’,cf); % pick four nodes to form a quad
% use right click ’Type’ or ’Done’ to display
Elt=[Inf abs(’quad4’);
154 156 152 148 1 1;148 146 150 154 1 1;
146 142 144 150 1 1;142 111 83 144 1 1];
fe_cyclicb(’MeshRimLine2Patch’,cf,Elt);
% disk2
fe_cyclicb(’DisplayFirst’,cf,{’disk2’});
fe_fmesh(’3dLineInitAddInfo Quad4’,cf); % pick four nodes to form a quad
model.Elt=[Inf abs(’quad4’);
1274 1276 1272 1270 1 1;1270 1272 1268 1266 1 1
1266 1268 1264 1262 1 1;1262 1231 1203 1264 1 1];
fe_cyclicb(’MeshRimLine2Patch’,cf,model.Elt);
fecom(’ShowPatch’);
% save cf.Stack{’info’,’ViewMesh’}
% Once the geometry generated typical calls are
fesuper(’Sebuildsel -initrot’,cf,cf.Stack{’info’,’ViewMesh’})
fe_cyclicb(’Displaysel 2’,cf,def,cf.Stack{’info’,’ViewMesh’})
3.2
Bearing and support representations
3.2. BEARING AND SUPPORT REPRESENTATIONS
3.2.1
27
Linear bearing
One can simply represent a support or a bearing by a linear spring that is to
say a celas element (for more details see sdtweb(’celas’)). A celas element
is announced in the model element matrix by the header [Inf abs(’celas’)] and
format is as follow: [NodeId1 NodeId2 -DofID1 DofID2 ProID EltID Kv Mv Cv]
NodeId1 and NodeId2 define between which nodes celas is connected (if NodeId2=0
celas is grounded), DofID1 and DofID2 which dof are connected, and Kv Mv and Cv
give respectively stiffness mass and damping. A typical bearing for a rotor turning
around x will then be defined by
Figure 3.5: Simple disk on long rod model.
The following generates a spring bearing connected to node n1, stiffness is 1e9
and damping 1e2 in the xy plane. The use of a spring property is necessary for non
linear time domain applications
model=d_rotor(’TestDiskLongBeam’);
n1=feutil(’findnode z==.71 & x==0 & y==0’,model);
model=feutil(’AddElt’,model,’celas’,[n1 0
-12 0 100]);
model.il=p_spring(model.il,’dbval 100 1e10 0 1e2’);
fe_simul(’mode’,model)
r1=struct(’Origin’,[20 10 0],’axis’,[0 0 1],’radius’,3, ...
’planes’,[1.5 1 111 1 3.1;
5.0 1 112 1 4;], ...
28
CHAPTER 3. TOOLBOX TUTORIAL
’MasterCelas’,[0 0 -123456 123456 10 0 1e14], ...
’NewNode’,0);
links={’connection’,’bearing’,...
struct(’C1’,1,’C2’,r1,...
’link’,{{’celas’,[0 0 23 0 103 0 1e5 0 0.1]}},...
’NLdata’,struct(’type’,’RotCenter’,’lab’,’Bearing’,...
’sel’,’ProId 1’,’JCoef’,1,’drot’,n1+.06))}
[model,RunOpt.idof]=nl_spring(’ConnectionBuild’,model,links)
[cf.mdl,RunOpt.idof]=nl_spring(’ConnectionBuild’,cf.mdl,links);
For 3d rotors, if there is no node on the axis of the shaft where one want to model
the bearing, one can add a node whose displacement depends on displacements of
nodes on a ring of the shaft using (see sdtweb(’fe case#connectionscrew’)).
Then one can connect a grounded celas to this node. xxx a full example is needed
xxx
3.2.2
Non-linear bearings in the time domain
Documentation of nl spring capabilities should go here.
3.3
Gyroscopic effects
SDT supports gyroscopic matrices in both rotating (body-fixed) and fixed frames
(Eulerian representation of an axisymmetric structure). When performing assembly,
the matrices in the local rotating frame are obtained with MatType 7 gyroscopic and
MatType 8 centrifugal softening. MatType 70 corresponds to the gyroscopic matrix
in the global fixed frame. There is no centrifugal softening in this frame.
3.3.1
Fixed frame models
The mass1 and beam1 elements gyroscopic matrices are only available in the
global fixed frame (MatType 70). The rotation axis is assumed to be the axis of the
beam for beam1 elements. Moments of inertia must be equal (axisymmetry). For
3.4. FREQUENCY DOMAIN ANALYSIS, FULL MODEL
29
mass1 elements the rotation axis is assumed to be the one whose rotation inertia is
different from the 2 others that must be equal.
mass1 .Elt format: [n mxx myy mzz ixx iyy izz EltId]
One can build simple models of 1d rotor using mass1 elements to represent rigid
disk and beam1 to represent the shaft. One can find an example of such a rotor in
d rotor(’TestShaftDiskMdl’). See section ?? for more details on how to mesh
such a rotor.
For volume and shell elements, the formulation of gyroscopic matrices in global
fixed frame is unclear and thus not currently implemented.
3.3.2
Rotating frame models
For all volume elements, one can compute gyroscopic (MatType 7) and centrifugal softening (MatType 8) matrices in the local rotating frame.
Elements under development are
• mass1 : Only point masses with same mass along the 3 translation DOF and
no rotation inertia are considered. Other are ignored.
• beam1 : Not supported.
• shell : Not supported.
In that case rotation axis must be given as a vector in info,Omega stack entry in
the model. For example model=stack set(model,’info’,’Omega’,[0 1 0]) will
define a rotation axis along Y. Note that the norm of this vector is assumed to be
the rotation speed in rad/s. The norm of the rotation vector should be 1 so that
matrices are assembled for a rotation speed of 1 rad/s. Indeed it is assumed that
gyroscopic and centrifugal softening matrices have been assembled for a rotation
speed of 1 rad/s in many functions (such as fe rotor etc. ...).
3.4
Frequency domain analysis, full model
Supported computations in fe rotor, are
• Campbell diagram building
30
CHAPTER 3. TOOLBOX TUTORIAL
• Direct computation of critical speeds
• Frequency domain response to unbalance and harmonic loads on bearings
• Time domain simulation accounting for non-linear bearings is under development (these are performed with the shaft in a rotating frame and the stator
fixed).
3.4.1
Campbell diagrams, full model
Campbell diagrams are implemented in the fe rotor Campbell command.
model=d_rotor(’TestShaftDiskMdl’);
fe_rotor(’Campbell -crit -cf100’,model,linspace(0,8000,100));
figure(100);set(gca,’ylim’,[0 200])
Command options are -cfi to define figure where to plot, -crit to compute
critical speeds, -stability to display a stability diagram (damping-rotation speed).
The following is an example of a simple disk rotating at the end of a long rod.
For other details see rotor2d.
% Model Initialization
mo1=rotor2d(’test simpledisk -back’); % init model
cf=feplot;cf.model=rotor2d(’buildFrom2D’,mo1);
SE=cf.Stack{’disk1’}; % enforce boundary cond. on sector and assemble
SE=fe_case(SE,’FixDof’,’Base’,’z==1.01’);
SE=fe_cyclic(’assemble -se’,SE);
cf.Stack{’disk1’}=SE; fecom(’view1’);
% automated building of Campbell diagram : XXX NEED REVISION
RunOpt=struct(’targ’,1, ...
’Range’,linspace(0,1,30));
cf.def=rotor2d(’teig’,cf,RunOpt);
d1=fe_def(’subdof’,cf.def,feutil(’findnode r==0’,SE));
3.4.2
Blade with centrifugal stiffening
One considers stiffness matrices that are dependent on the rotation speed. Assuming that a second order polynomial representation is sufficient, one can build a
3.4. FREQUENCY DOMAIN ANALYSIS, FULL MODEL
31
vector of weigthing coefficients



 α1 


−1 

 1 


1
1
1


α2
=  Ω1 Ω2 Ω3 


 α 
Ω21 Ω22 Ω23
3
α
2

 α 

3
(3.1)
Such that the stiffness at rotation speed Ω is approximated by
[K(Ω)] =
X
[KΩi ]
(3.2)
αi
The zCoef uses velocity Omega in rad/s.
This example now treats computation at variable rotation speeds
% Model Initialization
model=demo_cyclic(’testblade’);cf=feplot(model);
% Compute matrix coefficients for a multi-stage rotor
range=struct(’data’,[0 0 1;0 0 8e3;0 0 16e3],’unit’,’RPM’);
% Assembling in the feplot figure, allows memory offload
fe_cyclicb(’polyassemble -noT’,cf,range);
X=struct(’data’,linspace(0,16e3,10),’unit’,’RPM’);
fe_rotor(’Campbell -cf1’,cf.mdl,X);set(gca,’ylim’,[0 3000])
Now a more standard non-linear static computation for a range or rotation
speeds.
model=demo_cyclic(’testblade’);cf=feplot(model);
r2=linspace(1e3,15e3,20)’;
range=struct(’data’,r2*[0 0 1],’unit’,’RPM’);
model=stack_set(model,’info’,’Omega’,range);
model=fe_cyclic(’LoadCentrifugal’,model)
opt=fe_simul(’NLStaticOpt’);
opt.MaxIter=100;opt.JacobianUpdate=1;
def=fe_time(opt,model);def.data(:,1)=range.data(:,3);
3.4.3
Complex modes
To compute complex modes at a given rotation speed, one can use fe rotor
Campbell command with option -cmode. Complexe modes are the computed using a
32
CHAPTER 3. TOOLBOX TUTORIAL
real mode basis projection. Mode options should be stored in the ’info’ ’EigOpt’
model stack entry. The complexe modes are return for the first rotation speed given
as input argument.
Once modes are computed, you can display them in feplot. The fecom ShowTraj
command displays trajectories. For example:
model=d_rotor(’TestShaftDiskMdl’)
model=fe_caseg(’assemble -SE -secdof -matdes 2 1 70’,model); % assemble model m
def=fe_rotor(’Campbell -cmode -cf100’,model,100); % C modes at 100 RPM.
cf=feplot(model,def); fecom(’view3’);iimouse(’resetvie’);
fecom(cf,’ShowTraj’)
Figure 3.6: Complex mode and trajectory.
3.4.4
Forced frequency response to unbalanced load
One can compute the frequency response to an unbalanced load, or to an asynchronous load using fe rotor RotatingLoad and ForcedResponse command (see
sdtweb(’fe rotor’) for more details). Definition of the load is different in local rotating frame or global fixed frame. One can see the validation part of this document
for various examples. Following example computes the response to an unbalanced
mass on the 1D rotor model:
mb=1e-4; db=0.15; % mass, distance to axis
om=linspace(0,6000,201); % RPM
model=fe_rotor(sprintf(’RotatingLoad 2 %.15g -90 2’,mb*db),model); % unbalanced
r1=struct(’Omega’,om/60*2*pi,’w’,om/60*2*pi); % Range
model=stack_set(model,’info’,’Range’,r1);
R1=fe_rotor(’ForcedResponse’,model); % compute forced response
iiplot(R1) % plot response
3.5. SOLVERS FOR MODELS WITH CYCLIC SYMMETRY
3.5
33
Solvers for models with cyclic symmetry
The SDT/Rotor module contains
• classical cyclic symmetry solvers, where one assumes the solution to be associated with a specific number of diameters (spatial harmonic associated to the
Fourier transform of a periodic geometry, see [5] for more details.)
• full rotor reduced models where cyclic symmetry solutions are used to build
a reduced model for various stages. The associated solvers are discussed in
section 3.6.
3.5.1
Static response
Resolution of static responses is performed using fe cyclicb ShaftSolve. You
should be aware, that non-linear static iterations may fail to converge if you have
rigid body modes in your system. In the example below, this is the reason for fixing
the axial motion of point 136 in disk1 and using the -FixTan which adds a tangential
translation constraint on the first disk.
if 1==1 % One disk case
cf=demo_cyclic(’testrotor 7 -blade -cf 2’);
Sel={’disk1’,’groupall’};
else % Two disk case
cf=demo_cyclic(’testrotor 7 10 -blade -cf 2 reset’);
Sel={’’,’EltName SE’;
’disk1(1:2)’,’groupall’;’disk2(1:3)’,’groupall’};
end
cf.Stack{’disk1’}=fe_case(cf.Stack{’disk1’},’FixDof’,’Axial’,136.03);
% Linear static response
cf.Stack{’info’,’Omega’}=struct(’data’,250,’unit’,’RPM’);
d0=fe_cyclicb(’shaftsolvestatic 0 -FixTan’,cf.mdl)
fe_cyclicb(’displaySel’,cf,d0,Sel)
fecom(’ColorDataEvalRadZ’)
% Non-linear static response
cf.Stack{’info’,’Omega’}=struct(’data’,250,’unit’,’RPM’);
d0=fe_cyclicb(’shaftsolvestatic 0 -FixTan -nlstep 1e-10’,cf.mdl)
34
CHAPTER 3. TOOLBOX TUTORIAL
fe_cyclicb(’displaySel’,cf,d0,Sel)
fecom(’ColorDataEvalRadZ’)
XXX example with thermal loading xxx
Example with temperature dependent properties.
3.5.2
Single stage mode computations
As a first example one will consider computations of a single disk using mono
harmonic solutions
Call shaftTeig in fe cyclicballows to compute the specified mono-harmonic
normal modes.
Mono-harmonic normal modes are recovered to the rotor with the help from
command shaftdispay. If command option sel is specified and a selection of
elements is provided, the shapes are recovered to that selection only. Selections are
cell arrays with the typical entry Sel={’disk1’,sel1} where sel1 is either a string
(to select a subset of elements in the true mesh) or a list of elements (to build a
reduced viewing mesh).
% Model Initialization
cf=demo_cyclic(’testrotor 7 -blade -cf 2 reset’);
% Mono-harmonic Solutions
model=stack_set(cf.mdl,’info’,’EigOpt’,[5 5 -1e3 11 1e-8]);
def=fe_cyclicb(’shaft Teig 0 5’,model);
% partial display and computation of strain energy
Sel={’disk1’,’withnode {r<130}’};
fe_cyclicb(’Displaysel’,cf,def,Sel,’enerkdens’);
if 1==2 % total display if needed
cf.sel=’groupall’;cf.def=fe_cyclicb(’Display’,cf,def);
end
cf.Stack{’info’,’StressCritFcn’}=’fe_cyclicb(’’StressRR’’);’
[dfull,STRESS]=fe_cyclicb(’Displaysel’,cf,def,Sel,’stress-gstate’);
z=STRESS.GroupInfo{1,5};figure(1);plot(squeeze(z.Y(1,1,:,7)))
This will be extended to full disk computations in section ??.
3.5. SOLVERS FOR MODELS WITH CYCLIC SYMMETRY
3.5.3
35
Multi-stage harmonic mode computations
Call shaftTeig in fe cyclicb allow to compute the specified mono-harmonic
solutions (multi-stage solutions for which disks share the same Fourier harmonic
coefficient δ) in a single job.
Mono-harmonic eigensolutions are recovered using Dispay. If command option
sel is specified and a selection of elements is provided, the shapes are recovered to
that selection only. Selections are cell arrays with the typical entries:
• Sel={’disk1’,sel1} where sel1 is either a string (to select a subset of elements in the true mesh) or a list of elements (to build a reduced viewing
mesh),
• Sel={’’,selg} where selg is a string that selects elements of the global mesh
(selg is often ’eltname==SE’ so that only disks are displayed).
In the same fashion, mono-harmonic static responses are returned by ShaftSolveStat
This is of particular interest to compute the static deformation under the centrifugal loading (known to have a Fourier harmonic coefficient of δ = 0) and built with
command LoadCentrifugal within fe cyclic.
% Model Initialization
cf=demo_cyclic(’testrotor 7 10 -blade -cf 2 reset’);
% Mono-harmonic Solutions
model=stack_set(cf.mdl,’info’,’EigOpt’,[5 5 -1e3 11 1e-8]);
def=fe_cyclicb(’shaft Teig 0 2’,model);
demo_cyclic(’RefcheckDisk710’,def) % non regression check
cf.Stack{’disk1’}=fe_case(cf.Stack{’disk1’},’park’,’blade’,’innode{r>=20
Curve=fe_cyclicb(’fourier 1:13 -mono -egyfrac’,cf,def); % check energies
iiplot(Curve);colormap(flipud(hot));
cf.def=fe_cyclicb(’Display’,cf,def);
% static responses : sdtweb(’freqcyclic#cyclic_static’)
cf.Stack{’info’,’Omega’}=struct(’data’,1000,’unit’,’RPM’);
cf.Stack{’curve’,’StaticState’}=fe_cyclicb(’shaftsolvestatic 0’,cf.mdl)
% Pre-stressed modes
dp=fe_cyclicb(’shaft Teig 0 2’,model);
36
CHAPTER 3. TOOLBOX TUTORIAL
[def.data dp.data]
After full rotor assembly restitution is performed using SeRestit.
3.5.4
Campbell diagrams
First example of the beam with single disk
% Model Initialization
model2D=rotor2d(’test simpledisk -back’);
cf=feplot(rotor2d(’buildFrom2D’,model2D));
SE=cf.Stack{’disk1’}; % enforce boundary cond. on sector and assemble
SE=fe_case(SE,’FixDof’,’Base’,’z==1.01’); cf.Stack{’disk1’}=SE;
% Compute matrix coefficients for a multi-stage rotor
range=struct(’data’,[0 0 1; 0 0 1000/2/pi*60],’unit’,’RPM’);
fe_cyclicb(’polyassemble -noT’,cf,range);
% Now run a mono-harmonic computation returning reduced model
cf.Stack{’info’,’Omega’}=struct(’data’,range.data(1,:),’unit’,’RPM’);
cf.Stack{’info’,’EigOpt’}=[5 20 0]; % define eigenvalue options
MVR=fe_cyclicb(’shafteig 1 -ReAssemble 2 -NoN -buildMVR’,cf);
MVR.Stack{end}(end+[-1:0],4)={’1’;’0’}; % skip problem with geometric softenin
rc=struct(’data’,linspace(0,8000*2*pi,50),’unit’,’RPM’);
hist=fe_rotor(’Campbell’,MVR,rc);
fe_rotor(’plotCampbell’,hist,struct(’fig’,100,’axProp’,{{’ylim’,[0 250]}}))
Another example will be needed to treating the multi-stage case. This example
needs further validation and rewrite.
% Model Initialization
model=demo_cyclic(’testrotor 7 10 -blade’);
cf=feplot(model);
% Compute matrix coefficients for a multi-stage rotor
range=struct(’data’,[0 0 1;0 0 800;0 0 1600],’unit’,’RPM’);
% Assembling in the feplot figure, allows memory offload
model=fe_cyclicb(’shaftRimAsSe’,model); % Needed for PolyAssemble
3.6. FULL ROTOR MODEL FROM CYCLIC COMPUTATION
37
fe_cyclicb(’polyassemble -noT’,cf,range);
% Now run a mono-harmonic multi-speed computation
cf.Stack{’info’,’Omega’}=struct(’data’,range.data(1,:),’unit’,’RPM’);
cf.Stack{’info’,’EigOpt’}=[5 20 -1e3]; % define eigenvalue options
MVR=fe_cyclicb(’shafteig 1 -ReAssemble 2 -NoN -buildMVR’,cf);
%MVR.Stack{end}(end+[-2:0],4)={’1’;’0’;’0’};
% skip problem with geomet
rc=struct(’data’,linspace(1,8000,50),’unit’,’RPM’);
hist=fe_rotor(’Campbell’,MVR,rc);
fe_rotor(’plotCampbell’,hist,struct(’fig’,100,’axProp’,{{’ylim’,[0 3e3]}
%Sel={’disk1’,’groupall’;’disk2’,’groupall’};
%fe_cyclicb(’Displaysel’,cf,def,Sel)
3.5.5
Complex modes
Need documentation here.
3.5.6
Forced frequency response to unbalanced load
Need documentation here.
3.6
3.6.1
Full rotor model from cyclic computation
Single stage full rotor example
Starting from the mono-harmonic computation in section 3.5.2. One builds a
full shaft model that will allow prediction of all the modes.
%H5.close;fclose all; % may be needed for overwrite
cf=demo_cyclic(’testrotor 7 -blade -cf 2’);
cf.Stack{’info’,’Omega’}=struct(’data’,250,’unit’,’RPM’);
38
CHAPTER 3. TOOLBOX TUTORIAL
d0=fe_cyclicb(’shaftsolvestatic 0’,cf.mdl) % auto-display with no arg
cf.Stack{’curve’,’StaticState’}=d0;
RunOpt.Root=fullfile(sdtdef(’tempdir’),’Disk_7’);
RunOpt.FileSe=fullfile(sdtdef(’tempdir’),’Disk_7_SE’);
cf.mdl=fe_cyclicb(’shaftSeAssemble -reset’,cf.mdl,RunOpt.FileSe);
RunOpt.FileTeig=fullfile(sdtdef(’tempdir’),’Disk_7_TEIG.mat’);
% See sdtweb(’fe_cyclicb#ShaftEig’) for -batch option
def=fe_cyclicb(’shaft Teig 0 1 5’,cf.mdl);
% Now build a multi-harmonic model
fe_cyclicb(’ShaftPrep -handle’,cf,def);
fesuper(’fassemble’,cf);
% Mode Computations
defr=fe_eig(cf.Stack{’MVR’},[5 50 1e3 11 1e-8]);
cf.sel=’reset’;cf.def=fesuper(’sedef’,cf,defr);
def_ext=fe_cyclicb(’DefList’,RunOpt.FileTeig(1:end-4))
% the same results should be achived by assembling the prestress inside
% shaftTeig xxx update matrices only once, not for each diameter
cf=demo_cyclic(’testrotor 7 -blade -cf 2’);
cf.Stack{’info’,’Omega’}=struct(’data’,250,’unit’,’RPM’);
cf.mdl.il=[1001 fe_mat(’p_super’,’SI’,1) 1 0 0 1];
fe_cyclicb(’shaft Teig 0 1 5 -batch -reassemble’,cf.mdl,RunOpt.FileTeig);
def_int=fe_cyclicb(’DefList’,RunOpt.FileTeig(1:end-4))
%if norm(def_int.data(def_int.data(:,1)>1,1)-def_ext.data(def_ext.data(:,1)>1,1
%error(’ShaftTEig internal and external prestress produce different results’);
Note that to build a disk model from a sector, you should use model=fe cyclicb(’DiskFromS
1’,model,sector). xxx Arnaud : need to check adaptation for multi-disk models.
3.7
Time domain analysis
Once rotor model is created, one can perform time computation. nl spring
3.7. TIME DOMAIN ANALYSIS
39
function is very useful in that case. Gyroscopic effects can be treated as non linear
load depending on instant value of a model DOF (observation of the rotation speed
for example). Links between fixed and rotating parts can also be modelized as non
linear loads.
3.7.1
Simple example
Following example simply computes the response to an impact on the disk, assuming
that rotation speed is 1000 RPM:
model=d_rotor(’TestShaftDiskMdl’); % build simple 1D rotor
% Define Time option and other parameters:
opt=fe_time(’TimeOpt Newmark .25 .5 0 1e-4 1e4’); % TimeOpt
Range=struct(’Omega’,1000/60*2*pi);
model=stack_set(model,’info’,’Range’,Range);
opt.matdes=[2 1 70];
model=stack_set(model,’info’,’TimeOpt’,opt);
model=fe_rotor(’TimeOptAssemble’,model);
% initial impact:
model=fe_case(model,’DofLoad’,’In’,...
struct(’def’,1,’DOF’,2.02,...
’curve’,sprintf(’TestStep%.15g’,opt.Opt(4)*5)));
% Compute response:
def=fe_time(model); iiplot(def);
3.7.2
Gyroscopic effects
Gyroscopic coupling is represented by a load −Ω(t).D(Ω = 1) ∗ V where Ω is the
rotation speed and D the gyroscopic coupling matrix. That can be applied at each
step of time using the DofKuva nl spring non linearity (see sdtweb(’nl spring’)).
An unbalanced mass is a load proportional to rotation speed. In the local rotating
frame it can be described using nl spring DofV non linearity.
Following example deals with the simple 1D rotor and performs a time integration in fixed global frame taking in account the gyroscopic effect, for an initial
impact on the disk. Note that the non linear holding of the gyroscopic effect is not
necessary here since the global frame is considered, and rotation speed is assumed
40
CHAPTER 3. TOOLBOX TUTORIAL
to be constant (1000 RPM). The gyroscopic effects (in green in figure below) are
coupling the y and z motion.
Figure 3.7: y (top) and z (bottom) deflection, with (green) and without (blue)
gyroscopic effect.
model=d_rotor(’TestShaftDiskMdl’);
model=fe_case(model,’FixDof’,’Ends’,...
3.7. TIME DOMAIN ANALYSIS
41
[1.01 1.02 1.03 4.01 4.02 4.03 0.01]);
% TimeOpt:
opt=nl_spring(’TimeOpt -gamma .501’);
opt.NeedUVA=[1 1 1];
opt.IterEnd=’if ite>90;evalin(’’caller’’,’’assignin(’’’’base’’’’,’’’’def
opt.Follow=1; opt.RelTol=-1e-5;
opt.Opt(7)=-1; % factor type sparse
opt.Opt(4)=1e-4; opt.Opt(5)=0.6e4; % NSteps
% Initial impact:
model=fe_case(model,’DofLoad’,’In’,...
struct(’def’,1e3,’DOF’,2.02,...
’curve’,sprintf(’TestStep%.15g’,opt.Opt(4)*5)));
% Without gyroscopic effect:
def0=fe_time(opt,model) % compute
% With NL gyroscopic effects:
model=stack_set(model,’pro’,’DofKuva1005’, ... % gyroscopic effects
struct(’il’,[1005 fe_mat(’p_spring’,’SI’,1) 0 0 0 0 0],...
’type’,’p_spring’,’NLdata’,struct(...
’type’,’DofKuva’,’lab’,’gyroscopic effect’, ...
’Dof’,[],’Dofuva’,[0 1 0],’MatTyp’,70,...
’factor’,-1*1000/60*2*pi,’exponent’,1,’uva’,[0 1 0])));
def=fe_time(opt,model) % compute
% Display results as curves
ci=iiplot;
iicom(’sub 2 1’);
iicom(ci,’IIxOnly’,{’disp(1)’;’disp(2)’});
i1=fe_c(ci.Stack{’disp(1)’}.DOF,2+[.02;.03],’ind’);
iicom(ci,sprintf(’;cax1;chc%i;cax2;chc%i’,i1(1),i1(2)));
% comgui(’ImWrite’,comgui(’cd’,’o:\sdt.cur\rotor\plots\shaftdisk_withand
% display deformation
cf=feplot(model); % display model
cf.def=def0; % without gyrocopic effects
cf.def=def; % with gyroscopic effects
42
3.7.3
CHAPTER 3. TOOLBOX TUTORIAL
Other representations of bearings
In the fixed basis the simplest bearing model is a linear spring (celas element. In
rotating basis, using a spring to model beaing is not possible using a celas element.
The nl spring RotCenter non linearty is usefull to modelize link between rotating
and non rotating parts.
In the fixed basis one can use a non linear spring to model the bearing. The
nl maxwell non linearity describes a set of generalized maxwell rheological models
that can be used as non linear bearing in the global frame. As an illustration,
following example replaces the linear bearing of the 1D rotor by a zener model of
the link.
model=d_rotor(’TestShaftDiskMdl’); % Build model
model=fe_case(model,’FixDof’,’Ends’,...
[1.01 1.02 1.03 4.01 4.02 4.03 0.01]); % Clamp ends
% TimeOpt:
opt=nl_spring(’TimeOpt’);
opt.Follow=1; opt.RelTol=-1e-5;
opt.Opt(7)=-1; % factor type sparse
opt.Opt(4)=1e-4; opt.Opt(5)=0.6e4; % NSteps
opt.IterInit=’model.FNL0=model.FNL+0;’;
% Initial impact:
model=fe_case(model,’DofLoad’,’In’,...
struct(’def’,1e3,’DOF’,2.02,...
’curve’,sprintf(’TestStep%.15g’,opt.Opt(4)*5)));
% NL bearings
% define nl_maxwell data
model.il(ismember(model.il(:,1),[100;101]),:)=[]; % remove properties
k0=500000; k1=k0/2; c1=600; % 20.41% for f=54.15 Hz
data=nl_maxwell(sprintf(’db zener k0 %.15g k1 %.15g c1 %.15g’,k0,k1,c1));
data.Sens{2}=3.02; % translation sensor defining nl_maxwell inputs
r1=p_spring(’default’); r1=feutil(’rmfield’,r1,’name’);
r1.NLdata=data; r1.il(3)=k0; % translation sensor defining nl_maxwell inputs
r1.il(1)=100; model=stack_set(model,’pro’,’bearingy’,r1);
r1.NLdata.Sens={’trans’,3.03}; % translation sensor defining nl_maxwell inputs
r1.il(1)=101; model=stack_set(model,’pro’,’bearingz’,r1);
ci=iiplot(3); % results will be store there
def0=fe_time(opt,model); % compute
4
Validation
Contents
4.1
4.2
4.3
Rigid disk example . . . . . . . . . . . . . . . . . . . . . .
44
4.1.1
Matrices in rotating frame . . . . . . . . . . . . . . . . . . . 44
4.1.2
Matrices in global fixed frame . . . . . . . . . . . . . . . . . 45
4.1.3
Validation with 3D model disk . . . . . . . . . . . . . . . . 47
Simple 2DOF model of shaft with disk
. . . . . . . . . .
50
1D models . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
4.3.1
1D example in a fixed frame . . . . . . . . . . . . . . . . . . 54
4.3.2
1D models in a rotating (body-fixed) frame . . . . . . . . . 57
4.4
3D rotor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57
4.5
Data structure reference . . . . . . . . . . . . . . . . . . .
59
44
4.1
CHAPTER 4. VALIDATION
Rigid disk example
Figure 4.1: Simple rigid disk.
We consider a simple rigid disk of axis Y, thickness h, radius R, mass m. This
simple example is very useful because we can easily compute matrices in both of
global and local frame for a simple description of motion with 4 DOF. Besides we
can compute in SDT equivalent matrices for a mass1 rigid disk, for a disk described
by a beam1 element and for a volume disk in hexa8 elements. Then we can compare
gyroscopic matrices and make sure that their implementation for each element is
correct.
4.1.1
Matrices in rotating frame
The motion of the disk is described by 2 translations (uc and wc ) and 2 rotations
DOF (θu and θw ). Disk is assumed to be rigid so displacements at each point of the
disk are given by the shape functions



 u 


1 0 0

v
=  0 0 −w

 w 

0 1 v


  uc 


−v 
 w 


c
u 
= [Nxyz ] {q}

θu 




0


θw
(4.1)
4.1. RIGID DISK EXAMPLE
45
Rotation matrix (2.3) along Y axis is given by


0 0 1


[Ω] = Ω  0 0 0 
−1 0 0
(4.2)
Using matrix expression given in section 2.1.1 in body fixed local rotating frame,
and projecting the integrals by assuming rigid disk motion




[M ] = 
m 0 0 0
0 m 0 0
0 0 Iu 0
0 0 0 Iw





(4.3)
2
with Iu = Iw = 41 mR2 + m h12




[D] = 2mΩ 
0
−1
0
0




[Kc] = −mΩ2 
1
0
0
0
0
0
2
0 − h12
1
0
0
0
0
1
0
0
0
0
h2
12
0

0
0 

h2
12


(4.4)
0
0
0
0
h2
12





[M ] {q̈L } + D {q̇L } + Kc {qL } = FL
(4.5)
(4.6)
An unbalanced mass is represented by a static load in the local rotating frame
{FL } =



1 



 0 


0 






(4.7)
0
4.1.2
Matrices in global fixed frame
Local frame (indexed with L ) is rotating in global fixed frame (indexed with G )
according to rotation matrix
46
CHAPTER 4. VALIDATION
"
[Rt ] =
cos(Ωt) −sin(Ωt)
sin(Ωt) cos(Ωt)
#
(4.8)
so that we have
{qL } = [Rt ] {qG } h i
{q̇L } = [Rt ] {q̇G } + Ṙt {qG }
h
i
h
i
{q̈L } = [Rt ] {q̈G } + 2 Ṙt {q̇G } + R̈t {qG }
and equation (4.6) can thus be rewritten as
h
i
h
i
h
i
RT M R {q̈G } + 2RT M Ṙ + RT DR {q̇G } + RT M R̈ + RT DṘ + RT Kc R {qG } = FG
[MG ] {q̈G } + [DG ] {q̇G } + [KcG ] {qG } = FG
(4.9)
#
"
#
"
1
0
0
−1
and RT R̈ = Ω2
thus in the gyroscopic effect
One has RT Ṙ = Ω
0 1
1 0
the translation terms disappear and one has

0
0
0
0



[DG ] = 2Ω 
0 0
0
0 0
0
0 0 −Iv
0 Iv
0





with Iv = 14 mR2 = Iu − 2mh2 /12 and the xxx UNEXPECTED xxx centrifugal
softening in the global frame




[KcG ] = −Ω2 
0
0
0
0
0
0
0
0
0
0
1
2 Iv
0
0
0
0
1
2 Iv





An unbalanced mass is represented by a rotating load in the global fixed frame
{FG } =



sin(Ωt) 



 cos(Ωt) 





0
0




(4.10)
4.1. RIGID DISK EXAMPLE
4.1.3
47
Validation with 3D model disk
This validation example considers a disk meshed with hexa8 volume elements.
Local frame matrices are computed and projected on the geometrical rigid body
modes (x and z translations, and corresponding rotation). One checks matching of
• matching of theoretical and numerical matrices
• response amplitudes of the disk with unbalanced mass in global and local frame
• mass1 and beam1 elements gives the same gyroscopic matrices in the global
frame (mattype 70)
% model of disk:
R1=.01;R2=.15;h=0.03;rho=7800;
md=d_rotor(sprintf(’testvoldisk -dim %.15g %.15g %.15g 5 24’,R1,R2,h))
md.DOF=[];md=fe_caseg(’assemble -se -matdes 2 1 7 8 not’,md);
% disk assumed to be rigid:
rb=feutil(’geomrb’,md); cf=feplot(md); cf.def=rb;
md.K=feutil(’tkt’,rb.def(:,[1 3 4 6]),md.K);
md.DOF=[1.01 1.03 1.04 1.06]’;
md.K{2}=0*md.K{2}; % rigid disk
md.K{2}(1,1)=5e5;md.K{2}(2,2)=5e5; % bearing
md.K{2}(3,3)=1e5;md.K{2}(4,4)=1e5; % bearing rot /XXX
% Campbell in local rotating frame:
fe_rotor(’campbell-critical’,md,linspace(0,9000,31));
% Unbalanced mass:
w=1; t=12; wrange=logspace(0,3,100); Q=[];
for j1=1:length(wrange);w=wrange(j1);
% rotation matrix
R=[cos(w*t) -sin(w*t); sin(w*t) cos(w*t)]; R=[R zeros(2);zeros(2) R];
Rp=w*[-sin(w*t) -cos(w*t); cos(w*t) -sin(w*t)];Rp=[Rp zeros(2);zeros(2)
Rpp=-w^2*R;
% Global matrices
MG=R’*md.K{1}*R;
DG=2*R’*md.K{1}*Rp + R’*w*md.K{3}*R;
KG=R’*md.K{1}*Rpp + R’*w*md.K{3}*Rp + R’*w^2*md.K{4}*R
+ R’*md.K{2}*R;
% compare to theoretical values
m=pi*(R2^2-R1^2)*3e-2*7800;
48
CHAPTER 4. VALIDATION
Iv=0.5*m*(R2^2+R1^2); Iu=0.5*Iv+m*h^2/12;
DGth=zeros(4); DGth(4,3)=Iv; DGth(3,4)=-Iv; DGth=w*DGth;
KGth=diag([0 0 1 1]); KGth=-w^2*Iv/2*KGth;
if norm(KG-R’*md.K{2}*R-KGth)/norm(KGth)>5e-2;error(’Cent. soft mismatch’);end
if norm(DG-DGth)/norm(DGth)>5e-2; error(’gyro matrix mismatch’); end
% unbalanced mass:
X0L=inv(md.K{2}+w^2*md.K{4})*w^2*[1 0 0 0]’; % local
X0L=abs(X0L(1));
X0G=inv(-w^2*MG+1i*w*DG+KG) *w^2*[-1i 1 0 0]’; % global
X0G=abs(X0G(1));
Q(1,j1)=X0L; Q(2,j1)=X0G;
end
figure(4);semilogy(wrange*60/2/pi,Q(1,:),wrange*60/2/pi,Q(2,:));
legend(’local’,’global’); title(’Unbalanced mass’);setlines
xlabel(’Rotation velocity [RPM]’); ylabel(’Amplitude [m]’)
if norm(Q(1,:)-Q(2,:))/norm(Q(1,:))>1e-8; error(’Global/Local error’); end
% check mass1 gyroscopic matrix 70:
mdmass=struct(’Node’,[1 0 0 0 0 0 0], ...
’Elt’,[Inf abs(’mass1’) 0; 1 m m m Iu Iv Iu]);
mdmass=fe_case(mdmass,’fixdof’,’Base’,[1.02 ;1.05])
mdmass=fe_caseg(’assemble -se -matdes 2 1 70’,mdmass)
if norm(w*mdmass.K{3}-DGth)/norm(DGth)>1e-8; sdtw(’_err’,’mass1 gyro 70 unmatch’
% check beam1 gyroscopic matrix 70:
Omega=[0 1 0]; % axis of the disk
mdbeam1=struct(’Node’,[1 0 0 0 -h/2*Omega; 2 0 0 0 h/2*Omega],...
’Elt’,[Inf abs(’beam1’) 0; 1 2 1 1 0 0 0]);
mdbeam1.il=p_beam(’convertto1’,p_beam(sprintf(’dbval 1 TUBE %.15g %.15g’,R2,R1))
mdbeam1.pl=m_elastic(’dbval 1 steel’);
mdbeam1=fe_case(mdbeam1,’fixdof’,’fix1’,...
[1+(find(Omega)+[0;3])/100;2+(find(Omega)+[0;3])/100]);
rb=feutil(’geomrb’,mdbeam1); mdbeam1=fe_case(mdbeam1,’DofSet’,’fix2’,rb);
rb=fe_simul(’static’,mdbeam1); mdbeam1=fe_case(mdbeam1,’remove’,’fix2’);
mdbeam1.DOF=[]; mdbeam1=fe_caseg(’assemble -se -matdes 2 1 70’,mdbeam1);
mdbeam1.DOF=fe_case(’gettdof’,mdbeam1);
rb=feutil(’placeindof’,mdbeam1.DOF,rb)
mdbeam1.K=feutil(’TKT’,rb.def(:,setdiff(1:6,find(Omega)+[0 3])),mdbeam1.K)
if norm(w*mdbeam1.K{3}-DGth)/norm(DGth)>1e-8;
sdtw(’_err’,’beam1 gyro 70 unmatch’);
4.1. RIGID DISK EXAMPLE
49
end
The response to the unbalanced mass is the same in both of the 2 frames. The
maximum of response matches rotation speed found as critical speed for forward
whirl in local and global Campbell diagram.
Note that we can compute Campbell in local frame from Campbell in global frame
with:
(F )
(F )
fL = kfG − Ωk for forward modes and
(B)
(B)
fL = kfG + Ωk for backward modes.
The 2 Campbell diagrams have been computed using matrices in corresponding
frame and we check that we can pass from one to other using these formulas.
XXX In this example:
- Centrifugal softening in global fixed frame? Not 0
- In GLOBAL frame gyroscopic matrix DG do not modify unbalanced response
because only translation dof are affected... - In LOCAL frame gyroscopic D do
not modify unbalanced response: X0L=inv(md.K2+w2 *md.K4)*w2 *[1 0 0 0]’; %
local
Figure 4.2: Top: Unbalanced mass response amplitude computed in local and global
frame. Bottom left: Campbell diagram in local rotating frame, right: in global
frame.
50
CHAPTER 4. VALIDATION
4.2
Simple 2DOF model of shaft with disk
This section is about the simple 2 DOF rotor model described in chapter 2 of
Lalanne and Ferraris [7].
Figure 4.3: Simple model of rotor.
The disk is rigid, the shaft is described by 2 sin shape functions f (y) = sin( πy
L)
where L is the length of the shaft.
Bearing "at y = L3 is represented
by 2 additional
stiffness
and damping. Kbearing =
#
#
"
kxx kxz
cxx cxz
sin( 2π
Cbearing = sin( 2π
3 )
3 )
kzx kzz
czx czz
The 2 DOF are considered in the global fixed frame.
"
m 0
0 m
#
"
{q̈} + Ω
0 −a
a 0
#
"
{q̇} +
k 0
0 k
#
{q} = F
(4.11)
For an unbalanced mass mb at a position
of L/3
(
) on the shaft and at a distance
sin(Ωt)
of db of the rotation axis F = m∗ dbΩ2
where m∗ = sin( π3 )mb.
cos(Ωt)
(
For a simple asynchronous load of amplitude f0 rotating at sΩ F = f 0
sin(sΩt)
cos(sΩt)
)
.
Frequency analysis is performed.
Harmonic solutions are computed under the form <(Q0 exp(ısΩt)) (s = 1 for unbalanced mass and s <> 1 for asynchronous load).
Implementation of this case can be found in d rotor Lalanne2DOF. One can
4.2. SIMPLE 2DOF MODEL OF SHAFT WITH DISK
51
define values of parameters (kxx, czx, m, a, mb, f0, s etc. ...) as fields of a data
structure r1 given as argument : d rotor(’Lalanne2DOF’,r1). A campbell and frequency forced response are then computed at the rotation speeds defined (in RPM)
in the field .om of the parameter data structure. One can ask only for the model
using model=d rotor(’Lalanne2DOFMdl’,r1);.
If this first case, no bearing is considered (Kbearing = 0 and Cbearing = 0).
beta=0;
r1=struct(’om’,linspace(0,9e3,101),’s’,1,...
’kxx’,0,’kzz’,0,’kxz’,0,’kzx’,0,...
’cxx’,1e2*beta,’czz’,5e2*beta,’cxz’,0,’czx’,0);
R1=d_rotor(’TestLalanne2DOF’,r1)
Figure 4.4: Campbell diagram. Symmetric rotor without bearing.
Figure 4.5: Response to an unbalanced load (left) and asynchronous load (right).
Symmetric rotor without bearing.
Maximum response for unbalanced mass is obtained for the exact critical rotation speed of forward mode computed in the Campbell (3089 RPM). This speed is
52
CHAPTER 4. VALIDATION
the same as in Lalanne theoretical expression.
Bearing stiffness along z is now taken in account so that rotor is not symmetric. kzz = 5e5 and kxx = kxz = kzx = 0. There is no damping in the bearing:
Cbearing = 0).
beta=0;
r1=struct(’om’,linspace(0,9e3,101),’s’,1,...
’kxx’,0,’kzz’,5e5,’kxz’,0,’kzx’,0,...
’cxx’,1e2*beta,’czz’,5e2*beta,’cxz’,0,’czx’,0);
R1=d_rotor(’TestLalanne2DOF’,r1)
Figure 4.6: Campbell diagram. Asymmetric rotor with z stiffness bearing.
Now the 2 modes are not at the same frequency for Ω = 0.
Figure 4.7: Response to an unbalanced load (left) and asynchronous load (right).
Asymmetric rotor with z bearing stiffness.
Now there are 2 maximums of response that match critical rotation speeds for
4.2. SIMPLE 2DOF MODEL OF SHAFT WITH DISK
53
both forward and backward modes. This is the same for the asynchronous load.
Bearing stiffness along z is taken in account so that rotor is not symmetric.
kzz = 5e5, kxx = 1e5 and kxz = kzx = 0. Damping in the bearing is also considered with cxx = 100β, czz = 500β and cxz = czx = 0.
beta=15;
r1=struct(’om’,linspace(0,20e3,201),’s’,1,...
’kxx’,1e5,’kzz’,5e5,’kxz’,0,’kzx’,0,...
’cxx’,1e2*beta,’czz’,5e2*beta,’cxz’,0,’czx’,0);
d_rotor(’TestLalanne2DOF’,r1)
Figure 4.8: Campbell (left) and Responses to unbalanced load (right) for different
damping (top:β = 1, middle:β = 15 and bottom:β = 26). Asymmetric rotor with z
bearing stiffness and damping.
54
CHAPTER 4. VALIDATION
Backward and forward mode can cross each other in the Campbell diagram.
Asymmetry leads to the excitation of the backward mode. Damping leads to a more
spread resonance response.
4.3
4.3.1
1D models
1D example in a fixed frame
This first example treats the simple case, taken from [6], of a shaft with a rotating
disk at one third the length.
In order to compare this model to the simple 2 DOF model of Lalanne (see
section 4.2) we project the matrices on the 2 sin shape function of the shaft. Relative
error for mass matrix is 0.01%, 4.59% for stiffness and 1.64% for gyroscopic matrix.
Campbell for the projected model and the Lalanne 2 DOF model are almost the
same. For the full 1d model (not projected) the increasing of the frequency of 1rst
forward whirl mode tends to an asymptote.
Figure 4.9: Campbell diagrams. Left: 1D rotor (up: projected on 2 DOF, down:
full model), right: Lalanne 2 DOF rotor.
4.3. 1D MODELS
55
Following example performs preceding comparison :
% - LALANNE 2DOF
model2DOF=[]; m=14.29; k=1.195e6; a=2.871;
kxx=0; kzz=0; kxz=0; kzx=0;% bearing
% define model matrices :
model2DOF.K={m*eye(2), k*eye(2)+sin(pi*2/3)^2*[kxx kxz;kzx kzz],a*[0 -1;1
model2DOF.DOF=1+[.01;.03];
model2DOF.Klab={’m’,’k’,’Dg’};model2DOF.Opt=[1 0 0;2 1 70];
% rotate model so that x=rotating axis:
model2DOF.K=feutil(’tkt’,[1 0 0; 0 0 1],model2DOF.K);
model2DOF.K=feutil(’tkt’,[0 -1 0;1 0 0; 0 0 1],model2DOF.K);
for j1=1:3; model2DOF.K{j1}=model2DOF.K{j1}([2 3],[2 3]); end
model2DOF.DOF=[1.02;1.03];
model2DOF=stack_set(model2DOF,’info’,’Omega’,[1 0 0]);
% - SHAFTDISK beam1+mass1 gyro 70 - - - - - - - [model,TR]=d_rotor(’TestshaftdiskMdl -TRLalanne’)
model.Elt=feutil(’removeelt eltname celas’,model);
% project matrices on 2 sin shape functions equivalent to lalanne 2DOF m
model=fe_caseg(’assemble -secdof -matdes 2 1 70 3’,model);
TR=feutilb(’placeindof’,model.DOF,TR);
model.K=feutil(’TKT’,TR.def,model.K); model.DOF=[2.02;2.03];
% - compare with reference matrices from Lalanne
for j1=1:3 % Compare matrices [model.K{j1} model2DOF.K{j1}]
if normest(model.K{j1}-model2DOF.K{j1})/normest(model.K{j1})>0.05;
sdtw(’_err’,’2DOF and shaftdisk unmatch for mat %s’, model.Klab{j1});
end
end
% Campbell with SDT matrices reduced on Lalanne shapes
r1=struct(’data’,linspace(0,9e3),’unit’,’RPM’);
fe_rotor(’campbell -nodir -crit -cf1’,model,r1);
% - Now compare full beam model and 2D shapes
model.DOF=[]; model.K={};if ishandle(1);close(1);end
fe_rotor(’campbell -nodir -crit -cf1’,model2DOF,r1);
set(findall(1,’type’,’line’),’color’,’k’, ...
’linewidth’,2,’linestyle’,’--’);
hold on;
fe_rotor(’campbell -nodir -crit -cf1’,model,r1);
56
CHAPTER 4. VALIDATION
hold off;set(gca,’ylim’,[0 160]);
h=findall(1,’type’,’line’);legend(h(end+[0 -3]),’2 DOF’,’beam’)
Following example computes frequency response to unbalanced or asynchronous
load:
model=d_rotor(’TestShaftDiskMdl’); % Model Initialization
% Assemble nominal matrices:
model=fe_caseg(’assemble -reset -secdof -matdes 2 1 70’,model);
% Campbell diagram and critical speeds:
fe_rotor(’campbell -full -critical’,model,linspace(0,20000,30));
set(gca,’ylim’,[0 350]);
% Unbalanced mass or asynchronous load :
mb=1e-4; db=0.15; % mass, distance to axis
s=1; f0=1; % s=1, unbalanced load. s<>1, asynchronous load
om=sort([3296 3200:10:3500 linspace(0,20000,101)]); % RPM
% RotatingLoad NodeId f0 theta0 exponent : define complex rotating load
if s==1 % unbalanced mass
model=fe_rotor(sprintf(’rotatingload 2 %.15g -90 2’,mb*db),model);
else % asynchronousload
model=fe_rotor(sprintf(’rotatingload 2 %.15g -90 0’,f0),model);
end
r1=struct(’Omega’,om/60*2*pi,’w’,s*om/60*2*pi); % Range
model=stack_set(model,’info’,’Range’,r1);
R1=fe_rotor(’forcedresponse’,model); % compute forced response
iiplot(R1) % plot response
% Post (radial deformation):
Q=max(abs(R1.Y),[],2); figure;semilogy(om,Q);
xlabel(’Rotation speed [RPM]’); ylabel(’radial def amplitude [m]’)
if s==1; title(’Unbalanced mass’)
else;
title(sprintf(’Asynchronous load %.15g\\Omega’,s))
end
4.4. 3D ROTOR
57
Figure 4.10: Top: Campbell diagrams. Bottom: Responses to unbalanced mass and
asynchronous load.
Fig 4.10 shows the radial deformation response for an unbalanced load and for an
asynchronous load rotating at −Ω speed. The unbalanced load excites the forward
modes (3296 RPM) whereas the asynchronous load excites the backward modes
(2785 RPM and 4697 RPM). Frequencies match those computed as critical frequencies in the Campbell diagram.
4.3.2
1D models in a rotating (body-fixed) frame
While this representation is not very classical, it corresponds to the nominal
choice when doing time integration of a rotor that is not axisymmetric.
4.4
3D rotor
The same rotor as described in lalanne (see fig 4.3) is meshed using hexa8 elements.
Use model=d rotor(’TestVolShaftDiskMdl’).
58
CHAPTER 4. VALIDATION
Figure 4.11: 3d model of Lalanne rotor.
Matrices are defined in the local rotating frame. We described the unbalanced
load by a static load, and we use in following example the same procedure as for
local frame 1d rotor, at w = 0.
model=d_rotor(’testvolshaftdiskmdl’)
% Assemble nominal matrices:
model.DOF=[];model=fe_caseg(’assemble -se -matdes 2 1 7 8’,model);
model.DOF=fe_case(’gettdof’,model);
% Campbell diagram:
model=stack_set(model,’info’,’eigopt’,[5 20 1e3]);
fe_rotor(’campbell -critical’,model,linspace(0,20000,30));
% Unbalanced mass or asynchronous load :
mb=1e-4; db=0.15; % mass, distance to axis
s=0; f0=1; % s=1, unbalanced load. s<>1, asynchronous load
om=sort([2789 2750:10:2820 11760:10:11840 linspace(0,20000,101)]); % RPM
model=fe_rotor(sprintf(’rotatingload 180 %.15g 0 2’,f0),model);
r1=struct(’Omega’,om/60*2*pi,’w’,s*om/60*2*pi); % Range
model=stack_set(model,’info’,’Range’,r1);
R1=fe_rotor(’forcedresponse’,model); % compute forced response
iiplot(R1) % plot response
4.5. DATA STRUCTURE REFERENCE
59
% Post (radial deformation):
Q=abs(R1.Y(:,1)); % unbalanced along x
figure;semilogy(om,Q);
xlabel(’Rotation speed [RPM]’); ylabel(’radial def amplitude [m]’)
if s==0; title(’Unbalanced mass’)
else;
title(sprintf(’Asynchronous load %.15g\\Omega’,s))
end
Figure 4.12: Left: Campbell diagram. Right: Response to unbalanced mass.
Unbalanced mass excites the forward whirl modes. Maximum response is found
at critical speeds (rotation speeds that induce a complex mode of 0 Hz frequency
in the rotating frame). Campbell critical speed (2789 RPM) matches computed
frequency response.
4.5
xxx
Data structure reference
60
CHAPTER 4. VALIDATION
5
Function reference
Contents
fe cyclic
. . . . . . . . . . . . . .
62
fe rotor
. . . . . . . . . . . . . .
65
rotor1d
. . . . . . . . . . . . . .
71
rotor2d
. . . . . . . . . . . . . .
74
. . . . . . . . . . . . .
75
demo cyclic
fe cyclicb Mesh
. . . . . . . . . . . .
79
. . . . . . . . . . . . .
83
obsolete
. . . . . . . . . . . . . .
95
nl spring
. . . . . . . . . . . . . . 103
mkl utils
. . . . . . . . . . . . . . 112
fe cyclicb
Non linearities list
. . . . . . . . . . . 114
Creating a new non linearity: nl fun.m
. . . . 130
nl solve
. . . . . . . . . . . . . . 132
nl mesh
. . . . . . . . . . . . . . 135
spfmex utils
extrotor
. . . . . . . . . . . . . 142
. . . . . . . . . . . . . . 144
fe cyclic
Purpose
Support for cyclic symmetry computations.
model=fe_cyclic(’build NSEC’,model,LeftNodeSelect)
def=fe_cyclic(’eig NDIAM’,model,EigOpt)
Syntax
Description
fe cyclic groups all commands needed to compute responses assuming cyclic
symmetry. For more details on the associated theory you can refer to [8].
Assemble [,-struct]
This command supports the computations linked to the assembly of gyroscopic coupling, gyroscopic stiffness and tangent stiffness in geometrically non-linear elasticity.
The input arguments are the model and the rotation vector (in rad/s)
model=demosdt(’demo sector all’);
[K,model,Case]=fe_case(’assemble -matdes 2 1 NoT -cell’,model);
SE=fe_cyclic(’assemble -struct’,model,[0 0 1000]); %
def=fe_eig({K{1:2},Case.T,model.DOF},[6 20 0]);% Non rotating modes
def2=fe_eig({K{1},SE.K{4},Case.T,model.DOF},[6 20 0]); % Rotating mode shapes
[def.data def2.data]
Note that the rotation speed can also be specified using a stack entry model=stack set(model
’info’, ’Omega’,[0 0 1000]).
Build ...
model=fe cyclic(’build nsec epsl len’,model,’LeftNodeSelect’) adds a cyclic
symmetry entry in the model case. It automatically rotates the nodes selected with
LeftNodeSelect by 2π/nsec and finds the corresponding nodes on the other sector
face. The default for LeftNodeSelect is ’GroupAll’ which selects all nodes.
The alternate command model=fe cyclic(’build nsec epsl len -intersect’,model,’L
is much faster but does not implement strict node tolerancing and may thus need
an adjustement of epsl to higher values.
Command options are
62
fe cyclic63
• nsec is the optional number of sectors. An automatic determination of the
number of angular sectors is implemented from the angle between the left and
right interface nodes with the minimum radius. This guess may fail in some
situtations so that the argument may be necessary.
• nsec=-1 is used for periodic structures and you should then provide the translation step. For periodic solutions, model=fe cyclic(’build -1 tx ty tz
epsl len -intersect’,model,’LeftNodeSelect’) specifies 3 components
for the spatial periodicity.
• Fix will adjust node positions to make the left and right nodes sets match
exactly.
• epsllen gives the tolerance for edge node matching.
• -equal can be used to build a simple periodicity condition for use outside of
fe cyclic. This option is not relevant for cyclic symmetry.
• -ByMat is used to allow matching by MatId which allows for proper matching
of coincident nodes.
model=demosdt(’demo sector 5’);
cf.model=fe_cyclic(’build epsl 1e-6’,model);
LoadCentrifugal
The command is used to build centrifugal loads based on an info,Omega stack entry
in the form
data=struct(’data’,[0 0 1000],’unit’,’RPM’);
model=stack_set(model,’info’,’Omega’,data);
model=fe_cyclic(’LoadCentrifugal’,model);
Eig
def=fe cyclic(’eig ndiam’,model,EigOpt) computes ndiam diameter modes using the cyclic symmetry assumption. For ndiam¿0 these modes are complex to
account for the inter-sector phase shifts. EigOpt are standard options passed to
fe eig.
This example computes the two diameter modes of a three bladed disk also used
in the d cms2 demo.
64fe
cyclic
model=demosdt(’demo sector’);
model=fe_cyclic(’build 3’,model,’groupall’);
fe_case(model,’info’)
def=fe_cyclic(’eig 2’,model,[6 20 0 11]);
fe_cyclic(’display 3’,model,def)
The basic functionality of this command is significantly extended in fe cyclicb
ShaftEig that is part of the SDT/Rotor toolbox.
See also
Section ??
fe rotor
Purpose
The fe rotor function implements classical solutions for rotor dynamics applications.
AddMass
mdl=fe rotor(’AddMass’,mdl,RO);
This command can be used to add a local mass on a 3d rotor mesh. The mass is
added, and linked to existing node using a MPC connection.
RO is a data structure with fields
• .mxyz matrix whose first 3 columns define x y and z coordinates of added
mass, and the 4th defines the mass.
• .ProId the ProId of the rotor where mass is added.
Command options are
• -DofLoad defines a 6 direction load on added masses (usefull for reduction
purpose).
• -mpcmaster modifies MPC connection so that mass DOF are master ratherthan
slave.
Campbell
fe rotor(’Campbell’,model,RunOpt) computes the Campbell diagram and displays it with fe rotor(’plotcampbell’,out,RunOpt) if no output argument is
requested.
RunOpt can be a vector of rotation speeds (RPM) or a data structure with at least
field .Omega containing rotation speeds and other fields giving other variables used
in zCoef (for example .par field).
Accepted command options are
65
66fe
rotor
• -cf i can be used to force display of the diagram in a specific figure.
• -nodir avoids the call to determine the rotation direction.
• -full forces the use of full matrices. Without the argument, full matrix
eigenvalue calls are only performed with less than 100 DOFs.
• -crit overlays the critical speed computation.
• -stability displays stability diagram (damping/Omega).
Examples can be found in section 3.4.1.
Critical
Computation of critical speeds. It can be called when computed Campbell using
command option -crit (see Campbell).
Critical speed are computed assuming deformation is a complex mode at the same
frequency as the rotation speed (w = Ω) in the global fixed frame or equal to 0
(w = 0) in the local rotating frame.
In the global fixed frame:
¨ + (C + ΩD(Ω = 1)){X}
˙ + (K + Ω2 Kc(Ω = 1)) {X} = 0
M {X}
With X = X0 exp(ıΩt)
(Ω2 (−M + ıD(Ω = 1)) + ıΩC + K) {X0 } = 0
In the local rotating frame:
¨ + (C + ΩD(Ω = 1)){X}
˙ + (K + Ω2 Kc(Ω = 1)) {X} = 0
M {X}
With X = X0 constant
(K + Ω2 Kc(Ω = 1)) {X0 } = 0
Examples can be found in section 3.4 xxx.
Whirldir
Internal command to display the direction of the modes on the Campbell diagrams.
xxx details
Assemble
model=fe rotor(’Assemble’,model,zCoef,r1); This command is used to assemble mass stiffness and damping matrices taking in account all the rotor matrices
(gyroscopic coupling, centrifugal softening, etc. ...).
Default zCoef can be obtain using model=fe def(’zCoef-default’,model);. r1
fe rotor67
is a data structure whose fields are parameters used in zCoef. In particular one
should specify the rotation speed r1.Omega (rad/s). Command option -cell can
be used to return only matrices in a cell array.
RotatingLoad
This command builds a rotating DofLoad on a model node for frequency analysis.
model=fe rotor(’RotatingLoad NodeId f0 theta0 wexponent’,model);
NodeId is the id of the node where load will be applied, f0 is the amplitude of the
load, theta0 is the angle formed by the load initial direction and the first global
direction in the plane orthogonal to rotation axis (x for y and z rotation and y for
x rotation). The amplitude of the load can depend on a power of pulsation defined
with wexponent.
Resulting complex load is of the form
f 0wwexponent
(
1
±ı
)
in the plane orthogonal to the rotation axis (sign of +/ − ı depends on rotation
axis).
Forced response to this load can be computed using ForcedResponse.
ForcedResponse
This command can be used to compute forced response to a frequency load (for
example a rotating load built using RotatingLoad).
R1=fe rotor(’ForcedResponse’,model);
Complex load must be prior defined as a ’In’ entry in the case of the model.
Observation can be defined as ’output’ SensDof entry. If not, only dof corresponding to the ’In’ load will be returned.
Range of computation must be defined in the ’info’ ’Range’ Stack entry of the
model as a structure of data (with fields .Omega defining rotation speeds and .w
defining pulsations of the load at corresponding rotation speeds. These fields must
be of the same length. If necessary one can add other fields for variables used in a
defined zCoef). If .w is equal to zero, frequency dependence of load is assumed to
concern the .Omega vector (it is usefull to described unbalanced mass in the local
rotating frame since load amplitude depends on Ω2 but load is static in this frame
so that w = 0).
68fe
rotor
Following example defines an unbalanced load on the simple 1d ShaftDisk model
defined in d rotor and computes the forced response (local frame):
model=d_rotor(’TestShaftDiskMdl’) % build simple model
model=fe_caseg(’assemble -se -matdes 2 1 70’,model); % assemble model
mb=1e-4; db=0.15; % mass, distance to axis
om=linspace(0,6000,201); % RPM
model=fe_rotor(sprintf(’RotatingLoad 2 %.15g -90 2’,mb*db),model); % unbalanced
r1=struct(’Omega’,om/60*2*pi,’w’,om/60*2*pi); % Range
model=stack_set(model,’info’,’Range’,r1);
R1=fe_rotor(’forcedresponse’,model); % compute forced response
iiplot(R1) % plot response
In global rotating frame, load is static (w = 0). Following example deals with a
rigid disk in global rotating frame:
R1=.01;R2=.15;h=0.03;
md=d_rotor(sprintf(’TestVolDisk -dim%.15g %.15g %.15g 2 16’,R1,R2,h));
md.DOF=[]; md=fe_caseg(’assemble -se -matdes 2 1 7 8’,md);
% disk assumed to be rigid :
rb=feutil(’geomrb’,md); cf=feplot(md); cf.def=rb;
md.K=feutil(’tkt’,rb.def(:,[1 3 4 6]),md.K);
md.DOF=[1.01 1.03 1.04 1.06]’;
md.K{2}=0*md.K{2}; % rigid disk
md.K{2}(1,1)=5e5;md.K{2}(2,2)=5e5; % bearing
md.K{2}(3,3)=1e5;md.K{2}(4,4)=1e5; % bearing rot
% Unbalanced mass or asynchrone load :
mb=1e-4; db=0.15; % mass, distance to axis
s=0;
om=sort([2789 2750:10:2820 11760:10:11840 linspace(0,20000,101)]); % RPM
md=fe_rotor(sprintf(’RotatingLoad 1 %.15g 0 2’,mb*db),md);
r1=struct(’Omega’,om/60*2*pi,’w’,s*om/60*2*pi); % Range
md=stack_set(md,’info’,’Range’,r1);
R1=fe_rotor(’forcedresponse’,md); % compute forced response
iiplot(R1) % plot response
SEBuild
This command can be used to build a superelement of rotor from a 3d rotor model.
It includes Craig Bampton reduction, bearing rings adding, ...
fe rotor69
SE=fe rotor(’SEBuild’,model,RO);
model is a 3d mesh of rotor.
RO is a data structure with following fields
.xbea vector defining position of bearings according to rotor axis.
.bea data structure of bearing infos. bea.length is the length of the bearings,
bea.Npt the number of points on one bearing, bea.ProId is the ProId of the
journal.
.mxyz is optional. Defines the mass position (reduction is performed so that DOF
are created at these positions).
.EigOpt eig option for mode computation for Craig-Bampton reduction.
One can use following options:
-noreduce no reduction is performed.
-rigid use rigid ring for bearings instead of rbe3 rings.
% Lalanne 3D rotor
model=d_rotor(’TestVolShaftDiskMdl’); % Build model
% remove bearing and boundary conitions:
model.Elt=feutil(’RemoveElt proid1000:1001’,model); % remove linbearings
model=fe_case(model,’Remove’,’Ends’);
% Build SE:
RO=struct(’mxyz’,[0.0894892917244 0.118333333333 0.0516666666667],... Po
’EigOpt’,[5 20 1e3]); % eig option for CraigBampton
RO.xbea=[0;0.4];
RO.bea.length=0.01;
RO.bea.Npt=1;
RO.bea.ProId=1; % proid of the bearing
SE=fe_rotor(’SEBuild-rigid’,model,RO); % Following is now in SEbuild com
TimeOpt
model=fe rotor(’TimeOpt’,model);
Defines a default TimeOpt in the ’info’ ’TimeOpt’ model stack entry for time
integration with rotor models. Following command options are available:
70fe
rotor
• Assemble Defines AssembleCall field in order to take in account gyroscopic
effects in time computation. TimeOpt field .matdes should be filled by user
in order to define what matrices will be assembled. Default is [2 1 7] for
mass stiffness and gyroscopic coupling matrix, see sdtweb(’MatType’) for
available matrices (for example 8 for centrifugal softening...). Before time
integration desired matrices will be assembled taking in account the ’info’
’Omega’ model stack entry that defines rotation vector (norm should be equal
to one so that matrices can be assembled once for different computation with
different rotation speed). Rotation speed is taken as first parameter on the
’info’ ’Range’ model stack entry (in that case rotation vector norm must be
one). If there is no Range entry, rotation is taken equal to the norm of rotation
vector. Corresponding M C K matrices are then built (fe rotor Assemble
call) and will be used for Newmark time integration.
rotor1d
Purpose
for general details about 1d rotors and section 3.1.2 for a full example of 1d rotor
This function gives some commands to help the meshing of 1D rotor. See section 3.1.1
meshing.
1To2D
From a 1d model with beam1 elements (masses are not converted for the moment),
builds a 2d rotor.
LC l defines the max length of elements.
1To3D
From a 1d model with beam1 elements (masses are not converted for the moment),
builds a 3d rotor. one can see section 3.1.3 for a tutorial.
• LC l defines the max length of elements.
• div n defines the number of sector of 3d mesh.
The grounded celas are assumed to be bearings. RBE3 rings are defined at each
bearing.
AddBearing
This command add a rotor bearing as a celas element.
mo1d=rotor1d(’AddBearing ...’,mo1d,pos);
mo1d is a 1d rotor model pos is the x y z position of the bearing.
Command options are
• -keep if not present remove existing celas at given position.
• DOF DOF that defines the DOF concerned by bearing link.
• k k the spring stiffness.
• c c the spring damping.
71
72rotor1d
• ProID ProID the spring ProID.
For example:
mo1d=rotor1d(’AddBearing DOF -123 k 1e4 -keep’,mo1d,pos);
AddBeam
mo1d=rotor1d(’AddBeam ...’,mo1d);
This command adds a beam on the axis of the rotor, accordin to following argument
specified as command option:
• x1 x1 beginning of the beam in the axis direction
• x2 x2 end of the beam in the axis direction
• r1 r1 inner radius of the beam. By default 0.
• r2 r2 outer radius of the beam.
• MatID MatID MatID. If not given new MatID is used.
• ProID ProID ProID. Note that the associated element property contains the
section information according to r1 and r2, so that existing ProID will be lost.
If not given new ProID is used.
• -refine Refine existing beams to ensure that beams have coincident nodes.
For example
mo1d=rotor1d(’AddBeam x1 0.5 x2 0.7 r1 0.11 r2 0.77 MatID 1’,mo1d);
AddNodeRefine
[mo1d,ind]=rotor1d(’AddNodeRefine ...’,mo1d,xyz);
This low level call command adds nodes at given positions xyz (one row per node,
3 columns x y and z, or one column to define distance along the rotor axis) refining
beams of the model mo1d if needed.
Command options are:
• -epsl epsl Tolerance for new node adding.
For example
[mo1d,ind]=rotor1d(’AddNodeRefine’,mo1d,[0.2 0 0]);
rotor1d73
Skyline
mdl=rotor1d(’Skyline...’,xy);
This command can be used to generate rotor model from skyline description. xy
is a 2 column matrix whose 1st column defines position according to rotation axis,
and 2nd column defines radius at corresponding positions. One can define multiple
parts rotor using separator NaN in the 1st column. For 2D rotor meshing, use [NaN
r] to define internal radius r of the corresponding part.
• SkylineToBeam builds 1d beam rotor model. See example in 1D subsection of
section 3.1.1.
• SkylineTo2D a 2D rotor model (that can be used to generate 3D model by
revolution, or using cyclic symetry, see rotor2d BuildFrom2D)), see example
in 2D subsection of section 3.1.1.
Following command options are accepted
• -Lc l specify maximum length l of elements.
rotor2d
Purpose
The rotor2d function lets you build a superelement representation for rotor
applications starting from a 2D model. A tutorial is given in section ??
teig
Needs description.
test
Simpledisk
BuildFrom2D
model=rotor2d(’buildFrom2D’,model2D); builds a 3D sector model by revolution
of a 2D section. In the rotor module, the symmetry axis is always z so that if the
2D mesh is given in xy coordinates a permutation is performed.
• -nsec N number of sectors. By default, one considers 10 sectors, for a different
value use buildFrom2D -nsec N.
• -div N number of divisions in each sector.
The sector is modeled as a superelement called disk1.
% Model Initialization
model2D=rotor2d(’test simpledisk -back’);
cf=feplot(rotor2d(’buildFrom2D’,model2D));
SE=cf.Stack{’disk1’}; % enforce boundary cond. on sector and assemble
SE=fe_case(SE,’FixDof’,’Base’,’z==1.01’);
SE=stack_set(SE,’info’,’Omega’,[0 0 0;0 0 1000]); % define speed range
SE=fe_cyclic(’assemble -se’,SE);
cf.Stack{’disk1’}=SE; fecom(’view1’);
cf.Stack{’info’,’EigOpt’}=[5 20 0]; % define eigenvalue options
RunOpt=struct(’targ’,1, ...
% define target diameter
’Range’,linspace(0,1,30));
% define speed points relative to range
[cf.def,hist]=rotor2d(’teig’,cf,RunOpt);
figure(1);rotor2d(’plot’,hist);set(gca,’ylim’,[0 250])
74
demo cyclic
Purpose
Syntax
Combines examples of the use of fe cyclicb commands.
demo_cyclic(’testdisk nsec’)
demo_cyclic(’testrotor nsec1 nsec2 ...’)
Disk
Moved to section 3.5.2.
ShaftMono
Moved to section 3.5.3.
Variable speed
One considers stiffness matrices that are dependent on the rotation speep. Assuming
that a second order polynomial representation is sufficient, one can build a vector
of weigthing coefficients



 α1 


−1 

 1 


1
1
1


α2
=  Ω1 Ω2 Ω3 




Ω21 Ω22 Ω23
α3
α
2

 α 

3
(5.1)
Such that the stiffness at rotation speed Ω is approximated by
[K(Ω)] =
X
[KΩi ]
αi
The zCoef uses velocity Omega in rad/s.
This example now treats computation at variable rotation speeds
% Model Initialization
model=demo_cyclic(’testblade’);cf=feplot(model);
% Compute matrix coefficients for a multi-stage rotor
range=struct(’data’,[0 0 1;0 0 800;0 0 1600],’unit’,’RPM’);
% Assembling in the feplot figure, allows memory offload
fe_cyclicb(’polyassemble -noT’,cf,range);
75
(5.2)
76demo
cyclic
X=struct(’data’,linspace(0,1600,10),’unit’,’RPM’);
fe_rotor(’Campbell -cf1’,model,X)
Another example will be needed to treat the multi-stage case
% Model Initialization
model=demo_cyclic(’testrotor 7 10 -blade’);
model=fe_cyclicb(’shaftRimAsSe’,model);
cf=feplot(model);
% Compute matrix coefficients for a multi-stage rotor
range=struct(’data’,[0 0 1;0 0 800;0 0 1600],’unit’,’RPM’);
% Assembling in the feplot figure, allows memory offload
fe_cyclicb(’polyassemble -noT’,cf,range);
% Now run a mono-harmonic multi-speed computation
cf.Stack{’info’,’Omega’}=struct(’data’,range.data(1,:),’unit’,’RPM’);
def=fe_cyclicb(’shafteig 0 -ReAssemble 2 -NoN’,cf);
Sel={’disk1’,’groupall’;’disk2’,’groupall’};
fe_cyclicb(’DisplaySel’,cf,def,Sel)
% Reduce the full model
fe_cyclicb(’ShaftPrep -svdtruncate -mseq1 -handle -norestit’,cf,def);
fesuper(’fassemble’,cf);
% Force single harmonic
% xxx
Rewrite needed here.
ShaftMulti
The second example is a non-monoharmonic shaft computation.
The following example builds a reduced order model from a set of mono-harmonic
modeshapes whose Fourier harmonics are 0, 1 and 2 and sector modes with fixed
interfaces. The latter are computed within the framework of mono-harmonic computations, they are called with -1 in shaftTeig. No confusion is possible since the
demo cyclic77
true mono-harmonic solutions with δ = −1 are solutions with δ = 1. However, the
restitution of fixed interface solutions with Display[Sel] has no sense.
Call shaftprep aims to build the reduced kinematic subspaces of the sector
super-elements from the specified target solutions. Prior to that, it separates the
sector mesh into two: the slice with the left-interface nodes (the inter-sector superelement) and the remaining elements (the sector super-element). It projects the
matrices of the sector super-elements onto their individual subspaces and the matrices of the inter-sector slices onto the subspaces of its two neighbouring sector
super-elements.
Command fassemble in fesuper first projects the finite elements matrices of
the inter-disk volumic interface onto the subspaces of its neighbouring disks. It then
assembles the reduced matrices of the sector super-elements and inter-sector slices to
form the reduced matrices of the disks. Finally, it assembles these reduced matrices
and that of the volumic interfaces to form the reduced matrices of the whole rotor.
Here too, a selection can be specified so that the generalized modeshapes can
be recovered to a subset of physical DOF (relying on the true mesh or a viewing
mesh). The selections are defined like in DisplaySel, however both the sector and
inter-sector super-elements have to be considered so that the recovery concerns the
whole underlying bladed sector.
The Fourier harmonic contents of the generalized modeshapes can be obtained
without recovery with the help from command fourier of fe cyclicb. When specified, -egyfrac returns the fraction of strain energy per harmonic per disk so that
energy localization within a disk can be achieved with the supplementary information of which harmonics are involved in the response. The graph displays the disks
(from top to bottom) and for each disk the possible harmonics between 0 and N/2 (if
applicable). Another way to display the same information is to group the harmonics
first and then the disks. This is done with the -sortbyd option. It adds the proper
amount of zeros for harmonics that are not present on a given disk.
mono.mat to name a model that contains the mono-harmonic description.
% Model Initialization
cf=demo_cyclic(’testrotor 7 10 -blade -cf 2’);
% Mono-harmonic Solutions
model=stack_set(cf.mdl,’info’,’EigOpt’,[5 10 -1e3 11 1e-8]);
[def,sectors]=fe_cyclicb(’shaftteig -1 0 1 2’,model); %-batch
Curve=fe_cyclicb(’fourier 1:50 -mono -egyfrac’,cf,...
fe_def(’subdef’,def,def.data(:,2)~=-1));
78demo
cyclic
% xxxNeed : display curve fe_cyclicb(’fourier -mono -egyfrac -cf 3’,Curve);
r1=sortrows(def.data);
if any(r1(1:6,1)>r1(7,1)/1e5);error(’Missing rigid modes’);end
% Model Reduction
fe_cyclicb(’ShaftPrep -svdtruncate -mseq1 -handle -norestit’,cf,def);
fesuper(’fassemble’,cf);
% Mode Computations
defr=fe_eig(cf.Stack{’MVR’},[5 50 1e3 11 1e-8]);
Sel={’disk2’,’innode {r>150}’;
’disk2l’,’innode {r>150}’;
’disk1’,’groupall’;
’disk1l’,’groupall’;
’’,’withnode {x>0}’};
fesuper(’sebuildsel -initrot’,cf,Sel);
cf.def=feutilb(’placeindof’,cf.sel.cna{1}.adof,defr);
fecom(’colordataevala’);
% Post-processing: spatial spectra
cf.sel=’reset’;cf.def=[];
fe_cyclicb(’fourier 7:25 -red -egyfrac -cf 4’,cf,defr);
fe_cyclicb(’fourier 7:25 -red -egyfrac -sortbyd -cf 5’,cf,defr);
% focus on mode 7
fe_cyclicb(’fourier 7 -red -egyfrac -cf 6’,cf,defr);
Now one wants to treat the case of a forced response for loads defined on the disks
only. The command ShaftLoadMulti allows to build one mono-harmonic excitation
per disk. For each disk i, the shape def i and harmonic coefficient delta i are
specified in a cell array whose a typical line is {’diski’,def i,delta i}.
Call fourier provides a means to checkout the spatial harmonic content of the
generalized load with respect to the set of generalized coordinates (option -red has
to be specified). Energy-based computations are not available for generalized loads.
fe cyclicb Mesh
Purpose
MeshAddRim
MeshAddRim deals with already existing inter-disk volumic rings. It renumbers their
model to be integrated with the already defined disk super-elements. Note that
adjusting the geometric tolerance with option epsl val can be important.
cf=demo_cyclic(’buildstep0’);% See sdtweb(’demo_cyclic.m#Step0’)
% Extract rim model into mo1 (would come from other reading)
[cf.mdl.Elt,mo1.Elt]=feutil(’RemoveElt EltName~=SE’,cf.mdl);
mo1.Node=cf.mdl.Node;mo1.Node=feutil(’GetnodeGroupAll’,mo1);
cf.mdl.Node=[];
% Combine mo1 (rim) and cf.mdl (disks)
fe_cyclicb(’MeshAddRim epsl 1e-3’,cf,mo1);
cf.sel=’EltName~=SE’;fecom(’showpatch’);
Other commands documented in the tutorial are
• MeshRim described below and illustrated in section 3.1.6, is an automated
procedure to mesh rims form a selection of nodes on two disks.
• MeshRimLine2Patch, described in section 3.1.6 is used to build view meshes
of large models.
MeshRim
This command is used to mesh rims as volumes or penalty springs.
• -kp val is used to specify the penalty stiffness.
• epsl val specifies length tolerance for node matching.
• -masterdisk val specifies the disk(s) on whose surface the slave nodes will
be matched.
• -masterdisk val specifies the slave disk(s) whose edge nodes will be connected to the master disk surface.
79
80fe
cyclicb Mesh
MeshSecAddNode
MeshSecAddNode [epsl espl] is used to place sensors relatively to a disk/rotor
model. It uses a cell array to define sensors (see sdtweb(’sensor#scell’)). It first
matches each sensor to a surface in a sector of a disk with an optional tolerance
epsl that allows to tune the research. It then adds these surface elements to the
selection. The latter serves as the input of the subsequent SensMatch call that
1. automatically deals with the specified direction of measure (column ’DirSpec’)
by detecting the normals, computing vectors from the latter, etc.,
2. builds the observation matrix at each sensor (cta entries) that relates the DOF
of the matched surface to the observation at this sensor along the measurement
direction.
% Load 360 reduced shaft model, sdtweb(’demo_cyclic.m#Step2’)
cf=demo_cyclic(’buildstep2’);
sensors=cf.Stack(’Test’).tdof;
disp(sensors); % display sensor properties
% match sensors
[sens,sel]=fe_cyclicb(’MeshSecAddNode epsl 20’,cf,sensors);
cf.mdl=fe_case(cf.mdl,’SensDof’,’Test’,sens);
% display sensors
fecom(’showpatch’);
fecom(cf,’curtab Cases’,’Test’);
The model to which the sensors are matched is made of super-elements already
reduced, call to MeshSecAddNode with the supplementary input of a generalized
quantity (with a list of generalized coordinates stored in .DOF) automatically builds
the observation matrix that expands the generalized modeshapes to the sensors along
the measurement direction.
A first application of this is to animate generalized modeshapes on the experimental wire frame as proposed in the example below.
cf=demo_cyclic(’buildstep4’);
def=cf.Stack(’def_mvr’);
fe cyclicb Mesh81
% match sensors
sensors=stack_get(cf.mdl,’info’,’Test’,’GetData’);
[r1,sel,sens]=fe_cyclicb(’MeshSecAddNode epsl 20’,cf,sensors.tdof,def);
% add wireframe
r1.Elt=[r1.Elt zeros(size(r1.Elt,1),1);cf.Stack(’WireFrame’)];
r1.Elt=feutil(’setgroupall egid -1’,r1);
cf.mdl=fe_case(cf.mdl,’SensDof’,’Test’,r1);
% animate generalized modes at sensors
cf.sel(1)=’groupall’;
cf.sel(2)=’-Test’;
cf.def=struct(’def’,sens.cta*def.def,...
’DOF’,cf.CStack(’Test’).tdof(:,1),...
’data’,def.data);
cf.o(1)={’sel 2 def 1 ch 1 ty8 scc10’,’edgecolor’,’r’,’linewidth’,2};
A second application is to display and animate generalized response or transfer
functions.
cf=demo_cyclic(’buildstep6’);
xF=cf.Stack(’xF_mvr’);
% match sensors
sensors=stack_get(cf.mdl,’info’,’Test’,’GetData’);
[r1,sel,sens]=fe_cyclicb(’MeshSecAddNode epsl 20’,cf,sensors.tdof,xF);
% add wireframe
r1.Elt=[r1.Elt zeros(size(r1.Elt,1),1);cf.Stack(’WireFrame’)];
r1.Elt=feutil(’setgroupall egid -1’,r1);
cf.mdl=fe_case(cf.mdl,’SensDof’,’Test’,r1);
% display responses
xF=cf.Stack(’xF_mvr’);
ci=iiplot(3);iicom(ci,’curvereset’);
XF=iicom(ci,’curveXF’);
XF(’Test’).w=xF.data’;
XF(’Test’).xf=(sens.cta*xF.def)’;
XF(’Test’).lab=sens.lab;
iicom(’SubMagPha’);
iicom(ci,’IIxOnly’,{’Test’});
% animate response at sensors
82fe
cyclicb Mesh
cf.sel(1)=’groupall’;
cf.sel(2)=’-Test’;
cf.def=struct(’def’,sens.cta*xF.def,...
’DOF’,cf.CStack(’Test’).tdof(:,1),...
’data’,xF.data);
cf.o(1)={’sel 2 def 1 ch 1 ty8 scc10’,’edgecolor’,’r’,’linewidth’,2};
MeshSensMatch
supports topology correlation for a SensDof entry defined on a multi-stage shaft
model.
MeshSurfSet
generates standard surface sets for a sector.
MeshCylSurf
model=fe cyclicb(’MeshCylSurf epsl val’,model,NodeList) makes a surface
perfectly cylindrical. The node list of nodes to be used on the left edge may be
omitted (it will be found automatically).
MeshFixTheta
provides handling utilities for slanted sectors, see section 3.1.5.
MeshFixRadial
Generates MPC constraints for using DOFs given in radial coordinates: .01 is radial,
.02 tangential, .03 axial.
The following example illustrates a case where tangential motion of nodes 5 and
6 is set.
cf=demo_cyclic(sprintf(’testrotor %i -cf 5’,5));
cf.Stack{’disk1’}=fe_cyclicb(’MeshFixRadial’, ...
cf.Stack{’disk1’},’radial’,[5.02;6.02]);
def=fe_cyclicb(’shaftteig 0 1’, ...
stack_set(cf.mdl.GetData,’info’,’EigOpt’,[5 3 0]))
fe_cyclicb(’Display’,cf,def);
fecom(’ColorDataEvalTanZ -ColorBarTitle"TanZ"’);
fe cyclicb
Purpose
Support for advanced cyclic symmetry computations.
Description
fe cyclicb groups advanced commands used to build and manipulate reduced
order models of single symmetric structures and their assemblies. For more details
on the associated theory you can refer to [8].
Rotor Construction
DiskFromSector
This command builds a disk/rotor model from (a) physical sector model(s). Shafts
can be generated by combining multiple calls to disk from sector. Once, disks are
combine, their connection trough rim models is described in section 3.1.6.
Command DiskFromSector also handles the construction of the cyclic sector
models. Cyclic symmetry information can be already given in the sector model
(calls to fe cyclic(’build’) done beforehand) or done in the command. In the
later case, an optional epsl tol can be declared so that it is propagated to the
subsequent call to fe cyclic(’build epsl tol’,...), where tol is the desired
tolerance for left-right interface node matching.
The example below demonstrates the capability of the function for two disks
with 7 and 10 blades respectively.
cf=demo_cyclic(’buildstep0’);
sector1=cf.Stack{’disk1’};
sector2=cf.Stack{’disk2’};
% build disk1 from sector1
model=fe_cyclicb(’DiskFromSector epsl 1e-6’,[],sector1);
% build disk2 from sector2 and append to disk1
model=fe_cyclicb(’DiskFromSector epsl 1e-6’,model,sector2);
fe_cyclicb(’DisplayFirst’,model) % Avoids full display for large models
In cases when cf already contains one sector per disk, the shaft model can be created in a single operation with the command fe cyclicb(’diskfromsector’,[],cf,{’s
where sel diski selects the sector model of disk i. The example below illustrate
this by putting the two sector models into a single one prior to the rotor assembly.
cf=demo_cyclic(’buildstep0’); % See sdtweb demo_cyclic(’Step0’)
83
84fe
cyclicb
sectors=cf.Stack{’disk1’}; % Build a model with two sectors
sectors=feutil(’addtest’,sectors,cf.Stack{’disk2’});
sectors.Stack={};
cf.model=sectors;
% build rotor from sectors and auto display
fe_cyclicb(’DiskFromSector epsl 1e-3’,cf,{’group1:2’,’group3:4’});
During the build process, sectors are automatically renumbered so that node
numbers are left interface, interior, right interface (in order matching that of the
left interface). The renumbering can be forced with the -renumber option. This
allows to have nodal overlap between the superelements of two adjacent sectors. The
command then adds a mpc,diski end multiple point constraint to account for the
fact that the disk is closed circumferentially.
Mesh
Meshing utilities See fe cyclicb Mesh.
ConnectionRing
ConnectionRing builds a ”ring connection” where the structure is fixed axially and
radially on a set of nodes and first point only in tangential direction
Display
Display commands group tools to build mesh views specific to disk assemblies.
• [def,ENER]=fe cyclicb(’Displaysel’,cf,def,Sel,’enerkdens’) is used
to recover mono-harmonic solutions on a partial selection For details on monoharmonic solutions see section 3.5. Examples can be found in section 3.5.2,
section 3.5.3, ...
Sel is a cell array specifying how each stage is displayed. In the example from
section 3.5.1, one uses
Sel={’’,’EltName SE’;
% Keep only SE for display (no interstage rim)
’disk1(1:2)’,’groupall’; % all elements from sectors 1:2
’disk2(1:3)’,’groupall’};% all elements from sectors 1:3
See sdtweb fesuper#SeBuildSel for details on partial superelement display
and more examples on the way to define Sel). The last command can be any
valid fe stress command. Without output argument the result is displayed.
fe cyclicb85
[cf,def]=demo_cyclic(’buildstep1’);
def=fe_def(’subdef’,def,def.data(:,2)>=0); % remove fixed edge solu
fe_cyclicb(’Display’,cf,def);fecom(’ColorDataEvalA’);
fe_cyclicb(’DisplaySel’,cf,def,cf.Stack(’ViewMesh’));
fecom(’ColorDataEvalA’);
During the command one defines SE.cGL0 corresponding to a rotation by
one sector. And the SE.Alpha for the harmonic shift. fesuper(’sedefinit
-rot’,cf); is then used to define a restitution by disk. The SeRestit then
contains the def so that SeDefinit is performed for every restitution.
• fe cyclicb(’Display’,cf,def) defines a full disk selection within feplot.
def=fe cyclicb(’Display’,cf,def) is used to recover full motion from monoharmonic solutions. For large models, restitution on the full shaft model may
be very costly (remember that one vector for 1e6 DOF requires 7.6 MB) and
DisplaySel is typically preferred.
• fe cyclicb(’DisplayAllEdges’,cf[,sel]) displays 2D cuts of the disks
specified in the cell array sel, with a typical entry {’diski’} to display only
disk i (default displays all disks). This cut is basically the projection of the
right interface (or equivalently the left interface when meshes are compatible)
to the plane θ = 0. Such a view is particularly well suited to the definition
of the inter-stage rim nodes in MeshAddRim as well as to the construction of
viewing meshes in MeshRimLine2Patch. Note finally that this view keeps the
elements in their original groups.
cf=demo_cyclic(’buildstep0’);
fe_cyclicb(’DisplayAllEdges’,cf);
fecom(’colordatag’);
• fe cyclicb(’DisplayFirst’,cf[,sel]) provides a simple command to display the first sector of each stage (cf can be replaced by a model resulting from
fe cyclicb DiskFromSector). A selection can also be specified to restrict the
view to a subset of stages.
cf=demo_cyclic(’buildstep0’);
fe_cyclicb(’DisplayFirst’,cf,{’disk2’});
• fe cyclicb(’DisplaySkin’,cf[,sel]) displays the outer enveloppe of the
selected disks in sel with the inter-sector common surfaces removed.
86fe
cyclicb
cf=demo_cyclic(’buildstep0’);
fe_cyclicb(’DisplaySkin’,cf,{’disk1’});
fecom(’showpatch’);set(cf.o(1),’FaceAlpha’,.33);
• fe cyclicb(’DisplayInterDisk’,cf,nodes) displays the two ring surfaces
used to define the inter-stage volumic interface.
cf=demo_cyclic(’buildstep0’);
% rim nodes
n1=feutil(’getnode NodeId’,cf.mdl,[12 18 24 1127 1133 1139]’);
fe_cyclicb(’DisplayInterDisk’,cf,n1);
• fe cyclicb(’DisplaySymmetrySurface’,cf) displays the nodes in a cyclic
symmetric condition as colored surfaces.
Mono-harmonic solutions
These commands apply to sector models used to compute mono-harmonic eigensolutions.
ShaftTEig,ShaftEig,ShaftSolve
These commands compute mono-harmonic solutions with specified Fourier harmonics (classical cyclic solution for single stage models). For a tutorial on generating
the proper models, see section 3.1.6. For the associated theory, please refer to [9].
The calling format is def=fe cyclicb(’shaft Teig delta list’,model);. ShatTeig
accepts multiple diameters in the delta list and packages individual calls that to
ShatTeig. For a disk example section 3.5.2.
The main variants in the call are as follows
• Diameter -1 is used to ask for the computation of fixed edge modes.
• The eigenvalue options ’info’,’EigOpt’ should be set in the model stack.
• -ReAssemble forces reassembly rather than reuse of disk matrices that may
have been precomputed and saved in the sector superelements.
• -thermal takes thermal loading into account. Thermal state should be stored
as a case entry called DofSet,ThermalState. See example in section 3.5.1.
fe cyclicb87
• for computations at prestressed state curve,StaticState should be defined.
• -all xxx
• -FixTan is used to enforce no tangential motion of one interface node. This is
used for static analysis of freely rotating rotors (example in section 3.5.1).
• -NoN stores the imaginary component of the eigenvector using a DOF shift
by 50 (thus .51 is the imaginary x translation). This is necessary if further
computations require complex fields (by considering different components there
is no difficulty storing the spatial Fourier transform of a complex field).
• model.Dbfile when the field is defined to a proper file name, intermediate
matrices above the preference getpref(’SDT’,’OutOfCoreBufferSize’,100)
(in MB) are stored in the database file which uses the standard HDF5 based
.mat format (MATLAB ¿= 7.3).
• -nlstep tol is used to compute the large non-linear large transformation
problem with a tolerance δq/q < tol. See an example in section 3.5.1.
• For static computations, the centrifugal load is rebuilt at each step using
model=fe cyclic(’loadcentrifugal’,model); for the rim and sectors.
• -batch option is used to compute eigenvectors with multiple diameter in a
single run. For large models, this can take many hours so that intermediate
file saves are used to allow restarts.
One then typically expects to have set a cf.mdl.Dbfile=’file DB.mat’ to
allow memory off-loading during the computation.
cf=demo_cyclic(’testrotor 7 -blade -cf 2’);
root=fullfile(sdtdef(’tempdir’),’Disk_7_Batch’)
%setpref(’SdtRuntime’,’ExecLocal’,1) % May be needed
% cf.mdl.Dbfile=[root ’_DB.mat’]; % out of core matrices
fe_cyclicb(’shaft Teig 0 1 5 -batch’,[root ’.mat’]);
% multiple Disk_7_batch_diam.mat files are generated
% Now reload pointers to selected solutions
RO=struct(’Fmax’,8000,’diams’,[0 1 5]);
d1=fe_cyclicb(’DefList’,root,RO);
88fe
cyclicb
ShaftSeAssemble
fe cyclicb(’ShaftSeAssemble -force’,cf.mdl,fname) is used to assemble superelement matrices of each of the disk* superelements. If a curve,StaticState is
defined in the model stack, fe cyclic assemble is used, otherwise SE=fe mknl(SE,’NoT’)
is called.
If the -force option is omitted an attempt to reload the variable Stack SE diski
from the file is first made and assembly is only performed if that variable does not
contain the matrices.
If a mdl.Dbfile field is defined, the argument fname may be omitted.
-reset xxx.
Deflist,Def ...
Cyclic symmetry results can be stored in three main forms
• the basic form, valid for real vectors only, stores real and imaginary components
for the spatial fourier transform as real and imaginary components at a single
DOF
• the long vector form uses additionnal DOFs shifted by 50. Starting from the
basic form one would have d1.DOF=[d1.DOF;d1.DOF+.5]; d1.def=[real(d1.def);imag(
The test for usage of this format is that the last dof is above .05 rem(d2.DOF(end),1)>.5.
• the double vector form uses the nominal DOFs of the first sector but store the
real and imaginary parts as consecutive vectors.
d1.def=[real(d1.def(:,1));imag(d1.def(:,1)]; d1.data=[d1.data(1,:);NaN
NaN]
DefDouble, DefLong, DefBasic commands allow transformations between formats while handling out-of-core files properly.
When reading results, def=fe cyclicb(’DefList’,’root’); reads all root*.mat
files and combines the vectors into a single deformation set in the double vector format. Selection of diameters and frequency range during the read process is peformed
using
RO=struct(’Fmax’,8000,’diams’,[0 1 5 18]);
d1=fe_cyclicb(’DefList’,’root’,RO);
fe cyclicb89
Specific cases require to sort the output vectors according to the list of diameters
specified in the .diams field, especially when one wants to put fixed interfaces solutions first for reduction purposes. The command to use becomes DefListSortDiam.
Full rotor SE model
ShaftPrep
fe cyclicb(’ShaftPrep’,cf,def); generates reduced sector super-elements.
Each bladed sector is divided into two regions. A first super-element is attached
to the elements with the left interface nodes, it is called the inter-sector superelement. A second one is attached to the remaining elements to form the sector
super-element.
A reduced kinematic subspace of the sector super-element (with the definition
above) is built from def, disk by disk.
Vectors are first sorted with respect to their contribution to the considered disk
if the -svdtruncate option is used.
Then, they are sorted according to their contribution to subsets of physical DOF
of the initial sector. If one specifies -mseq 0 (default call), these subsets are
1. DOFs within either the inter-sector interface (right interface) or the inter-stage
interface(s),
2. remaining DOFs (left interface and interior DOF).
If -mseq 1 is enforced, these subsets are
1. DOFs common to the inter-stage and inter-sector interface(s),
2. DOFs within the inter-sector interface (right interface),
3. DOFs within the inter-stage interfaces,
4. remaining DOFs (left interface and interior DOFs).
Both these sortings make the subsets of vectors linearly independent from each
other. They require that fixed edge solutions are stored at the beginning in def.
The following step is to make the vectors linearly independent within each set.
Vectors in sets (1.), (2.) and (4.), when applicable, are processed with an Iterative
90fe
cyclicb
Maximum Sequence Algorithm ([10]). Vectors in set (3.), when applicable, are
processed with a Singular Value Decomposition.
See Ref. [5] for details.
-handle option controls whether the resulting bases are stored in memory or on
the disk.
-norestit suppresses the explicit construction of the Restit variable, normally
stored in cf.mdl.Stack.
Once the sector superelements have been generated, the disk model is assembled
using the subsequent fesuper(’fassemble’,cf) call which generates the reduced
disk model in cf.Stack{’SE’,’MVR’}.
A compact example is provided below. A fully developed example can be found
in demo cyclic ShaftMulti.
[cf,def]=demo_cyclic(’buildstep1’);
fe_cyclicb(’ShaftPrep -svdtruncate -mseq1 -norestit’,cf,def);
fesuper(’fassemble’,cf);
ShaftLoad,ShaftSELoad
fe cyclicb(’ShaftLoadMulti’,cf,data); generates a reduced mono-harmonic load
for each disk specified in data. It is a cell array whose a typical line is {’diski’,def i,delta i}
where for each disk i, the shape def i and harmonic coefficient delta i are specified.
fe cyclicb(’ShaftSELoad’,cf,def); generates a reduced load from its physical counterpart. In practice, it is used for very specific loading cases, e.g. single
DOF load or random load.
Developed examples are presented in demo cyclic ShaftMulti.
% define model
cf=demo_cyclic(’buildstep4’);
% build the excitation on first all sectors, with specified
% diameters 3 on disk1 and 4 on disk 2
data={’disk1’,cf.Stack{’disk1’}.Stack{’Enforce_mode_7’},3;
’disk2’,cf.Stack{’disk2’}.Stack{’Enforce_mode_7’},4
’disk1l’,struct(’def’,1,’DOF’,cf.Stack{’disk1l’}.Elt(2,1)+.01),3;
’disk2l’,struct(’def’,1,’DOF’,cf.Stack{’disk2l’}.Elt(2,1)+.01),4};
def34=fe_cyclicb(’ShaftLoadMulti’,cf,data);
def34.def=sum(def34.def,2); % one column in def34.def per row in data
fe cyclicb91
def34.data=[0 0];
fe_cyclicb(’fourier 1 -red -cf 1’,cf,def34); % checkout shape
% now keep the same shapes but force delta=0 on both disks
data(:,3)={0};
def00=fe_cyclicb(’ShaftLoadMulti’,cf,data);
def00.def=sum(def00.def,2); % one column in def00.def per row in data
def00.data=[0 0];
fe_cyclicb(’fourier 1 -red -cf 1’,cf,def00); % checkout shape
% now try a random load
r1=fesuper(’fnode’,cf.mdl);
r1=[r1(:,1)’+.01;r1(:,1)’+.02;r1(:,1)’+.03];
defrnd=struct(’DOF’,r1(:),’def’,[]);
defrnd.def=randn(length(defrnd.DOF),1);
defrnd=fe_cyclicb(’ShaftSELoad’,cf,defrnd);
defrnd.data=[0 0];
fe_cyclicb(’fourier 1 -red -cf 1’,cf,defrnd); % checkout shape
% now consider a physical load on first sector of disk 1
r1=fesuper(’fnode’,cf.mdl);
r1=[r1(:,1)’+.01;r1(:,1)’+.02;r1(:,1)’+.03];
defsp=struct(’DOF’,r1(:),’def’,[]);
defsp.def=fe_c(defsp.DOF,1+[.01;.02;.03])’*randn(3,1);
defsp=fe_cyclicb(’ShaftSELoad’,cf,defsp);
defsp.data=[0 0];
fe_cyclicb(’fourier 1 -red -cf 1’,cf,defsp); % retrieve a Dirac’s comb
ShaftFRF [, D, MS, -rest]
This command allows to build the Frequency Response Functions of a rotor model,
either full or reduced. A load and a set of observation DOF have to be defined and
added to the model with fe case. The frequency range is stored in the stack as a
’info’,’Freq’ entry.
The general call is
xF=fe_cyclicb(’ShaftFRFD’,disk,lossfac)
xF=fe_cyclicb(’ShaftFRFD -rest’,disk,lossfac,cf,sel)
xF=fe_cyclicb(’ShaftFRFMS’,disk,def,damp)
xF=fe_cyclicb(’ShaftFRFMS -rest’,disk,def,damp,cf,sel)
92fe
cyclicb
The command FRFD assembles the matrices of the model then uses them to
compute the response. An optional loss factor can be specified.
The command FRFMS synthetizes the response from a set of modeshapes. A
damping ratio for all modes can be specified.
The option -rest restores the response computed on the reduced model to a
given selection of physical DOF. Without selection, the response is restored to the
whole physical DOF set. This option must be disabled when dealing with a full
rotor model.
The example developed in demo cyclic ShaftMulti builds the sythetized response of a reduced rotor model to a random excitation.
% define model
[cf,load,def]=demo_cyclic(’buildstep5’);
% Compute the response to the random excitation
mdl=fe_case(cf.Stack(’mvr’),’dofload’,’Load’,load);
mdl=stack_set(mdl,’info’,’Freq’,linspace(900,2000,2201));
xF=fe_cyclicb(’shaft frfms’,mdl,def,.001);
% select where to restore (upper blade corner)
Sel1={’’,’eltname SE’;’disk1’,’selface & withnode{NodeId 154}’};
Sel1=fesuper(’SeBuildSel -initrot’,cf,Sel1);
Sel2={’’,’eltname SE’;’disk2’,’selface & withnode{NodeId 154}’};
Sel2=fesuper(’SeBuildSel -initrot’,cf,Sel2);
% ... and do restore
xF1=fesuper(’SeDef’,Sel1.cna{1},xF);
xF2=fesuper(’SeDef’,Sel2.cna{1},xF);
% plot responses
ci=iiplot(3);
XF=iicom(ci,’curveXF’);
XF(’Disk1’)=struct(’w’,xF.data,’xf’,xF1.def’,’dof’,xF1.DOF);
XF(’Disk2’)=struct(’w’,xF.data,’xf’,xF2.def’,’dof’,xF2.DOF);
iicom(’subMagPha’)
iicom(ci,’IIxOnly’,{’Disk1’,’Disk2’});
ii_plp(def.data);
fe cyclicb93
Fourier [,ind], ...
[-phys, -mono, -red, -egy, -egyfrac, -sortbyd]
This command allows to perform a 3D Fourier analysis of given modeshapes. The
maximum norm of each harmonic is plotted against the harmonic coefficient. The
plot is different when dealing with a single modeshape or a set of modeshapes.
Accepted options are
• ind is an optional selection of deformations. See also the alternate fe def
SubDef.
• -phys, -mono and -red are used to distinguish between an analysis of physical
modeshapes (full 3D), mono-harmonic modeshapes (the DFT step is omitted)
and generalized modeshapes (reduced multi-harmonic model). In all cases,
the user has to check that the physical or reduced models are geometrically
periodic, i.e. that DOF come in repetitive groups, except for -mono where the
concept of mono-harmonic modeshapes assumes that structures are periodic.
• -egy and -egyfrac provides means for energy-based computations. Option
-egy displays the fraction of energy in each existing harmonic within each disk
so that the total amount of energy within each disk is 1. Option -egyfrac
displays the fraction of energy in each existing harmonic within each disk so
that that total amount of energy within the rotor is 1. The default displays
these quantities disk by disk (from top to bottom) and for each disk, all the
possible harmonics are displayed (from bottom to top), as depicted in the
figure below.
• -sortbyd groups these quantities first by harmonics (from bottom to top) and
then by disk (from top to bottom), with the appropriate number of zeros for
non present harmonics (typically when δ > N/2 for a given disk), as displayed
in the figure below.
[cf,def]=demo_cyclic(’buildstep1’); % sdtweb demo_cyclic(’step1’)
Curve=fe_cyclicb(’fourier 1:50 -mono -egyfrac’,cf,...
fe_def(’subdef’,def,def.data(:,2)~=-1));
’xxx’%fe_cyclicb(’fourier -mono -egyfrac -cf 3’,Curve);
% sdtweb demo_cyclic(’step4’) multi-harmonic analysis
[cf,def]=demo_cyclic(’buildstep4’); %
fe_cyclicb(’fourier 7:25 -red -egyfrac -cf 11’,cf,def);
fe_cyclicb(’fourier 7:25 -red -egyfrac -sortbyd -cf 13’,cf,def);
94fe
See also
cyclicb
Section ??
obsolete
Purpose
Syntax
Obsolete functionality
model=fe_cyclicb(’Basis [, -norm, -all, -int, -rb]’,model,orders,omegas,
def=fe_cyclicb(’DiskEig’,DISK)
def=fe_cyclicb(’DiskEngineLoad EO’,model)
def=fe_cyclicb(’DiskFRFD [, -rest]’,DISK,lossfac,cf,sel)
def=fe_cyclicb(’DiskFRFMS [, -rest]’,DISK,def,damp,cf,sel)
K=fe_cyclicb(’DiskMatrices [ mk]’,DISK,Eltselection)
fe_cyclicb(’Fourier MODENUM [, -phys, rotor, disk, -red, -test TOL]’,fig
model=fe_cyclicb(’PolyAssemble [, NoT]’,model,params)
DISK=fe_cyclicb(’Reduce NODEID0 ELTID0 [, -int]’,sector,def)
model=fe_cyclicb(’Renumber’,model)
def=fe_cyclicb(’Display’,cf,def)
def=fe_cyclicb(’ShaftEngineLoad EO’,model)
def=fe_cyclicb(’ShaftFRFD [-rest]’,model,lossfac,cf,sel)
def=fe_cyclicb(’ShaftFRFMS [-rest]’,model,def,damp,cf,sel)
fe_cyclic(’ShaftPrep’,model,def)
mdl=fe_cyclic(’ShaftRing [-round N1 N2 N3 -autoclose N4]’,rim1,rim2)
fe_cyclicb(’ShaftLoad’,model)
[def,mdl]=fe_cyclicb(’ShaftTEig ORDERS’,model)
OBSOLETE Basis [, -all, -norm, -int, -rb]
This command allows to build a set of modes :
• with the harmonics specified in an array [δ1 , δ2 , ...],
• for the rotation vectors specified in a cell {[ω1x , ω1y , ω1z ] , [ω2x , ω2y , ω2z ] , ...}.
The general call is
[model,def]=fe_cyclicb(’basis -all -int -norm -rb’,sector,orders,omegas);
The output is a struct array containing the modeshapes. If only one output is
required, the basis is added to the model as a TR field. The field data refers to the
harmonic in column 2 and the rotation speed in column 3. The number of computed
modes is controlled by the field ’info’,’EigOpt’ in the stack.
cf=demo_cyclic(’testload disk 5 -nor reset’) % reset file (rather than l
95
96obsolete
% Set of Cyclic Modes / Fixed Interface Modes
sector=stack_set(cf.Stack{’disk1’},’info’,’EigOpt’,[5 4 0 11 1e-8]);
sector=stack_set(sector,’info’,’EigOptFixInt’,[5 4 0 11 1e-8]);
sector=fe_cyclicb(’basis -all -int -norm’,sector,[0:3],...
{[0 0 0],[0 0 250]});
cf.model=sector;cf.def=sector.TR;
The -all option is used to get both modeshapes associated with a double eigenvalue in the case where harmonics are not 0 or half the number of sectors, when
applicable. For more information on cyclic symmetry, please refer to [...].
The -norm option ensures that modes are orthonormalized in mass and stiffness
because of convergence problems caused by the presence of double eigenvalues. This
option is not required when the eigenvalue problem is solved with Nastran (fe eig
method 50). xxx discuss with EB
When the -int option is added, modes of the initial sector with its left and right
interfaces fixed (clamped) are also computed and added at the beginnning of the
output. These modes have a −1 in the field data. The computation parameters
are specified in the ’info’,’EigOptFixInt’ stack entry. When this option but no
harmonic are given, it computes only fixed interface modes.
The six rigid body modes of a cyclic symmetric structure are mono-harmonic
with harmonic 0 (1T along and 1R around the axis of symmetry) and harmonic 1
(2T along and 2R around the other axes). Thus, the -rb option is used to compute
two more flexible modes with harmonic 0 and four more flexible modes with harmonic
1.
OBSOLETE DiskEig [, -ord]
This command allows to compute the approximate modes of a reduced disk model
built with the command Reduce of fe cyclicb.
Command fails and is no longer maintained zzz see with arnaud
cf=demo_cyclic(’testload disk 5 -nor’) % reload model
fe_cyclicb(’reduce 1 1 -int’,cf);disk=cf.Stack{’diskmodel’};
% Mode computations
disk=stack_set(disk,’info’,’EigOpt’,[5 30 1e3 11 1e-8]);
[def,disk]=fe_cyclicb(’diskeig -ord’,disk);
obsolete97
disp(def.data);
cf.def=fe_cyclicb(’Display’,cf,def);
The -ord option is used to identify the Fourier harmonic coefficient associated
with each mode when dealing with the reduced model of a tuned disk. When dealing
with a mistuned disk (whose modes are multi-harmonic), this returns the coefficient
whose harmonic is the greatest.
DiskEngineLoad EO [, sel]
This commands builds a physical load, spatially mono-harmonic, on a specified set
of nodes. If no selection is present, all nodes are used.
% Model Initialization
cf=demo_cyclic(’testdisk 7 -blade -cf 2’);
% External Load
Load=fe_cyclicb(’DiskEngineLoad 3 r > 201’,cf);
cf.def=Load;fecom showdefarrow;
OBSOLETE DiskFRF [, D, MS, -rest]
This command allows to build the Frequency Response Functions of a disk model,
either full or reduced. A load and a set of observation DOF have to be defined and
added to the model with fe case. The frequency range is stored in the stack as a
’info’,’Freq’ entry.
The general call is
xF=fe_cyclicb(’DiskFRFD’,disk,lossfac)
xF=fe_cyclicb(’DiskFRFD -rest’,disk,lossfac,cf,sel)
xF=fe_cyclicb(’DiskFRFMS’,disk,def,damp)
xF=fe_cyclicb(’DiskFRFMS -rest’,disk,def,damp,cf,sel)
The command FRFD assembles the matrices of the model then uses them to
compute the response. An optional loss factor can be specified.
The command FRFMS synthetizes the response from a set of modeshapes. A
damping ratio for all modes can be specified.
The option -rest recovers (xxxEB recovers, expands, interpolates, ...) the response computed on the reduced model to a given selection of physical DOF. Without selection, the response is expanded to the whole physical DOF set. This option
must be disabled when dealing with a full disk model.
98obsolete
The following example builds both direct and sythetized responses of a reduced
disk model to a 2EO excitation.
cf=demo_cyclic(’testload disk 5 -nor’) % reload model
% the call to fe_cyclicb basis is already done
fe_cyclicb(’reduce 1 1 -int’,cf);disk=cf.Stack{’diskmodel’};
% External Load
Load=fe_cyclicb(’DiskEngineLoad 2’,cf);
fe_cyclicb(’DiskSeDefInit’,cf);
Rload=fe_cyclicb(’DiskSeLoad’,cf,Load);
disk=fe_case(disk,’dofload’,’Blade_load’,Rload);
freq=[1500:5:3000]’;
disk=stack_set(disk,’info’,’Freq’,freq);
% Restitution to Blade Dofs
tips=feutil(’FindNode r>201’,cf.mdl);
disk=fe_case(disk,’SensDof’,’Sensors’,disk.DOF);
% Transfert Functions / Direct
xFd=fe_cyclicb(’disk frfd -rest’,disk,.002,cf,tips);
% Transfert Functions / Modal Synthesis
disk=stack_set(disk,’info’,’EigOpt’,[5 50 -1e3 11 1e-8]);
[def,disk]=fe_cyclicb(’diskeig’,disk);
xFms=fe_cyclicb(’disk frfms -rest’,disk,def,.001,cf,tips);
% Response Plots
ci=iiplot;
XF=iicom(’curveXF’);
XF(’Blade resp.D’)=struct(’w’,xFd.data,’xf’,xFd.def.’,’dof’,xFd.DOF);
XF(’Blade resp.MS’)=struct(’w’,xFms.data,’xf’,xFms.def.’,’dof’,xFms.DOF);
iicom(’subMagPha’)
iicom(ci,’IIxOnly’,{’Blade resp.D’,’Blade resp.MS’})
OBSOLETE DiskPlot
This commands provides a graphical representation of the generalied quantities
(modeshapes or load) on a patch whose nodes represent the generalized DOFs.
obsolete99
The following example deals with such representation for both the modes and a
3EO excitation.
% Model Initialization
cf=demo_cyclic(’testload disk 5 -nor reset’)
% Model Reduction
fe_cyclicb(’reduce 1 1 -int’,cf);disk=cf.Stack{’diskmodel’};
% Mode Computations
disk=stack_set(disk,’info’,’EigOpt’,[5 50 -1e3 11 1e-8]);
[def,disk]=fe_cyclicb(’diskeig’,disk);
fe_cyclicb(’diskplot’,3,cf,def);
% External Load
Load=fe_cyclicb(’DiskEngineLoad 3’,cf);
fe_cyclicb(’DiskSeDefInit’,cf);
Rload=fe_cyclicb(’DiskSeLoad’,cf,Load);
fe_cyclicb(’diskplot’,4,cf,Rload);
OBSOLETE Disk ...
(internal commands)
DiskRest computes the Fourier Recovery Matrix associated with the specified harmonic. This function is used internally by fe cyclicb.
DiskMatrices returns the reduced matrices assembled from the sector superelement matrices. When the option mk is specified, it returns the mass and stiffnes
matrices only.
cf=demo_cyclic(’testload disk 5 -nor reset’) % reload model
fe_cyclicb(’reduce 1 1 -int’,cf);disk=cf.Stack{’diskmodel’};
Kr0=fe_cyclicb(’diskmatrices’,disk);
disk.il=[1001 1 1 250^2 250^4];
Kr=fe_cyclicb(’diskmatrices mk’,disk);
PolyAssemble [, noT] supports the computations of the coefficients of the matrix polynomial from the assembly of the stiffness matrices (including gyroscopic and
nonlinear tangent stiffnesses) at the given values of the parameters. Three values
are required.
The following example assembles the mass and full stiffness matrices at 0, 500
and 1000 rps, then computes the modes of the free sector at 250 rps.
100obsolete
% Model Initialization
cf=demo_cyclic(’testdisk 5 -blade noK -nor -cf 2’);
sector=fe_cyclicb(’polyassemble noT’,cf.Stack{’disk1’},[0 500 1000]);
[Case,sector.DOF]=fe_mknl(’init’,sector);
K={sector.K{1},feutilb(’sumkcoef’,{sector.K{2:4}},[1 250^2 250^4])};
% Mode Computations
def=fe_eig({K{1},K{2},Case.T,sector.DOF},[5 10 0 11]);
cf.model=sector;cf.def=def;
OBSOLETE DiskSeDefInit
This command initializes the restitution of the generalized modes computed with
the DiskEig command on the physical DOF set. The restitution bases are stored in
the Stack as a ’info’,’SeRestit’ entry which contains the following fields:
• a field .DOF that contains the physical DOF set,
• a field .adof that contains the generalized DOF set,
• a cell .Restit where the first column gives the indices in the physical DOF
vector associated with each sector, the second column gives the indices in the
generalized DOF vector associated with each sector and the third column contains the transformation matrix from physical to generalized DOF coordinates.
• a cell .cGL that contains one matrix per sector which is a local to global frame
transformation matrix.
The restitution is performed with the command SeDef of fesuper. In this command, a patch can be defined as a selection of elements so that the modeshapes are
expanded only to the physical DOF of their nodes.
The following example builds a reduced model, computes a set of generalized
modes, then the modeshapes are recovered on the blades only.
% Model Initialization
cf=demo_cyclic(’testload disk 5 reset’) % reset file (rather than load)
% Mode Computations
def=fe_eig(cf.mdl,[5 20 -1e3 11 1e-8]);
% Restitution
cf.def=fesuper(’SeDef’,cf,def);
obsolete101
OBSOLETE DiskSeLoad
This commands transforms an external load, expressed on the physical DOF set,
into a generalized load, expressed on the generalized DOF set. It is necessary to
initialize the restitution of the underlying disk model, since this transformation is
the inverse operation.
% Model Initialization
cf=demo_cyclic(’testload disk 5 -nor’)
%xxx obsolete
%Model Reduction
fe_cyclicb(’reduce 1 1 -int’,cf);
% External Load
Load=fe_cyclicb(’DiskEngineLoad 1’,cf);
fe_cyclicb(’DiskSeDefInit’,cf);
Rload=fe_cyclicb(’DiskSeLoad’,cf,Load);
Reduce [, -int]
The Reduce command is used to generate a disk model from a set of cyclic modes
associated with multiple harmonics. The general call is
[disk,SEsector]=fe_cyclicb(’reduce NodeId0 EltId0 [-int]’,model);
fe_cyclicb(’reduce NodeId0 EltId0 [-int]’,cf);
The second call uses directly a global model stored in the variable cf and stores
the reduced model as an entry ’info’,’diskmodel’ in cf.Stack.
If required, new starting points for numbering the generalized DOF and the
associated elements are defined in the command string through the two integers
NodeId0 and EltId0.
The initial set of modes has to be given as a field TR of the model. This operation
can be performed directly by using the command Basis of fe cyclicb, as shown in
the following script.
% Model Initialization
cf=demo_cyclic(’testload disk 5 -nor -cf reset’);
fe_cyclicb(’reduce 1 1 -int’,cf);
disk=cf.Stack{’diskmodel’};
102obsolete
The reduction basis is built by separating right, left and interior motion from
the cyclic modeshapes. When the -int option is invoked, fixed interface modes of
the sector are added to the set of interior modes. For more information about this
procedure, refer to [11].
nl spring
Purpose
Syntax
Description
Non linear links/force modelization for time simulation
model=nl_spring(’tab’,model);
...= nl_spring(’command’, ...)
Opt=nl_spring(’TimeOpt’);
nl spring supports non-linear connections and loads for transient analysis. Non
linear springs between 2 DOF (see nlspring). loads which depend on DOF values
(see DofKuva, DofV), springs between 2 nodes in different bases (see RotCenter),
etc. ...). A full list of non-linearities is given below.
Standard non-linear simulations are handled by nl solve. Below is a description
of the inner mechanisms of a non-linear simulation with the non-linear toolbox.
After the non linearity definition, a proper TimeOpt is required to set the good
fe time calls to perform a non linear Newmark time integration. A default TimeOpt
can be set using nl spring TimeOpt.
The following steps are required for a time simulation
• Definition of non-linear properties. These are stored as pro entries of the model
stack. The associated property function must handle non-linearities which is
currently only the case for p spring and p contact.
A non-linearity is always associated with elements or superelements (typically
a celas element. A given group of elements can only be associated with a
single non-linearity type.
The information needed to describe the non linearity is stored in a .NLdata
field.
• Model initialization using the an fe case(’assemble’) call in fe time, is
followed by the building of a model.NL stack that describes all non-linearities
of the model in a format that is suitable for efficient time domain integration.
This translation is performed by the nl spring NL command.
• Jacobian computation, see nl spring NLJacobianUpdate.
• Residual computations are performed through mkl utils. The nominal residual call is r=-fc; mkl utils(’residual’, r,model,u,v,a,opt,Case);.
103
104nl
spring
Supported non linearities
See nllist for supported non linearities, and nl fun to add your own non-linearities.
ConnectionBuild
One can define a set of non linear links between 2 parts of a model using a call of
the form
[model,idof]=nl spring(’ConnectionBuild’,model,data);
idof is a second optionnal out argument. It returns the list of DOF concerned by
links (it can be useful in order to reduce super elements keeping idof as interfaces
DOF for instance). data contains all the information needed to define links. It is a
3 column stack like cell array. First column contains the string ’connection’, the
second the name of the non linear link described in the third column that contains
a data structure with following fields:
.Ci define nodes to connect in first (.C1) and second component (.C2). It can be
a vector of NodeId or a screw data structure (slave nodes of the model nodes
via RBE3 links, see see sdtweb(’fe case#connectionscrew’).
.link defines how to link component 1 to component 2. It is a 1x2 cell array. First
cell defines the type of link (’EqualDof’ or ’Celas’) and the second gives
information about the link. For celas link it is a standard element matrix row
with 0 replacing NodeId :[0 0 DofId1 DofId2 ProId EltId Kv Mv Cv Bv].
.NLdata (optional) defines non linearity associated to celas link. See the list in list of
supported NL. If this field is not present or empty, only linear link is considered.
.PID (optional) is a 1x2 line vector that defines PID (second column of .Node matrix,
see sdtweb(’node’) of connected node (1rst column for 1rst component).
.DID (optional) is the same as above, defining DID (third column of .Node matrix,
see sdtweb(’node’) of connected nodes.
Following example defines a model with a cylinder and a hole in a block. The
cylinder is linked to the block by 3 celas preserving the pivot link.
mo1=demosdt(’demoConnection-vol’); % meshes models
mo1=fe_case(mo1,’fixdof’,’base’,’z==-1’); % clamps the cylinder base
r1=struct(’Origin’,[0.5 0.5 0.5],’axis’,[0 0 1],...
’radius’,.1,’rtol’,.01,’length’,1,’Npt’,-3,...
’ProId’,111,’planes’,[]); % Cylinder-side
nl spring105
r1=nl_spring(’ConnectionCyl’,r1); % defines planes
r3=r1; r3.ProId=1; % Block-side
link={’connection’,’link1’,struct(’C1’,r3,’C2’,r1,...
’link’,{{’celas’,[0 0 12345 12345 1000 0 1e9]}})}; % Defines c
[mdl,idof]=nl_spring(’ConnectionBuild’,mo1,link); % builds connection
cf=feplot(mdl); % displays in feplot
fecom promodelviewon; fecom(’curtab Cases’,’link1_2’);
def=fe_eig(mdl,[5 20 1e3]); % computes the first 20 modes
if length(find(def.data<1e-3))>1; sdtw(’_err’,’connection failed’); end
cf.def=def; fecom ColorDataAll % displays modes
See also t nlspring(’2beam’) example.
ConnectionCyl
Define a cylinder connection.
data=nl spring(’ConnectionCyl’,data);
data is a standard connection screw data structure (see fe caseg ConnectionScrew)
with following additional fields:
.rtol radius tolerance for cylinder selection.
.length length of the cylinder.
.Npt number of planes (equally distributed on the whole length). If Npt<0, ends of
the cylinder are included in the connection points.
.ProId ProId of the elements containing nodes to connect.
106nl
spring
Figure 5.1: ConnectionCyl
InitV
q0=nl spring(’InitV’,model,d0,RO);
InitV computes the initial static displacement and velocity associated to a DOF
initial position and velocity. d0 is a data structure with field .DOF containing the
DofId where initial value is applyed and .def containing initial displacement and
velocity at this DOF. RO is a optional input argument data structure with following
fields that define:
.dt time step for time integration.
.dq increment for initial vel computation.
.Nv number of time steps to reach d0.def(1) (displacement is imposed as a 0.5(1 −
cos) time function on these time steps).
.Np number of steps to stabilize at d0.def(1) and d0.def(1)+dq.
If input argument RO omitted, options are get from ’info’ ’initvopt’ Stack entry.
If there is no such entry, InitV parameters are computed using -optim process (see
below).
Displacement at q0 and q0+dq is obtained meaning the last Np/10 steps of each
stabilization period, and initial velocity is computed from those 2 displacements to
match d0.def(2) at d0.DOF.
nl spring107
[q0,RO]=nl spring(’InitV-optim’,model,d0); can be used to find input parameters RO. Optimization of dt and Np is performed from given or default values.
Parameters dq and Nv are kept at given or default value. First dt is optimized. dt
is increased (multiplied by 4) until time integration of the InitV process diverge
and last dt that leads to convergence is kept. Then Np is increased by 100 steps
until the deformation is converged on the stabilization periods, that is to say that a
criteria taking in account standard deviation/mean of the deformation and the ratio
of the last Np/10 steps upon previous Np/10 steps on each Np period is less than a
tolerance (2.0).
See 2beam example XXX.
NL
model=nl spring(’NL’,model)
This command is used to build .NL field data for time integration from NLdata field
in NL p spring property entries in the input model Stack. The command option
-storefnl can be used to specify the way of computing and storing a non linear
effort associated to NL (for those which support it).
NLJacobianUpdate
opt=nl spring(’JacobianCall’) returns the callback used to update or initialize the jacobian ki used in iterative methods. The said jacobian must take nonlinearities into account.
For the case of a non-linear spring, the most important gradient of the tabulated
law Fu is added as stiffness between the 2 DOF to the stiffness matrix and the most
important gradient of Fv to the damping matrix.
For non-linear iterations in a Newmark scheme, the Jacobian is given by
ki=(model.K{3}+kj)+ (opt(2)/opt(1))/dt*(model.K{2}+cj) + 1/opt(1)/dt^2*mo
Accepted command options, associated to variants of the call are
• -TangentMdl to return tangent model. It is assumed that model.K(1:3) correspond to M, C, and K (in this order). u and v variables of caller workspace
can be needed.
• -ener to compute for each def stored in model.d1 def structure (that is typically computed modes), some associated energies:
108nl
spring
freq frequency in Hz.
damping damping ratio: (φTj [C]φj )/(2ωj ).
enerK total strain energy: φTj [K]φj .
enerC φTj [K]φj .
NLlink-enerK strain energy for each NL link: φTj [KN Llink ]φj .
NLlink-enerK for each NL link: φTj [CN Llink ]φj .
SetPro
mdl=nl spring(’SetPro ProId i ParamName1 Value1 ...’,mdl)
This command is used to change some nl spring properties parameters. i is the
ProId of corresponding p spring property, ParamName the name of parameter to
change (k for il(3), c for il(5) or the fieldname in NLdata) and Value the value to
assign.
It is possible to define a new property by specifying an NLdata structure in
third argument: mdl=nl spring(’SetPro ProId i’,mdl,NLdata). If the property
already exists, it is overwritten by the NLdata structure provided.
Standard NLdata structures depend on the non-linear function, see nllist for
more details. They can be obtained through the nl function command db, see
nl fun for more details.
GetPro
pro=nl spring(’GetPro’,model)
This command is used to get non linear properties in the model stack.
• Command option ID allows getting a specific non linear property by specifying
its ProId.
• Command option type‘‘nl fun’’ allows getting the non linear properties of
a specific type. See nllist for more details on types of non-linearities.
nl spring109
TimeOpt
This command returns usual default TimeOpt for non-linear simulations. By default
the output is the same as the TimeOptNLNewmark presented below. See also fe time
for TimeOpt definition details.
Supported TimeOpt commands are
• TimeOptNLNewmark, or TimeOpt to obtain the TimeOpt for NLNewmark simulations. Use TimeOpt-gamma .51 to introduce numerical damping by directly
giving gamma.
• TimeOptStat to perform static simulations (see also fe time nl solve).
• TimeOptTheta to perform time simulations with the θ-method (see fe time
). Numerical damping can be introduced using TimeOptTheta-alpha .05,
the specified α value will be added to θ, so that the coefficient used in the
simulations will be θ1 = θ + α.
• TimeOptExplicit to perform time simulations with the explicit Newmark
scheme.
From standard fe timesimulations, the following TimeOpt fields are added or
modified
• Jacobian field is modified to take into account non linearities, see NLJacobianUpdat
• Residual field is modified to take into account non linearities, and to use
mkl utils to improve computation times, see sdtweb mkl utils.
• AssembleCall field is modified, to perform non-linearities initialization after assembly. AssembleCall is the string passed to fe case, generated by
nl_spring(’AssembleCall’).
• OutputInit field is modified to also check non linearities and initialize nonlinearities related outputs, this is a callback generated by nl_spring(’OutputInitC
• FinalCleanUpFcn field is modified to perform cleanup on non linearities as
well, this is realized through the ExitFcn command option of fe simulfe timeClea
(see fe timeTimeOpt), using ’-ExitFcn"nl_spring(’’fe_timeCleanUp’’)"’.
110nl
spring
TimeOutputOptions
Fine tuning of fe time output can be achieved by specifying an ’info’,’OutputOptions’
case entry.
Accepted fields for the OutputOptions structure are
• .FnlAllT if defined and equal to 1, non-linear loads are saved at all time steps.
• .FnlIiplot if defined and equal to 1, non linear loads are displayed in an
iiplot figure as curve FNL. If the display timer associated with this figure does
not stop automatically, you can stop it with cingui(’TimerStop’).
mkl utils
Non linearities are treated by mkl utils mex file. In order to make proper distribution of mkl utils please send us result of:
ver
cd(fullfile(matlabroot,’bin’,getenv(’MATLAB_ARCH’)))
!ls -lt *mkl*
For more details see sdtweb(’mkl utils’).
rheo2NL
OBSOLETE. Use now nl spring NL.
NL=nl spring(’rheo2NL’,model,DOF,offset);
This command is used to convert rheological data into a structure of data understandable for NLforce command. DOF is the list of the DOF coherent with u and v
arguments of NLforce command. Offset is optional. It is a structure of data with
fields .DOF and .def that defined 0 reference for Fu and Fv tab laws.
tab
model=nl spring(’tab’,model);
This command is used to convert formal rheological description data stored in
model.Stack to a tabulated law description. The format is likely to change due to
optimization of the compiled functionality in mkl utils (see mkl utils).
nl spring111
BlockSave,BlockLoad
Undocumented intermediate save of a time block for long simulations that do not
fit in memory.
mkl utils
Purpose
For detailed callback information see sdtweb(’nlspring timeopt’) (section ??)
Residual command is used to compute standard residue.
mkl utils(’residual’,r,model,u,v,a,opt,Case); call modifies variable r in memory according to following standard residue computation.
r = model.K{1}*a + model.K{2}*v + model.K{3}*u - fnl -fc;
Typically in fe time computations one has
opt.Residual=’r=-full(fc);mkl utils(’’residual’’,r,model,u,v,a,opt,Case);’;
with fc the time load (resulting from DofLoad entries in model Case) and
fnl is the sum of the non linear efforts (if any) computed directly by mkl utils
(rotcenter, mocirc2), in the non linear functions (see sdtweb nl fun) or in nl spring.
mkl utils then calls the adequate nl fun function (nl spring by default) automatically.
Model information specifically supported by the residual command are
• opt.Rayleigh if the field exists defines a global Rayleigh damping and opt.Rayleigh(1)*m
is added to the residual.
• model.K{2} can be a data structure describing modal damping with following
fields:
.def : M Φ vectors as columns.
.data : cj modal damping coefficients as a vector. cj = 2ωj ζj .
.K : optional additional damping matrix. This matrix must be in a mkl
transposed v handle format (use v handle(’mklst’,K) to convert a
matlab matrix to this format). Note that model.K{2}.K is taken in account for the jacobian computation whereas modal damping is not.
Corresponding additional residue term is
P
T
T
j [M ] φj ∗ cj ∗ φj [M ] ∗ v.
• model.NL can be a stack of non linearities. Column 3 provides a structure
with the following standard fields
.type a MATLAB function handle which is then called through NL.type(NL,fc,model,u,v,
Also some older NL string giving the type name.
112
mkl utils113
.c observation matrix for non linear displacements and velocities stored in
row format obtained with NL.c=v handle(’mklst’,sparse(NL.c)).
.unl pre-allocated memory for the result of NL.c*u. Must be consistent with
the number of rows in NL.c. The computation is handled by mkl utils.
.vnl if exists pre-allocated memory for the result of NL.c*v. Must be consistent with the number of rows in NL.c. The computation is handled by
mkl utils.
.b command matrix for non linear loads. At the end of the NL.type call it is
expected that NL.unl contains the non linear component loads such that
the residual becomes r=r+NL.b*NL.unl. The matrix is expected to be
in transposed form NL.b=v handle(’mklst’,b’);. These conventions
allow reuse of a .c matrix for command. Note that the sign conventions when using unl to return a non linear force are opposite to what
is done when the result is added to fc, see sdtweb nl fun to compare
conventions.
–
Non linearities list
Purpose
List of supported non linearities. It is possible to create new ones (sdtweb
nl fun)
nl inout
nl inout is the more general non linearity, using observation and command
matrix.
fN L = b × f (C.u, C.v)
The pro.NLdata structure has fields
114
Non linearities list115
.type
.lab
.b,.c
’nl inout’
Label of the non linearity.
Command and observation definition. If the NLdata.DOF field is defined,
placement of the observation matrix in done during the model assembly
phase.
.Sens,.LoadAlternate form for .b, .c.
xxx .Sens ell array of the form
{SensType,SensData} where SensType is a string defining the sensor
type and SensData a matrix with the sensor data (see sdtweb sensor).
.Load
data structure defining the command as a load (with .DOF and .def
fields).
.Fu
defines the function of C.u and C.v defining the load. Multiple
forms are possible. Currently a cell array of tables for Fu, a numeric curve ID for a curve in the stack, ... 2 predefined laws exist : Friction f f c0 c0 and BumpStop dumax 0.02 k0 500 c0 0
dumin -0.02 k1 500 c1 0 (a bumpstop example can be found in
sdtweb t nlspring(’BumpStop’). THIS IS NOT FULLY GENERAL.
In particular c and b must have the same size for the moment. XXX
need to be detailed. XXX.
.Elt
not available yet.
.unl0
Optional. Define an offset in observation (before applying Fu) as unl =
c ∗ u + unl0. It can be a vector giving direct offset (as many lines as
c). It can also be a string defining what offset to apply : the only
strategy implemented is unl0=’q0’ to remove observation of the static
from observation at each time step. It can also be the name of a curve
stored in model stack.
No jacobian is computed for this non-linearity. Maybe it will be needed in some
cases.
nl maxwell
nl maxwell describes rheological models using stiffness and damping.
116Non
linearities list
.type
.lab
.Sens
’nl maxwell’
Label of the non linearity.
Observation definition. Cell array of the form {SensType,SensData}
where SensType is a string defining the sensor type and SensData a
matrix with the sensor data (see sdtweb sensor).
data structure defining the command as a load (with .DOF and .def
fields).
superelement that defines the rheological model. Only matrices are
used (.K field). Mass matrix is ignored. The .DOF field is unused and
first DOF are assumed to be the observations defined, and following
correspond to internal states.
.Load
.SE
Jacobian is computed using a Guyan condensation keeping only the observation
(internal states are condensed) to obtain tangent damping and stiffness.
Internal states are integrated using an independent finite differences explicit scheme,
with the same step of time as the main scheme, or a subsampling opt.NLsteps times.
At the first residue computation, the initial internal states are computed according
to initial condition in terms of displacements and velocities through a time integration until variation of speed between the 2 last computed steps is lower than
opt.RelTol.
Force on the observation DOF (F), displacement (Qc) and velocity (dQc) of the
internal DOF, displacement and velocity observations are stored in the NL output.
The command nl spring dbtype is a database of generalized maxwell rheological
models. type can be:
zener standard viscoelsatic model. Parameter k0, k1 and c1 can be given as a string
of the form db zener k0 k0 k1 k1 c1 c1 in the command.
The example of the standard viscoelastic model is detailed here as an illustration.
The standard viscoelastic model, also known as Zener model, is composed by a spring
(K0 ) in parallel with another spring (K1 ) and a serial dashpot (C1 ) as displayed
figure 5.2.
Non linearities list117
Figure 5.2: Standard viscoelastic model.
In the Laplace domain, the relation between the relative load and the relative
displacement is given by
K0 K1 + (K0 + K1 ))C1 s
1 + s/z
= K0
K1 + C1 s
1 + s/p
F (s) = K(s)X(s) =
(5.3)
where p and z are respectively the pole and the zero of the model
K1
C1
(5.4)
K0 K1
(K0 + K1 ) C1
(5.5)
p=
z=
The maximum loss factor is
p−z
1
K1
ηm = √ = p
2 pz
2 K0 (K0 + K1 )
(5.6)
and obtained for pulsation
ωm =
√
K1
pz =
C1
s
K0
K0 + K1
K0 is the static stiffness of the model. Typically K1 =
that the damping is maximal for the frequency of interest.
(5.7)
K0
2
and C1 is defined so
118Non
linearities list
Following example considers K0 = 1000N/m, K1 = 500N/m and C1 = 1.4N s/m.
These parameters lead to a maximum loss factor of 20.14% for a frequency of
46.41Hz. The module and the loss factor are represented in figure 5.3.
Figure 5.3: Module and loss factor.
Following example consists in a mass of 1e-2kg linked to the ground by the zener
model. Initial displacement corresponding to a 1N load on the mass is imposed and
then a time simulation is performed.
% parameters
param.m=1e-2; param.dt=1e-4; param.N=1e3;
param.k0=1e3; param.k1=param.k0/2; param.c1=1.4; % zener parameters
% define model
mdl=struct(’Node’,[1 0 0 0 0 0 0],...
’Elt’,[Inf abs(’mass1’) 0; 1 0 0 param.m 0 0 0]);
% define nl_maxwell data
data=nl_maxwell(sprintf(’db zener k0 %.15g k1 %.15g c1 %.15g’,....
param.k0,param.k1,param.c1));
data.Sens{2}=1.03; % translation sensor defining nl_maxwell inputs
Non linearities list119
% define associated property
r1=p_spring(’default’); r1=feutil(’rmfield’,r1,’name’);
r1.NLdata=data; r1.il(3)=param.k0;
r1.il(1)=100; mdl=stack_set(mdl,’pro’,’zener’,r1);
% define option for time integration
opt=nl_spring(’TimeOpt’);
opt.NeedUVA=[1 1 1];
opt.Follow=1; opt.RelTol=-1e-5;
opt.Opt(7)=-1; % factor type sparse
opt.Opt(4)=param.dt; opt.Opt(5)=param.N; % NSteps
opt.IterInit=’model.FNL0=model.FNL+0;’; % needed for internal state xxx:
%opt.IterEnd=’eval(opt.Residual)’; % to compute real FNL for current stat
% Initial state
r1=data.SE.K{3}\[1;0]; r1=r1(1); % initial displacement for 1N load
mdl=stack_set(mdl,’curve’,’q0’,struct(’def’,r1,’DOF’,1.03));
% Time computation
ci=iiplot(3);
def0=fe_time(opt,mdl); % compute
% The same but NL as a model
SE2=data.SE;
SE2.Elt(end+1:end+2,1:6)=[Inf abs(’mass1’); 1 0 0 param.m 0 0];
SE2=fe_caseg(’assemble -secdof -matdes 2 3 1 -reset’,SE2);
r1=SE2.K{3}\[1;0]; %r1=r1(1);
SE2=stack_set(SE2,’curve’,’q0’,struct(’def’,r1,’DOF’,SE2.DOF));
def20=fe_time(opt,SE2); % compute
F20=SE2.K{2}*def20.v+SE2.K{3}*def20.def; F20=F20(1,:);
NL20=struct(’X’,{{def20.data {’LIN-F1’;’LIN-Qc1’;’LIN-dQc1’;’LIN-unl1’;’L
’Y’,[F20’ (fe_c(def20.DOF,3.03)*def20.def)’ (fe_c(def20.DOF,3
NL20.name=’NLfromLIN’;
iiplot(NL20)
iicom(’IIxOnly’,{’NL(1)’,’NLfromLIN’});
if norm(ci.Stack{’NL(1)’}.Y(2:end,:)-NL20.Y(2:end,:))/norm(NL20.Y(2:end,:
sdtw(’_err’,’something has changed’)
end
DofKuva
DofKuva defines a non linear load of the form
120Non
linearities list
f actor.Dof exponent .K.V
.type
’DofKuva’
.lab
Label of the non linearity.
.Dof
Dof of Case.DOF.
.Dofuva
[1 0 0] for displacement Dof, [0 1 0] for velocity and [0 0 1] for
acceleration.
.MatTyp
Type of the matrix K (see MatType). Desired matrix is automatically
assembled before time computation.
.factor
Scalar factor.
.exponent Exponent of the DOF.
.uva
Type of vector V: [1 0 0] for displacement, [0 1 0] for velocity and
[0 0 1] for acceleration.
For example one can take in account gyroscopic effect in a time computation
with a NL of the form
model=stack_set(model,’pro’,’DofKuva1005’, ... % gyroscopic effects
struct(’il’,[1005 fe_mat(’p_spring’,’SI’,1) 0 0 0 0 0],...
’type’,’p_spring’,’NLdata’,struct(...
’type’,’DofKuva’,’lab’,’gyroscopic effect’, ...
’Dof’,1.06,’Dofuva’,[0 1 0],’MatTyp’,7,...
’factor’,-1,’exponent’,1,’uva’,[0 1 0])));
DofV
DofV defines a non linear
a dof)
Dof exponent .V
.type
.lab
.Dof
.Dofuva
NDdata fields:
effort of the following form (product of a fixed vector and
’DofV’
Label of the non linearity.
Dof of Case.DOF.
[1 0 0] for displacement Dof, [0 1 0] for velocity and [0 0 1] f
acceleration.
.exponent Exponent of the DOF.
.def
data structure with fields .def which defines vector V and .DOF whi
defines corresponding DOF.
nlspring
nlspring defines a non linear effort from rheological information (stop, tabulated
damping or stiffness laws etc.) between 2 DOF.
To define a non linear spring, one has to add a classic celas element, linear spring
Non linearities list121
between only 2 DOF. The non linear aspect is described by associated properties as
a ’pro’ entry in the model Stack.
For the moment, the 2 DOF of the non linear spring have to be given in the
.dof1 and .dof2 fields of this entry.
One can describe non linearity by a formal rheological description using one or
more of following fields in the pro Stack entry:
• .But : [dumax k0 c0 dumin k1 c1]. For du from dumin to dumax, f=0. For
du>dumax, k0 stiffness is applied to du-dumax, and for du<dumin, k1 stiffness
is applied to du-dumin. Damping is not taken in account at this time (due to
tabulated law strategy).
• .Fsec : [fsec,cpenal]. For dv<-fsec/cpenal or for dv>fsec/cpenal, f=fsec
is applied. For -fsec/cpenal<dv<fsec/cpenal, f=cpenal*dv is applied. If
omitted, cpenal=1e5.
• .K
• .C
This information will be converted in tabulated laws Fu and Fv using nl spring
tab (low level call that should be automatically called at the beginning of time
computation).
One can also describe non linearity with a tabulated effort / relative displacement
and effort / relative velocity law between the DOF (dof2-dof1), respectively in the
Fu and Fv fields of the pro Stack entry. First column of Fu (resp. Fv) gives the
relative displacements (resp. velocities) and second column gives the efforts. One
can give a coefficient av factor of Fv depending on relative displacement as a third
column of Fu. It can be useful to describe a non linearity depending on relative
displacement and relative velocity. Force applied is F=av(du).Fv(dv). It is used in
particular to describe damping in a stop (.But NL).
Following example performs a non linear time computation on a simple 2-node
model:
model.Node=[1
model.Elt=[Inf
1
1
];
0 0 0 0 0 0; 2 0 0 0 0 0 1];
abs(’celas’) 0 0;
2 3 -3 0 1 0 10;
% linear celas
2 3 -3 100 2 0 0;
% Associated to nl
122Non
linearities list
model.Stack={’pro’,’celas1’,...
struct(’il’,[100 fe_mat(’p_spring’,’SI’,1) 1e3 1 0 0 0],...
’type’,’p_spring’,...
’NLdata’,struct(’type’,’nlspring’,...
’dof1’,1.03,’dof2’,2.03,...
’but’,[1e-3 1e3 0 -4e-4 1e3 0]))};
model=fe_case(model,’FixDof’,’base’,1);
model=fe_case(model,’DofLoad’,’in’,struct(’DOF’,2.03,’def’,1));
model=fe_curve(model,’set’,’input’,’TestStep 0.02’);
model=fe_case(model,’setcurve’,’in’,’input’);
opt=nl_spring(’TimeOpt’); opt.Opt([4 5])=[1e-3 1e4];opt.NeedUVA=[1 1 0];
def=fe_time(opt,model);
% XXX need to update timeoptexplicit
if 1==2
opt=nl_spring(’TimeOptExplicit’); opt.Opt([4 5])=[1e-3 1e3];opt.NeedUVA=[1 1 0];
d2=fe_time(opt,model);
figure(10);
subplot(211);plot(def.data,def.def’);xlabel(’Time [s]’);title(’displacement’)
subplot(212);plot(def.data,def.v’);xlabel(’Time [s]’);title(’velocity’)
subplot(211);hold on;
plot(d2.data,d2.def’,’r--’);xlabel(’Time [s]’);title(’displacement’)
hold off;
subplot(212);hold on;
plot(d2.data,d2.v’,’r--’);xlabel(’Time [s]’);title(’velocity’)
legend(’Implicit’,’Explicit’);
hold off
end
Following example deals with a clamped-free beam, with a bilateral bump stop
at the free end. XXX: image
% define model:
L=1; b=1e-2; h=2e-2; e=1e-3; % dimensions
model=[];
model.Node=[1 0 0 0 0 0 0; 2 0 0 0 L 0 0];
model.Elt=[Inf abs(’celas’) 0 0;
2 0 2 0
100 1 110 0;
% linear celas
Non linearities list123
Inf abs(’beam1’) 0 0;
1 2 1 1
0 1 0 0
];
model=feutil(sprintf(’RefineBeam %.15g’,L/20),model);
model=fe_case(model,’FixDof’,’base’,1); % clamps 1st end
model=fe_case(model,’FixDof’,’2D’,[0.03;0.04;0.05]); % 2D motion
% model properties:
model.pl=m_elastic(’dbval 1 steel’);
model.il=p_beam(sprintf(’dbval 1 BOX %.15g %.15g %.15g %.15g’,b,h,e,e));
% Bump stop NL:
model=stack_set(model,’pro’,’celas1’,...
struct(’il’,[100 fe_mat(’p_spring’,’SI’,1) 1e-9 0 0 0 0],...
’type’,’p_spring’,...
’NLdata’,struct(’type’,’nlspring’,...
’dof1’,2.02,’dof2’,0,...
’but’,[0.02 5e2 0 -0.02 5e2 0],... % gap k
’umin’,3)));
if 1==1
model=fe_case(model,’DofLoad’,’in’,struct(’DOF’,2.02,’def’,50));
model=fe_curve(model,’set’,’input’,’TestStep 0.02’);
else
f=linspace(12,18,3);
model=fe_case(model,’DofLoad’,’in’,struct(’DOF’,2.02,’def’,1));
model=fe_curve(model,’set’,’input’,sprintf(’Testeval cos(%.15g*t)’,f(1)*
end
model=fe_case(model,’setcurve’,’in’,’input’);
% Time computation:
opt=nl_spring(’TimeOpt’); opt.Opt([4 5])=[1e-3 1e4];opt.NeedUVA=[1 1 0];
def=fe_time(opt,model);
RotCenter
The Rotcenter joint is used to introduce a penalized translation link between two
nodes A and B (rotation DOFs of NL entry are ignored), where the motion of A
is defined in a rotating frame associated with angle θA and large angle rotation
RLG (θA ). The indices G and L are used to indicate vectors in global and local
coordinates respectively.
124Non
linearities list
The positions of nodes are given by
{xA }G = [RGL ] ({pA } + {uA }L )
{xB }G =
({pB } + {uB }G )
(5.8)
which leads to expressions of the loads as
{FA }L = [RLG ] (K ({xB }G − {xA }G ))
{FB }G =
K ({xA }G − {xB }G )
(5.9)
To account for viscous damping loads in the joints, one must also compute velocities. Using (2.2), one obtains
{ẋA }G = [RGL ] ({u̇A }L + {ω(t)} ∧ {pA + uA }L )
{ẋB }G =
{u̇B }G
(5.10)
Velocity computations are currently incorrect with uA ignored in the rotation effect. So
that viscous damping loads can be added
{F CA }L = [RLG ] (K ({ẋB }G − {ẋA }G ))
{F CB }G =
K ({ẋA }G − {ẋB }G )
(5.11)
For a linearization around a given state (needed for frequency domain computations or building a sensor observation matrix),
(
qAG
qBG
)
"
=
RGL 0
0
I
#(
qAL
qBG
)
(5.12)
In global basis, stiffness matrix of a celas link is given by
"
k
I −I
−I I
#
(5.13)
which leads to the following stiffness matrix
"
T
RGL
0
0
I
# "
k
I −I
−I I
#"
RGL 0
0
I
#
"
=k
T
I
−RGL
−RGL
I
#
(5.14)
where qA DOFs are in the local basis (motion relative to the shaft in its initial
position) and qB are in the global frame.
data describing this link is stored in model stack as a p spring pro entry. Stiffness and damping are stored respectively as 3rd and 5th column of the data.il field
(standard linear spring, see sdtweb(’p spring’)).
NDdata fields:
Non linearities list125
.type string ’RotCenter’.
.sel a FindElt command to find celas of RotCenter type.
.k this field should not be used. .JCoef field should be used instead and has
priority. Stiffness used for Jacobian computation. Damping is not taken in
account in Jacobian in this case.
.JCoef coefficient of celas stiffness and damping for jacobian computation. Default is
1.
.drot the rotation DOF.
.lab label.
nl rotCenter
This non linearity can be used to connect 2 points A and B, where the motion of
A is defined in a rotating frame associated with angle θA and large angle rotation
RLG (θA ). More generally A and B are no real nodes but defined implicitely as observation matrices. nl rotcenter is an extension of RotCenter documented above,
using observation matrices which is more general.
.type string ’nl rotcenter’.
.sel a FindElt command to find elemnts asosciated to the NL link (XXX really
used ?).
.JCoef coefficient of celas stiffness and damping for jacobian computation. Default is
1.
.drot the rotation DOF.
.lab label.
.Weights (optional) Weight of the stiffness in a pivot link (in fact computed force is
multiplied by the weight factors before being applied so that the sum of weight
coef divided by number of points by pivot should be equal to 1).
.Stack Stack of cta coupling. Of the form {’cta’, ’name’,{r1,r2}}, where ’cta’
is a constant string defining the type of the link, ’name’ a string containing
the name of corresponding links. r1 is the observation in the first (rotating)
part. It is a data structure with fields .Node defining the nodes involved,
126Non
linearities list
.cta defining the observation matrix, .DOF defining corresponding DOF (as
many columns as in .cta) and .SeName defining as a string the name of the
superelement where cta is defined (XXX if omitted, it is assumed that DOF
and cta are defined on the model.DOF - no superelement -). r2 is the same
for the non rotating part.
An example can be found in t nlspring 2beam (XXX this must be generalized
to make it separated from psa08).
Temporary strategy was to define prior a RotCenter link, then convert it to the
nl rotcenter link using mdl=psa08(’nl rotcenterFix’,cf.mdl,RO); command.
This should no longer be used XXX.
Default uses the damping and stiffness defined in the il field of the p spring
pro entry to model a linear spring/damper between the 2 parts (stiffness il(3) and
damping il(5)).
Defining a xb parameter, the Excite NONL law will be applied instead of the
spring/damper. Parameter that are to be defined are
.xb Radial clearance.
.kb Stiffness at radial clearance.
.cb Damping at radial clearance.
Stiffness and damping at initial position are given in corresponding p spring properties il(3) and il(5). For example:
cf.mdl=nl spring(’setpro ProId 103 k 371 c 2000e-3 xb 0.03 kb 37100 cb
5’,cf.mdl);
One can also use a squeeze-film type law defining a .muRL3 field, with following
parameters (XXX this need to be reactivated and updated) :
.muRL3 oil viscosity*bearing radius*bearing length3 .
.boundary Boundary condition (0=Sommerfeld,1=Gumbel(p¿0)).
.N theta Number of integration point.
Defining a .RelF field, one can define a sub call to another non linearity to
compute the force resulting from the excentricity computed by nl rotcenter. In
Non linearities list127
that case, the .RelF field contains the NLdata field of the sub NL to be called.
Following example (XXX need to geenralize psa08 ShaftRebuild and ShaftTime
XXX) define a zener link in the bearing of simple 2beam example:
cf=feplot(2); t_nlspring(’2beam-build’)
psa08(’ShaftRebuild’,cf) % define large rotation DOF
psa08(’ShaftTime 2000 1 1e-5 0’,cf) % Omega(rpm), N_rot, dt, theta0
mo1.il(2,6)=0; % No gyroscopic because of shaft beam1
opt.RotFollow=1;% Follow velocity and not iterations
r1=stack_get(mo1,’pro’,’celas103’,’GetData’);
% define zener
NLdata=nl_maxwell(’db zener k0 125e3 k1 50e3 c1 0.4’);
r1.NLdata.RelF.type=’nl_maxwell’; r1.NLdata.RelF.NLdata=NLdata;
mo1=stack_set(mo1,’pro’,’celas103’,r1);
def=fe_time(opt,mo1);
rod1
XXXEB : following needs to be checked The rod1 non-linear connection is a simple
penalized rigid link. One considers two nodes A and B (see figure 5.4).
Figure 5.4: Large rotation rod functional representation.
Currently, one can introduce masses at points A and B. mass2 elements should
be used to account for the actual position of the center of gravity.
The global non linear load associated with the rod is thus
{xB −xA }
Frod = kr (k{xB − xA }k − L0 ) k{x
B −xA }k
(5.15)
which accounts for a load proportional to the length fluctuation around L0 (penalized
rod model).
128Non
linearities list
When linearizing, one considers a strain energy given by kr kqB − qA0 k2 with the
motion at node A0 being related to the 6 DOFs at node A by
"
{qA0 } =
I
0
h
i #
~
AB∧
I
{qA }
(5.16)
Node A node is free to rotate. The linearized stiffness thus corresponds to
an axial stiffness in the direction of the rod. The computation of the stiffness is
however based on the current position of the extremity nodes, a difficulty in model
manipulations is thus to translate these nodes.
data describing this link is stored in model stack as a p spring pro entry. Stiffness and damping are stored respectively as 3rd and 5th column of the data.il field
(standard linear spring, see sdtweb(’p spring’)). NL information is stored in the
data.NLdata field which has itself following fields :
• type : string ’rod1’.
• sel : a FindElt command to find associated celas of rod1 type ((’proid100’).
• ulim : build tabulated law from -ulim to ulim. Default is 1e3.
• lab : label.
nl modaldmp
Implementation of modal damping. Although modal damping is not a non-linear
feature in itself, its implementation needs makes it behave as a non-linearity.
The concept is to provide shapes defined on a part of a model with associated
damping ratios. nl modaldmp handles the kinematic projection on the model which
can contain superlements. In the case where superelements are used and concerned
with modal damping, the shapes provided must be written on the physical DOF of
the superelements.
The set of shapes must be stacked in model with a valid ID field. It is a common
deformation SDT data structre (see sdtweb def), with an additional .ID field. The
.data field is equivalent to the ones of complex modes (see fe ceig). It is a matrix
of two columns respectively giving the frequency and the target damping ratio for
each mode.
Non linearities list129
Since modal damping implies a modal sensor, the features performs both by
default. It is however possible to simplify it as a pure modal sensor. The theory
around modal sensing/damping can be found in [12].
The pro.NLdata structure has fields
• type: string ’nl modaldmp’.
• CurveId: the curve ID stacked in model which provides the shapes and their
damping ratios.
• SensorOnly: to use the feature only as a modal sensor in a def data structure.
The NLdata structure generation can be integrated using an nl modaldmp(’db’)
call. See sdtweb nl spring#setpro for this integration. This is used in transient
simulations, and in complex mode computations, see nl solve.
nl contact
See p contact.
Creating a new non linearity: nl fun.m
Purpose
The structure of nl spring allows creating any new non-linearity through the
use of a dedicated function, named nl fun.m. This function which non-linearity
name will be fun, will be automatically called by nl spring for classical operations.
The function structure has been designed to comply with specific needs. Standard calls have been defined, which are detailed below:
• Residue computation, called by mkl utils (sdtweb mkl utils), must ouput
the entry force minus the non linear force computed. The call performed is
nl_fun(r2,fc,model,u,v,a,opt,Case)
This call is low level and must modify fc using sp util(’setinput’) as
fc-fnl where fnl is the non linear force computed. Note that this is the
only possible call for nargin==8. Note that mkl utils allows a formalism
with precomputed observations, using fields unl.
• Jacobian computation, must output the tangent stiffness and tangent damping matrices associated to the non linearity. The call performed is
[kj2,cj2]=nl_fun(NL,[],model,u,v,[],opt,Case,RunOpt);
This call must output either empty matrices if no tangent nor Jacobian matrix
is associated to the non linearity, or matrices expressed on the DOF vector of
Case.DOF. The first matrix is the tangent stiffness matrix, the second on is the
tangent damping matrix.
• Initializations for fe time, must initialize the model non-linearity for non
linear forces computation
The call must generate the non linearity stored in model.NL, it can optionally
generate non linear DOF and labels. The call performed is of the type.
NL=nl_fun(’init’,data,mo1);
NL is a struct containing at least the field type with the nl fun handle (e.g.
[email protected] fun). data contains the Stack,pro entry, and mo1 is the model,
named mo1 where the call is performed.
• ParamEdit returns the ParamEdit string allowing integrated parameters interpretation (for internal SDT use).
The call performed is of the type.
130
Creating a new non linearity: nl fun.m131
st=nl_fun(’ParamEdit’);
• db returns default NLdata fields for a non linearity. This allows integrated
building of non-linearities in a model. This function can call ParamEdit to
allow interactive setup.
This call must return a NLdata field and is of the type
NLdata=nl_fun(’db data 0’);
• Renumbering capability, must return the non-linearity written for the new
renumbered nodes, elements, dof, . . .
The call performed (by feutilbfor example) is of the type
NL=nl_fun(’renumber’,NL,nind);
nind is the renumbering vector.
The designed nl fun template is given in the non-linear toolbox, sdtweb nl fun.m#1.
It is a functional non linear function, computing a zero non linear force. The definition of a non linearity using nl fun in a standard SDT model is given in the
following.
% A standard SDT model
model=struct(’Node’,[1 0 0 0 0 0 0; 2 0 0 0 0 0 1],...
’Elt’,[Inf abs(’celas’) 0 0;
1 2 3 -3 0 1 0 10;
% linear celas
]);
% Define a non linearity of type nl_fun
model=nl_spring(’SetPro ProId 100’,model,nl_fun(’db data0’));
%Equivalent to
% model=stack_set(model,’pro’,’nl_fun’,...
% struct(’il’,[100 fe_mat(’p_spring’,’SI’,1)],...
%
’type’,’p_spring’,...
%
’NLdata’,struct(’type’,’nl_fun’,’data’,[])));
% Define the case
model=fe_case(model,’FixDof’,’base’,1);
model=fe_case(model,’DofLoad’,’in’,struct(’DOF’,2.03,’def’,1));
model=fe_curve(model,’set’,’input’,’TestStep 0.02’);
model=fe_case(model,’setcurve’,’in’,’input’);
% Define the TimeOpt and compute the solution
opt=nl_spring(’TimeOpt’); opt.Opt([4 5])=[1e-3 1e4];opt.NeedUVA=[1 1 0];
def=fe_time(opt,model);
nl solve
Purpose
Integrated non linear simulations
Description
The simulation of non linearities require special handling in SDT, which is packaged in the non linear toolbox. This function aims at performing classical studies,
such as done by fe simulfor classical SDT models with this special handling.
See nllist for the list of supported non linearities.
Static
To compute the static state of a model with non-linearities.
q0=nl_solve(’static’,model);
It is possible to use custom fe time simulation properties using the model stack
entry info,TimeOptStat. See nl spring TimeOpt for fields and defaults.
It is possible to use as command option any field from the usual static simulation
option, see sdtweb nl spring#TimeOpt to have more details. E.g. To redefine on the
fly the maximum number of iteration, one can enter [q0,opt]=nl solve(’static
maxiter 100’,model);.
By default, the StaticNewton algorithm implemented in fe time is called.
An Uzawa algorithm is also implemented in nl solve, under the method static
nl solve uzawa. This algorithm is very different from the StaticNewton one
since here the solution is not incremented but fully re-computed at each iiteration.
This is useful when some non-linear forces do not derive from potentials. Command StaticUzawa can be used in nl solve – to access it: q0=nl solve(’static
Uzawa’,model);.
Mode
The definition of modes for non-linear models is not straight forward. This command aims at computing tangent modes as function of a non-linear model current
state. The resolution thus concerns a linear model with tangent stiffness, damping
matrices corresponding to the model current diplacement, velocity, accleration state.
The eigenvalue solvers used are then fe eigfor real modes and fe ceigfor complex
modes.
132
nl solve133
By default, modes tangent to a static state are computed. A static simulation
is performed to produce a model state from which tangent matrices are computed.
It is also possible to compute tangent modes at specific instants during a transient
simulation, at SaveTimes instant, and to store frequency/damping data and deformations. Command options a A set of command options allows precising the mode
computation wanted and the output.
Accepted command options to control the model computation itself are
• -cpx for complex mode computation (default is real mode computation).
• -stat for mode computation based on a static state (typically after an fe timestat
simulation).
• -time for mode computations during a transient simulation (exclusive with
the default -stat option).
• -traj for mode computations based on states provided as an additional argument. xxx
• -skip skips fe timesimulations and use the data provided in model to compute the modes. For a static computation, the model stack entry curve, q0
will be used. If empty, a zero displacement static state will be used. For a
transient mode computation, the model stack entry curve,TSIM will be used,
if empty an error will occur.
For options -skip and/or -traj, a deformation is/can be provided (either the
time deformation, or a static deformation in the model stack). This deformation is
stacked in the working model under the name curve,DEF TRAJ and can be accessed
during all initialization phases.
Accepted command options to control the output format are
• -dataOnly to save only the frequency, damping data (does not store the deformation field). The output is then under a frequency tracking curve in the
iiplotformat.
• -fullDOF to output the deformation fields restituted on the unconstrained
DOF.
• -alpha (requires -cpx) to also output the real mode participation to the complex modes. This is in fact the projection of the complex modes on the real
mode basis.
134nl
solve
• -real "ModeBas" (requires -cpx) to specify a particular real mode basis on
which the complex modes will be computed. The real mode basis is supposed
to be stored in the model stack entry curve, ModeBas.
Sample calls to extract tangent modes are given below.
def0=nl_solve(’Mode’,model)
def0=nl_solve(’Mode-stat-fullDOF’,model);
defT=nl_solve(’Mode-time’,model);
hist=nl_solve(’Mode-time-dataOnly’,model);
histC=nl_solve(’Mode-cpx-time-dataOnly’,model);
defC=nl_solve(’Mode-cpx-time-alpha-real’’MyBas’’-fullDOF’,model);
def1=nl_solve(’Mode-skip-fullDOF’,model);
SineSweep
xxx
nl mesh
Purpose
Integrated mesh modifications for non-linear applications
Description
Some non-linearities require surface/volume remeshing (e.g. definition of conforming interfaces for contact) or adpations (generation of thin interface layers).
This function regroups such functionalities. Mesh generation are performed by
fe gmsh(interface to gmsh) and fe tetgen (interface to tetgen, see help fe tetgen).
Conform
The Conform call is an integrated call to generate comforming meshes between two
facing interfaces. The command generates a conforming surface mesh of the face to
replace, merges it with the conform mesh of the second interface, replaces the model
face mesh and remeshes the model volume to yield a new equivalent volume with a
conform face mesh.
mo1=nl_mesh(’conform eltsel"FindElt"’,model,sel);
% sel={eltSelToReplace eltSelForReplacement;...}
model is a standard SDT model. sel is a cell array containing in each line two
FindElt commands specifying the element selection face to remesh and the element
selection face to use for the conforming interface for replacement.
• Command option eltsel allows specifying in a string a FindElt command
restraining the working area in the original model.
• Command option smartSize allows generating a conforming mesh with a coherent mesh characteristic length.
• Command option gmsh allows using gmsh to mesh the final volume.
• Command option tetgen allows using tetgen to mesh the final volume (by
default).
• Command option output asks to output the generated mesh in a .mat file.
• Command option OrigContour asks to keep original positions of mid-nodes
of the quadratic faces delimiting the volume to remesh. This may however
yield mesh wraping problems when the face to remesh is much coarser than
the mesh trace to place for conformity.
135
136nl
mesh
• Command option mergeTo allows specifying a FindElt selection command in
a string to replace the mesh on another model selection than the one used to
generate the conforming interface (which uses eltsel.
• It is also possible to provide additional arguments, which will be passed the
the nl meshcover call performed in the procedure.
Limitations: The Conform call only supports generation of conforming interfaces when one interface contour fully contains the other interface contour. Handling
of more complex contour configurations has not been implemented. Besides, this
function has been designed to handle planar surfaces. Additional operation to work
on non planar surfaces are left to the user (e.g. pre/post projections of the surfaces
on a plane).
Cover
The Cover call is degined to mesh the interstice between two closed planar contours,
when one fully contains the other. The call is performed as
[newModel,opt,largeContour]=nl_mesh(’cover’,model,{eltsel_large,eltsel_small});
model is a standard SDT model. Variables eltsel large and eltsel small are
FindElt calls defining the element selection of the respectively large surface and
small surface (the small being contained in the large).
The output newModel is the mesh generated from the surface contours.
opt outputs additional information about the mesh generation, it is a struct
containing fields .NodeAdd specifiying the potential nodes added in the interstice
space meshed,.nodeEdgeSel1 specifying the NodeId of the nodes located on the
eltsel large contour, .nodeEdgeSel2 specifying the NodeId of the nodes located
on the eltsel small contour, and .tname the name of the temporary file containing
the generated mesh.
largeContour provides the original contour in beam elements of the eltsel large
selection.
• Command option merge allows merging the interstice mesh with the inner
mesh of the eltsel small selection.
• Command option quad allows generating proper quadratic meshes.
• Command option smartSize allows generating an interstice mesh with a characteristic length in coherence with the contour mesh lengh.
nl mesh137
• Command option lcval allows setting the characteristic length to Val to the
interstice mesher.
• Command option algo‘‘name’’ allows specifying the meshing algorithm name
to the gmsh mesher. See the gmsh documentation for more information.
Replace
The call Replace is designed to replace parts of a model face mesh with new given
face meshes. It is performed as
model=nl_mesh(’replace’,model,nodesToReplace,NewModel,nodeIDtoKeep)
model is a standard SDT face (shells) model. nodesToReplace is a cell array
containing vectors of NodeId specifying the areas to be replaced. NewModel is a cell
array containing the new face models which will be merged to the mesh skin in coherence with the removed elements (specified by nodesToReplace). nodeIDtoKeep
is an optionnal argument specifying NodeId of the original model for nodes whose
NodeId must not change in the transformation.
• Command option setMat allows defining a specific MatId to the output mesh.
• Command option setPro allows defining a specific ProId to the output mesh.
• Command option keepNoCheck in combination with the use of a third argument nodeIDtoKeep assumes the nodes numbering is correct and forces the
nodes original numerotaion without check.
Contour
Call ContourFrom generates SDT beam1or beam3 contour models for CAD definitions. All formats readble by gmsh can theoretically be used. Only the .geo, .stp
and .igs are tested.
Since .geo files can contain geometric yet undiscretized objects, a 1D meshing
pass is performed with gmsh to provide an SDT contour model. This is not supported
for other file types.
model=nl_mesh(’contourFrom’,’file.stp’); % not specifying the type
Call Contour generates an SDT face mesh from an SDT beam11 or beam13 contour.
138nl
mesh
model=nl_mesh(’contour’,model);
model is an SDT beam model defining a closed contour.
• Command option lcval allows specifying a characteristic length for gmsh.
• Command option lcminval allows specifying a minimal characteristic length
for gmsh.
• Command option quad allows generating quadratic meshes.
• Command option keepNode asks to keep the original contour NodeId for the
contour command.
• Command option diag asks to output the gmsh log file for diagnostic problems.
• Command option single tells nl mesh that a single coutour is defined. This
is usefull when several closed contours are defined since it is impossible to
automatically decide whether each contour is independant or if they define a
single complex contour.
• Command option groupval is used in combination to the single command
option. This allows specifying which contour group will be meshed, while
other possible contours will define holes.
• Command option algo’’val’’ allows specifying which algorithm gmsh must
use (this depends on the gmsh version, report to the gmsh documentation for
more details).
• Command option AllowContourMod allows gmsh adding nodes on the contour
provided. By default gmsh is forced not to add nodes to the lines defining the
contour to mesh.
Rivet
This command generates rivet drills in a specified contour. A model containing a
beam contour can be provided, or an EltSel string generating a surface selection (see
section and the selface option) on a bigger model. A data structure providing the
origins, and rivet radiuses and washer (or rivet head radiuses). The mesh generated
between both radiuses is structured.
The data structure must contain fields
nl mesh139
• Orig providing the rivet centers in an [x y z;...] matrix.
• radHole providing the rivet hole radius, either a scalar if all rivets have the
same radius, or a line vector providing each rivet radius separately.
• radWash providing the rivet washer (or head) radius, either a scalar if all rivets
have the same washer radius, or a line vector providing each rivet washer radius
separately.
and can optionnaly contain fields
• plane To directly provide the contour plane normal to define the drillings, in
an [nx ny nz; ...] matrix.
• Ns To define the number of mesh segments in the rivet to washer radius area
(default 10), either a scalar if all rivet heads have the same properties, or a
line vector defining the property for each rivet separately.
• Nr To define the number of mesh radial nodes in the rivet to washer radius
area (default 2), either a scalar if all rivet heads have the same properties, or
a line vector defining the property for each rivet separately.
• Command option MatIdval allows setting the modified mesh MatId to val.
• Command option ProIdval allows setting the modified mesh ProId to val.
• Command option -fill outputs in second argument a compatible mesh of the
rivet bores.
Following example meshes a rectangular contour with a few rivet drillings inside.
% Generate a global contour
model=struct(’Node’,[...
1 0 0 0 0 0 0;
2 0 0 0 10 0 0;
3 0 0 0 10 2 0
4 0 0 0 0 2 0], ’Elt’,[]);
model.Elt=feutil(’ObjectBeamLine 1 2 0 2 3 0 3 4 0 4 1’,model);
model=feutil(’refinebeam .2’,model);
%feplot(model)
140nl
mesh
% define rivet positions, eventually planes
RO=struct(’Orig’,[ 3 1 0;6 1 0;9 1 0],...
’radHole’,[.2;.2;.2],...
’radWash’,[.8;.8;.8]);
model=nl_mesh(’Rivet’,model,RO);
cf=feplot(model);
GmshVol
This call integrates the generation of a volumic mesh from a face mesh with gmsh.
model=nl_mesh(’GMSHvol’,model);
model is a standard SDT face mesh model.
• Command option setmat allows specifying a specific MatId to the output mesh.
• Command option setpro allows specifying a specific ProId to the output mesh.
• Command option keepFaces asks to keep orignal NodeId of the nodes located
on the face mesh.
• Command option lc specifies a characteristic length for gmsh.
• Command option clmin specifies a minimal mesh length for gmsh.
• Command option clmax specifies a maximal mesh length for gmsh.
ExtrudeLayer
This command generates a non trivial extrusion of a face mesh follwing the face
normal at each node, to generate a volumic layer.
model=nl_mesh(’ExtrudeLayer thick Val’,model);
model is an SDT model with shell elements (a surface definition).
Command option thick specifies the extrusion thickness. Command option
setmat allows specifying a specific MatId to the output. Command option setpro
allows specifying a specific ProId to the output.
nl mesh141
StackClean
This call cleans up a model stack when mesh modifications have been performed. It
cleans up stack entries definition that became incoherent with some mesh modifications.
model=nl_mesh(’StackClean’,model);
Command option rmuns removes stack entries that could not be sorted out.
Command option rmmod removse stack entries affected by the model modifications.
See also celas, p spring, fe gmsh
spfmex utils
Purpose
OfactOptim
This command can be used to set spfmex parameters in order to optimize computation speed for factorization and / or solving.
spfmex utils(’OfactOptim’,ki,RO,ofact(1,’lu’));
ki is the matrix that is used for the optimization. RO is a data structure defining
options with following fields:
.nCompt Number of computation for result averaging.
.maxDomain Max size of blocks of the elimination tree (fraction of matrix size).
.maxZeros Max number of zeros in the blocks of the resolution tree (fraction of matrix
size).
.refineStep Number of step to refine the optimal parameter pair found in the first step.
Command option -refine must be added to perform the refine step.
The last argument ofact(1,’lu’) is needed in order to call directly spfmex utils.
Available command options are
-setopt use default RO.
-refine performs refine step for optimal search.
fact to benchmark factorization step.
solve to benchmark resolution step.
-plot to plot history in iiplot (xxx this need to be generalised, call to gvdr utils plot
xxx).
Following example optimize only solving:
ki=rand(20);
RO=struct(’nCompt’,100,... number of computation for result averaging
142
spfmex utils143
’maxDomain’,2.^[4:7],... parameter 1
’maxZeros’,logspace(-3,1,5),... parameter 2
’refineStep’,3); % refine results to most relevant parameters
spfmex_utils(’ofactoptim solve-refine’,ki,RO,ofact(1,’lu’)); % method,sol
extrotor
Purpose
External references
http://www.sdtools.com/help/mpc.html
144
Bibliography
[1] C. Desceliers, Dynamique non linéaire en déplacements finis des structures tridimensionnelles viscoélastiques en rotation. PhD thesis, École Centrale de Paris,
2001.
[2] M. Géradin and D. Rixen, Mechanical Vibrations. Theory and Application to
Structural Dynamics. John Wiley & Wiley and Sons, 1994, also in French,
Masson, Paris, 1993.
[3] J. Batoz and G. Dhatt, Modélisation des Structures par Éléments Finis. Hermès,
Paris, 1990.
[4] J.-P. Laı̂né, Dynamique des rotors. Cours de l’École Centrale de Lyon, 2005.
[5] A. Sternchüss, Multi-level parametric reduced models of rotating bladed disk
assemblies. PhD thesis, Ecole Centrale de Paris, 2009.
[6] M. Lalanne and G. Ferraris, Rotordynamics prediction in Engineering. Wiley,
1998.
[7] G. Lallement, C. Berriet R., and S., “Updating finite element models using
static deformations,” International Modal Analysis Conference, pp. 494–499,
1992.
[8] R. G. and V. C., “Calcul modal par sous-structuration classique et cyclique,”
Code Aster, Version 5.0, R4.06.02-B, pp. 1–34, 1998.
[9] Sternchüss, A. and Balmes, E. and Jean, P. and Lombard, JP., “Reduction of
Multistage disk models : application to an industrial rotor,” in 012502, 2008.
Paper Number GT2008-012502.
[10] E. Balmes, “Orthogonal maximum sequence sensor placements algorithms
for modal tests, expansion and visibility.,” IMAC, January 2005.
145
146
BIBLIOGRAPHY
[11] A. Sternchüss and E. Balmes, “On the reduction of quasi-cyclic disks with
variable rotation speeds,” in Proceedings of the International Conference on
Advanced Acoustics and Vibration Engineering (ISMA), pp. 3925–3939, 2006.
[12] G. Vermot Des Roches, Frequency and time simulation of squeal instabilities.
Application to the design of industrial automotive brakes. PhD thesis, Ecole
Centrale Paris, CIFRE SDTools, 2010.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
