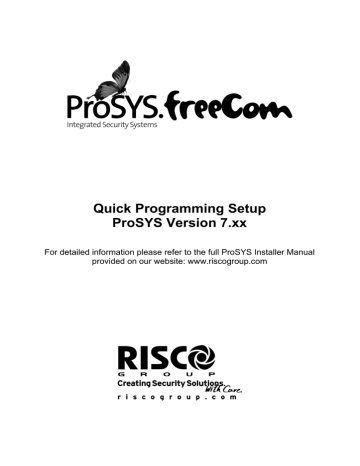

Quick Programming Setup

ProSYS Version 7.xx

For detailed information please refer to the full ProSYS Installer Manual provided on our website: www.riscogroup.com

2

Table of Contents

Introduction......................................................................................................................................3

I. Suitable Locations........................................................................................................................3

II. Installing Hardware (Devices).....................................................................................................3

1. BUS Connection..................................................................................................................... 3

1.1 Setting BUS Accessory ID Numbers ..........................................................................4

2. Setting Zone Inputs Connection........................................................................................... 5

2.1 Connection on the main unit (ProSYS 7), G3 zone expanders (ProSYS EZ8G3,

EZ16G3) or Inputs on iWISE BUS................................................................................5

2.2 Connection on the main unit (ProSYS 5), Zone expanders (ProSYS EZ8, EZ16)....6

3. Wiring Auxiliary Devices (Sensors)...................................................................................... 6

4. Wiring Internal Bell ................................................................................................................ 6

5. Bell Tamper Wiring (Terminal Bell TMP) .............................................................................. 6

6. Wiring UO1 to Activate Any External Stand-alone Siren.................................................... 7

7. Wiring Important BUS Accessories...................................................................................... 7

7.1 Wiring the Voice Module..............................................................................................7

7.2 ProSound - BUS Siren Connection.............................................................................8

7.3 Wiring the GSM.............................................................................................................8

7.4 Wiring BUS Detectors .................................................................................................9

III. Programming the System ........................................................................................................10

Power Up and Enter Installer Mode........................................................................................ 10

Identifying the Connected Devices (including BUS Detectors) ........................................... 11

Automatic Settings ............................................................................................................11

Bus Test ..............................................................................................................................11

Programming: SYSTEM........................................................................................................... 11

SYSTEM - Timers ...............................................................................................................11

SYSTEM - Controls ............................................................................................................11

SYSTEM - Set Clock...........................................................................................................12

Programming: Wireless ZONES ............................................................................................. 12

ZONES - Wireless Calibration ...........................................................................................12

ZONES - Wireless Zone Allocation ...................................................................................12

ZONES - Wireless Communication Test...........................................................................13

Programming: ZONES Wired & Wireless (Attributes)........................................................... 13

PARTITIONS .......................................................................................................................13

GROUP SETS......................................................................................................................13

ZONE TYPE.........................................................................................................................13

ZONE SOUND .....................................................................................................................13

ZONE TERMINATION .........................................................................................................14

ZONE RESPONSE ..............................................................................................................14

ZONE LABELS....................................................................................................................14

Programming BUS Detectors.................................................................................................. 14

Programming BUS detectors on the Main BUS...............................................................14

Programming BUS Detectors on a BUS Zone Expander ................................................15

Programming the Input on the iWISE BUS Detector .......................................................16

Programming: Dialer (For PSTN Dialing)............................................................................... 17

DIALER - Link-Up ...............................................................................................................17

DIALER - Accounts ............................................................................................................17

DIALER - Communication Format ....................................................................................17

DIALER - Control................................................................................................................18

DIALER - Auto Codes.........................................................................................................18

DIALER - Follow Me ...........................................................................................................18

Programming: PROG OUTPUTS............................................................................................. 18

PROG OUTPUTS - Define ..................................................................................................18

Codes........................................................................................................................................ 19

System Backup ........................................................................................................................ 19

Exiting Programming Mode .................................................................................................... 19

Installer Programming Menu Maps ..............................................................................................20

Technical Specifications...............................................................................................................26

ProSYS Quick Programming Setup

Introduction

This simple setup procedure guide covers all common ProSYS programming steps (based on factory default settings) required in order to have a working system.

I. Suitable Locations

Decide where to position your ProSYS control panel. A central location is often the best place, making wiring to expanders and accessories easier. It is advisable to prepare a plan of expander/accessory physical locations in advance to the installation, as this will determine which type of expander is required at each location.

The control panel location should be:

In a dry place near an AC power supply (switched off).

With a good earth connection.

With access to the customer’s phone lines.

With access to the routing of cables for the system from detection devices.

Warning:

If connecting remote power supplies, do

NOT

connect the Red wire (+12v) between the Power Supply Unit and

ProSYS.

II. Installing Hardware (Devices)

1. BUS Connection

The set of four terminals on the left of the Main Panel represent the Expansion BUS. These terminals support the connection of keypads and expansion modules. The connections are terminal-to-terminal with color-coded wires, as follows:

AUX RED

COM BLK

+12V power

Black 0V common

BUS 1 YEL Yellow DATA

BUS 1 GRN Green DATA

Note:

For BUS 2 the terminals are identical but with reference to BUS 2.

The parallel wiring system supports parallel connections from any point along the wiring. The maximum wire run permitted is 300 meters (1000 feet) for all legs of the BUS for long cable runs. Please use the correct cable as stated on page 1-3 of the Installation Manual.

ProSYS Quick Programming Setup 3

4

1.1 Setting BUS Accessory ID Numbers

Each accessory has its ID category number, which is defined by dipswitches. Before setting power on, define each module’s ID number by setting the dipswitches as follows:

ID

1 2 3 4 5

Dipswitches

1 2 3 4 5

01 OFF OFF OFF OFF OFF 17 OFF OFF OFF OFF ON

02 ON OFF OFF OFF OFF 18 ON OFF OFF OFF ON

04 ON ON OFF OFF OFF 20 ON ON OFF ON

06

07 OFF ON OFF OFF

08 ON ON ON OFF OFF

23 OFF ON

24 ON ON

ON OFF

ON OFF

09 OFF OFF OFF ON OFF

10 ON OFF

25 OFF OFF OFF ON

26 ON OFF

ON

ON

12

ON OFF 27 OFF ON

ON ON OFF 28 ON ON OFF ON

OFF ON OFF 29 OFF ON ON ON

14 ON OFF ON OFF 30 ON OFF ON ON

15 OFF ON ON OFF 31 OFF ON ON ON

16 ON ON ON ON OFF 32 ON ON ON ON ON

Notes:

1

: Most accessories have 4 Dipswitches while the BUS Detectors have 5 Dipswitches

2

: IDs 9-16 are available for keypads, proximity key readers and BUS Detectors. ID 17-32 is only available for

BUS Detectors.

3

. You may have up to 128 BUS detectors. Each detector must have a unique ID on the BUS zone expander

that it is connected to, therefore each ID can be used twice or more - once on each BUS zone expander.

Devices are split into ‘Families’. Each ‘Family’ of devices has sequential identification numbers which are set by the Dipswitches. The first module in each category is defined as ID= 1. If a

Dipswitch is changed on any device, it is necessary to remove power from that device and repower.

Families that have sequential ID numbers are:

Keypads

Zone Expanders (8 Wired Zone Expander, 16 Wired Zone Expander, 8 Wireless Zone

Expander, 16 Wireless Zone Expander)

Outputs (8 Open Collector Outputs, 4 Relay Outputs, X-10 Outputs)

Power Supplies (3Amp Power Supplies and 1.5 Amp Power Supplies)

BUS Zones

For example: Each Zone Expander (Hardwired Expander and Wireless Expander) has sequential numbering such as 1,2,3,4 etc…

ID1 (First Zone Expander)

ID2 (Second Zone Expander)

ID3 (Third Zone Expander)

ID4 (Fourth Zone Expander)

= DIP Switch ‘1 off, 2 off, 3 off, 4 off’ = [

↓↓↓↓

]

= DIP Switch ‘1 on, 2 off, 3 off, 4 off’ = [

↑↓↓↓

]

= DIP Switch ‘1 off, 2 on, 3 off, 4 off’ = [

↓↓

]

= DIP Switch ‘1 on, 2 on, 3 off, 4 off’ = [

↑↑↓↓

]

The first zone on ‘Zone Expander’ 1 will be ZONE 09

The last zone on ‘Zone Expander’ 1 will be ZONE 16 or 24 (depending on 8/16 zones on the zone expander).

The first zone on ‘Zone Expander’ 2 will follow on from the last zone on ‘Zone Expander’ 1. See

NOTE 1 below.

Notes:

1

: On Wireless Zone Expanders, there are two banks of Dipswitches. One bank for ZONE ID number and one bank for Wireless KEYFOB ID number. Wireless Keyfob ID numbers can be 1, 2, 3 or 4.

2

: The main unit can support a maximum load of 1.4 Amp. If more current is required install additional power supply modules (1.5 or 3 Amp).

3

: On 3 AMP Supervised Power Supplies, there are two programmable outputs. These programmable outputs belong to the ‘Output’ family. There are two Dipswitches on the 3 AMP PSU, one for the PSU ID and one for the OUTPUT ID.

ProSYS Quick Programming Setup

Maximum number of Devices possible:

ProSYS16

Total number of zone expanders

Outputs expanders

Keypads

Power Supply

ProSound Siren

1x8

8

ProSYS40

4x8 or 2x16 or 2x8 + 1x16

2 4

12

ProSYS128

1x8 + 7x16

8

16

8 8 8

8 8 8

2. Setting Zone Inputs Connection

The following diagrams illustrate the various possible zone connections.

2.1 Connection on the main unit (ProSYS 7), G3 zone expanders (ProSYS

EZ8G3, EZ16G3) or Inputs on iWISE BUS

Note:

TEOL uses normally-closed (NC) contacts in a zone to distinguish between alarm, tamper condition and fault/AM condition using 4.7 K +6.8 K + 12 K End-of-Line resistors.

Note:

The values in the diagram above refer to ProSYS version 7.xx.

ProSYS Quick Programming Setup 5

2.2 Connection on the main unit (ProSYS 5), Zone expanders (ProSYS EZ8,

EZ16)

NORMALLY CLOSED

ZONE CONFIGURATION zone com

NORMALLY OPEN ZONE

CONFIGURATION zone com

END OF LINE ZONE

(N.C CONTACT) zone com

END OF LINE ZONE

(N.O CONTACT) zone com

DOUBLE END OF LINE

ZONE CONFIGURATION zone com

6

2.2

K 2.2

K

2.2

K

DETECTOR

ALARM

DETECTOR

ALARM

DETECTOR

ALARM

DETECTOR

ALARM

DETECTOR

ALARM TAMPER

Note:

The values in the diagram above refer to ProSYS version 5.xx and below.

3. Wiring Auxiliary Devices (Sensors)

Use the

Auxiliary Power AUX (+) COM (-)

terminals to power PIRs, glass-break detectors (4wire types), smoke detectors, audio switches, photoelectric systems and/or any device that requires a 12V DC power supply.

The total power from the

AUX

terminals should not exceed 600mA.

Note:

If the auxiliary outputs are overloaded (exceed 600mA) and are shut down, you must disconnect all loads from the outputs for a period of at least 10 seconds before you reconnect any load to the auxiliary outputs.

4. Wiring Internal Bell

The Bell/LS terminal provides power to the internal siren. When connecting an internal sounding device, pay attention to the polarity.

It is important to position the BELL/LS Jumper (J3) correctly. The position varies depending on the type of internal siren.

A maximum of 900 mA may be drawn from this terminal.

Note:

To avoid Bell Loop Trouble, if no connections are made to an internal siren, use a 2.2K

Ω

resistor in its place.

5. Bell Tamper Wiring (Terminal Bell TMP)

Connect the bell tamper to the BELL TMP and COM terminals on the Main Panel using 2.2K

Ω resistor in serial.

Important:

If you DO NOT use the terminal TMP BELL, remember to connect a 2.2K

Ω

resistor (Resistor colors: Red, Red,

Red) BELL between TMP and COM.

PROSYS MAIN PANEL

BELL

TMP

COM

BELL TAMPER

2.2

K EOL

RESISTOR

ProSYS Quick Programming Setup

6. Wiring UO1 to Activate Any External Stand-alone Siren

Output UO1 has 3 terminals C, N.C. and N.O. and can be configured to provide a positive voltage, negative voltage or a contact depending on the J10 jumper located on the main board.

Positive (POS)

: When the J10 connector is placed on

POS

, the C terminal on UO1 supplies

13.8V

Negative (NEG)

: When the J10 connector is placed on

NEG

, the C terminal on UO1 supplies

COM

Single pin

: If the J10 connector is placed

only on 1 pin

, the UO1 acts as a dry contact.

7. Wiring Important BUS Accessories

7.1 Wiring the Voice Module

The Voice Module provides native audible information about the status of your ProSYS system, and enables any remote, touch-tone (DTMF) telephone to act as a keypad for the system.

The diagram below shows the main components of the electronic form of voice:

BUS Connection – JP1

The connection to the main BUS can be made through the terminals of the module voice AUX (RED), COM (BLK), BUS

(YEL) and BUS (GRN) as illustrated.

When placed near the ProSYS main unit you can use the supplied

4-wire cable that is dedicated to connecting with the voice module

(JP1) to the BUS ProSYS

Voice Connection – JP2

Connects the Voice module (JP2) to the

VOICE connector on the ProSYS Main

Panel via the supplied cable (essential for normal operation of the Voice module).

Through this connector, the module transmits the voice audio signals to the central ProSYS who then sends them on the telephone line for remote communication with the phone numbers dedicated to Follow Me destinations. This connection is necessary for the proper functioning of the module.

ProSYS Quick Programming Setup

ProSYS

Voice

Module

Identical

Connectors

7

7.2 ProSound - BUS Siren Connection

Connect the siren according to the diagram. Set the related Dipswitches for BUS mode operation.

Dipswitch CONFIG 2

should be in

ON

position for ProSound BUS connection

Dipswitch CONFIG 4

: Defines the siren sound rhythm (ON = Slow, Off = Fast)

Dipswitch ID1: 1-3

: Set ID BUS Number. Up to 8 sirens can be connected to the ProSYS

Dipswitch ID1 4

: Set different siren sound

Notes:

The PROX and TRBL outputs are deactivated in BUS mode configuration.

To protect the battery against deep discharge, the battery will automatically disconnect below 10.5 VDC.

The siren will not operate when a battery is not connected.

To

Battery

TAMPER

INT EXT

+

PS

-

BLK RED

(To Int.

Tam per)

TRIG STROB

C -

C +

AUTO

MAN

POW ER

ON

1 2 3

CONFIG

4

ON

1

ID1

2 3 4

LED2

7.3 Wiring the GSM

ProSYS Main GSM/GPRS Module

SET

PHONE

LINE

To telephone set

Telephone cable to bring the voice messages from the ProSYS to the module

BUS GSM / GPRS

SET

PHONE

LINE

To PSTN Line from the Wall

To Internal

Speaker

To

ProSYS

Panel

BUS

8

Important:

Do NOT make any connection to the RED Power terminal from the security panel.

ProSYS Quick Programming Setup

7.4 Wiring BUS Detectors

The ProSYS supports integration of BUS detectors. Up to 32 addressable BUS detectors can be assigned to the main unit without the need to add any additional hardware zone expanders

(using virtual zones).

To assign more than 32 BUS detectors (up to 128) you need to add BUS Zone Expanders.

For full installation instructions refer to the instructions supplied with each BUS detector.

Connecting BUS Detectors to the ProSYS panel:

1.

Set the BUS detector ID number (1-32) using the detector's Dipswitches.

Note:

For WatchOUT, LuNAR, and WatchIN set the switch that defines the detector operation mode to BUS mode.

2.

Wire the BUS terminals (RED), COM (BLK), BUS (YEL) and BUS (GRN) to the ProSYS

BUS.

Note:

For maximum operation stability, it is best NOT to exceed a total 300 meters (1000 feet) of wiring from the BUS detector to the ProSYS panel.

Connecting BUS Detectors using a BUS Zone Expander:

1.

Set the BUS Zone Expander ID number (1-8) using the Dipswitches SW1 1-3.

2.

Using SW2 Dipswitches, set the number of zones this expander will support (8,16,24,32)

3.

Wire the BUS Zone Expander terminals marked as

TO PANEL

to the ProSYS BUS.

4.

Set the BUS detector ID number (1-32) using the detector's Dipswitches.

Note:

Do not repeat the same ID twice on the same BUS zone expander.

5.

Wire each detector's BUS terminals to the relevant BUS zone expander's terminals marked as

TO DEVICE

.(see figure below)

Note:

For maximum operation stability, it is best NOT to exceed a total of:

300 meters (1000 feet) of wiring from the BUS Zone Expander to the ProSYS panel.

300 meters (1000 feet) of wiring from the BUS Zone Expander to the last BUS detector.

ProSYS Quick Programming Setup 9

10

III. Programming the System

Power Up and Enter Installer Mode

1.

Connect Mains power. The keypad displays "

Partition 1

".

2.

Press

[7][1]

to go into the installer programming menu.

3.

If a Master/Manager code is required, press

[1][2][3][4]

4.

You are prompted for the Installer Code.

For ProSYS16, press

[0][1][1][6]

(Default Master Code).

(Default Installer Code)

For ProSYS40, press

[0][1][4][0]

(Default Installer Code)

For ProSYS128, press

[0][1][2][8]

(Default Installer Code)

5.

You are now in Installer Programming mode. Move to the section "Identifying the connected devices" described below.

Quick Keys shown (in square brackets) can be pressed when at the ‘Main Menu’ instead of using the Up/Down keys

Notes:

If required, you can default the panel to manufacturer's default settings as follows:

1. Fit J2 (the Default Jumper) across both pins in order to default.

2. Connect the Mains power. Wait until the keypad displays “To Install Press * ”.

3. Press * and enter the default installer code, depending on the ProSYS type. The system automatically

enters the automatic accessories settings process.

4. Remove J2 Default Jumper and place it back on one pin.

5. Move to the section "Identifying the connected devices" described below.

Navigating through the menus:

When navigating through the ProSYS menus, the following keys are used:

-

- to enter numeric values where required

- to scroll up or down through the menu options displayed

- Enter / Save (to move into the displayed menu or to save the data that you have changed)

- to toggle displayed menu options from ‘N’ to ‘Y’ and vice-versa

- to go back / quit / don’t save

If you do not know where you are in the menu structure, press main menu.

repeatedly to return to the

Entering Text Descriptions (Labels):

Key [1] = 1ABCDEFGHIJKLM

Key [2]

Key [4]

Key [5]

= 2NOPQRSTUVWXYZ

= 1abcdefghijklm

= 2nopqrstuvwxyz

Key

= Move cursor Left

Key

= Move cursor Right

Key

= Save

ProSYS Quick Programming Setup

Identifying the Connected Devices (including BUS Detectors)

Automatic Settings (QUICK KEYS = [7][5])

Note:

In most cases, when entering Installer mode with the default jumper connected, the system will ‘assume’ that this is a ‘virgin’ installation and take you immediately to Auto Settings. If the keypad is already showing

“AUTO SETTINGS”, skip to step 3 below.

1.

Using the / keys, select

[ACCESSORIES]

and press .

2.

Using the / keys, select

[AUTO SETTINGS]

.

3.

Press to begin the Auto Settings process in which it identifies all the devices on the BUS.

4.

Verify that the Keypad displays all the devices you have connected. If a device does not appear, ensure that you have given it a unique ID within its “family”.

5.

Press to accept what is being displayed and move on to the next device found.

6.

Repeat steps 4 and 5 until all devices have been shown.

Bus Test (QUICK KEYS = [7][3])

The BUS test will send multiple test commands to each device connected to the system to ensure good connectivity.

1.

Using the / keys, select

[BUS TEST]

and press .

2.

Using the / keys, check that every device shown reports 99% or higher.

Note:

If a low reading is experienced, check connections with the device and repeat the BUS test.

Programming: SYSTEM

SYSTEM - Timers

(Entry/Exit Times etc)

QUICK KEYS = [1][1]

1.

Using the /

2.

Using the /

keys, select

[TIME DEFINE]

and press .

keys, select the required timer option and press .

Note:

Some options have more menu levels which are accessed by pressing the [#] key.

3.

Using the numeric keys, change the selected option to the desired value and press

.

SYSTEM - Controls

(Audible Panic, Installer Reset, EN Settings, etc.)

QUICK KEYS = [1][2]

1.

Using the

2.

Using the /

/ keys, select

[SYSTEM CONTROL]

and press

keys, select the option required and press

3.

Using the key, select

[Y]

(Yes) or

[N]

(No)

4.

Repeat step 2 and 3 until all required options have been set, then press

.

.

.

ProSYS Quick Programming Setup 11

12

SYSTEM - Set Clock

QUICK KEYS = [1][3]

1.

Using the / keys, select

[SET CLOCK]

and press

2.

Using the / keys, select

[SYSTEM TIME]

and press

3.

Using the numeric keys, enter the current time and press .

4.

Using the / keys, select

[SYSTEM DATE]

and press

5.

Using the numeric keys, enter the day (01 to 31).

.

6.

Using the

7.

Press the

key, select the current month.

button once to advance the cursor one position right.

8.

Using the numeric keys, enter the current year and press .

.

.

Programming: Wireless ZONES

ZONES - Wireless Calibration

(Wireless Receiver background noise threshold setting)

QUICK KEYS = [2][9][5]

1.

Using the

2.

Using the /

/

3.

Using the

4.

Using the

/

keys, select

select

[MAINTENANCE]

[WL CALIBRATE]

and press

and press

select the Wireless Receiver and press

.

.

.

key, choose

[Y]

(Yes) to ‘Re-Calibrate’ the Wireless Receiver and press

.

5.

After a short while, the measured background noise will be shown.

6.

Add 10 to the displayed ‘NEW THOLD’ (New Threshold) by using the numeric keys and press

Explanation:

.

The Calibration measurement above shows the amount of background ‘noise’ that the receiver can ‘hear’ on the same frequency as the RISCO wireless devices. This ‘noise’ could be neighboring devices of another system or other devices operating on the same frequency nearby. These are ‘unwanted’ signals that the ProSYS wireless receiver must be told ‘not to listen to’.

The threshold (set above) is the absolute minimum signal strength needed to be heard from a wireless device in order for the receiver to effectively ‘hear it’. This ‘threshold’ is set at ten above the background ‘noise’ (recommended) making the receiver ignore the unwanted signals.

With this threshold set, the ProSYS receiver will only hear its own devices which are nearer and have a signal strength greater that the threshold level set.

ZONES - Wireless Zone Allocation

(Enrolling the wireless devices)

QUICK KEYS = [2][9][6]

1.

Using the / keys, select

[MAINTENANCE]

and press .

2.

Using the

3.

/ keys, select

[WL ZONE ALLOC]

and press

Using the numeric keys, enter the desired zone number and press .

4.

Using the / keys, select

[(RE)WRITE]

and press .

5.

Depending on the wireless device enrolled, please do one of the following:

.

ProSYS Quick Programming Setup

)

For Wireless PIRs, Door Contacts, Flood Detectors, Shock Detectors - Close the tamper

)

For Wireless Smoke Detectors, Fit the batteries and lid, then do nothing for 10-30 seconds

)

For Wireless PANIC Pendants, press the button(s) for 10 seconds (Cannot be

Supervised)

6.

Using the / keys, select

[SUPERVISED]

or

[NONE SUPERVISED]

for this wireless device.

7.

Repeat steps 3 to 6 until all required wireless devices have been enrolled.

ZONES - Wireless Communication Test

(Signal strength of the wireless devices)

QUICK KEYS = [2][9][7]

1.

Using the / keys, select

[MAINTENANCE]

and press .

2.

Using the / keys, select

[WL COMM TEST]

and press

3.

Activate all wireless devices in turn.

4.

Using the zone number.

/

.

keys, observe the signal strength received from each device

Note:

Make sure that the signal strengths are at least 10 units higher than the receiver threshold level.

Programming: ZONES Wired & Wireless (Attributes)

The bold sub headings below are ‘Main Menu’ headings.

The key is pressed to move into the various sub menus.

To return to the ‘Main Menu’ headings at any time, press [*] repeatedly.

1.

Using the Up/Down keys, select

[ONE BY ONE]

and press .

2.

Using the numeric keys, enter the desired zone number and press

PARTITIONS

.

3.

Using the numeric keys, select or deselect the relevant partitions to which this zone will belong to and press .

GROUP SETS

4.

Using the

[A]

,

[B]

,

[C]

or

[D]

, keys, select the required group and press

ZONE TYPE

5.

Using the Up/Down keys, select the required zone type and press

ZONE SOUND

.

.

6.

Using the / keys, select the required zone sound option and press .

Note:

This determines if the zone will ‘be silent’, ’cause Bell to activate’, ‘cause Buzzer to activate’, ‘cause Bell and Buzzer to activate’, ‘create keypad bleep for chime’ etc… when the zone is opened/causes an alarm condition.

‘Buzzer’ refers to the sound emitted from the Keypad(s).

ProSYS Quick Programming Setup 13

14

ZONE TERMINATION

(Only applicable for hard wired zones)

7.

Using the

.

ZONE RESPONSE

/ keys, select the required zone termination type and press

8.

Using the / keys, select the required response time and press .

ZONE LABELS

(Zone description text)

QUICK KEYS = [2][8]

9.

Using the / keys, select

[LABEL]

and press .

10.

Using the numeric keys, enter the desired zone number and press .

11.

Using the keys listed below, enter the required text for the zone description and press

. (See page 10 for entering text descriptions.)

12.

Repeat steps 10 and 11 for all zones requiring description text.

Programming BUS Detectors

The following section describes the flow of adding BUS detectors to the ProSYS. BUS detectors can be programmed to the main unit or to a BUS zone expander.

Programming BUS detectors on the Main BUS

Step 1: Adding BUS Detector to the Main Unit

QUICK KEYS = [7][1][9][5]:

Note:

If you have already performed Auto Settings skip to Step 2 below:

Assign BUS Detectors to a Zone ID and set basic parameters

.

1.

From the main installer menu press

[7][1][9][5]

to access the BUS Zone category.

2.

Using the /

Dipswitches (01-32)

keys select a BUS detector ID number as set by the detector's

Note:

The bottom line in the display shows "(0:yy) Type: None". In the 0:yy designation, the 0 represents that the BUS detector is on the main unit and is not assigned to a BUS Zone Expander. The yy represents the BUS detector ID number (up to 32) as set by the detector's DIP switches.

3.

Using the / keys move to the Type field. Use the detector's type.

4.

Repeat steps 2 and 3 for other BUS detectors.

key to select the

Note:

If required you can add virtual zones to the system. Virtual zones are cost effective. They enable to use up to 32 BUS Zones on the main unit without adding physical zone expanders. To add a Virtual BUS zone expander select type VBZ08 or VBZ16 when adding a zone expander (Quick key

[7][1][2]

).

Step 2: Assign BUS Detectors to a Zone ID and set basic parameters

Each BUS zone detector should be assigned to a zone. BUS zones on the main unit can be assigned to a virtual zone or to a physical wired zone. They cannot be assigned to wireless zones or zones located on a BUS zone expander

1.

From the main installer menu press

[2]

to enter the

Zones

menu.

ProSYS Quick Programming Setup

2.

Using the / keys, select

[ONE BY ONE]

and press

3.

Using the numeric keys, enter the desired zone number and press

.

.

Note:

You can select any zone number that is not defined on a Wireless Zone Expander or a BUS Zone

Expander.

4.

Press to access the Partitions category.

5.

Define Partitions, Groups, Zone Type and Zone Sound.

6.

In the Termination category select BUS Zone and press displayed:

. The following is

7.

Select the BUS zone number (designated by

yy

) to assign to the programmed zone. The

TYPE field will be updated automatically when selecting the zone.

8.

Press . Define a label and press

9.

Repeat steps 3-8 for all required BUS zones.

to confirm.

Step 3: Programming the BUS Detectors Full Parameters

1.

From the main Installer menu select

[2] Zones > [0] Miscellaneous > [3] BUS Zone

Parameters

.

2.

Select the zone number that the BUS zone was assigned to and press

3.

Configure the parameters for the relevant BUS detector

.

Programming BUS Detectors on a BUS Zone Expander

Step 1: Adding the BUS Zone Expander to ProSYS

QUICK KEYS = [7][1][2]:

Note:

If you already performed Auto Settings skip to Step 2 below:

Assign BUS Detectors to a Zone ID and set basic parameters.

1.

From the main installer menu press

[7][1][2]

to enter the add BUS zone expander menu.

2.

Using the / keys select a BUS Zone Expander ID.

3.

Using the / keys move to Type. Use the key to select a type (BZE08,

BZE16, BZE24 or BZE32 zone expander) based on the Dipswitches you set on the expander. Press .

4.

Using the key, select the detector type of each BUS detector connected to this

BUS zone expander.

Note:

The bottom line in the display shows "(x:yy) Type: None" . In the x:yy designation, the x represents the BUS Zone Expander ID number and the yy represents the BUS detector ID number that is connected to the zone expander, as set by the detector's Dipswitches.

5.

Press to move to the next BUS detectors.

Step 2: Assign BUS Detectors to a Zone ID and set basic parameters

1.

From the main installer menu press

[2]

to enter the

Zones

menu.

2.

Using the displayed:

/ keys, select

[ONE BY ONE]

and press . The following is

ProSYS Quick Programming Setup 15

16

3.

Using the numeric keys, select a zone number whose designation (x:yy) is equivalent to the one defined for the BUS detector. (The x represents the BUS Zone Expander ID number and the yy represents the BUS detector ID number as set by the detector's ID

Dipswitches).

Press to access the Partitions category.

4.

Define Partitions, Groups, Zone Type and Zone Sound.

5.

In the Termination category select a BUS Zone and press

6.

Press . Define a label and press

7.

Repeat steps 3-7 for all required BUS zones.

to confirm.

.

Step 3: Setting the BUS Detectors Parameters

1.

From the main Installer menu select

[2] Zones > [0] Miscellaneous > [3] BUS Zone

Parameters

.

2.

Select the zone number that the BUS Zone was assigned to and press

3.

Configure the parameters for the relevant BUS detector.

.

Programming the Input on the iWISE BUS Detector

The iWISE BUS detectors have additional input on board.

1.

Add iWISE BUS detector to the system as described in the Programming BUS Detectors section.

2.

From the main installer menu press

[2]

to enter the

Zones

menu.

3.

Using the / keys, select

[ONE BY ONE]

and press

4.

Using the numeric keys, enter the desired zone number and press

.

.

Note:

You can select any zone number that is not defined on a Wireless Zone Expander or a BUS Zone

Expander.

5.

Press to access the Partitions category.

6.

Define Partitions, Groups, Zone Type and Zone Sound.

7.

In the Termination category select one of the following options: BUS Zone Input N/C,

BUS Zone Input EOL, BUS Zone Input DEOL, BUS Zone Input N/O, BUS Zone Input

TEOL. Press .

8.

Press . Select the BUS zone that the input zone belongs to. The Type field will be updated automatically when selecting the zone.

9.

Press . Define the loop response time.

10.

Press , assign a label and press .

11.

Repeat steps 3-10 for all required iWISE inputs.

Note for iWISE BUS Detectors:

The iWISE BUS detectors have additional input. The parameters of this input are the same as any other regular wired zone in the system, with the exception that this input should be linked to one of the zones in the system. For further information refer to instructions supplied with the product.

ProSYS Quick Programming Setup

Programming: Dialer (For PSTN Dialing)

The bold sub headings below are ‘Main Menu’ headings.

The key is pressed to move into the various sub menus.

To return to the ‘Main Menu’ headings at any time, press repeatedly.

DIALER - Link-Up

(MS Telephone numbers and Communication format)

QUICK KEYS = [5][1]

1.

Using the / keys, select

[LINK-UP]

and press .

2.

Using the

3.

Using the

/

/

keys, select

keys, select

[MS LINK-UP]

and press

[MS 1 LINK-UP]

and press

.

4.

Using the / keys, select

[PSTN/VOICE]

and press

Note:

It is the assumption that a regular phone line is used for communication to MS.

.

.

5.

Using the numeric keys, enter the Primary MS phone number and press

6.

Using the / keys, select

[MS 2 LINK-UP]

and press .

7.

Using the / keys, select

[PSTN/VOICE]

and press

Note:

It is the assumption that a regular phone line is used for communication to MS.

.

8.

Using the numeric keys, enter the Secondary MS phone number and press

.

.

DIALER - Accounts

(Site Code/ID)

QUICK KEYS = [5][2]

1.

Using the

2.

Using the

3.

Using the

/

/

/

keys, select

keys, select

[ACCOUNTS]

[FOR ACR 1]

and press

keys, select the relevant Partition and press

and press .

.

.

4.

Using the numeric keys, enter the Site Code/ID for Partition 1 / MS 1 and press

5.

Using the button, select ‘

Y

’ or ‘

N

’ to apply the Site Code/ID to all partitions and

. press .

Note:

If each partition requires a different Site Code/ID, repeat step 3 - 5 selecting the relevant partition

DIALER - Communication Format

(Transmission protocol to MS)

QUICK KEYS = [5][3]

1.

Using the

2.

Using the

/

/

keys, select

keys, select

[COMM FORMAT]

[FOR MS 1]

and press

and press .

3.

Using the numeric keys, enter the transmission format code and press

Note:

0420 for Contact/Point ID – 0700 for SIA

4.

Using the / keys, select

[FOR MS 2]

and press .

5.

Using the numeric keys, enter the transmission format code and press

Note:

0420 for Contact/Point ID – 0700 for SIA

ProSYS Quick Programming Setup

.

.

.

17

18

DIALER - Control

(Yes/No Options for the Dialer)

QUICK KEYS = [5][5]

1.

Using the

2.

Using the

3.

Using the

/

/

keys, select

[CONTROL]

and press

keys, select

[MS ENABLE]

.

key, change ‘

N

’ (No) to ‘

Y

’ (Yes) and press

4.

Using the

5.

Using the

6.

Using the

7.

Using the

/

/ keys, select

key, change ‘

key, change ‘

N

keys, select

N

[UD ENABLE]

’ (No) to ‘

’ (No) to ‘

Y

Y

.

’ (Yes) and press

[FM ENABLE]

.

’ (Yes) and press

DIALER - Auto Codes

(MS Report Codes)

.

.

.

.

QUICK KEYS = [5][0][1]

1.

Using the

2.

Using the

3.

Using the

/ keys, select

[AUTO CODES]

and press

/

key, change ‘

N

’ (No) to ‘

Y

’ (Yes) and press .

.

keys, select

[CONTACT ID]

or

[SIA]

and press .

Note:

The ‘AutoCodes’ function should ONLY be performed after all Zone programming has been completed.

Once the Auto Codes function is performed, the ProSYS will quickly look through all current zone parameters and automatically fill in the correct MS codes for the relevant zone programming.

Any subsequent zone parameter changes will require you to perform Auto Codes again.

DIALER - Follow Me

(Used to define events to Follow Me phones be phone, SMS or

Email)

QUICK KEYS = [5][7][4]

1.

Using the / keys, select a Follow Me number and press

2.

Define the following parameters for each Follow Me number:

.

)

Type

: Configure the format of the message sent to the Follow Me destination, in an occurrence of an event.

)

Partitions

: Specify the partitions that will initiate the Follow Me report due to a certain event that occurred in the assigned partitions.

)

Events and their restore

: Specify which events will activate this Follow Me destination in the partitions assigned to the Follow Me destination.

Programming: PROG OUTPUTS

The bold sub headings below are ‘Main Menu’ headings.

The key is pressed to move into the various sub menus.

To return to the ‘Main Menu’ headings at any time, press [*] repeatedly.

PROG OUTPUTS - Define

(Example for STU)

QUICK KEYS = [3][1]

1.

Using the numeric keys, enter the ‘UO’ (Utility Output) number and press

ProSYS Quick Programming Setup

.

Note:

Outputs 1-6 are on main ProSYS panel.

2.

By using the / keys, select the Category in which this output will activate and

3.

press

By using the

.

/ keys, select the Event in which this output will activate and press .

4.

By using the numeric keys, select the Partitions that will cause this output to activate and press

5.

By using the

. and press

6.

By using the

.

/ keys, select the Switching Mode that this output will follow

key, select the Partition(s) Condition when this output will activate

7.

and press

By using the

.

key, select the Partition(s) Condition when this output will deactivate and press .

8.

Using the keys listed on page 10, enter the required text for the Output description and press .

9.

Repeat steps 1-9 for all Outputs that require programming.

Codes (Changing the Installer code)

Press [*] repeatedly to return to the ‘Main Menu’.

QUICK KEY = [4]

1.

Using the / keys, select

[CODES]

and press

2.

Using the / keys, select

[INSTALLER]

and press

3.

Enter a new Installer code and press .

4.

Repeat the new Installer code and press to confirm.

System Backup

.

1.

Fit the 12V Rechargeable Battery and secure the ProSYS Panel lid.

Exiting Programming Mode

1.

Press

[*]

repeatedly to return to ‘Main Menu’.

2.

Press

[0]

to EXIT and SAVE your settings.

.

Note:

The system will not allow exit from the Installer mode if a ‘Tamper’ or ‘System Fault’ condition exists.

Correct any tamper and/or system fault conditions before attempting to exit the Installer mode.

The system is now programmed and ready for use.

For more comprehensive and detailed instructions, please refer to the ProSYS Installation Manual.

For User Functions, please refer to the ProSYS User Manual.

ProSYS Quick Programming Setup 19

20

Installer Programming Menu Maps

[1] System

[11] Time Define

[111] Ex/En Delay 1

[112] Ex/En Delay 2

[113] Bell Timeout

[12] System Control

[114] Bell Delay

[1201] Quick Arm

[115] S. Aux Break [119] More

[116] WL MOD. Times [1191] Phone Line Cut

Delay Time

[117] Z. Test Times

[118] AC Off Delay

[1215] Code GM

[1192] Guard Delay

[1229] GM AUT/PAR

[1230] Double Code

[1231] Disarm Stop FM

[1202] Quick UO [1216] Audible Jam

[1203] Allow Bypass [1217] Technician

Tmpr

[1204] Quick Bypass [1218] Technician

Reset

[1205] False Code

Trouble

[1219] Abort Alarm

[1206] Bell Sqk [1220] Summ/Win

Clock

[1232] Global Follower

[1233] Area

[1234] DIS Keypad Auto

Disarm Exists

[1235] Aud Prx TMP

[1236] AM=Tamper

[1207] Bell 30/10

[1208] Alm Phone

Cut

[1221] Forced KSW

[1222] Pager

[1209] 3 Min Bypass [1223] Arm Prewrn

[1210] Dbl Ver Fire

[1224] L.Batt.Arm

Al

[1211] Aud Panic [1225] ENG Tamper

[1212] Buzz->Bell [1226] Blank Display

[1213] Alarm ZE Cut [1227] 24H Bypass

[1214] Fire Temp

Pattern

[1228] IMQ Install

[13] Set Clock

[14] Windowing

[131] System Date

[15] System Labels

[16] Tamper Sound

[141] Window Start

[161-5] Tamper

Sound

[17] Default

Enb/Disb

[18] Service Info

[19] System

Version

[181] Service

[132] System Time

[142] Window Stop

[182] Service Phone

[1237] Prox AM=Tamper

[1238] SIRN AUX=TMP

[1239] GSM Pre-Alarm

[1240] Dis. GSM Bat

[143] Window Days

ProSYS Quick Programming Setup

[2] Zones

[21] One by One

[22] Partitions/Group

[23] Zone Type

[23zz00] Not used

[23zz01] Ex/En1

[23zz08] I+Ex(Op)/En [23zz16] Special

[23zz17] Pulsed KSW [23zz09] I+En

Follower

[23zz10] I+Instant [23zz18] Exit Termination [23zz02] Ex/En2

[23zz03] Ex(Op)/En [23zz11] UO Trigger

[23zz04] En Follower [23zz12] Day Zone

[23zz19] Latch KSW

[23zz20] EN.Fol+Stay

[23zz05] Instant

[23zz06] I+Ex/En1

[23zz07] I+Ex/En2

[23zz13] 24 Hours

[23zz14] Fire

[23zz15] Panic

[23zz21] KSW Delay

[23zz22] Latched KSW Dly

[24] Zone Sound

[25] Termination

[241] Silent

[242] Bell Only

[2501] N/C

[243] Buzzer Only

[244] Bell+Buzzer

[2505] BUS Zone

[245] Door Chime

[246] Bell/A Buz/D

[2509] BZ Input DEOL

[26] Loop Response

[27] Cross Zone

[28] Labels

[29] Maintenance

[20] Miscellaneous

[2502] EOL

[2503] DEOL

[2504] N/O

[271] Zone Crossing

[2506] TEOL

[2507] BZ Input N/C

[2508] BZ Input EOL

[291] Copy Zone

[292] Delete Zone

[294] Delete Par.

[295] WL Calibrate

[293] Add/Copy Par. [296] WL Zone Alloc

[2510] BZ Input N/O

[2511] BZ Input TEOL

[297] WL Comm. Test

[298] Zone Self Test

[299] Soak Test

[201] Forced Arming [202] Pulsed Counter [203] BUS Zone Prms.

ProSYS Quick Programming Setup 21

[3] Utility Output

[30] Nothing

[31] System

[32] Partition

[33] Zone

[34] User Code

[4] Code Maintenance

[41] Authority

[42] Partition

[43] Grand Master

[44] Installer

[45] Sub-Installer

[46] Code Length

[3101] Bell Follow

[3102] No Tel Line

[3103] Comm. Fail

[3104] Trouble Follow

[3105] GND Pulse

[3106] Low Bat. Fol

[3201] Ready Follow

[3202] Alarm Follow

[3203] Arm Follow

[3204] Burglary Follow [3212] Fire Trouble

Follow

[3205] Fire Follow [3213] Day (Zone)

Follow

[3206] Panic Follow

[3210] Chime Follow

[3211] Ex/En Follow

[3214] Gen Trouble

Follow

[3215] Stay Follow [3207] Special

Emergency Follow

[3208] Duress Follow

[331] Zone Follow

[332] Alarm Follow

[3401] Pulse N/C

[3402] Latch N/C

[3107] AC Loss Fol

[3108] Sensors Test

[3109] Voice Module

[3110] Battery test

[3111] Bell Burglary

[3112] Scheduler

[3209] Buzzer Follow

[3216] Tamper Follow

[333] Arm Follow

[3403] Pulse N/O

[3113] D Key Reader

Comm

[3114] Switch AUX

[3115] GSM Error

[3116] GSM:PSTN Loss

[3117] GSM:Low Bat

[3217] Disarm Follow

[3218] Bell Follow

[3219] Bell Stay Off

[3220] Zone Bypass

[3221] Auto Arm Alarm

[3222] Zone Loss Alarm

[334] Disarm Follow

[3404] Latch N/O

22 ProSYS Quick Programming Setup

[5] Dialer

[51] Link Up

[52] Cust.

Accounts No.

[53] Comm Format

[54] Access & ID

[511] MS Link Up

[541] Access Code

[55] Control

[5501] MS Enable

[5502] FM Enable

[5503] U/D Enable

[5504] Call Delay

[512] U/D Phones

[542] ID Code [543] MS Lock

[5507] User Initiate

[5508] Callback U/D

[5509] Autobatch

[5513] Show Handshake

[5514] Audible Kissoff

[5515] UD GSM Enable

[5510] Answer

Machine

[5511] UL Installation

[5516] X.Modem Enable

[5505] Dial Tone

[56] Parameters

[57] Report Split

[5506] Call Save

[561] MS Retries

[562] FM Retries

[563] Rings to U/D

[5512] Show Kissoff

[564] Dial Tone Time

[565] Redial Wait

[566] Dial Method

[567] Pulse Duty Cycle

[568] Swinger Limit

[569] VM Retries

[571] MS Arm/Disarm

[572] MS Urgent

[573] MS Non Urgent [575] Email (See Email table)

[574] Follow Me [576] Event Log

[58] Alarm Restore

[581] On Bell Time Out [582] Follow Zone

[59] Periodic Test

[583] At Disarm

[50] More

[591] MS Test

[501] Auto Codes

[592] UD Test

[502-6] ACM

Parameters (See ACM table)

[6] Report Codes

[61] Emergency Key

[62] Zones

[63] Accessory

Tamper

[64] Main Trouble

[65] PS Trouble

[66] Arm Codes

[67] Disarm Codes

[68] Miscellaneous

[69] Special Comm

[60] Accessory Code

ProSYS Quick Programming Setup 23

24

[7] Accessories

[71] Add/Delete

module

[711] Keypad

[712] Zone Expander

[713] Utility Output

[717] Printer Module

[718] Access Control

[719] More

[7194] Siren

[7195] BUS Zones

[7196] GSM

[714] Power Supply

[715] Event Logging

[7191] Dig Key

Reader

[7192] Advanced

Digital Voice

[7197] X. Modem

[72] Verify Module

[73] BUS Test

[74] BUS Scanning

[75] Auto Settings

[8] Miscellaneous

[81] Keyfobs

[82] Siren

[83] GSM

[716] WL Button

[811] WL Button Param [812] WL Button

Allocation

[821] Strobe Control

[822] Strobe Blink

(See GSM table)

[9] Access Control

[91] Door Define

[91dd1] Partitions

[92] Card Code Pos.

[93] Special Code

[91dd2] Door Time

[7193] ACM

[823] Strobe Arm SQK

[824] Siren LED

[91dd3] Door Fire

[91dd4] Door Input

[826] Proximity Level

[827] Bat. Load Test

[91dd5] Door Label

ACM

[502] ACM

Parameters

[5021] ACM IP

Address

[5027] Gateway IP [50203] DNS 1 IP

[5022] ACM UD Port [50204] DNS 2 IP

[5023] ACM AUX1 Port

[5028] Software

Update IP

[5029] Software

Update Port

[50205] NTP IP

[5024] ACM AUX2 Port

[5025] ACM AUX3 Port

[5026] Subnet IP Mask

[5020] More

[50201] U/D IP Mask

[50206] NTP Port

[50207] NTP UPD Time

[503] ACM Control

[5031] ACM Config

[5032] ACM UD Config

[50202] ACM Net

Name

[5033] ACM AUX1

Config

[5034] ACM AUX2

Config

[5035] ACM AUX3

Config

[504] ACM MS

Polling

[5041] ACM MS

[505] ACM Function

Primary

[506] View ACM

Config

[5042] ACM MS

Secondary

[5043] ACM MS Backup

ProSYS Quick Programming Setup

Email

[575] Email

[83] GSM

[831] GSM

Parameters

[832] GSM Control

[5751] Mail IP

Address

[5752] Mail SMTP

Port

[5753] Mail POP3

Port

[8311] GSM Mode

[8212] GSM Times

[8313] Prefix

[8314] PIN Code

[8315] GPRS

[8316] Email

[8317] Caller ID

[8318] RSSI Level

[8321] Disable In.

Call

[5754] Email Prefix [5757] SMTP Password

[5755] Email Domain

[5756] SMTP User

Name

[83111] GSM Backup

[83112] GSM Only

[83113] GSM Main

[83121] PSTN Lost

[83122] GSM Lost

[83123] SIM Expire Date

[8313 1 to 2] PBX Prefix

[8313 3 to 8] Prefix

Constant

[83139] Remove Prefix

[83130] Add Prefix

[83151] APN Code

[83152] GPRS User

Name

[83153] GPRS Password

[83154] GPRS MS

Polling

[831541] GPRS Primary

[831542] GPRS

Secondary

[83161] SMTP IP

Address

[83162] SMTP Port

[83163] SMTP User

Name

[83164] SMTP Password

[83165] SMTP Email

Prefix

[83166] SMTP Email

Domain

[831543] GPRS Backup

ProSYS Quick Programming Setup 25

26

Technical Specifications

Main

Input Power:

Current Consumption:

Rechargeable Standby

Battery:

Power Outputs:

16.5 Volts AC @ 40 Volt-Amps (VA) (via integral transformer)

60 mA, typical / 70 mA, maximum

12 Volts up to 17 Amp-Hours (AH)

Programmable Voltage:

Fuses:

Auxiliary Power:

12 Volts DC @ 600 mA, maximum (from all AUX terminals)

Bell/LS (External):

12 Volts DC @ 900 mA, maximum

UO1:

Relay (programmable output) (3 Amps)

UO2:

500 mA transistor

UO3-UO6:

Open Collector Active Pull-Down, 70 mA, max

F3

Responsible for:

Battery Power 3.0 A

AUX

Automatic fuse

BELL

Automatic fuse

8 LED Keypad

Current Consumption:

16 LED Keypad

Current Consumption:

LCD Keypad

Current Consumption:

75 mA maximum

75 mA maximum

100 mA maximum

Proximity LCD Keypad

Current Consumption:

Touchscreen Keypad

160 mA maximum

Current Consumption:

180 mA maximum

Touchscreen Keypad with Proximity

Current Consumption:

8 zone expansion module

210 mA maximum

Current Consumption:

16 zone expansion module

45 mA maximum

Current Consumption:

BUS Zone Expansion

45 mA maximum

Current Consumption:

20 mA, typical

8,16 wireless zone expansion module

Current Consumption:

40 mA maximum

Frequency:

868.6-868.7 MHz (narrowband operation in EU) or 433.92 MHz

4 relay output expansion module

Current Consumption:

Contacts:

25 mA typical / 140 mA maximum

4 Form C (SPDT) Relays.

Contact rating:

3 A / 24V DC

8 transistor output expansion module

Current Consumption:

Contacts:

25 mA typical / 30 mA maximum

Open Collector, Active Pull-Down, 70 mA maximum

1.5A Power Supply Expansion Module

Input Power:

Rechargeable Standby

Battery:

Power Outputs:

16.5 Volts AC @ 40 VA (via transformer)

12 Volts up to 17 Amp-Hours (AH)

Auxiliary Power: 12 Volts DC @ up to 1.5A

Bell/LS (External) Sounder Output:12 Volts DC @ 900 mA, maximum

*: Total current Bell+Aux=1.5A

Fuses:

F1: Battery power 3.0 A

F2: Auxiliary power 2.0 A

F3: Bell/loudspeaker power 1.0 A

ProSYS Quick Programming Setup

3A Power Supply Expansion Module

Input Power:

16.5VAC @ 50VA (via 230VAC / 16.5VAC/50Hz transformer)

Rechargeable Standby

Battery:

Power Outputs:

12V Up To 21 Amp-Hours (AH)

Auxiliary Power: 3A @13VDC

Bell/LS (External) Sounder Output: 1.7A @13VDC

Overload Protection:

On board Utility Outputs:

Automatic Electronic Protection

2 relays, 12VDC @ 3A max Dry Contact Relays

Event Log Expansion Module

Current Consumption:

Printer Module

Current Consumption:

X-10 Transmitter Module

Current Consumption:

Access Control Module

Current Consumption:

Input power:

Readers Consumption:

30 mA, maximum

0 mA, maximum

30 mA maximum

100 mA maximum

13.8V DC + 10%

5V / 150 mA maximum

Relay:

Proximity Key Reader

24V DC / 1 A maximum

Current Consumption:

70 mA, typical / 180 mA maximum

Advance Digital Voice Module

Current Consumption:

Voice Message Unit

Current Consumption:

38 mA typical / 60 mA maximum

9 mA (standby) /

60 mA (active speaking - normal volume) /

130 mA (active speaking - full volume)

Input Power:

8V DC to 14V DC

GSM/GPRS Communication Module

Current Consumption:

Input Power:

During Communication - 300mA, During Standby - 70mA

13.8VDC ±10%

Battery: Lead Acid (rechargeable), 12VDC/1.2Ah

Advanced Communication Module (ACM)

Current Consumption:

[email protected]

Fast PSTN Modem 2400 BPS

Current Consumption:

100 mA maximum

CE Declaration of Conformity

Hereby, RISCO Group declares that this control panel (ProSYS 128, ProSYS 40, ProSYS 16), with wired accessories (including cables) and wireless accessories, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For the CE Declaration of Conformity please refer to our website: www.riscogroup.com.

Compliance Statement

Hereby, RISCO Group declares that the ProSYS series of control panels and accessories are suitable for use in systems designed to comply with PD6662:2004 Security Grade 3, Environmental Class II.

(Security Grade 2 when using Wireless accessories).

The ProSYS series of control panels and accessories comply with the relevant parts of the EN50131 series of standards.

The ProSYS series of control panels and accessories comply with DD243:2004.

ProSYS Quick Programming Setup 27

RISCO Group Limited Warranty

RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because

Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller cannot guarantee the performance of the security system which uses this product. Seller's obligation and liability under this warranty is expressly limited to repairing and replacing, at Seller's option, within a reasonable time after the date of delivery, any product not meeting the specifications. Seller makes no other warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any particular purpose.

In no case shall seller be liable for any consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever.

Seller's obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay.

Seller does not represent that its product may not be compromised or circumvented; that the product will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product will in all cases provide adequate warning or protection.

Buyer understands that a properly installed and maintained alarm may only reduce the risk of burglary, robbery or fire without warning, but is not insurance or a guaranty that such event will not occur or that there will be no personal injury or property loss as a result thereof.

Consequently seller shall have no liability for any personal injury, property damage or loss based on a claim that the product fails to give warning. However, if seller is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, seller's maximum liability shall not exceed the purchase price of the product, which shall be complete and exclusive remedy against seller.

No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.

WARNING

: This product should be tested at least once a week.

Contacting RISCO Group

RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows:

United Kingdom

Tel: +44-161-655-5500 [email protected]

USA

Tel: +1-631-719-4400 [email protected]

Italy

Tel: +39-02-66590054 [email protected]

Spain

Tel: +34-91-490-2133 [email protected]

Brazil

Tel: +1-866-969-5111 [email protected]

China

Tel: +86-21-52-39-0066 [email protected]

France

Tel: +33-164-73-28-50 [email protected]

Poland

Tel: +48-22-500-28-40 [email protected]

Belgium

Tel: +32-2522-7622 [email protected]

Israel

Tel: +972-3-963-7777 [email protected]

All rights reserved.

RISCO Group reserves the right to amend the software and features without prior notice.

No part of this document may be reproduced in any form without prior written permission from the publisher.

© RISCO Group 07/09 5IN1286

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
