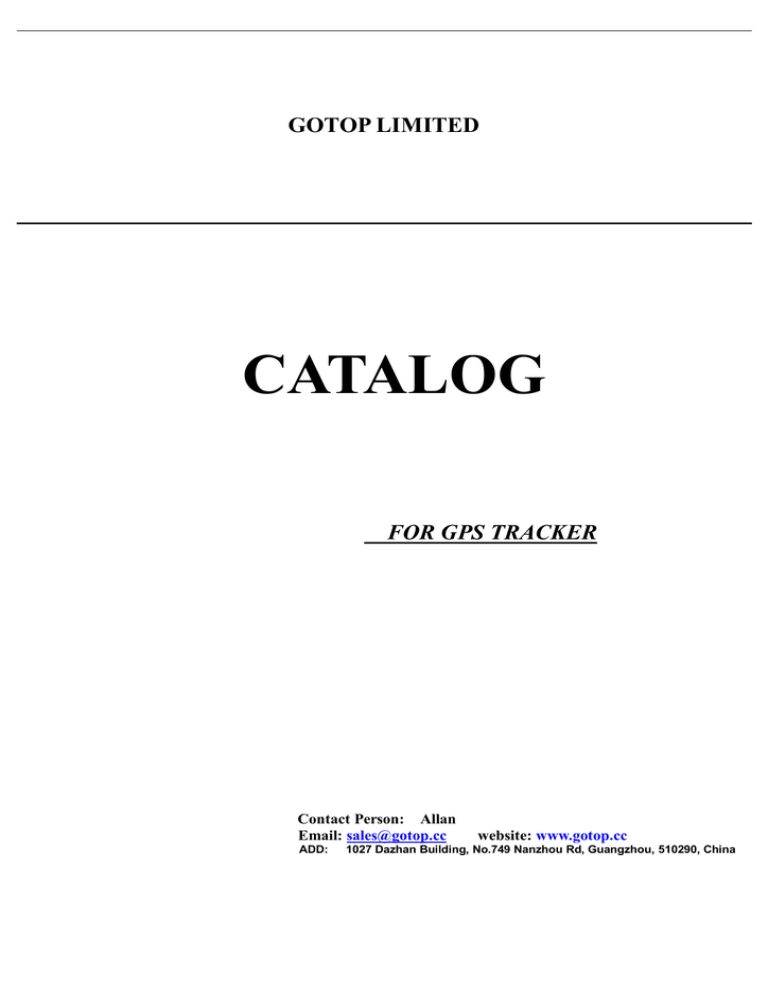

CATALOG

GOTOP LIMITED

CATALOG

FOR GPS TRACKER

Contact Person: Allan

Email:

[email protected]

website:

www.gotop.cc

ADD: 1027 Dazhan Building, No.749 Nanzhou Rd, Guangzhou, 510290, China

TL-201

Dim . 68mm x 40mm x 20mm Weight. 40g

Band. 900/1800 or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

Car charger 12—24V input 5V output Wall charger 110-220V input 5V output

Battery . Chargeable changeable 3.7V 800mAh Li-ion battery Standby . 48hours

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

GPS accuracy 10 meters, 2D RMS Protocol TCP

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 42s; Warm status = 35s; Hot status = 1s

Feature

Real-time locating and tracking.

Show Location Directly on Mobile Phone

Voice Surveillance

Two ways talking communication

SOS button for emergency rescue

Geo-fence alarm

Overspeed alert

Low battery alert

Support establishes five telephone numbers.

Voice Surveillance

Dial the tracker by the authorized number; the tracker will answer the call automatically. If hands up the call before the tracker's answer, the tracker will send one position information to the authorized number.

Google Link

Send locating command to the tracker or call the tracker, you will receive an SMS with an http link. Click on the link then the location can be shown directly on Google Map on your mobile phone

Band.

900/1800 or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

Car charger 12—24V input 5V output Wall charger 110-220V input 5V output

Dim . 65 x 40 x 18mm Weight. 50g

Battery . Chargeable 3.7V 1700mAh Li-ion battery Standby . 200hours

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

TL-206

GPS accuracy 5 meters, 2D RMS Protocol TCP

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 42s; Warm status = 35s; Hot status = 1s

Feature

Tracking by SMS or GPRS

Longer battery life (standbytime 200hours)

Google link function

One big SOS button for emergency rescue

Voice Surveillance

Support voice call

Geo-fence alarm

Overspeed alert

Low battery alert

Two ways talking communication

Support establishes five telephone numbers.

3 buttons for calls or sending message

What’s new:

Longer battery life

The backup battery standby time is 200 hours. The battery capacity is 1700mAh

One Big SOS button

Press the SOS button and the GPS tracker will send a help alert with exact location to the authorized numbers for immediate rescue, then the GPS tracker will call authorized number 1,2,3 successively till one of the authorized numbers answers the help call..

Google link function

Users can click the URL and see the position in cell phone directly

TV-680

TV-680

Charging voltage 110-220V

Working temperature -20°-—65°

Humidity: 5%-95%

Limited working temperature: -30°C -- -40°C, +80°C-- +85°C

Storing temperature : -45°C -- +90°C

Accurate positioning: 3.0 m 2D-RMS, DGPS: 2.5 m

Speed Positioning: 0.1m/s, DGPS:0.05m/s

Charging port: DC 5V 3A

Power consumption: standby 48 hours

Start-up time: hot start: <1.5s Warm start: <34s Cold start: <35s (Autonomous)

Feature

Watch design, show date, time, lat, log, speed on the creen

Tracking by SMS and GPRS

In emergency, press the SOS button to have an accurate positioning

Google link function

Two ways talking communication function

Low energy consumption

Supports alarming and remote monitoring

Supports fast dial button

May monitor without disturbing the tracked person and realizes real-time tracking;

Can position the holder by call or SMS

Single location

(1) making a phone call : The authorization number call the watch that ring 1-4 hang up after, can reply a message that all related information longitude and latitude, the longitude and latitude position data can through the Google map searches a target address, calling in and ringing 5 behind automatically answer, can talk with each other as phone

(2) Message (SMS) Mode : before having settle authorization number, any number can send out a message "6660000"(0000 is password) to the watch, then will get a positioning reply.

Two-way talking communication

When you press button “Call 1”, the device will call the pre-set number 2; When you press button ”Call 2”,the device will call the pre-ser number 3; then you can communicate with other person with two-way mode.

If someone call the device, then you will see the interface, you can answer it by pressing SOS button, otherwise it will answer automatically after 30 seconds, or you can hang up it by pressing ON/OFF button

GPS Mobile Phone Tracker

Feature:

Mobile phone function

SMS tracking and GPRS tracking

One big SOS button for emergency rescue

Listen in function

Geo-fence function

Low power alarm

Google link function

TV-806

This mobile phone represents the perfect combination of GSM and GPS technologies. With large-capacity phonebook, SMS, alarm clock, call center, phone settings, FM radio, GPS, hang-up state emergency alarm, etc. You can speed dial three phone numbers from this GPS cell phone tracker with just a push of a button.

Dimensions: 80×49×16 mm

GSM module: GSM850/1900Hz or GSM900/1800MHz, two combinations

Working temperature -20°-—65°

Humidity: 5%-95%

Voltage: Rechargeable 800mAh battery

Storing temperature: -45°C -- +90°C

TV-690

Accurate positioning: 3.0 m 2D-RMS, DGPS: 2.5 m

Speed Positioning: 0.1m/s, DGPS: 0.05m/s

Charging port: DC 5V 3A

Power consumption: standby 48 hours

Start-up time, hot start: <1.5s Warm start: <34s Cold start: <35s (Autonomous)

Feature

Tracking by SMS and GPRS

Screen show date, time, latitude and longitude, altitude

Supports three fast dial button;

A SOS button for emergency help

Two ways talking communication

Listen in function

Geo-fence function

Low power alarm

JRC gps chip

Google link function

Electronic Fence Function

(1)GPS Fence Function

After the setup is successful, the setting mobile phone will receive command. Then, when the ward leaves this area, the terminal will send the alarming information of being out of the fence to the center number.

Two-way communication

When you press button “Call 1”, the device will call the pre-set number 1; When you press button ”Call 2”,the device will call the pre-ser number 1; then you can communicate with other person with two-way mode.

In addition, the terminal may receive all calls by pressing the Receive button and end all calls by pressing the End button; For all calls, if the terminal does not choose to end or receive within 30s, they can be received automatically.

MT-201

Dim . 51mm x 46mm x 17mm Weight. 40g

Band.

850/1800/1900 or 900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

Car charger 12—24V input 5V output Wall charger 110-220V input 5V output

Battery . Chargeable changeable 3.7V 850mAh Li-ion battery Standby . 48hours

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

GPS accuracy 10 meters, 2D RMS Protocol TCP or UDP

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 45s; Warm status = 35s; Hot status = 1s

Feature

This tracker is designed for pets

Tracking via SMS or GPRS (TCP/UDP)

Real-time polling & Current location report & Tracking by time interval

SOS emergency/Movement/Geo-Fence/Low Battery/Speeding Alarm

Voice Surveillance

Removable and rechargeable internal battery

Packing

1 Wall Charger

1 AC power cable

1 User Manual

1 USB Cable

1 Pet collar

2 Batteries

1 CD

________________

Packing Size: 190*125*60mm

Net Weight: 380g

Gross Weight:500g

24pcs/box

Package:400*278*306mm

G.W/Package:12kg

Wiring diagram

TLT-2H

Dim . 88mm x 46mm x 18mm Weight. 50g

Band.

900/1800 or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM module.

MTK Program GPS chip. JRC Chipset

Battery . Chargeable changeable 3.7V 500mAh Li-ion battery Standby . 60hours

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +65 °C

Postion Accuracy 2.5 meters, CEP GPS Sensitivity -164 dBm

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 35s; Warm status = 30s; Hot status = 1s

Feature

This trackr is special designed for motorbike

Single location and real time tracking on the tracking software

Setting the Calling on or off by sms

Support quick dialing buttons for 3 preset phone numbers

SOS button send out exact location for immediate rescue

Geo-fence alarm

Cut-off the engine and oil by sms remote

ACC detect charge function Car battery charge the battery built-in the tracker when driving, stop charging when parking

Low power alarm

Power-saving Function

When tracker receives the power saving command, it will close the GPS immediately, and send the confirmation message to the sender. SMS Command or movement will reopen the GPS again.

Alarm when cut off power function

When the user need to cut-off electricity and oil, using a mobile phone to send command, the device will return to: "Confirm Power

OFF?” If it receives the user sending another command in ten minutes, white wire will output low level in order to control the outside relay to cut off oil and electricity.

Very Easy to install

Only five wires need to be connected to your motor bike, you can DIY

completely.

1 Connect wire

1 Battery

1 CD

________________

Packing Size: 200*115*45mm

Net Weight: 190g

Gross Weight:350g

50pcs/box

Package:615*425*260mm

G.W/Package:160kg

GPS Chipset: JRC chipset

Dimension: 88mmx46mmx18mm

Charging voltage:110-220V

Working temperature -20°-—65°

Humidity: 5%-95%

Limited working temperature:-30°C -- -40°C, +80°C-- +85°C

TLT-2E

Storing temperature:-45°C -- +90°C

Accurate positioning: 2.5 meters, CEP

Charging port: DC 5V 3A

Power consumption: standby 48 hours

GSM Module: MTK Case, support TCP protocol, support 850/900/1800/1900 MHz

Start-up time, hot start: <1.5s Warm start: <34s Cold start: <35s (Autonomous)

Feature

Waterproof design

Single location and continuous tracking

Google link function

SOS button send out exact location for immediate rescue

Cut-off the engine and oil by sms remote

ACC detect charge function

Support quick dialing buttons for 3 preset phone numbers

Electronic fence function

Low power consumption, power saving mode function

Alarm on the Calling on or off the calling function

Low battery alarm

Power-saving Function

When tracker receives the instruction and confirms the user password correctly, it will close the GPS immediately, and send the confirmation message to the sender. The tracker built in vibration sensor, once monitors the track movement for change to open the

GPS. If in 5 minutes, with not monitors the track changed in the movement to close GPS.

Cut-off electricity and oil function

When the user need to cut-off electricity and oil, using a mobile phone to send command, the device will return to: "Confirm Power

OFF?” If it receives the user sending another command in ten minutes, white wire will output low level in order to control the outside relay to cut off oil and electricity.

Water proof design

Products comply with waterproof, accord with the standards of industry IP65 and dustproof. Built-in antenna, integrative machine and easy to assemble.

Waterproof design

1 Connect wire

1 SOS Button

1 CD

________________

Packing Size: 200*115*45mm

Net Weight: 190g

Gross Weight:350g

50pcs/box

Package:615*425*260mm

G.W/Package:160kg

VT-106

Dim . 78 x 45 x 27mm Weight. 135g

Band.

900/1800 or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

Digital input 9-36V DC Analog input 0-15V

Battery . Chargeable 3.7V 1000mAh Li-ion battery

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +75 °C

GPS accuracy 5 meters, 2D RMS Protocol TCP

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 42s; Warm status = 35s; Hot status = 1s

Waterproof function

Inbuilt Super Magnet

Tracking by SMS and GPRS

Google link function

Cut-off power and fuel remotely

Geo-fence alarm

Low battery alarm

Speeding alarm

One input, one output

Main power lost alarm

1000mAh Internal Backup Battery

Built-in GPS and GSM antenna

VT-320

Dim . 115mm x 60mm x 21mm

Time to first fix

Weight.

Cold status = 42s; Warm status = 38s; Hot status = 1s

140g

Band.

900/1800/1900Mhz or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

GPS Sensitivity . -158Db Normal power consumption . 85mA/h

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

GPS accuracy 10 meters, 2D RMS Protocol TCP

Power Supply +9V - +36V/ 1.5V Backup Battery 850mAh

Interface three input and one output Humidity 5% ~ 95% non-condensing

Feature

SMS and GPRS TCP/UDP Communication

Track on Demand

Show Location Directly on Mobile Phone

Track by Time Interval

SOS Panic Button

Movement Alarm

Geo-fencing Control

Low Battery Alarm

Speeding Alarm

GPS Blind Area Alarm (in/out)

Power-cut Alarm

Engine Cut (Stop Engine)

3 Inputs

1 Output

GSM: GSM Antenna GPS: GPS Antenna SIM: SIM Card Slot

ON/OFF: Power key USB: Serial cable

S_Key: SIM Card Slot key L_gps: GPS status led

L_gsm: GSM Status led Wire Socket: Wire cables

Dim . 104mm x 62mm x 24mm Weight. 190g

Band.

850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

GPS Sensitivity . -158Db Normal power consumption . 85mA/h

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

GPS accuracy 10 meters, 2D RMS Protocol TCP

Power Supply +9V - +36V/ 1.5V Backup Battery 850mAh

Humidity 5% ~ 95% non-condensing Button One SOS button

LED 2 LED lights to show GPS/GSM status Flash Memory 4MB

Interface 5 digital inputs (3 negative and 2 positive triggering); 2 analog inputs; 5 outputs

Time to first fix Cold status = 42s; Warm status = 38s; Hot status = 1s

VT-380

Feature

SMS and GPRS TCP/UDP Communication

Track on Demand

Show Location Directly on Mobile Phone

Track by Time Interval

Listen (Voice Wiretapping) (Optional)

GSM Blind Area Memory

Logging Capacity up to 180,000 Waypoints

Inbuilt Motion Sensor for Power Saving

SOS Panic Button

Movement Alarm

Geo-fencing Control

Low Battery Alarm

Speeding Alarm

GPS Blind Area Alarm (in/out)

Power-cut Alarm

Engine Cut (Stop Engine)

I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs

Analog Input: 2 analog inputs of 10 bits resolution for connecting fuel level sensor or other sensors.

Dim . 91mm x 64mm x 25mm Weight. 750g

Band.

900/1800 or 850/900/1800/1900Mhz Network. GSM/GPRS

GSM/GPRS module.

Simcom 300/ Simcom 340 GPS chip. SIRF 3 chip

Battery . Chargeable changeable 3.7V 1050mAh Li-ion battery Standby . 60hours

Storage temp -40 °C ~ +85 °C Operation temp -20°C ~ +55 °C

GPS accuracy 5 meters Protocol TCP

Humidity 5% ~ 95% non-condensing

Time to first fix Cold status = 60s; Warm status = 40s; Hot status = 1s

VT-108

Feature

Real-time locating and tracking on web and history replay

Show Location Directly on Mobile Phone

Monitor the voice around the tracker cut off the circuit by SMS remote

Door detective and ACC detective

Door alert and trunk alert

Engine cut

SOS button for emergency rescue

Geo-fence alarm/Speeding alarm/Low battery alarm/main power lost alarm

Support hand-free phone call between driver and call center.

Very easy to install. Designed with inner relays, we remove the most complex part of installation

Two-ways talking communication

Any cell phone number calls the tracker, after the unit automatic answer, then can do the communication with the holder; Press the

SOS button or Pressing the calling button for 3 seconds, the unit will call the authorized cell phone number. If nobody answers the call or any other reason fails to answer this call, the unit will continue to call the authorized number 3 times. Press the SOS button can end this communication.

VT-809

Product Characteristics

● GPS vehicle location

● GSM 850/900//1800/1900MHz

● High sensitivity, highly integrated GPS chip

● Low energy consumption

● Fast signal acquisition

● Support single location and continuous tracking

● Support the fence alarm

● Support location information query through SMS and the Internet

● Locate the user by telephone or through SMS

GSM module

GPS sensitivity

GPS center frequency

GSM 850/950//18000/1900MHz

-159dBm

L1, 1575.42MHz

GPS positioning accuracy 5 - 25 m

Speed accuracy 0.1 m/s

Time accuracy

Default data

In sync with GPS

WGS-84

Hot start

Cold start

Maximum altitude

Maximum speed

Acceleration of gravity

1 s

38 s

18000 m

515 m/s

﹤4g

Operating temperature

Humidity

Dimensions (mm)

-20---65℃

5%---95%

LED

50*45*21

Voltage 12V - 24V

Average standby current Less than 80MA

Power supply, work status indication

GPS Vehicle

Tracking

VT810

Real-time locating and tracking

It can transmit the longitude and latitude coordinates by SMS or GPRS. If devices get the GPS fix, the devices can send you real-time location; These devices can support Google map link, the devices will send the SMS with http link, click the link, the detailed position information will show on Google map directly. Smart phone would be better.

Monitoring function

The guardian uses a mobile phone to send a message instruction to the vehicle tracker. Upon receipt of the instruction, the vehicle tracker dials the number of the mobile phone which has sent the message instruction. After the call is connected, the vehicle tracker enters the monitoring mode.

Security function

If the ACC wire is connected to the ACC switch, this equipment will start the security function automatically in five minutes after the vehicle engine is turned off. If vehicle vibration occurs within one minute, the equipment will enter the security status with 1 minute delay, and will enter the security status unless no vehicle vibration occurs.

.

Sleep mode

After entering the security status, if no vehicle vibration occurs within 20 minutes, this equipment enters the sleep mode. In the sleep mode, this equipment neither locates nor uploads data, but can send/receive messages and make/answer calls, so as to achieve maximum energy saving.

Vibration alarm

Under the security status (including the sleep status), if vehicle vibration occurs, this equipment immediately disconnects the relay and dials the mobile phone number of the vehicle owner to give an alarm; meanwhile, it wakes up the GPS positioning, and uploads the alarm and location data to the service platform

Wire cutting alarm

Under the security status, when the main power line of the vehicle tracker is disconnected, the vehicle tracker will send the wire cutting alarm message to the mobile phone number preset to receive the SOS message and uses the inner backup battery instead. The backup battery can work 7-10 hours.

If the positive wire and negative wire of equipment are connected together after power line had been cut, the equipment still works normally.

SOS Button

Press the SOS button, the devices will send a help alert with location info to authorized mobile phone number, then dial the authorized number.

Oil/Electricity Cut-off function

This function is using for the vehicle owner to send a SMS remotely to stop a moving vehicle, also can send another instruction to recover.

Geo-fence alarm

The devices will send the message with Geo info when it breaches the district.

Low battery alarm

The devices will send an alert when it is low battery.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
