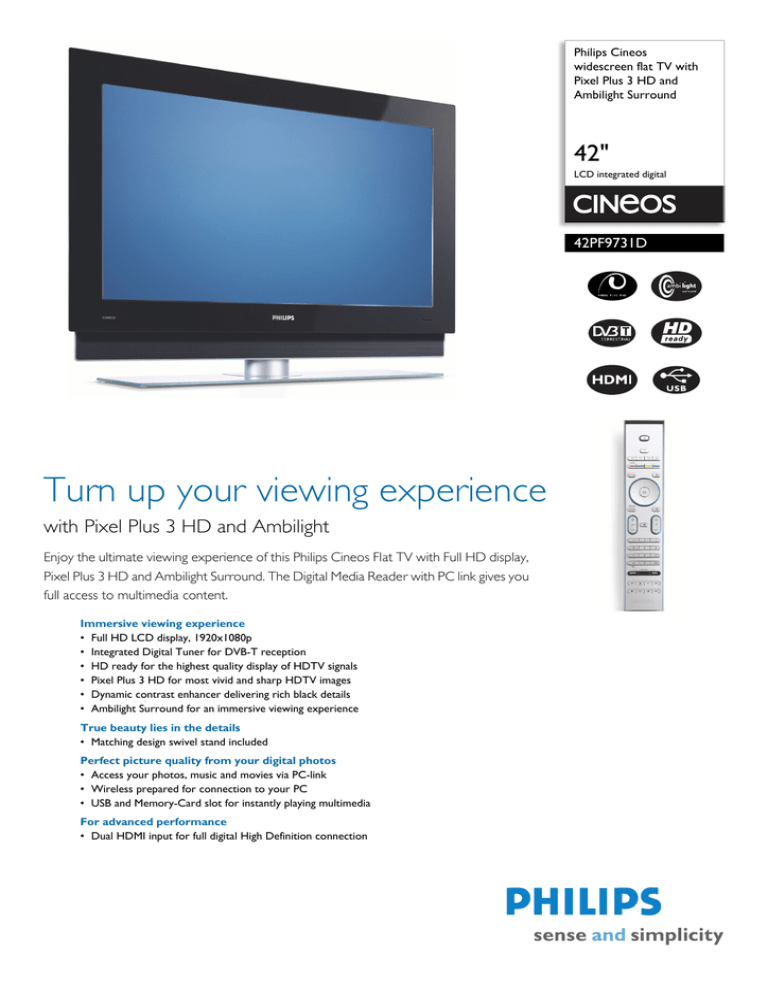

Philips Cineos
widescreen flat TV with
Pixel Plus 3 HD and
Ambilight Surround
42"
LCD integrated digital
42PF9731D
Turn up your viewing experience
with Pixel Plus 3 HD and Ambilight
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Full HD display,
Pixel Plus 3 HD and Ambilight Surround. The Digital Media Reader with PC link gives you
full access to multimedia content.
Immersive viewing experience
• Full HD LCD display, 1920x1080p
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Pixel Plus 3 HD for most vivid and sharp HDTV images
• Dynamic contrast enhancer delivering rich black details
• Ambilight Surround for an immersive viewing experience
True beauty lies in the details
• Matching design swivel stand included
Perfect picture quality from your digital photos
• Access your photos, music and movies via PC-link
• Wireless prepared for connection to your PC
• USB and Memory-Card slot for instantly playing multimedia
For advanced performance
• Dual HDMI input for full digital High Definition connection
42PF9731D/10
Widescreen flat TV with Pixel Plus 3 HD and Ambilight Surround
42" LCD integrated digital
Specifications
Picture/Display
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 550 cd/m²
Dynamic screen contrast: 4000:1
Response time (typical): 8 ms
Viewing angle: 176º (H) / 176º (V)
Diagonal screen size: 42 inch / 107 cm
Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control
+ Light sensor, Digital Natural Motion, Dynamic
contrast enhancement, Jagged Line Suppression,
Progressive Scan, Pulse Killer Chip, Widescreen
Plus
• Screen enhancement: Anti-Reflection coated
screen
Ambilight
• Ambilight Features: Ambilight Surround, Auto
adaptive to video content, Efficient low energy
lamp
• Colour Settings: Full Multi Colour
• Dimming Function: Manual and via Light Sensor
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60Hz
800 x 600
60Hz
1024 x 768
60Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
dual screen
• Remote Control: Amp, DVD, Sat, STB (Set-Top
Box), VCR, Multi-functional
• Remote control type: RC4401
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Movie expand 14:9, Movie
expand 16:9, Subtitle and Heading Shift, Super
Zoom, Widescreen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
information Line
• VESA Mount: Vesa compliant
Multimedia Applications
• Digital Content Management: Digital Media
Reader
• Memory Card Types: Compact Flash type I,
Compact Flash type II, Memory Stick, Microdrive,
MultiMedia Card (MMC), Secure Digital Card
(SD), Smart Media Card
• Multimedia connections: Ethernet-UTP5, UPnP,
WiFi (opt. Ethernet-bridge), 7-in-1 Memory Card
Reader, USB (streaming video capable)
• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures, DivX 3.11, DivX 5, MPEG1,
MPEG2, MPEG4, XviD
Tuner/Reception/Transmission
•
•
•
•
•
Aerial Input: 75 ohm coaxial (IEC75)
TV system: DVB COFDM 2K/8K, PAL, SECAM
Video Playback: NTSC, SECAM, PAL
DVB: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Output power (RMS): 2x15W
• Sound Enhancement: Digital Signal Processing,
Dynamic Bass Enhancement, Graphic Equaliser
• Sound System: Virtual Dolby Digital
Ext 1 Scart: Audio L/R, CVBS in/out, RGB
Ext 2 Scart: Audio L/R, CVBS in/out, RGB, Y/C
Ext 3: YPbPr
Ext 4: HDMI
Ext 5: HDMI
Ext 6: VGA PC-in, Audio L/R in
Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, 2x USB, Multi-slot
memory card reader
• Other connections: Analogue audio Left/Right
out, Ethernet, S/PDIF in (coaxial), S/PDIF out
(coaxial), Common Interface
Loudspeakers
Power
Sound
• Built-in speakers: 4
• Loudspeaker types: Integrated woofers with
wOOx, Dome tweeter
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug & Play
• Ease of Use: Auto Volume Leveller (AVL), Delta
Volume per preset, Graphical User Interface, On
Screen Display, Program List, Side Control
• Electronic Program Guide: Now + Next EPG
• Picture in Picture: Full dual screen (2 tuners), Text
•
•
•
•
•
•
•
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: AC 220 - 240 V +/- 10%
Power consumption: 248 W
Standby power consumption: 0.8W
Dimensions
• Set dimensions (W x H x D):
1095 x 764 x 114 mm
• Set dimensions with stand (H x D): 824 x 290 mm
• Weight incl. Packaging: 59 kg
• Product weight: 35 kg
• Box dimensions (W x H x D):
1292 x 1064 x 323 mm
• Colour cabinet: High Gloss Black
• VESA wall mount compatible: 800 x 400 mm
Accessories
• Included Accessories: Tabletop swivel stand, RF
antenna cable
• Optional accessories: Floor stand
•
Widescreen flat TV with Pixel Plus 3 HD and Ambilight Surround
42" LCD integrated digital
42PF9731D/10
Product highlights
Full HD LCD display 1920x1080p
This display has a resolution that is referred to as Full HD.
The state-of-the-art LCD screen technology has the full
high-definition widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the best possible
picture quality for HD input signals with up to 1080 lines.
It produces brilliant flicker-free progressive scan pictures
with optimum brightness and superb colours. This vibrant
and sharp image will provide you with an enhanced
viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and the additional cables.
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD sources
like HDTV broadcast, Blu-ray DVD or HDVD. HD ready
is a protected label that offers picture quality beyond that
of progressive scan. It conforms to strict standards laid
out by EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a High
Definition TV signal. It has a universal connection for both
analogue YPbPr and uncompressed Digital connection of
DVI or HDMI, supporting HDCP. It can display 720p and
1080i signals at 50 and 60Hz.
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination of ultimate
sharpness, natural detail, vivid colours and smooth
natural motion on all qualities of HD, standard TV signals
and multimedia content, for high definition displays. Each
pixel of the incoming picture is enhanced to better match
the surrounding pixels, resulting in a more natural
picture. Artefacts and noise in all sources from
multimedia to standard TV and also in highly compressed
HD are detected and reduced ensuring that the picture
is clean and razor sharp.
Ambilight Surround
With lights surrounding the picture Ambilight 3 makes an
impressive contribution to the overall viewing experience
with ambient light on 3 sides to complement the colours
and light intensity of the image on screen. It creates
ambiance, stimulates more relaxed viewing, and
improves perceived picture detail, contrast and colour.
Ambilight 3 automatically and independently adapts the
colours of each screenside according to the changing
content on the screen. With the 3rd Ambilight the top of
the picture is now fully surrounded, completely immersing
you into the content.
Bypacked swivel stand
For maximum freedom of placement, this high-quality
stand is designed specifically for this TV, and allows easy
placement of your Flat TV without drilling holes in the
wall. Enjoy the best viewing angle with the convenience of
the 40 degrees of swivel (20 degrees each side). Invisible
cable management is included in the back. This stand fits
seamlessly on the matching accessory floorstand.
Issue date 2008-04-07
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 9.0.16
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 23307
EAN: 87 10895 92050 6
www.philips.com
PC-link
The PC-link provides fun and easy access to your personal
digital media files and multimedia content*. The widely
used Ethernet (LAN) and WiFi open standards are used
for wired and (optional) wireless** connection and
ensure interoperability. Browse your PC collection of
digital photographs, multimedia videos and music files via
your home LAN network. The intuitive user interface of
the TV and the Philips Multimedia Manager for your PC
makes it available at the push of a button (* see product
for supported formats, PC-LAN functionality required **
Additional 'Ethernet-bridge' device required)
* DVB-T, supported in selected countries only
