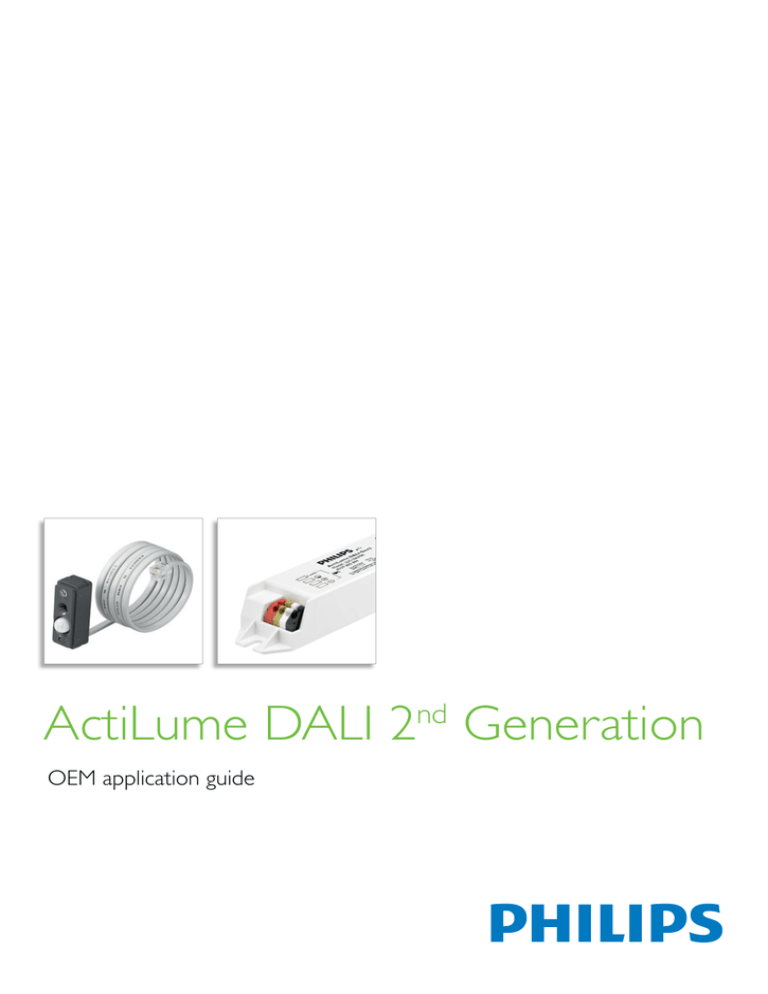

ActiLume DALI 2

nd

Generation

OEM application guide

1-2

Philips

ActiLume DALI 2 nd

Generation

Contents

Contents

1 What is ActiLume DALI 2

nd

Generation

2 Product characteristics

2.1 ActiLume Gen 2 Multi-Sensor LRI 1663

2.2 ActiLume DALI Gen 2 LLC1663

2.3 Dimensions ActiLume DALI Gen 2

2.4 Electrical characteristics

2.5 Ballast recovery feature (self-healing)

2.6 Night mode

3 System startup behavior at power up

3.1 No light after mains power is interrupted

3.2 Timing sequence

3.3 Default values for various timings

3.4 Daylight regulation and dynamic offset

4 ActiLume DALI Gen 2 application and user modes

4.1 Mode 1 - Cell Office Window / Corridor (& Decorative)

4.2 Mode 2 - Open plan Window / (Middle /) Corridor

4.3 Mode 3 – School/Classroom (& Decorative)

4.4 Mode 4 - Cell Office Task / Workspace (& Decorative)

4.5 Mode 5 - Open plan Task / Workspace (& Decorative)

4.6 Mode 6 - Corridor / staircase

4.7 Mode 7 - Toilet

4.8 Mode 8 - Meeting Room (& Decorative)

4.9 Mode 9 - Open plan Task / (middle /) Workspace & mains switching

4.10 Mode 10 - Free floor standing luminaire

4.11 Mode 11 - Adjacent Cell Office Window / Corridor (& Decorative)

4.12 Mode 12 - Free for OEM

4.13 Mode 13 - Free for OEM

4.14 Mode 14 - Free for OEM

4.15 Mode 15 - Free for OEM

4.16 Mode settings- overview (1)

4.17 Mode settings- overview (2)

5 Occupancy sharing

5.1 Mode based linking

5.1.1 How does it work

5.1.2 Mode based linking overview

5.2 Simple occupancy sharing

5.3 Group based linking

3

16

17

23

23

24

25

22

22

23

23

20

21

21

22

18

19

19

20

12

12

12

14

15

27

27

27

29

30

31

6

10

10

10

11

11

9

9

8

9

7

7

7

Philips

ActiLume DALI 2 nd

Generation - Contents i-3

6 Changing default settings (commissioning)

6.1 Changing the mode

6.1.3 Using the Service button on sensor

6.2 Request active Mode

6.3 Setting the background level

6.4 Changing Power-Up-State

6.5 Switching between configurations

6.6 Request active Configuration

6.7 Setting the IR group

6.8 Resetting the ActiLume DALI Gen 2

6.9 Walk test

6.10 Grouping of ballasts/drivers

6.11 DALI addressing of the ActiLume DALI Gen 2

6.12 Group addressing of the ActiLume DALI Gen 2

6.13 Fast mode

6.14 100 hour burn-in

6.15 Some general default settings

7 Manual control

7.1 Touch and Dim (Push button) control

7.2 Wiring

7.3 Infrared (IR) control

8 DDR set point calibration

8.1 Calibration methods

8.1.2 Calibration by using IR remote controls

8.1.3 Calibration by using Touch and Dim

9 Built in requirements

9.1 Wiring inside the luminaire

9.2 Wiring outside the luminaire

9.3 Mounting

9.3.5 Wiring to and from the controller

9.4 System capabilities and limitations

i-4

Philips

ActiLume DALI 2 nd

Generation - Contents

48

48

48

48

49

46

46

46

46

46

45

45

45

45

45

42

42

42

42

43

43

44

44

32

32

32

32

33

37

38

38

38

39

40

35

35

36

37

33

33

34

34

10 Scenes

11 BMS network interface

12 Parallel Linking

13 Peripheral devices

13.1 Push Button Units

13.2 Extension sensor LRM8118 and LRM8119

14 MultiOne 2 Controls

14.1 Connecting the interface and startup of the software

14.2 Reading settings from the ActiLume DALI Gen 2

14.3 Feature-tab General

14.4 Feature-tab Mode

14.5 Feature-tab Scene

14.6 Writing settings to the ActiLume DALI Gen 2

15 Datasheets

15.1 Datasheet ActiLume DALI Gen 2

15.2 Data sheet IRT8010

15.3 Data sheet IRT8030

15.4 Data sheet IRT8050

15.5 Data sheet UID8510

16 HVAC commands

17 FAQ

18 Abbreviations

Copyright

Disclaimer

Limitations of damages

61

61

68

72

78

83

55

55

55

56

57

59

60

50

51

52

53

53

53

87

88

90

91

91

91

Philips

ActiLume DALI 2 nd

Generation - Contents i-5

1 What is ActiLume DALI 2

nd

Generation

Global warming, climate change, carbon emissions – these words seem to be on everyone’s lips. Today, we all know that our energy consumption comes at a price. Commercial, institutional and industrial buildings account for about half of total energy consumption. And up to 35% of the electricity used in an office building, for example, is spent on lighting.

Lighting controls are key to creating lighting solutions that make the maximum difference in terms of cutting energy usage. At the same time, they effectively manage the quality of the light, enhancing people’s lives – at the office, in industry, in shops, at school, etc. And the beauty of stand-alone controls is that they do all this in an extremely simple manner – now that’s smart!

The first ActiLume DALI was designed to fulfill the needs of those working in open-plan and cell offices, but can also be adapted to suit other applications. It combines automatic energy saving functions with easy-to-use manual controls. The presence and daylight functions allow savings of up to 50-75% on electricity, while push-button and infrared controls provide manual interaction. For optimal daylight harvesting savings two groups are used. Installation was also easy.

The new ActiLume DALI Gen 2 offers the same simplicity of the ActiLume DALI but gives you more advanced features.

With ActiLume DALI Gen 2 it is possible to realize more advanced lighting concepts and a bigger lighting installation. Instead of 2 lighting groups, the ActiLume

DALI Gen 2 gives the design freedom to create 4 lighting groups. Over the 4 lighting groups, 34 DALI luminaires can easily be installed. Overall this increase from a maximum of 11 to 34 Luminaires brings down the initial investment of the ActiLume DALI Gen 2 and secures a short payback, even when the installation is operating energy efficient

LED luminaires.

With the possibility of parallel connecting the different

ActiLume DALI Gen2 systems, the interconnected systems give a behavior which you normally would get from an advanced Building Management System at no additional costs and installation efforts. On the other hand when a Building Management System is required, the

ActiLume DALI Gen2 can also be integrated.

The ActiLume DALI Gen 2 is based on a new hardware and software platform which secures the future and will bring further range enrichments in the future.

1-6

Philips

ActiLume DALI 2 nd

Generation - Ch 1 What is ActiLume DALI 2 nd

Generation

2 Product characteristics

ActiLume consists of the following basic components:

4

LLC1663/00 ActiLume DALI Gen 2 (LLC1663)

4

LRI1663/00 ActiLume Gen 2 Multi-Sensor (LRI1663)

This chapter will cover the product characteristics of the

ActiLume DALI Gen 2 sensor and controller. The remote controls information can be found in chapter 7.3, “Infrared

(IR) control”, and information on the extension sensors

LRM8118 and LRM8119 can be found in chapter 13.2 -

Extension sensor LRM8118 and LRM8119.

2.1 ActiLume Gen 2 Multi-Sensor LRI 1663

The ActiLume Gen 2 Multi-Sensor contains four functional devices in one housing and is wired with a connection cable of one meter to the controller. The functional devices are:

Figure 1 LLC1663

4

Infrared receiver

4

Light detector

4

Movement detector (PIR)

4

Service button/indicator

Figure 3

Figure 2 LRI1663

Additional components are:

4

Three infrared remote controls intended for installers and facility managers to make the commissioning easier:

4

The IRT8097 for grouping of luminaires, walk test, start 100h burn in and to set the reference light level

4

The IRT8098 to choose between mode 1 and mode

2 and to set the reference light level

4

The IRT8099 for advanced commissioning for all modes and to change several default factory values

4

Four infrared remote controls intended for end users:

4

IRT8010

4

IRT8030

4

IRT8050

4

UID8510

All three can be used to personalize the light levels with preset dim values, scene setting or manual override of light levels.

4

Additional movement detection area extension sensors

(LRM8118 and LRM8119) to assure movement is detected wherever needed

The application area of ActiLume DALI is a typical indoor environment (offices, corridors, meeting rooms, etc.) in normally heated and ventilated areas. ActiLume DALI has no protection against aggressive chemicals or water

(pollution degree 2). The sensor is normally mounted inside a Class I luminaire and is optimized for a ceiling height of 2.5 to 3 meter. The mounting height can reach up to 3.5 meter but the sensitivity patterns of the sensors will change accordingly.

2.1.1 IR receiver

The infrared receiver serves as a communication portal for the commissioning tools IRT8097, IRT8098 and

IRT8099 and also for the following user interfaces:

Figure 4

4

4

4

4

IRT8010

IRT8030

IRT8050

UID8510

Philips

ActiLume DALI 2 nd

Generation - Ch 2 Product characteristics 2-7

The angle under which the IR receiver will receive RC5 codes is a 55° angle.

Remote control luminaire

2.2m

55°

1.25m

sensor

When the sensor is mounted too close to the window it will look partly outside. Sun reflection from a car bonnet or a window of a car or snow can reflect directly into the sensor. The sensor will then measure such high illumination levels that it will drive the artificial light to its minimal level or even switch off the artificial lights. The optimum distance [Y] from the window to the ActiLume

Gen 2 Multi-Sensor can be obtained from the graph. This graph shows the relation between the distance from the window to the sensor [Y] and the height [H] of the sensor.

1.8m

Figure 5

2.5m.

2.1.2 Light sensor

The (day)light sensor is a photo diode that reads actual average illuminance in

Candela per m 2 captured under an angle

Figure 6 of approximately 72º. The intensity of the illuminance depends on the amount of artificial and/or natural light supplied in the office as well as how well this light is reflected towards the ceiling/sensor. The light reflection depends highly on the colors chosen to furbish the office, and can vary between 0.1 for pure dull black to 0.5 for a complete glossy white furnished office. In an average office the reflection factor is 0.3.

The illuminance signal is sent continuously to the

ActiLume DALI Gen 2 controller. The ActiLume DALI

Gen 2 controller translates these signals into dimming commands in order to get a constant light level on the desk of approximately 600 lux (factory default value).

The daylight sensor should be installed with a minimum distance of 0.6 meter to the window to avoid the sensor looking outside.

Ø3.6m.

Figure 7

Field of view

230

220

210

200

190

180

170

160

150

140

130

120

110

100

90

80

70

60

50

100 120 140 160 180 200 220 240 260 280 300

H (cm)

Figure 8

2-8

Philips

ActiLume DALI 2 nd

Generation - Ch 2 Product characteristics

2.1.3 Movement detector

The occupancy sensor is a PIR (Passive

Infra-Red) sensor that detects movement with an X-Y cross-area under an angle of X

= 72º and Y = 85º. When installed in a typical office ceiling at 3 meter height, it is sensitive for small movements within a 4 by 5 meter area. It will cover small movements down to a few centimeters at the task area of a desk and is sensitive to large movements within a range of 6 by 8 meter.

Figure 9

2.1.4 Service button

The service button can be pressed with a pen or small screwdriver.

It can be used for:

Figure 11 behind the service button

How to use the service button is described in chapter

6.1.3, “Using the Service button on sensor”.

Figure 10

8.0m.

5.0m.

4.0m.

6.0m.

2.5m.

Though the sensor has a radial reach of 5 meter, the maximum recommended height to place the sensor in the ceiling is 3 meter to assure movement coverage and detection. The PIR sensor reacts on movement, by means of a temperature difference such as the human body temperature versus its surrounding temperature.

A car that just starts its engine is not seen by the PIR, nor does it see people sitting within the car or a forklift truck. Therefore, it is recommended not to use this

ActiLume DALI system in outdoor, parking or industrial applications. The LRM8118 and LRM8119, which are extension sensors and part of the ActiLume DALI system, are used to increase the movement detection range. They have approximately the same viewing specifications as the standard sensor (LRI1663). More info on these sensors can be found in chapter chapter 13.2 - Extension sensor

LRM8118 and LRM8119”.

To switch the light behind the service button on or off, press the service button for approximately 10 seconds

(8 to 12 seconds).

The color of the light of the service button has the following function:

Steady red : presence/movement detected

Steady yellow : Sensor is working but no presence/

movement detected

No color : LED indication is disabled by service

button or malfunction

2.1.5 Other sensor specifications

The ActiLume sensor (LRI1663) has an RJ10 (4P4C) connector fixed to a cable. The length of the cable is

100 centimeters. The sensor housing (casing) material is

Polycarbonate UL94 V-0 and the color is dark grey

(5 NC 10714 which is close to RAL 7024 “Graphite grey”).

The housing is resistant to the glow wire test 850 ºC /

5 seconds and has a basic insulation ≥ 1500 V. The dimensions of the sensor are as given below.

Figure 12

15.8

16.4

Philips

ActiLume DALI 2 nd

Generation - Ch 2 Product characteristics 2-9

2.2 ActiLume DALI Gen 2 LLC1663 2.4 Electrical characteristics

The LLC1663 is the heart of the system. It will take care of all the communication to the ballasts / drivers connected in a way that is freely programmable or in a standard way by selecting a specific mode. In contradiction to the LLC1653 ActiLume, this LLC1663

ActiLume DALI 2 nd

2.3

generation all functions can be programmed freely like switching on or off the daylight sensor independently of the PIR sensor. Furthermore the

LLC1663 can be set into 3 different configurations with each of them their own application area.

4

Window / Corridor configuration. In this configuration the ActiLume DALI Gen 2 will function in exactly in the same way as the LLC1653.

4

Parallel Linking configuration. In this configuration various ActiLume DALI Gen

2 devices can be connected together and work together and share their occupancy information.

4

BMS configuration. In this configuration various ActiLume DALI Gen2 devices can be connected together and be connected to a gateway of the Building Management

System (BMS). The ActiLume DALI Gen

2 offers the possibility to forward HVAC commands to the BMS system. A list of

HVAC commands is given in Chapter 16,

“HVAC commands”.

Figure 13

More on these configurations can be found in the various chapters below.

Dimensions ActiLume DALI Gen 2

Some of the most important electrical characteristics that have to be kept in mind are the following:

4

Both DALI ports have only basic insulation with respect to the mains. Since it is only basic insulation, a mains rated cable should be used when one or both DALI lines are brought outside the luminaire in which the

ActiLume DALI Gen 2 is placed. Also a strain relief on the DALI line(s) is mandatory in this case. This is to ensure safety under all conditions

4

The Touch and Dim input is mains voltage and should be treated as such, according to local standards and regulations. The usage of a strain relief and mains rated cable is mandatory

4

The front of the sensor ensures double insulation.

Nevertheless, if the sensor is used outside the luminaire or in a different luminaire then the ActiLume

DALI Gen 2 is placed, mains rated extension cables and strain reliefs must be used.

Furthermore, the DALI connections will be powered by the ActiLume itself, so there is no need for any external power supply. Please check the table below for guaranteed supply current ratings of both DALI connections.

Configuration Port 1

Window / Corridor 68 mA

Parallel Linking

BMS

68 mA

68 mA

Port 2

24 mA

3mA

Not powered

DALI port 1

DALI Window

DALI port 2

DALI Corridor

Figure 15

The absolute maximum rating for Port 1 and Port 2 is for all configurations 250mA.

59.6

64

Figure 14

2-10

Philips

ActiLume DALI 2 nd

Generation - Ch 2 Product characteristics

2.5 Ballast recovery feature (self-healing)

When one ballast fails and is replaced by a new one, the system will automatically notice when this ballast is replaced will configure the new ballast according to the original ballast. This means that with self-healing a complete re-commissioning of all ballasts is no longer needed.

During commissioning the ActiLume DALI Gen 2 knows which device is set into which Group and what address it has. Of course, allowing the ActiLume DALI Gen 2 to have this data means it needs to be commissioned (using the DALI button on the IRT8099 – see also chapter 6.10,

“Grouping of ballasts/drivers”). The ActiLume DALI Gen

2 keeps in constant contact with all ballasts connected by sending every now and then, a DALI query to each address. As soon as one of the devices is not reacting anymore to the query sent, this is a sign that the device is not there anymore and it will start searching for a “virgin” device. If this defective device is now exchanged by a new device without an address, this will be noticed. The

ActiLume DALI Gen 2 will assume this is a replacement for the “not responding” address. The ActiLume DALI

Gen 2 will program the new device in the same way as the defective/removed device.

2.6 Night mode

Night mode is only applicable for BMS network and if supported by the BMS gateway. BMS will send the night mode command to the controller via a gateway to force the ActiLume DALI Gen 2 to enter the night mode.

During night mode,

4

4

4

4

There is no light level regulation (no DDR)

Once received night mode command, controllers will first dim down to background level when there is no occupancy in the areas for 5 minutes

Controllers will switch off the lights after 5 minutes of background dimming period if no occupancy during that period

The controller switches ON light in its own controlled area when it detects presence in its range (such as office cleaners movement)

Of course, it goes without saying that if 2 or more devices spread over 2 or more groups, are defect and being replaced, the ActiLume DALI Gen 2 does not know which one should replace which removed/ defective device. Unfortunately, in this case the system needs to be re-commissioned (using the DALI button on the IRT8099 – see chapter 6.10, “Grouping of ballasts/ drivers”). Therefore it is of great importance that if a device connected to the ActiLume DALI Gen 2 is defect, it is being replaced as soon as possible to prevent this situation.

To stop the night mode the BMS has to send the stop command to the ActiLume DALI Gen 2. As soon as the ActiLume DALI Gen2 receives this command it will resume its standard tasks.

The commands to be sent by the BMS in order to activate or deactivate the night mode are given in the next table.

11

12

7

8

9

10

13

4

5

6

Step Action

1 Set DATA TRANSFER REGISTER 1 (DTR1) to 0x64

2

3

Set DATA TRANSFER REGISTER 2 (DTR2) to 0x02

Set DATA TRANSFER REGISTER (DTR) to 0x02

ENABLE WRITE MEMORY

ENABLE WRITE MEMORY

WRITE MEMORY LOCATION (- NO REPLY) with value 0x55

Set DATA TRANSFER REGISTER (DTR) to 0x0A

ENABLE WRITE MEMORY

ENABLE WRITE MEMORY

WRITE MEMORY LOCATION (- NO REPLY) with value 0x00 (disable) or 0x01 (enable)

WRITE MEMORY LOCATION (- NO REPLY) with value 0x05 (night mode)

WRITE MEMORY LOCATION (- NO REPLY) with value 0x01 (Set Feature)

WRITE MEMORY LOCATION (- NO REPLY) with the

Control Device Checksum

Enable Checksum = 0xF9

Disable Checksum = 0xFA

Table 1

Description

Select memory bank 100

Select sub bank 2

Select address Lock byte

Enable write operations

Enable write operations

Unlock the memory bank

Select address Enable / Disable

Enable write operations

Enable write operations

Indicates that the night mode should be disabled or enabled

Feature 5 is selected (night mode)

Selects the Set Feature command

Stores the control device checksum. This will be the trigger for the ActiLume DALI Gen 2 to execute the

Enable/Disable Night-Mode command.

Philips

ActiLume DALI 2 nd

Generation - Ch 2 Product characteristics 2-11

3 System startup behavior at power up

This chapter is about how the system will start up when powered for the first time and/or after a power interrupt has taken place.

3.1 No light after mains power is interrupted 3.2 Timing sequence

ActiLume DALI is preferably never disconnected from the mains and soft-switched by means of movement detection or manually via the Touch and Dim push button or IR remote control. When ActiLume DALI Gen 2 is hard-switched or if the power supply is interrupted, the

ActiLume movement sensor requires a circuit stability time of 30 seconds after switching on the mains. During this stabilizing period, the luminaires are depending on the mode setting switched on or off. This is to avoid a complete building from being lit, after a power cut during the night or every morning when a complete building or floor is being switched on. This behavior is called “powerup-state”. The “power-up-state” can be changed using the

IRT8099 commissioning tool and is described in chapter

6.4, “Changing Power-Up-State”.

Depending on which mode is selected with full or partial automatic behavior, one of the following timing sequences are selected which is based on presence detection.

For example, in the cell office mode (Mode 1) during presence detected, there will be DDR. If for a certain time (delay time) no presence has been detected, there is no need to have the lights at a background level so they will fade down and be switched off. The picture below gives a graphical representation of the behavior.

10s

Figure 16

Minimum light level.

Delay time set by the sensor.

During this delay there will be daylight regulation.

Moment of switching on the mains.

3-12

Philips

ActiLume DALI 2 nd

Generation - Ch 3 System startup behavior at power up

In an open plan office (Mode 2 and if not in parallel linking situation) it is of great importance that the lights will stay on for a certain amount of time after no movement has been detected. This is to prevent that people who sit in a different area of that same open plan office do not sit in a well-lit area but look into the dark when they are the last one working in the open plan office. This time that the lights are at a low dim level is called Prolong time and this low light level is called background level. The picture below gives a graphical representation of the behavior.

10s

Minimum light level.

Delay time set by the sensor.

During this delay there will be daylight regulation.

Moment of switching on the mains.

Figure 17

In other applications a reduced light level is needed even if there is nobody present, but switching lights off is not wanted or even allowed. Therefore the prolong time is can be set to infinite and it will stay in its background level. This situation is often used if mains switching is done for the lighting.

10s

Figure 18

Minimum light level.

Delay time set by the sensor.

During this delay there will be daylight regulation.

Moment of switching on the mains.

Prolong time.

Philips

ActiLume DALI 2 nd

Generation - Ch 3 System startup behavior at power up 3-13

3.3 Default values for various timings

In the ActiLume DALI Gen 2 there are several timers for when to do something after last movement has been detected. Within the various different modes these timers can have a different default value. The timers used throughout this document are:

4

0 min for Mode 1, 3, 4, 8, 11, 13, 14 and 15

4

15 min for Mode 7 and 10

4

60 min for Mode 6

4

120 min for Mode 2, 5 and 12

4

Infinite for Mode 9 (meaning the lights are not switched off)

Possible values for grace time are 0, 15, 30, 60, 90, 120,

150 and infinite.

4

Hold time

4

4

4

Grace time

Prolong time

Retention time

As soon as no movement has been detected anymore, all timers start in the following sequence.

Hold time is the time (T1 to T2) from the point at which the last movement has been detected until grace time starts. This is 15 minutes for all modes by default. The possible values are 1, 5, 10, 15, 20, 25, 30 and 35 minutes.

Grace time is the time from T2 to T3 during which the lights are being dimmed down from the current light level to the background level. By default this is 10 seconds for all modes. Possible values are 0, 5, 10, 15, 20 and 25 seconds.

Prolong time is the time from T3 to T4 at which the background level is maintained at a fixed level. Modes have different prolong times. The following prolong times are the default values:

Retention time (T2 to T5) is a specific timer during which the active light situation at T2 is remembered. If the ActiLume DALI Gen 2 is in automatic mode (auto on

/auto off) and the light level has been manually changed to a certain fixed level, this timer will be active. If the room becomes unoccupied, the above mentioned timers will sequentially start running and take their actions when needed. As soon as the hold time has expired and lights are the lights start to dim down, the retention timer starts to run. For a certain period of time the

ActiLume DALI Gen 2 will remember the last light level at timer position T2. To prevent that the person has to re-override the light level time after time when entering the room again after (for example) being away for a meeting, the ActiLume DALI Gen 2 will during the retention timer remember the light level and when the room is entered again, the ActiLume DALI Gen 2 will continue with its light level as if the room was not left unoccupied. The default setting of the retention timer for all modes is 15 minutes. Possible values for the retention timer are 0, 15, 30, 60, 90, 120, 150 and 180 minutes.

T4 T5

Figure 19

T1 T2 T3

3-14

Philips

ActiLume DALI 2 nd

Generation - Ch 3 System startup behavior at power up

3.4 Daylight regulation and dynamic offset

In order to have an evenly spread light distribution across a cell office or open plan office, the ActiLume

DALI Gen 2 has the ability to use a dynamic offset between the different groups or Window and Corridor connection. When using the ActiLume DALI Gen 2 as a standalone device in combination with the Window and

Corridor connections, at first the lights will be dimmed down together from 100% to 80%. When dimming deeper because of excess of daylight, the corridor row will dim more slowly than the window row. When the

Window row reaches 1% the corridor row will be at

30%. When there is still access of light, the corridor row will dim deeper until it also reaches 1%.

When the ActiLume DALI Gen 2 is configured into represent the Window row, Group 2 the Corridor row created by the middle row is in between the window and the corridor row. This means that if the Window row reaches its minimum dim level, the middle row will be at

See also picture below for the comparison between the two situations.

max. offset

100%

80%

100%

80%

Corridor

Corridor

Middle

30%

Window

30%

15%

Window max. offset max. offset

Figure 20

100%

80%

Figure 21

Middle

Corridor

Window

30%

15% max. offset

Philips

ActiLume DALI 2 nd

Generation - Ch 3 System startup behavior at power up 3-15

4 ActiLume DALI Gen 2 application and user modes

ActiLume has 15 pre-programmed application Modes in which a group of luminaires can be controlled according to the Table below.

Mode Description

Mode 1 Cell Office Window / Corridor (& Decorative)

Mode 2 Open plan Window / (Middle /) Corridor

Mode 3 School/Classroom (& Decorative)

Mode 4 Cell Office Task / Workspace (& Decorative)

Mode 5 Open plan Task / Workspace (& Decorative)

Mode 6 Corridor / staircase

Mode 7 Toilet

Mode 8 Meeting Room (& Decorative)

Mode 9 Open plan Task / (middle /) Workspace & mains switching

Mode 10 Free floor standing luminaire

Mode 11 Adjacent Cell Office Window / Corridor (& Decorative)

Mode 12 Free for OEM (copy of Mode 2)

Mode 13 Free for OEM (copy of Mode 8)

Mode 14 Free for OEM (copy of Mode 8)

Mode 15 Free for OEM (copy of Mode 11)

Mode 16 Free for OEM (only available via MultiOne2Controls)

Table 2

This chapter explains for which application which Mode is best suited or which lighting design requires which Mode.

4-16

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

4.1 Mode 1 - Cell Office Window / Corridor

(& Decorative)

For cell office applications ActiLume DALI Gen 2 has

3 dedicated Modes. From these Modes, Mode 1 is the basic and most applied mode. Mode 1 is the default mode in which the ActiLume DALI Gen 2 is supplied. The functioning of Mode 1 is described in the graph below.

100%

Light level

10%

T1 T2 T3 T4

T6 T7

Time T8 T9T10

Artificial light level

Natural light level

Overcast, insufficient natural light

Sunny, sufficient natural light

Room occupied

Room unoccupied

Figure 22

Before T1 no one is in the office, so the lights are off. At T1 someone enters the office, the artificial light will go to 100% and then immediately start DDR

(Daylight Depending Regulation) to regulate according to the amount of natural daylight coming through the windows. At T2 the person is leaving the cell office and the hold time starts. During the grace time of 10 seconds

(from T3 to T4) the lights will be dimmed down to their minimum level and at T4 the lights will be switched off.

At T6 the person comes back into the office but the lights will stay off because the sun is shining and the light level is sufficient. This is called a DDO (Daylight Depending

Override). At T7 it becomes cloudy again. The natural light level drops so the artificial light turns on automatically to compensate the lack of light. At T8 the person is leaving the office again. The light level continues to be regulated for another 15 minutes and at T9 it starts fading down again. Finally the lights will be switched off at T10.

For cell offices designed around the indoor lighting norm

EN12464, or when using direct/indirect lighting, Mode 5 is advised. See chapter 4.5, “Mode 5 - Open plan Task /

Workspace (& Decorative)”.

When in Parallel Linking or BMS configuration, all luminaires are to be connected to the Window connection and commissioning of the luminaires is needed as described in chapter 6.10, “Grouping of ballasts/ drivers”. When using the ActiLume DALI Gen 2 in Parallel

Linking or BMS configuration, there is also a possibility of having a third group of luminaires intended for decorative lighting.

Mode 1 - Cell office

Auto on

Auto off

15 min.

15 min.

Mode 2 - Open plan office

Auto on

Auto off

If, during the grace time (T3 to T4 or T9 to T10) movement is detected, the hold time will be extended by

10 minutes. This will be done once only.

Manual on

Auto off

Mode 4 - Cell office

Auto on

Auto off

Mode 1 is designed for a classic luminaire arrangement. The master luminaire is implemented at the window side. In Window/Corridor configuration, the luminaires alongside the windows are connected to the

Window connection of the controller and the others are connected to the Corridor side. The corridor side will follow the window side with an offset.

Mode 5 - Open plan office

Auto on

Auto off

15 min.

120 min.

Mode 6 - Corridor

Auto on

Auto off

Mode 7 - Toilets

15 min.

15 min.

Mode 8 - Meeting room

Auto on

Auto off

Manual on

Auto off

No DDR

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes 4-17

Mode 9 - Open plan office

Always light

Auto on

Auto off

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

15 min.

120 min.

15 min.

15 min.

60 min.

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

15min.

4.2 Mode 2 - Open plan Window / (Middle /)

Corridor

Mode 2 functions in principle in the same way as Mode 1 but with the difference that in Mode 2, the lights do not turn off after the hold time (15 minutes) but are set to a background light level. This is to avoid that in parts of an open plan office where no one is present people are not looking into a completely dark area.

Background level

15 minutes after the last movement has been detected

(T3), the lights will fade down to 20% during Grace time

(T3 to T4). This light level (background level) will be maintained for 120 minutes (T4 to T5) before the lights will be turned off. If needed, the background level can be altered to 1%, 10%, 20%, 30%, 40%, or 50%. This is described in chapter 6.3, “Setting the background level”.

100%

10%

Background level

T1 T2 T3 T4 T5

T6 T7

Time T8 T9T10

Figure 24

Artificial light level

Natural light level

Overcast, insufficient natural light

Sunny, sufficient natural light

In Window/Corridor configuration, the luminaires connection of the controller and the others are connected to the Corridor side. The corridor side will follow the window side with an offset. For open plan offices designed around the indoor lighting norm is advised. See chapter 4.5, “Mode 5 - Open plan Task /

Workspace (& Decorative)”.

15 min.

When in Parallel Linking or BMS configuration, all luminaires are to be connected to the Window connection and commissioning of the luminaires is needed

Mode 2 - Open plan office

Auto on

Auto off

Auto on

Auto off drivers”. When using the ActiLume DALI Gen 2 in Parallel

Linking or BMS configuration, there is also a possibility of having a third group of luminaires intended for a middle row (row between window and corridor row) lighting.

Mode 7 - Toilets

15 min.

15 min.

Auto on

Auto off

No DDR

Mode 6 - Corridor

Auto on

Auto off

Mode 8 - Meeting room

Manual on

Auto off

Room occupied

Room unoccupied

15 min.

120 min.

15 min.

15 min.

60 min.

15 min.

T11

4-18

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

Mode 9 - Open plan office

Always light

Auto on

Auto off

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

15min.

4.3 Mode 3 – School/Classroom (& Decorative) 4.4 Mode 4 - Cell Office Task / Workspace

(& Decorative)

Mode 3 is a dedicated mode for classrooms. This mode functions approximately the same as Mode 1 though in this mode the lights must always be switched on manually when entering the classroom. When the last person has left the classroom, the lights will be turned off automatically after the delay time (15 minutes, like in

Mode 1) or can be switched off manually.

Manual switch on/off

The manual switch on function is to prevent that lights switch on when people are just passing as many classrooms have opened doors towards the schools corridors. For this application an IRT8050 remote control can be used, or a wall switch, with a push-to-make

Mode 4 functions in a similar way to Mode 1 except in this mode the Window and Corridor lights are replaced by Task and Workspace lights. For the workspace light, the daylight regulation is disabled and kept at 100%. This allows the use of low power sources that bring just the required minimum of 200 Lux in the working environment using up- or down-lighters or wall washers. This does not only create a different atmosphere but also saves energy compared to a classic luminaire arrangement.

Direct/indirect

To apply direct and indirect lighting, the direct lights must be connected to the luminaire containing the Philips a remote control, to use this wall switch connected to the

Touch and Dim input of the ActiLume DALI Gen 2.

for the direct and indirect lights, separate ballasts have to be used.

Mode 3 - School, classroom

Manual on

Auto off

15 min.

Figure 26

Mode 5 - Open plan office

15 min.

120 min.

Extension sensor

Auto on

15 min.

(5 by 6 meter) of the ActiLume movement sensor. Since the sensor is always close to the window to capture the daylight the classroom entrance is often not reached or covered. Therefore it is advised to use the LRM8118 and/

Auto off or LRM8119 movement extension sensor to ensure full coverage.

configuration the indirect light is always at 100% lamp power and the direct lighting is functioning according to

Chapter 3.2 Day light regulation. When the 100% lamp power for indirect is not preferred from a design point of

Mode 2 - Open plan office

Auto off

Auto on then will follow the direct light level with + 30% offset

(read: more light output).

Mode 8 - Meeting room

15 min.

Auto off

Auto on

Auto off

15 min.

Mode 5 - Open plan office

S

S

Auto on

Auto off

Mode 7 - Toilets

S

Auto off

Auto on

Figure 27

S

S

15 min.

M

15 min.

Philips

ActiLume

120 min.

15 min.

15 min.

S

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

Mode 8 - Meeting room

Manual on

Auto off

15 min.

15 min.

60 min.

15min.

15 min.

Mode 9 - Open plan office

Always light

Auto on

Auto off

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

15 min.

15min.

Only task light DDR

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes 4-19

15 min.

Mode 1 - Cell office

15 min.

Mode 2 - Open plan office

15 min.

120 min.

(& Decorative)

Mode 5 functions just like Mode 2 except in this Mode the Window and Corridor light are replaced by Task and

Mode 6 is designed for use in corridors. The daylight switching is disabled. Only presence detection functions according to the figure below. The delay times cannot be regulation is disabled and kept at 100%. This allows the use of low power sources that bring just the required minimum of 200 Lux in the working environment using

1%, 10%, 20%, 30%, 40%, 50%, 60% or 70% of the light level as described in chapter 6.3, “Setting the background level”.

a different atmosphere but also saves energy compared to a classic luminaire arrangement.

Mode 6 - Corridor

Auto on

Auto off

15 min.

60 min.

Direct/indirect

To apply direct and indirect lighting the direct lights must be connected to the luminaire containing the Philips connector labeled “Corridor”. It must be noted that in this configuration the indirect light is always at 100% lamp power and the direct lighting is functioning with DDR.

Mode 9 - Open plan office

15 min.

When from a design point of view the 100% lamp power

Auto on well. The indirect light should than be connected to the

Corridor. The indirect light will then follow the direct

15 min.

15 min.

Auto on

Mode 5 - Open plan office

Auto on

Auto off

15 min.

120 min.

soon as the corridor is longer than 6 meters. With one

ActiLume DALI Gen 2 controller and a maximum of 2 be configured. However it is more economical to make

Mode 10 - Free floor standing luminaire linking.

15 min.

Only task light DDR

Mode 6 - Corridor

Auto on

Auto off

15 min.

60 min.

Auto on

Auto off

No DDR

15 min.

15 min.

Mode 8 - Meeting room

Manual on

Auto off

15 min.

Mode 9 - Open plan office

Always light

Auto on

Auto off

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

15min.

4-20

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

4.7 Mode 7 - Toilet 4.8 Mode 8 - Meeting Room (& Decorative)

amount of artificial light will be automatically reduced at the entrance. The amount of artificial light in the cabinets will stay at a predetermined level. If required, it is possible

15 min.

Manual on

Maximum comfort

The Philips ActiLume DALI Gen 2 system switches the lights automatically on and off on occupancy and regulates the artificial lights down at the entrance when enough daylight is detected. Lights at the entrance will be switched or an infrared transmitter. Lights will be switched off automatically 15 minutes after the last movement has been detected. When switched on, there is daylight combination of different light levels for each of the two outputs (Window and Corridor) of the Philips ActiLume

DALI Gen 2 system. By using the infrared transmitter

IRT8030, the combination can be stored in the ActiLume lights in the cabinets will be switched off 15 minutes after

15 min.

Manual on

Mode 7 - Toilets

DALI Gen 2 luminaire connector labeled “Window”.

Cabinet lights must be connected to the Philips ActiLume

DALI Gen 2 luminaire connector labeled “Corridor”.

15 min.

120 min.

the IRT8030 can be found in chapter 7.3.2, “Using the

15 min.

Auto on

Mode 8 - Meeting room

Manual on

Auto off

Mode 6 - Corridor

Auto on

Auto off

15 min.

15 min.

60 min.

Figure 32

Auto on

15 min.

15min.

situated more than 3 meters from the cabinets, an extension sensor should be used for full coverage.

15 min.

15 min.

15 min.

Auto on

Auto off

No DDR

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

Always light

Auto on

Auto off

15 min.

Only task light DDR

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

15 min.

15min.

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes 4-21

Mode 1 - Cell office

Auto on

Auto off

15 min.

Mode 2 - Open plan office

Auto on

Auto off

15 min.

120 min.

4.9 Mode 9 - Open plan Task / (middle /)

Workspace & mains switching

Auto on

Auto off

Mode 9 is a variation on Mode 2 with daylight regulation as described in chapter 4.2, “Mode 2 - Open plan Window

Mode 5 - Open plan office

Mode 3 - School, classroom

Auto on and will not switch off. This is to avoid that in parts of an open plan office where no one is present, people in other areas are looking into a complete dark area. This Mode

Mode 2 - Open plan office

Auto on

15 min.

120 min.

Mode 10 is a variation on Mode 1 with daylight regulation as described in chapter 4.1, “Mode 1 - Cell Office Window

/ Corridor (& Decorative)”. In Mode 10 the lights will detected for 15 minutes. Furthermore the difference

Auto on

15 min.

switched on (Power up state is lights on).

Mode 5 - Open plan office a floor or building switch is used to turn off the lights as well as other electric equipment after office hours. To turn off the lights, a building or floor switch is required.

Background level

Mode 6 - Corridor

Manual on

Auto off

Auto on

Auto off

15 min.

the lights will fade down to the background level of be adjusted to 1%, 20%, 30%, 40%, 50%, 60% or 70% of the light level as described in chapter 6.3, “Setting the background level”.

Mode 3 - School, classroom

Manual on

Auto off

15 min.

15 min.

15min.

15 min.

20% (factory setting). The background light level can be adjusted to 1%, 10%, 30%, 40%, 50%, 60% or 70% of the light level as described in chapter 6.3, “Setting the background level”.

Mode 11 - Adjacent cell offices

Mode 9 - Open plan office

Auto on

Auto on

Auto off

Auto on

Auto off

15 min.

15 min.

15 min.

Only task light DDR

15 min.

15 min.

Mode 5 - Open plan office

Figure 34

Auto on

Auto off

15 min.

15 min.

120 min.

15min.

Auto off

4.11 Mode 11 - Adjacent Cell Office Window /

Corridor (& Decorative)

Mode 7 - Toilets

15 min.

15 min.

Mode 11 is a copy of Mode 1. It is created to be able to have different cell offices beside one another in which the

Linking.

Mode 2 - Open plan office

Auto on

Auto off

Mode 4 - Cell office

Auto on

Auto off

Mode 6 - Corridor

Auto on

Auto off

Mode 8 - Meeting room

Manual on

Auto off

In the example below you see 2 offices. If presence is level if no presence is detected in Office 2. Also if in

Office 2 presence is detected and in Office 1 there is no level.

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

15 min.

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

120 min.

60 min.

15 min.

15min.

Figure 35

4-22

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

4.12 Mode 12 - Free for OEM

Mode 12 is an exact copy of Mode 2. It is created to be able to have different open plan offices beside one another in which the lights should react on one another when in Mode Based Linking.

If the ActiLume DALI Gen 2 is reset as described in chapter 6.8, “Resetting the ActiLume DALI Gen 2” these settings will not be influenced and will stay as they are.

4.14 Mode 14 - Free for OEM

Mode 14 is an exact copy of Mode 8. It is created to be able to have different meeting rooms within the same network in which multiple ActiLume DALI Gen

2 are available and the lights within one meeting room should react to one another but should not react on the

ActiLume DALI Gen 2 of the adjacent meeting rooms when in Mode Based Linking.

If the ActiLume DALI Gen 2 is reset as described in chapter 6.8, “Resetting the ActiLume DALI Gen 2” these settings will not be influenced and will stay as they are.

4.13 Mode 13 - Free for OEM

Mode 13 is an exact copy of Mode 8. It is created to be able to have different meeting rooms within the same network in which multiple ActiLume DALI Gen

2 are available and the lights within one meeting room should react to one another but should not react on the

ActiLume DALI Gen 2 of the adjacent meeting rooms when in Mode Based Linking.

If the ActiLume DALI Gen 2 is reset as described in chapter 6.8, “Resetting the ActiLume DALI Gen 2” these settings will not be influenced and will stay as they are.

4.15 Mode 15 - Free for OEM

Mode 15 is by default an exact copy of Mode 11. In this way it is possible to have, in a network of multiple

ActiLume DALI Gen 2, the possibility of having 2 situations of adjacent offices.

If the ActiLume DALI Gen 2 is reset as described in chapter 6.8, “Resetting the ActiLume DALI Gen 2” these settings will not be influenced and will stay as they are.

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes 4-23

4.16 Mode settings- overview (1)

Start-up and Dimbehaviour

Power-up state

Range lichts OFF lichts ON

Background level during Prolong 1% time when Occupancy elsewhere 10% and group is “Auto-on” (When 20%

“manual-on BL =0%) 30%

40%

50%

60%

70%

Delay and Switching-off behaviour Range

Hold Time 1 min

Smart Time extension (once) when occupancy detected during 5 min gracetime 10 min

Grace Fading

15 min

Disable

Grace Time

Enable

0 s

5 s

10 s

5 min

10 min

15 min

20 min

25 min

30 min

35 min

0 min

Prolog Time applied only for

15 s

20 s

25 s

0 min

Groups that have Occupancy 15 min

Control AutoOn-AutoOff (so not 30 min applc for Manual on - Auto Off 60 min

Groups) 90 min

Manual Control Functions

Reacting on PBU Signalling with

120 min

150 min infinite

Range

Yes same mode adress received via

Paralel Link Bus.

No

0 min

Retention time MO settings (start 15 min when delay time ended) 30 min

60 min

90 min

120 min

150 min

180 min

Table 3

4-24

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

4.17 Mode settings- overview (2)

Group 1 (Window)

Occupancy Control

Daylight Override

Daylight Regulation

Range

Auto On-Auto Off

Manual On-Auto Off

Manual On-Man Off

Disable

Enable

Disable

Enable

Daylight Switching Disable

Enable

Daylight Regulation/ Switching @ manual Disable

Enable

Daylight Regulation Offset 0%

10%

15%

20%

Group 2 (Corridor)

Occupancy Control

Daylight Override

30%

40%

50%

60%

Range

Auto On-Auto Off

Manual On-Auto Off

Manual On-Man Off

Disable

Enable

Daylight Regulation

Daylight Switching

Disable

Enable

Disable

Enable

Daylight Regulation/ Switching @ manual Disable

Enable

Max Dynamic Daylight Regulation Offset 0%

10%

15%

20%

30%

40%

50%

60%

Table 4a

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes 4-25

Group 3 (Middle / Decorative)

Occupancy Control

Daylight Override

Daylight Regulation

Range

Auto On-Auto Off

Manual On-Auto Off

Manual On-Man Off

Disable

Enable

Disable

Enable

Daylight Switching Disable

Enable

Daylight Regulation/ Switching @ manual Disable

Enable

Max Dynamic Daylight Regulation Offset 0%

10%

15%

20%

Group 4 (Blackboard)

Occupancy Control

Daylight Override

30%

40%

50%

60%

Range

Auto On-Auto Off

Manual On-Auto Off

Manual On-Man Off

Disable

Enable

Daylight Regulation

Daylight Switching

Disable

Enable

Disable

Enable

Daylight Regulation/ Switching @ manual Disable

Enable

Max Dynamic Daylight Regulation Offset 0%

10%

15%

20%

30%

40%

50%

60%

Table 4b

4-26

Philips

ActiLume DALI 2 nd

Generation - Ch 4 ActiLume DALI Gen 2 application and user modes

5 Occupancy sharing

The ActiLume DALI Gen 2 has the possibility to share its occupancy status with other ActiLume DALI Gen 2 or with the OccuSwitch DALI.

5.1 Mode based linking

When the ActiLume DALI Gen 2 is in Parallel Linking configuration, up to 64 ActiLume DALI Gen 2 can be connected together via the DALI 2 Port. In this system setup all ActiLume DALI Gen 2 connected can communicate with one another and share their occupancy status.

5.1.1 How does it work

When an ActiLume DALI Gen 2 system is built up of various ActiLume and they are all connected together via the parallel linking configuration each ActiLume DALI

Gen 2 can communicate about which mode it is operating in, and if local occupancy is detected, send this message onto the parallel linking connection. Other ActiLume

DALI Gen 2 operating in the same or in a different mode can react on this signal in three different ways namely:

!

Important

In Parallel Linking configuration, this interconnection is polarity sensitive. This means that D+ and D- have to be connected in the correct way, all D+ together and all

D- together.

4

4

4

Treat the signal as if the occupancy was detected by itself

Go into background level

Do not react and ignore the signal

Philips

ActiLume DALI 2 nd

Generation - Ch 5 Occupancy sharing 5-27

Example

Given a part of a floor plan below there are several different areas each with their own specific Mode setting. In each room there is a setup of luminaires with one ActiLume DALI Gen 2, and in the corridor there are a few ActiLume DALI Gen 2. Some of the areas are occupied and others are not but will react to the occupancy signals from these areas. The corridor, for example, will always be on or in background level as long as one of the other areas is occupied. The secretary’s office will stay in background as long as the director is in his office. In the open plan office the lights will be at

DDR in the area where occupancy is detected and at background level in the rest of the open plan office.

Mode 1 - Cell Office Mode 11 - Secretary Mode 11 - Director

Mode 6 - Corridor

Mode 8 - Meeting Room

Mode 2 - Open Plan

Lights in daylight depending regulation

Lights in background level

Lights off

Figure 36

Presence

An overview of how all the different Modes react on each other is given in the next chapter.

5-28

Philips

ActiLume DALI 2 nd

Generation - Ch 5 Occupancy sharing

5.1.2 Mode based linking overview

Mode based Occupancy Linking

Reaction to occupancy Mode 1

Reaction to occupancy Mode 2

Reaction to occupancy Mode 3

Reaction to occupancy Mode 4

Reaction to occupancy Mode 5

Reaction to occupancy Mode 6

Reaction to occupancy Mode 7

Reaction to occupancy Mode 8

Reaction to occupancy Mode 9

Reaction to occupancy Mode 10

Reaction to occupancy Mode 11

Reaction to occupancy Mode 12

Reaction to occupancy Mode 13

Reaction to occupancy Mode 14

Reaction to occupancy Mode 15

Table 5

Range

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Local occupancy

Background level

Ignore

Philips

ActiLume DALI 2 nd

Generation - Ch 5 Occupancy sharing 5-29

5.2 Simple occupancy sharing

To be able to combine the ActiLume DALI Gen 2 with the

OccuSwitch Advanced, there is an option to decrease the occupancy sharing functionality. The ActiLume DALI Gen

2 will, in this case, react to the occupancy signals without taking into account in which mode the transmitter is functioning. The reaction to the signal however, is fixed and depends on the mode the ActiLume DALI Gen

2 is in. The short table below demonstrates how the

ActiLume DALI Gen 2 will react to the occupancy signal.

Mode based Occupancy Linking

Not depending on senders mode

Table 6

Range

Local occupancy

Background level

Ignore

5-30

Philips

ActiLume DALI 2 nd

Generation - Ch 5 Occupancy sharing

5.3 Group based linking

Group based linking is sharing occupancy information and each ActiLume DALI Gen 2 will react on it in its own way.

Example

See drawing below of an office plan. In the corridor there are several ActiLume DALI gen 2 and each office has an ActiLume DALI Gen 2. All ActiLume DALI Gen 2 have a Group programming as given in the drawing. All

ActiLume DALI Gen 2 in the corridor will act as one since they all have the same group numbers (Group 1,

2, 3 and 4). For all ActiLume in the corridor mode, the lowest group number is “1”. This is called the Base Group

Number. The other Group numbers (2, 3 and 4) are called

Secondary Group Numbers If someone is present in the most left office where the ActiLume DALI is assigned to Group 2, the other cell office which also is assigned to Group 2 will act in the same way since they have the same group number. The ActiLume DALI Gen 2 that are in the corridor will act on this presence because they also have been assigned to Group 2. Since Group 2 is not their lowest group number they will act on this presence in a different way. They way all ActiLume DALI Gen 2 will act on one another also depends in which mode they are. The reaction to Base Group Number and Secondary

Group Number in relation to the various modes is given in the table below.

Group 2 - Cell Office Group 4 - Cell Office Group 3 - Meeting Room

Group 1, 2, 3 and 4 - Corridor

Group 2 - Cell Office

Figure 37

Group based Occupancy Linking Range

Base Group Nr (Lowest group number) Local occupancy

Background level

Ignore

Secundary Group Nr (Succesive no) Local occupancy

Background level

Ignore

Table 7

Philips

ActiLume DALI 2 nd

Generation - Ch 5 Occupancy sharing 5-31

6 Changing default settings (commissioning)

During commissioning and configuring, every now and then, the lights will blink as a confirmation that the programming sequence done is executed by the ActiLume

DALI Gen 2.

If the lights were off when starting this commissioning or configuring of the ActiLume DALI Gen 2 system, the system will always end with all lights on, except when the mode in which the ActiLume DALI Gen 2 is, is based on the “manual on / auto off” principle. In that case the lights will always be turned off after the blinking.

6.1 Changing the mode

The default active mode is Mode 1 – Cell Office. There are 3 possible ways to change the active mode.

6.1.1 Using the IRT8099

Follow the next steps:

1: Press “1-15”

Red LED

Send button

2: Select your mode to be

made active

For Mode 1 press “1” or

“0” followed by “1”

For Mode 14 press “1”

followed by “4” etc

3: Wait until the red LED

stops blinking

4: Point the front of the

remote to the multi

sensor LRI1663 and press

the green send button

Figure 39

Figure 38

Various default settings of the ActiLume DALI Gen 2 can be changed by means of a remote control (IRT8099/20) or by using the MultiOne2Controls software package in combination with the LCN6800 interface. The usage of this software package and interface will be explained in a separate chapter 14, “MultiOne 2 Controls”.

In this chapter it will be explained how to make changes using the remote control IRT8099/20. In the subchapters below there will be references to the red LED and green send button. In the picture above you can see where they are located.

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink as a confirmation that the transmission is received correctly and the requested change has been made.

6.1.2 Using the IRT8098

When using the IRT8098, only Mode 1 or 2 can be selected. Follow the following steps to either select Mode

1 or Mode 2.

By pressing the button “cell office” or “open plan” the ActiLume DALI

Gen 2 the related Mode will be activated. During transmission a red LED on the IRT8098 will light up. After transmission the lights connected to the ActiLume DALI

Gen 2 will blink as a confirmation that the transmission is received correctly and the requested change has been made.

Figure 40

6-32

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning)

6.1.3 Using the Service button on sensor

Even without any remote control a selection can be made between Mode 1 and Mode

2. In this way it is possible to toggle between

Mode 1 and Mode 2. By pressing the service button for less than 1 second, the mode setting is changed and there will be a confirmation from the ActiLume DALI Gen 2 by blinking of the lights.

4

Mode 1 = 1 flash

4

Mode 2 = 2 flashes

Figure 41

6.2 Request active Mode

If there is uncertainty about the selected mode number, the ActiLume DALI Gen 2 can be requested to acknowledge which mode is active.

1: Press “Mode ?” while

pointing the remote to the

multi sensor LRI1663

2: All lights will go to

minimum level.

3: The number of flashes

have to be counted and

represents the mode

number.

4: The lights will go back to

their previous situation

6.3 Setting the background level

By default the background level is set to 10% or 20% depending on the active mode. To change the background level, by means of the IRT8099, follow the next steps:

1: Press “%”

2: Press “1” for 10%

“2” for 20%

“3” for 30%

“4” for 40%

“5” for 50%

“7” for 60%

“8” for 70%

3: Wait until the red LED

stops blinking

4: Point the front of the

remote to the multi sensor

LRI1663 and press the

green send button

Figure 44

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink as a confirmation that the transmission is received correctly and the requested change has been made.

Figure 42

5 flashes = Mode 5

100%

1%

Press “mode?” button

Figure 43

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning) 6-33

6.4 Changing Power-Up-State

By default the power-up state depends on the active mode. To change the power-up state, using the IRT8099, follow the next steps:

6.5 Switching between configurations

There are 3 different configurations possible: BMS, Parallel

Linking and Window/Corridor. By default Parallel Linking is active. To change the configuration using the IRT8099, follow the next steps:

1: Press “on/off”

2: Press “on” or “off”

“on” for power-up state on

“off” for power-up state off

3: Wait until the red LED

stops blinking

4: Point the front of the

remote to the multi sensor

LRI1663 and press the

green send button

Figure 45

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink as a confirmation that the transmission is received correctly and the requested change has been made.

1: Press “Config”

2: Select your configuration

“1” = BMS

“2” = Parallel linking

“3” = Window/Corridor

3: Wait until the red LED

stops blinking

4: Point the front of the

remote to the multi sensor

LRI1663 and press the

green send button

Figure 46

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink as a conformation that the transmission is received correctly and the requested change has been made.

!

Important

The Port 2 configuration change will only be effectuated after a mains cycle.

6-34

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning)

6.6 Request active Configuration

If there is uncertainty about the active configuration, the

ActiLume DALI Gen 2 can be requested to acknowledge which configuration is active.

6.7 Setting the IR group

When using more than 1 ActiLume DALI Gen 2, each with their own remote control, it is very well possible that they will disturb one another. In order to prevent this, a different IR group can be defined for each ActiLume DALI

Gen 2. By default the IR group is “A”. To change the IR group using the IRT8099, follow the next steps: 1: Press “Link ?” while pointing

the remote to the multi

sensor LRI1663

2: All lights will go to minimum

level

3: The number of flashes have

to be counted and

represents the active

configuration

4: The lights will go back

to their previous situation

1 Flash means BMS configuration.

Figure 47

2 Flashes means Parallel Linking configuration.

3 Flashes means Window/Corridor configuration.

1: Press “A-G”

2: Select your IR group

“1” for IR group A

“2” for IR group B

“3” for IR group C

“4” for IR group D

“5” for IR group E

“6” for IR group F

“7” for IR group G

3: Wait until the red LED

stops blinking

4: Point the front of the

remote to the multi sensor

LRI1663 and press the green

send button

Figure 49

!

Important

The number of flashes is the active configuration.

This means if a different configuration is programmed without a mains cycle, the

“old” configuration is still active.

Max

Min

Figure 48

2 flashes = Configuration 2 = Parallel Linking

1 2

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning) 6-35

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink as a confirmation that the transmission is received correctly and the requested change has been made.

6.8 Resetting the ActiLume DALI Gen 2

If it is needed to reset the ActiLume DALI Gen 2, this can be done using the IRT8099, following the next steps:

Infrared

Group A

M

S

S

M

S

Infrared

Group B

M

S

S

M

S

M

M

ActiLume

S

S

M

M

ActiLume

S

S

Infrared

Group C

Infrared

Group D

1: Press “>0<”

2: Point the front of the

remote to the multi sensor

LRI1663 and press the green

send button

Figure 50

Note

In order to have the remote controls used by the end user set to the correct IR channel, please refer to the datasheets of the relevant remote control unit on how to change the IR group setting of the remote. This is mostly done by means of dipswitches or a rotary switch which is located in the battery compartment.

Figure 51

During transmission the red LED on the IRT8099 will blink. After transmission the lights connected to the

ActiLume DALI Gen 2 will blink twice as a confirmation that the transmission is received correctly and the requested reset has been made.

Note

Changing the IR channel has no influence on the remote controls used for commissioning. These remotes use a broadcast signal which is accepted independently from the IR channel the ActiLume

DALI Gen 2 is in.

Note

This reset will set all variables back to default level for all Modes and will make Mode 1 active.

6-36

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning)

6.9 Walk test

It is very important to have sufficient coverage of the presence detection so people are detected and the lights will react on that in the correct way. The walk test function is used to check the coverage area of the movement detector. By pressing the button on the remote control, the ActiLume

DALI Gen2 will flash the lamps once as an acknowledgment that the walk test mode has been entered. After this all lamps will go to lowest light level to indicate that it is ready to do the walk test.

When entering the walk test mode, the PIR sensor either from the multi sensor or from the extension sensor can execute the walk test. However, the response however will be different. This is mainly due to the unique detection algorithm inside the extension sensor.

Figure 52

Behavior of the multi sensor

In the walk test mode the lighting is set to 1% and every time movement is detected, the light goes to 100% for

1 second and returns to 1%. It can immediately detect the next movement.

If the coverage of the standard multi sensor LRI1663 is insufficient, the coverage can be extended using an extension sensor. There are 2 types available, namely the luminaire based version (LRM8119) and the ceiling mounted version (LRM8118).

Behavior with extension sensor

In the walk test mode the lighting is set to 1%. Once movement is detected by the extension sensor, the light goes up to 100% and will stay at that level for up to a maximum of 60 seconds, even when there is no movement detected. Then it will return to 1% indicating it is ready for the next movement detection. These 60 seconds are due to the settings inside the extension sensor - this time period cannot be adjusted.

In walk test mode, DDR, DDS DDO will be disabled.

Exiting the walk test mode

The ActiLume DALI Gen 2 will automatically recover from the walk test situation, and return into active state, 60 seconds after last movement detection of the complete system so including possible detection by extension sensors. At this point it will flash all connected lights twice.

The alternative way to exit the walk test mode is to press the button on the remote control again. The controller will exit the walk test mode by flashing all connected lights twice.

6.10 Grouping of ballasts/drivers

When using the ActiLume DALI

Gen 2 in a Parallel Linking or BMS configuration, all ballasts/drivers have to be connected to the

DALI 1 Port (Window). In order to make a distinction between which luminaires are on the window side, which ones on the corridor side, etc, it is possible to place the luminaires into 4 different DALI groups each with their own specific functionality depending on the selected Mode.

Group 1 = Window row

Group 2 = Corridor row

Group 3 = Middle row/decorative

lighting

Group 4 = Blackboard lighting

Figure 53

To start the process, press the “DALI address” button, while pointing the remote to the related multi sensor.

The ActiLume DALI Gen 2 will first set all lights to maximum light output and start searching for connected devices. This can take some time depending on how many devices are connected. Each time a device is found, the device will be set to minimum level. When all devices are found, the ActiLume DALI Gen 2 will put all devices to minimum level. One device will start flashing and the system needs to be informed into which Group this light point should be placed by pressing the corresponding button on the remote (1 = Group 1, 2 = Group 2, etc).

As soon as the luminaire is assigned to a certain group, the next, randomly chosen, luminaire will start flashing and the luminaire should be assigned to a Group in the same way. This sequence will continue until all luminaires are assigned to a specific group.

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning) 6-37

As soon as the last luminaire is assigned, the full system will flash two times as an acknowledgement that the programming has succeeded after which all luminaires will return to their default setting related to the selected mode of the ActiLume DALI Gen 2.

6.11 DALI addressing of the ActiLume DALI Gen 2

Example

The ActiLume DALI Gen 2 should get Group address 8. In this case, while pointing the IRT8099 towards the multi sensor of the related ActiLume DALI Gen 2:

• The button “group” is pressed

• Wait until the LED stops flashing

• The button “8” is pressed

• Wait until the LED stops flashing

• The lights will blink as a conformation the group addressing has succeeded The ActiLume DALI Gen 2 itself can also have a DALI short address when in Parallel Linking mode or in BMS mode. This can be done by connecting a tool to the

Parallel Linking line that does the randomization according to the DALI standard. How this sequence is going depends on the software package used to have this done.

Another way to do it is to force a DALI address onto the

ActiLume DALI Gen 2 by using the IRT8099.

6.13 Fast mode

In order to save time during testing and/or demonstration, the ActiLume DALI Gen 2 provides a special mode, some timer related settings will be drastically reduced resulting in fast response from the ActiLume DALI Gen 2.

First you should consider which address to give to which

ActiLume DALI Gen 2.

To start the sequence press two times “9” (wait for the

LED to stop flashing before pressing “9” for the second time). Now press the address you want to give to the

ActiLume DALI Gen 2. For address 24 press “2” (wait for the LED to stop flashing) and press “4”. The ActiLume

DALI Gen 2 will acknowledge the addressing by flashing its lights. For addresses “0” to “9”, an extra “0” should be pressed to complete the addressing. For example if address “2” is needed, the following sequence should be pressed while pointing the IRT8099 to the multisensor:

“9”, “9”, “0” and “2”.

To enter this feature, the following sequence of buttons on the IRT8099 have to be pressed while pointing the remote control the related multi sensor: “1”, “3”, “7”, “9”. The ActiLume

DALI Gen 2 will response by blinking the lights once to indicate the fast mode had been entered.

Parameter changes under fast mode:

Several time-related parameters are reduced to 0.1 of their setting and it affects the following timers:

6.12 Group addressing of the ActiLume DALI Gen 2

Apart from giving the ActiLume

DALI Gen 2 a short address it is also possible to give it a DALI Group address. This can be very handy when a network of several ActiLume DALI

Gen 2 is connected to a BMS. The group address can be given to the

ActiLume DALI Gen 2 by pressing the “group” button on the IRT 8099 followed by a DALI group number. The

DALI group number can be from 0 to

15. By default it is set to 255 which means no group address.

4

Hold Time

4

Prolong Time

4

DDS Measure Time

4

Smart Time

4

Retention Time

Figure 55

To exit fast mode again press the sequence of buttons

(“1”, “3”, “7”, “9”) on the IRT8099 while pointing the remote control to the related multi sensor.

To acknowledge the ActiLume DALI Gen 2 has exited the fast mode, it will blink all connected lights twice.

Figure 54

6-38

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning)

6.14 100 hour burn-in

Many fluorescent lamp manufacturers state that prior to normal use, fluorescent lamps should not be dimmed. First these lamps should be

“burned in” for 100 hours in order to maintain light quality and lifetime also at low dimming level. In order to enable this, the ActiLume DALI Gen

2 has the option to activate the 100 hours burn in feature. During these first 100 hours, all connected lights are not dimmed. The ActiLume DALI Gen

2 uses a burning hour counter based on the status of what is connected to the Window/DALI 1 port.

It is possible to enable and disable the

100 hour burn mode by means of the remote control. By default the 100 hour burn mode is disabled.

Figure 56

To start the 100 hours burn in sequence, press the “100 h” button on the remote control followed by pressing the send button while pointing the remote to the related multi sensor.

If it is needed to stop and reset the timer, this can be done by sending the 100h again as described above or by using the MultiOne2Controls software + interface or send a factory reset as described in Chapter 6.8 -

Resetting the ActiLume DALI Gen 2.

Be aware that all other settings and changes that have been made will be reset to factory defaults when doing this and re-commissioning is needed.

During this 100 hour burn in time, all devices connected to the Window/DALI 1 Port and Corridor/DALI 2 Port will not be dimmed.

Only for set point calibration and commissioning, the 100 hour burn mode will temporarily be overridden.

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning) 6-39

6.15 Some general default settings

In the following table you will find an overview on some general default settings that are valid for a new ActiLume DALI Gen 2.

Default Mode based Occupancy Linking Range

Region EU/APR

Application Mode

US

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Mode 7

Mode 8

Mode 9

Mode 10

Mode 11

Mode 12

Mode 13

DALI grouping of luminaires

Mode 14

Mode 15

Broadcast

Group 1

Group 2

Group 3

Group 4

Configuration Window/Corridor

Occupancy Sharing

Assigning DALI Short adress

Light Level Setpoint

Parallel Link

BMS

Simple Occupancy Linking

Group based Occupancy Linking

Mode based Occupancy linking

0 - 63

Clear (99)

200 to 1000 lux

Table 8

600 lux *

* = Approximate lux level at the table

6-40

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning)

Mode based Occupancy Linking

Assigning DALI Group adress

IR Group Address

100H burn-in

Walk test

Fade Time

HVAC/Sunblinds Key pass through

Table 9

8 sec.

11.3 sec.

16 sec.

22.6 sec.

32 sec.

45.3 sec.

64 sec.

90.5 sec.

Enable

Disable

0 sec.

0.7 sec.

1 sec.

1.4 sec.

2 sec.

2.8 sec.

4 sec.

5.7 sec.

B

C

D

E

Range

0 - 15

Clear (255)

A

F

G

Disable

Enable

On

Off

Default

Philips

ActiLume DALI 2 nd

Generation - Ch 6 Changing default settings (commissioning) 6-41

7 Manual control

The ActiLume DALI Gen 2 is the perfect system to keep the light at a constant level without interference. If, however, the light level needs to be changed, this can be done by using a Touch and Dim switch or by remote control, for example.

7.2 Wiring

The connection diagram should be as follows:

7.1 Touch and Dim (Push button) control

The Touch and Dim functionality of the ActiLume DALI

Gen 2 works in the same way as it is implemented in many other Philips Lighting products. The “T and D” input is used for this application. The push button used must be of the “retractive push to make” type, meaning the contact is closed when the push button is operated, otherwise the contact is open.

L1

N

PE

(T and D)

2

(T and D)

1

L and “T and D” shall be connected to the same phase!

T and D

PE

N

L

ActiLume DALI Gen 2

Controller 1

T and D

PE

N

L

ActiLume DALI Gen 2

Controller 2

One button for each

ActiLume DALI Gen 2

Figure 58

Always take care that the “T and D” connection is connected to the same phase as the L connection. If this is not respected then, when pushing the Touch and Dim button, the voltage going into the controller will be too high and this will adversely damage the controller.

7.3 Infrared (IR) control

Figure 57

The usage of the Touch and Dim is very intuitive. When pushing the button the lights will react immediately depending on their previous situation. In the table below the different sequences are given.

Action Duration Reaction

Very short push < 0.04 s Will be ignored

Short push 0.04 - 0.5 s Switch on/off opposite to previous situation

Long push 0.5 - 10 s Dim up/down opposite to previous direction

There are different IR remote controls for different purposes. These IR remote controls can be categorized into two groups:

4

IR remotes controllers for daily use

4

IR remotes controllers for (re-)programming the

ActiLume DALI Gen 2 controller.

The following remotes are for (re-)programming the

ActiLume DALI Gen 2

4

IRT8097

4

IRT8098

4

IRT8099

How to use these remotes is explained throughout this document.

The following remote controls are for daily use when needed:

4

IRT8010

4

IRT8030

4

IRT8050

4

UID8510

7-42

Philips

ActiLume DALI 2 nd

Generation - Ch 7 Manual control

7.3.1 Using the IRT8010

The IRT8010/00 is a two-key handheld transmitter, suitable for the infrared remote control of lighting installations in point-and-shoot applications. The

IRT8010/00 can be used to switch on and off as well as dim up and down a single lighting control circuits (one IR channel control). The infrared group address can be set by means of a rotary switch within the remote control unit itself. For the exact location of the rotary switch see chapter 15.2 – “Data sheet IRT8010”.

7.3.2 Using the IRT8030

The IRT8030 is a 4 preset/scenes remote control unit and can be used for wall mounting or tabletop operation (wall holder included). The IRT8030 can be used to select or program light presets (scenes) 1, 2, 3 or 4. The infrared group address can be set by means of 3 dipswitches on the unit itself. See chapter 15.3 – “Data sheet IRT8030” for the exact location of the dipswitches and other information on the IRT8030.

Figure 59

Figure 60

Recommended Applications

IRT8010 is mainly used as hand held transmitter to enable manual override of the ActiLume DALI Gen 2 automatic control system. For 1-channel “semi-automatic” (manual on – automatic off) applications it is recommended to use the IRT8010 in combination with IRT8050. The

IRT8050 is then used as a “wall switch”, and the IRT8010 provides handheld control. See chapter 15.2 – “Data sheet

IRT8010” for more information of the IRT8010.

Programming presets (light scenes) with the

IRT8030

Since this remote control (IRT8040) is also used for other control systems, a conversion from channels to groups has to be made. Selecting a group has the following meaning for the ActiLume DALI Gen 2:

Channel 1 = all Groups

Channel 2 = Group 1

Channel 3 = Group 2

Channel 4 = Group 3

Channel 5 = Group 4

For creating a preset, first the required group must be selected, and then the light level can be set for that particular group. By setting the light level for each group required, store operation can be executed after which the preset can be re-called.

Step 1: select the infrared channel

Group selection is achieved with the “Select Channel” key. A LED indicates the selected group. When the

“Select Channel” key is momentarily pressed (less than 1/2 second) the LED shows the (last) selected channel. When the key is pressed continuously or repeatedly, the next channel is selected. This action can be continued or repeated until the required channel has been selected. The selection LED stays on for 5 seconds after last key release.

Philips

ActiLume DALI 2 nd

Generation - Ch 7 Manual control 7-43

Step 2: off/down – on/up control

With the “Channel On/up” and “Channel Off/down” keys the selected group can be switched and/or dimmed up or down. During the actual transmission of infrared signals, the LED flashes for verification of the selected channel. After transmission the LED is switched off.

7.3.3 Using the IRT8050

The IRT8050 is suitable for wall mounting or tabletop operation. However, the infrared radiation pattern has been optimized for wall-mounted operation.

The IRT8050 can operate in two types of control Modes:

4

Group control (on/up – off/down)

4

Scene control (also called preset control)

3

4

1

2

O

3

4

1

2

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Select

Recall

Store

Figure 61

Programming presets

Preset 1

Preset 2

Preset 3

Preset 4

All OFF

Channel On / Up

Channel Off / Down

Select Channel

Recall installer presets

Store presets

The procedure to be followed is as follows:

Step 1: Adjust individual control circuits as described before

Step 2: Press the “Store presets” key

Step 3: Press the for example the “Preset 2” key to store the setting as Preset 2

Recall factory presets

At any time the user can revert to the pre-programmed presets as set in the factory, by pressing the “Recall factory presets” key. When doing so, the lights will flash twice and Preset 1 will be recalled.

Note

Preset 1 cannot be set to a fixed level because it activates DDR. If a fixed level needs to be programmed, than first deactivate DDR by means of the MultiOne tool (see chapter 14.5 - Featuretab Scene).

Figure 62

The control Mode can be set by means of 5 dipswitches on the unit itself.

The infrared channel address can be set by means of another 3 dipswitches on the unit itself.

See chapter 15.4 – “Data sheet IRT8050” for more information on the settings and location of the dipswitches.

7.3.4 Using the UID8510

The UID8510 is in fact approximately the same remote control as the IRT8050 with slightly reduced functionality. It is suitable for wall mounting or tabletop operation. However, the infrared radiation pattern has been optimized for wall-mounted operation.

Figure 63

See chapter 15.5 – “Data sheet UID8510” for more information on the settings and location of the dipswitches.

7-44

Philips

ActiLume DALI 2 nd

Generation - Ch 7 Manual control

8 DDR set point calibration

Although the ActiLume DALI Gen 2 is set to create a light level of 600 lux by default underneath the light sensor, this can be insufficient or incorrect in some cases. If a different light level is measured than what is expected this is mostly due to the fact that the ActiLume DALI Gen 2 expects certain environment conditions like a reflection factor of

0.3 and a ceiling height of 3 meter.

If the light level is not what it is expected to be, the light level can be calibrated and set to a different level. The daylight depending regulation will use as of that point forward this new set point.

The reason for wanting a different light level can be:

4

The user doesn’t like the light level

4

A light level of 600 lux is not according to the design

4

Different environment than expected (different reflection factor)

8.1.2 Calibration by using IR remote

controls

The second way to calibrate the light is by using a remote control (IRT8099) and a lux meter. By following the steps below, the light level can be set to any specific level.

4

Place the lux meter at the desk underneath the sensor

4

Dim the lights up/down by means of the remote until the correct light level is reached

4

Press the save button on the remote

4

Lights will blink twice to indicate the set point is stored

Figure 65

8.1 Calibration methods

This calibration method can also be done by using the up/ down and save keys of the IRT8097 and/or IRT8098

There are 3 ways to calibrate the light level:

4

Auto calibration

4

Calibration by using IR remote controls

4

Calibration by using Touch and Dim

8.1.1 Auto calibration

Press the service button on the LRI1663 for 5 seconds: (3 – 7 seconds) and the

ActiLume DALI Gen 2 will enter the automatic set point calibration mode.

4

When releasing the button, any ladder or other items that will not be there during normal operation need to be taken away

4

The lights will be switched off

4

10 seconds after the lights are switched off, the ActiLume DALI

Figure 64

Gen 2 will read the light level

4

Lights will be set to 100% output

4

10 seconds after the lights are at 100%, the ActiLume

DALI Gen 2 will read the light level

4

A calculation will be done and calibration set point will be set to 100% light output level – 0% light output level

4

Lights will blinking twice to indicate the set point is stored

Figure 66

8.1.3 Calibration by using Touch and Dim

The third option for setting a different default light level is by using the Touch and

Dim (or the up/down keys of any of the remotes) in combination with the service button on the LRI1663 multi sensor.

Figure 67

After the last up/down dimming action done by the Touch and Dim or the up/down keys of any of the remotes, the service button on the sensor will have a store function for 30 seconds. If pressed briefly (less than 1 second), the

ActiLume DALI Gen 2 will store the light level as a new set point for DDR. If the service button is not pressed within these 30 seconds, the function of the service button will be switched back to its default behavior.

Philips

ActiLume DALI 2 nd

Generation - Ch 8 DDR set point calibration 8-45

9 Built in requirements

9.1 Wiring inside the luminaire

The wiring inside a luminaire is of the same type as that used for connecting lamps to ballasts/drivers and for the mains connections. The LRI1663 multi sensor on the other hand has its own cable on one side attached to the sensor and on the other side a RJ10 (4p4c) connector. This RJ10 connector can be pushed/clicked into the ActiLume DALI Gen 2 and is in this simple way connected.

There are 2 different clips available, one for TL-D (T8) lamps and one for TL5 (T5) lamps. The TL5 version is called the LCA8002. The TLD version of the clip is called the LCA8003. Both types can be ordered separately and are packed in boxes of 50 pieces.

38.3

7

9.2 Wiring outside the luminaire

In many cases the DALI line(s) have to be brought outside the luminaire in order to connect the DALI line to other luminaires or to a gateway of a BMS. Since the DALI line(s) have only basic insulation towards the mains, these cables should be treated as mains cables and therefore must be mains rated cables to be used in combination with strain relief at the place where the DALI line(s) enter/leave the luminaire.

LCA8002/00

4.5

10

38.3

11

9.3 Mounting

The sensor and ActiLume DALI Gen 2 controller each have their own way of being mounted inside a luminaire. These devices are not meant to be placed on the outside of a luminaire or being to be treated as independent devices.

9.3.1 Sensor LRI1663

LCA8003/00 Figure 69

4.5

16

Figure 68

The sensor can be mounted into a luminaire in different ways. The following options are the most commonly used ways of mounting the sensor.

The most simple way of mounting the sensor into the luminaire is by using a metal clip. The clip can be mounted on the backside of the sensor and then it can be clipped onto the lamp.

When a sensor is clipped on the lamp (or attached to optics) and the distance between sensor and lamp is less than 8cm, then the sensor should be located at the cold side of the lamp. The cold side of the lamp is the side where the wiring towards the ballast is the longest.

9-46

Philips

ActiLume DALI 2 nd

Generation - Ch 9 Built in requirements

In order to increase the front size of the sensor so it will fit better between the lamella, a ring is available that can be clicked onto the front side of the sensor. The ring model number is LCA8001/00 and can be ordered in boxes of 100 pieces.

Figure 70

47 19

Figure 74

12 mm

Ø 4 mm

54 22

LCA8001/00 Figure 71

A second ring/clip, called LCA8005, can also be used but is meant for mounting the sensor directly into the metal of the luminaire. A rectangular hole of 60 x 22 mm must be made in the luminaire so the clip (including the sensor) can be put into the hole.

Figure 75

Figure 72

R0-0.5 mm (4x)

4 mm 20 mm

Another possibility is to use the latching rills on the back of the sensor. To use this way of mounting, 2 holes of 4 mm diameter have to be drilled 20 mm apart. A third hole is needed for the sensor wire go through the material. The thickness of the material can be up to maximum of 0.7 mm.

If the sensor is placed within the luminaire, a distance of at least 8 cm should be kept between sensor and sensor wiring and the “warm” side of the lamp. The warm side of the lamp is the side where the wiring from the ballast to the lamp(s) is the shortest.

r 2.3

60 mm

1. Required Luminaires opening dimension: 60 x 22 (mm)

2. Thickness fitness of Luminaires fixture: 0.5~2.5 (mm)

Figure 73

44 mm

Figure 76

Philips

ActiLume DALI 2 nd

Generation - Ch 9 Built in requirements 9-47

Another way of mounting the sensor is to punch a hole in the luminaire (e.g. in the infill panel) and push the sensor from the inside into the rectangular hole so only the front part of the sensor will be visible on the outside of the luminaire. Also here, a distance of at least 8 cm should be kept between sensor and sensor wiring and the “warm” side of the lamp. The warm side of the lamp is the side where the wiring from the ballast to the lamp(s) is the shortest.

Please contact your local sales representative for more info on ordering these rings or other accessories.

9.3.2 Sensor cable

The sensor has a PVC-free 300V rated 4-core cable. One end is connected to the sensor and on the other end an

RJ10 (4p4c) connector is attached.

Figure 77

9.3.4 Controller LLC1663

It is easy to mount the ActiLume DALI Gen 2. Just 2 holes are needed in the following pattern.

Ø 4.2 mm

!

Important

The sensor wire can be extended with a male-female RJ10 (4p4c) 4 wire cable of up to 5 meter. The system can handle this extension and will function as expected. EMI behavior however, might be influenced by this extension.

Figure 78

168 ... 170 mm

9.3.3 Sensor position

If multiple luminaires are used in the same area, the distance between the different sensors should be at least

1.5 meter. This to prevent a sensor from “seeing” the light variation of the other luminaire and trying to act on it.

Min 1.5 m

The ActiLume DALI Gen 2 can be mounted by means of

2 screws and nuts and using these holes.

9.3.5 Wiring to and from the controller

The ActiLume DALI Gen 2 has WAGO 250 connectors and a RJ10 receptacle. The WAGO 250 is a connector that accepts a wide range of wire diameters from 0.5 mm 2 to

1.5 mm 2 (16 … 20 AWG) and a strip length of 8.5 …

9.5 mm. This makes it easy to have the ActiLume DALI

Gen 2 fit into any luminaire without having to use special wiring. The RJ10 receptacle connects and locks the cable of the LRI1663 multi sensor.

9-48

Philips

ActiLume DALI 2 nd

Generation - Ch 9 Built in requirements

9.4 System capabilities and limitations

When Port 2 configuration is switched, see also chapter

6.5, “Switching between configurations”, a visual feedback will be received by blinking of the lamps:

4

Port 2 switched to BMS configuration, all the lamps connected to Port 1 port will blink once

4

Port 2 switched to Parallel Linking configuration, all the lamps connected to Port 1 port will blink twice

4

Port 2 switched to Corridor configuration, all lamps connected to Port 1 and Port 2 will blink three times

!

Important

The Port 2 configuration change will only be effectuated after a mains cycle

When in Parallel or BMS configuration, a maximum of

64 ActiLume DALI Gen 2 can be connected in parallel.

Under all conditions a maximum of 2 PBU’s and a maximum of 2 extension sensors are allowed to be connected to the ActiLume DALI Gen 2. Furthermore the maximum supply current of Port 1 and Port 2 has to be respected when connecting peripherals. PBU’s can only be connected to Port 1 whereas the extension sensors can be connected to Port 1 as well as Port 2.

The limits on how many ballasts/drivers in combination with PBU’s and extension sensors are given below. In these tables you will find the absolute maximum numbers. Less is, of course, no problem.

In BMS or Parallel Linking configuration the absolute maximum limitations are as follows:

BMS/Parallel linking configuration

PBU Ext sensors ballasts

2 2

2 1

2 0

1 2

1 1

1 0

0 2

0 1

0 0

Table 11

22

23

24

27

28

29

32

33

34

!

Important

PBU’s can only be connected to the Window

(Port 1) connection of the ActiLume

DALI Gen 2.

In Window/Corridor configuration the absolute maximum limitations are as follows:

Window/corridor configuration

Window Corridor

PBU Ext sensors ballasts PBU Ext sensors ballasts

2 2 22 0 0 12

2 1 23 0 1 11

2 1 23 0 0 12

2 0 24 0 2 10

2 0 24 0 1 11

2 0 24 0 0 12

1 2 27 0 0 12

1 1 28 0 1 11

1 1 28 0 0 12

1 0 29 0 2 10

1 0 29 0 1 11

1 0 29 0 0 12

0 2 32 0 0 12

0 1 33 0 1 11

0 1 33 0 0 12

0 0 34 10

0 0 34 0 1 11

0 0 34 12

Table 12

Philips

ActiLume DALI 2 nd

Generation - Ch 9 Built in requirements 9-49

10 Scenes

The ActiLume DALI Gen 2 controller supports 4 different presets/scenes from Preset 1 to Preset 4. Preset 1 is the factory default scene. In this scene the Daylight Dependent Regulation (DDR) is active and the corridor row luminaires operate with an offset which is predefined. Depending on which Mode is chosen, the Middle row/decorative lighting will go to DDR or 100% depending on the active mode and Extra Manual-On remains will stay in its current state. It is possible to recall 4 different scenes via a remote controller (IRT8030 and IRT8050). The fading time will be determined by the DALI fade-time setting and is by default 0.7 s. There will be no Daylight Dependent Regulation for Preset 2, 3 and 4.

Default scene values:

Window row

Group # Preset 1 1 Preset 2 Preset 3 Preset 4

1 DDR 100% 50% 10%

Corridor row 2

Middle row/decorative 3

Extra Manual-on row 4

DDR

100%

2

100%

100%

Unchanged 100%

50%

50%

50%

10%

10%

10%

1

By factory default DDR is enabled for Group 1 and 2 as described in this table for all modes.

If DDR is disabled by using the MultiOne tool, Scene 1 can be set to a fixed level.

2

Group 2 in Mode 10 has no DDR but is fixed to 100%.

Table 13

10-50

Philips

ActiLume DALI 2 nd

Generation - Ch 10 Scenes

11 BMS network interface

ActiLume DALI Gen 2 can be connected to a Building

Management System (BMS) via a gateway that converts the BMS protocol into DALI and vice versa. This interface uses the standard DALI commands to control the

ActiLume DALI Gen 2. The BMS protocol can be for example LON, EIB/KNX, Ethernet, BACnet etc.

Under BMS configuration mode, the ActiLume DALI Gen

2 controller will act in the following way:

4

It will behave as a DALI slave (like a ballast/driver) and respond to the DALI commands sent by the gateway. It is not possible to program and interact via the ActiLume DALI Gen 2 with individual ballast/driver connected to the ActiLume DALI Gen 2.

4

Presence commands will be passed through onto the

DALI BMS bus so other systems can act on that

4

A set of BMS commands (e.g. for HVAC and Sunblind) received from IR remote controls will be transferred to the DALI BMS (Up/down heating/ventilation/ sun blinds)

4

Night mode (-Enable / -disable and set parameters) can be enabled and disabled via the BMS system

Philips

ActiLume DALI 2 nd

Generation - Ch 11 BMS network interface 11-51

12 Parallel Linking

Multiple ActiLume DALI Gen 2 can be connected together to form a large control area. The interlinking of the various ActiLume DALI Gen 2 is done by connecting them to the same DALI network by means of the DALI

Port 2 (Parallel port) connection. In this way the ActiLume

DALI Gen 2 can share its occupancy status. The ActiLume

DALI Gen 2 can also form a parallel network together with the OccuSwitch Advanced but since the occupancy sharing protocol of the OccuSwitch Advanced is a simple protocol, the ActiLume DALI Gen 2 must be told that one or more OccuSwitch Advanced are in the system. This can only be done by means of the MultiOne2Controls software and interface.

!

Important

Since all ActiLume DALI Gen 2 connected together are supplying a small current onto the Parallel Linking line, all “DA+” connections must be connected together and “DA–” connections must be connected together. This is because these connections are polarity sensitive.

12-52

Philips

ActiLume DALI 2 nd

Generation - Ch 12 Parallel Linking

13 Peripheral devices

The Window and Corridor connection (DALI port 1 and 2) of the ActiLume DALI Gen 2 can support some extra input devices in addition to the ballasts/drivers. The

ActiLume DALI Gen 2 controller is designed to support

2 types of other devices, namely push button units and extension sensors. These devices will use a Philips

Lighting proprietary protocol instead of DALI when communicating with ActiLume DALI Gen 2 controller, although they are sharing the same DALI connection

(Window or Corridor) with ballasts/drivers.

13.1 Push Button Units

If multiple ActiLume DALI Gen 2 are connected together via parallel linking or BMS configuration, the instructions send by a PBU, will be communicated to other ActiLume

DALI Gen 2.

LCU2070/00

Made in E.U.

PFT yyww

DA+

DA -

1

2

5

6

3

4

LCU2071/00

Made in E.U.

PFT yyww

DA+

DA -

1

2

5

6

3

4

Black

Black

White

Red

Purple

White

Green

Yellow

Black

Black

White

Red

Purple

White

Green

Yellow

DA +

DA -

SW-COM

A1

B1

SW-COM

C1

D1

DA +

DA -

SW-COM

A2

B2

SW-COM

C2

D2

DALI

Figure 78 LCU2070 Push-button unit

Figure 79 LCU207x/00 wiring

The PBUs (Push Button Units) give the opportunity to enhance the system with some extra functionality without having the restriction of choice for components. The

PBU is a device that has 8 flying leads and can support up to 4 pushbuttons. Each pushbutton will have its own predefined functionality. There are 2 different types of

PBUs, namely the LCU2070 and the LCU2071. They can be used separately or can be combined with one another.

In the table below the functionality of the PBUs is given.

!

Important

PBU’s can only be connected to the Window

(Port 1) connection of the ActiLume DALI

Gen 2.

13.2 Extension sensor LRM8118 and LRM8119

PBU

LCU2070

LCU2071

Table 14

D1

A2

B2

C2

D2

Switch

A1

B1

C1

Group # Action

1, 2, 3 On / Dim up

1, 2, 3

4

Off / Dim down

On / Dim up

4

1, 2

1, 2

3

3

Off / Dim down

On / Dim up

Off / Dim down

On / Dim up

Off / Dim down

Figure 80 Figure 81

If the PIR coverage of the standard multi sensor is insufficient, up to 2 extra extension sensors can be connected to one ActiLume DALI Gen 2. The LRM8118 is an extension sensor to be mounted into the ceiling and the LRM8119 is a sensor to be mounted into a luminaire.

Both sensors are connected directly onto one of the

DALI connections and they will be powered via the DALI line, so no extra wiring/connection to the mains is needed.

Philips

ActiLume DALI 2 nd

Generation - Ch 13 Peripheral devices 13-53

max. 3.5 m

If an extra cover (LCA8004) is placed on the LRM8119, have the same dimensions and therefore fits in/on the same brackets and clips as described above.

The LRM8118 however is a ceiling mounted version. To

5 m

If a ceiling mounted extension sensor needs to be used and there is no possibility to mount the sensor into the ceiling (for example a concrete ceiling) there is always the possibility to mount the sensor against the ceiling. To make this possible there is a special adapter available - the

LRH8100.

ceiling in which the sensor fits.

viewing angle restrictor. This shield can be extracted from the LRM8118 extension sensor at any time.

360

Figure 84

=

Figure 82

For the LRM8119 there is a cover (LCA8004) available that has the same type of shield and will give the same result as for the LRM8118.

Figure 83

13-54

Philips

ActiLume DALI 2 nd

Generation - Ch 13 Peripheral devices

14 MultiOne 2 Controls

This chapter is a small introduction on how to commission and configure the ActiLume DALI Gen 2 using the

MultiOne2Controls software. If you are using the standard MultiOne software you will only get part of the functionality as described below. How to use the software itself is explained in the “Quick start guide” and

“Manual” that accompanies the MultiOne software. This will not be explained in this application guide.

14.2 Reading settings from the ActiLume DALI

Gen 2

Figure 85

Apart from the MultiOne2Controls software also an interface is needed (the LCN8600/00 MultiOne interface

USB2DALI) to be able to make a connection between your computer and the ActiLume DALI Gen 2 system.

14.1 Connecting the interface and startup of the software

The interface can only be used if the ActiLume DALI

Gen 2 is in parallel configuration (which is the default configuration) or in BMS configuration. Furthermore it is important to respect the polarity of the wiring by which the parallel linking is done. If one ActiLume DALI Gen 2 is connected incorrectly, it is impossible to communicate with the system.

If two or more ActiLume DALI Gen 2 are connected correctly together, the interface can be connected to the

(DALI Corridor) Port 2 of one of the ActiLume DALI

Gen 2. After this connection has been made the USB cable (which is supplied together with the interface) can be used to connect the interface to your computer after which the software can be started. Select “All” when selecting the application mode in the software. After scanning the network or using the Commission button, all

ActiLume DALI Gen 2 will be displayed in the Network tree.

When selecting an ActiLume DALI Gen 2 in the Network screen by clicking on it and on the right hand side selecting the “Device features” tab, you will find a listing of data. On the left side you will find feature-tabs called

General, Mode 1 to Mode 16 and Scene 1 to Scene 4.

The setting values that are displayed are NOT the actual values. To see the actual values of the ActiLume DALI

Gen 2, the Read button has to be used by clicking on it.

A popup will appear (“Read feature configuration”), in which feature -tabs can be (de)selected that have to be read. By default all feature-tabs are selected. If only Mode

1 needs to be read, than choose “(De)select all” and select Mode 1 only.

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls 14-55

14.3 Feature-tab General

Figure 87

It is advised to select only those feature-tabs that are needed to be read/changed because a full read cycle of all feature-tabs will take approximately 6 minutes.

Item

Configuration

Mode

IR channel

Region

Fade time

Occupancy sharing

100 hour burn-in

Walk test

Send HVAC/sunblind messages to BMS

Light sensor reference point

[1] = This is the lux level on the light sensor

Table 15

Figure 88

This feature-tab contains general information of the

ActiLume DALI Gen 2 that is used as overall setting regardless which mode is active.

Op this feature-tab you will find some selectable / changeable features.

In the table below you can find the default settings and the range in which it can be changed.

The fade time that can be set in this feature tab is the fade time used when changing from one scene to another scene.

Default value Range

Parallel link Window / Corridor - Parallel link - BMS

1

A

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

A, B, C, D, E, F, G

EU

0.7

Mode based disabled

EU, US

0, 0.7, 1, 1.4, 2, 2.8, 4, 5.7, 8, 11.3, 16, 22.6, 32, 45.3, 64, 90.5

Simple, Mode Based, Group Based disabled - enable

Units seconds disabled disabled

100 disabled - enable disabled - enable

4 ... 15000 Lux [1]

14-56

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls

14.4 Feature-tab Mode

Figure 89

This feature-tab is a very extensive tab that is the heart of the behavior of the ActiLume DALI Gen 2. In this picture and in the table below you will find the default settings for Mode 1. Mode 2 up to and including Mode 16 are variations in these settings making it simple and easy to have the ActiLume DALI Gen 2 change its functionality so it will fit into a different application by a simple press of a button on the IRT8099/20 IR remote control.

Some of the Features can be enabled or disabled by respectively checking or unchecking the tick boxes. This can be done by a simple mouse-click on the tick boxes.

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls 14-57

Item

Hold time

Prolong time

Smart time

Grace time

Fade during grace period

Light status on power up

Background level

Default value

15

10

10

10

Enabled

Lights off

10

Range

1, 5, 10, 15, 20, 25, 30

0, 15, 30, 60, 90, 120, 150, infinite

0, 5, 10, 15

0, 5, 10, 15, 20, 25

Enable, Disable

Lights on, Lights off

1, 10, 20, 30, 40, 50, 60, 70

Retention time

Occupancy mode

Daylight dependant override

Activate regulation/switching

Daylight dependant switching Enabled

Daylight dependant regulation Enabled

Daylight regulation offset

Reaction to mode

[1]

[2]

Base group

Secundary group

15 0, 15, 30, 60, 90, 120, 150, 180

Auto on / auto off, Auto on / auto off, Manual on / auto off, Manual on / manual off

Enabled

Disabled

Enable, Disable

Enable, Disable

Local occupancy

Local occupancy

Enable, Disable

Enable, Disable

0, 10, 15, 20, 30, 40, 50, 60

Local occupancy, Background level, Ignore

Local occupancy, Background level, Ignore

Local occupancy, Background level, Ignore

[1] = Group depending and not available for Group 1

[2] = Mode depending

Units minutes minutes minutes seconds

% minutes

%

Table 16

On this feature tab you also find a button called “Reset to factory defaults” which will reset all features on this feature-tab only. This in contradiction to the “Basics” function on the IRT8099, which will reset all features in the General, Mode1 … 16 and Scene 1 … 4 tabs. See also

Chapter 6.8 - Resetting the ActiLume DALI Gen 2.

14-58

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls

14.5 Feature-tab Scene

Figure 90

Scene 1 to 4 can be recalled by means of the IRT8030.

In the table below the ranges of the settings can be found for each feature.

Item

Enable for daylight control

Dim level

Override daulight based dim level

[1] = Group depending

Default value Range

[1] Enable, Disable

[1]

[1]

0 ... 100

Enable, Disable

Table 17

Units

%

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls 14-59

14.6 Writing settings to the ActiLume DALI Gen 2

Figure 92

Figure 91

At this a warning popup will appear with the information that if the Configuration is changed from “Parallel linking” to “BMS” or “Window/Corridor”, the ActiLume DALI

Gen 2 will change that particular setting after a mains cycle when this has been programmed. This popup also gives the possibility to suppress this popup for the future by checking the tick box “Don’t show this message again”.

After having set all features to the correct values it is time to write all these features back into the ActiLume DALI

Gen2.

His is done in almost the same way as when reading the data from the ActiLume DALI Gen 2 only now the

“Write” button on the top left hand corner of the screen is used.

When clocking on this “Write” button, a popup will appear (“Write feature configuration”) where a selection can be made in the same way as in the “Read feature configuration” described above.

After selecting the features that need to be written back into the ActiLume DALI Gen 2, the Write button in the

“Write feature configuration” popup can be clicked.

Remember that when the BMS configuration is activated after the mains cycle, the DALI line will become unpowered and power must be supplied another device

/ PSU. There is a possibility by switching on the internal power supply of the MultiOne tool by selecting from the top navigation “Tools” – “Power supply” – “Enable

Power supply”. On the MultiOne tool a red LED (located alongside the mini-USB connector) will be turned on as a sign that the power supply is turned on. The DALI line will now be powered via the USB connection up to

220mA on the DALI line if needed and supported by the computer connected. This means that if a laptop without mains connection could result in short battery life of the laptop. Therefore it is advised to have the laptop connected to the mains if possible.

Figure 93

It is advised to select only those feature-tabs that are needed to be written back into the ActiLume DALI Gen 2 because a full write cycle of all feature-tabs will take approximately 18 minutes.

14-60

Philips

ActiLume DALI 2 nd

Generation - Ch 14 MultiOne 2 Controls

15 Datasheets

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

15.1 Datasheet ActiLume DALI Gen 2

ActiLume DALI Gen 2 system

15.8

Multisensor LRI1663 dimensions in mm

167.5

179.5

Controller LLC1663 dimensions in mm

16.4

4.2

1/7

22.1

30.0

Product description

The Philips ActiLume DALI Gen 2 lighting control system consists of a small, lightweight multisensor and a controller, designed for easy integration into luminaires.

ActiLume DALI Gen 2 is a true Plug and Play solution for offices, corridors etc. where as much as 34 drivers, divided over 4 groups

(named Window, Corridor, Middle/Decorative and Blackboard), can be controlled. In addition to this ActiLume DALI Gen 2 systems can be connected in the so called “parallel linking” mode, whereby occupancy information is shared, creating a network. Futhermore it can be configured to function within a BMS network.

The system is easy to install and use, not only initially, but also when expansion is required.

An application guide is available to help specify and apply the system in an optimal way.

Features and benefits

• Philips ActiLume DALI Gen 2 is a DALI based lighting control system designed for maximum comfort and energy savings up to 75%.

• ActiLume DALI Gen 2 is a Plug and Play system; no specific lighting control training is needed. Moreover, the system is supported with simple, dedicated application and installation sheets.

• The ActiLume DALI gen 2 system consists of three state of the art miniature sensors (combined into the LRI1663) in combination with a controller containing a series of pre-programmed modes. In total 15 modes of operation can be selected/configured with the optionally available IRT8099/20 tool.

• The two most applied modes, cell and open plan office, can be selected via a short push on the service button of the LRI1663.

• The light sensor is sensitive for visible radiation (matching the human eye) providing automatic savings with daylight depending regulation, without any visible discomfort for the user.

• The movement detector is very sensitive to human movements and contains a 15 minutes delay timer to provide optimal functionality whilst maximizing energy saving during absence.

• Personal control solutions can be created by connecting a mains rated spring-back switch to the controller, a Push Button Unit (PBU) or by using an infrared remote control unit.

• The ActiLume DALI Gen 2 controller has two DALI outputs. These outputs are pre-programmed (factory setting) as DALI output and parallel linking output.

• The system can be extended with a maximum of 2 optionally available movement detectors, LRM8118 and/or LRM8119 to maximize movement coverage. This will reduce the number of drivers per controller by 1 for each connected extension sensor.

• Factory light level setting is at 600 lux at a reflection factor of 0.3

Applications

The ActiLume DALI Gen 2 system is designed for office applications, from open plan to cell offices, lobbies or toilets, and from corridor to small meeting rooms.

It offers dedicated modes, e.g. for schools and direct/indirect lighting concepts.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-61

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

Plug and Play control regimes

Technical data for installation

• Mode 1: Cell office, offering daylight regulation and switching lights off when no presence is detected.

• Mode 2: Open plan office, offering daylight regulation and switching lights off when no presence is detected with extended timings. Maintaining a background lightlevel in unoccupied areas when another area is occupied and occupancy is shared through parallel linking.

• Next to the modes the following functions can be changed independently:

- Power up behavior

- Default lightlevel

- Background level

• Mode switching, between mode 1 and 2, can be achieved with the service button on the multisensor LRI1663.

• When one connected driver fails and is replaced by a new one no re-commissioning is needed as the controller will program the new driver with the setting of the driver that has failed. This is the so called driver recovery feature.

Commissioning and everyday use tools

The ActiLume DALI Gen 2 system can, once it is installed and has been commissioned, work stand alone.

For commissioning an extensive infrared user interface (remote control) is available and for everyday use four infrared user interfaces:

• IRT8099 extensive commissioning tool

• IRT8030 extensive user tool

• IRT8010, IRT8050 and UID8510 simple user tools

To override the automatic behavior without having to use one of the user remotes the ActiLume DALI Gen 2 system can also be controlled by a maximum of two Push Button Units PBU7020 and/or PBU7021.

Each PBU will decrease the amount of connectable drivers by 5.

Philips quality

Controller LLC1663:

Mains input voltage

nominal range

performance range

safety range

Mains frequency

Input power:

Additional required input power

120 … 277V

110 … 294V

108 … 305V

50 … 60Hz.

≤ 700mW

(at 230V

AC

AC

AC

AC

50Hz) per driver

Environmental conditions operating

ambient temperature range

relative humidity range

250mW

0 … 55° Celsius

20 … 85%

(no condensation)

maximum case temperature T

Environmental conditions storage

CASE

65° Celsius

temperature range

relative humidity range

Connector type mains, T and D and DALI ports

wire size

AWG wire size

-25 ... 85° Celsius

10 … 95%

(no condensation)

WAGO 250

0.5 … 1.5mm

2

20 … 16

stripping length 8.5 … 9.5mm.

Connector type multisensor port RJ-10 (4P4C)

Dimensions (length, width, height) 179.5 x 30.0 x 22.1mm.

Weight 70 grams

Maximum number of drivers

DALI ports

34

2

DALI port-1 (Window) config. Window/Corridor

DALI port-2 (Corridor) config. Corridor/Parallel/BMS

DALI port-1 maximum nominal load 68mA.

DALI port-2 maximum nominal load

Window/Corridor configuration 24mA.

Parallel linking configuration

BMS configuration

3mA.

not powered

DALI ports absolute maximum load ≤ 250mA.

Touch and Dim input (mains rated) 1 This ensures quality with respect to:

• System supplier

• As manufacturer of lamps, electronic control gear and lighting control equipment, Philips ensures that, from the earliest development stage, optimum performance is maintained.

• International standards

• Philips lighting control equipment complies with all relevant international rules and regulations.

Compliances and approvals

RFI 9kHz to 30MHz

RFI 30MHz to 1000MHz

Immunity

Safety

Quality standard

Environmental standard

Approval marks

CE marking

EN 55015

EN 55022 A

EN 61547

EN 61347-1

EN 61374-2-11

ISO 9001

ISO 14001

ENEC

Multisensor LRI1663:

Viewing angle

light sensor (daylight spectrum) 72° (circular)

movement sensor

(passive infra red)

infra red sensor

72° x 85° (rectangular)

(RC5 code from remotes)

Service pushbutton/light:

toggle between

activate

Cable length

Connector type

Extension of cable allowed

110° (circular)

Mode-1/2 and

Sensor light On/Off automatic lightlevel calibration

1.00m

RJ-10 (4P4C)

No

Dimensions (length, width, height) 44.7 x 16.4 x 15.8mm.

Weight 28 grams

Controller LLC1663 and Multisensor LRI1663

Housing

outer material

glow wire test

insulation for safety polycarbonate UL94 V-0

850° Celsius for ≤ 5sec.

≥ 1500V

15-62

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

2/7

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

3/7

Detection patterns of the sensors

Movement sensor

The detection area for the movement sensor can be roughly divided into two parts:

• 4.0 by 5.0m. for small movements (at a desk)

• 6.0 by 8.0m. for large movements (walking)

Mentioned values are applicable when the sensor is mounted at a height of 2.5m.

Service button

The service button has three functions. One function is to toggle between the two most commonly used application modes Mode-1 (Cell office) or Mode-

2 (Open plan office). The second function is to calibrate the lightlevel. The third function is visible indication of movement (red indicates movement and yellow no movement).

It also has switchable integrated light source.

Mode switching:

When the service button is pressed for ≤1sec. the mode is changed. Acknowledgement is indicated by flashing of the connected luminaires. One flash indicates the Mode-1 (Cell office) application and two flashes indicate the Mode-2 (Open plan office) application.

2.5m.

8.0m.

5.0m.

4.0m.

6.0m.

Light sensor

The light sensor measures the total amount of light in circular field of approximately Ø3.6m. when mounted at a height of 2.5m. The following aspects should be observed during installation:

• Minimum distance from the window 0.6m.

• Prevent light reflections from outside entering the sensor (for example sunlight reflection on a car bonnet) as this will lead to incorrect light regulation.

As a guideline the formula 0.72 x H can be used to calculate the minimum distance between the window and sensor whereby H is the height from the bottom of the window to the ceiling.

Light calibration:

When pressing the service button for ≥3sec. and

≤7sec. the lights will be switched off to indicate that the lightlevel calibration cycle is initiated. After this all items underneath the sensor that are not there during normal operation, but have influence on the calibration, need to be removed. Approximately after

10sec. a sample of the lightlevel is recorded (X) and the lights are switched on with 100% output. After another 10sec. the lightlevel is recorded again (Y) and a calculation is made Y-X= new calibration set point. This value is stored in the controller and the connected luminaires flash twice to acknowledge this.

Integrated light switching:

When pressing the service button for ≥10sec. the integrated light source is either switched on or off.

2.5m.

Ø3.6m.

Infrared sensor

The infrared sensor (receiver) will react to signals from any of the IR remotes when the signal is transmitted under an angle of up to 55°.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-63

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

4/7

Parallel linking/BMS and DALI groups

When the ActiLume DALI Gen 2 system is used in a parallel linking or

BMS configuration than all drivers (luminaires or other devices) need to be connected to DALI port 1, which is identified as DALI Window. DALI port 2, identified as DALI Corridor, is interconnected to the other DALI port 2 of the rest of the system with a maximum of 64 connections

(connection is polarity sensitive).

To be able to make a distinction between how the connected drivers react they need to be assigned to 1 of the 4 DALI groups:

• group #1 = Window

• group #2 = Corridor

• group #3 = Middle or Decorative

• group #4 = Blackboard

Assigning the luminaires to these groups needs to be done during the commissioning phase making use of IRT8099/20 tool.

Multisensor mounting

The sensor has latching rills on the back so it can be mounted easily.

There are several methods of mounting available:

• directly onto the lamp by means of an additional clip LCA8002 (TL-5) or LCA8003 (TL-D).

• inside the luminaire housing using the additional clip LCA8005. To use this clip a hole needs to be cut according to the dimensions as indicated in figure a.

• directly inside the luminaire housing whereby a hole needs to be cut

(punched) according to figure b. r=-0.5 mm (4x)

ActiLume DALI

Gen 2 system

W

#1

M

#3

B

#4

C

#2

60 mm

1. Required Luminaires opening dimension: 60 x 22 (mm)

2. Thickness fitness of Luminaires fixture: 0.5~2.5 (mm)

Figure a: Cutout pattern when using with clip LCA8005

r=-2.3 mm (4x)

W

#1

M

#3

C

#2

ActiLume DALI

Gen 2 system

= DALI-1 port (devices)

= DALI-2 port (parallel linking)

Example of Parallel linking configuration

ActiLume DALI Gen 2 system connection overview

Touch and dim

Safety earth

Mains Neutral

Mains Live

LLC1663 controller

DALI port 1

DALI Window

DALI port 2

DALI Corridor

44 mm

Figure b: Cutout (punch) pattern when using with cover LCA8006

LRI1663 multisensor

15-64

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

Mode

1

2

3

4

5

6

7

Description

Cell office Window/Corridor + Decorative

Open plan office Window/(Middle)/Corridor

School/Classroom + Decorative

Cell office task area + Decorative

Open plan office task area + Decorative

Corridor and/or staircase

Toilet

Mode 1 - Cell office

Auto on

Auto off

15 min.

Mode 3 - School, classroom

Manual on

Auto off

15 min.

Mode 5 - Open plan office

Auto on

Auto off

Mode 7 - Toilets

Auto on

Auto off

No DDR

15 min.

120 min.

15 min.

15 min.

8

9

10

11

12

13

14

15

Meeting room + Decorative

Open plan office task area (Middle) with mains switching

Free floor standing luminaire

Adjacent cell office Window/Corridor + Decorative

Free for OEM (copy of mode 2)

Free for OEM (copy of mode 8)

Free for OEM (copy of mode 8)

Free for OEM (copy of mode 11)

Mode 2 - Open plan office

Auto on

Auto off

15 min.

120 min.

Mode 4 - Cell office

Auto on

Auto off

Mode 6 - Corridor

Auto on

Auto off

15 min.

15 min.

60 min.

Mode 8 - Meeting room

Manual on

Auto off

15 min.

5/7

Mode 9 - Open plan office

Always light

Auto on

Auto off

Mode 11 - Adjacent cell offices

Auto on

Auto off

15 min.

15 min.

15 min.

Mode 10 - Free floor standing luminaire

Auto on

Auto off

Only task light DDR

15 min.

15min.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-65

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

LLC1663/00 ActiLume DALI Gen 2

The controller from the ActiLume DALI

Gen 2 system. The ActiLume system is a

DALI-based plug and play control system which fulfills the basic needs in offices with maximum energy saving options by daylight harvesting and presence detection.

LRI1663/00 ActiLume Gen 2 multisensor

The multisensor from the ActiLume DALI

Gen 2 system. Color of the product is ultra dark grey (similar to RAL7024)

LCA8006/00 Cover for ActiLume multisensor

Cover for the ActiLume multisensor to obtain the same outer dimensions as the ActiLume MicroLuxSense and the

ActiLume 1-10V sensor. Color of the product is light grey (similar to RAL7035)

IRT8099/20 Advanced mode selection tool

Commissioning tool for ActiLume DALI

Gen 2 system and luminaires with

ActiLume. Easy to use and inexpensive tool to adjust the functionality, perform an installation test and/or calibrate lightlevel.

Batteries are included.

LRM8118/00 Extension sensor

Compact movement detector to be used to expand the detection area for ActiLume and ActiLume DALI solutions. The sensor is connected to the DALI line from the controller (luminaire) and does not require external power. The sensor is suitable for both recessed and surface mounting (in combination with the LRH8100). Mounting height is between 2.5 and 3.5 m. Color of the product is white (similar to RAL9010)

LRH8100/00 Surface mount adaptor

Surface mounting box for the LRM8118 extension sensor. Comes with cut-out holes for most common cable trunking systems.

Color of the product is white (similar to

RAL9010)

LRM8119/00 ActiLume movement extension sensor, luminaire based

Compact luminaire based movement detector to be used to expand the detection area for ActiLume and ActiLume

DALI solutions. The sensor is connected to the DALI line from the controller

(luminaire) and does not require external power. Mounting height is between 2.5 and

3.5 m. Color of the product is ultra dark grey (similar to RAL7024)

15-66

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

6/7

LCA8004/00 Cover ActiLume extension sensor

Cover for the ActiLume multi sensor to obtain the same outer dimensions as the ActiLume MicroLuxSense and the

ActiLume 1-10V sensor. Color of the product is light grey (similar to RAL7035)

LCA8001/00 Ring for ActiLume sensors

Ring around the cover of the ActiLume multisensor + cover, ActiLume luminaire based extension sensor + cover, ActiLume

1-10V sensor or ActiLume MicroLuxSense to fit in the micro-optics of a luminaire.

Color of the product is light grey (similar to

RAL7035)

LCA8002/00 ActiLume sensor clip for TL-5

Clip to be used for ActiLume multisensor,

ActiLume Luminaire based extension sensor, ActiLume 1-10V sensor and the

ActiLume MicroLuxSense . With this clip the sensor can be directly clicked on the

TL-5 lamp.

LCA8003/00 ActiLume sensor clip for

TL-D

Clip to be used for ActiLume multisensor,

ActiLume Luminaire based extension sensor, ActiLume 1-10V sensor and the

ActiLume MicroLuxSense . With this clip the sensor can be directly clicked on the

TL-D lamp.

LCA8005/00 ActiLume mounting clip for use in luminaire

Clip to be used for ActiLume multisensor,

ActiLume Luminaire based extension sensor, ActiLume 1-10V sensor and the

ActiLume MicroLuxSense. With this clip the sensor can be mounted in the luminaire housing. Color of the product is light grey

(similar to RAL7035)

IRT8010/00 Hand-held two-key transmitter

Hand-held two-key transmitter, for infrared control of various lighting control systems.

ActiLume can also dim the lights (by pressing a button > 0.5 sec). The unit is supplied with batteries. A wall holder is separately available. This transmitter is not designed to be operated from the wall holder. The IR group address selector switch is situated in the battery compartment. Color of the product is white (similar to RAL9010)

LRH8010/00 Wall holder

Wall holder for the IRT8010 hand-held two-key transmitter. Color of the product is white (similar to RAL9010)

LLC1663, LRI1663 Datasheet

ActiLume DALI Gen 2 system

IRT8030/00 Four-preset hand-held transmitter

Four-preset hand-held transmitter, suitable for infrared control of the ActiLume system specifically when using Mode 8 (Meeting room). It has 4 keys for presets and one key for “all off ”. Keys for individual control and preset programming are located under a hinged cover at the bottom of the transmitter. The IR group address selector switches are also situated behind the hinged cover. The unit is supplied complete with wall holder and batteries. Color of the product is white (similar to RAL9010)

7/7

IRT8050/00 Two-key infrared remote control

Two-key infrared remote control transmitter for wall mounting and table-top use. The unit can be used in combination with ActiLume. The actual function of the two large keys can be selected with a dip switch in the battery compartment. A dip switch is also used to select the IR group address. Batteries are included. Color of the product is white (similar to RAL9010)

UID8510/00 ToBeTouched IR

The UID8510 IR user interface panel provides intuitive on/off and dimming functionality. It connects via infrared to the

ActiLume system.

Batteries are included. Color of the product is white (similar to RAL9003)

Packing data

Type Box dimensions Qty/ Material

(mm)

Weight (Kg)

net gross

LLC1663/00

LRI1663/00

LRM8118/00

LRH8100/00

188 x 188 x 66

200 x 175 x 110

80 x 72 x 40

80 x 80 x 40

12

12

1

1

Cardboard

Cardboard

Cardboard

Plastic bag

0.840

0.300

0.076

0.027

1.000

0.504

0.083

0.033

LRM8119/00

IRT8099/20

LCA8001/00

LCA8002/00

LCA8003/00

LCA8004/00

LCA8005/00

LCA8006/00

200 x 175 x 110

155 x 40 x 17

216 x 93 x 70

216 x 93 x 70

216 x 93 x 70

216 x 93 x 70

220 x 97 x 71

220 x 97 x 71

12

1

100

50

50

50

50

50

Cardboard

Cardboard

Cardboard

Cardboard

Cardboard

Cardboard

Cardboard

Cardboard

0.030

0.030

0.155

0.450

0.450

0.186

0.780

0.120

0.507

0.100

0.221

0.455

0.455

0.218

0.810

0.160

Ordering Data

Type

LLC1663/00 ActiLume DALI Gen 2

LRI1663/00 ActiLume Gen 2 multisensor

LRM8118/00 Extension sensor

LRH8100/00 Surface mount adaptor

LRM8119/00 ActiLume movement extension sensor

IRT8099/20 Advanced configuration tool

LCA8001/00 Ring for ActiLume sensors

LCA8002/00 ActiLume sensor clip for TL-5

LCA8003/00 Actilume sensor clip for TL-D

LCA8004/00 Cover for ActiLume extension sensor

LCA8005/00 Clip for mounting in luminaire housing

LCA8006/00 Cover for ActiLume Gen 2 multisensor

MOQ Ordering number EAN code level 1 EAN code level 3 EOC

12 9137 003 49403

12 9137 003 56703

1 9137 003 24703

1 9137 003 18903

12 9137 003 43703

1 9137 003 34203

1 9137 003 38303

1 9137 003 40803

1 9137 003 40903

1 9137 003 43803

1 9137 003 48803

1 9137 003 55503

8718291 659839 8718291 659846 659839 00

8718291 680925 8718291 680932 680925 00

8711559 730783

8711559 519203

8718291 139461

8711559 732565

8727900 882780

8727900 952940

8727900 952988

8718291 139386

8711559 730790

8711559 519210

8718291 139478

8711559 732572

8727900 882797

8727900 952957

730783 99

519203 99

139461 00

732565 99

882780 00

952940 00

8727900 952995 952988 00

8718291 139393 139386 00

8718291 196242 8718291 196259 196242 00

8718291 653752 8718291 653769 653752 00

3222 636 35150

02/2013

Data subject to change www.philips.com/lightingcontrols

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-67

IRT 8010/00

Point-and-Shoot Transmitter (IR)

LRH 8010/00

Wall holder

15.2 Data sheet IRT8010

IRT 8010 transmitter Dimensions in mm

Description

- The IRT 8010/00 is a hand held two-key transmitter, suitable for the infrared remote control of lighting installations in point-andshoot applications. The IRT

8010/00 can be used to switch and/or dim up/down a single lighting control circuits.

N.B. Occuswitch IR can only switch the lights.

- The unit contains an integrated

"teach mode" which can be used to program the Infra-Red group

A-G and channel "1" addresses of the individual controllers.

- The IRT 8010/00 can also be used with WireMaster and

LightMaster when the rotary switch in the battery compartment is set to position 8.

Features

- Hand held

- Point and shoot

- Distance max. 8 m

- 2 buttons

- Red indicator LED

- Channel "1"only

- Integrated teach mode

- Rotary switch for group address

A-G/general and selection of

WireMaster/LightMaster functionality.

- Battery saving > 10 seconds use then auto cut off

- 2 LR03; AAA batteries included

- Battery life time with Philips

Powerlife batteries - 1050 mAh

(normal use) ≥ 2.5 years

- Optional: Wall holder to place next to the entrance of the room

Related equipment

- LRH 8010/00 Wall holder

LRH 8010 wall holder Dimensions in mm

1/4

15-68

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

IRT 8010/00 Point-and-Shoot Transmitter (IR)

LRH 8010/00 Wall holder

2/4

Applications

- The unit is optimised for use in small control areas like standard cellular offices, small presentation rooms etc.

- The IRT 8010/00 is primarily intended for controlling the infrared versions of the "Occuswitch".

- The IRT 8010/00 is a point-and-shoot transmitter. Its main application is to override the "Presence" version of the Occuswitch or to switch (on) the "Absence" version of the Occuswitch.

- The IRT 8010/00 can also be used as a point-and-shoot transmitter in

Trios, Helio, WireMaster and LightMaster applications.

- The IRT 8010/00 can also be used in combination with the IRT 8050/00 and the absence detection type of the Occuswitch. In this application the

IRT 8050/00 is used as a 'wall switch', and the IRT 8010/00 provides top table remote control.

- Up to seven IRT 8010/00 transmitters (group address A-G) can be used in larger rooms together with one (or more) IRT 8050/00 transmitters at the entrances, to switch the lighting circuits individually, see figure 1.

Environmental conditions

Operating conditions

Storing conditions

EMC

Immunity

Radiated interference

Mechanical specifications

Dimensions (l x w x h)

Weight (with batteries)

Housing material

Housing colour

Reliability

Call rate:

Lifetime:

Installation

Battery handling

Operating temperature +5°C…+50°C

Relative humidity 20%…85%

(non condensing)

Storage temperature –25 °C…+70°C

Relative humidity 10%…95%

In accordance with EN 61000-4-3

In accordance with EN 61000-4-3

119 x 57 x 27 mm

78 grams

ABS

RAL 9010 (White)

0.2 - 0.5% per year (estimated)

10 years (estimated)

I RT 8050/00

Figure 1 Possible application

Use with WireMaster and LightMaster

The IRT 8010/00 can also be used with WireMaster and LightMaster to control the lights. In this case the rotary switch in the battery compartment has to be set to position 8. Exception: when the combined head LRI 2364/

10 is used the rotary switch has to be set to position 0 (see the table below and Figure 4). For WireMaster and LightMaster the two buttons of the IRT

8010/00 have the same function: the upper button can be used to switch the lights on, and also to switch them off. With LightMaster a single button can be used to switch on/off and dim.

Technical data.

Number of keys

Number of indicator LED's

Number of IR_LED's

Carrier frequency

Protocol

Battery type

Number of batteries

2

1

2

36 KHz *

RC 5 *

LR03, AAA Power life (1050 mAh)

2

* When rotary switch set to position 8 the carrier frequency and protocol are different: 20 µs pulse at 1 KHz.

Figure 2 opening the battery compartment

In order to insert or replace the batteries, the battery compartment must be opened according to figure 2.

Batteries must be replaced separately. Always use a set of 2 batteries from the same brand with the same production date. Please make sure that the batteries are inserted with the correct polarity. Inverted batteries might cause damage to the transmitter. Disposal of batteries must be in accordance to local regulations.

Positioning

The transmitter has an infrared radiation pattern as shown in figure

3. The maximum distance to the receiver is approximately 8 meters.

Figure 3 IR radiation

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-69

IRT 8010/00 Point-and-Shoot Transmitter (IR)

LRH 8010/00 Wall holder

3/4

Selection of infrared groups *

In order to avoid that all lighting circuits in one room are switched unintentionally, the transmitters present in one room and their respective receivers can be given a different infrared group address. The group address of the transmitter can be changed by using the rotary switch in the battery compartment, see figure 4.

Teaching the Occuswitch

In order to teach the "Presence" or "Absence" mode of the Occuswitch, the next procedure should be followed:

1. Set the rotary switch in the group address position "general" (=0).

2. Bring the IRT 8010/00 into the teach mode by pressing the teach mode button for more than two seconds, see figure 5. The red LED will blink.

3. Press button 1 for "Presence" mode or button 0 for "Absence" mode.

4. Bring the IRT 8010/00 back into normal operation:

- press the teach mode button for (0.5 seconds), or

- automatically when no buttons are pressed during 15 seconds, or

- turn the rotary switch.

Mounting

The IRT 8010/00 can be stored in the separately available wall holder, see figure 6.

Optional

Figure 4 rotary switch

Note: teach commands are always transmitted in the

"general" address code, so each controller will react regardless it’s actual programmed group address. To avoid this, take care of a IR transmitter – IR receiver/controller distance of 1.5 m.

Teaching of infrared groups *

In order to adjust the group address of the controller to that of the corresponding transmitter, the next procedure should be followed:

1. Set the rotary switch in the desired group address position, see figure 4.

2. Bring the IRT 8010/00 into the teach mode by pressing the teach mode button for more than two seconds, see figure 5. The red LED will blink.

3. Press button 1 followed by button 0.

4. Bring the IRT 8010/00 back into normal operation:

- press the teach mode button for (0.5 seconds), or

- automatically when no buttons are pressed during 15 seconds, or

- turn the rotary switch.

LRH 8010/00

Figure 6 LRH 8010 wall holder

Red indicator LED

Transmission of infrared signals is indicated by a red LED. In teach mode the red LED is blinking 0.5 sec on and 0.5 sec off, see figure 7.

9

012

3456

Figure 5 teach mode button

* Not for use with WireMaster and LightMaster.

15-70

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

Figure 7 indicator LED

IRT 8010/00 Point-and-Shoot Transmitter (IR)

LRH 8010/00 Wall holder

Packing data

Transmitter

Type

Unit box

Outer box

Wall holder

Type

Unit bag

Outer box

Ordering data

Type

IRT 8010/00

LRH 8010/00

Box dimensions

(mm)

131 x 58 x 87

240 x 135 x 87

Box dimensions

(mm)

240 x 135 x 87

MOQ

12

12

4/4

Qty

1

12

Qty

1

12

Ordering number

9137 003 14203

9137 003 16303

Material

card board card board

Material

plastic card board

EAN code level 1

87 11559 517 490

87 11559 517 971

Weight (kg) net

0.06

1.20

Weight (kg) net

0.034

0.5

EAN code level 3

87 11559

517 711

gross

0.097

1.270

gross

0.04

0.57

3222 636 30312

02/2002

Printed in EU

Data subject to change http://www.controls4lighting.com

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-71

IRT8030/00

TRIOS Hand- / Wall transmitter

15.3 Data sheet IRT8030

1/6

Dimensions

26

26

15-72

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

64

14

81

4,6

Product details

• The IRT8030 is a 4 preset handheld transmitter complete with wall holder, suitable for the infrared remote control of lighting installations equipped with Helio or Trios control systems.

• It can be used to switch and/or regulate 5 individual lighting control circuits, and to program and select 4 lighting presets (scenes).

• Five large double sided keys at the top are used for the main functions (preset selection and

“all off ”). Less frequently used functions (individual control and preset programming) are located under a hinged cover at the bottom of the unit.

• The transmitter has an integrated

“teach mode” so it can be used as a programming tool for group, channel addresses and operational modes of TRIOS controllers.

• The group address of the transmitter itself can be selected with

DIP switches (behind the text plate under the hinged cover).

• A red LED on the front of the unit indicates the transmission of infrared signals and gives a warning when the unit is in

“teach mode”.

• Battery lifetime (with Philips

Powerlife batteries - 1050 mAh) is at least 4 years, when used 50 times per day as an average.

• The unit is delivered complete with wall holder, batteries and installation instructions.

Applications

• The IRT8030 is primarily intended for the infrared remote control of lighting installations in offices. Its main function is the selection of pre-programmed values (called “presets”) and the

“all off” command. Control of individual control circuits and the adjustment and storage of these presets (or lighting scenes) are other important functions.

Additionally the transmitter can be used in “teach mode” to set addresses and operational modes of lighting controllers.

• The IRT8030 can be used in combination with HELIO, and

TRIOS. It replaces the IRC2130 and IRT1090.

• Although designed for handheld or tabletop operation, the unit will frequently be used from a fixed position, i.e. in the wall holder. The Infrared radiation pattern has been optimised for this application.

IRT8030/00

TRIOS Hand- / Wall transmitter

2/6

Functionality

Four presets can be selected with the four large keys on the front of the transmitter. The fifth large key is the “all off” button. Buttons behind the hinged cover can be used to program the Presets or to select the

“Teach mode”. These buttons are not used during normal use of the

IRT8030.

For incidental changes of system parameters, the transmitter can be switched temporarily into a “teach mode”. The IRT8030 can then be used as a TRIOS programming tool, thus offering the same (programming) functionality as the TRIOS programming tool IRT1090 and as included in the remote control transmitter IRT8050.

For an overview of the key allocation refer to figure 1: key functions of the IRT8030

For an overview of the key allocation in “teach mode” refer to figure 2: key functions of the IRT8030 in “teach mode”

Operating instructions

General information

The allocation of keys is such that the most common functions can be operated with the large upper keys and the less common functions with the keys under the hinged cover.

Dimming and switching of individual control circuits and the programming functions in “teach mode” require a “two-step” operation: First the required channel or parameter must be selected, then the required operation can be executed or the selected value entered.

The following paragraphs give a short description of the various control functions. Obviously these descriptions are only relevant provided that this function is supported by the corresponding control system. For details on specific functions please refer to the documentation on the relevant control system.

Selecting presets (light scenes)

One out of four presets can be selected directly using one of the four large keys on the front of the transmitter. Lights can be switched off simultaneously with the fifth large key.

3

4

1

2

O

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

3

4

1

2

I

O

Select

Recall

Store

Figure 1: Key functions of the IRT8030

Preset 1

Preset 2

Preset 3

Preset 4

All OFF

To select

“teach mode”

Channel On / Up

Channel Off / Down

Select Channel

Recall installer presets

Store presets

Controlling individual lighting control circuits in Helio and Trios

(Figure 1)

First the required channel must be selected, then the required operation can be executed. Channel selection is achieved with the “Select

Channel” key. An LED indicates the selected channel. When the “Select

Channel” key is momentarily pressed (less than 1/2 sec.) the led shows the (last) selected channel. When the key is pressed continuously or repeatedly, the next channels are selected. This action can be continued or repeated until the required channel has been selected. If no further keys are pressed the LED’s stay on during 5 seconds after the last key release.

With the “Channel On / Up” and “Channel Off / Down” keys the selected channel can be switched and /or regulated, as allowed by the corresponding controller(s). During the actual transmission of infrared signals, the LED flashes for verification of the selected channel. After transmission the LED is switched off.

Programming presets

The procedure to be followed is:

1. adjust individual control circuits as described before

2. press the “store” key

3. press the wanted preset key

Recall installer presets

At any time the user can revert to the pre-programmed presets as set by the installer, by pressing the “Recall” key.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-73

IRT8030/00

TRIOS Hand- / Wall transmitter

3/6

Programming Operational Mode, Group Address and Channel

Address.

For programming the group, or channel, addresses or the operational mode of a controller, the transmitter must be set in the “teach mode”.

This is done by pressing the “Channel On / Up” and “Channel Off /

Down” keys (under the cover) simultaneously until (after about

3 seconds) a flashing LED (2 flashes per second) indicates the “teach mode”. The functions of the keys in “teach mode” are shown in figure 2.

During the transmission of the programming instructions, the infrared indicator LED will flash rapidly. When finished it returns to slow flashing.

Also the function indicator LED will flash, thus showing the actual function. After programming is completed, the transmitter can be reset to normal operation by pressing the “Back to normal mode” keys again until the LED’s will switch off.

The transmitter will revert to normal operation automatically 1 minute after the last key press.

Flashing LED

≤ 3m

0/A

2/C

4/E

6/G

8

7

9

1/B

3/D

5/F

Operating Mode

Group Address

Channel Address

Back to normal mode

Select Parameter

Recall factory presets

Copy user to installer presets

Figure 3: Radiation pattern in “teach mode”

Notes:

1. When transmitting in “teach mode”, the infrared radiation pattern of the IRT8030 is reduced to a narrow beam, in order to achieve selective programming of luminaires or controllers. Therefore the transmitter must be pointed directly at the receiver and the distance from transmitter to receiver must be less than 3 meters. (See figure 3)

2. All commands of the IRT8030 “teach mode” are transmitted in the

“general” group, in order to assure proper reaction regardless the group address of TRIOS.

Figure 2: Key functions of the IRT8030 in “teach mode”

First the parameter to be programmed (group, channel or mode) must be selected, and then the required value can be entered.

Parameter selection is done with the “Select” key. An LED indicates the selected parameter. When the “Select Parameter” key is momentarily pressed (less than 1/2 sec.) the led shows the (last) selected parameter.

When the key is pressed continuously or repeatedly, the next parameters are selected. This action can be continued or repeated until the required parameter has been selected. If no further keys are pressed the LED’s stay on during 5 seconds after the last key release.

The value required is programmed by pressing the appropriate upper key (0-9 / A-G). The transmitter sends the codes that set the appropriate address or mode of the controller.

Related equipment

Lighting Management Systems

Helio Room controllers:

Multisensor

LRC5040 LRC5042 LRC5048

LRI5133

Stand-alone controls

Trios installer Room controllers: LRC1010 LRC1015

LRC1020 LRC1025

LRC1030 LRC1035 LRC1620

Trios infrasense Luminaire controller LLC1120

Trios multisense Luminaire controller LLC1130

Multisensor LRI 1110

General Purpose Components

IR receivers

Multisensor

IRR1224

LRI8133

IRR8124 IRR8125

LRI8134

15-74

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

IRT8030/00

TRIOS Hand- / Wall transmitter

4/6

Technical data

Number of keys

LED indicators

Number of IR-LED’s

Carrier frequency

Supply voltage

Number of batteries

Battery type

Battery life

: 15

: 1 Red LED for indication of IR transmission and “teach mode”

5 Red LED’s for indication of selected channel or parameter

: 5 (in “teach mode” only one active)

: 36 kHz. (RC5 standard)

: 6.0 V nominal

: 4 each 1.5 V nominal

: LR03, AAA Power Life (1050mAh)

: over 4 years (calculated with Philips

Powerlife batteries -1050mAh- and

50 commands per day)

Environmental conditions

- Operating

Temperature

Relative humidity

: 5...50°C

: 20...85 %

Condensation not allowed

The IRT8030 should not be exposed to direct sunlight or to high temperatures and should not be used in damp rooms such as bathrooms

- Storage conditions

Temperature

Relative humidity

Dimensions

: -25...85°C

: 5...95 %

: transmitter: 177x 64 x 26 mm

(max. height x width x depth)

Weight wall holder: 131 x 81x 26 mm

: 0.119 Kg (without batteries)

0.164 Kg (with batteries)

0.212 Kg (with batteries and wall holder)

Housing transmitter

- Material

- Colour

: ABS

: White (Bayer 0177 - close to RAL 9010)

- Mounting : in wall holder (loose or fixed)

- Fixation in wall holder : two Parker screws in battery compartment. (see figure 5b)

Housing wall holder

- Material

- Colour

- Mounting

: ABS

: White (Bayer 0177 - close to RAL 9010)

: with screws or double-sided tape.

(see figure 5a)

EMC

- Immunity : in accordance with EN 50082-1

- Radiated interference : in accordance with EN 50081-1

Reliability

- Call rate

- Lifetime

: 0.2 - 0.5% per year (estimated)

: 10 years (estimated)

Figure 4: Positioning

Installation

Positioning

The transmitter IRT8030 is suitable for wall mounted operation, handheld operation and for tabletop operation. For details see figure 4: positioning.

Mounting

The transmitter can be placed in a wall holder. If necessary the transmitter can be locked in the wall holder. For details see figure 5a and 5b: mounting the transmitter.

Battery handling

The transmitter is powered by 4 batteries, type LR03 or AAA. Batteries must be replaced simultaneously. Always use a set of

4 batteries from the same brand with the same production date. Please make sure that batteries are inserted with the correct polarity. Inverted batteries may cause damage to the transmitter! For details see installation instructions.

Disposal of batteries must be in accordance to local regulations.

Note: it is recommended not to use rechargeable nickel cadmium batteries, in view of their limited performance.

Setting of group address

The infrared group address of the transmitter (itself) can be set by DIP switches located behind the text plate under the hinged cover. The DIP must be operated carefully using a pencil, a paperclip or other pointed device. For the exact settings see figure 6: DIP switch settings, and refer to installation instructions.

h r

IR receiver h (m)

1

1.5

2 r max (m)

3

4.5

6

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-75

IRT8030/00

TRIOS Hand- / Wall transmitter

+

∅ 5 mm

No. 4 (∅ 2,9 mm)

5/6

No. 6 (

∅ 3,5 mm)

Figure 5a: mounting the wall holder

Not used

ON

1 2 3 4 5 6 7 8

1

• •

2 3

• •

• • •

Infrared group address

A

B

C

F

G

D

E

General

Dipswitch settings:

5+6+7 ON =

Teach mode

6 ON =

IRT 8030

= ON

Figure 6: Setting of infrared group address

Optional

∅ 2 mm

Figure 5b: locking the transmitter in the wall holder adjust control circuits

P1

P2

P3

P4 store presets recall installer presets(1) copy to installer presets(3)

P1

P2

P3 recall factory presets(3)

P4 installer presets

(back-up user presets) user presets

P1

P2

P3

P4 factory presets

Figure 7: Relationship between categories of presets

(1) press “Recall installer presets”

(2) press “Copy user to installer presets” in teach mode

(3) press “Recall factory presets” in teach mode

15-76

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

IRT8030/00

TRIOS Hand- / Wall transmitter

Indications and diagnostics

1 Red LED, located in the infrared window, indicating:

- OFF

- fast flashing

- slow flashing

: transmitter not used

: infrared transmission takes place

: transmitter in “teach mode”

5 Red LED’s, located behind a window in the hinged cover of the transmitter, indicating:

- fast flashing: in normal mode : channel for which control commands are being transmitted in “teach mode” : parameters for which programming commands are being transmitted

- slow flashing: in normal mode in “teach mode”

: selected channel

: selected parameter (programming function)

Packing data

Type

Unit box

Outer box

Box dimensions

(mm)

220 x 95 x 50

230 x 200 x 210

Ordering Data

Type

IRT8030/00

MOQ

8

Related documentation

Installation Instructions

HELIO Handbook (English)

UNILON Handbook (English)

TRIOS system handbook (English)

TRIOS luminaires handbook (English)

Quantity

1

8

Ordering number

9137 003 14403

3222 636 40081

3222 636 49000

3222 636 49010

3222 636 49030

3222 636 49040

6/6

Material Weight (Kg) net gross card board card board

0.215

1.720

0.285

2.580

EAN code level 1

EAN code level 3

87 11559 517636 87 11559 517643

3222 636 30342

01/2002

Printed in The Netherlands

Data subject to change www.controls4lighting.com

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-77

IRT8050/00 Datasheet

Two-key wall transmitter

15.4 Data sheet IRT8050

80

8

Dimensions in mm

28

1/5

Product details

• The IRT 8050 is a multi-purpose two-key transmitter suitable for the infrared remote control of lighting installations and other buildingrelated equipment.

• The IRT 8050 can be used to switch and/or regulate lighting in individual control circuits, select lighting presets, operate sun blinds and switch HVAC (heating, ventilation airconditioning) systems to comfort or standby.

• The two large keys can have 27 different sets (combinations) of control functions and 5 programming functions (for operational modes).

• The unit is suitable for wall mounting and for tabletop operation.

The Infrared radiation pattern, however, has been optimized for wallmounted operation.

• As a special feature it offers the possibility to operate two different control circuits using the “toggle key” principle.

Toggle keys alternately send two different codes, i.e. the code changes each time the key is pressed. Thus two functions can be controlled with one key, e.g. “Circuit 1 ON - Circuit 1 OFF” or “Blinds UP -

Blinds STOP”.

• The transmitter has an integrated “teach mode” and can thus be used as programming tool for group and channel addresses.

• The actual function is selected by 5 dip switches in the battery compartment. Table 3, in the section “Miscellaneous”, shows the setting of the dip switch for the 27+ 5 possible sets of key functions.

• The group address of the transmitter can be selected with 3 dip switches in the battery compartment. Table 2, in the section

“miscellaneous”, shows the exact settings.

• The key function can be selected and batteries can be exchanged without removing the unit from the wall.

• Transmission of infrared signals and the teach mode / normal mode is indicated by a red LED on the front of the unit.

• Battery life-time (with Philips Power Life batteries - 1050 mAh) has been calculated at over 5 years for an average of 50 normal keyoperations per day.

15-78

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

IRT8050/00 Datasheet

Two-key wall transmitter

2/5

Applications

• The IRT 8050 is primarily intended for the infrared remote control of individual lighting control circuits and for control of sun blinds in systems with combined lighting and non-lighting building functions.

• Selection of presets is possible using “multiple-touch” operation, i.e. a sequence of 1, 2, 3 or 4 short key presses.

• It offers an easy to find, fixed point control to switch on basic lighting.

• The IRT 8050 can be used in combination with LMM and TRIOS. It may serve as the replacement of the IRC 2310 and the IRT 8060.

•The IRT 8050 can be used as programming tool, thus offering the same functionality as the TRIOS programming tool IRT 1090. For programming of group and channel addresses of a controller, the transmitter must be set in the “teach mode” by pressing both keys simultaneously for more than 2 seconds. A flashing LED indicates the teach mode.

When the left key is pressed, the transmitter sends the codes that set the group address of the controller to the same group address as the transmitter. If the transmitter is set to the “general” address, no group addressing codes are generated.

When the right key is pressed, the transmitter sends the codes that set the controller to the channel address that corresponds to the actual function of the transmitter.

Channel addressing is only possible when the actual functionality of the transmitter includes channel commands. For instance, if the transmitter is set to call a preset or to operate sun blinds, no channel programming codes can be generated. If the transmitter is set to operate two channels (with toggle keys), the channel addressing codes in teach mode correspond to the left key (i.e. the lowest channel address, except for the ch5/ch1 combination). After programming has been completed, the transmitter can be reset to normal operation by pressing both keys again, until the LED lights up.

The operational mode of a controller can be changed by setting the dip-switches in the transmitter to the required operational mode and pressing one of the keys.

Note: When transmitting addressing codes and operational mode commands, the infrared radiation pattern of the IRT 8050 is reduced to a narrow beam, in order to facilitate selective programming of luminaires or controllers. Therefore the transmitter must be pointed at the receiver. The maximum distance is 3 meters. The beam of radiation is perpendicular to the front of the transmitter (see also figure 1). The red LED can be used as reference for directing the transmitter to the receiver.

Installation

Opening the unit

In order to reach the mounting holes, set the function and address dipswitches and insert the batteries, the unit can be opened using the keys as “doors”. This can be done without any tool by lifting first the left key and then the right key from the bottom centre part.

1

2

Opening the unit

Dimensions in mm

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-79

IRT8050/00 Datasheet

Two-key wall transmitter

3/5

Positioning

The transmitter IRT 8050 is suitable for wall-mounted operation and for tabletop operation. When mounted on the wall, the unit must be located between 1 and 2 meters from the ceiling.

The corresponding receiver must be located in the ceiling, within a circle around the transmitter, with a maximum radius of between 3 and

6 meters respectively (see figure 3).

IR receiver r

1

2

2x 60x19mm h h (m) r max (m)

1

1.5

2

3

4.5

6

Positioning

Mounting

The transmitter can be fixed to the wall using round-headed screws of 3.5 to 4.0 mm diameter or with two pieces of double-sided sticking tape. (60 x 19 mm). See figure 4.

Ø 5 mm

Fixing to a wall with double-sided adhesive tape

Battery handling

Batteries must be replaced simultaneously. Always use a set of four batteries from the same brand with the same production date.

Please make sure that batteries are inserted with the correct polarity.

Inverted batteries may cause damage to the transmitter (see installation instructions).

Disposal of batteries must be in accordance with local regulations.

Miscellaneous

Group address selection

Dip switch position

1 2 3

• •

• • •

Helio - Trios group address

A

B

C

D

E

F

G

General

Scenio group address

1

2

Ø 3.5 - 4 mm

Fixing to a wall with screws

15-80

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

IR Group

Address

Function

Setting the Dip switch position

IRT8050/00 Datasheet

Two-key wall transmitter

4/5

Functions of the keys

DIP Switch Position

4 5 6 7 8

1) •

1)

1) •

1)

1) •

1)

4) •

4)

2)

3) •

• • •

teach mode

Remarks:

In order to avoid unexpected and inconsistent system reactions, the lighting “toggle functions” can be used for switching only!

Do not use toggle keys;

• with multiple transmitters in one room

• in combination with a movement detector

• in centrally-controlled systems.

Channel commands are not applicable for Scenio.

Left key function

Ch 1 Off / Down

Ch 2 Off / Down

Ch 3 Off / Down

Ch 4 Off / Down

Ch 5 Off / Down

All Off

All Off

All Off

All Off

Blinds Down

Ch 1 On - Ch 1 Off

Ch 2 On - Ch 2 Off

Ch 3 On - Ch 3 Off

Ch 4 On - Ch 4 Off

Ch 5 On - Ch 5 Off

All Off

All Off

All Off

All Off

All Off

All Off

All Off

All Off

Absent + All Off

Blinds Down - Stop

Light Level Down - Stop

All Off (1+2)

Operational Mode 1

Operational Mode 2

Operational Mode 3

Operational Mode 4

Operational Mode 5 group addressing codes

Right key function

Ch 1 On / Up

Ch 2 On / Up

Ch 3 On / Up

Ch 4 On / Up

Ch 5 On / Up

Preset 1

Preset 2

Preset 3

Preset 4

Blinds Up

Ch 2 On - Ch 2 Off

Ch 3 On - Ch 3 Off

Ch 4 On - Ch 4 Off

Ch 5 On - Ch 5 Off

Ch 1 On - Ch 1 Off

Preset 1 - Preset 2

Preset 1 - Preset 3

Preset 1 - Preset 4

Preset 4 - Preset 3

Preset 4 - Preset 2

Preset 4 - Preset 1

P1, P2, P3, P4

P4, P3, P2, P1

Setpoint 0 + Preset 1

Blinds Up - Stop

Light Level Up - Stop SCENIO ONLY

Preset 1 SCENIO ONLY

Operational Mode 1

Operational Mode 2

Operational Mode 3

Operational Mode 4

Operational Mode 5 channel addressing codes

1) In all code sets of the type Px <–> Py (“toggle key”) and all off, the all off key resets the other key to the Px command. Thus the lighting will always be switched on at Px, regardless the status before switch off .

2) For the window blinds “toggle functions” up <–> stop and down

<–> stop, both keys reset the other to the first command. (i.e. only the last operated key will generate a stop command). Additionally, both keys are automatically reset to the first command 1 minute after the last key press. Thus a consistent operation is maintained, even with centrally controlled window blinds.

3) For the SCENIO “toggle functions” up <–> stop and down <–> stop, both keys reset the other to the first command. (i.e. only the last operated key will generate a stop command). Additionally, both keys are automatically reset to the first command, 1 minute after the last key press. Thus the correct operation of the up and down keys is maintained when for some reason the stop command was not given

(e.g. after dim up to maximum or dim down to minimum).

4) Multiple touch keys: A sequence of 1, 2, 3, or 4 short key presses will call different presets. Time between two subsequent presses must be less than approx. 0.5 seconds.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-81

IRT8050/00 Datasheet

Two-key wall transmitter

5/5

Memo card Technical Data

Memo cards are printed at the rear side of the keys.

These cards show the address setting (left key) and the 12 most common key functions (right key). Space has been reserved to mark the settings used.

E

F

G

C

D

A

B

*

ON

1 2 3

GROUP ADDRESS

= ON

1 2 3

Memo cards at rear side of keys

ON

4

Indications and Diagnostics

4 5 6 7 8

5 6

7

8

= ON

Ch 1

Ch 2

Ch 1 - 2

P1

P4

P1/P4

P4/P1

P1,2,3,4

SCENIO

LUX

• teach mode

A flashing LED indicates that the teach mode has been selected.

• normal mode

a constant LED when the two keys are pressed indicates that the transmitter reverted to normal mode. After key release, the LED is switched off.

• transmission indication

A fast flashing LED during key press indicates that infrared radiation is taking place.

Number of keys

Number of indicator LEDs

Number of IR-LEDs

Carrier frequency

Supply voltage

Number of batteries

Battery type

2

1

5

36 KHz. (RC5 standard)

6.0 V nominal

4 each 1.5 V nominal

LR03, AAA Power Life

(1050mAh)

Environmental conditions operating conditions temperature relative humidity condensation

Weight

Housing

Material

5 to 50°C

20 to 85 % not allowed storage conditions temperature relative humidity

-25 to 85°C

5 to 95 %

Note: The IRT 8050 should not be exposed to direct sunlight or to high temperatures and should not be used in damp rooms such as bathrooms.

Dimensions 93 x 80 x 28 mm

(max. height x width x depth)

0.070 Kg (without batteries)

0.115 Kg (with batteries)

Colour

Mounting

ABS

White (Bayer 0177 - close to

RAL 9010) screws 3.5 to 4.0 mm.

diameter, through mounting holes in battery compartment

EMC immunity radiated interference

Reliability call rate life time in accordance with EN 50082-1 in accordance with EN 50081-1

1% per year (estimated)

10 years (estimated)

Packing data

Type

Unit box

Outer box

Ordering Data

Type

IRT 8050/00

Box dimensions

(mm)

124 x 92 x 50

205 x 192 x 133

Qty

1

8

MOQ Ordering number

8 9137 003 10703

Material

cardboard cardboard

Weight (Kg)

net

0.115

0.92 gross

0.160

1.380

EAN code level 1

87 11559 517070

EAN code level 3 EOC

87 11559 517087 517070 xx

3222 636 30061

04/2012

Data subject to change www.philips.com/lightingcontrols

15-82

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

UID8510 IR Datasheet

ToBeTouched User interface

15.5 Data sheet UID8510

Dimensions in mm

89 20

1/4

General description

The ToBeTouched UID8510 IR user interface panel provides intuitive on/off and dimming functionality. It connects wirelessly to infrared RC5 protocol on lighting control systems.

Building upon the iconic design as applied in LivingColors, the

ToBeTouched range of intuitive user interfaces brings the same style and ease of interaction to professional lighting applications.

The ToBeTouched range comprises various models. These range from a simple on/off switch, plus a version with dimming, through to a cool/ warm-white controller and a full-color model. Assisting the user with light, sound and color feedback*, these easy-to-install interfaces make operating a lighting system straightforward – and fun!

* Not applicable on the UID8510

Product details

• The UID8510 is a multi-purpose two-key transmitter suitable for the infrared remote control of lighting installations and other buildingbound equipment.

• The UID8510 can be used to switch and/or regulate lighting in individual control circuits, to select lighting presets, to operate sun blinds and to switch HVAC (heating, ventilation, air-conditioning) systems to comfort or standby.

• The two large keys can have 25 different sets (combinations) of control functions and 5 programming functions (for operational modes).

• The unit is optimized for wall-mounted operation.

• As a special feature it offers the option of operating two different control circuits using the “toggle key” principle. Toggle keys send two different codes alternately, i.e. the code changes each time the key is pressed. This means that two functions can be controlled with one key, e.g. “Channel 1 ON - Channel 1 OFF” or “Blinds UP - Blinds

STOP”.

• The actual function is selected by 5 DIP switches on the back of the device. The table on the last page shows the setting of the DIP switches for the 25 key functions.

• The transmitter’s group address can be selected by means of 3 DIP switches on the back of the device. The table on the last page shows the exact settings.

• Battery life (with Philips Power Life batteries - 1050mAh) has been calculated at over 5 years with average usage.

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-83

UID8510 IR

ToBeTouched User interface

2/4

Applications

• The UID8510 is primarily intended for the infrared remote control of individual lighting control circuits and for control of sun blinds in systems with combined lighting and non-lighting building functions.

• Selection of presets is possible using “multiple-touch” operation, i.e. a sequence of 1, 2, 3 or 4 short key presses.

• It offers an easy-to-find, fixed-point control for switching on basic lighting.

• The UID8510 can be used in combination with LMM, TRIOS,

Actilume and the ‘Occu’ family.

The operational mode of a controller can be changed by setting the dip switches on the back of the transmitter to the required operational mode.

Positioning

The UID8510 transmitter is suitable for wall-mounted operaton. When mounted on the wall, the unit must be located between 120 cm and

140 cm above the floor.

The corresponding receiver must be located in the ceiling, as shown below. r

IR receiver

Related equipment

Lighting management systems:

• LMM

Stand-alone and Luminaire based controls:

• Actilume

• OccuSwitch

• OccuPlus

• Trios

Sensors:

• Infrared receivers

• Multi-sensors

Switch Caps

Three switch caps are provided with the UID8510 to customize the look of the device to the user’s own preference. By rotating the caps, multiple configurations are available, providing total flexibility. The caps can easily be changed using a small screwdriver, as shown in the picture below.

Min. 1.2 m

Max. 1.4 m h h (m)r max (m)

1 3

1.5 4.5

2 6

Mounting

The dock can be fixed to the wall by means of flat (countersunk) screws with a maximum diameter of 8mm or by means of double-sided adhesive tape. on off on off

3

1

2 or or

26 mm

26

ø max. 8

ø max. 8

15-84

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

UID8510 IR

ToBeTouched User interface

Attach the transmitter to the dock as shown below.

2

1

3/4

Battery handling

Batteries must be replaced as soon as the battery low indicator starts blinking.

1

1

2

3

4x

4x

LR03

AAA

4x AM4

+

+

+

+

+

+

+

+

2

+

+

+

+

To undock the transmitter, a small screwdriver is required to unlock the device, also shown in the picture above.

Always use a set of 4 batteries from the same brand with the same production date. Please make sure that batteries are inserted with the correct polarity. Inverted batteries may cause damage to the transmitter

(See installation instructions).

Disposal of batteries must be in accordance with local regulations.

Included in the package

• UID8510 IR user interface device

• Wall plate with double-sided tape

• 3 x switch caps

• 4 x AAA batteries

• Quick user guide

• Installation instructions

Technical data

Number of IR LEDs

Carrier frequency

Supply voltage

Number of batteries

Battery type

Environmental conditions

Storage conditions

Temperature

Relative humidity

Operating conditions

Temperature

Relative humidity

IP

8

36 kHz (RC5 standard)

6.0 V nominal

4, each 1.5 V nominal

LR03, AAA Power Life (1050mAh)

-25 to +85˚C

5 to 95%; no condensation

+5 to +50˚C

20% to 85%; no condensation

20

The UID8510 should not be exposed to direct sunlight or to high temperatures and should not be used in damp rooms such as bathrooms.

Dimensions

Weight

Without batteries

Housing

Material

Grade

Color

Mounting

EMC

Immunity

Radiated interference

90x90x21mm

0.125 kg

0.073 kg

PC Lexan *8M7D024X STD

FXD121R CMR#53577

White (RAL 9003)

Double-sided tape (included) or flat head screws, max. 8mm diameter (not included)

in accordance with EN 55022

in accordance with EN 55024

Reliability

Call rate

Life time

1% per year (estimated)

10 years (estimated)

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets 15-85

UID8510 IR

ToBeTouched User interface

DIP switch settings

ON

1 2 3 4 5 6 7 8

IR Group

Address

Function

Helio, LMM, Trios

1 2

A

B

C

D

E

F

G

ALL

ON

ON

ON

ON

ON

ON

ON

ON

3

ON

ON

ON

ON

Ch1 off/down

Ch2 off/down

Ch3 off/down

Ch4 off/down

Ch5 off/down

All off

All off

All off

All off

Blinds down

Ch1 on/off

Ch2 on/off

Ch3 on/off

Ch4 on/off

Ch5 on/off

All off

All off

All off

All off

All off

All off

All off

All off

Absent + All Off

Blinds down/stop

Ch1 on/up

Ch2 on/up

Ch3 on/up

Ch4 on/up

Ch5 on/up

P1

P2

P3

P4

Blinds up

Ch2 on/off

Ch3 on/off

Ch4 on/off

Ch5 on/off

Ch1 on/off

P1/P2

P1/ P3

P1/P4

P4/ P3

P4/P2

P4/ P1

P1, P2, P3, P4

P4, P3, P2, P1

Setpoint 0 + Preset 1

Blinds up/stop

4 5 6 7 8

ON

ON

ON

ON

ON

ON

ON ON

ON

ON

ON

ON

ON

ON

ON ON

ON

ON

ON ON

ON

ON

ON

ON

ON

ON

ON ON

ON

ON

ON ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON ON

4/4

Packing data

Type

UID8510 TBT IR

Ordering Data

Type

UID8510 TBT IR

Box dimensions Qty

(mm)

Material Weight (Kg)

net gross

113x113x61 1 cardboard 0.073 0.195

MOQ Ordering number

1 9137 003 35203

EAN code level 1

8727900873467

EAN code level 3

8727900 873474

EOC

873467 00

3222 636 30643

11/2011

Data subject to change www.philips.com/lightingcontrols

15-86

Philips

ActiLume DALI 2 nd

Generation - Ch 15 Datasheets

16 HVAC commands

The following HVAC commands received via IR can be forwarded to the BMS when the ActiLume DALI Gen 2 is in BMS configuration.

Sunblinds

Command Action

EO 10000 Blinds stop

EC 10110

E4 10010

Blinds Rotate step down

Blinds down

EA 10101

E2 10001

Blinds Rotate step up

Blinds up

Ventilation

Command Action

D8 01100 HVAC fan off/down

DA 01101 HVAC fan on/up

Sunblinds

Command Action

CE 00111 HVAC 3 steps up

CC 00110

CA 00101

HVAC 2 steps up

HVAC 1 steps up

C2 00001

D2 01001

D4 01010

D6 01011

HVAC on/steps 0

HVAC 1 steps down

HVAC 2 steps down

HVAC 3 steps down

Table 18

Philips

ActiLume DALI 2 nd

Generation - 16 HVAC commands 16-87

17 FAQ

Q1: How many ActiLume DALI Gen 2 can I connect together when I use Parallel Linking?

A1: 64 since this is the limit of DALI addressing.

Q2: How many ActiLume DALI Gen 2 can I connect together when I use BMS mode?

A2: 64 since this is the limit of DALI addressing.

Q6: Which Groups are dimming when using the

Touch and Dim button?

A6: Group 1, 2 and 3 will be dimmed up/down or switched on/off.

Q7: Is daylight regulation still active when using the Touch and Dim button?

A7: No, daylight regulation will be switched off?

Q10: Do we have a description of all the commands to control the ActiLume DALI

Gen 2 when it is connected to a BMS?

A10: The connection from the BMS to the ActiLume DALI

Gen 2 is a standard DALI connection. This ensures that the ActiLume DALI Gen 2 can be controlled via standard

DALI commands.

Q3: How many extension sensors can I connect to one ActiLume DALI Gen 2?

A3: The maximum number of extension sensors that can be connected is 2. More will introduce data collision on the DALI line resulting in bad or a non-functioning system. See also chapter 9.4, “System capabilities and limitations” for a more detailed explanation.

Q4: How many PBU’s can I connect to one

ActiLume DALI Gen 2?

A4: The maximum number of PBU’s that can be connected is 2. More will introduce data collision on the DALI line resulting in bad or a non-functioning system. See also chapter 9.4, “System capabilities and limitations” for a more detailed explanation.

Q11: Can I just put DALI commands on the parallel linking or BMS connection to control the ActiLume DALI Gen 2?

A11: It is advised not to do so since this connection is also being used by all ActiLume DALI Gen 2 for communicating with one another about their occupancy status. There is a big chance that there will be a data collision and commands will get lost. This communication can be stopped by sending 2 times the DALI command

“Initialise” (DALI command 258).

After these commands all ActiLume DALI Gen 2 will stop communication and the DALI line will be free for communication from the BMS or other devices that needs control. If all is done, the DALI command “Terminate”

(DALI command 256) should be send 2 times as an indication to all ActiLume DALI Gen 2 connected that they can continue with sharing there occupancy status.

Q5: How many ballasts/drivers can I connect to one ActiLume DALI Gen 2?

A5: This is difficult to answer because it depends on the configuration the ActiLume DALI Gen 2 is in. For more detailed information including numbers, see chapter 9.4,

“System capabilities and limitations”.

Q12: It is possible to recall scenes when using

PBU’s?

A12: No, this is not possible. For recalling scenes, the

IRT8030 is needed.

Q13: How can you switch between “Decorative lighting” and “middle row”?

A13: This depends on what mode is selected and what functionality is given to Group 3. The best way to go is to do the DALI grouping by means of the IRT8099/20 and then make the needed changes in settings to Group 3 by means of the MultiOne interface and software.

Q8: What is the maximum length of the cable between the PBU and the button/switch?

A8: The wires from the PBU to the switches can be extended up to 1 meter maximum.

Q9: Can I have Touch and Dim functionality when using a PBU?

A9: No, the PBU has no Touch and Dim functionality. In this is needed, the Touch and dim input of the ActiLume

DALI Gen 2 should be used.

Q14: Do we have a maximum length of the Touch and Dim button to the ActiLume DALI

Gen 2 controller?

A14: There is in principle no max length defined but, if the line gets too long it is possible that disturbances will be picked up by this line giving unwanted actions taken by the ActiLume DALI Gen 2. To prevent this, the following

R/C filter can be used to eliminate these disturbances where Ls is connected to the Touch and Dim input of the

ActiLume DALI Gen 2. See Figure 94.

17-88

Philips

ActiLume DALI 2 nd

Generation - Ch 17 FAQ

Q15: Can I connect 2 or more ActiLume DALI

Gen 2 in parallel to one Touch and Dim

button?

A15: No, this is not possible since the ActiLume DALI

Gen 2 has no synchronization implemented.

Q16: Can I connect 2 or more Touch and Dim buttons in parallel to one ActiLume DALI

Gen 2?

A16: Yes, this is possible, but keep in mind the length of the Touch and Dim line. See also Q14/A14.

Q17: Where can I find all ins and outs about the

“MultiOne” software?

A17: In this Application guide there is a part (chapter 14) about the MultiOne tool. The basics of the MultiOne tool will not be explained within this chapter. For learning how to work with MultiOne please use the “User manual” and

“Quick start guide” that is available within the MultiOne software. You can find it under the pulldown at the top navigation “Help”.

Within this application guide only those items related to the ActiLume DALI Gen 2 are explained

Q18: Is it possible to deactivate the day light sensor and the movement detector

separately?

A18: Yes, it is possible to (de)activate the PIR and light sensor independently from one another. By selecting

“Auto on / auto off” or “Manual on / auto off” in the mode feature the PIR detection is enabled. By selecting

“Manual on / manual off” in the mode feature, the PIR detection is disabled. The same goes for DDR, DDO and

DDS, they can be enabled or disabled separately, by means of the tick boxes as described in chapter 14.4.

PE

N

L

Figure 94

Touch and

Dim switch

100 Ohm

Type MRS25

Ls

330 nF

Type X2-275V

PE

N

L

Philips

ActiLume DALI 2 nd

Generation - Ch 17 FAQ 17-89

18 Abbreviations

Abbreviations used throughout this document are in alphabetical order:

DALI = Digital Addressable Lighting Interface

DDO = Daylight Dependent Override. Block auto on if sufficient daylight.

DDR = Daylight Dependent Regulation

DDS = Daylight Dependent Switching. If sufficient light, than switch off.

BMS = Building Management System

PBU = Push Button Unit (LCU2070 and/or LCU2071)

18-90

Philips

ActiLume DALI 2 nd

Generation - Ch 18 Abbreviations

Copyright

Copyright © 2013 by Philips Lighting B.V.

All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without prior written permission from Philips. Brands and product names are trademarks or registered trademarks of their respective companies.

Disclaimer

Philips makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Philips assumes no responsibility for any error that may appear in this document. Philips makes no commitment to update nor to keep current the information contained in this document.

Limitations of damages

The vendor will not be liable for any indirect, special, incidental or consequential damages (including damages for loss of business, loss of profits, or the like), whether based on breach of contract, tort (including negligence), product liability or otherwise, even if the vendor or its representatives have been advised of the possibility of such damages and even if a remedy set forth herein is found to have failed its essential purpose.

Philips

ActiLume DALI 2 nd

Generation 19-91

Although this information has been prepared with extreme care, no rights can be derived from any information and/or illustration in this manual.

April 2013

3222 636 49620

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
