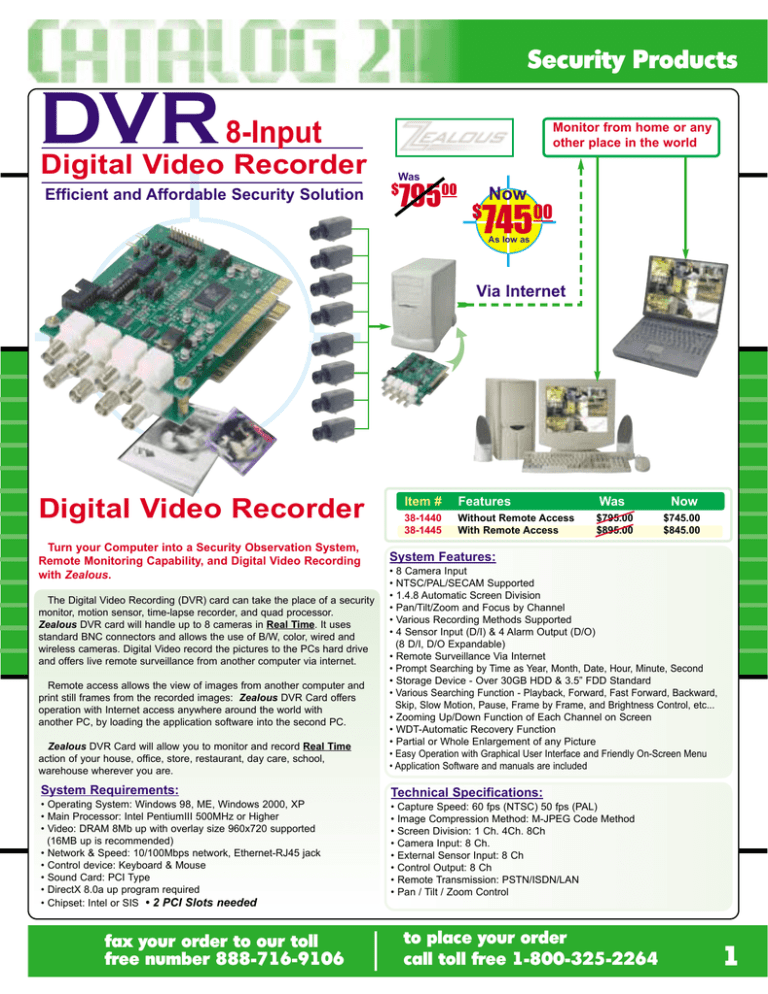

Security 1P 2-5 April

Security Products

DVR

8-Input

Digital Video Recorder

Efficient and Affordable Security Solution

Was

$

795

00

Now

$

745

00

As low as

Monitor from home or any other place in the world

Via Internet

Digital Video Recorder

Item # Features

38-1440 Without Remote Access

38-1445 With Remote Access

Was

$795.00

$895.00

Now

$745.00

$845.00

Turn your Computer into a Security Observation System,

Remote Monitoring Capability, and Digital Video Recording with Zealous.

The Digital Video Recording (DVR) card can take the place of a security monitor, motion sensor, time-lapse recorder, and quad processor.

Zealous DVR card will handle up to 8 cameras in Real Time. It uses standard BNC connectors and allows the use of B/W, color, wired and wireless cameras. Digital Video record the pictures to the PCs hard drive and offers live remote surveillance from another computer via internet.

Remote access allows the view of images from another computer and print still frames from the recorded images: Zealous DVR Card offers operation with Internet access anywhere around the world with another PC, by loading the application software into the second PC.

Zealous DVR Card will allow you to monitor and record Real Time action of your house, office, store, restaurant, day care, school, warehouse wherever you are.

System Requirements:

• Operating System: Windows 98, ME, Windows 2000, XP

• Main Processor: Intel PentiumIII 500MHz or Higher

• Video: DRAM 8Mb up with overlay size 960x720 supported

(16MB up is recommended)

• Network & Speed: 10/100Mbps network, Ethernet-RJ45 jack

• Control device: Keyboard & Mouse

• Sound Card: PCI Type

• DirectX 8.0a up program required

• Chipset: Intel or SIS

• 2 PCI Slots needed

System Features:

• 8 Camera Input

• NTSC/PAL/SECAM Supported

• 1.4.8 Automatic Screen Division

• Pan/Tilt/Zoom and Focus by Channel

• Various Recording Methods Supported

• 4 Sensor Input (D/I) & 4 Alarm Output (D/O)

(8 D/I, D/O Expandable)

• Remote Surveillance Via Internet

• Prompt Searching by Time as Year, Month, Date, Hour, Minute, Second

• Storage Device - Over 30GB HDD & 3.5” FDD Standard

• Various Searching Function - Playback, Forward, Fast Forward, Backward,

Skip, Slow Motion, Pause, Frame by Frame, and Brightness Control, etc...

• Zooming Up/Down Function of Each Channel on Screen

• WDT-Automatic Recovery Function

• Partial or Whole Enlargement of any Picture

• Easy Operation with Graphical User Interface and Friendly On-Screen Menu

• Application Software and manuals are included

Technical Specifications:

• Capture Speed: 60 fps (NTSC) 50 fps (PAL)

• Image Compression Method: M-JPEG Code Method

• Screen Division: 1 Ch. 4Ch. 8Ch

• Camera Input: 8 Ch.

• External Sensor Input: 8 Ch

• Control Output: 8 Ch

• Remote Transmission: PSTN/ISDN/LAN

• Pan / Tilt / Zoom Control fax your order to our toll free number 888-716-9106 to place your order call toll free 1-800-325-2264

1

Security Products

Was

$

1100

00

14” Color Quad

Observation

System with

Remote

Control

& 4 Cameras

Now

$

985

00

4 Cameras

4 Cables

2

Back view

FEATURES

Item# 38-1410

PACKAGE INCLUDES:

1

Color Monitor

1

Remote Control

4

1/3” Color CCD Cameras

4

60ft Cables (6 Pin mini DIN)

4

Brackets

1

Power Cable, Manual,

2

Batteries

Compatible with a combination of BNC and 6 Pin Mini DIN

Cameras

• 4 Camera

s

Capability

• Manual/Automatic Switching

• 2 Way Audio

• Real Time Quad Processor

• Metal Cabinet

• Alarm Sensor

• Picture In Picture (PIP) Function

• Alarm Output

• On Screen Display OSD Function

• Remote Control

• Freeze & Zoom Function

• Stand By Function

• A/V Input/Output

• NTSC/PAL

• AC 100-240V AC, 50/60 Hz

TECHNICAL SPECIFICATIONS

• MONITOR • CAMERA

SPECIFICATIONS

Picture Tube

Resolution

Control Function

Sequential S/W

Video Input Selector S/W

Audio System

Dwell Time

V-IN

A-IN

V-OUT

A-OUT

Trigger Out

DC 12V Out

Other function

Other S/W

Other S/W

Dimensions (WXHXD)

Weight

Color 14” Tube with 90 Deflection

More than 300 lines at center

Audio, Brightness, Color, Contrast, Tint,

Sharpness, Dwell Time Control

CA1, CA2, CA3, CA4, Auto

VCR

2Way

1 sec-60 sec

1Vp-p Composite at 75 Ohm (4 mini DIN

From Camera), 1 RCA From VCR

4 mini DIN From Camera, 1 RCA From VCR

2-RCA out 1BNC (LOOP)

2-RCA out

DRY Contact Terminal

4 mini DIN for Camera

Freeze, Zoom, PIP, 3 Picture

Alarm Sensor

Alarm Time Control

13.7”x12.7”x14.3” / (347 x 324 x 364)mm

24.2 lbs / 11Kg

SPECIFICATIONS

Pick-up Device

Picture Element

TV System

Sync. System

Scanning System

Resolution

Mini Illumination

Auto White Balance

Gain Control

Shutter Speed Control

S/N Ratio

Lens Type

V-OUT

A-IN

A-OUT

Power Source

Material

Dimensions(WXHXD)

Weight

1/3” Color CCD

NTSC: 512(H)492(V),PAL:542(H)X582(V)

NTSC/PAL Standard

Internal

525 Lines 2:1 interlace

More than 330 Lines

1 Lux (f:1.2)

Built in / Manual Focus Control

AGC (Automatic Gain Control) Built in

1/60 sec-1/100,000 auto Electric shutter speed

More than 50dB

C Mount Lens

Mini DIN to Monitor 1Vp-p at 75 Ohm

Mini DIN from Monitor

Mini DIN to Monitor

DC 12V from Monitor

Plastic

1.9”x2”x3.2” / (48X52X81)mm

0.66 lb / 0.3Kg

Order On Line

Observation System Security Products

12” B/W Quad

Observation System

With Remote Control and Four Cameras

Item# 38-1415

PACKAGE INCLUDES:

4 Cameras

1

B/W monitor

1

Remote Control

4

1/4” black CCD camera

4

60ft cables (6 Pin mini DIN)

$

550

00 for 2 way audio

• A/V Input/output for VCR Recording & Playback

• Camera Switching Time Adjustable (1 to 60 seconds)

• Alarm Sensor built-in monitor

• Stand by function to save the screen power

• Free Voltage (AC90V~AC250V, 50Hz/60Hz)

Compatible with a

B a c k V e i w

4

Brackets

1

power cable, manual,

2

batteries

Was

Features:

$

585

00

• 4-Camera Capability

• Built-in Real Time Quad Processor

• Manual/Automatic Switching Among Multiple Cameras

• Built-in condenser microphone & speaker combination of BNC and 6 Mini Din Cameras

Camera

:

• Pick-Up Device: 1/3” B/W CCD

• Picture Element: EIA: 270K Pixels, CCIR: 320K Pixels

• TV System: EIA/CCIR 50Hz, 60Hz Standard

• Resolution: more than 380 lines • Mini Illumination: 0.2 Lux

• Gain Control: AGC (Automatic Gain Control) Built-In

• S/N Ratio: More than 50dB • Lens Type:C/CS Mount Lens

• Power Source: DC 12V From Monitor • Dimensions(WxHxD):

1.89”x1.89”x3.19”/(48x48x81)mm • Weight: 0.44lb/0.2Kg

• Comes with mounting bracket & screws, System DIN cable, and User Manual

Monitor:

• Picture Tube: B/W 12” Tube with 90 Deflection

• Power Source: AC100V/240V, 50/60Hz Free Voltage

• Resolution: More than 800 lines(Horizontal)

• TV System: EIA or CCIR Standard

• Monitor Control: V-Hold, H-Hold Audio,

Contrast, Brightness

• Audio System: 2Way Audio

• Camera Consumption: 4xMini DIN Jack/BNC

• V-Out: 1xRCA to VCR, 1xRCA for Slave

• A-Out: 1xRCA to VCR, 1xRCA for Slave

• A/V-IN: 4xMini DIN from camera, 1xRCA from VCR

• Control S/W: CA1/2/3/4, VCR, Quad/Auto, Alarm

• Alarm In: CA1-CA4, GND, 12V

• Dimensions(WxHxD):

11.89”x 11.57”x 11.61”/(302x294x295)mm

• Weight: 15.4lb/ 7Kg

3

14” Color Monitor

(Switching)

Was

$

399

00

Now

$

374

00

Item# 38-1460 free number 888-716-9106

TECHNICAL SPECIFICATIONS

SPECIFICATIONS 38-1460

System

Picture Tube

Horizontal Resolution

Video Input

NTSC 3.58 / PAL 4.43

14 Inch CRT, 0.66mm stripe pitch, 90º deflection

More than 360 Lines

Video Signal: Composite 1Vp-p

Video signal: 0.7 Vp-p, Sync Signal: 0.3Vp-p

Subcarrier Frequency Sync. range 3.579545MHz ± 500Hz / 4.433619MHz ± 500Hz

Horizontal & Vertical

Frequency Stability

High Voltage

15.750KHz ± 500Hz / 60Hz ± 3Hz

15.625KHz ± 500Hz / 50Hz ± 3Hz

24KV ± 1.0KV

Power Consumption

Power Input

Dimensions

Audio Input 1 / 2 / 3 / 4

Audio Output

Operating Humidity Condition

Operating Temperature Range

Weight (Approx)

60 Watts (Maximum)

100V-230V, 50/60Hz

365mm (W) x 338mm (H) x 384mm (D)

14.4” (W) x 13.3” (H) x 15.1” (D)

-5dBu, High Impedance

1.2 Watts

0 to 90%

0 to 40º C

12Kg to place your order call toll free 1-800-325-2264

3

Security Products

14” Color QuadObservation

System with Remote Control

Item# 38-1370

FEATURES

$

650

00

• 4 Camera Capability

• Manual/Automatic Switching

• 2 Way Audio

• Real Time Quad Processor

• Metal Cabinet

• Alarm Sensor

• Picture In Picture (PIP) Function

• Alarm Output

PACKAGE INCLUDES:

• On Screen Display OSD Function

• Remote Control

• Freeze & Zoom Function

• Stand By Function

• A/V Input/Output

• NTSC/PAL

• AC 100-240V AC, 50/60 Hz

• One color monitor

• One Remote Control

• One 1/3” Color CCD camera

• One 60ft cable (6 Pin mini DIN)

• One Bracket

• One power cable, manual, 2 batteries

TECHNICAL SPECIFICATIONS

M O N I T O R S P E C I F I C AT I O N S

Picture Tube

Resolution

Control Function

Sequential S/W

Video Input Selector S/W

Audio System

Dwell Time

V-IN

A-IN

V-OUT

A-OUT

Trigger Out

DC 12V Out

Other function

Other S/W

Other S/W

Dimensions (WXHXD)

Weight

Color 14” Tube with 90 Deflection

More than 300 lines at center

Audio, Brightness, Color, Contrast, Tint,

Sharpness, Dwell Time Control

CA1, CA2, CA3, CA4, Auto

VCR

2Way

1 sec-60 sec

1Vp-p Composite at 75Ohm (4Mini DIN

From Camera), 1 RCA From VCR

4 Mini DIN From Camera, 1 RCA From VCR

2-RCA out 1BNC (LOOP)

2-RCA out

DRY Contact Terminal

4 Mini DIN for Camera

Freeze, Zoom, PIP, 3 Picture

Alarm Sensor

Alarm Time Control

13.7”x12.7”x14.3” / (347 x 324 x 364)mm

24.2 lbs / 11Kg

Back view

C A M E R A S P E C I F I C AT I O N S

Pick-up Device

Picture Element

TV System

Sync. System

Scanning System

Resolution

Mini Illumination

Auto White Balance

Gain Control

Shutter Speed Control

S/N Ratio

Lens Type

V-OUT

A-IN

A-OUT

Power Source

Material

Dimensions(WXHXD)

Weight

1/3” Color CCD

NTSC: 512(H)492(V),PAL:542(H)X582(V)

NTSC/PAL Standard

Internal

525 Lines 2:1 interlace

More than 330 Lines

1 Lux (f:1.2)

Built in / Manual Focus Control

AGC(Automatic Gain Control) Built in

1/60 sec-1/100,000 auto Electric shutter speed

More than 50dB

C Mount Lens

Mini DIN to Monitor 1Vp-p at 75Ohm

Mini DIN from Monitor

Mini DIN to Monitor

DC 12V from Monitor

Plastic

1.9”x2”x3.2” / (48X52X81)mm

0.66 lb / 0.3Kg

Compatible with a combination of BNC and 6 Pin Mini DIN

Cameras In one Application

Cameras Not Included

Security Surveillance Camera

Additional Color Camera for 14” Color System (Item# 38-1370)

• Image sensor: 1/3” Color CCD

• Picture element: NTSC: 512(H) x 492(V),

PAL: 512(H) x 582(V)

• TV System = NTSC/PAL Standard

• Resolution: more than 330 TV lines

• Min. Illustration: 1 Lux • Gain Control: AGC Built-in

• S/N Ratio: more than 50 dB

• Dimensions: 1.93”x2.04”x3.19/(49x52x81)mm

• Weight: 0.66lb/0.3Kg • Comes with Lens, Bracket, 60ft Cable

Item # 1-2 3-4 5-up

38-1380

$149.00 $144.00

$140.00

1 0 0 ’ E X T R A

C A B L E w i t h c o u p l e r

Item # 1-2 3-4 5-up

38-1500

$39.00

$35.00

$32.00

100ft BNC Plug to BNC

Plug With Coupler

• RG-58 Coaxial Cable

• BNC to BNC plug Coupler

Item # 1-2 3-4 5-up

17-7925

$19.00

$17.15

$16.30

4

Order On Line

Security Products

12” B/W Quad

Observation System

Item# 38-1385

Features:

• 4-Camera Capability

• Built-in Real Time Quad Processor

• Manual/Automatic Switching Among Multiple Cameras

• Built-in condenser microphone & speaker for 2 way audio

• A/V Input/Output for VCR Recording & Playback

• Camera Switching Time Adjustable (1 to 60 seconds)

• Alarm Sensor built-in monitor

• Stand by function to save the screen power

• Free Voltage (AC90V~AC250V, 50Hz/60Hz)

Was

$

395

00

$

375

00

Technical Specifications:

Monitor:

• Picture Tube: B/W 12” Tube with 90º Deflection

• Power Source: AC100V/240V, 50/60Hz Free Voltage

• Resolution: More than 800 lines(Horizontal)

• TV System: EIA or CCIR Standard

• Monitor Control: V-Hold, H-Hold Audio,

Contrast, Brightness

• Audio System: 2Way Audio

• Camera Consumption: 4xMini DIN Jack/BNC

• V-Out: 1xRCA to VCR, 1xRCA for Slave

• A-Out: 1xRCA to VCR, 1xRCA for Slave

• A/V-IN: 4xMini DIN from camera, 1xRCA from VCR

• Control S/W: CA1/2/3/4, VCR, Quad/Auto, Alarm

• Alarm In: CA1-CA4, GND, 12V

• Dimensions(WxHxD):

11.89”x 11.57”x 11.61”/(302x294x295)mm

• Weight: 15.4lb/ 7Kg

Camera:

• Pick-Up Device: 1/3” B/W CCD

• Picture Element: EIA: 270K

Pixels, CCIR:320K Pixels

• TV System: EIA/CCIR 50Hz,

60Hz Standard

• Resolution: more than 380 lines

• Mini Illumination: 0.2 Lux

Back View

• Gain Control: AGC(Automatic

Gain Control) Built-In

• S/N Ratio: More than 50dB

• Lens Type:C/CS Mount Lens

• Power Source: DC 12V From Monitor

• Dimensions(WxHxD): 1.89”x1.89”x3.19”/(48x48x81)mm

• Weight: 0.44lb/0.2Kg

Package Includes:

• One B/W Monitor

• One Remote Control

• One 1/3” B/W CCD Camera

• One 60ft Cable (6Pin Mini DIN)

• One Bracket

• Comes with Power cable,

Manual, and 2 batteries

Security Surveillance

Camera

Additional B/W Camera for 12” B/W

System (Item# 38-1385)

• Image sensor: 1/3” B/W CCD

• Picture element: EIA = 270K,

CCIR = 330K

• TV System = EIA/CCIR,

50/60 Hz standard

• Resolution: more than 380 TV lines

• Min. Illustration: 0.02 Lux

• Gain Control: AGC Built-in

• S/N Ratio: more than 50 dB

• Dimensions: 1.89”x 2.04”x 3.19”

(48x52x81)mm

• Weight: 0.66lb/ 0.3Kg

• Comes with Lens, Bracket, and 60ft Cable

1 0 0 ’

E X T R A

C A B L E w i t h

C o u p l e r

Item # 1-2 3-4 5-up

38-1505

$33.50

$29.00

$26.00

5

1 / 2

” 6 Pin DIN /

BNC Connector

100ft BNC Plug to BNC

Plug With Coupler

• RG-58 Coaxial Cable

• BNC to BNC plug Coupler

Item # 1-2 3-4 5-up

38-1390

$94.00

$89.00

$84.00

Item # 1-2 3-4 5-up

17-7735

$14.95 $12.95 $11.25

Item # 1-2 3-4 5-up

17-7925

$19.00 $17.15 $16.30

6

Order On Line

Observation System with

Real-Time Quad Processor

Item# 38-1285

$

High Resolution 17” Monitor with Real-Time

Quad Processor With 4 MotionSensor Cameras

Quad Alert, INFO Alert, View Alert, Nite Alert, Audio Alert

FEATURES:

1/3” Low Light CCD Motion Sensor Camera, Unique Motion Sensor, 65ft Cable and Metal Mounting Bracket

792

00

Camera Features:

• 1/3” low light CCD camera • 380 Lines of resolution• 6 low light infra-red light illuminators to operate in bright light to almost total darkness • Unique motion sensor with 15ft detection range • Alarm inputs to add additional alarm devices

• Built-in condenser speaker and microphone to allow for two-way communication

• Scanning System: Black & White, EIA • Lens: 4.3mm fixed • 512(H) x 492(V)

Auto Iris controlled by electronic system

Monitor Features:

• High resolution monitor for exceptional picture quality • Sequentially rotate through full screen display of each camera location • One camera full screen viewing

• Alarm inputs to add additional alarm devices • Built-in speaker and microphone for two way audio communication • Switching Mode Power Supply (SMPS) technology automatically adjusts monitor to different voltage/power requirements

• On/Off power switch allows monitor to be turned off while VCR is recording

• Alarm outputs used to connect optional VCR or Security Recorders (event or time lapse VCR) High resolution monitor with real-time quad processor (30 FPS)

Model # SG7864S

Monitor:

• 17” black and white • Horizontal Resolutions: over 750 TV lines • Camera Capability: Up to 4 camera connections

• Quad Speed: 30 frames per second

For Extra Cable Use

• Power Requirement: AC 90V~260V (Free Voltage)

• Switching Time: 1-60 sec.

Item#: 38-1335 & 39-1340

For Extra Camera

Use Item#:38-1365

Security Products

Observation System with Real-Time Quad

Processor

Model # SG6861S

12” B&W Monitor

With One Motion

Sensor Camera

Model # SG6831S

High Resolution 12” Monitor

With One Motion Sensor Camera

Quad Alert,

Alarm outputs to connect monitor to optional recording devices.

View Alert,

Nite Alert,

Monitor:

• 12” black and white

• Horizontal Resolutions: over 800 TV lines

• Camera Capability: Up to 4 camera connections

• Power Requirement: AC 90V~260V, 60Hz

Item # Price

Audio Alert

For Extra Cable Use

Item#: 38-1335 & 39-1340

38-1255 $319.00

fax your order to our toll free number 888-716-9106

Monitor:

• 12” black and white

• Horizontal Resolutions: over 800 TV lines

• Camera Capability: Up to 4 camera connections

• Power Requirement: AC 90V-260V (Free Voltage)

• Dim. (W x D x H): 12.5” x 11.5” x 12.5”

Item #

38-1260

Price

$239.00

to place your order call toll free 1-800-325-2264

Info Alert,

View Alert,

Nite Alert,

Audio Alert

7

Security Products

14” Color Quad

Observation System

I t e m #

38-1525

PACKAGE INCLUDES:

• One Color Monitor

• Color CCD Camera

• 100ft Cable (6 PIN mini DIN)

$

865

00

8

14” Color Monitor with Quad Splitter

• 14” Color Quad Monitor • OSD Function Control

• Individual Channel control by OSD • Free Voltage

• Auto Sequential Switching System • Auto Channel

Skipping • VCR Recording & Playback • Freeze

Function • Alarm Terminal (4 Input/ 1 Output) • Mic

& Speaker Built-In • Real Time Display • Video

Signal Loss Detection • VCR Recording in Screen-Off

Specifications:

• TV System: NTSC or PAL • Horizontal Resolution:

400 Lines at Center • Scanning Frequency: NTSC

(Horizontal: 15.75 KHz, Vertical: 60Hz) PAL

(Horizontal: 15.625 KHz, Vertical: 50Hz) • Input

Signal: 1Vp-p at 75Ω Terminated • Input

Impedance: 75Ω • Power Source: free Voltage

(AC100V~240V, 50~60Hz) • Power Consumption:

75W • Connectors: Camera: Mini DIN 6P

Connector & BNC. VCR IN/ OUT: RCA Jack

• Controls: Power, Quad/SEQ, CH1, CH2, CH3,CH4,

Talk, Play, Still, Menu, Volume • Dim. (W x H x D):

14.2” x 13.2” x 14.7” / 360 x 335 x 372 (mm)

• Net Weight: 27.5 lb / 12.5 Kg

Color CCD Camera

• Color CCD Camera with 270,000 Pixels

• 330 TV Lines

• Fixed Lens Specifications:

• TV System: NTSC, PAL

• No. of Pixels: 270,000 Pixels

• Picture Elements: NTSC 542(H) x 505(V),

PAL 542(H) x 597(V)

• Scanning System: Interlaced

• Resolution: 330TV Lines(H)

• Video Output: 1Vp-p

• Output Impedance: 75Ω

• S/N Ratio: 46dB more

• IRIS system: Electronic Auto Iris

• Electronic Shutter: 1/60(1/50)~1/100,000

• Min. Illumination: 2 Lux with F1.2 Lens

• Lens: Fixed Lens

• Microphone Sensitivity: -62dB

• Audio: Two Way • Accessories: Stand, 20m Cable

• Power Supply: DC 12V(From Monitor)

• Power Consumption: Max 2.8W

• External Dim.: 2.2”x 2.6”x 2.8” / (55x65x72)mm

• Weight: 0.18 lb / 80g

100 Feet Cable

• 6 Pin mini DIN to 6 Pin mini DIN

• 6 Pin mini DIN type Coupler • Color: White

• Compatible with 38-1010

2.4GHz

Technology

Wireless A/V Receiver & Transmitter 2.4 GHz RX/TX

• Model# JRS-2G4

• 2.4 GHz Wireless A/V Receiver & Transmitter • Selectable up to 4 CH Monitoring with Auto Scan

• Dwelling time adjustable • Last Channel Memory • 4 Control Key of Scan/CH/SET/Mute

Specification:

Transmitter:

• TV System: NTSC or PAL • Transmit Freq.: 2.4GHz • Transmit Power: 50mV/m at 3M

• No. of Video Channels: 1 Video Channel

• Video Interface: Transmitter Input Level: 1Vp-p Base Band Video Transmitter Input Impedance: 75Ω

• No. of audio Channels: 1 Audio Channel

• Connector: Camera: Mini DIN A/V Input: RCA Jack Power:DC Jack

• Accessories: Mini DIN Cable or RCA to Mini DIN Cable(option)

• Power Consumption: Max. 6W(w/Camera) • External Dim.: 5”x3.5” / (130x88.8)mm

Receiver:

• TV System: NTSC or PAL • Input frequency Range: 2.4000GHz to 2.4835GHz

• IF Frequency: 479.5MHz • Frequency Stability: ±200KHz • Input Impedance: 50Ω

• Image Rejection: 30dB • Audio S/N Ratio: >30dB

• Connector: Camera: Mini DIN A/V Input: RCA Jack Power: DC Jack • Power Source: DC12V-16V

• Power Consumption: Max 6W • External Dim.: 6”x5.2” / (150x131)mm

Item # 1 2 3-up

38-1000

$107.95 $102.55 $97.42

Order On Line

Security Products

5” B/W 2-Channel

Observation System

Package Includes

• 1 5” B/W Monitor

• 1 1/3” B/W CCD Camera

• 1 Mounting Bracket

• 1 50ft Cable

Features:

• 2-Camera Capability & Auto IRIS Camera

• Manual/Automatic Switching between 2 Cameras

• Built-in condenser microphone & speaker for 1 way or 2 way audio

• A/V Input/Output for VCR Recording & Playback

• Camera Switching Time Adjustable

Technical Specifications:

Monitor:

• Picture Tube: B/W 5” Tube with 90 Deflection

• Power Source: DC 17V, 1.2A, AC to DC adaptor

• Resolution: More than 500 lines at center

• TV System: EIA or CCIR Standard 2:1 Interlace

• Control Volume: Brightness, Contrast, Volume, Time

• Sequential S/W: CA1/2, Auto

• Audio System: 2Way • Weight: 3.1lb/1.4Kg

• Dimensions(WxHxD): 6.6”x5.7”x8.3”/(168x145x211)mm

Item # 1-2 3-4 5-up

38-1420

$151.00 $142.00

$133.40

TEVICOM

For Extra Camera

# 3 8 - 1 4 3 0

Back View

Camera:

• Pick-Up Device: 1/3” B/W CCD

• Picture Element: EIA: 270K Pixels, CCIR:320K Pixels

• TV System: EIA/CCIR 50Hz, 60Hz Standard • Resolution: more than 380 lines

• Mini Illumination: 0.02 Lux • Illumination Type: IR LED X 6

• Gain Control: AGC(Automatic Gain Control) Built-In

• Shutter Speed Control: 1/60sec-100,000 Auto Electronic shutter Control

• S/N Ratio: More than 50dB • Power Source: DC 12V From Monitor

• Dimensions(WxHxD): 2”x3”x1.3”/(52x76x33)mm • Weight: 0.44lb/0.2Kg

• Comes with power supply, mounting bracket, screws, cable, and manual.

10” B/W 4-Channel

Observation System

Package Includes

• 1 10” B/W Monitor

• 1 1/3” B/W CCD Camera

• 1 Mounting Bracket

• 1 50ft Cable

Features:

• 4-Camera Capability & Auto IRIS Camera

• Manual/Automatic Switching Among Multiple Cameras

• Built-in condenser microphone & speaker for 2 way audio

• A/V Input/output for VCR Recording & Playback

• Camera Switching Time Adjustable (1 to 60 seconds)

Technical Specifications:

Monitor:

• Picture Tube: B/W 10” Tube with 90 Deflection

• Power Source: AC110V/220V, 50/60Hz

• Resolution: More than 800 lines at center

• TV System: EIA or CCIR Standard 2:1 Interlace

• Control: Volume,Brightness, Contrast, H-Hold, V-Hold

• Sequential S/W: CA1/2/3/4, Auto

• Video Input Selector S/W: VCR

• Audio System: 2Way • Weight: 10.45lb/ 4.75Kg

• Dimensions(WxHxD):9.53”x9.60”x9.88”/(242x244x251)mm

Item # 1-2 3-4 5-up

38-1425

$219.00 $212.00

$204.00

TEVICOM

For Extra Camera

# 3 8 - 1 4 3 5 fax your order to our toll free number 888-716-9106

Back View

Camera:

• Pick-Up Device: 1/3” B/W CCD • Picture Element: EIA: 270K Pixels, CCIR:320K Pixels

• TV System: EIA/CCIR 50Hz, 60Hz Standard • Resolution: more than 380 lines

• Mini Illumination: 0.02 Lux • Illumination Type: IR LED X 6

• Gain Control: AGC(Automatic Gain Control) Built-In

• Shutter Speed Control: 1/60sec-100,000 Auto Electronic Shutter Speed Control

• S/N Ratio: More than 50dB • Power Source: DC 12V From Monitor

• Dimensions(WxHxD): 2”x3”x1.3”/(52x76x33)mm • Weight: 0.44lb/0.2Kg

• Comes with power supply, mounting bracket, screws, cable, and manual.

to place your order call toll free 1-800-325-2264

9

Security Products

24 HR “Real Action” / 960 HR TIME LAPSE VCR with Remote Control

The VCR Combines high performance, incredible array of features and outstanding value. It records 2,12, or 24 Hours of real time video and audio on a single T-120 VHS Video Tape. Time and date are displayed on-screen and the VCR can be trigged by an alarm input. 350 line resolution recording in black and white and 300 line resolution recording in color. It records 30 Hr. real time with T-160 Tape.

From an External

Audio Source

Monitor TV

110/220V

Video Camera

VIDEO IN

VIDEO OUT

Item# 38-1355

• Recording Method: Dual-Azimuth 4-Head Rotating helical scanning system • Audio Recording: In 2, 6, and 18 Hr Modes

• Video: Input/Output (BNC) • Wt.: 9lb • Audio: Input/Output (RCA) • Power Requirements: 110/220V, 60Hz • Microphone, Alarm, Panic, Input

• Dim.: 14

1/2

(W)x 3

3/4

(H)x11

1/2

”(D) • Comes with power cables, remote control, manual, 2 “AAA” Batteries, 90 Day Manuf.’s Warranty.

$

479

00

24 Hours TIME LAPSE VCR

Features:

• Type: 24 Hrs time lapse VCR

• Cassette Tape: Standard T-120 VHS Tape

DC 24V

• Rewind & Fast forward time: Apprx. 5 minutes

• Signal Format: NTSC

• Horizontal Resolution: 300 TV Lines (B/W), 220 TV Lines (Color)

• Signal to Noise Ratio: 45 dB

• Display Mode: Date, Year, Hour, Minute, Second, Recording,Speed

• Clock Format: 24 Hour • Video In/Out: BNC Type

• Power Consumption: 19W • Dimensions: 14 1/2 ” x 12 1/2 ” x 3 3/4 ”(WXDxH)

Event Video Cassette

Recorder

WAS

Item# 38-1400

FEATURES:

• Dual Rotary Head Helical Scanning

• Quick Response Mechanism

$

231

00

$

216

00

• Auto Tracking Function

• Time/Date/Stamp on Each recording

• End of tape Audible Warning

• On Screen Title(Up to 16 Characters for English Letters & Numbers)

• 14 Function Wireless remote Control

• Compatible with Composite Video Camera/Monitor

• Programmable Event Recording Duration

• Normally Open Activation Input

• Automatic Power-on When Triggered

Item# 38-1200

$

359

00

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Format

Video Recording System

Maximum Recording Time

Power Supply

Power Consumption

Tape Format

Rear Connection

Trigger input

Trigger output

Operating Temperature

Operating Humidity

Recording Format

Input Level

Output Level

Dimensions (WxHxDmm)

Weight

VHS Format

Rotary Two heads scanning

180M In. (E-180) 3 Hours

DC13V,1.2A

Approx. 18W

Tape Width 12.7mm (VHS Type)

4 x RCA Terminal (A/V in/out)

1 x Din input (Option)

3 x Screw Terminal (Trigger in/out/Ground)

N.O (Normal Open) dry contact (Momentary closure)

N.O (Normal Open) dry contact for revolving record

5ºC Deg.~ 35ºC Deg.

Less than 80%

NTSC/Pal

1Vp-p, 750ohm, unbalanced (RCA)

2Vp-p, 750ohm, unbalanced (RCA)

270 x 94.5 x 320mm

Approx. 3.0 Kg.

10

Order On Line

Security Products

9 Channel Color Full Duplex

Multiplexer

Item# 38-1395

WAS

$

882

00

Now

$

842

00

FEATURES

• Full Duplex Operation • Digital Motion Detection

• High Quality Digital Processing • Scaling Feature Makes More Sharp Picture

• 2X Moving Zoom from Full Screen in Live or VCR Playback Mode

• Multi Screen Display (4. 6. 8. 9) • Hardware Programmable Alarm Inputs

• Auto Impedance Switching BNC Connectors at looping Video Outputs

• 256 Event Long Including Alarm and Program Setup

• 2 Monitor Output (Main Monitor & Spot Monitor)

• Remote Control Available Using RS232 Serial or hardware Programmable

Alarm Inputs.

SYSTEM OVERVIEW

Alarm In

Alarm Out

Out

Camera 2

Camera 1

Spot Monitor Output

In

Time Lapse VCR

Monitor 2

Camera 9

Looping (Automatic Termination)

Monitor Output

AC-IN

DC-5V

Power

Adaptor

Monitor 1

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

VIDEO SIGNAL

ELECTRICAL

VIDEO FEATURES

CONNECTORS

MECHANICAL

ALARM FEATURES

ENVIRONMENTAL

Television System

Digital Memory

Video Input

Video Input Signal

Video Output

Video output Signal

Scale

Zoom

Power Supply

Power Consumption

Display Format

Sequencing Dwell

Segment Border

Time/Date Generator

Video Input

Video Output

NTSC PAL

720x480 720x580

9 Cameras, 1 VCR

1.0 Vp-p 75 Ohm

9 Looping, 2 Monitor, 1 VCR

1.0 Vp-p 75 Ohm

Yes

2 Times Digital

100-240VAC,50/60Hz (Free Voltage)

Approx. 10W

4, 6, 8, and 9 Screen

1 ~ 9 sec

Narrow Black Line

Yes (Selectable Display)

9 BNCs

9 BNCs

Monitor Output

VCR Input

VCR Output

Alarm In/Out

2 BNCs

1 BNC & 1 Y/C

1 BNC & 1 Y/C

25-Pin D-SUB

Power Jack DC Jack

Dimensions (WxHxDmm) 44 x 430 x 300mm

Weight

Alarm Inputs

4.7Kg (Rack Mountable Type)

9 Inputs (NO/NC Selectable)

Alarm Output

Multiple Alarm Display

Alarm Duration

Video Loss Indicate

Operating Temperature

Humidity

1 Relay Output (3A Max)

Sequence

1 ~ 60sec

Alarm with Blue Screen

0 ~ 50ºC

10 ~ 90% relative, Non-Condensing fax your order to our toll free number 888-716-9106 to place your order call toll free 1-800-325-2264

11

Security Products

PIR Camera Processor

Connect up to 4 cameras

• Video input port: 4 PIR CCD cameras

• Video output port: 1 video output, load impedance 75Ω

• Timer: Built-in real time clock

• Power source: DC 12V±10%

• Power consumption: 1.5W max

• Dim.(WxDxH): 7.2”x5.8”x1.2”

(183 x 148 x 32)mm

• Cameras Sold Seperatly, for PIR Cameras please use Item# 38-0780, 38-0775

Item # 1-2 3-4 5-up

38-0865

$159.00 $139.00

$129.00

PIR Camera

PIR Camera Processor

TV/Monitor

VCR

PIR CCD Camera

F o r P I R P r o c c e s s o r S e e I t e m # 3 8 - 0 8 6 5

Features: • Motion activated PIR CCD camera • Alarm output to control panel, lamp. VCR or Monitor • Video/Audio signal monitoring

• Built-in microphone & tamper switch • Alarm time 10 sec.,30 sec. & 120 sec. can be switchable

Specifications: • Electronic Shutter: 1/60 (1/50) to 1/100,000 sec • Microphone: High sensitivity • Load Impedance: 75Ω

• Standard Pinhole Lens: f3.7mm/F2.0 • Power Source: DC 12V ± 10% • Current Consumption: 190mA (activated)

• Dimensions (LxWxD): 4.3”x2.76”x1.7”/ (110x70x44mm) • Lamp Control Loading:500W(max) • PIR Detection Range 110º with 12 meters

(at 25ºC) • PIR Alarm Output: N.C/N.O, max loading 30VDC, 0.2A

• 1/4” Toshiba Color CCD Image Sensor

• Resolution: 330TV lines

• NTSC: 512(H) x 492(V) pixels

• PAL: 512(H) x 582(V) pixels

• Min. Illumination: 2 Lux / F2.0

• S/N Ratio > 45dB (AGC off)

• Lens Angle: 70º

• 1/3” Samsung B/W CCD Image Sensor

• Resolution: 380TV lines

• EIA: 510(H) x 492(V) pixels

• CCIR: 500(H) x 582(V) pixels

• Min. Illumination: 0.5 Lux / F2.0

• S/N Ratio > 48dB (AGC off)

• Lens Angle: 90º

• 1/4” Color CCD Image Sensor

• Resolution: 380TV lines

• NTSC: 512(H) x 492(V)

• PAL: 512(H) x 582(V)

• S/N Ration: > 45dB (AGC off)

• Lens Angle: 70º • 2 Lux / F2.0

Item # 1-2 3-4 5-up

38-0780

$129.00

$122.55

$116.00

Item # 1-2

38-0775

$102.00

3-4 5-up

$97.75

$92.86

Item # 1-2 3-4 5-up

38-0970

$119.00

$113.00

$107.39

Digital B/W Quad Processor

4 Channels

Digital Color Quad Processor

4 Channels

2 Page Color Quad Processor

8 Channels

Rear View

Rear View

Features Video

• 4 Channels

• Connect up to 4 cameras High Resolution

• 720(H) x 484(V) <EIA>

• 720(H) x \576(V) <CCIR>

• 256 gray shades Multi Function

• Independent full screen

• Auto sequential switching OSD Operation

• On Screen Display time setting Recording

• VCR input / output for VCR recording

Specification

• Video input port: 4 cameras & 1 VCR input

• Video output port: 1 video & 1 VCR output

• Load impedance: 75Ω • Timer: Built-in real time clock • Power Source: DC 12V

• Power Consumption: 6W max

• Dim.(WxHxD):9.4”x1.8”x6”(240x45x150)mm

Item #

38-0665

Price

$159.00

12

Order On Line

• Real time quad display (60 or 50 fields/sec)

• Connect up to 4 cameras, 1VCR In,

1 Video/1 VCR Out

• High Resolutio: NTSC: 720(H) x 484(V)

PAL: 720(H) x 576(V)

• Best quality with 16.7 million true colors

• Title generator

• On screen display time setting

• Video loss signal detecting function

• Channel independent freeze function

• Built-in sequential switch with variable dwell (1~9 sec)

• Power Source: [email protected] , 7.5W adaptor not included

Item #

38-1300

Price

$249.00

Rear View

• Real-time quad display

• Two-Page Quad for 8 Cameras

• Video System: NTSC: 525 lines, 60 frames/sec

PAL: 625 lines, 50 frames/ sec

• High resolution: 1024 x 512

• Video Input: 8 cameras + 1 VCR input

• Video Out x 2, 1Vp-p / 75Ω

• Alarm Input: 8 alarm inputs and 1 alarm reset in

• Alarm Output: 2 alarm out

• Video loss detection

• 16 million colors

• Programmable Quad and 8 Channel auto switcher output at the same time

• VCR Playback zoom and freeze function

• Power Source: AC 110V or AC 220V

• Dim.(WxHxD): 13.5”x2.2”x9.6”/ (345x56x245)mm

Item #

38-1305

Price

$289.00

Security Products

Wireless Video

Guardian Video

Security System &

Television In One

900MHz

• Provides Security Day & Night

• Easy Wireless Plug & Play Set Up

• Superior Video and Audio Quality

Camera :

• Pick-up : 1/3” B/W CCD area sensor

• 270,000 pixels, 512(H) x 492(V)

• 380 TV lines • Built-in Transmitter

• Clear Audio with a built-in microphone and night time viewing with infrared LEDs.

• Comes with a wide angle lens for maximum viewing and can be mounted anywhere.

Monitor:

• 5.5” monitor has built-in VHF/UHF TV channels and provides sharp B/W image with clear sound from the camera.

• Comes with a rechargeable battery pack that gives portability for use in any place.

Protect Your Home and Business with

New Technology

Item # 1-2 3-4 5-up

38-1015

$119.00

$113.00

$107.00

900 MHz Wireless Video

Observation System with

5” Monitor

Item# 38-1510

Color Video Doorphone System

Description

• Color Monitor & Metal

Camera, Adaptor Type

Video

FEATURES

• Modern & Elegant Design

• Simple and easy Installation

$

Was

329

00

$

299

00

OUTDOOR UNIT / FLUSH MOUNT TYPE CAMERA

SPECIFICATION

Power Source

Power Consumption

Camera unit

Camera Lens

DC 12V 1,000mA

3W (Maximum)

1/4” Color CCD 270K, Pixels image sensor

3.6mm,92º

Min. Illumination

Object pick up range

Lower than 0.03 Lux.

Apprx. 60º Horizontal, 50º Vertical

Operating Temperature -10ºC ~ 50ºC(+14ºF ~ 122ºF)

Dimensions (WxHxDmm) 112 x 182 x 58mm

Weight Approx. 650g

INDOOR UNIT

SPECIFICATION

Power Source

Power Consumption

CRT

Resolution

AC/110V/ DC 17V, 1000mA(included)

13W (Maximum) 0.4W (Stand by)

4” LCD, Active Matrix TFT

479(H) x 234(V) lines (Horizontal)

Operating Temperature

Calling Sound

0ºC ~ +40ºC (23ºF to 122ºF)

2 Strokes electronic chime

Communication simultaneous with hand set

Automatic cancel after 60 sec.

Dimensions (WxHxDmm) 185 x 220 x 52mm

Weight Approx. 750g

CONNECTION DIAGRAM

1R 2W 3Y 4B

CAMERA

1R - (+) DC12V

2W - (-) GND

3Y - VIDEO

4B - AUDIO

DC 12V power supplied from the monitor

Door Open Key

AC power are option when you purchase

Key 4B 3Y 2W 1R video memory

High

1 2 CA INT

Video

75Ohm

MONITOR

DC Power Adaptor (Standard, Provided) fax your order to our toll free number 888-716-9106

900MHz

Up to 300ft

• Set includes one 900MHz camera/ transmitter and one 5” B/W monitor/ receiver. • Up to 300ft range (100ft range through walls, floors, and ceilings)

• Closed circuit monitoring system lets you keep an eye on your private property, baby’s room, or business. • Transmits Audio and Video Signals

Interference-Free Up to 100 feet Through Walls, Floors, and Ceilings.

• Camera Features Wide-Angle Lens, Infrared LED’s for Operation In Low

Light Environments, Built-In Microphone, Tripod Or Wall Mount, and Battery or AC Operation. • 5” Display Monitor Features Two Selectable Channels

(Allows Use of Multiple Cameras), Brightness, Contrast and Vertical Hold

Controls, and Battery or AC Operation.• Camera Dimensions: 2”x3.75”x5.5”

• Monitor Dimensions: 6” x 8.25” x 6.3”

Item # 1-2 3-4 5-up

38-0710

$159.89 $155.10

$150.44

to place your order call toll free 1-800-325-2264

13

Security Products

Compact Pan/Tilt

High Performance Integrated Dome System

NOW

$

462

00

Item# 38-1495

FEATURES:

• Attractive, Compact Profile Surveillance Color

Dome System for Indoor Application

• Integrated PAN/TILT Receiver & Driver in Mini

Dome Camera

• Hard Ceiling or Suspended Ceiling Application

• Controller & 18M Connection Cable Included

• Remotely Controlled and Quick Response Mechanism

• 355º Panning / 90º tilting / ID set up

• Built-In Auto Pan Function.

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Pick-Up Device

Pixel

System

Minimum Illumination

Synchronizing

Horizontal Resolution

Video Output

S/N Ratio

Lens Angle

Pan Speed

Tilt Speed

Pan Angle

Tilt Angle

Power Supply

Dimension (WxHxDmm)

1/4” Color CCD

270K Pixels

NTSC/PAL

1 Lux

Internal

350 TV lines

1 Vp-p VBS/75 Ohm

More than 46dB

92º

12º / SEC

8º / SEC

355º

90º

DC 12V 800mA

109 x 89mm / Camera

84 x 35 x 123mm / Controller

43 x 14 x 170mm / Remocon

IR Illuminator Camera (B/W) For Night Vision Monitoring

NOW

$

167

70

WAS

Item# 38-1405

$

182

70

• Pickup device: 1/3” B/W CCD

• Picture Element: 270K

• Resolution: 330 TV lines

• Maximum Survey: More than 65 feet

• Min. Illustration: 0 Lux

• Lamp: Infra Red LED

• Wave: 880 mm

Video Out

• View Angle: 60º

• IR LED Qty. = 40 pcs

• An effective way of discreetly illuminating the security area under the dark of 0 Lux

• Allows an effective range of up to 20m under optimum condition

• Weatherproof plastic housing camera for both indoor/outdoor use.

• Dimensions: 33.85”x38.38”x4.13”/ (86x97.5x105)mm

Day

• Weight: 0.6lb/ 270g

• Comes with cable, bracket, and 12V DC power supply

Monitor Screen

Night

14

Order On Line

1/3” B/W CCD Dome Cameras with Board Lens

Common Specifications:

• Number of Pixel: • Current Consumption: 120mA • Electronic Shutter:

1/60 (1/50) to 1/100,000 sec. Auto • Load Impedance: 75Ω

• Lens Angle: 92º • Power Source: DC 12V±10% • Auto Iris: AES only

• Standard Board Lens:f3.6mm/F2.0

Security Products

Digital Color CCD Dome Cameras

Common Specifications:

• Number of Pixel:NTSC: 512(H) x 492(V) PAL: 512(H) x 582(V)

• Electronic Shutter: 1/60 (1/50) to1/100,000 sec. Auto • Auto white balance

• Load Impedance: 75Ω • Power Source: DC 12V±10%

1/3” B/W

Image Sensor 380 TV Lines

• 5.0 Lux/F2.0

• S/N Ratio > 46dB (AGC off)

• EIA: 510(H)x 492(V) pixel

• CCIR: 500(H) x 582(V) pixel

• Diam.: (3.4”/87mm)x

High: (2.8”/72mm)

Item # 1-2 3-4 5-up

38-0650

$55.00

$52.25

$49.63

1/3” B/W

Image Sensor 400 TV Lines

• 0.1 Lux/F2.0

• S/N Ratio > 48dB (AGC off)

• EIA: 512(H) x 492(V)

• CCIR: 512(H) x 582(V)

• Diam.: (3.4”/87mm)x

High: (2.4”/60mm)

Item # 1-2 3-4 5-up

38-0625

$79.00

$75.05

$71.29

B/W Dome Camera with Audio

FEATURES

• Compact Profile Surveillance

• B/W Dome for Indoor Applications

• Hard Ceiling or Suspended Ceiling Applications

• Built-in B/W CCD with 270,000 pixels

• High Resolution & 1 Way Audio Available

• High Sensitivity of 0.05 Lux at F1.2

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Pick-Up Device

Picture Element

Scanning System

1/3” B/W CCD

270,000 (EIA320,000(CCIR)

525 Lines 2:1 Interlace (EIA)

625 Lines NON-Interlace (CCIR)

Scanning Frequency

Horizontal resolution

S/N Ratio

Gamma Correction

Video output signal

Minimum Illumination

AGC control

Automatic Electronic Shutter (EIA)

Automatic Electronic Shutter (CCIR)

(H) 15.734KHz (V) 59.94Hz

(H) 15.625KHz (V) 50Hz

380 TV Lines

48dB

0.45

1.0Vp-p 75ohm, Negative

0.05Lux

Built-In (Auto)

1/60~100,000

1/50~100,000

Lensf:4.3mm Built-In

Operating Temperature 14F-122F (-10C+50C)

Operating Humidity

Power Source

Dimensions (WxHxDmm)

Weight

Within 90% RH

DC 12V 10%,200mA

ø100 x 70MM

350g

Item # 1-2 3-4 5-up

38-1465

$65.90

$62.00

$58.80

fax your order to our toll free number 888-716-9106

1/4” Image Sensor

330 TV Lines

• 5 Lux/F2.0

• S/N Ratio > 45dB (AGC off)

• Lens Angle: 69º

• Auto detect Center Window

• 150mA • f3.5mm/F2.0

• Diam.: (3.4”/87mm)x

High: (2.4”/60mm)

Item # 1-2 3-4 5-up

38-0610

$119.00 $113.00 $107.00

1/3”

Image Sensor 400 TV Lines

• 1 Lux/F2.0

• S/N Ratio > 48dB (AGC off)

• Auto detect • 260mA

• Lens Angle: 92º

• AES only • f3.6mm/F2.0

• Diam.: (3.4”/87mm) x High: (2.8”/72mm)

Item # 1-2 3-4 5-up

38-0600

$145.00 $137.50 $130.00

Color Dome Camera with Audio

FEATURES

• Compact Profile Surveillance Color Dome for Indoor Applications

• Hard Ceiling or Suspended Ceiling Applications

• 1 Way Audio Available

• Built-in Color CCD with 270,000 pixels

• High Resolution • High Sensitivity of 1.0Lux at F1.2

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Pick-Up Device

Picture Element

White Balance

Scanning System

1/4” Color CCD

270K (NTSC), 320K (PAL)

Automatic White Balance (AWB)

525 Lines 2:1 Interlace (NTSC)

Scanning Frequency

625 Lines NON-Interlace (CCIR)

(H) 15.734KHz (V) 59.94Hz

Horizontal resolution

S/N Ratio

Gamma Correction

Video output signal

Minimum Illumination

AGC control

Automatic Electronic Shutter (NTSC)

Automatic Electronic Shutter (PAL)

(H) 15.625KHz (V) 50Hz

330 TV Lines

48dB (AGC off)

0.45

1.0Vp-p 75ohm, Negative

1Lux, at F2.0

Built-In (Auto)

1/60~100,000

1/50~100,000

Lensf:4.3mm Built-In

Operating Temperature

Operating Humidity

Power Source

Dimensions (WxHxDmm)

Weight

14F-122F (-10C+50C)

Within 90% RH

DC 12V 10%,200mA

ø100 x 70MM

350g

Item # 1-2 3-4 5-up

38-1470

$126.00

$119.00

$115.50

14 0 to place your order call toll free 1-800-325-2264

15

Security Products

B/W Board Camera

1/3” B/W with IR

Specifications:

• Electronic Shutter:

1/60 (1/50) to 1/100,000 sec.

• Load Impedance: 75Ω

• Power Source: DC 12V±10%

• Lens Angle: 92º

• Pickup Element: 1/3” B/W Samsung

CCD image sensor

• Resolution: 380 TV lines

• EIA: 510 (H) x 492 (V)

• CCIR: 500 (H) x 582 (V)

• Min. Illumination: 0.5 Lux / F2.0 (over 2M)

0 Lux / F2.0 (in 2M)

• S/N Ratio > 46dB (AGC off)

• Current Consumption: 140mA

• Standard Board Lens : f3.6mm/ F2.0

• Dim.(L x W): 1.5” x 1.5” / (38 x 38)mm

Item # 1-2 3-4 5-up

38-0770

$57.00

$54.15

$51.44

1/3” CCD Color Camera with pinhole lens

(5.5mm, 60º) 270,000

Pixel with Audio

Item # 1-2 3-4 5-up

38-1045

$70.95

$67.52

$63.34

MIC

B/W Board

Camera with Audio

FEATURES

• 1/3” B/W CCD Board Camera

• Low Power Consumption

• Built In Electronic Auto IRIS

• Internal Synchronization

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Pick-Up Device 1/3” Interline CCD

TV System EIA or CCIR Standard

Number of PixelsEIA:512(H) x 492(V),

Scanning System

Horizontal Resolution

Synchronization

CCIR:512(H)x582(V)

Internal Synchronization

380TV Lines

1Vp-p 75 Ohm

Audio Output

Gamma Correction

S/N Ratio

AGC control

Minimum Illumination

IRIS Control

300mV at 600ohm

0.45

50dB (AGC off)

Built-in

0.1Lux (f2.0)

1/60-1/100,000:EIA,

1/50-1/100,000:CCIR

DC12 ±10%, 100mA Power Requirement

Operating Temperature

Storage Temperature

Weight

Dimension

-10

-20

ºC

ºC

~ +50 ºC , RH95% Max

~ +60 ºC , RH95% Max

Approx.30g

32 (W) x 32 (H)

Item # 1-2 3-4

38-1480

$49.00

$45.00

5-up

$42.00

1/4” Color with Audio

Common Specifications:

• Electronic Shutter:

1/60 (1/50) to 1/100,000 sec.

• 75Ω • Power Source:

DC 12V±10%

• 1/4” Color Toshiba CCD image sensor

• Resolution: 330 TV lines

• NTSC: 512 (H) x 492 (V)

• PAL: 512 (H) x 582 (V)

• Min. Illumination: 2 Lux / F2.0

• S/N Ratio > 45dB (AGC off)

• BLC Function: Auto detect

• Microphone: High sensitivity

• White Balance: Auto white balance

• Current Consumption : 130mA

• Dim.(LxW): 1.3”x1.3” / (32x32)mm

1/4” Color with Audio

• 1/4” Color CCD image sensor

• NTSC: 512 (H) x 492 (V)

• PAL: 512 (H) x 582 (V)

• Resolution: 330TV lines

• Min. Illumination: 2 Lux / F2.0

• S/N Ratio > 45dB (AGC off)

• BLC Function: Auto detect

• Microphone: High sensitivity

• White Balance: Auto white balance

• Current Consumption: 160mA

• Standard Board Lens: f3.6mm/F2.0

• Dim.(LxW): 1.65”x1.65” / (42x42)mm

Item # 1-2 3-4 5-up

38-0755

$99.00

$94.05

$89.34

Item # 1-2 3-4 5-up

38-0760

$95.00

$94.05

$89.34

Resolution:

330 TV Lines

Pinhole Lens

1

Color Board Cameras

Mini 1/4” Digital Color CCD Camera

2

Board Lens

Common Specs:

• Pick up Element : 1/4” Color CCD image sensor

• Number of Pixel: NTSC: 512(H) x 492(V) / PAL: 512(H) x 582(V)

• Min. Illumination: 5 Lux/F2.0 • S/N Ratio: > 45dB (AGC off) • Electronic Shutter : 1/60 (1/50) to

1/100,000 sec. • BLC Function: Auto detect • White Balance: Auto white balance

• Load Impedance : 75Ω • Power Source: DC 12V±10% • Current Consumption: 150mA

• Dim.(WxHxD): (1.4”x1.4”x0.6”) / 36x36x15)mm

Fig.

1

2

Item#

38-0890

38-0615

Standard

Board Length

f3.7mm/F3.5

f3.6mm/F2.0

Lens

Angle

90º

70º

1-2

$105.00

105.00

3-4

$99.75

99.75

5-up

$94.76

94.76

Mini 1/3” B/W CCD

C a m e r a

Board Lens

Image Sensor

Specifications:

• Electronic Shutter: 1/60 (1/50) to 1/100,000 sec • Load Impedance: 75Ω

• Power Source: DC 12V±10%

• Current Consumption: 120mA • Auto Iris: AES only

• Dimensions(WxHxD): 1.4”x1.41”x0.6” / (36x36x15mm)

1/3” B/W Samsung Image Sensor 380 TV Lines

• EIA: 510(H) x 492(V) pixels

• CCIR: 500(H) x 582(V) pixels • 5.0 Lux/F2.0

• S/N Ratio > 46dB (AGC off)

• f5.0mm/F3.5 • Lens Angle 70º

Item # 1-2 3-4 5-up

38-0655

$59.00 $56.05 $53.24

Mini 1/3” B/W CCD

C a m e r a

Board Lens

Image Sensor

• 1/3” B/W Sony CCD image sensor 400 TV Lines

• EIA: 512(H) x 492(V) CCIR: 512(H) x 582(V)

• 0.1 Lux/F2.0

• S/N Ratio > 45dB (AGC off)

• f3.6mm/F2.0

• Lens Angle: 92º

• Electronic Shutter: 1/60(1/50) go 1/100K auto

• Video Output: 1Vpp, 75Ω

• DC 12V • Dim. (W x H x D):

1.41”x 1.41”x 0.59” / (36 x 36 x 15)mm

Item # 1-2 3-4 5-up

38-1310

$69.00 $66.00 $64.00

16

Order On Line

Color Bullet

Camera

(Waterproof)

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Image Device 1/4” Color Sharp CCD Image Sensor

Image Pixels512 (H) x 492 (V) NTSC

Resolution

Scanning System

Shutter Control

512 (H) x 582 (V) PAL

400 TV Lines

2:1 Interlace

1/ 60 -1/100,000 Sec

Electronic Shutter Built-In

Lensf 3.7mm Built-In

Lens Angle

Scanning Frequency

70 Degrees

(H) 15.734KHz, (V) 59.94Hz NTSC

Minimum Illumination

Output Connection

Power Requirement

(H) 15.325KHz, (V) 50Hz PAL

5.0 Lux, or F 1.2

Video (RCA), Power (DC Jack)

DC 12V, 150mA

Housing

Dim.(øxL)mm

Weight

Black Color and Metal

22 x 67.35

0.15lb/65g

Item # 1-2 3-4 5-up

38-1455

$126.00

$119.00

$115.50

Comes with Mounting Bracket and Cable Accessory with

RCA & DC Jack

1/3” B/W Bullet Camera

• Pickup element: 1/3” Sony CCD Image Sensor

• S/N Ratio: more than 48dB (AGC off)

• Video Output: 1 Vpp, 75Ω

• Number of pixel: <EIA> : 512(H)x492(V)

<CCIR>: 512(H)x582(V) • Resolution: 400 TV lines

• Min. Illumination: 0.1 Lux/F2.0

• Electronic Shutter: 1/60(1/50) to 1/100000 sec.

• Board Lens: f3.6mm/F2.0, Angle 92º

• Current Consumption: 120mA

• Power Source: DC12V ± 10%

• Dim.(LxDia.): 2.9”x0.9” (74x 21.5)mm

Item # 1-2

38-0860

$71.40

3-4

$67.83

5-up

$64.43

Image Sensor

1/4” Digital Color

Bullet Camera

• 1/4” Panasonic CCD Image Sensor

• Resolution: 380 TV lines • # of Pixels:

512 (H) x 492 (V)<NTSC>

• S/N Ratio: More than 48dB

• Load Impedance: 75 Ohm v • Lens Angle: 70º

• Electronic Shutter: 1/60(1/50) to 1/100000 auto

• Standard Board Lens: f3.6mm/F2.0

• Power Source: DC 12V ±10%

• Current Consumption: 100mA

• Dim.(LxD): 0.3”x1” / (89x26)mm

Item # 1-2 3-4 5-up

38-1240

$129.00

$122.55

$116.42

Image Sensor

fax your order to our toll free number 888-716-9106

Security Products

B/W Bullet

Camera

(Waterproof)

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Image Device 1/3” B/W CCD Image Sensor

Image Pixels512 (H) x 492 (V) NTSC

Scanning System

Resolution

Shutter Control

Electronic Shutter

512 (H) x 582 (V) PAL

2:1 interlace

380 TV Lines (H), 350 TV Lines (V)

Auto, 1/100,000 sec

Built-In

Lensf 3.6mm Built-In

Lens Angle

Scanning Frequency

Minimum Illumination

Output Connection

92 Degrees

Hor. 15.75KHz, Vert. 60Hz

0.1 Lux, or F 1.2

Video (RCA), Power (DC Jack)

Power Requirement

Housing

Dim.(øxL)

Weight

DC 12V, 120mA

Black Color and Metal

23x52

0.02lb/56g

Item # 1-2 3-4

38-1450

$74.00

$69.00

5-up

$61.90

Comes with Mounting Bracket and Cable Accessory with

RCA & DC Jack

1/3” CCD B&W Weatherproof

Bullet Camera with

Power Supply

• Weatherproof Housing Ideal for Indoor or Outdoor Applications

• Built-in 3.5mm Wide Angle Lens

• Camera Includes Finished Leads and Metal Mounting Bracket

• 12V DC power supply is included

• Power Supply and RCA/BNC

Connector for Ease of Installation

Item # 1-2 3-4 5-up

38-1275

$89.00

$83.00

$77.00

Model # CVC6981P

1/3” CCD Submersible

Camera

Model # CVC-6990

• Fuly Submersible of up to 100ft

• Super 0.01 Lux Sensitivity

• Built in 3.6mm Lens

• Camera Includes100ft Cable and Power Supply

Specifications:

• Image sensor: 510H x 492V picture elements

• Scanning System: Internal Sync.

• Resol.: 420 TV lines

• Output Connections: Video-RCA, Power DC Jack

• Power Req.: 12V DC Adaptor (included)

• Housing: Silver - Aluminum with Bracket

Item # 1-2 3-4 5-up

38-1280

$129.00 $127.00 $126.00 to place your order call toll free 1-800-325-2264

17

Security Products

Color Miniature

Camera with Audio

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Image Device 1/4” Color CCD Image Sensor

Image Pixels510(H)x492(V) NTSC 500(H)x

Scanning System

582(V) PAL

525 Lines 2:1 Interface (NTSC)

Resolution

Shutter Control

625 Lines 2:1 Interface (PAL)

380 TV Lines

1/60-1/100,000 Sec

Lensf 3.6mm Built-In

Lens Angle

Minimum Illumination

90 Degrees

0.5 Lux, or F 2.0

Output Connection

Power Requirement

Housing

Dim.(WxHxD)

Weigth:

Video (RCA), Power (DC Jack)

DC 12V, 150mA

Black Color and Metal

1.4”x1.4”x0.5”/(35x35x14)mm

55g/0.12 lb

Comes with Mounting Bracket and Cable Accessory with

RCA & DC Jack

Item # 1-2 3-4 5-up

38-1490

$112.00 $106.00

$98.70

Ultra-Compact

MutliCam

Full Color

Video

Camera

Can Be Used for Different

Application

The Worlds Smallest Camera

B/W Miniature

Camera with Audio (Pinhole)

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Image Device 1/3” B/W CCD Image Sensor

Image PixelsEIA/CCIR Standard, 512 x 492 (EIA)

Scanning System

Resolution

Shutter Control

512 x 582 (CCIR)

2:1 Interface

380 TV Lines

1/60-1/100,000 Sec

Lensf 3.8mm Built-In

Lens Angle

Minimum Illumination

Output Connection

Power Requirement

92 Degrees

0.1 Lux, or F 1.2

Video (RCA), Power (DC Jack)

DC 12V, 110mA

Housing

Dim.(WxHxD)

Weight

Black Color and Metal

0.9”x0.9”x0.4”/(23x23x9)mm

27g/0.06lb

Comes with Mounting

Bracket and Cable

Accessory with

RCA & DC Jack

Item # 1-2 3-4

38-1485

$64.00

$59.00

5-up

$54.60

Digital Color CCD Camera

Item# 38-1475

TECHNICAL SPECIFICATIONS

Pick-Up Device

Picture Elements

TV System

Sync. System

Scanning System

Resolution

Mini Illumination

White Balance

AGC Built-in

Shutter Speed Control 1/60 sec-1/100,000

S/N Ratio

Lens Type

More than 50dB

C/CS Mount Lens

V-OUT

Power Source

BNC to Monitor 1 Vp-p at 75 Ohm

DC 12V from Adaptor

Power Consumption Approx. 3W

Operating Temperature -10ºC ~ 50ºC

Operating Humidity

Material

Dimensions (WxHxD)

Weight

IRIS Mode

1/3” Color CCD

NTSC:512(H)x492(V),PAL:512(H)x582(V)

NTSC/PAL STANDARD

Internal

2:1 Interlace

More than 330 Lines

1 Lux

AWB

Under 90% RH

Metal

53 x 55 x 120mm

0.35Kg

VIDEO / DC / ESC

Rear Panel

Video out jack (BNC)

Power Input

Terminal

$

169

00

• Connect to your own system for various applications:

Security, Baby Watch, Multi-Media, Hobby,

Investigation, TV, VCR, Computer, CCTV Monitor.

• Auto-Electronic Iris • Built-in Microphone

• Easy Hookup

• Cable, Mount ad Power Adaptor Included

Item # 1-2 3-4

38-1020

$69.00

$65.00

5-up

$61.00

1/4” Digital Color CCD

C a m e r a

• Number of pixel: <NTSC>: 512(H) x492(V) <PAL>: 512(H) x 582(V)

• Min. Illumination: 2 Lux/F2.0

• S/N Ratio: more than

45dB (AGC off)

• Electronic Shutter: 1/60

(1/50) to 1/100,000 sec.

• BLC Function: Auto detect

• White Balance: Auto white balance

• Standard Lens: CC Mount f4.0mm/ F2.0

• Lens Angle: 63º

• Power Source: DC12V • 130mA

• Dim.(Dia.xH): 2”x1” / (51x26.5)mm

Item # 1-2 3-4 5-up

38-0870

$129.00 $122.55 $116.42

Resolution:

330 TV

Lines

1/3” CCD Camera

• Horizontal Resolution

380 lines

• Front Panel: Lens and

Microphone

• Uses Standard Mini 6 Pin DIN Plug

• Cable Length: 60 ft.

• Mounting Bracket & Hardware included

• Weight: 0.25lbs (0.11kg)

• Dim.(WxHxD) : 2.2”x2.4”x1.9”

(55 x 60 x 49)mm

Item # 1-2

38-0965

$64.00

3-4

$60.05

5-up

$55.30

18

Order On Line

Security Cameras Security Products

Pickup Element

R e s o l u t i o n :

400 TV Lines

1/3” Color

CCD Camera,

Inside. With built In Microphone

Mic

For Optional Lens Order Item # 38-0175 or 38-0745

• Pick up Element : 1/3” Sony Color CCD image sensor

• Number of Pixel : NTSC: 512(H) x 492(V) /

PAL: 512(H) x 582(V)

• Min. Illumination : 1 Lux/F2.0

• S/N Ratio : More than 46dB (AGC off)

• Electronic Shutter : 1/60 (1/50) to 1/100,000 sec. Auto

• BLC Function : Auto detect

• White Balance : Auto white balance

• Load Impedance : 75Ω

• Power Source : DC 12V±10%

• Current Consumption : 250mA

• Auto Iris: AI/ AES switchable

• Microphone: High Sensitivity

• RCA audio output

• Standard Board Optional

• Lens Angle: Optional

• Dim.(LxWxH): 3.7”x2.2”x2” / (95x56x52)mm

• Current Package doesn’t include Lens, and optional CCTV Lens can be selected

Item # 1-2 3-4 5-up

38-0595

$129.00 $119.00 $109.00

Pickup Element

R e s o l u t i o n :

330 TV Lines

1/4” Color

CCD Camera

Mic

For Optional Lens Order Item # 38-0175 or 38-0745

• Pick up Element : 1/3” Sony Color CCD image sensor

• Number of Pixel : NTSC: 512(H) x 492(V)

PAL: 512(H) x 582(V)

• Min. Illumination : 2 Lux/F2.0

• S/N Ratio : More than 45dB (AGC off)

• Electronic Shutter : 1/60 (1/50) to 1/100,000 sec.

Auto • BLC Function : Auto detect

• White Balance : Auto white balance

• Load Impedance : 75Ω

• Power Source : DC 12V±10%

• Current Consumption : 150mA

• BLC Auto detection

• Iris Mode: AES only Standard Board Lens:Optional

• Lens Angle: Optional

• Dim.(LxWxH): 3.7”x2.2”x2” / (95x56x52)mm

• Current Package doesn’t include Lens, and optional CCTV Lens can be selected

Item # 1-2 3-4 5-up

38-0605

$112.00 $107.00 $102.00

1/3” B/W CCD Cameras

• 380 TV Lines

Pickup Element: 38 Samsung

Number: EIA 510(H) x 492(V) of pixel: CCIR 500(H) x 582(V)

Min. Illumination: 5.0 Lux/F2.0

S/N Ratio > 46dB (AGC off)

Electronic Shutter: 1/60 (1/50) to 1/100,000 sec Auto

Load Impedance: 75Ω

Current Consumption: 120mA

Auto Iris: AI/AES switchable

Dimensions (L x W x H): (95 x 56 x 52mm)

Pickup Element

Item # 1-2

38-0645

$59.00

3-4

$49.00

5-up

$44.25

Mic

with Built In High Sensitivity Microphone,

RCA Audio Output

• 380 TV Lines

• Pickup Element: 1/3” B/W Samsung

• Number: EIA: 510 (H)x492 (V)of pixel: CCIR:

500(H)x 582 (V)

• Min. Illumination: 5.0 Lux/ F2.0

• S/N Ratio > 46dB (AGC off)

• Electronic Shutter: 1/60 (1/50) to 1/100,00 sec Auto

• Load Impedance: 75Ω

• Current Consumption: 120mA

• Auto Iris: AES Only

• Dimensions(LxWxH): 2.8”x1.9”x1.7”/ (70x47x42mm)

Item # 1-2 3-4

38-0640

$62.00

$59.00

5-up

$56.00

Pickup Element

Note: • Standard Package doesn’t Include Lens, and Optional CCTV Lens can be selected (Please see lenses )

• Power Source: DC 12V±10% • Standard Board Lens: Optional • Lens Angle: Optional • For

Optional Lens Please Order Item # 38-0175 or 38-0745 or 38-0795

1/3” CCTV Monofocal

L e n s ( 8 m m )

• Format: 1/3” • Mount: CS

• Focal Length: 8mm • View Angle:80º

• Aperture: 2.0mm • Comers with focus • Dim.(øxL): 1.4”x1.6”

Item # 1-2 3-4 5-up

38-0175

$25.00 $23.75 $19.50

1/3” CCTV Auto Iris Lens (4mm)

• Format: 1/3” • Mount: CS • Focal Length:

4mm • Iris Range: 1.4~88 • View Angle:

63.9º • Dimension (ø x L): 1.6”x1.8” /

(41.5x46.7)mm • For connector please see Item# 38-0800

Item # 1-2 3-4 5-up

38-0825

$119.00 $109.00 $97.00

1/3” CCTV Lens (8mm)

• Format : 1/3” • Mount: C • Focal

Length: 8mm • Back Focal:

8.5mm• Aperture: 2.0mm • View

Angle: 40º • Dimension (ø x L):

1.3”x1.2” / (34x30)mm

Item # 1-2 3-4 5-up

38-0795

$19.00

$18.05 $17.14

1/3” CCTV Lens (4mm)

• Format: 1/3”, Mount : C

Camera Not Included

• Focal Length 4mm • Back Focal

6.34mm • Aperture 2.0mm • View

Angle 80º • Comes with focus

• Dim.(øxL): 1.3”x1.1” / (34x28)mm

Item # 1-2 3-4 5-up

38-0745

$19.00 $18.05 $17.14

19 fax your order to our toll free number 888-716-9106

Pickup Element

1/3” B/W

CCD Camera

• Standard Package doesn’t Include

Lens, and Optional

CCTV Lens can be selected (Please see lenses below)

• Power Source: DC 12V±10%

• Standard Board Lens: Optional • Lens Angle:

Mic

Optional • For Optional Lens Please Order

Item # 38-0175 or 38-0745

• 400 TV Lines

• Pickup Element: 1/3” B/W Sony

• Number: EIA: 512(H) x 492(V) of pixel: CCIR:

512(H) x 582(V) • Min. Illumination: 0.1 Lux/F2.0

• S/N Ratio > 48dB (AGC off)

• Electronic Shutter:1/60 (1/50) to /100,00 sec Auto

• Load Impedance: 75Ω

• Current Consumption: 120mA

• Auto Iris: AI/AES Switchable

• Dimensions(LxWxH): 3.7”x2.2”x2”/ (95x56x52mm)

with Built In High Sensitivity Microphone

RCA Audio Output

Item # 1-2 3-4

38-0635

$69.00

$59.00

5-up

$53.00

to place your order call toll free 1-800-325-2264

19

Security Products

PIR Motion

Sensor Camera

Model # SG7011SX

• 1/3” CCD B&W image sensor

• Motion sensor with 18ft range

• Auto iris camera automatically adjusts to different lighting conditions

• 3.6mm wide angle lens • Resolution:

380 lines • Built-in speaker & microphone

• 2

1/4

”(W) x 2

1/2

”(D) x 3

1/2

”(H)

Item # 1-2 3-4 5-up

38-1365

$114.00 $113.00

$112.00

2.4 GHz Color Wireless Camera System

Model # SG6945 • Including “Intel-Alert”™ Technology

• Easily Connects to any TV

• Audio Alert, Auto Alert, Record Alert

System Includes: • 1/4” CCD Color Wireless Camera

• Wireless Receiver • 2 power adapters • RCA and Coaxial Cable

• Wireless transmission of up to 300ft

Item #

38-1250

Price

$179.00

Additional 2.4 GHz Color Wireless

Camera System to go with 38-1250

Item #

38-1330

Price

$179.00

Wireless Baby Sitter LEXON

®

• Lets parents know the needs of the baby instantly • Listen conveniently from any part of the home • No installation required • Compact receiver allows you to clip it to your belt or clothing • Squelch switch to minimize back ground noise or interference • Completely portable and wireless

Item # 1-2

38-0995

$23.73

3-4

$21.35

5-up

$19.22

Housing & Bracket

1

2

3

100 Feet Cable With Coupler

For use with Lorex

Observation

System

Model # CVA6805

• 6 Pin mini DIN to 6

Pin mini DIN

• 6 Pin mini DIN type Coupler

• Color : Off White

Item # 1-4 5-9 10-up

38-1335

$29.95

$28.95

$27.95

250 Feet Cable With Coupler

Model # CVA6807

Item # 1-4 5-9 10-up

38-1340

$64.00

$62.00

$59.00

Compatible with

38-1255,

38-1260,

&

38-1285

1/3” CCD

Color Smoke

Detector

Camera

• Uses High resolution

1/3” CCD board camera with audio, which is undetectably built-in to the smoke detector

• Resolution: 330TV Lines

• Angle of View: (72º for B/W)/

(65º for Color cameras)

• Includes: 25’ cable (RCA Audio/Video Output connectors) and power adapter.

Item # Desc.

38-1030

Color

1-2

$99.00

3-4

$94.00

5-up

$92.00

120V AC/ 12V DC

AC/DC Adaptor

Power Supply works for all cameras

• Input: 120V AC

• Output: 12V DC

• Current: 500mA

Item #

40-2235

1-4

$4.99

5-9

$4.74

10-up

$4.50

4

Waterproof

Sunshade Housing

Model# ACC-1215

Can be used with Item#

38-1285, 38-1260,

38-1255, 38-1365

Item # 1-4 5-9 10-up

38-1345

$23.95

$22.75

$21.62

Infrared Rays

Automatic Lighting

LEXON

®

Fig.

3

4

1

2

Outdoor Housing Indoor Bracket

Dimensions

(LxWxH): 15.3”x4”x4.8”/ (388x100x122)mm

(øxL): 1.8”x6”/ (45x150)mm

(øxL): 3.1”x6.3” / (80x160)mm

(LxWxH): 11.6”x3.4”x3.9”/(295x86x99)mm

Item #

38-0805

38-0810

38-0815

38-0820

Indoor Bracket

1-4

$27.50

5.90

6.90

12.50

Outdoor Bracket

5-9

$24.15

4.69

6.21

11.25

10-up

$21.50

3.50

5.59

10.01

20

Order On Line

• Auto ON/OFF

• Great convenience as automatic lighting in the hallway or the stairway

• Being transferred to constant lighting

• Battery: DC UM-3 (1.5V x 4)

• Also can use DC 6V Adaptor • Easy installation

Item #

38-0985

1-4

$9.41

5-9

$8.46

10-up

$7.62

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
