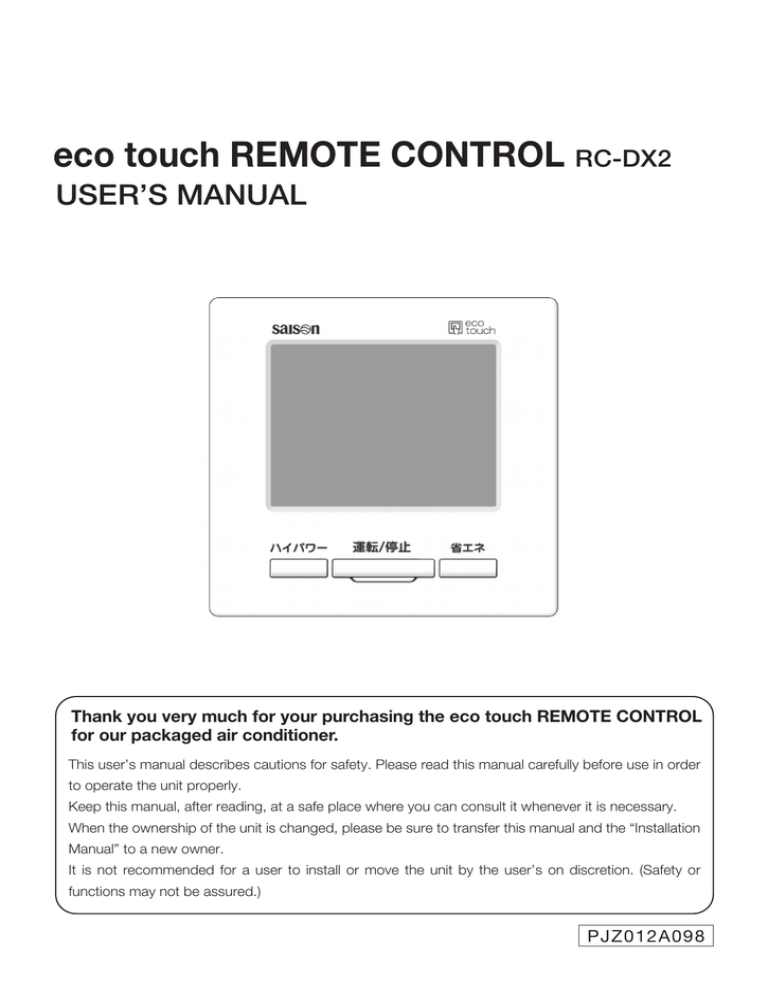

eco touch REMOTE CONTROL RC-DX2
USER’S MANUAL
Thank you very much for your purchasing the eco touch REMOTE CONTROL
for our packaged air conditioner.
This user’s manual describes cautions for safety. Please read this manual carefully before use in order
to operate the unit properly.
Keep this manual, after reading, at a safe place where you can consult it whenever it is necessary.
When the ownership of the unit is changed, please be sure to transfer this manual and the “Installation
Manual” to a new owner.
It is not recommended for a user to install or move the unit by the user’s on discretion. (Safety or
functions may not be assured.)
PJZ012A098
Contents
1. Safety precautions ………………… 2
2. Functions and menu items of Remote
Control (R/C) ………………………… 4
3. Quick reference of menu items ………8
4. Menu items ………………………… 10
Run/Stop ………………………………………… 10
Change operation mode ………………………… 11
Change set temperature ………………………… 11
Change flap direction …………………………… 12
Change fan speed ……………………………… 12
High power operation …………………………… 13
Energy-saving operation ………………………… 13
Energy-saving settings ………………………… 17
Grille up and down ……………………………… 22
Individual flap control …………………………… 25
External ventilation ……………………………… 28
Initial settings …………………………………… 29
Timer ……………………………………………… 33
Weekly timer ……………………………………… 37
Home leave mode ……………………………… 41
Administrator settings …………………………… 44
Select the language ……………………………… 55
5. Maintenance ……………………… 56
Method of the filter sign reset ………………… 56
Maintenance of Unit and LCD ………………… 57
Auto-clearning function setting ………………… 58
Dust sign reset …………………………………… 62
6. Useful information………………… 64
Contact company & Error display ……………… 64
Notice of inspection date ……………………… 65
When the message “Periodical check” is
displayed ………………………………………… 66
When the message “Periodical check 1” or
“Periodical check 2” is displayed ……………… 66
When the message of “Back-up” is displayed …… 66
7. After-sale service ………………… 67
—1—
1. Safety precautions
Safety precautions
●Please read the precautions written here carefully to operate the unit properly. You are required to observe these
fully because every item of these instructions is important for safety.
WARNING
Failure to follow these instructions may result in serious consequences such as death,
severe injury, etc.
CAUTION
Failure to follow these instructions may cause injury, property damage or, serious
consequences depending on.
●The following pictograms are used in the text.
Never do.
Always follow the instructions given.
Be sure to ground the unit.
Absolutely keep wet hands away.
Absolutely keep water away.
●Keep this manual at a safe place where you can consult with whenever necessary. Show this manual to installers when moving
or repairing the unit. When the ownership of the unit is transferred, this manual and the “Installation Manual” (in CD-R) should
be given to a new owner.
●Electrical wiring work must be implemented only by qualified specialists.
WARNING
Consult your dealer or a professional contractor to install the unit.
Improper installation made on your own may cause electric shocks, fire or dropping of the unit.
Consult your dealer when moving, disassembling or repairing the unit.
Never modify the unit.
Improper handling may result in injury, electric shocks, fire, etc.
Take care to protect terminal connections from external forces or stress caused by wiring.
Improper connection or fixing could cause heat generation, smoke or fire.
Do not install the unit at a place where inflammable gas may generate, flow in, accumulate or leak.
Inflammable gas could catch fire if it accumulates around the unit.
Avoid using combustible substances (hair spray, insecticide, etc) near the unit.
Do not use benzene or paint thinner to clean the unit.
It could cause cracks, electric shocks or fire.
The unit should not be used in inappropriate environment.
Using the unit at the following places could deteriorate its performance significantly or cause electric
shocks, break-down, smoke or fire as a result of corrosion.
∙ Where air contains dense oil mist, steam, organic solvent vapor, corrosive gas (ammonium, sulfuric compound, acid, etc)
∙ Where acidic or alkaline solution, cosmetics, special spray, etc. are used frequently
∙ Where oil mist generates
∙ Where dense cigarette smoke exists
∙ Where dust floats in air
∙ Where water vapor generates or heavily humid area
—2—
The maximum voltage connectable to the remote control is DC 18 V. Do not connect to AC220~240V or
380/415V.
It could cause breakage, ignition or fire.
Stop operation under abnormal situation.
If continued, it could result in break-down, electric shocks, fire, etc.
If any abnormal condition (burnt odor etc.) occurs, stop operation, turn off the power switch and consult your dealer.
Stop operation when any anomaly is detected.
If operation is continued, it could cause fire or break-down. Consult you dealer.
CAUTION
Do not use or let use the unit or remote control as play equipment.
Improper operations could cause ill health or health disorder.
Never disassemble the remote control.
If you touch internal parts accidentally, you could get electric shocks or cause trouble.
Consult your dealer when it is necessary to inspect its interior.
Do not wash the remote control with water or liquid.
It could cause electric shocks, fire or break-down.
Do not install the remote control where it may be splashed with water.
If water gets into the device accidentally, it could cause electric shocks or breaking electronic parts.
Do not touch electric parts or operate buttons or screens with wet hands.
It could cause electric shocks, fire or break-down.
Be sure to stop operation and shut down the circuit breaker before starting maintenance work.
It could cause electric shocks or injury.
Install the remote control securely where it can be stable.
Insufficient strength or improper installation could cause the remote control to drop off.
Do not dispose the remote control by yourself.
It could destruct the environment. Ask your dealer when it is necessary to dispose the remote control.
The remote control should not be installed where it is exposed to direct sunlight or the ambient
temperatures become higher than 40°C or lower than 0°C.
It could cause deformation, discoloration or break-down.
Do not use benzene, paint thinner, wipes etc. to clean the remote control.
It could discolor or break-down the remote control. Wipe it with a piece of cloth which is squeezed
tightly after wetting with diluted neutral detergent. Finish up the cleaning by wiping with a piece of dry
cloth.
Do not pull or twist the cable of the remote control.
It could cause break-down.
Do not tap the remote control buttons or screen with pointed objects.
It could damage or cause break-down.
—3—
2. Functions and menu items of the Remote Control
Names and functions of sections on the R/C (Operating section)
⑤LCD display (With backlight)
③Energy Saving switch
④Operation lamp
⑥USB port (mini-B)
①Run/Stop switch
②High Power switch
Touch panel system, which is operated by tapping the LCD screen with a finger, is employed for any operations
other than the ① Run/Stop, ② High power and ③ Energy-saving switches.
①
運転/停止
switch (Run/Stop switch)
ne push on the button starts operation and
O
another push stops operation. (☞page 10)
② ハイパワー switch (High Power switch)
Pushing this button starts the high power
operation. (☞page 13)
③ 省エネ switch (Energy Saving switch)
If the backlight is ON setting, when the screen is
tapped while the backlight is turned off, the
backlight only is turned on. (Operations with
switches ①, ② and ③ are excluded.)
⑥ USB port
USB connector (mini-B) allows connecting to a
personal computer.
For operating methods, refer to the instruction
manual attached to the software for personal
computer (eco-touch remote control series, utility
software).
P ushing this button starts the energy-saving
operation. (☞page 13)
④ Operation lamp
This lamp lights in green (yellow-green) during
operation. It changes to red if any error occurs.
Note
⑤ LCD (With backlight)
· When connecting to a personal computer, do not connect
A tap on the LCD lights the backlight.
simultaneously with other USB devices.
The backlight turns off automatically if there is no
Please be sure to connect to the computer directly, without
operation for certain period of time.
going through a hub, etc.
Lighting period of the backlight lighting can be changed.
(☞page 32)
—4—
Names and functions of sections on R/C (Display)
* All icons are shown for the sake of explanation.
TOP screen
①Clock, R/C name display
②Icon display
③Menu button
⑤Change set temp
button
④Change operation
mode button
⑥Change flap
direction button
⑧Timer button
⑦Change fan speed
button
⑨Message display
① Clock, R/C name display
Displays the current time ( ☞page 30) and the
name of R/C (☞page 50)
② Icon display
Each icon is displayed when one of following
settings is going on.
When the demand control When setting is made
from the sub R/C.
is effective.
(☞page 14)
When the central control When the grille up and
down is set at the enable.
(Optional) is running.
(☞page 22)
During the ventilation
When the periodical
inspection is necessary. operation
(☞page 28)
(☞page 66)
When ”filter sign” is up. When the Permission/
(☞page 56)
Prohibition setting is made.
(☞page 46)
When the weekly timer W h e n t h e p e a k - c u t
is set.
timer is set.
(☞page 18)
(☞page 37)
③ Menu button
When setting or changing other than the following
④-⑧, tap the menu button. When menu items are
displayed, select one and set.
④ Change operation mode button (☞page 11)
Displays the operation mode which is selected
currently. Tap this button to change the operation
mode.
⑤ Change set temp button (☞page 11)
Displays the temperature which is set currently.
Tap this button to change the set temperature.
⑥ Flap direction button (☞page 12)
Displays the flap direction which is selected
currently. Tap this button to change the flap
direction.
⑦ Fan speed change button (☞page 12)
Displays the fan speed which is selected currently.
Tap this button to change the fan speed.
⑧ Timer button (☞page 33)
Displays simplified contents of the timer which is
set currently.
(When two or more timers are set, contents of the timer
which will be operated immediately after is displayed.)
Tap this button to set the timer.
⑨ Message display
Status of air conditioner operation and messages
of the R/C operations etc. are displayed.
—5—
Menu item
Main menu
Basic operation
…………………………………………………………………… 10
Run/Stop ………………………………………………………… 10
Change operation mode ………………………………………… 11
Change set temp ………………………………………………… 11
Change flap direction …………………………………………… 12
Change fan speed ……………………………………………… 12
High power operation …………………………………………… 13
Energy-saving operation………………………………………… 13
Energy-saving setting
…………………………………………………………………… 17
Sleep timer ……………………………………………………… 18
Peak-cut timer …………………………………………………… 18
Automatic temp set back ……………………………………… 21
Grille up and down
…………………………………………………………………… 22
Individual flap control
…………………………………………………………………… 25
External ventilation
…………………………………………………………………… 28
Initial settings
…………………………………………………………………… 29
Clock setting ……………………………………………………… 30
Date & time display ……………………………………………… 31
Summer time……………………………………………………… 31
Contrast …………………………………………………………… 31
Backlight ………………………………………………………… 32
Controller sound ………………………………………………… 32
Timer
…………………………………………………………………… 33
Set ON timer by hour …………………………………………… 34
Set OFF timer by hour …………………………………………… 36
Set ON timer by clock …………………………………………… 36
Set OFF timer by clock ………………………………………… 36
Confirm …………………………………………………………… 37
Weekly timer
…………………………………………………………………… 37
Home leave mode
…………………………………………………………………… 41
Administrator settings
…………………………………………………………………… 44
Permission/Prohibition setting ………………………………… 46
Silent mode timer ………………………………………………… 47
Setting temp range ……………………………………………… 48
Temp increment setting ………………………………………… 49
Set temp display ………………………………………………… 49
R/C display setting ……………………………………………… 50
Change administrator password ……………………………… 54
Select the language
…………………………………………………………………… 55
Filter sign reset
…………………………………………………………………… 56
Auto-cleaning function setting …………………………………………………………………… 58
Auto-cleaning …………………………………………………… 59
Operation schedule of cleaning………………………………… 60
Frequency of cleaning …………………………………………… 60
Collection frequency of dust …………………………………… 61
Frequency of cleaning a brush ………………………………… 61
Dust sign reset
…………………………………………………………………… 62
—6—
Main menu
Installation settings
………………………………………………
Installation date ……………………………
Company information ………………………
Test run ……………………………………
Grille up and down …………………………
Static pressure adjustment
Change auto-address
Address setting of main IU
IU back-up function …………………………
R/C settings
………………………………………………
Main/Sub of R/C ……………………………
Return air temp………………………………
R/C sensor …………………………………
R/C sensor adjustment ……………………
Operation mode ……………………………
Select operation mode ……………………
˚C / ˚F …………………………………………
Fan speed ……………………………………
External input ………………………………
Ventilation setting……………………………
Fan control …………………………………
Auto-restart …………………………………
Auto temp setting……………………………
Auto fan speed ………………………………
IU settings
………………………………………………
High ceiling …………………………………
Filter sign ……………………………………
External input 1………………………………
External input 1 signal ………………………
External input 2………………………………
External input 2 signal ………………………
Heating thermo-OFF temp adjustment...…
Return air sensor adjustment ………………
Fan control in cooling thermo-OFF ………
Fan control in heating thermo-OFF ………
Anti-frost temp ………………………………
Anti-frost control ……………………………
Drain pump operation ………………………
Residual fan operation in cooling …………
Residual fan operation in heating …………
Intermittent fan operation in heating………
Fan circulator operation ……………………
Control pressure adjust ……………………
Auto operation mode ………………………
Thermo. rule setting…………………………
Auto fan speed control ……………………
IU overload alarm ……………………………
Service & Maintenance
………………………………………………
IU address ……………………………………
Next service date ……………………………
Check run mode ……………………………
Operation data ………………………………
Inspection of auto-cleaning function ……
Saving IU settings …………………………
Special settings ……………………………
—7—
Please refer to
[Installation
manual]
3. Quick reference of menu items
Administrator password It is necessary to input the Administrator password for menu items showing.
Setting and display items
Details
Reference
Set the time period from start to stop of operation.
■The selectable range of setting time is from 30 to 240 minutes
(at 10-minute intervals).
■When the setting is “Enable”, this timer will activate whenever
any operation starts.
page 17
Set the times to start and stop the capacity limiting operation and
the peak-cut %.
■Peak-cut 40% means operating at 40% of nominal capacity
■4 operation patterns per day can be set at the maximum.
■The setting time can be changed at 5-minute intervals.
■The selectable range of peak-cut % is from 0 · 40 to 80% (at
20% intervals).
■Holiday setting (including temporary day off) is available.
* Clock setting is necessary.
page 18
It returns to the set temperature when the set time is counted up.
■The selection range of the set time is from 20 to 120 minutes (at
10-minute intervals).
page 21
Grille up and down
When using the automatic grille up and down panel, the grille goes
up and down.
page 22
Individual flap control
Set the moving range (upper and lower limit positions) of the flap
at each air outlet of IU.
page 25
External ventilation
The ventilation is turned on or off.
■If the ventilation is set at “Independent operation”, the ventilator
can be turned on/off without any combination of the IU operation.
page 28
Filter sign reset
Reset the filter sign.
Set next cleaning date.
page 56
Set and correct the current date and time.
■When the power supply is interrupted for 80 hours or less, the
clock continues to operate with the built-in backup batteries.
If it is interrupted for more than 80 hours, it is necessary to
renew the setting.
page 30
Energy-saving setting
Sleep timer
Administrator password
Peak-cut timer
Automatic temp
set back
Initial settings
Timer
Clock setting
Date & time display
Summer time
Contrast
Backlight
Controller sound
Set whether the date and time are displayed or not, and select 12H or 24H.
Select whether the controller sound is actuated at the touch panel
operation or not.
page 32
Set ON timer by
hour
Set OFF timer by
hour
Set ON timer by
clock
Set the time to operate the unit after stopping the operation within
the range of 1 – 12 hours (at 1-hour intervals).
page 34
Set the time to stop the operating unit within the range of 1 – 12
hours (at 1-hour intervals).
page 36
Set the clock time to start operation.
■The time can be set at 5-minute intervals.
■It can be selected from once (only one day) or every time (every day).
* Clock setting is necessary to set the timer.
page 36
Set OFF timer by
clock
Set the time to stop operation.
■The time can be set at 5-minute intervals.
■It can be selected from once (only one day) or every time (every day).
* Clock setting is necessary to set the timer.
page 36
page 31
Current time is advanced or delayed by 1 hour.
page 31
Contrast of LCD can be adjusted.
page 31
Select whether the backlight is used or not, and set the lighting time. page 32
—8—
Setting and display items
Weekly timer
page 37
When the unit is not used for a long period of time, the room
temperature is maintained at a moderate level, avoiding extremely
hot or cool temperatures.
■C ooling or heating is operated according to the outdoor
temperature and the set temp.
■Set temp and fan speed can be set.
page 41
Permission/
Prohibition setting
Set the permission/prohibition for each of following operations:
[Run/Stop], [Change set temp], [operation mode], [Change flap
direction], [Individual flap control], [Change fan speed], [High
power operation], [Energy-saving operation], [Timer], [Weekly
timer] and [Slelect the language]
page 46
Silent mode timer
The period of time to operate the unit by prioritizing the quietness
can be set.
■Starting and stopping times for the silent mode operation can be
set at 5-minute intervals.
* Clock setting is necessary to set the time.
page 47
Restrict the setting range of temperature.
■Temperature range can be restricted depending on operation
modes.
page 48
Set the interval for setting temperature (0.5°C/1.0°C).
page 49
Set temperature display method can be selected.
Select a actual temperature or the difference from the base temp
such as +1,+2°C or -1,-2°C.
page 49
Register the names of remote control and indoor unit.
Set Yes or No for the need of indoor temperature display.
Set Yes or No for the need for the display of error code, heating
standby, defrosting operation on, automatic cooling/heating and
display temp of R/C · Room · Outdoor.
page 50
Change the administrator password.
page 54
Set the language to be displayed on the R/C.
page 55
page 59
page 60
page 60
page 61
page 61
page 62
page 64
Administrator password
Administrator password
Setting temp
range
Temp. increment
setting
Set temp display
RC display setting
Change
administrator
password
Select the language
Auto-cleaning function
Administrator password
(Only FDT Auto-cleaning Panel)
Reference
On timer or Off timer on weekly basis can be set.
■8-operation patterns per day can be set at the maximum.
■The time can be set at 5-minute intervals.
■Holiday setting (including temporary day off) is available.
* Clock setting is necessary to set the time.
Home leave mode
Administrator settings
Details
Auto-cleaning
Set to enable or disable the auto-cleaning function.
Operation schedule of cleaning Set the time range to start the auto-cleaning.
Frequency of cleaning
Set the minimum frequency of auto-cleaning.
Collection frequency of dust Set the timing to collect dust.
Frequency of cleaning a brush Set the number of brush cleaning.
Dust sign reset
Contact campany & Error display
Reset the dust collection sign.
Address of the service contact is displayed.
—9—
4. Menu items
Run/Stop
ハイパワー
ハイパワー
運転/停止
運転/停止
省エネ
省エネ
1 Run
Push the
Operation lamp (green) lights and operation starts.
運転/停止
(Run/Stop) switch.
2 Stop
Push the
The operation lamp turns off and the operation stops.
運転/停止
(Run/Stop) switch.
When the operation stops, all operation buttons on the screen turn off.
When the set lighting time of backlight (☞page 32) is counted up, the
backlight turns off.
When the screen is tapped, the backlight lights, and all operation
buttons are displayed.
Note
· Do not shut down the power supply immediately after the stop of operation.
It should be waited for more than 5 minutes till the residual operation time of drain
motor is counted up. Otherwise, it could cause water leakage or breakdown.
Advice
· A message ”Invalid request” may be displayed when a button is pushed. This is not a fault but it is because the button operation is set
to the “Disable”.
· The unit starts to operate initially with the following settings after the power on. These settings can be changed as desired.
Operation mode … With auto mode: Auto cooling
Without auto mode: Cooling
Set temp
… 23.0°C
Fan speed
… High
Flap position
… Level
· In the following cases, a message “Operation mode invalid” is displayed and it changes to the fan operation, because operation modes
are not matched.
When different operation modes are selected between IUs which are connected to a OU that do not allow mixed operation of cooling
and heating.
— 10 —
Change operation mode
1 Tap the Change operation mode button on the TOP screen.
2 When the Change operation mode screen is displayed, tap the
button of desired mode.
3 When the operation mode is selected, the display returns to the
TOP screen.
Icons displayed have the following meanings.
Cooling
Fan
Dry
Heating
Auto
■Operation modes which cannot be selected depending on combinations of IU and
OU are not displayed.
■W hen the Auto is selected, the cooling and heating switching operation is
performed automatically according to indoor and outdoor temperatures.
Change set temp
1 Tap the Set temp button on the TOP screen.
2 When the Change set temp screen is displayed, select the
temperature as desired with using
▲
▼
buttons.
3 After selecting the set temp, tap the Set button.
4 The display returns to the TOP screen after tapping the
Set
button.
■For allowable temperature setting ranges, refer to the range setting of set temp
(☞page 48).
■Reference set temp
Cooling … 26 to 28°C
Dry
… 24 to 26°C
Heating … 20 to 24°C
Fan
… Setting temp is not required.
■I f the Auto is selected for the set temp, the set temp display shows “0”.
Temperature can be selected with using ▲
▼ buttons. Temperature
increases by 1°C at each tap on the ▲ button or decreases by 1°C at each tap
on the ▼ button.
(As for the initial setting, “0” is 24 °C)
■If the Back button is tapped without tapping the Set button, the selected
set temp is invalidated and the display returns to the TOP screen.
— 11 —
Change flap direction
1 Tap the Change flap direction button on the TOP screen.
2 When the Change flap direction screen is displayed, tap the button
for desired direction.
To swing the flap, tap the Auto swing button.
To fix the flap position, tap one of 1 to 4 buttons.
3 After selecting the flap direction, the display returns to the TOP screen.
■Since the flap is controlled automatically in the following operation, it may differ
from the display on the R/C.
∙When the room temperature is higher than the set temp (In case of the heating
operation)
∙When the “In operation for heating standby” or “In operation for defrosting” is
displayed (In case of the heating operation)
(Cool air is blown horizontally not to blow directly to human body.)
■When the Ind. flap control button is tapped, the flap motion range (upper or
lower limit position) at each air outlet can be set. (☞page 26)
Request
· Do not move the flap forcibly by hands. It could damage the flap.
·D
o not blow air downward for a long period of time during the cooling operation.
Condensation may be generated and water may drip from the side panel. (In case of Ceiling suspended type)
Change fan speed
1 Tap the Change fan speed button on the TOP screen.
2 When the Change fan speed screen is displayed, tap the button of
desired fan speed.
3 After setting the fan speed, the display returns to the TOP screen.
■Fan speeds which can be set vary depending on the models of IU.
■W hen the Auto is selected, the fan speed is changed automatically
depending on the capacity.
— 12 —
High power operation
The high power operation adjusts the room temperature quickly to a pleasant level by increasing the operation
capacity. The high power operation continues for 15 minutes at the maximum and returns to the normal operation
automatically. When the operation mode is changed, the high power operation returns to the normal operation, too.
ハイパワー
運転/停止
省エネ
1 Push the
ハイパワー
(High Power) switch to start the high power operation.
■O
peration will start when the ハイパワー (High Power) switch is pushed, even if
運転/停止 (Run/Stop) switch is off.
2 Message “In operation for high power” is displayed on the R/C
screen, and “—, —°C” is displayed on the Set temp button during
the high power operation.
3 One more push on the
(High Power) switch terminates
the high power operation. Then it returns to normal operation.
Pushing the 運転/停止 (Run/Stop) switch stops the operation.
ハイパワー
■The high power operation is terminated also when the operation mode, set temp
or fan speed is changed.
■T he high power operation is operable only when the cooling or heating is selected for
the operation mode. If the ハイパワー (High Power) switch is pushed in any operation
mode other than the cooling or heating mode, the massage “Invalid request” is
displayed on the R/C screen.
Energy-saving operation
Use this operation to save energy.
Set temp is fixed at 28°C in the cooling operation or 22°C in the heating operation. Since the capacity is
controlled automatically based on the outdoor temperature, energy can be saved without losing comfort.
ハイパワー
運転/停止
省エネ
1 Push the
省エネ
(Energy Saving) switch to start the energy-saving operation.
■The operation will start when the
pushed, even if
運転/停止
省エネ
(Energy Saving) switch is
(Run/Stop) switch is off.
2 Message “In operation for energy-saving” is displayed on the
screen
during the energy-saving operation. Set temp is fixed at “28.0°C” in
the cooling operation or “22.0°C” in the heating operation.
Set temp shows “- -°C” in the automatic operation mode.
3 One more push on the
(Energy Saving) switch, terminates
the energy-saving operation, and it changes to the normal operation.
Pushing the 運転/停止 (Run/Stop) switch stops the operation.
省エネ
■S et temp cannot be changed during the energy-saving operation. If it is
attempted, a message “Invalid request” is displayed on the screen.
■Energy-saving operation is operable only when the cooling, heating or auto is
selected for the operation mode. If the 省エネ (Energy Saving) switch is pushed
in any operation mode other than the cooling, heating or auto mode, the message
“Invalid request” is displayed on the R/C screen.
■Energy-saving operation is terminated also when the operation mode is changed.
— 13 —
■Restrictions on the sub R/C
When one IU is controlled with 2 R/Cs, the following settings cannot
be made on the sub R/C. It is necessary to use the main R/C.
In case of the sub R/C, the icon S is displayed on the R/C screen.
Basic operation
High power operation
Energy-saving operation
Energy-saving setting
Individual flap control
External ventilation
Filter sign reset
Initial settings
Timer
Weekly timer
Home leave mode
Administrator settings
Installation settings
R/C settings
IU settings
Service & Maintenance
Select the language
Error display & Error display
Main


















Sub






 *1
*2
*3
*4


*1 Warming up function cannot be set.
*2
R/C display setting, Set temp display and Change administrator password can be set.
*3 Main/Sub of R/Cs can be set.
*4 IU address, Error display, Error history, Reset periodical check, CPU reset and
Calibration can be made.
Touch panel
■Operations on menu screens
1 Tap the
Menu button on the TOP screen.
2 Main menu screen is displayed.
When a desired menu item is tapped, setting screen for each item
is displayed.
3 When the
Next button is tapped, next main menu screen is
displayed.
When there are two or more pages, the Next button is displayed at the
leading page and the Previous button is displayed at the last page. The
Next and Previous buttons are displayed on pages in between.
— 14 —
4 When the
Back button is tapped, the display returns to the TOP
screen.
5 When the
Set button is displayed on the setting screen for
each item, tapping this button to confirm the setting.
6 When an item is referenced to the administrator password in this
manual, the Input password screen is displayed after selecting the
menu.
Enter the administrator password (4-digit number) and tap the
Set
button.
When the password is unknown or wrong, the setting cannot be
changed.
Note
·For the administrator password at the factory setting, refer to the Installation
Manual (consult your dealer).
When your administrator password is forgotten, initialize the password by referring
to the Installation Manual (consult your dealer).
— 15 —
■Cautions for each setting screen
· When returning to the screen mentioned below from each setting screen, operate the following buttons or switches.
button
■Return to Main screen … Menu
button
■Return to the last previous screen… Back
… 運転/停止 (Run/Stop) switch
■Return to TOP screen
· When the Back button is tapped without tapping the Set button on the way of setting, contents of the
setting are invalidated, and the display returns to the last previous screen. If the 運転/停止 (Run/Stop) switch is
pushed on the way of setting, contents of the setting are invalidated, the setting mode is terminated and the
display returns to the TOP screen.
·If no button is operated for approx. 5 minutes on the way of setting each item, the display returns to the TOP
screen automatically. Contents of the setting on the way become invalid.
·Message ”Invalid request” may be displayed when a button is pushed. This is not a fault but it is because the
button is set to the Prohibition. (☞page 46)
· It is necessary to stop the air conditioner by pushing the 運転/停止 (Run/Stop) switch before starting the following
settings. If the Set button is tapped on the menu screen while the air conditioner is operating, the message
“Invalid request” is displayed.
■Energy-saving setting
■Administrator setting
— 16 —
Energy-saving setting
1 Tap the
Menu button on the TOP screen.
Note
·Always stop the air conditioner with the 運転/停止 (Run/Stop) switch before
starting the energy-saving operation.
If the “Energy-saving setting” is tapped while the air conditioner is operating, the
message “Invalid request” is displayed.
2 Tap the “Energy-saving setting” on the main menu screen.
3 When the Input password screen is displayed, enter the administrator
password.
After entering the administrator password (4-digit number), tap the
Set button.
When the password is unknown or wrong, the setting cannot be
changed.
Note
·For the administrator password at the factory setting, refer to the Installation
Manual (consult your dealer).
When your administrator password is forgotten, initialize the password by referring
to the Installation Manual (consult your dealer).
4 When the Energy-saving setting screen is displayed, select a
desired item.
■ Sleep timer
■ Peak-cut timer
■ Automatic temp set back
— 17 —
■Sleep timer
1 If the “Sleep timer” is tapped on the Energy-saving setting menu
screen, contents of current setting are displayed.
1
2
2 Select a desired time with ① ▲ ▼ buttons.
Setting range: 30 to 240 minutes, at 10-min intervals
3 Tap the ② State button to switch between “State Enable”
and “State Disable”.
3
If the “State Enable” is selected, operation stops at the set time
every time.
Unless the Sleep timer is used, set at the “State Disable”.
4 After the setting, tap the ③
Set button. The display returns
to the Energy-saving setting menu screen.
■Peak-cut timer
Advice
· When the peak-cut timer is used, be sure to make the Clock setting in advance (☞page 27).
· The peak-cut timer control may not be performed depending on combination of IU and OU.
1 When the screen to select the setting range, select a day of the
week to be set.
①Weekdays: Monday – Friday
②Sat. Sun : Saturday, Sunday (☞4 )
③All days : Monday - Sunday
oves to the day of the week setting screen. (☞2 )
④Each day : M
1
2
3
2 If a desired day of the week ① is tapped on the display, contents
of current setting for the day are displayed. (☞5 )
4
3 For the holiday setting, tap the block ② under a day to switch
between “
1
2
” (the holiday setting) and “(Blank)” (reset).
T imer does not operate on the day set as holiday. Two or more
holidays can be set.
■To enable the timer on the day set as holiday, it is necessary to reset the holiday setting.
4 When tapping ③ “All Disable” button, the timer does not operate
on all days of the week.
3
When the timer is used, be sure not to set “All Disable”.
— 18 —
5 Screen to check contents of current setting is displayed.
When the contents are changed or new setting is added, ① select
a setting line No. and ② tap the Change button.
1
2
6 Detail setting screen for the timer setting contents is displayed.
①Tap the State button to switch between “State Enable” and
“State Disable”.
②If the Change button is tapped, the start time and the end
time can be set. (☞7 )
1
2
3
③If the Peak-cut % button is tapped, the peak-cut % can be
set. (☞9 )
7 Set the Start time.
Set the hour and minute with the
▲
▼
buttons.
Setting time can be set at 5-min intervals.
Tap the
Set
button after the setting. (☞8 )
8 Set the End time.
▲
▼ buttons. The
End time can be set from 5 minutes after the Start time up to
24:00 at 5-min intervals
Set the hour and minute with the
Tap the
Set
— 19 —
button after the setting. (☞10 )
9 Set the peak-cut %.
Set the peak-cut % with the
▲
▼
buttons.
The peak-cut % can be set at 0%, 40%, 60% or 80%.
The lower the peak-cut % is, the higher the effect of energy-saving
becomes.
Tap the
Set
button after the setting. (☞10 )
10 The setting content check screen (☞6 ) is displayed.
Set button is tapped, the contents are confirmed and a
day of the week setting content check screen (☞5 ) is displayed.
If the
11 If the settings are corrected or added further within the same
day, repeat the setting. (☞5 )
■ When contents of the setting are duplicated, the priority is given to the set
contents of smaller peak-cut %.
12 Display a day of the week setting content check screen. (☞5 )
Enter button.
a) In case of group setting: (1-①Weekdays, 1-②Sat, Sun, 1-③All days)
To save the setting, tap the
Move to the group setting check screen. (☞13 )
b) In case of individual setting: (1-④Each day)
Save the setting and move to a day of the week selection screen
(☞2 )
13 Display the group setting acknowledge screen.
Tap the YES to save the setting.
The display changes to a day of the week setting check screen
after the saving. (☞3 )
14 When making the setting after changing a day of the week,
repeat the setting from the step 2 .
— 20 —
■Automatic temp set back
Note
·It is not economical to cool too much during the cooling operation. If it is set back to a relatively higher set temp when the temperature
has been closed to an appropriate level, the eco operation will be realized.
·It is not economical to heat too much during the heating operation. If it is set back to a relatively lower set temp when the temperature
has been closed to an appropriate level, the eco operation will be realized.
1 Tap the “Setting in cooling” when setting for the cooling operation
or the “Setting in heating” when setting for the heating operation.
The Setting in the cooling operation includes the cooling, dry and auto.
The Setting in heating is for the heating operation only.
Setting time range: 20 – 120 min, at 10-min intervals
Set temp range: It can be set within the preset temp range set
according to the set temp range menu. (☞page 48)
2 Set desired time and temperature with the
▲
▼
buttons.
When the Set button is tapped, contents of setting are
confirmed, and the display returns to the last previous screen.
When the No Setting button is tapped, “-- min --°C” is
displayed, and the “Automatic temp set back” is not performed.
3 The same setting method as the Setting in the cooling operation
can be applied to the Setting in heating.
— 21 —
Grille up and down (When using the automatic grille up and down panel)
CAUTION
Before operating the suction grille, confirm that no one stays and no obstacle exists in its
operating range.
Contacting the suction grille accidentally could cause physical injury or damage on parts.
Avoid touching the suction grille, wires, etc.
There is risk of injury if you get hit by the suction grilles or entangled with the wires.
Do not attempt to bring down the suction grille forcibly while it is stopped.
It could damage the elevation motor or wires.
Do not bend the wires or touch, or bring closer, a burning cigarette to them.
If the wire is broken, the suction grille or air filter could drop off, resulting in injury.
1 Tap the
Menu button on the TOP screen.
2 Tap the “Grille up and Down” button on the menu screen.
Operating air conditioner stops automatically.
When operating the air conditioner with the central control device
(an optional item), it stops if the grille is brought up or down (by
operating the ▲
▼ button).
When only one IU is connected to the R/C, go to the step 4 .
When two or more IUs are connected to the R/C, go to the step 3 .
When you tap the “Grille up and Down” button, a message “Invalid request” may be displayed. This is normal. The
message is displayed unless the automatic grille up and down panel is used.
If you press the 運転/停止 (Run/Stop) switch on the way of work, the grille up and down mode terminates, and
the screen returns to original display.
— 22 —
3 When two or more IUs are connected to the R/C, a list of IUs is
displayed. Tap the number of IU on which the grille is brought up
or down.
If you bring up or down the grilles on all connected IUs
simultaneously, tap the All units button.
The IU selection screen shows up to 8 units. When 9 or more units
are connected, tap the Next button to show the 9th and further
units.
4 Tap the
▼
button.
If you tap the ▼ button, the suction grille descends by the
set maximum length, and stops automatically.
To stop the descent on the way, tap the
▲
button.
To store the suction grille, tap the ▲ button. The suction
grille goes up and stops automatically after being stored.
To stop the ascent on the way, tap the
▼
button.
To set the descent length for the suction grille, tap the Length
button. (☞6 )
5 When the administrator password input screen is displayed, enter
the administrator password.
■The administrator password input screen may be displayed depending on the
setting with the Permission/Prohibition setting (☞46 page).
Enter the administrator password (a 4-digit number), and tap the
Set
button.
When the password is unknown or wrong, you cannot change the
setting.
Note
·For the administrator password at the factory setting, refer to the Installation
Manual.
When your password is forgotten, initialize the password by referring to the
Installation Manual.
— 23 —
6 Set the descent length for the suction grille.
You can set the descent length in the unit of 0.1 m using the
▲
▼
buttons.
Setting range of descent length: 0.1 m – 4.0 m
7 After setting the descent length, tap the
Set
button.
Advice
· Please note that, if you control the operation from an optional device such as the sub R/C, center console, etc., in any process other than
when the suction grille is descending, the air conditioner starts to operate. (Display on the R/C does not change.)
· Please note that, if you select the “Grille up and down” of the step 1 above during heating, the indoor unit blower may continue to run for
approx. 40 seconds.
Note
·When the remote control is set with the sub R/C, you cannot select any IU. Ascent or descent occurs on all IUs simultaneously.
·When the suction grille stops at the specified position, the wires (2 pcs.) may sag by approx. 8 cm at the maximum and the suction grille
may tilt. These are corrected automatically when it is stored.
· Large noise may occur when the storing position is corrected, but this is normal.
·On a ceiling type unit of FDT model, if the wires are sagging after the grille hitting an obstacle, etc., the grille will not go up or down in
order to prevent the wires from getting entangled. In the event that the grille will not go up or down, remove such obstacle and strain the
wires properly. Tap then the ▲
▼ button again in this condition.
— 24 —
Individual flap control
Motion range (upper and lower limit positions) of the flap at each air outlet can be set at a desired range individually.
■When the R/C is set as the sub R/C, the individual flap control cannot be set.
■When changing contents of the individual flap control, stop the air conditioner.
1 Tap the
Menu button on the TOP screen, and select the
“Individual flap control”, or tap the Change flap Direction button
on the TOP menu and the “change flap direction” screen is
displayed.
Tap the Ind. flap Control button on the Change flap direction
screen.
— 25 —
2 W hen
the Input password screen is displayed, enter the
administrator password.
■There are cases that the Input password screen is displayed when the Permission/
Prohibition setting is “Prohibition” (☞page 46).
Set button after entering the administrator password
(4-digit number).
When the password is unknown or wrong, the setting cannot be
changed.
Tap the
Note
·For the administrator password at the factory setting, refer to the Installation
Manual (consult your dealer).
·When your administrator password is forgotten, initialize the password by referring
to the Installation Manual (consult your deaker).
When only one IU is connected to one R/C, go to the step 4 .
When two or more IUs are connected to one R/C, go to the step 3 .
3 When two or more IUs are connected to one R/C, an IU list is
displayed. Tap the IU No. to be set.
The IU select screen shows up to 8 units. When 9 or more units
are connected, the 9th and later units are displayed by tapping the
Drain
hose
button.
Next
side
4 Select the No. of air outlet of which the flap motion range is changed.
No.2
No.1
Control box
■When there are two or more air outlets such as the
Ceiling cassette type and the air outlet to be set
cannot be identified, set the upper and lower limit
positions of any flap provisionally. When the setting
is confirmed, the flap at the set air outlet moves
once to the lower limit position so that the air outlet
position can be identified. After checking the air
outlet position in this way, select the air outlet No. to
be set.
No.3
No.4
Pipe side
Drain hose side
Air outlet No.
[In case of Ceiling
cassette type]
— 26 —
■When there is only one outlet flap such as the Wall mounted type, only the flap is
displayed. (The same applies also to the Ceiling suspended type.)
5 When the air conditioner is operating, the acknowledge screen to
stop operation is displayed.
Tap the
Yes
to stop the air conditioner.
■When the air conditioner is operating, the “Individual flap control” cannot be
changed. To stop the air conditioner, push the 運転/停止 (Run/Stop) switch or
reset the “Individual flap control setting” with the Back button.
6 Select one of the upper limit positions from
1 ~ 6
for the
range of flap motion.
Selected upper limit position is displayed on the screen.
Tap the
Set
button after the setting.
7 S elect one of the lower limit positions from
1 ~ 6
for the
range of flap motion.
Range of flap motion based on the upper and lower limit positions
which ane selected at the last action is displayed on the screen.
Tap the
Set
— 27 —
button after the setting.
8 Acknowledge screen for the range of flap motion is displayed.
Tap the Yes button if there is no change on the setting. If
there is any change, tap the Back button.
9 Acknowledge screen for the completion of setting is displayed.
When changing the range of flap motion for other air outlet is
desired, tap the
Yes
button. (☞4 )
T o terminate the setting, tap the
returns to the TOP screen.
No
button. The display
External ventilation
1 Tap the
Menu button on the TOP screen.
2 Tap the “External ventilation” on the main menu screen.
■The ventilation operation is enabled in case that the External ventilation is set
“Independent”.
■In case that the External ventilation is set “Disable” or “Interlocking”, the ventilation
operation is disable.
For details, refer to Installation manual.
— 28 —
3 The External ventilation screen is displayed.
If the Venti. On button is taped, the ventilation operation starts.
To stop the ventilation operation, tap the Venti. Off button.
In case that the Ventilation is set “Interlocking”, the ventilation
operates interlocked with Run/Stop operation of air conditioner.
Initial settings
1 Tap the
Menu button on the TOP screen.
2 Tap the “Initial settings” on the main menu screen.
3 When the “Initial settings” menu screen is displayed, tap a desired
item.
■Clock setting
■Date & time display
■Summer time
■Contrast
■Backlight
■Controller sound
— 29 —
■Clock setting
1 Tap the “Clock setting” on the Initial settings menu screen.
▲
▼
Tap the Time button after the setting.
buttons.
Set the “yy/mm/dd” with the
■The “clock setting” is necessary for the following settings.
· Peak-cut timer
· Set ON timer by clock, Set OFF timer by clock
· Weekly timer
· Silent mode timer
· Filter sign reset, Setting next cleaning date
2 Set the “hour : minute” with the
▲
▼
clock setting screen.
Set button after the setting.
To change the “yy/mm/dd”, tap the Date button.
Tap the
— 30 —
buttons on the
■Date & time display
1 Tap the “Date & time display” on the Initial settings menu screen.
Tap ON/OFF for the Date and time.
Tap ON/OFF for A day of the week.
Tap Display method “12H or 24H”.
12 Hours … If it is PM 3:50, it displays “PM 3:50”.
24 Hours … If it is PM 3:50, it displays “15:50”.
Tap position of AM/PM
Infront … PM 3:50
Back … 3:50 PM
2 After setting each item, tap the
Set
button.
■Summer time
1 Tap the “Summer time” on the Initial settings menu screen,
Changing from “Disable” to “Enable”… (Current time + 1 hr) is displayed.
Changing from “Enable” to “Disable”… (Current time – 1 hr) is displayed.
■Contrast
1 Tap the “Contrast” on the Initial settings menu screen.
The contrast on the screen changes by tapping the Dark
Bright
2 Tap the
button to select a desired contrast.
Set
— 31 —
button after the setting.
or
■Backlight
1 Tap the “Backlight” on the Initial settings menu screen,
Tap the ON or OFF for the backlight lighting and the lighting
Period (5 – 90 sec, at 5-sec intervals).
ON…The “Backlight” lights when the LCD is tapped.
If no operation is made for the set time, it turns off
automatically.
OFF…The “Backlight” does not light even if the LCD is tapped.
2 Tap the
Set
button after the setting.
■Controller sound
1 Tap the “Controller sound” on the Initial settings menu screen,
Tap ON or OFF for the controller sound.
ON… When a button on the screen is tapped, a “beep” sounds.
OFF… There is no beep.
— 32 —
Timer
Note
· The Clock setting (☞page 30) must be made when the Set ON timer by clock or Set OFF timer by clock is used.
1 Tap the
Timer button on the TOP screen or tap the Menu
button on the TOP screen, and select the “Timer” on the main
menu screen.
2 Tap a desired item on the Timer menu.
■ Set ON timer by hour
■ Set OFF timer by hour
■ Set ON timer by clock
■ Set OFF timer by clock
■ Confirm
hen the timer is set, the Confirm button is displayed.
W
The button is not displayed unless the timer is set.
— 33 —
■Operation of each timer
①Set ON timer by hour
②Set OFF timer by hour
③Set ON timer by clock
④Set OFF timer by clock
When the set time elapses, the air conditioner starts.
Operating conditions at the start of operation can be set.
Operation takes place once at each setting.
When the set time elapses, the air conditioner stops.
Operation takes place once at each setting.
The air conditioner starts at the set time.
Operating conditions at the start of operation can be set.
Only one day (Once) operation or operation Everyday can be set.
The air conditioner stops at the set time.
Only one day (Once) operation or operation Everyday can be set
■Setting of each timer can be combined. Allowable combination settings are as shown below.
Allowable combination setting (○: Allowed, ╳: Prohibited)
Sleep
Sleep
OFF: Hours
ON: Hours
OFF: Clock
ON: Clock
Weekly
×
×
○
○
○
OFF: Hours
×
×
×
×
×
ON: Hours
×
×
×
×
×
OFF: Clock
○
×
×
○
×
ON: Clock
○
×
×
○
Weekly
○
×
×
×
×
×
If a prohibited combination setting is made, a message “This combination cannot be accepted” is displayed for 3 seconds.
■Priority order of the timer settings (①→③) is as follows.
①Set OFF timer by hour/clock, weekly OFF timer
②Sleep timer
③Set ON timer by hour/clock, weekly ON timer
■On the TOP screen, the timer is displayed from the earliest one out of OFF time of the sleep timer, ON time and OFF time.
■Set ON timer by hour
1 When the “Set ON timer by hour” is tapped on the timer setting
menu screen, the Set ON timer by hour setting screen is displayed.
2 Select desired hours for the period to start operation by timer with
the ▲
▼ buttons.
Range of setting time: 1 to 12 hours (at 1-hr intervals)
3 When operating conditions at the start of operation are set, tap the
Next button. (☞4 )
When operating conditions are not set, tap the
4 Set the following operating conditions.
Set
①Warming up ON/OFF (the Main R/C only)
… To 5
②Operation mode
… To 6
③Set temp
… To 7
④Fan speed
■ Warming up setting can be made with the main R/C only.
■ Set the operation mode before setting the set temperature.
— 34 —
button.
Note
Warming up
·To warm up the room temperature closed to the set temperature at the set start time of the operation, the microcomputer estimates the
start time of the operation based on the last warming up operation and starts the operation 5 to 60 minutes earlier.
·When the warming up is turned ON, set the timer at one hour earlier or more than the start operation by timer. If it is set in less than one
hour, a message “Warming up cancelled” is displayed on the screen. (This is used as the Set ON timer by hour and clock.)
5 Tap a desired operation mode.
If the No setting
last action. (☞ 4)
button is tapped, it starts operation at the
6 Select a desired temperature (at 1°C intervals) with the
▲
▼ buttons. Or tap the Auto button and select the auto
temp setting.
Tap the
Set
button after the adjustment. (☞ 4)
If the No setting button is tapped, “--°C” is displayed, and it
operates at the last action.
7 Tap a desired fan speed.
If the No setting
action. (☞ 4)
button is tapped, it operates at the last
8 After setting the desired contents at the screen of the step 4
Set button.
peration will start at set hours later.
O
on the previous page, tap the
— 35 —
■Set OFF timer by hour
1 Tap the “Set OFF timer by hour” on the timer setting menu
screen.
2 Select desired hours to stop operation with the
▲
▼
buttons.
Range of setting time: 1 to 12 hours (at 1-hr intervals)
3 Tap the
Set
button after the setting.
■Set ON timer by clock
1 Tap the “Set ON timer by clock” on the timer setting menu screen.
2 Select a desired time to start operation (5-min intervals) with the
▲
▼
buttons.
3 When operating conditions at the start of operation are set, tap the
Next button to set operation conditions.
Select each setting referring to the steps 4 to 7 of the Set ON
timer by hour setting. Tap the
Set
button after the setting.
If operating conditions are not set, tap the
Set
button.
T he Set ON timer by clock can be operated one day (Once) or
everyday. If it is operated everyday, tap the Once / Everyday
button to change the display to “Everyday”.
■Set OFF timer by clock
1 Tap the “Set OFF timer by clock” on the timer setting menu screen.
2 Select a desired time to stop operation (5-min intervals) with the
▲
▼
buttons.
3 Tap the Set button after the setting.
The Set OFF timer by clock can be operated one day (Once) or
everyday. If it is operated everyday, tap the Once / Everyday
button to change the display to “Everyday”.
— 36 —
■Confirm
1 Tap the
Confirm button on the timer setting menu Screen
(☞ step 2 on page 33).
■ When the warming up is set, “
confirmation screen.
” is displayed in front of the operation mode on
Weekly timer
Note
· The Clock setting (☞page 30) must be made when the weekly timer is used.
· The weekly timer can be set from the main R/C only.
1 Tap the
Menu button on the TOP screen.
2 Tap the “Weekly timer” on the main menu screen.
— 37 —
3 When the Input password screen is displayed, enter the administrator
password.
■There are cases that the Input password screen is displayed by the Permission/
Prohibition setting. (☞page 46).
Set button after entering the administrator password
(4-digit number).
If the password is unknown or wrong, the setting cannot be
changed.
Tap the
Note
·For the administrator password at factory setting, refer to the Installation Manual
(consult your dealer).
When your administrator password is forgotten, initialize the password by referring
to the Installation Manual (consult your dealer).
4 When the screen to select the setting range, select a day of the
week to be set.
1
①Weekdays: Monday – Friday
②Sat. Sun : Saturday, Sunday (☞7 )
③All days : Monday - Sunday
oves to the day of the week setting screen. (☞5 )
④Each day : M
2
3
4
5 When a desired day of the week ① is tapped on the display,
contents of current setting for the day are displayed. (☞7 )
6 For the holiday setting, tap the block ② under the day to switch
1
2
between “
” (the holiday setting) and “(Blank)” (reset).
Timer does not operate on the day set as holiday.
Two or more holidays can be set.
■To enable the timer on the day set as holiday, it is necessary to reset the holiday setting.
3
If ③ “All Disable” is tapped, the timer does not operate on all days
of the week.
When the timer is used, be sure not to set “All Disable”.
— 38 —
7 Screen to check contents of current setting is displayed.
When the contents are changed or new setting is added, ① select
a setting line No. and ② tap the Change button.
1
2
8 Detail setting screen for the timer setting contents is displayed.
1
2
3
①Tap the State button to switch between “State Enable” and
“State Disable”.
②Tap the Type button to switch between the “OFF timer” and
the “ON timer”.
③Select a desired time (at 5-min intervals) with the ▲
▼ buttons.
④In case of “ON timer”, when the Next button is tapped,
operating conditions at the start of operation can be set. (☞ 9)
9 Set the following operating conditions.
①Warming up ON/OFF
(Operation starts 5 to 60 minutes earlier in order to warm up the room
temperature closed to the set temp at the set start time of operation.)
②Operation mode … To 10
③Set temp… To 11
④Fan speed… To 12
■Set the operation mode before setting the set temperature.
10 Tap a desired operation mode.
When the No setting button is tapped, it operates with the
same operation mode at the last action. (☞ 9)
— 39 —
11Select a desired temperature (at 1°C intervals) with the
▲
buttons. Or tap the Auto button to select the Auto
▼
temp setting.
Tap the Set
button after the selection. (☞ 9)
When the No setting button is tapped, “--°C” is displayed,
and it starts operation at the last setting temperature.
12 Tap a desired fan speed.
When the No setting button is tapped, starts operation at the
last fan speed. (☞ 9)
13 After setting desired contents at the screen of the step 9, tap
the
Set
button.
14 Display the setting contents check screen (☞ 7)
To register the setting, tap the Enter button.
① In case of group setting (Weekdays, Sat/Sun, All days setting)
Move to the group setting screen. (☞ 15)
② In case of the individual setting (Each day setting)
save the setting and move to a day of the week selection
screen. (☞ 5)
15 Display the group setting acknowledge screen.
Tap the Yes and save the setting.
The display changes to a day of the week setting check screen
after saving.
16 When making the setting after changing a day of the week,
repeat the setting from the step 5.
— 40 —
Home leave mode
Use this function to maintain the room temperature at a moderate level for avoiding extremely hot or cool after
leaving home.
■When the outdoor temperature is high, the home leave mode operates to cool down the room temp to a moderate level in order not to
become too hot in the room. When the outdoor temperature is low, it operates to warm up the room temp to a moderate level in order
not to become too cold in the room.
■The cooling and heating operations are controlled according to the outdoor air temperature and the set temperature.
■The set temperature and fan speed can be set.
Advice
· The Clock setting (☞page 30) must be made when the home leave mode is used.
· The home leave mode can be controlled from the main R/C only.
1 Tap the
Menu button on the TOP screen.
2 Tap the “Home leave mode” on the main menu screen.
3 When the Input password screen is displayed, enter the administrator password.
Tap the Set button after entering the administrator password
(4-digit number).
When the password is unknown or wrong, the setting cannot be changed.
Note
·For the administrator password at the factory setting, refer to the Installation
Manual (consult your dealer).
When your administrator password is forgotten, initialize the password referring to
the Installation Manual (consult your dealer).
— 41 —
4 Display the home leave mode (Start, End) screen.
When setting the conditions to start operation such as the set
temp during operation and fan speed, tap the Details button,
and check and set each item. (☞ 5)
To start operation after checking the conditions for the home leave
mode, tap the Start button.
To stop the home leave mode operation, tap the End button.
5 Following items are set at the details setting menu.
①Determine temp rule in cooling: Set the outdoor temperature
to judge the operation mode in cooling.
Allowable setting range: 26°C to 35°C (at 3°C intervals) (☞ 6)
②Determine temp rule in heating: Set the outdoor temperature
to judge the operation mode in heating.
Allowable setting range: 0°C to 15°C (at 3°C intervals) (☞ 7)
③Set temp rule in cooling: Set the indoor temperature to start
operation in cooling.
Allowable setting range: 26°C to 33°C (at 1°C intervals) (☞ 8)
④Set temp rule in heating: Set the indoor temperature to start
operation in heating.
Allowable setting range: 10°C to 18°C (at 1°C intervals) (☞ 9)
⑤Fan speed rule in cooling: Set the fan speed in cooling mode. (☞ 10)
⑥Fan speed rule in heating: Set the fan speed in heating mode. (☞ 11)
■Items set at the details setting menu are effective for the operation at the next
home leave mode.
■When the home leave mode is used initially, the following settings are preset.
These settings can be changed as desired.
①Determine temp rule in cooling : 35°C
②Determine temp rule in heating : 0°C
: 33°C
③Set temp rule in cooling
④Set temp rule in heating
⑤Fan speed rule in cooling
⑥Fan speed rule in heating
— 42 —
: 10°C
: Low
: Low
6 Set the outdoor temperature for the “Determine temp rule in
cooling”.
Select a desired setting temperature (26°C – 35°C, at 3°C
▲
▼ buttons.
button after the setting.
intervals). with the
Tap the
Set
7 Set the outdoor temperature for the “Determine temp rule in
heating”.
Select a desired set temp (0°C – 15°C, at 5°C intervals) with the
▲
Tap the
▼ buttons.
Set button after the setting.
8 Set the indoor temperature to start operation in cooling after
setting the “Determine temp rule in cooling”.
Select a desired set temp (26°C – 33°C, at 1°C intervals) with the
▲
Tap the
▼ buttons.
Set button after the setting.
9 Set the indoor temperature to strat operation in heating after
setting the “Determine temp rule in heating”.
Select a desired set temp (10°C – 18°C, at 1°C intervals) with the
▲
Tap the
▼ buttons.
Set button after the setting.
— 43 —
10 Set the fan speed in cooling mode.
Tap a desired fan speed.
11 Set the fan speed in heating mode.
Tap a desired fan speed.
12 After the settings of steps 6 to 11, the display returns to the
Details setting menu 5.
Tap the Back button to return to the step 4 of home leave
mode screen. To start operation, tap the Start button.
Administrator settings
1 Tap the
Menu button on the TOP screen.
— 44 —
2 Tap the “Administrator settings” on the main menu screen.
Note
· Be sure to stop the air conditioner with the 運転/停止 (Run/Stop) switch before
making the administrator settings.
If the “Administrator settings” on the main menu is tapped while the air conditioner
is running, the message “Invalid request” is displayed.
3 When the Input password screen is displayed, enter the administrator
password.
Set button.
If the password is unknown or wrong, the setting cannot be changed.
After entering the password (4-digit number), tap the
Note
·For the administrator password at factory setting, refer to the Installation Manual
(consult your dealer).
·When your administrator password is forgotten, initialize the password referring to
the Installation Manual (consult your dealer).
4 When the administrator setting menu is displayed, tap a desired
item.
■Permission/Prohibition setting
■Silent mode timer
■Setting temp range
■Temp increment setting
■Set temp display
■R/C display setting
■Change administrator password
— 45 —
■Permission/Prohibition setting
1 Tap the “Permission/Prohibition setting” on the administrator
setting menu screen.
Following items can be selected, and the Permission or Prohibition
can be set for them.
If the Permission is set, the operation is accepted.
If the Prohibition is set, the message “Invalid request” is displayed
for 3 seconds.
Some items may require the administrator password.
■Operation with Prohibition setting
Run/Stop operation is prohibited.
①Run/Stop…
②Change set temp…Change set temp operation is prohibited.
③Change operation mode…Change operation mode operation is prohibited.
④Change flap direction …Change flap direction operation is prohibited.
Administrator password is required for this
⑤Individual flap control…
control.
Change fan speed operation is prohibited.
⑥Change fan speed…
⑦High power operation…High power operation is prohibited.
⑧Energy-saving operation…Energy-saving operation is prohibited.
⑨Operation data for your reference
…
Operation data for your reference is prohibited.
⑩Setting of Grille descending length
…
A dministrator password is required for this
setting.
⑪Timer…Timer setting operation is prohibited.
⑫Weekly timer settings…Administrator password is required for these
settings.
Administrator password is required for this
⑬Select the language…
selection.
2 Tap the “Permission” or “Prohibition” for each item.
— 46 —
■Silent mode timer
Set the period of time to operate the OU with prioritizing the quietness.
Silent mode operation starts at the set ON time and ends at the set OFF time.
When the Silent mode timer setting is Enabled, the silent mode operation starts and ends everyday at the same
time until the setting is Disable.
Note
· When the Silent mode timer is used, the Clock setting (☞page 30) must be made.
· The silent mode timer can be set from the main R/C only.
· The air-conditioner cannot be operated at the maximum capacity during the silent mode operation.
1 When the “Silent mode timer” is tapped on the administrator
setting menu screen, the Silent mode timer setting screen is
displayed.
If it is OK that the Silent mode operation is performed at the start
and end time displayed on the screen, tap the State button to
select the “State Enable”.
■When the State button indicates the “State Disable”, the Silent mode timer is
not controlled.
Set
After changing to a desired setting, tap the
button.
To change the start time or the end time, tap the Change
button.
2 Set the start time for the Silent mode timer.
Select a desired time (at 5-min intervals) with the
▲
▼ buttons.
If the Set button is tapped after setting the start time, the
display changes to the end time setting screen. Set a desired time
(at 5-min intervals) for the end time and tap the Set button.
— 47 —
■Setting temp range
Limited range of setting temperature in the heating or the cooling operation can be selected.
1 When the “Setting temp range” is tapped on the administrator
settings menu screen, the setting temp range menu screen is
displayed.
①Setting upper/lower limit temp in cooling (☞ 2)
........................Set the range of setting temperature in the cooling
operation. (Including the Dry and Auto operations)
②Setting upper/lower limit temp in heating (☞ 3)
..........................Set the range of setting temperature in the
heating operation
③Temp range setting Enable/Disable (☞ 4)
..........................Set whether the limit on the setting temperature
range is enabled or disabled.
2 Set the range of setting temperature in the cooling operation.
Select at desired lower and upper limit temperatures (at 1°C
intervals) with the
▲
▼
buttons.
After Selecting the desired settings, tap the
Set
button.
3 Set the range of setting temperature in the heating operation.
Select desired lower and upper limit temperatures (at 1°C
intervals) with the
▲
▼
buttons.
After selecting the desired settings, tap the
Set
button.
■Setting temperatures can be set in the following ranges.
Cooling/Dry/Auto
Heating
— 48 —
Lower limit value
18~28°C
18~22°C
Upper limit value
30~35°C
22~30°C
4 Select the control contents of restriction on the setting temperature
range.
①Disable.......... Restriction on the setting temperature range is
disabled.
②Enable........... T he operation is restricted within the set
temperature range.
③Enable: No reflect on display
......................... The set temperature on the R/C can be displayed
beyond the set temperature range but actual
operation is restricted within the set temperature
range.
Note
· Over-cooling during the cooling operation or over-heating during the heating operation is not economical.
· It is recommended to set the temperature range at a little higher in the cooling operation or a little lower in the heating operation.
■Temp increment setting
Temperature increment for the change of the set temp can be changed.
1 When the “Temp increment setting” is tapped on the administrator
setting menu screen, the Temp increment setting screen is displayed.
Tap a desired temperature increment.
①1.0°C........ Setting temperature can be set at 1.0°C intervals.
(ex. …⇔ 24.0°C ⇔ 25.0°C ⇔ 26.0°C ⇔…)
②0.5°C........ Setting temperature can be set at 0.5°C intervals.
(ex. …⇔ 24.0°C ⇔ 24.5°C ⇔ 25.0°C ⇔…)
■Set temp display
1 Change the “Set temp display” on the “Change set temp” button at the
TOP screen.
Display set temp… the set temperature is displayed.
(ex. …⇔ 20.0°C ⇔ 21.0°C ⇔ 22.0°C ⇔…)
Display temp difference from base temp
… Difference from base temp is displayed.
(ex. …⇔ -1⇔ 0 ⇔ +1 ⇔ +2 ⇔…)
— 49 —
2 When the “Display temp difference from base temp” is selected,
the Base temp setting screen is displayed.
Select the base temperature with the
and tap the
Set
▲
▼
buttons,
button.
The base temperature set is reflected also on the display at the
Auto temp setting.
■R/C display setting
Contents of display on the R/C can be changed.
1 If the “R/C display setting” is selected on the administrator setting
menu screen, the R/C display setting menu screen is displayed.
(a) Room name…Set the name of R/C.
(b) Name of I/U…Set the name of IU.
(c) Indoor temp display
…Set whether the room temperature is displayed or not.
(d) Error code display
…Set whether “Error cord” is displayed or not.
(e) Heating standby display
…Set whether “Heating standby” is displayed or not.
(f) Defrost operation display
…Set whether “Defrost operation” is displayed or not.
(g) Auto cooling/heating display
…Set whether cooling or heating is displayed
or not during auto mode operation.
(h) Display temp of R/C, Room, Outdoor
…Set whether these temperatures are displayed or not.
— 50 —
(a) Room name
2 Set the name of R/C to be displayed on the TOP screen.
Name of R/C can be set with up to 9 2-byte letters (18 1-byte letters)
It can use alphabet or numeric letter. When each button is tapped,
allowable letters are displayed.
Select letters to be input one by one on the screen.
Tap the Back or Next button to display next character group.
When the Delete button is tapped, selected letters are deleted
one by one.
When the input is over, tap the
Set
set and displayed on the TOP screen.
button. The name of R/C is
(b) Name of IU
3 Set the name of IU to be added to the IU address button.
Tap the IU (Address No.) button to which the name is set.
When the letter selection screen is displayed same as at the
setting of the name of R/C (☞ 2), enter letters.
The name of IU can be entered up to 4 2-byte (8 1-byte) letters.
When the input is over, tap the
<Letters allowed to input>
Set
button.
0123456789/+-*
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz_
— 51 —
(c) Indoor temp. display
4 Select ON/OFF for the room temperature display.
OFF…
Room temperature is not displayed on the “Change
Set temp” button on the TOP screen.
ON…Room temperature is displayed on the “Change Set
temp” button at the TOP screen.
(d) Error code display
5 Select ON/OFF for the Error code display.
ON…
When there is any error on the IU, the message “Unit
protection stop” is displayed.
OFF…
The message “Unit protection stop” is not displayed
even if there is any error.
(e) Heating standby display
6 Select ON/OFF for the Heating standby display.
The heating standby control is operated to prevent blowing of cold
air at the start of heating operation.
ON…The message “Heating standby” is displayed during
the heating standby control.
OFF…The message “Heating standby” is not displayed.
— 52 —
(f) Defrost operation display
7 Select ON/OFF for the Defrost operation display.
When the frost on the OU heat exchanger is accumulated and the
conditions for start defrosting are established, the defrost operation
control is performed automatically.
ON…The message “Defrost operation” is displayed
during the defrost operation.
OFF…The message “Defrost operation” is not displayed.
(g) Auto cooling/heating display
8 Select ON/OFF for the display of the Auto cooling or heating.
ON…The message “Auto Cooling” or “Auto Heating” is
displayed on the “Change operation mode” button at
the TOP screen during the auto mode operation.
OFF…
The message “Auto” is displayed on the “Change
operation mode” button at the TOP screen.
(h) Display temp of R/C, Room, Outdoor
9 Select ON/OFF for the display of the R/C sensor temperature, room
temperature and outdoor temperature.
ON…
Each temperature is displayed on the TOP screen.
These temperatures are not displayed on the TOP screen.
OFF…
— 53 —
■Change administrator password
Administrator password can be changed.
1 When the “Change administrator password” is tapped on the
administrator settings menu, the Change administrator password
screen is displayed.
Enter the password (4-digit number) and tap the
Set
button.
2 The password change confirmation screen is displayed for 3
seconds, and the display returns to the administrator settings
menu screen.
— 54 —
Select the language
Select the language to be displayed on the R/C.
1 Tap the
Menu button on the TOP screen.
2 Tap the “Select the language” on the main menu screen.
3 W hen the Input password screen is displayed, enter the
administrator password.
■There are cases that the Input password screen is displayed by the Permission/
Prohibition setting (☞page 46).
Tap the Set button after entering the administrator password
(4-digit number).
If the password is unknown or wrong, the setting cannot be
changed.
Note
·For the administrator password at facory setting, refer to the Installation Manua
(consult your dealer).
·When your administrator password is forgotten, initialize the password by referring
to the Installation Manual (consult your dealer).
4 Select the language to be displayed on the R/C and tap the
Set
button.
日本語/English
— 55 —
5. Maintenance
Method of the filter sign reset
In order to announce the time for cleaning of the air filter, the message of “Filter cleaning” is displayed when the
cumulative operation time of the IU reaches the preset time. After cleaning the air filter, erase the message “Filter
cleaning” displayed.
1 Tap the “Filter sign reset” on the main menu screen.
2 The filter sign reset menu screen is displayed.
To reset the filter sign, tap the “Reset”. (☞ 3)
To set next cleaning date, tap the “Setting next cleaning date”.
(☞ 4)
— 56 —
3 The reset acknowledge screen is displayed.
Yes
Tap the
Not to reset, tap the Back button.
button.
4 The Setting next cleaning date screen is displayed.
Select a desired date with the
▲
▼
buttons and tap
the Set button.
The message of “Filter cleaning” will be displayed on the set date.
Note
· When setting next cleaning date, the Clock setting must be made. (☞page 30)
Maintenance of Unit and LCD
■Wipe the surface of LCD and main body of the remote control with a dry cloth when cleaning is required.
■If the dirt on the surface cannot be removed, soak the cloth in neutral detergent diluted with water, squeeze the cloth tightly, and clean
the surface. Wipe the surface with a dry cloth then.
Request
Do not use any paint thinner, organic solvent, or strong acid.
Warning
Do not use flammable materials (e.g. hairspray or insecticide) near the unit.
Do not clean the unit with benzene or paint thinner.
It could cause crack damage to the unit, electric shocks, or fire.
Caution
Do not wash the remote control.
Doing so may cause electric leakage and result in electric shocks or fire.
Be sure to stop the operation of the air conditioner and turn off the power supply breaker at the time
of maintenance.
Failure to do so may result in electric shocks or injury.
— 57 —
Auto-cleaning function setting [Administrator password]
Note
·Auto-cleaning function can be set only when the FDT Auto-cleaning panel is connected.
·If you select the Auto-cleaning function setting without connecting the panel, a message “Invalid request” is displayed for 3 seconds.
·Regarding the operating method of the Auto-cleaning panel, refer to the Instruction Manual attached to the FDT Auto-cleaning panel.
·When you use the FDT Auto-cleaning panel, you must set the time. (☞30 page)
·Auto-cleaning function can be set from the master R/C only.
Caution
The unit should not be installed at a place where it is critical to control temperatures.
It could cause trouble.
If you start the cleaning when the air conditioner is operating, the fan speed changes to low and the
flap direction control stops. When the 24-hour operation, etc., is selected, the auto-cleaning ON
(approx. 1 hour) and the state of operation (capacity reduction) will be changed. A green lamp lights
on the panel indicator during the cleaning operation.
Do not operate the air conditioner with the dust box removed.
Be sure to reinstall the dust box after collecting dust.
Periodical inspection
Check more than once every year whether or not the air-filter is clean and the dust box is full of dust.
1 Tap the
Menu button on the TOP screen.
2 Tap the “Auto-cleaning function setting” button on the Menu
screen.
— 58 —
3 The administrator password input screen is displayed.
Enter the administrator password (a 4-digit number), and tap the
Set
button.
When the password is unknown or wrong, you cannot change the
setting.
Note
·For the administrator password at the factory setting, refer to the Installation
Manual.
When your password is forgotten, initialize the password by referring to the
Installation Manual.
4 The Auto-cleaning function setting menu screen is displayed.
Tap an item to be set.
①Auto-cleaning
… Set whether the auto-cleaning is enabled or disabled.
②Operation schedule of cleaning
… Set a time range to start the auto-cleaning.
③Frequency of cleaning
… Set the minimum frequency for the auto-cleaning.
④Collection frequency of dust
… Set the frequency for dust collection.
⑤Frequency of cleaning of a brush
… Set a number of times for cleaning the brush.
■Auto-cleaning
1 Set whether the auto-control of cleaning is enabled or disabled.
Enable … Resets the disabled auto-cleaning operation.
Disable … Stops the auto-cleaning operation.
Backup switch of R/C becomes inoperable.
— 59 —
■Operation schedule of cleaning
1 Set a time range to start the auto-cleaning.
The auto-cleaning starts at any time within the selected time
range.
Auto-cleaning will start judging that the air conditioner is stopped.
When the air conditioner is operating, it cleans automatically with
the fun speed reduced to low and the louver stopped.
Sound of running motor will be heard during the auto-cleaning.
It should be better to select a time range when the sound of autocleaning operation will not be disturbing (when you are absent
normally).
If you select “E: The time designated”, you can specify the time to
start auto-cleaning. (☞ 2)
2 If you select E: The time designated with the Operation schedule
of cleaning, the time setting screen is displayed.
Select a desired time with the
▲
▼
buttons (in the
unit of 5-minute).
After setting the time, tap the
Set
button.
■Frequency of cleaning
1 Set the minimum frequency for the auto-cleaning.
Cleaning takes place once within 1 to 4 days depending on the
operation time of air conditioner.
A Once within 1 – 3 days:
Every day when the air conditioner is operated.
Once within 3 days when the air conditioner is stopped.
B Once within 2 – 4 days:
Once within 2 days when the air conditioner is operated.
Once within 4 days when the air conditioner is stopped.
— 60 —
■Collection frequency of dust
1 Set the timing for the dust collection.
When it reaches the set date, a message “Down the grille and
collect dust” is displayed on the R/C.
Dust box size is determined based on the estimated volume of
dust at general offices in a year. The frequency should be adjusted
depending on the extent of dust at your place.
If you select “D: The date designated”, you can specify the date
for dust collection. (☞ 2)
2 If you select D: The date designated with the Collection frequency
of dust, the date setting screen is displayed.
Select a desired date with the
▲
▼
buttons.
Set button.
If it reaches the set date, a message “Down the grille and collect
dust” is displayed.
After setting the date, tap the
■Frequency of cleaning a brush
1 Set the frequency to turn the brush.
Select one from 2 – 9 times. (Default setting: 5 times)
When dust remains on the brush after cleaning, increase the
number of times.
— 61 —
Dust sign reset
On a unit to which the auto-cleaning panel is connected, when it reaches the set time, a message “Down the grille
and collect dust” is displayed to notify that dust should be collected from the dust pox.
Collect dust from the dust box, and erase the message as follows.
1 Tap the “Grille up and down” button on the Menu screen.
Bring down the suction grille, remove the dust box and collect
dust from the dust box.
After collecting dust, replace the dust box and raise the suction
grille.
Regarding the grille up and down operation, refer to the Grille up
and down section. (☞Page 22)
For the removal and installation of dust box, refer to Instruction
Manual of the FDT Auto-cleaning panel.
2 After completing the dust collection, tap the
Dust sign reset
button.
3 Acknowledgement screen for the dust collect reset is displayed.
Tap the Yes button.
The dust collect timer is reset, and the message “Down the grille
and collect dust” disappears.
When the date has been specified with the dust collection setting,
it is necessary to specify the date for next dust collection. (☞ 4)
— 62 —
4 Display the date setting screen.
Select a desired date with the
▲
After setting the date, tap the
Set
— 63 —
▼
button.
buttons.
6. Useful information
Contact company & Error display
If any error occurs on the air conditioner, the “Unit protection stop” is indicated on the message display. Take the
following measures, stop the operation and consult your dealer.
1 The “Unit protection stop” is displayed on the message display.
Tap the Menu button.
2 Contents of error are displayed.
After checking the error contents (Code), tap the Contact button.
3 C ompany information (Name and phone No. of contact) is
displayed.
This is displayed when it has been preset by your dealer.
— 64 —
Notice of inspection date
If the next service date is set on the Service & Maintenance menu by your dealer, the following screen is displayed
for 5 seconds at the start of operation and for 20 seconds from the end of operation on the begining of the month
which includes the set date.
When this screen is displayed, contact your dealer.
When the period of use exceeds 10 years, the screen shown at left is
displayed.
When this screen is displayed, contact your dealer.
— 65 —
When the message “Periodical check” is displayed
In order to notify the timing to replace the fan belt, a message “Periodical check” may be displayed at the message
indicator when the accumulated operation time of IU counts up the setting time.
When the “Periodical check” is displayed, contact a company listed in
the Contact company display (☞Page 64) or your dealer, asking for the
belt replacement.
Reset the Periodical check after completing the belt replacement.
For the method to reset the Periodical check, refer to the Installation
Manual.
When the message “Periodical check 1” or “Periodical check 2” is displayed
The message “Periodical check 1” or “Periodical check 2” may be displayed at the message indicator in order to
notify the timing for periodical inspection of OU.
When the “Periodical check 1” or “Periodical check 2” is displayed,
contact a company listed in the Contact company display (☞Page 64)
or your dealer, asking for the belt replacement.
■If you continue to use the air conditioner without implementing the periodical
check, it could result in engine failure.
When the message of “Back-up” is displayed
When any error occurs on the OU but its operation is continued as an emergency measure, the message of “Backup” will be displayed.
hen the “Back-up” is displayed, contact your dealer immediately for
W
checking.
■If the operation is continued without checking, it could result in breakdown.
— 66 —
7. After-sale service
●Inform your dealer
●Repairs after Warranty Period
Consult your dealer. Fare-paying services may be
possible at the request of customer.
(The warranty period is one year counting from the
date of installation.)
●Model name
●Date of installation
●Failure conditions: As precise as possible.
●Your address, name, and telephone number
●Moving
The Moving of the unit requires special technology.
Consult your dealer. Necessary expenses for the
moving of the unit will be charged.
●Inquiry about After-sale Service
Contact your dealer or the service contact.
Warning
Do not disassemble, modify, or repair the unit by yourself.
Doing so may result in electric shocks or fire. Consult your dealer.
Do not move or reinstall the remote control by yourself.
Improper installation may result in electric shocks or fire. Consult your dealer.
— 67 —
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
