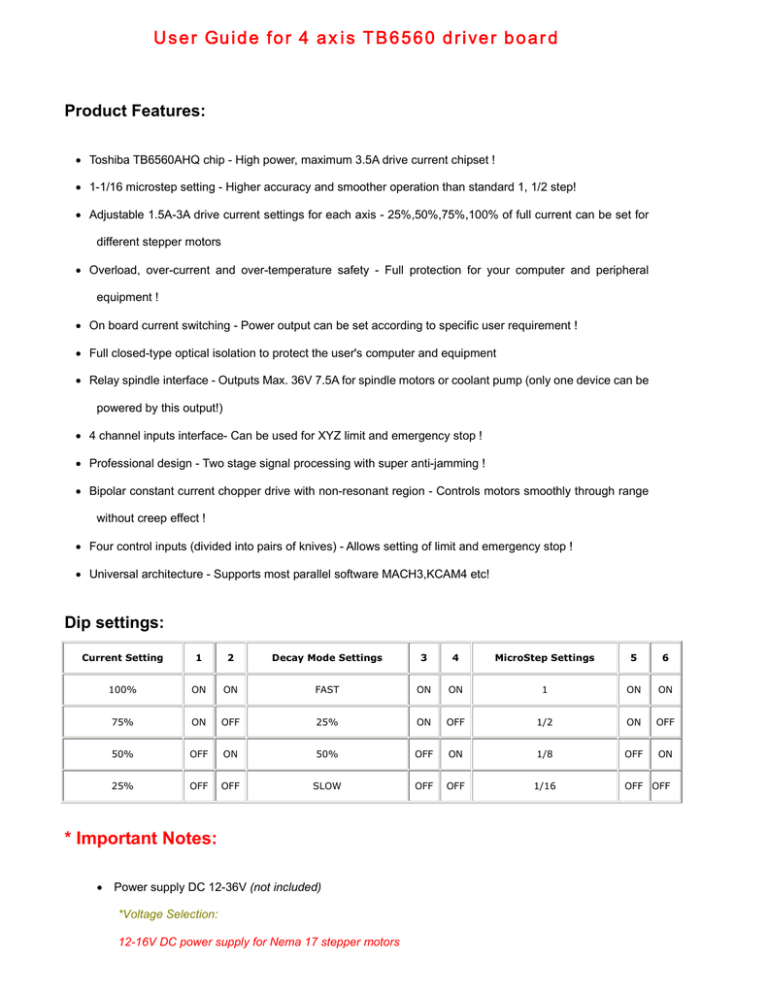

User Guide for 4 axis TB6560 driver board * Important Notes:
User Guide for 4 axis TB6560 driver board
Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset !
1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment !
On board current switching - Power output can be set according to specific user requirement !
Full closed-type optical isolation to protect the user's computer and equipment
Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
4 channel inputs interface- Can be used for XYZ limit and emergency stop !
Professional design - Two stage signal processing with super anti-jamming !
Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect !
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop !
Universal architecture - Supports most parallel software MACH3,KCAM4 etc!
Decay Mode Settings
ON OFF 25%
50% OFF ON 1/8 OFF ON
25% OFF SLOW OFF OFF 1/16 OFF OFF
* Important Notes:
Power supply DC 12-36V (not included)
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
(High voltage will burn up the chips or stepper motors!!!)
Output current of the power supply can be calculated by the following expressions:
Output current = Rated current of your stepper motors * quantity + 2A
(For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
If you are not sure about the selection of power supply, please feel free to contact us for help)
The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.
Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
The definition of 1-PIN 25 of Parallel Interface:
X Enable X Dir X Step Y Enable Y Dir Y Step
The definition of 1-PIN15 of Manual Interface:
Z Enable Z Dir Z Step C Enable C Dir
C Step Z Step X Dir X
Y Dir Z Dir C Dir
The definition of DB9 4 channel inputs interface:
Y Step X Step STOP
P1 P2 P3 P4 P5 P6 P7 P8 P9
X Limit Y Limit Z Limit STOP
P10 P11 P12 P13
Input 1 Input 2 Input 3
Corresponding P10 Corresponding P11 Corresponding P12
Limit setting FOR REFERENCE ONLY:
(*Note: you can also have other settings for other applications)
The definition of output Interface:
P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17
XB- YA+ YA- YB
YB- ZA+ ZA- ZB+ ZB- MO
Instructions of MACH3
Open MACH3 software, select mach3MILL, and then click OK. Please refer to Fig.1
The interface of MACH3 is displayed as Fig.2. The frequently-used action buttons are listed on the interface. We can configure MACH software at first.
Click PORT & PIN sub-menu of config menu. Please refer to Fig.3.
Please refer to Fig.4
To set up the basic frequency within the above Circle 1. This parameter will affect the rotational speed of the motor. After the setup of basic frequency, select Circle 2 where Configuration Scripting will be defined, please refer to Fig.5.
To modify the software settings according to the definition of Parallel Interface which is detailed in the above circle.
Then select the output signals column, as shown in Fig.6, and set up the corresponding items per the setup described in the circle.
After all have been set up, open the G CODE that needs to run, as shown in Fig.7
After G CODE has been opened, you may see the red button RESET flashing. Click RESET to stop
the flashing and then press CYCLESTART at the location of Circle 2
*Simple solutions if the driver does not work properly:
Please double check the software settings according to the Fig.5 and Fig.6
Please conform the parallel cable has been pluged tightly
Please turn off the power supply before changing dip settings
Please use stable high quality DC power supply for this driver
Problems in Mach3 using, Please refer to the Mach 3 User Manual
If problem persist, please feel free to contact us!
